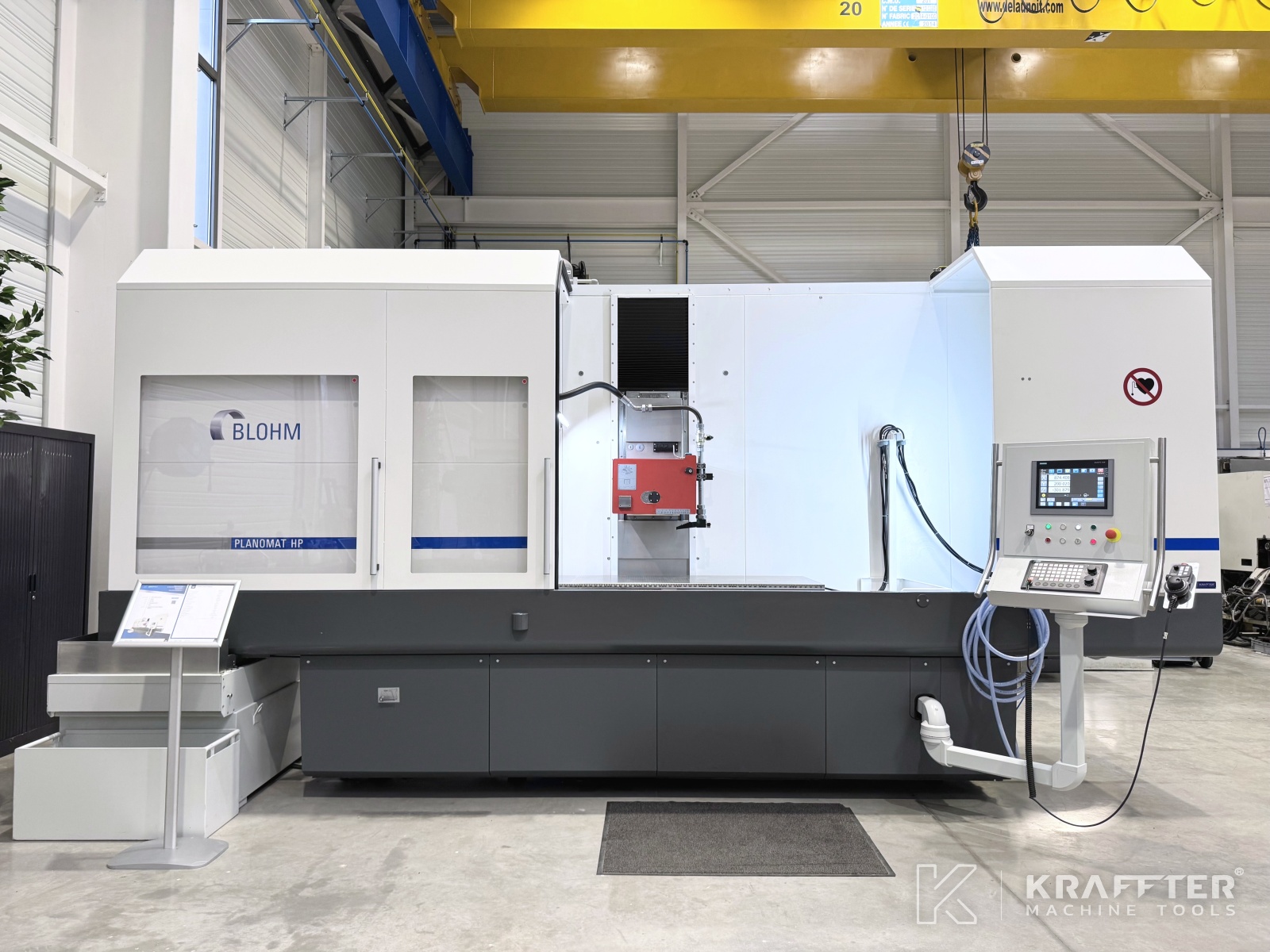

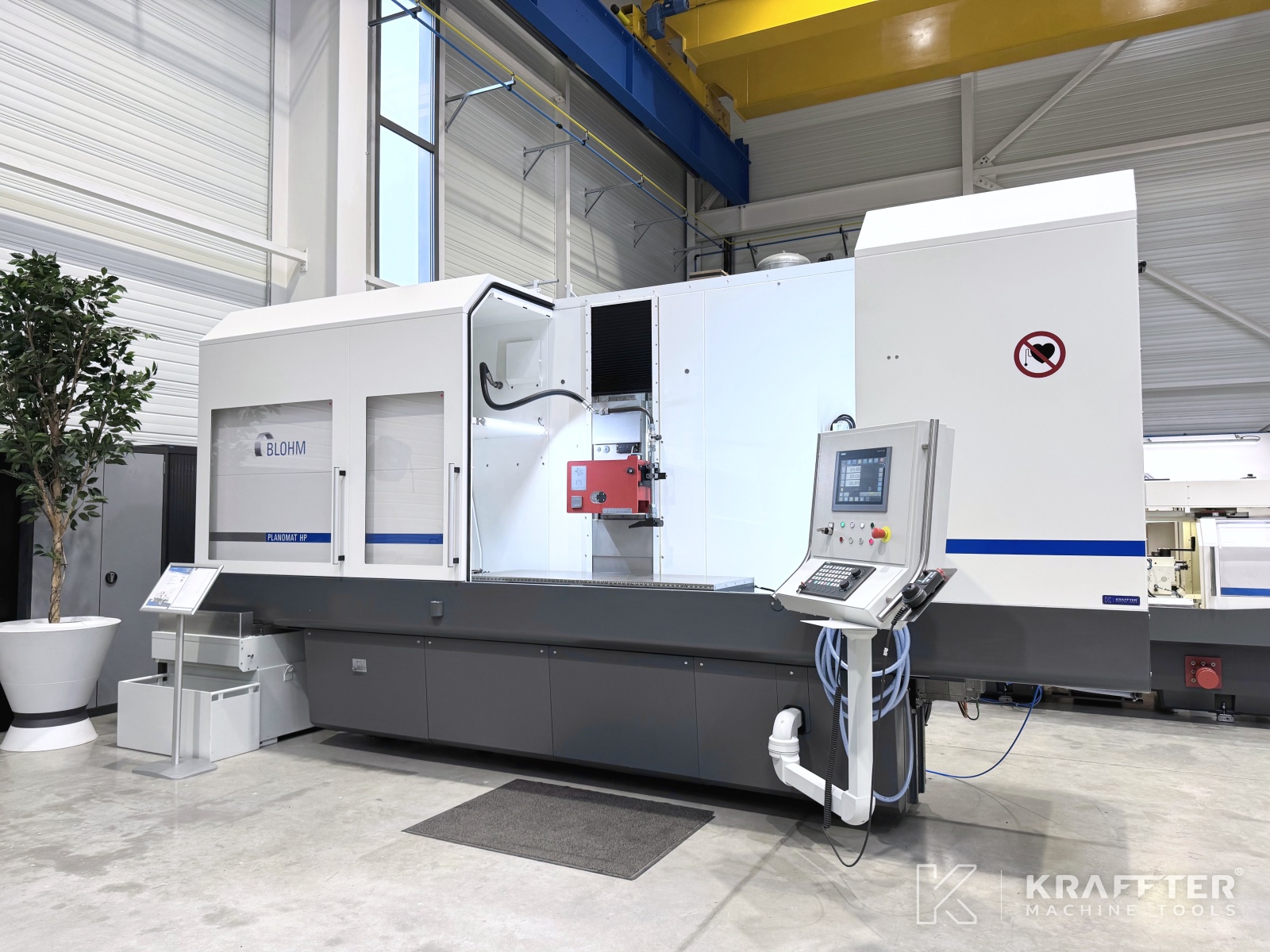

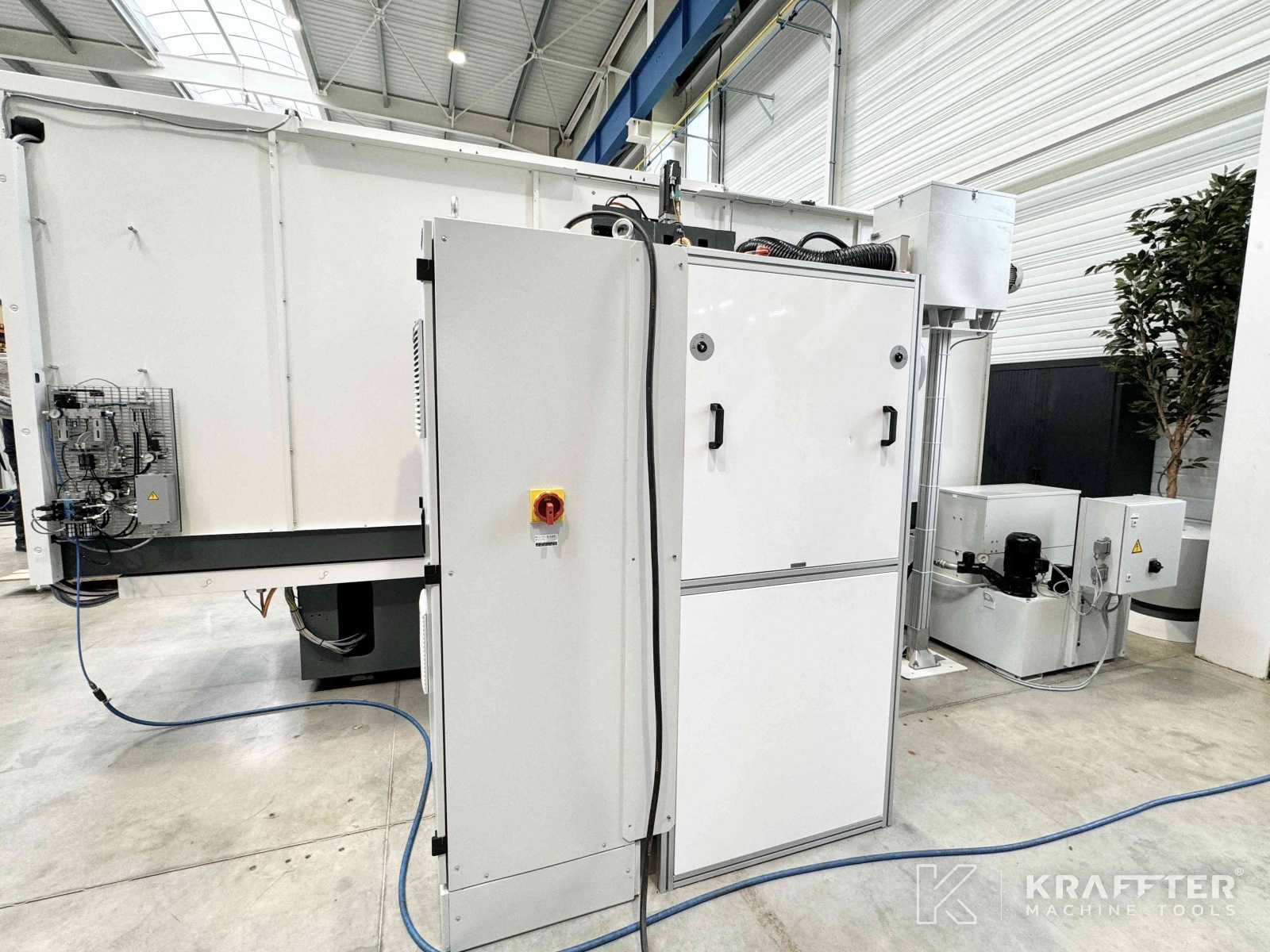

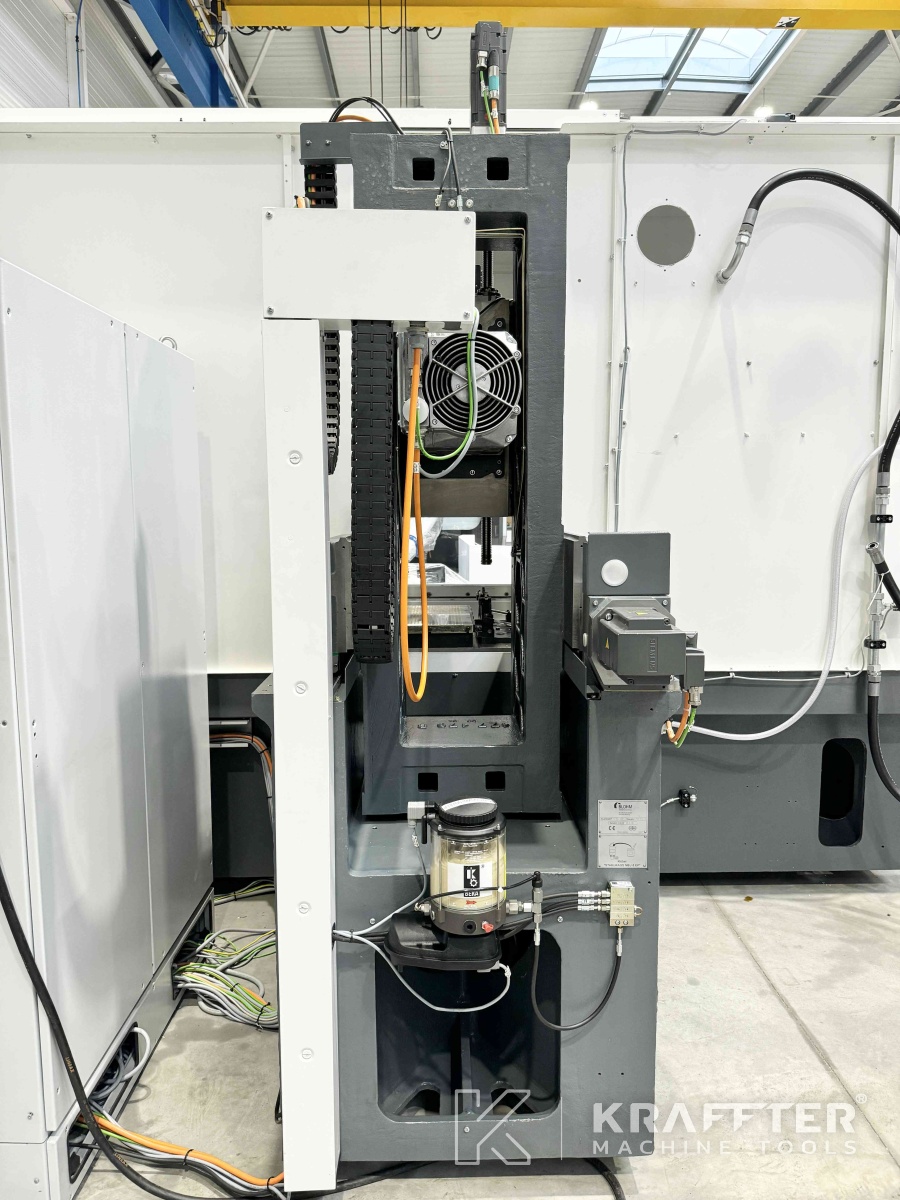

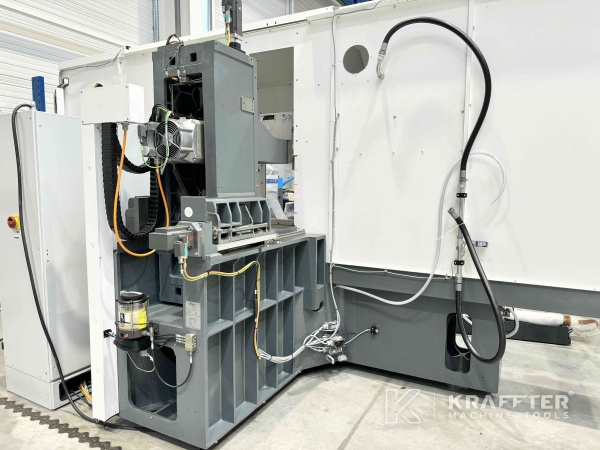

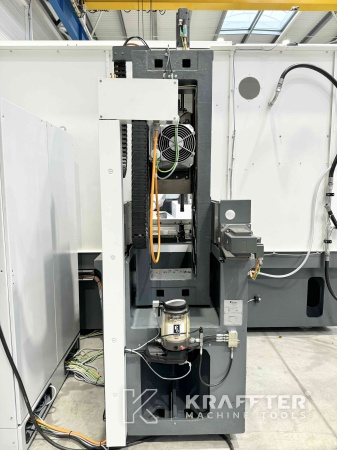

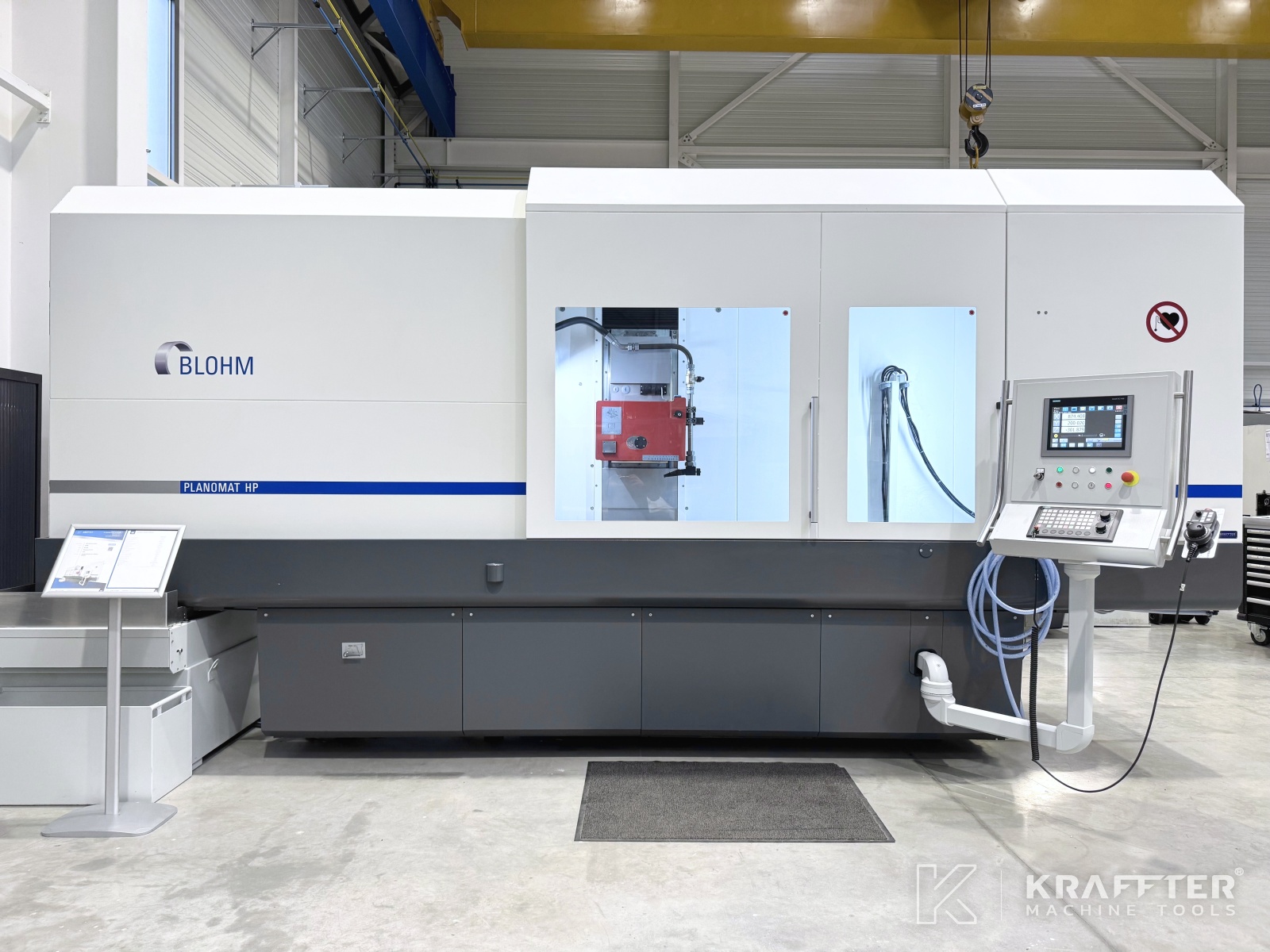

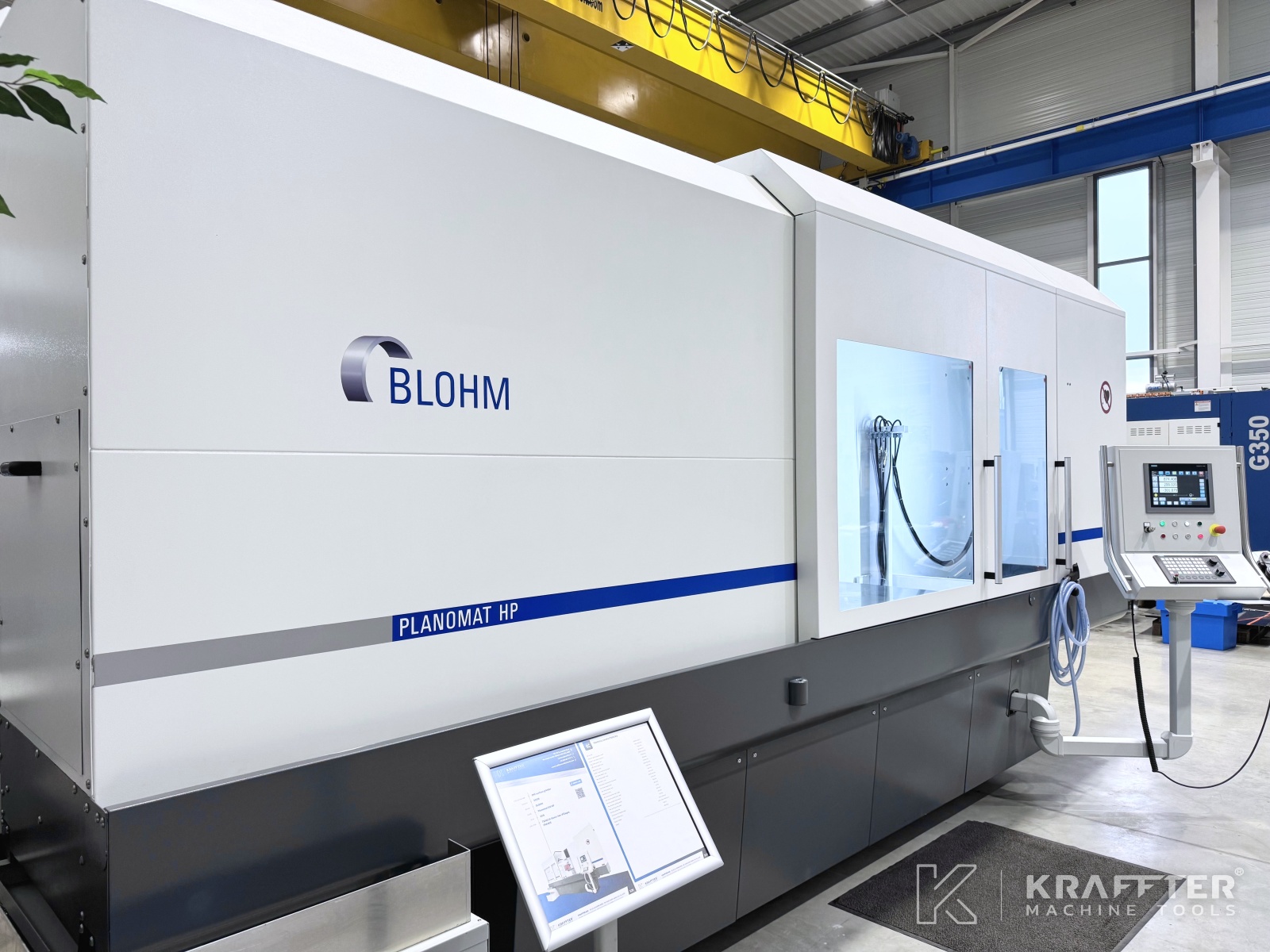

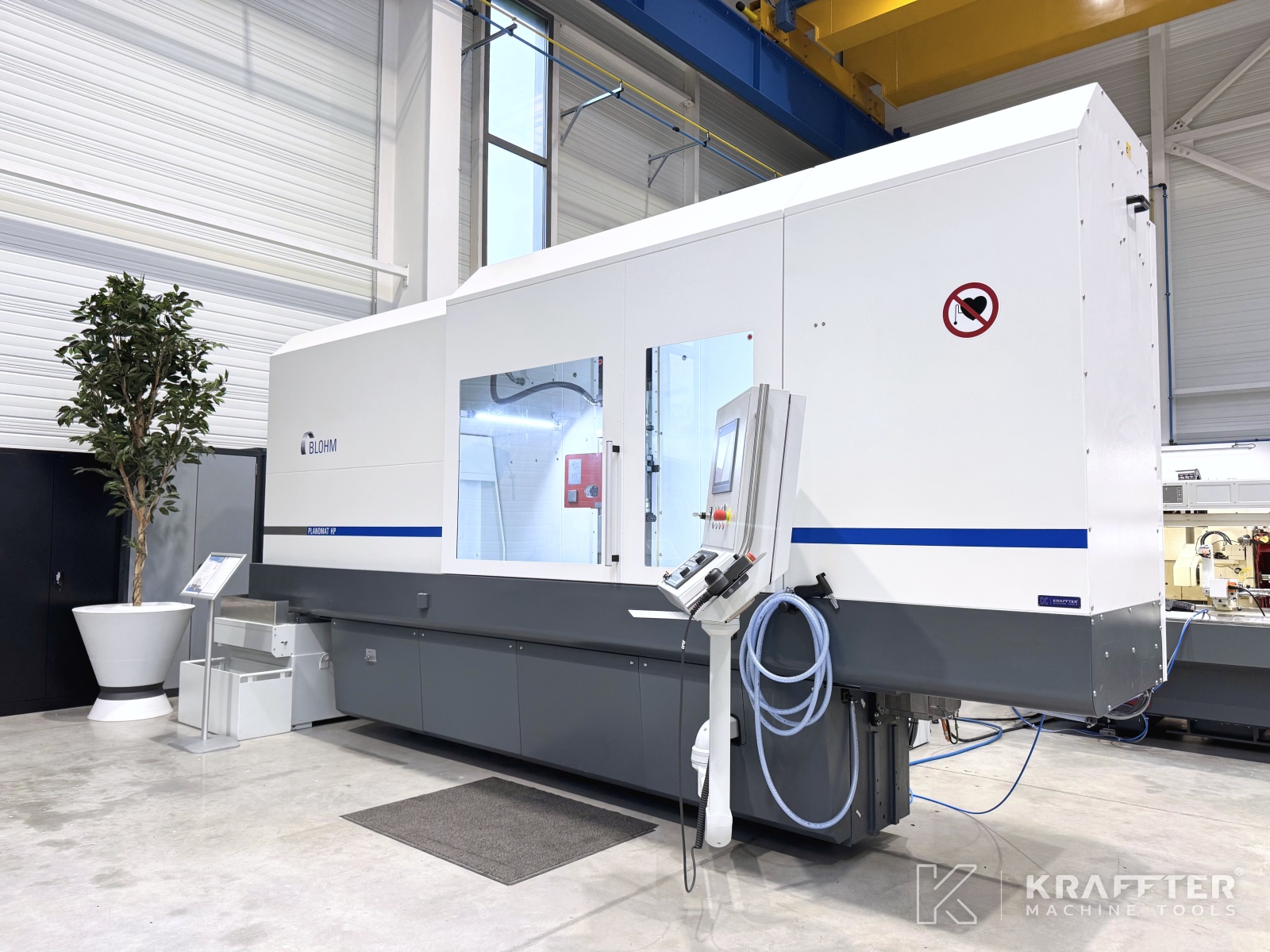

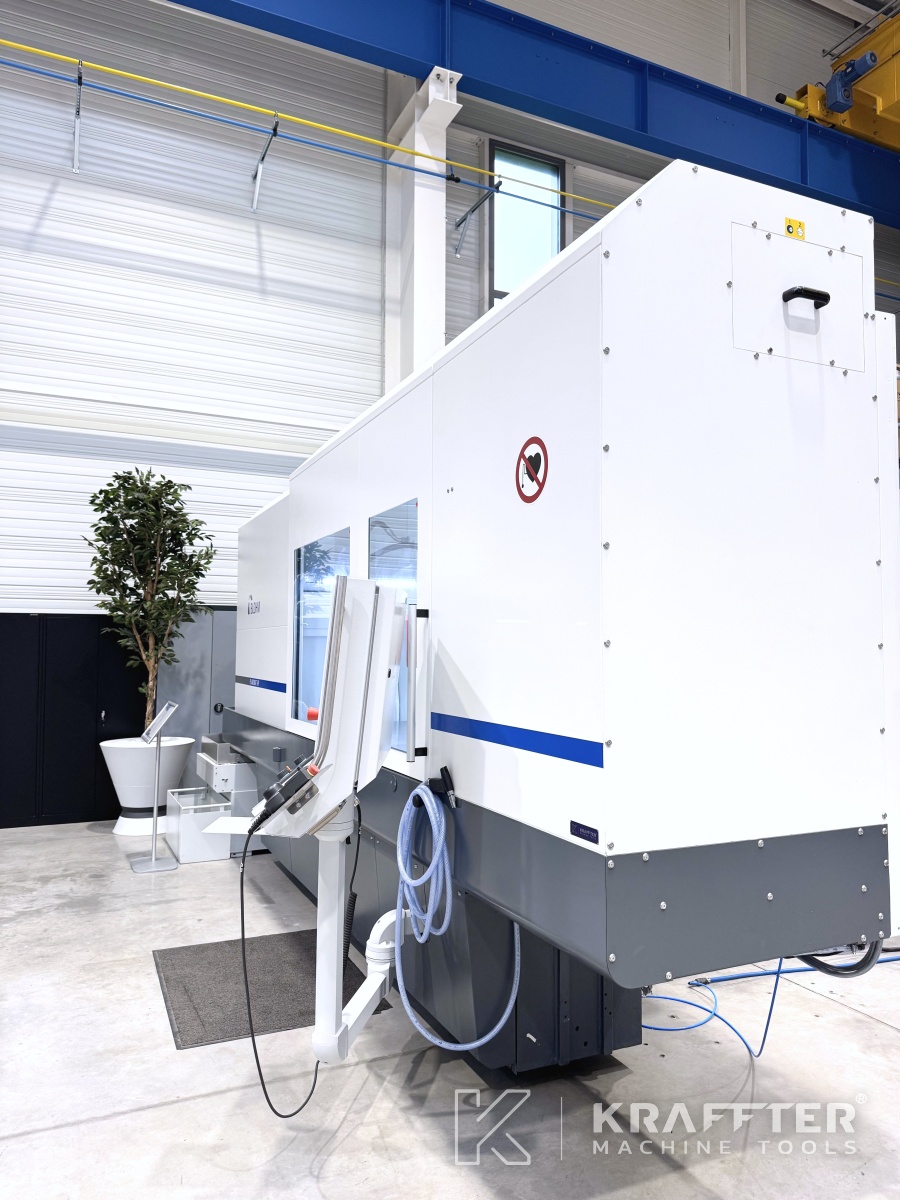

Type of machine : CNC surface grinder
Brand : BLOHM
N° de stock: 90136
Model : Planomat 616 HP
Year : 2015
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

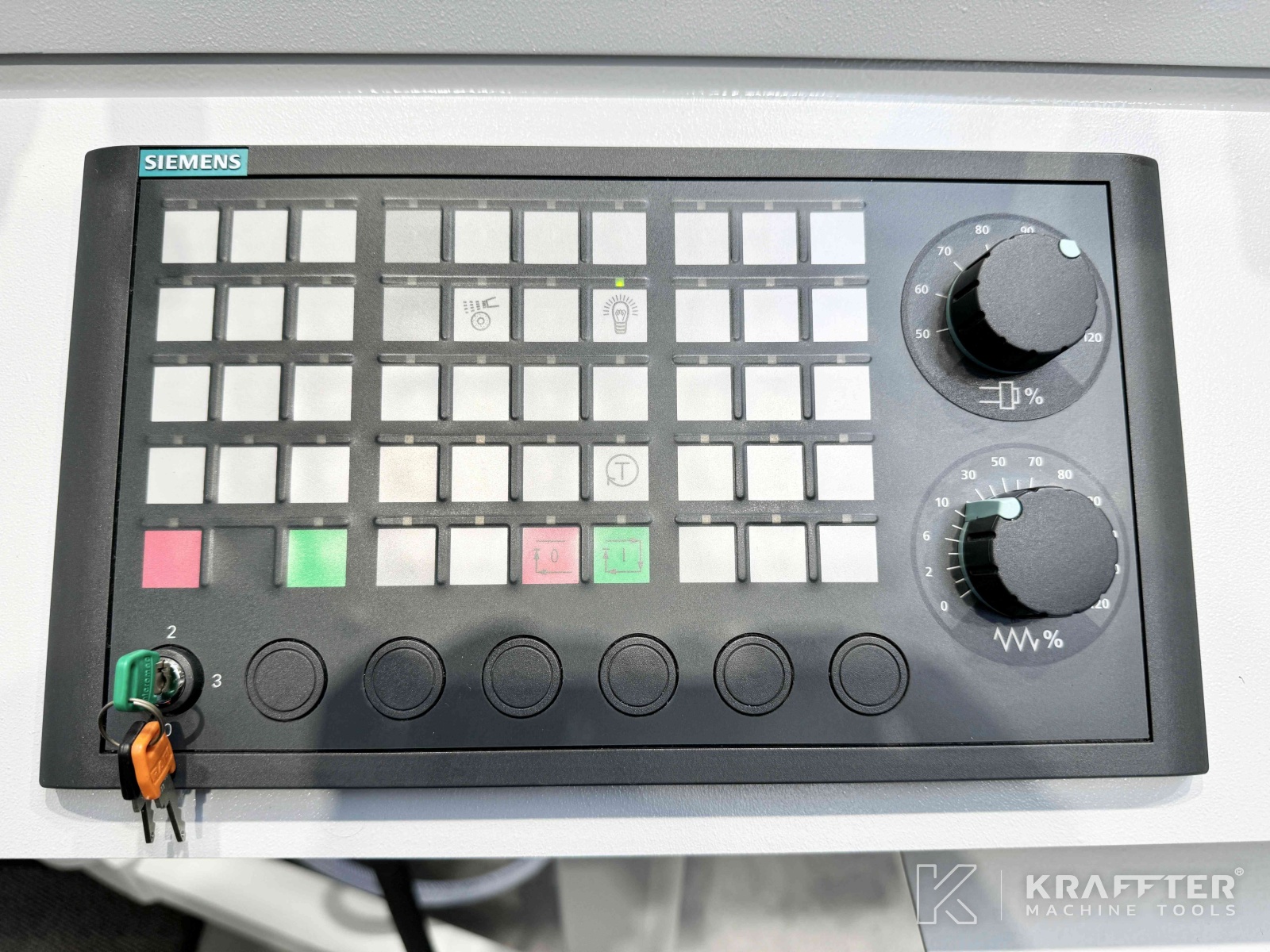

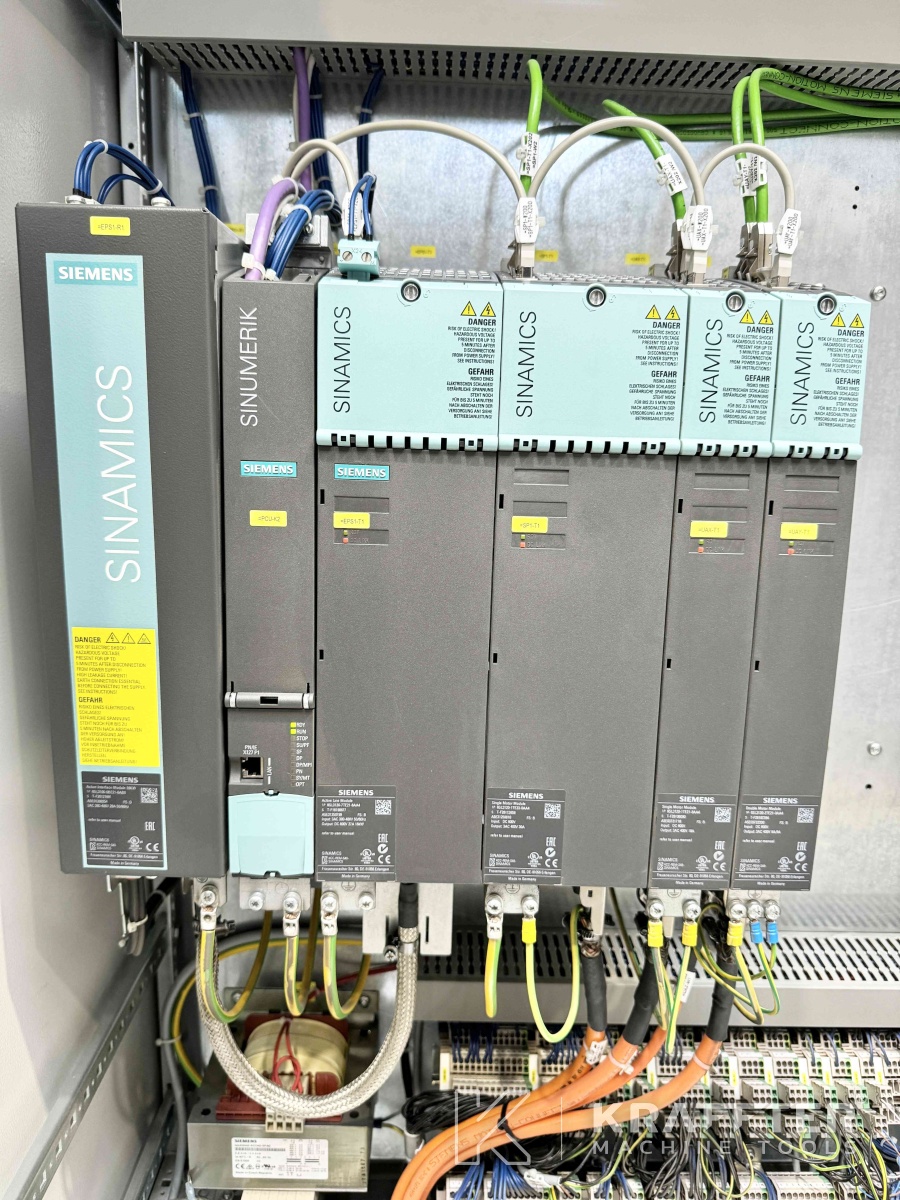

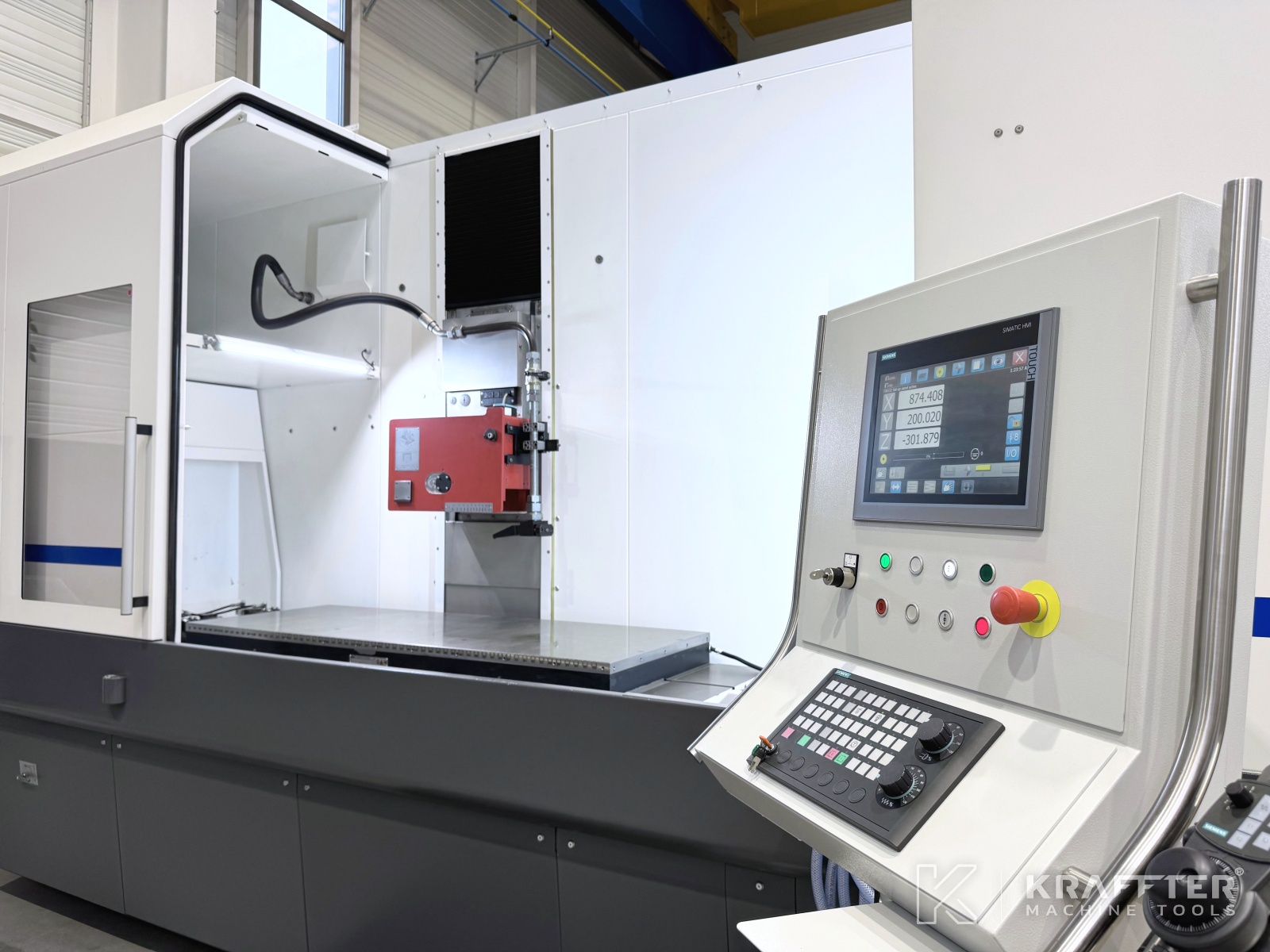

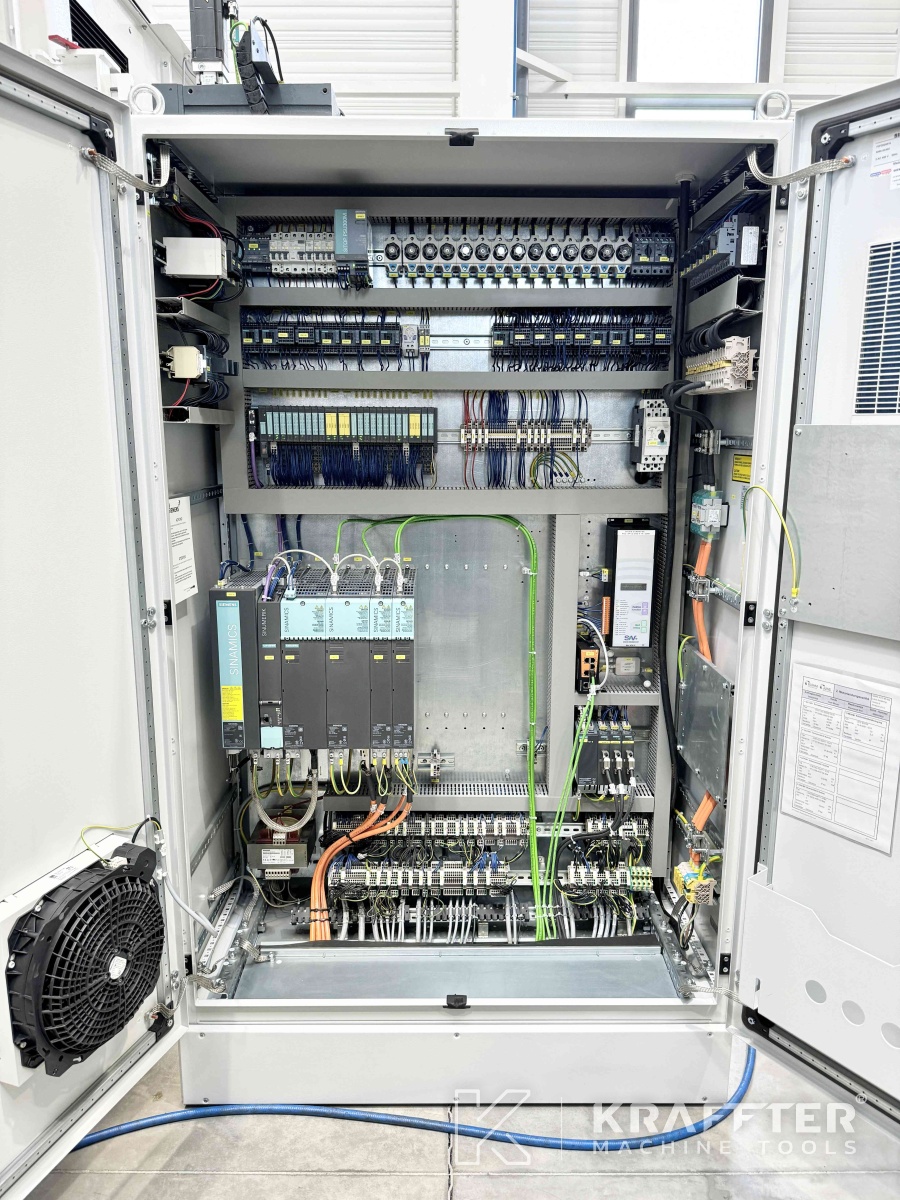

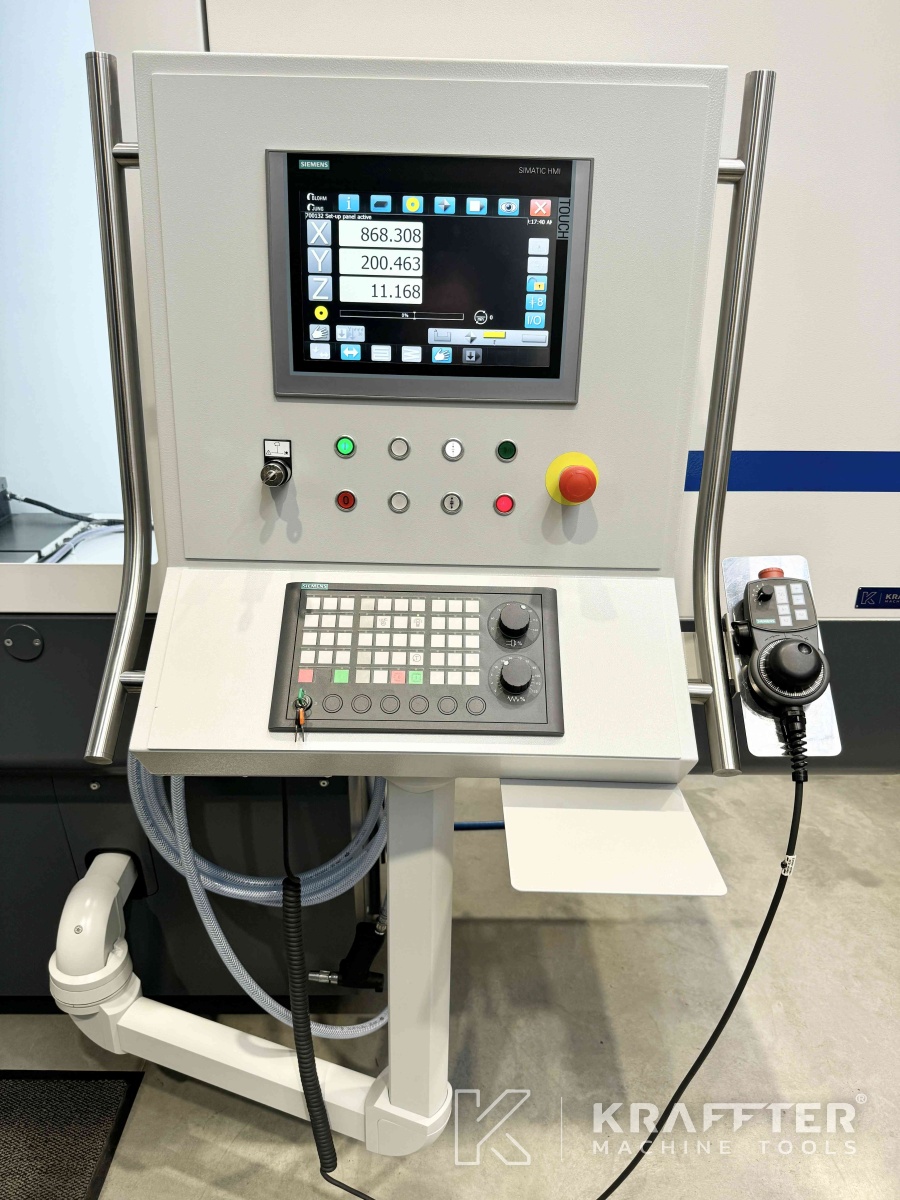

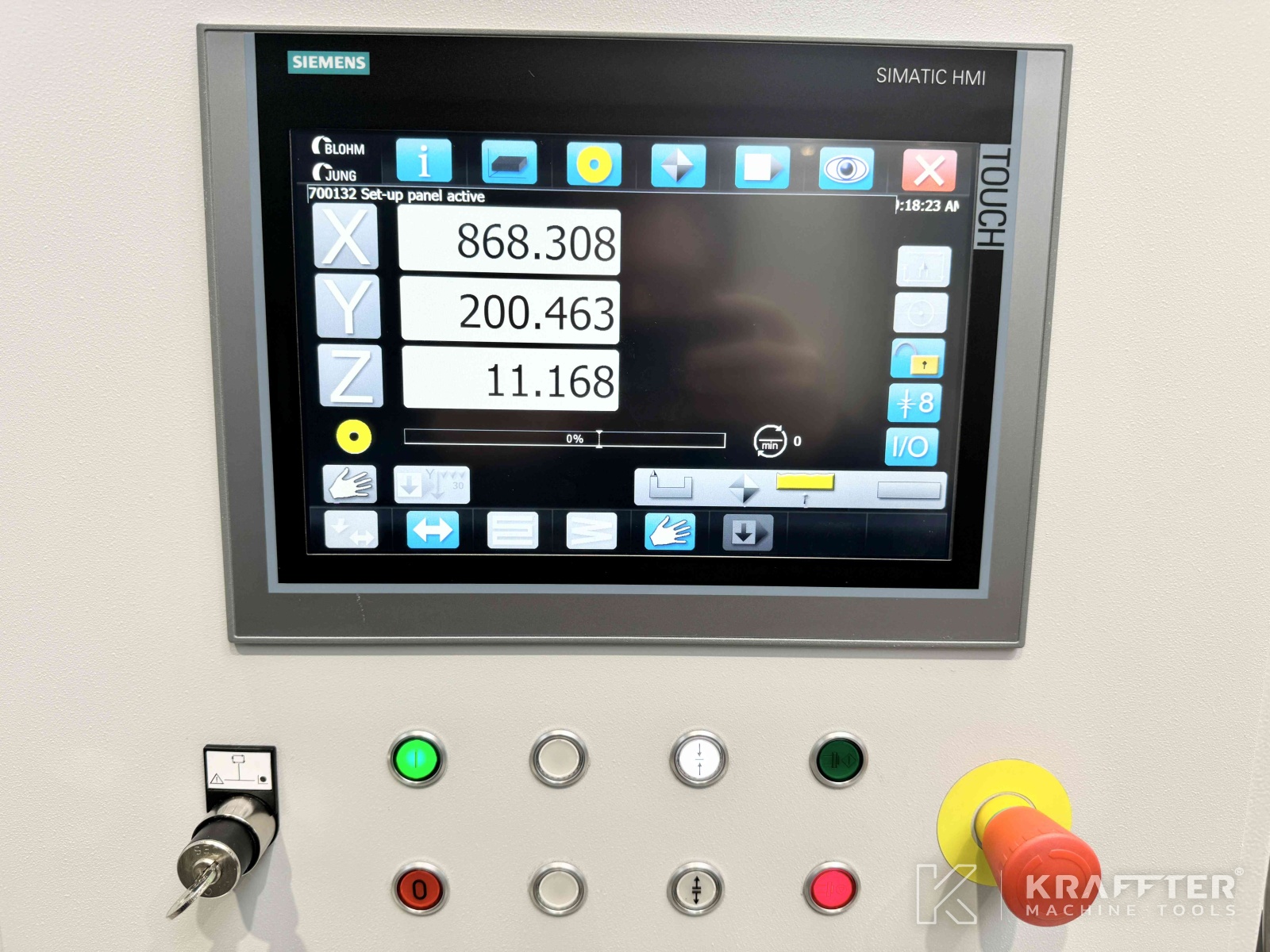

CNC control
SIEMENS 840D SL
Maximum grinding lenght x width
1600 x 600 [mm]

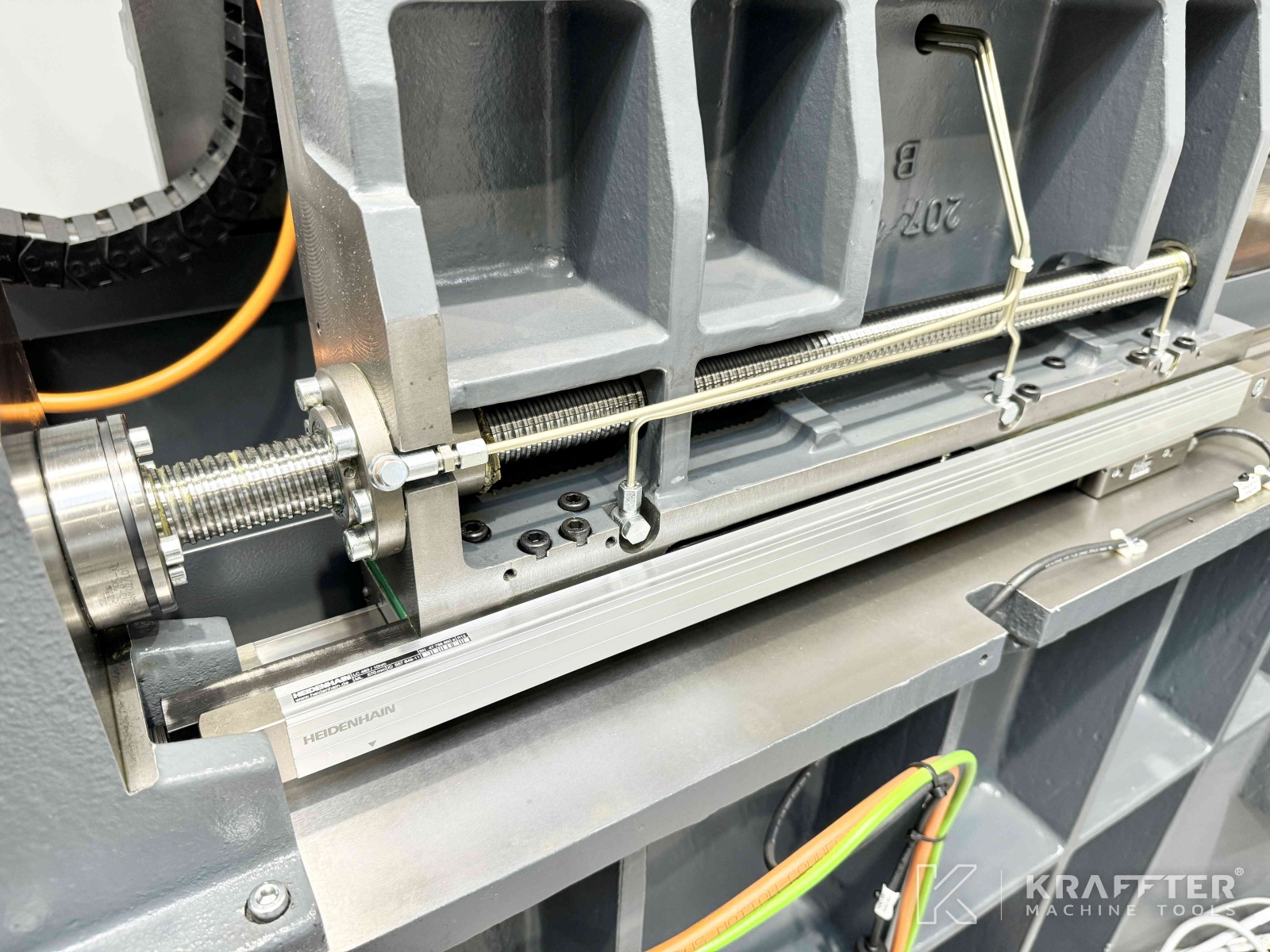

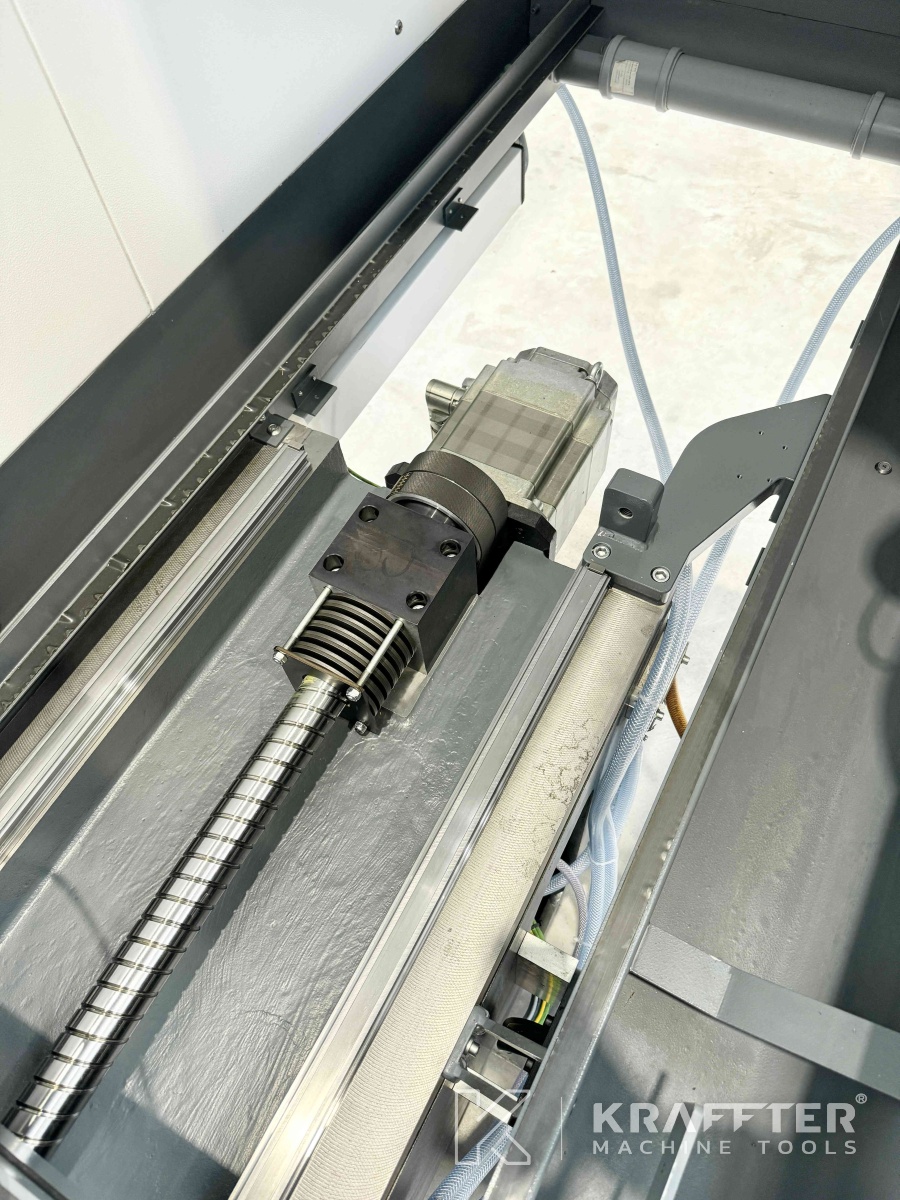

Stroke X axis (table movement)
1700 [mm]
Min. Stroke speed X axis
30 [mm/min]
Max. Stroke speed X axis
30000 [mm/min]
Resolution X axis
0.001 [mm]
Stroke Y axis (vertical movement)
800 [mm]
Min. Stroke speed Y axis
4 [mm/min]
Max. Stroke speed Y axis
6000 [mm/min]
Resolution Y axis
0.001 [mm]
Z axis travel (transverse movement)
560 [mm]
Min. Stroke speed Z axis
4 [mm/min]
Max. Stroke speed Z axis
6000 [mm/min]
Resolution Z axis
0.001 [mm]
Min. distance spindle nose / table
150 [mm]
Max. distance spindle nose / table
950 [mm]

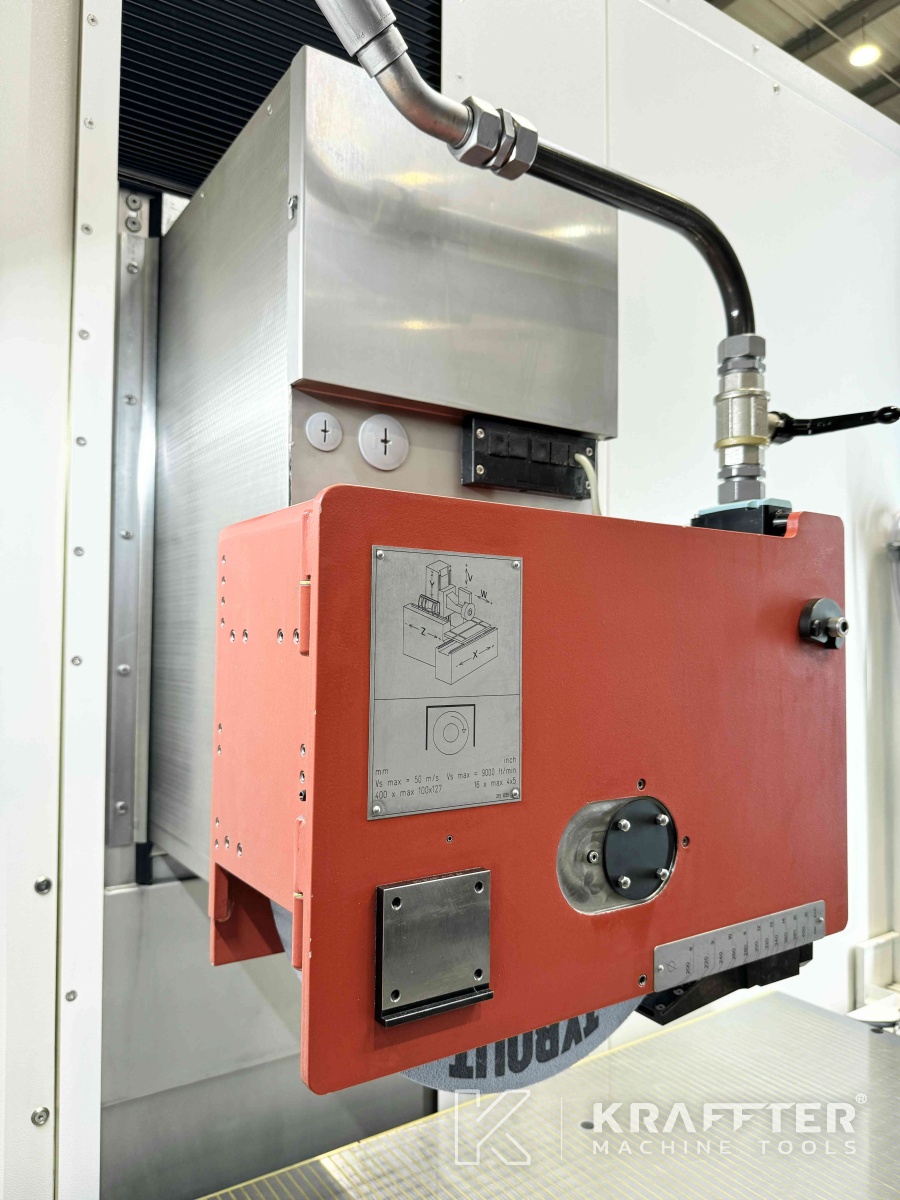

Grinding spindle motor power
15 [kW]

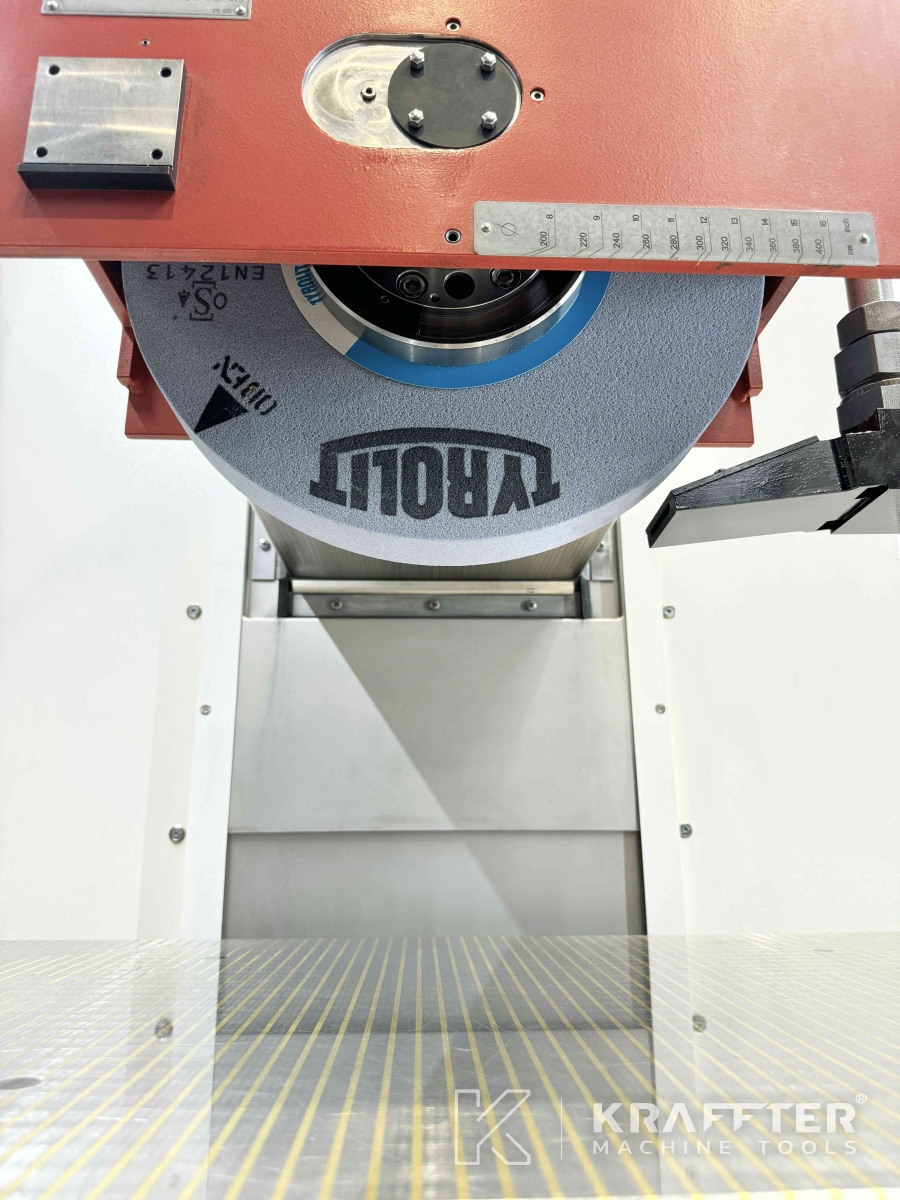

Max. diameter grinding wheel
400 [mm]
Max. grinding wheel width
100 [mm]
Min. grinding wheel width
30 [mm]
Grinding wheel bore
127 [mm]
Number of hours under power
6840 [h]

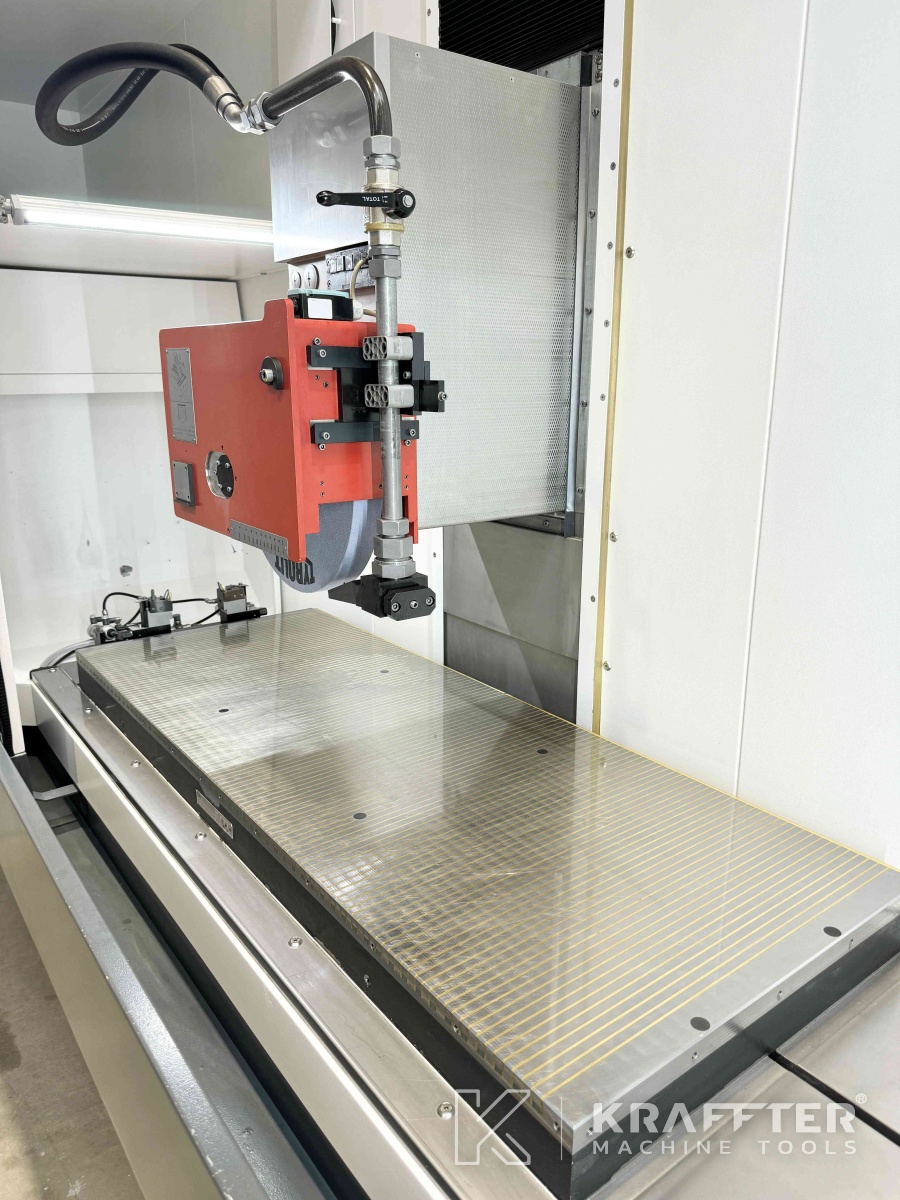

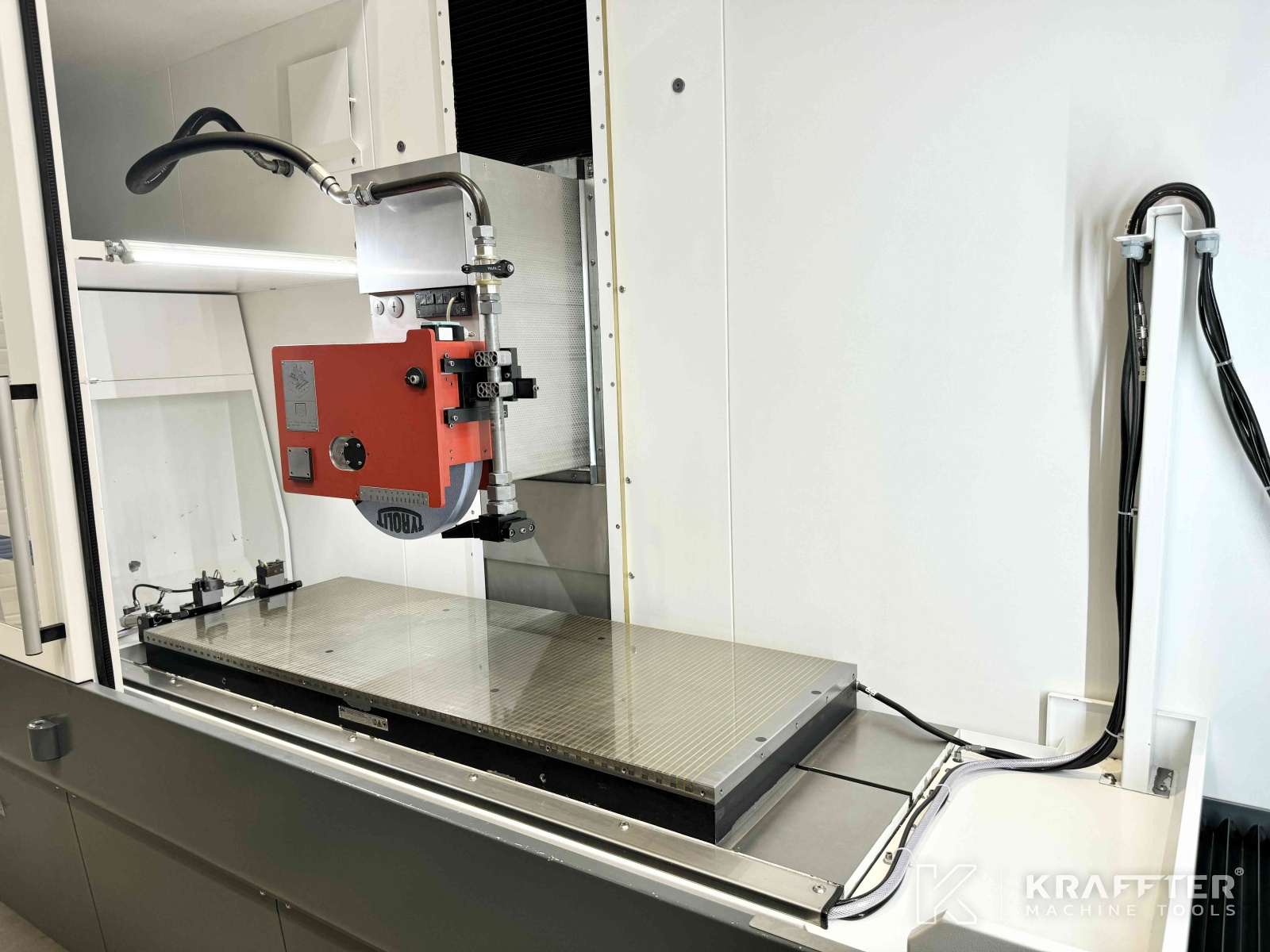

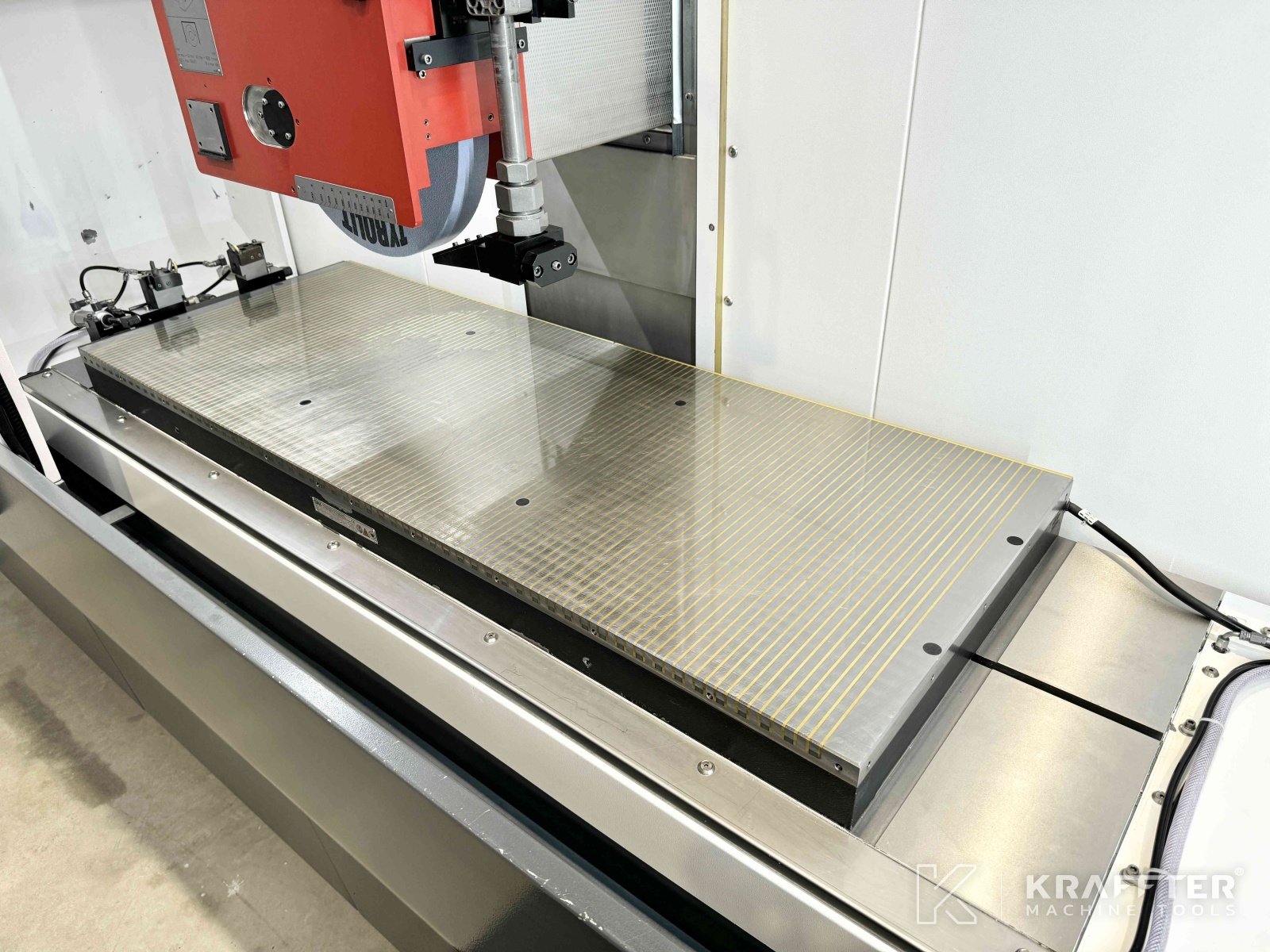

Dimensions of magnetic plate
1600 x 600 [mm]
Supply voltage
400 [V]
Machine dimensions
5450 x 3560 x 2800 [mm]
Weight
8000 [Kg]
Additional information
EQUIPMENT INCLUDED:

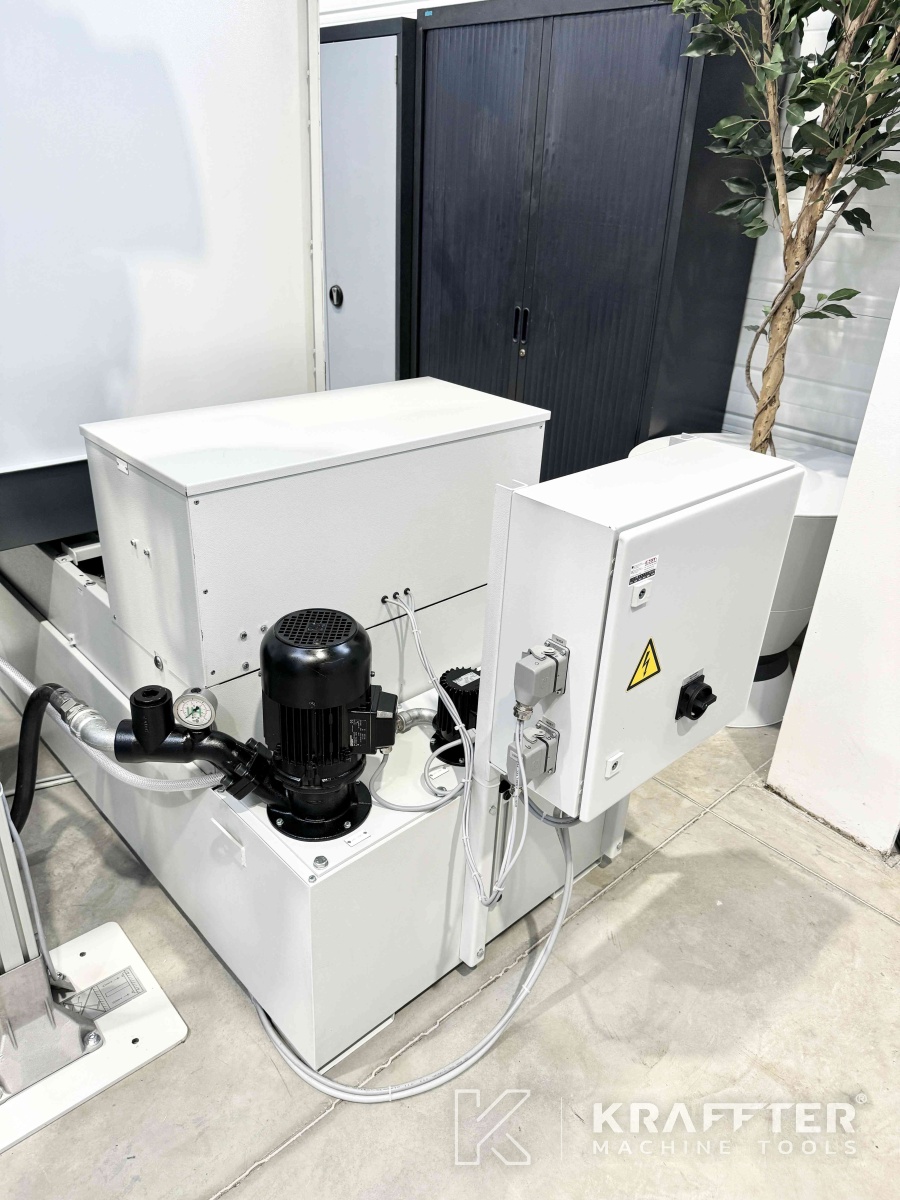

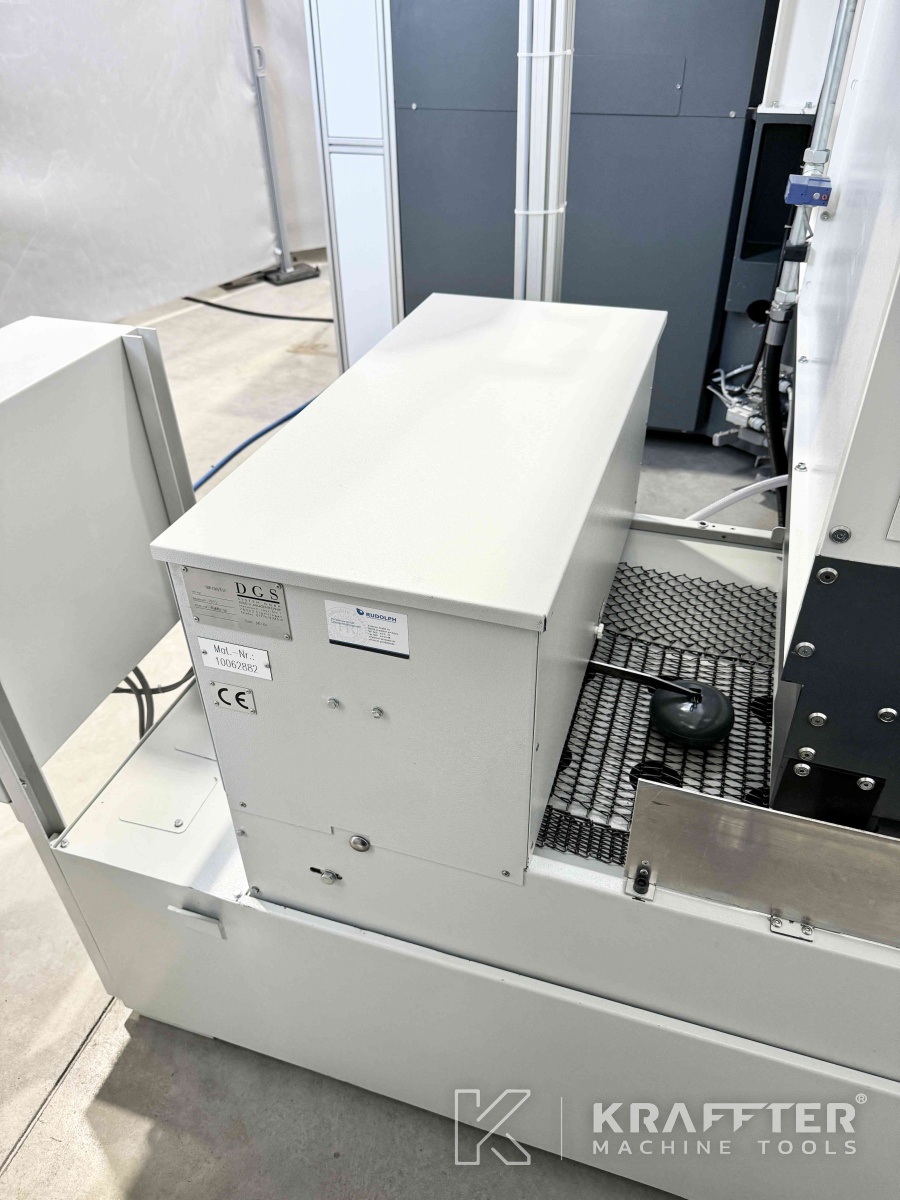

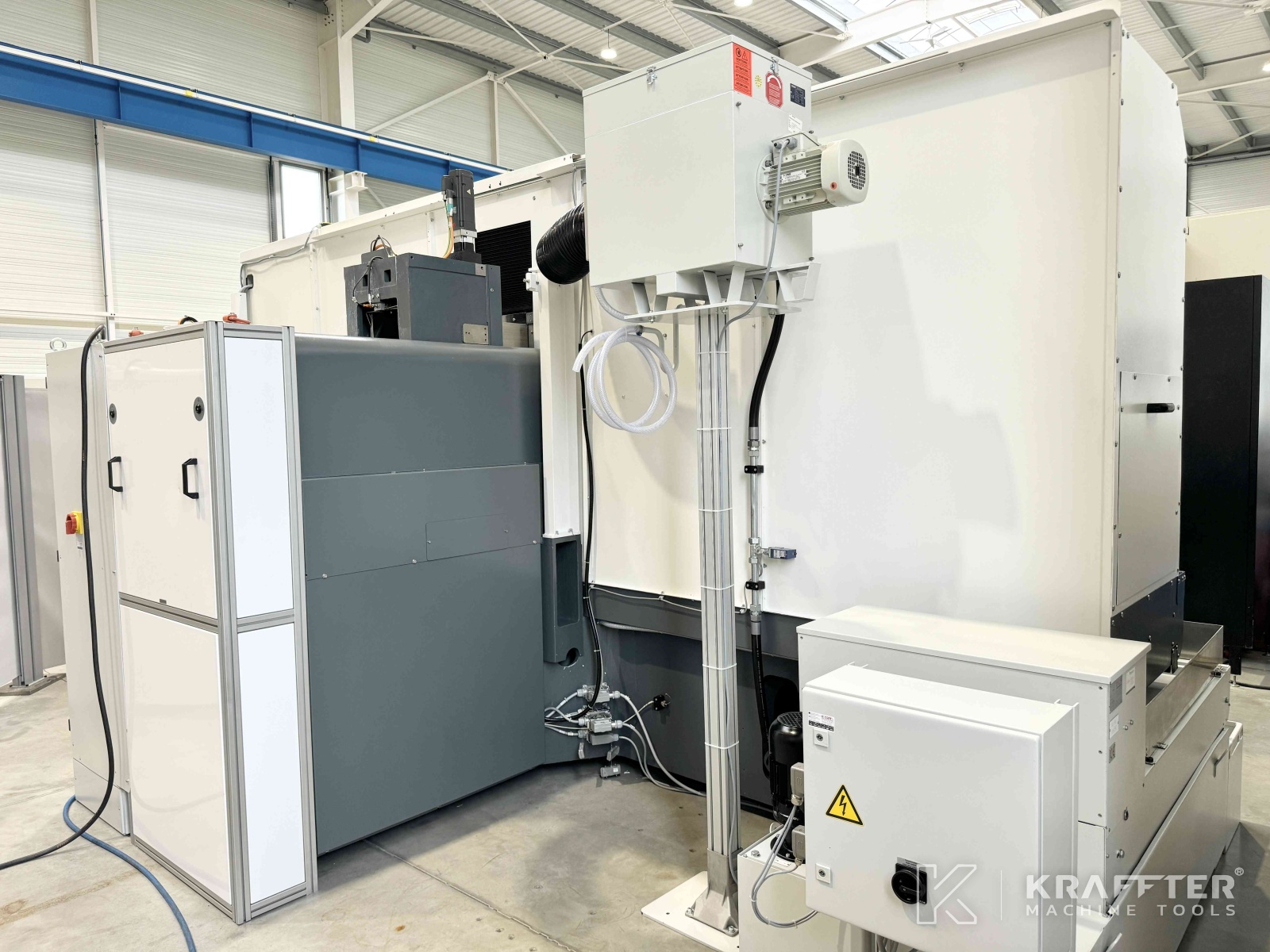

x1 coolant tank + paper filtration system DGS type SBF150/650

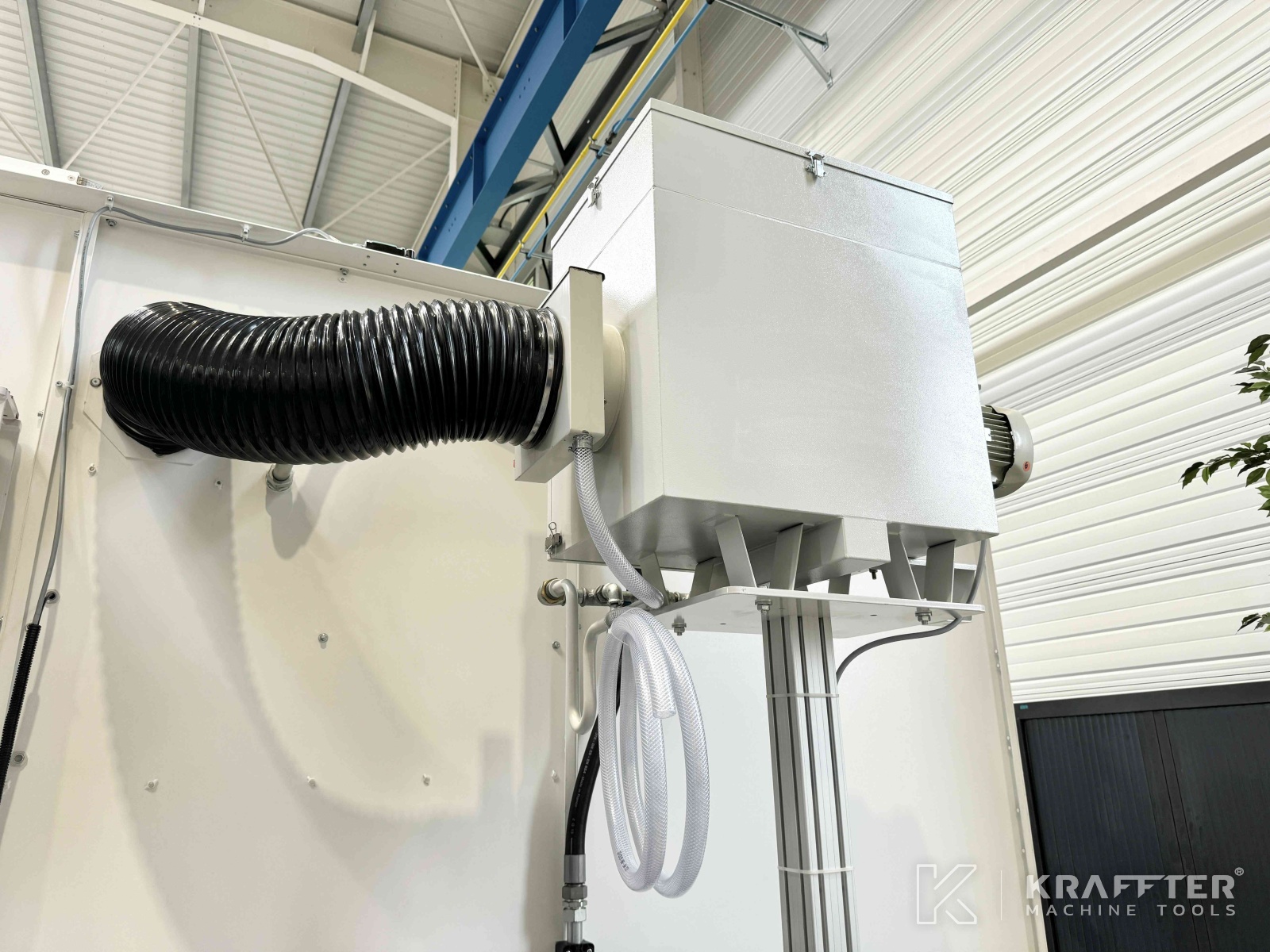

x1 oil mist extractor (2000 m3/h) SARA type UC 2 SD/S3

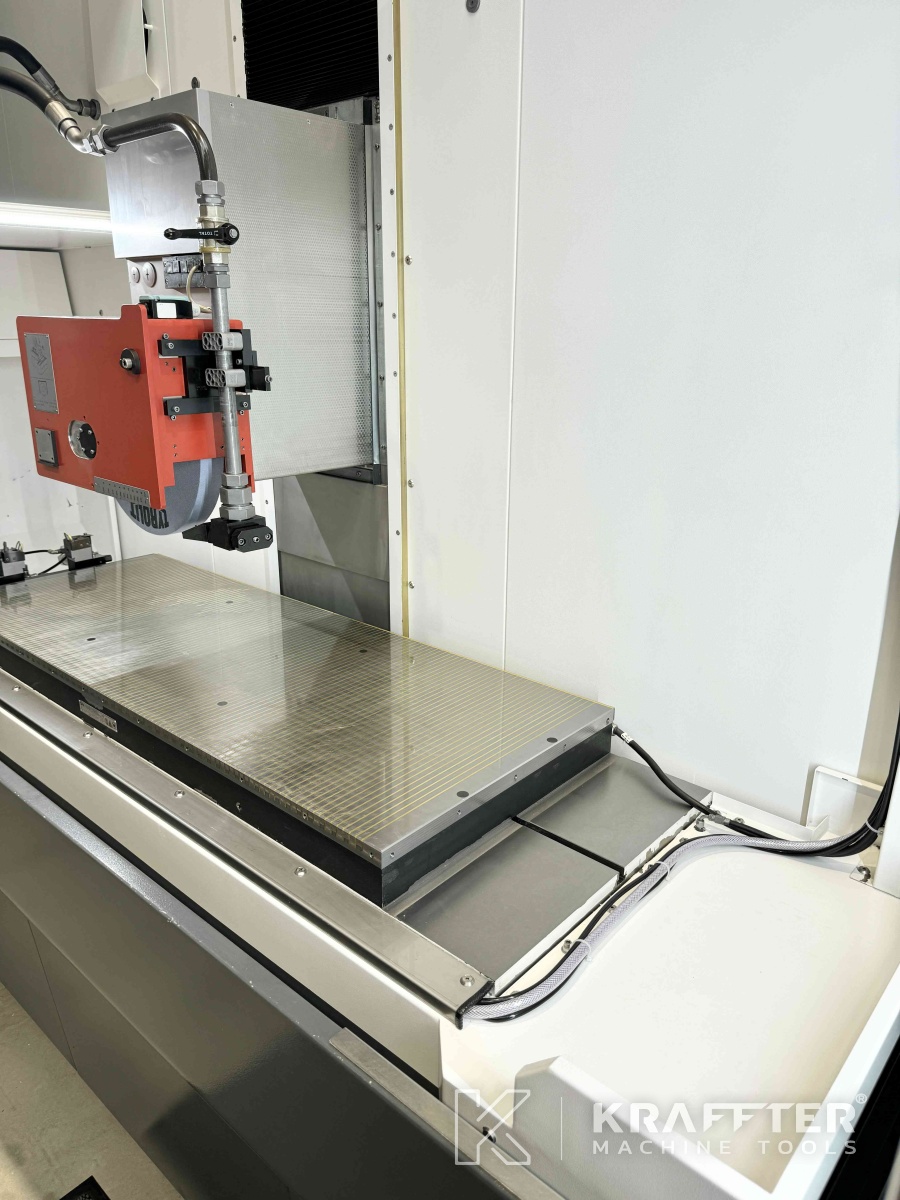

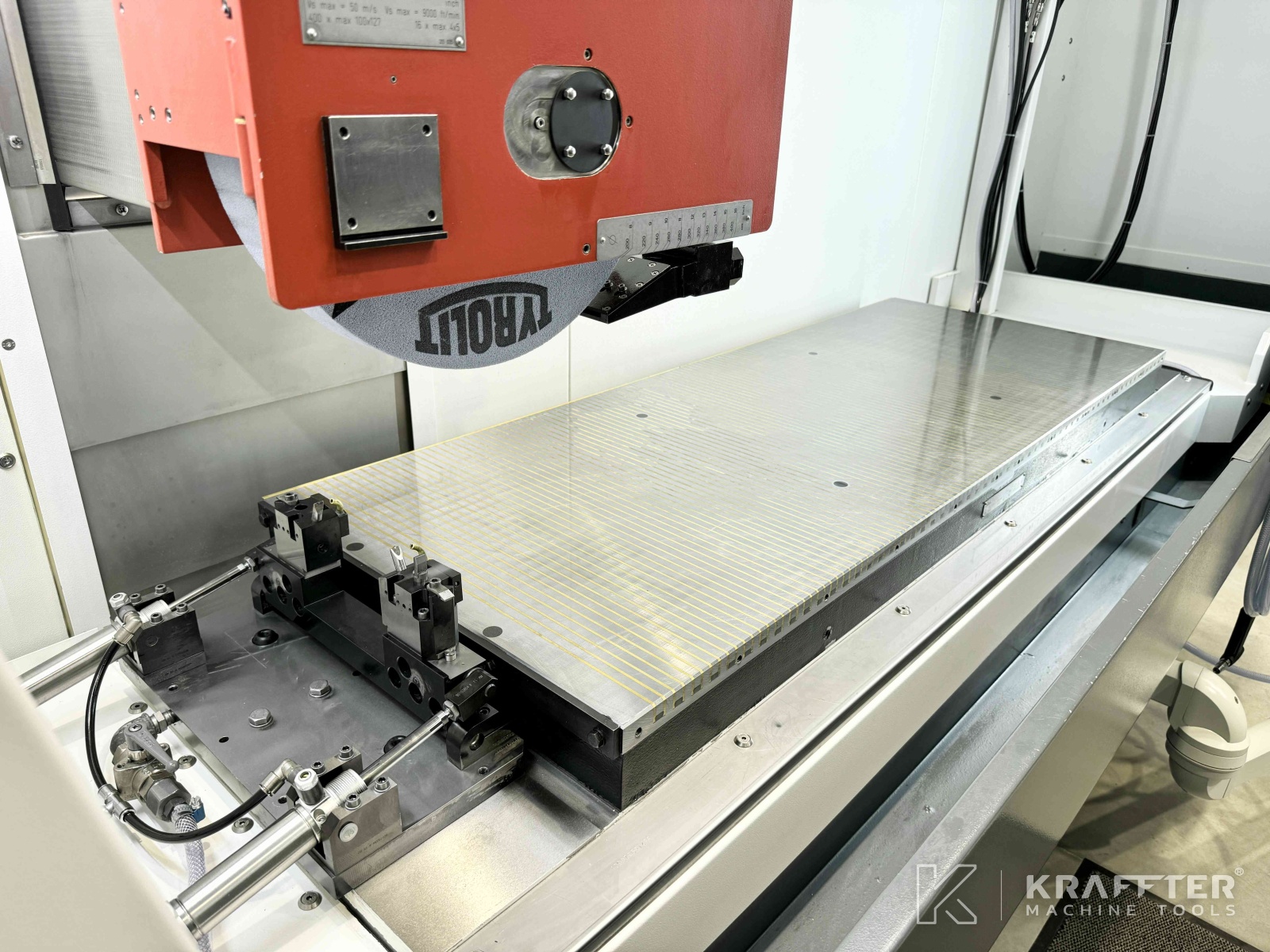

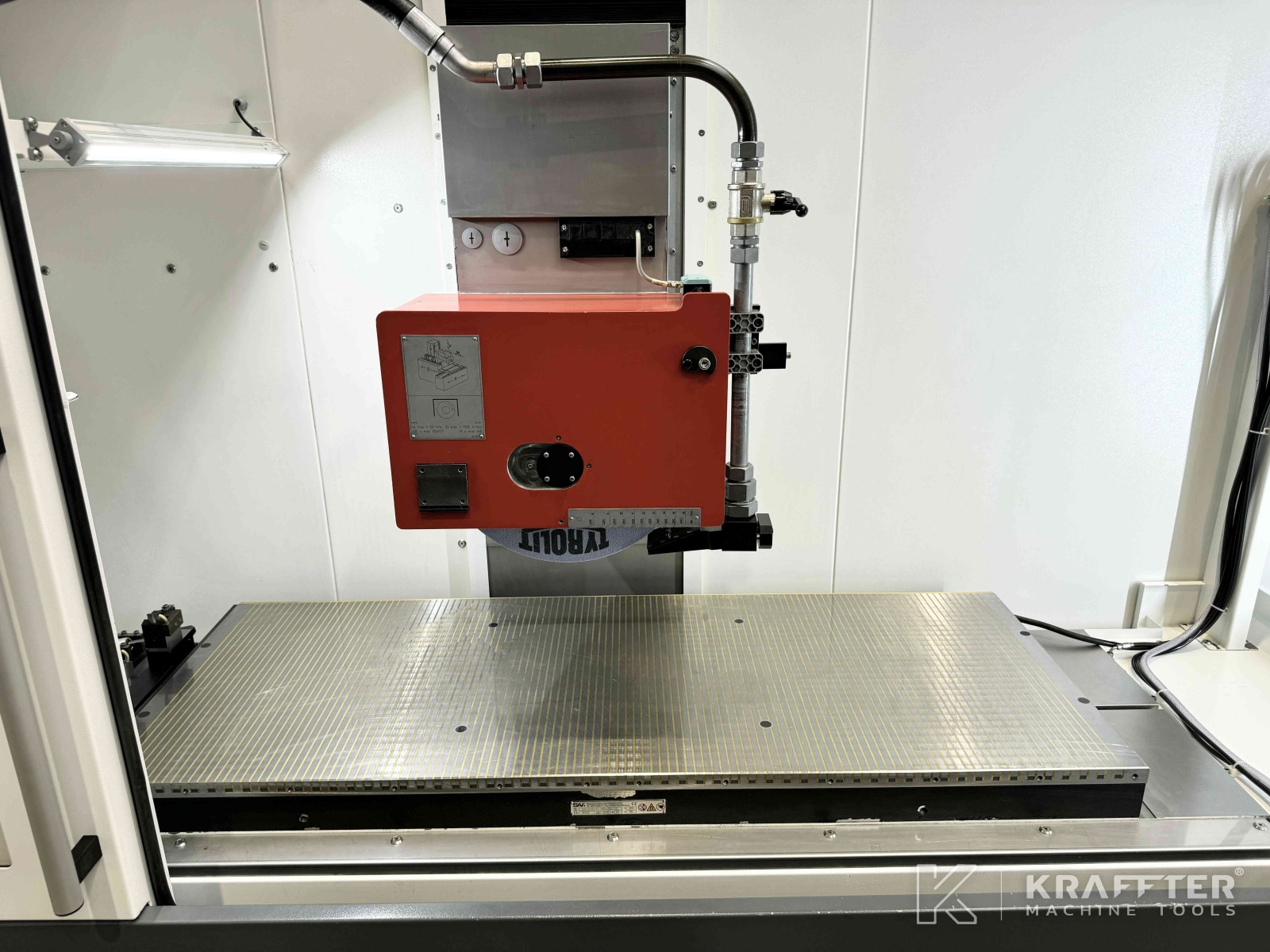

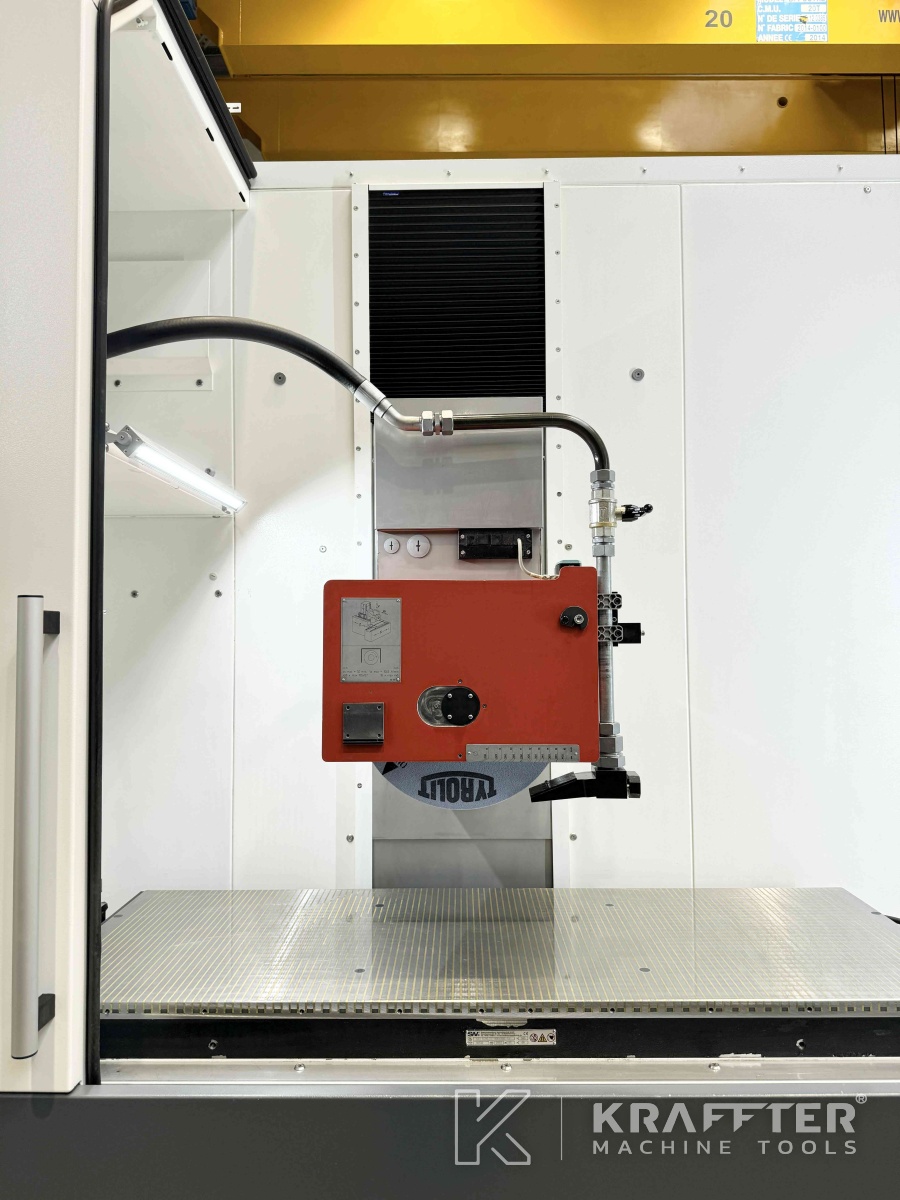

x1 1600*600 [mm] electromagnetic clamping plate SAV type B-243.70 - 1600 x 600 - 13

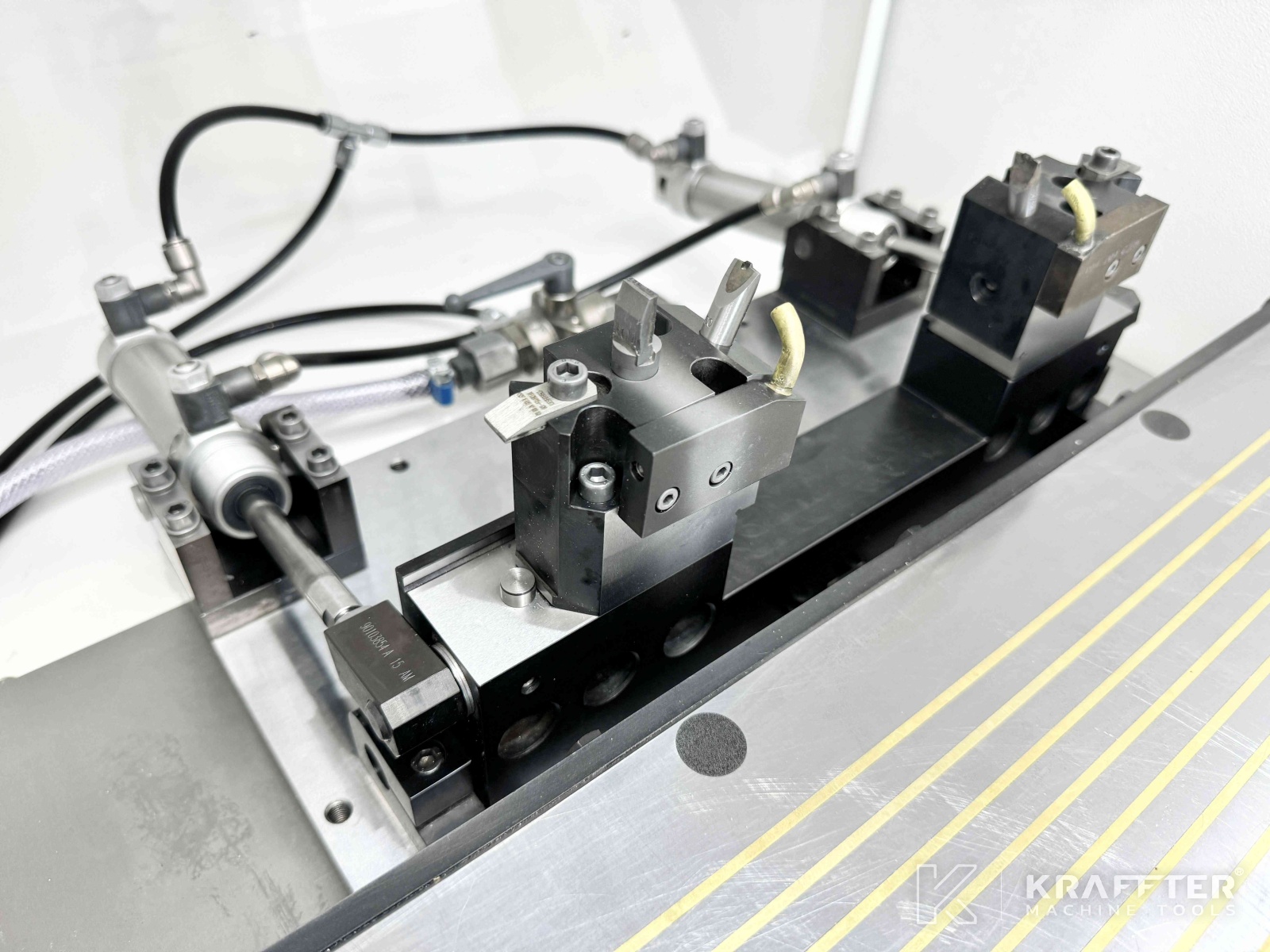

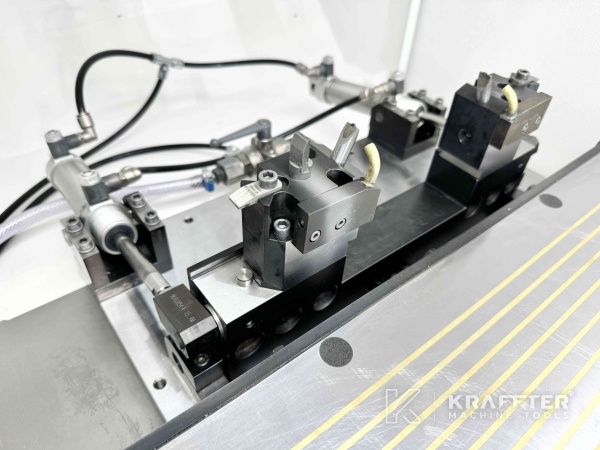

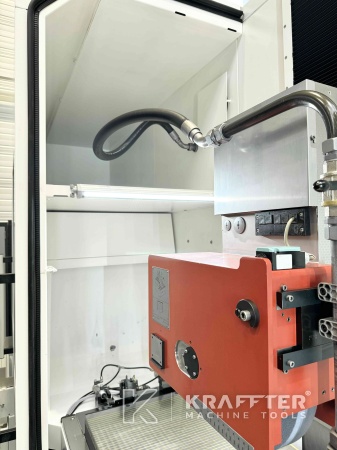

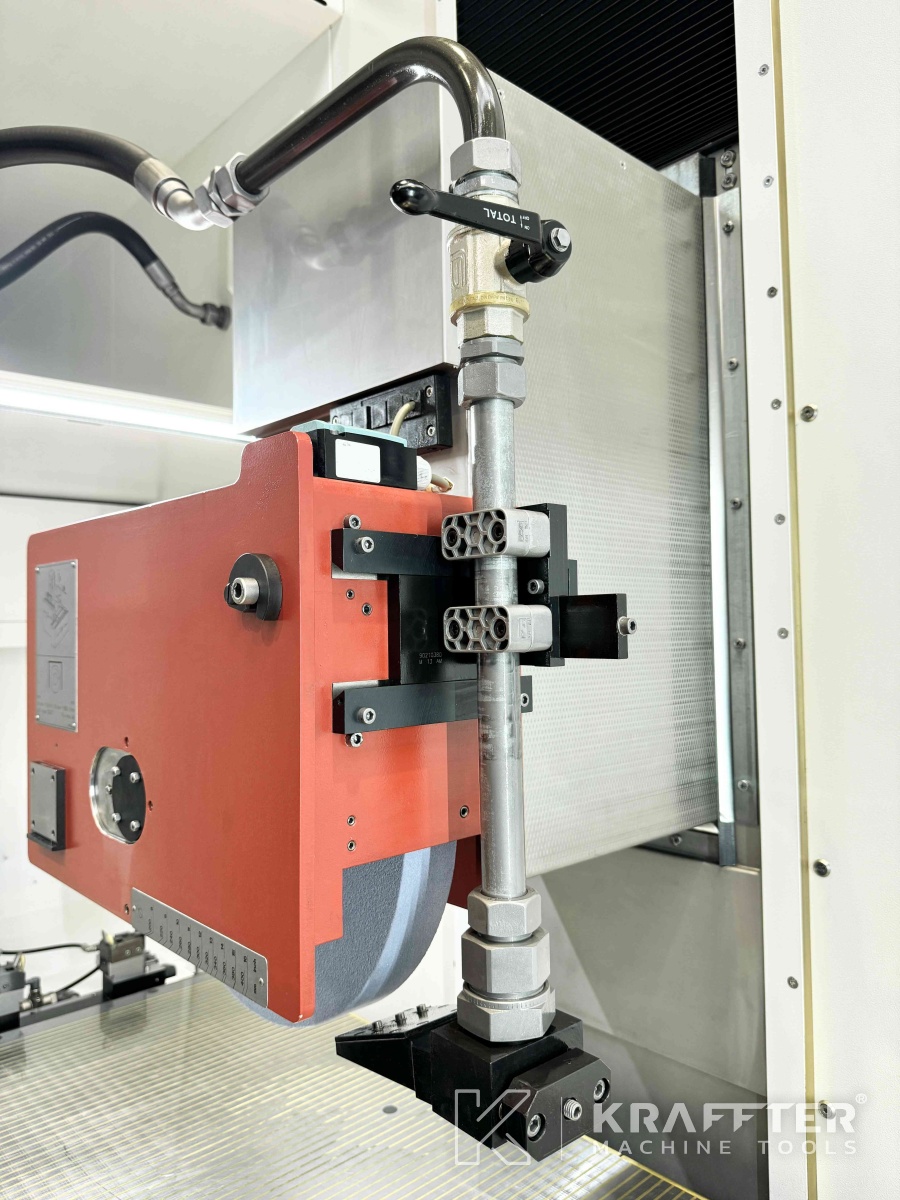

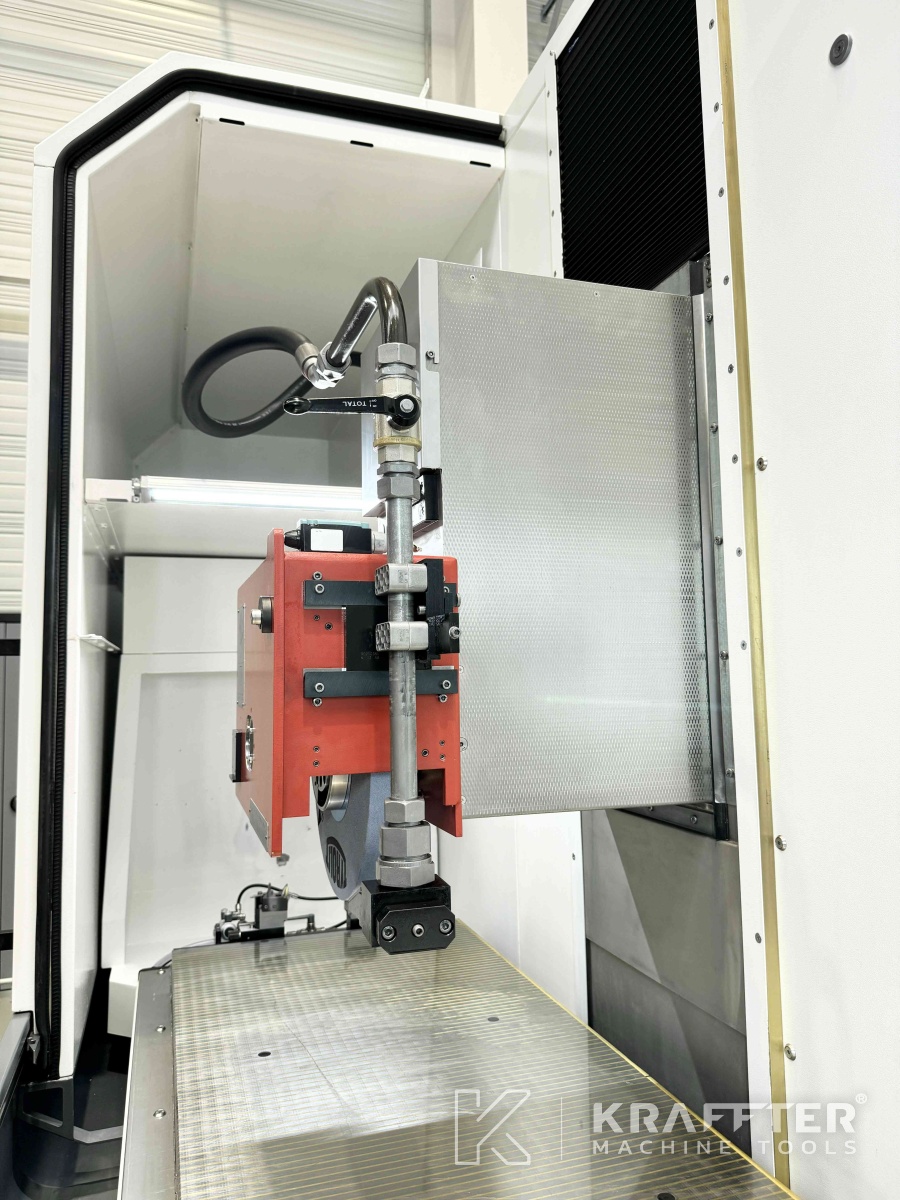

x1 lifting dressing device for peripheral, side and profile dressing
x5 grinding wheel flanges

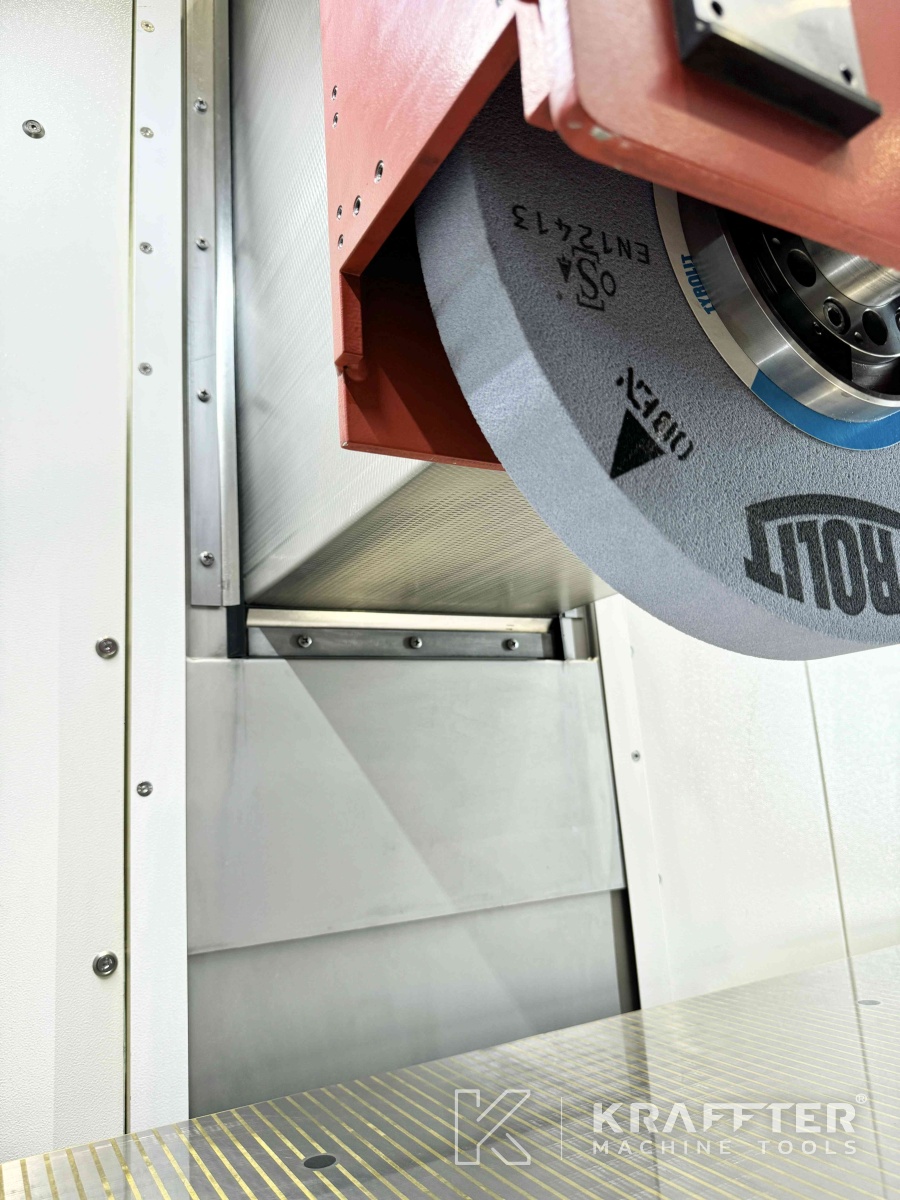

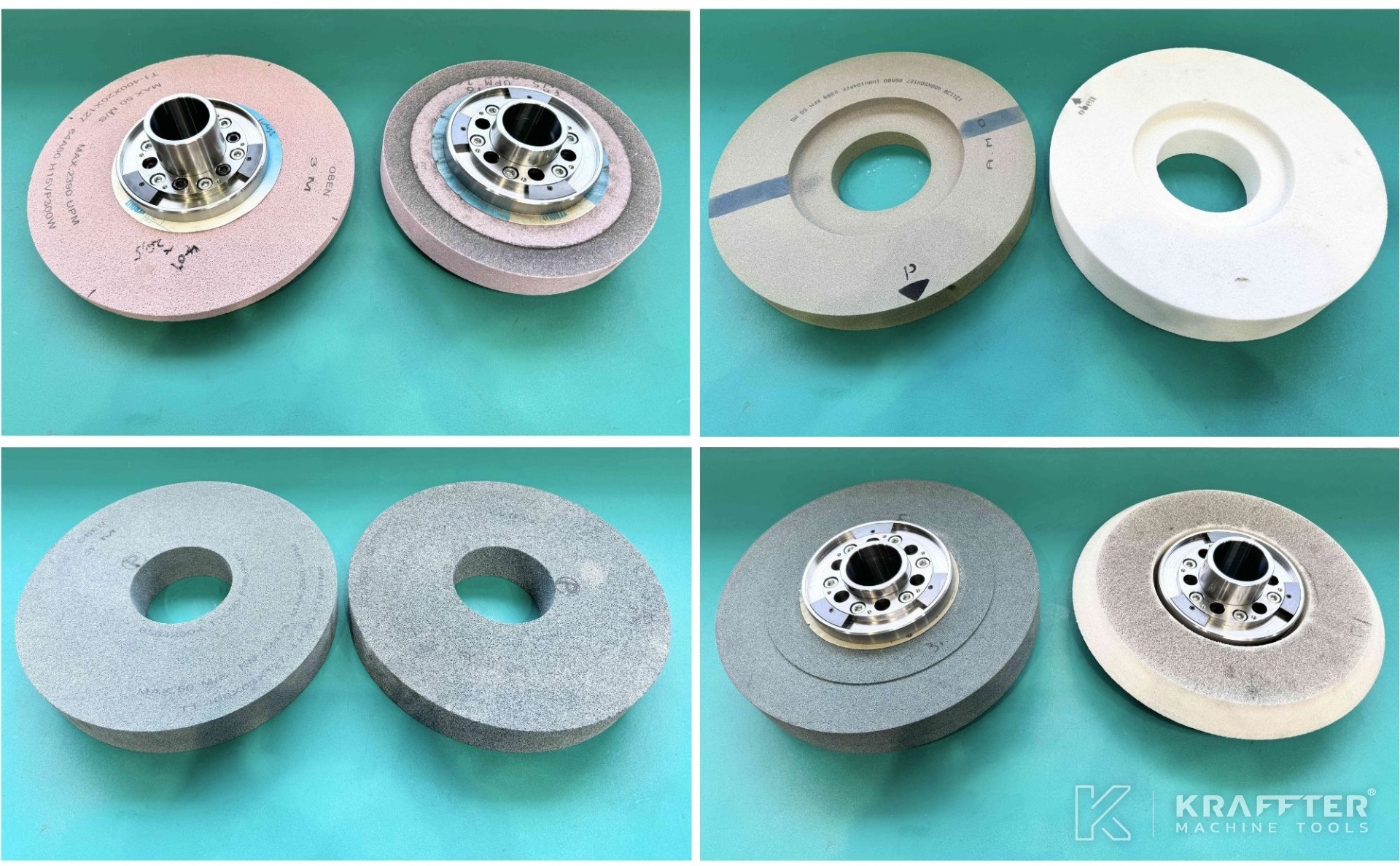

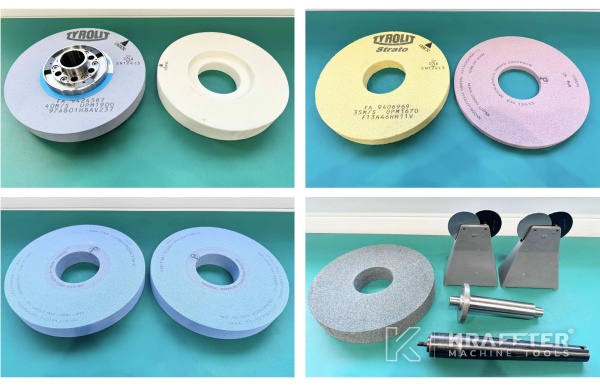

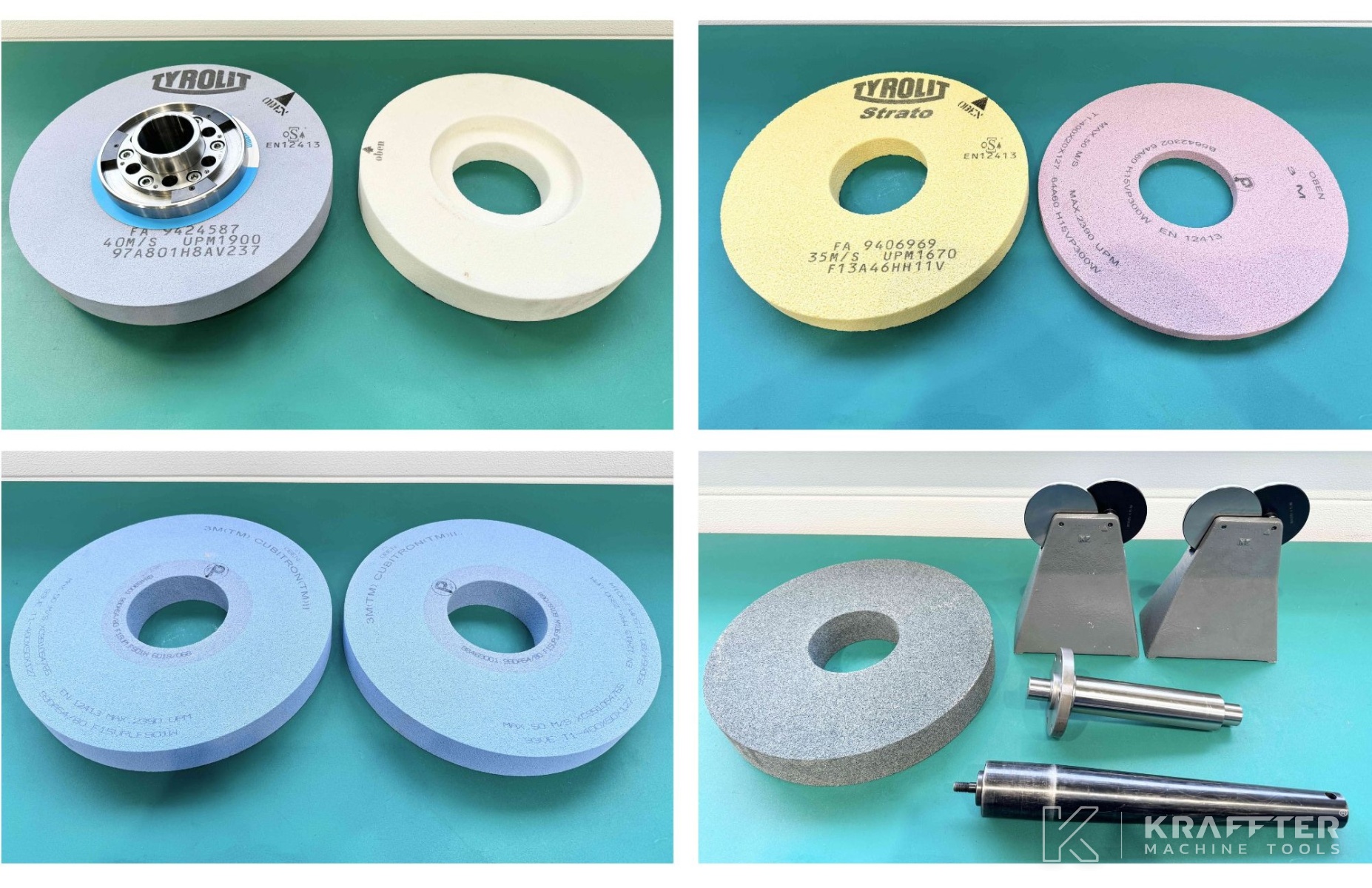

x15 grinding wheels Ø400 [mm]
x1 wheel balancing bench
x1 set of manuals + CD
