Sold

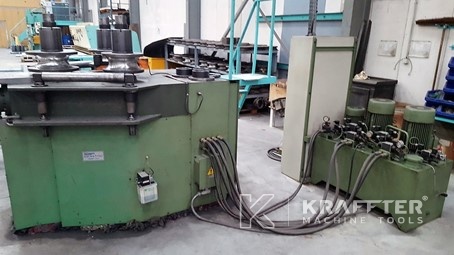

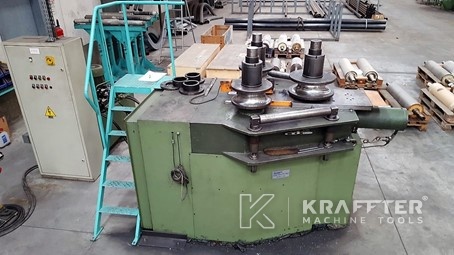

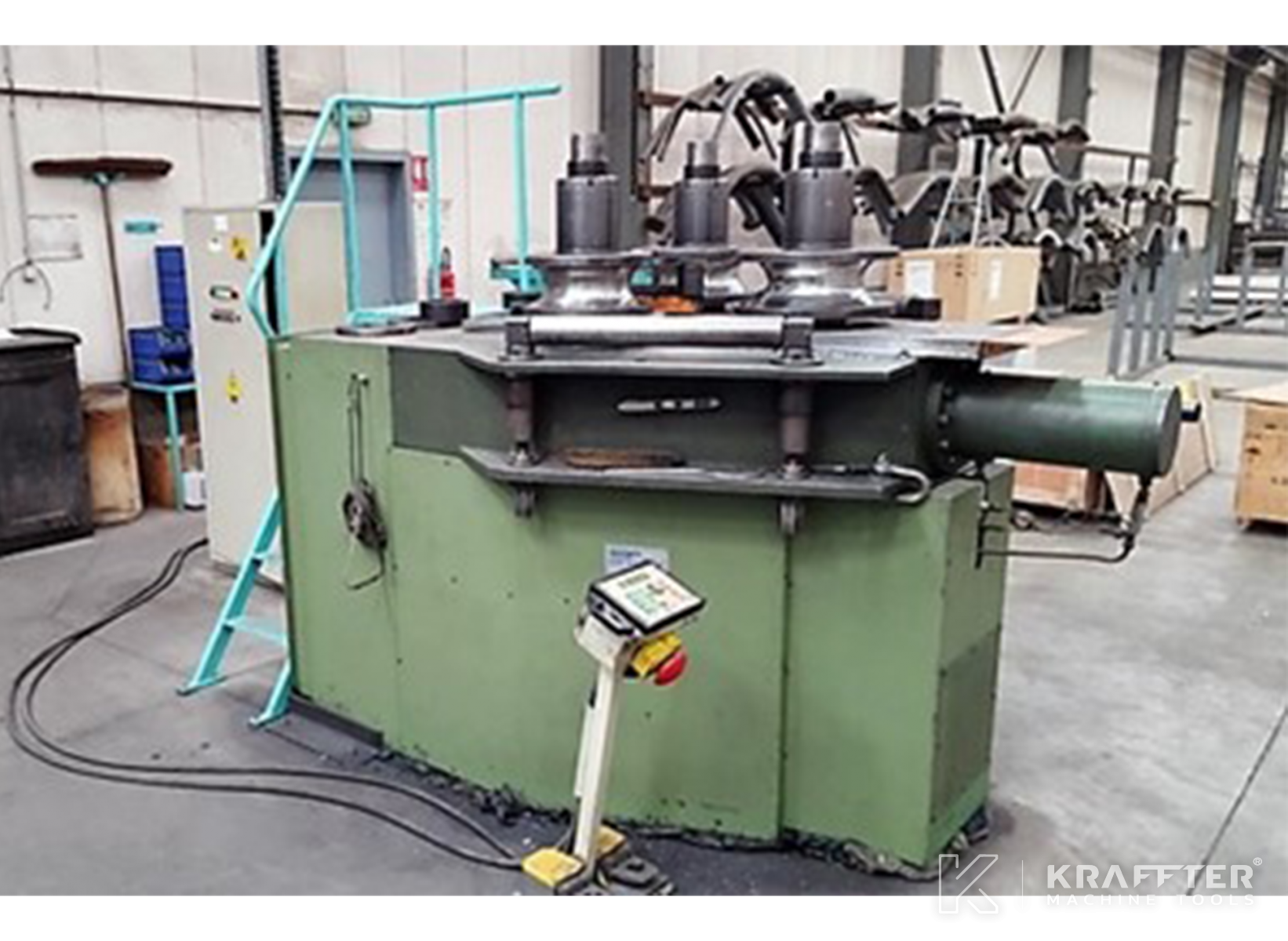

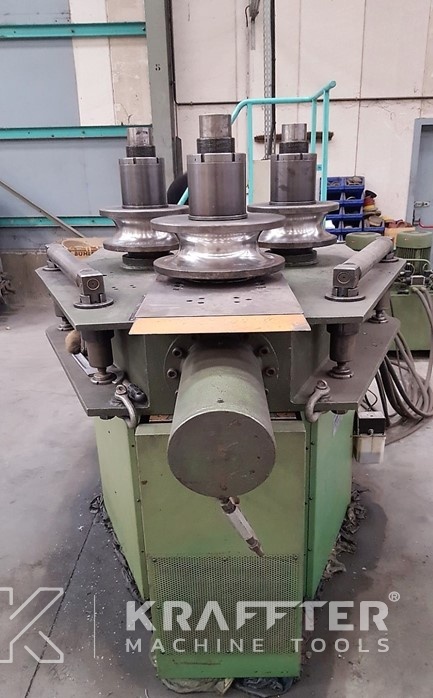

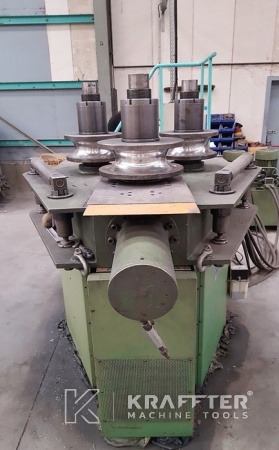

Type of machine : 3 roll pipe bender
Brand : SAF/TAURING
Stock N° : 20689-872
Model : Gamma 130
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
CNC control
CNC-C SAF/Tauring
Standard roll diameter
390 [mm]
Number of driven rolls
3
Control by food pedal
Yes
Pressure
45 [T]
Roll-holding shaft diameter
130 [mm]
Supply voltage
400 [V]
Total power required
19 [kVA]
Weight
3870 [Kg]

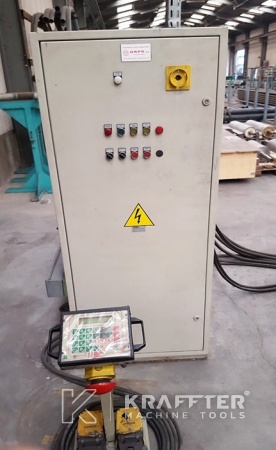

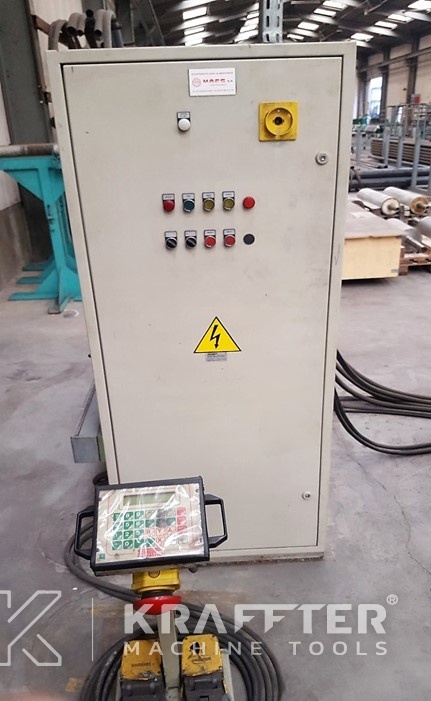

CNC :
- CNC-C SAF/Tauring control: possibiliy to determine your bending radius you wish on the digital pannel
- 28 double function buttons
- 90 different types of profiles memorisable
- 20 programmes memorisable
EQUIPMENT/ACCESSORIES :

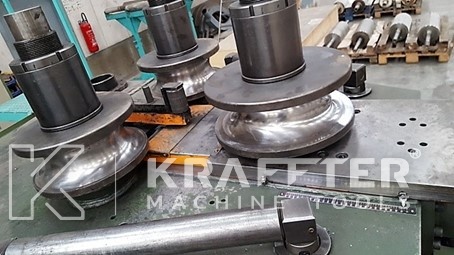

- A set of universal dies

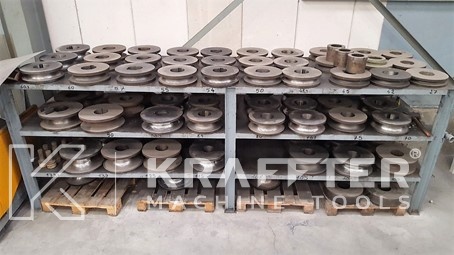

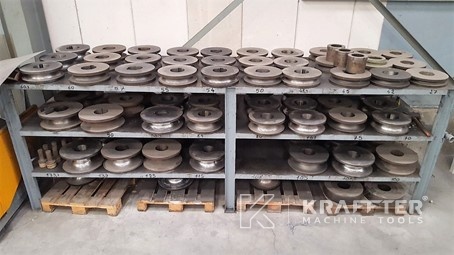

- A very big set of dies for bending round pipes (gaz and metric dimensions) :
- 27 [mm]
- 42 [mm]
- 48.3 [mm]
- 50 [mm]
- 54 [mm]
- 55 [mm]
- 54 [mm]
- 57 [mm]
- 60.3 [mm]
- 70 [mm]
- 75 [mm]
- 76.10 [mm]
- 80 [mm]
- 84 [mm]
- 88.90 [mm]
- 90 [mm] (x2)
- 95 [mm]
- 101.6 [mm]
- 103 [mm]
- 105 [mm]
- 108 [mm]
- 115 [mm]
- 125 [mm]
- 129 [mm]
- 133 [mm]
- 139.7 [mm]
- 152.40 [mm]
- 168.30 [mm]
- 6 tube rolling-supports (blue colours in picture backround)

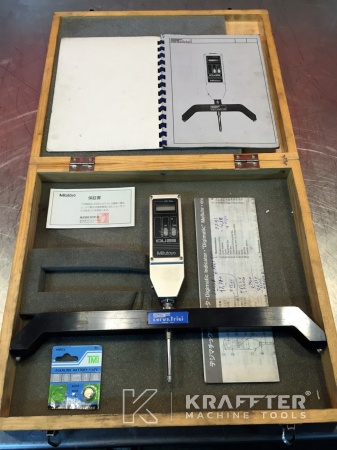

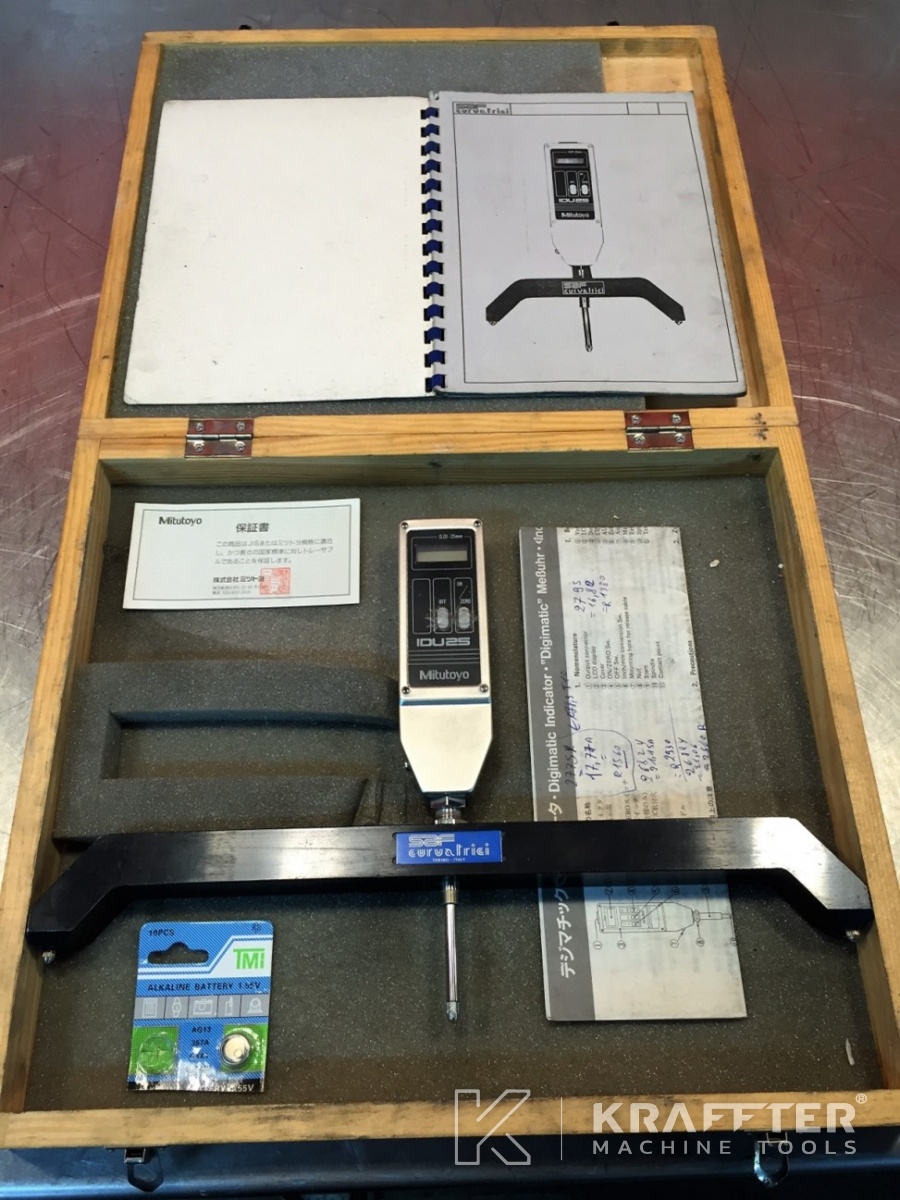

- 1 electronic angle mesure instrument MITUTOYO A 300 DGT (for a reliable precise and rapid angle mesuring) in its wooden box
- The complete technical documentation of the machine
- The CNC technical manual
- Possibility to add in option the extension card (NEW by TAURING) to the CNC to be able to make elliptical bending
