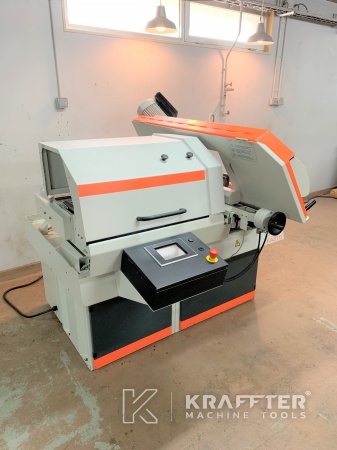

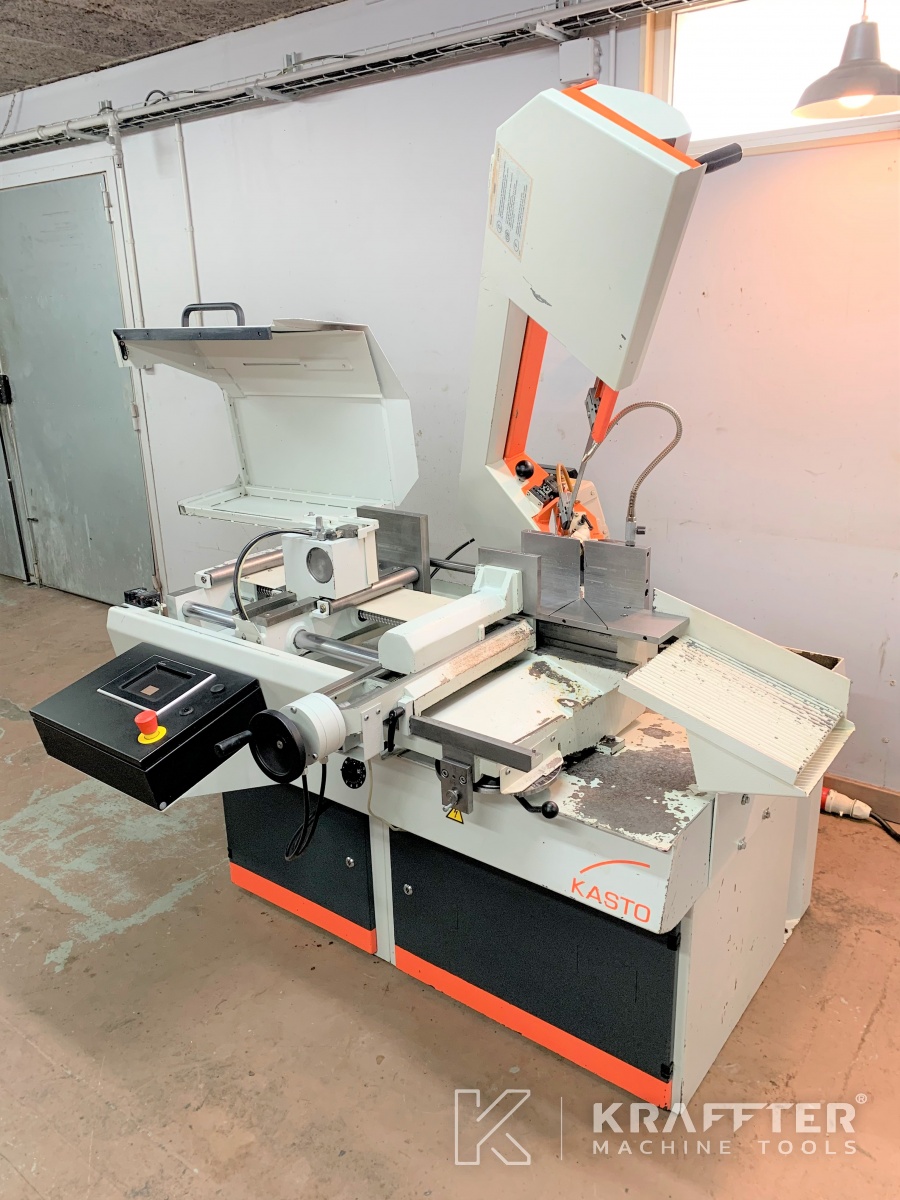

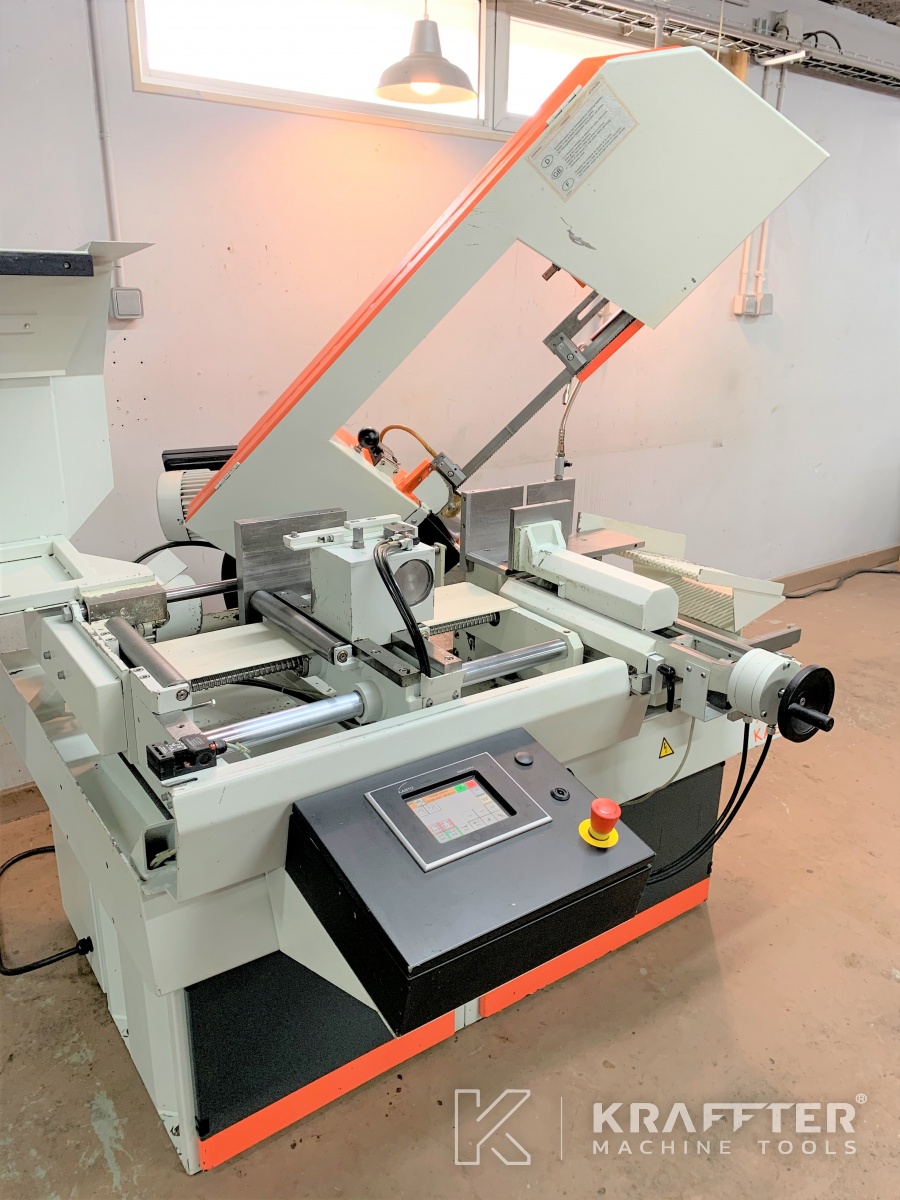

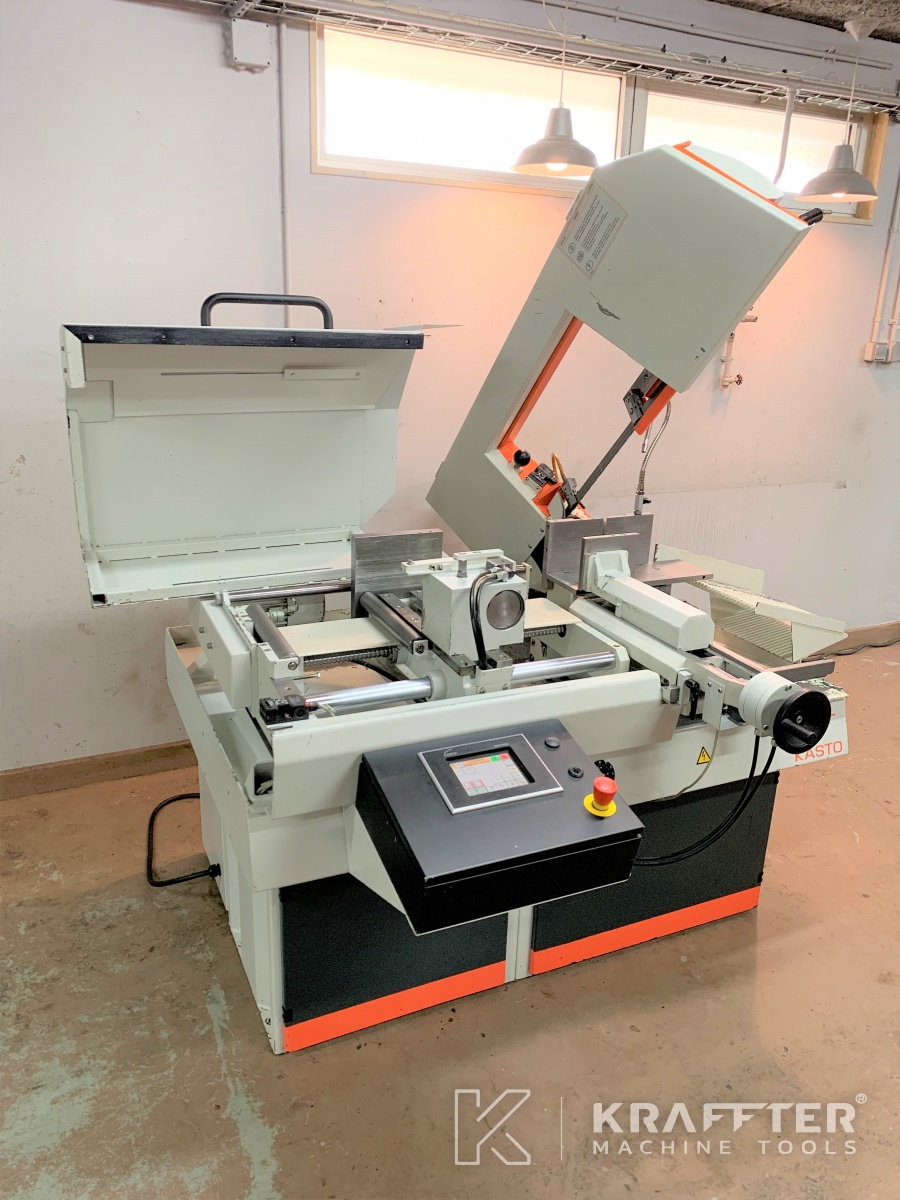

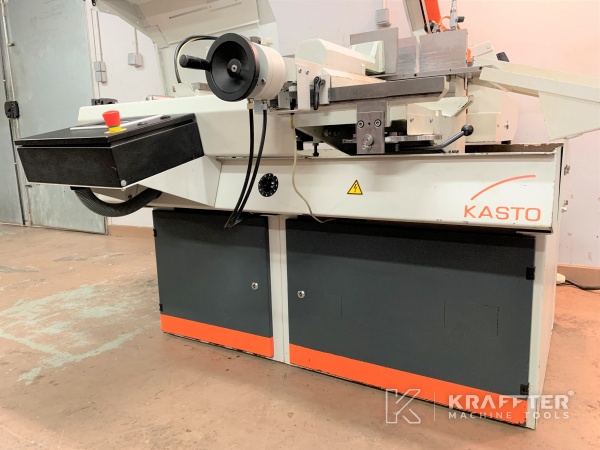

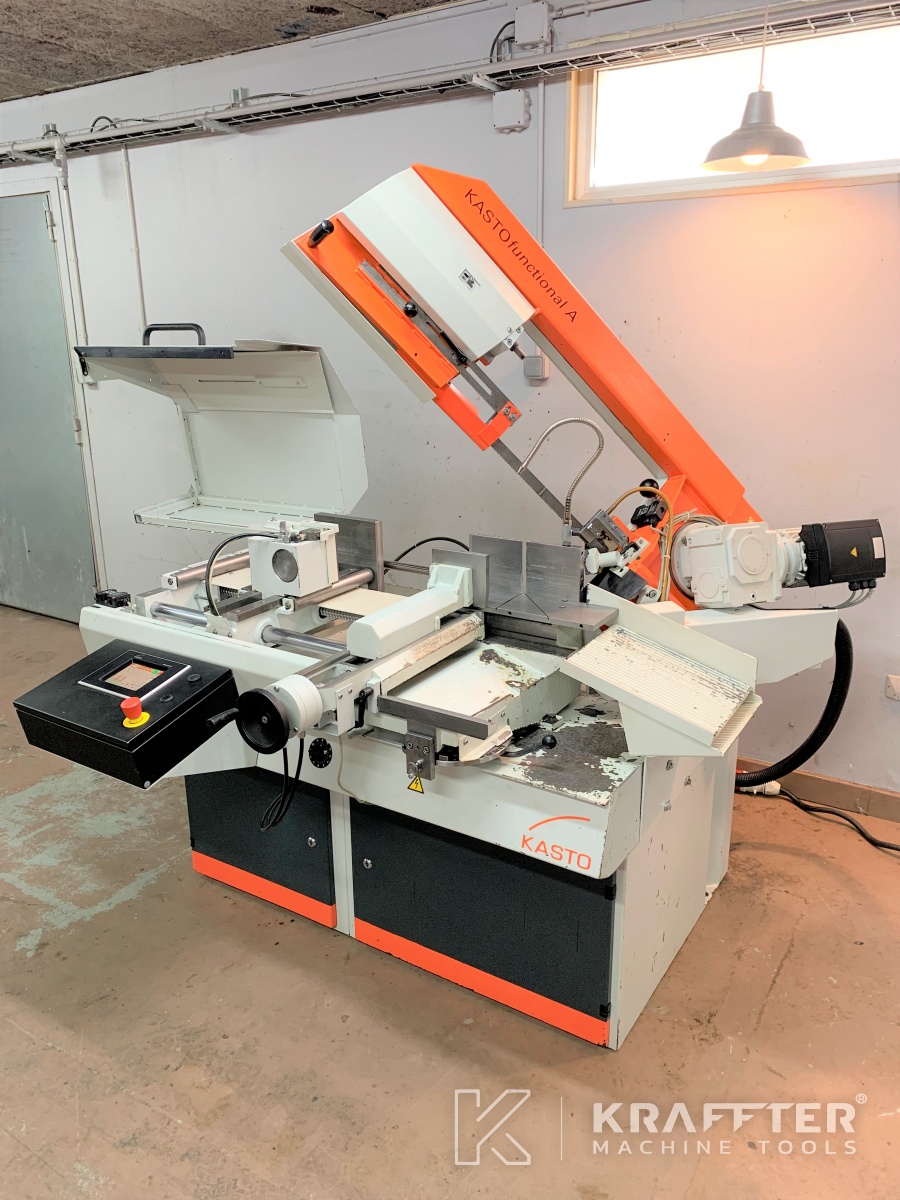

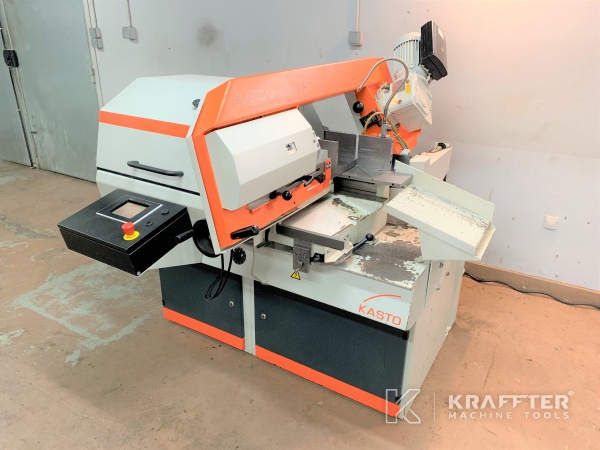

Type of machine : Automatic band saw
Brand : KASTO
Stock N° : 20689-973
Model : Functional A
Automatic : Yes
Year : 2011
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
CNC
Yes
CNC control
KASTO Basic Control
Angle cutting LEFT
45 [°]
Max. cutting diameter
260 [mm]
Max. vice opening
300 [mm]
Lubrication tank with pump
Yes
Angle cutting RIGHT
60 [°]

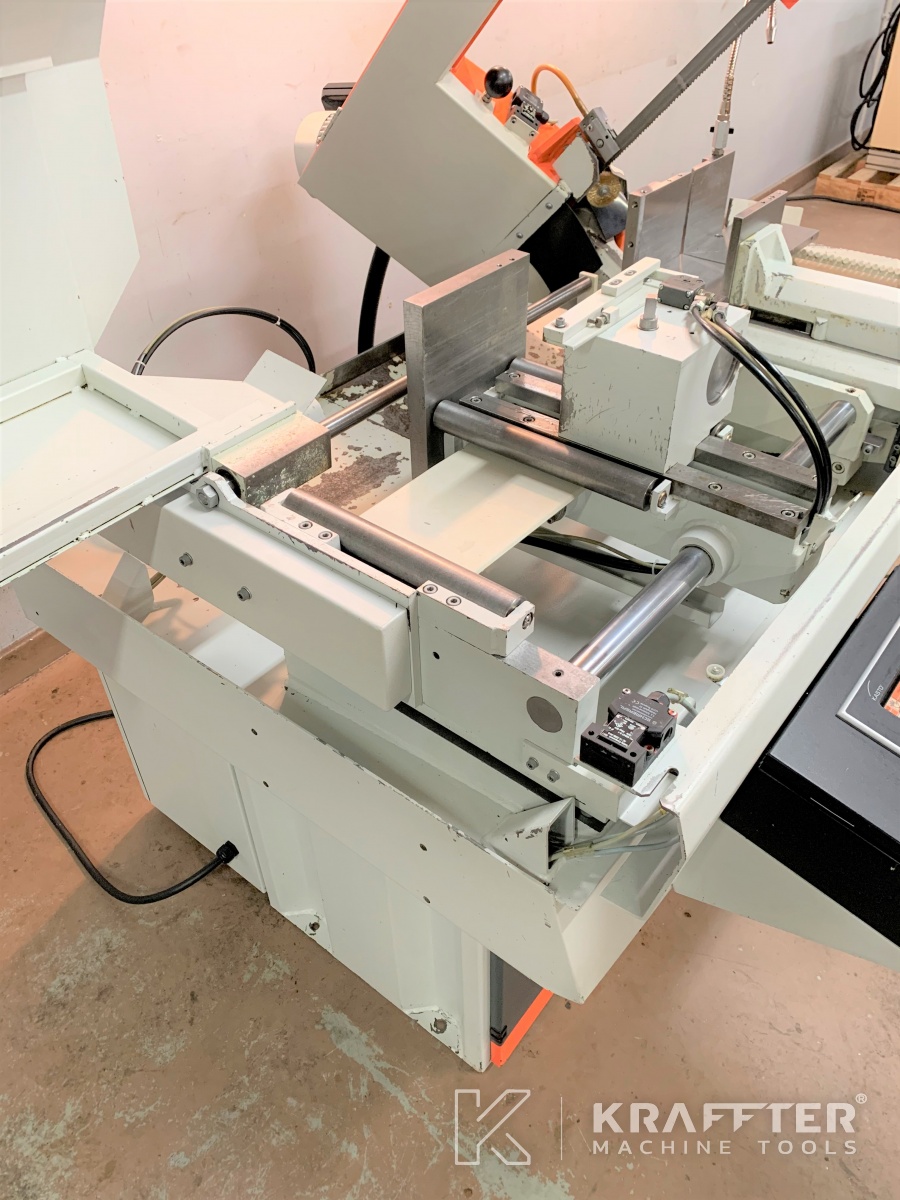

Automatic bar feeder
Yes
Max cutting lenght
9999 [mm]
Supply voltage
400 [V]
Weight
860 [Kg]
Dimensions
1500 x 1830 x 1500

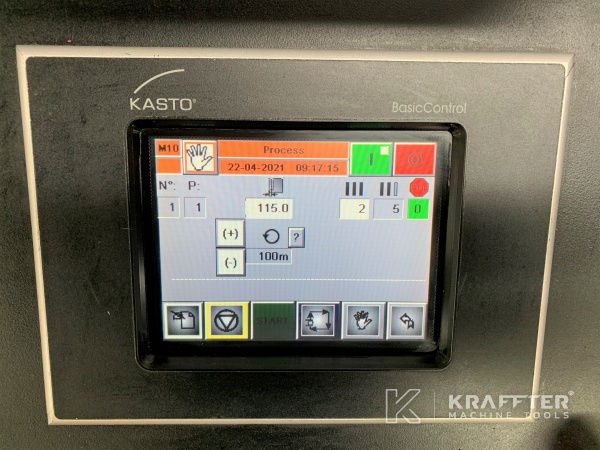

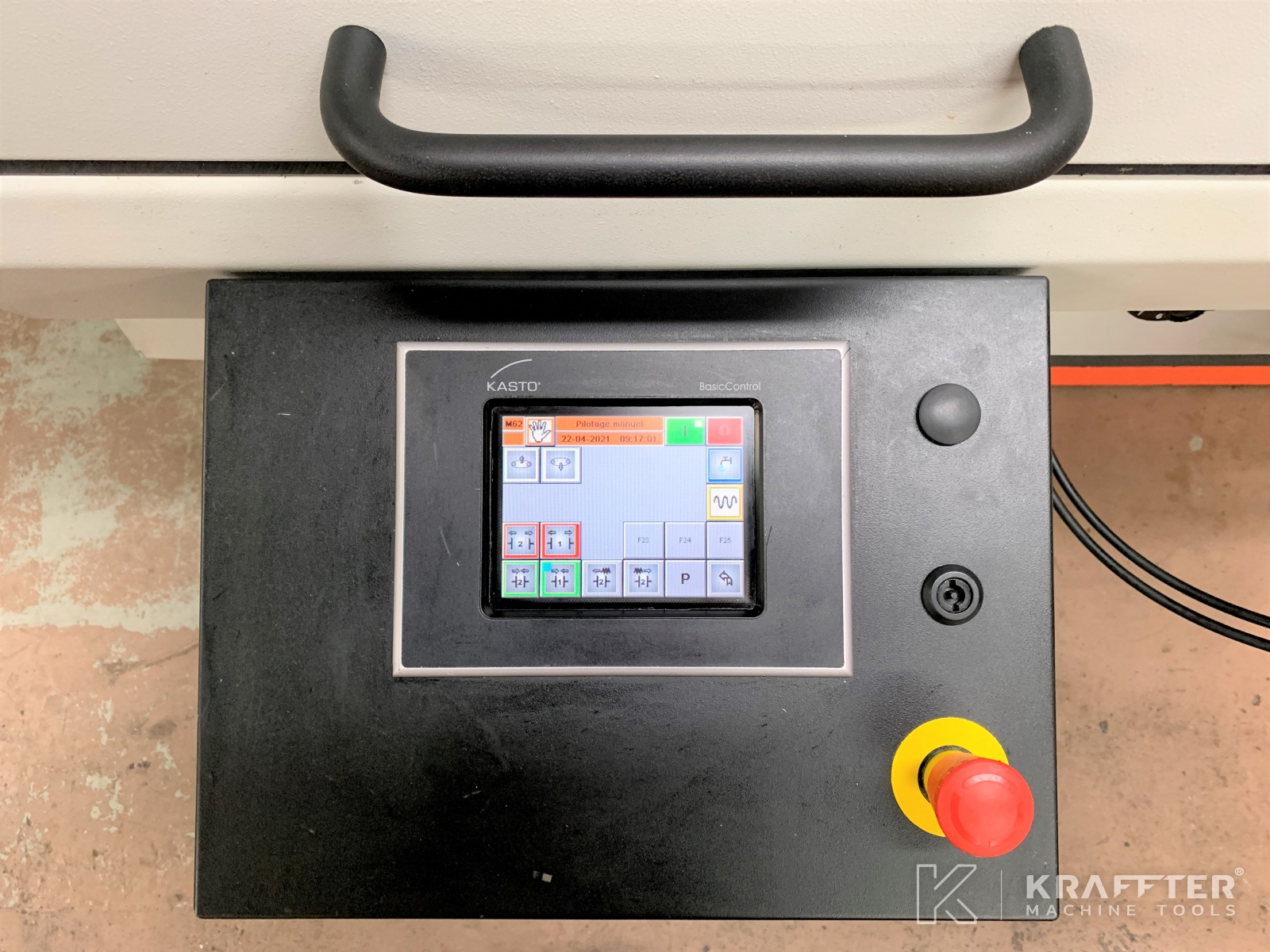

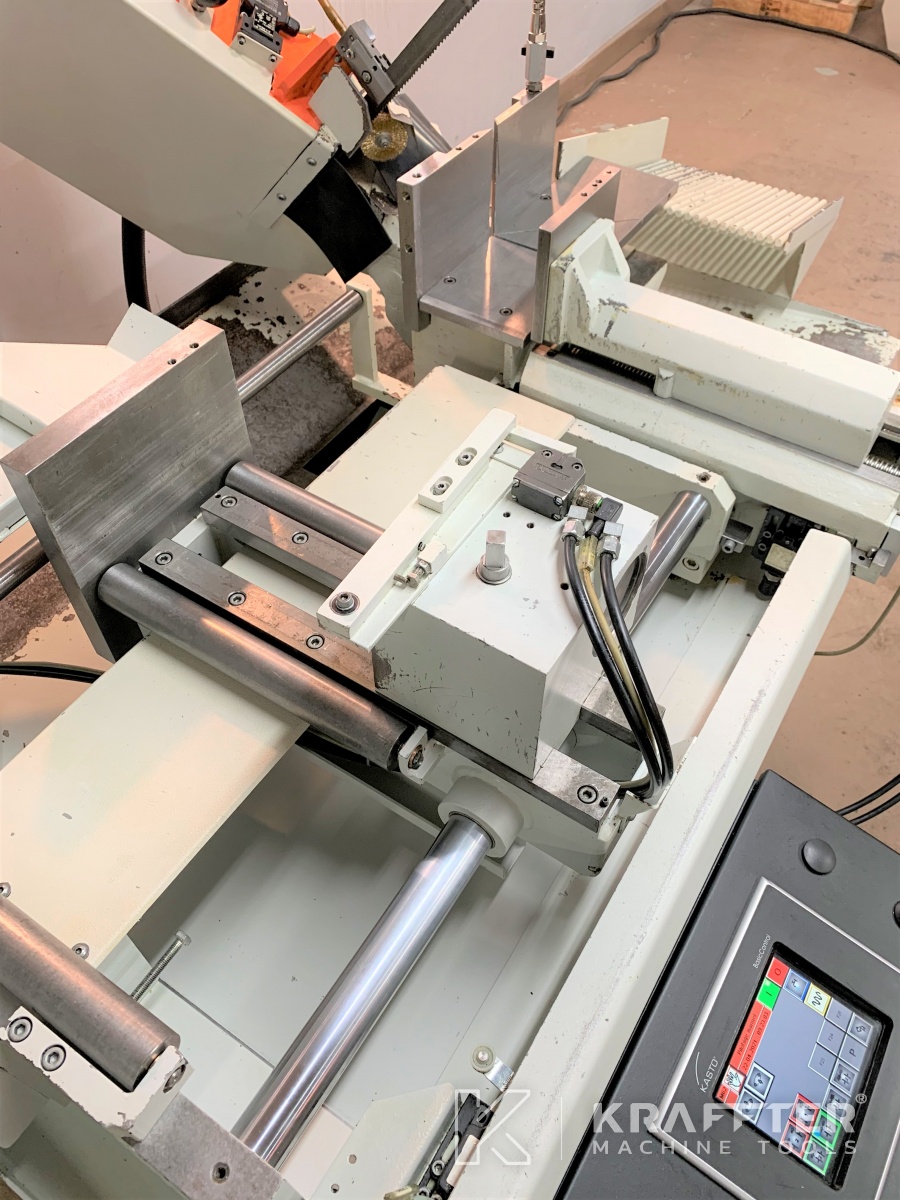

- Easy to operate control « BasicControl » colour touchpad screen
- Control functions : quantity/lenght/cutting speed
- Manual bow rotation RIGHT/LEFT

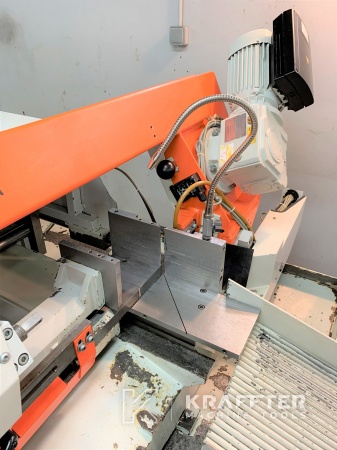

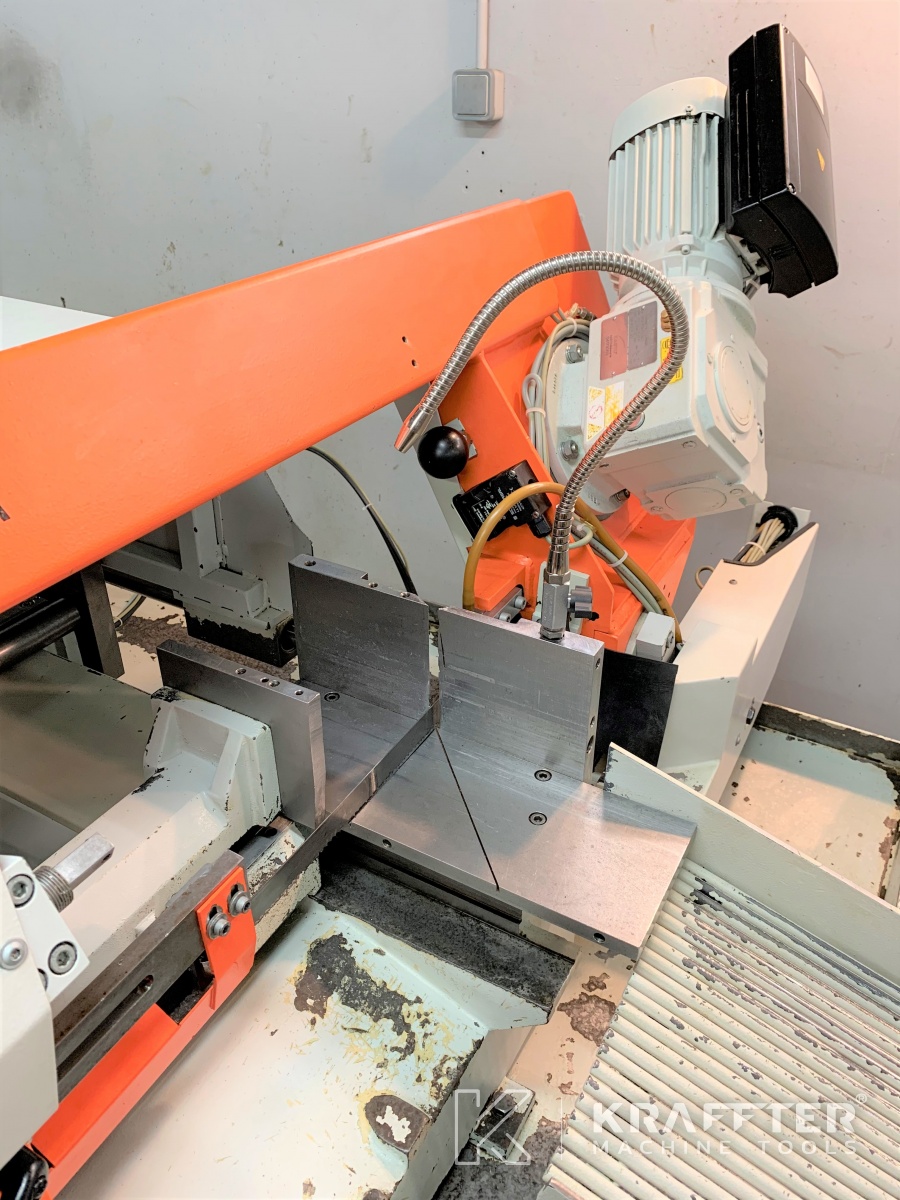

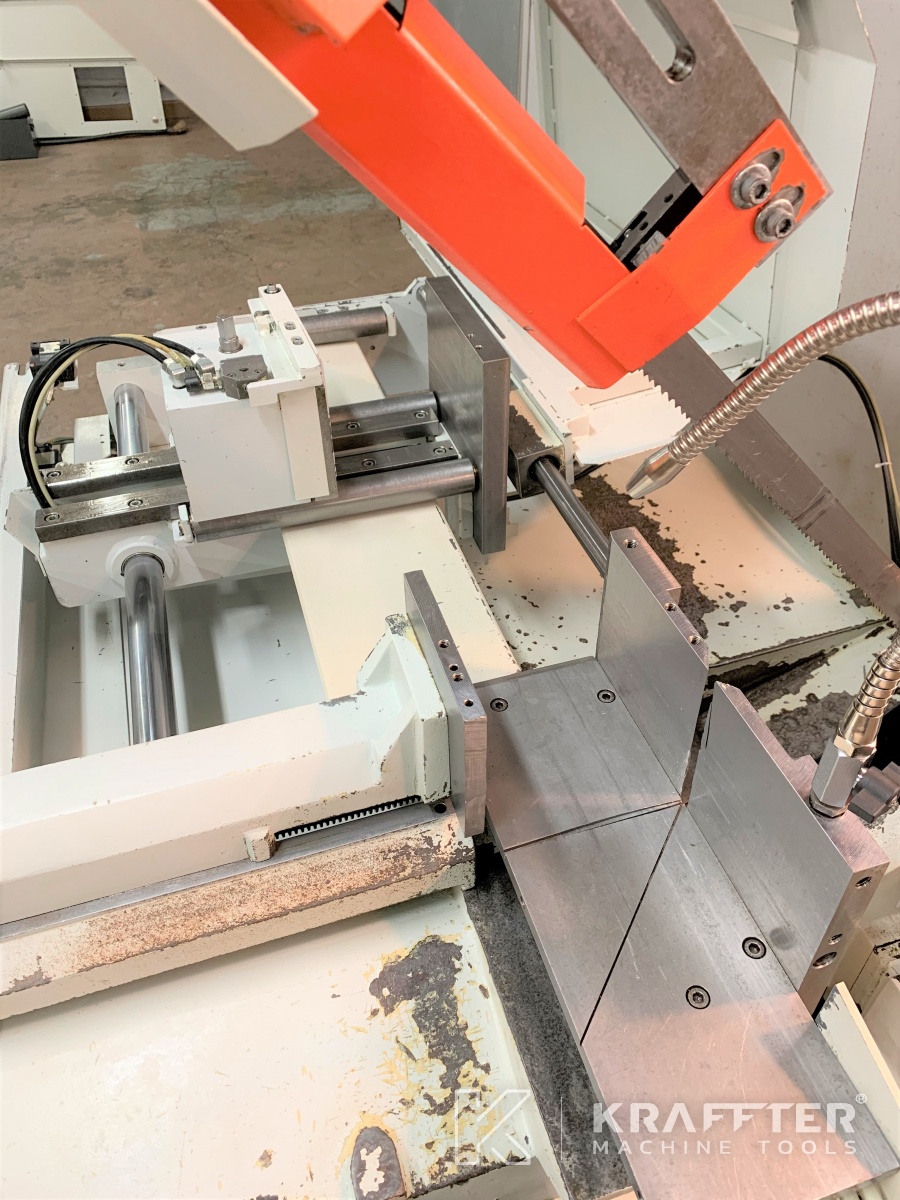

- Two short-stroke hydraulic horizontal clamping vices,
- Blade guides in carbide + ball bearings
- Infinitely adjustable mitre angle (-45° to +60°),
- Infinitely adjustable guide arm positioning,
- Metallic cleaning blade brush
- Blade lubrication : front & rear of the blade

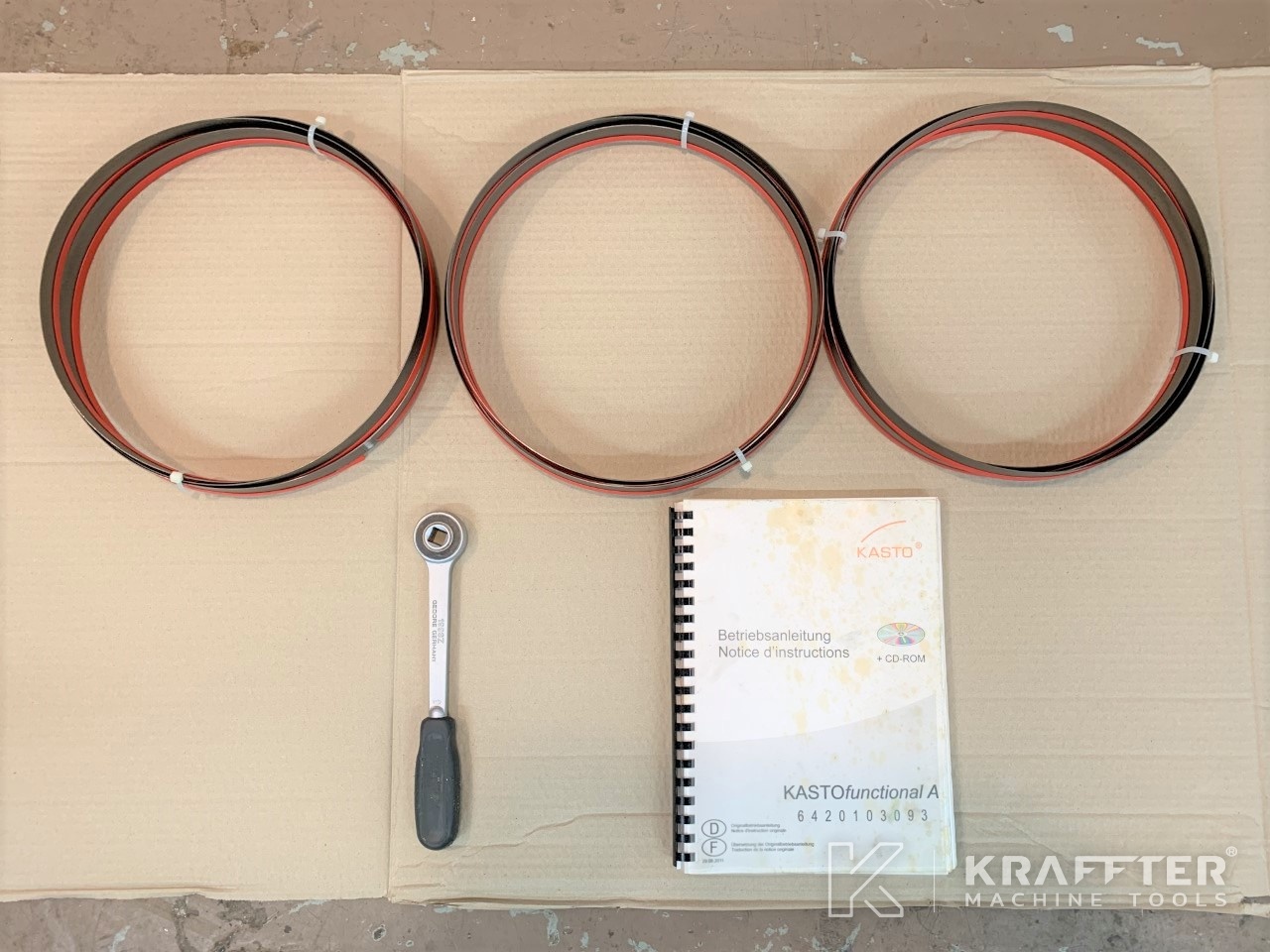

- Technical, service & CNC programming manual (in French)

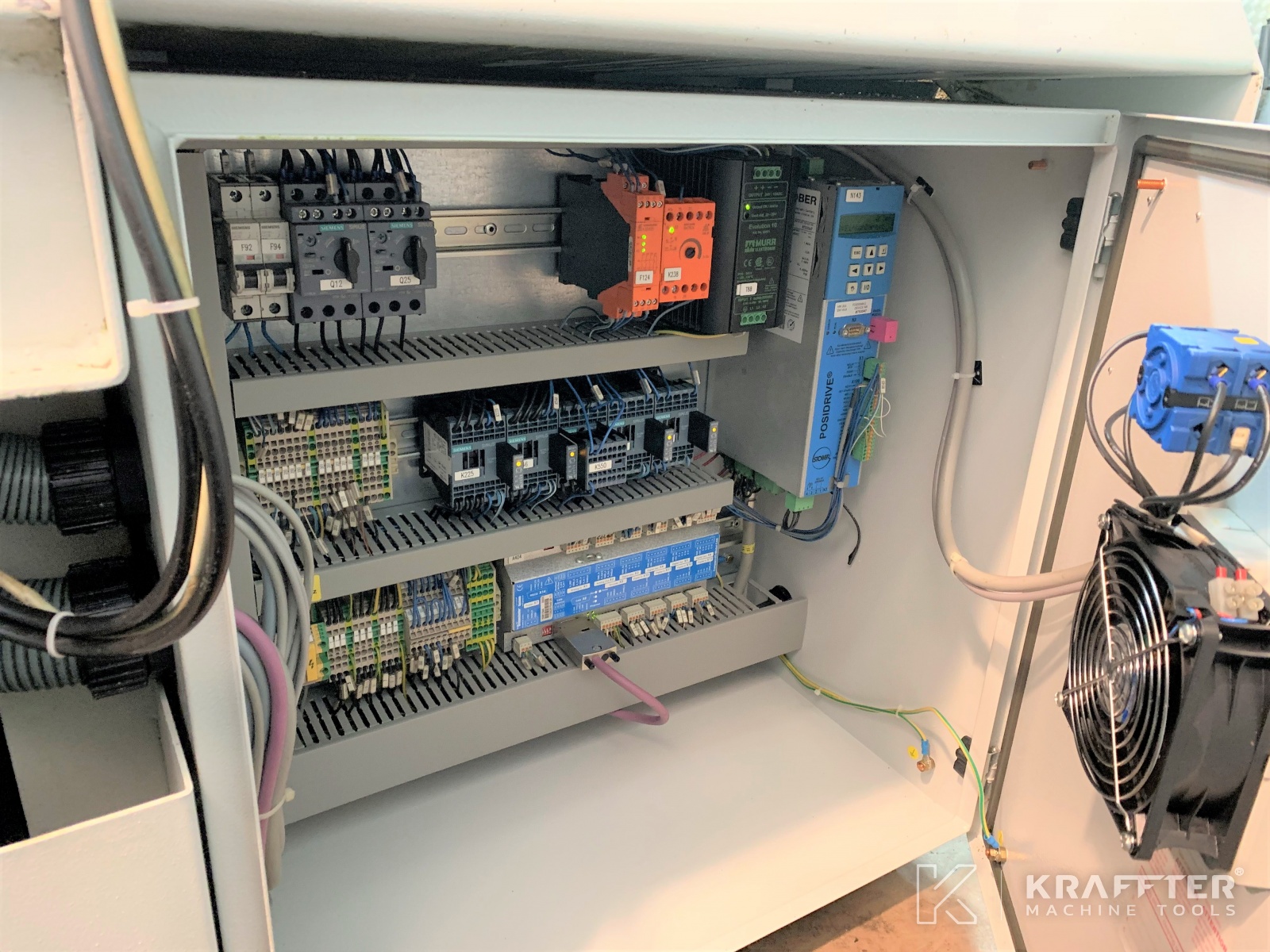

- Electrical & hydraulic diagrams
Cutting range :
- Ø : 260 [mm]
- Rectangle : 300 x 260 [mm]
- Square : 260 x 260 [mm]
- Maximum cutting lenght : 9999 [mm]
- Minimum cutting lenght : 6 [mm]
