Sold

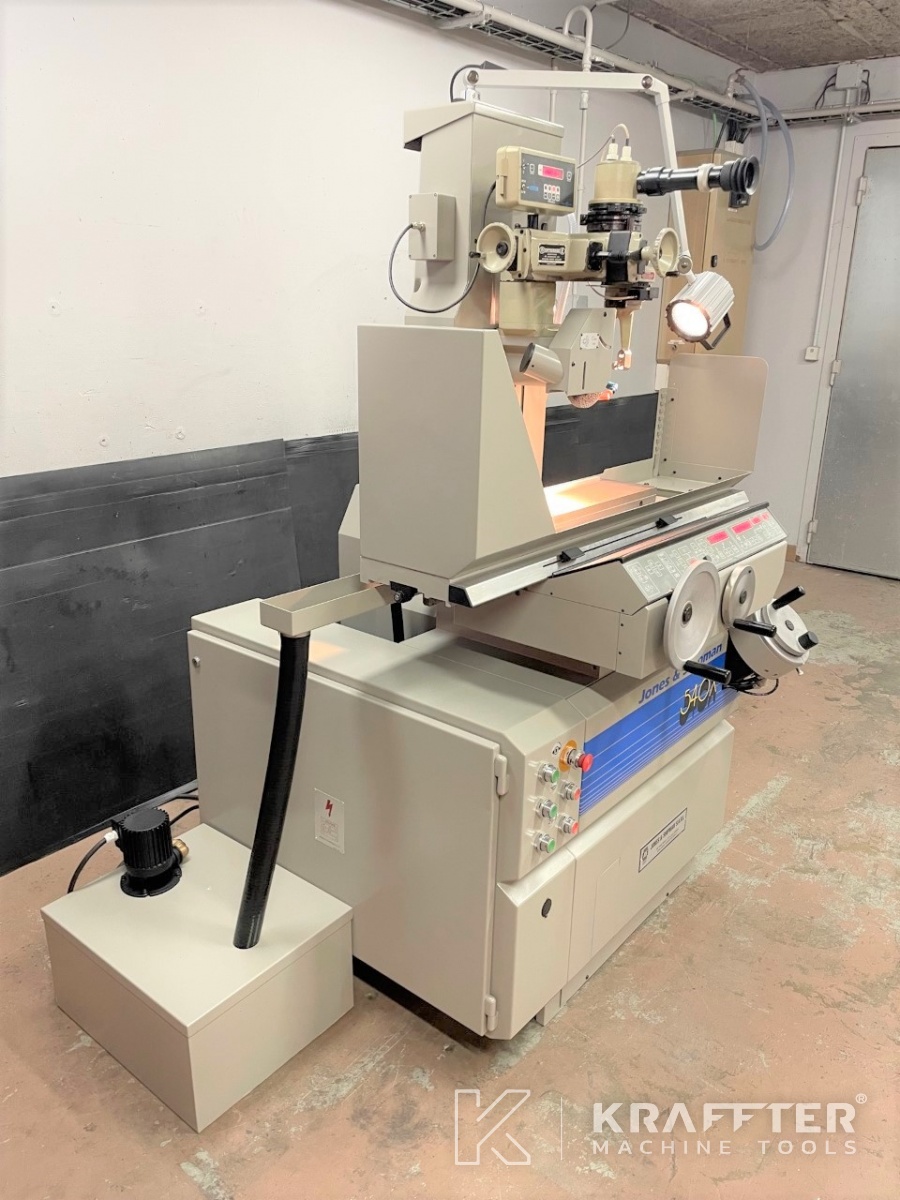

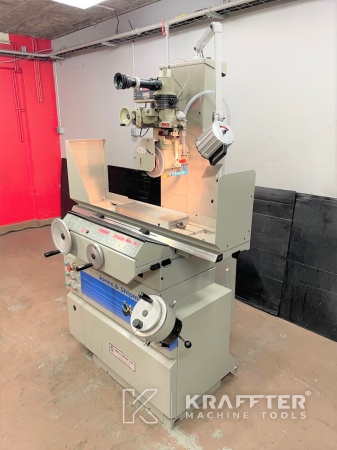

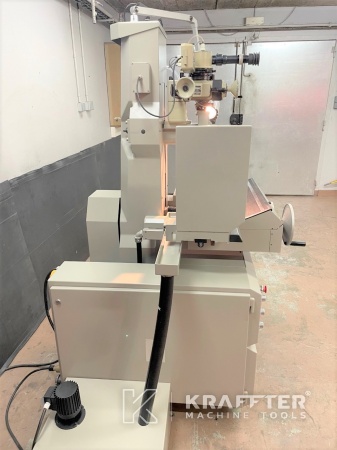

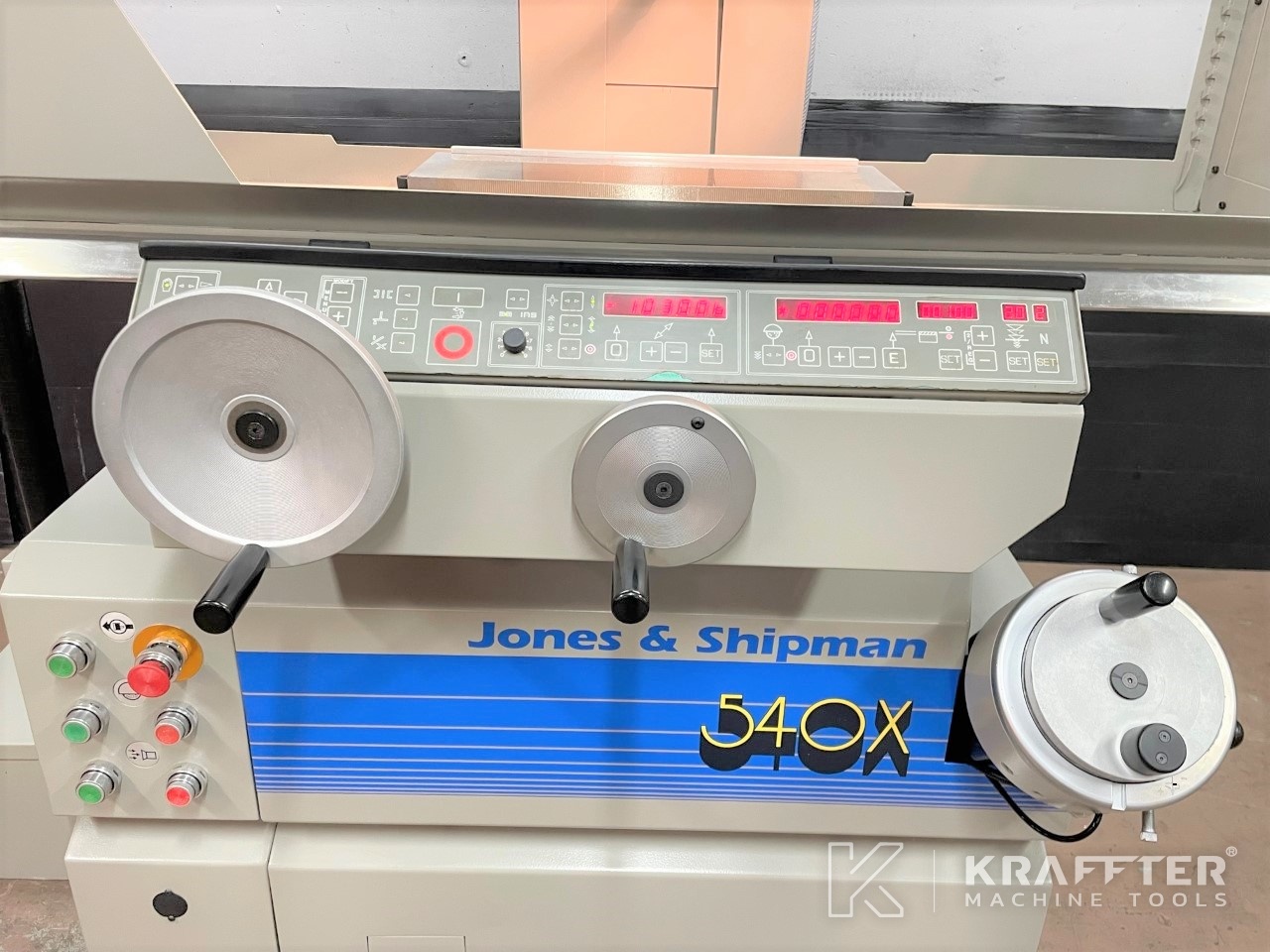

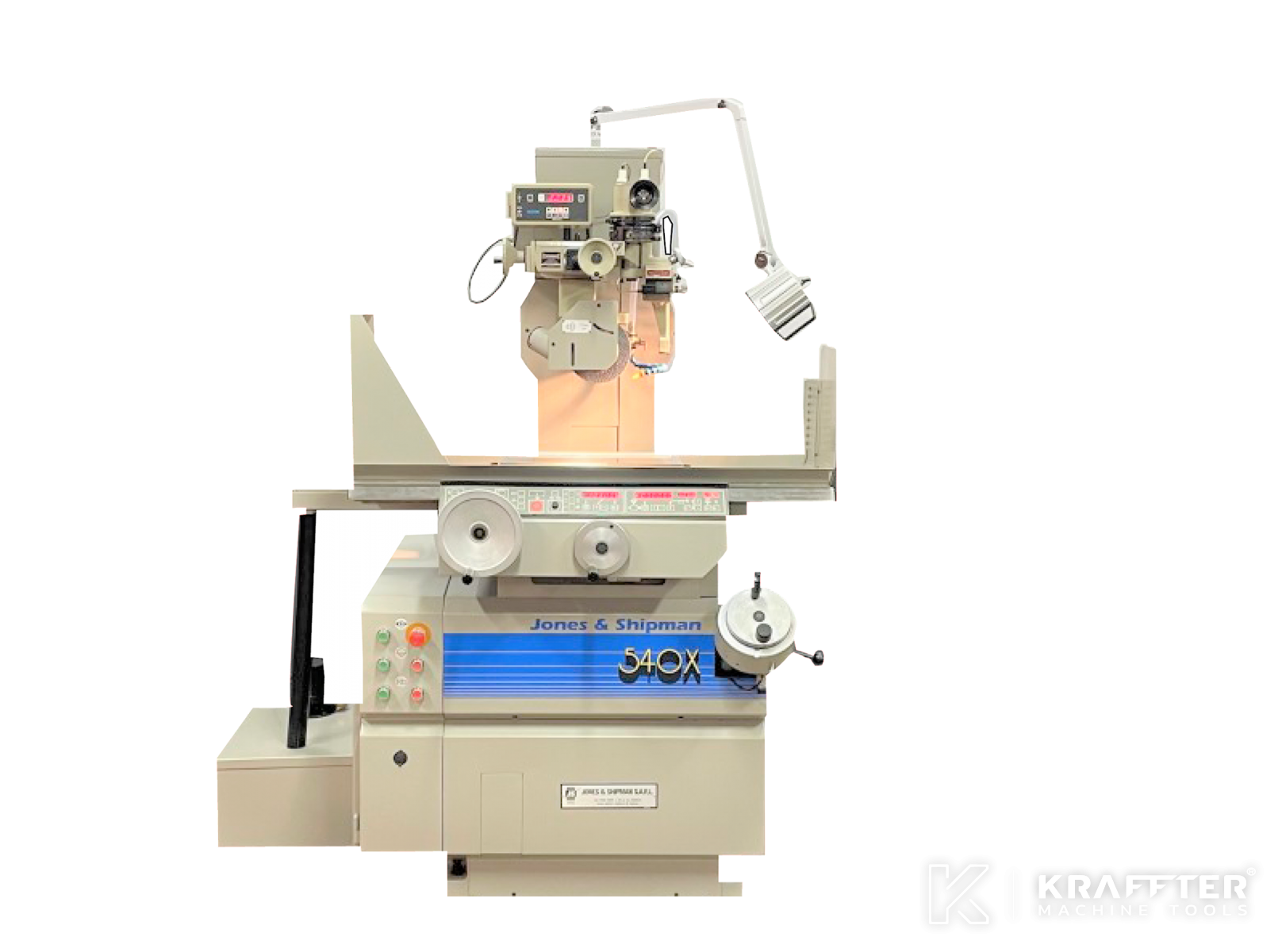

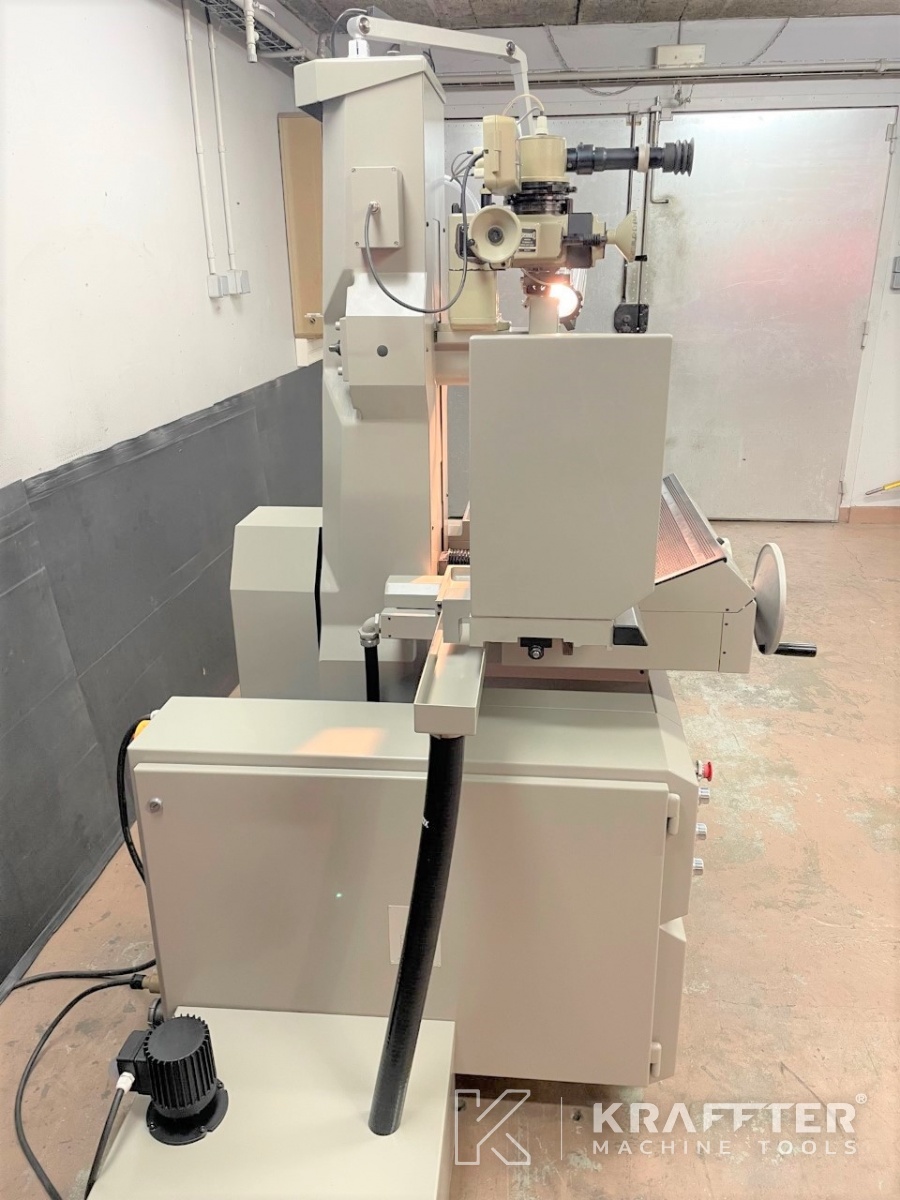

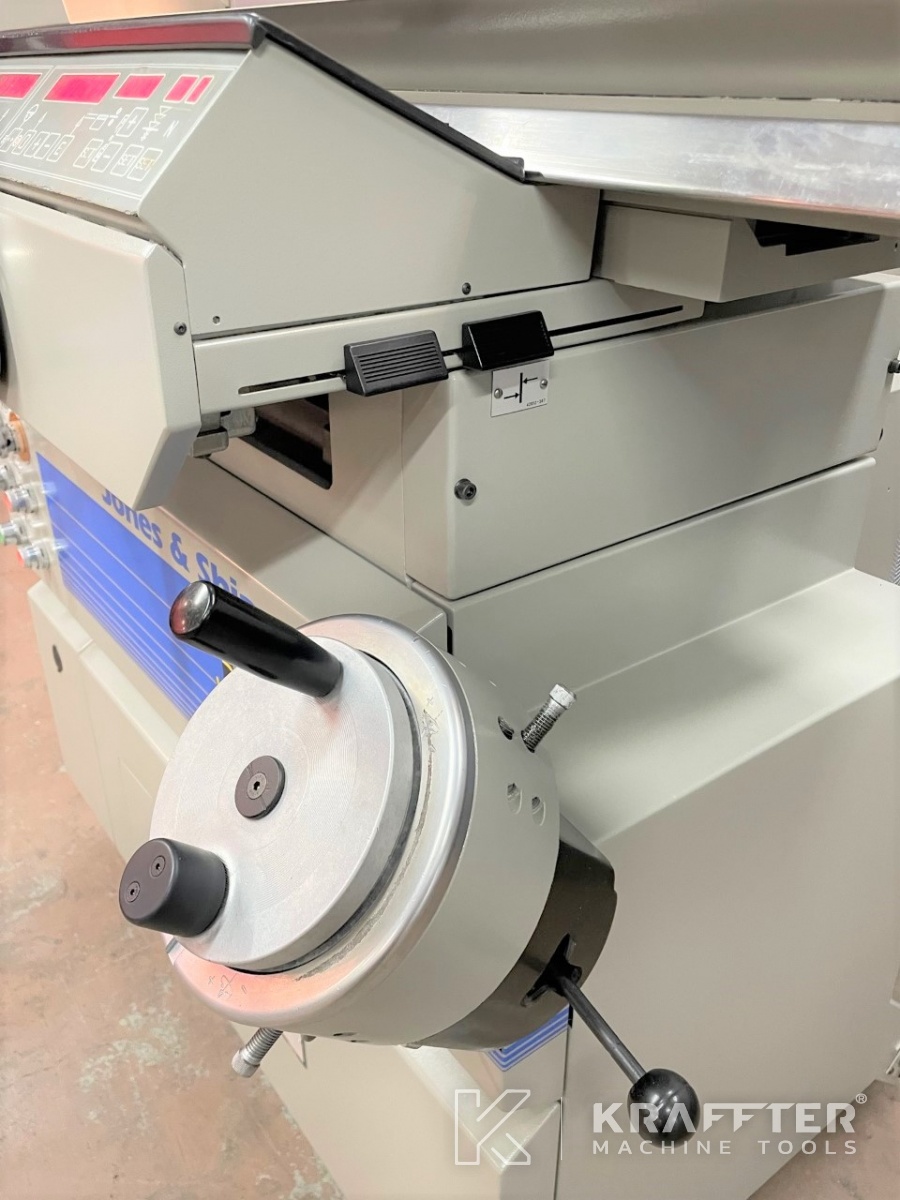

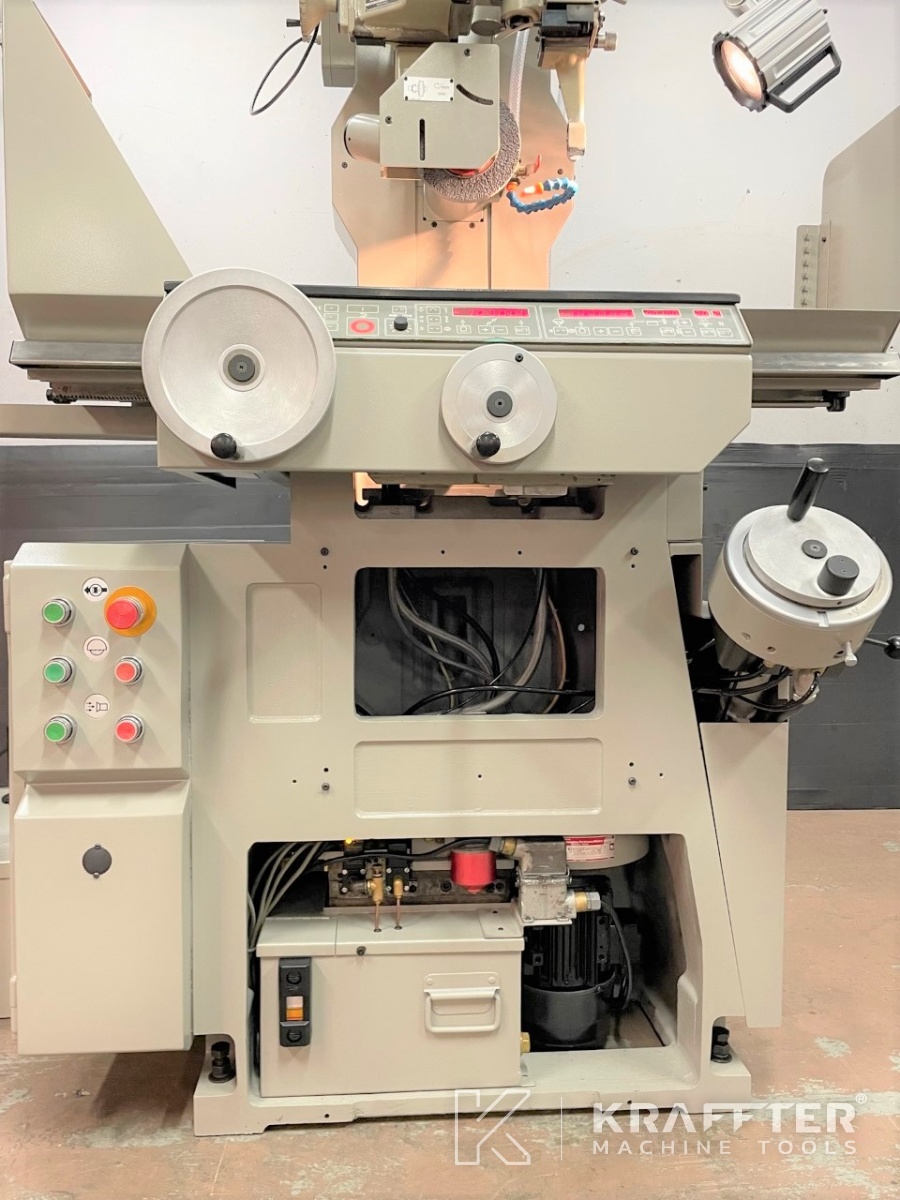

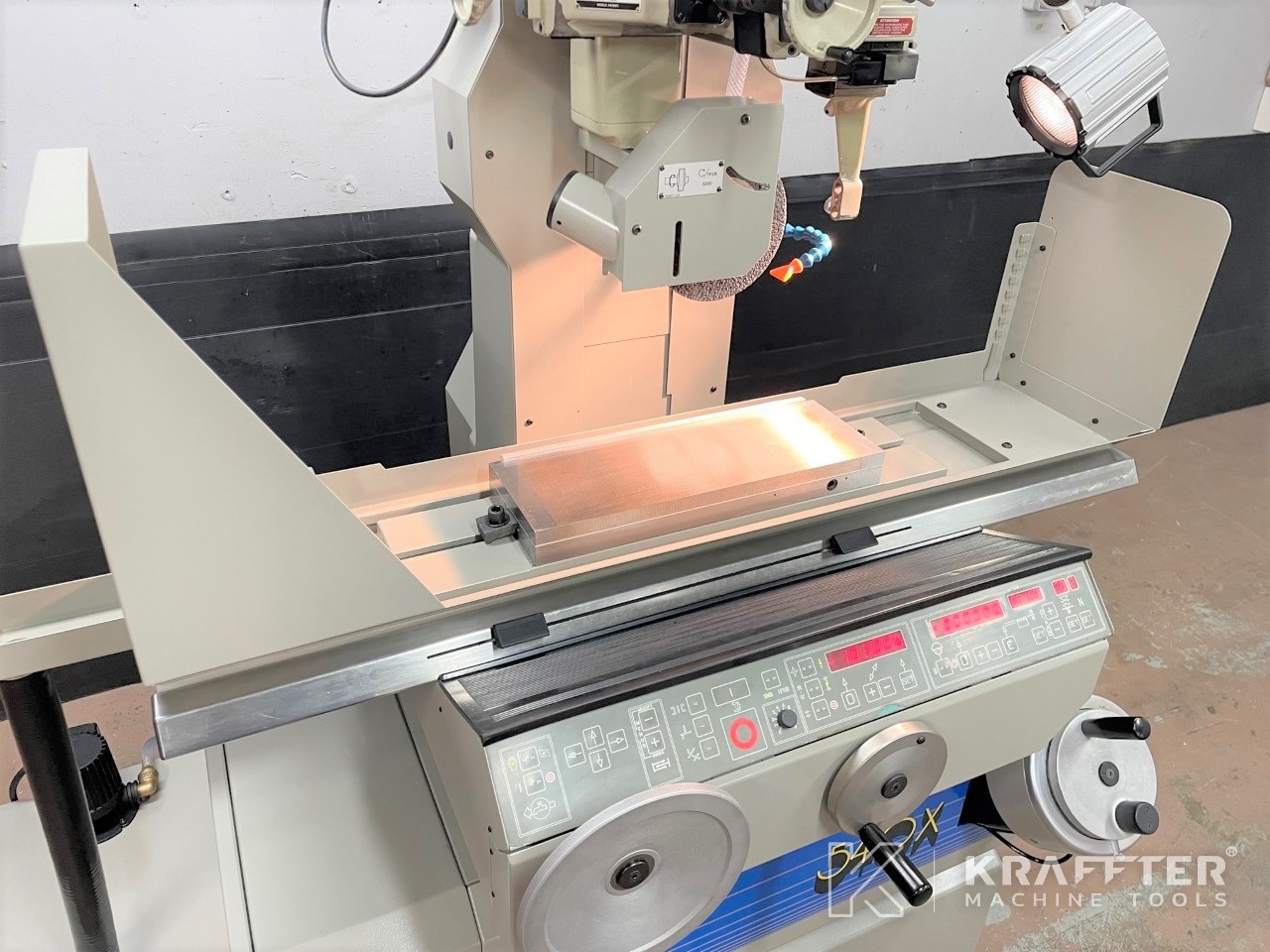

Type of machine : Surface grinder
Brand : JONES & SHIPMAN
Stock N° : 20689-976

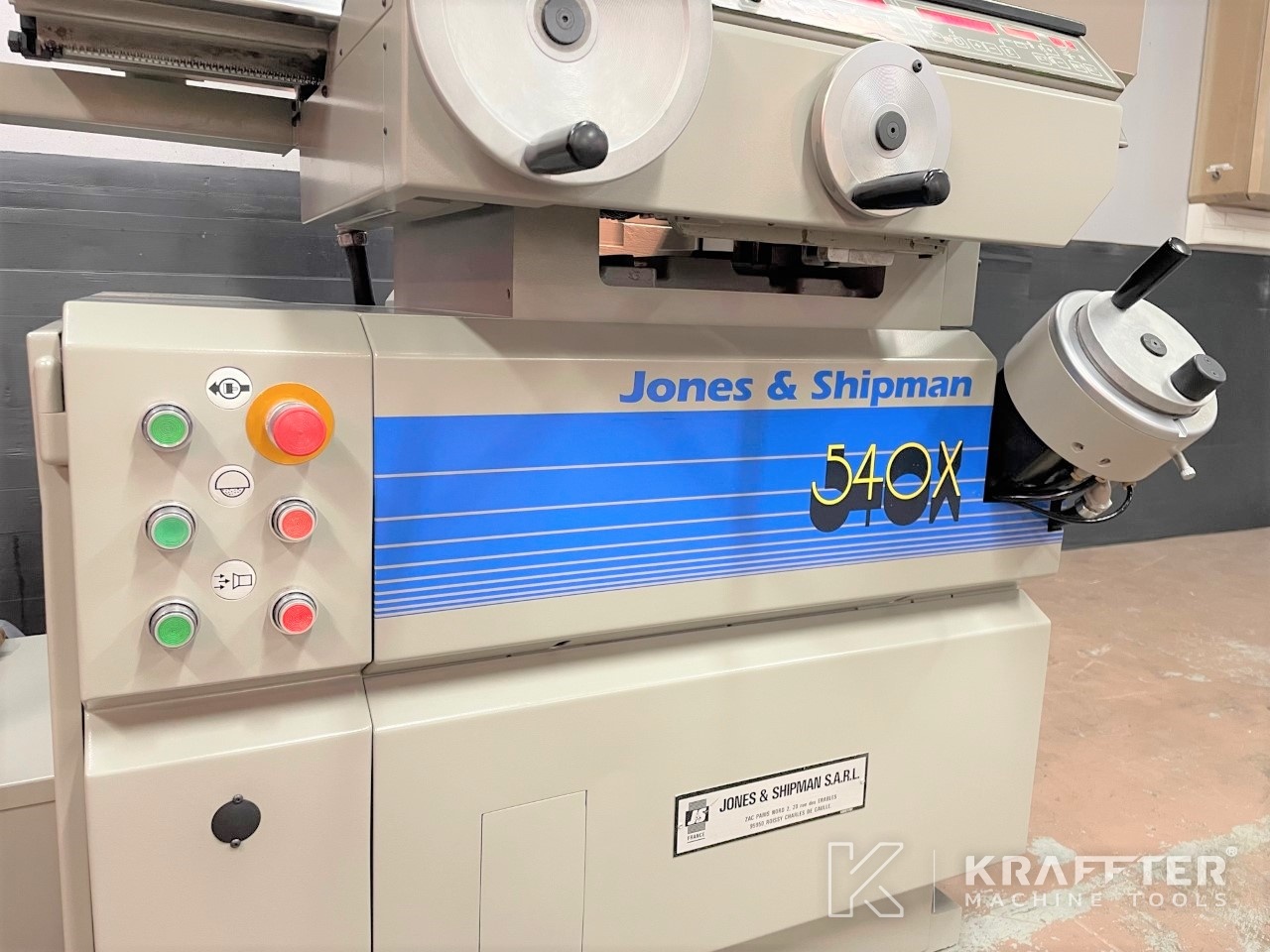

Model : 540X
Serial N° : B017161
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Automatic
Yes
Stroke X axis
490 [mm]
Stroke Y axis
171 [mm]
Table length
450 [mm]
Table width
150 [mm]
Max. distance spindle nose / table
400 [mm]

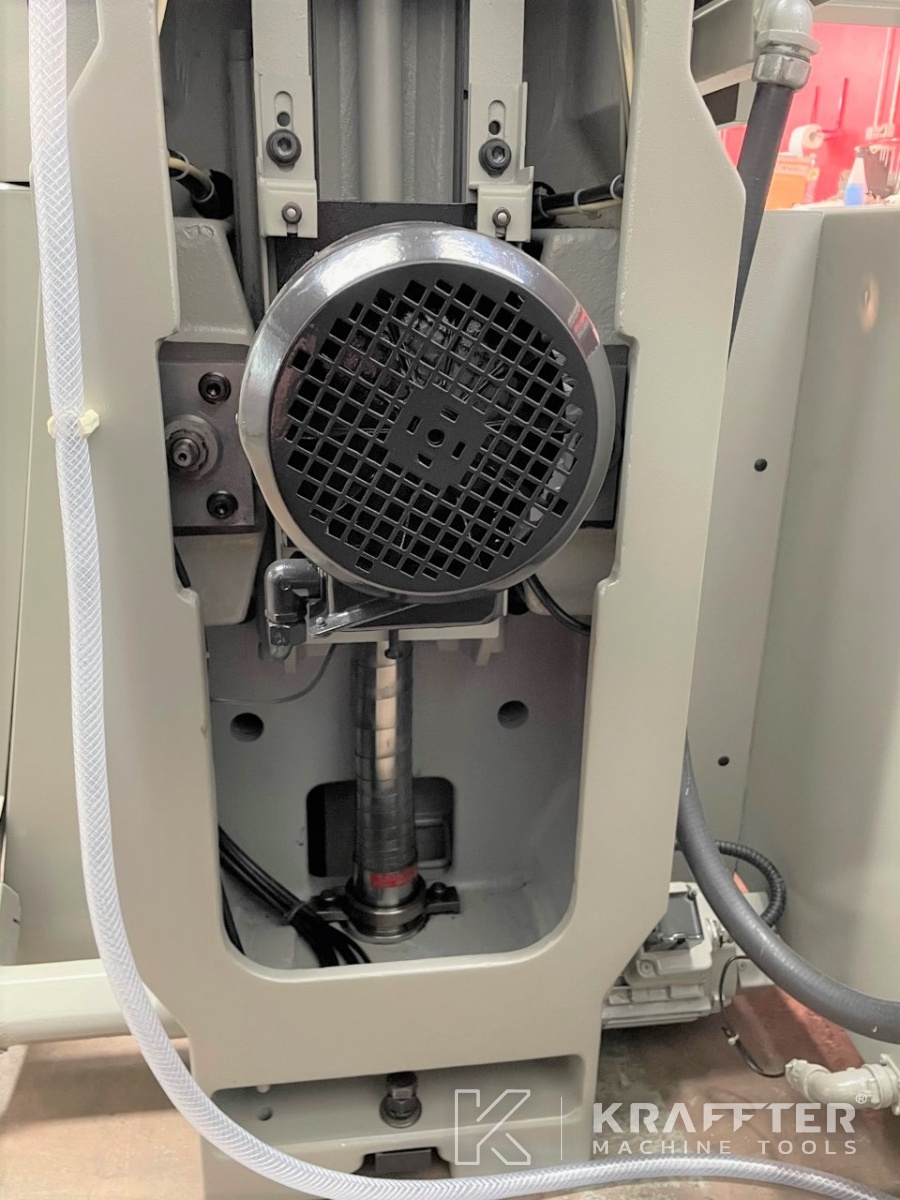

Grinding spindle motor power
1.5 [kW]
Grinding wheel diameter
200 [mm]
Grinding wheel width
20 [mm]
Wheel dresser
Optidress E (digital)
Variable power feeding
Yes

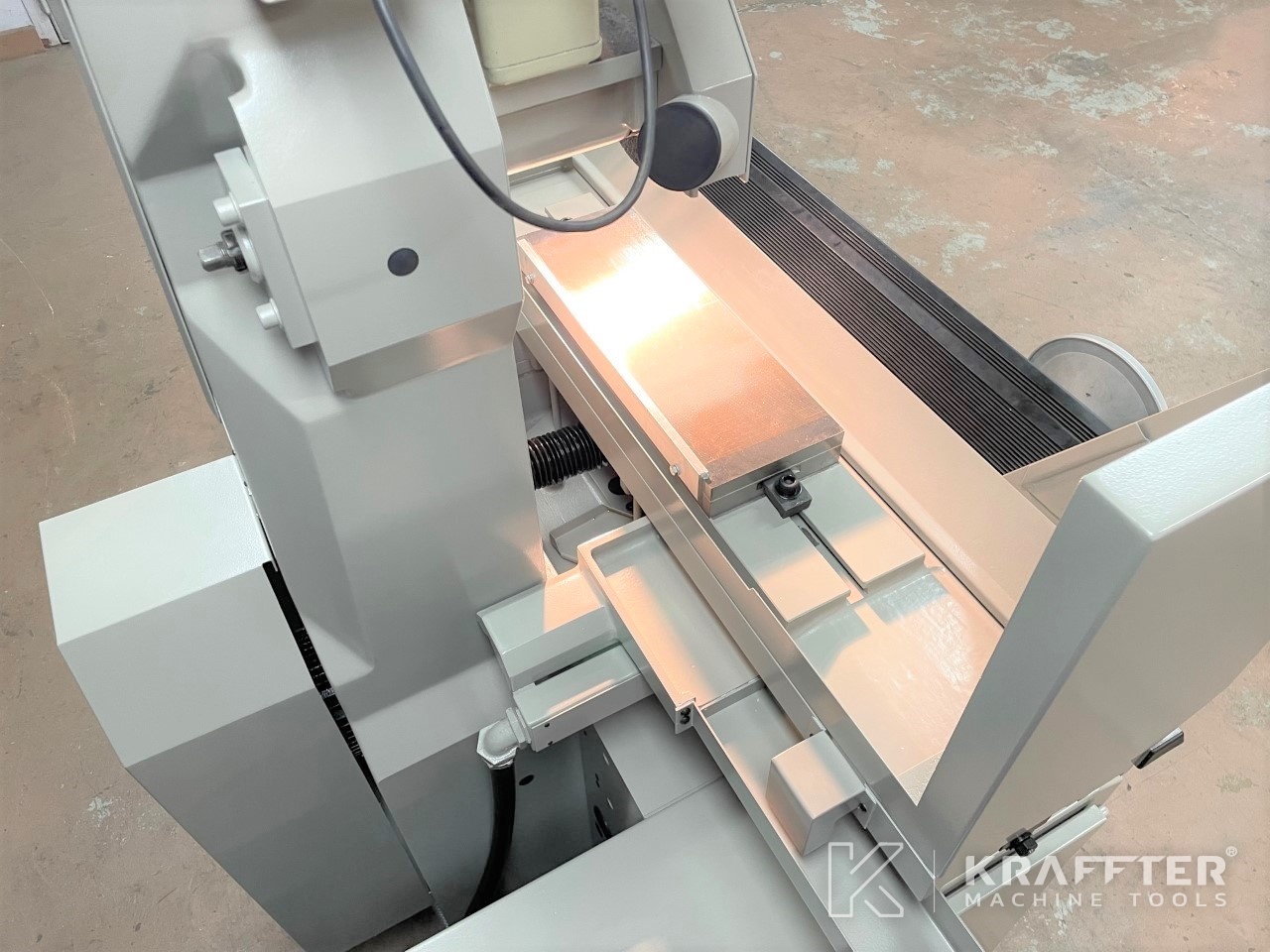

Magnet clamping plate
Yes
Dimensions of magnetic plate
450 x 150
Number of axes Digital Read Out
2

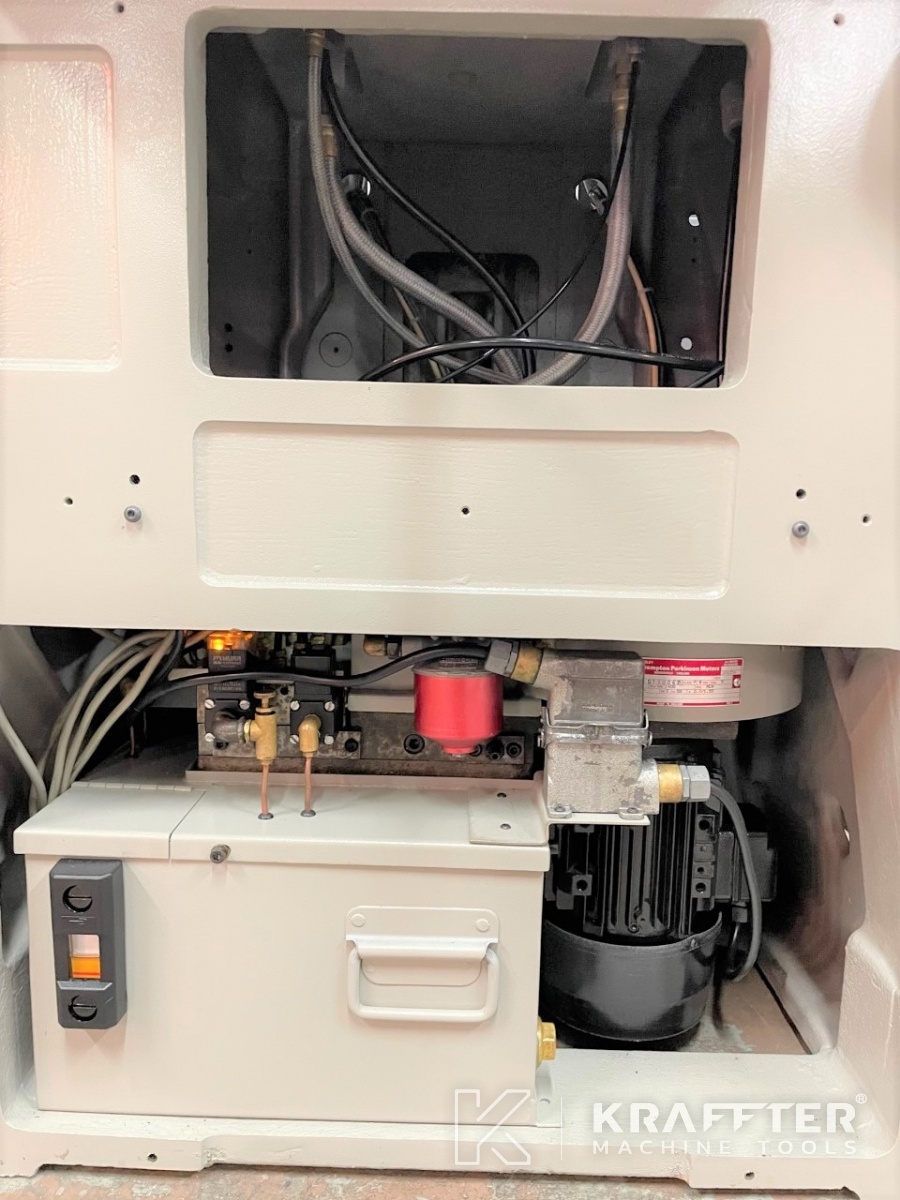

Lubrication tank with pump
Yes
Centralized lubrication
Automatique
Supply voltage
400 [V]
Dimensions
1600 x 720 x 1875
Weight
950 [Kg]

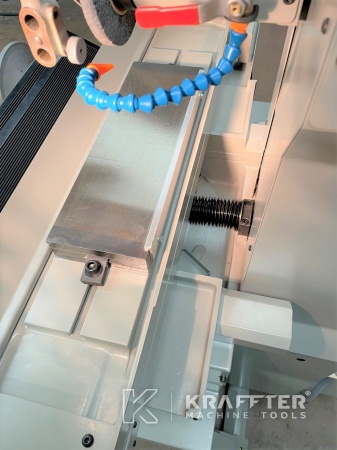

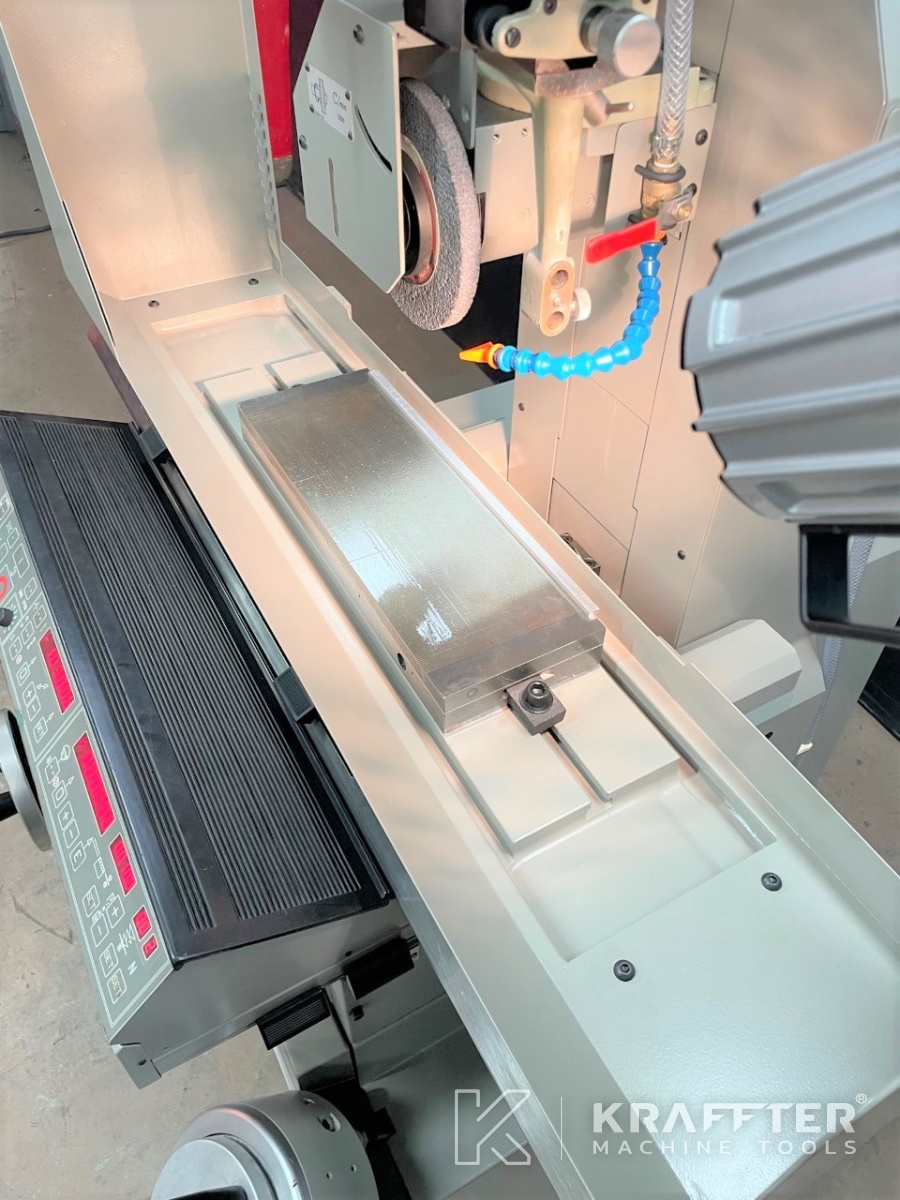

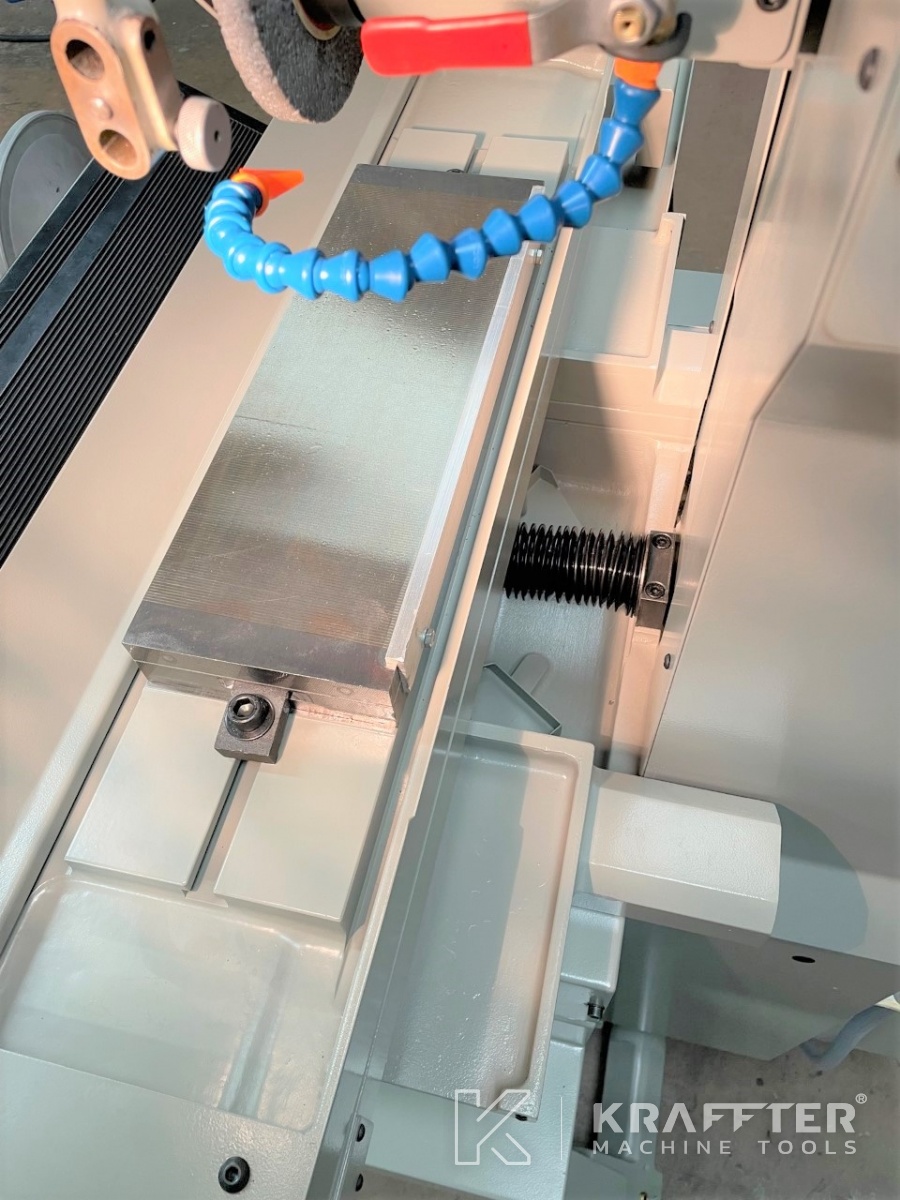

- Magnetic clamping plate; clamping surface : 450 x 150 [mm]

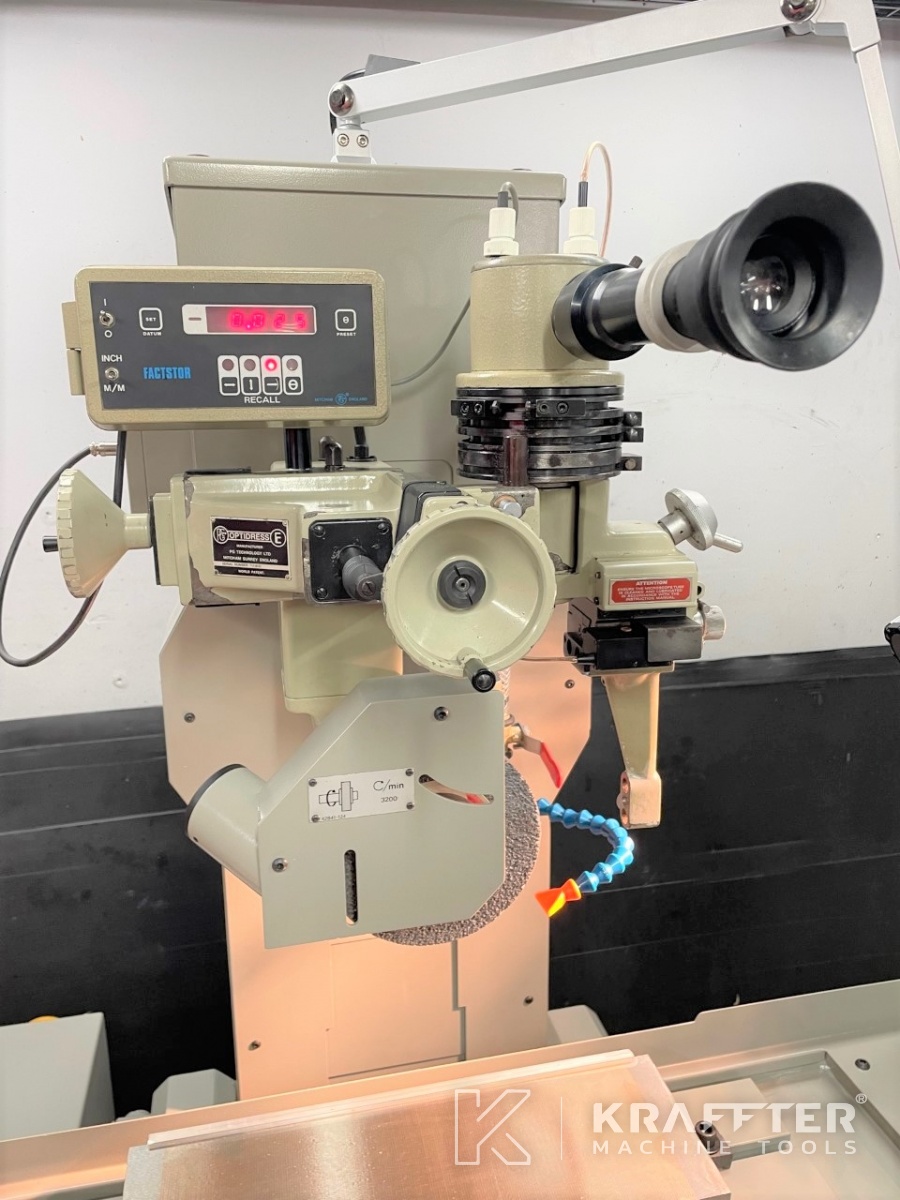

- OPTIDRESS E wheel forming attachment → 2 axis digital read out
- Digital read out resolution : 0.001 [mm] or INCH
- Rapid feeding on the Z axis

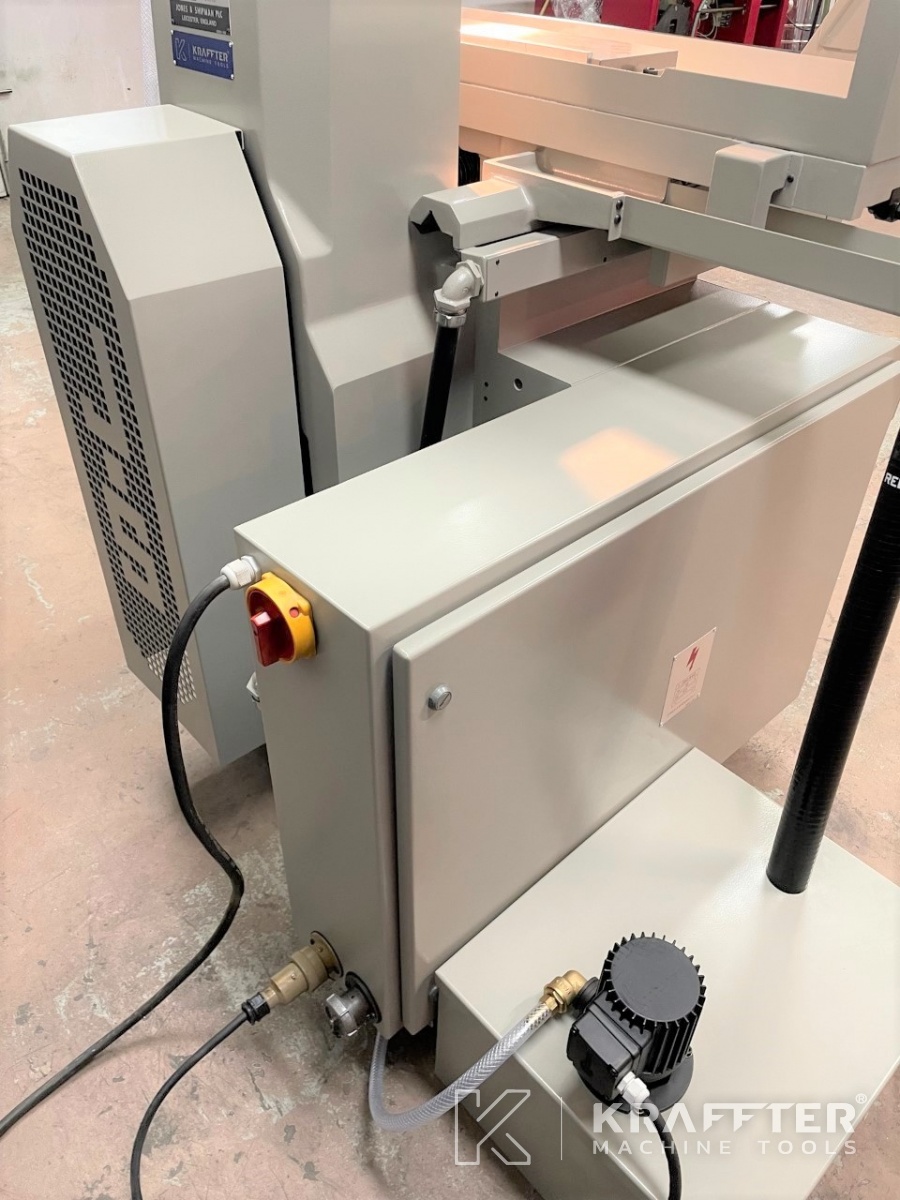

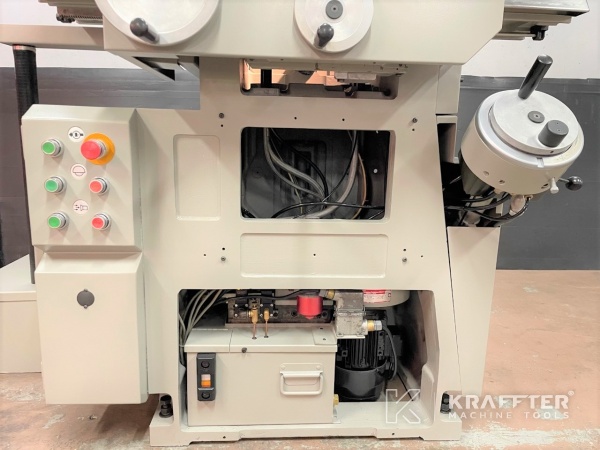

- Complete coolant system (tank + pump)
- Service and users manual
