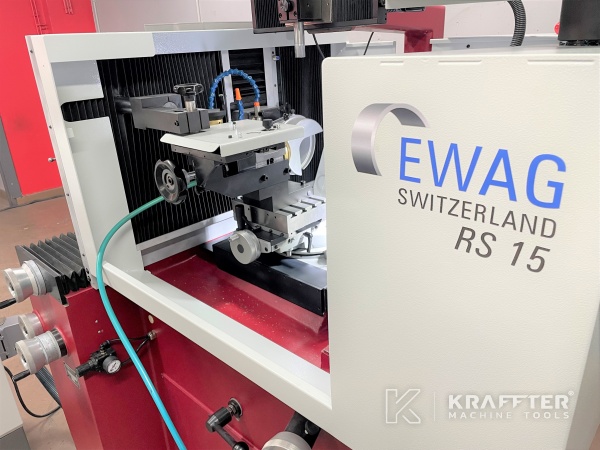

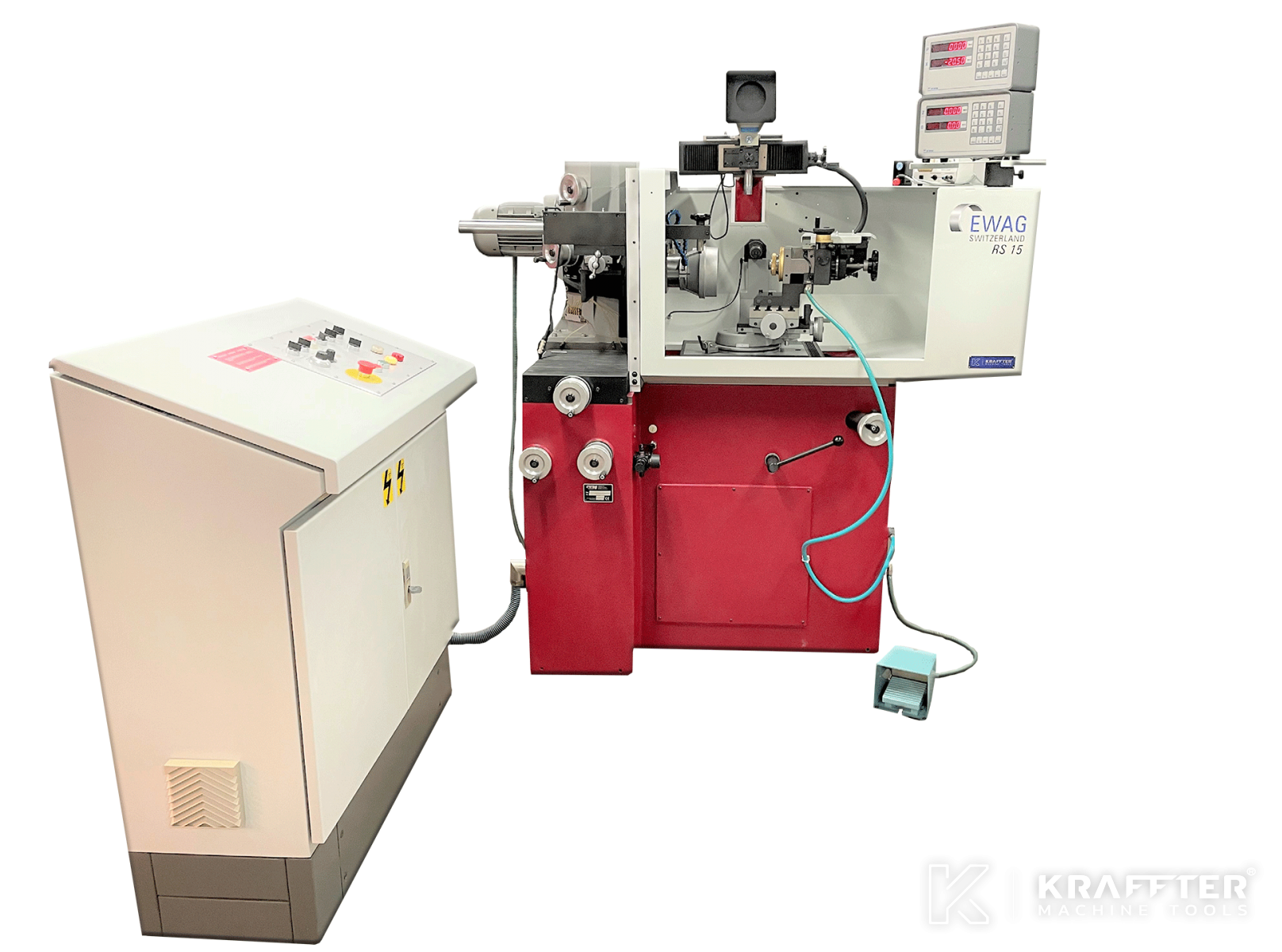

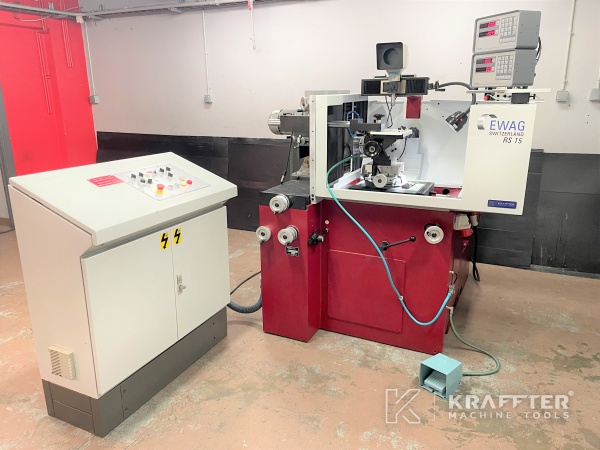

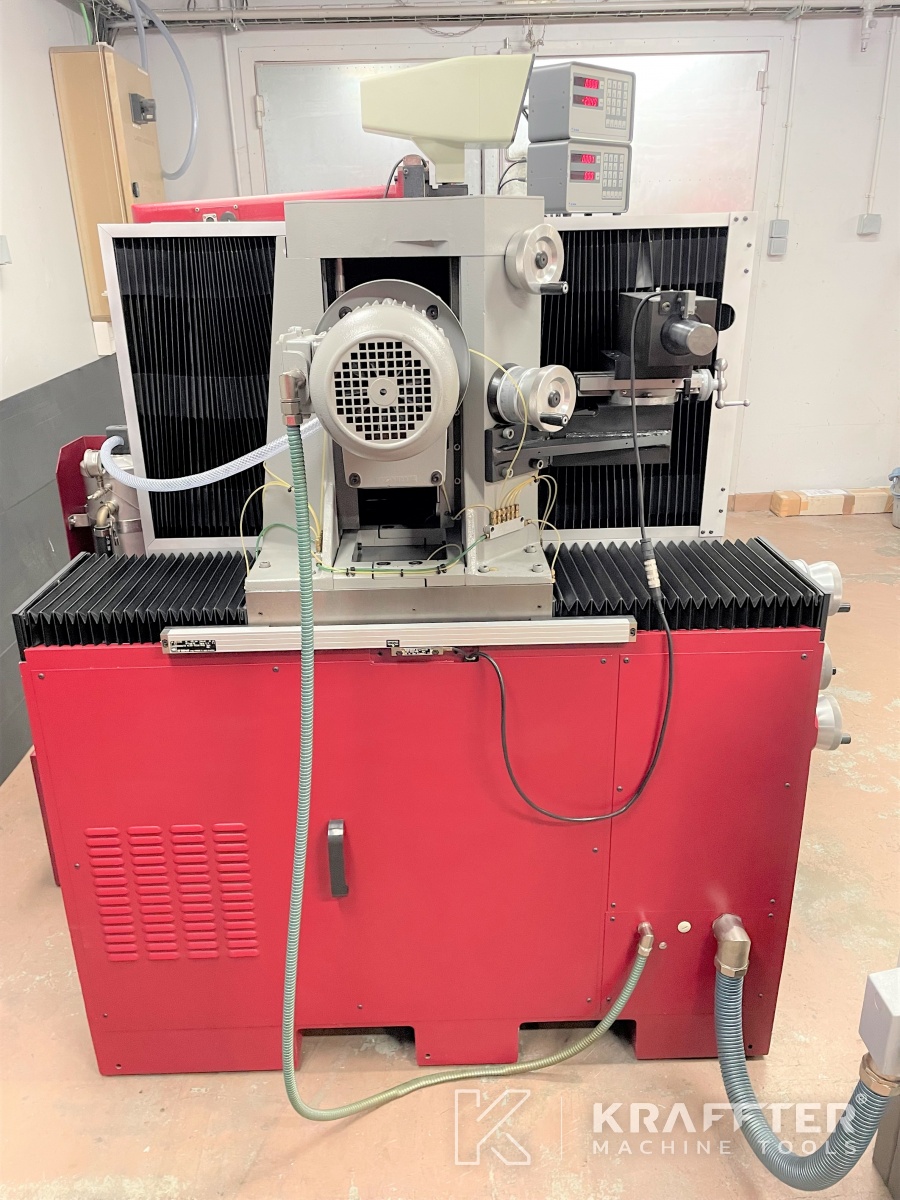

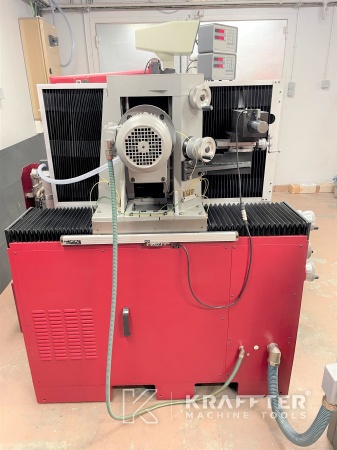

Type of machine : Tool grinding machine
Brand : EWAG
Stock N° : 20689-979
Model : RS 15
Year : 2000
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

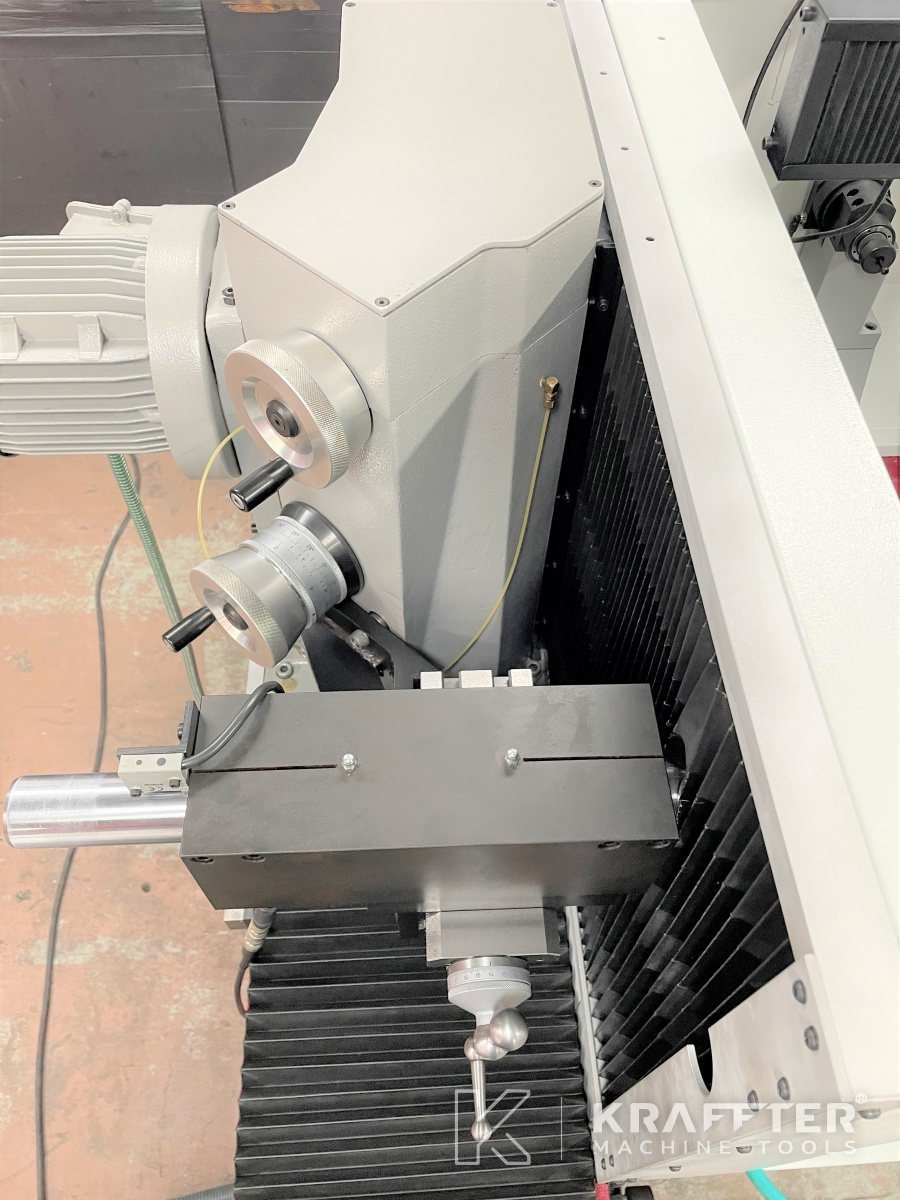

Stroke X axis
490 [mm]
Stroke Y axis
130 [mm]
Stroke Z axis
115 [mm]
Grinding spindle motor power
2.2 [kW]
B axis swivelling stroke
260 [°]
Workpiece spindle nose
HSK 63
Variable power feeding
Yes
Digital read out
RSF-Elektronik
Number of axes Digital Read Out
4
Lubrication tank capacity
100 [l]
Paper filtration unit
Yes

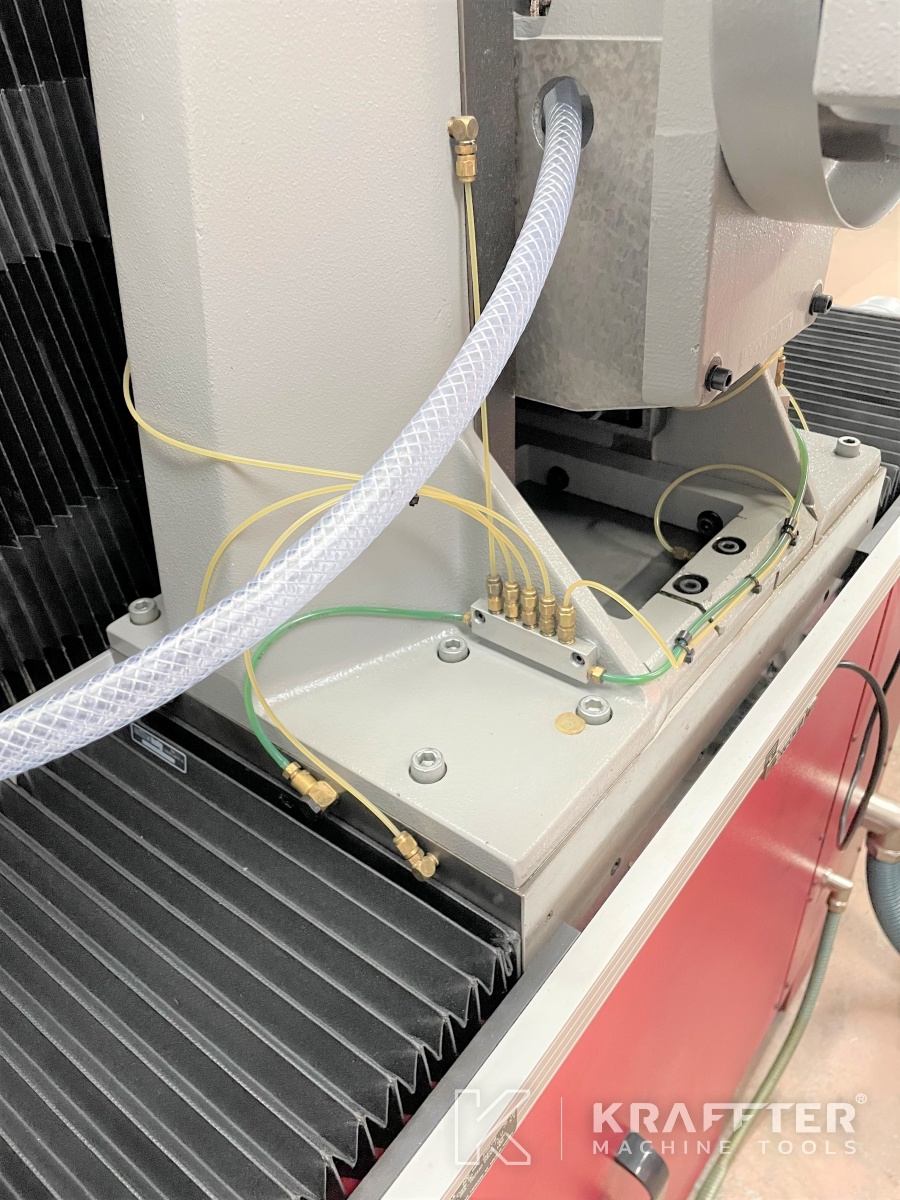

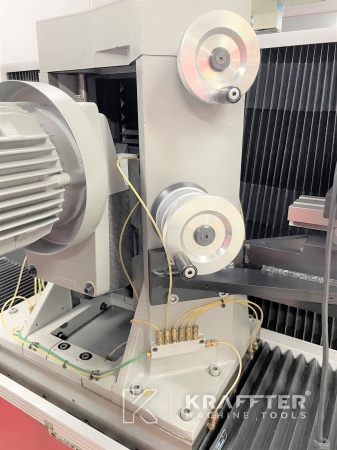

Centralized lubrication
Oui
Supply voltage
400 [V]
Dimensions
1700 x 1750 x 1840 [mm]
Weight
1850 [Kg]

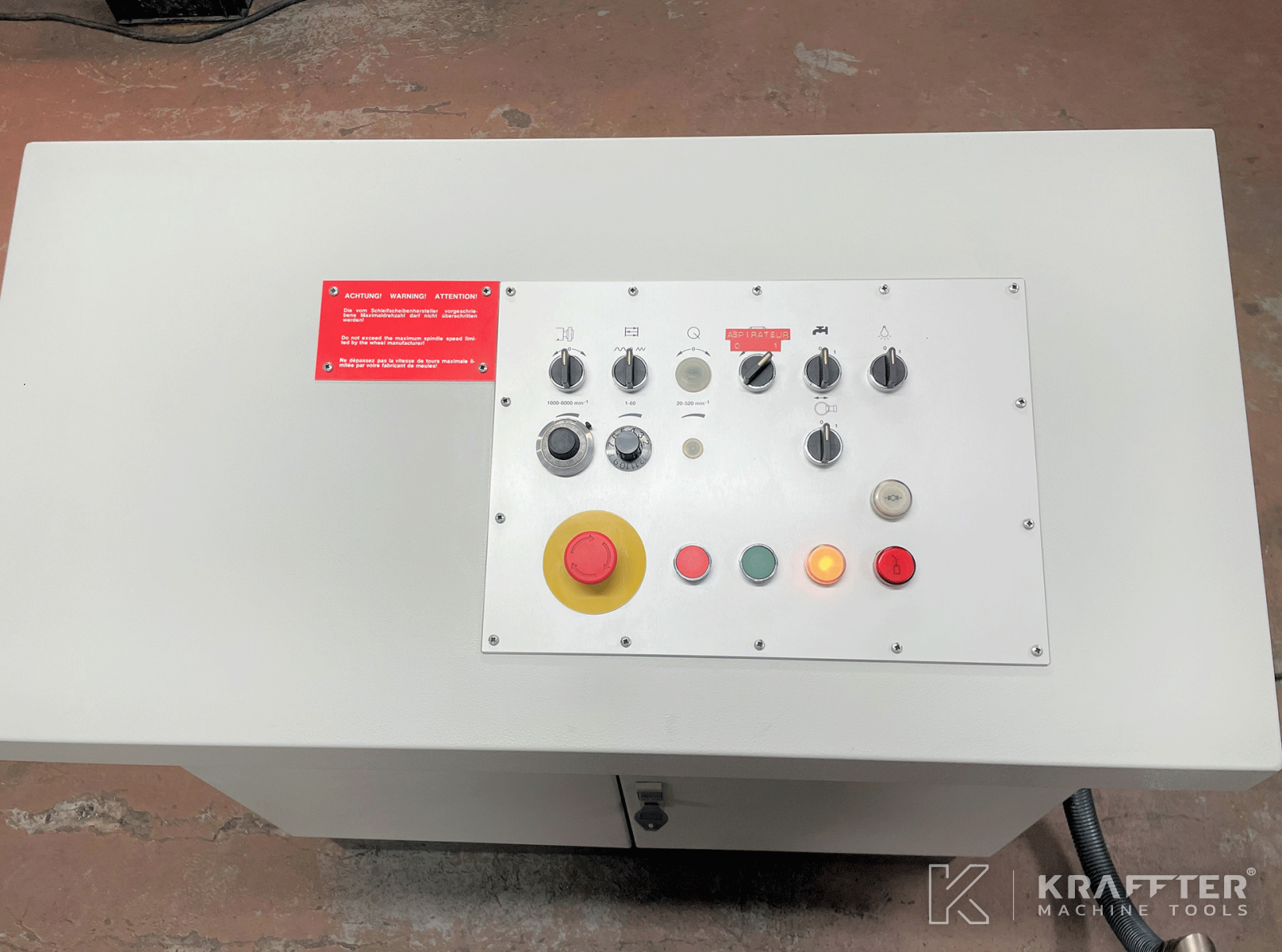

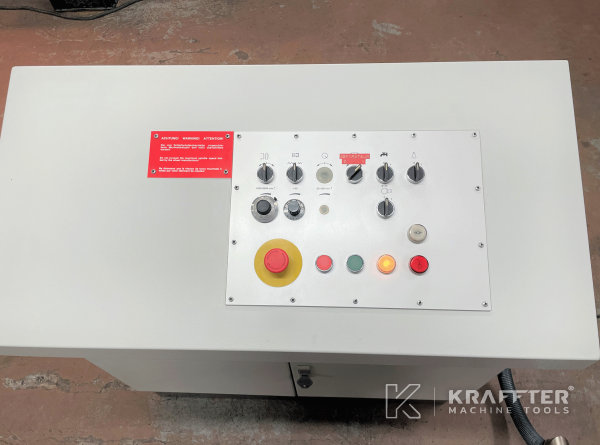

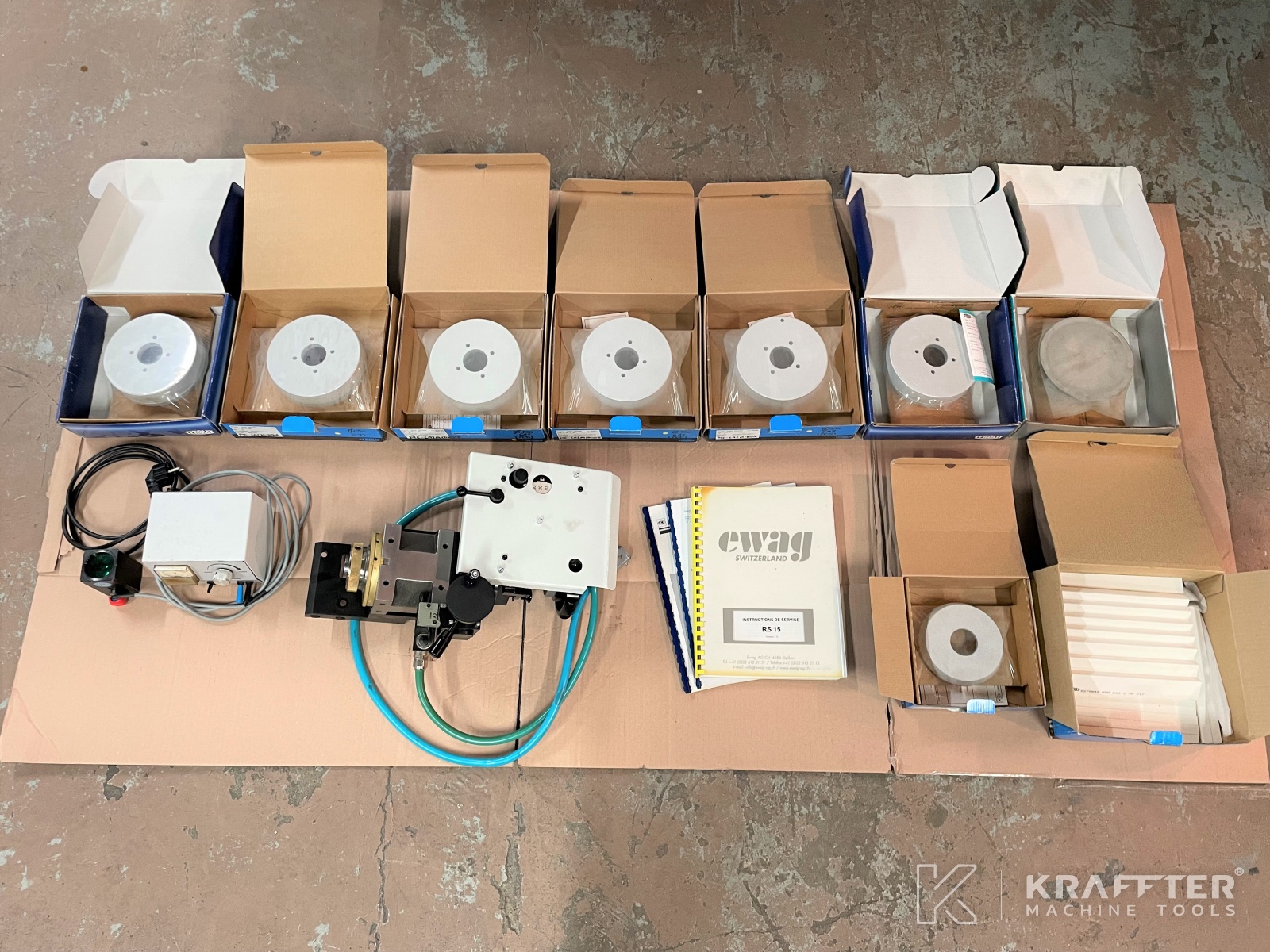

EQUIPMENT :

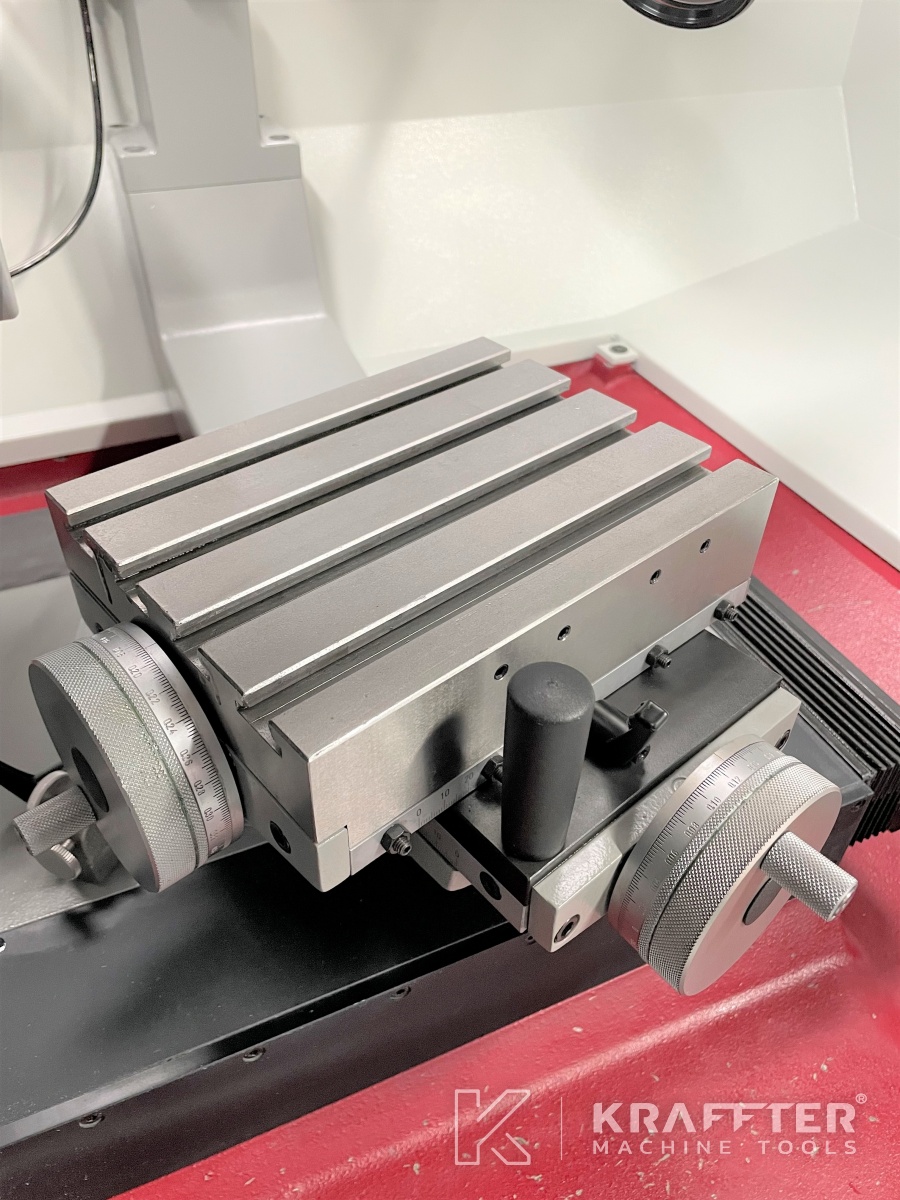

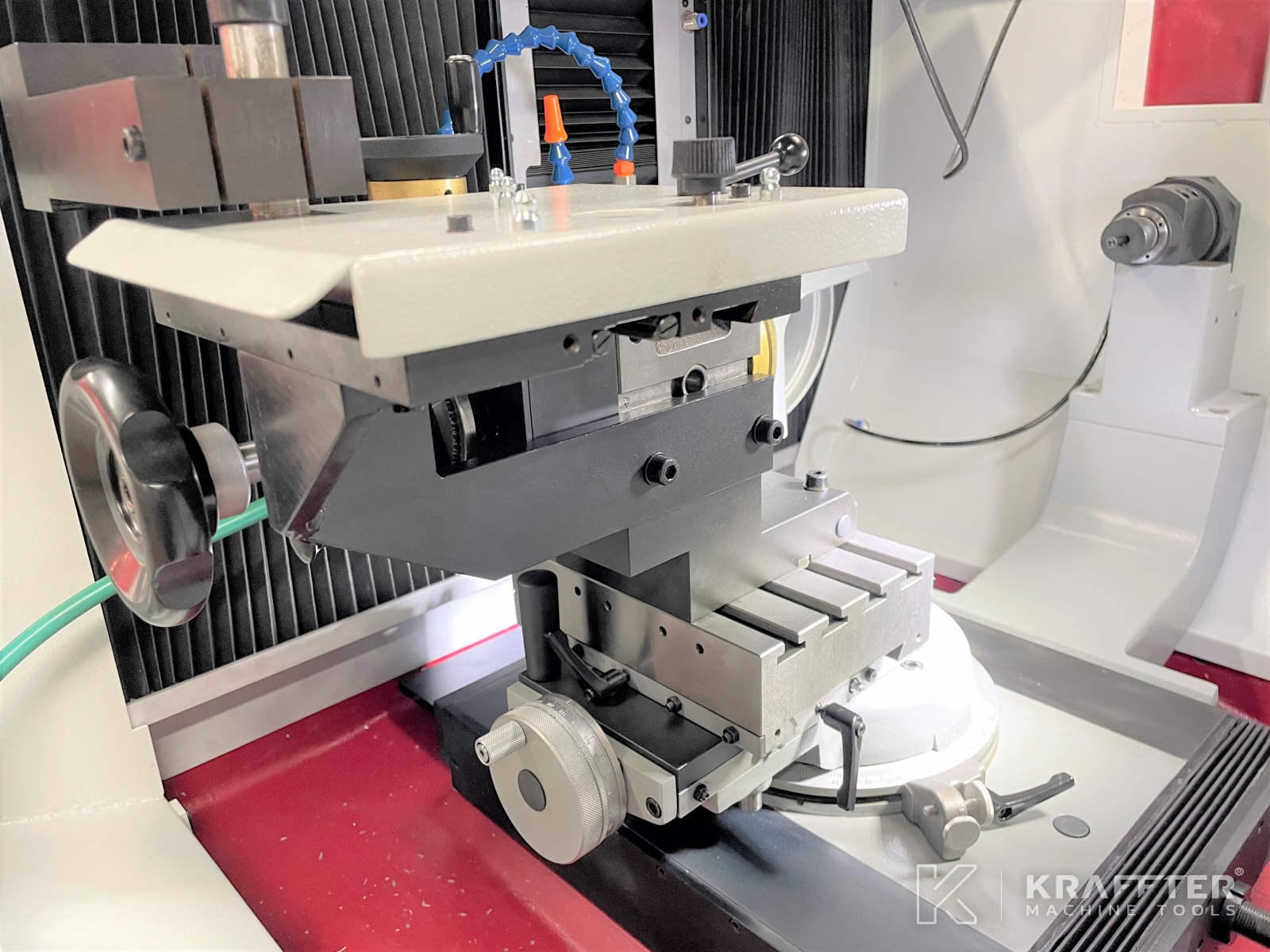

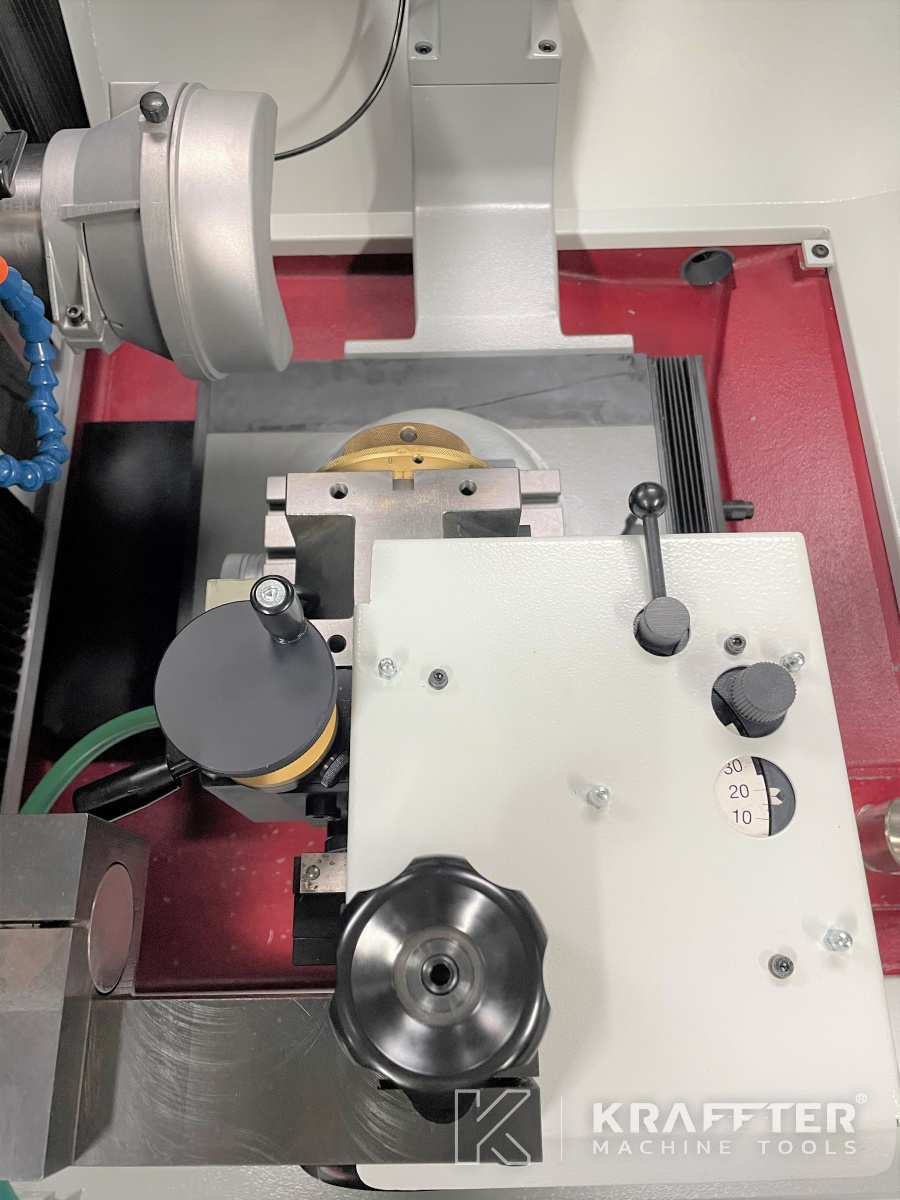

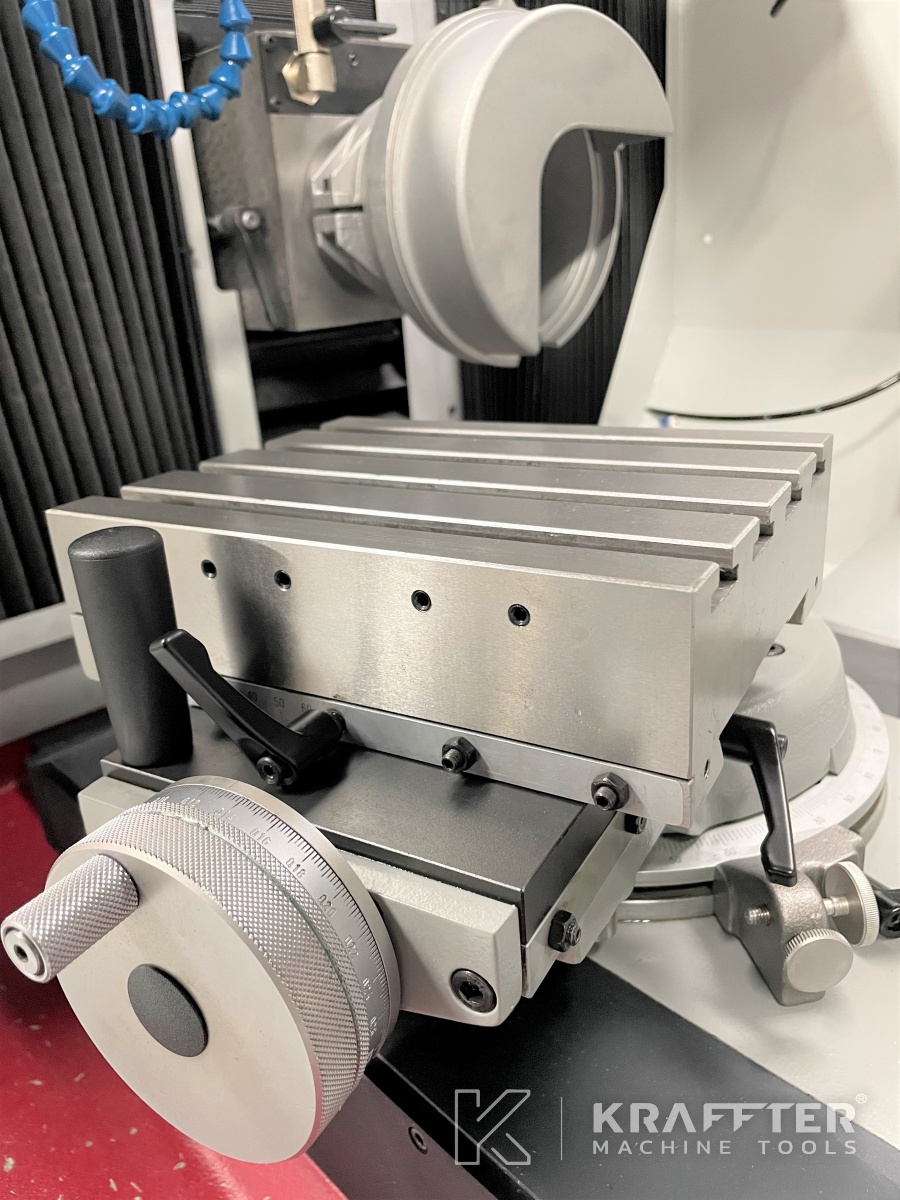

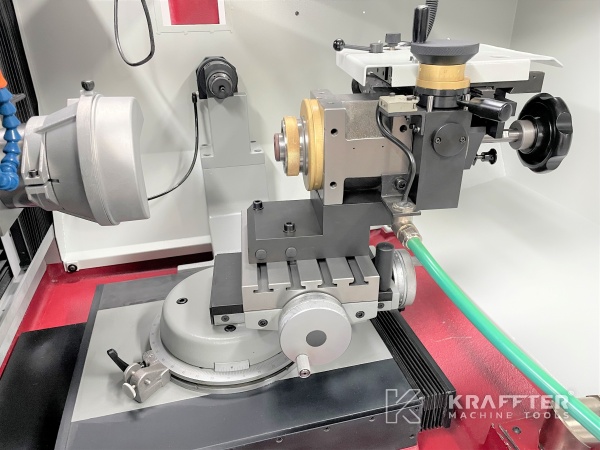

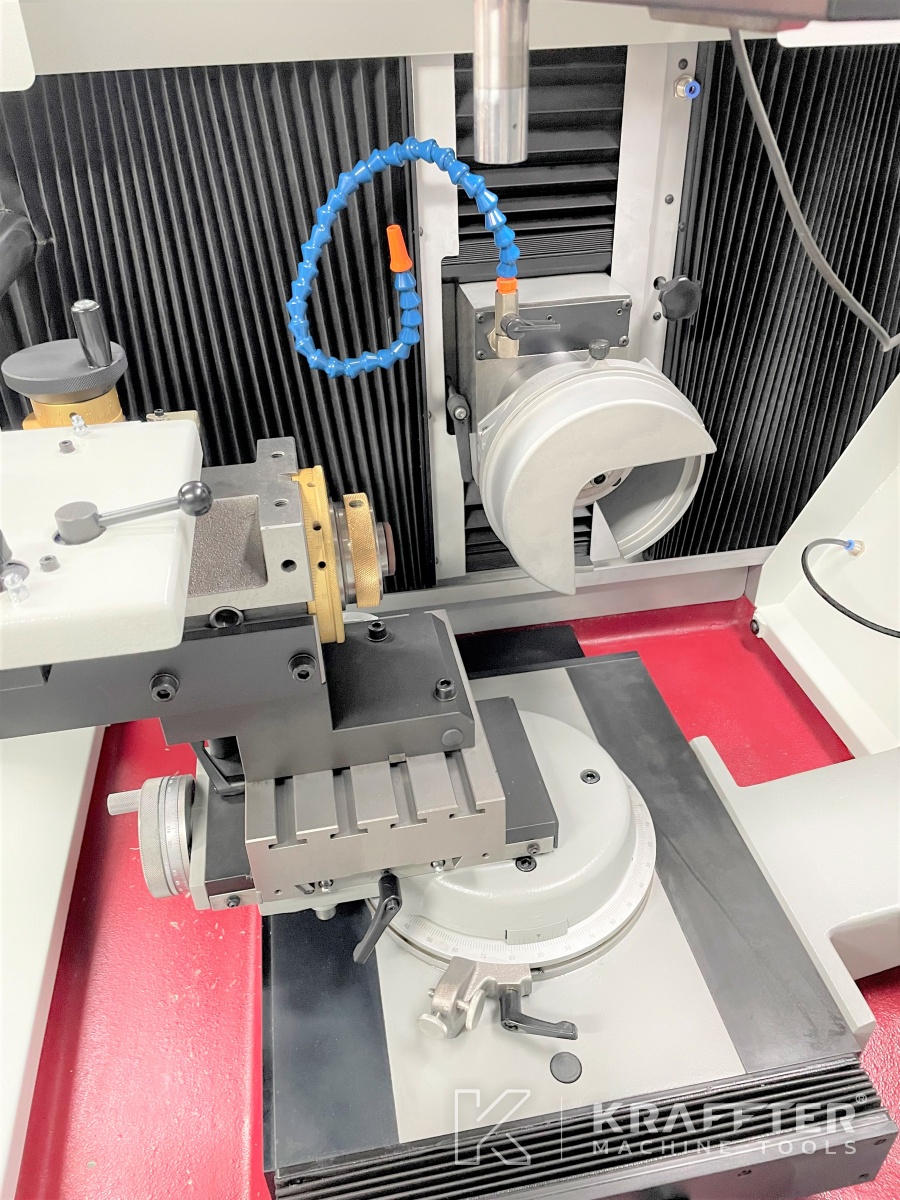

- Cross table KS15/60-002 – ref EWAG : 115-2-30692

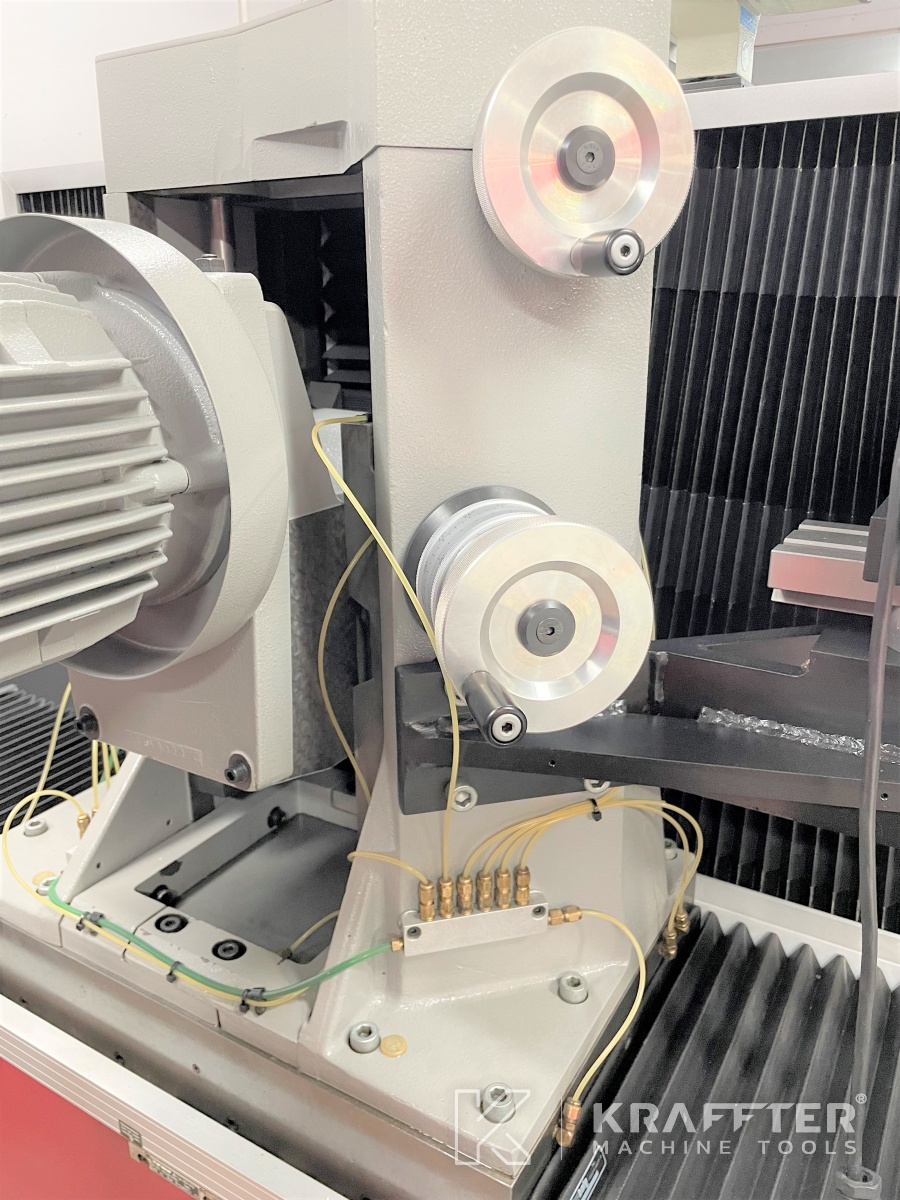

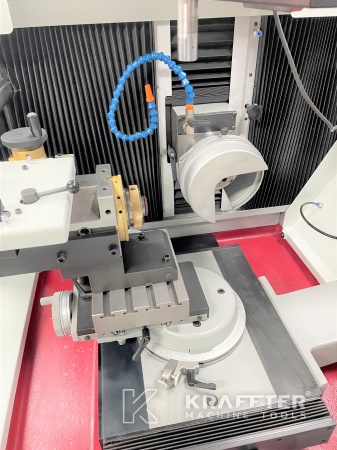

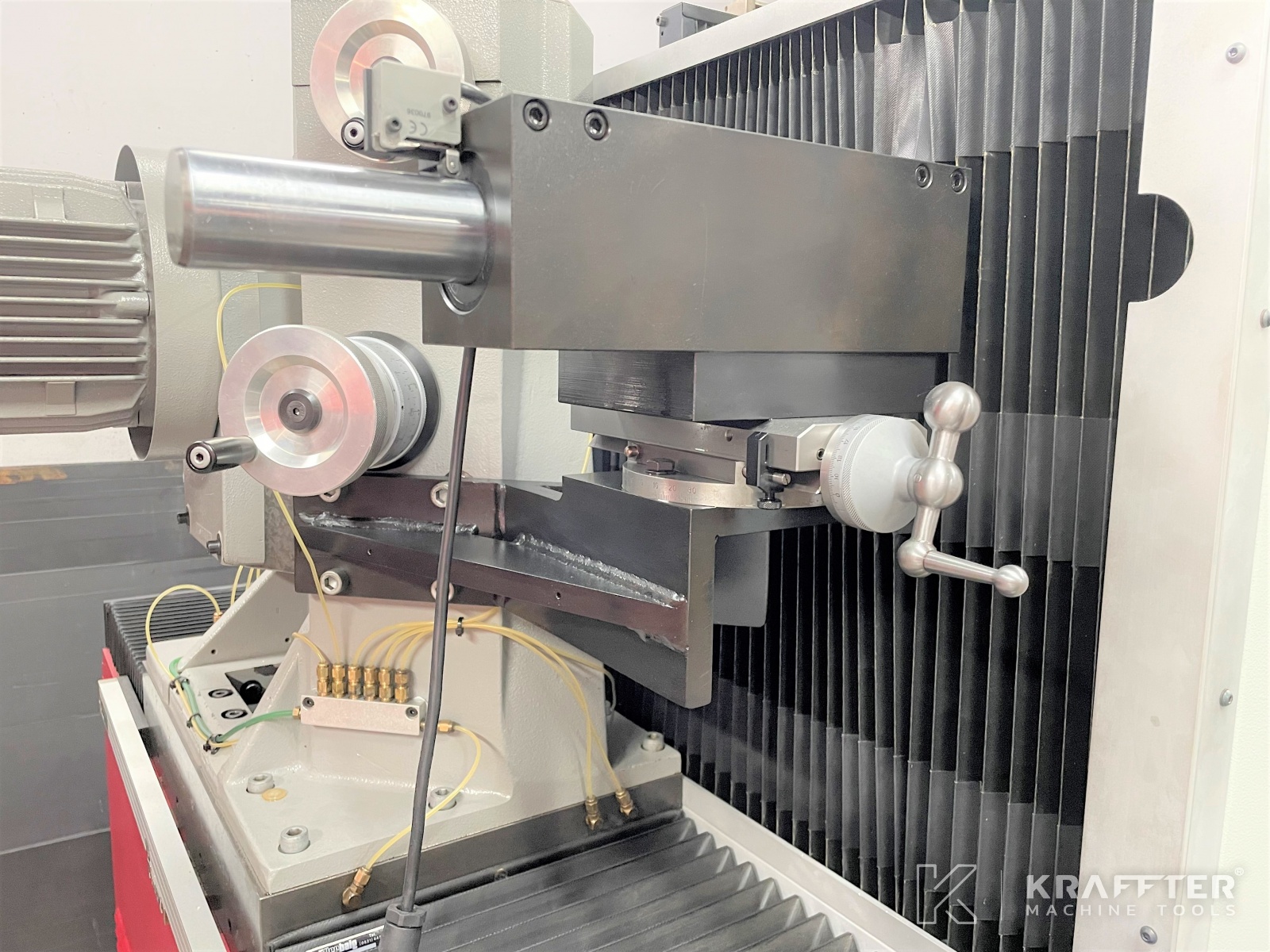

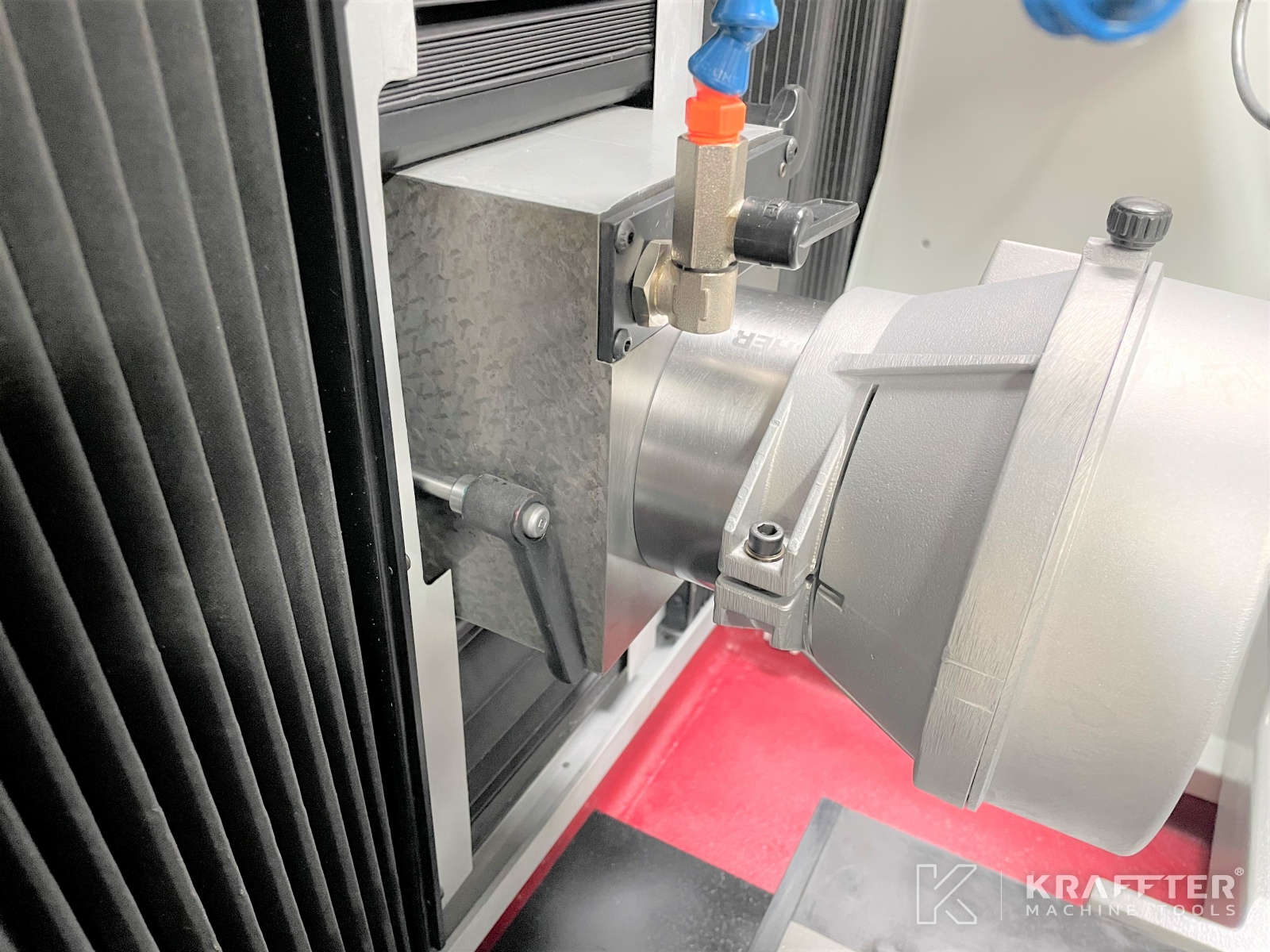

- Grinding spindle with variable speed – ref EWAG : 115-2-29075
- Steplessly adjustable oscillation device OR15 – ref EWAG : 115-2-28129
- Grinding pressure regulator AV15 (contact pressure : 0-400 N) – réf EWAG : 115-2-28150

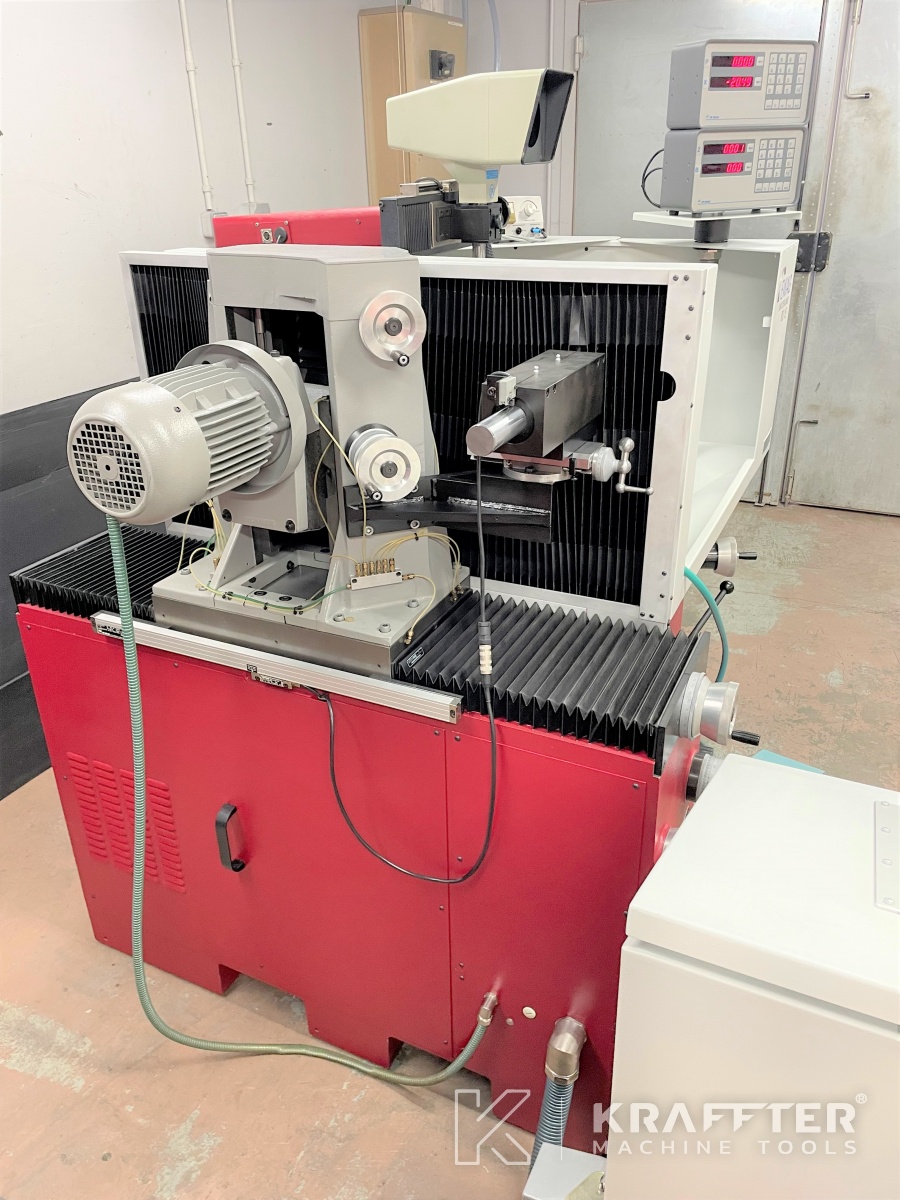

- Projector assembly metric PRO15M – ref EWAG : 115-2-28138
- Projector with screen Ø150 [mm] MARCEL AUBERT
- Pneumatical clamping for B axis (by footpedal) : 40 [Nm]

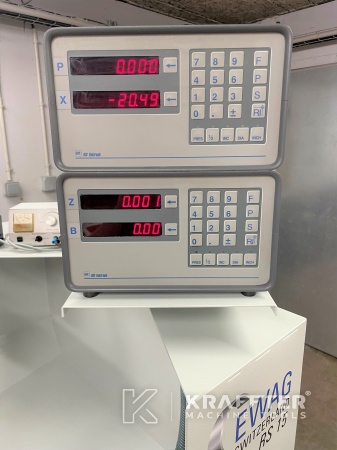

- 4 axes digital display RSF ELEKTRONIC DIG 15-4 – ref EWAG : 115-2-32146
P axis : 0.001 [mm]
X axis : 0.01 [mm]
Z axis : 0.001 [mm]
B axis : 0.01°
- Dressing attachment AD15 – réf EWAG : 115-2-31107
- Transmitted light illumination (with green filter)

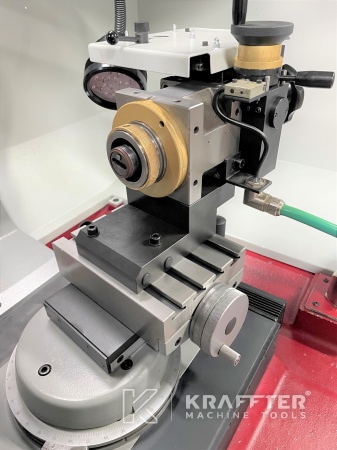

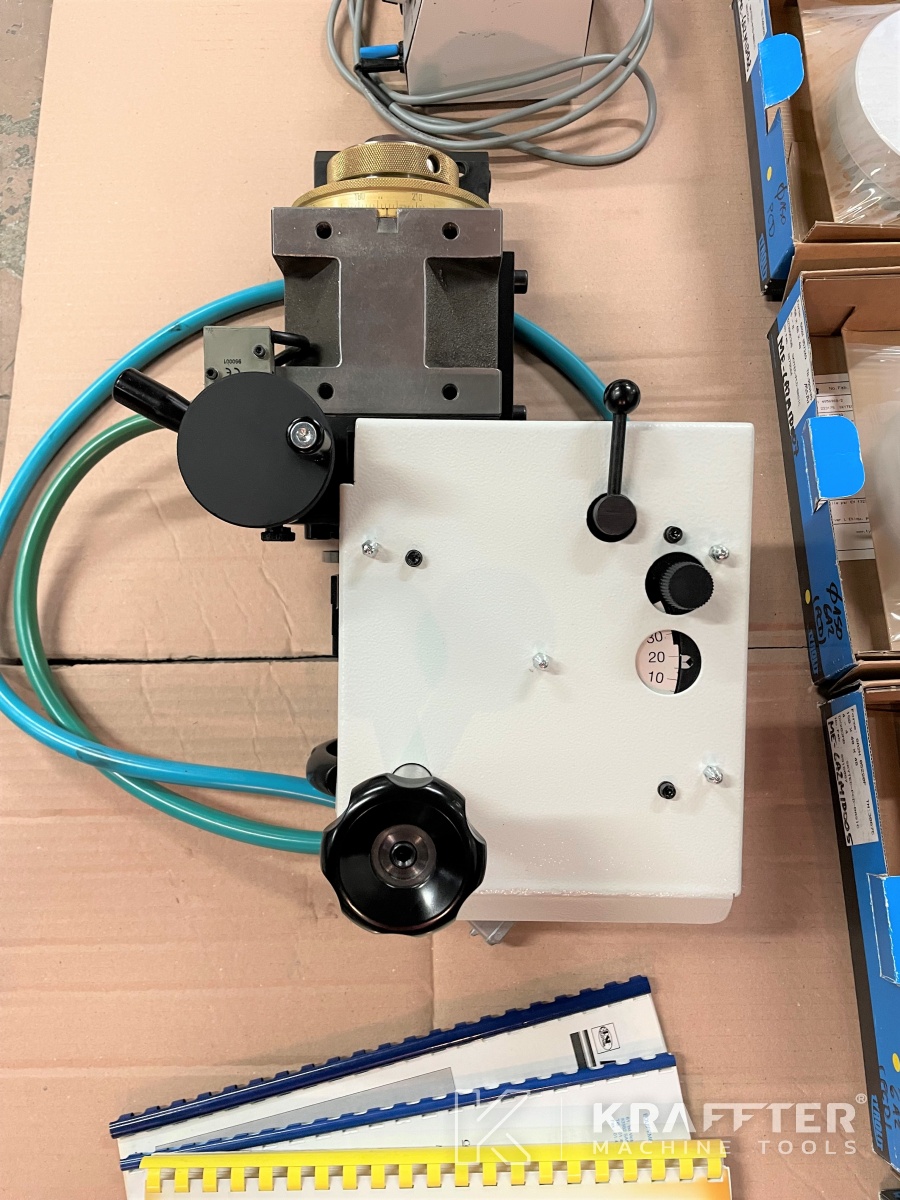

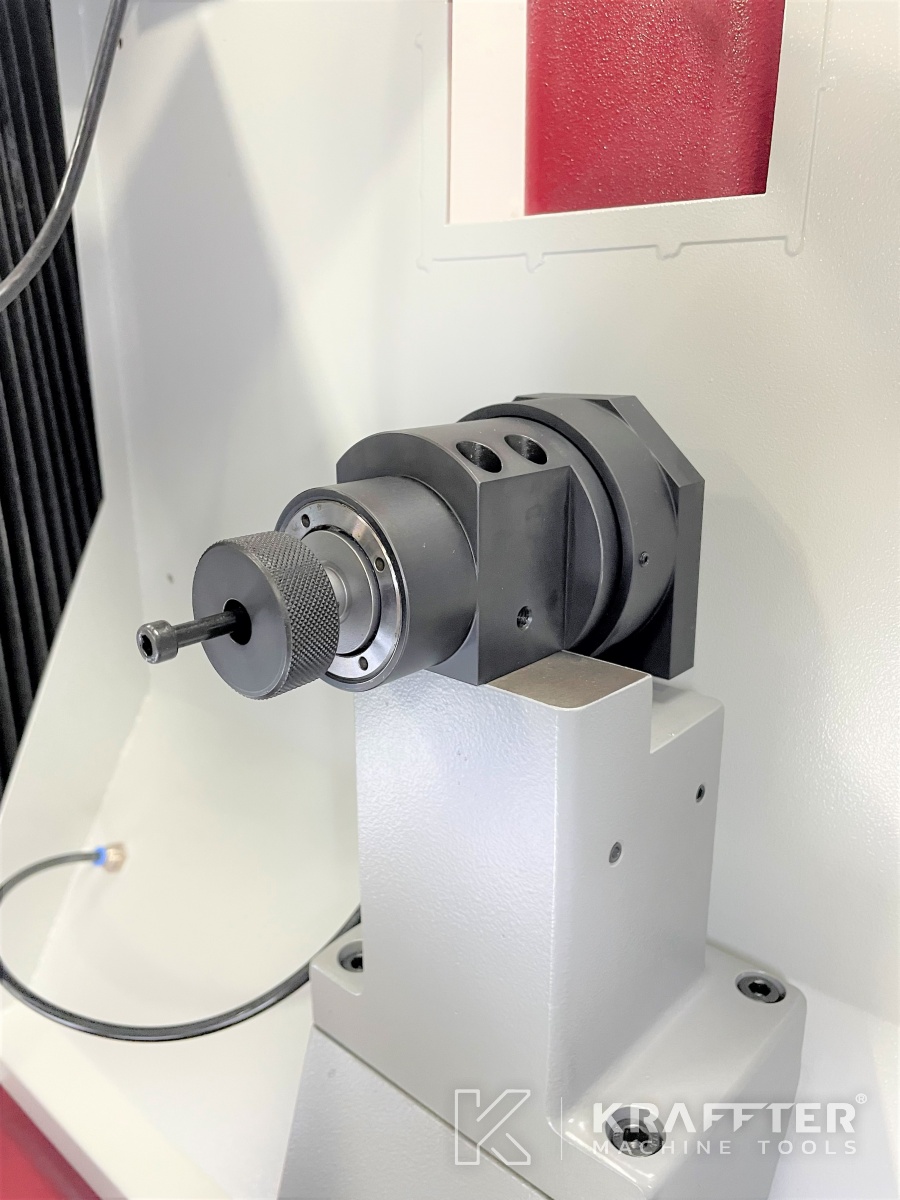

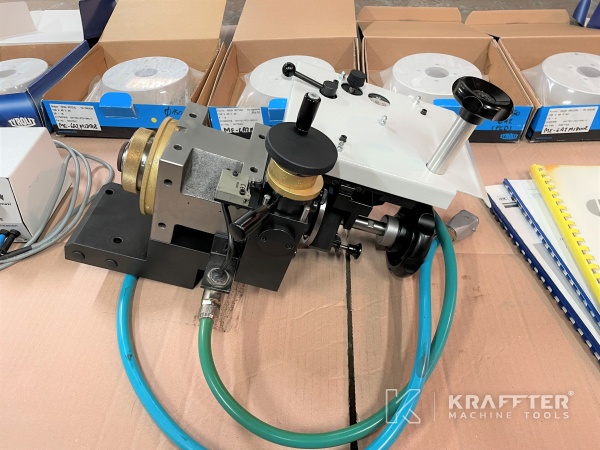

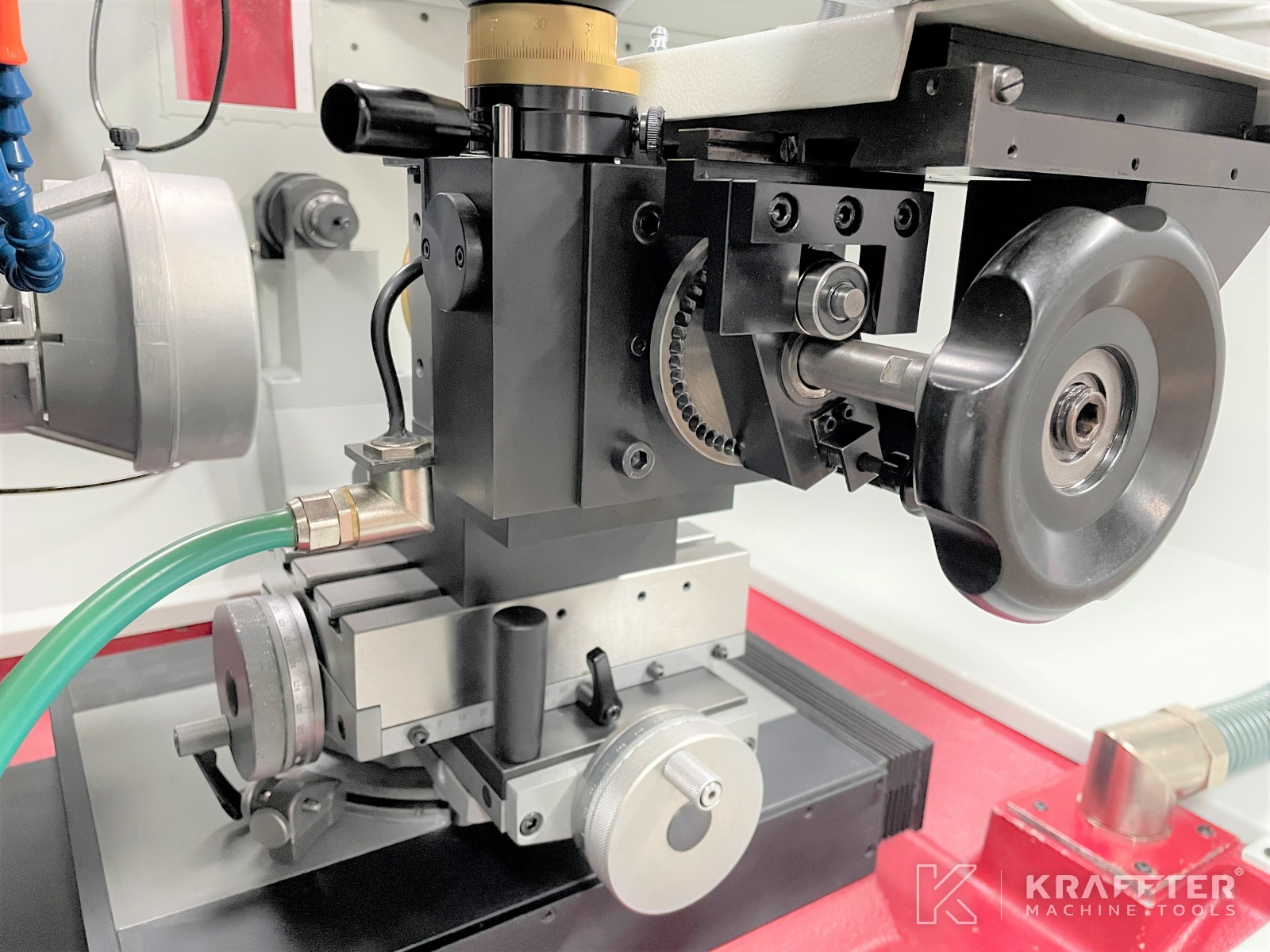

- Inclinded tooth angle grinding device AWS with divinding head HSK63, sine bar compensation and setting gauge compensation – réf EWAG : 115-2-31052

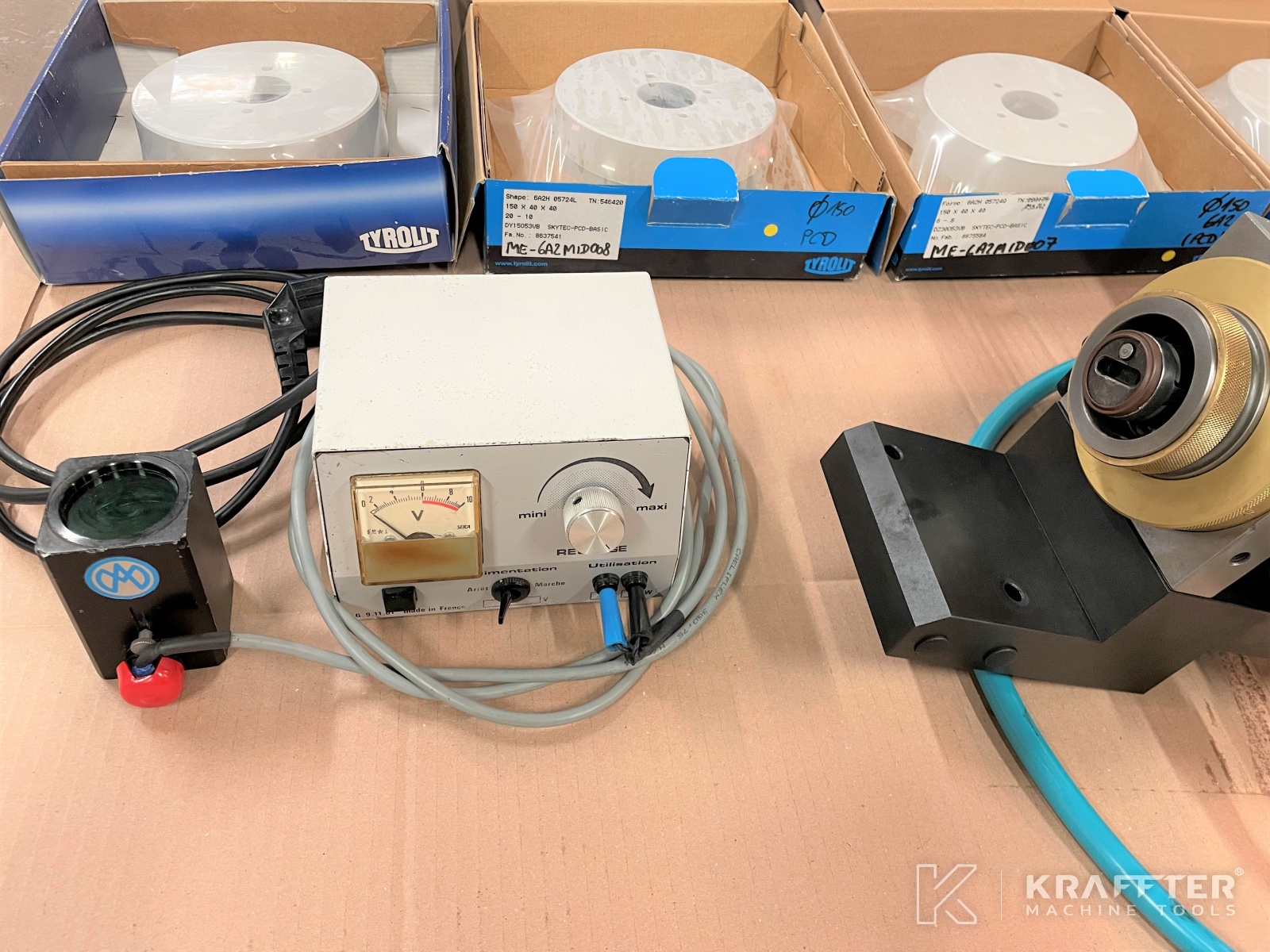

- x1 grinding wheel adaptator Q40-fix-OCS (33 mm) – réf EWAG : 115-2-16414

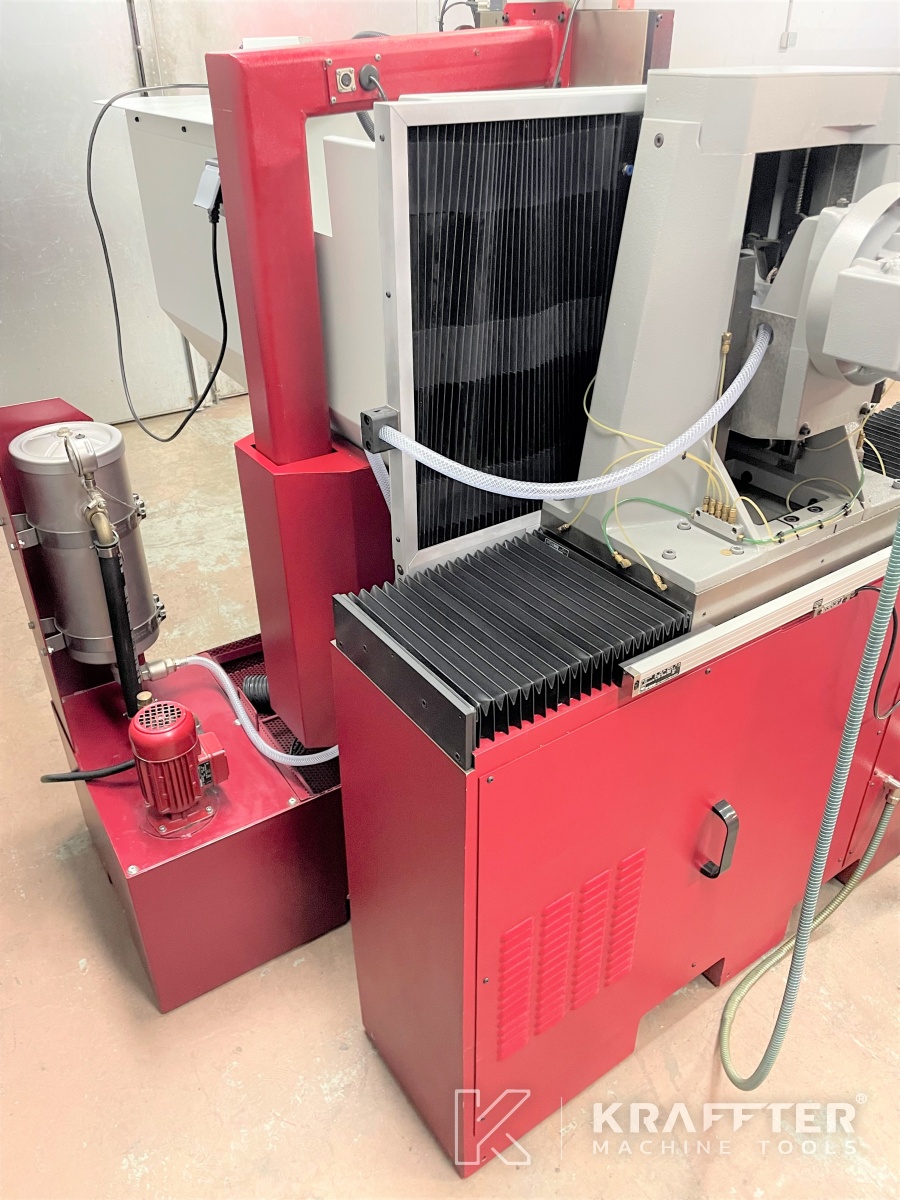

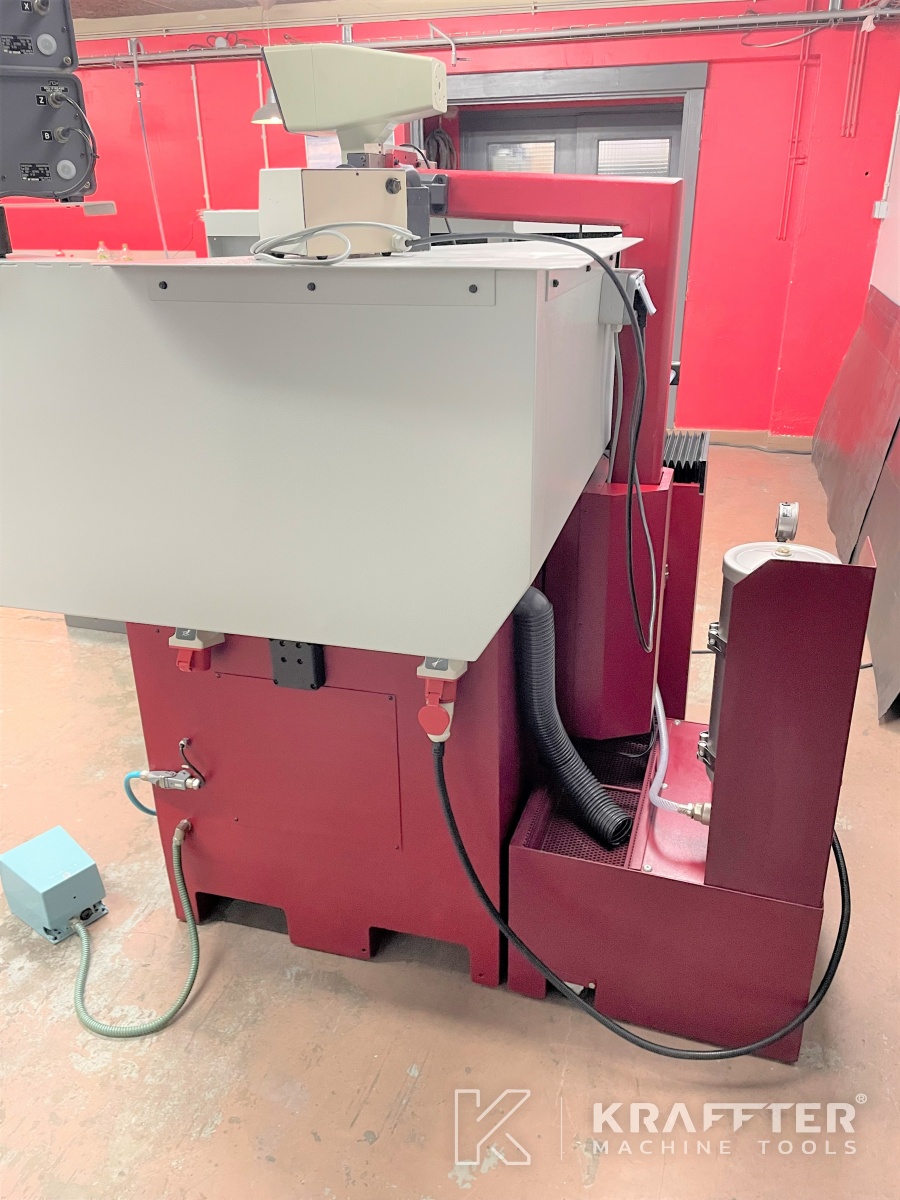

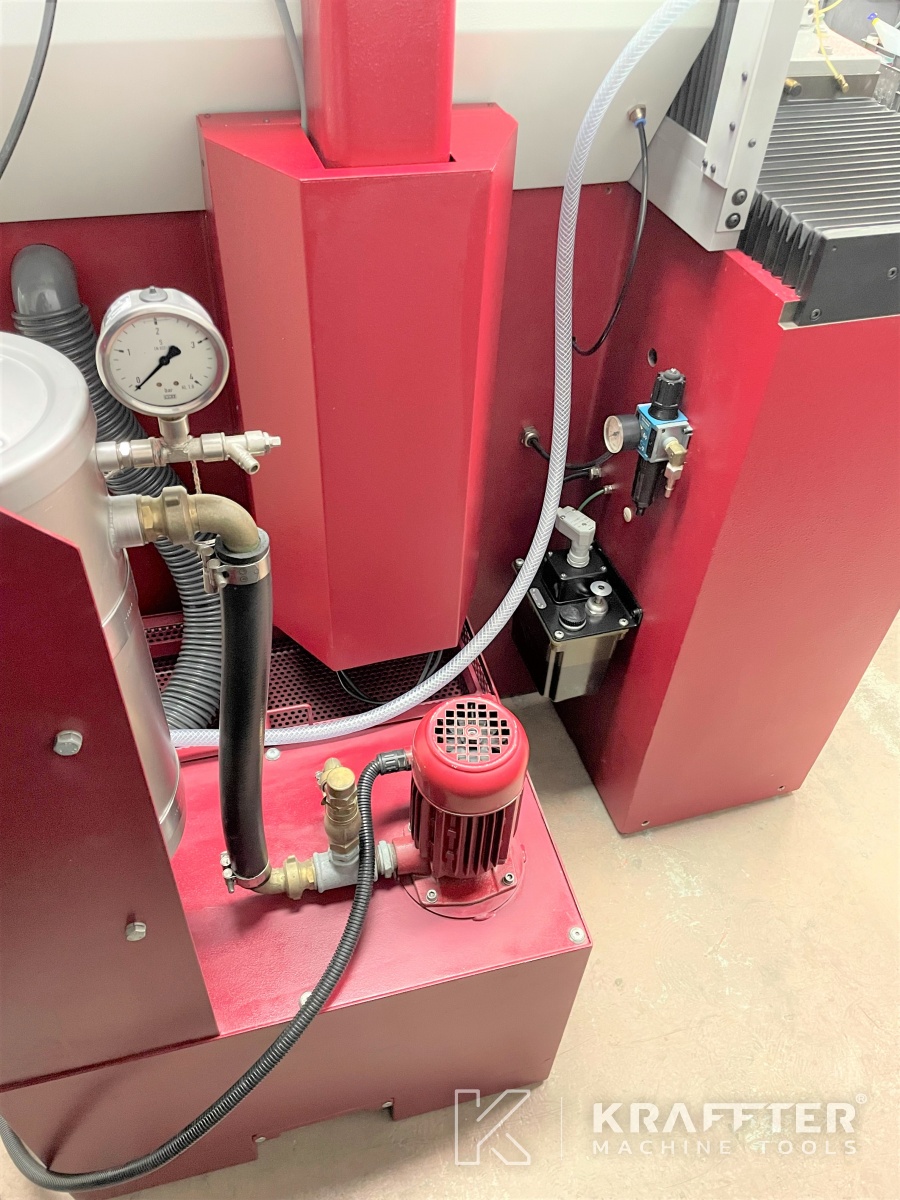

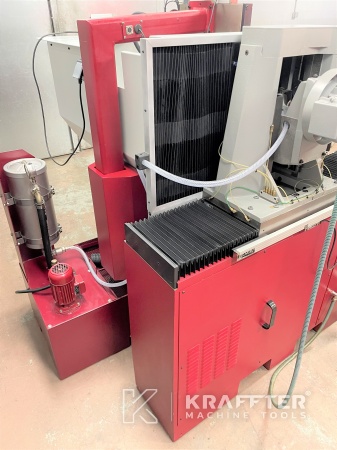

- Coolant unit K3P with filter cartridge (capacity : 100 [l] – 45 [l/min] at 0.5 bar)
- LED lamp 24 [V] - IP67

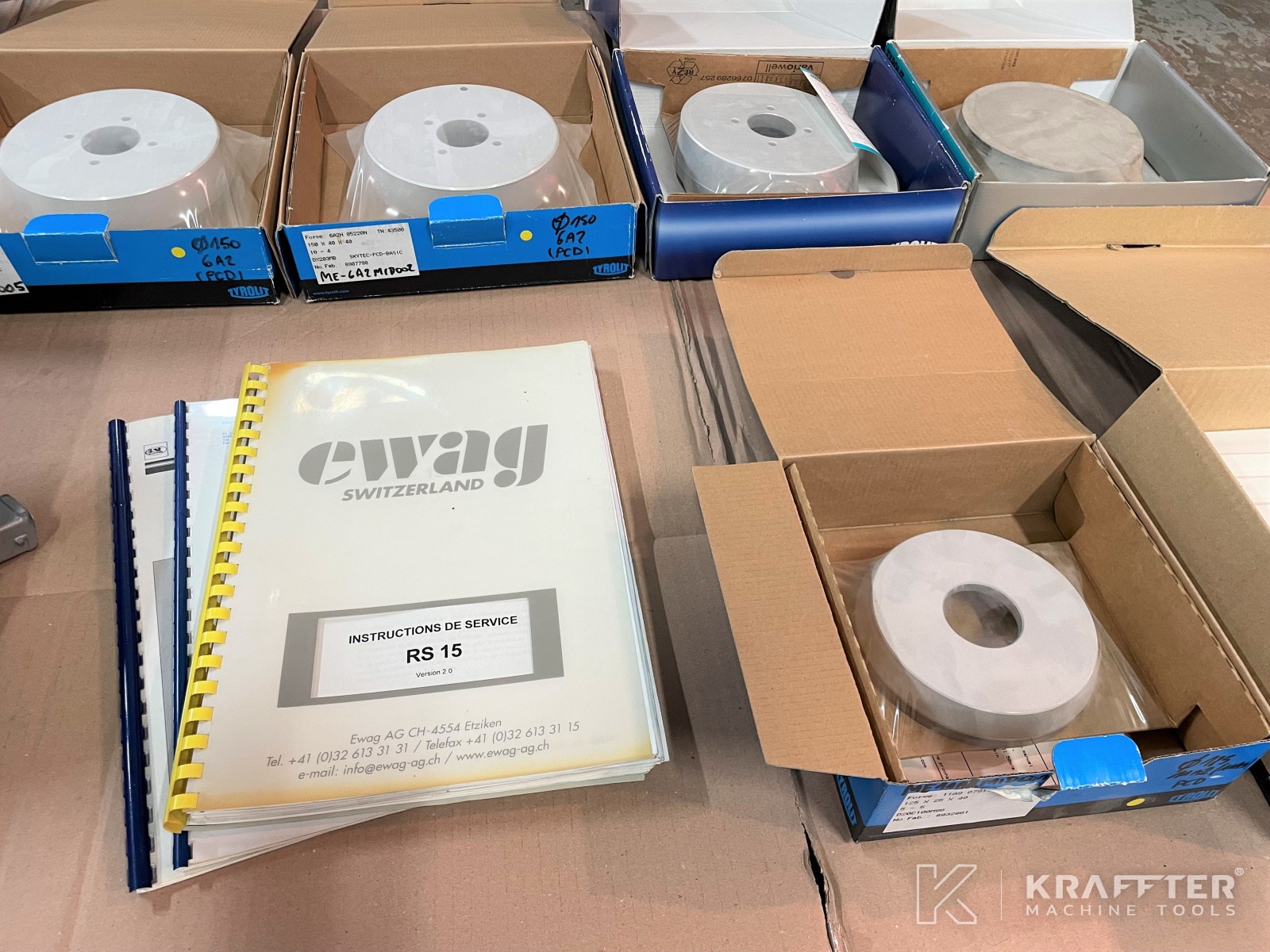

- x7 grinding wheels TYROLIT Skytec PCD Basic 150 x 40 x 40 [mm] – NEW never used
- x1 grinding wheel TYROLIT 125 x 25 x 40 [mm] – NEW never used
- Users and service manual (in French)
- Sevice manual for the tooth angle grinding device AWS (in French)
