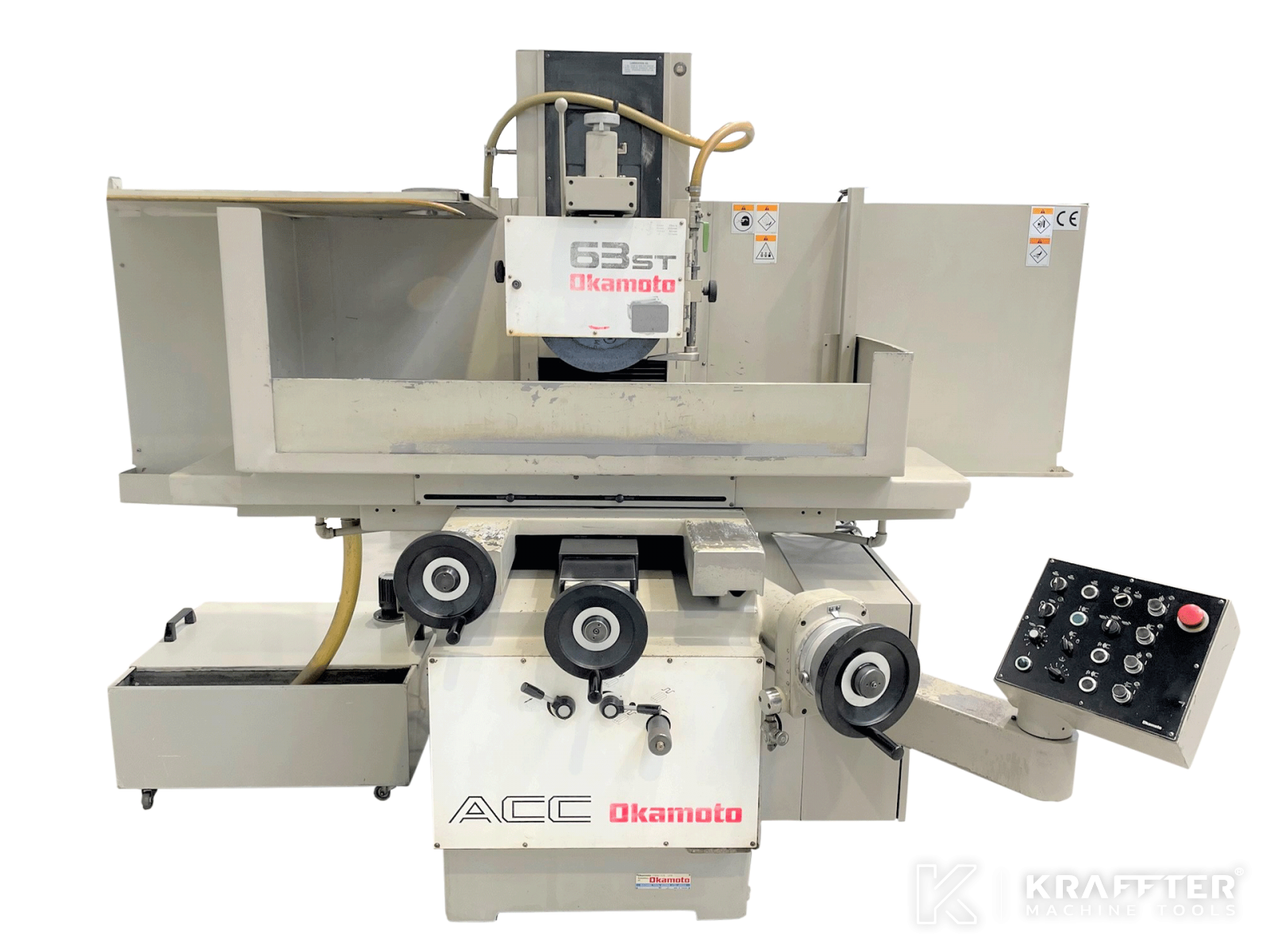

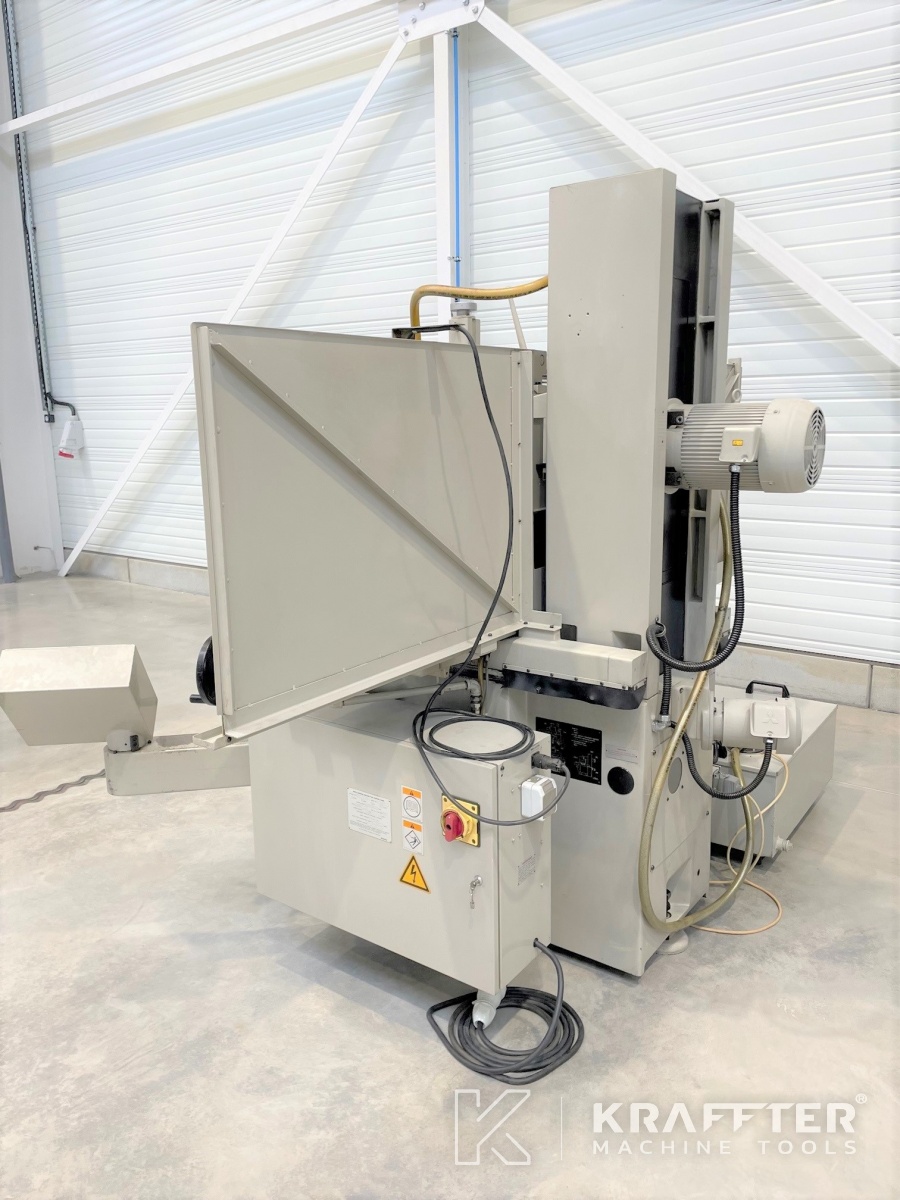

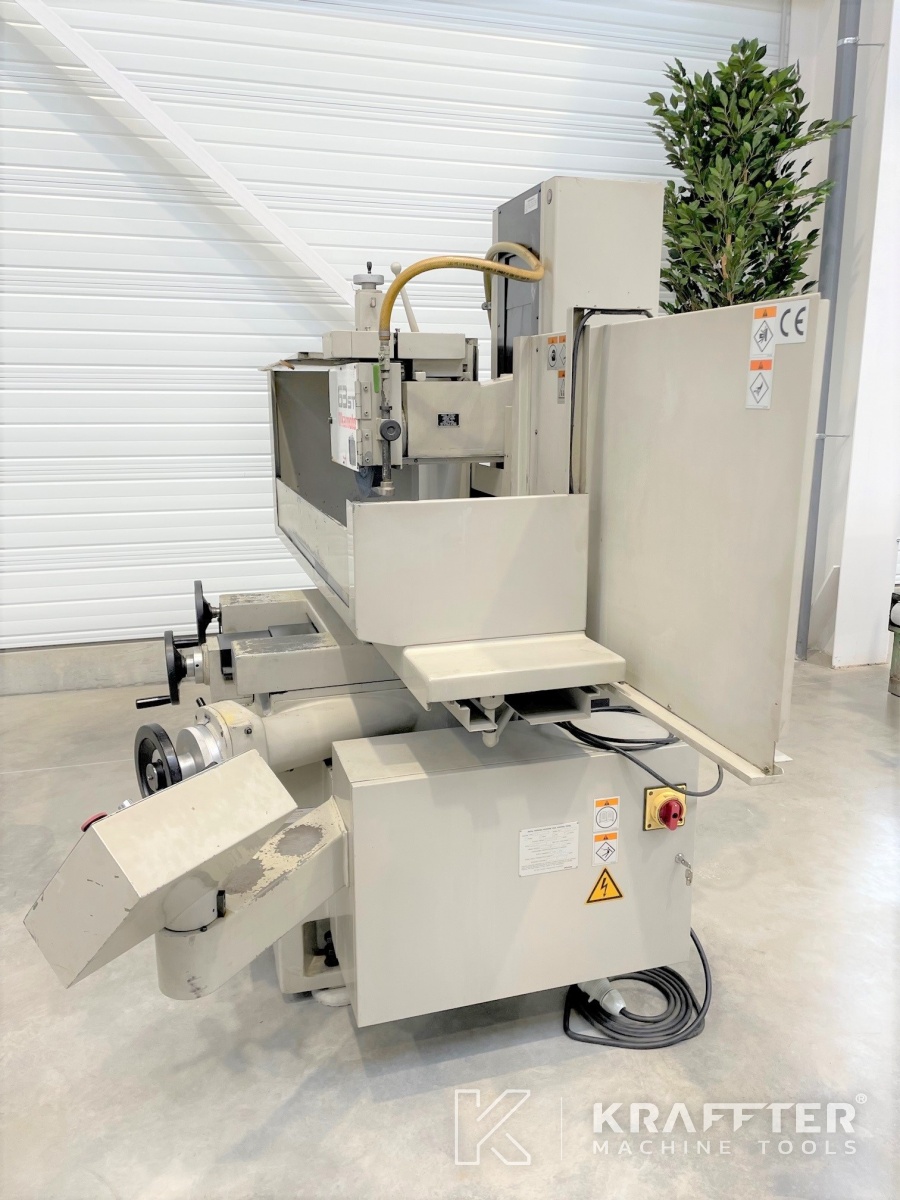

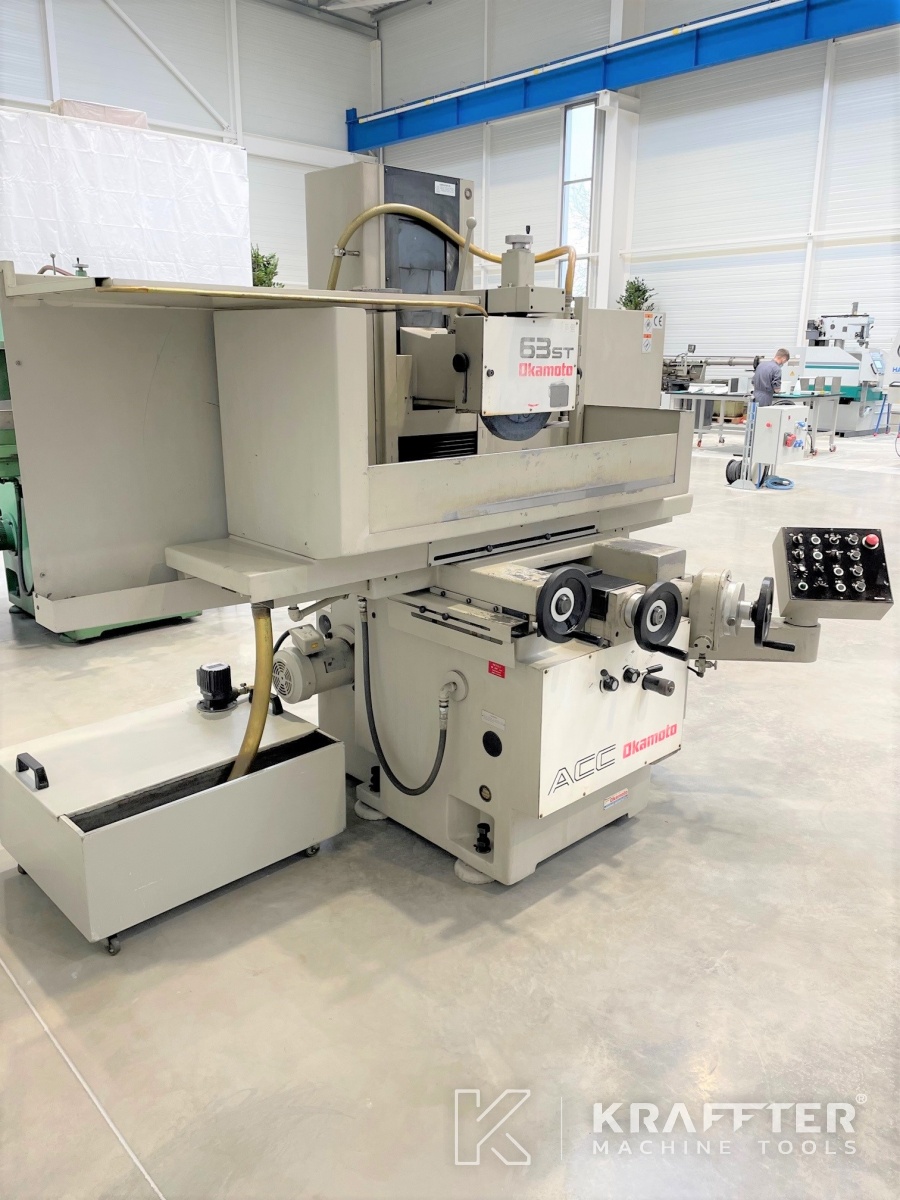

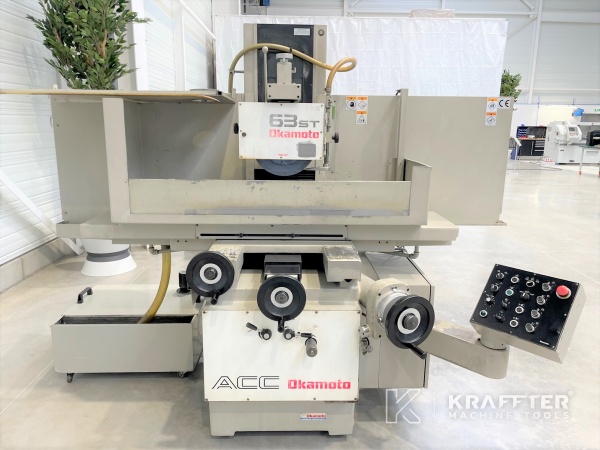

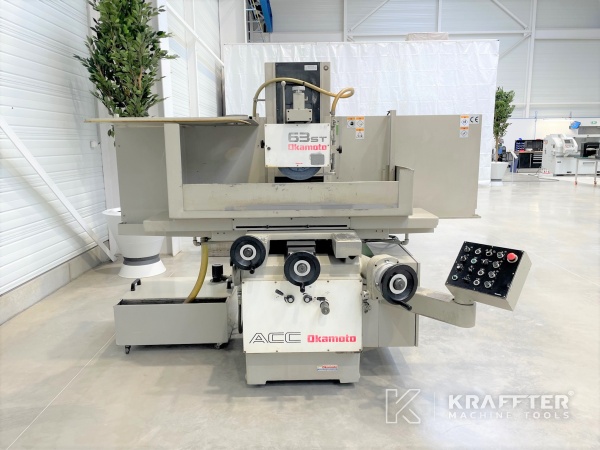

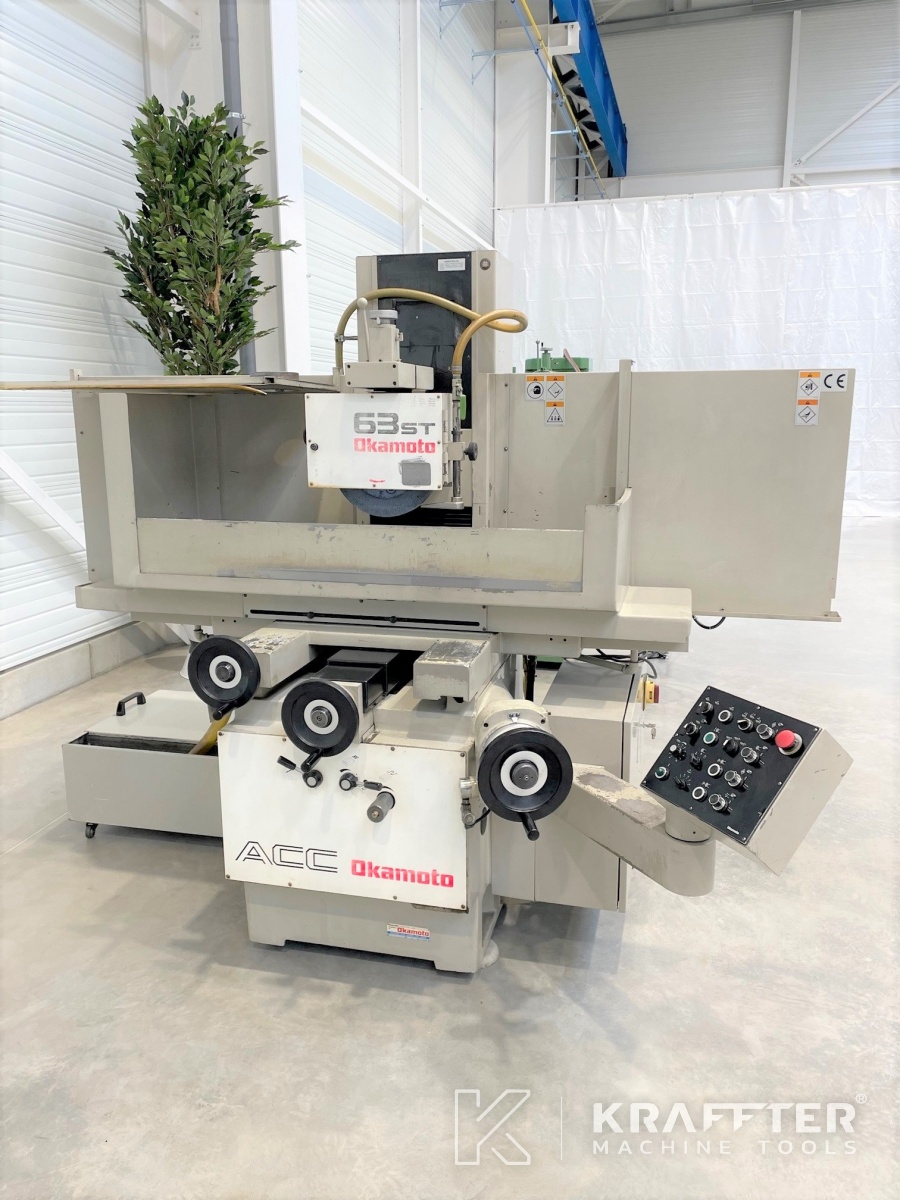

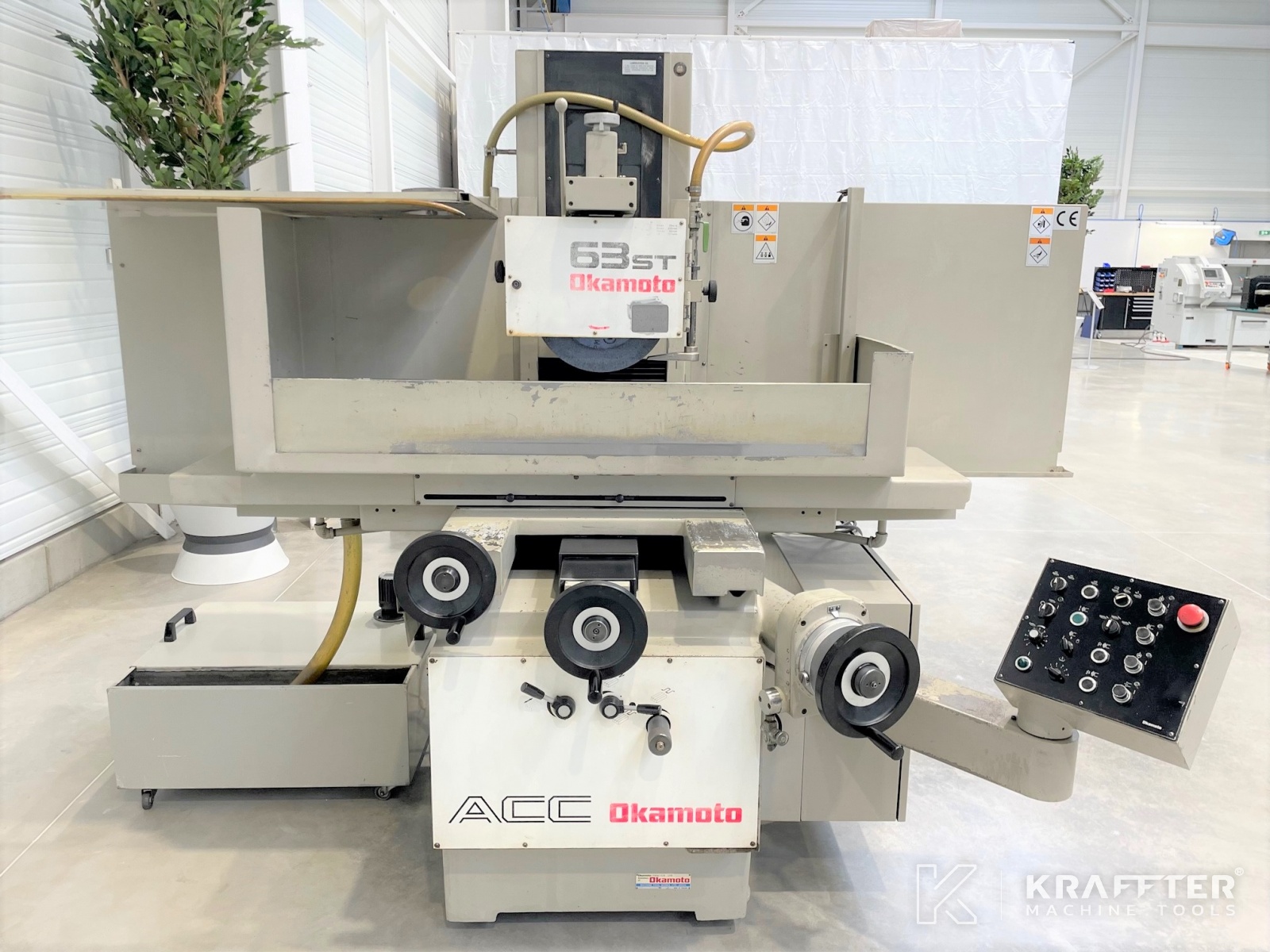

Type of machine : Surface grinder
Brand : OKAMOTO
Stock N° : 20689-991
Model : ACC 63 ST
Serial N° : 83707
Year : 2002
Location : 73240 St-Genix-les-Villages, FRANCE
Technical characteristics
Additional information
Request a quotation
Number of automatic axes
3
Maximum grinding lenght x width
605 x 300 [mm]
Stroke X axis
750 [mm]
Stroke Y axis
340 [mm]
Stroke Z axis
322 [mm]
Table length
605 [mm]
Table width
300 [mm]
Max. load on table
420 [Kg]
Grinding wheel speed
1500 [rpm]
Grinding spindle motor power
3.7 [kW]
Grinding wheel diameter
355 [mm]
Grinding wheel width
38 [mm]

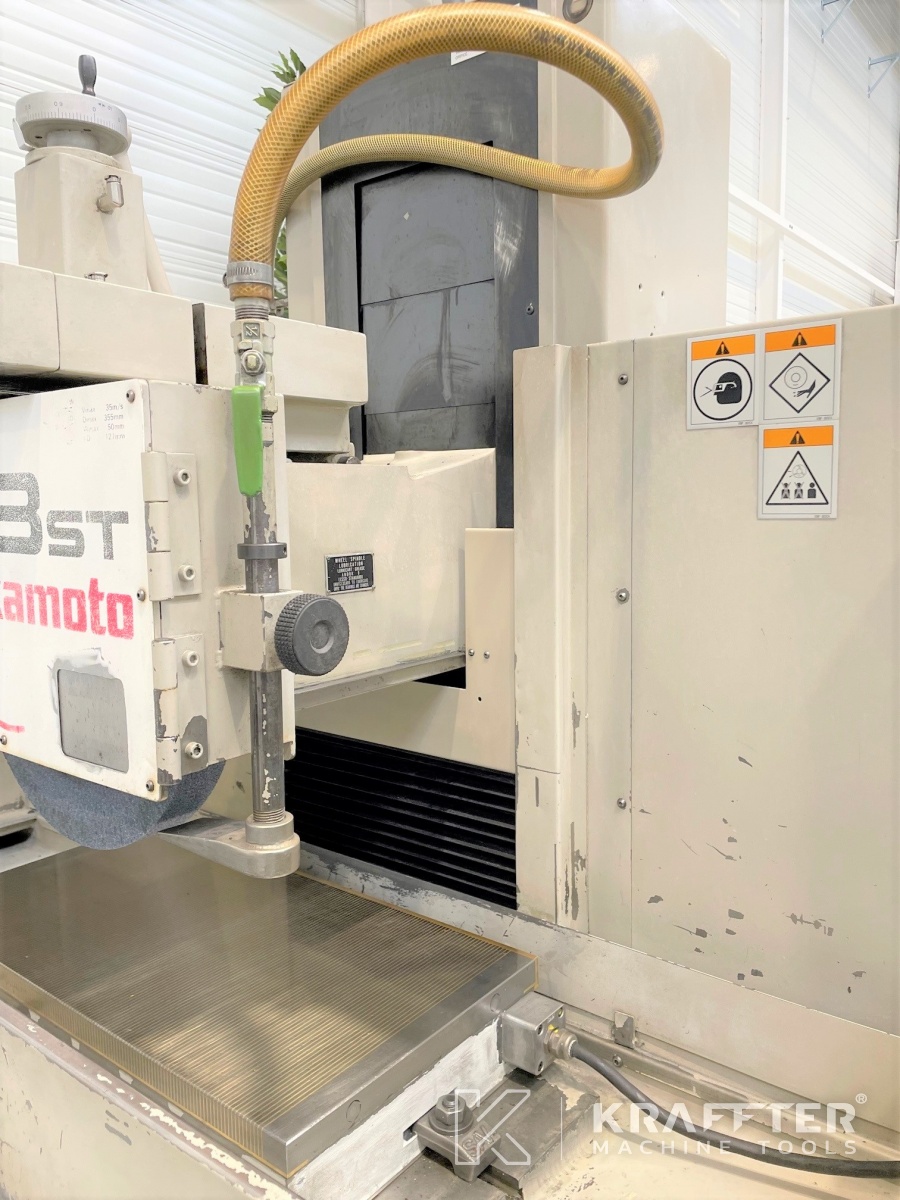

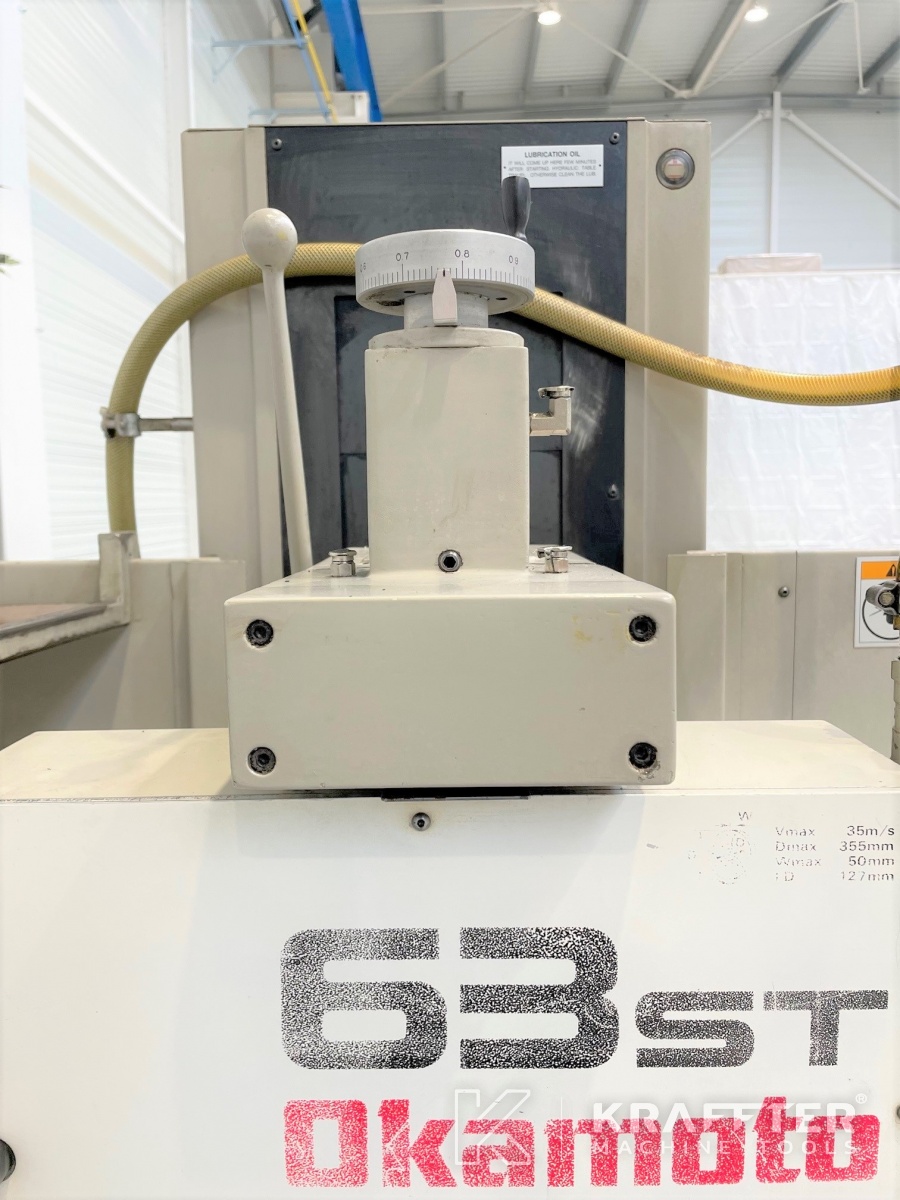

Wheel dresser on head
Yes

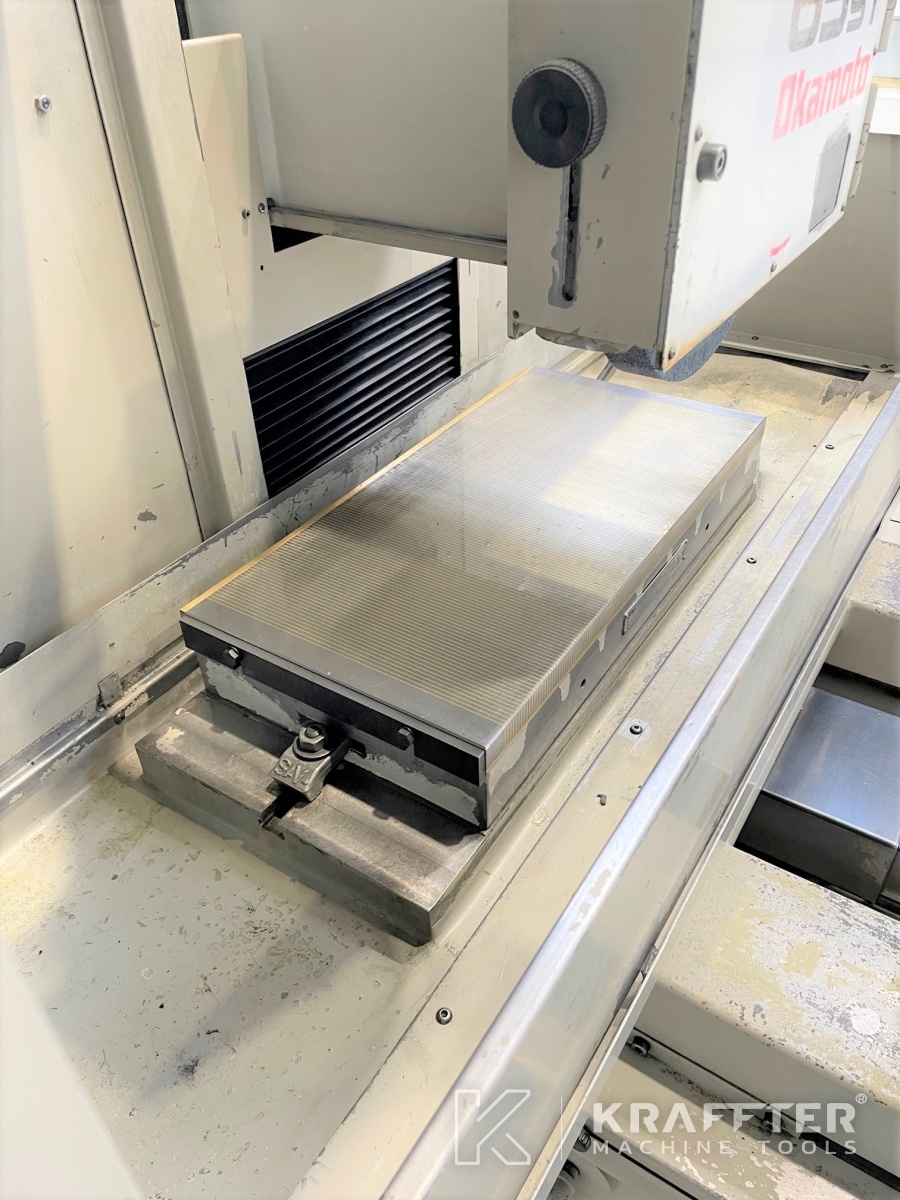

Electro permanent magnet clamping plate
Yes
Dimensions of magnetic plate
600 x 300 [mm]
Lubrication tank with pump
Yes
Centralized lubrication
Automatique
Supply voltage
400 [V]
Total power required
7.5 [kVA]
Dimensions
2625 x 1903 x 1766
Weight
1900 [Kg]
x4 feet pads
x1 operation manual (English)
