Sold

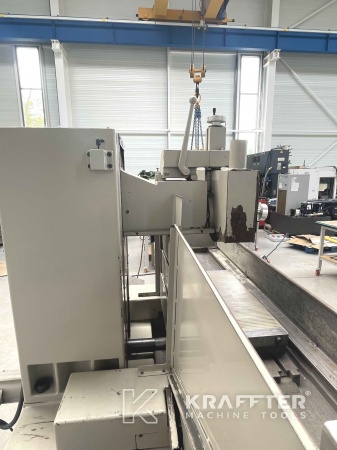

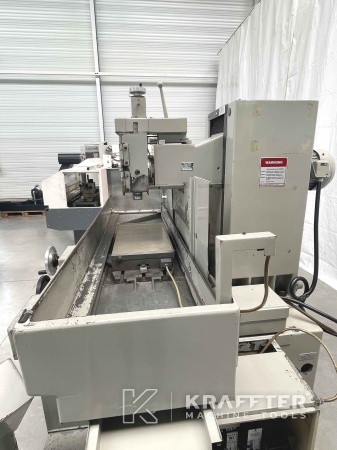

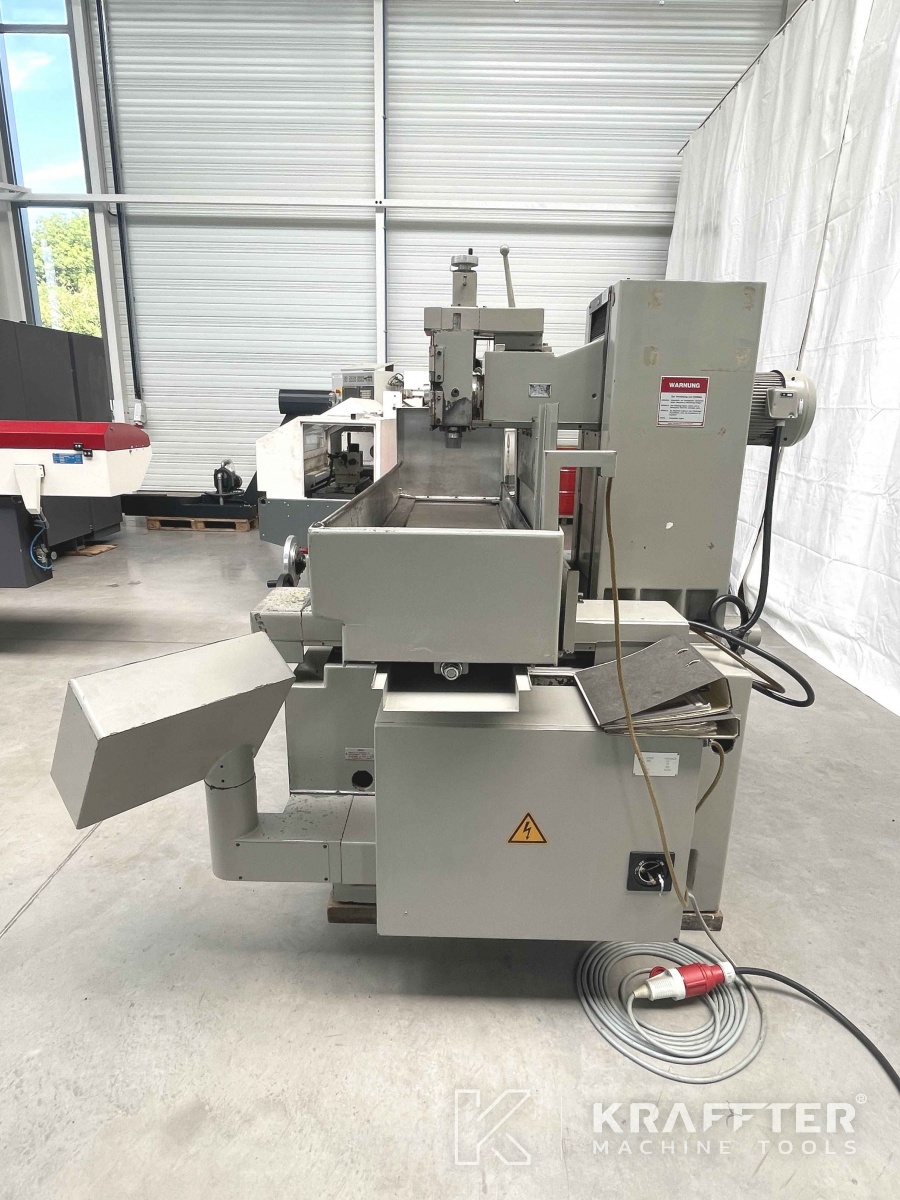

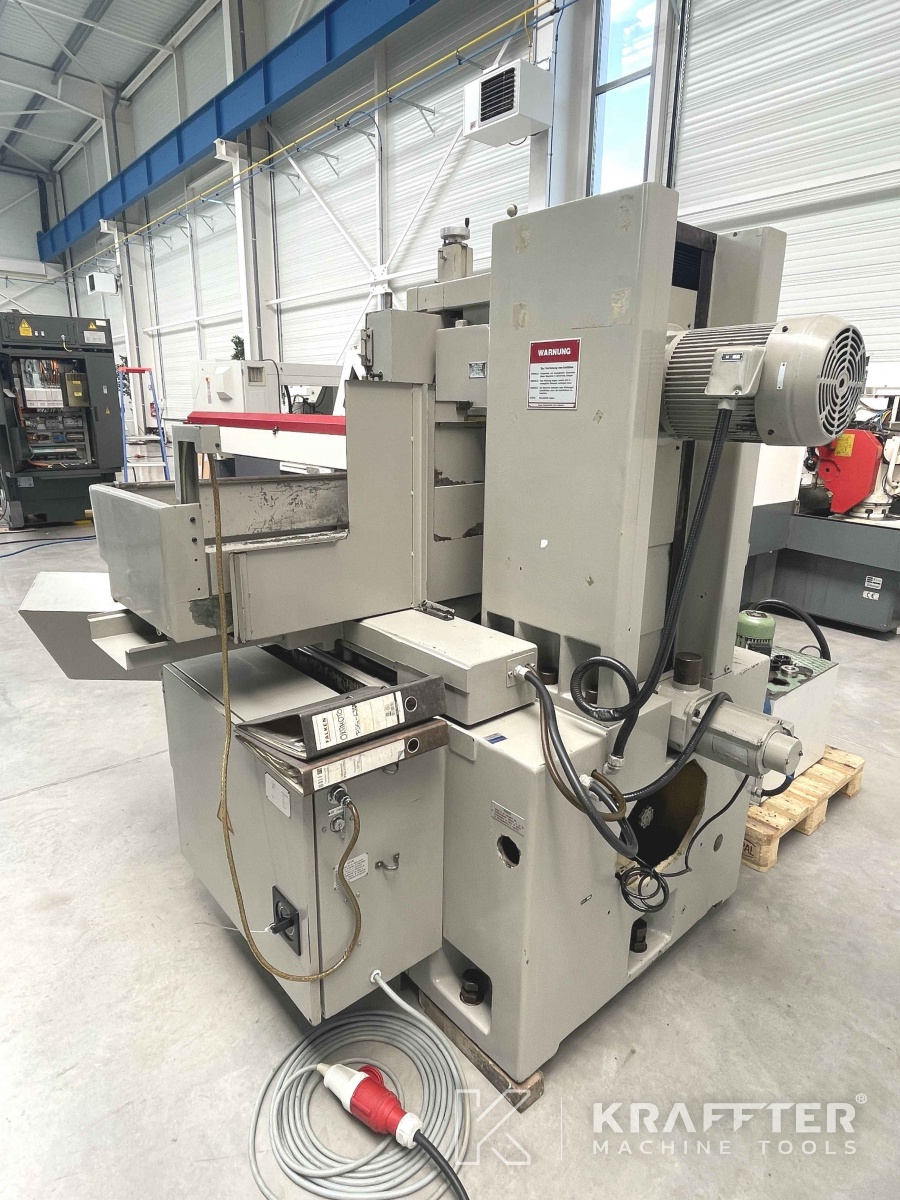

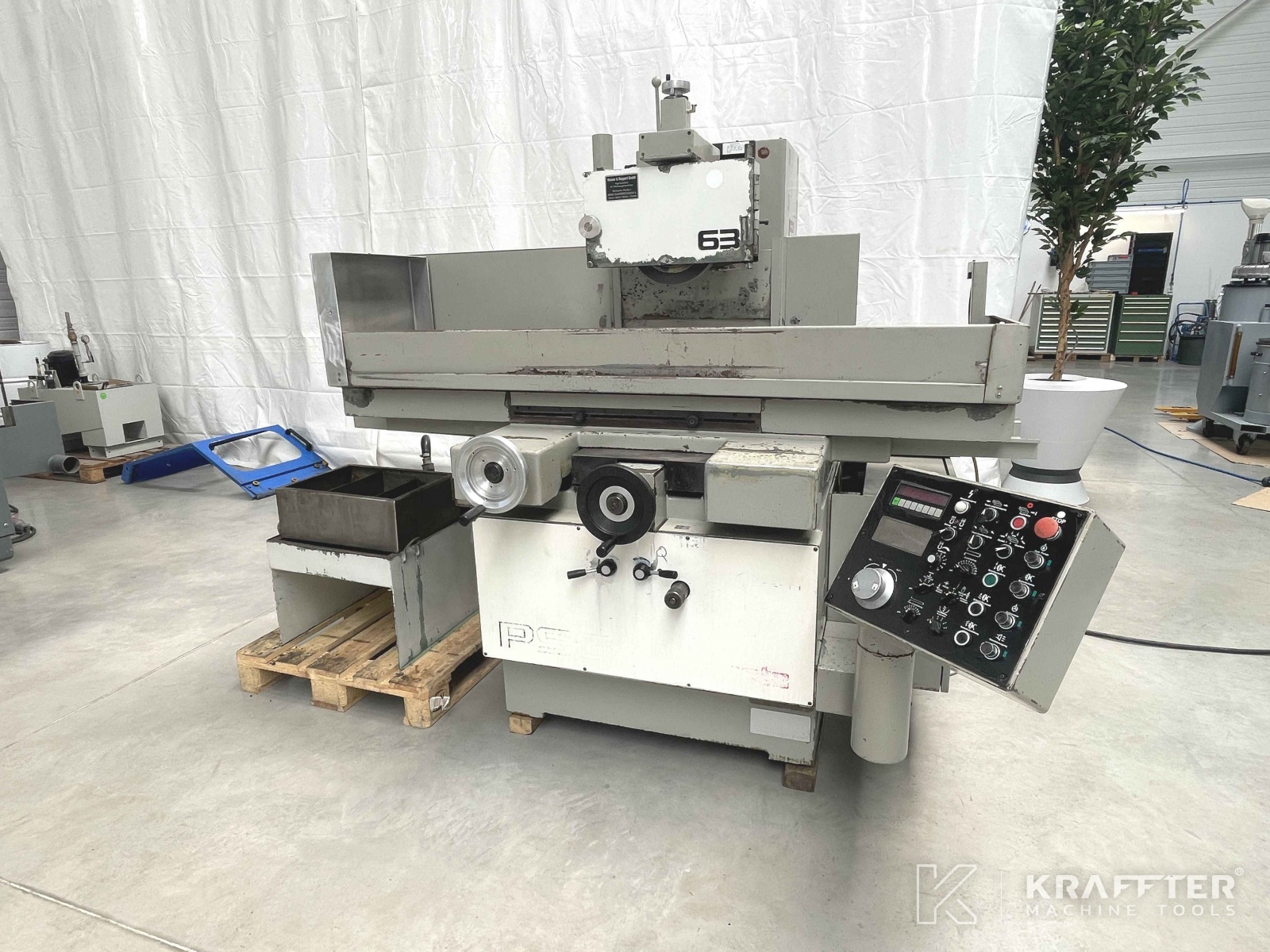

Type of machine : Surface grinder
Brand : OKAMOTO
Stock N° : 20690-025
Model : PSG-63UDX
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of automatic axes
3
Maximum grinding lenght x width
605 x 300 [mm]
Stroke X axis
750 [mm]
Stroke Y axis
340 [mm]
Table length
605 [mm]
Table width
300 [mm]
Max. load on table
420 [Kg]
Grinding wheel speed
1500 [rpm]

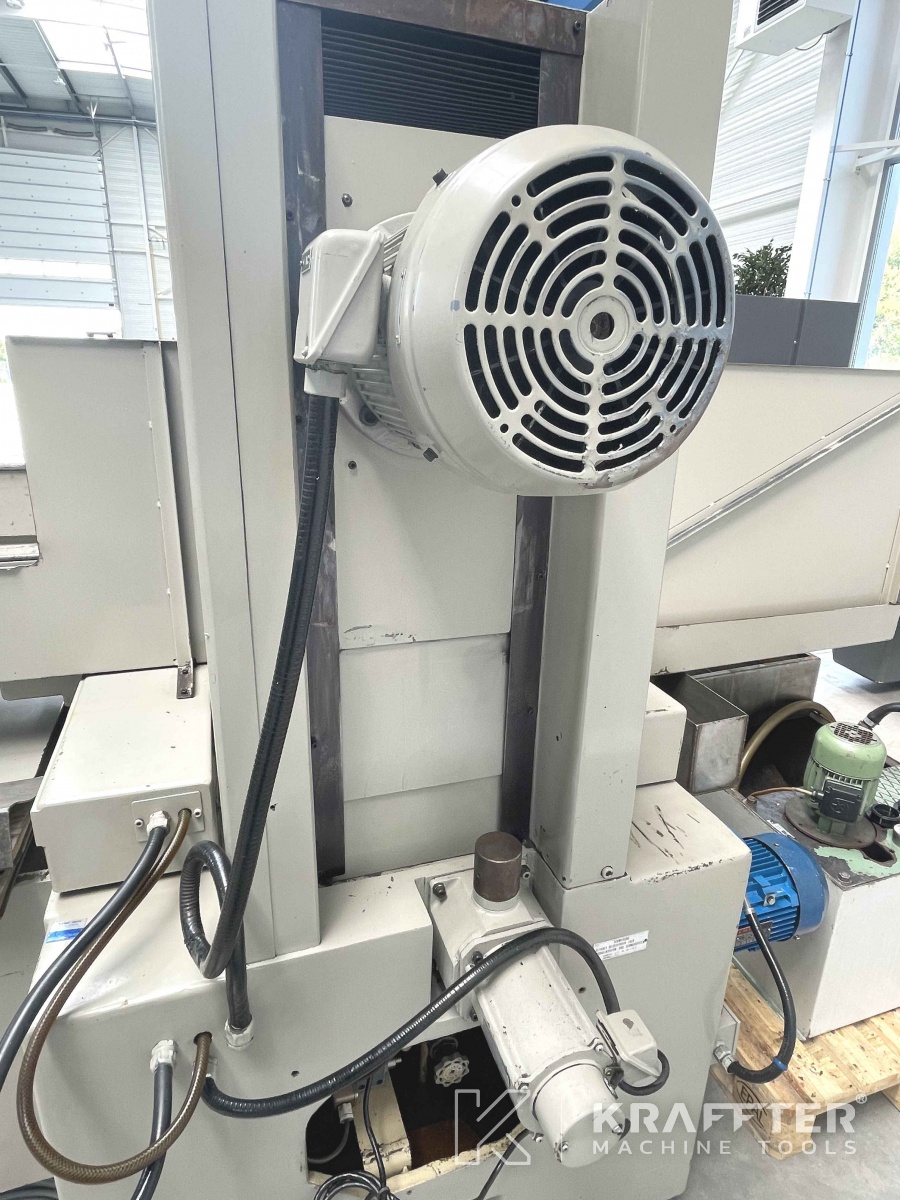

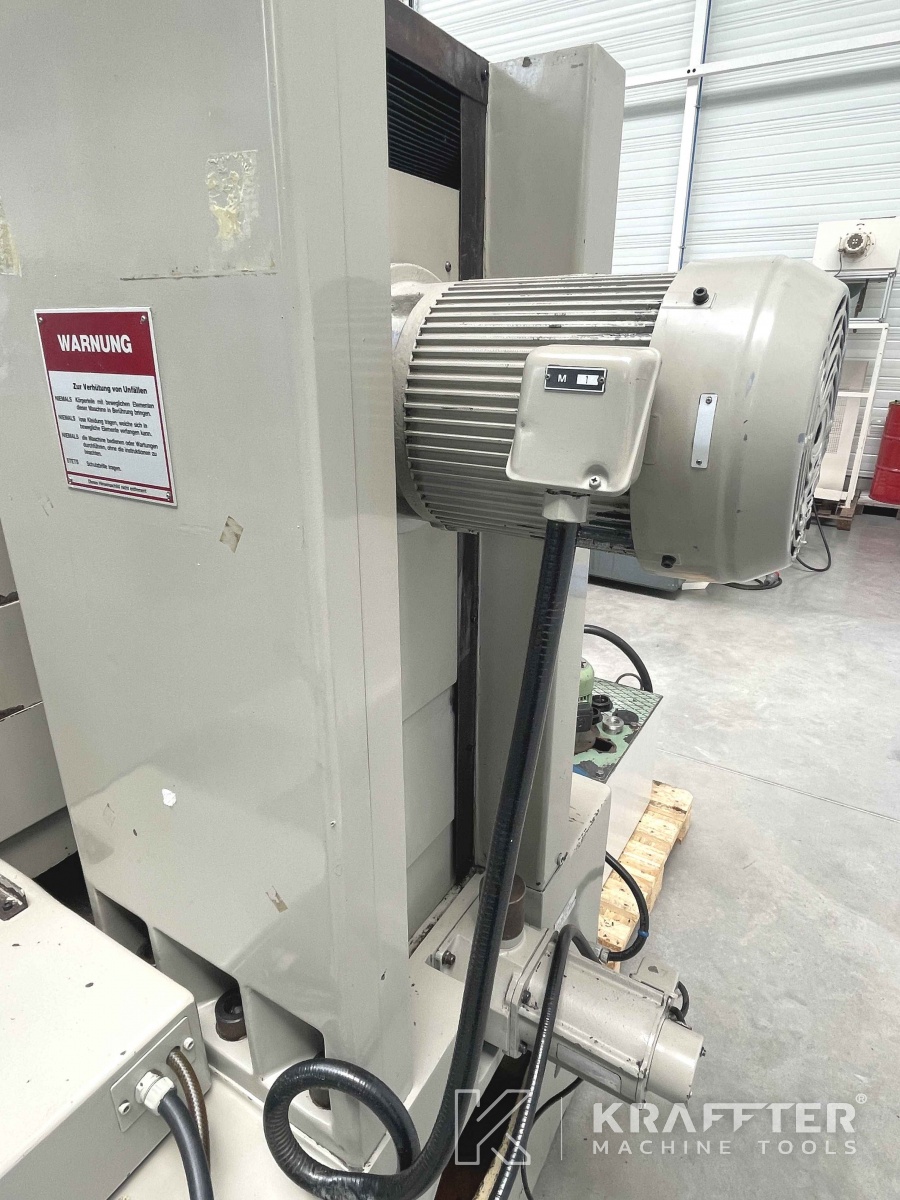

Grinding spindle motor power
3.7 [kW]
Grinding wheel diameter
355 [mm]
Grinding wheel width
38 [mm]
Grinding wheel bore
127 [mm]

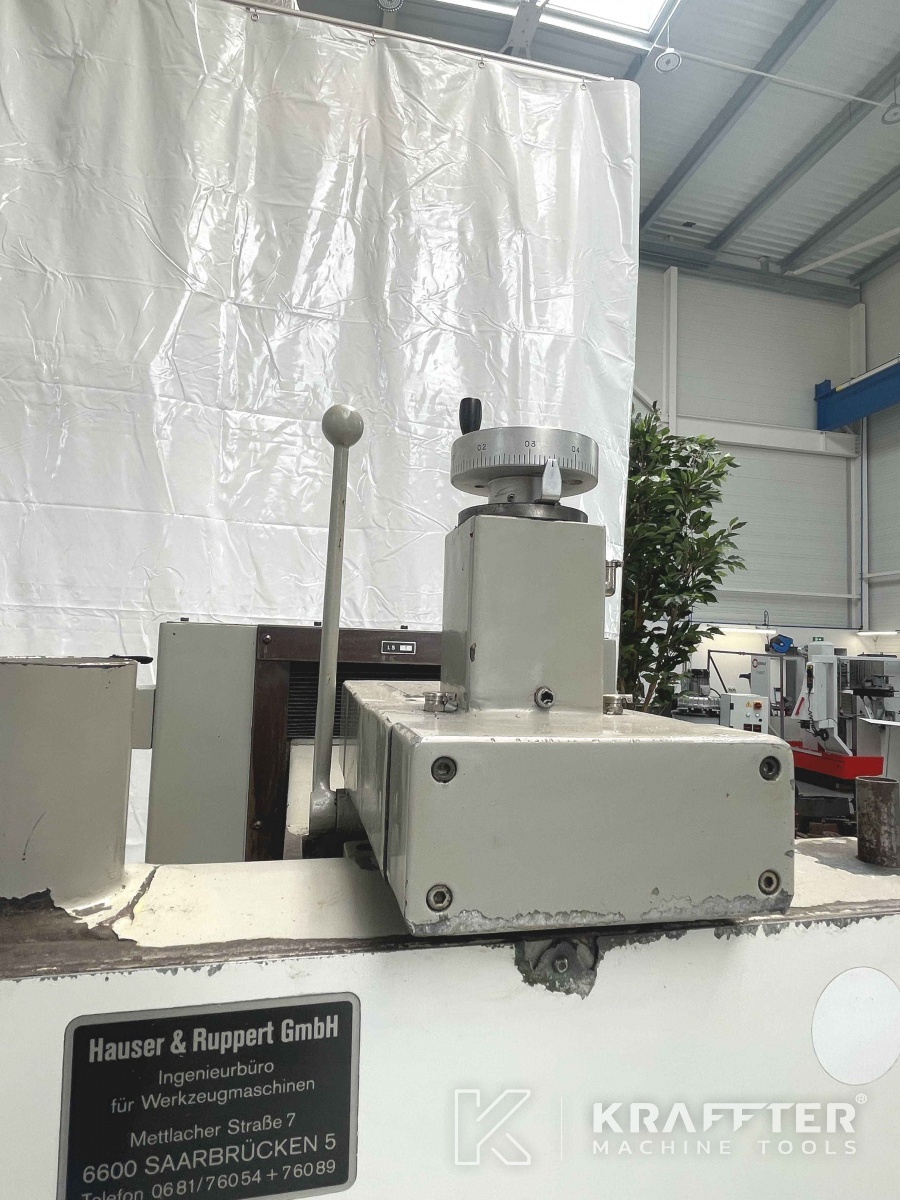

Wheel dresser on head
Yes

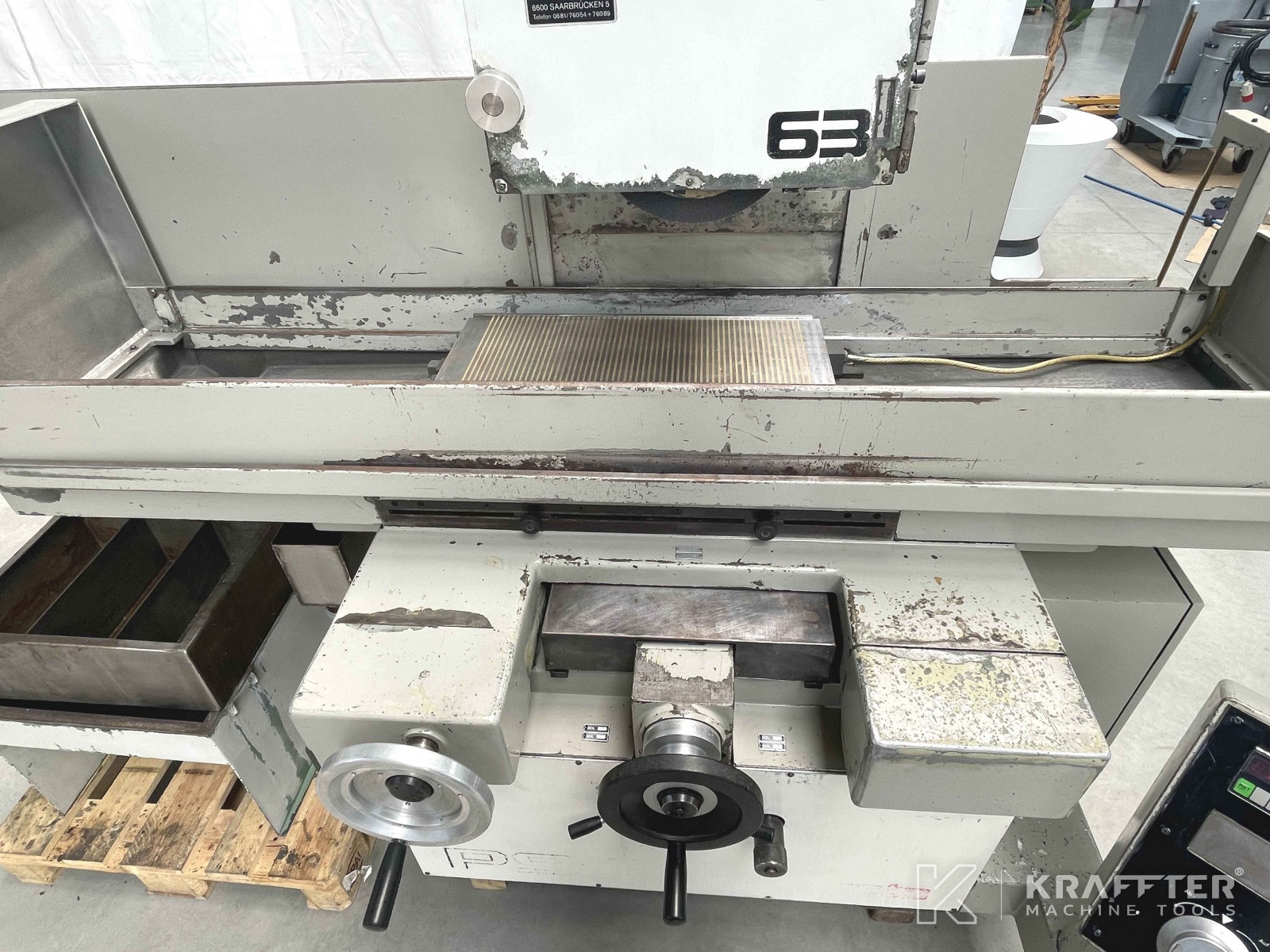

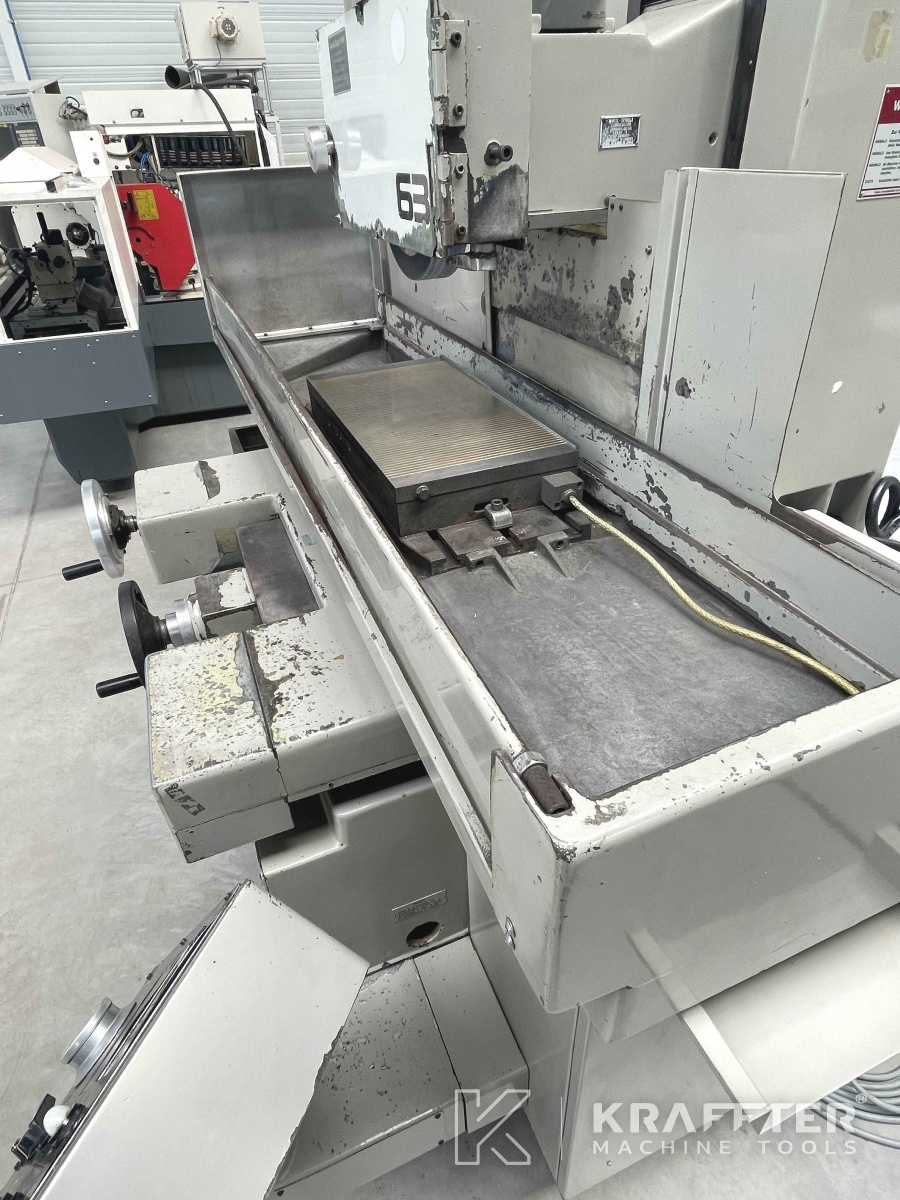

Electro permanent magnet clamping plate
Yes

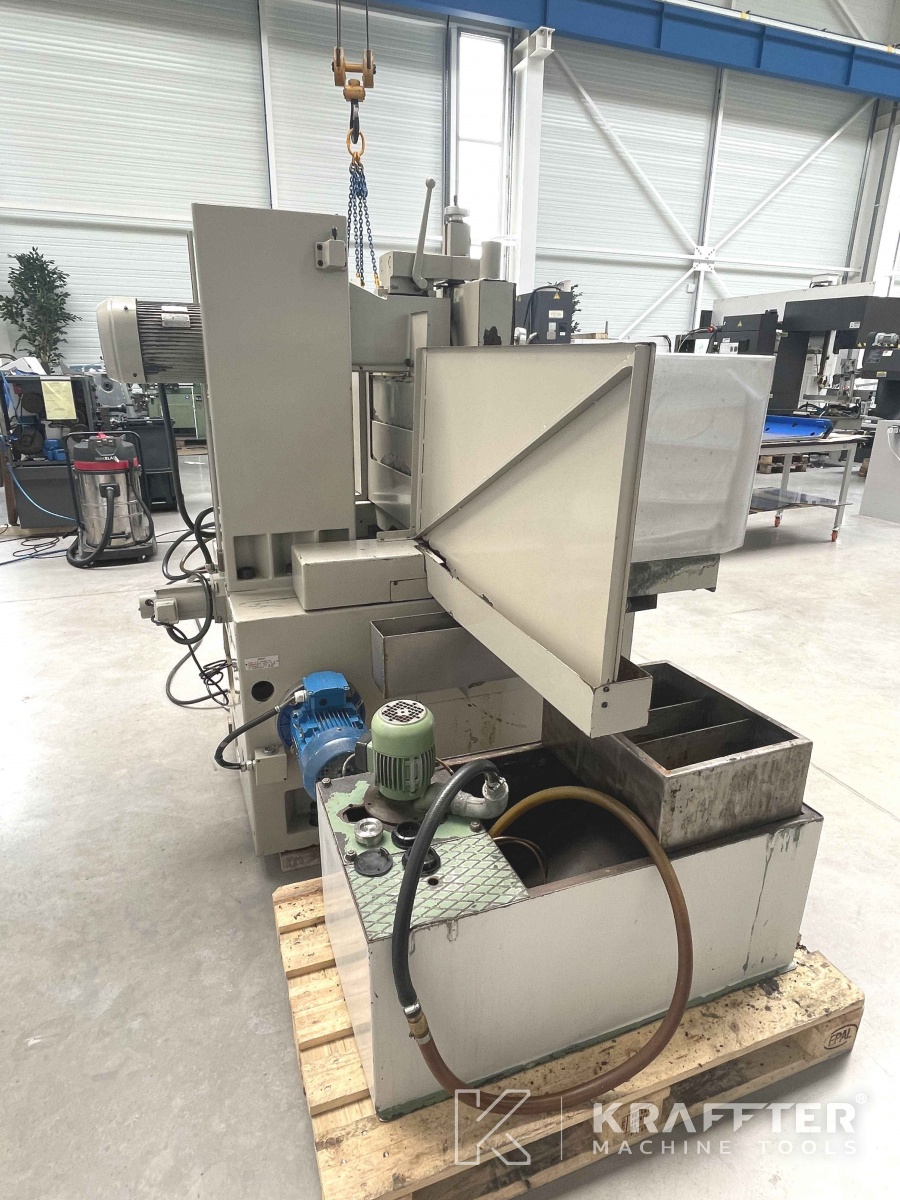

Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
2725 x 1906 x 1761 [mm]
Weight
2500 [Kg]
