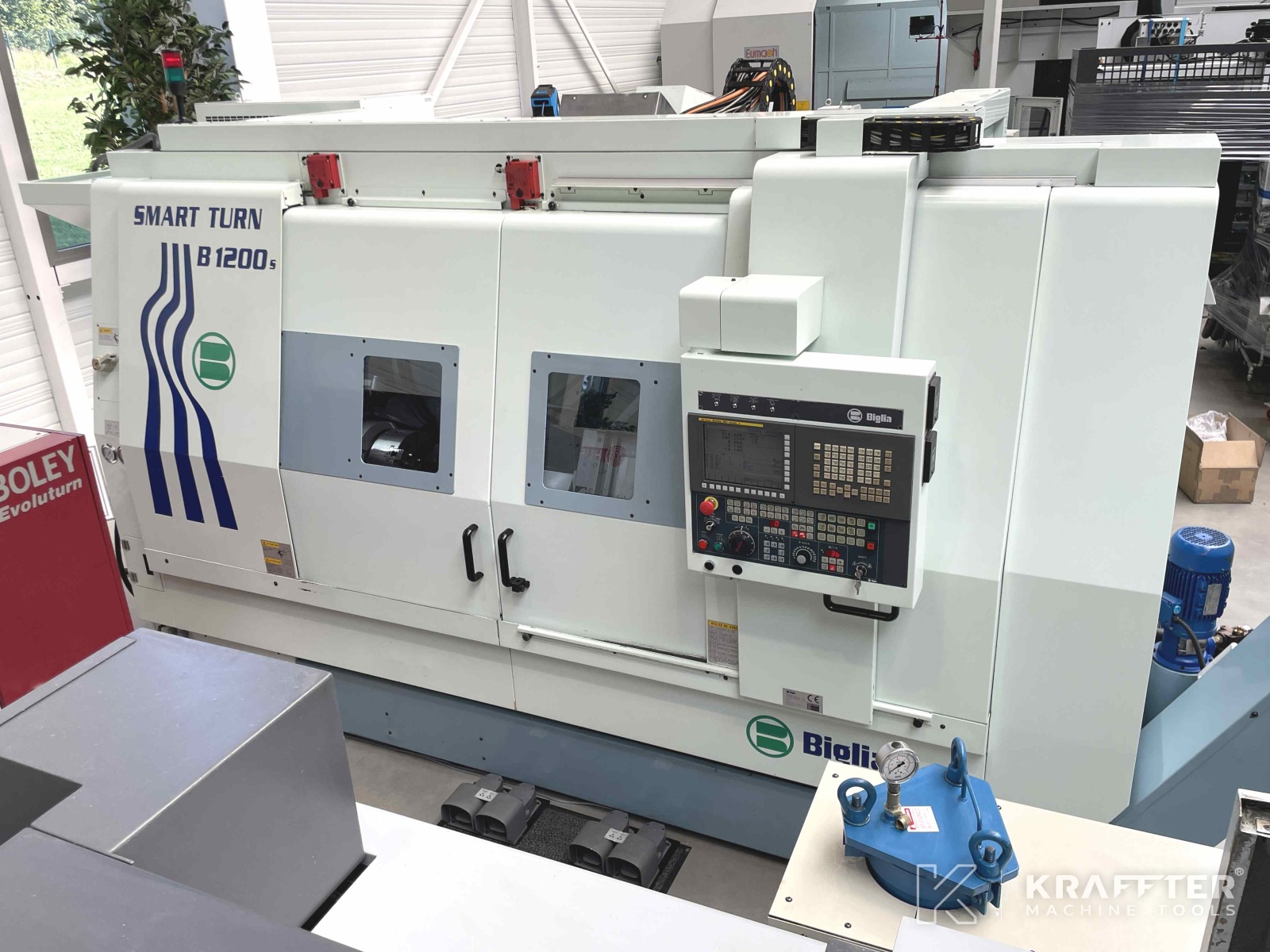

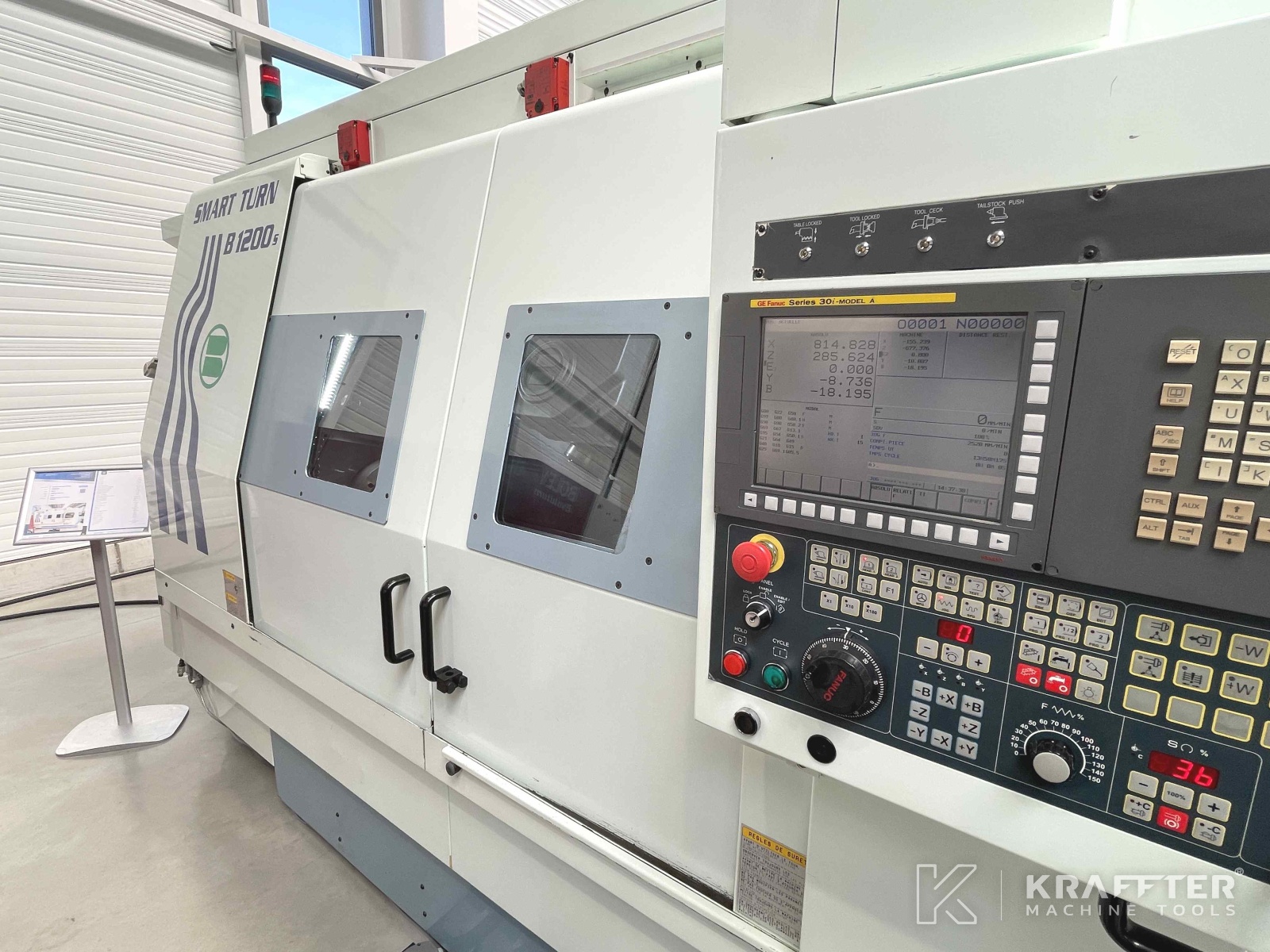

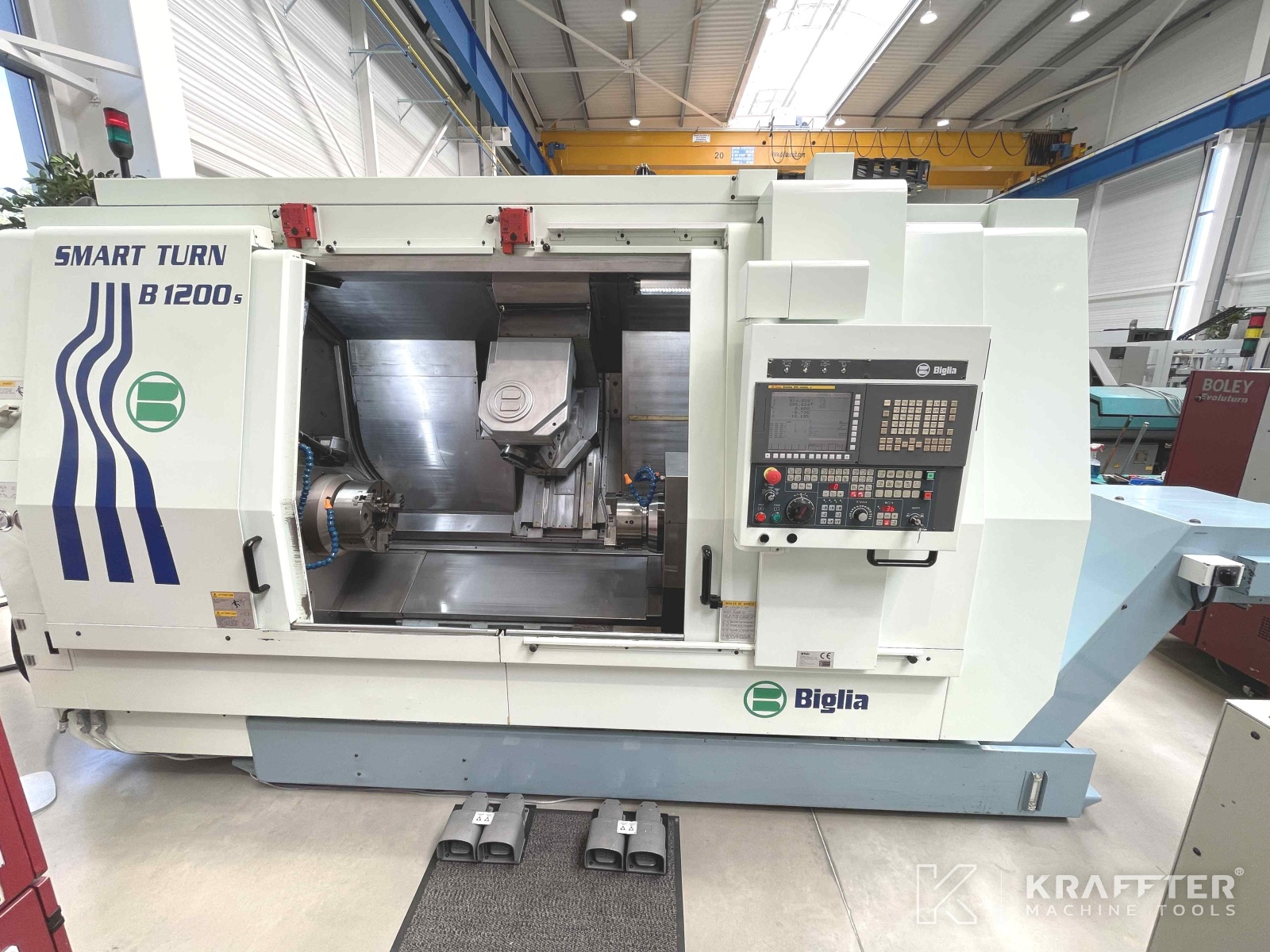

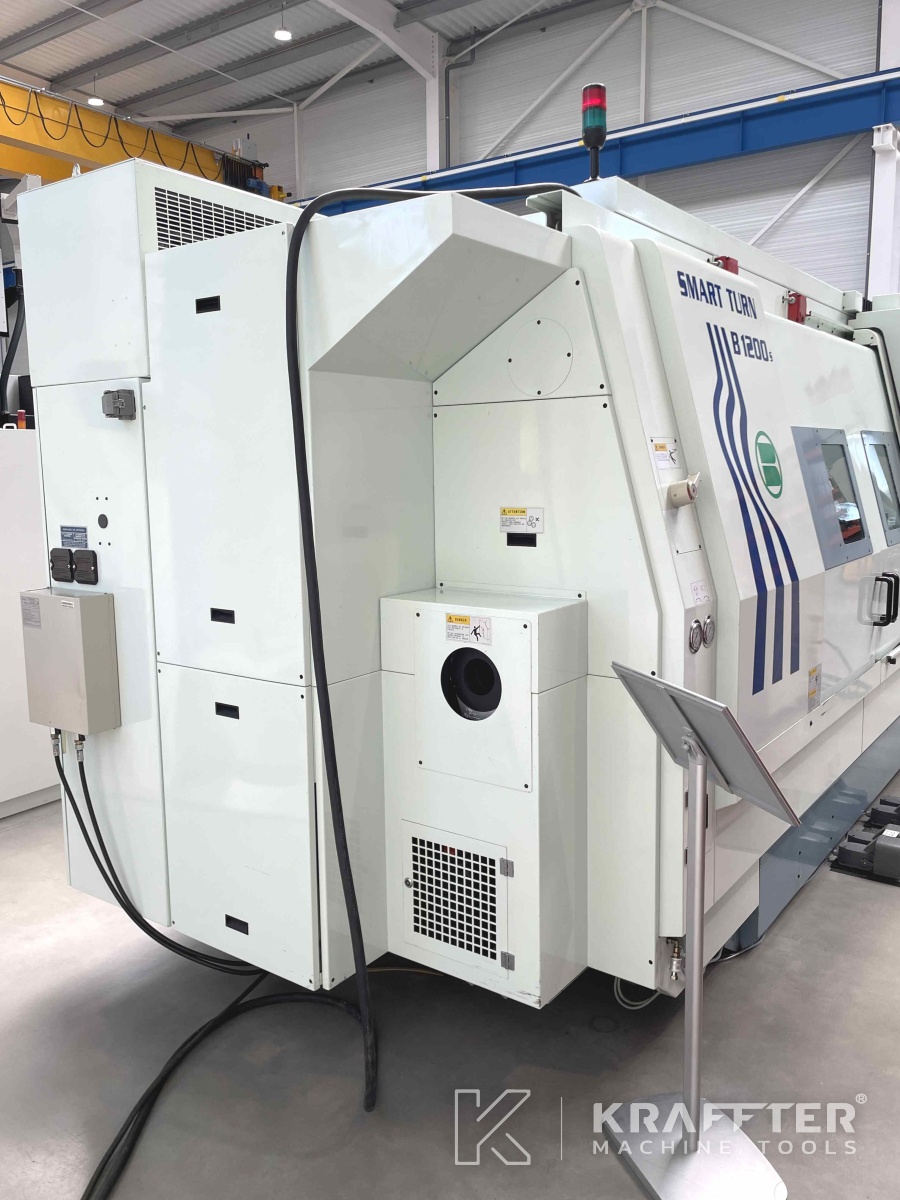

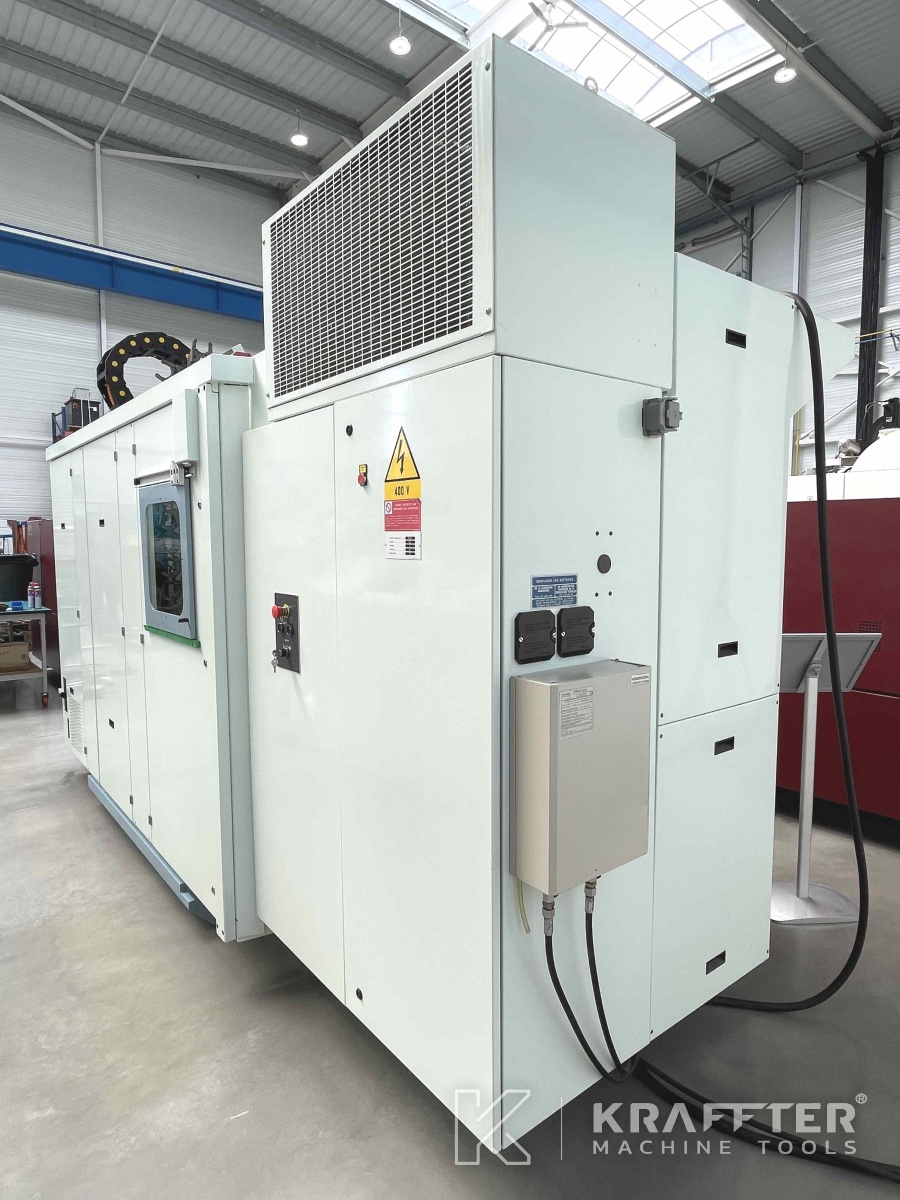

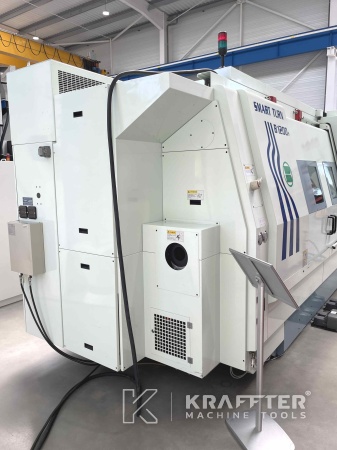

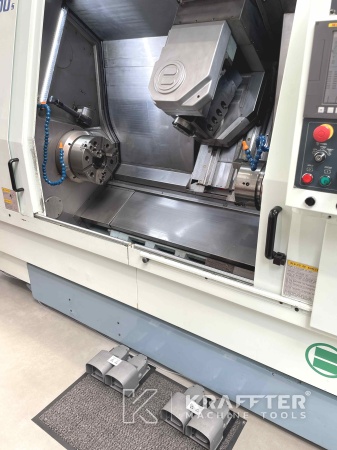

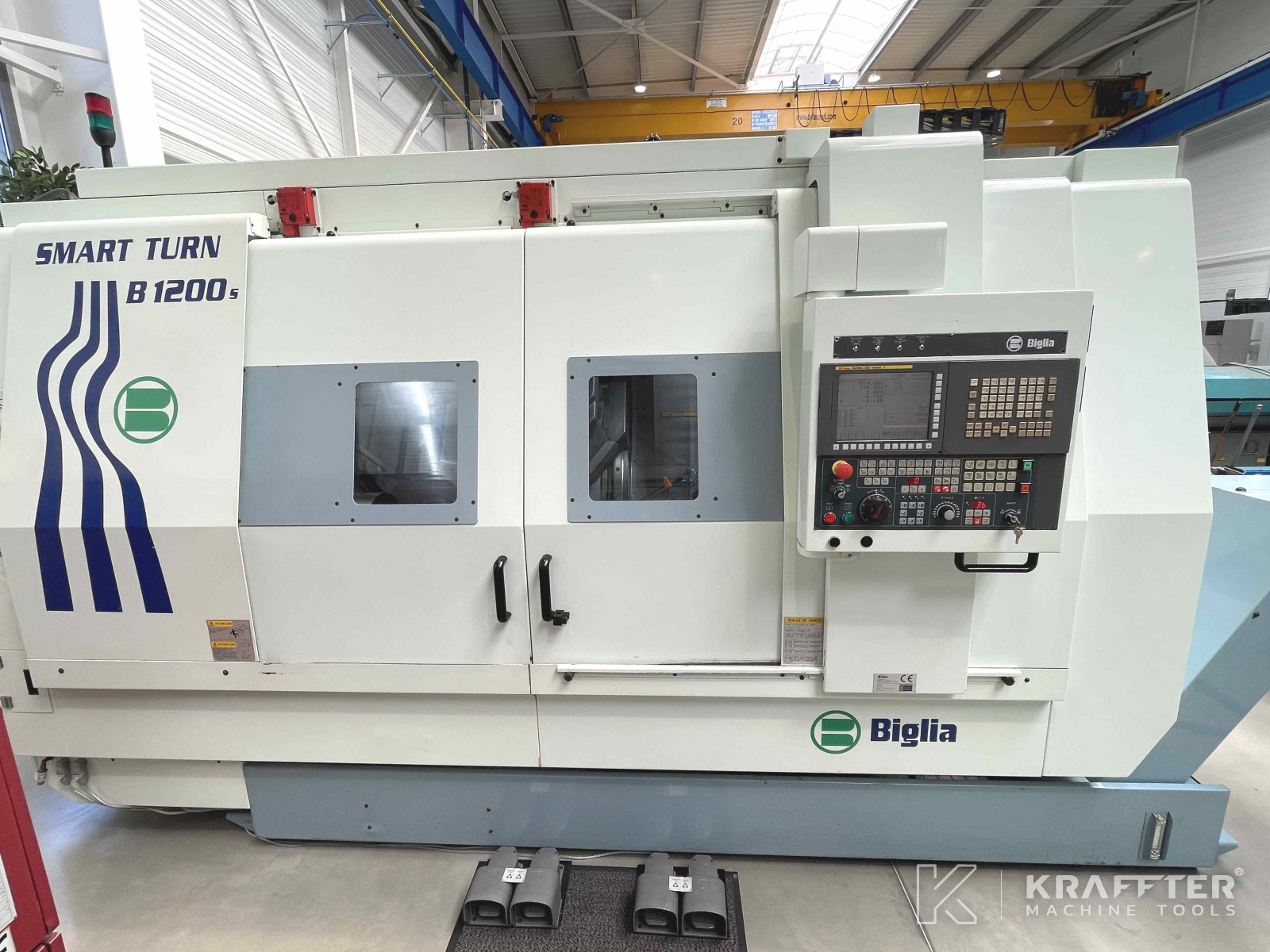

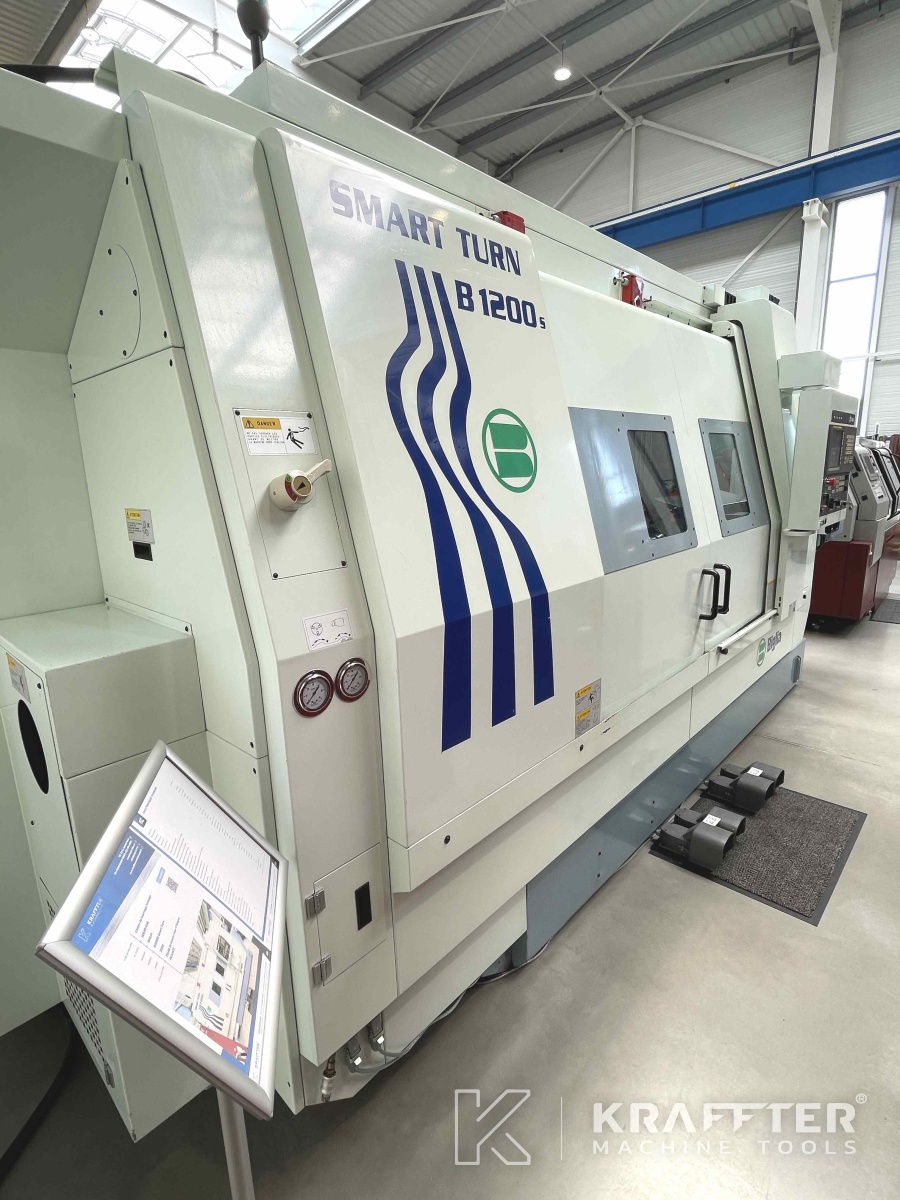

Type of machine : Turn-mill center
Brand : BIGLIA
Stock N° : 20690-045

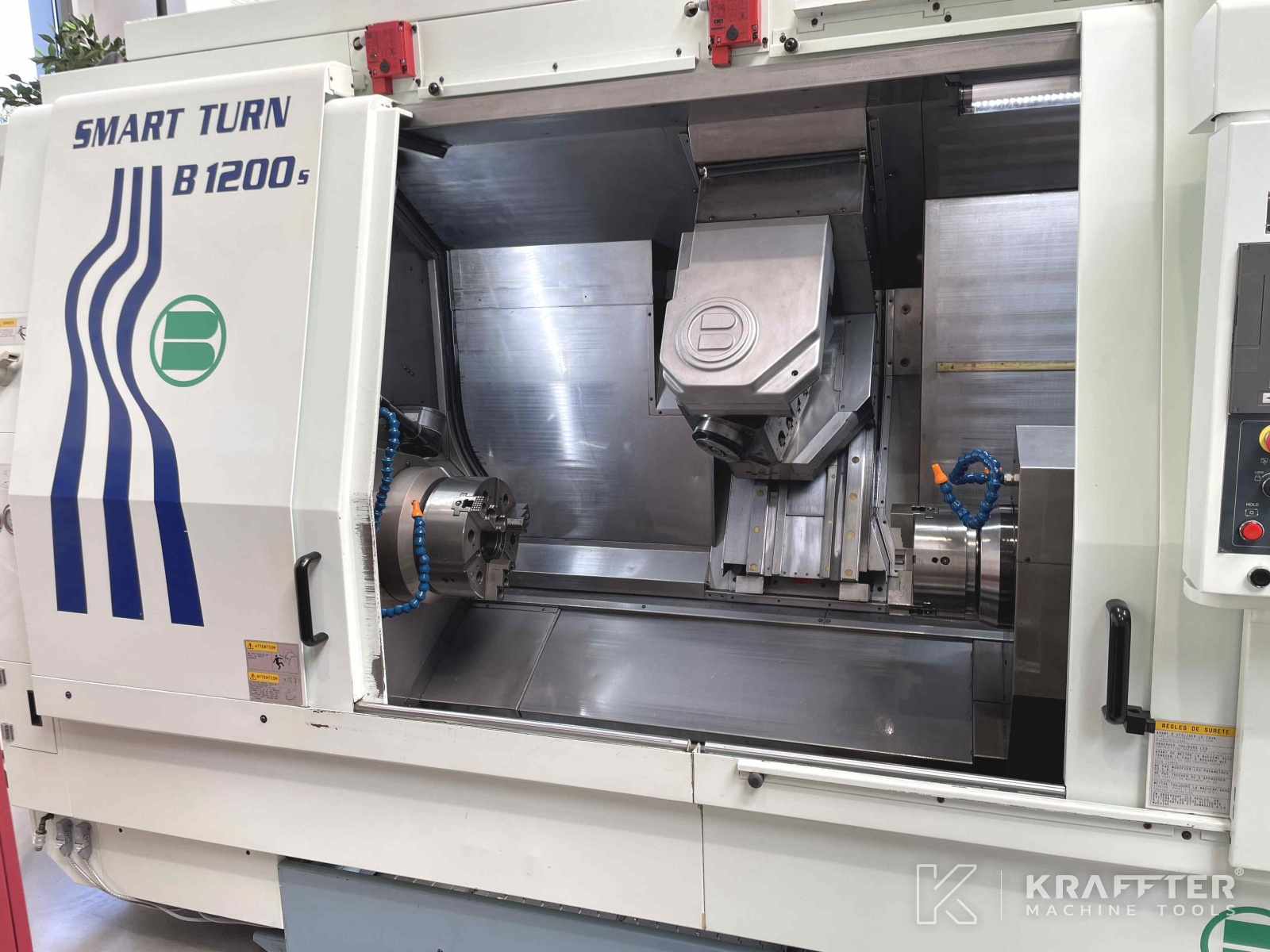

Model : B1200S Smart Turn
Year : 2006
Location : 73240 St-Genix-les-Villages, FRANCE
Videos :
Technical characteristics
Additional information
Request a quotation

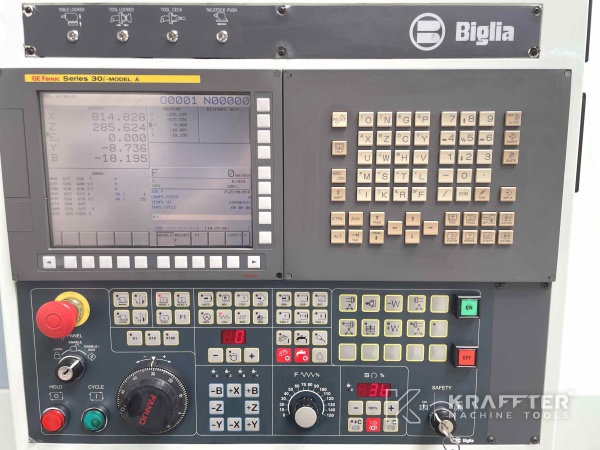

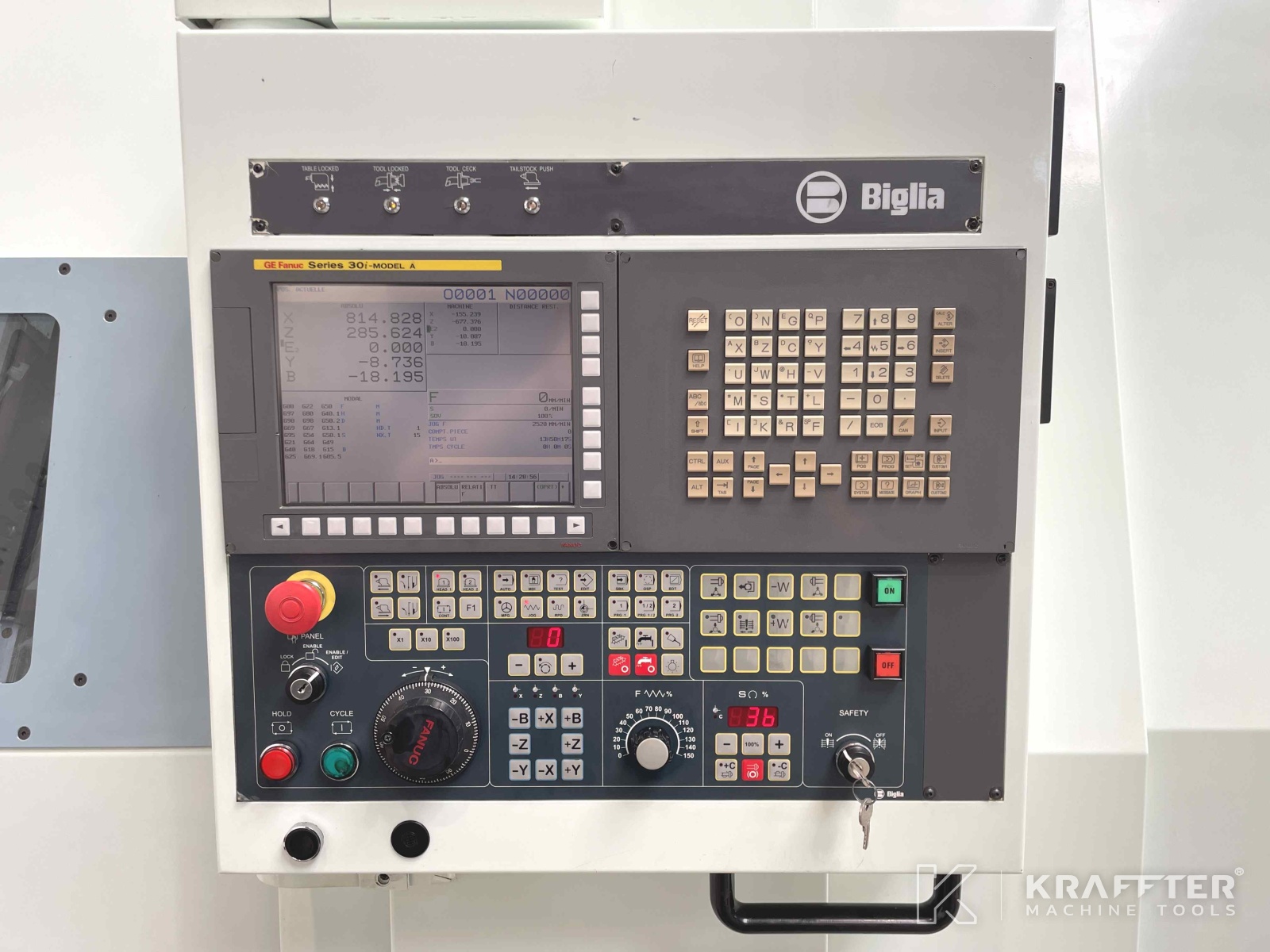

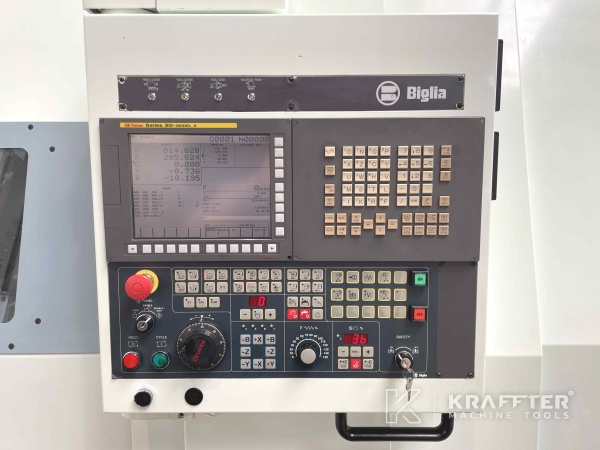

CNC control
FANUC 30i
Number of axes
5
Max. cutting diameter
500 [mm]
Max. turning diameter in rotation
750 [mm]
Max. turning lenght
1260 [mm]
Stroke X axis
510 [mm]
Stroke Y axis
+120 / -90 [mm]
Stroke Z axis
1300 [mm]
Stroke W axis
1130 [mm]
Stroke B axis
+/- 105 [°]
B axis indexing precision
0.001 [°]

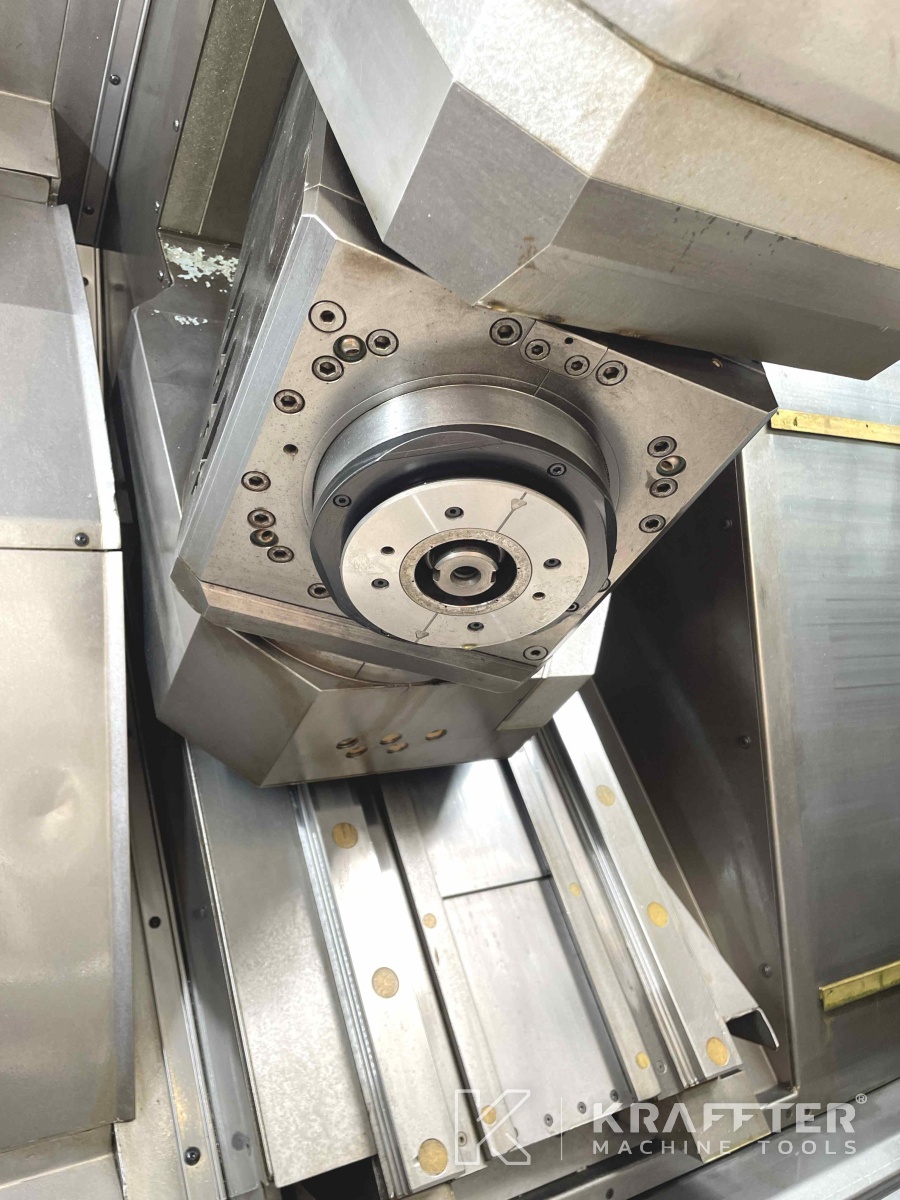

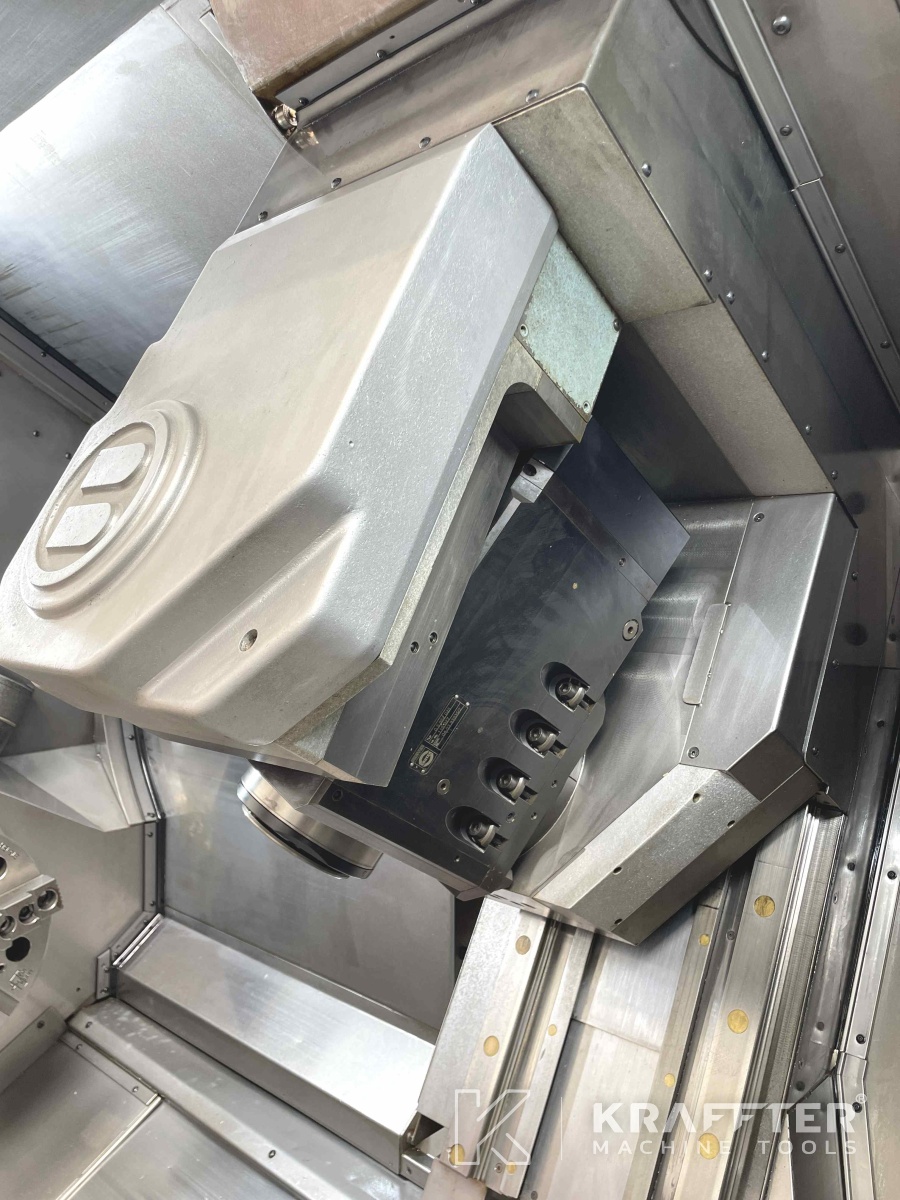

Milling head max. speed
8000 [rpm]

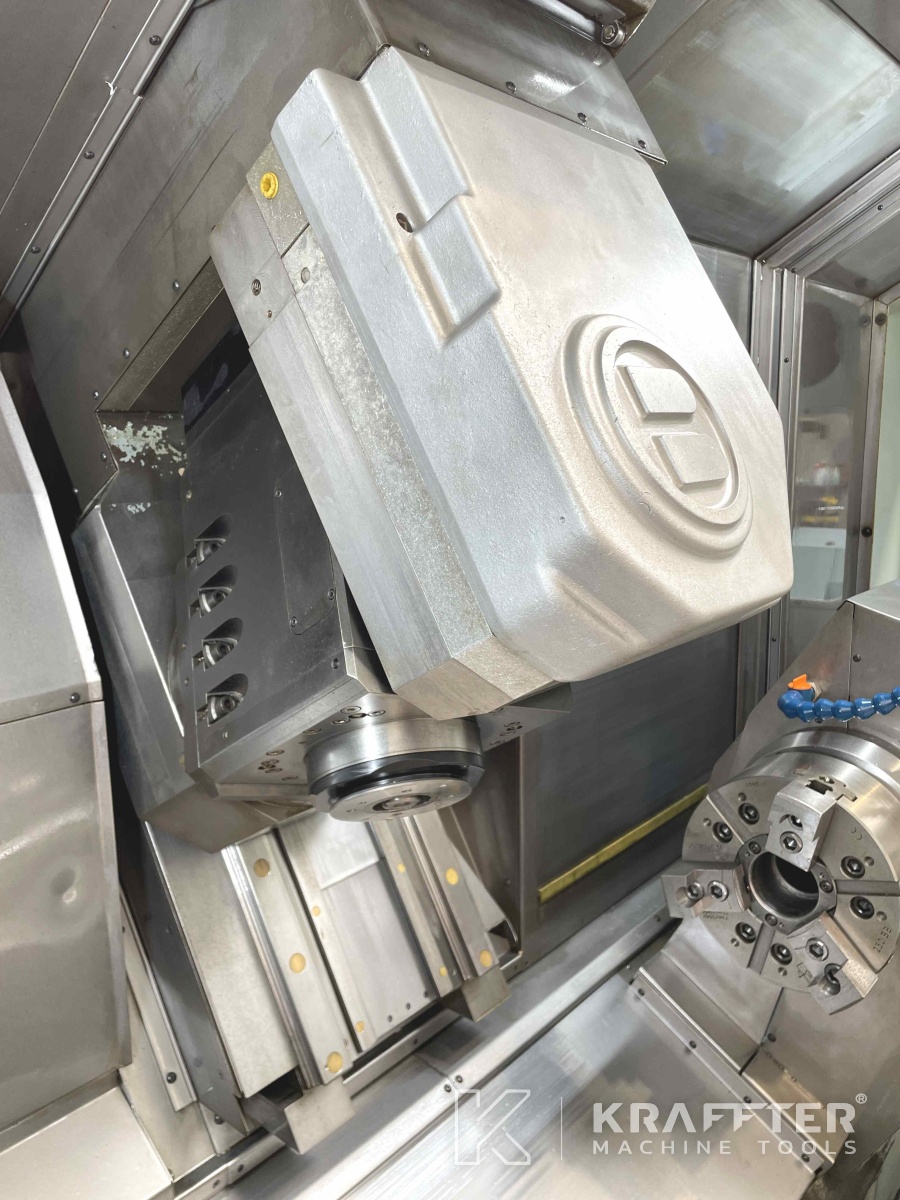

Milling head spindle attachment
HSK - 63
Max. milling spindle power
20 [kW]
Max. milling spindle torque
110 [Nm]
Coolant milling head
inter. + exter.

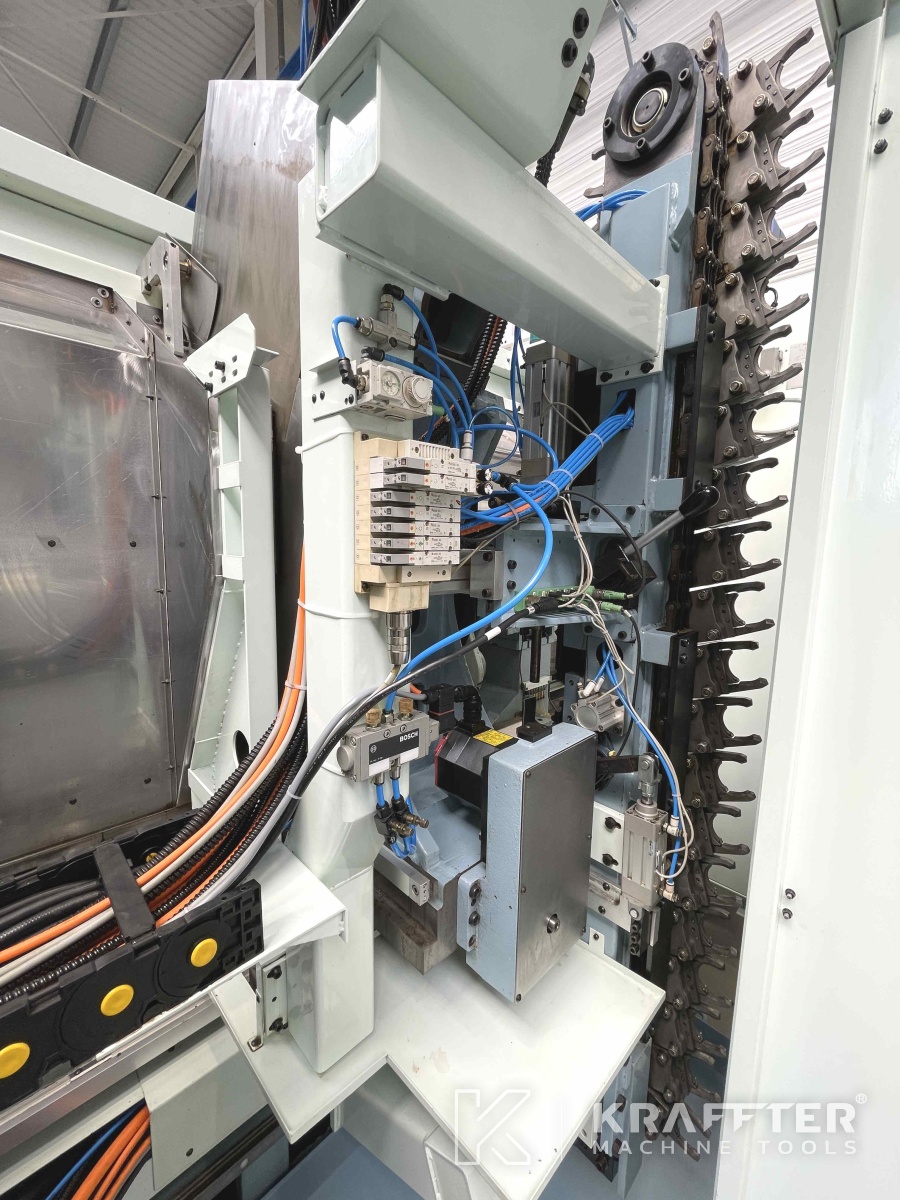

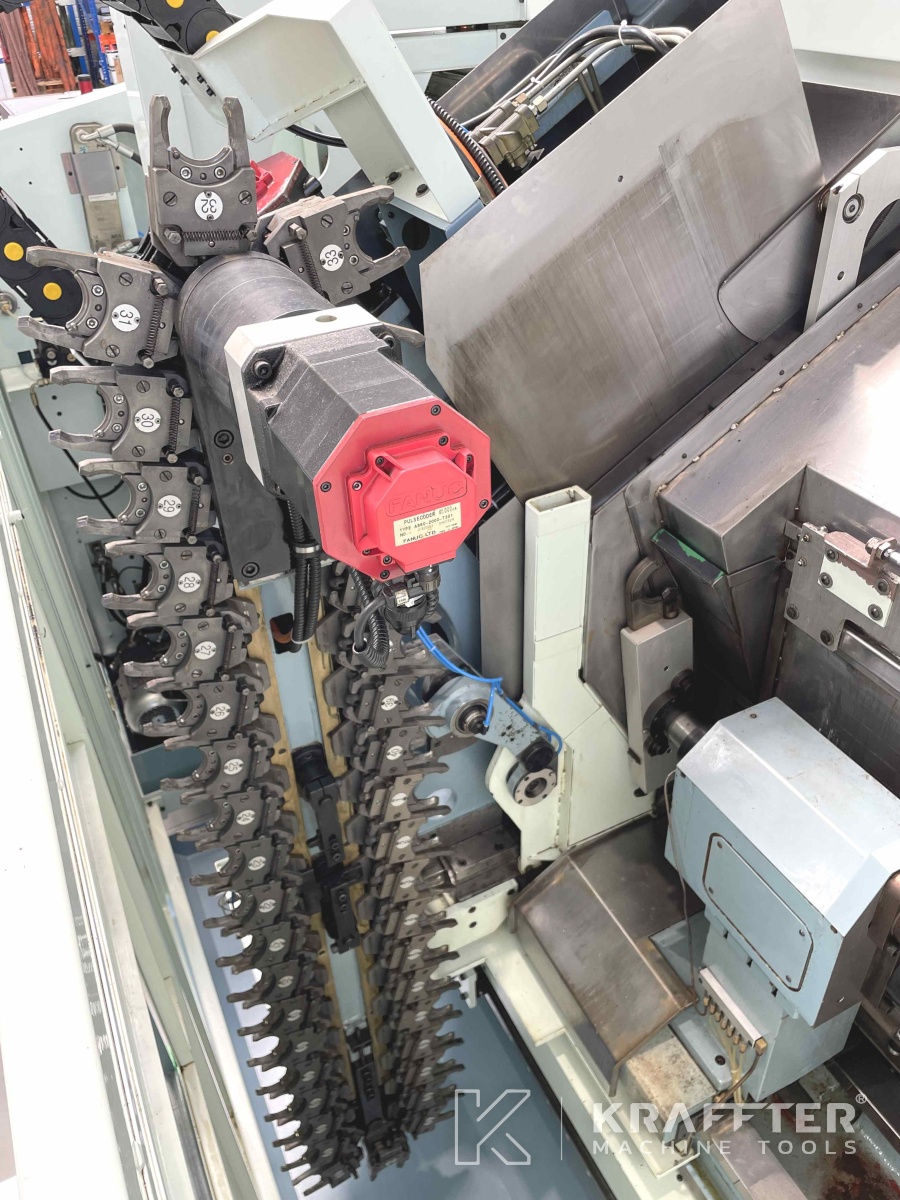

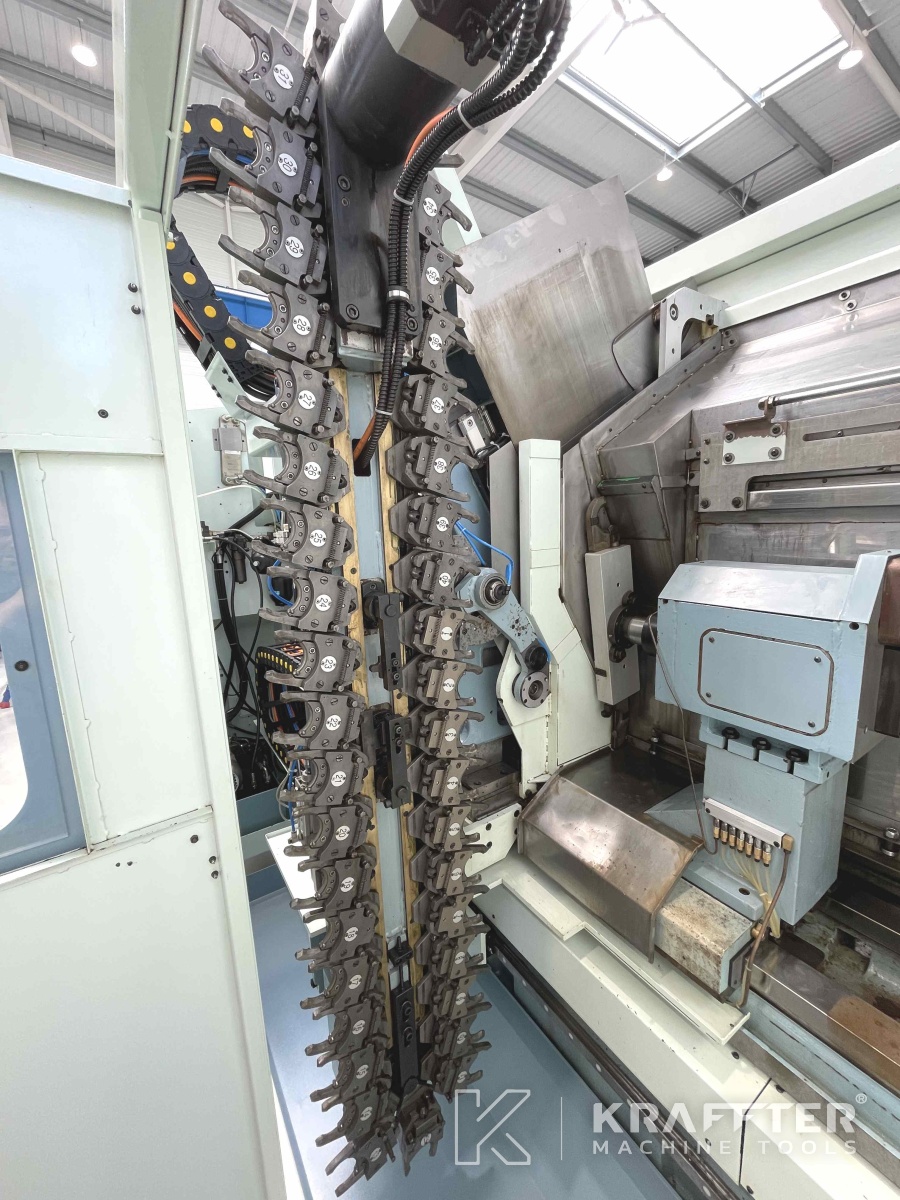

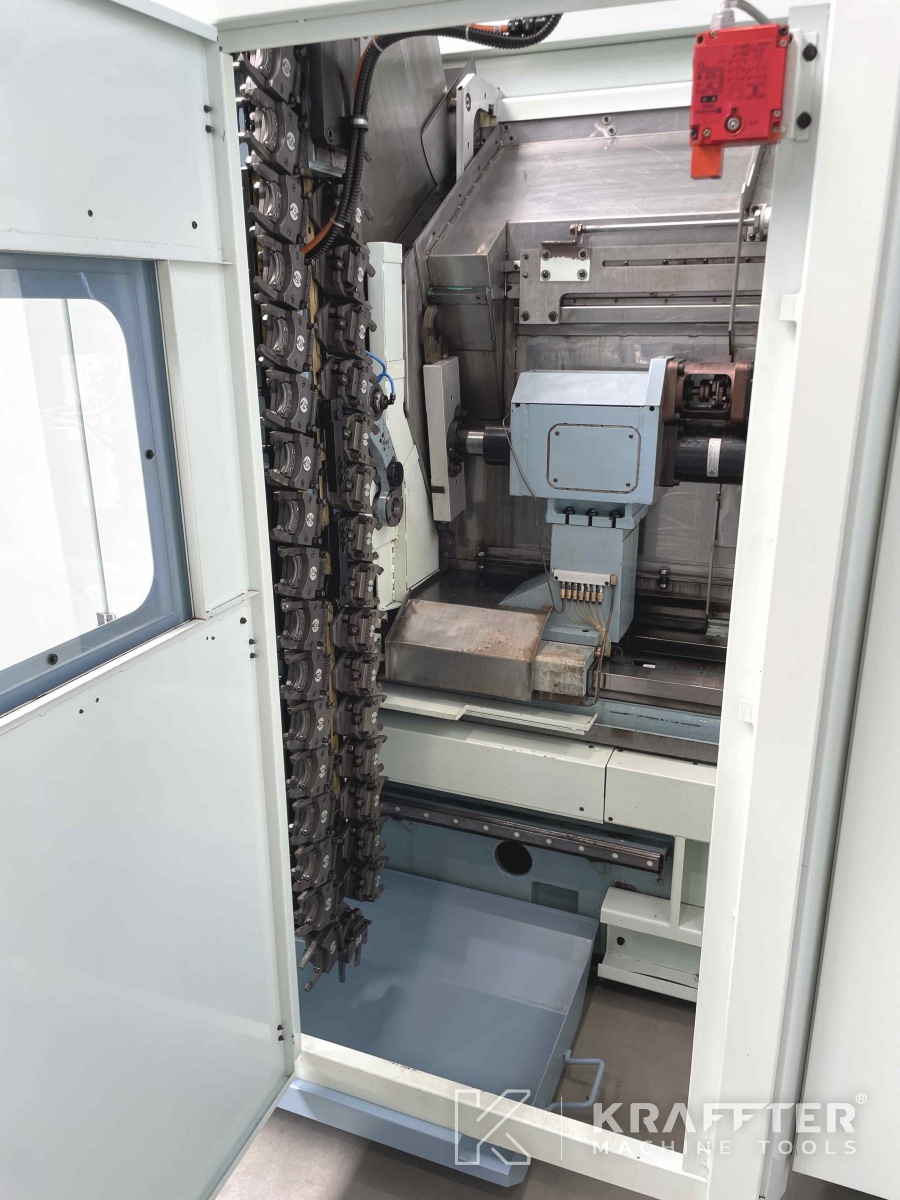

Tool magazine capacity
40 postes
Milling spindle angle lock range
180 [°]
Rapid traverse rate X axis
20000 [mm/min]
Rapid traverse rate Z axis
24000 [mm/min]
Rapid traverse rate Y axis
12000 [mm/min]

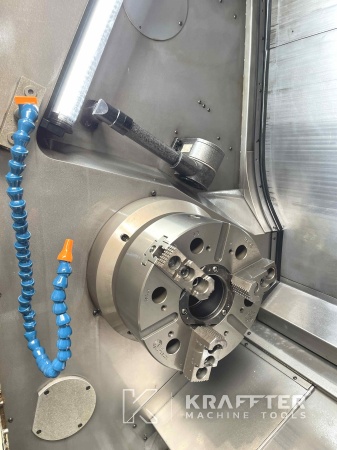

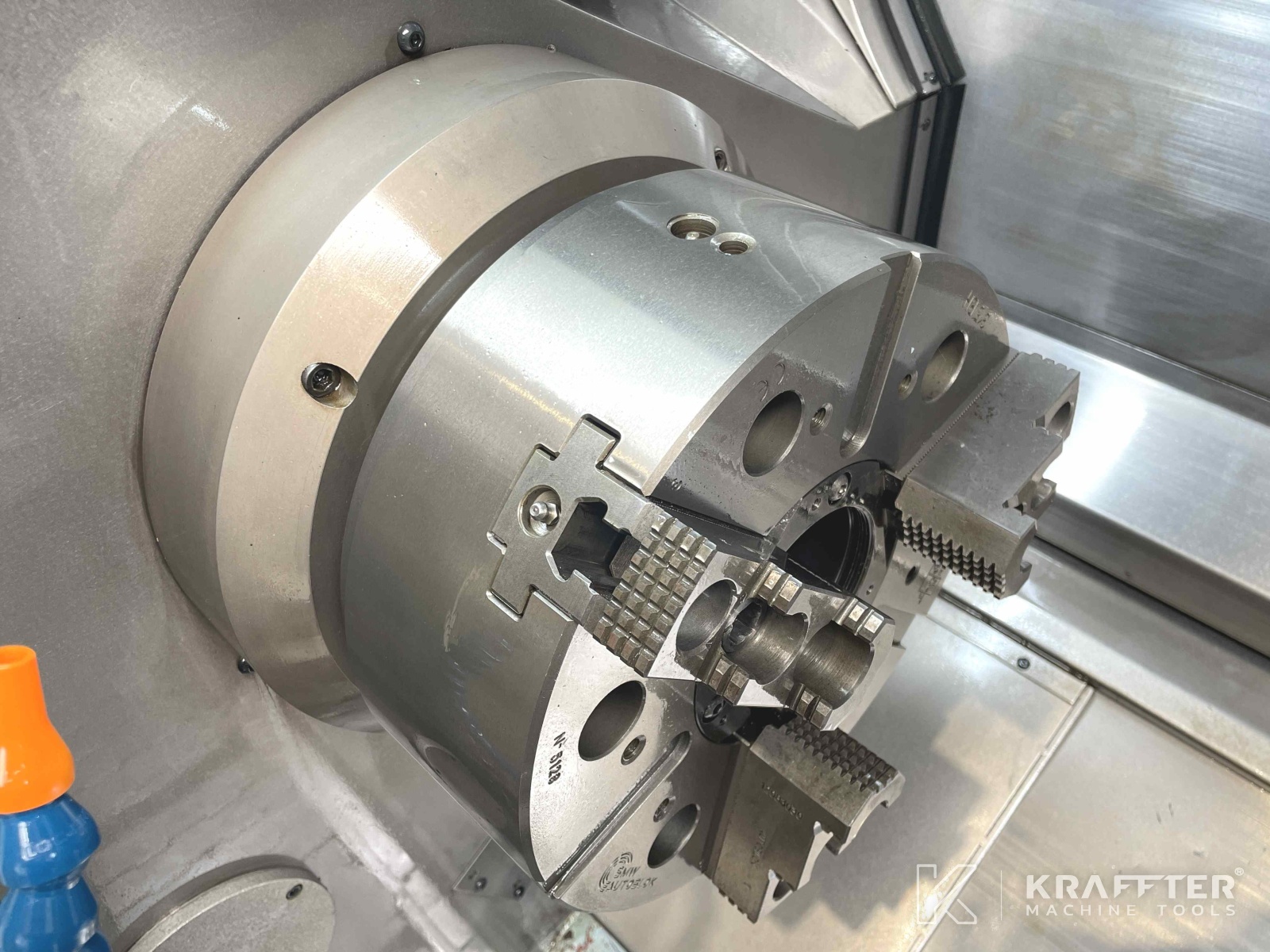

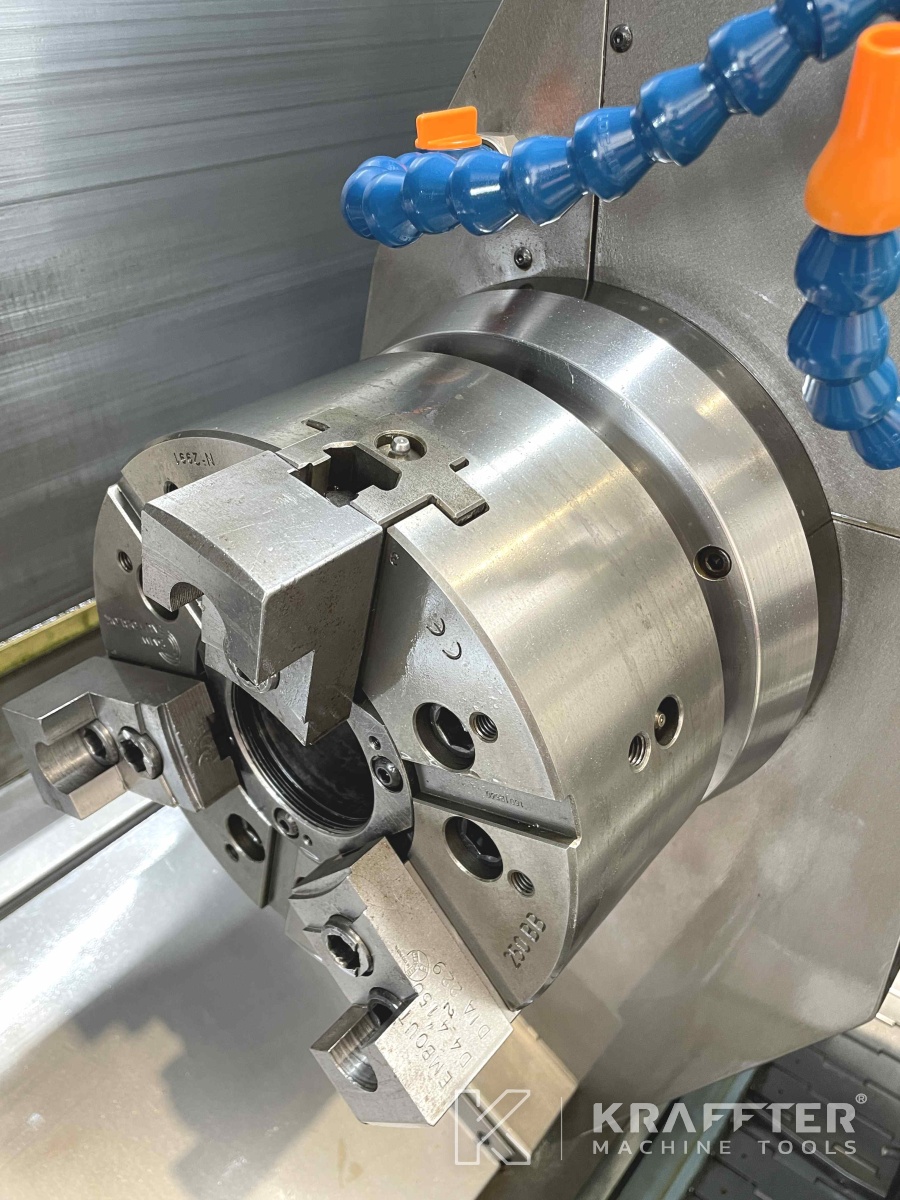

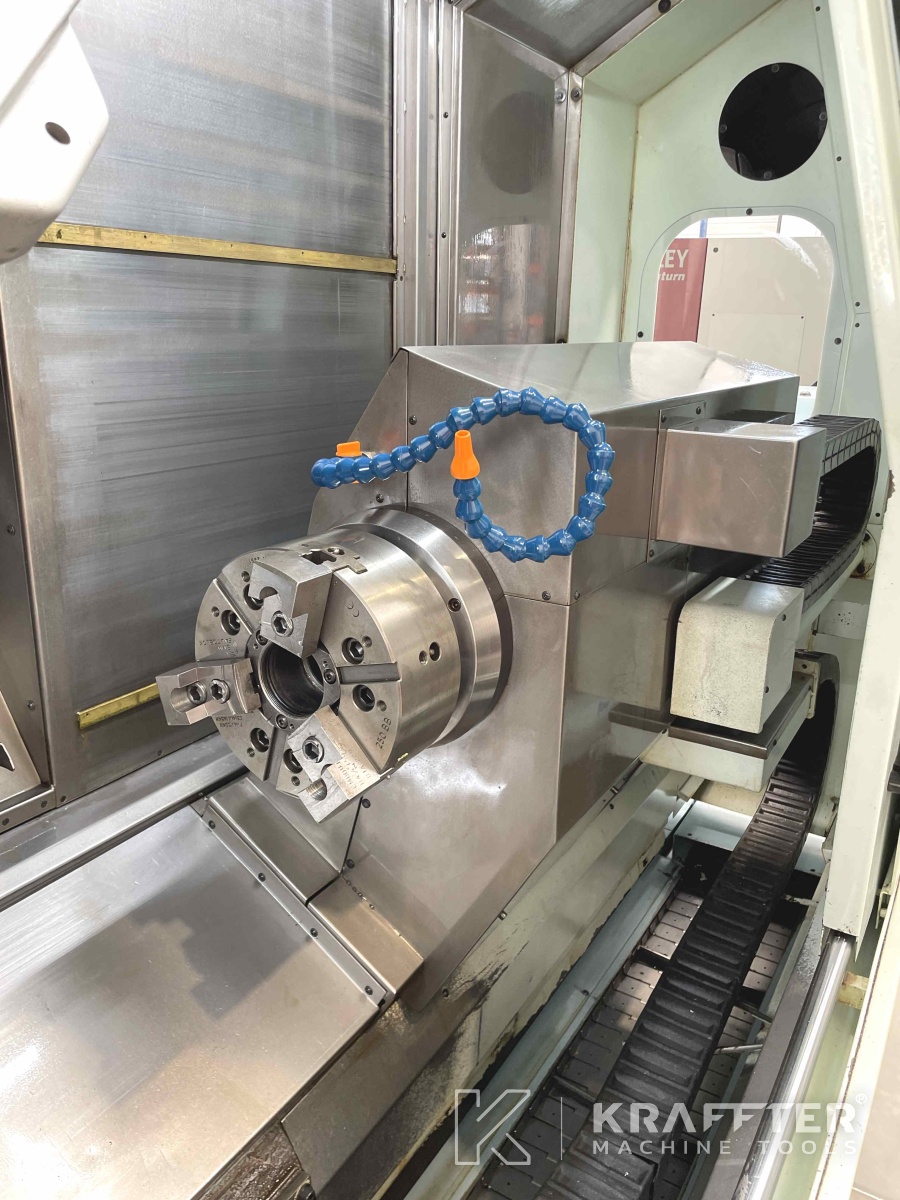

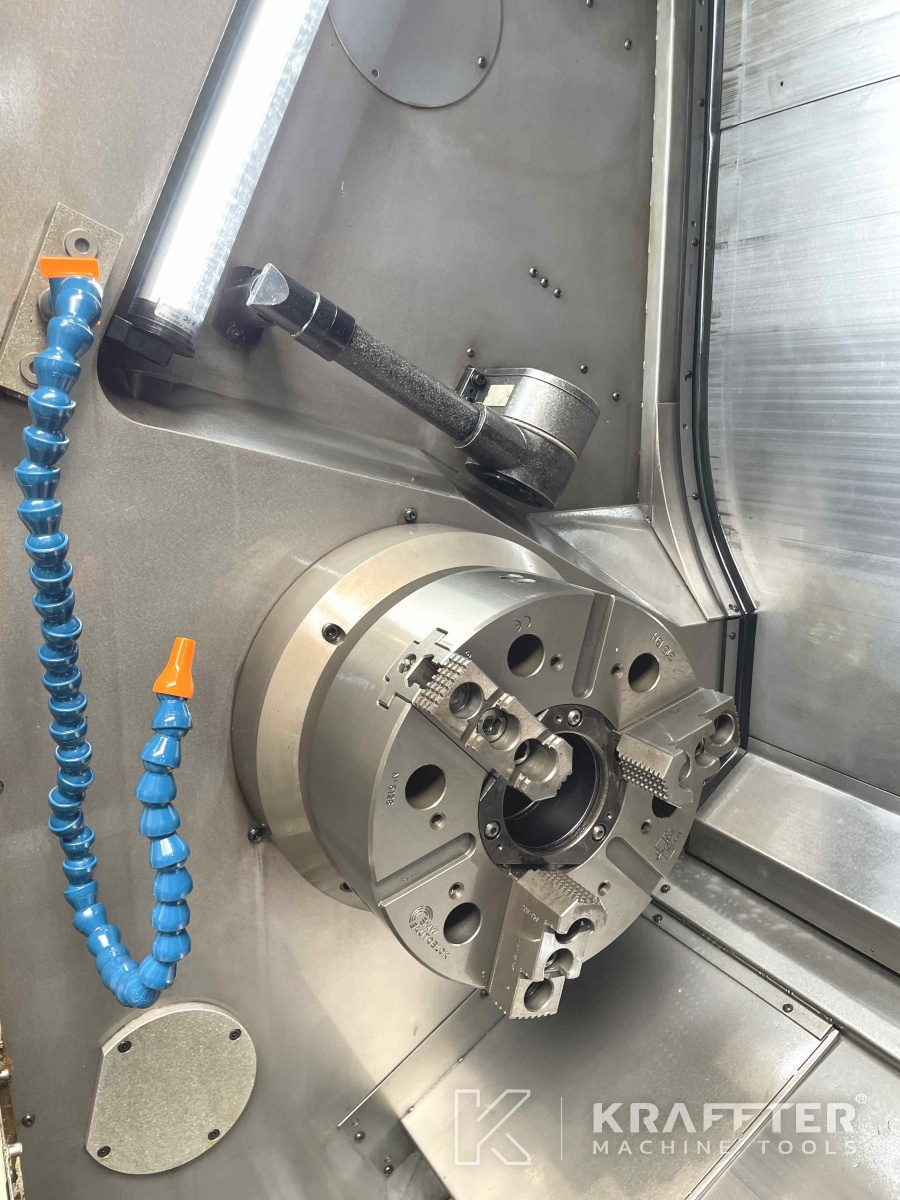

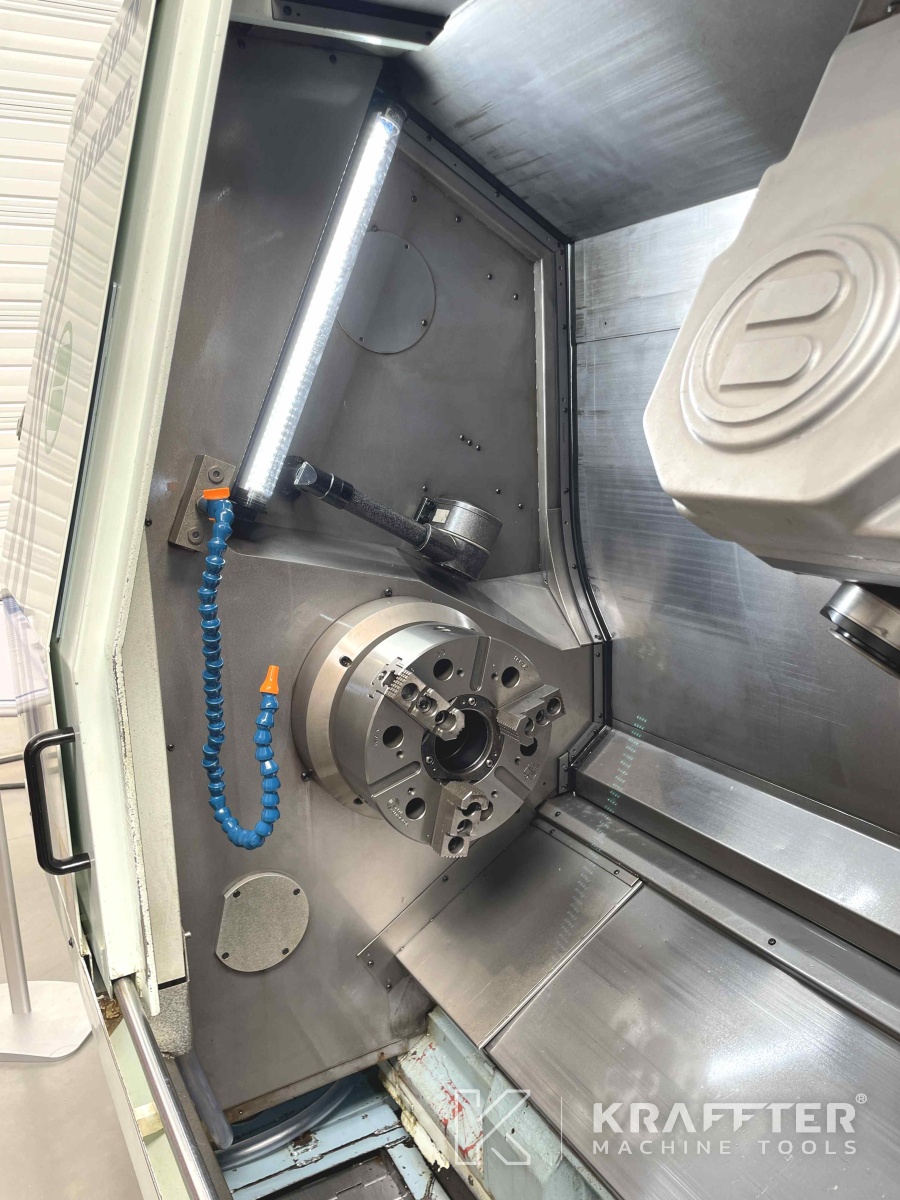

Spindle nose
DIN 55026 - ASA 8"
Spindle throughbore
94 [mm]
Max. spindle speed
3000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
30 [kW]
Spindle torque
821 [Nm]

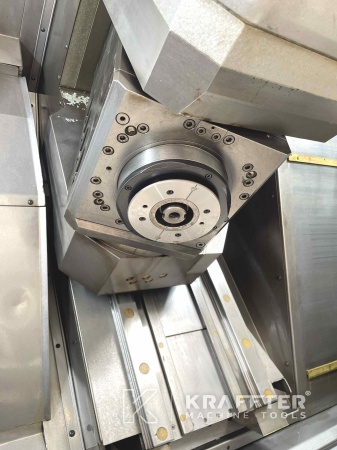

Counter spindle
DIN 55026 - ASA 6"
Counter spindle throughbore
65 [mm]
Max. counter spindle speed
4000 [rpm]
Counter spindle power
24 [kW]
Counter spindle torque
334 [Nm]

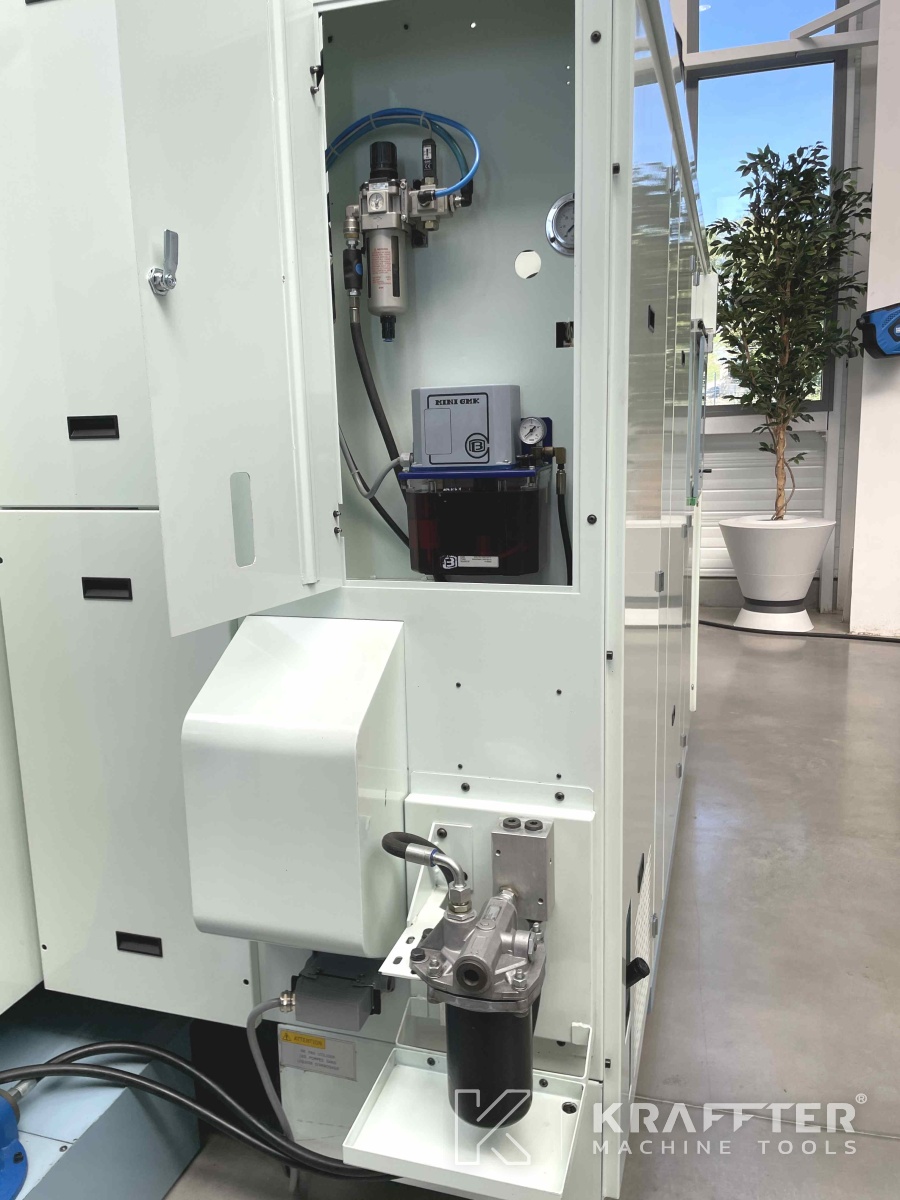

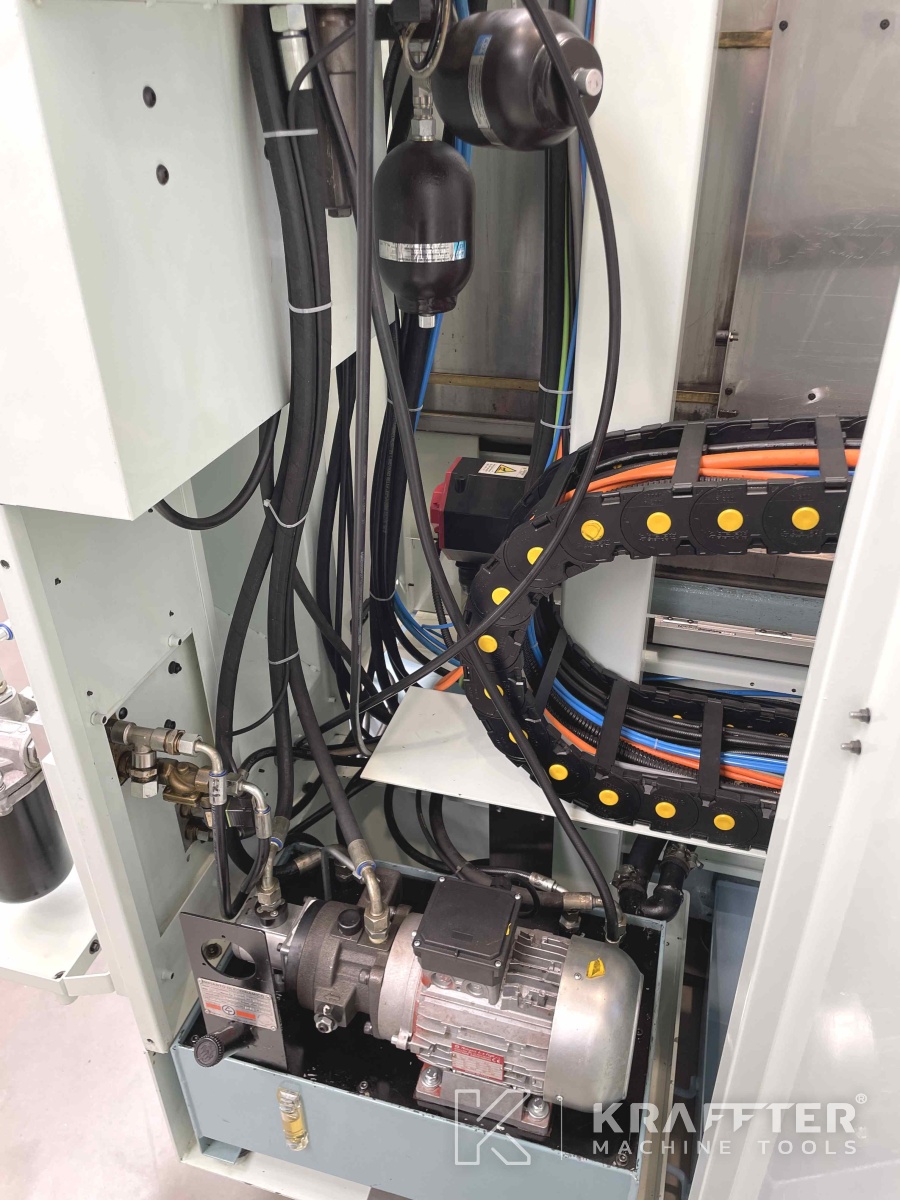

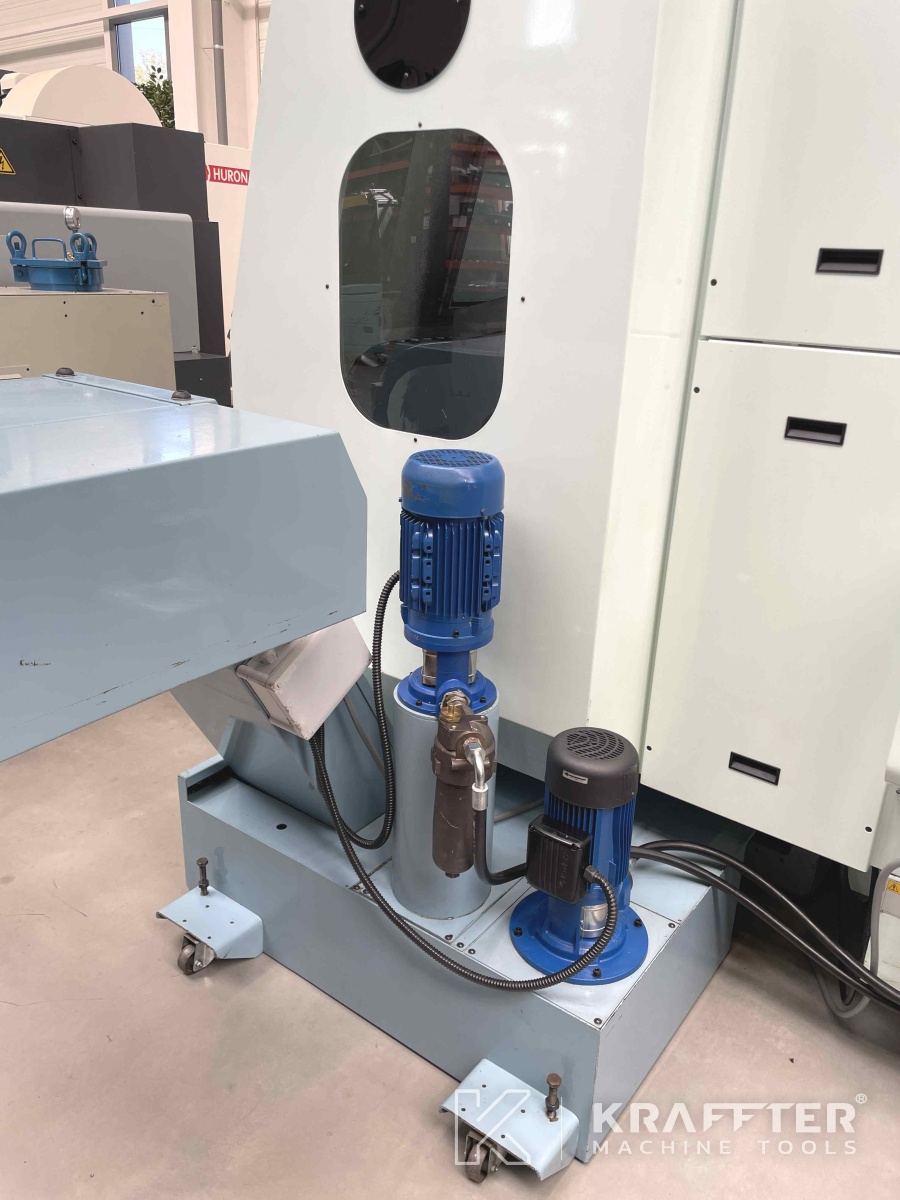

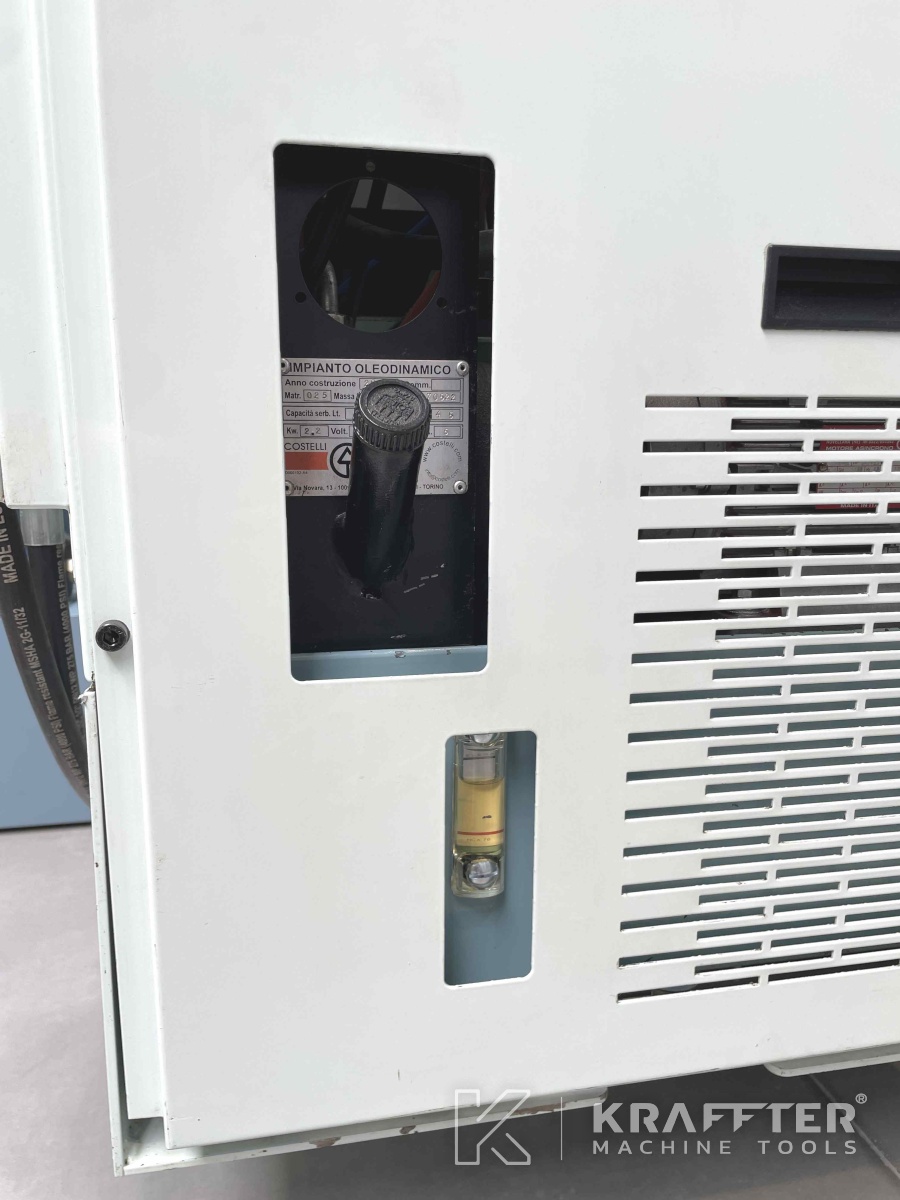

Lubrication tank with pump
Yes
Supply voltage
400 [V]
Number of hours under power
13412 [h]
Layout dimensions
5500 x 2300 x 2400 [mm]
Weight
8500 [Kg]
EQUIPMENT INCLUded:

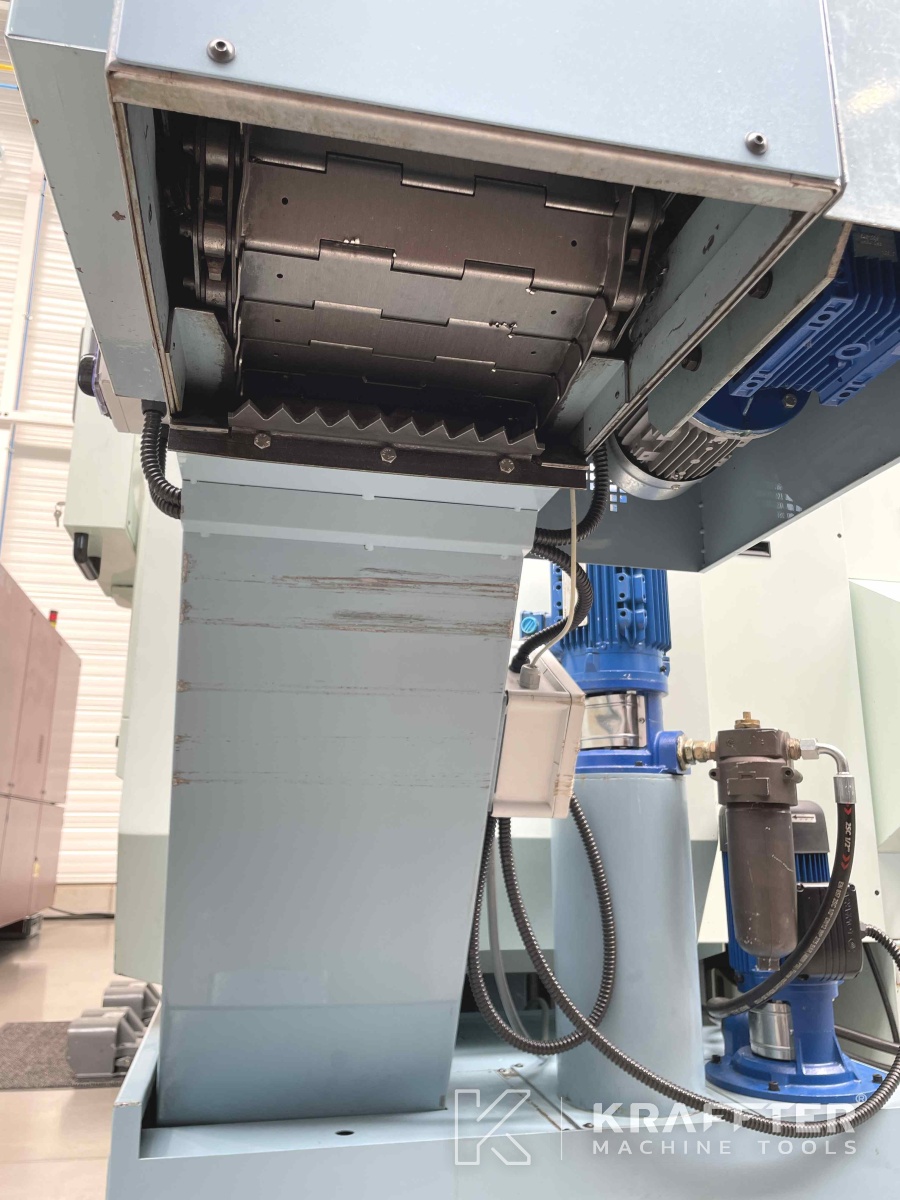

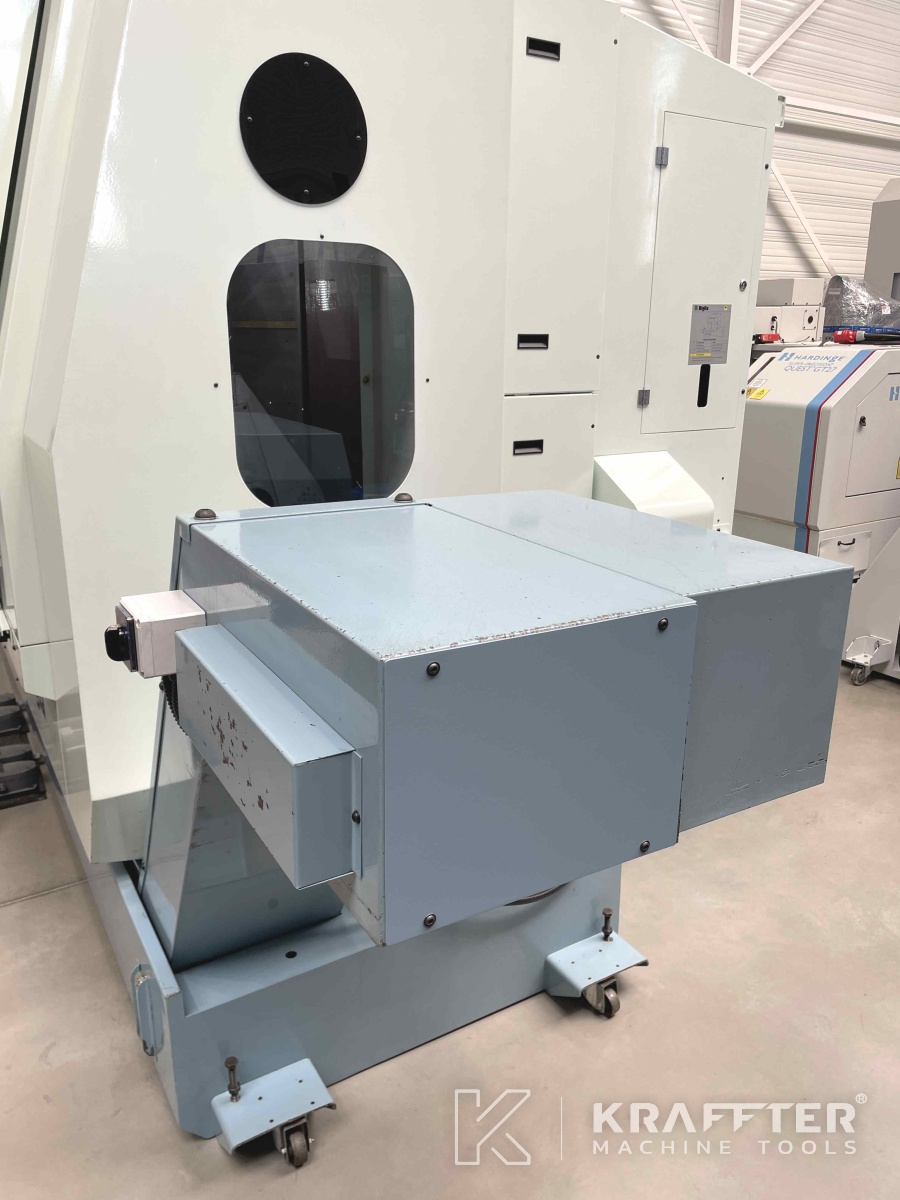

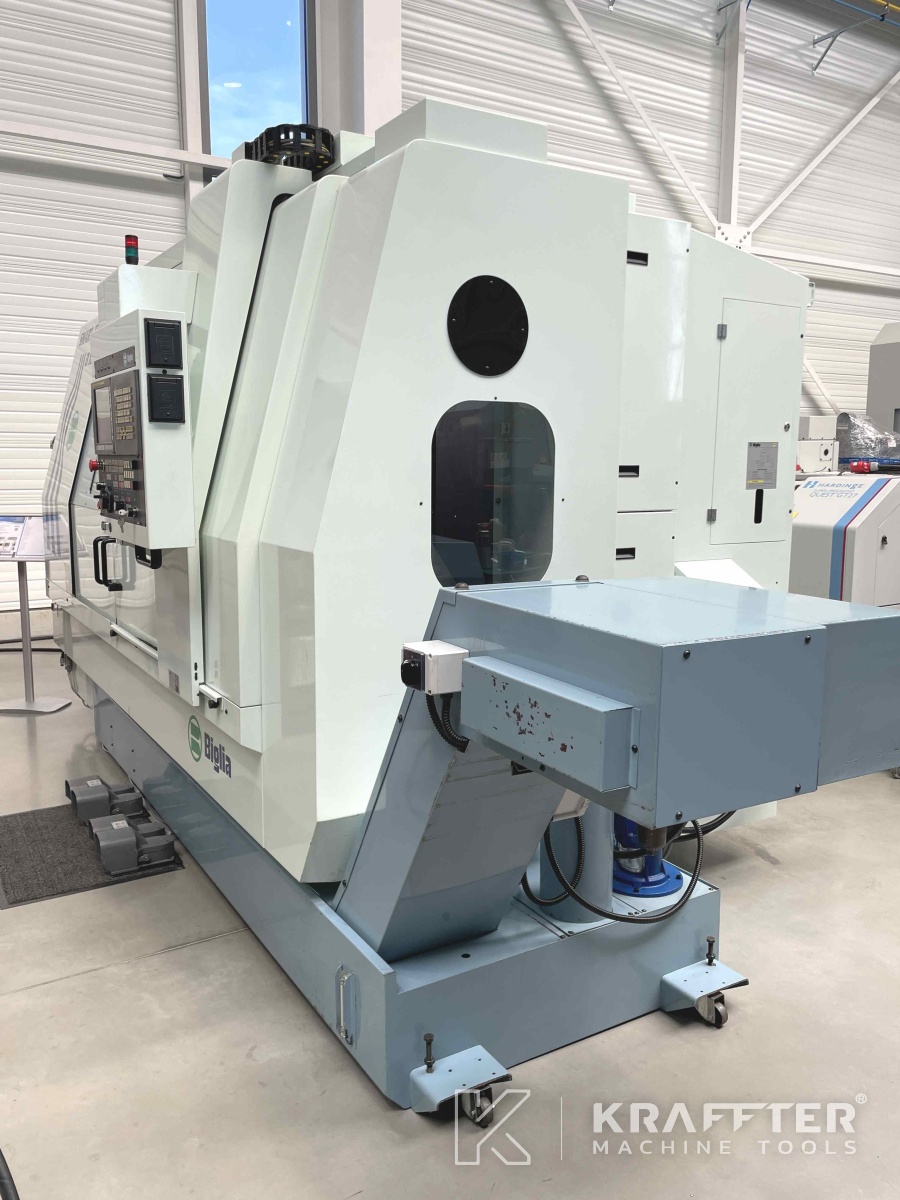

x1 chip conveyor
x1 chip tray
x1 users manual
x1 spare parts manual
x1 parameter backup
