Sold

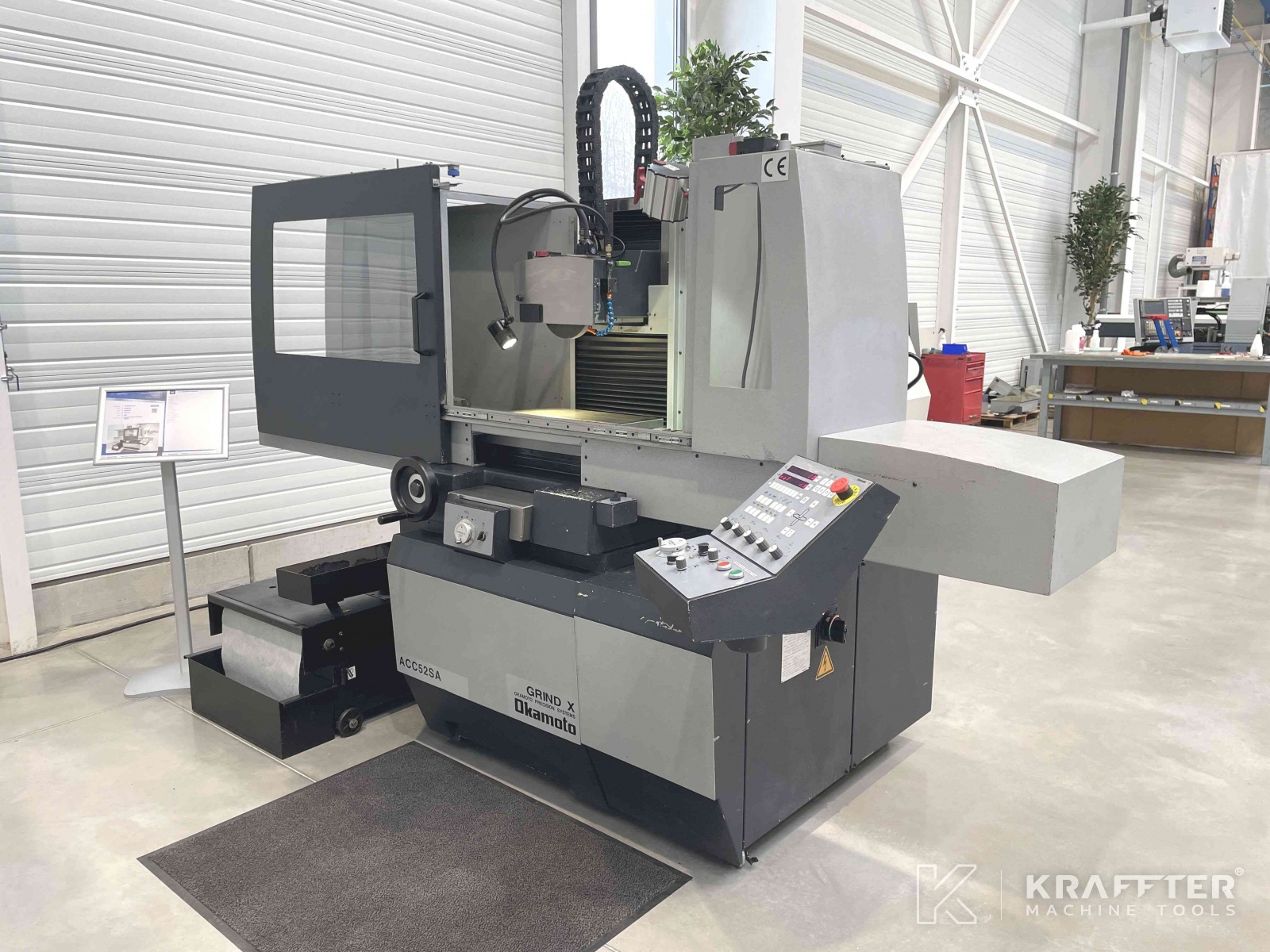

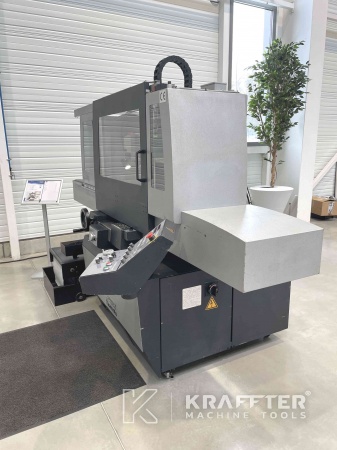

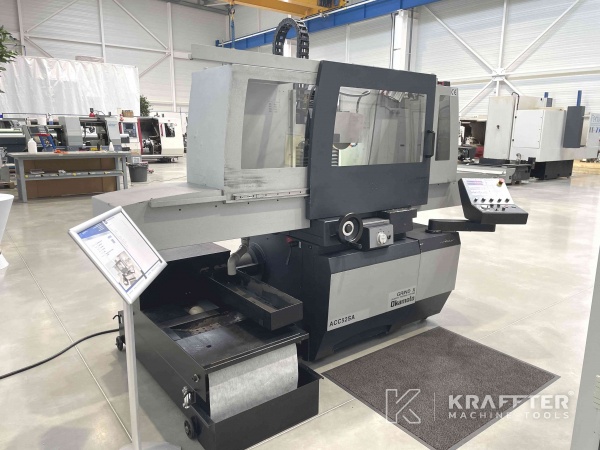

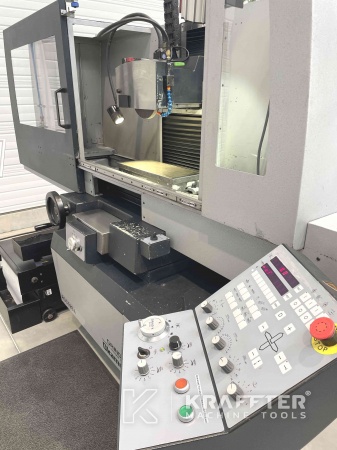

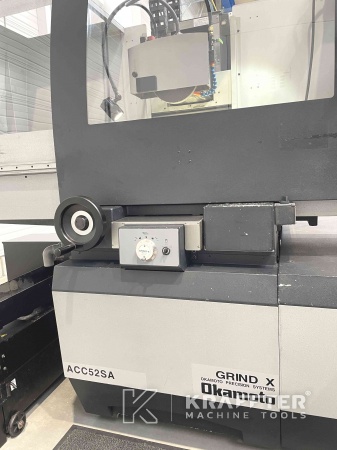

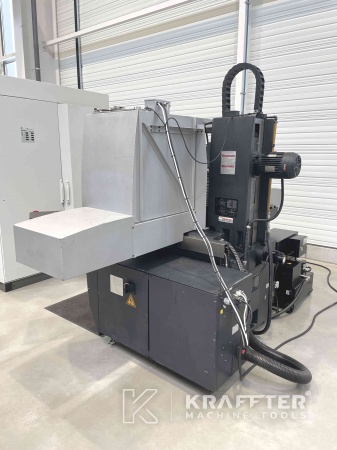

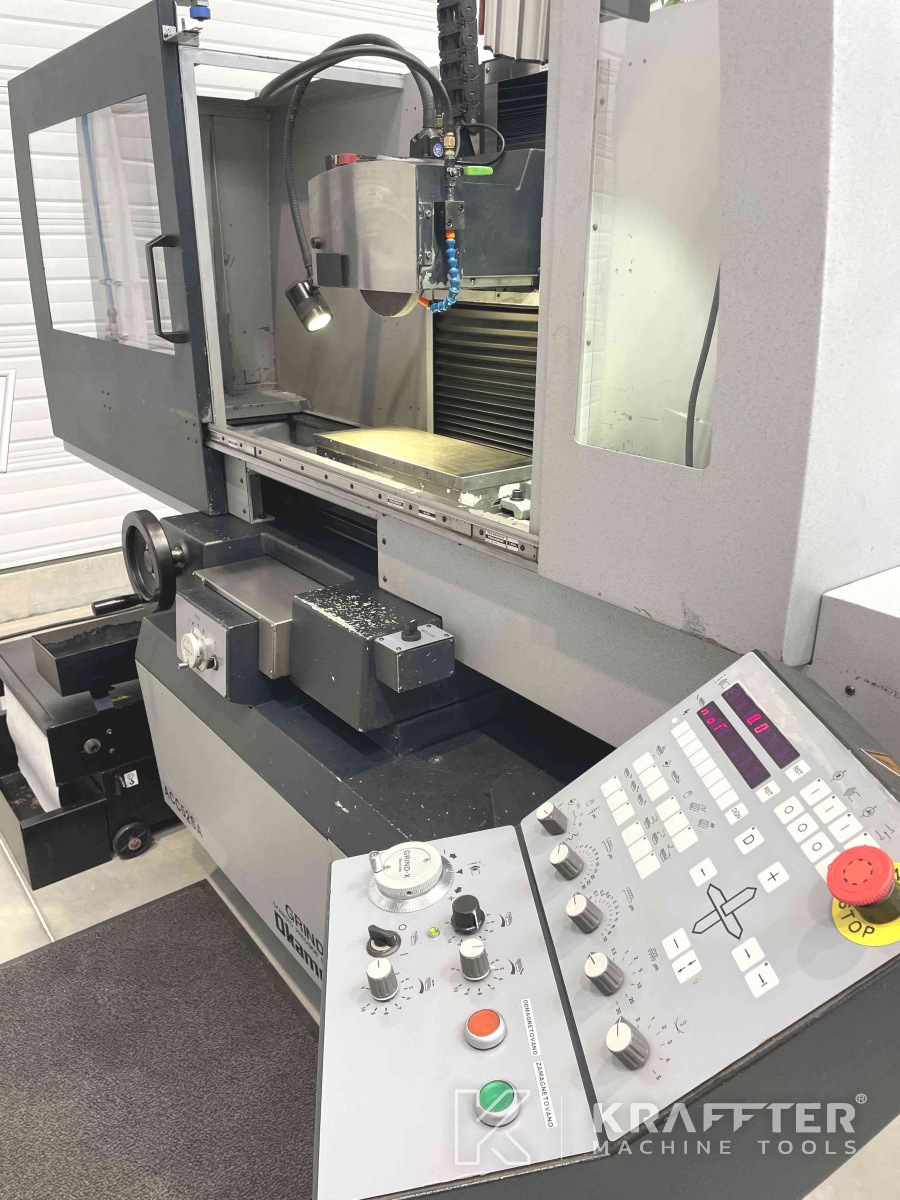

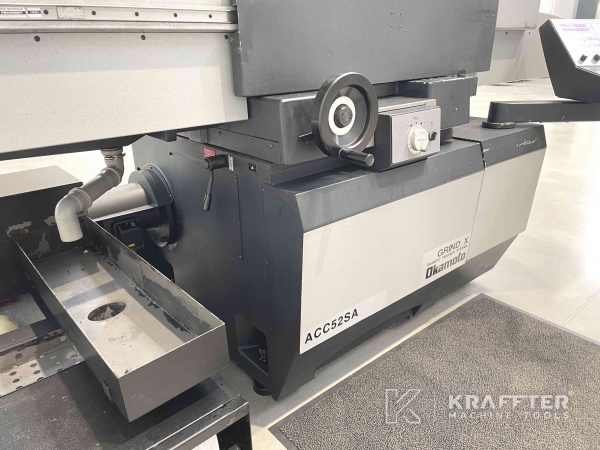

Type of machine : Surface grinder
Brand : OKAMOTO
Stock N° : 20690-027
Model : ACC 52 SA
Year : 2010
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of automatic axes
3
Stroke X axis
650 [mm]
Stroke Y axis
230 [mm]
Table length
550 [mm]
Table width
200 [mm]
Min. distance spindle nose / table
47.5 [mm]
Max. distance spindle nose / table
397.5 [mm]
Max. load on table
200 [Kg]
Grinding wheel speed
3000 [rpm]
Grinding spindle motor power
1.5 [kW]
Grinding wheel diameter
205 [mm]
Grinding wheel width
19 [mm]
Grinding wheel bore
50.8 [mm]

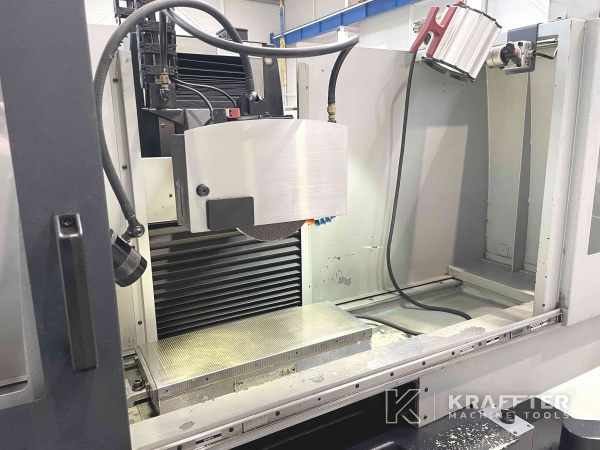

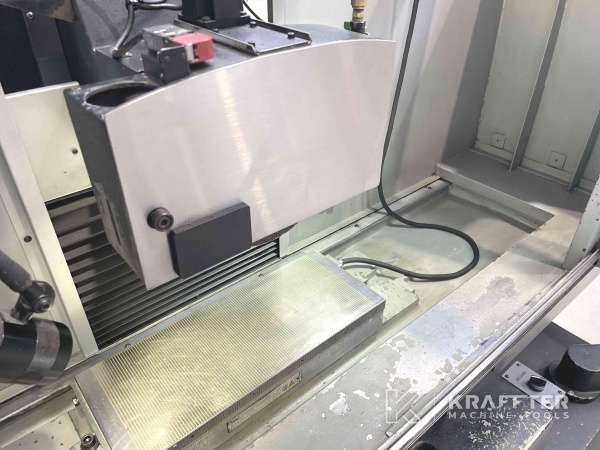

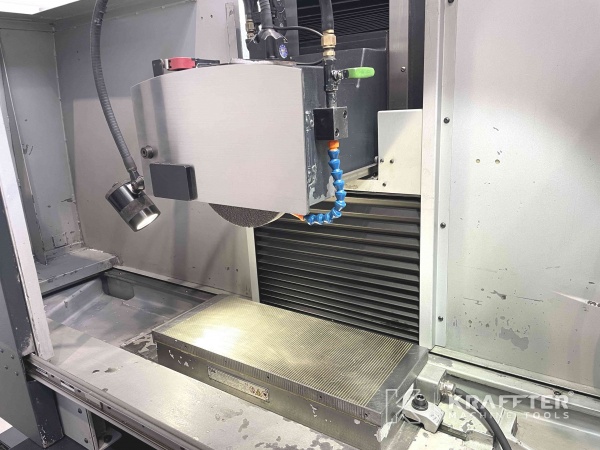

Electro permanent magnet clamping plate
Yes

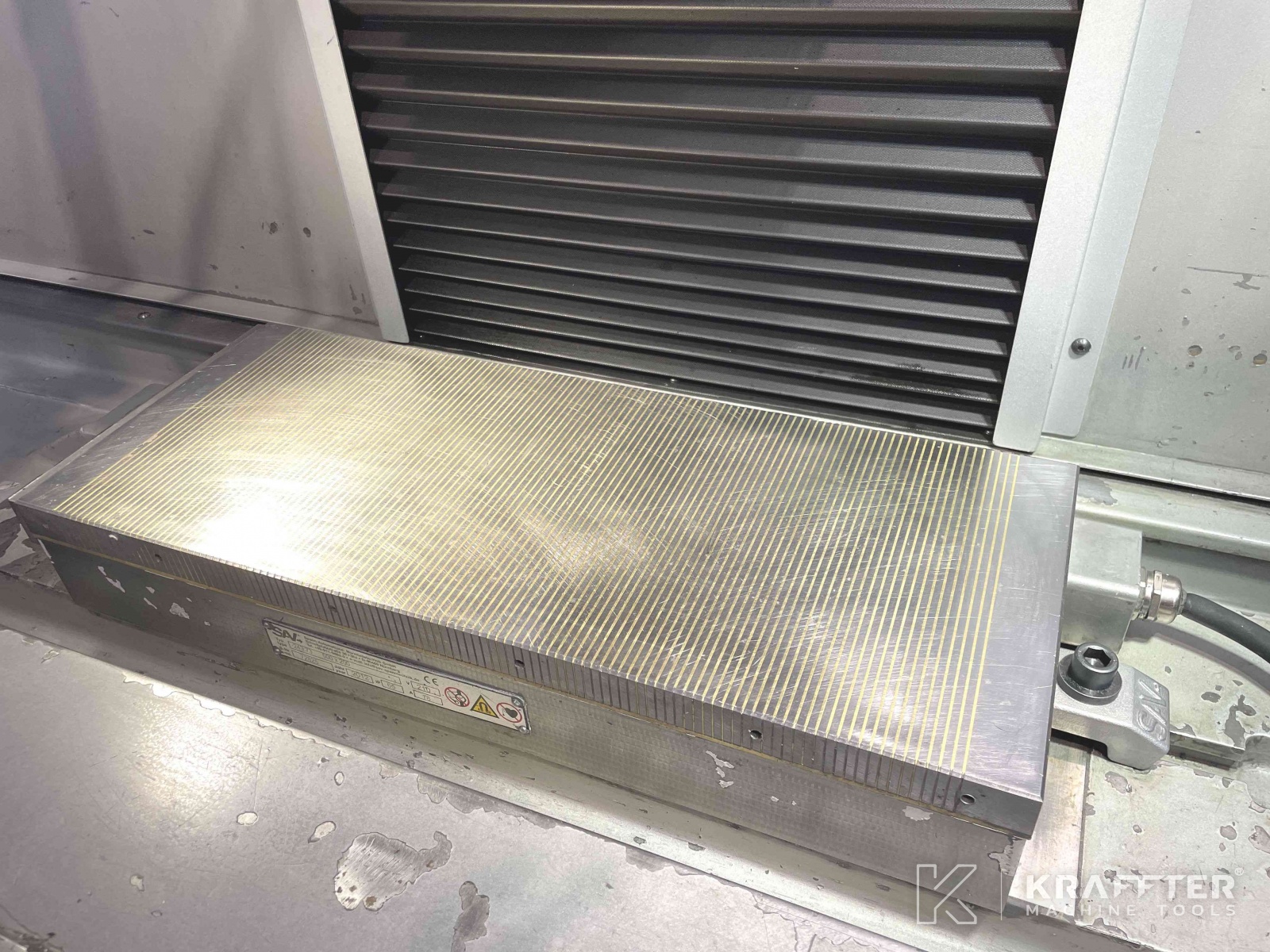

Dimensions of magnetic plate
500 x 200 [mm]

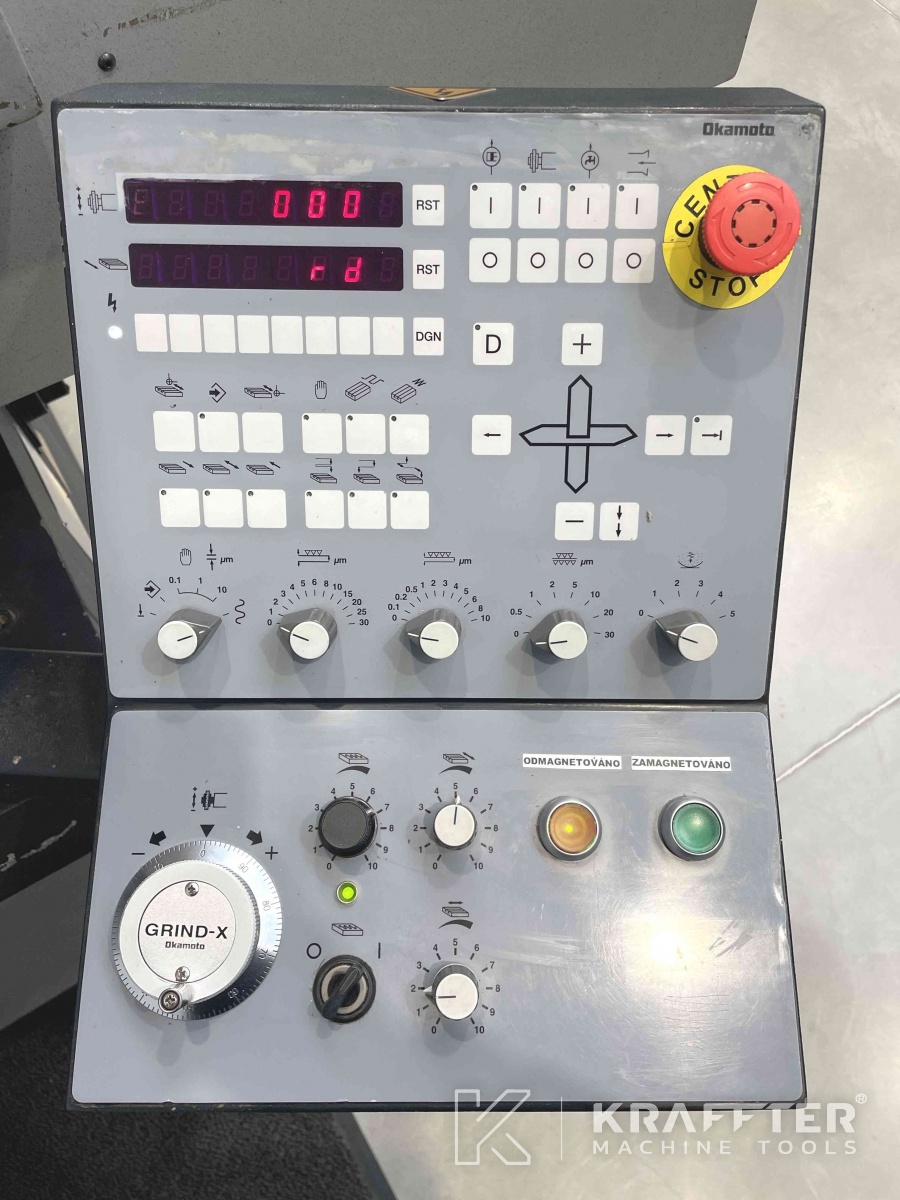

Number of axes Digital Read Out
2
Paper filtration unit
Yes
Supply voltage
400 [V]
Total power required
6 [kVA]
Dimensions
2507 x 1774 x 1845 [mm]
Weight
2200 [Kg]

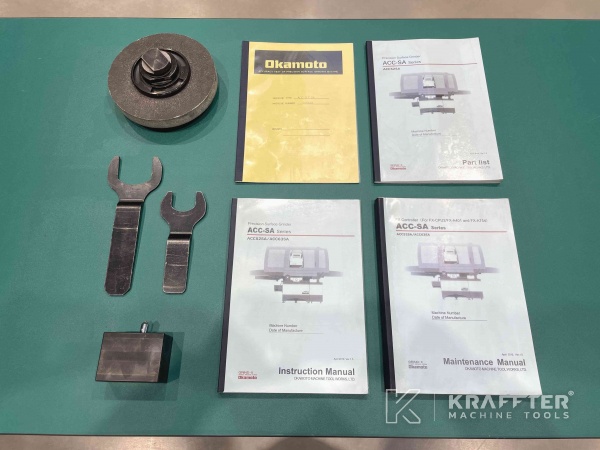

Equipment incluDED :
x1 wheel dresser
x2 wheel flanges

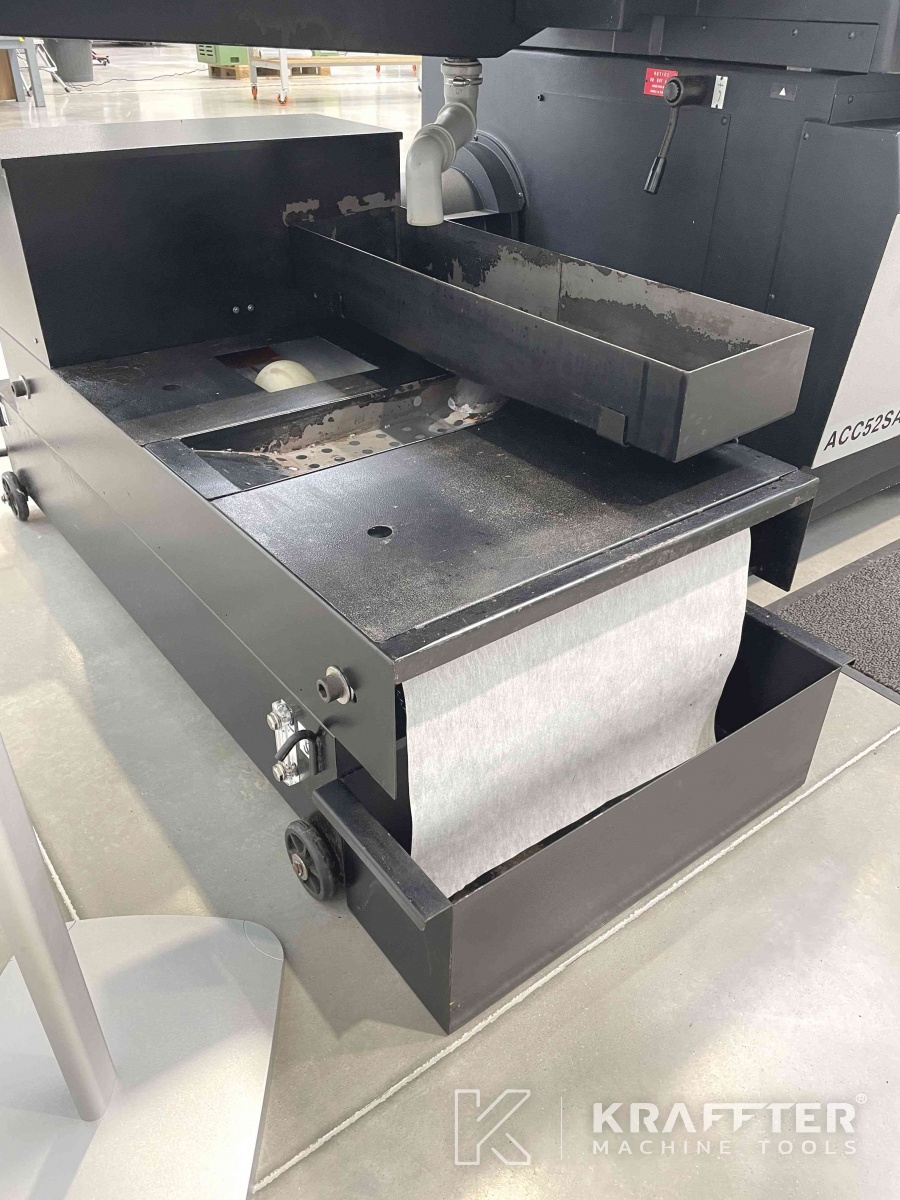

x1 paper band filtration system
x1 electro magnetic clamping plate 500 x 200 [mm]
x3 feet pads
