Sold

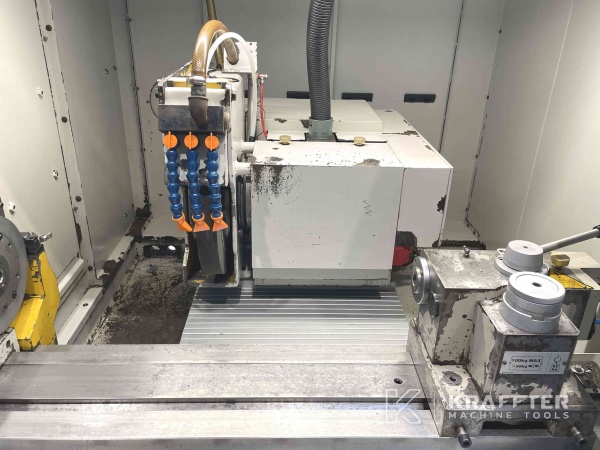

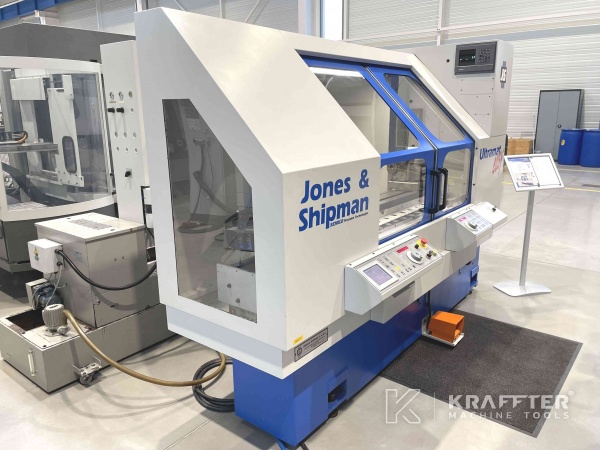

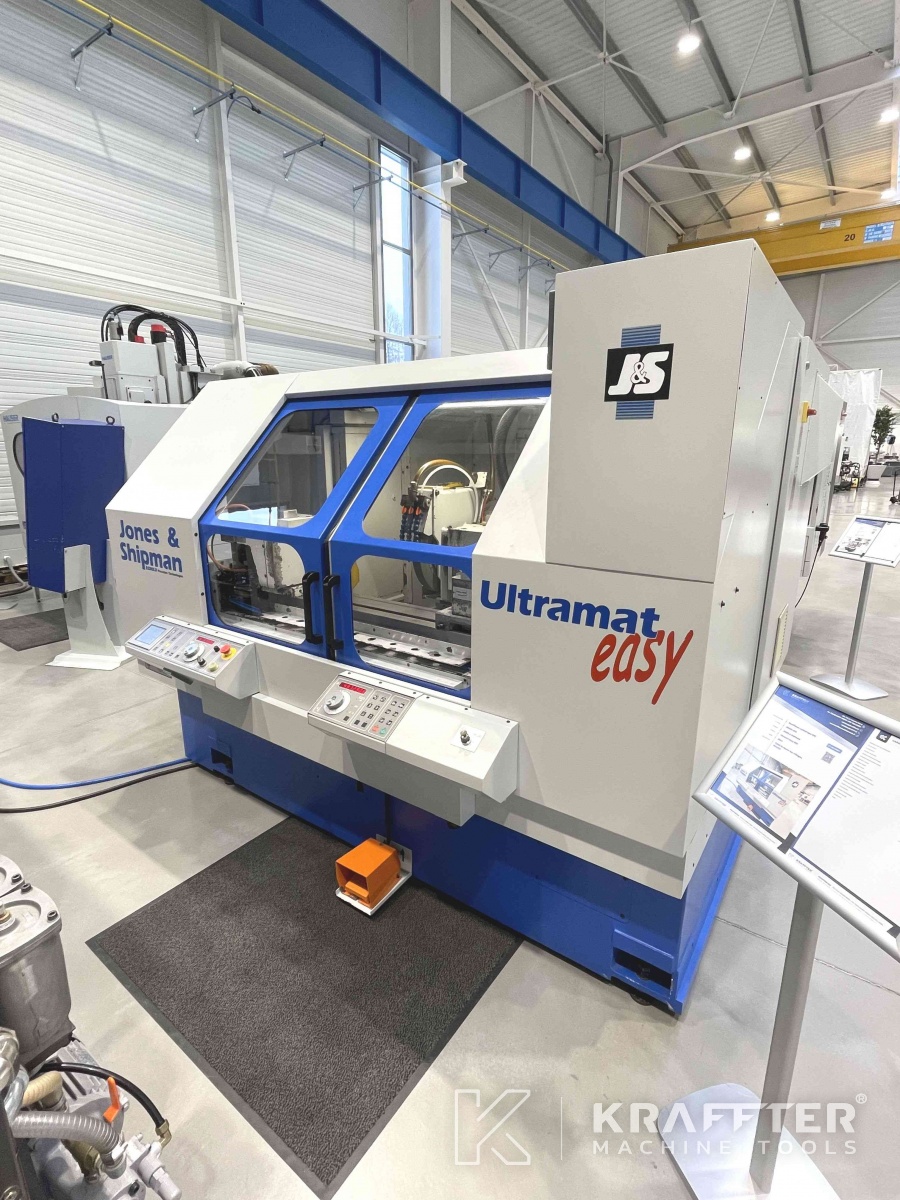

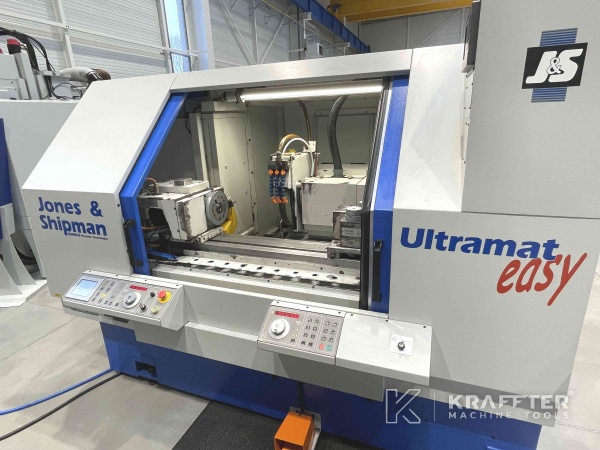

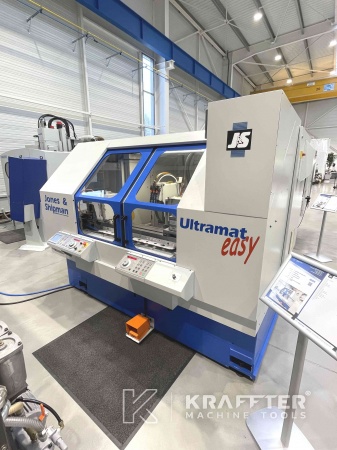

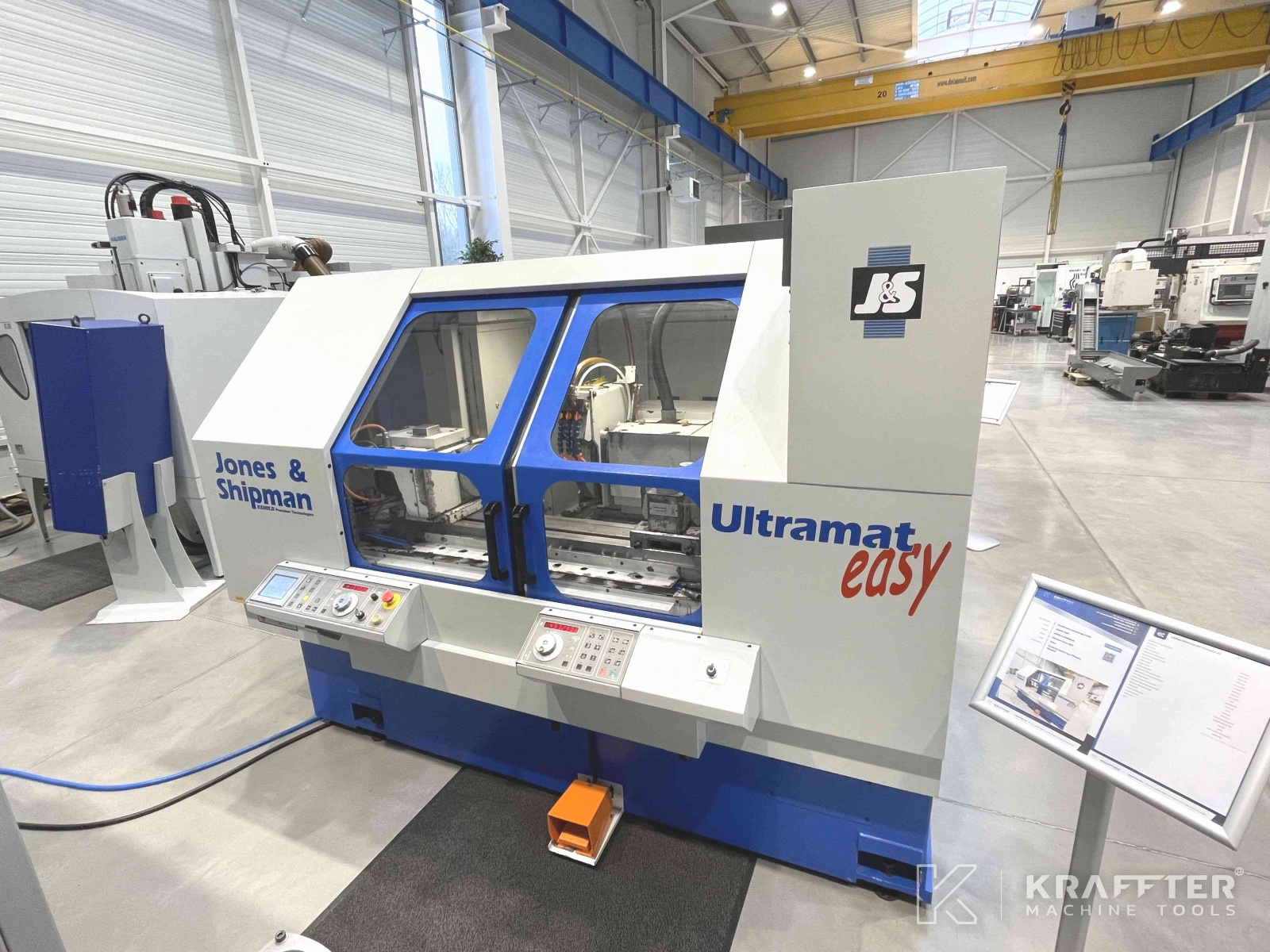

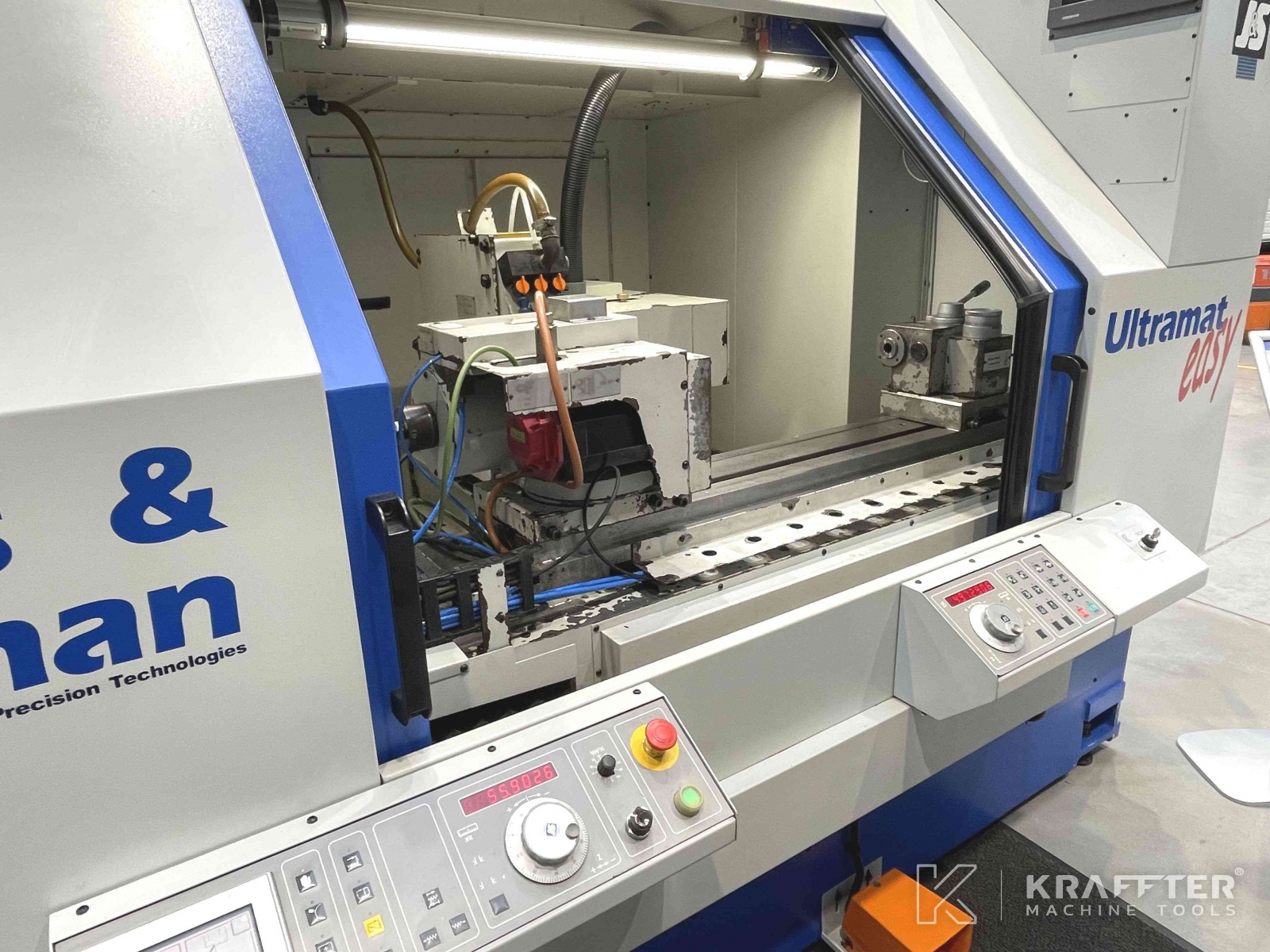

Type of machine : CNC cylindrical grinder
Brand : JONES & SHIPMAN
Stock N° : 20690-005
Model : Ultramat Easy 650
Year : 2004
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
Height of centers
160 [mm]
Max. grinding diameter
300 [mm]
Stroke X axis
260 [mm]
Stroke Z axis
750 [mm]
Grinding wheel speed
2672 [rpm]
Grinding spindle motor power
7.5 [kW]

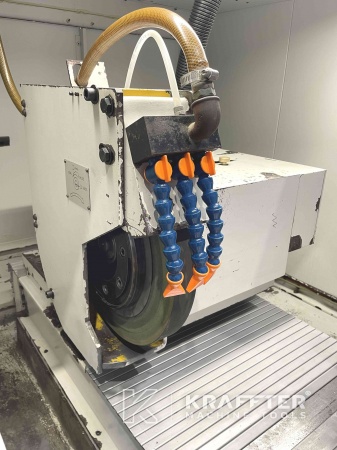

Grinding wheel diameter
457 [mm]
Grinding wheel width
50 [mm]
Grinding wheel bore
203.2 [mm]
Workpiece spindle nose
5 MT
Workpiece spindle max. speed
660 [rpm]
Workpiece swiveling range
+90° à -15°

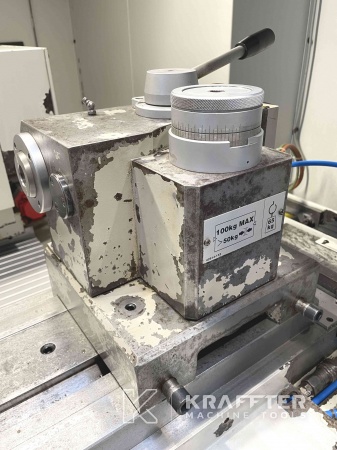

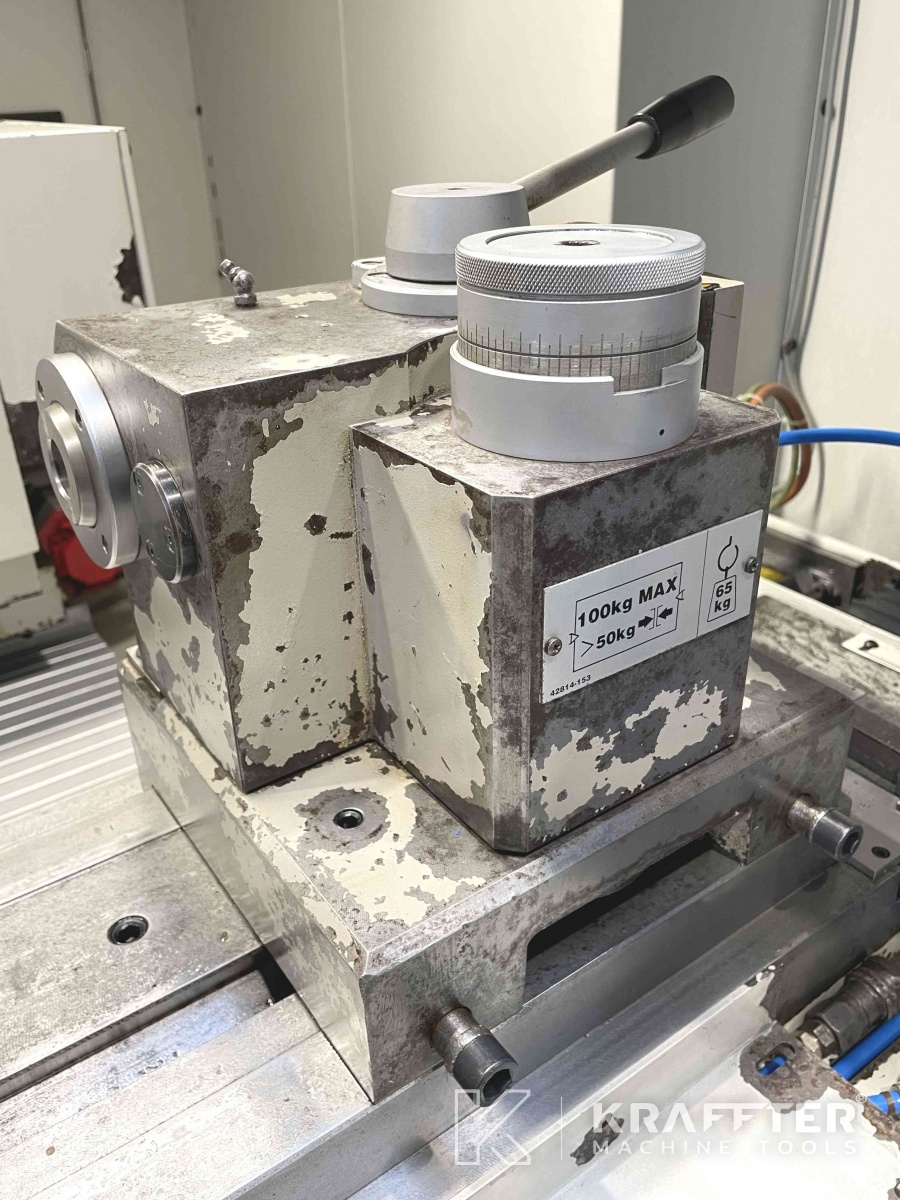

Type of attachment tailstock
MT 3
Tailstock quill stroke
30 [mm]
Max. load between centers
100 [Kg]

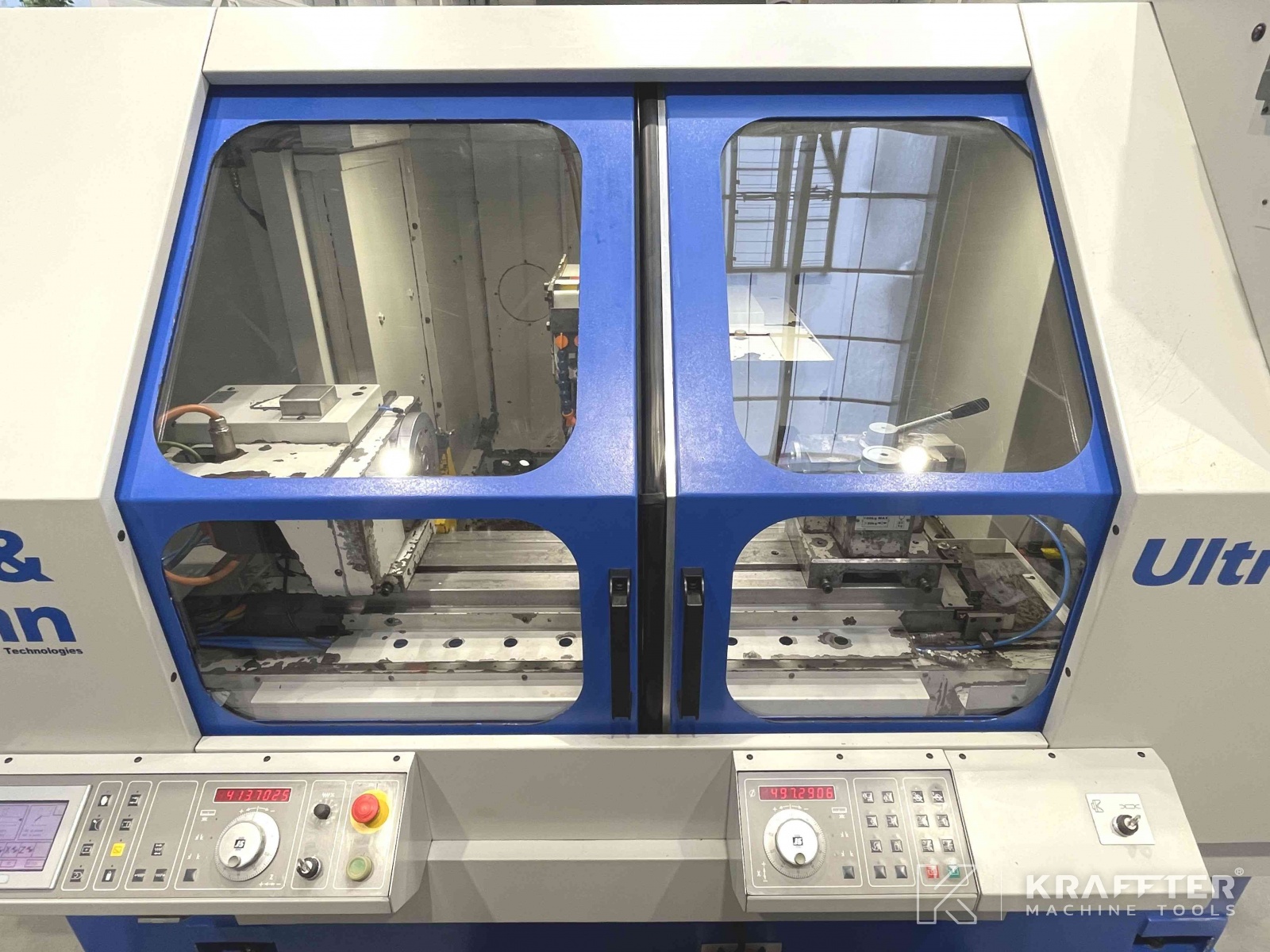

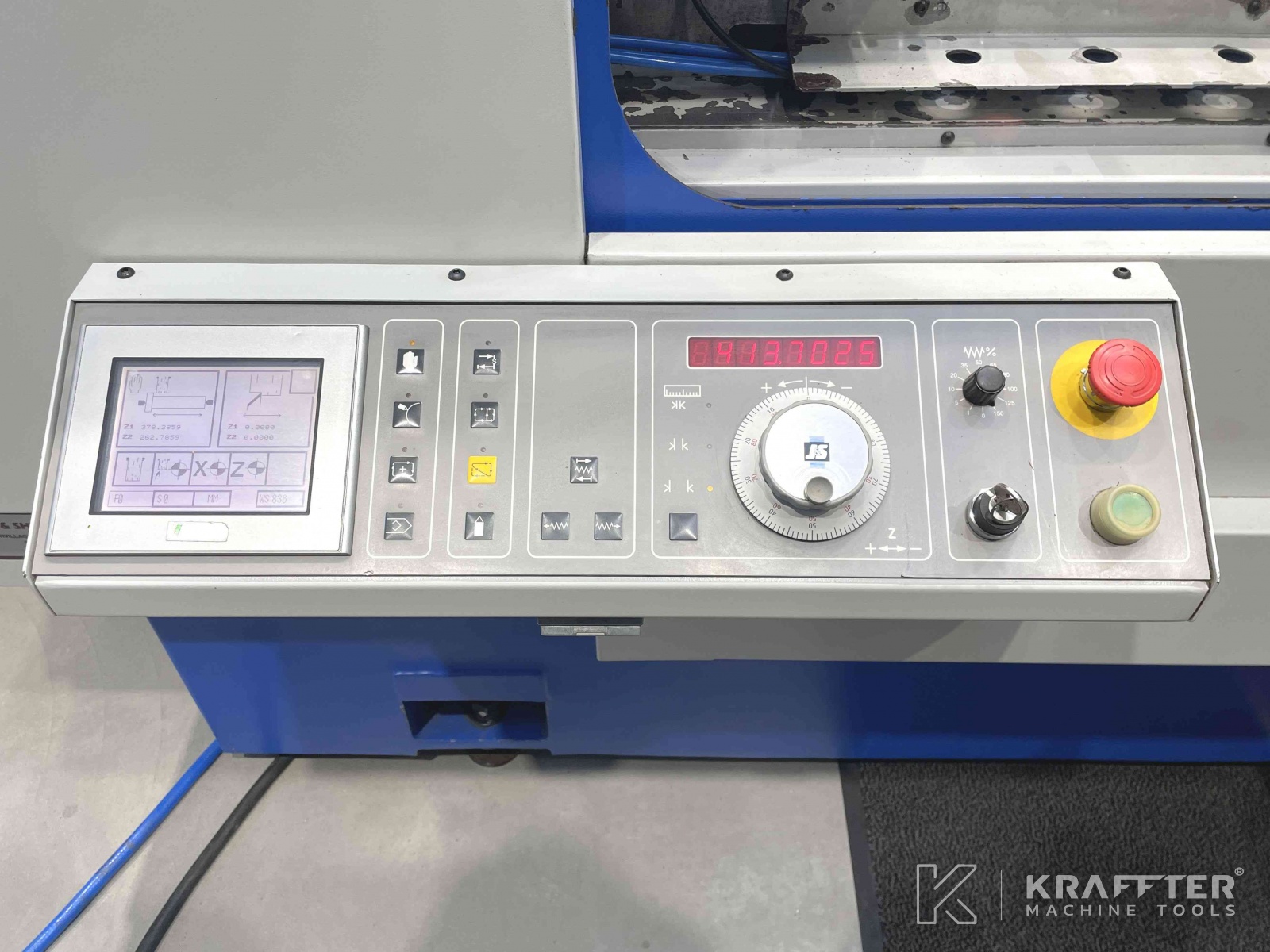

Touch control panel
FANUC QuickPanel G E

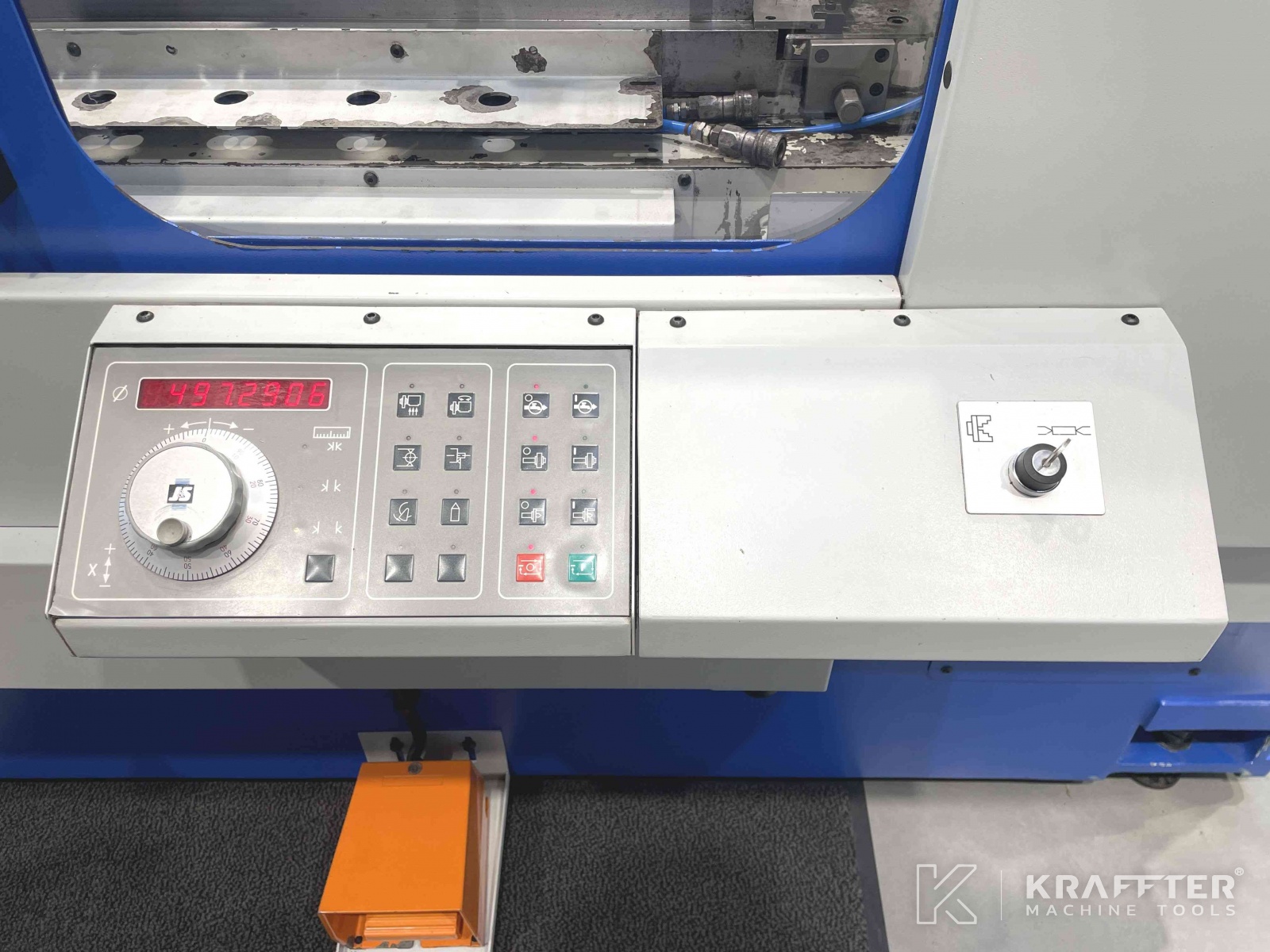

Digital read out
HEIDENHAIN ND 760
Supply voltage
400 [V]
Rated current
33 [A]
Dimensions
3050 x 2100 x 1990 [mm]
Weight
5000 [Kg]
EQUIPMENT INCLUDED:

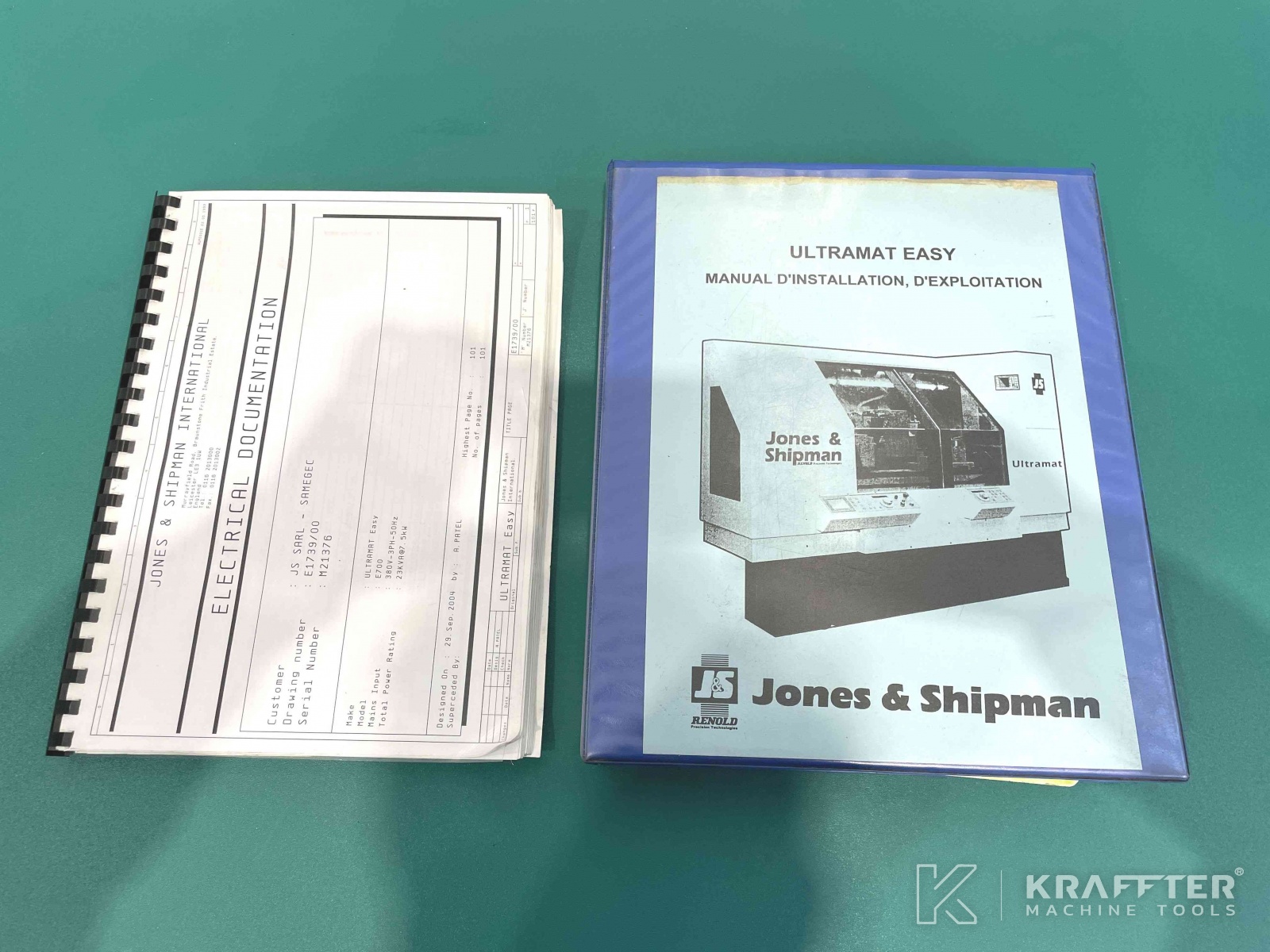

x1 users manual (in French)
x1 wiring diagram manual
x1 wheel flange
x1 grinding wheel

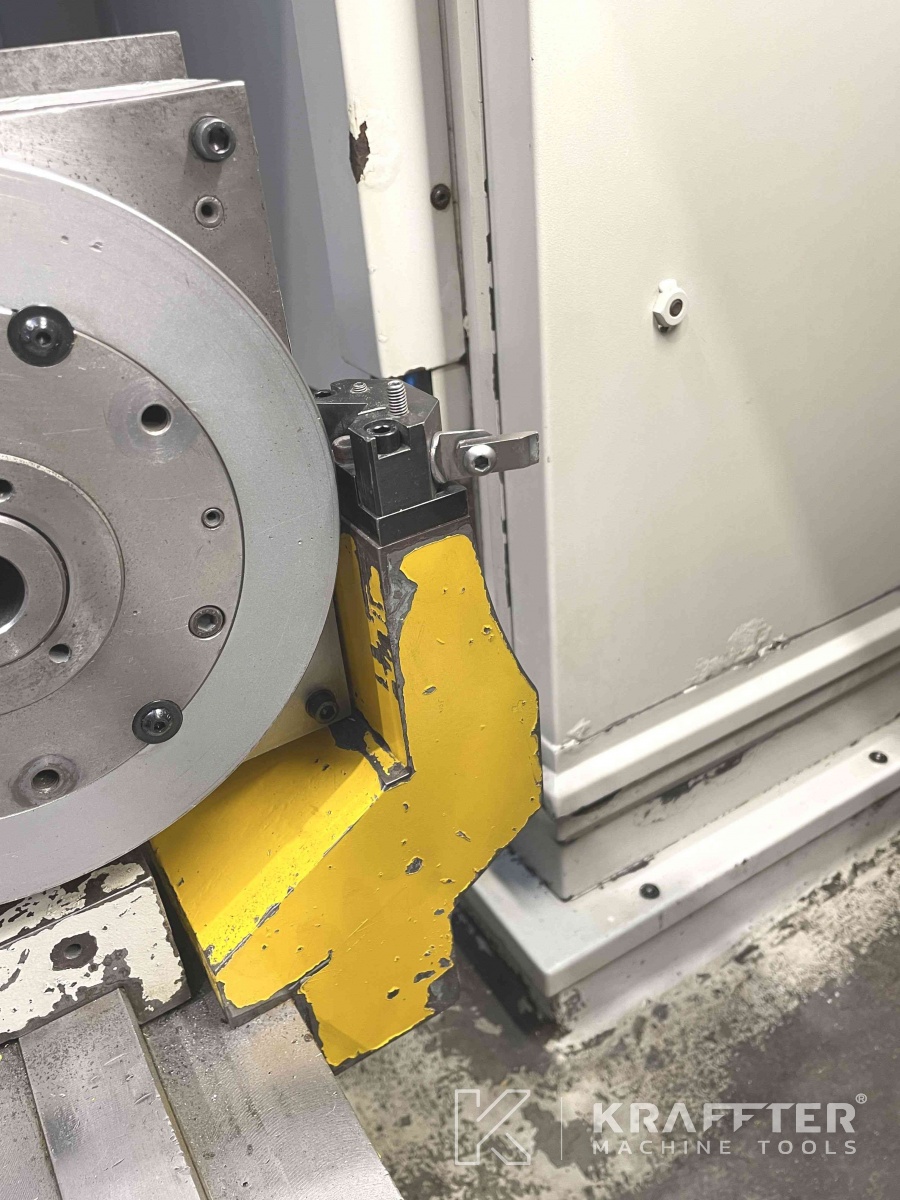

x1 wheel dresser

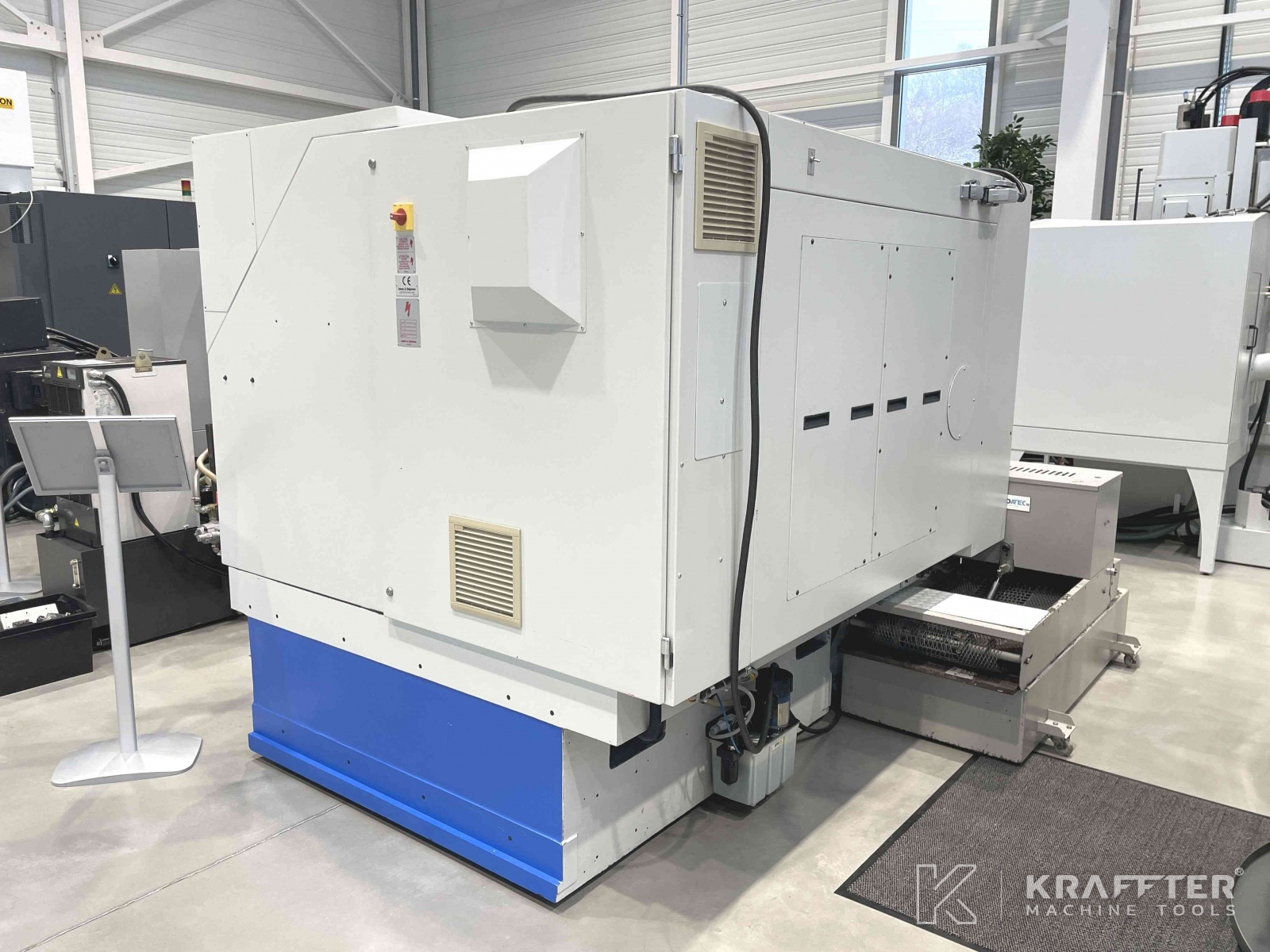

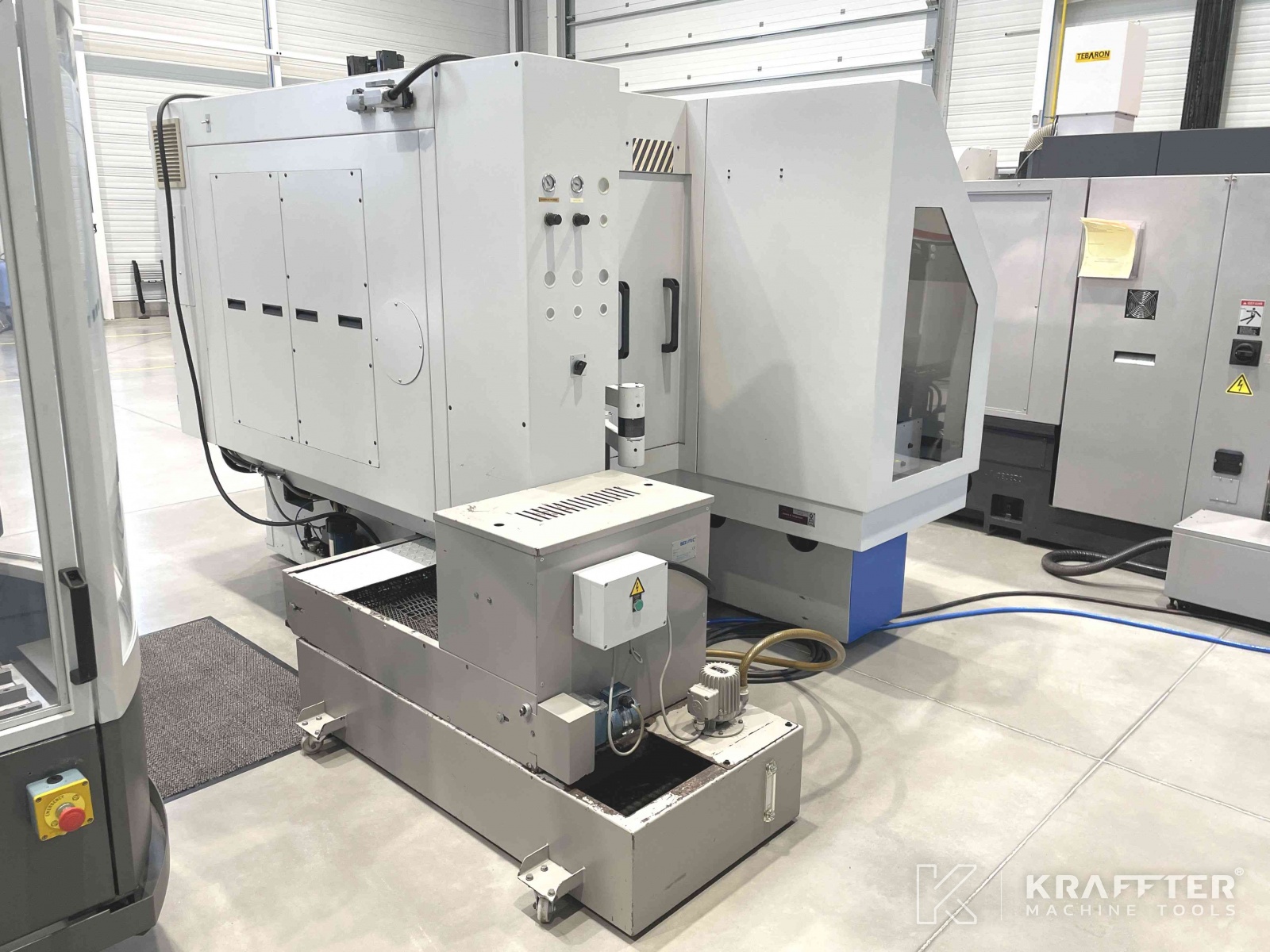

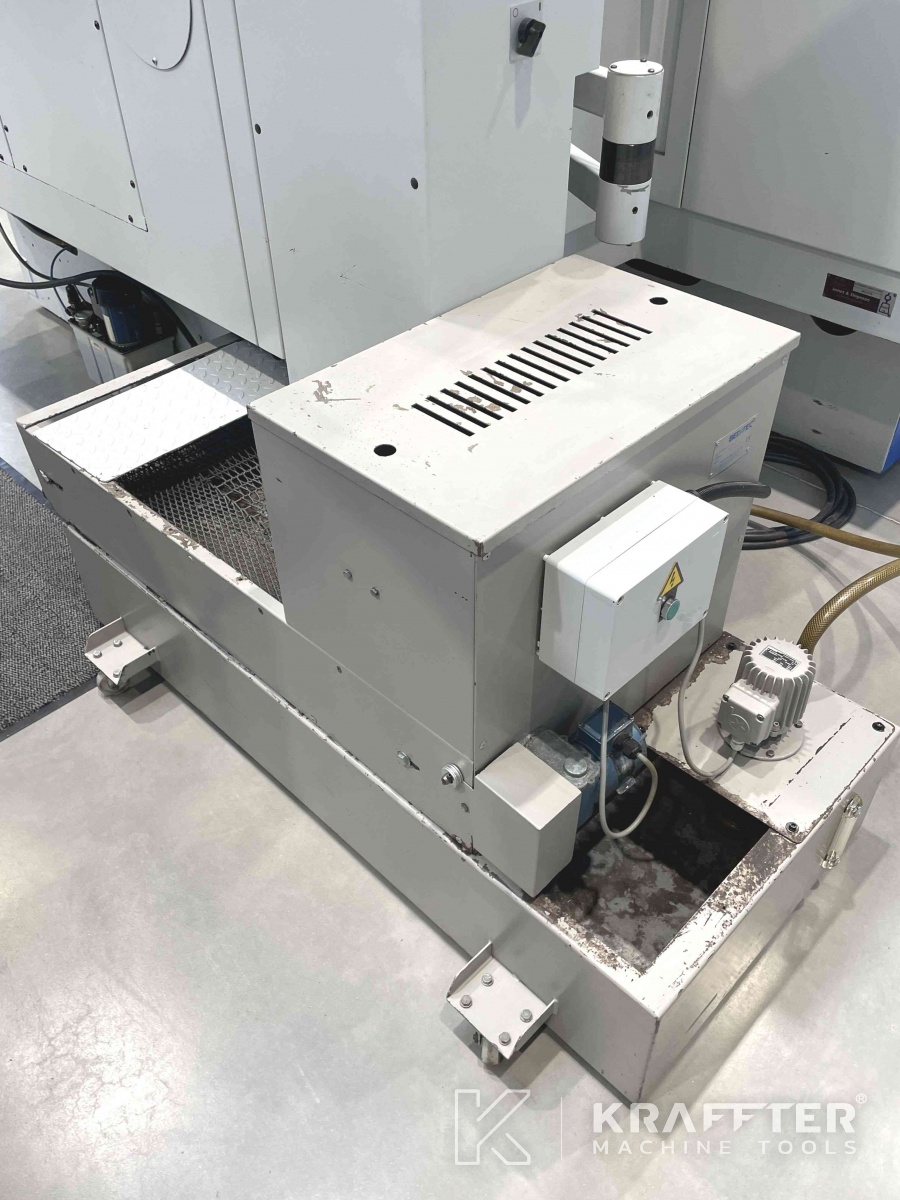

x1 paper filtration unit + lubrication pump
