Sold

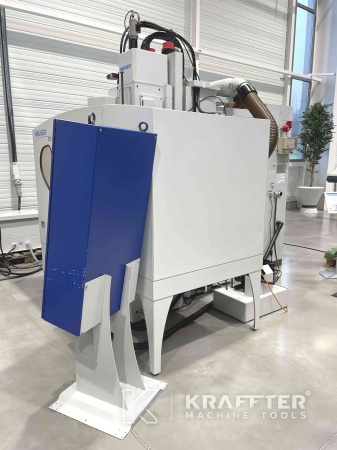

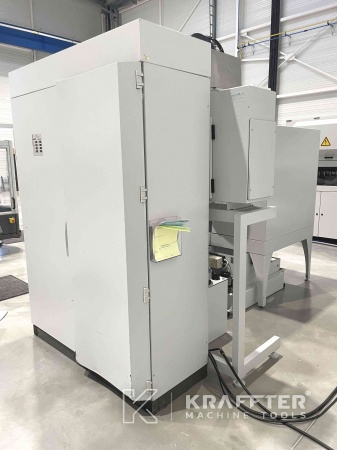

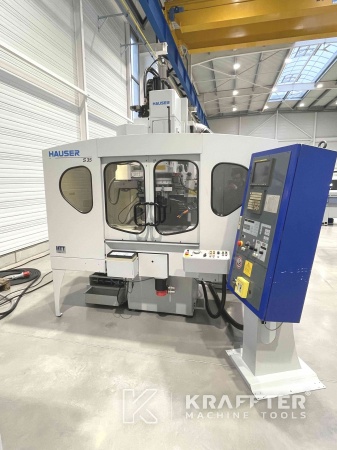

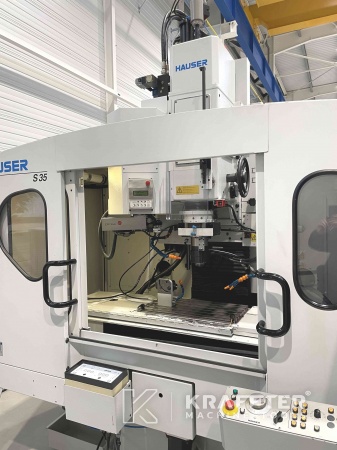

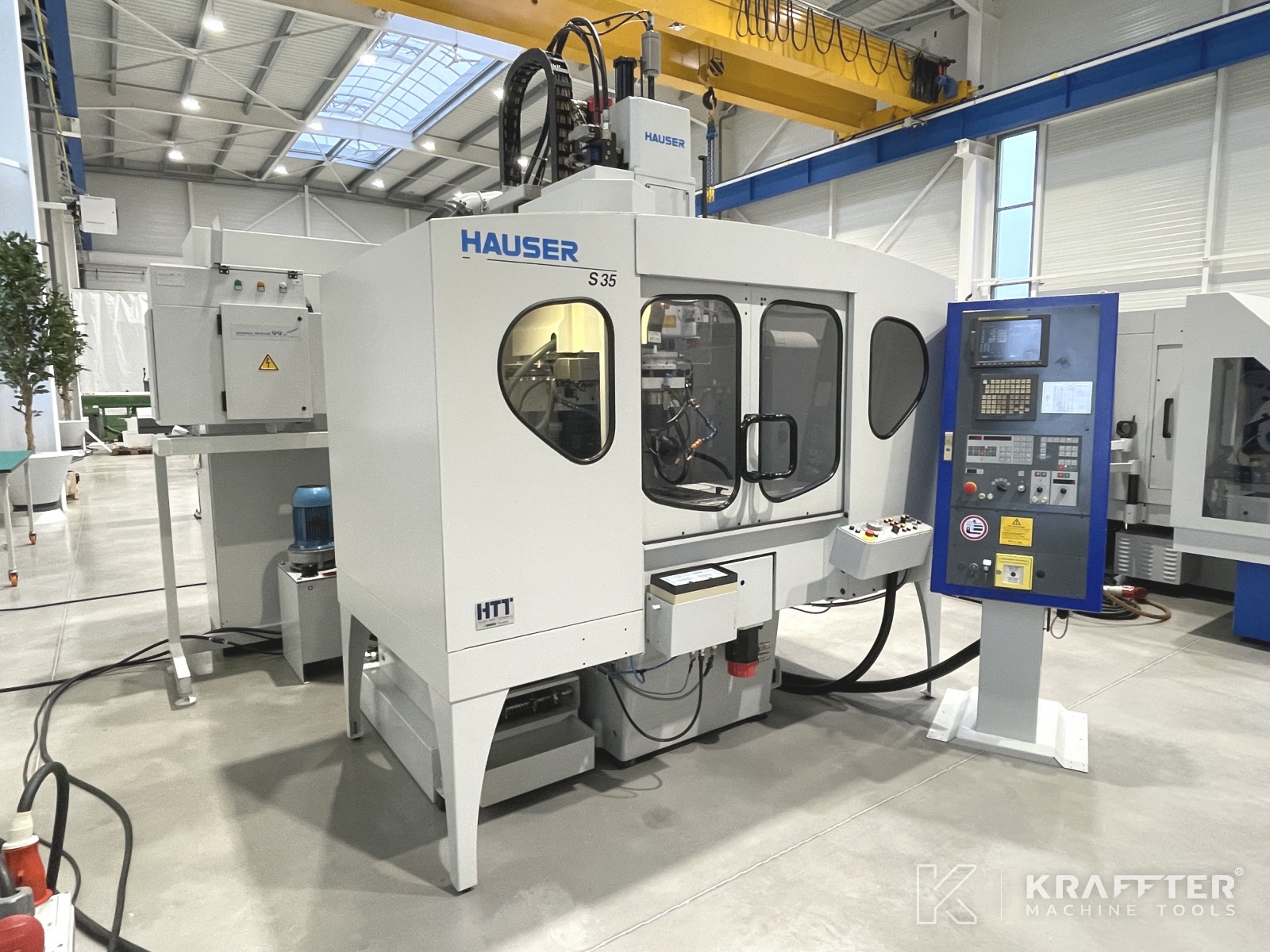

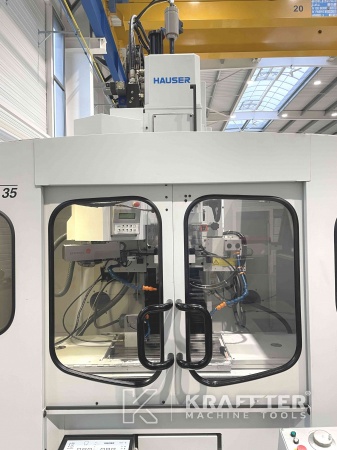

Type of machine : CNC jig grinding machine
Brand : HAUSER
Stock N° : 20690-043
Model : S 35 - 400
Year : 2003
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

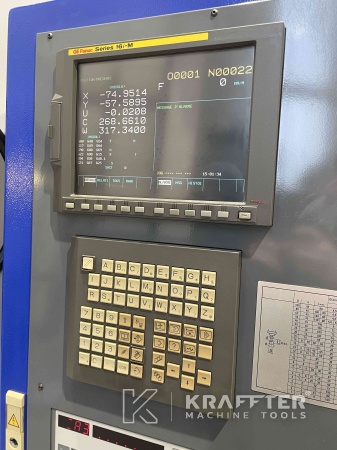

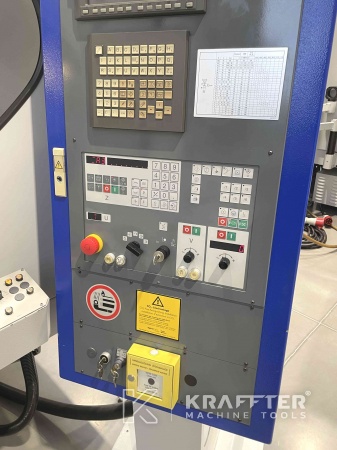

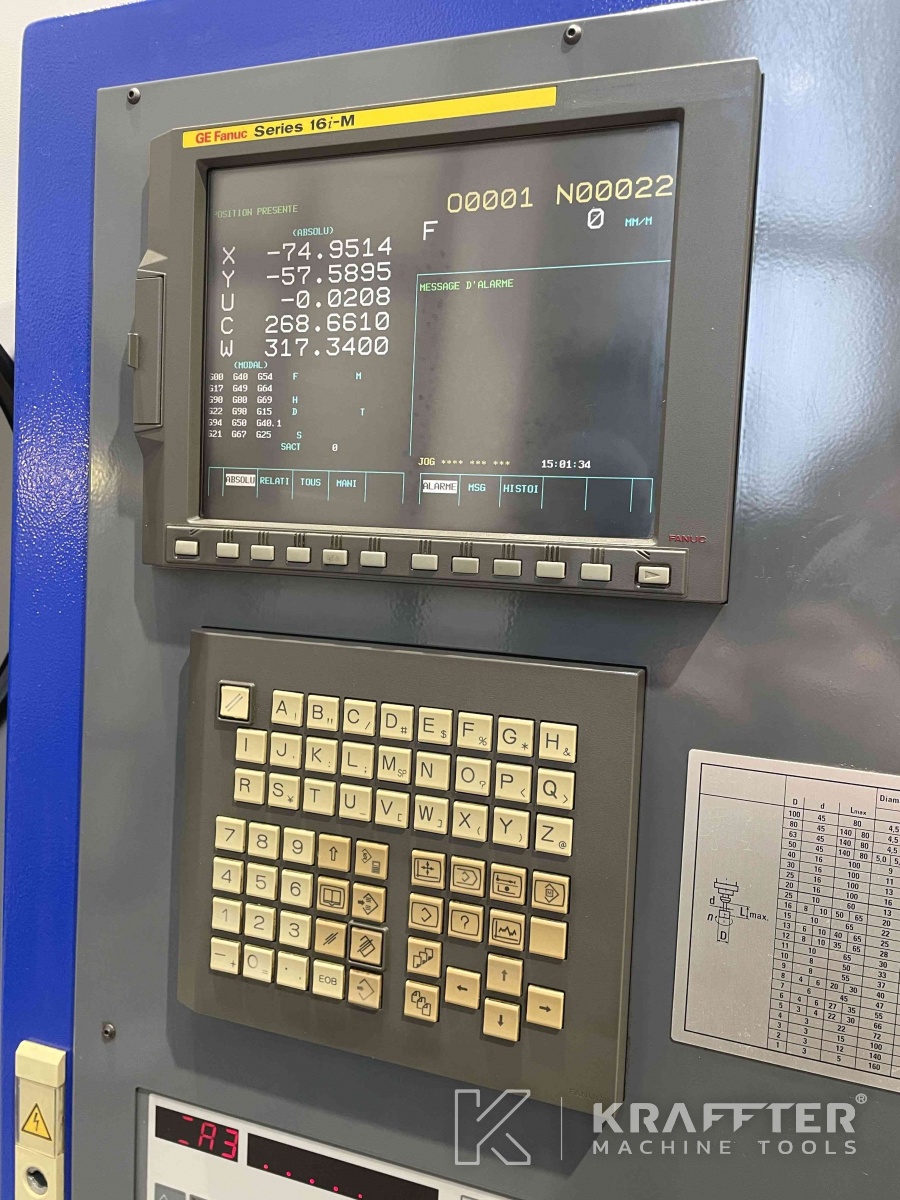

CNC control
FANUC 16i
Stroke X axis
500 [mm]
Stroke Y axis
300 [mm]
Stroke Z axis
110 [mm]
Min. Stroke speed Z axis
0.500 [mm/min]
Max. Stroke speed Z axis
14000 [mm/min]
Stroke frequency Z axis
max. 5 [Hz]
Stroke W axis
450 [mm]
Planetary speed C axis
5 - 300 [rpm]
Feed rate on X and Y axes
0 - 2000 [mm/min]
Traversing feeds X, Y
2000 [mm/min]
Feed rate on W axis
0 - 2000 [mm/min]
Traversing feed W
4000 [mm/min]
Stroke U axis (radial feed)
5.5 [mm]

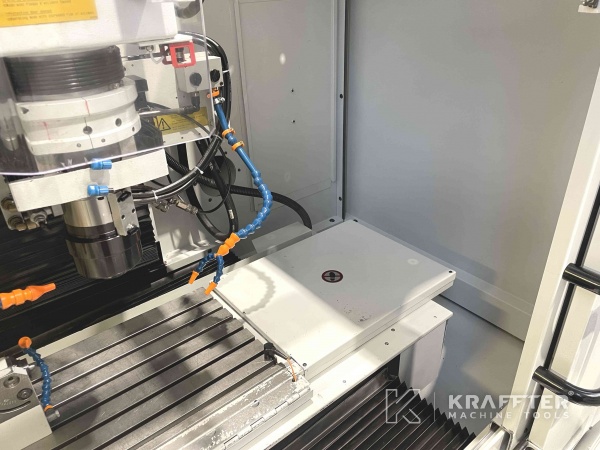

Table length
600 [mm]
Table width
380 [mm]
Max. load on table
300 [Kg]
Supply voltage
400 [V]
Equipment included :

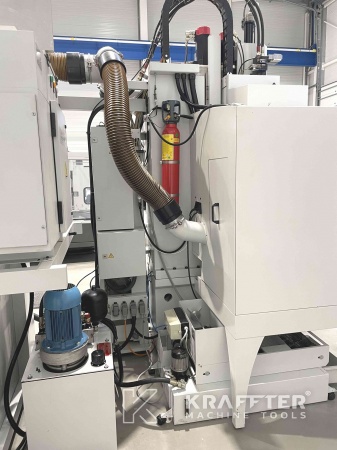

x1 HI-CUT pack including:
-work area protection
-evacuation system with electrostatic air filter
-fire protection system (to be assessed by a qualified organism)

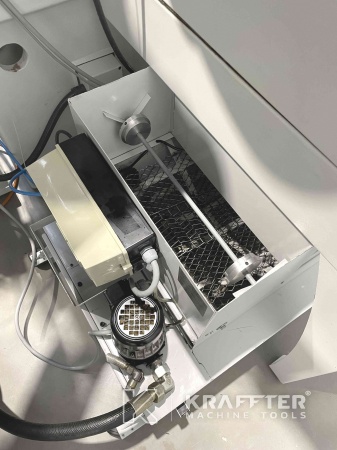

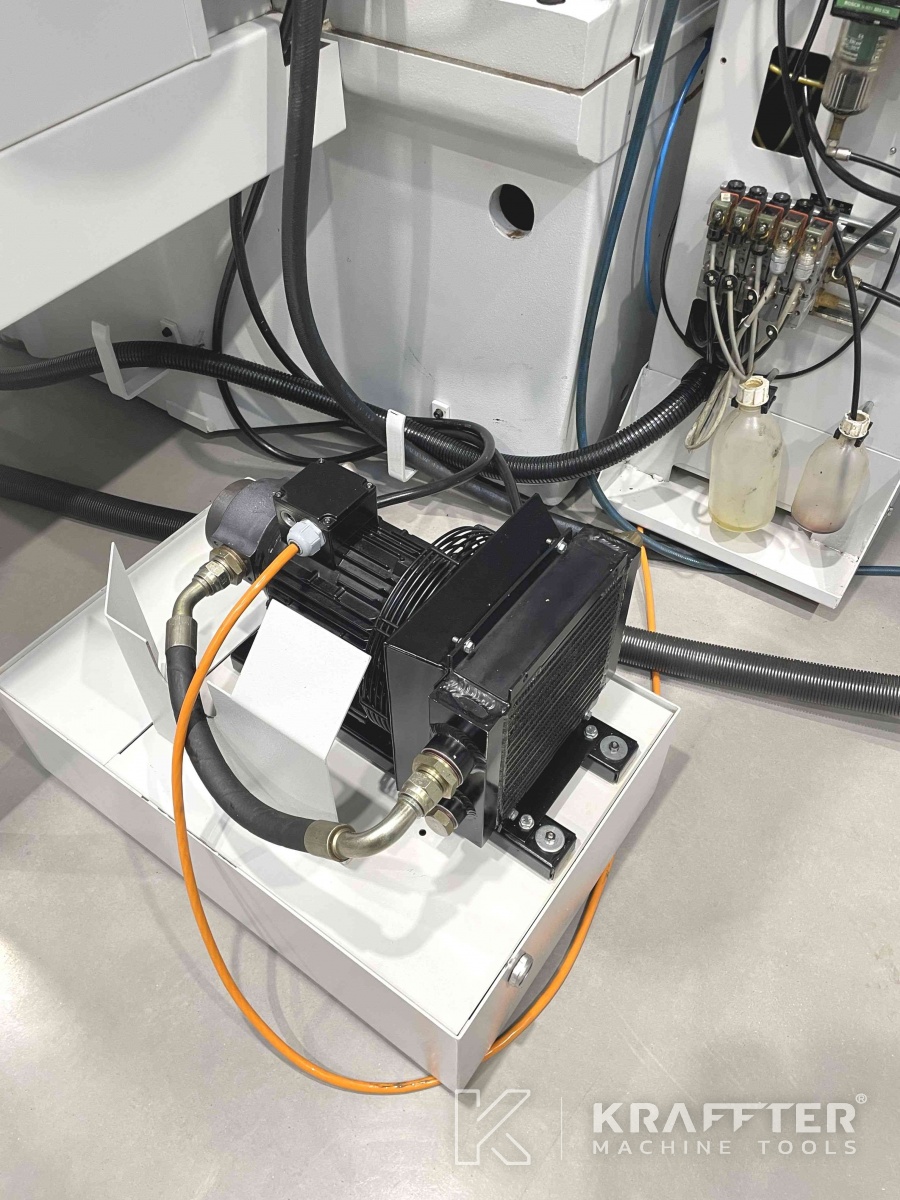

-cooling unit with automatic belt filter
x1 grinding motor
x1 cable for grinding motor

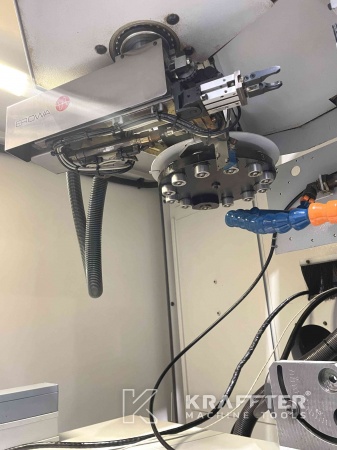

x1 MSS (Multi-Sensoric System) tool detection device
x1 RENISHAW OMP400 part probe
x27 grinding wheel holders
x1 set of grinding arbors
Various manuals
