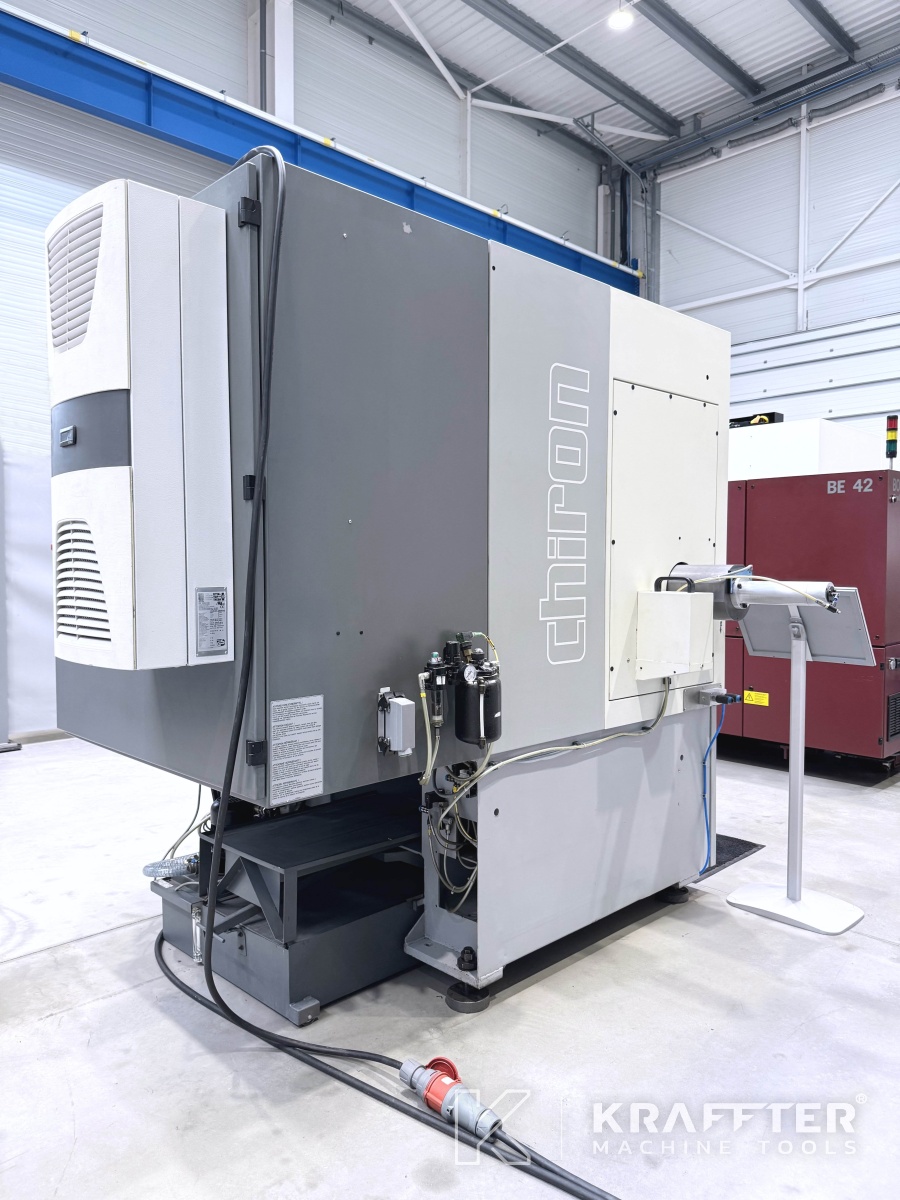

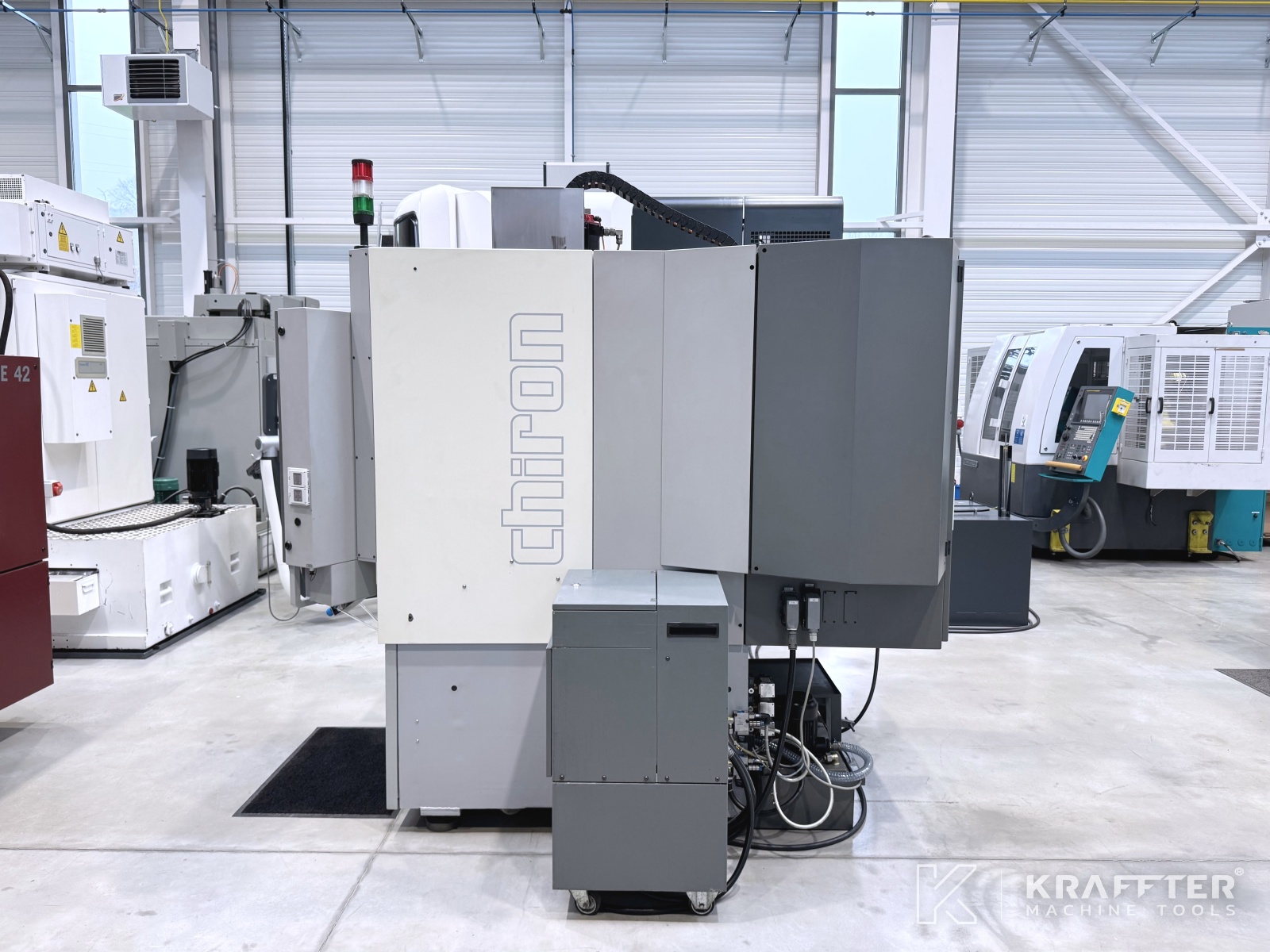

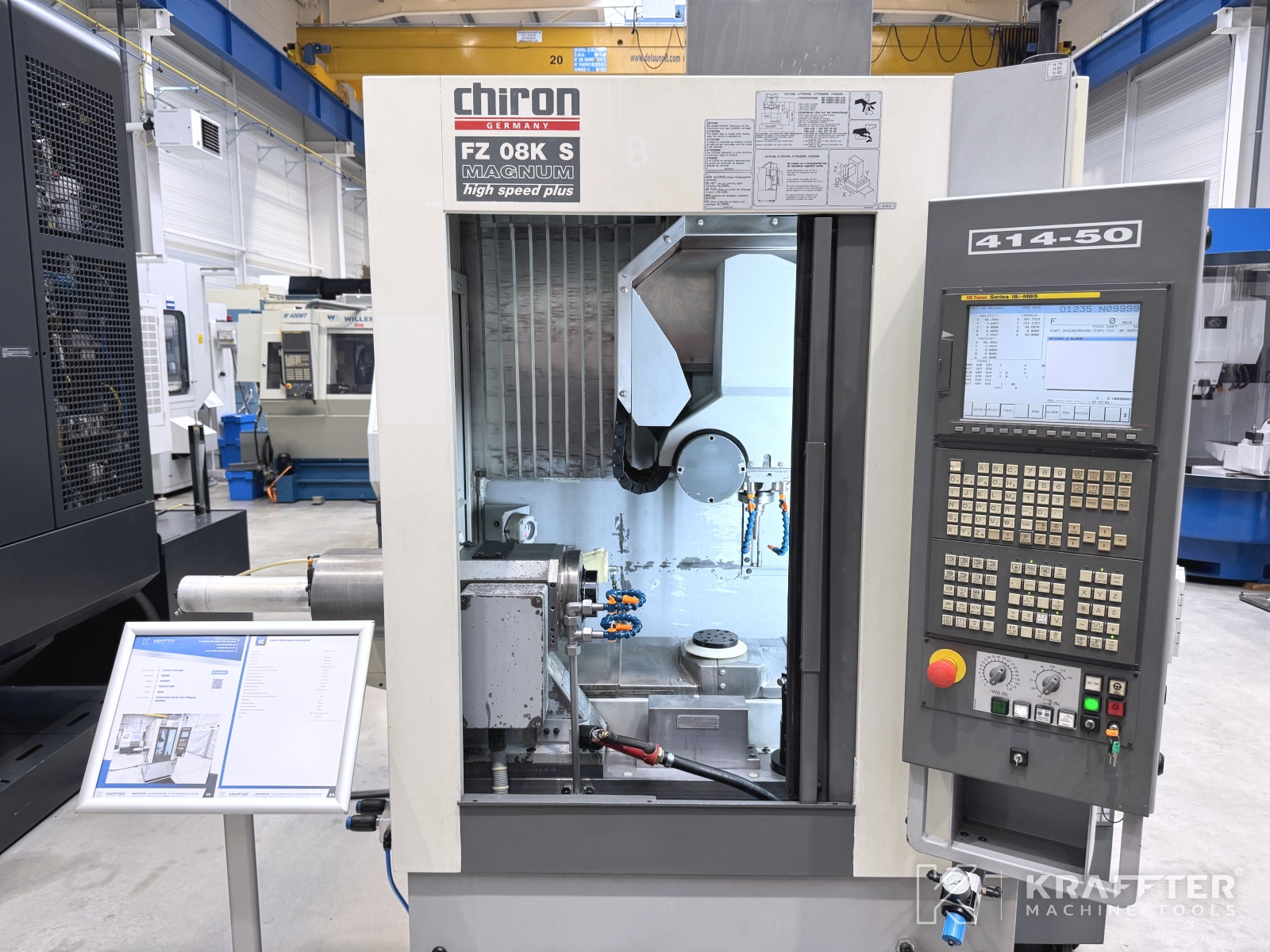

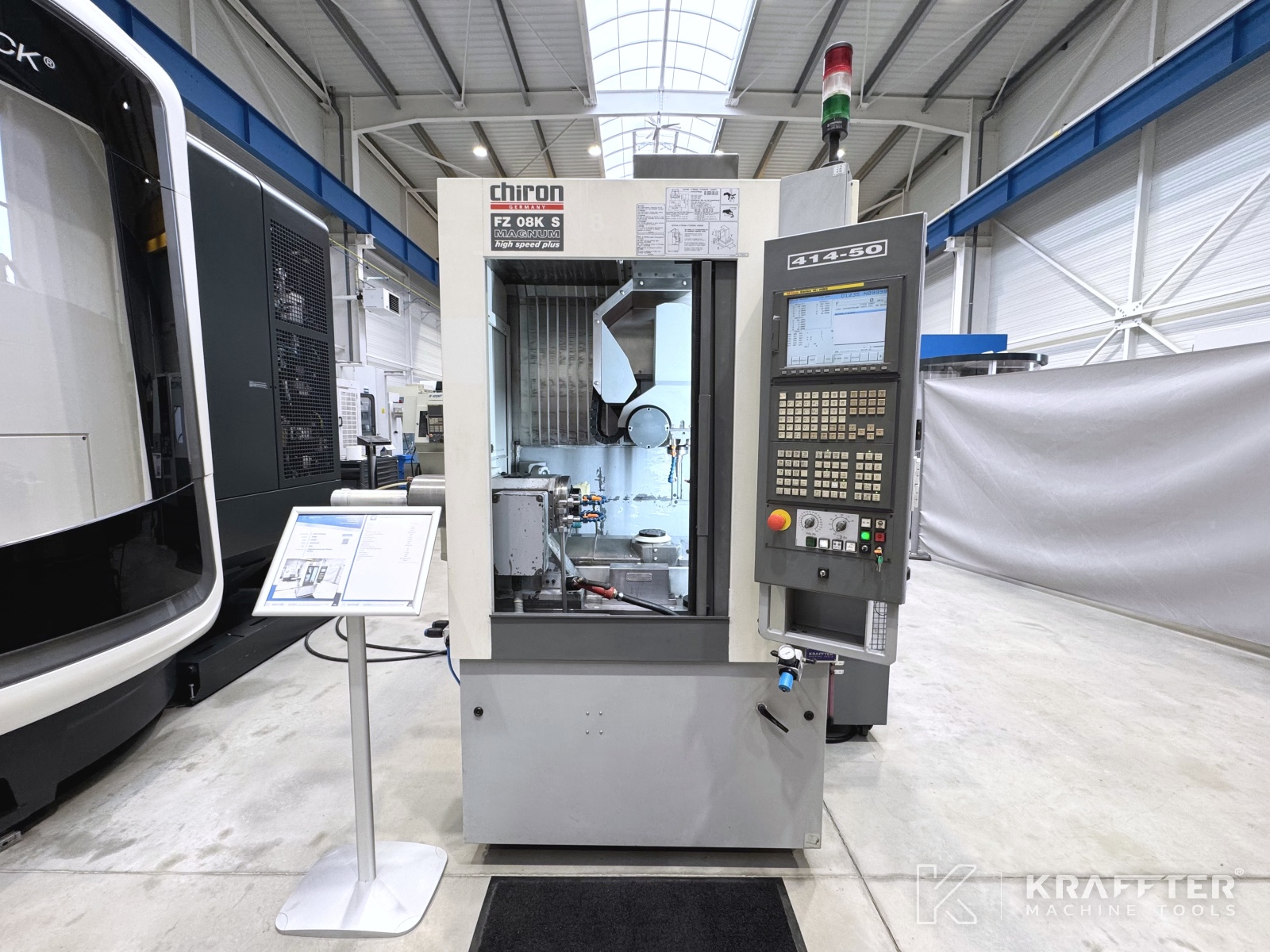

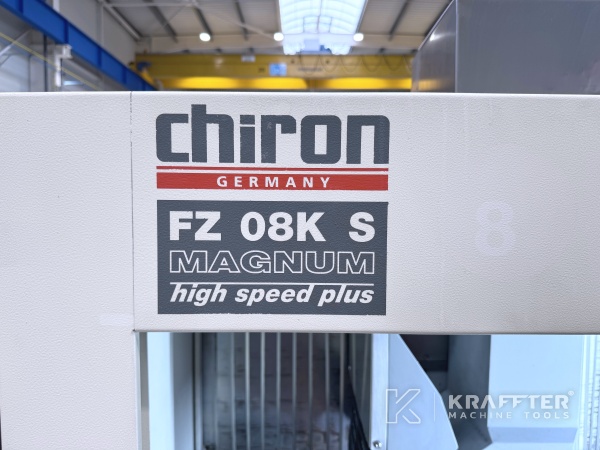

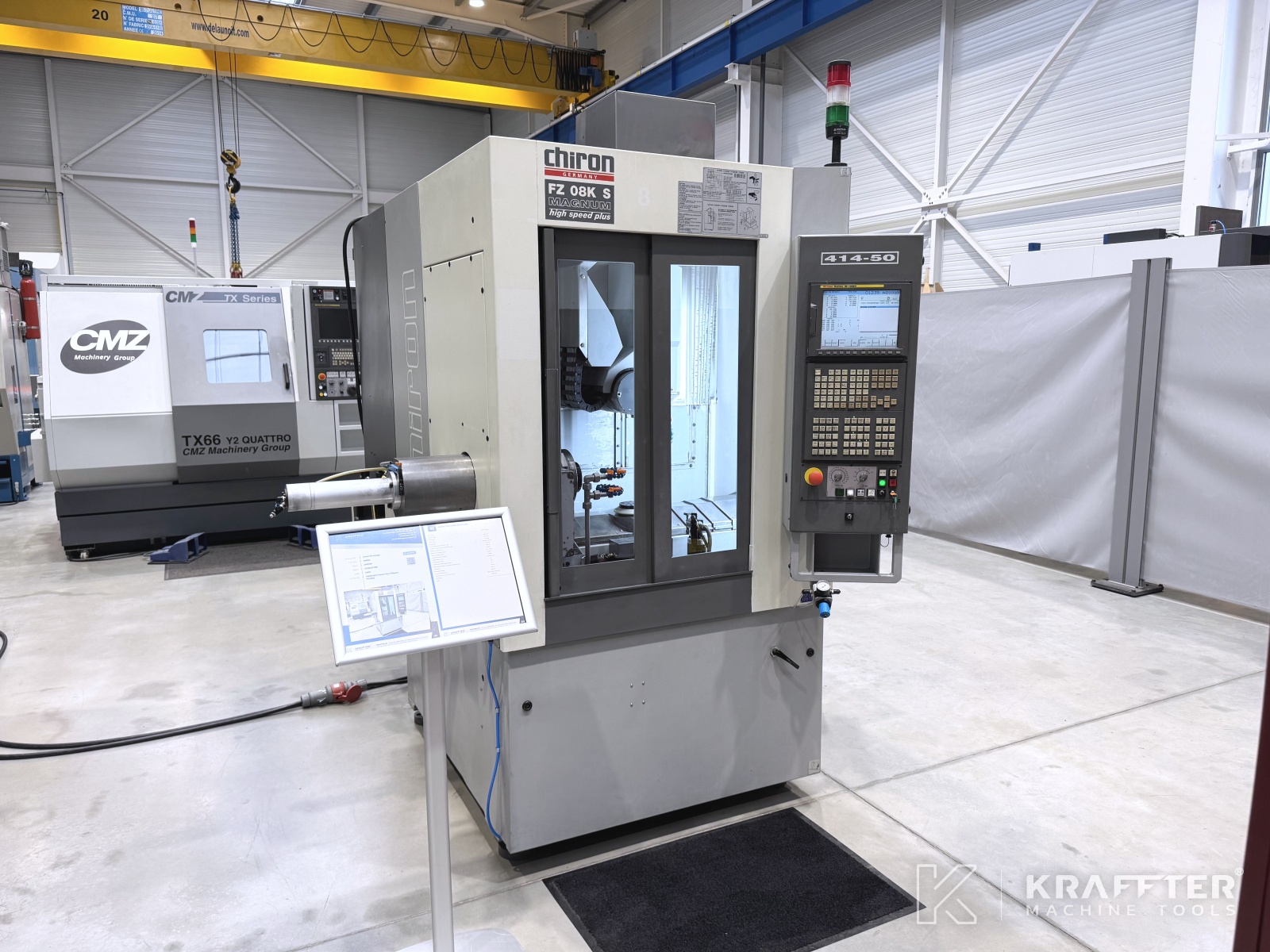

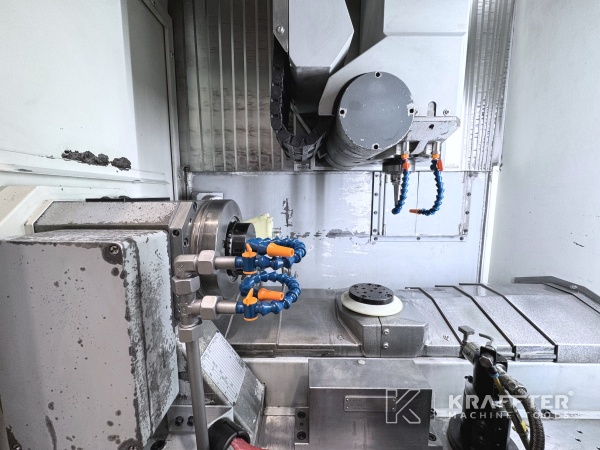

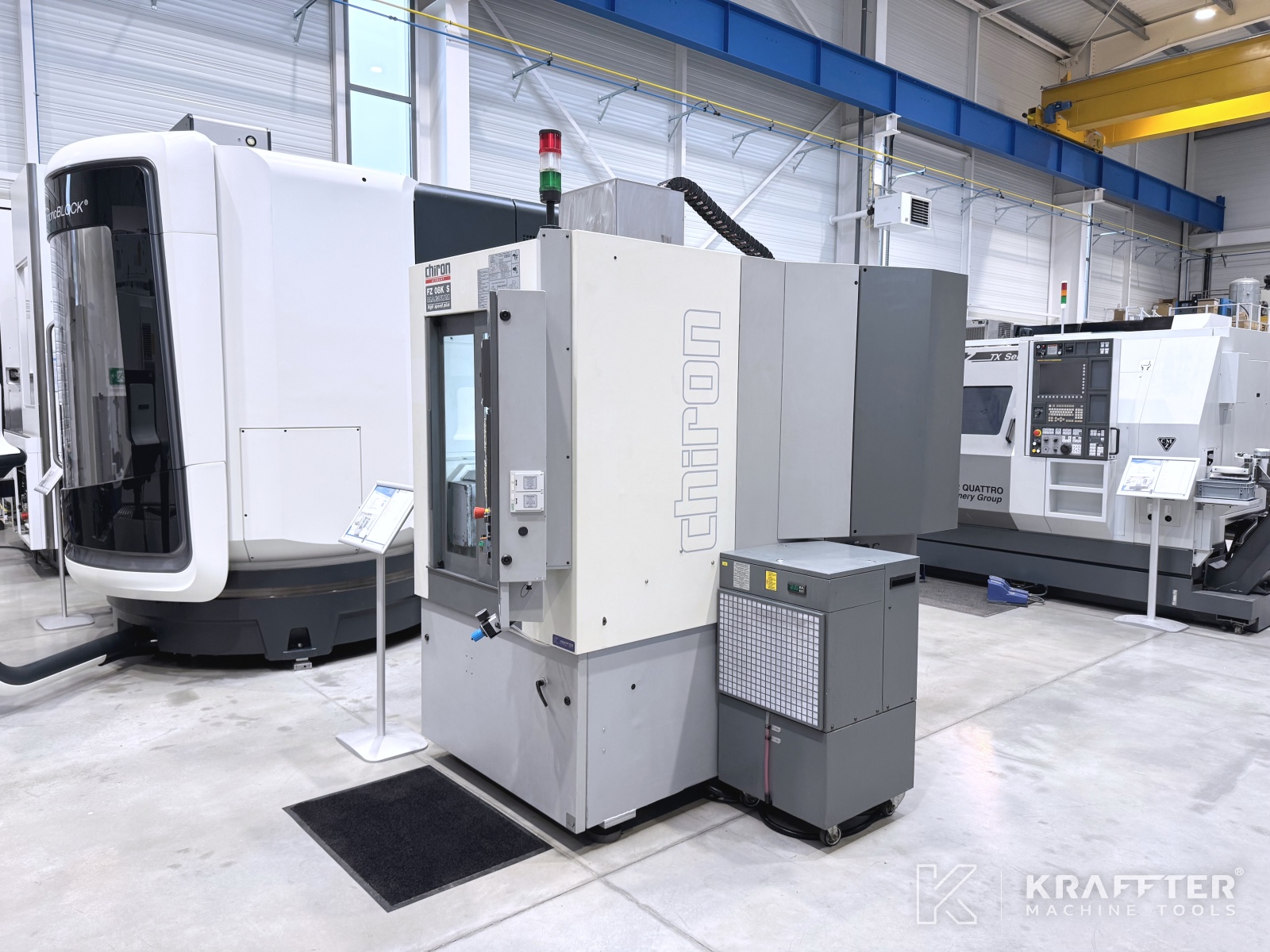

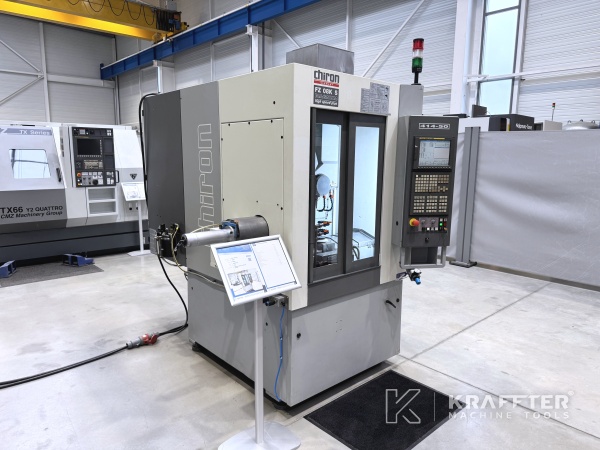

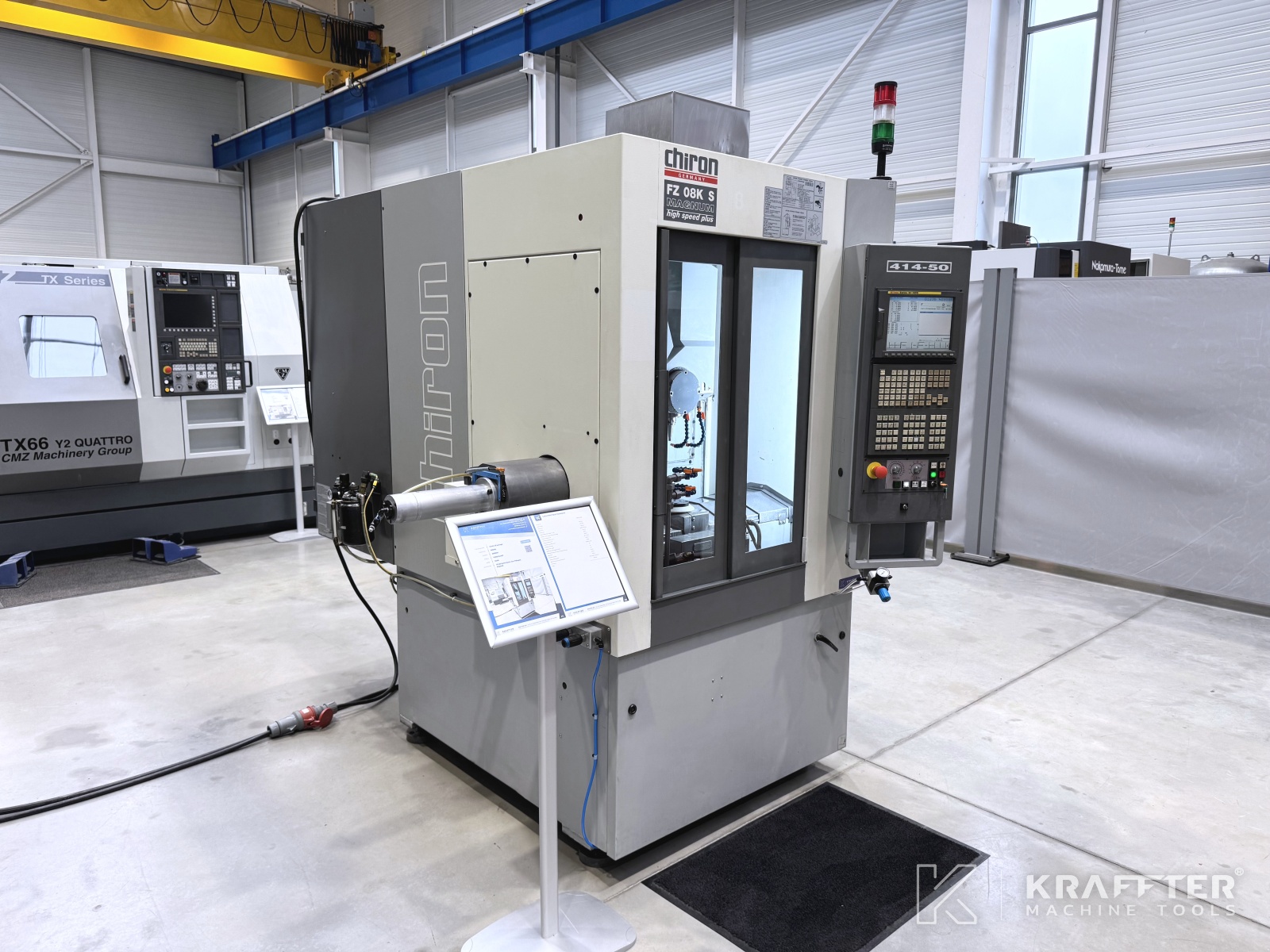

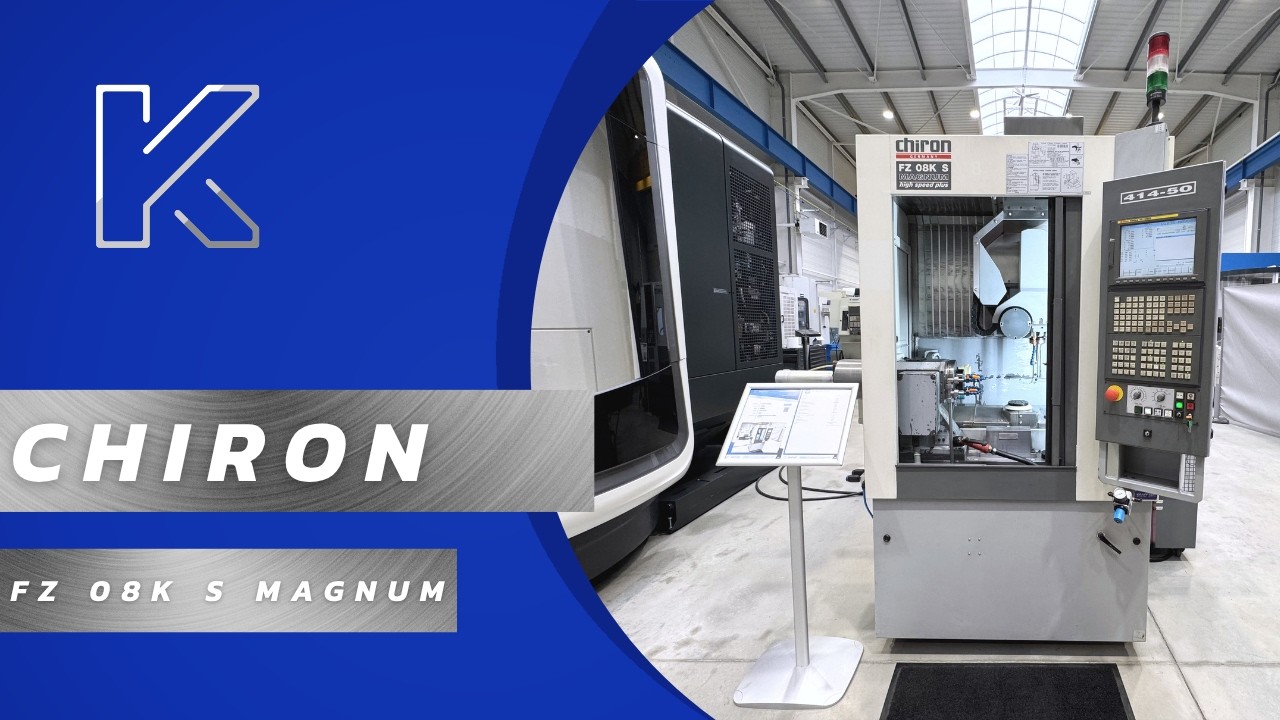

Type of machine : CNC machining centre
Brand : CHIRON
N° de stock: 90066

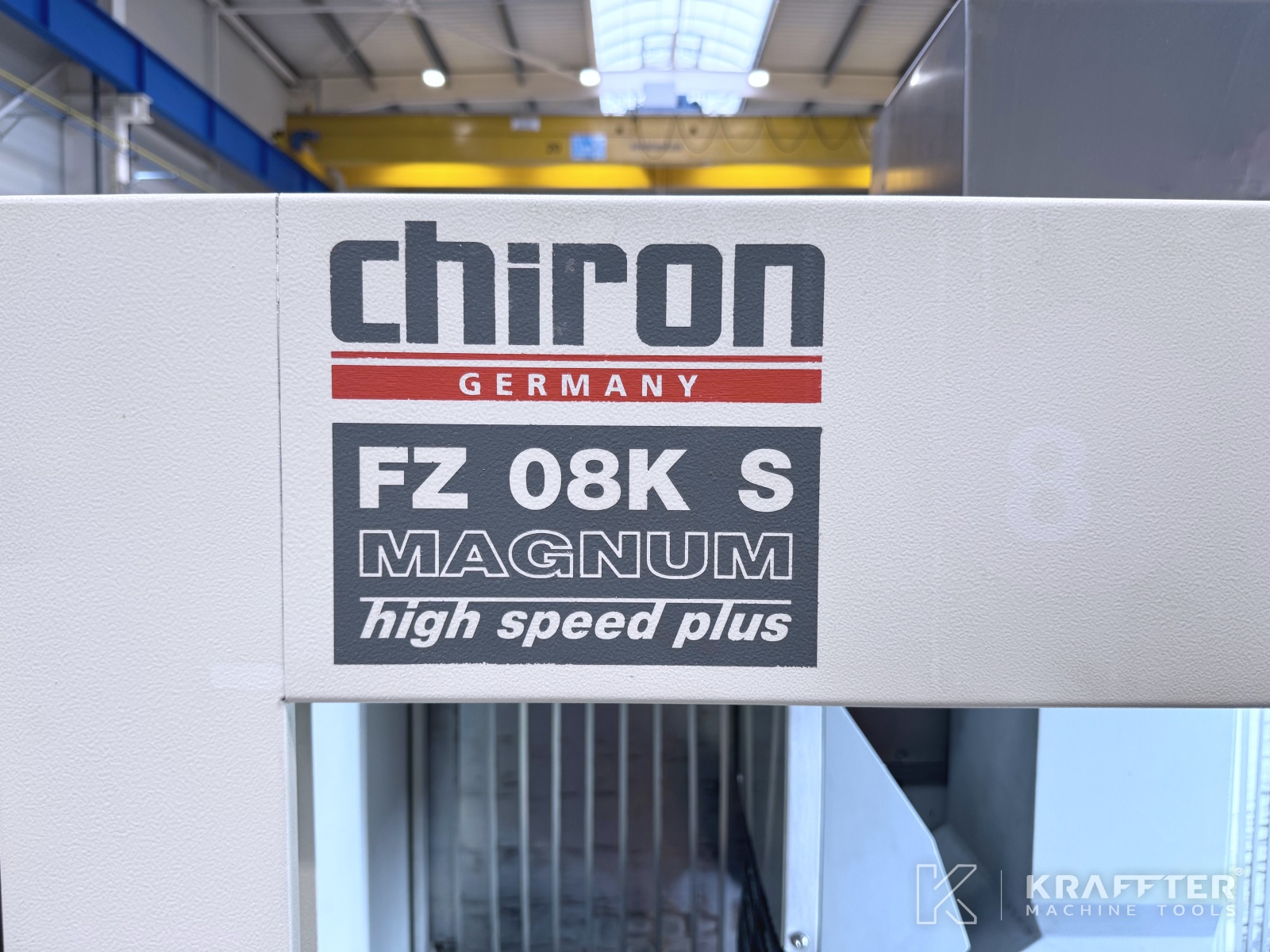

Model : FZ 08K S HSP
Year : 2006
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

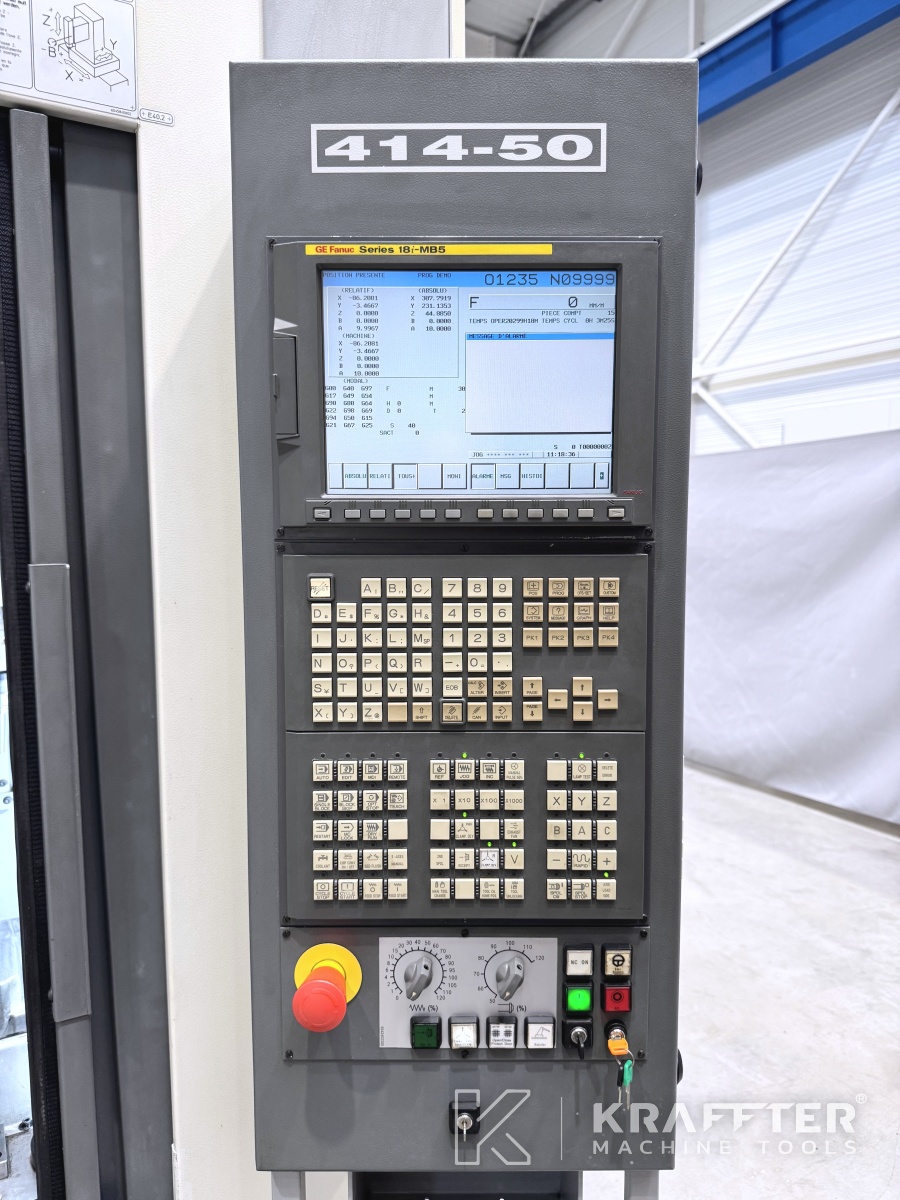

CNC control
FANUC 18i-MB5
Number of axes
7
Stroke X axis
450 [mm]
Stroke Y axis
270 [mm]
Stroke Z axis
310 [mm]
Traversing feeds X, Y and Z axes
75000 [mm/min]

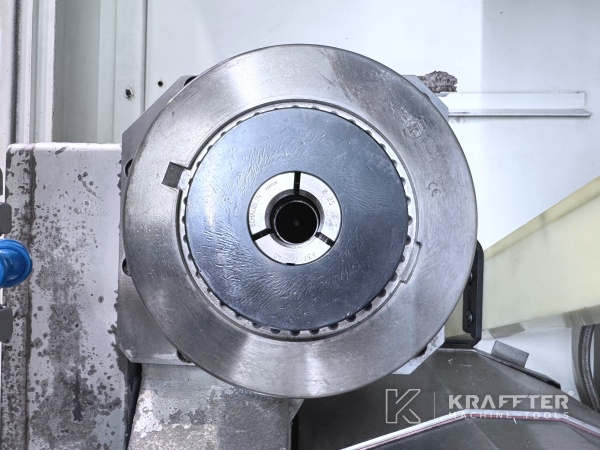

Max. bar diameter in turning spindle
32 [mm]
Main spindle max. speed
8000 [rpm]
Main spindle max. power
12 [kW]
Angular A axis stroke
360 [°]
A axis indexing precision
0.001 [°]

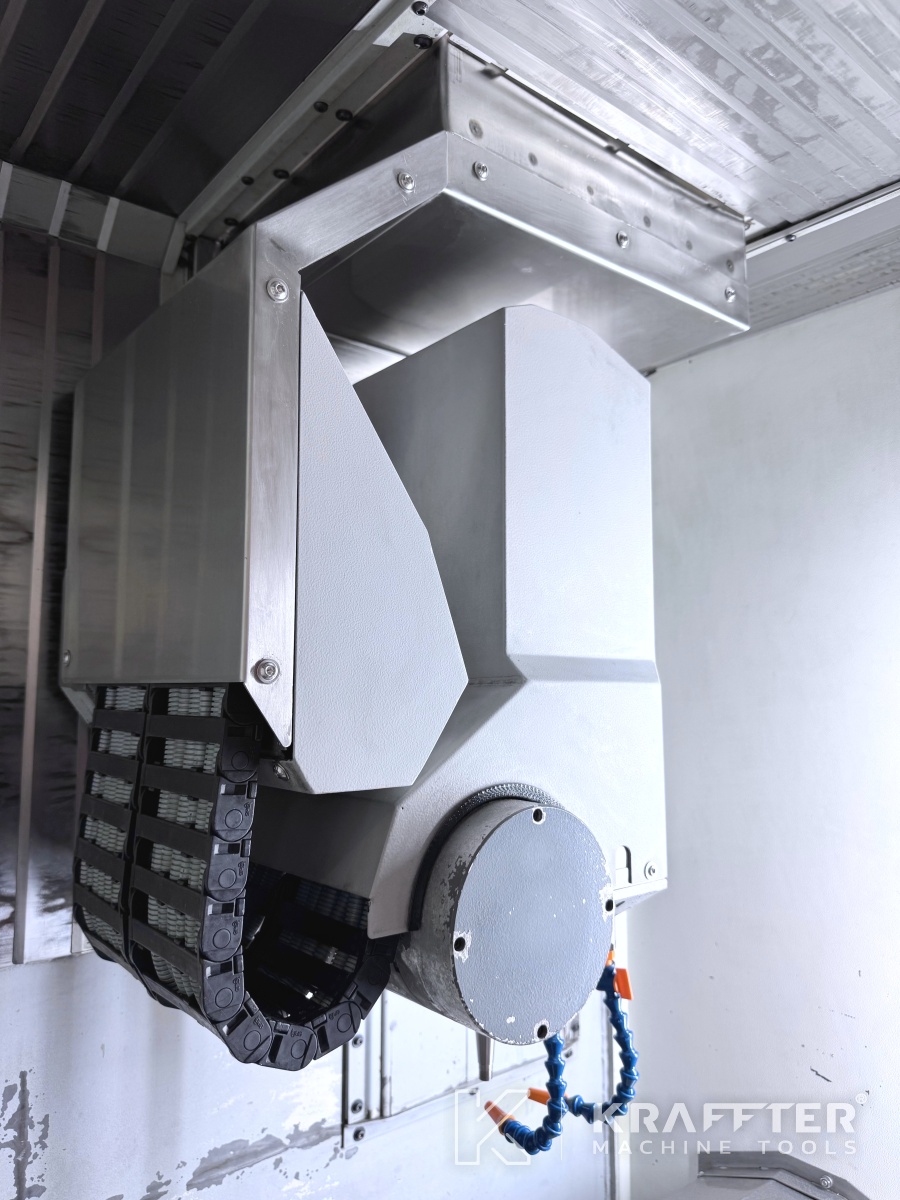

B axis swivelling stroke
-20° / +115 [°]
B axis indexing precision
0.001 [°]

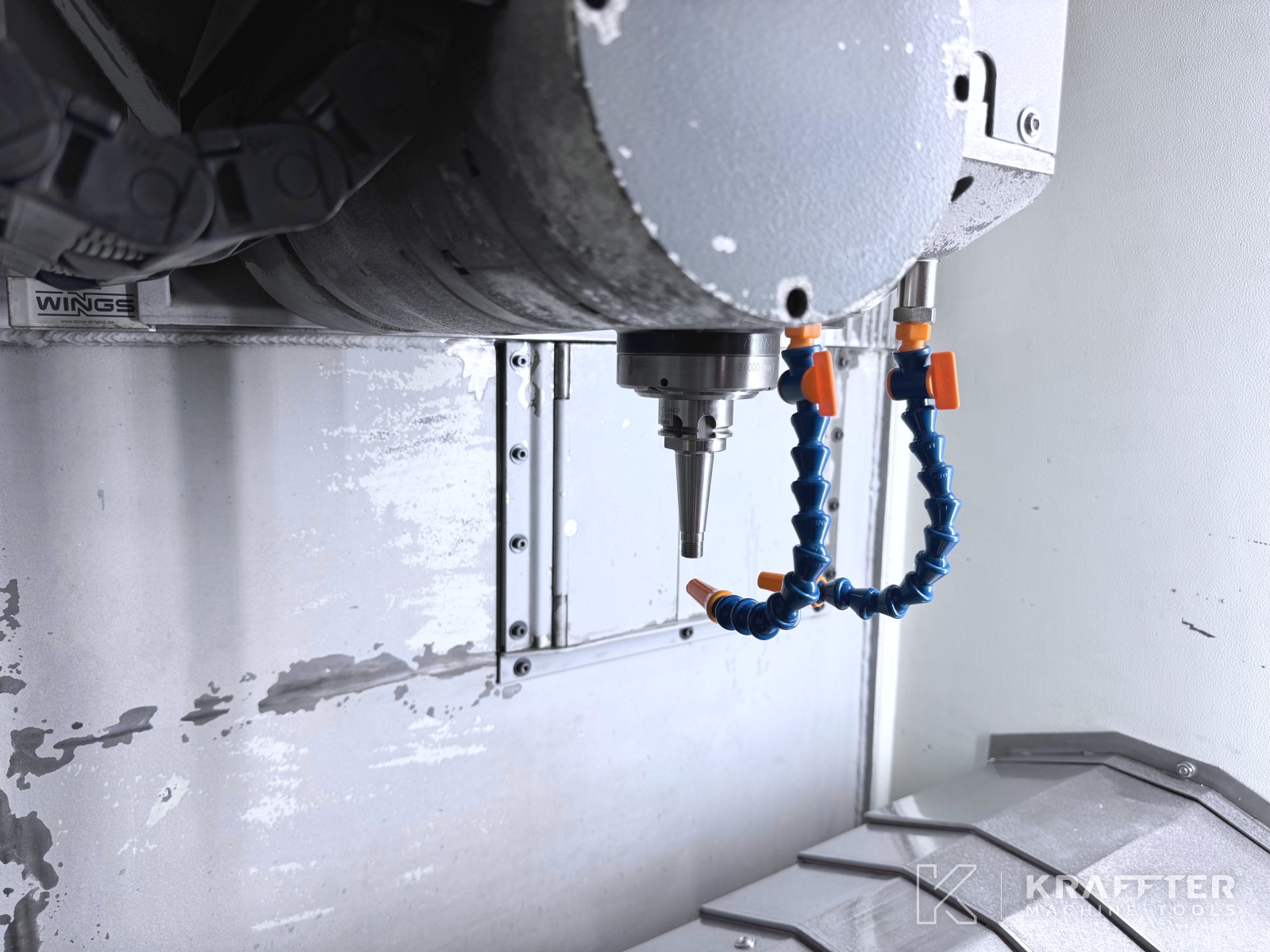

Spindle type
HSK40
Max. spindle speed
30000 [rpm]
Tool changer magazin number of stations
40
Part turnaround by robot (6th side machining)
Yes
RS232 Interface
Yes
Total power required
17 [kVA]
Supply voltage
400 [V]
Number of running hours
9911 [h]
Dimensions
1500 x 2600 x 2300 [mm]
Weight
3400 [Kg]
Additional information

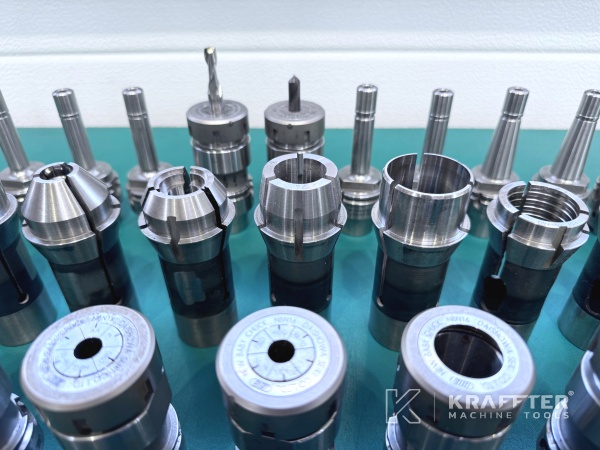

EQUIPMENT INCLUDED:

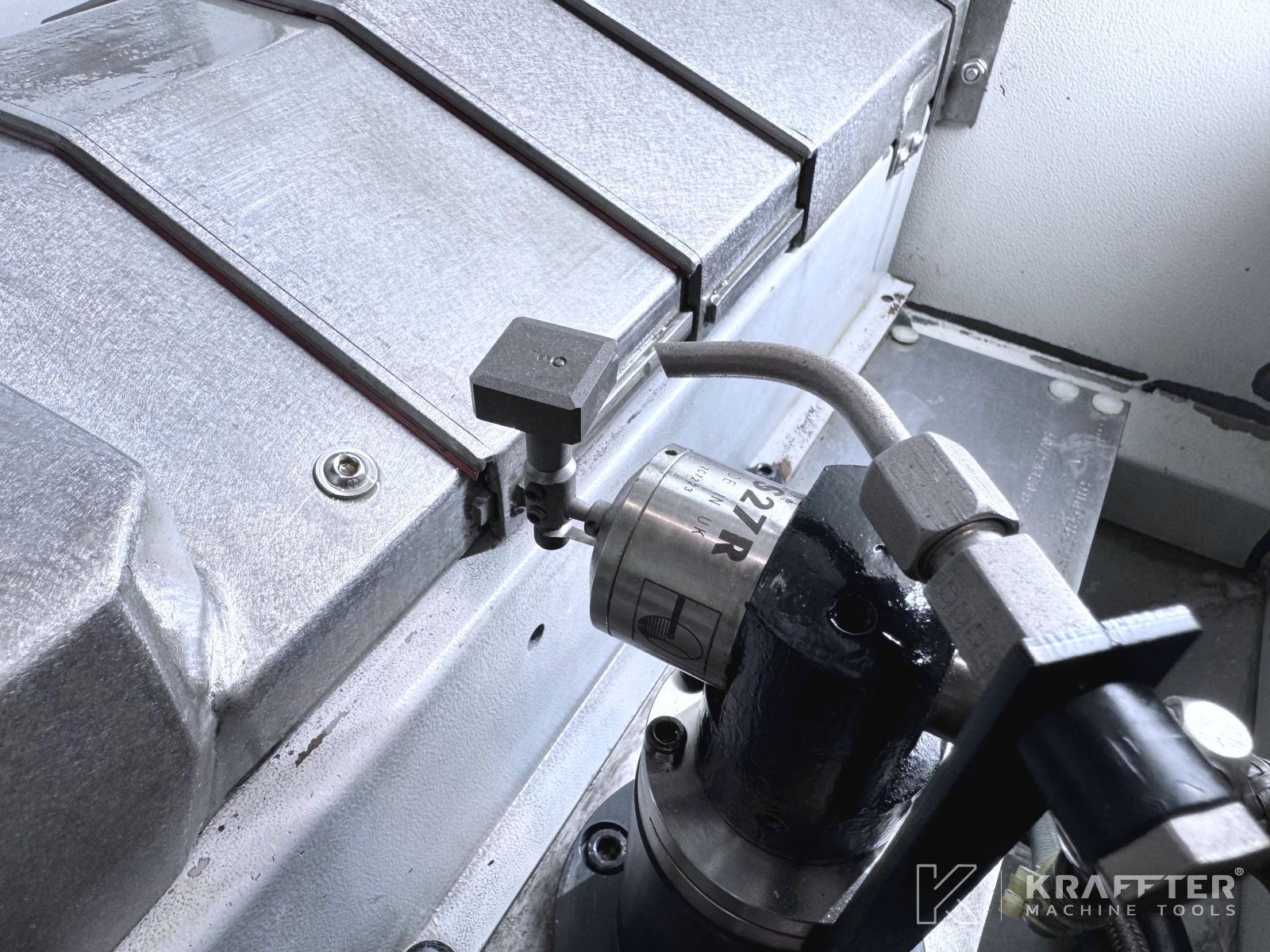

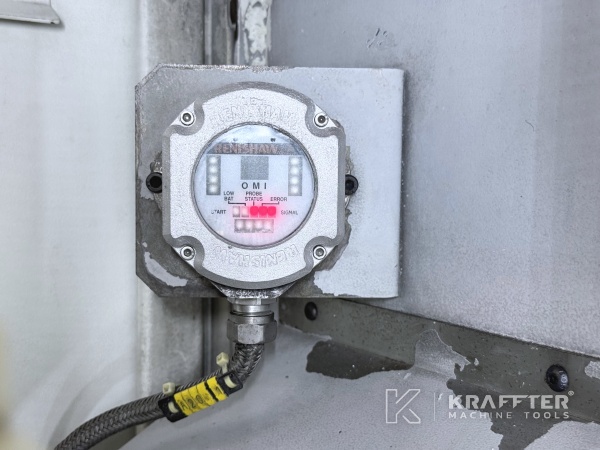

- x1 RENISHAW TS27R tool probe

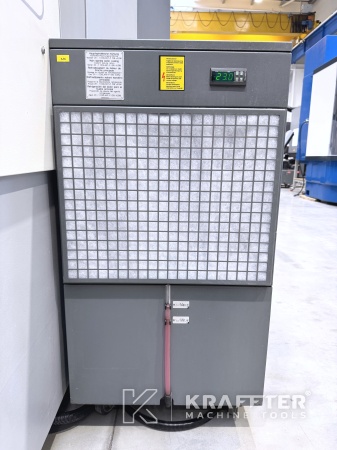

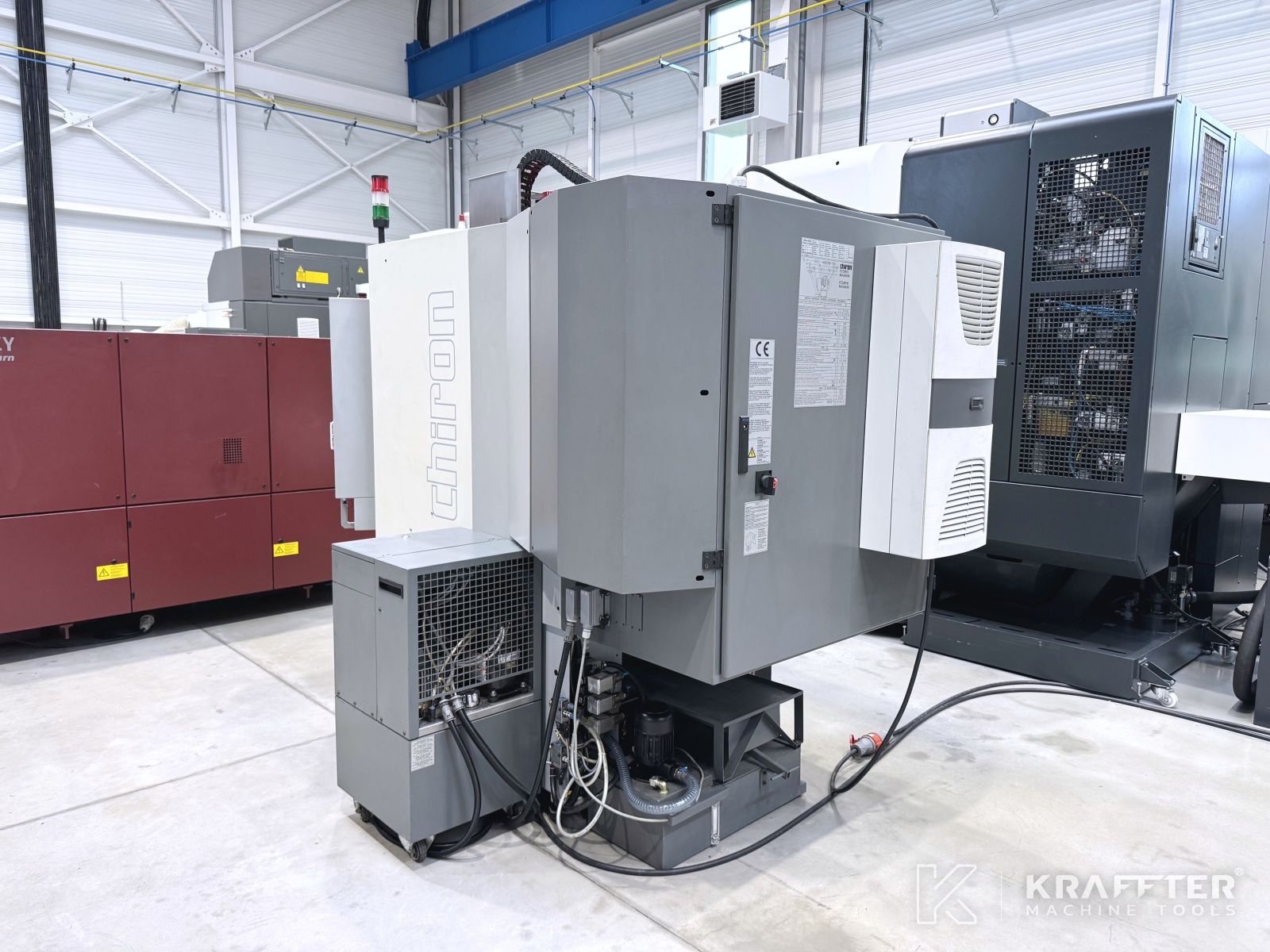

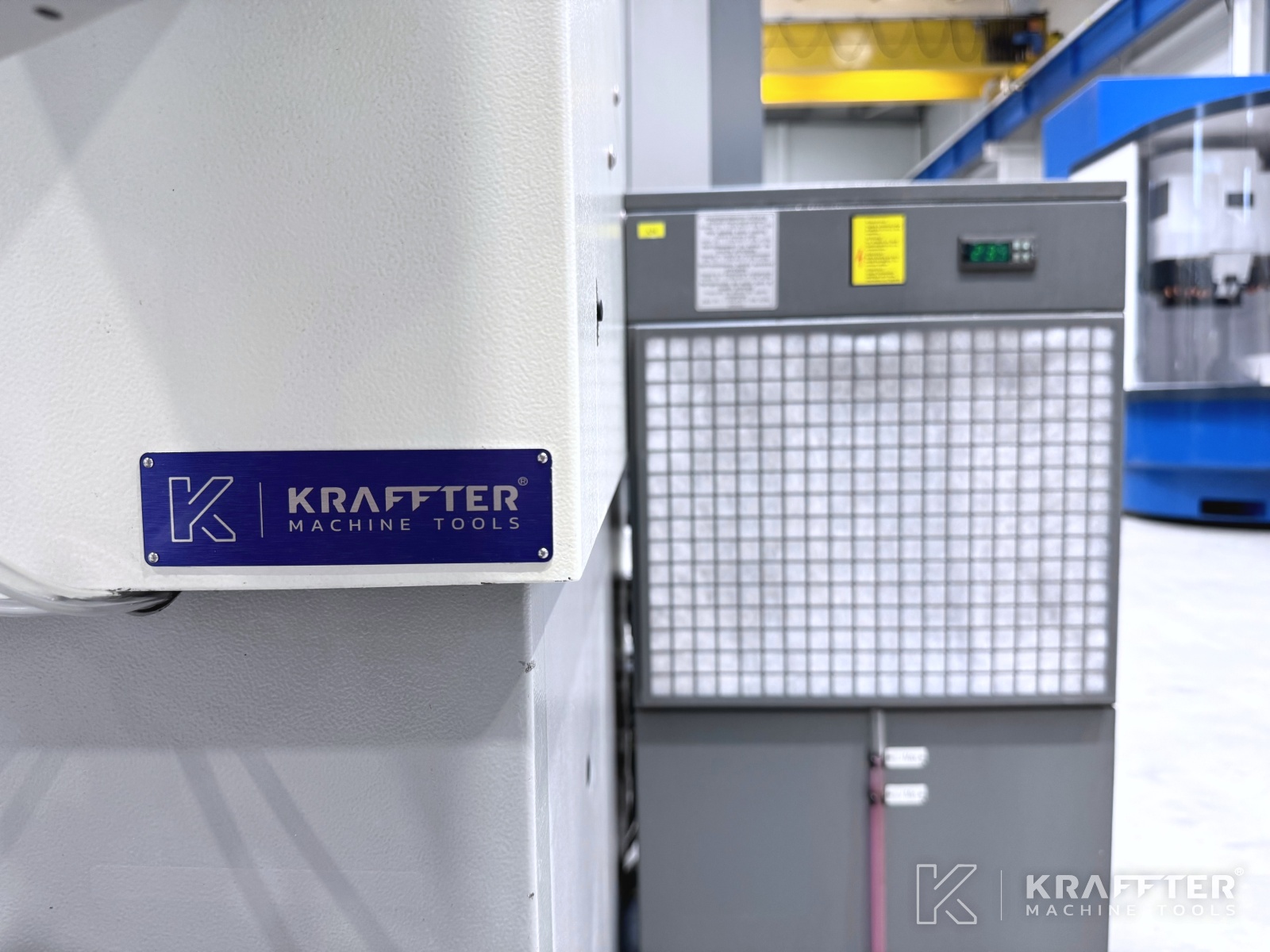

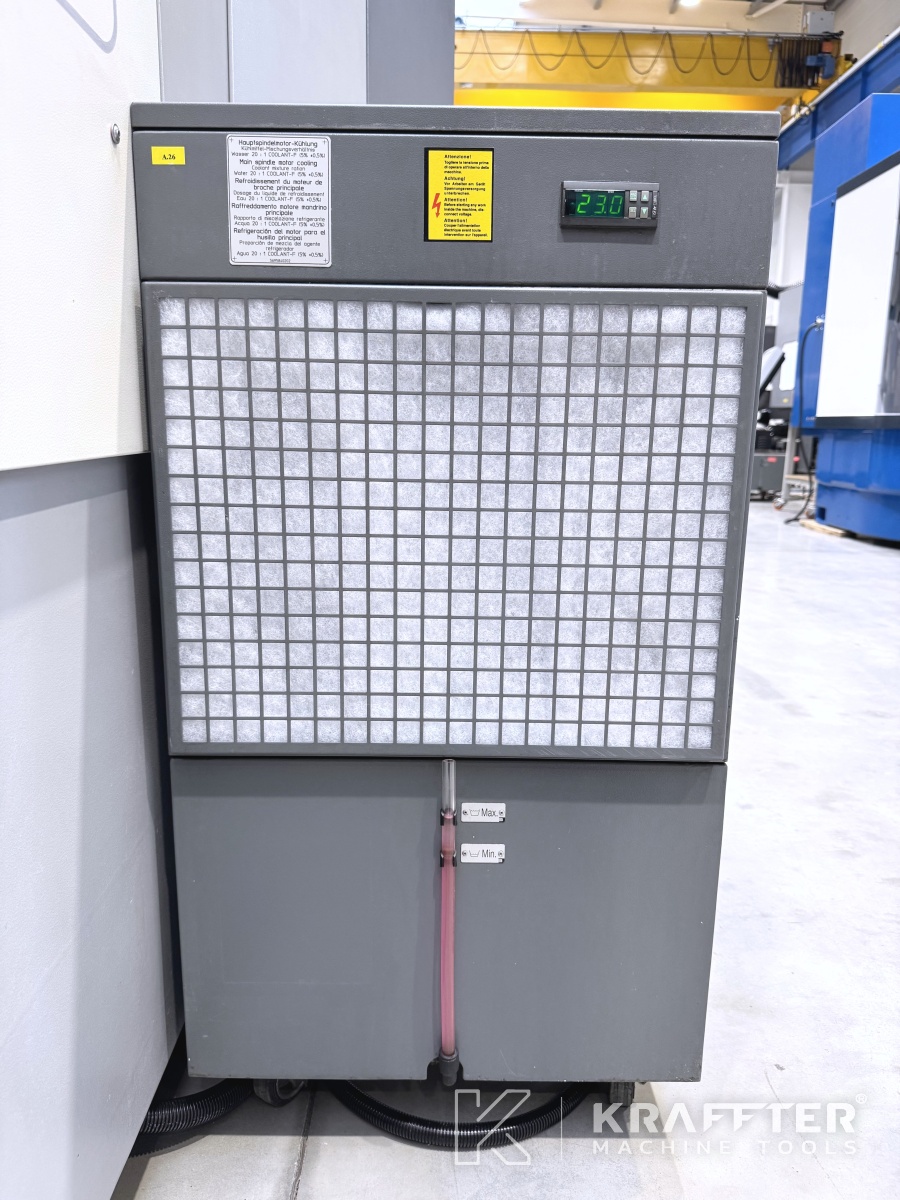

- x1 spindle cooling unit

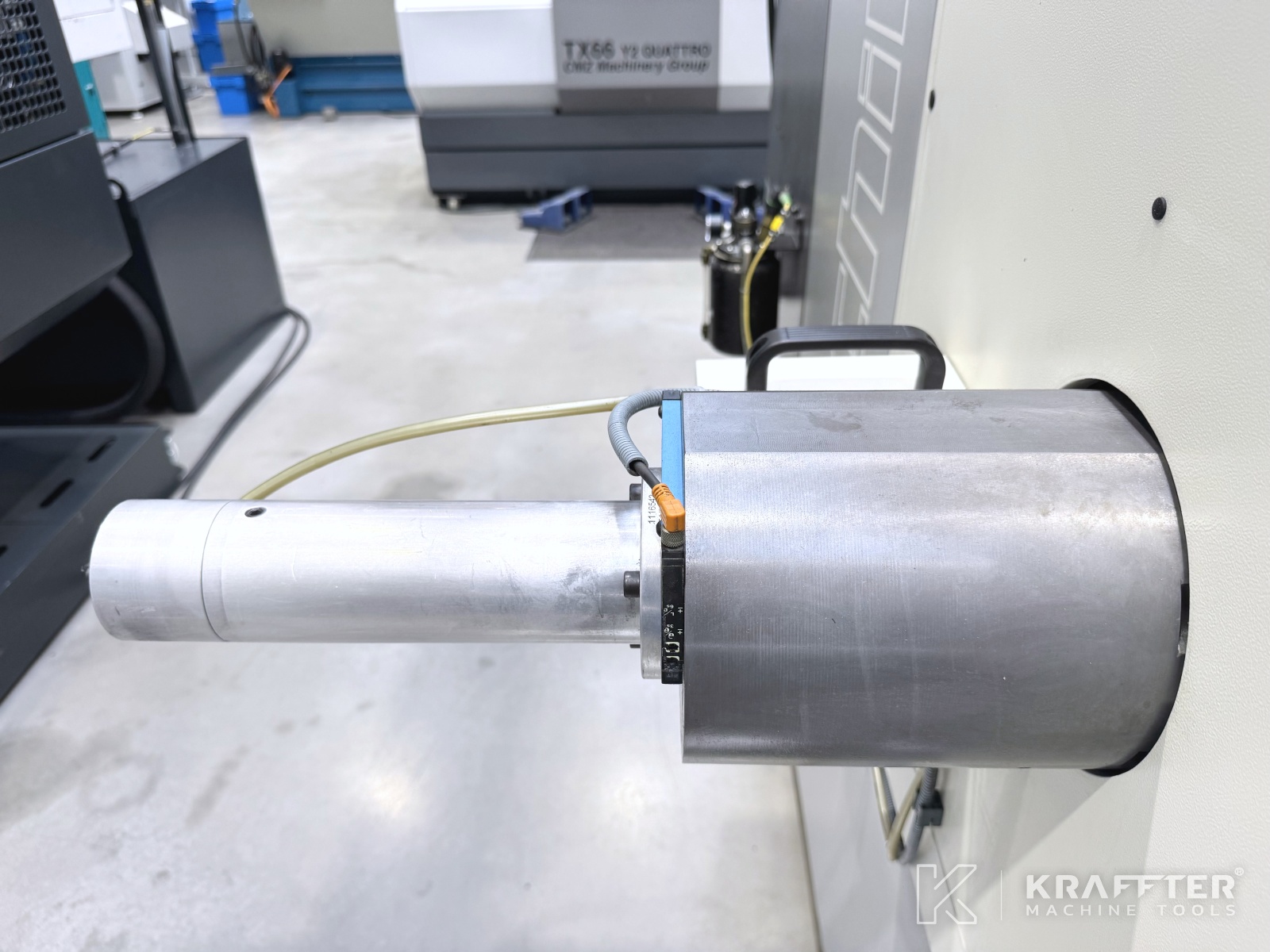

- x1 parts catcher

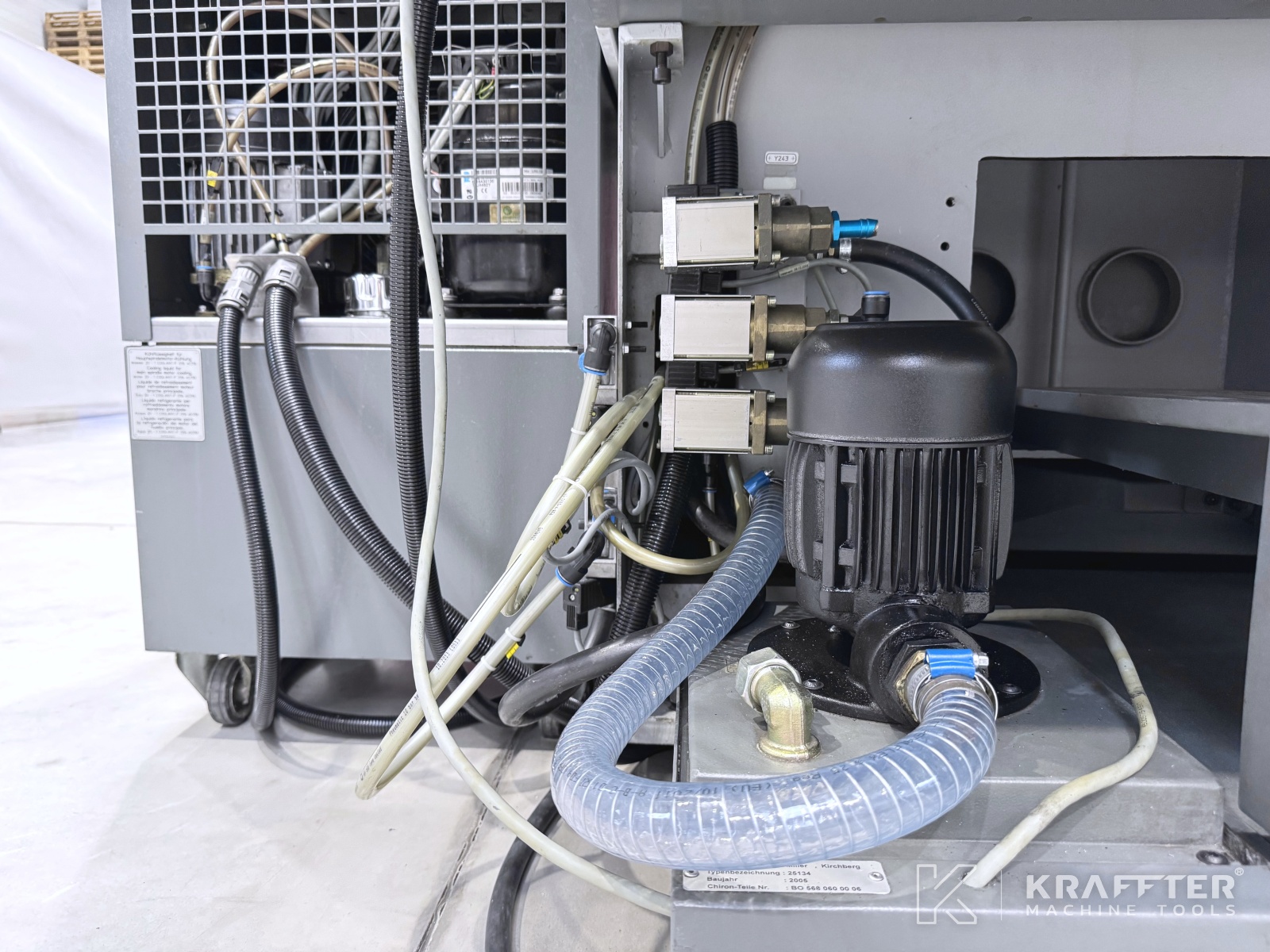

- x1 coolant tank
- x1 unit for 6th face machining (gripping system not included)

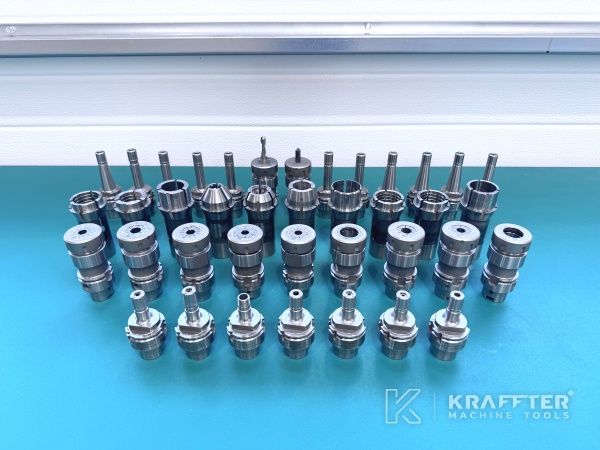

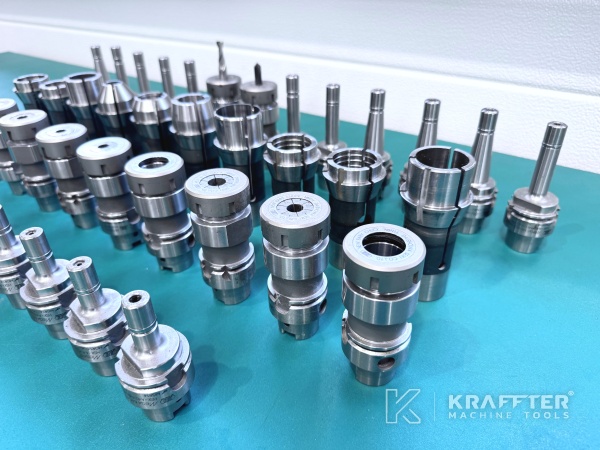

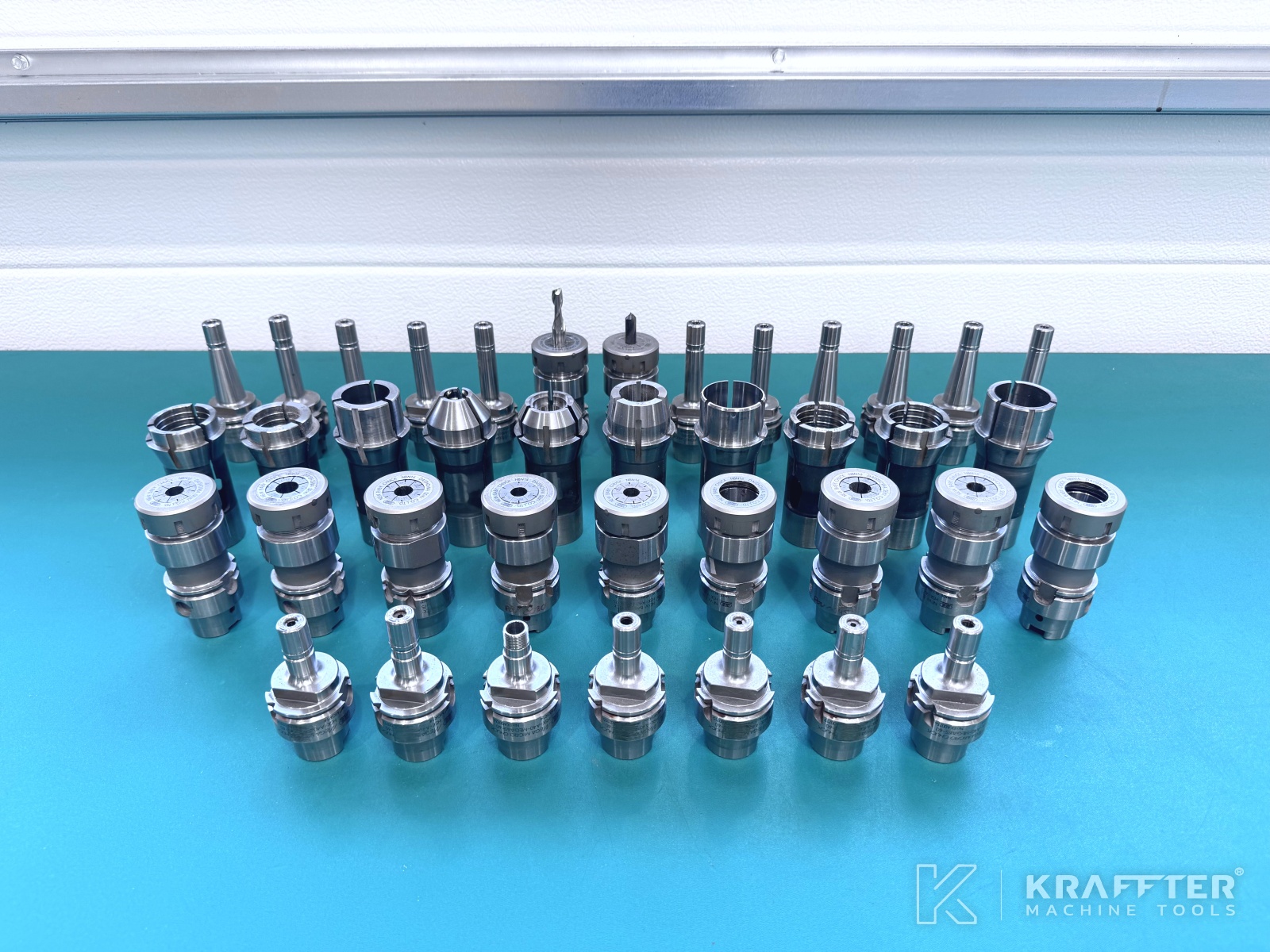

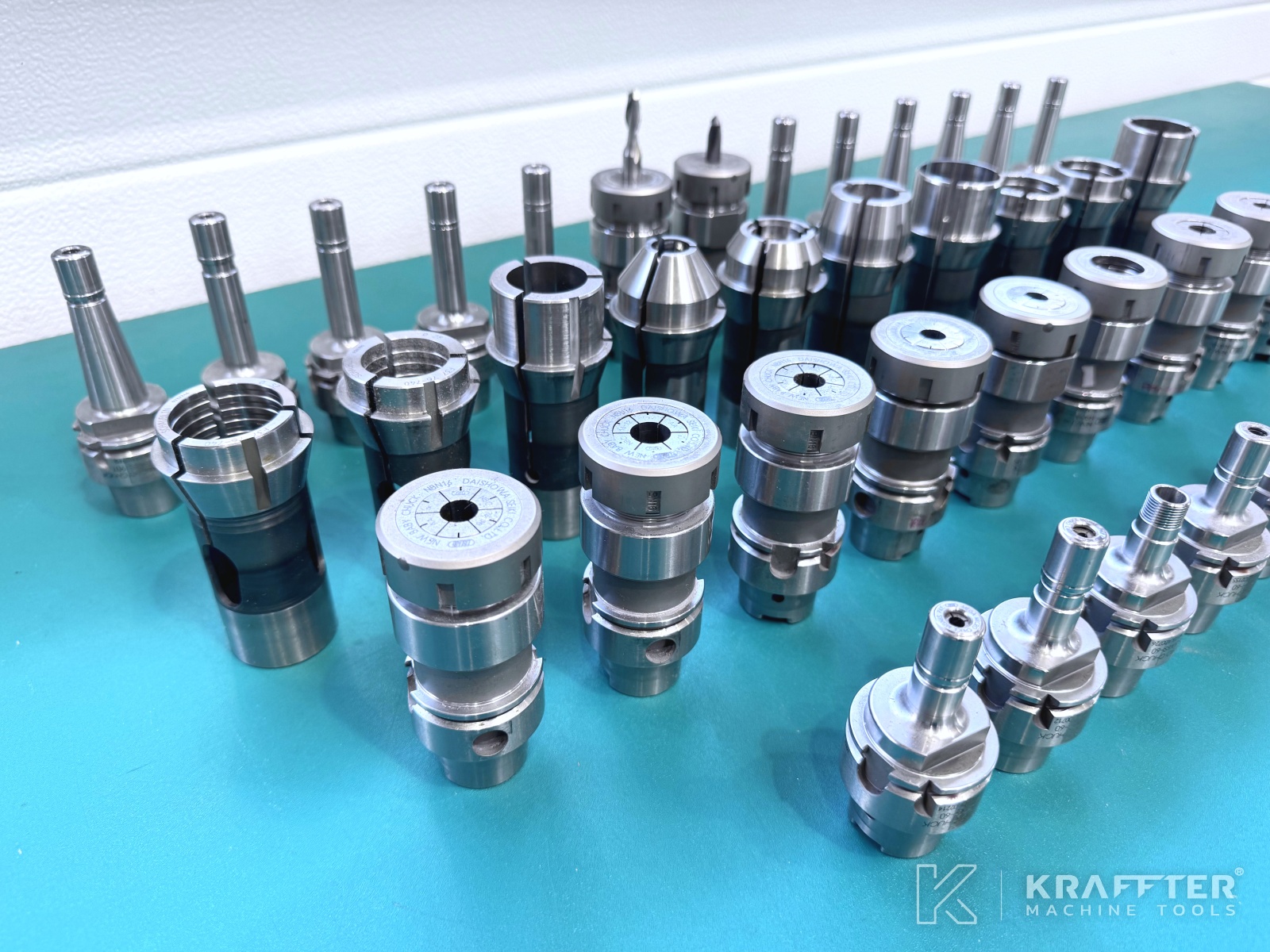

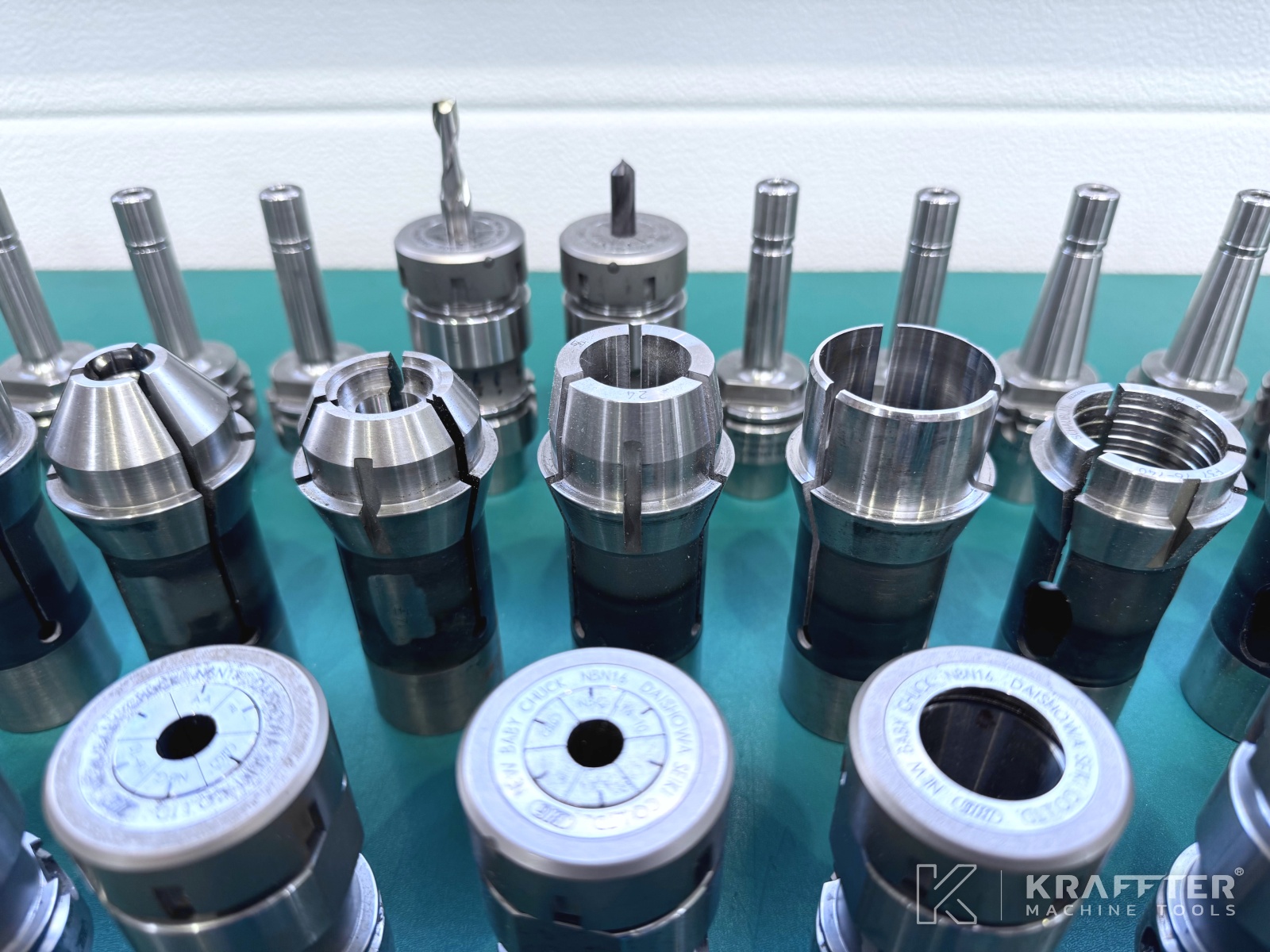

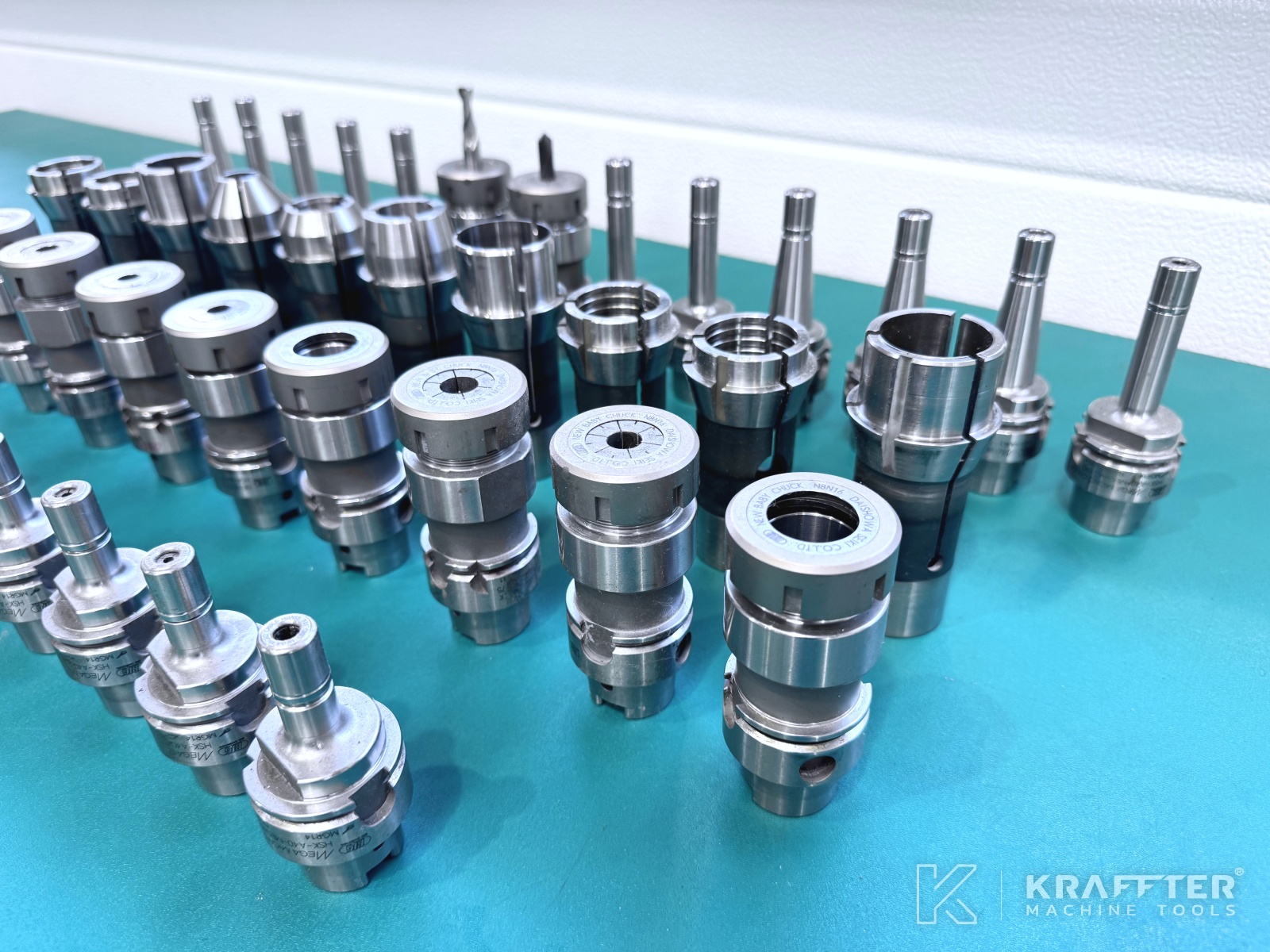

- x29 tool holders type HSK40 BIG KAISER

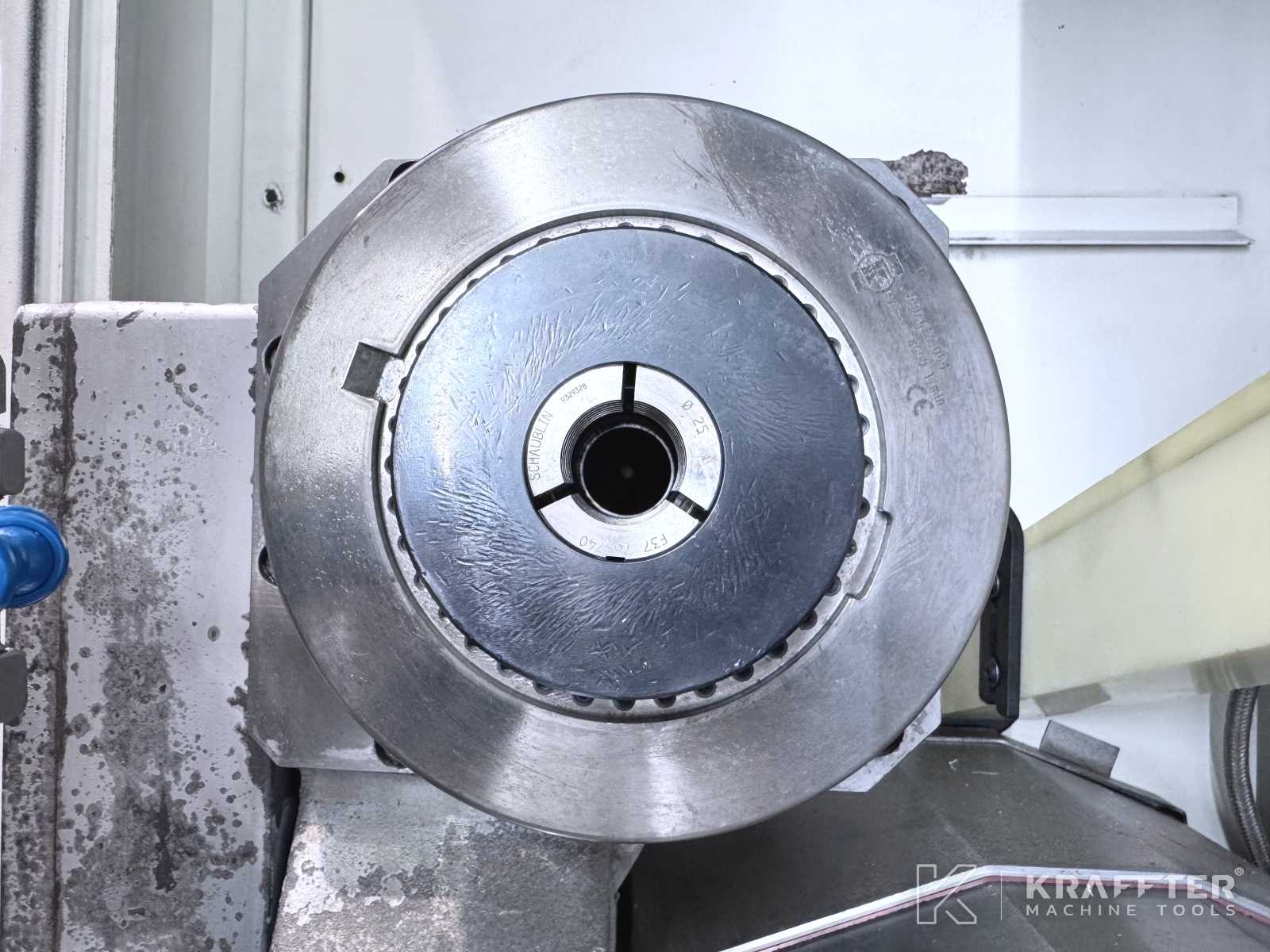

- x10 collets type F37 SCHAUBLIN
- x1 washing gun
- x1 3-color status light

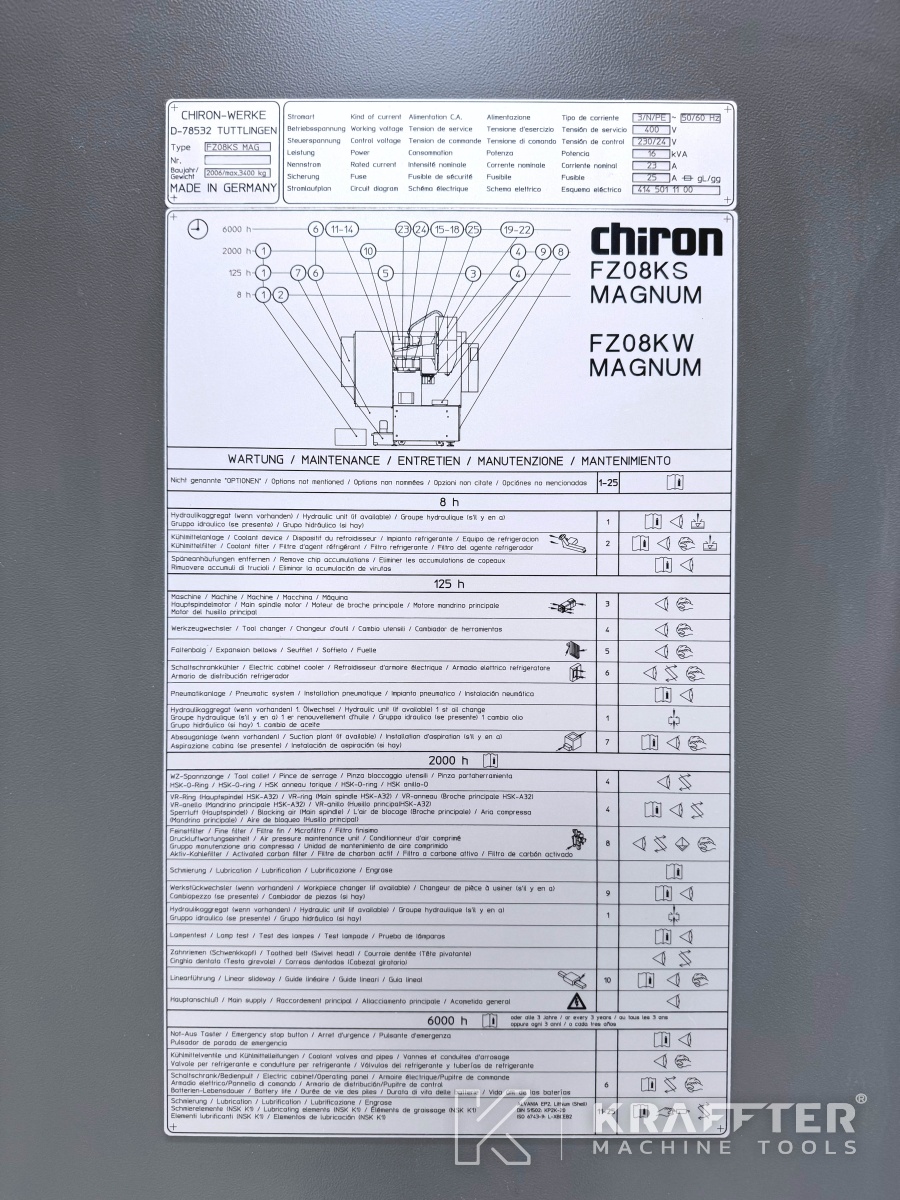

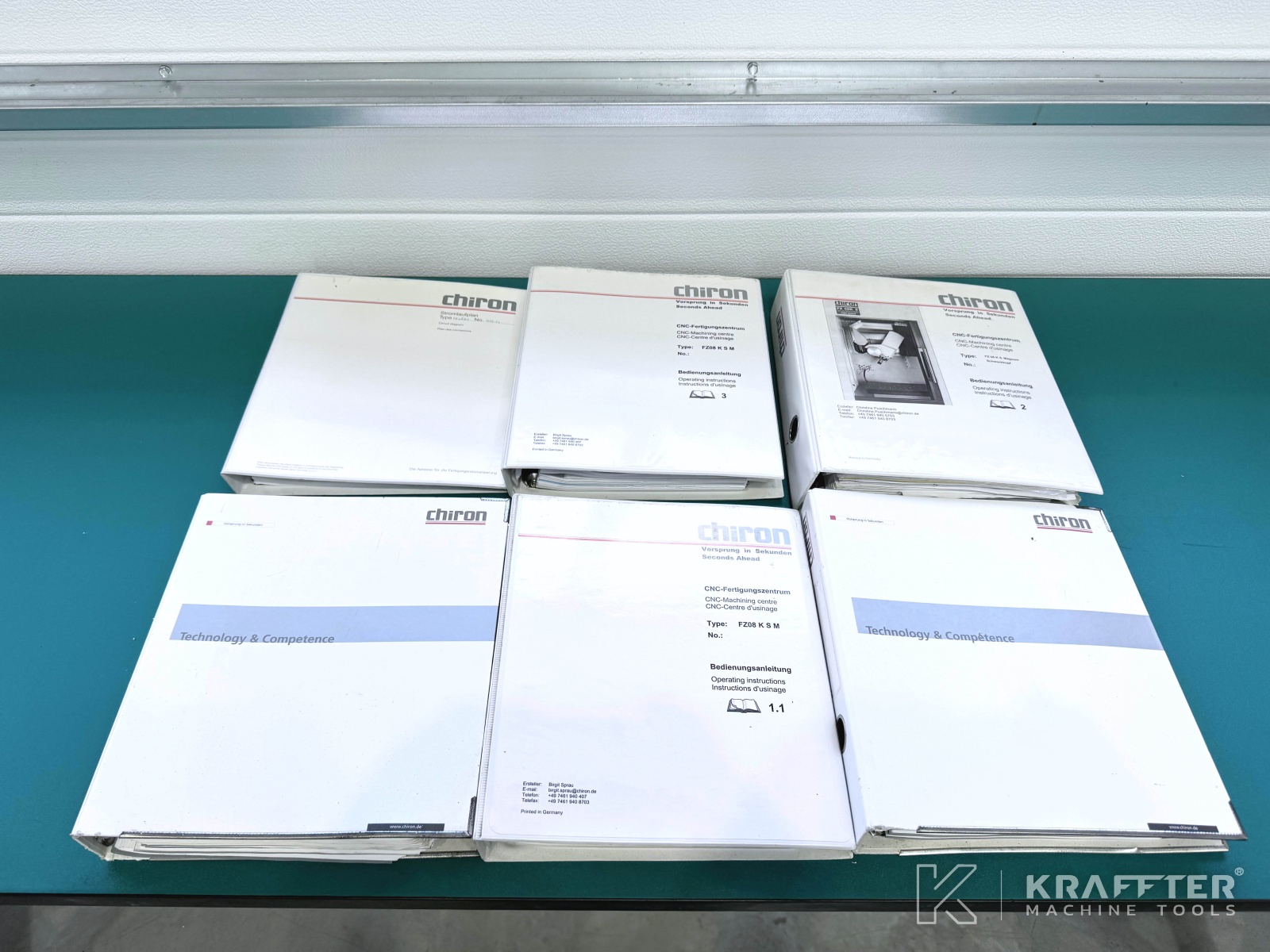

- x1 maintenance manual
- x1 operator's manual
- x1 programming manual
