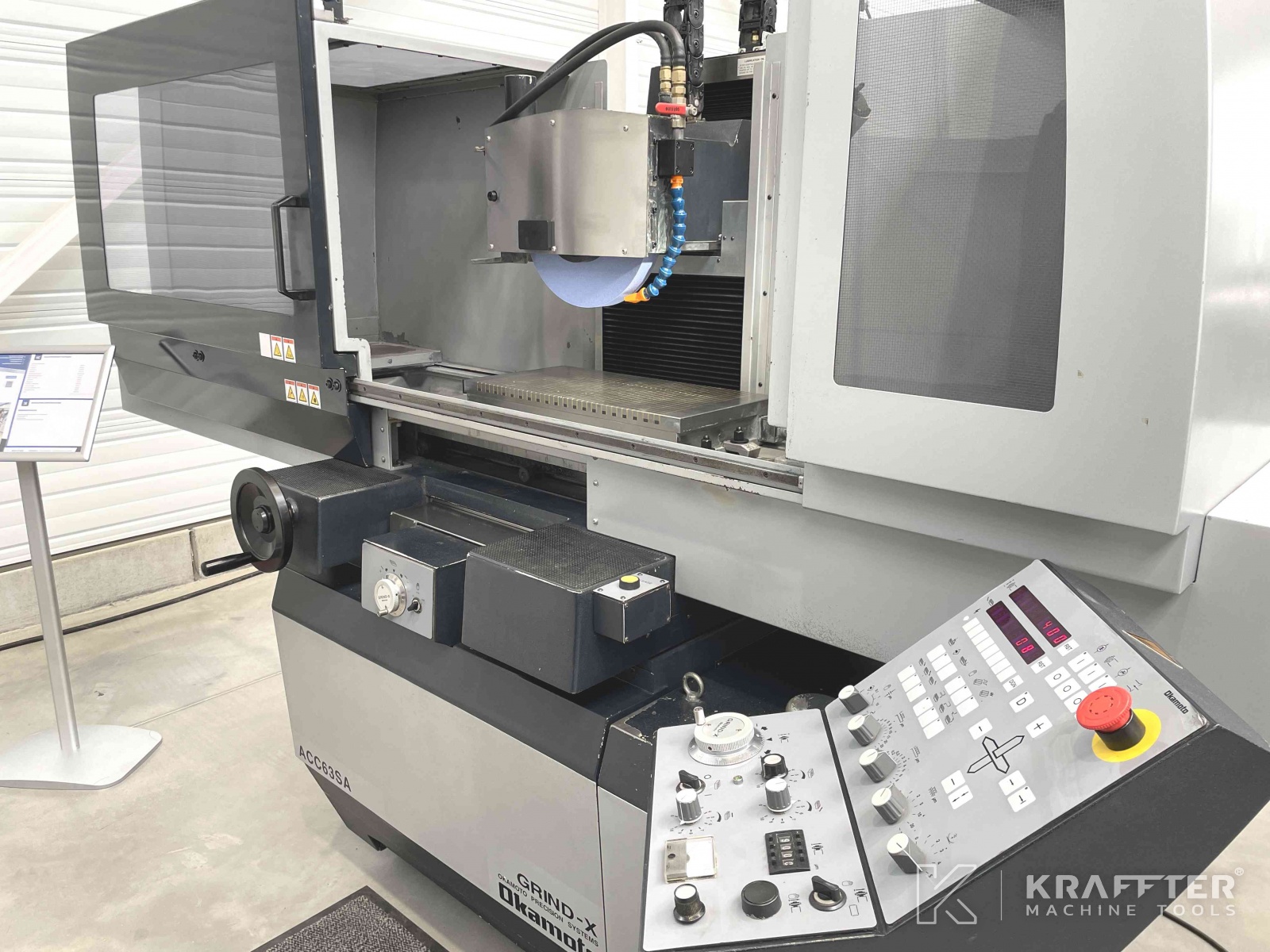

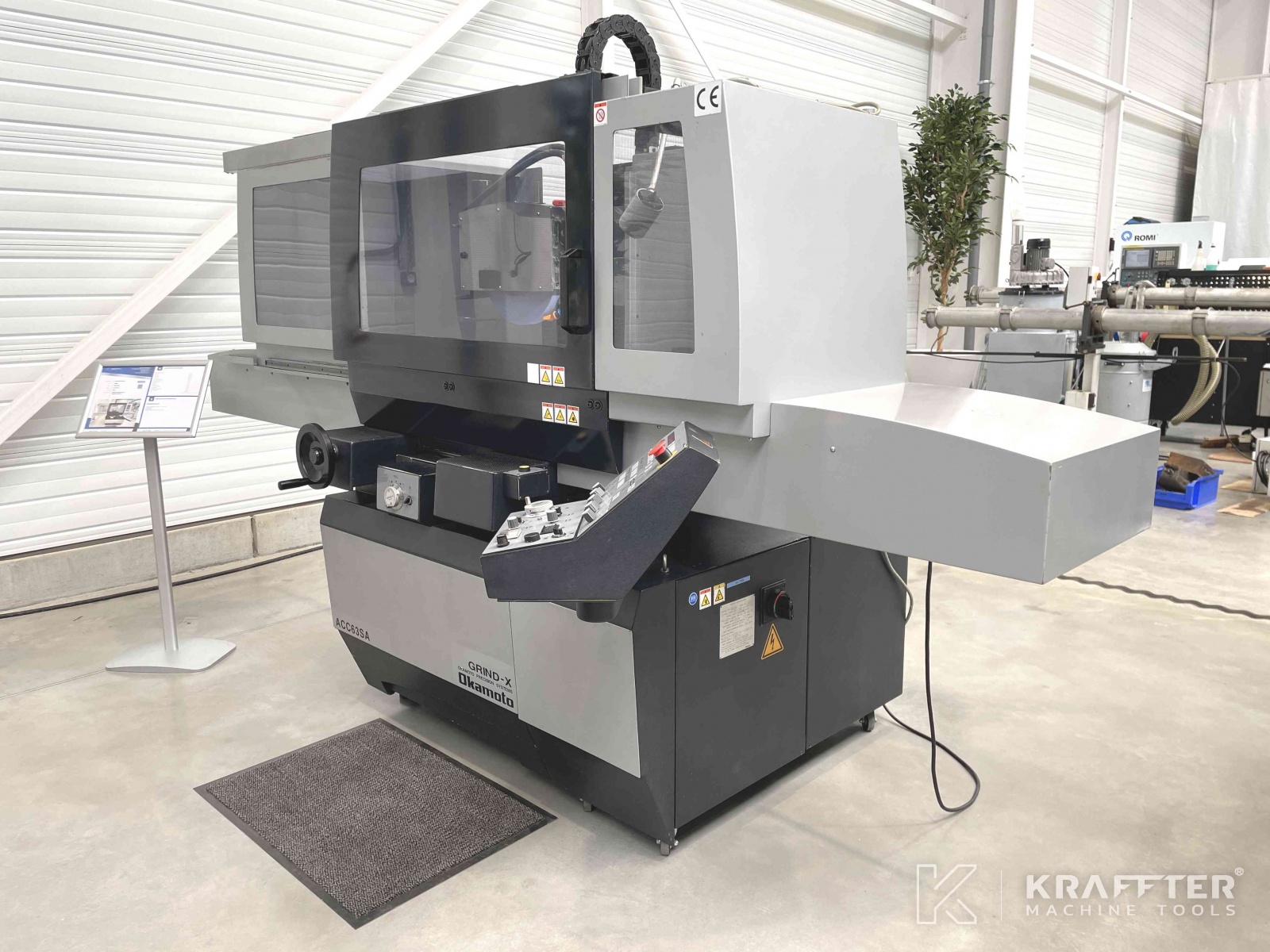

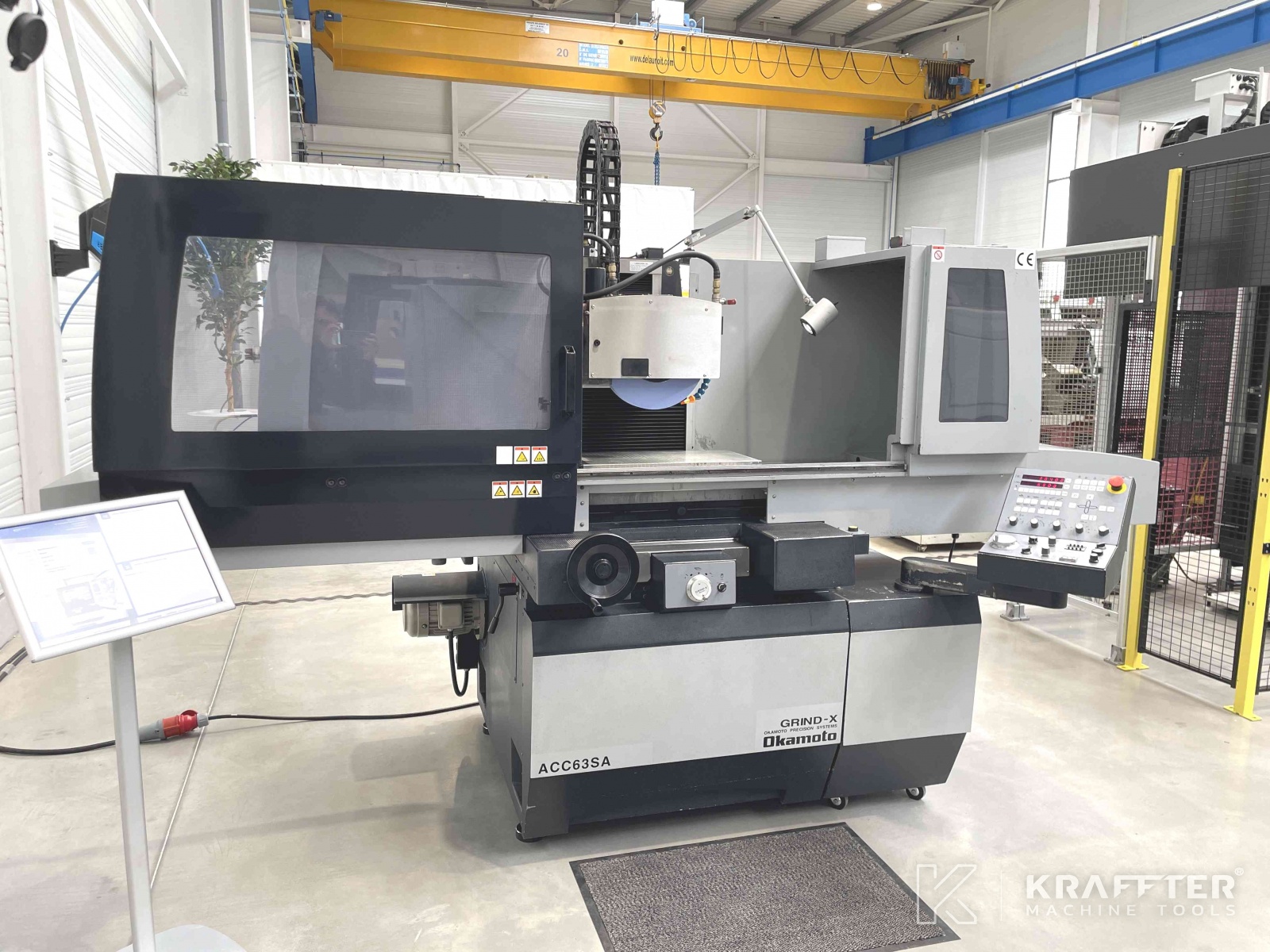

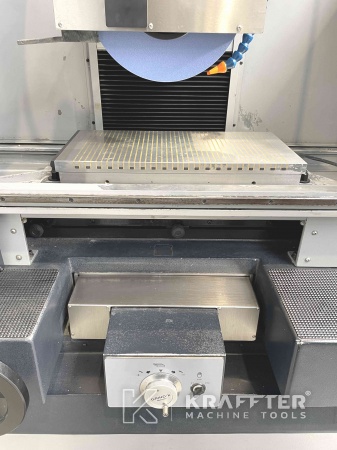

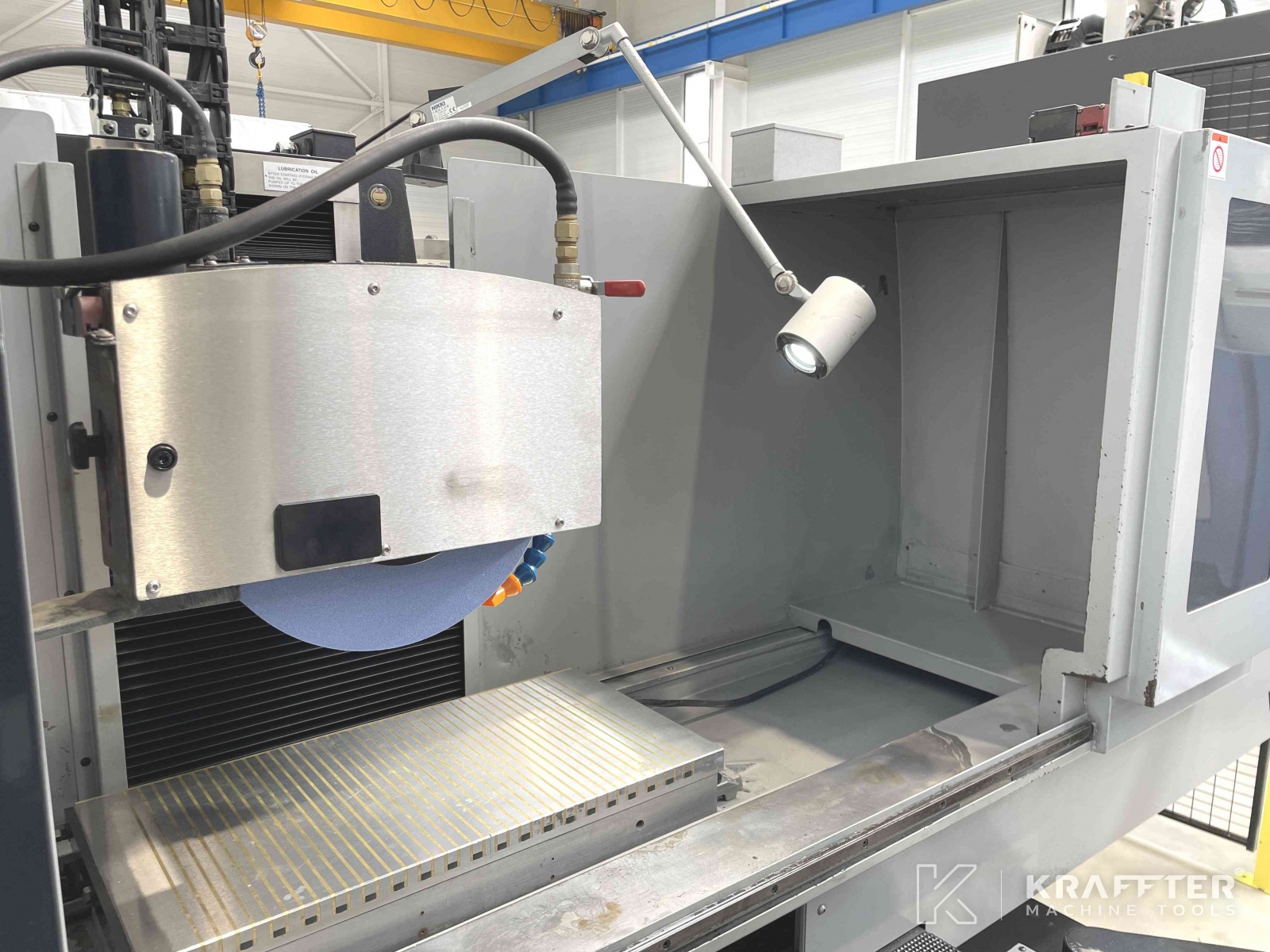

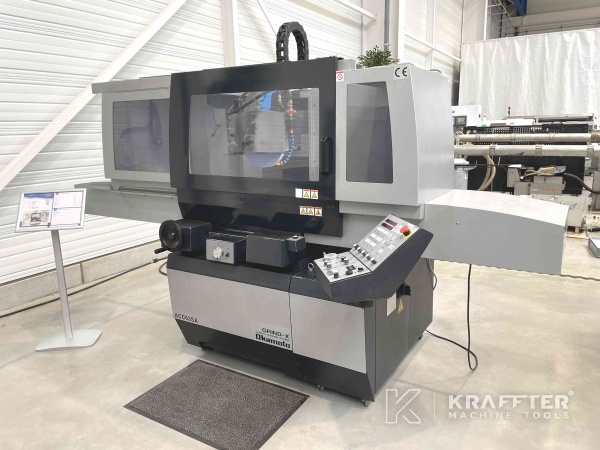

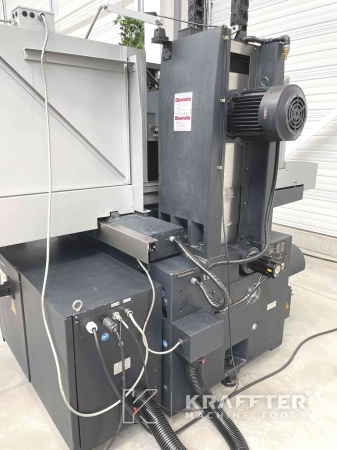

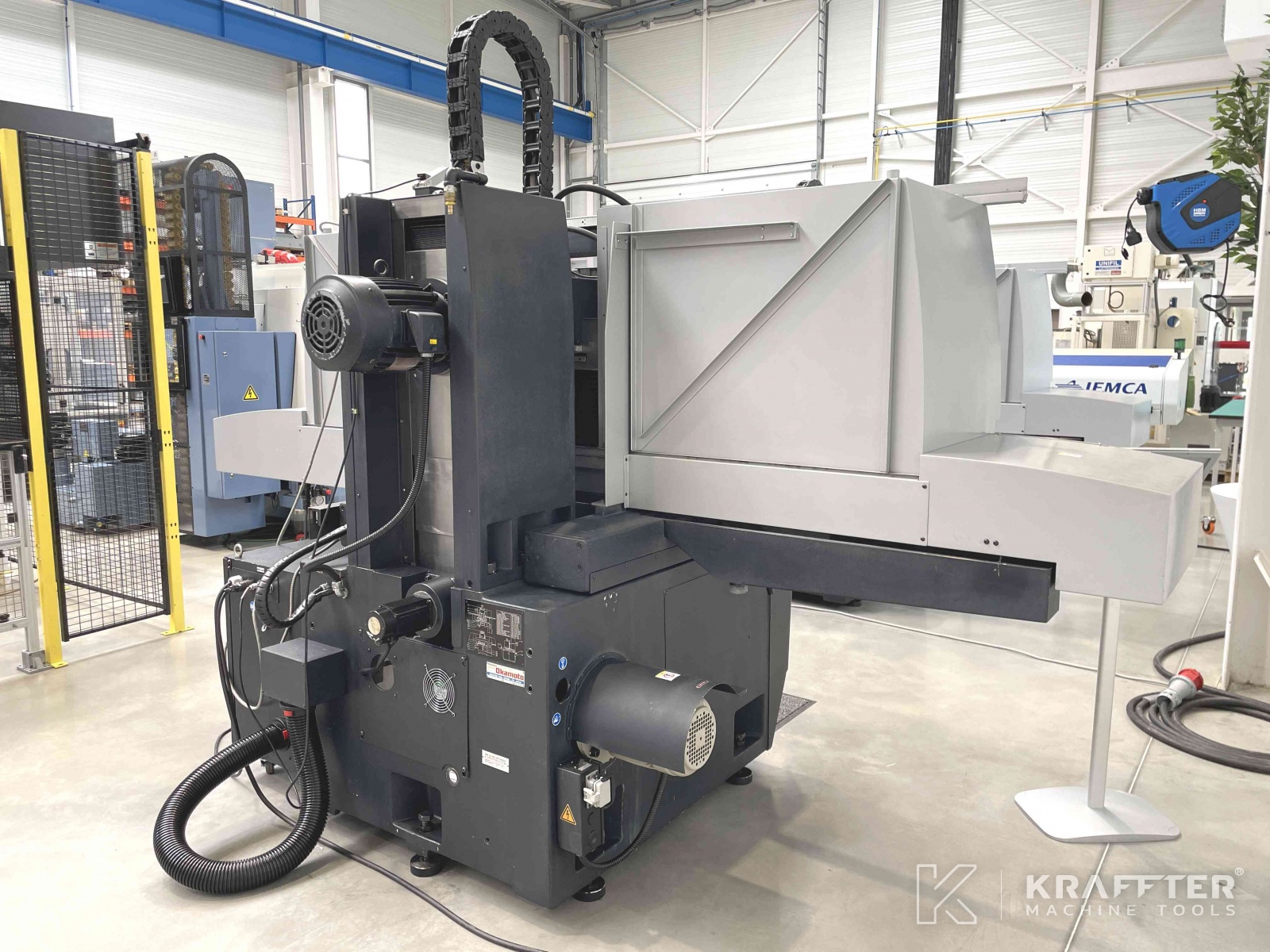

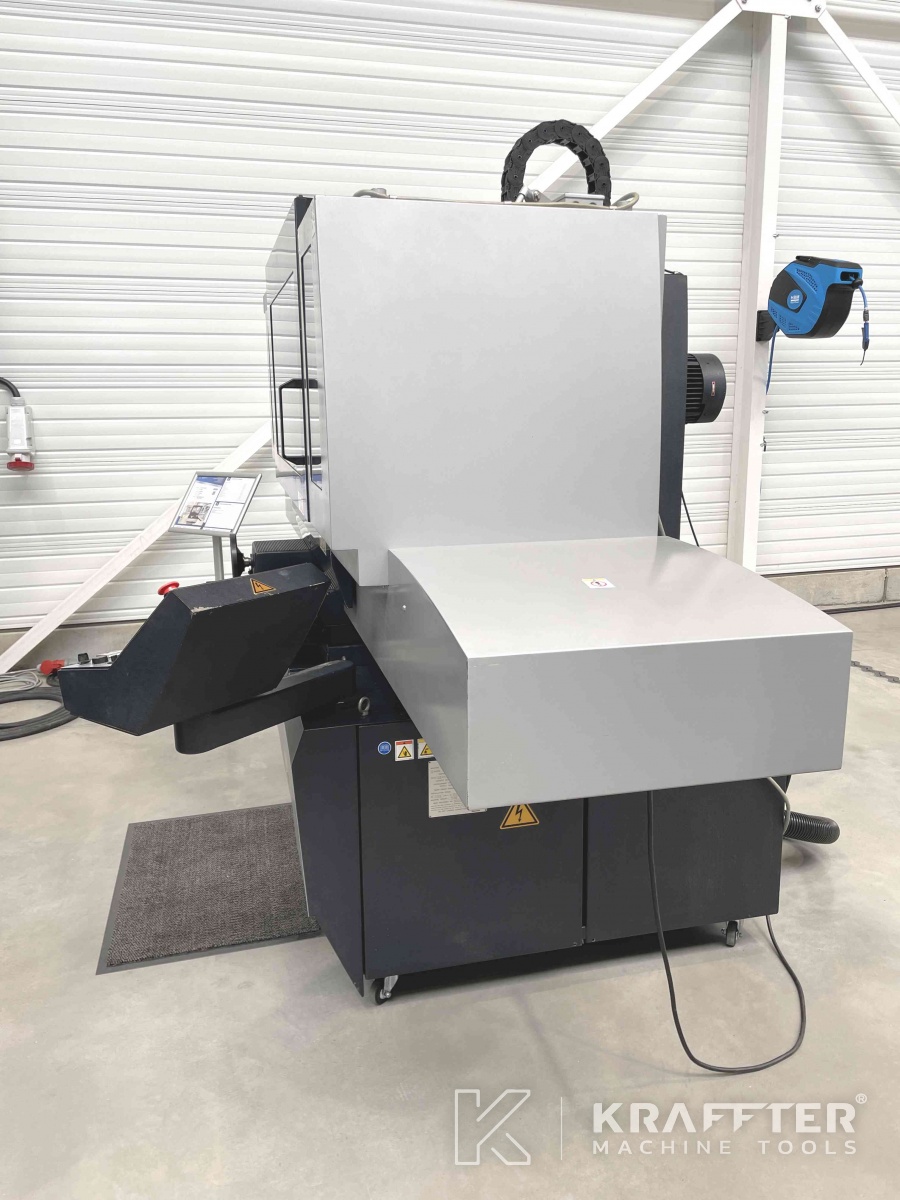

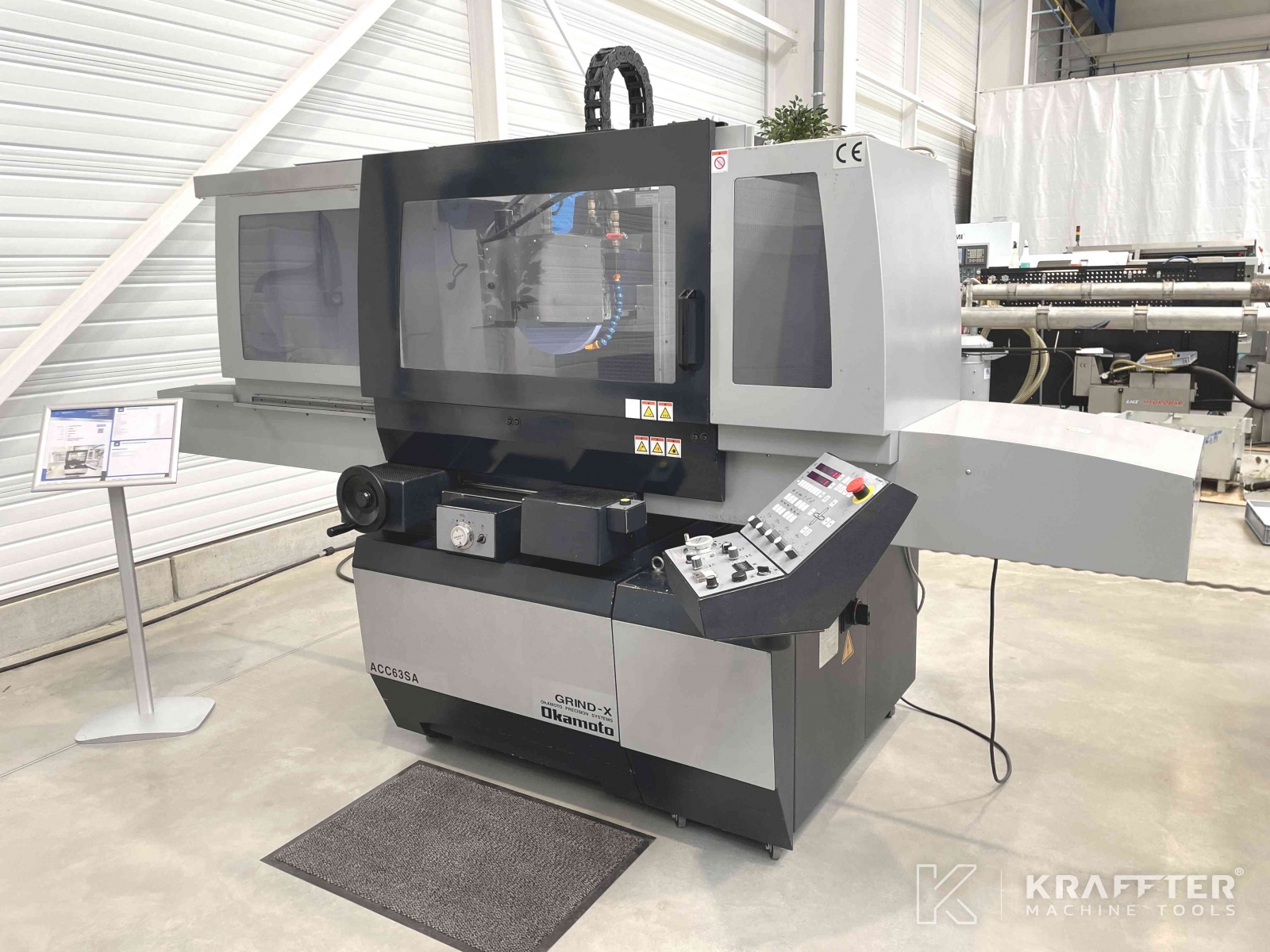

Type of machine : Surface grinder
Brand : OKAMOTO
Stock N° : 90057
Model : ACC 63 SA
Year : 2012
Location : 73240 St-Genix-les-Villages, FRANCE
Videos :
Technical characteristics
Additional information
Request a quotation
Number of automatic axes
3
Stroke X axis
750 [mm]
Stroke Y axis
340 [mm]
Table length
605 [mm]
Table width
300 [mm]
Max. distance spindle nose / table
322.5 [mm]
Max. load on table
420 [Kg]
Grinding wheel speed
1500 [rpm]
Grinding spindle motor power
3.7 [kW]
Max. diameter grinding wheel
355 [mm]
Grinding wheel width
38 [mm]
Grinding wheel bore
127 [mm]

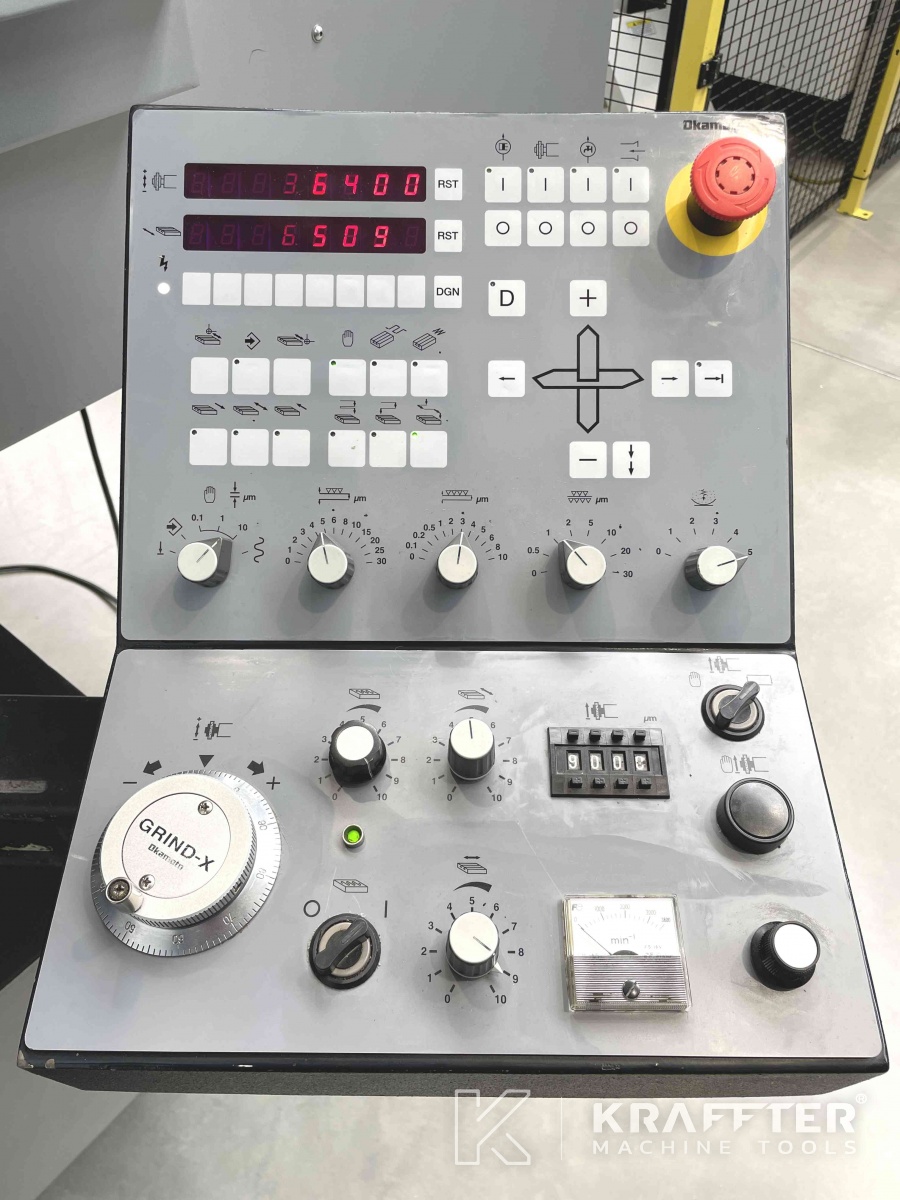

Number of axes Digital Read Out
2
Supply voltage
400 [V]
Total power required
10 [kVA]
Weight
2900 [Kg]
EQUIPMENT INCLUDED:

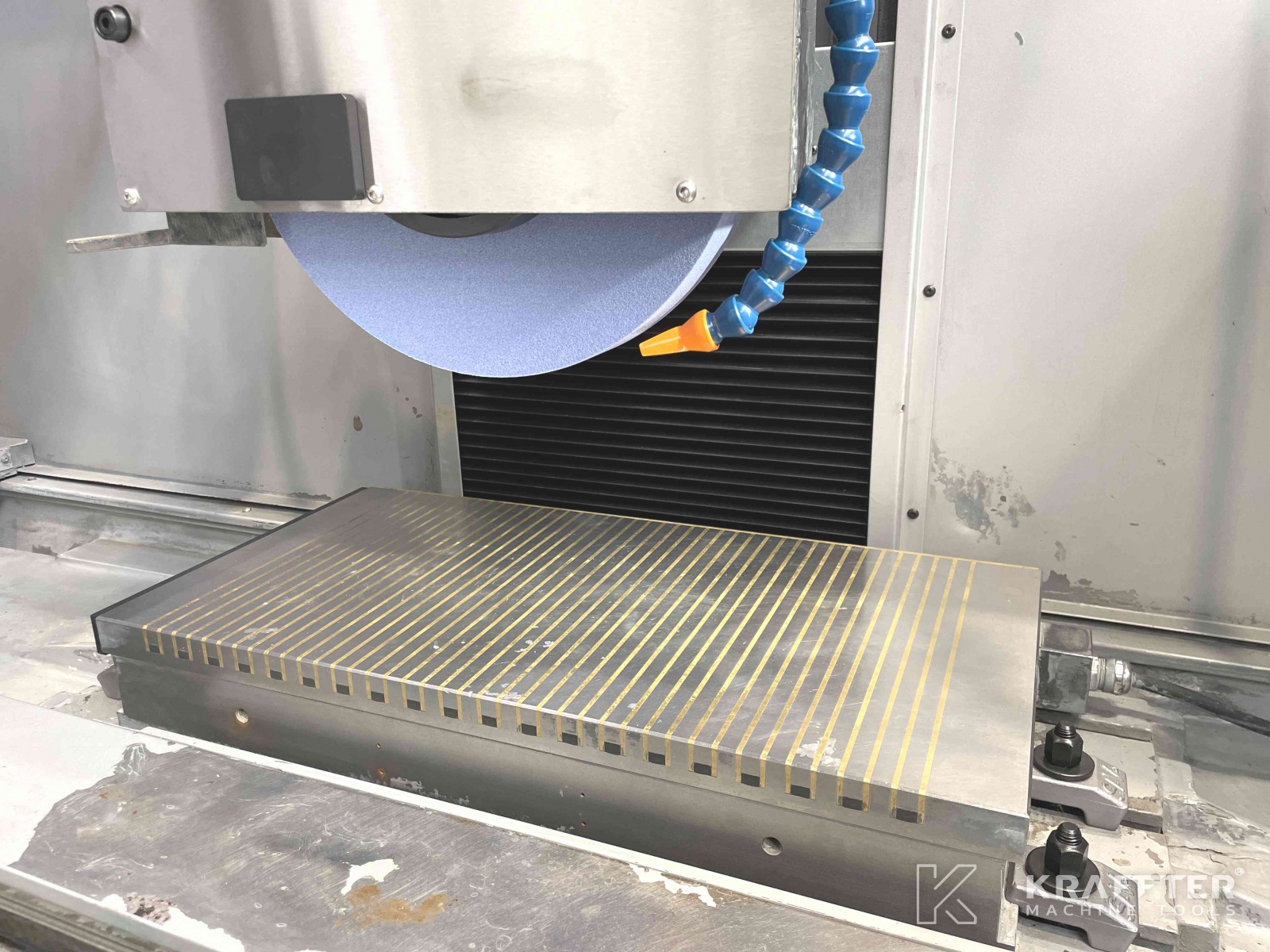

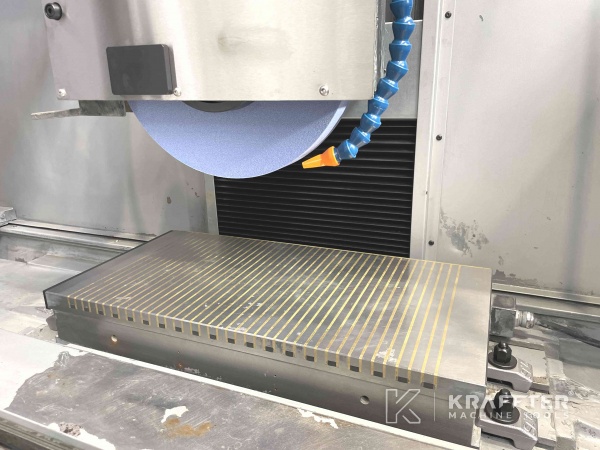

x1 electromagnectic clamping plate SAV type 243.70 - 600 x 300 [mm]
x1 wheel flange

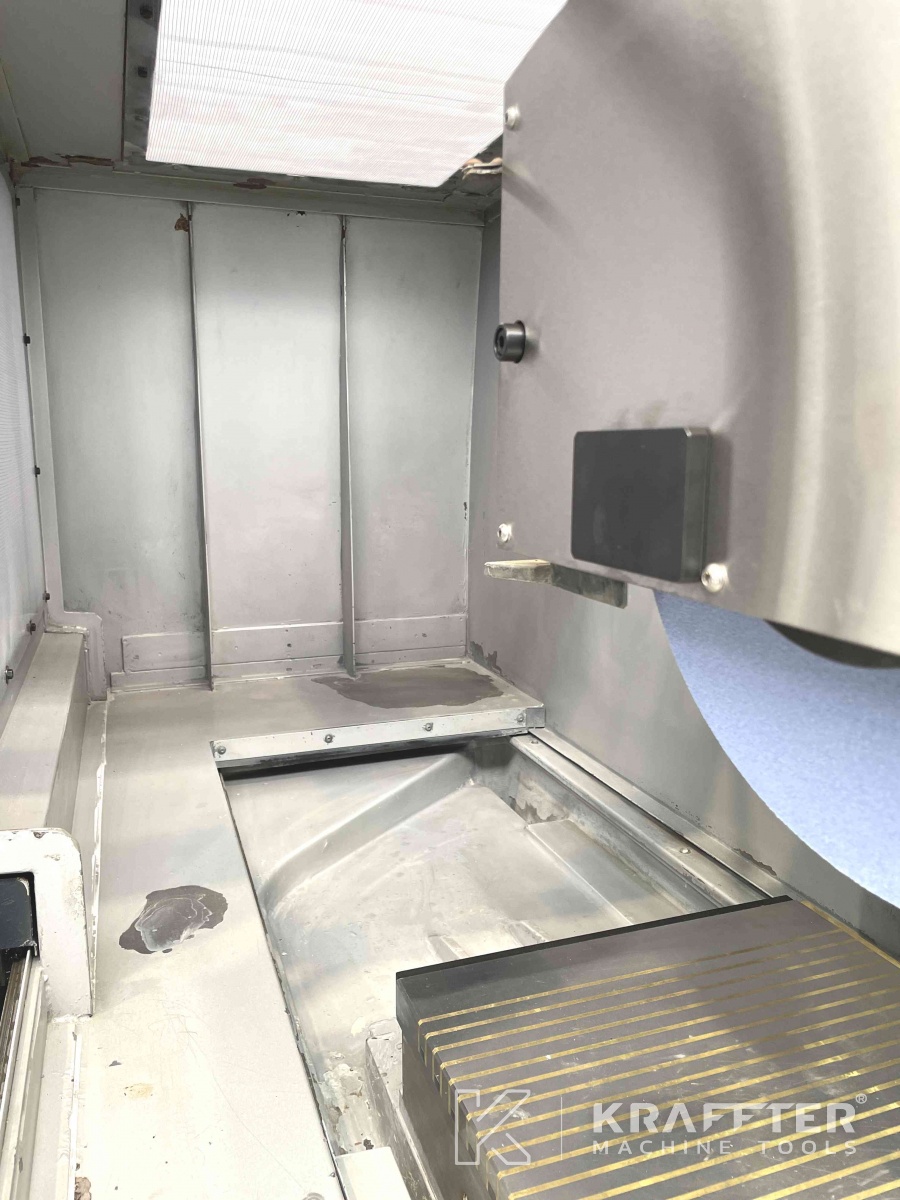

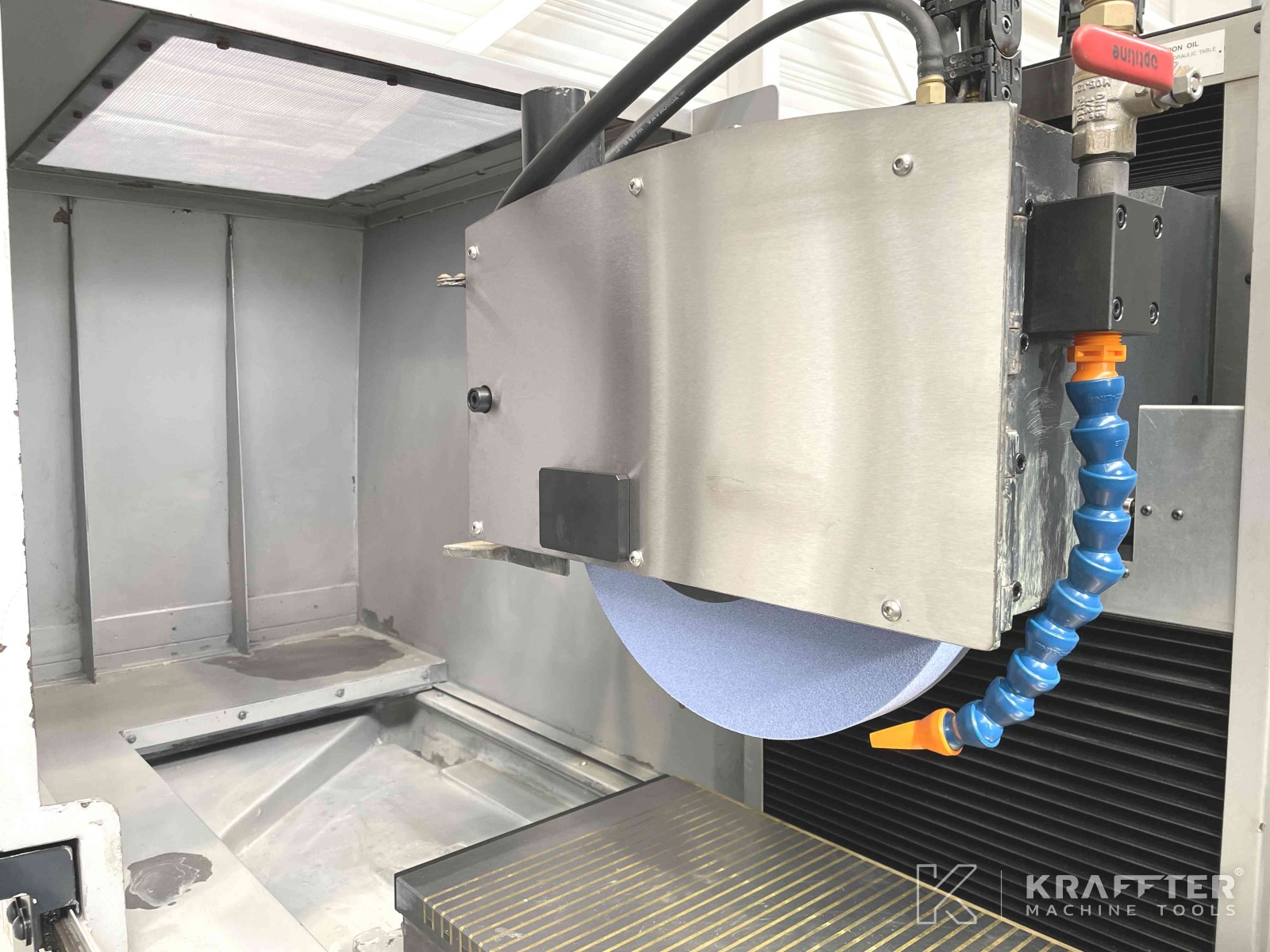

x1 TYROLIT gridning wheel

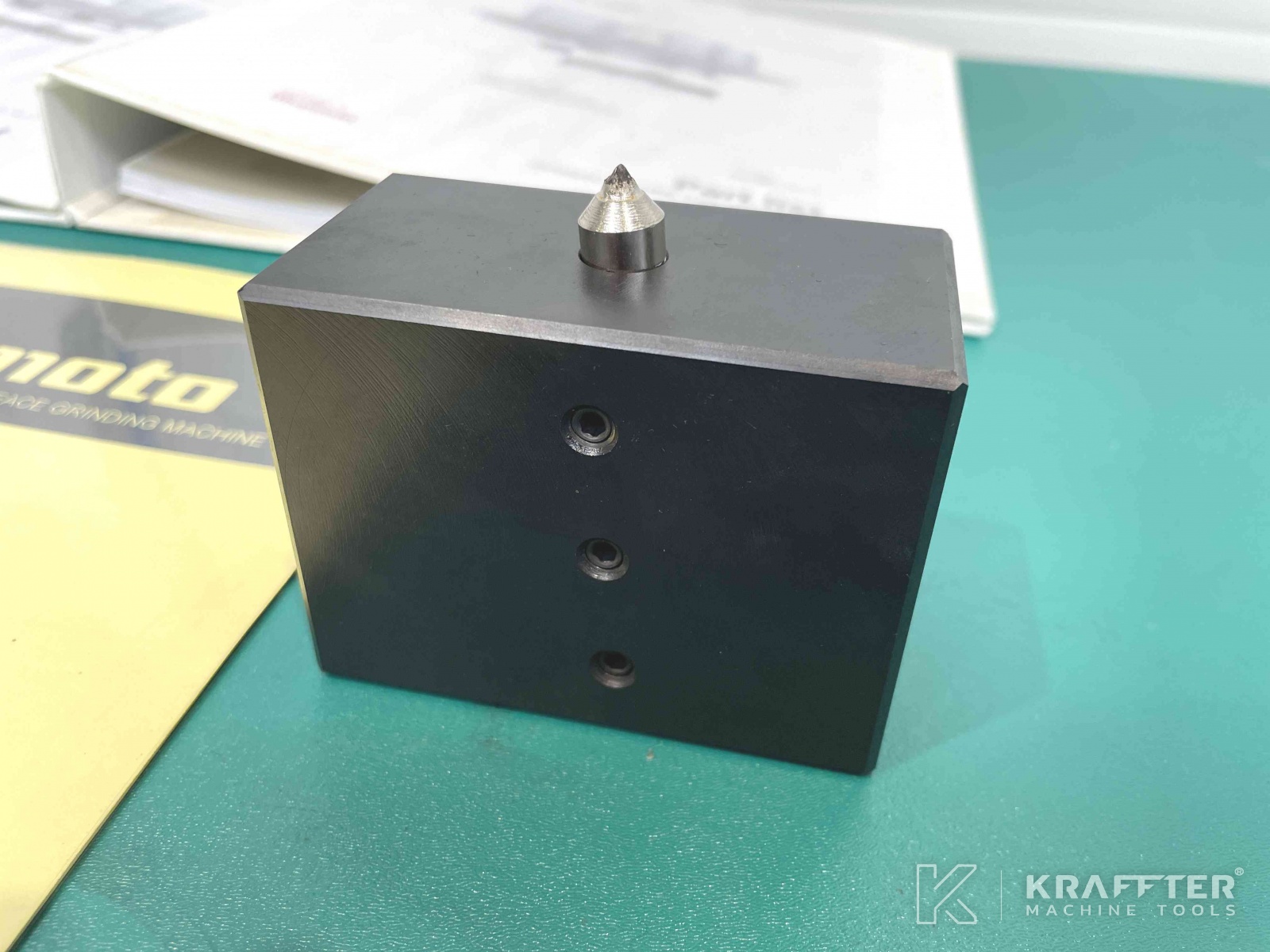

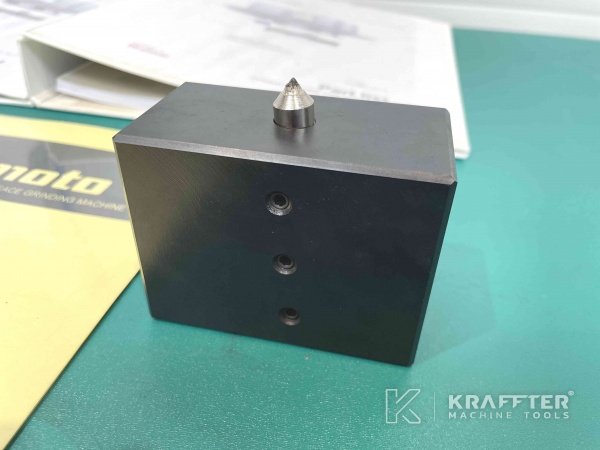

x1 wheel dresser
x1 spindle variable speed drive (OKAMOTO option)
