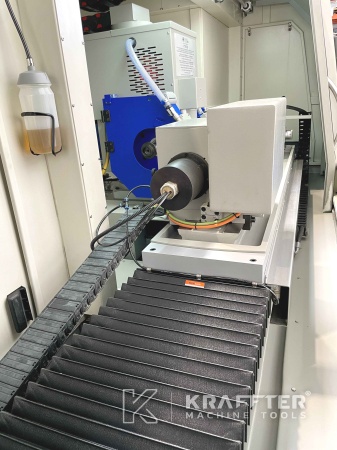

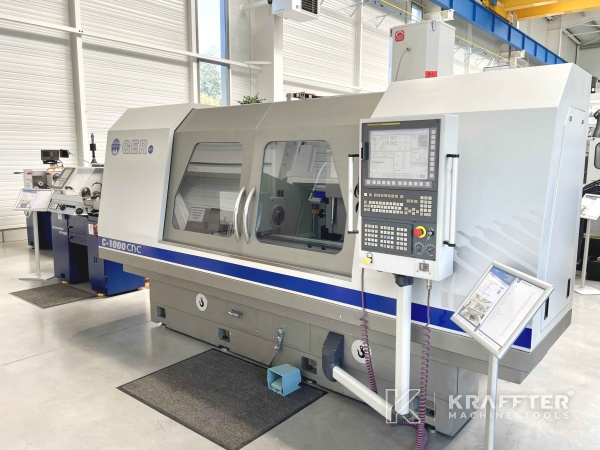

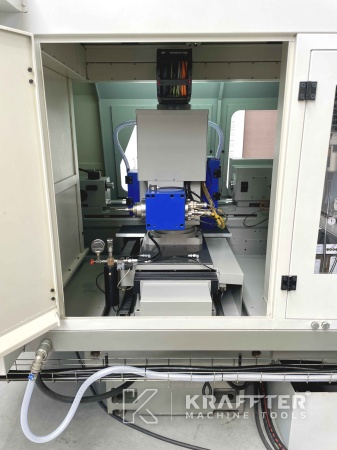

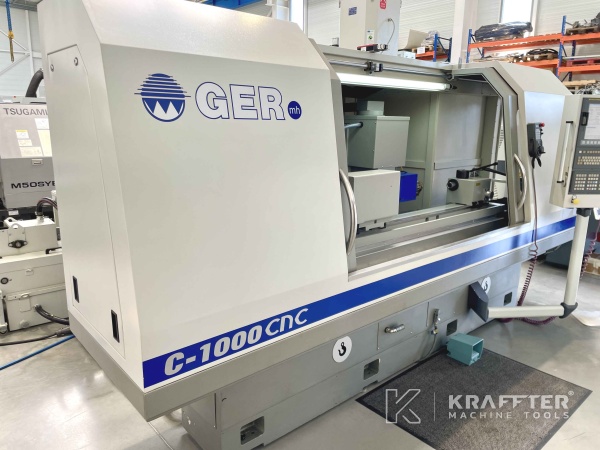

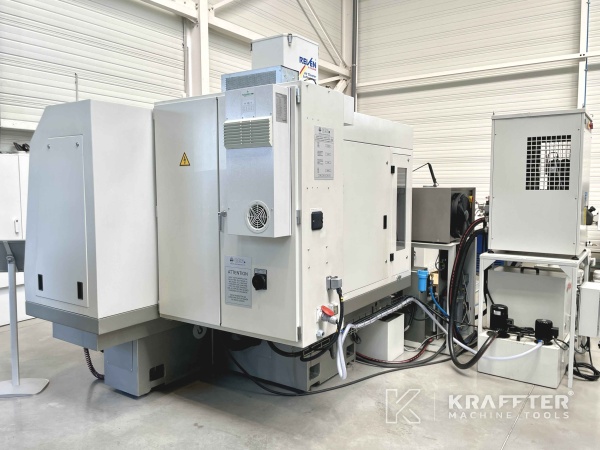

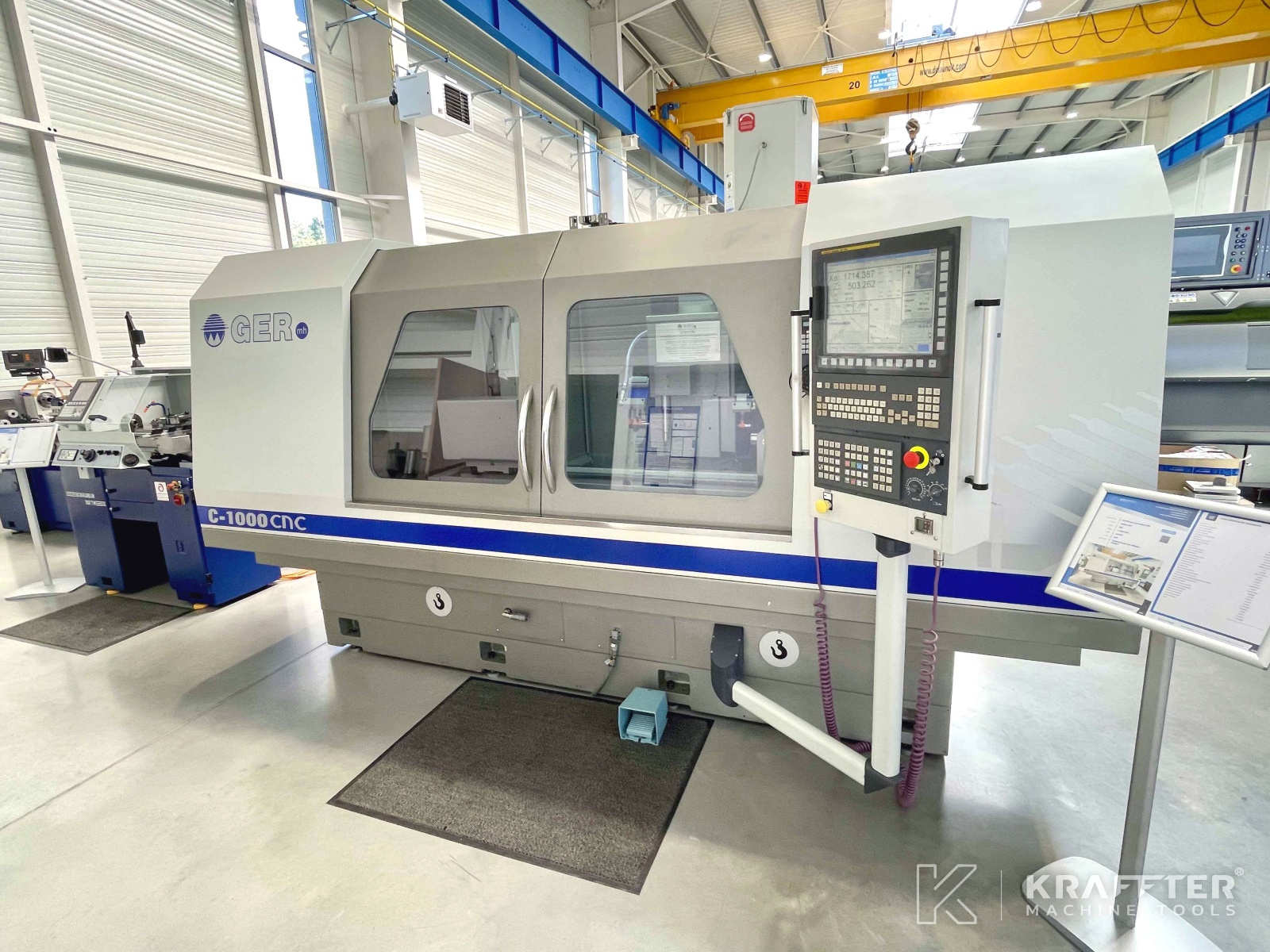

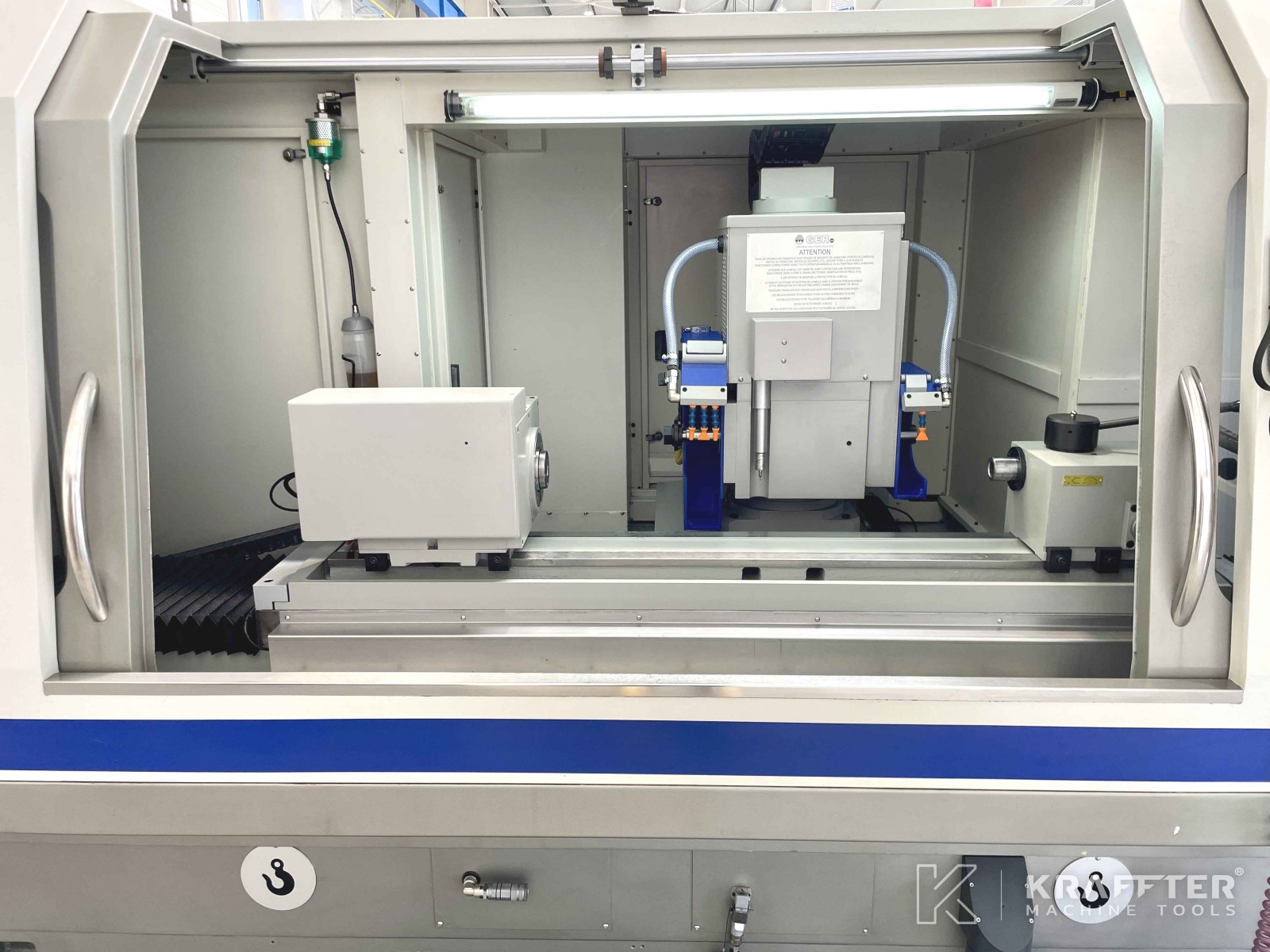

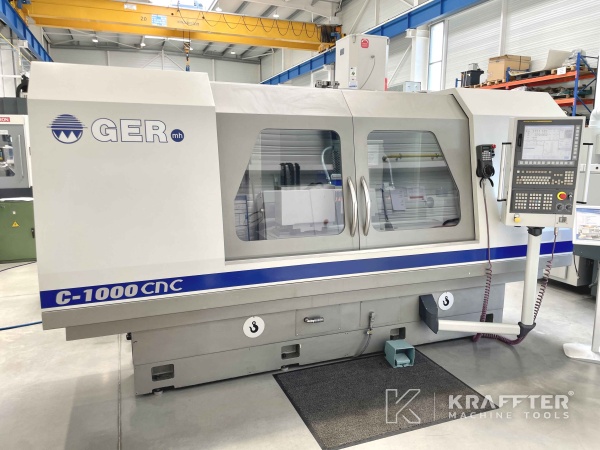

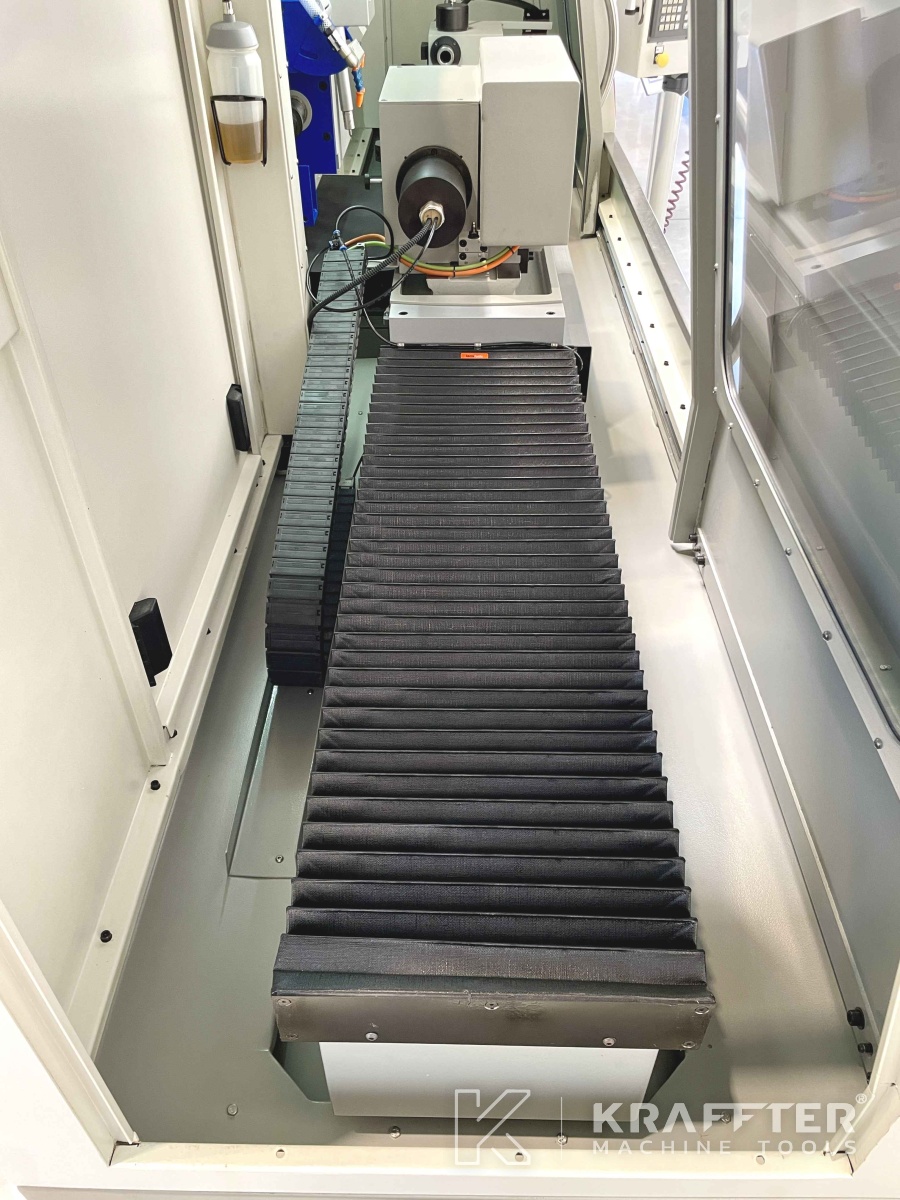

Type of machine : CNC cylindrical grinder
Brand : GER
N° de stock: 90088
Model : C-1000 CNC
Year : 2015
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

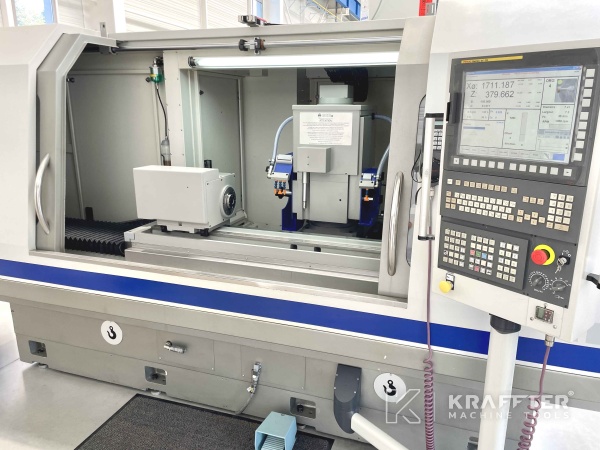

CNC control

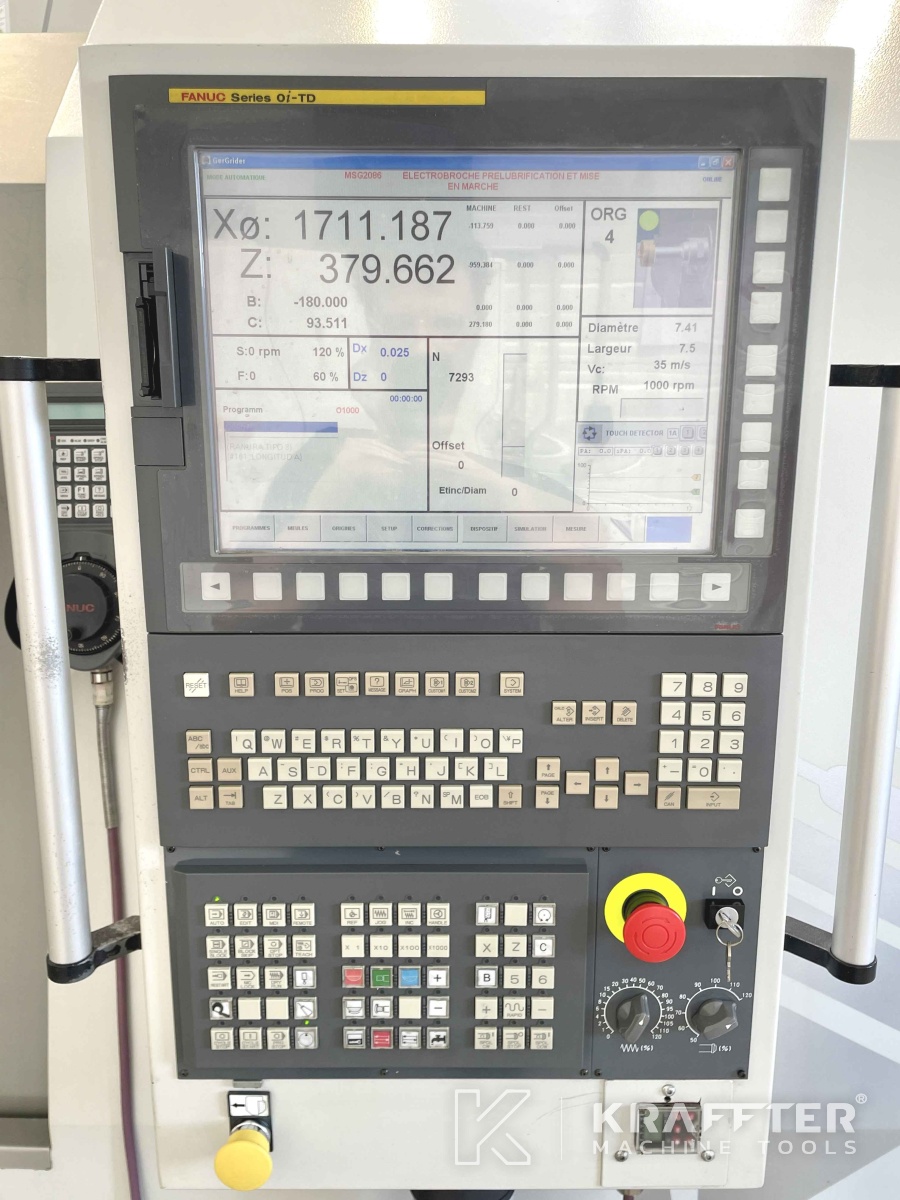

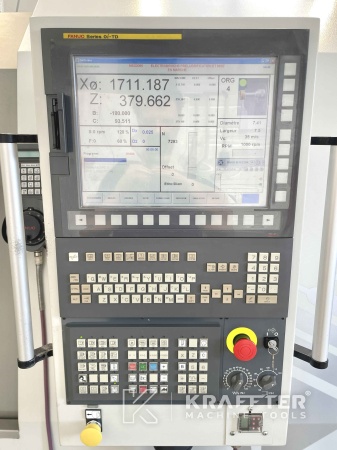

FANUC 0i-TD
Software installed
GERGRINDER
Colour touchscreen
Yes
Centre distance
1000 [mm]
Height of centers
140
Max. grinding diameter
275 [mm]
Stroke X axis
250 [mm]
Min. Stroke speed X axis
0.01 [mm/min]
Max. Stroke speed X axis
15000 [mm/min]
Resolution X axis
0.001 [mm]

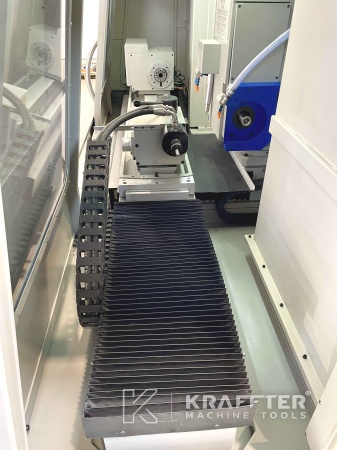

Stroke Z axis
1150 [mm]
Min. Stroke speed Z axis
0.01 [mm/min]
Max. Stroke speed Z axis
15000 [mm/min]
Orientation of table
+/- 9 [°]
Grinding spindle motor power
5.5 [kW]
B axis swivelling stroke
-20° / +210 [°] [°]
B axis indexing precision
0.001 [°]
Max. diameter grinding wheel
400 [mm]
Max. grinding wheel width
50 [mm]
Grinding wheel bore
127 [mm]
Workpiece spindle nose
DIN 55.026 N° 5
Internal workpiece spindle nose
Morse 4
Workpiece spindle max. speed
1000 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
+/- 45 [°]

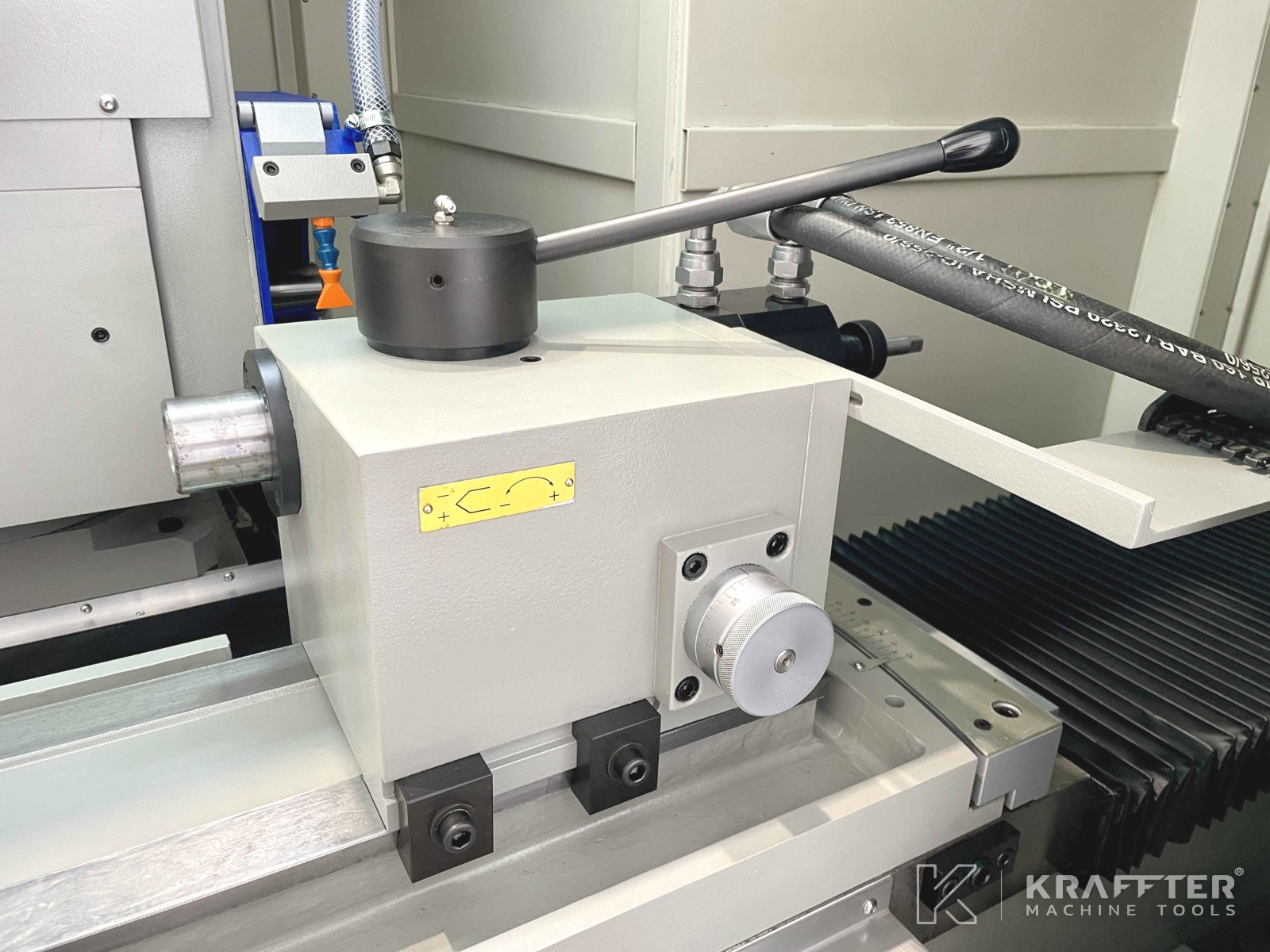

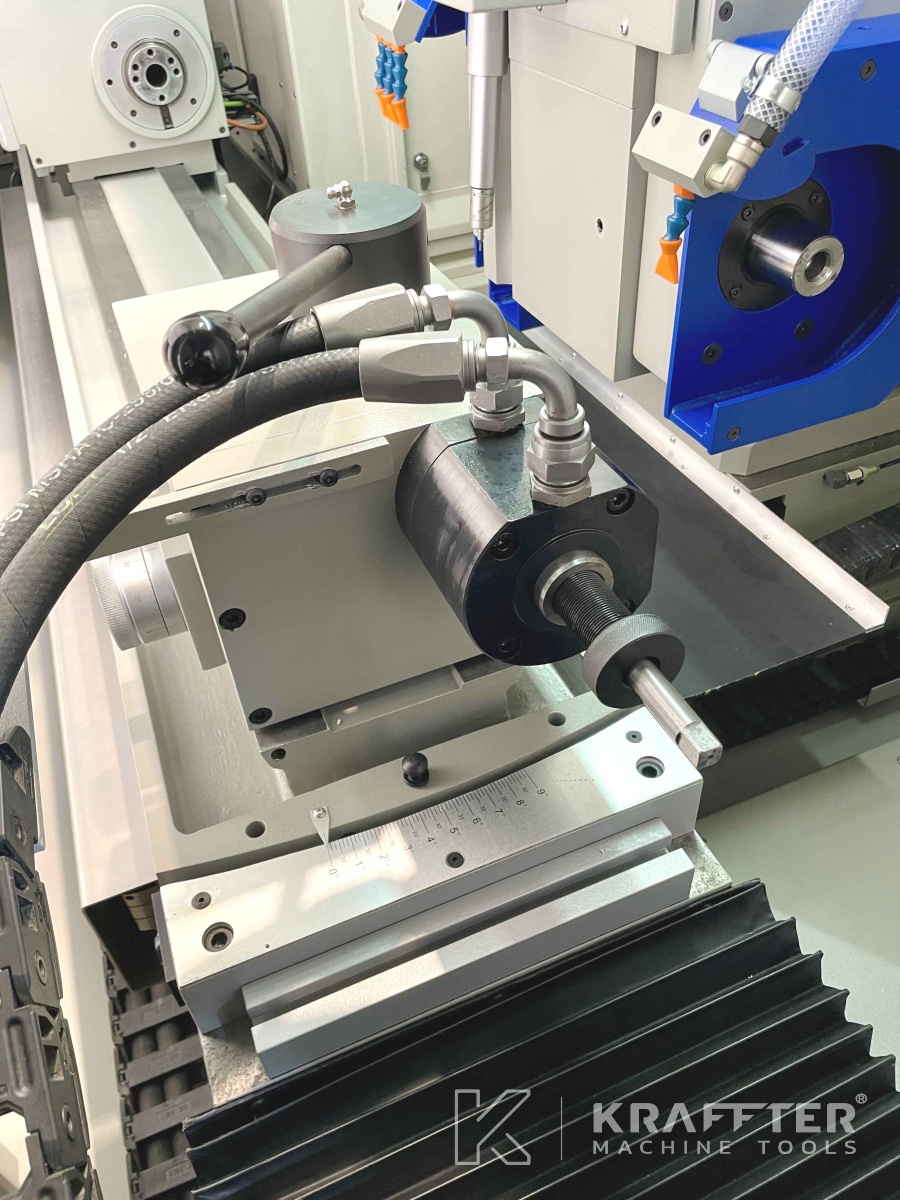

Type of attachment tailstock
Morse 4
Tailstock quill stroke
40 [mm]
Tailstock quill diameter
50 [mm]
Tailstock fine adjustment
+/- 50 [µm]
Collant pump flow rate
60 [l/min]
Lubrication tank capacity
230 [l]
Supply voltage
400 [V]
Total power required
30 [kVA]
Weight
4500 [Kg]
Additional information

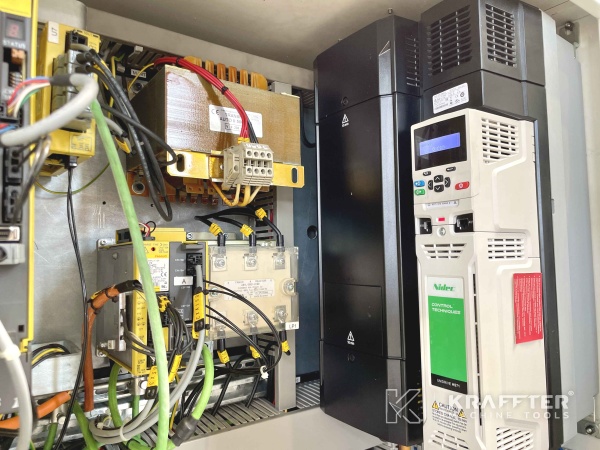

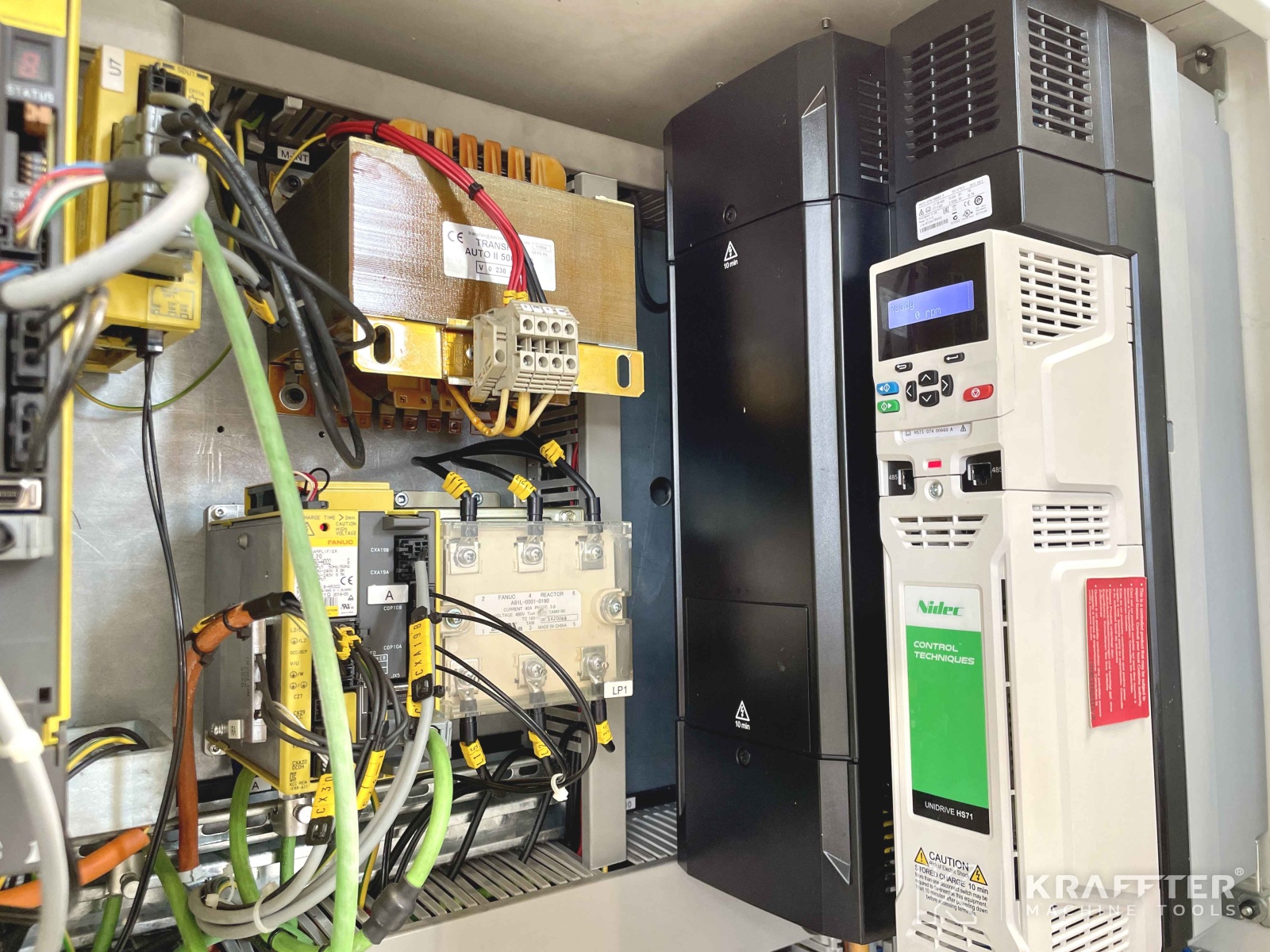

ELECTRONIC AND MEASUREMENT ACCESSORIES:
-Z axis glass scale
-X axis glass scale

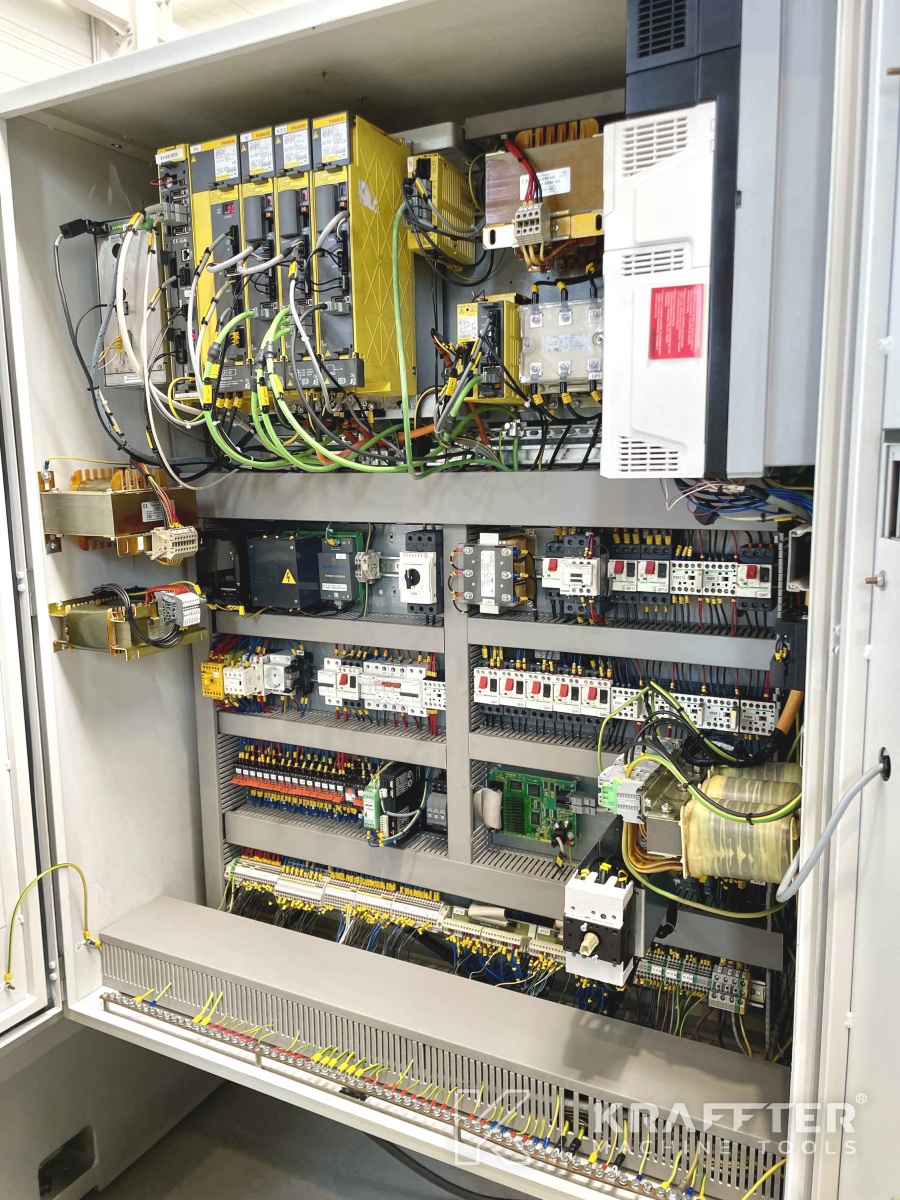

-Remote maintenance for FANUC control system

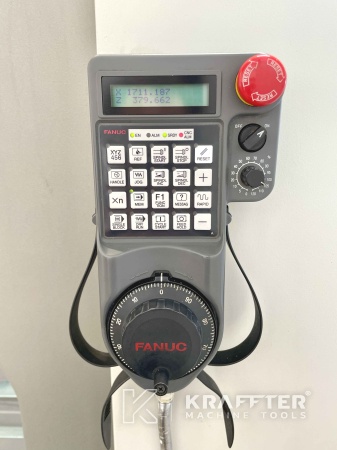

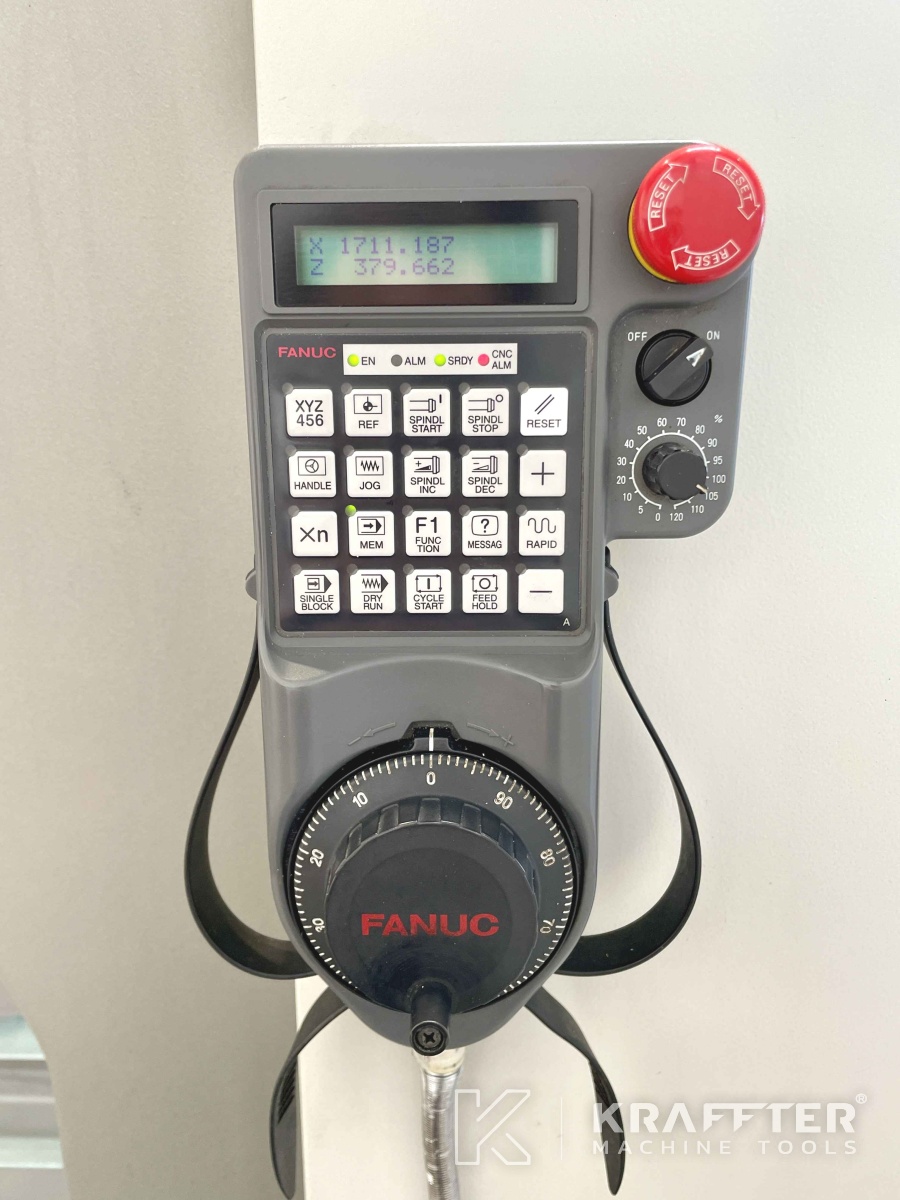

-FANUC electronic handwheel

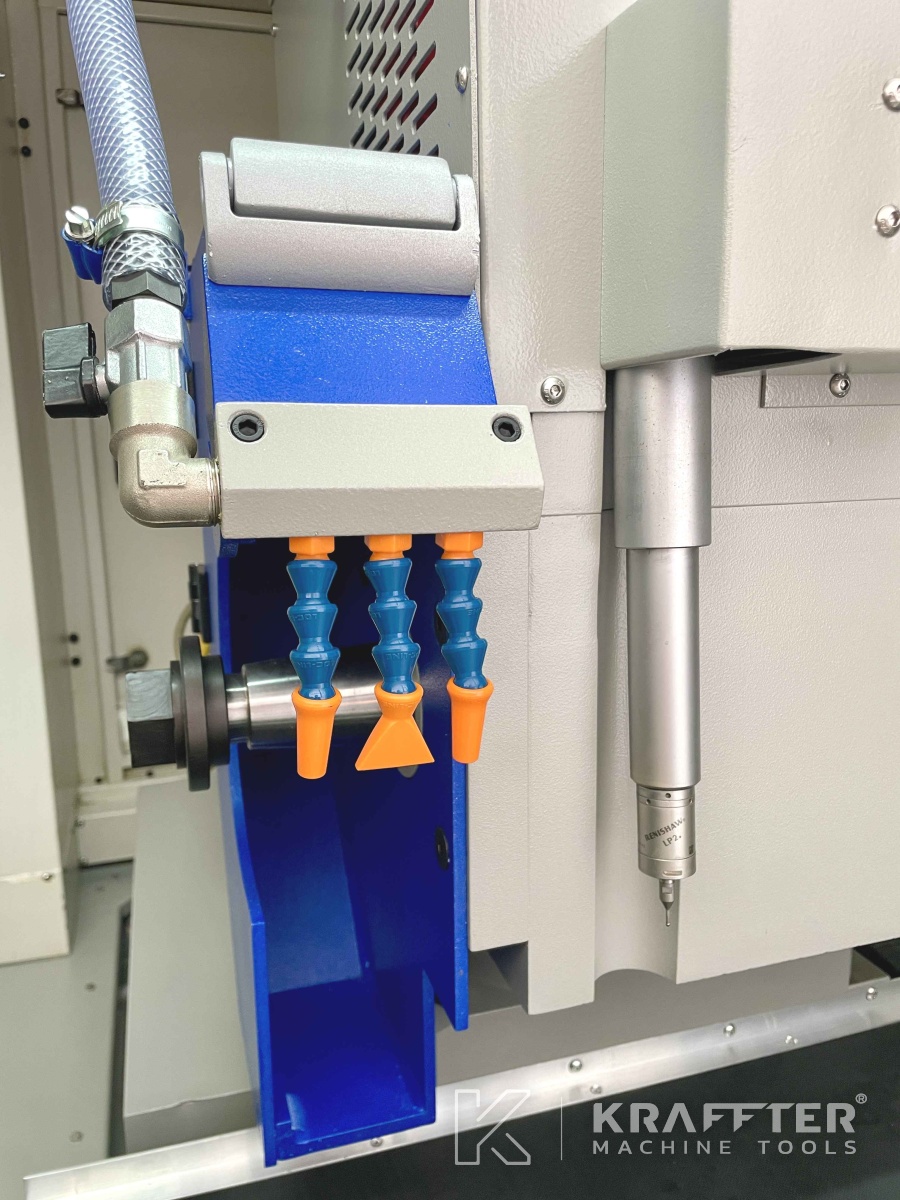

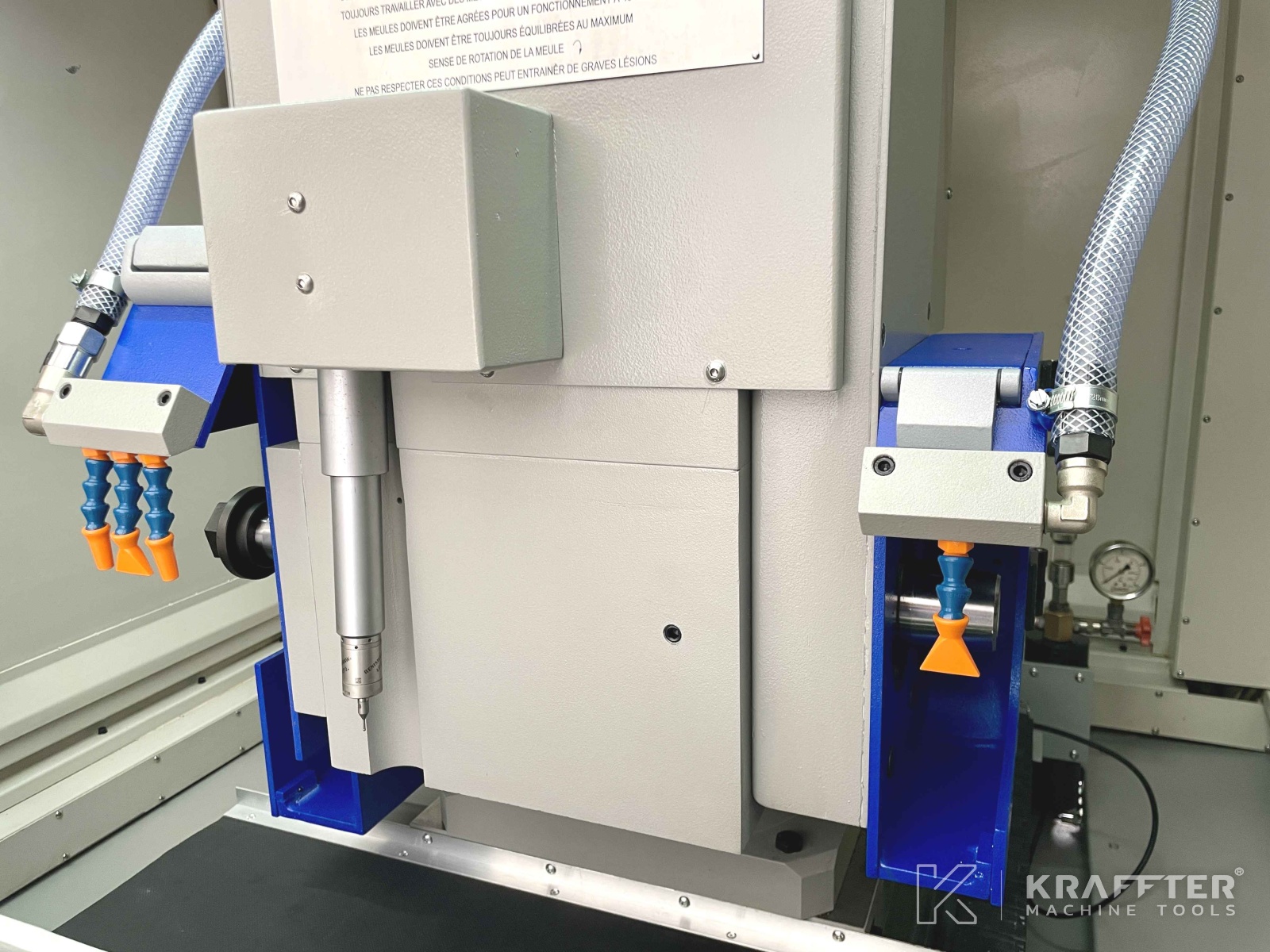

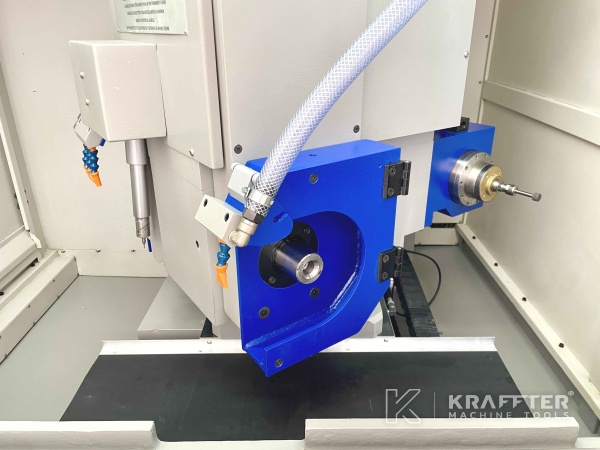

-Axial RENISHAW probe for longitudinal positioning of the part integrated in the wheelhead
-Interpolation of C and X axes for realisation of trochoidal shapes
-GAP (fast approximation) and CRASH (anti-collision) detection managed by the wheel-holder motor consumption data (functionnal for both wheels)

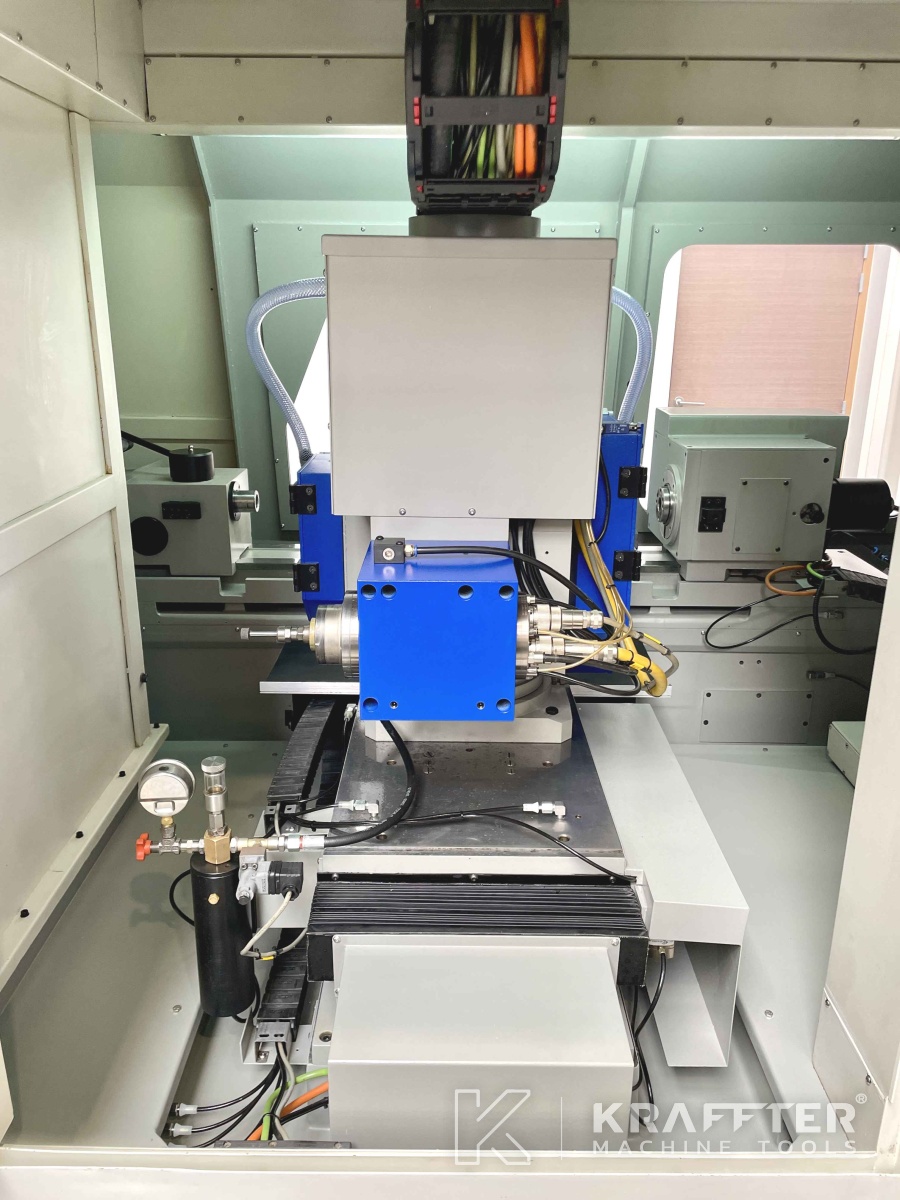

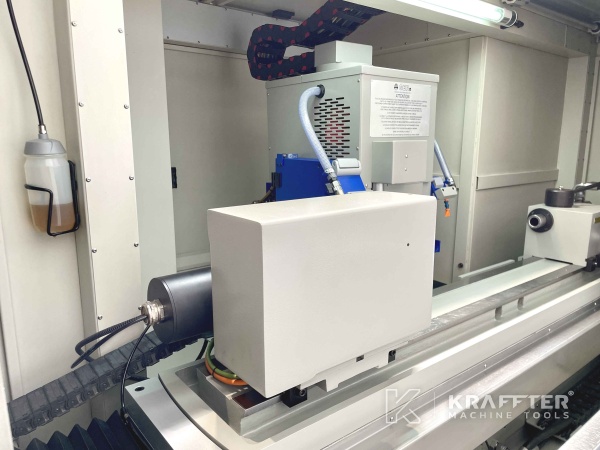

WHEELHEAD ACCESSORIES:

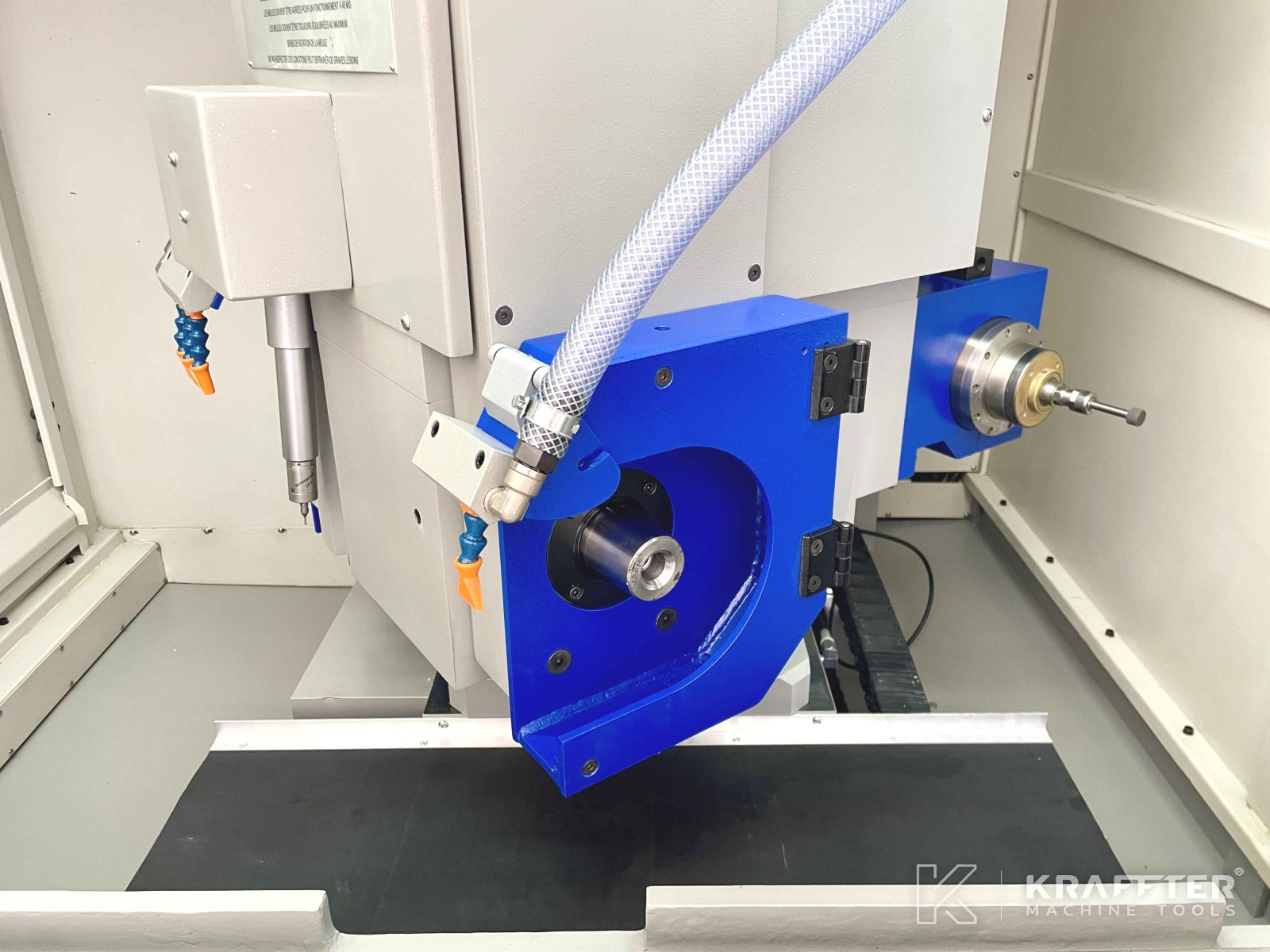

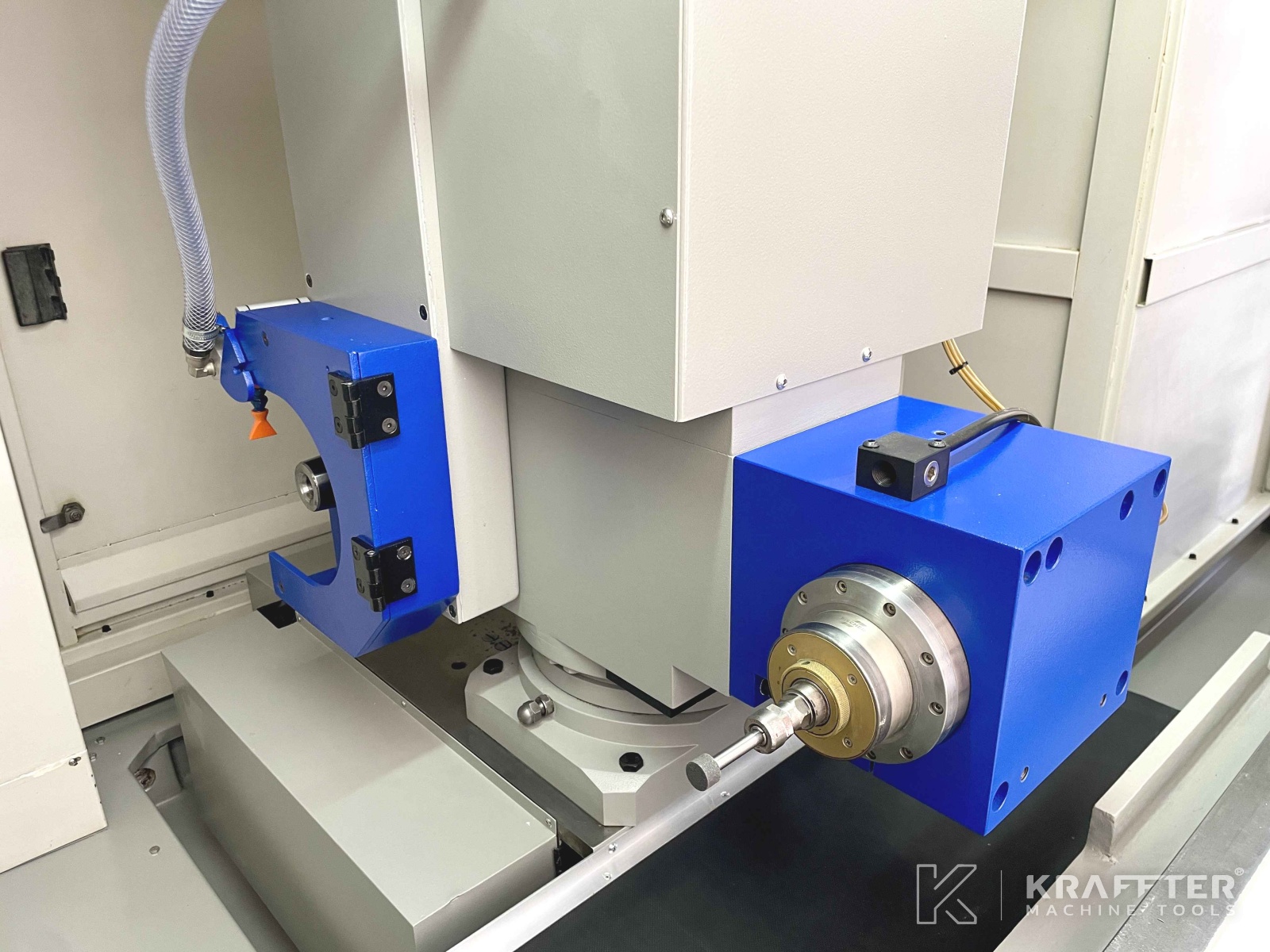

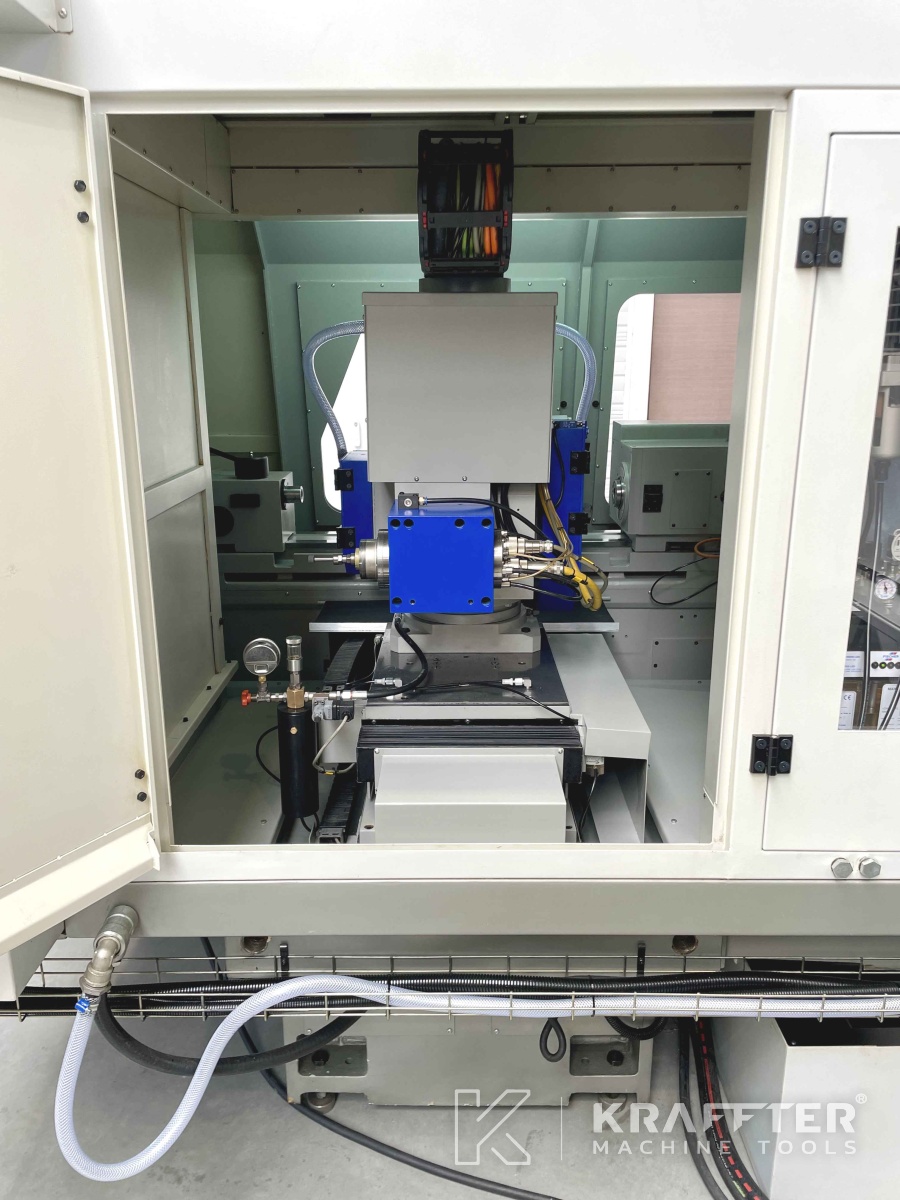

-B axis with automatic orientation -20°/+210 [°] - resolution 0.001 [°] for face, cone or internal grinding operations
-Right-hand grinding wheel Ø250 x 30 x 127 [mm]

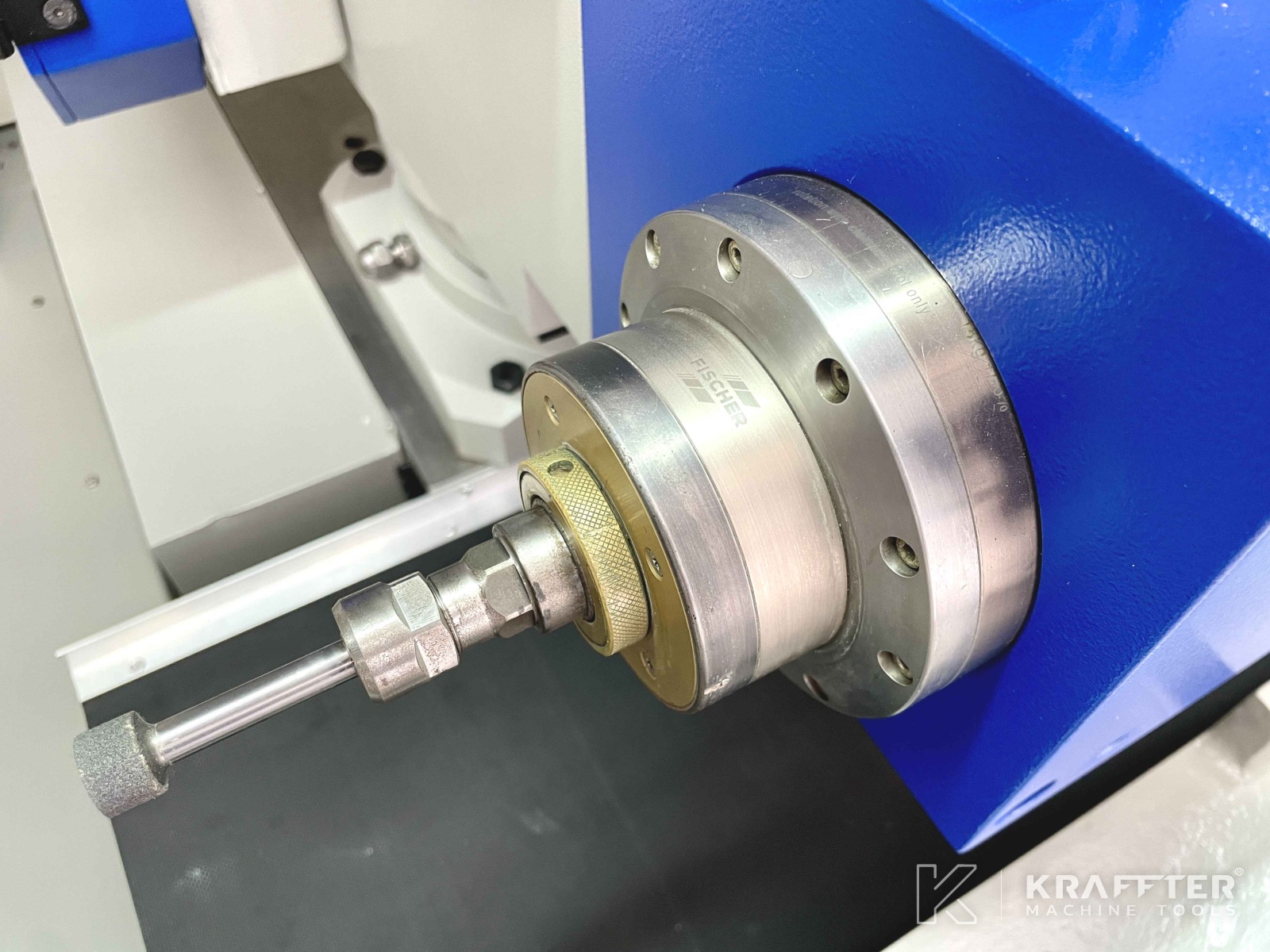

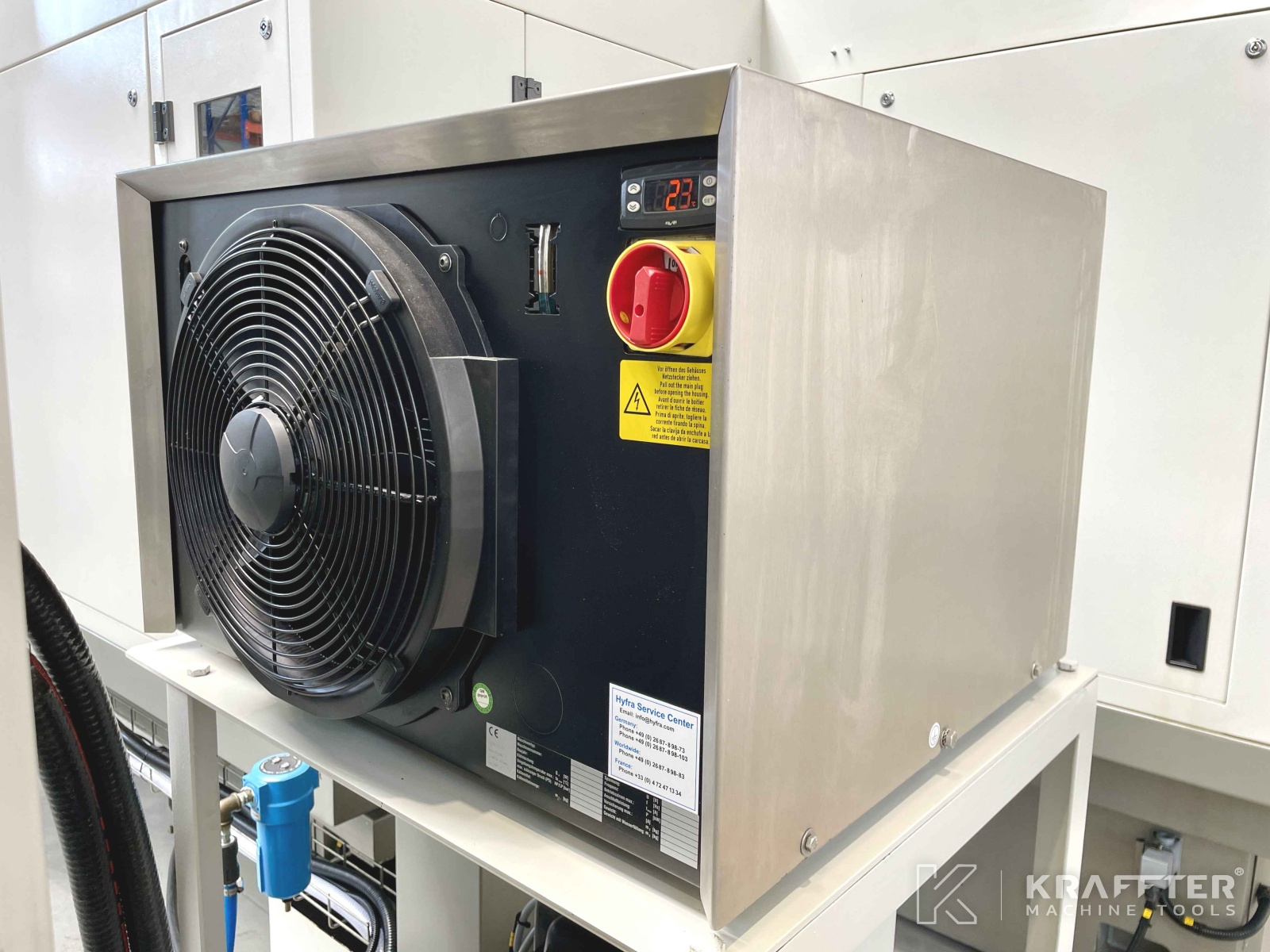

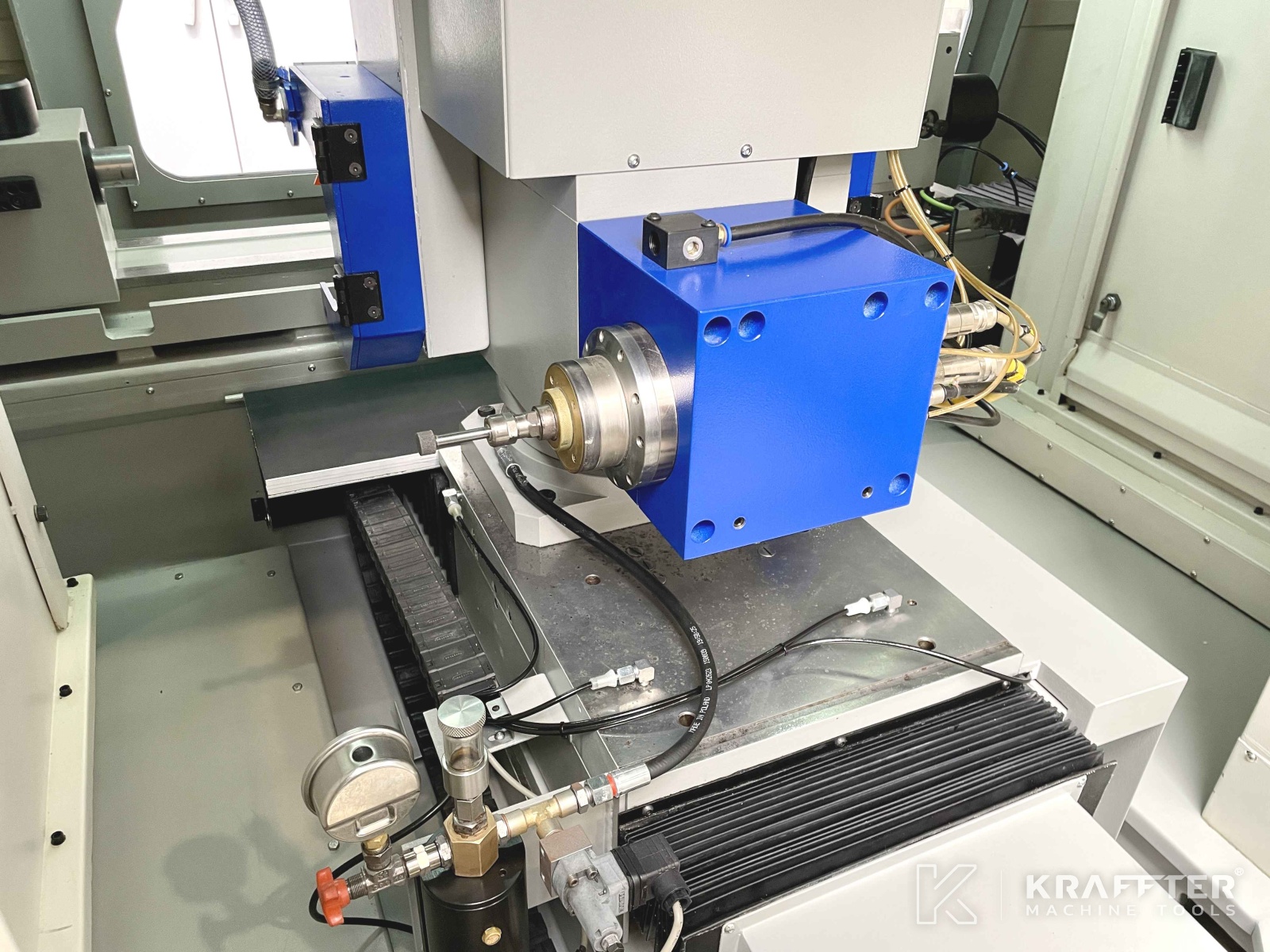

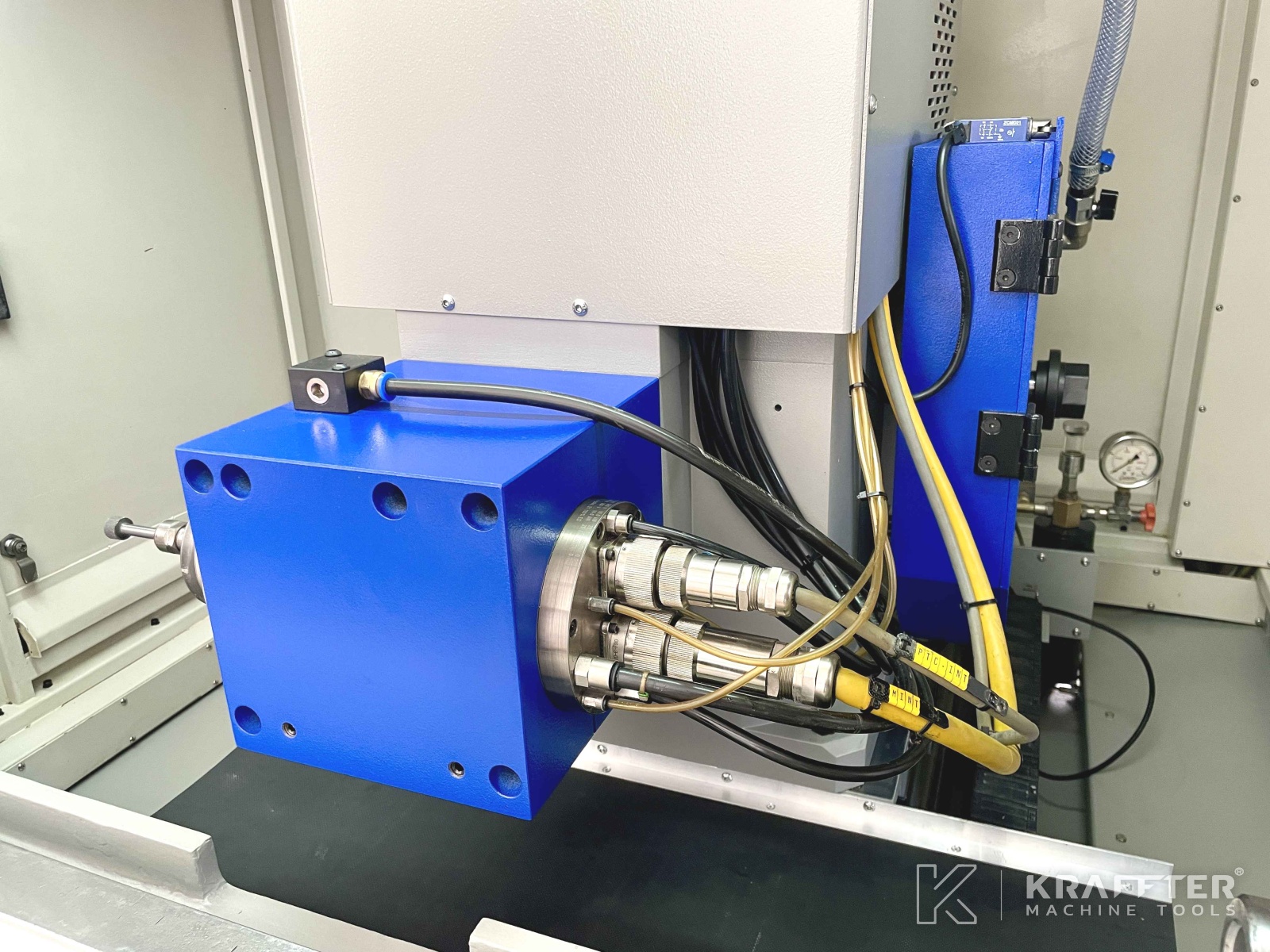

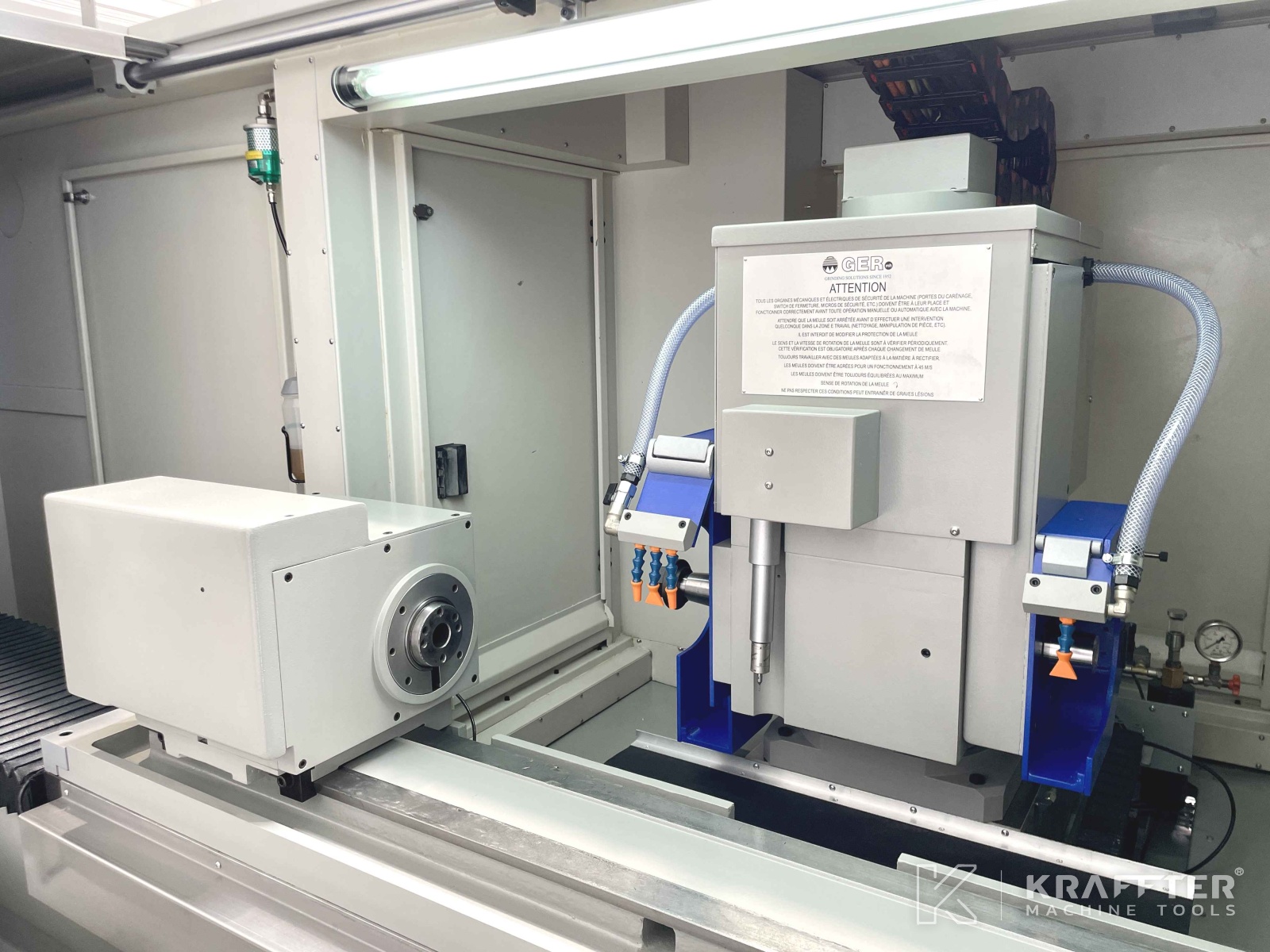

-FISCHER internal electrospindle type MF - Ø120 [mm] - 60'000 [rpm] - 10 [Kw] - HSK C25
-Cooler, lubrication unit for FISCHER spindle

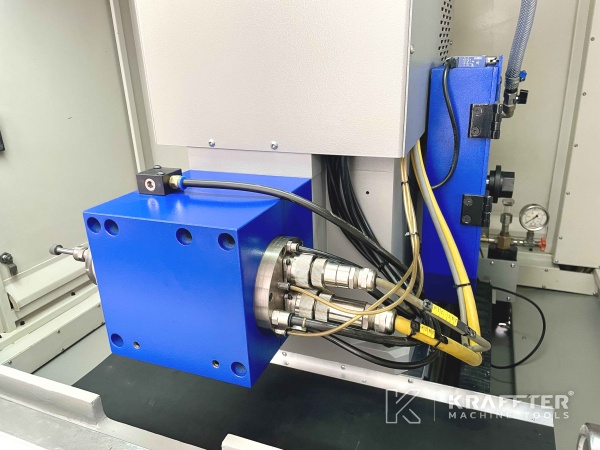

-Hydrostatic slides on X-axis to minimise "stick-slip" effects on C-axis applications (hydraulic unit included)

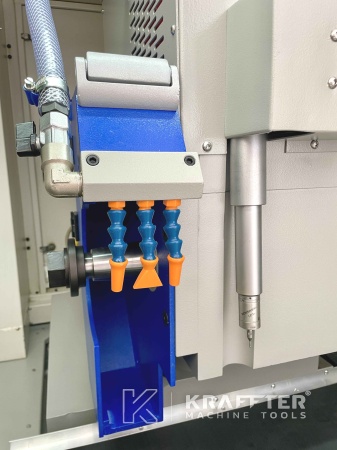

COOLANT ACCESSORIES:

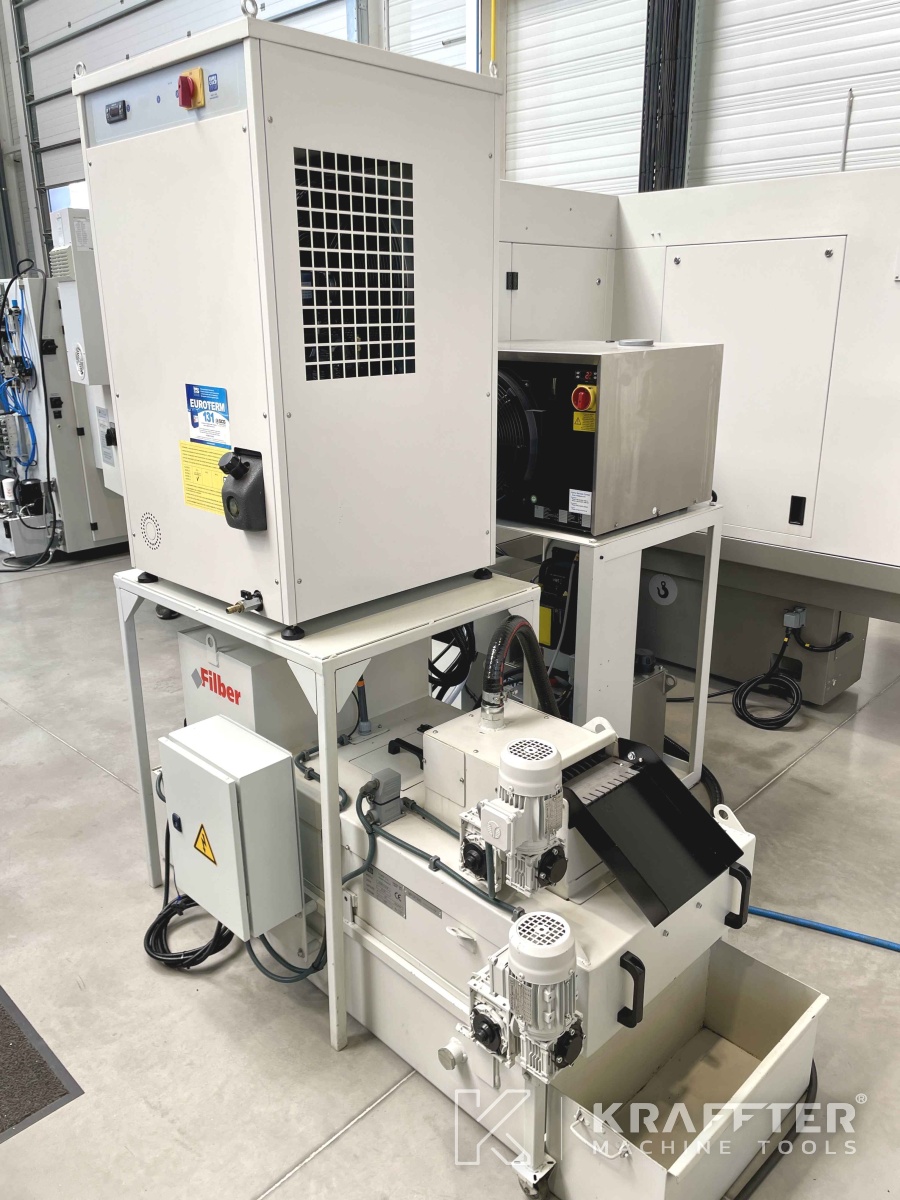

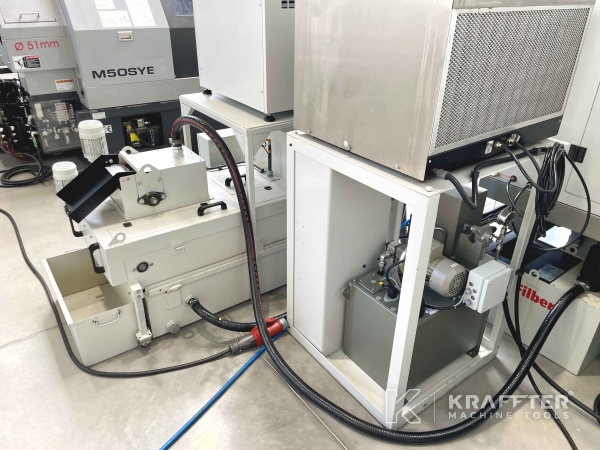

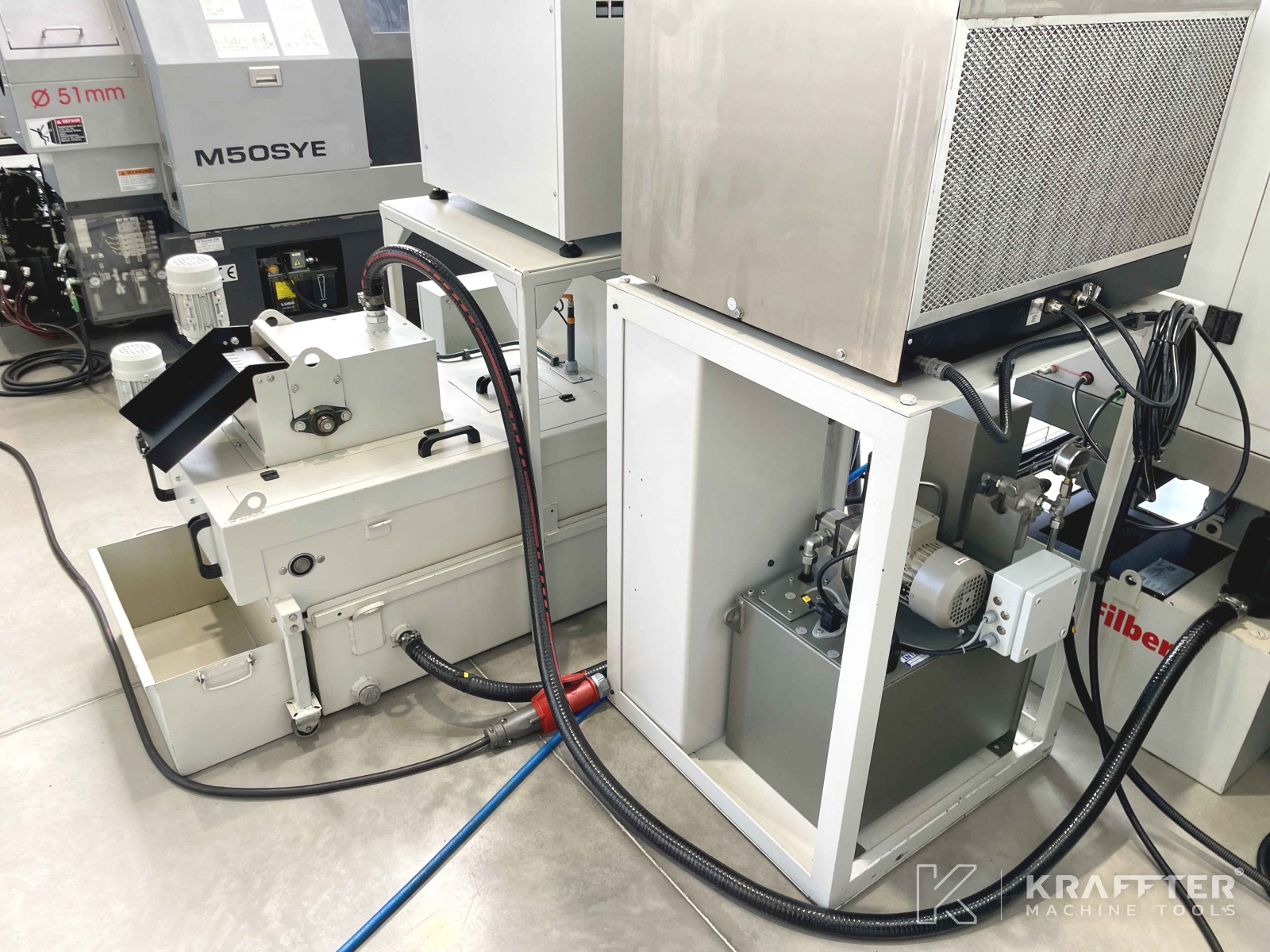

-230 [l] coolant tank with paper filtration and magnetic separator

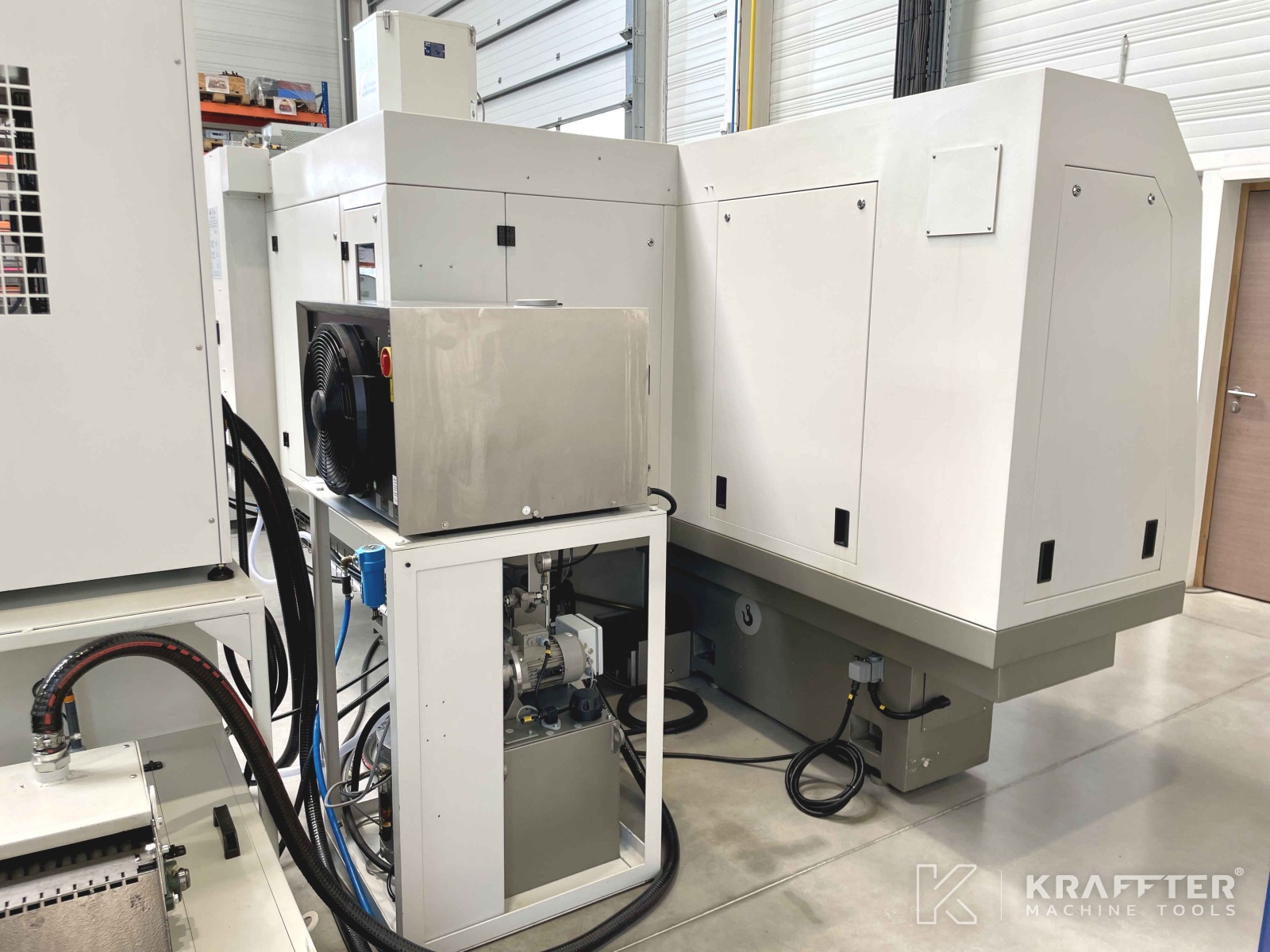

-Mist extraction device

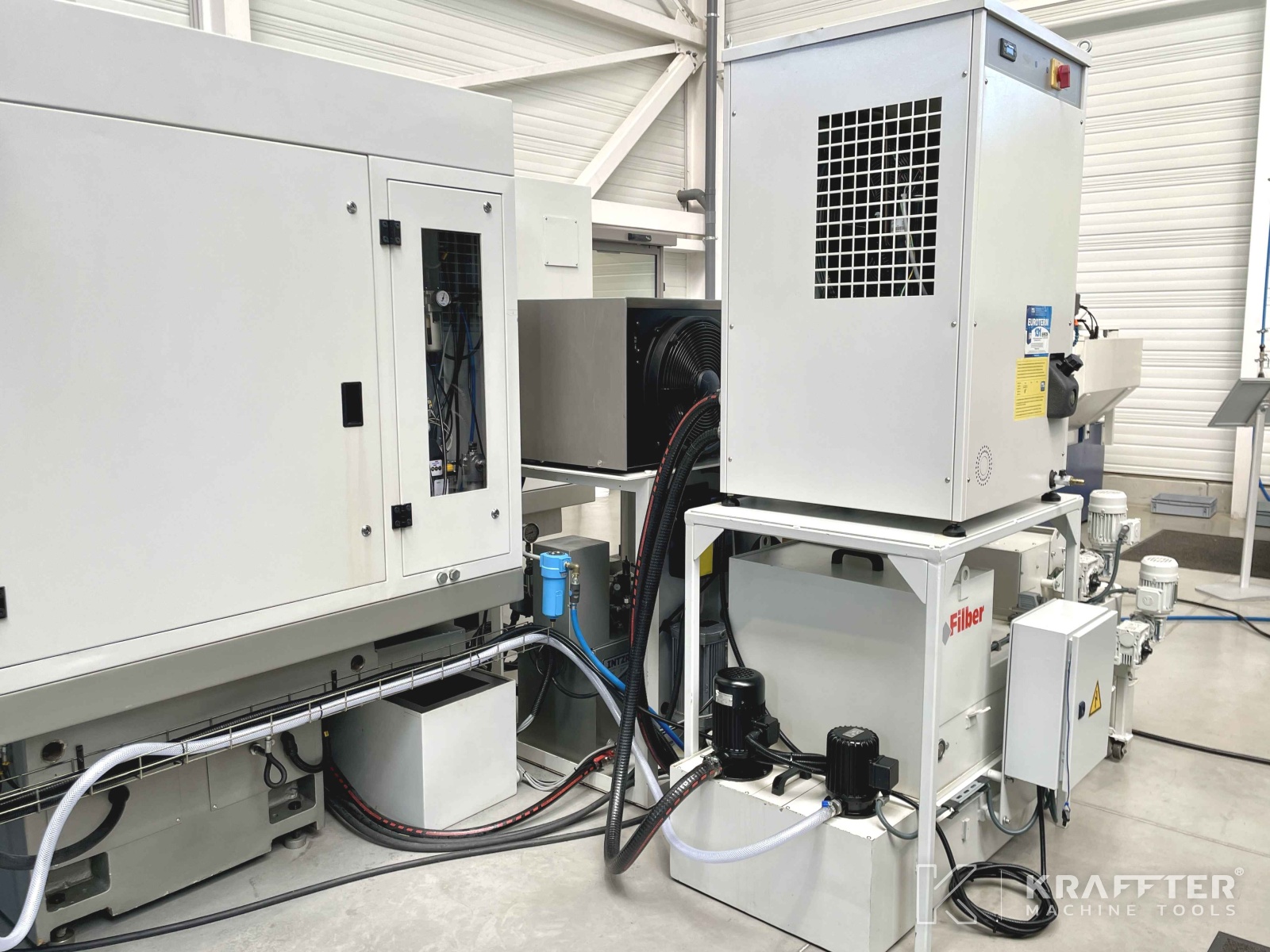

-2.4 [Kw] lubrication cooler unit

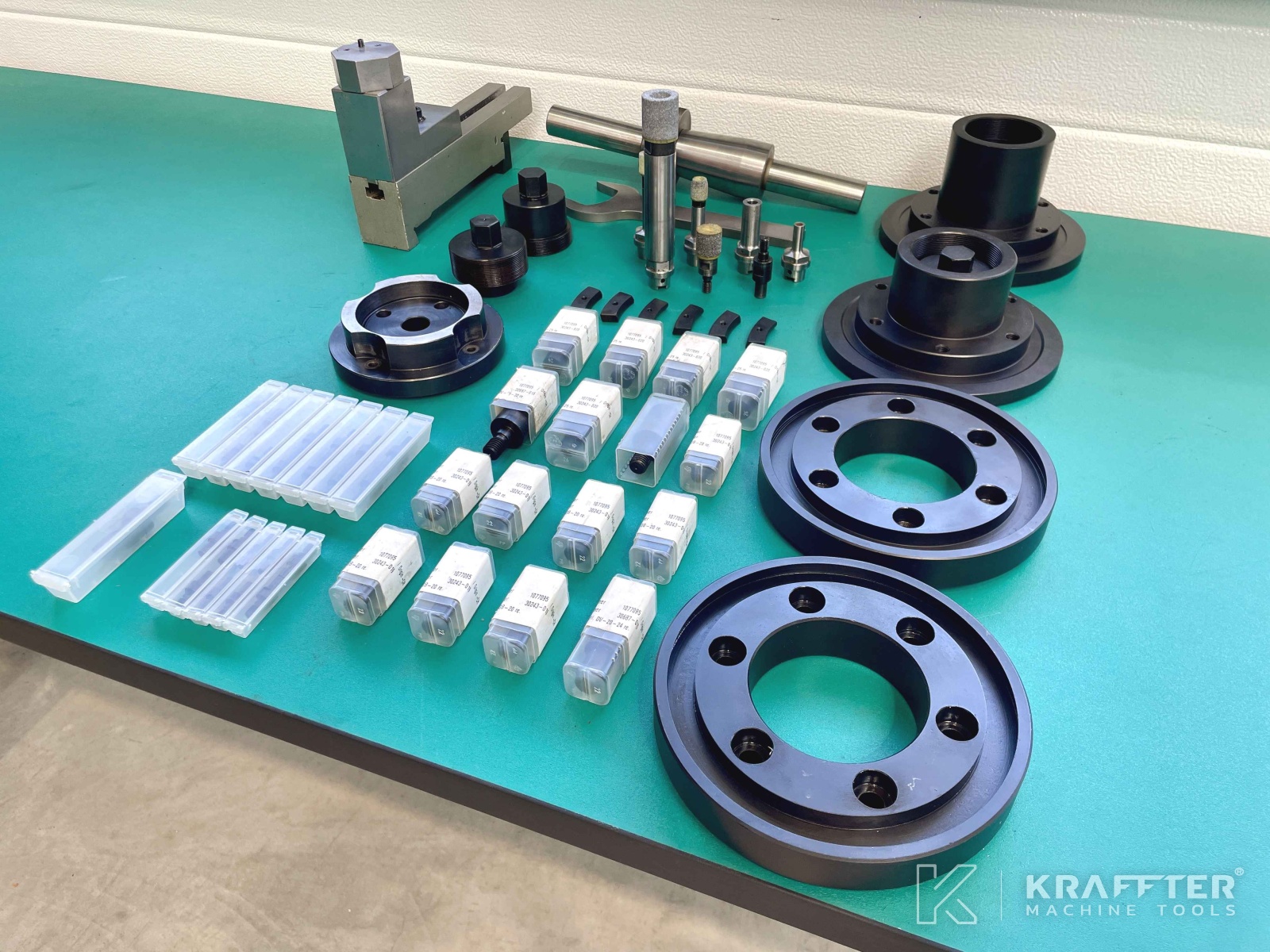

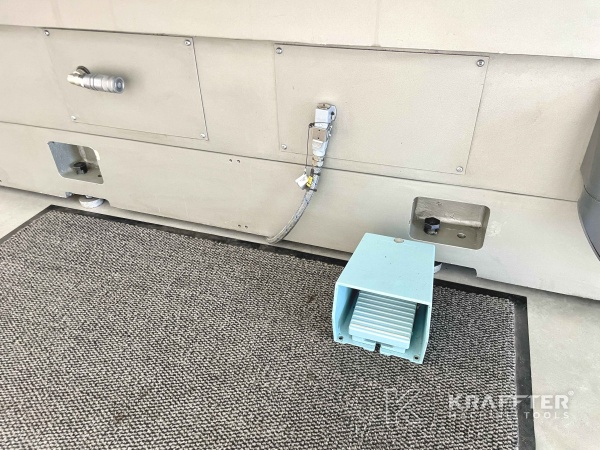

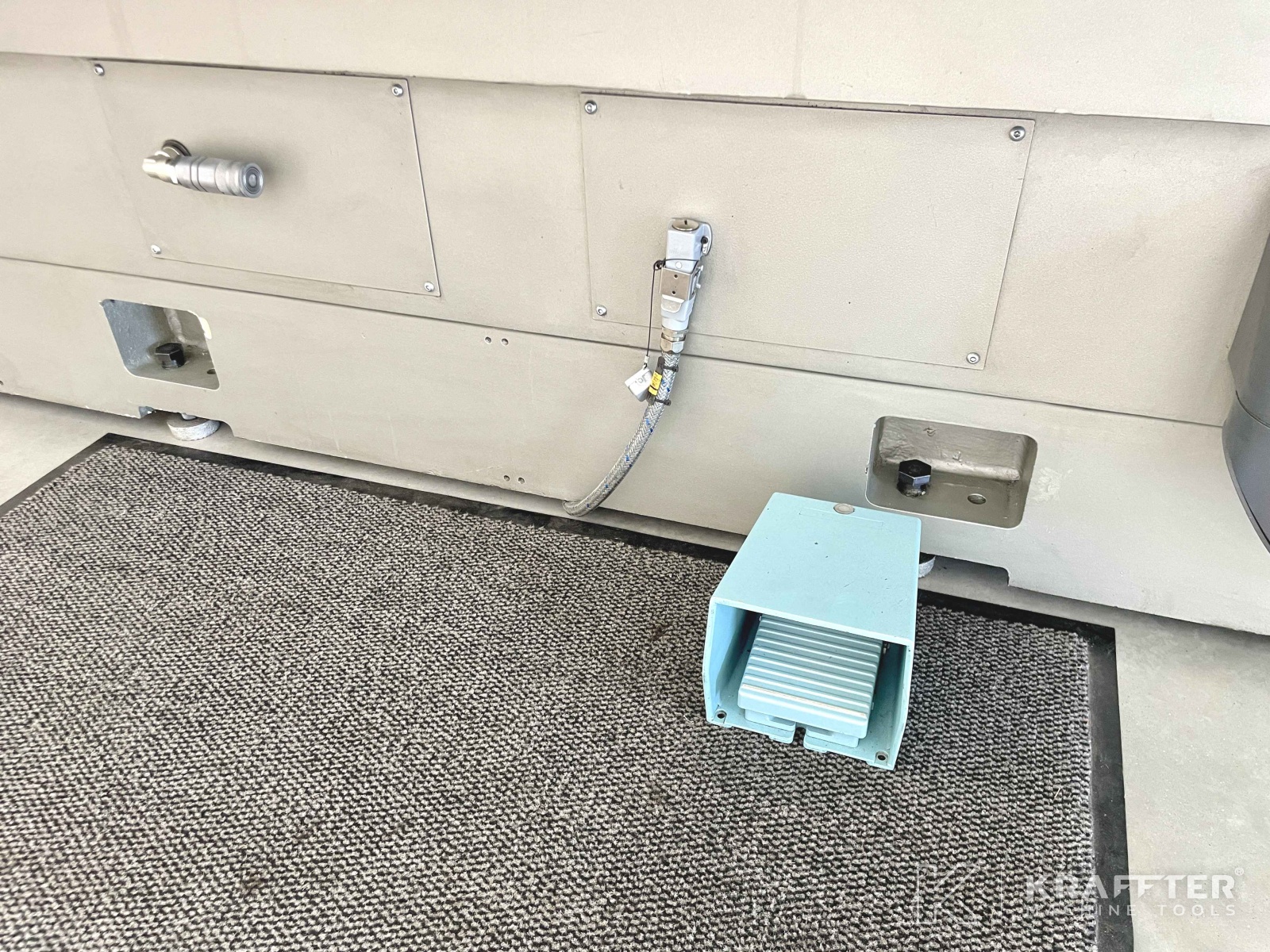

ACCESSORIES:

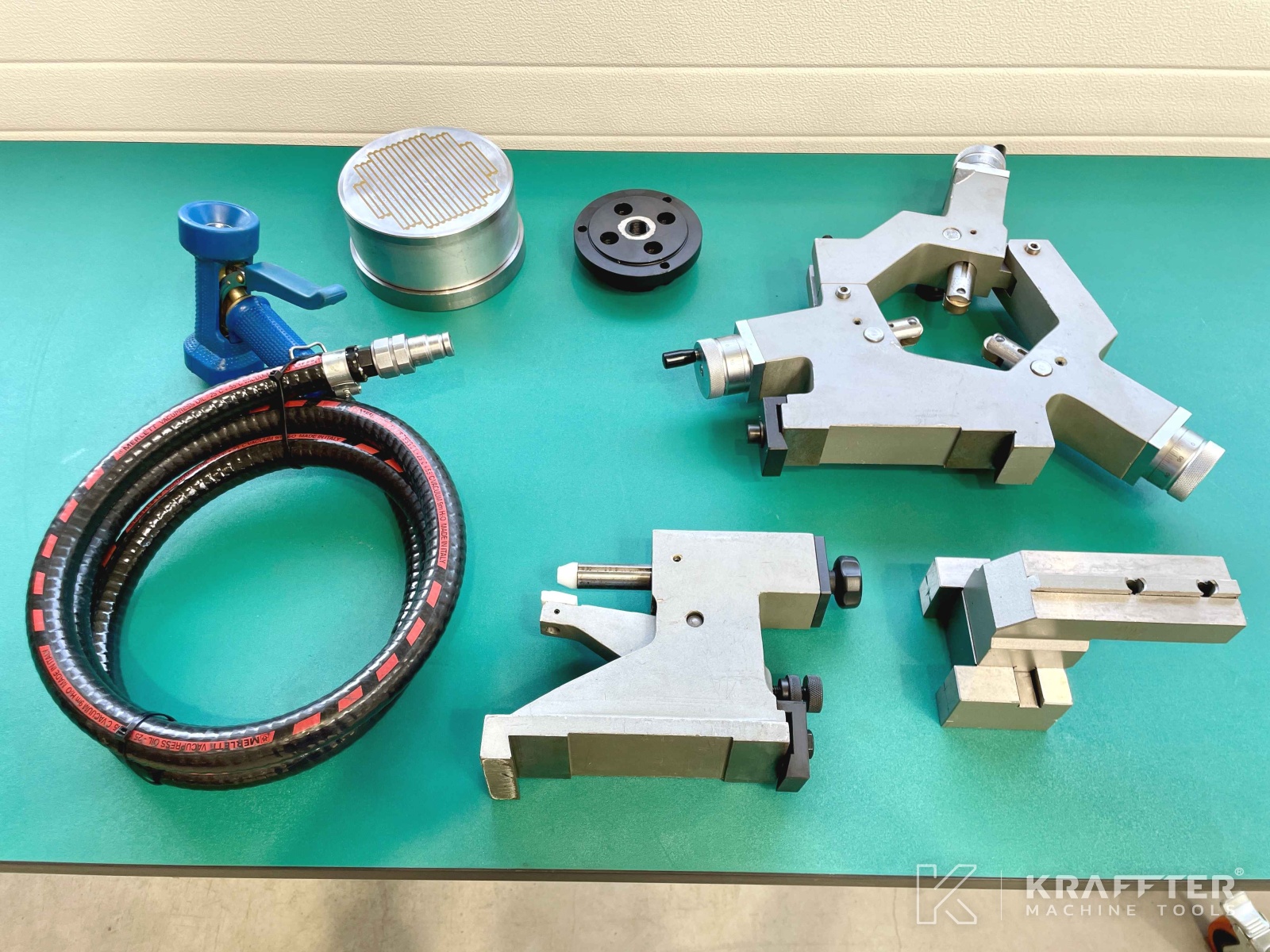

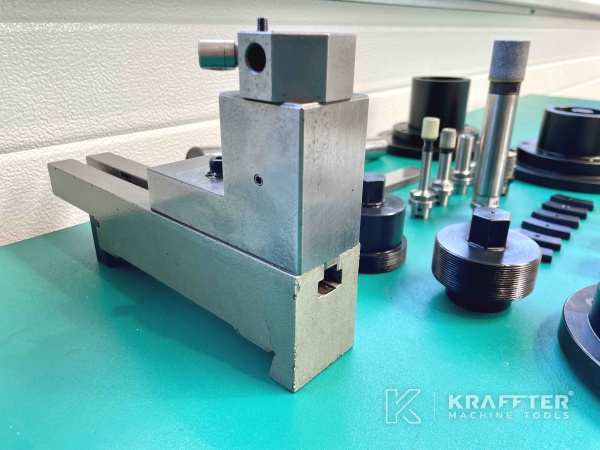

x1 manually-operated magnetic chuck Ø160 [mm]

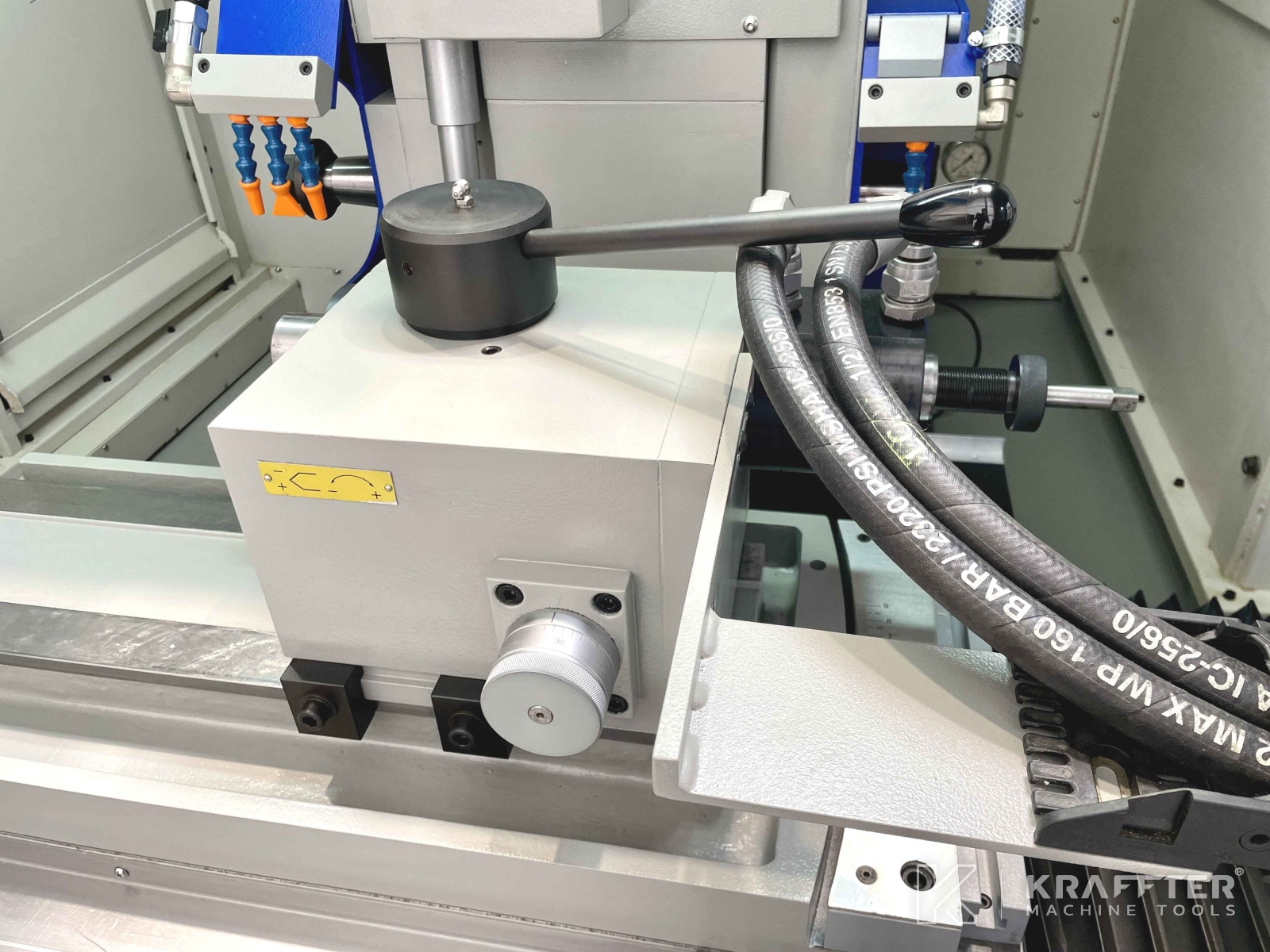

x1 precision steady rest 2 points Ø10 to 110 [mm] tip height 140 [mm]
x1 precision steady rest 3 points Ø10 to 110 [mm] tip height 140 [mm] with micrometric feed
x1 table mounted wheel dresser

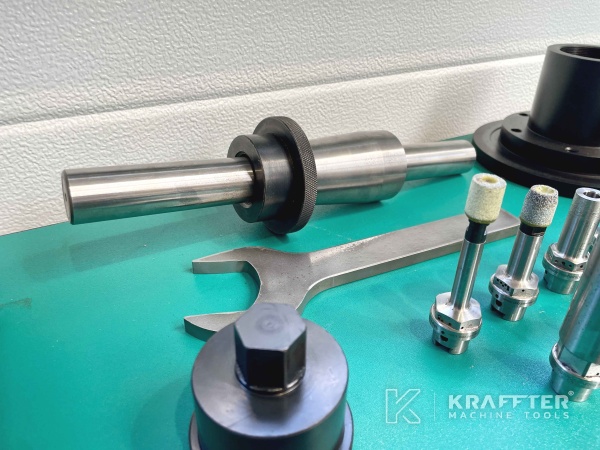

x1 wheel balancing shaft
x2 wheel flanges
x6 wheel-holders (HSK C25)
x2 sets of balancing weights for wheel flanges
Miscellaneous accessories
