Sold

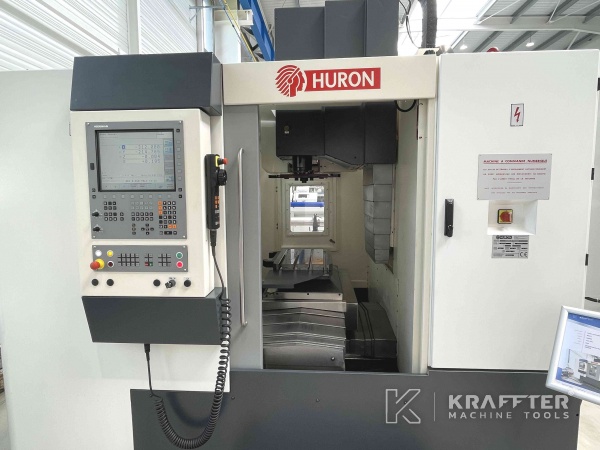

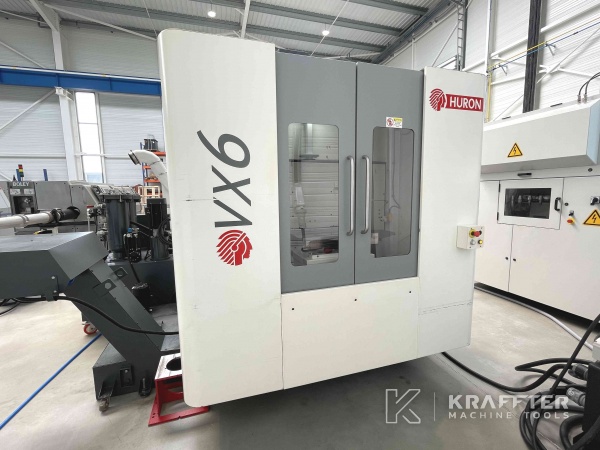

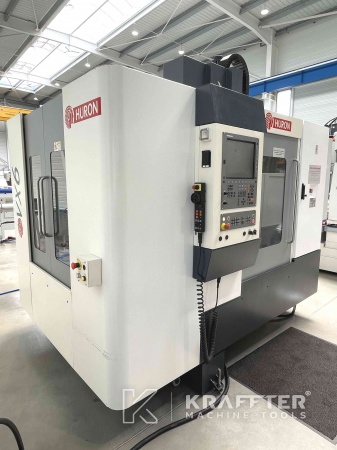

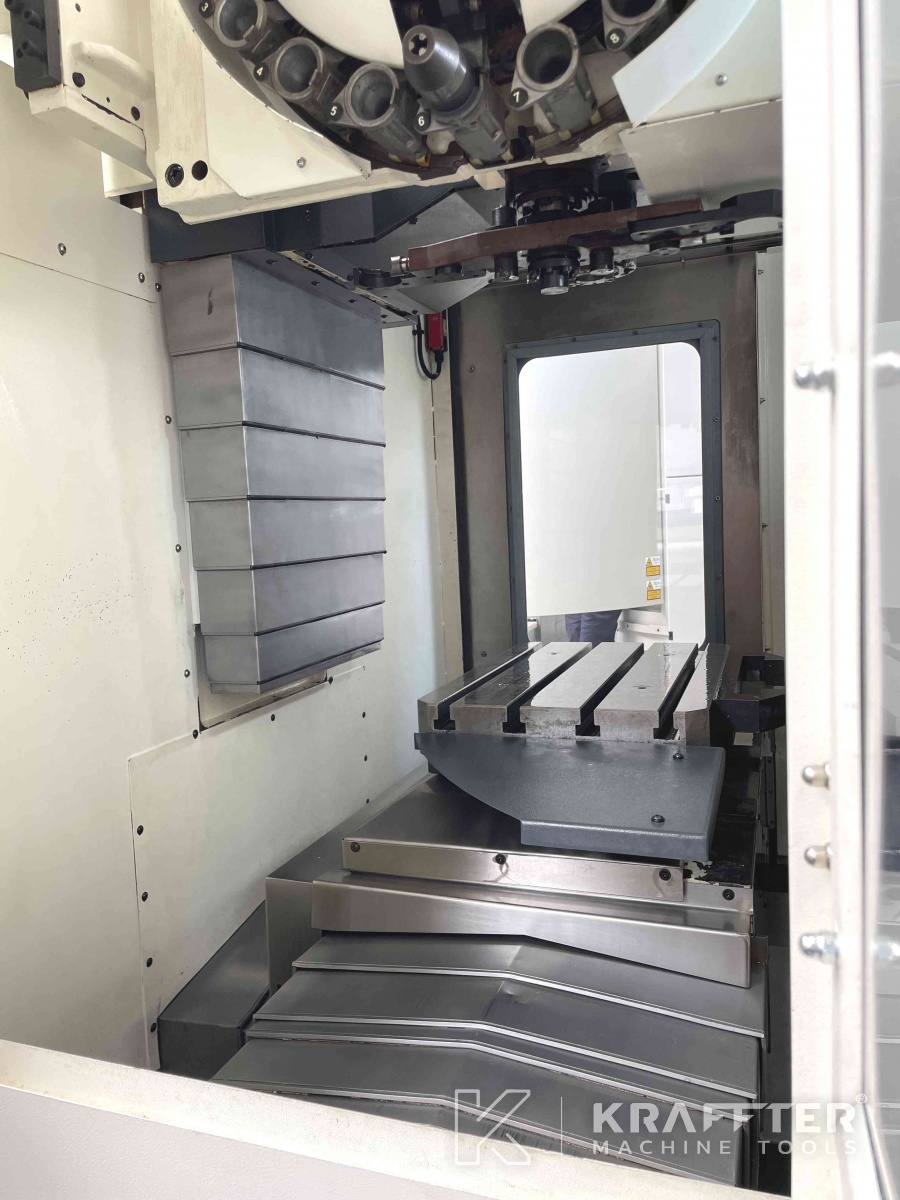

Type of machine : Vertical machining center
Brand : HURON
Stock N° : 90072
Model : VX6 APC
Year : 2014
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

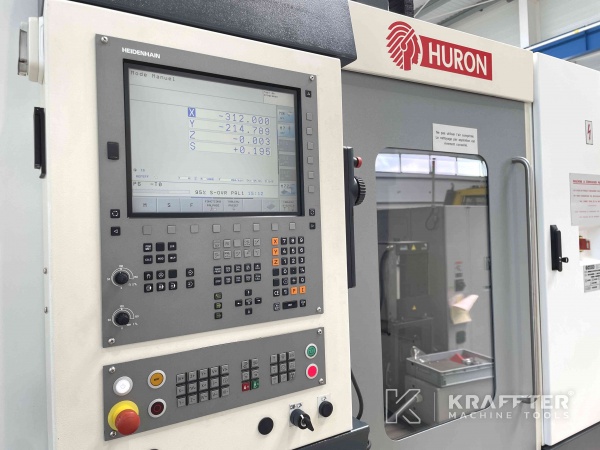

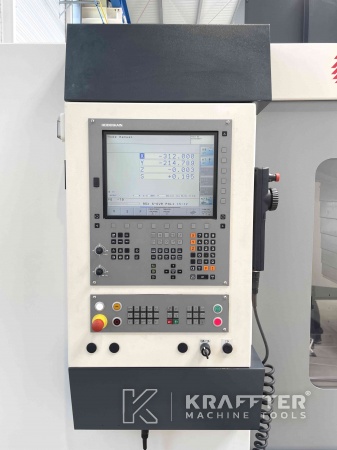

CNC control
HEIDENHAIN TNC 620
Number of axes
3
Stroke X axis
600 [mm]
Stroke Y axis
400 [mm]
Stroke Z axis
460 [mm]
Feed rate on X, Y and Z axes
24000 [mm/min]
Positioning tolerances of all axes
15 [µm]
Min. distance spindle nose / table
160 [mm]
Max. distance spindle nose / table
620 [mm]

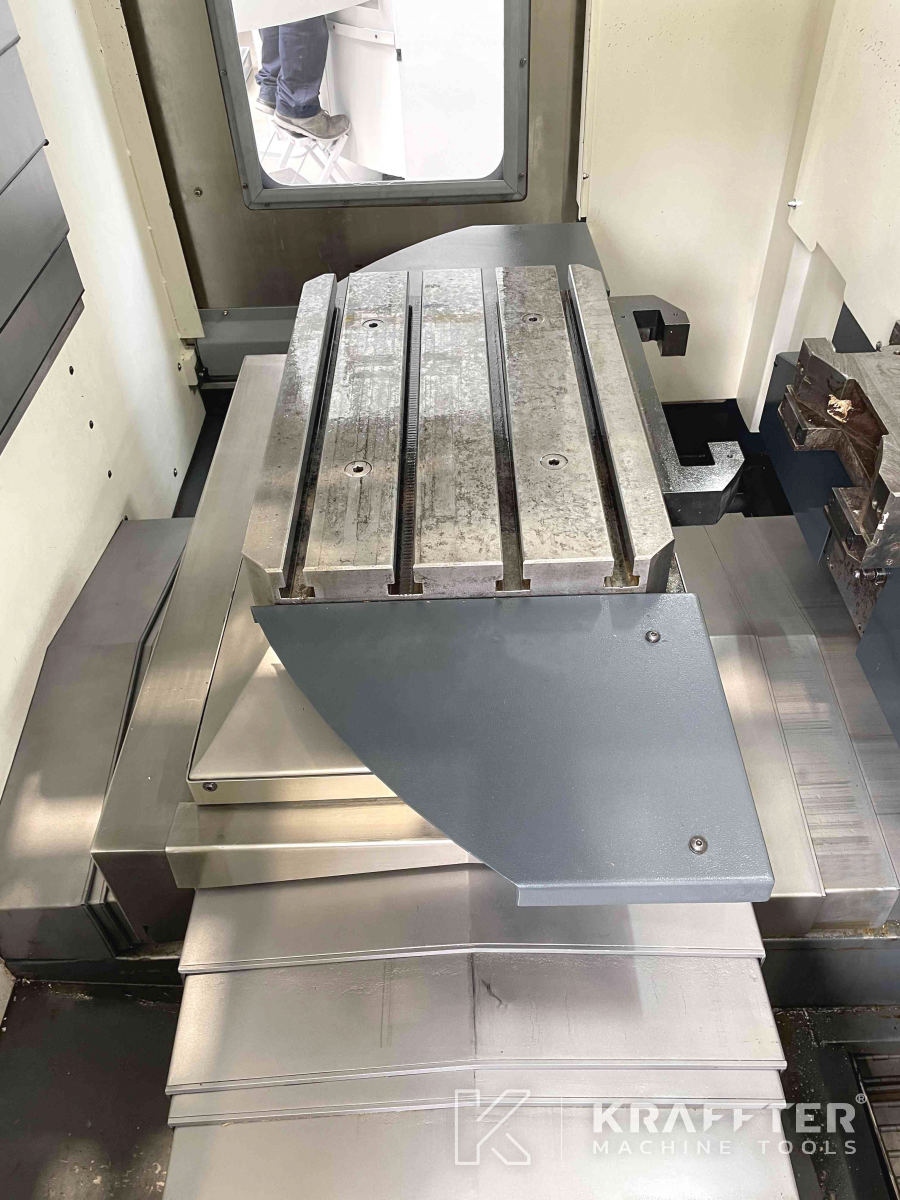

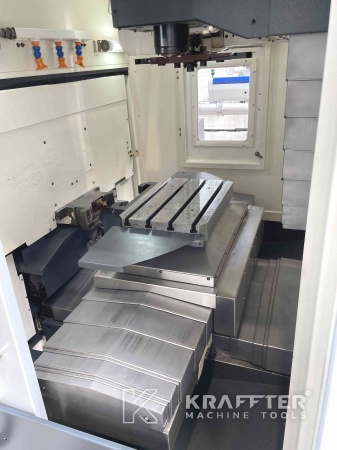

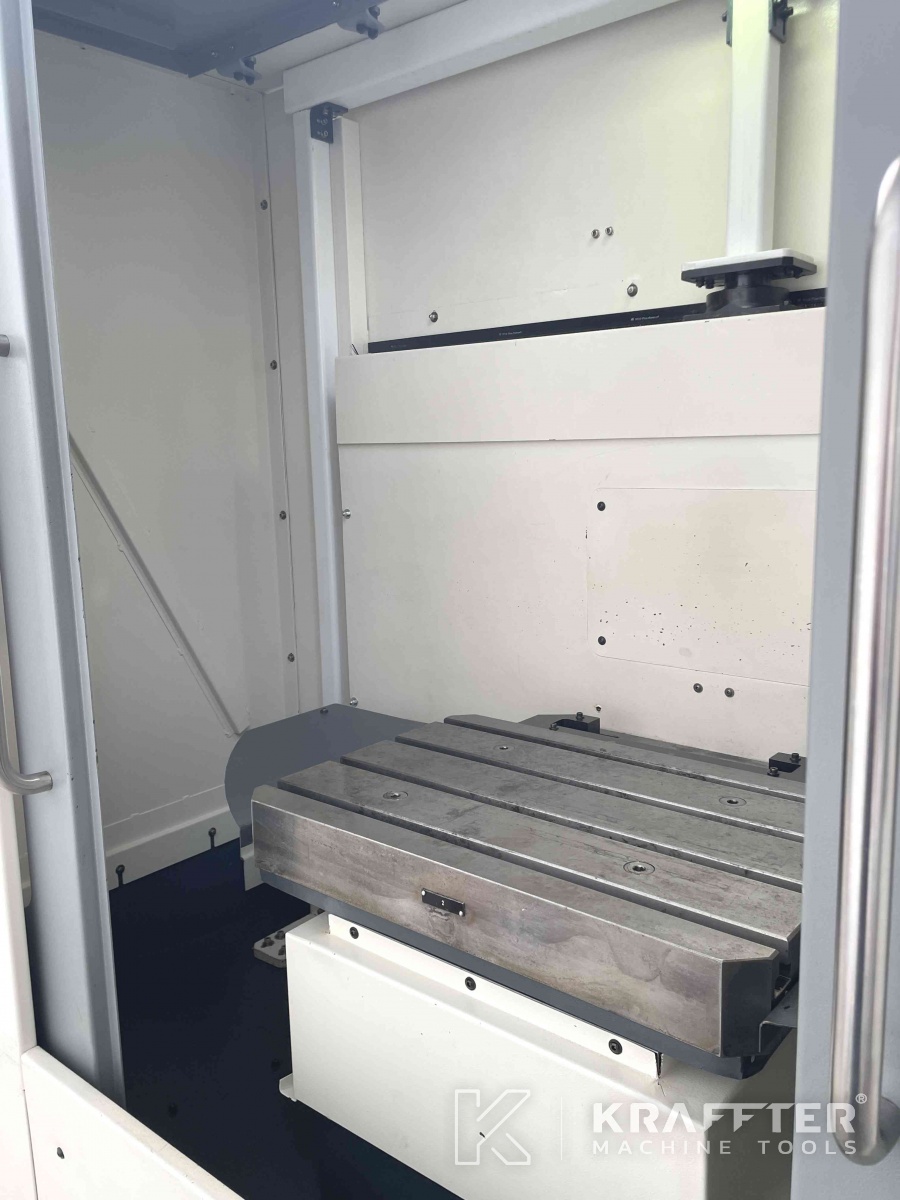

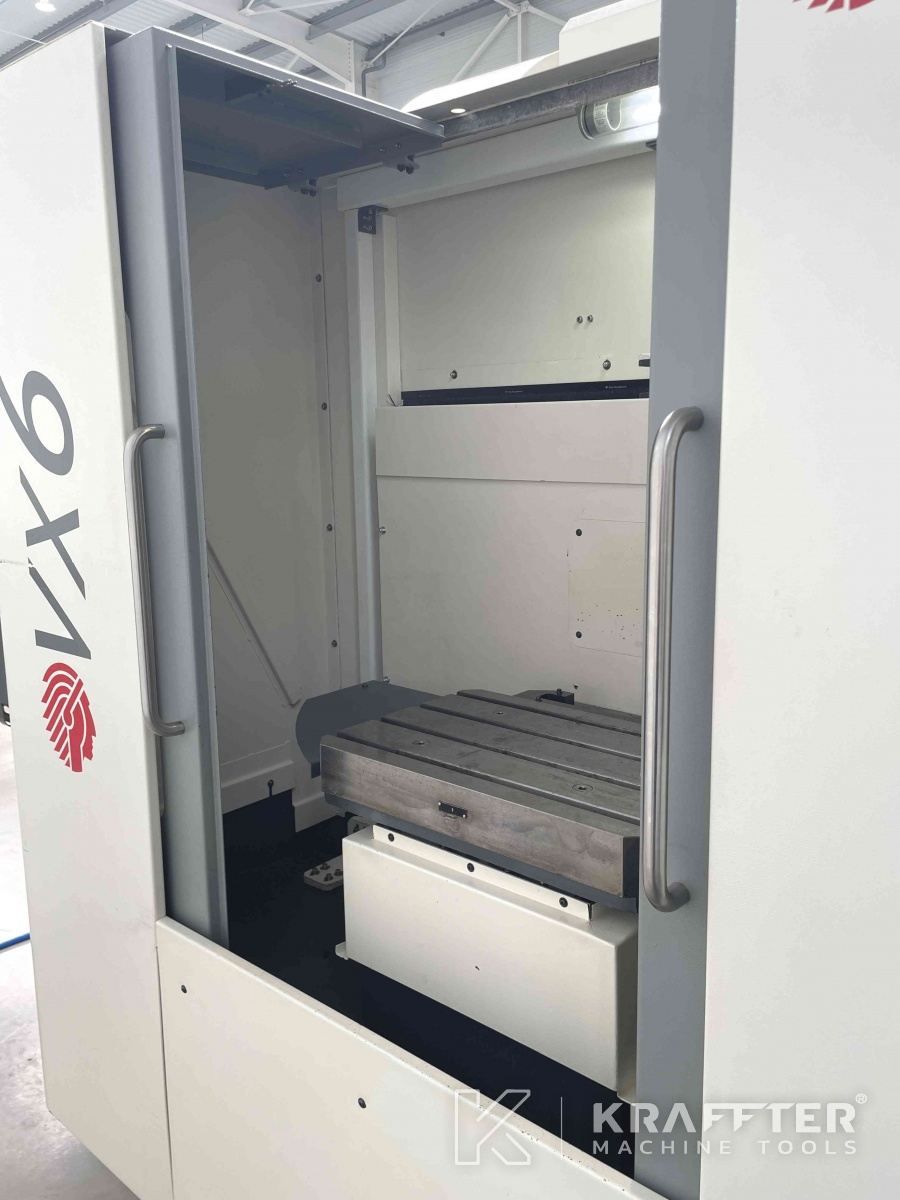

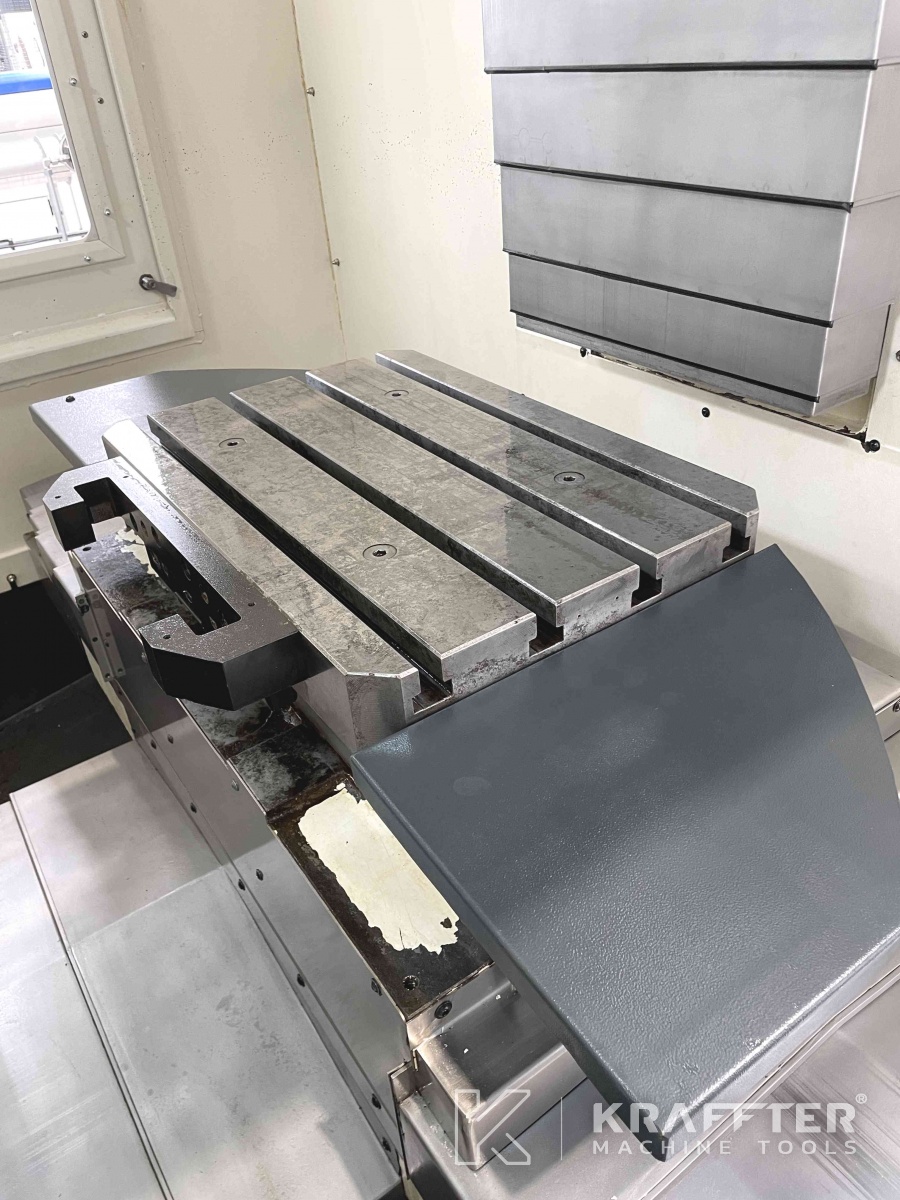

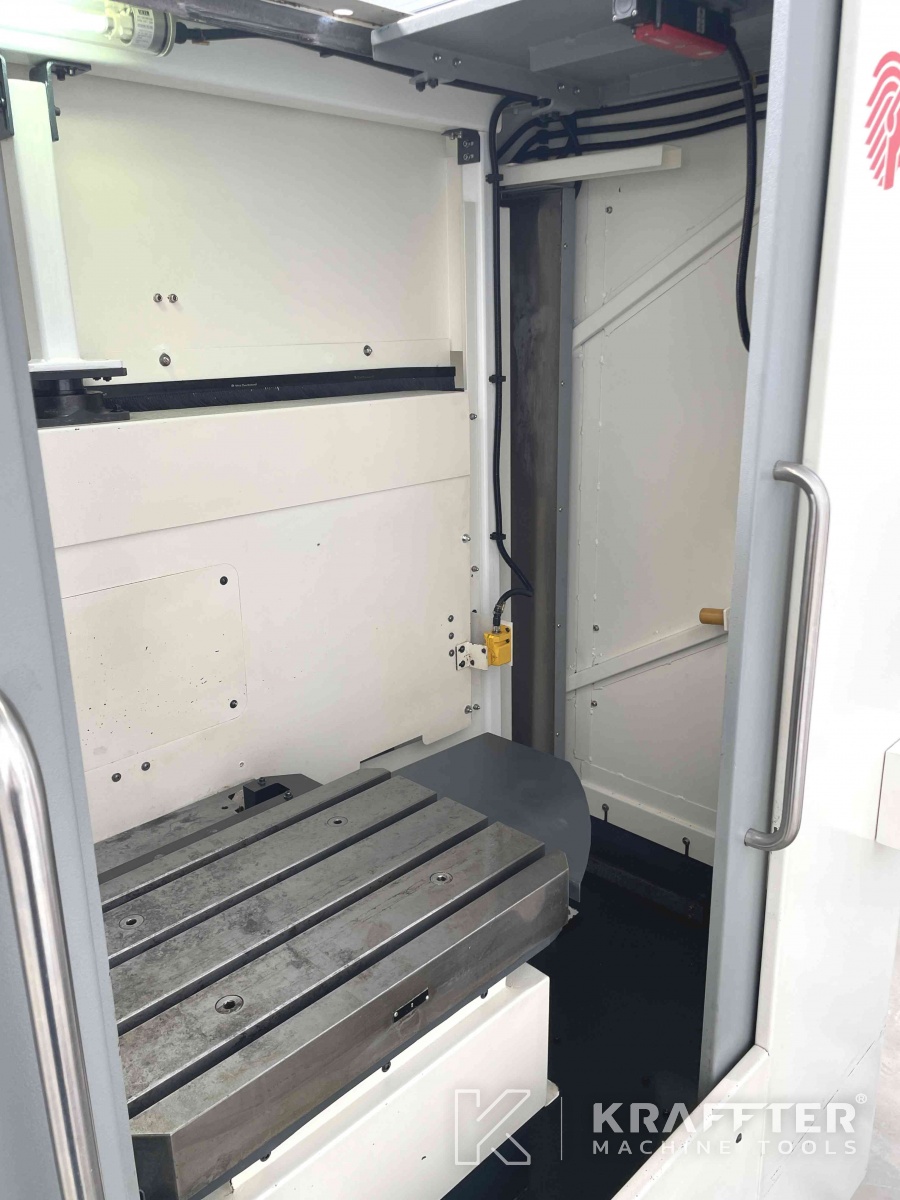

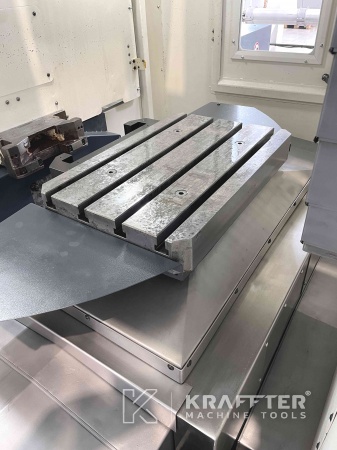

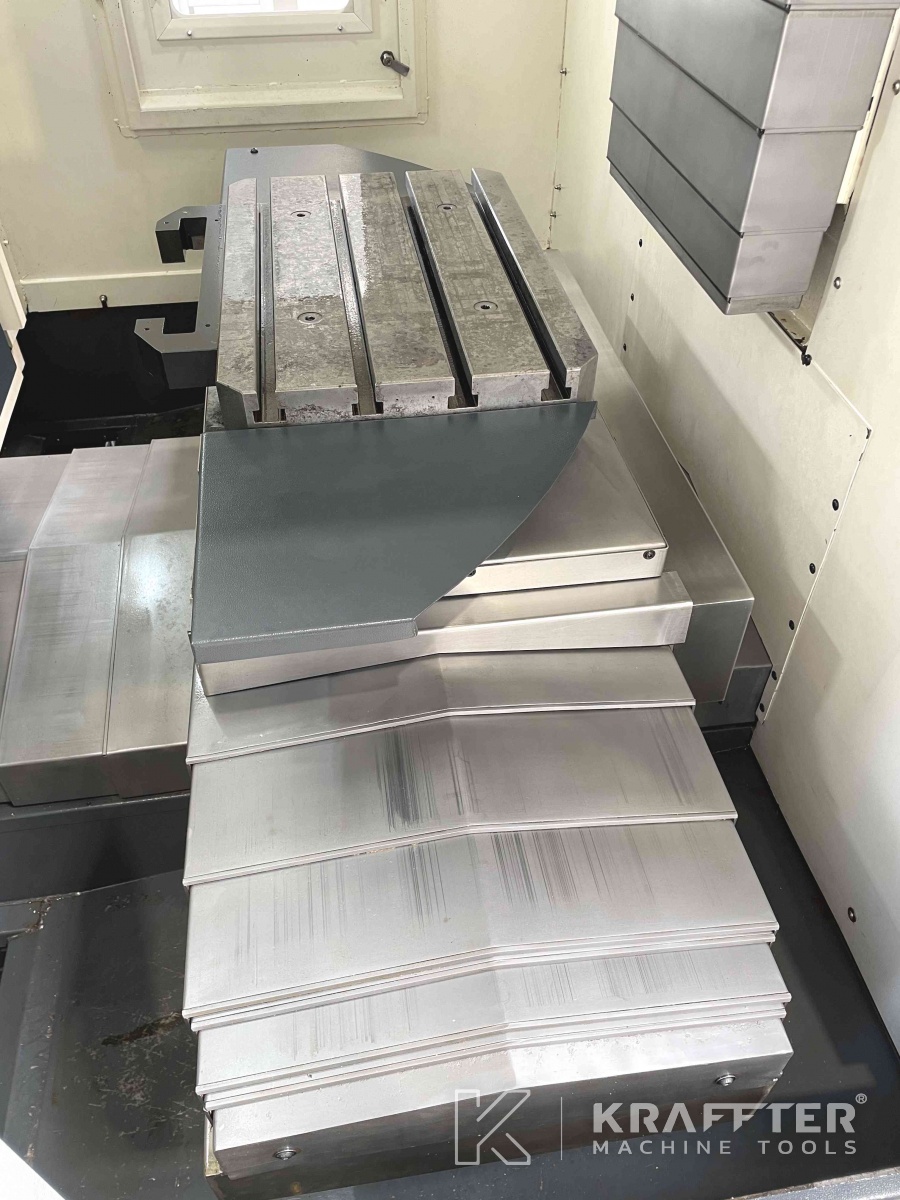

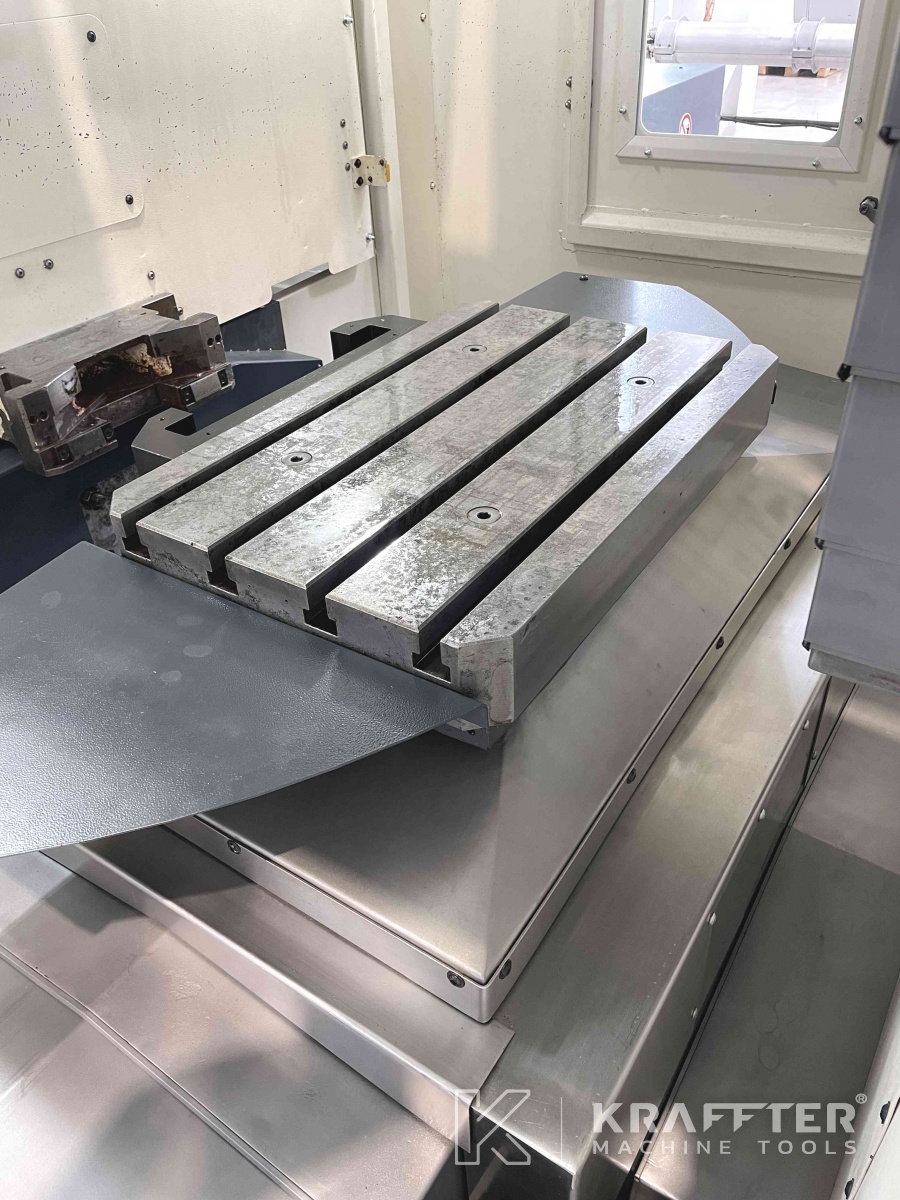

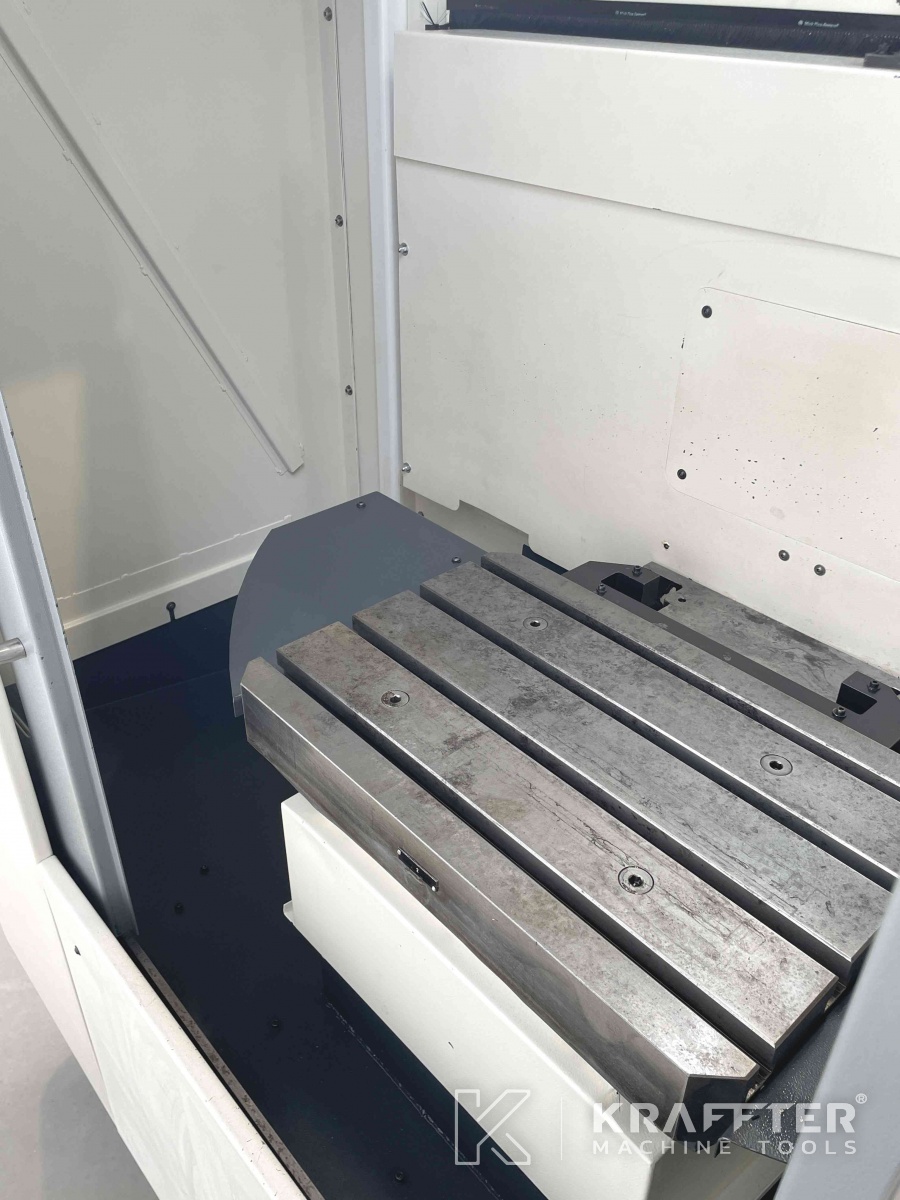

Pallet dimensions
600 x 400 [mm]
Quantity of pallets
2
Pallet positioning repeatability
15 [µm]

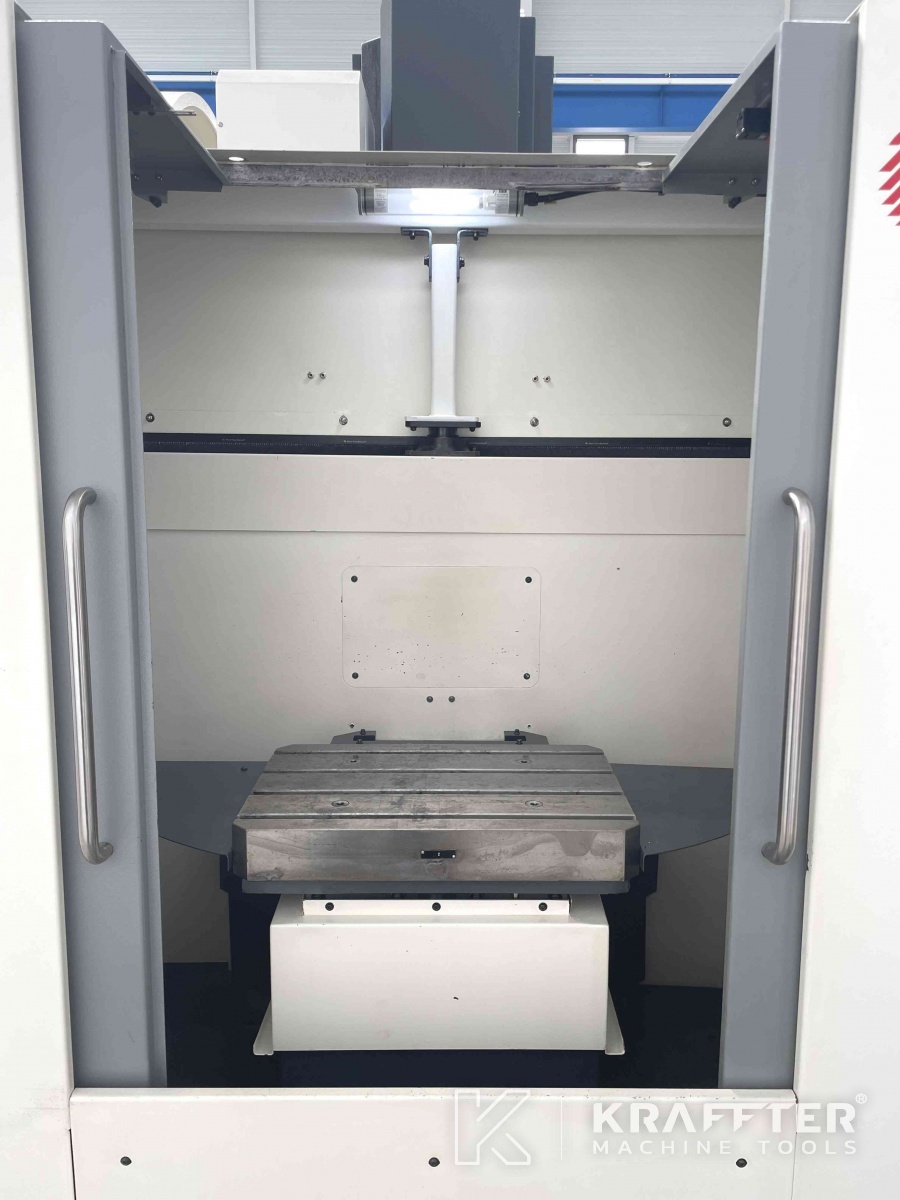

Pallet changing time
10 [sec]
Max. load on table
400 [Kg]

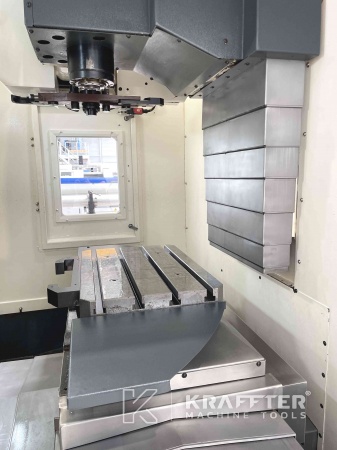

Spindle type
ISO-40
Max. spindle speed
10000 [rpm]
Spindle power
10.5 [kW]

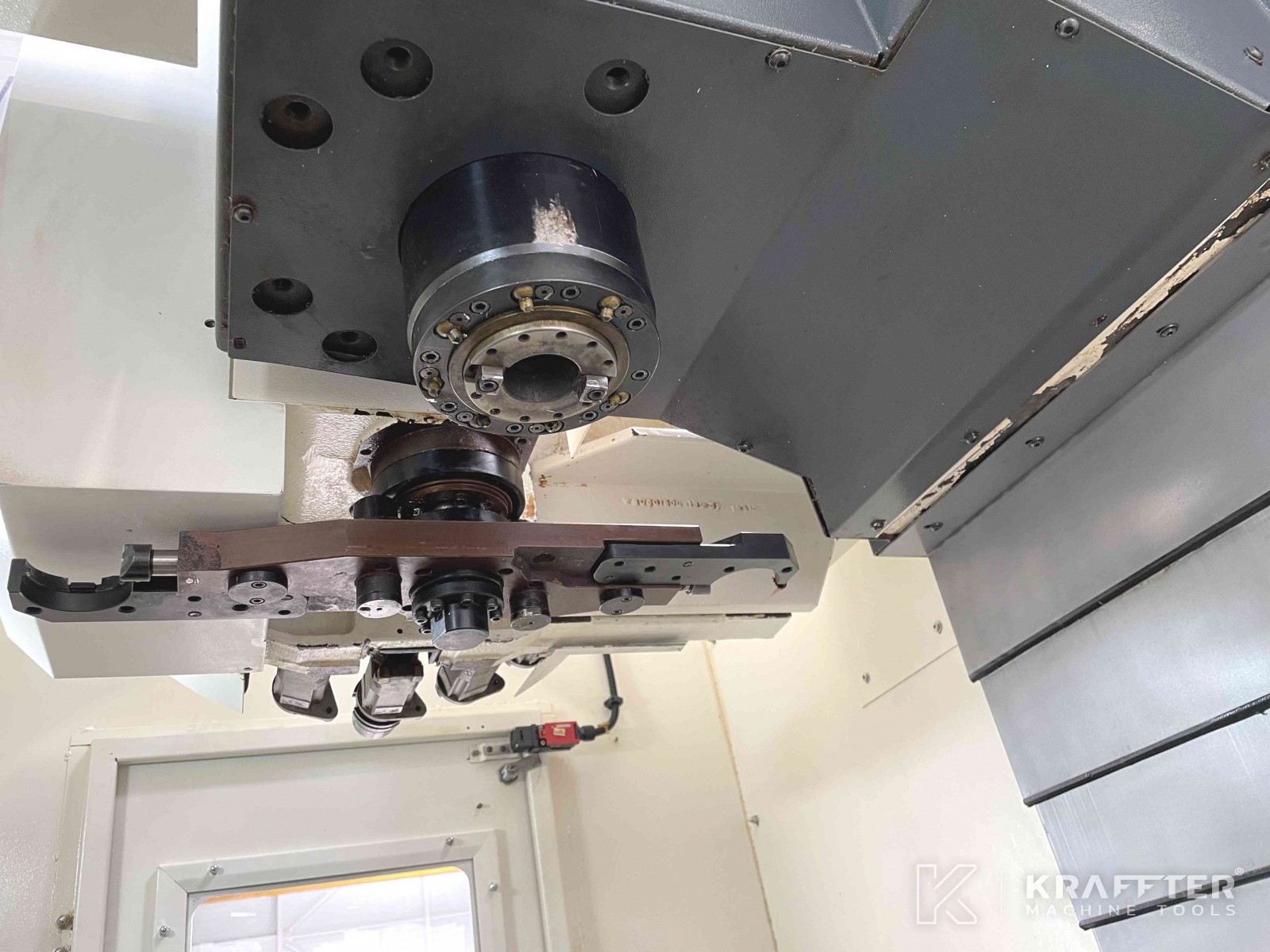

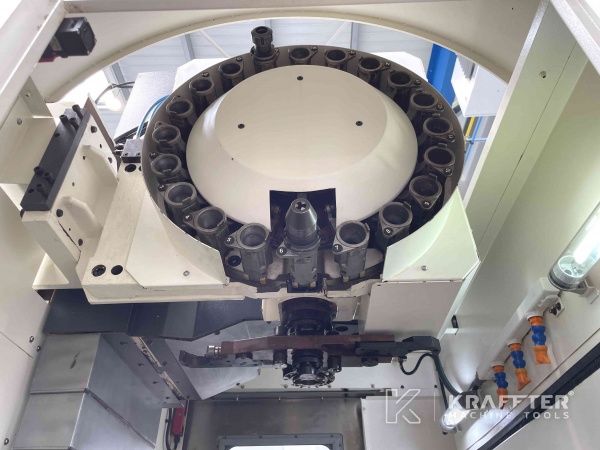

Tool changer magazin number of stations
20
Admissible load on each pallet
200 [Kg]
Total power required
37.5 [kVA]
Supply voltage
400 [V]
Number of running hours
11814 [h]
Weight
6500 [Kg]
Machine dimensions
3200 x 2350 x 3100 [mm]

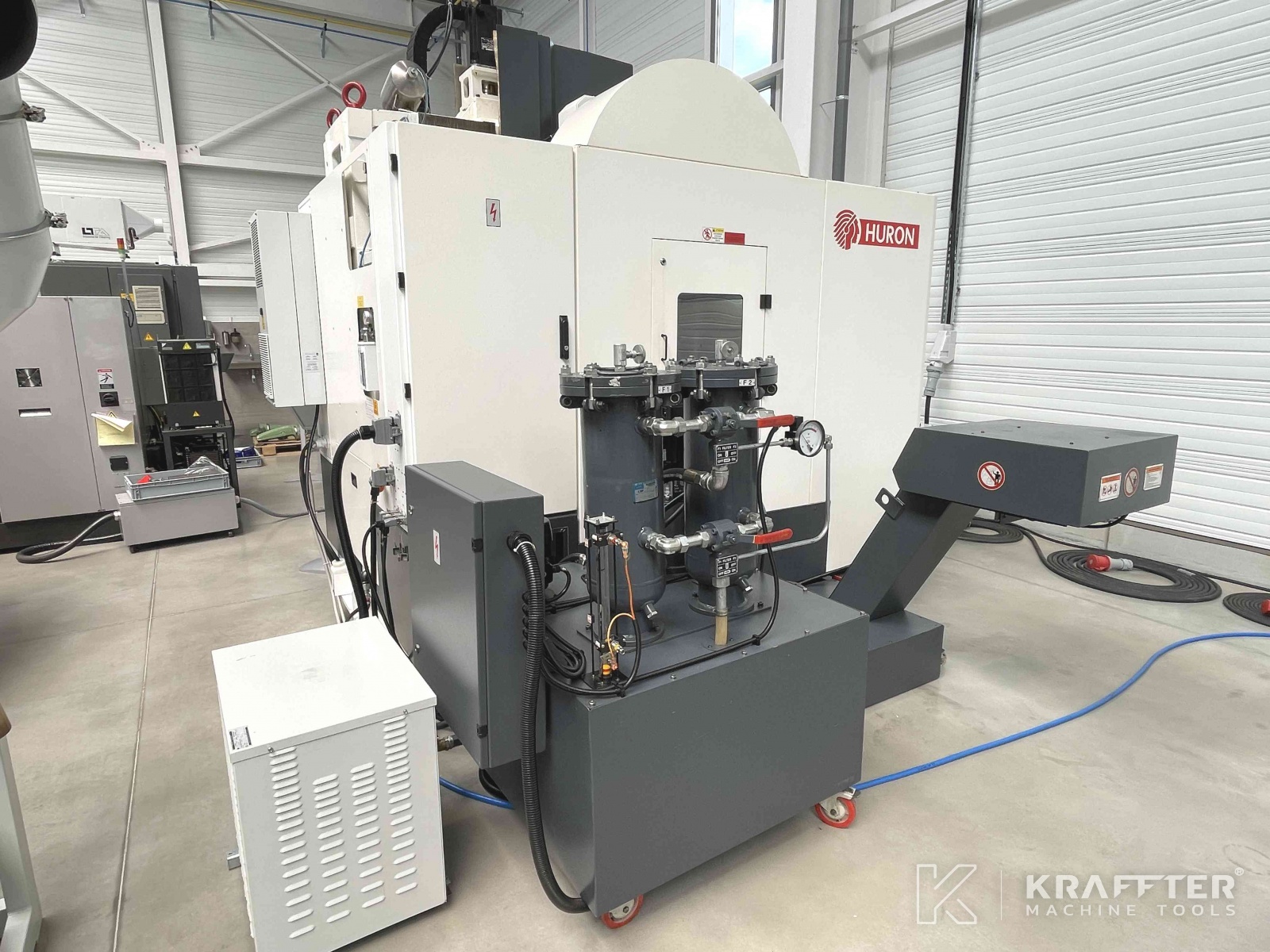

Equipment & OPTIONS included:

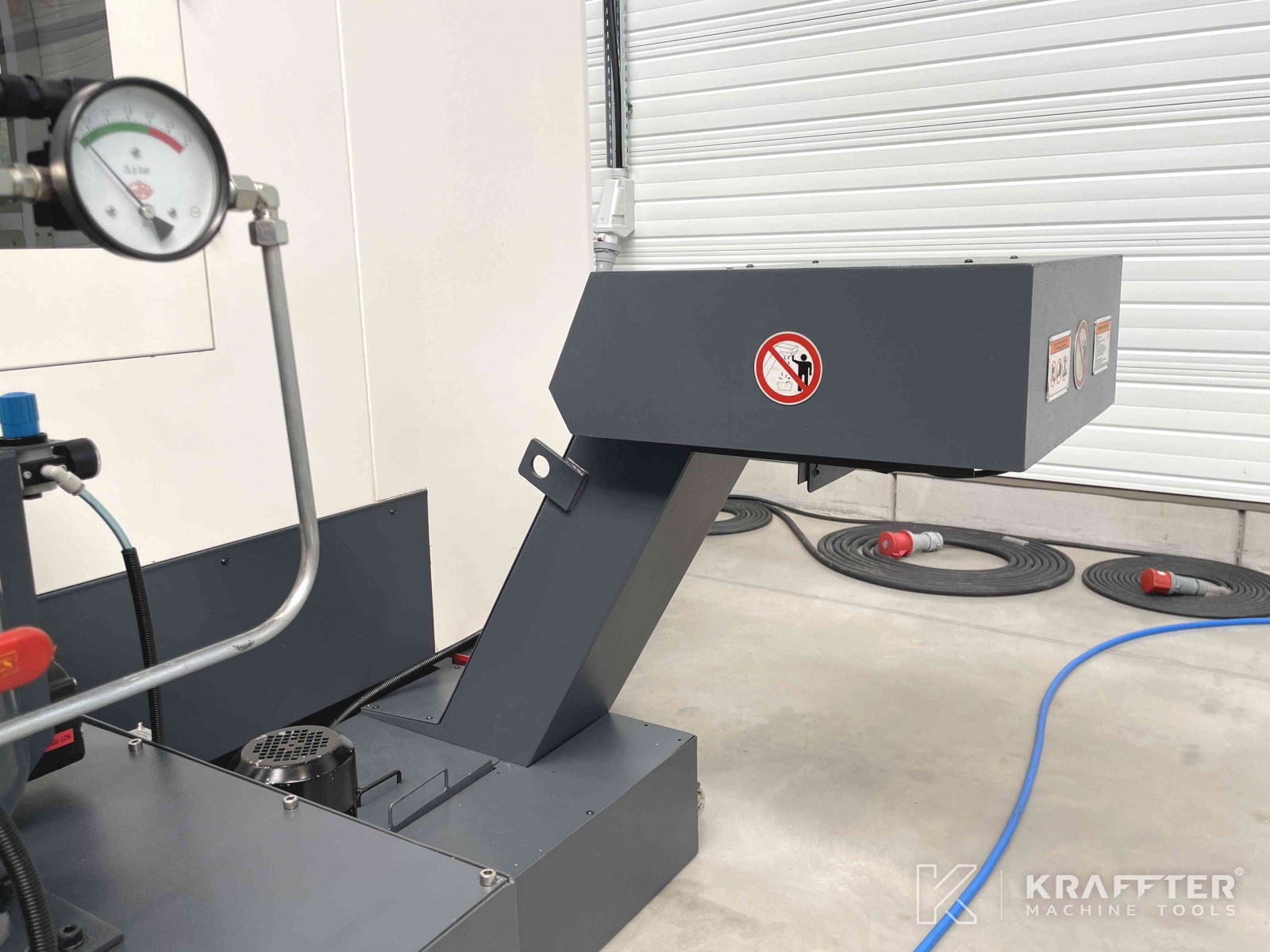

-Chip conveyor
-Thru spindle coolant

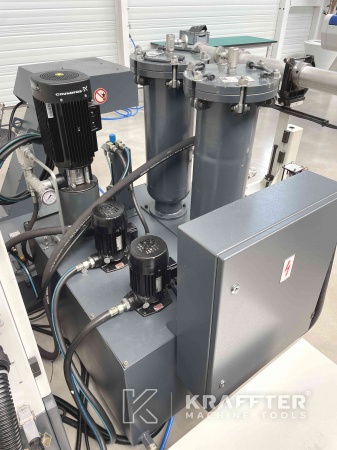

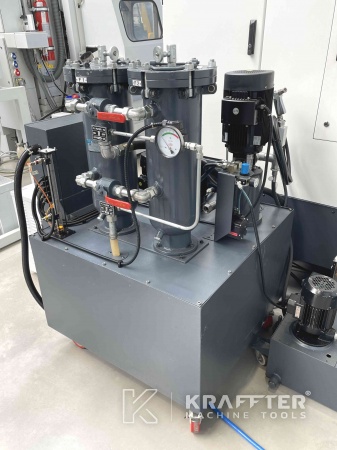

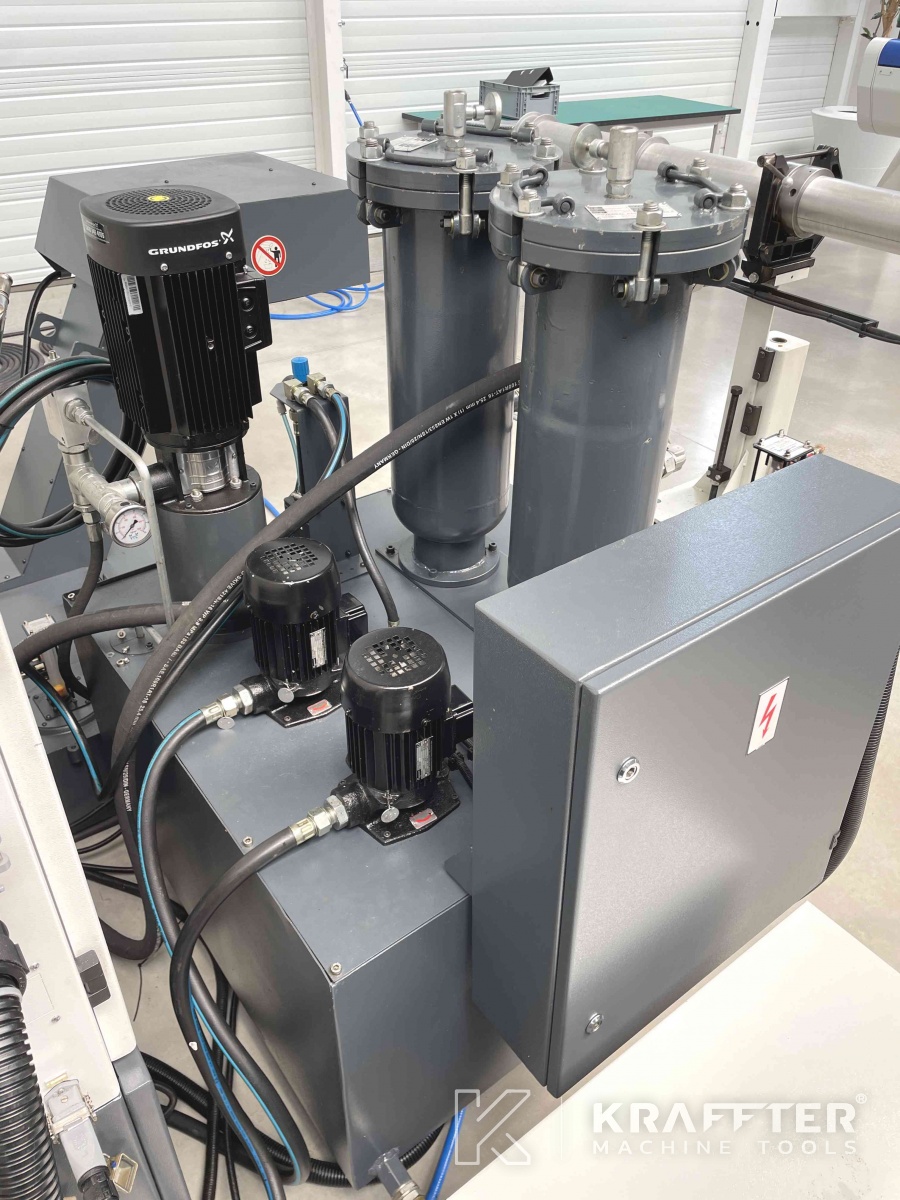

-High pressure GRUNDFOS pump (25 bars)
-Filtration unit 25 microns
-USB + RJ45 connection
