Sold

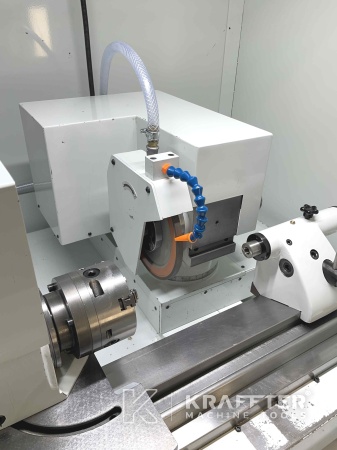

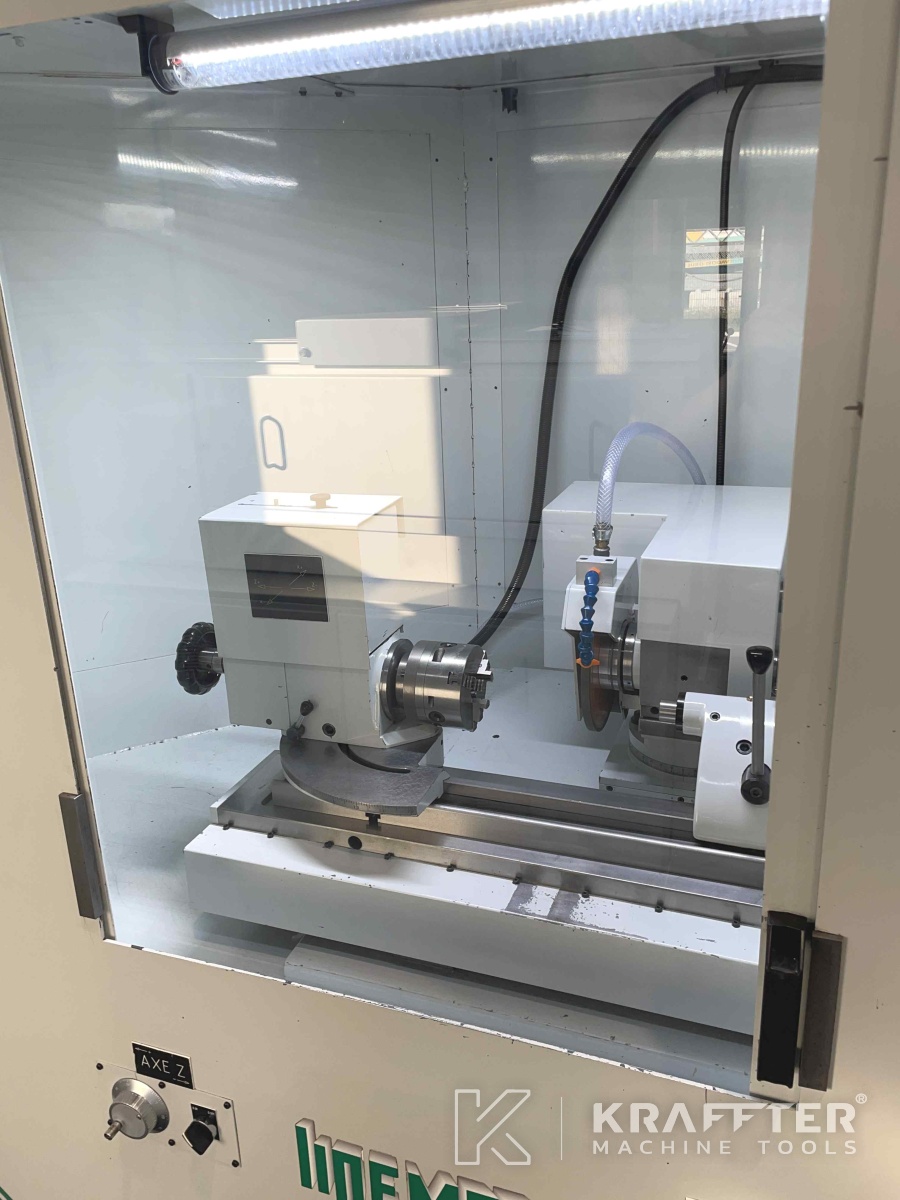

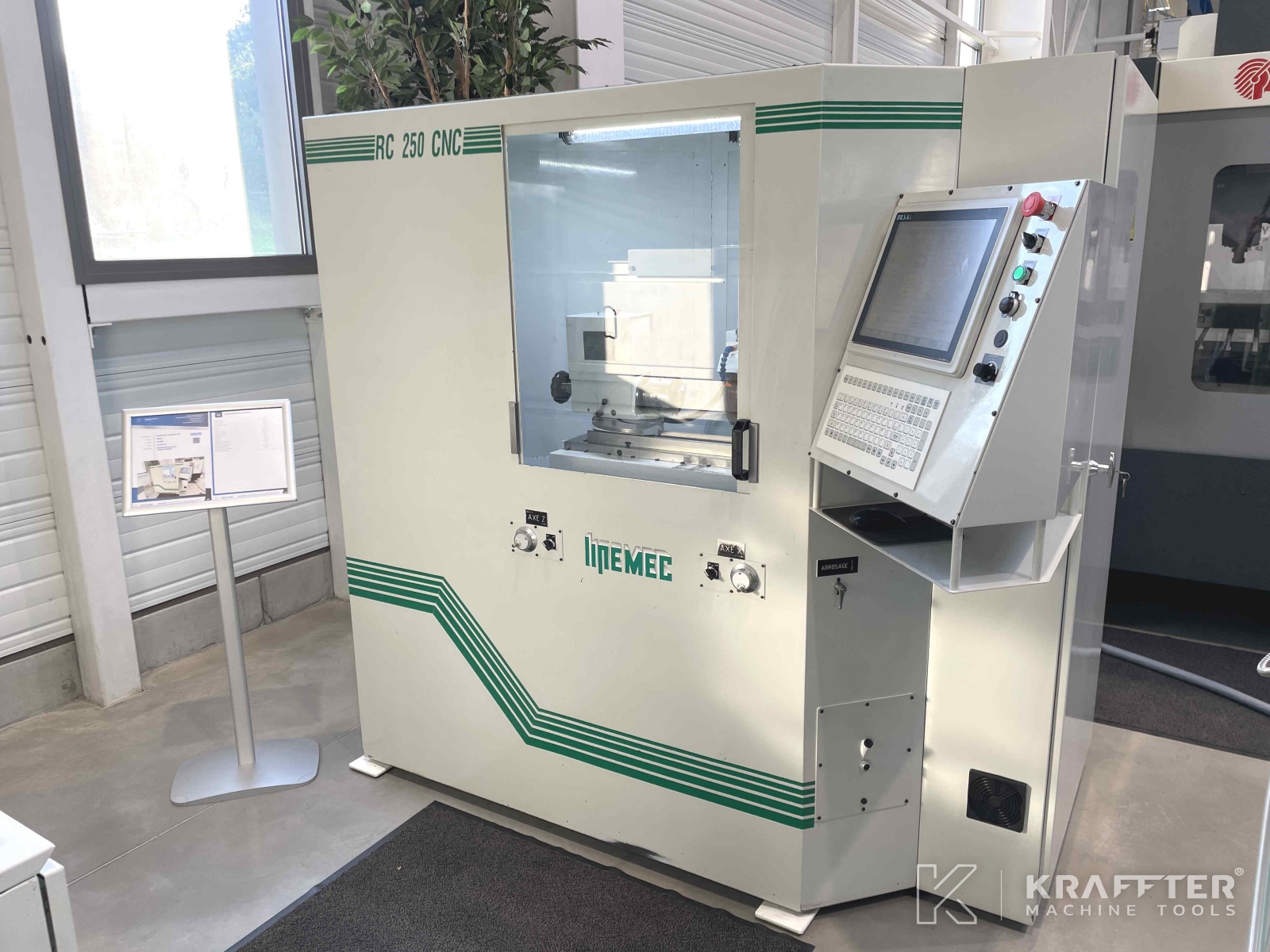

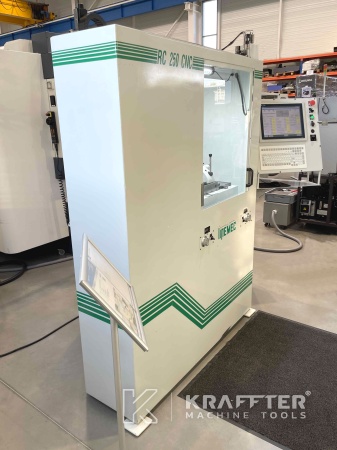

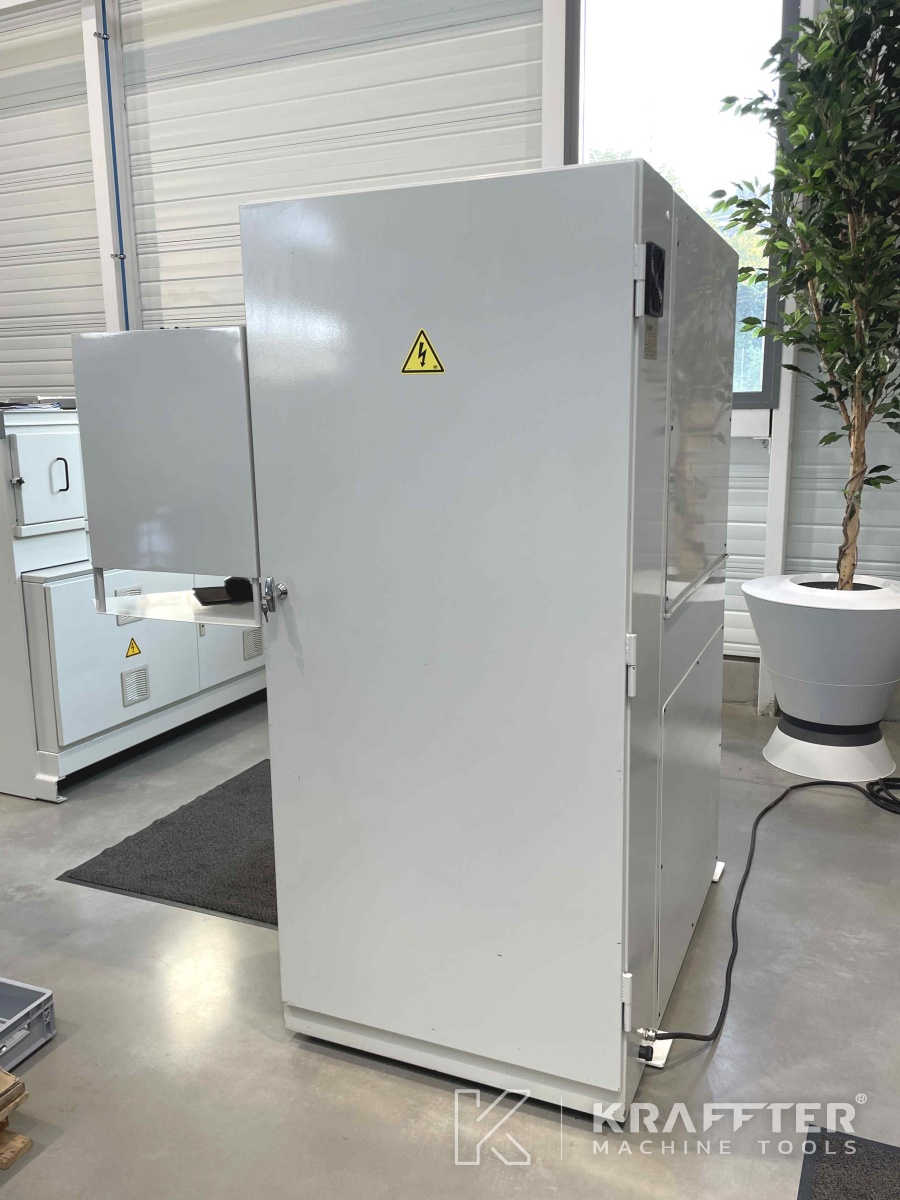

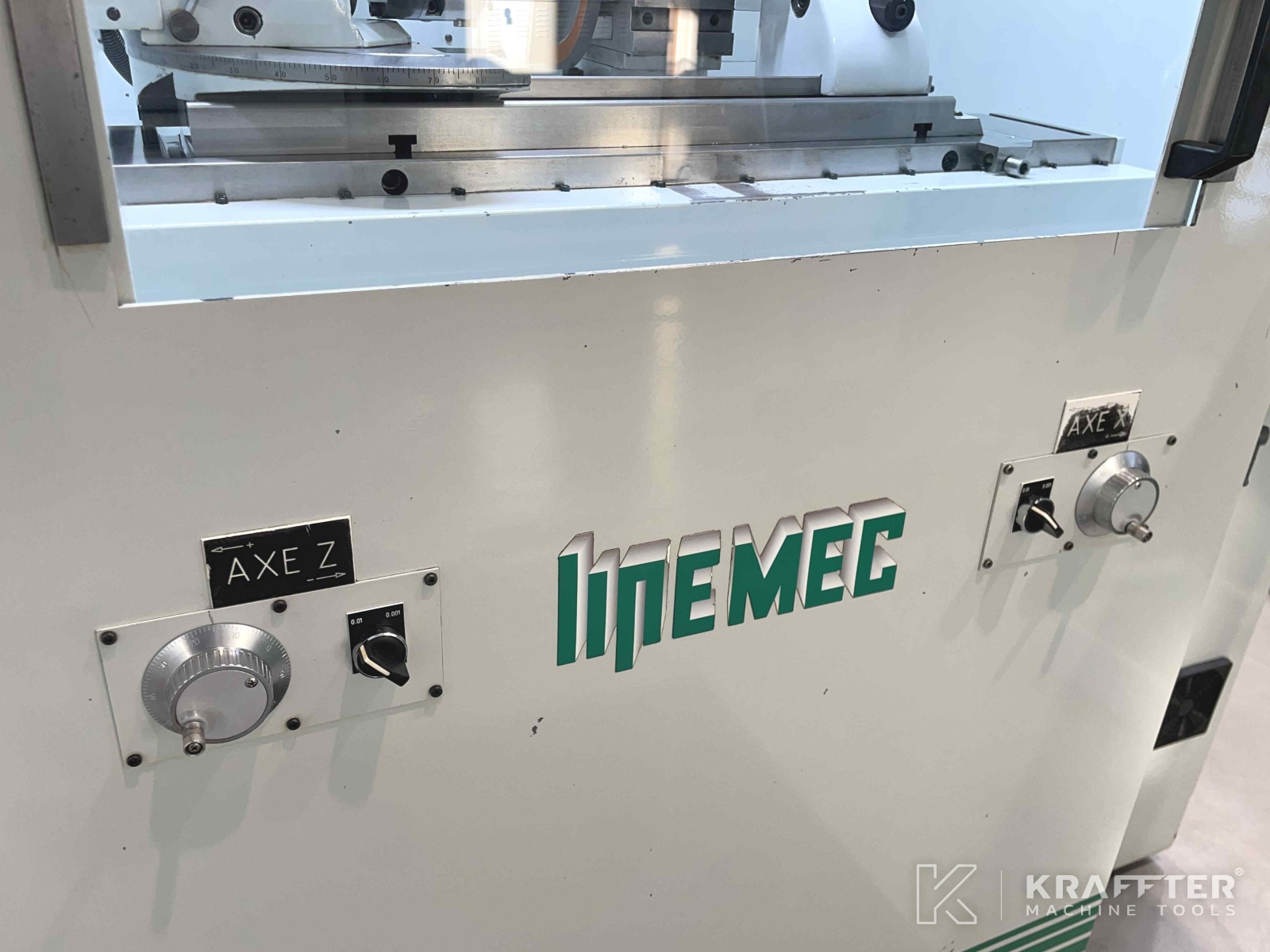

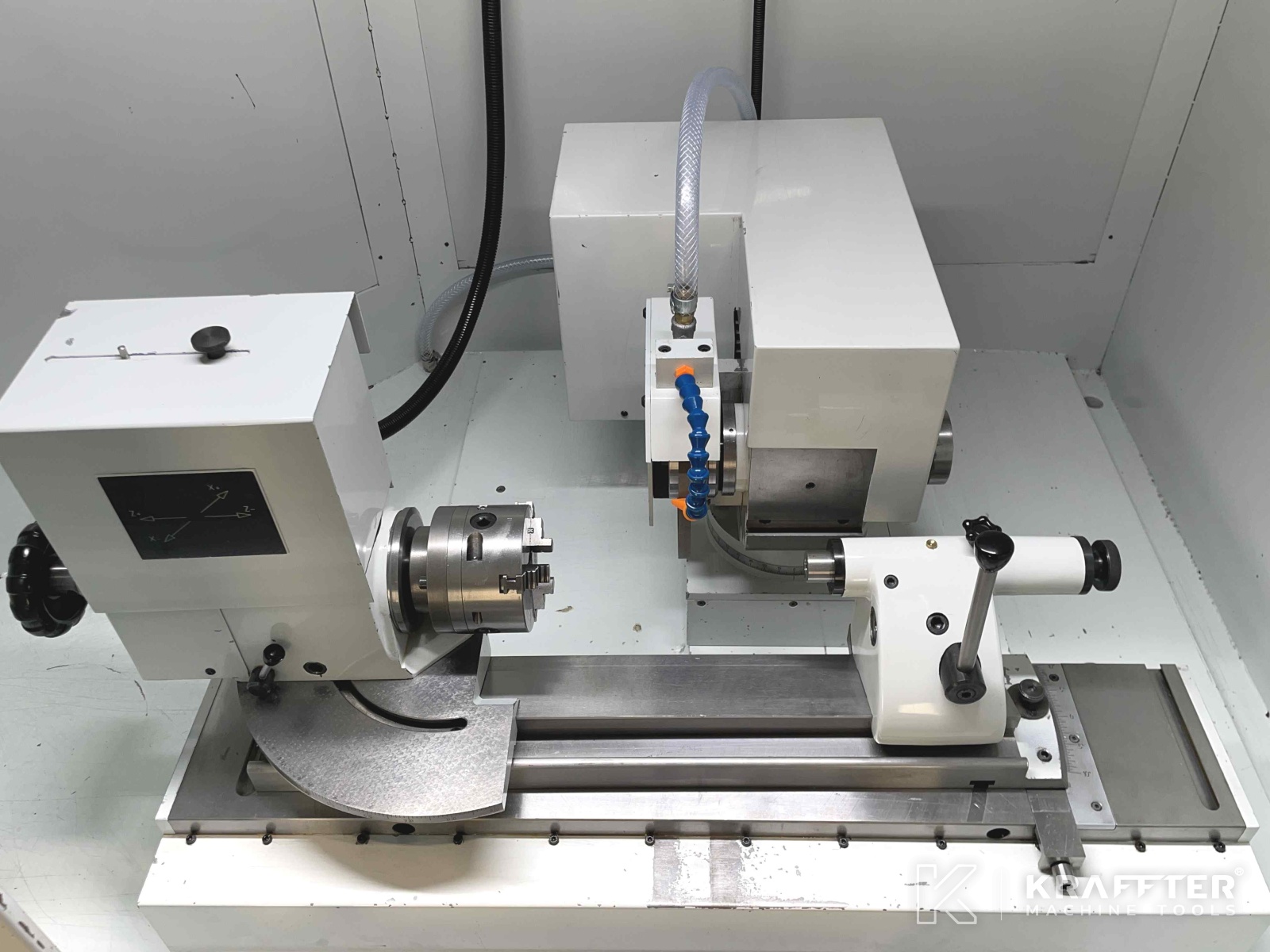

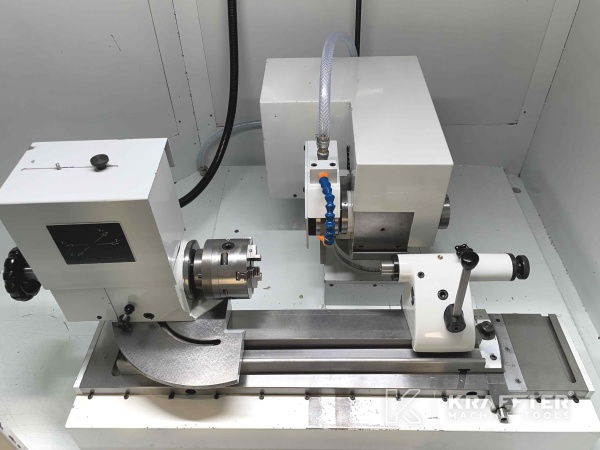

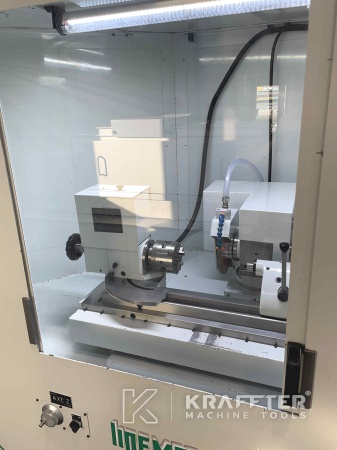

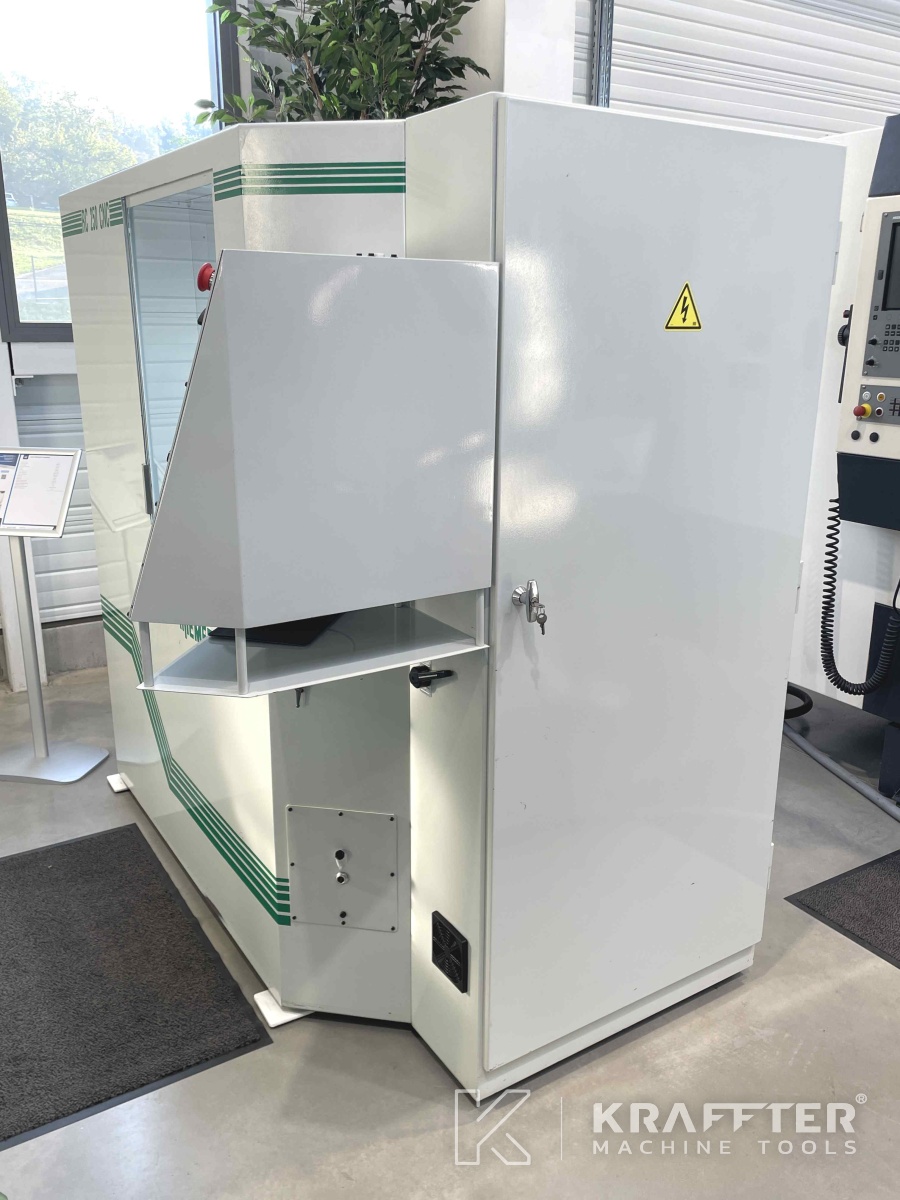

Type of machine : CNC cylindrical grinder
Brand : LIPEMEC
Stock N° : 90078
Model : RC 250 CNC
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

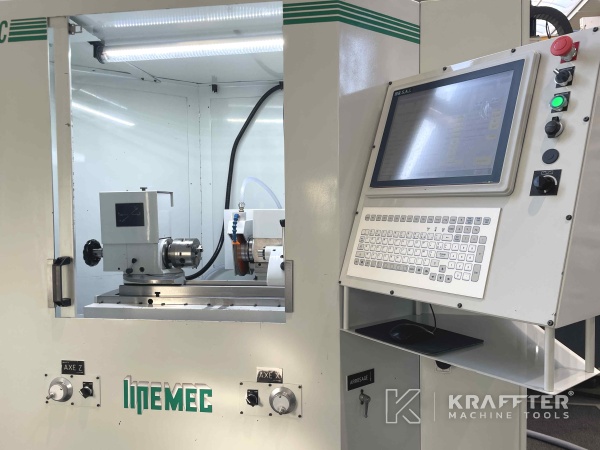

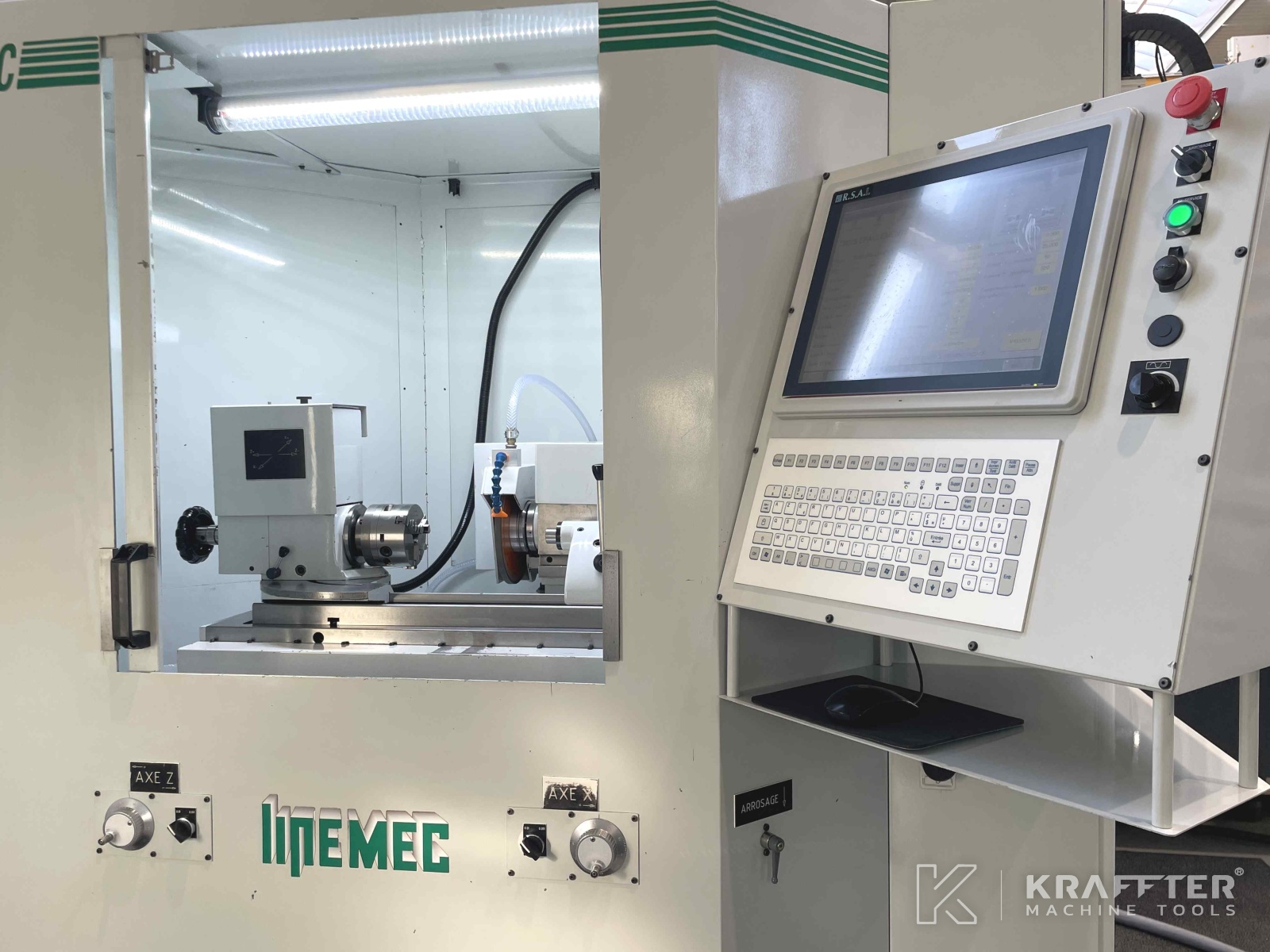

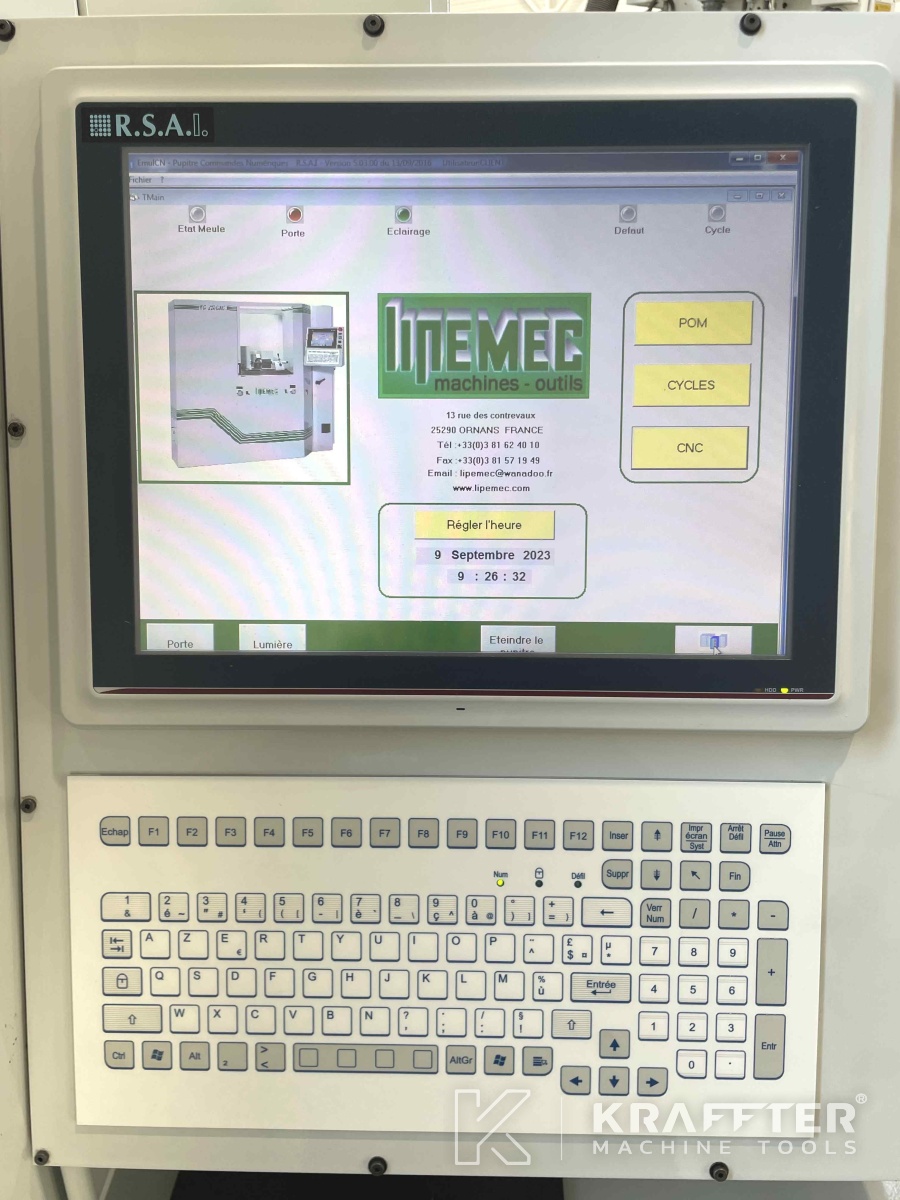

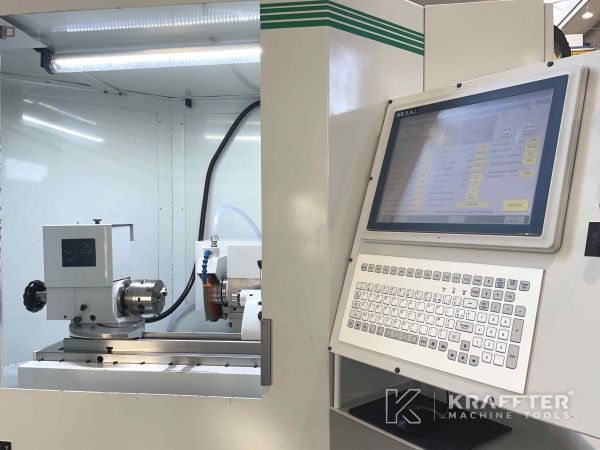

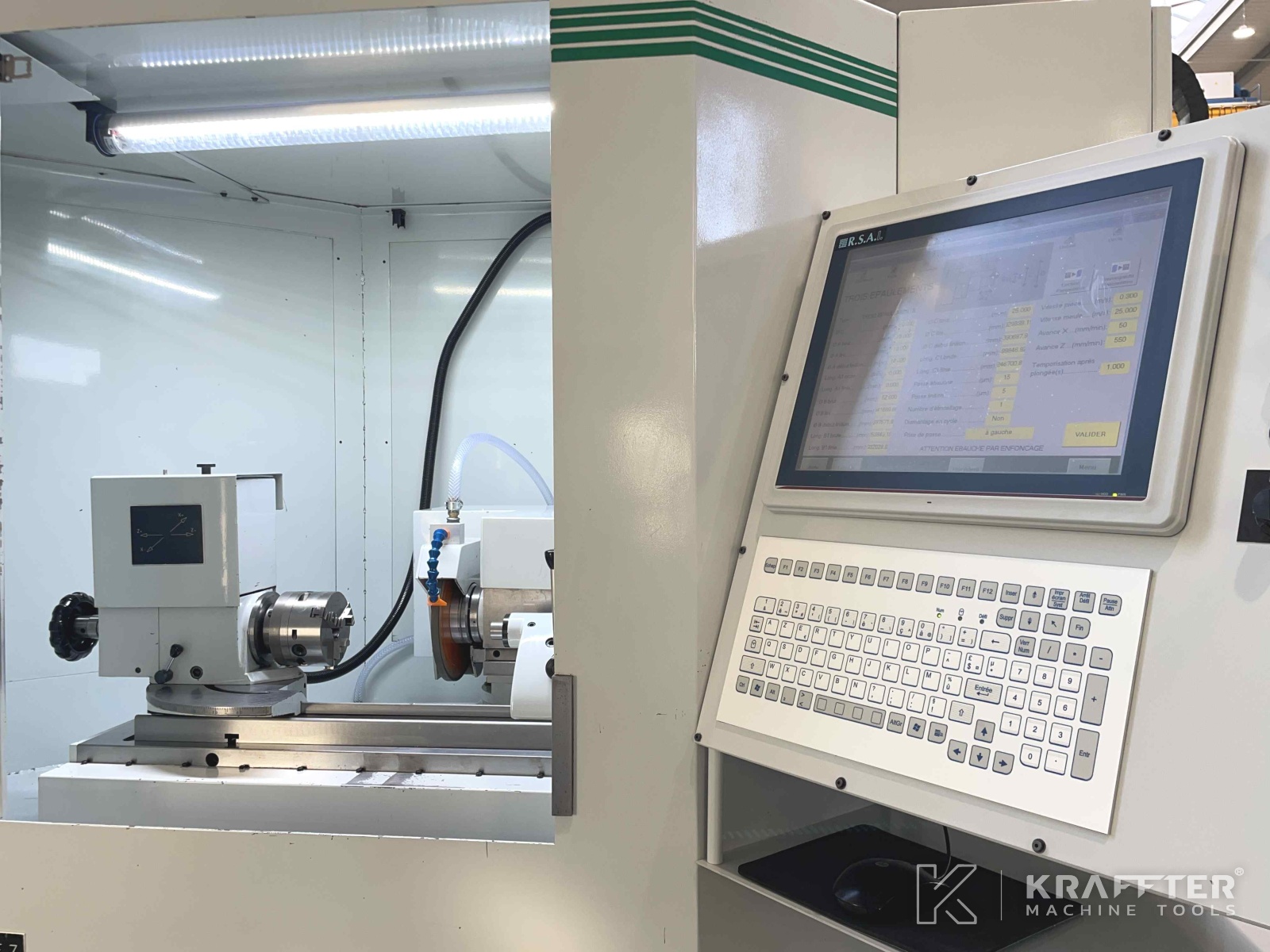

Colour touchscreen
Yes
Centre distance
250 [mm]
Height of centers
100 [mm]
Max. grinding diameter
200 [mm]
Stroke X axis
128 [mm]
Stroke Z axis
194 [mm]
Min. Stroke speed Z axis
10 [mm/min]
Max. Stroke speed Z axis
1200 [mm/min]

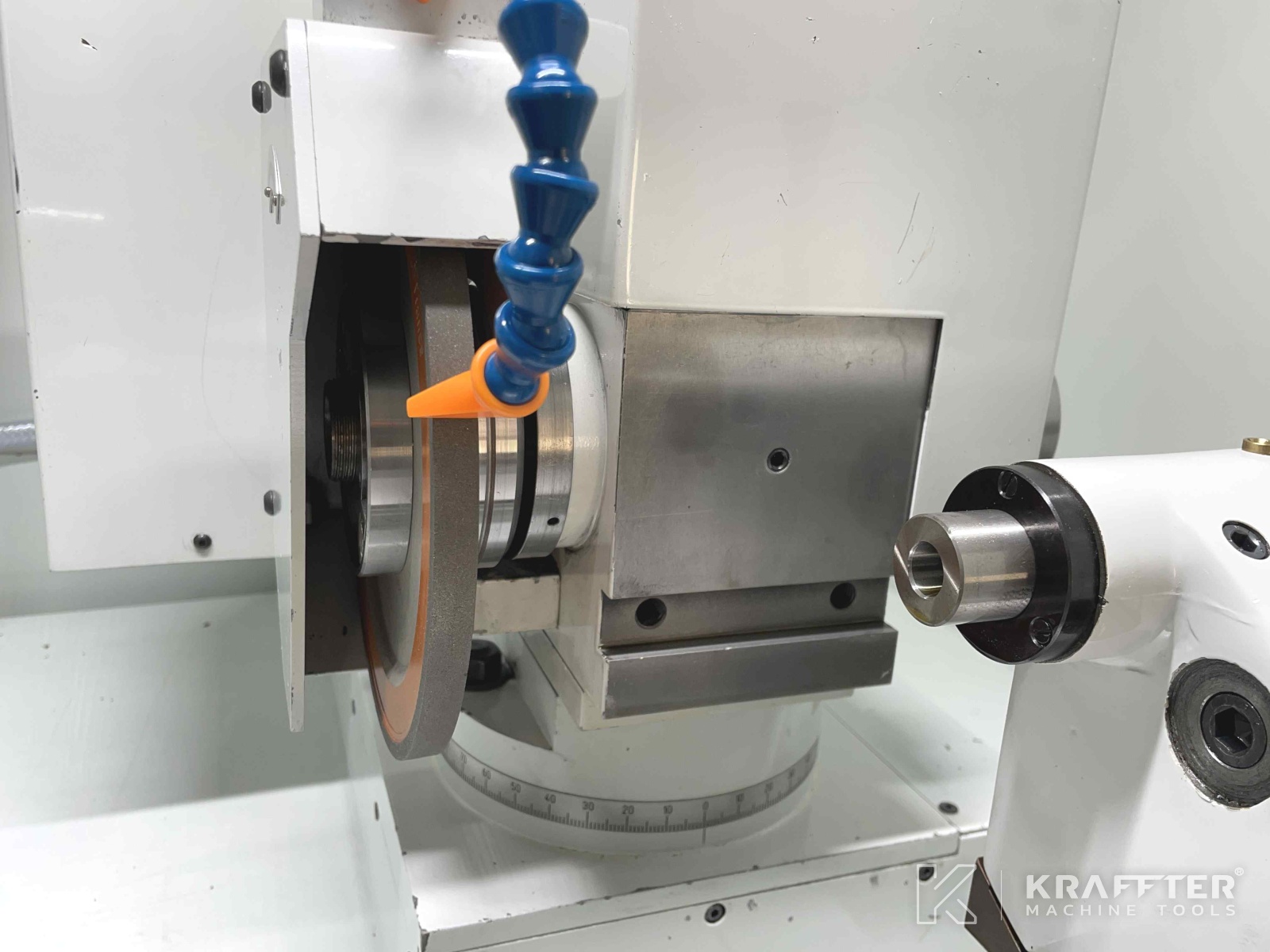

Grinding wheel speed
3000 [rpm]
Grinding wheel diameter
200 [mm]
Grinding wheel width
20 [mm]
Grinding wheel bore
32 [mm]
Workpiece spindle max. speed
1000 [rpm]
Workpiece swiveling range
0 - 90 [°]
Workpiece spindle power
1 [kW]
Spindle for collets
Schaublin type W20
Max. throughbore with collet
20 [mm]
eQUIPMENT INCLUded:

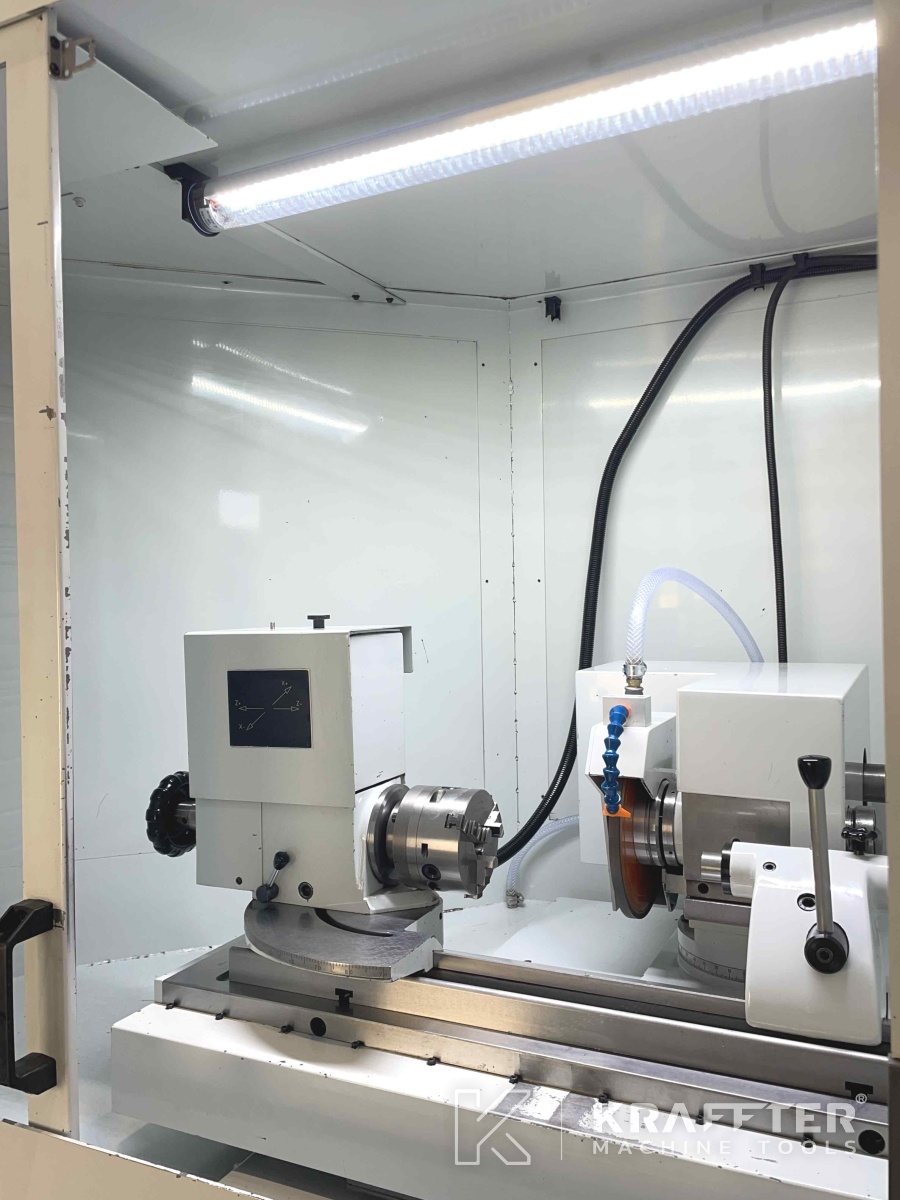

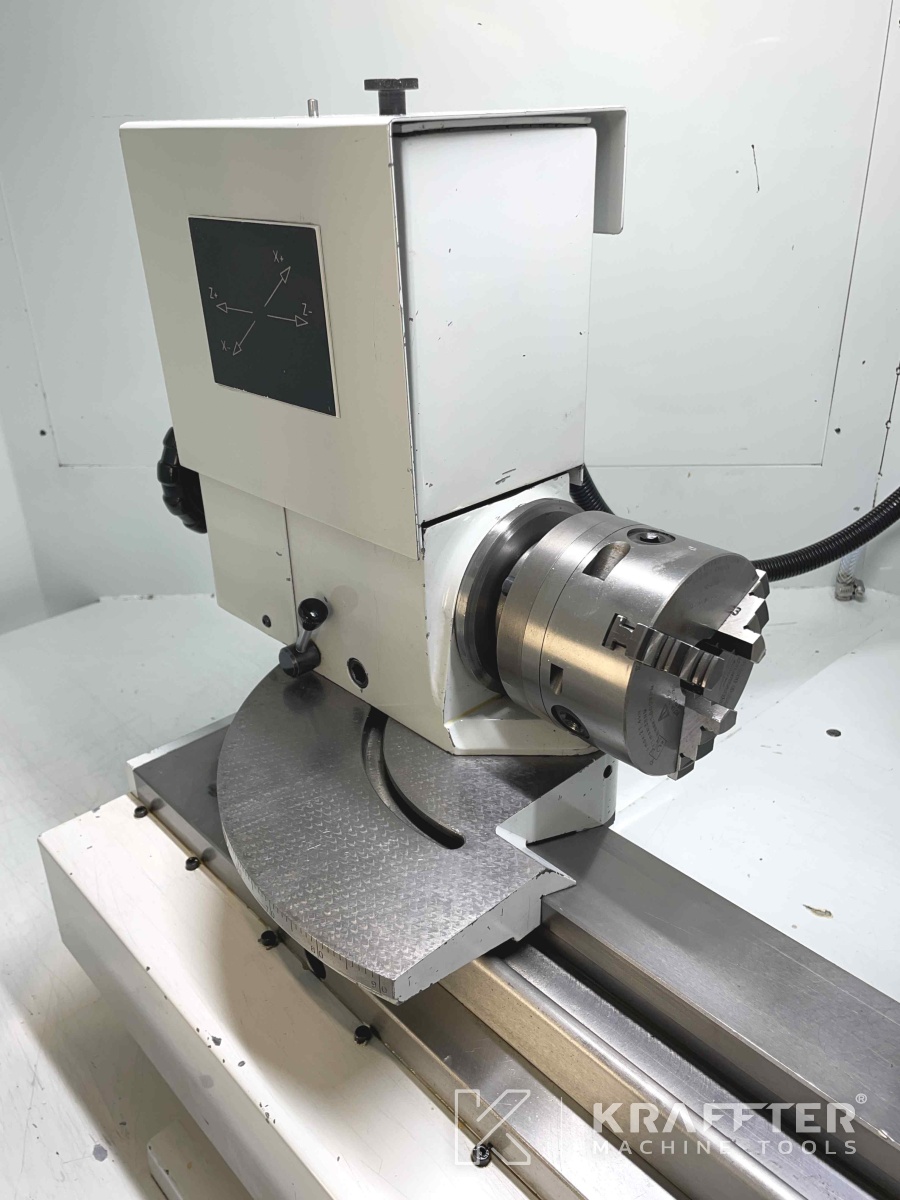

x1 3 jaw chuck Ø100 [mm] PRATT BURNERD

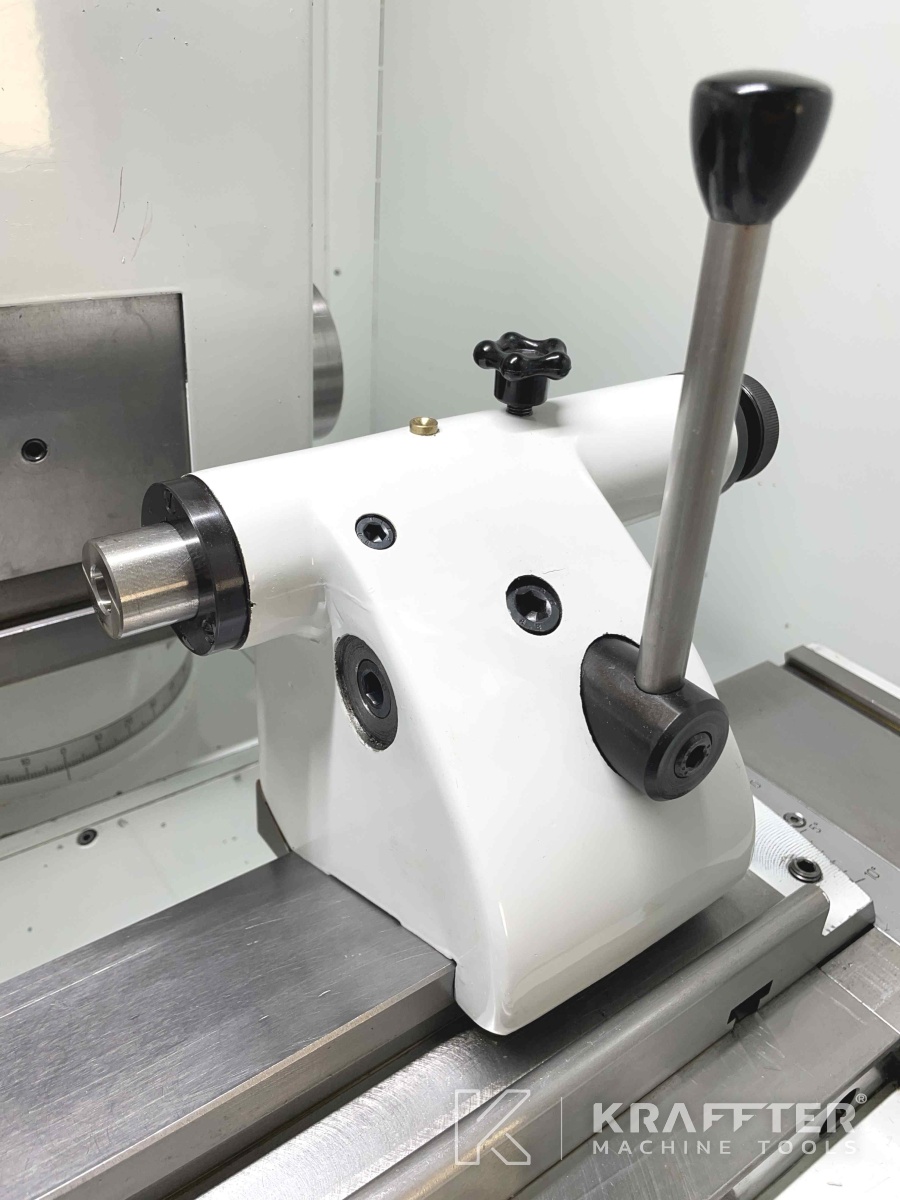

x1 tailstock
x1 glass scale on the X axis
x1 glass scale on the Z axis

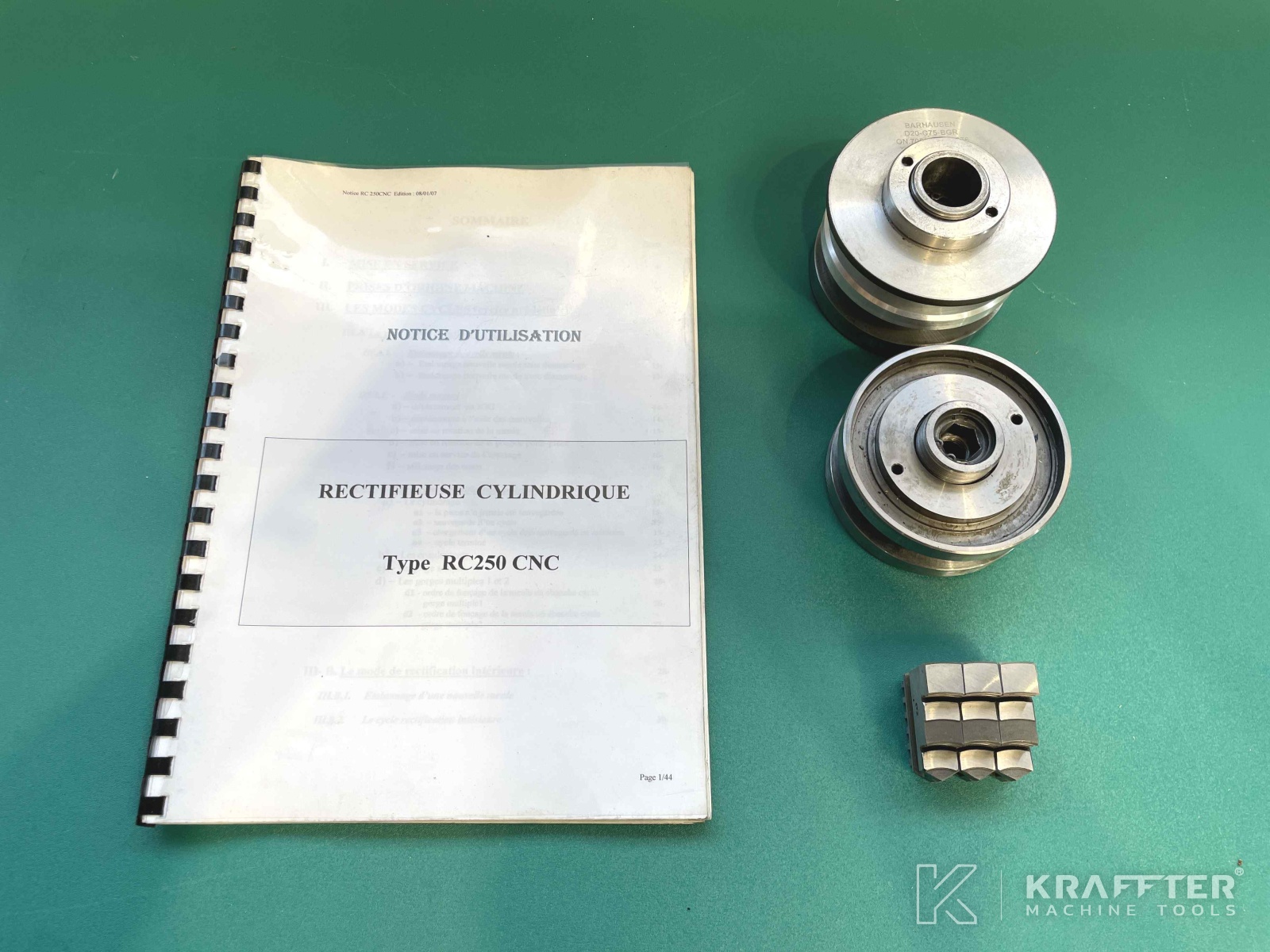

x3 grinding wheel flange
