Sold

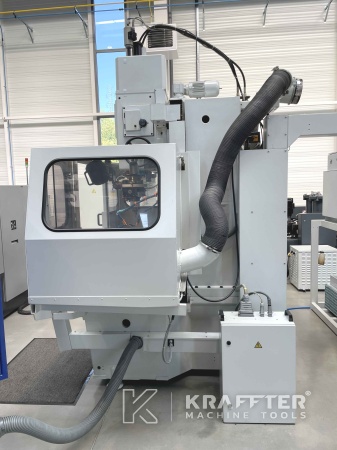

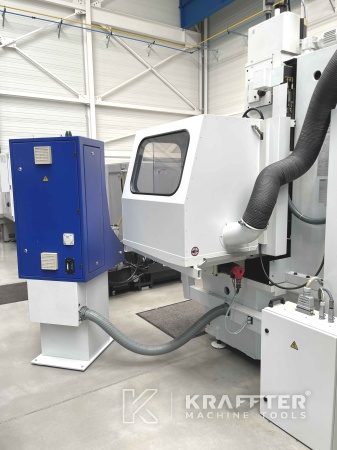

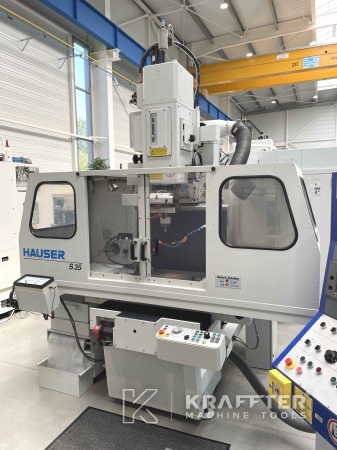

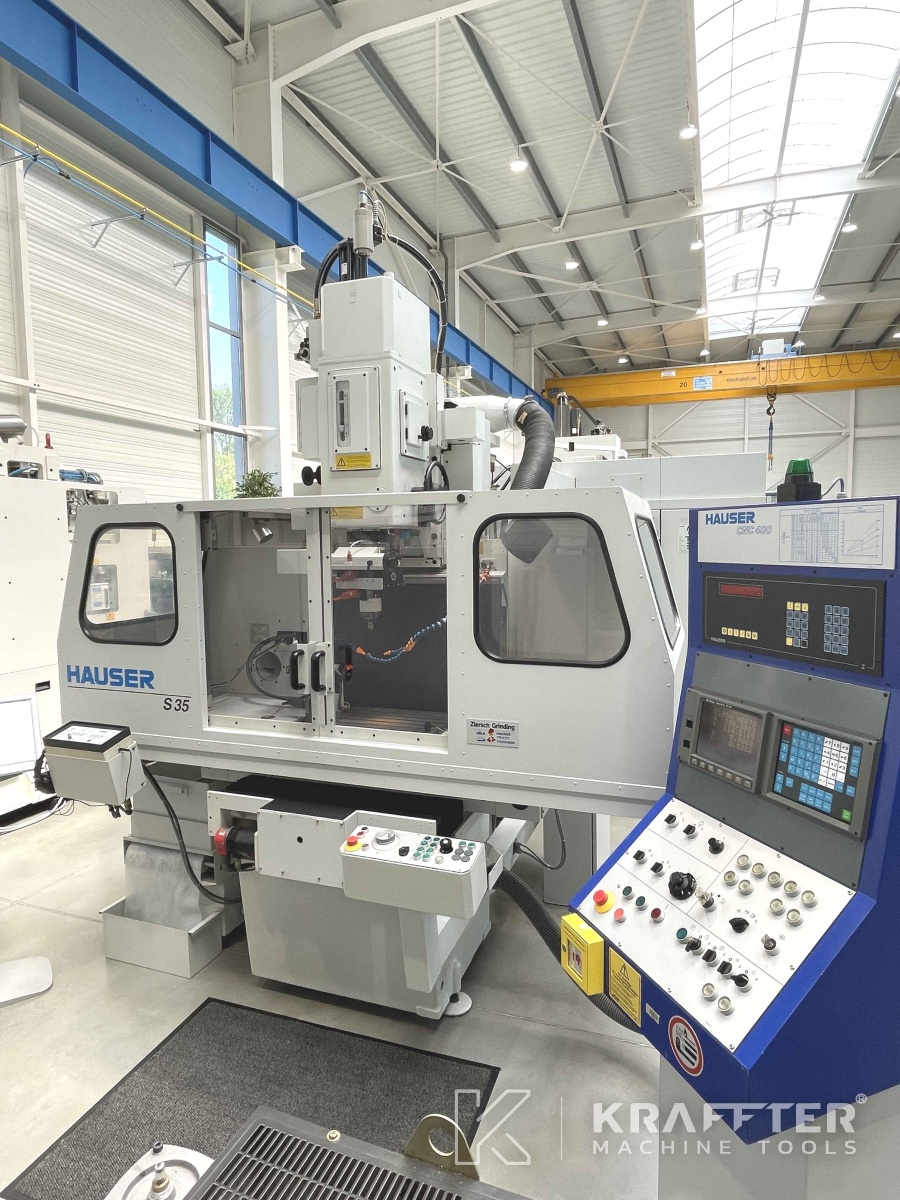

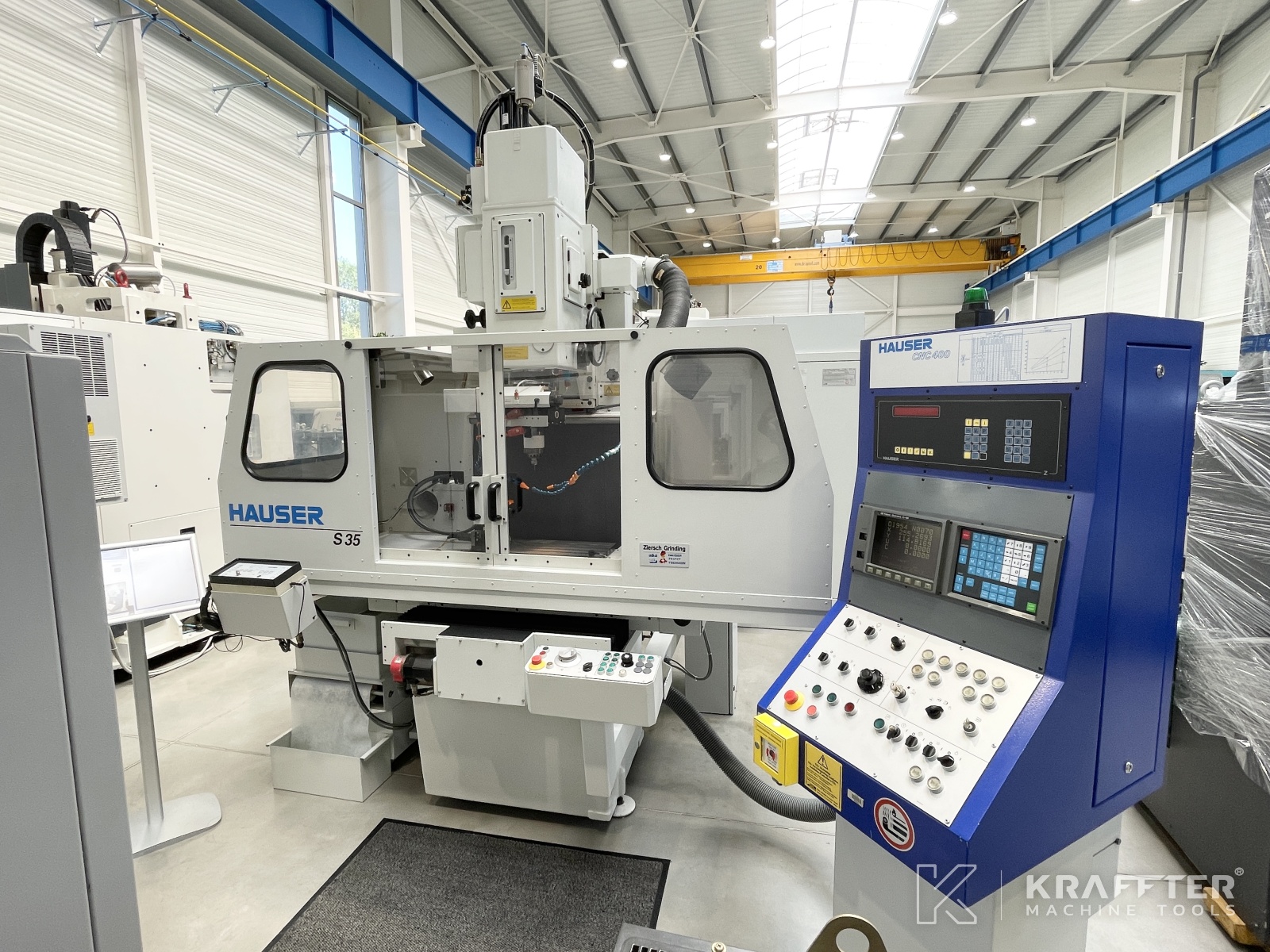

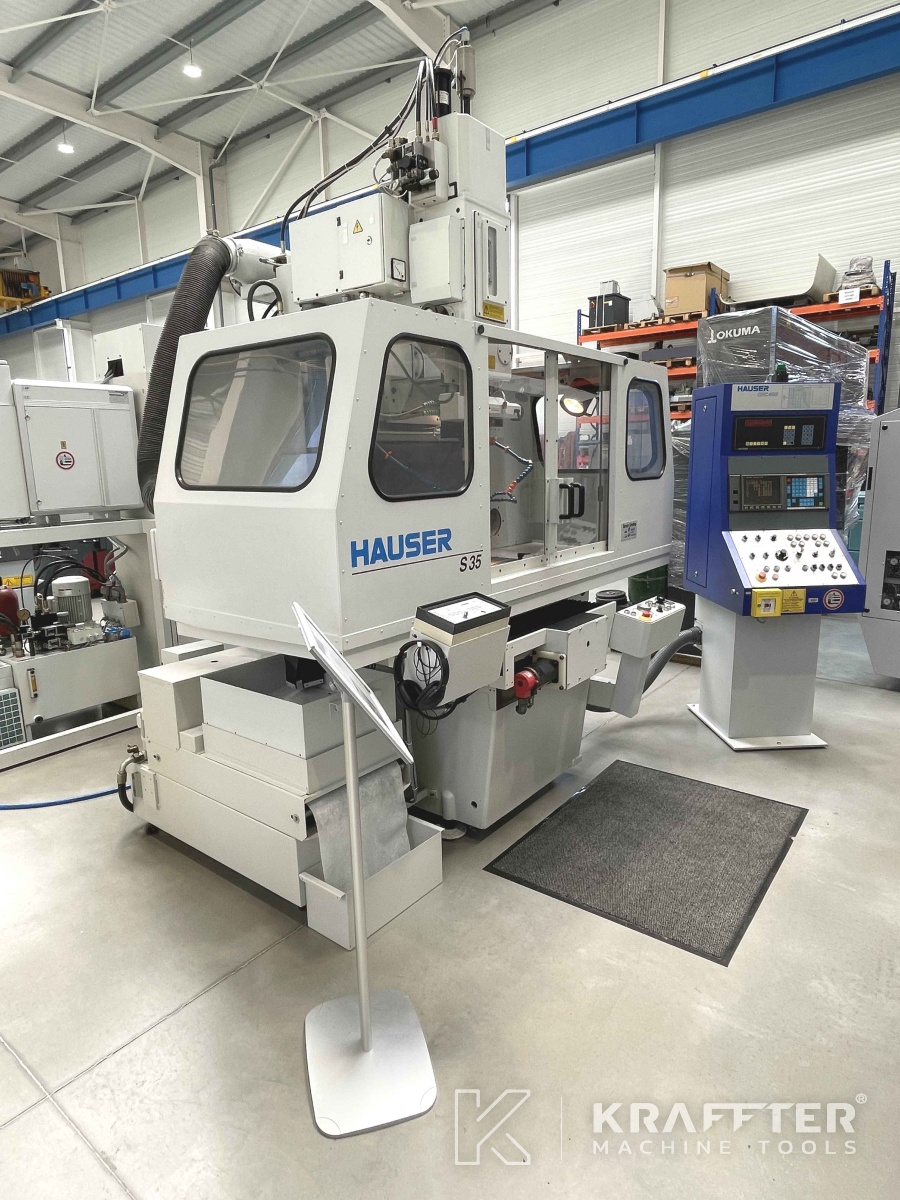

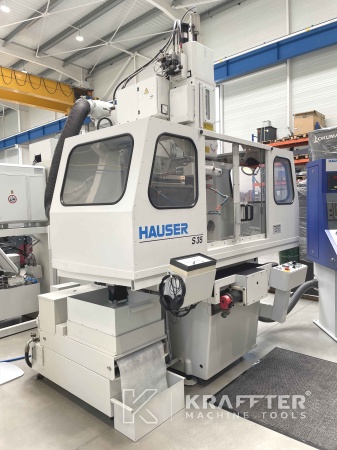

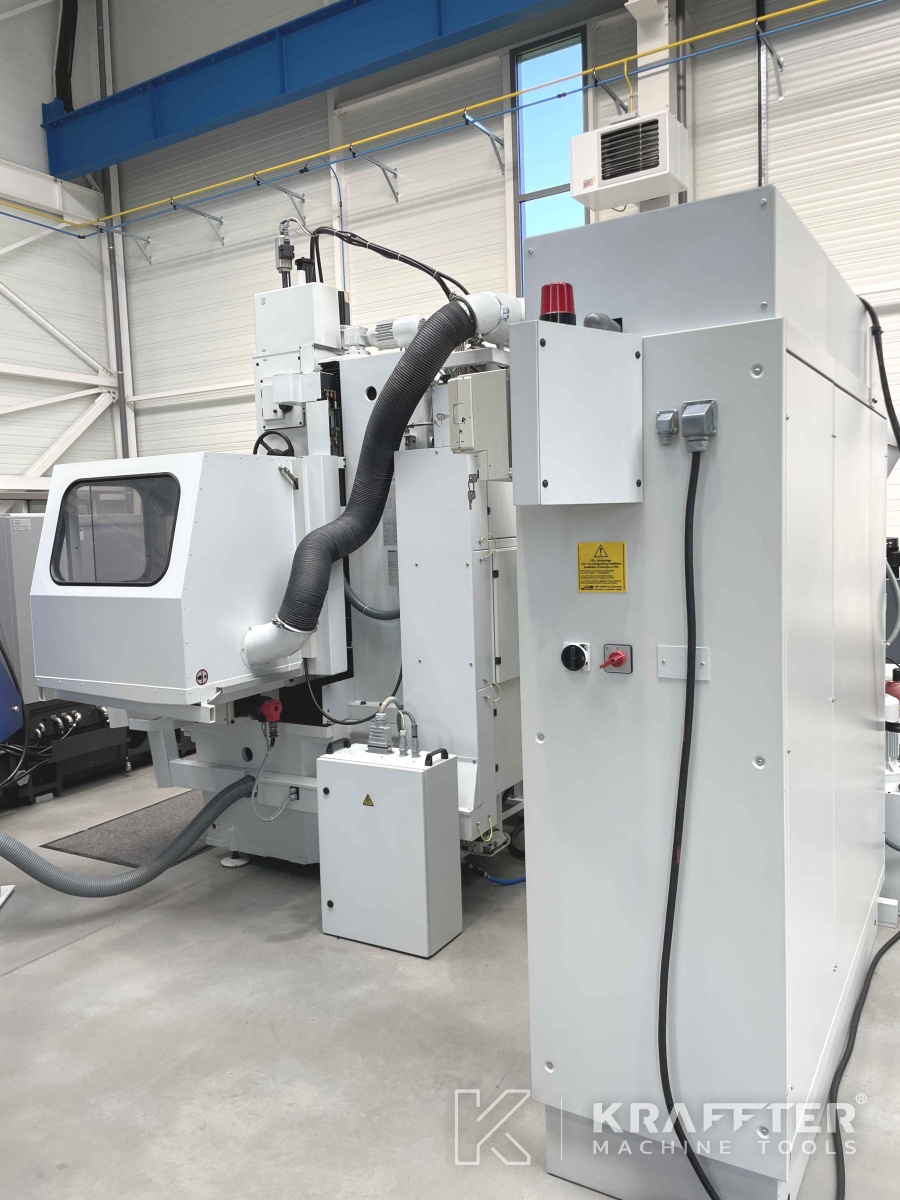

Type of machine : CNC jig grinding machine
Brand : HAUSER
Stock N° : 90064
Model : S35-400
Year : 1997
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

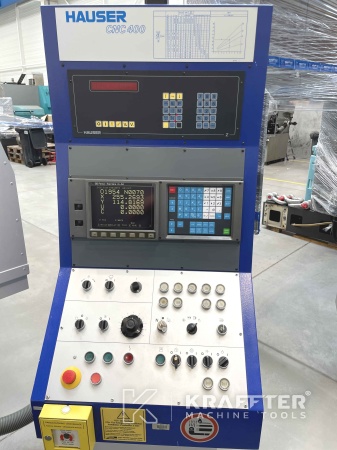

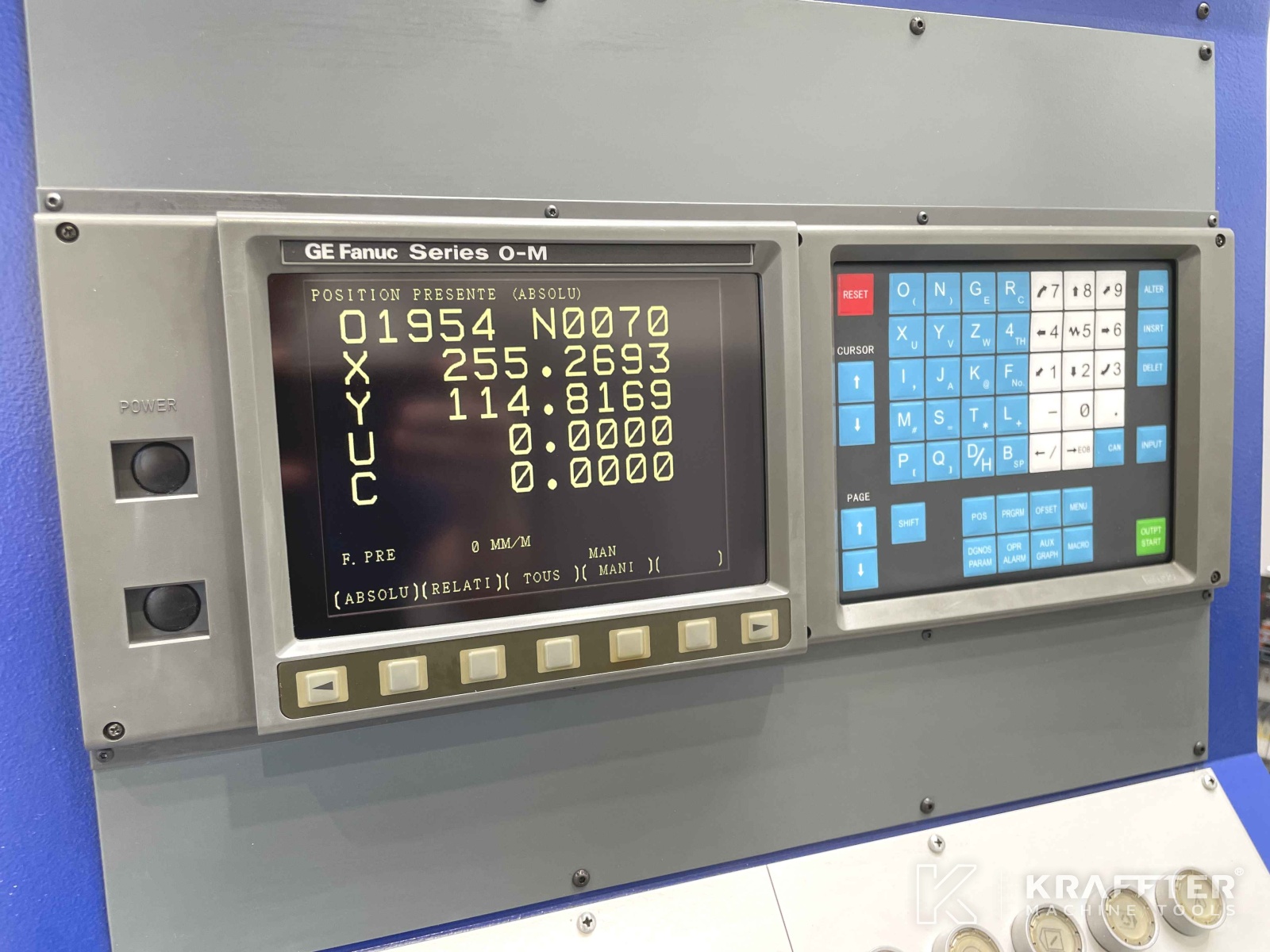

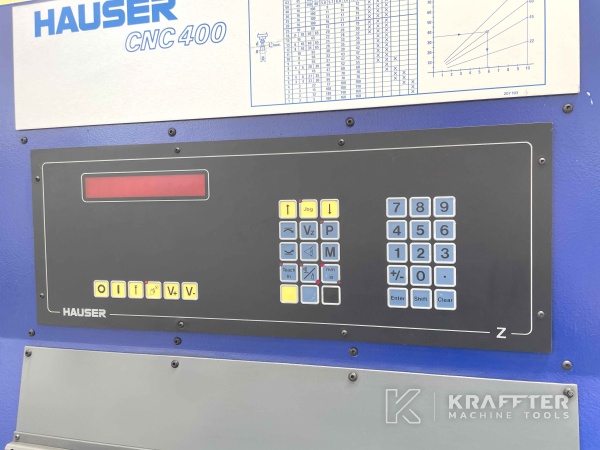

CNC control
FANUC Series O-M

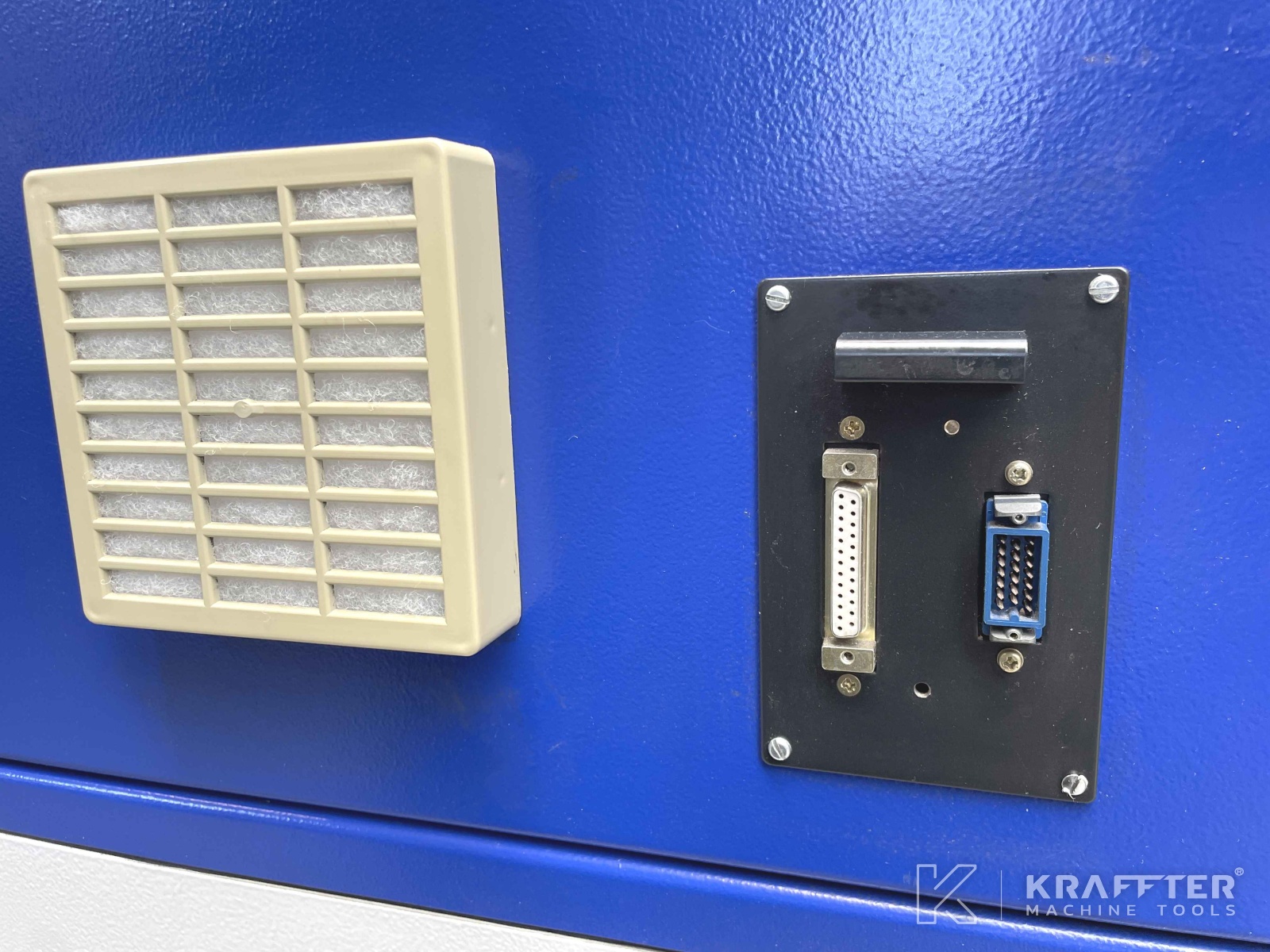

RS232 Interface
Yes
Stroke X axis
500 [mm]
Working feed X axis
0 - 1200 [mm/min]
Stroke Y axis
300 [mm]
Working feed Y axis
0 - 1200 [mm/min]
Stroke Z axis
110 [mm]
Working feed Z axis
0.5 - 12000 [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Stroke W axis
450 [mm]
Planetary speed C axis
5 - 250 [rpm]

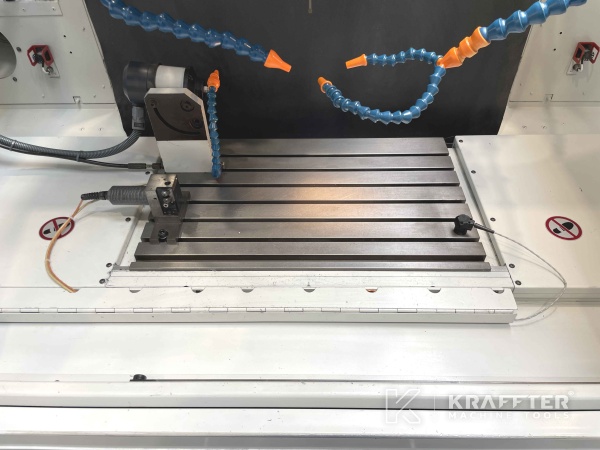

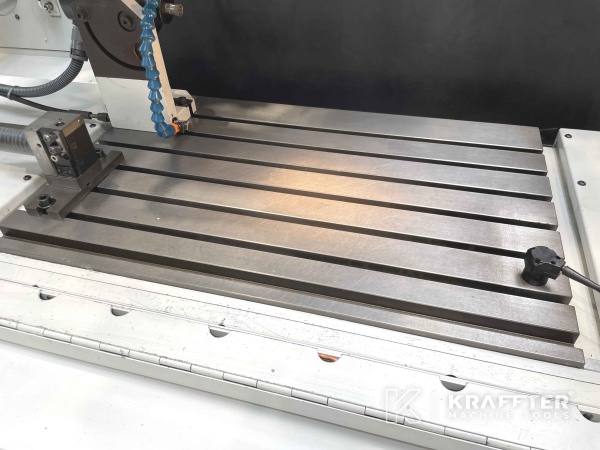

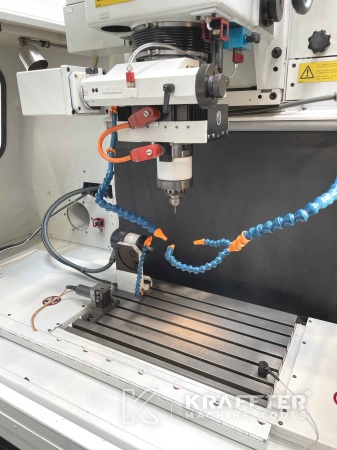

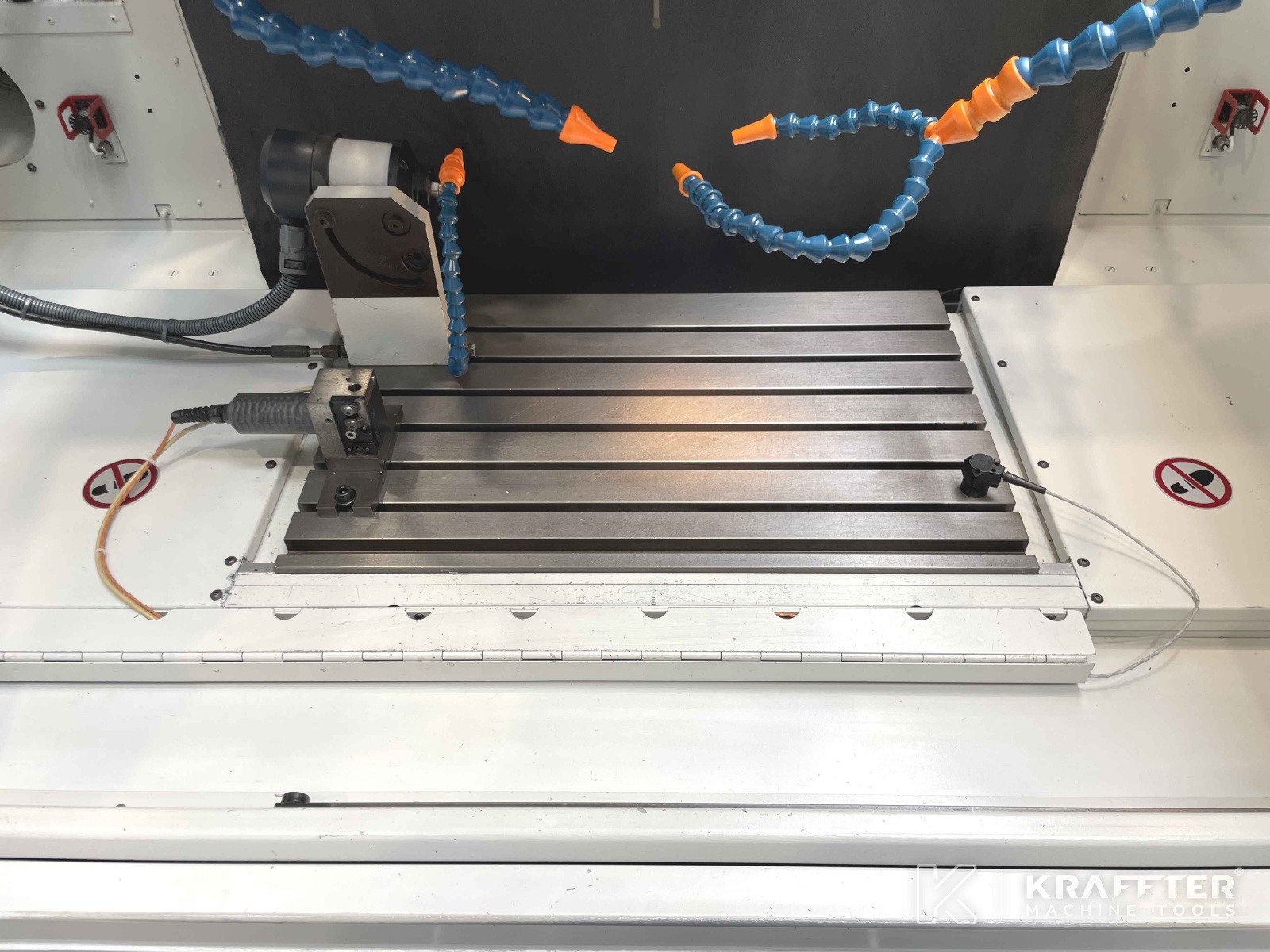

Table length
600 [mm]
Table width
380 [mm]
Max. load on table
250 [Kg]
Collant pump flow rate
60 [l/min]

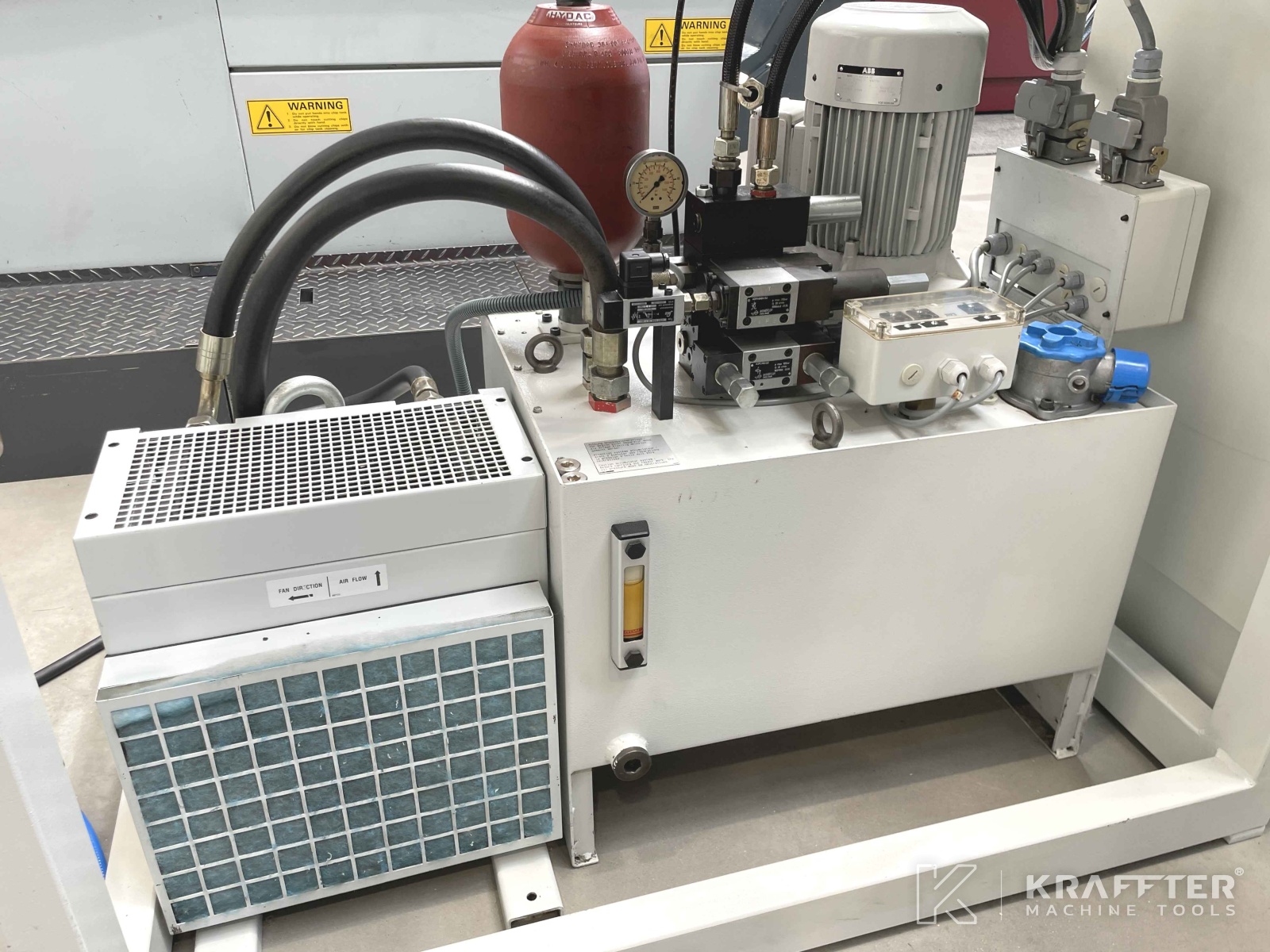

Lubrication tank capacity
125 [l]
Supply voltage
400 [V]
Total power required
10 [kVA]
Weight
4100 [Kg]
EQUIPMENT INCLUDED:

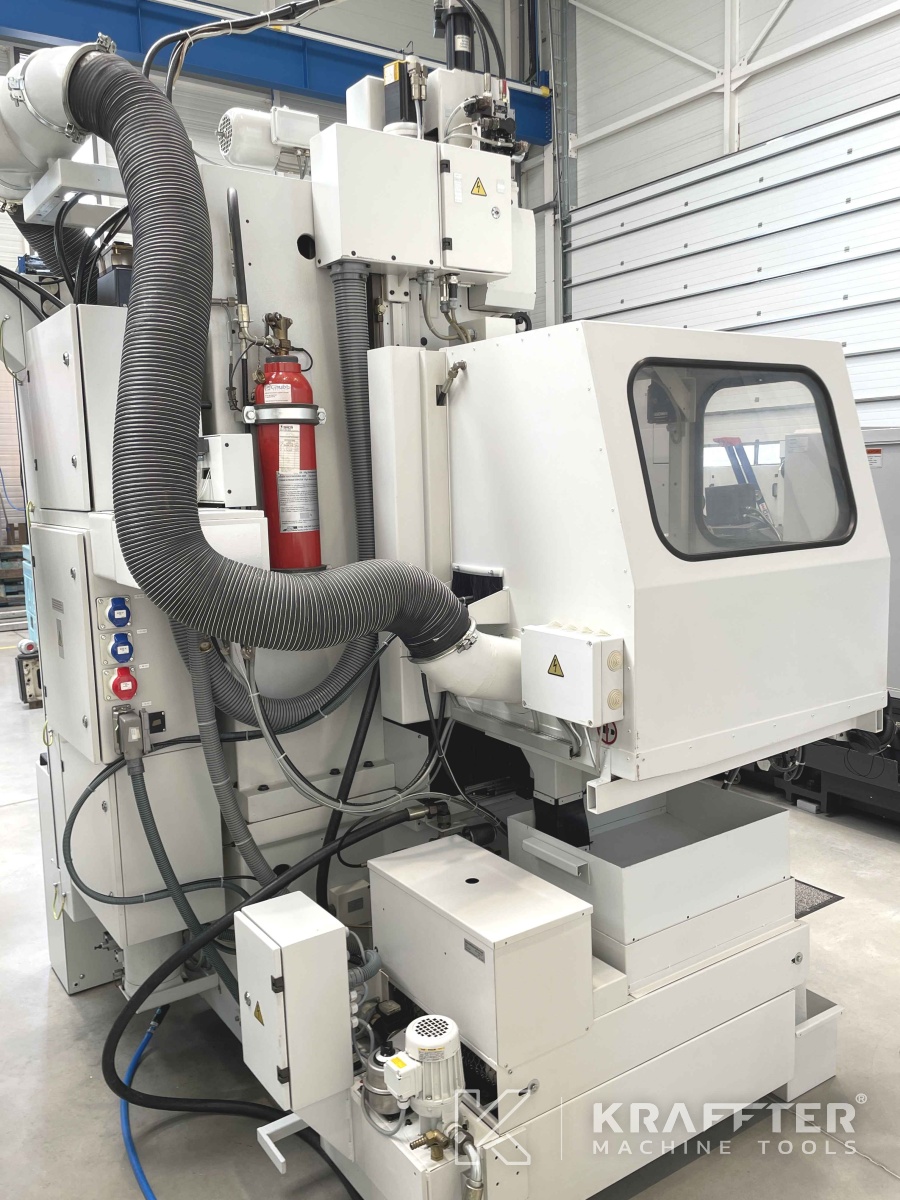

x1 HI-CUT pack including:

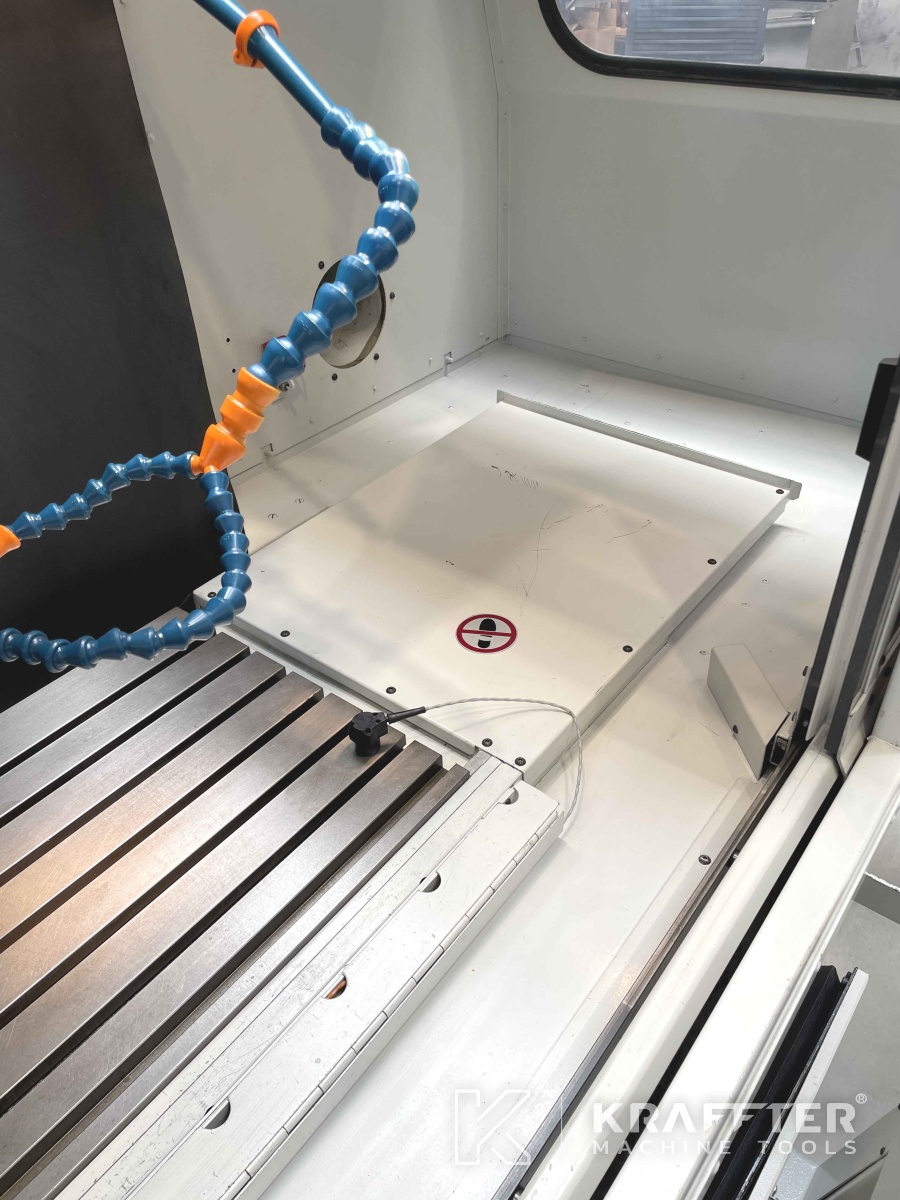

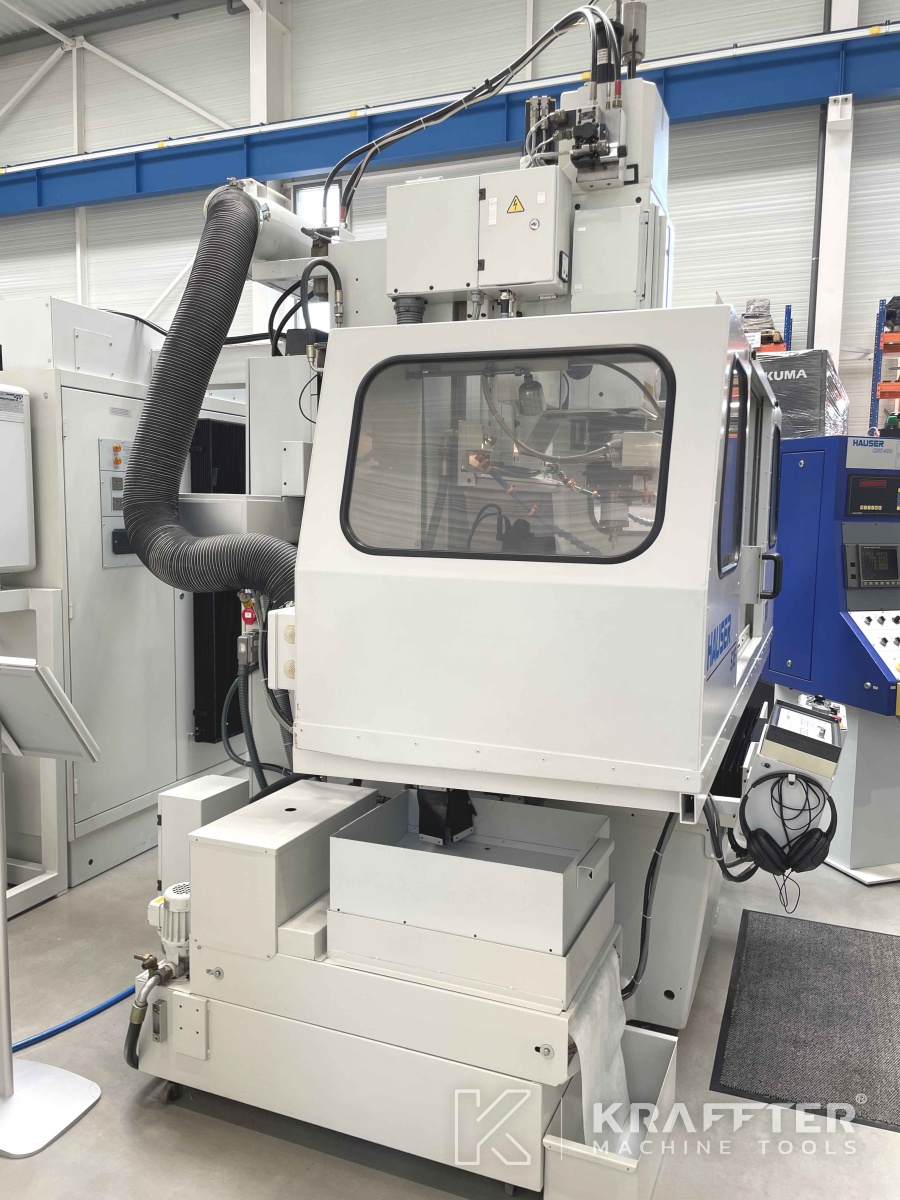

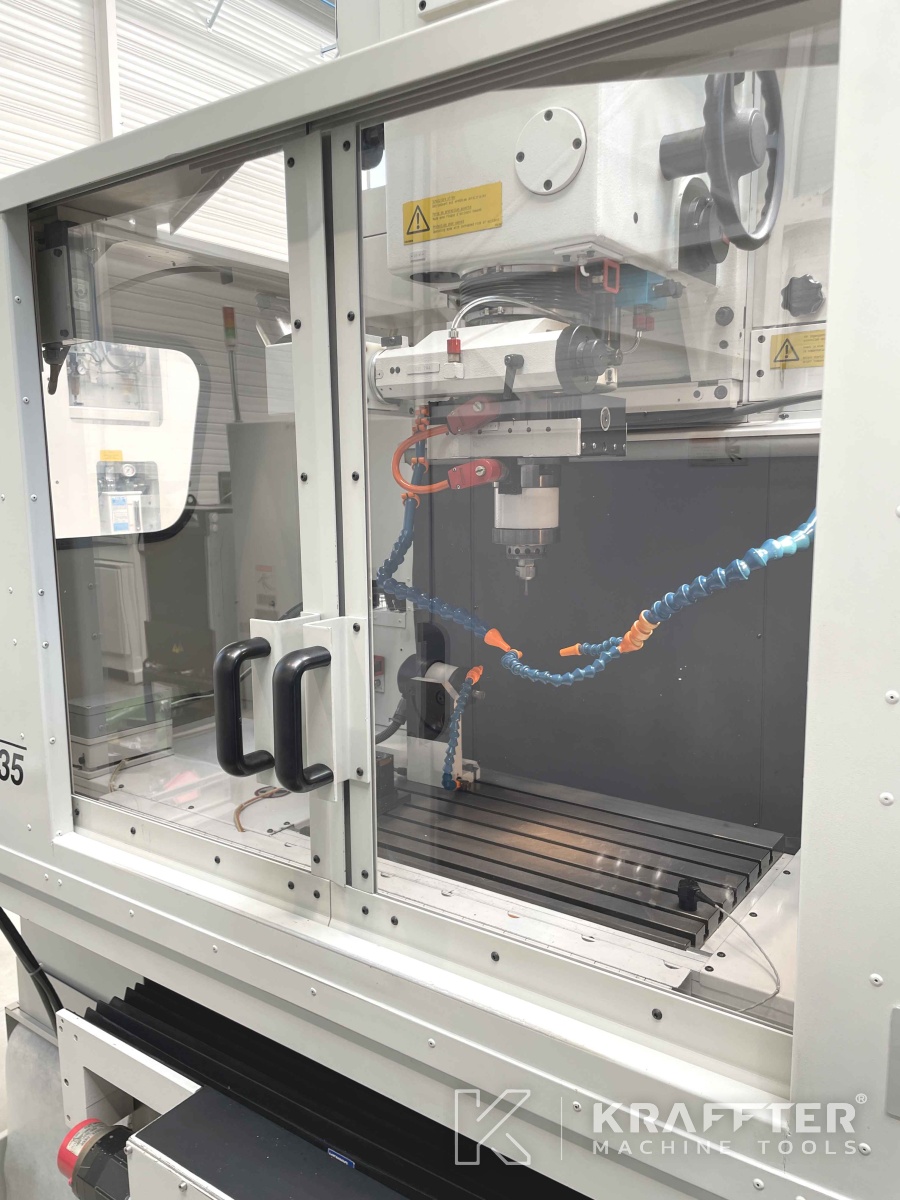

-protection of the work area

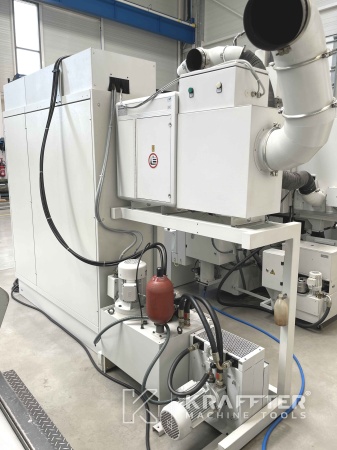

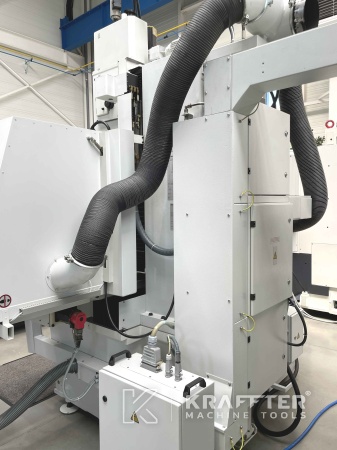

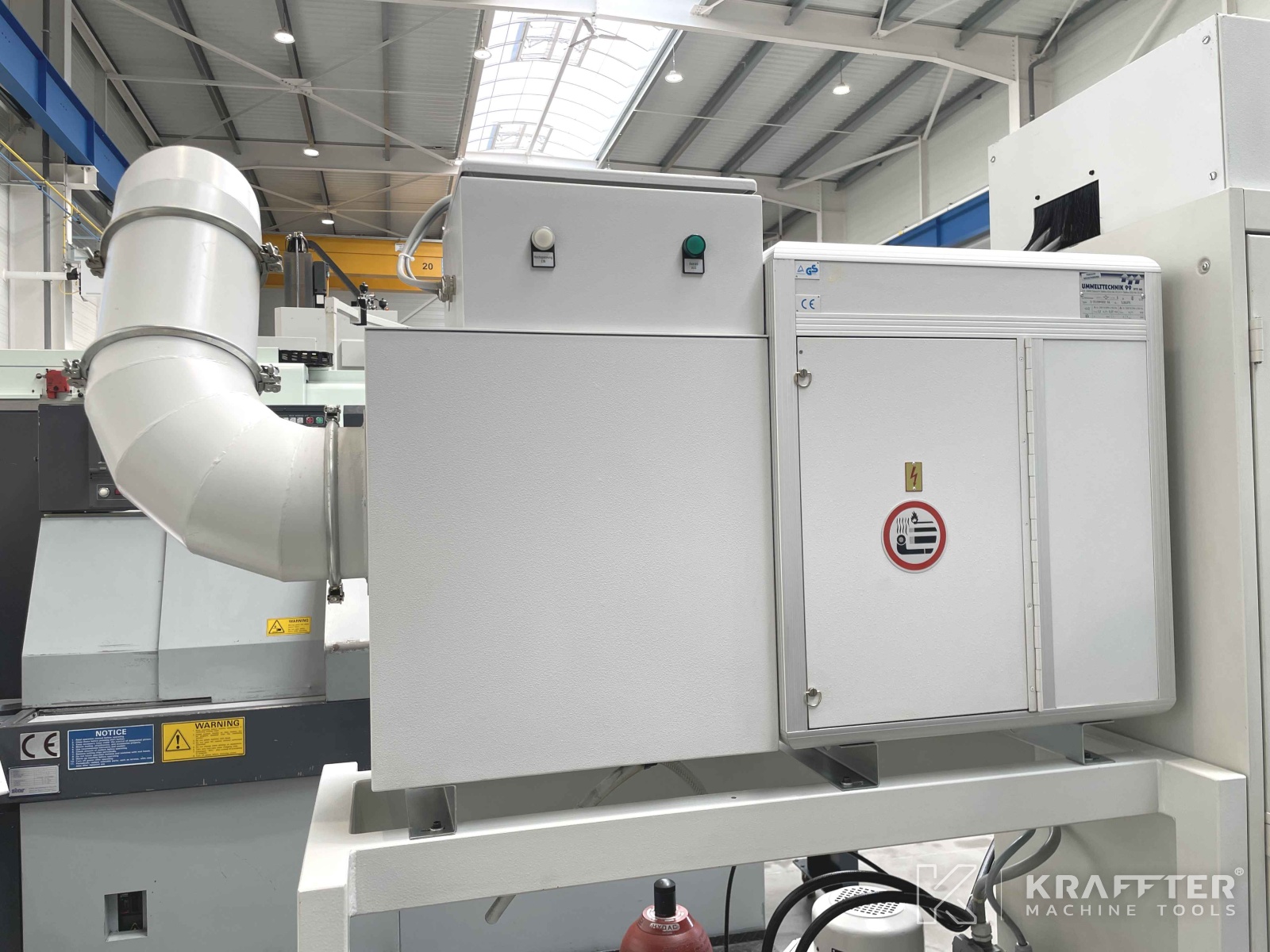

-mist extractor with electrostatic air filter

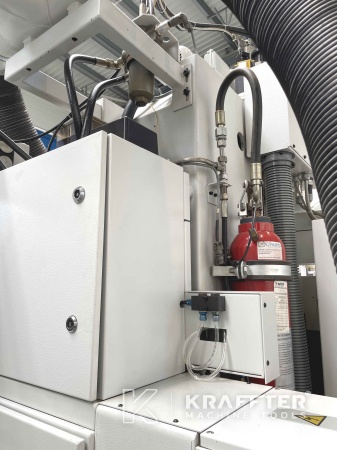

-fire protection system (to be inspected by a qualified organization)

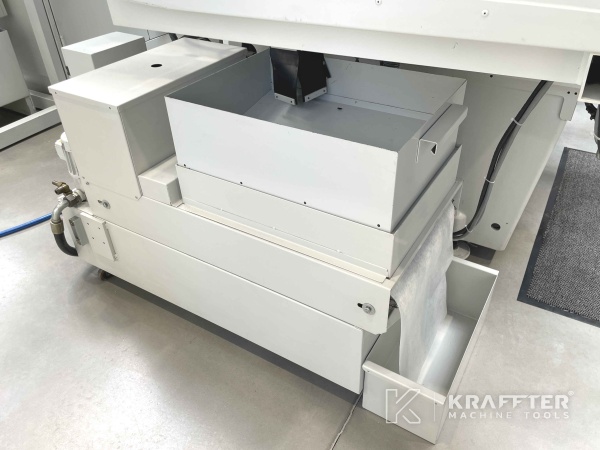

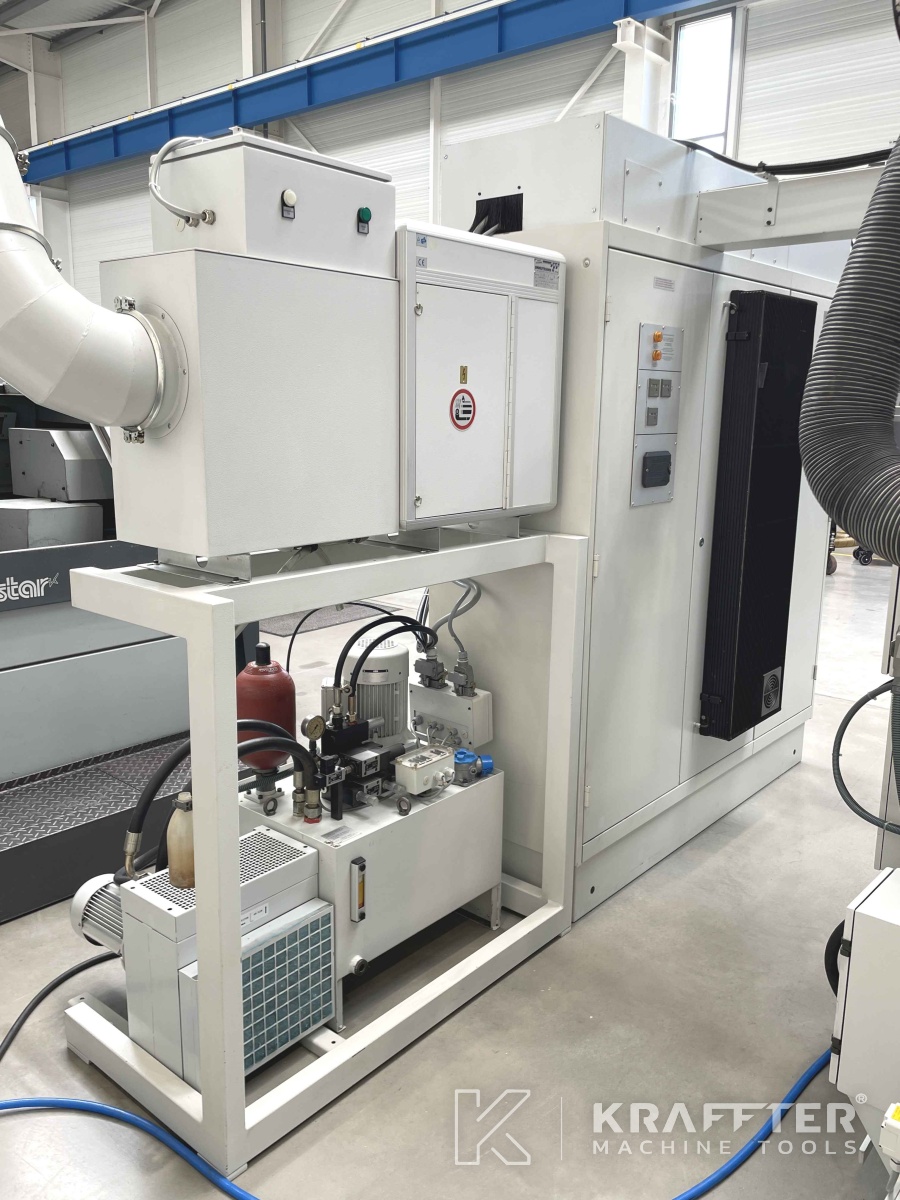

-Cooling unit (tank + pump) with automatic belt filter HTG-RWS-60

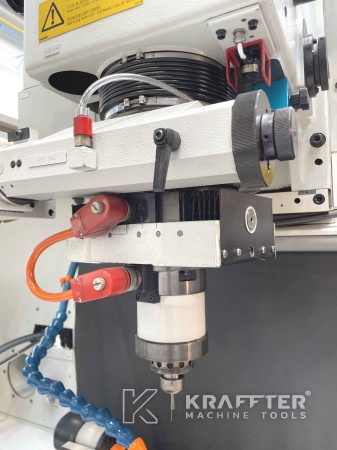

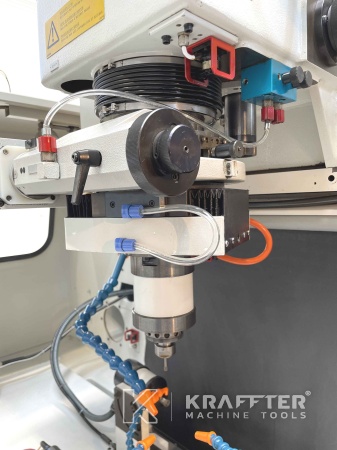

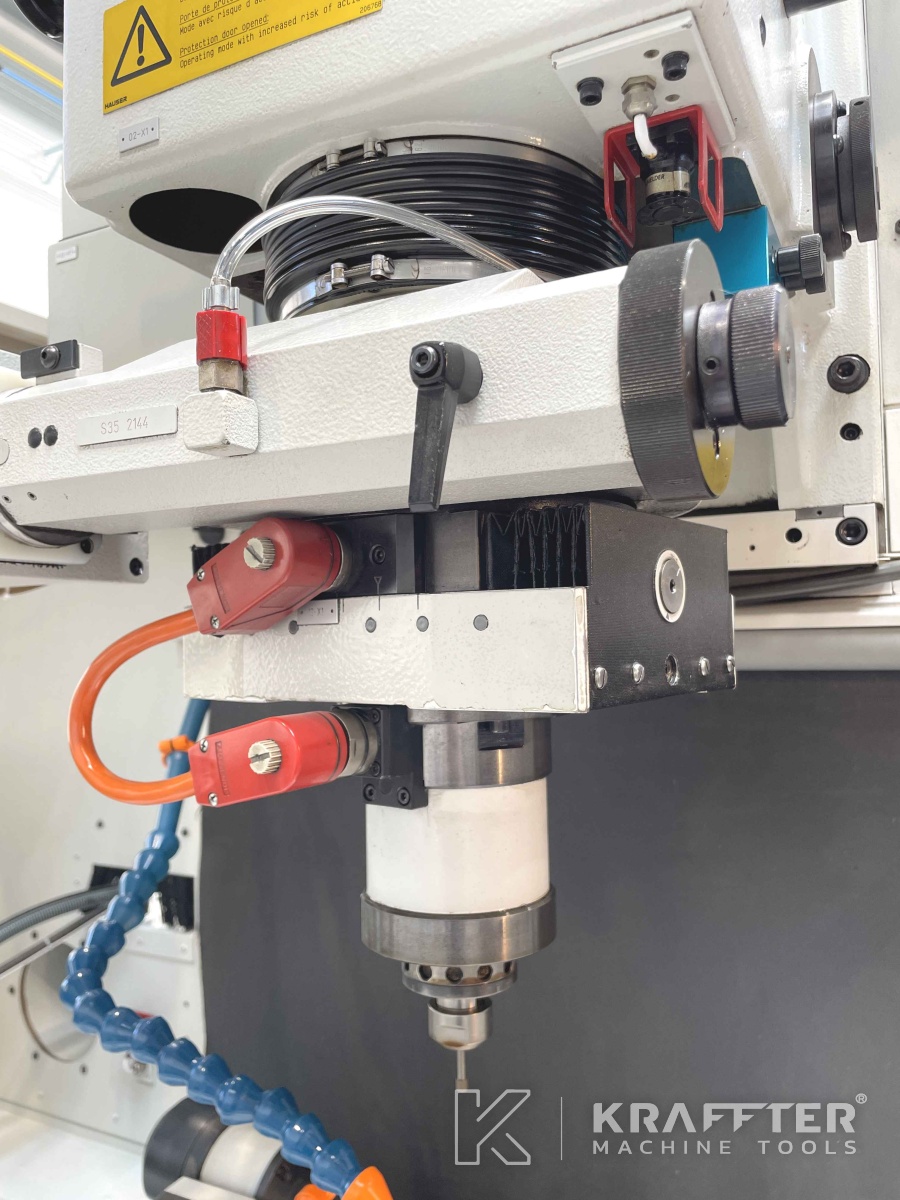

x1 45S grinding motor, speed 9000 - 45000 [rpm], for EX19 collets
x1 cable for grinding motor

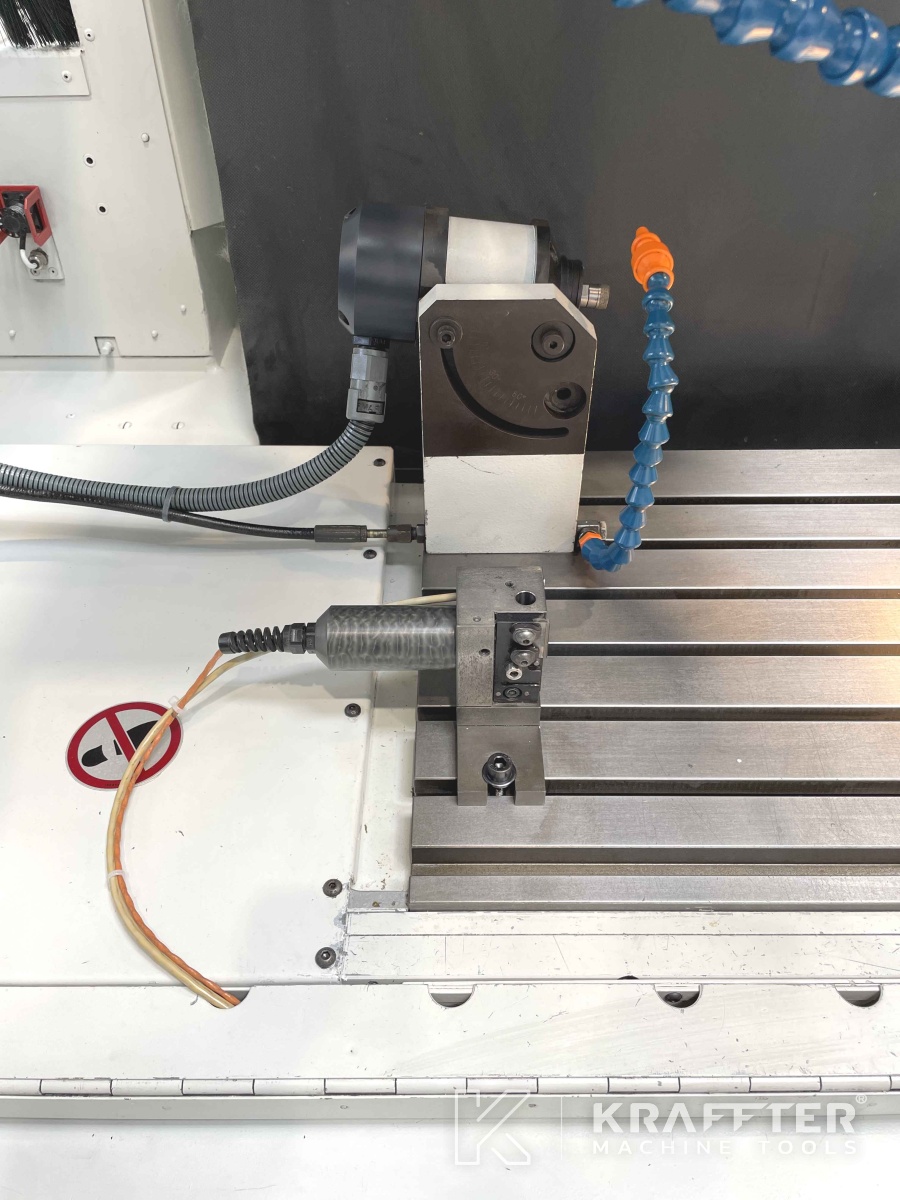

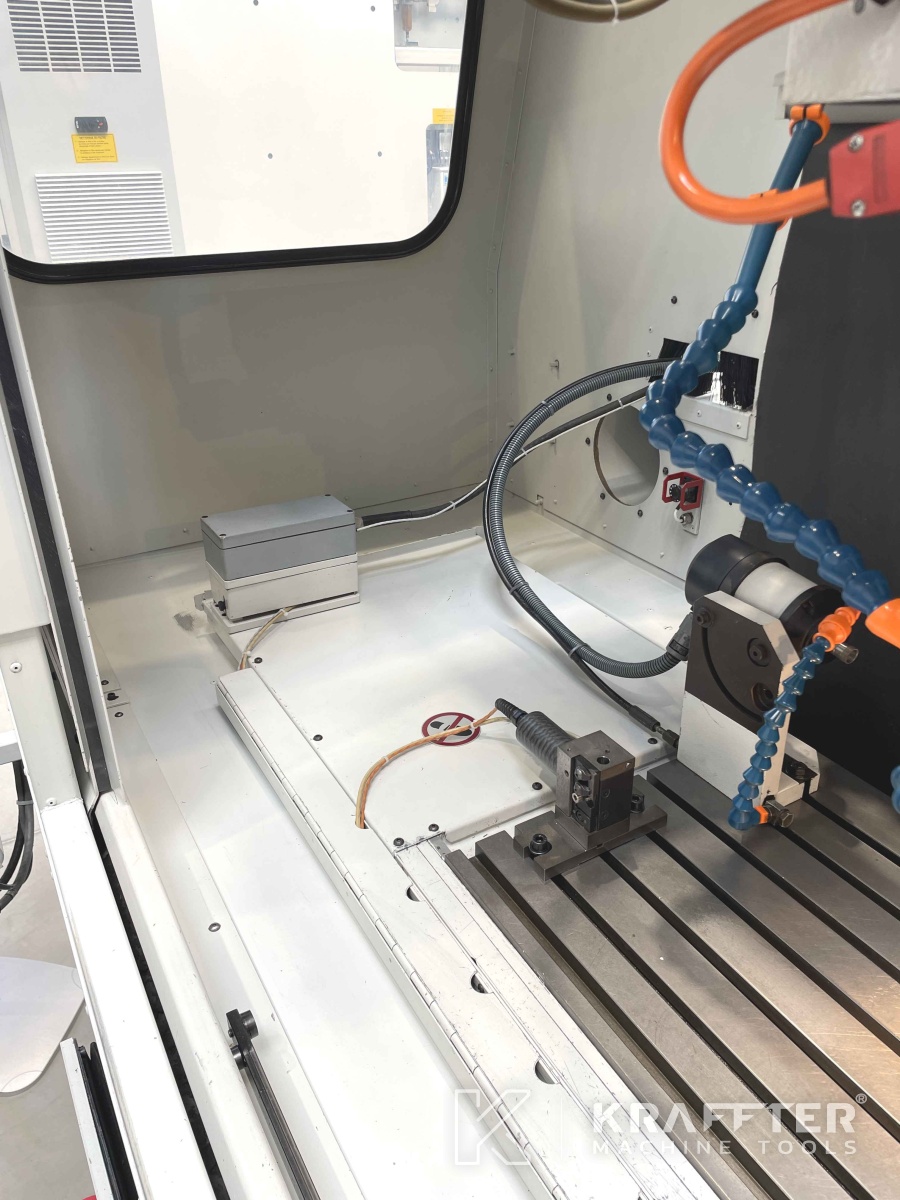

x1 MSS (Multi-Sensoric System) tool detection device
x1 HF dressing device for CBN - 0° to 90° - 16000 [rpm]
