Sold

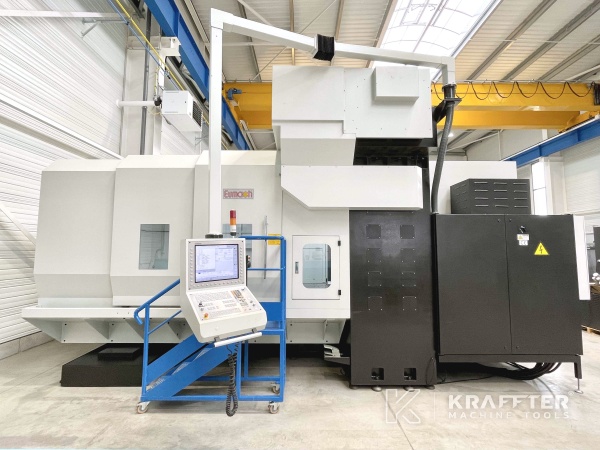

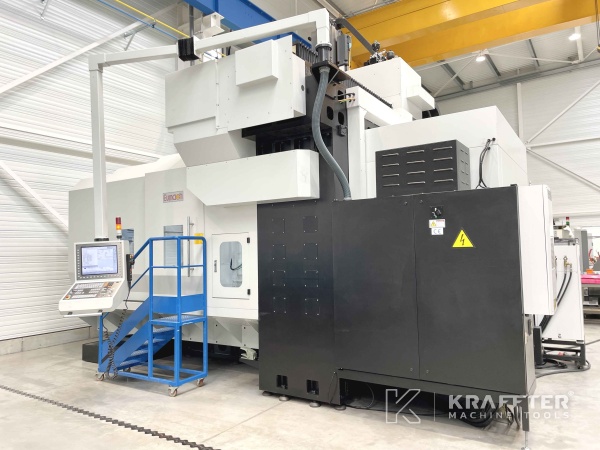

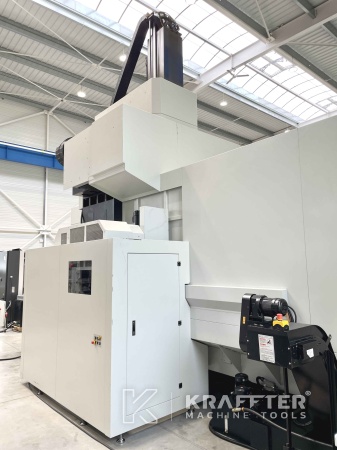

Type of machine : Vertical machining center
Brand : EUMACH
Stock N° : 90082
Model : DVM 2021
Year : 2016
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

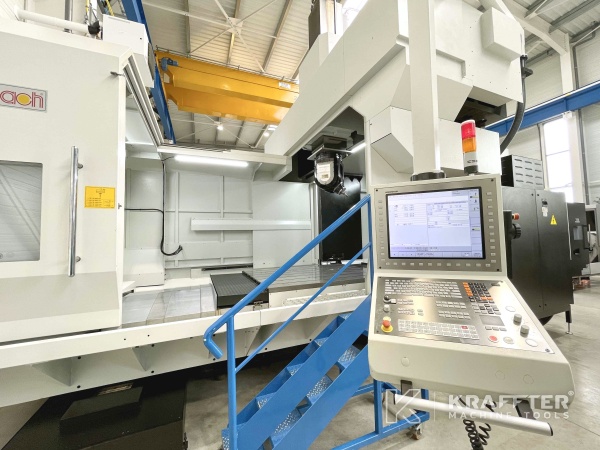

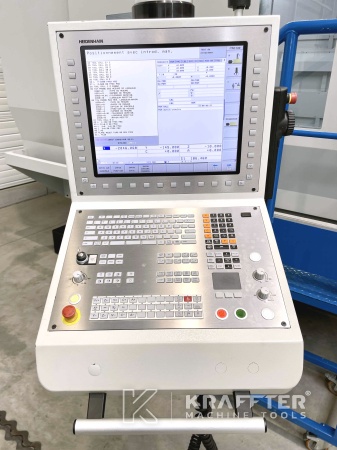

CNC control
HEIDENHAIN iTNC 530
Number of simultaneous axes
5
Stroke X axis
2150 [mm]
Stroke Y axis
2200 [mm]
Stroke Z axis
1100 [mm]
Distance between columns
2130 [mm]
Feed rate on X, Y and Z axes
8000 [mm/min]
Traversing feeds X, Y and Z axes
15000 [mm/min]
Angular A axis stroke
+/- 110 [°]
Angular C axis stroke
360 [°]
Max. distance spindle nose / table
1330 [mm]

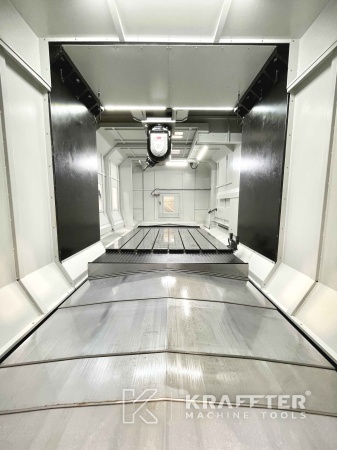

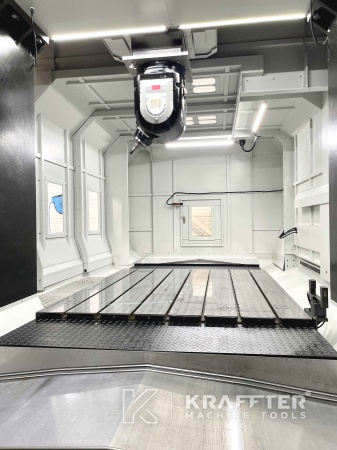

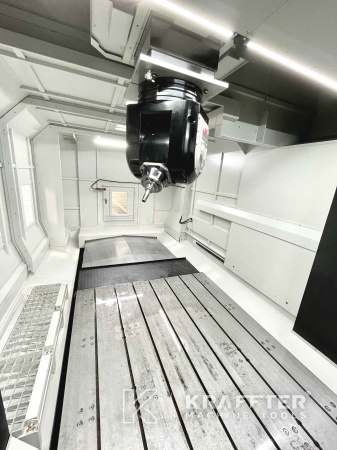

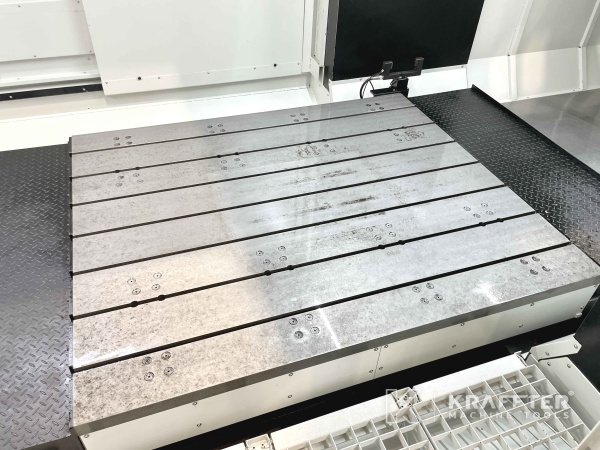

Table length
2000 [mm]
Table width
1700 [mm]
Max. load on table
8000 [Kg]
Spindle type
HSK-A63
Max. spindle speed
18000 [rpm]
Spindle power
21 [kW]
Tool changer magazin number of stations
32
Total power required
65 [kVA]
Supply voltage
400 [V]
Number of running hours
6066 [h]
Number of hours under power
15363 [h]
Weight
33000 [Kg]

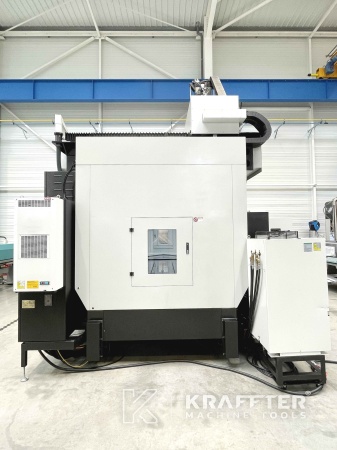

Machine dimensions
7250 x 4900 x 5930 [mm]
EQUIPMENT INCLUDED:
x3 HEIDENHAIN glass scales (X, Y and Z axes)
x1 coolant through spindle

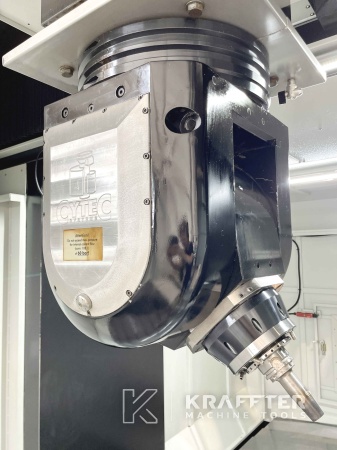

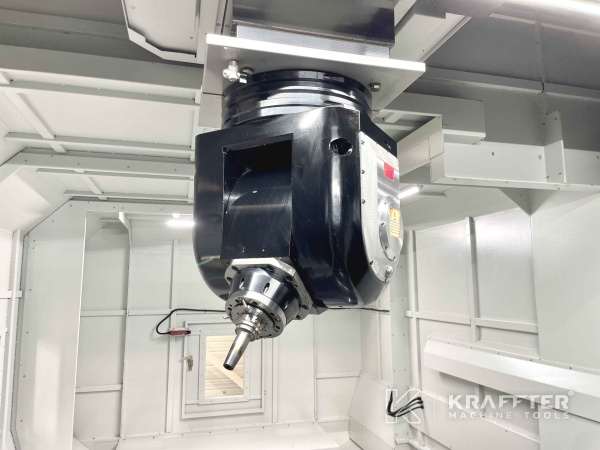

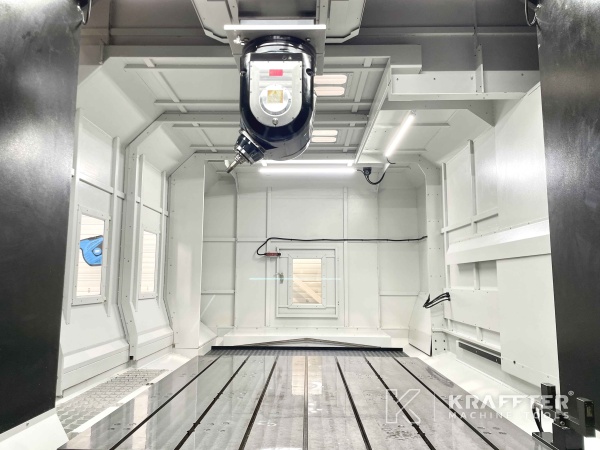

x1 simultaneous 2 axis fork type milling head (A + C) CYTEC type M21

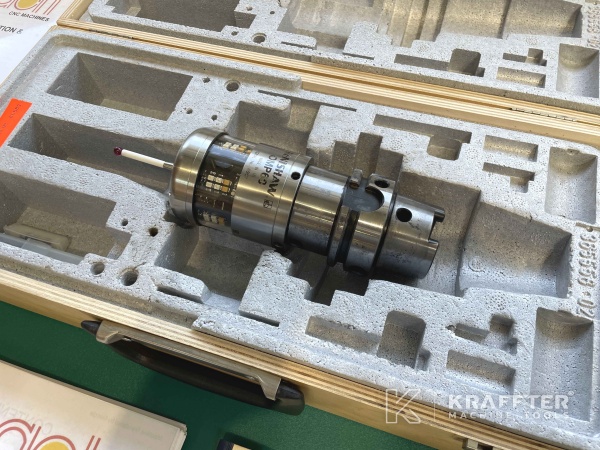

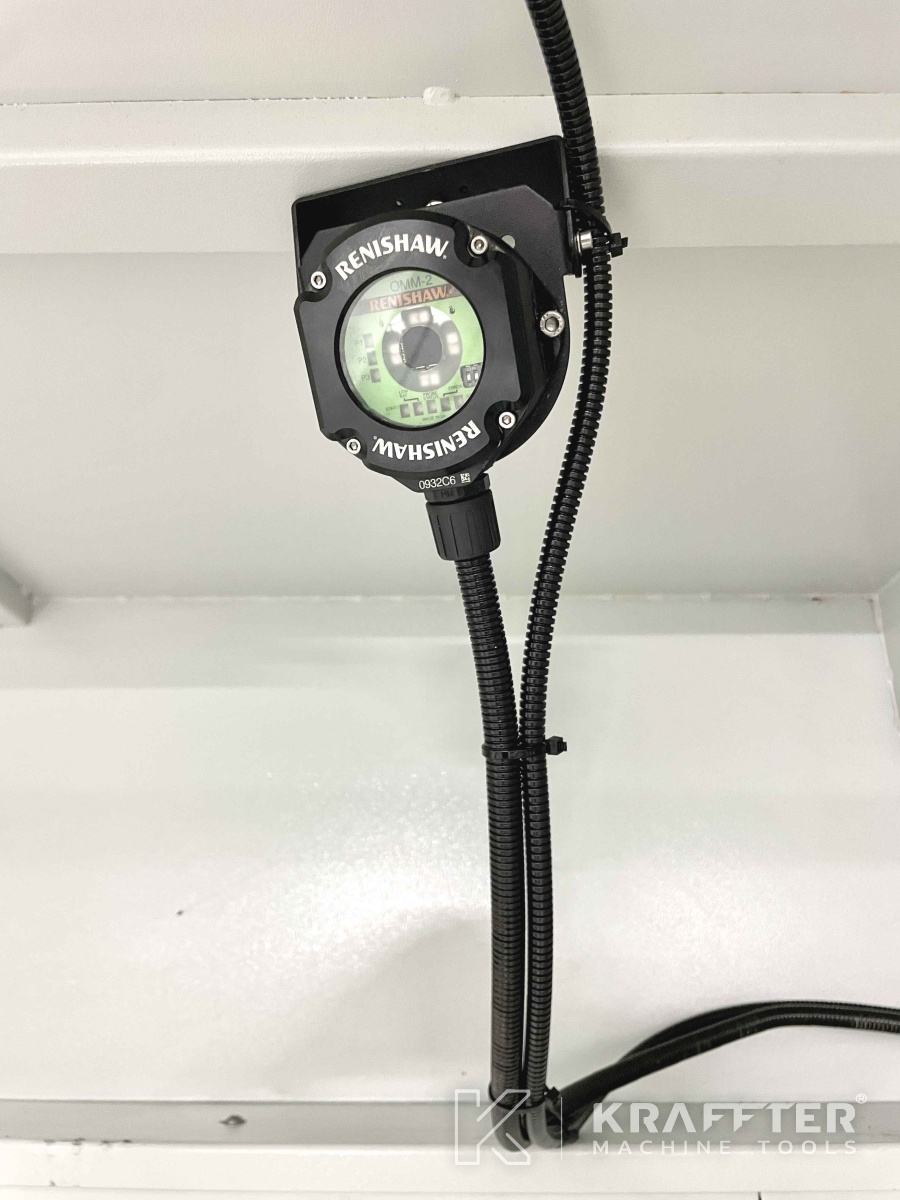

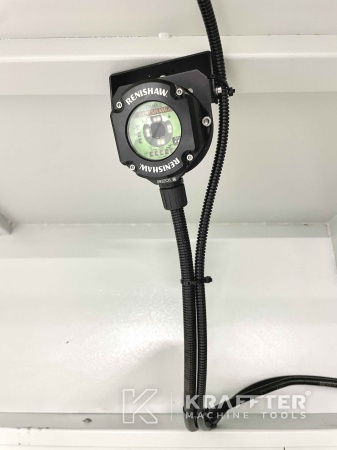

x1 RENISHAW OMP60 part probe

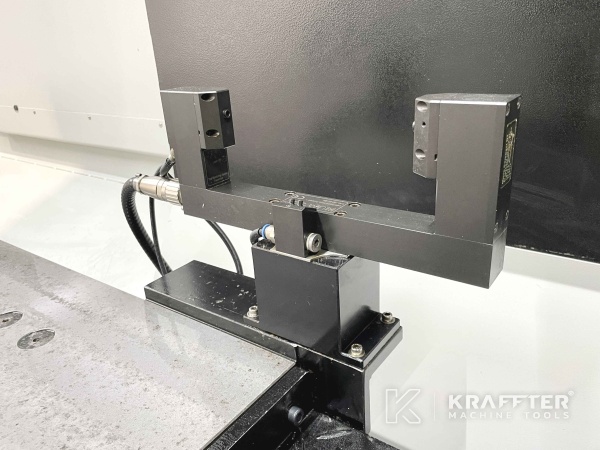

x1 BLUM laser system for tool setting and tool breakage detection

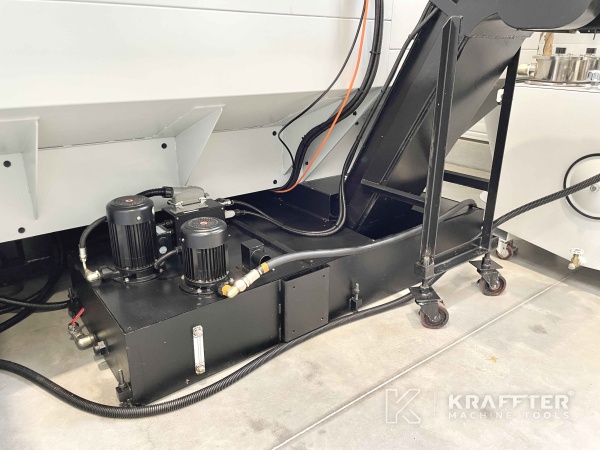

x1 chip conveyor

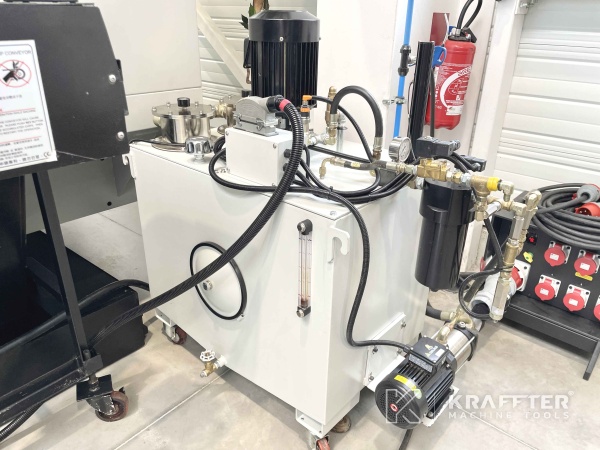

x1 coolant liquid filtration unit
Optional 4 guide ways on the X axis
Optional patented 420 x 420 [mm] section ram on the Z axis
