Sold

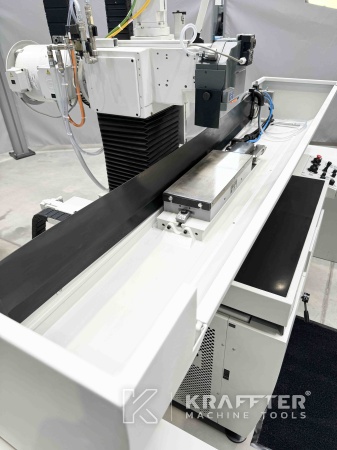

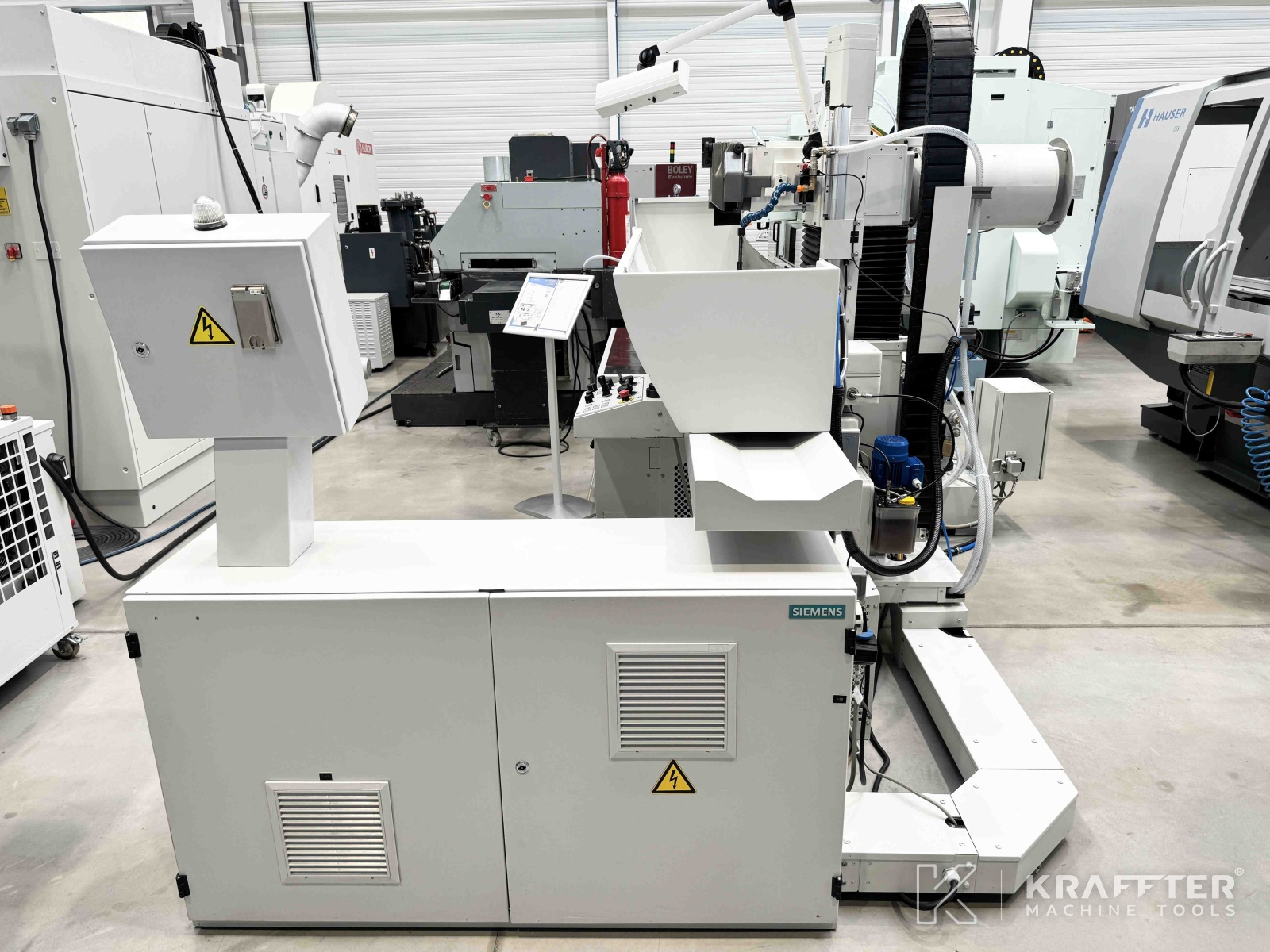

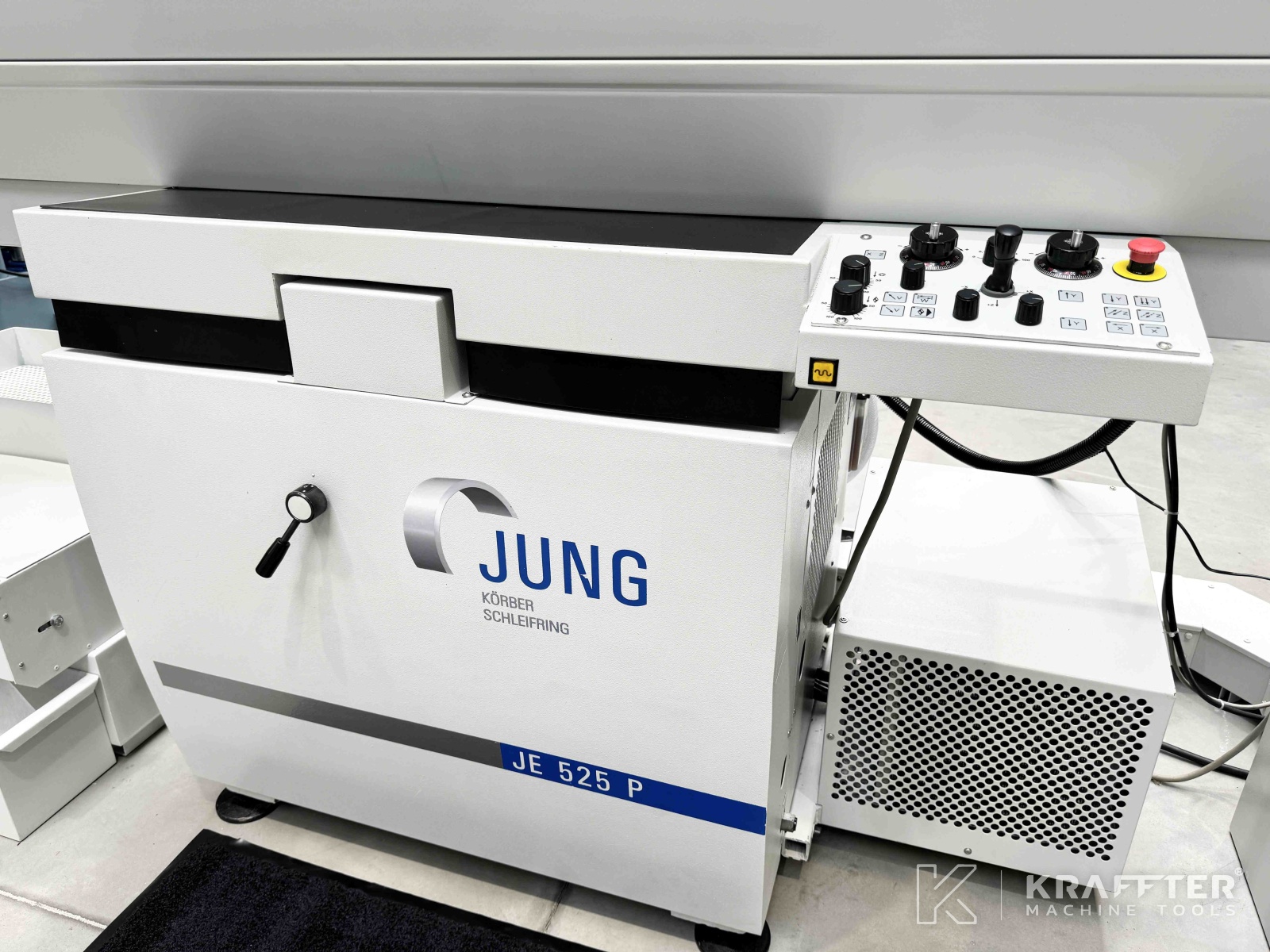

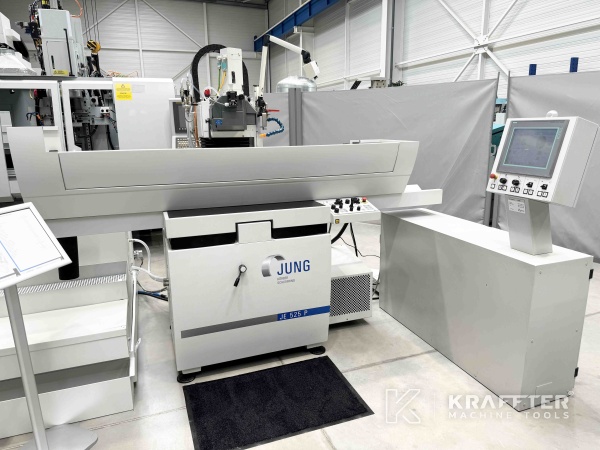

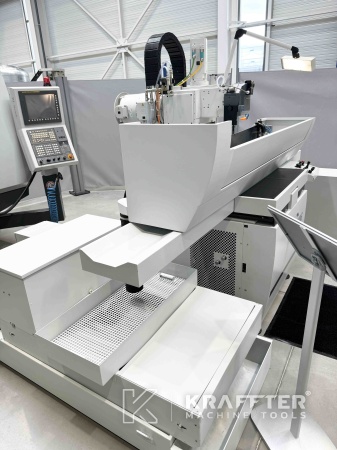

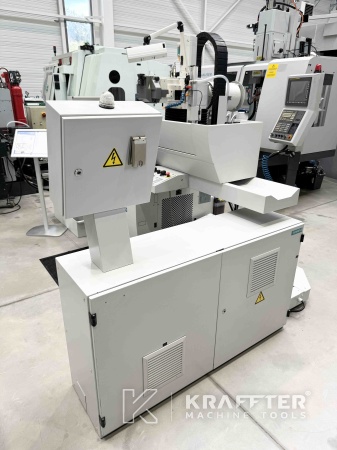

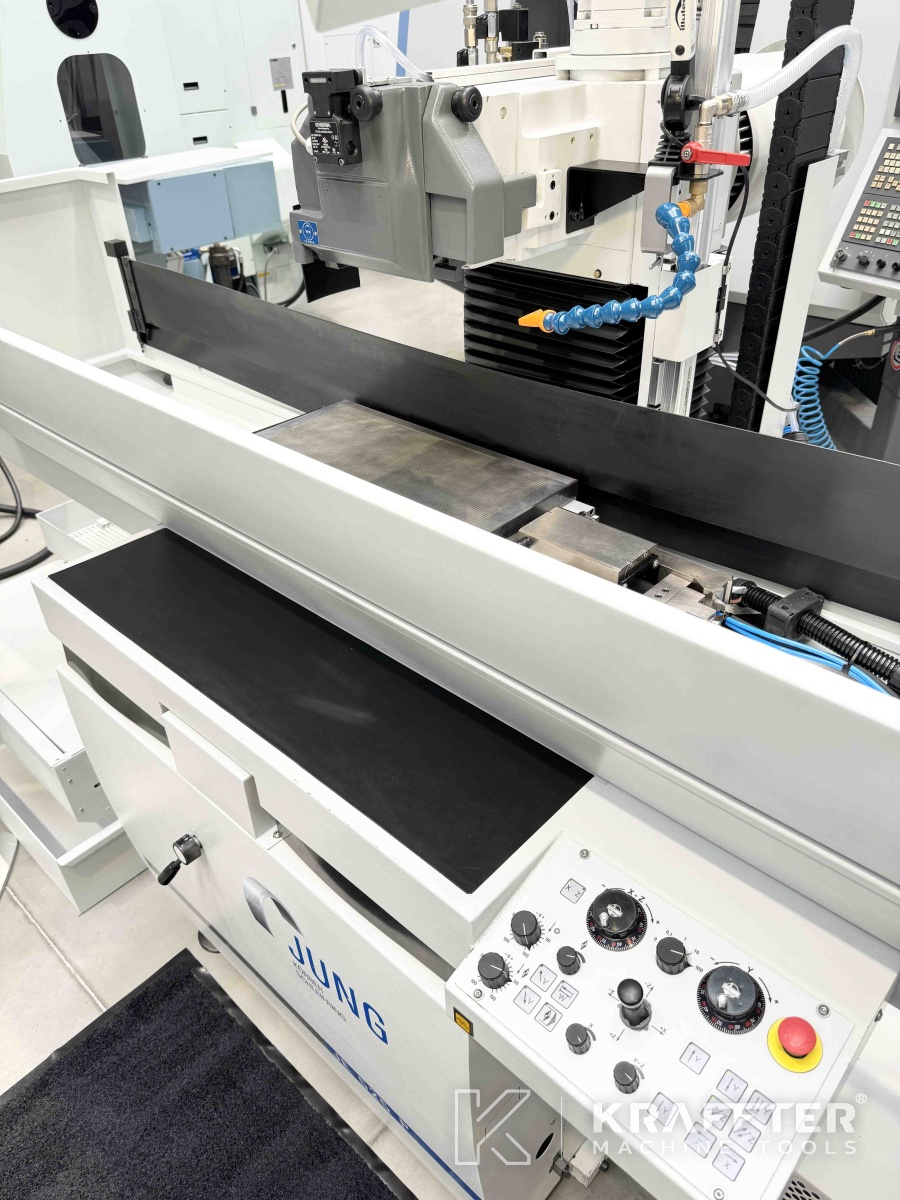

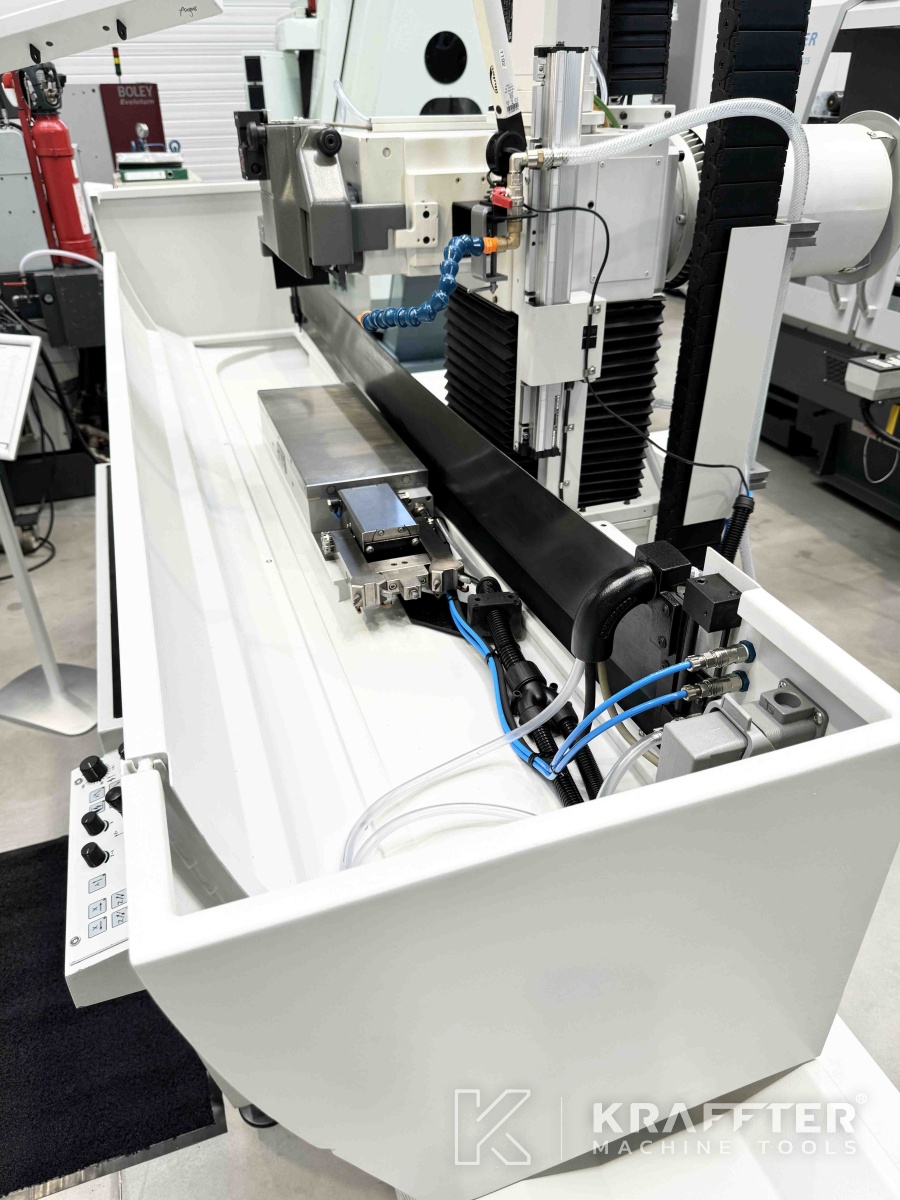

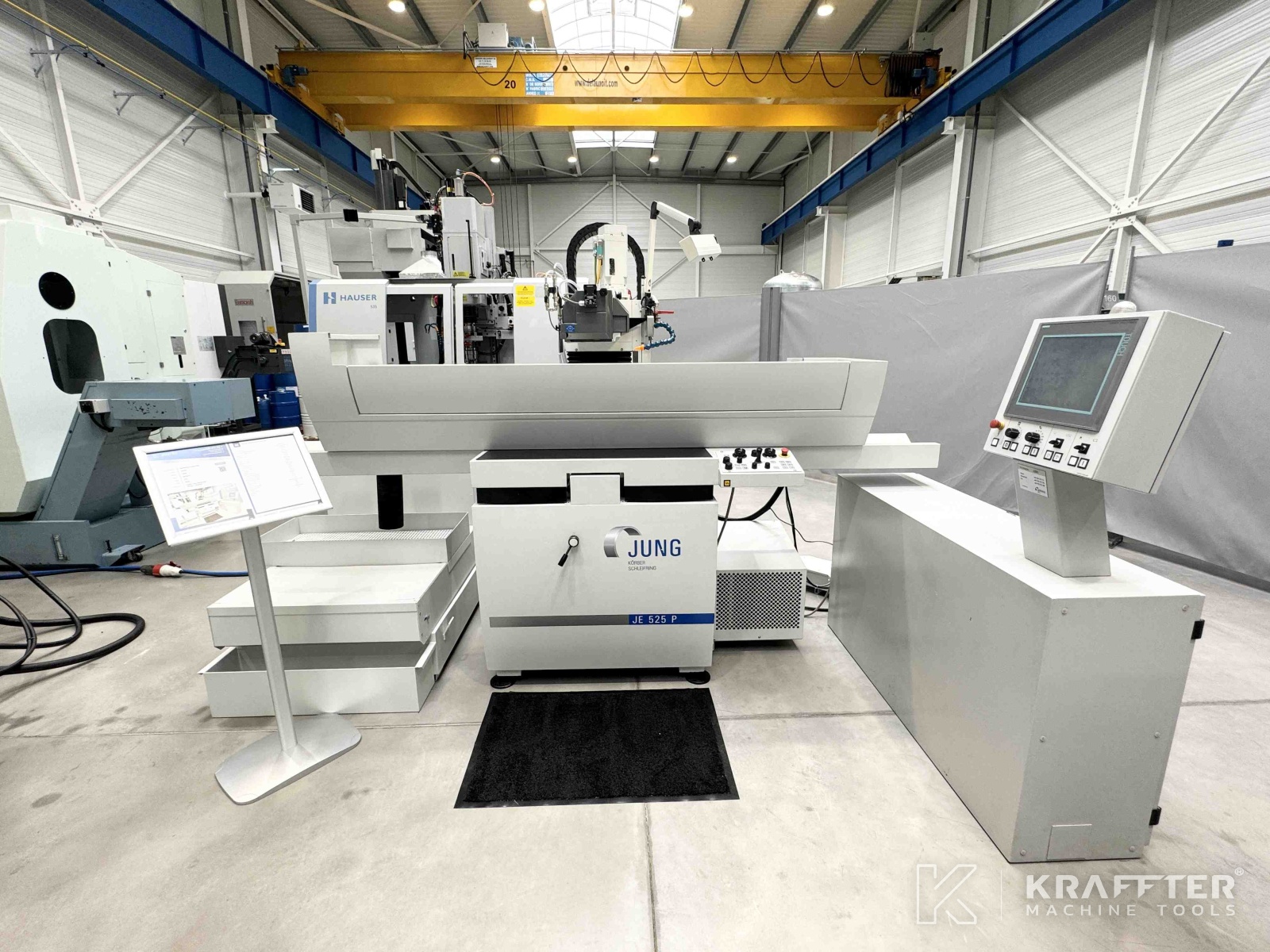

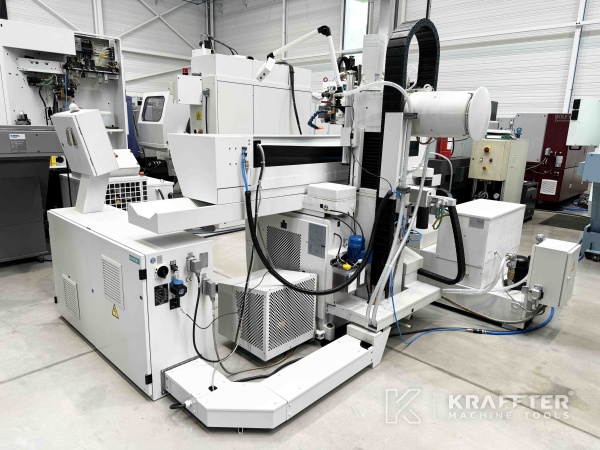

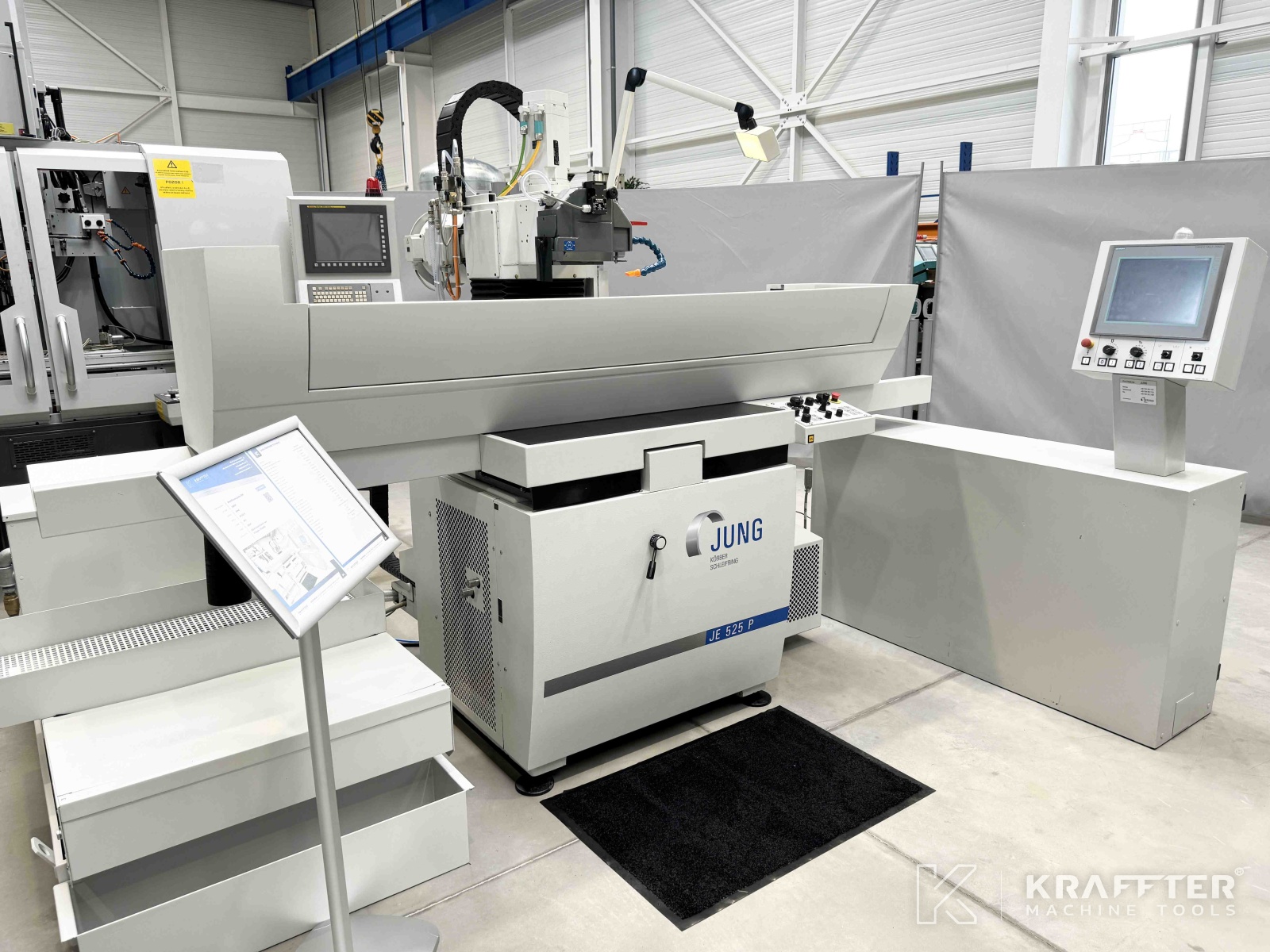

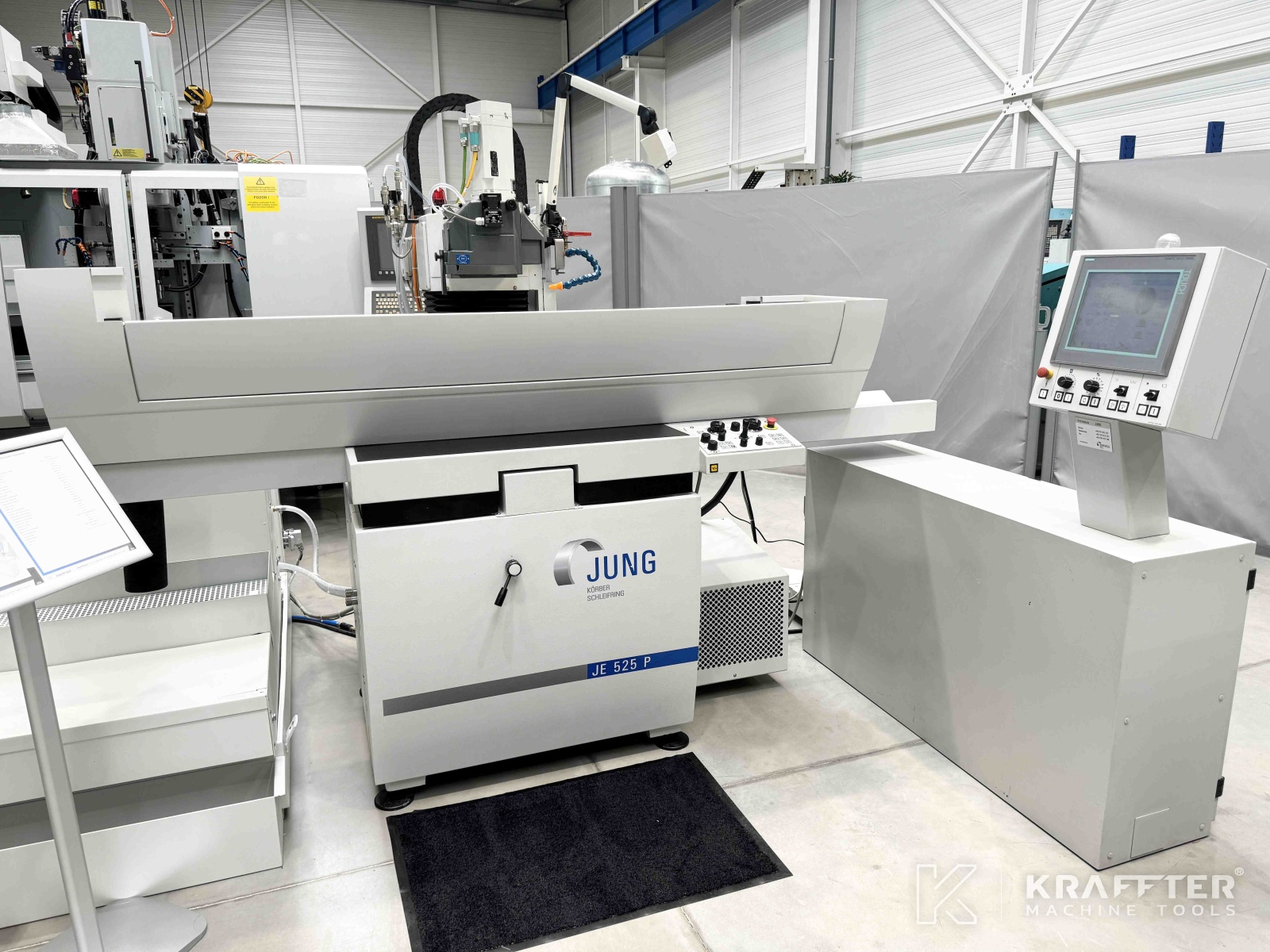

Type of machine : CNC surface grinder
Brand : JUNG
Stock N° : 90091
Model : JE 525 P
Serial N° : 4411
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
CNC control
SIEMENS 840D
Software installed
NCU-561.5 6FC5356-0BB15-0AA0
Maximum grinding lenght x width
600 x 250 [mm]
Stroke X axis (table movement)
660 [mm]
Min. Stroke speed X axis
5 [mm/min]
Max. Stroke speed X axis
24000 [mm/min]
Resolution X axis
0.0001 [mm]

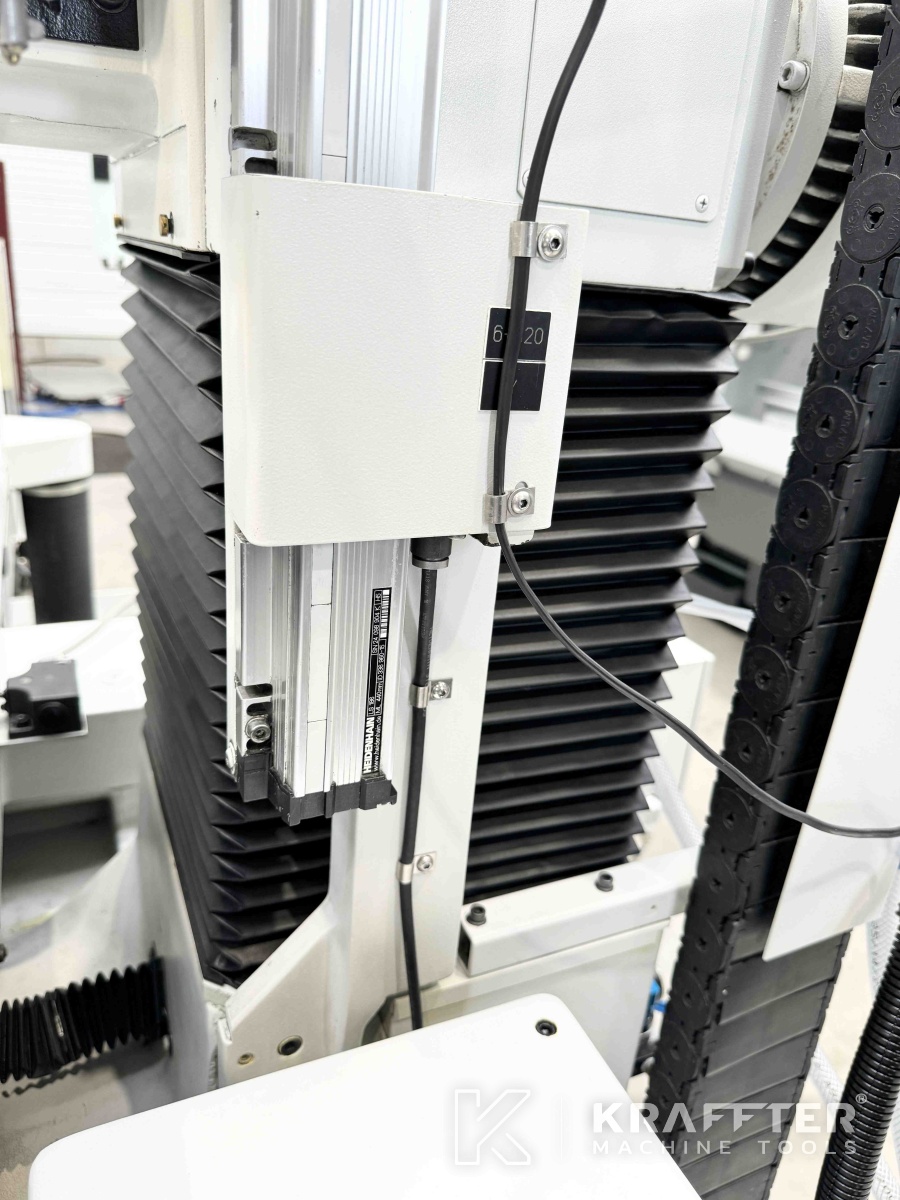

Stroke Y axis (vertical movement)
385 [mm]
Min. Stroke speed Y axis
0.1 [mm/min]
Max. Stroke speed Y axis
2000 [mm/min]
Resolution Y axis
0.0001 [mm]
Course axe Z (transverse movement)
225 [mm]
Min. Stroke speed Z axis
0.1 [mm/min]
Max. Stroke speed Z axis
2000 [mm/min]
Table length
600 [mm]
Table width
200 [mm]
Max. distance spindle nose / table
490 [mm]
Max. load on table
100 [Kg]

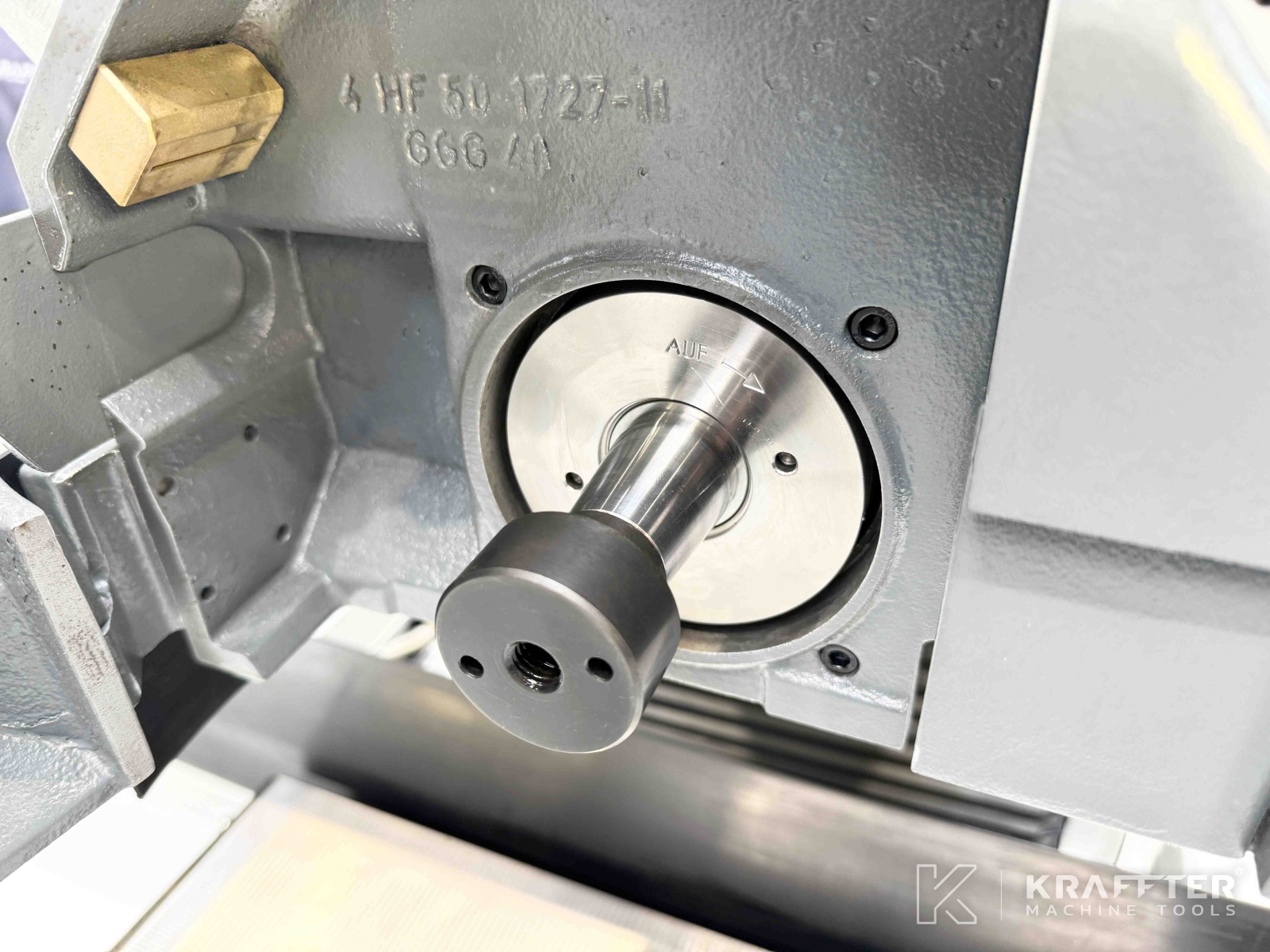

Grinding wheel min. speed
800 [rpm]
Grinding wheel max. speed
4200 [rpm]

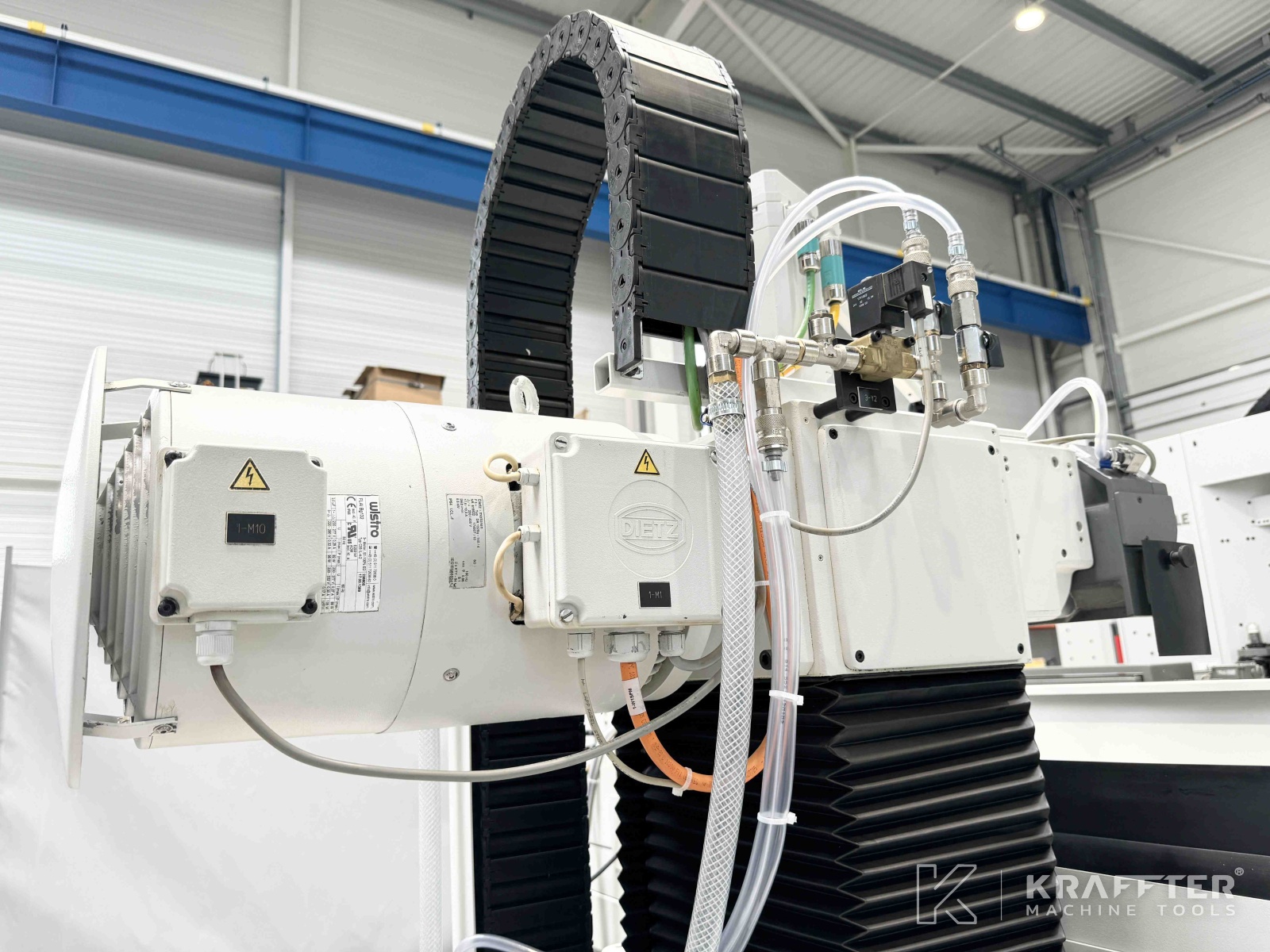

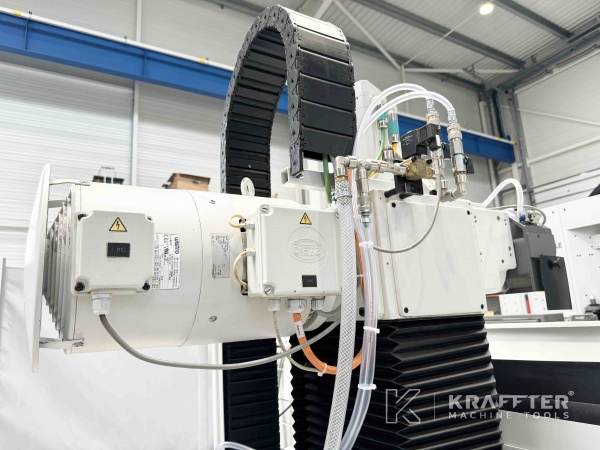

Grinding spindle motor power
5 [kW]

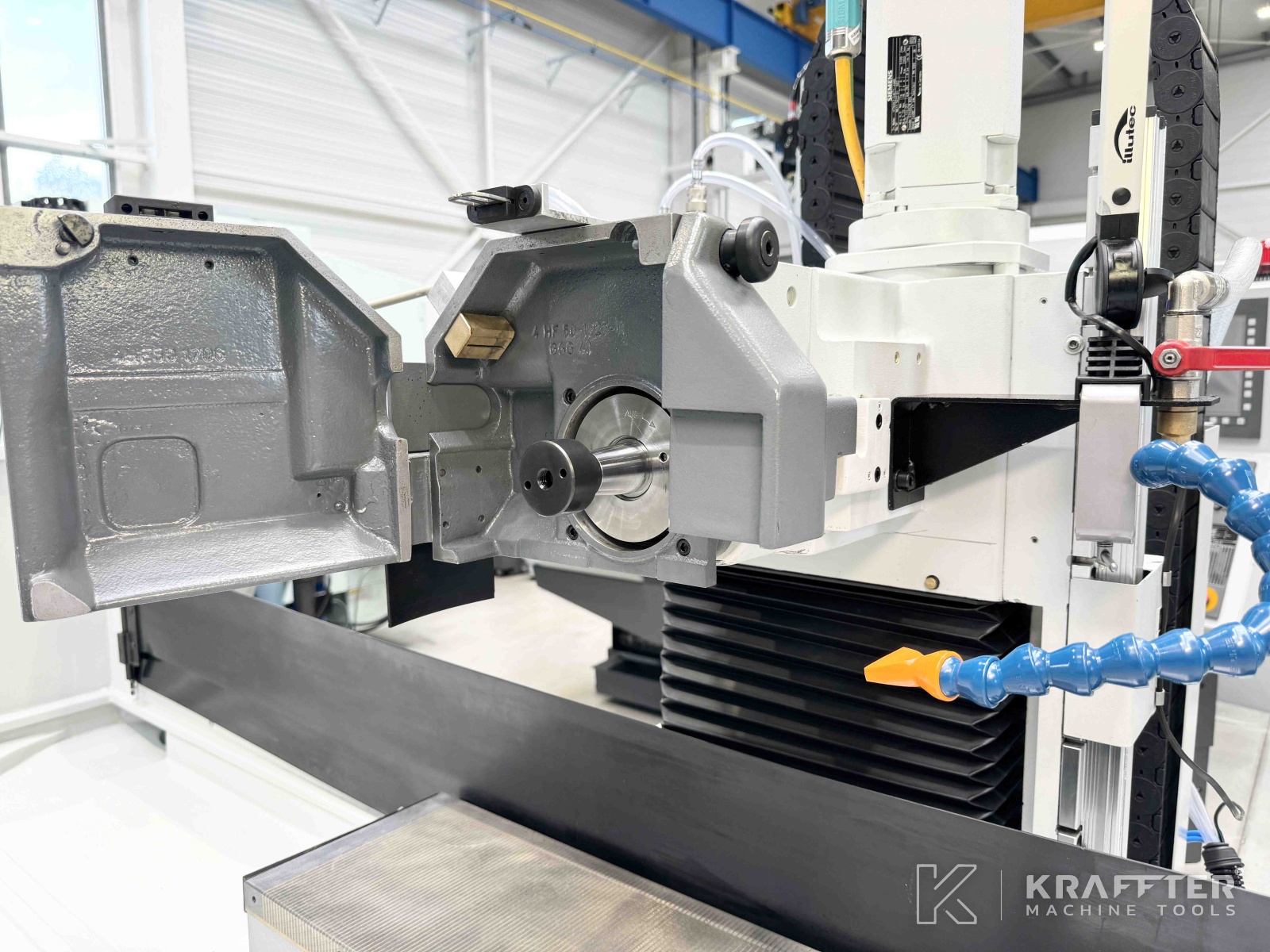

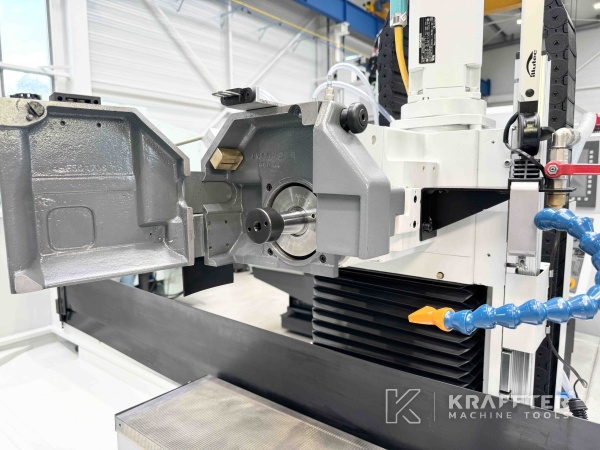

Max. diameter grinding wheel
250 [mm]
Max. grinding wheel width
25 [mm]
Grinding wheel bore
51 [mm]

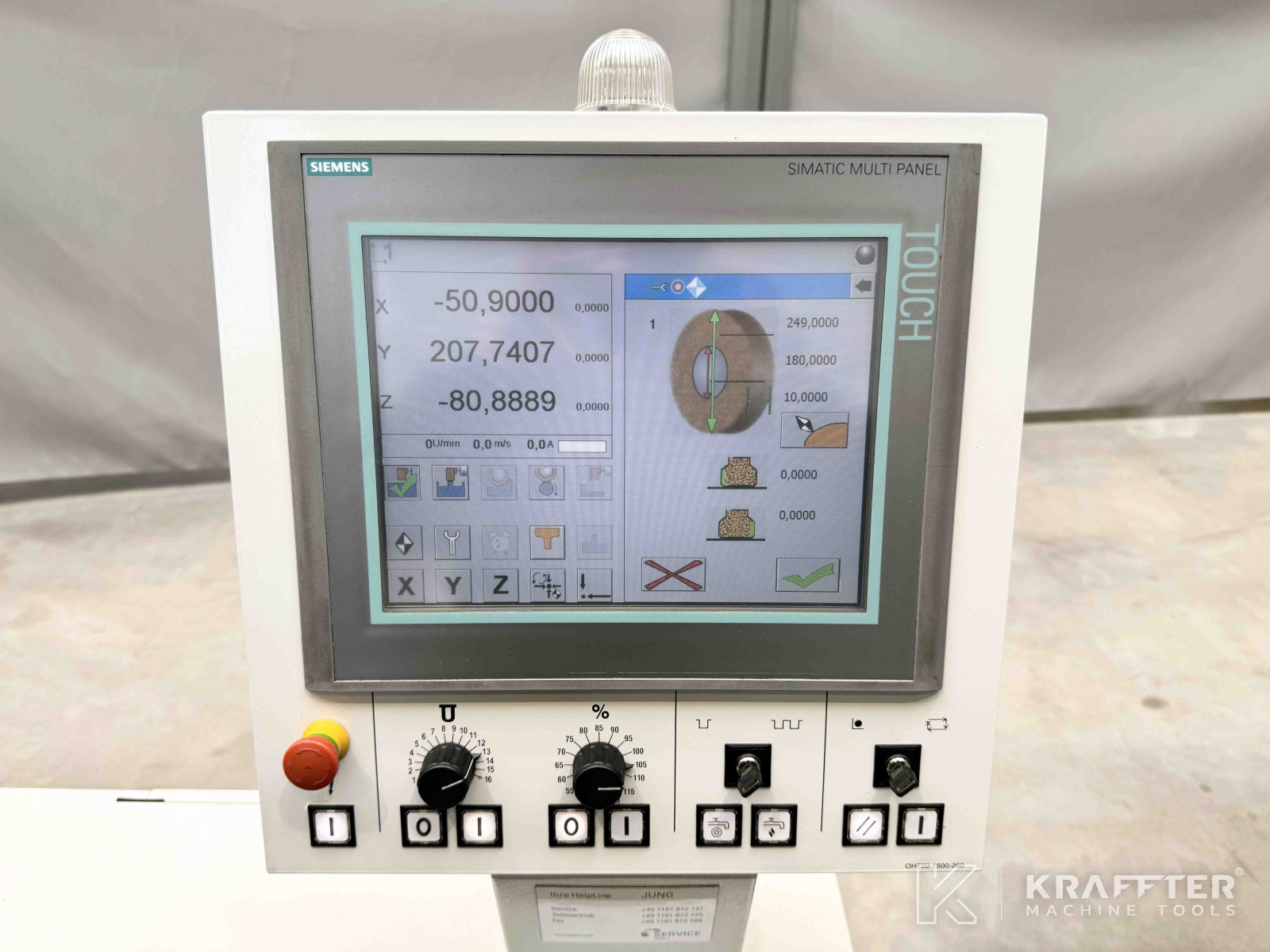

Touch control panel
SIEMENS Simatic Multipanel TOUCH
Supply voltage
400 [V]
Rated current
25 [A]
Total power required
10 [kVA]
Dimensions
3000 x 2050 x 2440 [mm]
Weight
1850 [Kg]
EQUIPMENT INCLUDED:

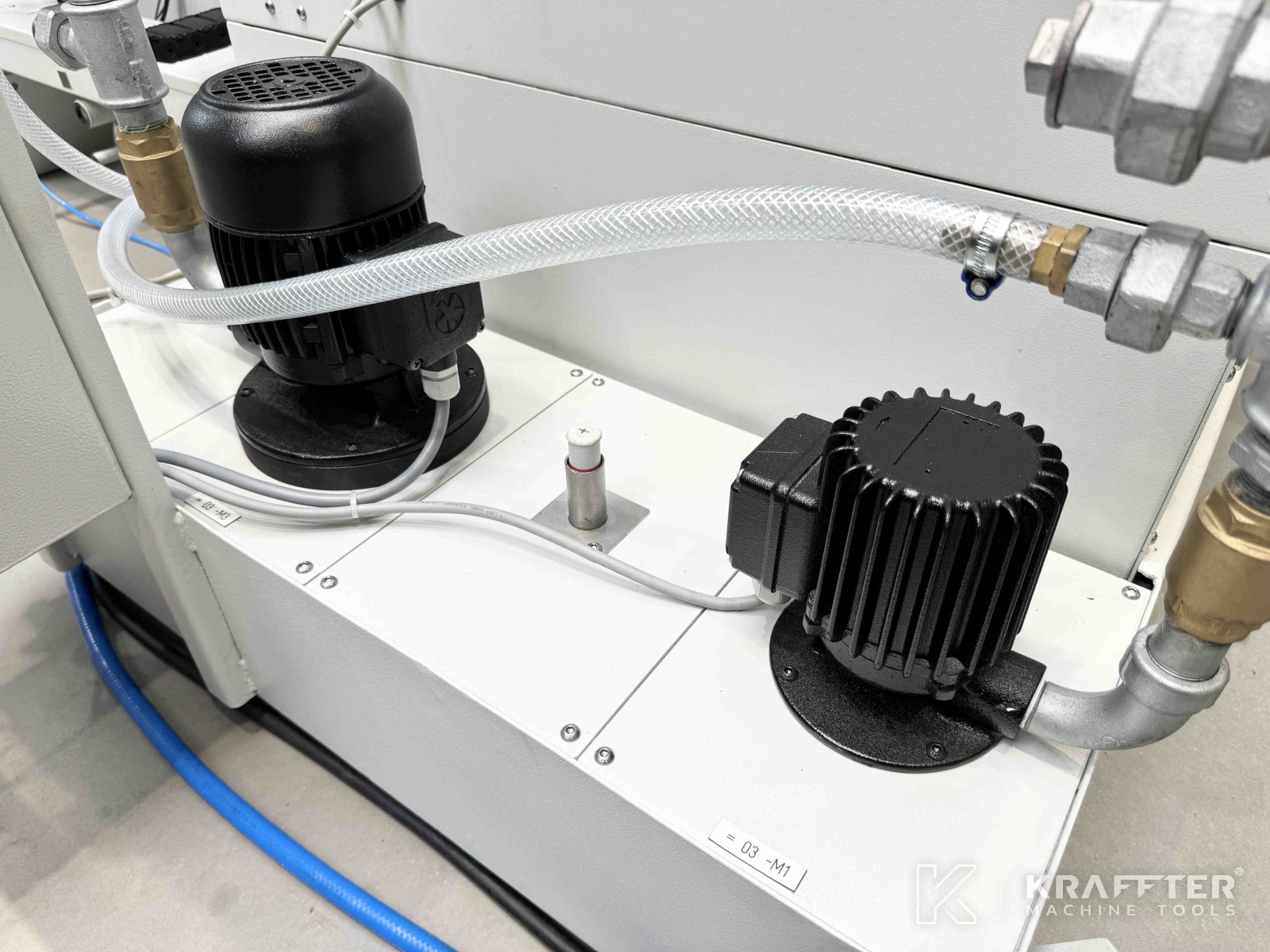

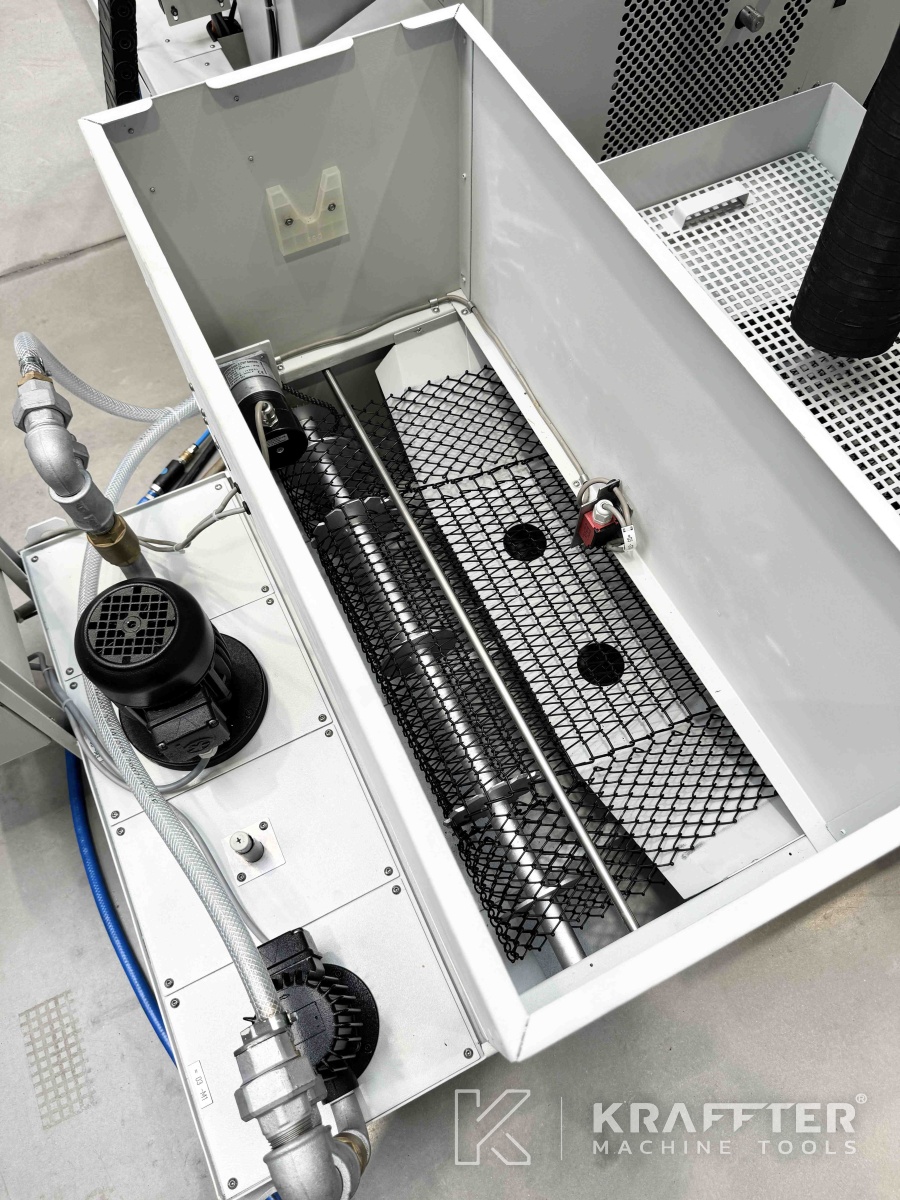

x1 coolant tank

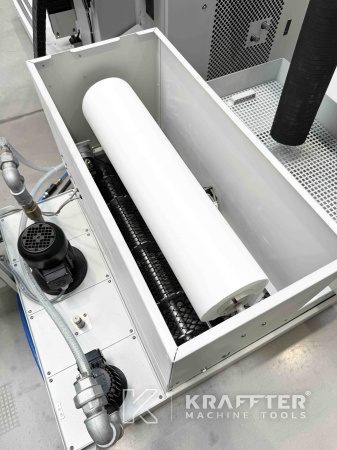

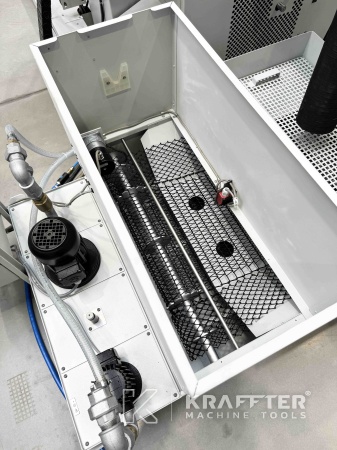

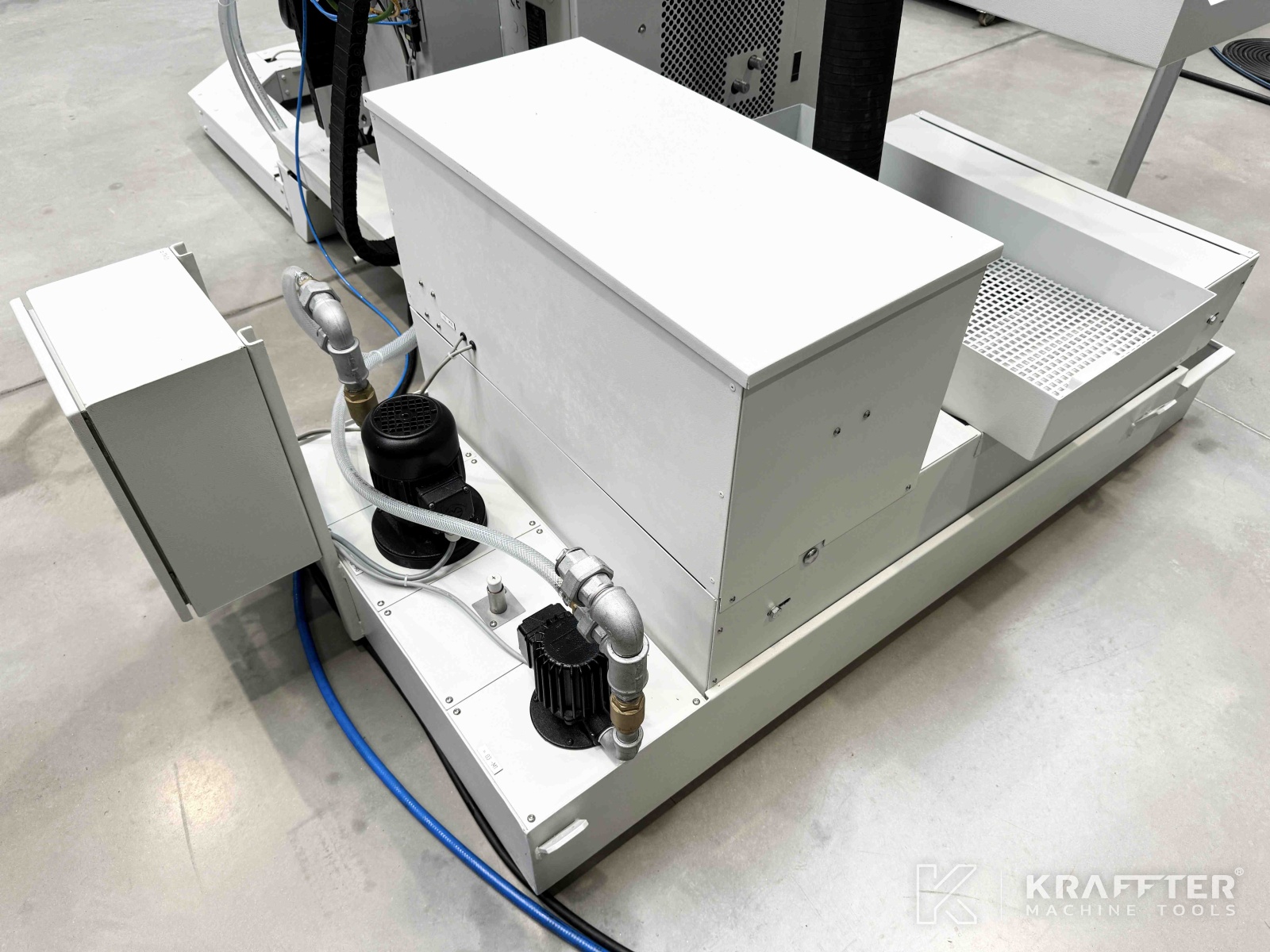

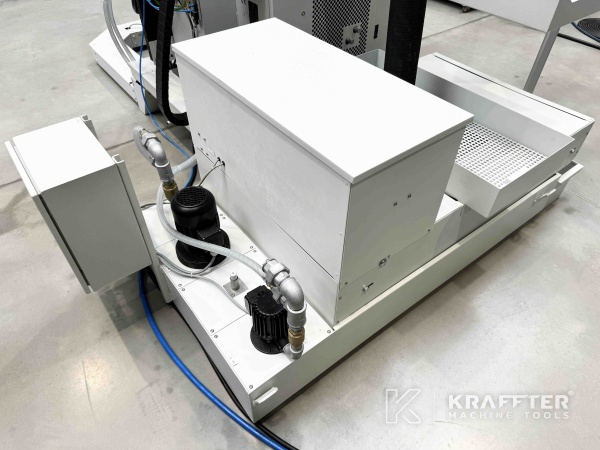

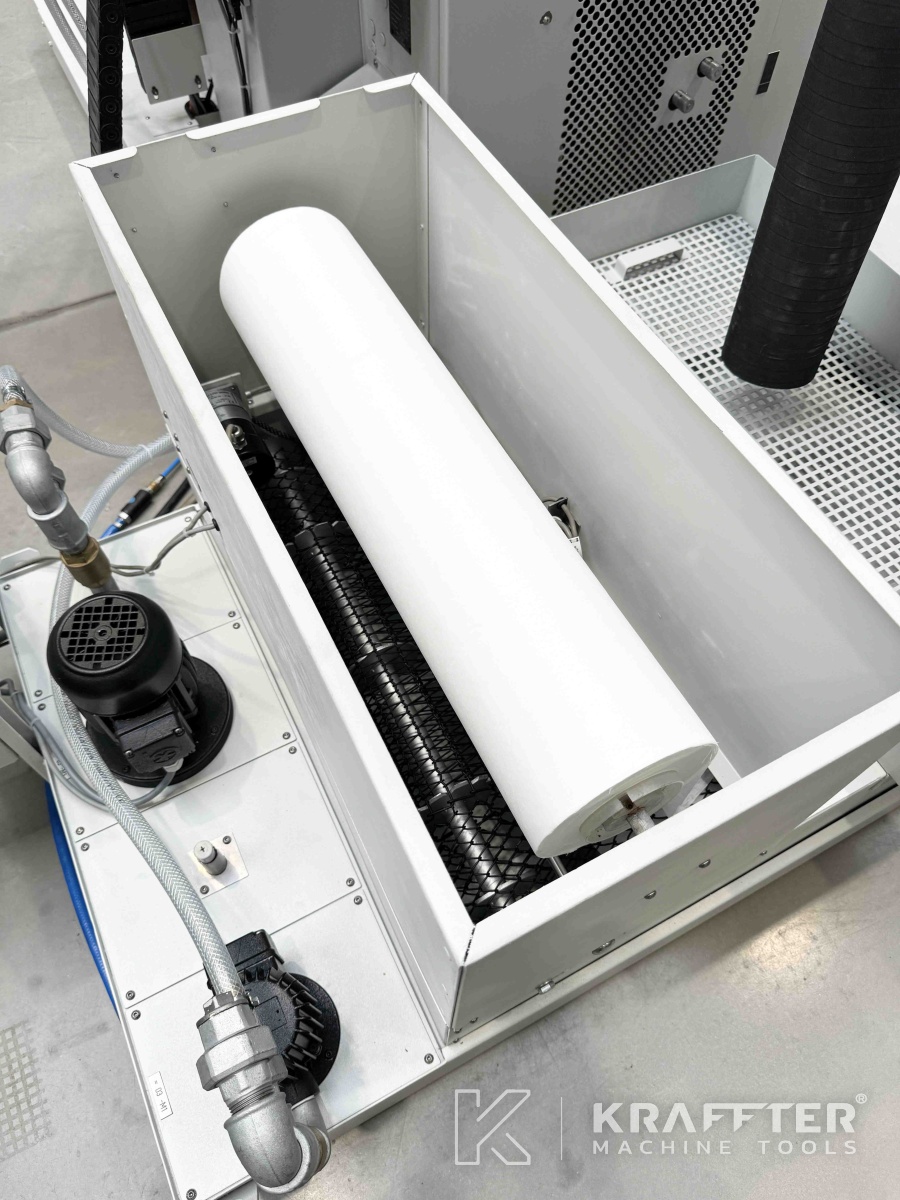

x1 paper tape filtration unit

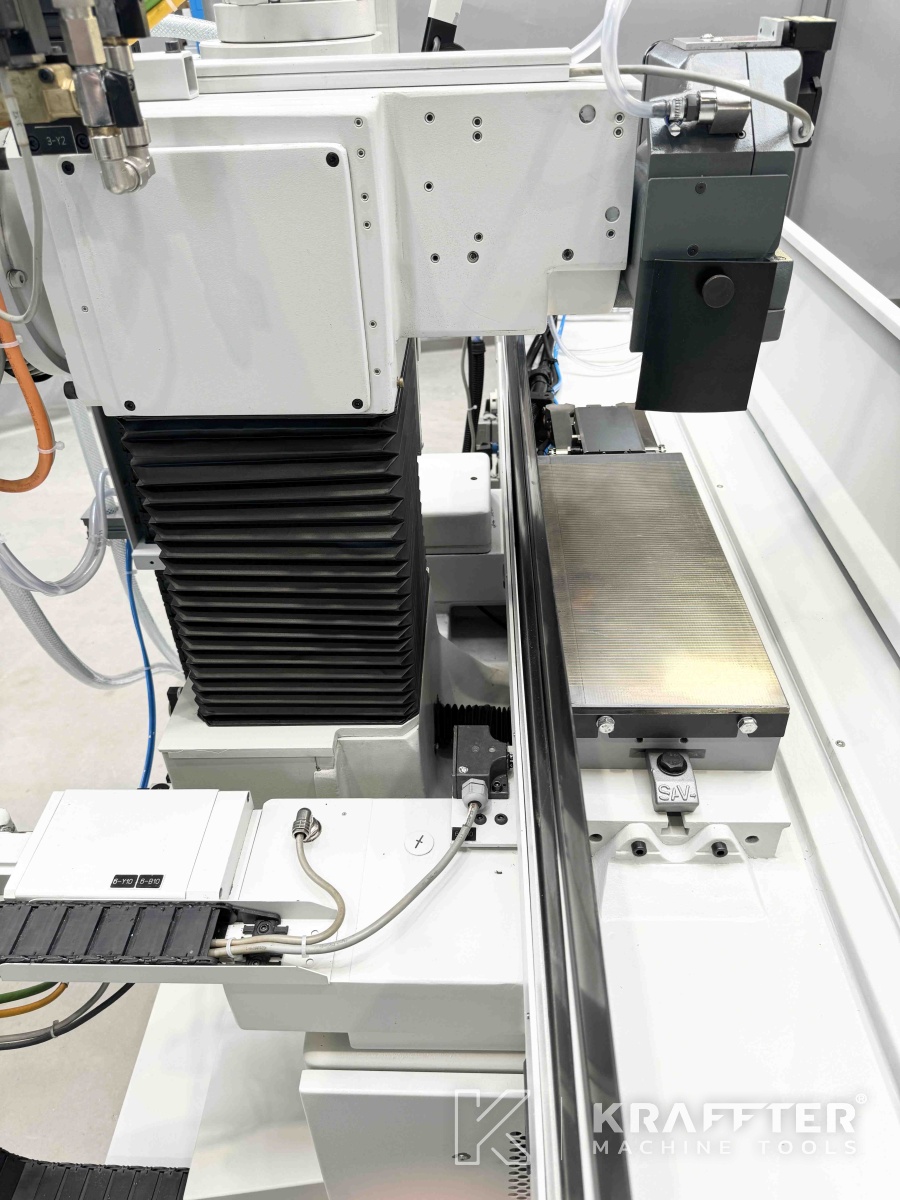

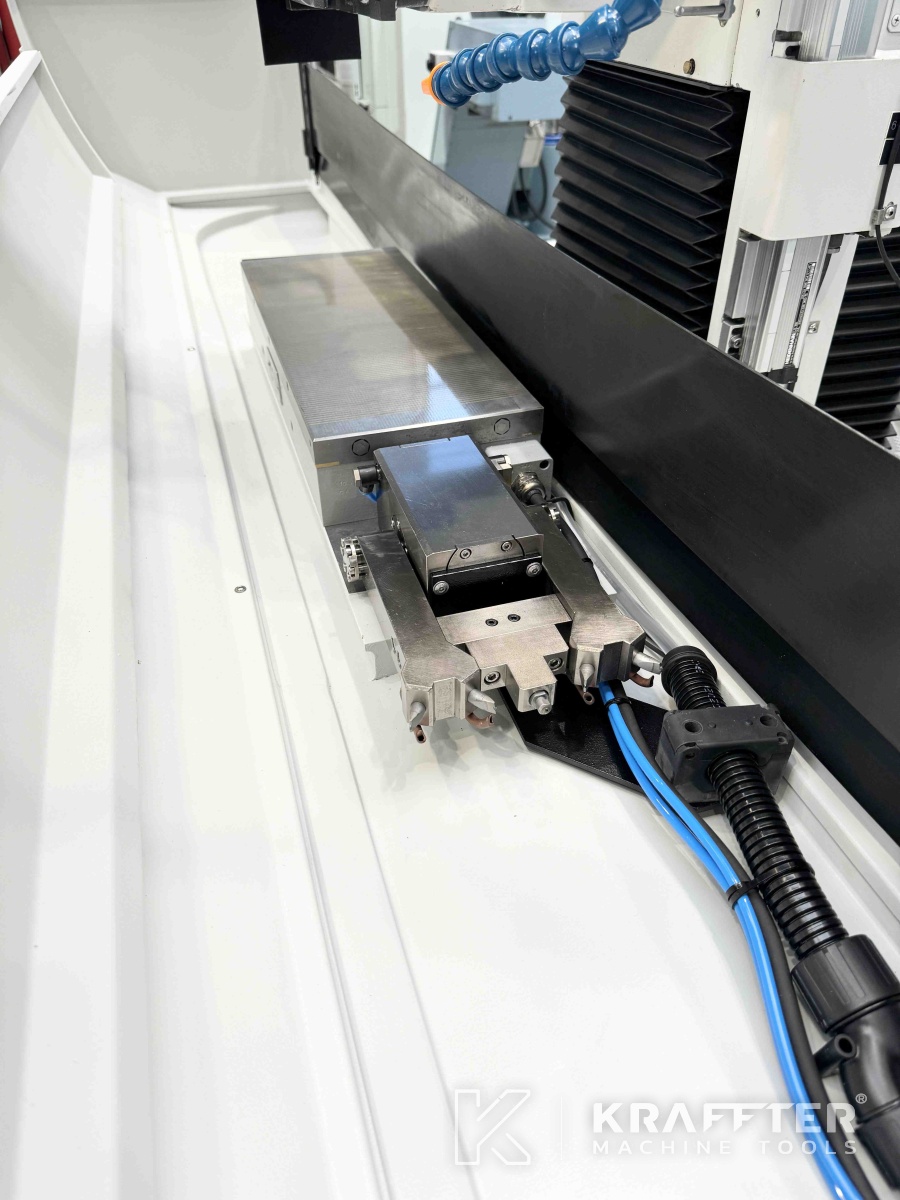

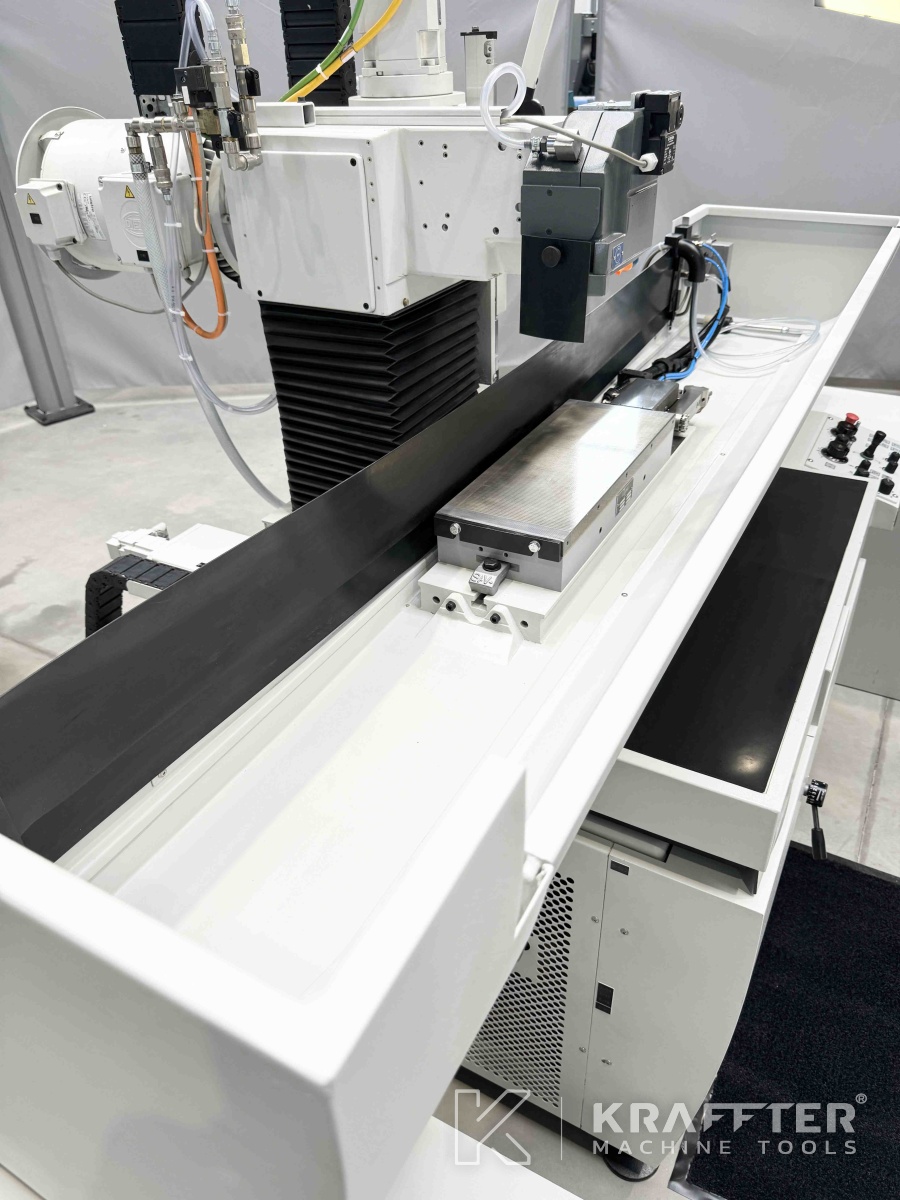

x1 JUNG type EP 50 S electromagnetic clamping plate 500 x 200 [mm]
