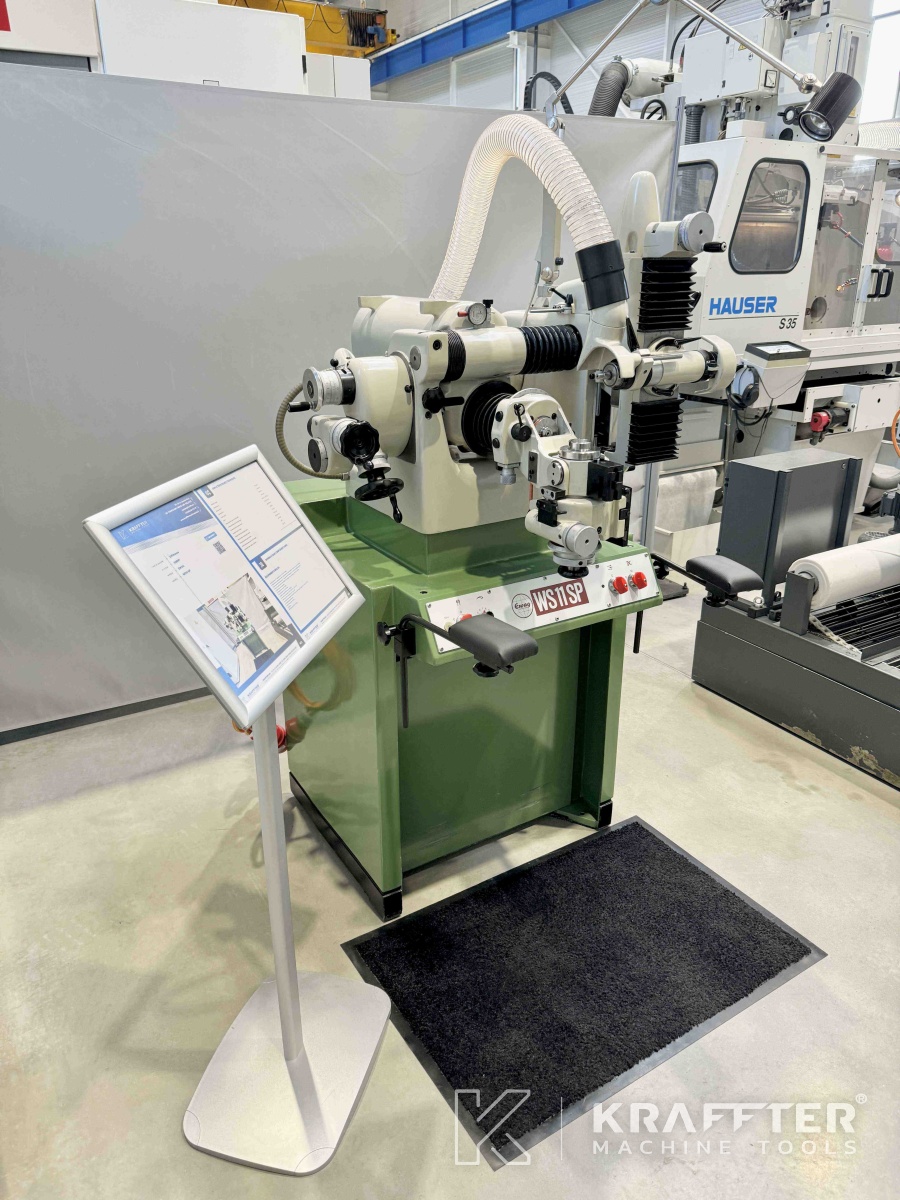

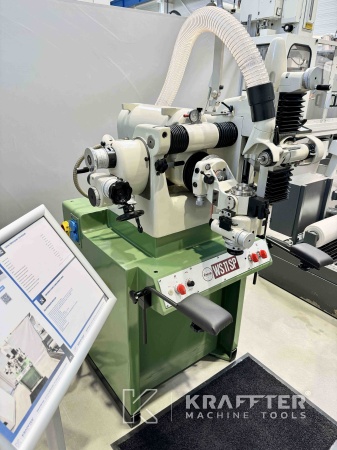

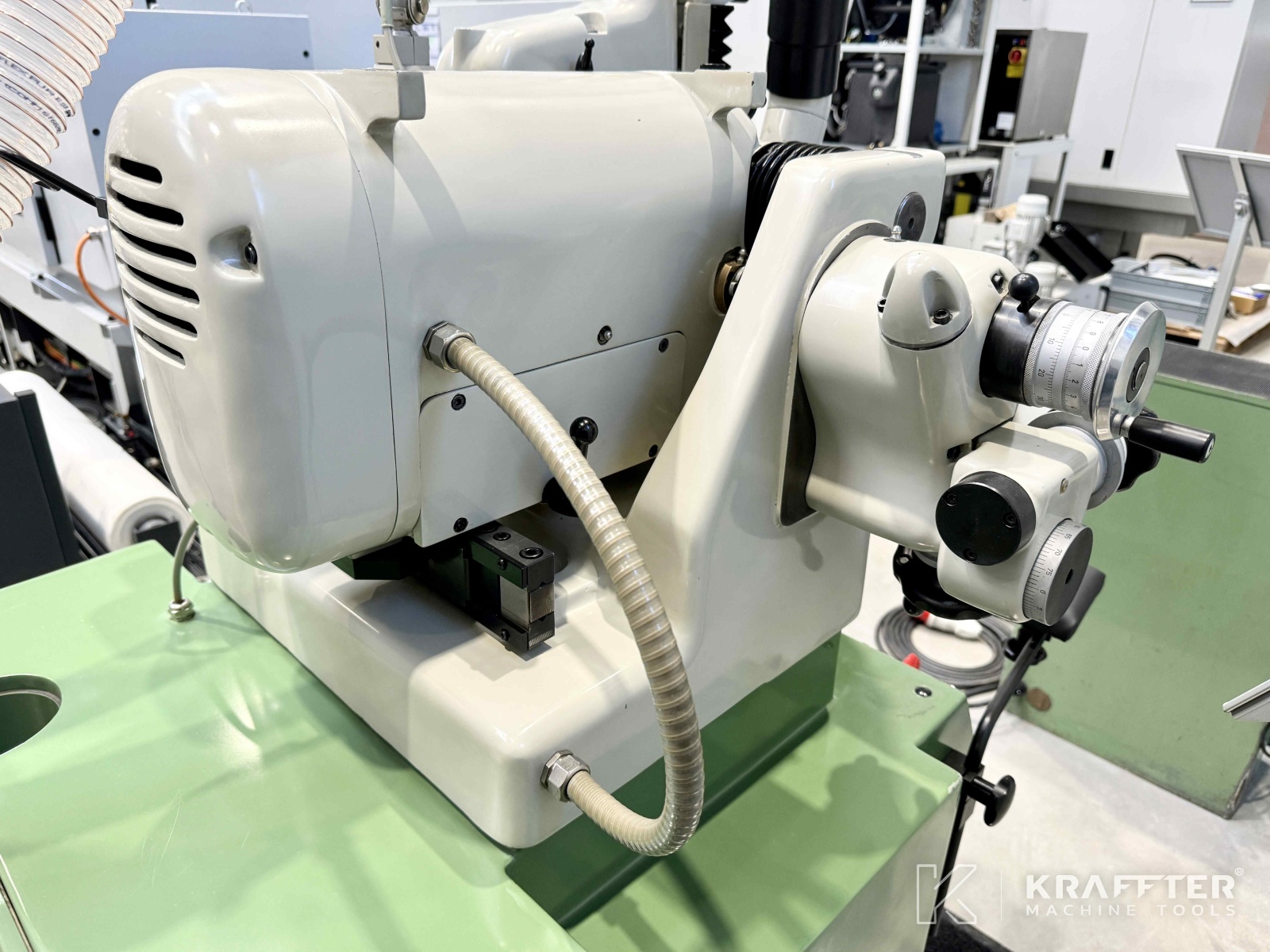

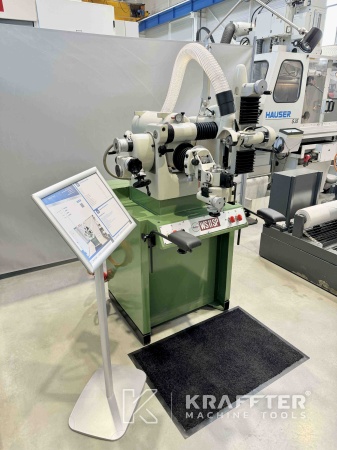

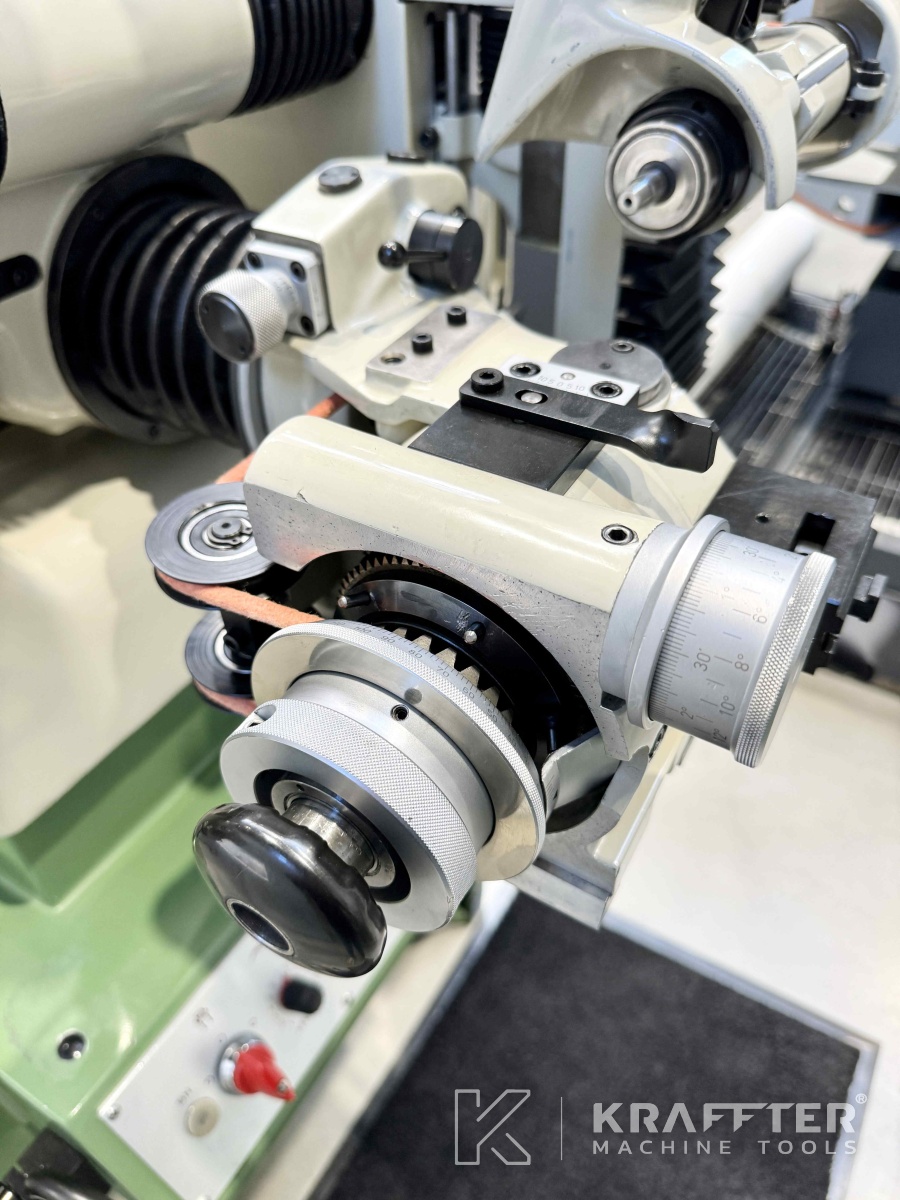

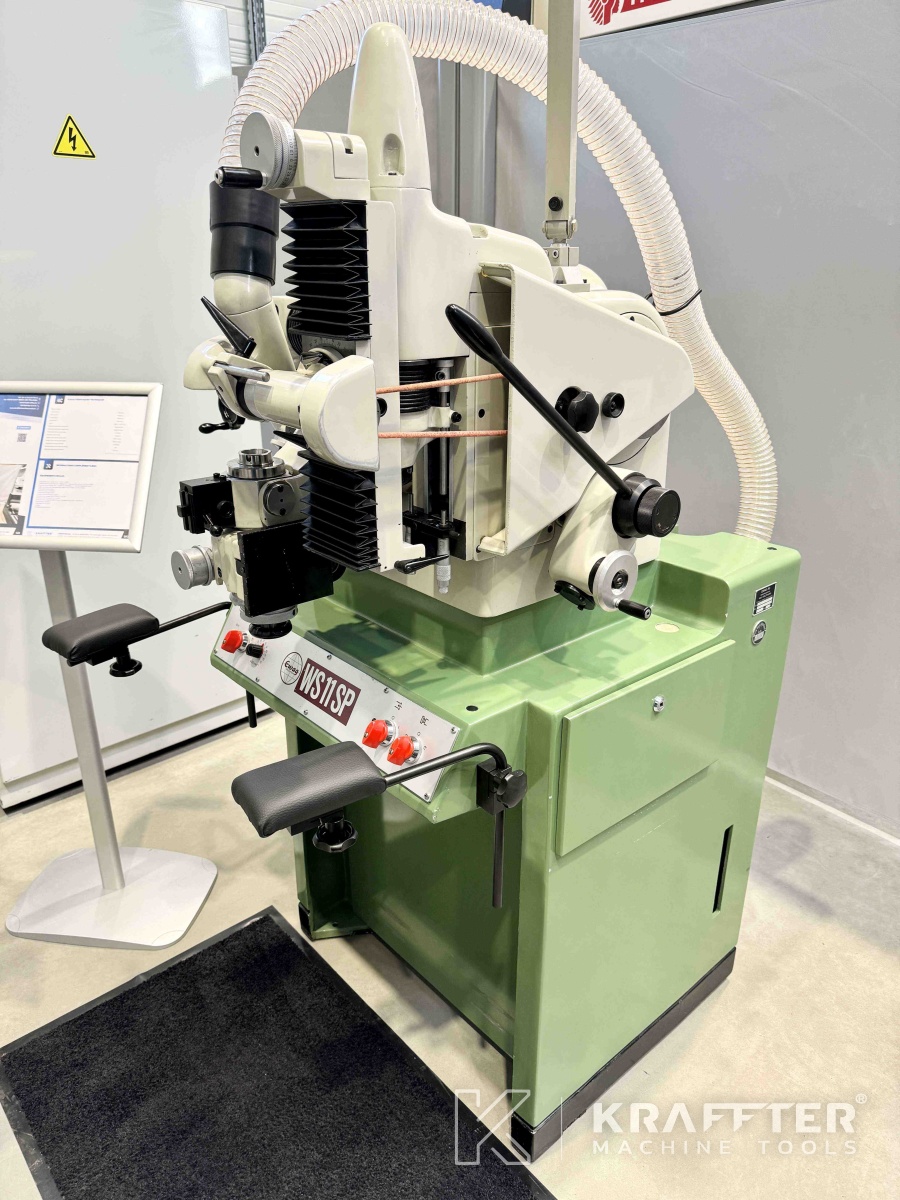

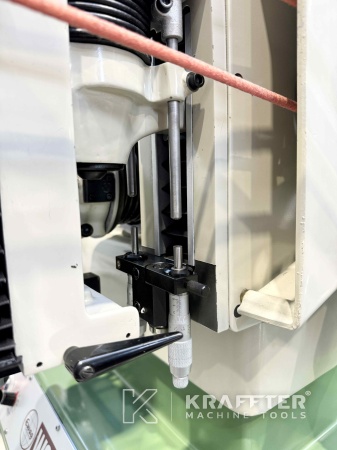

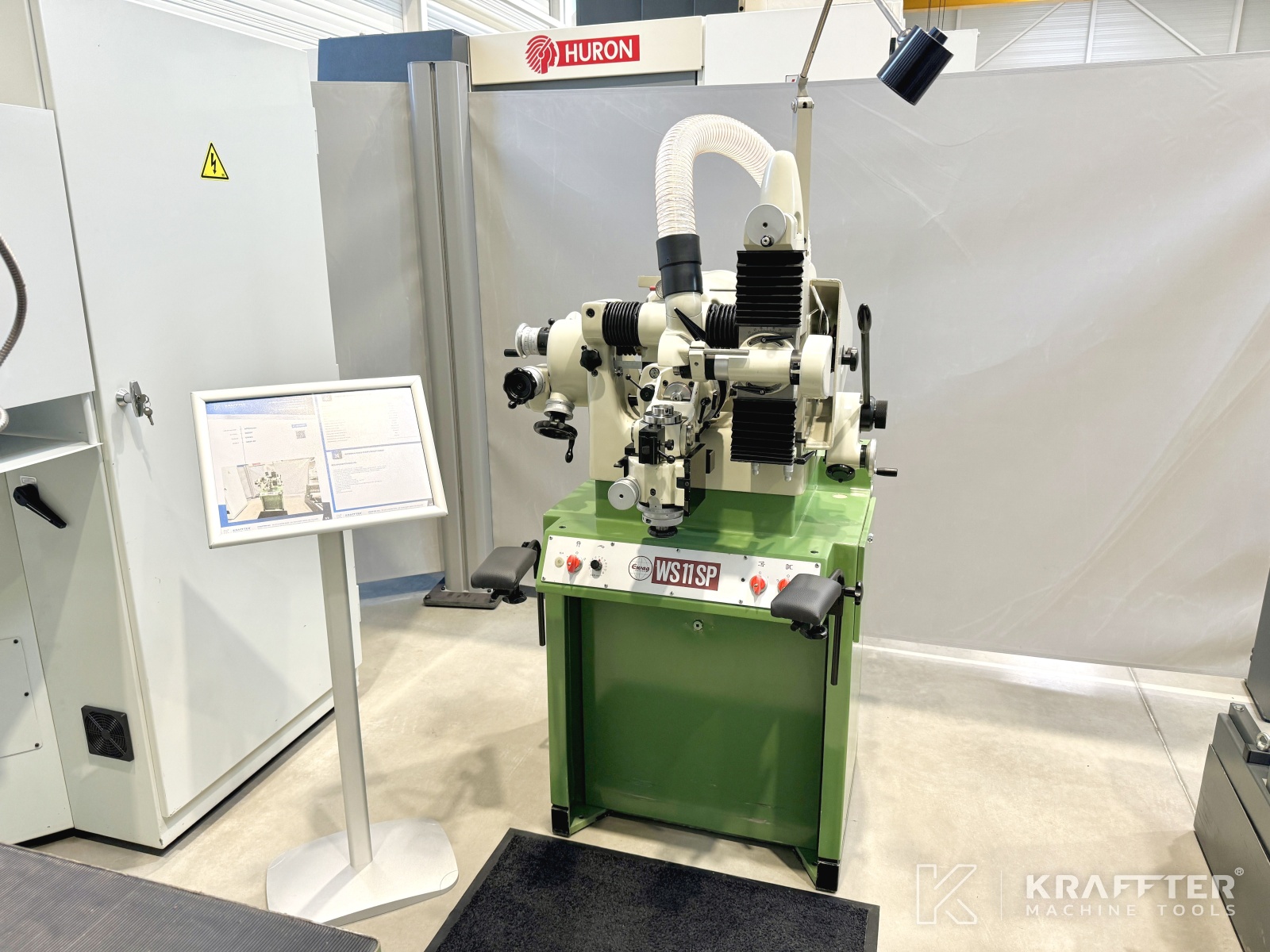

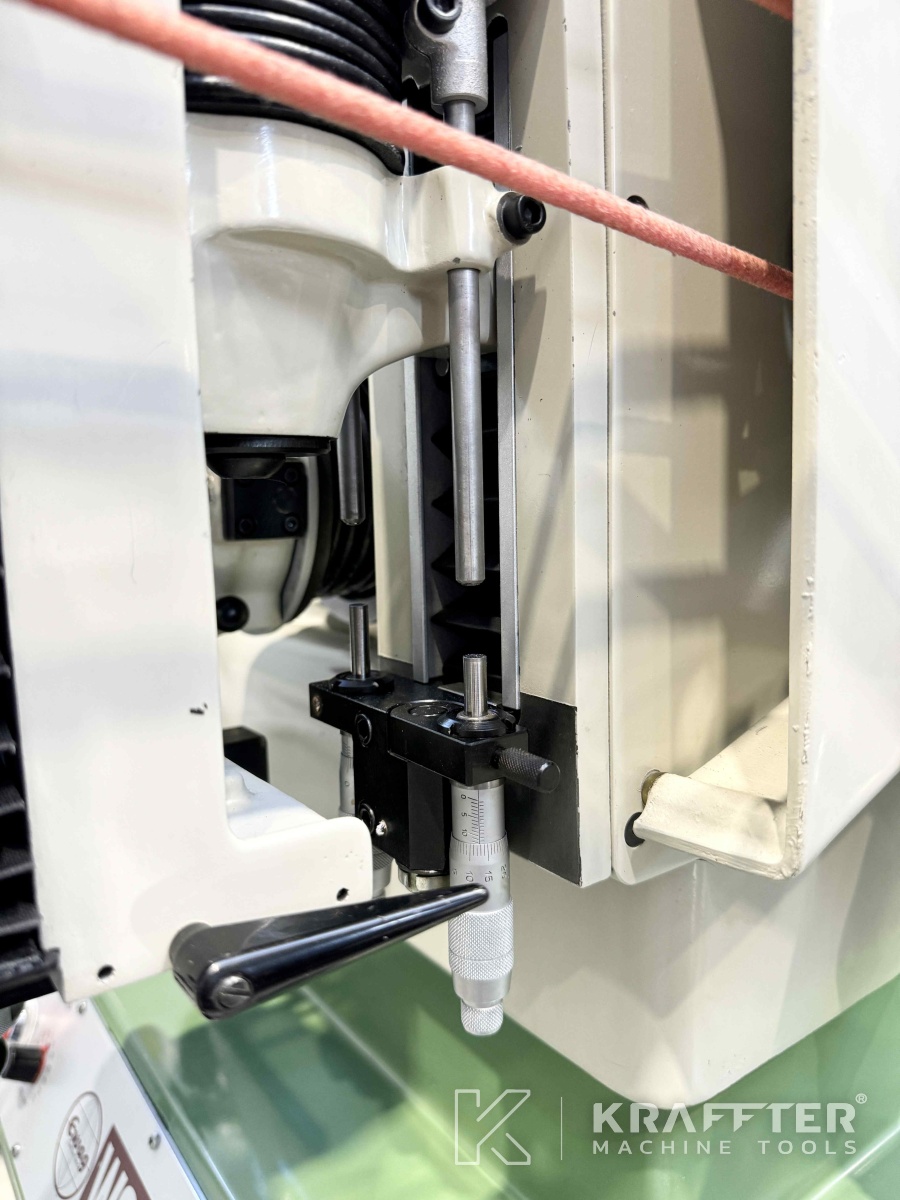

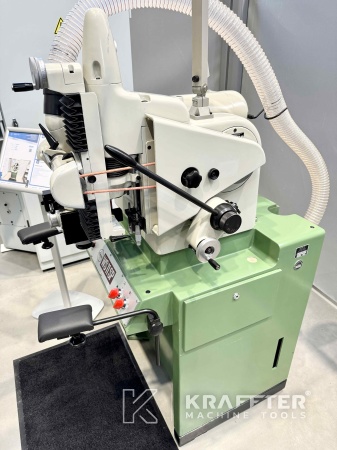

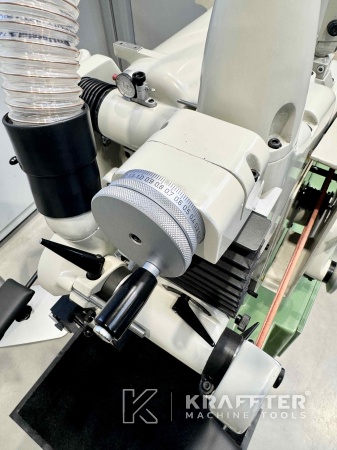

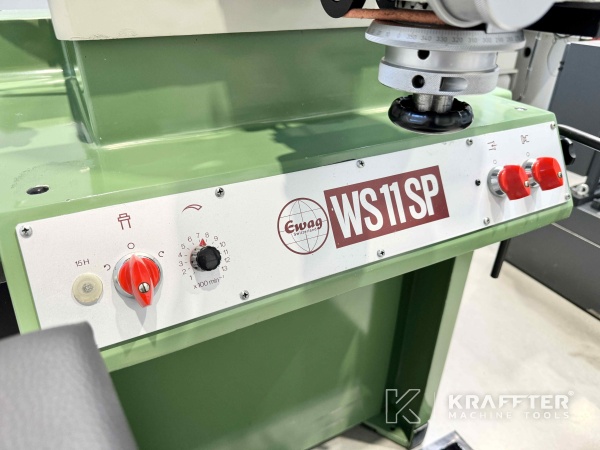

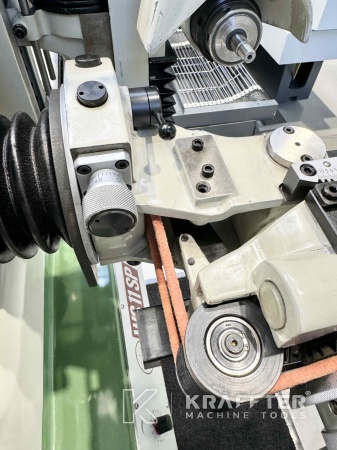

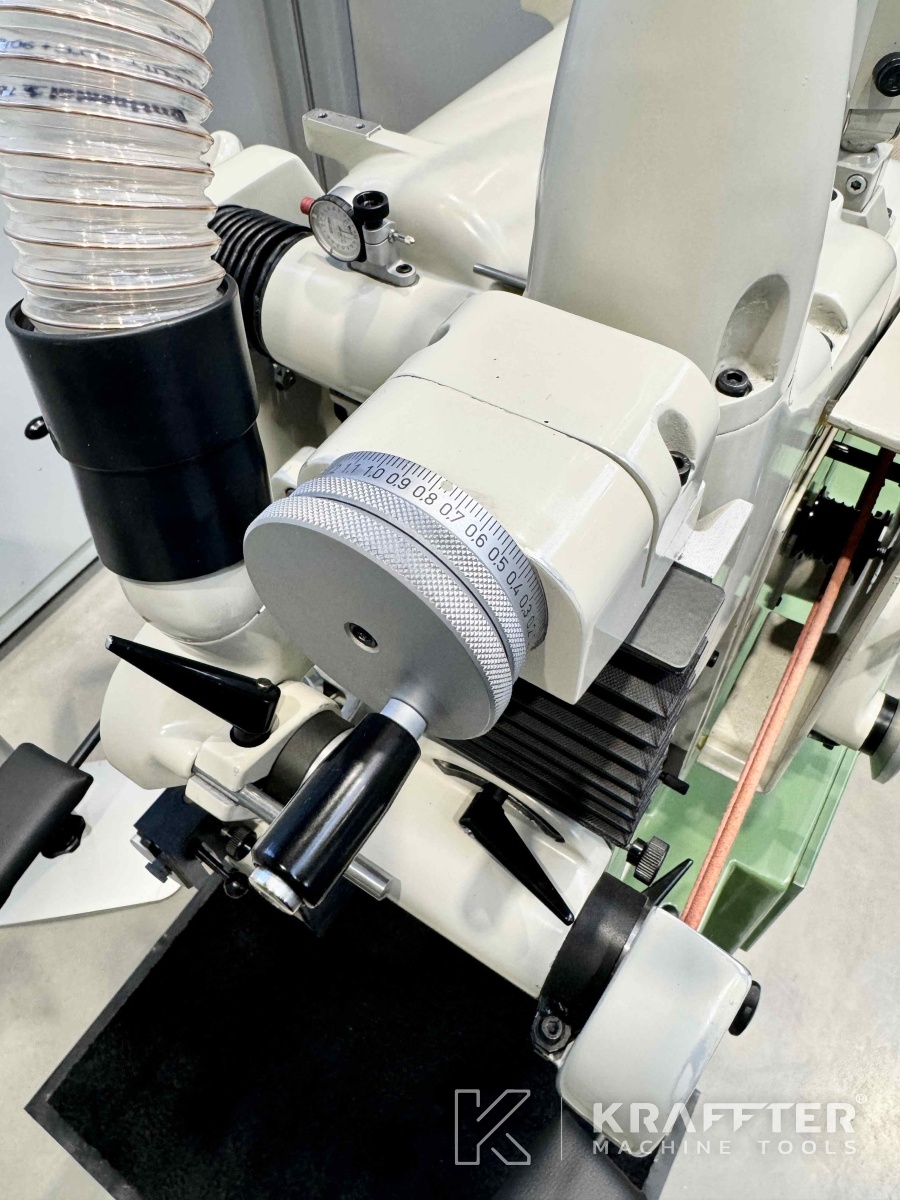

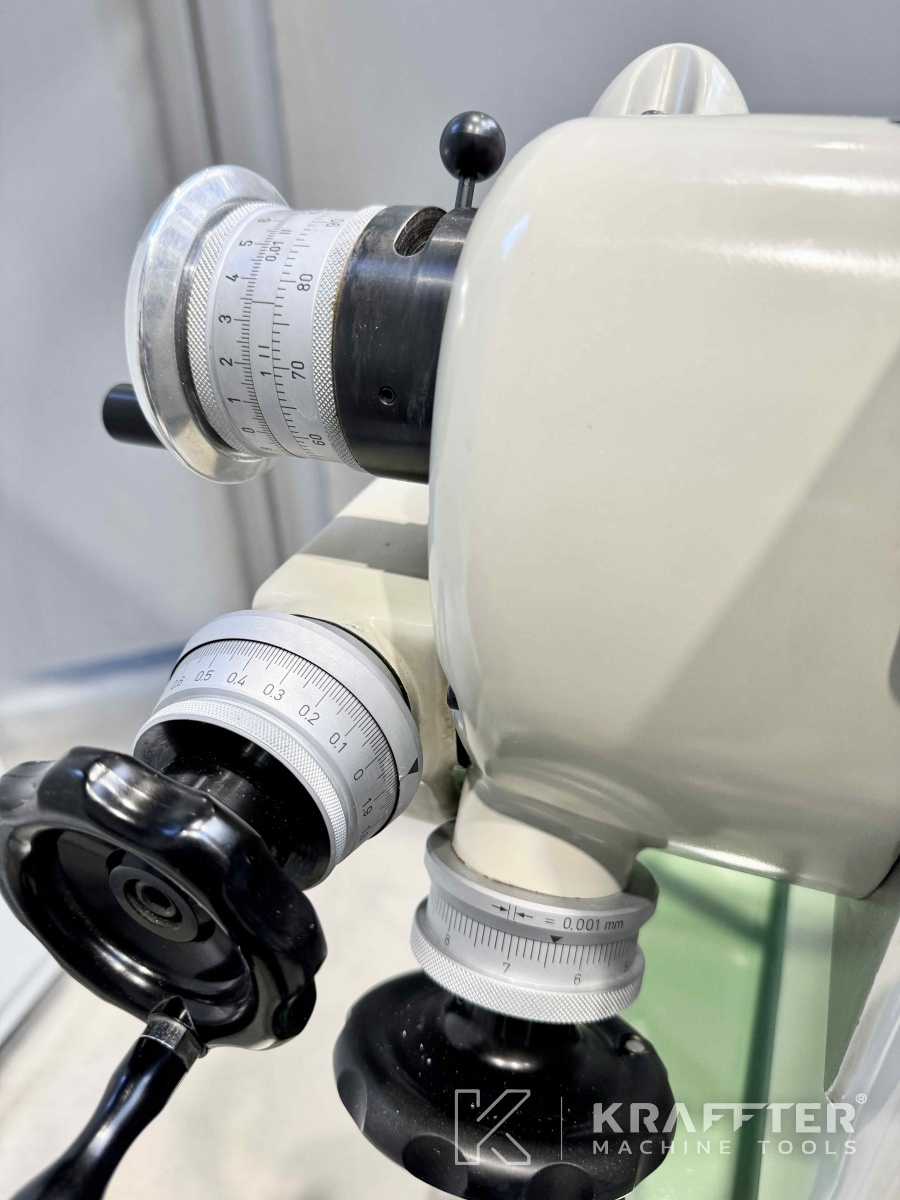

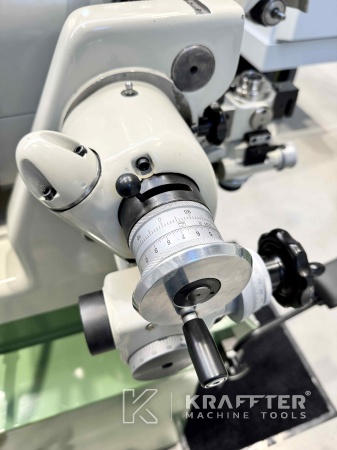

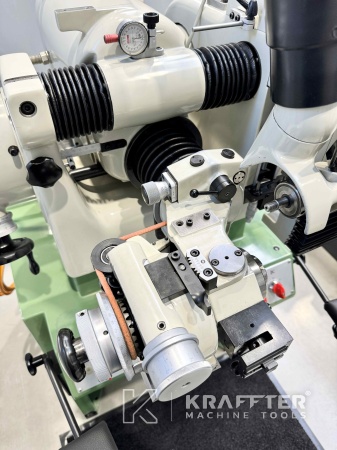

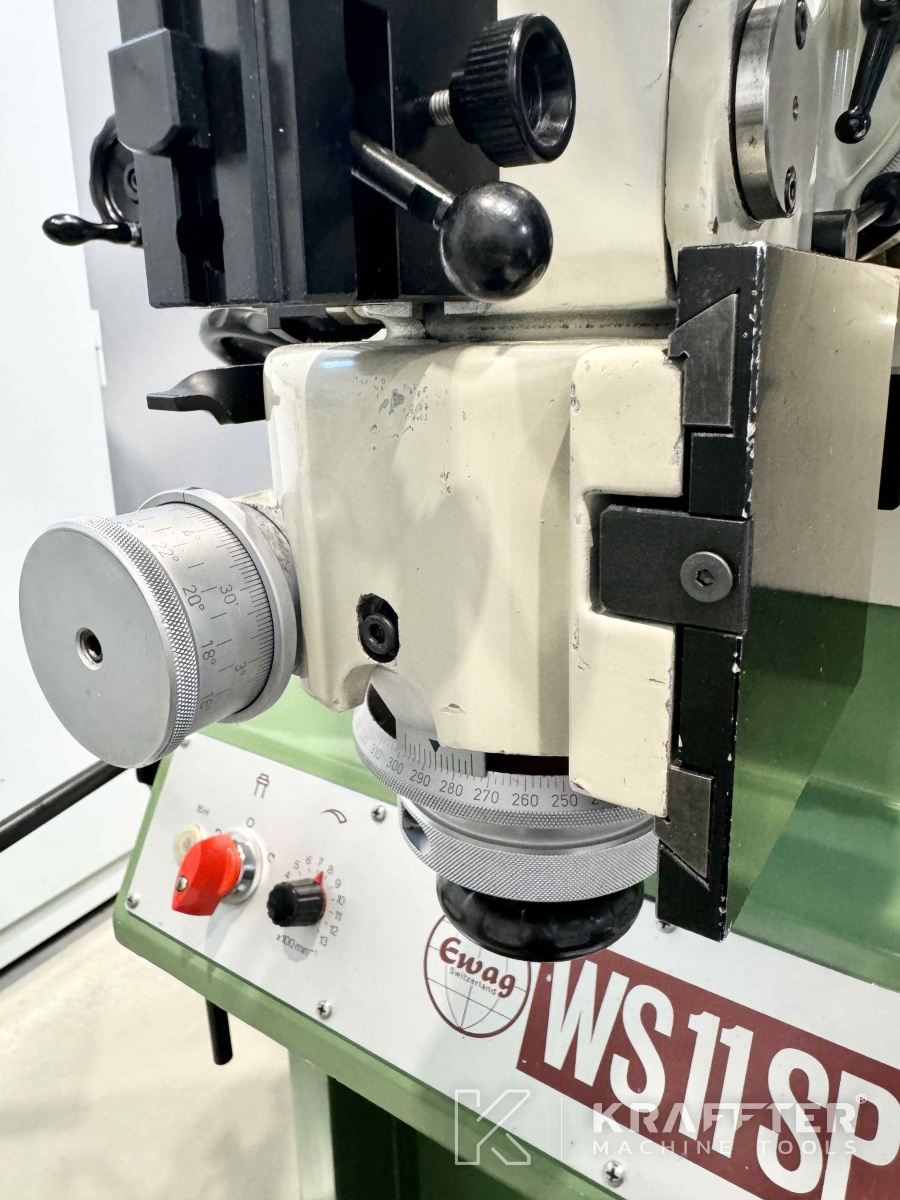

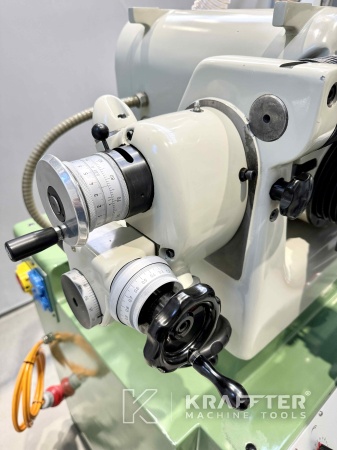

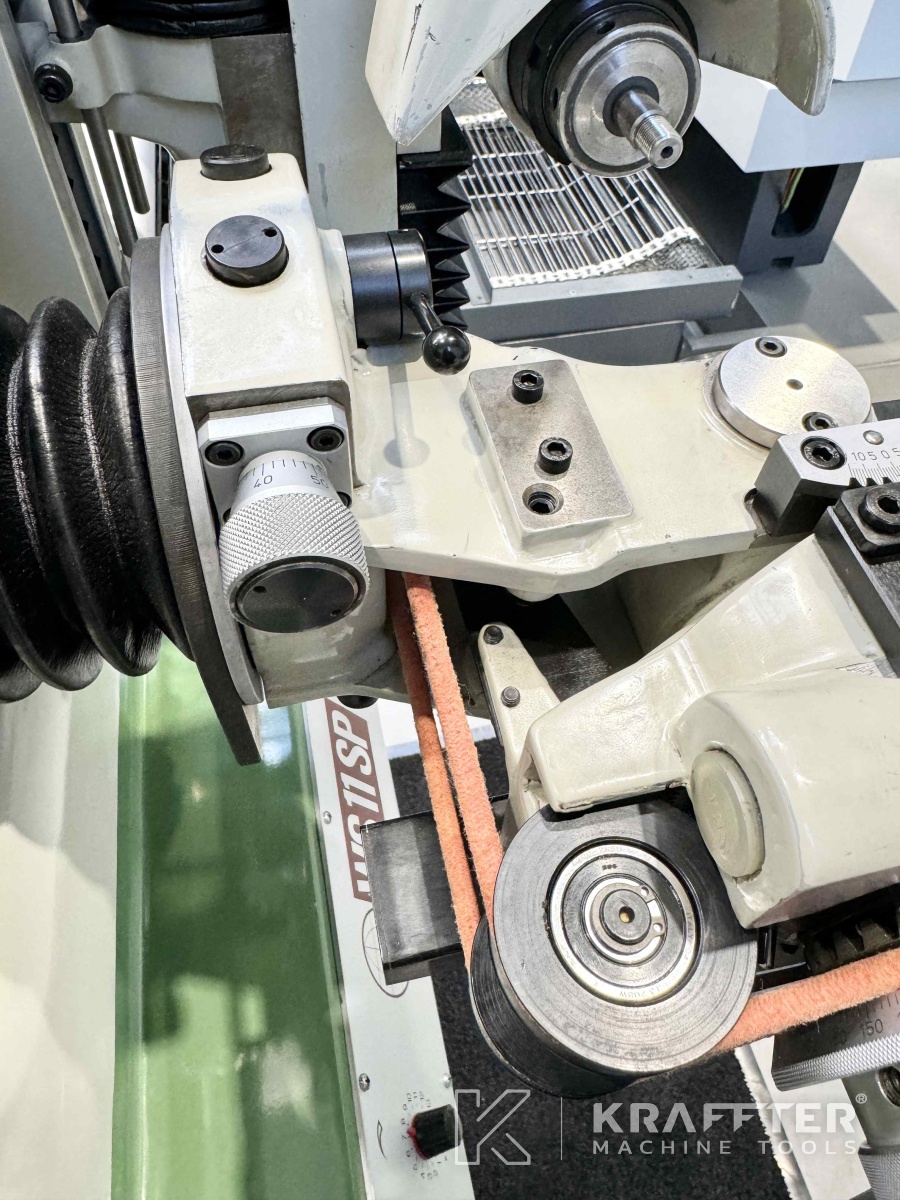

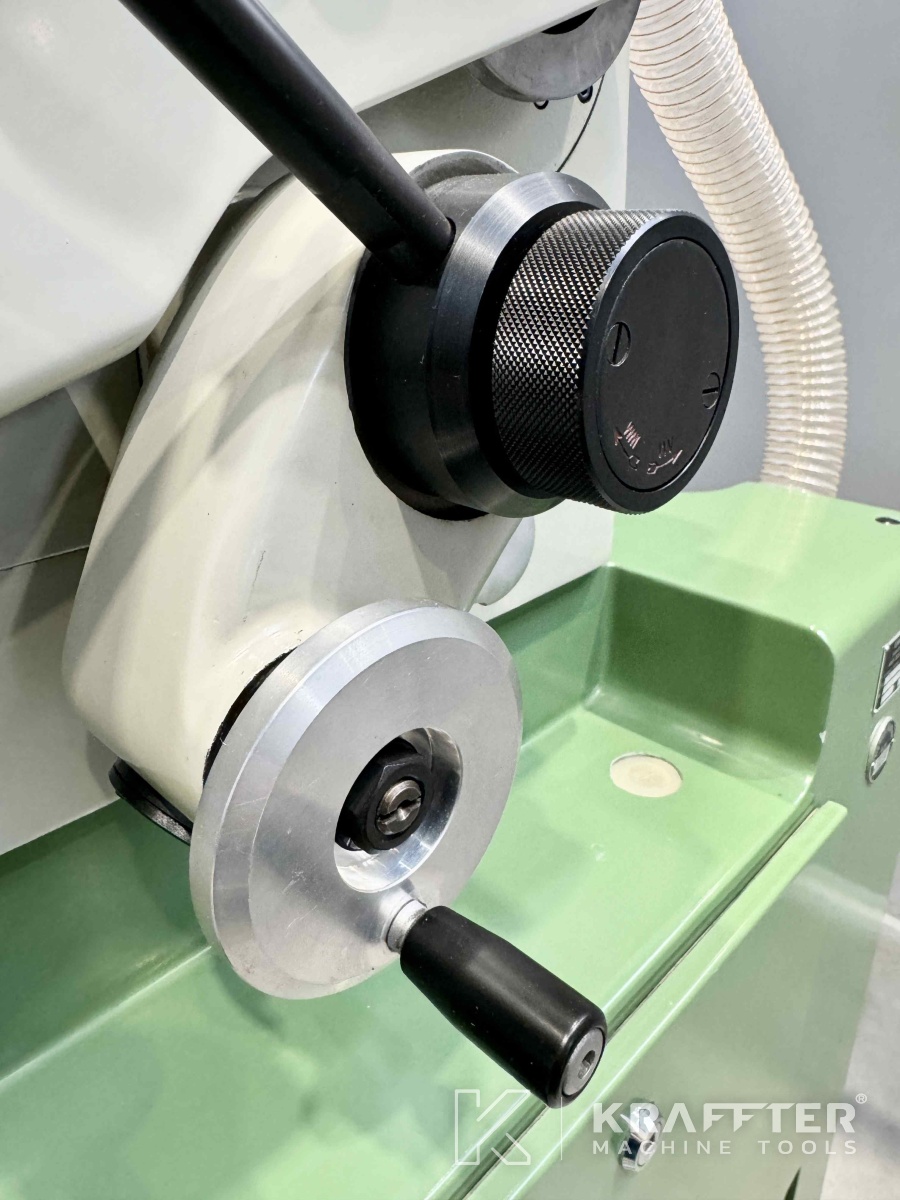

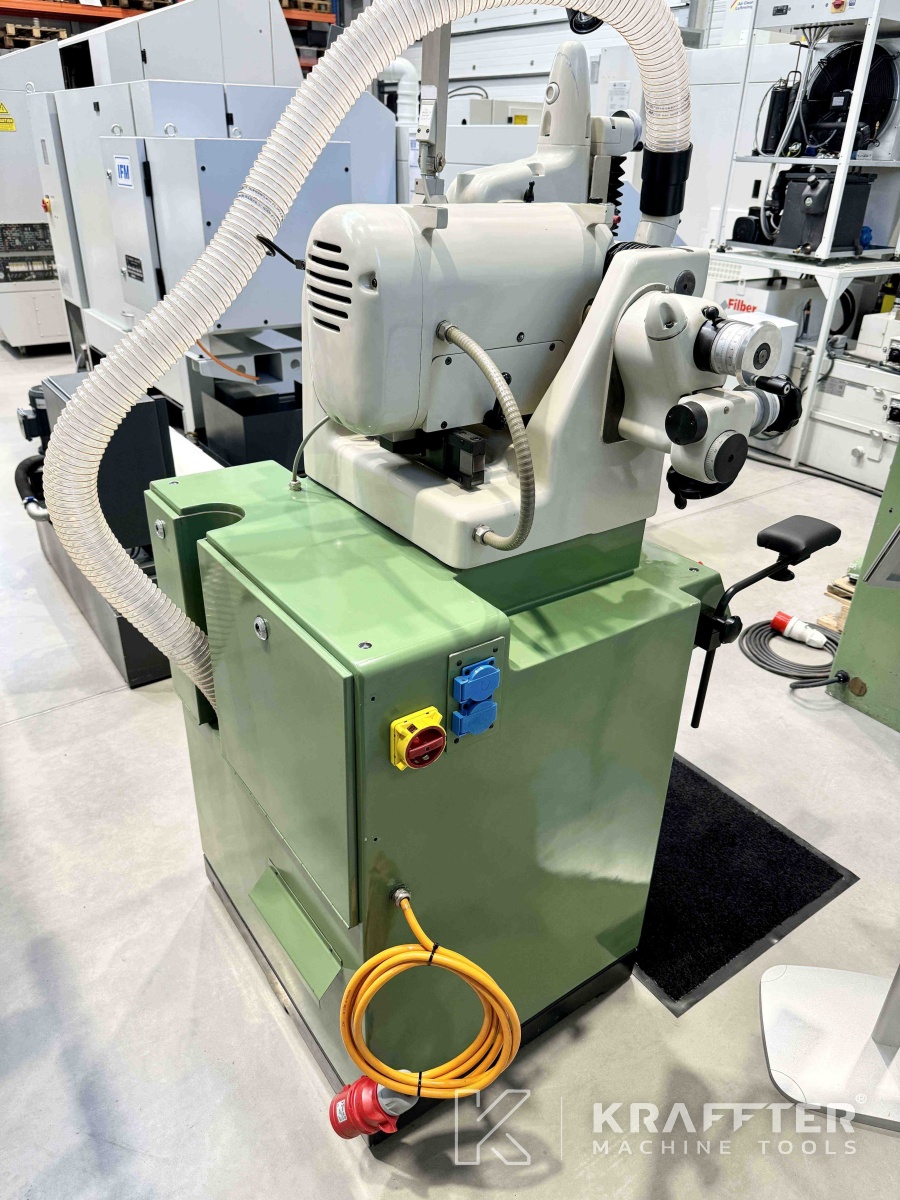

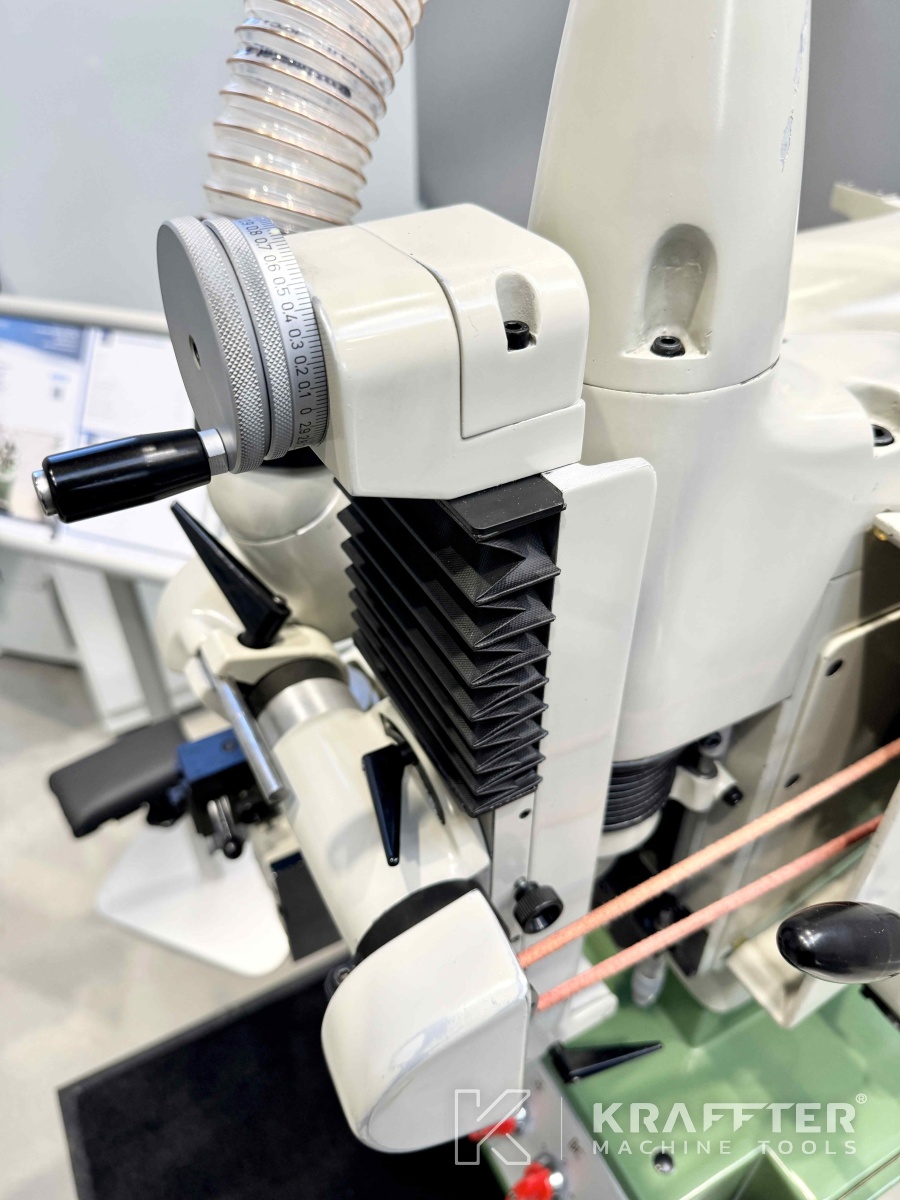

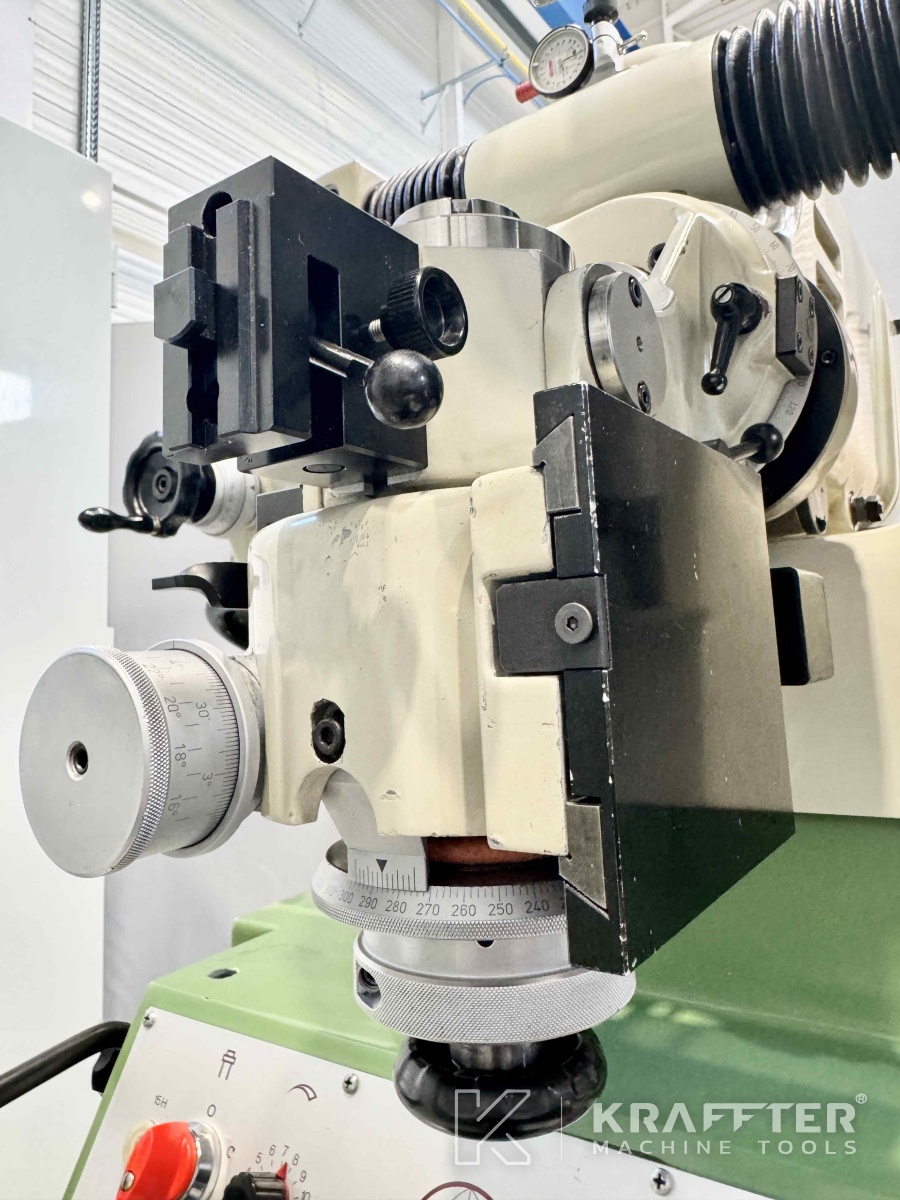

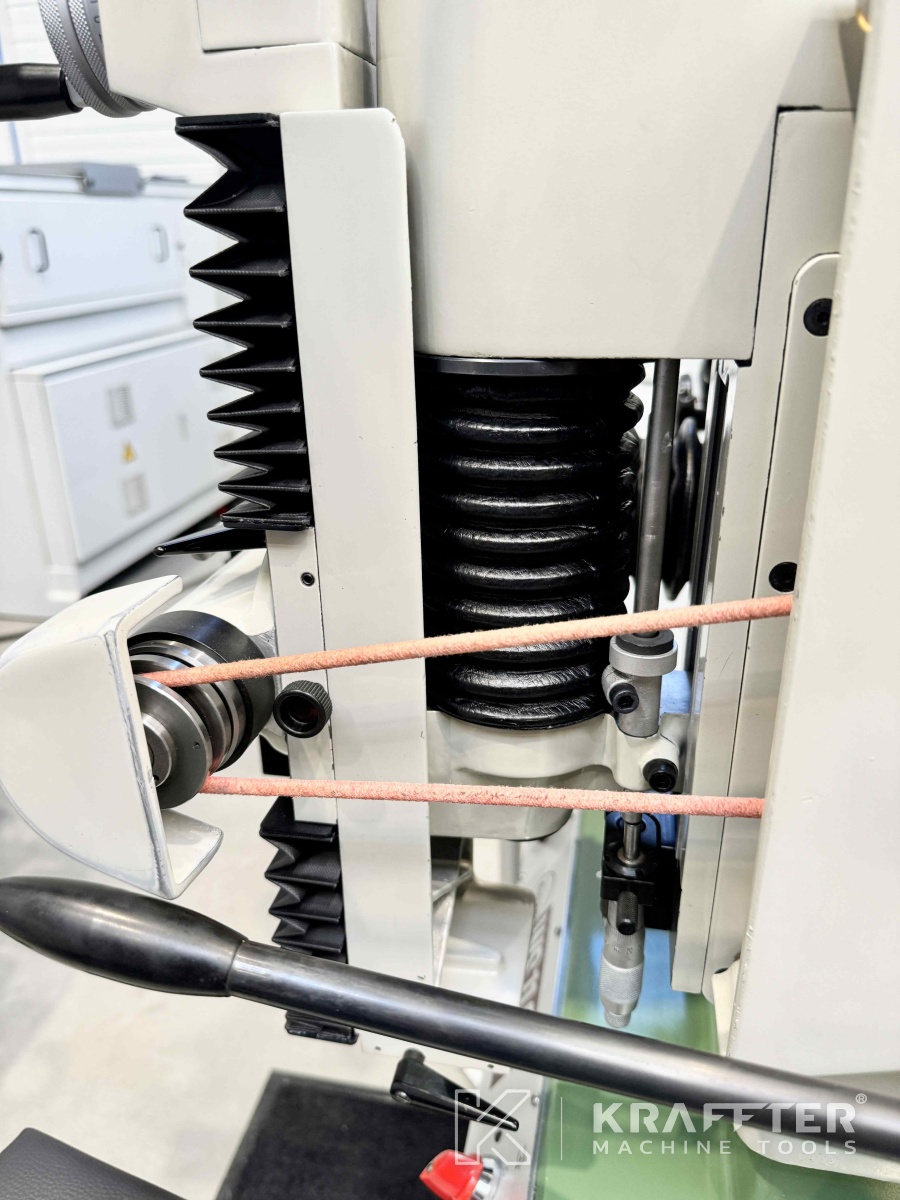

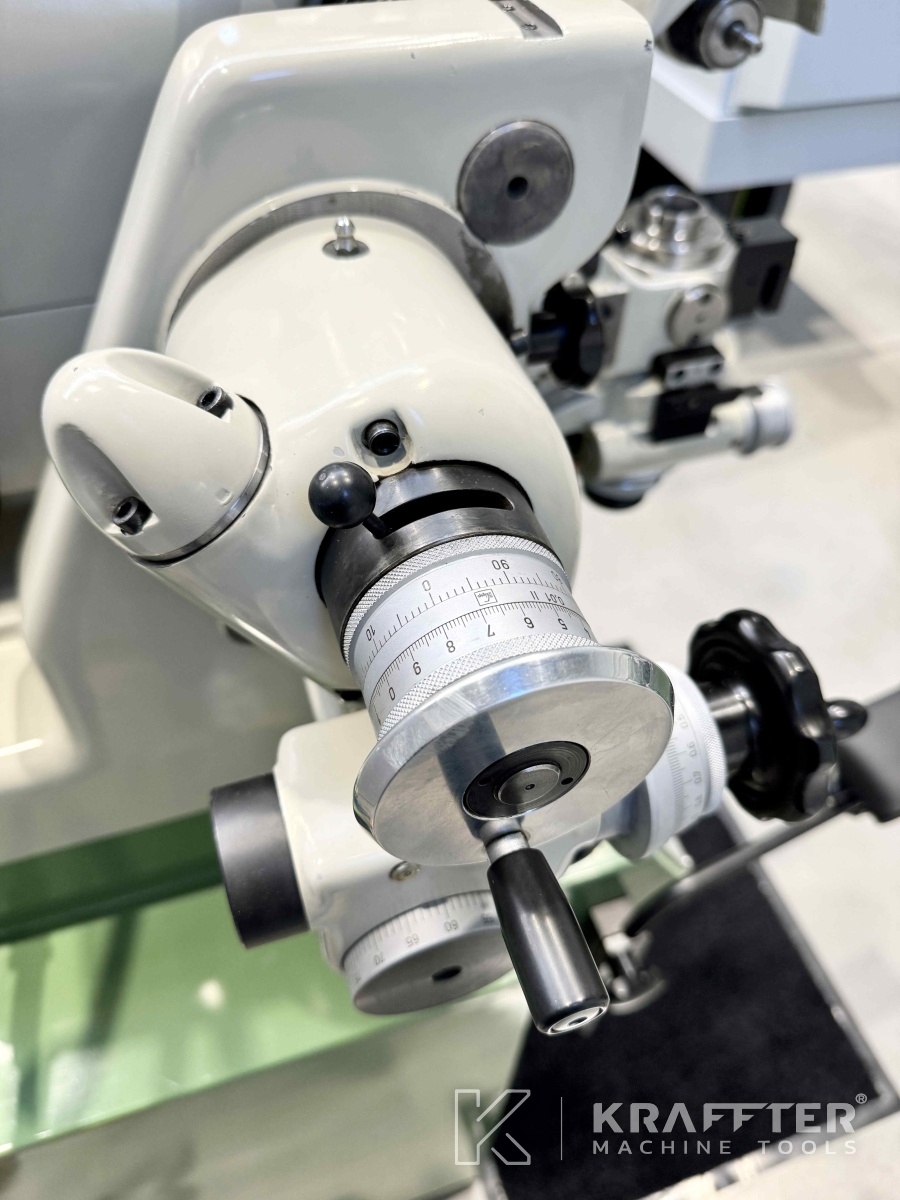

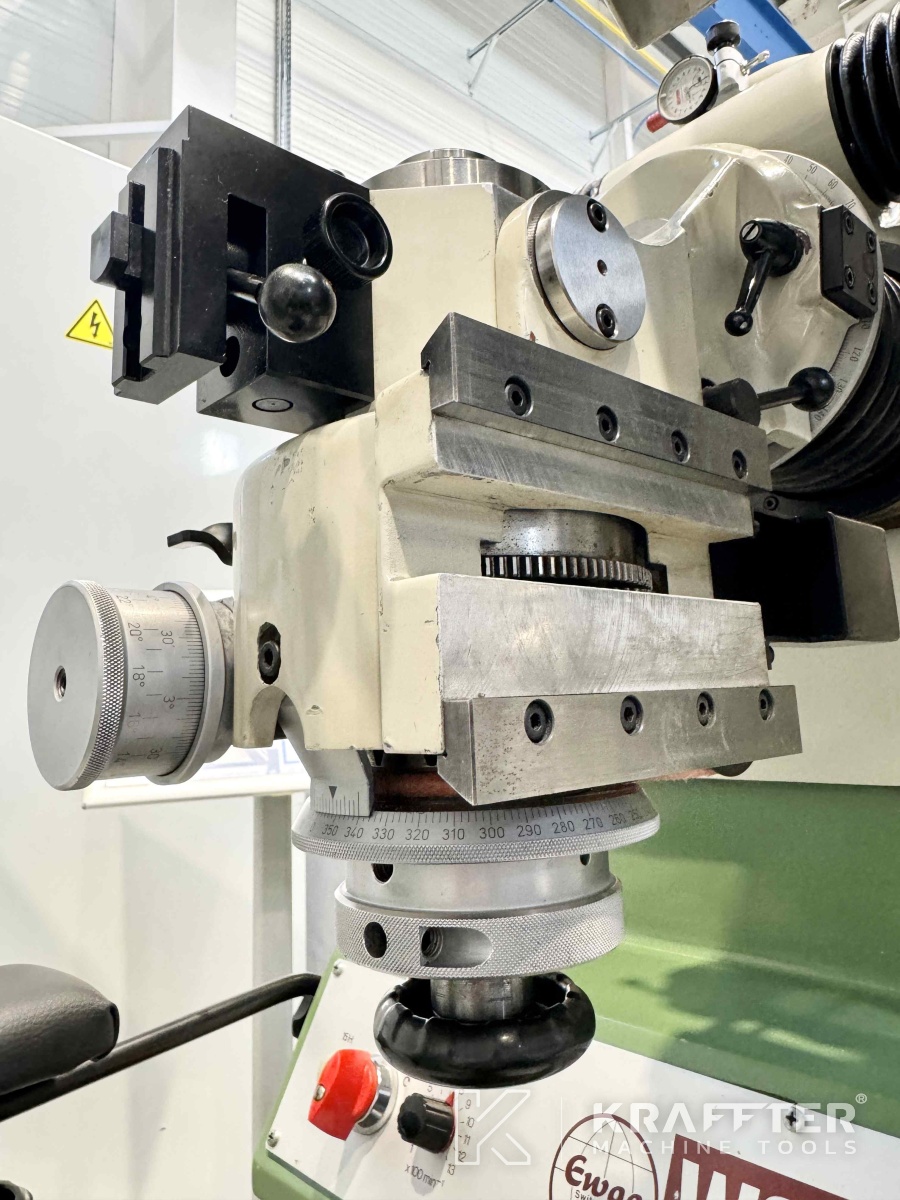

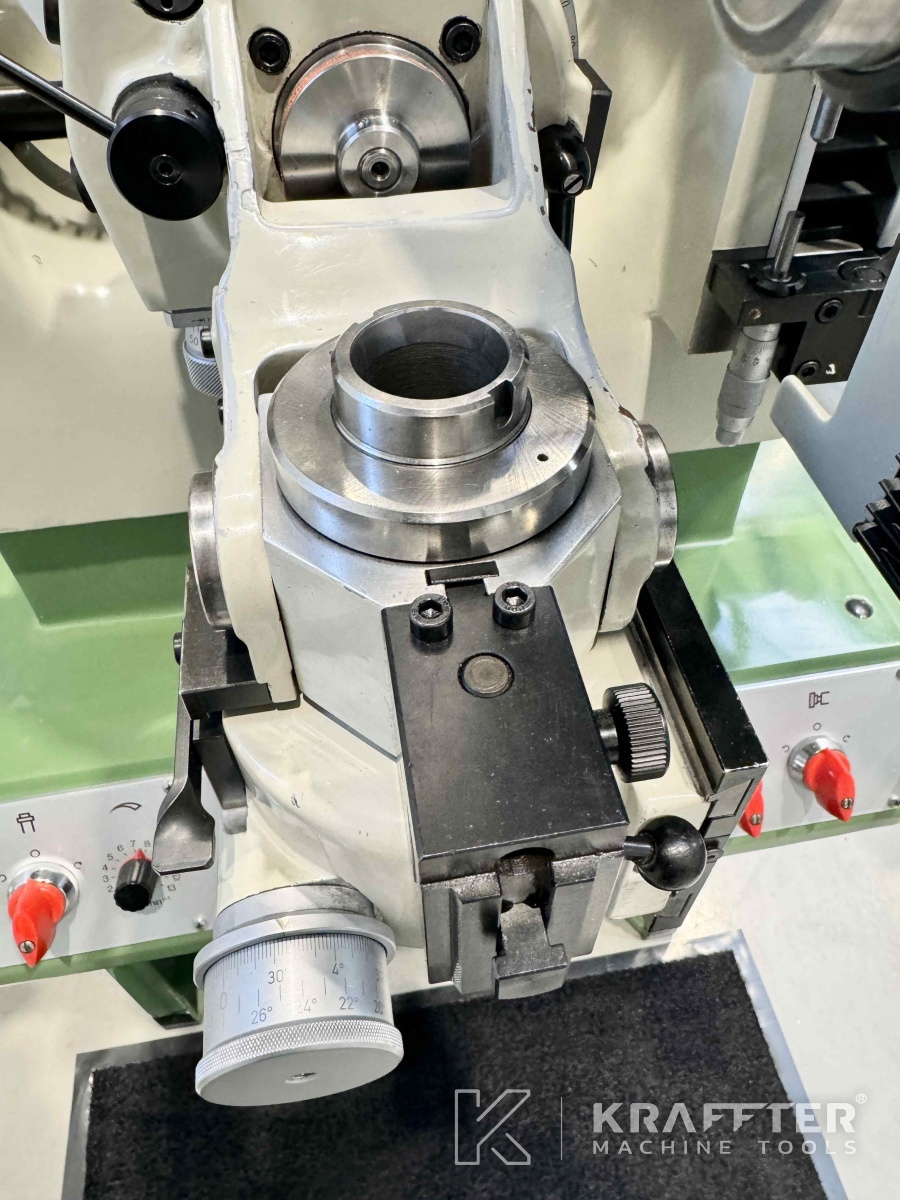

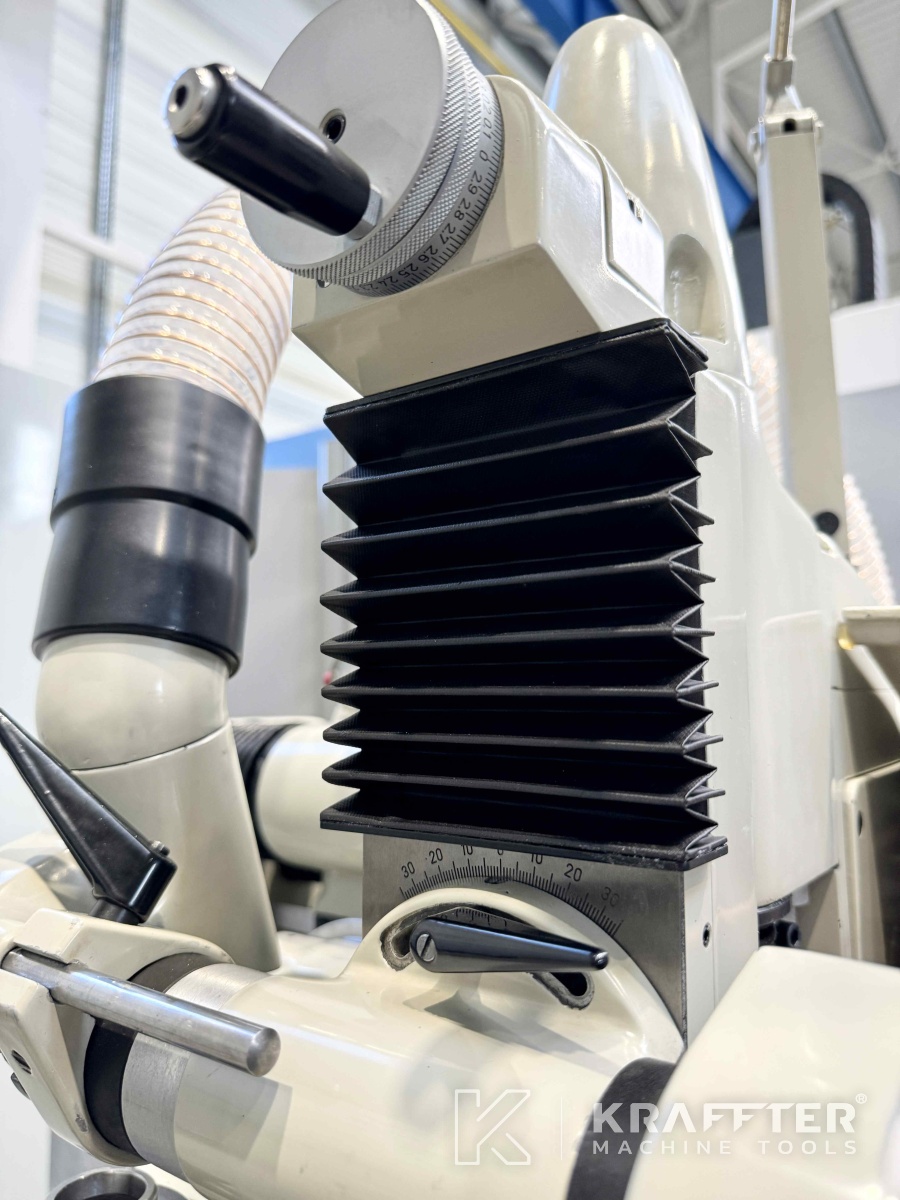

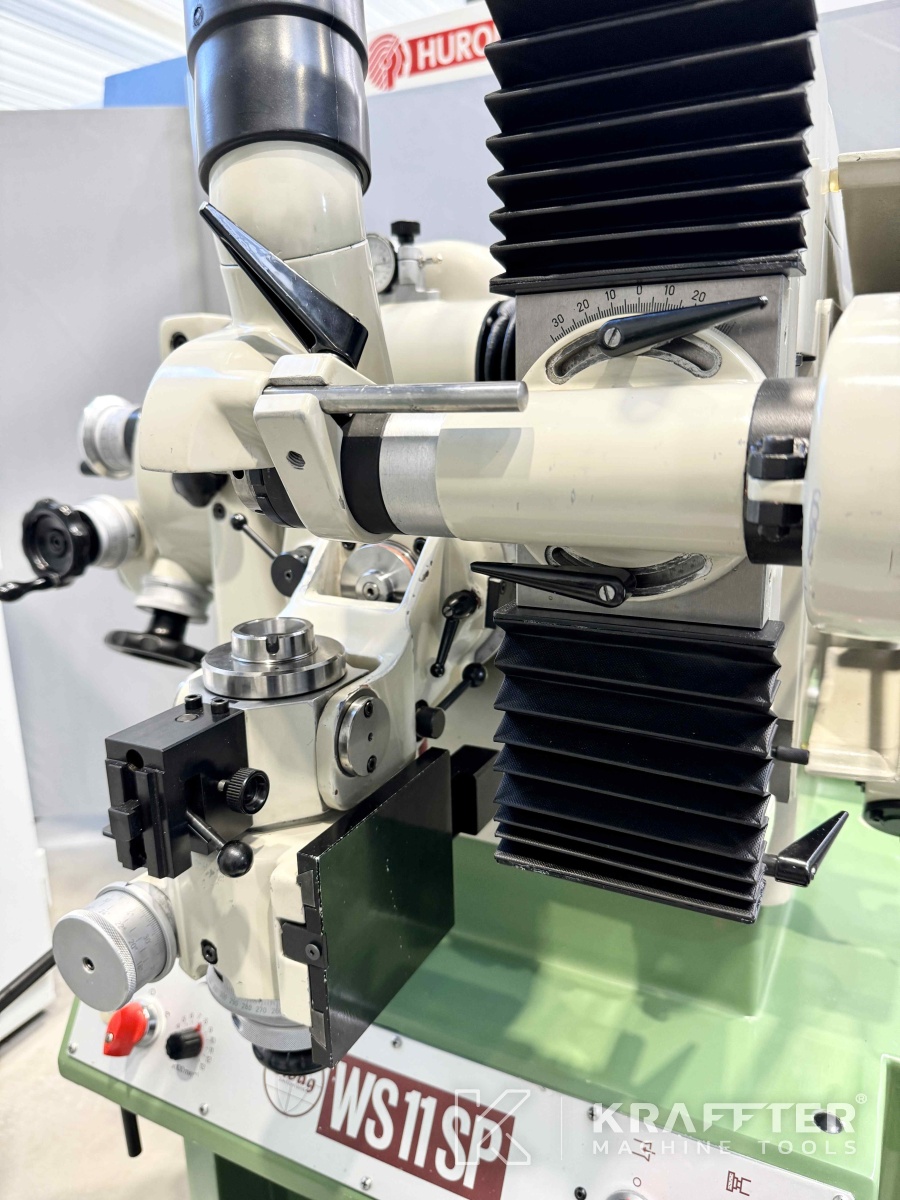

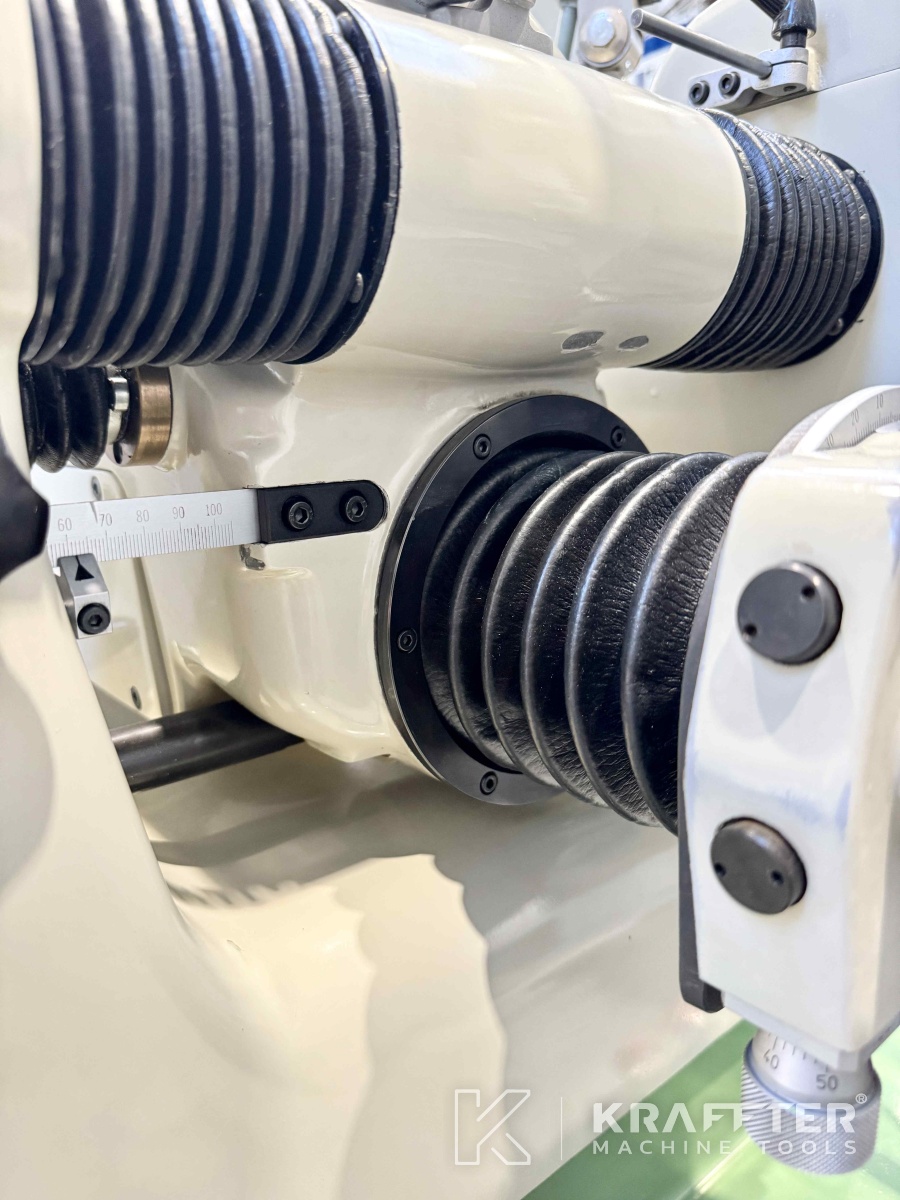

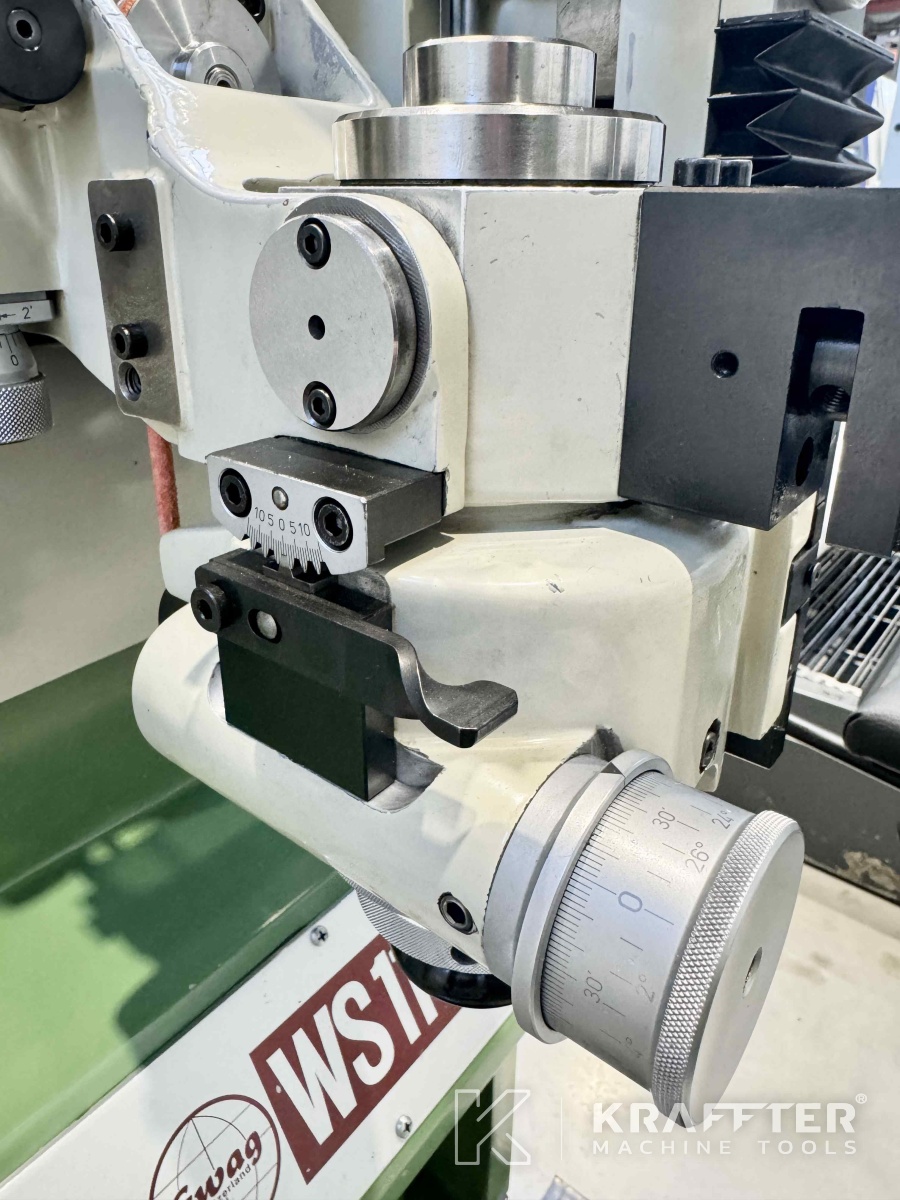

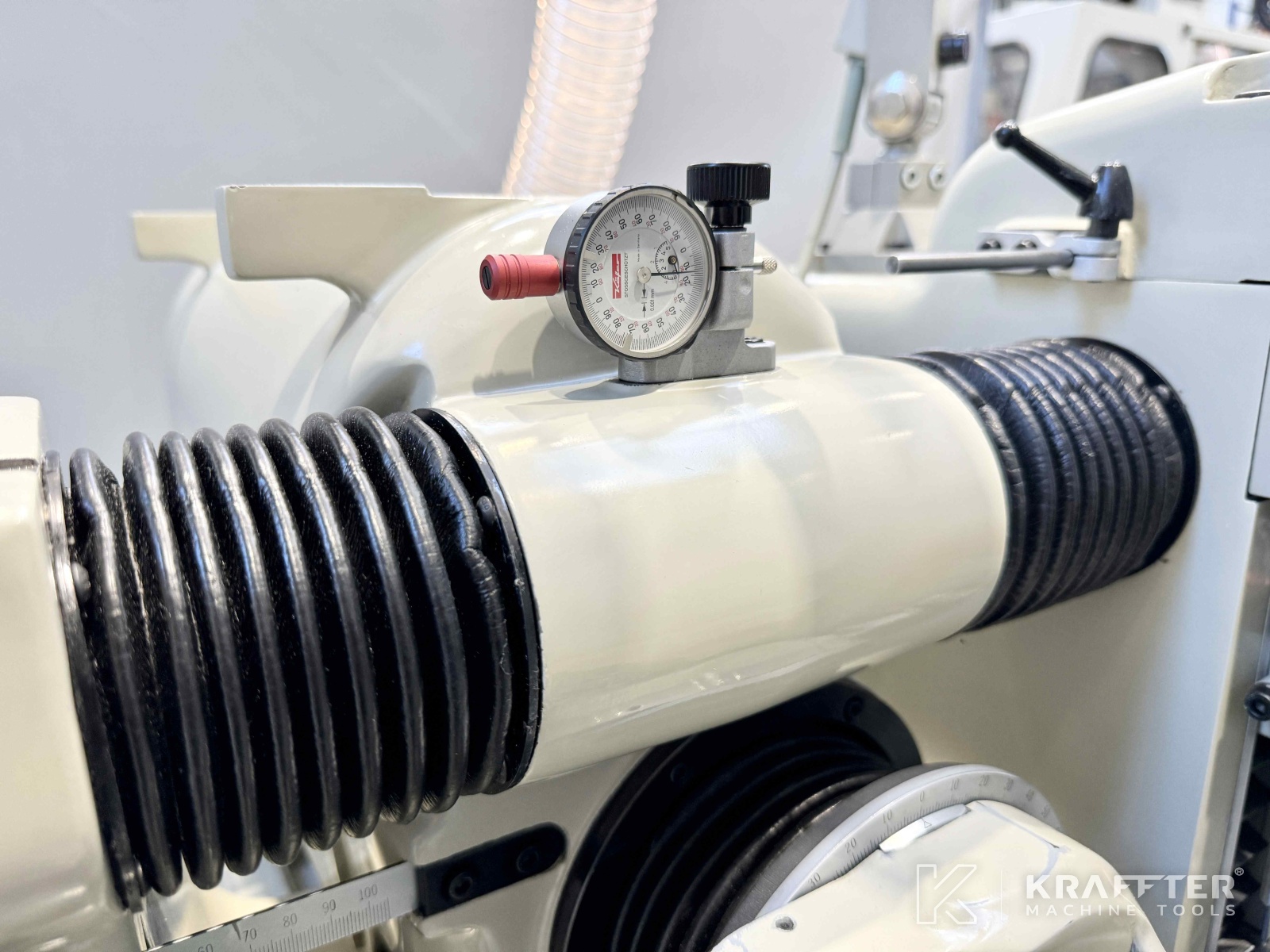

Type of machine : Tool grinding machine
Brand : EWAG
Stock N° : 90097
Model : WS11-SP
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
7
Stroke X axis
100 [mm]
Stroke Y axis
100 [mm]
Stroke Z axis
100 [mm]
V axis stroke
184 [mm]
A axis
-135 [°] / +30 [°] [°]
Grinding wheel min. speed
2500 [rpm]
Grinding wheel max. speed
8000 [rpm]
Grinding spindle motor power
0.3 [kW]
Max. diameter grinding wheel
75 [mm]
Workpiece spindle min. speed
100 [rpm]
Workpiece spindle max. speed
1300 [rpm]
Workpiece spindle power
0.37 [kW]
Spindle for collets
W25
Max. throughbore with collet
25 [mm]

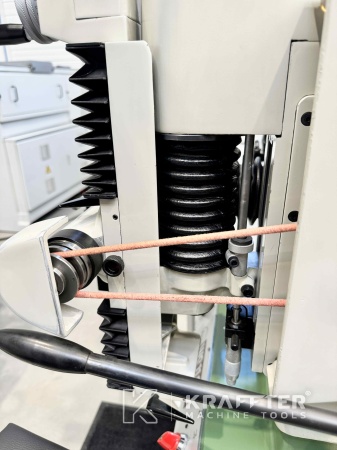

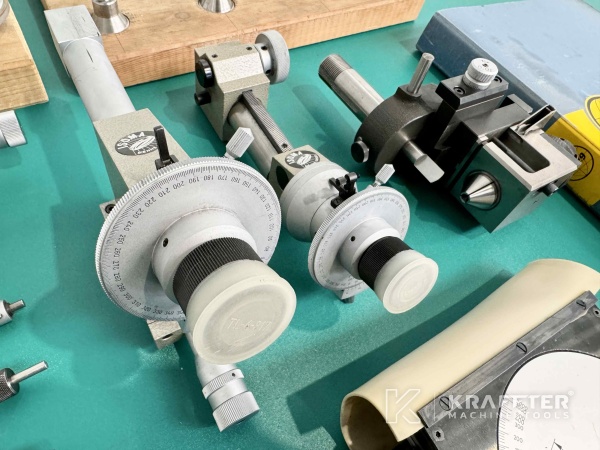

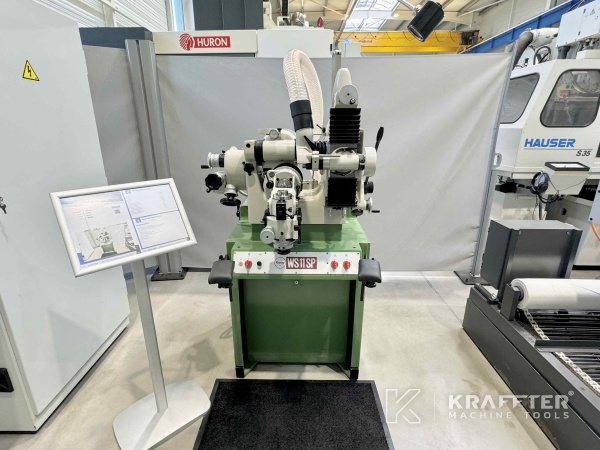

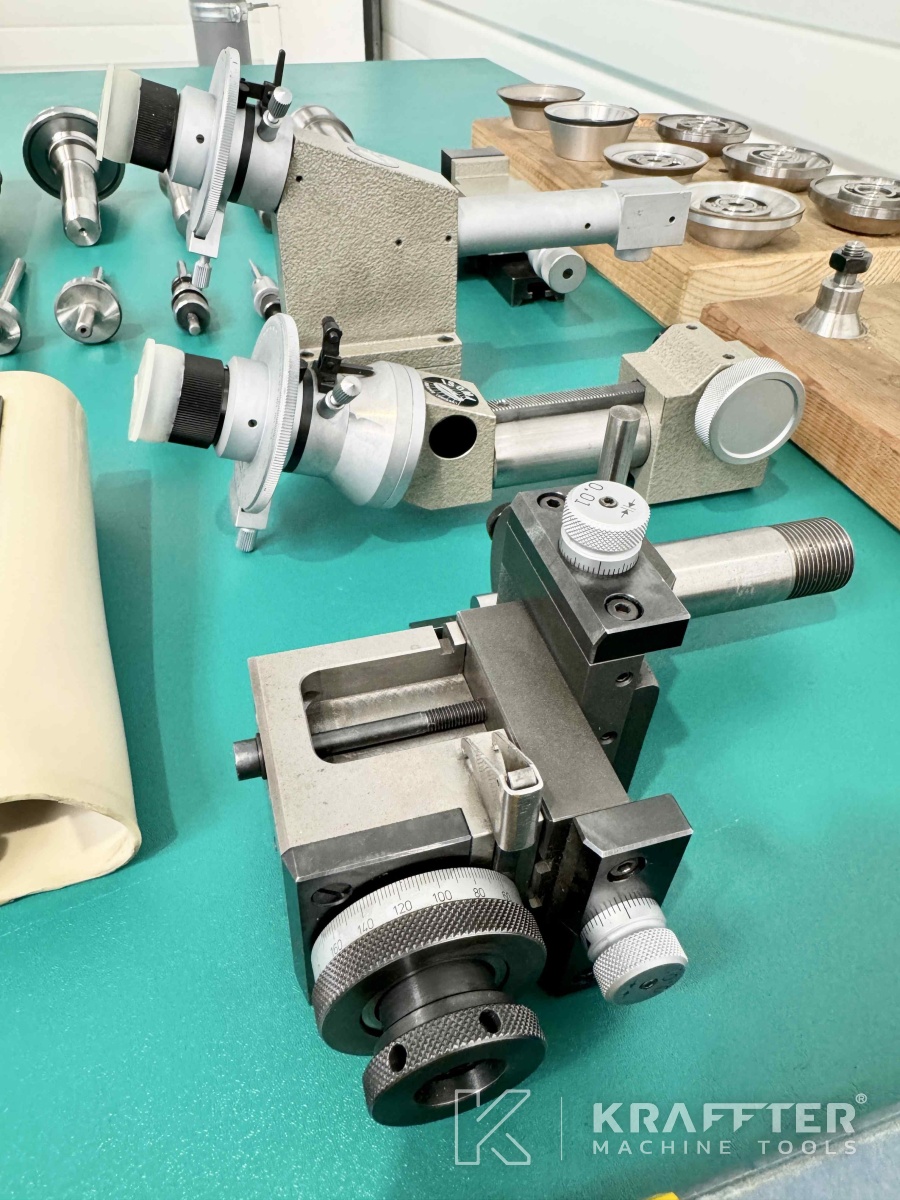

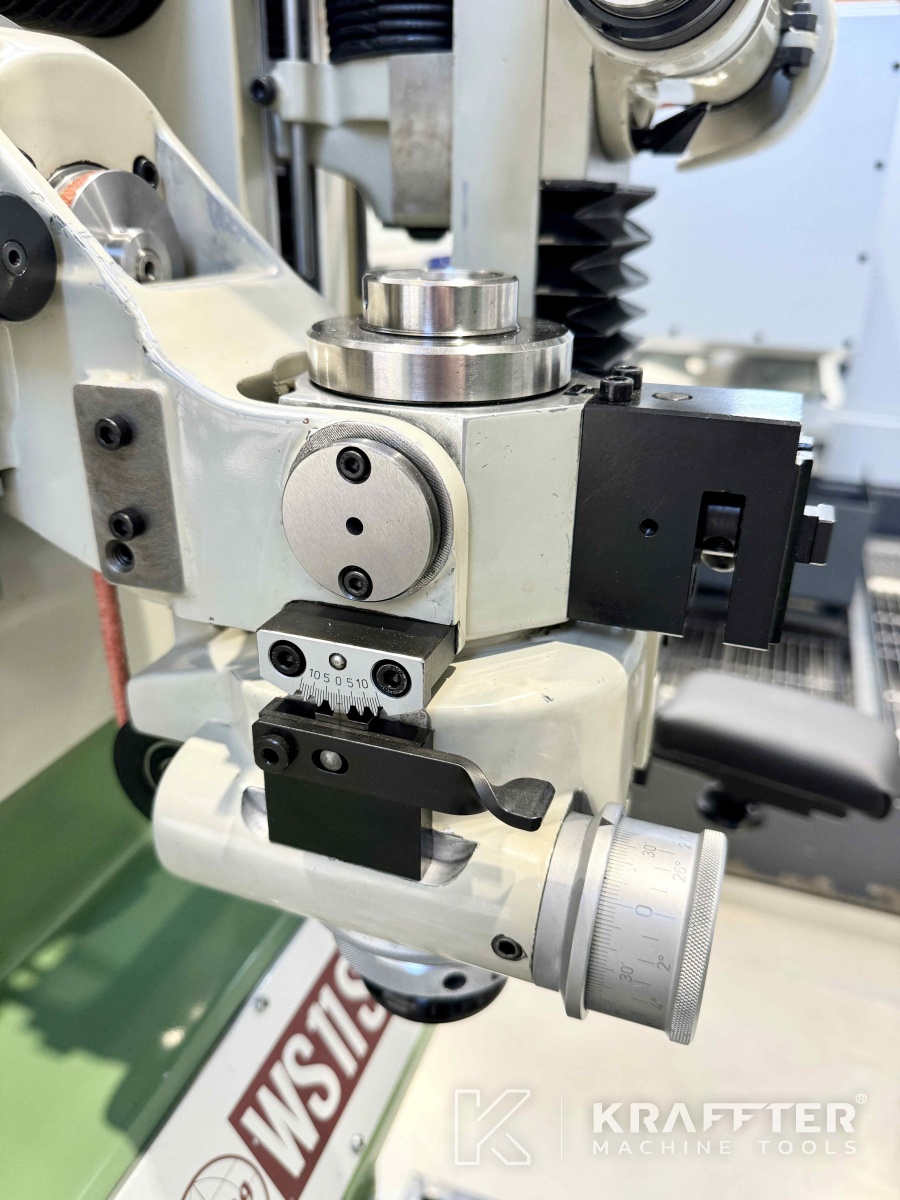

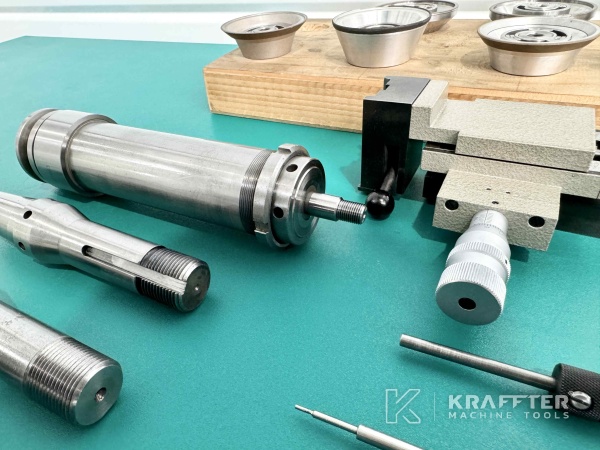

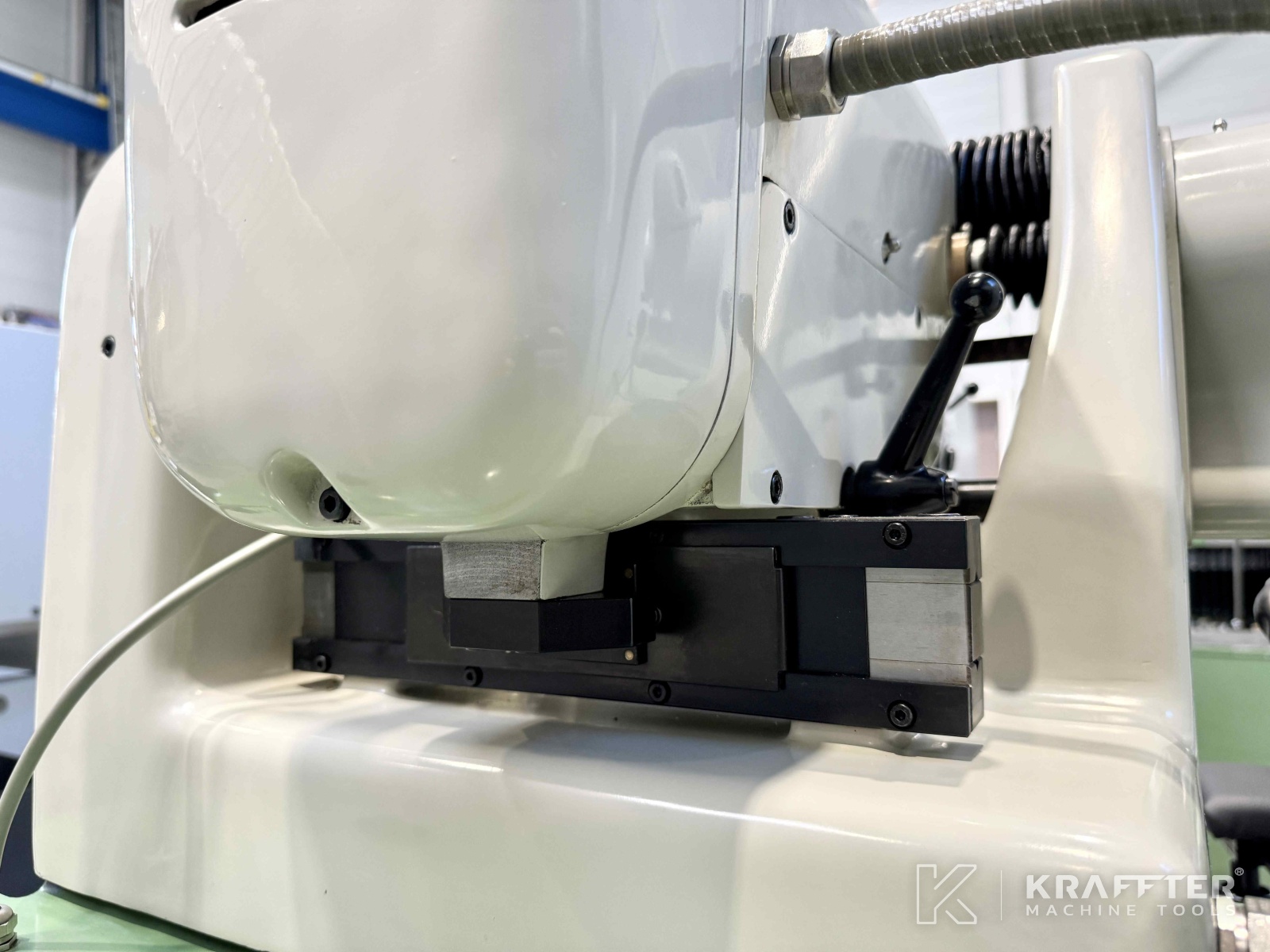

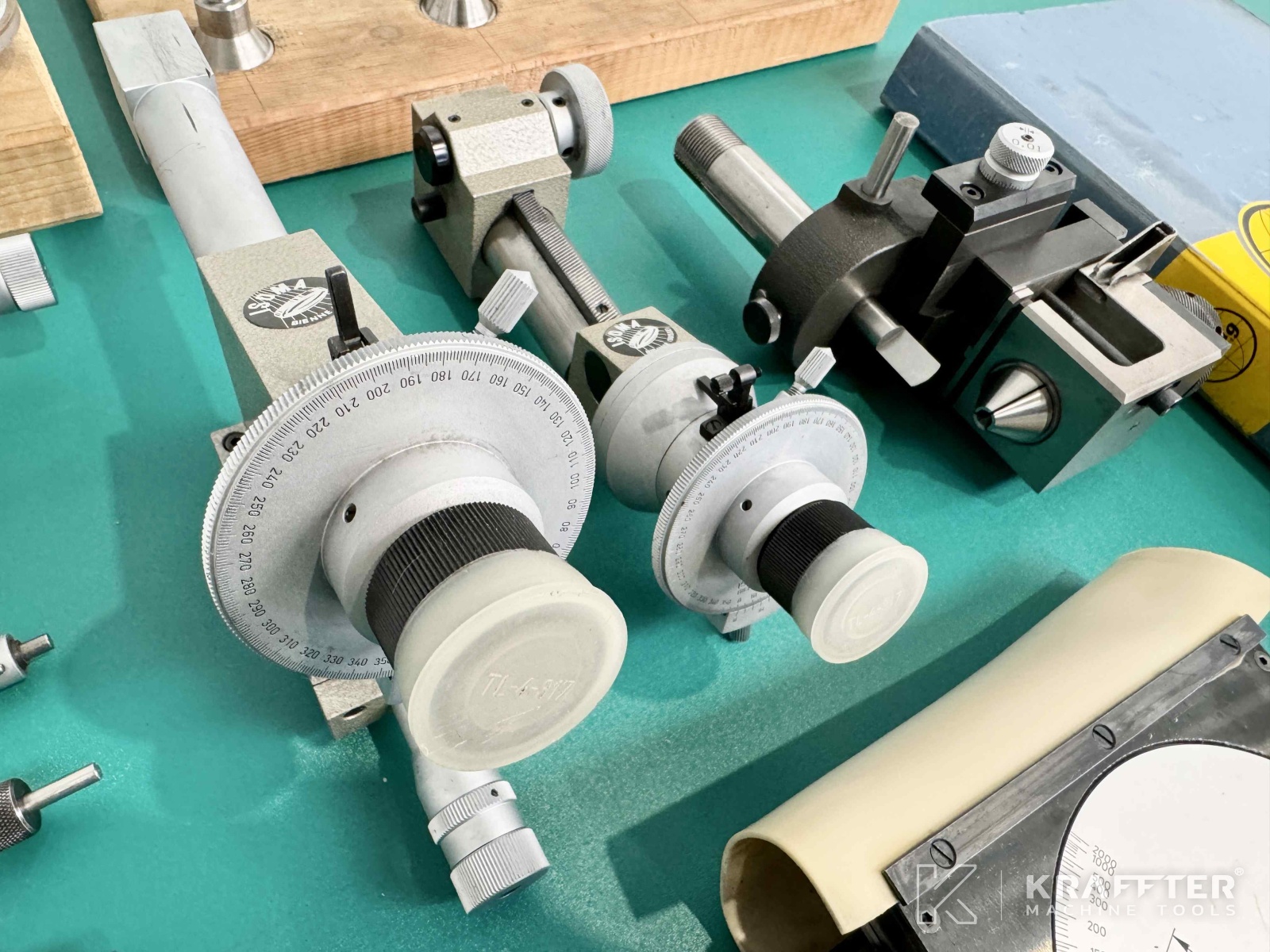

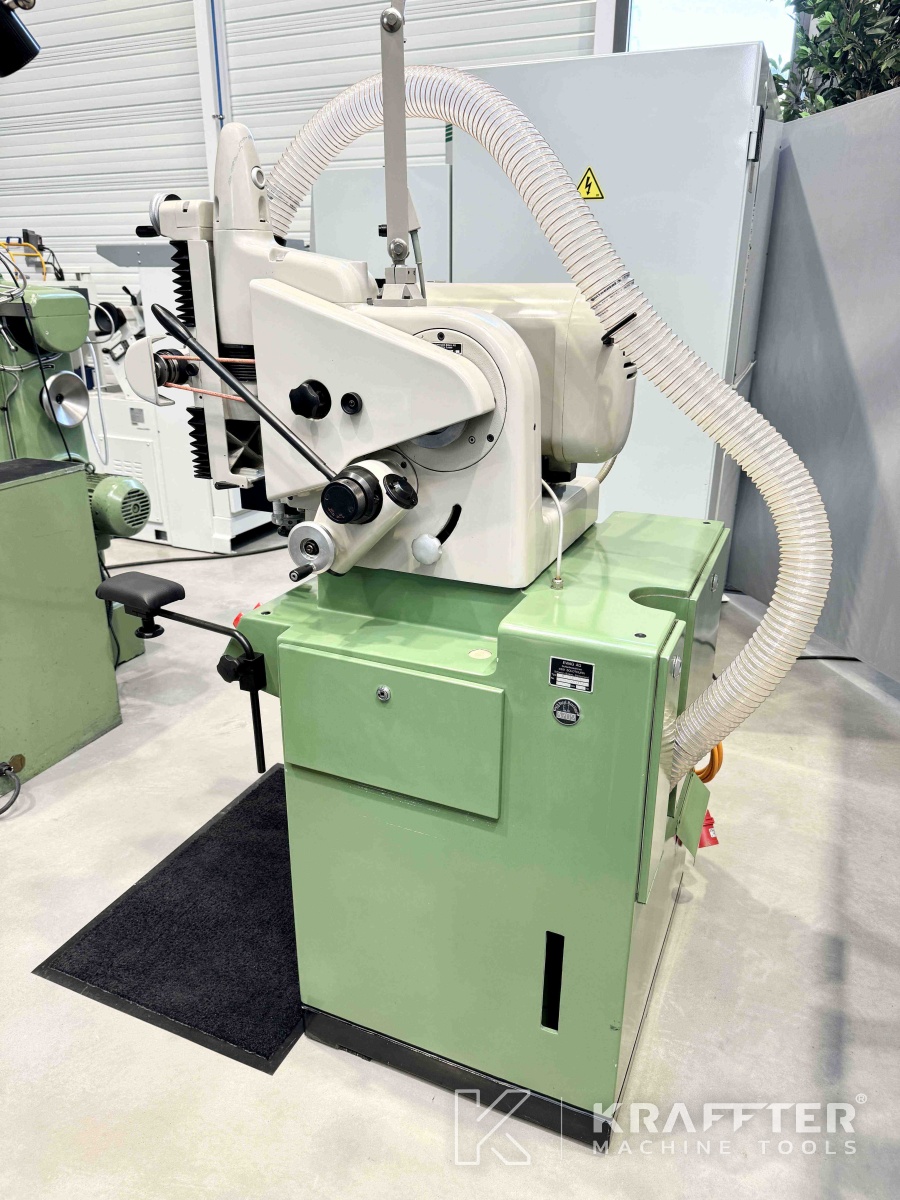

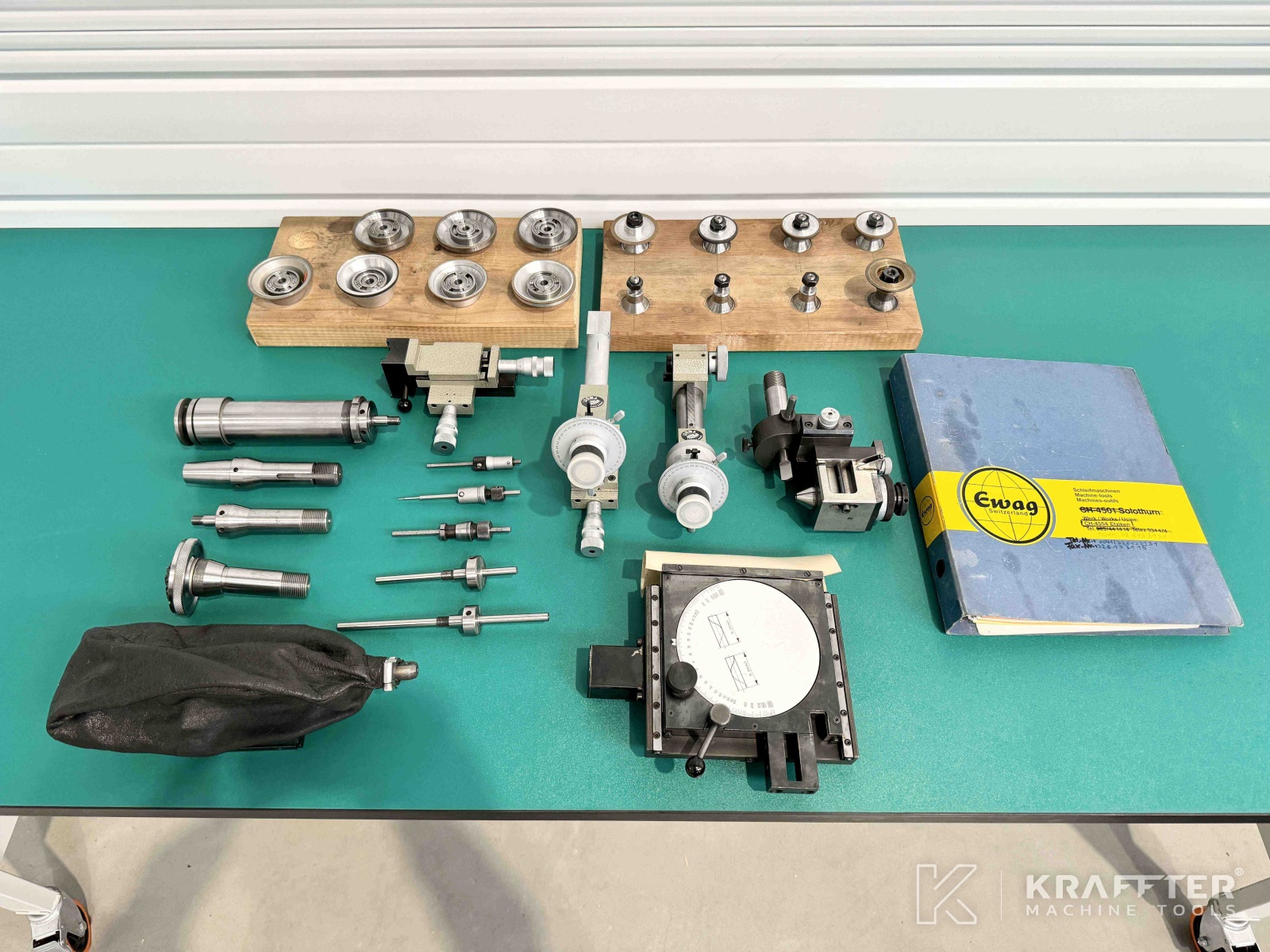

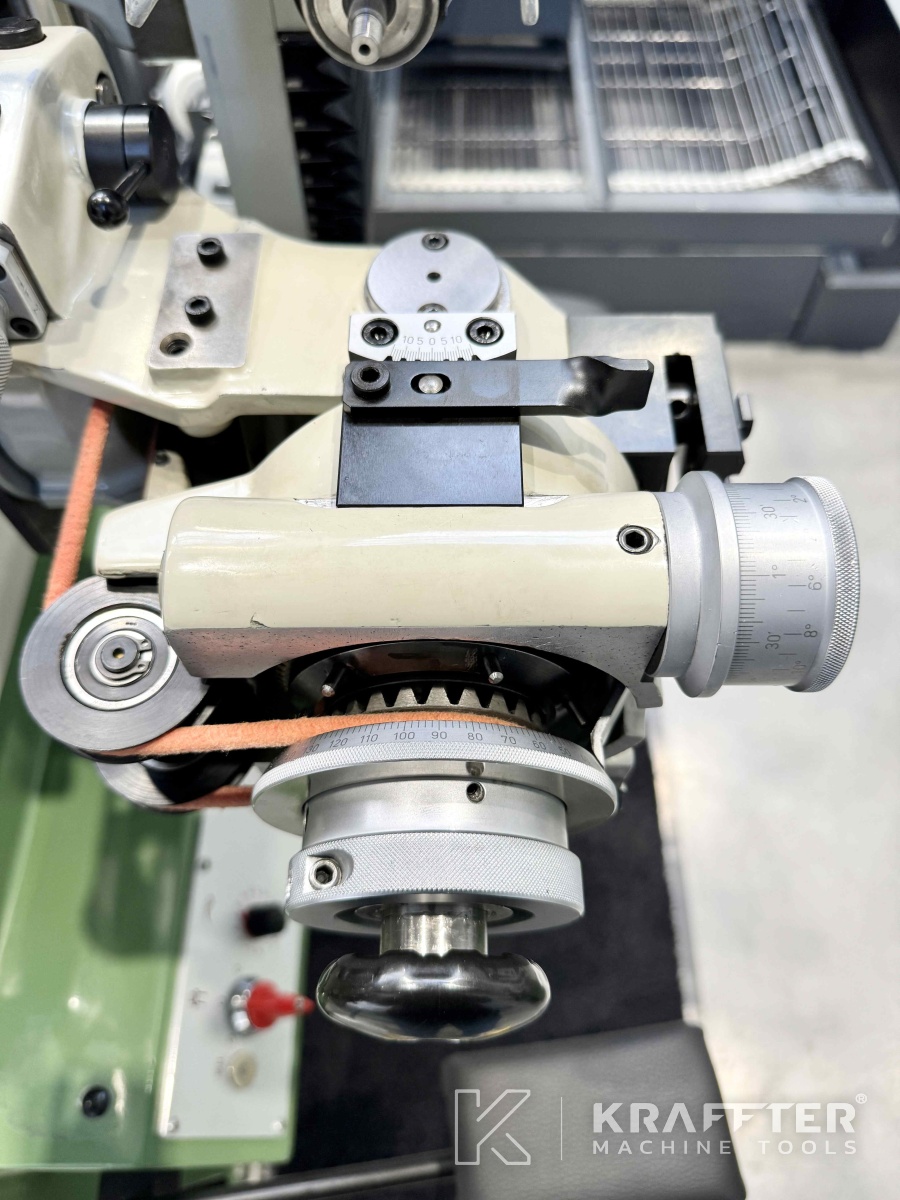

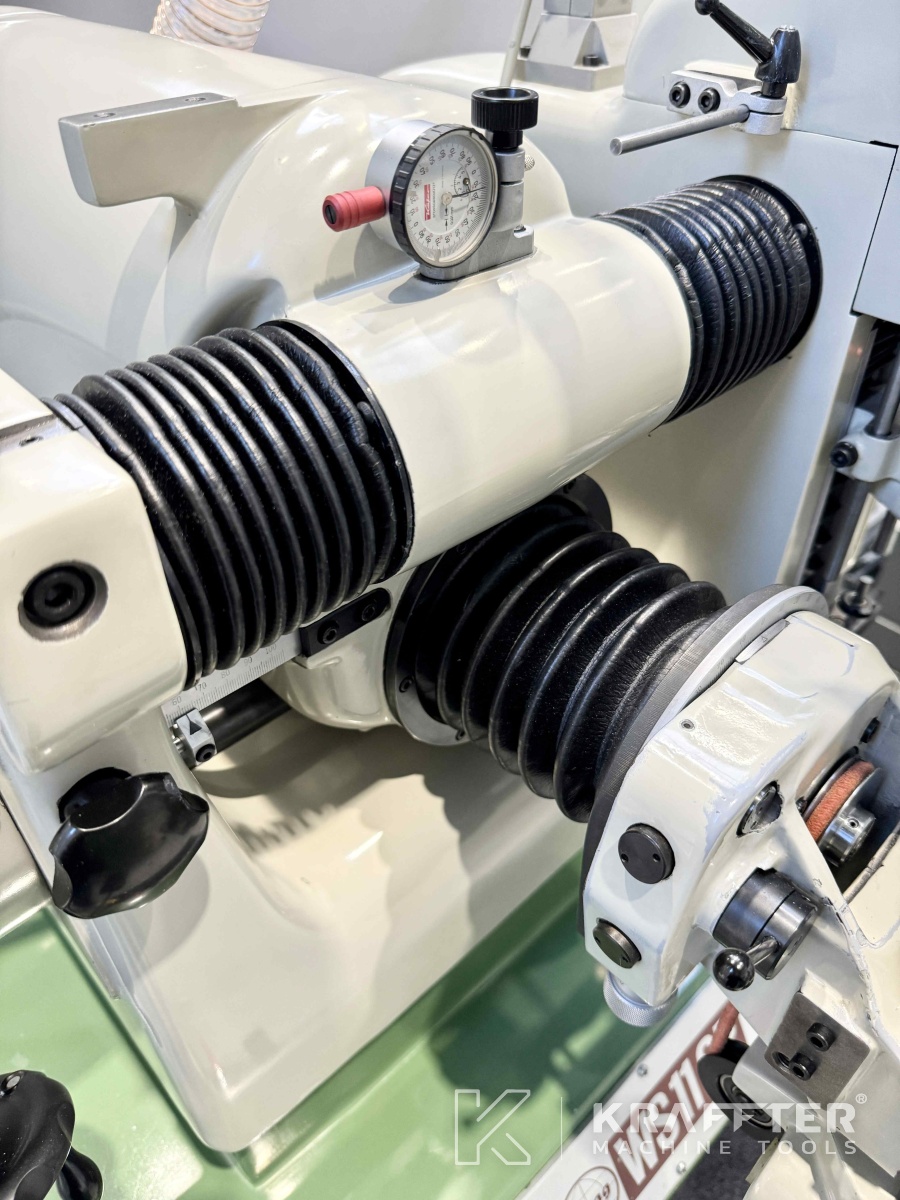

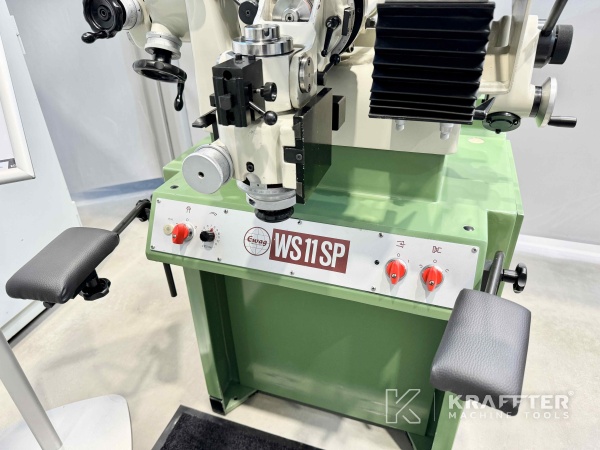

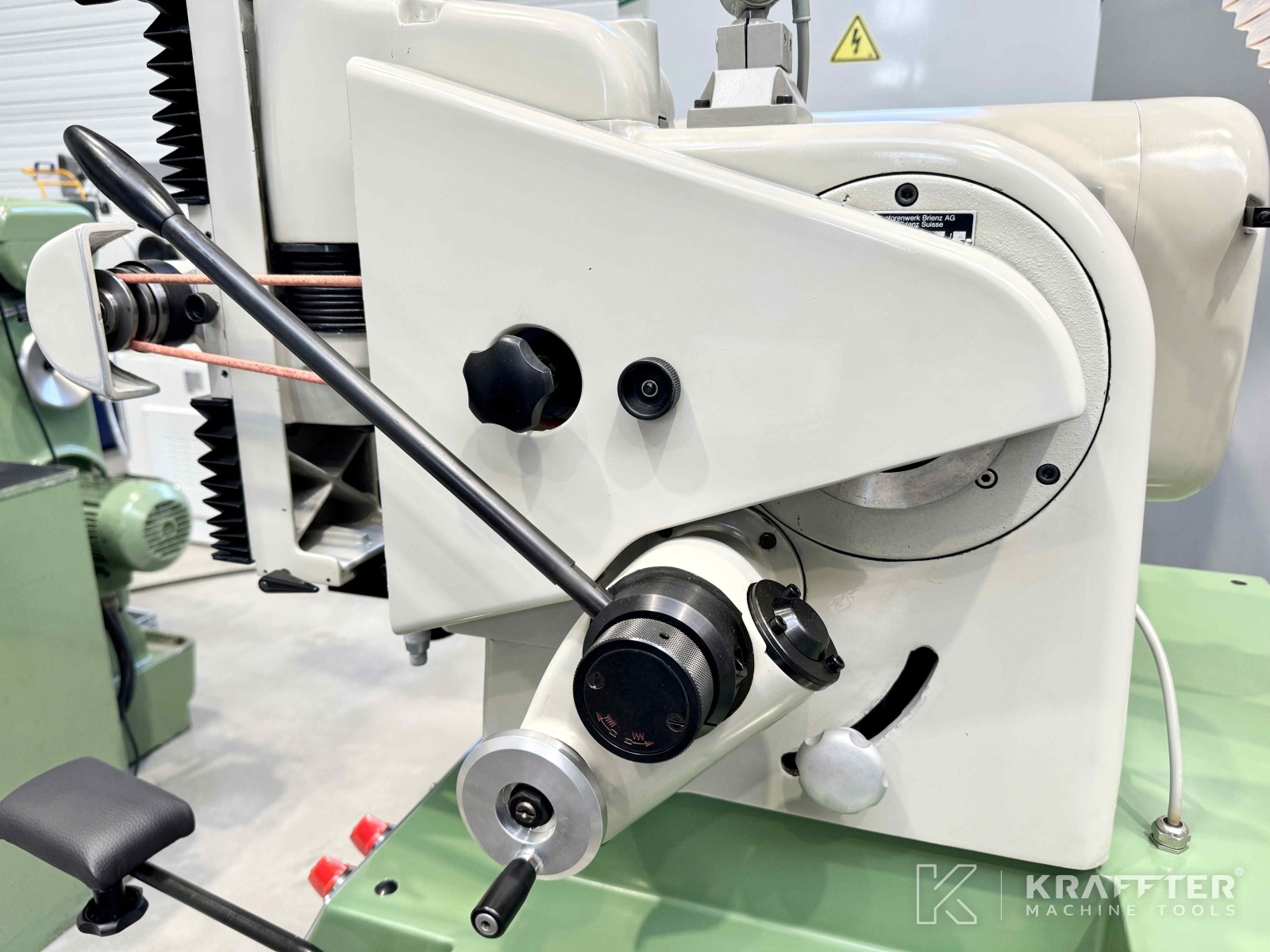

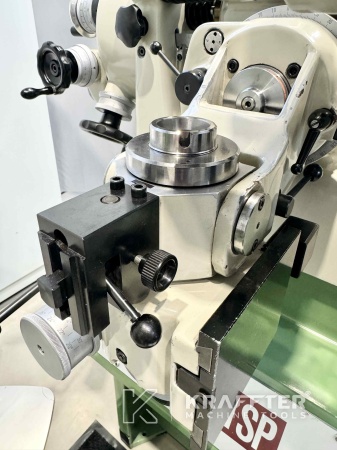

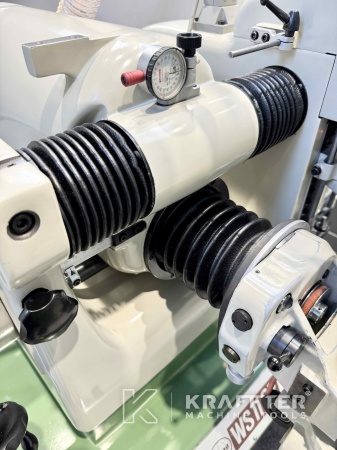

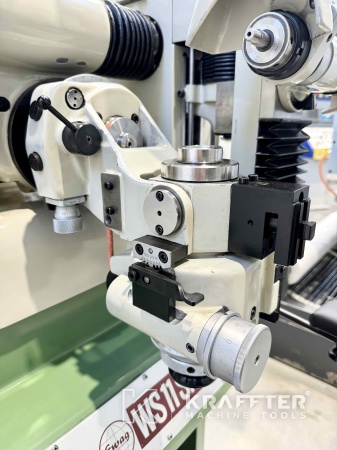

EQUIPMENT INCLUDED:
x1 infeed Z-axis : Infeed operation, metric 4 E-M with position reading - ref: 111-2-10666
x1 cross feed X-axis Fine cross feed 4 FQ-M - ref: 111-2-21708
x1 grinding stroke Y axis 3 J - ref: 113-2-23915 (WS 11-SP)

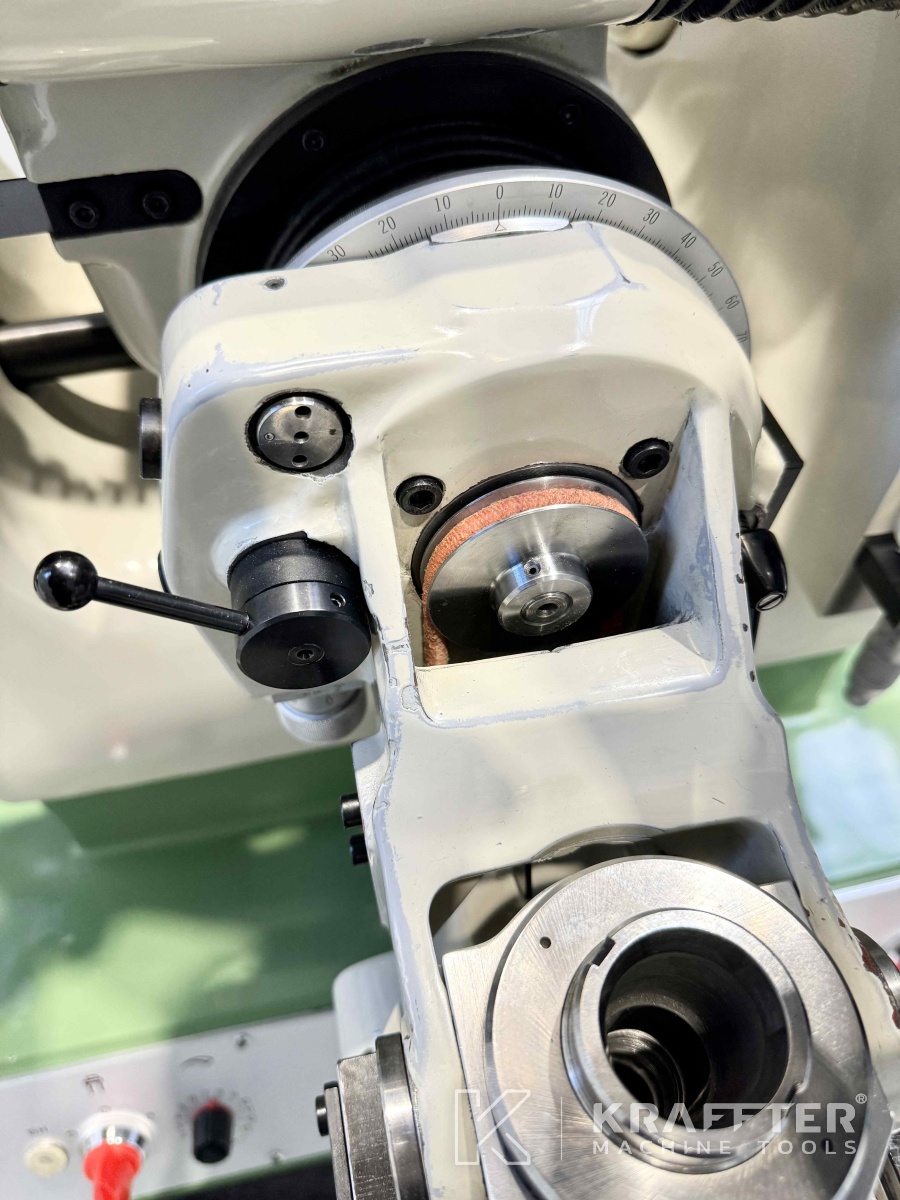

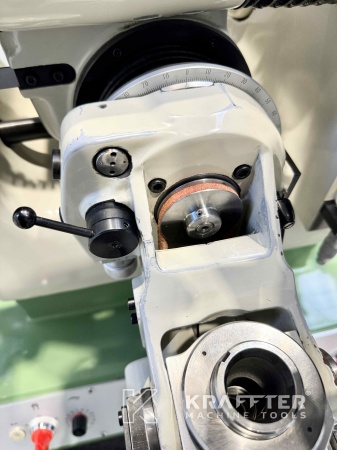

x1 spiral grinding head W25 - ref: 113-2-15839
x1 dust extraction unit
x1 ISOMA optic from the front
x1 ISOMA optic from the top
x1 ISOMA cross-table for ISOMA optic

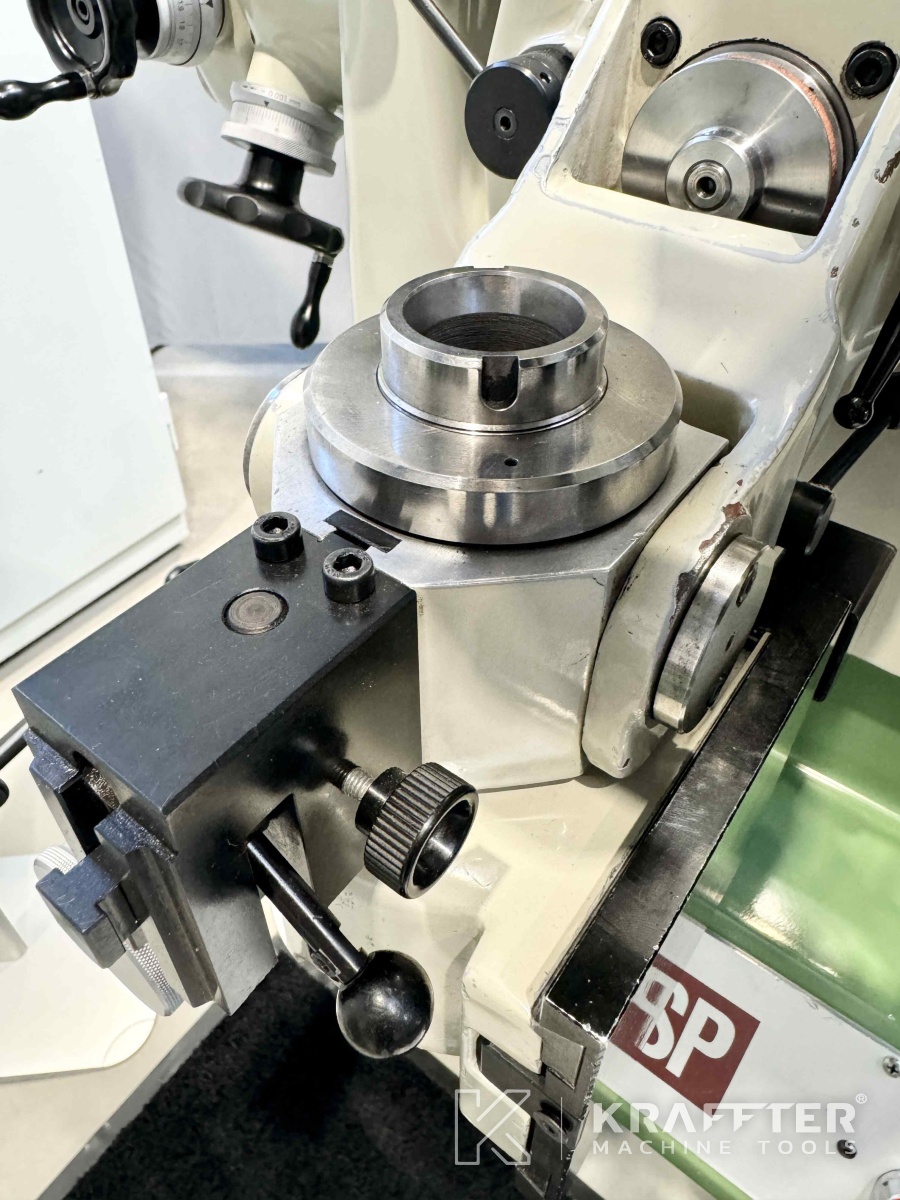

x1 quick-clamping three-faw chuck 25JF - ref: 25JF

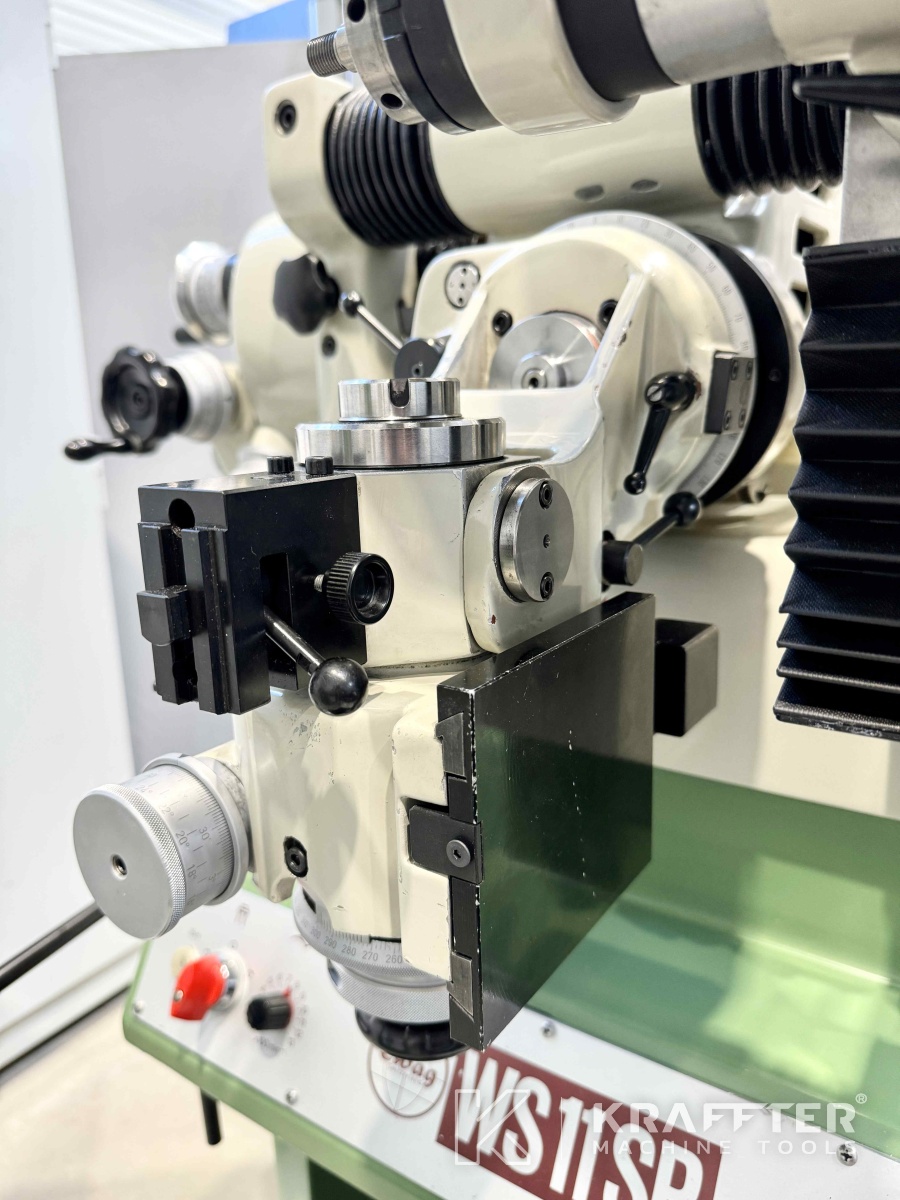

x1 dividing head TS20 (dividing: 15°) - ref: 20T
x1 arbor W25 / Q25-28 for mounting all Q21 adaptators - ref: Q25-28

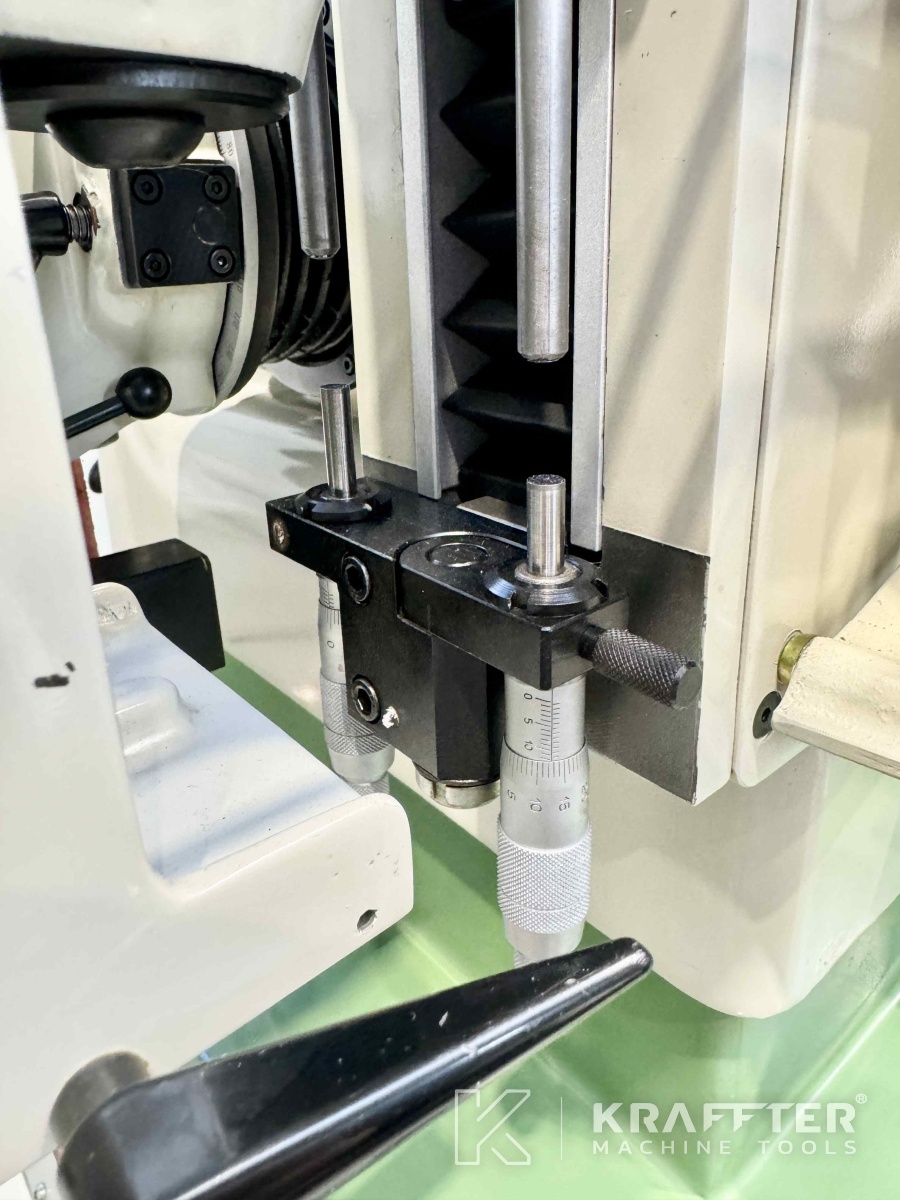

x5 depth stops

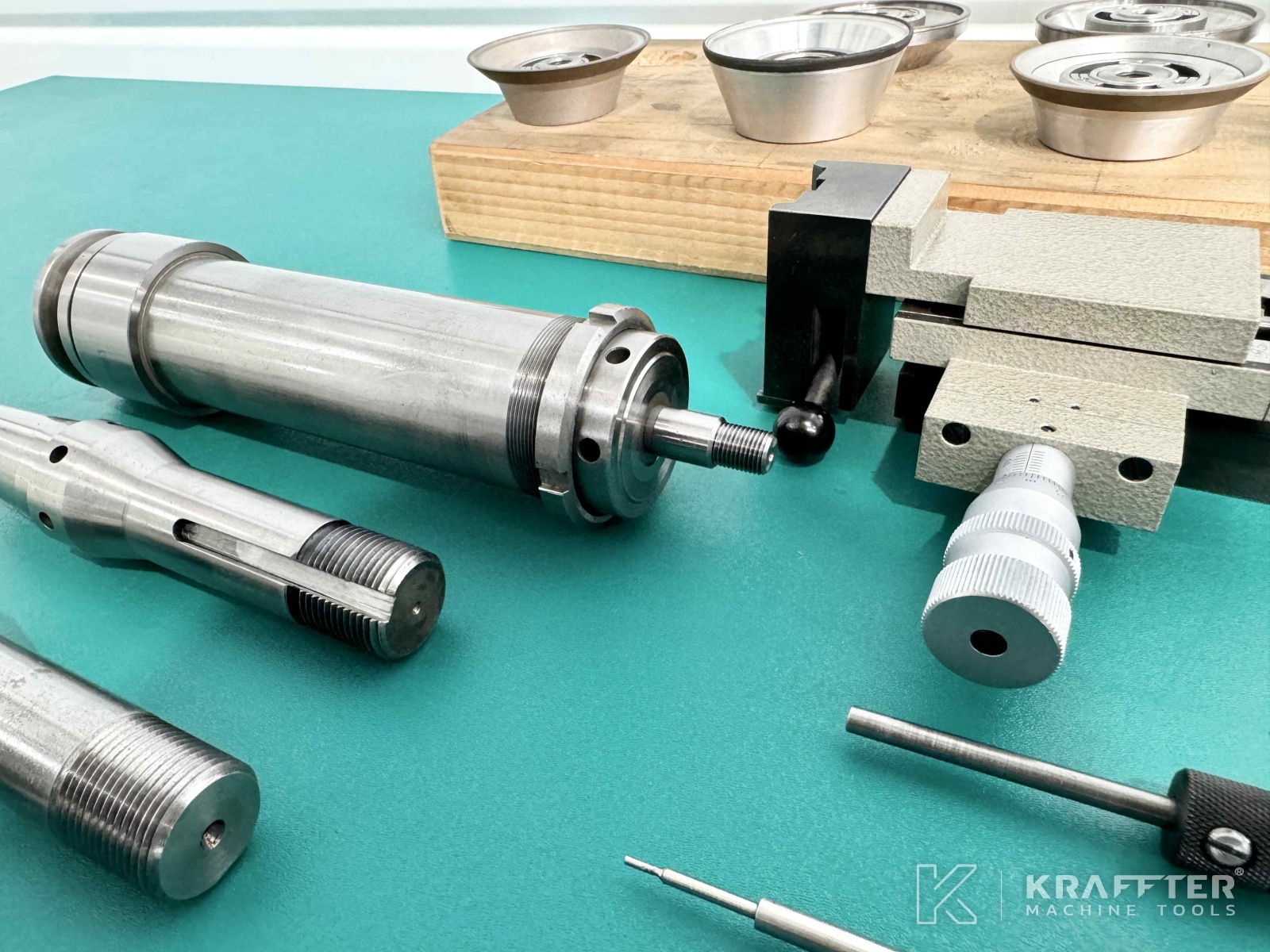

x2 grinding spindles
x1 lamp
x16 grinding wheel adaptators
