New in stock

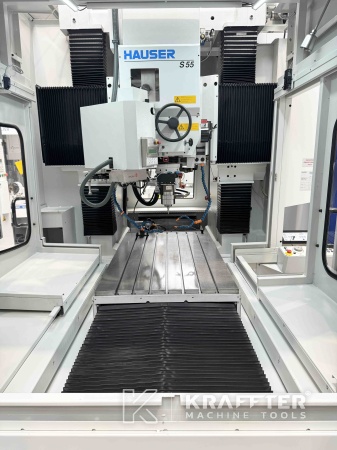

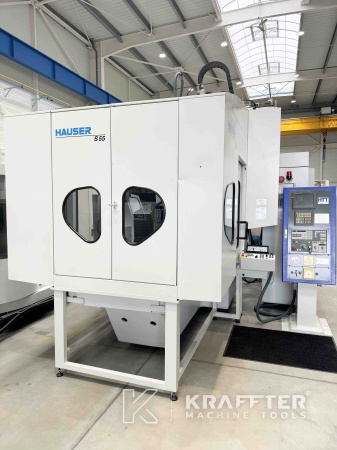

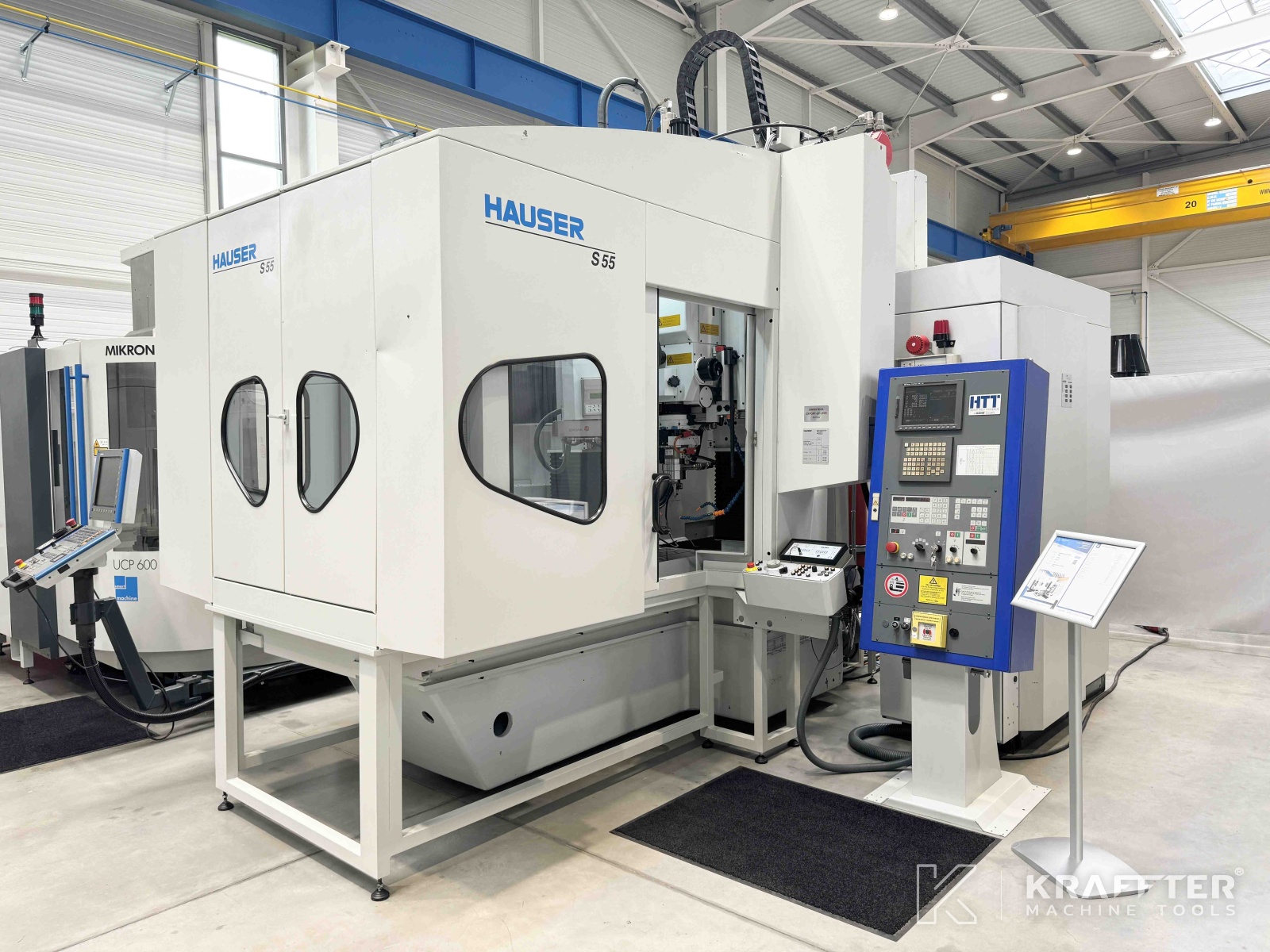

Type of machine : CNC jig grinding machine
Brand : HAUSER
Stock N° : 90096
Model : S55-400
Year : 2002
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

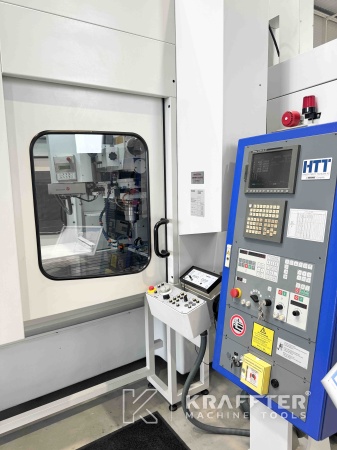

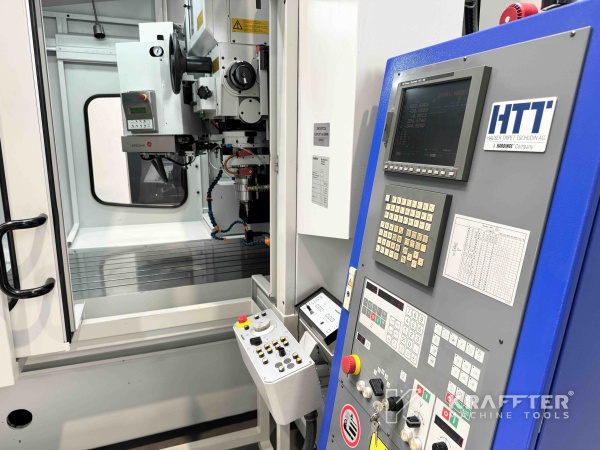

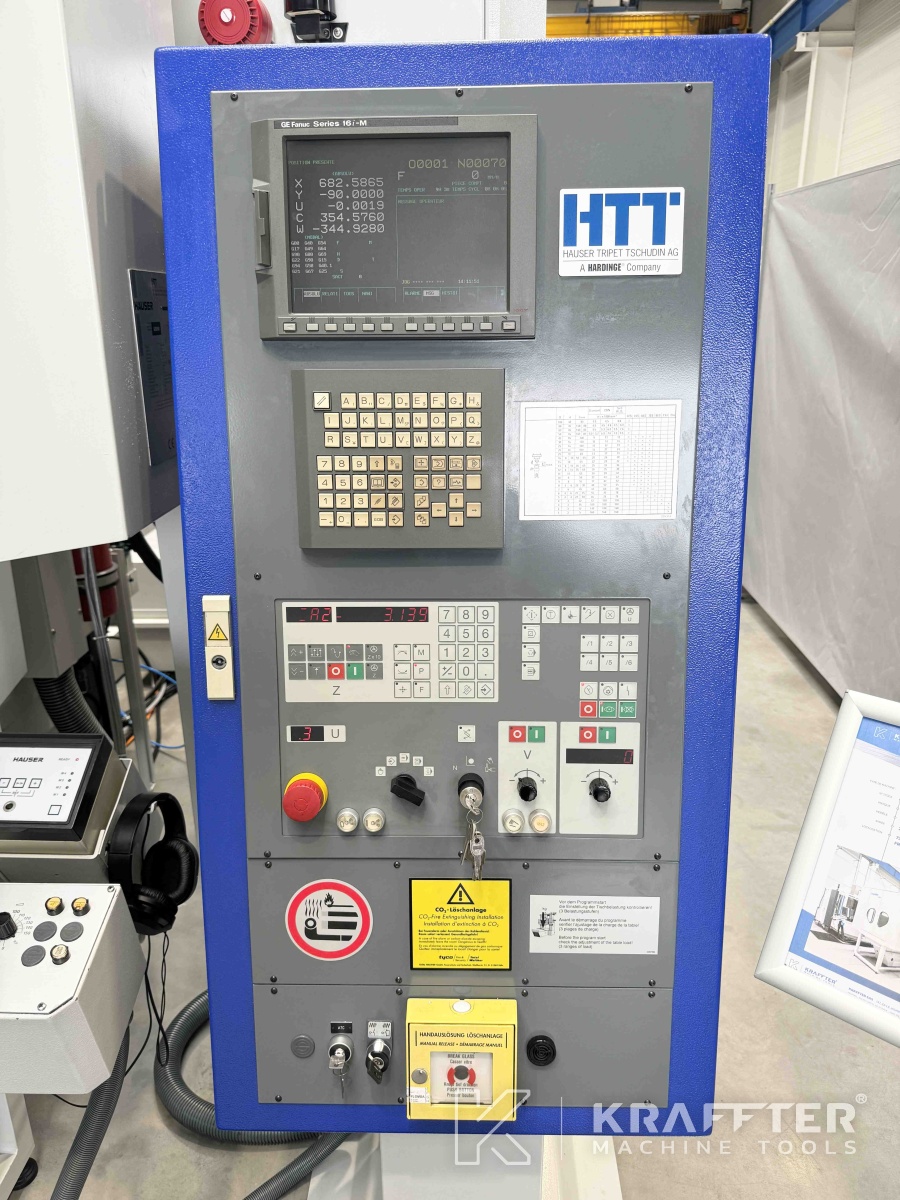

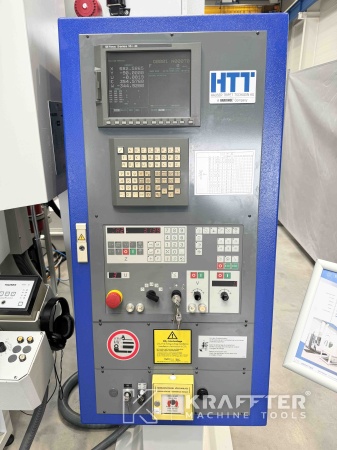

CNC control
FANUC 160i-M
Stroke X axis
1300 [mm]
Max. Stroke speed X axis
1800 [mm/min]
Rapid traverse rate X axis
4000 [mm/min]
Stroke Y axis
800 [mm]
Max. Stroke speed Y axis
1800 [mm/min]
Rapid traverse rate Y axis
4000 [mm/min]
Stroke Z axis
170 [mm]
Min. Stroke speed Z axis
0.500 [mm/min]
Max. Stroke speed Z axis
14000 [mm/min]
Stroke frequency Z axis
max. 5 [Hz]
Stroke W axis
635 [mm]
Rapid traverse rate W axis
1150 [mm/min]
Planetary speed C axis
5 - 300 [rpm]
Stroke U axis (radial feed)
5.5 [mm]
Distance between columns
970 [mm]

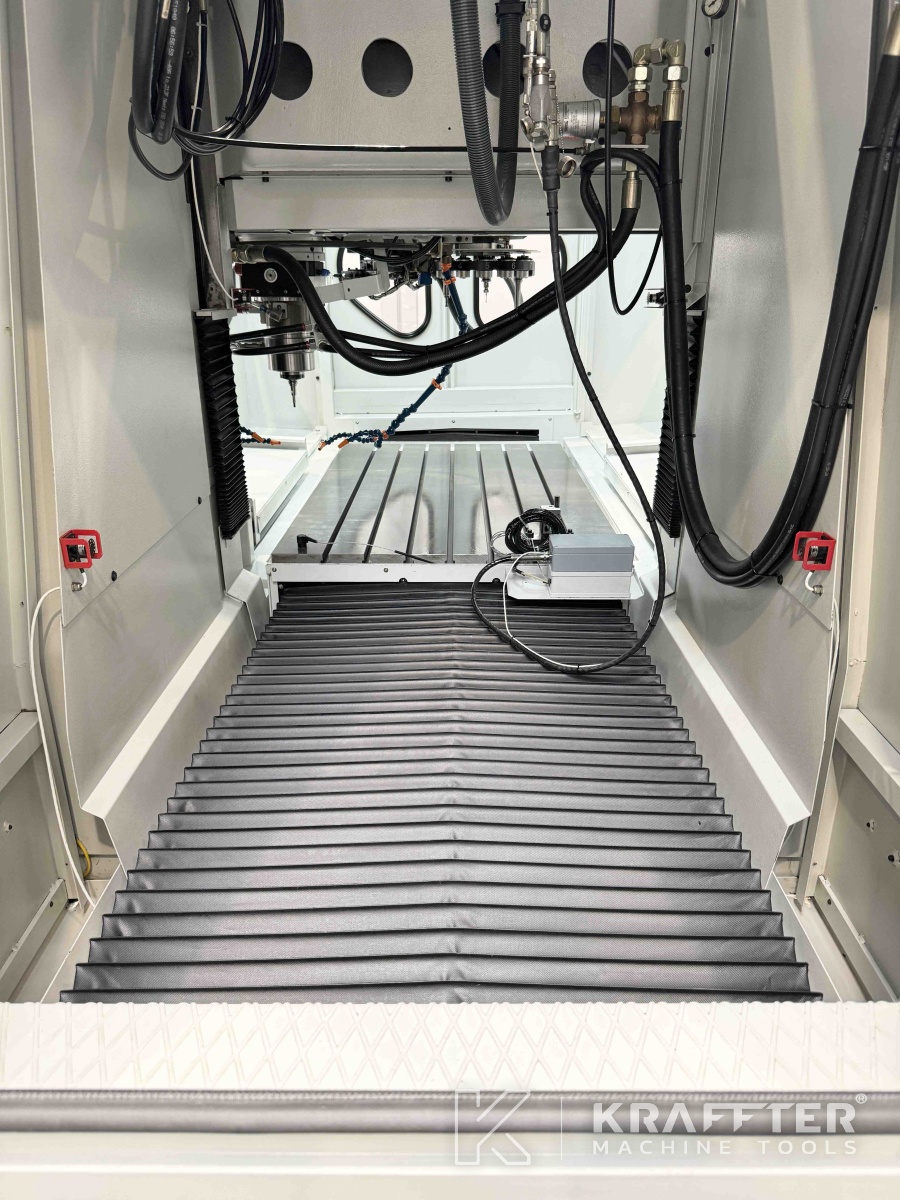

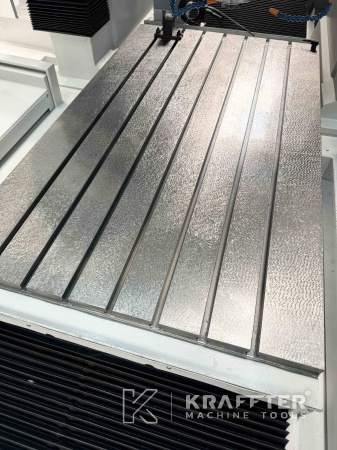

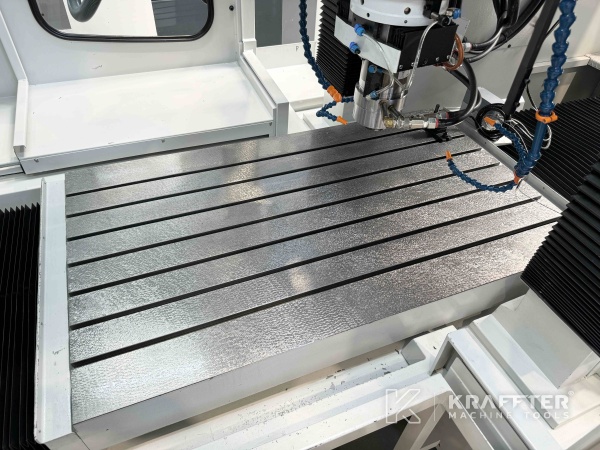

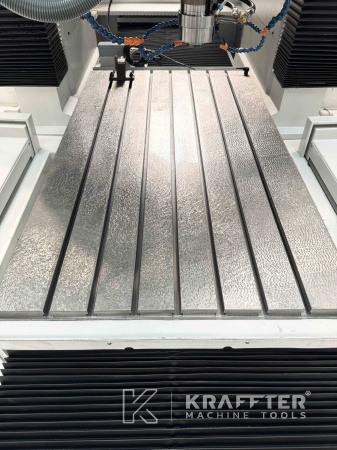

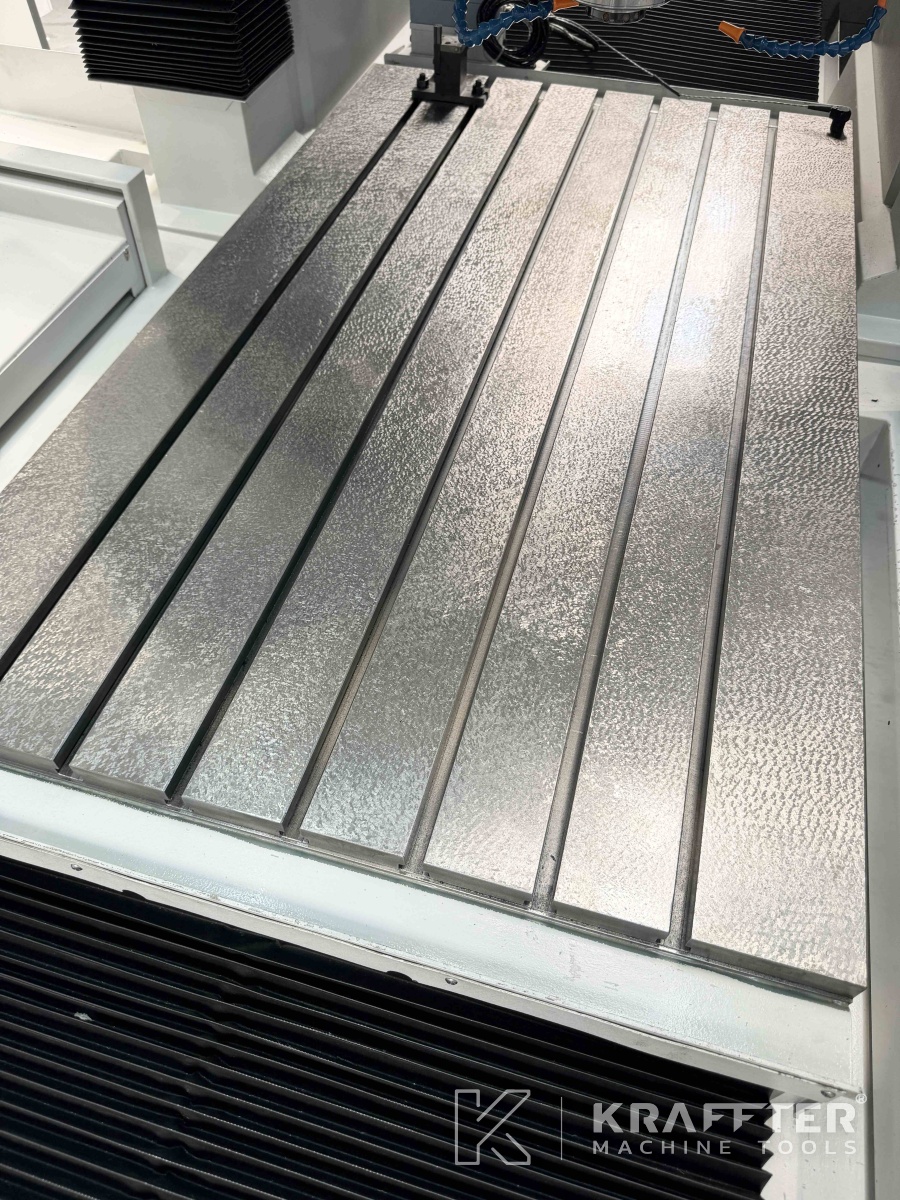

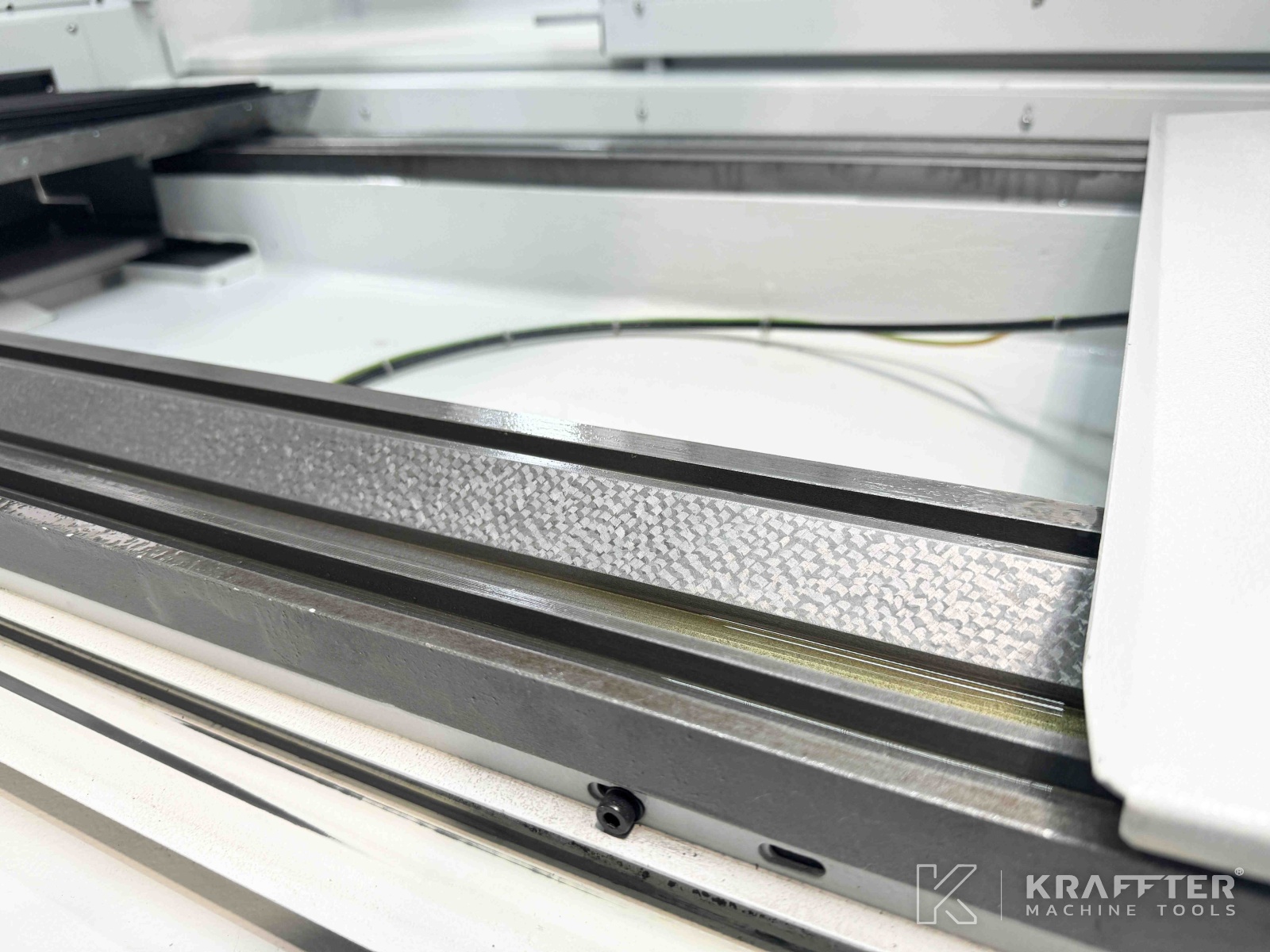

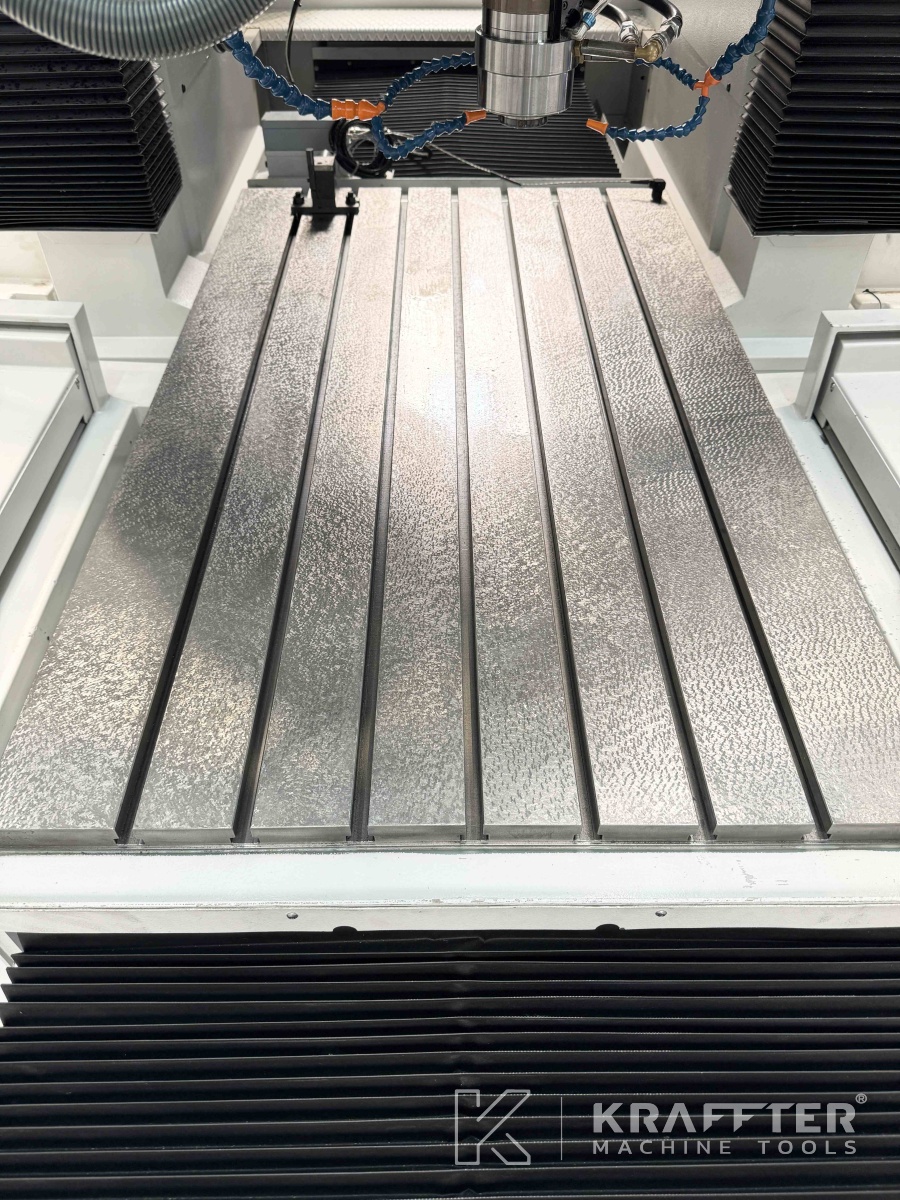

Table length
1440 [mm]
Table width
860 [mm]
Max. distance spindle nose / table
750 [mm]
Max. load on table
800 [Kg]
EQUIPMENT INCLUDED:

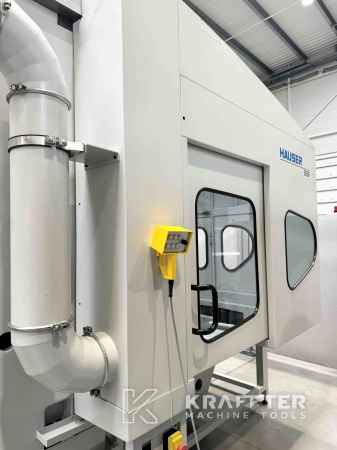

x1 HI-CUT pack including:

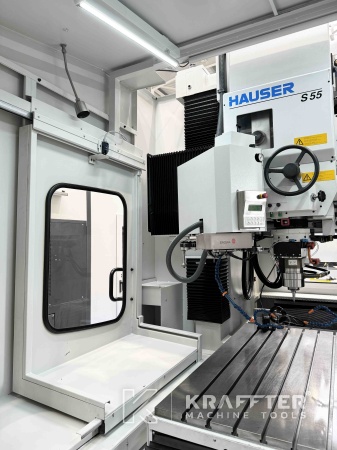

-protection of the work area

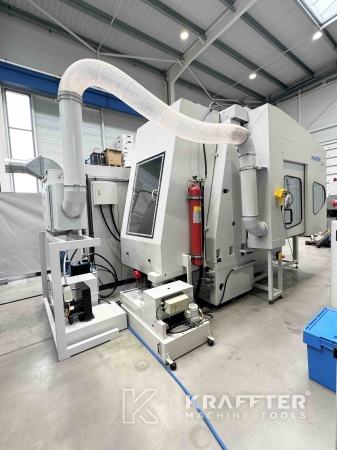

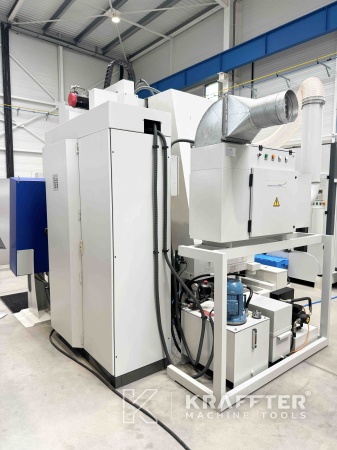

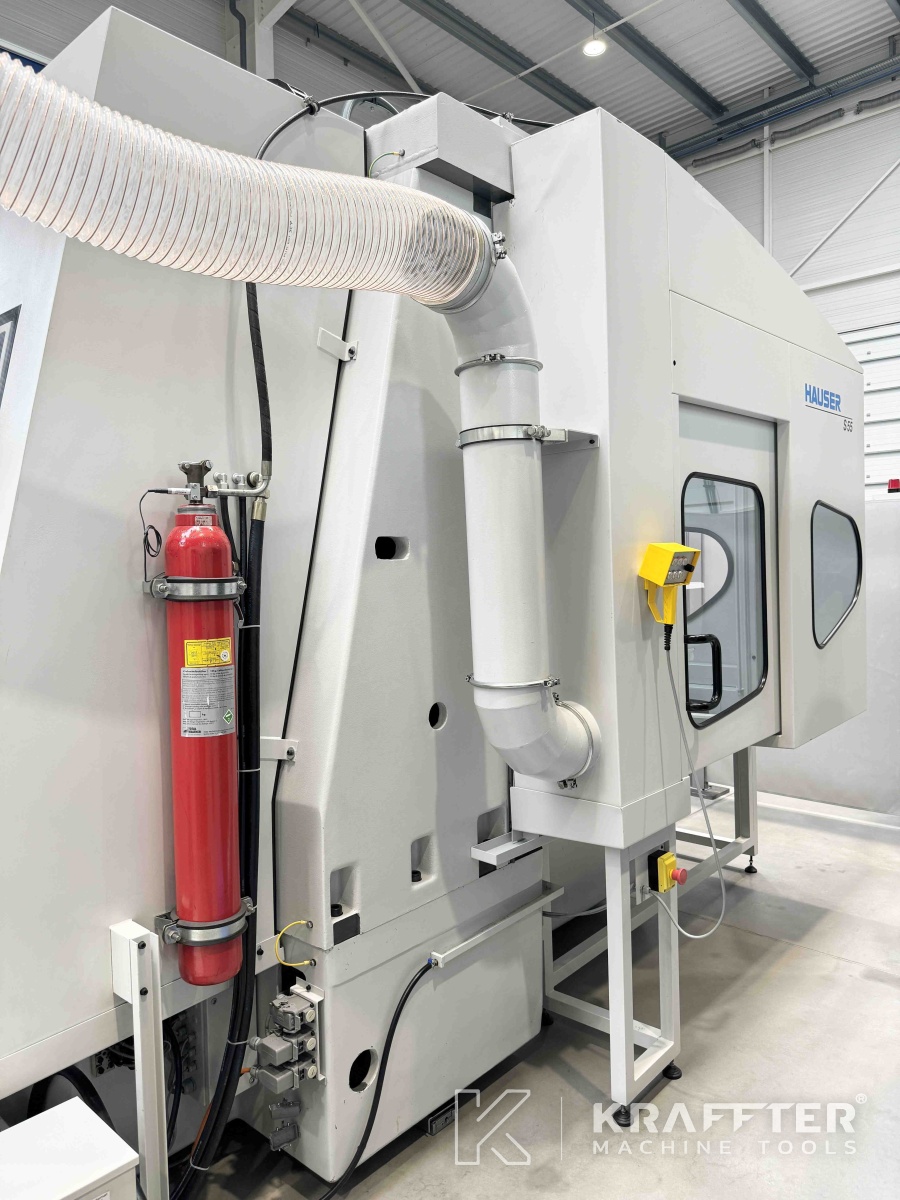

-mist extractor with electrostatic air filter

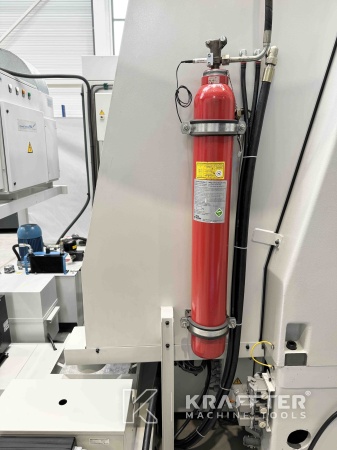

-fire protection system (to be inspected by a qualified organization)

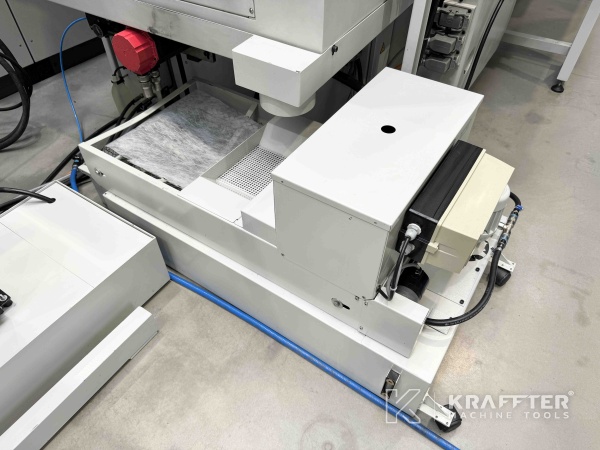

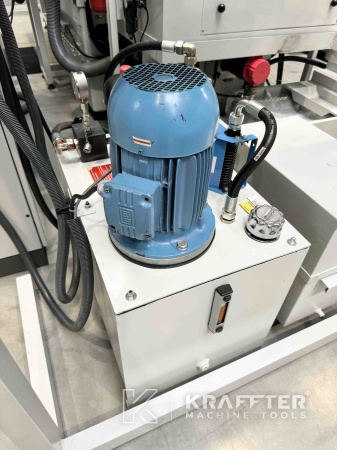

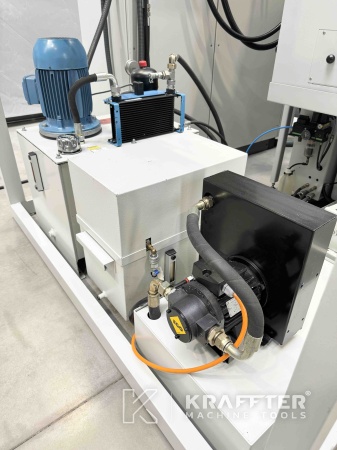

-Cooling unit (tank + pump) with automatic belt filter

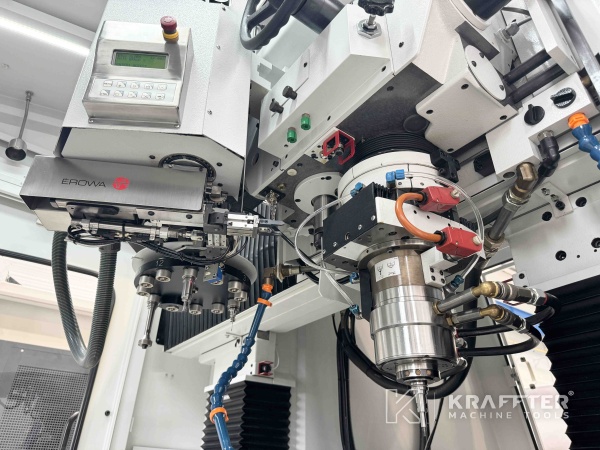

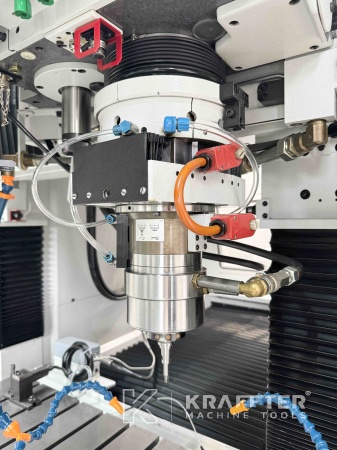

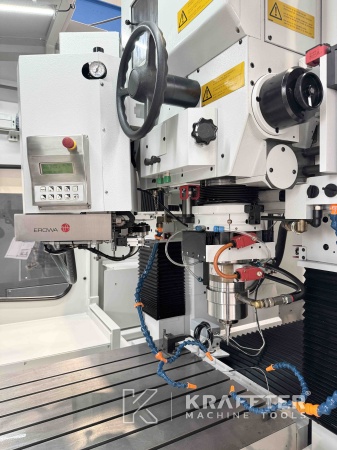

x1 45S grinding motor, speed 9000 - 45000 [rpm], for EX19 collets
x1 cable for grinding motor

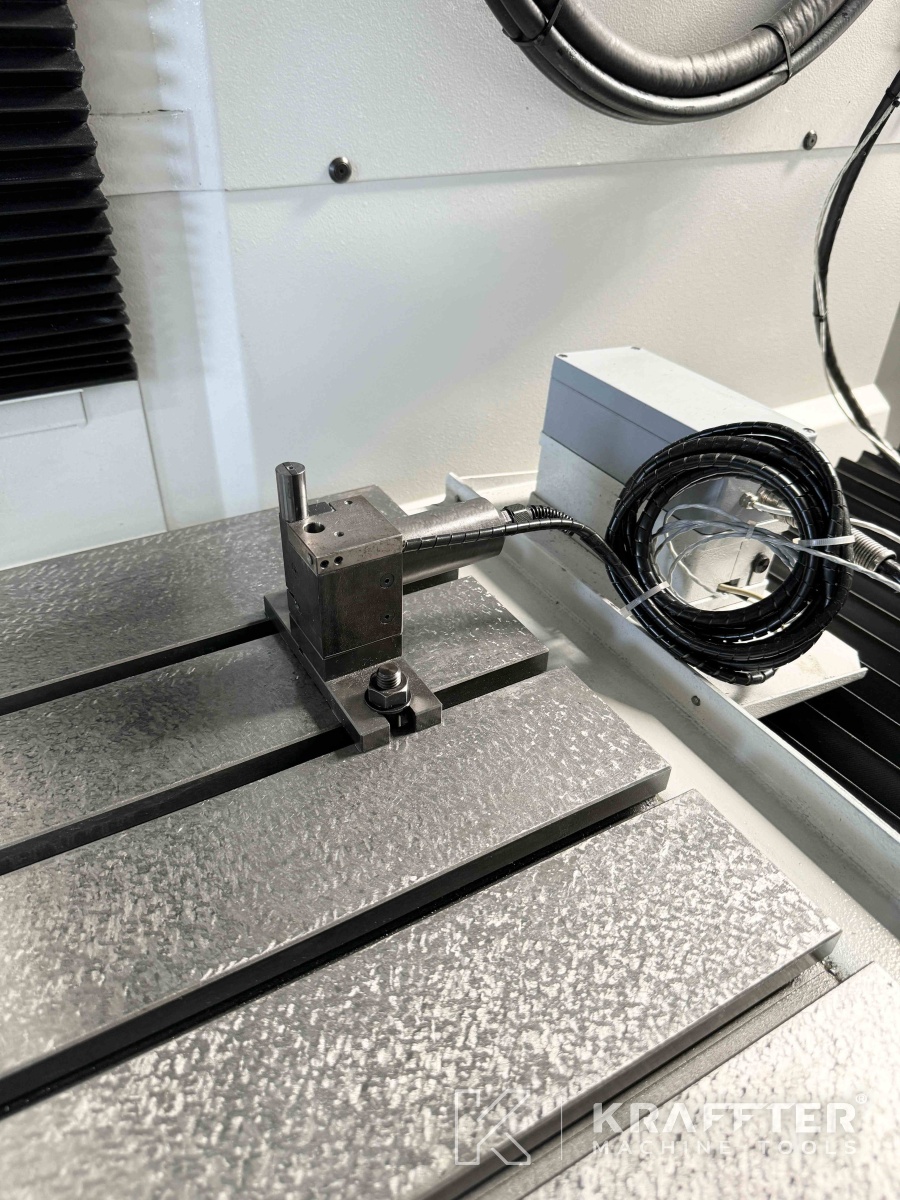

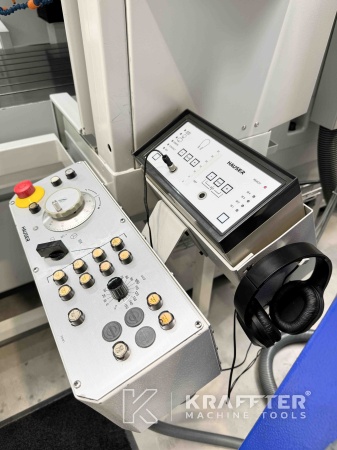

x1 MSS (Multi-Sensoric System) tool detection device
x1 RENISHAW OMP400 part probe

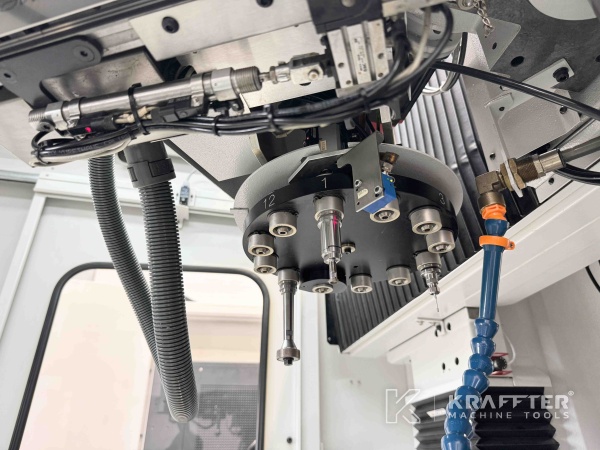

x1 set of grinding arbors
Various manuals
