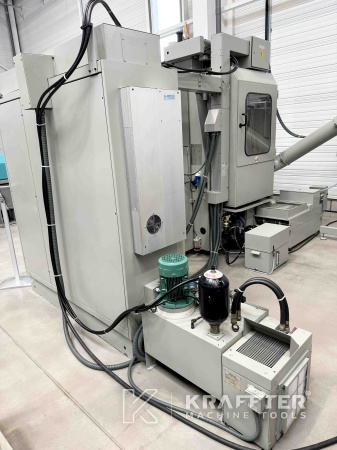

Machine tools for grinding operations HAUSER S40-400 90101

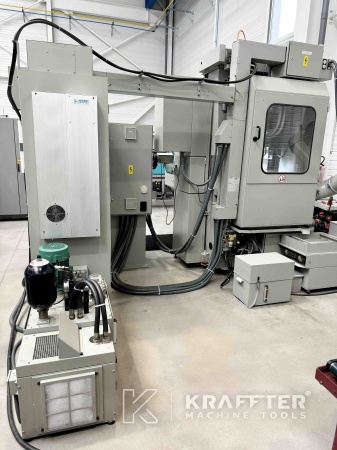

Industrial machines for grinding operations CNC jig grinding machine HAUSER S40-400 90101
HAUSER S40-400 90101 Second hand Machine Tools at Kraffter
Metal CNC jig grinding machine for precision machining HAUSER S40-400 90101
Precision Manufacturing CNC jig grinding machine HAUSER S40-400 90101

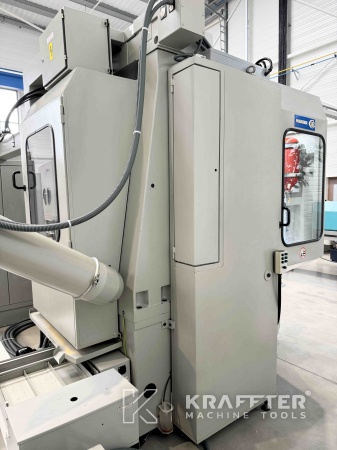

Precision mechanics CNC jig grinding machine HAUSER S40-400 90101 , Used machinery

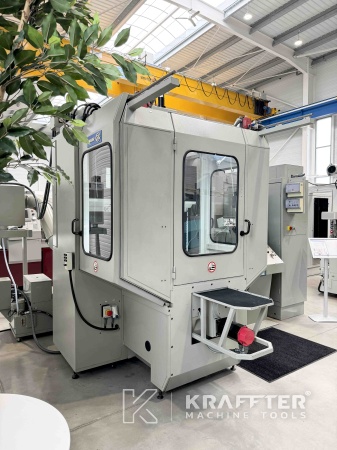

Industrial machines for CNC jig grinding machine HAUSER S40-400 90101

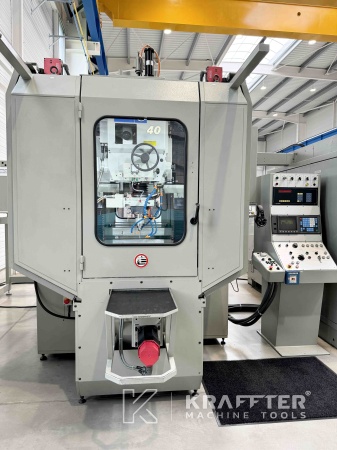

Numerical CNC jig grinding machine HAUSER S40-400 90101 at KRAFFTER your dealer of used machinery

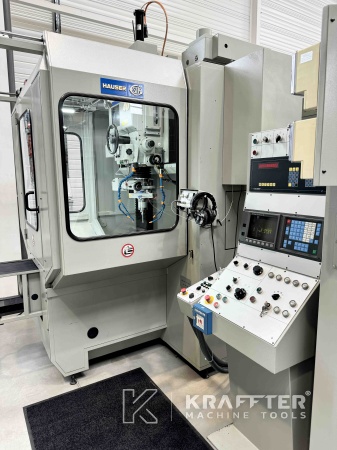

Precision CNC jig grinding machine HAUSER S40-400 90101 - Second hand Machine Tools

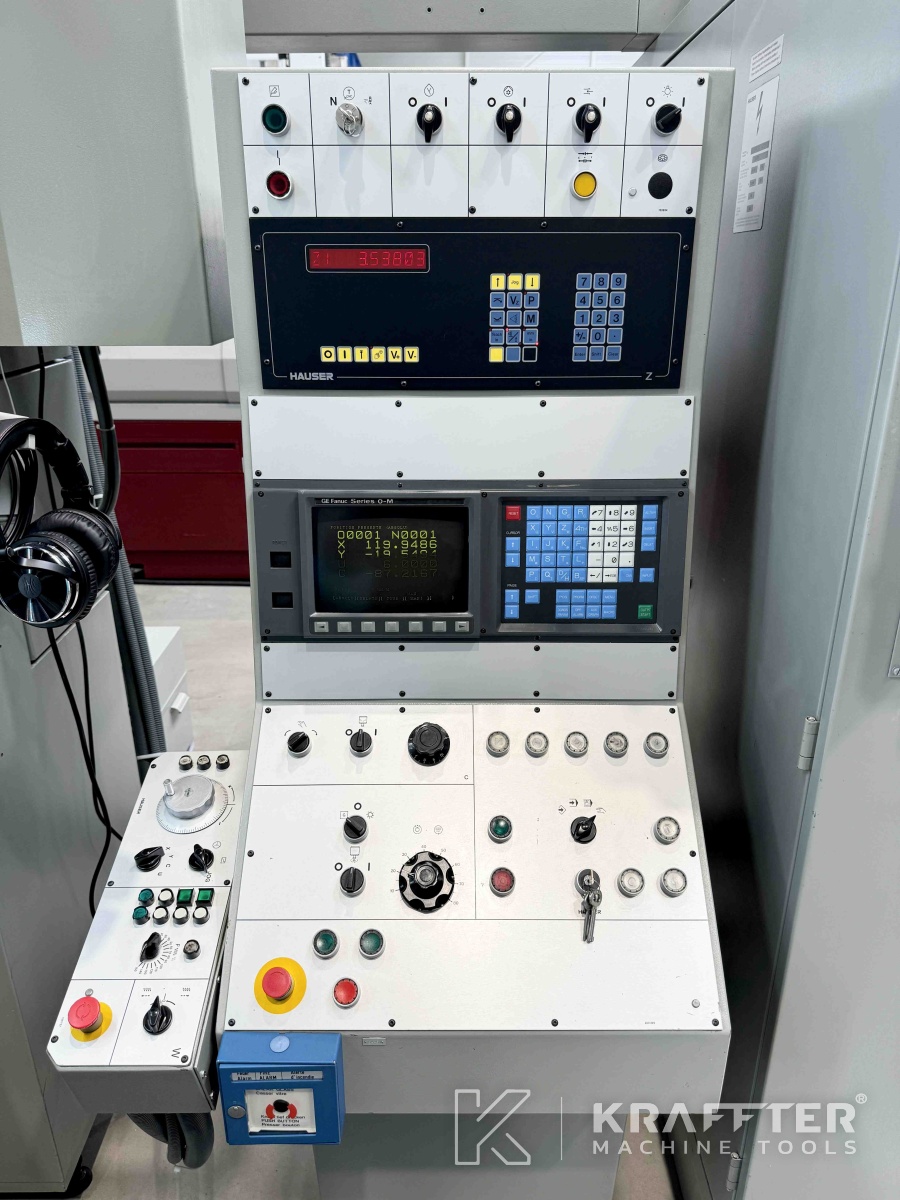

FANUC Series 0-M numerical control on machine tools HAUSER S40-400 90101

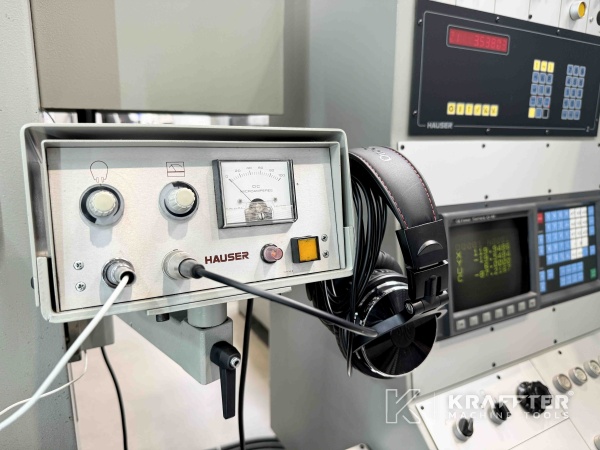

FANUC Series 0-M numerical control (cnc et cn) HAUSER S40-400 90101

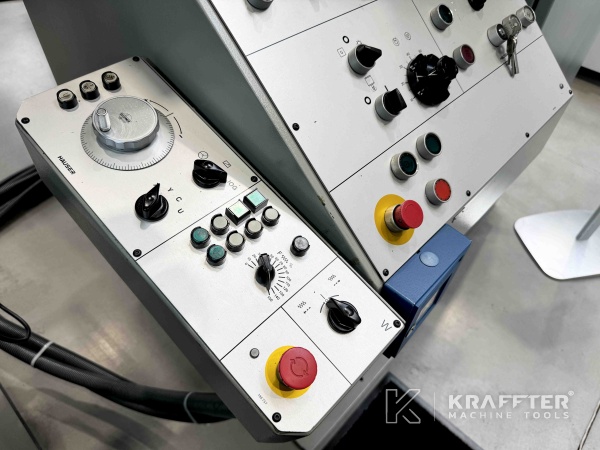

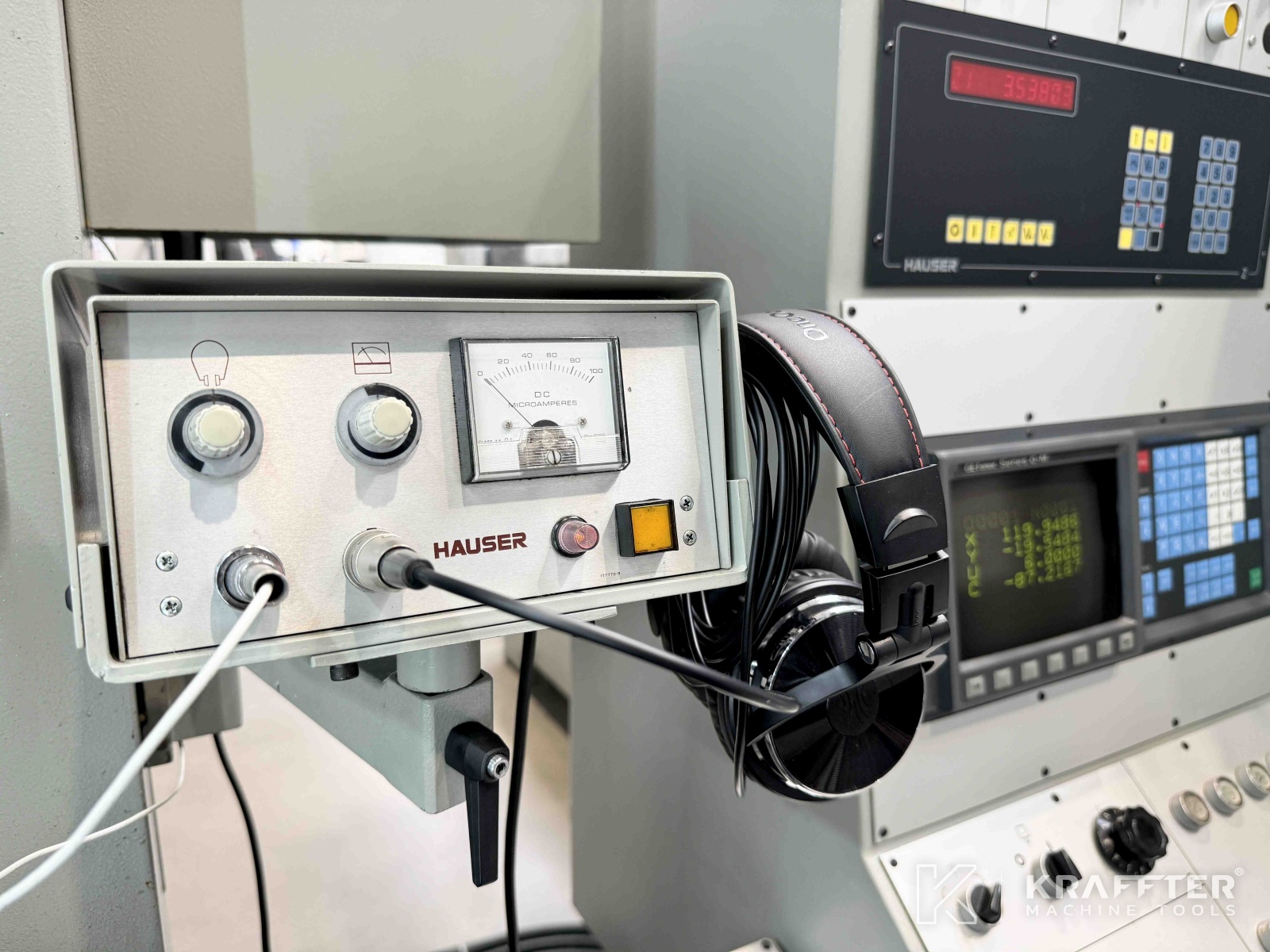

Tool control panel board on CNC jig grinding machine HAUSER S40-400 90101

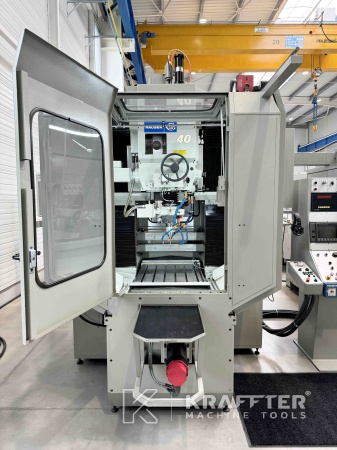

Used precision CNC jig grinding machine HAUSER S40-400 90101 KRAFFTER Machine tools reseller

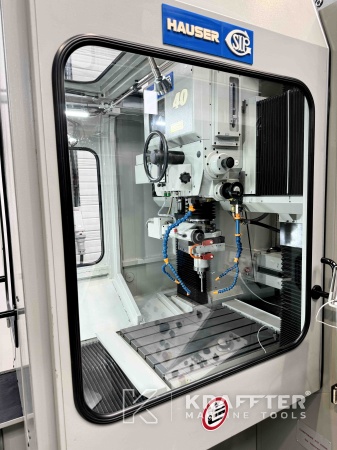

Digital programming CNC jig grinding machine HAUSER S40-400 90101

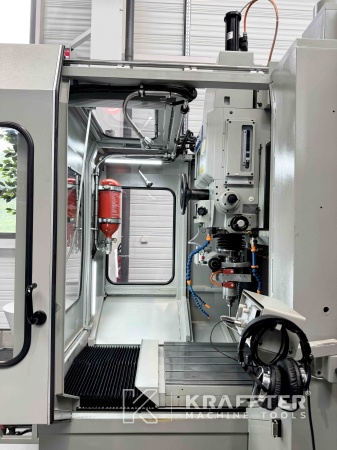

Numerically Controlled CNC jig grinding machine HAUSER S40-400 90101

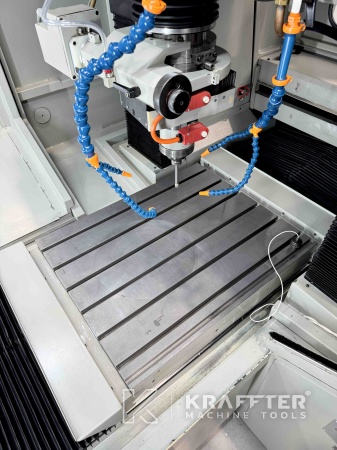

Power-assisted CNC jig grinding machine HAUSER S40-400 90101
Numerically assisted CNC jig grinding machine HAUSER S40-400 90101

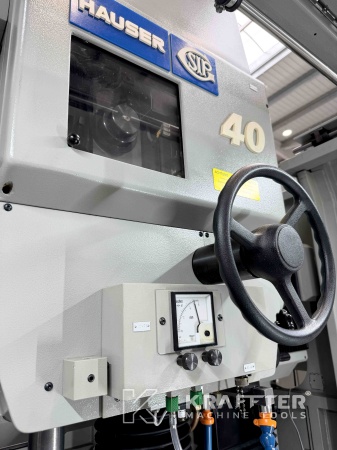

Used CNC jig grinding machine HAUSER S40-400 90101 destocking Europe, Turkey, India
CNC jig grinding machine for sale HAUSER S40-400 90101 , Second hand Machine Tools
HAUSER S40-400 90101 reselling and worldwide shipping at Kraffter Machine Tools
Sale of CNC jig grinding machine HAUSER S40-400 90101 - Dealer of used machinery
Second hand CNC jig grinding machine HAUSER S40-400 90101 for sale

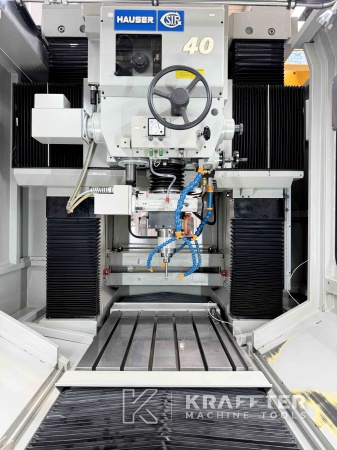

HAUSER S40-400 90101 - Second hand Machine Tools at Kraffter
CNC jig grinding machine HAUSER S40-400 90101 - KRAFFTER Machine tools reseller
Metal CNC jig grinding machine HAUSER S40-400 90101
HAUSER S40-400 90101 available at Kraffter Machine Tools dealer
KRAFFTER your dealer of Second-hand machine tools , HAUSER S40-400 90101

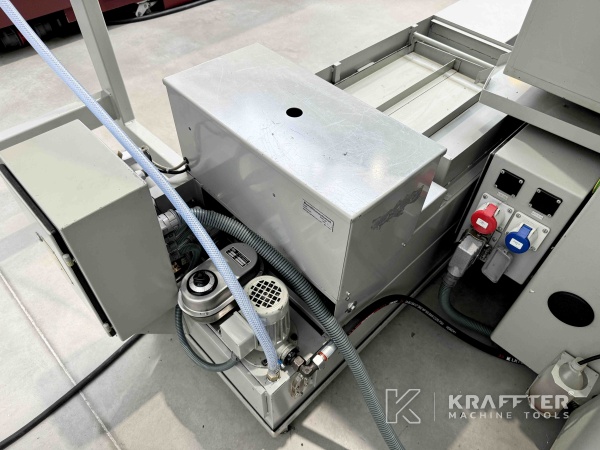

Worldwide purchase and resale of CNC jig grinding machine HAUSER S40-400 90101
Mist extraction on HAUSER S40-400 90101

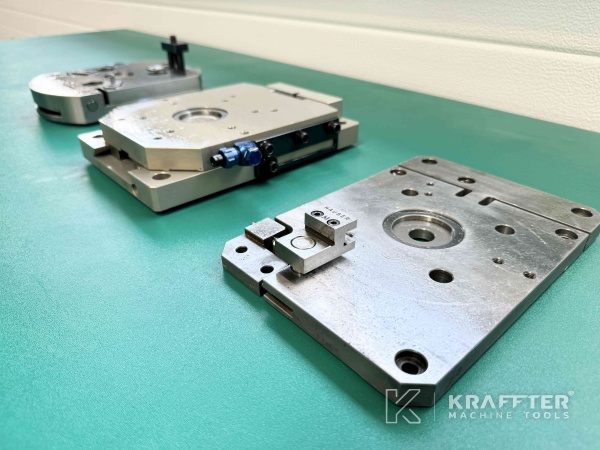

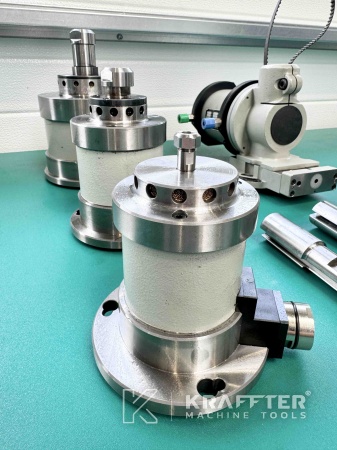

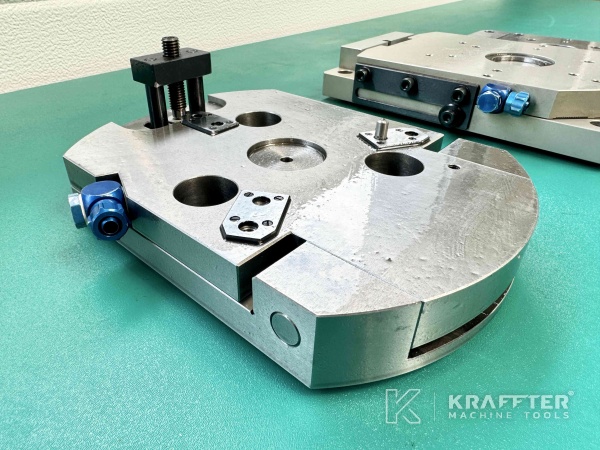

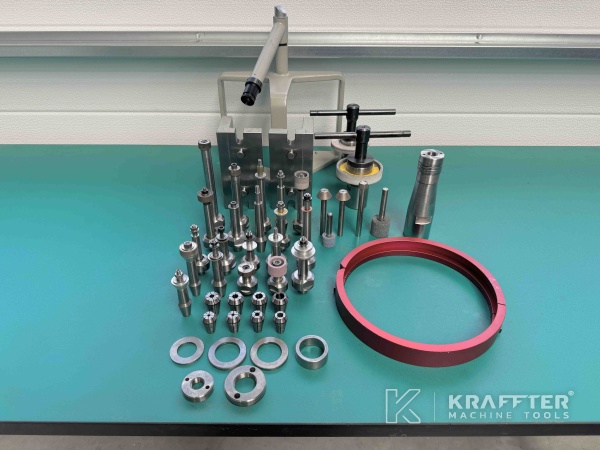

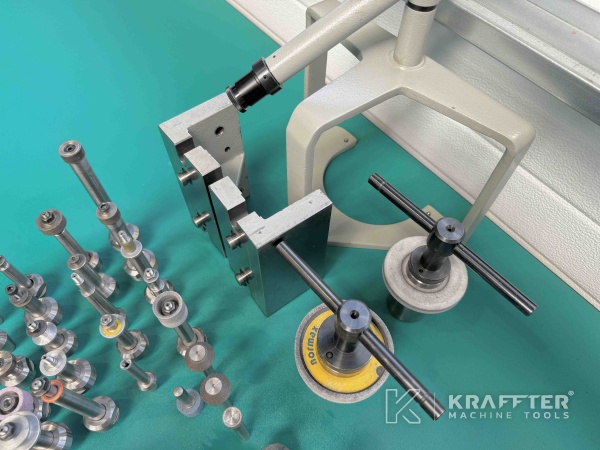

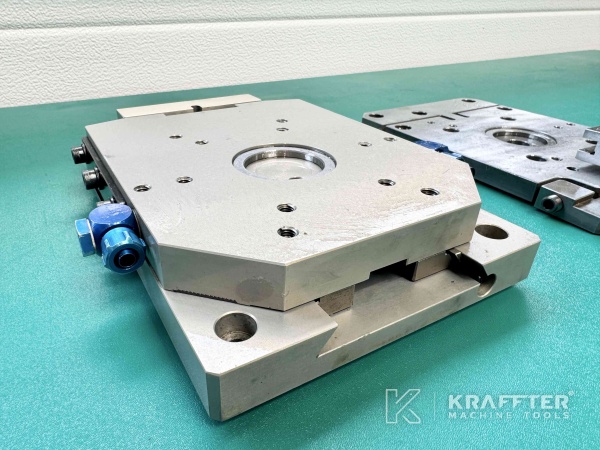

Accessories from HAUSER S40-400 90101
Accessories for CNC jig grinding machine HAUSER S40-400 90101
Accessories, equipment and tooling CNC jig grinding machine HAUSER S40-400 90101
Accessories, tooling for machine tools HAUSER S40-400 90101

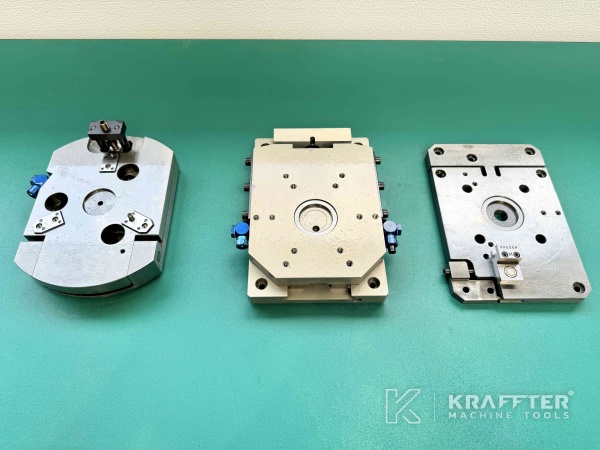

Equipment for CNC jig grinding machine HAUSER S40-400 90101 - Used machinery
User manual of CNC jig grinding machine HAUSER S40-400 90101

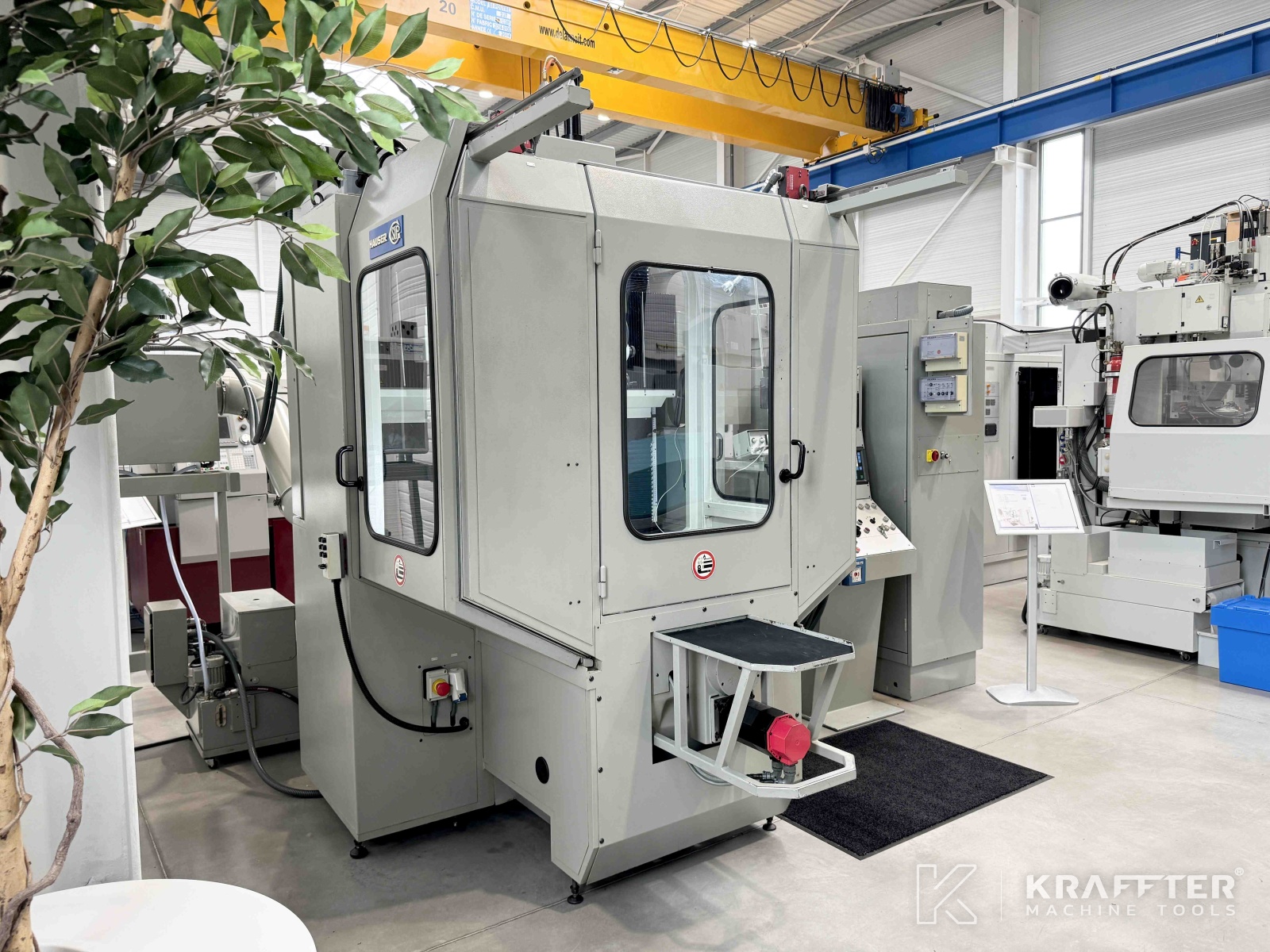

Type of machine : CNC jig grinding machine

Brand : HAUSER

N° de stock: 90101

Model : S40-400

Location : 73240 St-Genix-les-Villages, FRANCE

please wait Please wait a moment...
Email alert

Request a quotation

In accordance with articles 39 and following the French law n°78-17 of January 6, 1978 modified in 2004 relating to data processing, files and freedoms, any person can obtain communication and, if necessary, rectification or deletion of information concerning him, by addressing a letter to Kraffter Machine Tools®. - 137, ZA Le Jasmin Nord – 73240 SAINT-GENIX-LES-VILLAGES
Review our privacy policy for full details

Technical characteristics

CNC control
FANUC Series 0-M
Max. Stroke speed W axis
800 [mm/min]
Stroke X axis
650 [mm]
Max. Stroke speed X axis
4000 [mm/min]
Working feed X axis
1800 [mm/min]
Stroke Y axis
450 [mm]
Working feed Y axis
1800 [mm/min]
Stroke Z axis
130 [mm]
Min. Stroke speed Z axis
0.5 [mm/min]
Max. Stroke speed Z axis
12000 [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Planetary speed C axis
5 - 250 [rpm]
Stroke U axis (radial feed)
5.5 [mm]
Distance between columns
750 [mm]
Table length
770 [mm]
Table width
630 [mm]
Clearance between grinding motor and table
585 [mm]
Max. load on table
500 [Kg]
Supply voltage
400 [V]
Weight
4550 [Kg]

Additional information

EQUIPMENT INCLUDED:

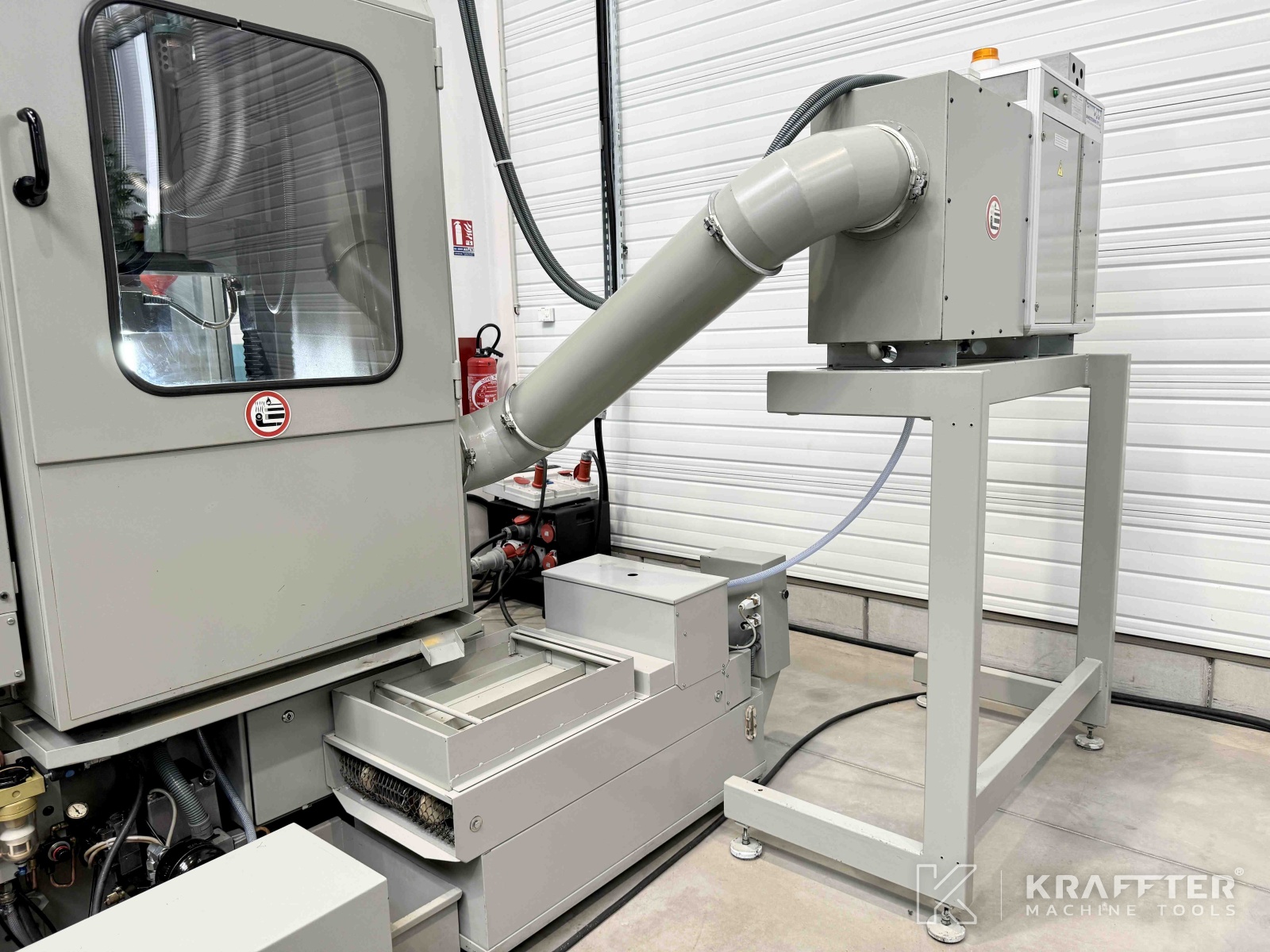

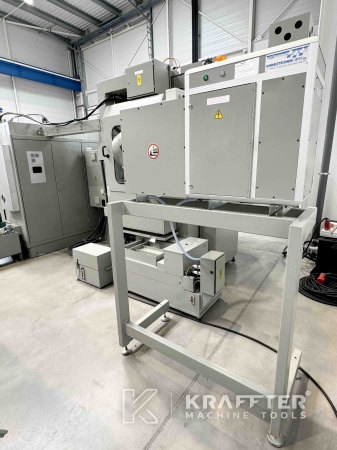

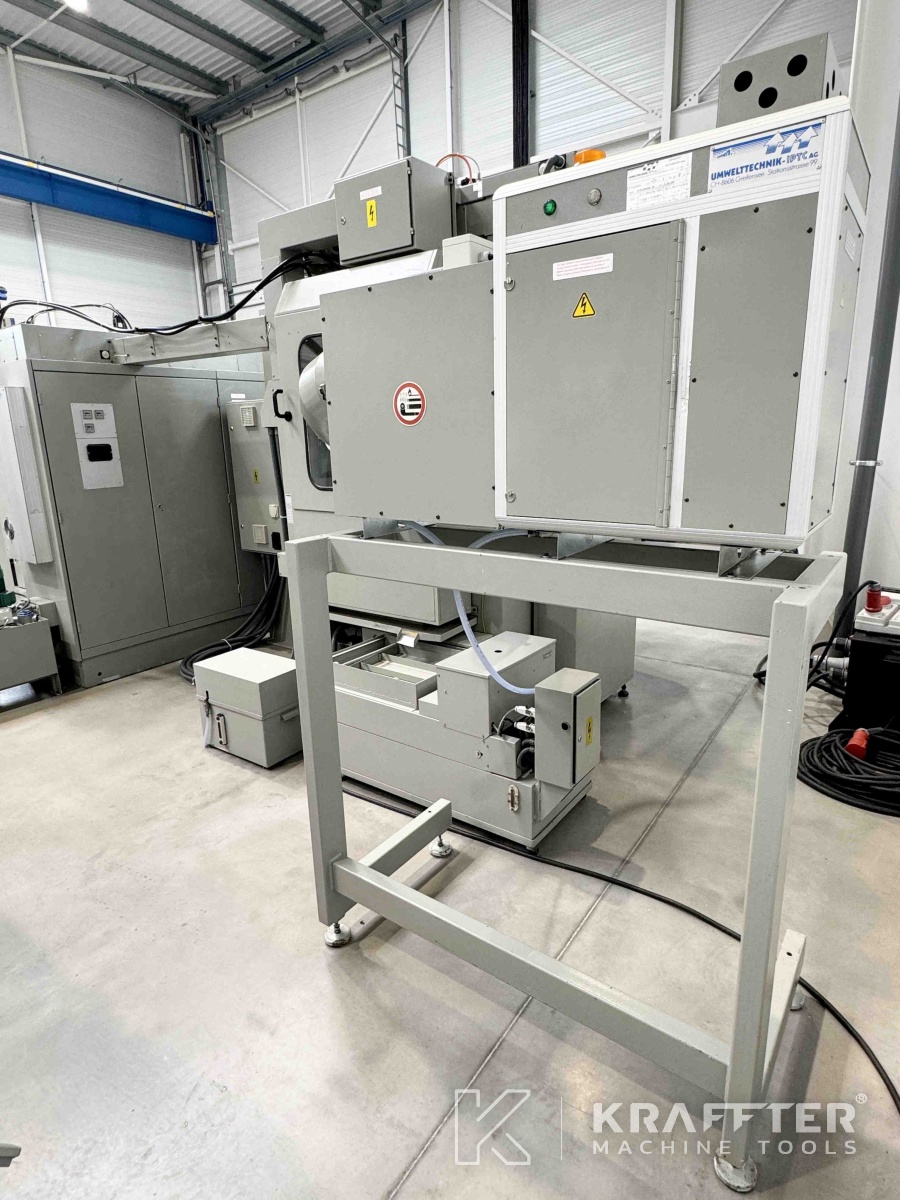

x1 HI-CUT pack including:



   -work area protection
   -exhaust system with electrostatic air filter
   -fire protection system (to be assessed by a qualified body)

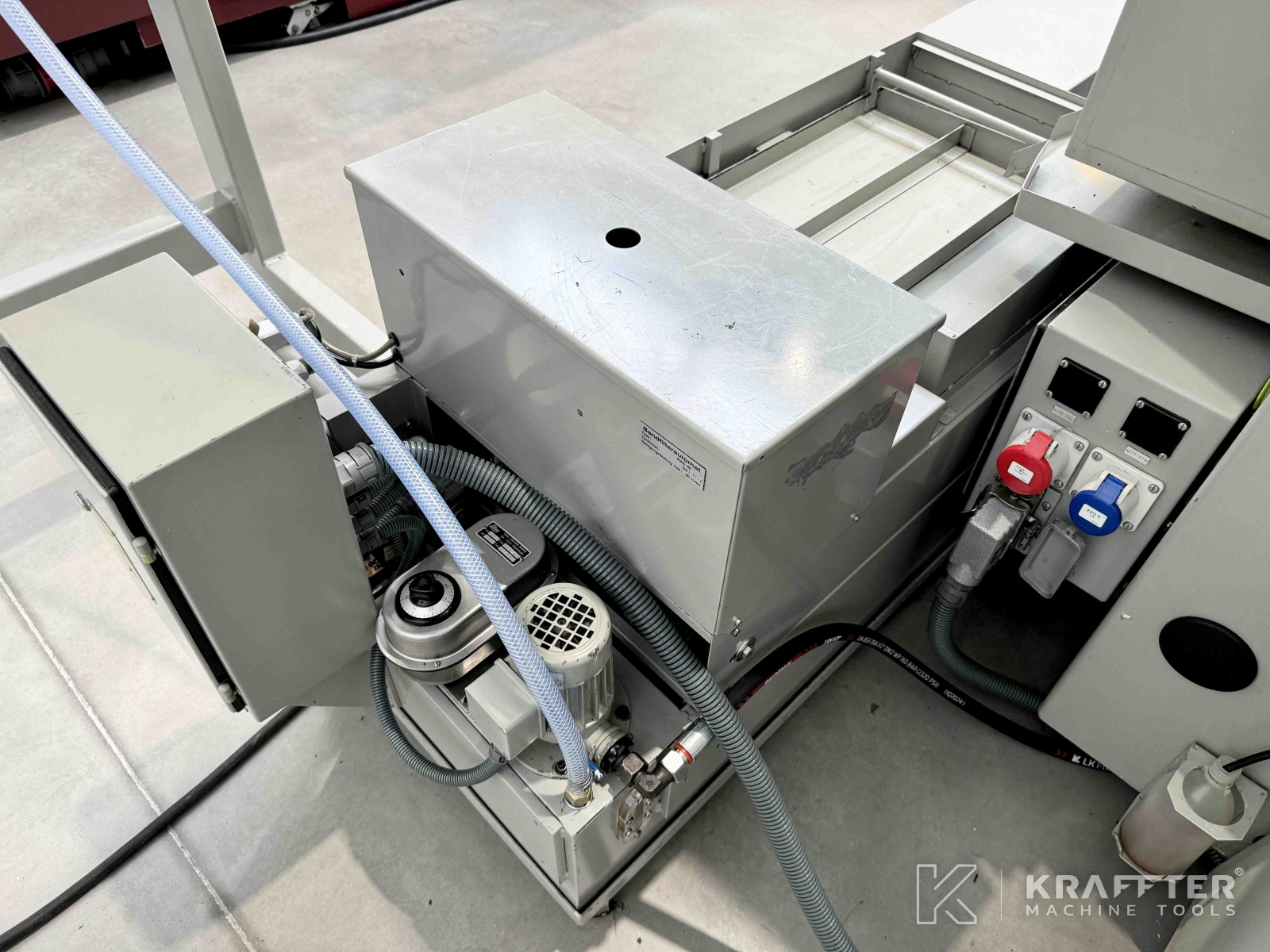

   -automatic paper tape filtration unit

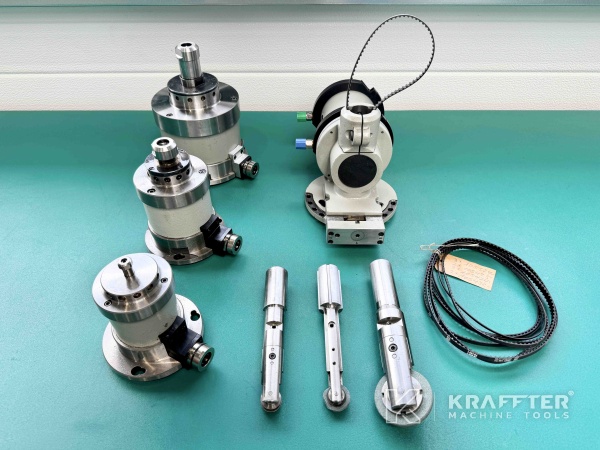

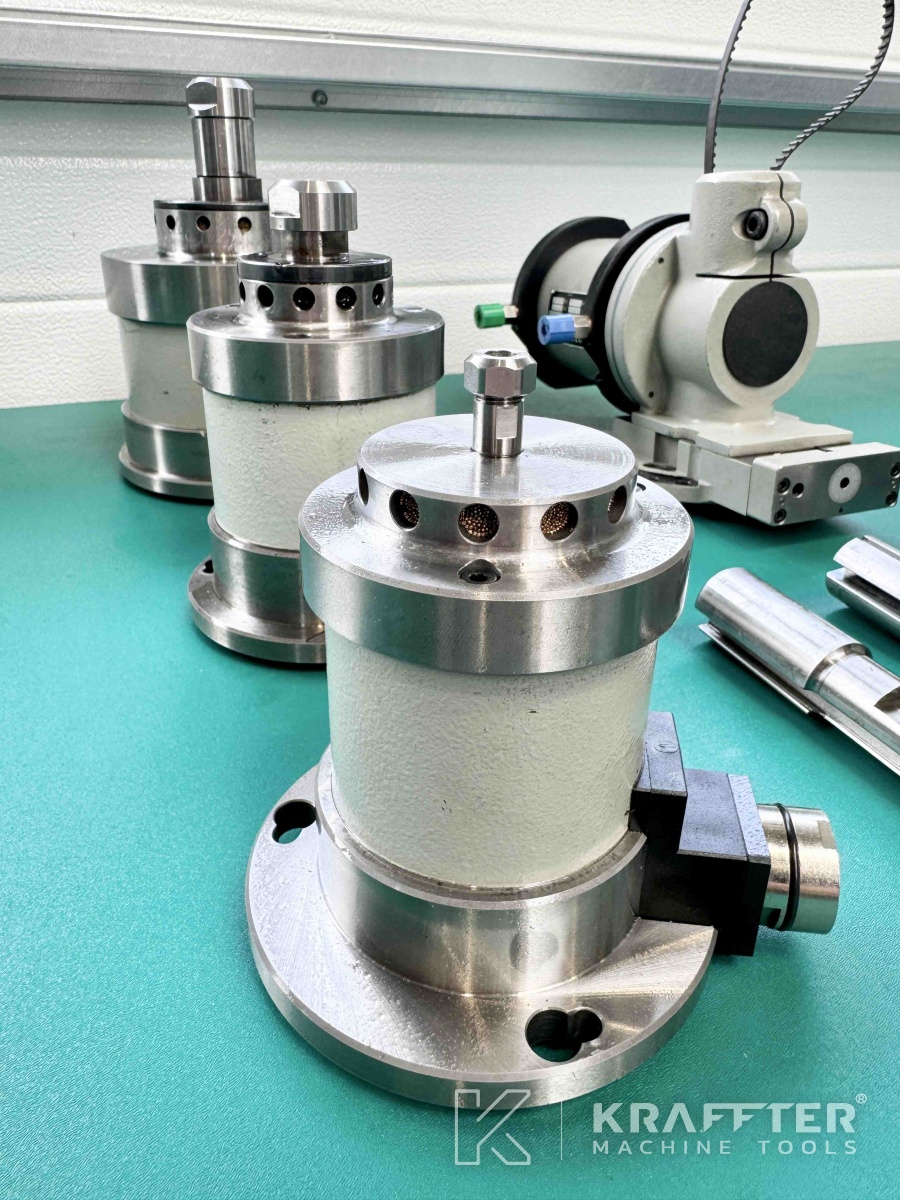

x1 grinding motor 22 S, speed 4500 - 22500 [rpm], for EX23 collets - part number: 181561
x1 45 S grinding motor, speed 9000 - 4500 [rpm], for EX19 collets - reference: 144017
x1 80 S grinding motor, speed 40000 - 80000 [rpm], for F6 collets - reference: 144021

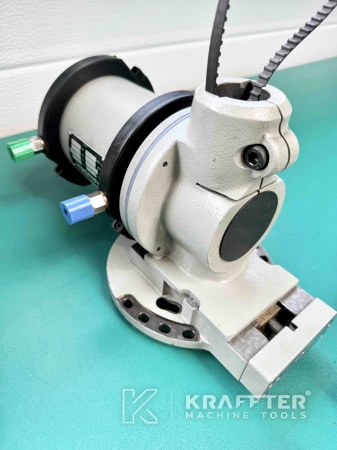

x1 grinding motor for slot grinding (motor + belt are included) - reference: 144022
x3 grinding tools for slot grinder
x1 set of belts for slot grinding motor

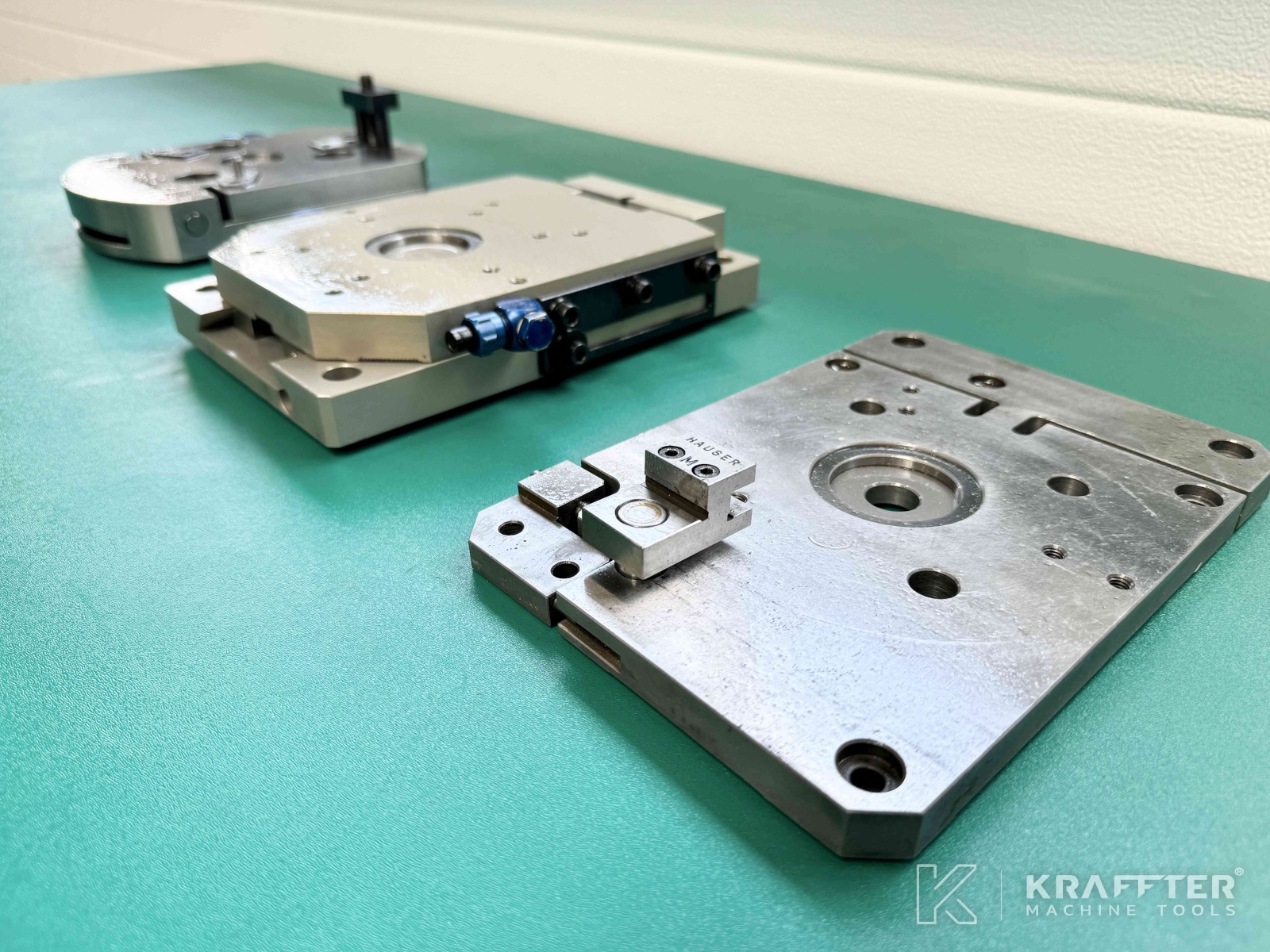

x1 intermediate plate for alignment of grinding motors - reference: 192940
x1 infinitely adjustable cantilever plate with mounted grinding motor for grinding up to Ø360 [mm] - reference: 144023
x1 adjustable plate, for tilting grinding motors and turbines (up to 16°) - reference: 126148
x1 set of 2 HAUSER 90° angle brackets - reference: 155361
x1 centring microscope - reference: 146318
x1 tool contact detection device - reference: 162334
x20 grinding wheel holders
x1 cable for grinding motor
Various tools

Complete documentation
