Sold

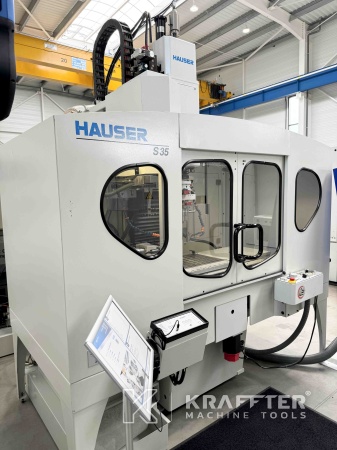

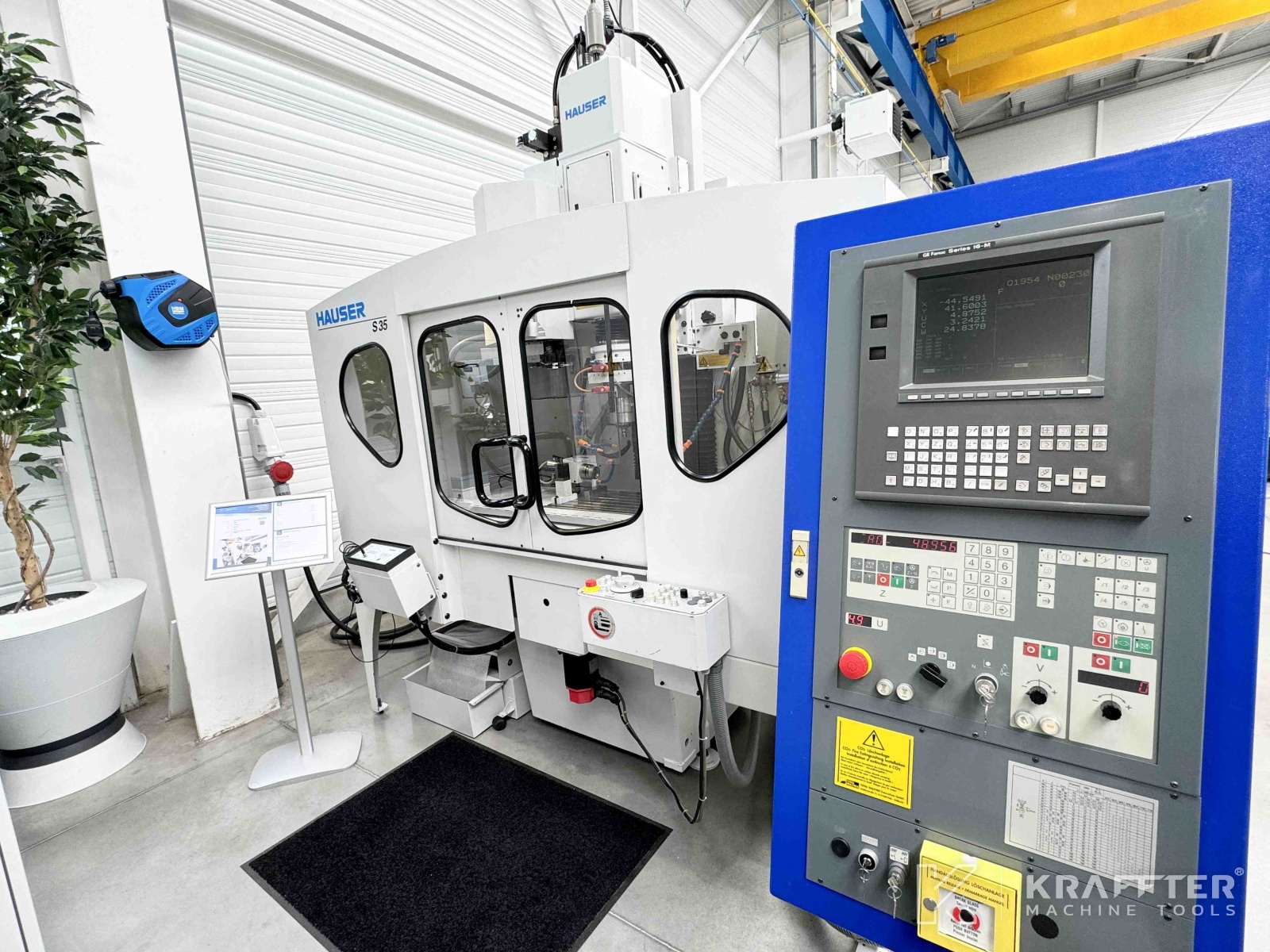

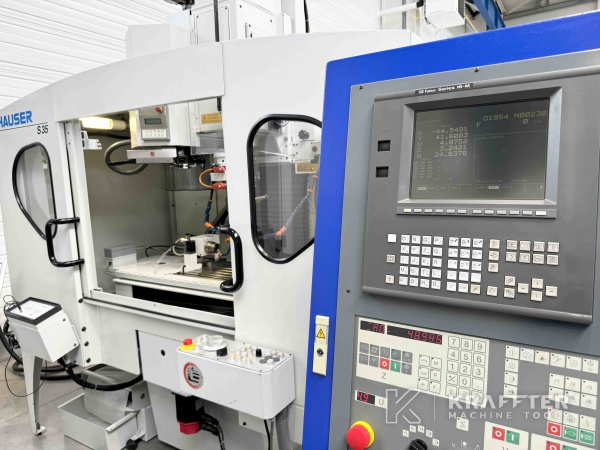

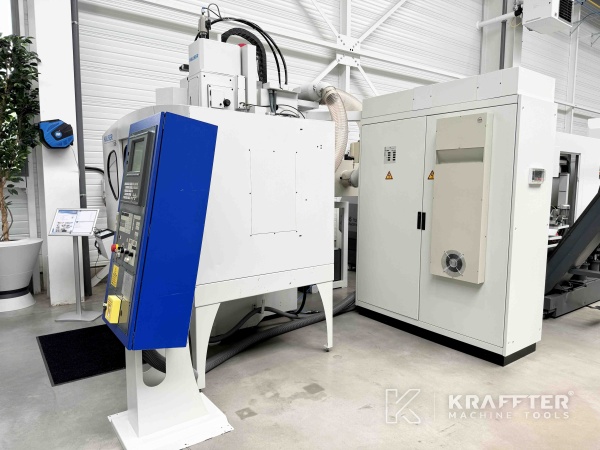

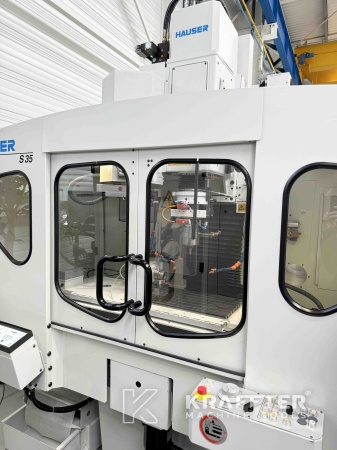

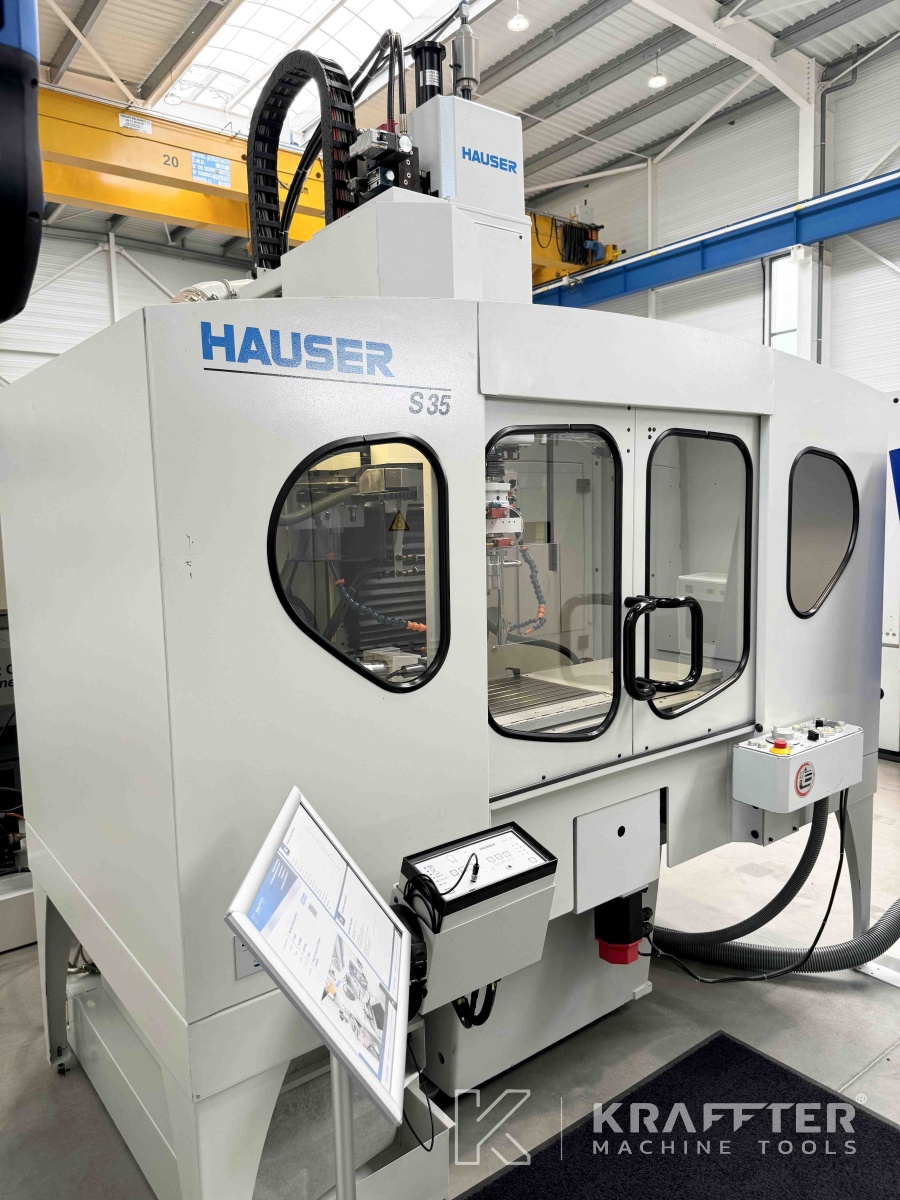

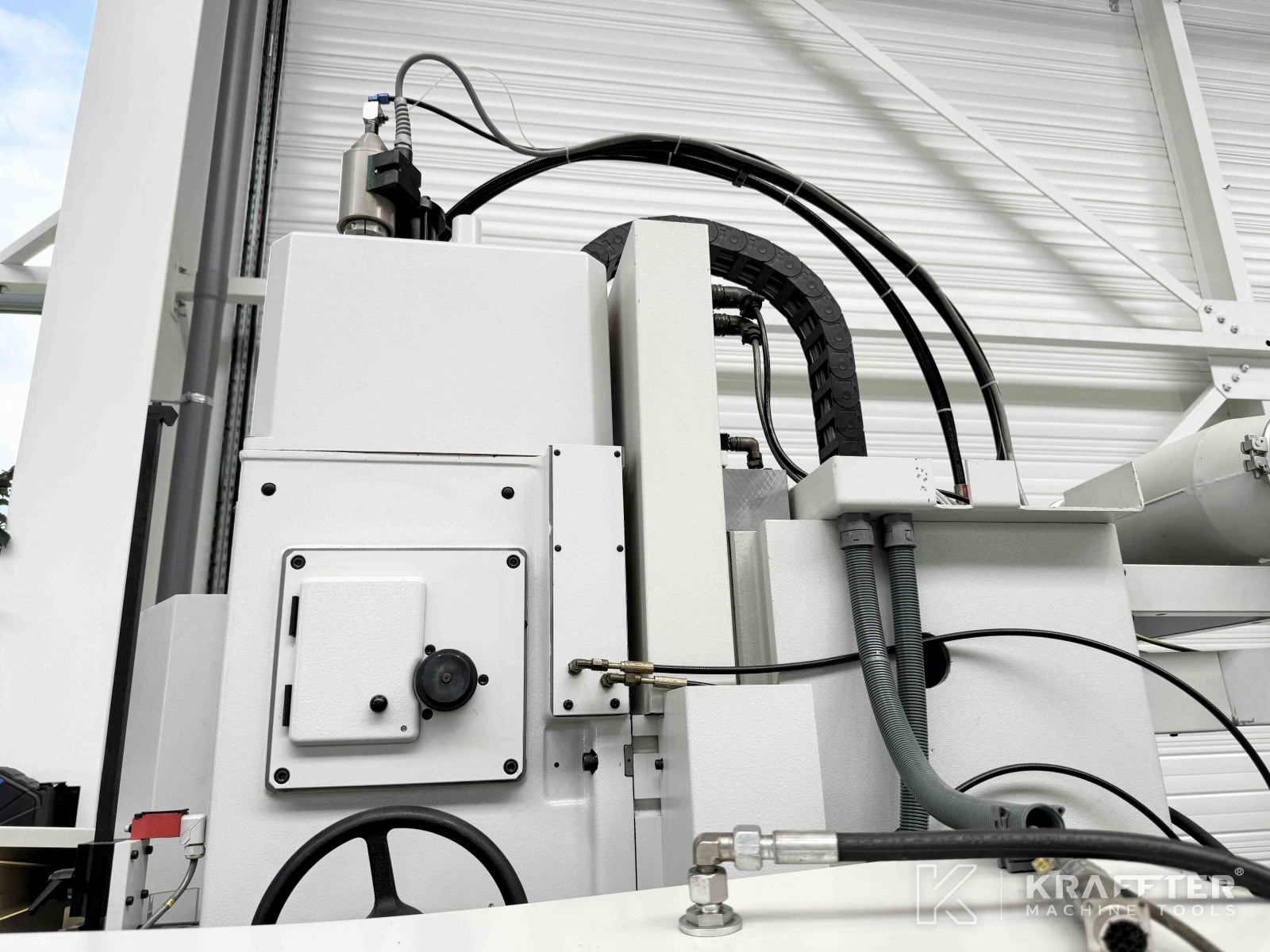

Type of machine : CNC jig grinding machine
Brand : HAUSER
N° de stock: 90103
Model : S35-400
Year : 1999
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Stroke X axis
500 [mm]
Working feed X axis
0 - 1200 [mm/min] [mm/min]
Stroke Y axis
300 [mm]
Working feed Y axis
0 - 1200 [mm/min] [mm/min]
Stroke Z axis
110 [mm]
Working feed Z axis
0.5 - 12000 [mm/min] [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Planetary speed C axis
5 - 250 [rpm]
Table length
600 [mm]
Table width
380 [mm]
Max. load on table
250 [Kg]
Collant pump flow rate
60 [l/min]
Lubrication tank capacity
125 [l]
Supply voltage
400 [V]
Weight
4500 [Kg]
Additional information

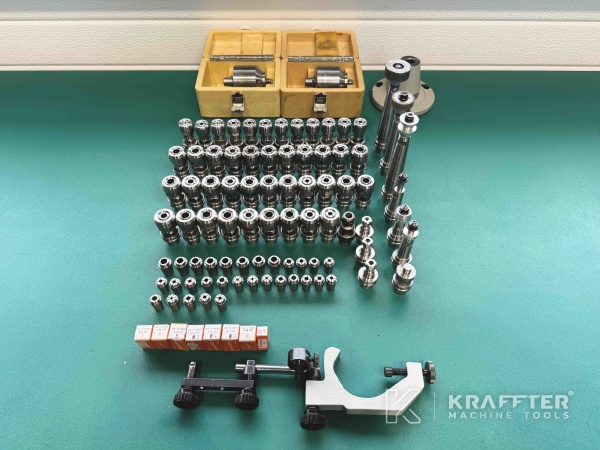

EQUIPMENT INCLUDED:

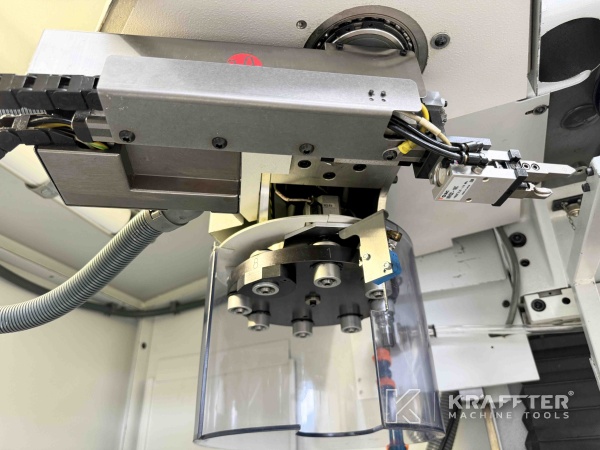

x1 EROWA 8-position automatic tool changer (HSK25)

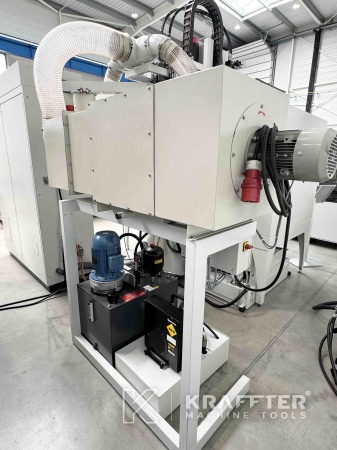

x1 HI-CUT pack including:
-work area protection

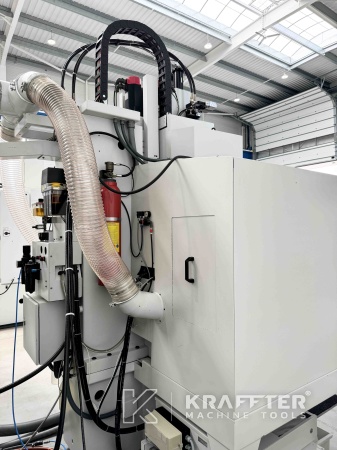

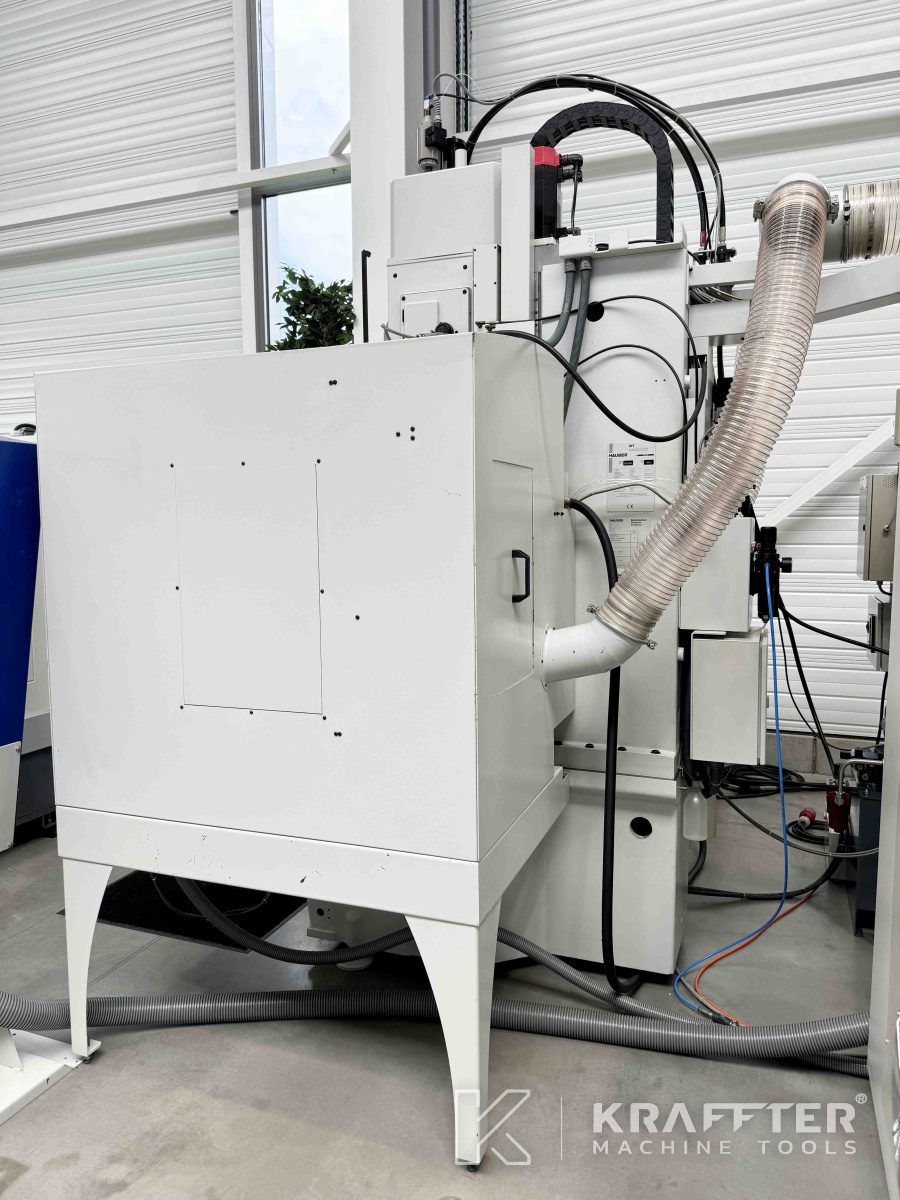

-exhaust system with electrostatic air filter
-fire protection system (to be assessed by a qualified body)

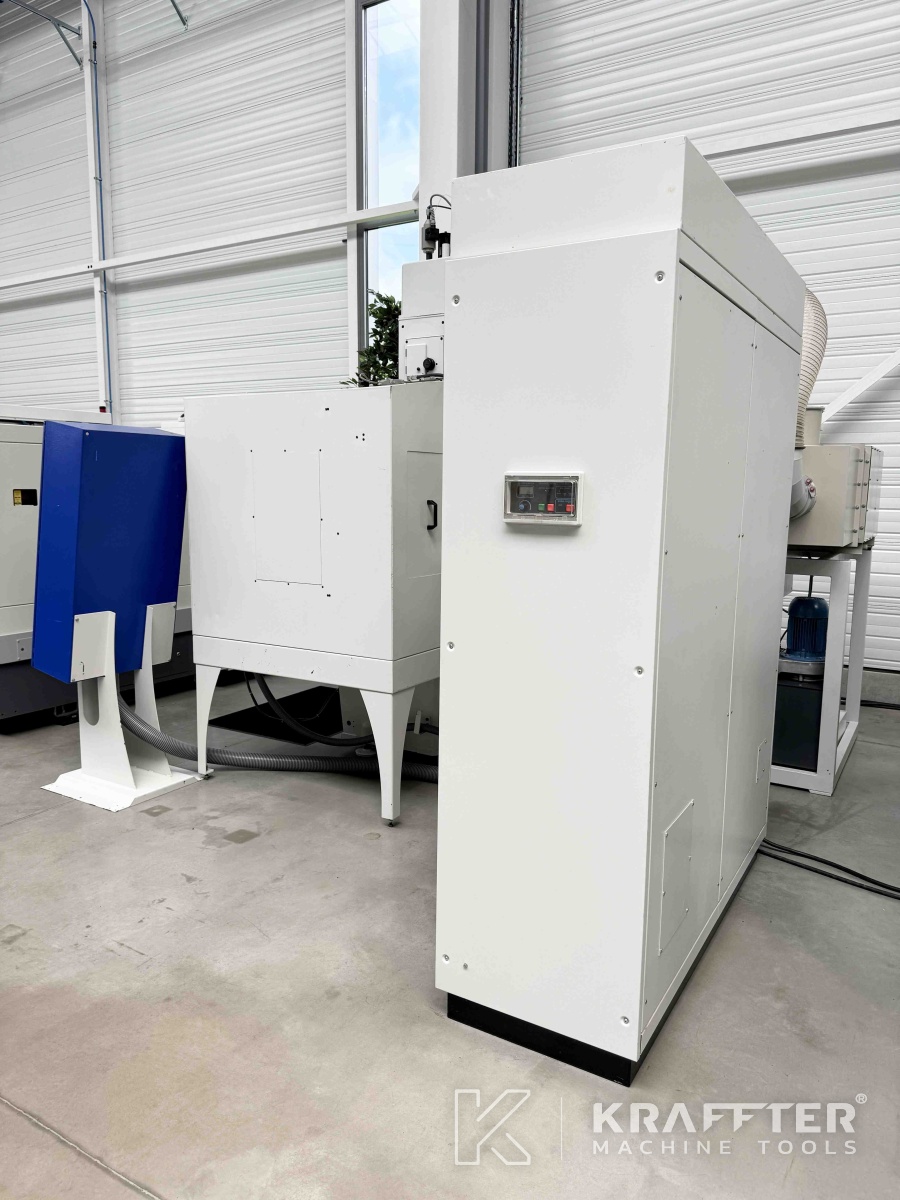

-HTG-RWS-60 automatic belt filter cooling unit

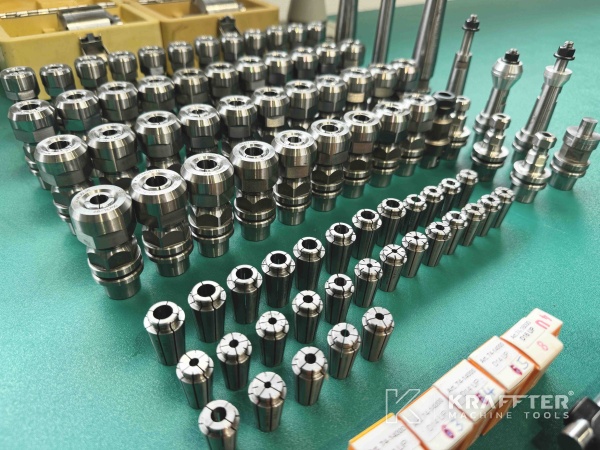

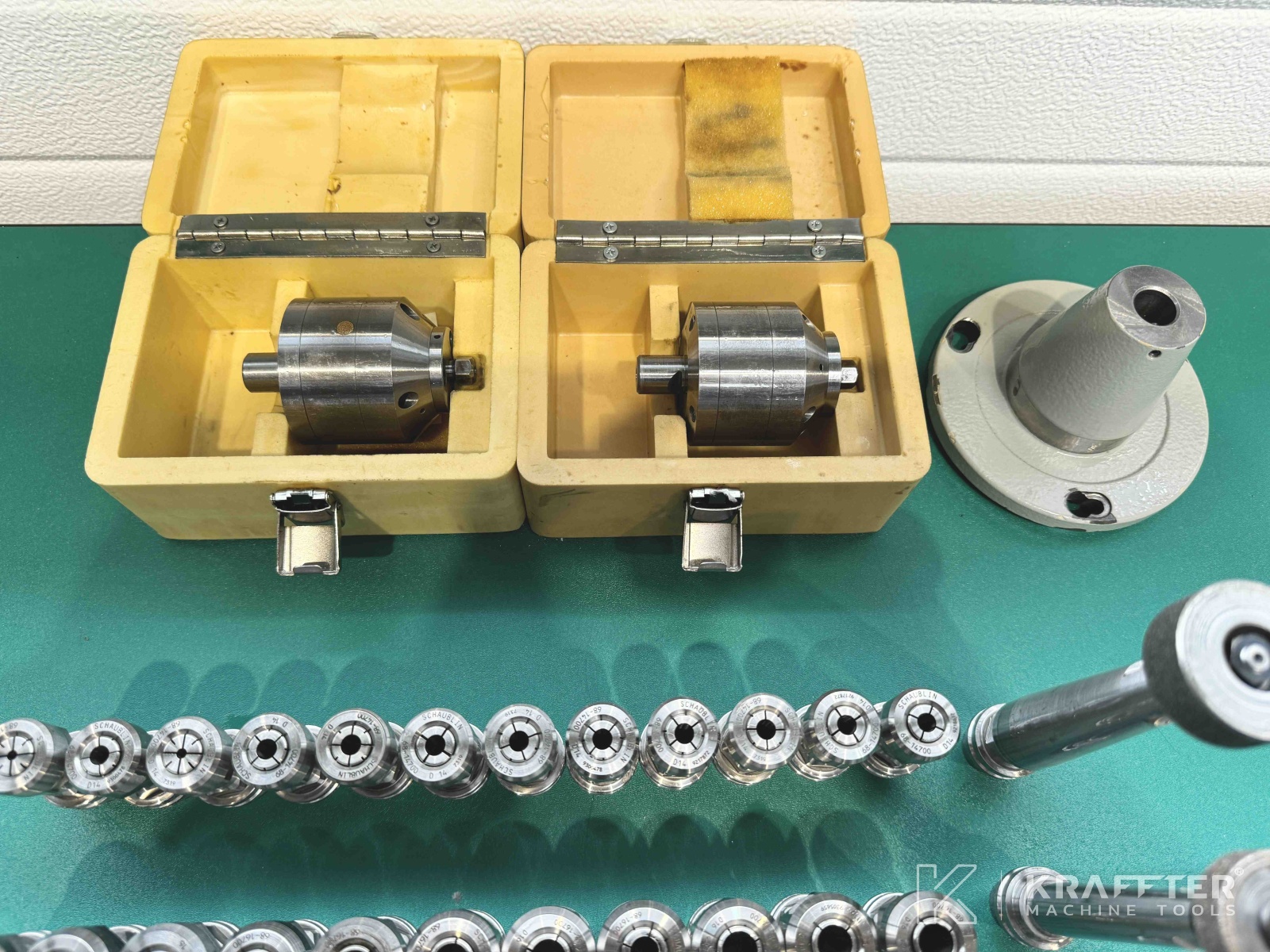

x47 collet holders HSK25
x7 wheel holders HSK25
x30 collets

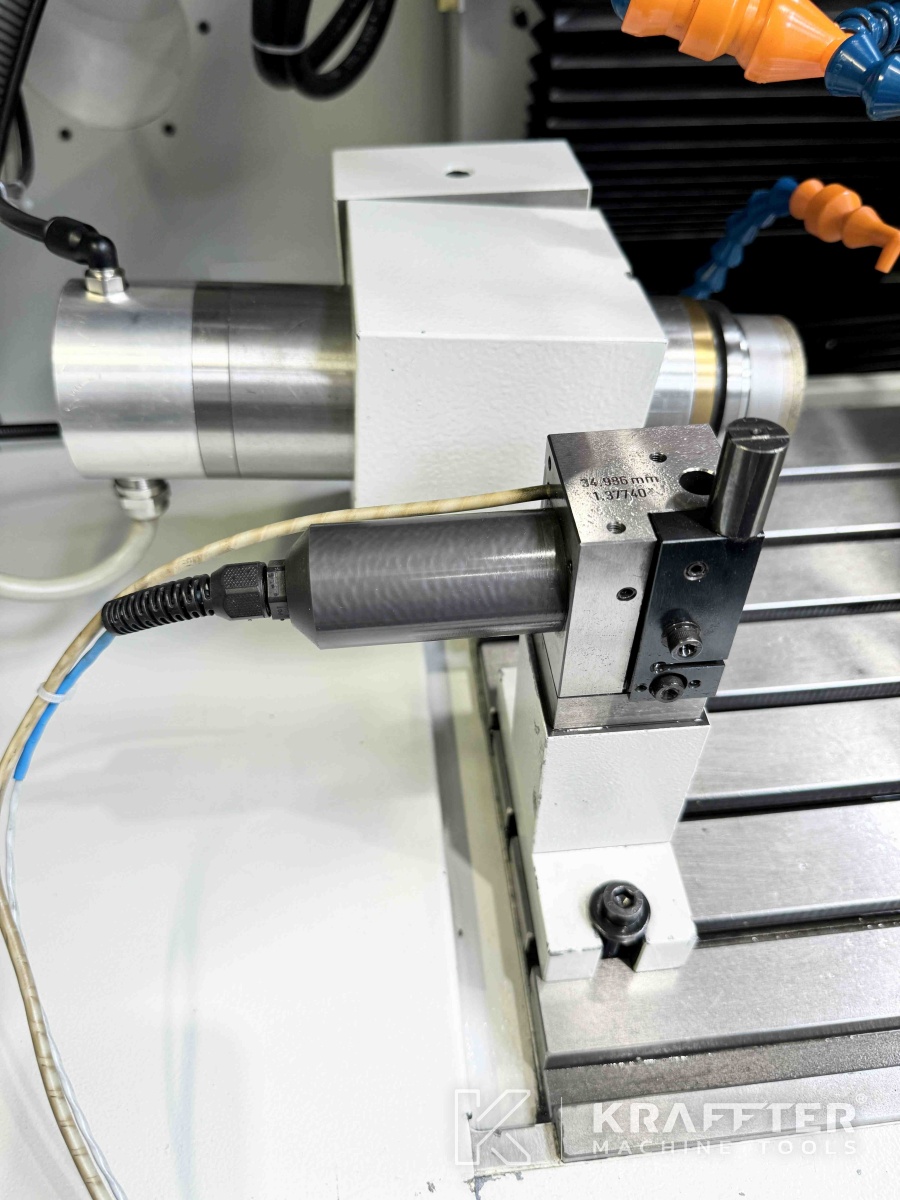

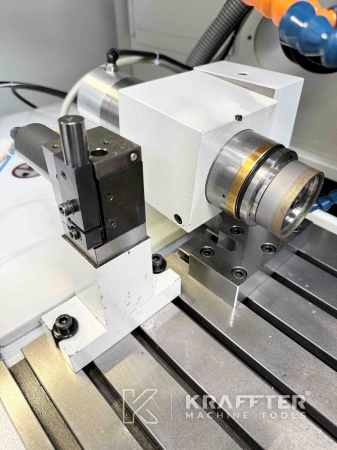

x2 grinding turbines
x1 grinding turbine support
x1 70S-ATC grinding motor 9000-70000 [rpm]

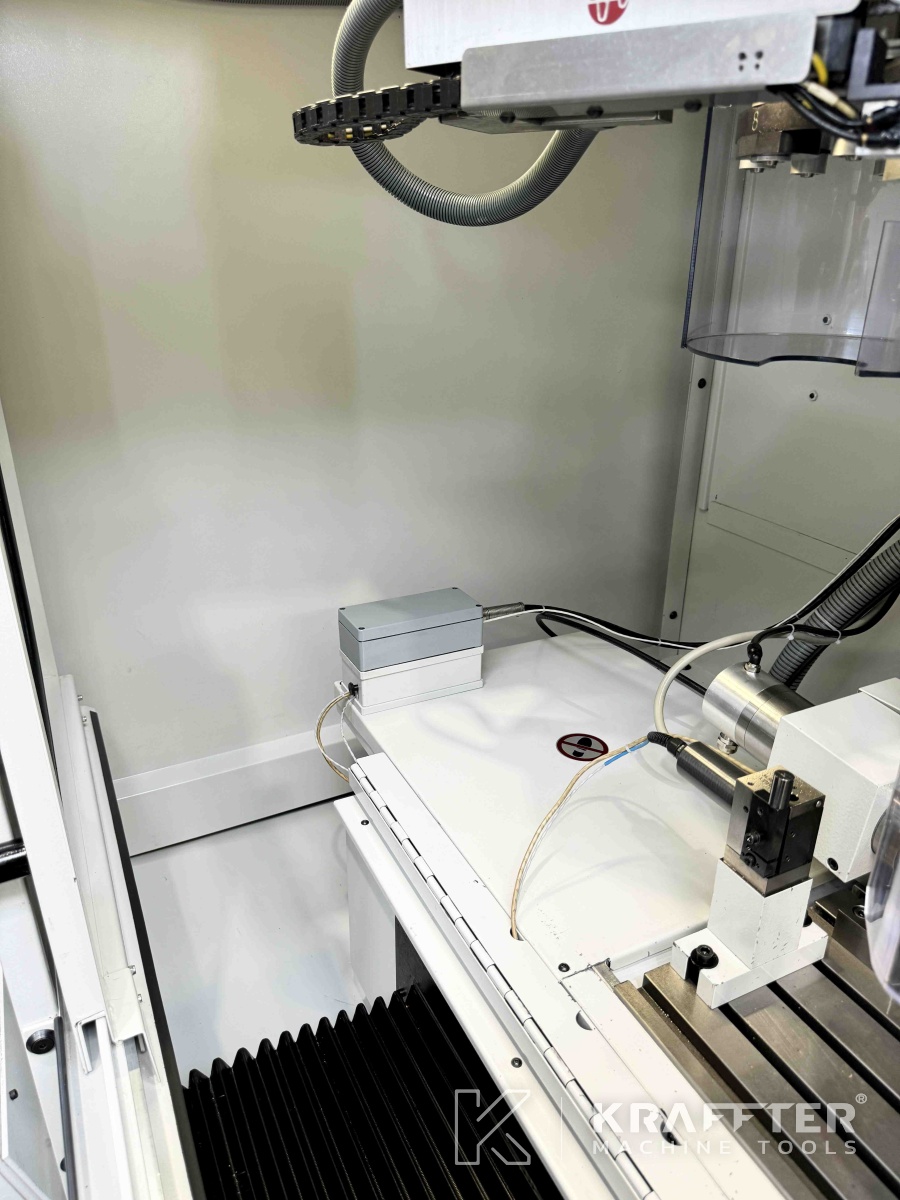

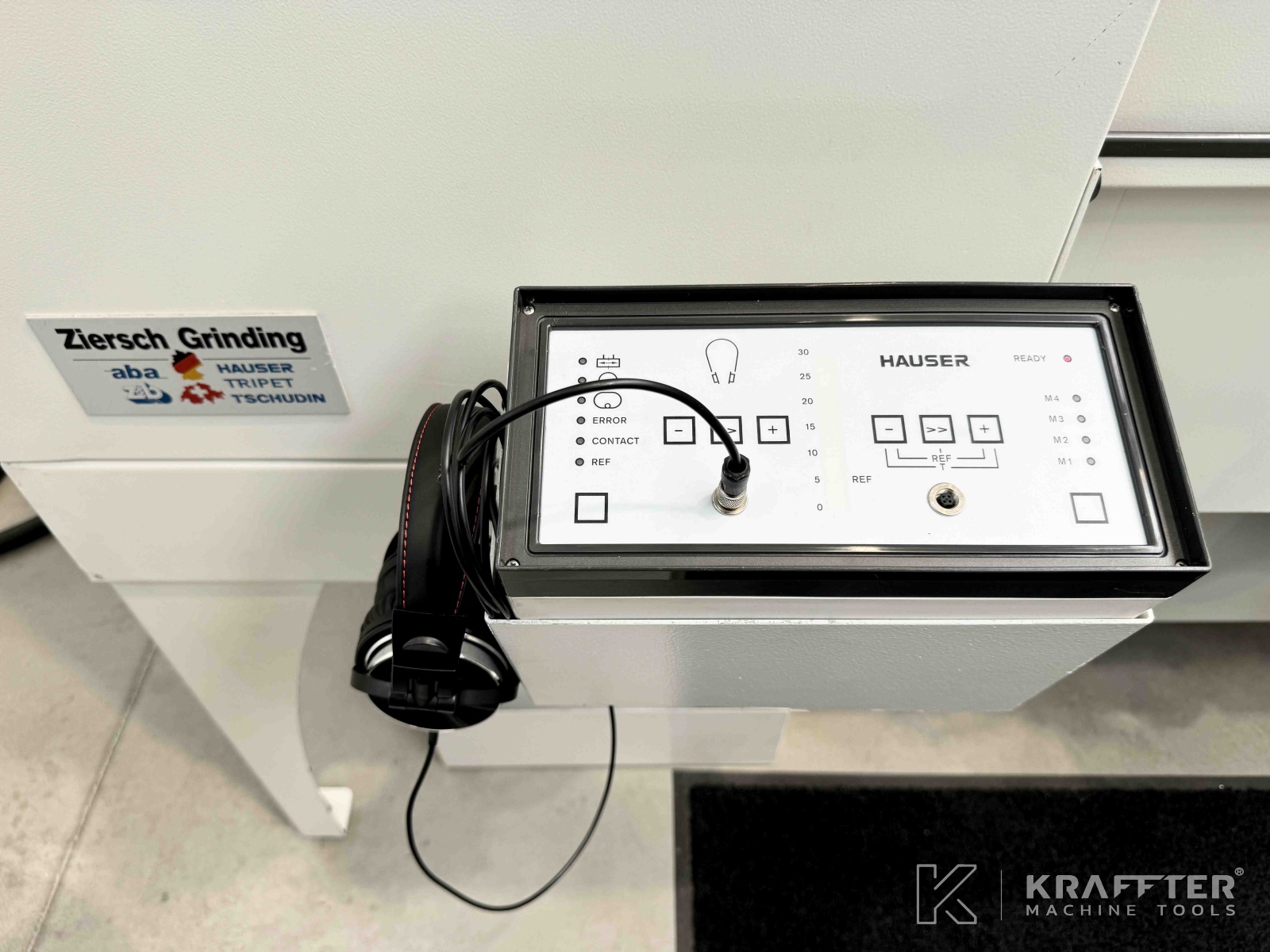

x1 MSS (Multi-Sensoric System) tool detection device
x1 set of technical manuals
