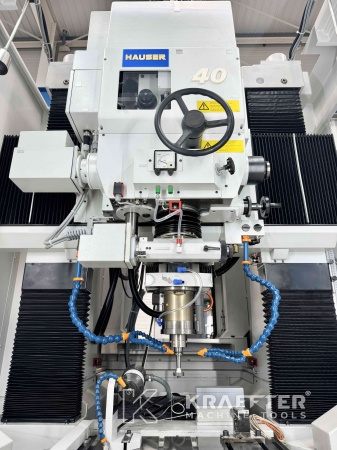

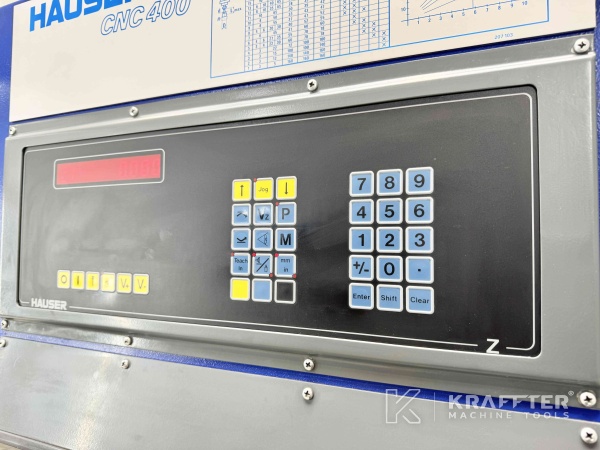

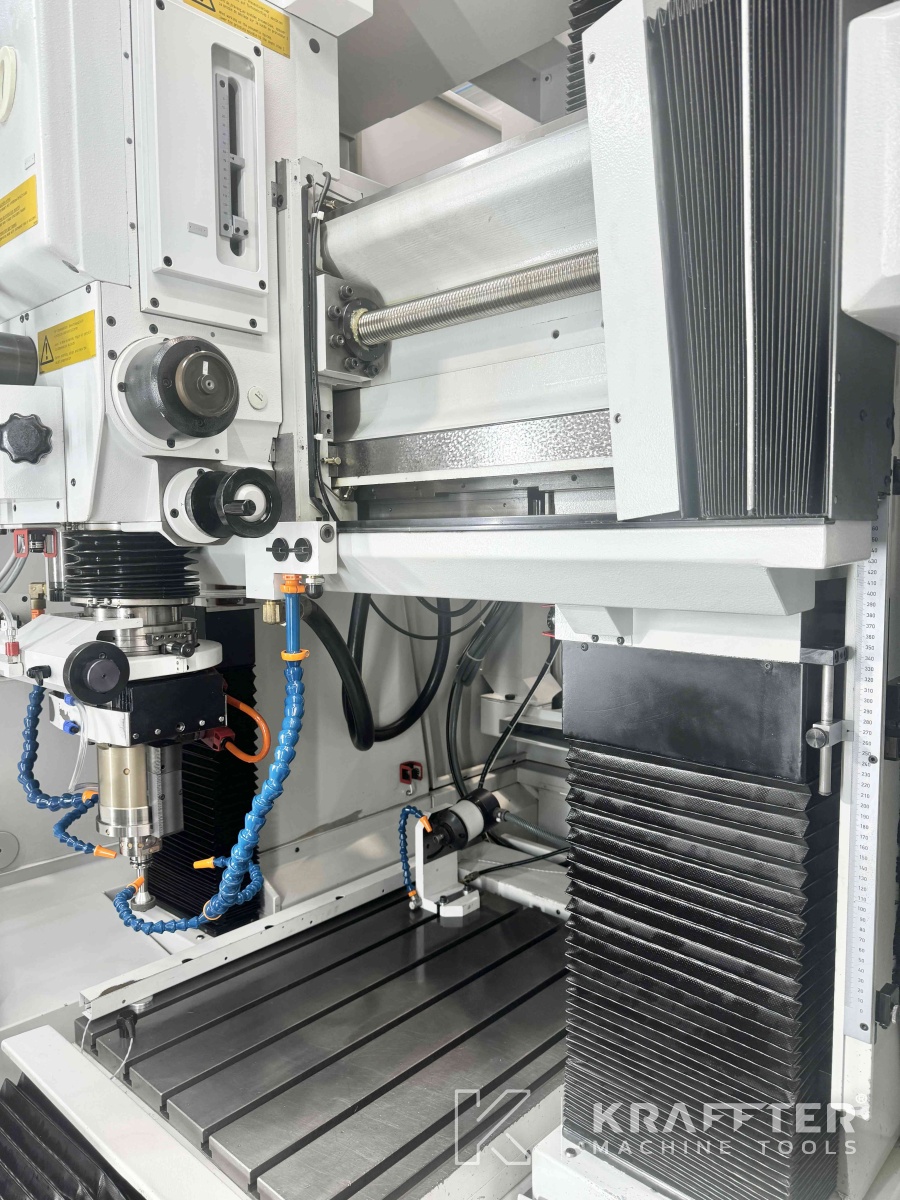

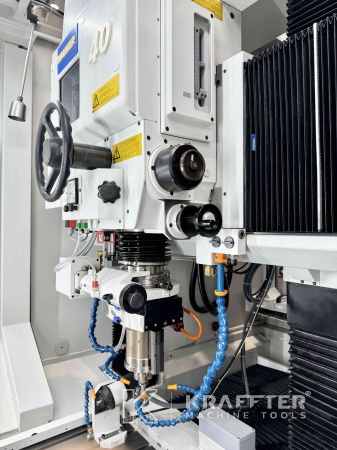

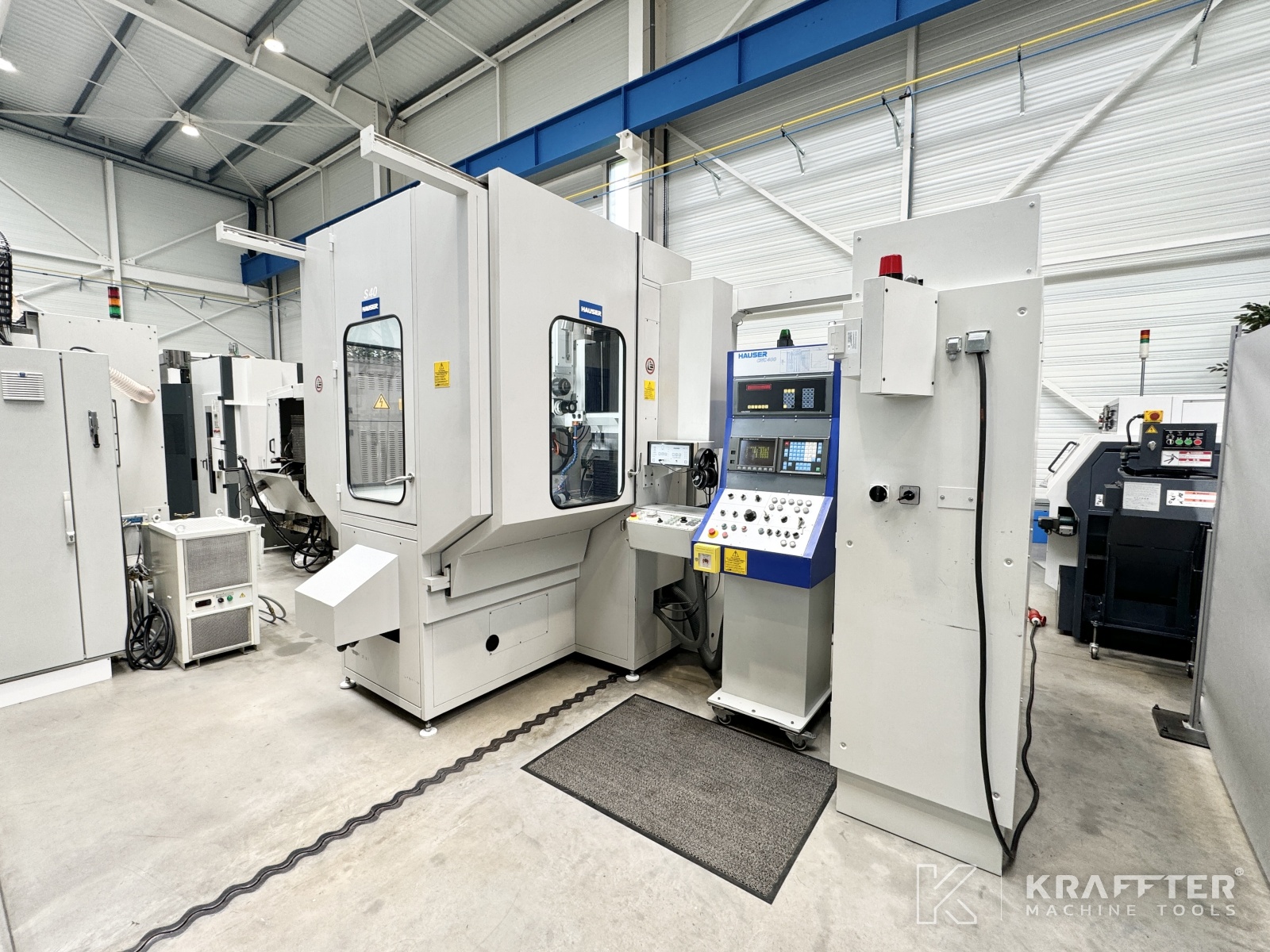

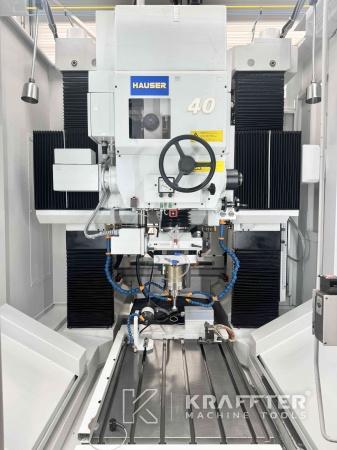

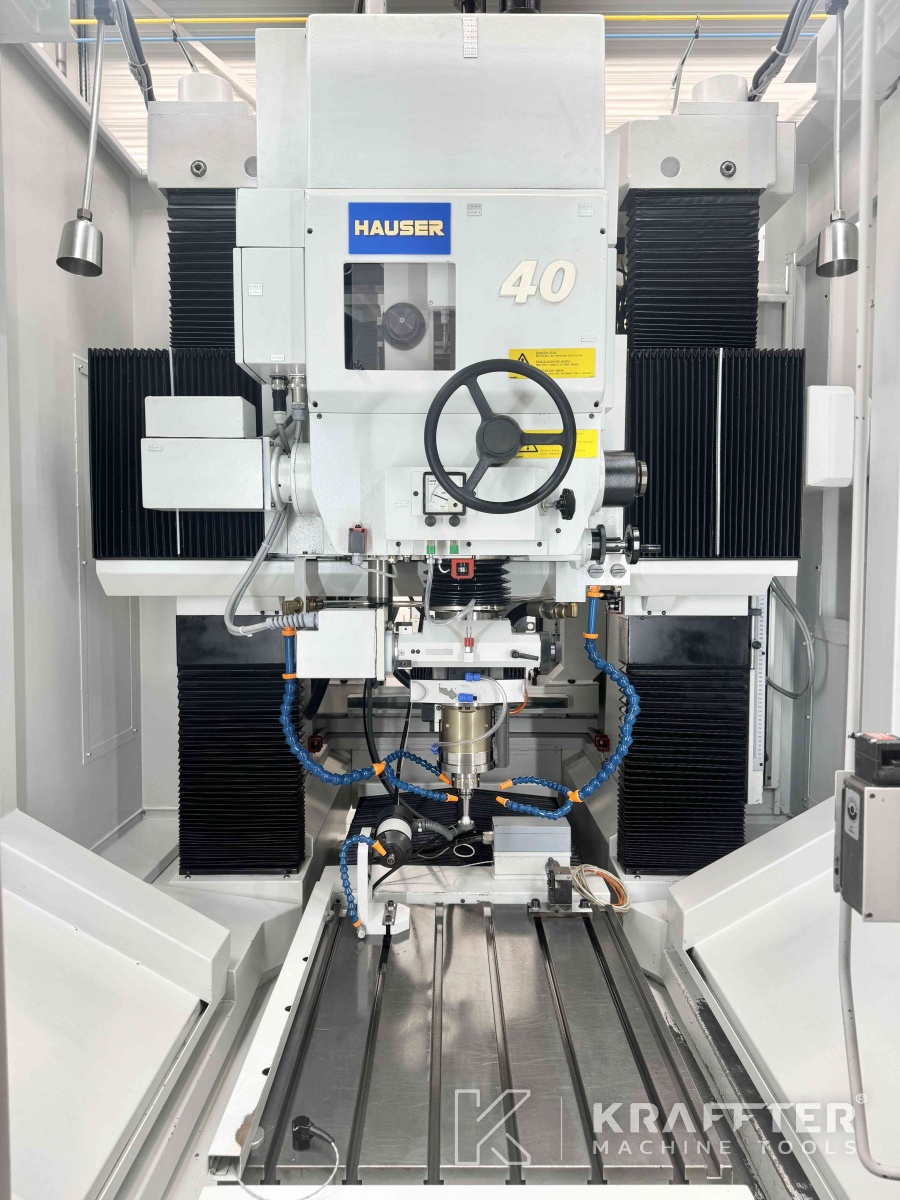

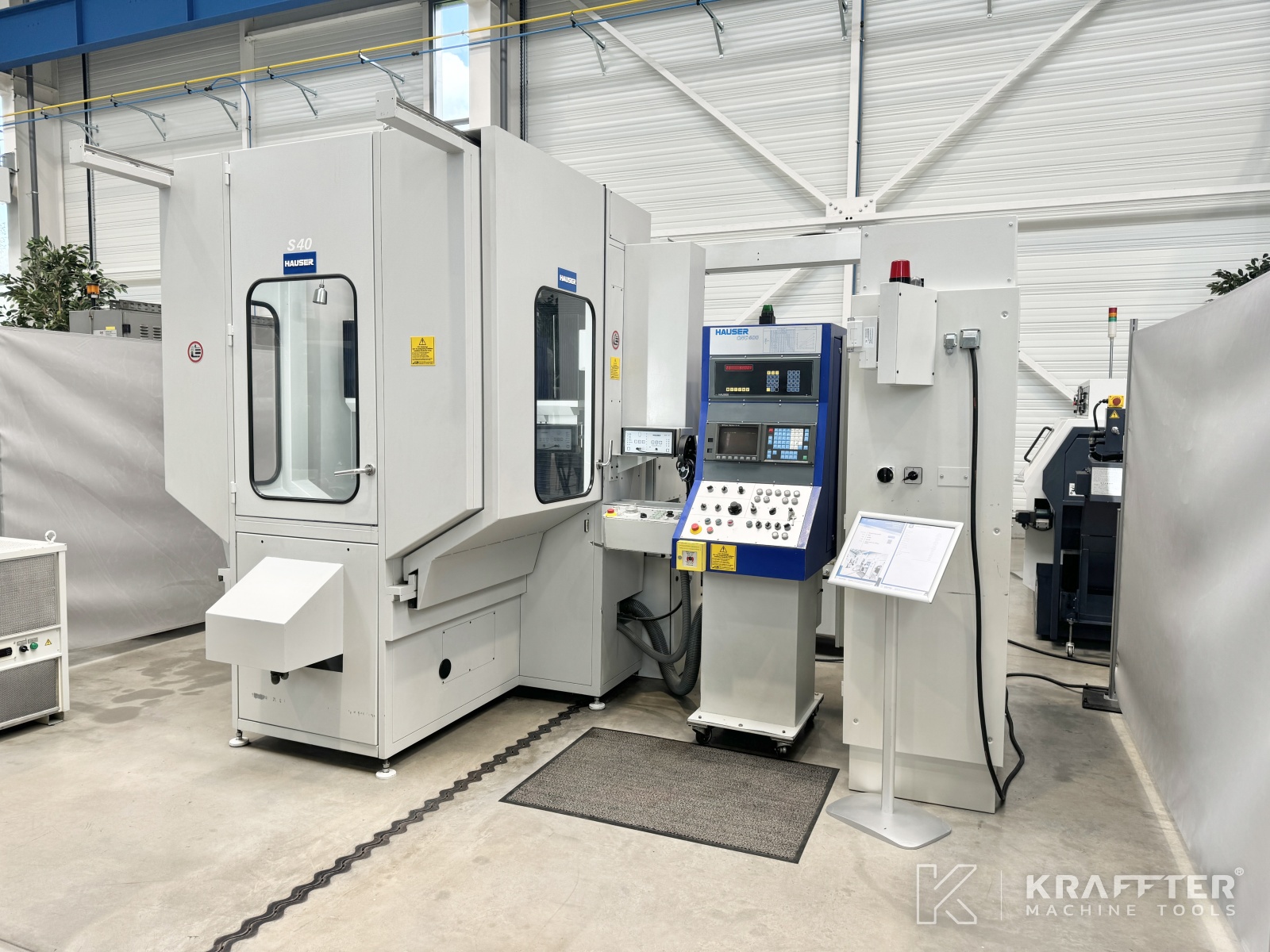

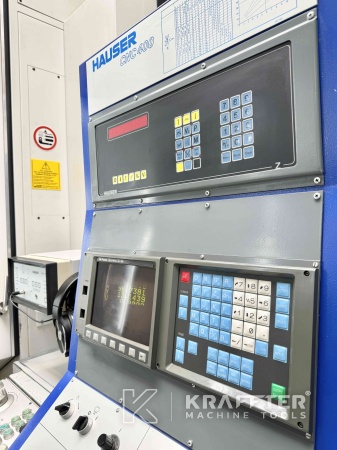

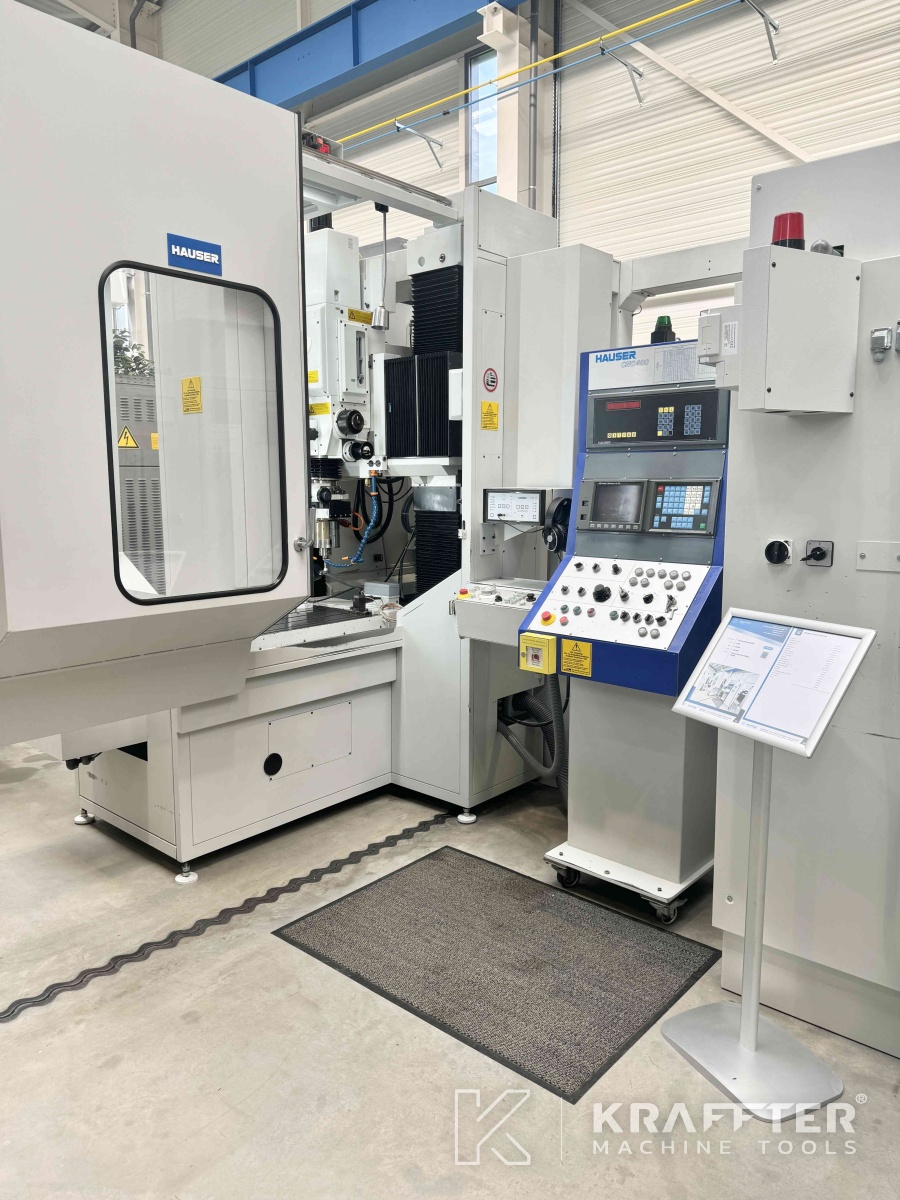

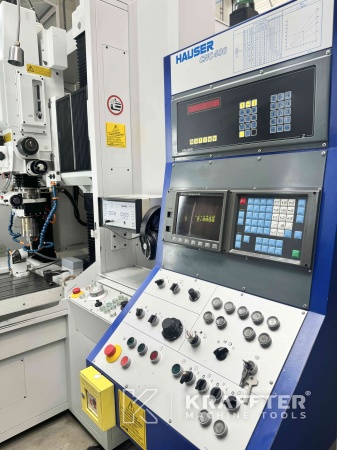

Type of machine : CNC jig grinding machine
Brand : HAUSER
N° de stock: 90123
Model : S40-400
Year : 1996
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

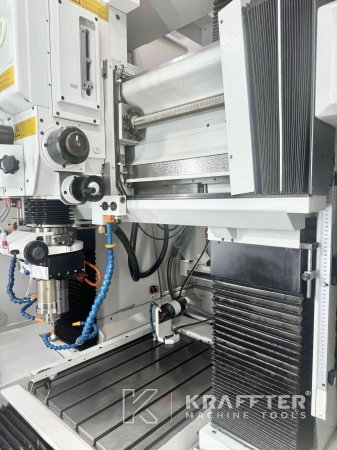

Max. Stroke speed W axis
800 [mm/min]

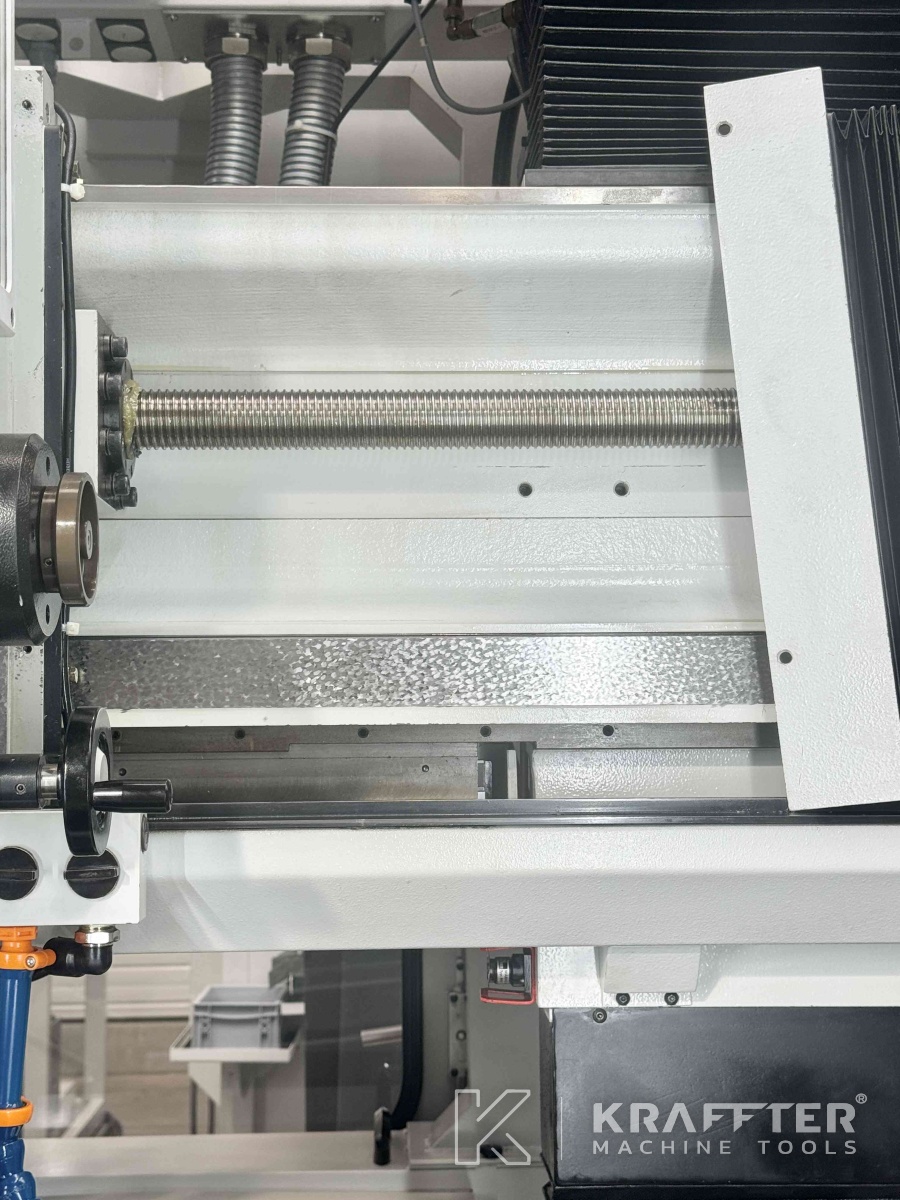

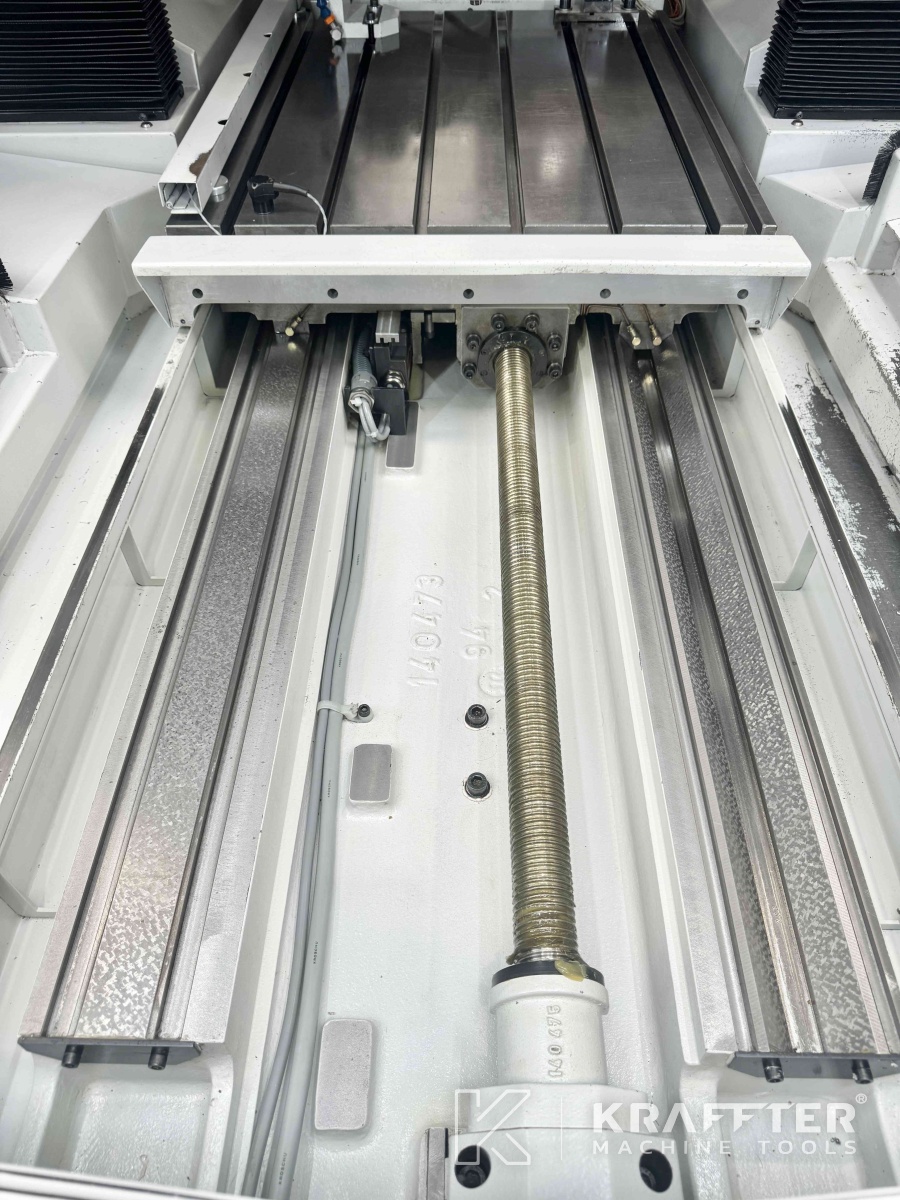

Stroke X axis
650 [mm]
Max. Stroke speed X axis
4000 [mm/min]
Working feed X axis
0 - 1800 [mm/min] [mm/min]
Stroke Y axis
450 [mm]
Working feed Y axis
0 - 1800 [mm/min] [mm/min]
Stroke Z axis
130 [mm]
Min. Stroke speed Z axis
0.5 [mm/min]
Max. Stroke speed Z axis
12000 [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Planetary speed C axis
5 - 250 [rpm]
Stroke U axis (radial feed)
5.5 [mm]
Distance between columns
750 [mm]

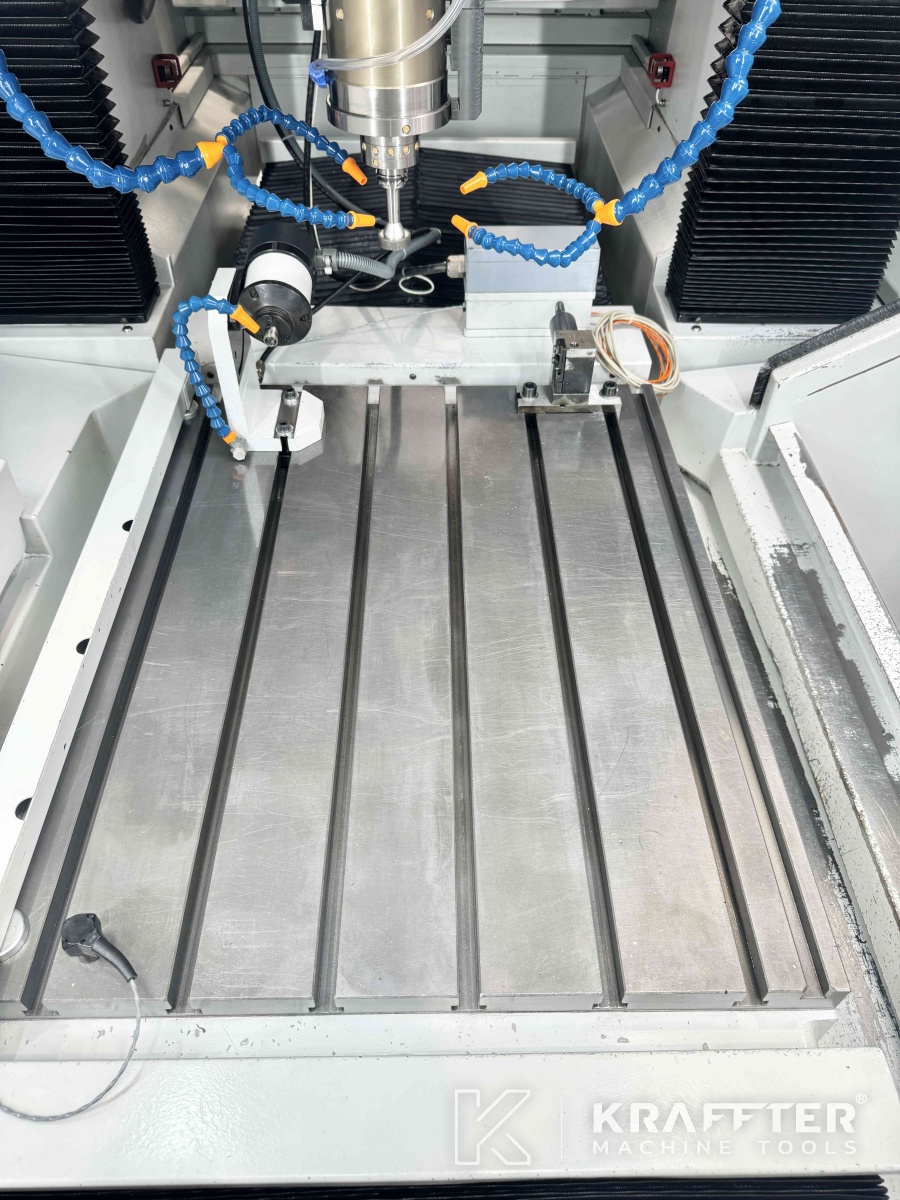

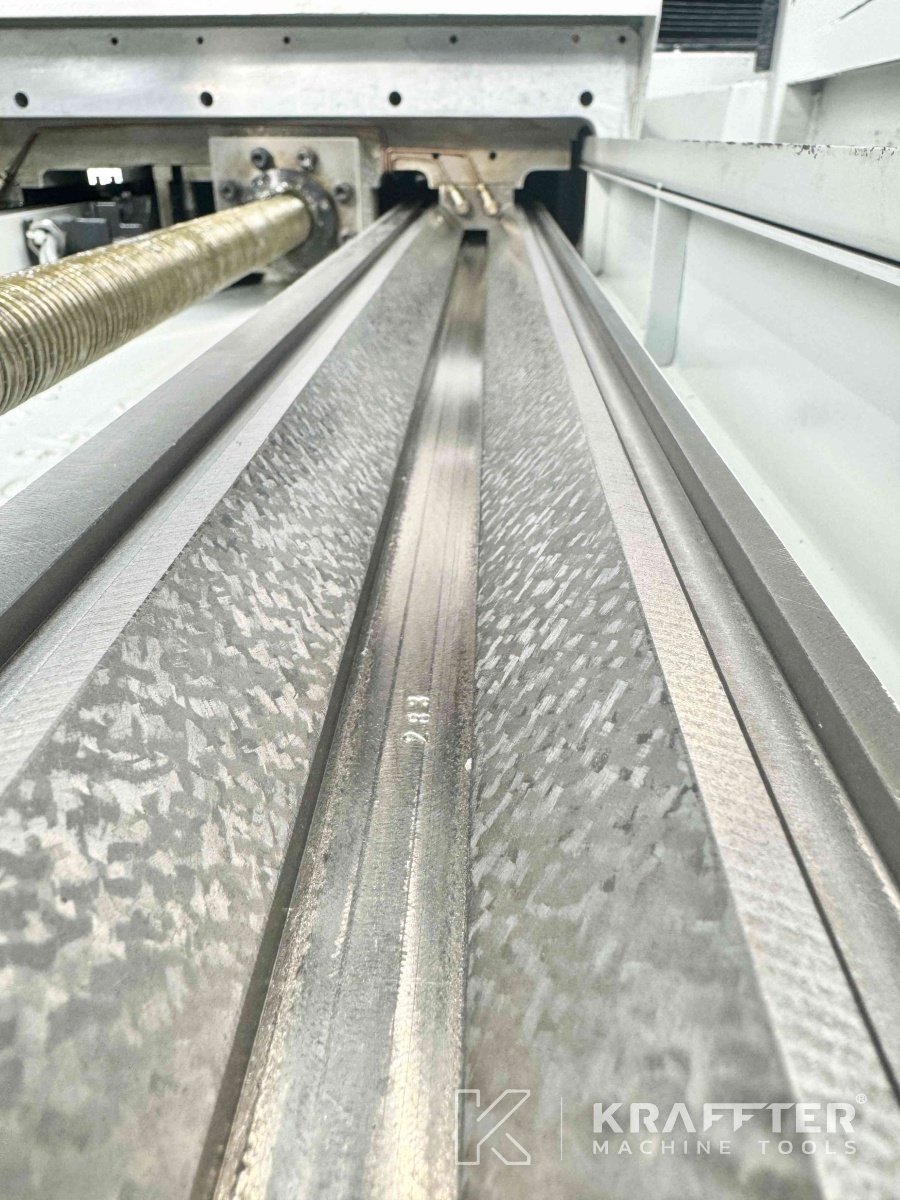

Table length
770 [mm]
Table width
630 [mm]
Clearance between grinding motor and table
585 [mm]
Max. load on table
500 [Kg]

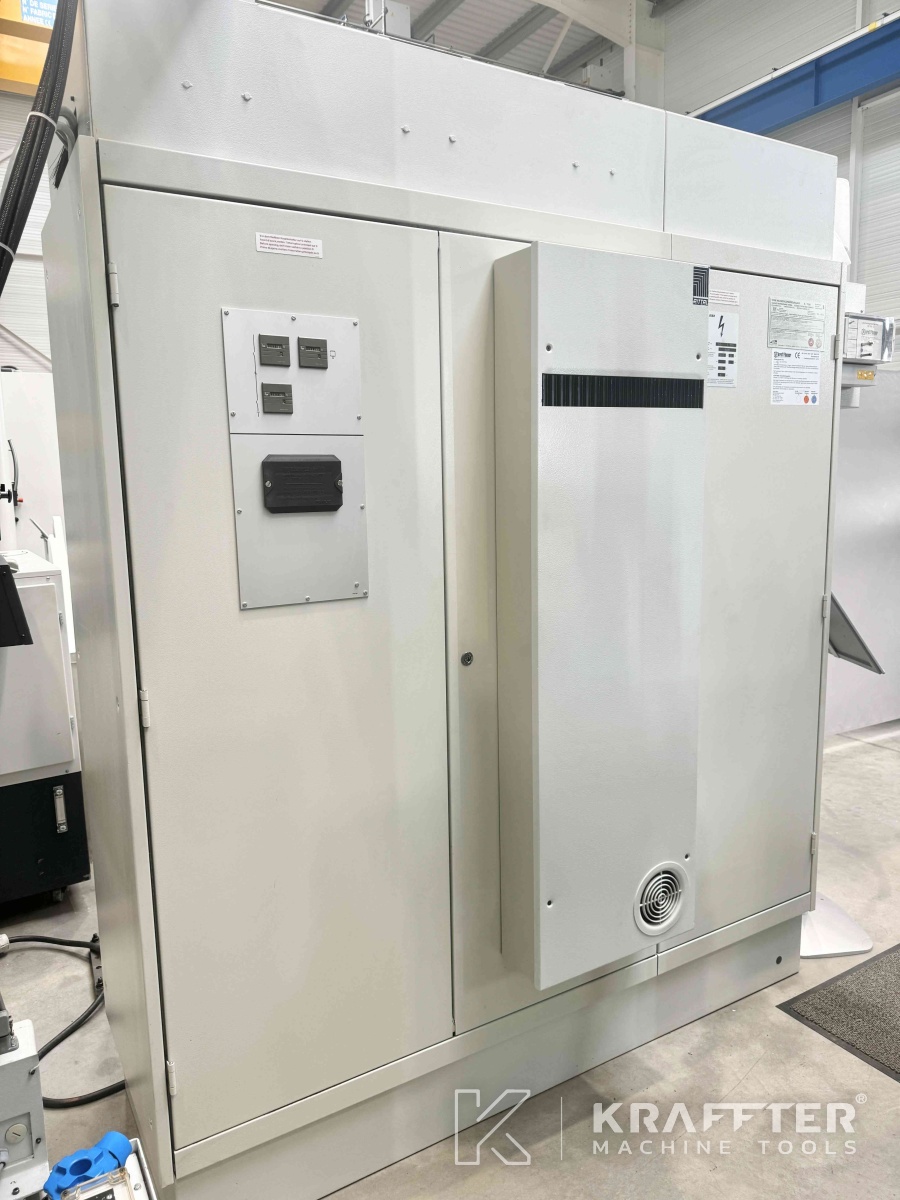

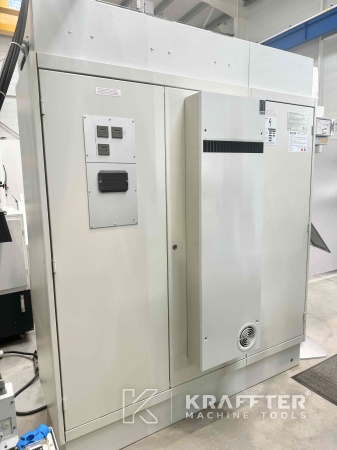

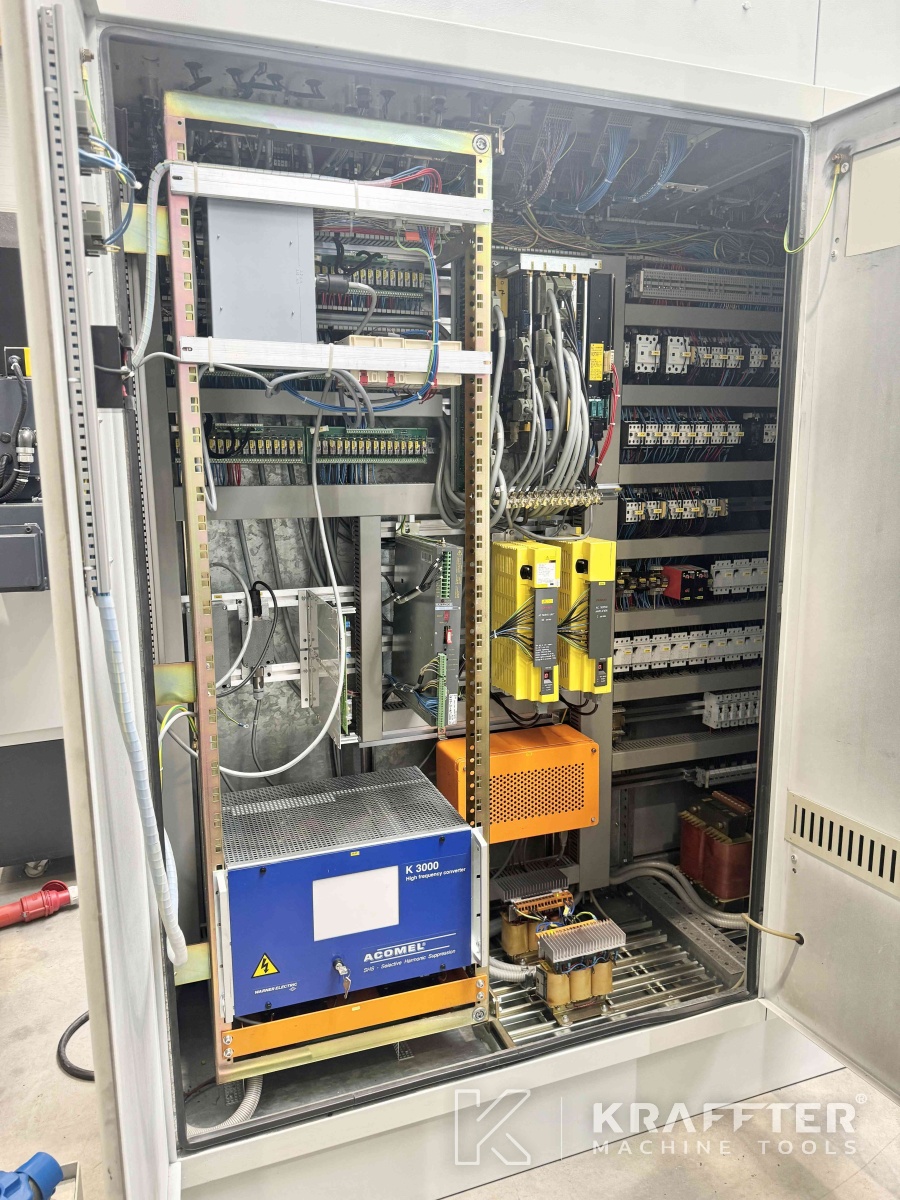

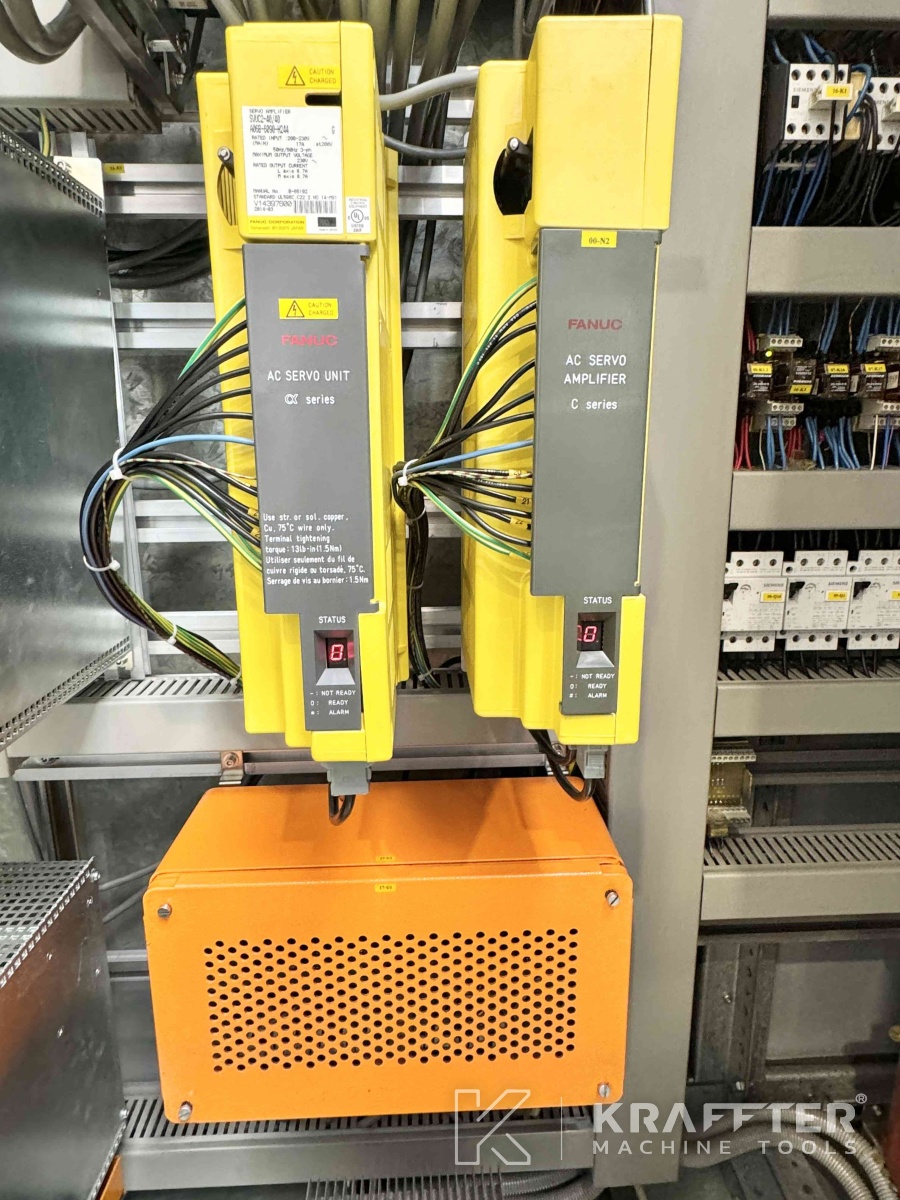

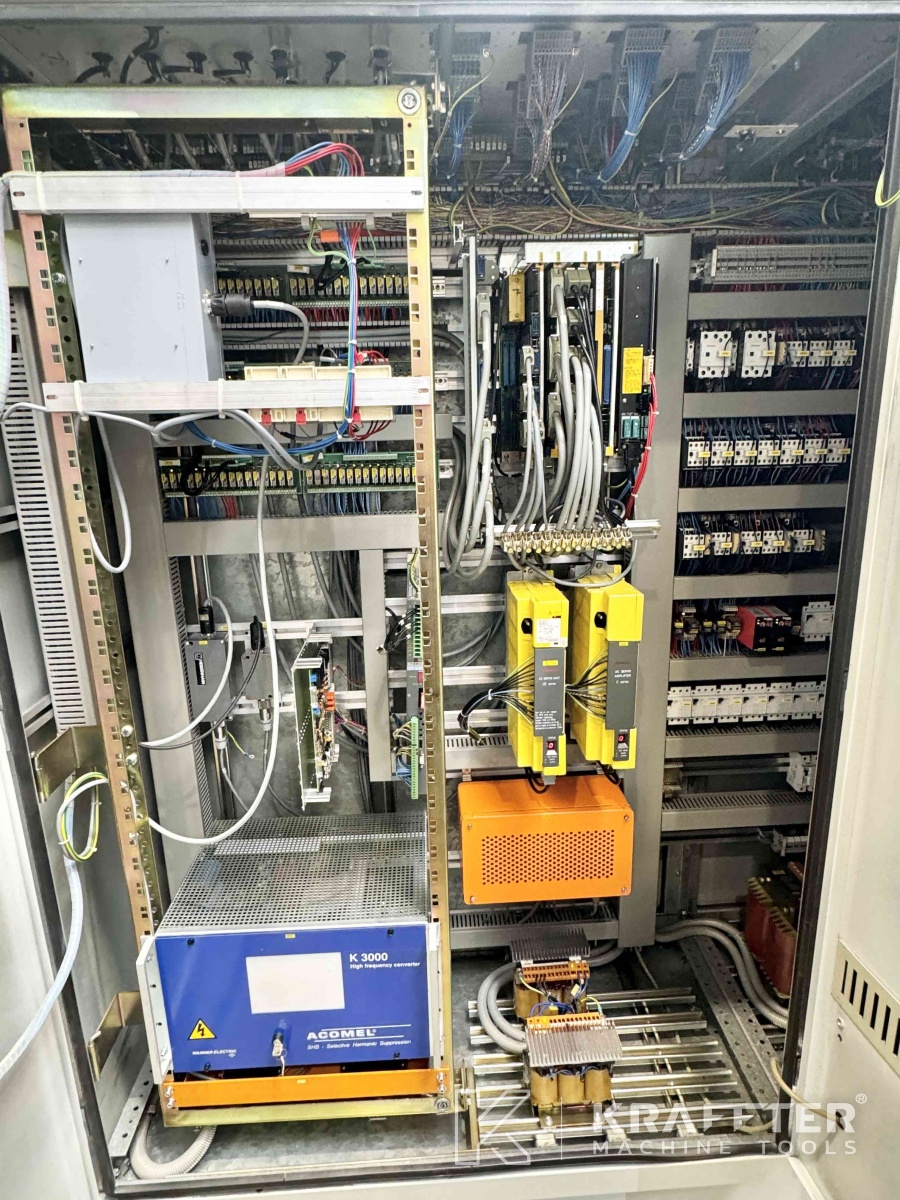

Supply voltage
400 [V]
Weight
4550 [Kg]
Additional information

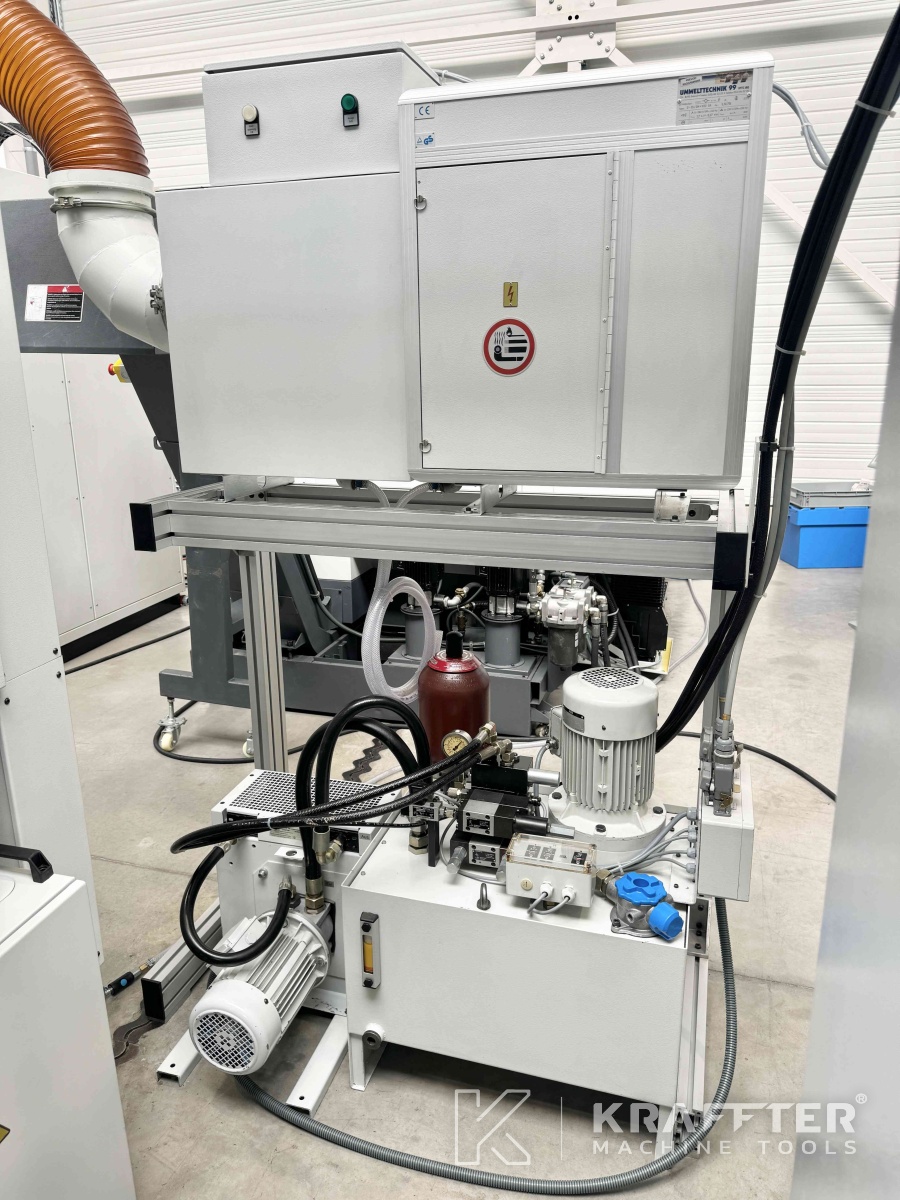

EQUIPMENT INCLUDED:

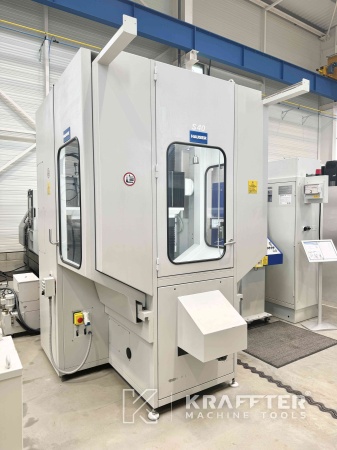

x1 HI-CUT pack including:

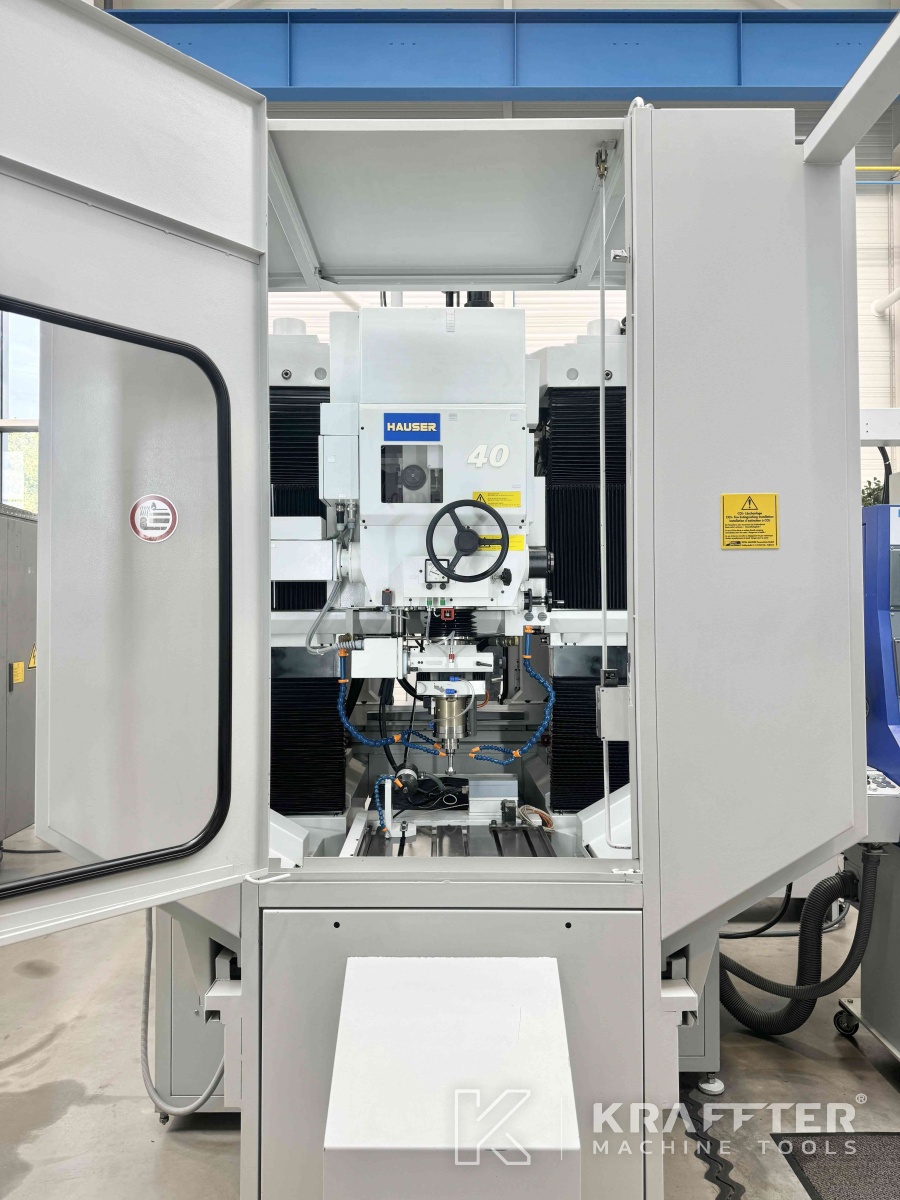

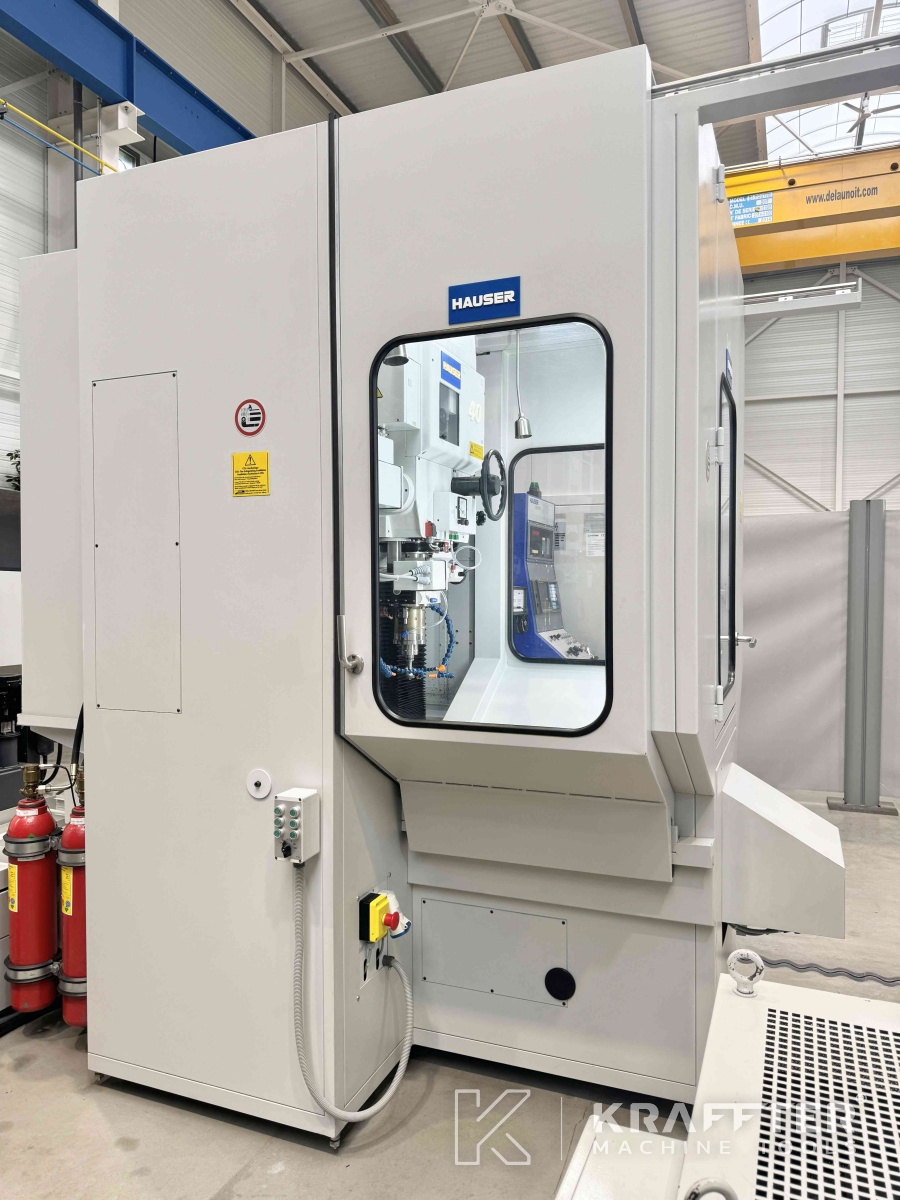

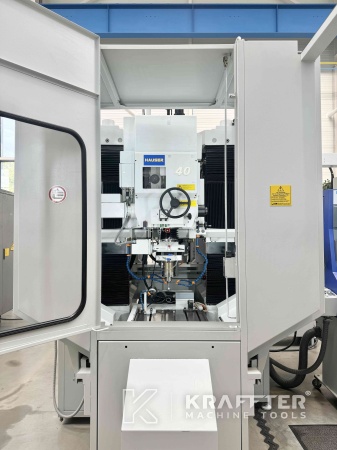

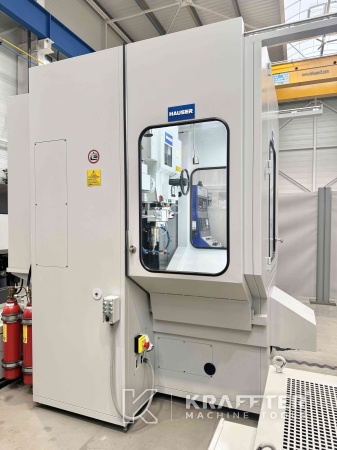

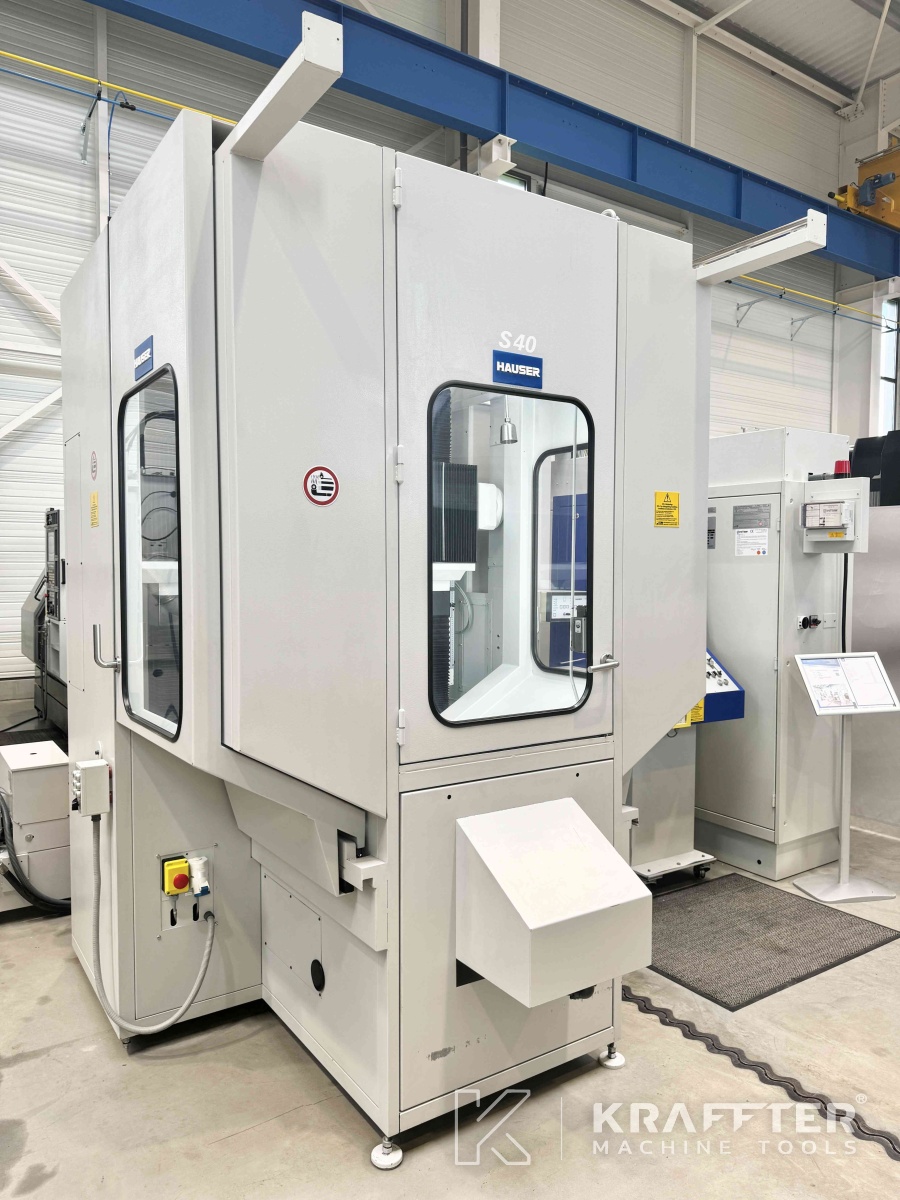

-work area protection

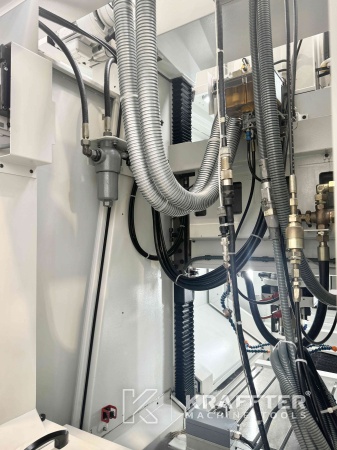

-exhaust system with electrostatic air filter
-fire protection system (to be assessed by a qualified body)

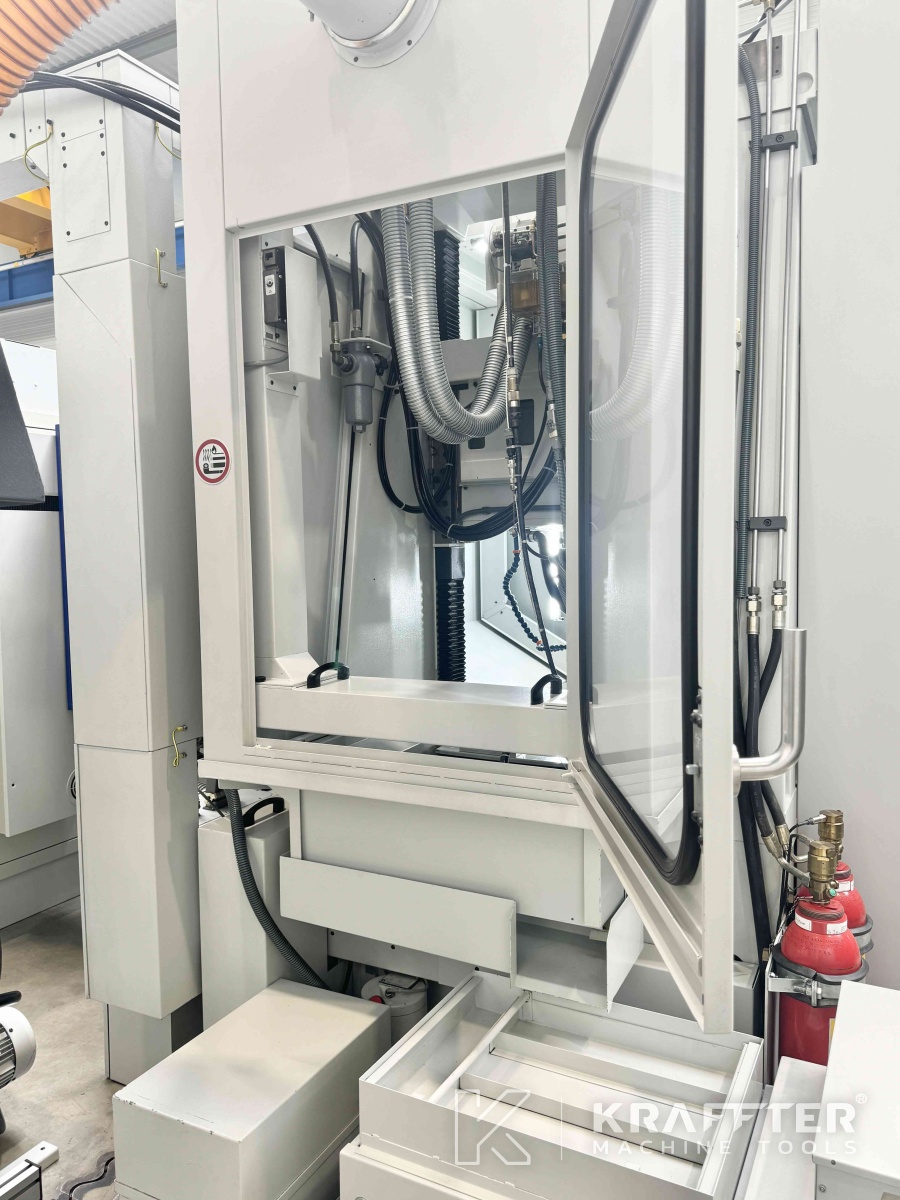

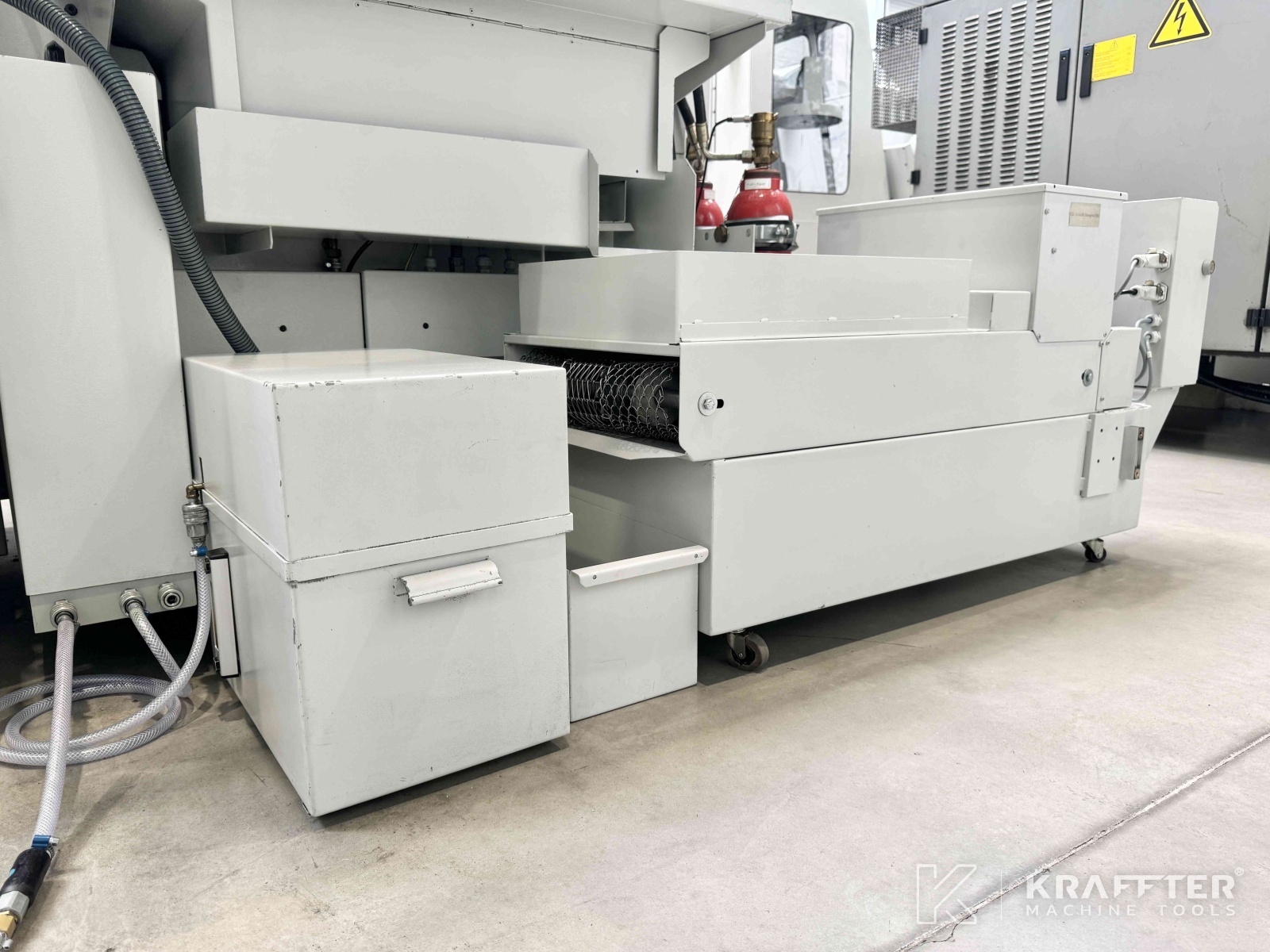

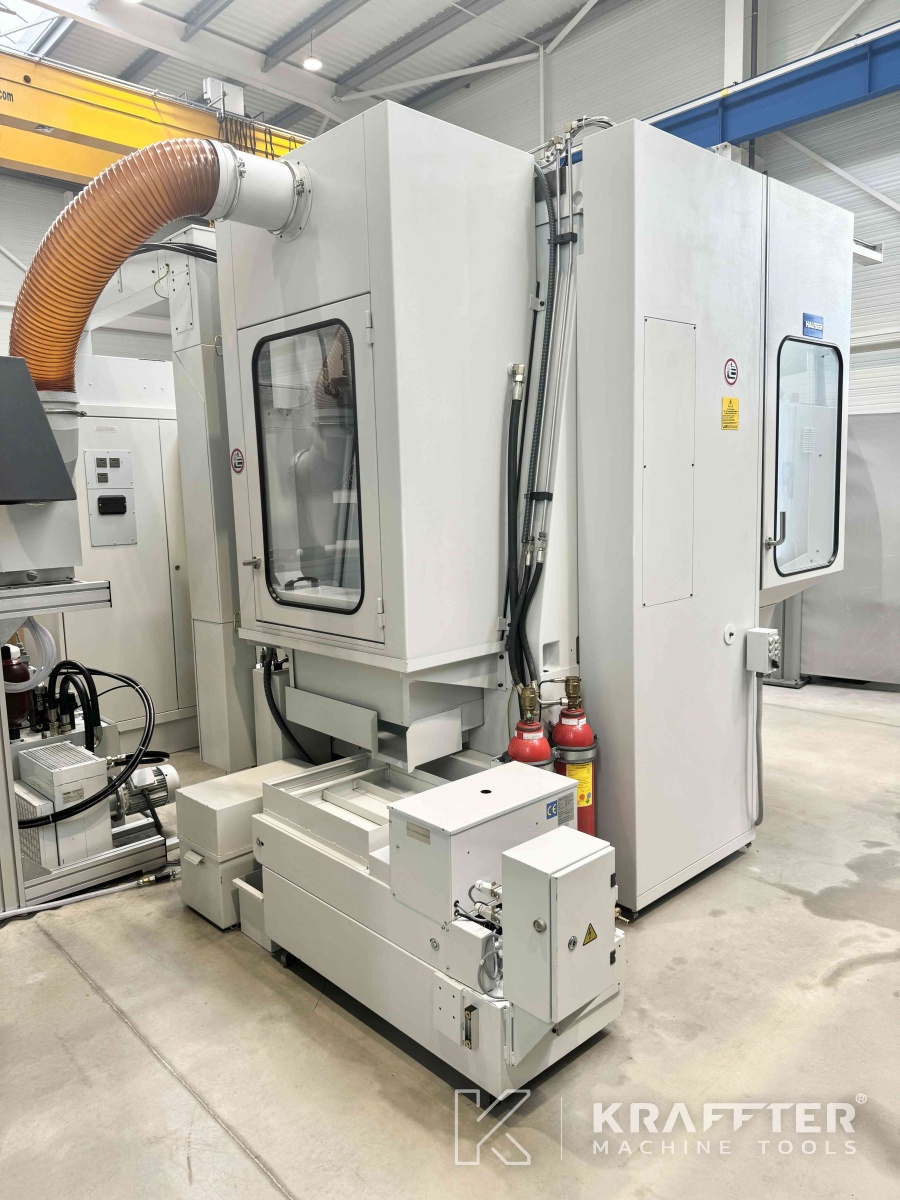

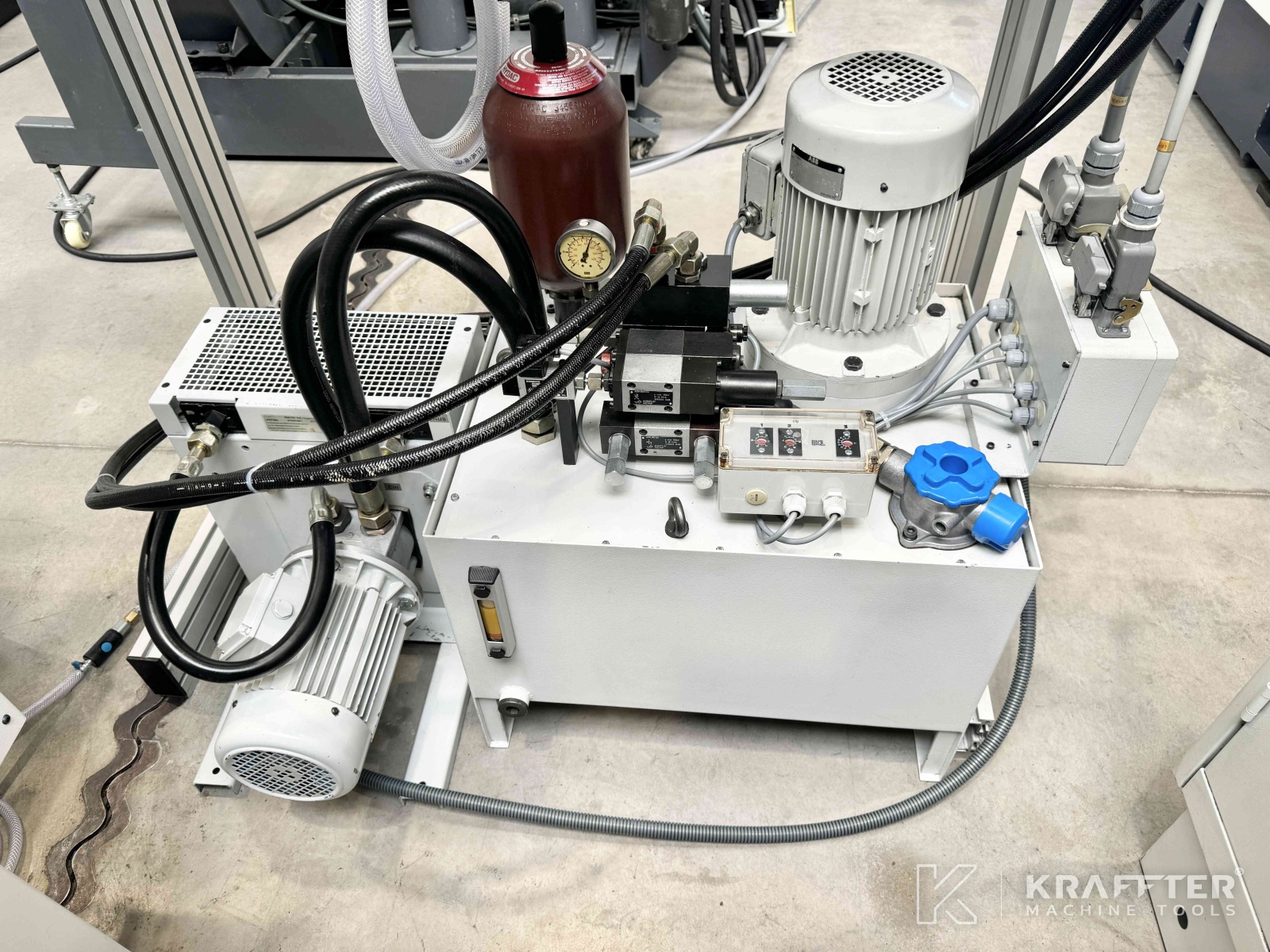

-HTG-RWS-60 automatic belt filter cooling unit

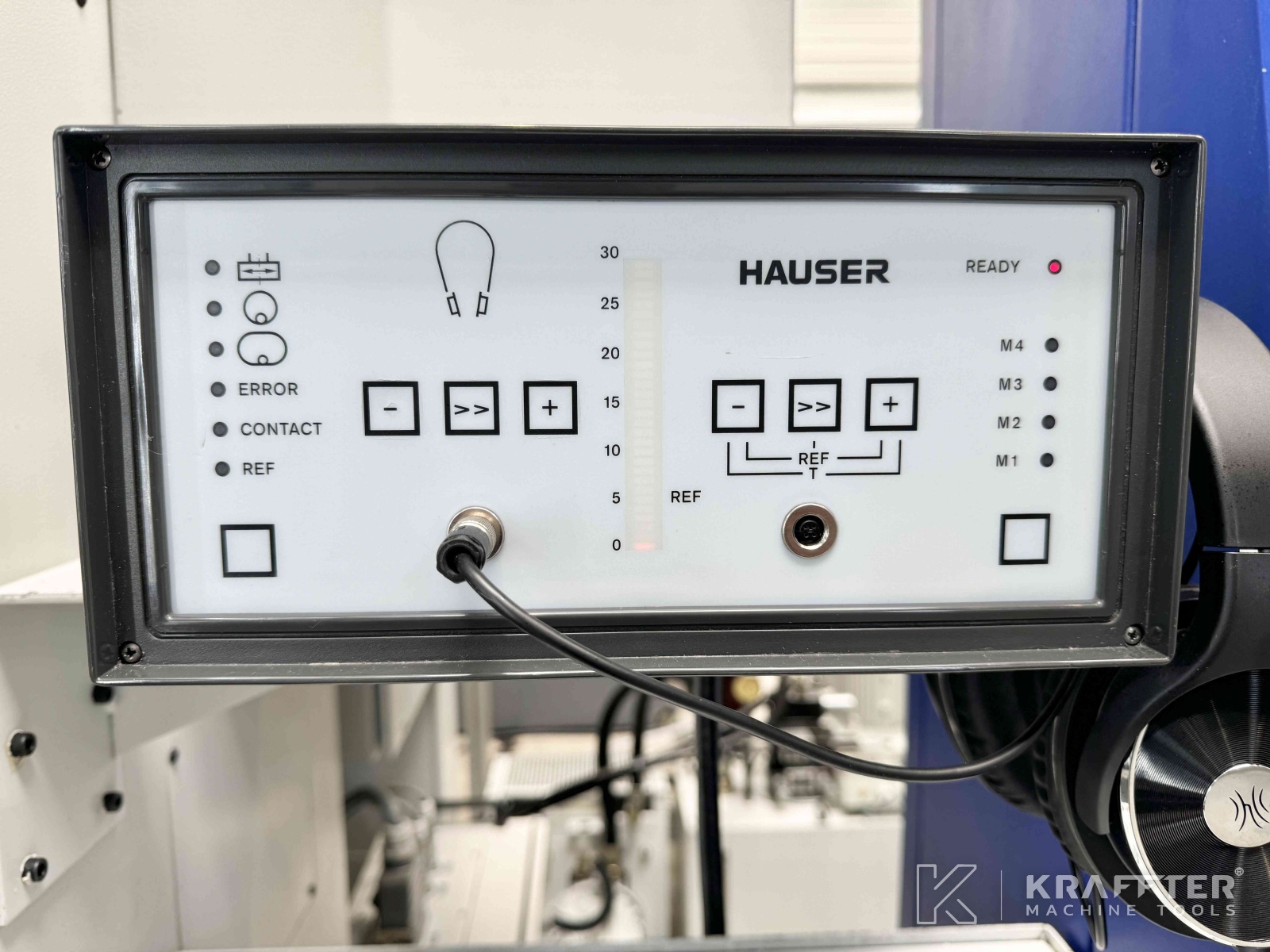

x1 MSS (Multi-Sensoric System) tool detection device

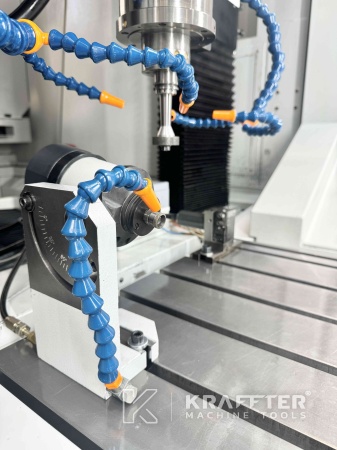

x1 CBN dressing unit with HF drive for automatic dressing of CBN grinding wheels (ceramic bond and synthetic resin)

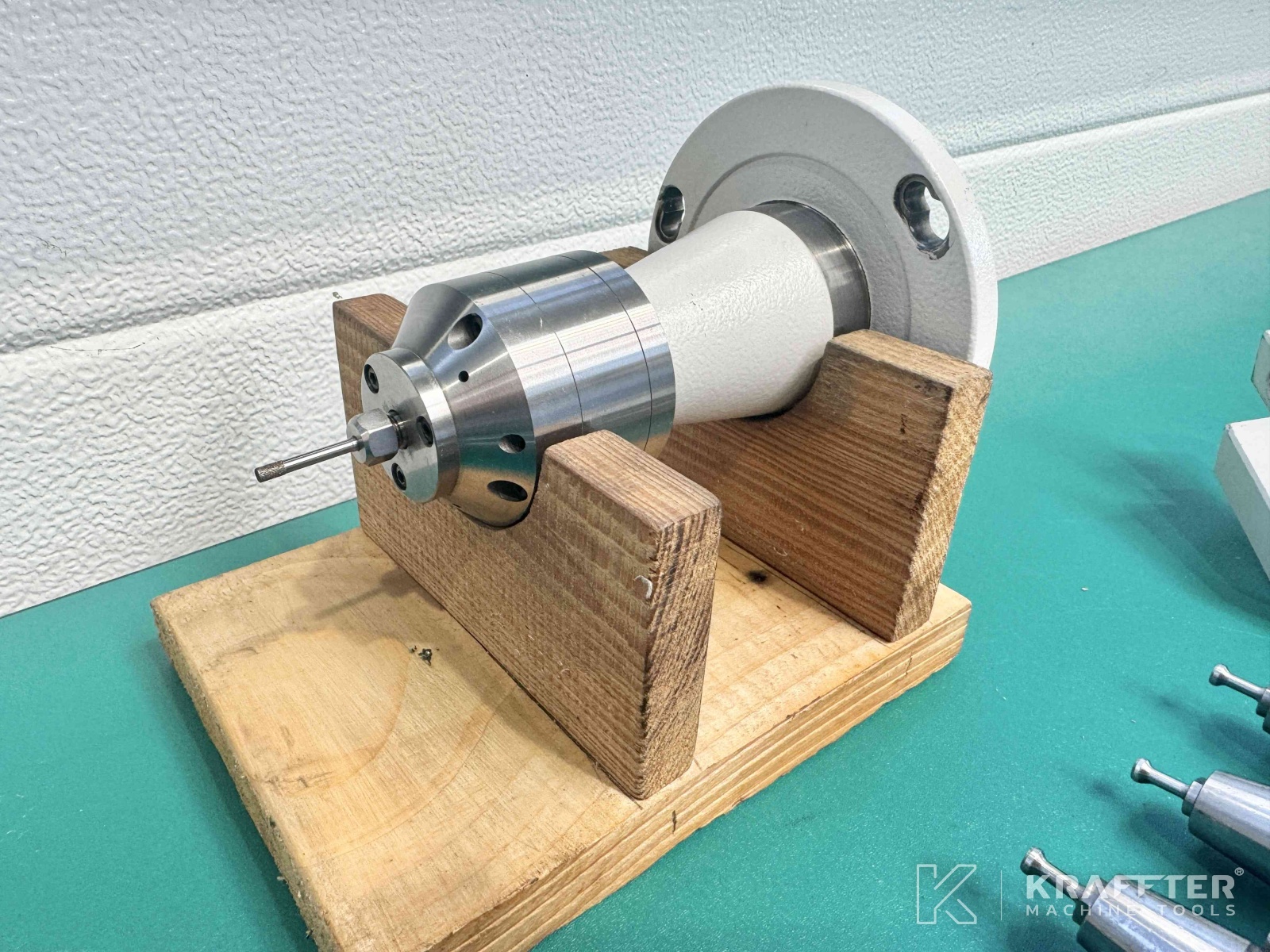

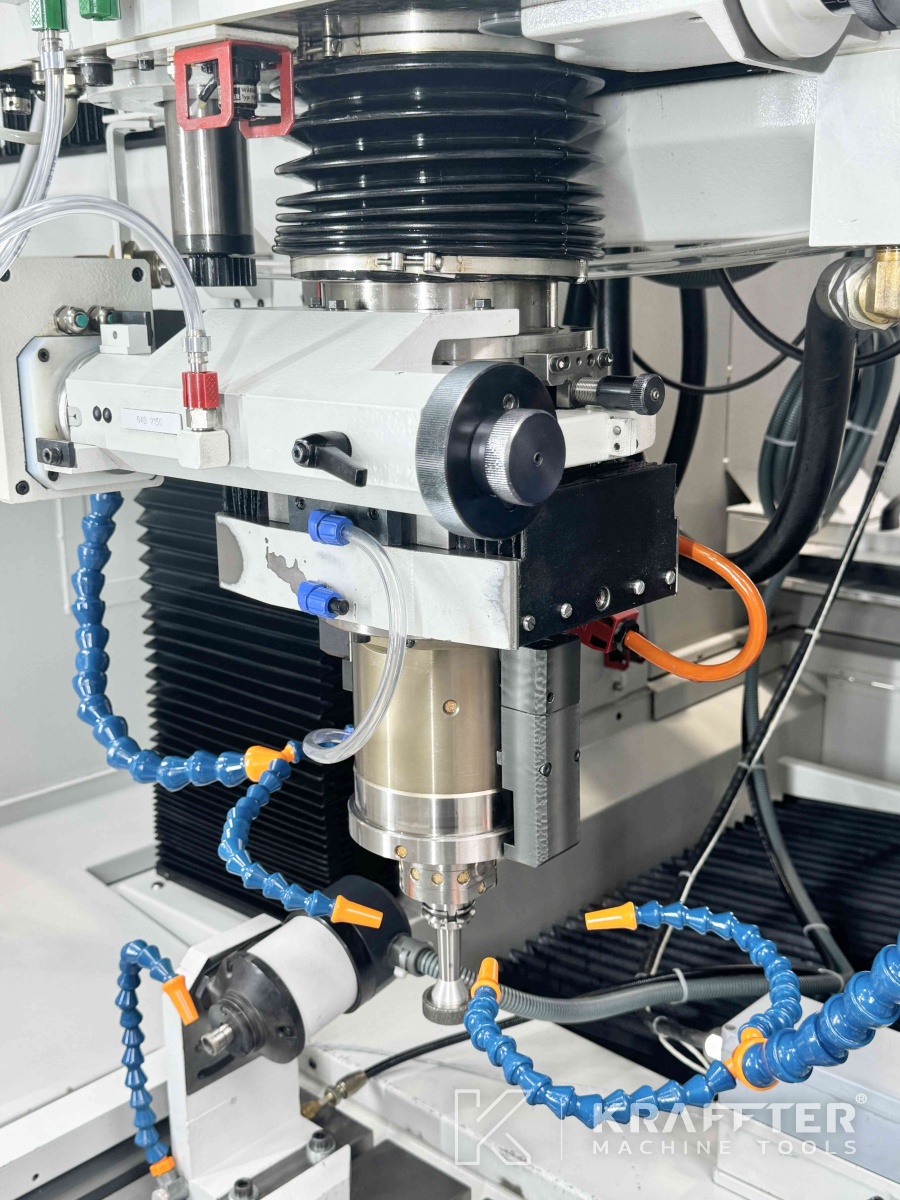

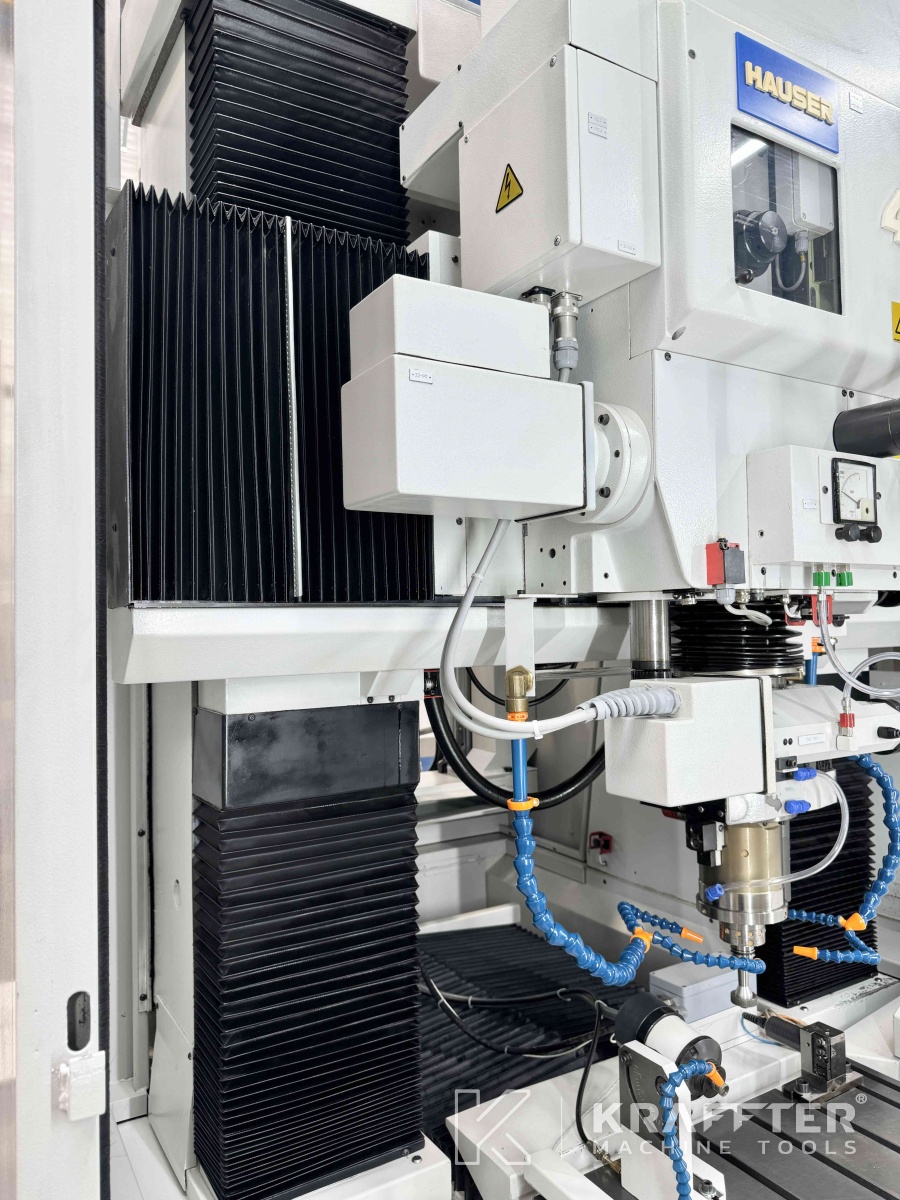

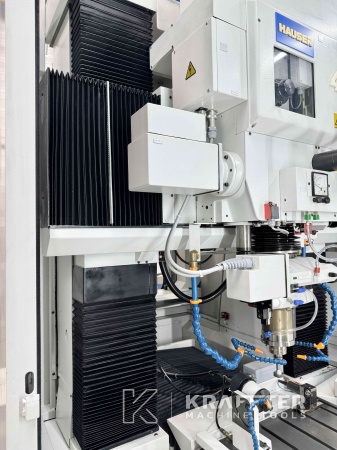

x1 T16 grinding turbine - speed: 160,000 rpm - reference: 164225
x1 turbine support with filter for use with T10 and T16 turbines - reference: 166497

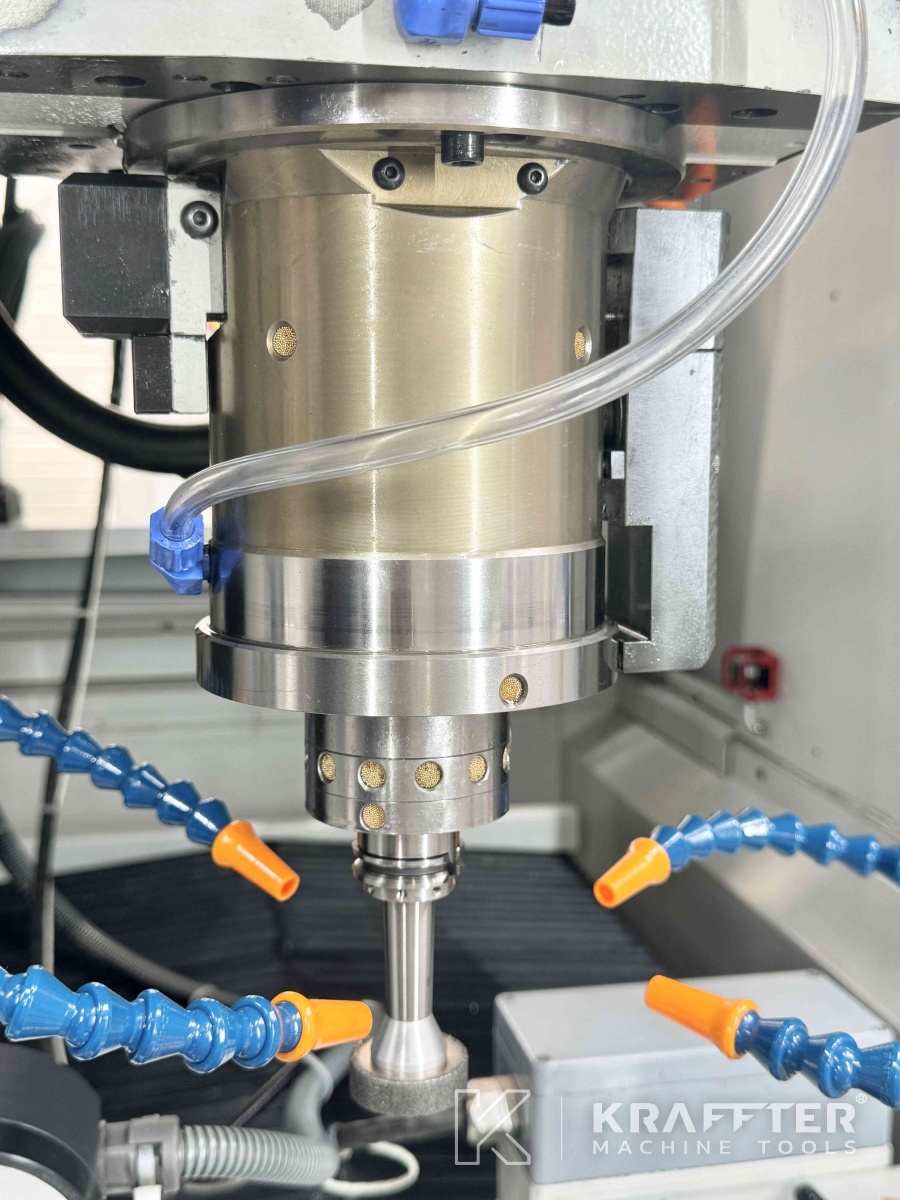

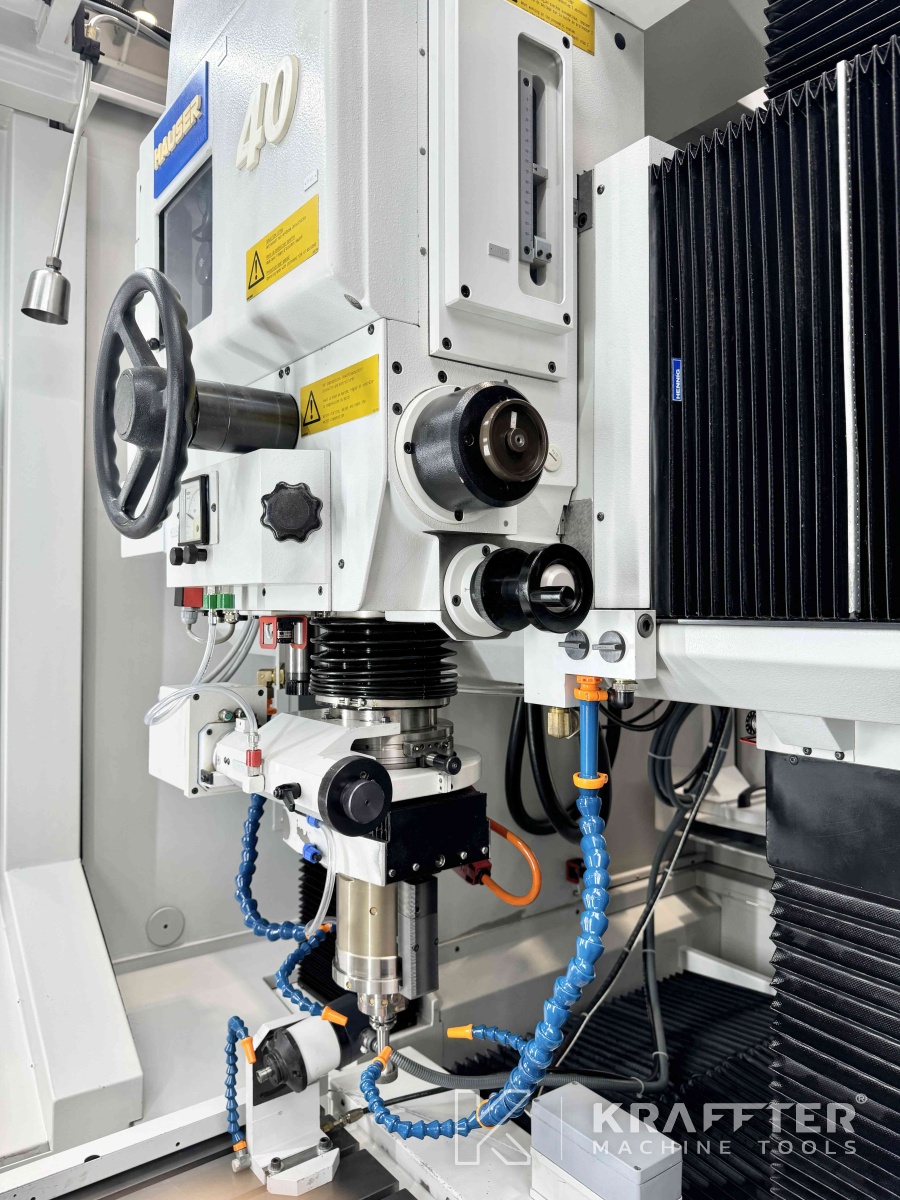

x1 60S-TC grinding motor, speed 9000 - 60000 [rpm], for SK20 collets - part number: 208450
x1 intermediate plate for aligning motors and urbines - reference: 192940
x1 centring watch holder for grinding motor rotor - reference: 191790

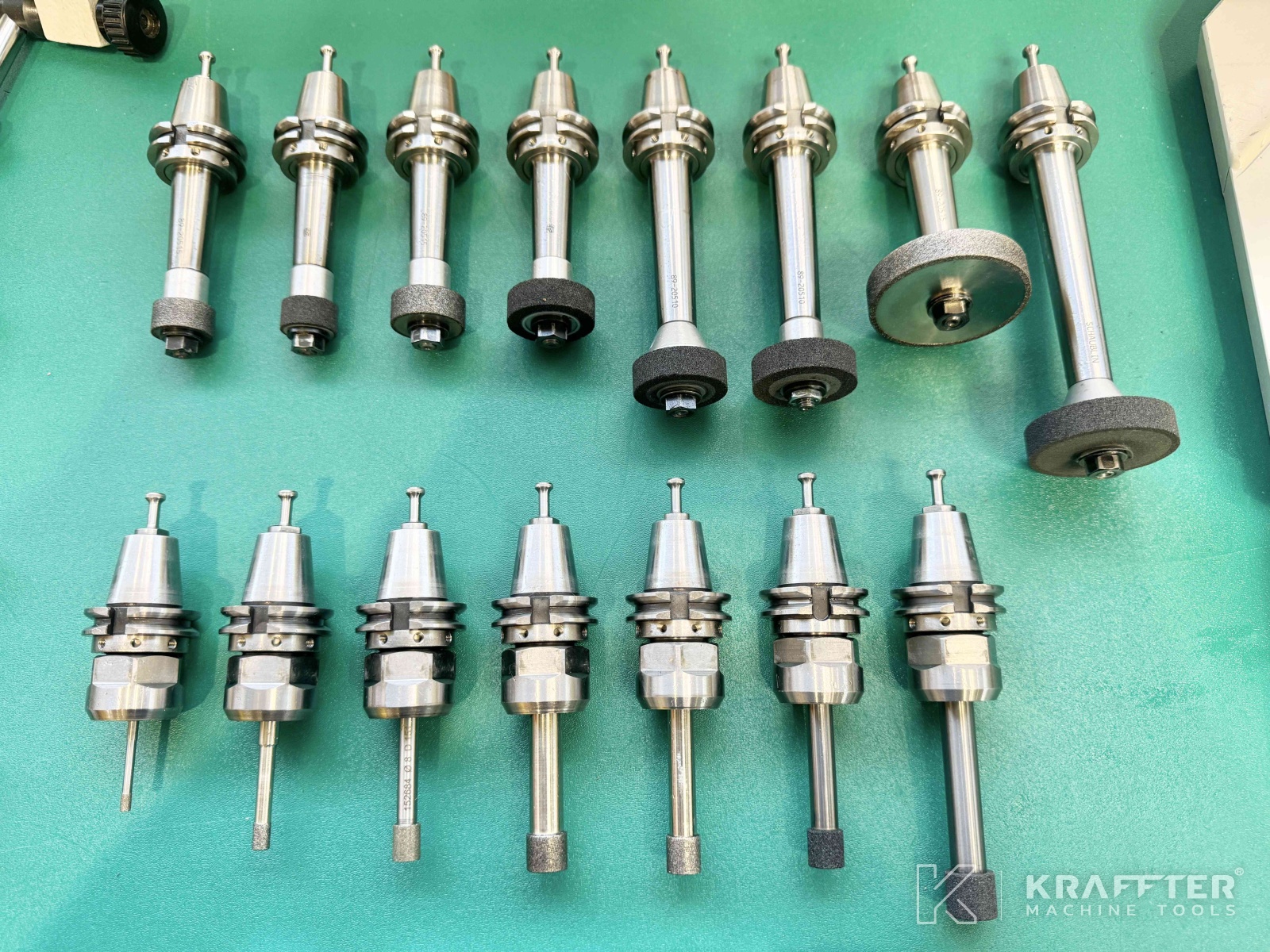

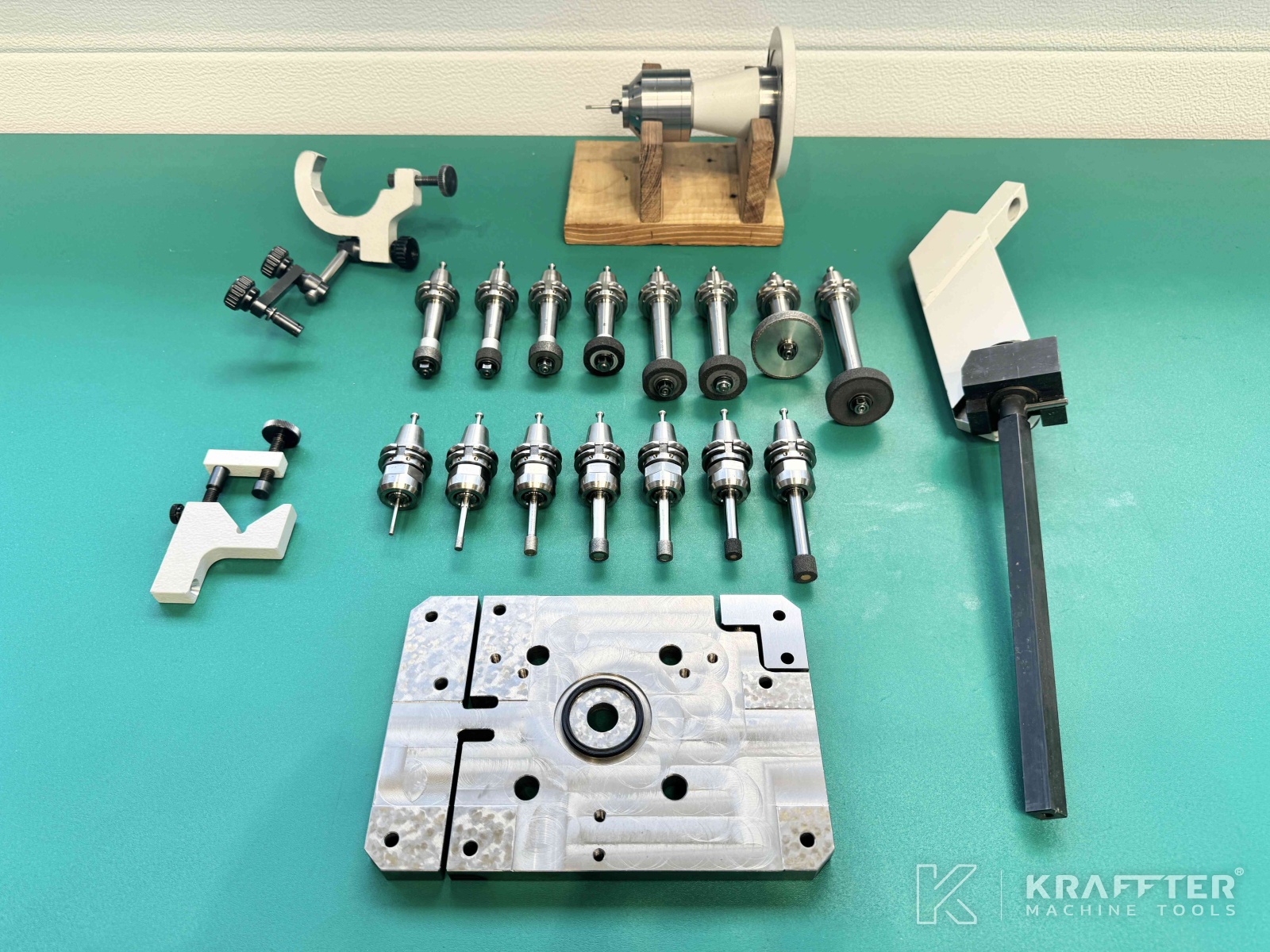

x15 wheel holder cleats
x1 cable for grinding motor
Various tools
Full documentation
