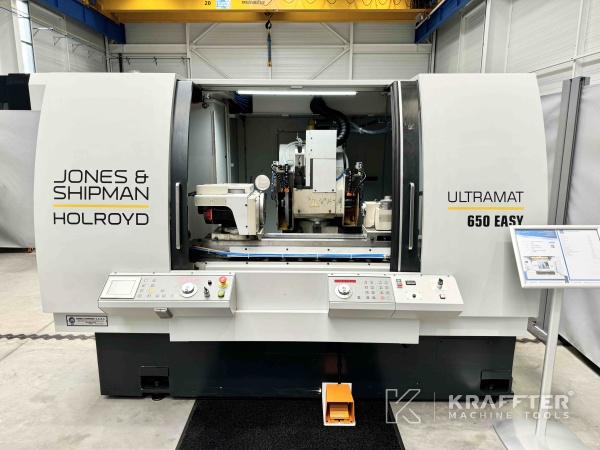

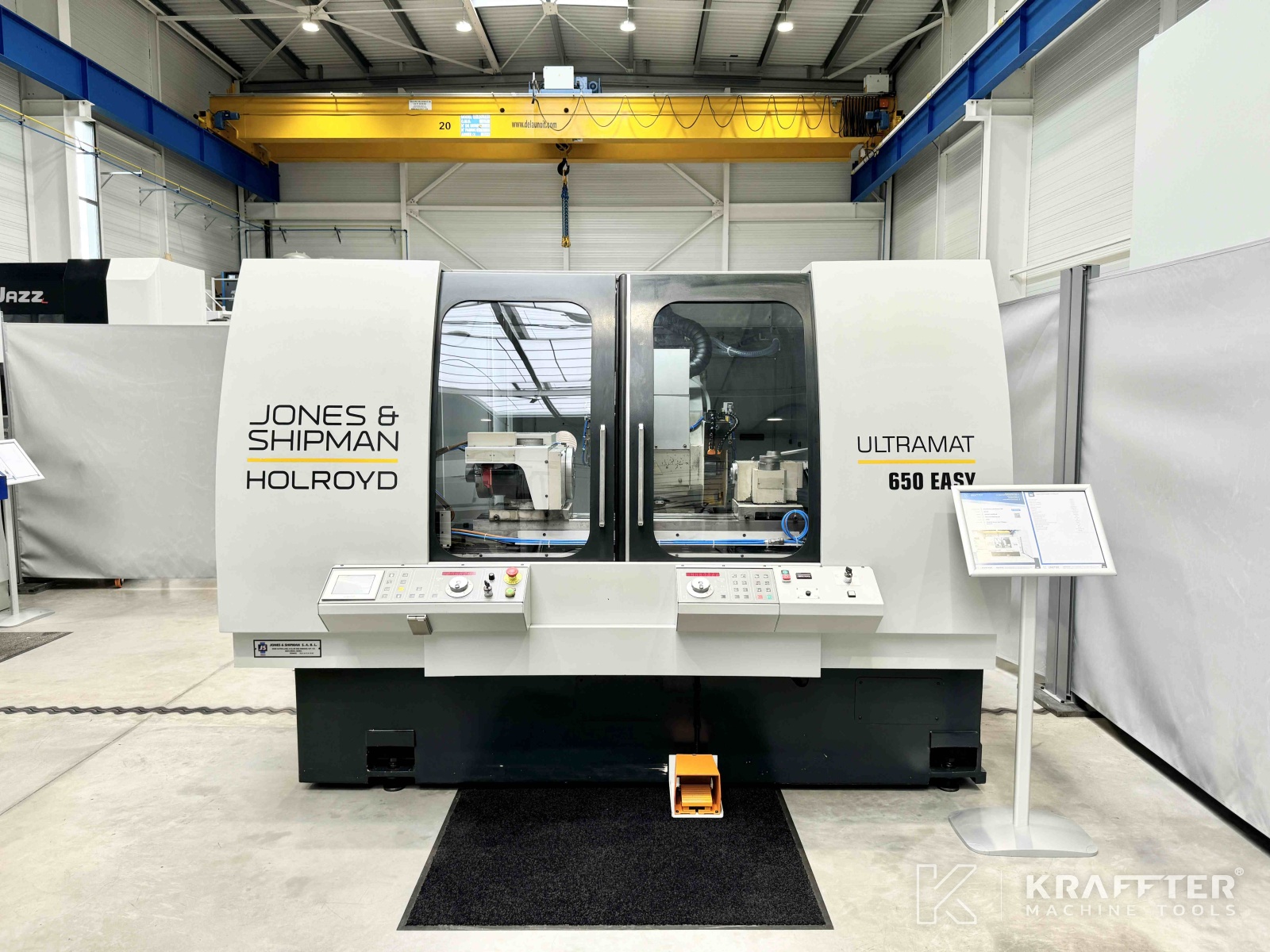

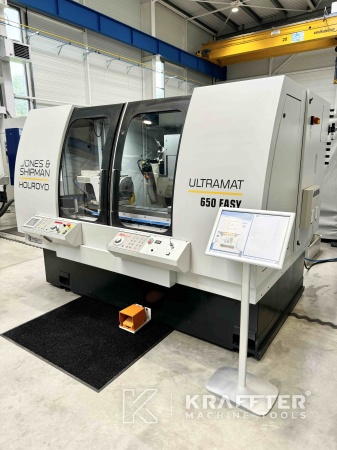

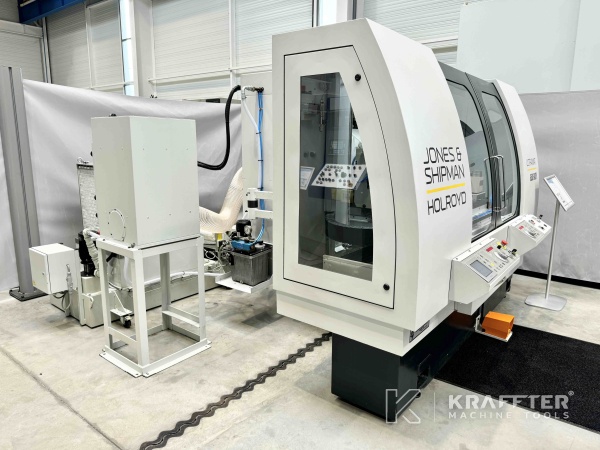

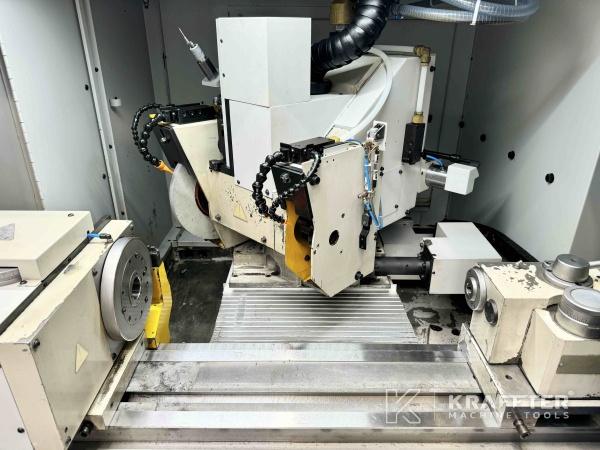

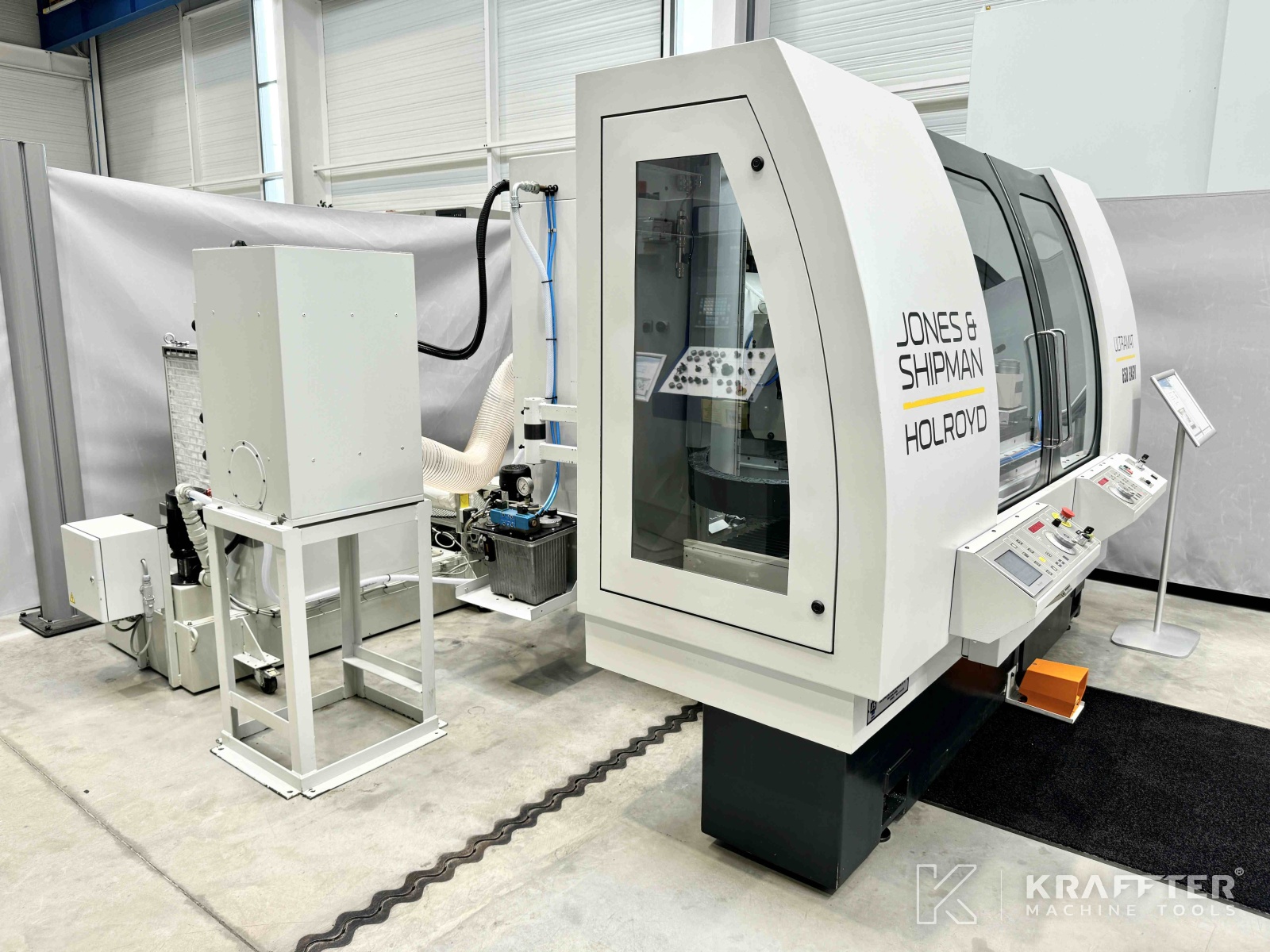

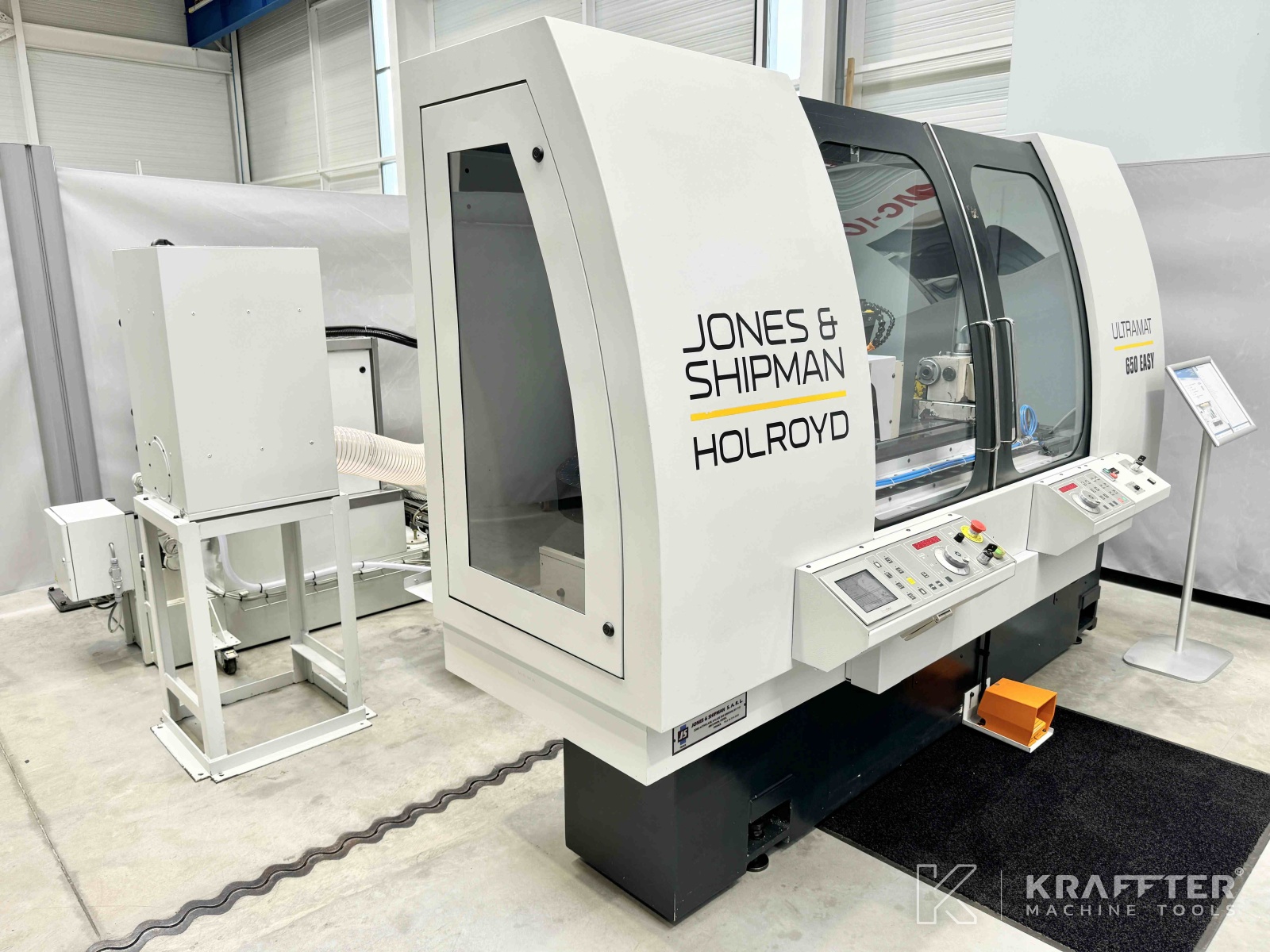

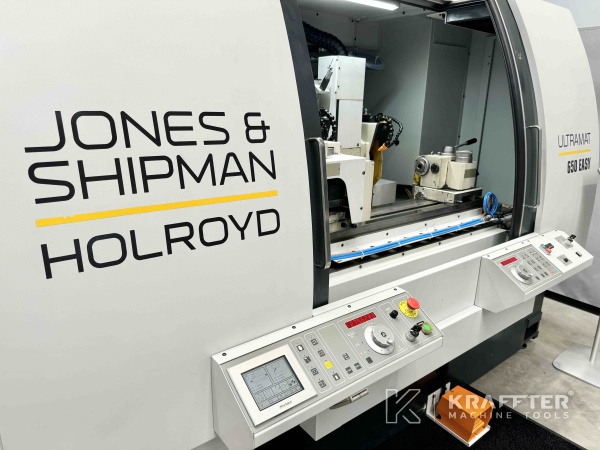

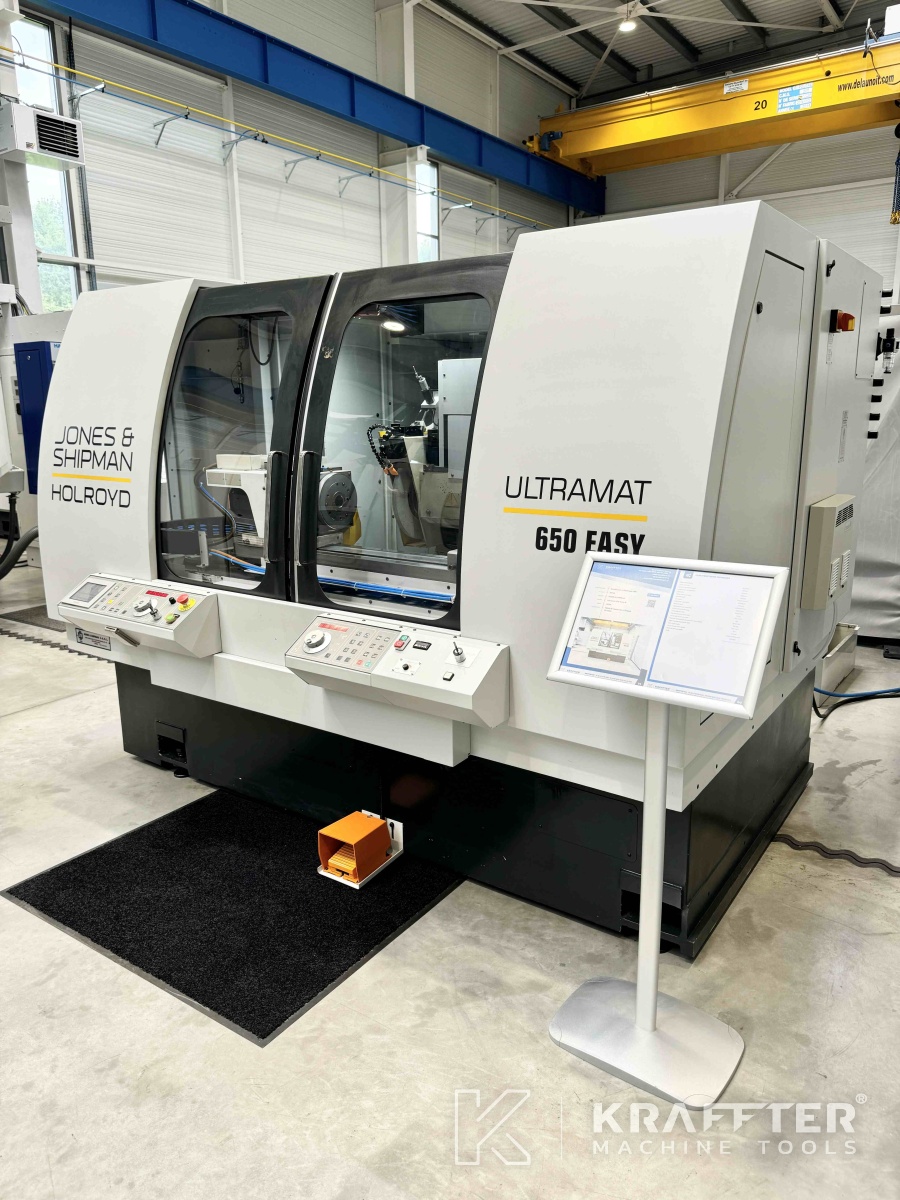

Type of machine : CNC cylindrical grinder
Brand : JONES & SHIPMAN
N° de stock: 90120
Model : Ultramat 650 Easy-B
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Centre distance
650 [mm]
Height of centers
160
Max. grinding diameter
300 [mm]
Max. grinding lenght
650 [mm]
Stroke X axis
260 [mm]
Max. Stroke speed X axis
6000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
750 [mm]
Max. Stroke speed Z axis
12000 [mm/min]
Resolution Z axis
0.0001 [mm]
Max. grinding wheel speed
2672 [rpm]
Grinding spindle motor power
4 [kW]
B axis swivelling stroke
-190 / +45 [°]
B axis indexing precision
0.001 [°]
Automatic B axis
Yes

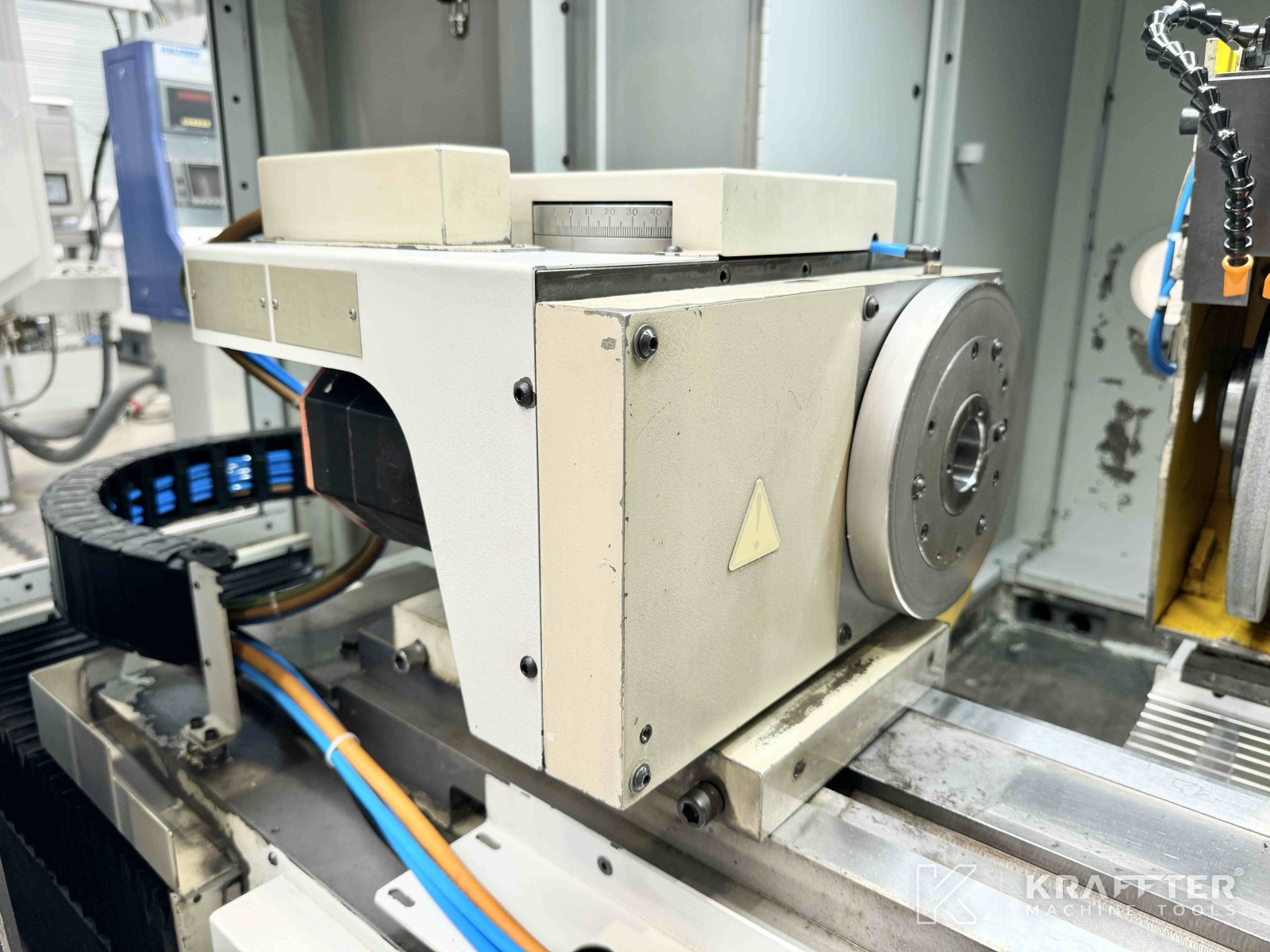

Internal workpiece spindle nose
MT5
Workpiece spindle max. speed
660 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
+90 / -15 [°]
Type of attachment tailstock
MT3
Tailstock quill stroke
30 [mm]

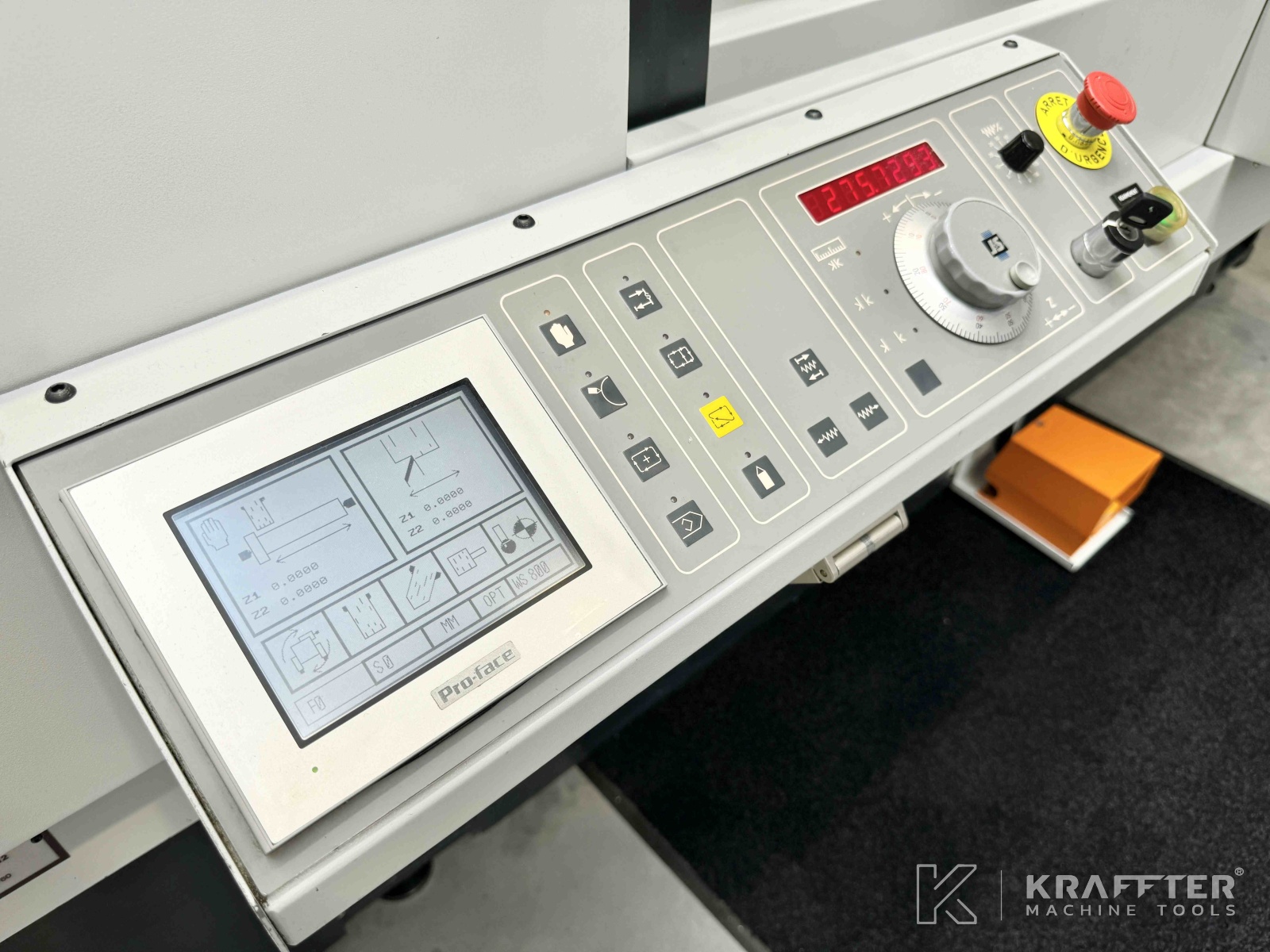

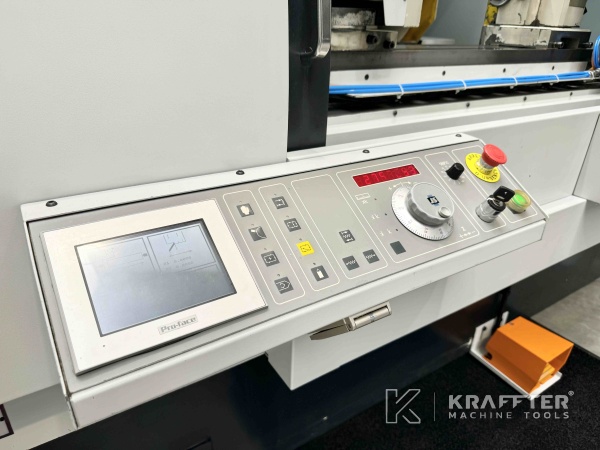

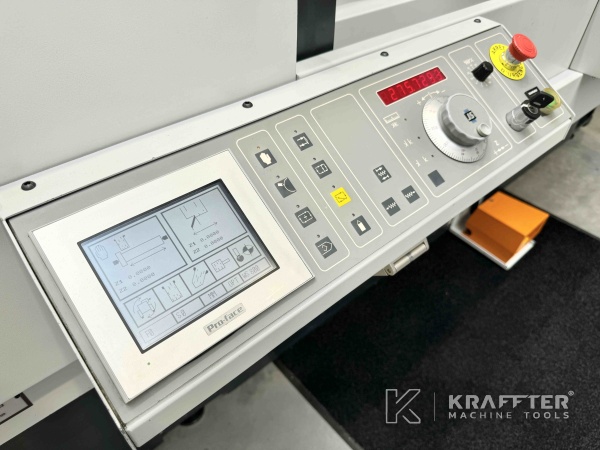

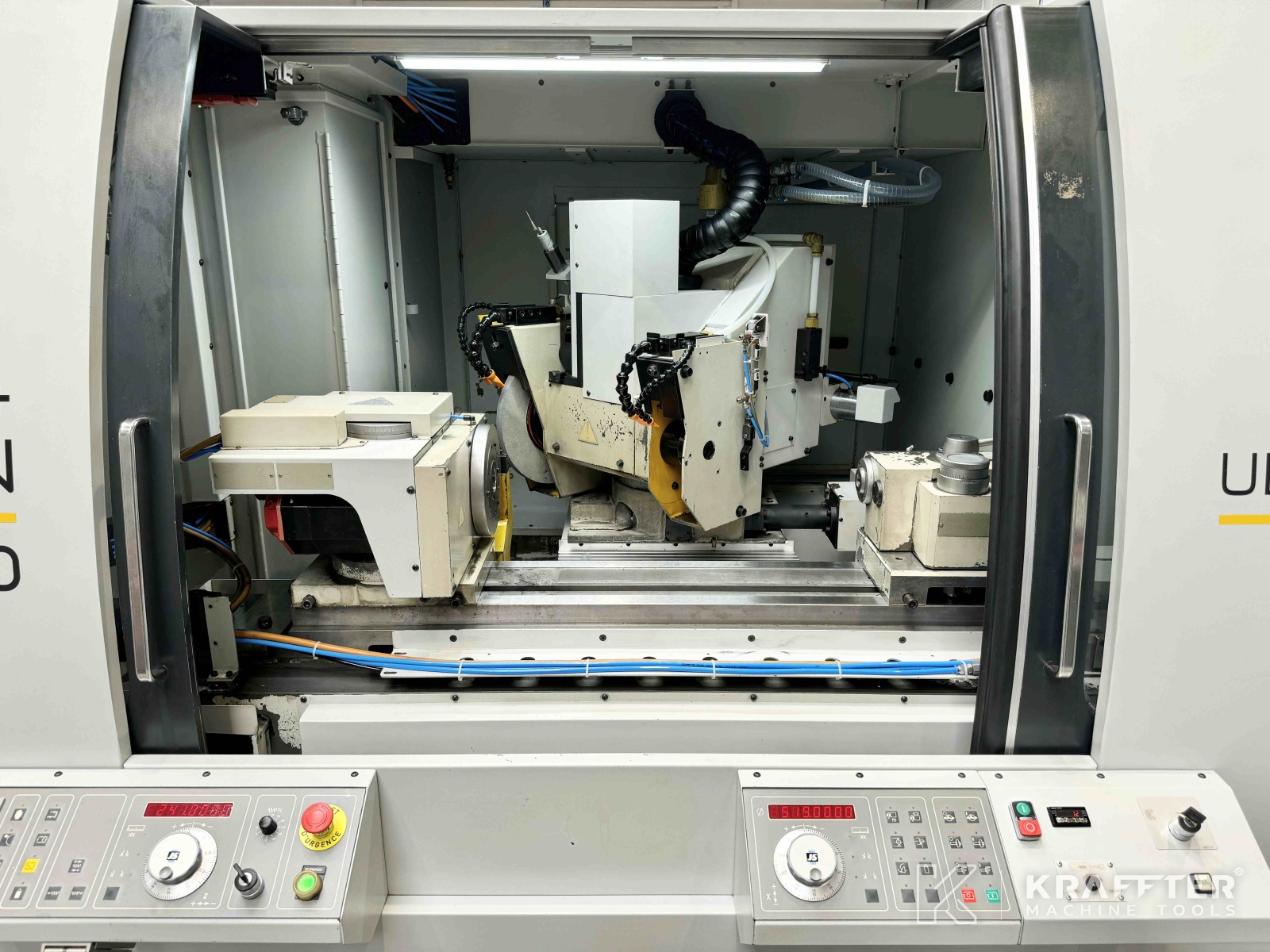

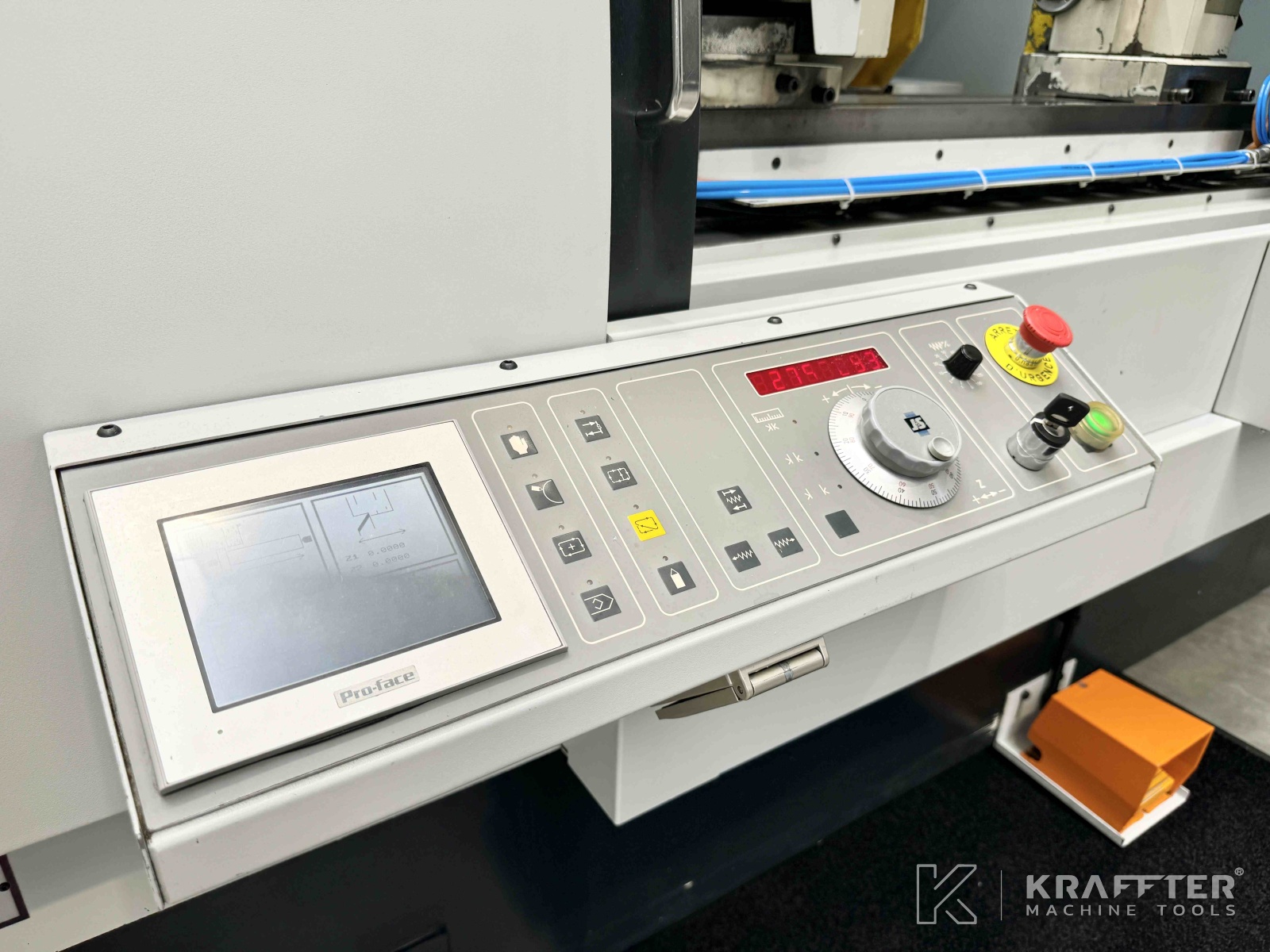

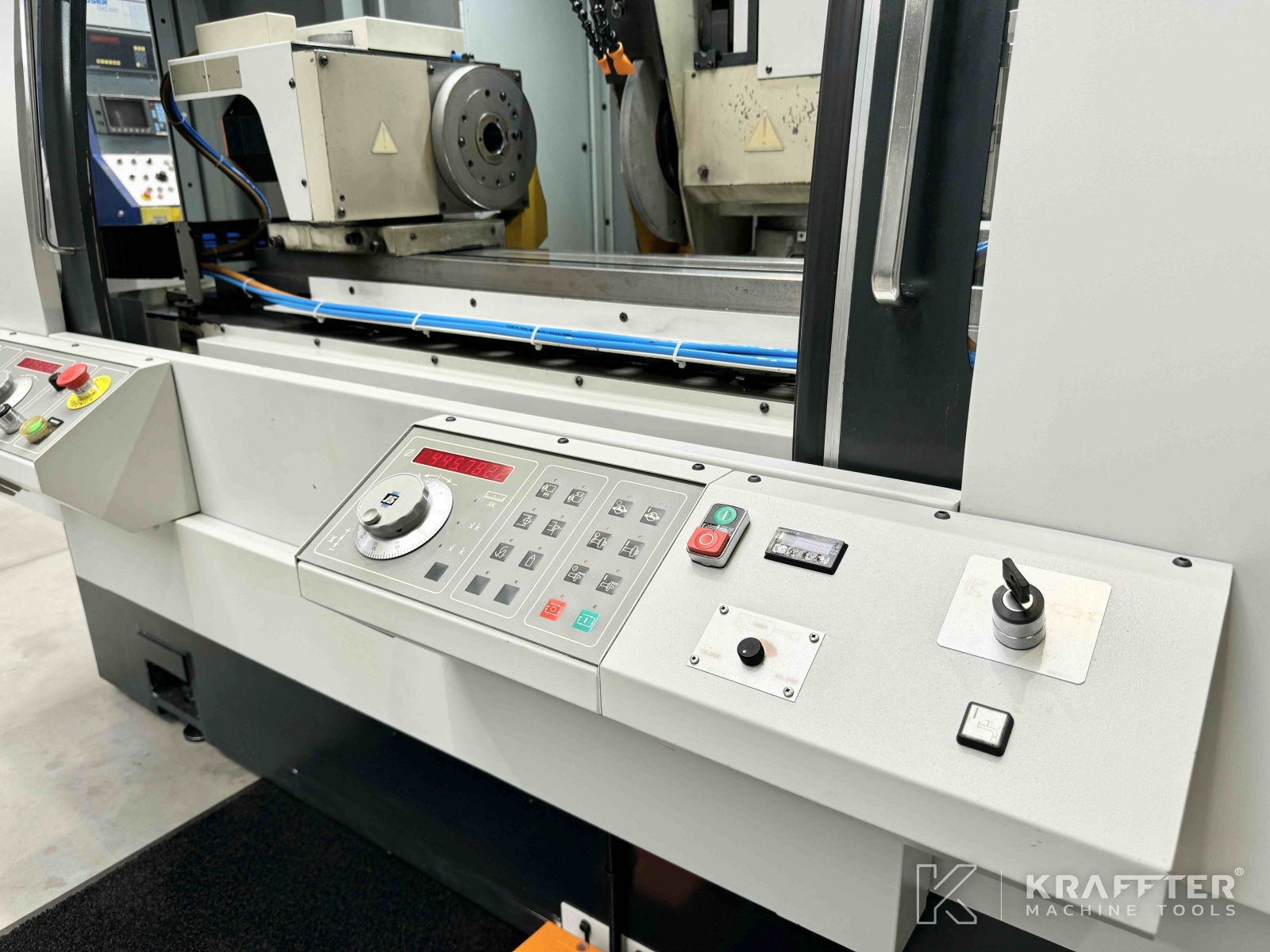

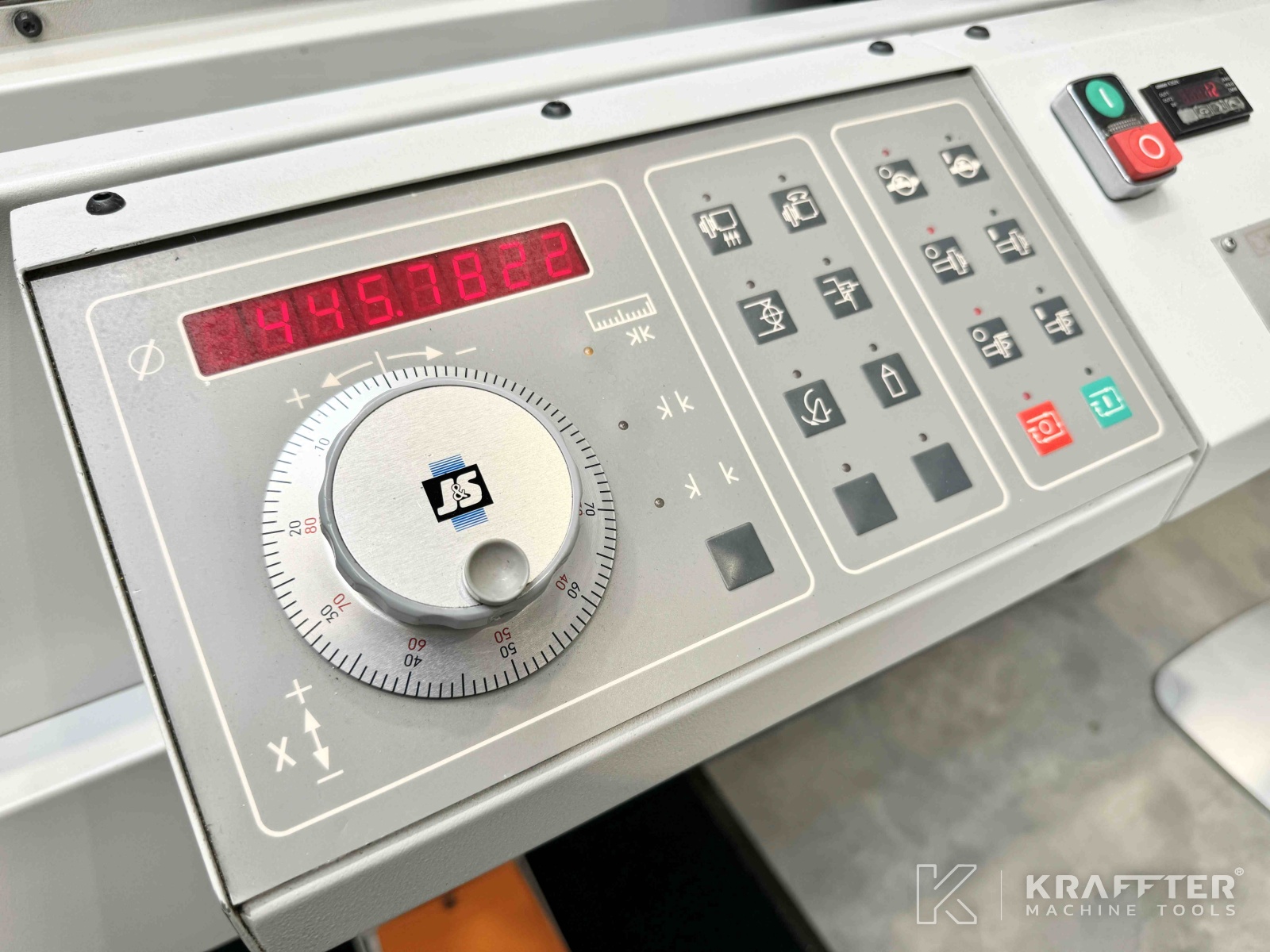

Touch control panel
FANUC QuickPanel G E
Weight
5000 [Kg]
Additional information

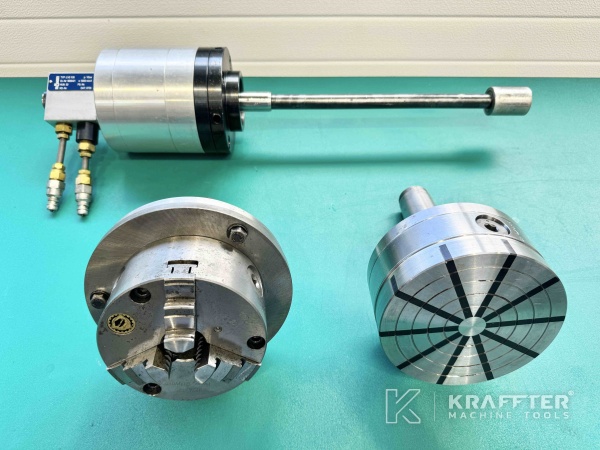

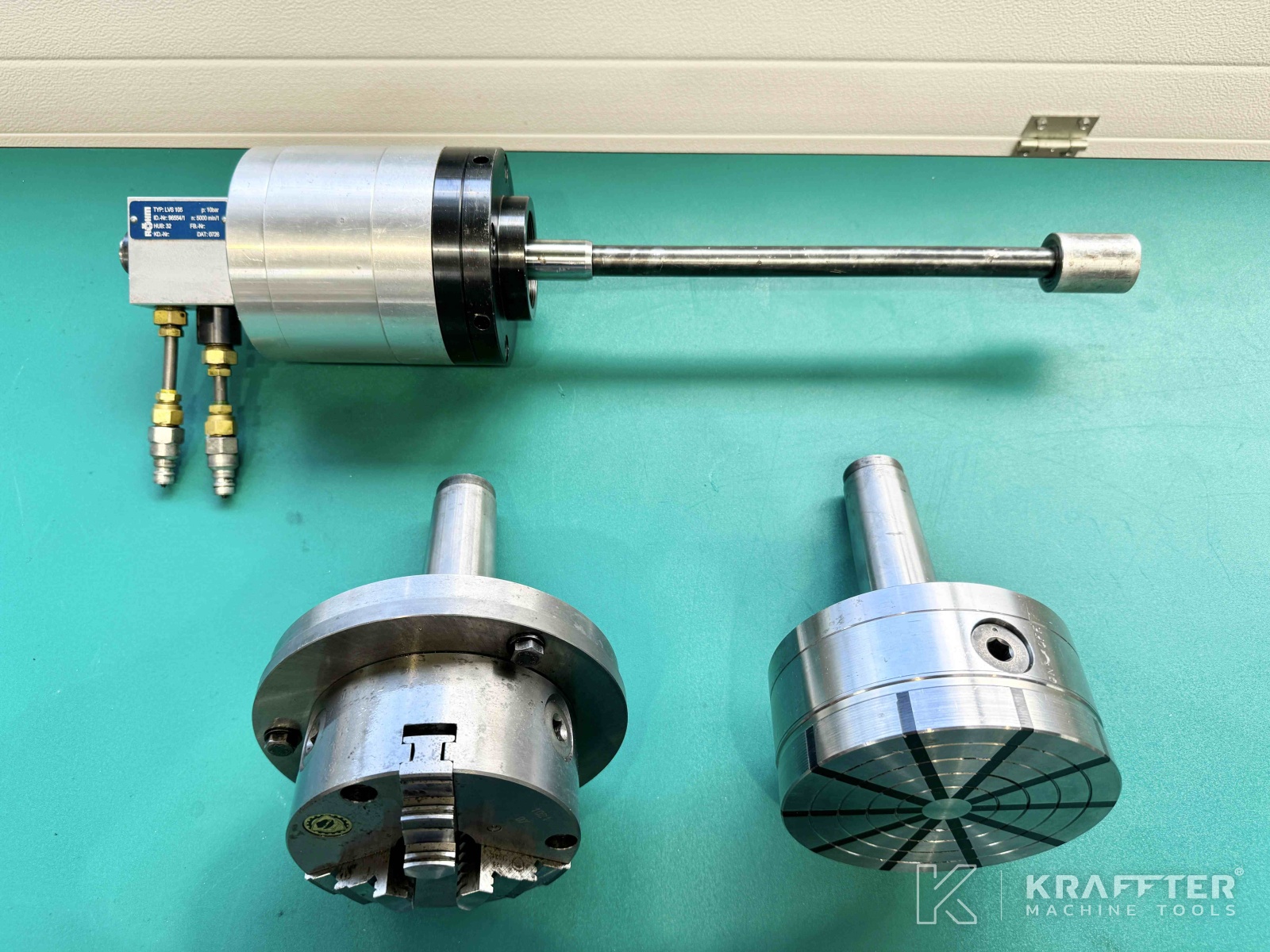

EQUIPMENT INCLUDED:
x1 soft option thread grinding cycle
x1 automatic B axis CNC controlled

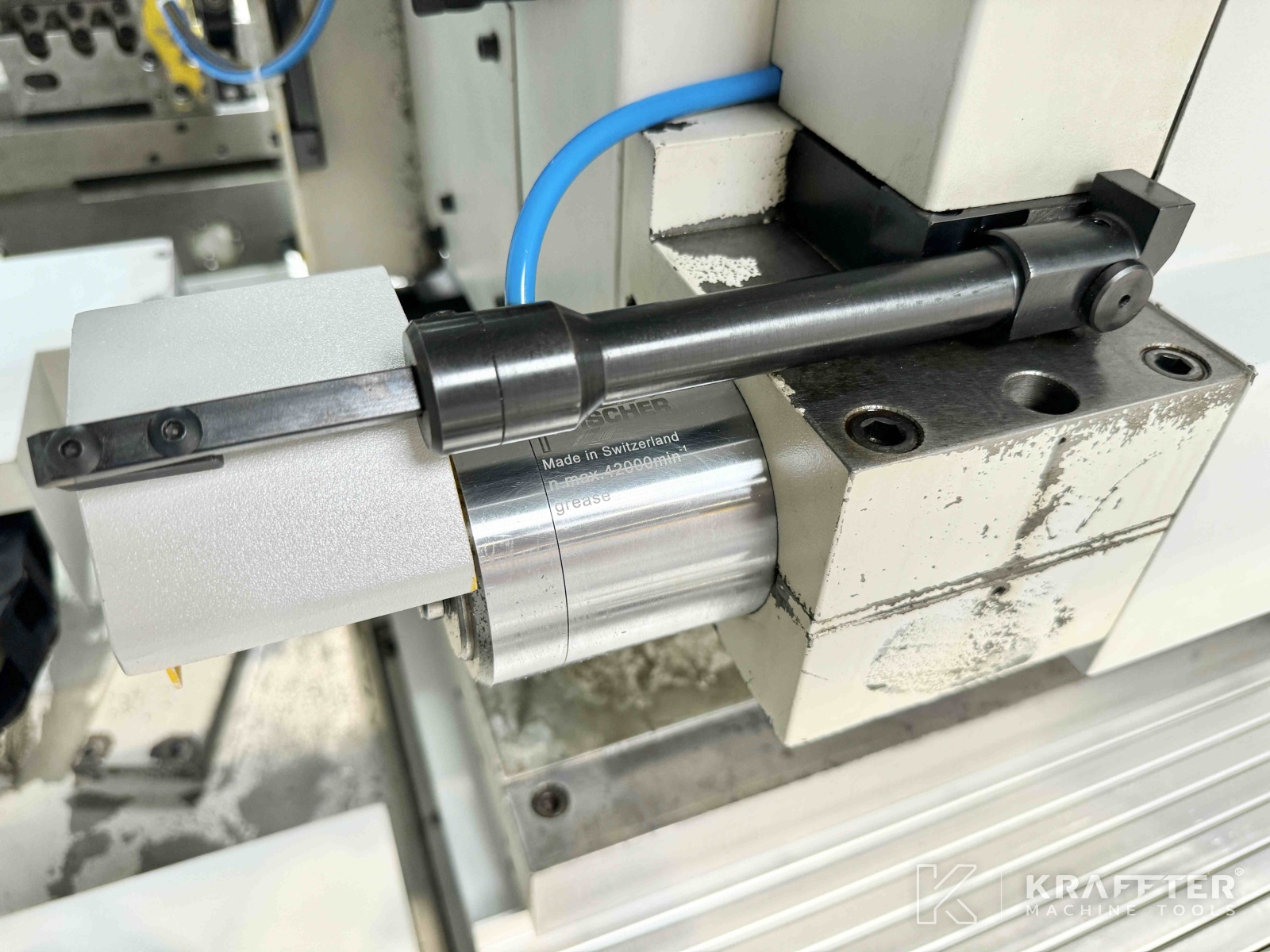

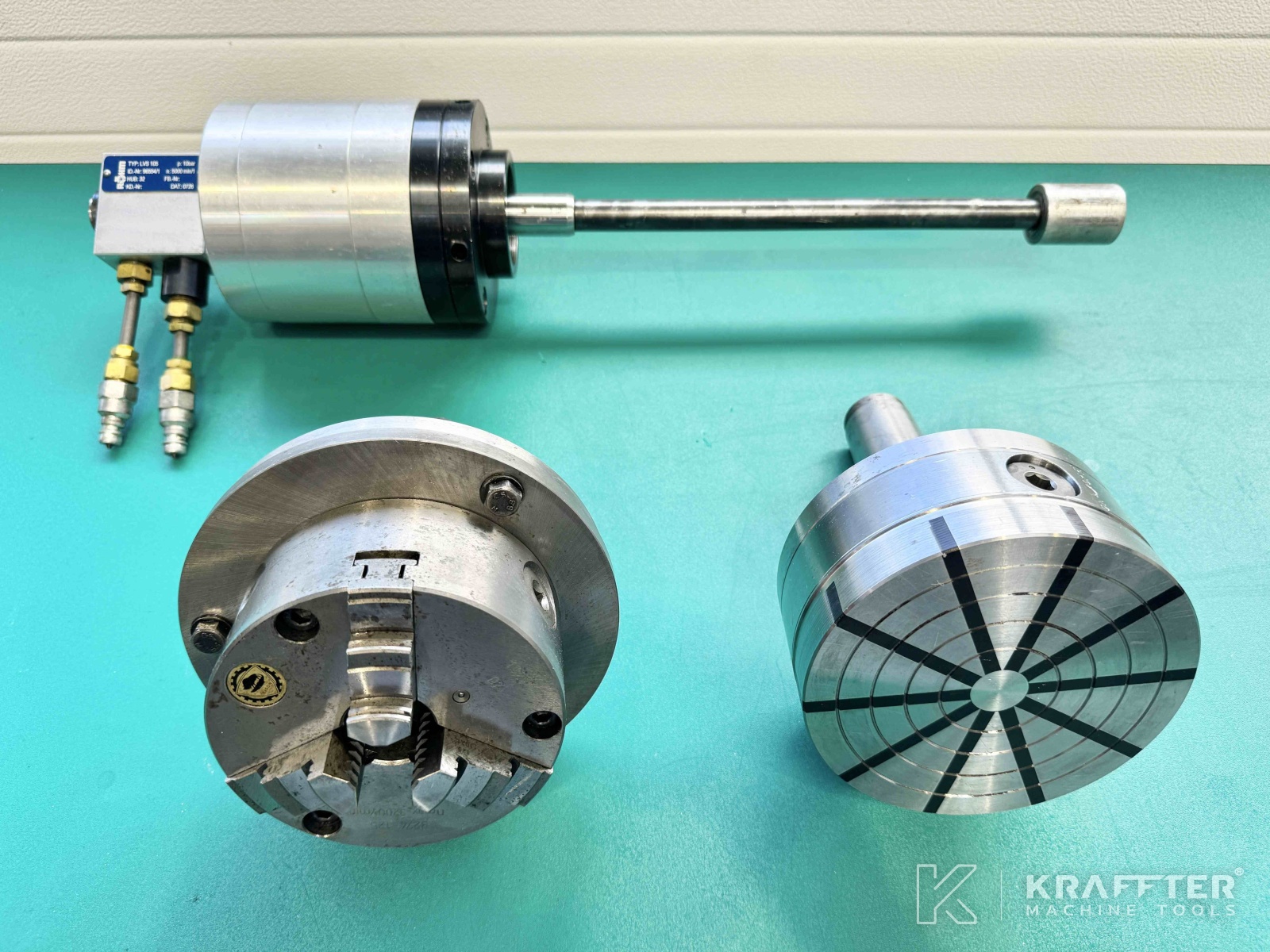

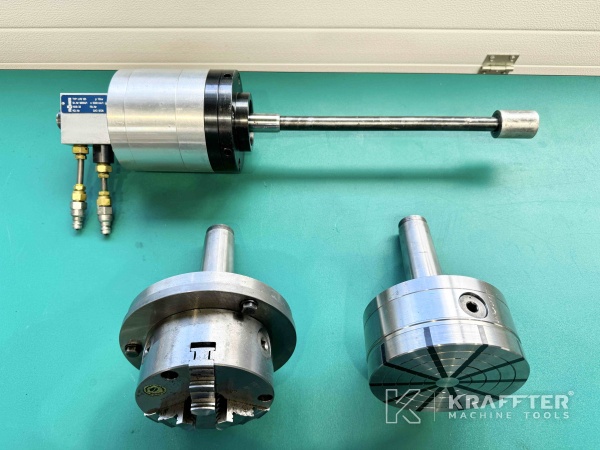

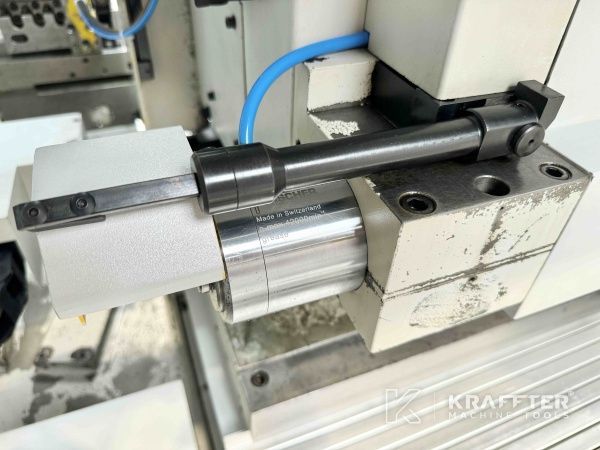

x1 FISCHER HJN-842 internal grinding spindle - 42'000 [rpm]
x1 top table

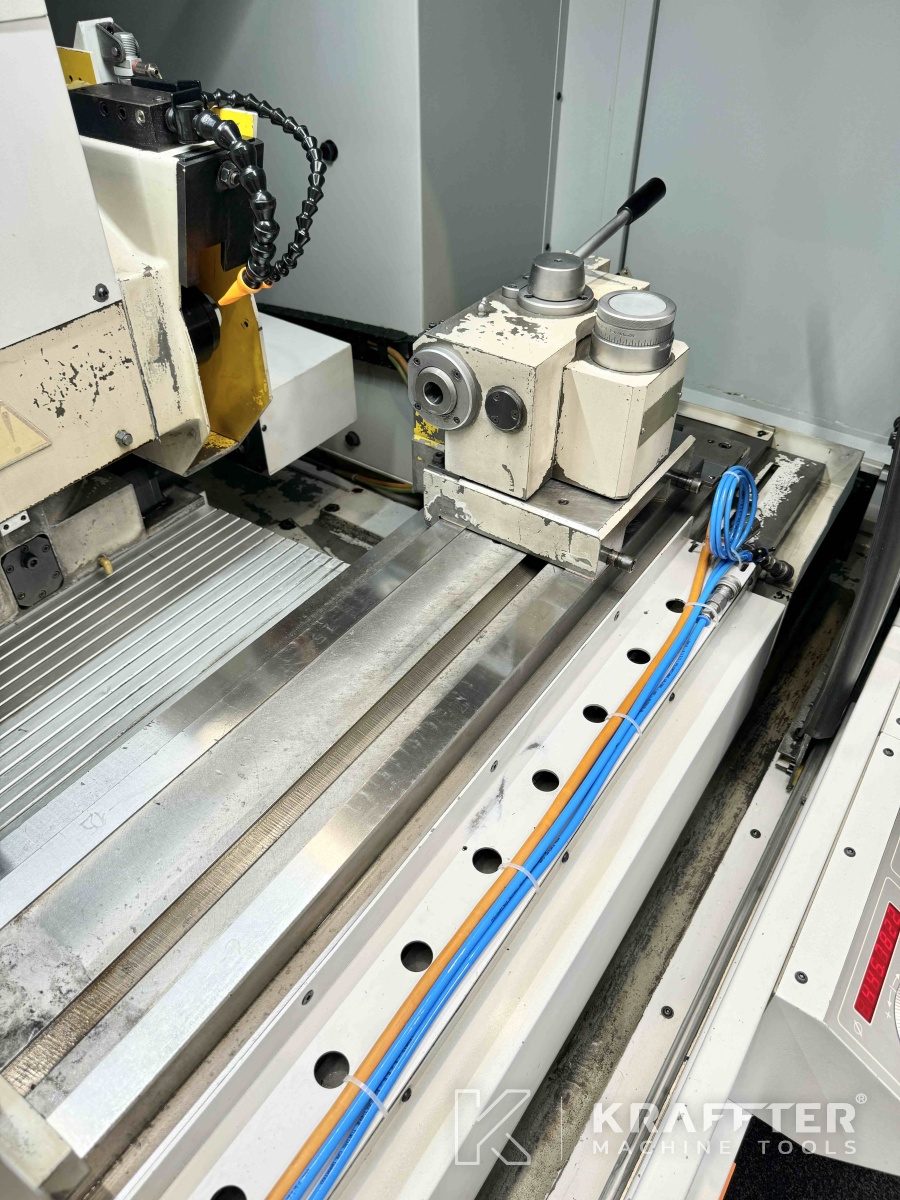

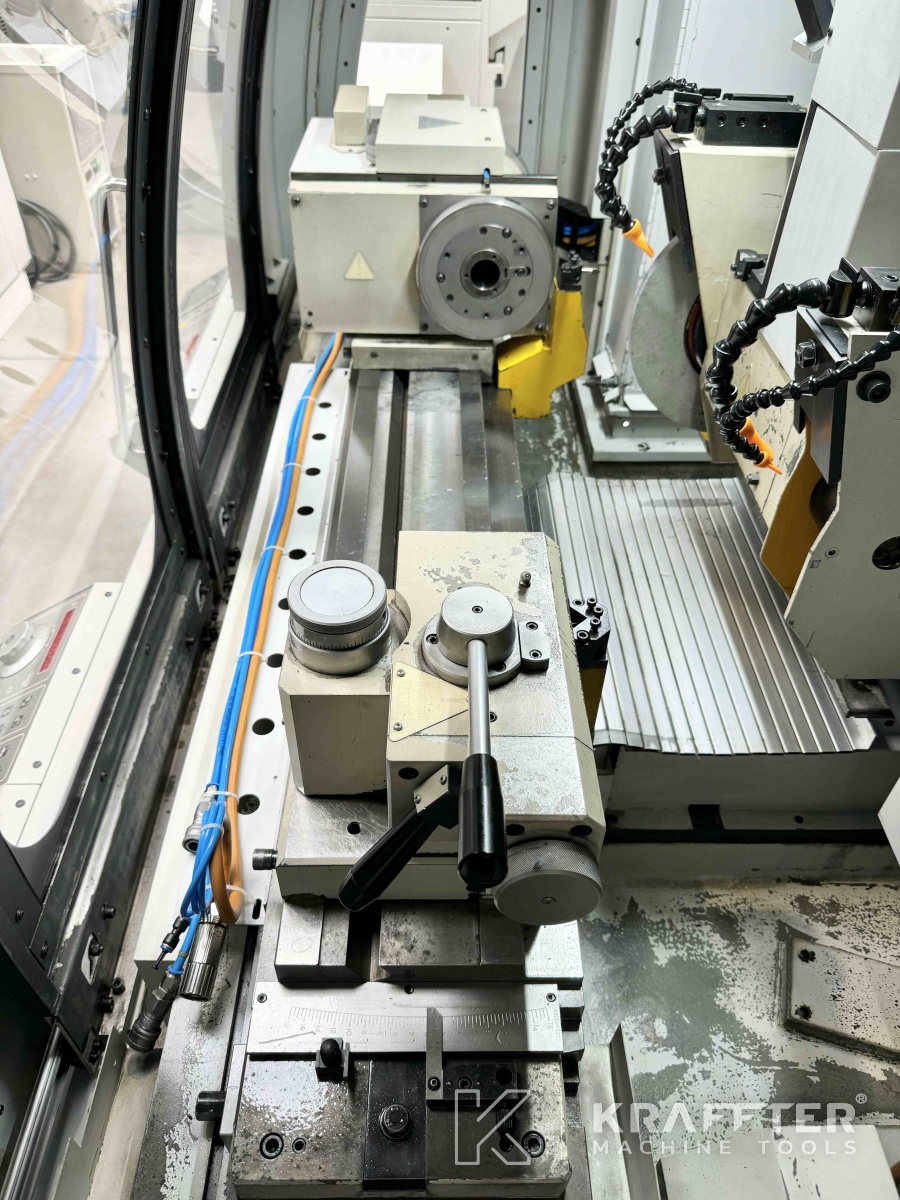

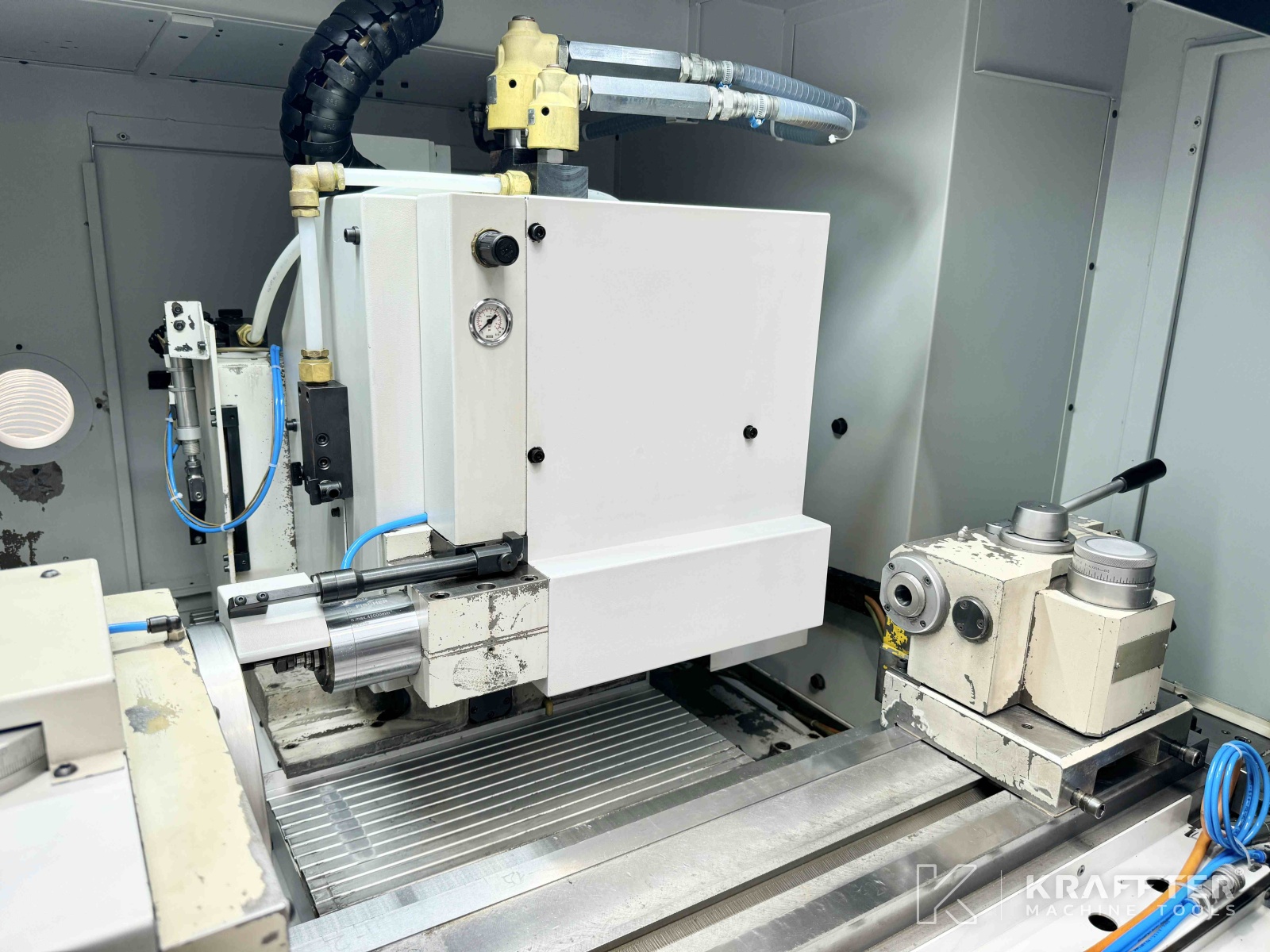

x1 tailstock with fine taper adjustment
x1 ROHM type LVS 105 pneumatic collet holder
x1 fixed dressing unit mounted on the left-hand table
x1 positional table-mounted dressing unit
x1 tailstock-mounted dressing unit

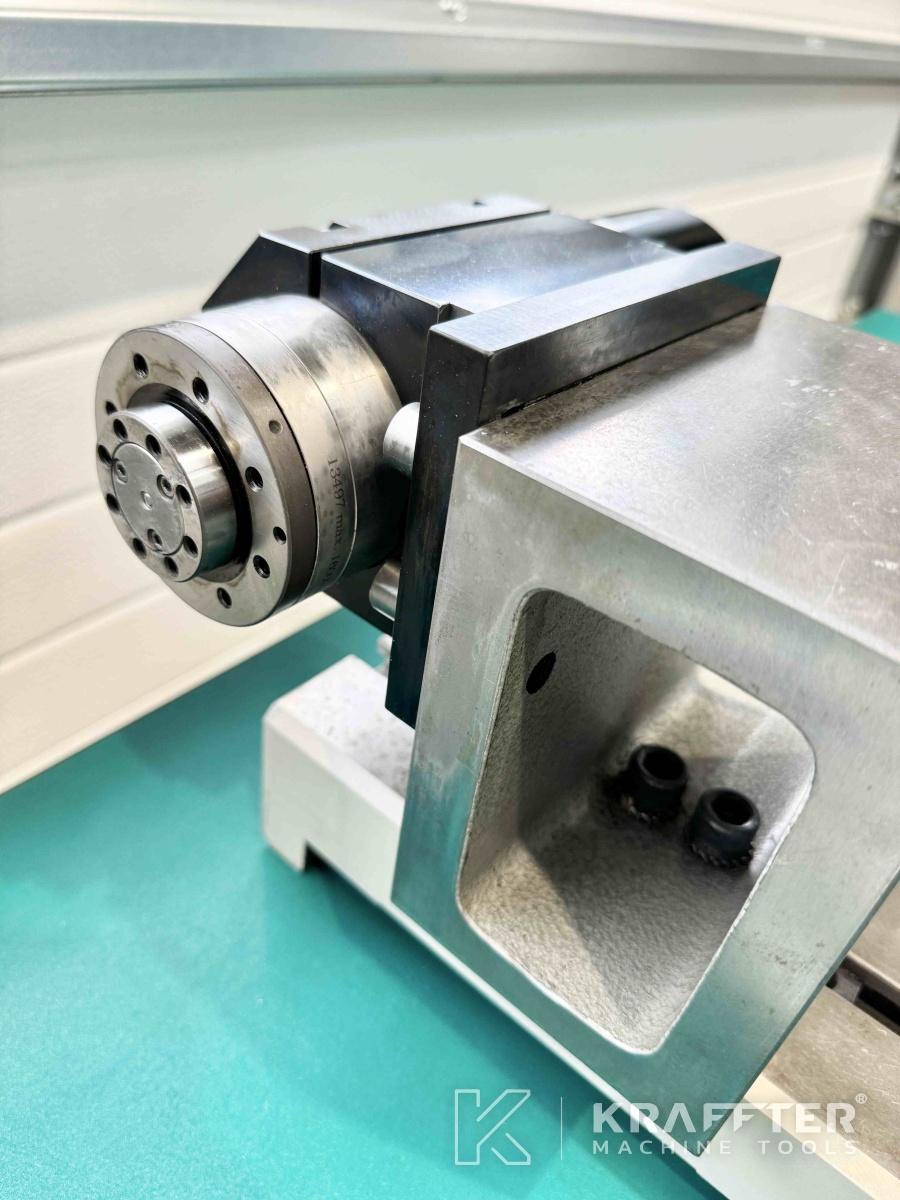

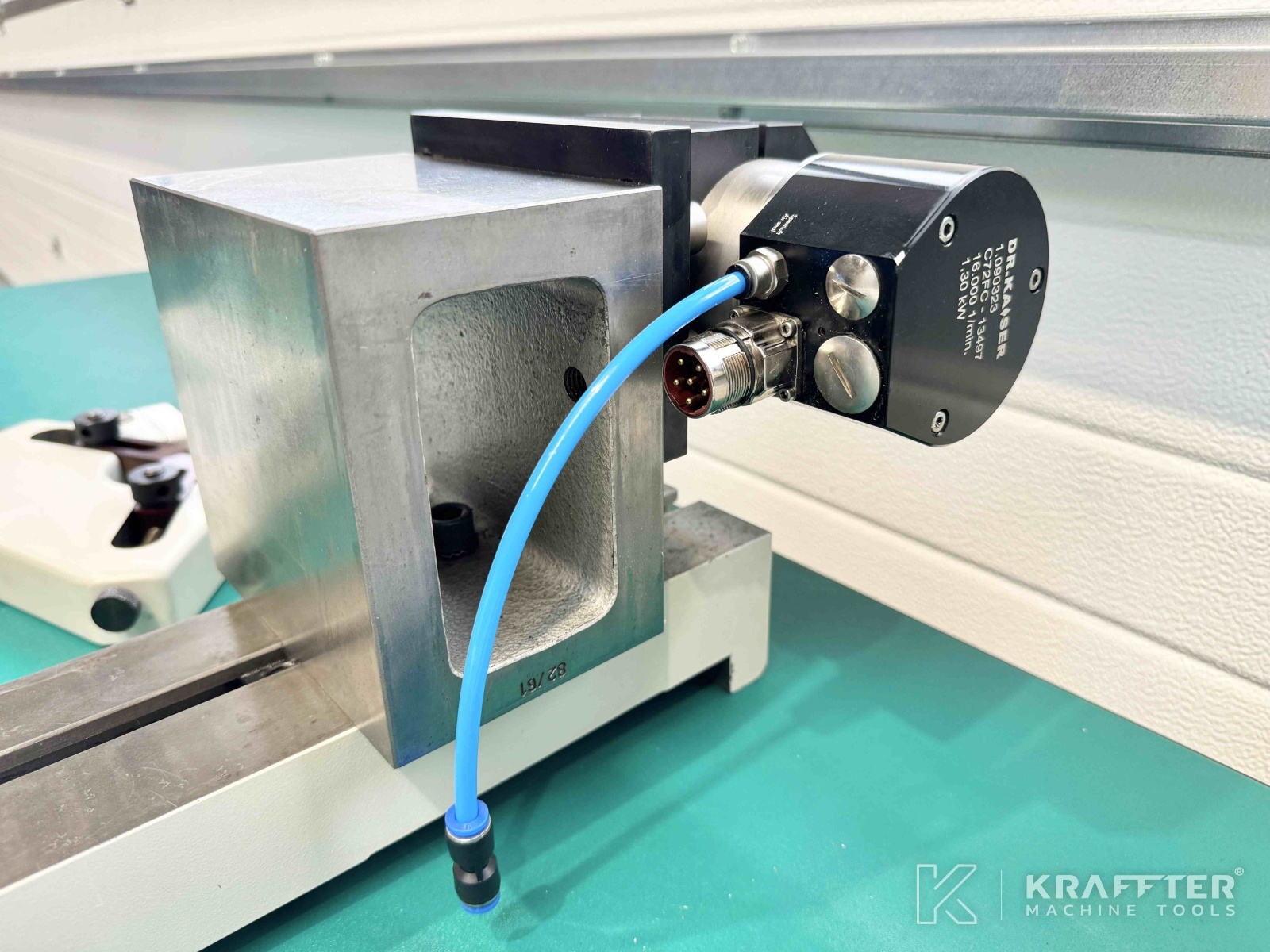

x1 diamond profile electrical wheel dressing unit

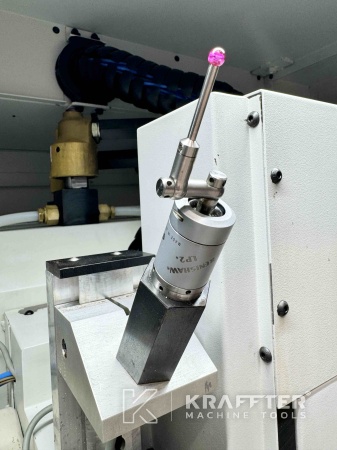

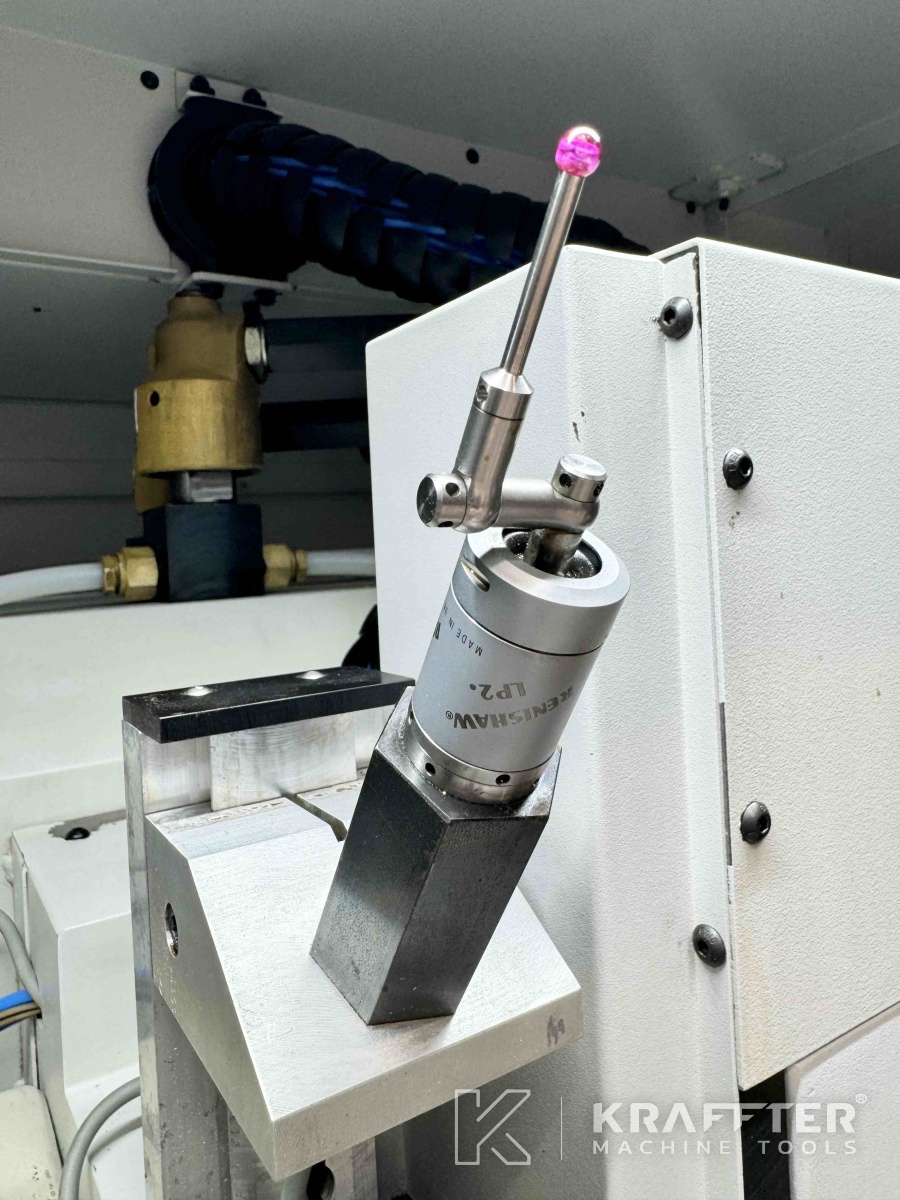

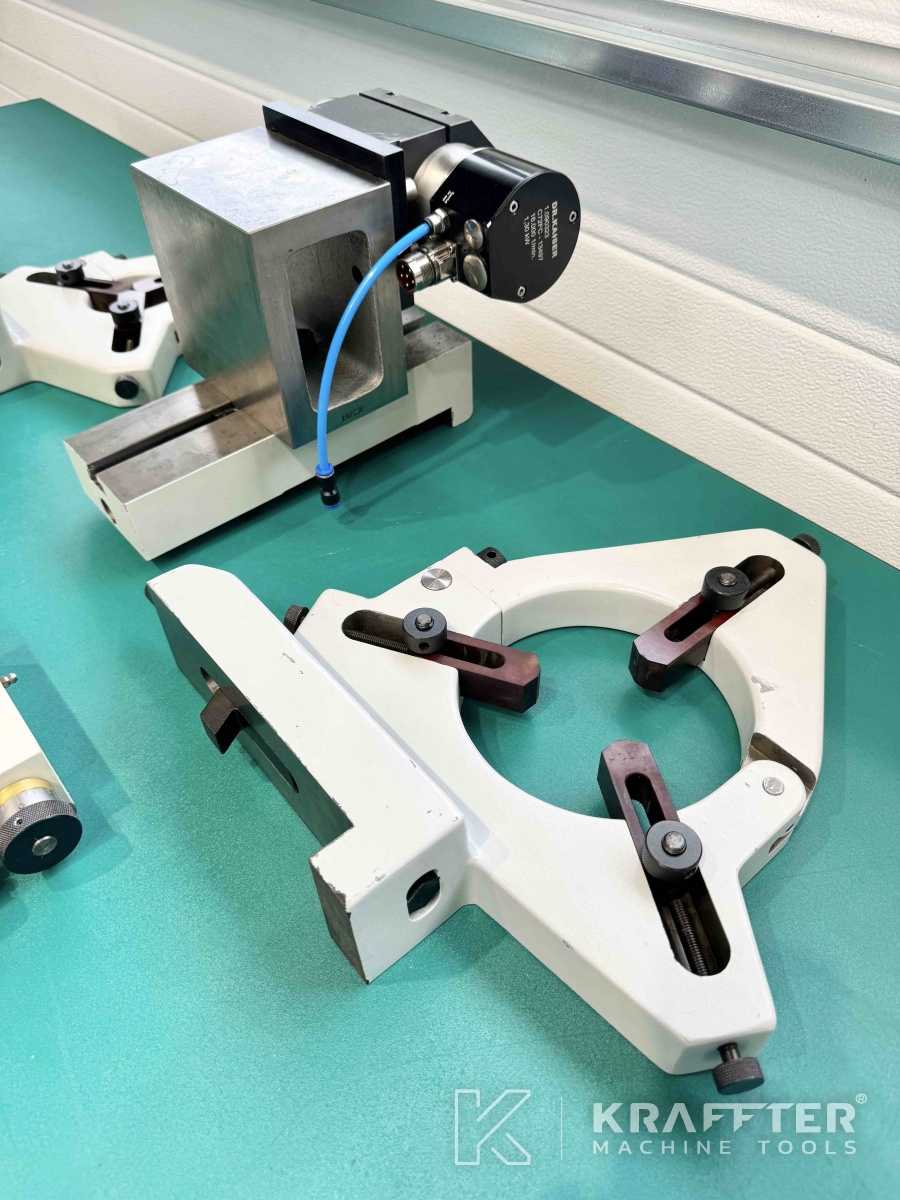

x1 RENISHAW LP2 workpiece touche probe

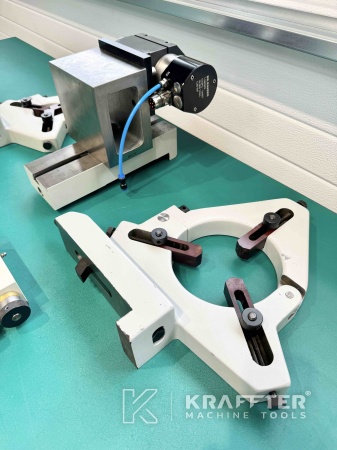

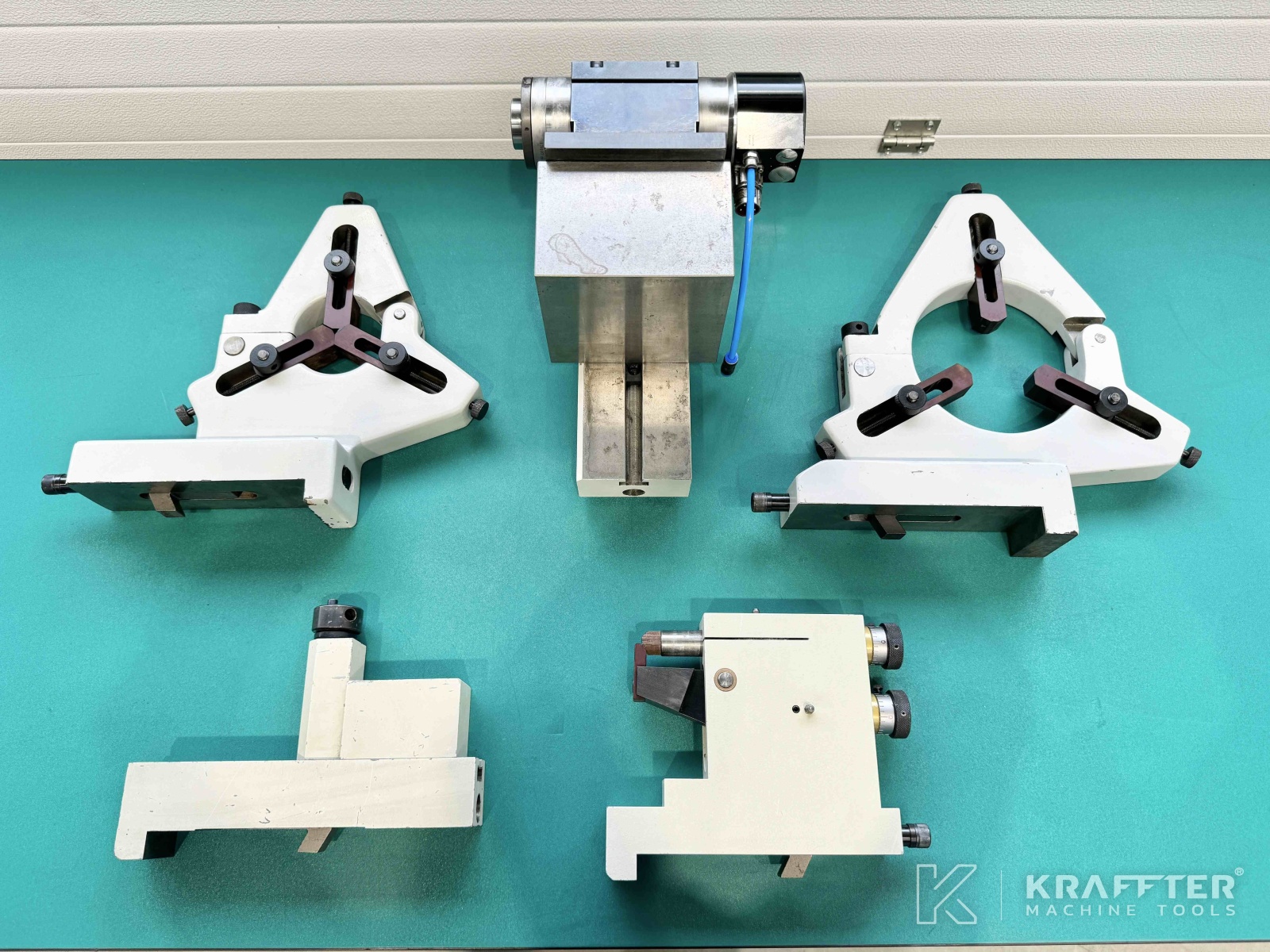

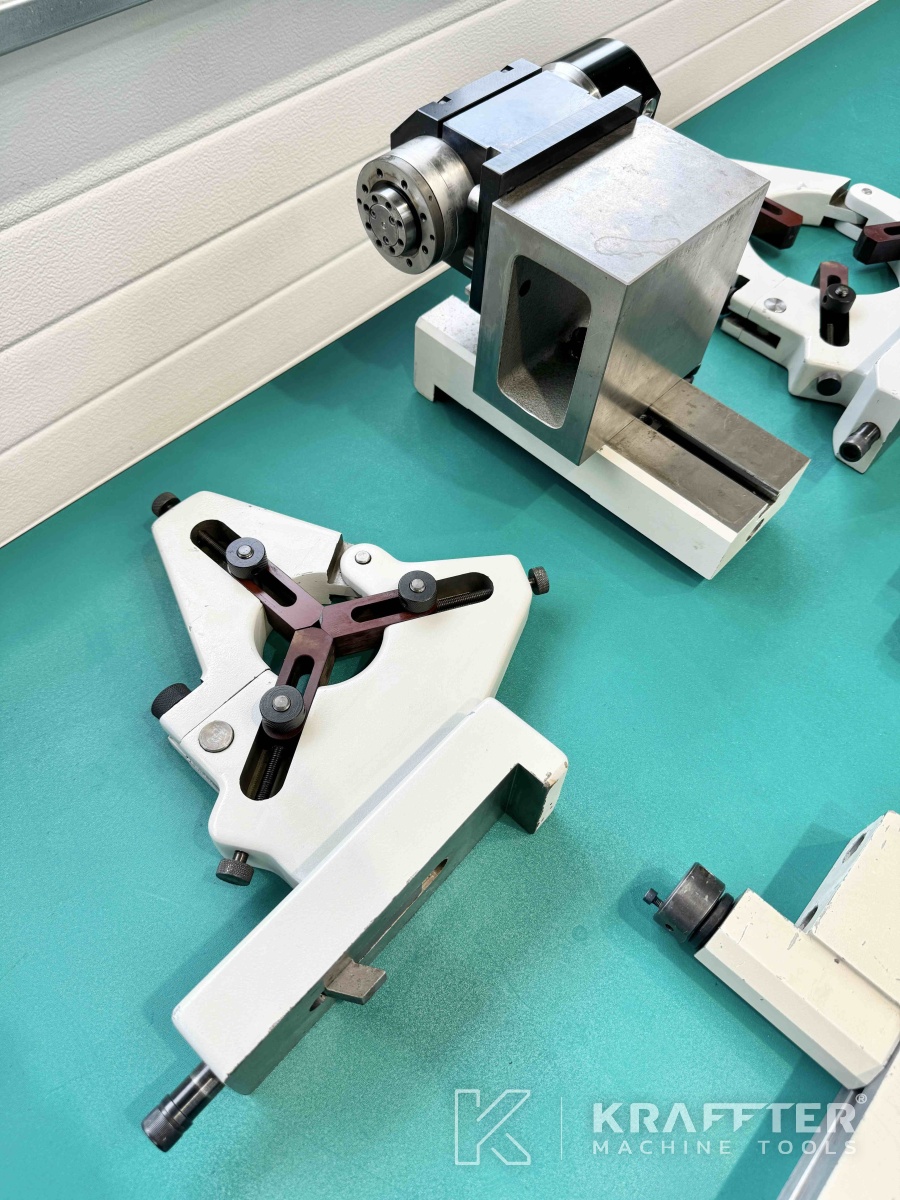

x1 large-diameter 3-point steady rest
x1 small-diameter 3-point steady rest
x1 2-point steady rest
x1 manual wheel loader arm

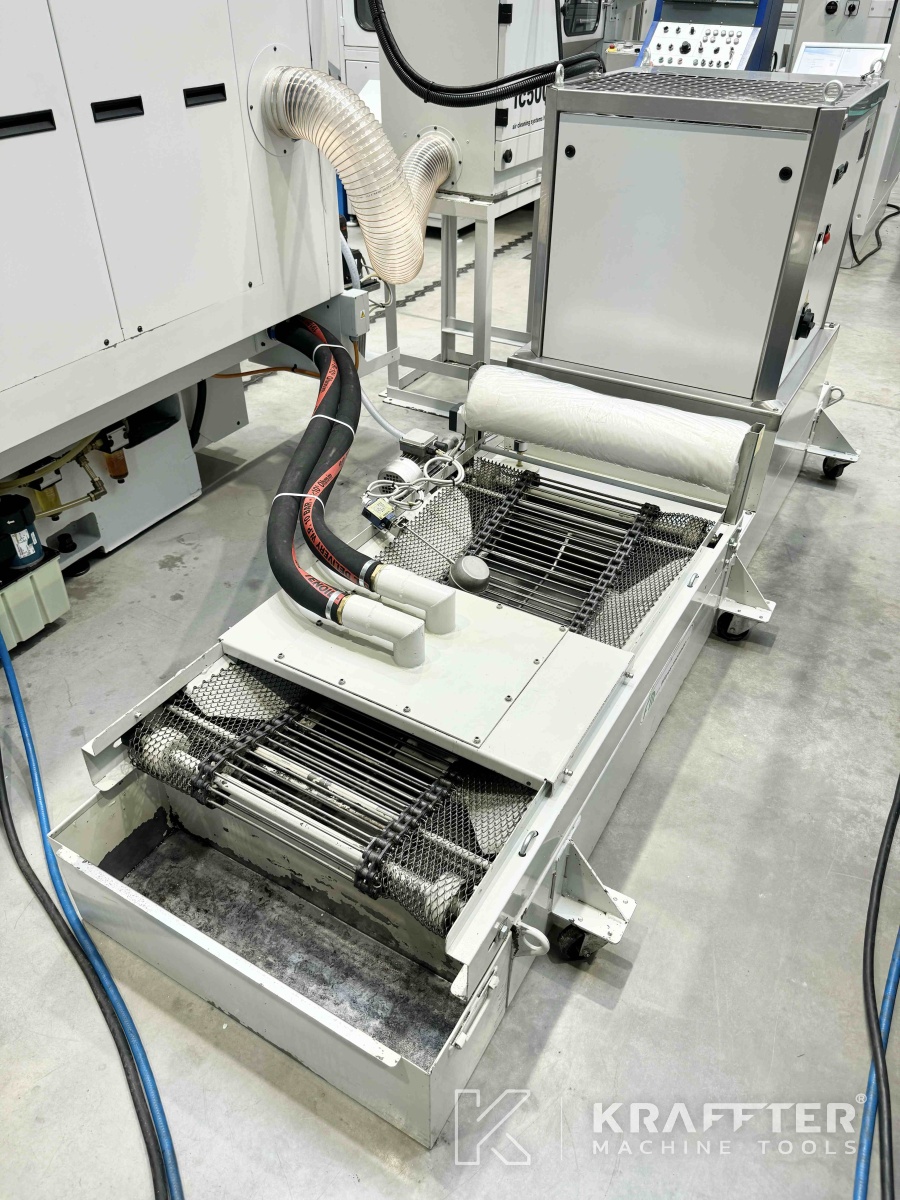

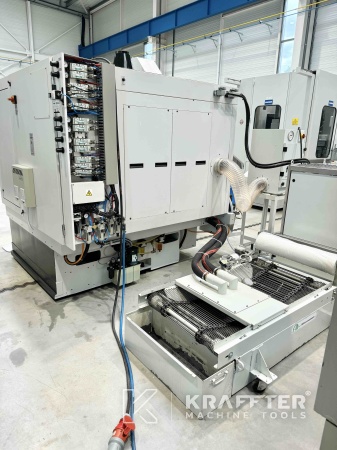

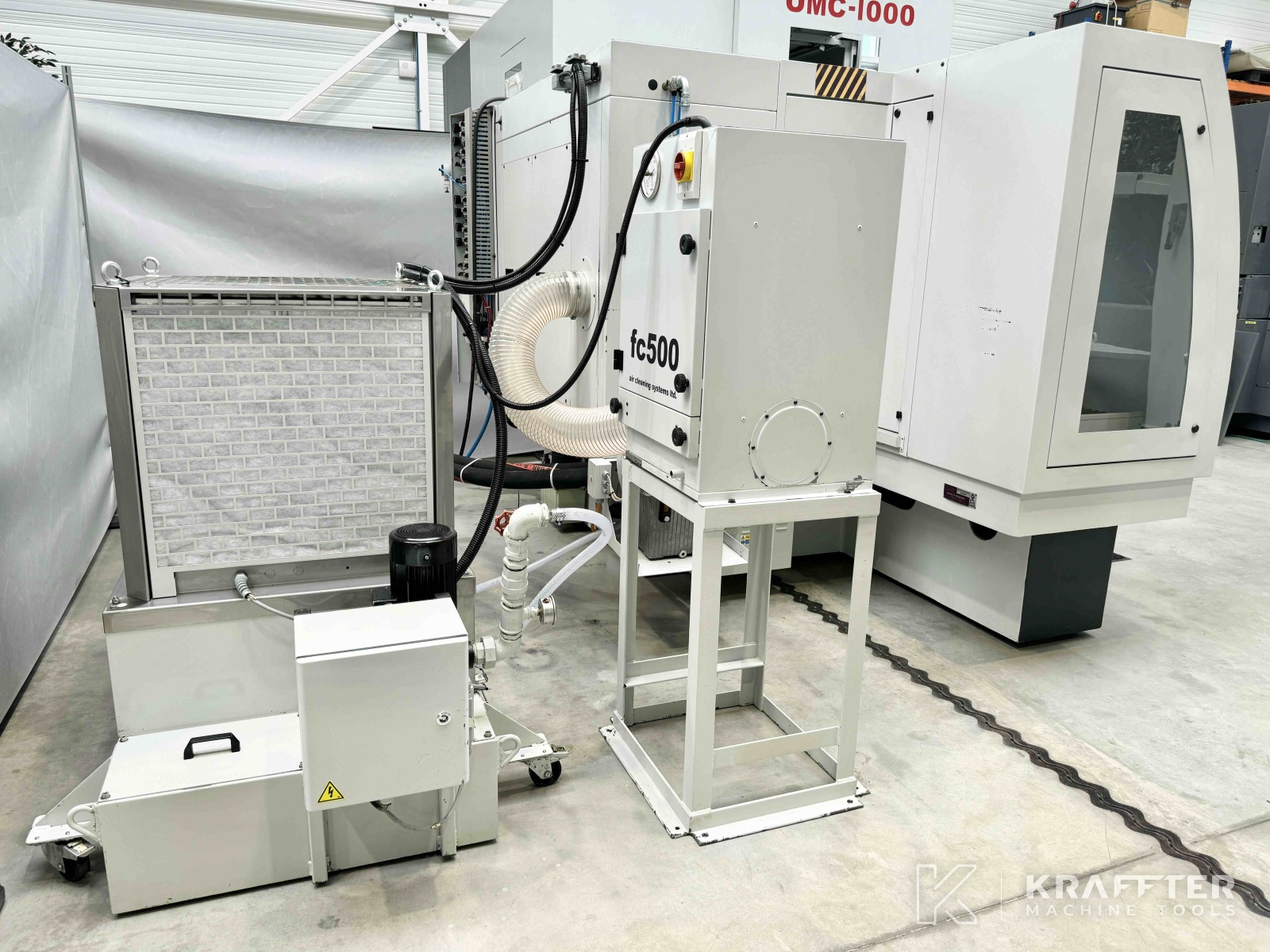

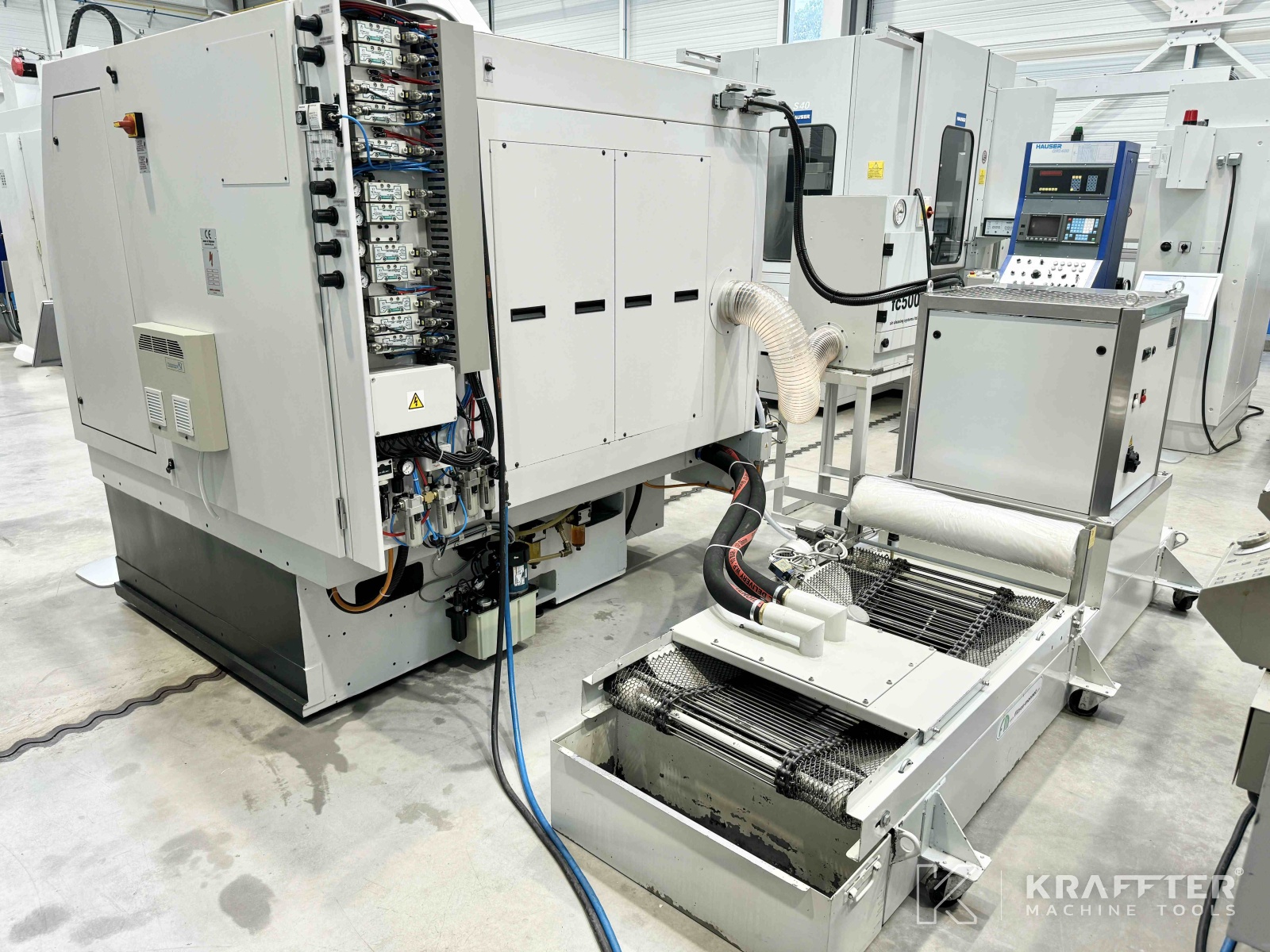

x1 collant tank + paper filtration FILTRES MONNET
x1 FC500 Air Cleaning Systems Ltd. mist extractor
x1 FILTRES MONNET TRK20-EF oil cooler

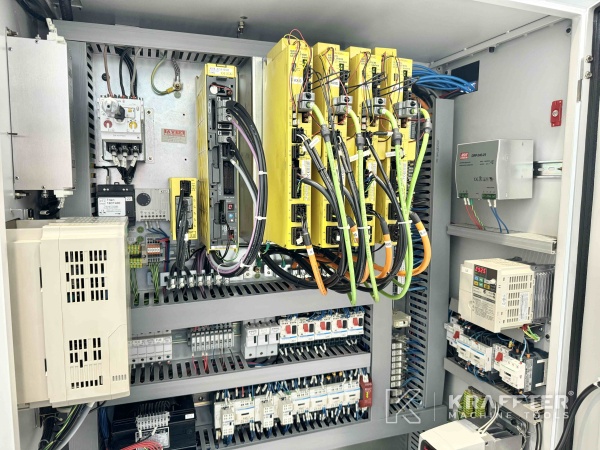

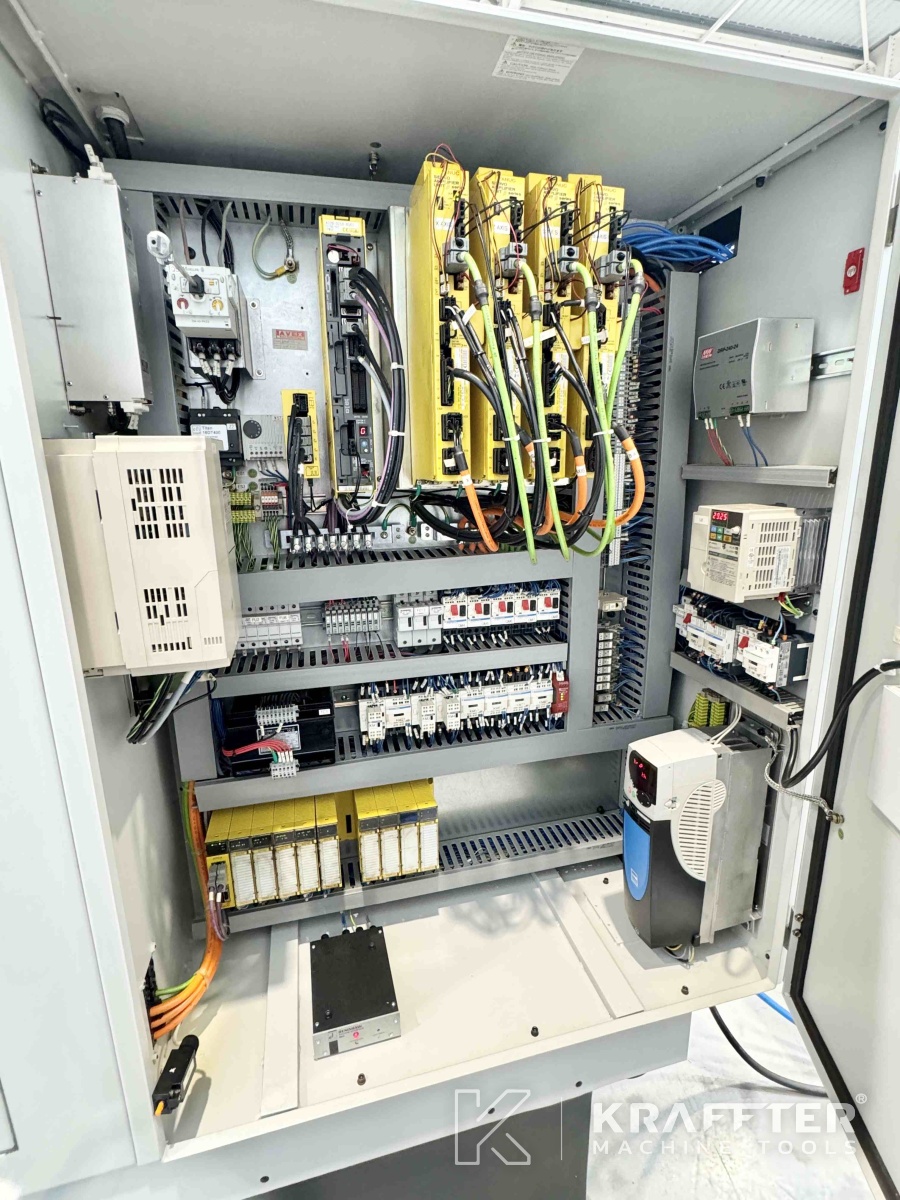

x1 PFANNENBERG electrical cabinet air conditioner
