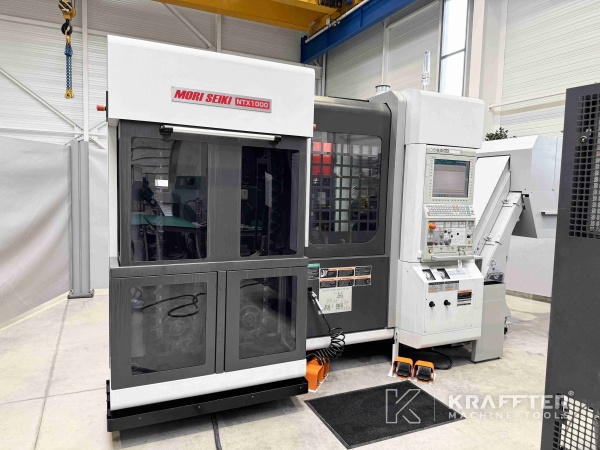

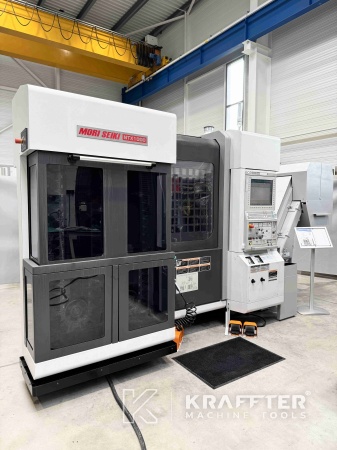

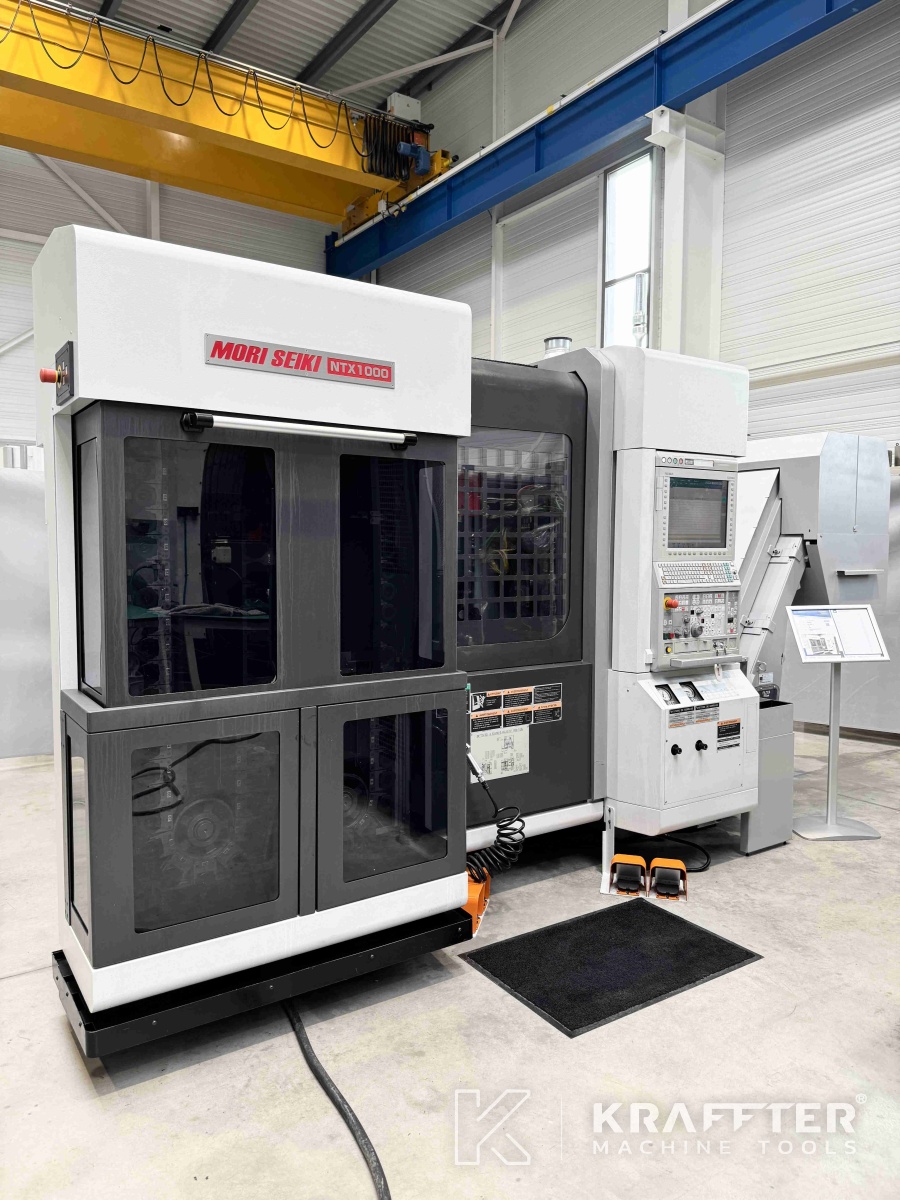

Type of machine : Turn-mill center
Brand : MORI SEIKI
N° de stock: 90127
Model : NTX 1000 / SZ
Year : 2011
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

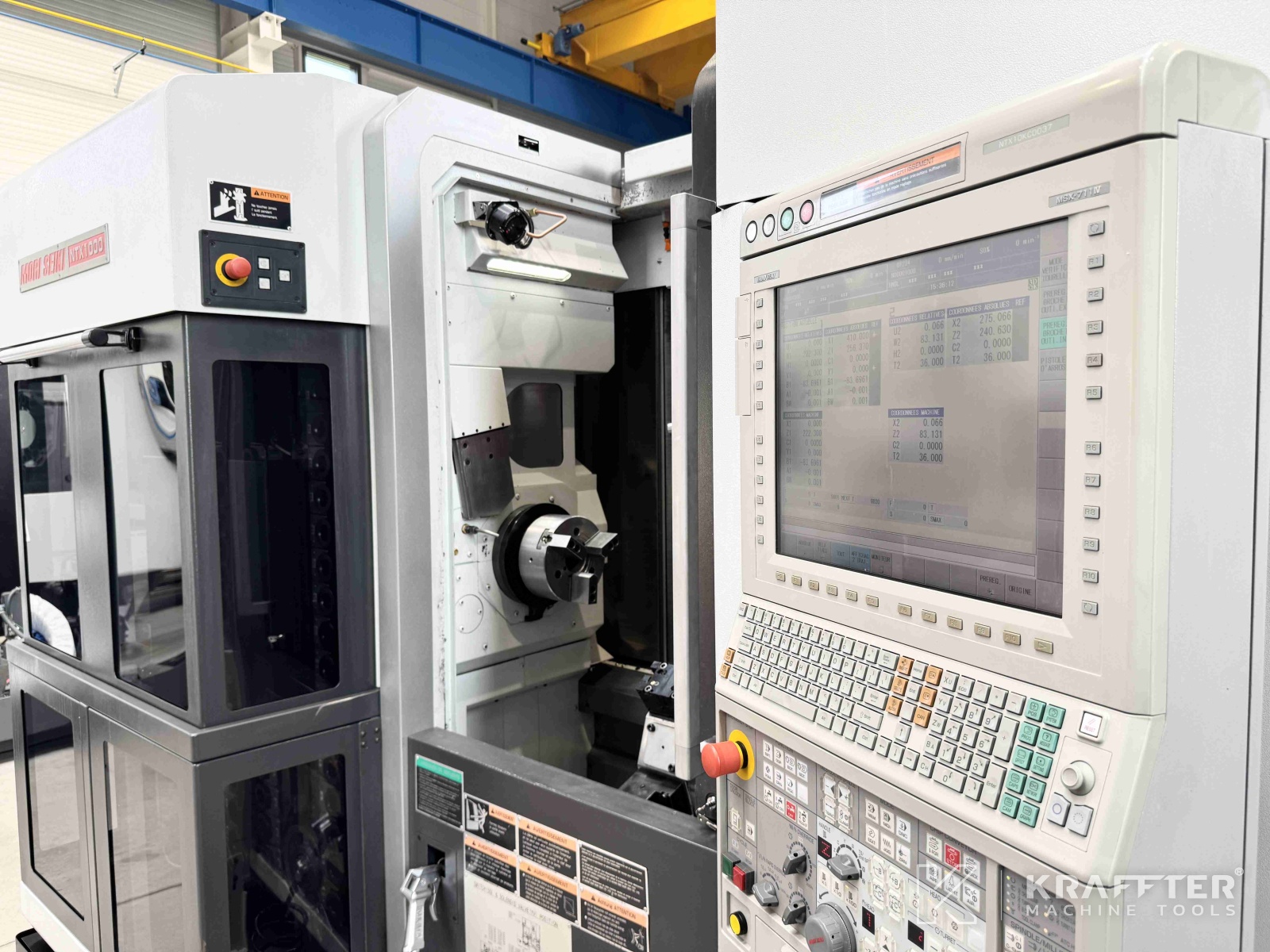

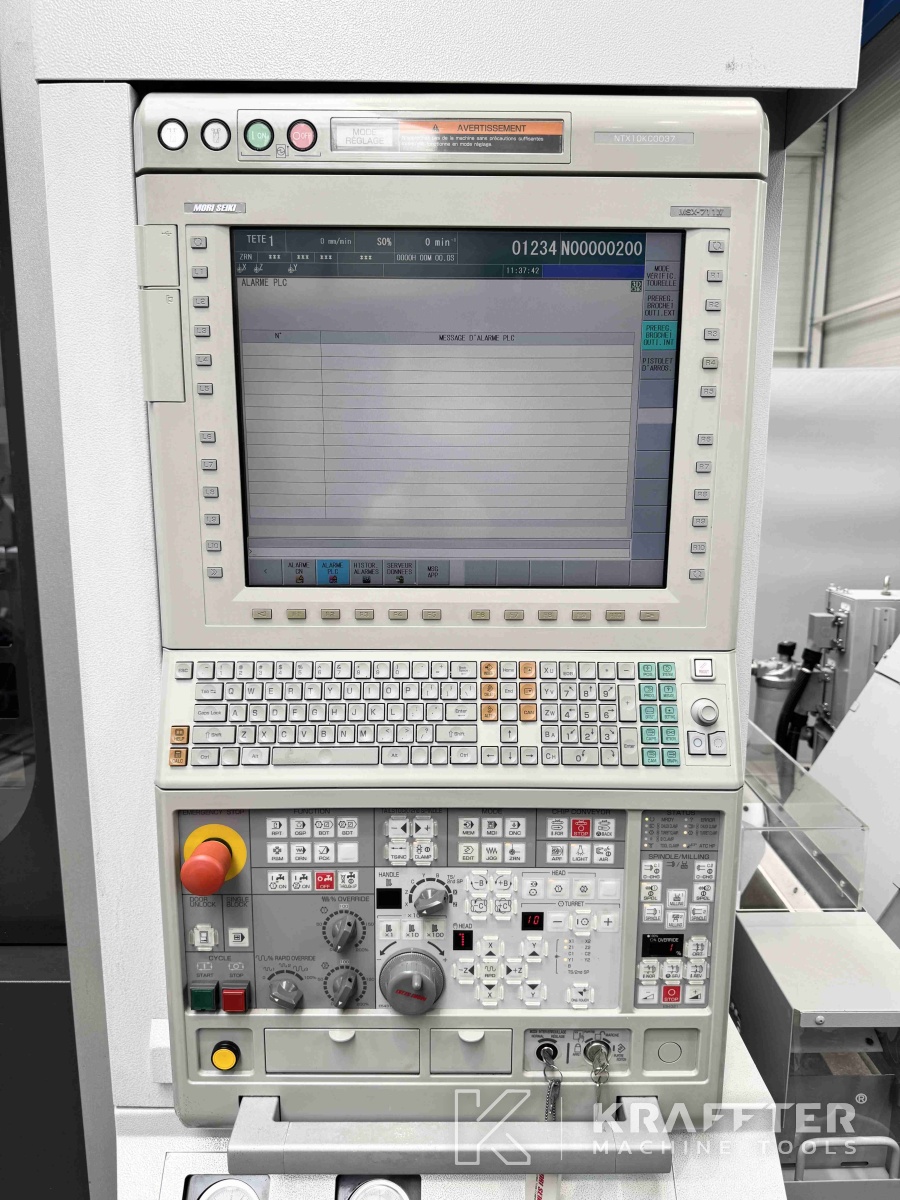

CNC control
FANUC MSX-711 IV
Number of simultaneous axes
5
Max. cutting diameter
370 [mm]
Max. turning lenght
424 [mm]
Stroke Y axis
105
Stroke Z1 axis
460 [mm]
Stroke X1 axis
380 [mm]
Stroke Z2 axis
610 [mm]
Stroke X2 axis
155 [mm]
B axis swivelling stroke
120 [°]
B axis indexing precision
0.0001 [°]

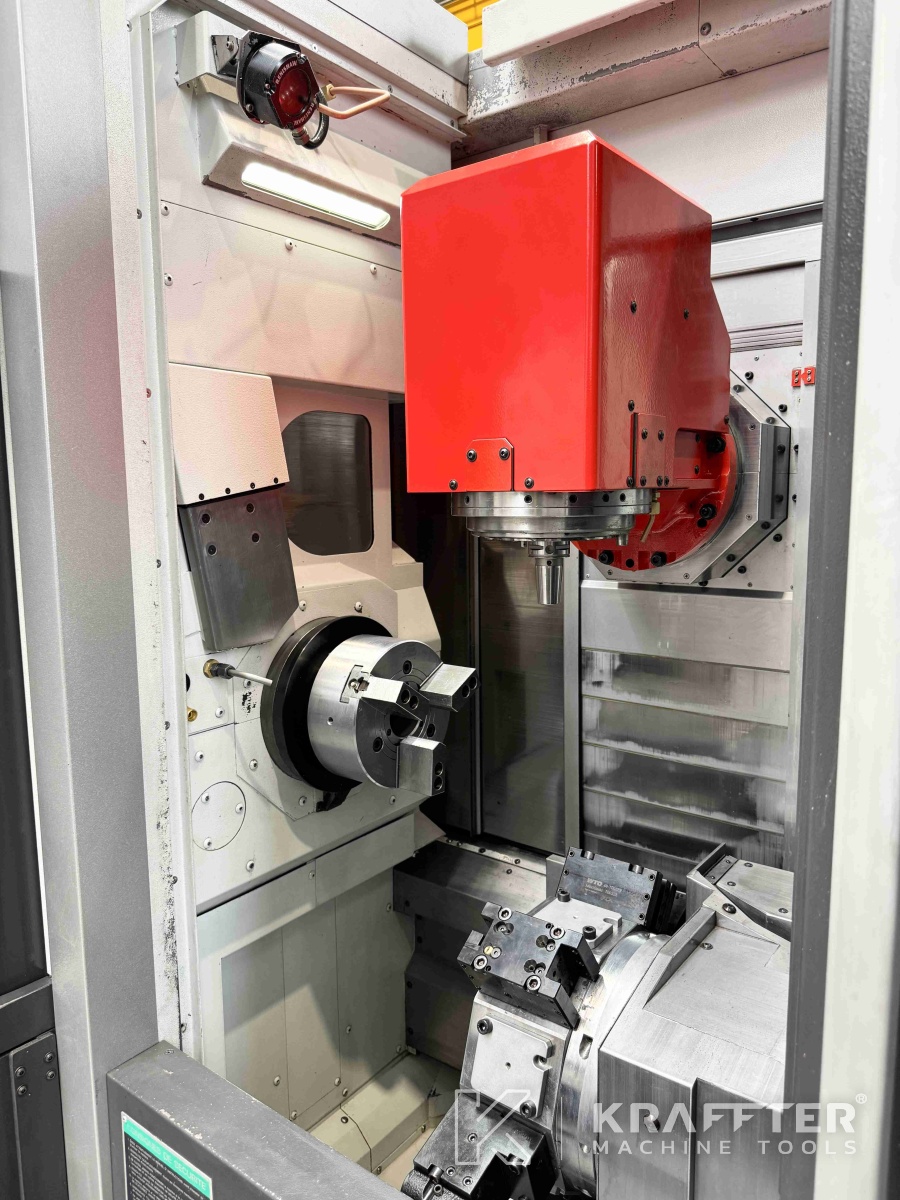

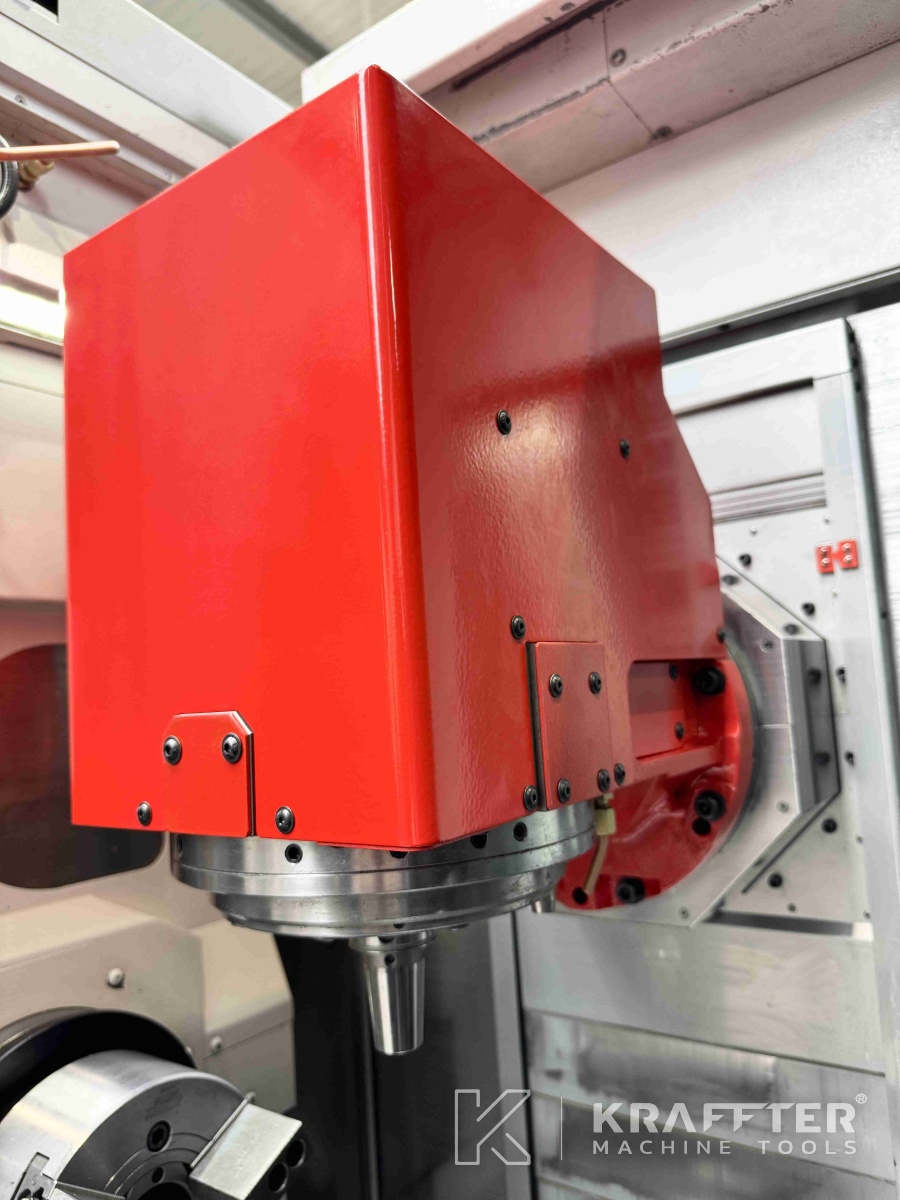

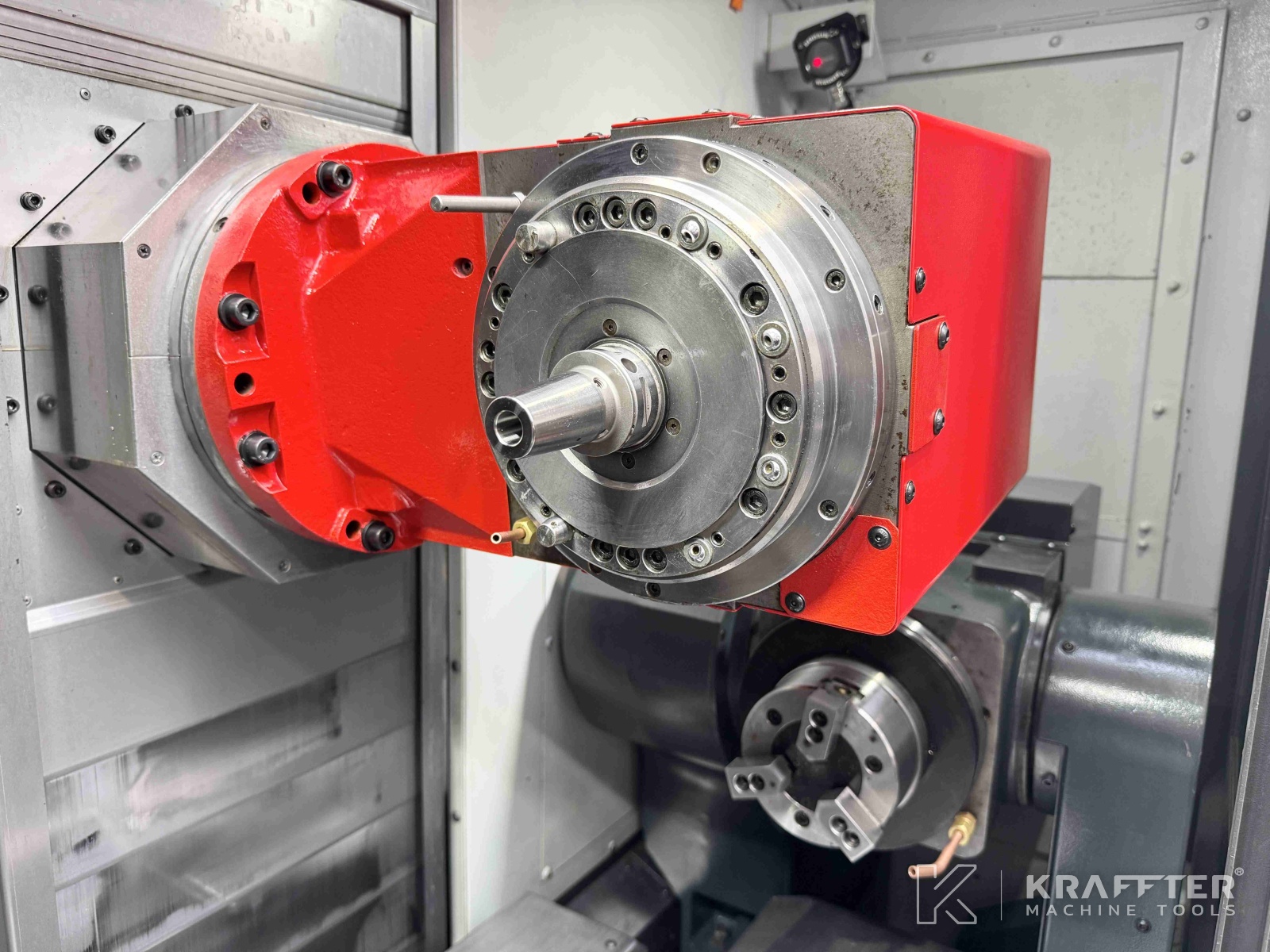

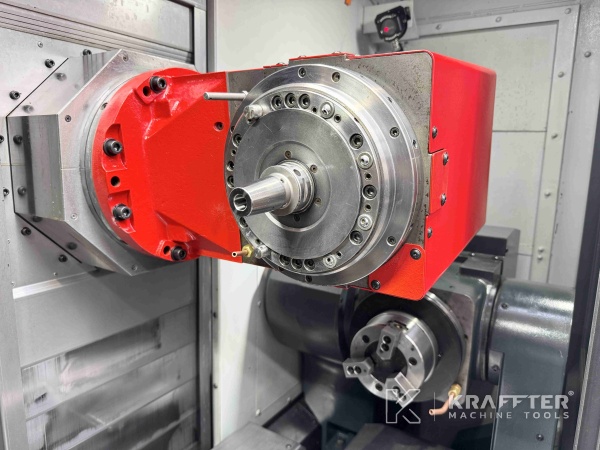

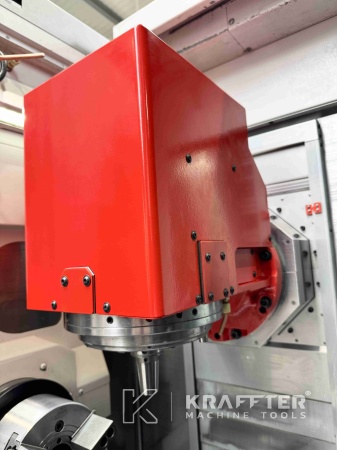

Milling head max. speed
12000 [rpm]
Milling head spindle attachment
Capto C5
Max. milling spindle power
9 [kW]

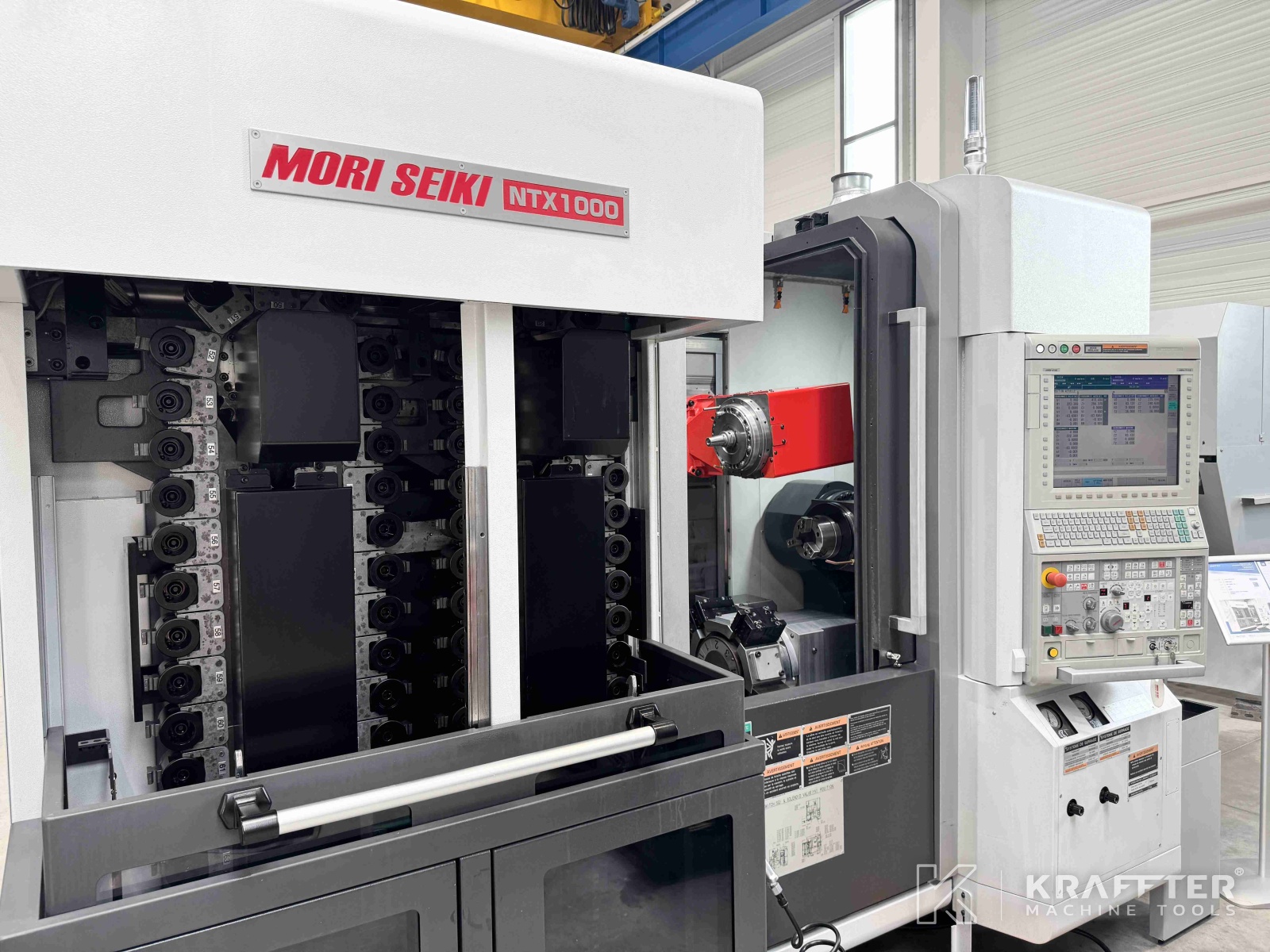

Tool magazine capacity
76
Max. tool lenght
250 [mm]
Max. tool diameter
130 [mm]
Max. weight of single tool
5 [Kg]
Rapid traverse rate X1 axis
40000 [mm/min]
Rapid traverse rate X2 axis
20000 [mm/min]
Rapid traverse rate Z axis
50000 [mm/min]
Rapid traverse rate Z2 axis
36000 [mm/min]
Rapid traverse rate Y axis
40000 [mm/min]
Spindle nose
JIS A2-6
Spindle throughbore
73 [mm]
Max. spindle speed
6000 [rpm]
Increment C-axis
0.0001 [°]
Spindle power
11 [kW]
Counter spindle nose
G6 flat nose
Counter spindle throughbore
38 [mm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.0001 [°]
Counter spindle power
7.5 [kW]
Counter spindle torque
37 [Nm]
Max. tool holder cross-section
20 [mm]
Number of tool stations
10
Total power required
48 [kVA]
Number of cutting hours
9867 [h]
Weight
8950 [Kg]
Additional information
EQUIPMENT INCLUDED:

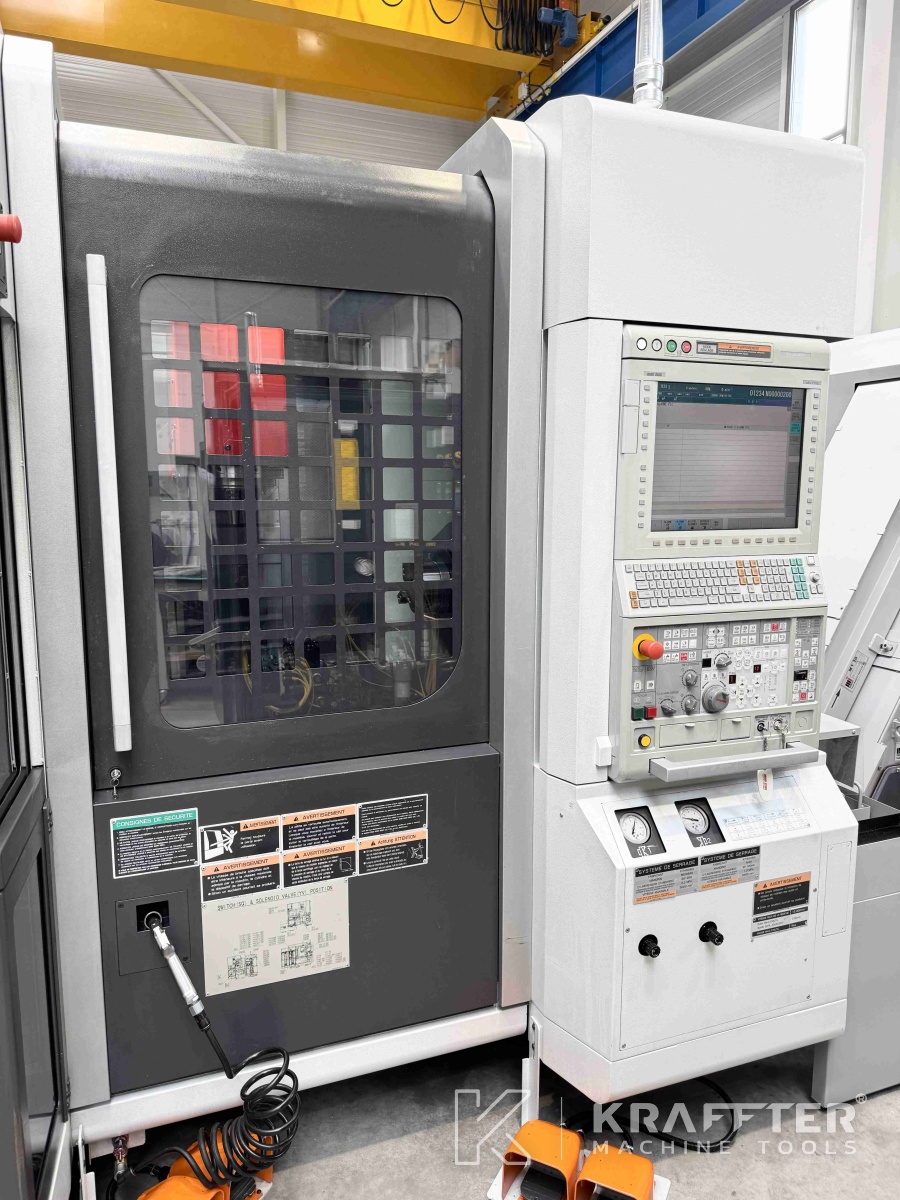

x1 MAPPS IV operating system

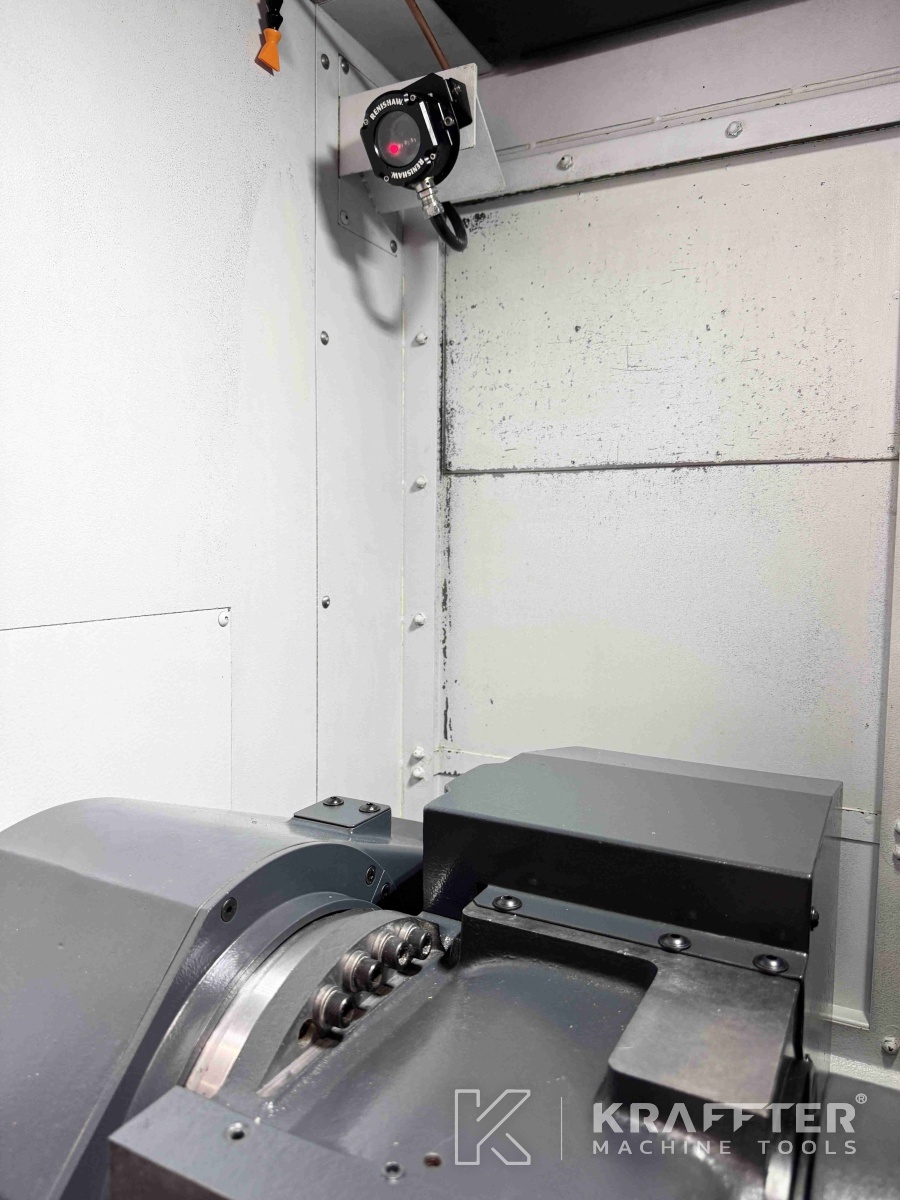

x1 RENISHAW tool probe

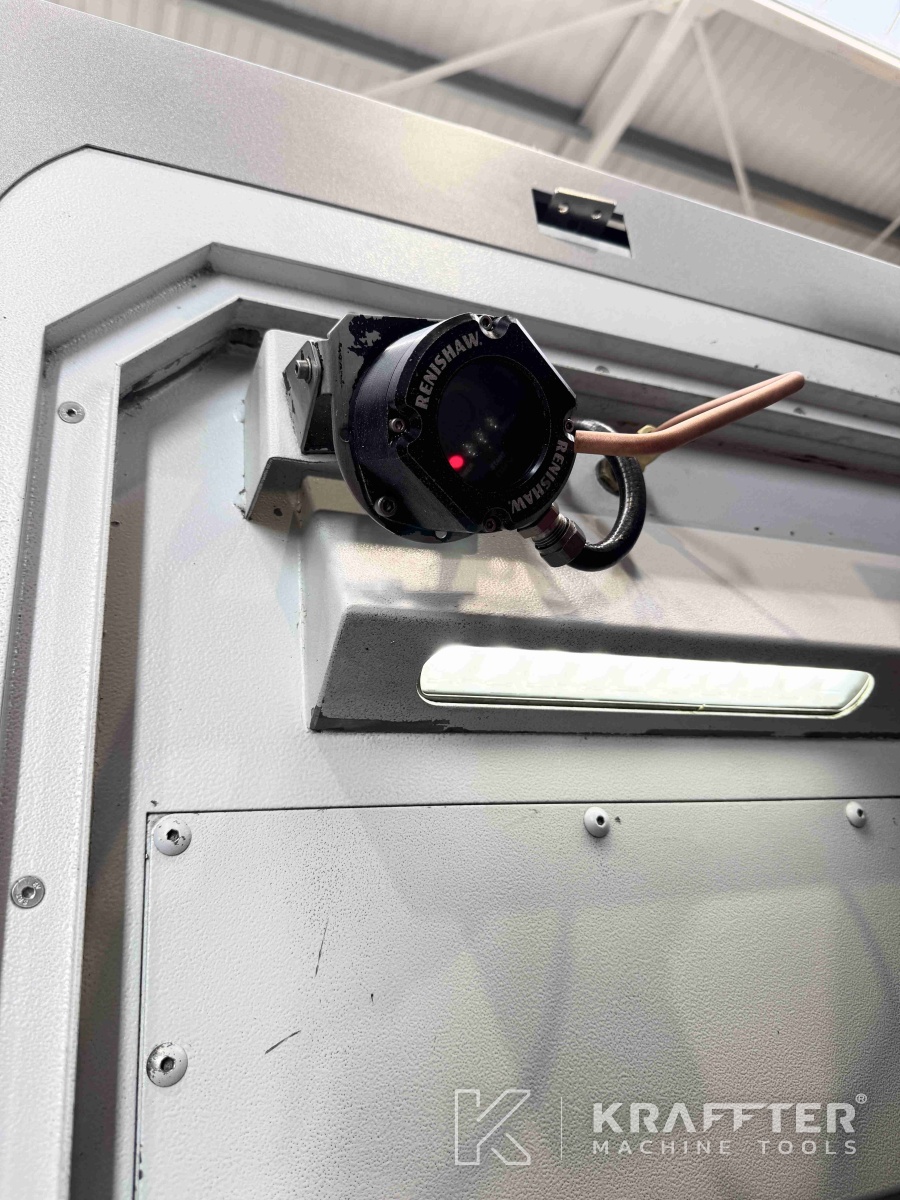

x1 RENISHAW part probe interface (laser sensor and software option installed)

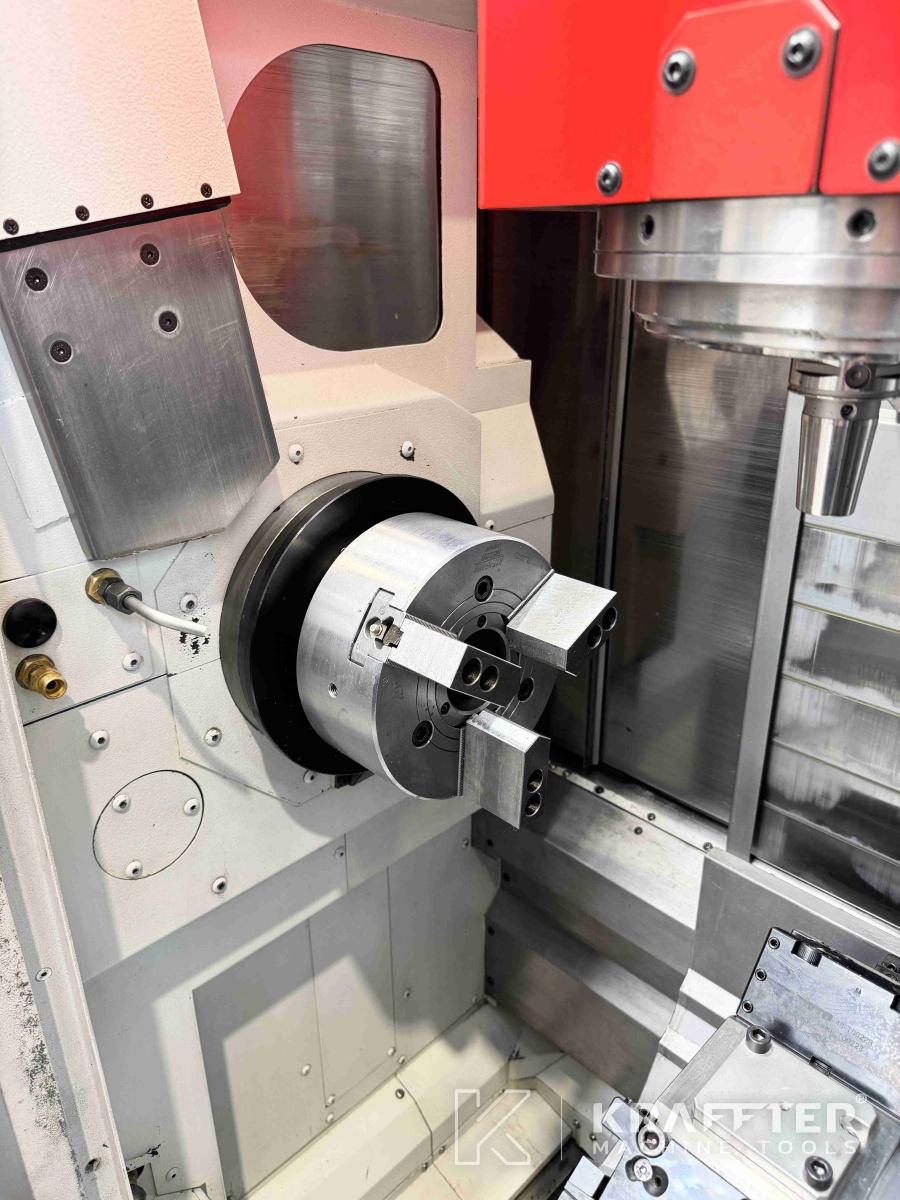

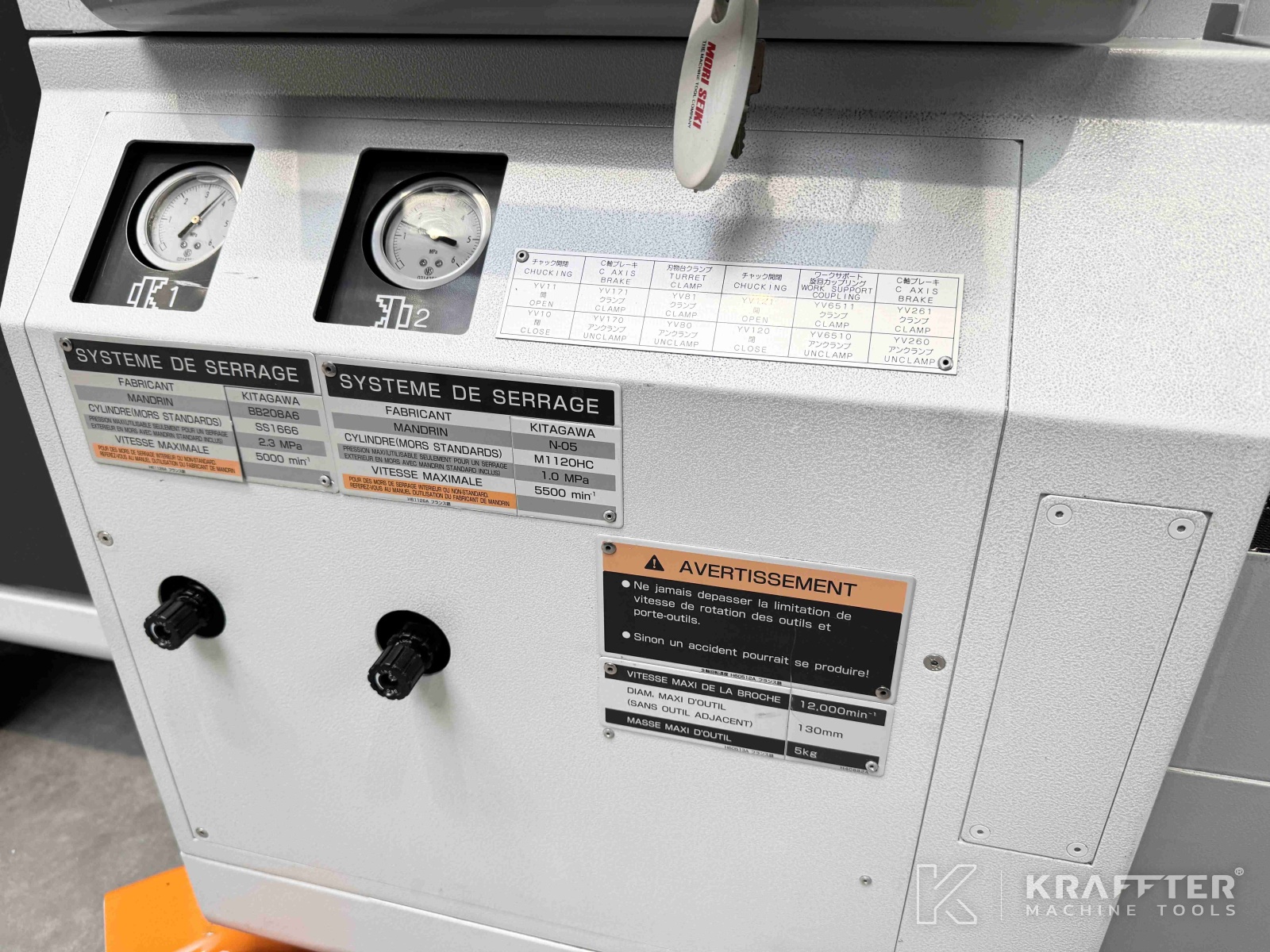

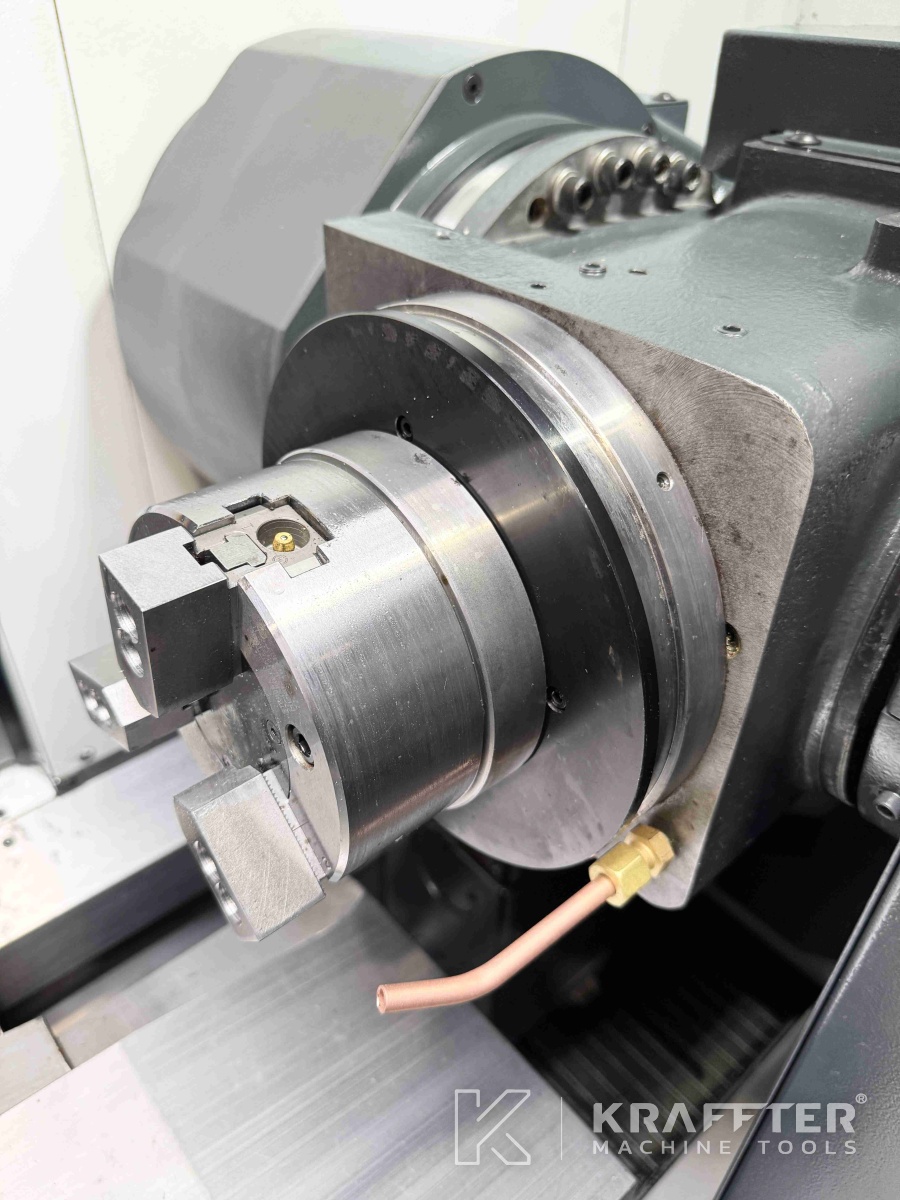

x1 KITAGAWA BB208 - Ø208 [mm] chuck
x1 blowing spindle chuck
x1 KITAGAWA N05 chuck - Ø135 [mm]
x1 blowing of counter-spindle chuck
x1 through tool spindle coolant

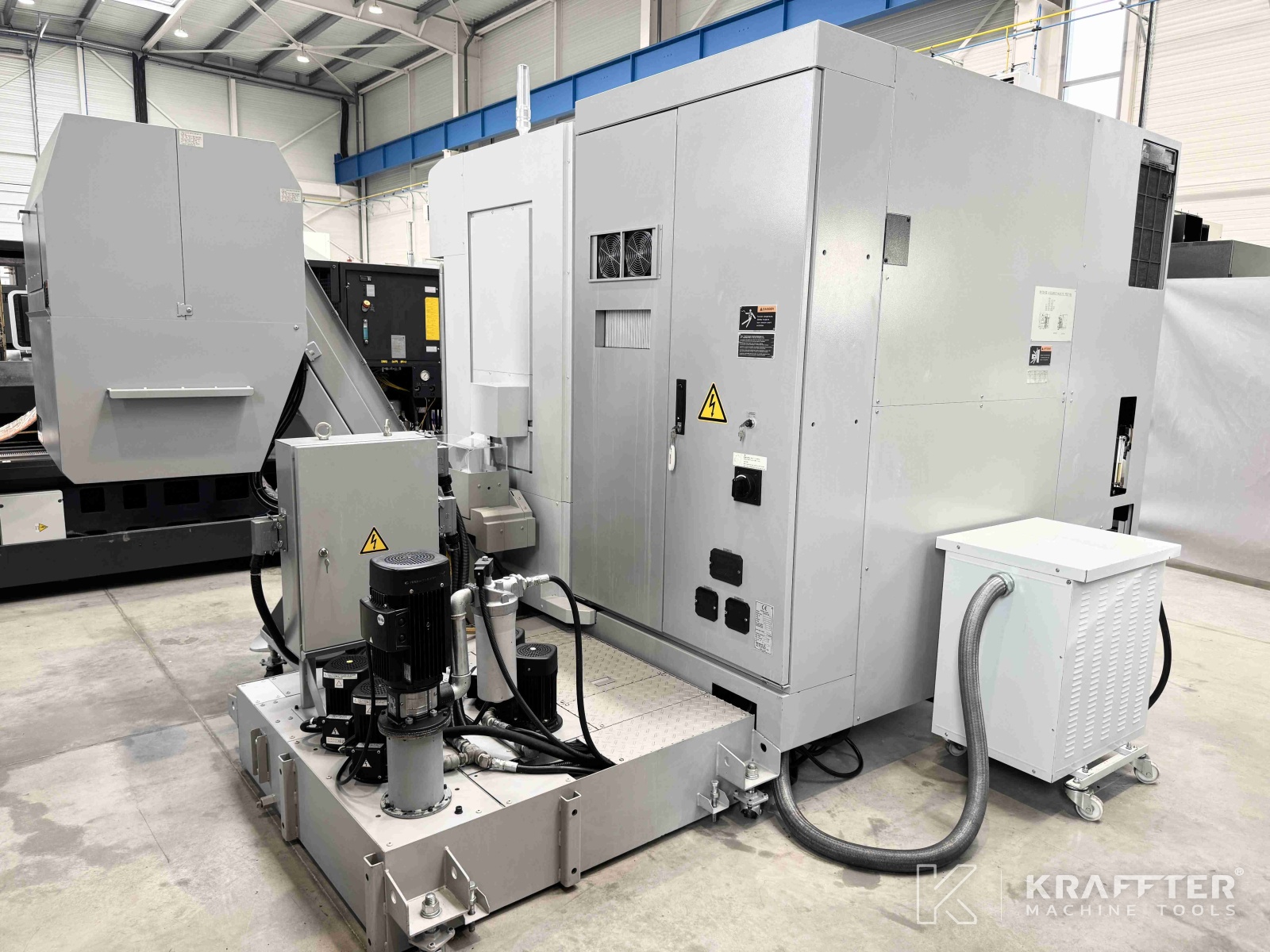

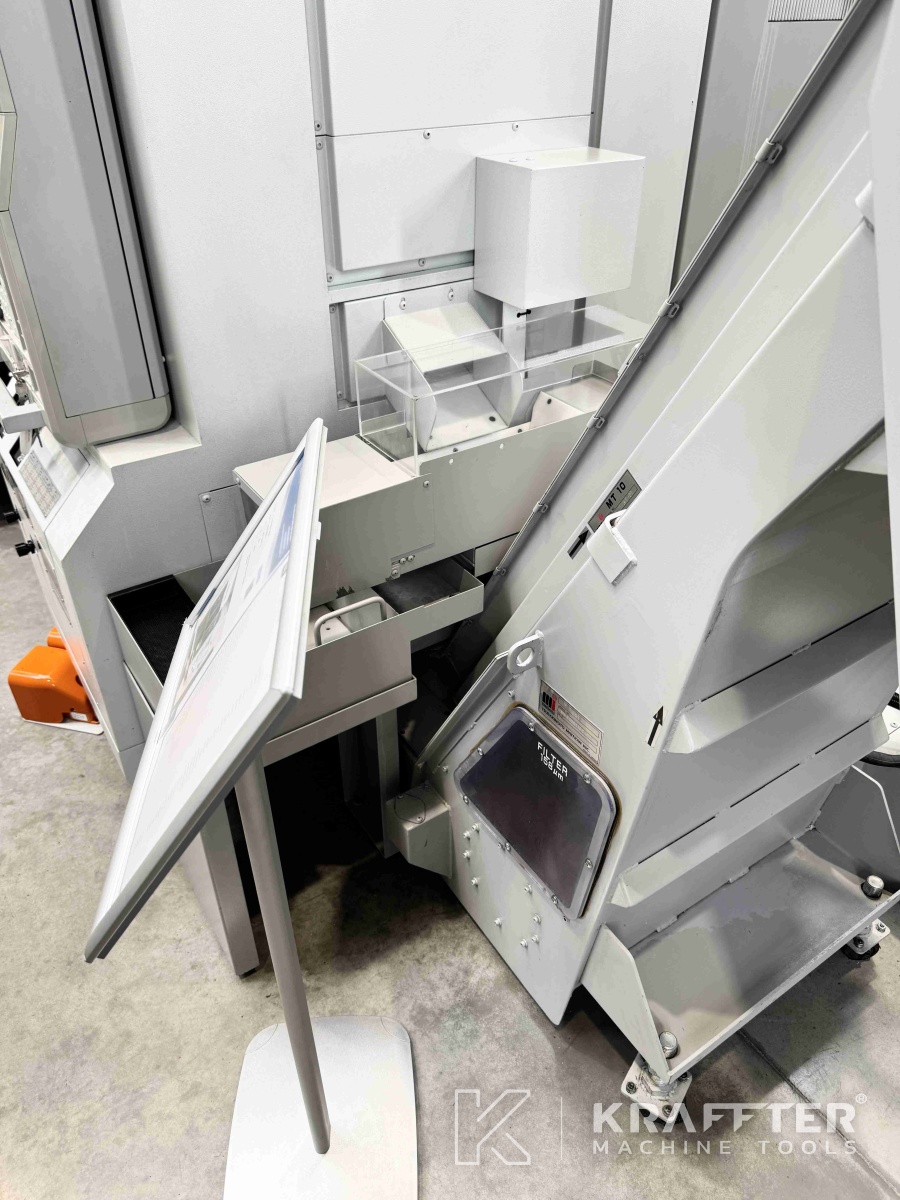

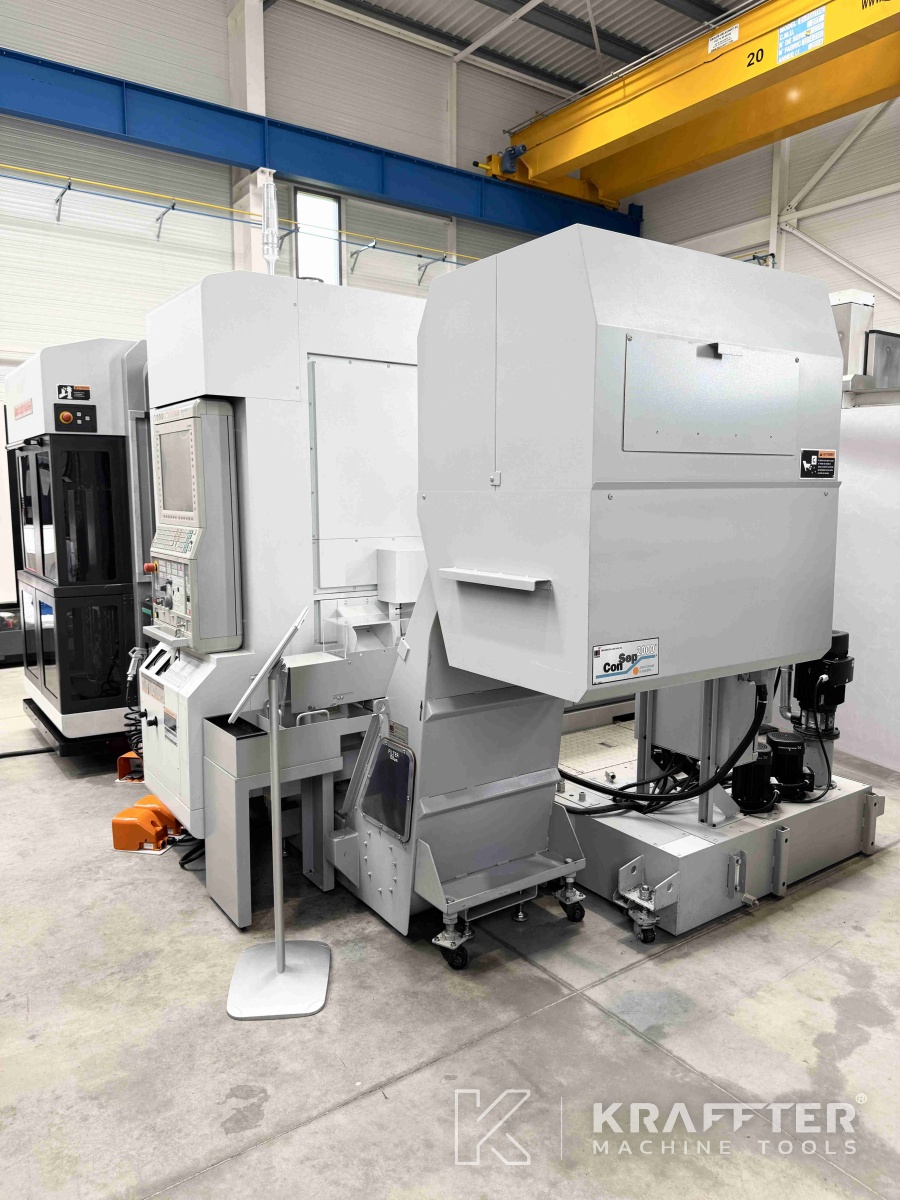

x1 chip conveyor (right exit)
x1 coolant gun

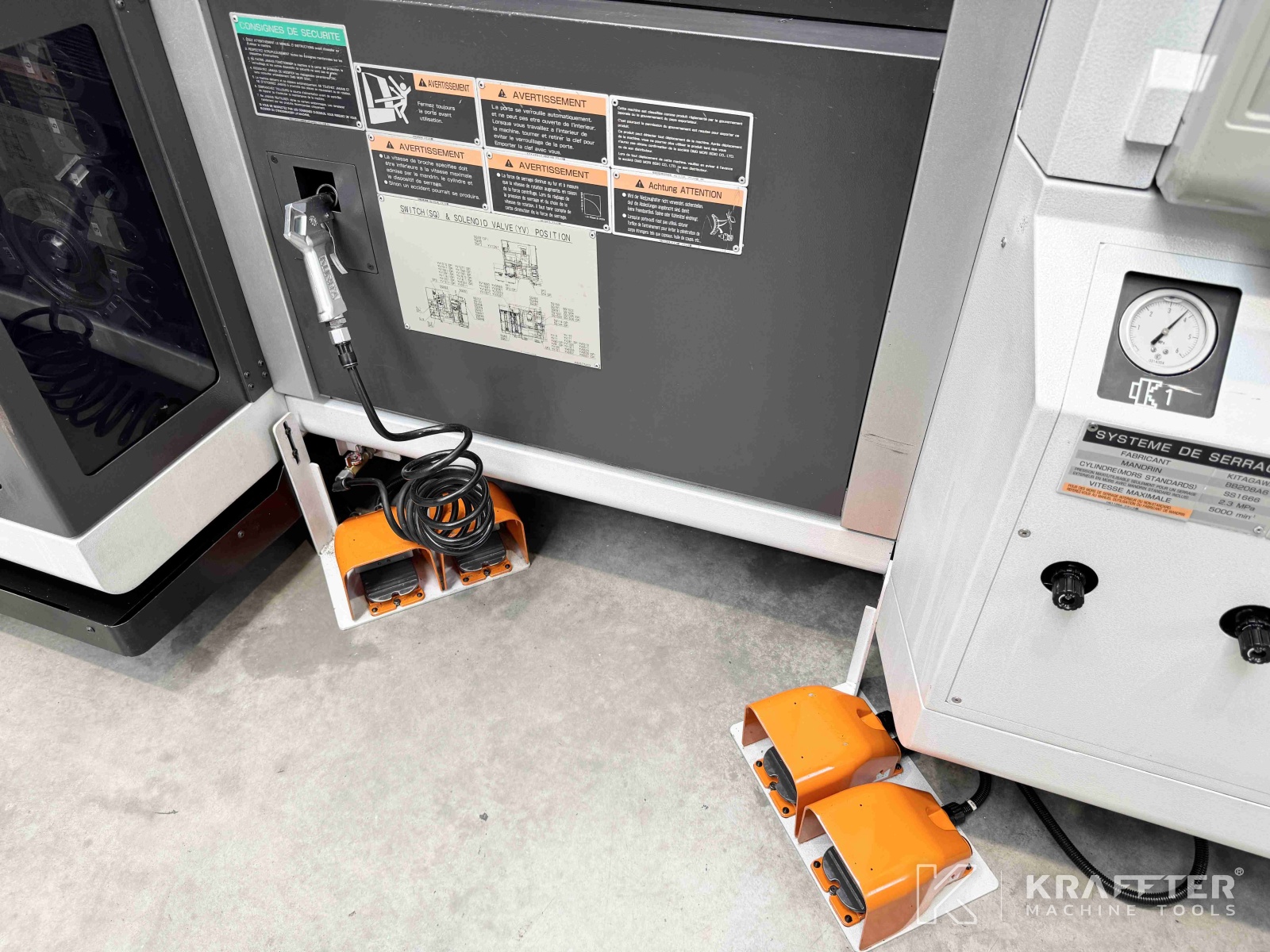

x4 foot pedals (clamping/unclamping chucks 1 and 2)

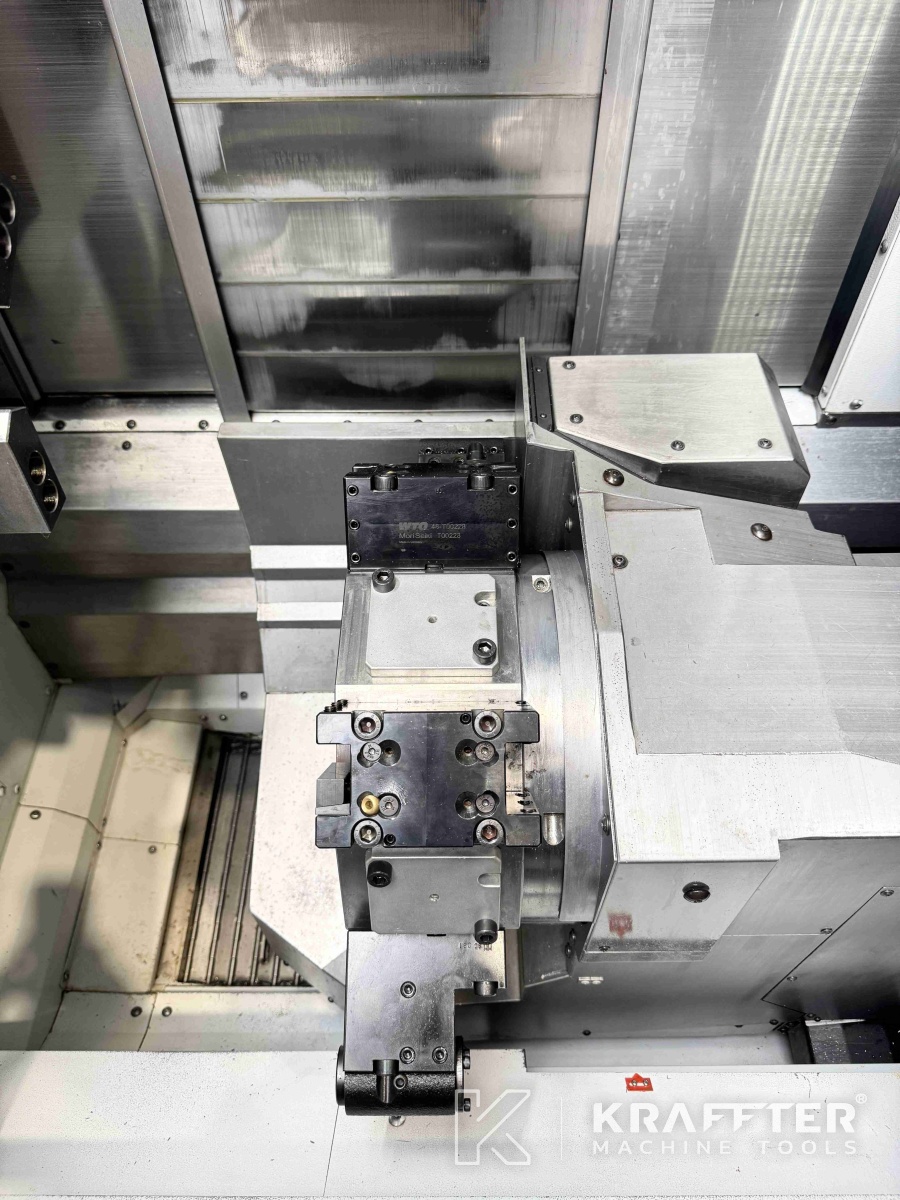

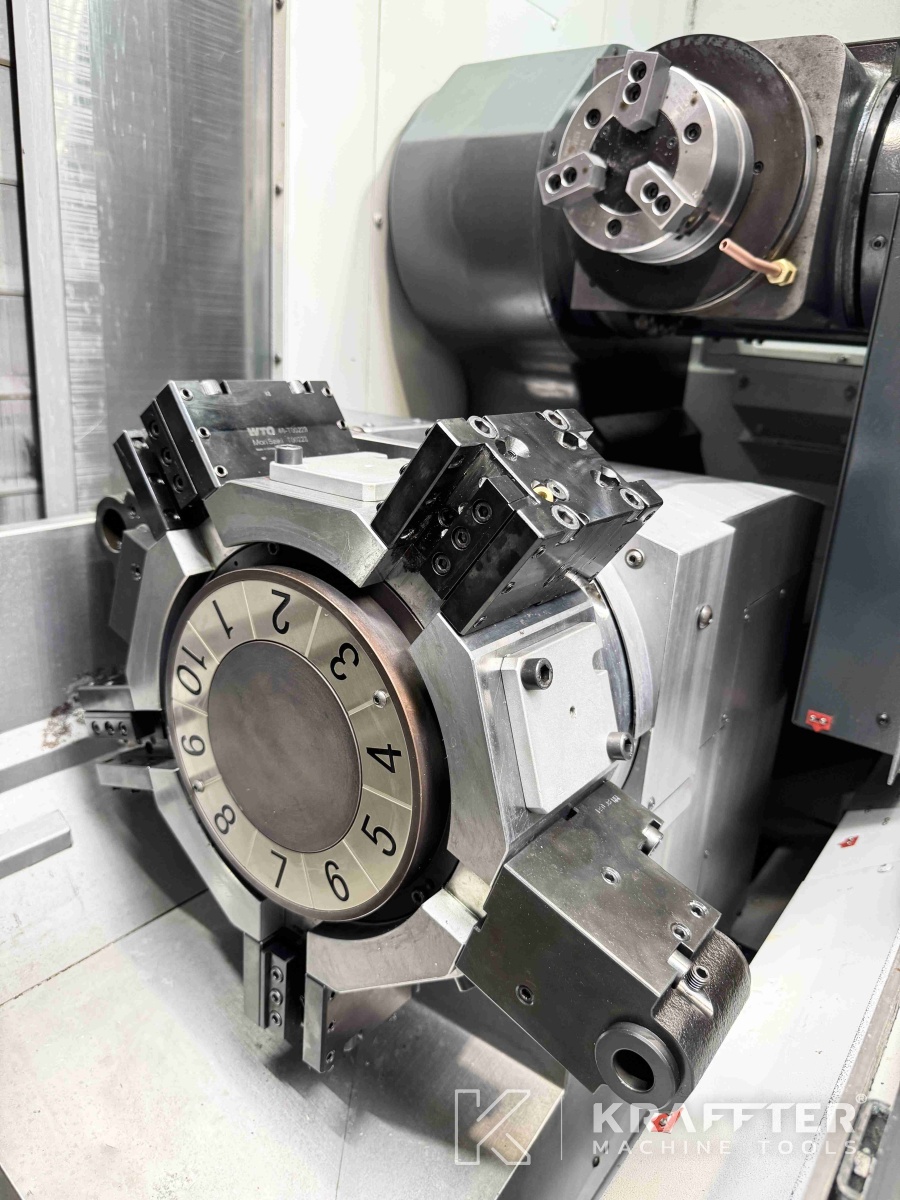

x6 static tool holders
x1 3-colours status lamp

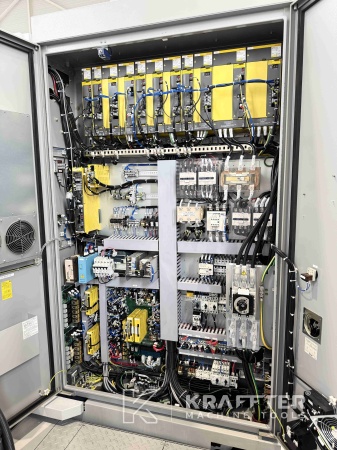

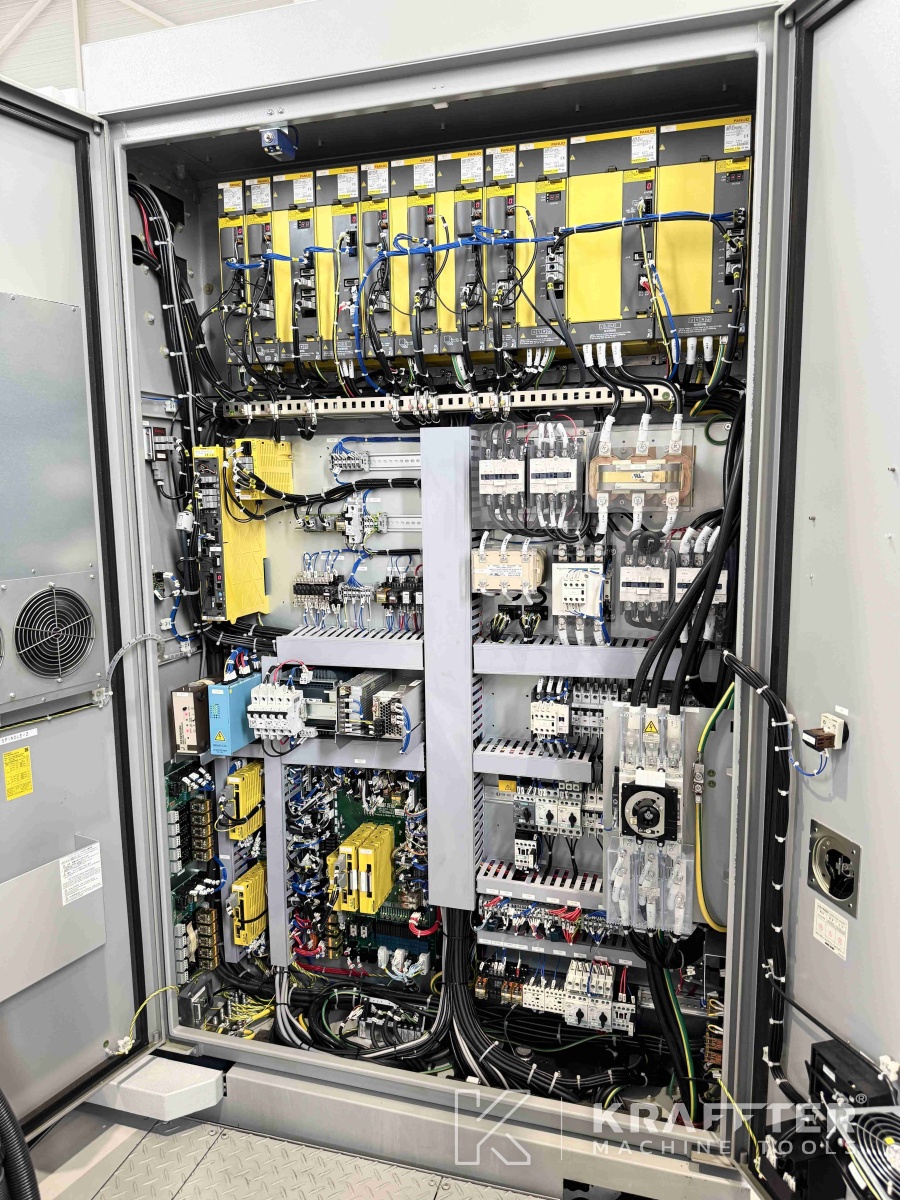

x1 electrical transformer

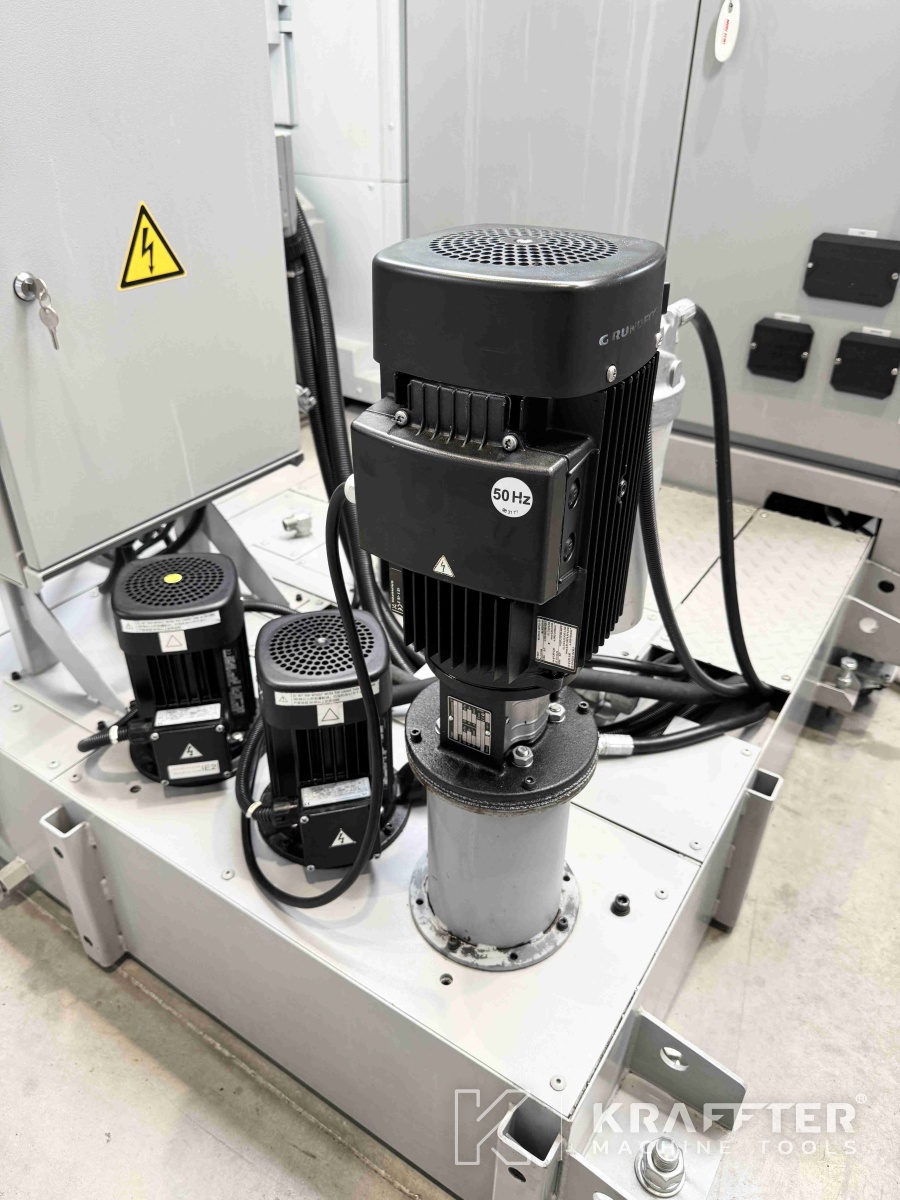

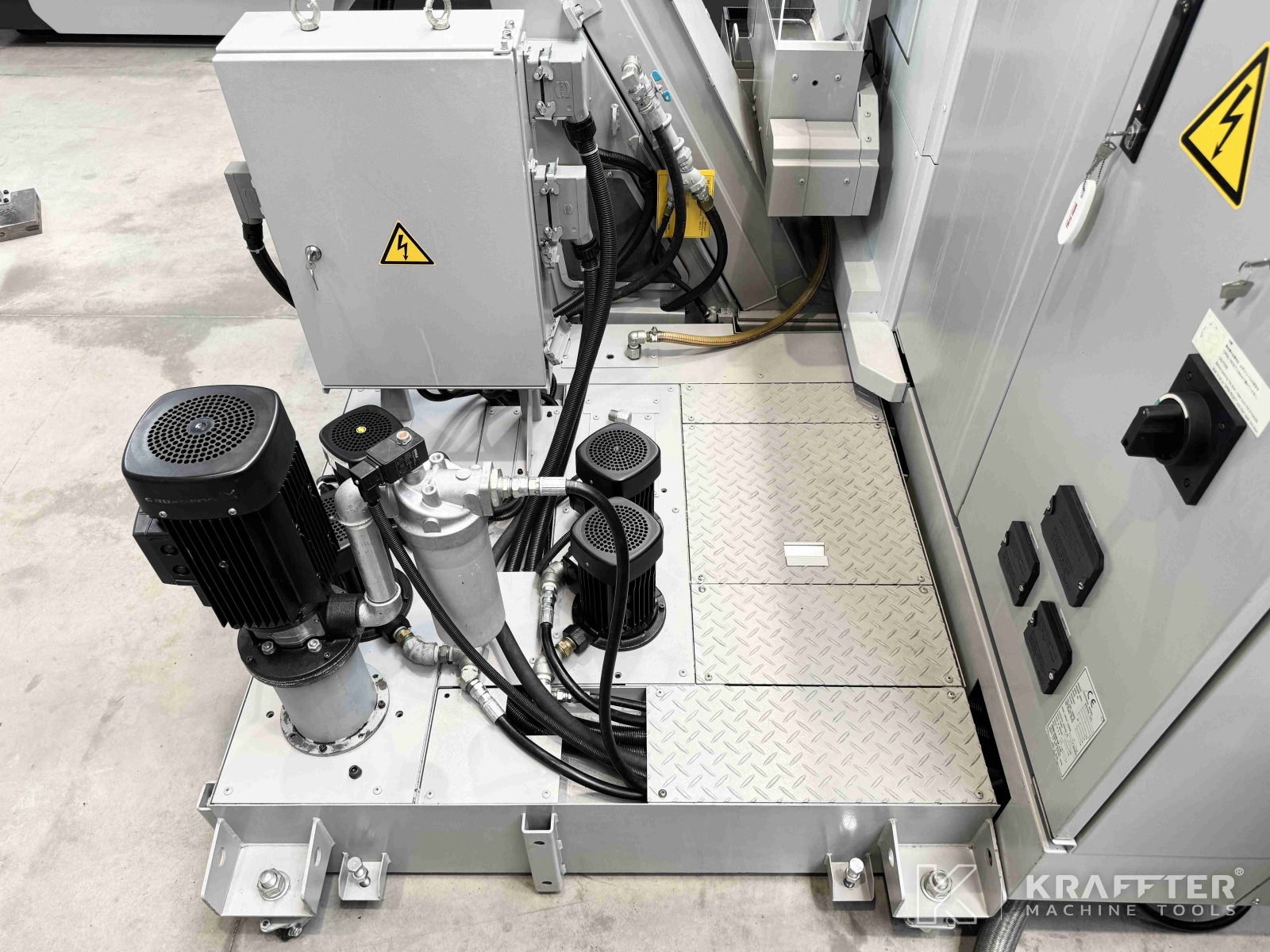

x1 high pressure collant pump

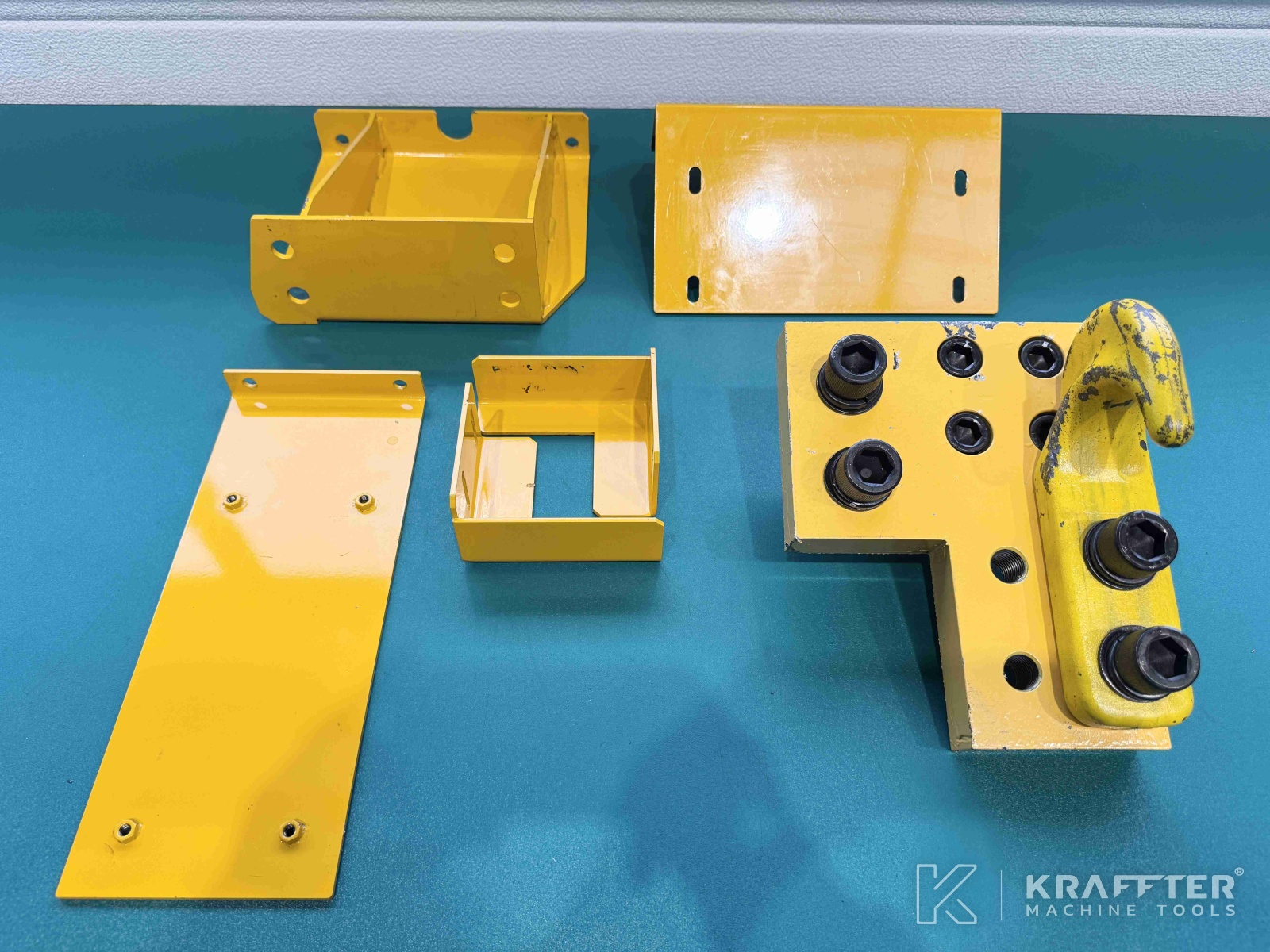

x1 set of axle clamps for transporting the machine
x1 set of technical manuals
FANUC OPTIONS INCLUDED :
x1 A02B-0306-J713 - 31i-A5 3-D Coordinate System Conversion
x1 A02B-0306-J815 - 31i-A5 Polar Coordinate Interpolation
x1 A02B-0306-J819 - 31i-A5 Helical Interpolation
x1 A02B-0306-J828 - 31i-A5 Rigid Tapping
x1 A02B-0306-J852 - 31i-A5 CS Contour Control
x1 A02B-0306-J926 - 31i-A5 Tool Offset, 99 Pairs
x1 A02B-0306-J930 - 31i-A5 Tool Radius (Cutter) Compensation and Tool Nose Radius Compensation
x1 A02B-0306-J947 - 31i-A5 Part Program Memory, 1 MB
x1 A02B-0306-R512 - 31i-A5 Nano Smoothing II
x1 A02B-0306-S676 - 31i-A5 Tilted Working Plane Command - Conventional
x1 A02B-0306-S687 - 31i-A5 Nano Smoothing
x1 A02B-0306-S737 - 31i-A5 Data Server Function
x1 A02B-0306-S808 - 31i-A5 AI Contour Control II
