Sold

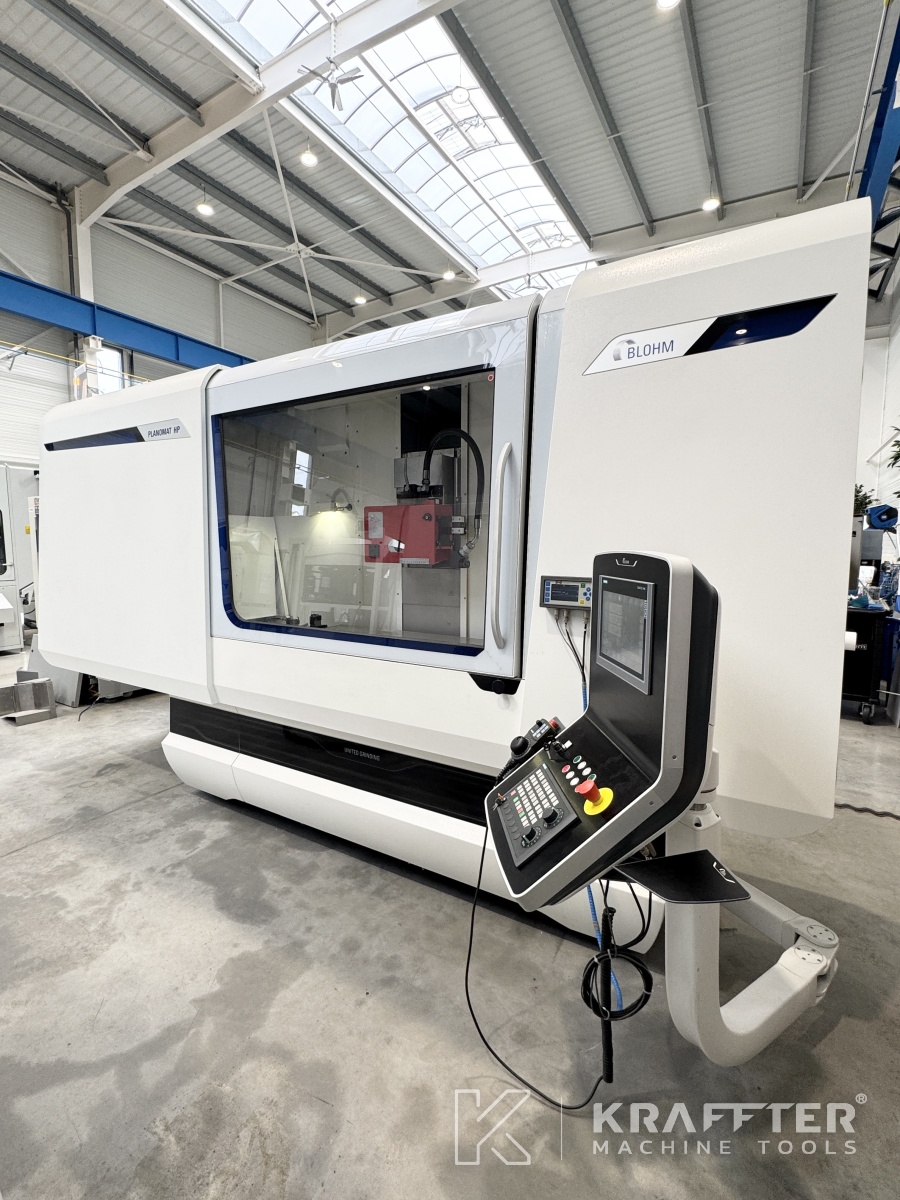

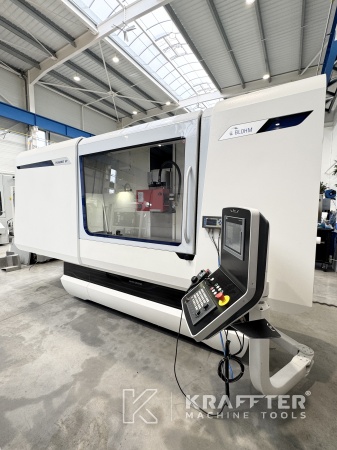

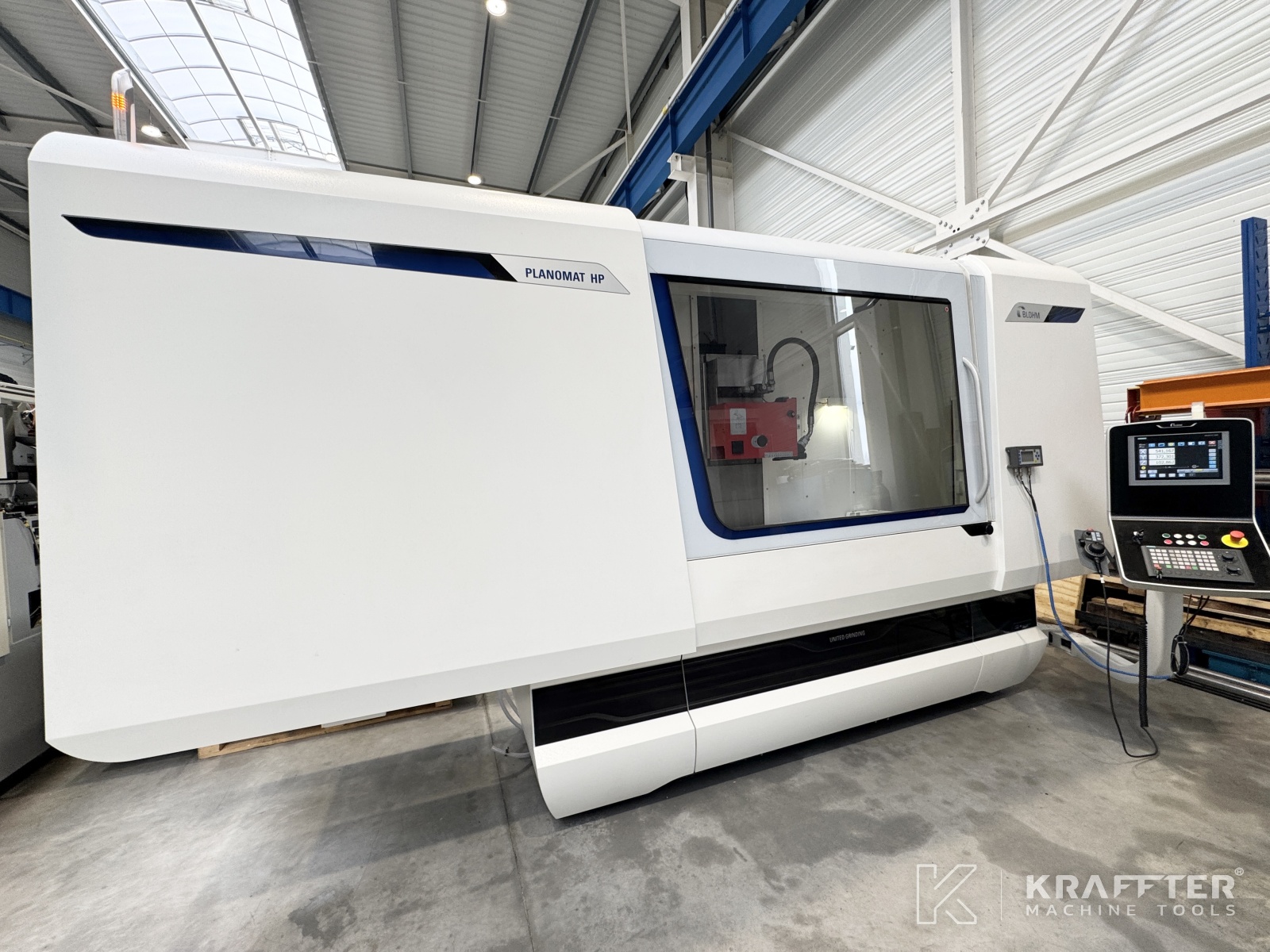

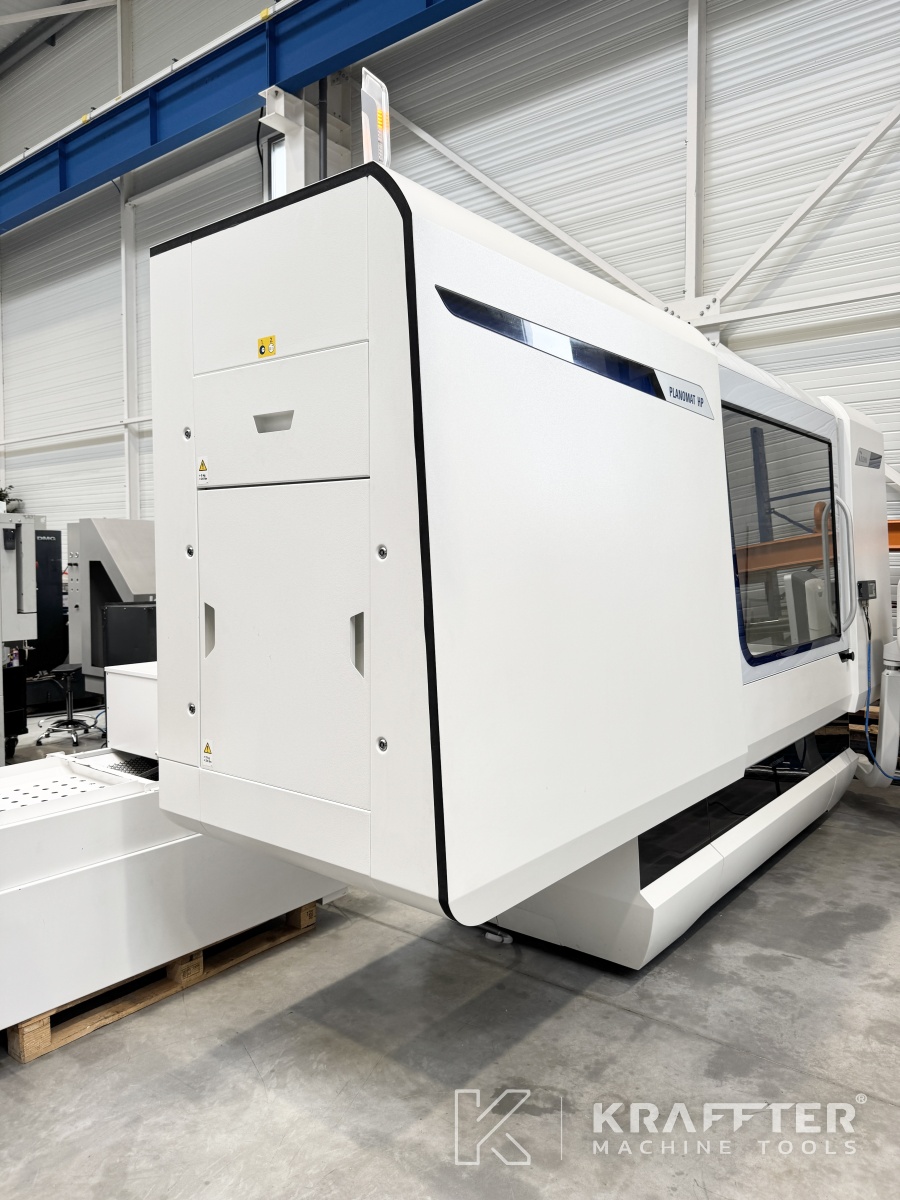

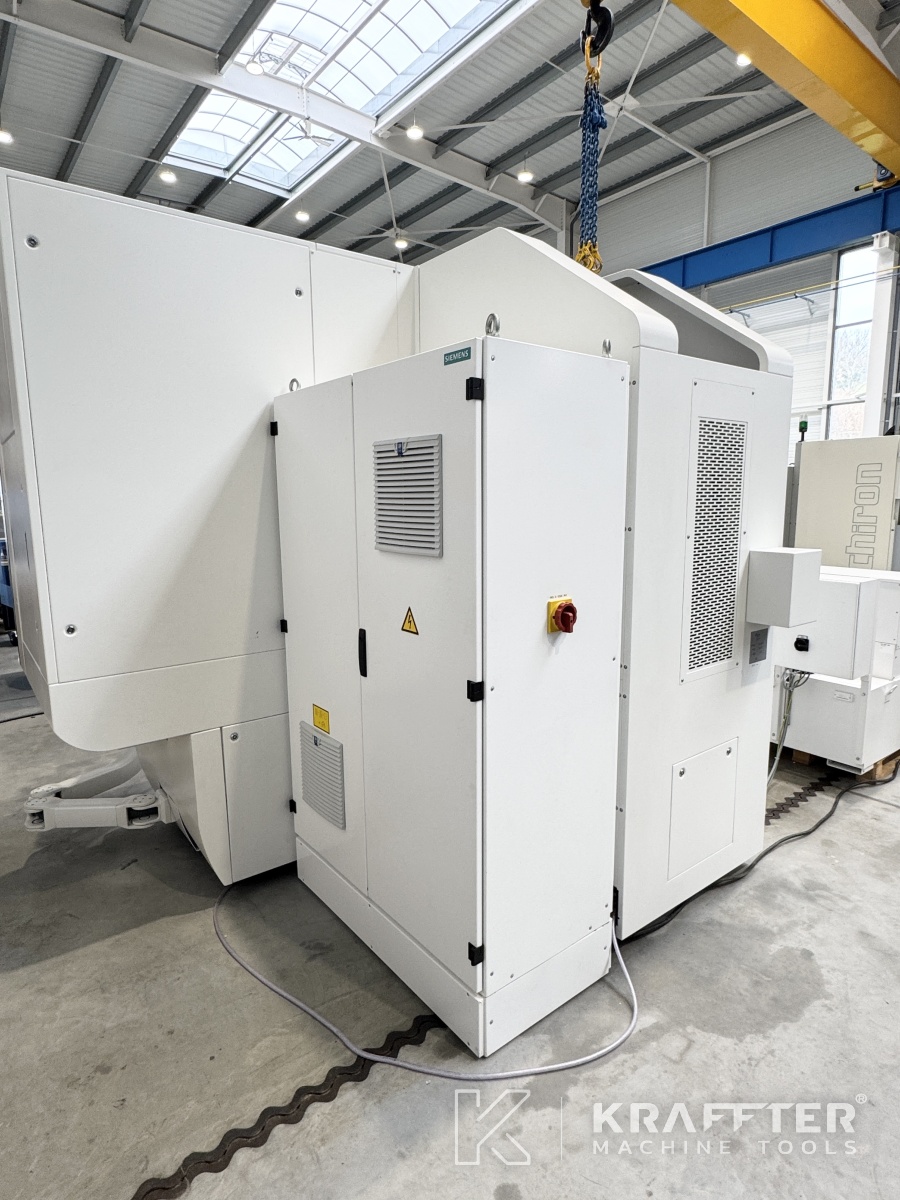

Type of machine : CNC surface grinder
Brand : BLOHM
N° de stock: 90133
Model : Planomat 612 HP
Year : 2015
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

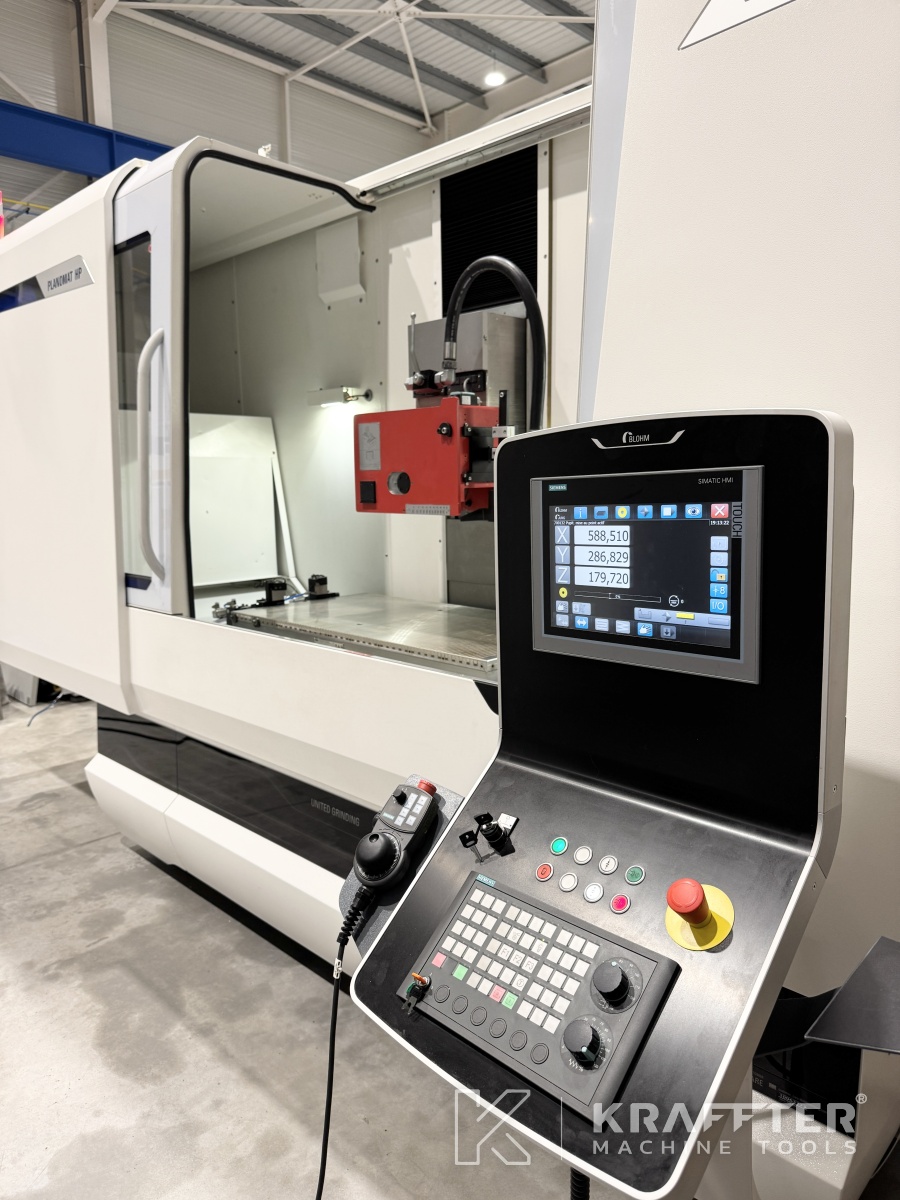

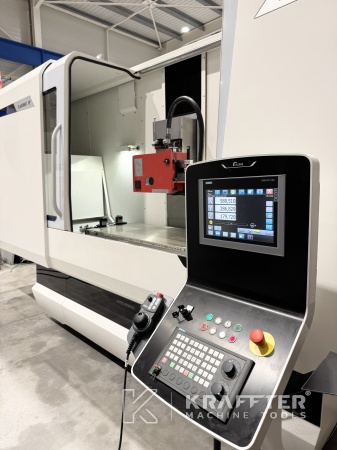

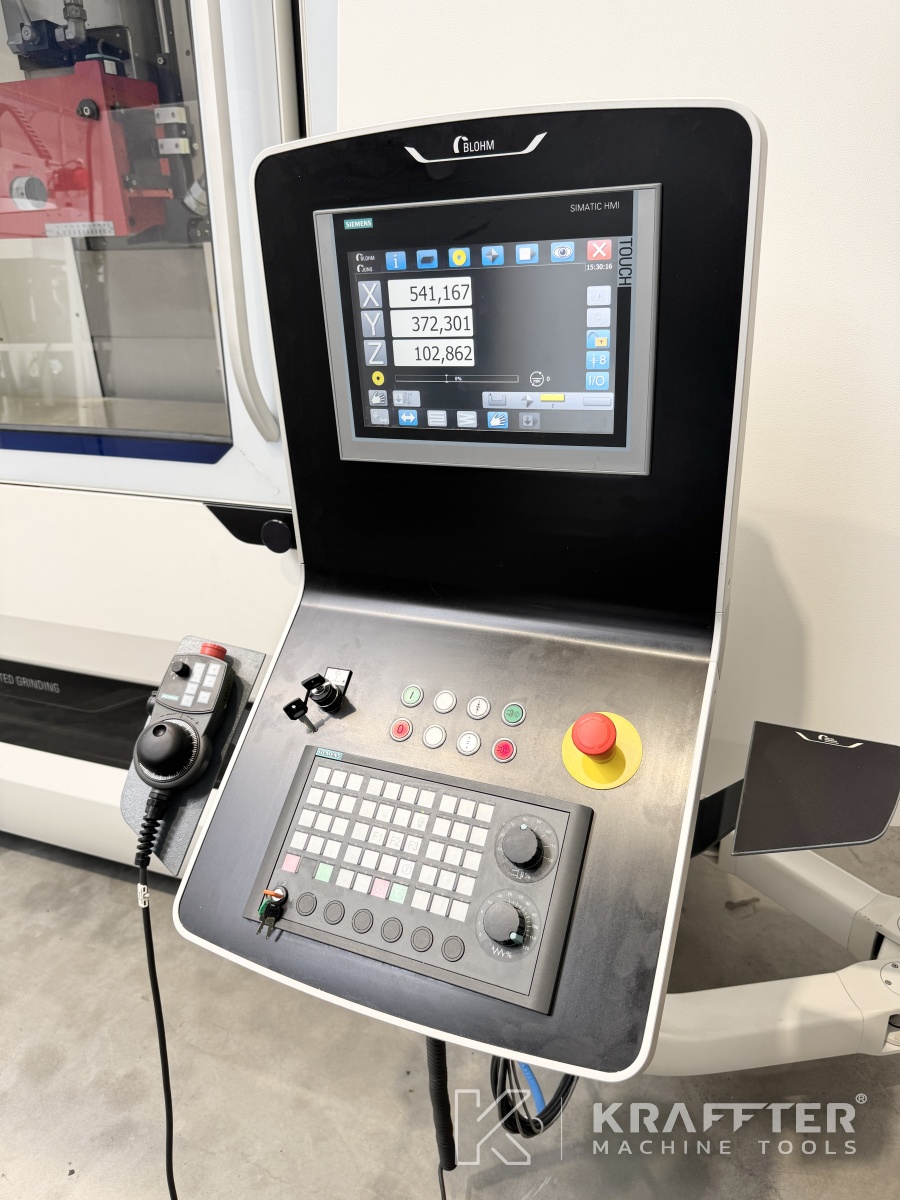

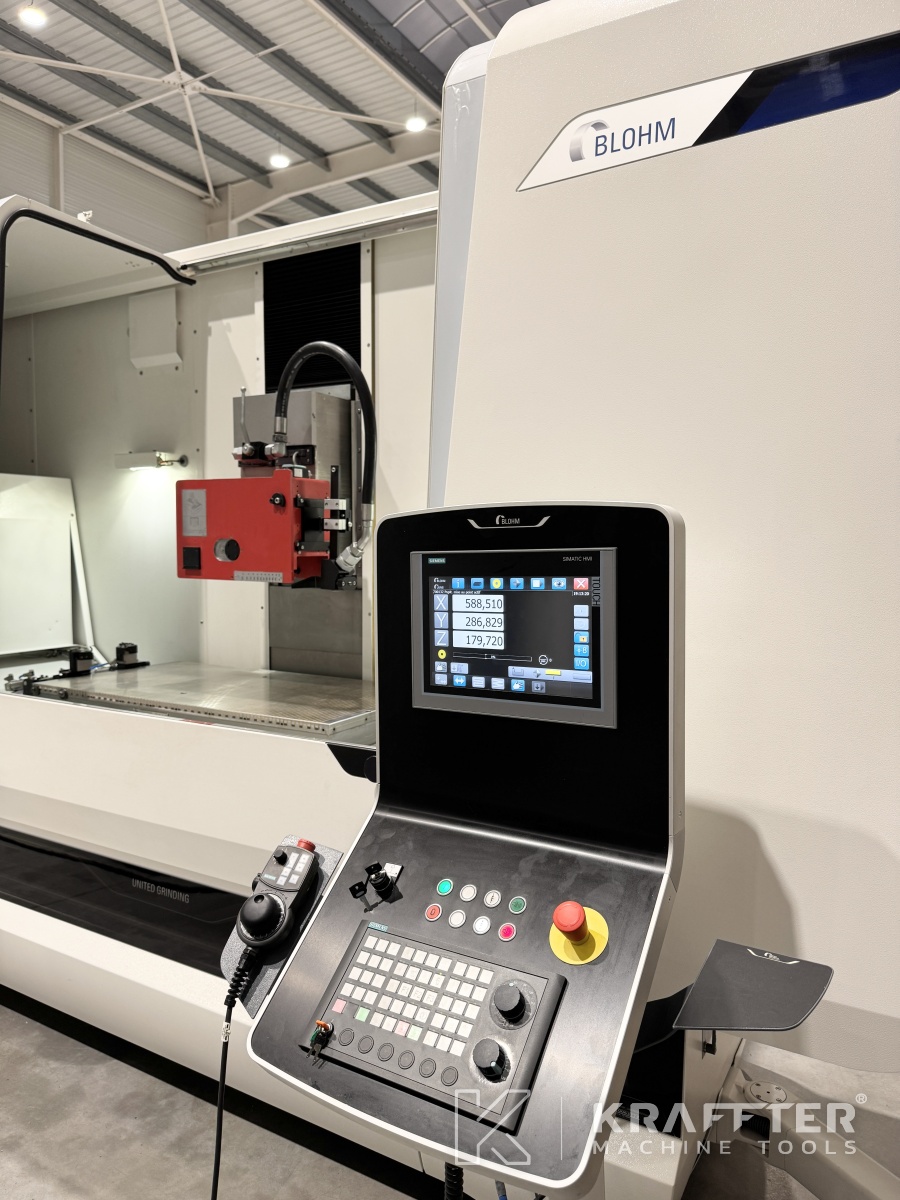

CNC control
SIEMENS 840D SL
Maximum grinding lenght x width
1200 x 600 [mm]
Stroke X axis (table movement)
1300 [mm]
Min. Stroke speed X axis
30 [mm/min]
Max. Stroke speed X axis
40000 [mm/min]
Resolution X axis
0.001 [mm]
Stroke Y axis (vertical movement)
550 [mm]
Min. Stroke speed Y axis
4 [mm/min]
Max. Stroke speed Y axis
6000 [mm/min]
Resolution Y axis
0.001 [mm]
Z axis travel (transverse movement)
560 [mm]
Min. Stroke speed Z axis
4 [mm/min]
Max. Stroke speed Z axis
6000 [mm/min]
Resolution Z axis
0.001 [mm]
Min. distance spindle nose / table
150 [mm]
Max. distance spindle nose / table
700 [mm]

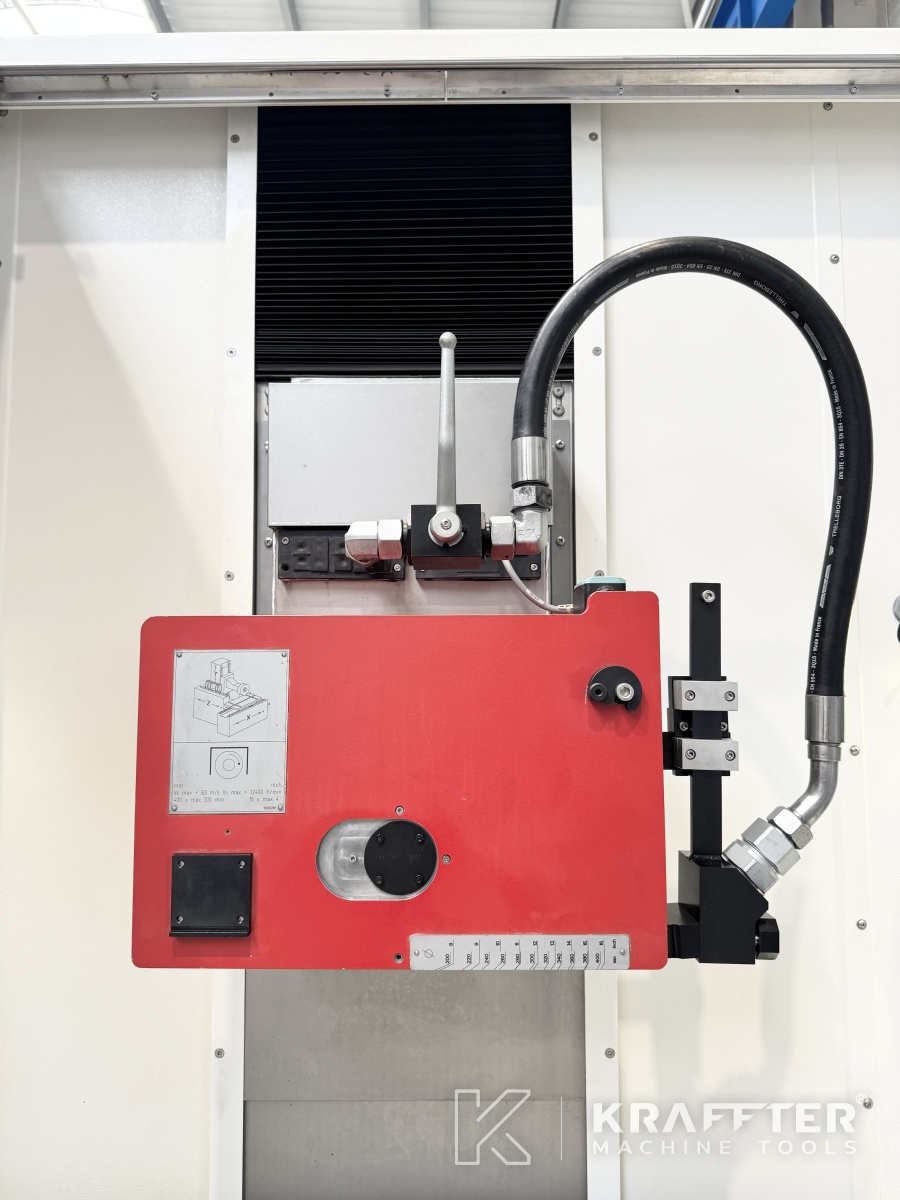

Grinding spindle motor power
15 [kW]
Grinding wheel diameter
400 [mm]
Max. grinding wheel width
30 [mm]
Grinding wheel bore
127 [mm]
Supply voltage
400 [V]
Machine dimensions
4740 x 3510 x 2800 [mm]
Weight
8000 [Kg]
Additional information
