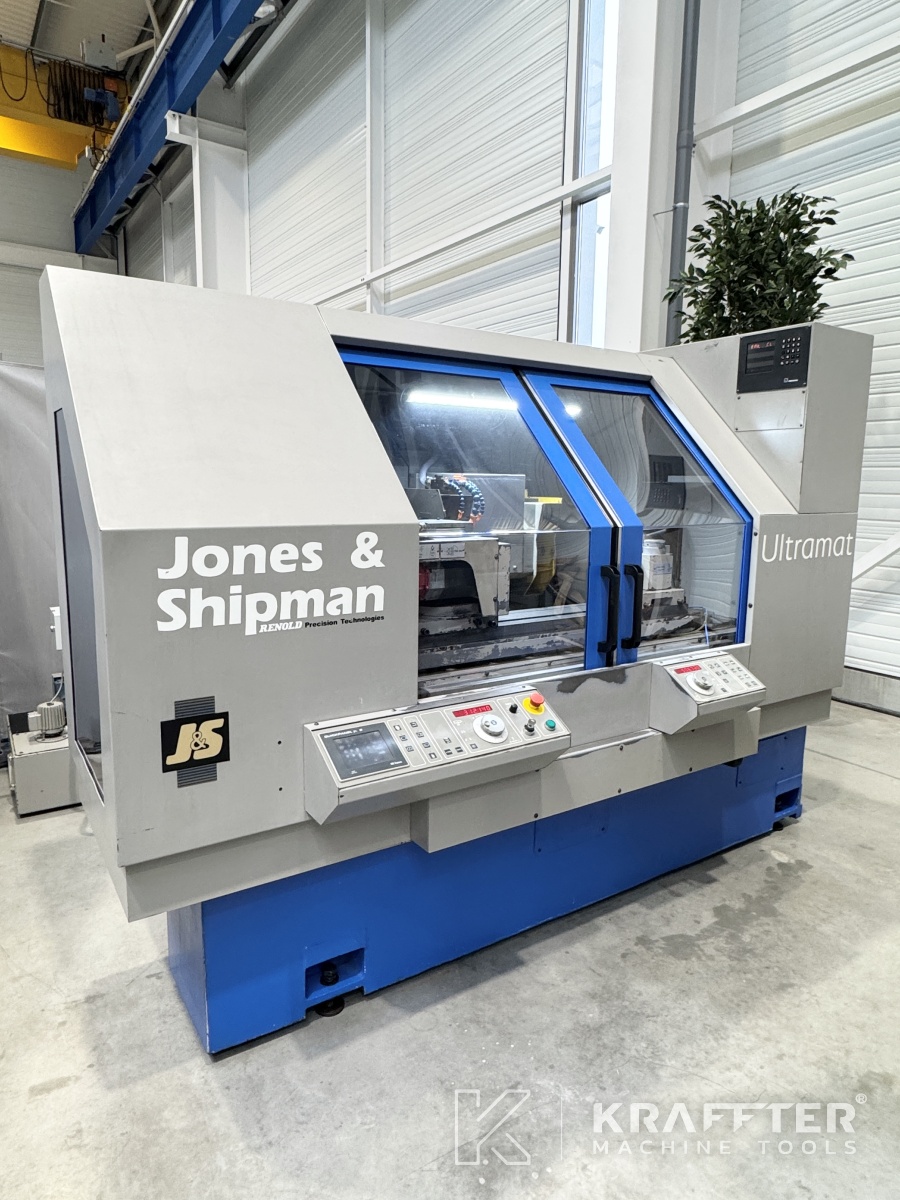

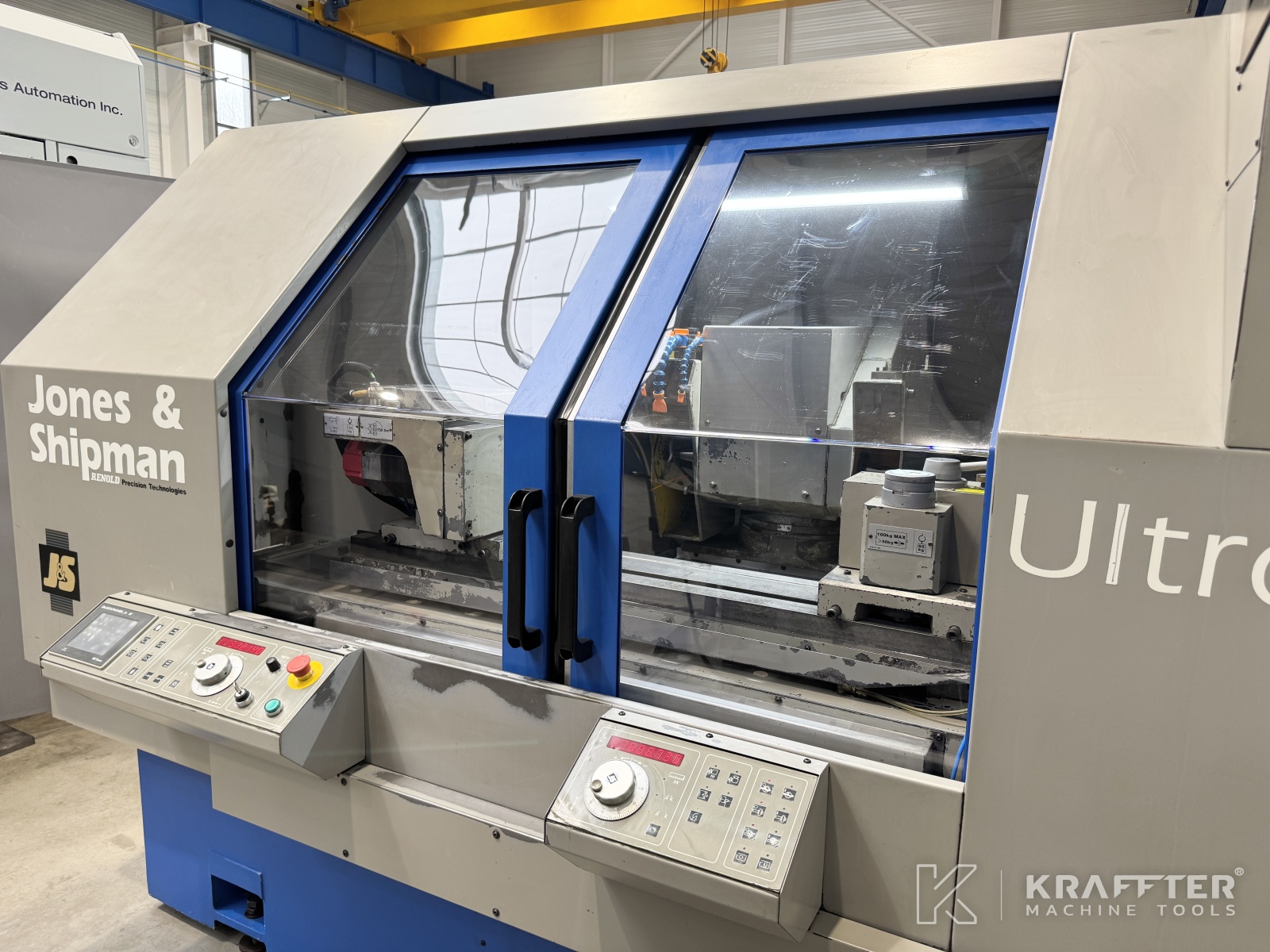

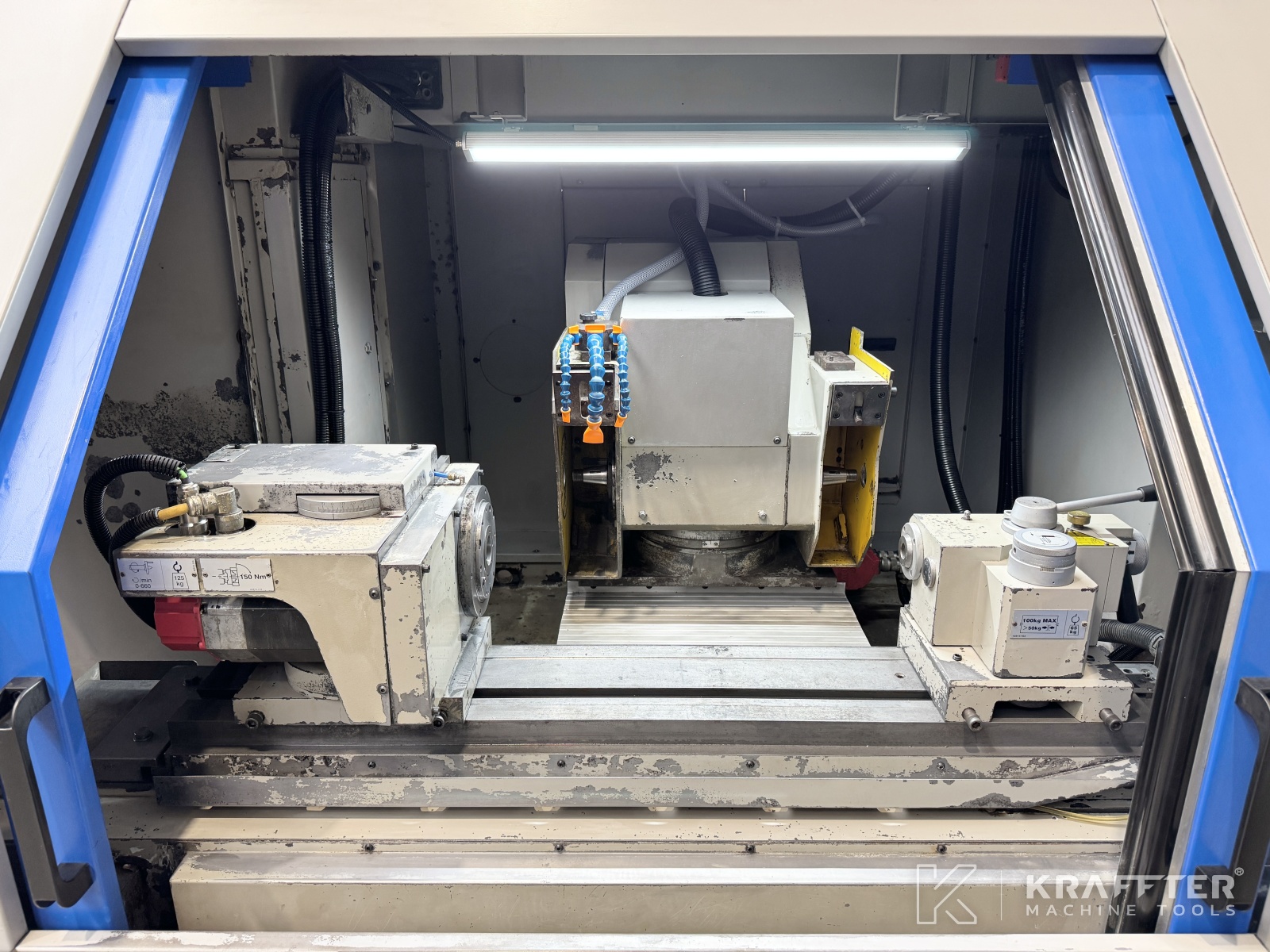

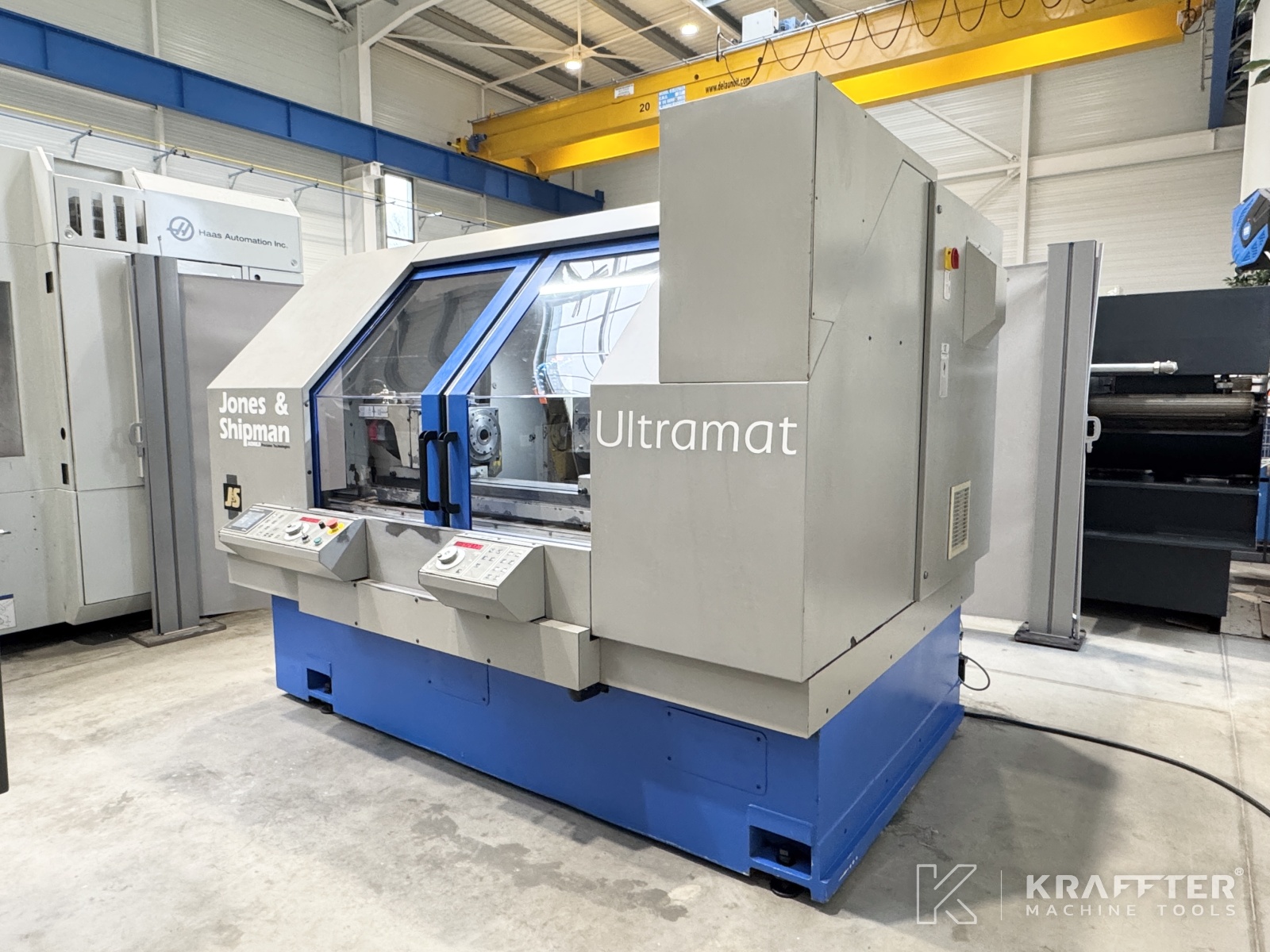

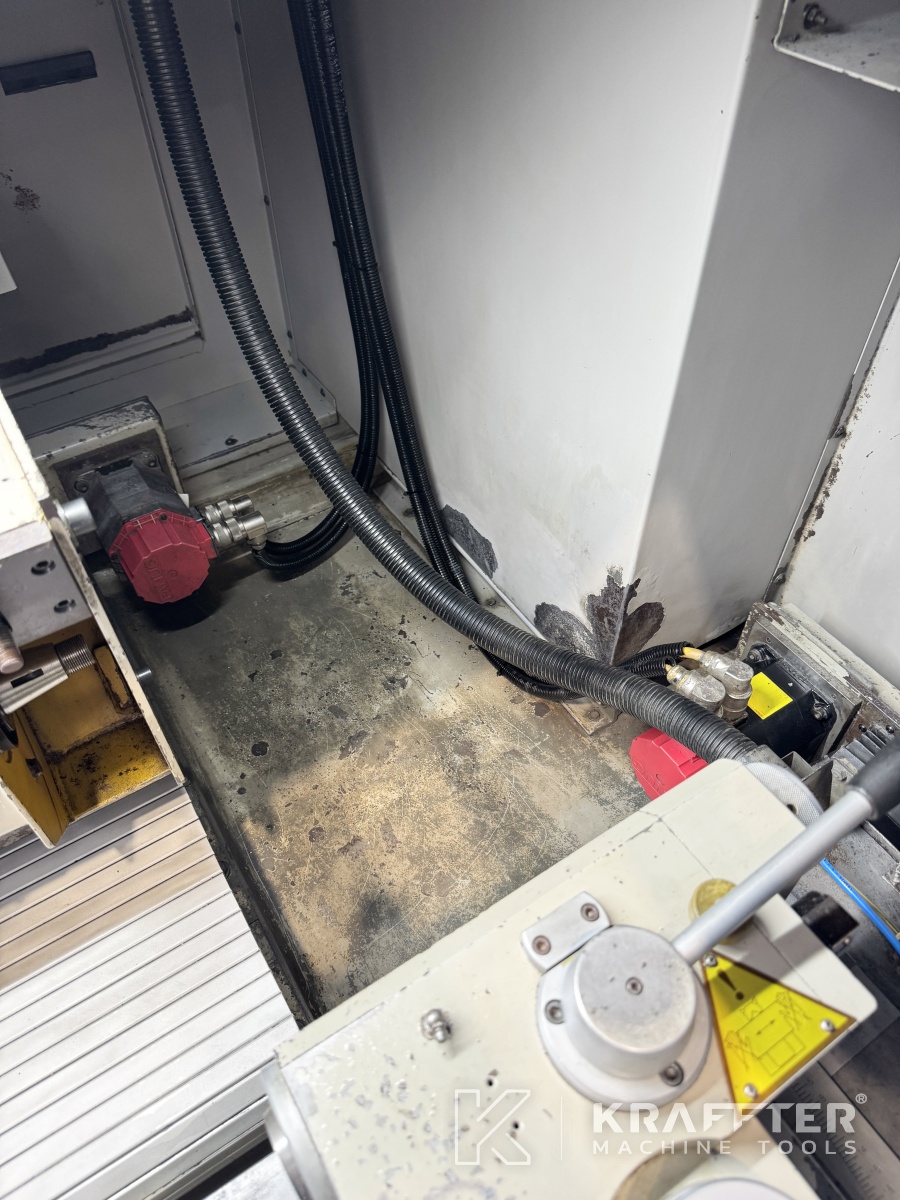

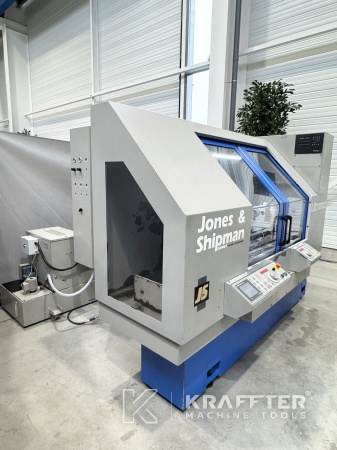

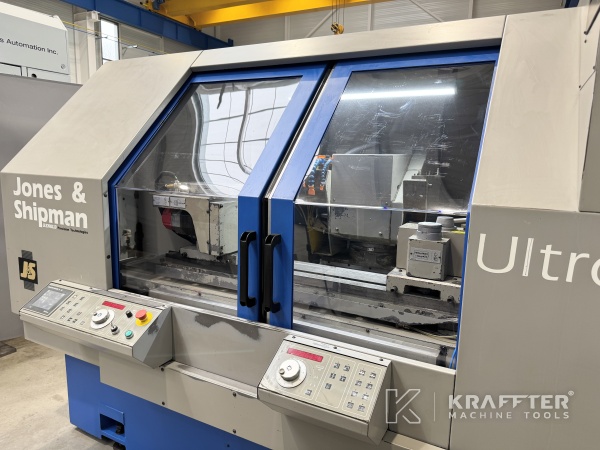

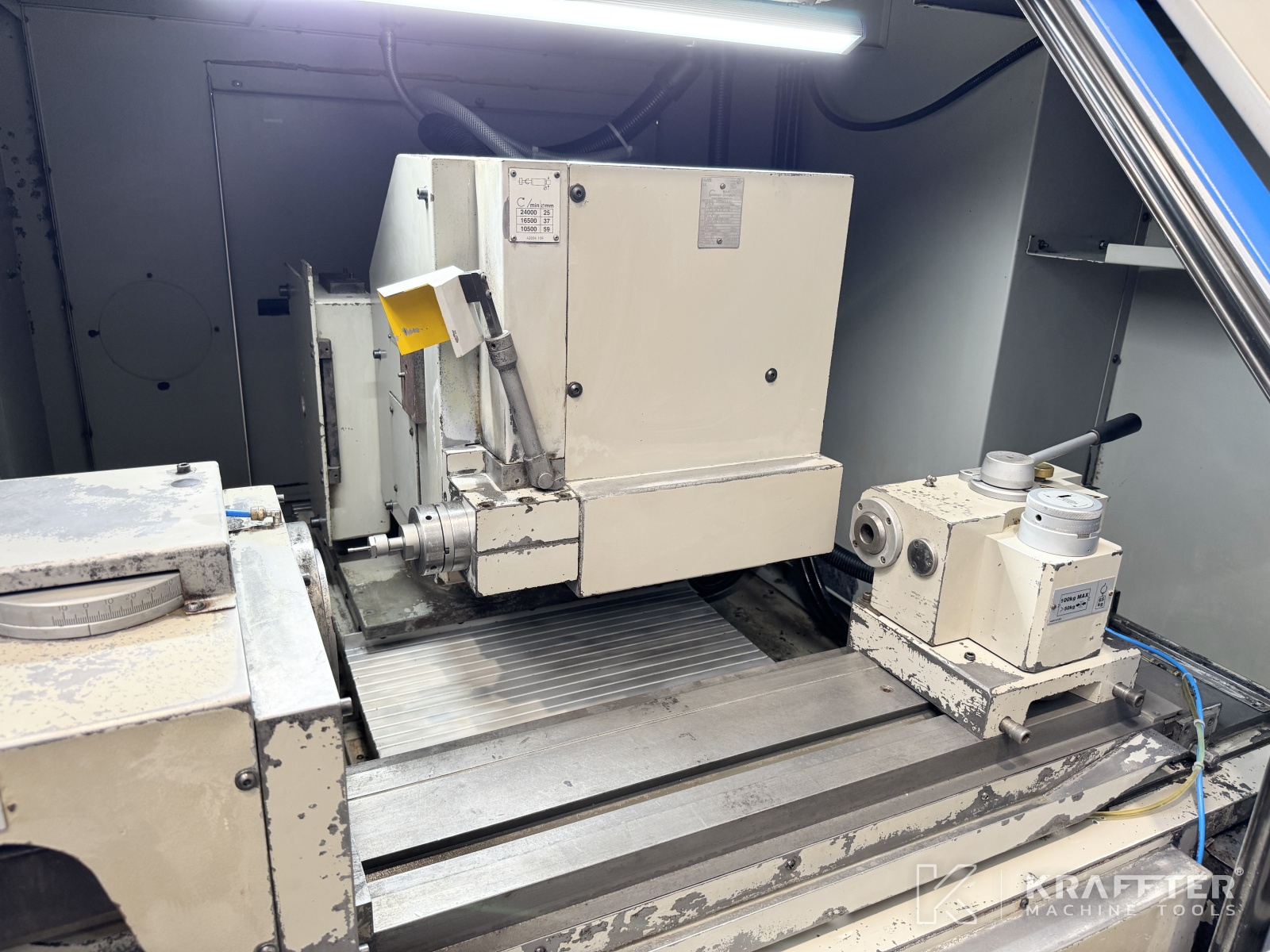

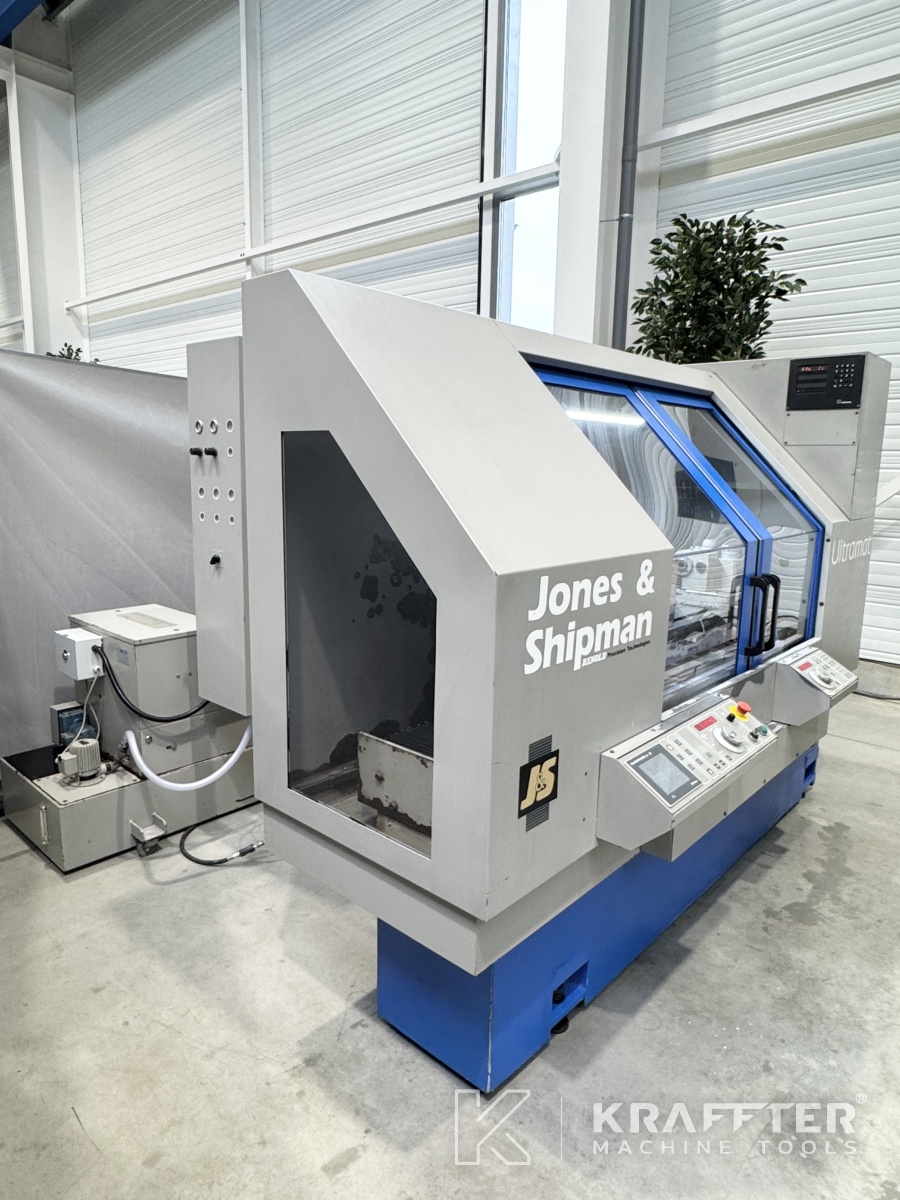

Type of machine : CNC cylindrical grinder
Brand : JONES & SHIPMAN
N° de stock: 90084
Model : Ultramat-X
Year : 2001
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

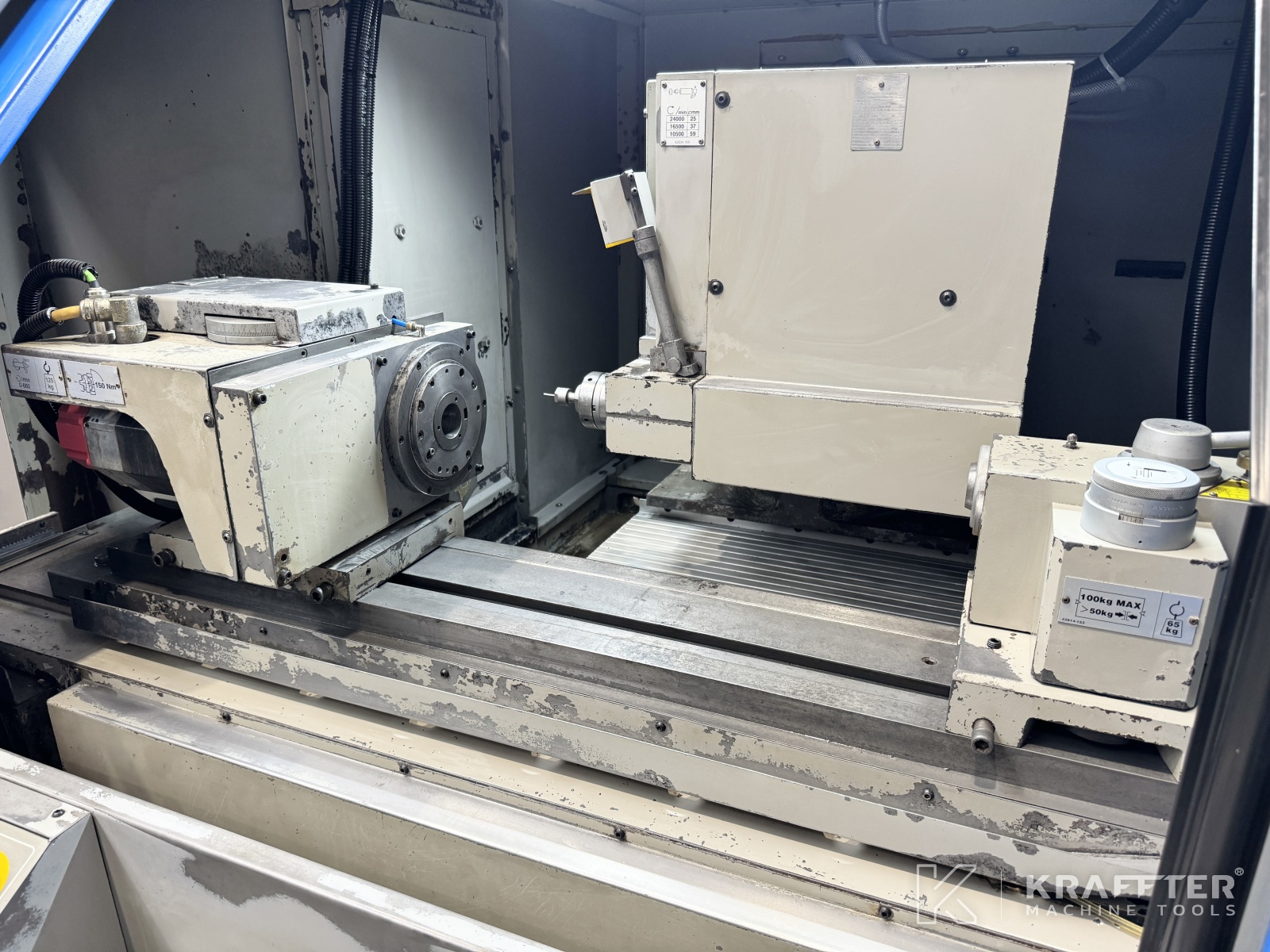

Centre distance
650 [mm]
Height of centers
160
Max. grinding diameter
300 [mm]
Max. grinding lenght
650 [mm]

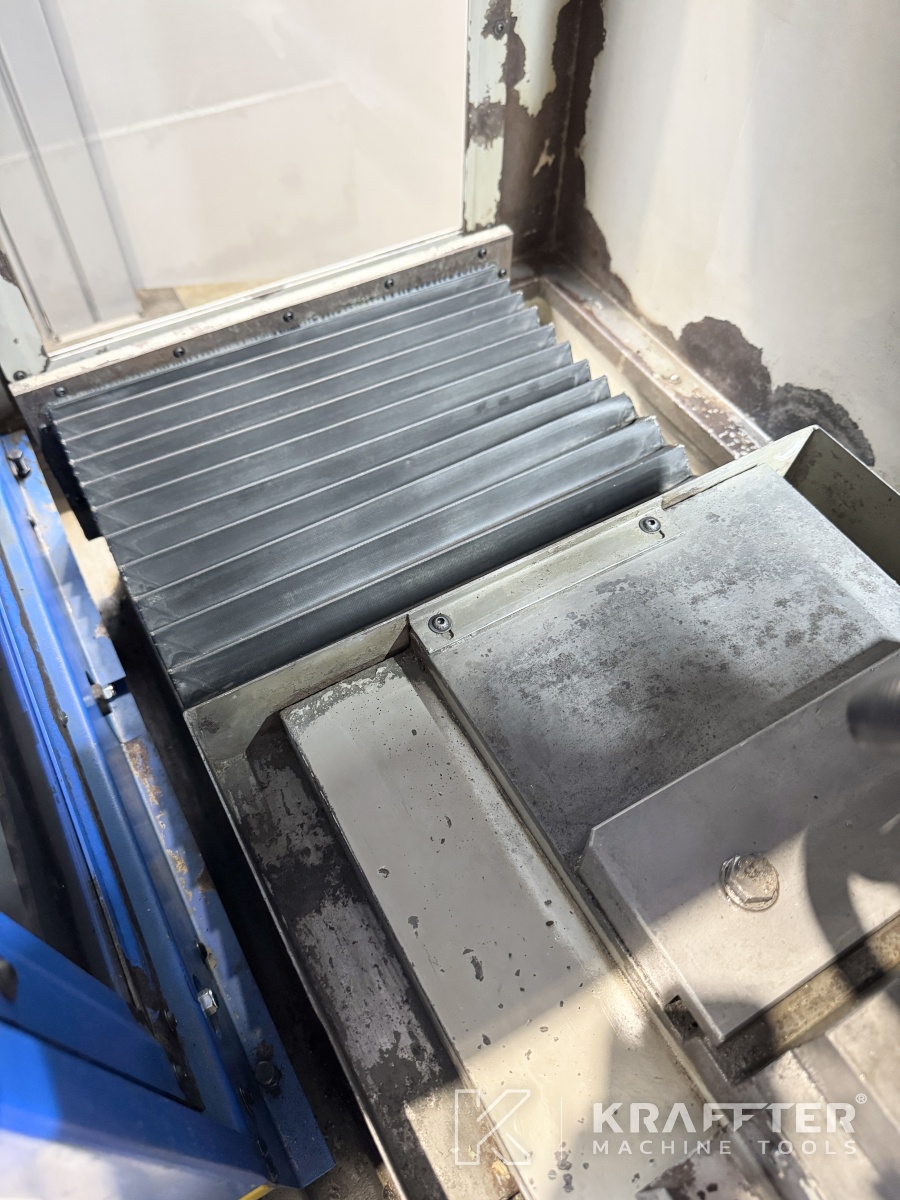

Stroke X axis
260 [mm]
Max. Stroke speed X axis
6000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
750 [mm]
Max. Stroke speed Z axis
12000 [mm/min]
Resolution Z axis
0.0001 [mm]
Max. grinding wheel speed
2672 [rpm]
Grinding spindle motor power
4 [kW]
B axis swivelling stroke
-190 / +45 [°]
B axis indexing precision
0.001 [°]

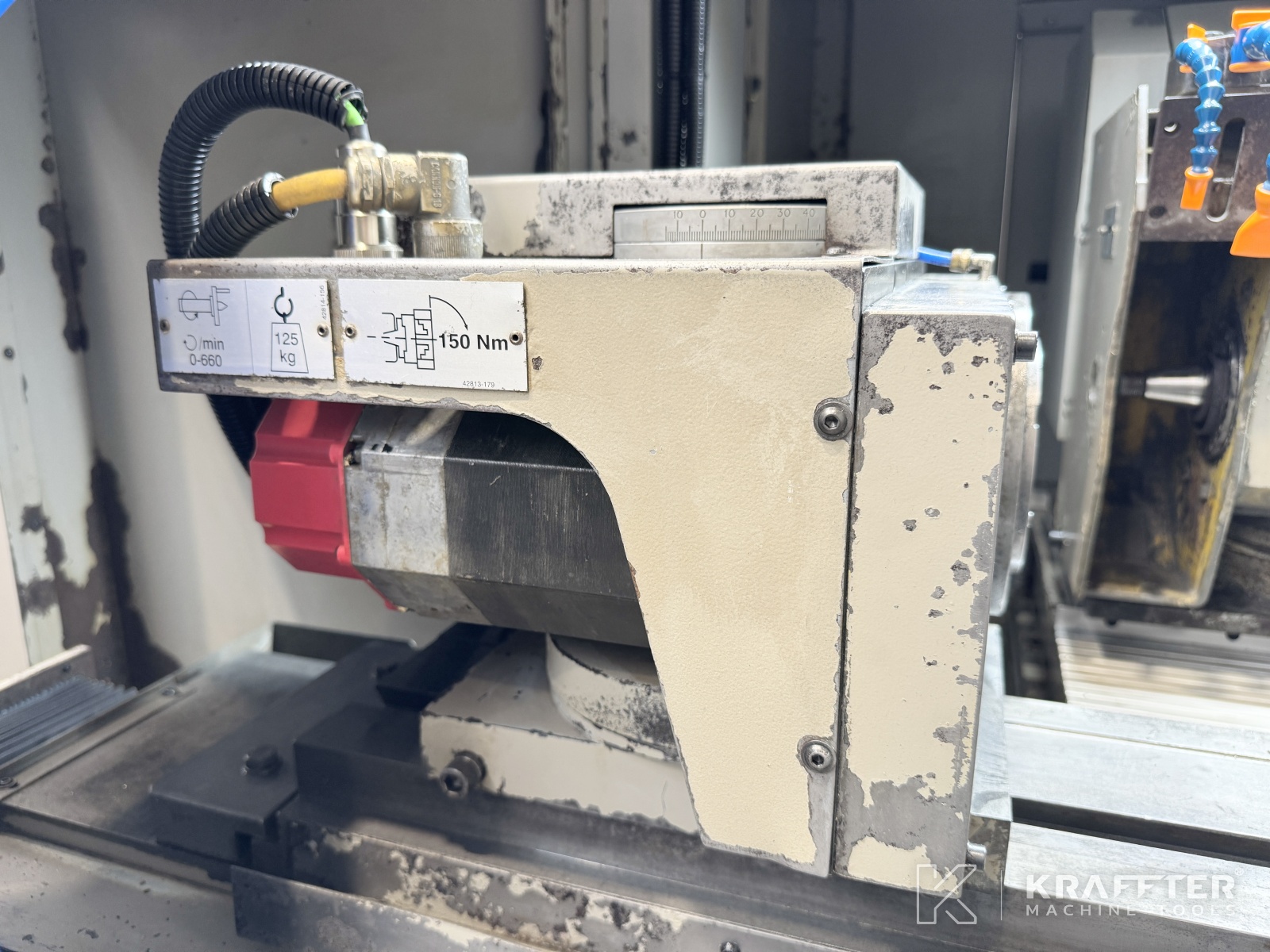

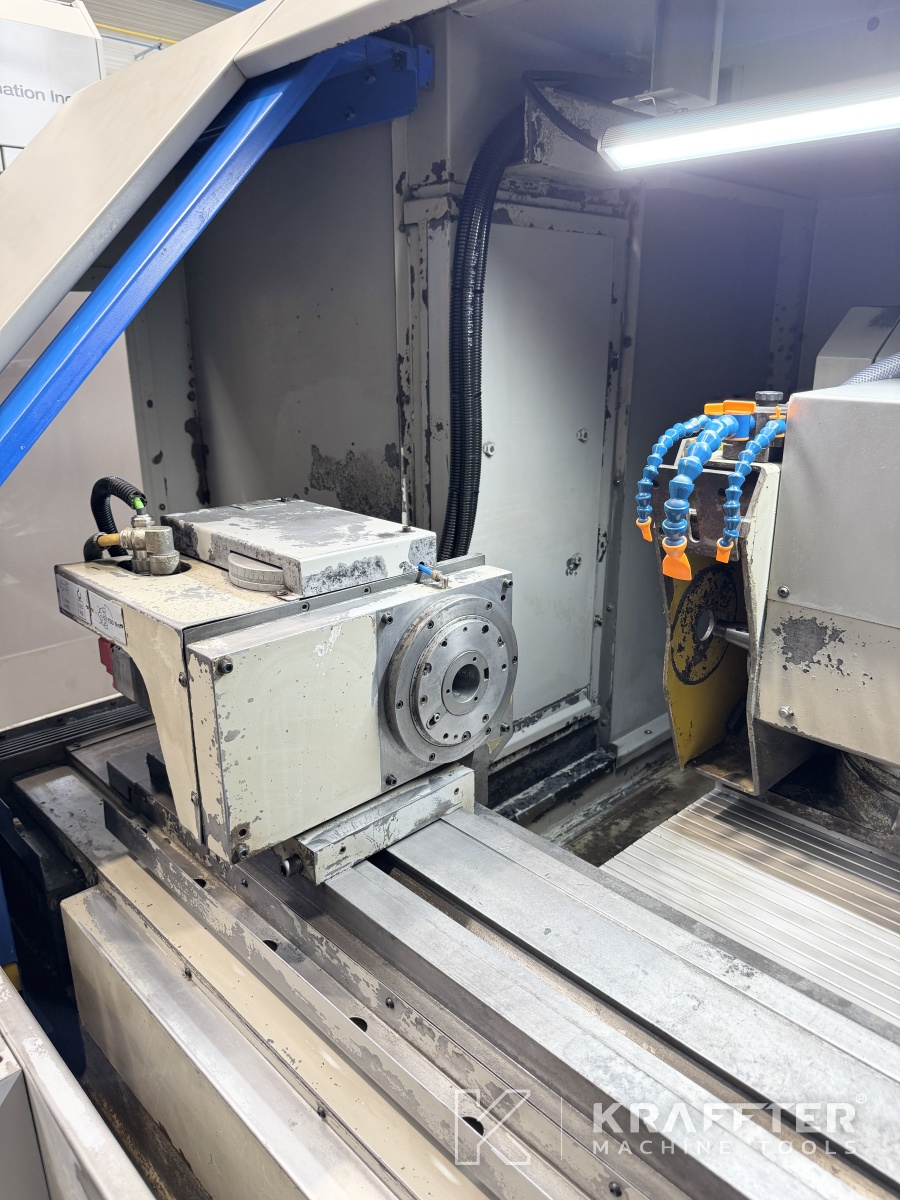

Internal workpiece spindle nose
MT5
Workpiece spindle max. speed
660 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
+90 / -15 [°]

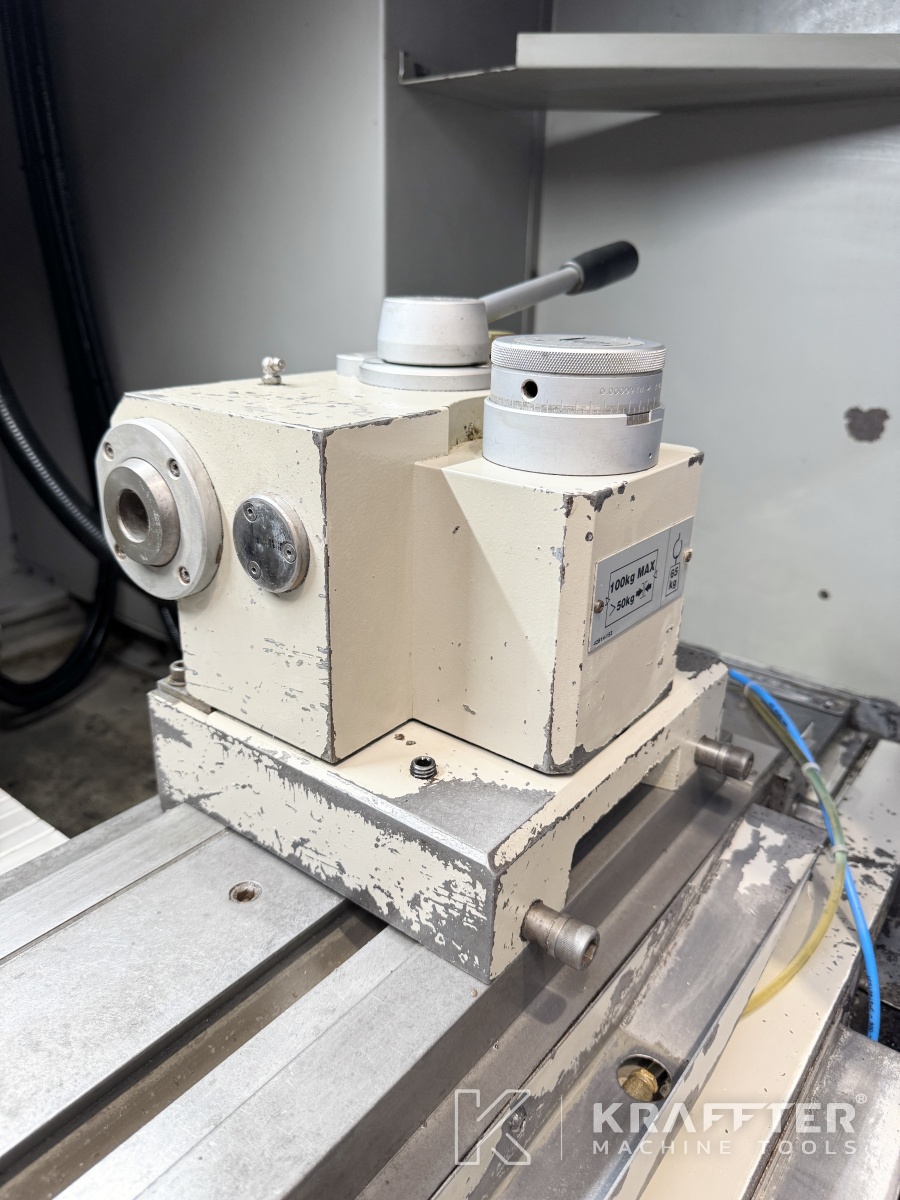

Type of attachment tailstock
MT3
Tailstock quill stroke
30 [mm]

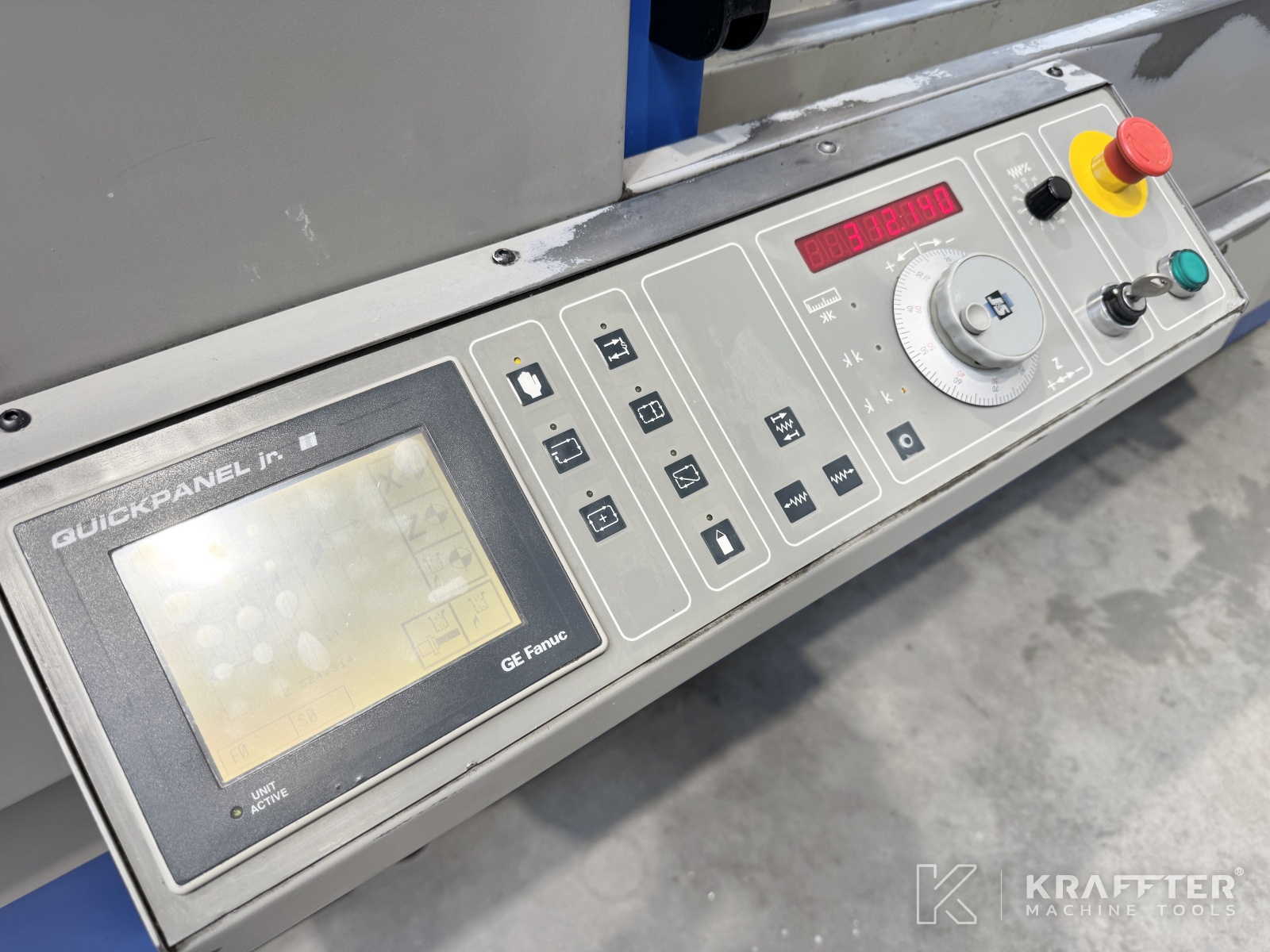

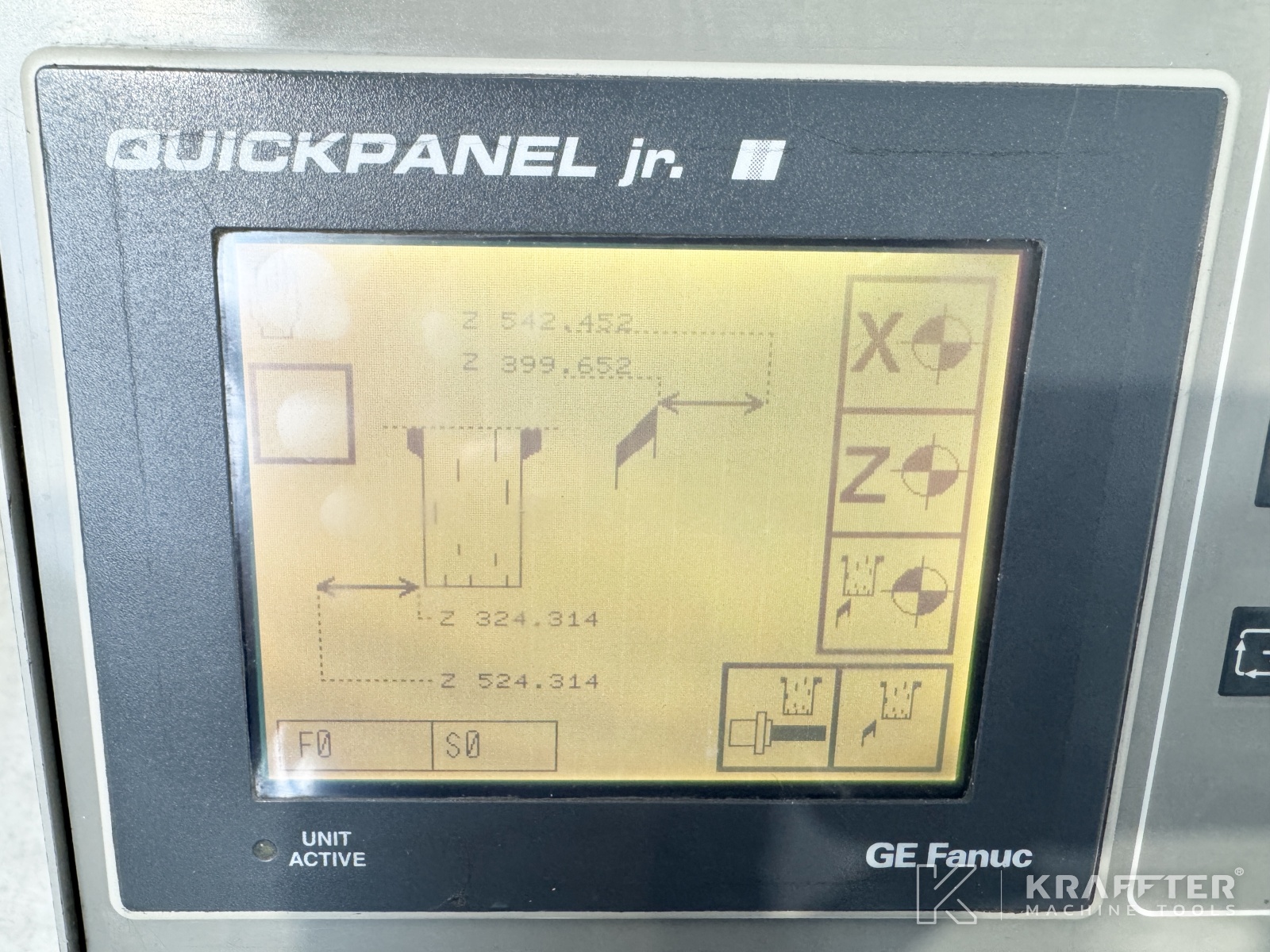

Touch control panel
FANUC QuickPanel G E

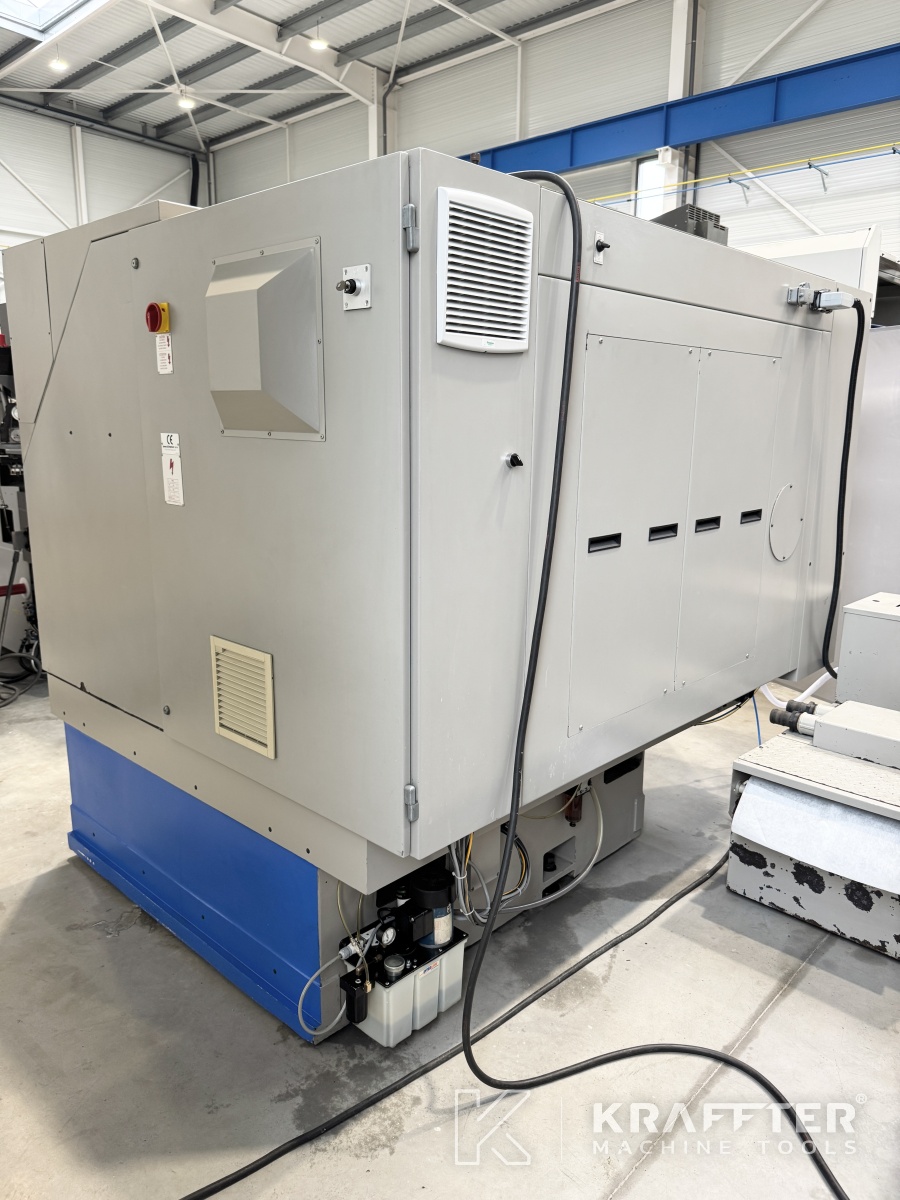

Supply voltage
400 [V]
Weight
5000 [Kg]

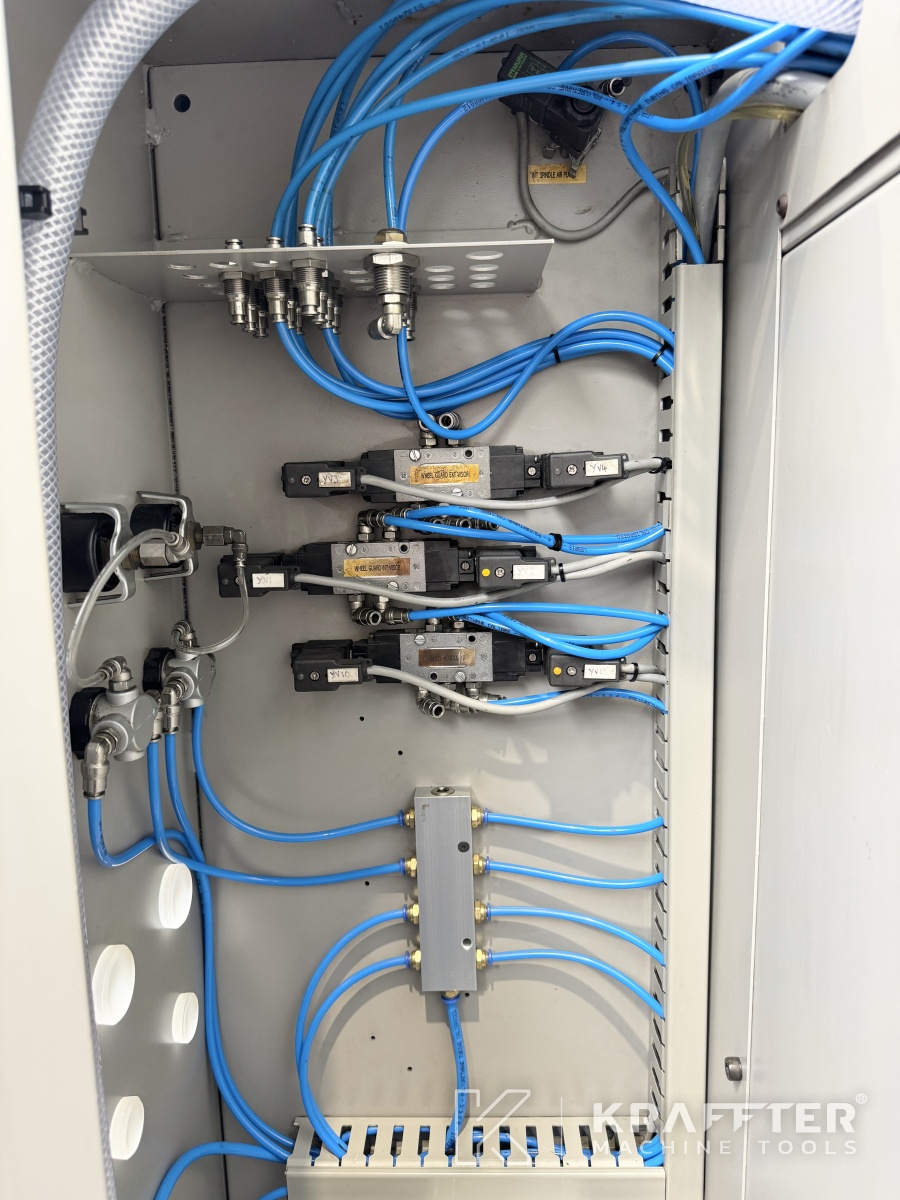

Additional information

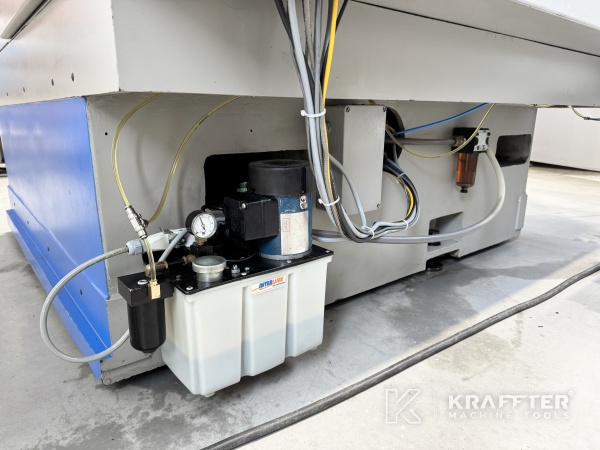

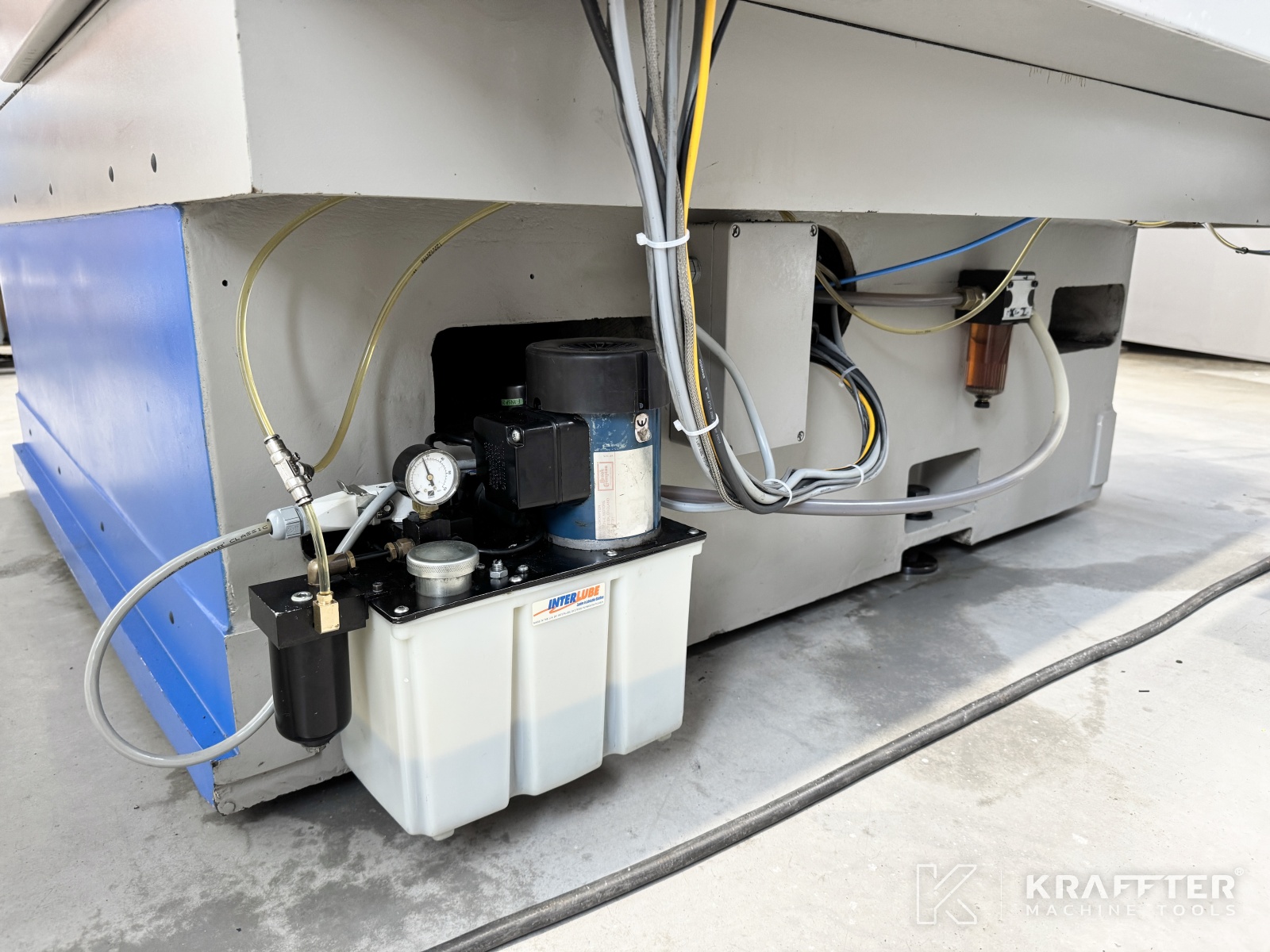

EQUIPMENT INCLUDED:

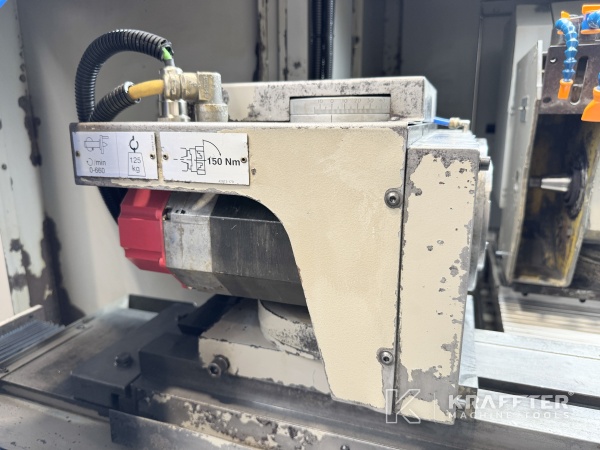

x1 manual indexing B axis

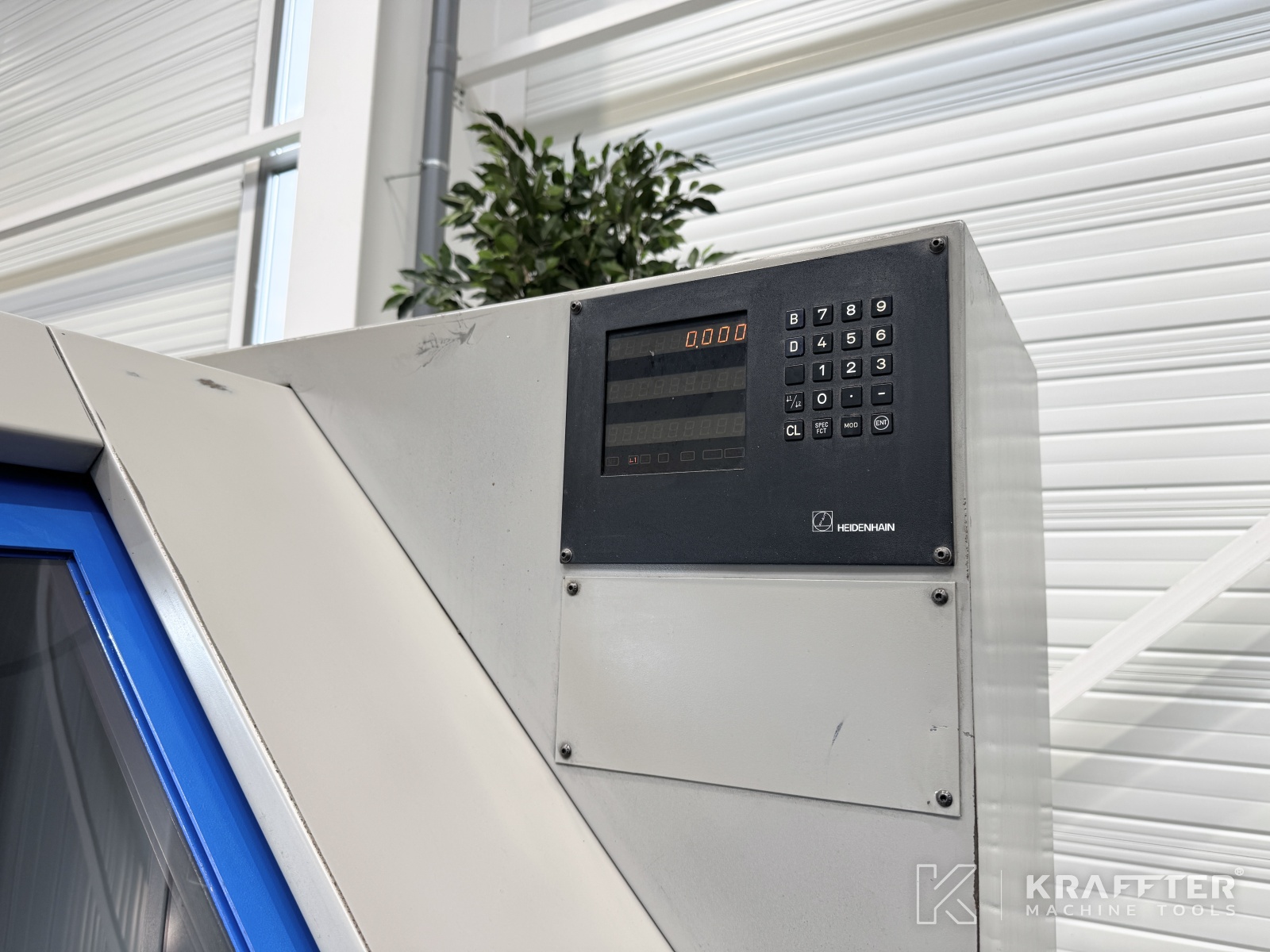

x1 HEIDENHAIN digital read out (B axis indexing resolution 0.001°)
x2 HEIDENHAIN linear glass scales on both X and Z axes
x1 internal grinding spindle

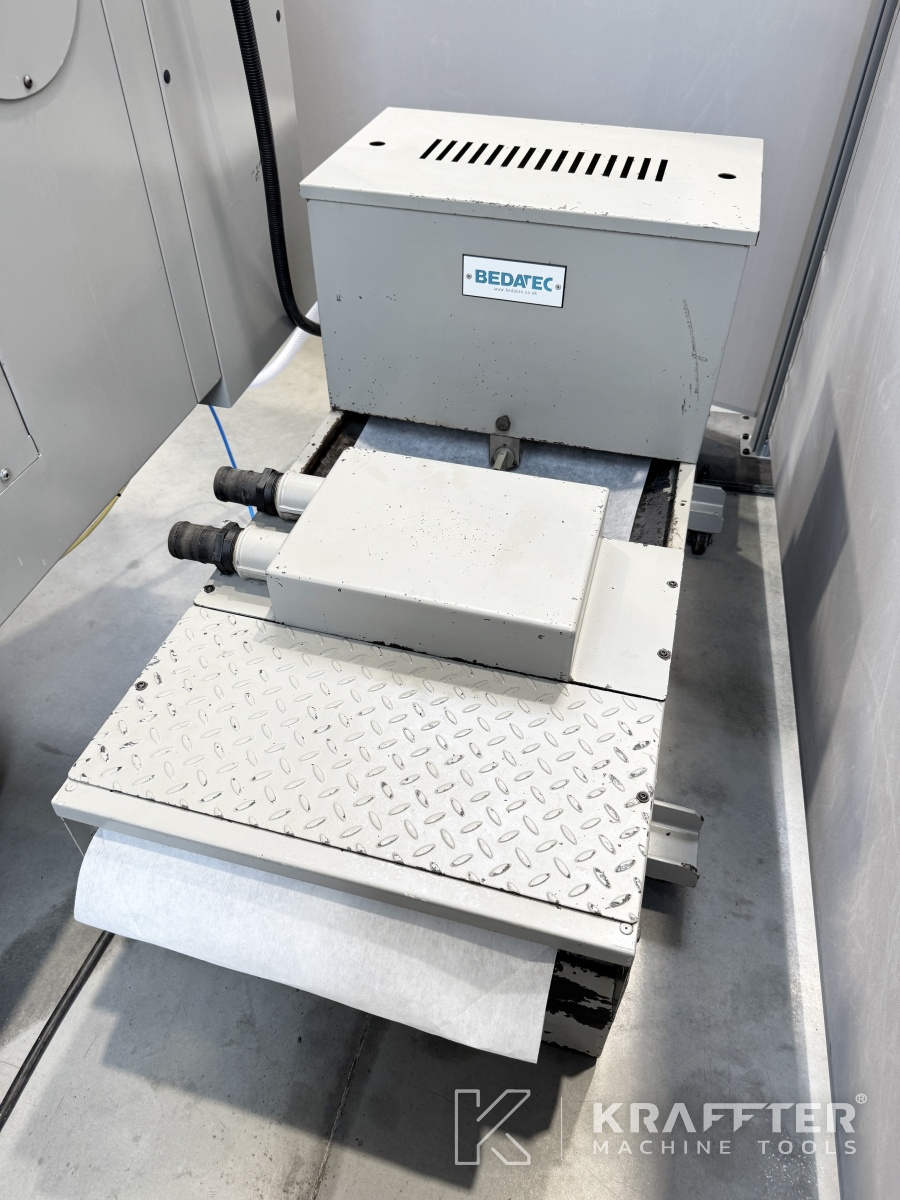

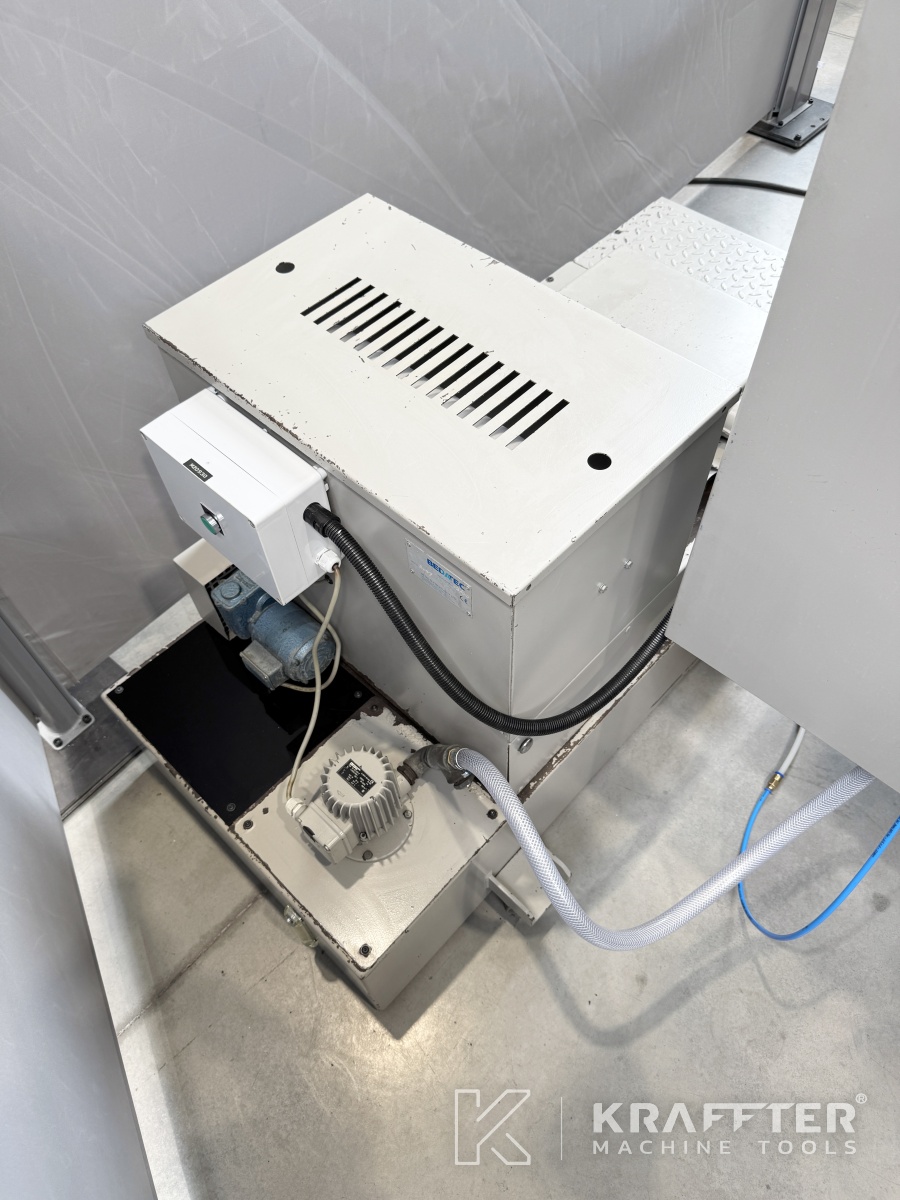

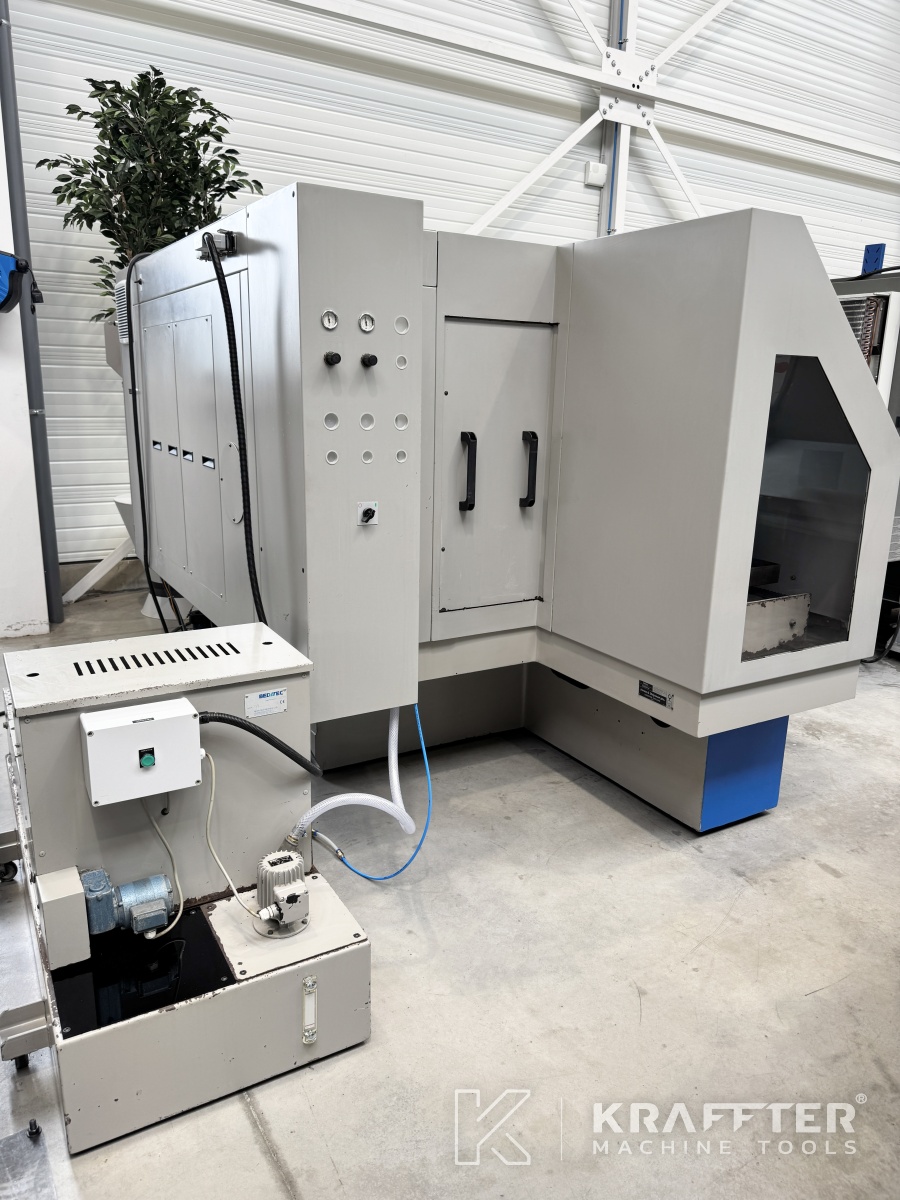

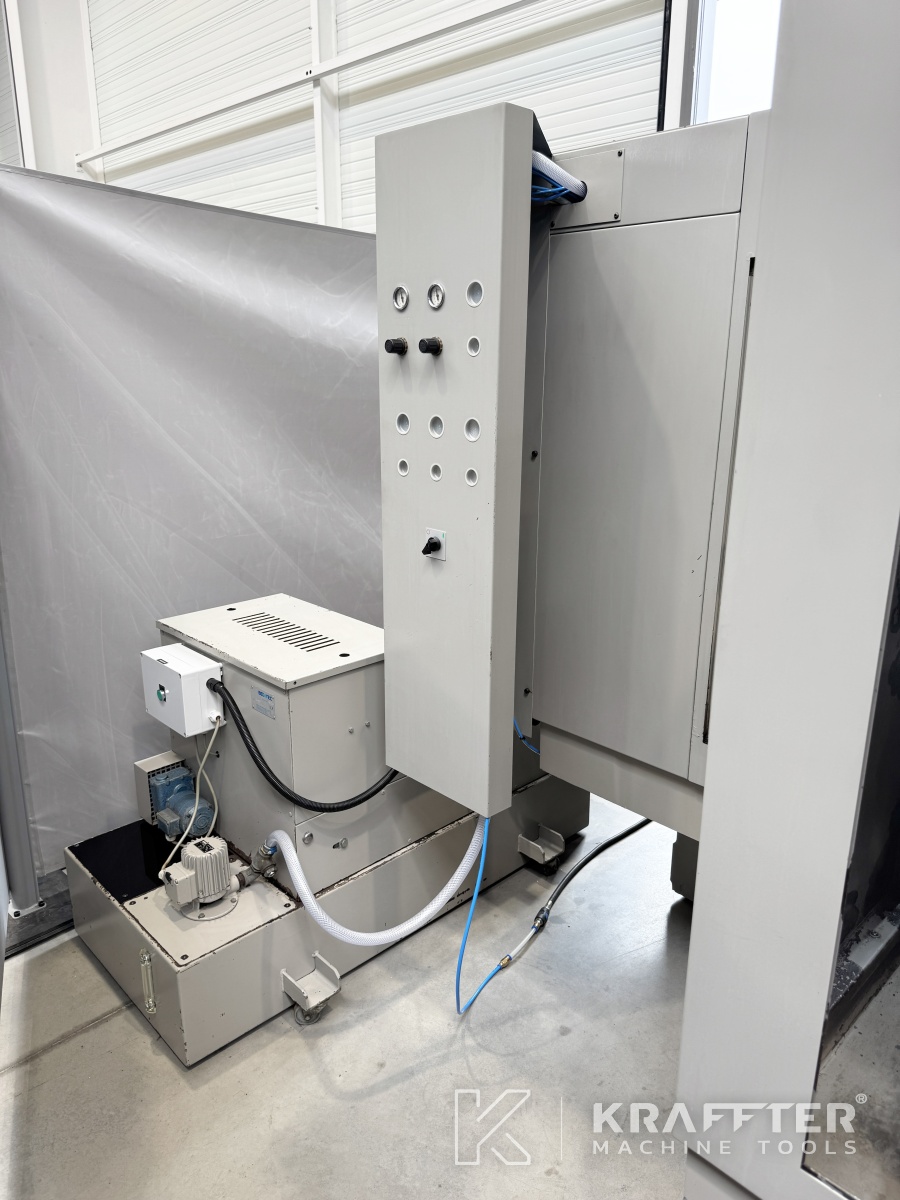

x1 paper filtration + coolant tank

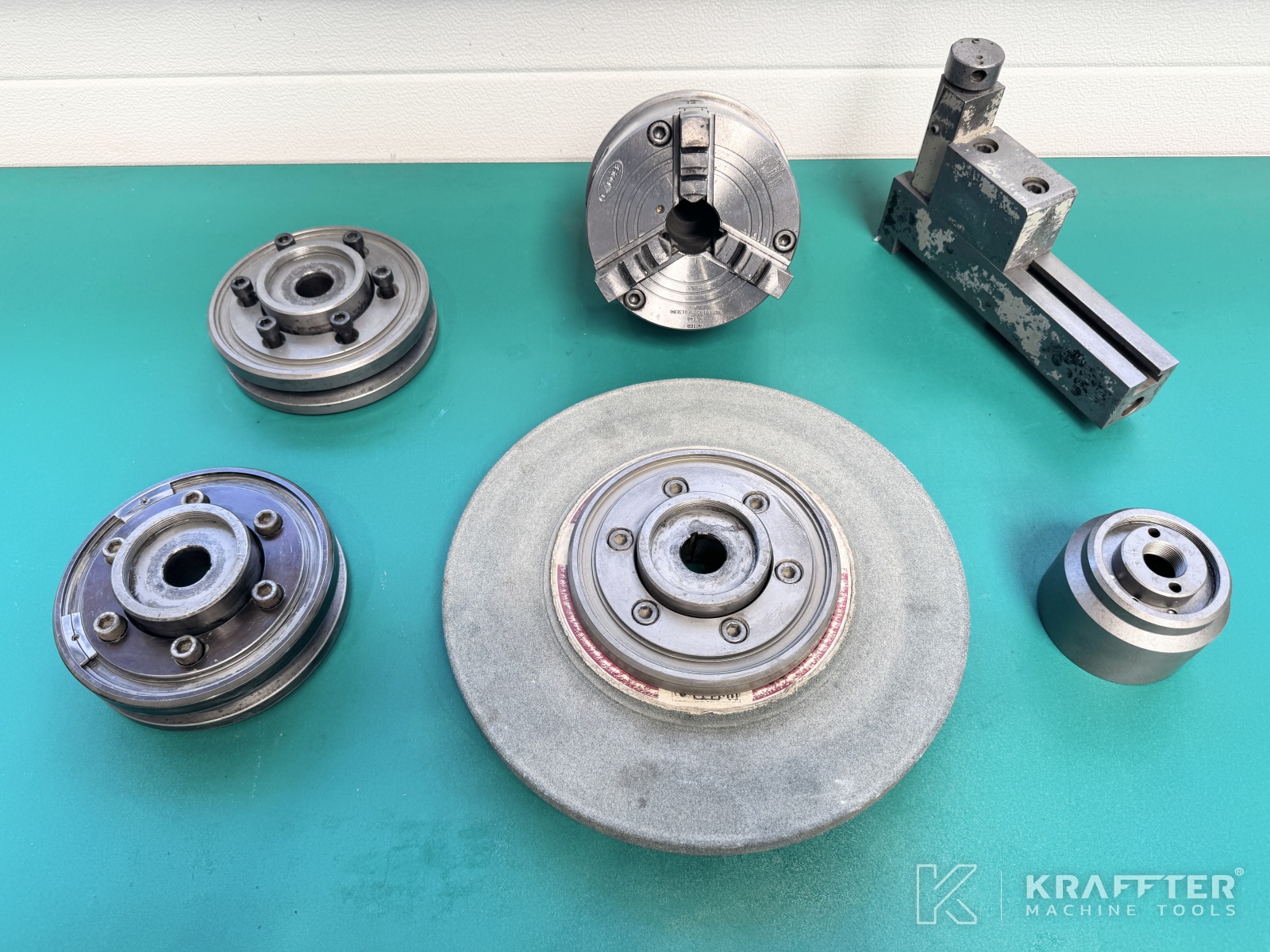

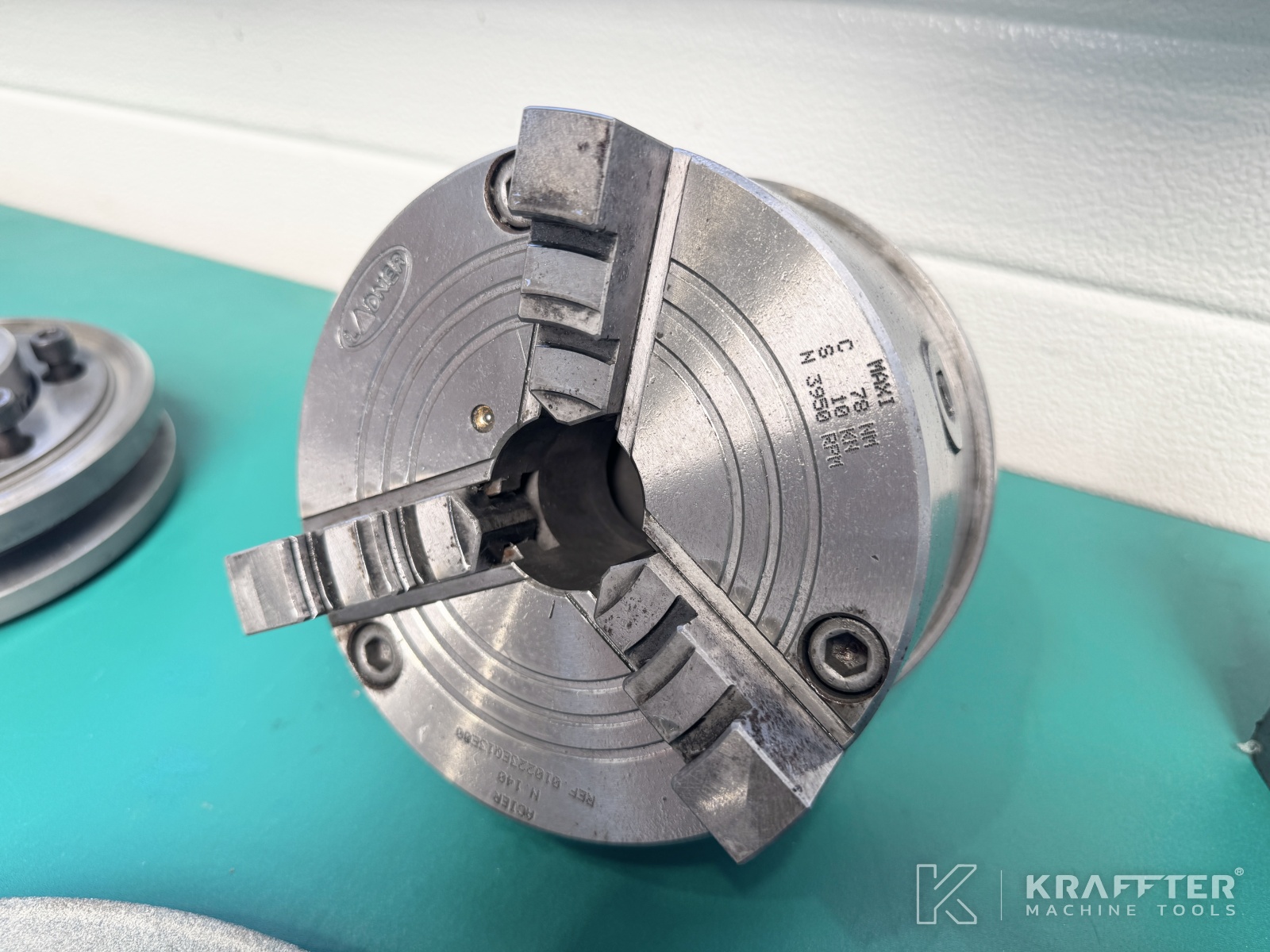

x1 LADNER 3-jaw chuck

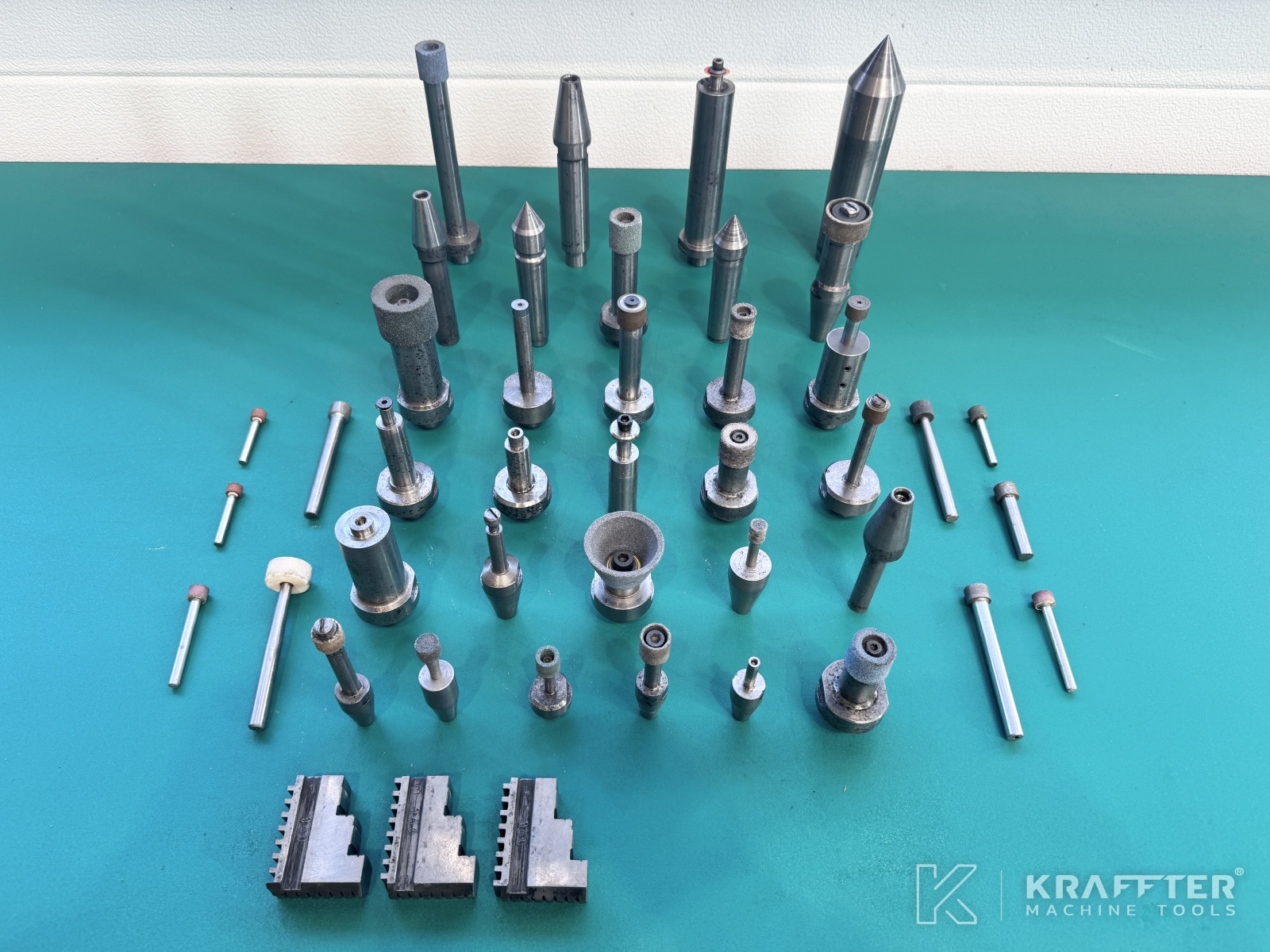

x1 set of external hard jaws
x1 set of internal hard jaws
x4 external grinding wheel flanges
x1 wheel dresser (table mount)

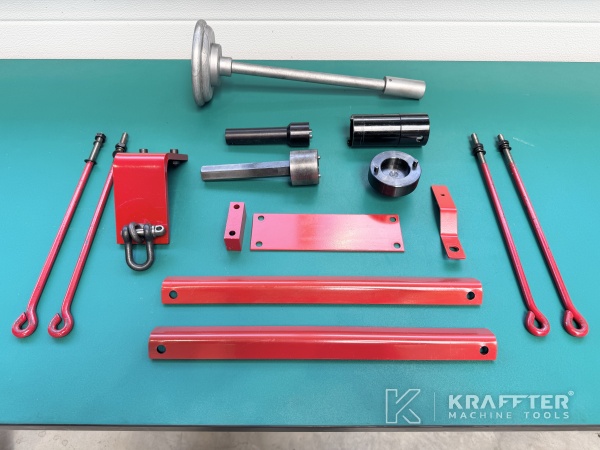

x1 set of brackets for locking the axes before transportation

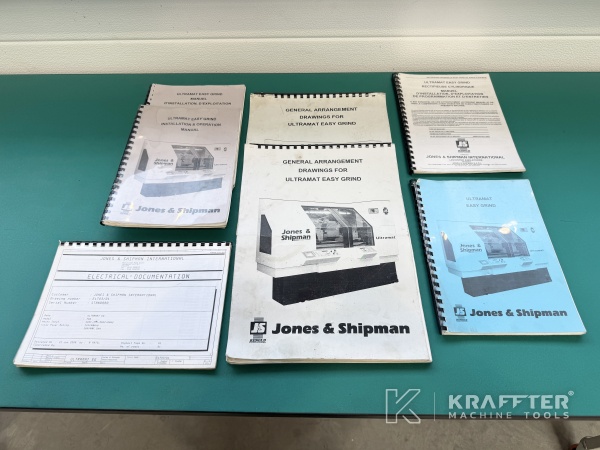

x1 set of operator manuals

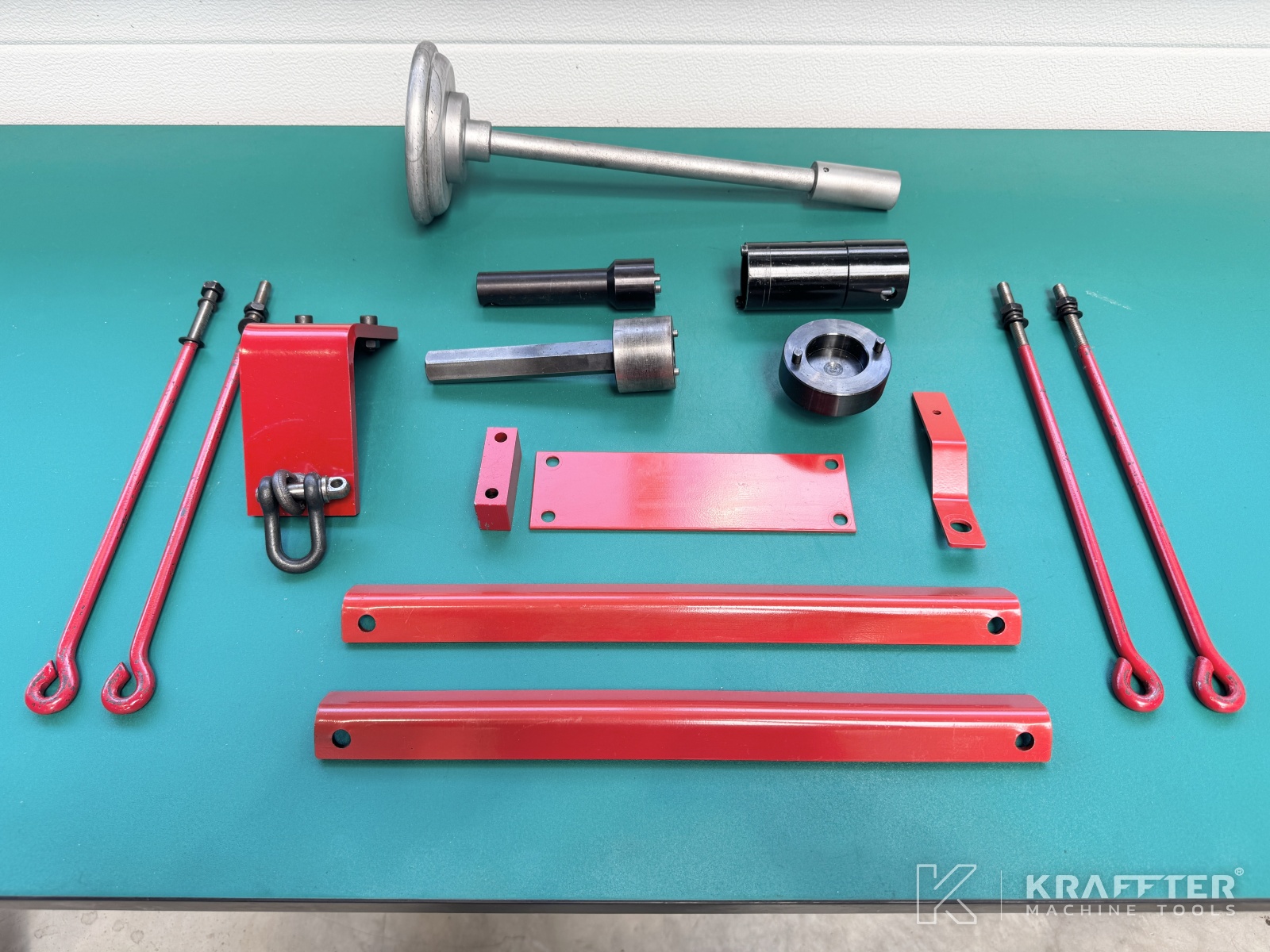

x1 drawbar

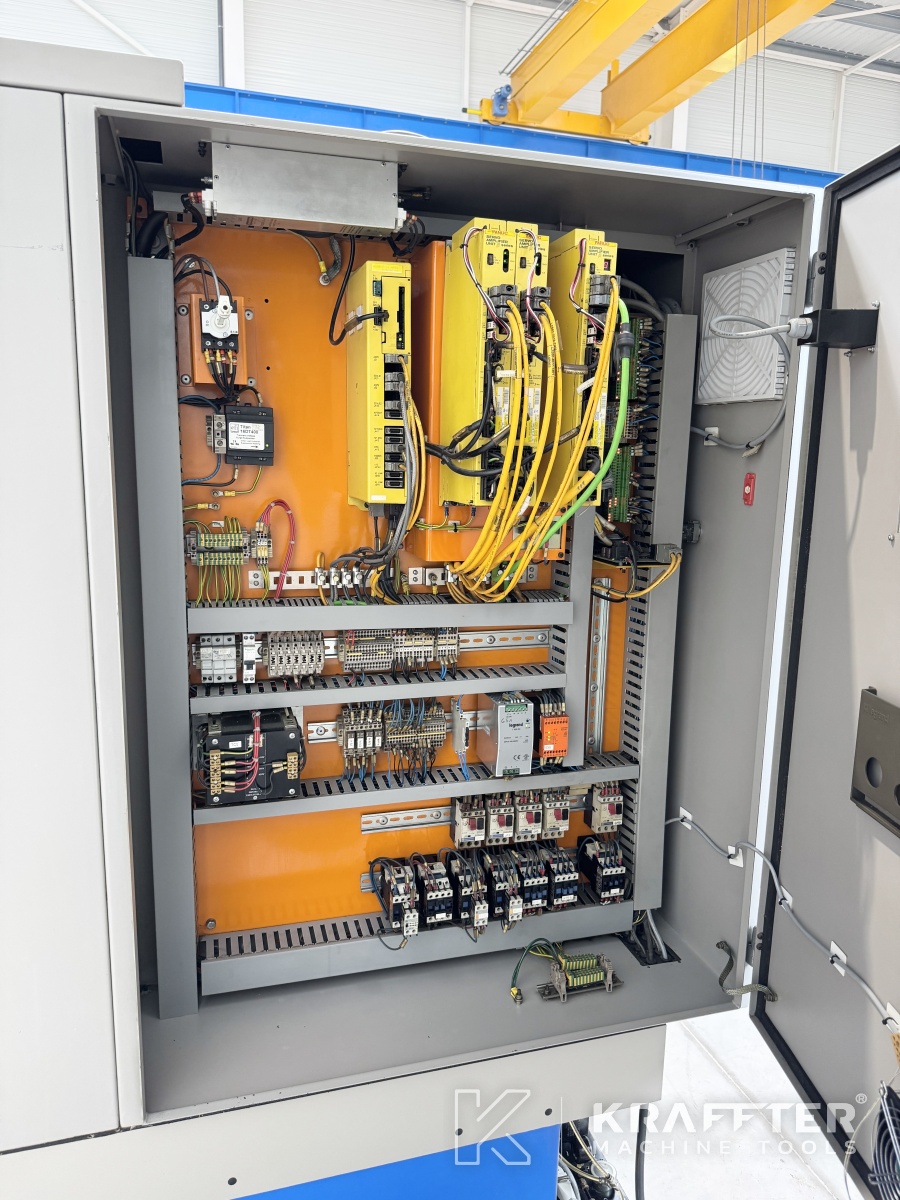

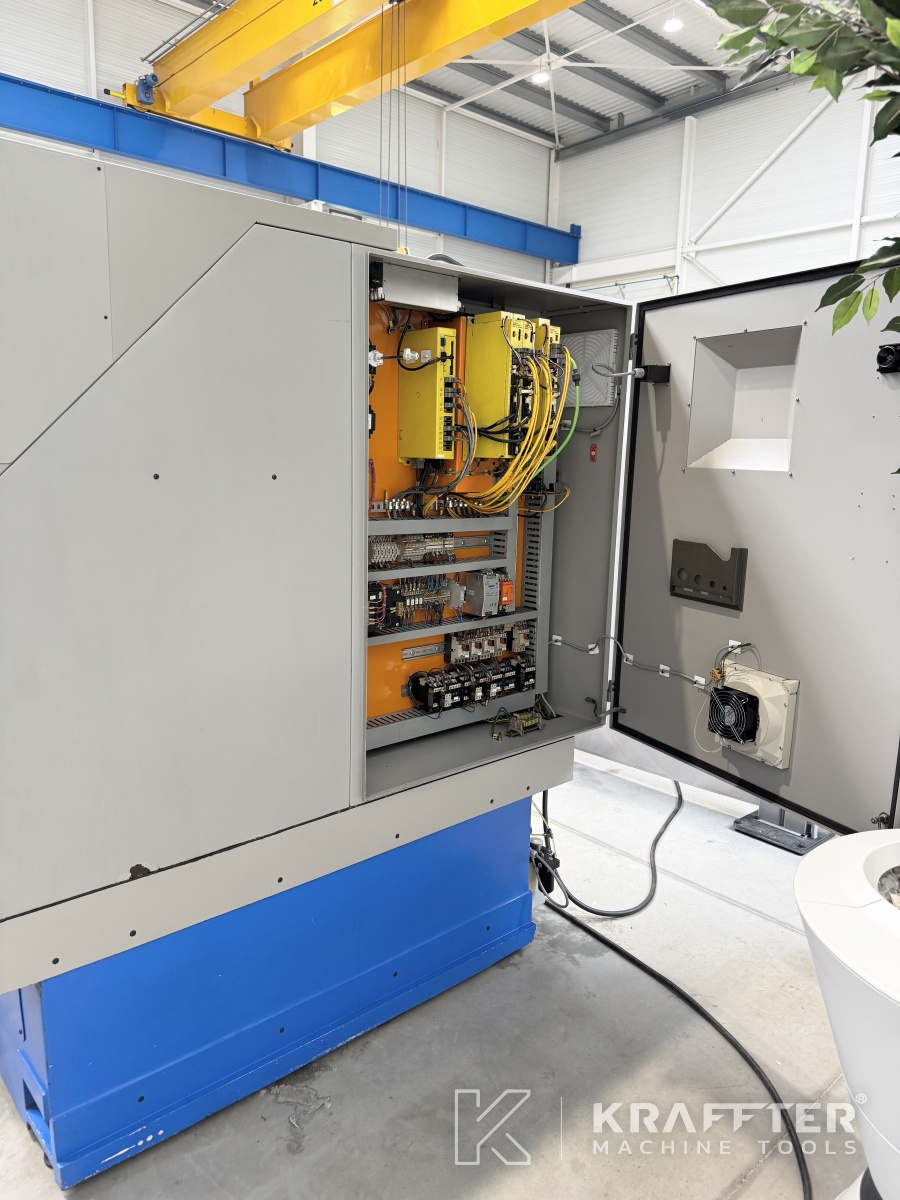

x1 ‘Electrical diagrams’ documentation
x1 set of wrenches

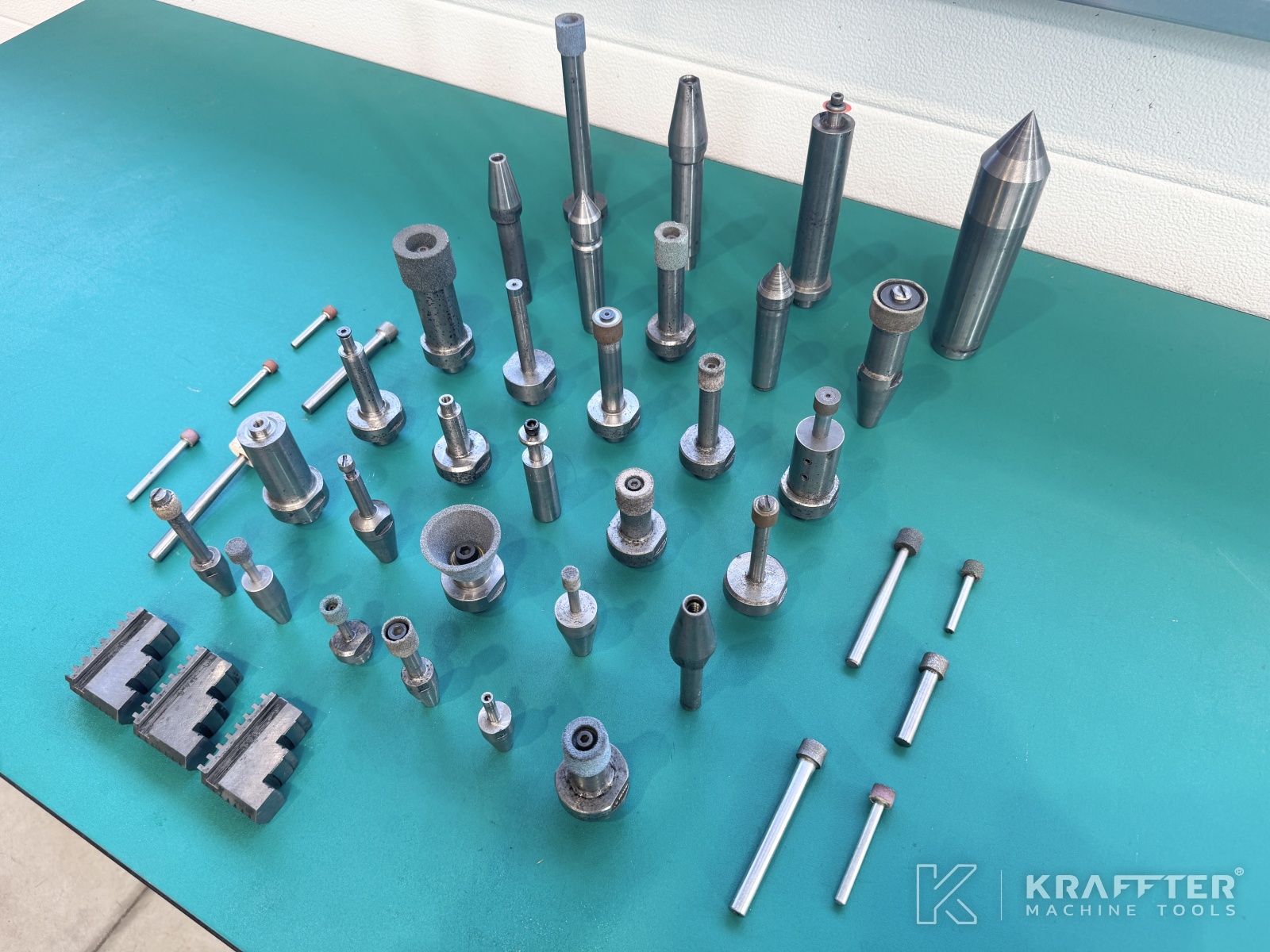

Various internal grinding wheel arbors
