Sold

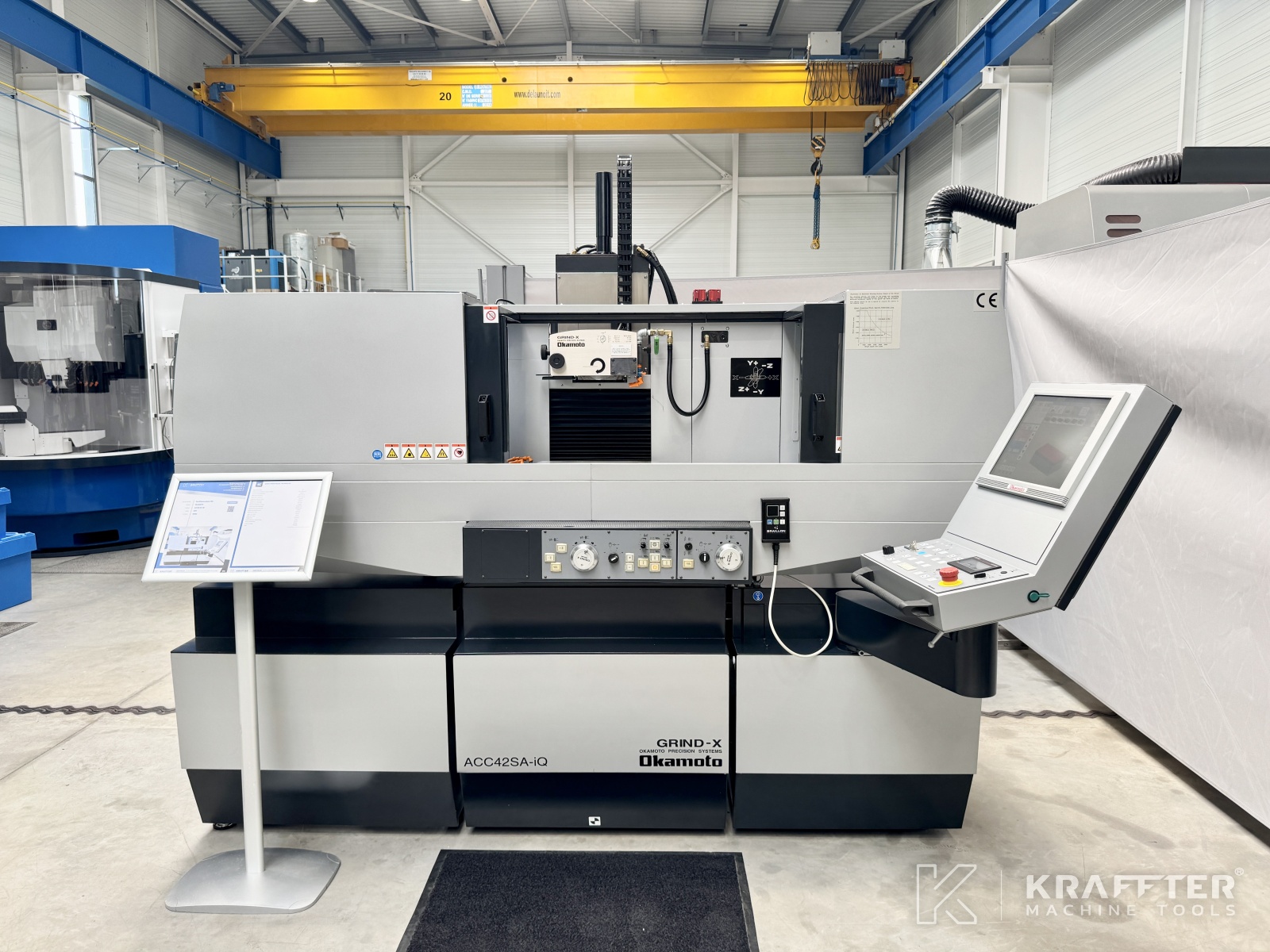

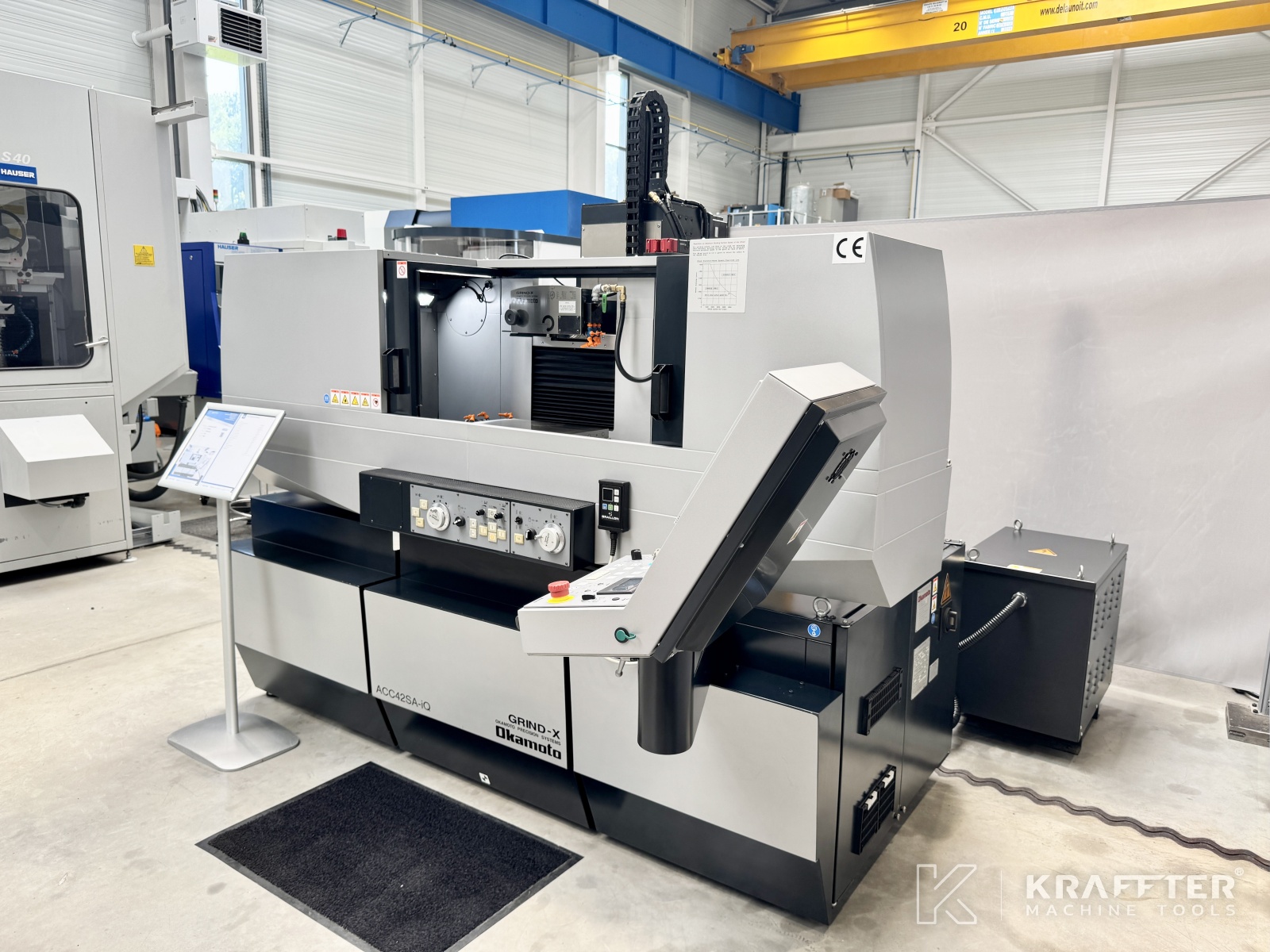

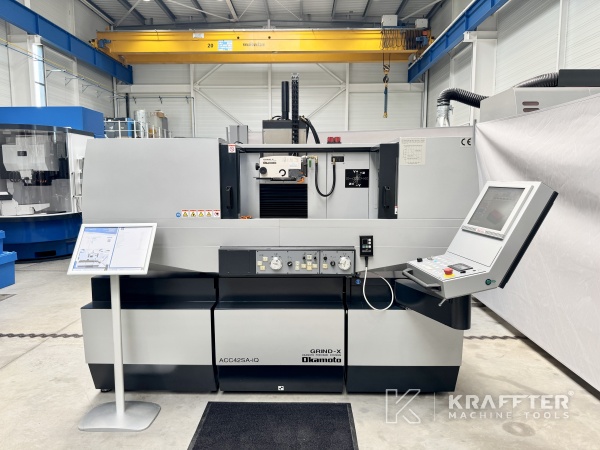

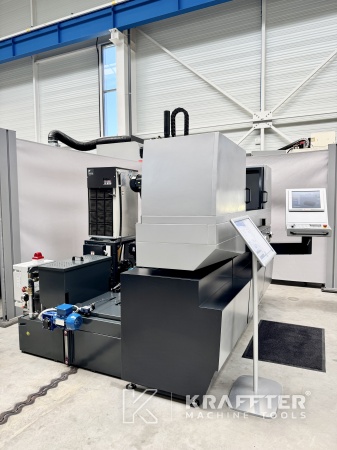

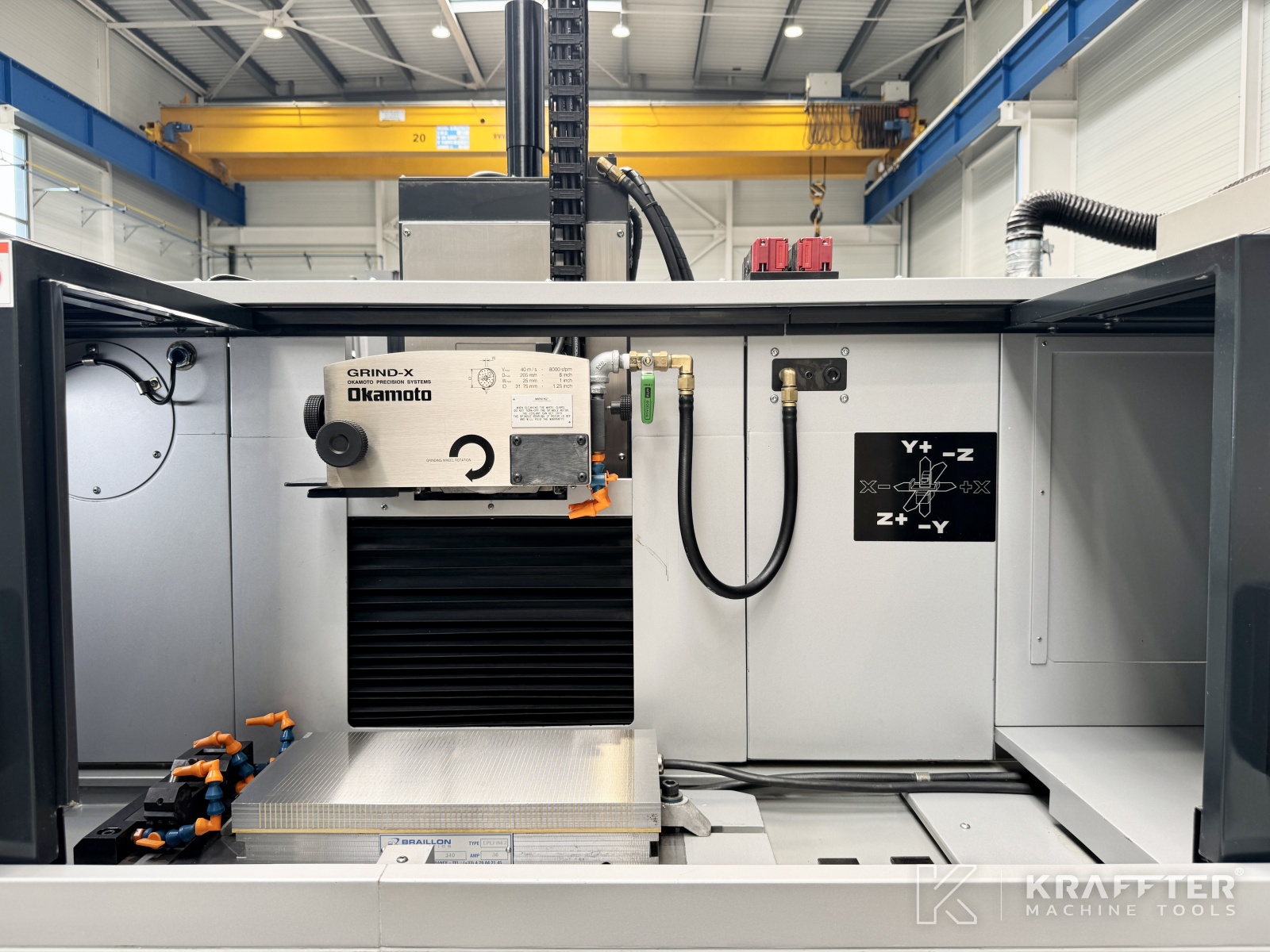

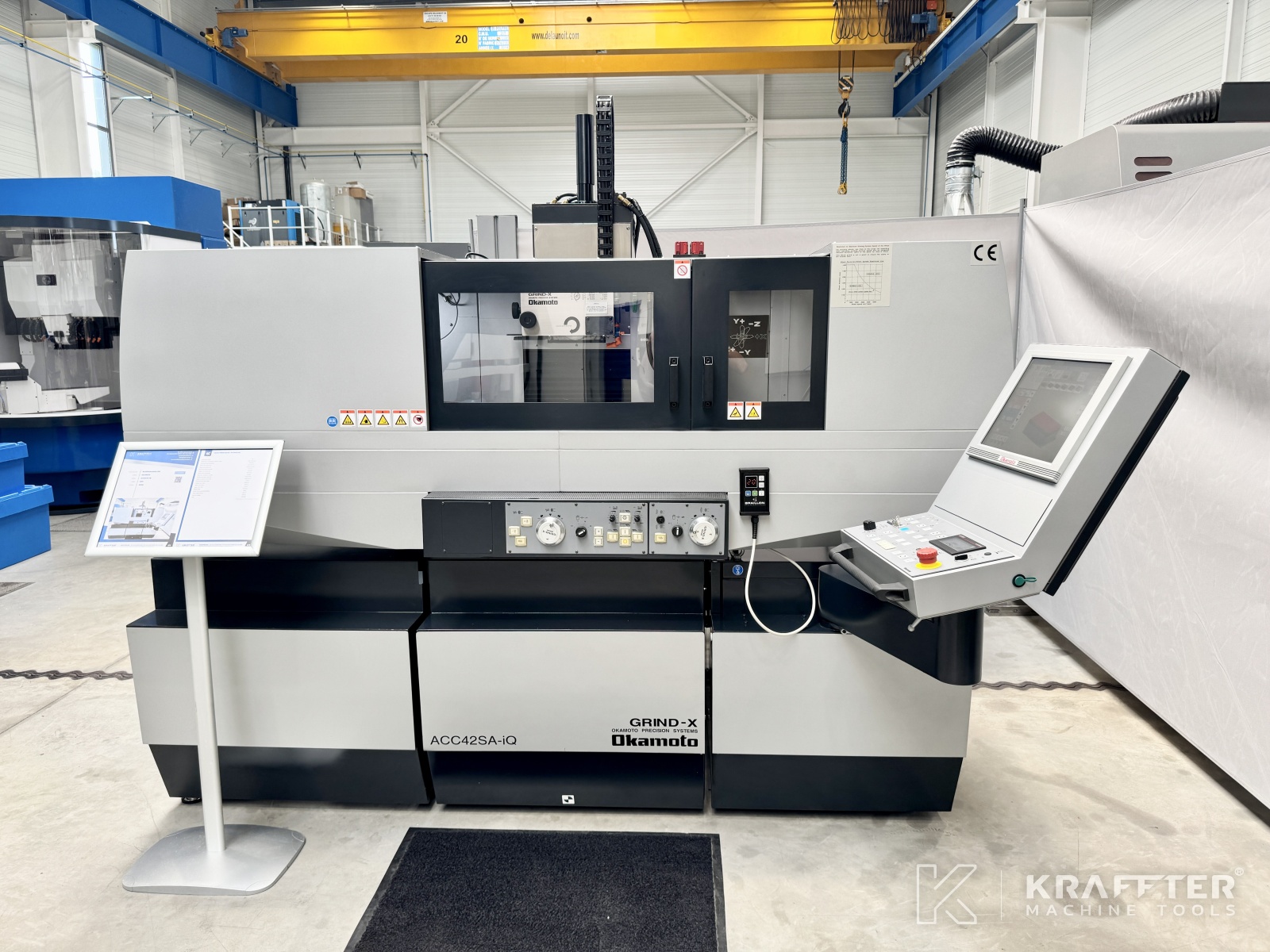

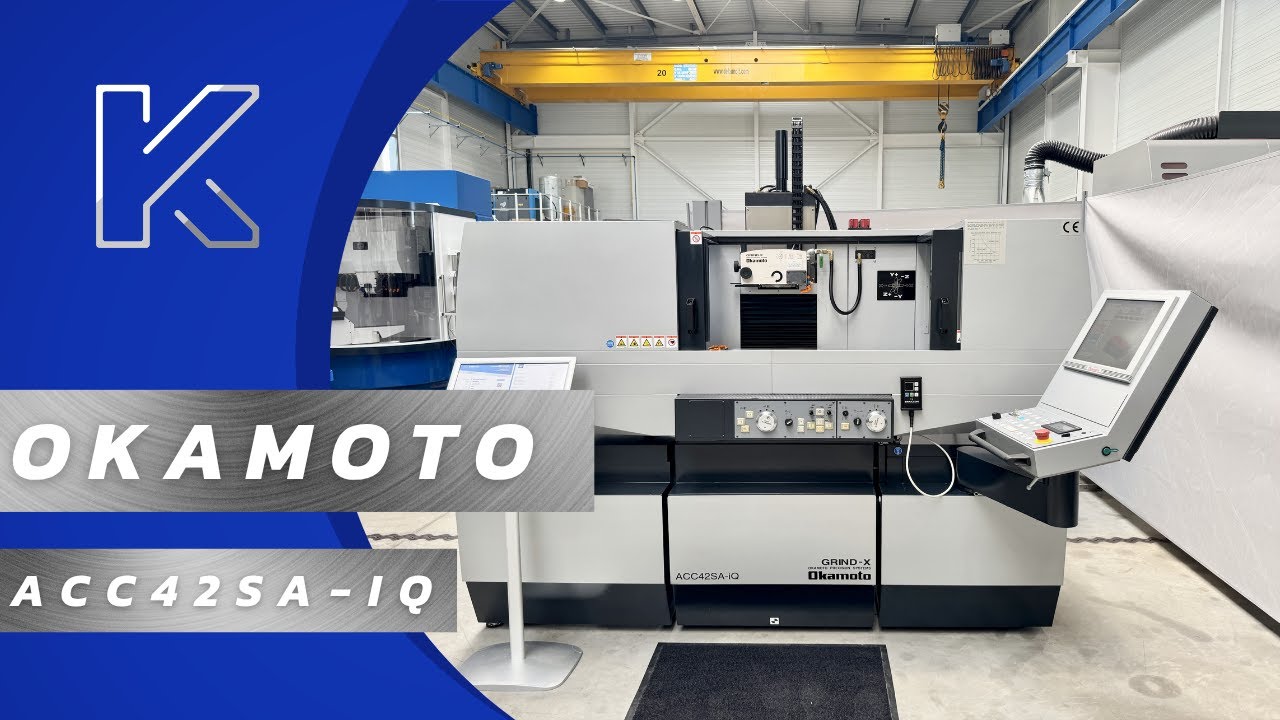

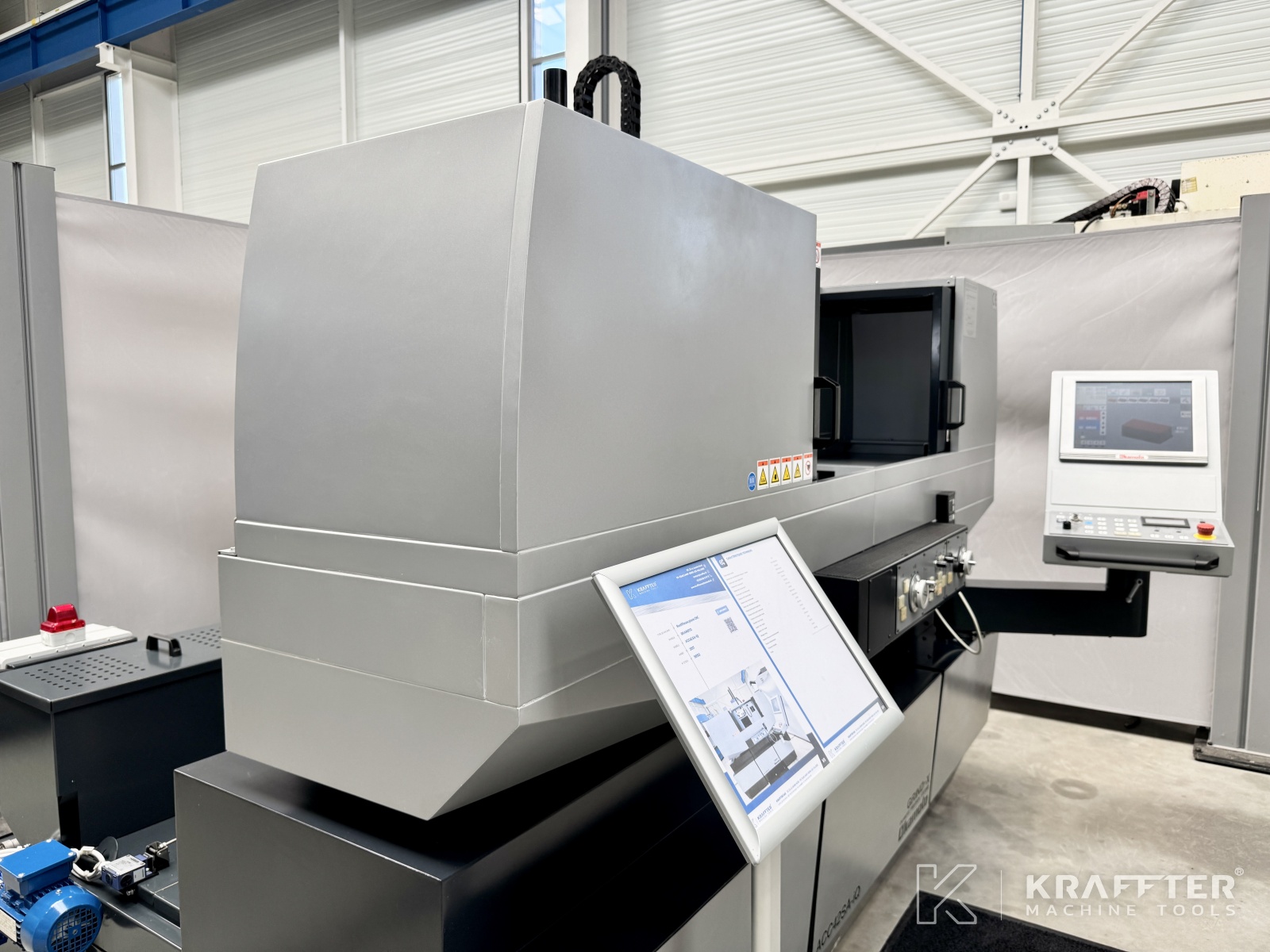

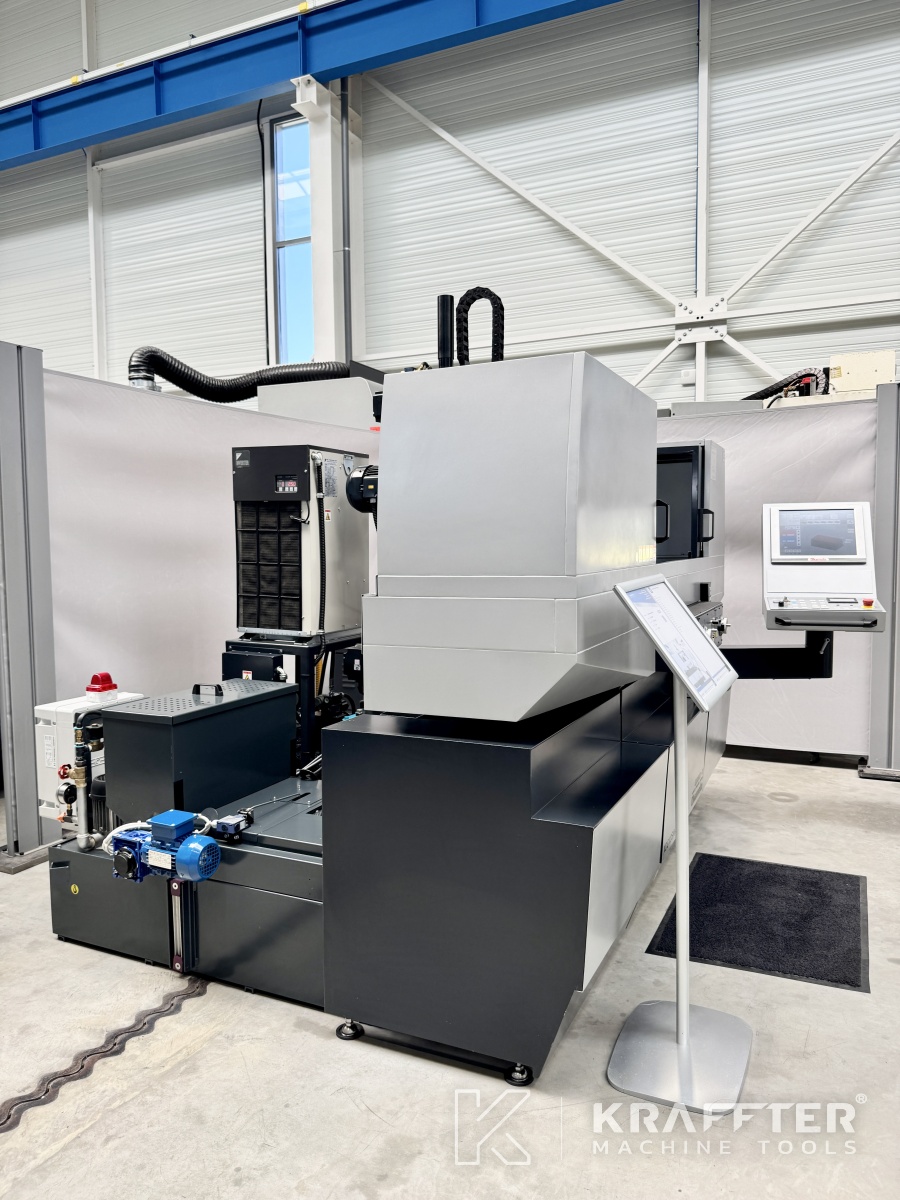

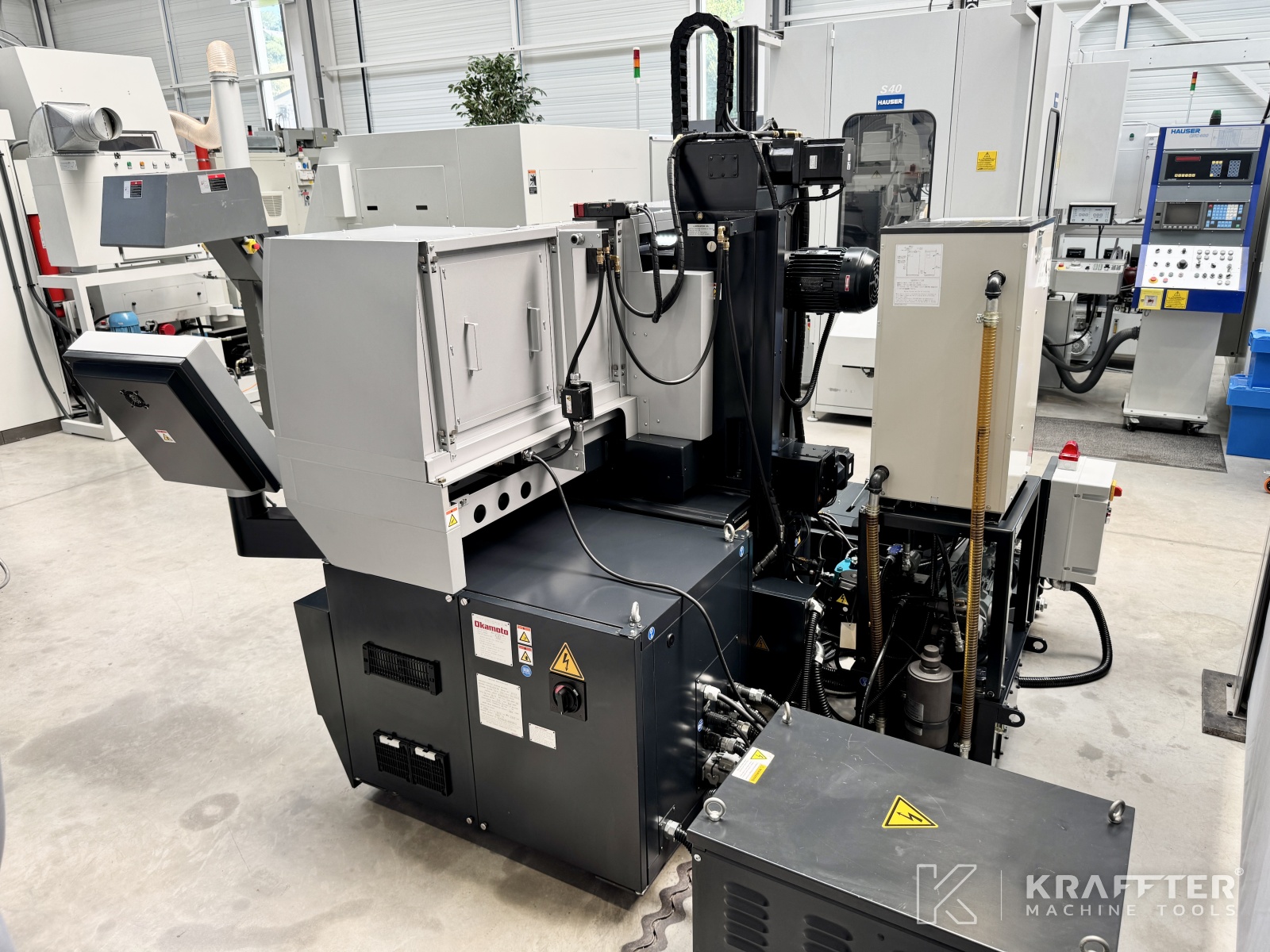

Type of machine : CNC surface grinder

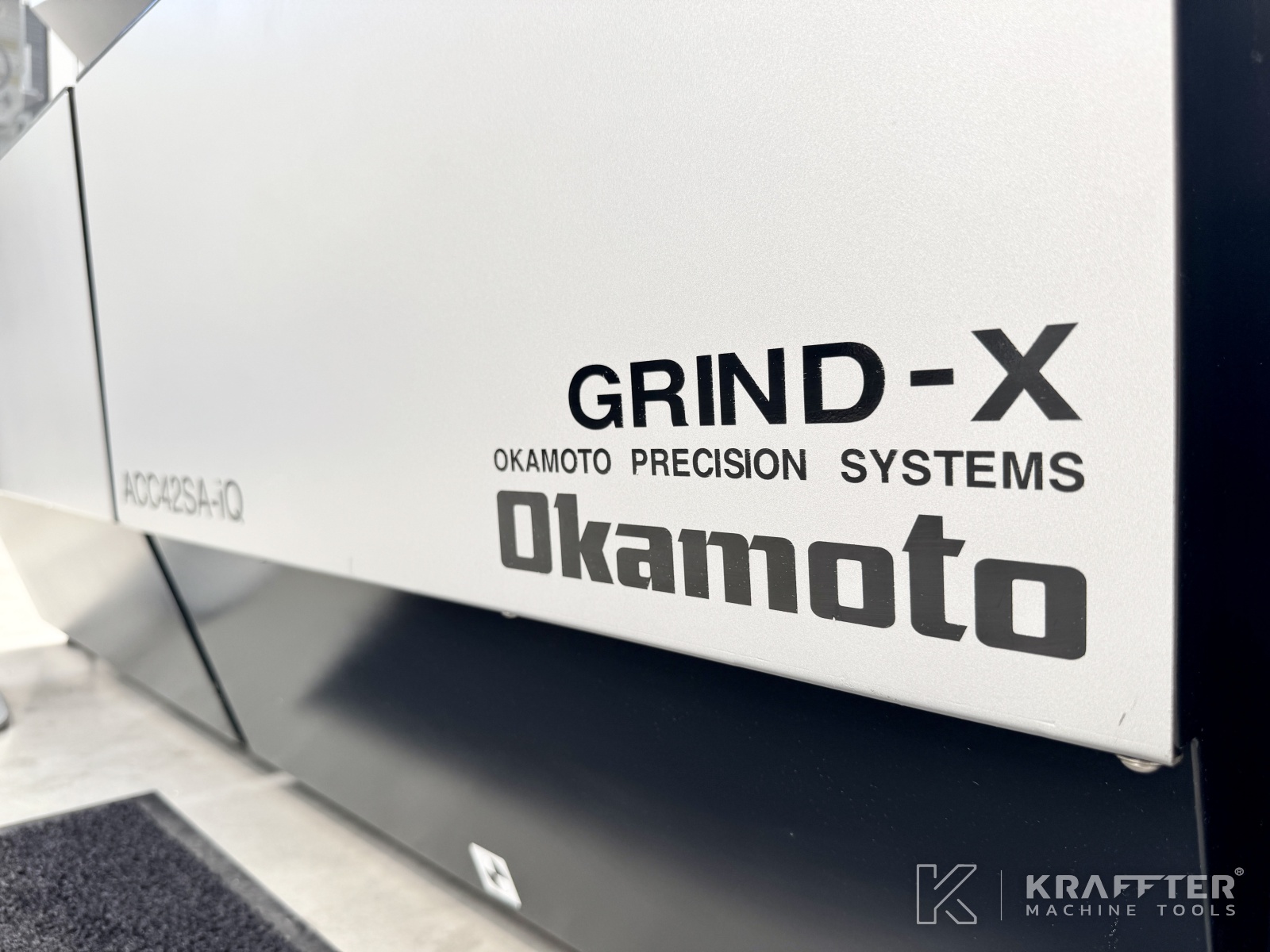

Brand : OKAMOTO
N° de stock: 90152
Model : ACC42 SA-iQ
Year : 2017
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

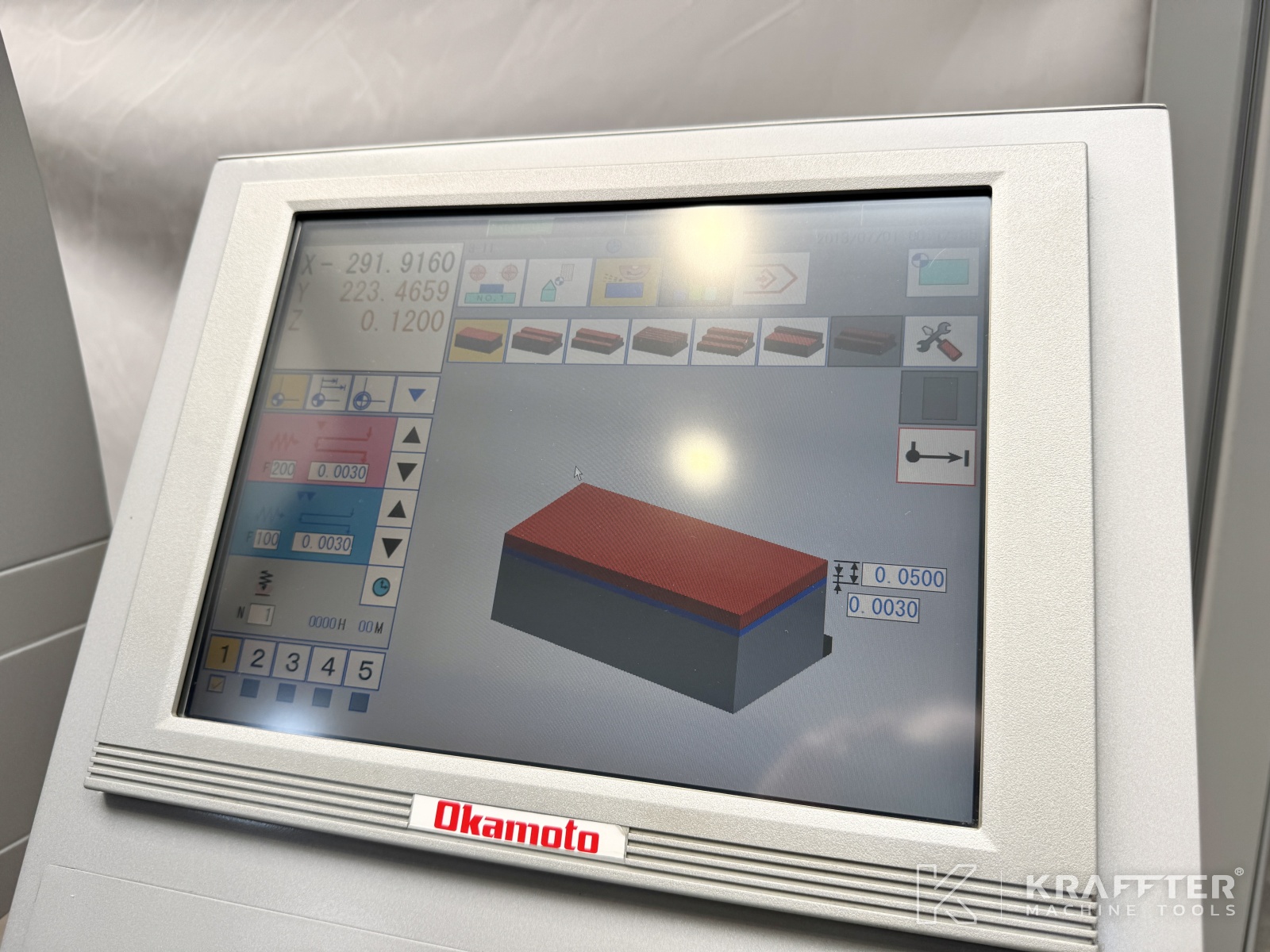

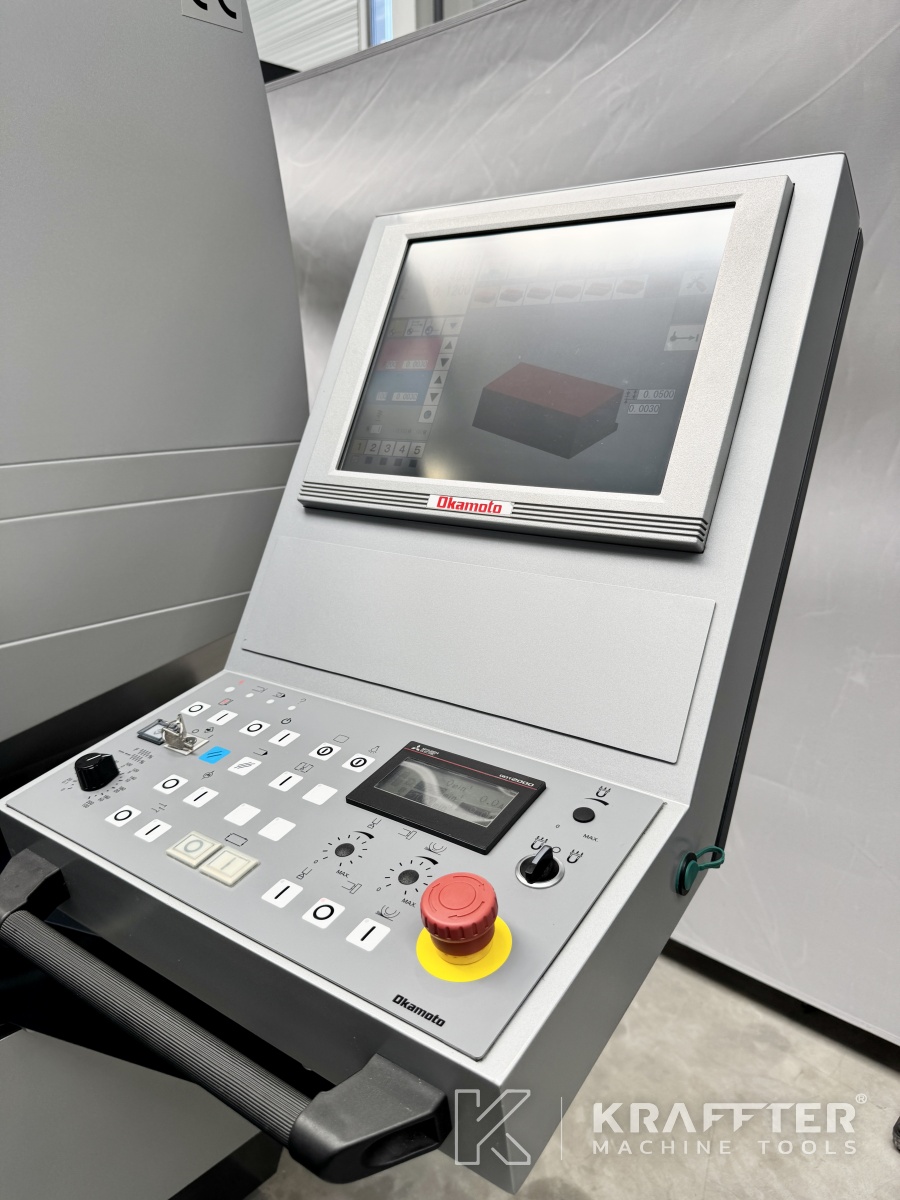

Colour touchscreen
Yes
Maximum grinding lenght x width
400 x 200 [mm]
Stroke X axis (table movement)
510 [mm]
Min. Stroke speed X axis
100 [mm/min]
Max. Stroke speed X axis
20000 [mm/min]
Z axis travel (transverse movement)
220 [mm]
Min. distance spindle nose / table
22.5 [mm]
Max. distance spindle nose / table
357.5 [mm]
Max. load on table
120 [Kg]
Min. grinding wheel speed
1000 [rpm]
Max. grinding wheel speed
3600 [rpm]
Grinding spindle motor power
2.2 [kW]
Max. diameter grinding wheel
205 [mm]
Max. grinding wheel width
16 [mm]
Min. grinding wheel width
6 [mm]
Grinding wheel bore
31.75 [mm]
Number of running hours
59 [h]
Supply voltage
400 [V]
Total power required
11 [kVA]
Weight
2100 [Kg]
Additional information
INCLUDED EQUIPMENT:

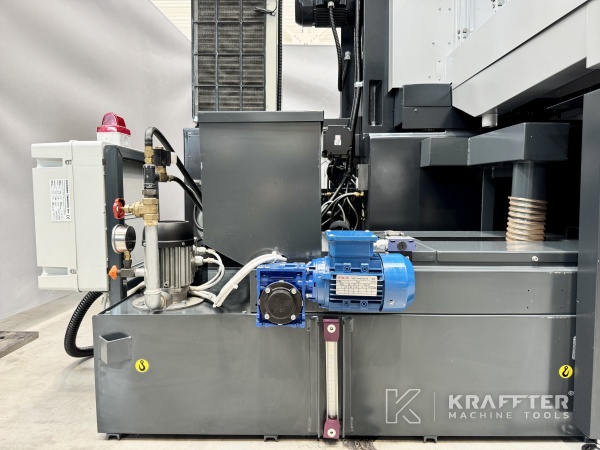

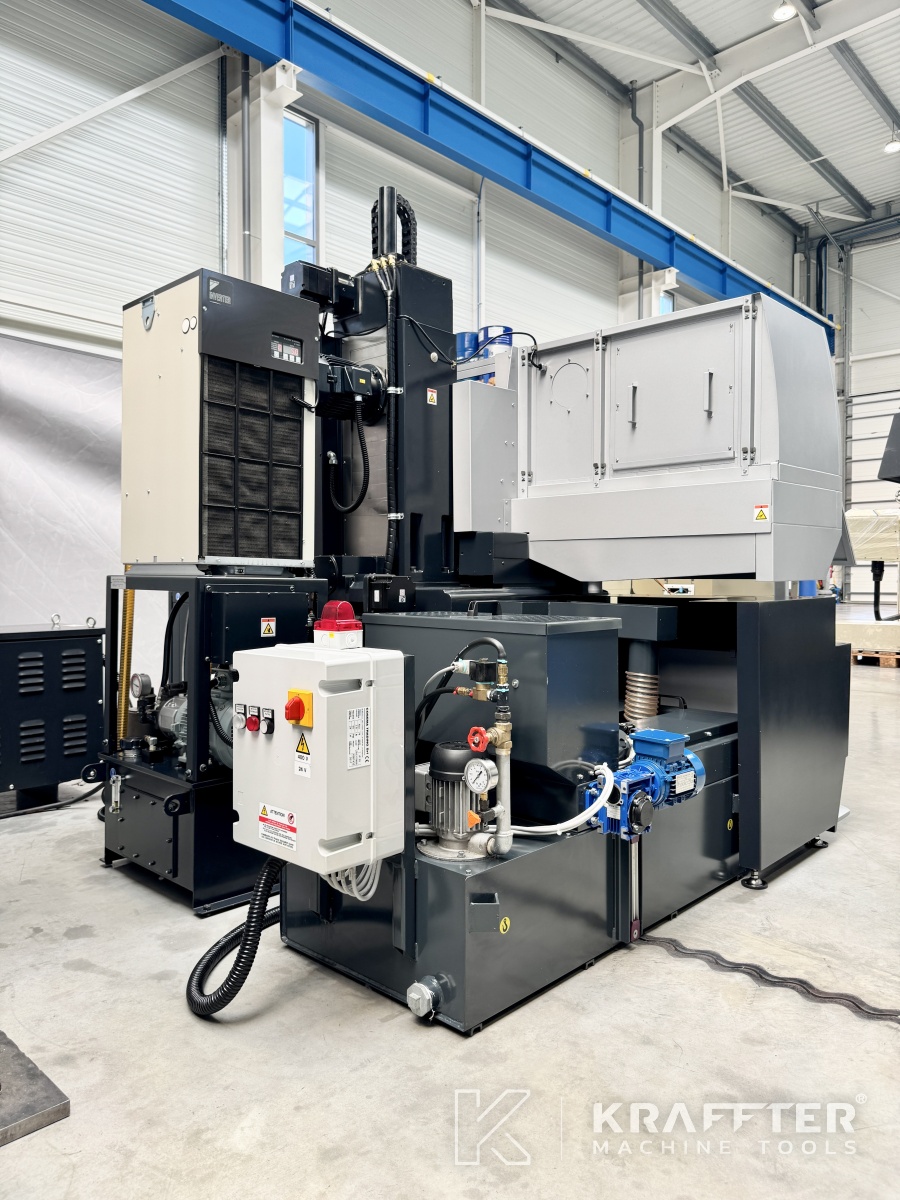

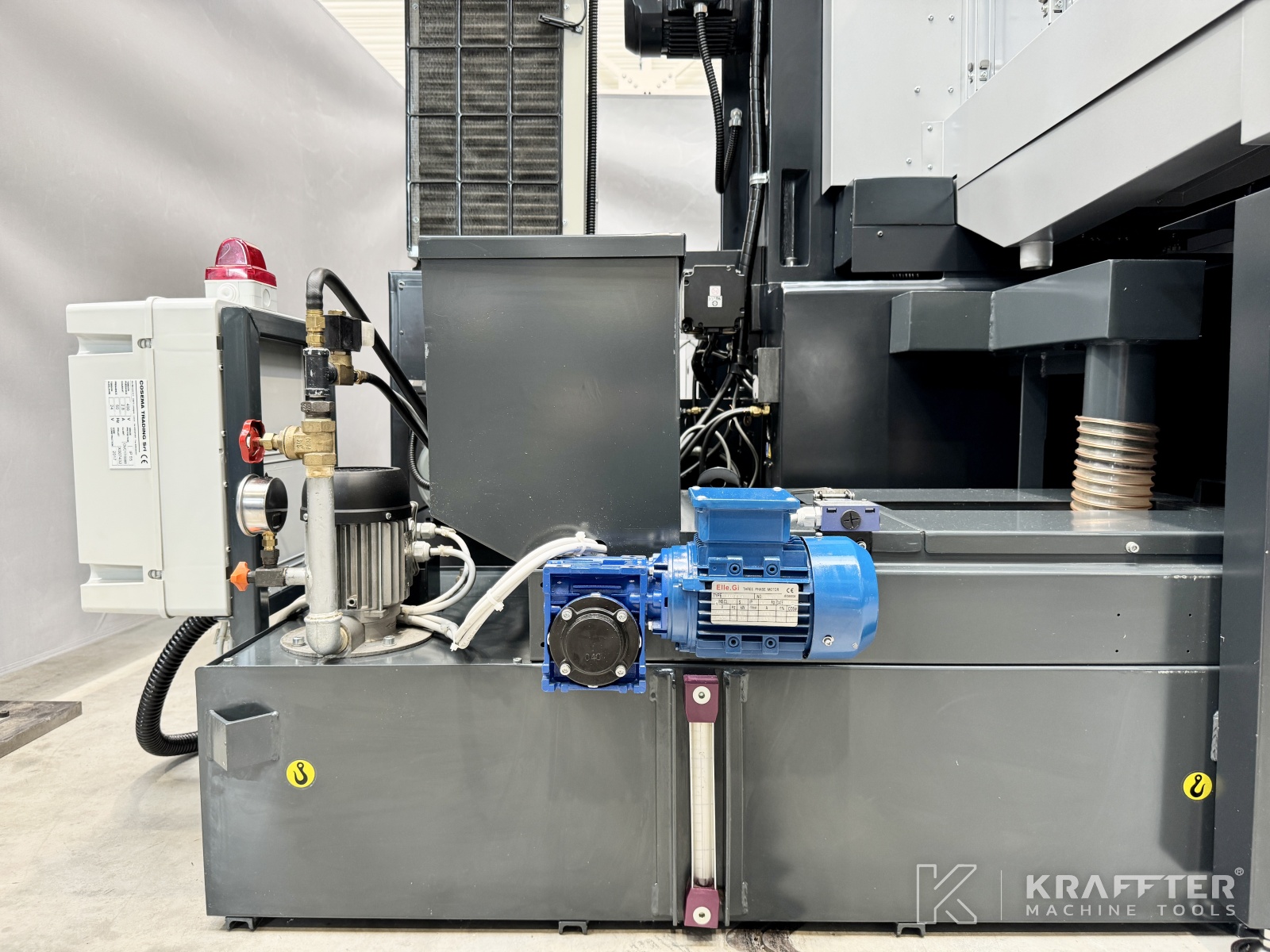

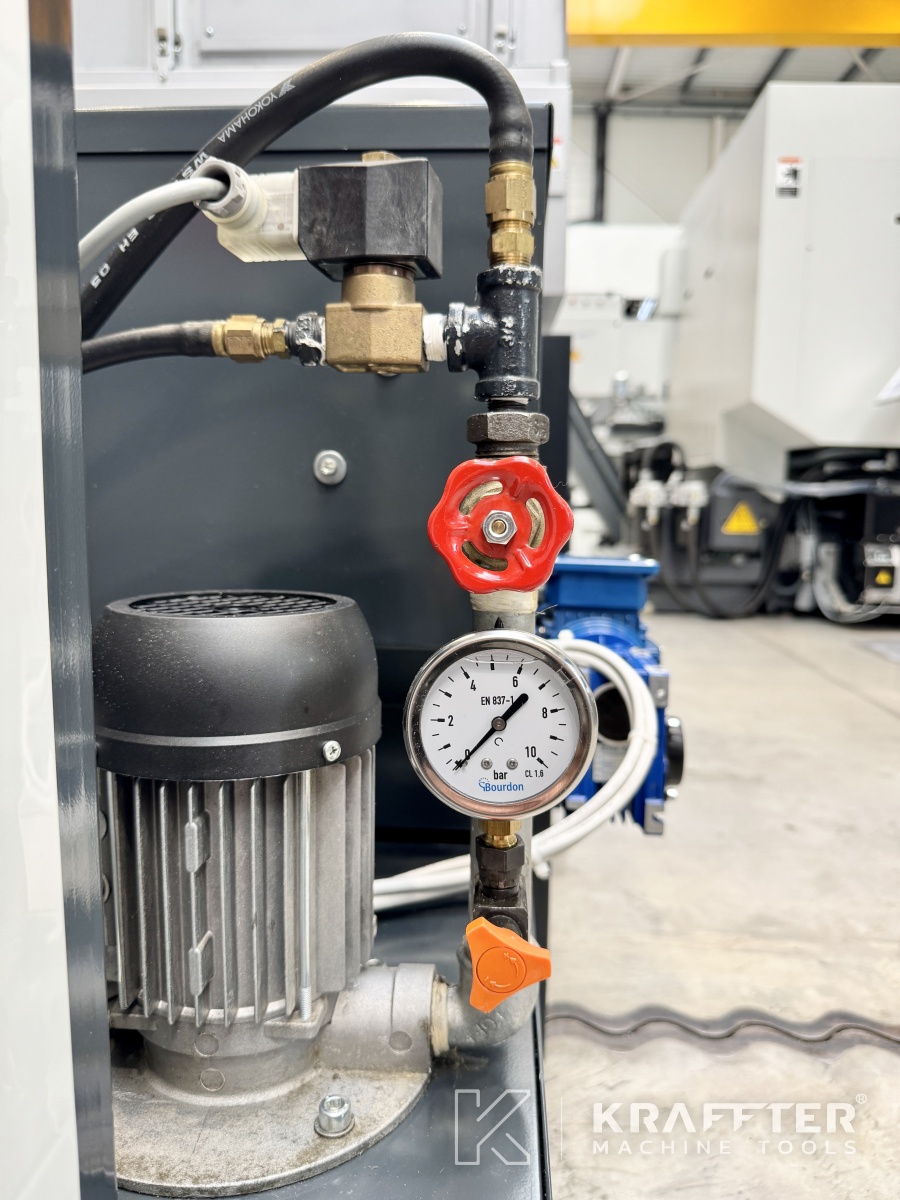

- x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1

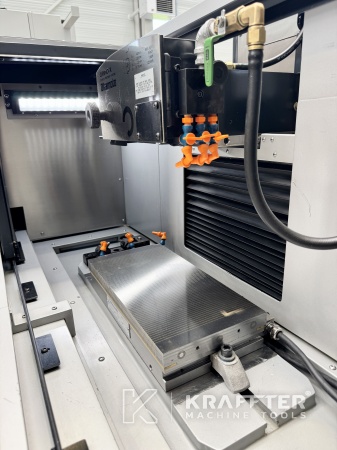

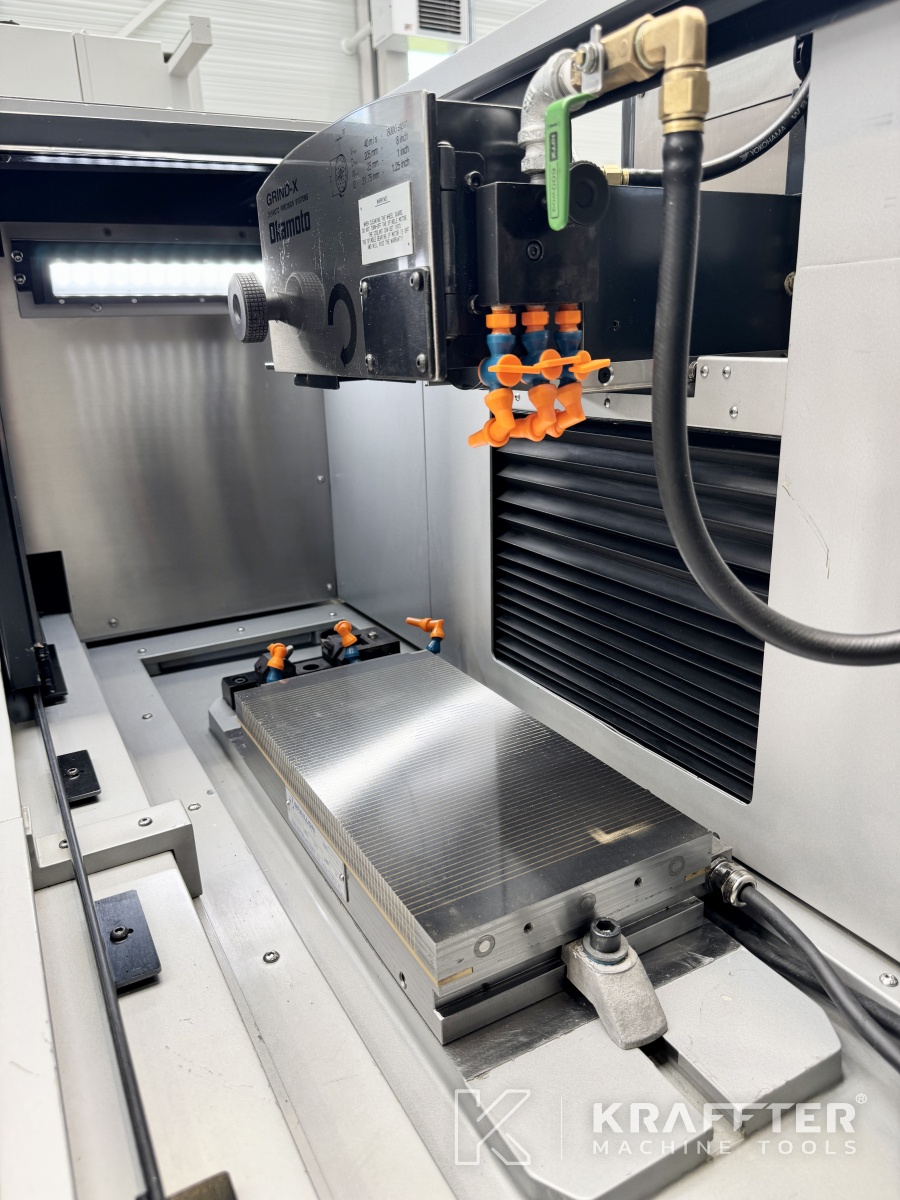

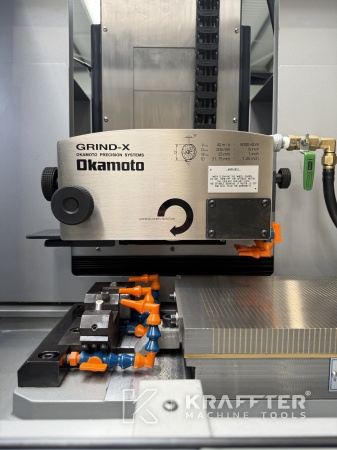

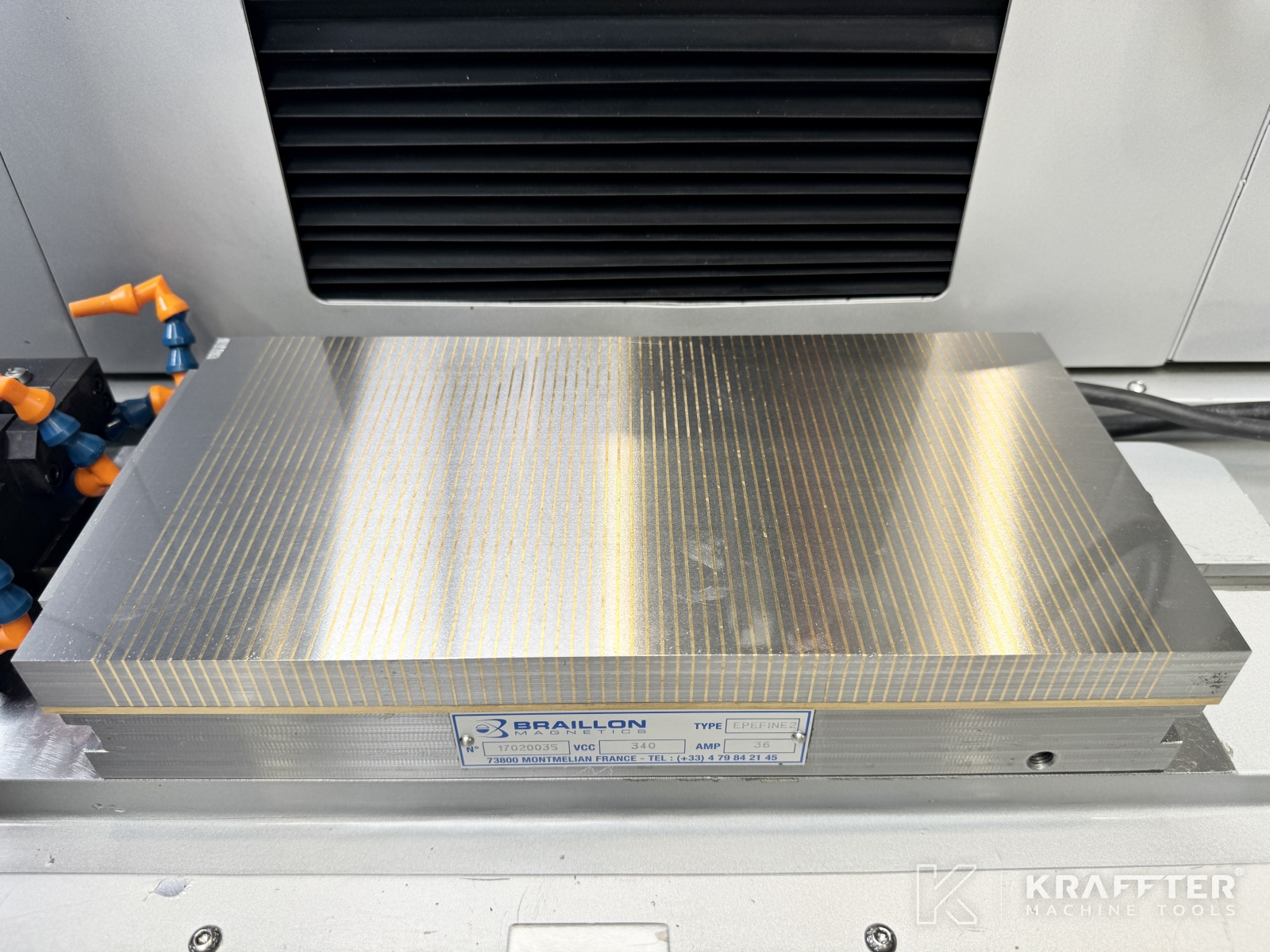

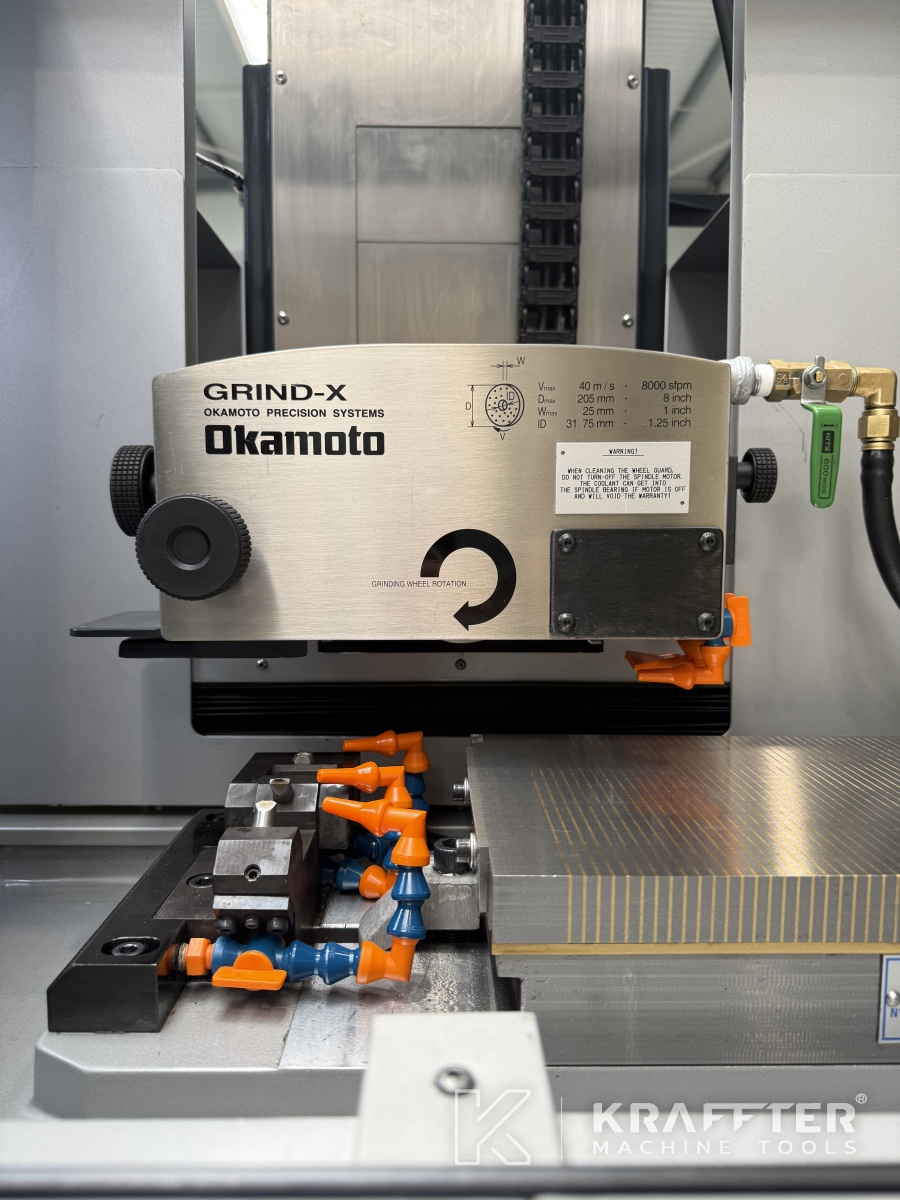

- x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2

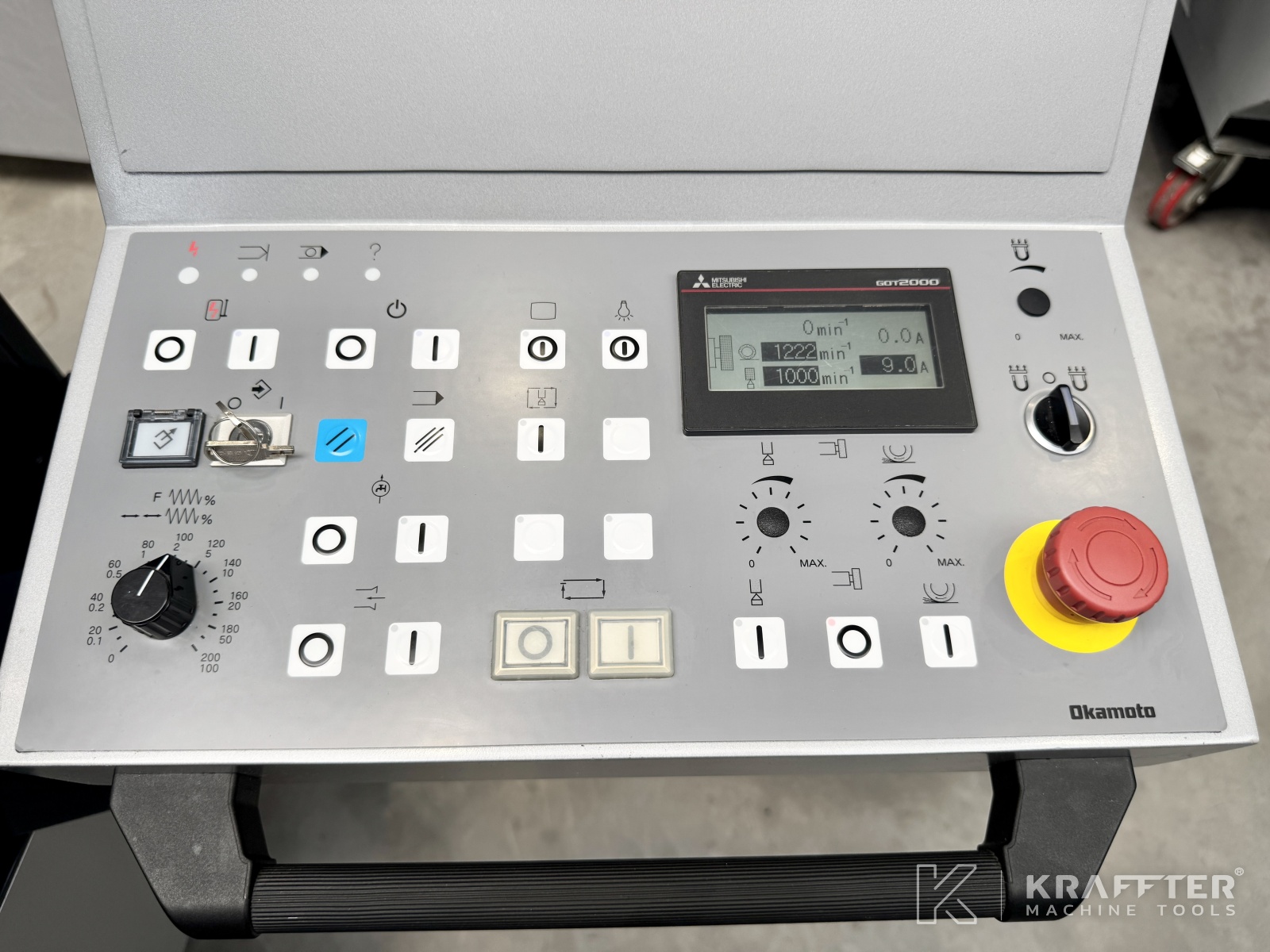

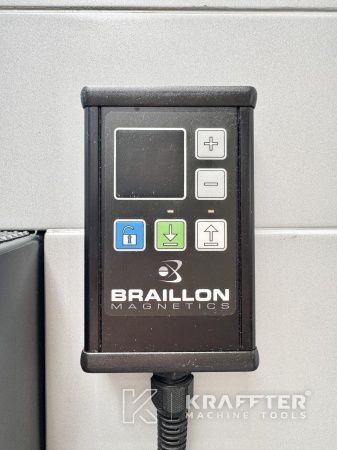

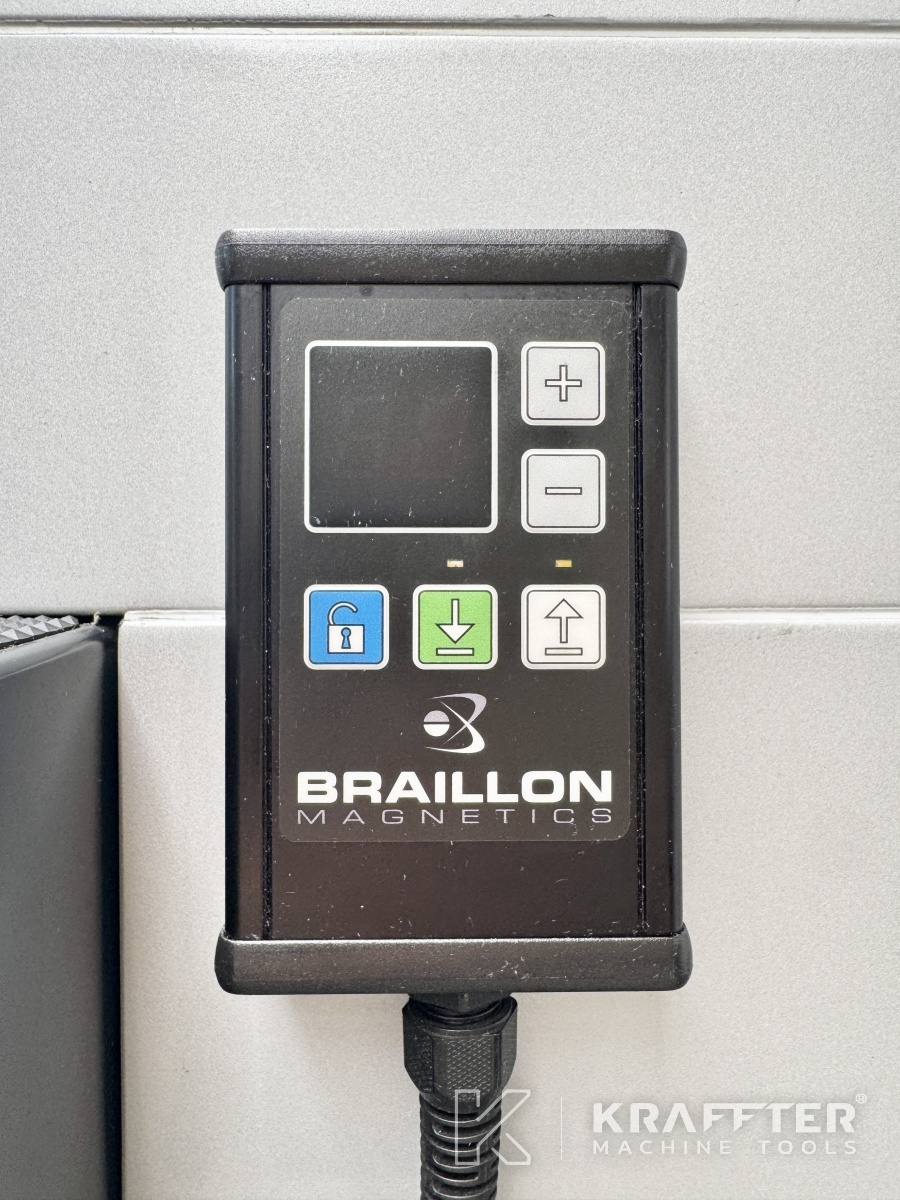

- x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10

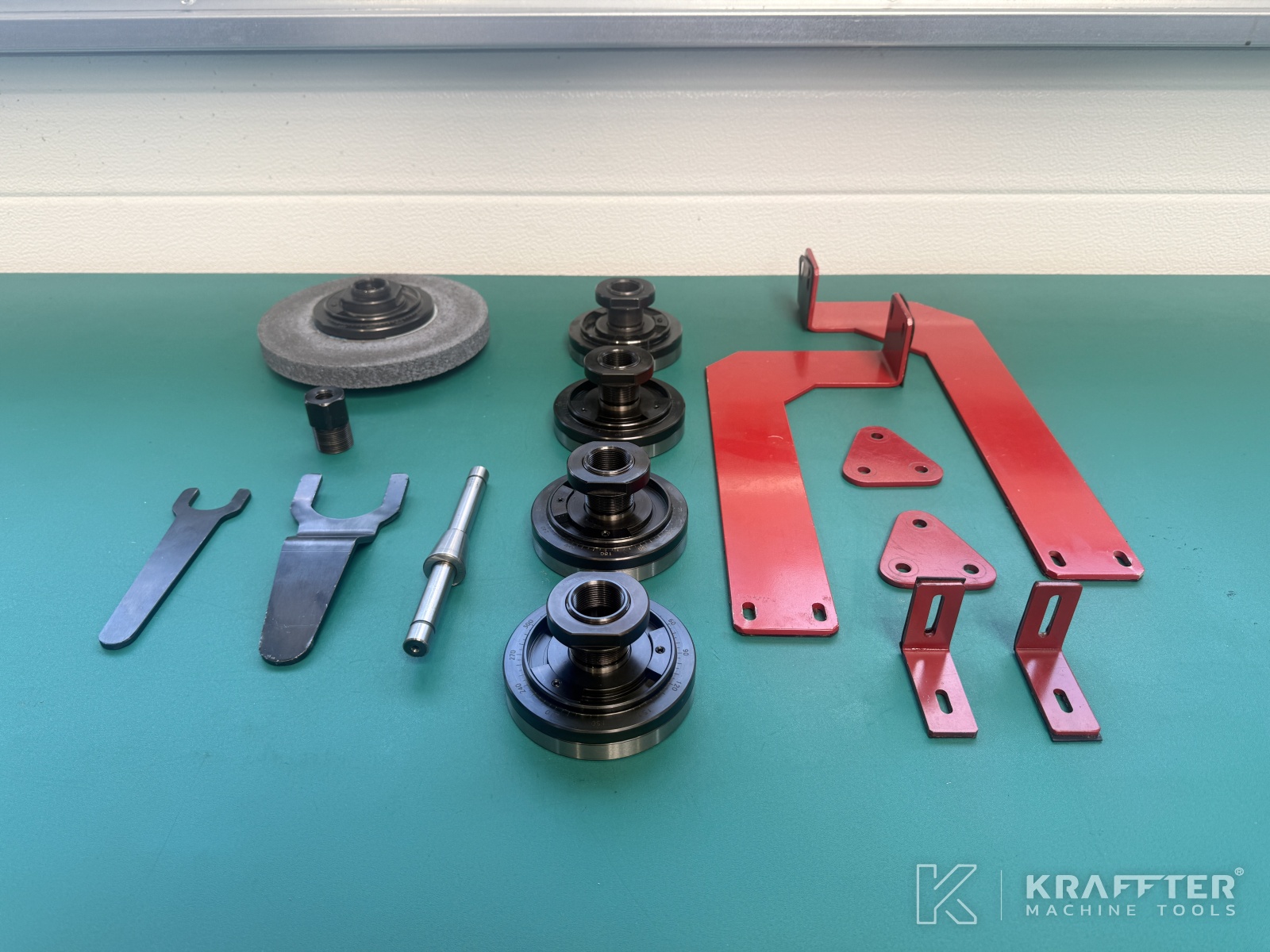

- x5 grinding wheel flanges

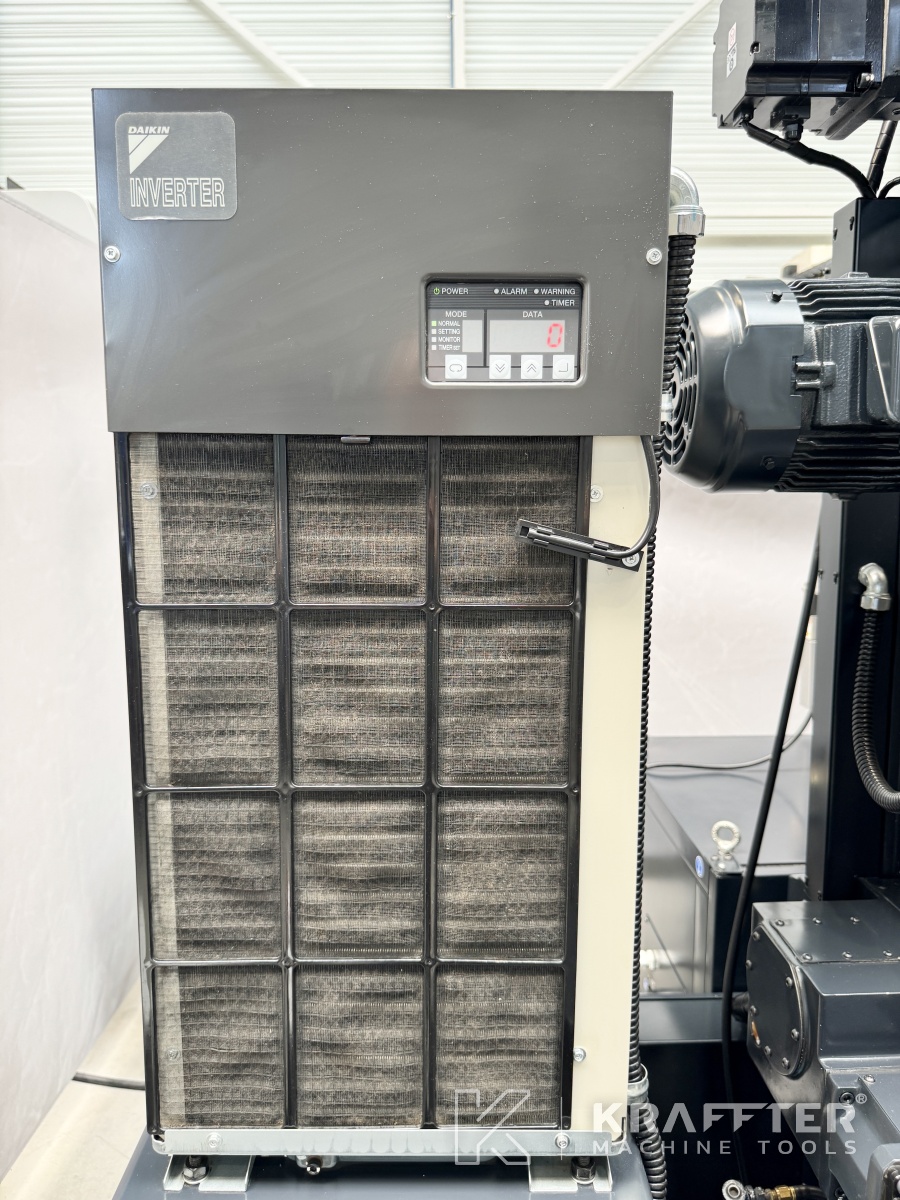

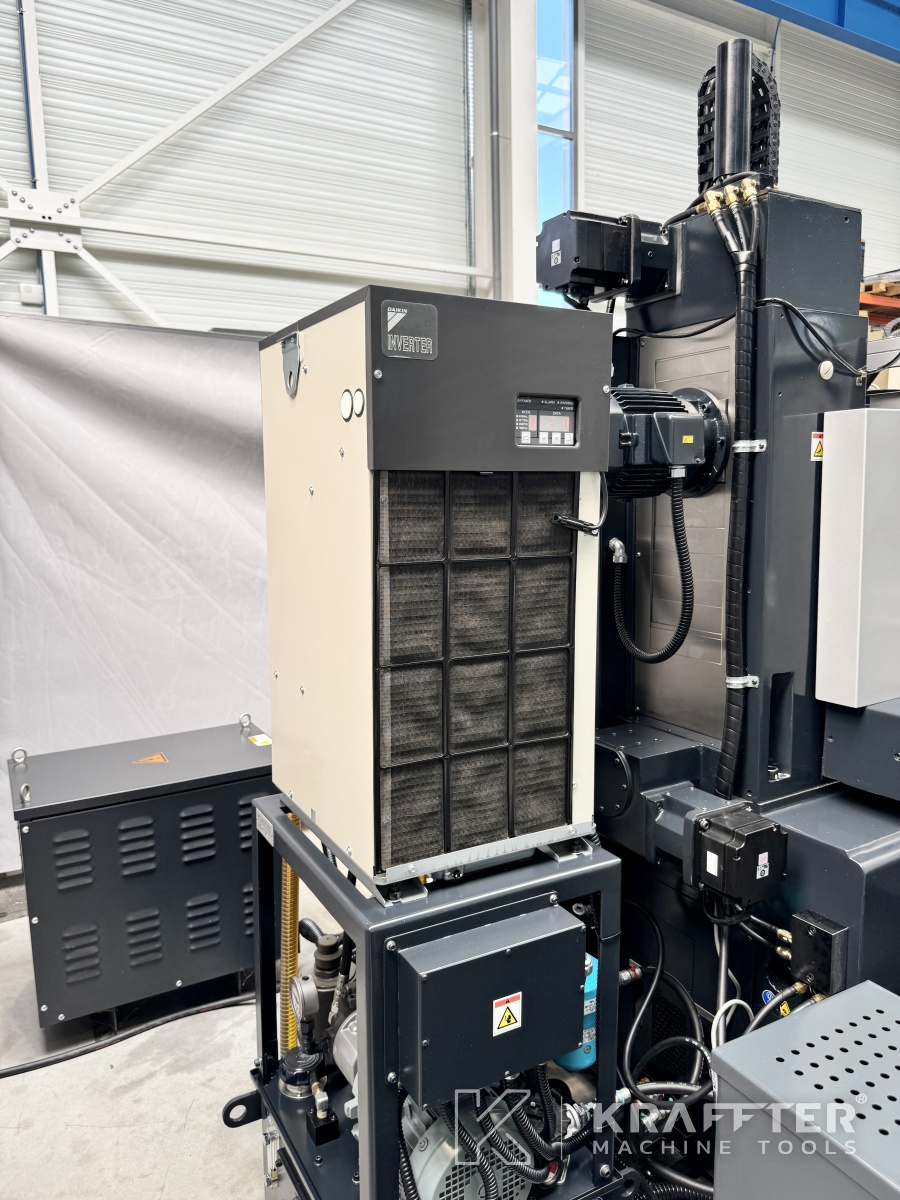

- x1 oil chiller
- x1 transformer
- x2 service keys
- x1 balancing shaft
- x1 set of axis-brackets for transport
STANDARD CONVERSATIONAL PROGRAMMING MODE:
-
Straight and angular dressing (standard)
-
Surface grinding, multiple plunge grinding, and face grinding (standard)
INCLUDED ISO PROFILING:
-
Wheel profiling
-
Contour machining of workpiece
Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece.
Precise positioning integrated: +/- 1 [µm]
