Sold

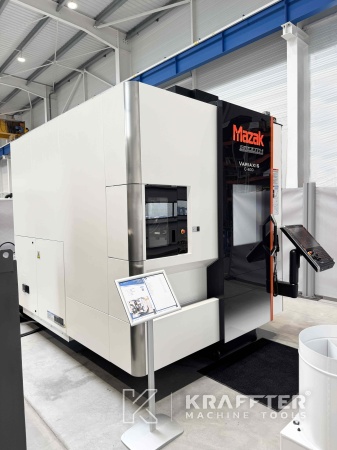

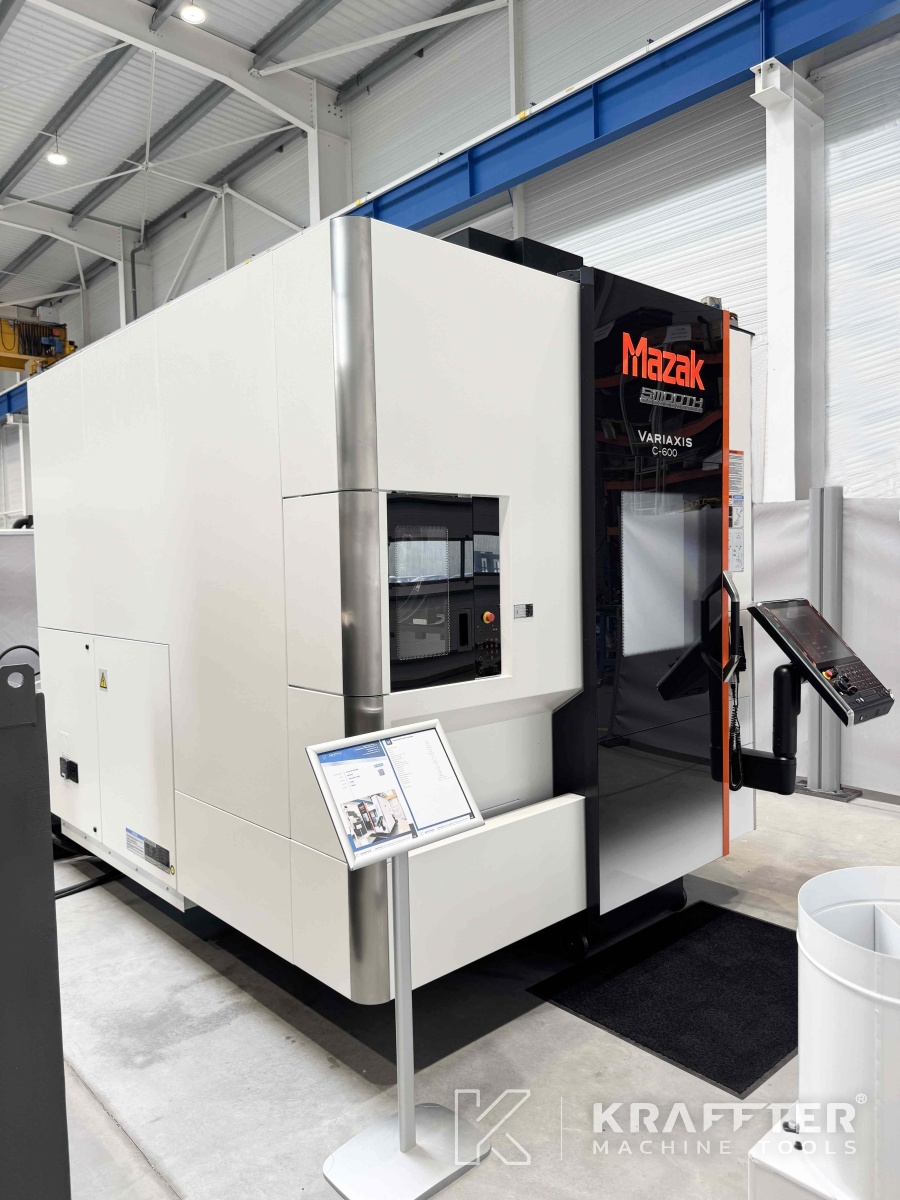

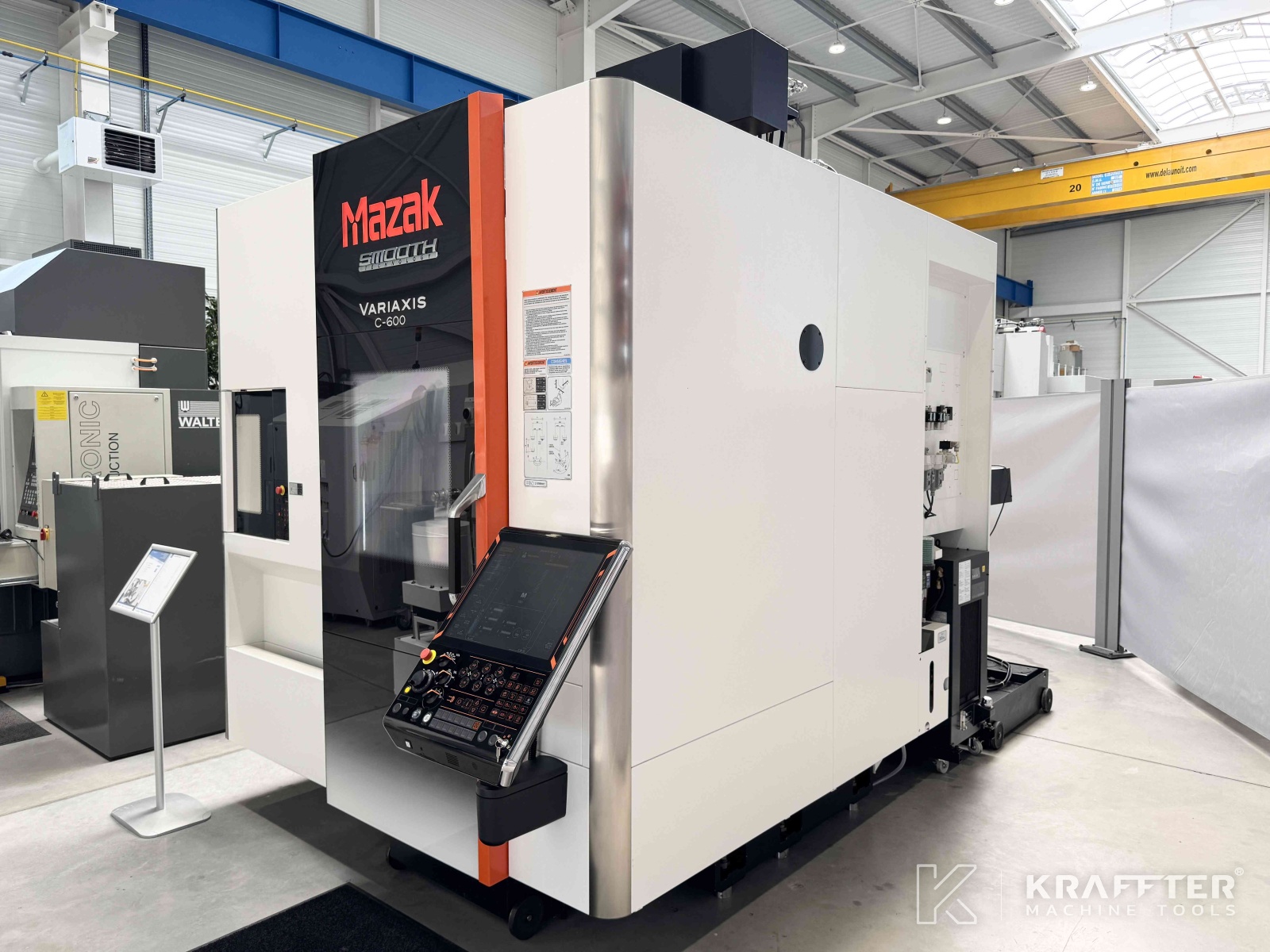

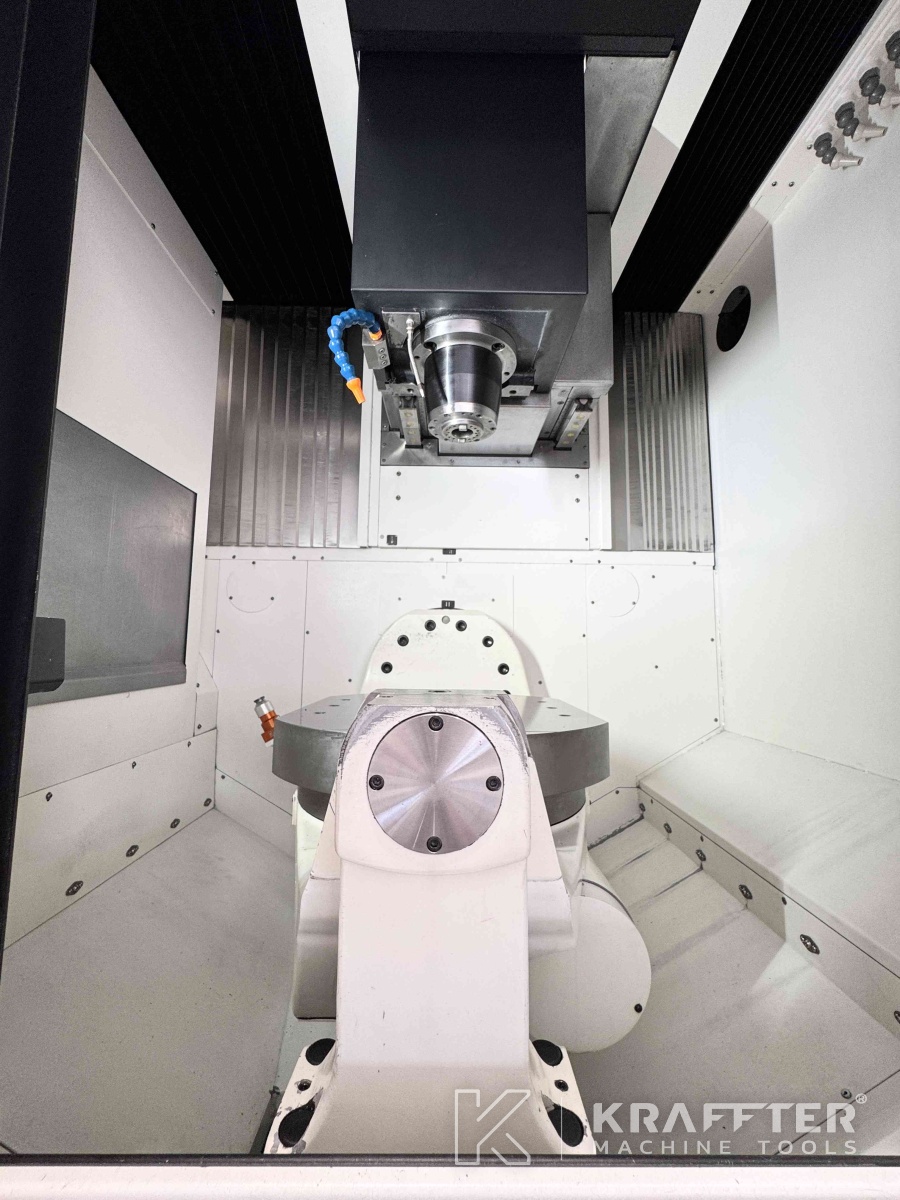

Type of machine : CNC machining centre
Brand : MAZAK
N° de stock: 90161

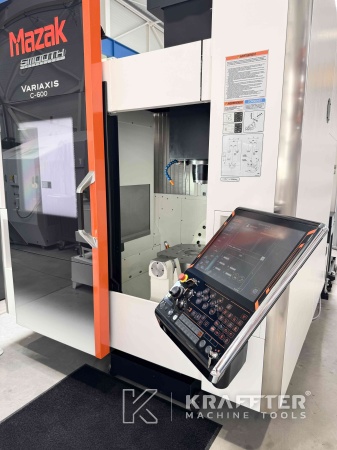

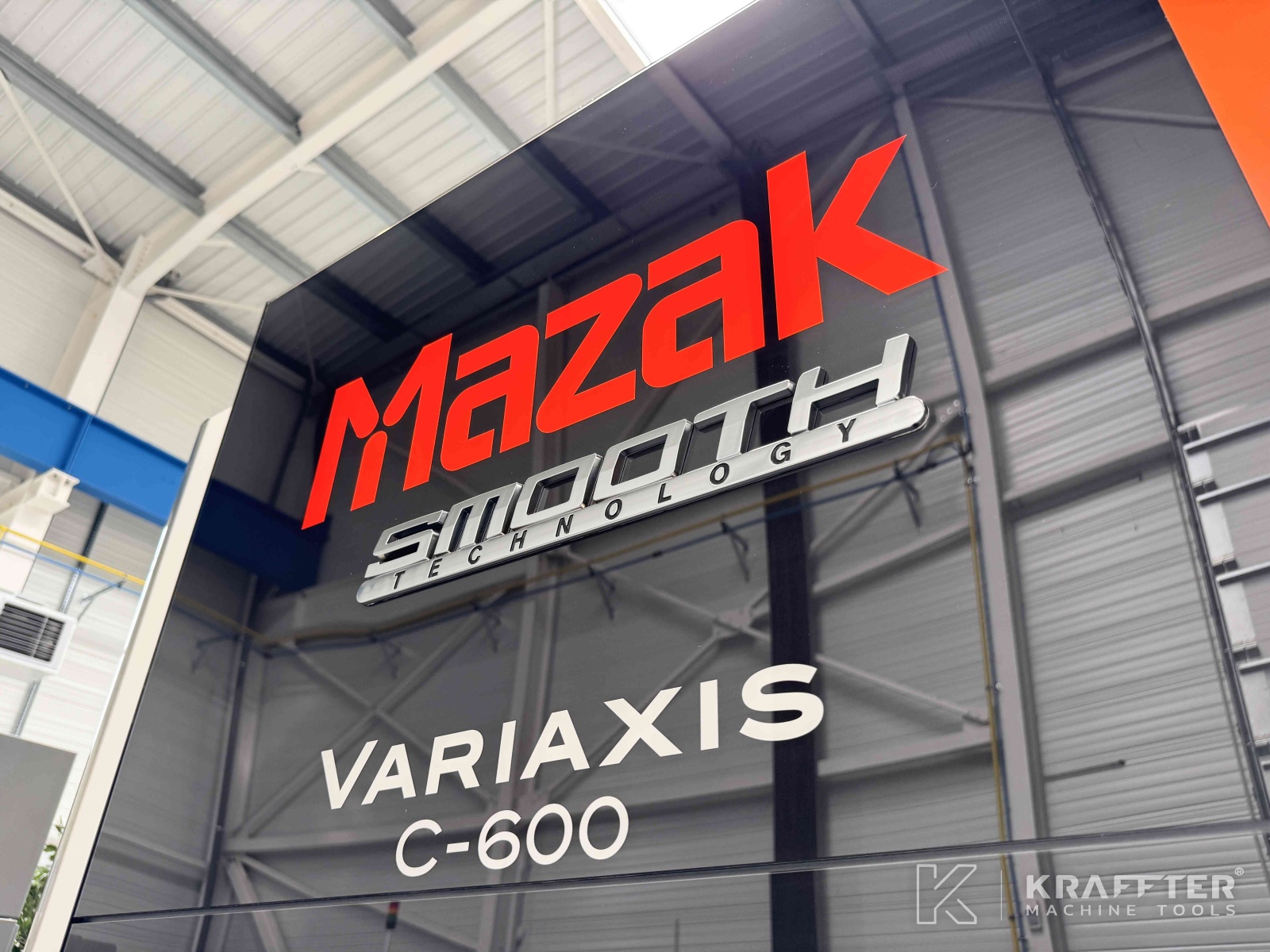

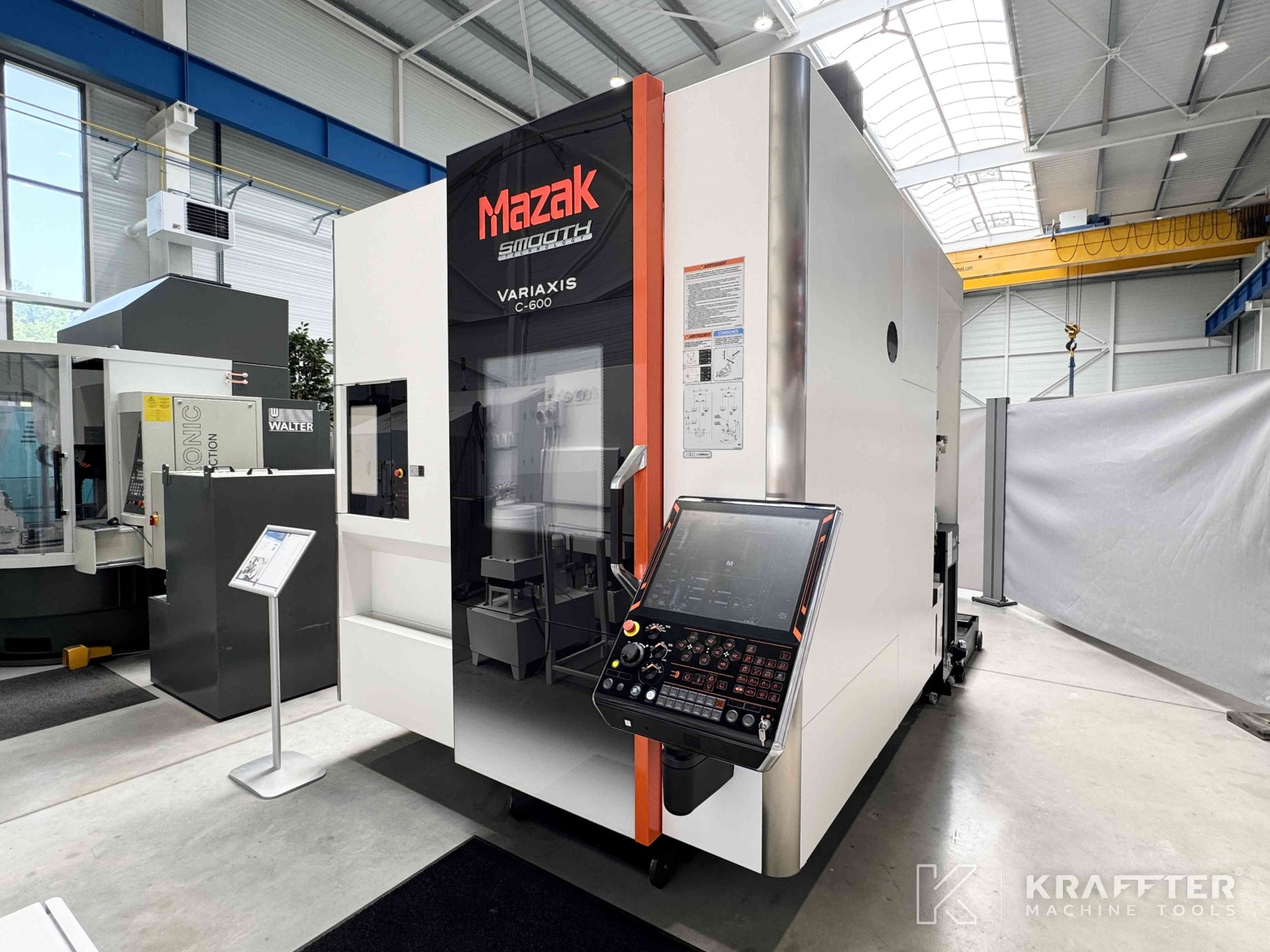

Model : Variaxis C-600
Year : 2020
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

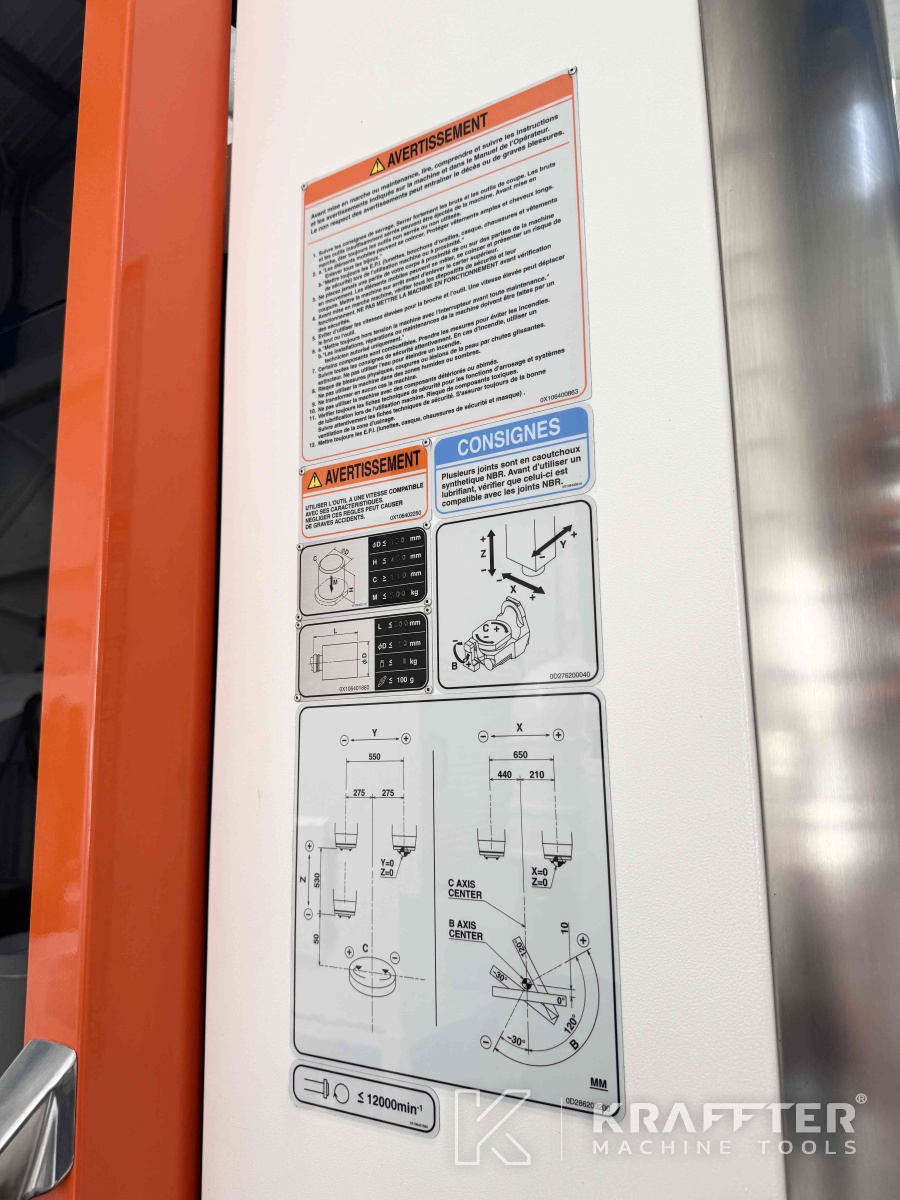

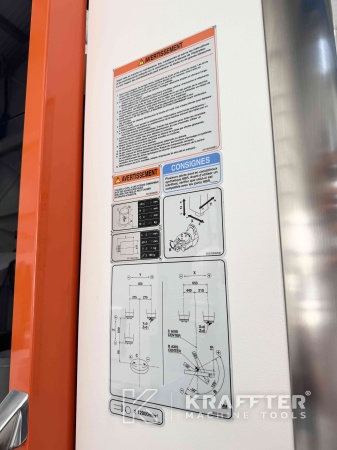

Number of simultaneous axes
5
Stroke X axis
650 [mm]
Stroke Y axis
550 [mm]
Stroke Z axis
530 [mm]
Feed rate on X, Y and Z axes
42000 [mm/min]
Min. distance spindle nose / table
50 [mm]
Max. distance spindle nose / table
580 [mm]

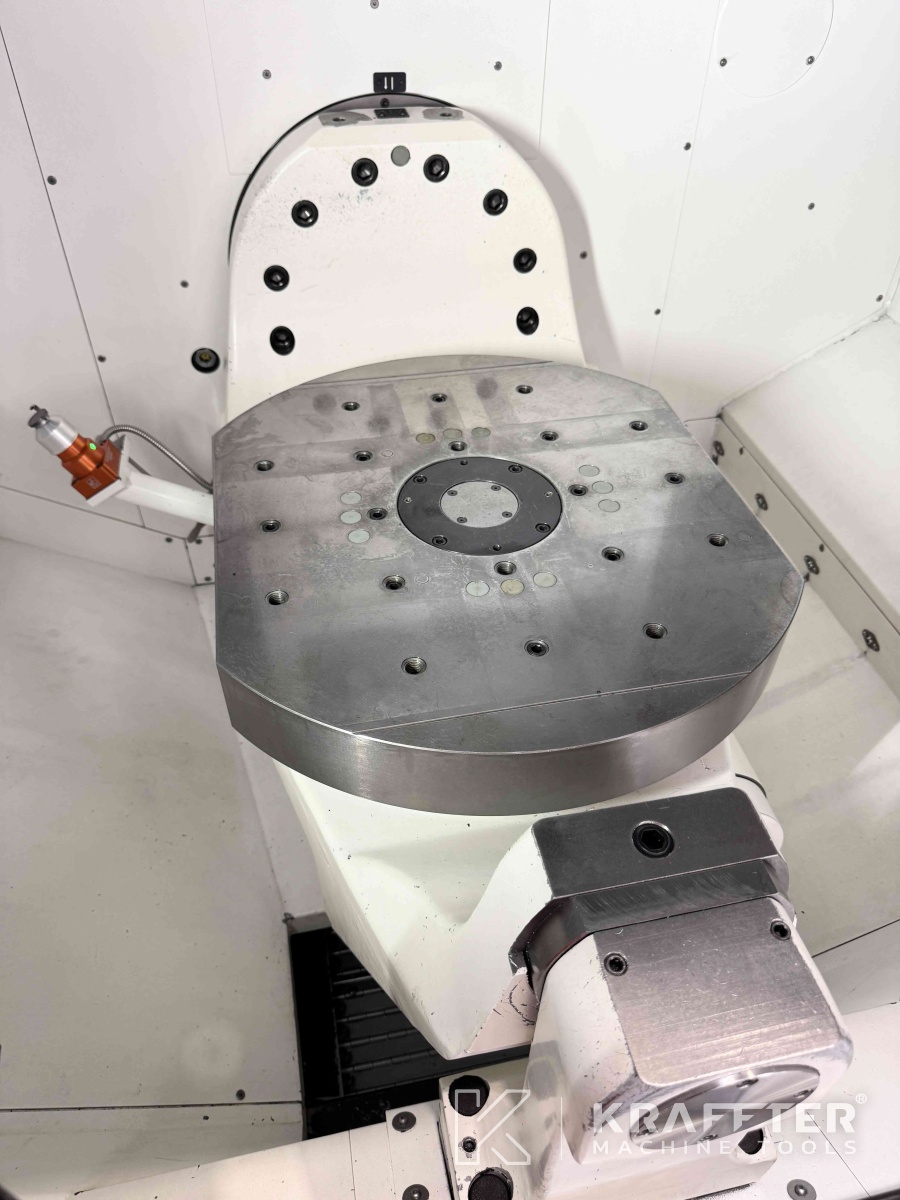

Table dimensions
Ø600 x 500 [mm]
Max. load on table
500 [Kg]

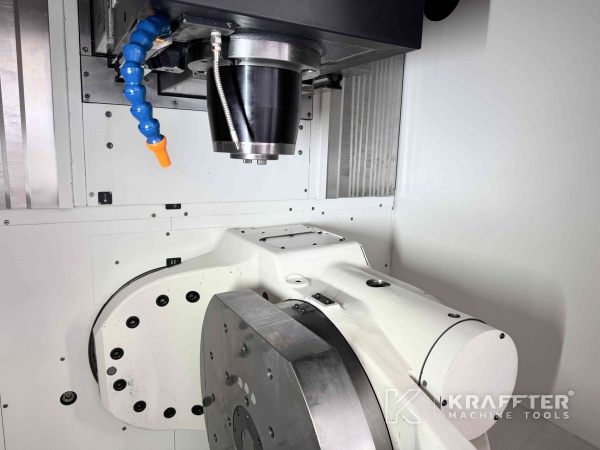

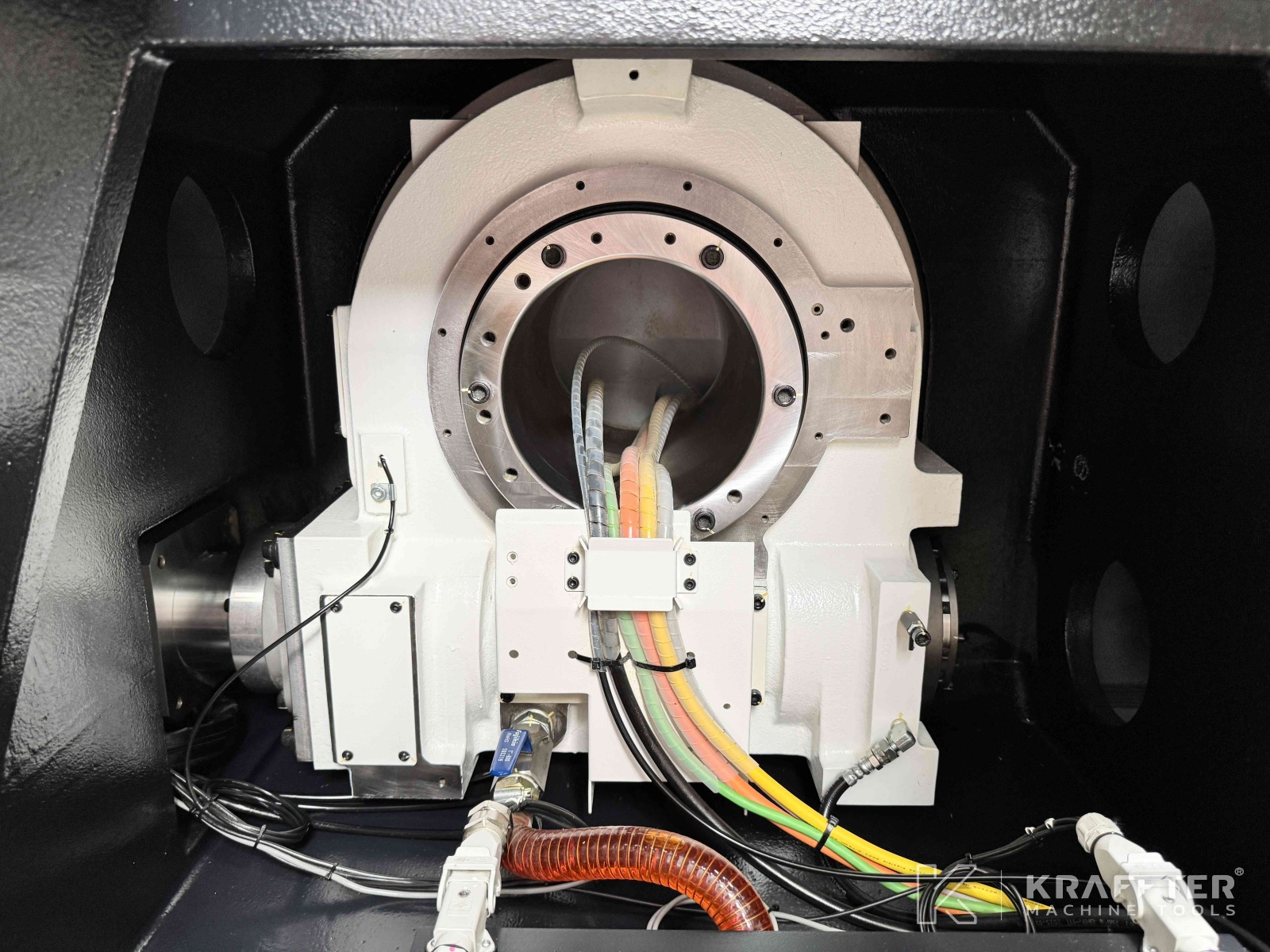

B axis swivelling stroke
-30 [°] / +120 [°]
Stroke C axis : table revolution
360 [°]

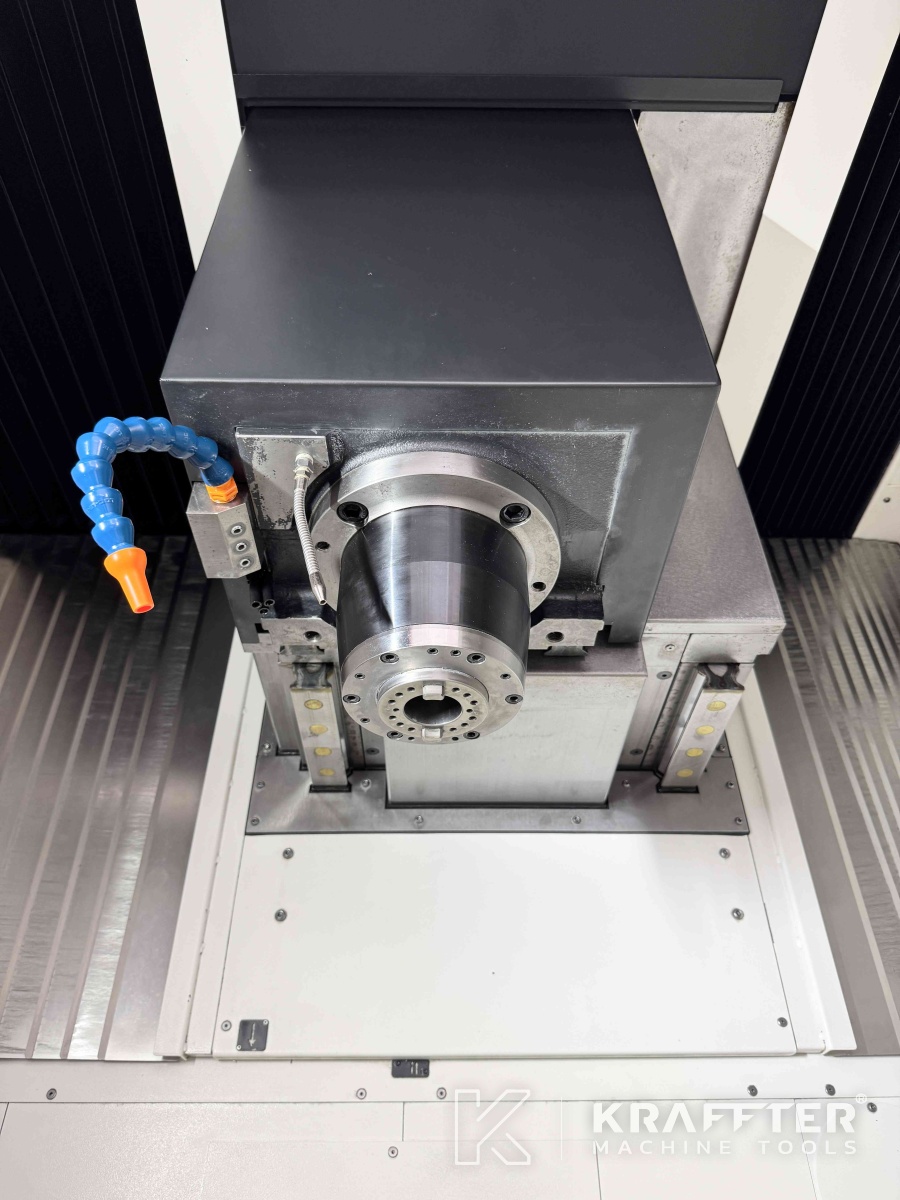

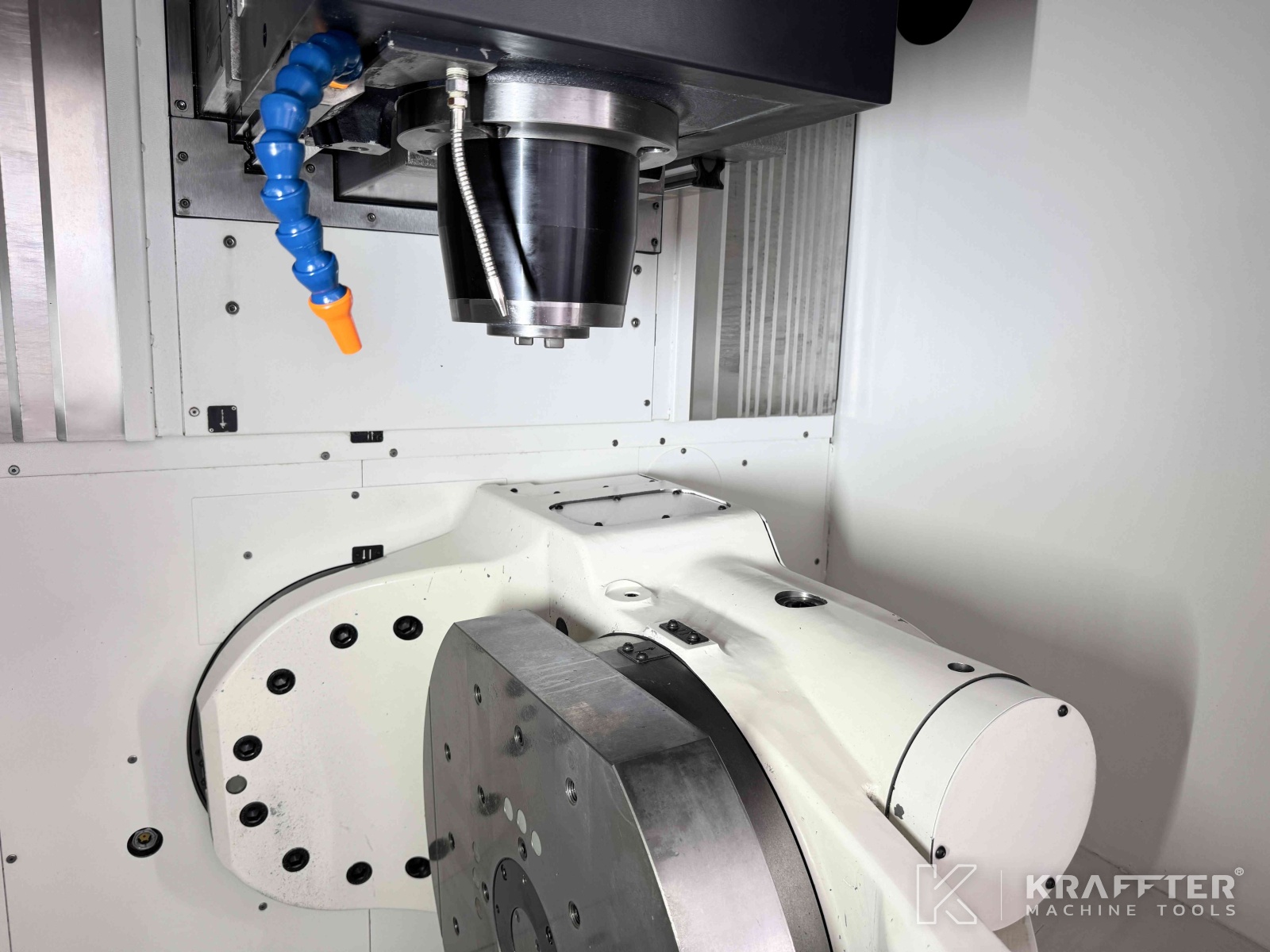

Spindle type
BT40
Max. spindle speed
12000 [rpm]
Spindle power
11 [kW]

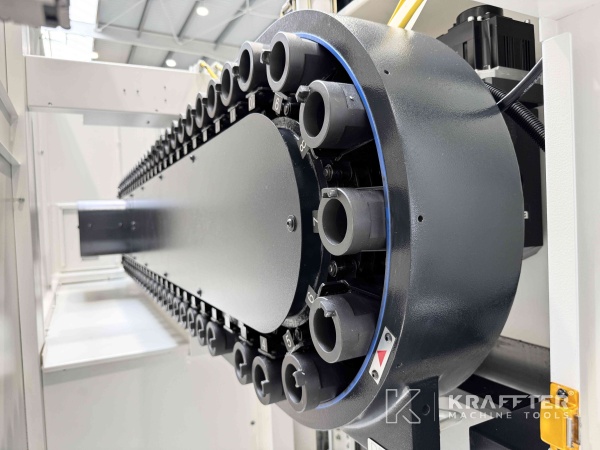

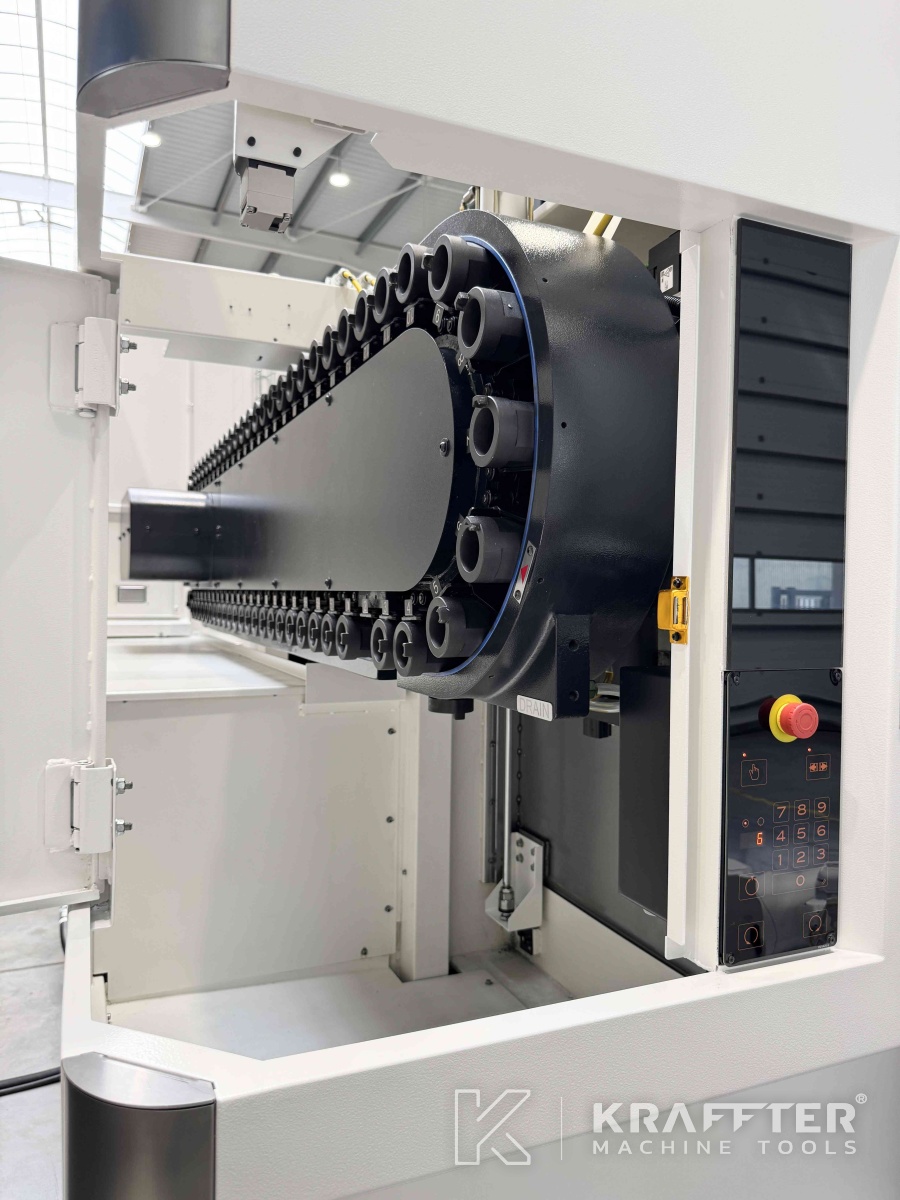

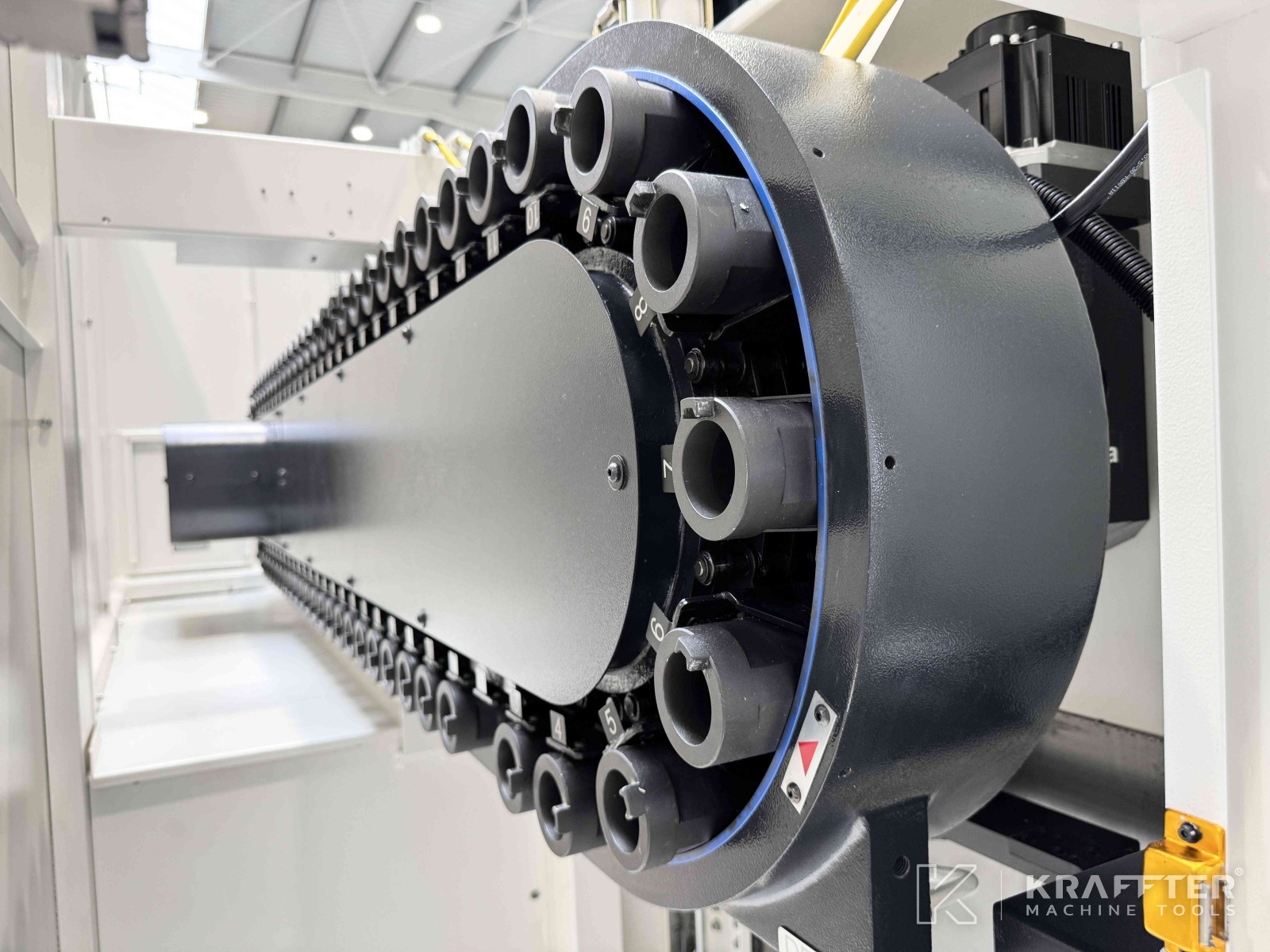

Tool changer magazin number of stations
60
Max. tool lenght
300 [mm]
Max. weight of single tool
8 [Kg]
Max. tool diameter
80 - 130 [mm]
Total power required
46.7 [kVA]

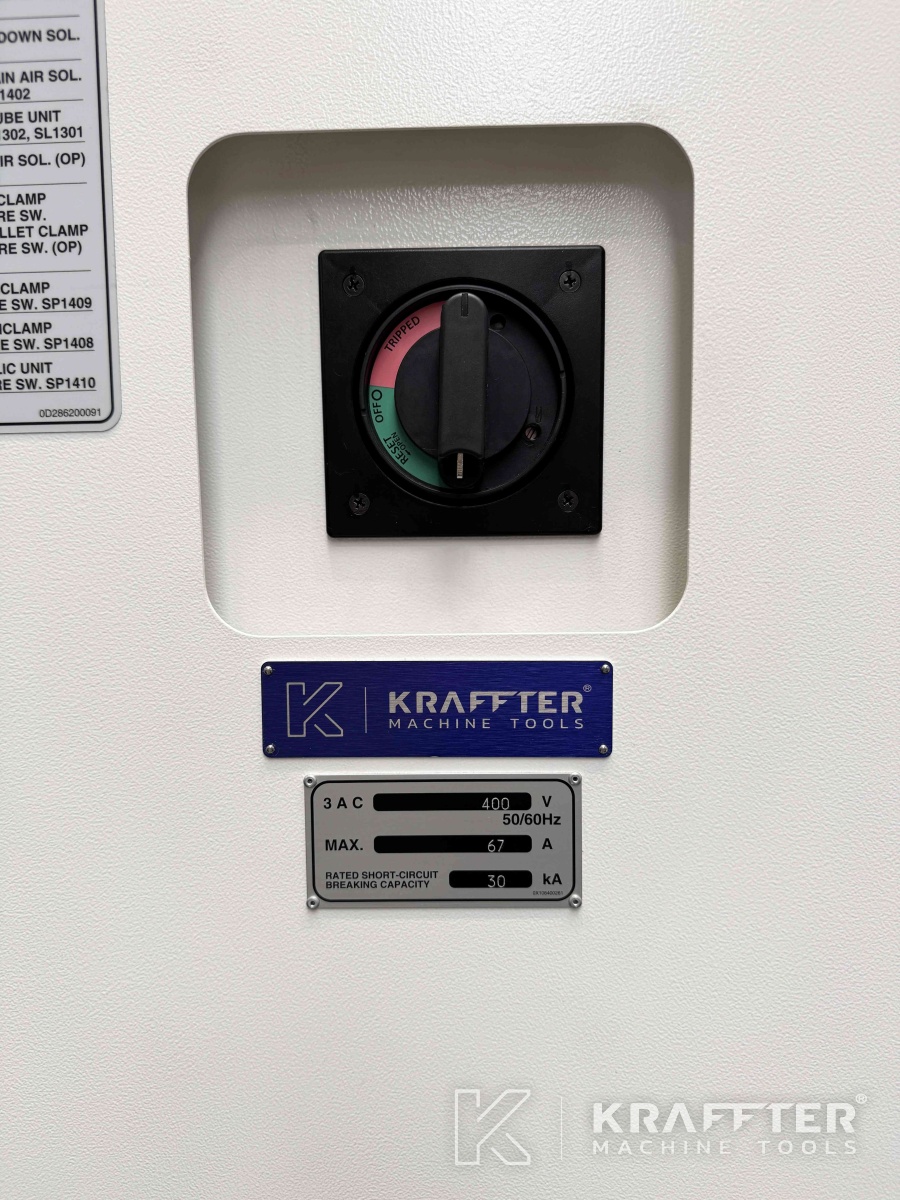

Supply voltage
400 [V]

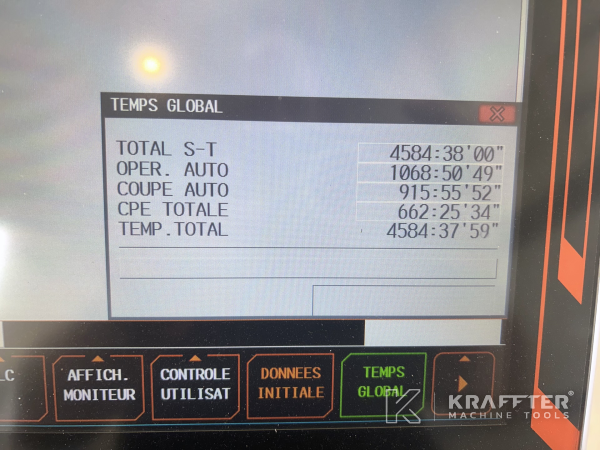

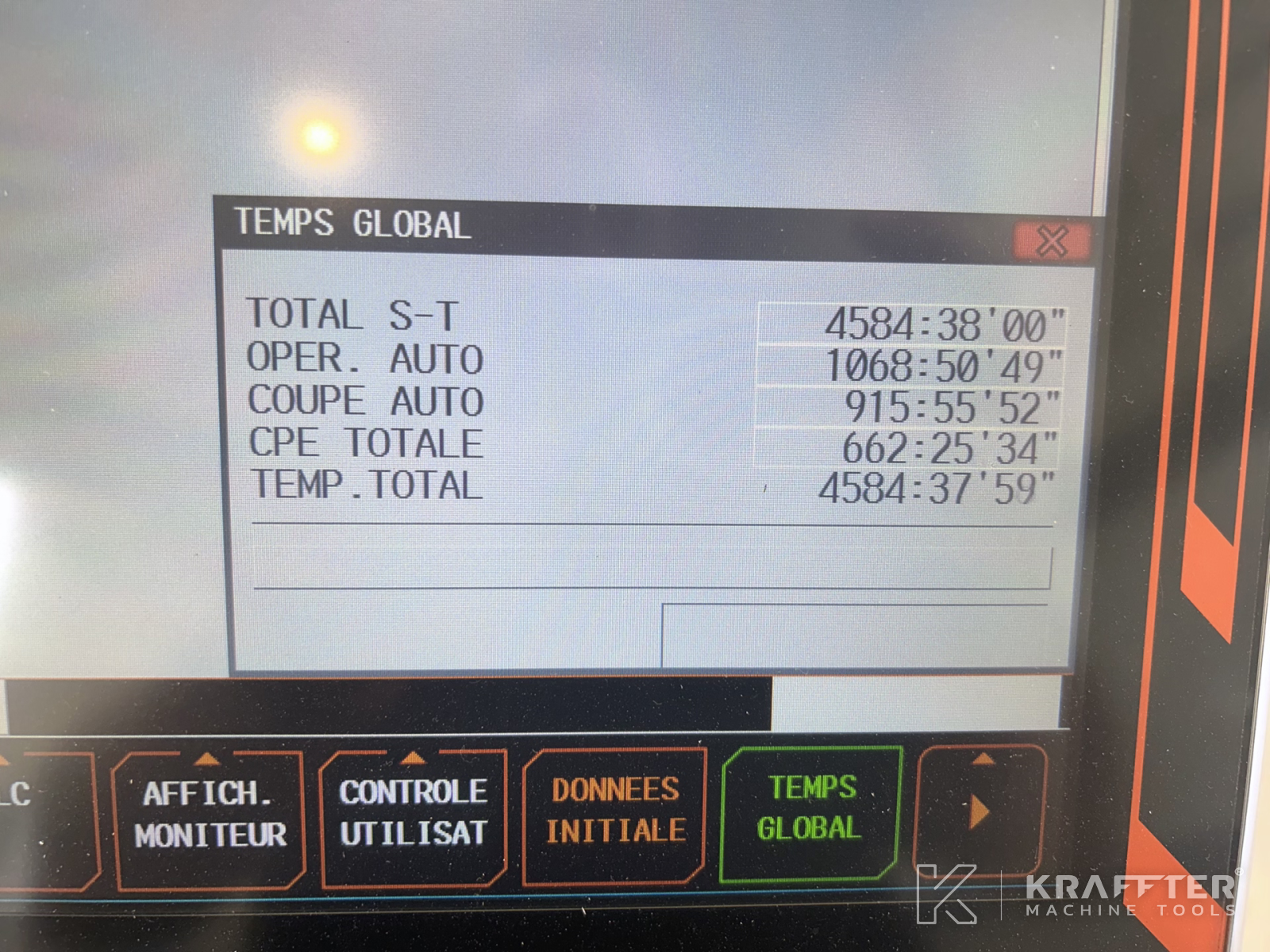

Number of running hours
916 [h]

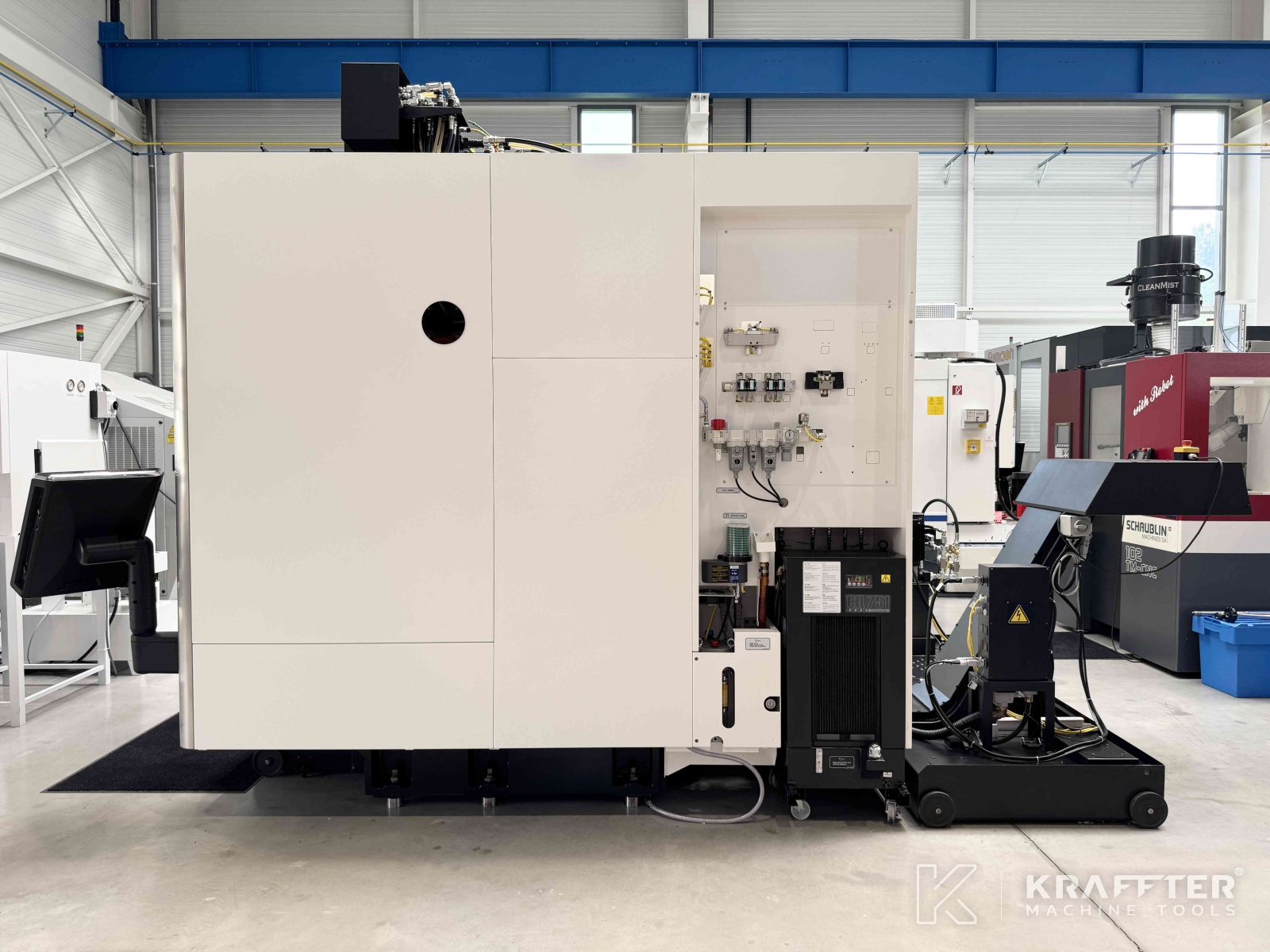

Machine dimensions
2350 x 2962 x 3039 [mm]
Layout dimensions
5010 x 2470 [mm]
Weight
10000 [Kg]
Additional information

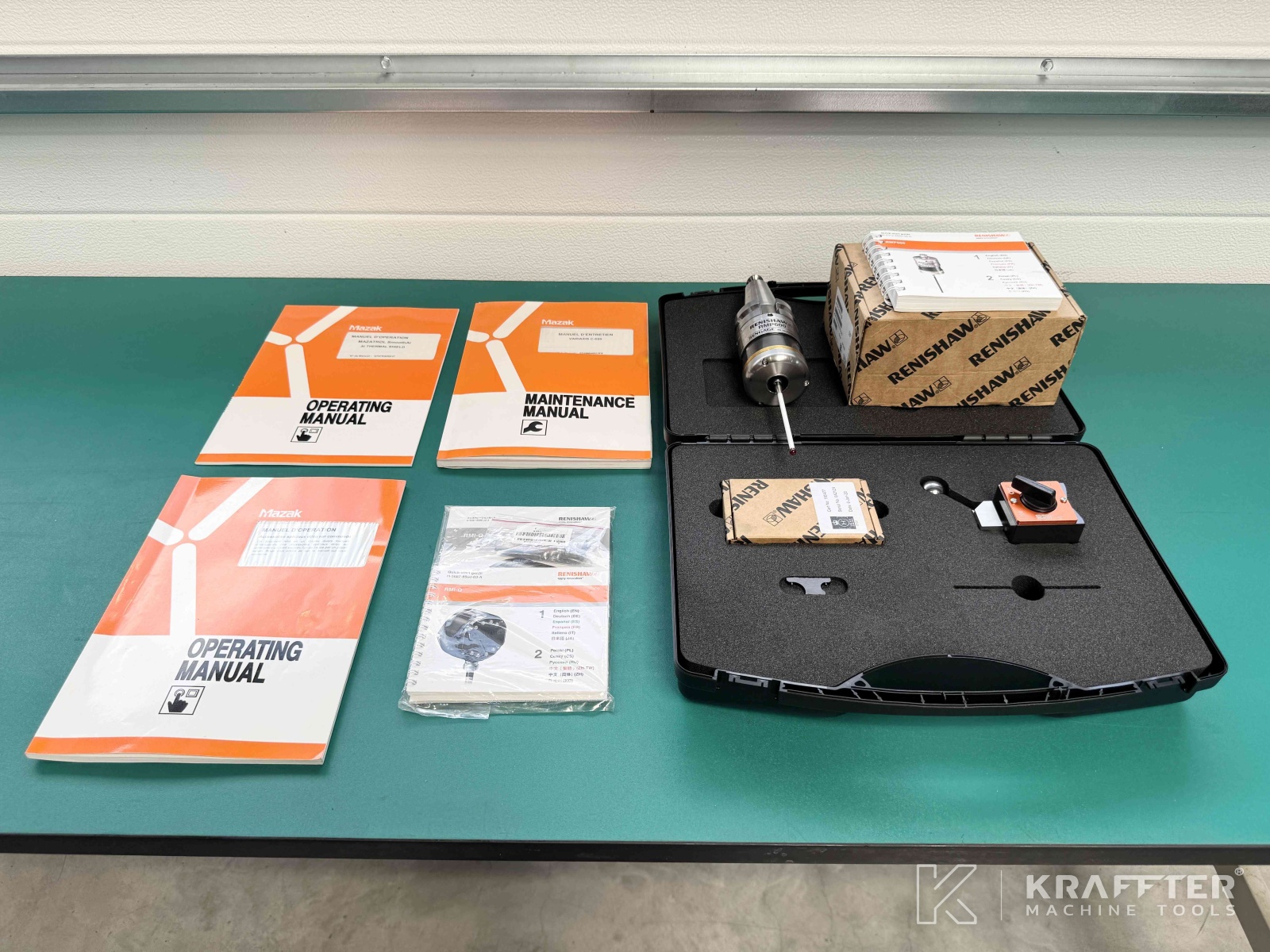

EQUIPMENT INCLUDED:

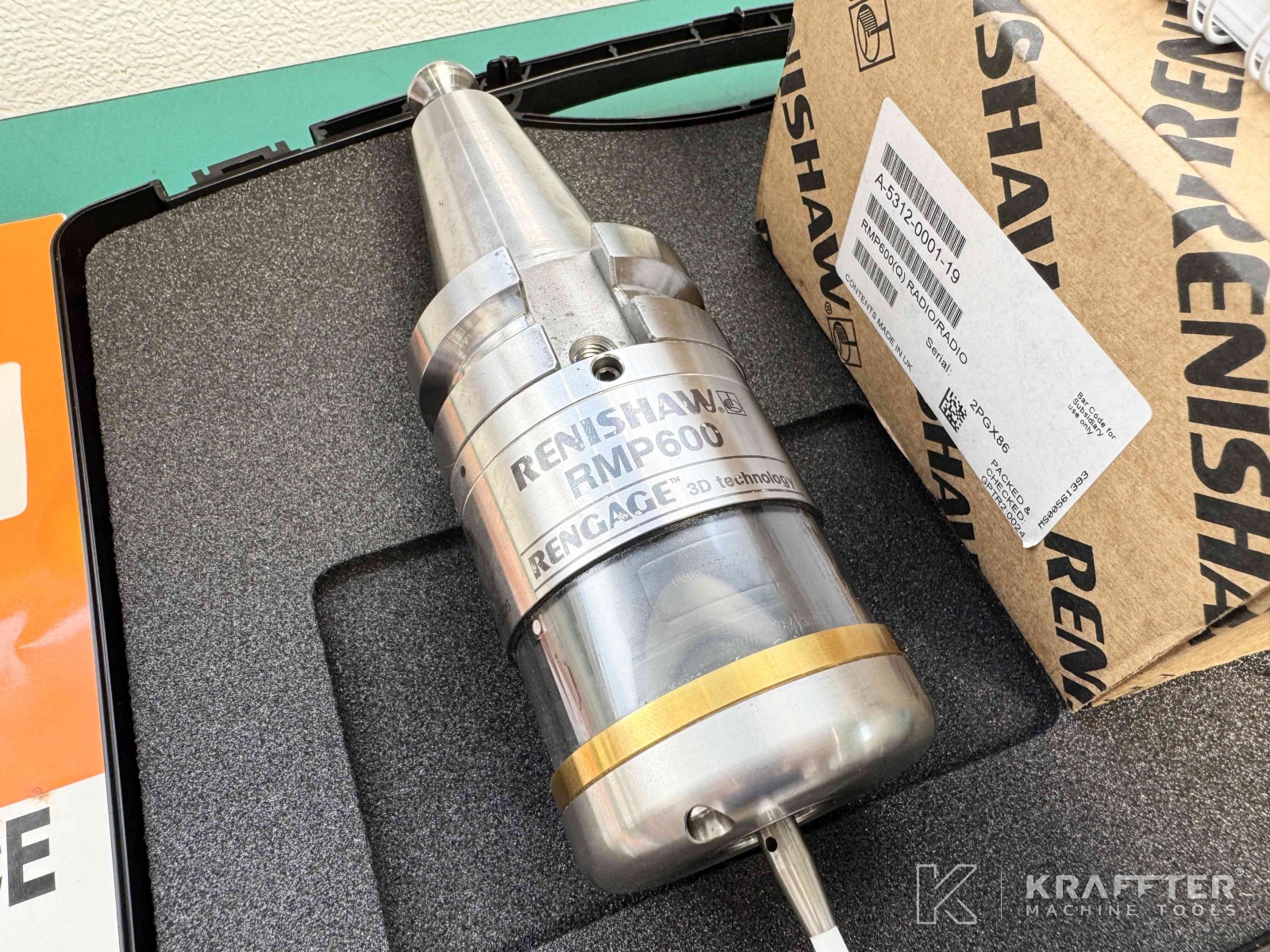

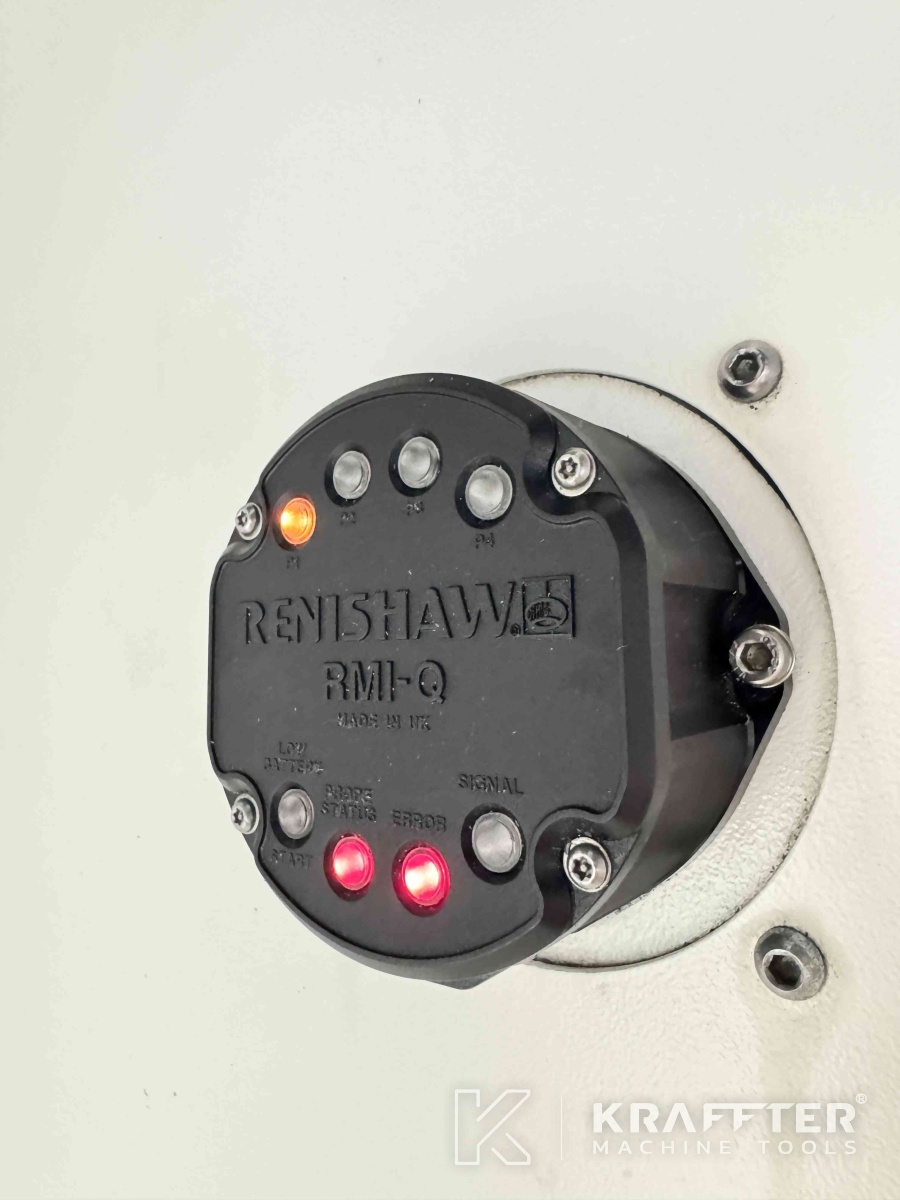

x1 RENISHAW part probe type RMP600

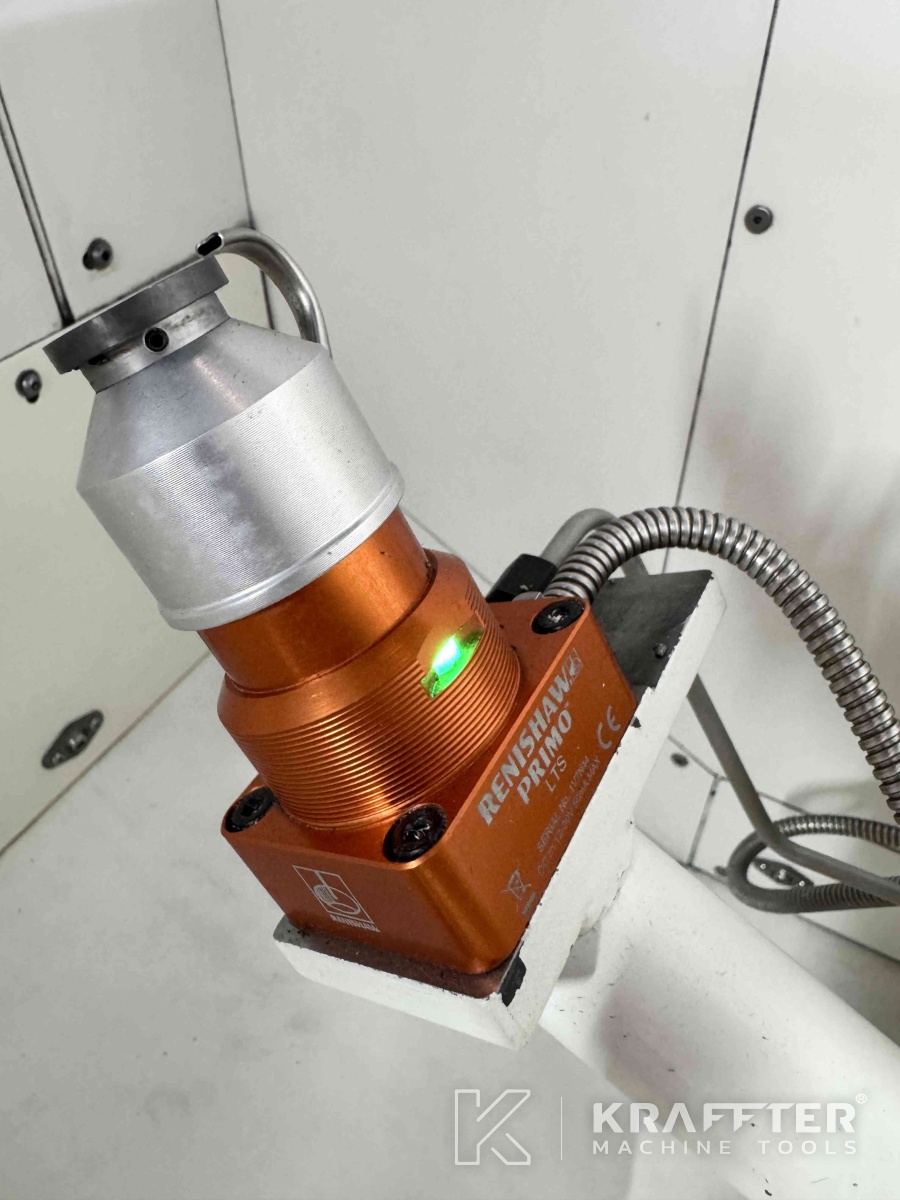

x1 RENISHAW tool probe type PRIMO LTS
x1 RENISHAW calibration sphere

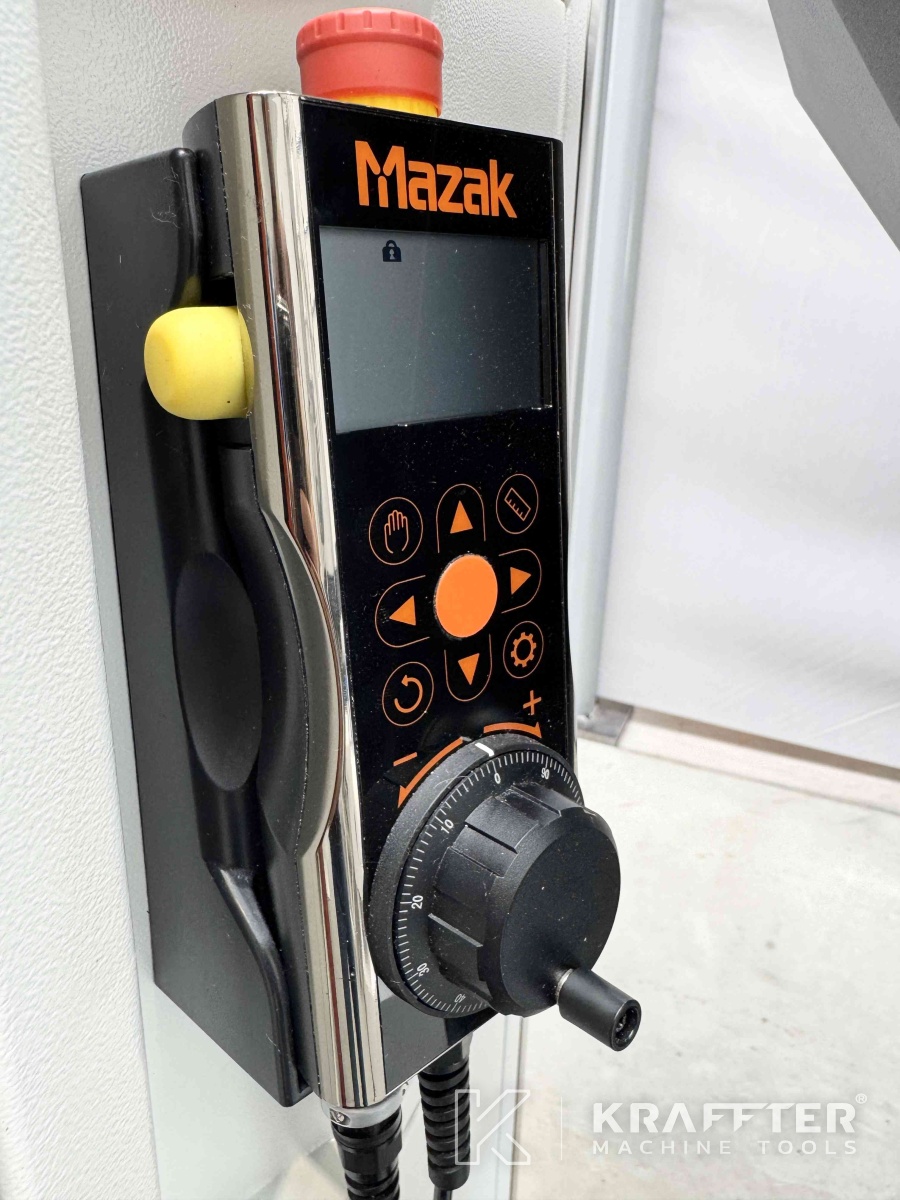

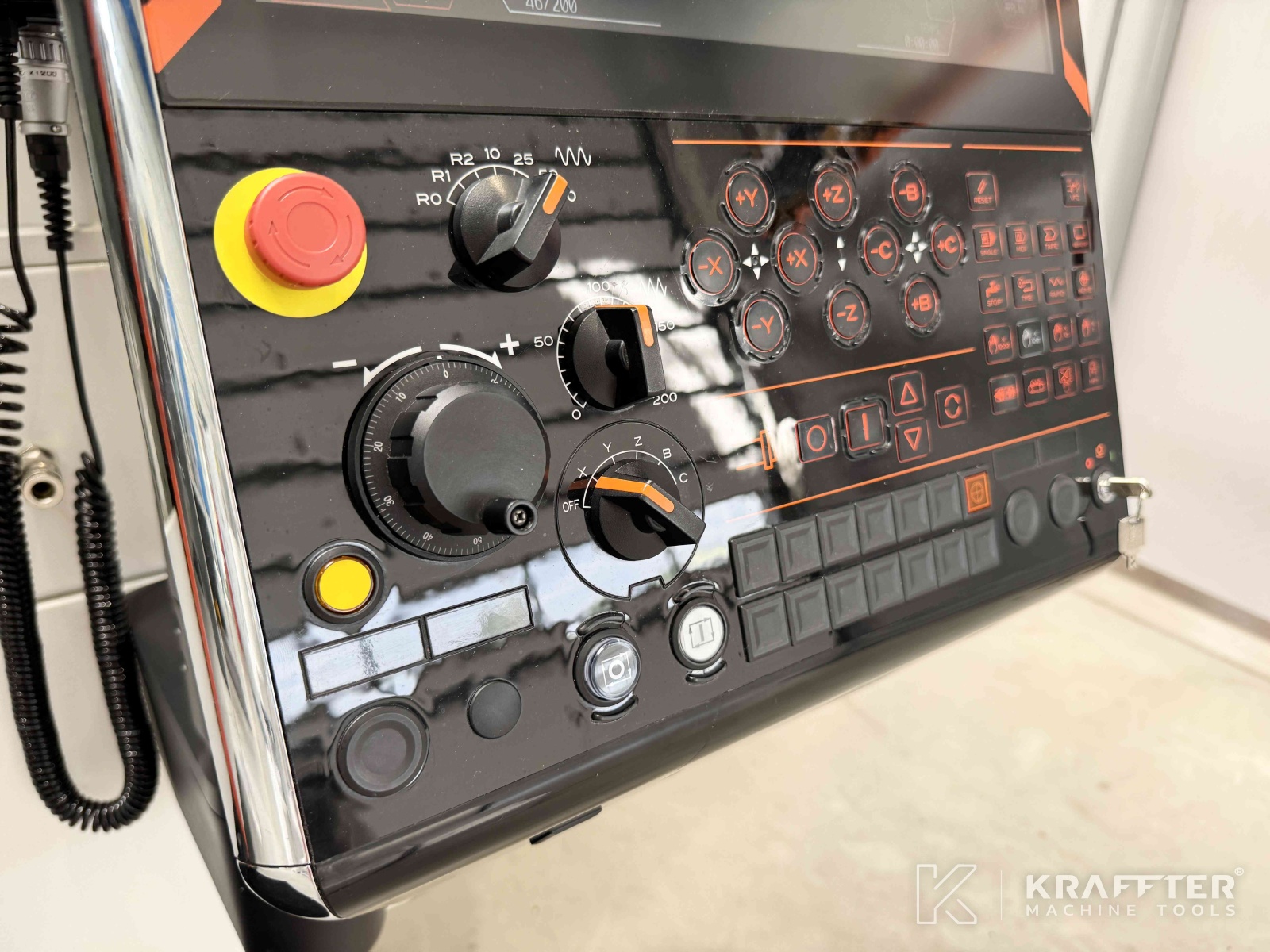

x1 electronic handwheel

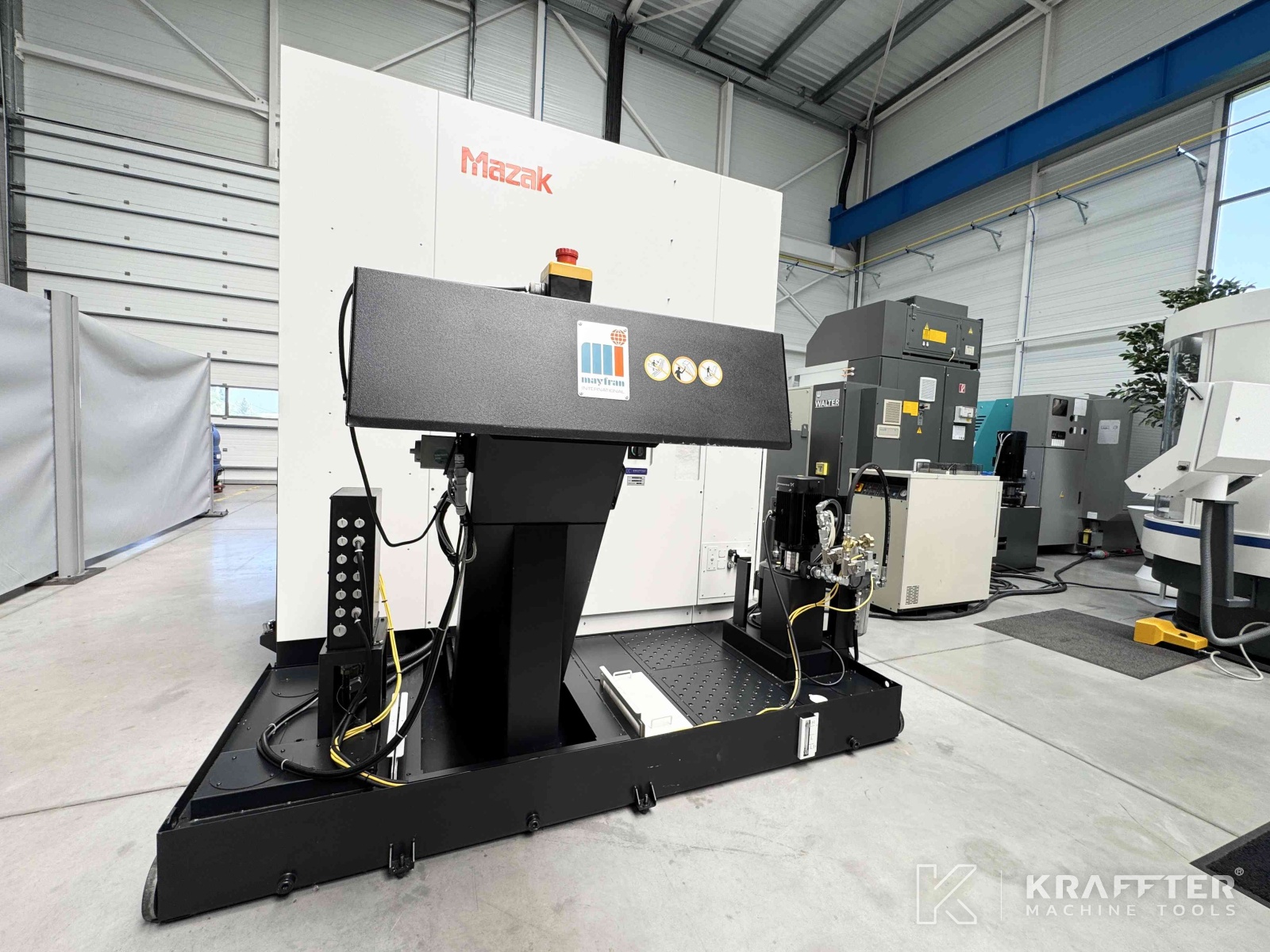

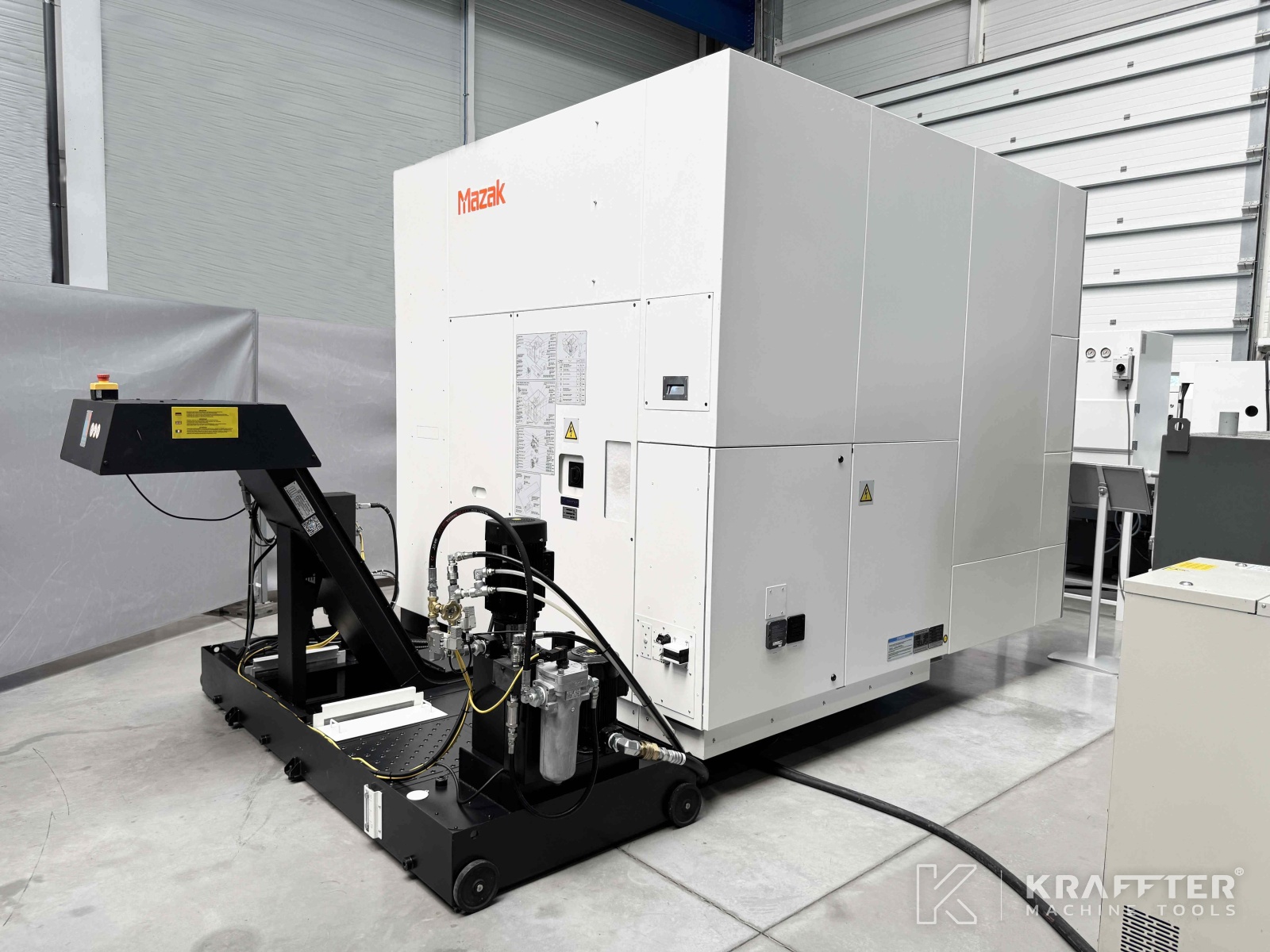

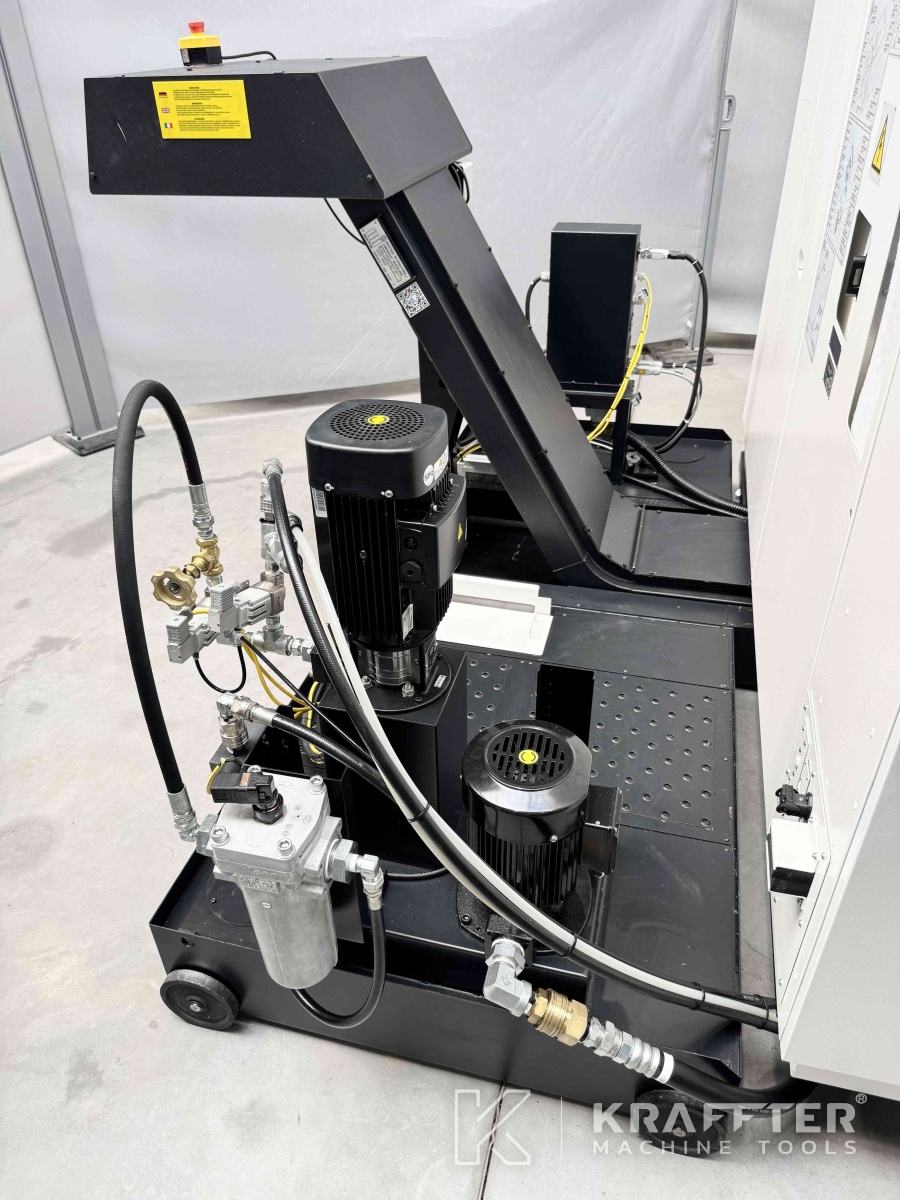

x1 chip conveyor

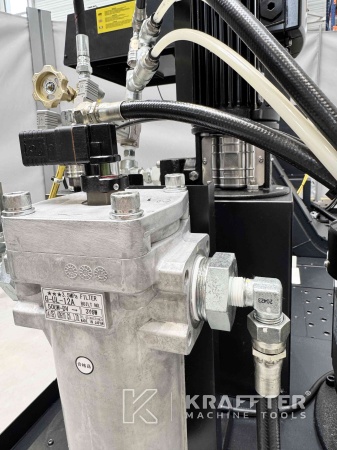

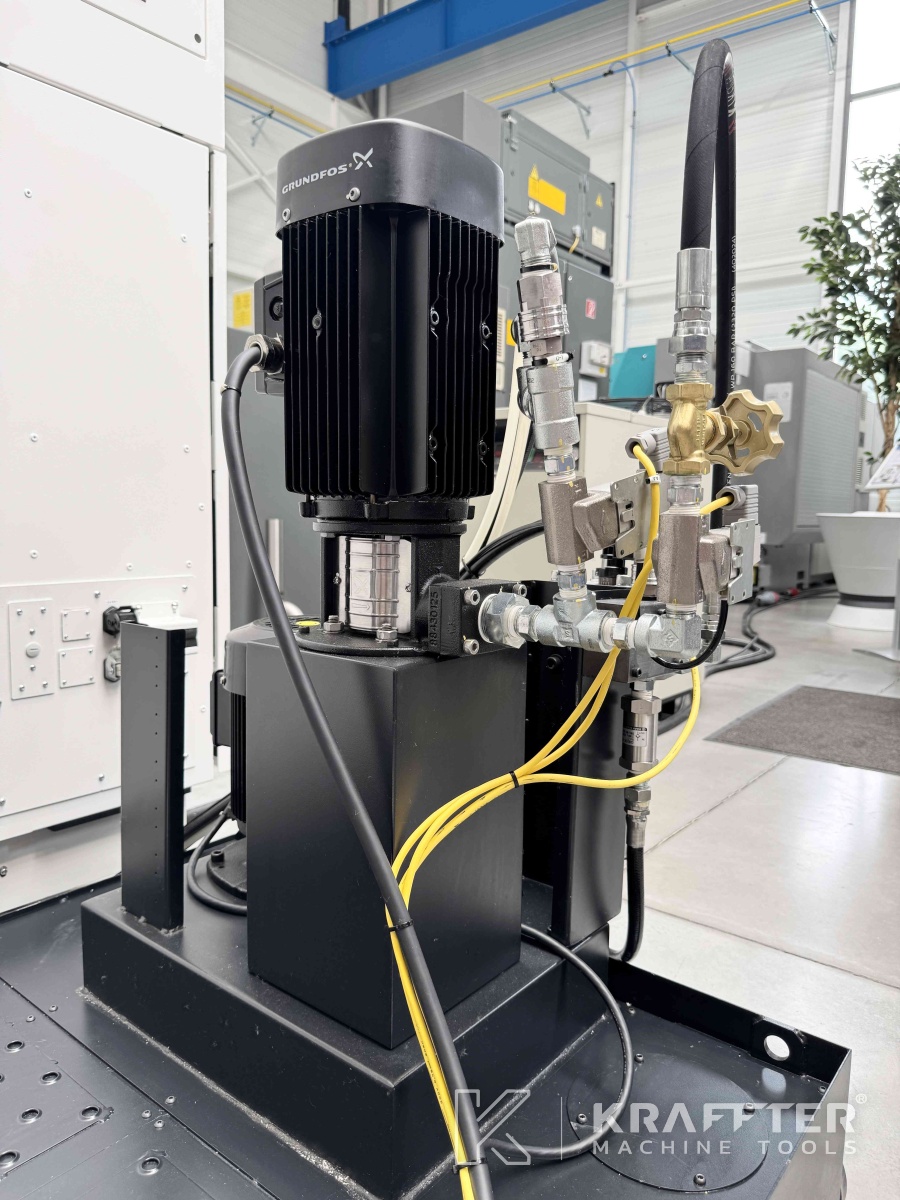

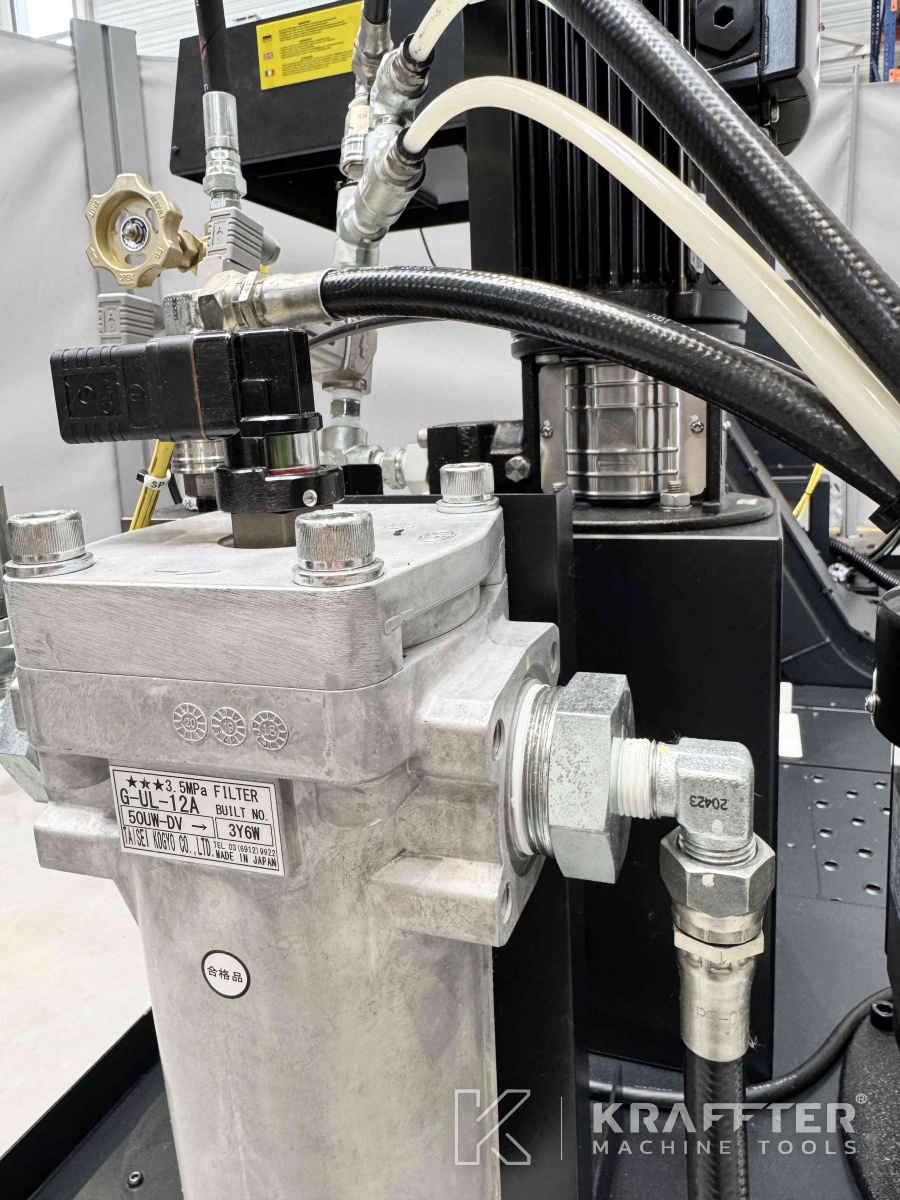

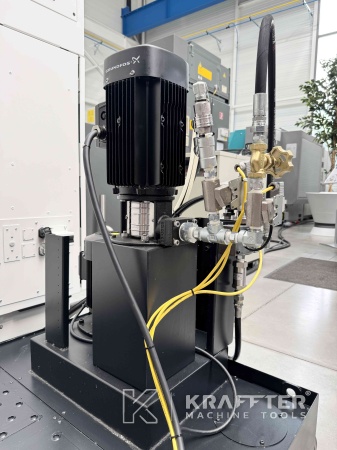

x1 high-pressure pump 15 [bar]
