Sold

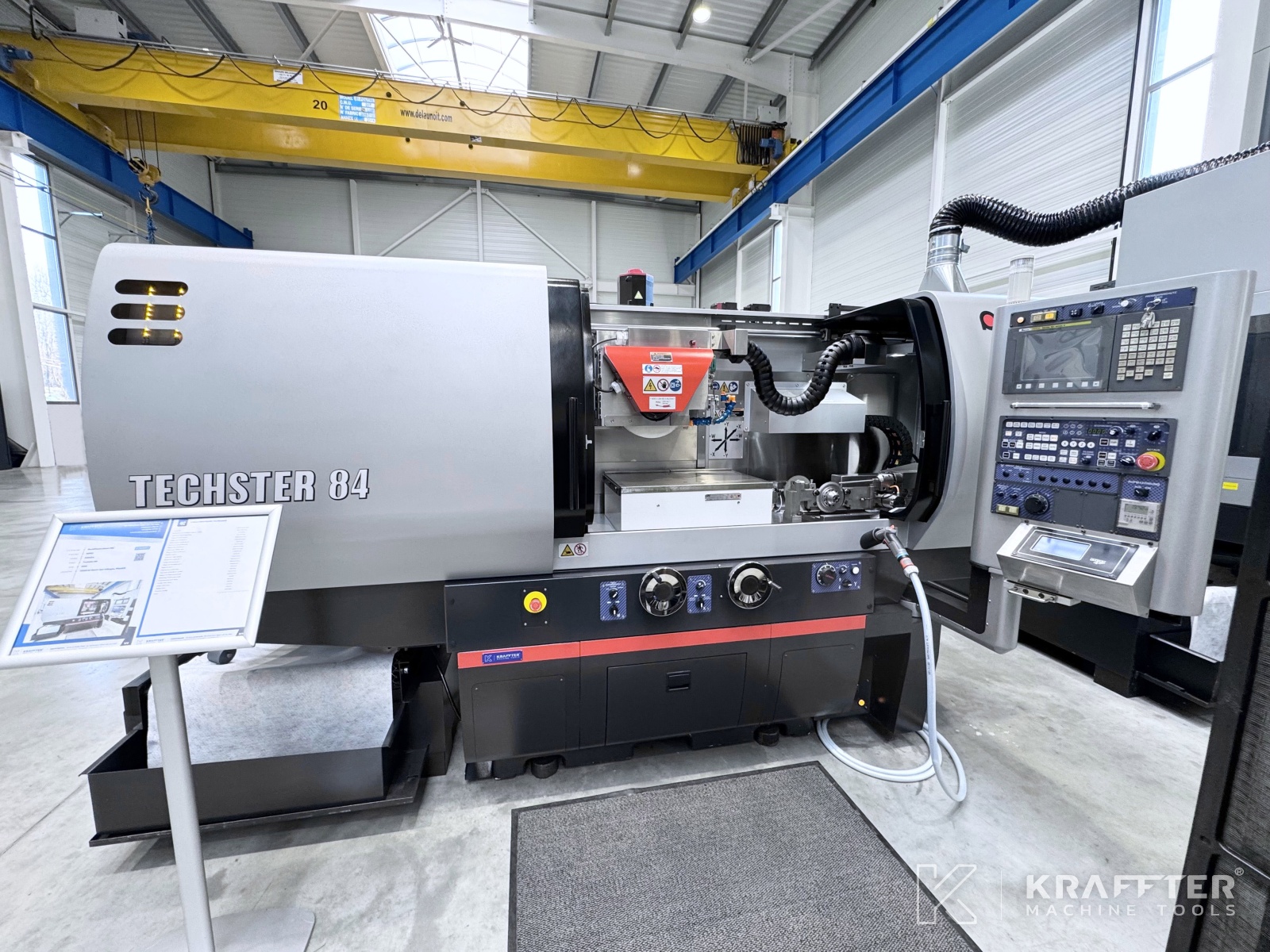

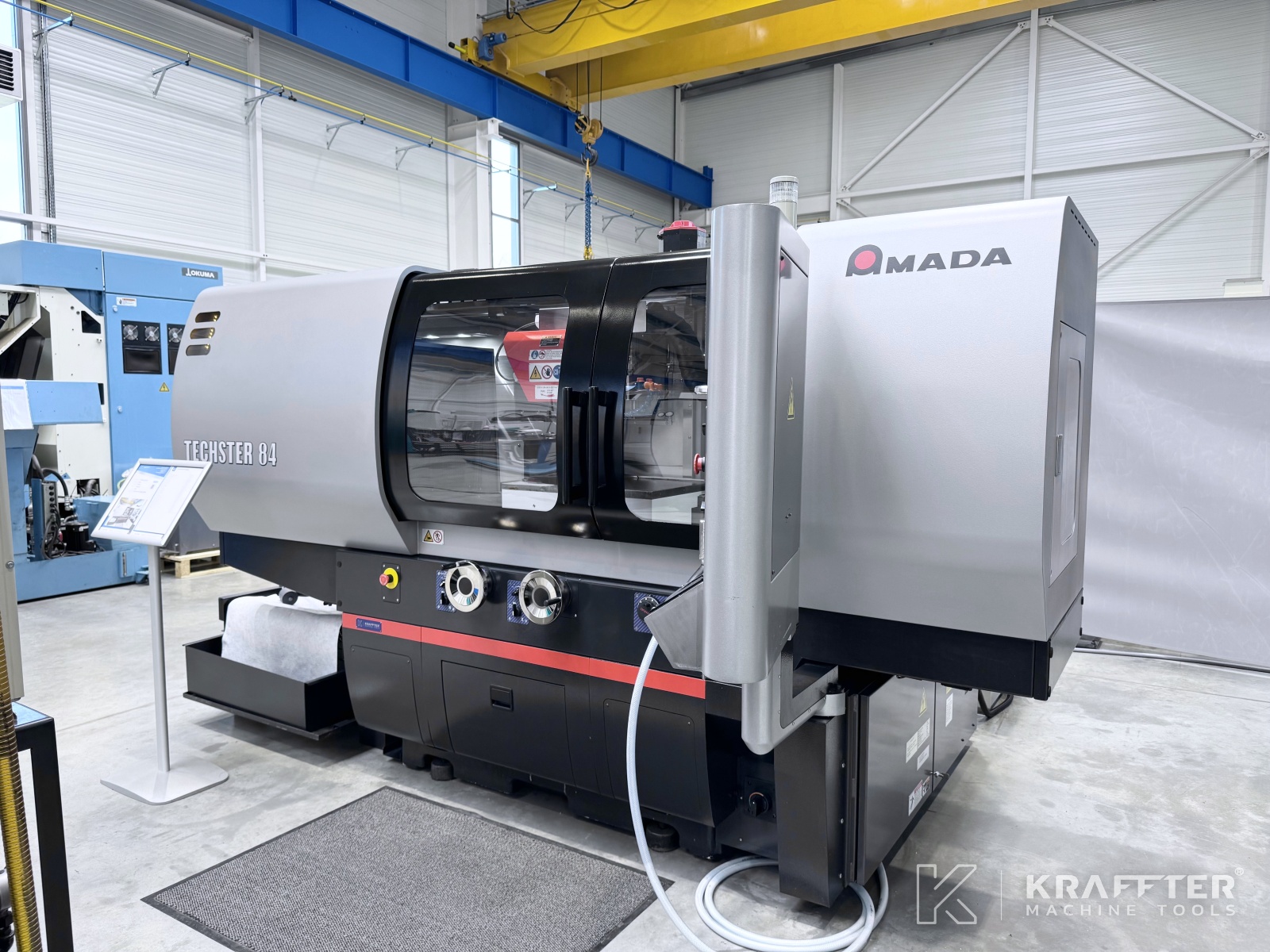

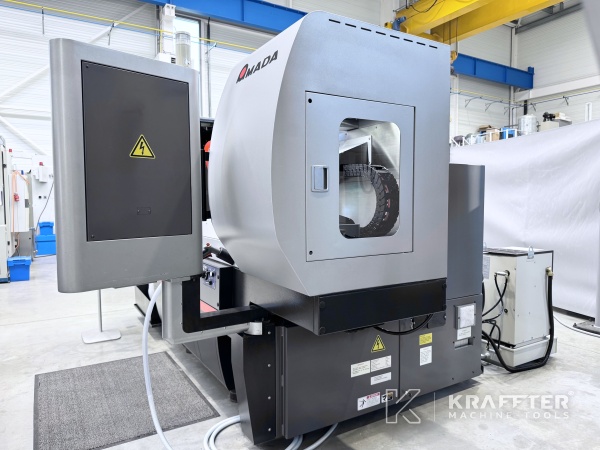

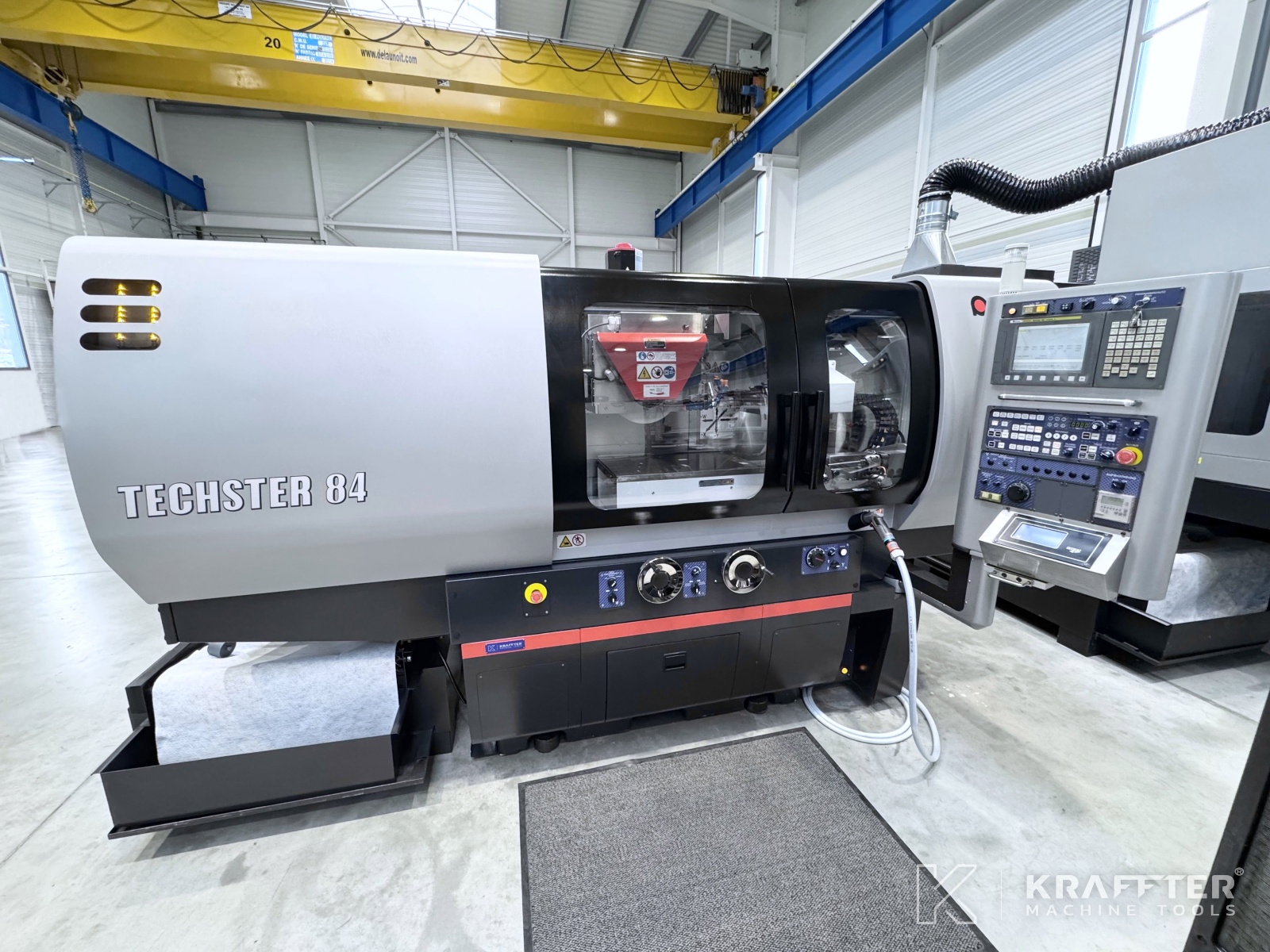

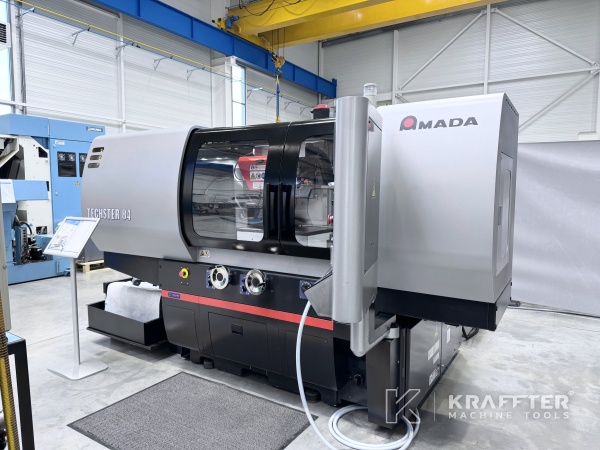

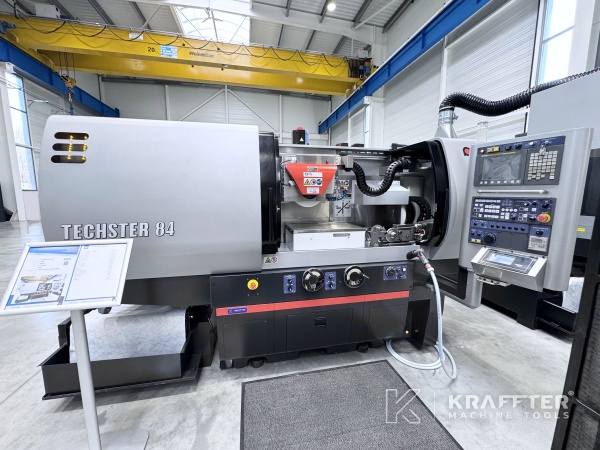

Type of machine : CNC surface grinder
Brand : AMADA
N° de stock: 90162

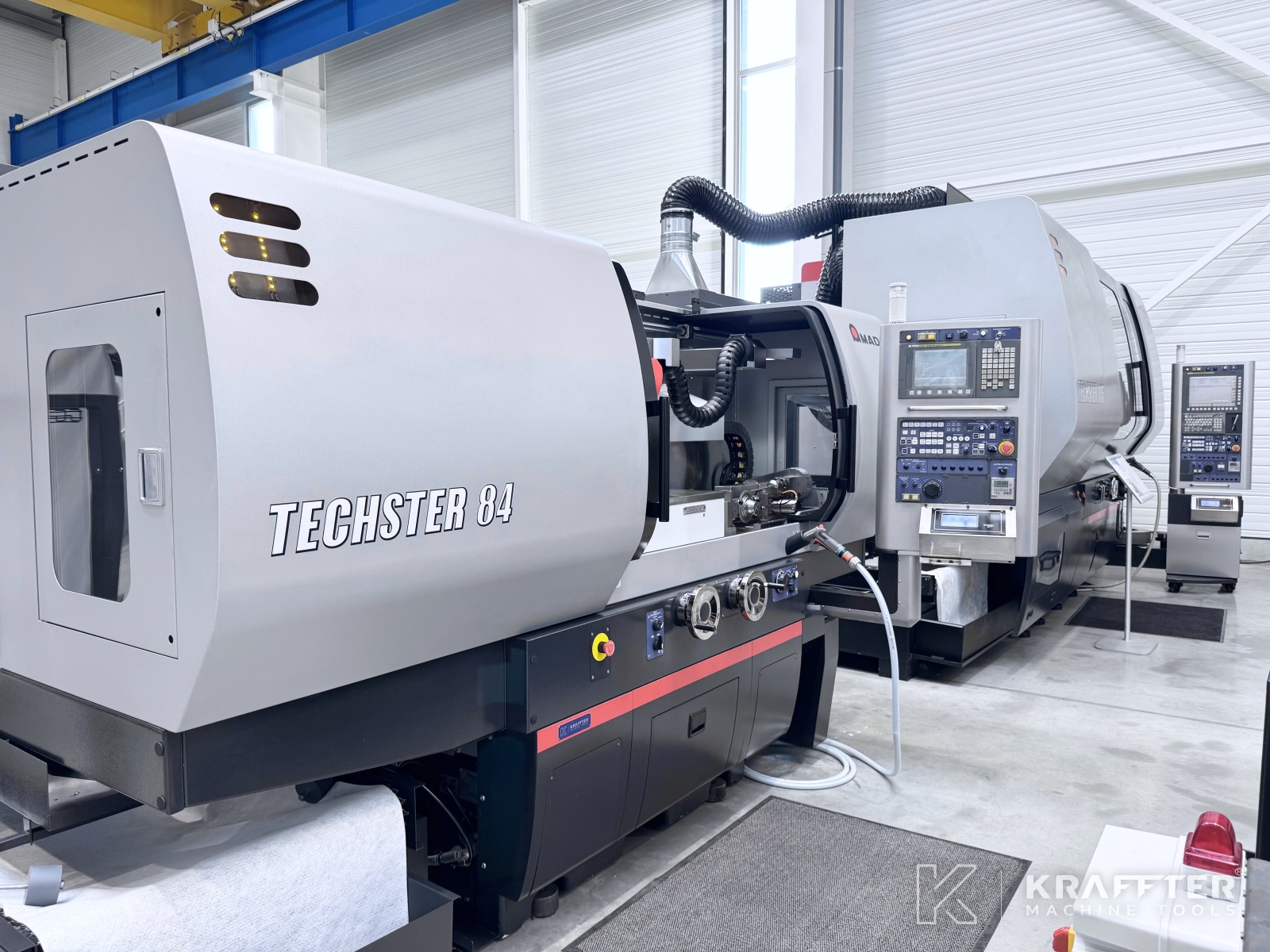

Model : Techster 84
Year : 2014
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

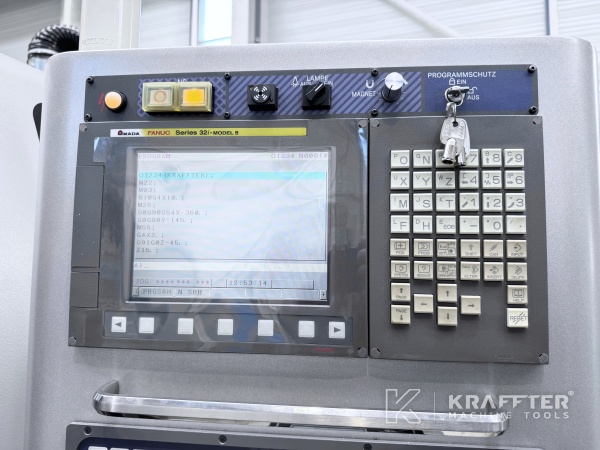

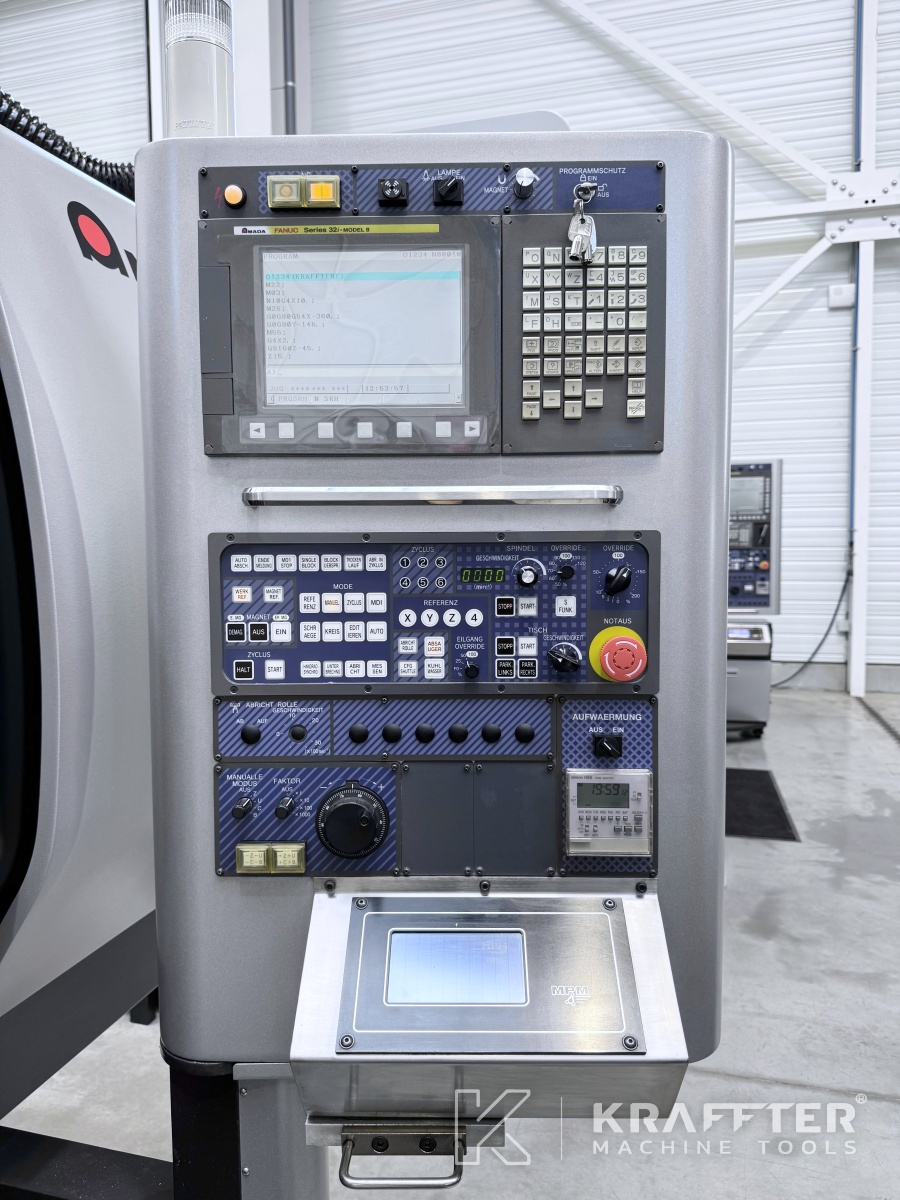

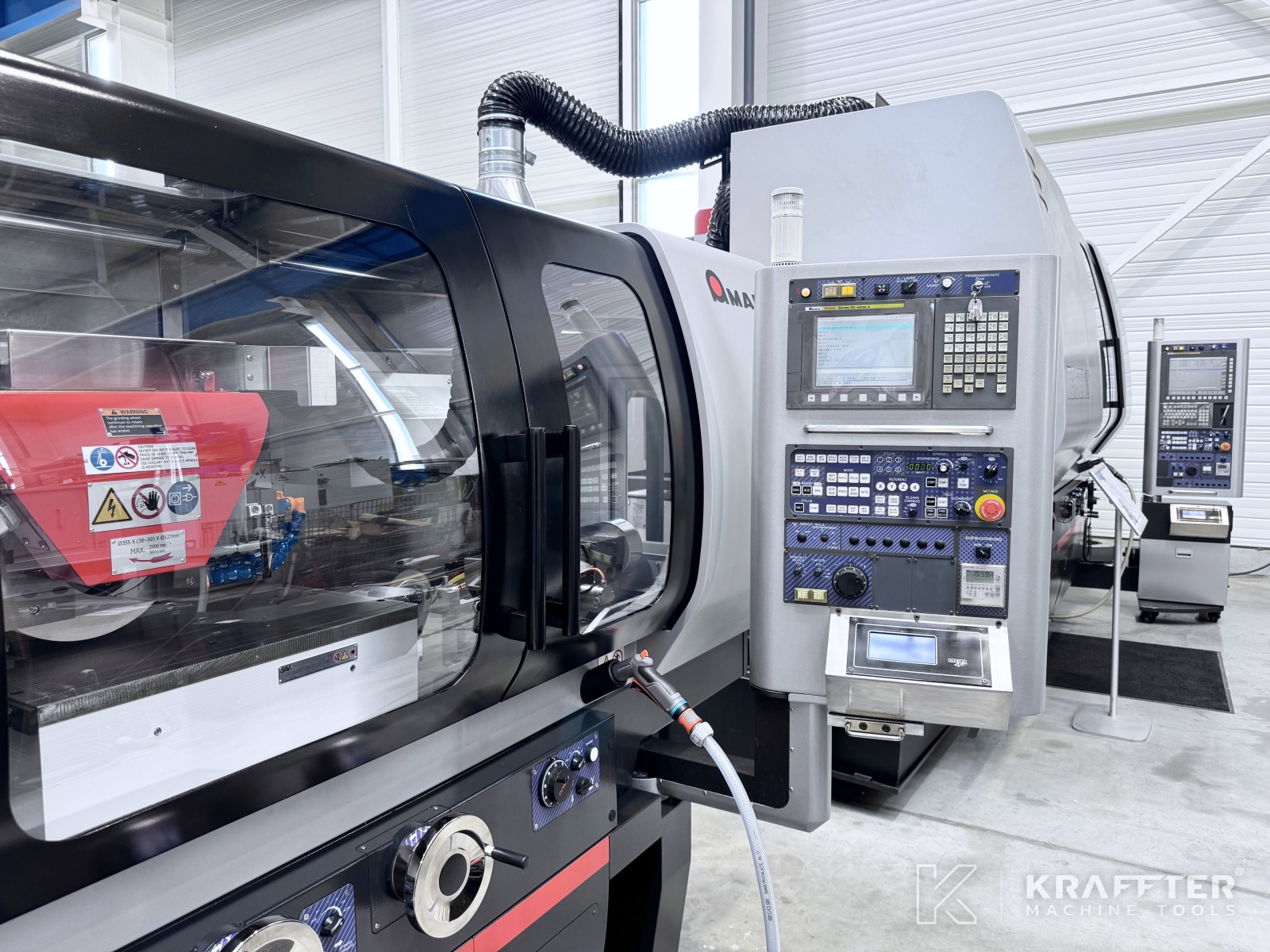

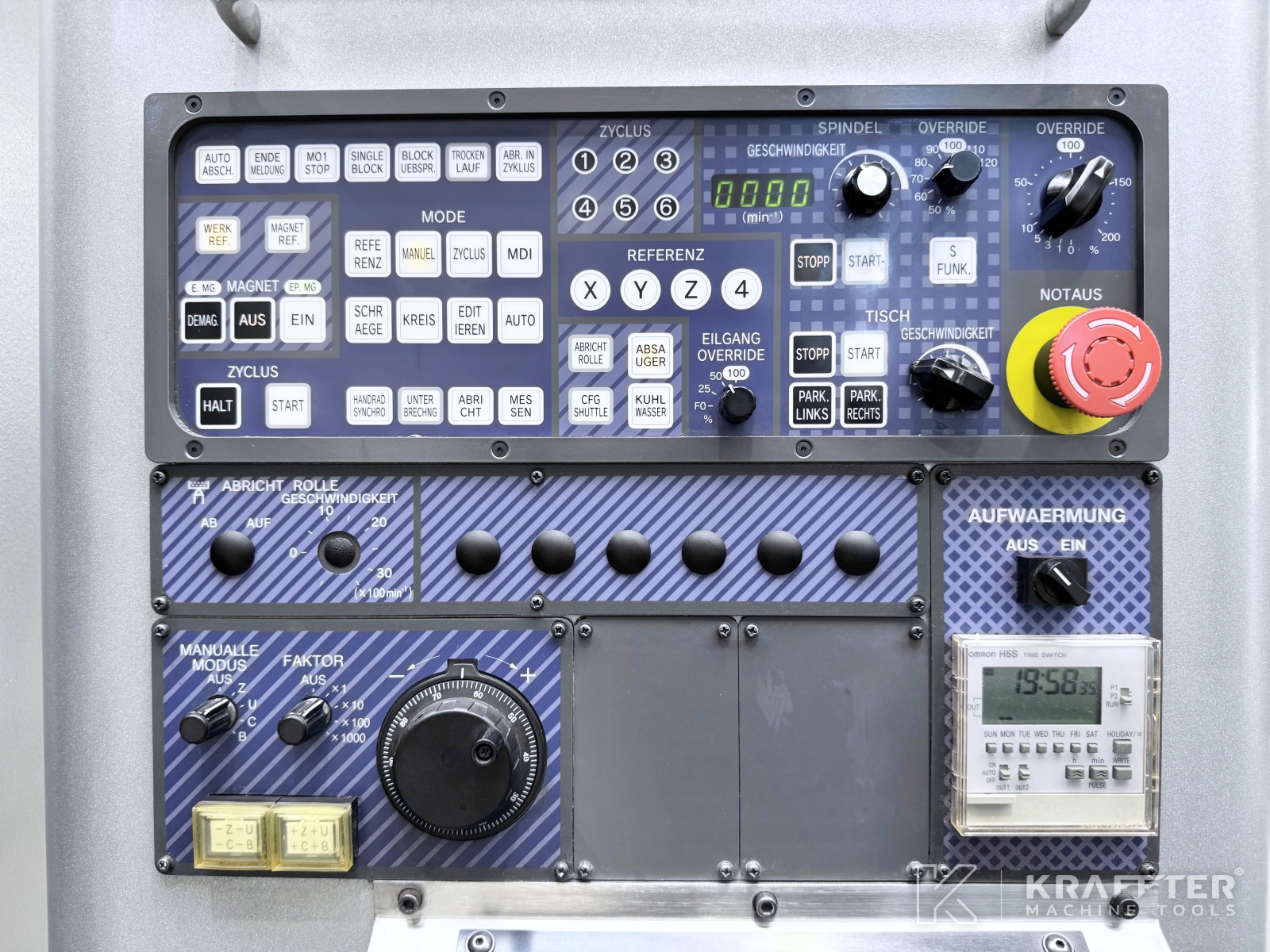

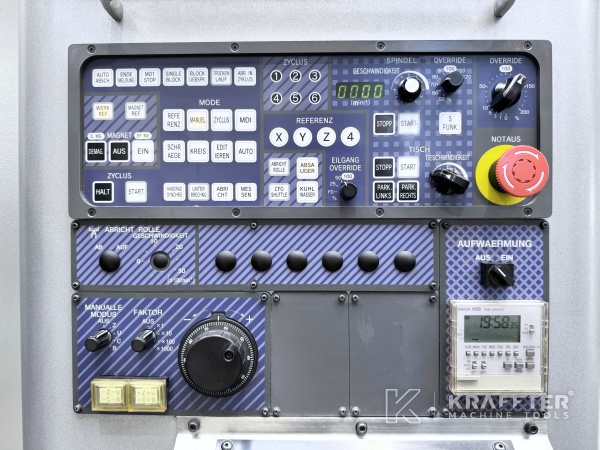

CNC control

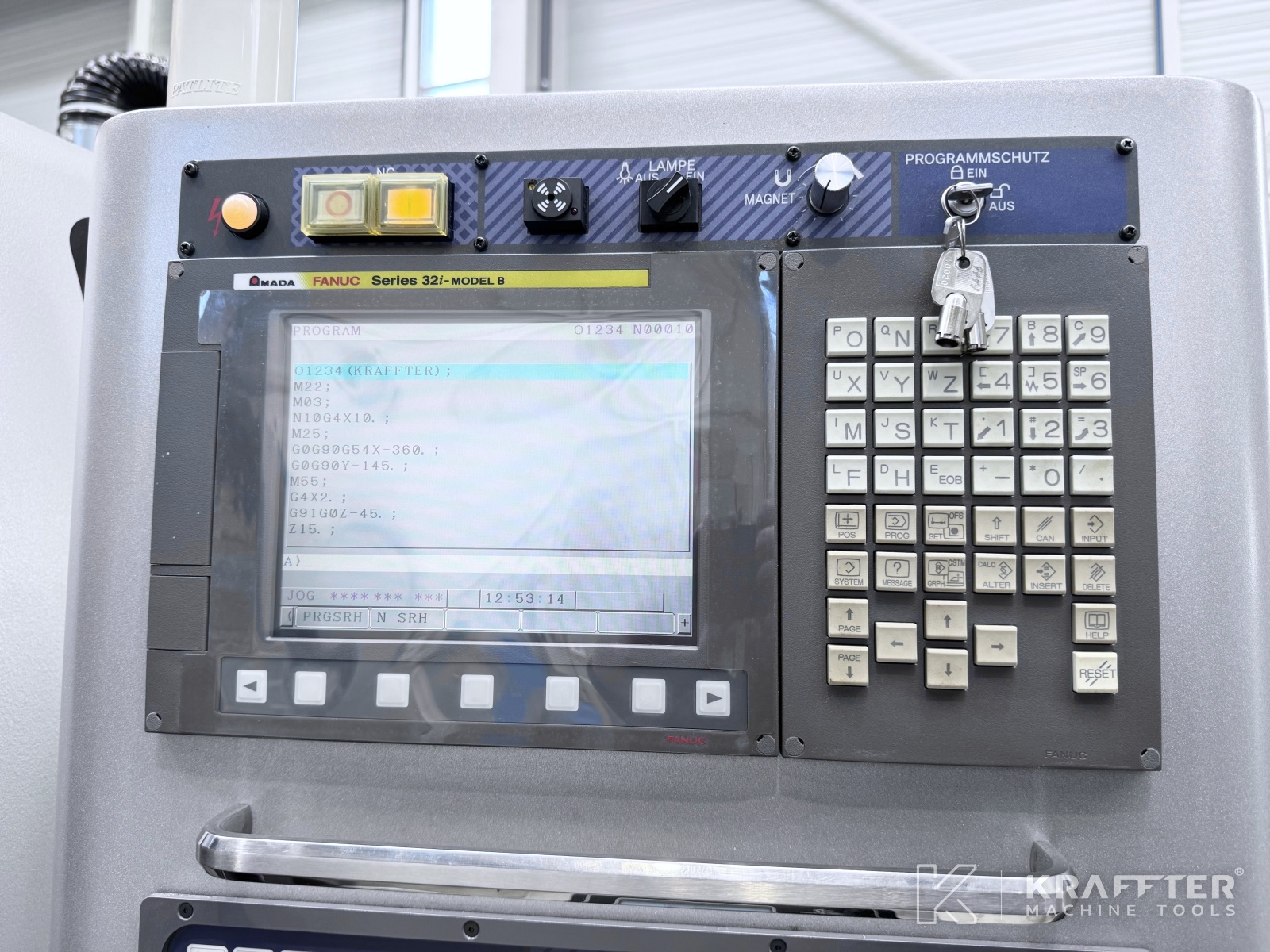

FANUC series 32i-B
Maximum grinding lenght x width
800 x 400 [mm]
W axis travel (longitudinal axis)
1000 [mm]
Min. Stroke speed W axis
0.1 [mm/min]
Max. Stroke speed W axis
40000 [mm/min]
X axis travel (transverse movement)
450 [mm]
Min. Stroke speed X axis
0.1 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Y axis (vertical movement)
500 [mm]
Min. Stroke speed Y axis
0.1 [mm/min]
Max. Stroke speed Y axis
2000 [mm/min]
Resolution Y axis
0.0001 [mm]
Max. distance spindle nose / table
500 [mm]
Max. load on table
1000 [Kg]
Min. grinding wheel speed
300 [rpm]
Max. grinding wheel speed
2500 [rpm]
Grinding spindle motor power
7.5 [kW]

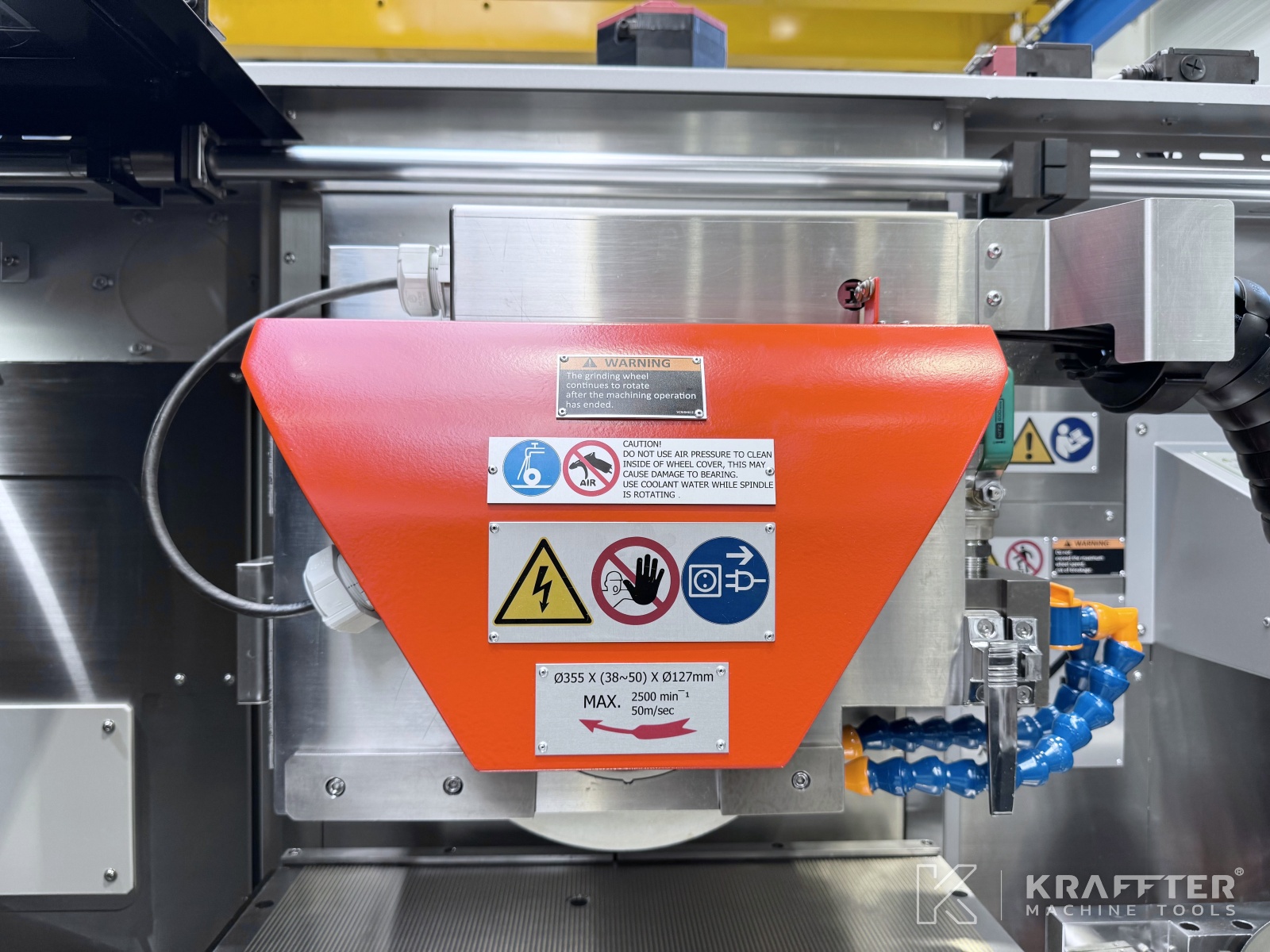

Max. diameter grinding wheel
355 [mm]
Max. grinding wheel width
50 [mm]

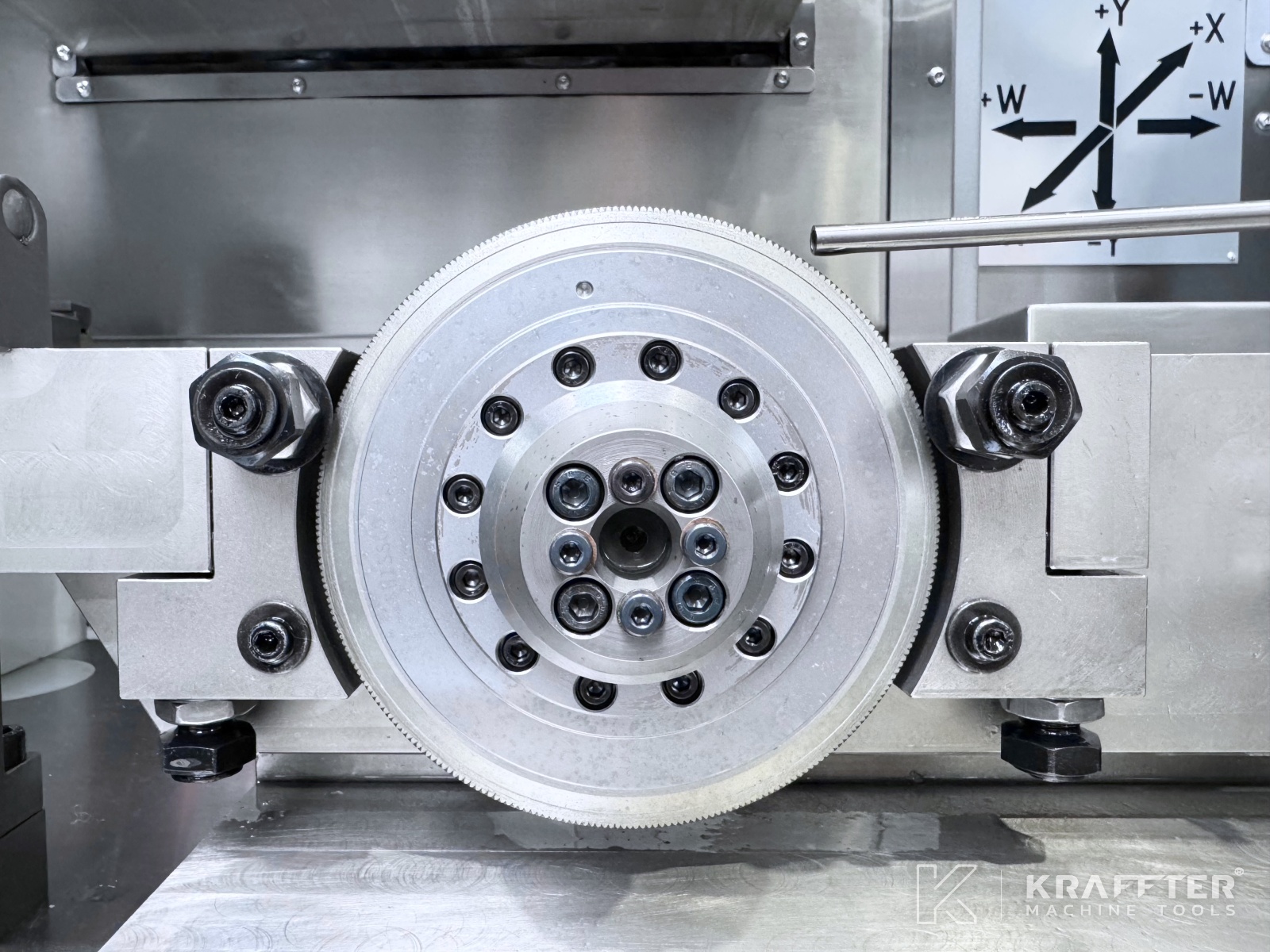

Grinding wheel bore
127 [mm]
Number of running hours
5675 [h]
Supply voltage
400 [V]
Total power required
23 [kVA]
Weight
5000 [Kg]
Additional information
EQUIPMENT / INCLUDED OPTIONS:
-

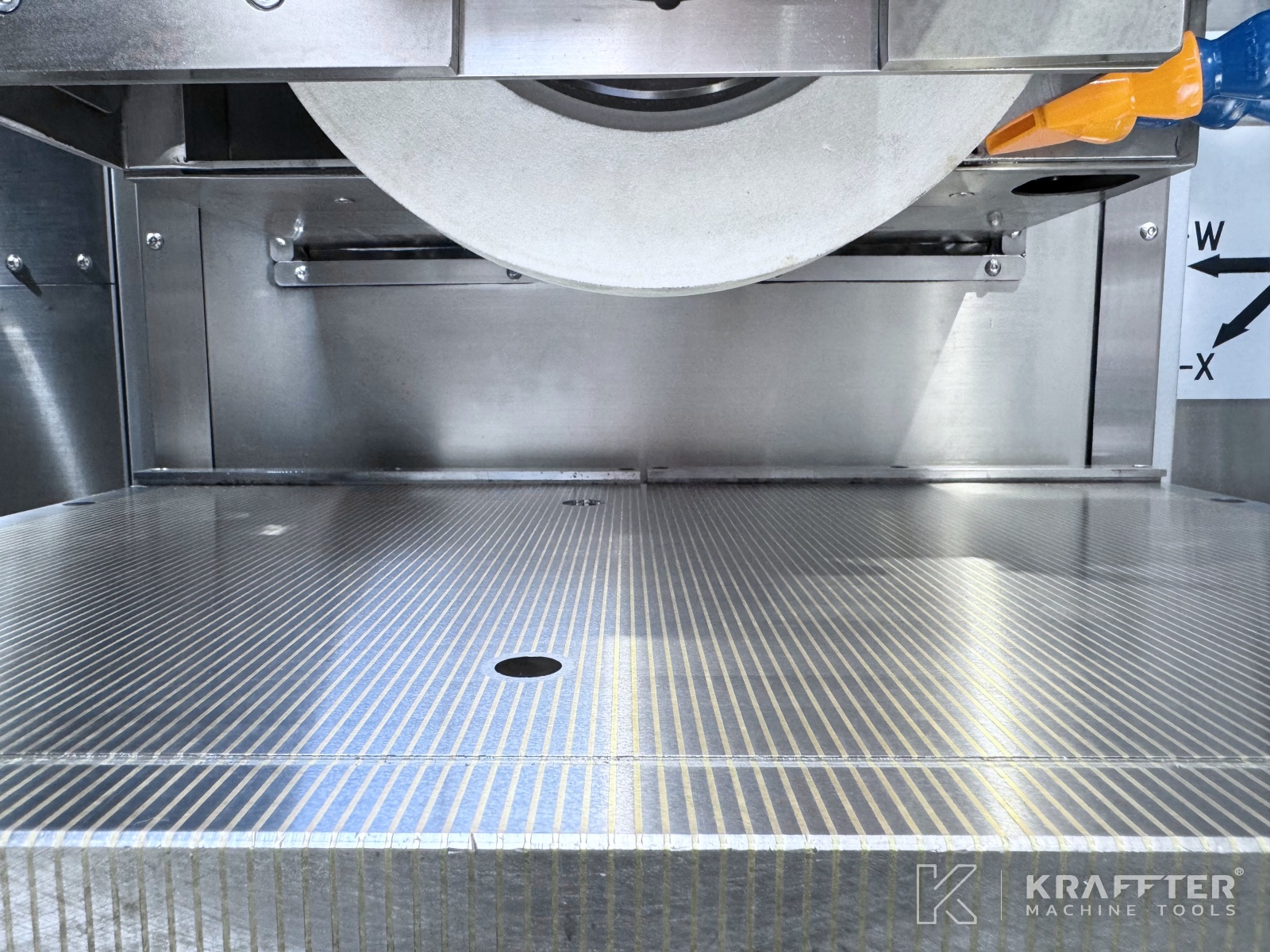

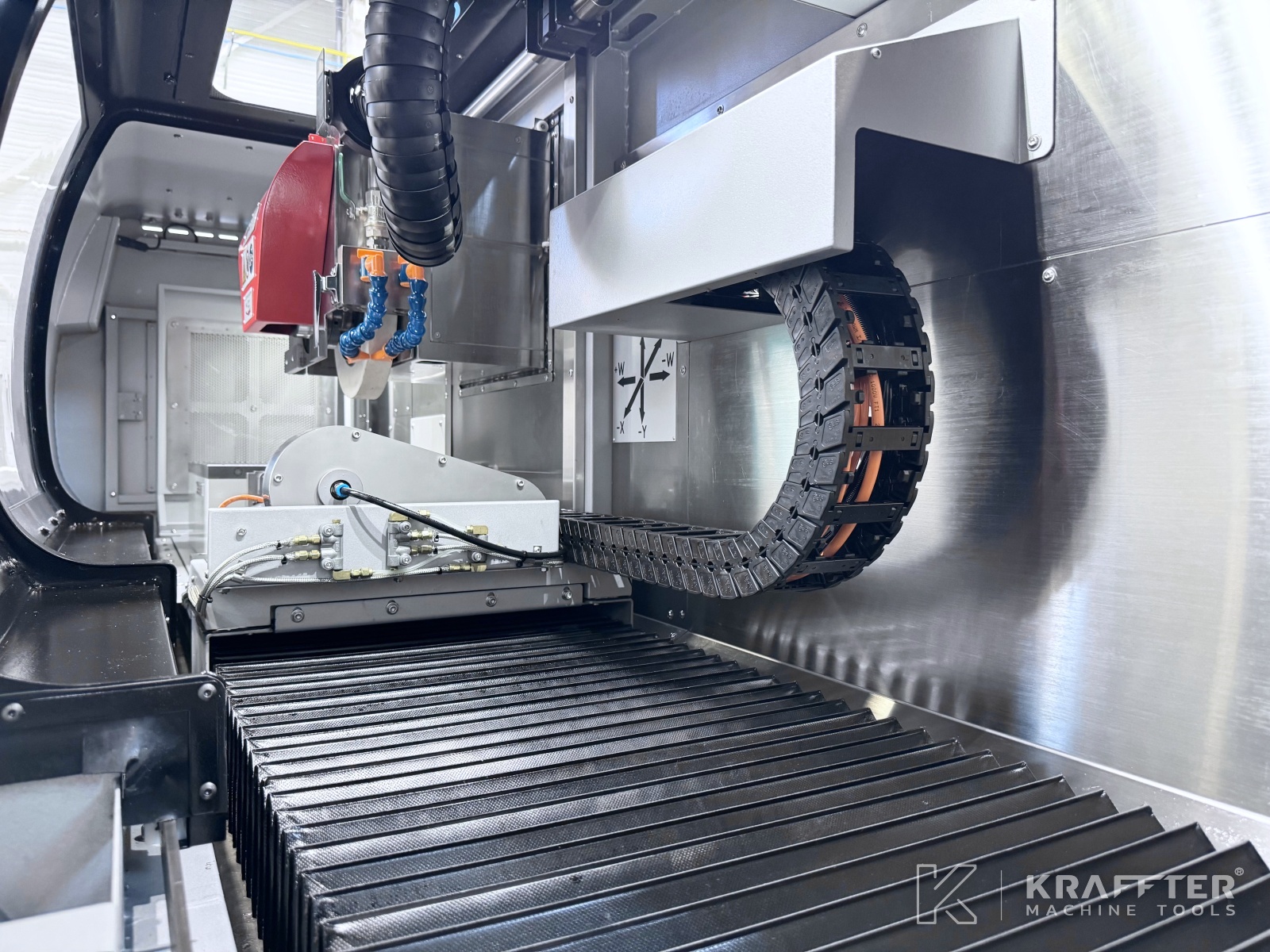

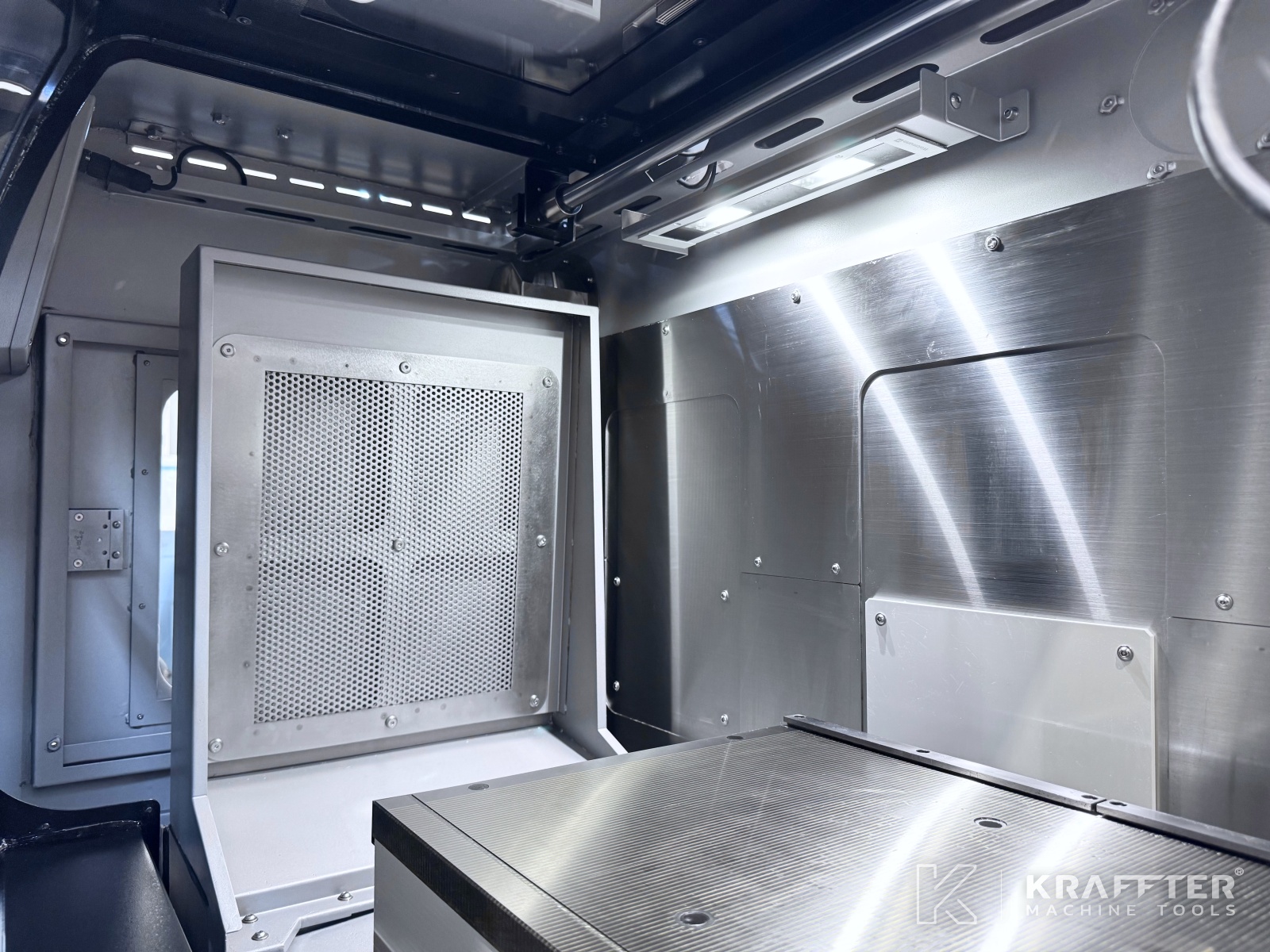

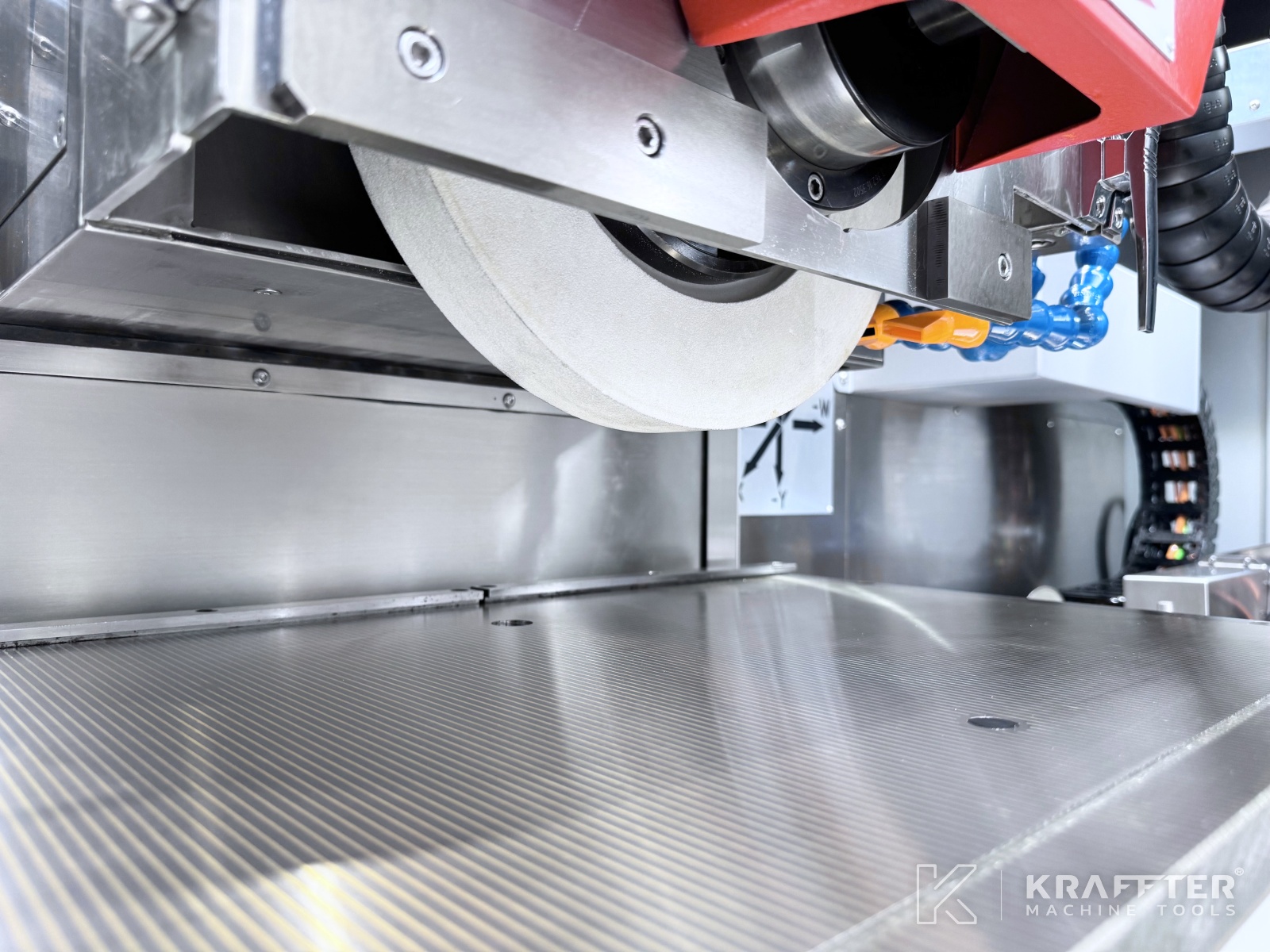

x1 SAV electro-magnetic chuck, type AH-243.73 P4 – dimensions: 600 x 400 [mm]
-

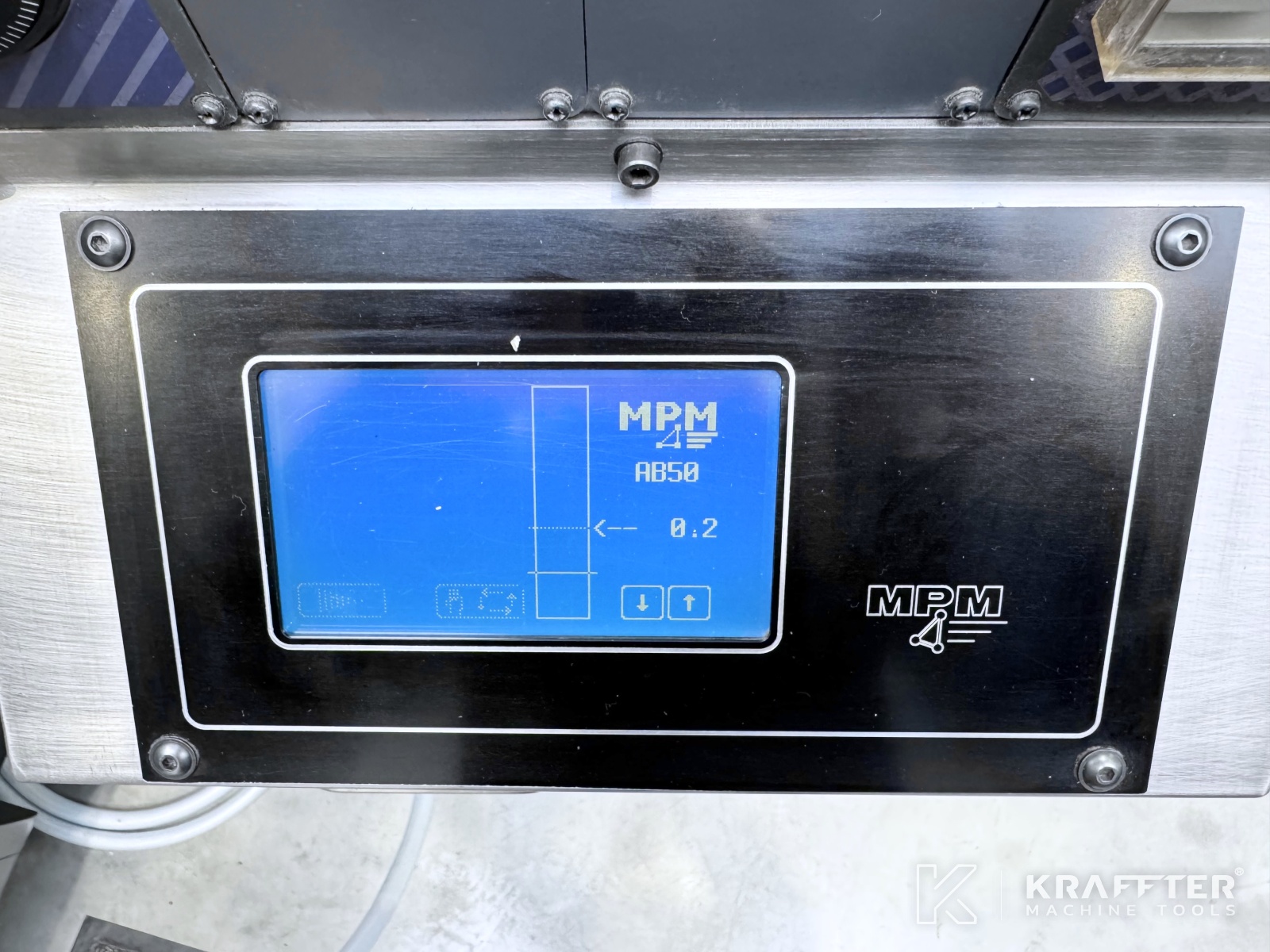

x1 automatic grinding wheel balancing device MPM, type BM50 + AB50.SM4
-

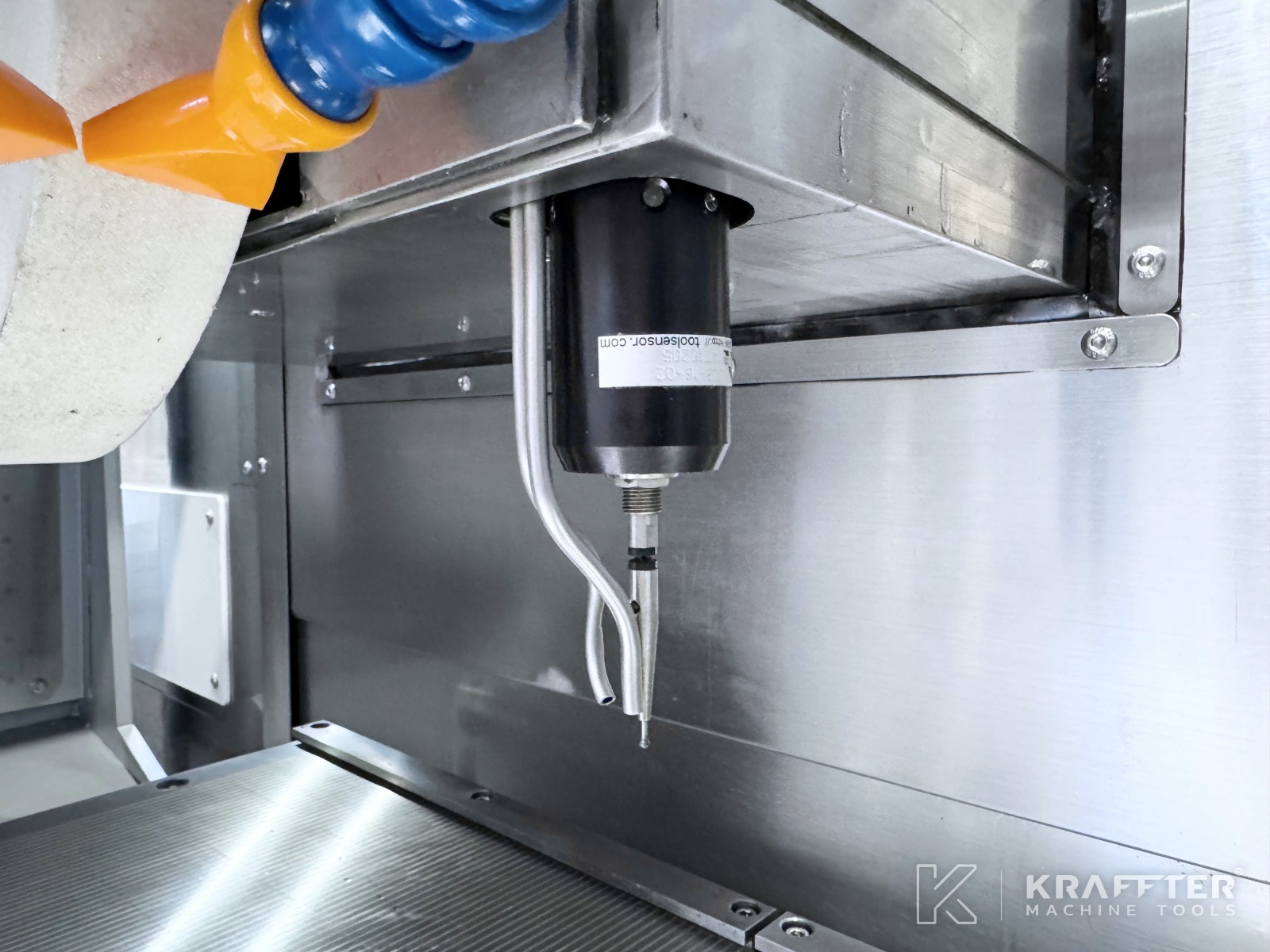

x1 automatic measuring probe with compensation function
-

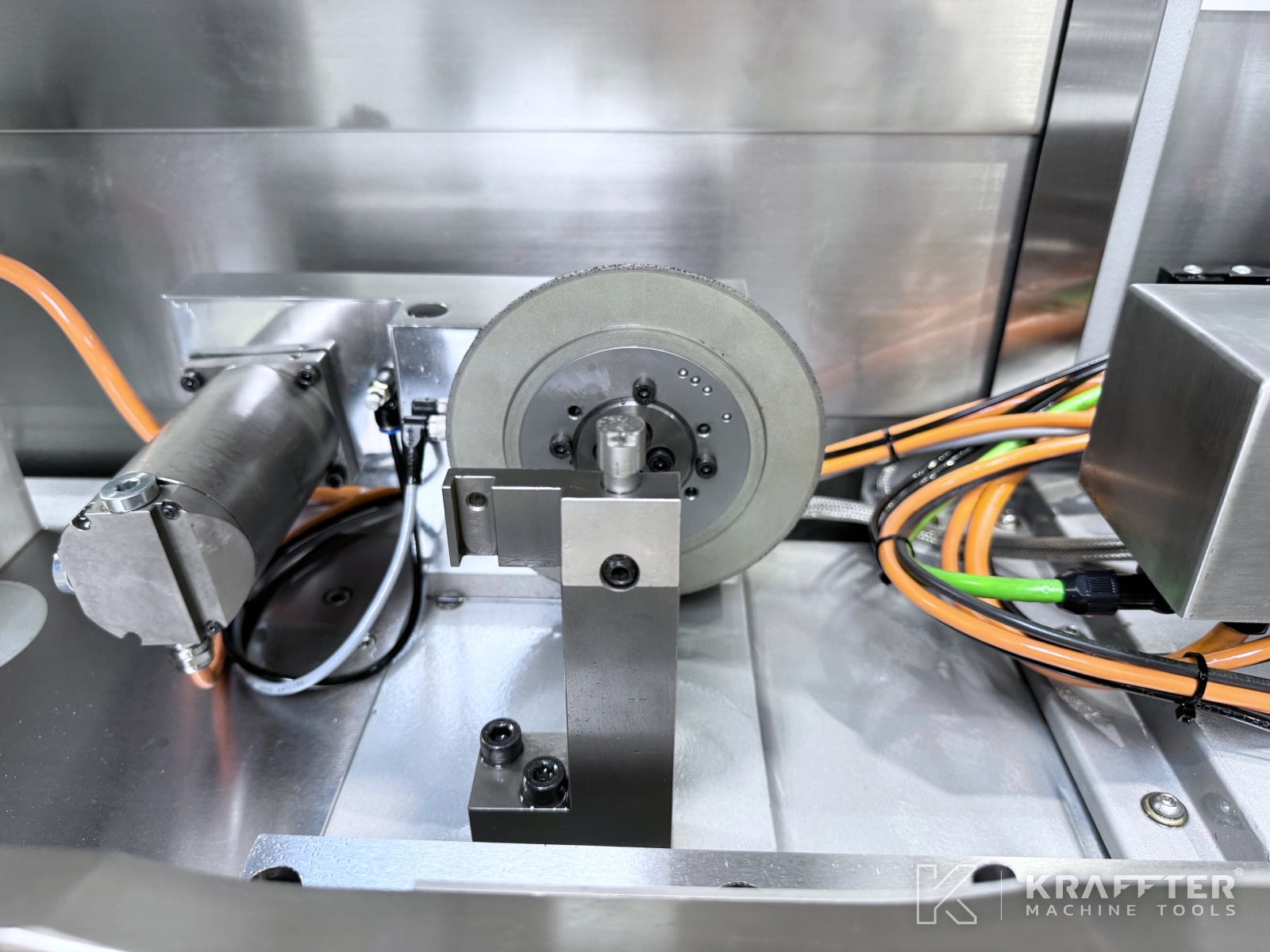

1x rotary dresser
-

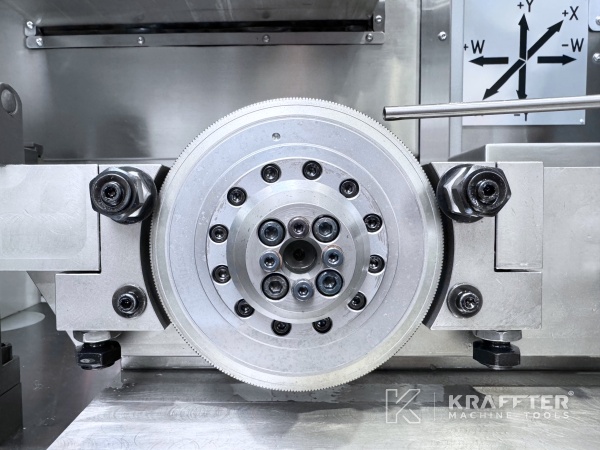

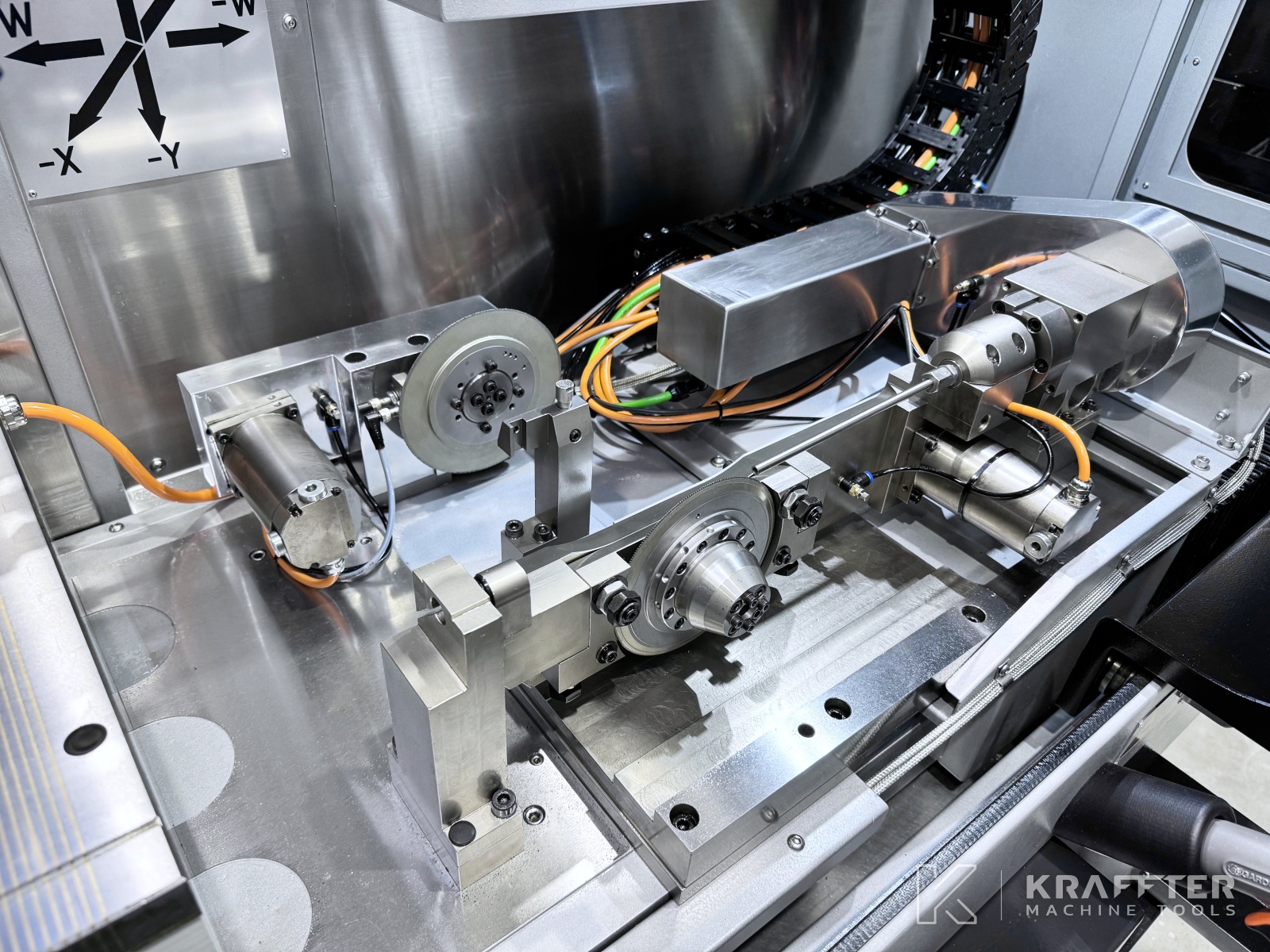

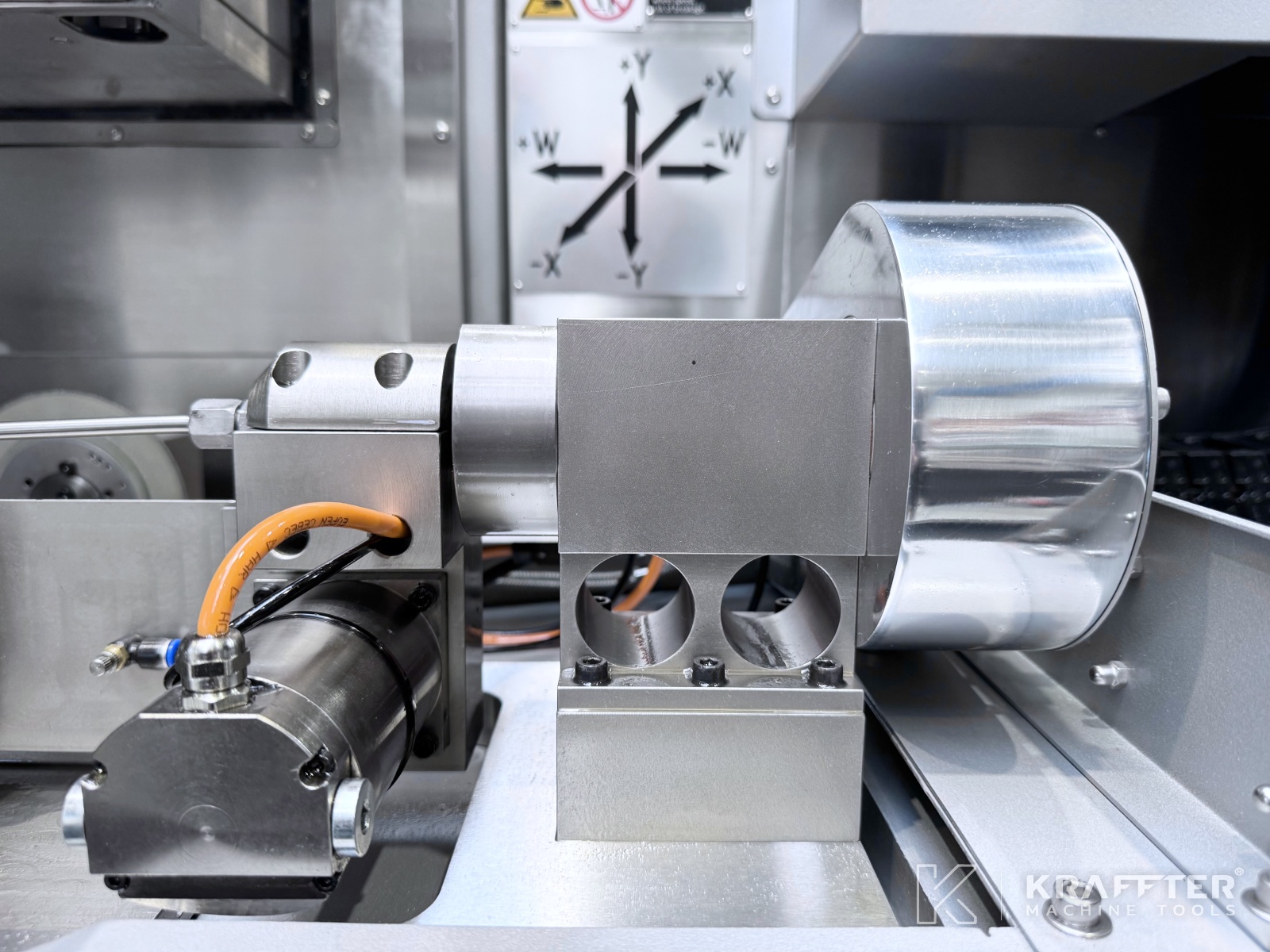

1x NC swivelling rotary dresser
-
1x static straight dresser
-
x2 linear glass scales on both X and Y axes
-

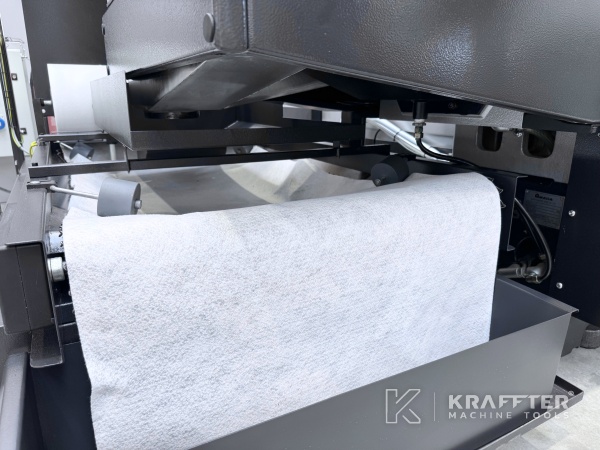

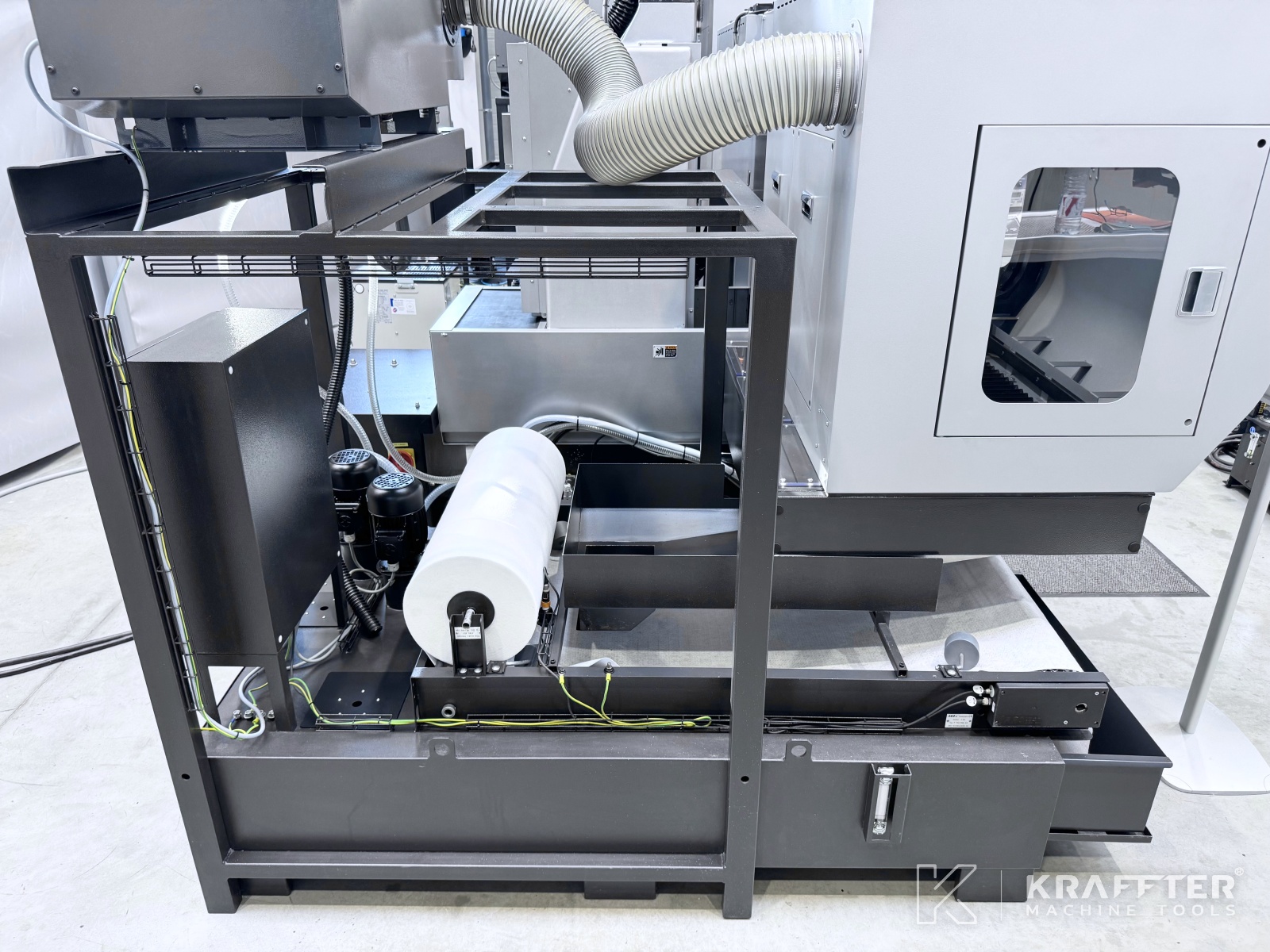

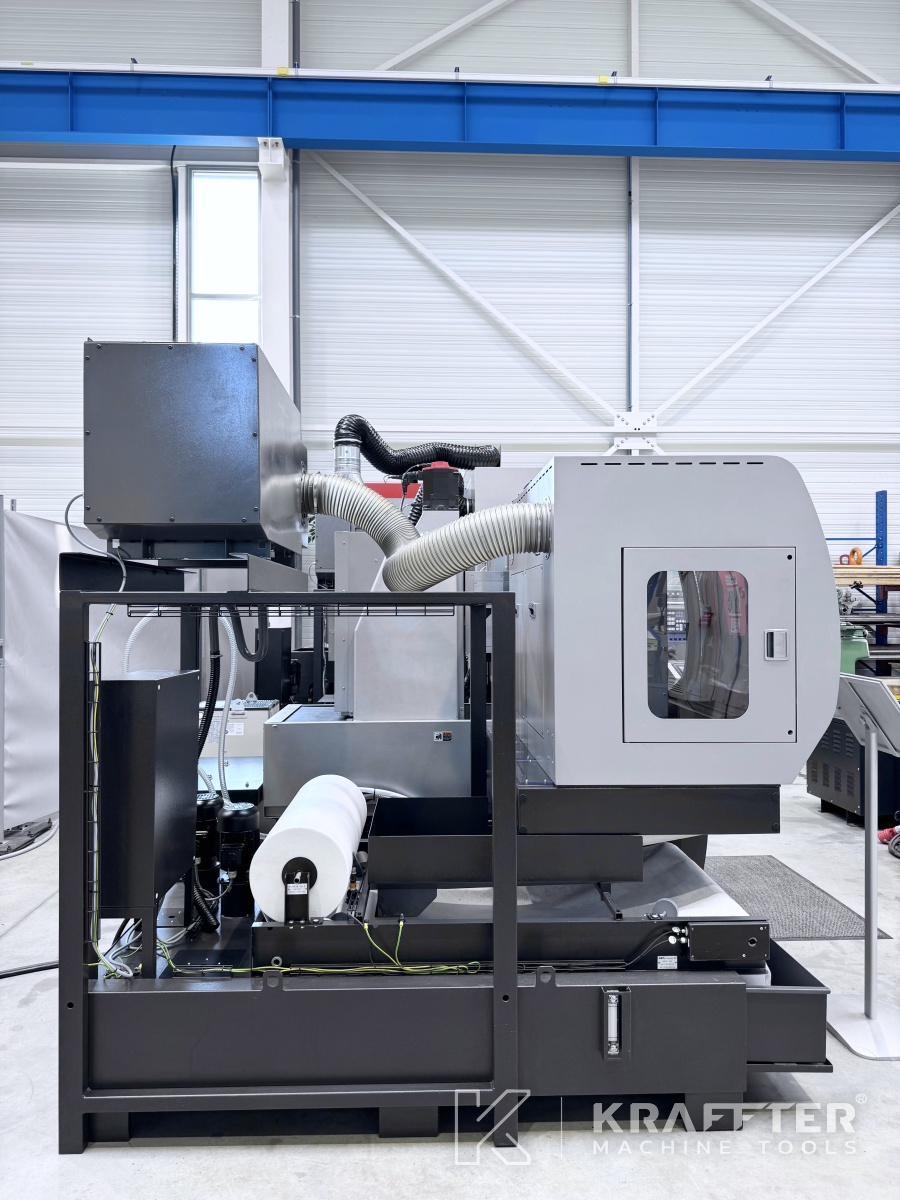

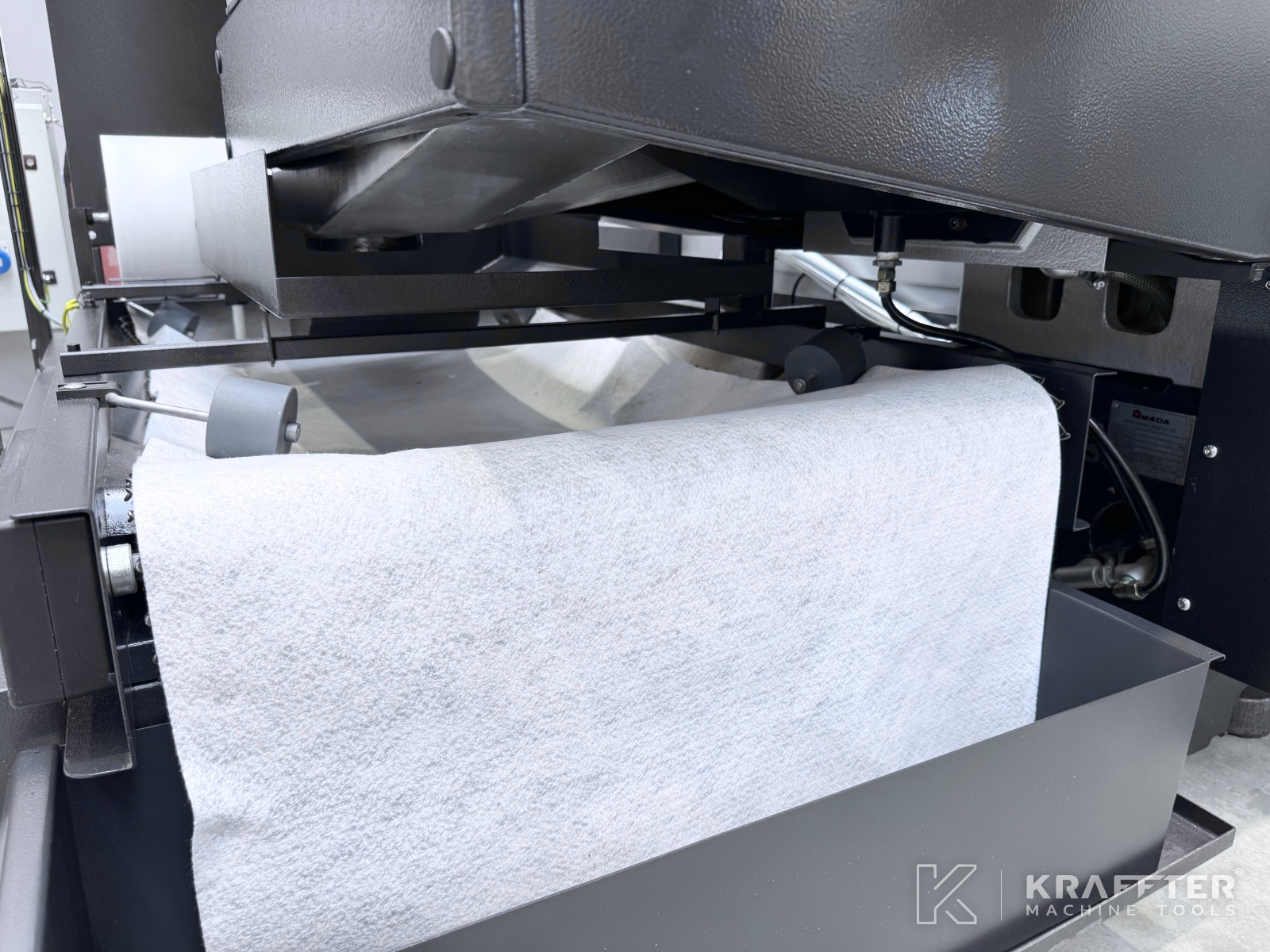

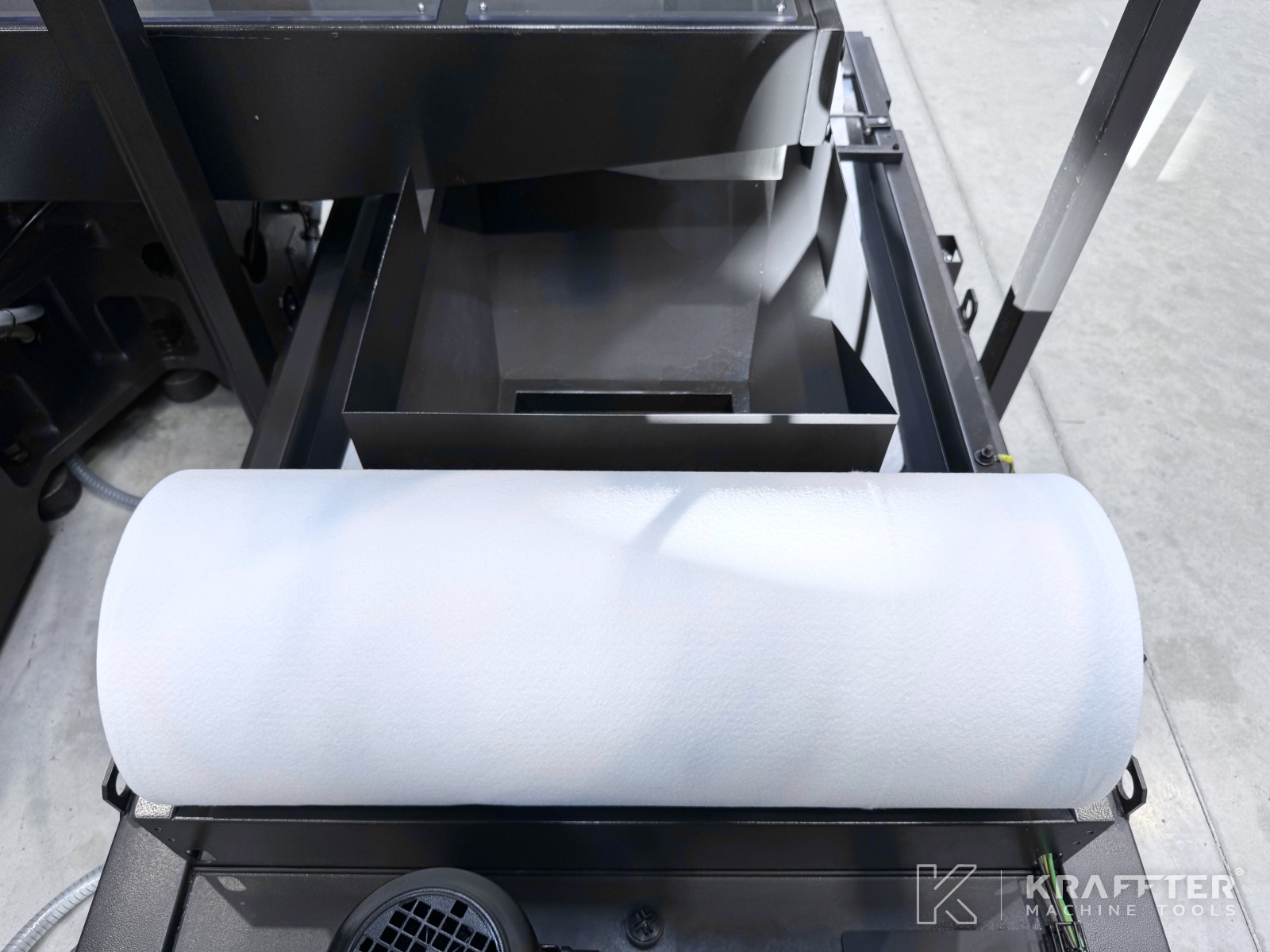

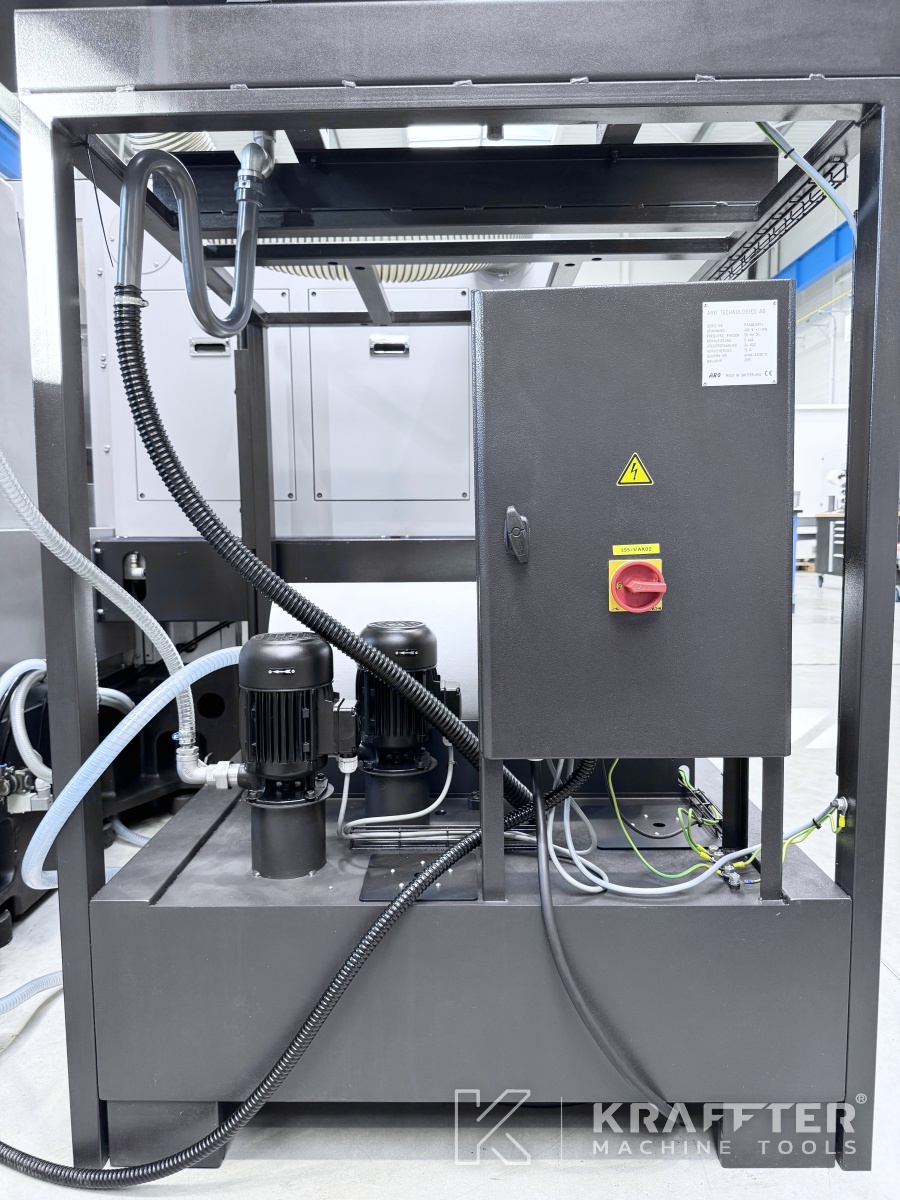

x1 paper tape filtration unit ARO TECHNOLOGIES AG, type PRA0025874
-

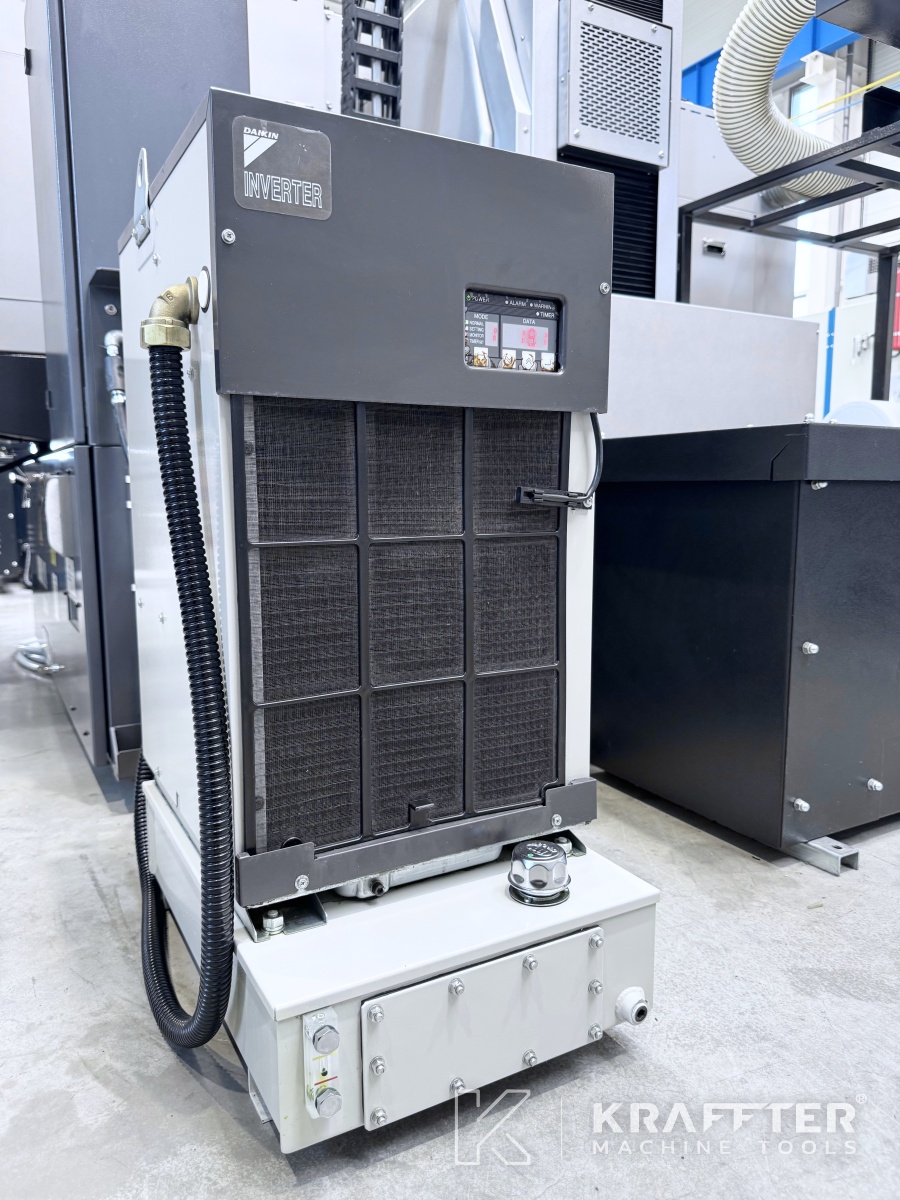

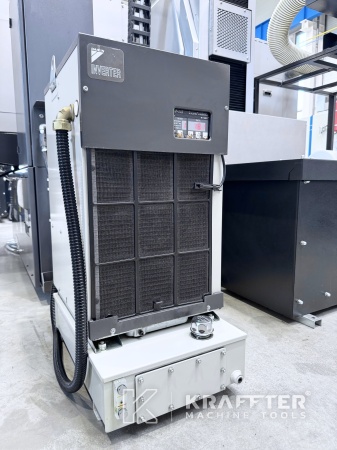

x1 oil chiller DAIKIN AKZ149M133
-

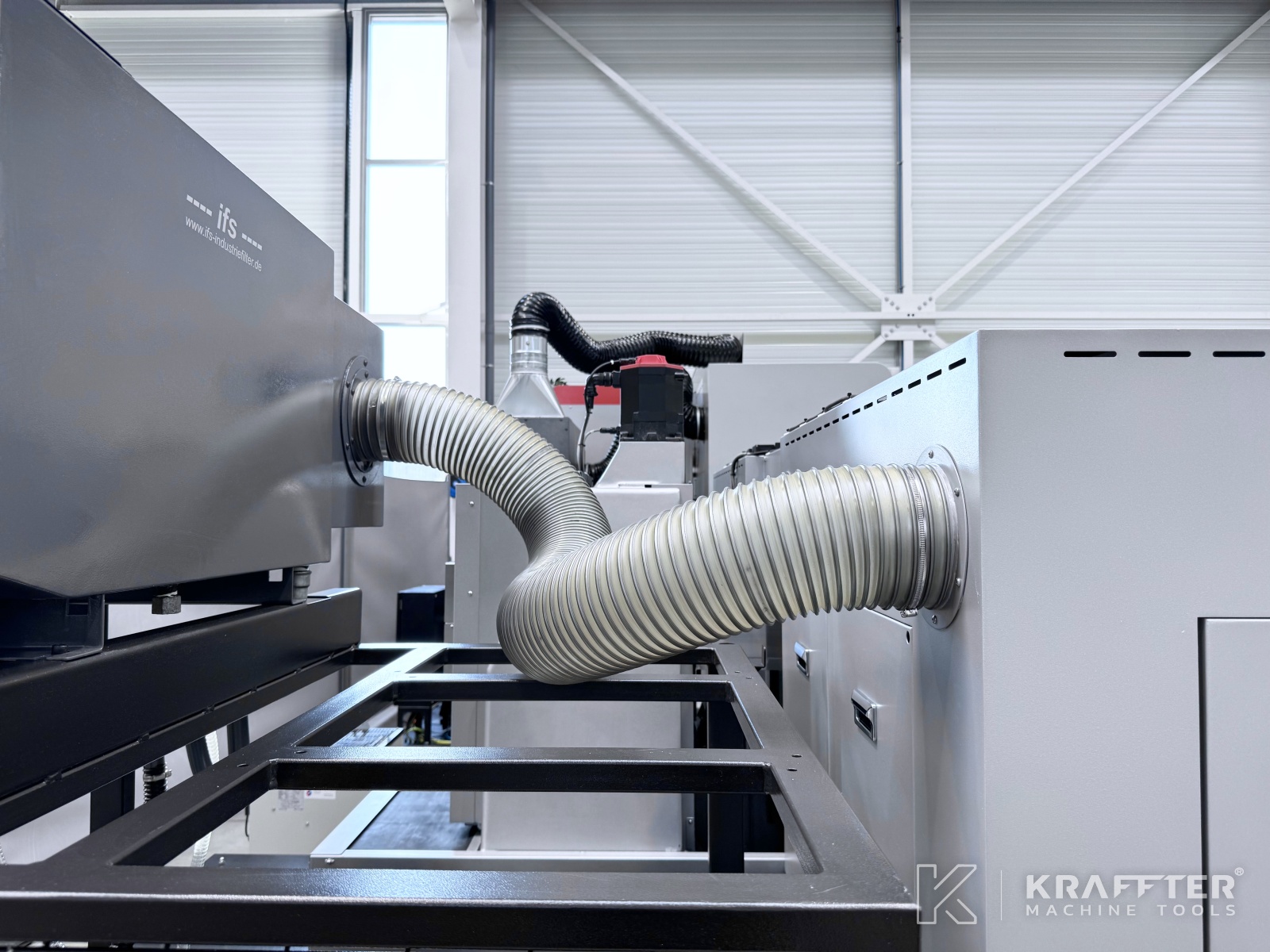

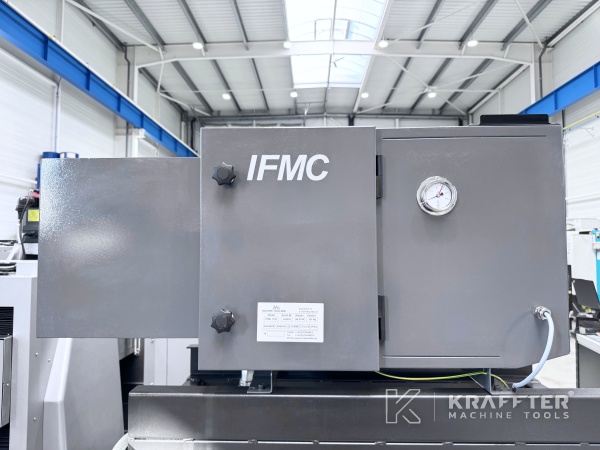

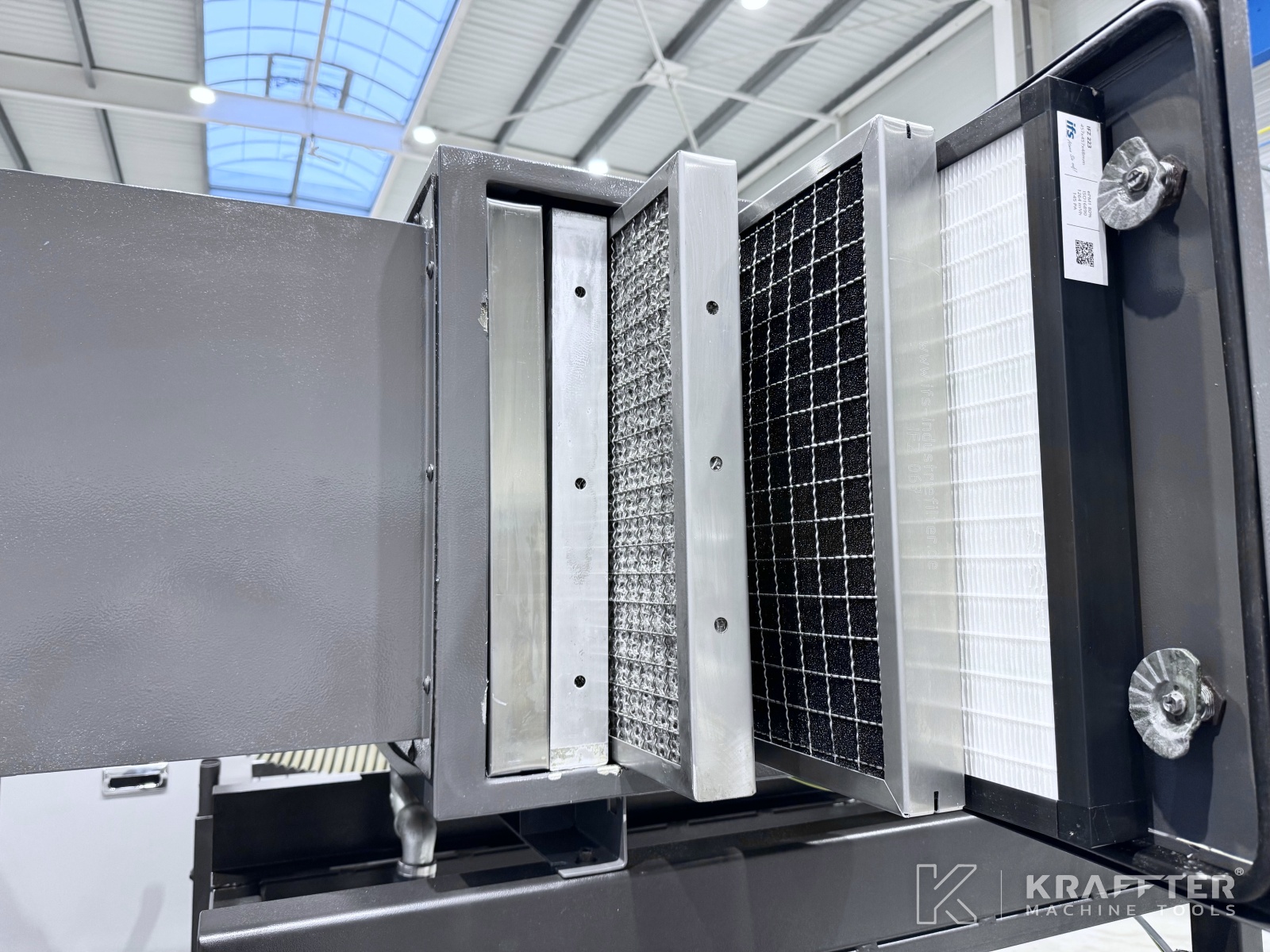

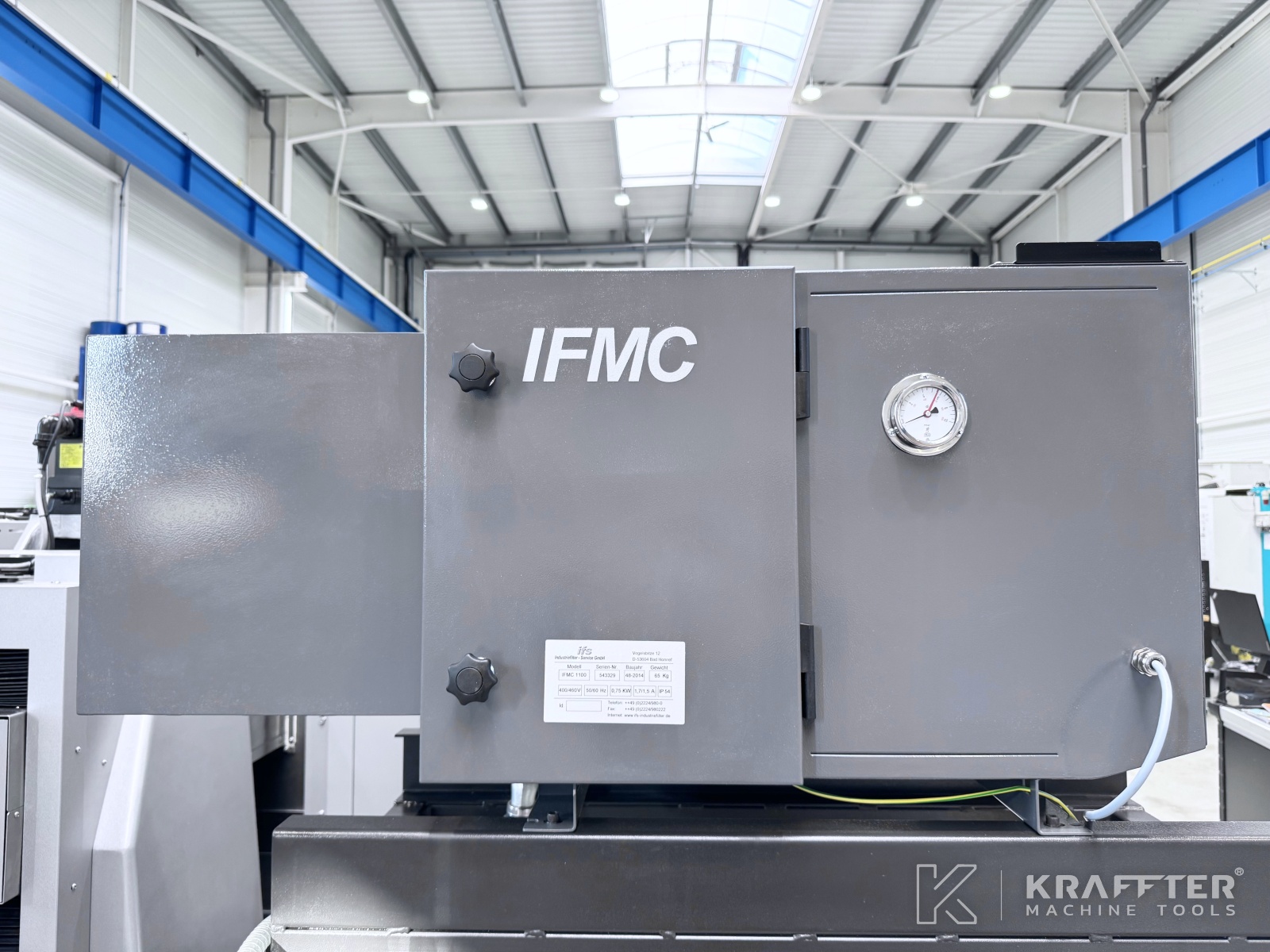

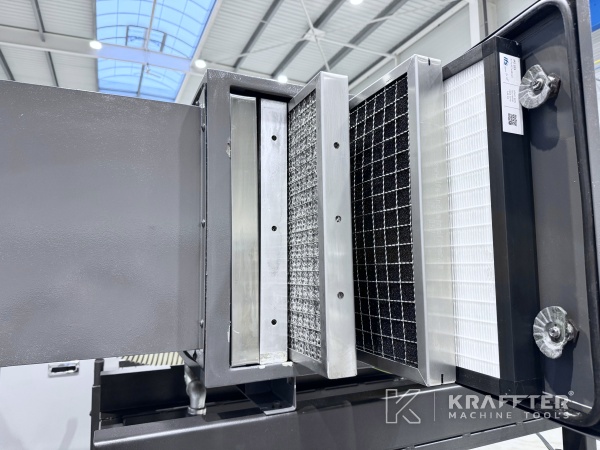

x1 oil mist extractor IFS, type IFMC 1100
-

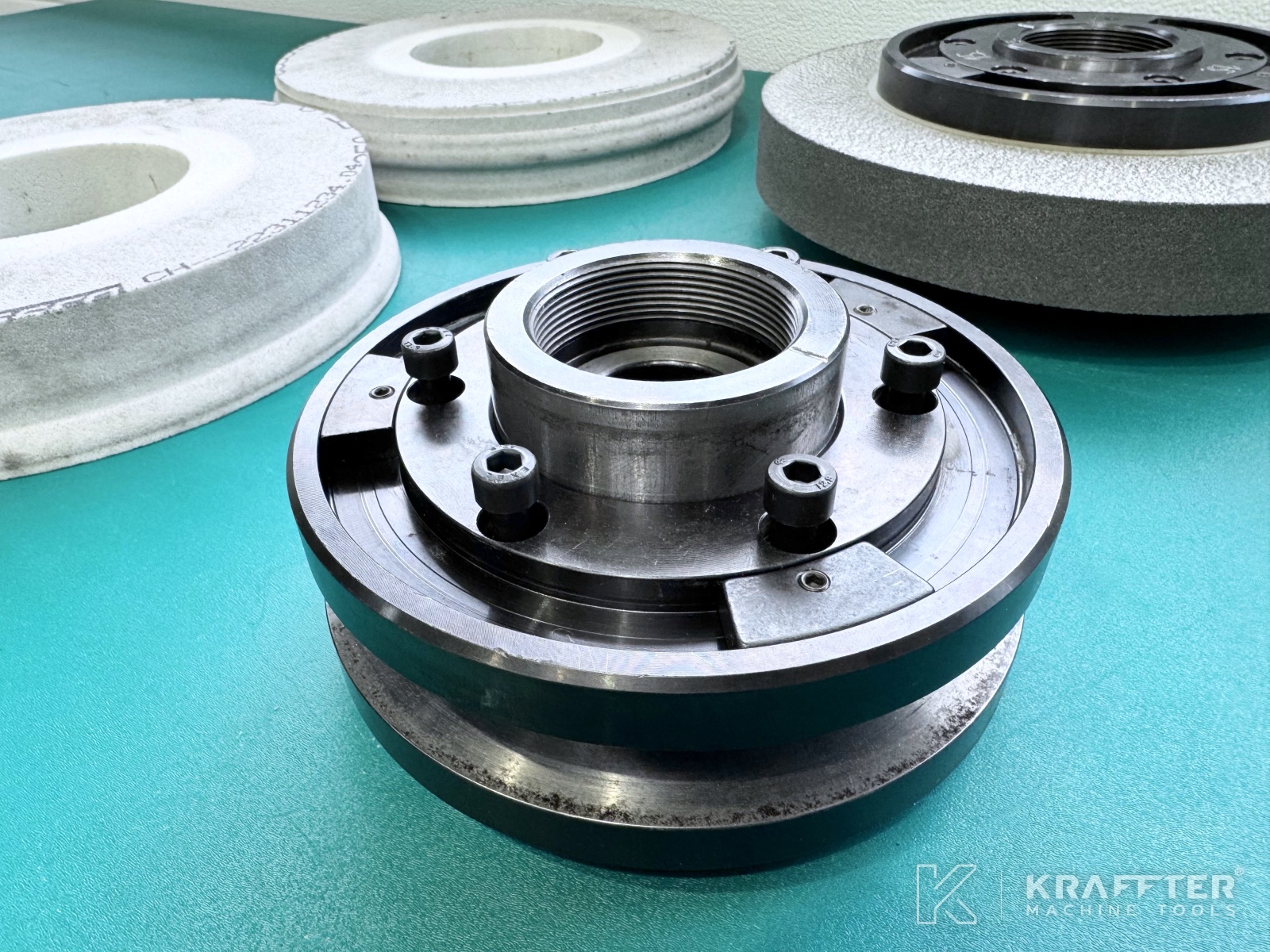

3x wheel flanges
-

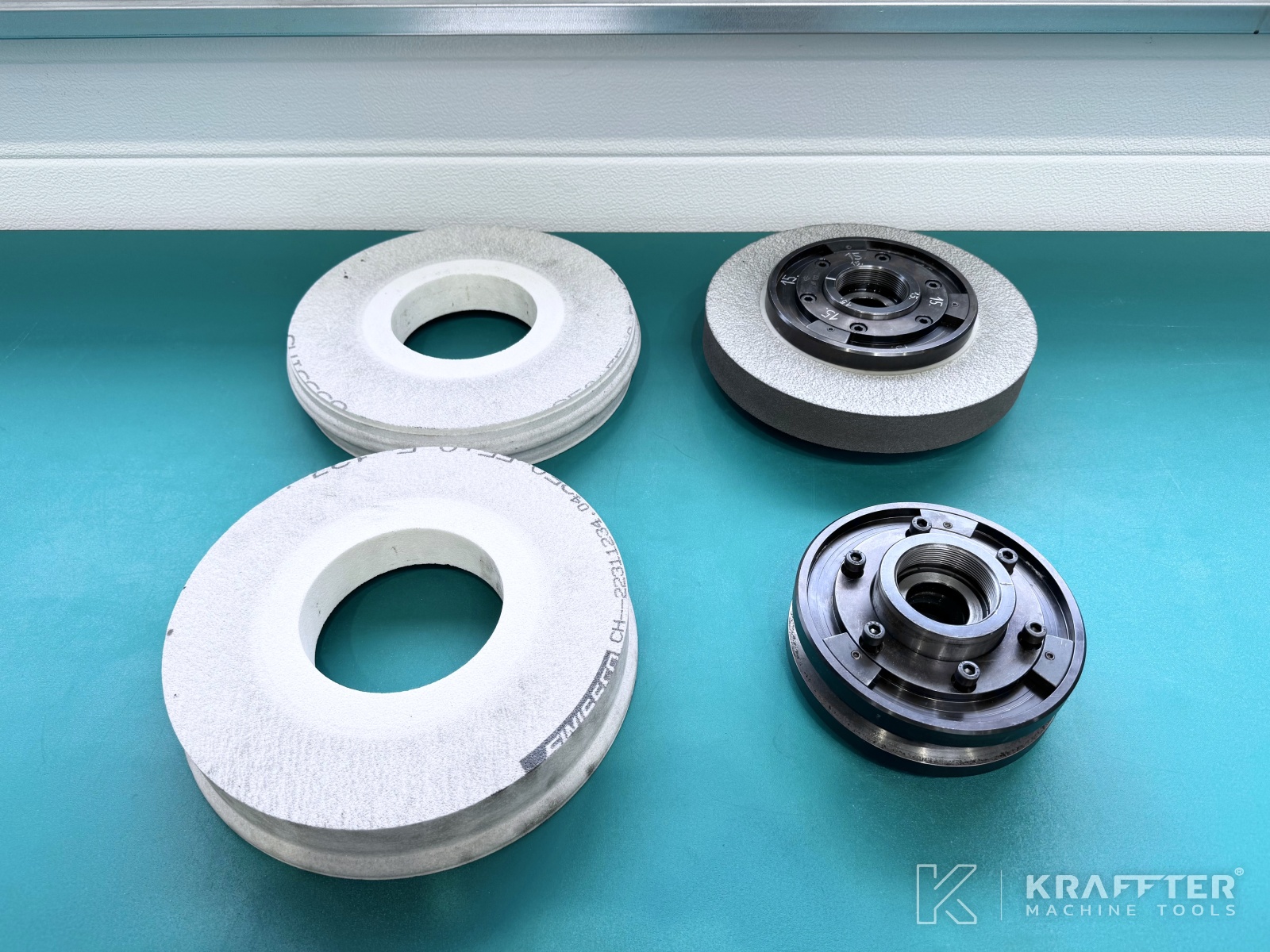

x4 grinding wheels
-

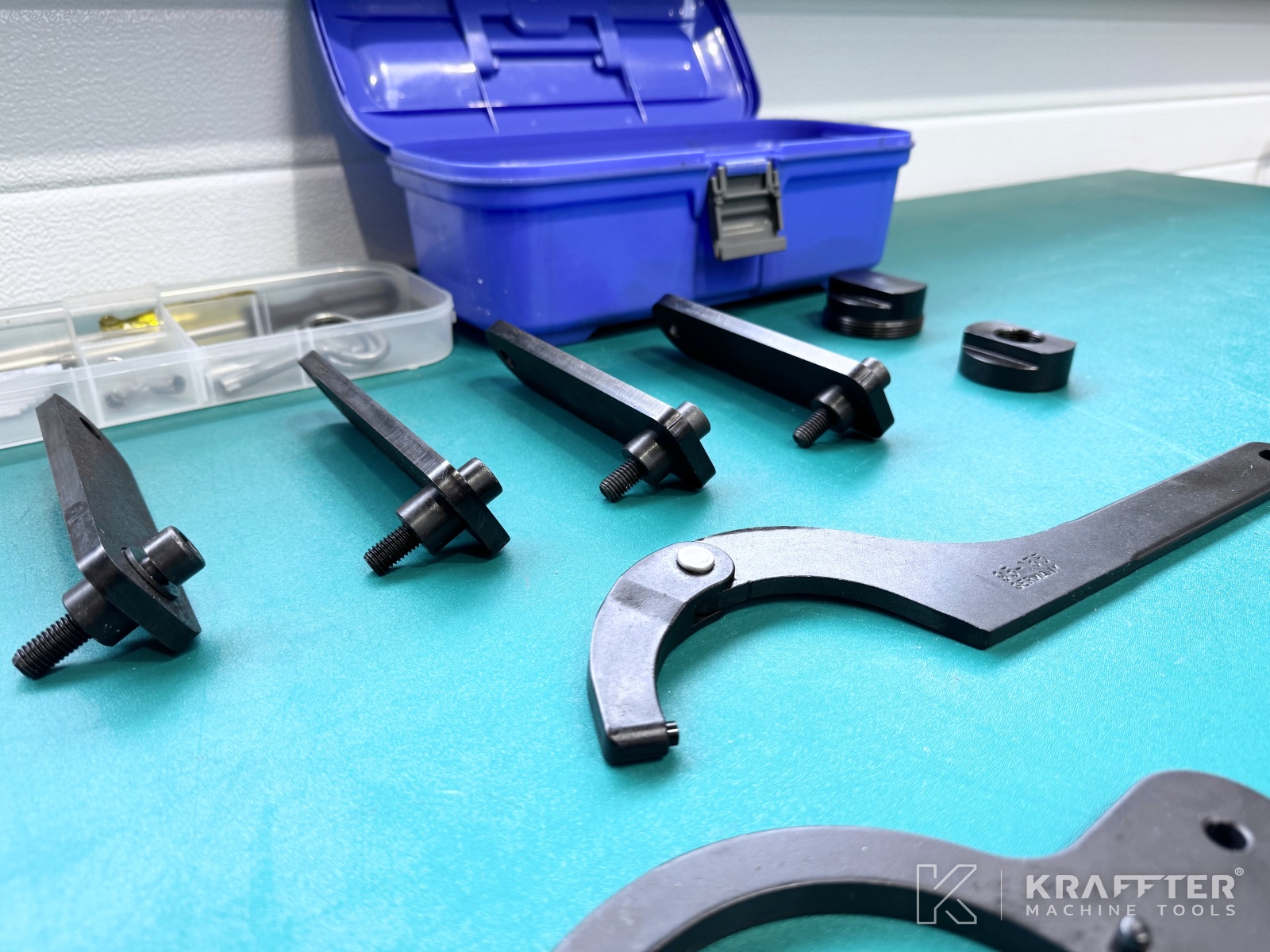

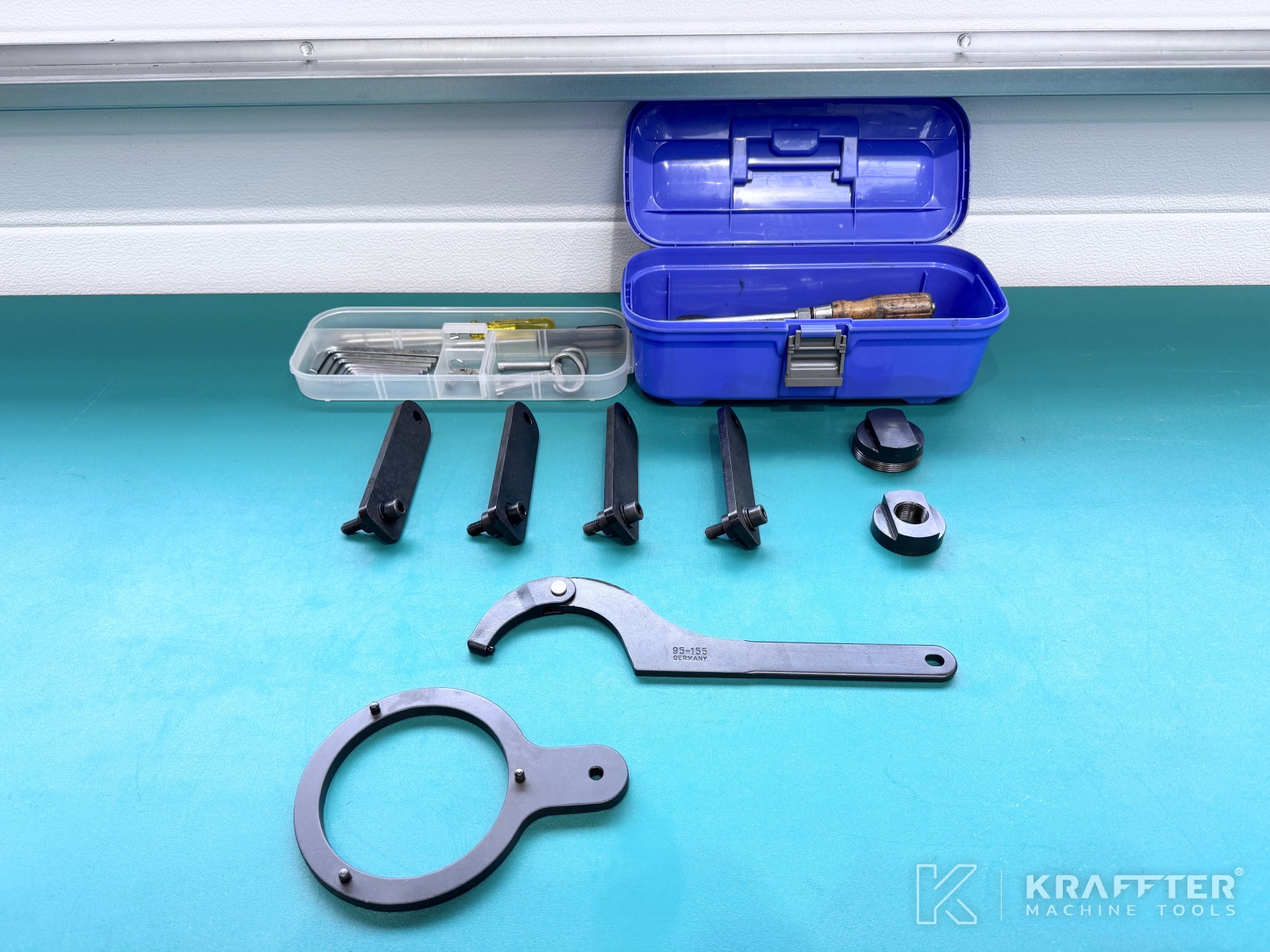

x1 set of service tools (wrenches)
-
x1 transformer
-

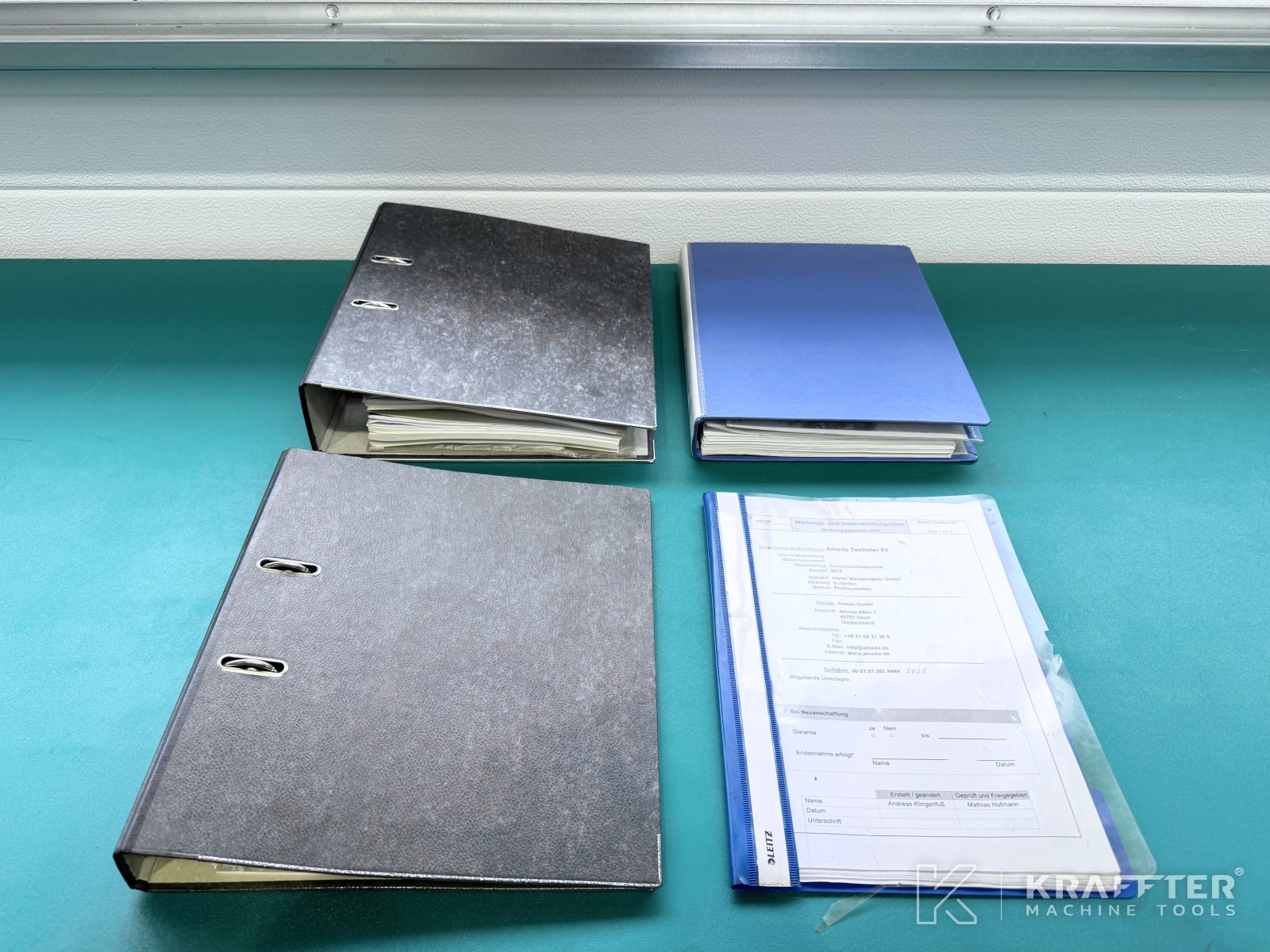

x1 set of technical manuals
