Sold

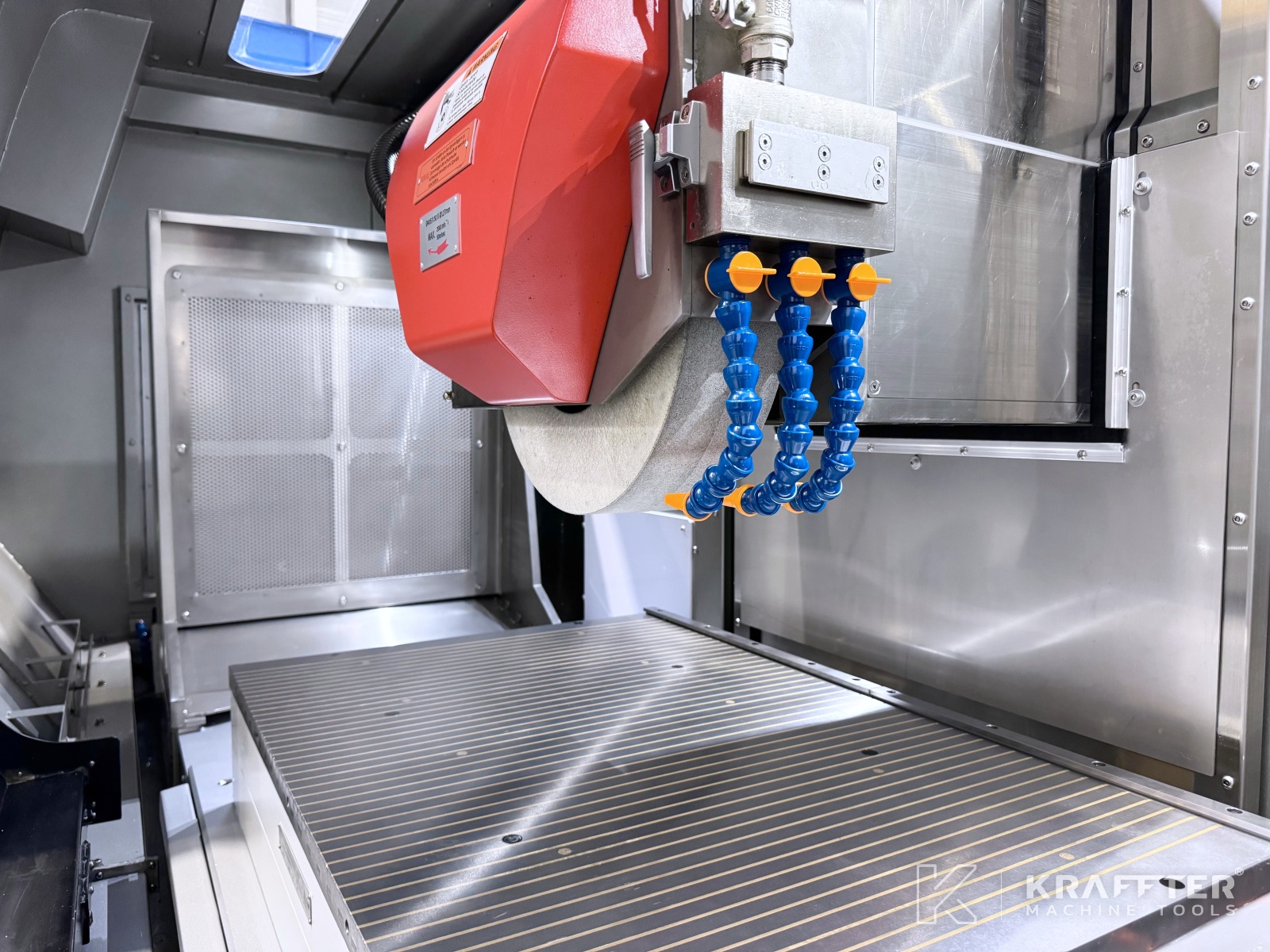

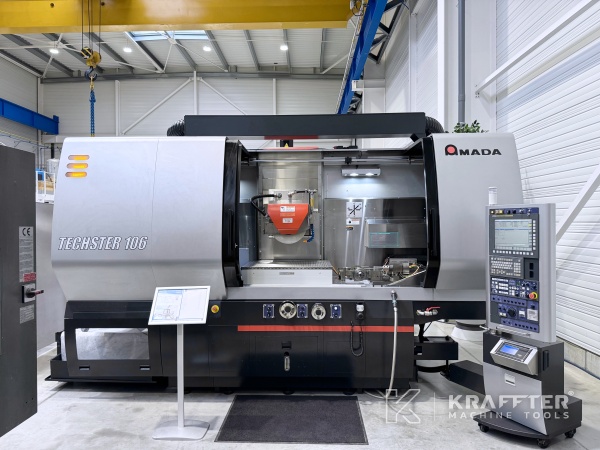

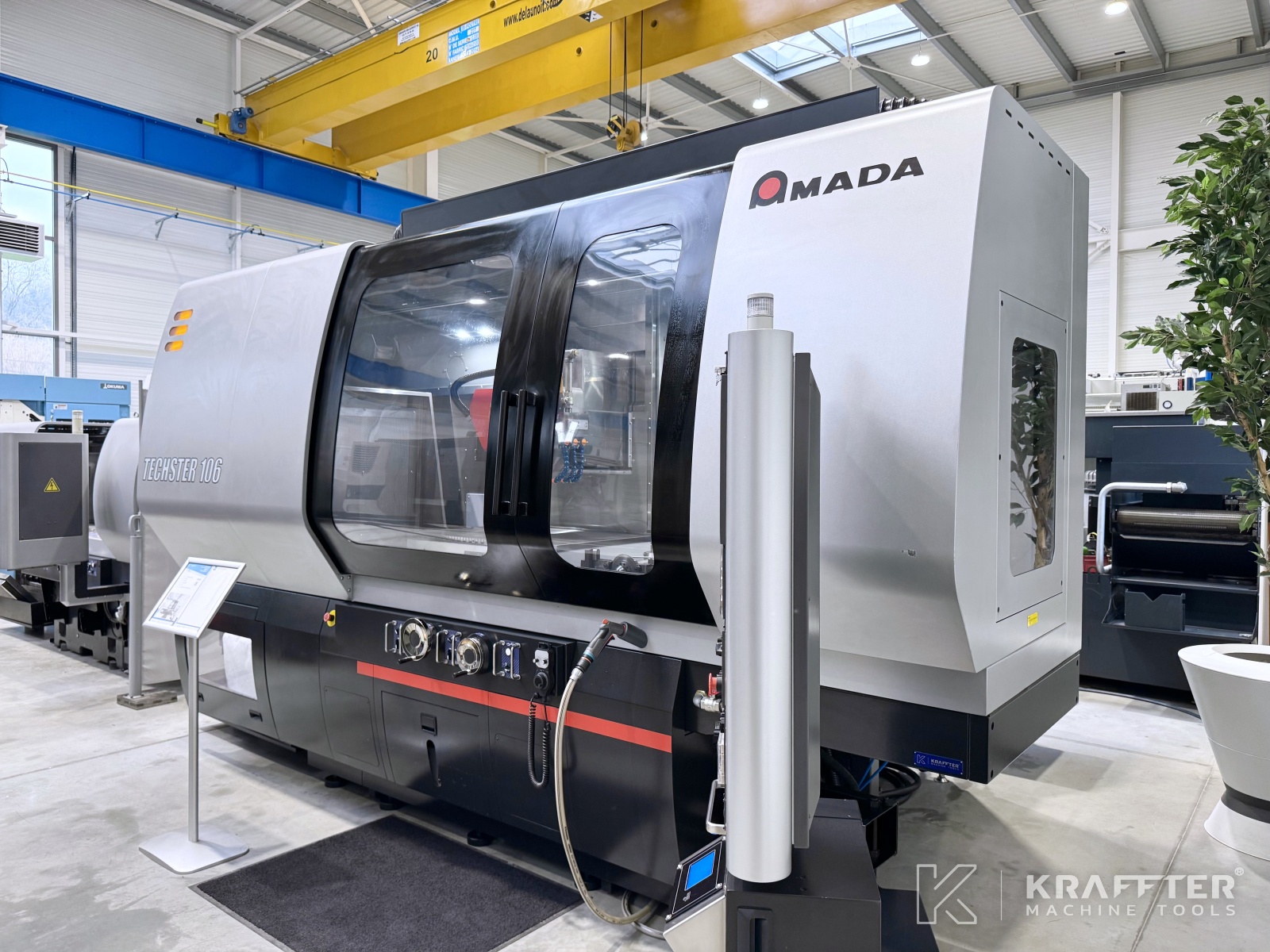

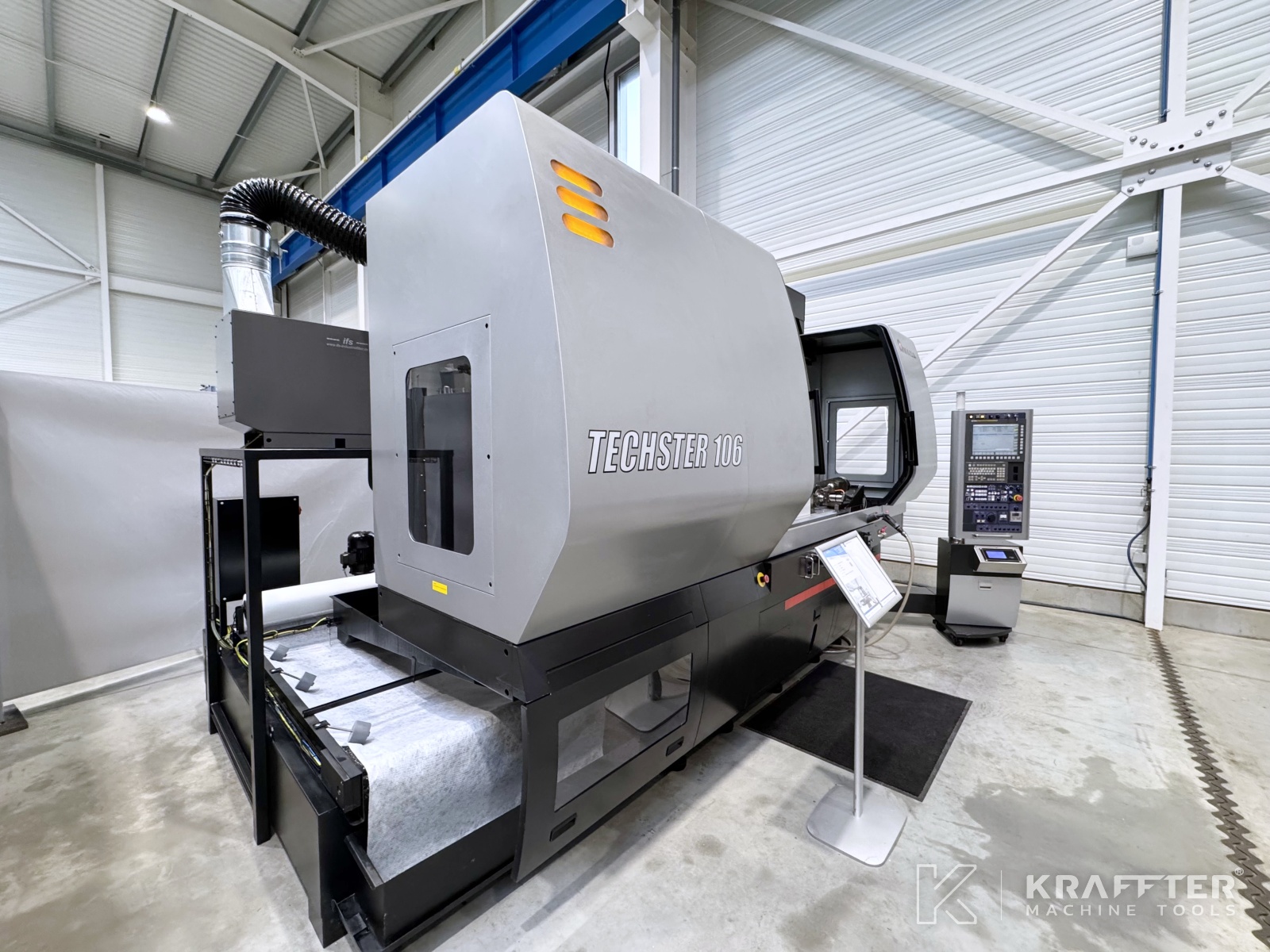

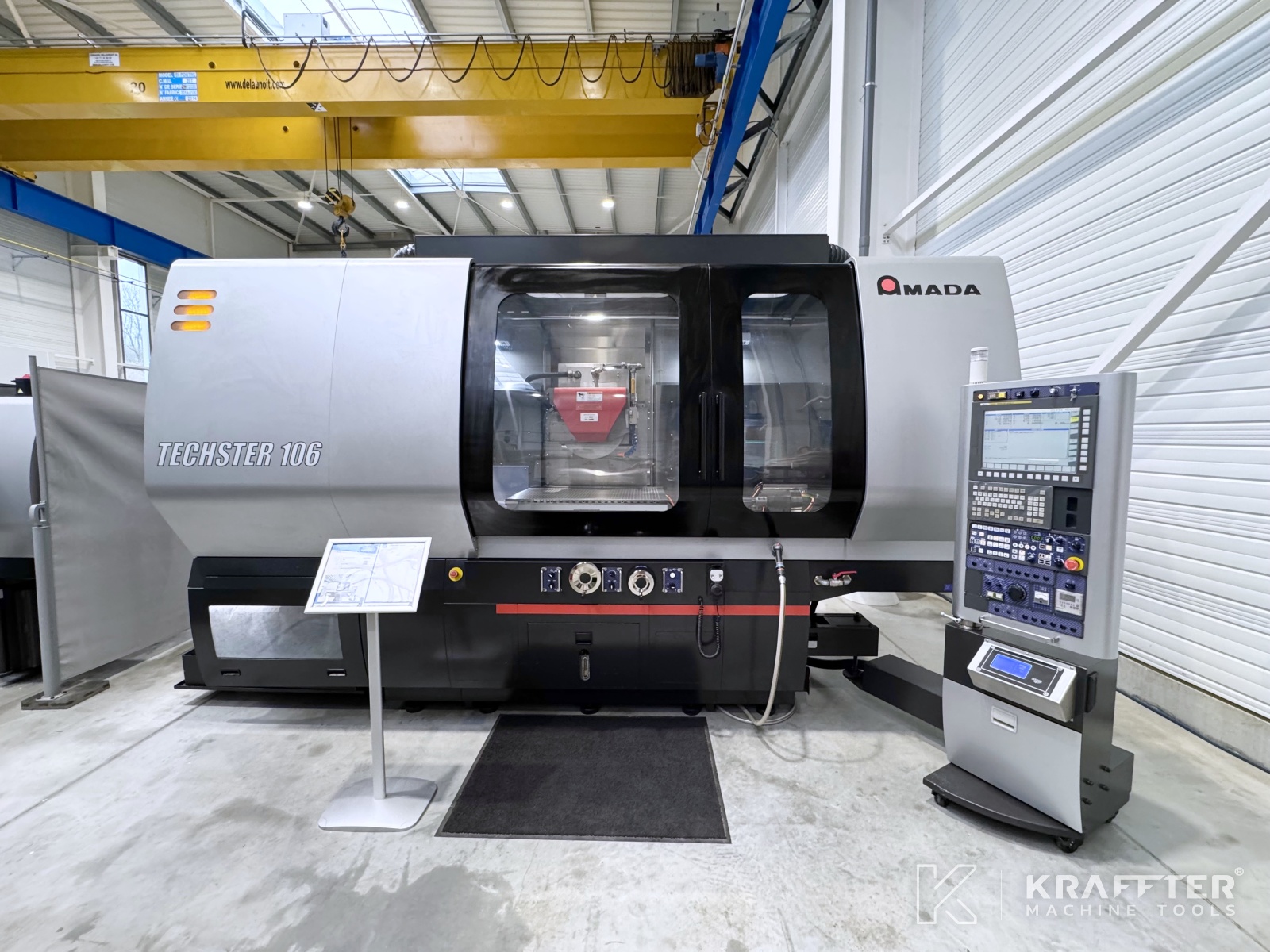

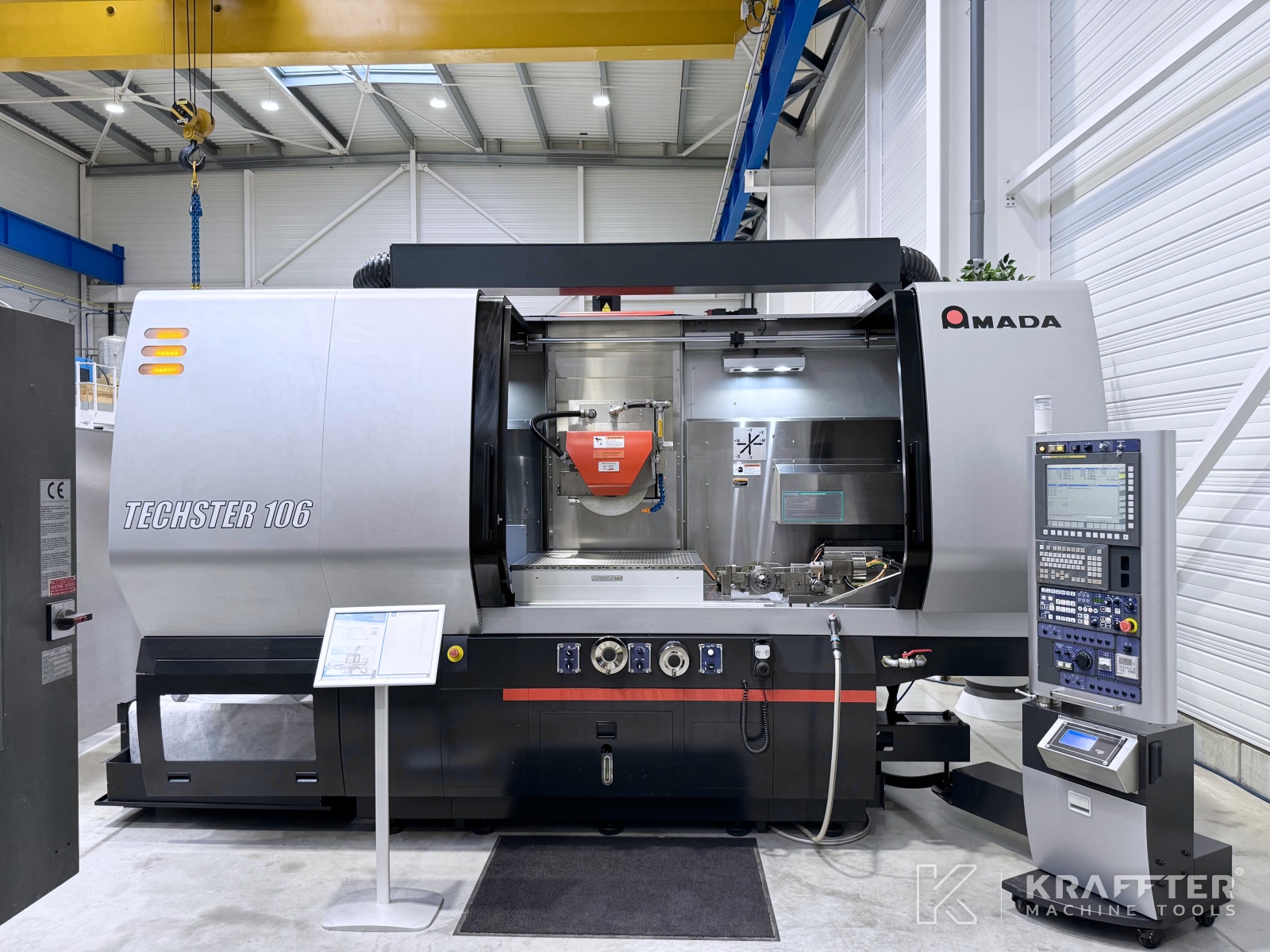

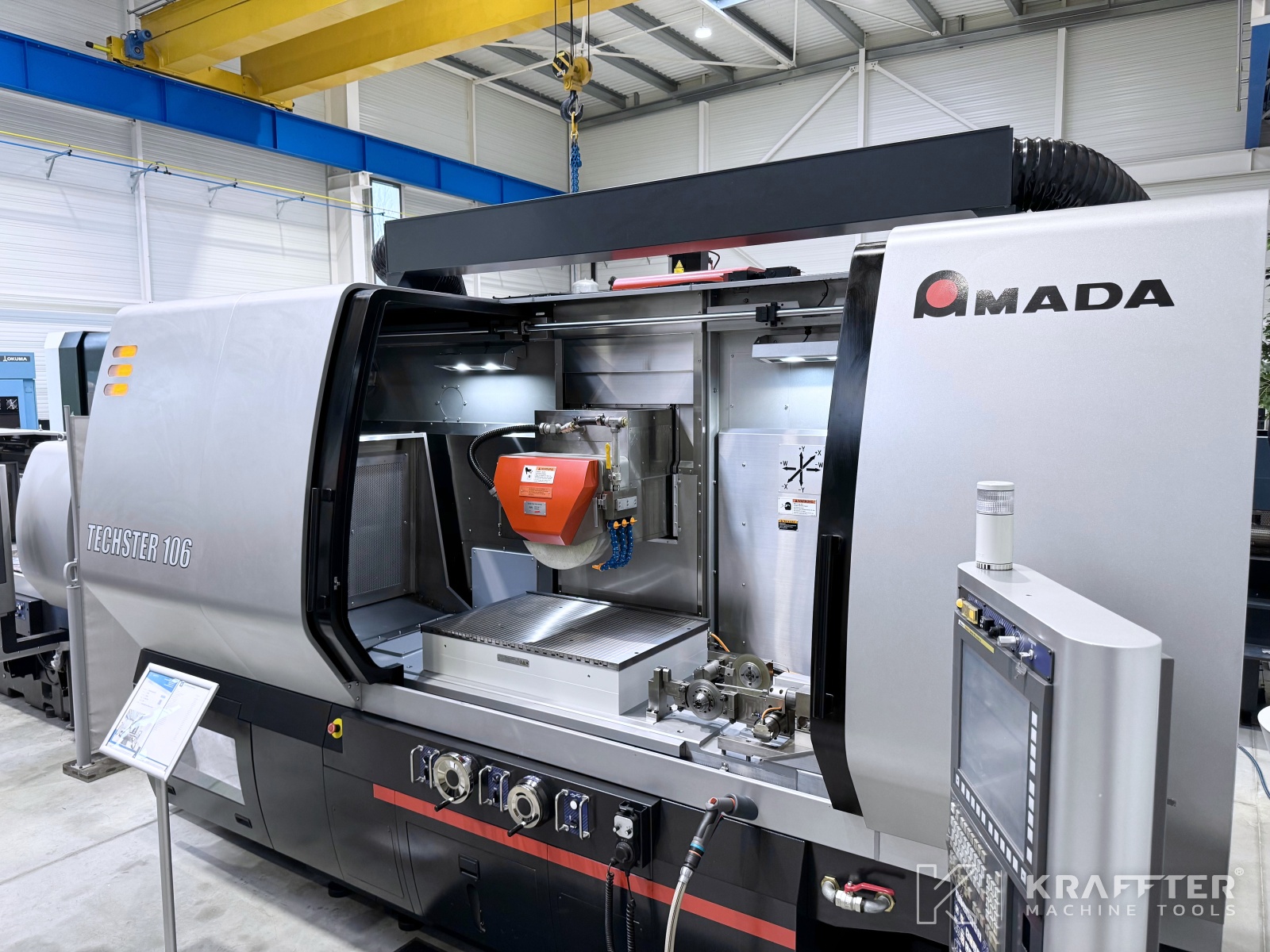

Type of machine : CNC surface grinder
Brand : AMADA
N° de stock: 90163
Model : Techster 106
Year : 2017
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

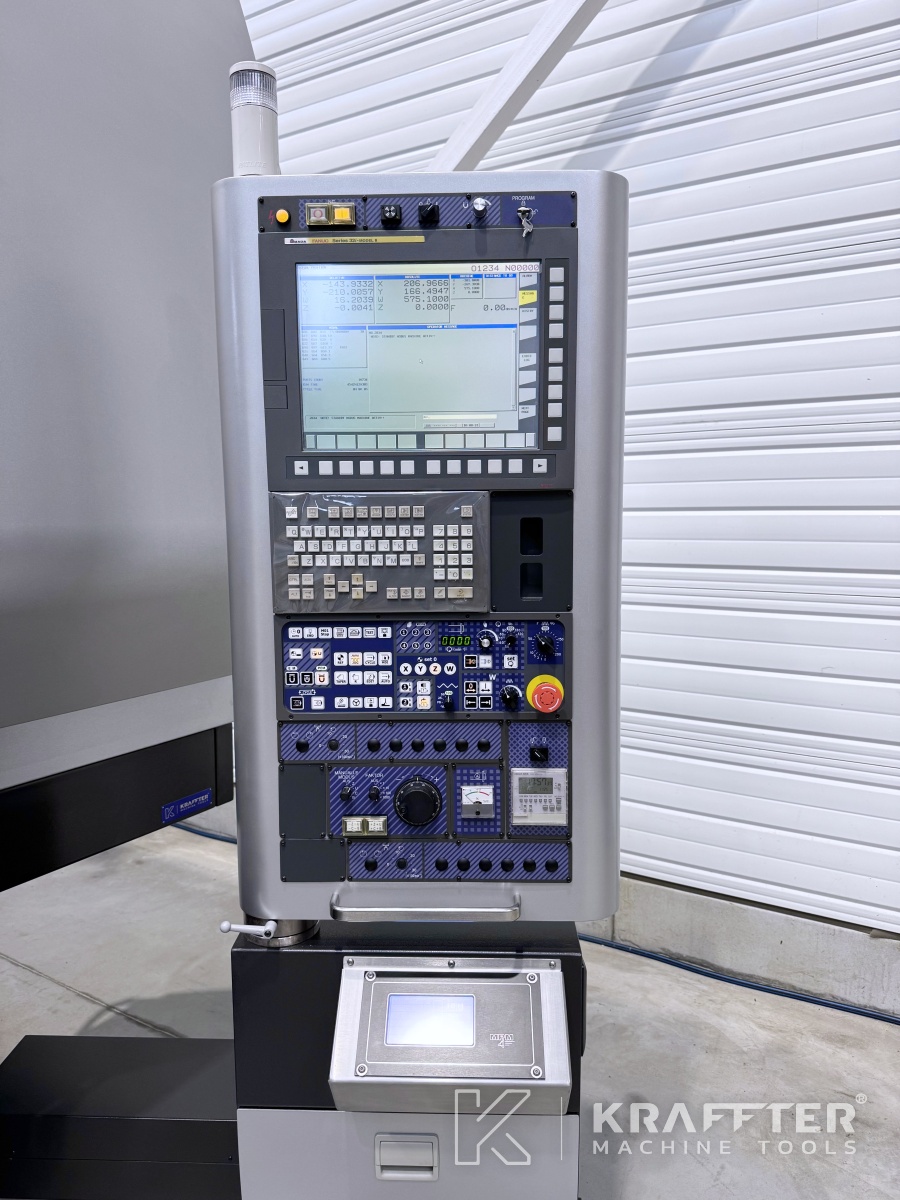

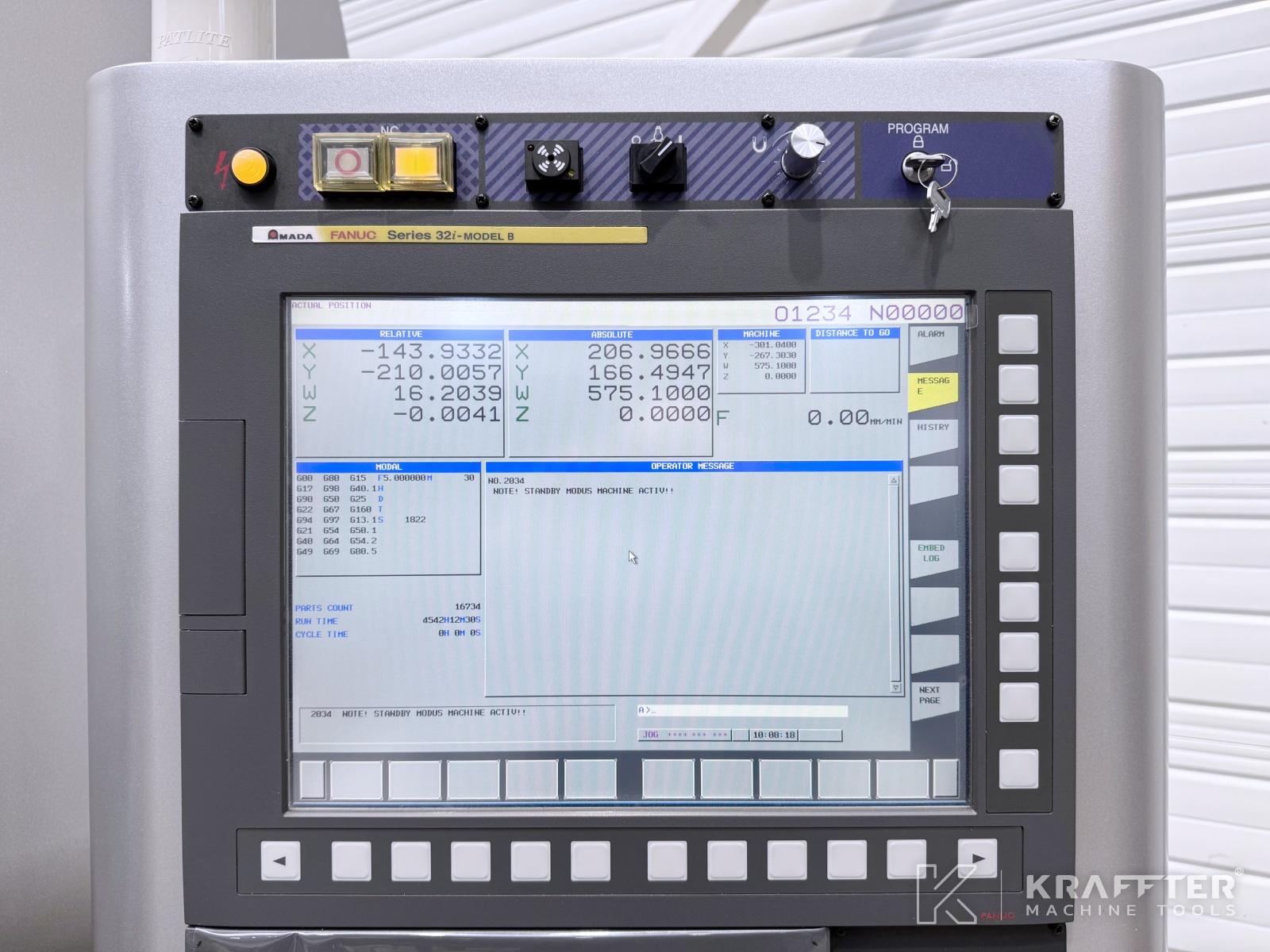

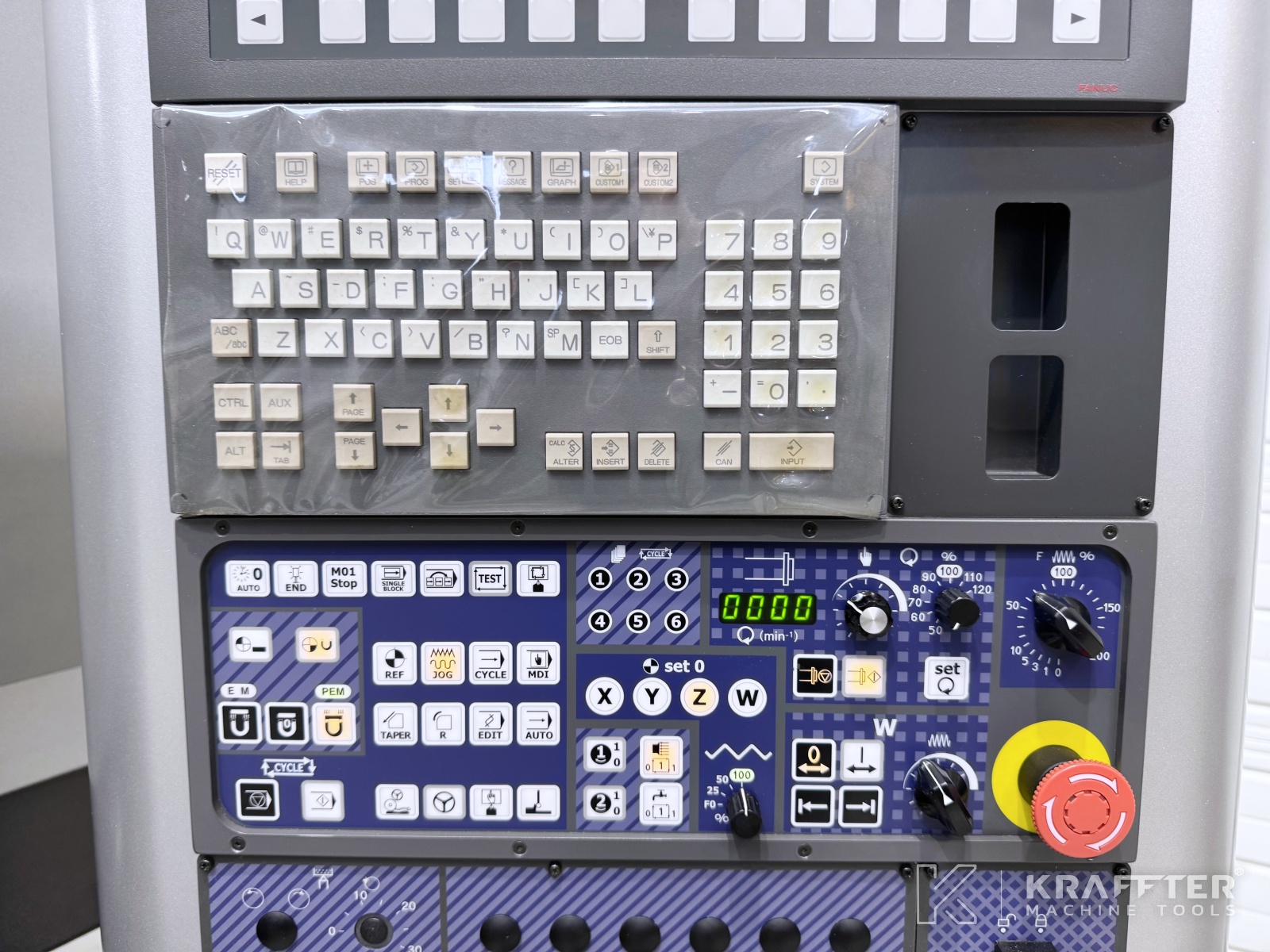

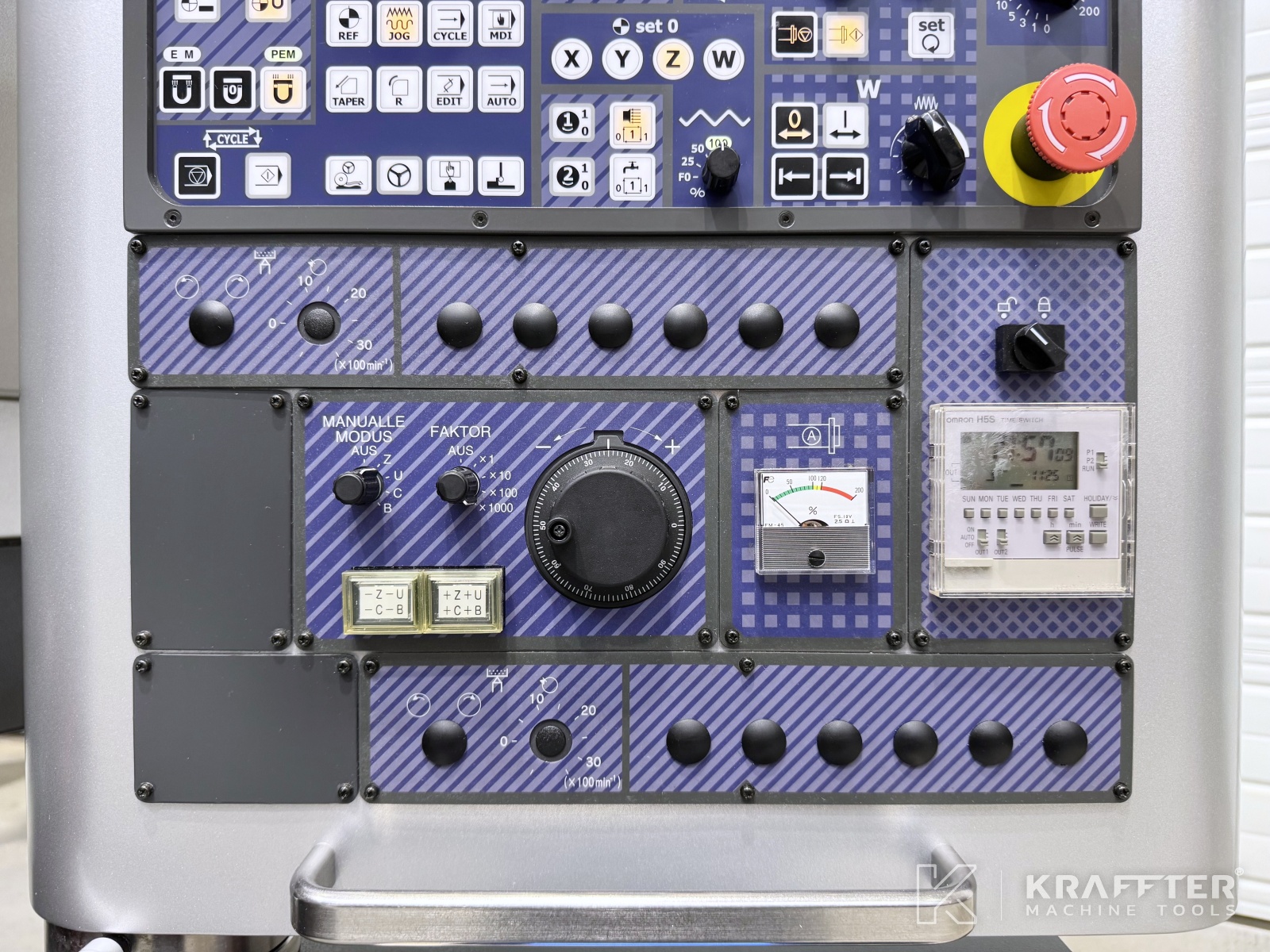

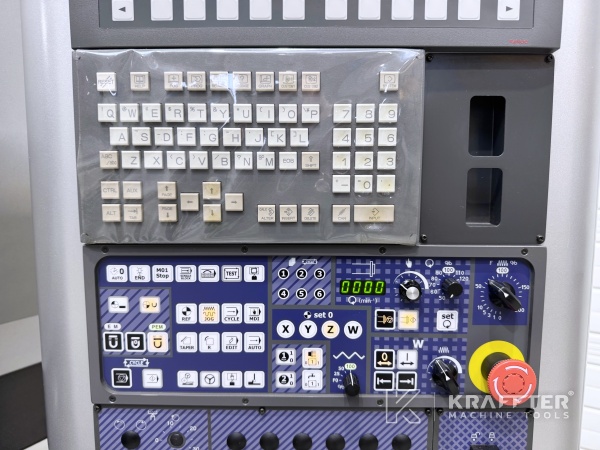

CNC control
FANUC series 32i-B
Colour touch screen
15 ["]
Maximum grinding lenght x width
1000 x 600 [mm]
W axis travel (longitudinal axis)
1300 [mm]
Min. Stroke speed W axis
0.1 [mm/min]
Max. Stroke speed W axis
40000 [mm/min]
Rapid traverse rate W axis
40000 [mm/min]
X axis travel (transverse movement)
660 [mm]
Min. Stroke speed X axis
0.1 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Rapid traverse rate X axis
5000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Y axis (vertical movement)
750 [mm]
Min. Stroke speed Y axis
0.1 [mm/min]
Max. Stroke speed Y axis
500 [mm/min]
Rapid traverse rate Y axis
2000 [mm/min]
Resolution Y axis
0.0001 [mm]
Max. distance spindle nose / table
750 [mm]
Max. load on table
1500 [Kg]
Min. grinding wheel speed
300 [rpm]
Max. grinding wheel speed
2000 [rpm]
Grinding spindle motor power
11 [kW]
Max. diameter grinding wheel
405 [mm]
Max. grinding wheel width
50 [mm]
Grinding wheel bore
127 [mm]
Working hours
2710 [h]
Total power required
29 [kVA]
Weight
11000 [Kg]
Additional information
EQUIPMENT / INCLUDED OPTIONS:
- 2-axis simultaneous

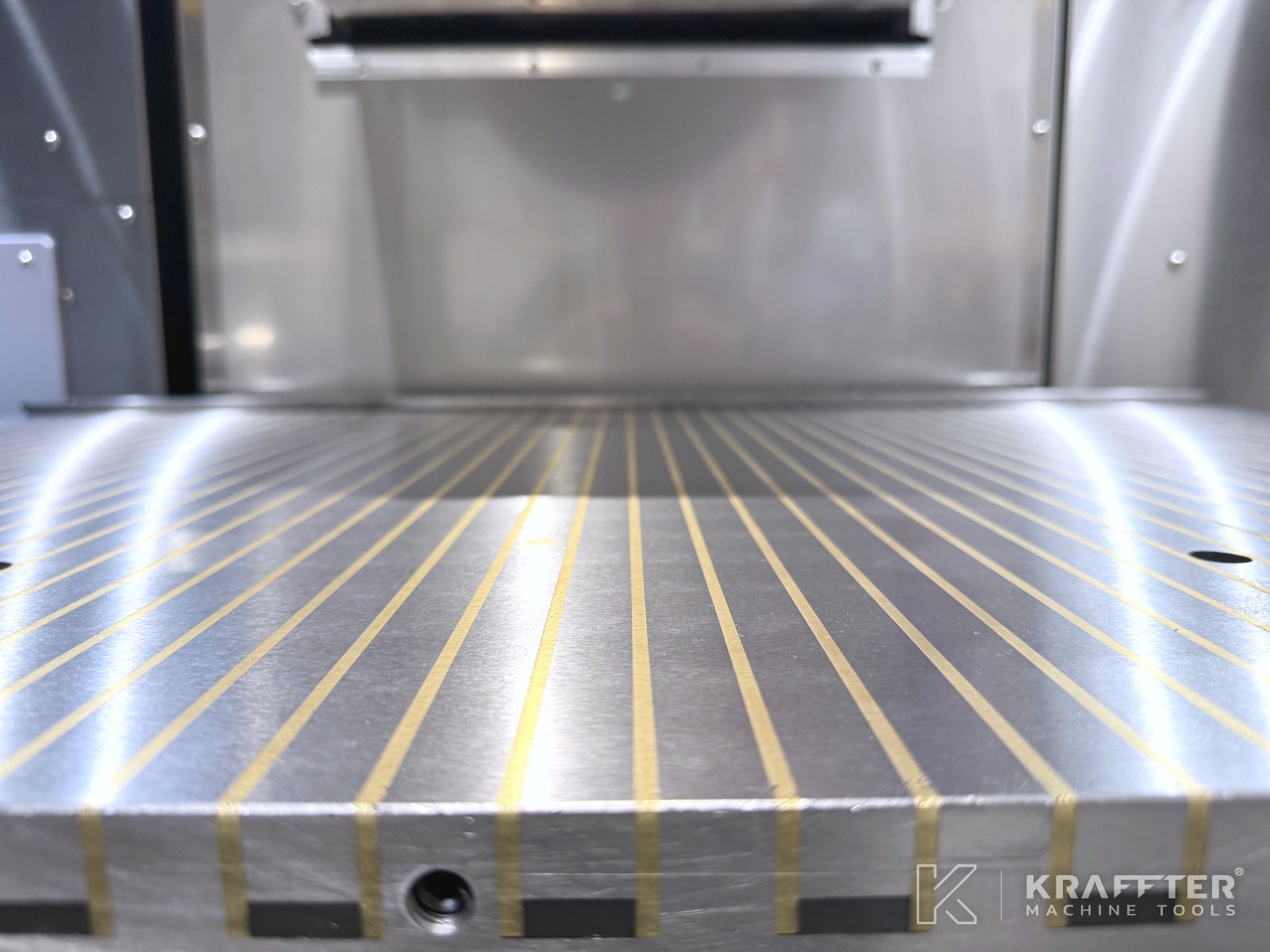

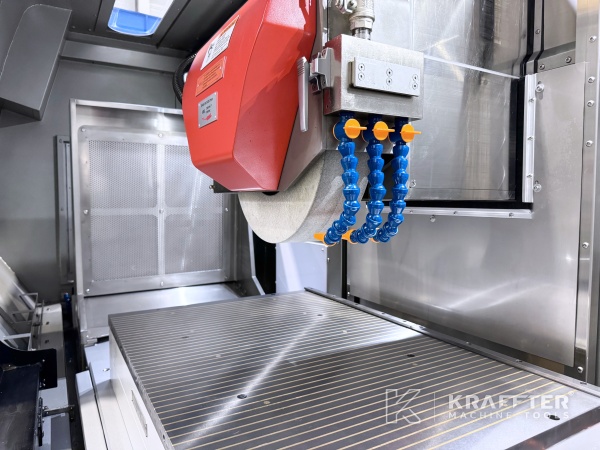

- 1x electro-magnetic chuck, 900 x 600 [mm]
-

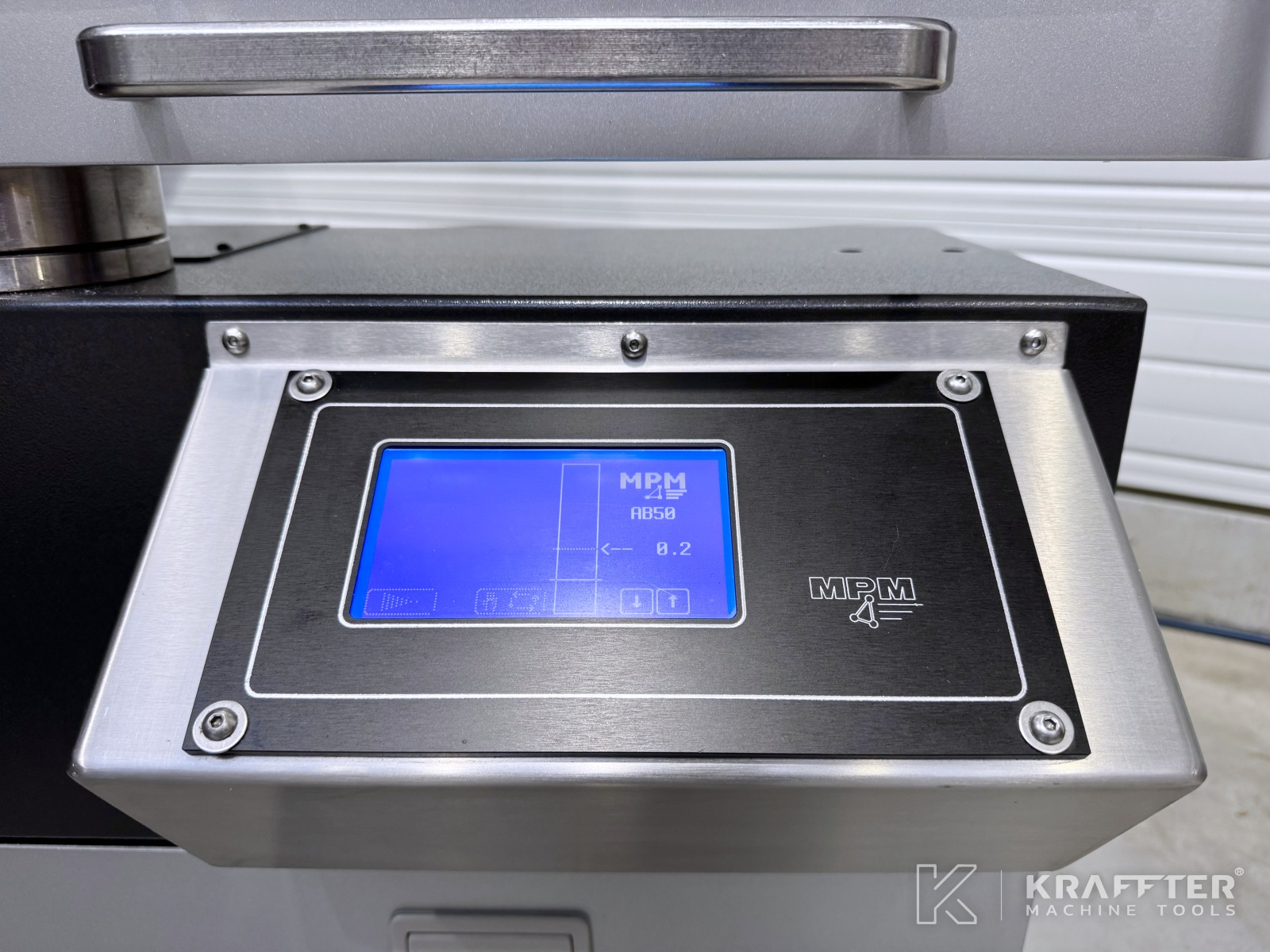

1x automatic grinding wheel balancing device, MPM type 3.ESB.150A.114.CF
-

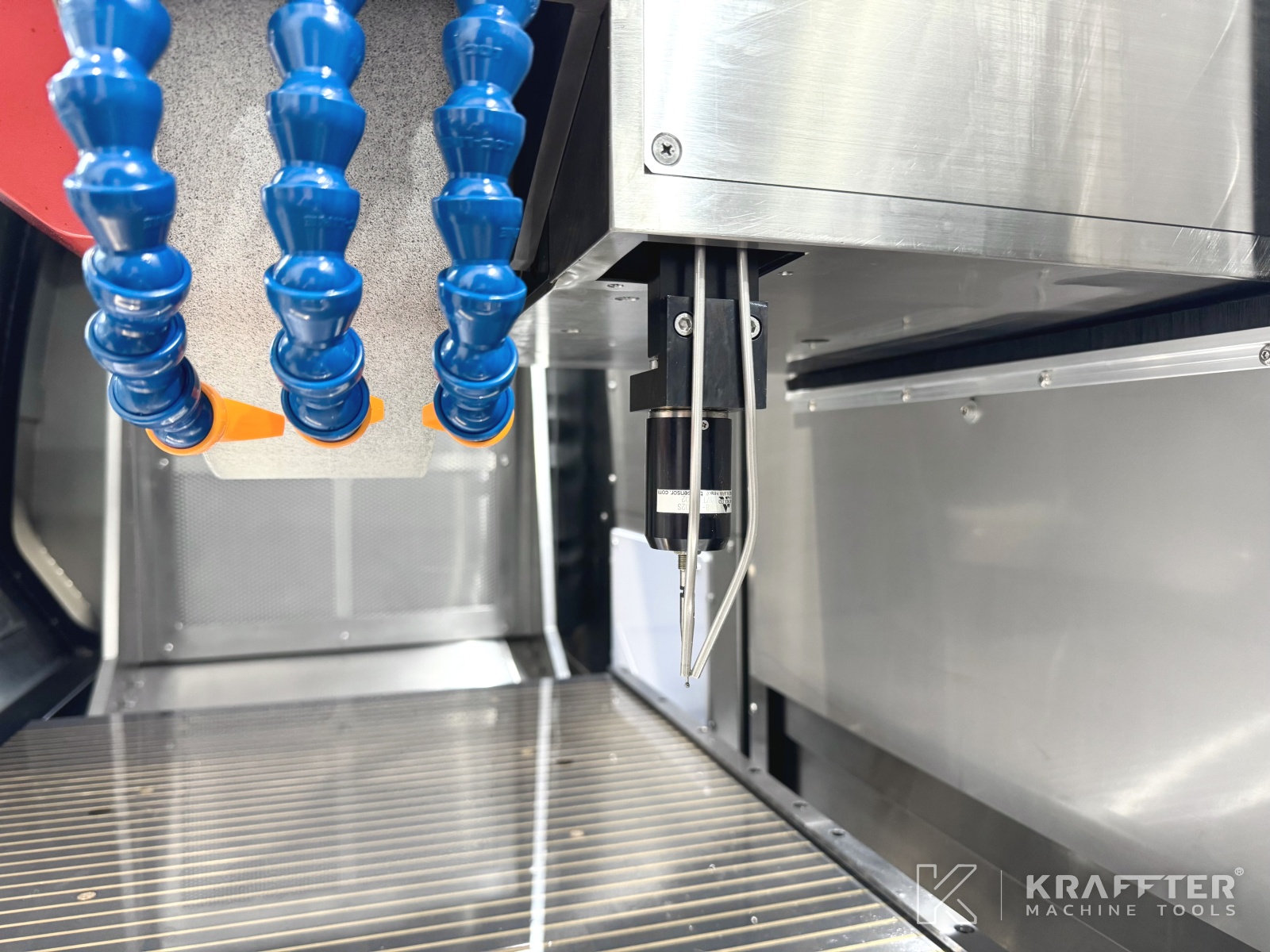

1x on-board measuring touch probe with compensation function
-

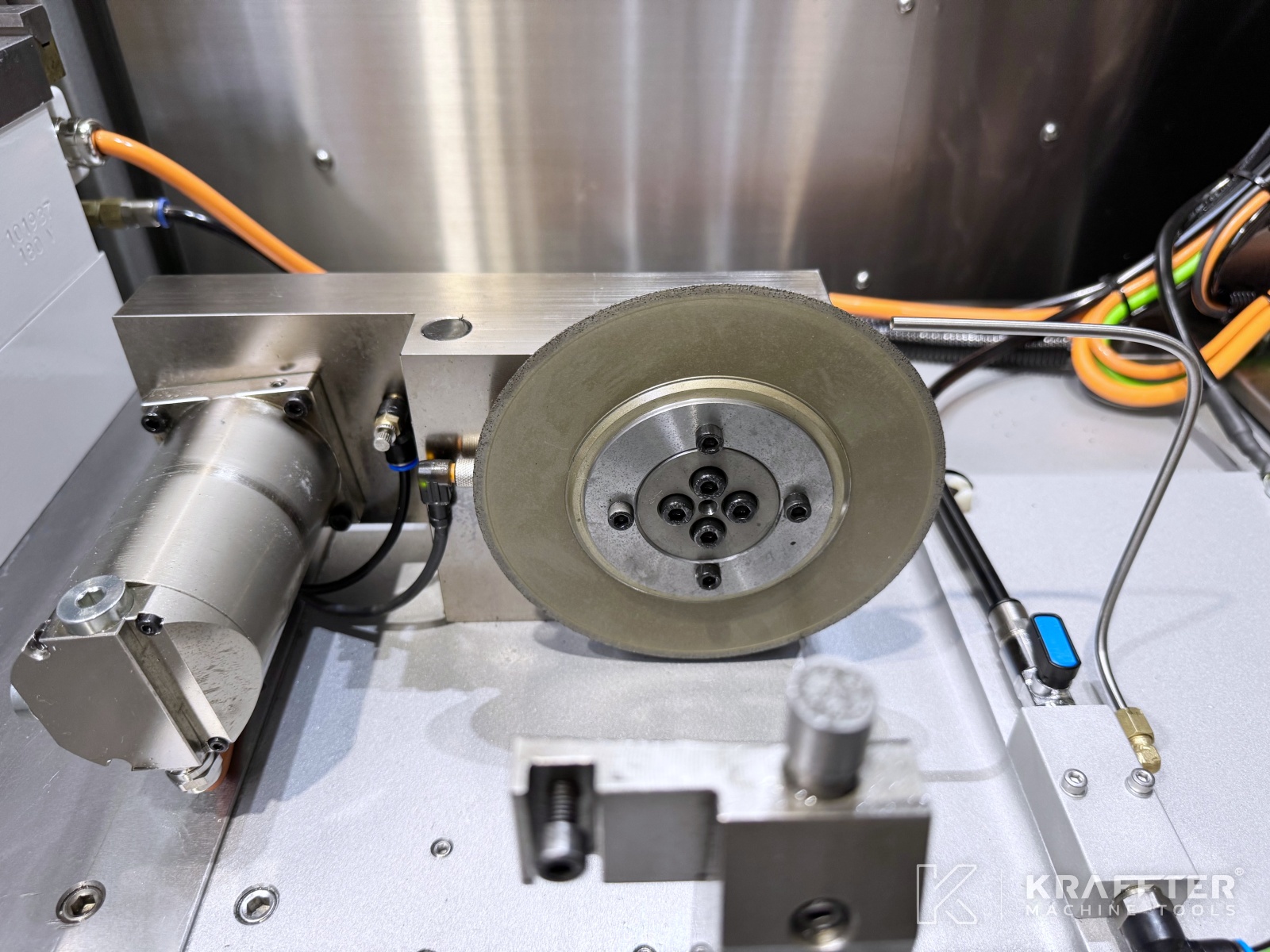

1x rotary dresser
-

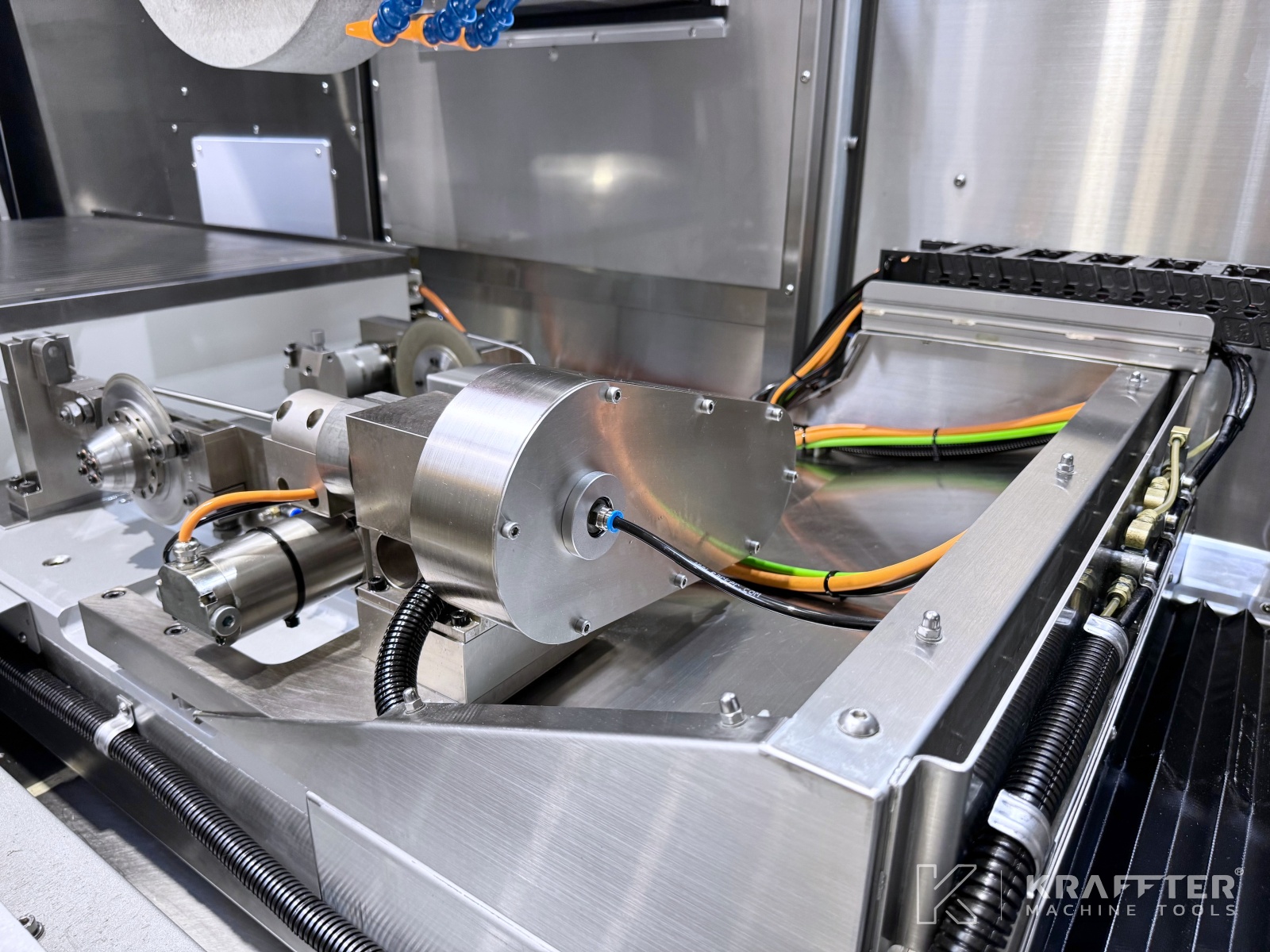

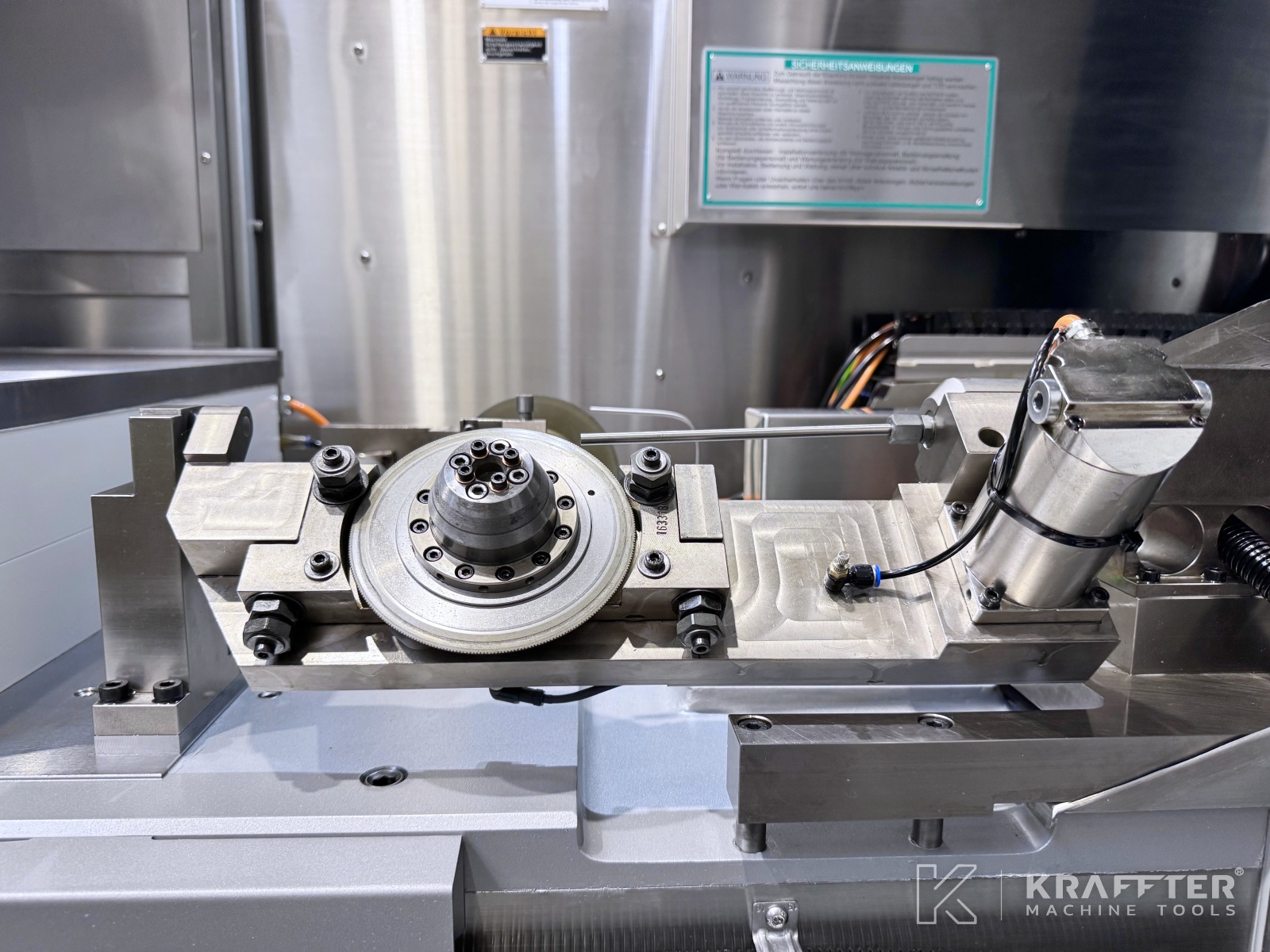

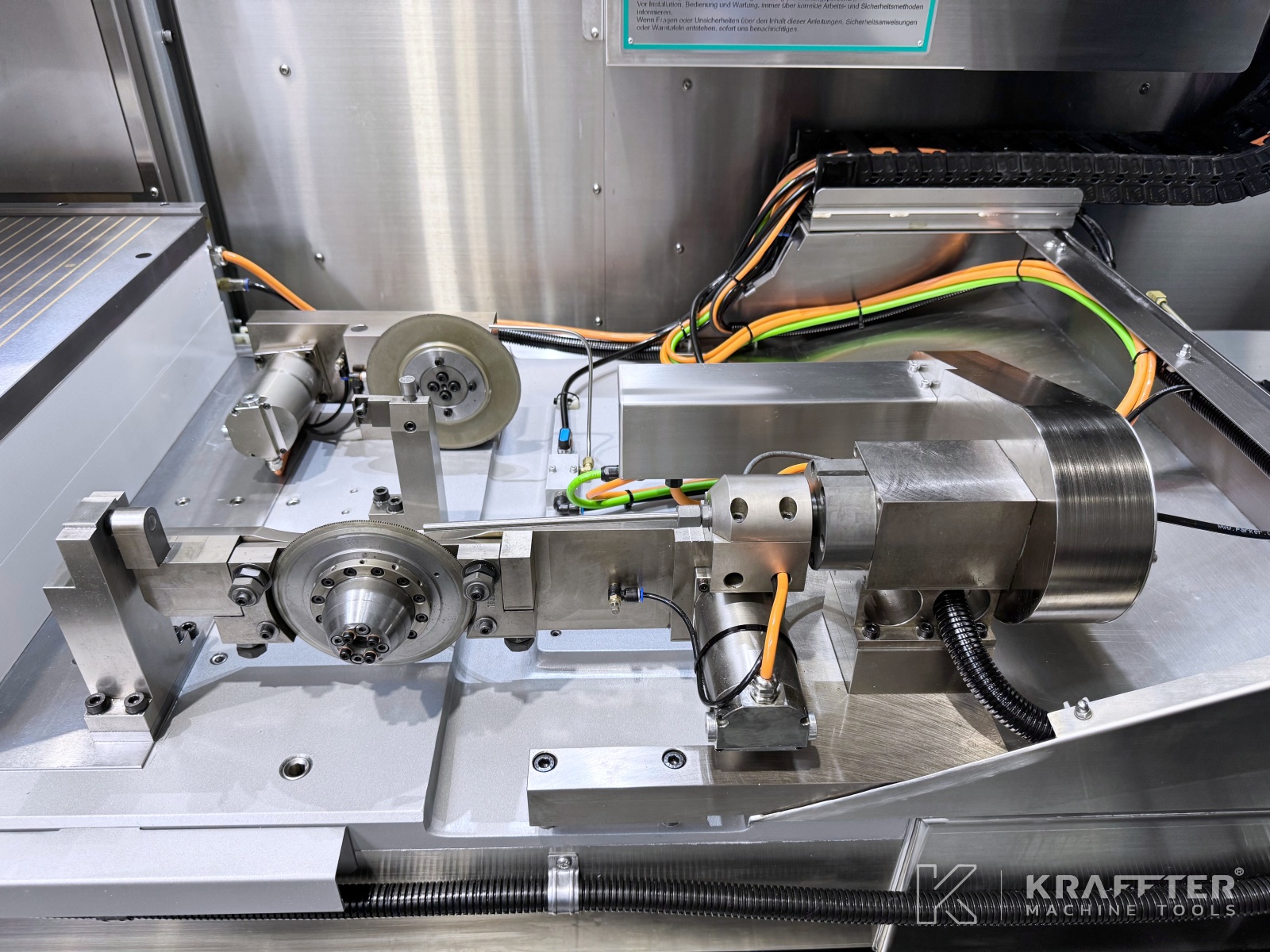

1x NC swivelling rotary dresser
-
1x static straight dresser
-

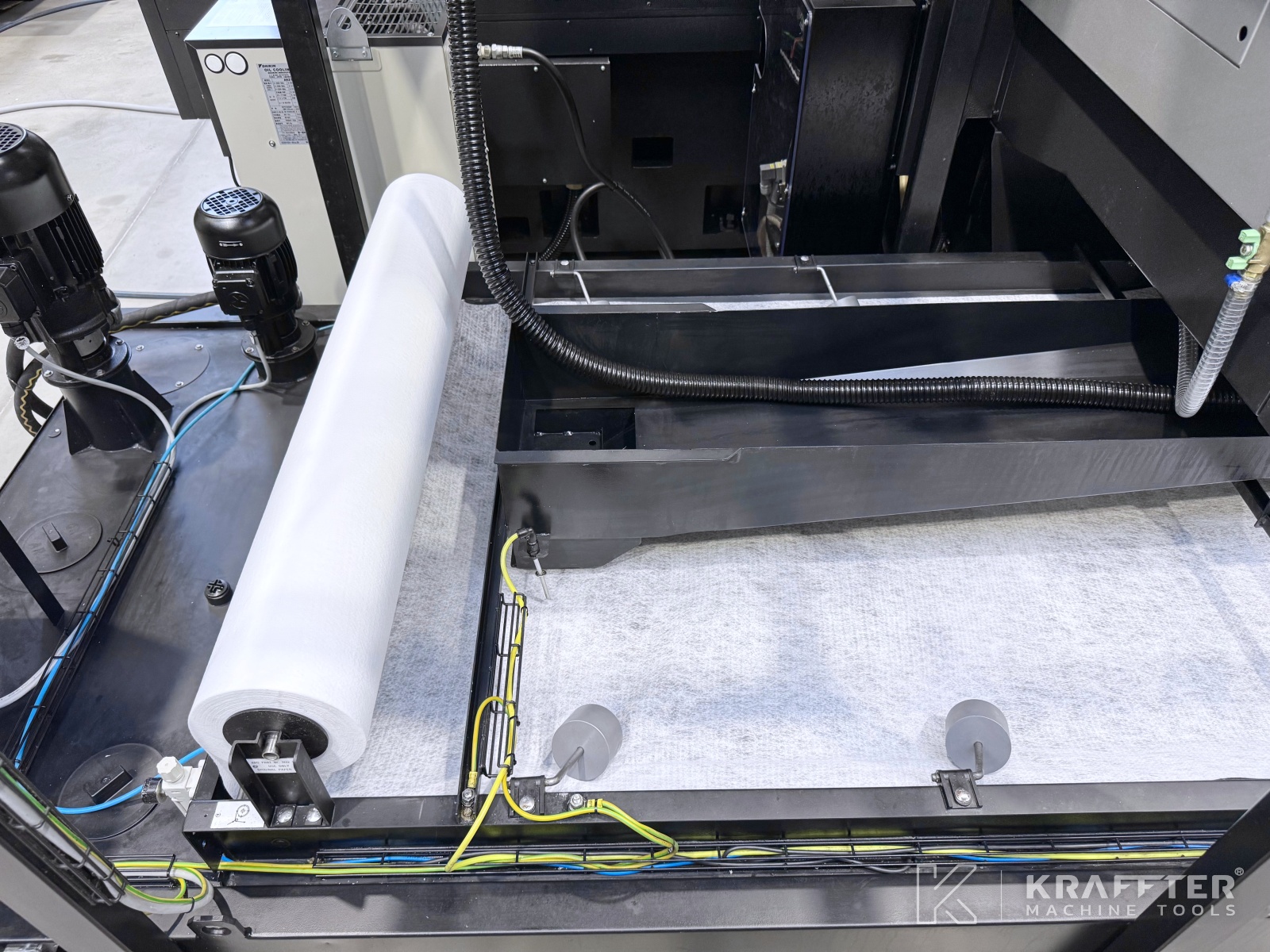

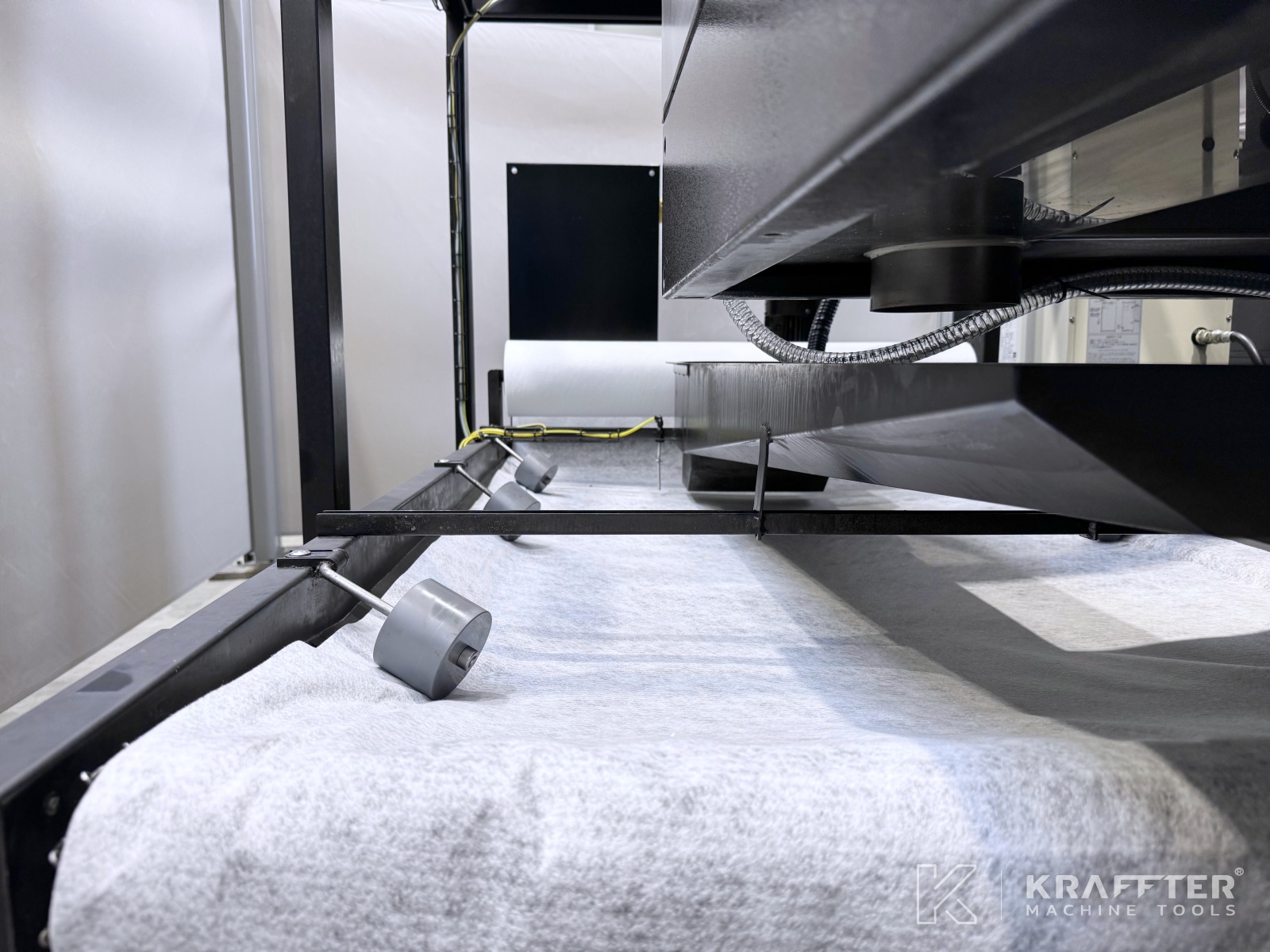

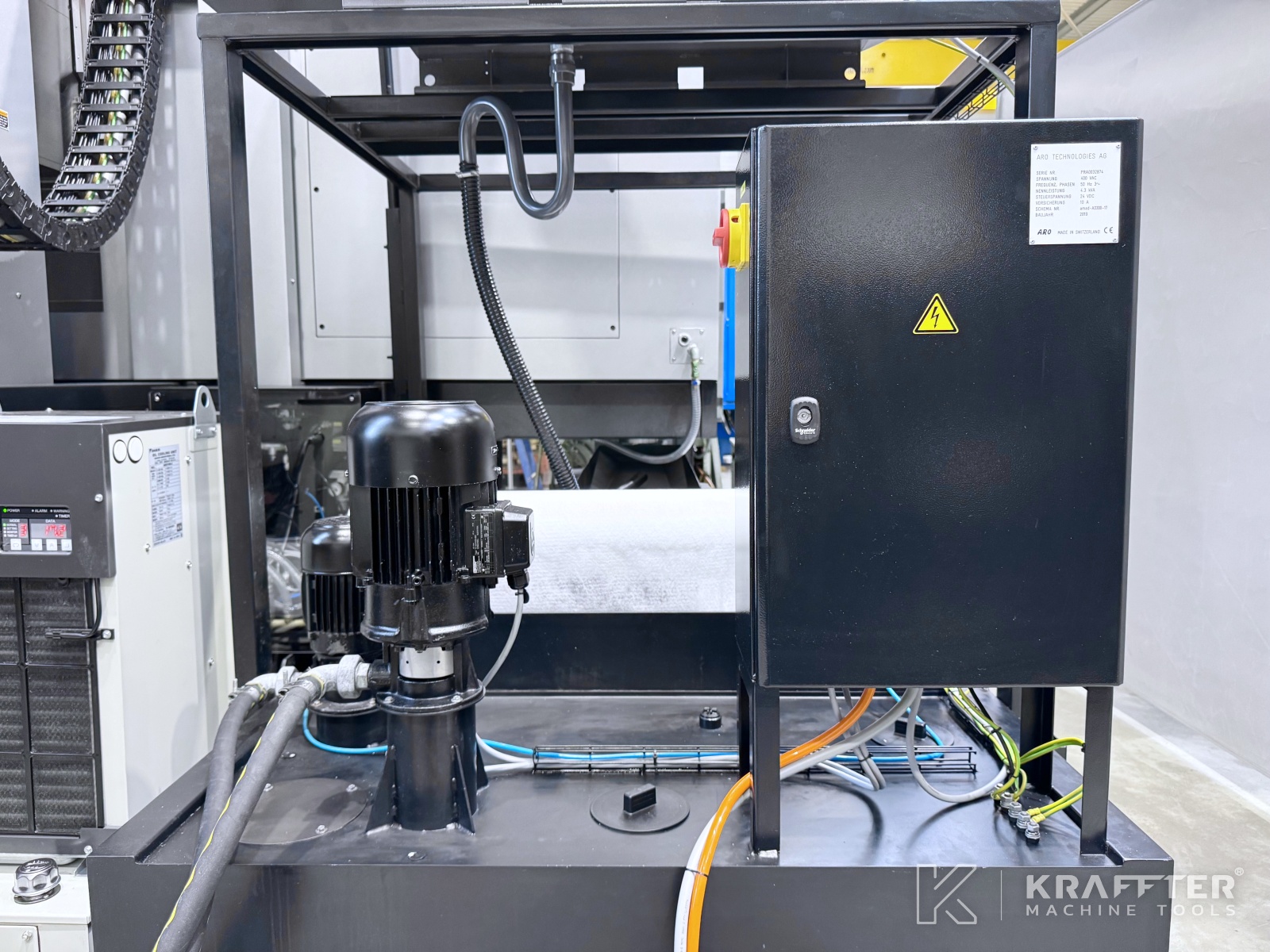

1x paper tape filtration unit
-

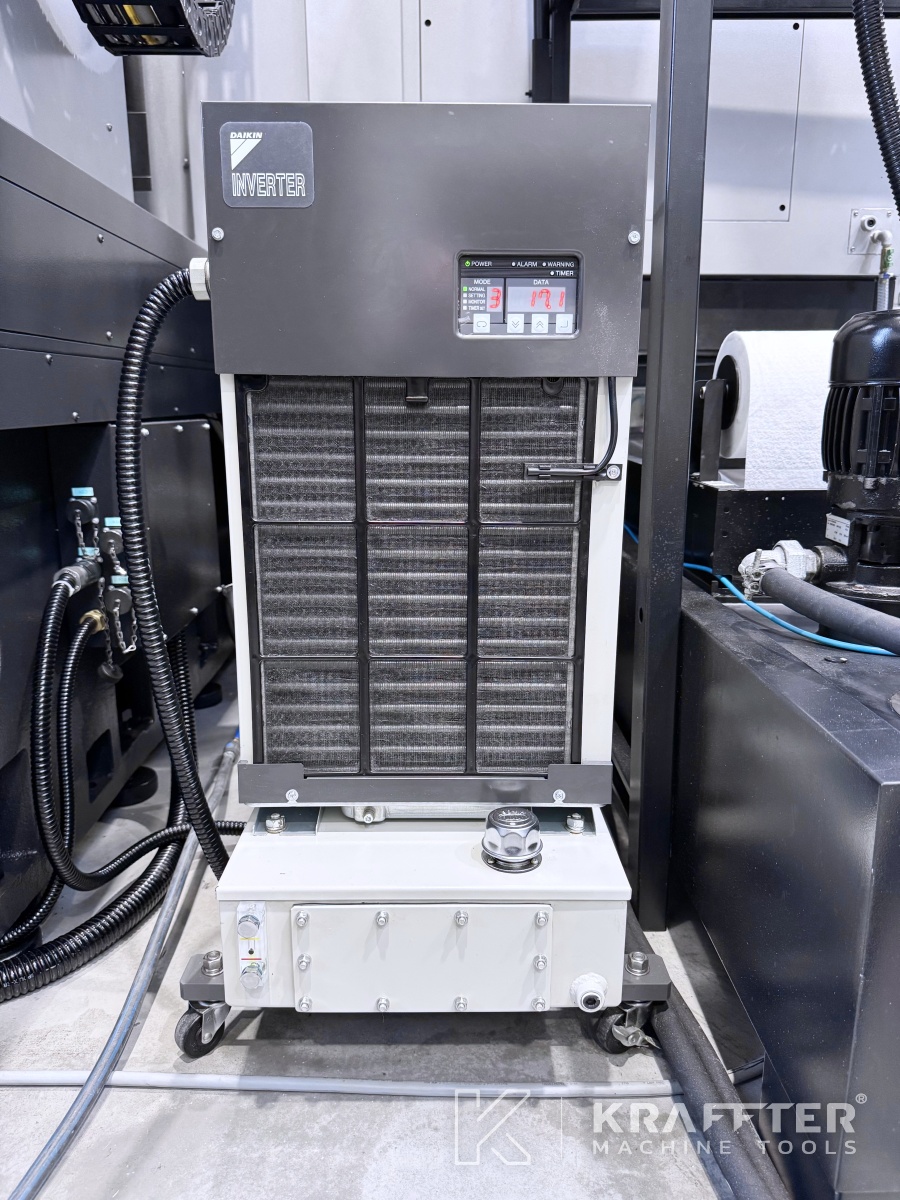

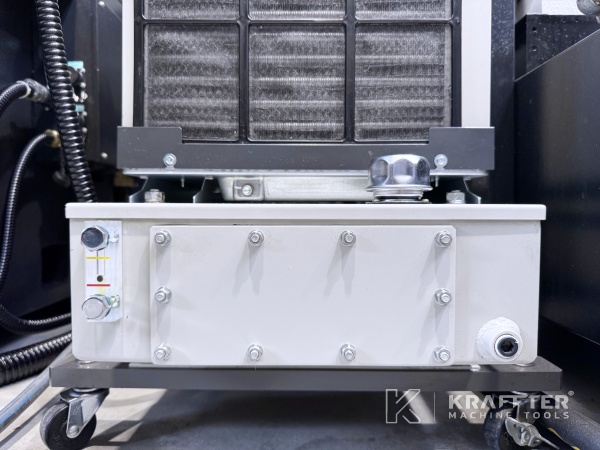

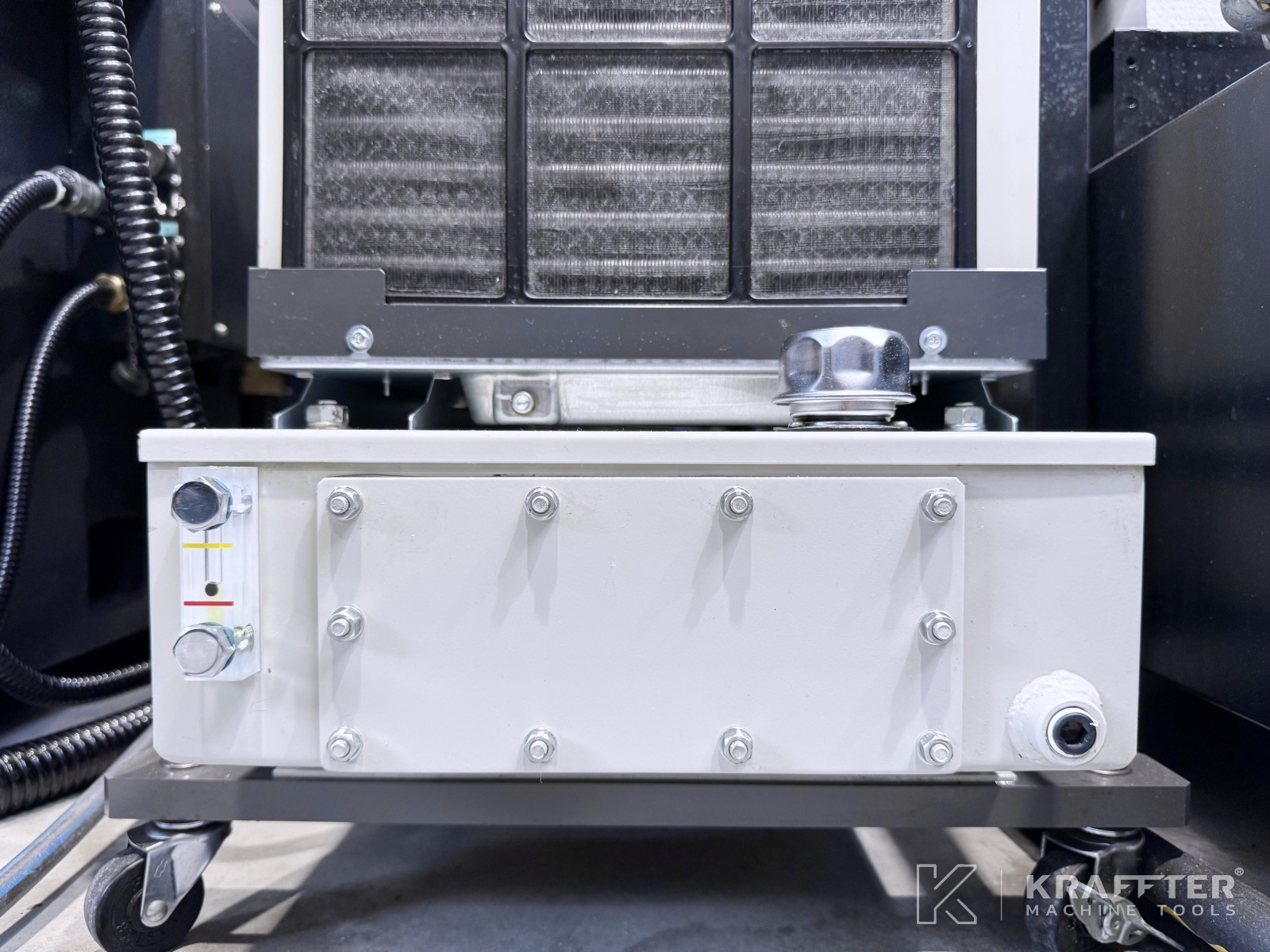

1x oil chiller, DAIKIN AKZ149-C
-

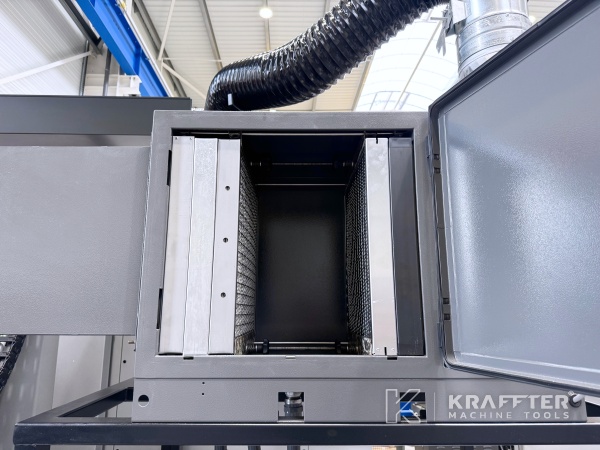

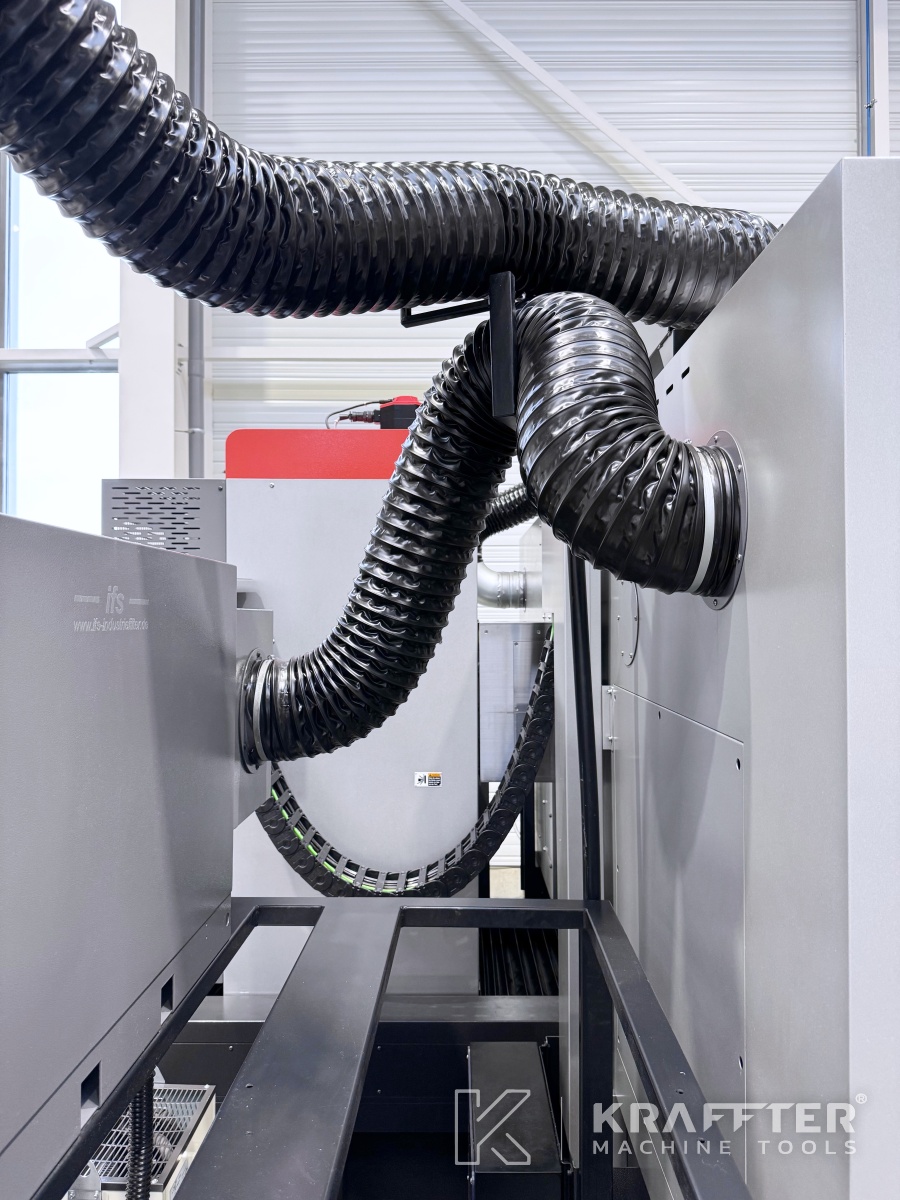

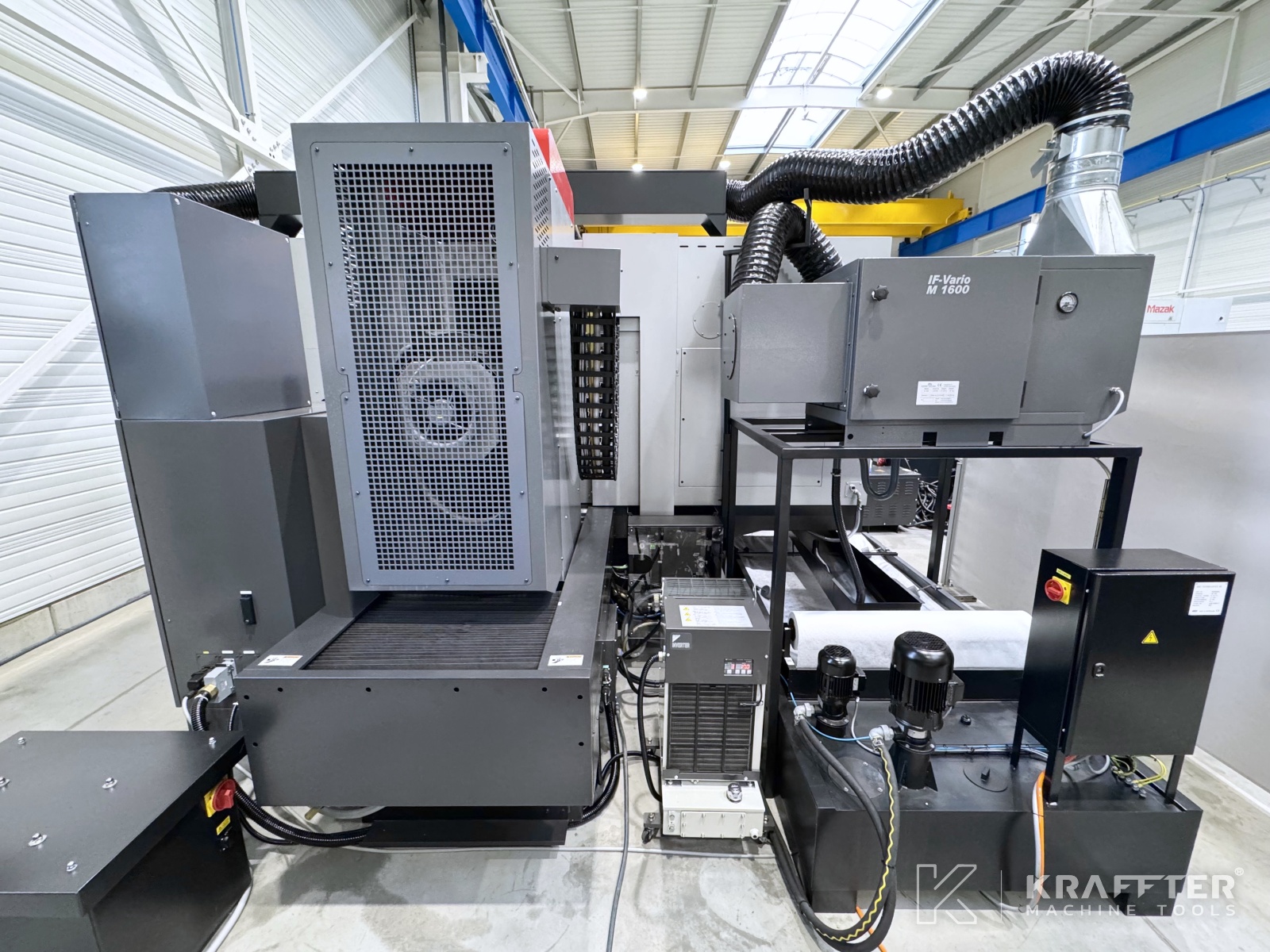

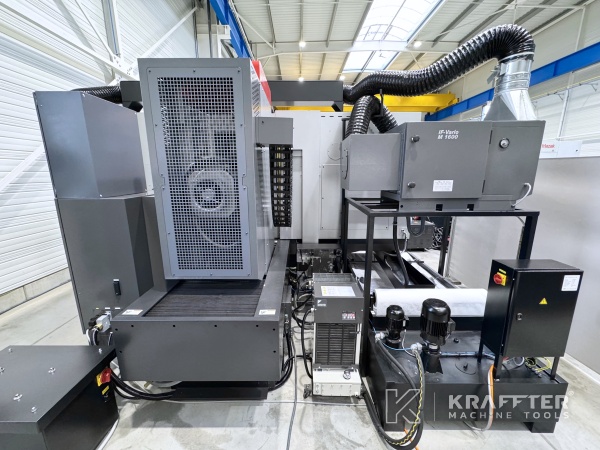

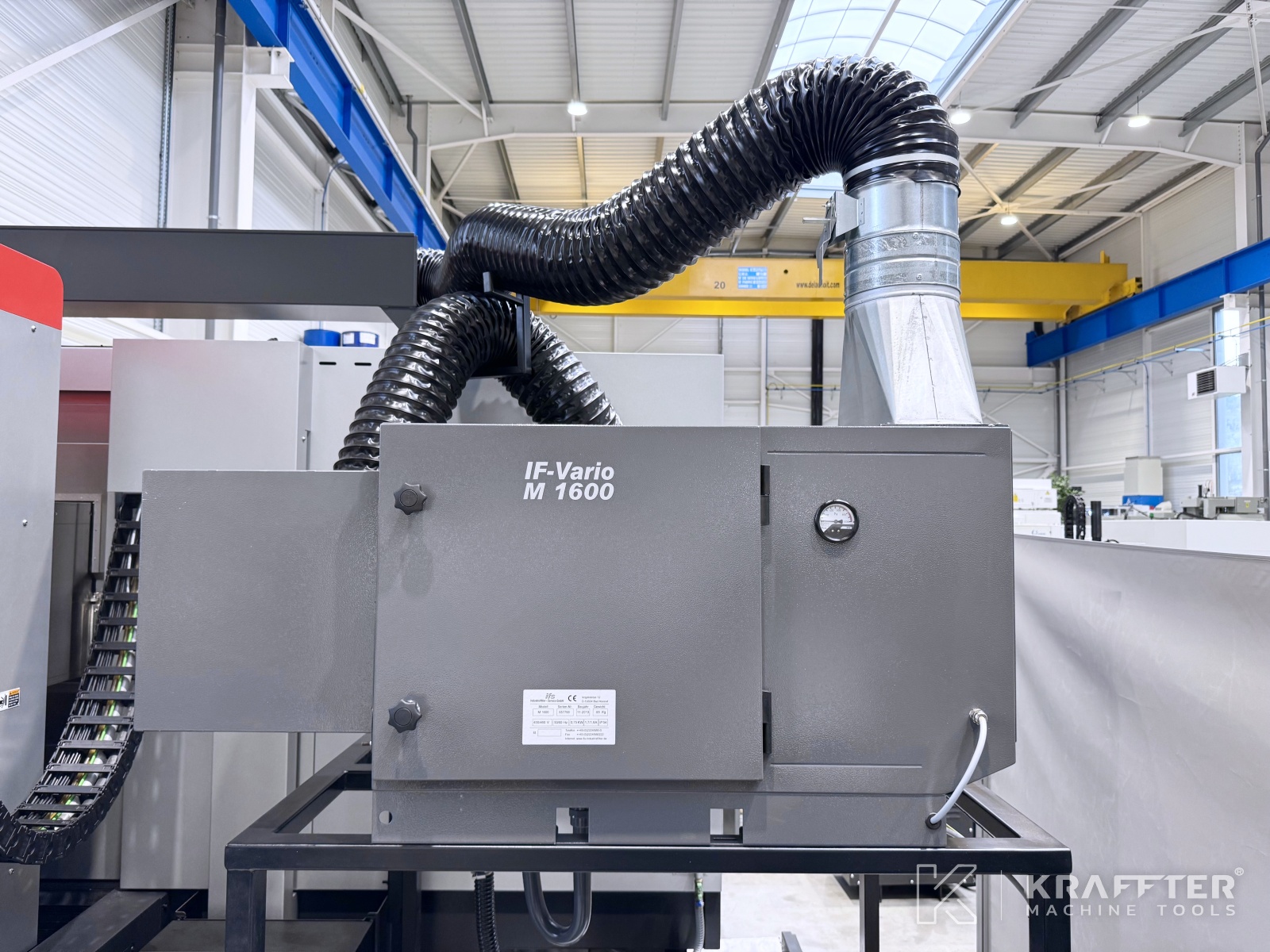

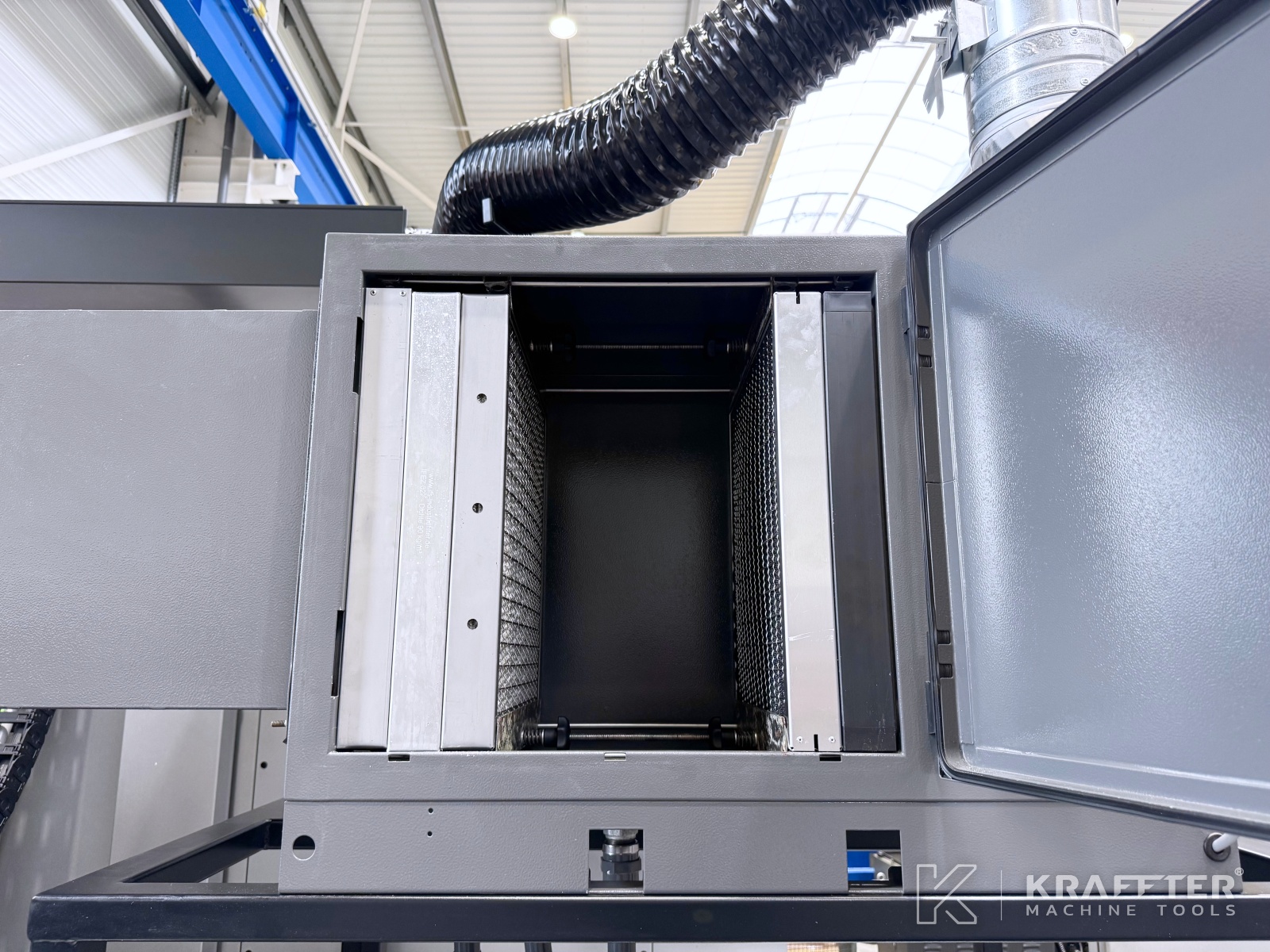

1x oil mist extractor, IFS type M 1600
-

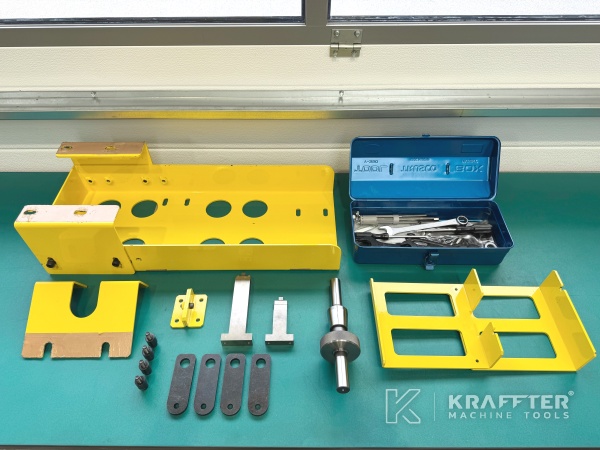

3x wheel flanges
-

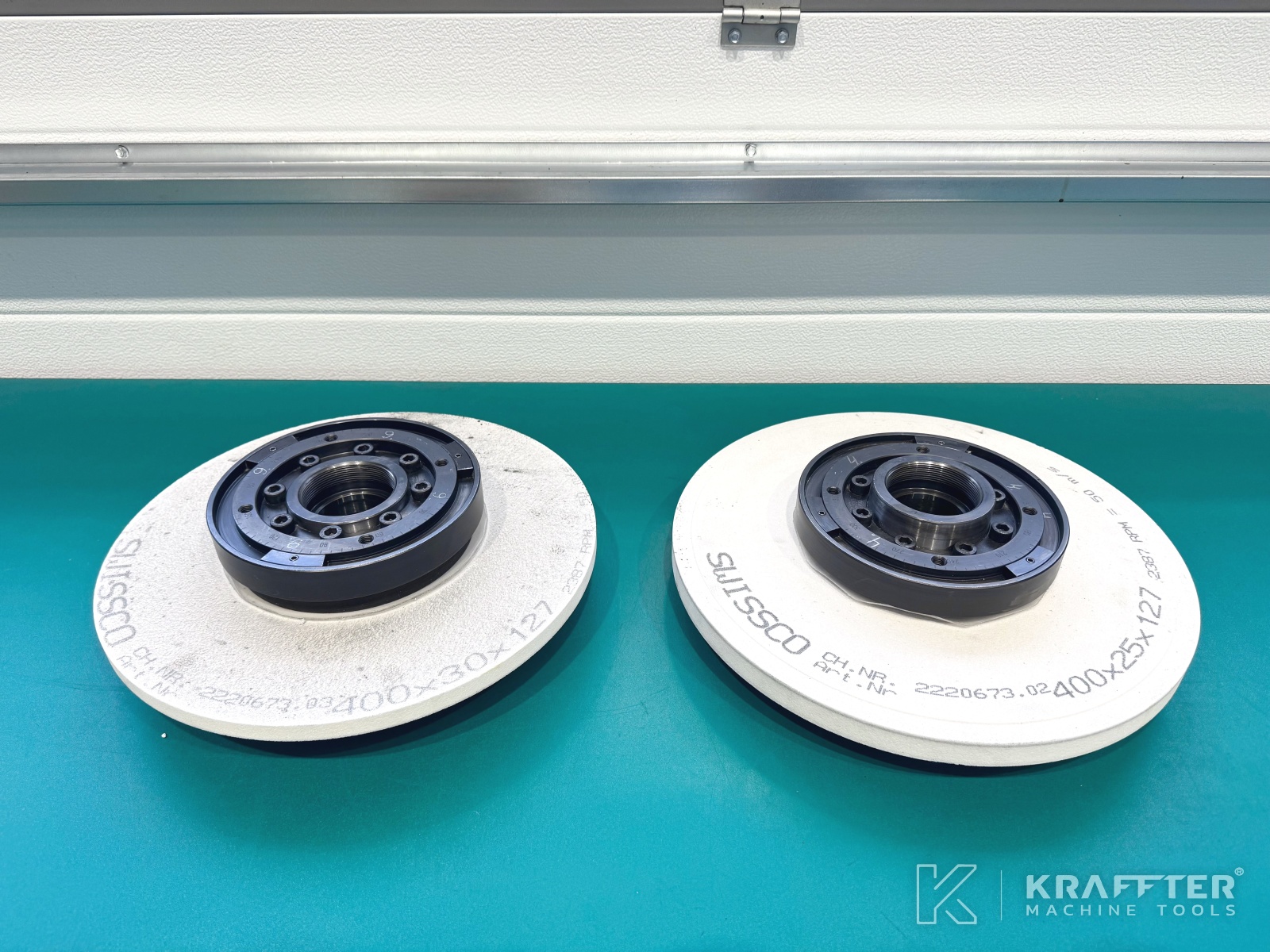

3x grinding wheels
-

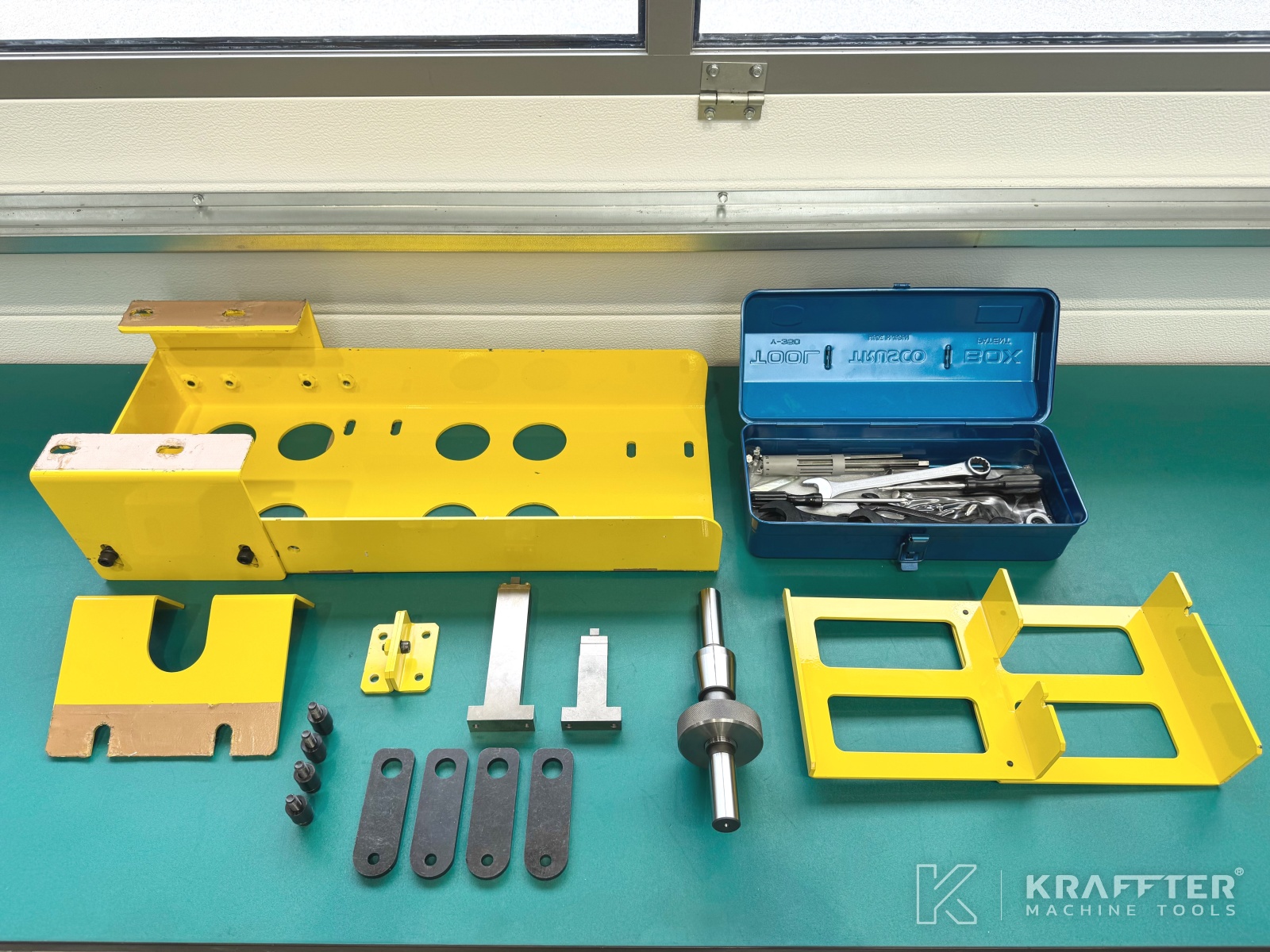

1x axis clamping kit
-
1x toolbox (service wrenches)
-
1x balancing arbor
-
1x transformer
