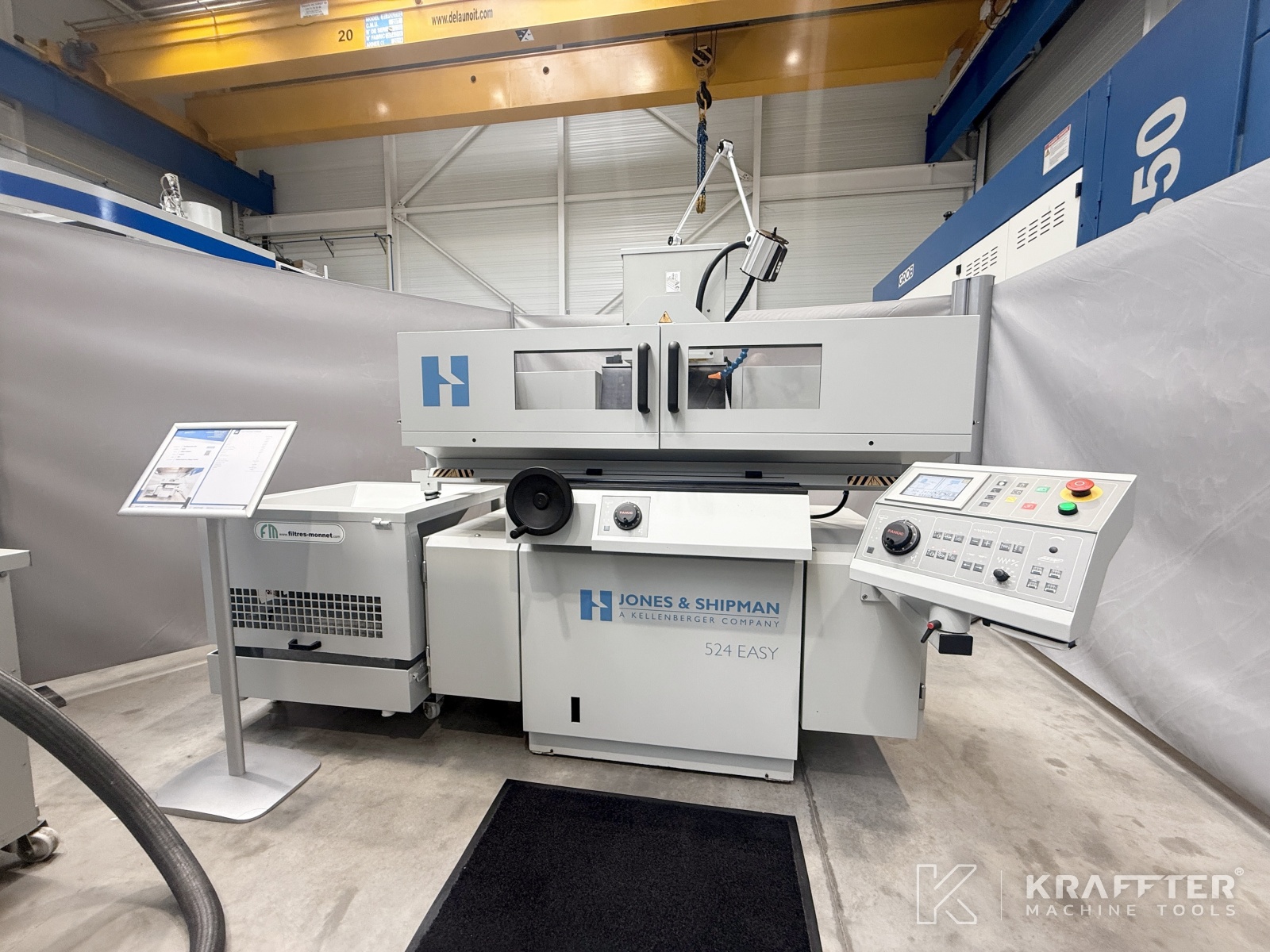

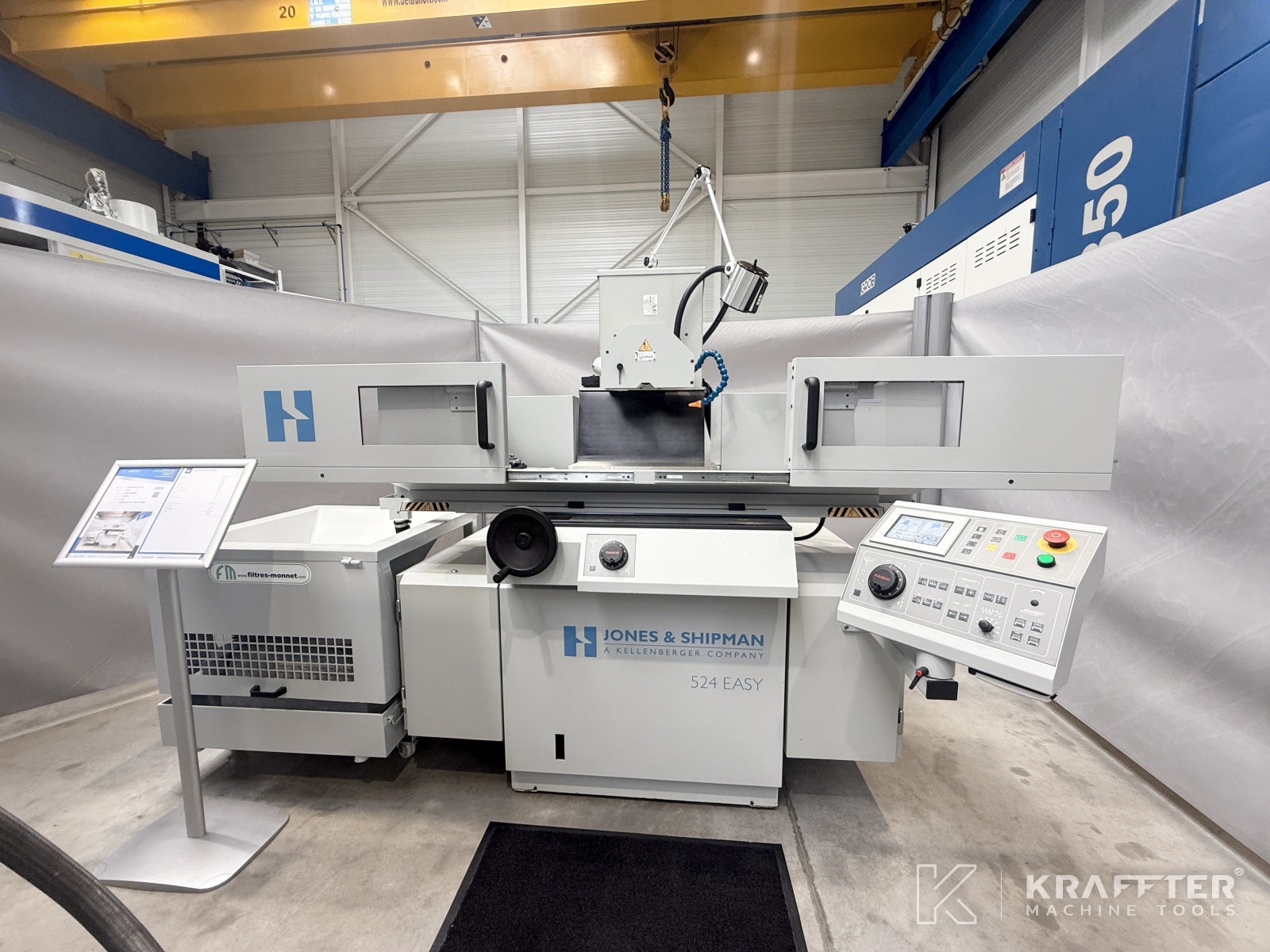

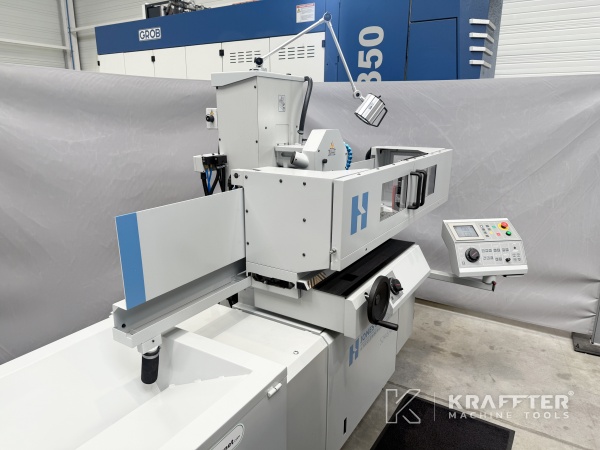

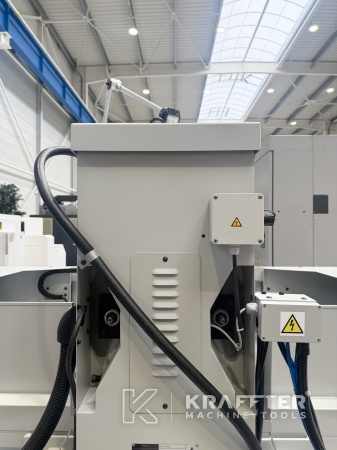

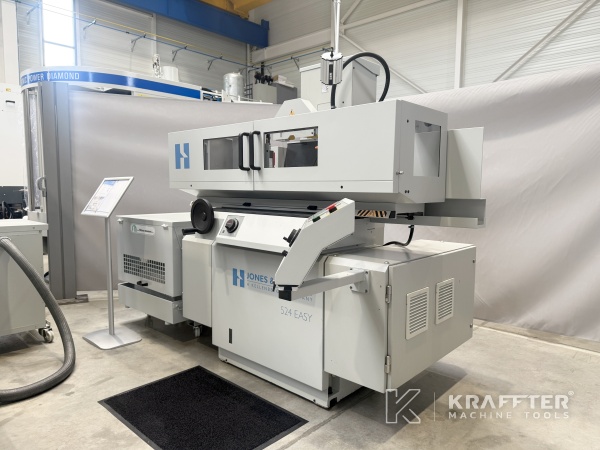

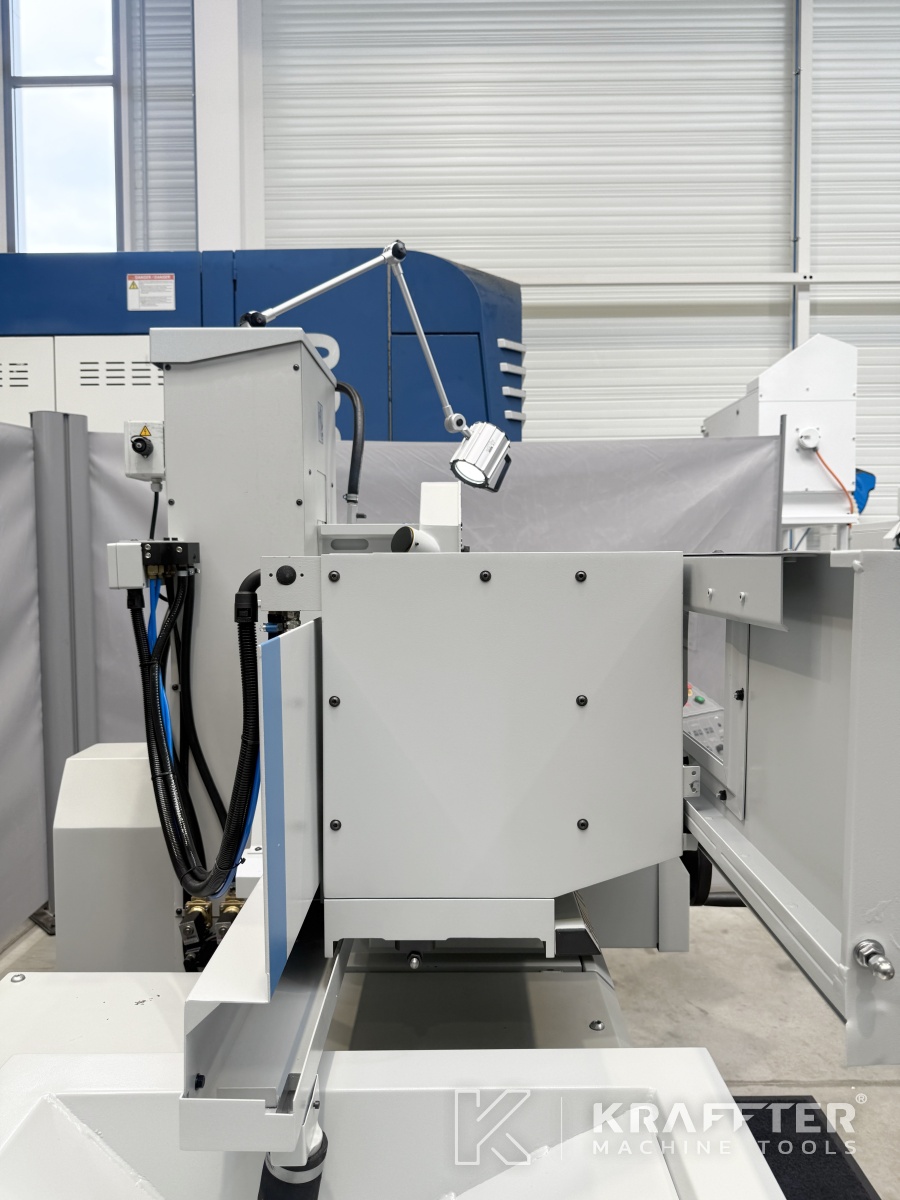

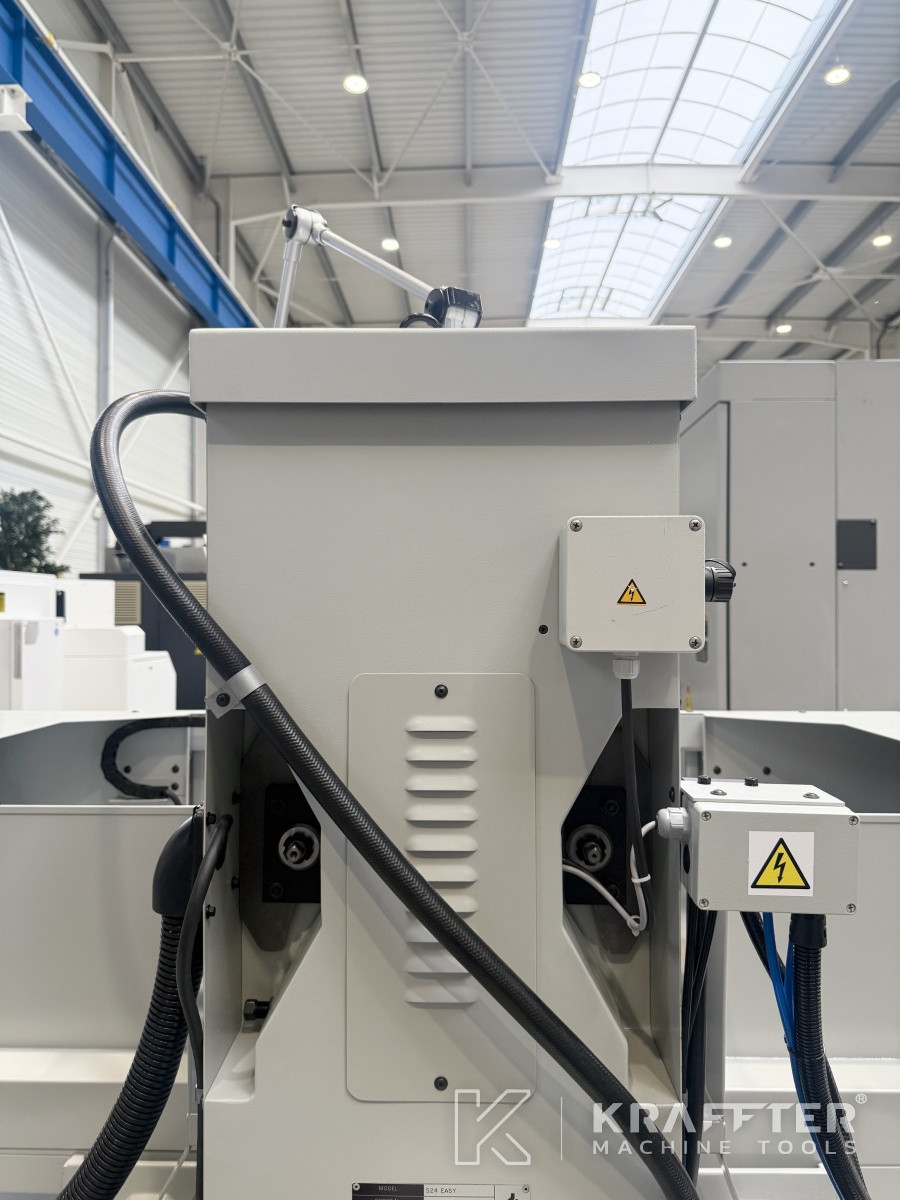

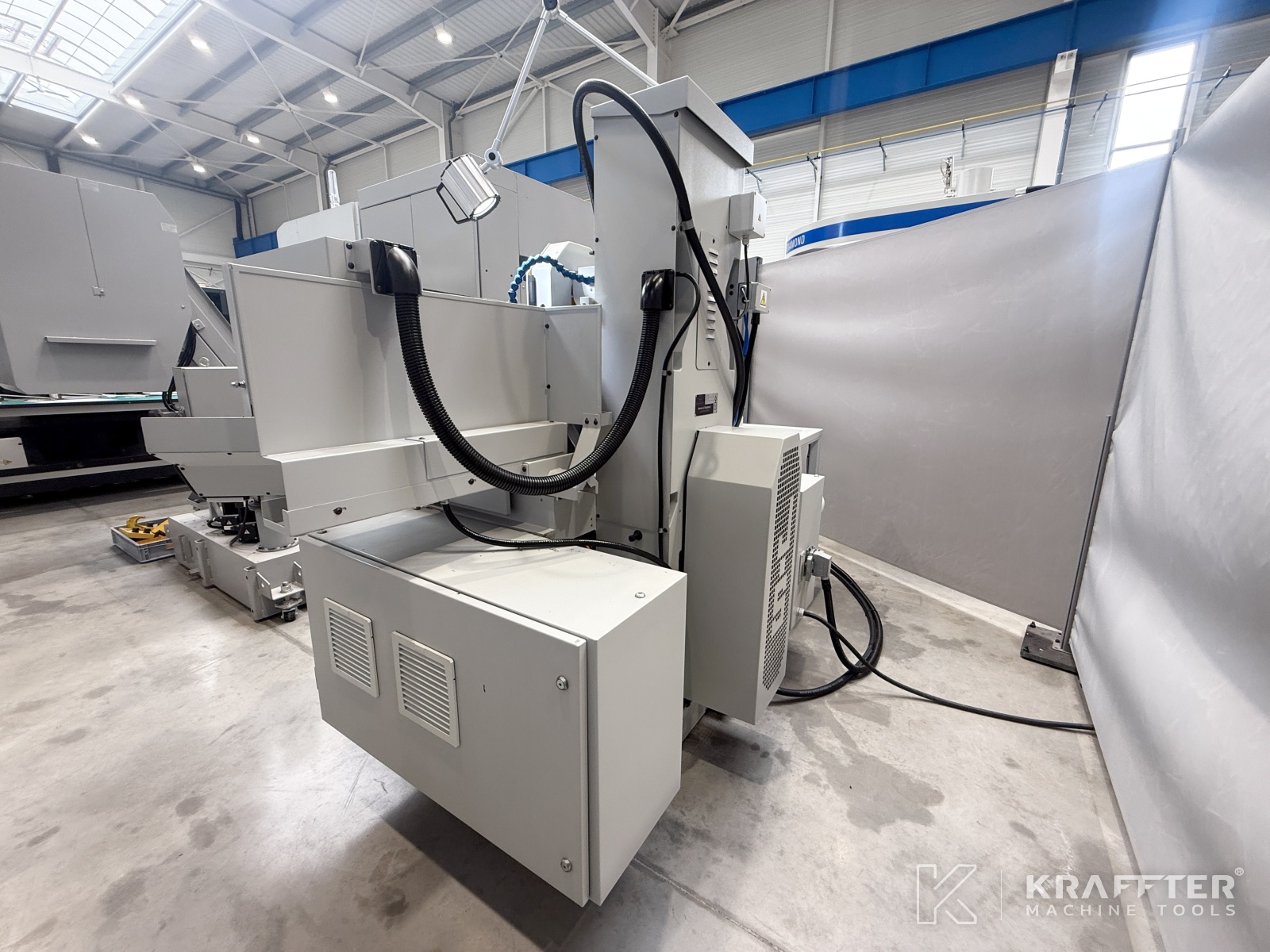

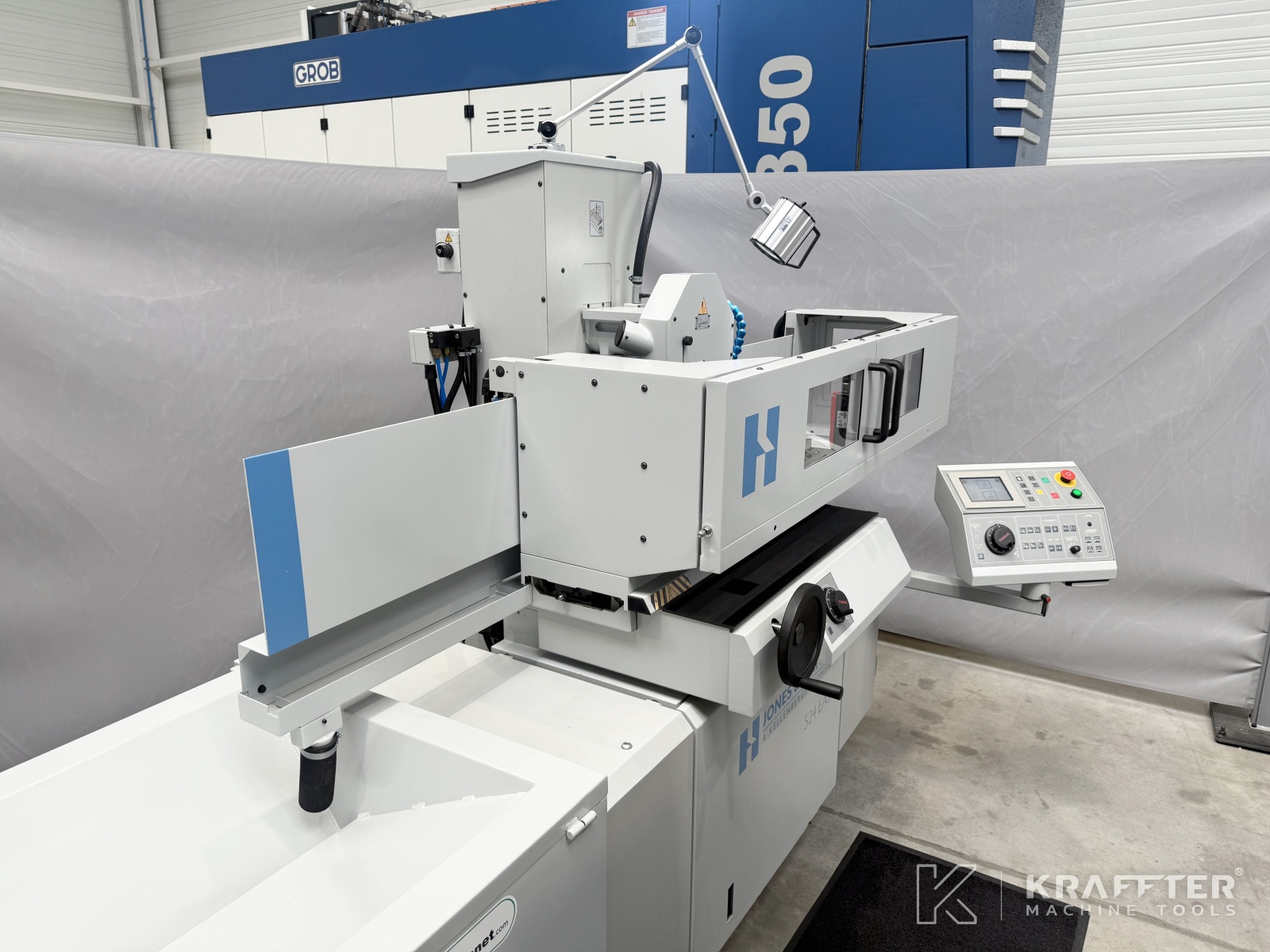

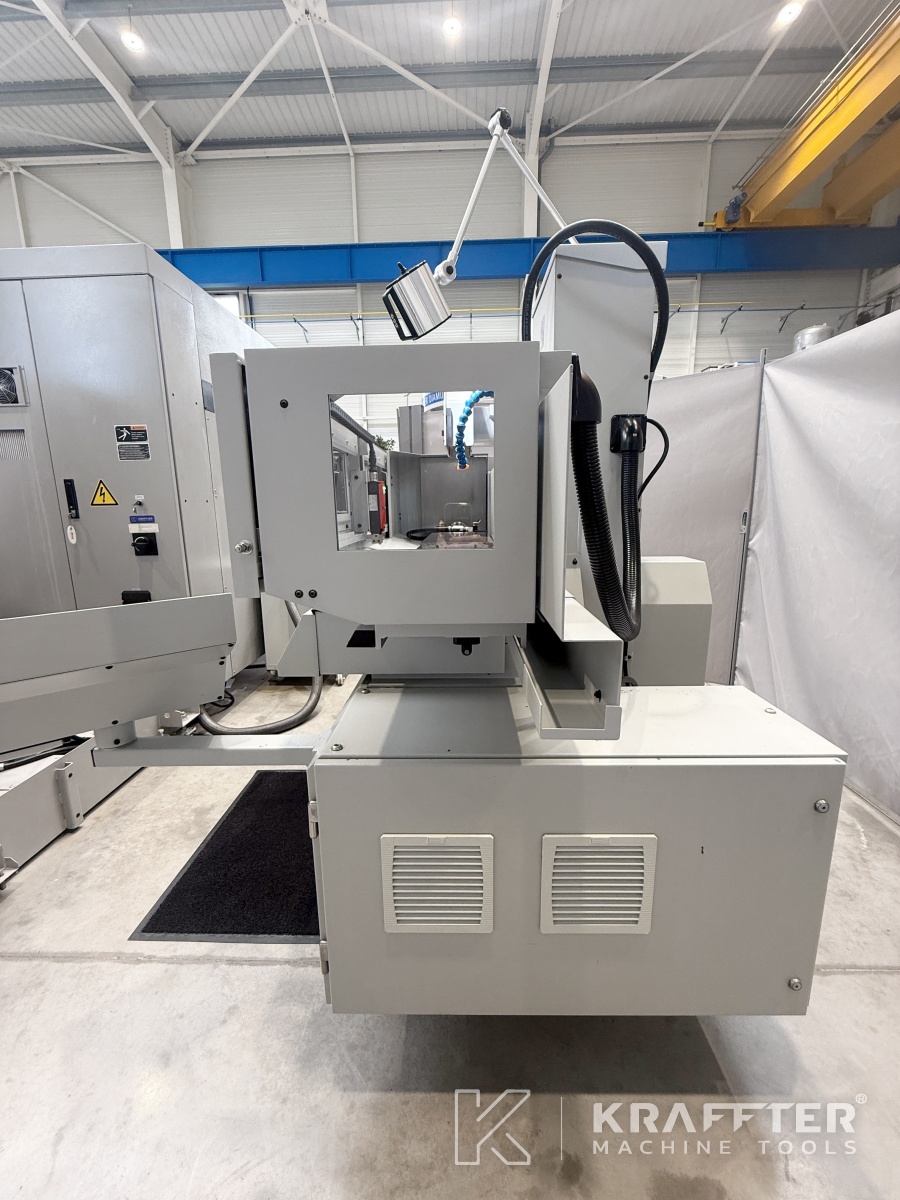

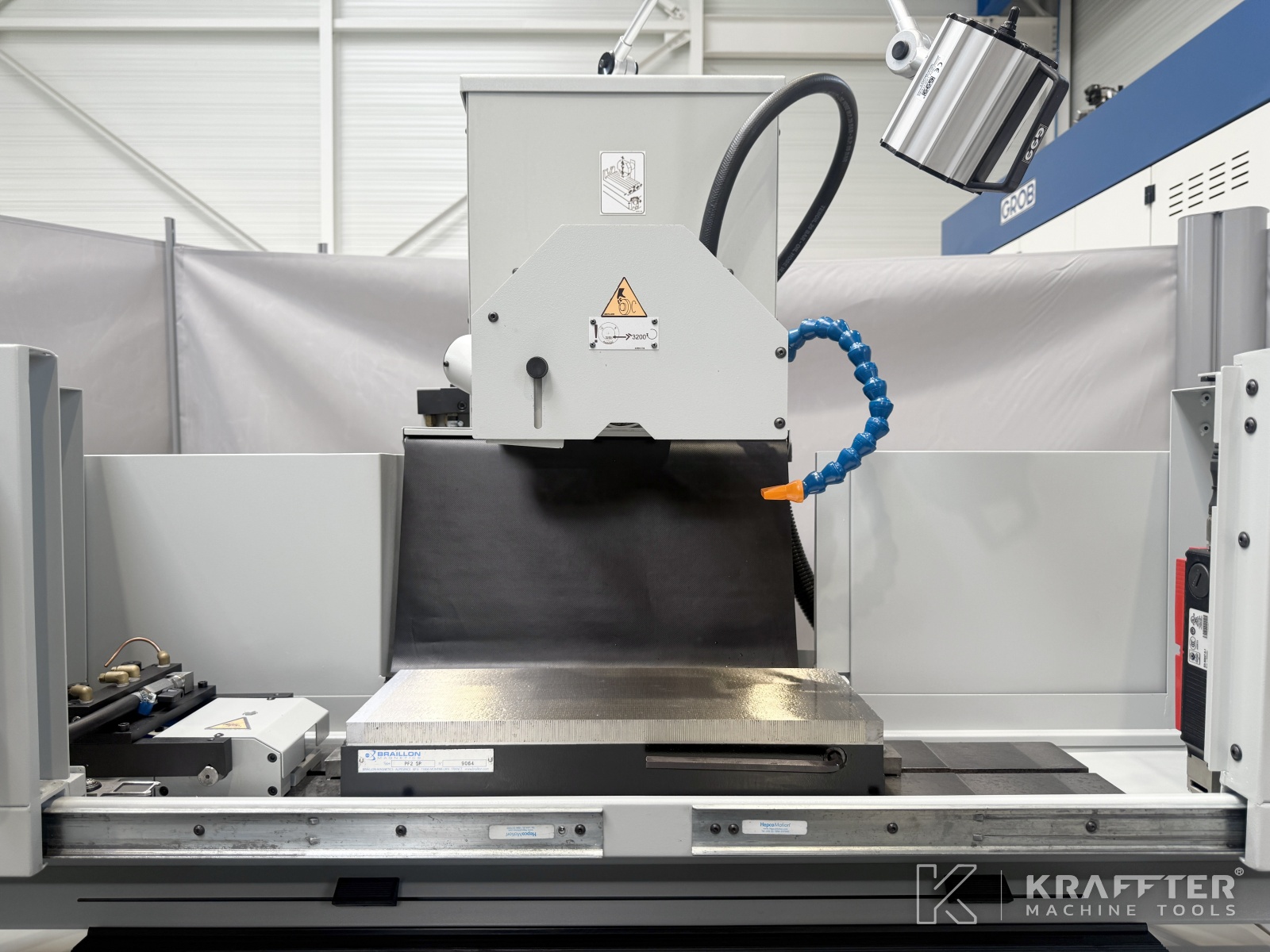

Type of machine : CNC surface grinder
Brand : JONES & SHIPMAN
N° de stock: 90158
Model : 524 EASY
Year : 2017
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

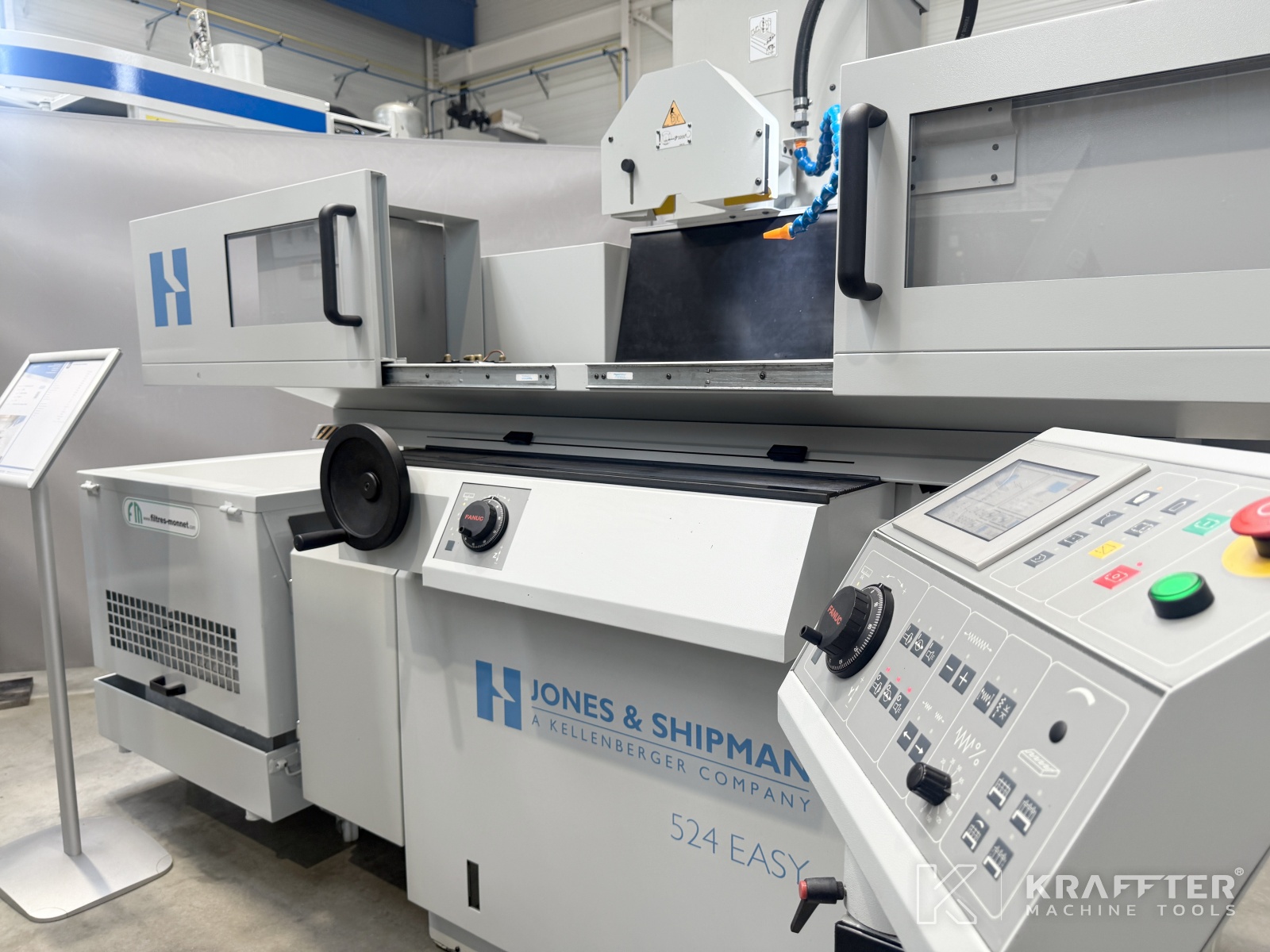

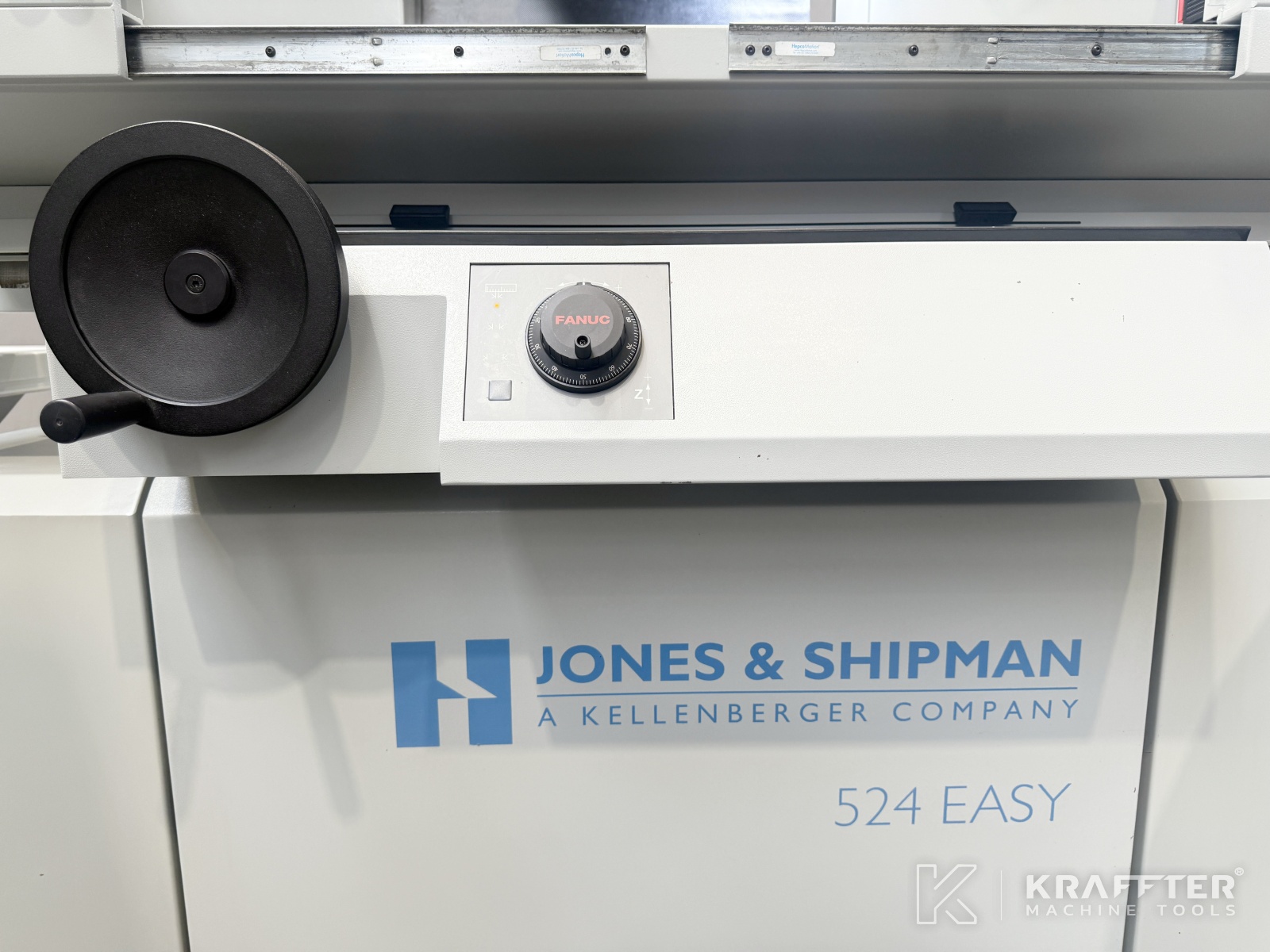

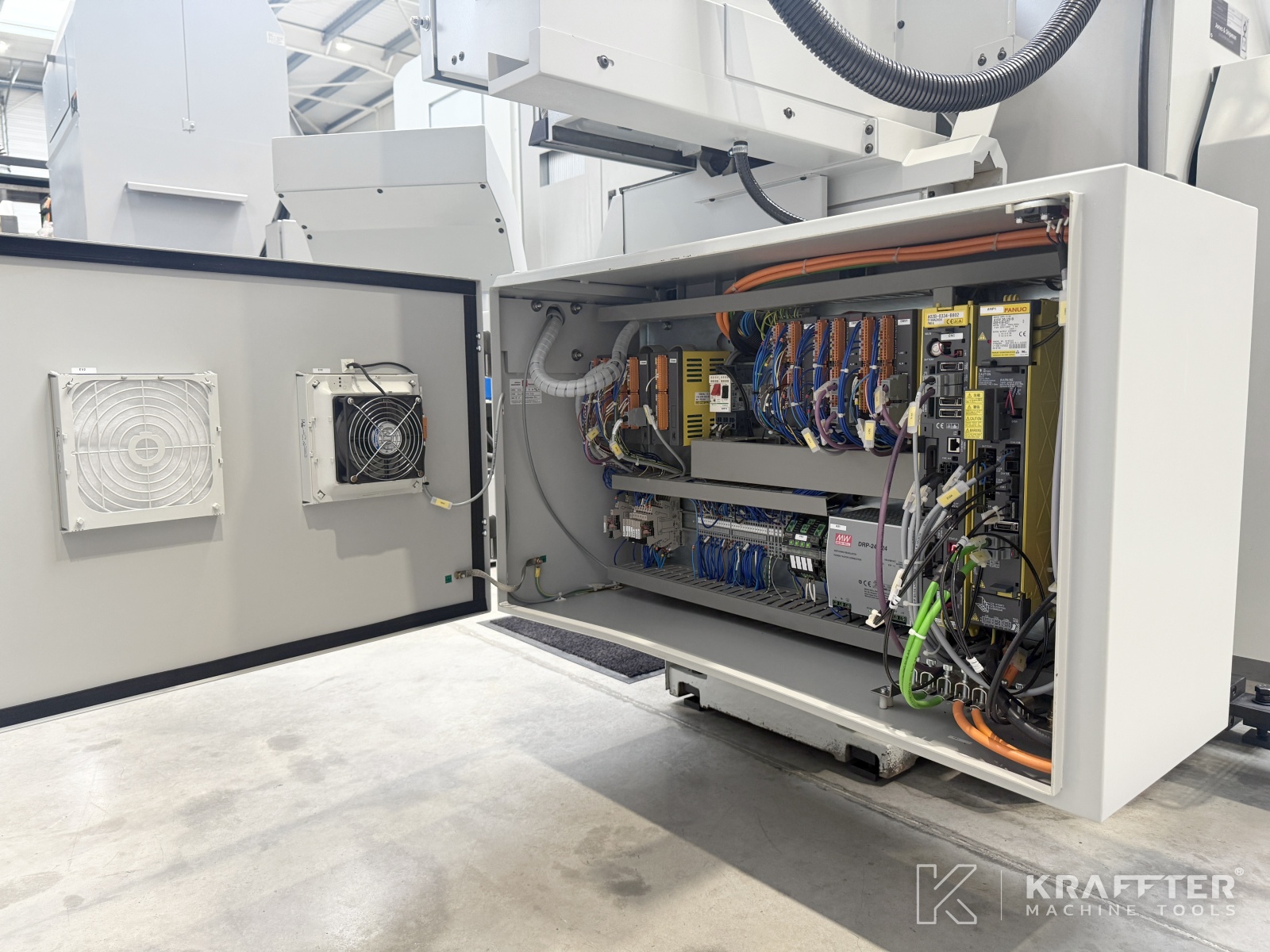

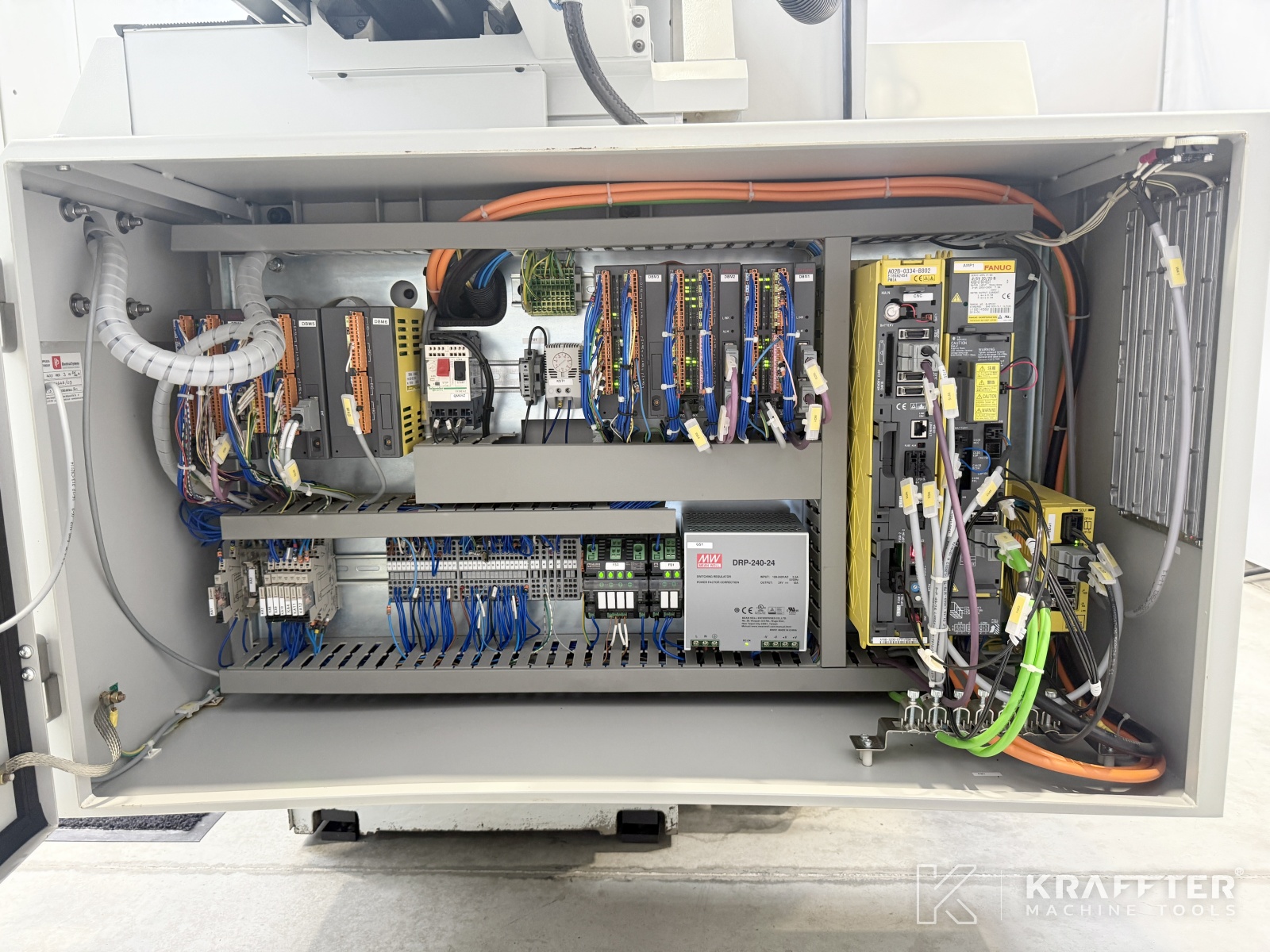

CNC control

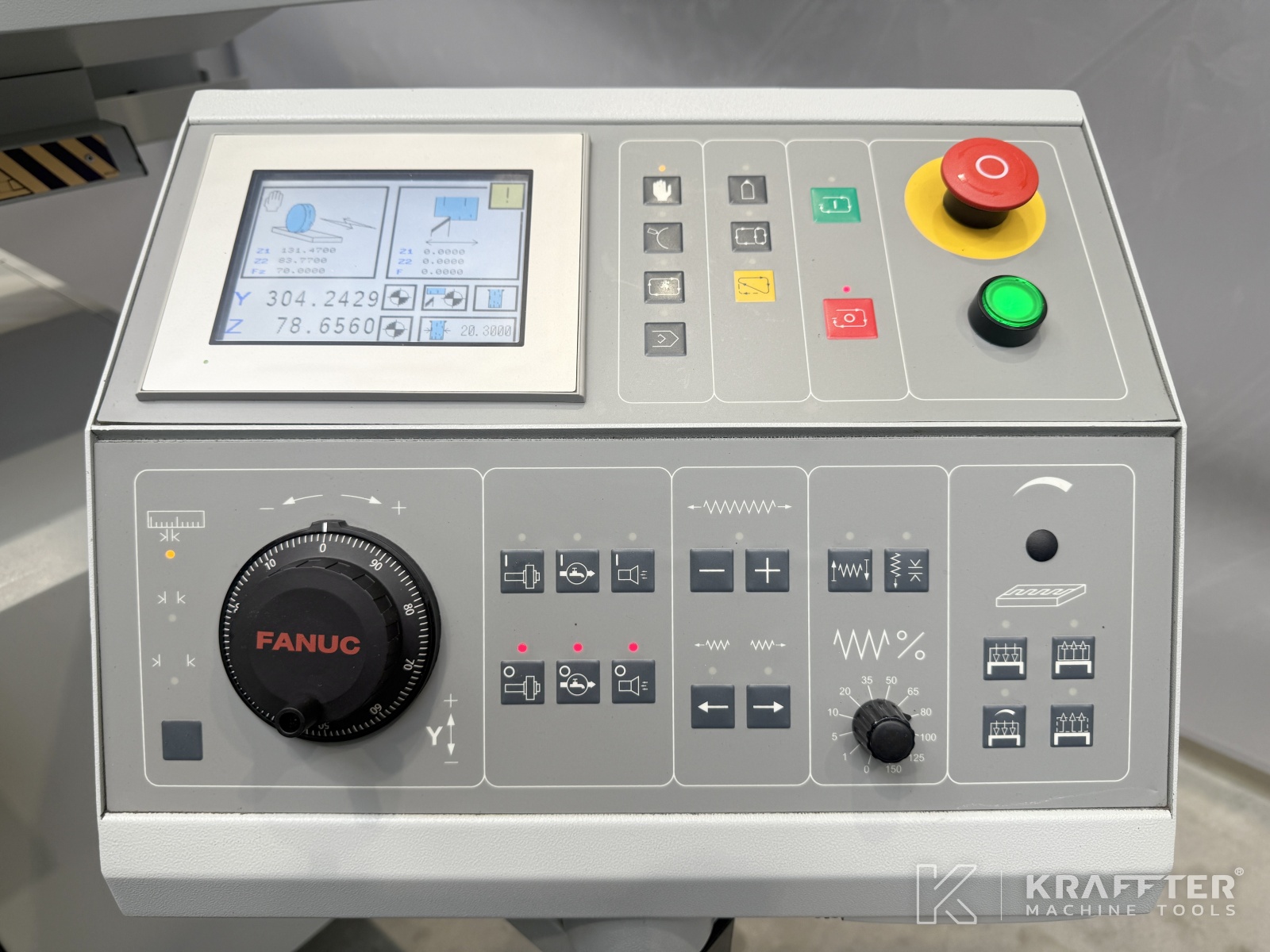

GE FANUC Quick Panel
Stroke X axis (table movement)
610 [mm]
Min. Stroke speed X axis
2000 [mm/min]
Max. Stroke speed X axis
25000 [mm/min]
Rapid traverse rate Y axis
3000 [mm/min]
Z axis travel (transverse movement)
192 [mm]
Min. Stroke speed Z axis
1 [mm/min]
Max. Stroke speed Z axis
3000 [mm/min]
Rapid traverse rate Z axis
3000 [mm/min]
Table length
500 [mm]
Table width
200 [mm]
Max. distance spindle nose / table
507 [mm]
Max. load on table
160 [Kg]
Grinding wheel speed
2400 [rpm]
Grinding spindle motor power
4 [kW]
Max. diameter grinding wheel
254 [mm]
Max. grinding wheel width
32 [mm]
Grinding wheel bore
76.2 [mm]

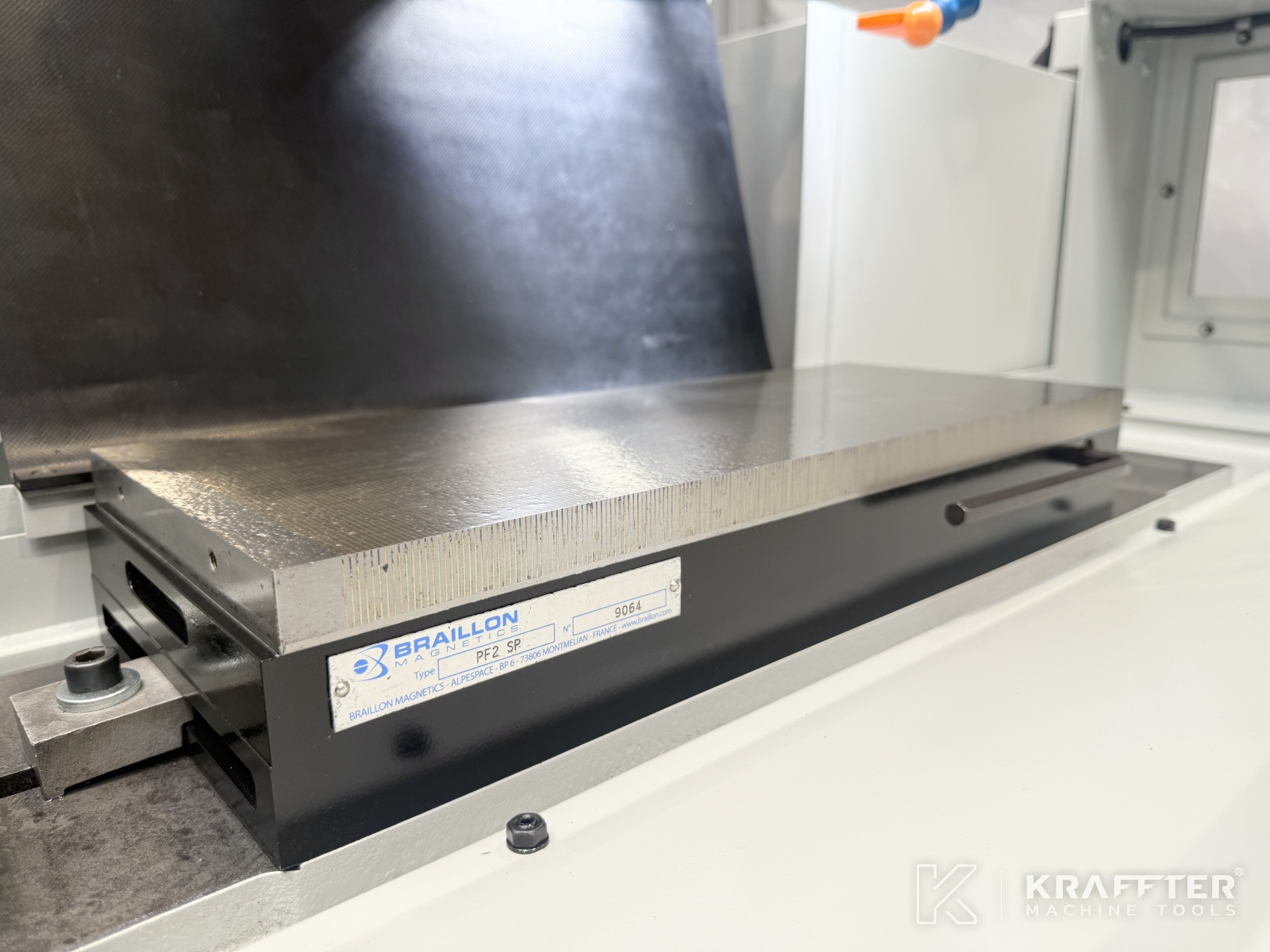

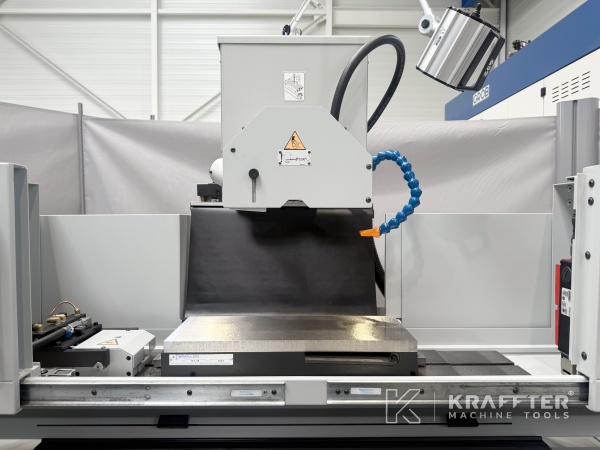

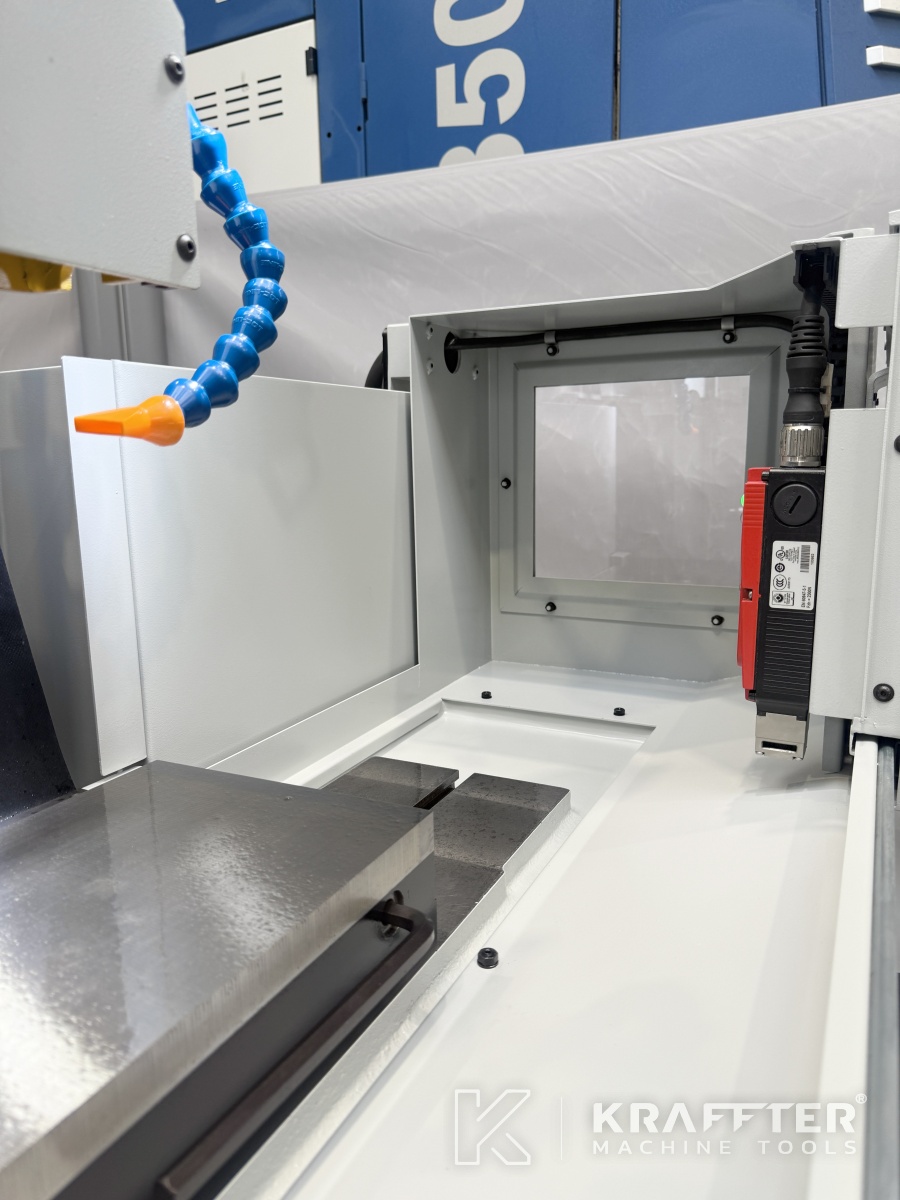

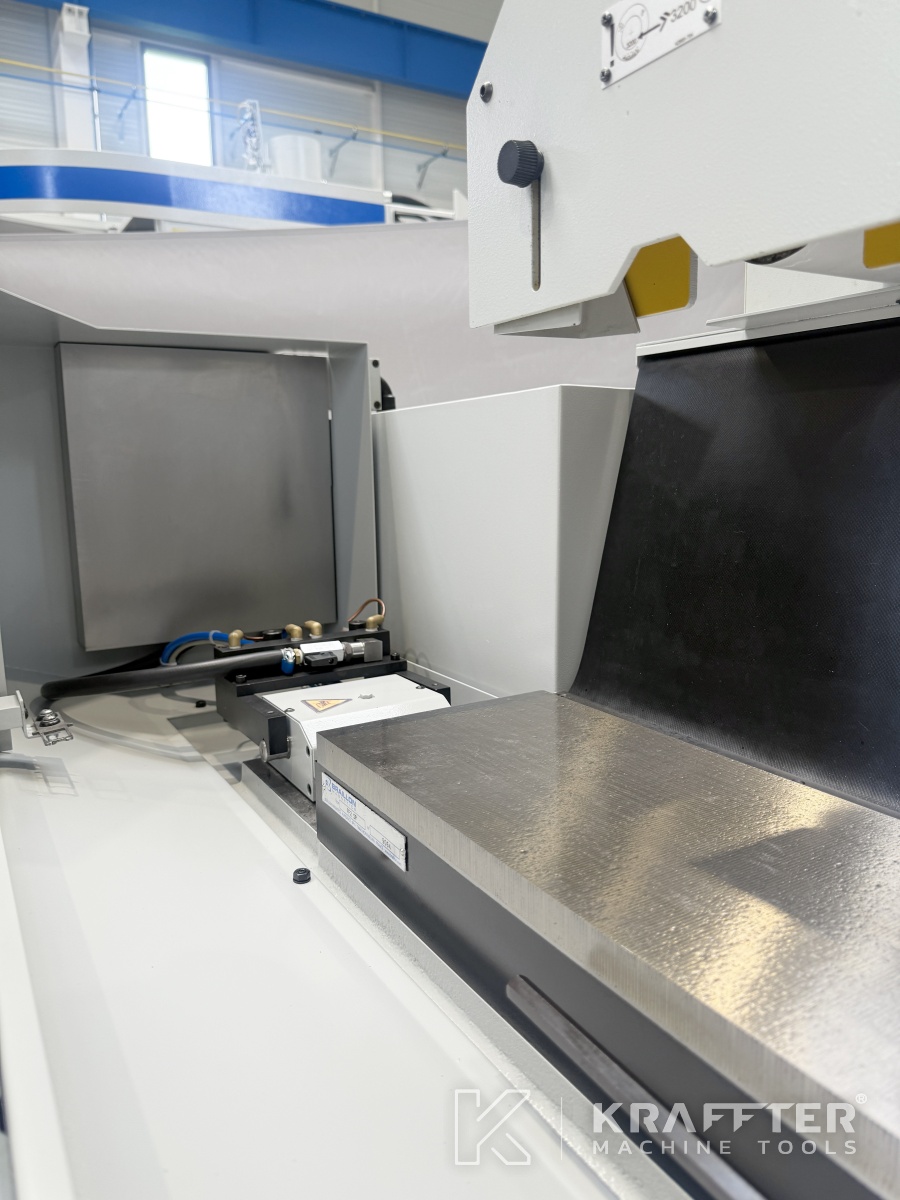

Dimensions of magnetic plate
500 x 200 mm
Supply voltage
400 [V]
Dimensions
1900 x 1300 x 2000
Weight
1370 [Kg]
Additional information
INCLUDED EQUIPMENT:
-

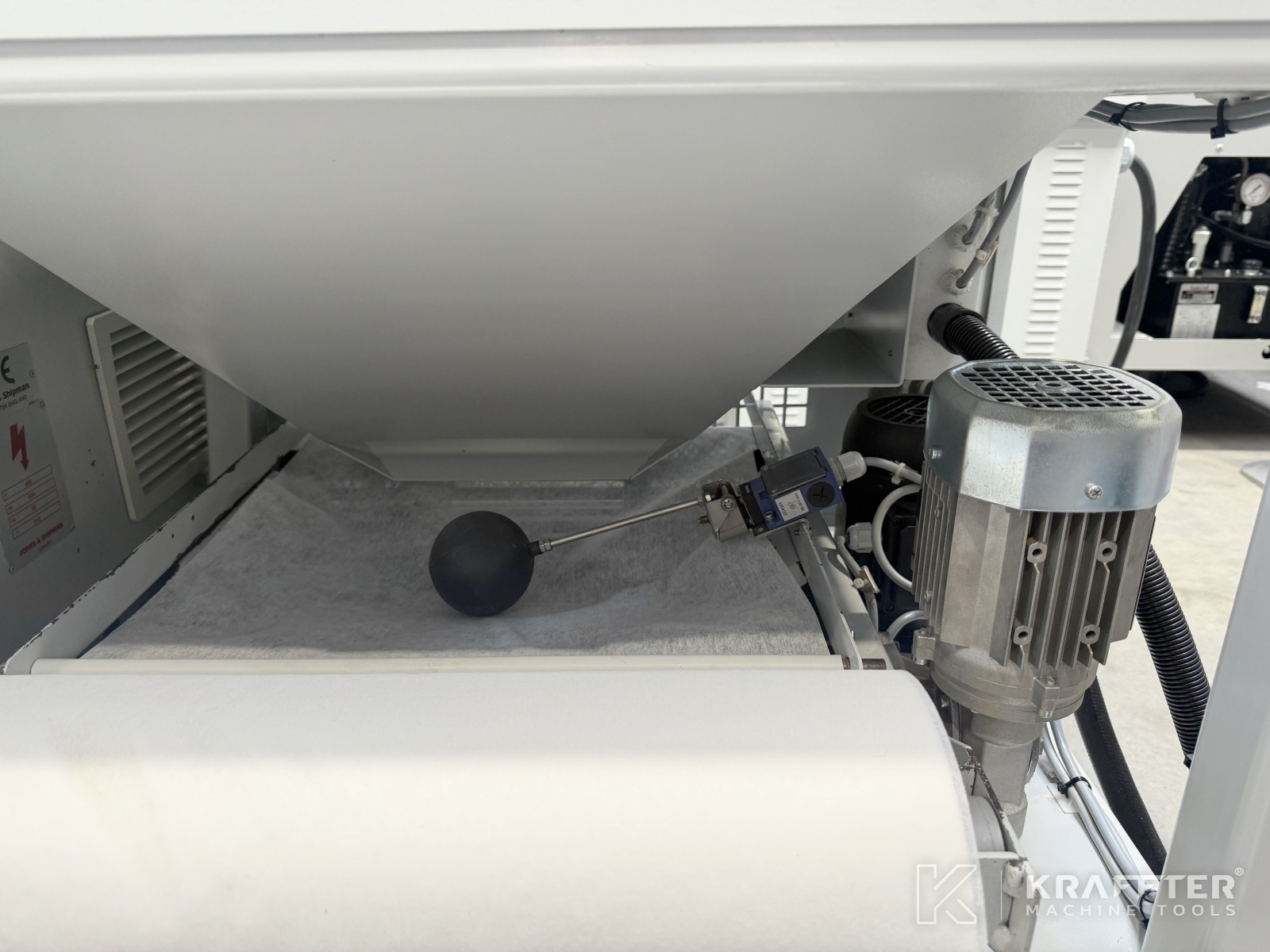

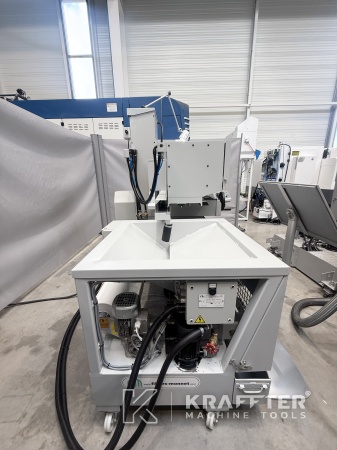

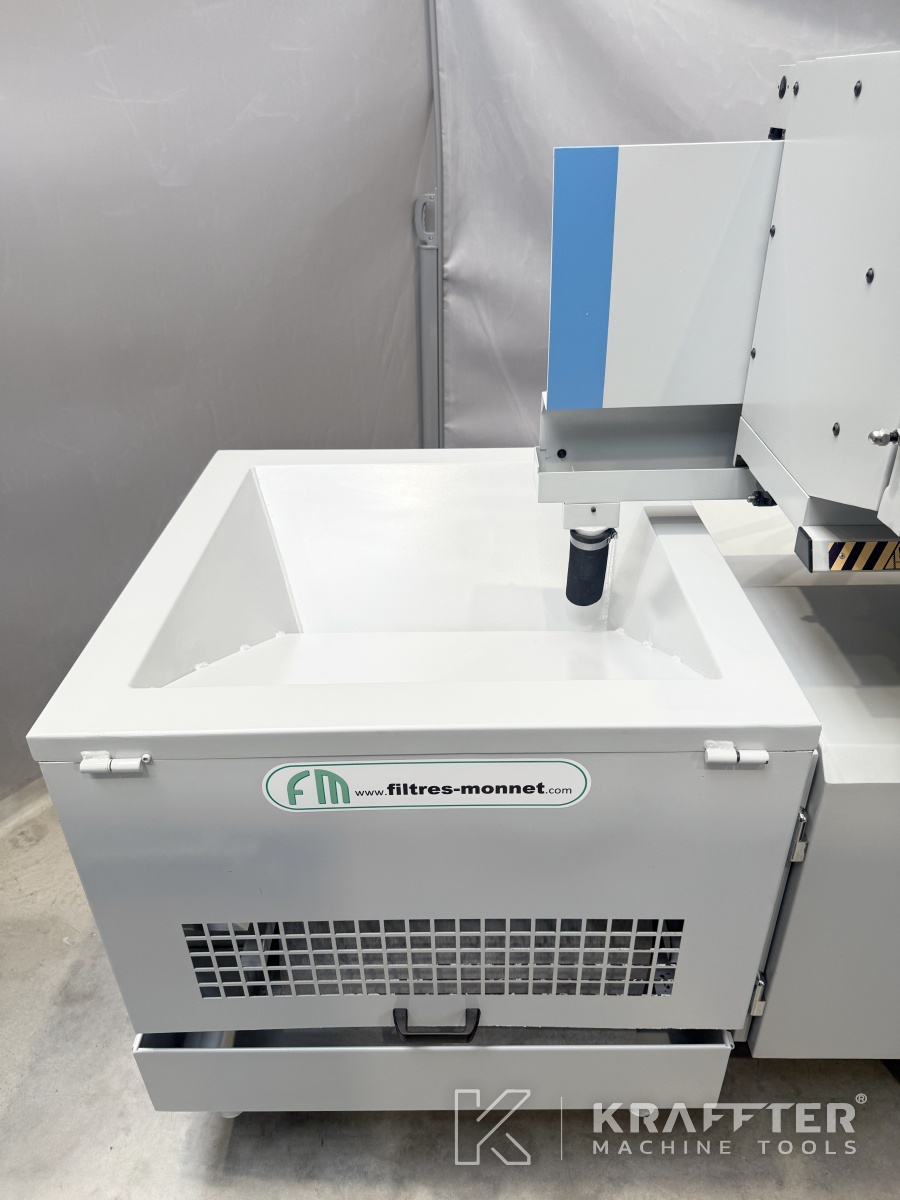

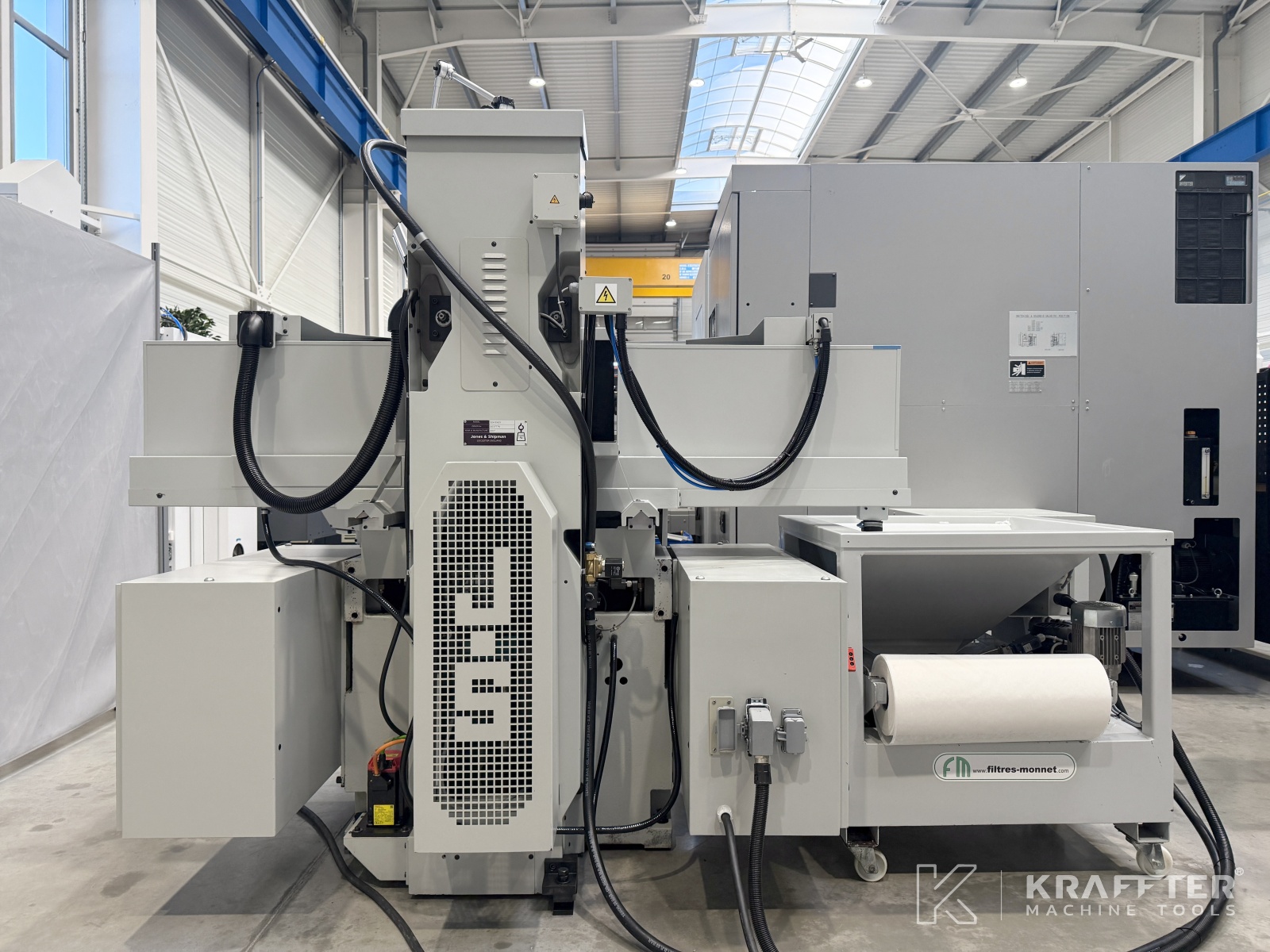

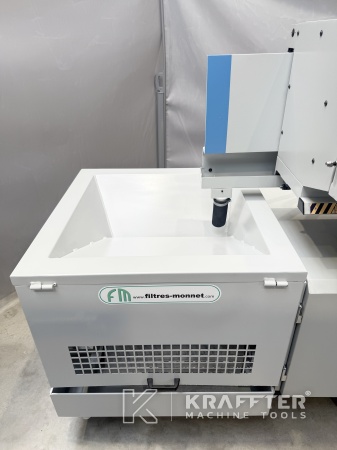

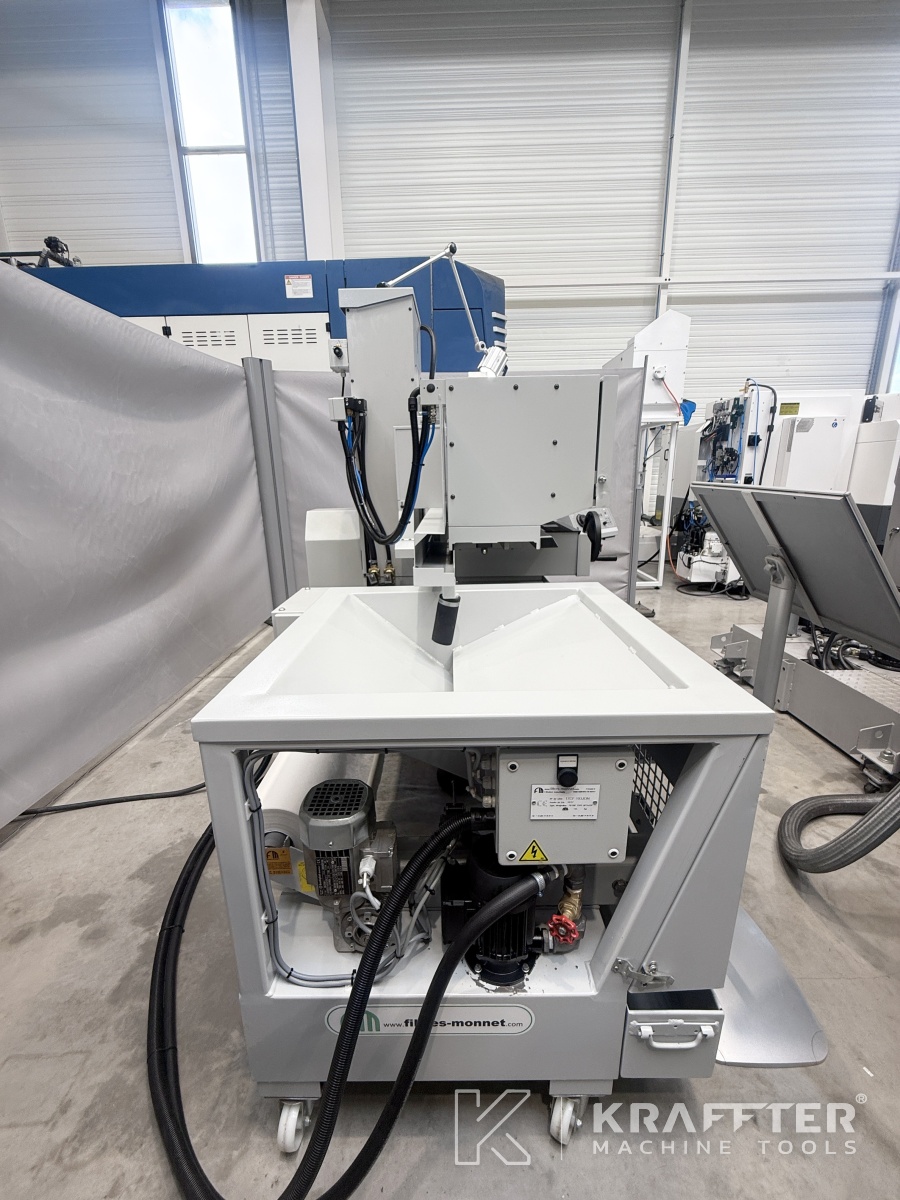

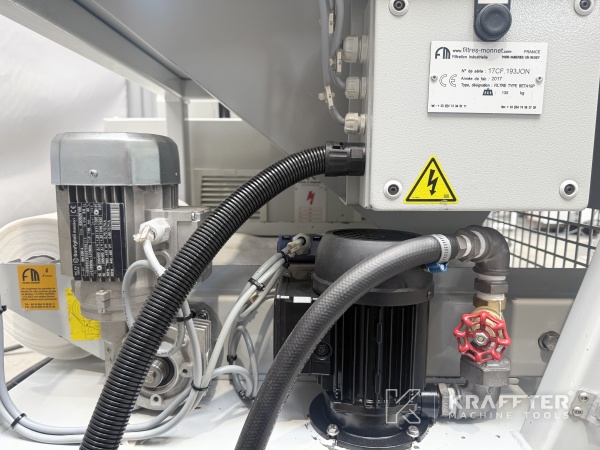

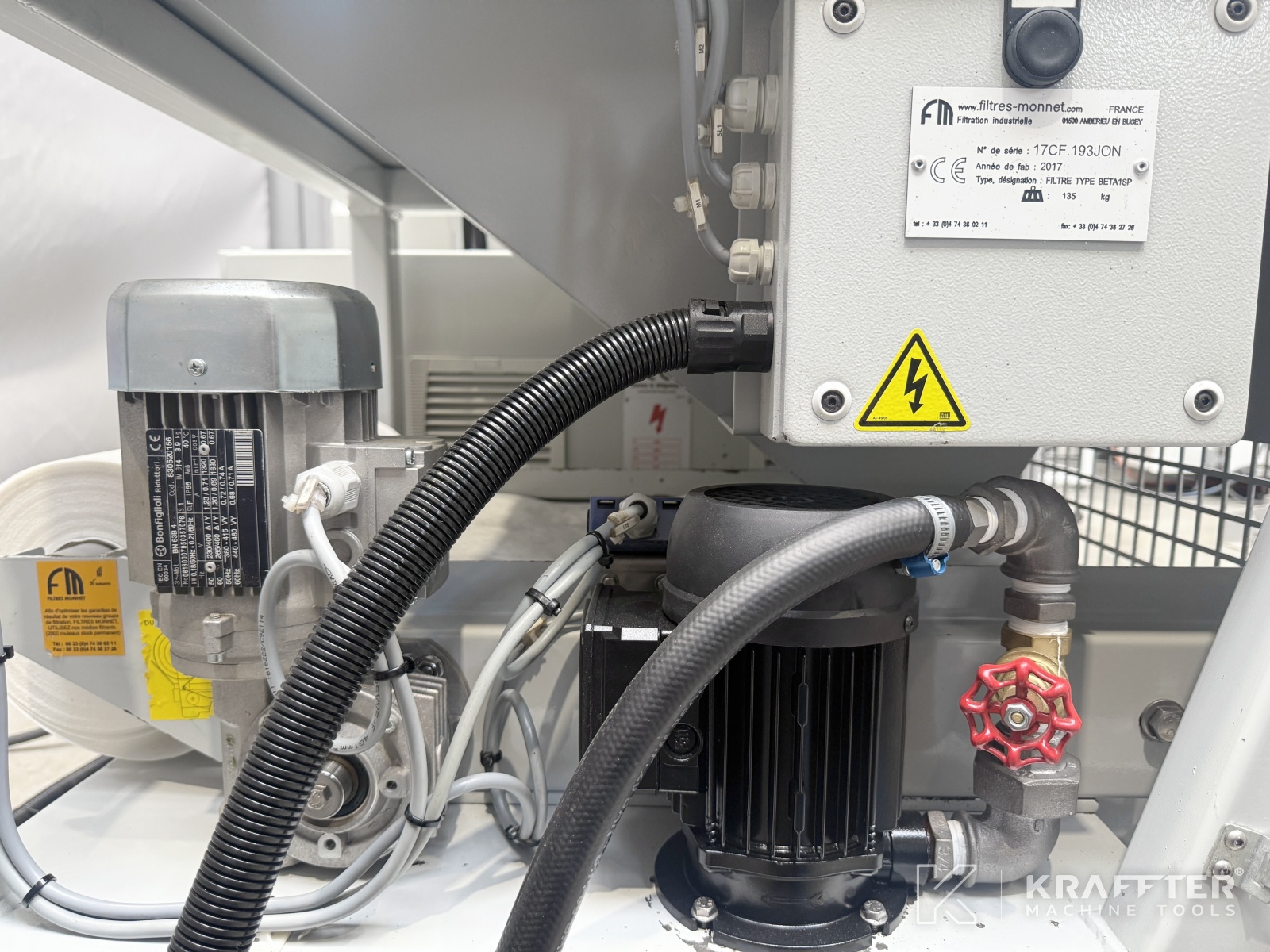

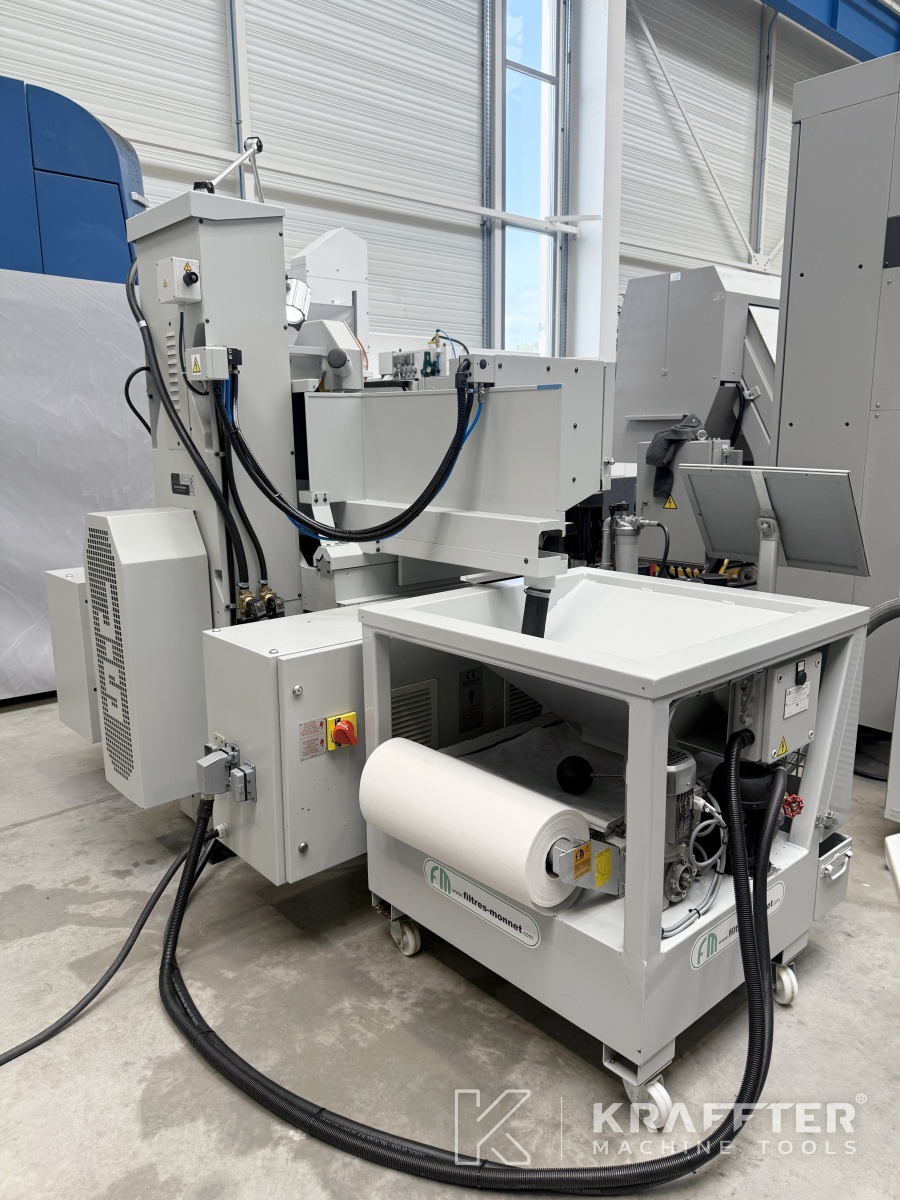

x1 FILTRES MONNET paper filtration unit, type BETA1SP
-
x1 set of HEIDENHAIN linear glass scales on Z and Y axes
-

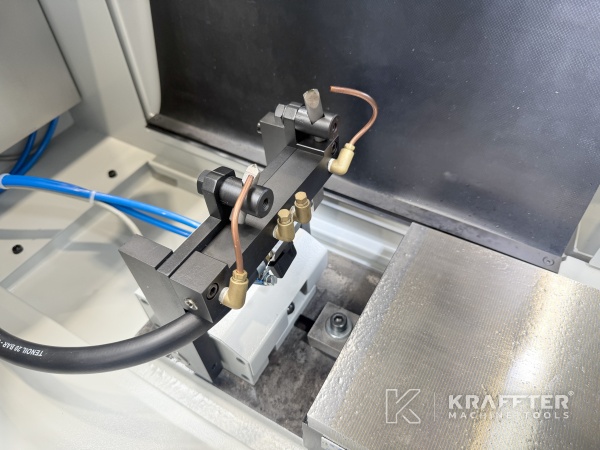

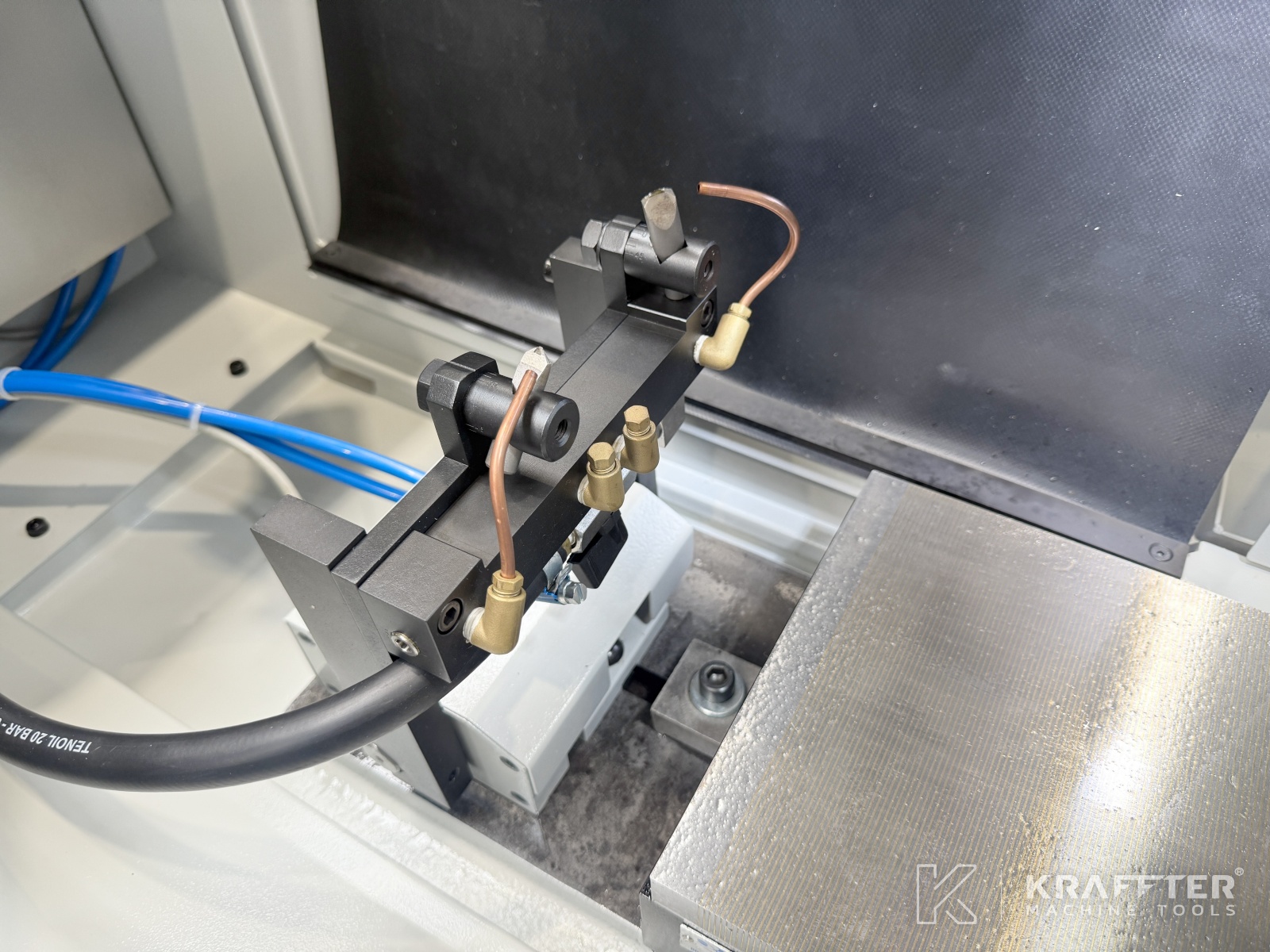

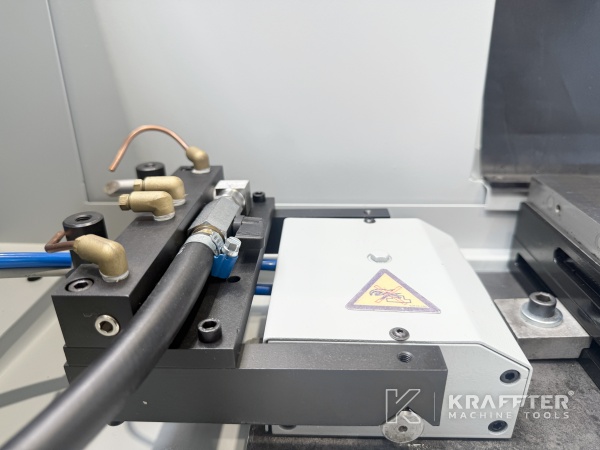

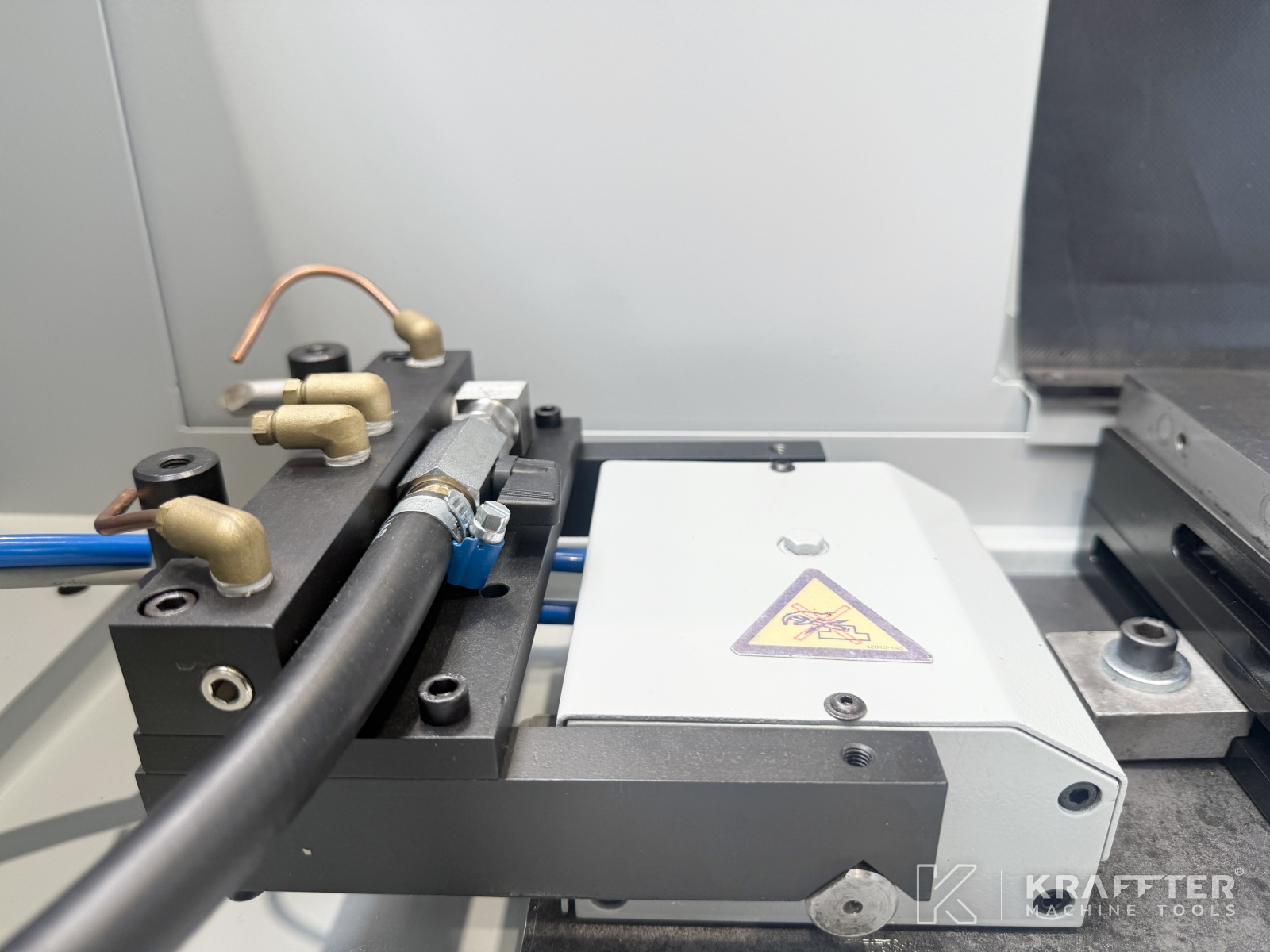

x1 automatic diamond dresser holder – 3 diamond positions
-

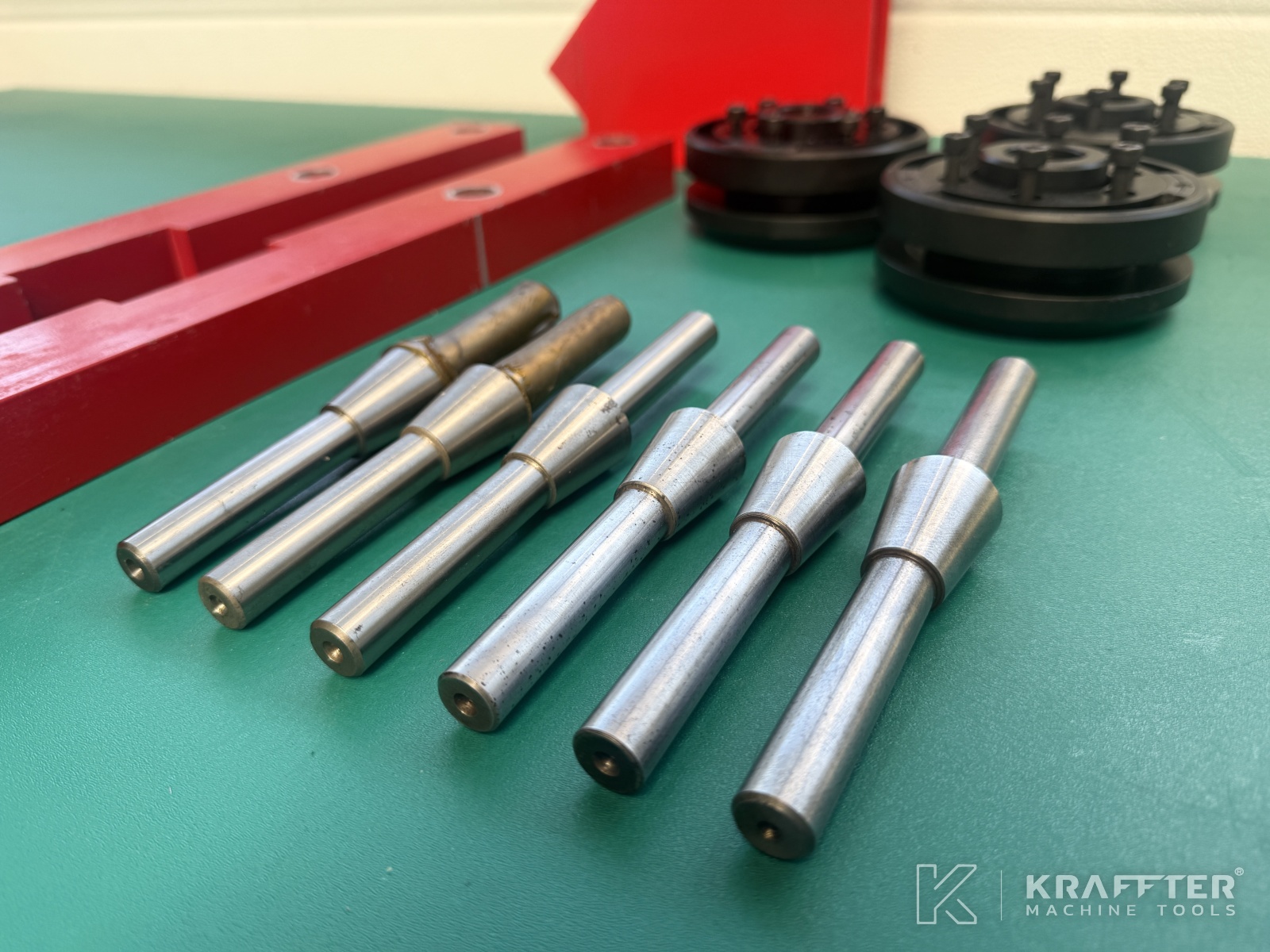

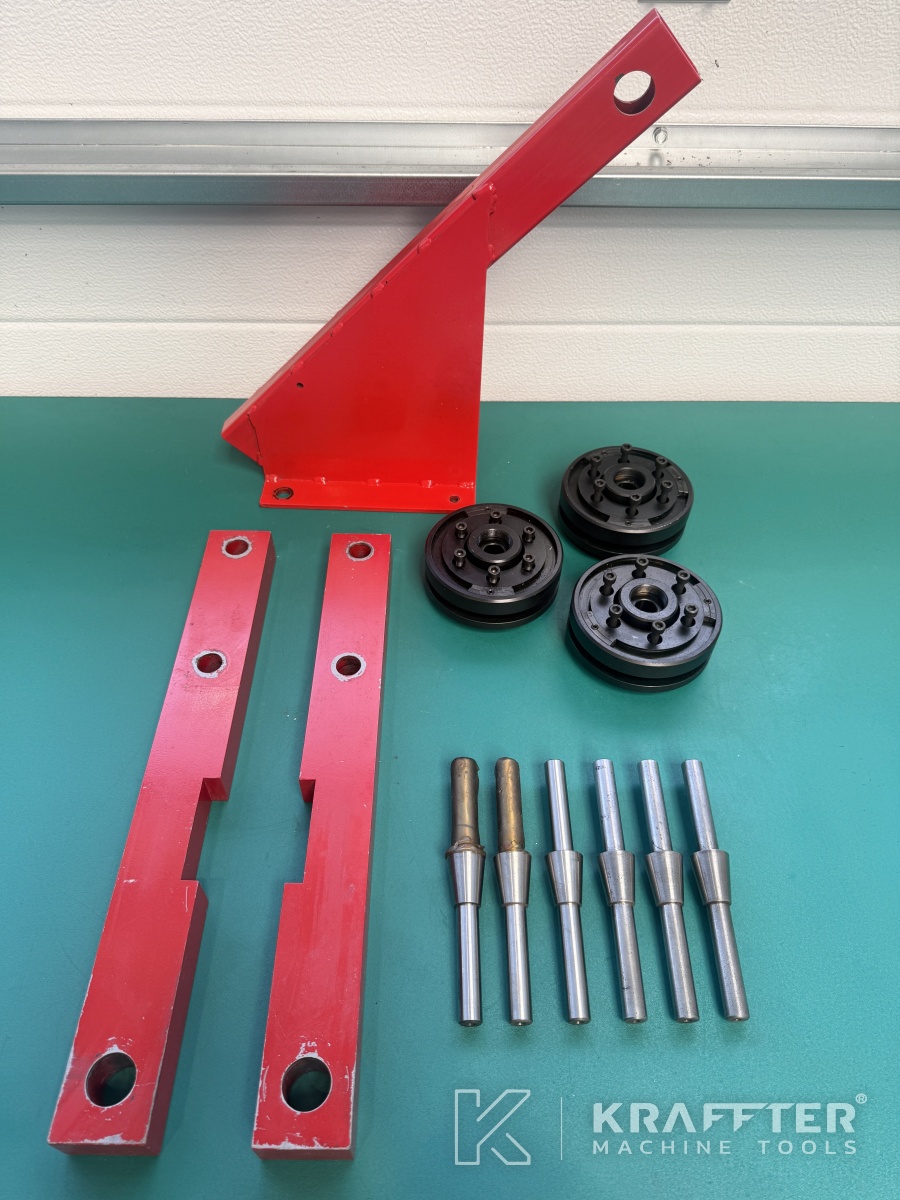

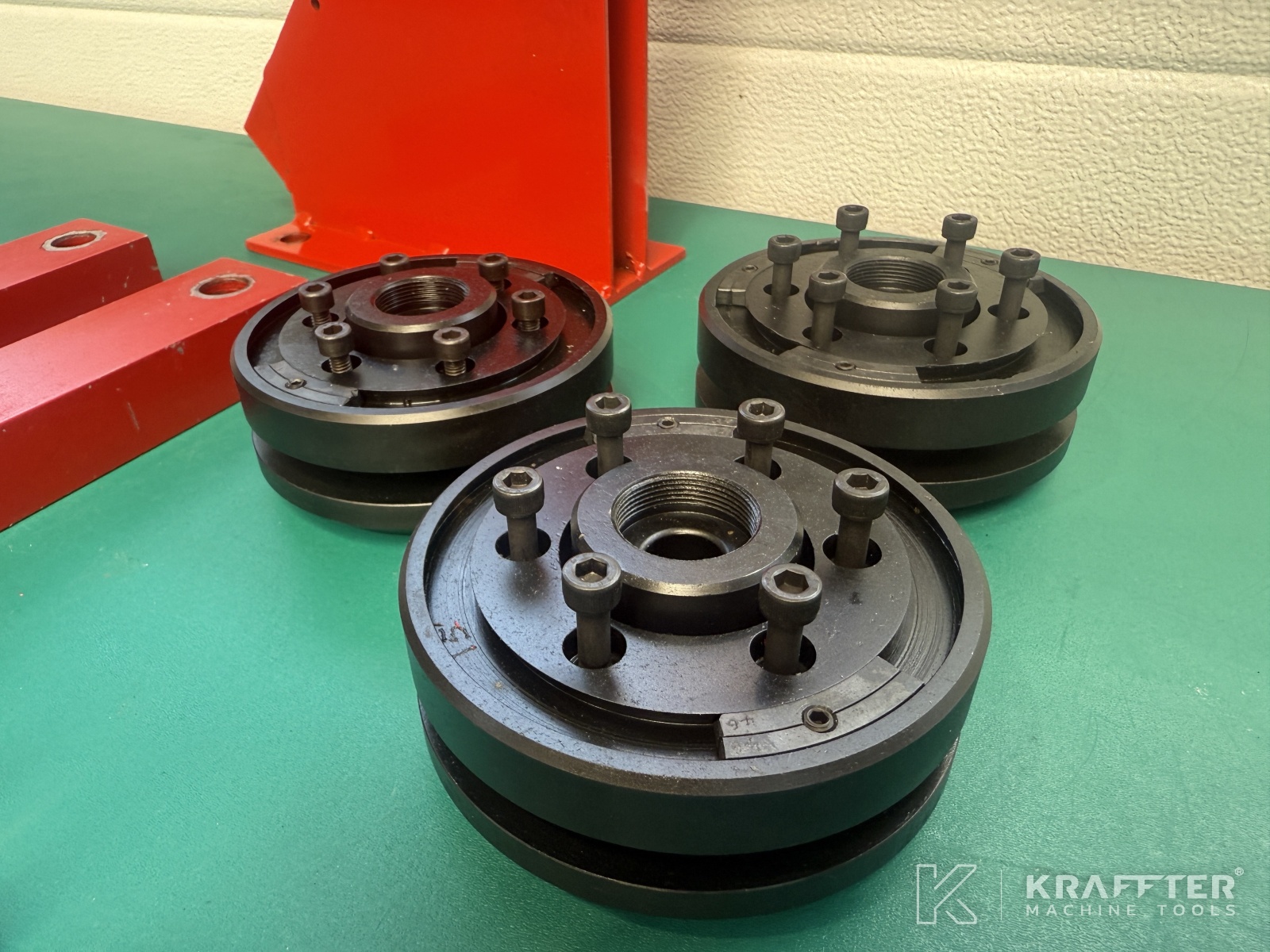

x3 wheel flanges
-
x1 LED lamp
-
x1 USB data transfer port
-
x1 set of clamping brackets for machine transport
-

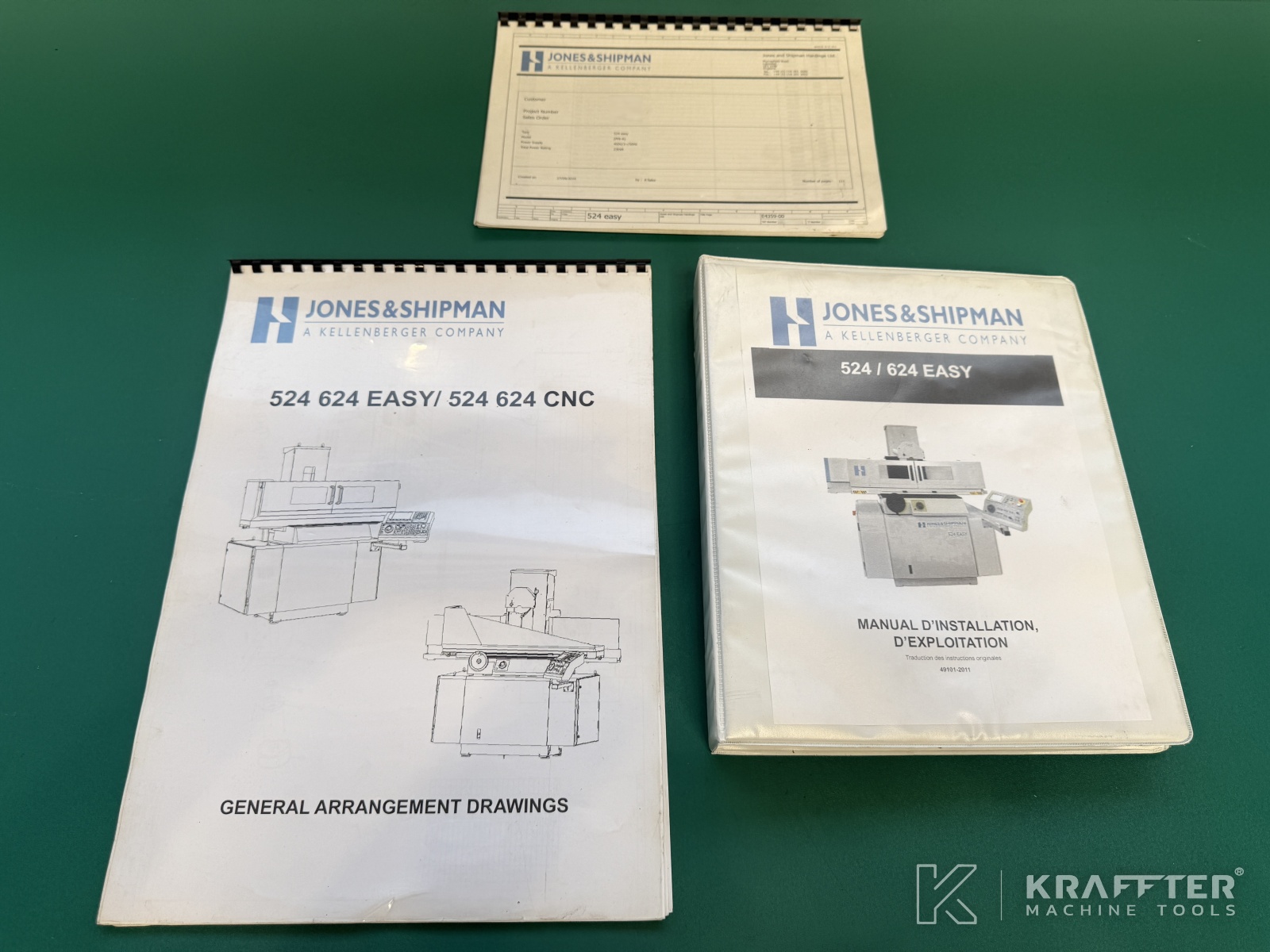

x1 installation and operation manual
-
x1 general arrangement drawings
