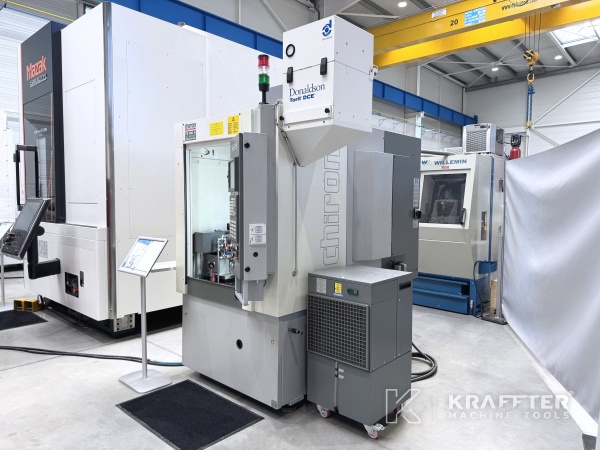

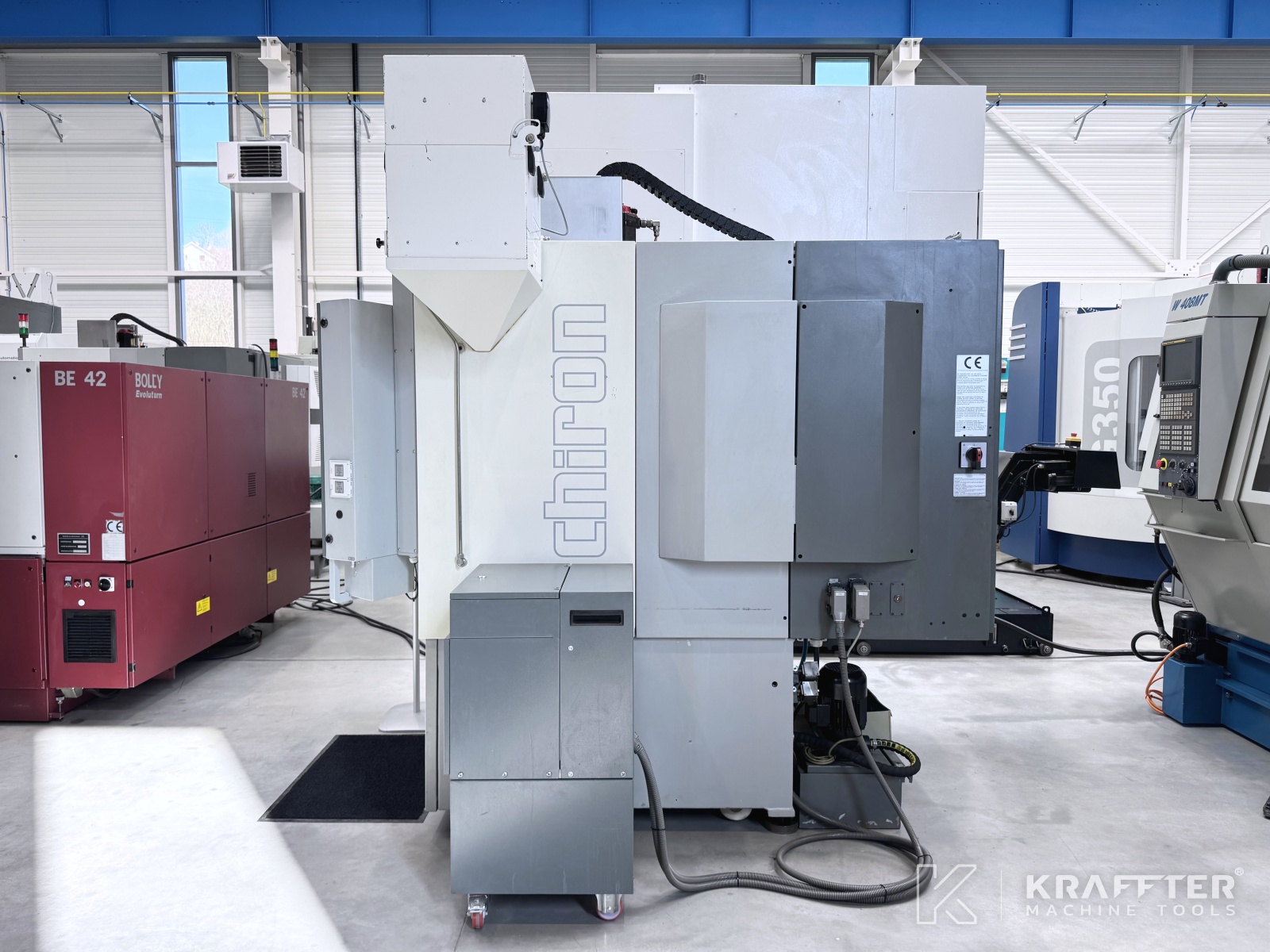

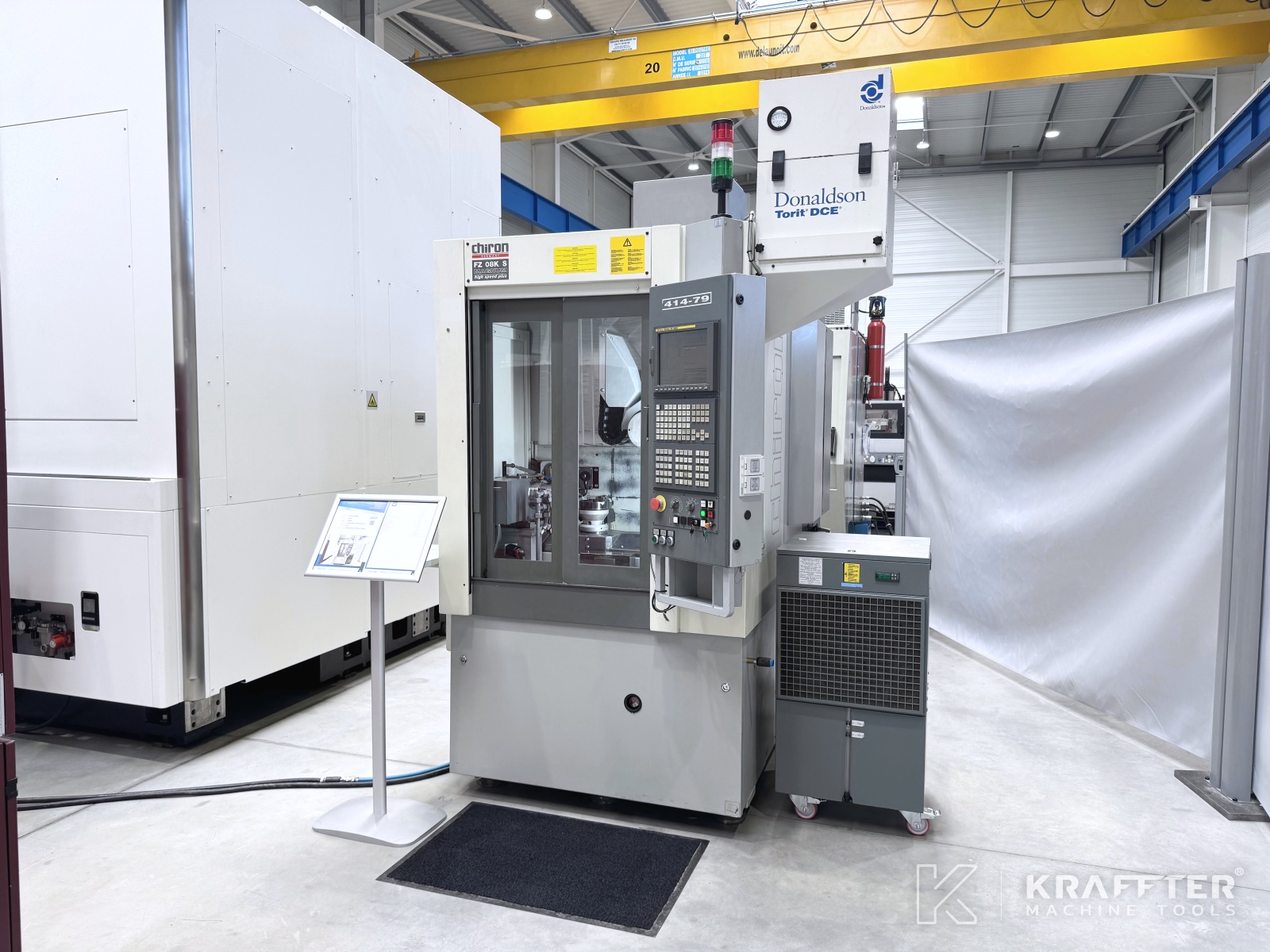

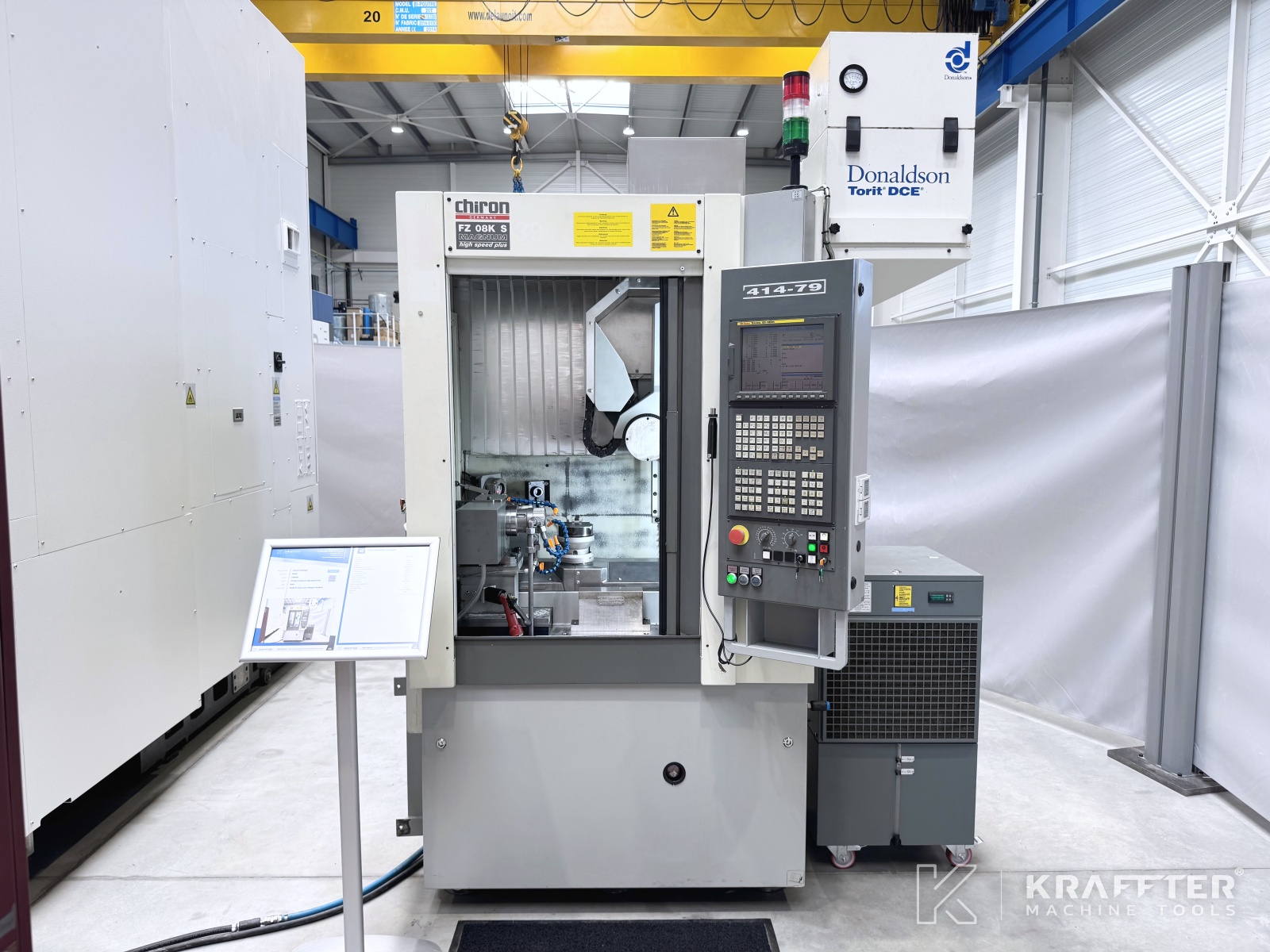

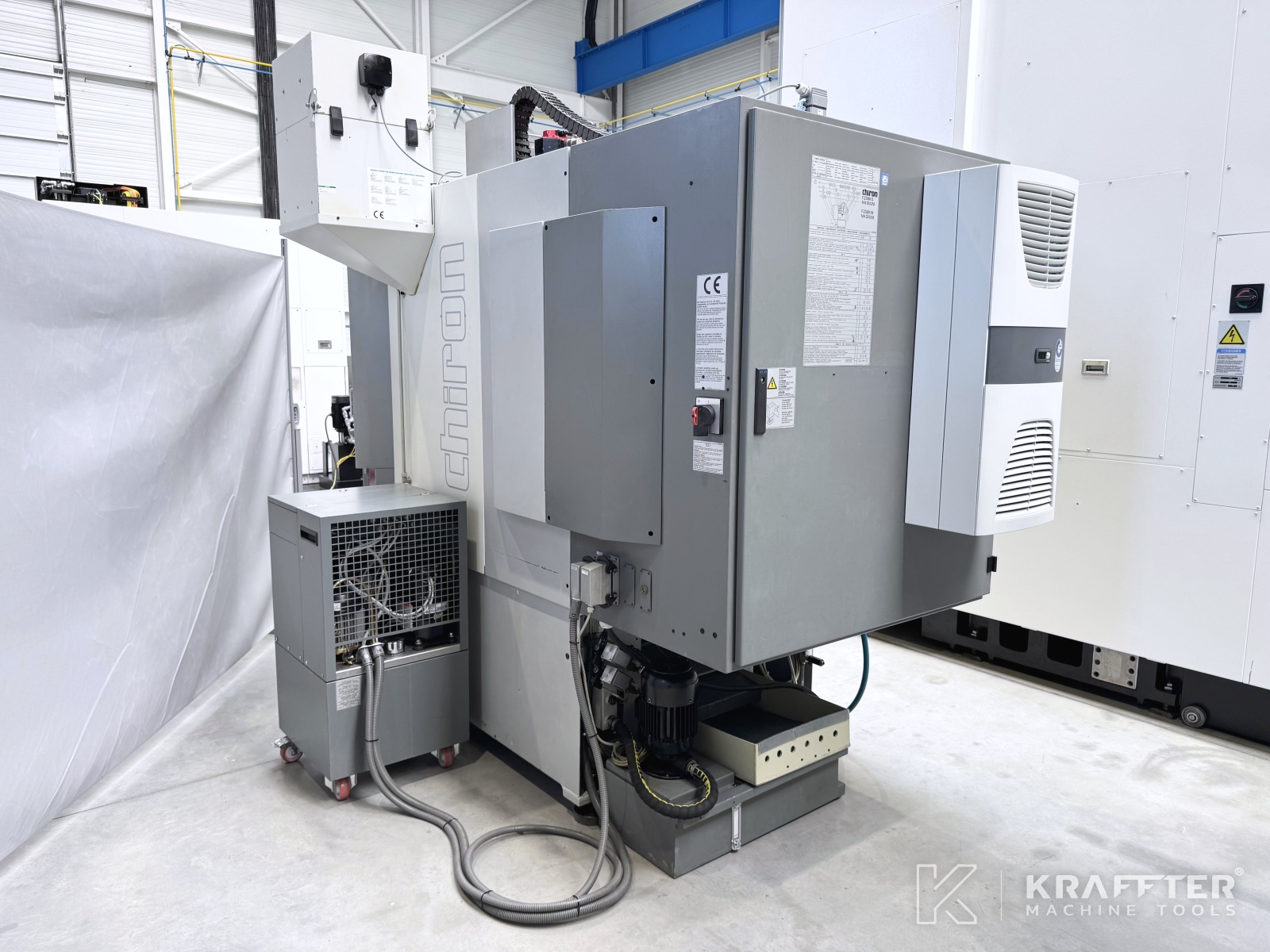

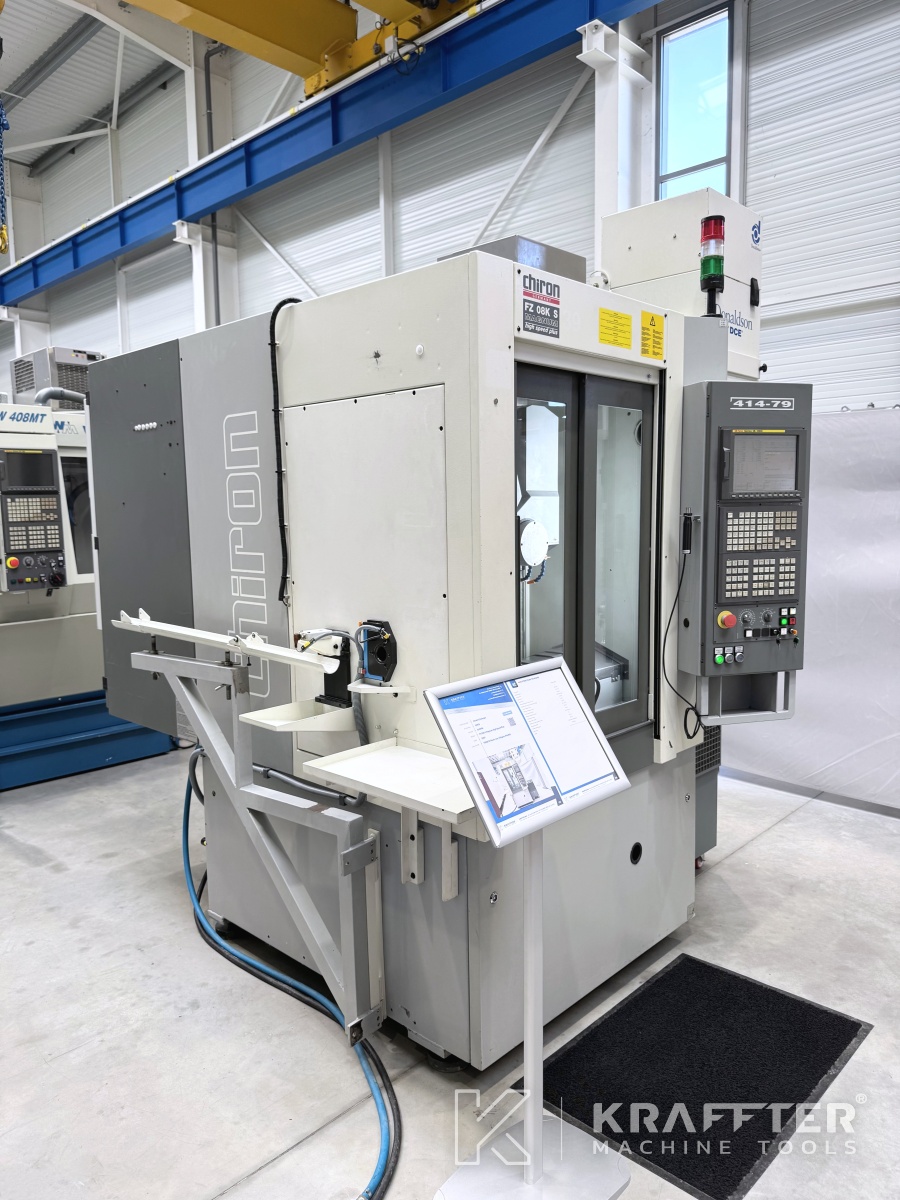

Type of machine : CNC machining centre
Brand : CHIRON
N° de stock: 90153

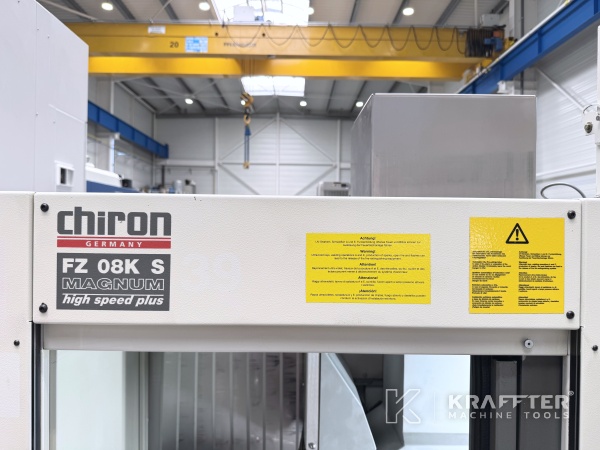

Model : FZ 08K S Magnum High Speed Plus
Year : 2007
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

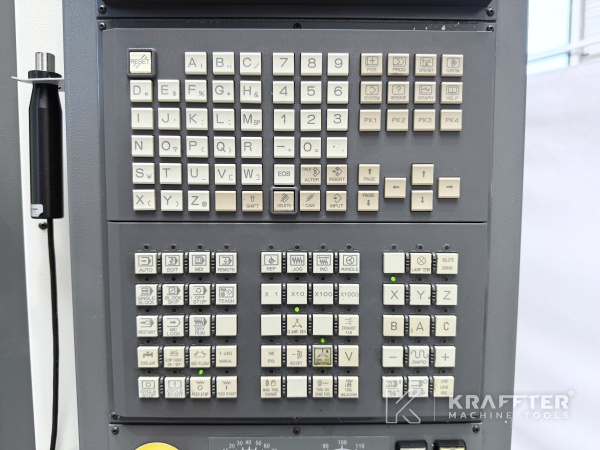

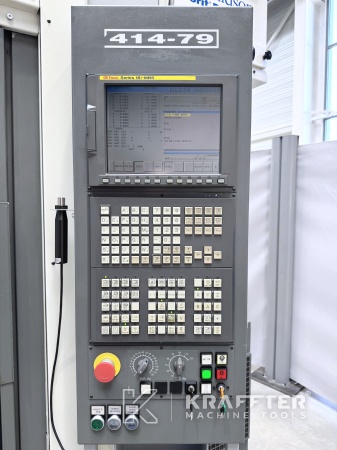

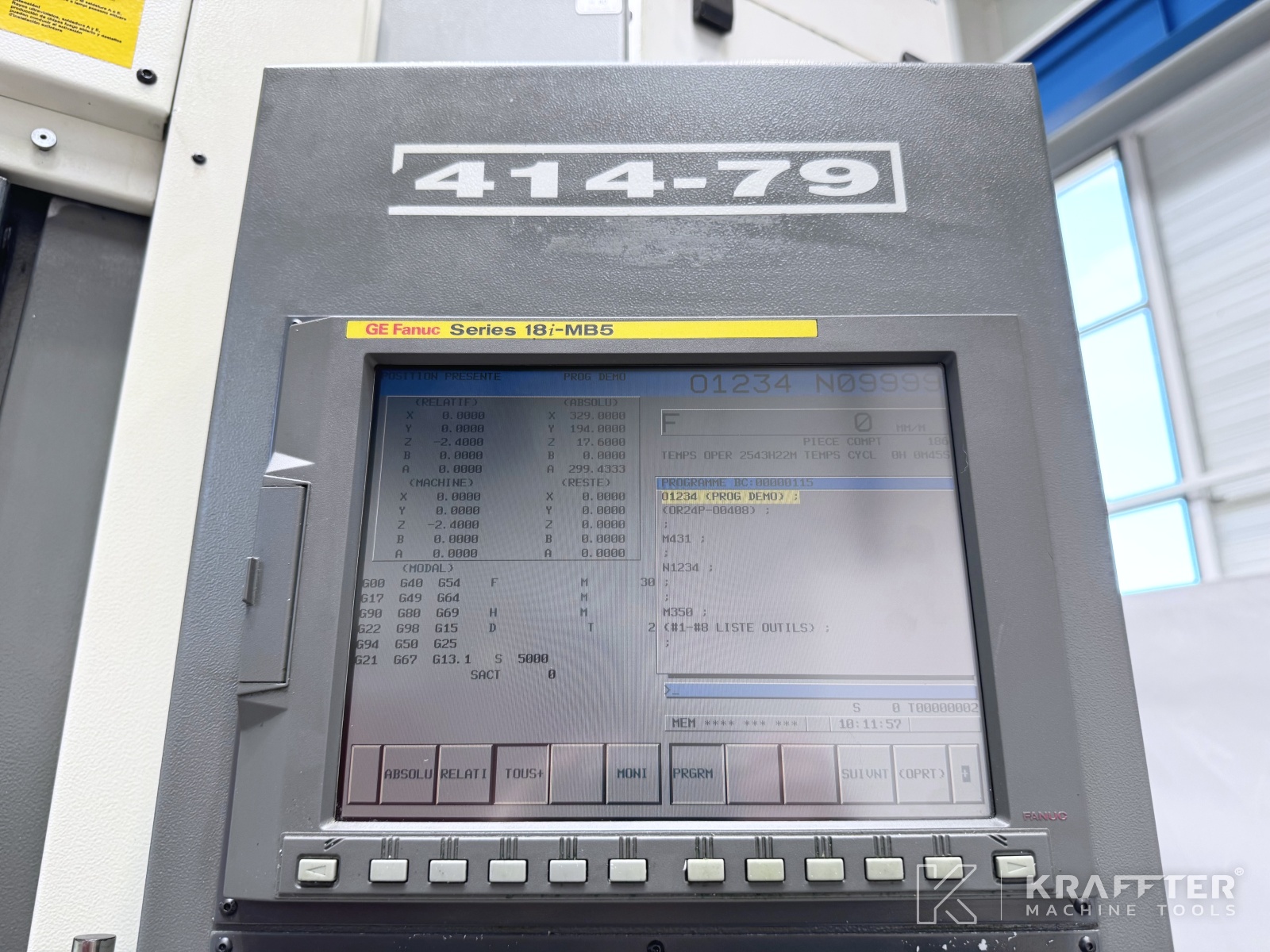

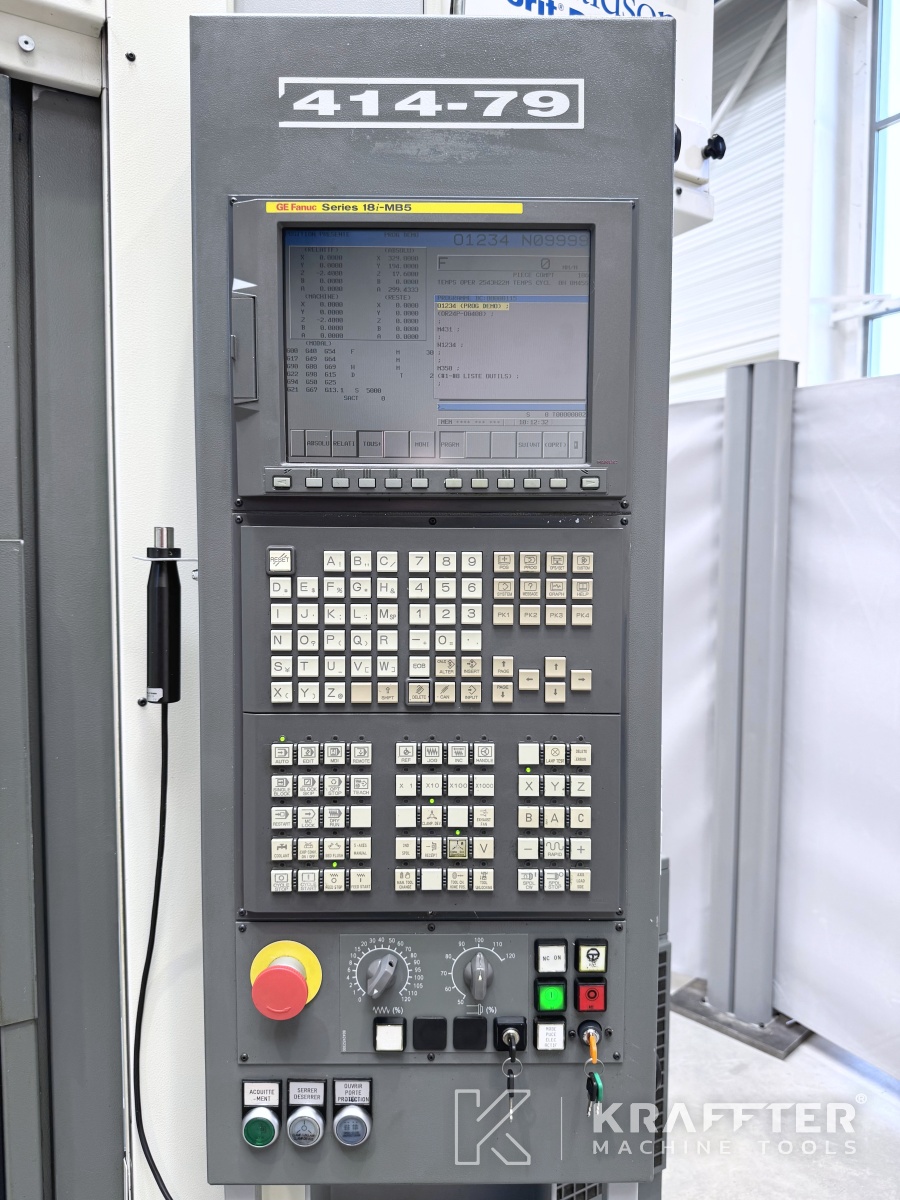

CNC control
FANUC 18i-MB5
Number of axes
7
Stroke X axis
450 [mm]
Stroke Y axis
270 [mm]
Stroke Z axis
310 [mm]
Traversing feeds X, Y and Z axes
75000 [mm/min]

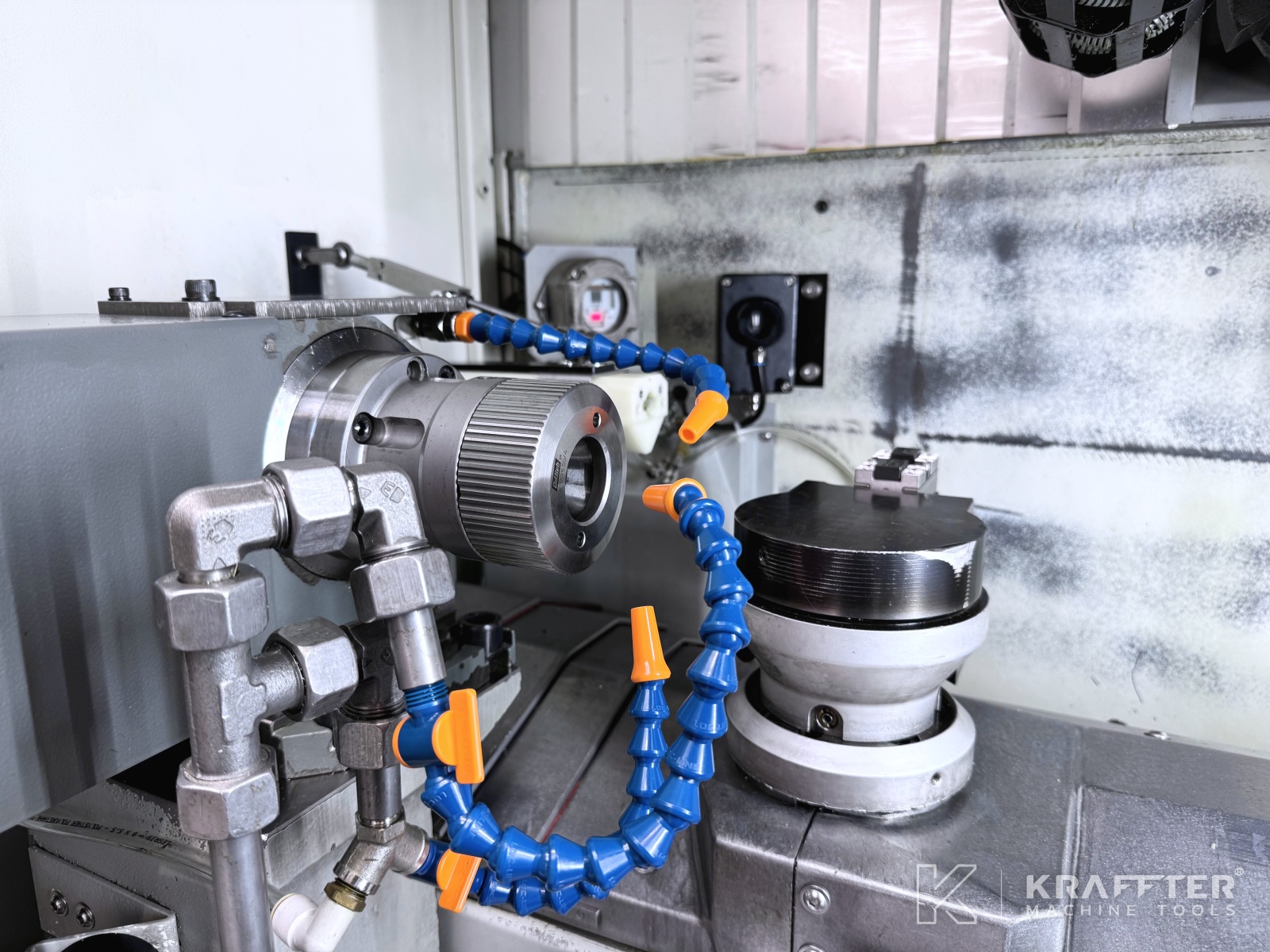

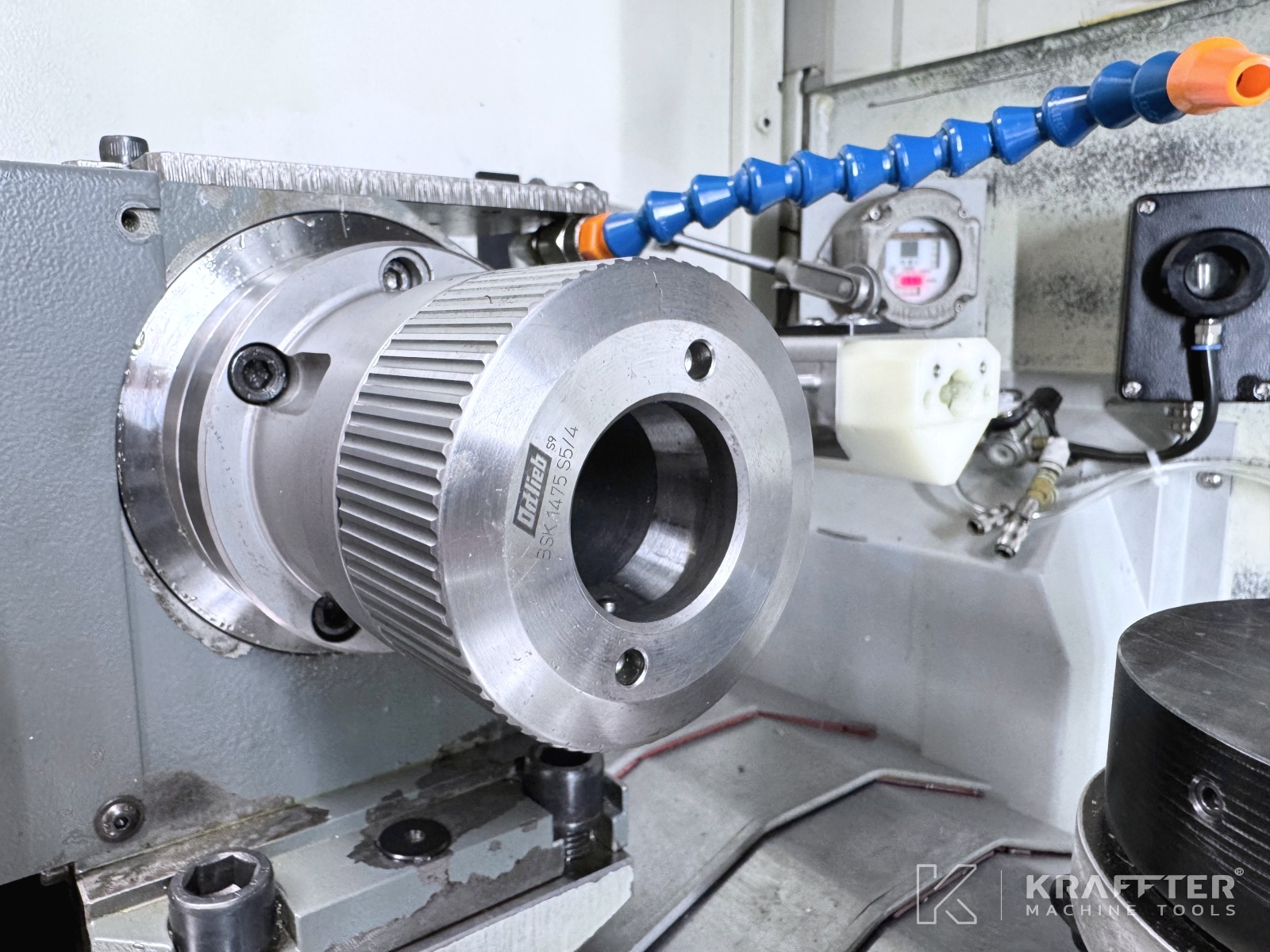

Max. bar diameter in turning spindle
32 [mm]
Angular A axis stroke
360 [°]
A axis indexing precision
0.001 [°]
B axis swivelling stroke
-20° / +115 [°]
B axis indexing precision
0.001 [°]

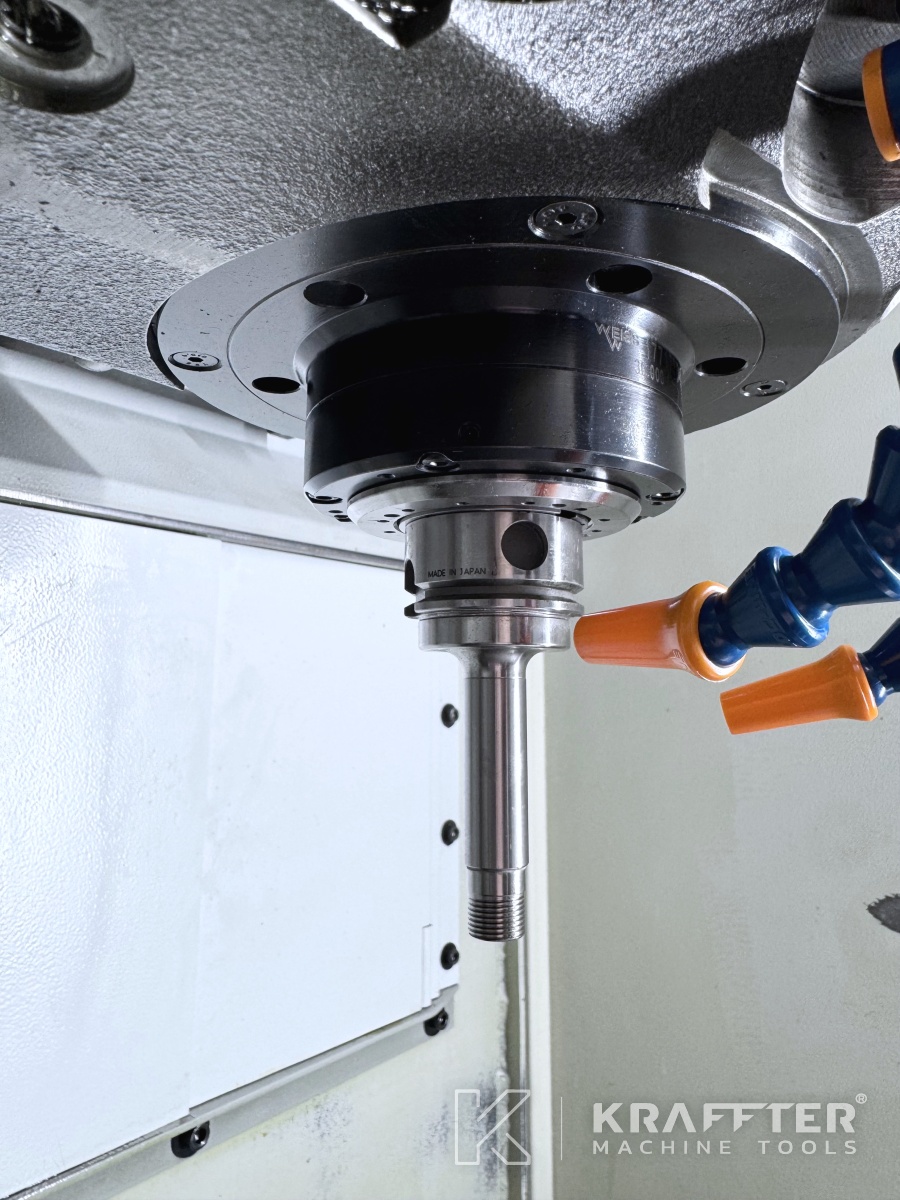

Spindle type
HSK40
Max. spindle speed
30000 [rpm]
Tool changer magazin number of stations
40
Total power required
17 [kVA]
Supply voltage
400 [V]
Dimensions
1500 x 2600 x 2300 [mm]
Weight
3400 [Kg]
Additional information
INCLUDED EQUIPMENT:
-

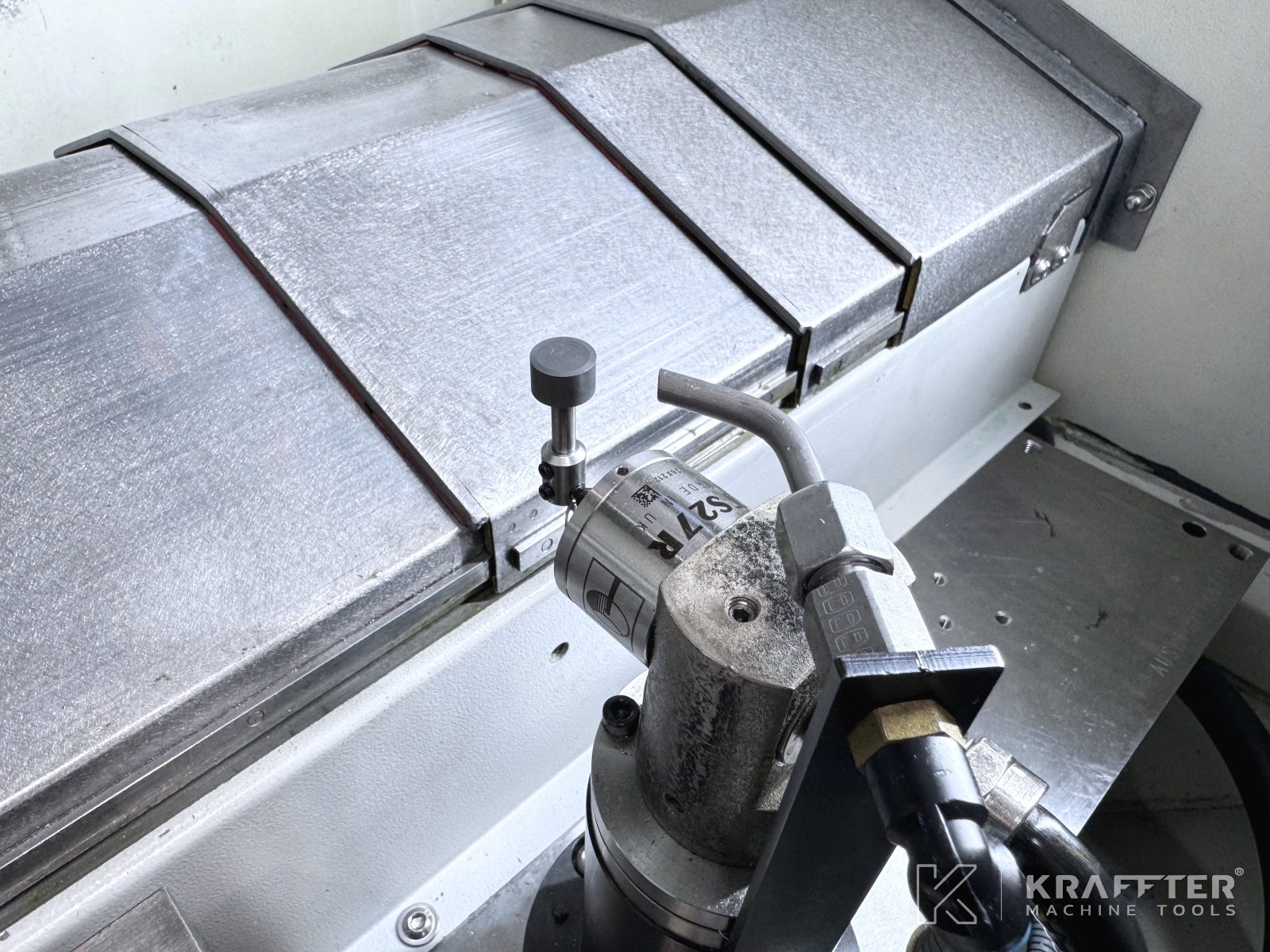

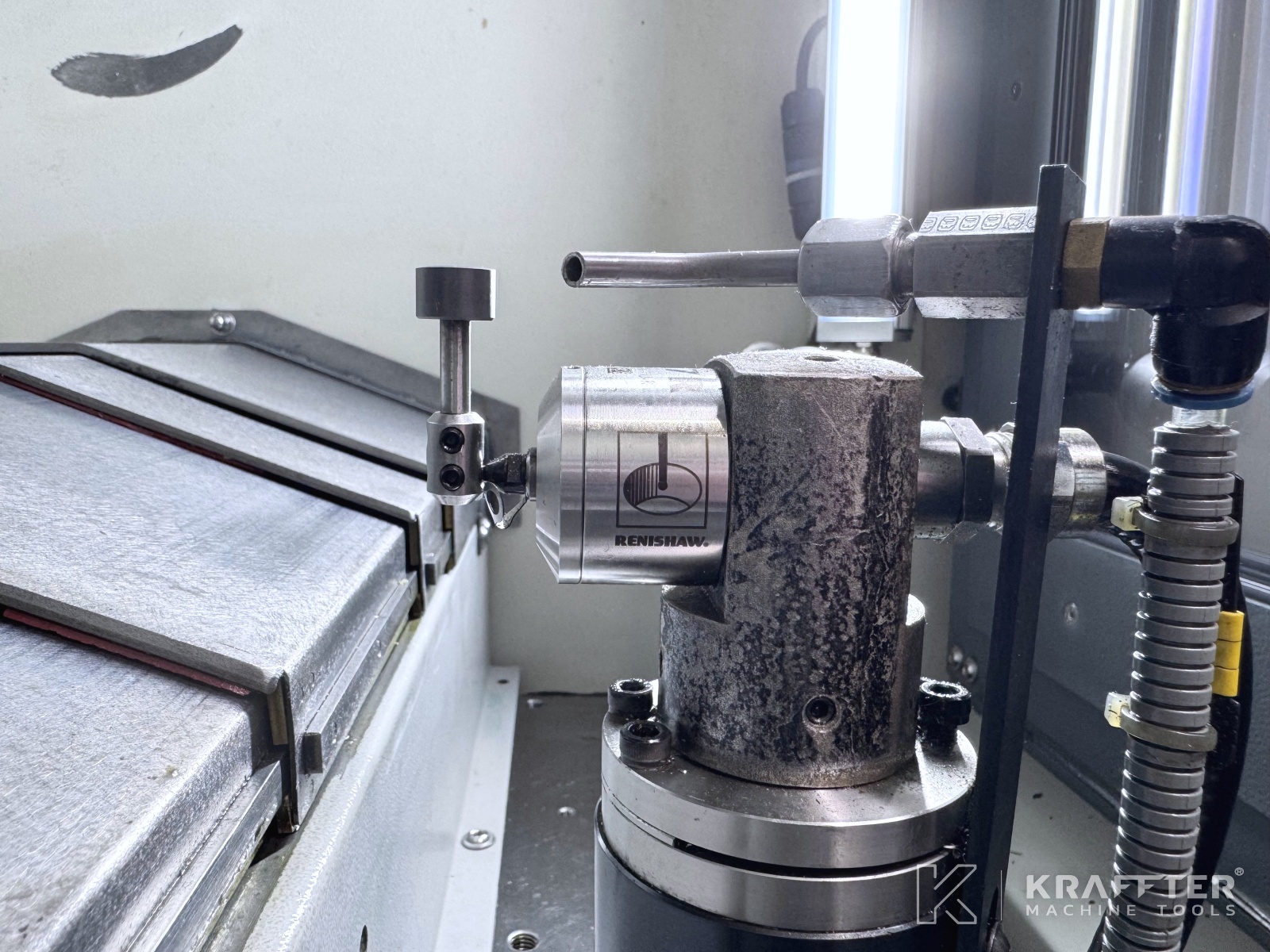

x1 RENISHAW tool probe, type TS27R
-

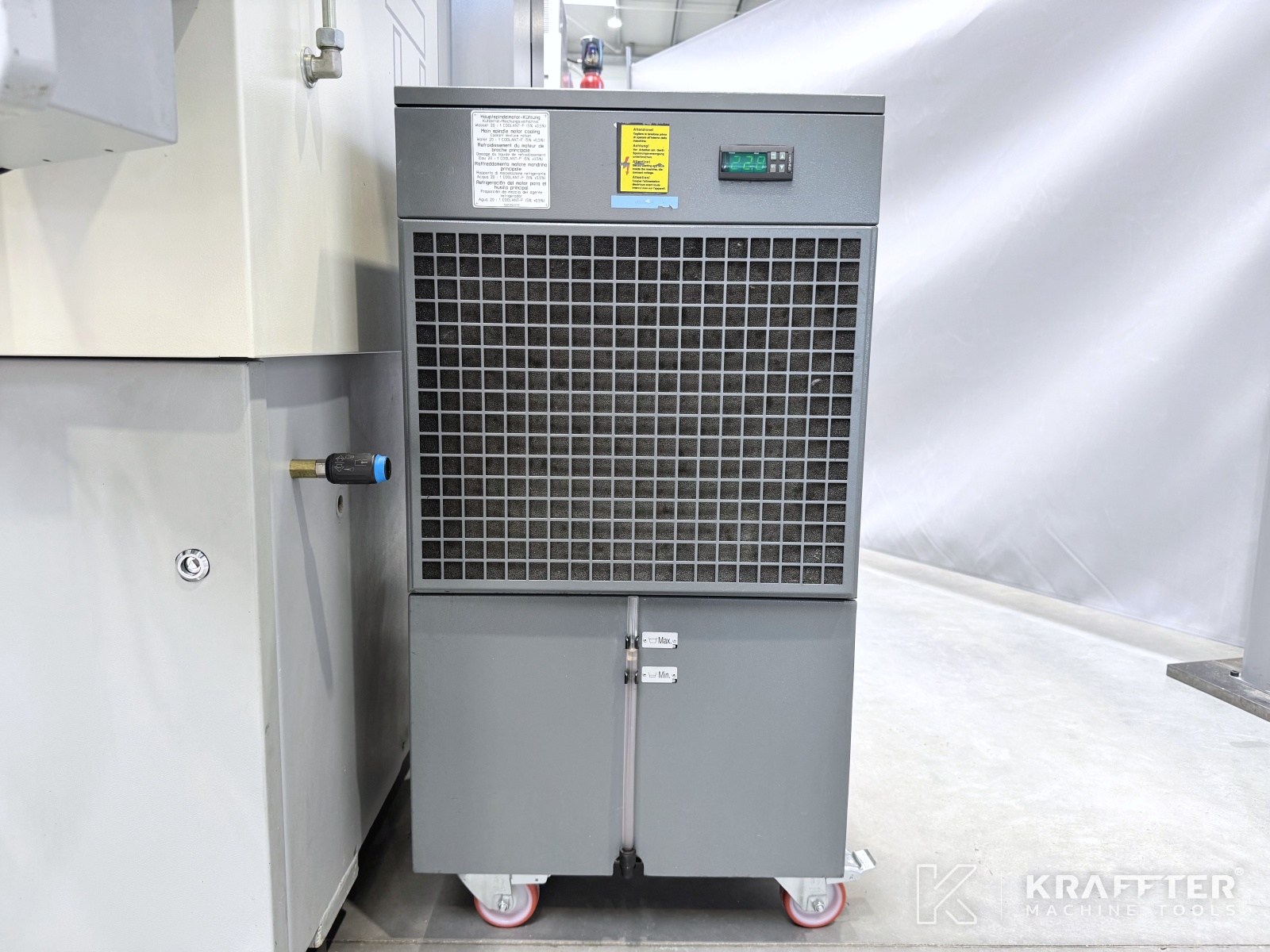

x1 spindle cooling unit
-

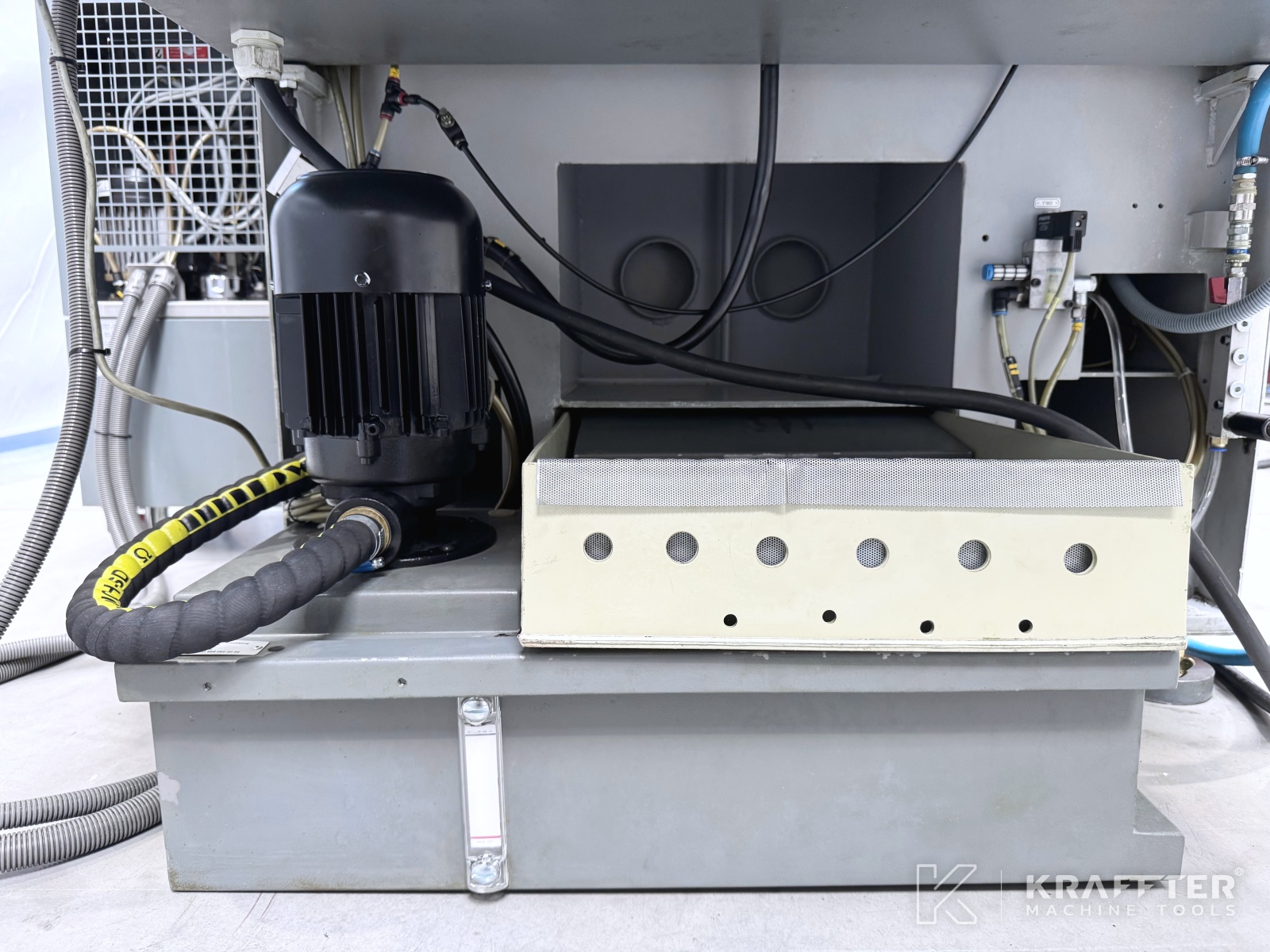

x1 coolant tank
-

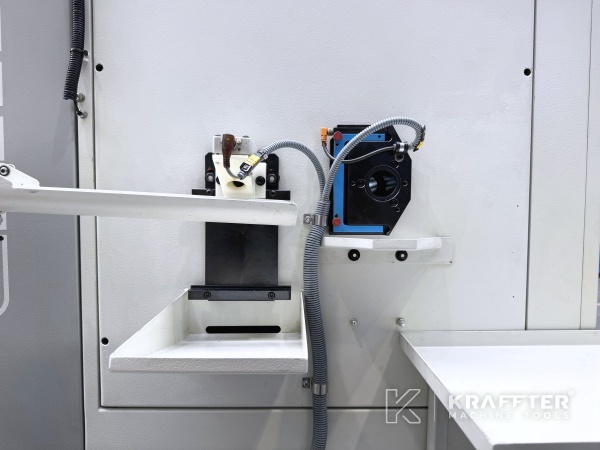

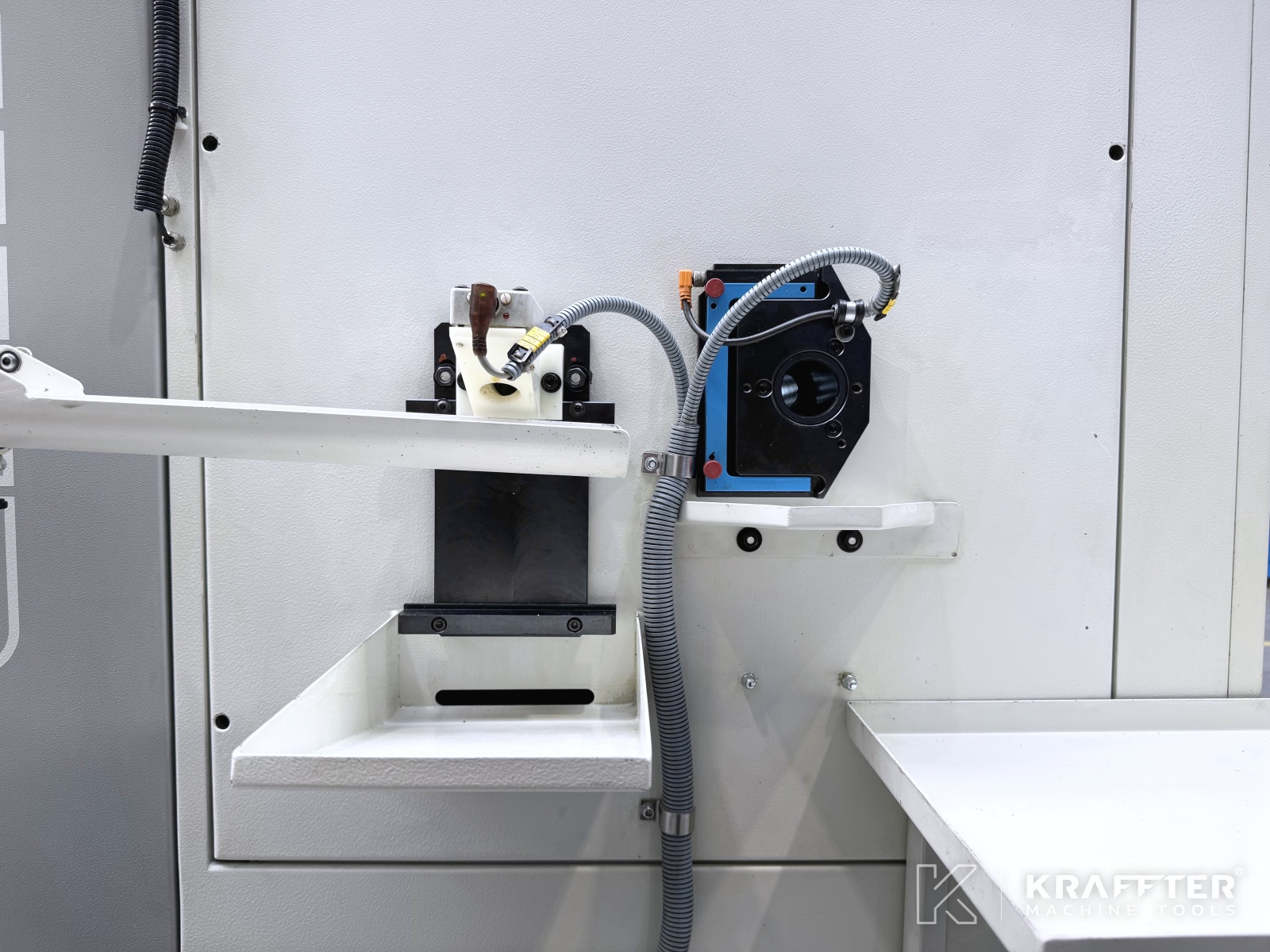

x1 unit for 6th-face machining
-

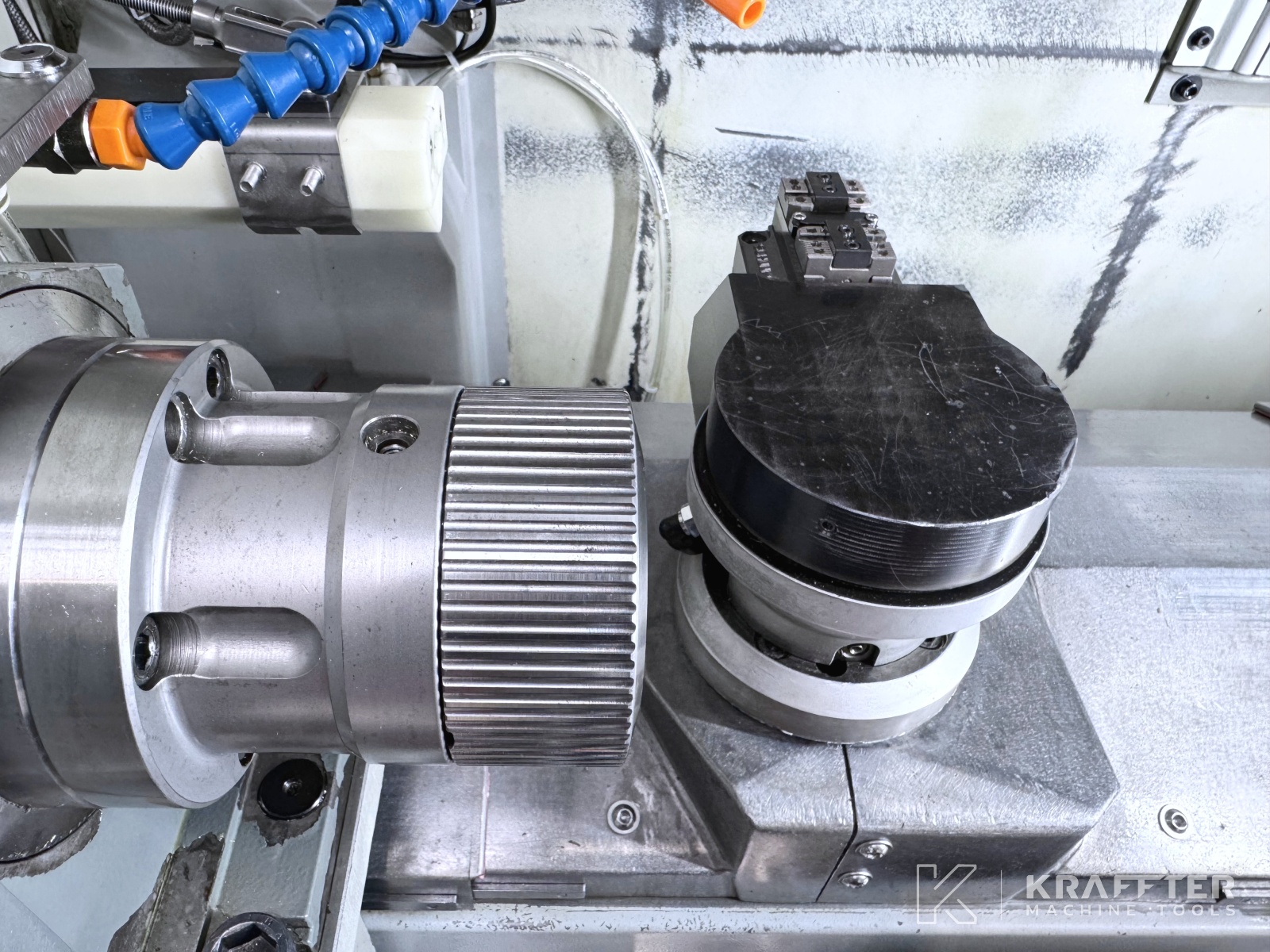

x1 SCHUNK clamping vice
-

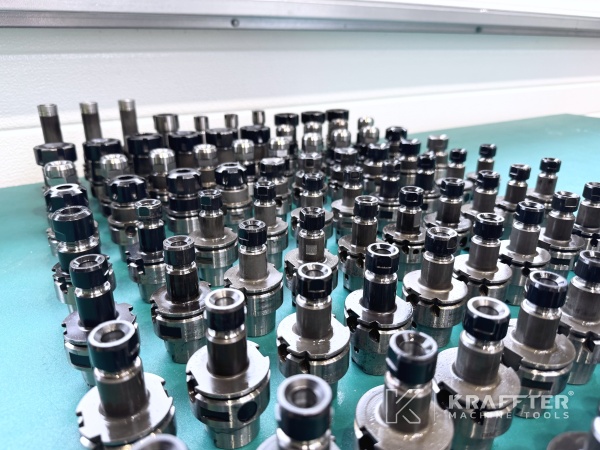

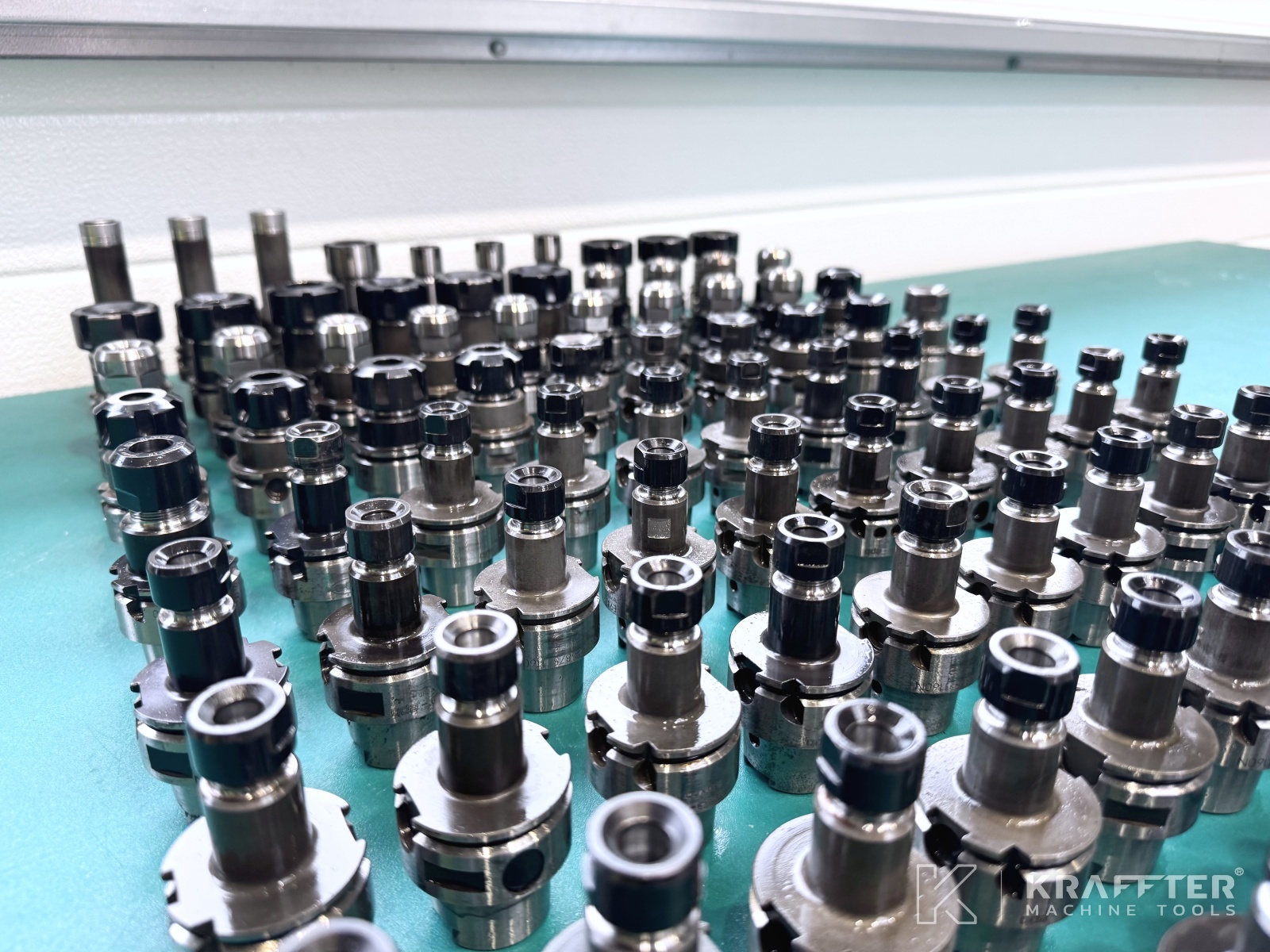

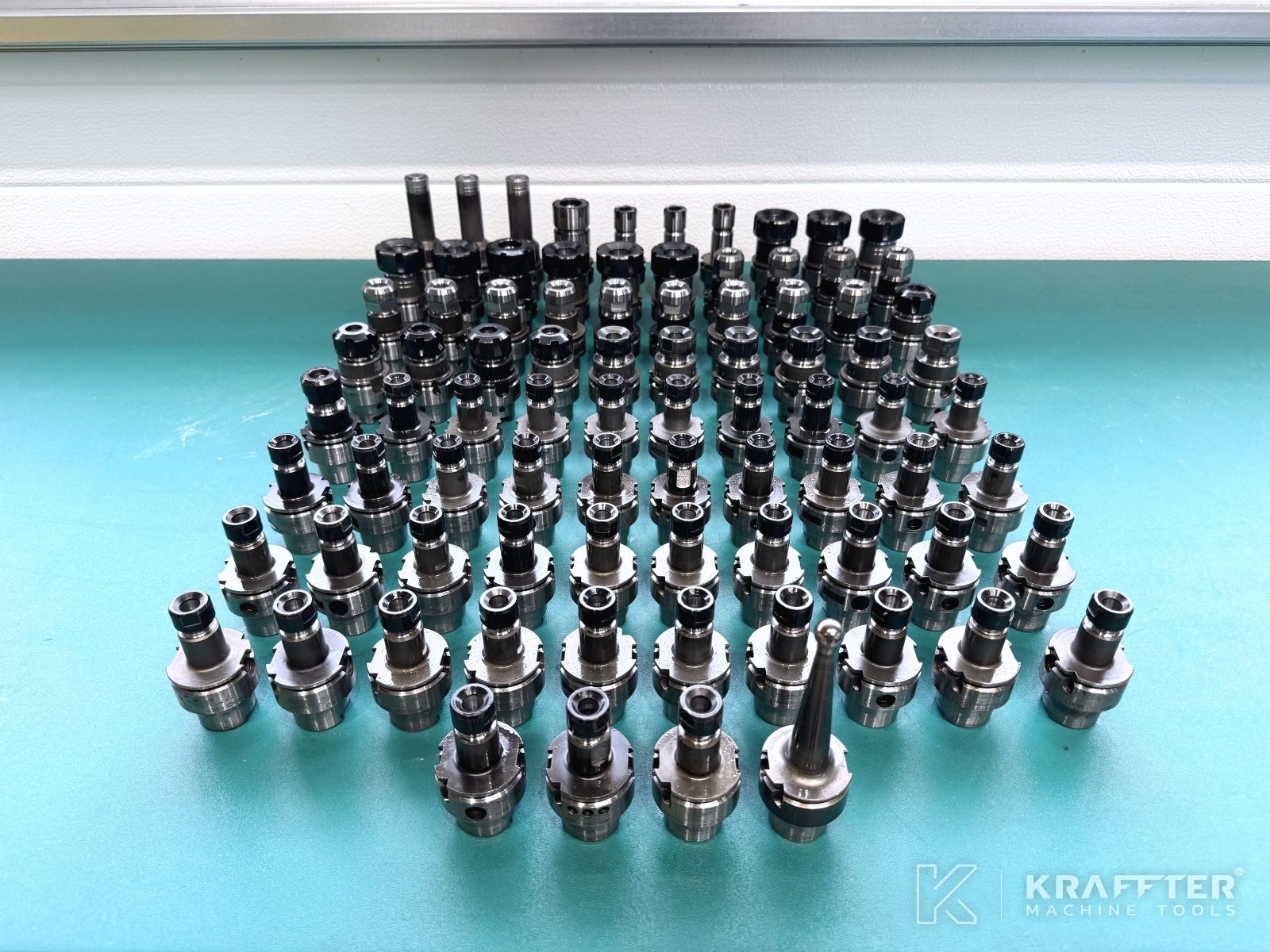

x84 tool holders - type HSK40
-

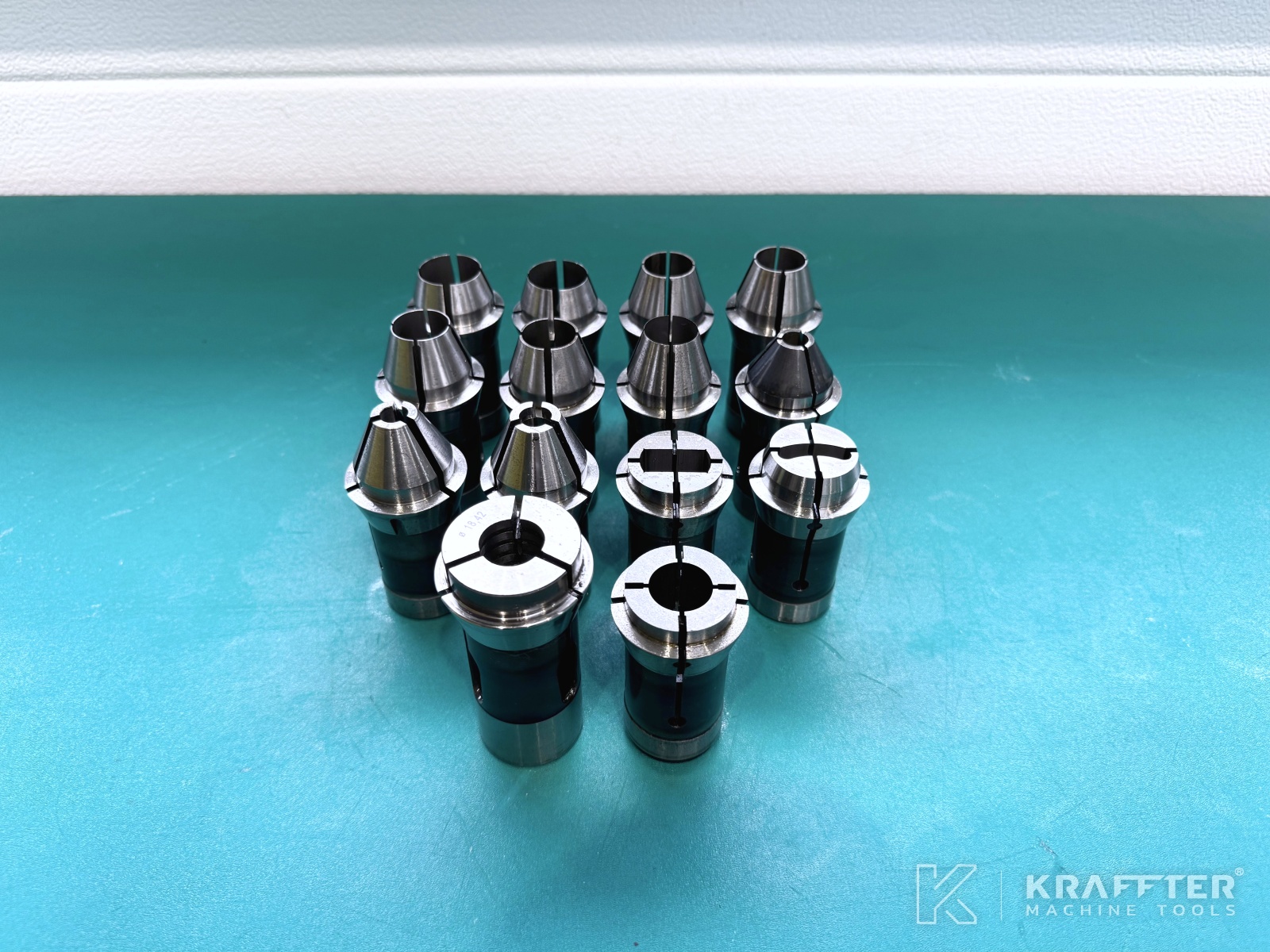

x14 collets - type F35
-

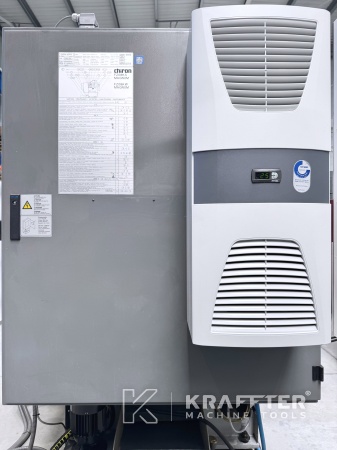

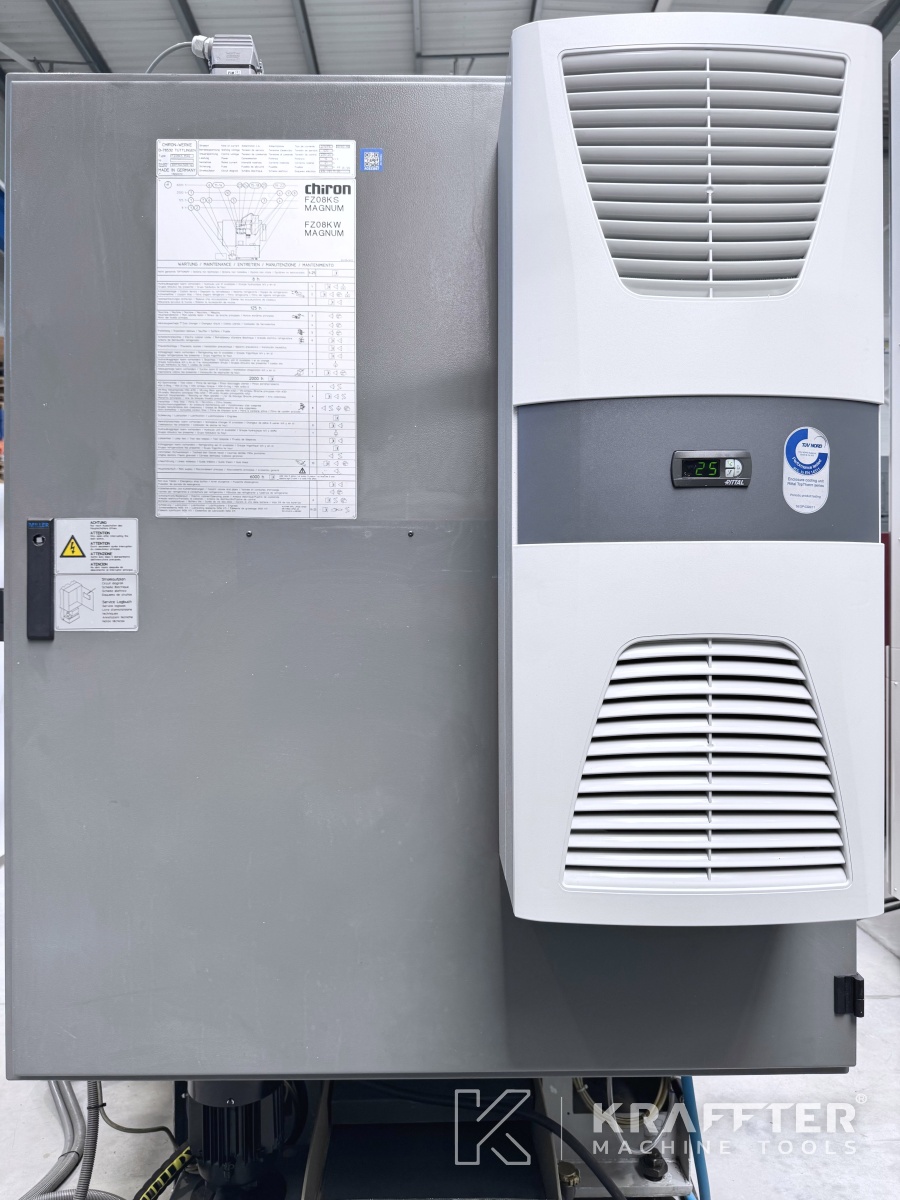

x1 electrical cabinet air conditioning unit
-

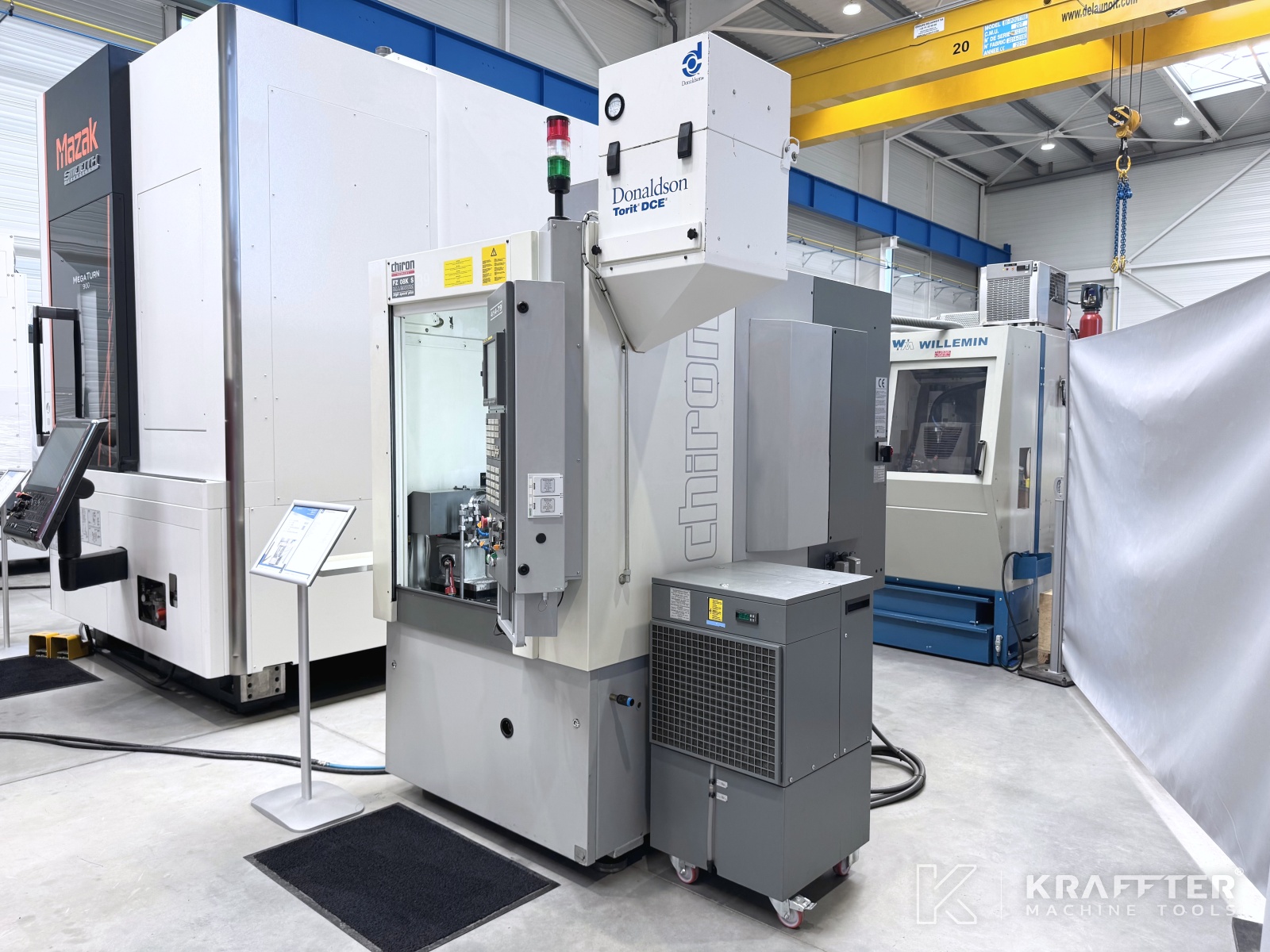

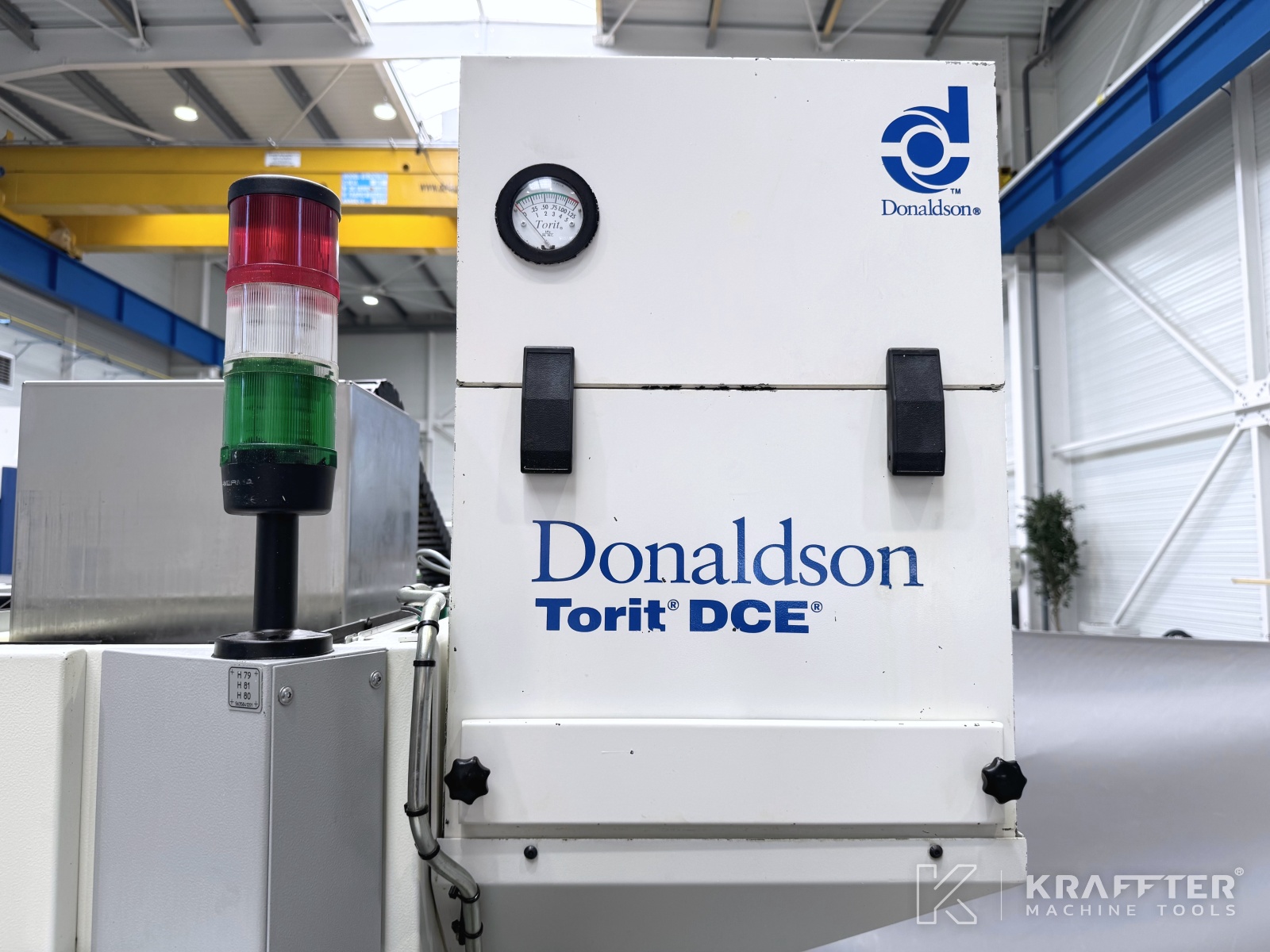

x1 DONALDSON mist extraction unit - type Torit DCE
-
x1 washing gun
-
x1 three-color status light
-
x1 MACHINING INSTRUCTIONS manual
-
x1 operator manual
-
x1 programming manual
