New in stock

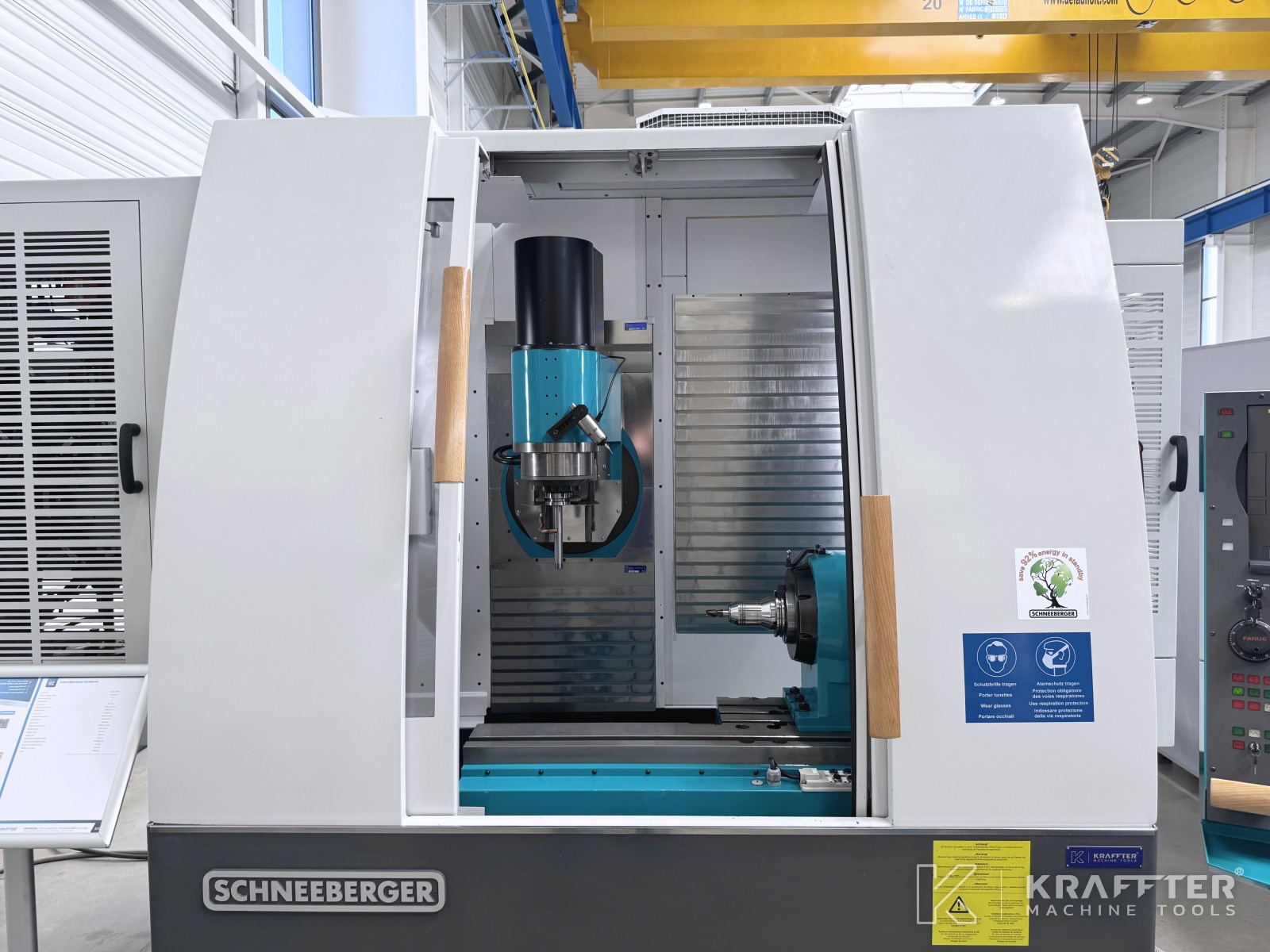

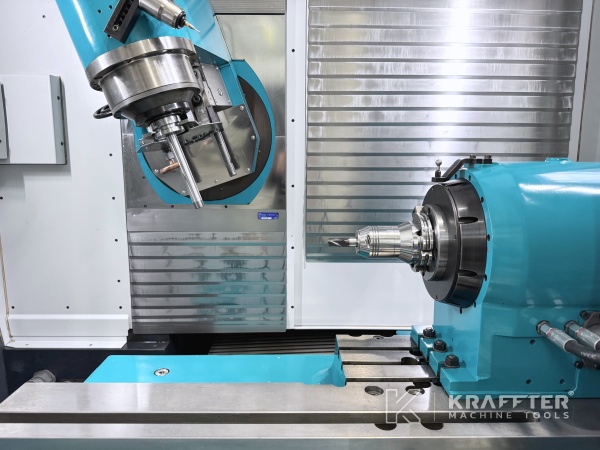

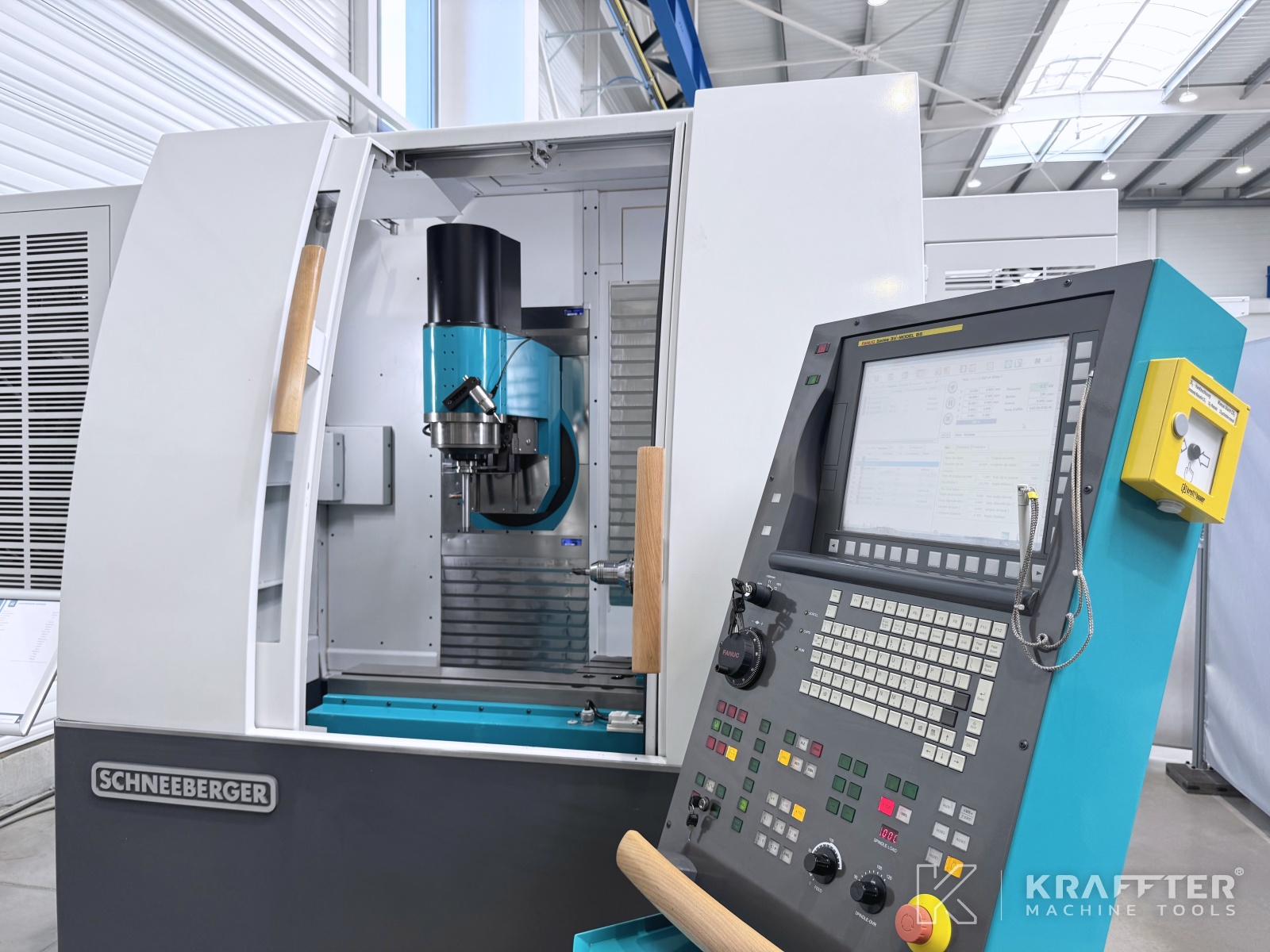

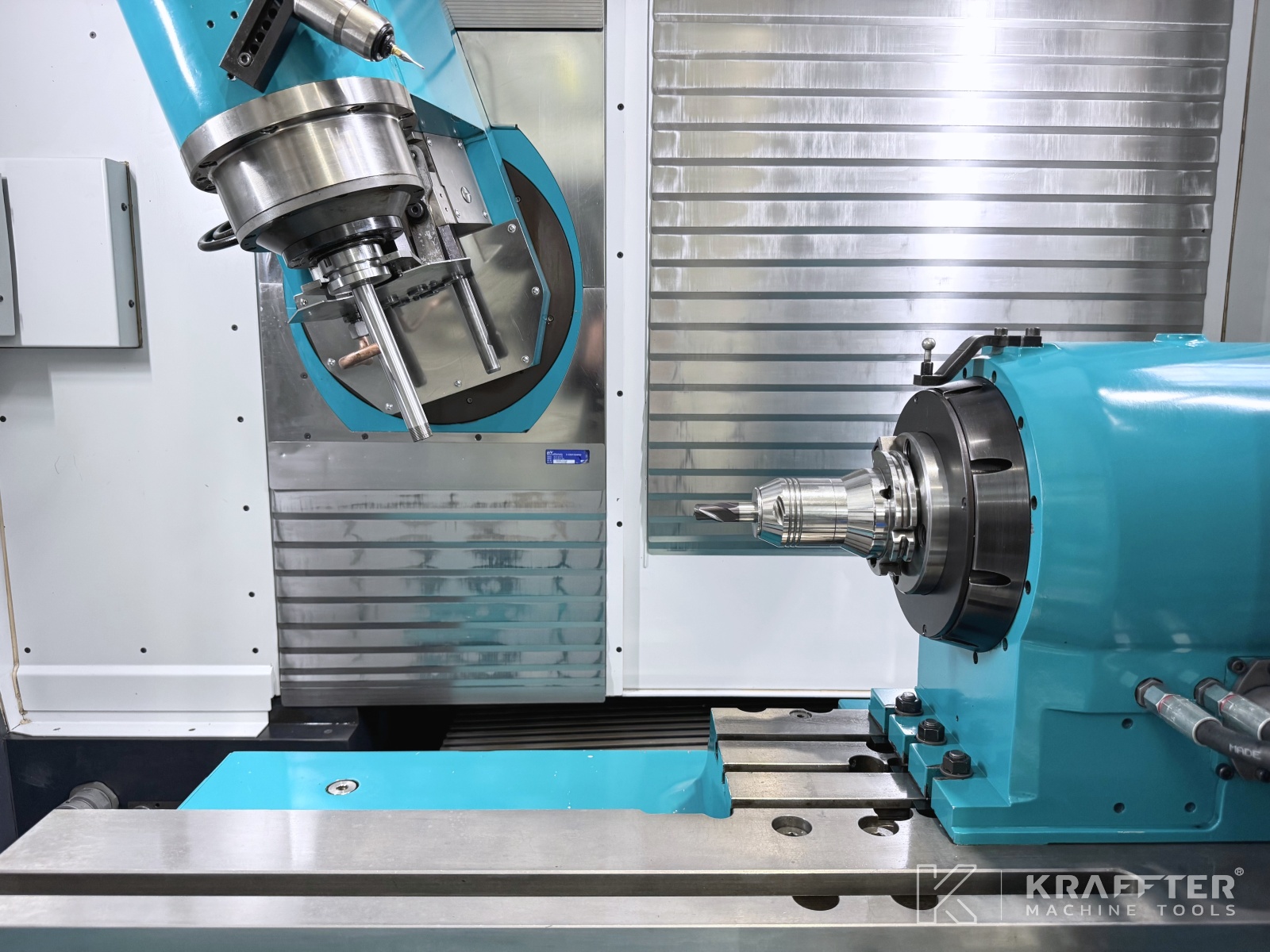

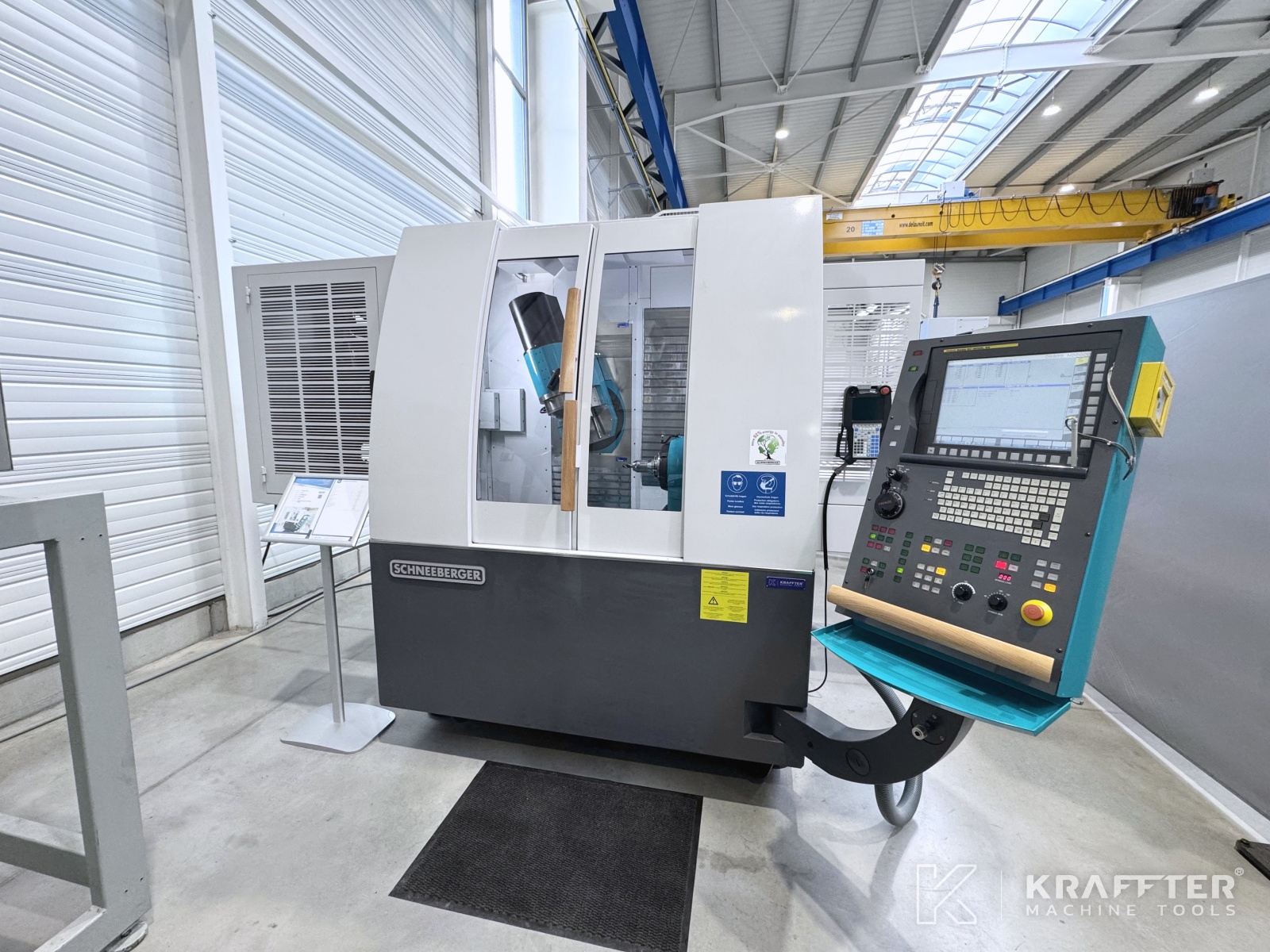

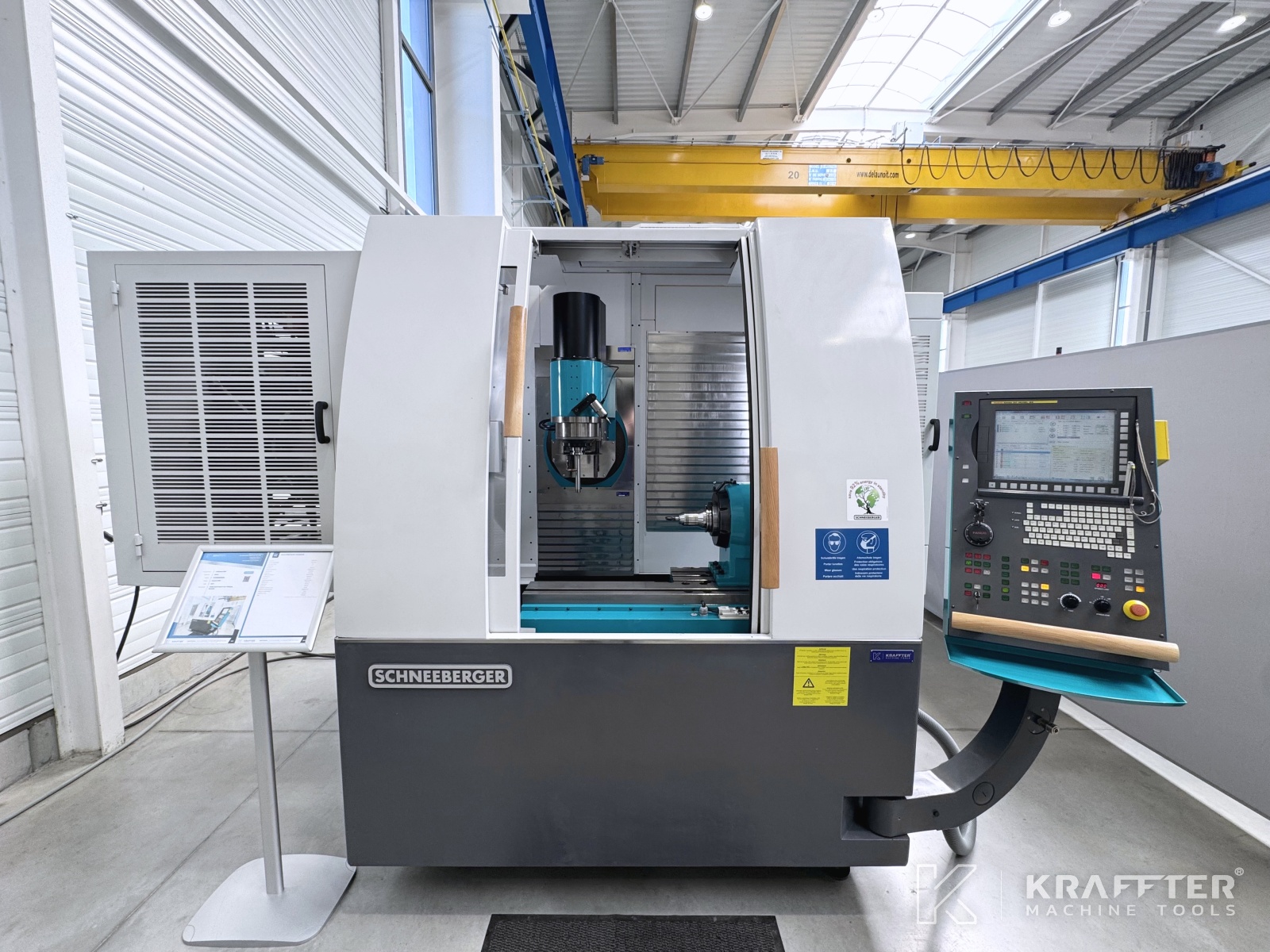

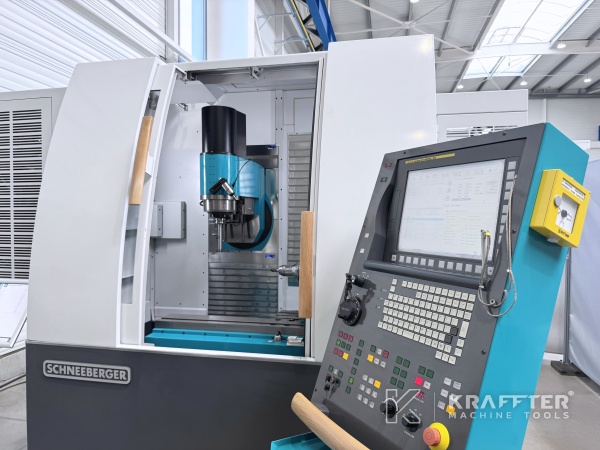

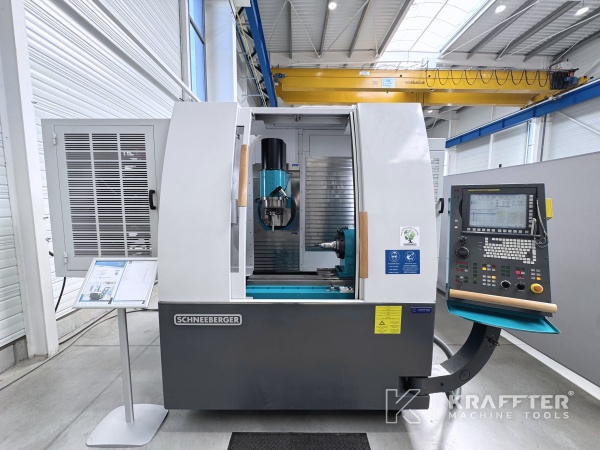

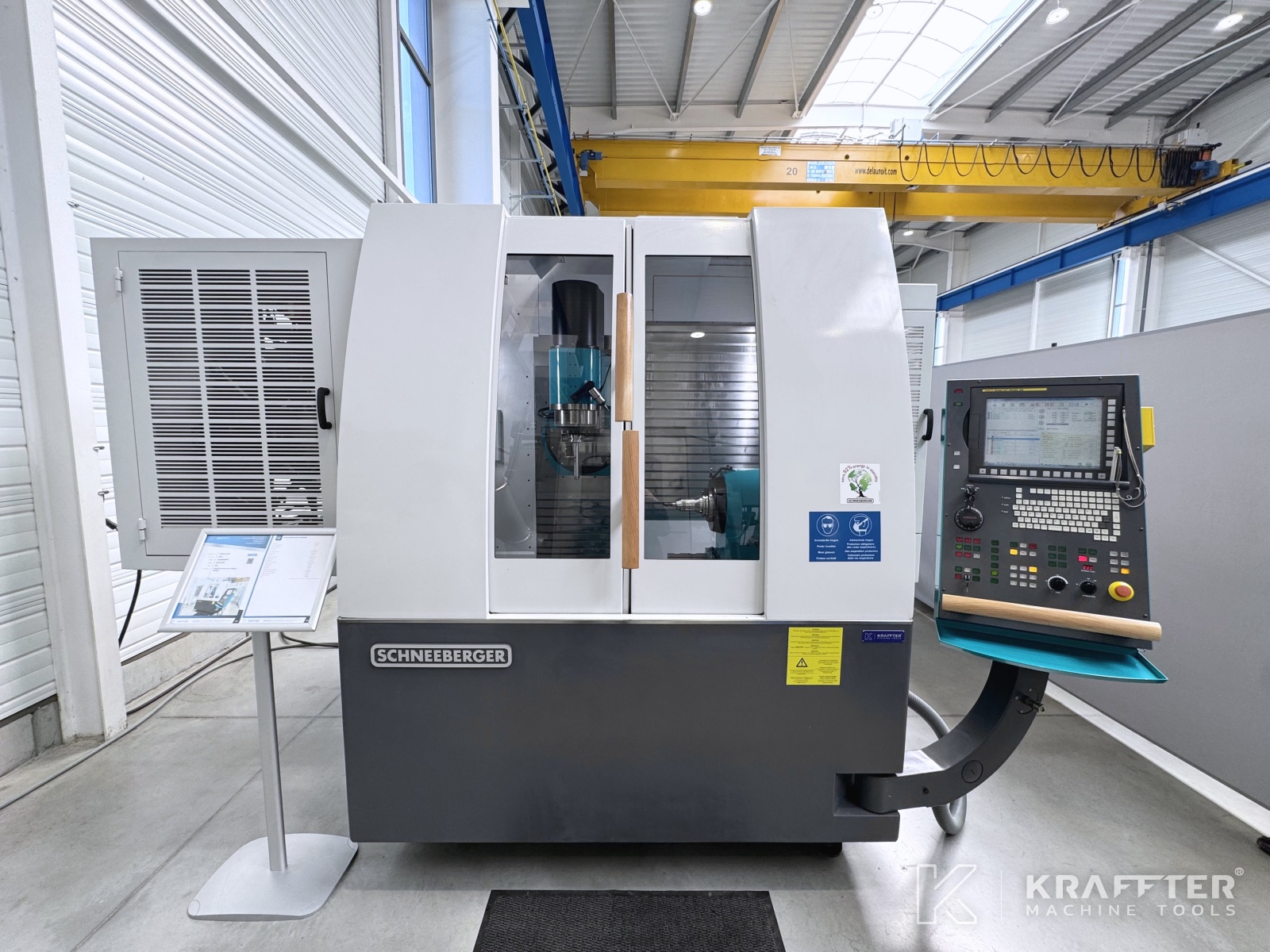

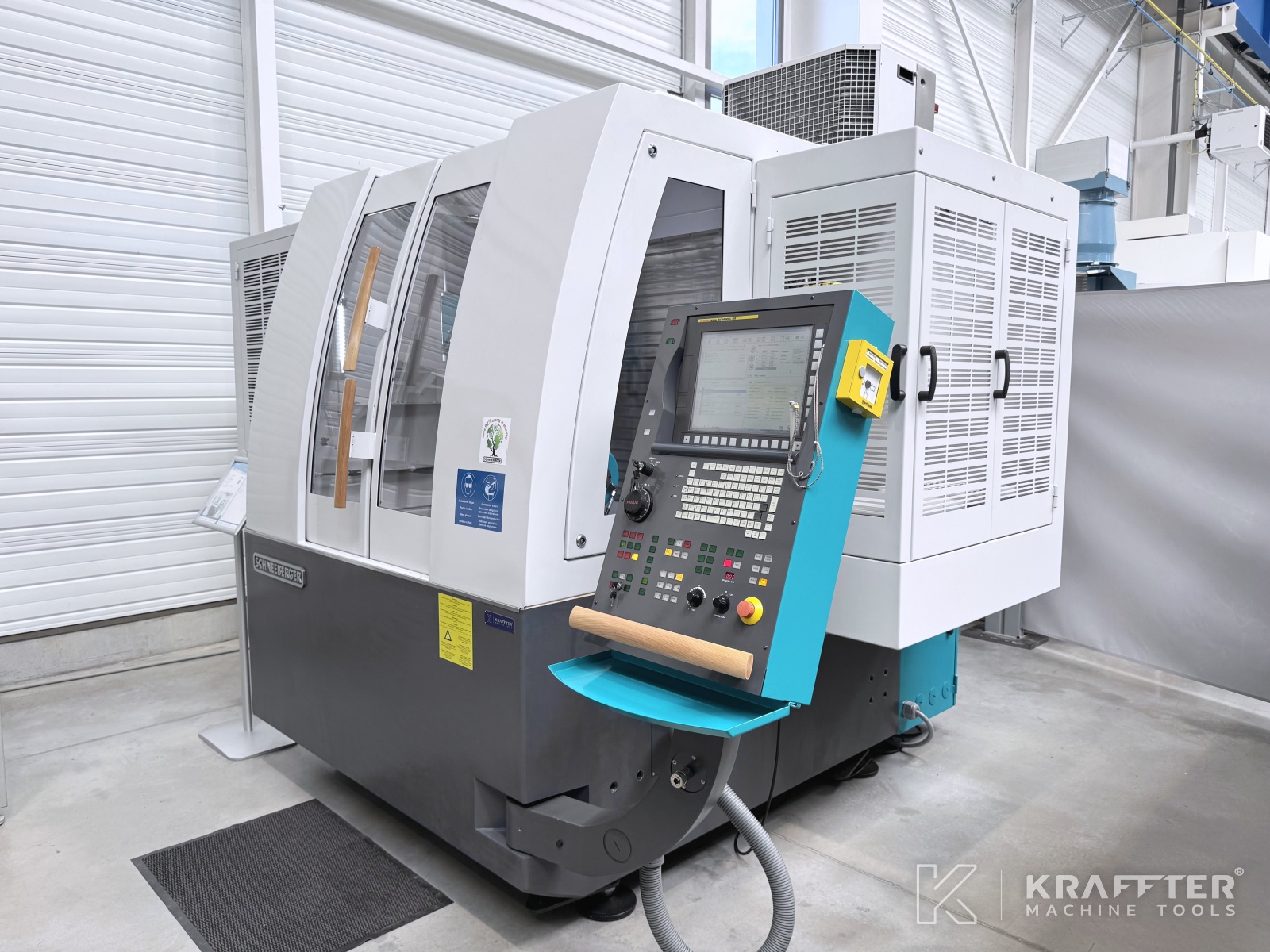

Type of machine : CNC tool grinding machine
Brand : SCHNEEBERGER
N° de stock: 90173

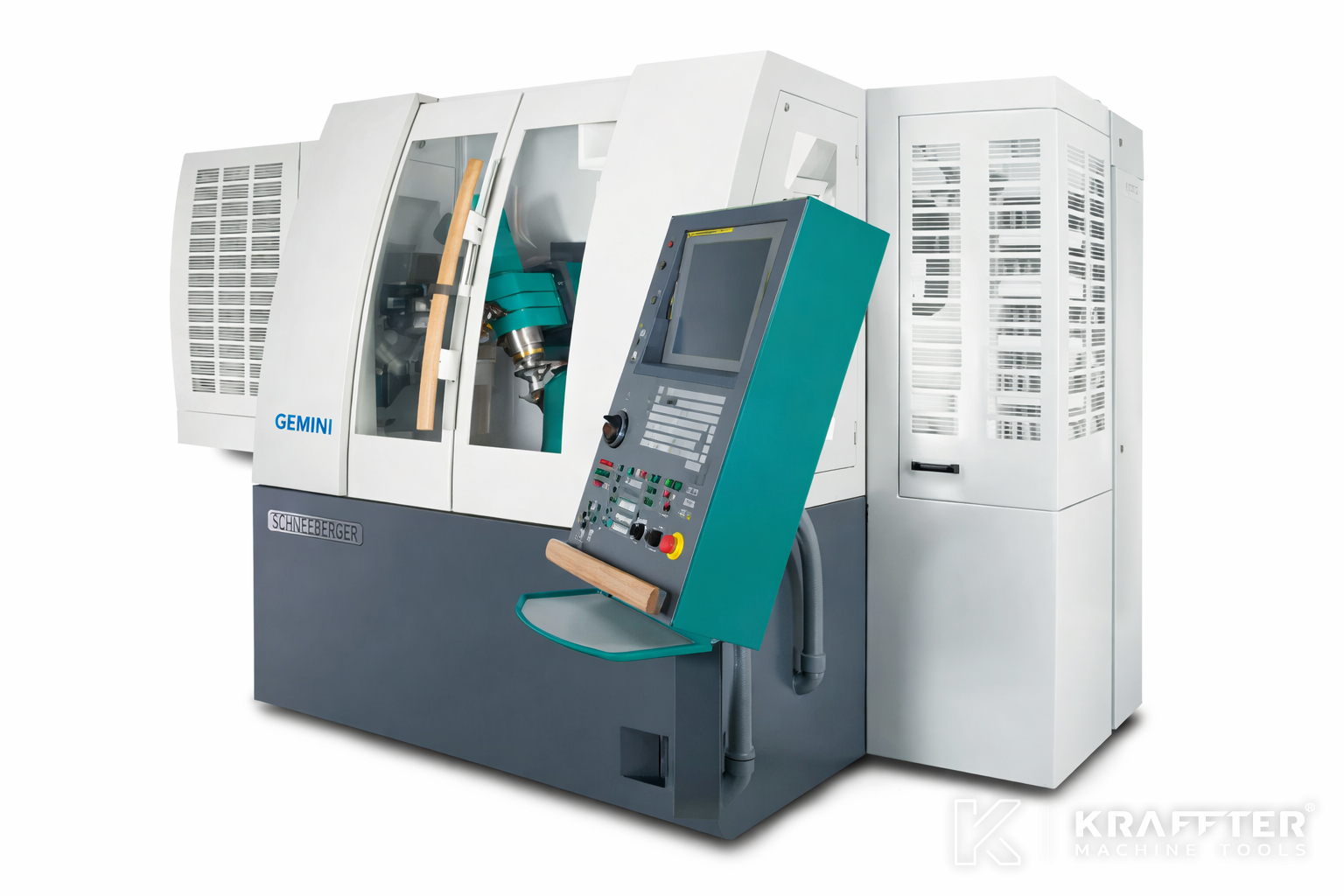

Model : Gemini DMR
Year : 2014
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

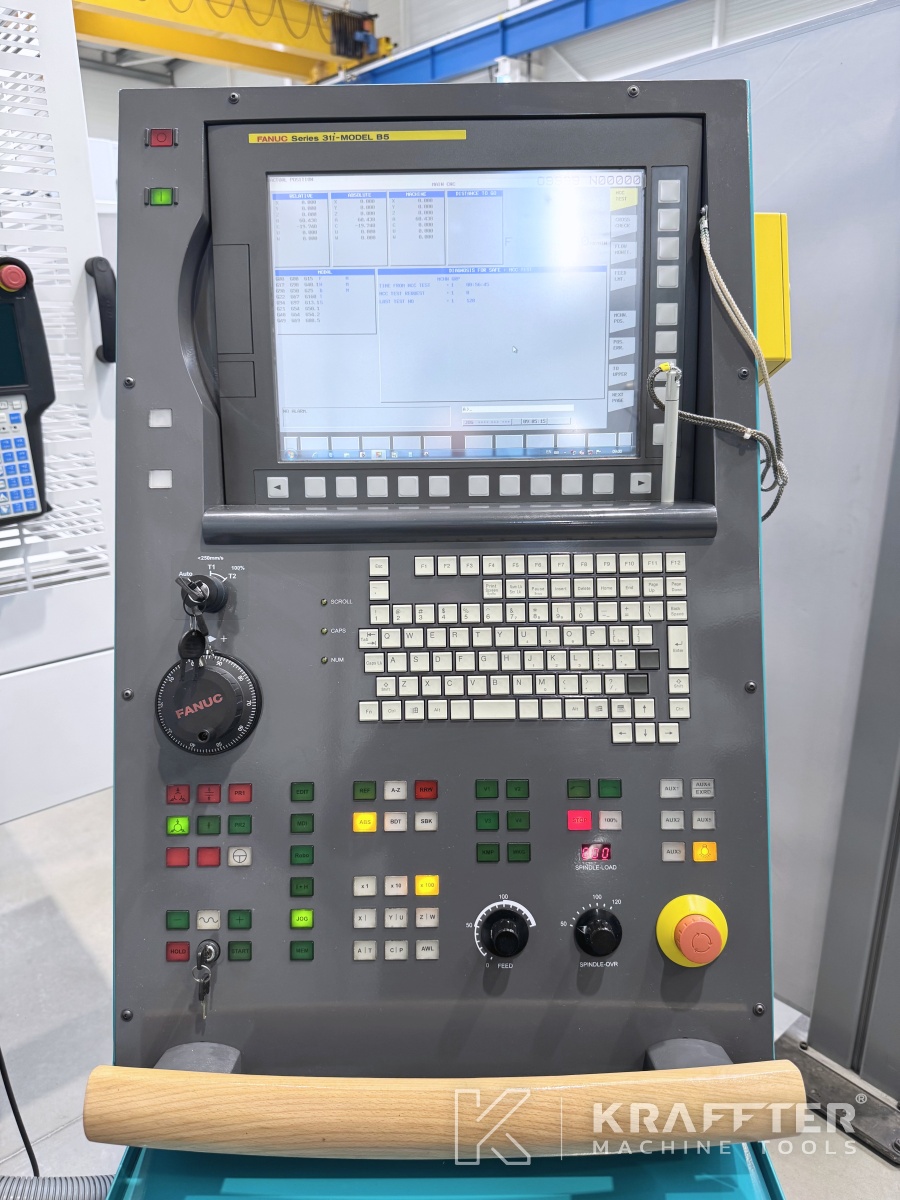

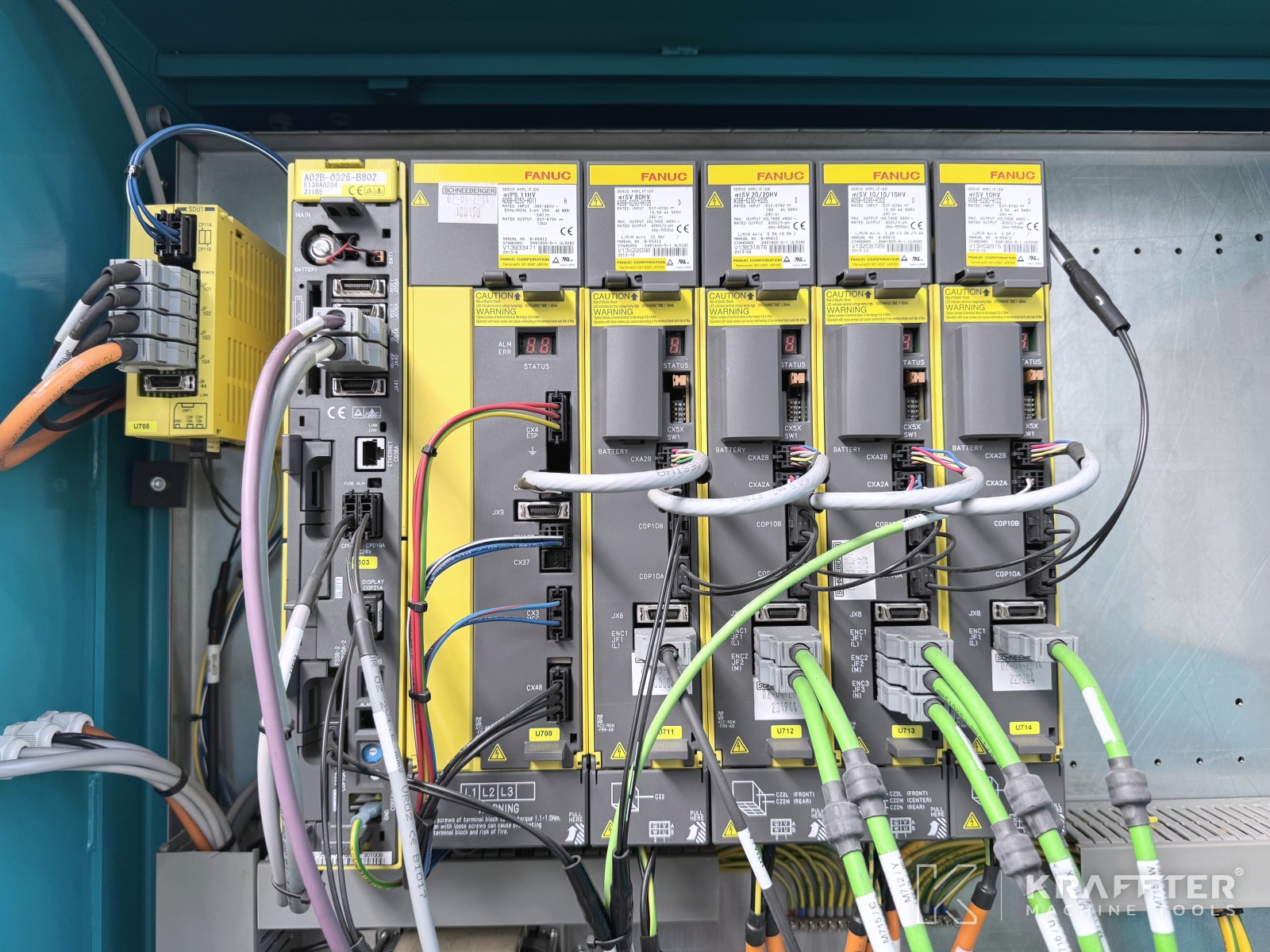

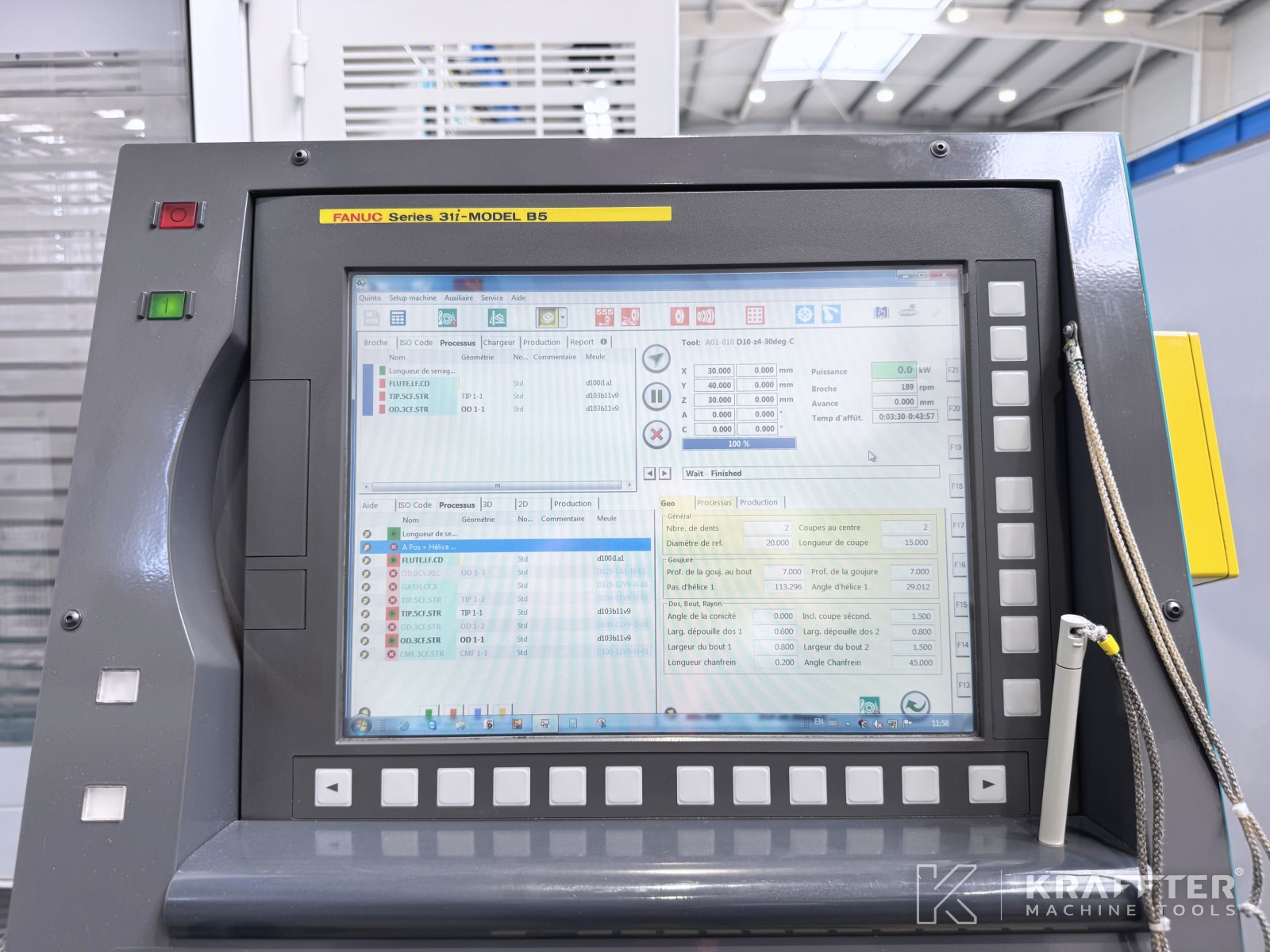

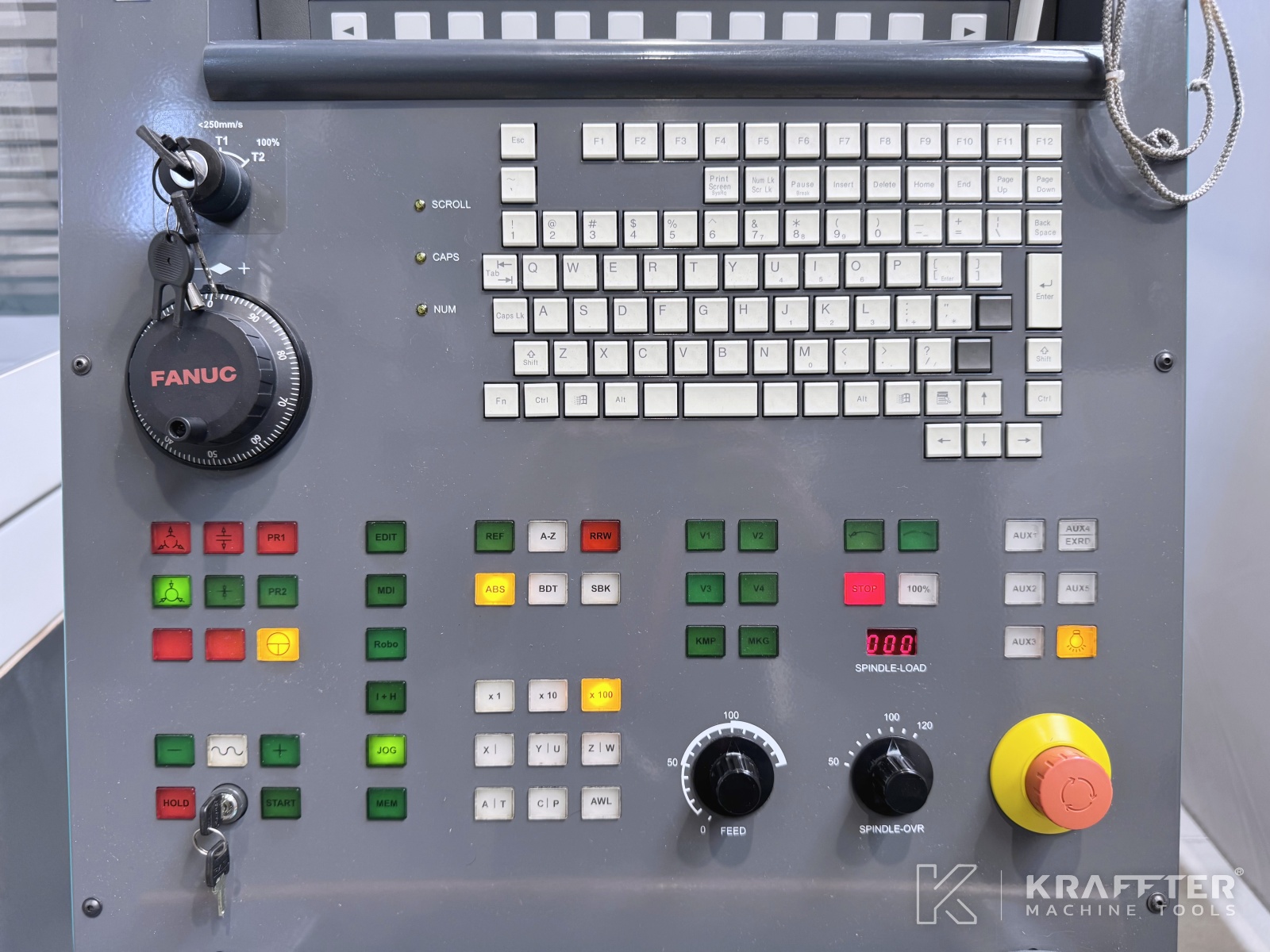

CNC control
FANUC 31i B5
Software installed
Quinto Qg1
Colour touchscreen
Yes
Number of axes
5
Stroke X axis
380 [mm]
Max. Stroke speed X axis
20000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Y axis
300 [mm]
Max. Stroke speed Y axis
5000 [mm/min]
Resolution Y axis
0.0001 [mm]
Stroke Z axis
280 [mm]
Max. Stroke speed Z axis
20000 [mm/min]
Resolution Z axis
0.0001 [mm]
Table length
500 [mm]
Table width
330 [mm]

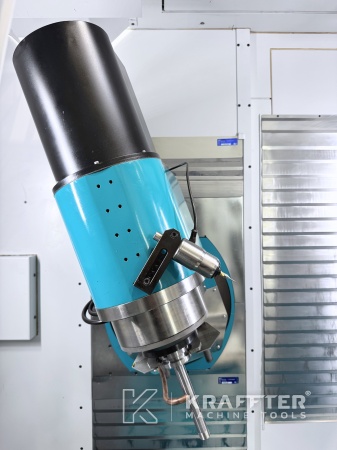

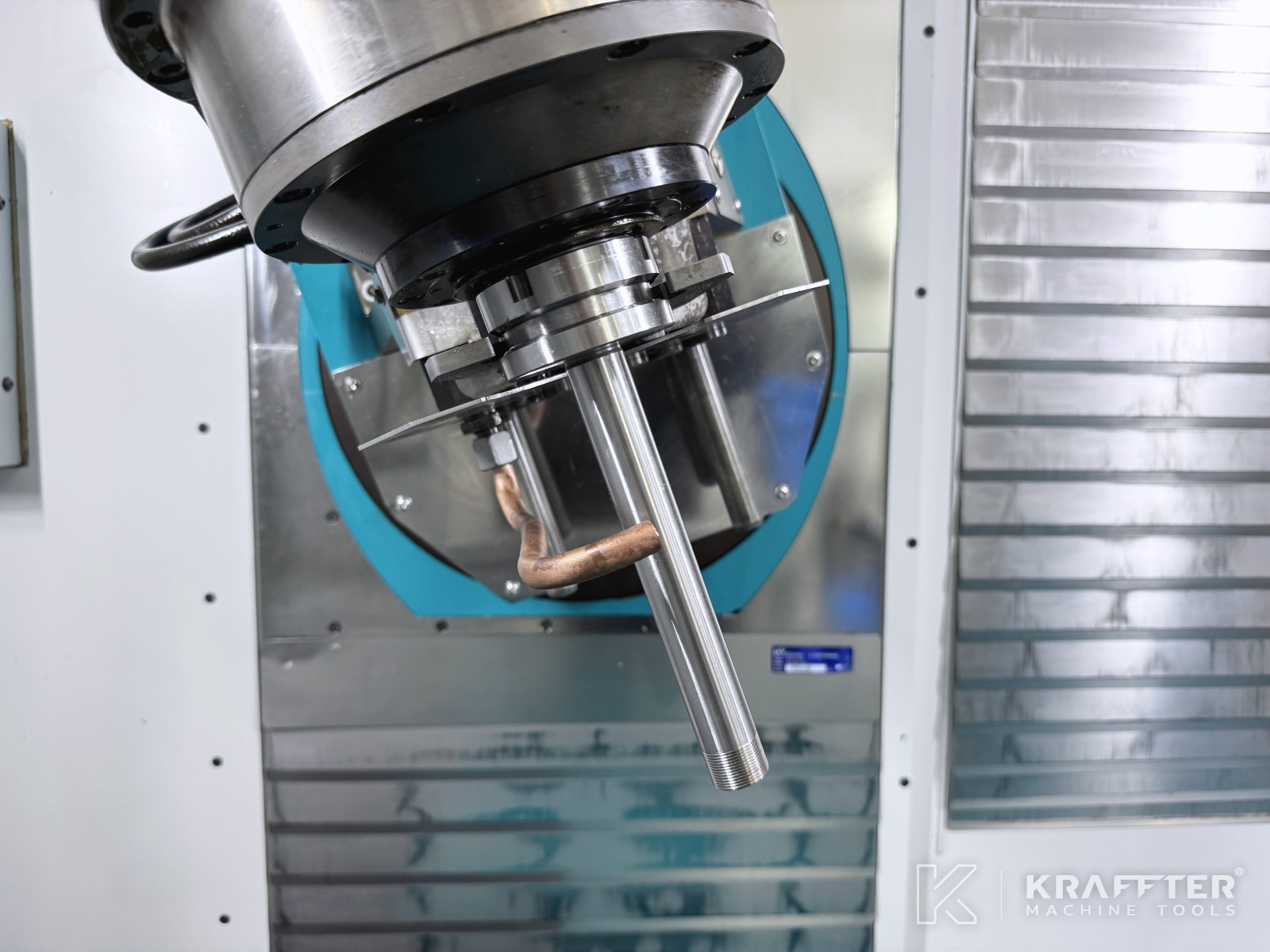

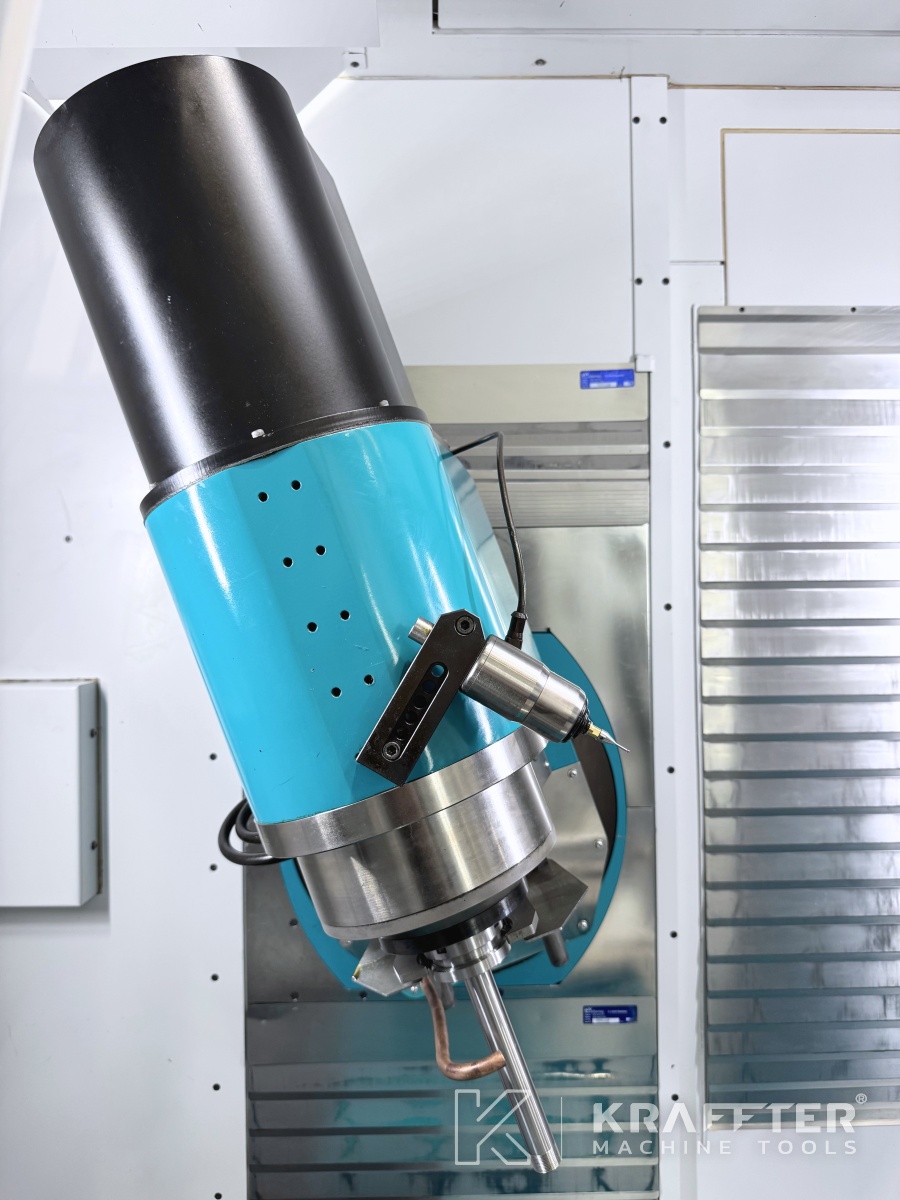

Grinding spindle attachment
HSK-50
Max. grinding wheel speed
10000 [rpm]
Grinding spindle motor power
14 [kW]
Max. diameter grinding wheel
250 [mm]

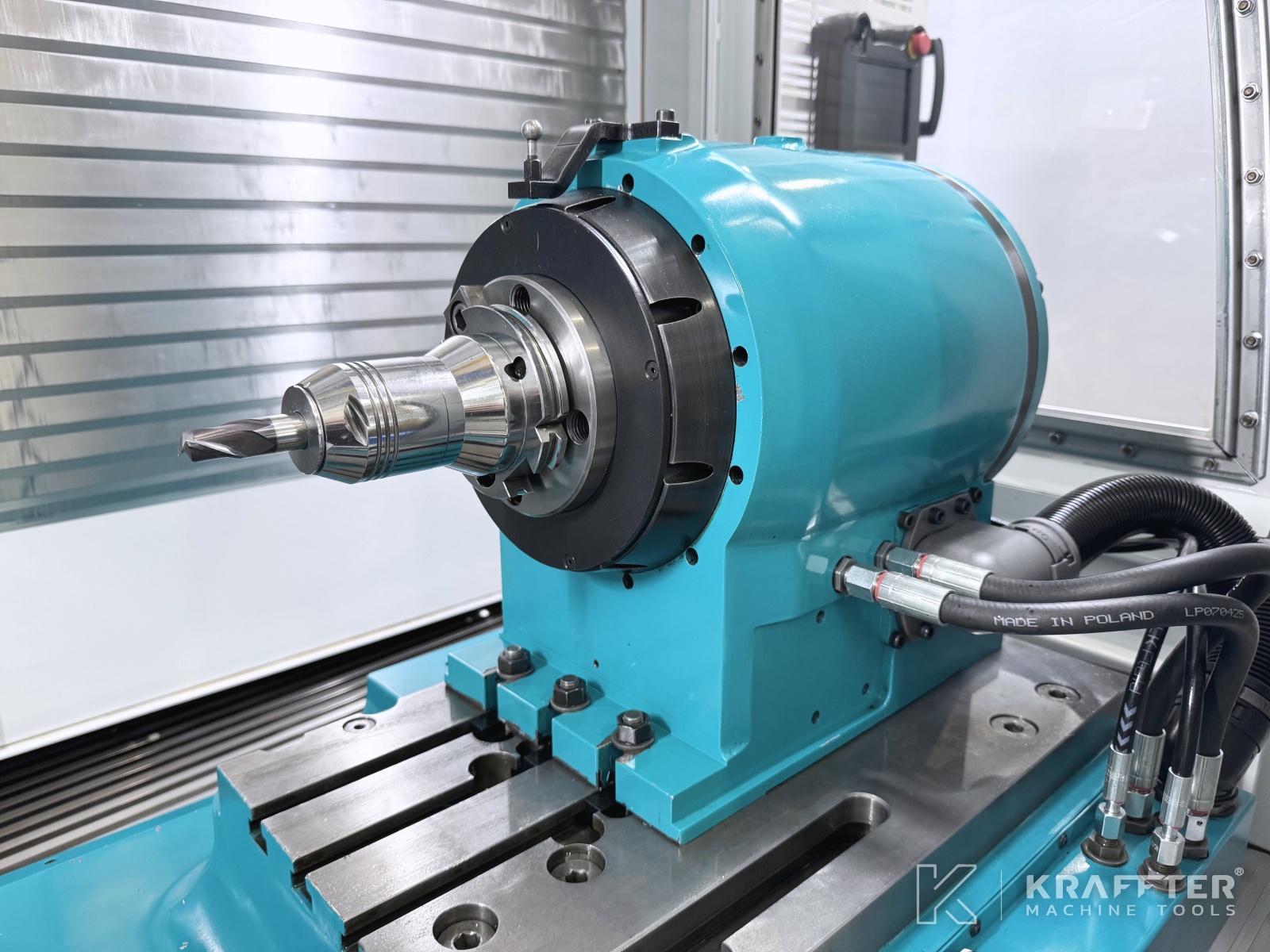

Internal workpiece spindle nose
ISO 50
Number of running hours
12340 [h]
Supply voltage
400 [V]
Rated current
63 [A]
Weight
8100 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information
EQUIPMENT INCLUDED:

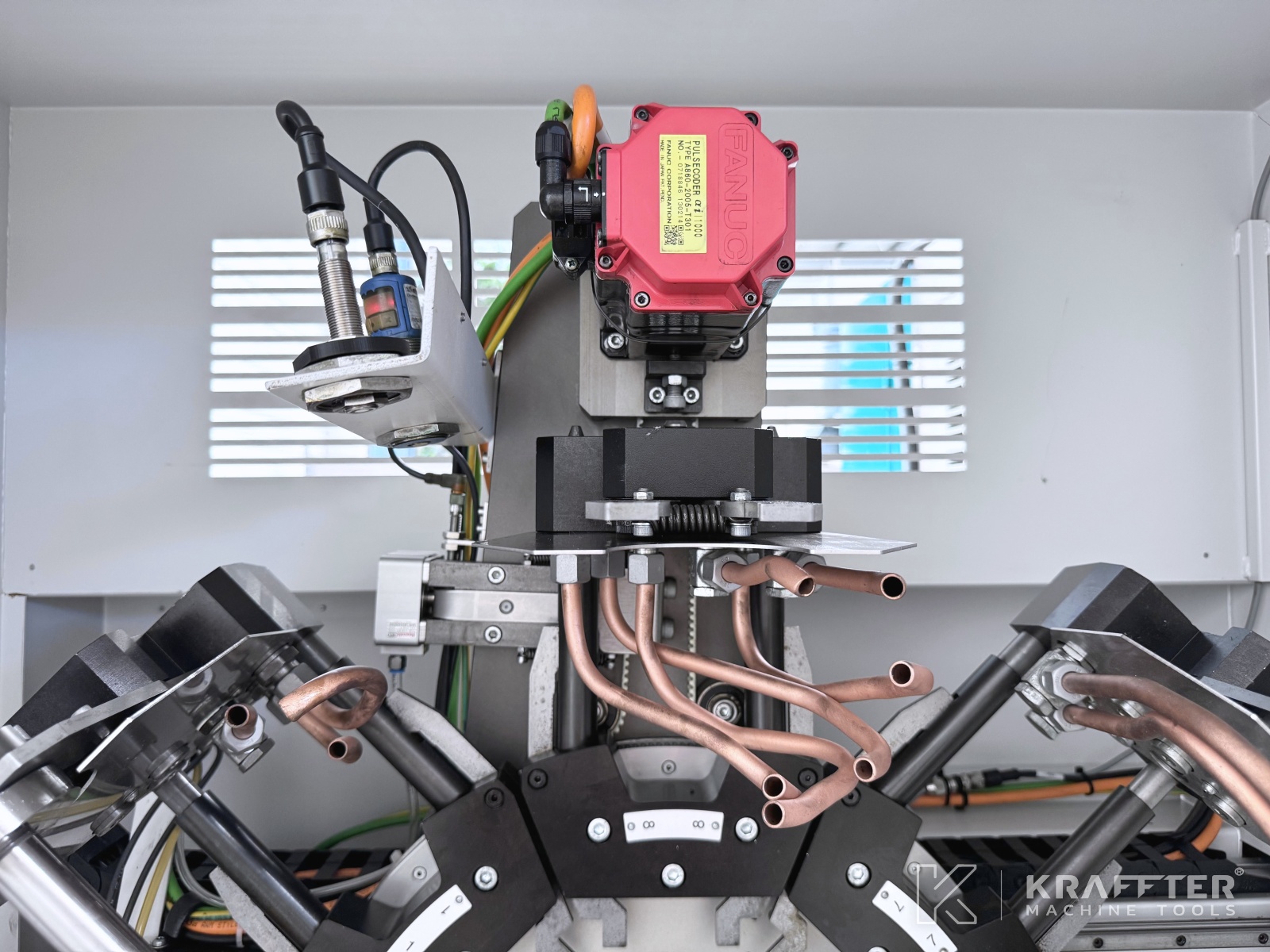

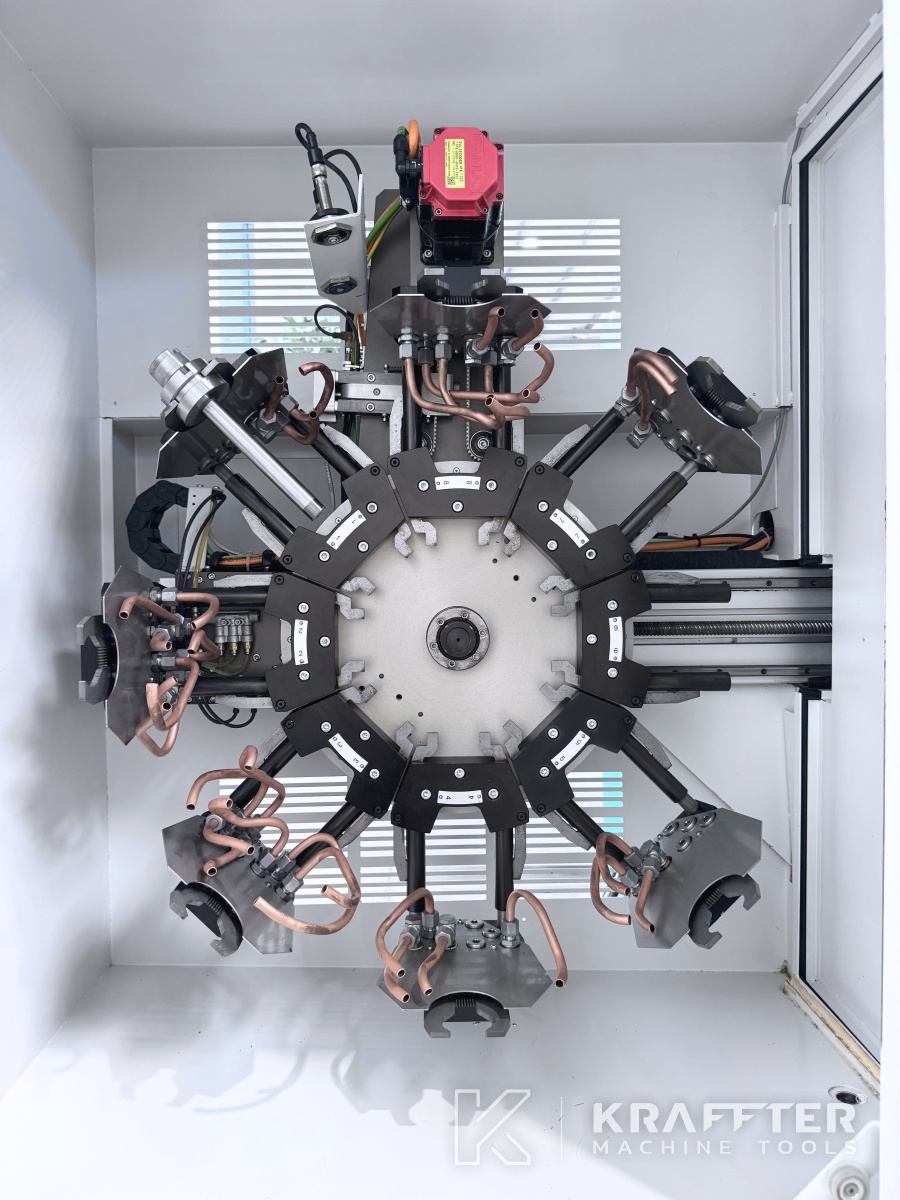

- x1 8-position grinding wheel changer
- x8 coolant supports

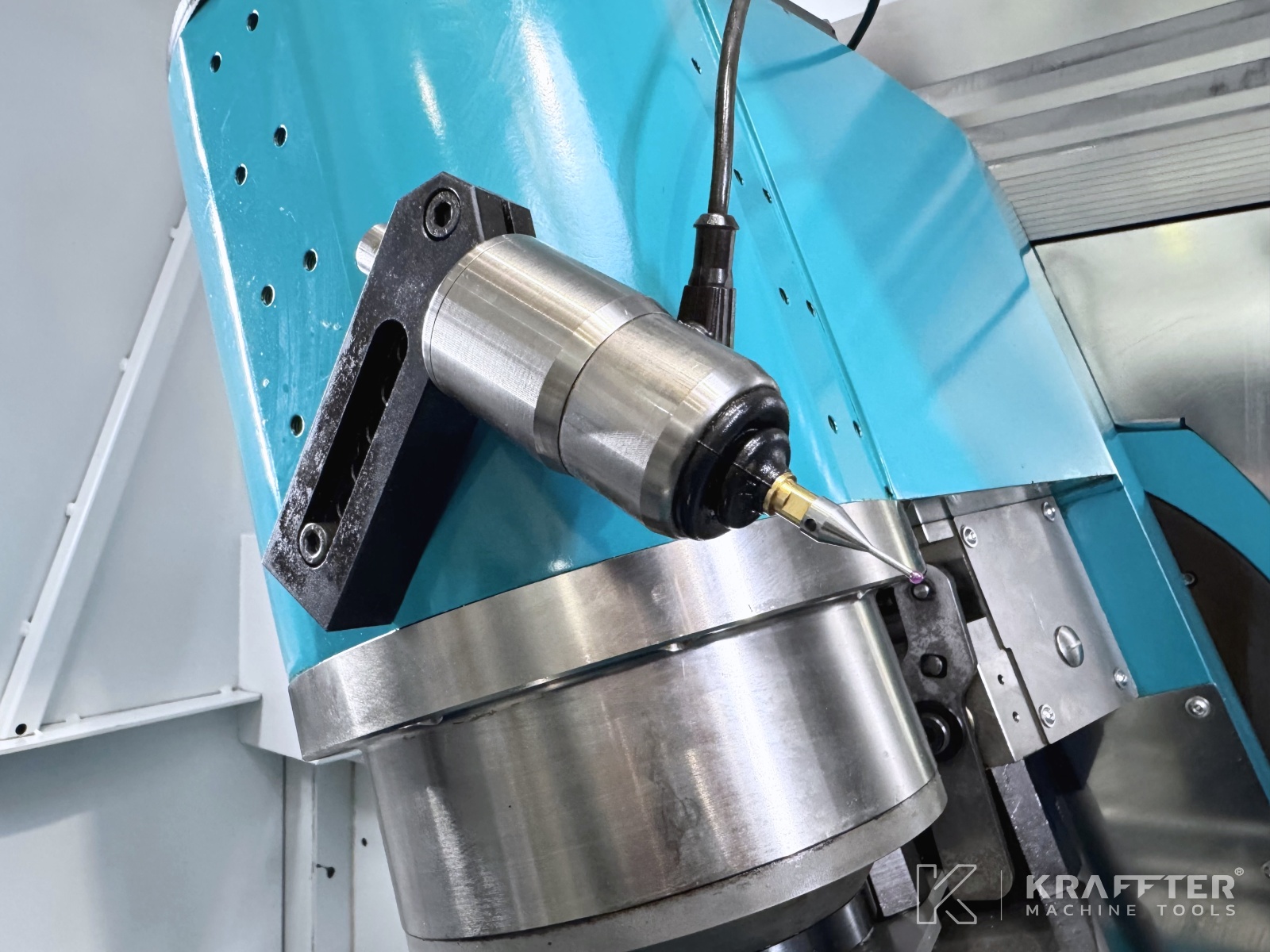

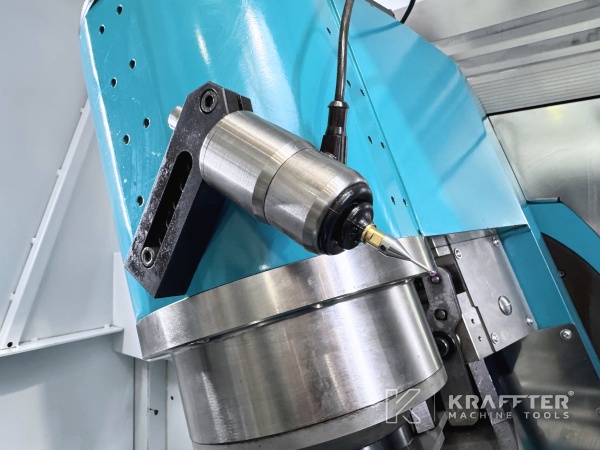

- x1 tool probe

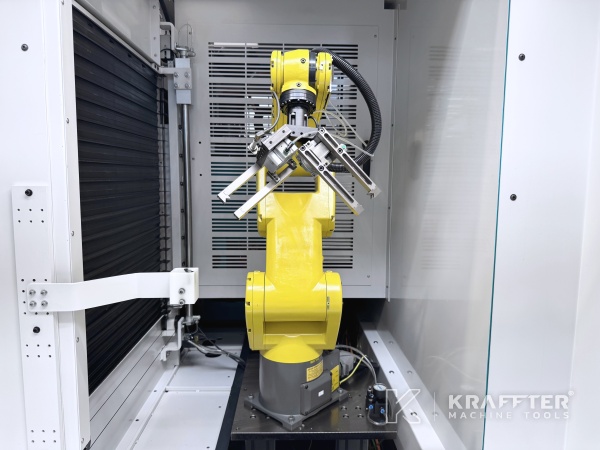

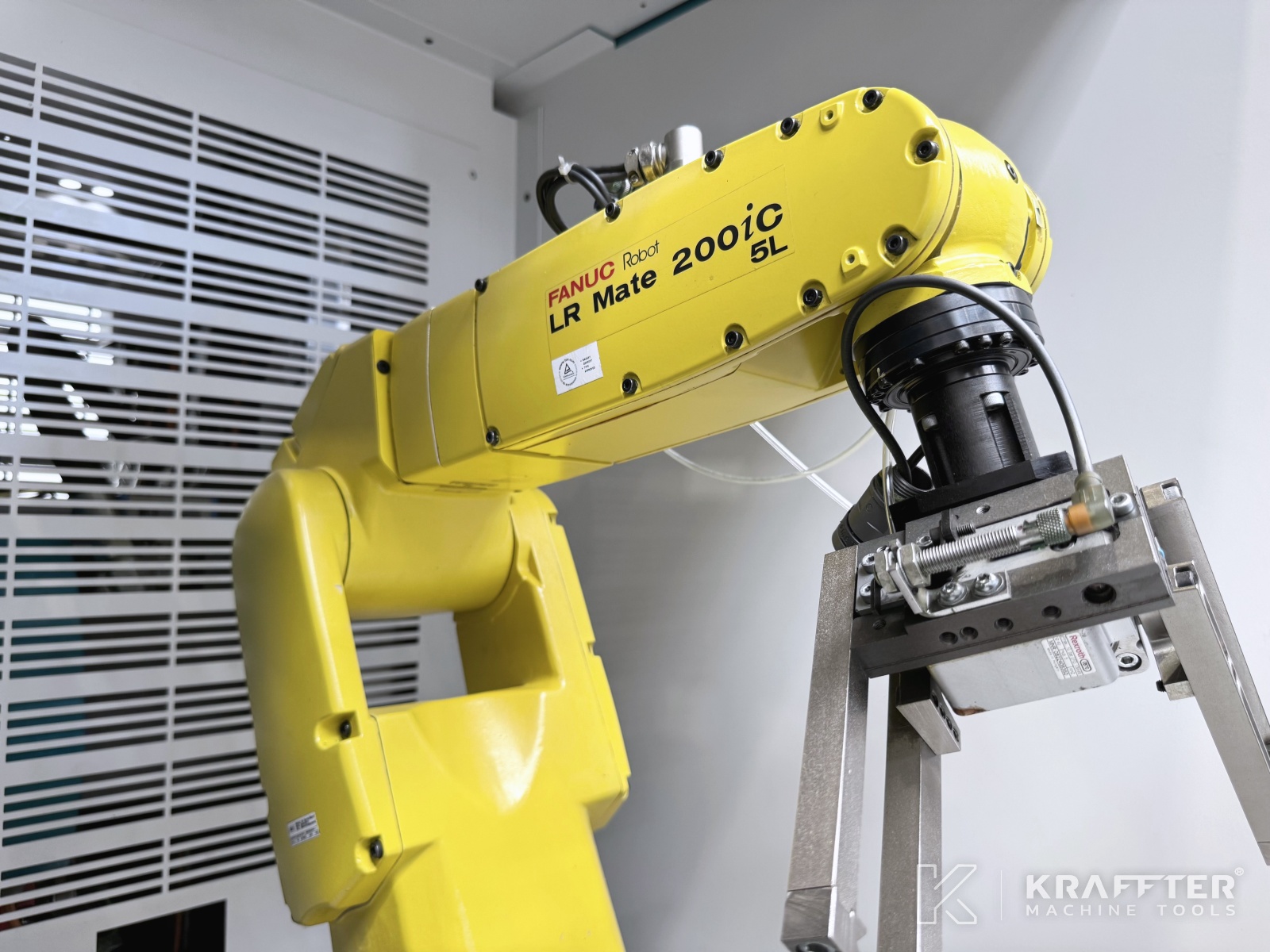

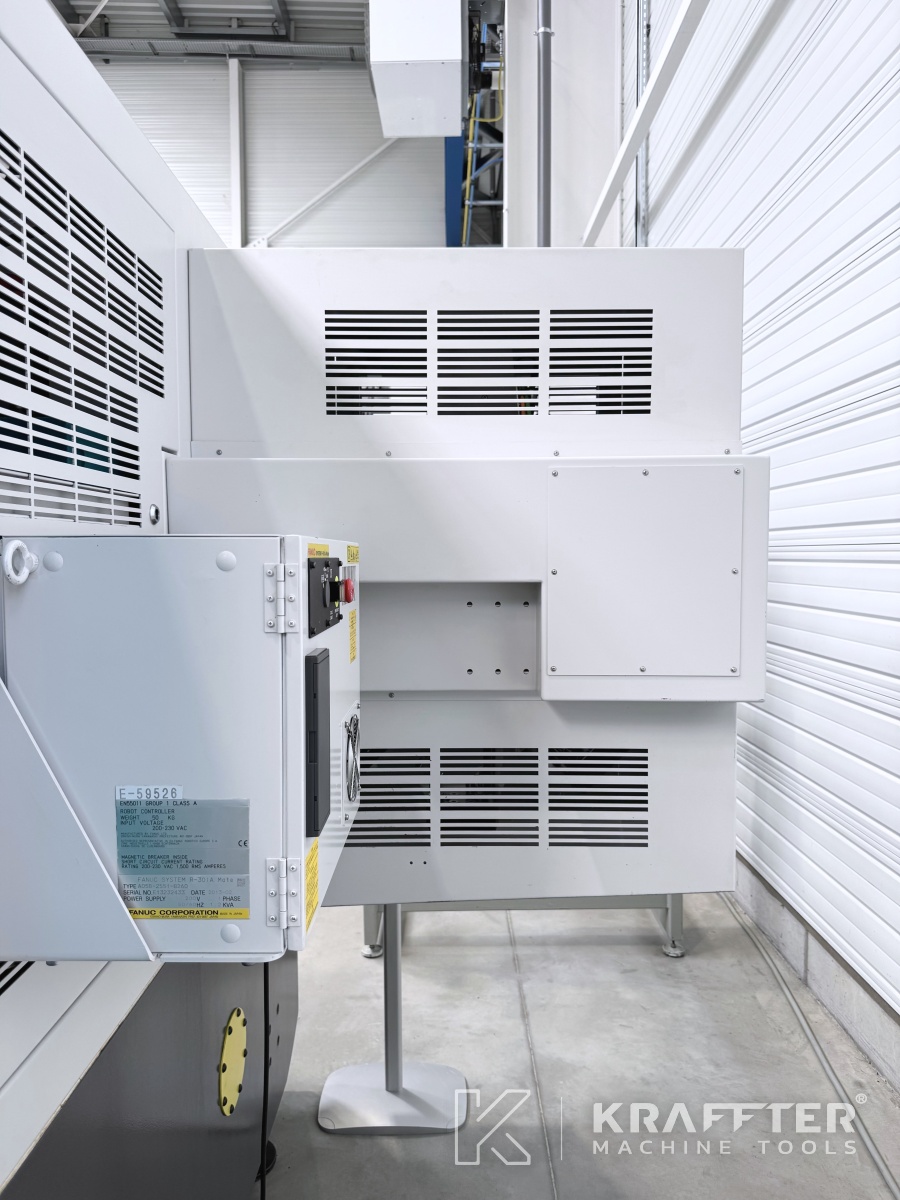

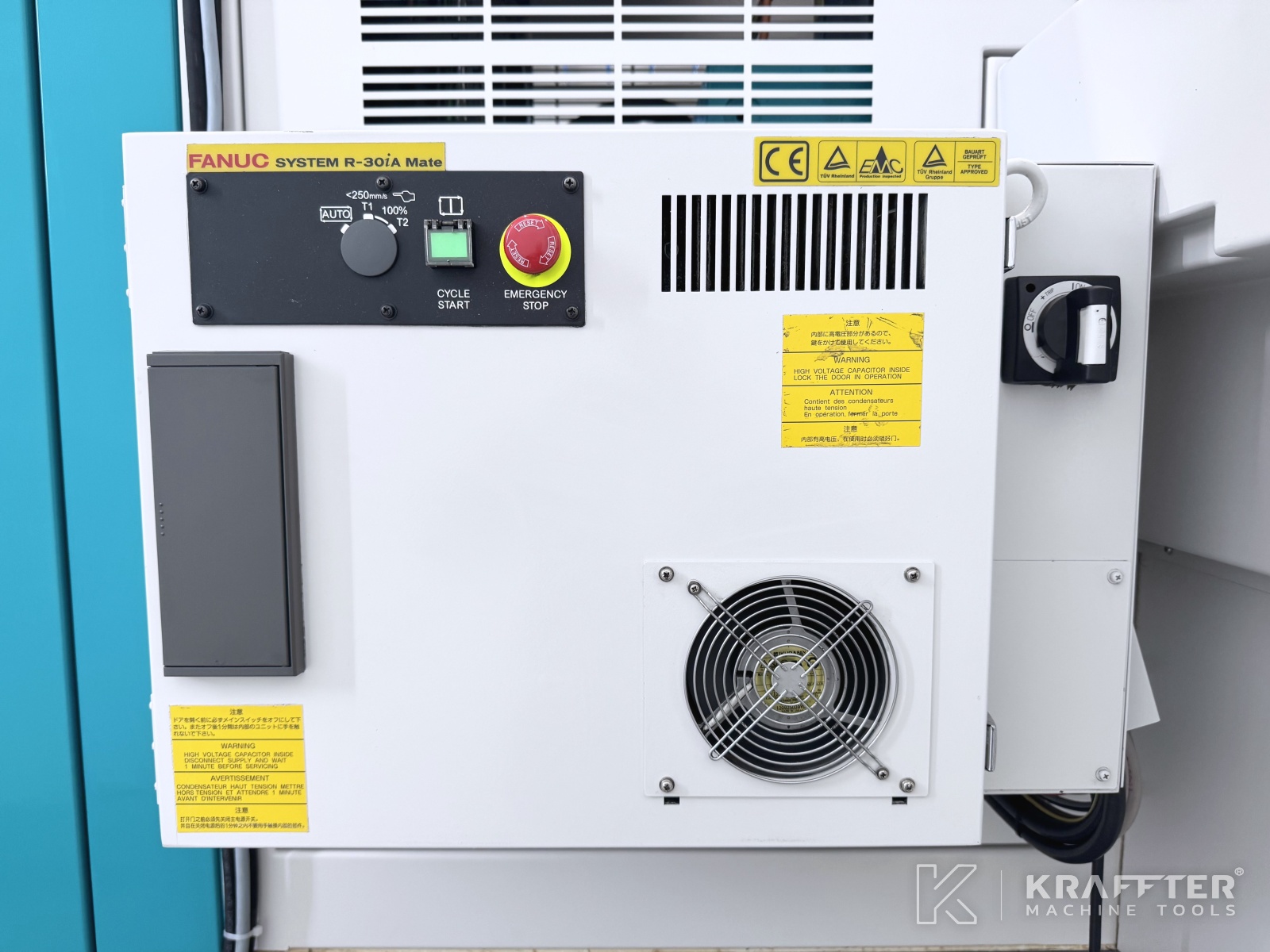

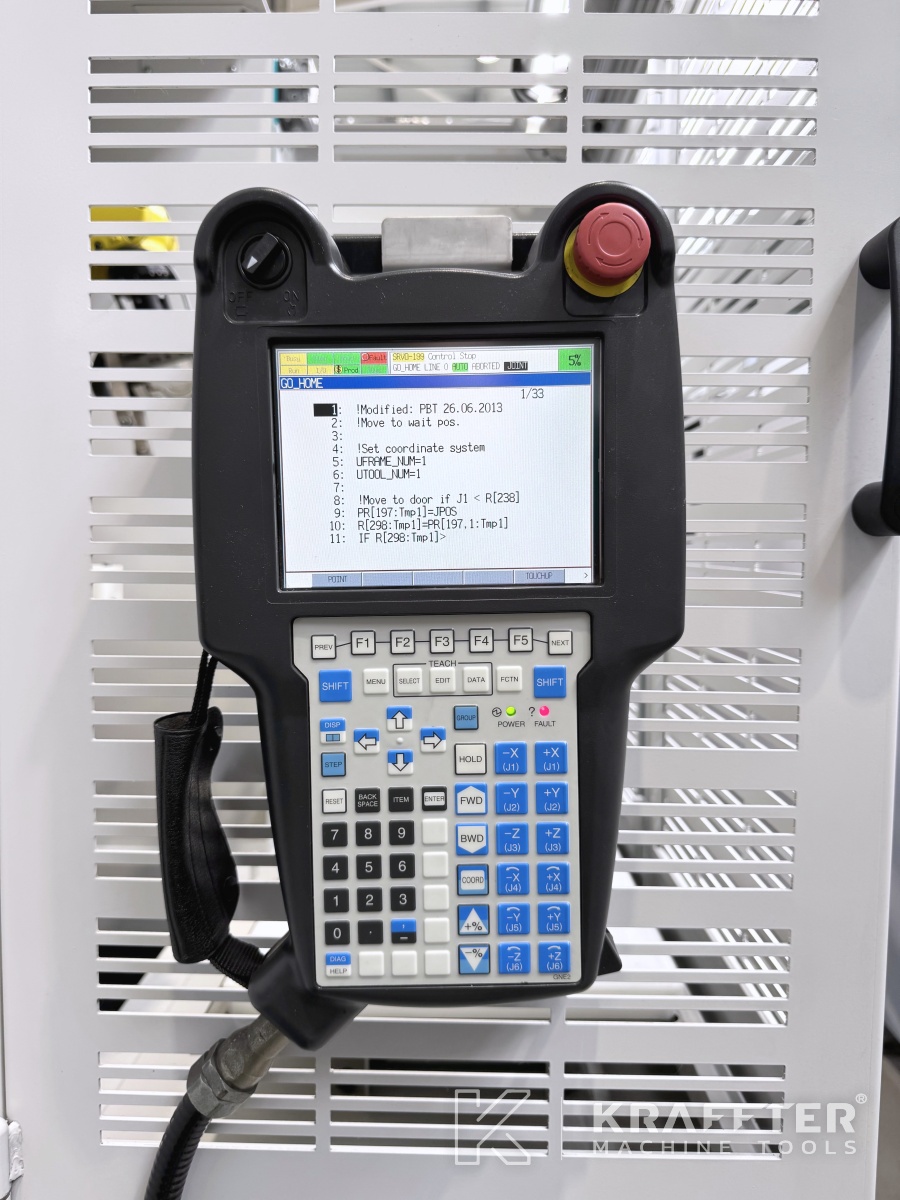

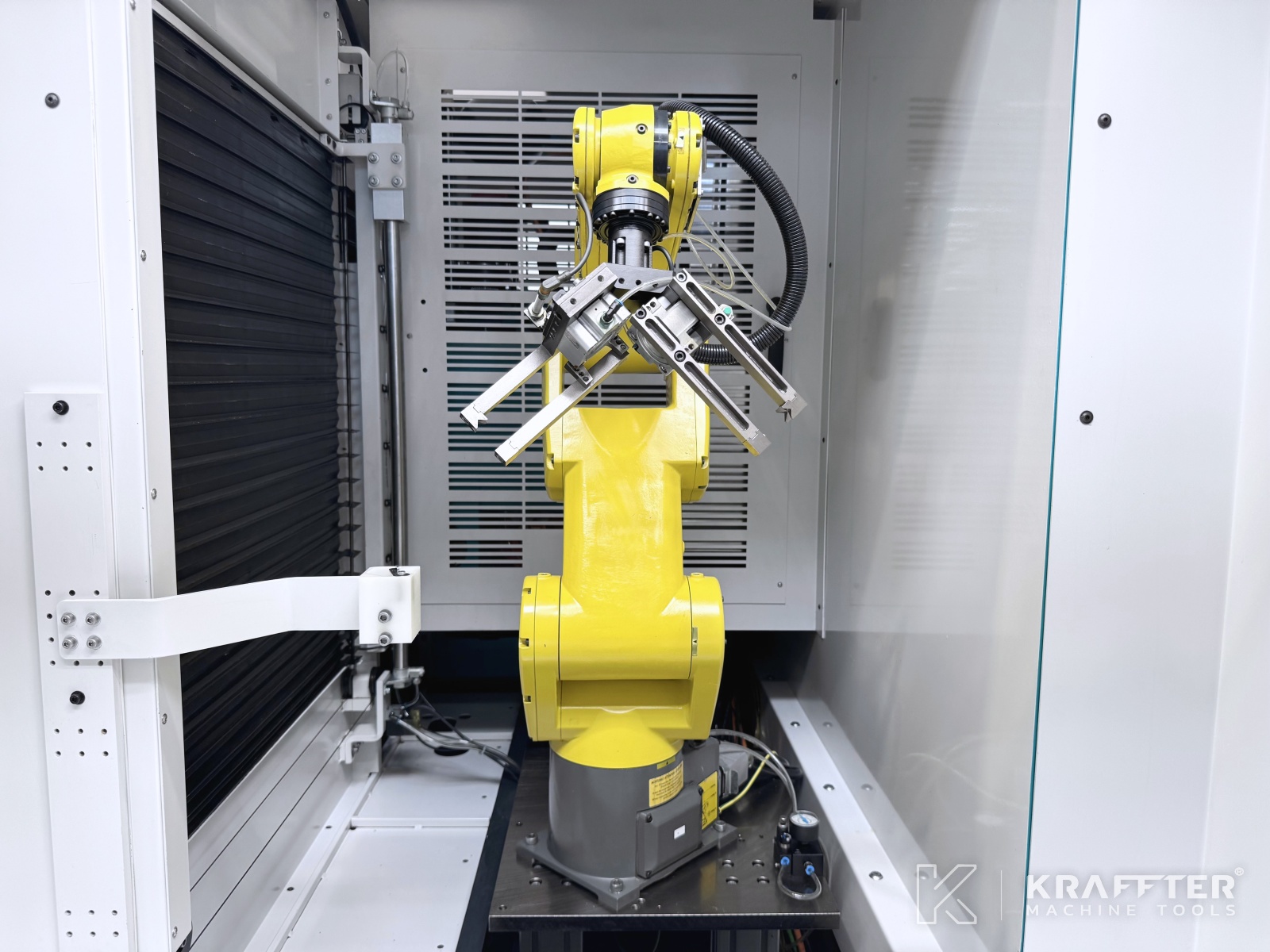

- x1 FANUC LR Mate 200iC 5L 6-axis tool-loading robot
- x1 set of robot grippers

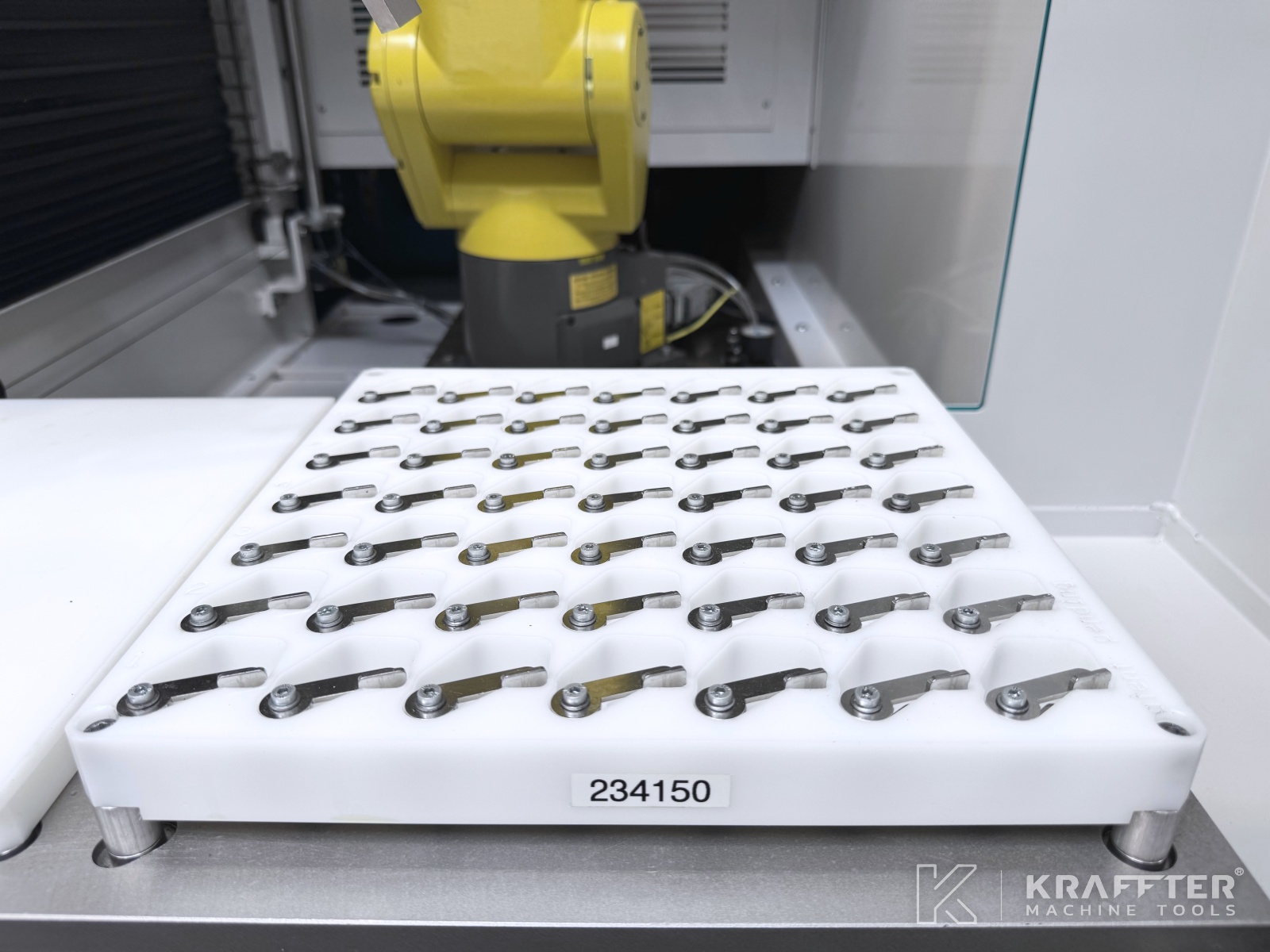

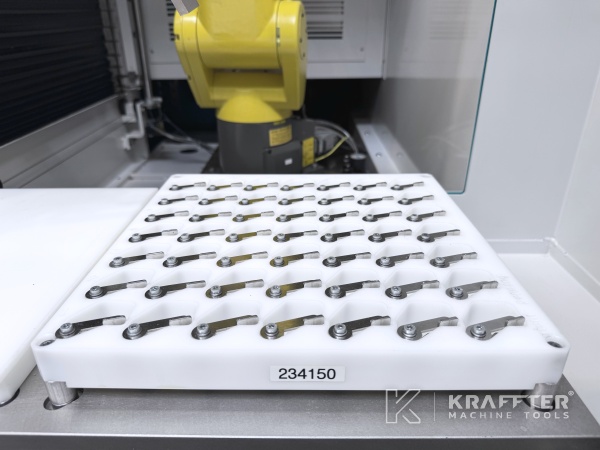

- x1 pallet for robotic tool loading/unloading
- x3 HEIDENHAIN linear scales on the X, Y and Z axes

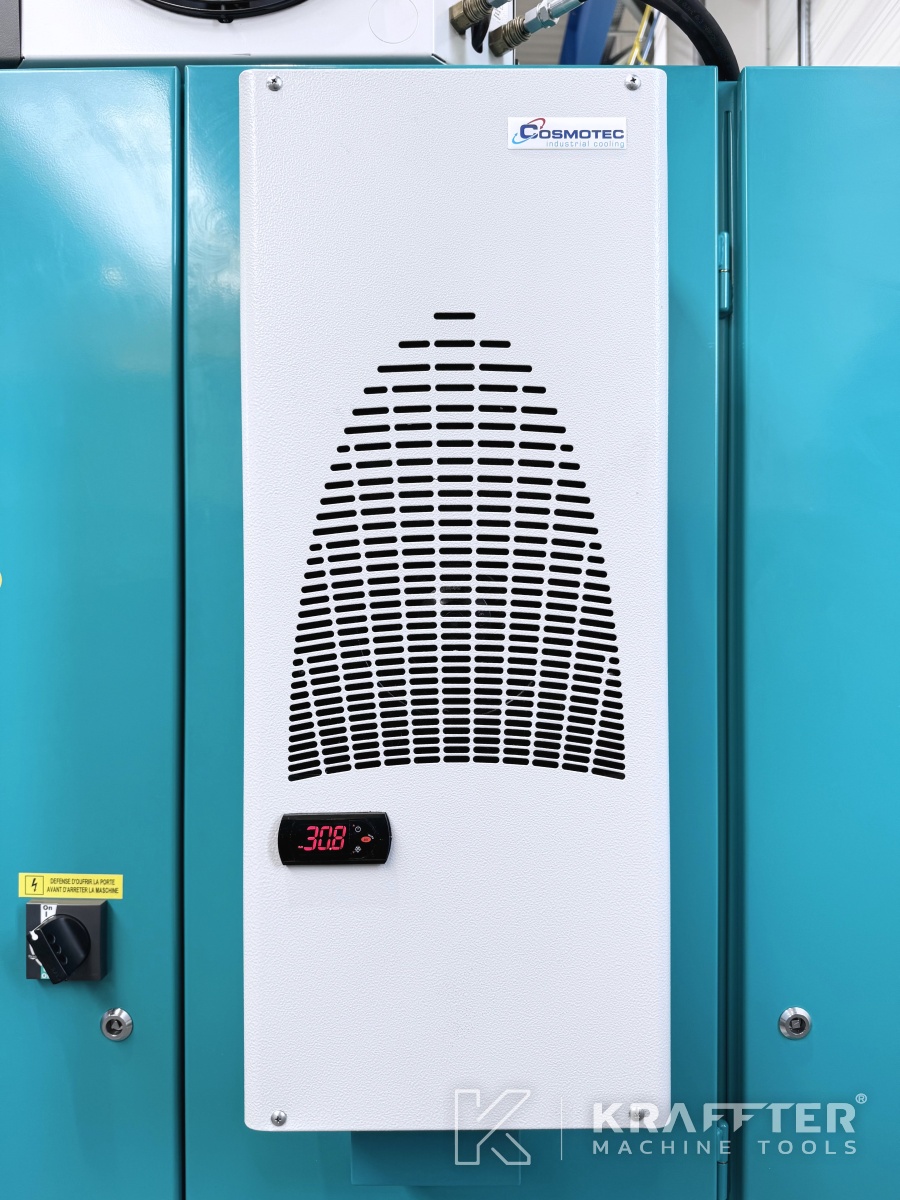

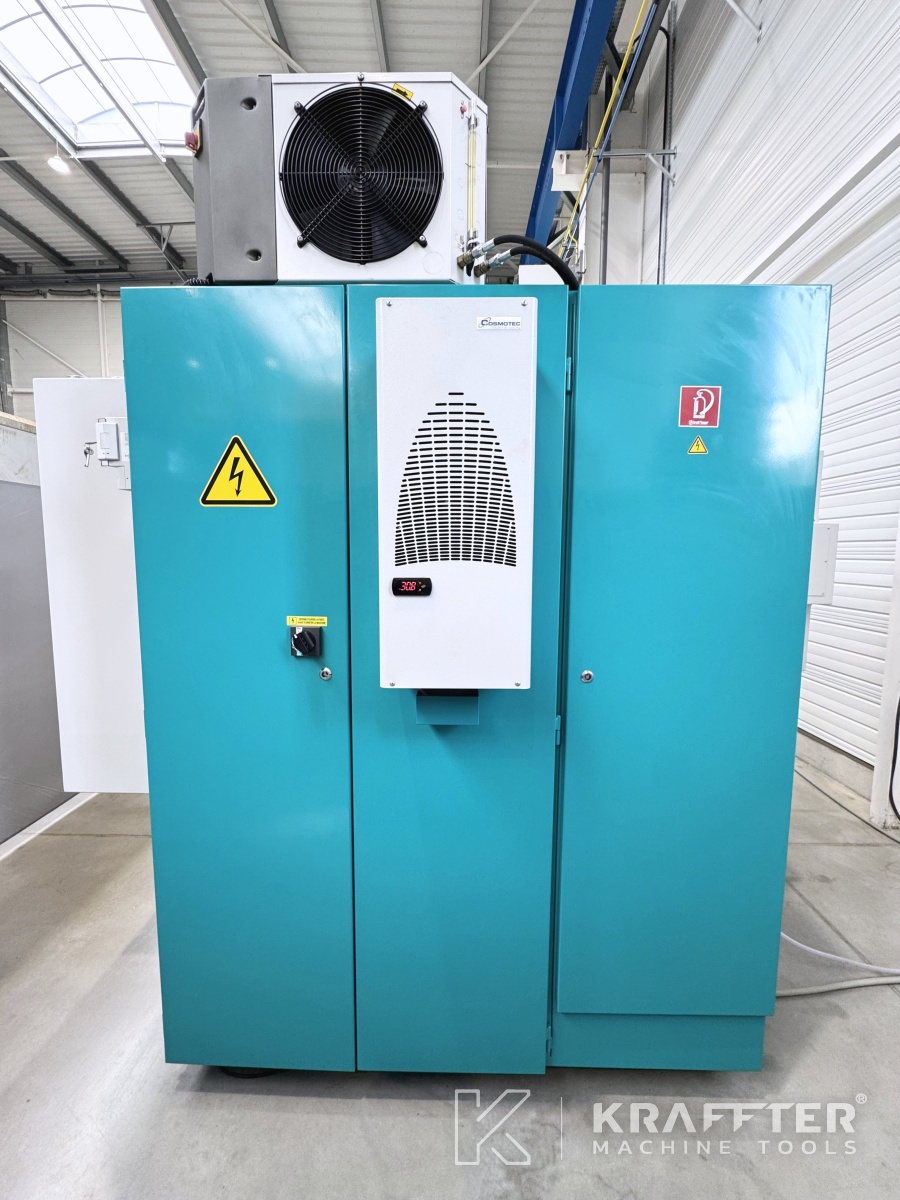

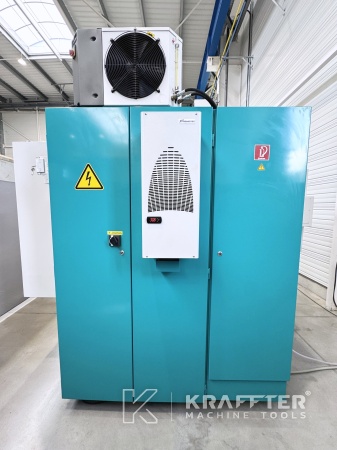

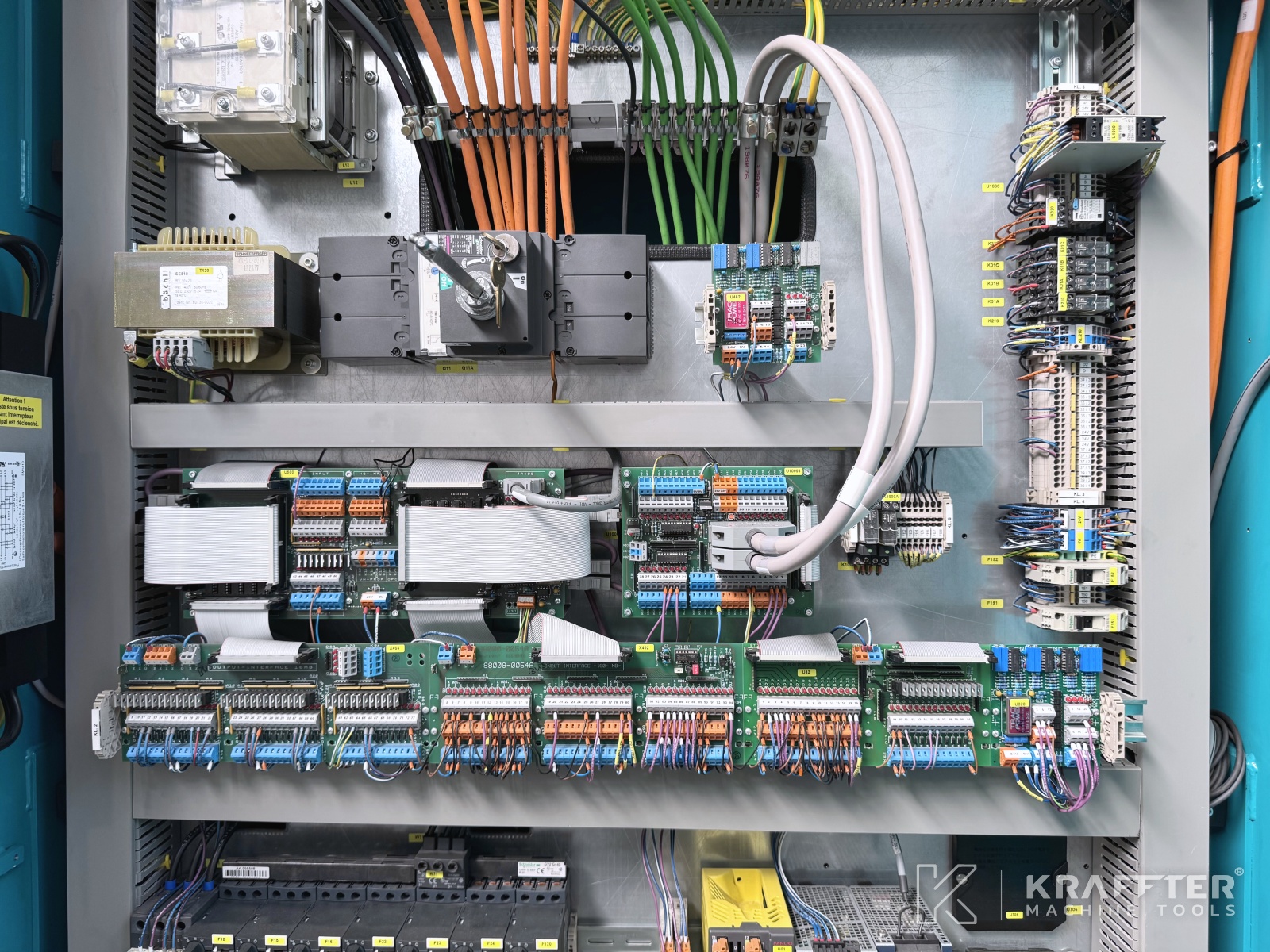

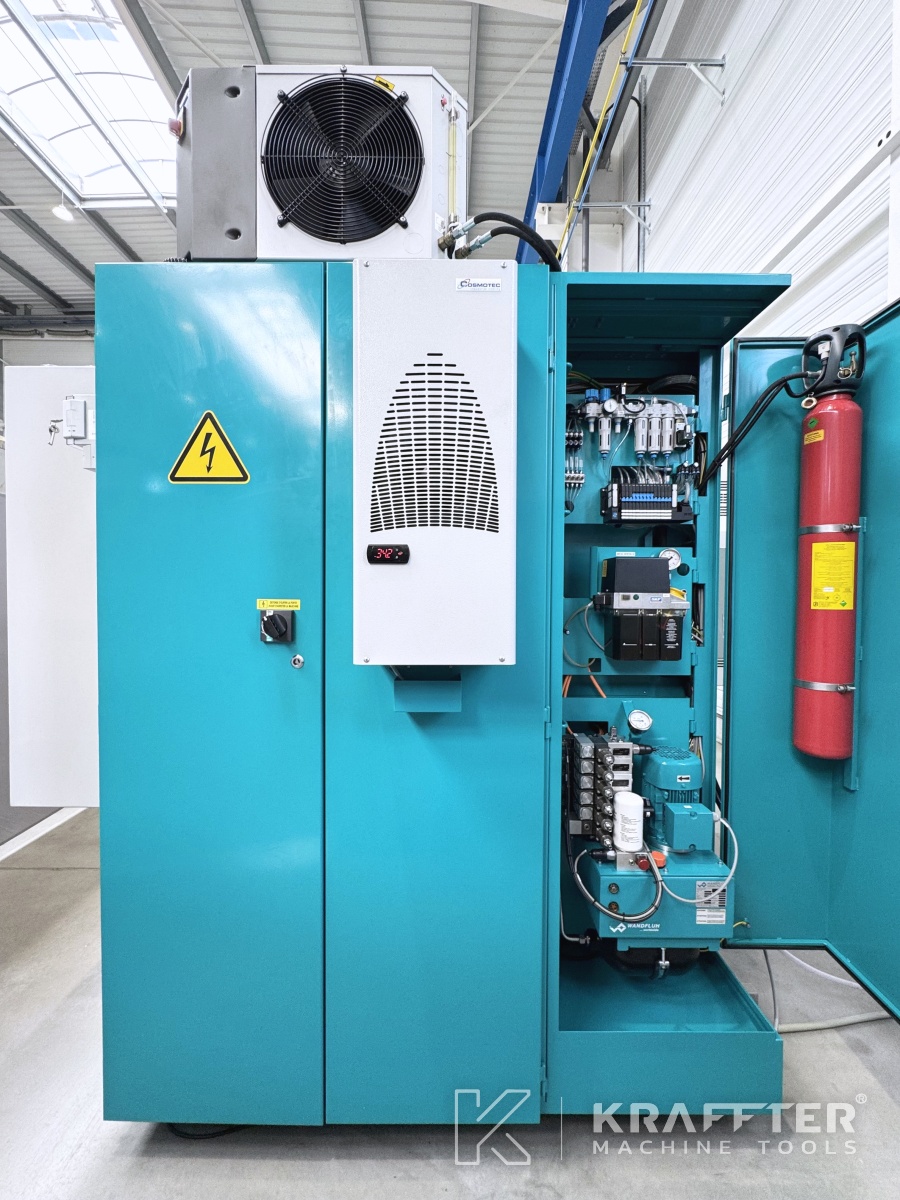

- x1 electrical cabinet air-conditioning unit

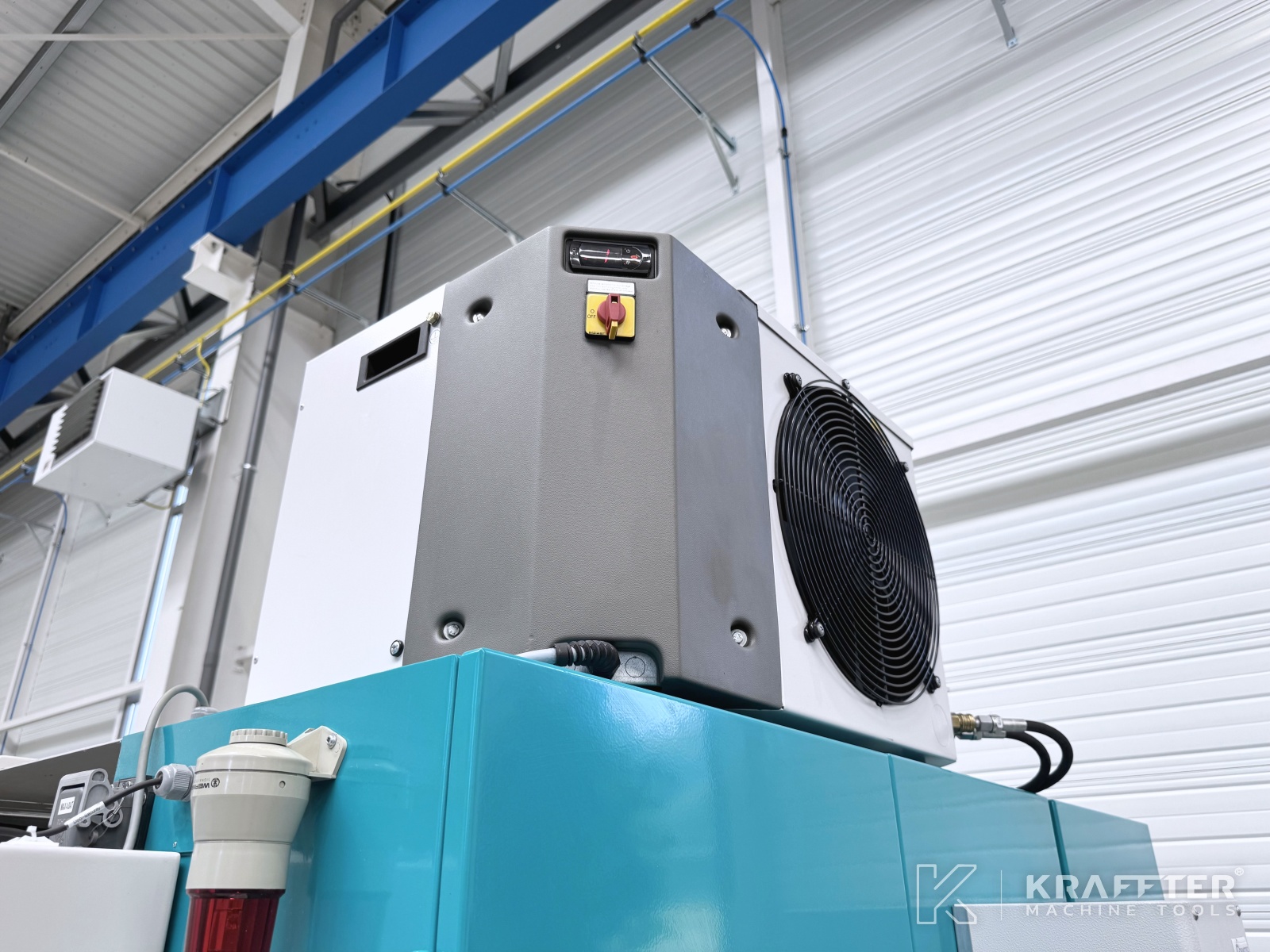

- x1 spindle chiller

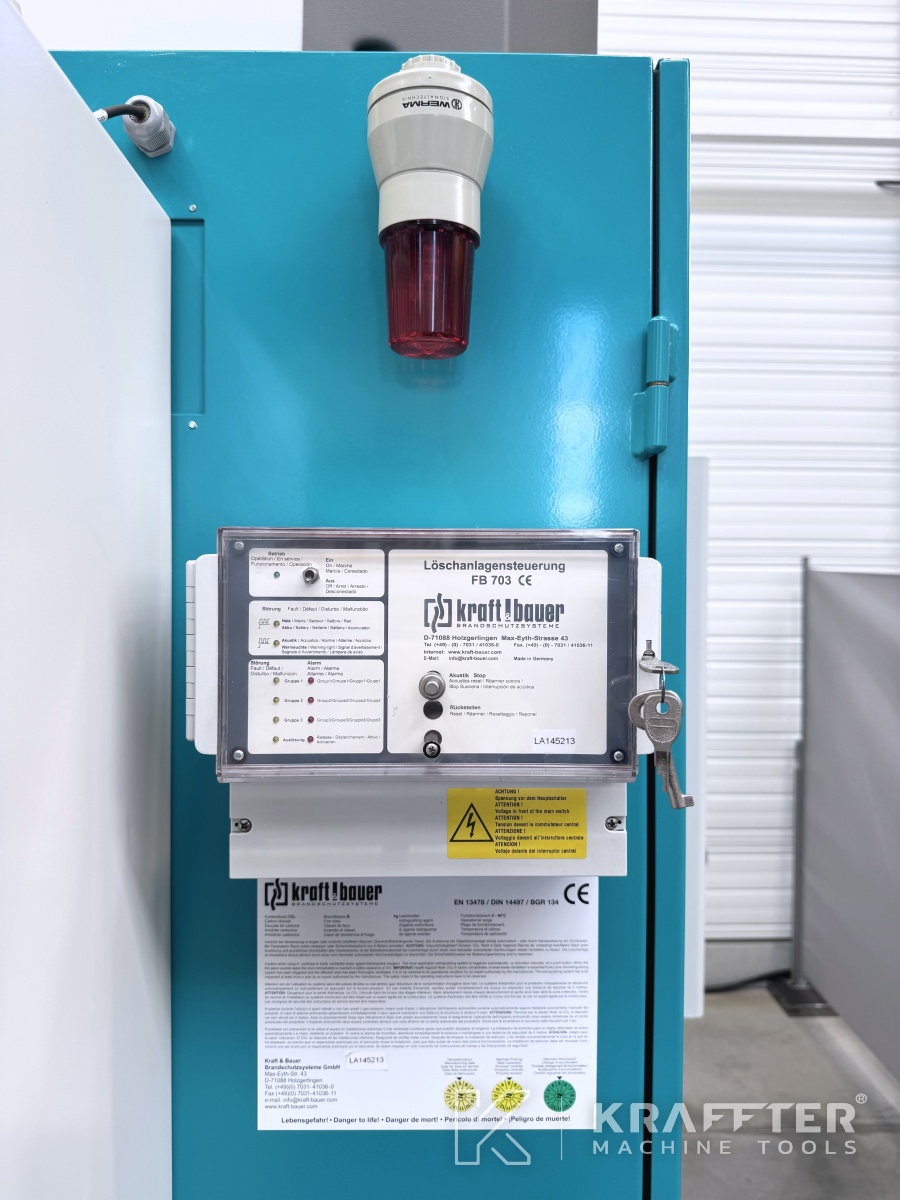

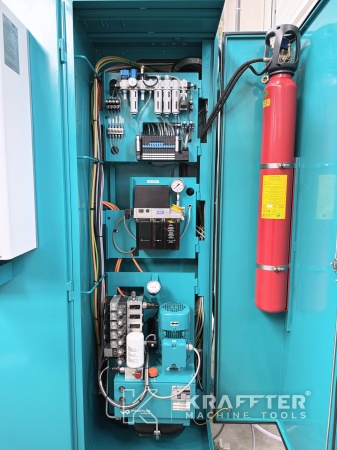

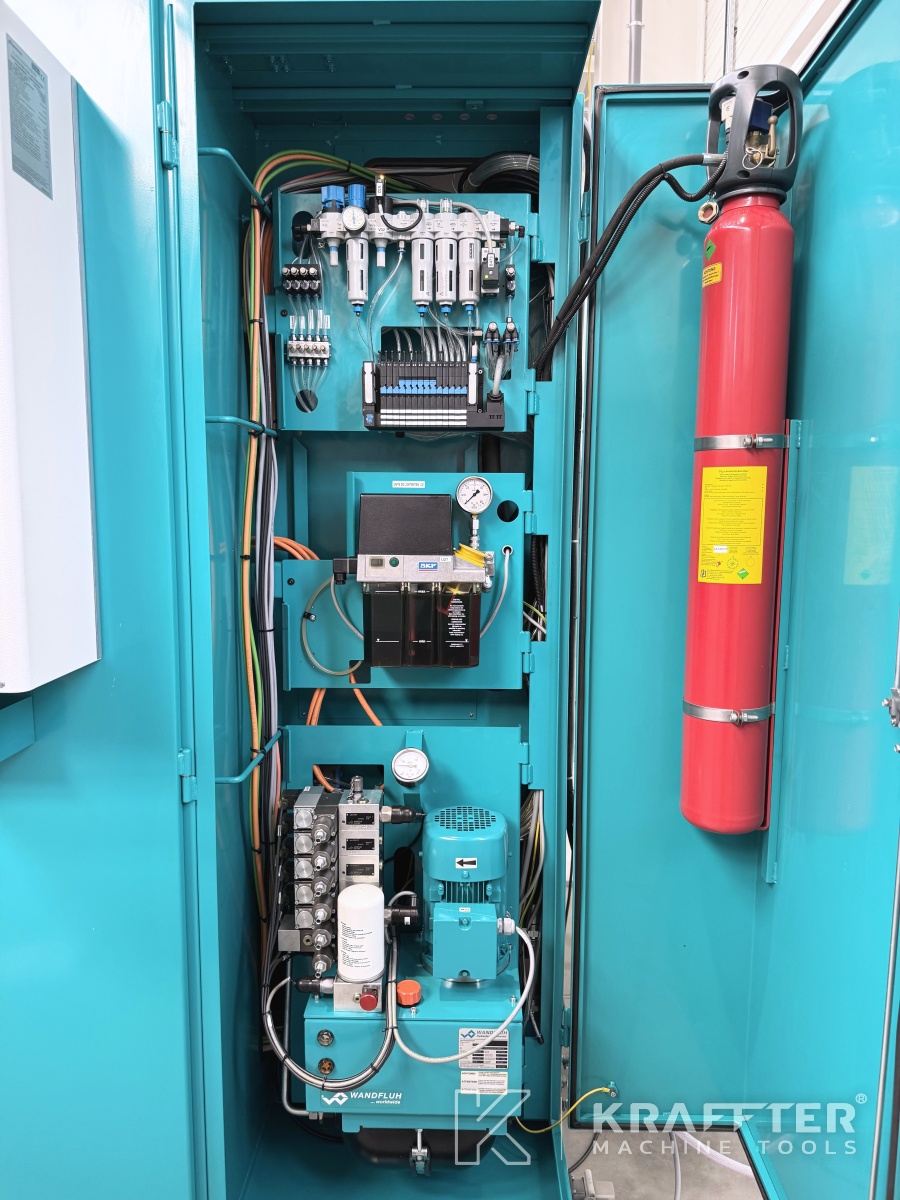

- x1 fire suppression system (to be inspected by the buyer through a qualified organization)

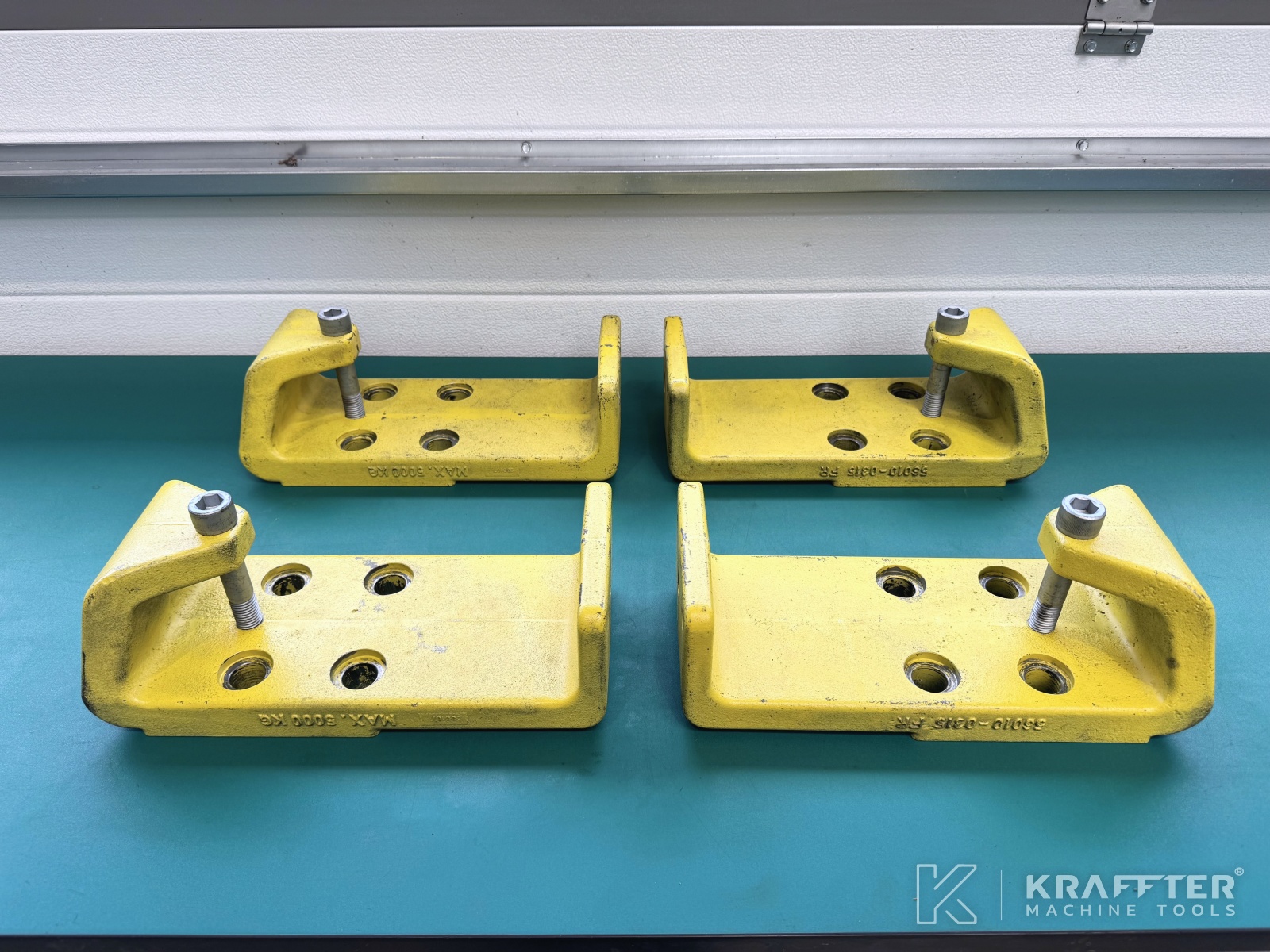

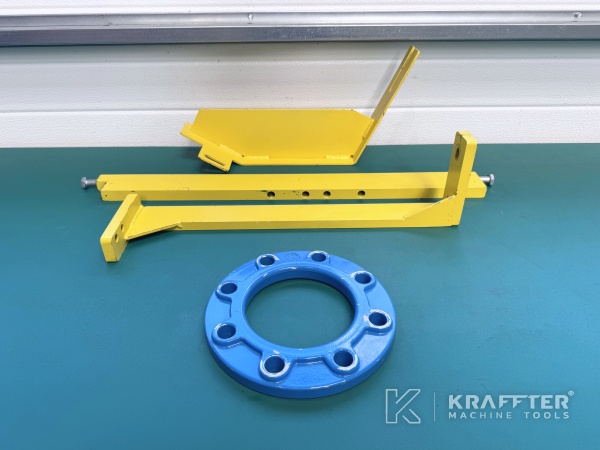

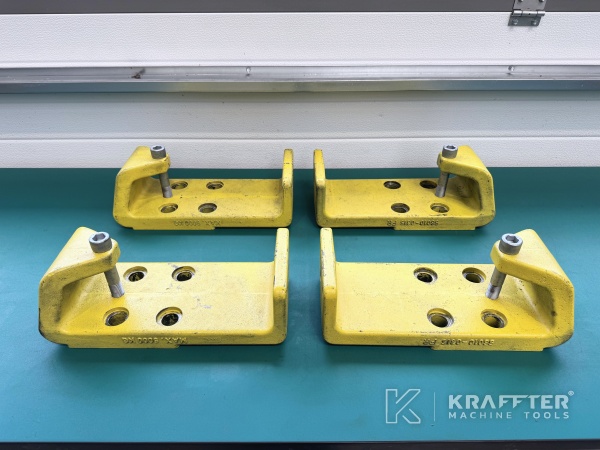

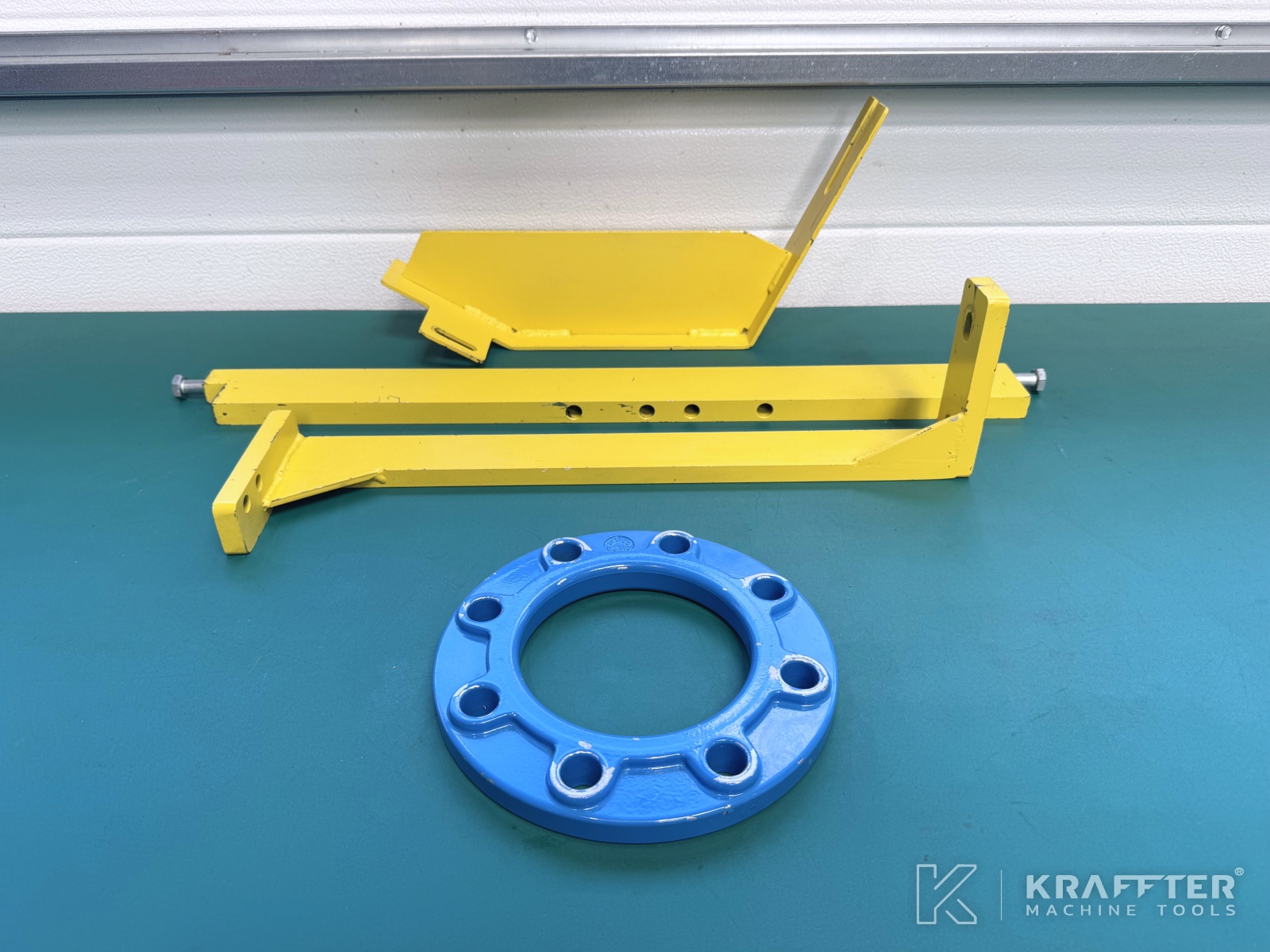

- x1 set of 4 lifting brackets

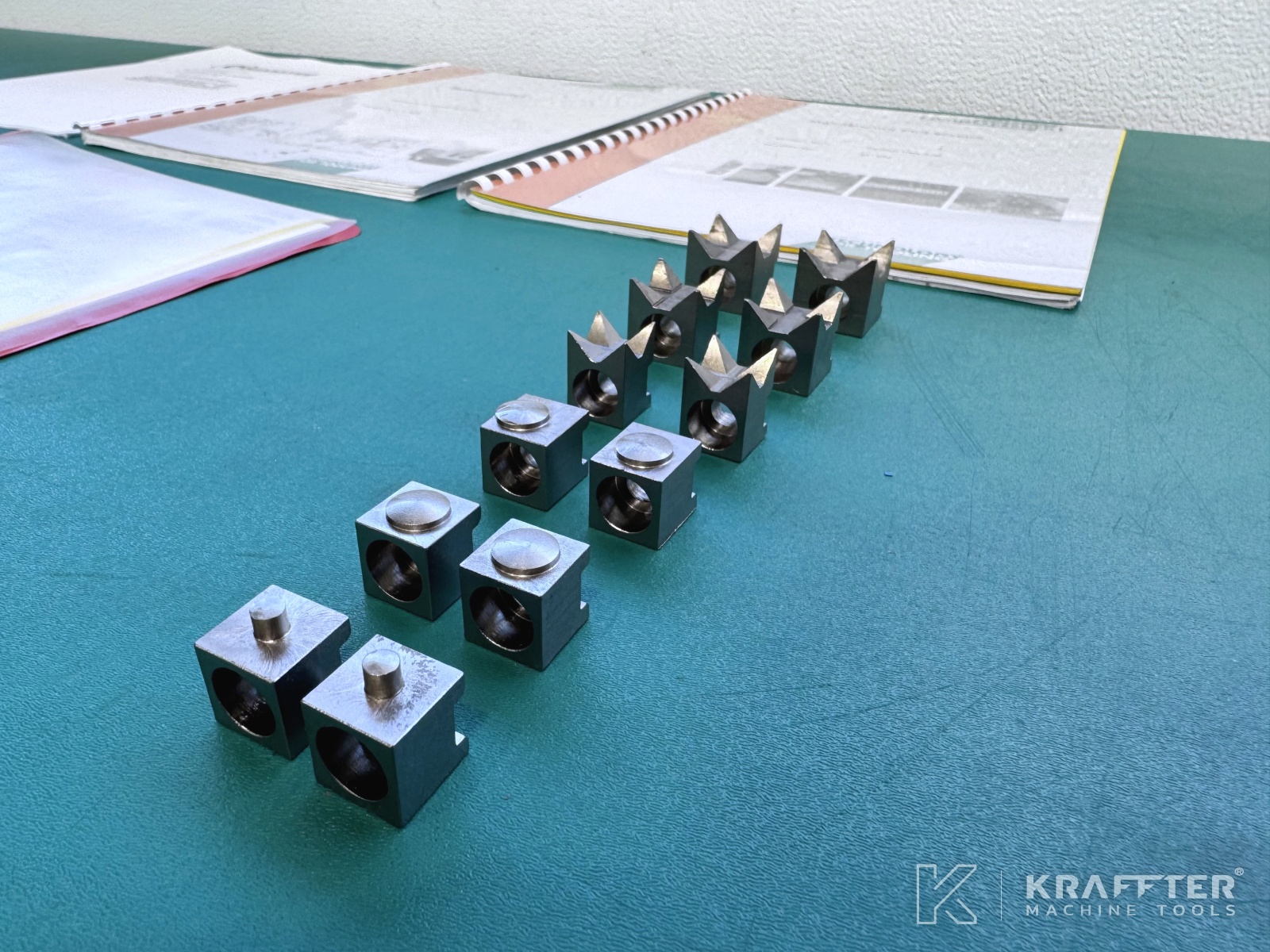

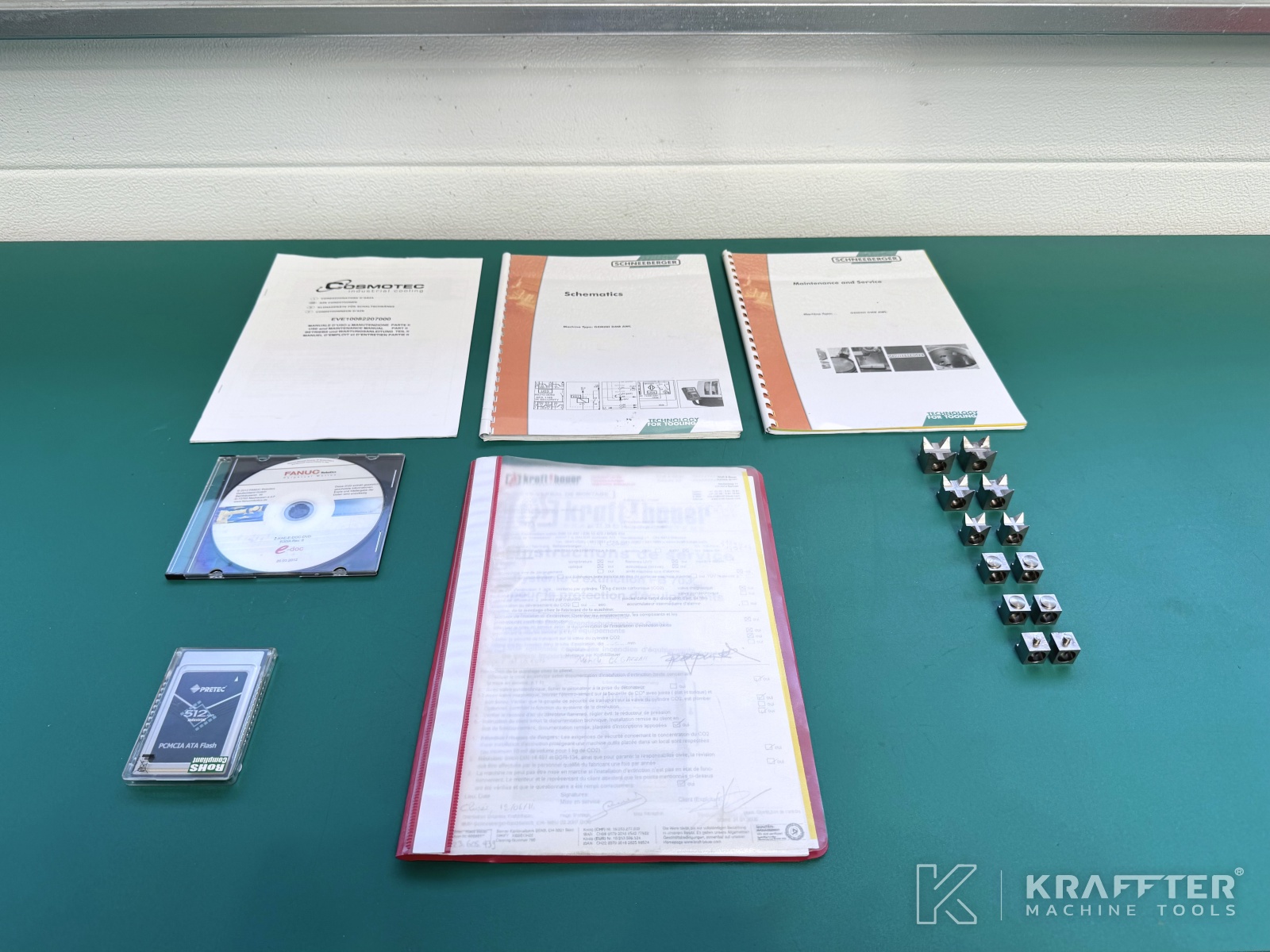

- x1 set of technical manuals
- x1 parameter backup on USB flash drive
*The SCHUNK collet holder and the 2 grinding wheel holders shown in the photos are not included
