New in stock

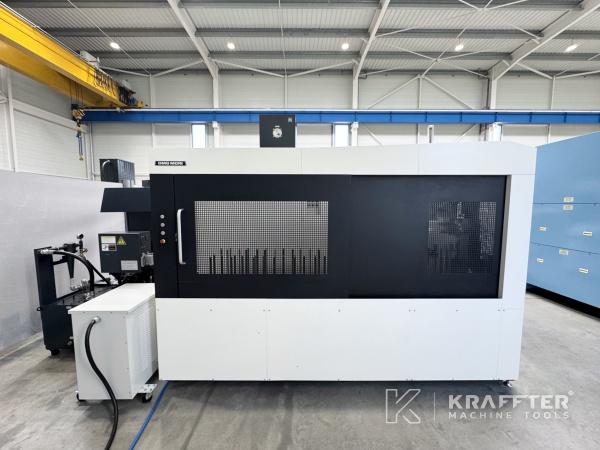

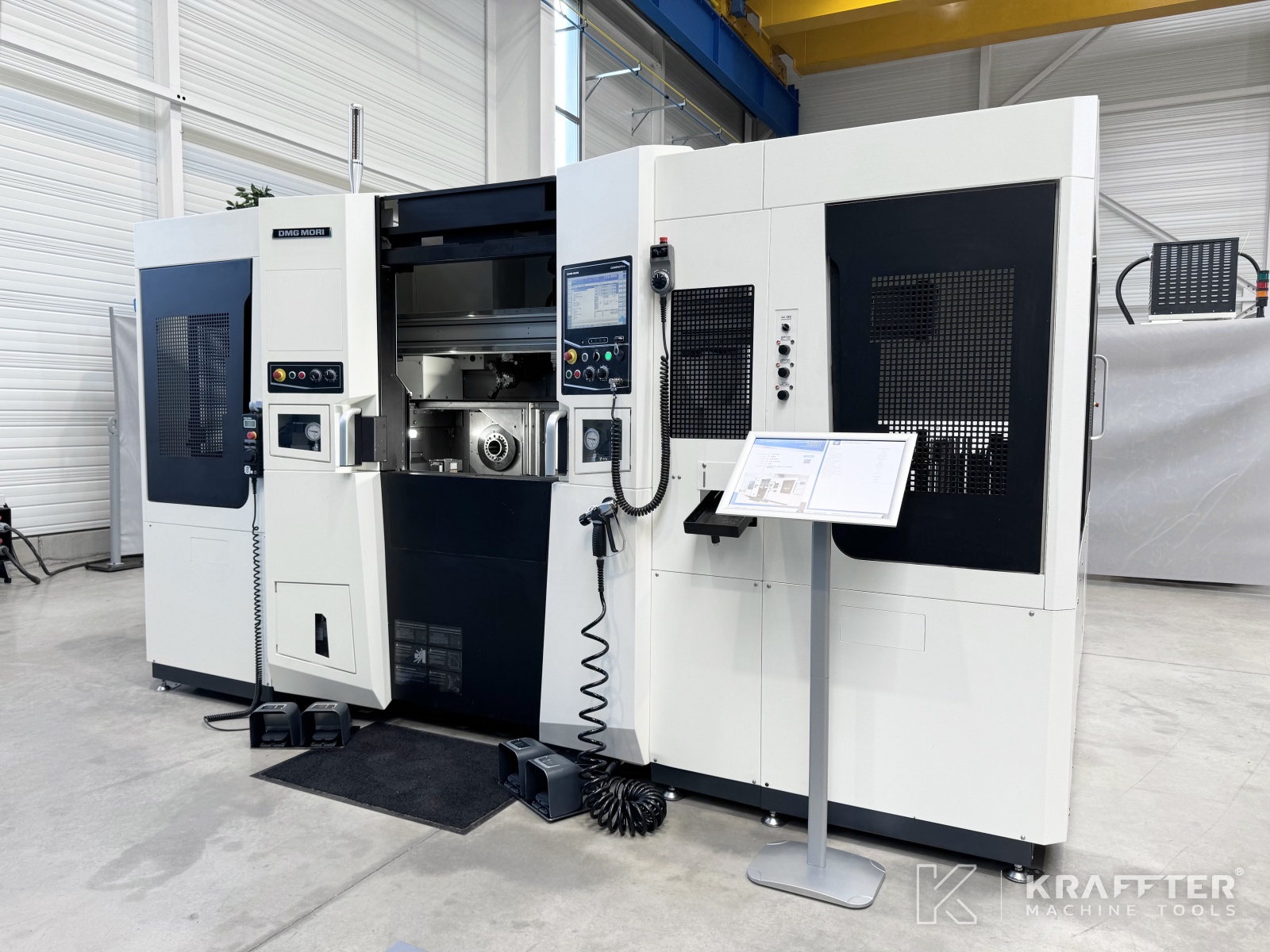

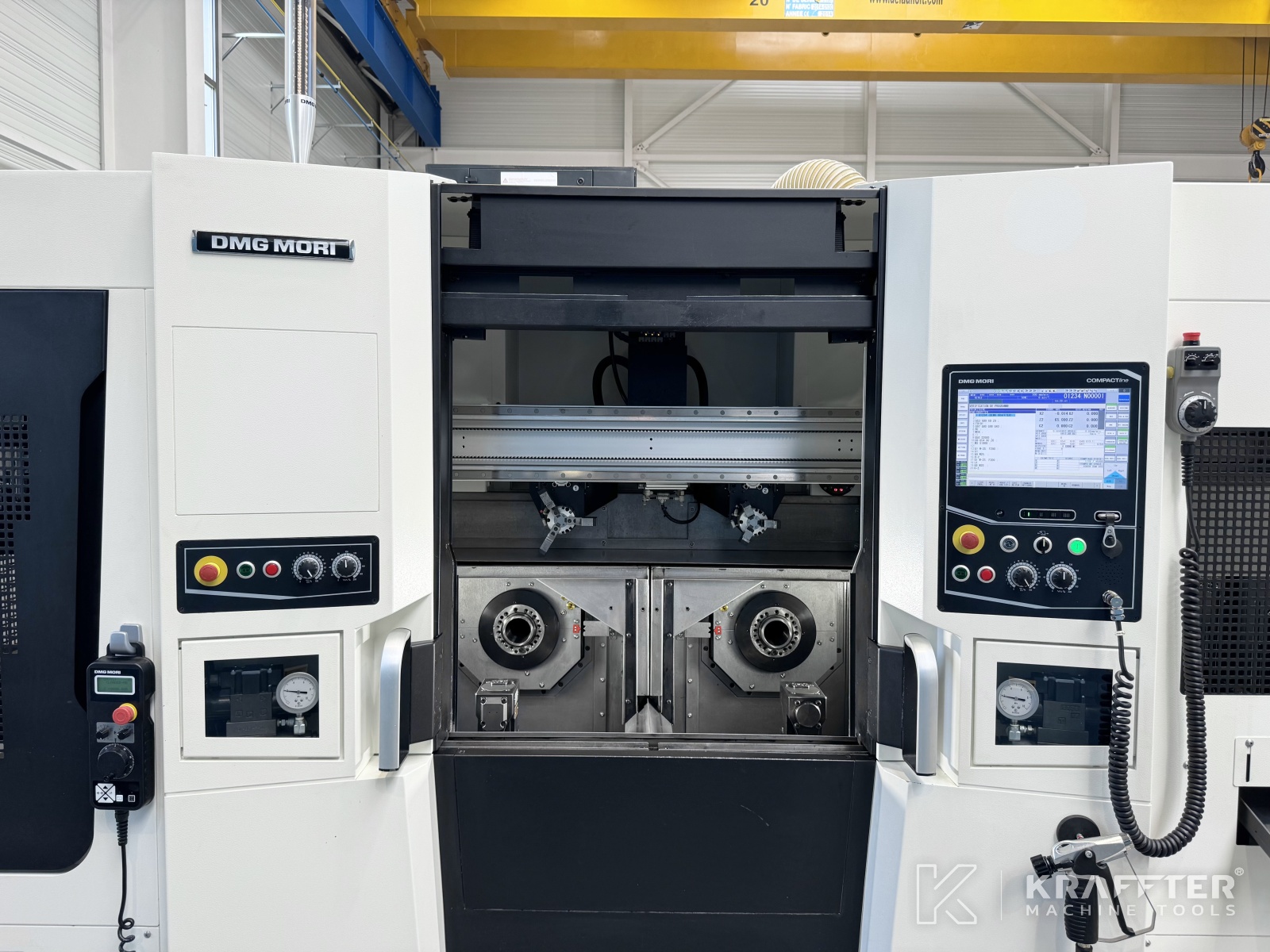

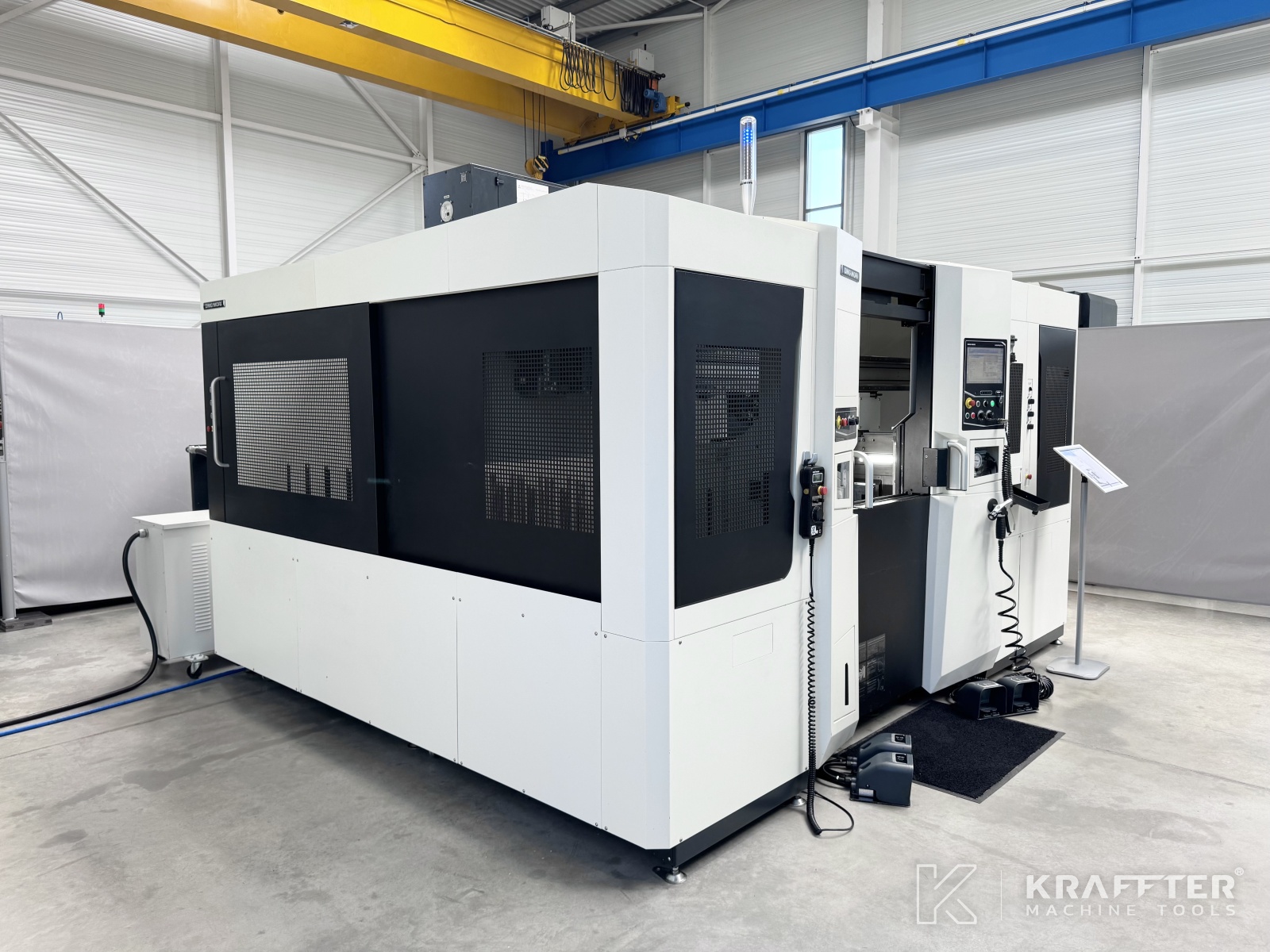

Type of machine : CNC lathe
Brand : DMG MORI
N° de stock: 90179
Model : NRX 2000 MC
Year : 2017
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Request a quotation
Technical characteristics

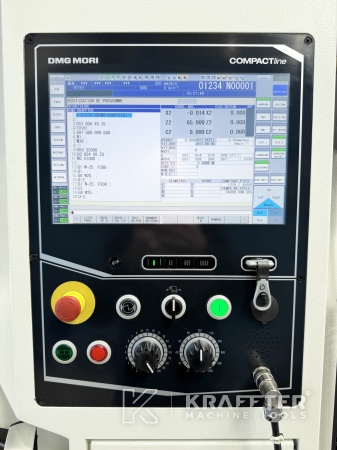

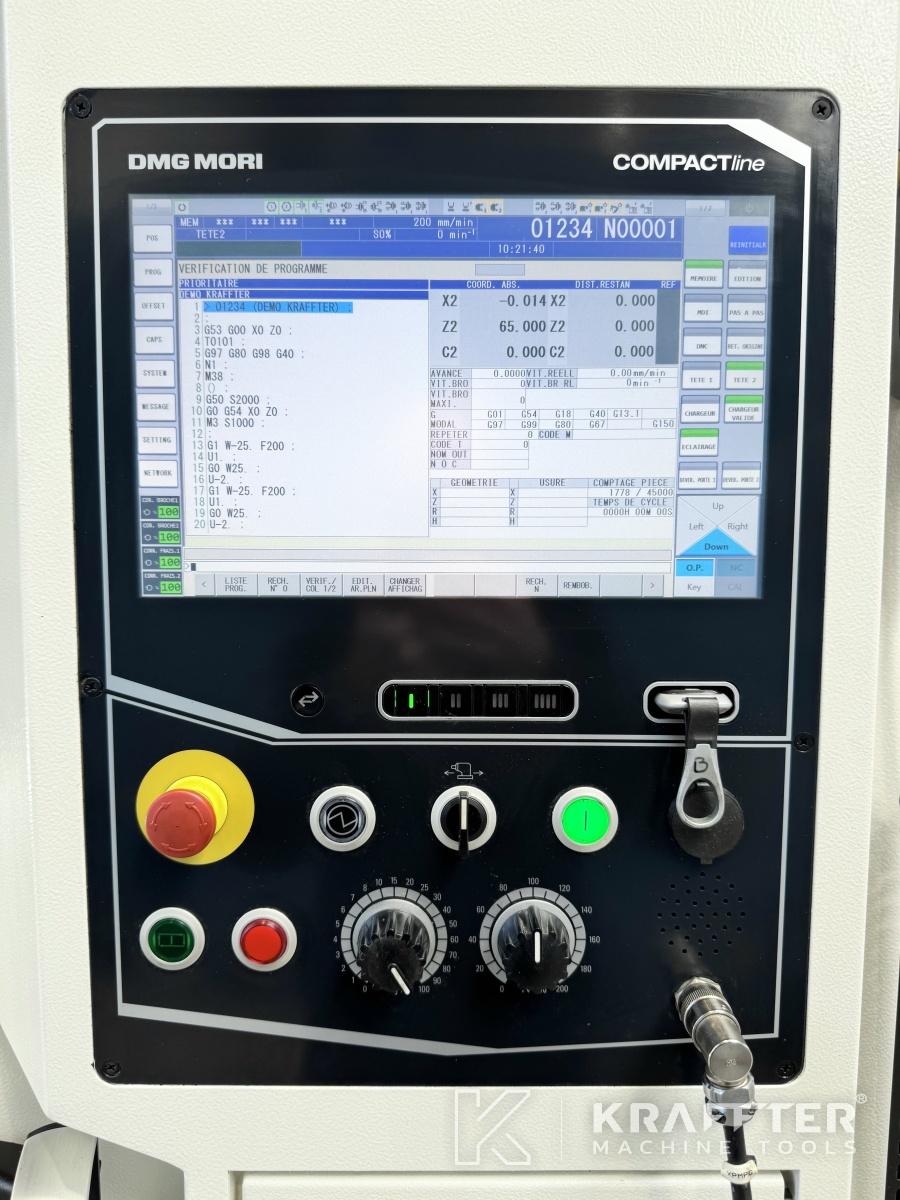

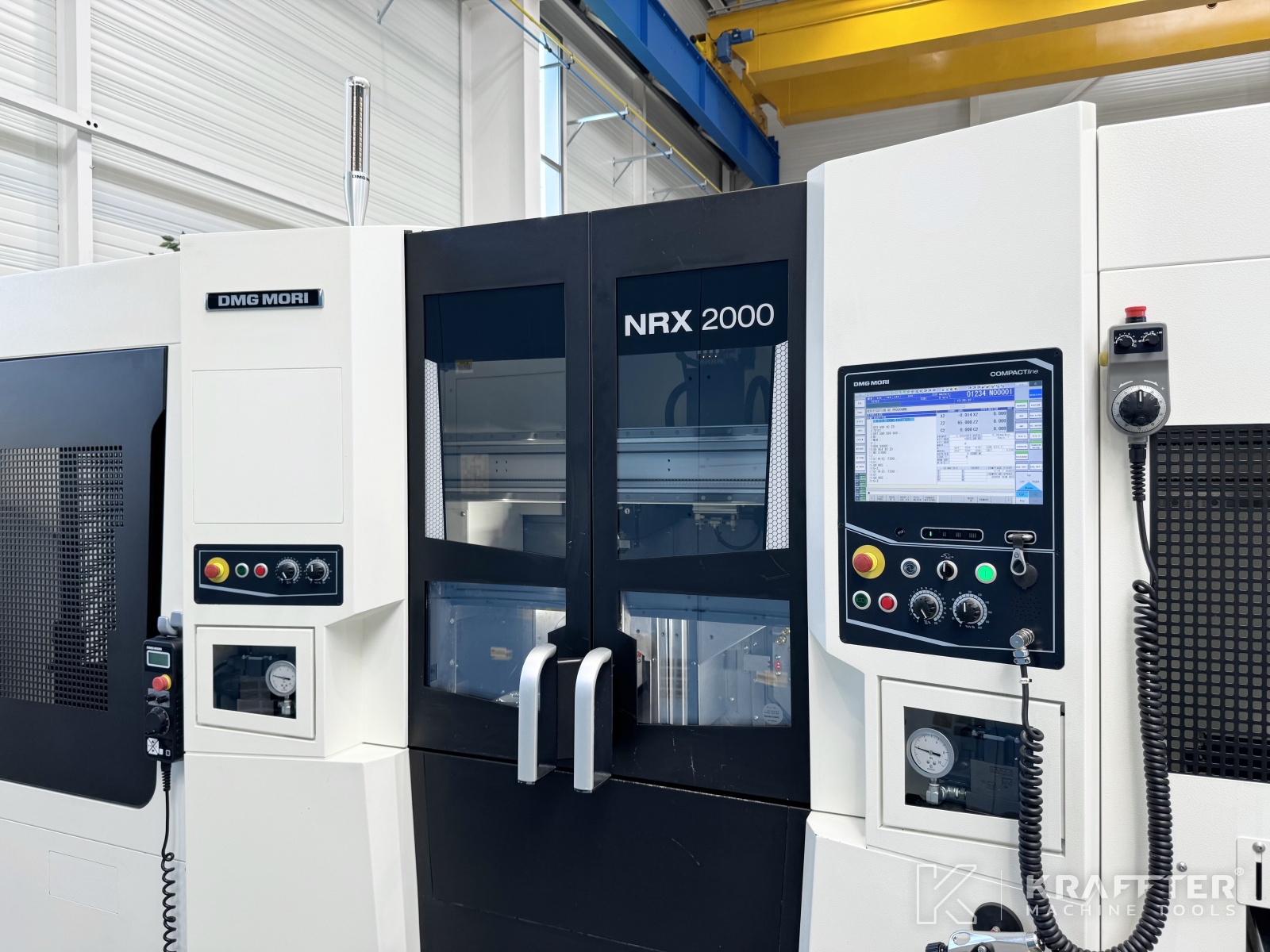

CNC control
MITSUBISHI M730UM
Max. turning diameter
150 [mm]
Stroke X axis
100 [mm]
Stroke Z axis
220 [mm]
Rapid traverse rate X1 axis
30000 [mm/min]
Rapid traverse rate X2 axis
30000 [mm/min]
Rapid traverse rate Z1 axis
30000 [mm/min]
Rapid traverse rate Z2 axis
30000 [mm/min]

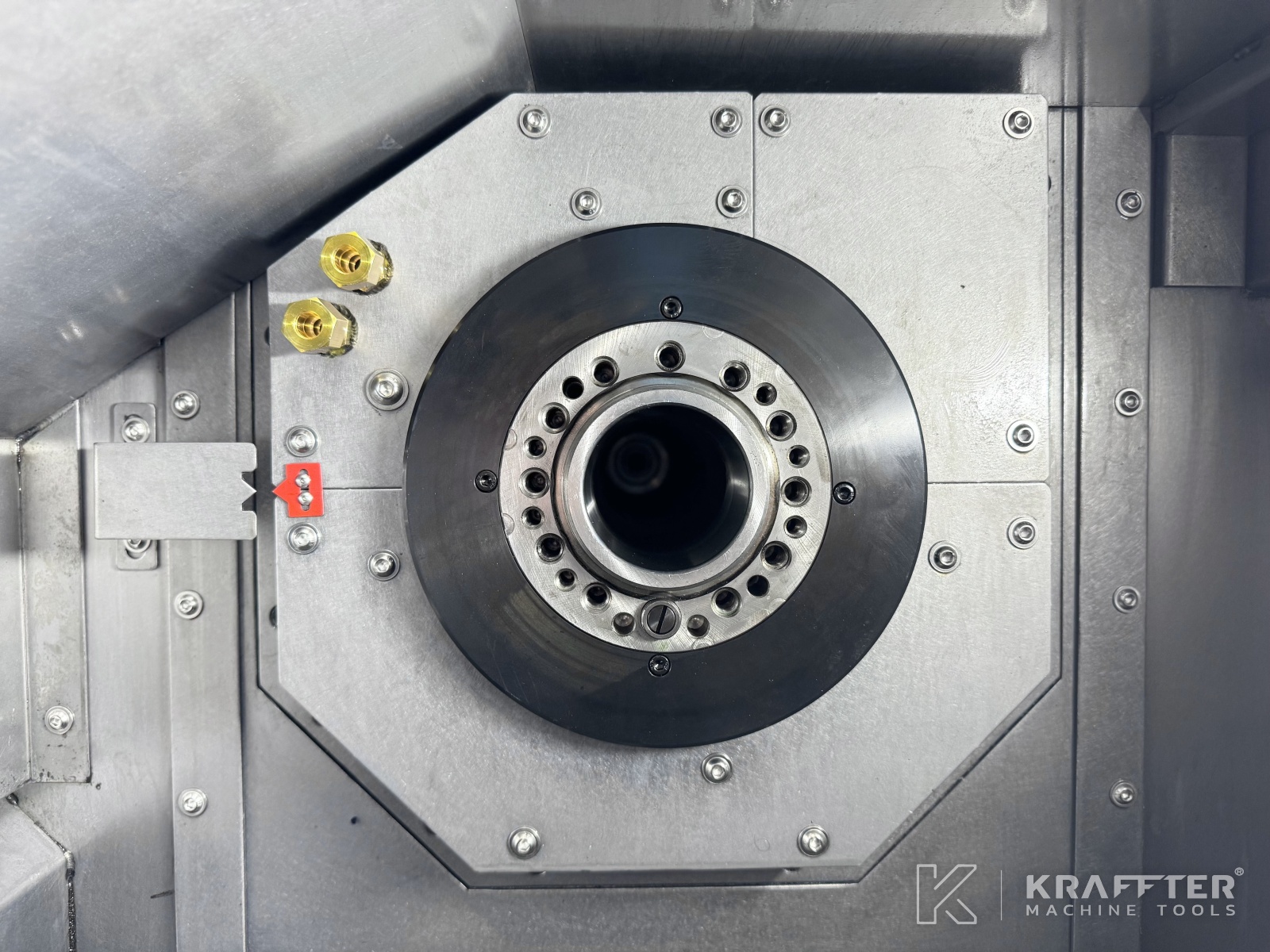

Spindle nose
JIS A2-5
Max. machining length spindle 1
100 [mm]
Max. machining length spindle 2
100 [mm]
Max. spindle speed - Spindle 1
6000 [rpm]
Max. spindle speed - Spindle 2
6000 [rpm]
Live tools power - Turret 1
1.5 [kW]
Live tools power - Turret 2
1.2 [kW]
Number of tool stations - Turret 1
10
Max. speed driven tools - Turret 1
10000 [rpm]
Number of tool stations - Turret 2
10
Max. speed driven tools - Turret 2
10000 [rpm]
Total power required
38 [kVA]
Supply voltage
400 [V]
Working hours
12270 [h]
Weight
5700 [Kg]
Additional information
INCLUDED EQUIPMENT:

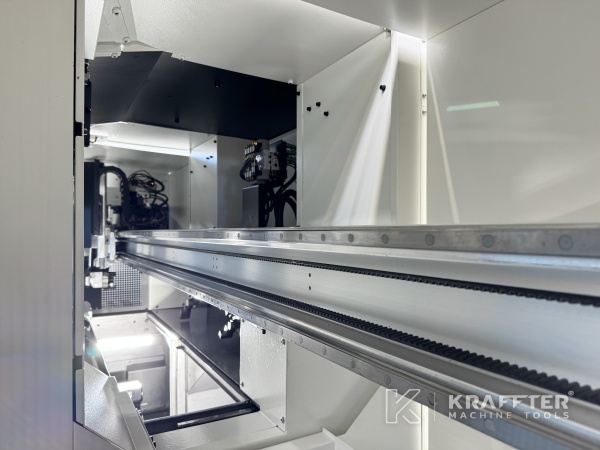

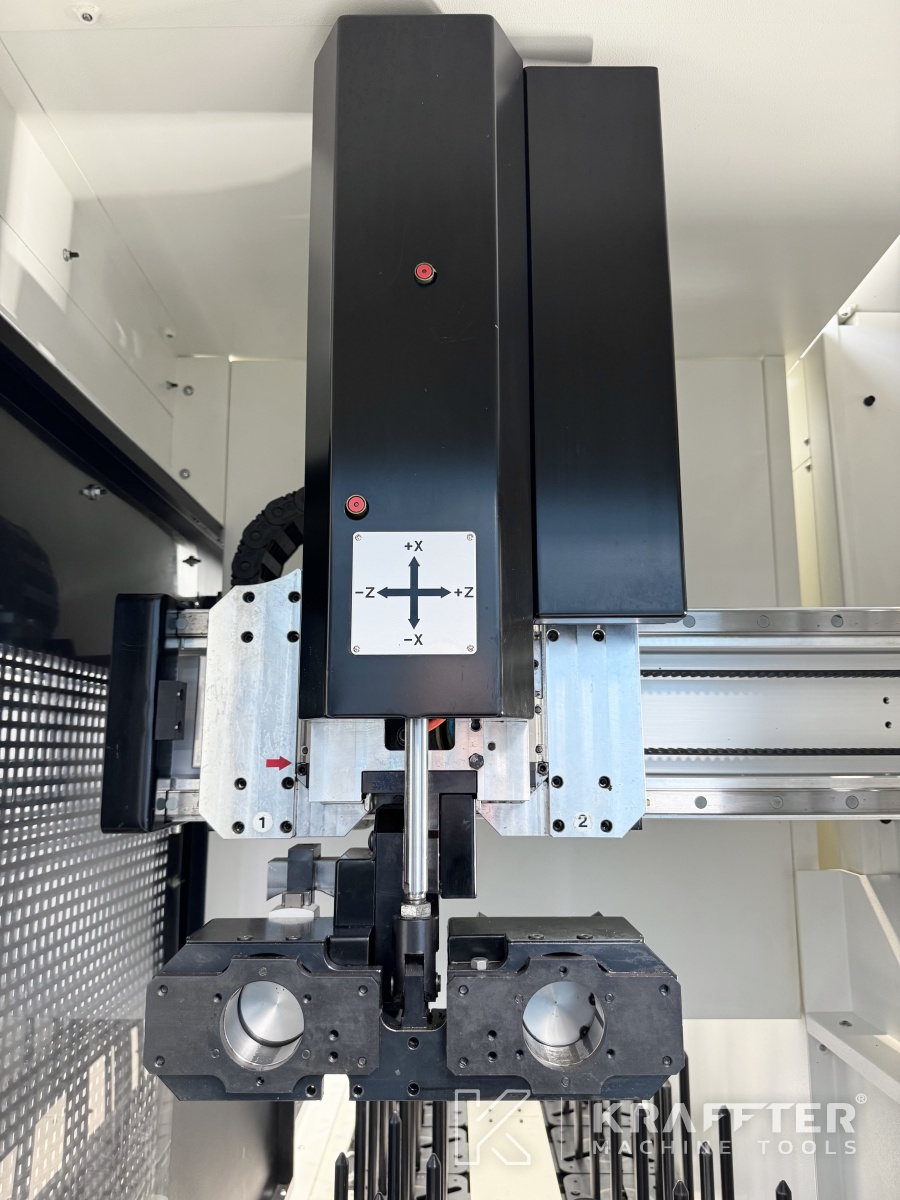

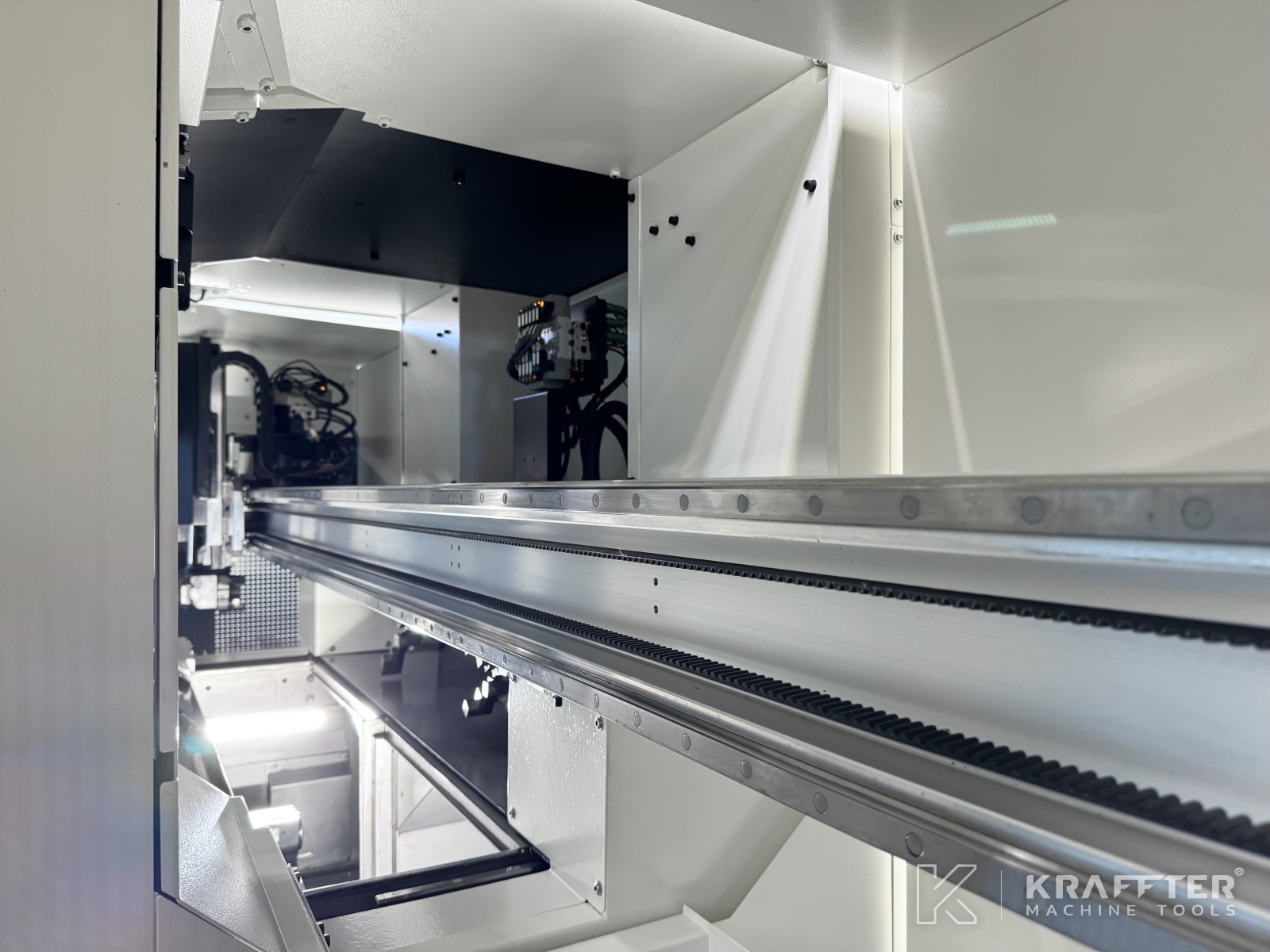

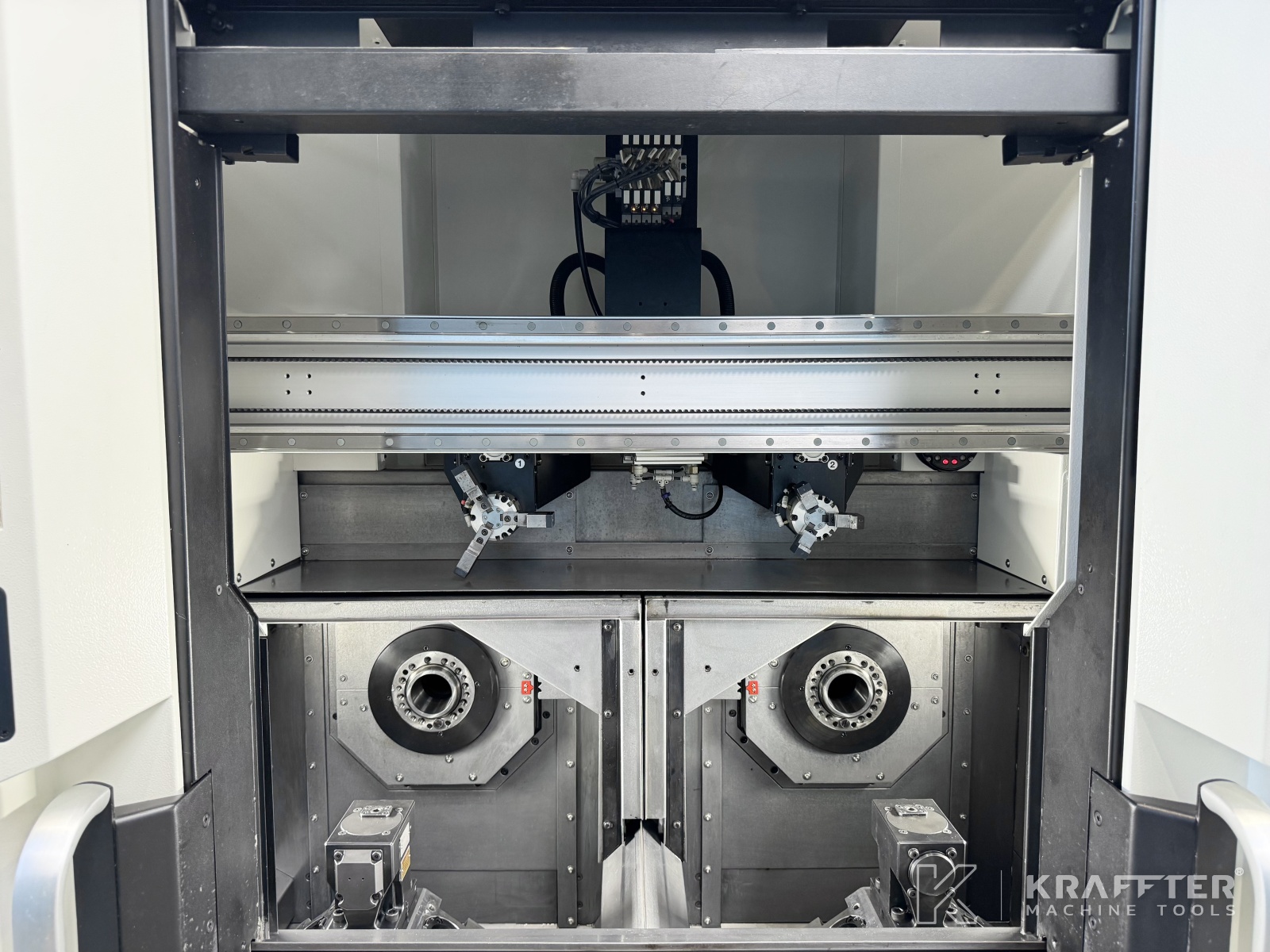

x1 gantry loader

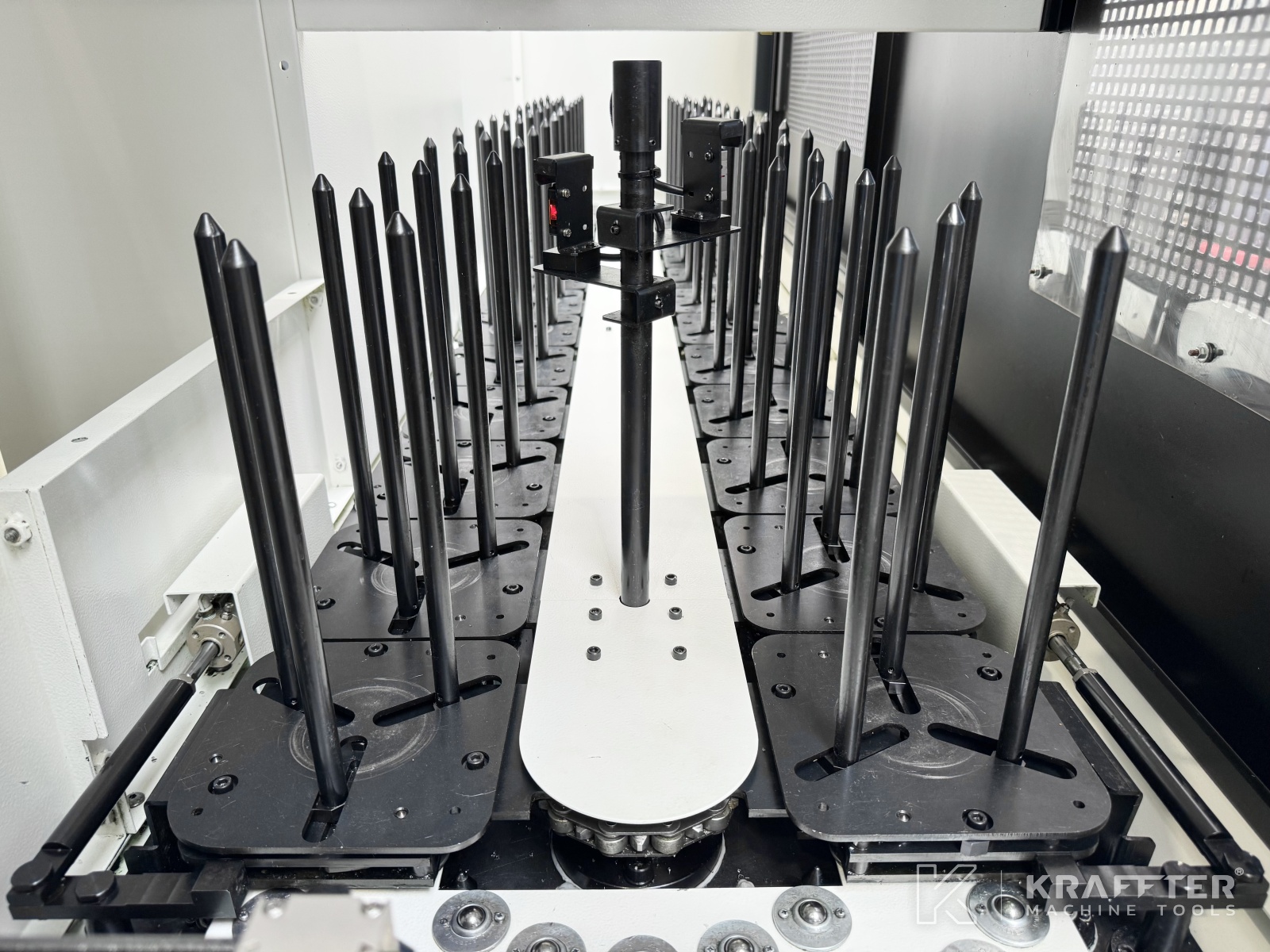

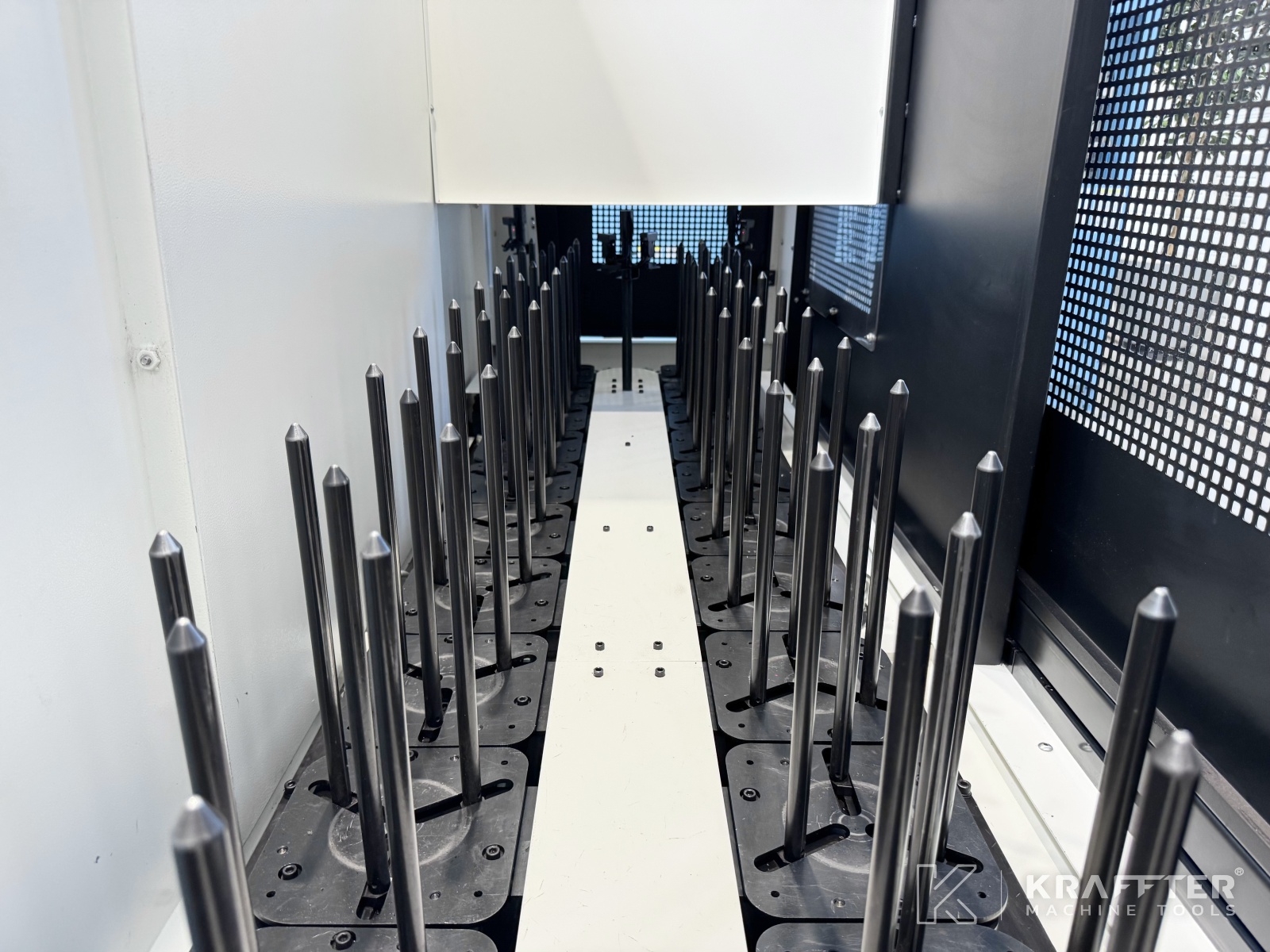

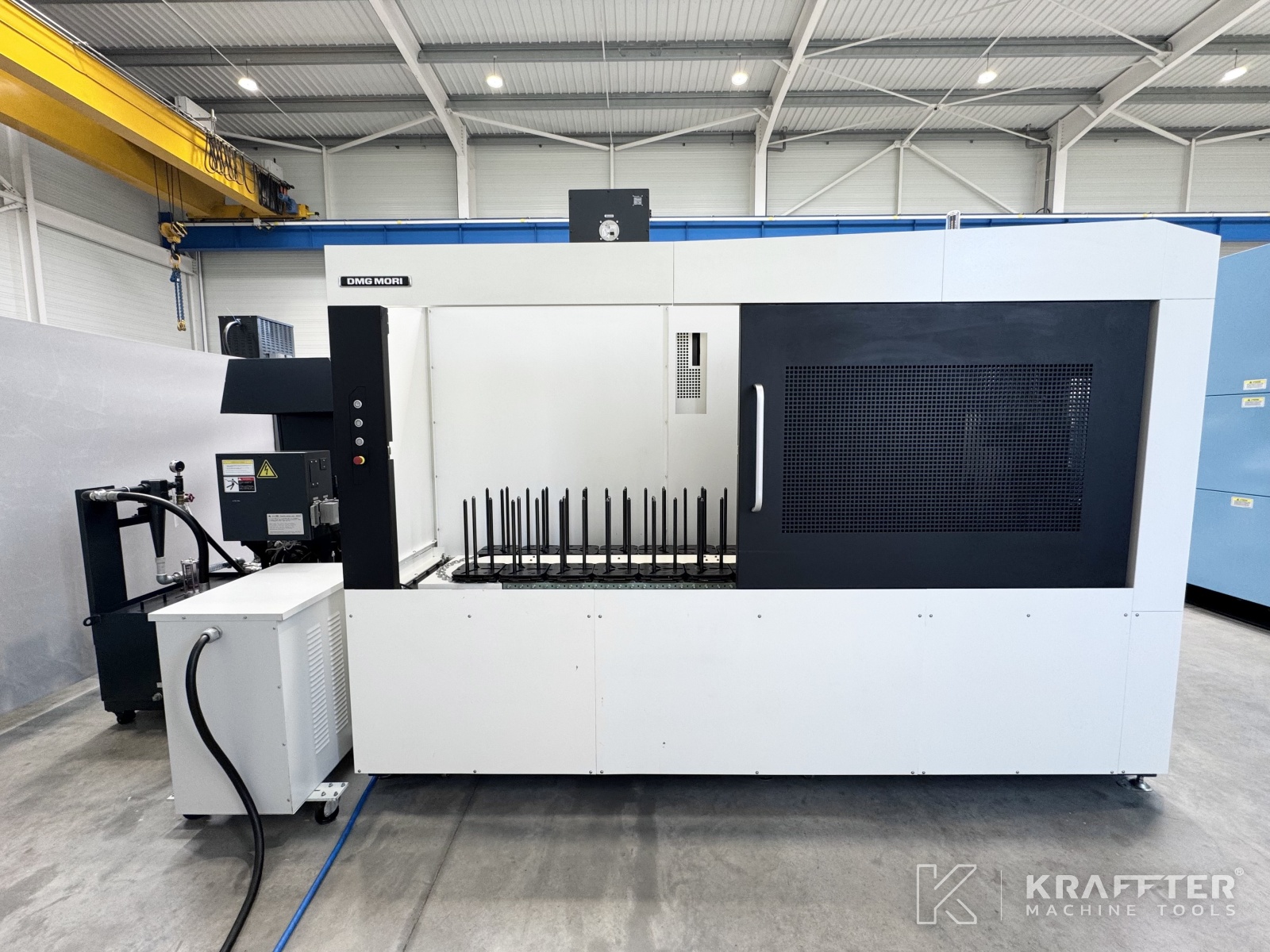

x2 workstockers (left + right) for raw materials and finished workpieces

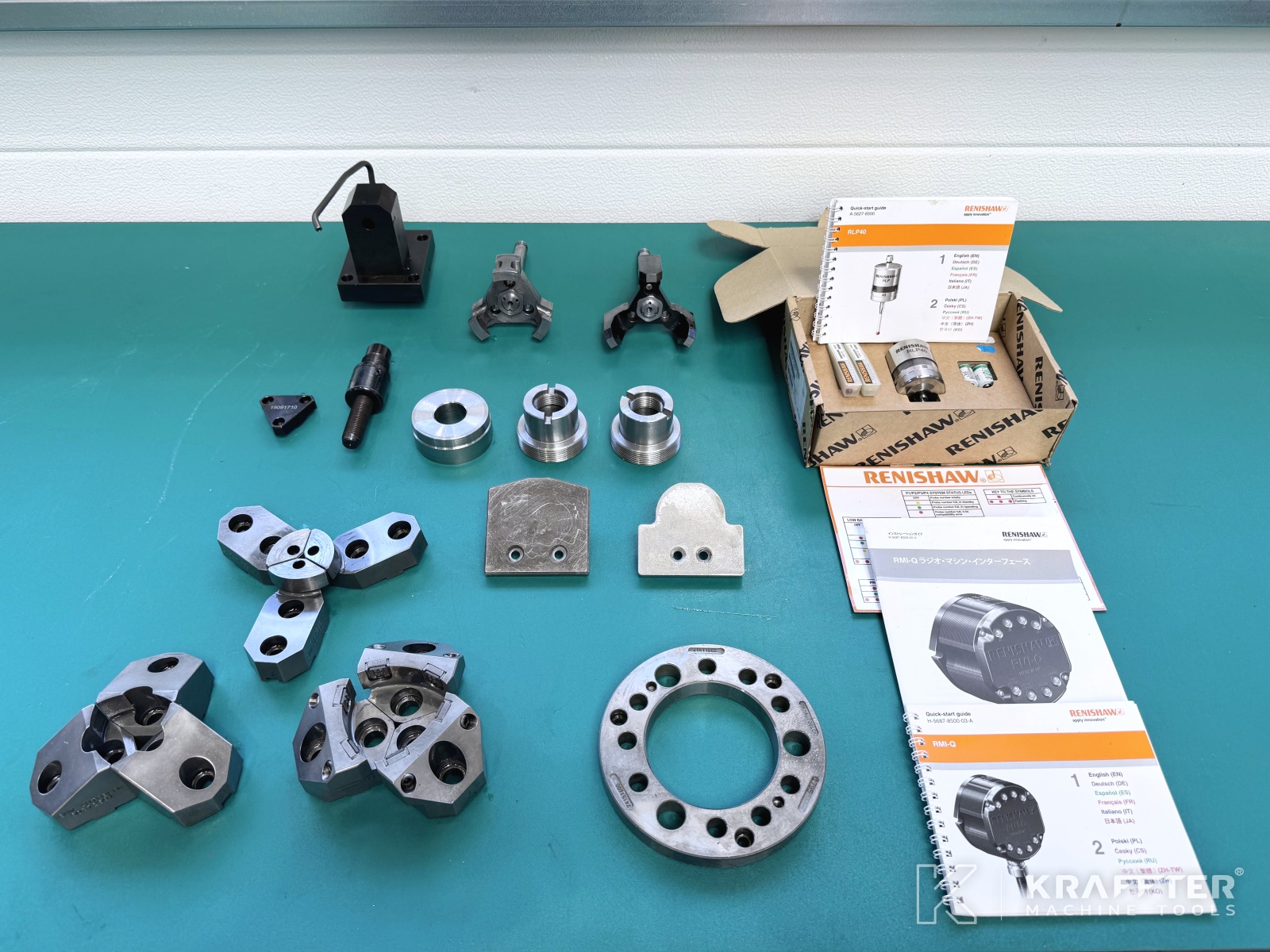

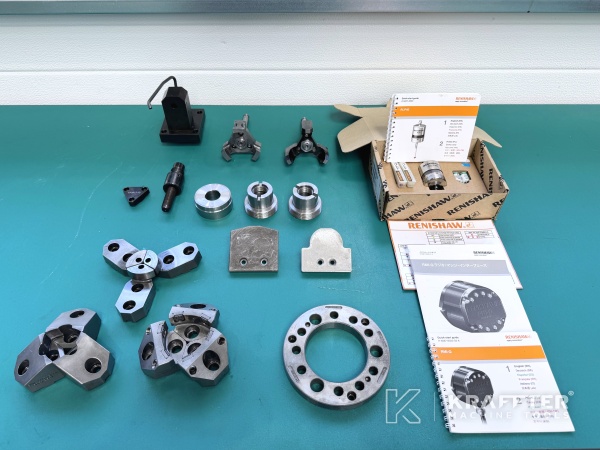

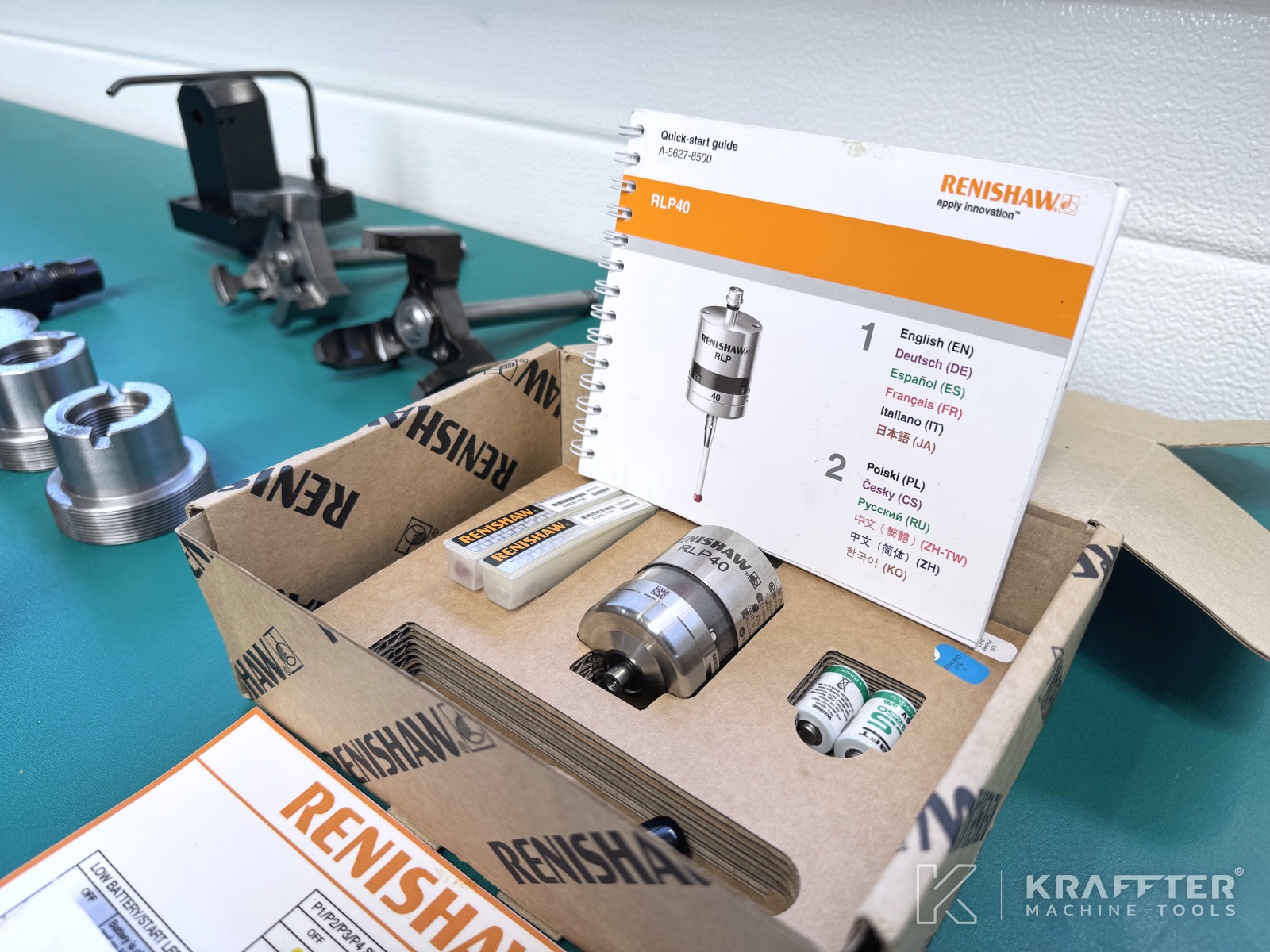

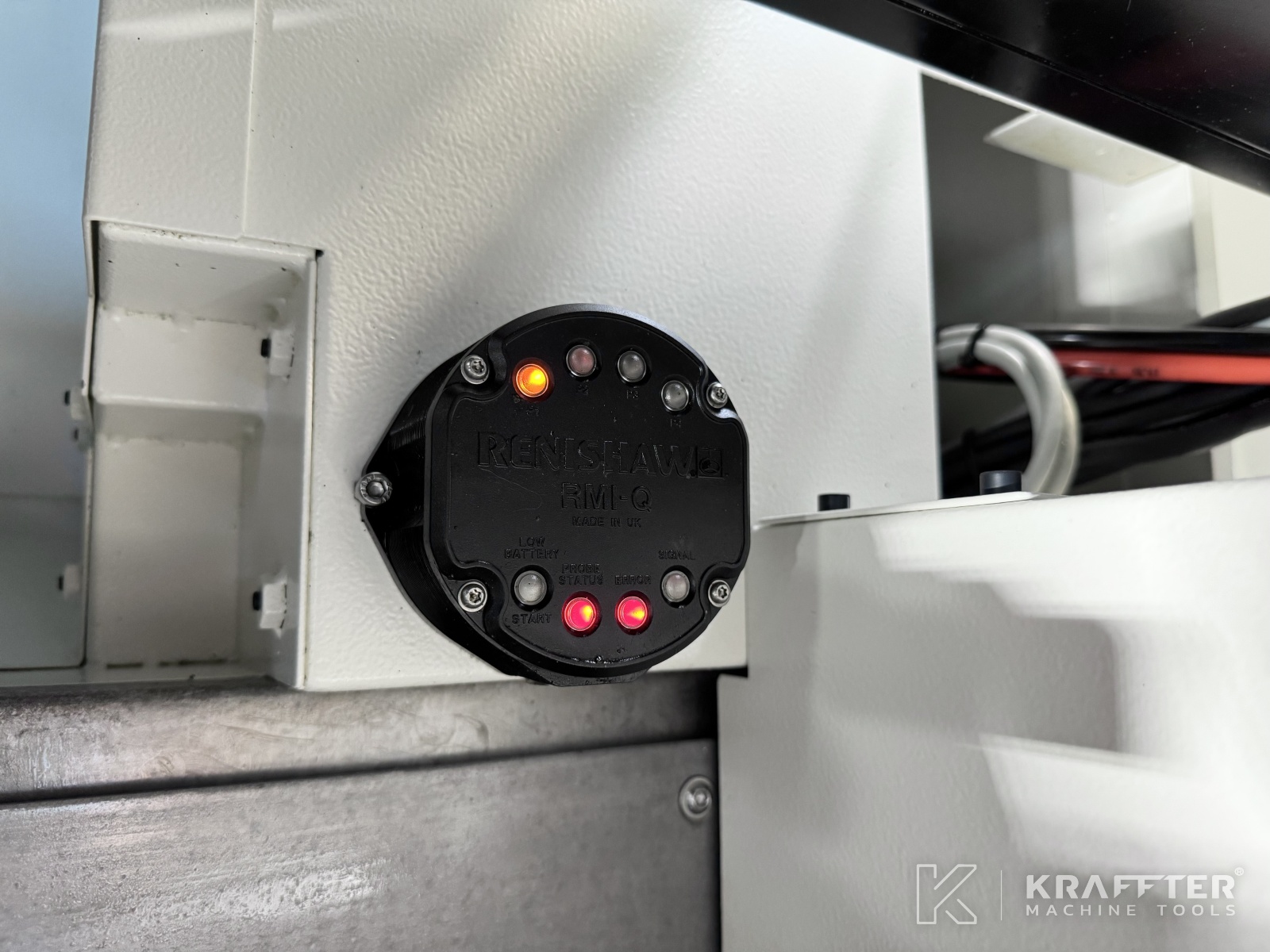

x1 RENISHAW workpiece touch probe, type RLP40 (NEW)
x1 drill bit breakage detection sensor (for turret N°1)

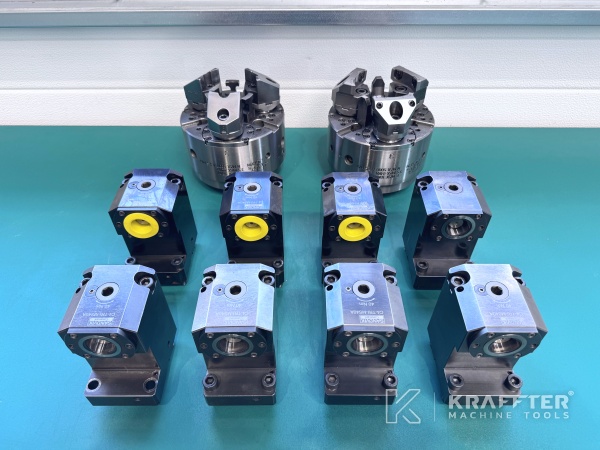

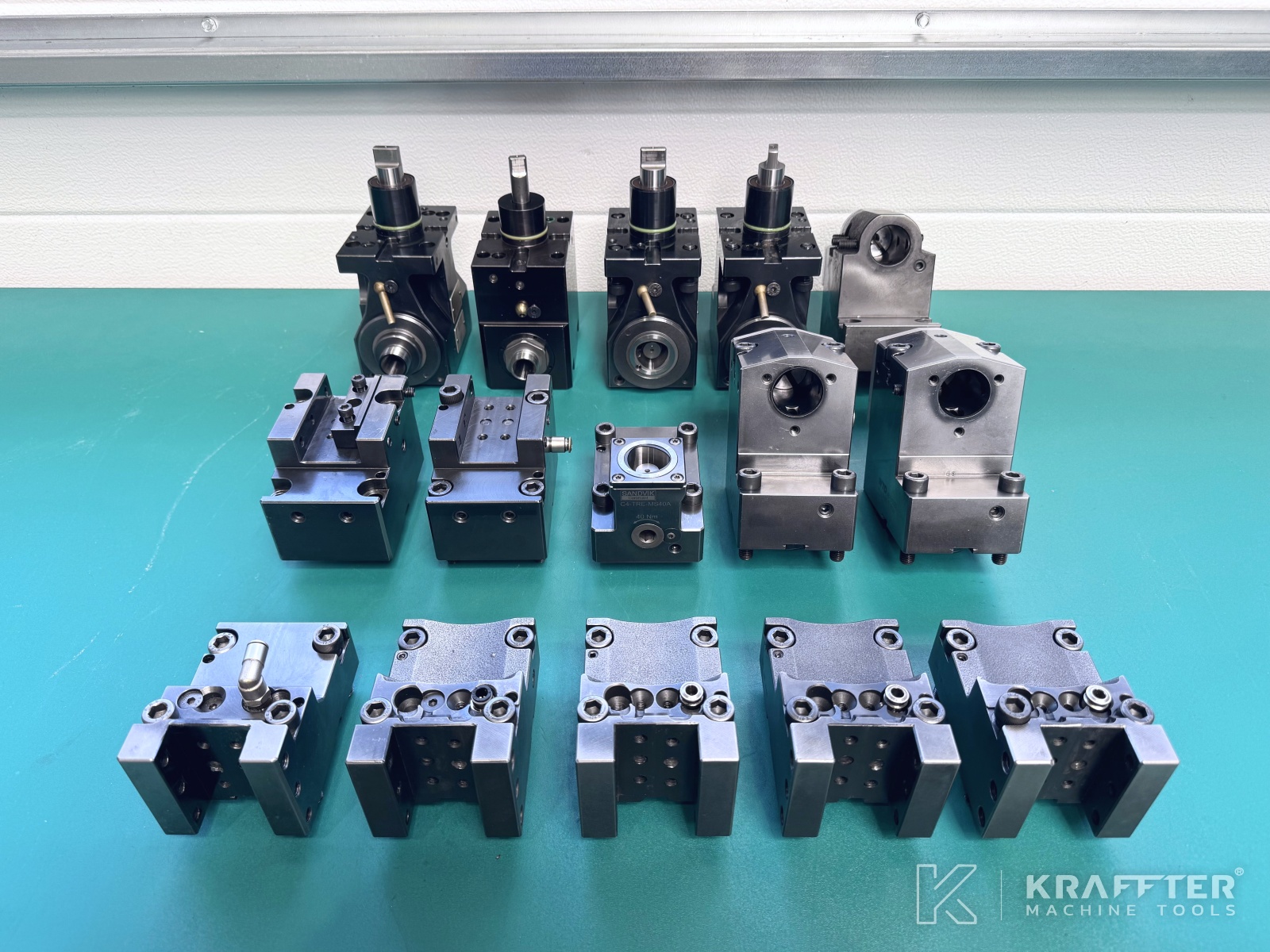

x19 static tool holders

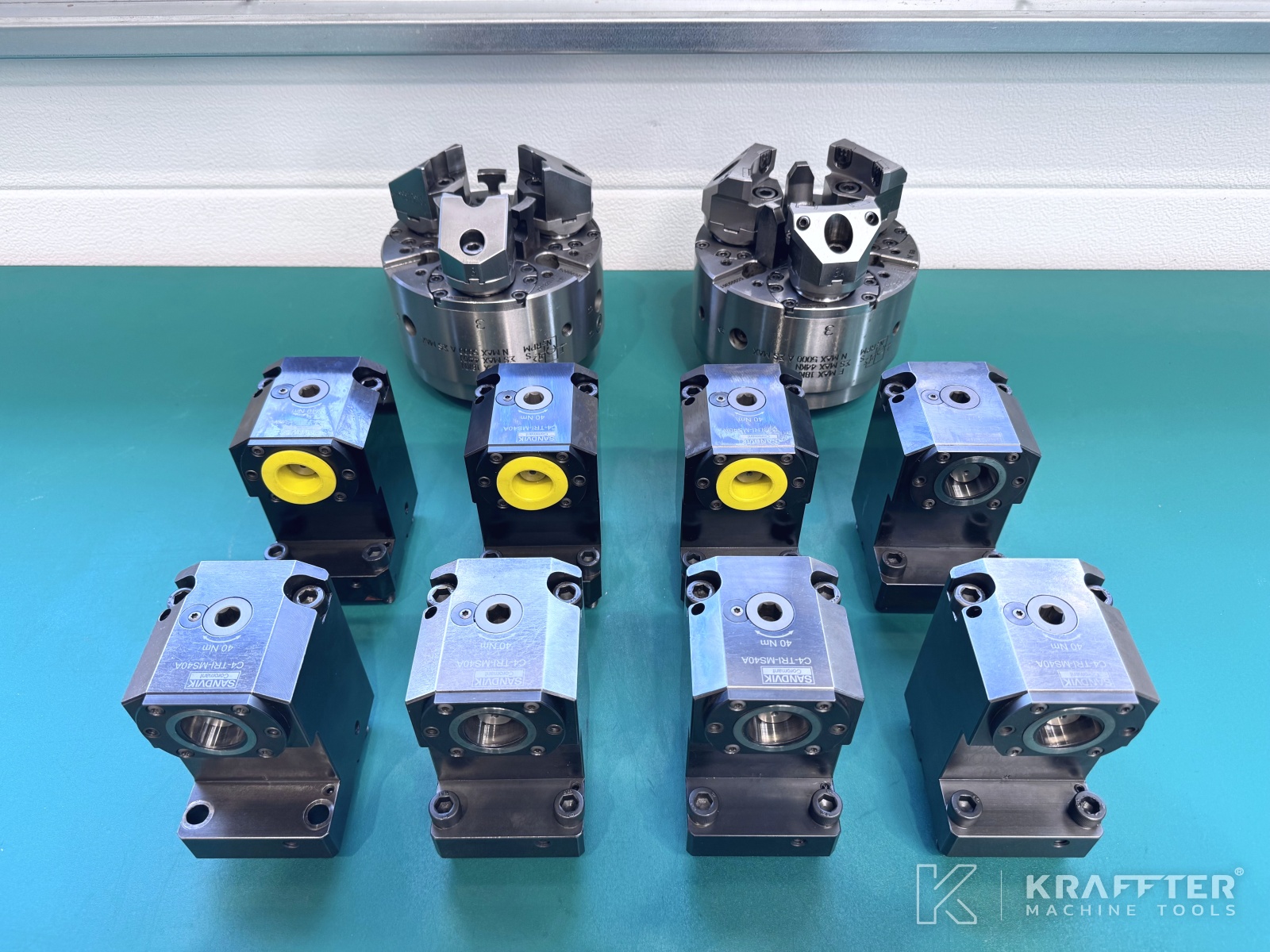

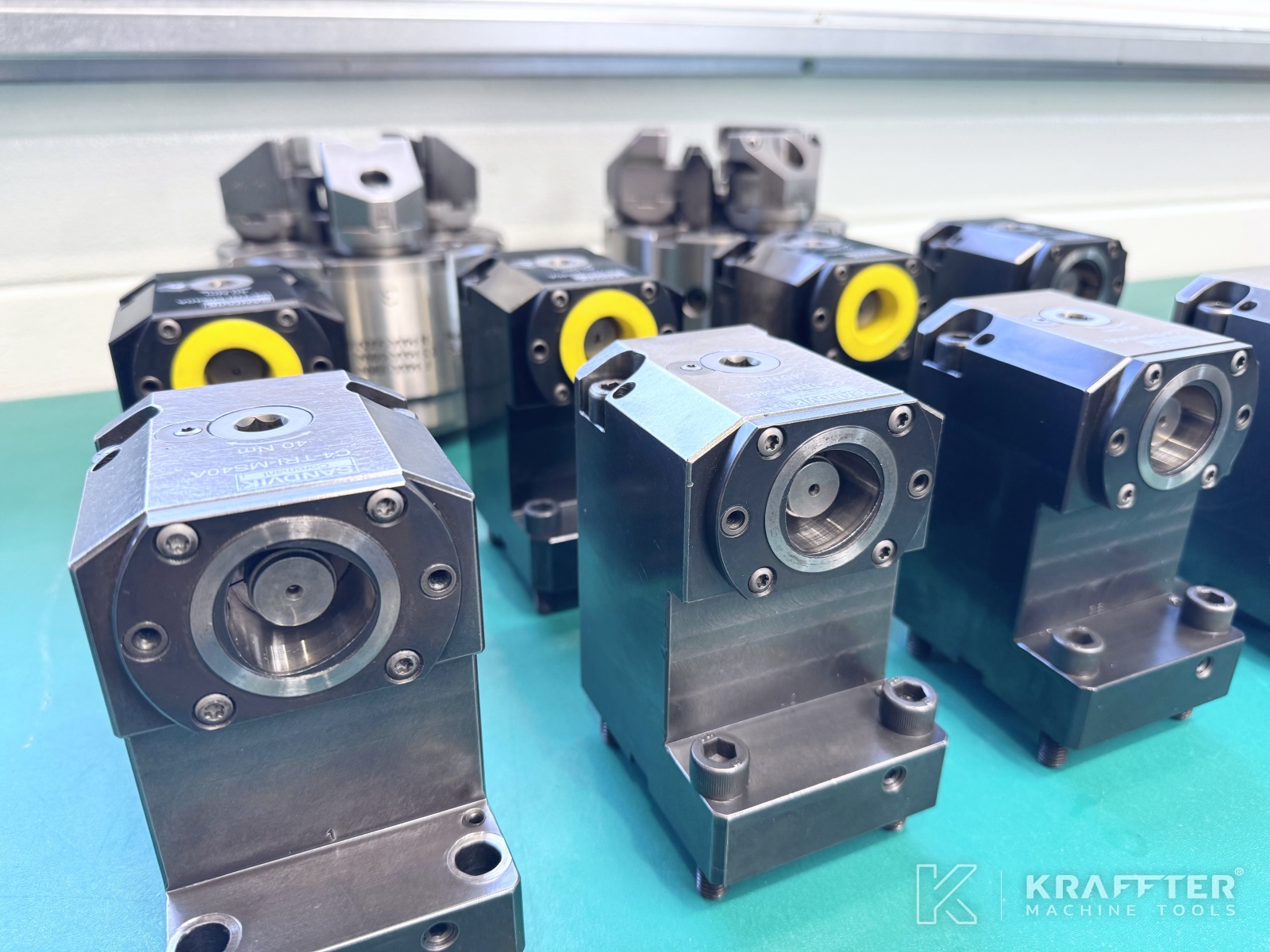

x4 axial driven tool holders

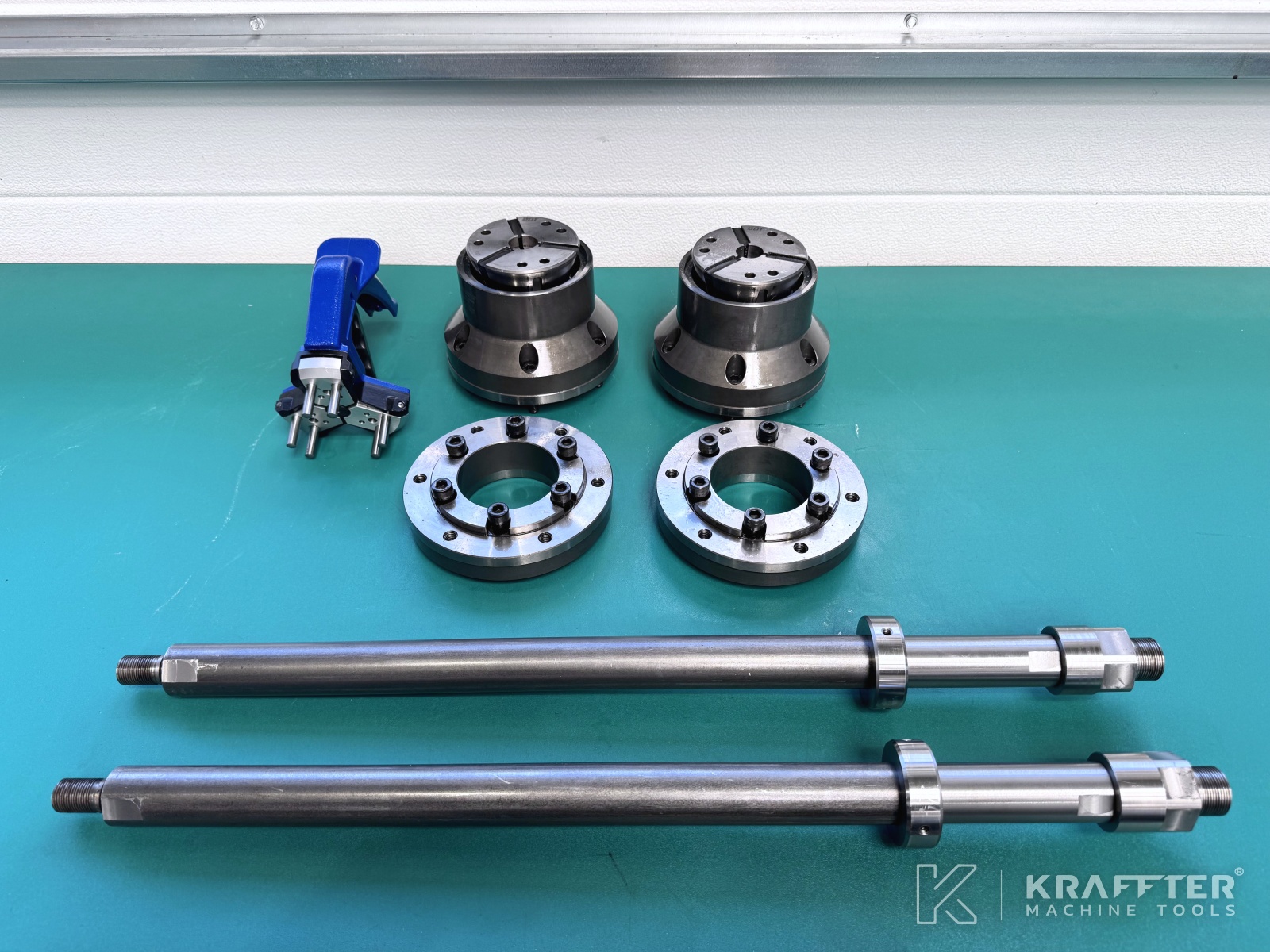

x2 KITAGAWA collet chucks, type KLAMP DKF65

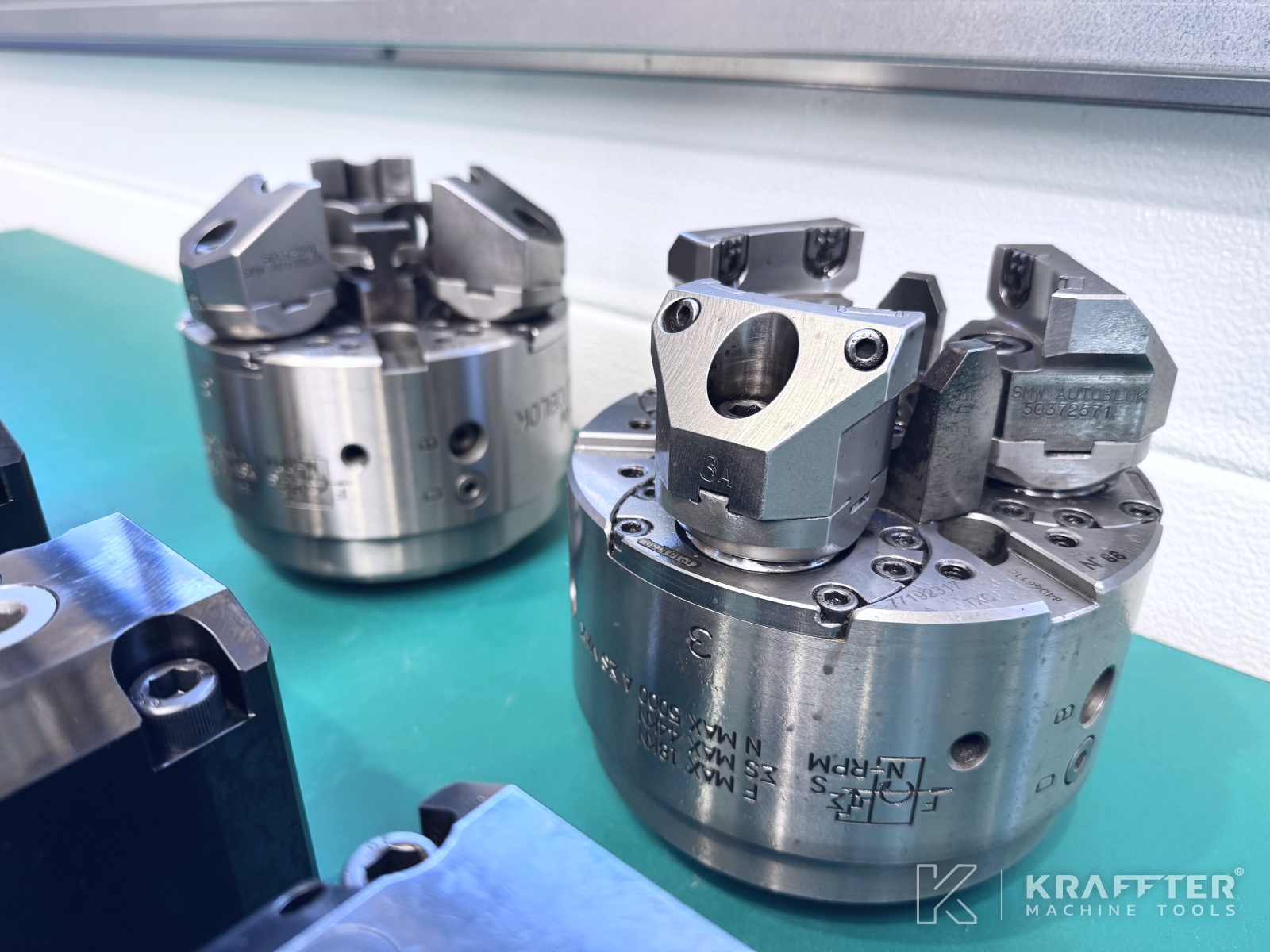

x2 three-jaw chucks
x1 status indicator lamp

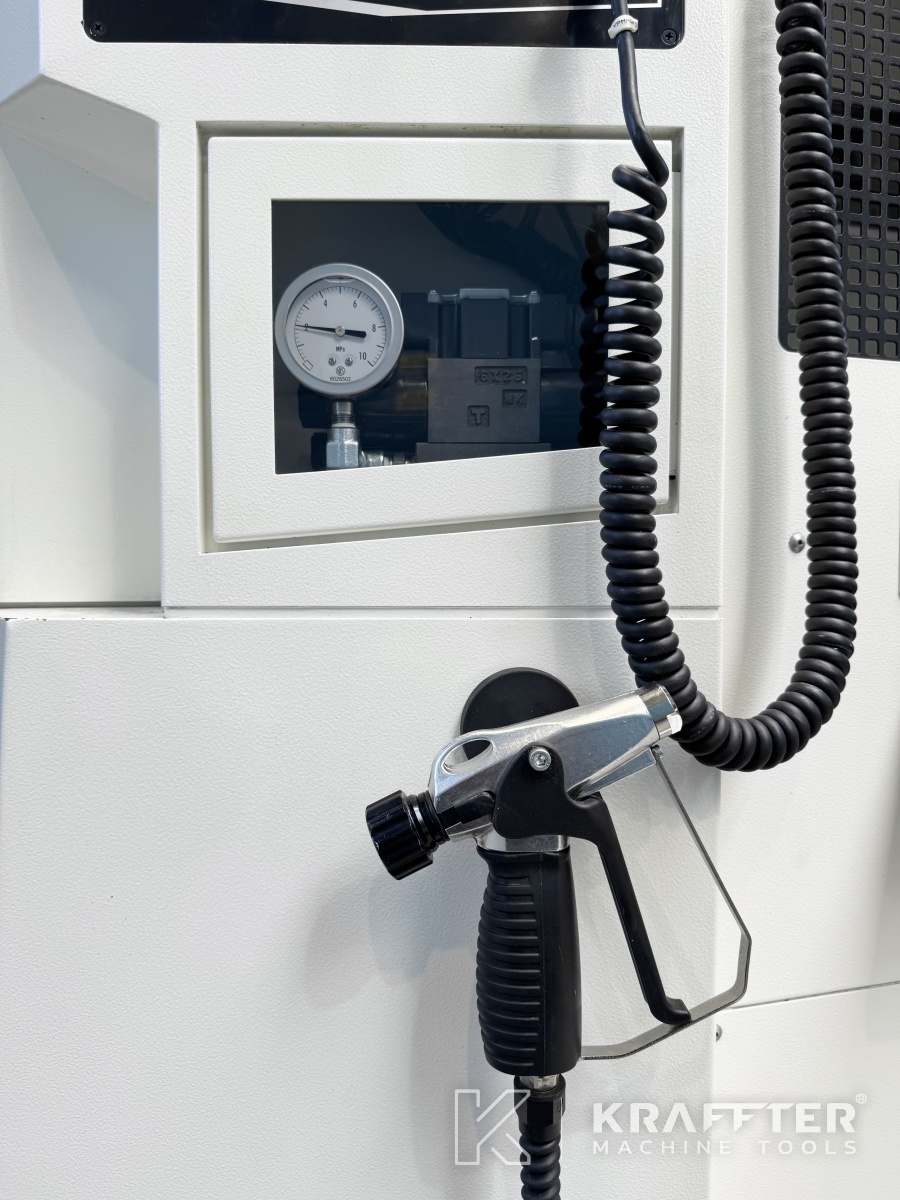

x1 coolant gun

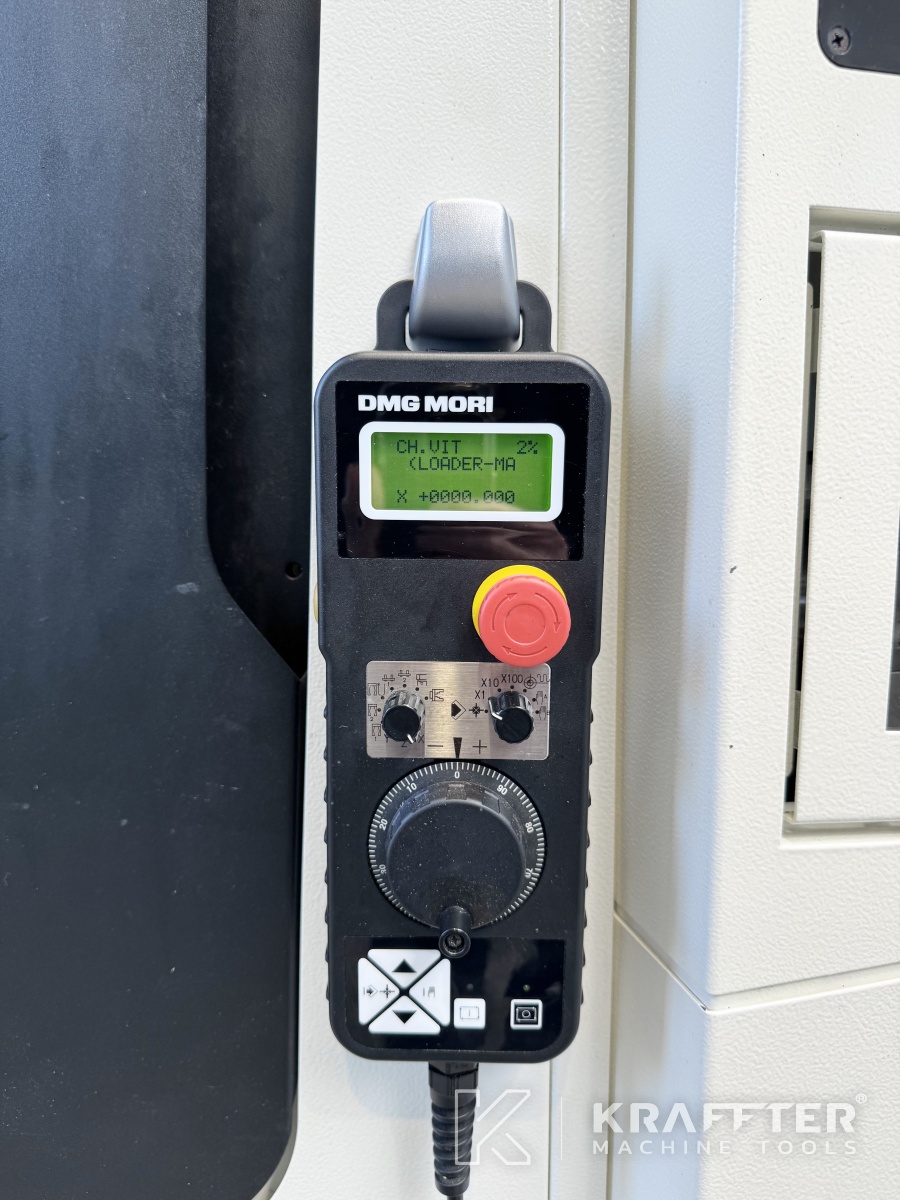

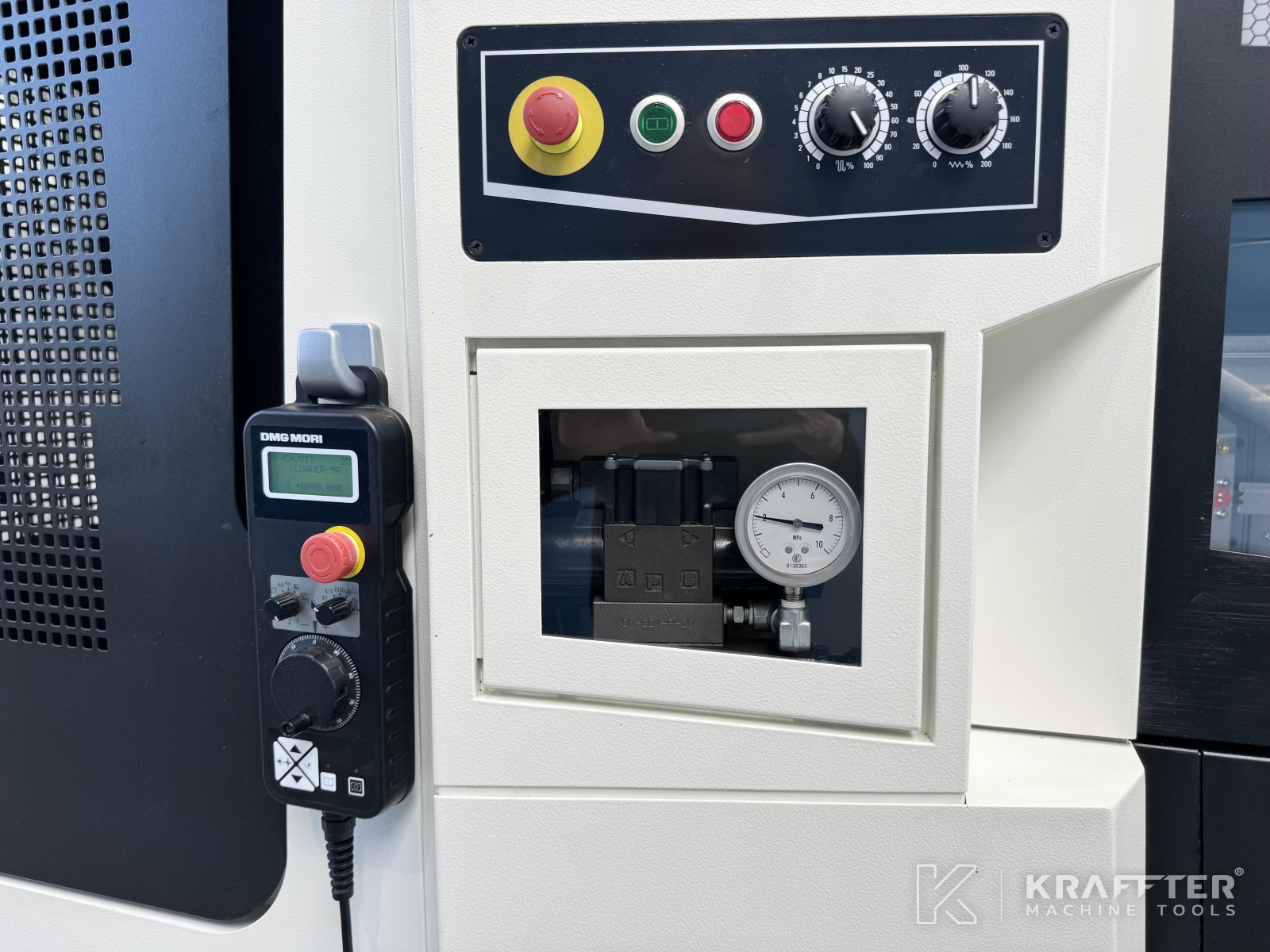

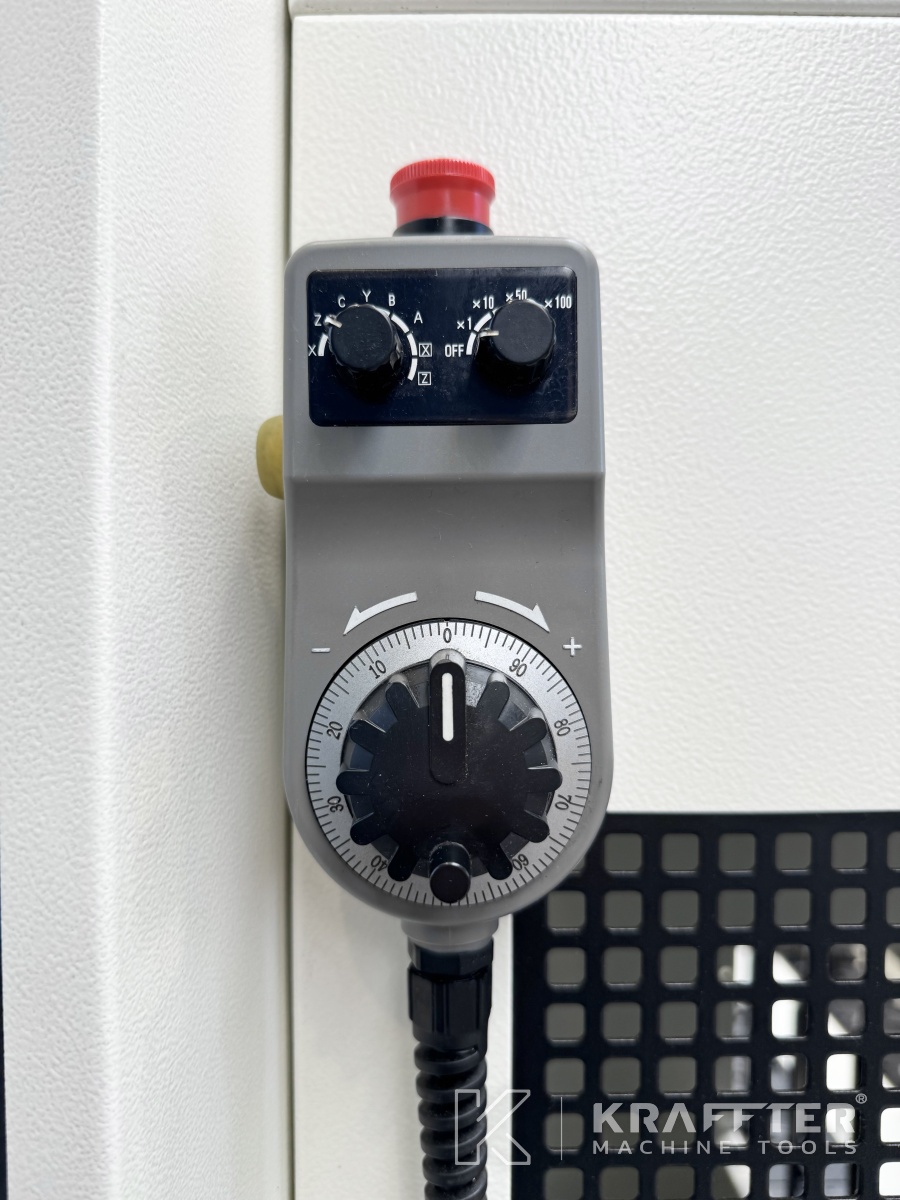

x2 remote electronic handwheels (Jogwheels)

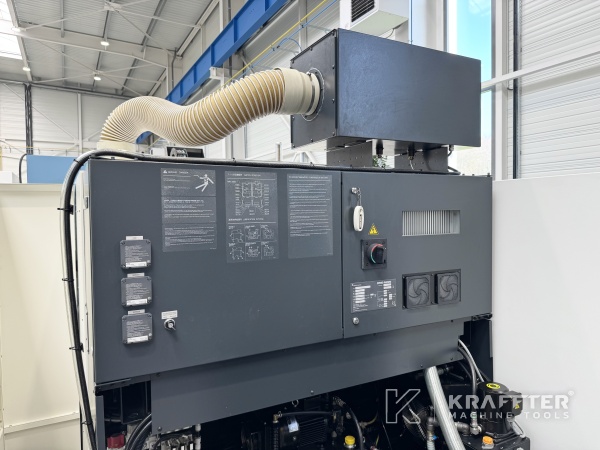

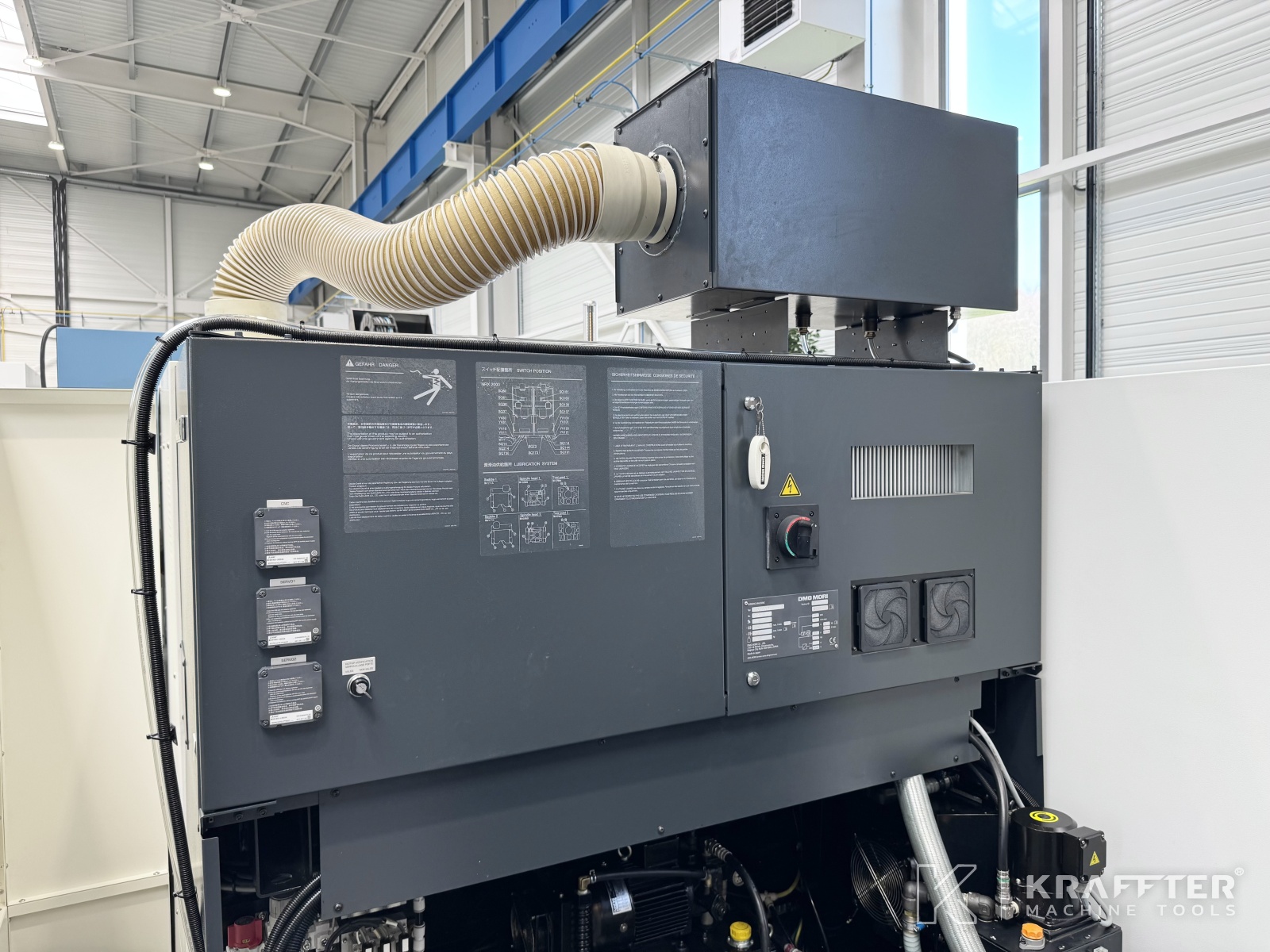

x1 oil mist extraction unit

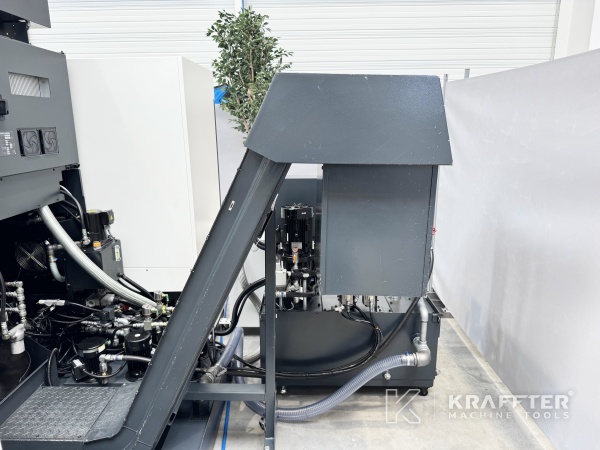

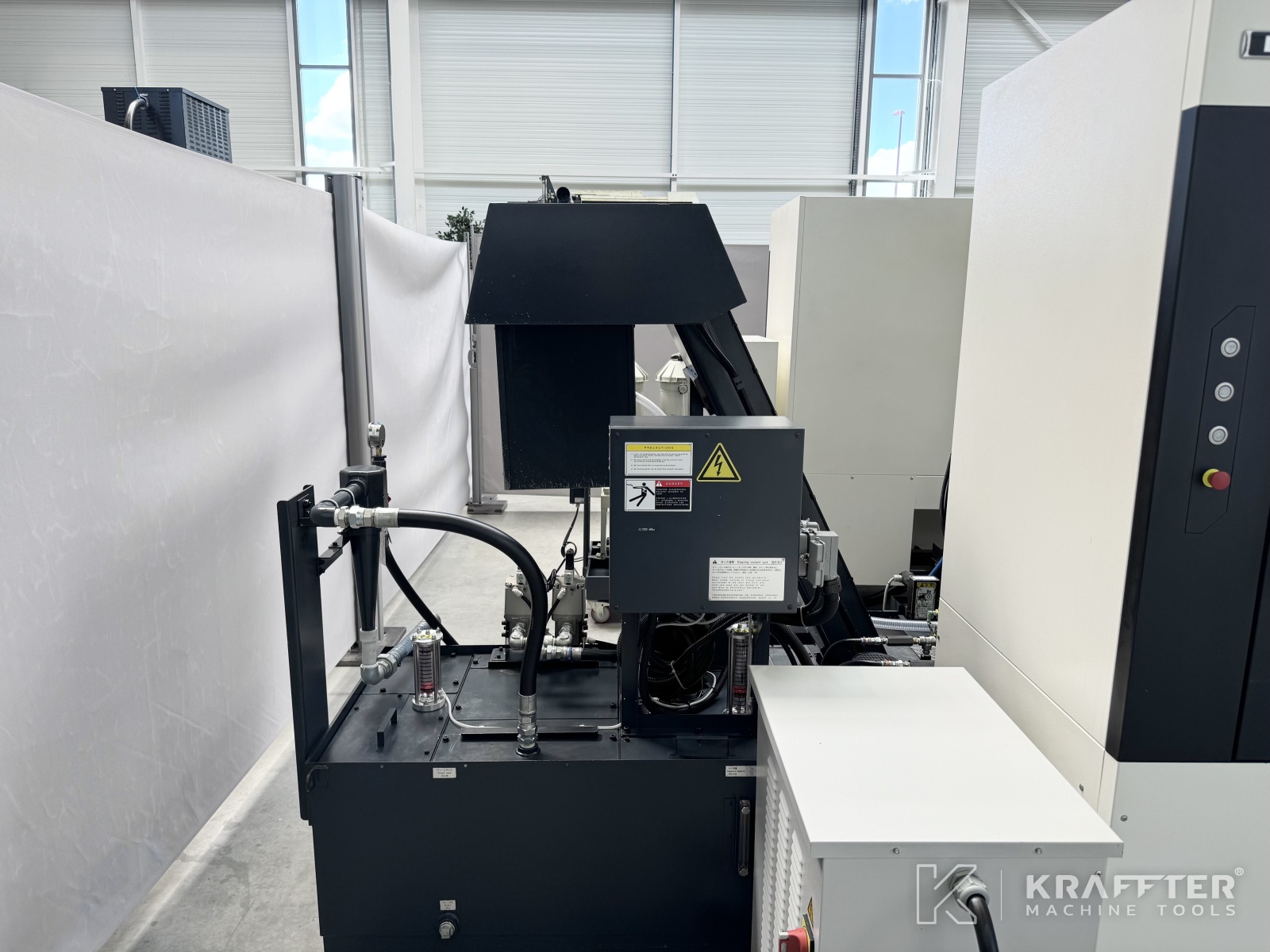

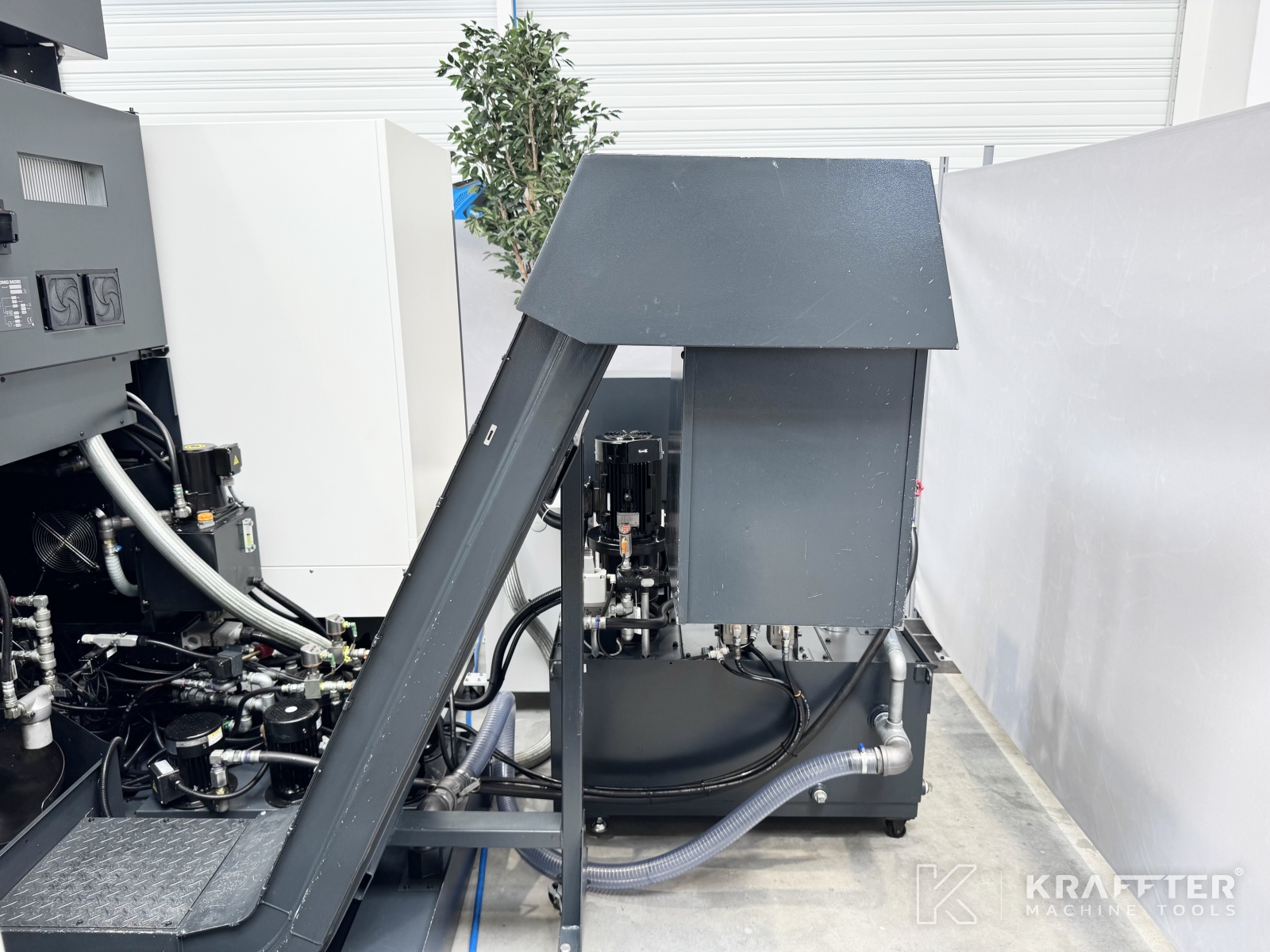

x1 chip conveyor

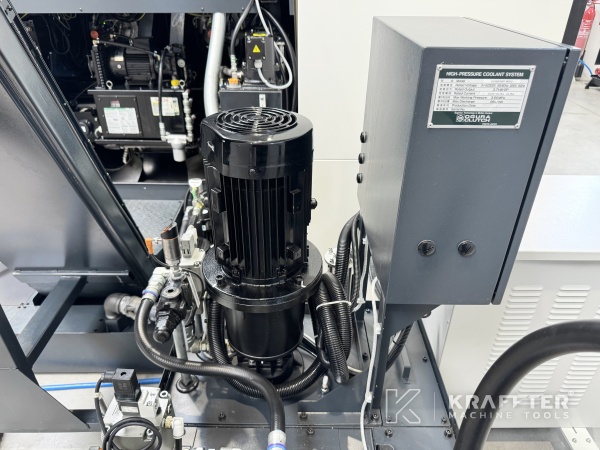

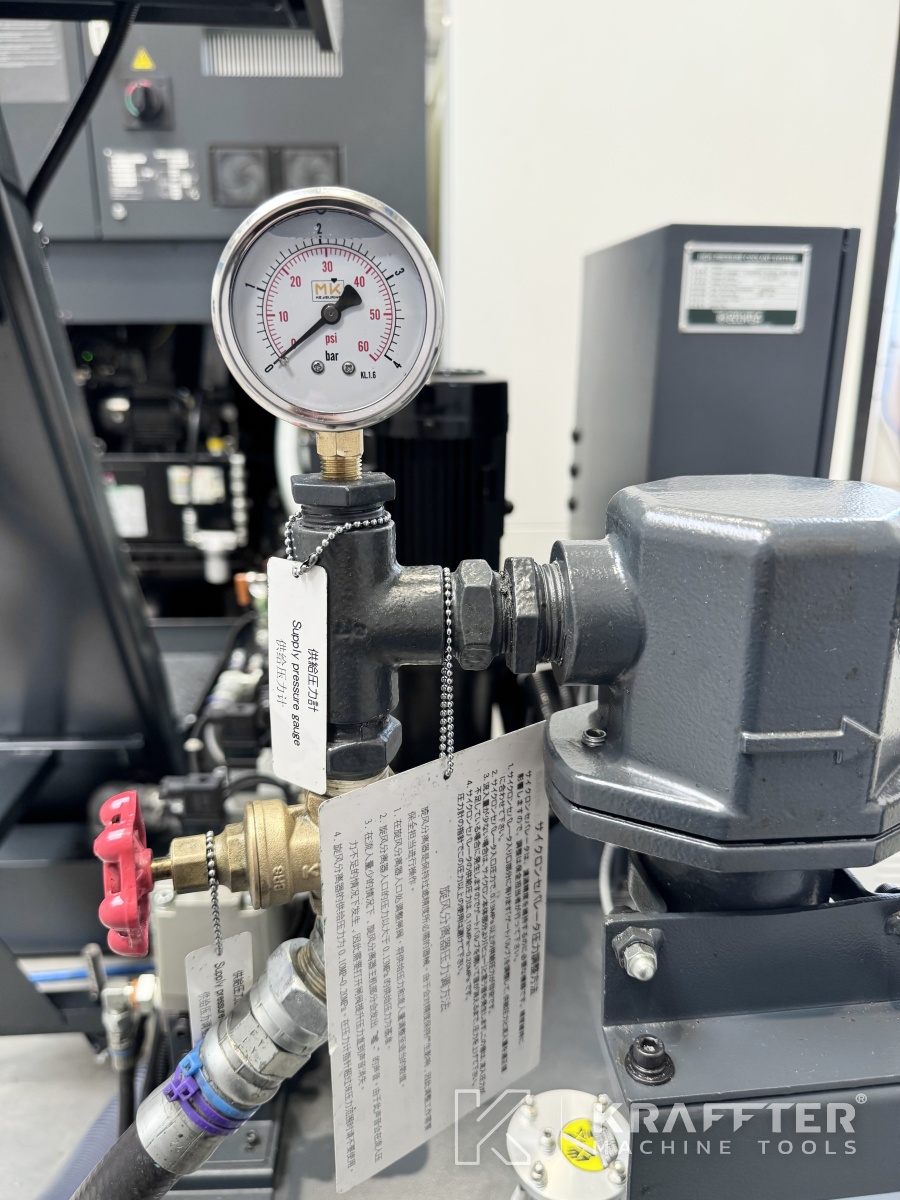

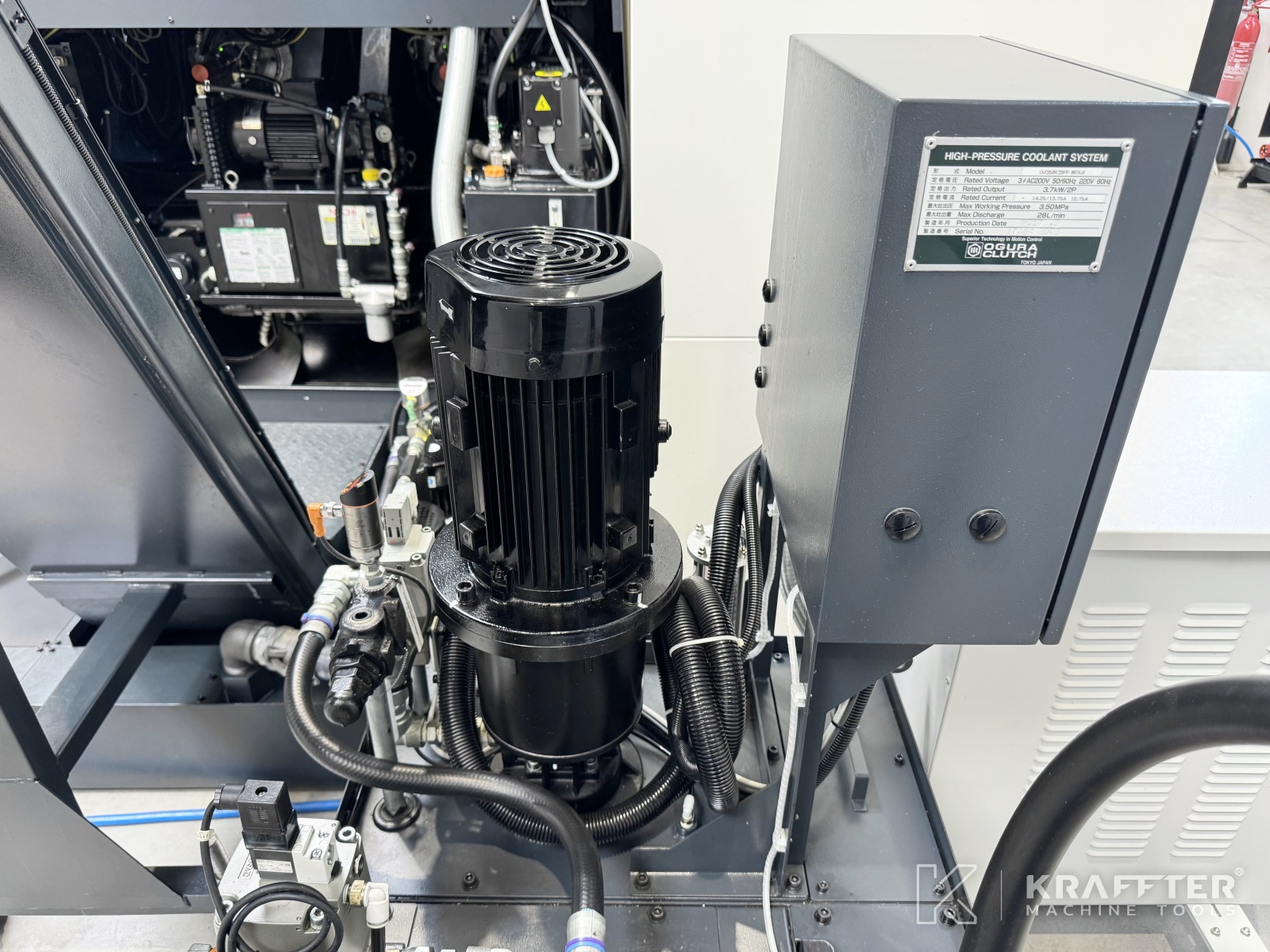

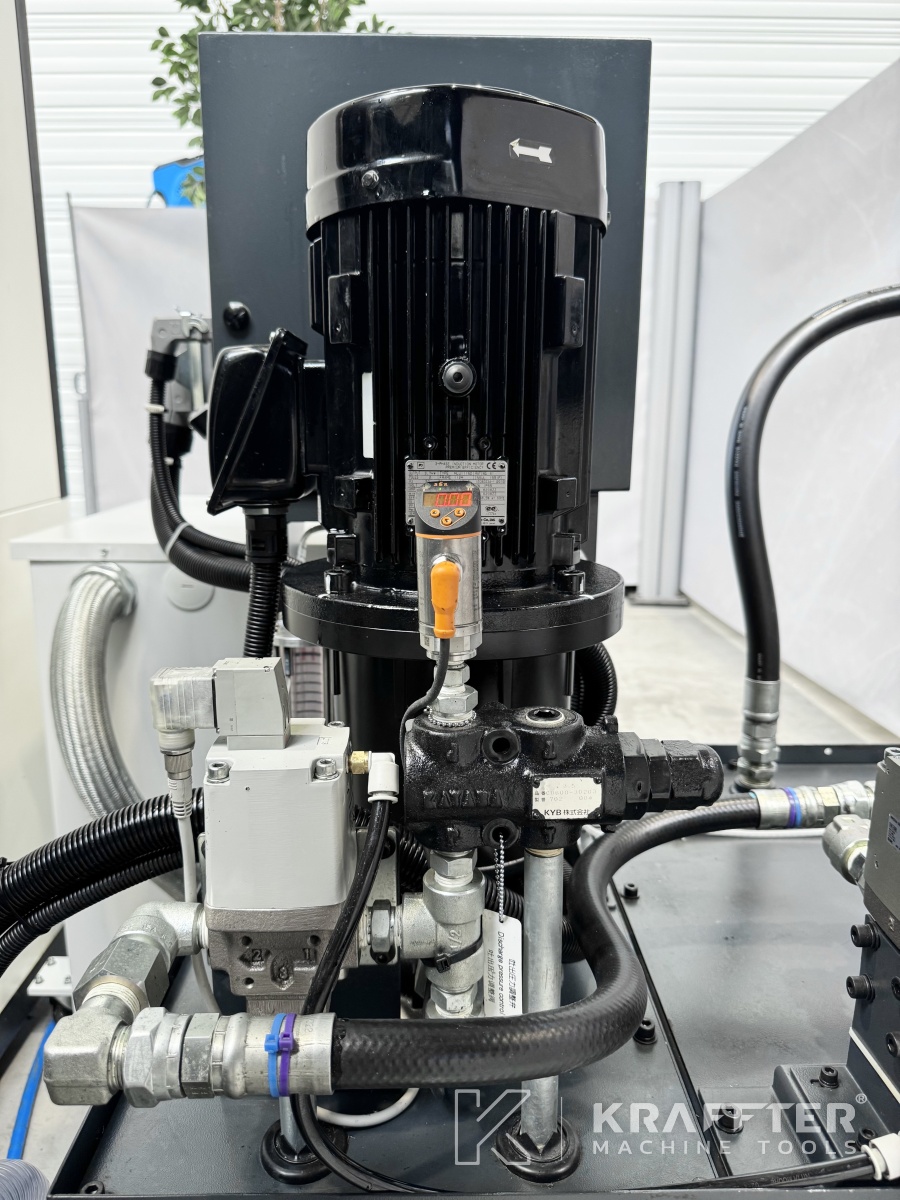

x1 high-pressure coolant unit, 35 [bar]

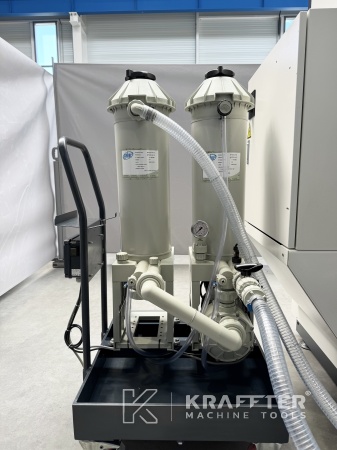

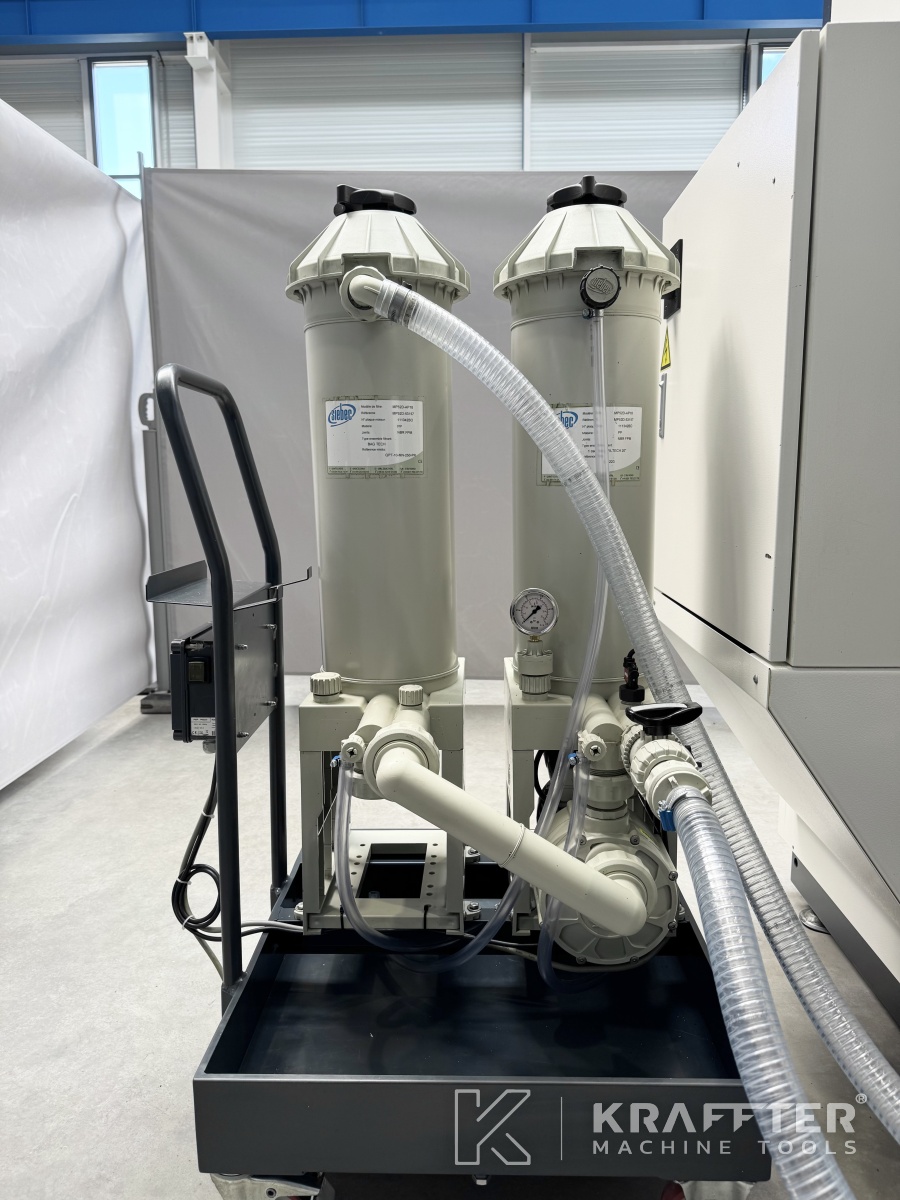

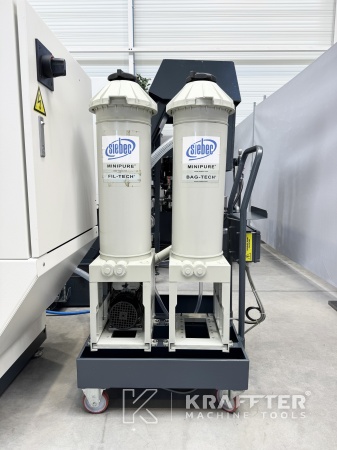

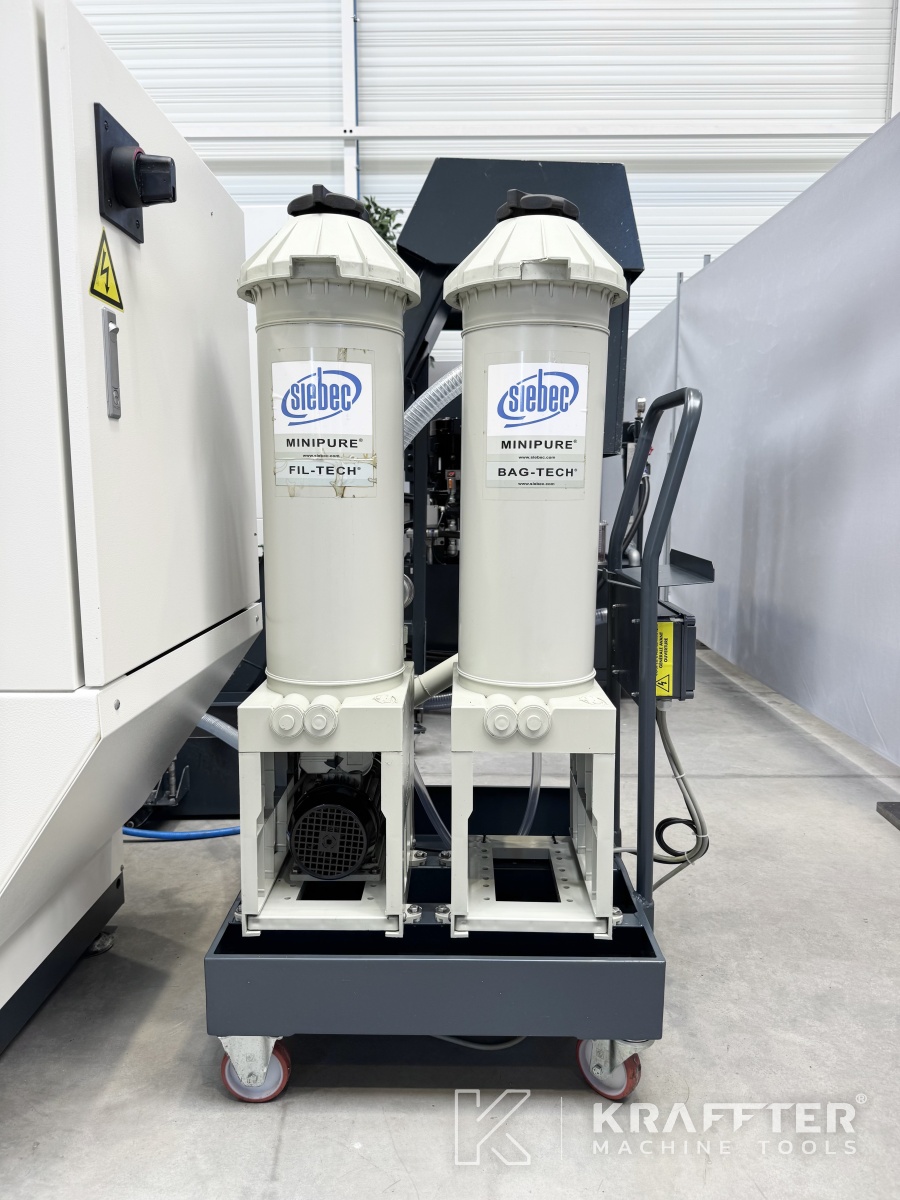

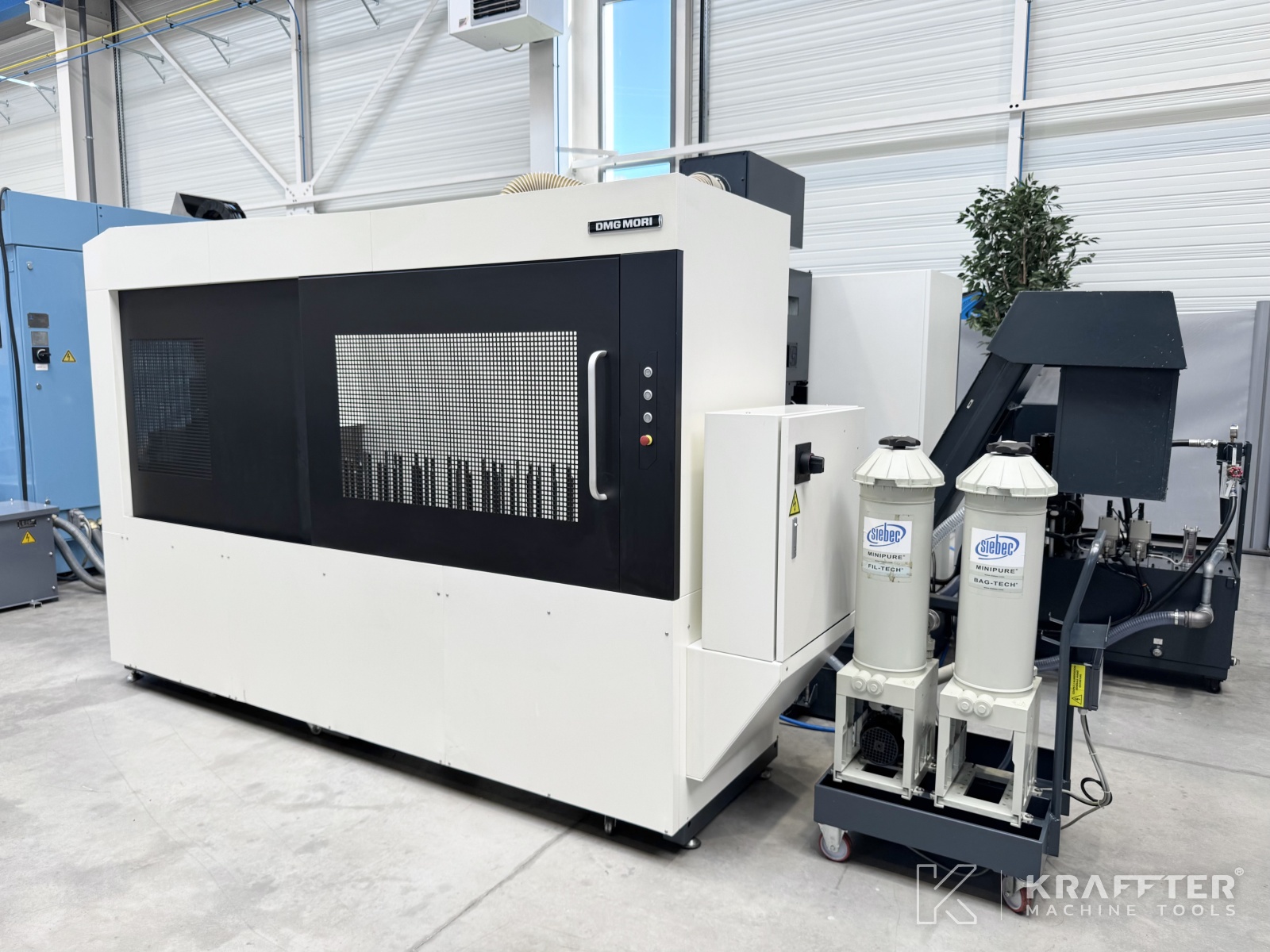

x1 SIEBEC cutting fluid filtration unit type MP52D-AP18

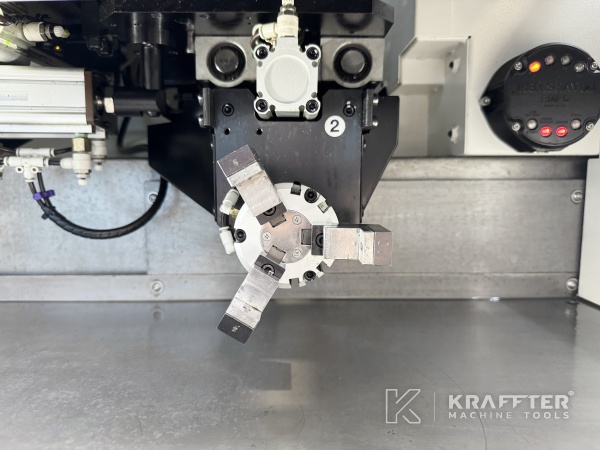

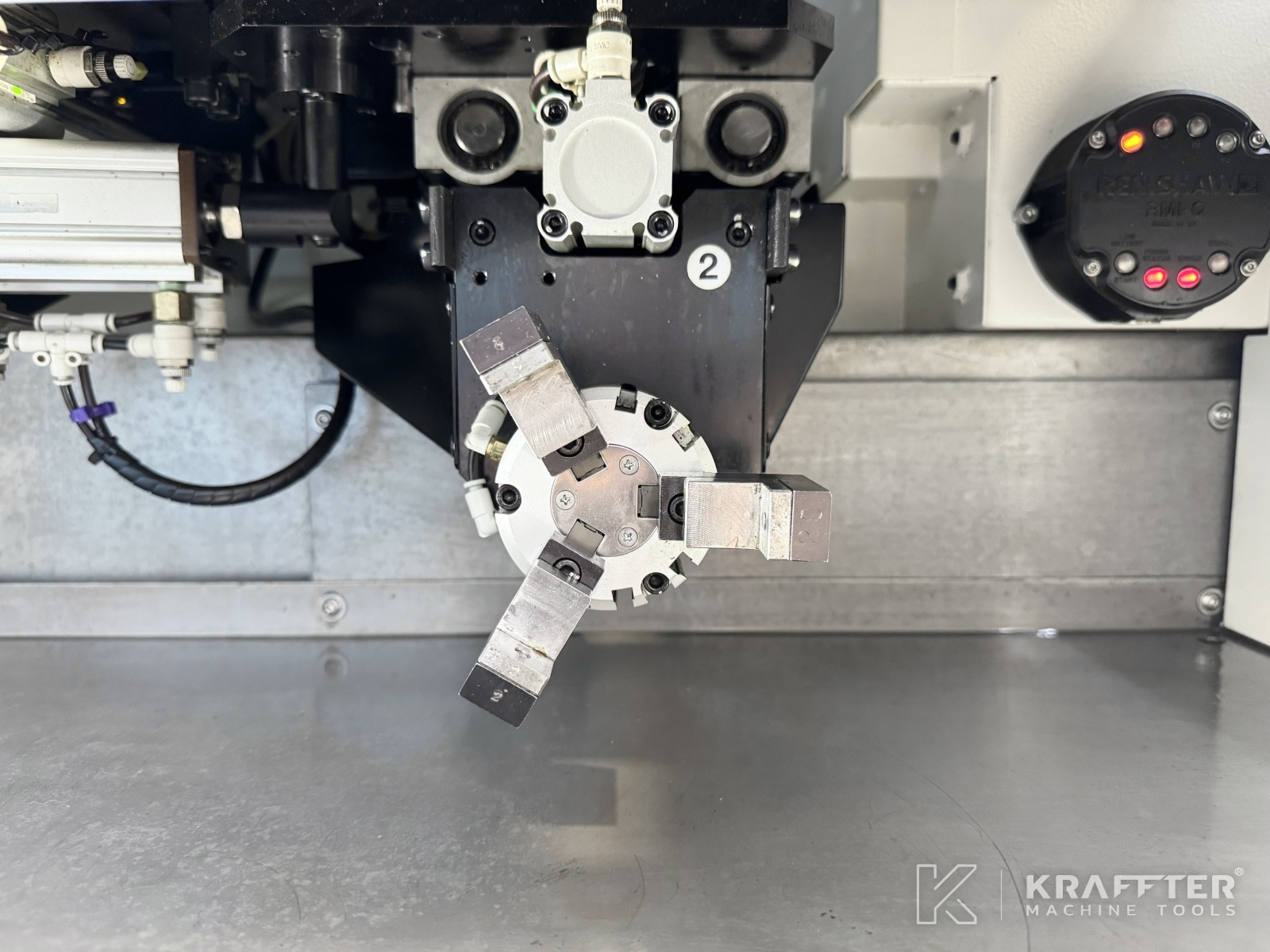

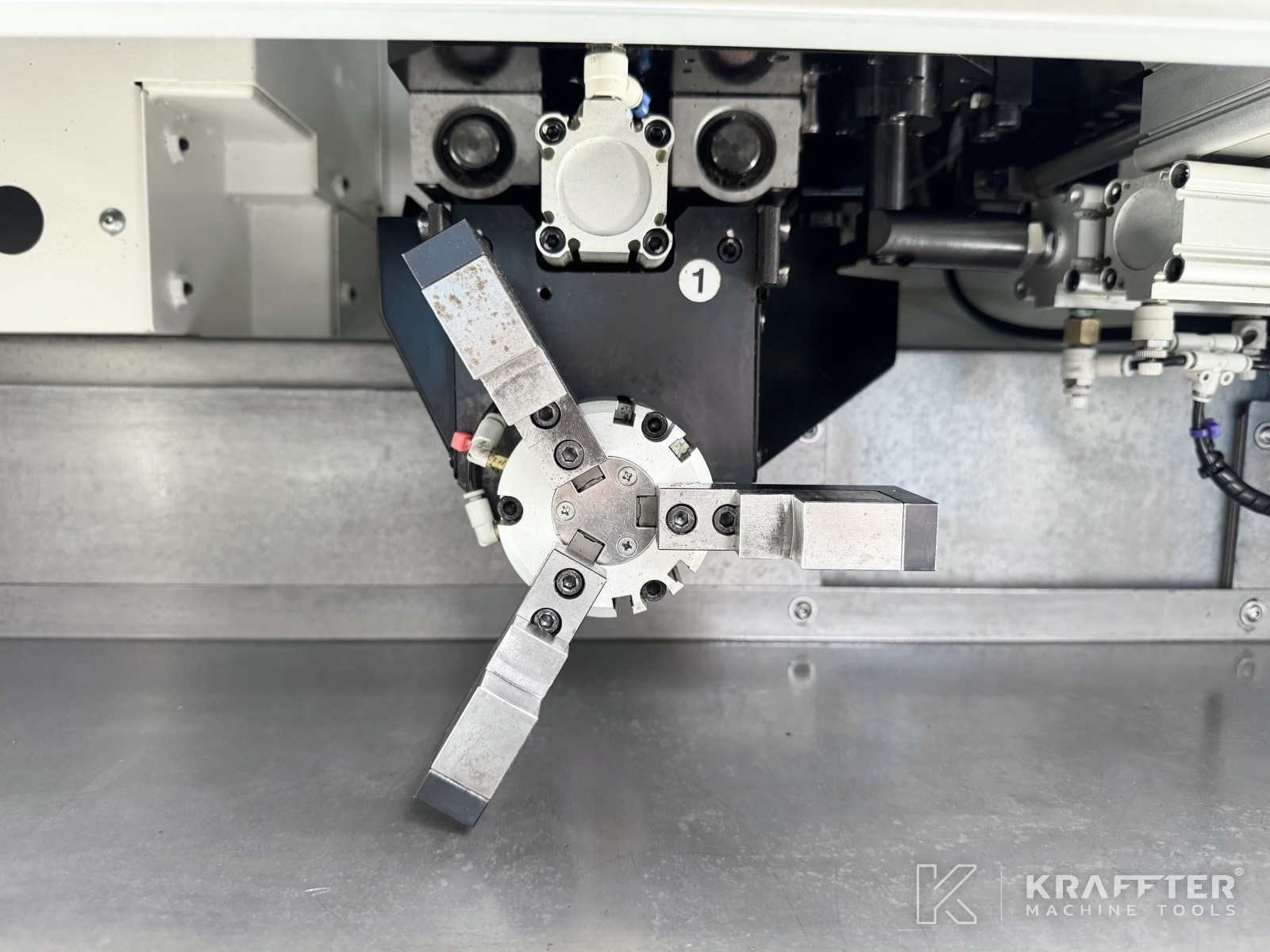

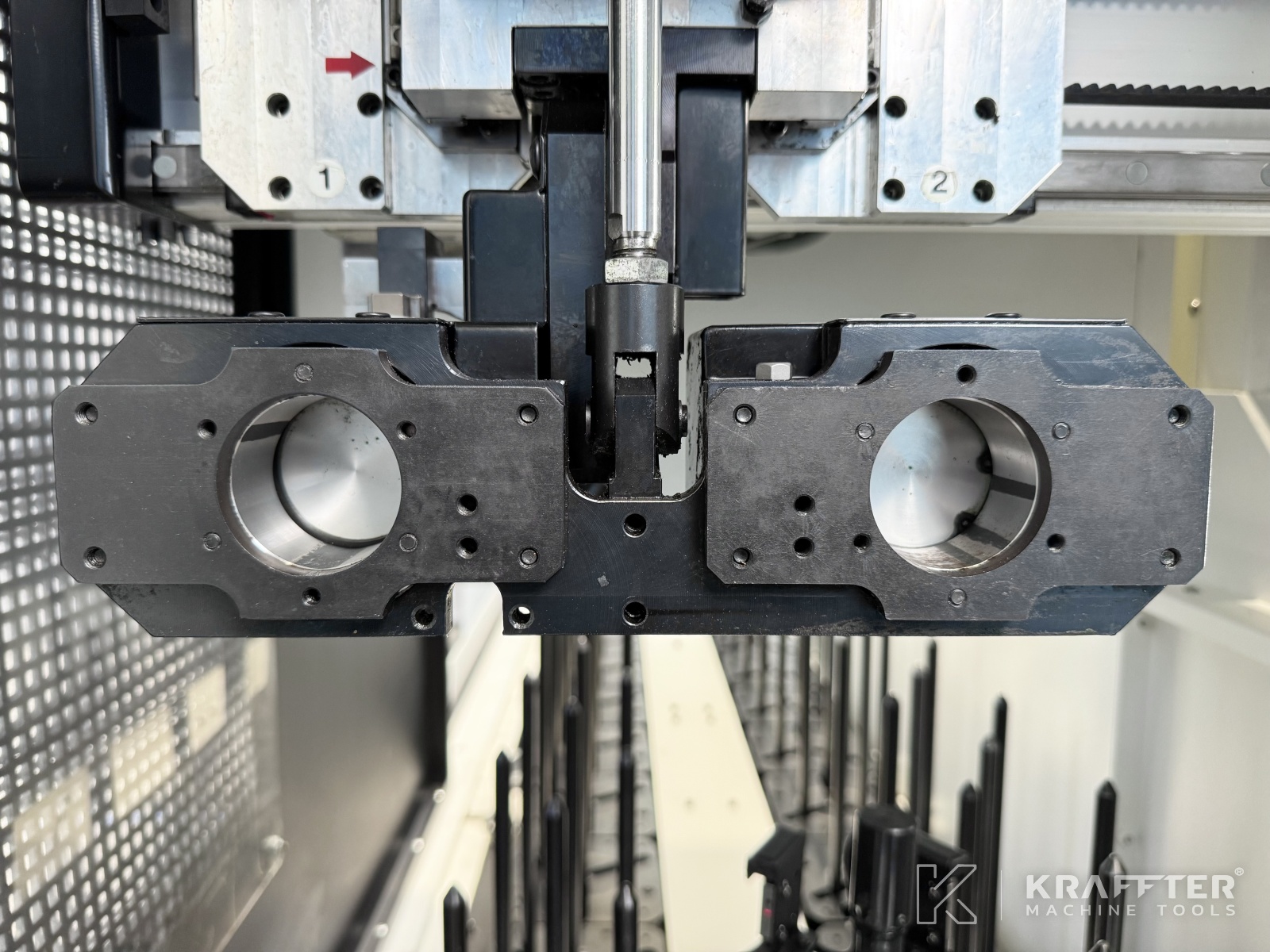

x1 set of grippers for the gantry loader

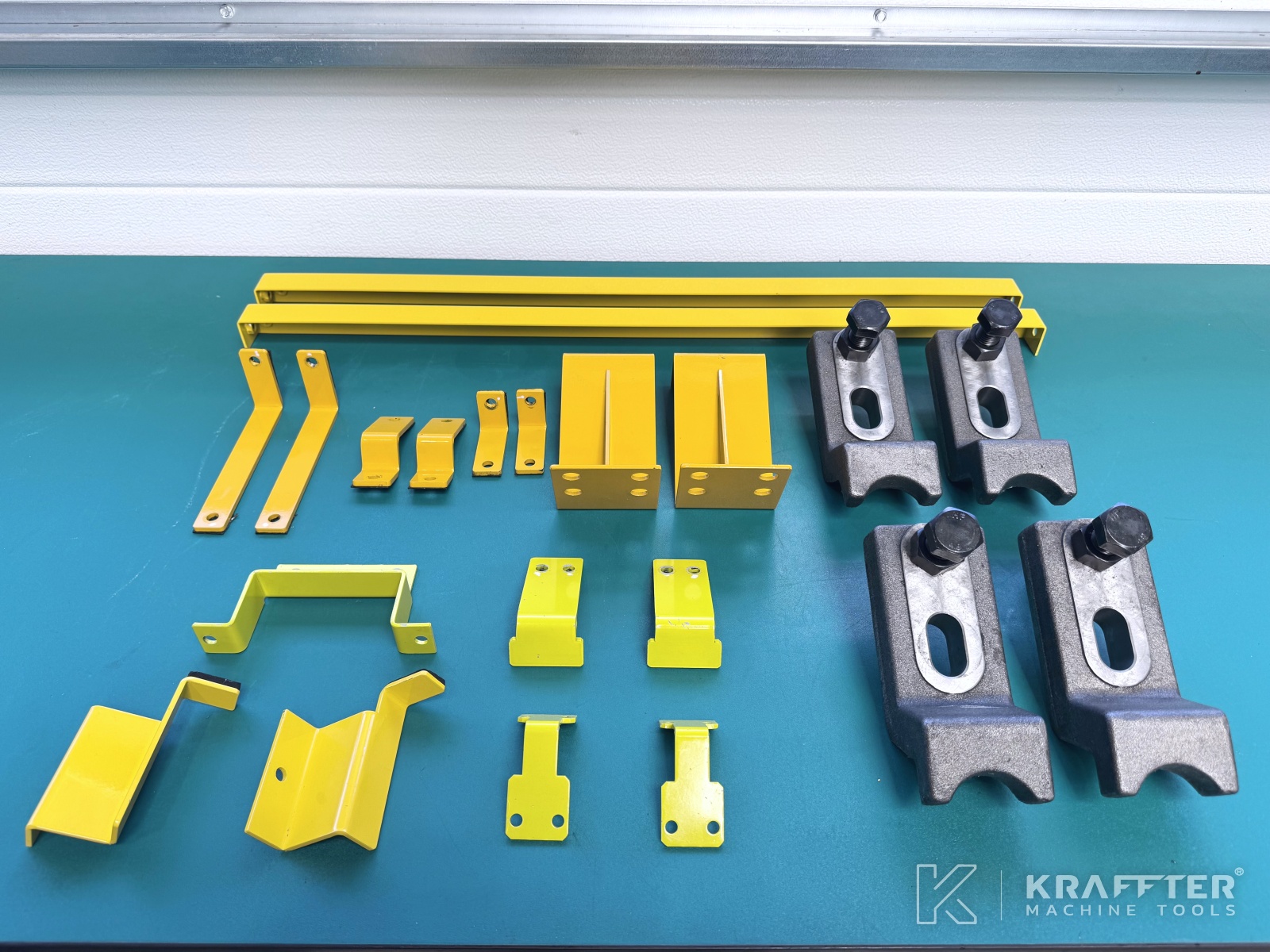

x1 set of axle clamping brackets for machine transport
x1 complete set of manuals (users manual, programming manual, electrical diagrams, gantry loader manual...)
