Sold

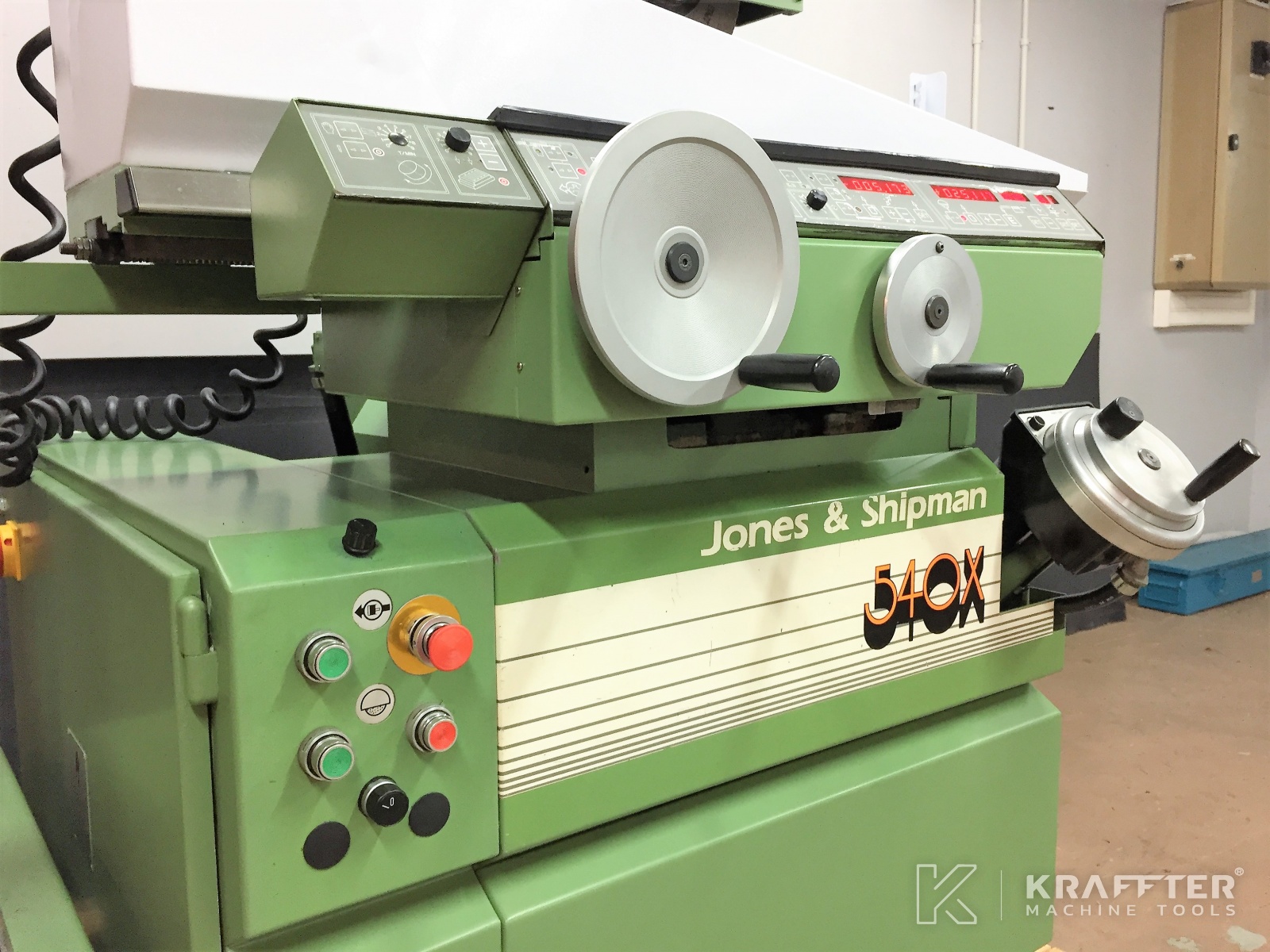

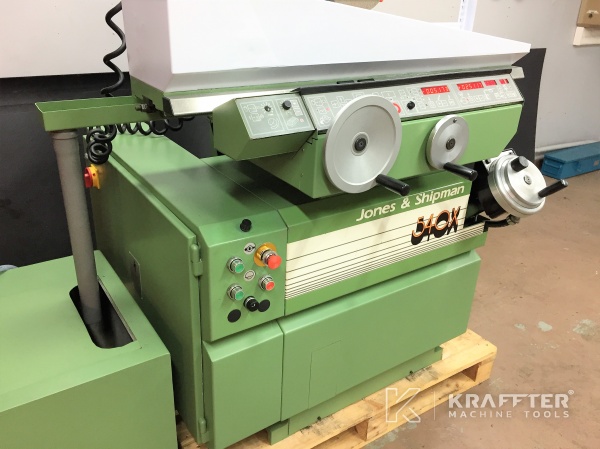

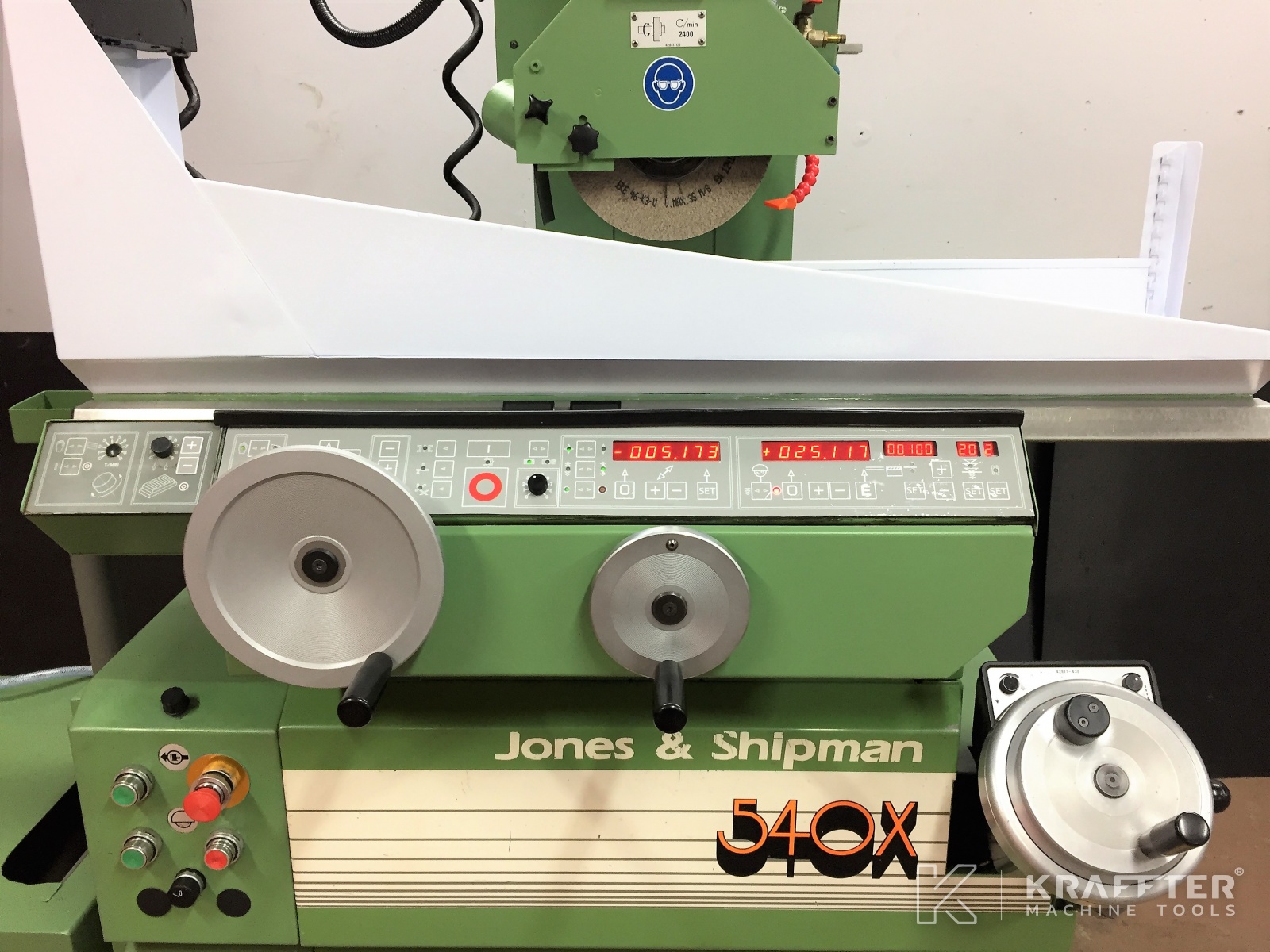

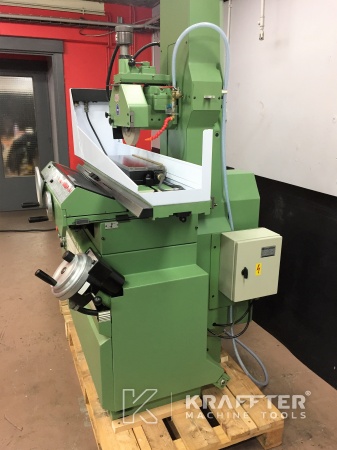

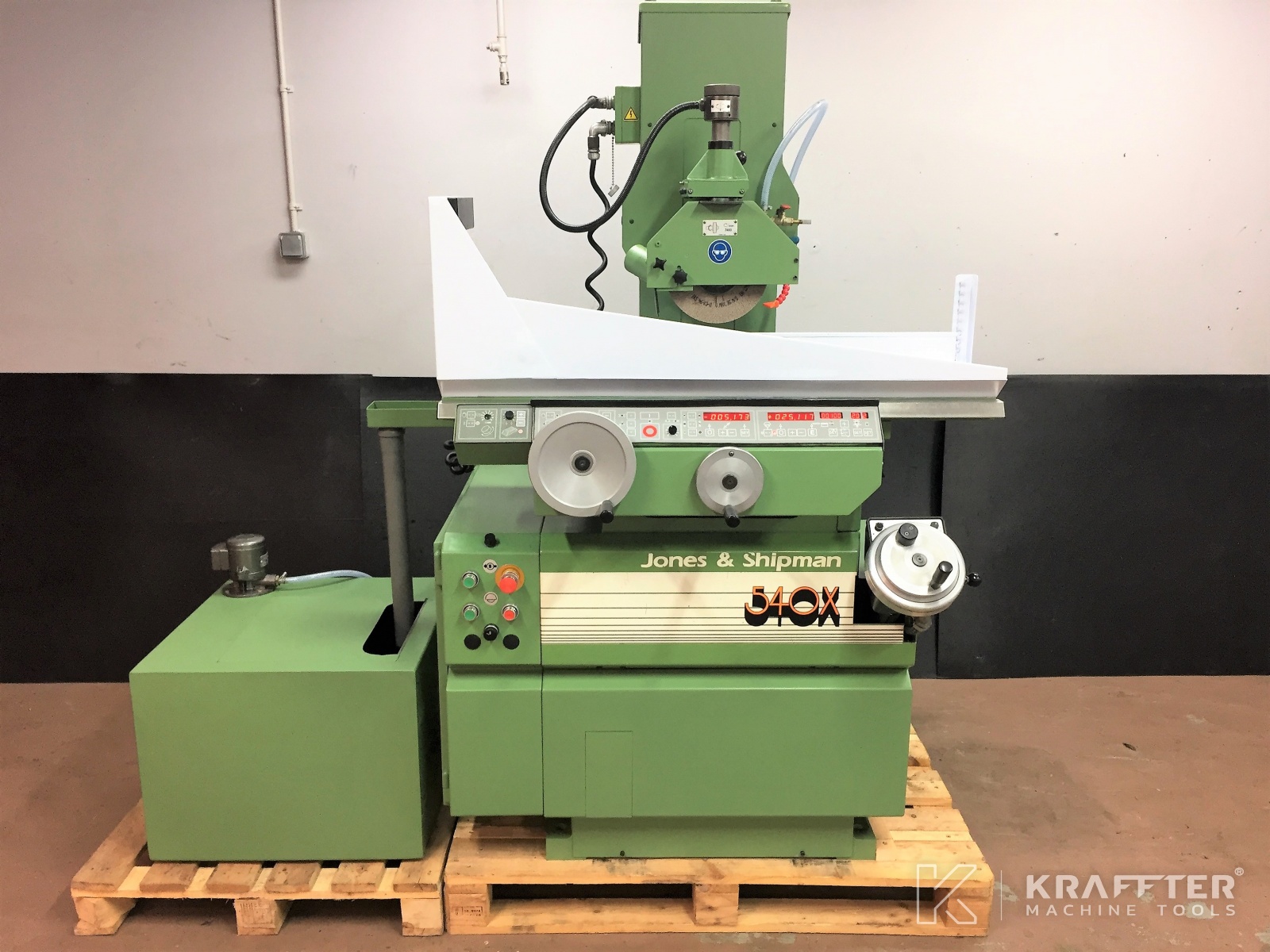

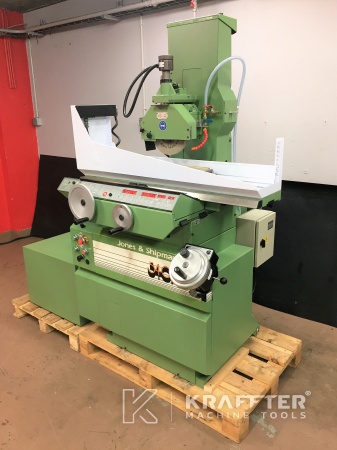

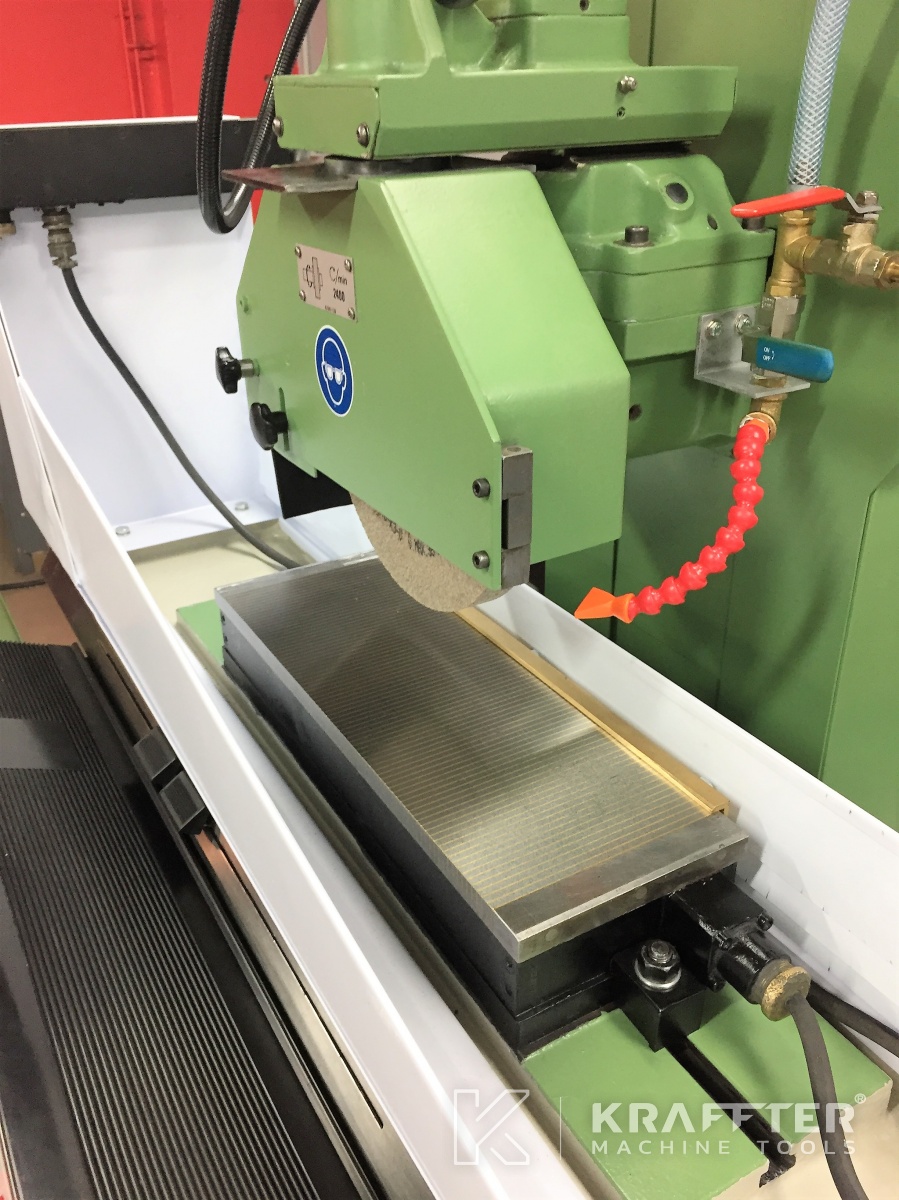

Type of machine : Surface grinder
Brand : JONES & SHIPMAN
Stock N° : 20689-910
Model : 540X
Year : 1991
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Automatic
Yes
Stroke X axis
490 [mm]
Stroke Y axis
171 [mm]
Table length
450 [mm]
Table width
150 [mm]
Max. distance spindle nose / table
402 [mm]
Grinding spindle motor power
1.5 [kW]

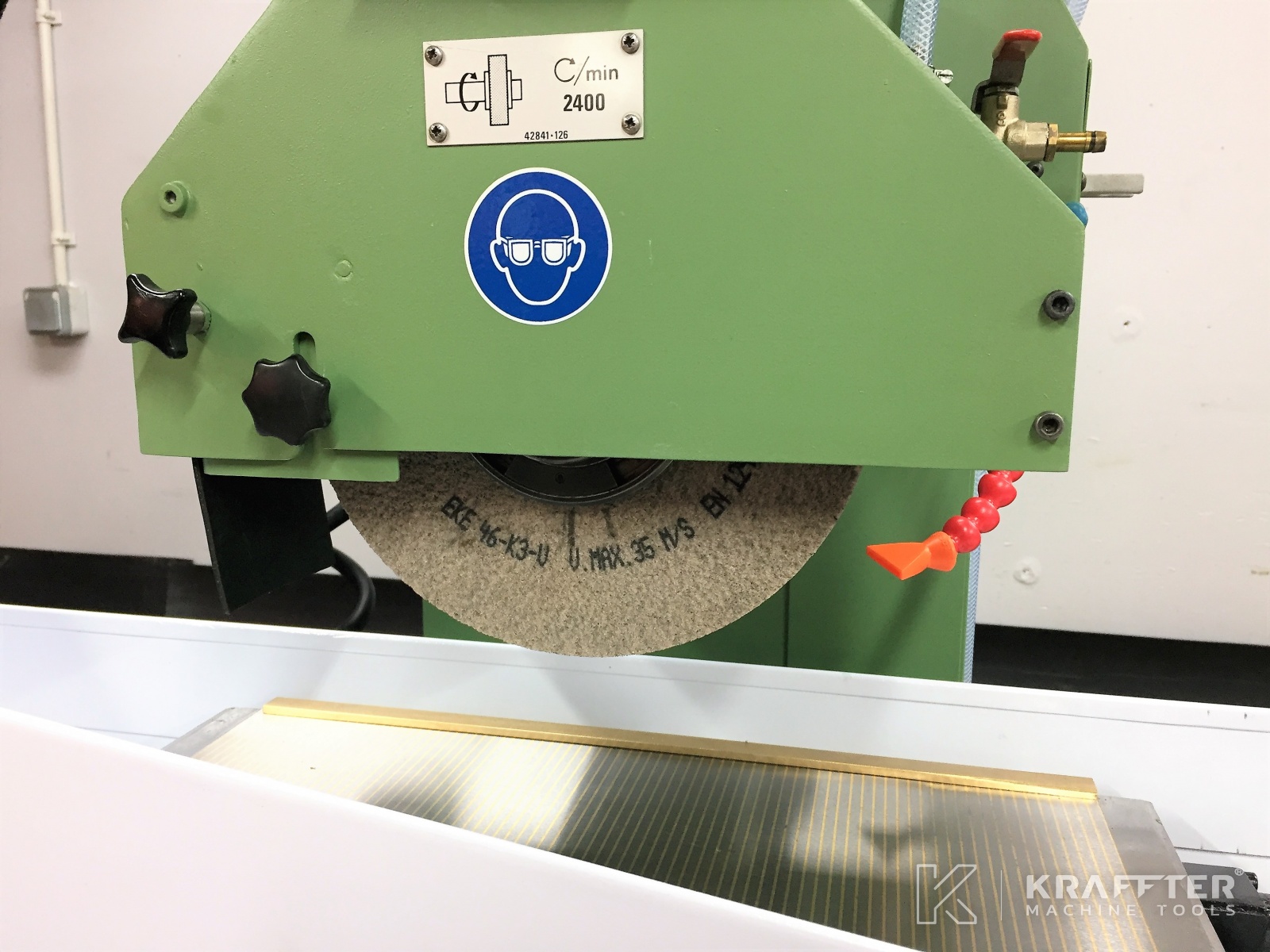

Grinding wheel diameter
200 [mm]
Grinding wheel width
20 [mm]
Wheel dresser on head
Yes
Variable power feeding
Yes
Electro permanent magnet clamping plate
Yes
Dimensions of magnetic plate
400 x 150 mm

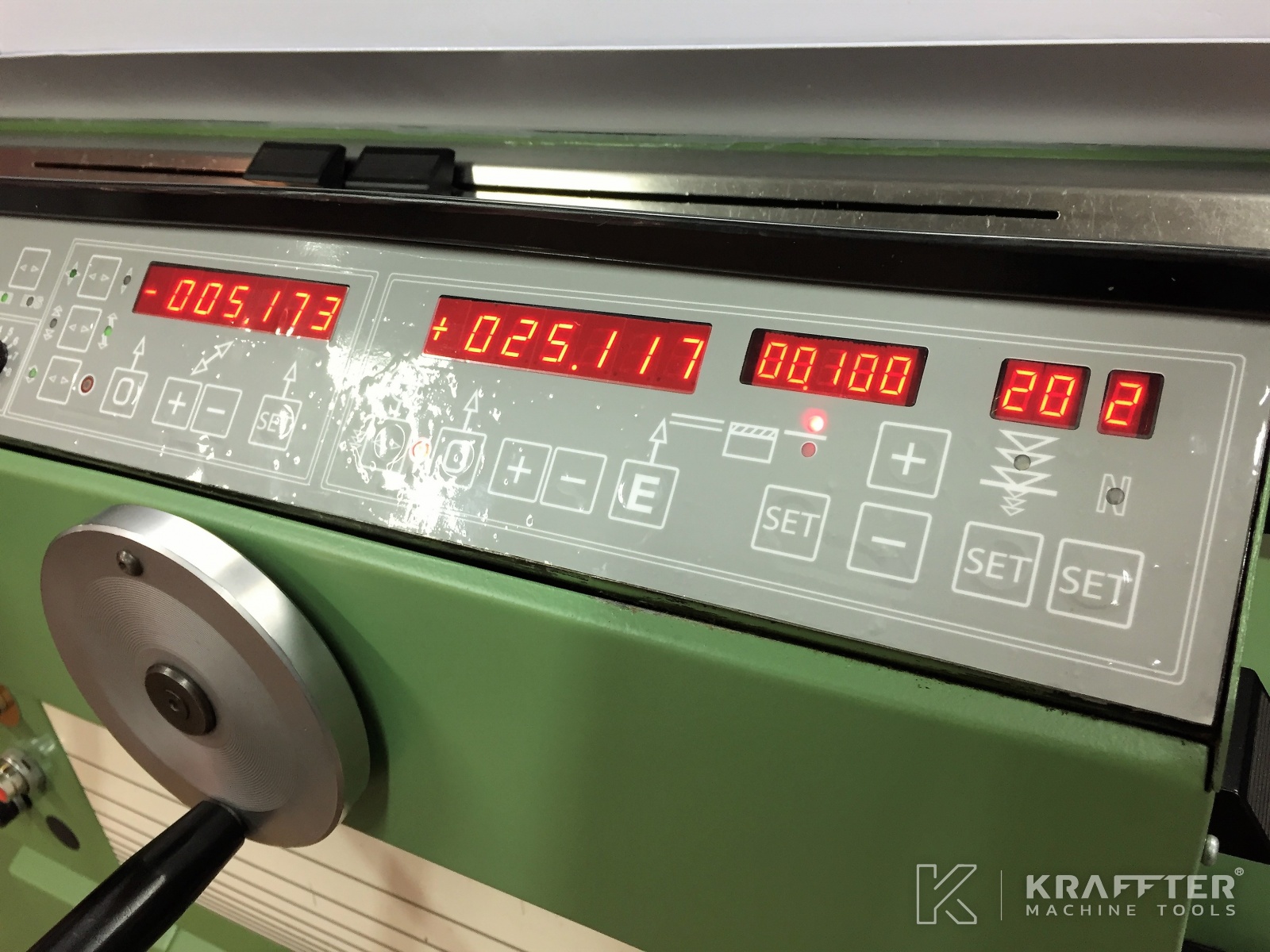

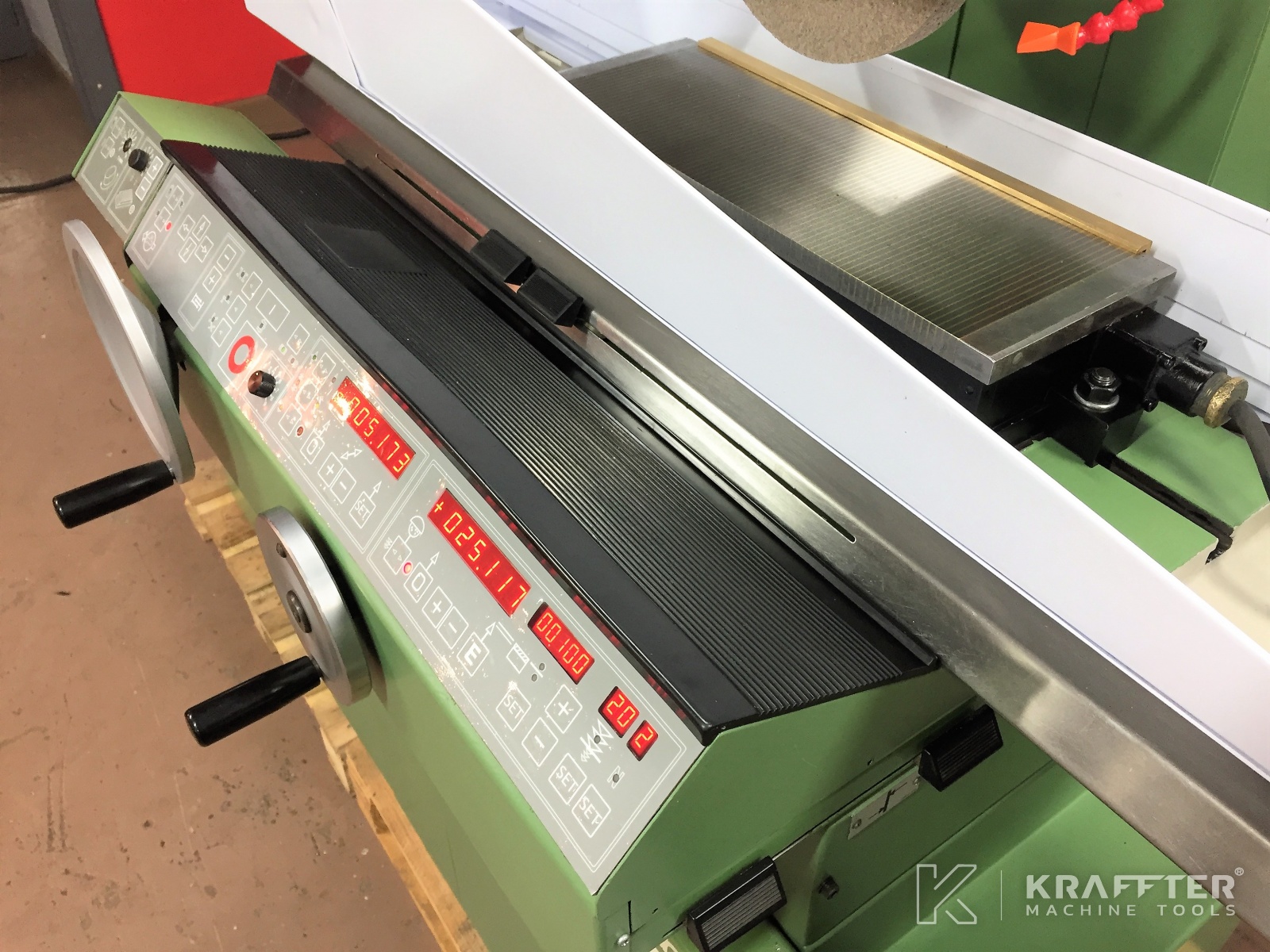

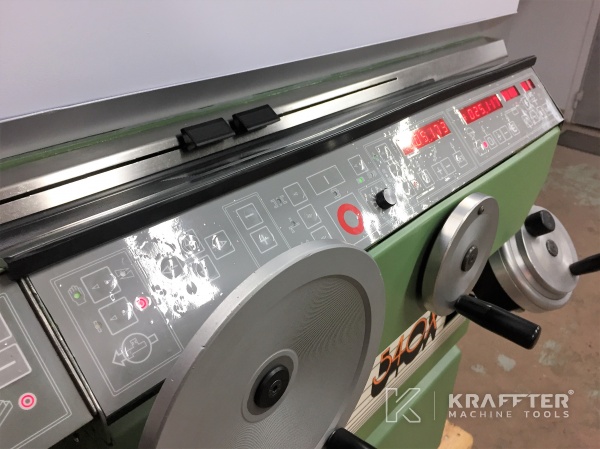

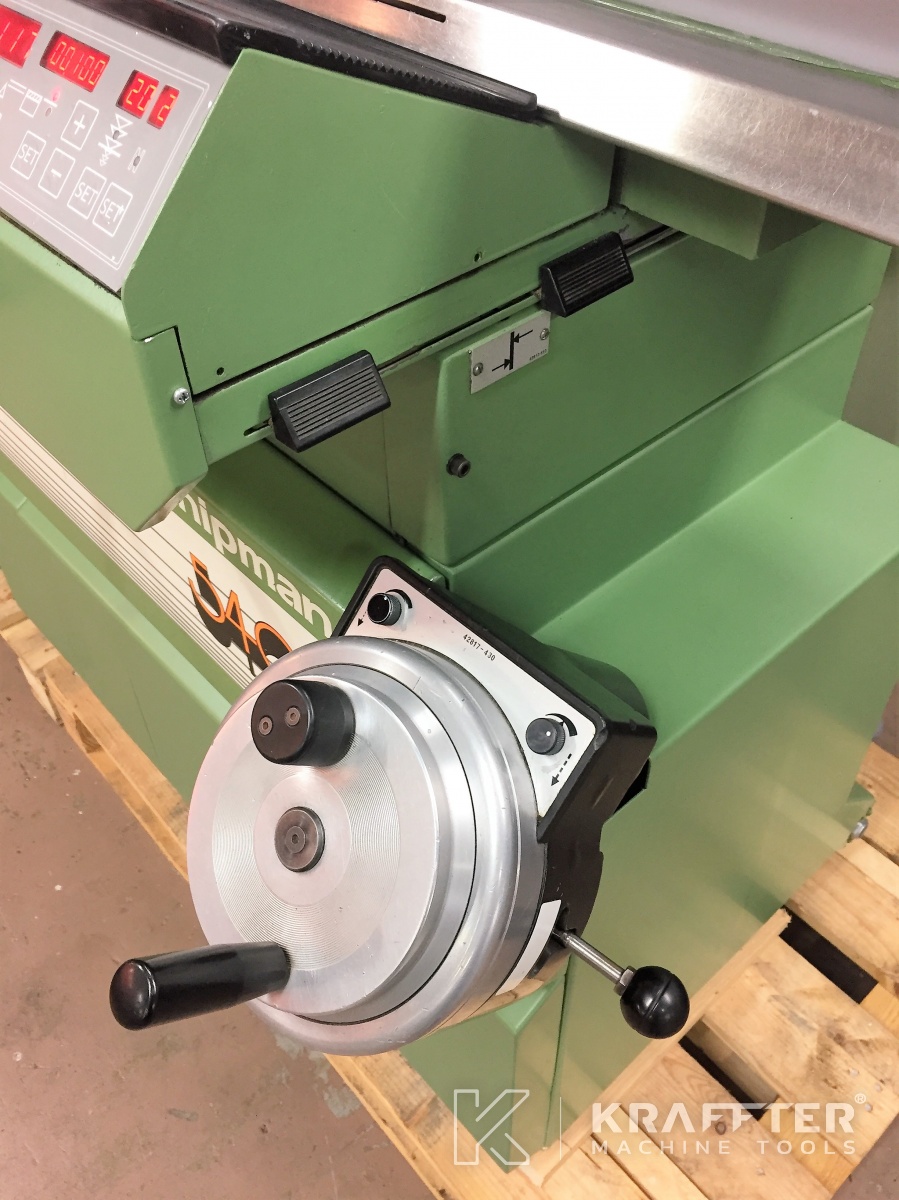

Digital read out
Jones & Shipman
Number of axes Digital Read Out
2
Lubrication tank with pump
Yes
Paper filtration unit
No
Centralized lubrication
Automatique
Supply voltage
400 [V]
Dimensions
1600 x 720 x 1875
Weight
950 [Kg]
- 2 axis digital read out
- Electro-magnetic clamping plate ; clamping surface : 400 x 150 [mm]
- Manual diamond grinding on head

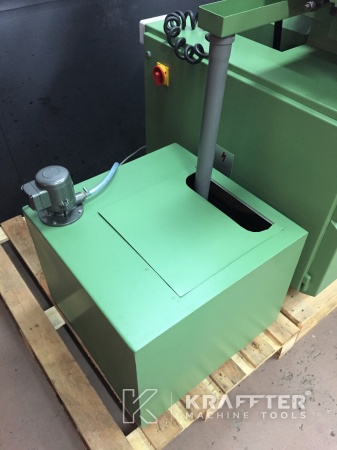

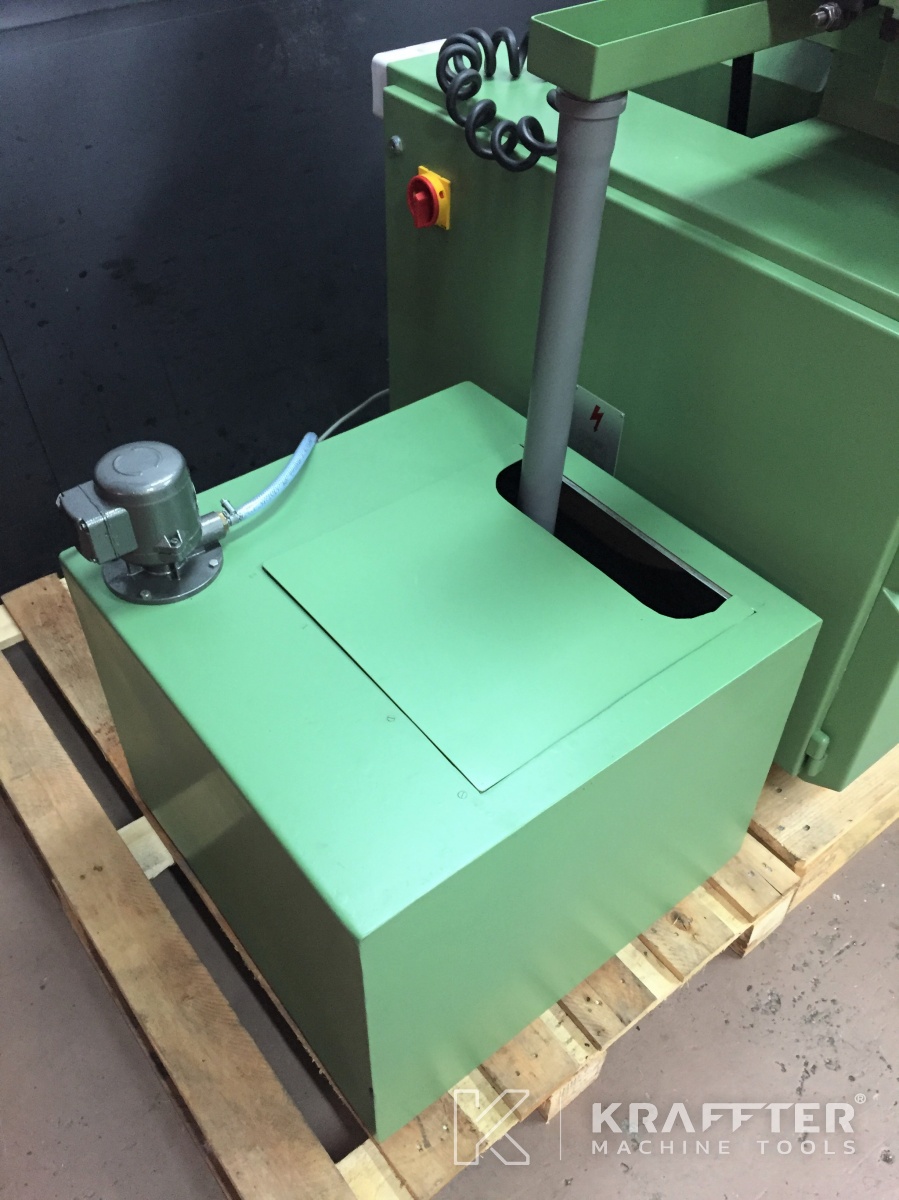

- Complete coolant system

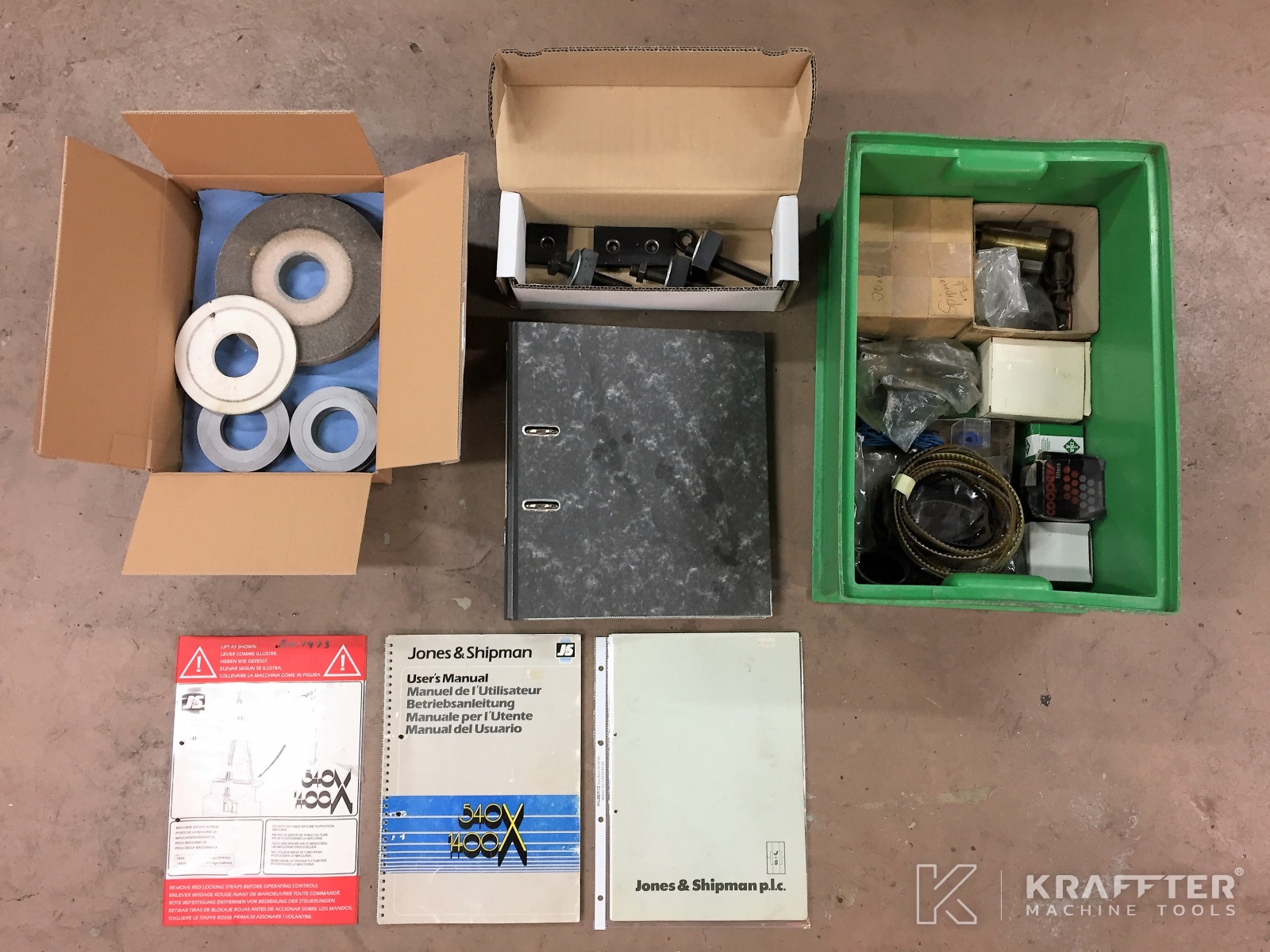

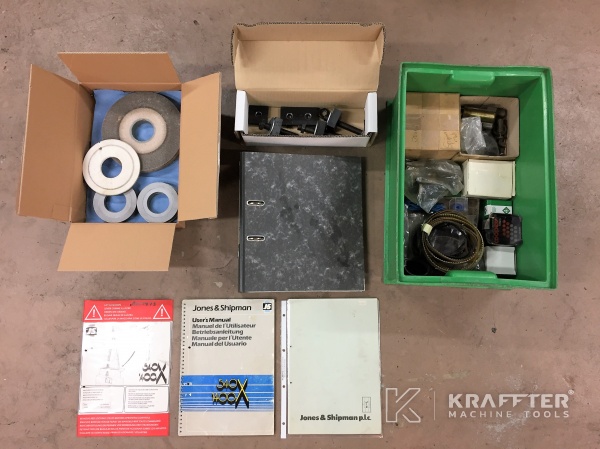

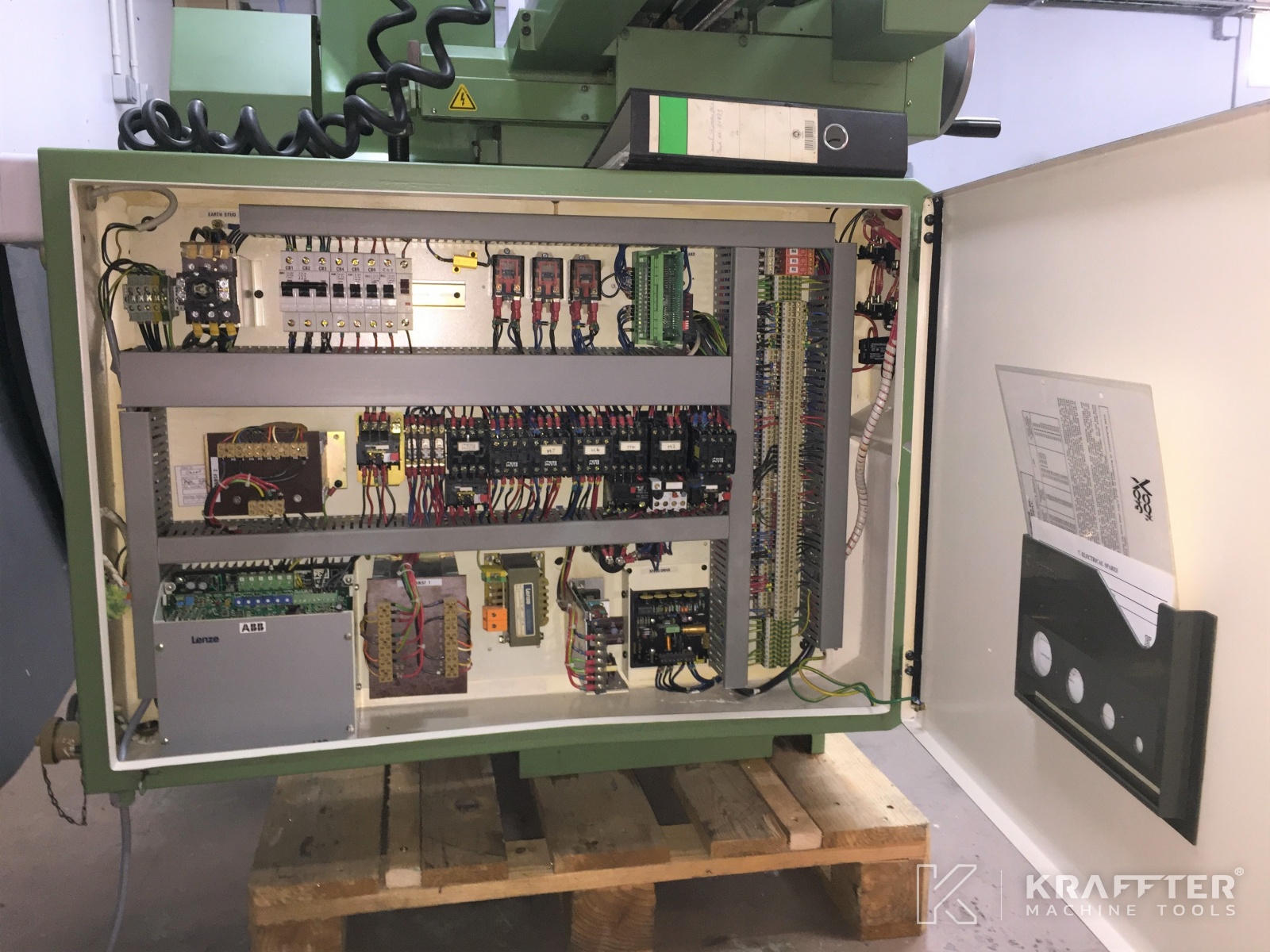

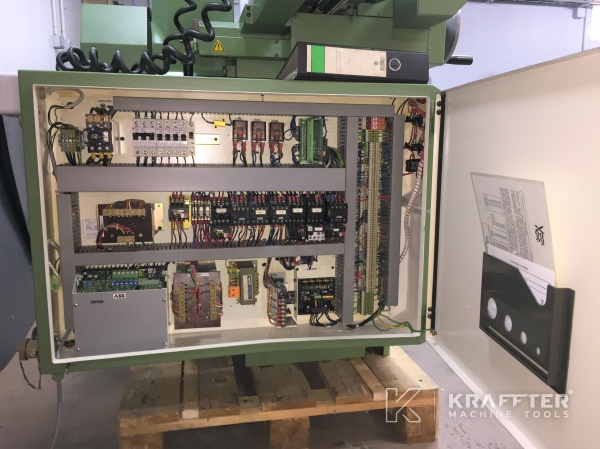

- Technical documentation, electrical plans and service/users manual
