Sold
Type of machine : Turn-mill center
Brand : DMG MORI
Stock N° : 20689-925

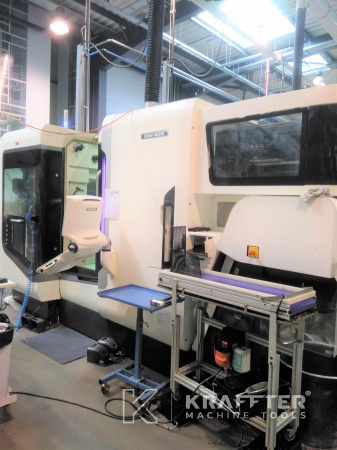

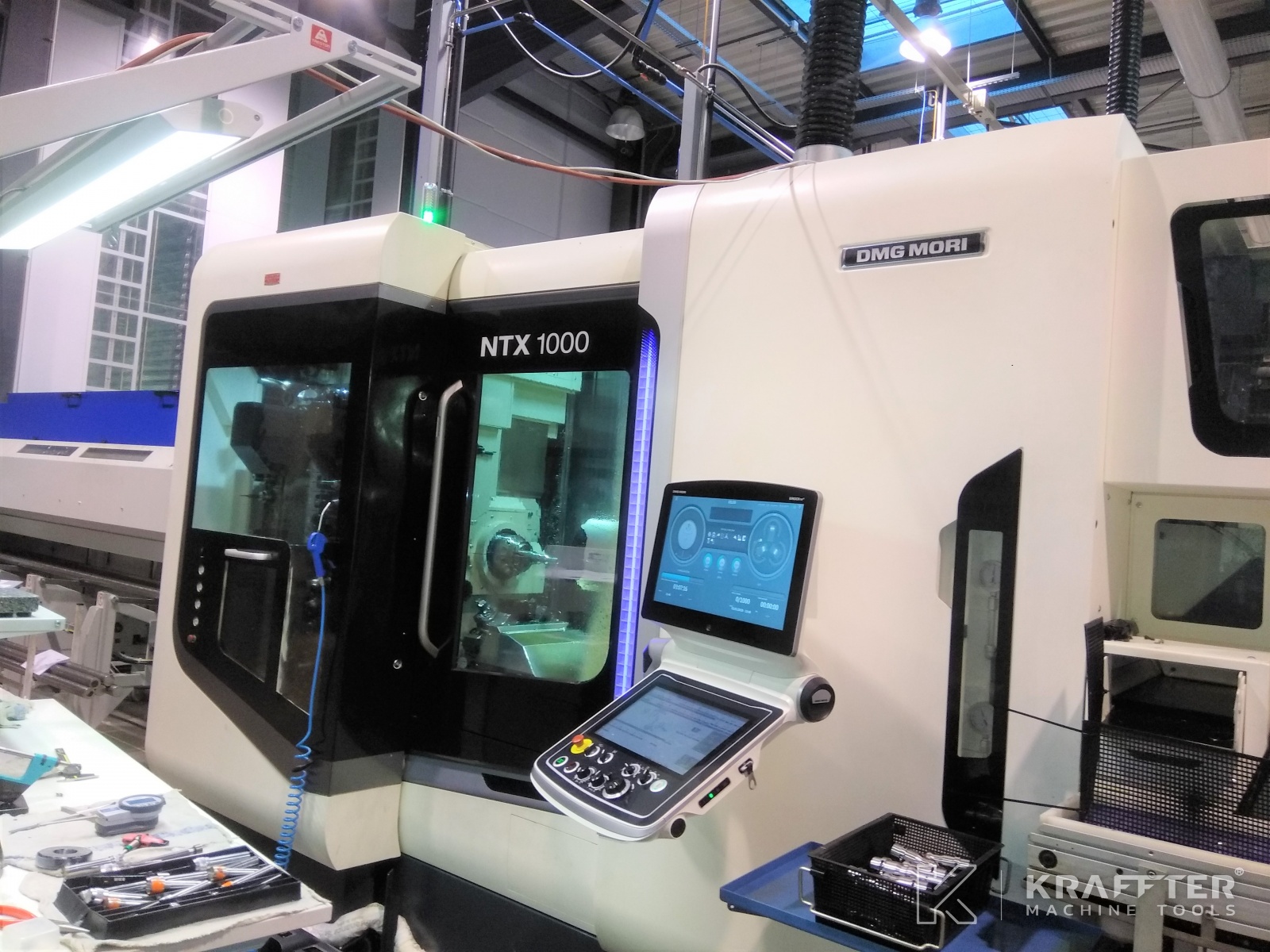

Model : NTX 1000
Year : 2015
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
CNC control
FANUC
Number of axes
5
Max. turning diameter
430 [mm]
Stroke X axis
455 [mm]
Stroke Z axis
800 [mm]
B axis swivelling stroke
240 [°]
B axis indexing precision
0.0001 [°]
Milling head max. speed
12000 [rpm]
Spindle throughbore
65 [mm]
Increment C-axis
0.001 [°]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
22 [kW]

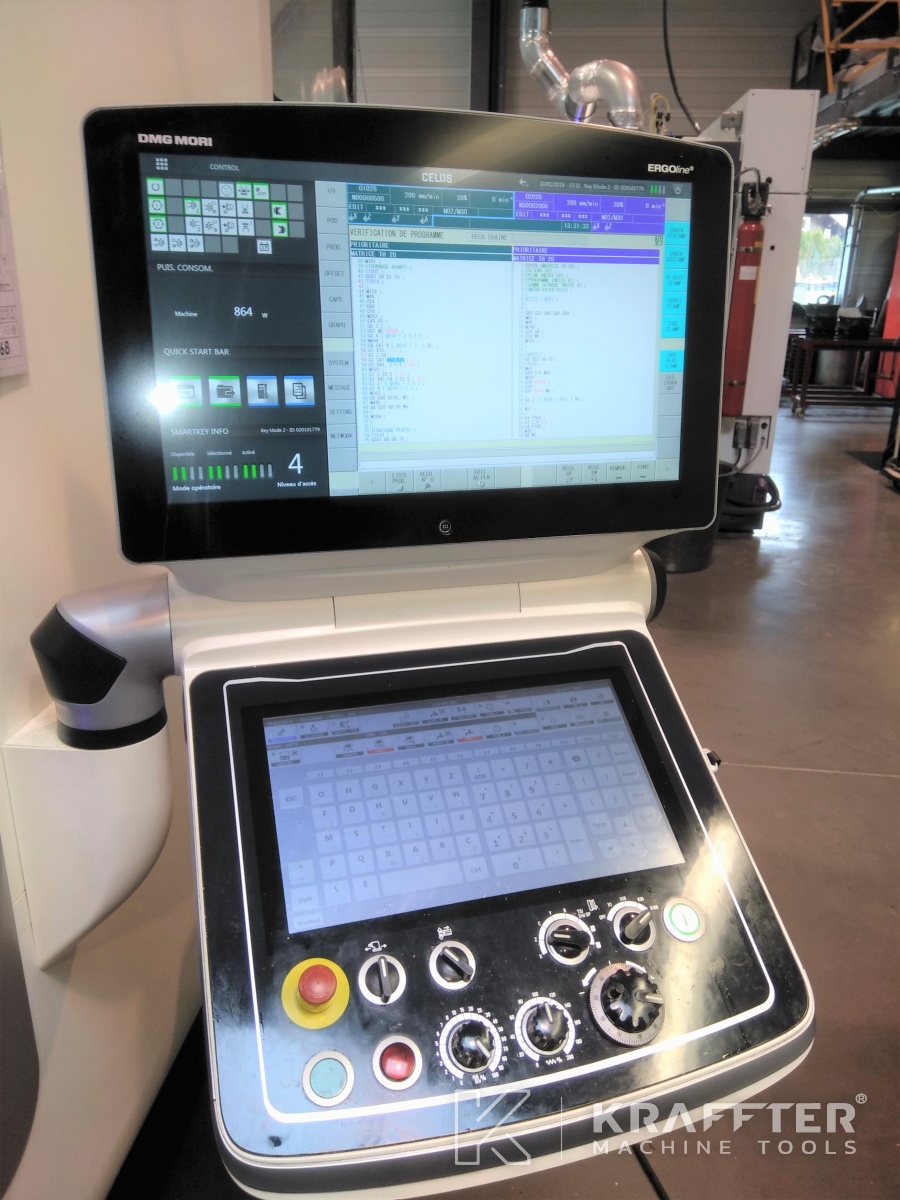

Colour touch screen
21.5 ["]
Milling head spindle nose type
Capto C5
High pressure collant device
80 [bars]

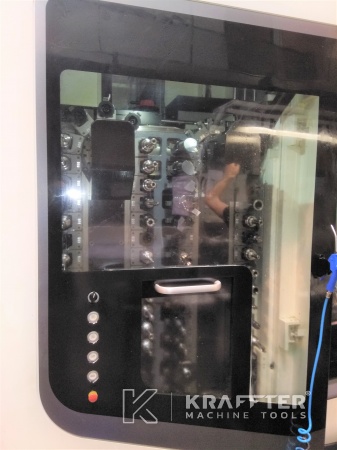

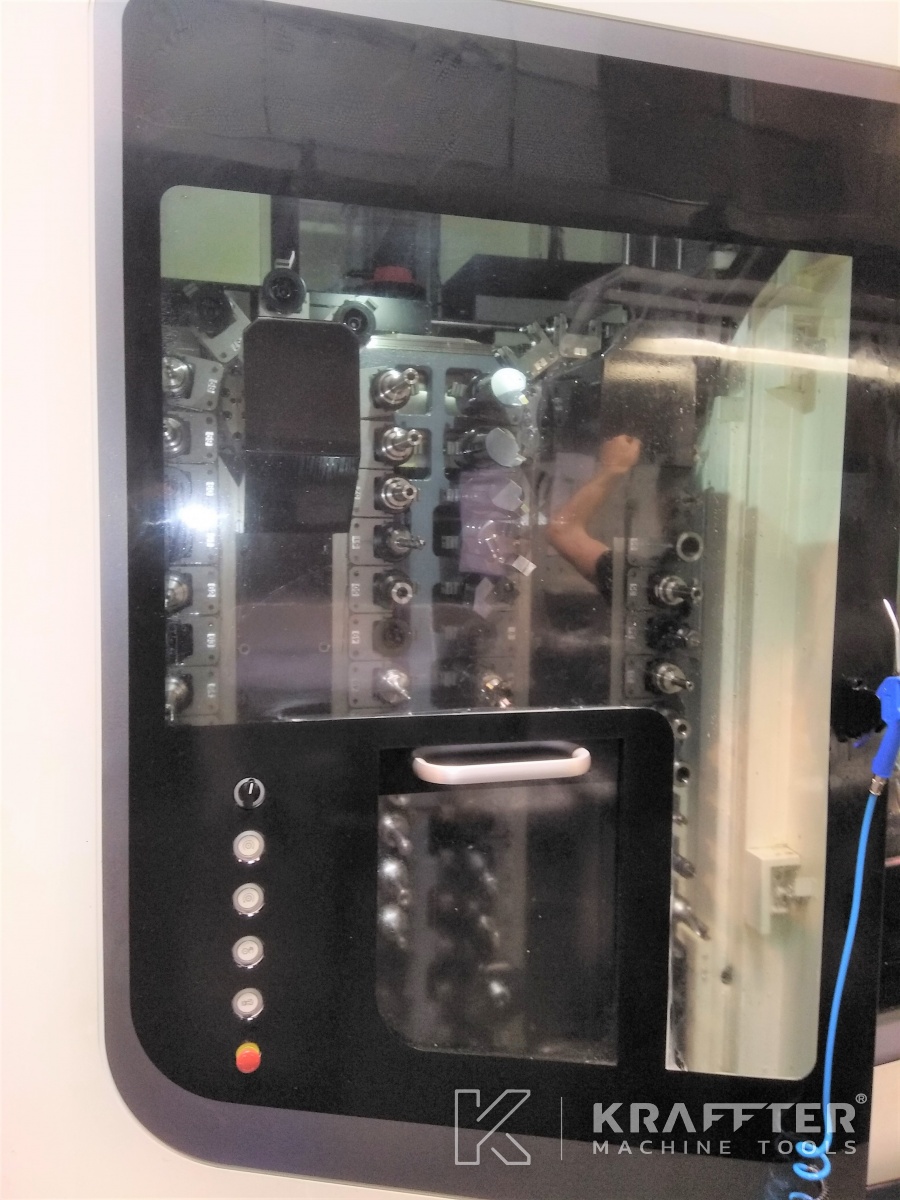

Number of tool stations
10
Centralized lubrication
Automatique
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
4169 x 2543 x 2543
Weight
10500 [Kg]

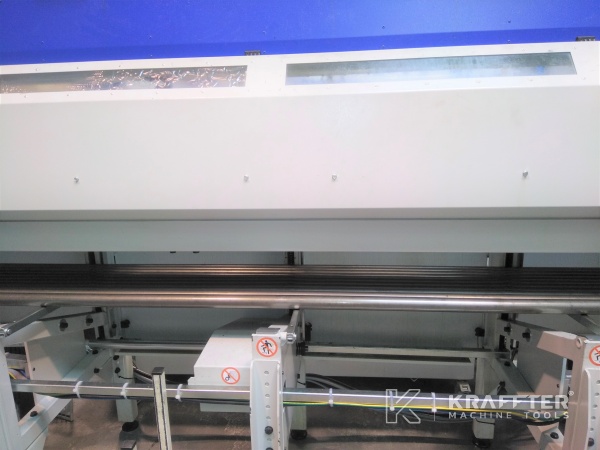

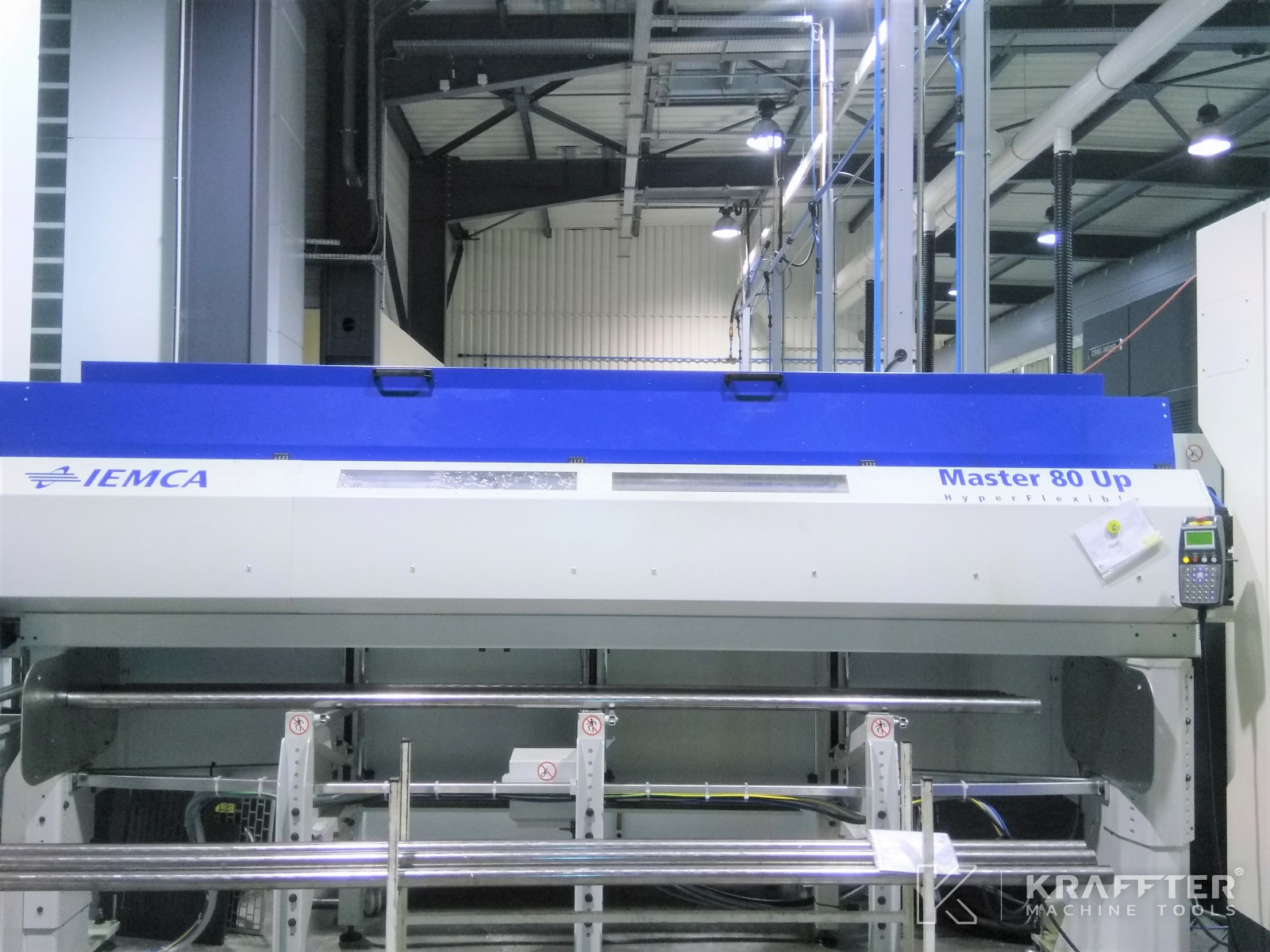

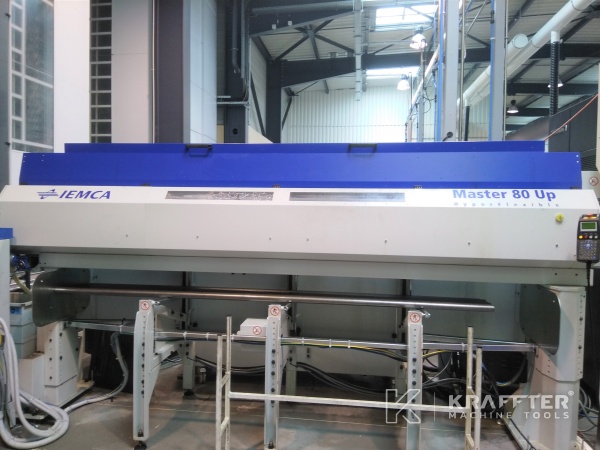

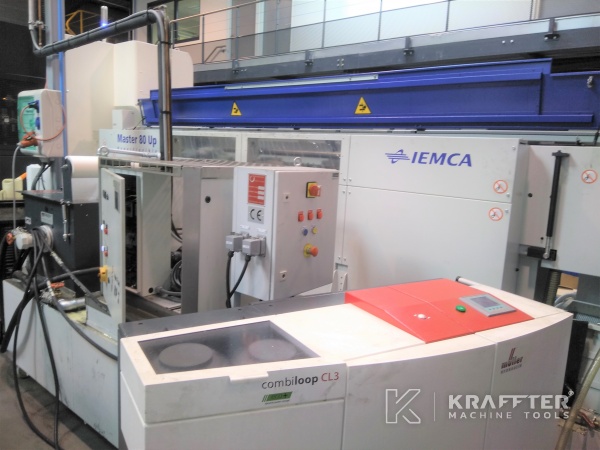

- 3 [m] bar feeder: IEMCA Master 80 Up (it is possible to buy the machine without the bar feeder)

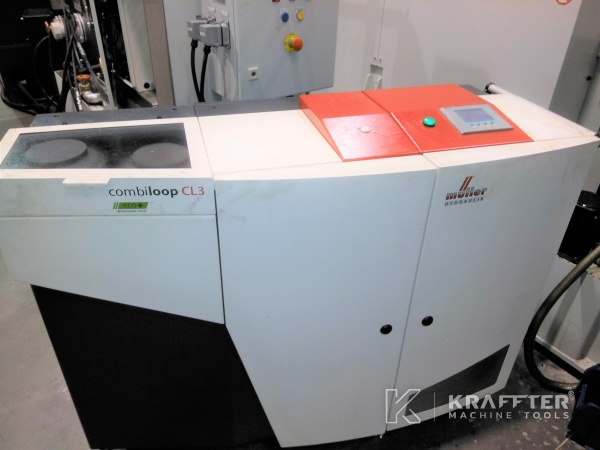

- High pressure pump MULLER - 80 bars

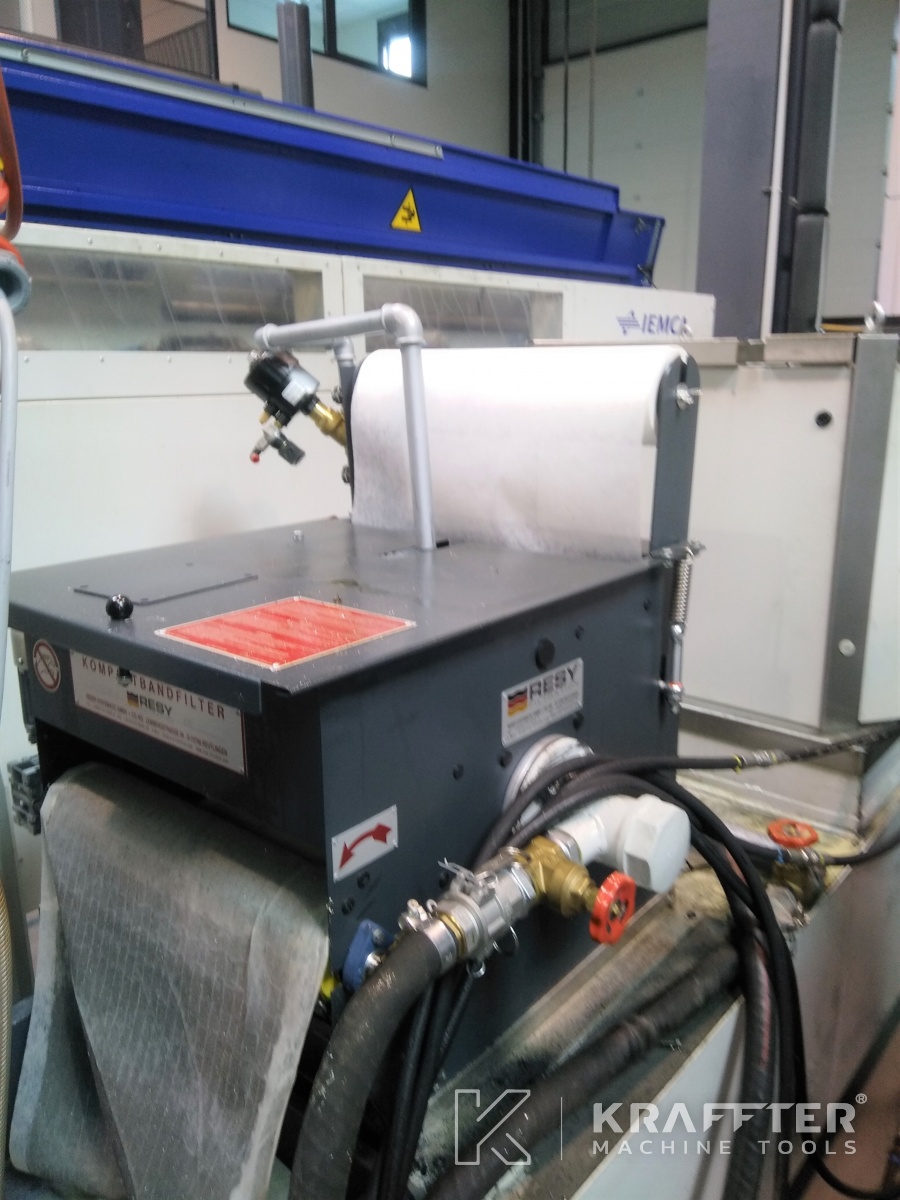

- Paper filter
- Cold unit (located at the outside of the workshop - to maintain optimal temperature in the workshop)
