Sold

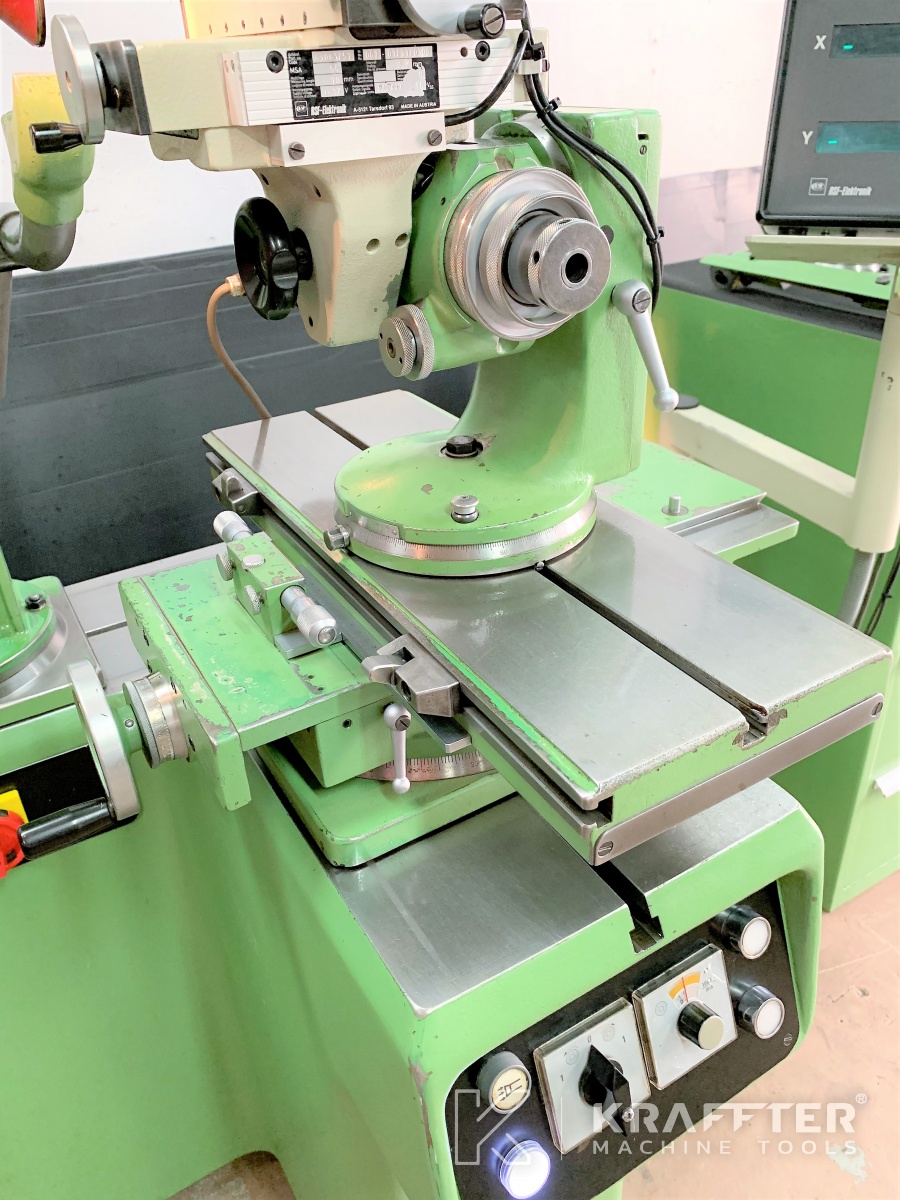

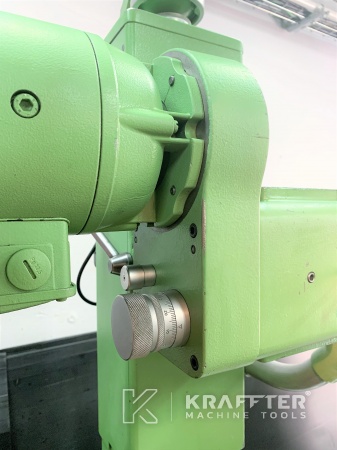

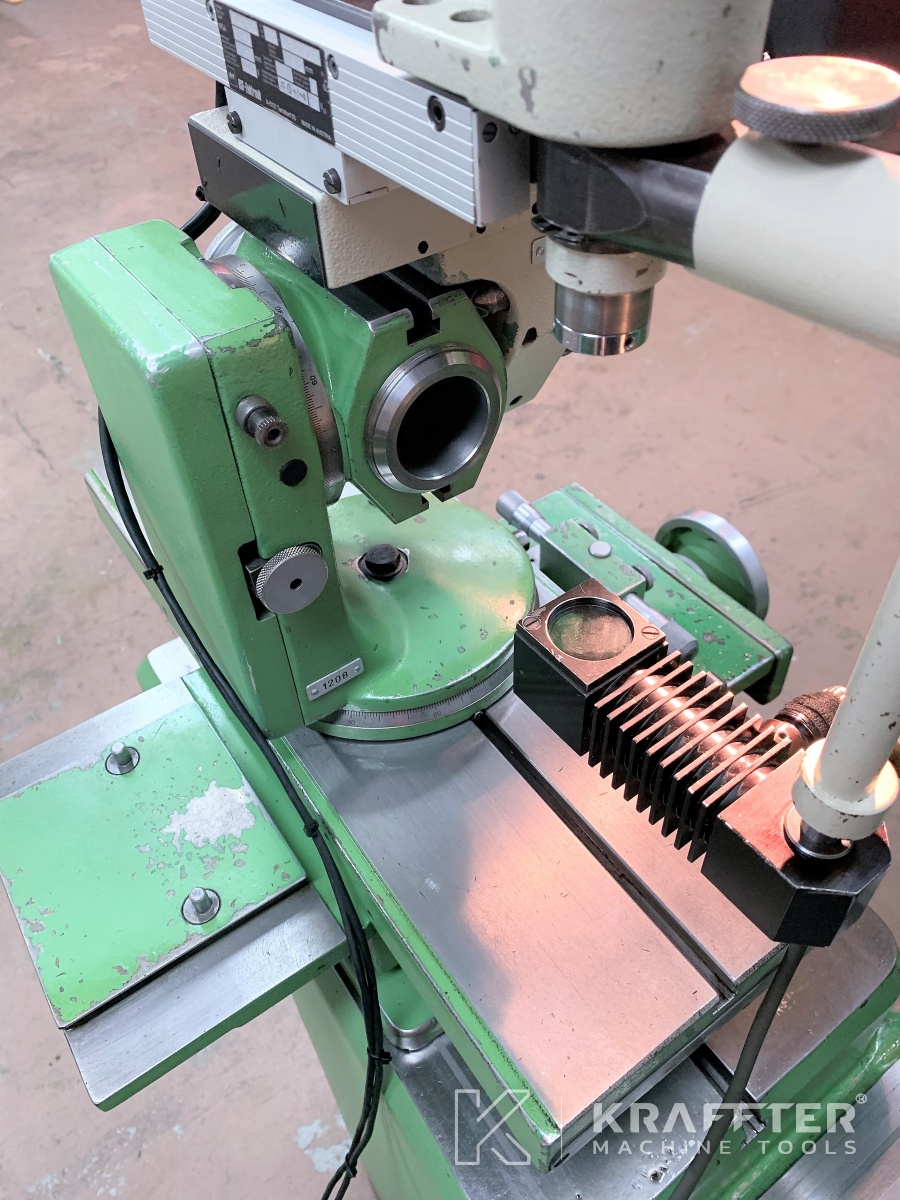

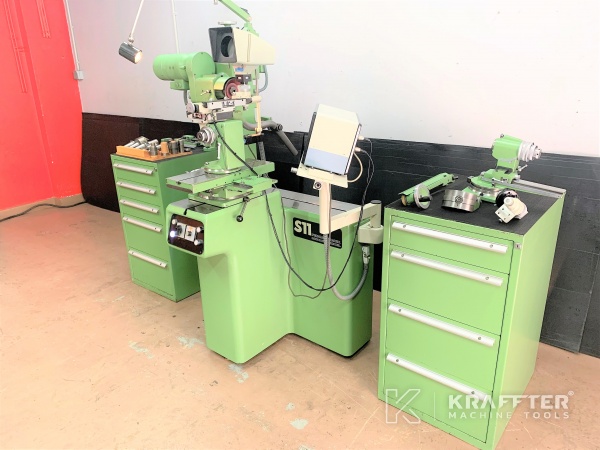

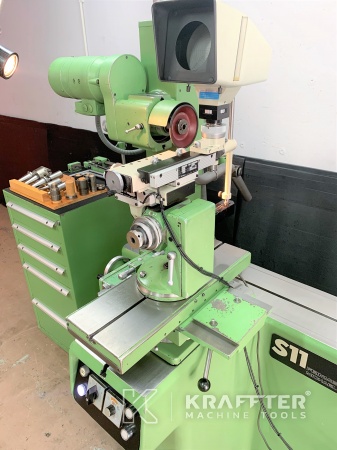

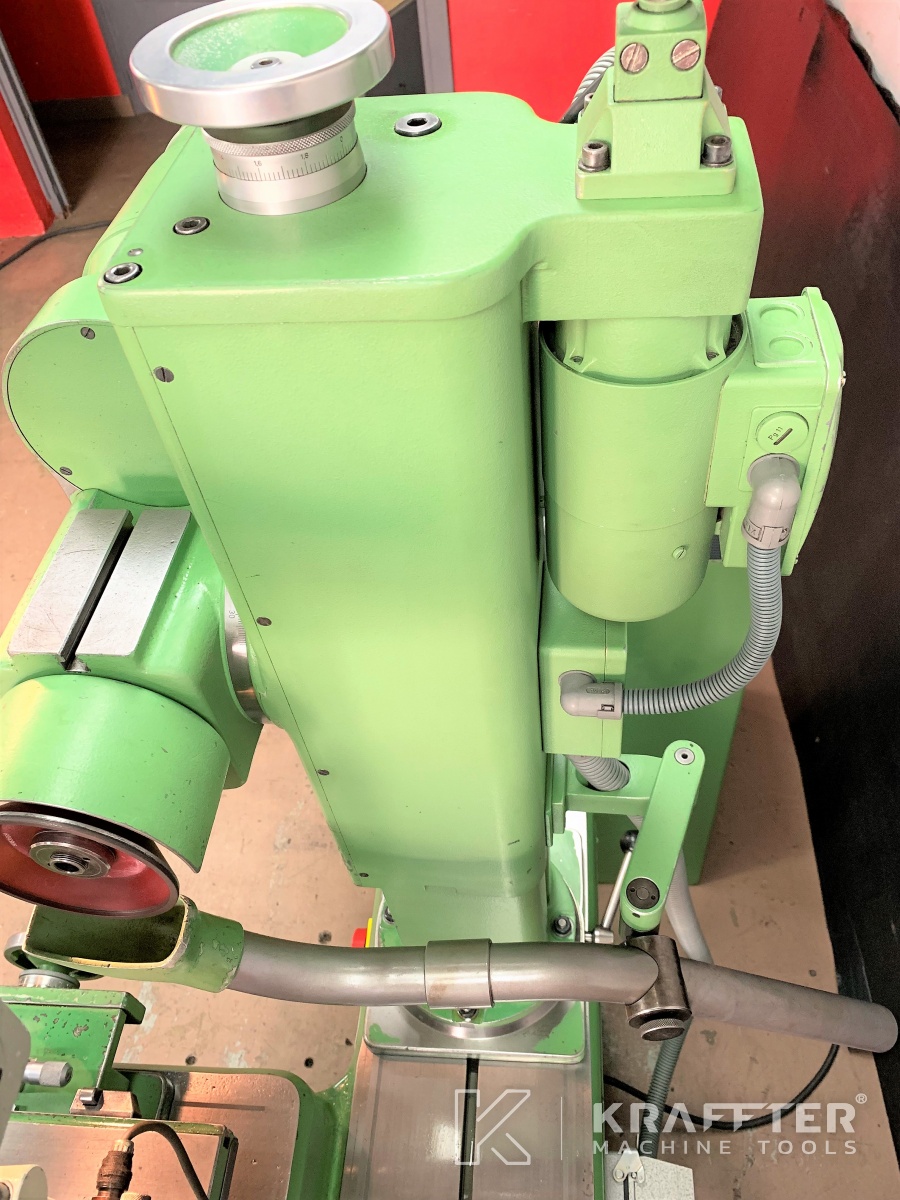

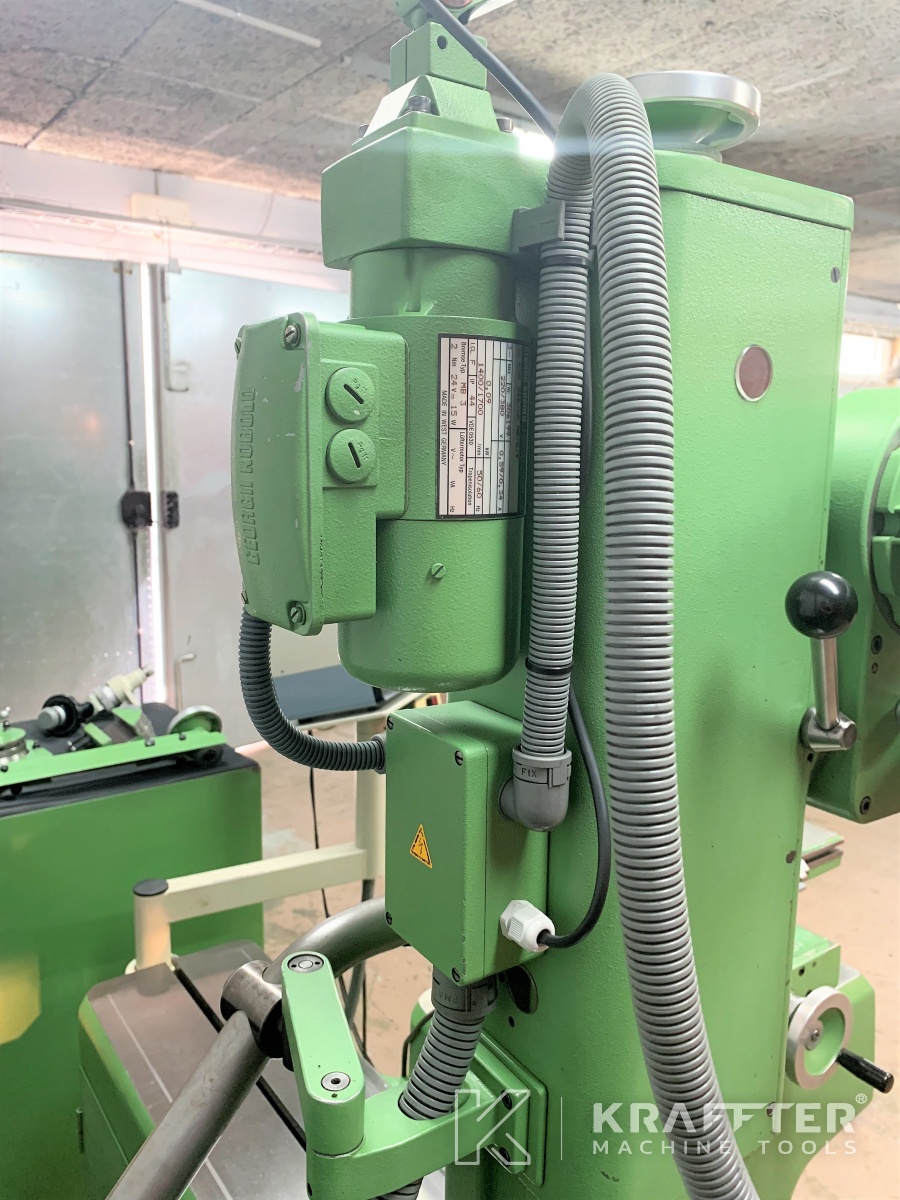

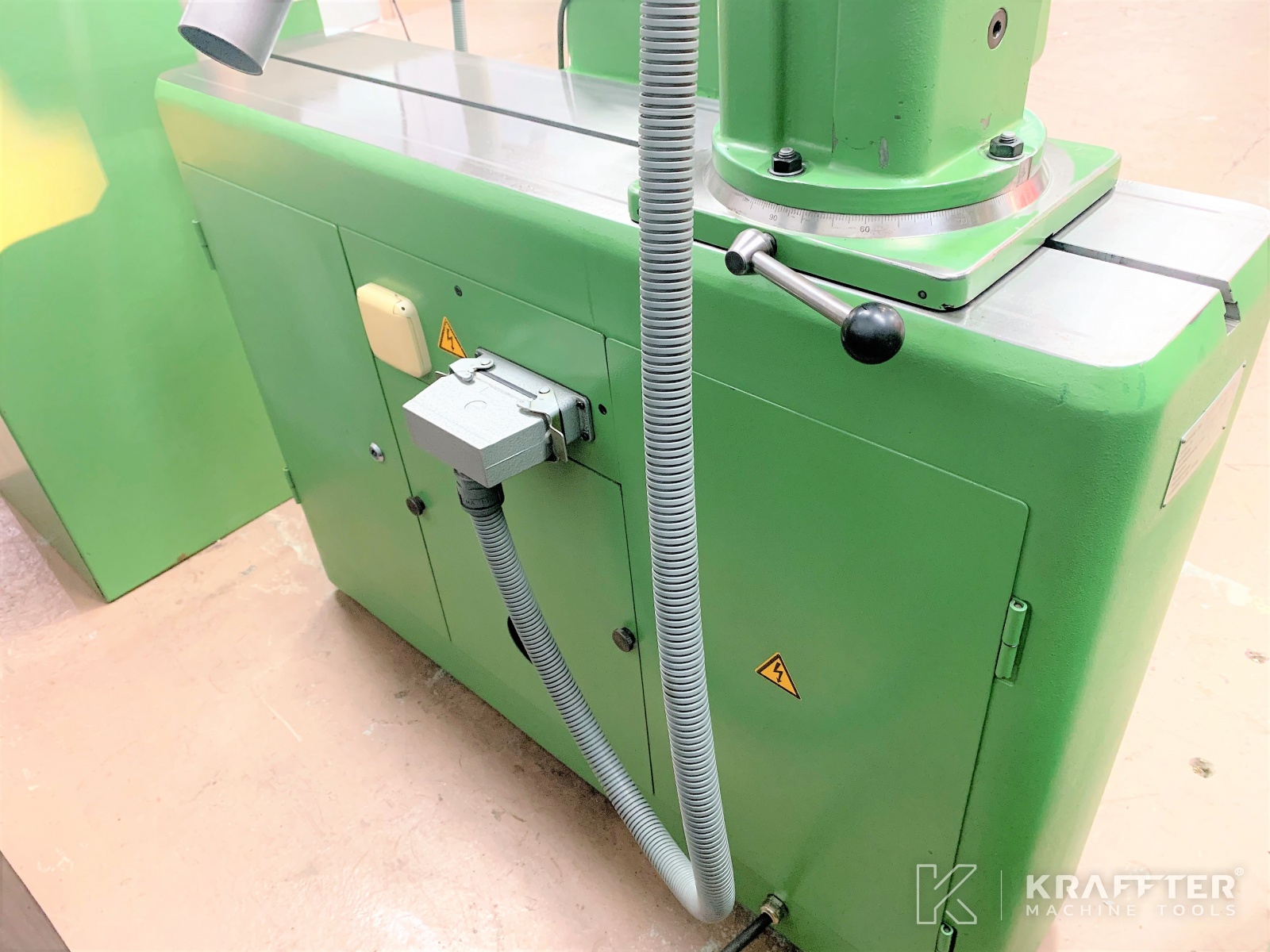

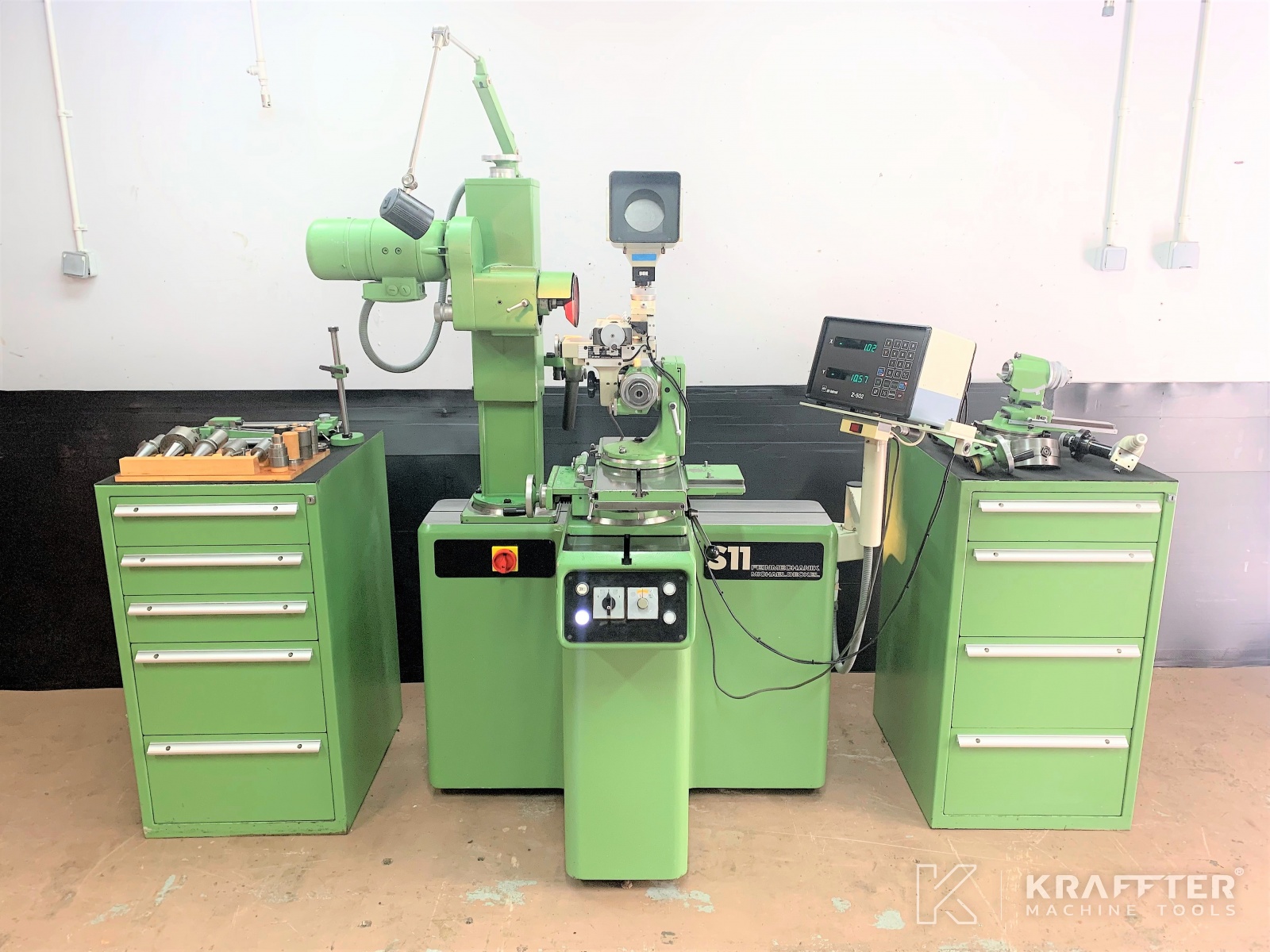

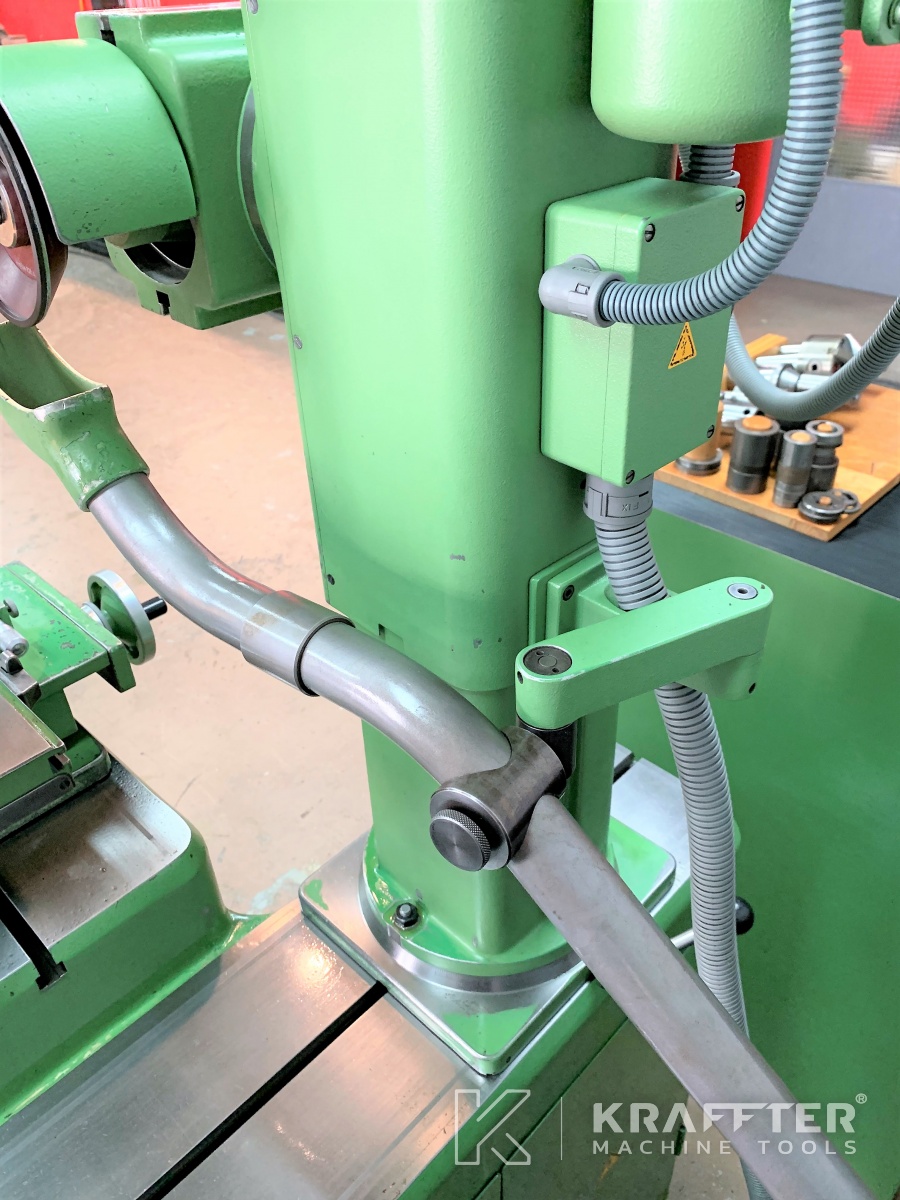

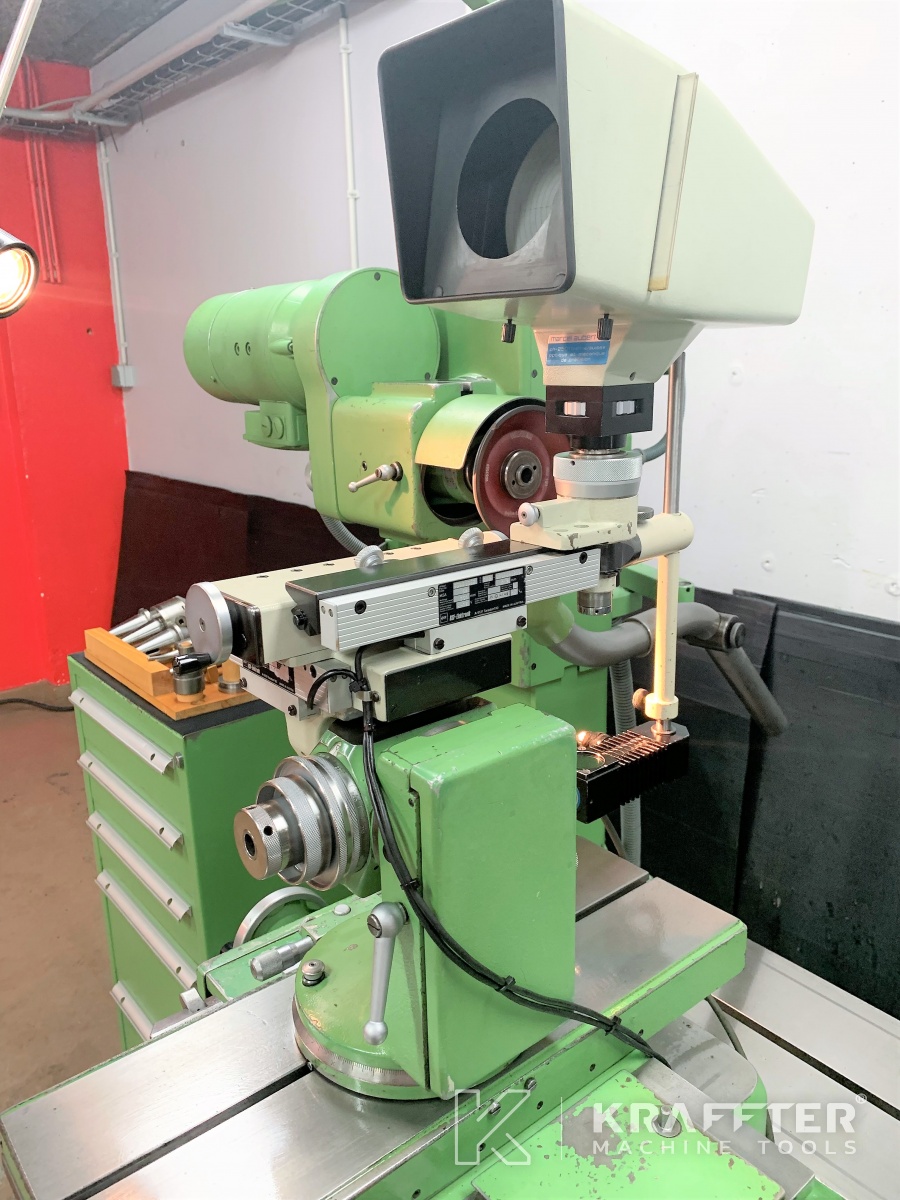

Type of machine : Tool grinding machine
Brand : DECKEL
Stock N° : 20689-934
Model : S11
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Grinding wheel diameter
125 [mm]
Workpiece spindle nose
ISO 40

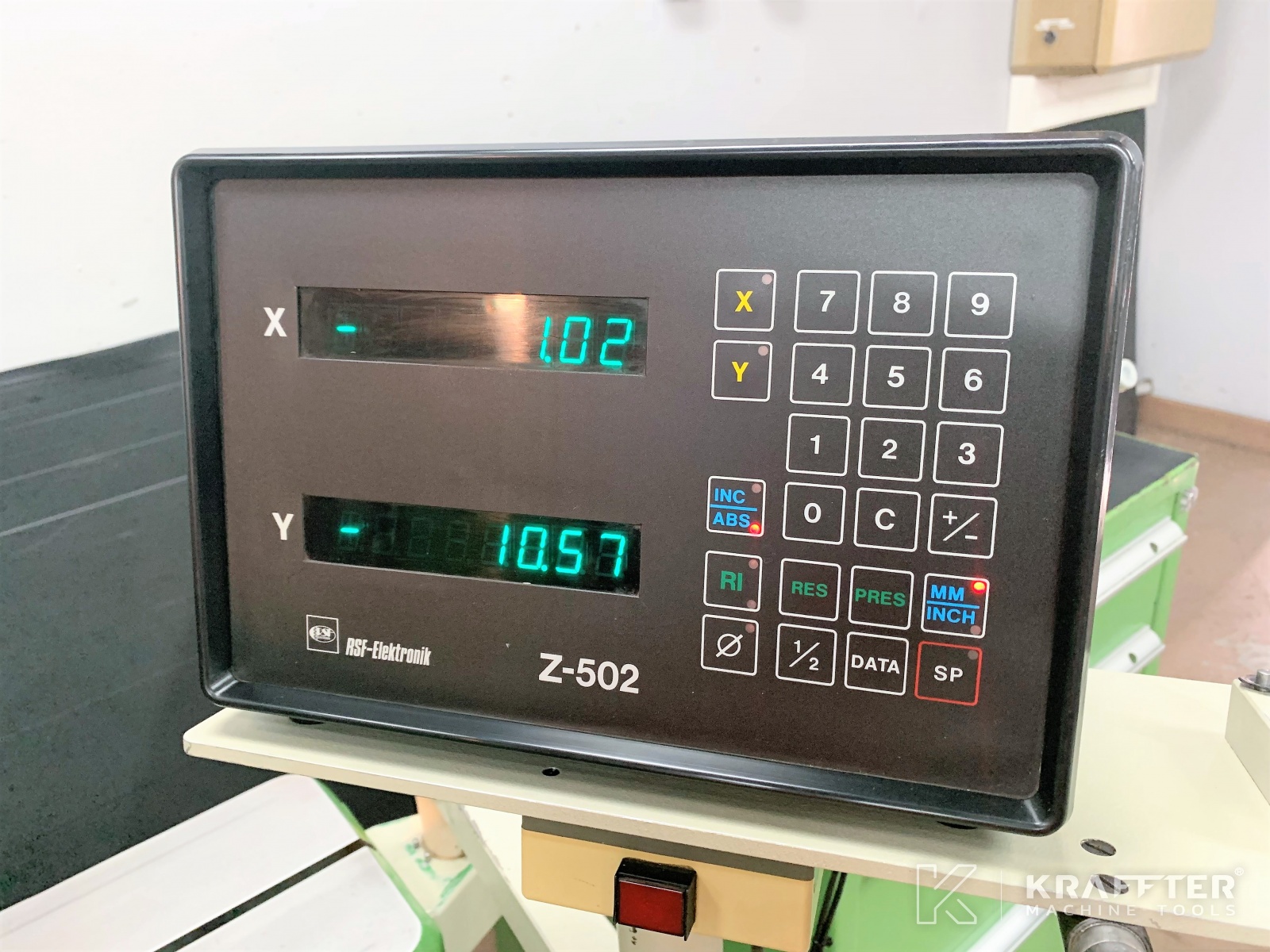

Digital read out
RSF-Elektronik Z-502
Paper filtration unit
No
Supply voltage
400 [V]
Total power required
2 [kVA]
Dimensions
1100 x 800 x 1760
Weight
520 [Kg]

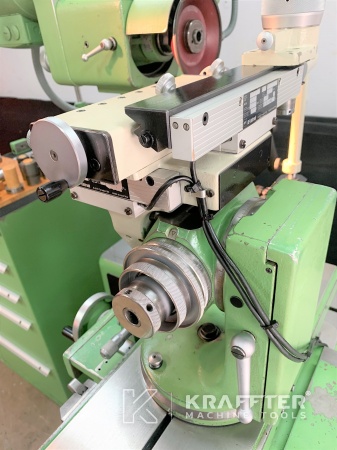

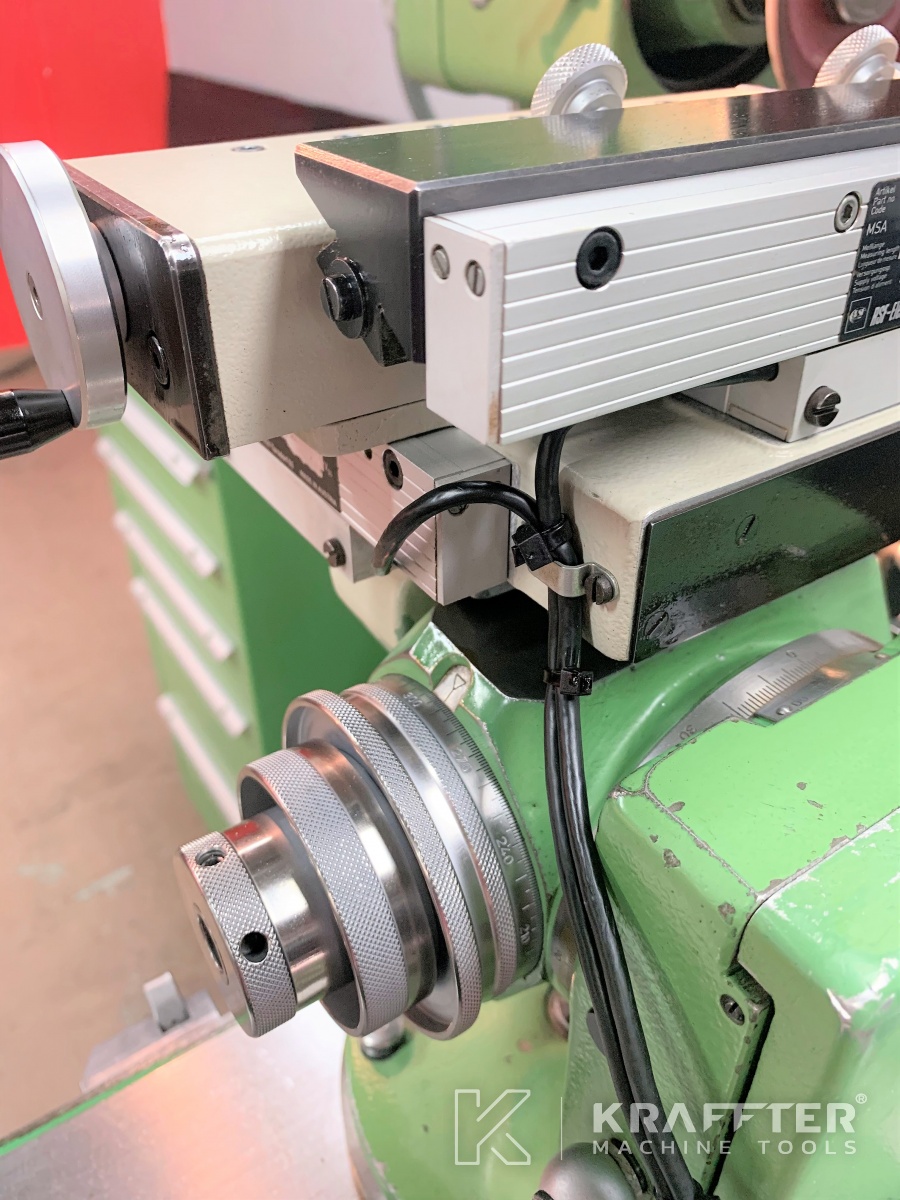

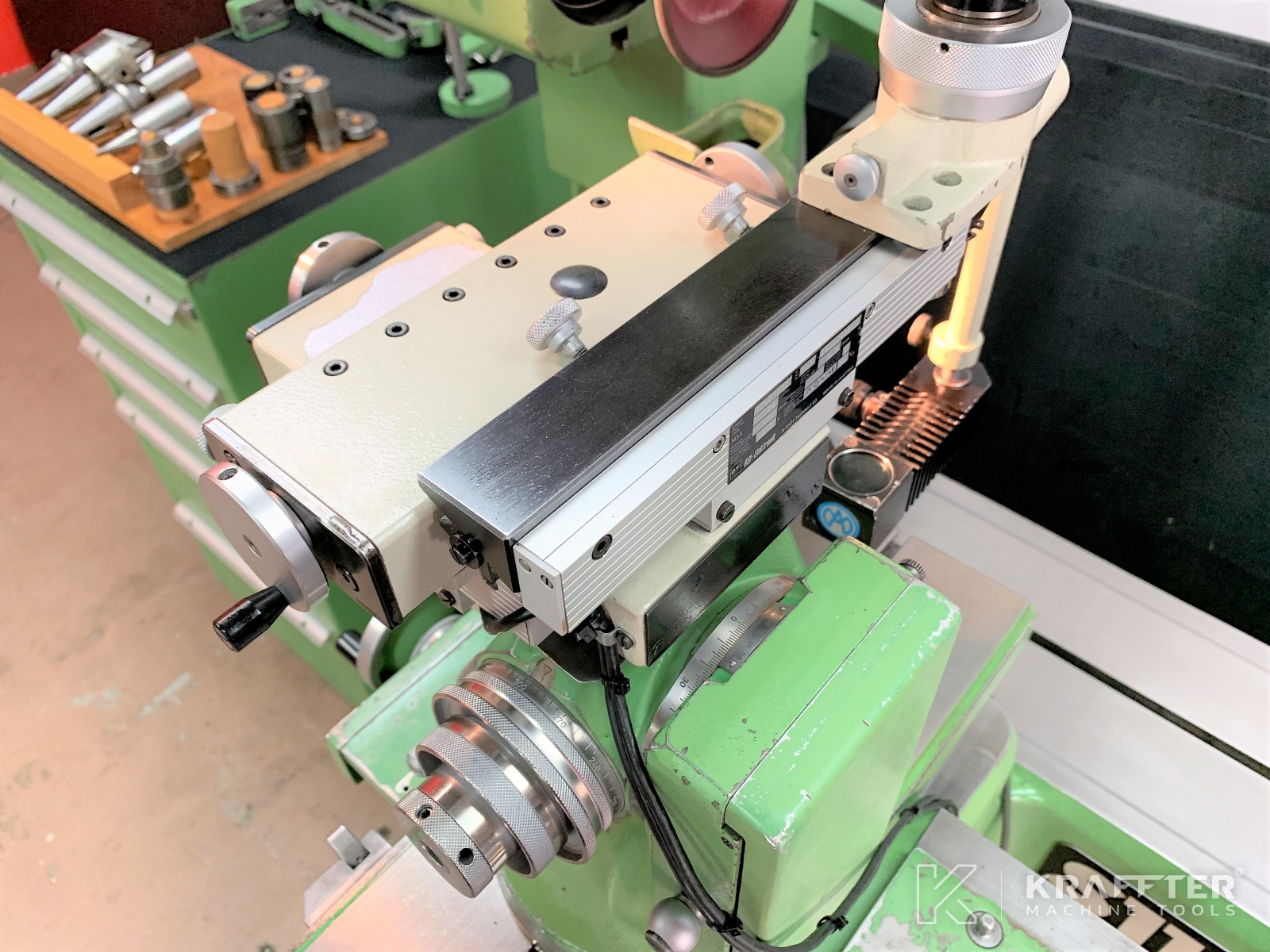

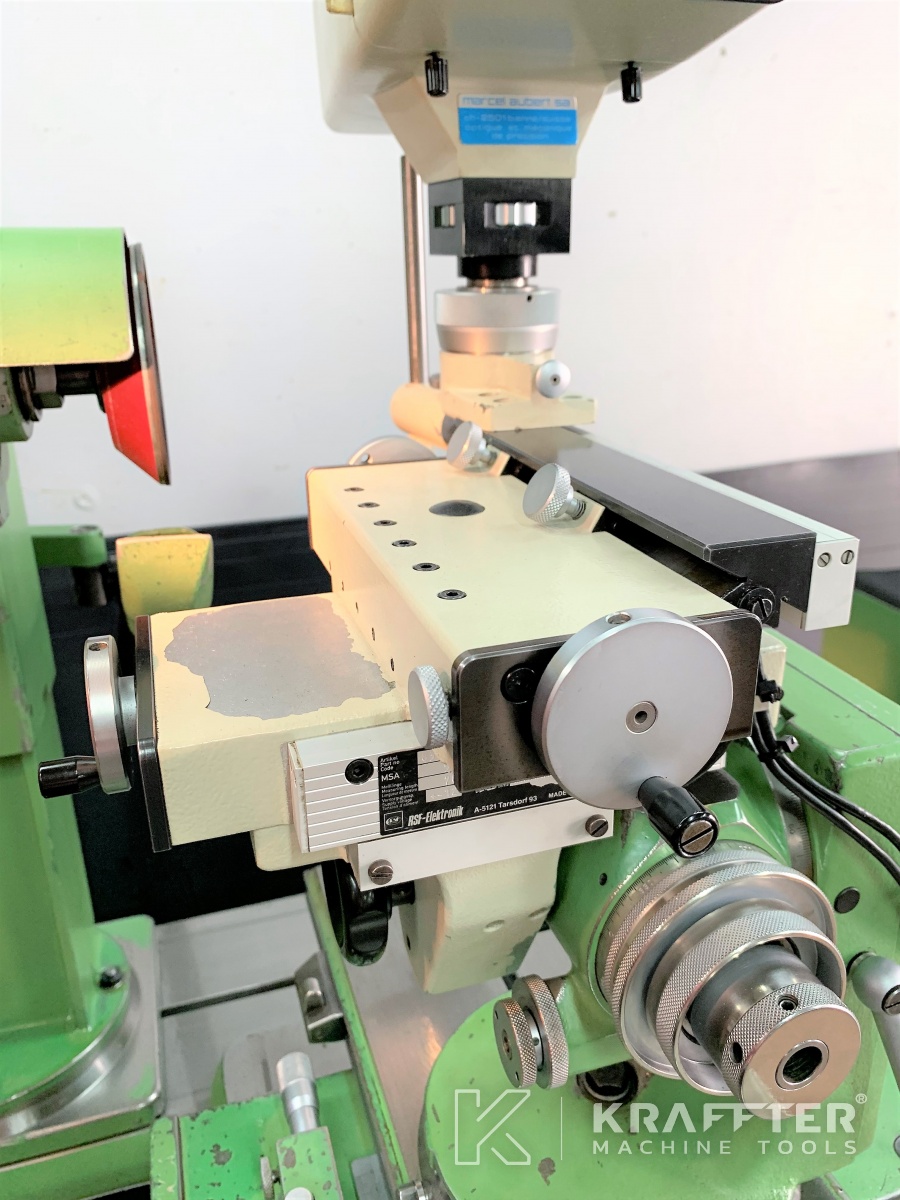

- 1 electronic mesuring unit (glass scales) + 2 axis digital read out RSF-Elektronik Z-502

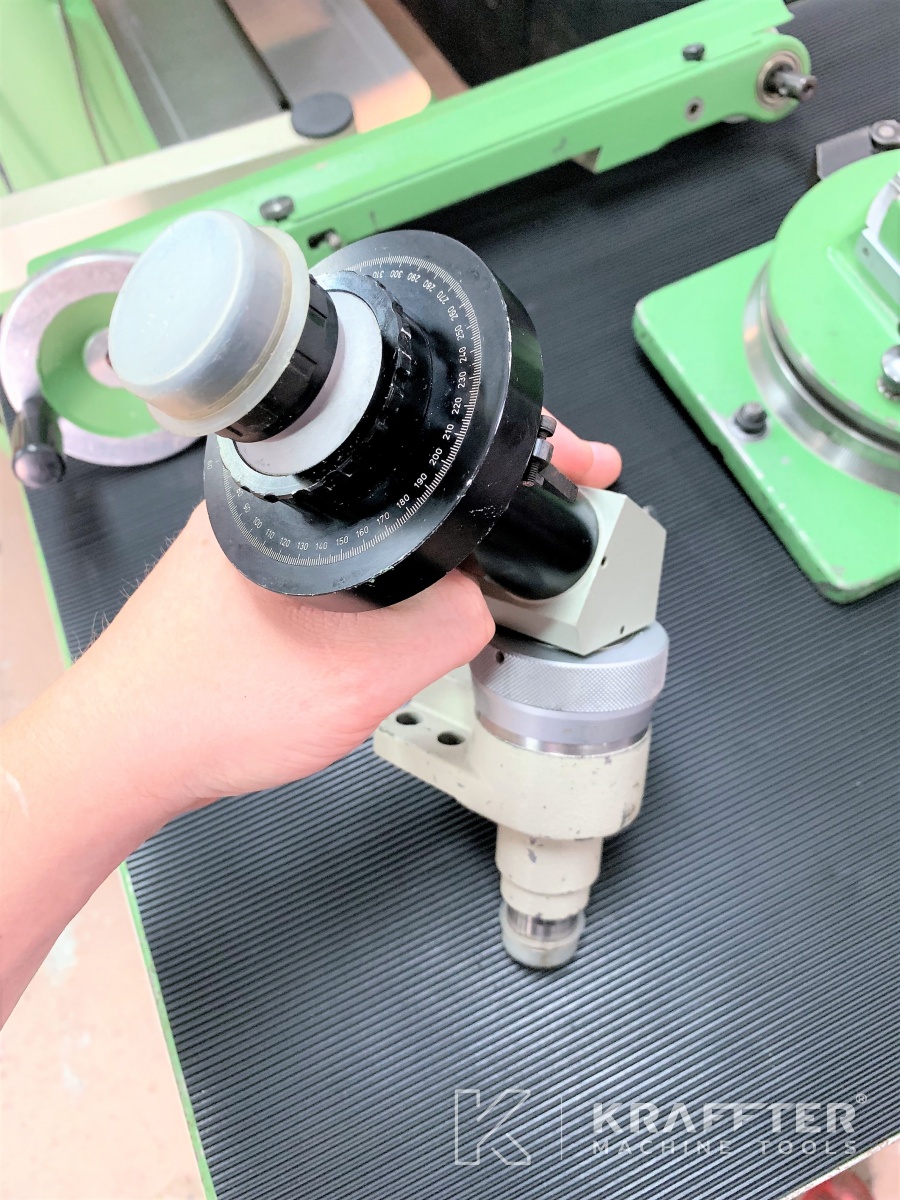

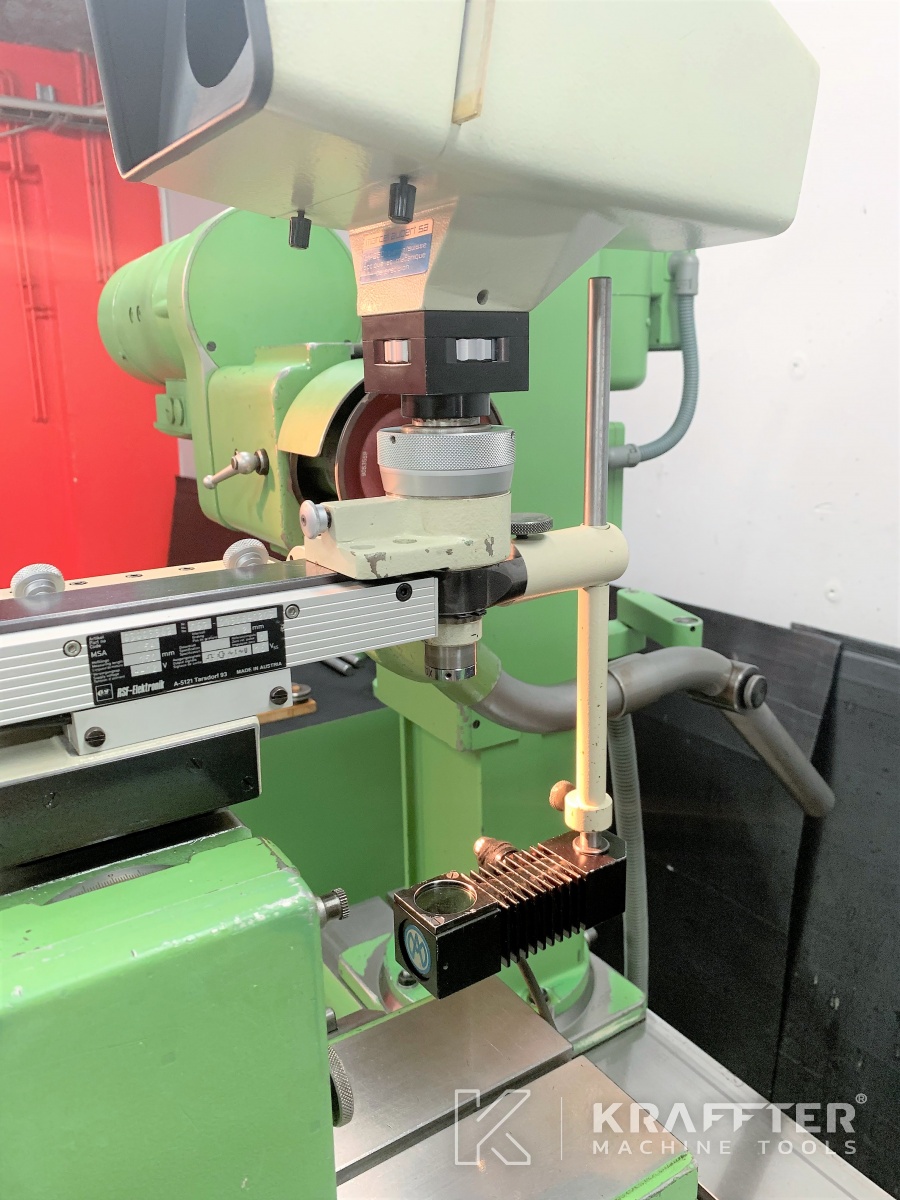

- 1 microscope

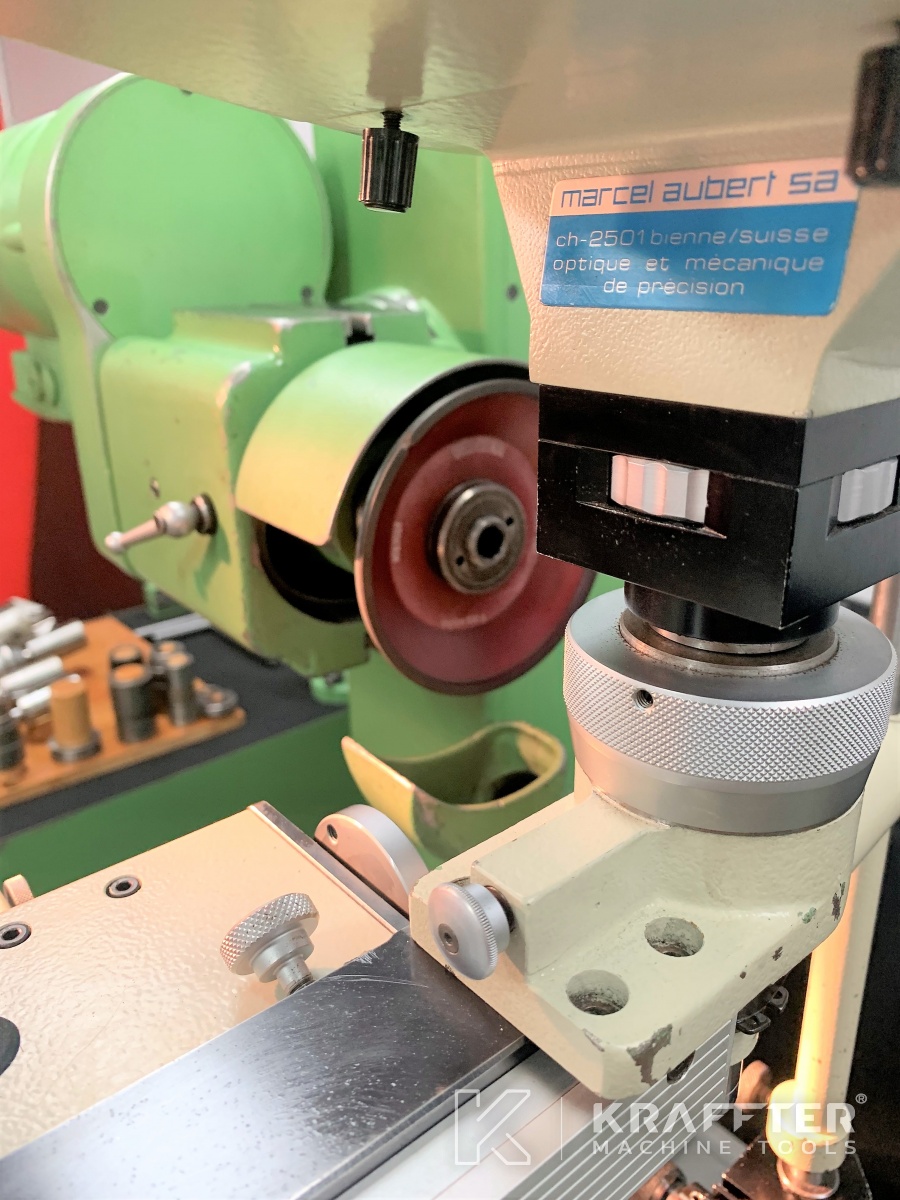

- 1 profile projector MARCEL AUBERT SA

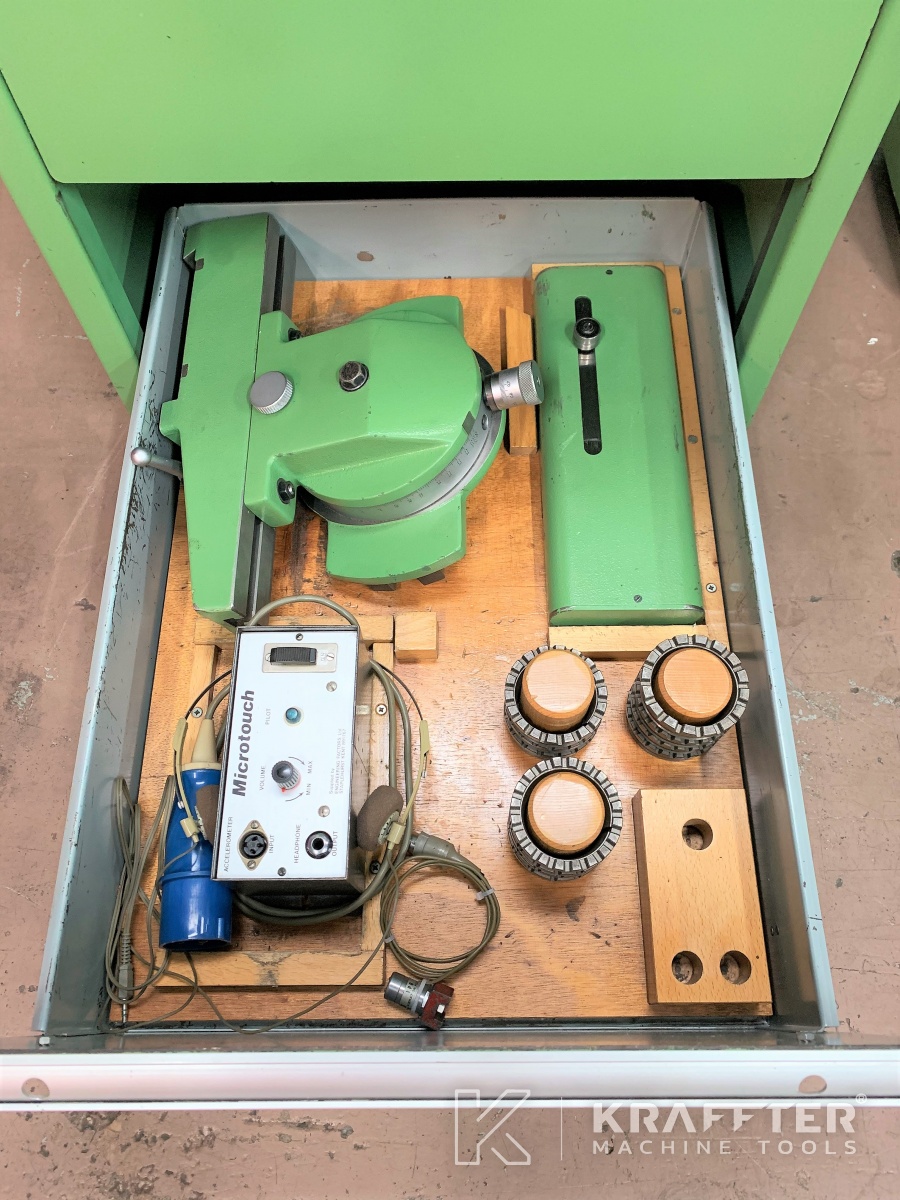

- 1 acoustic touch control system MICROTOUCH (grinding wheel to piece) + headset

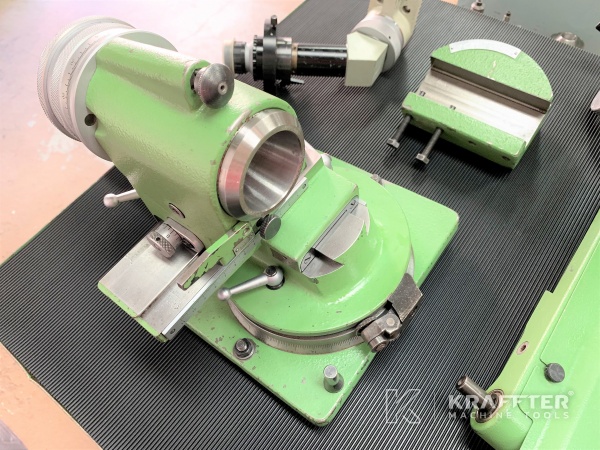

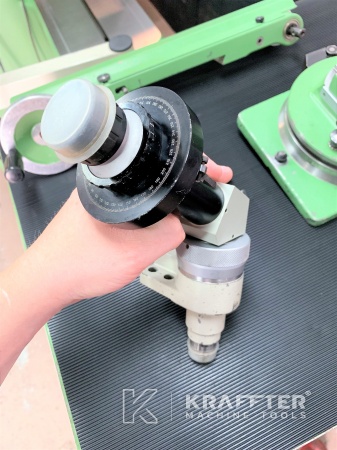

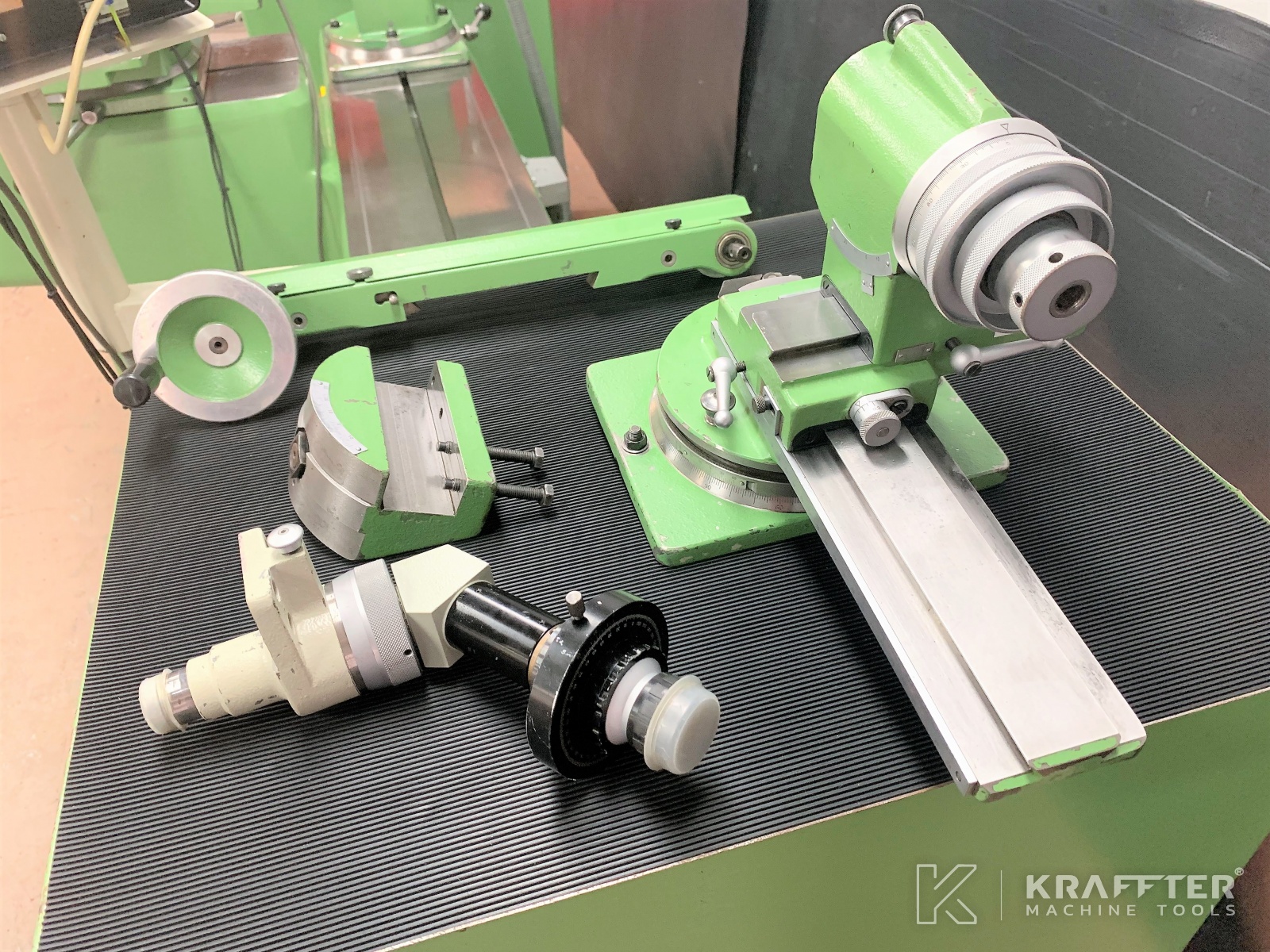

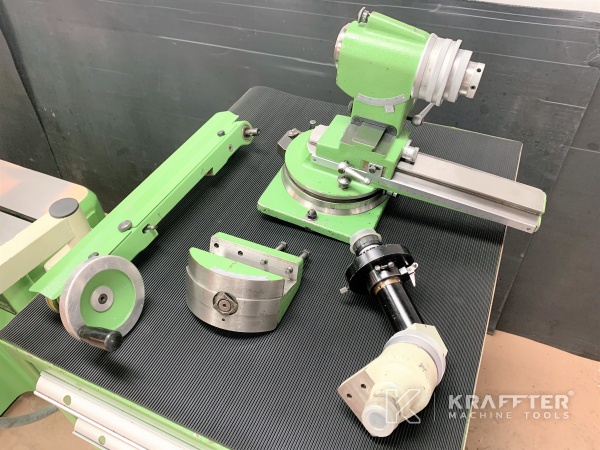

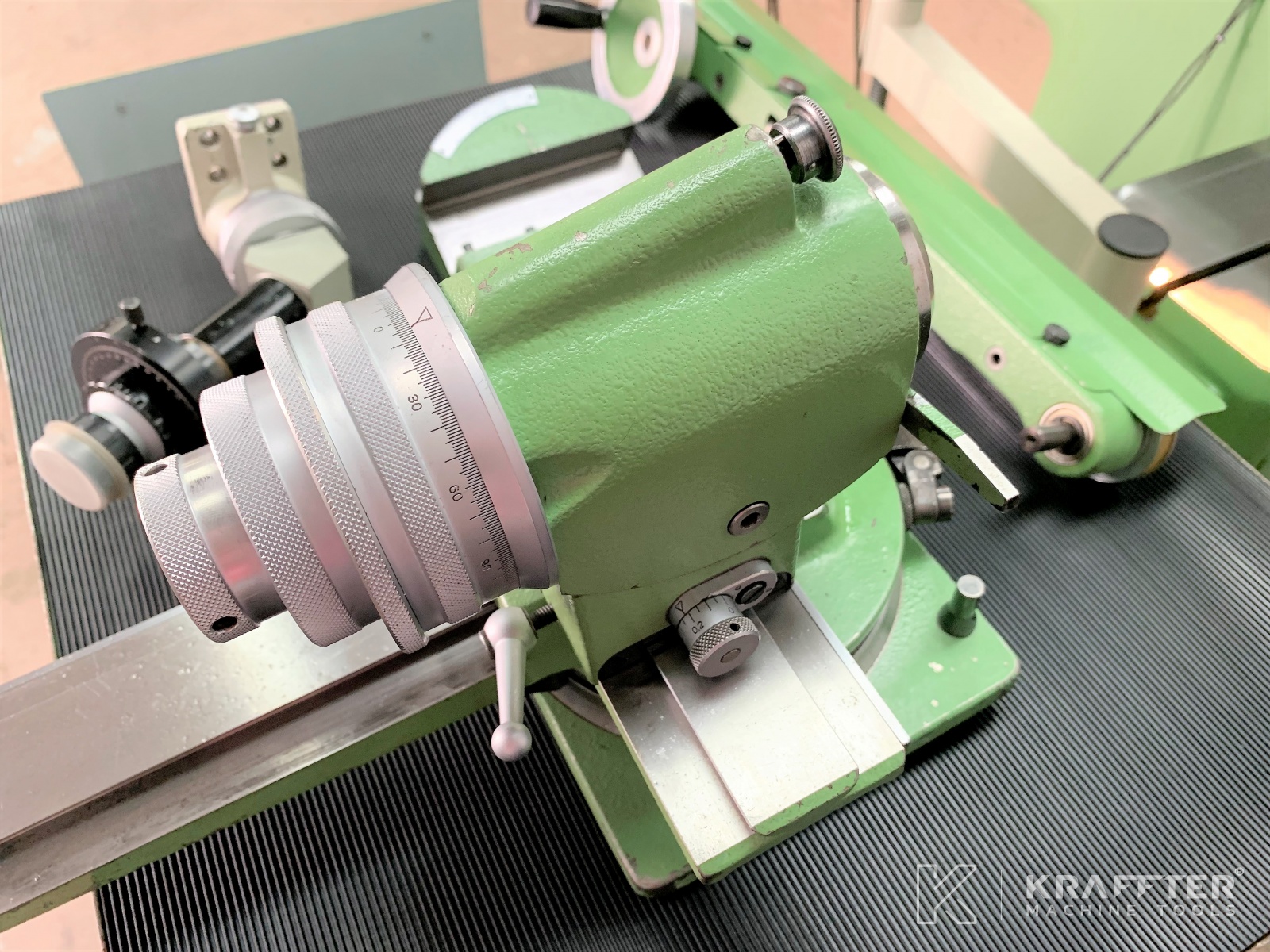

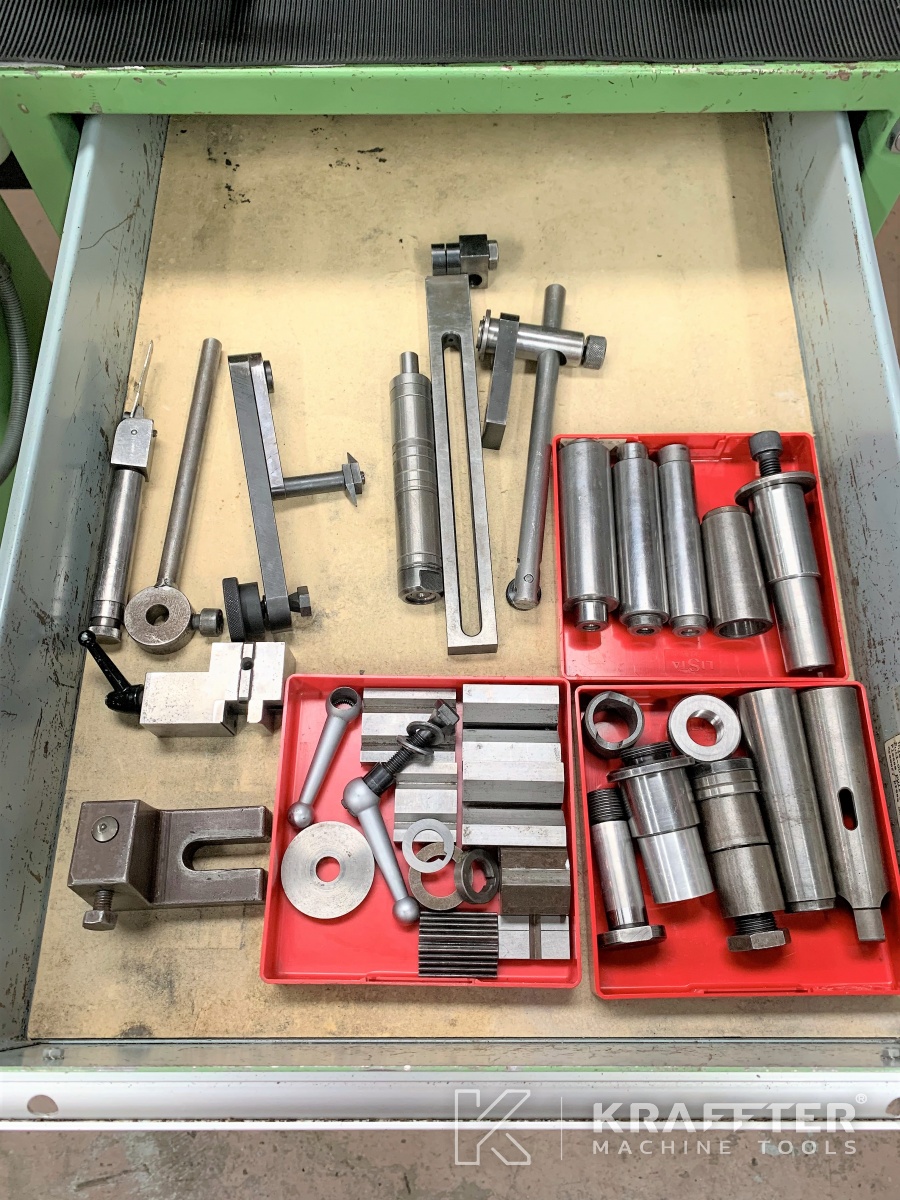

- 1 universal index head 2555201
- 13 dividing inserts for universal index head
- 1 spiral and relief grinding attachement 2580000
- 1 radius grinding attachement 2601200
- 1 support arm assembly 2576000
- 1 universal machine vice – jaw width 80 [mm] opening 80 [mm] 2635000
- 1 universal setting gauge 2570000
- 1 tooth rest 2571000
- 1 universal wheel dresser (convex or concave) 2628000
- 1 handwheel attachement for tool-holder slide

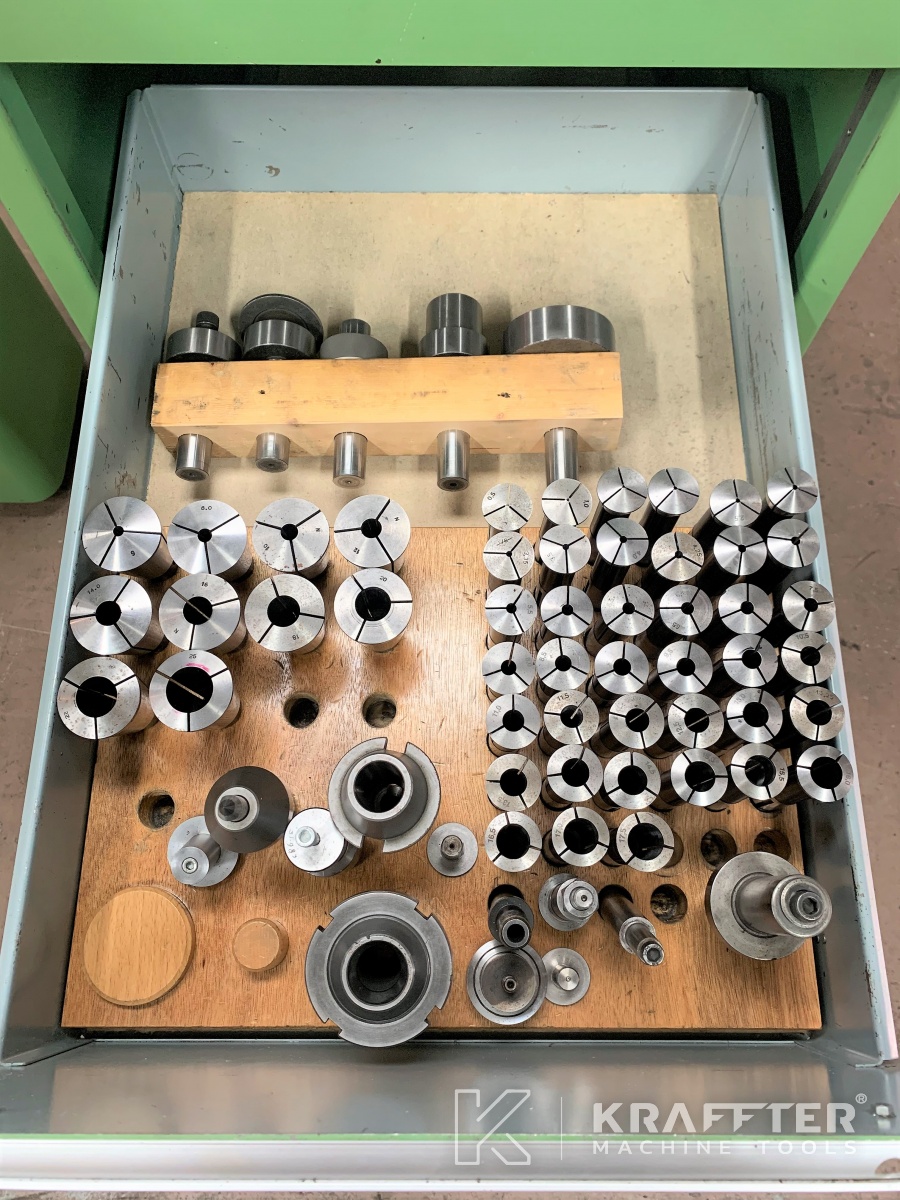

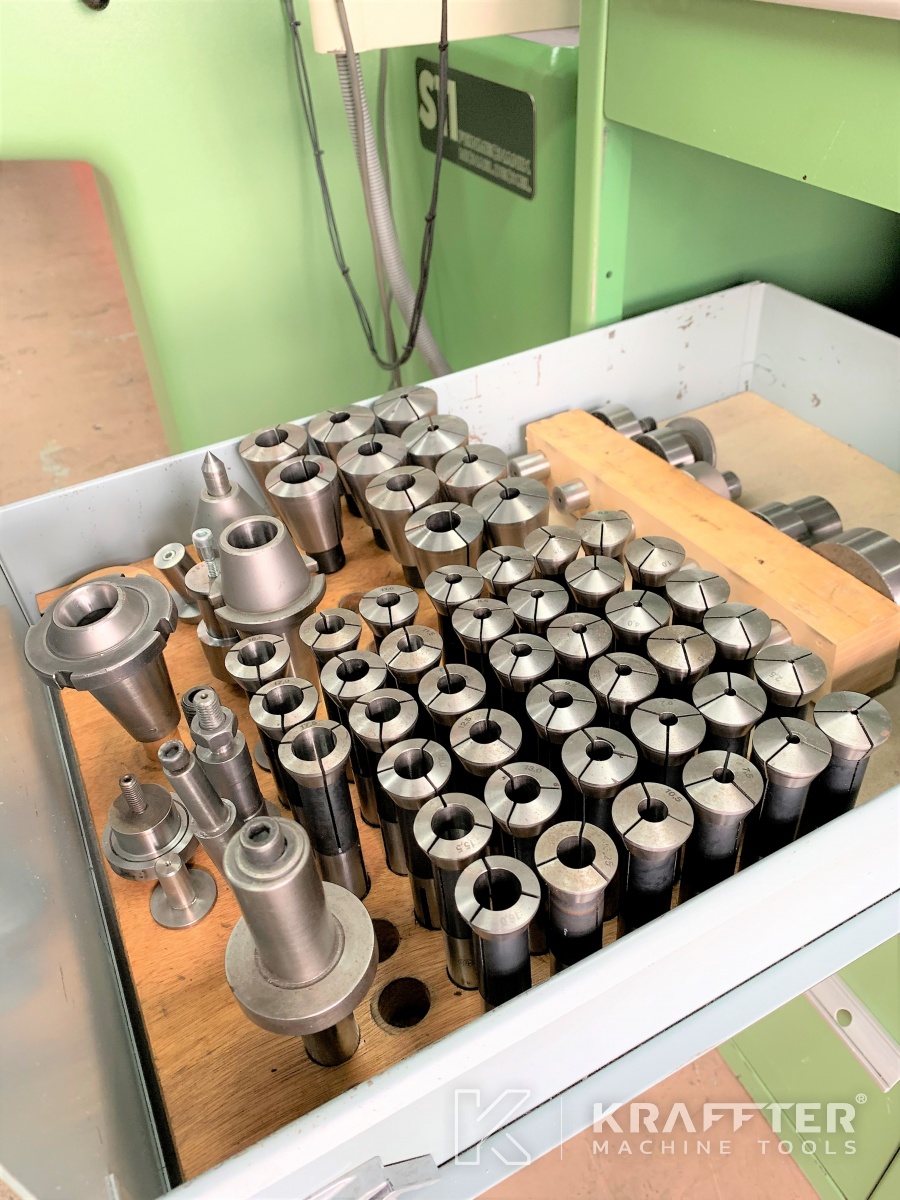

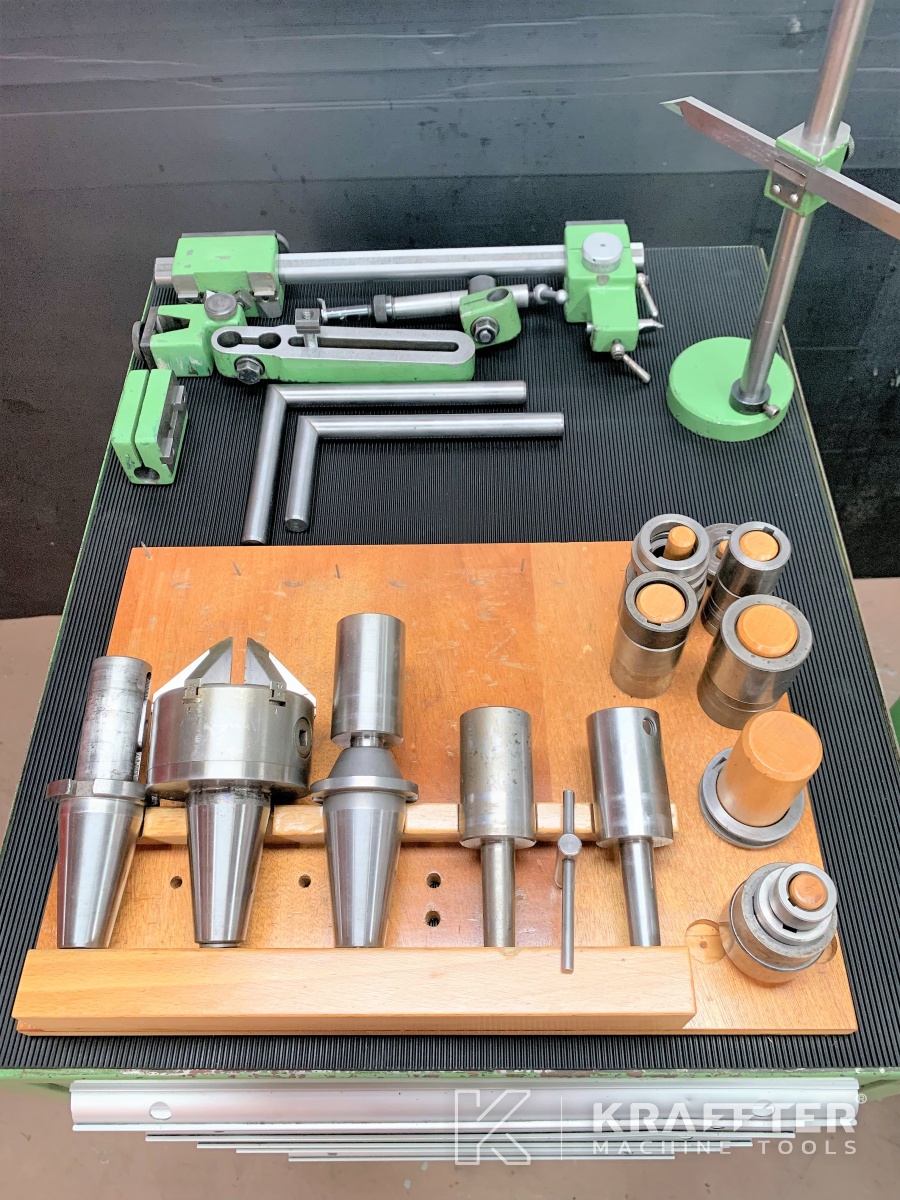

- 39 collets 355E Ø 0.5 to 17.5 [mm]
- 10 collets ISO40 Ø 6 to 25 [mm]
- 1 Ext ISO40 - Int 355E Drill sleeve
- 1 Ext ISO40 - Int CM1 Drill sleeve
- 1 Ext ISO40 - Int CM3 Drill sleeve
- 1 steel chuck KLOPFER 3 concentric jaws Ø100 [mm] attachement ISO40
- 1 steel chuck KLOPFER 6 concentric jaws Ø85 [mm] attachement ISO40

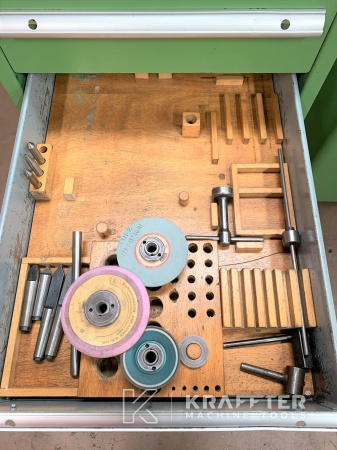

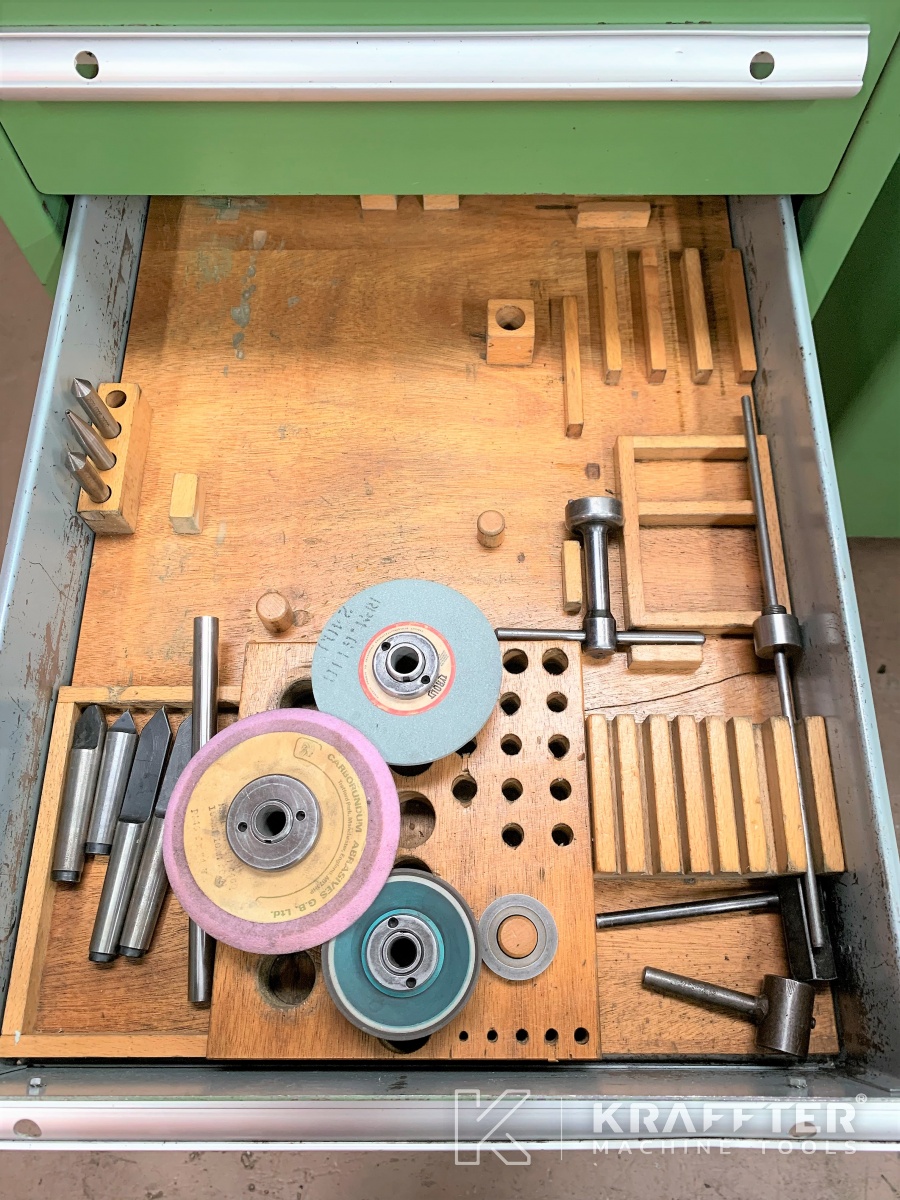

- Various grinding wheel holders
- Various grinding wheels

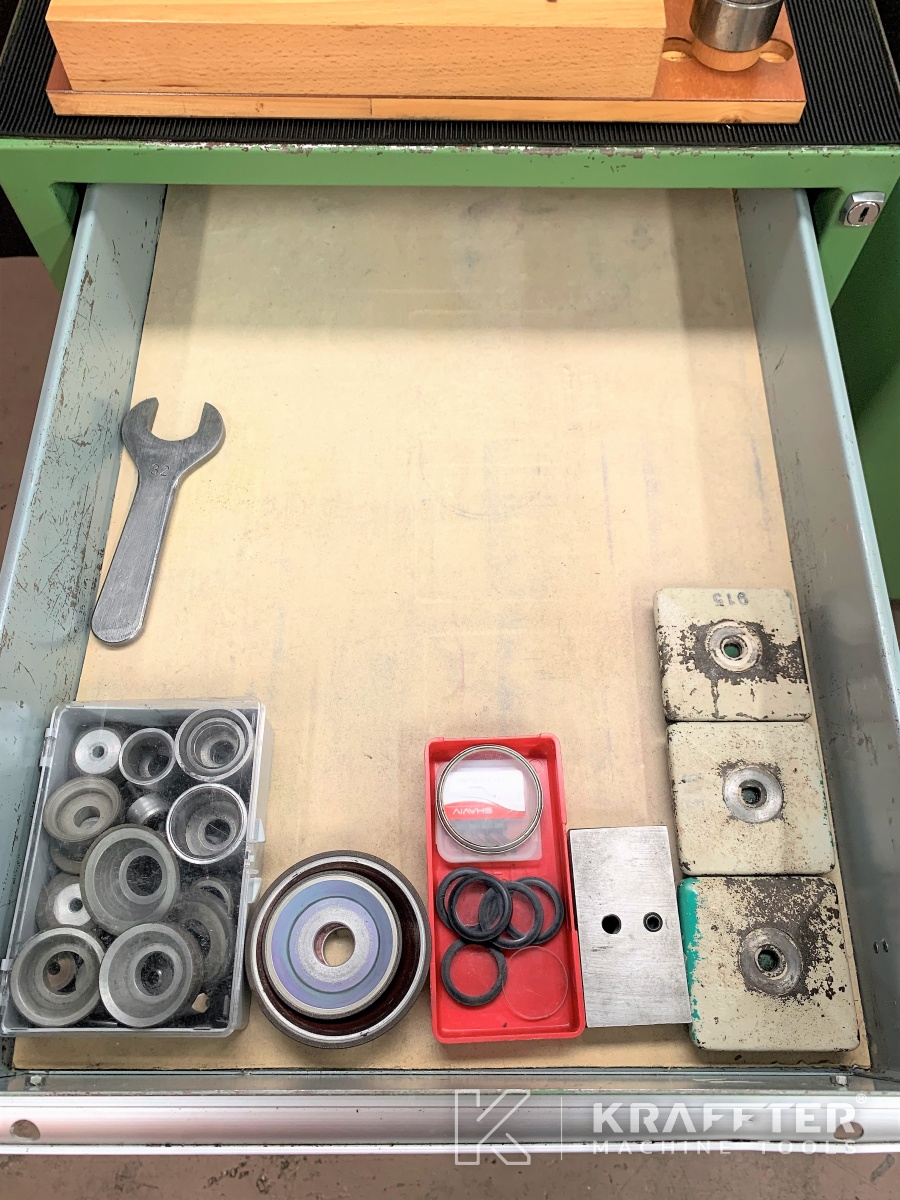

- Service keys
- 3 machine feet
- 1 halogene lamp

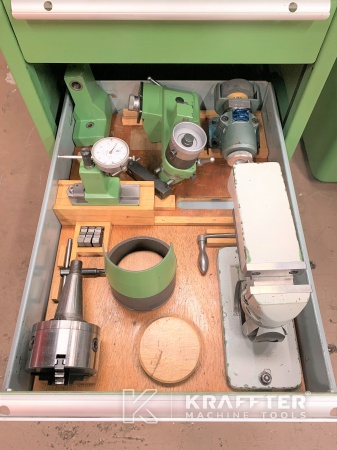

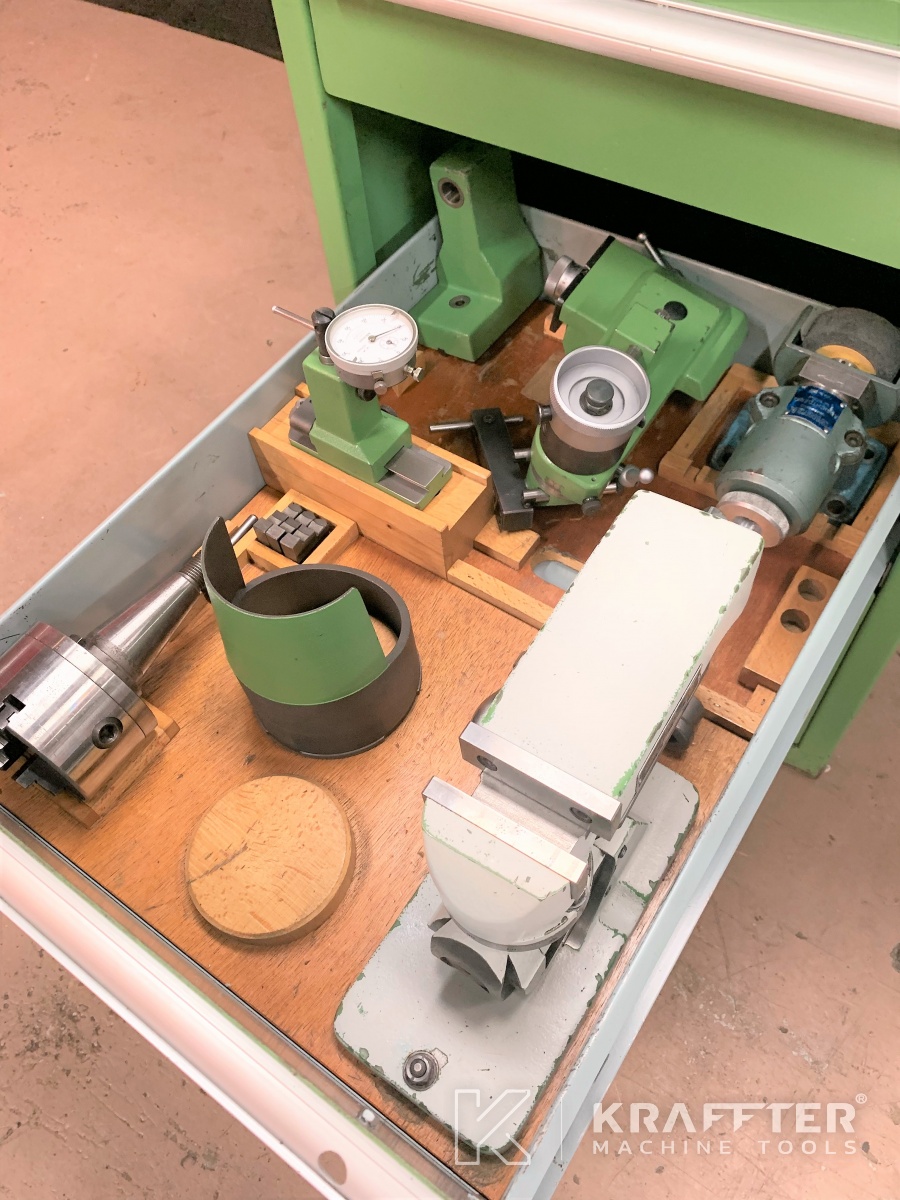

- 2 metallic cabinets for accessories storage
- Original books , technical manuals , mechanical schemes of the machine
