Sold

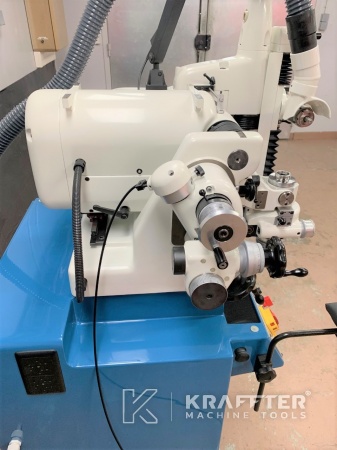

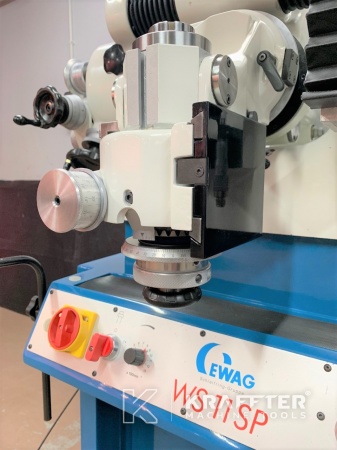

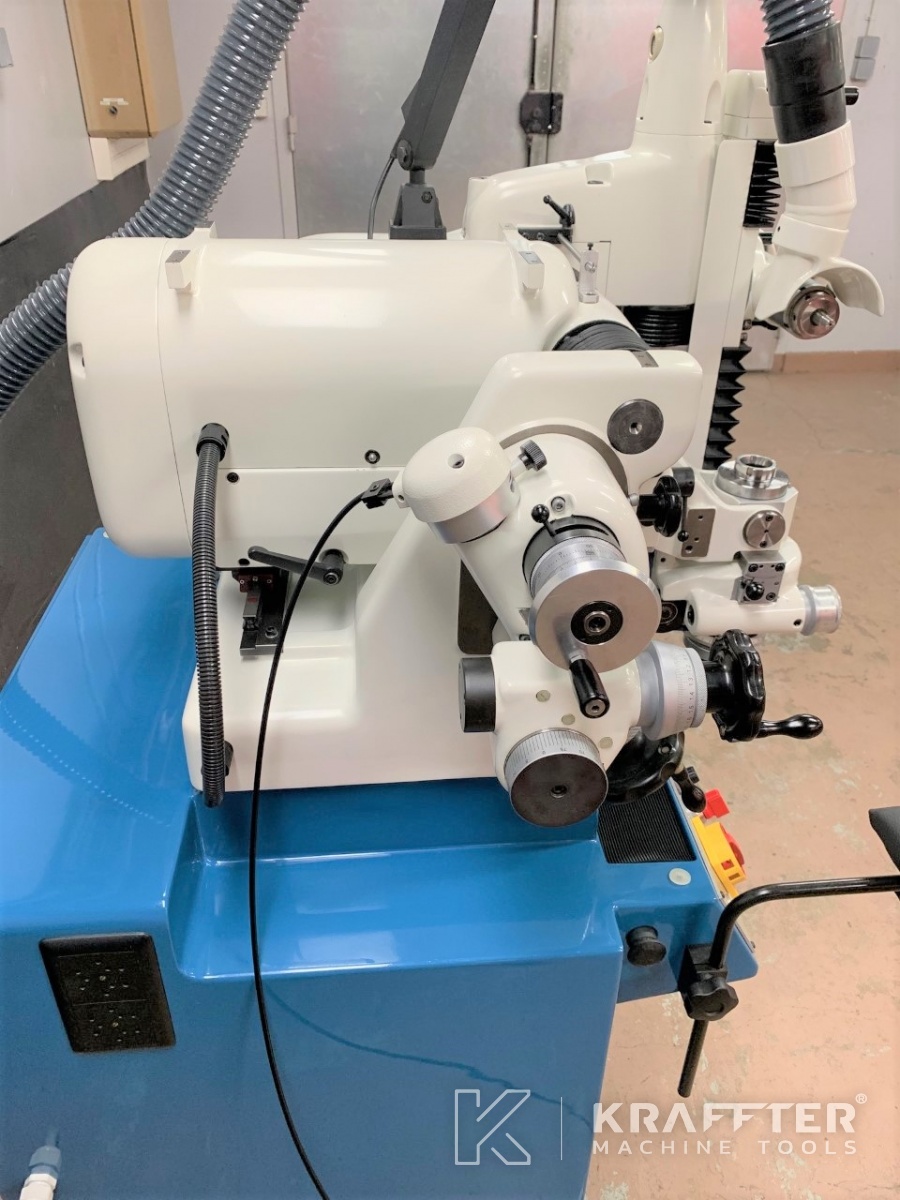

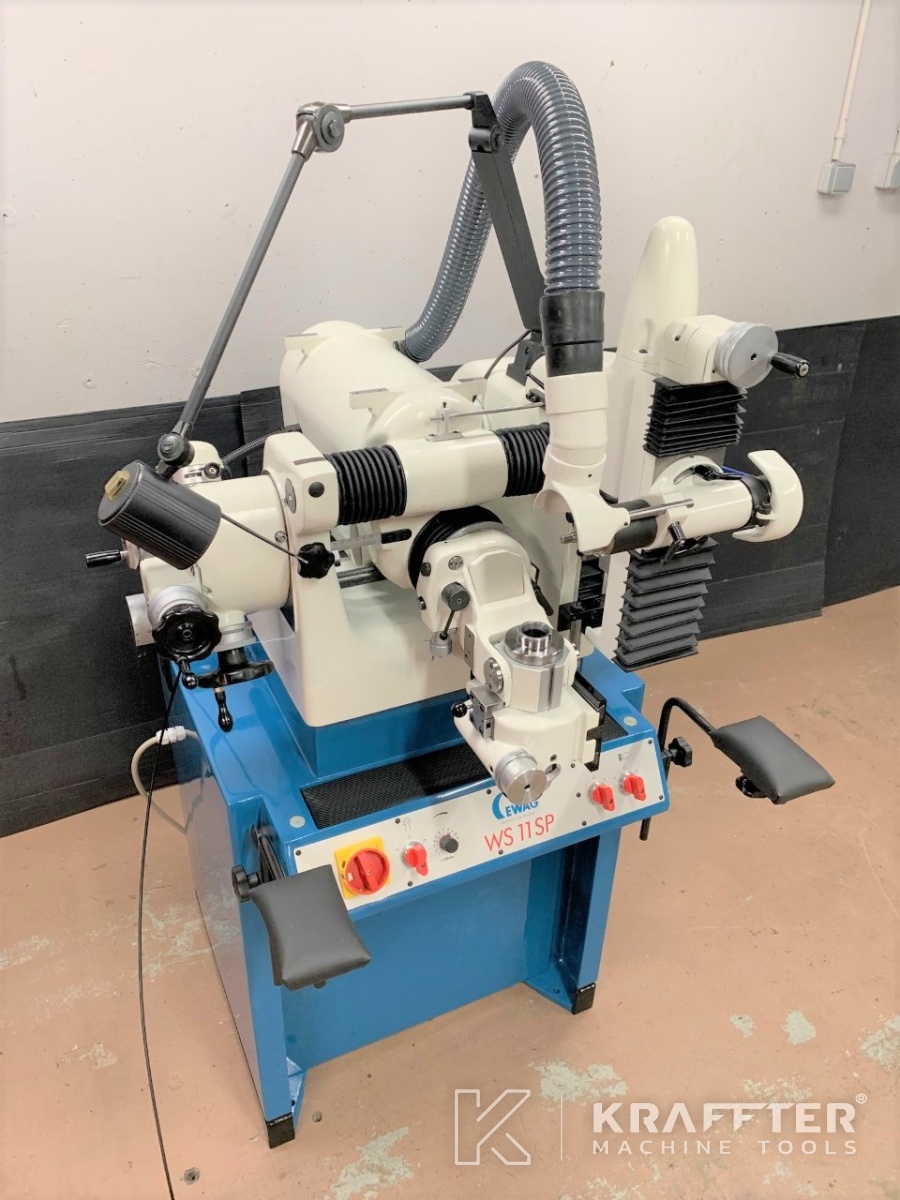

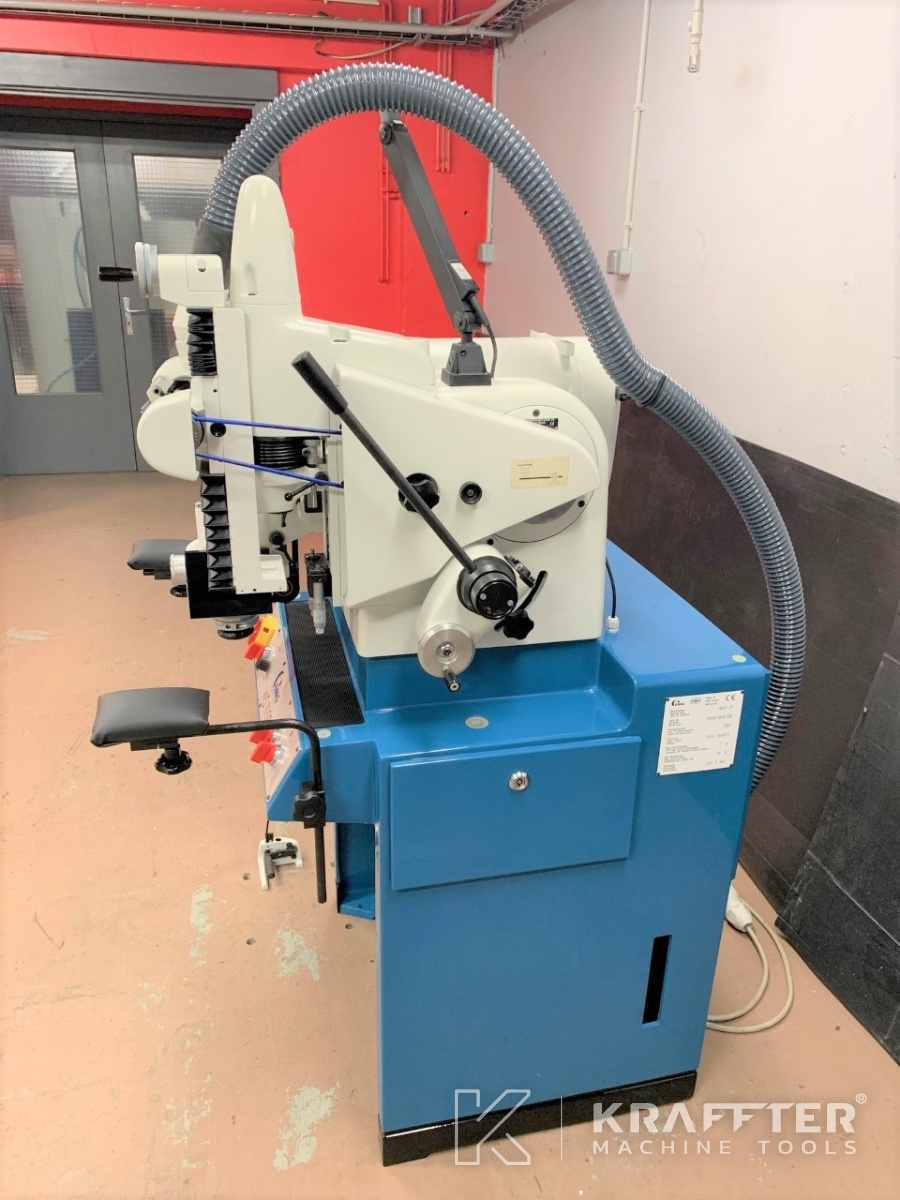

Type of machine : Tool grinding machine
Brand : DECKEL
Stock N° : 20689-948

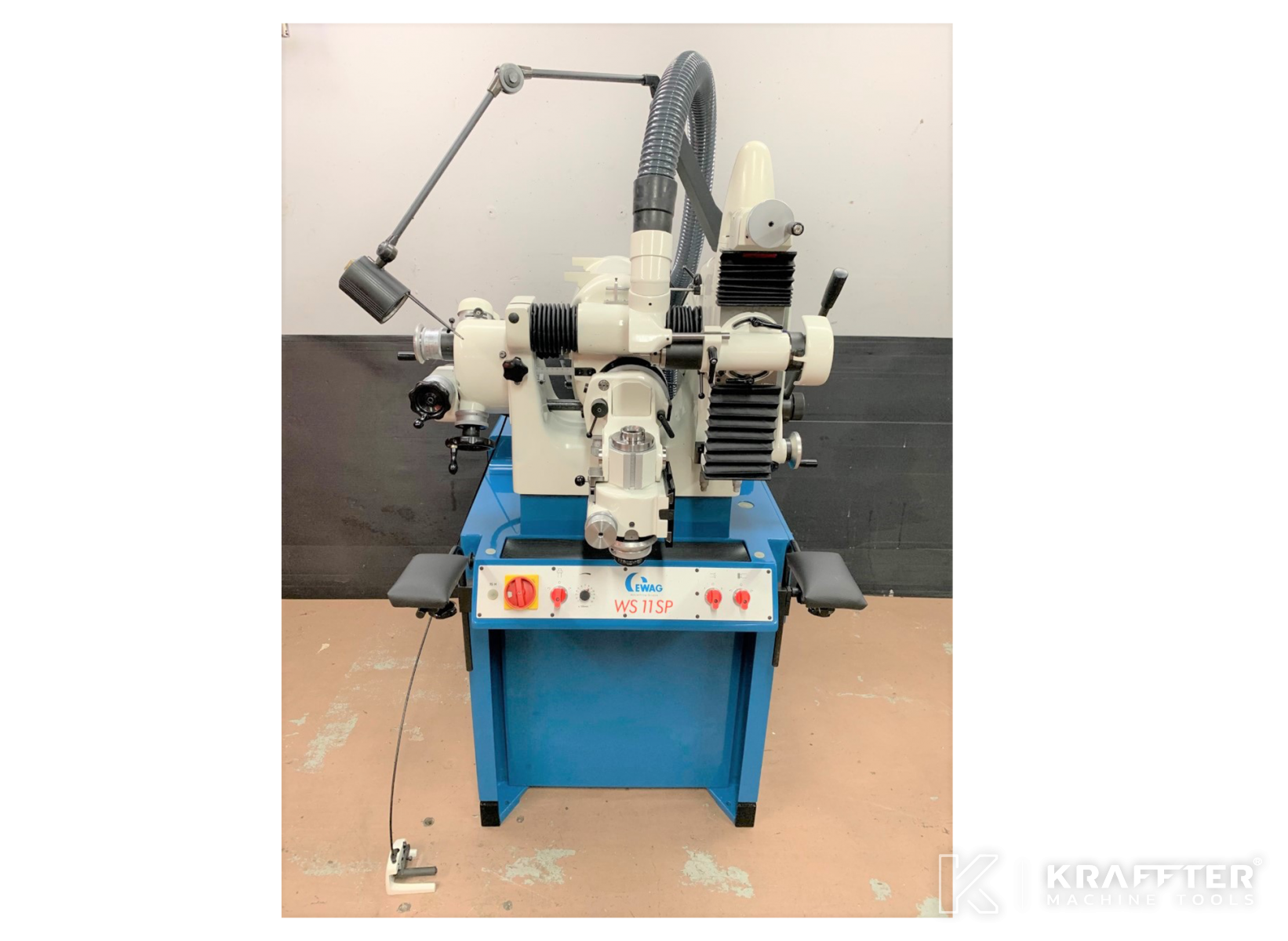

Model : WS11 SP
Year : 2004
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Workpiece spindle nose
W25
Supply voltage
400 [V]

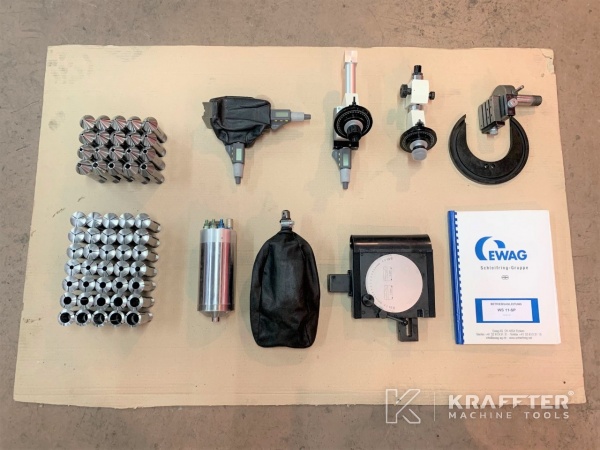

- x 1 infeed Z-axis - infeed operation, metric 4 E-M with position reading – EWAG part N° 111-2-10666
- x 1 Cross feed X-axis - 4 FQ-M - EWAG part N° 111-2-21708
- x 1 Grinding stroke Y-axis - 3H - EWAG part N° 113-2-23916

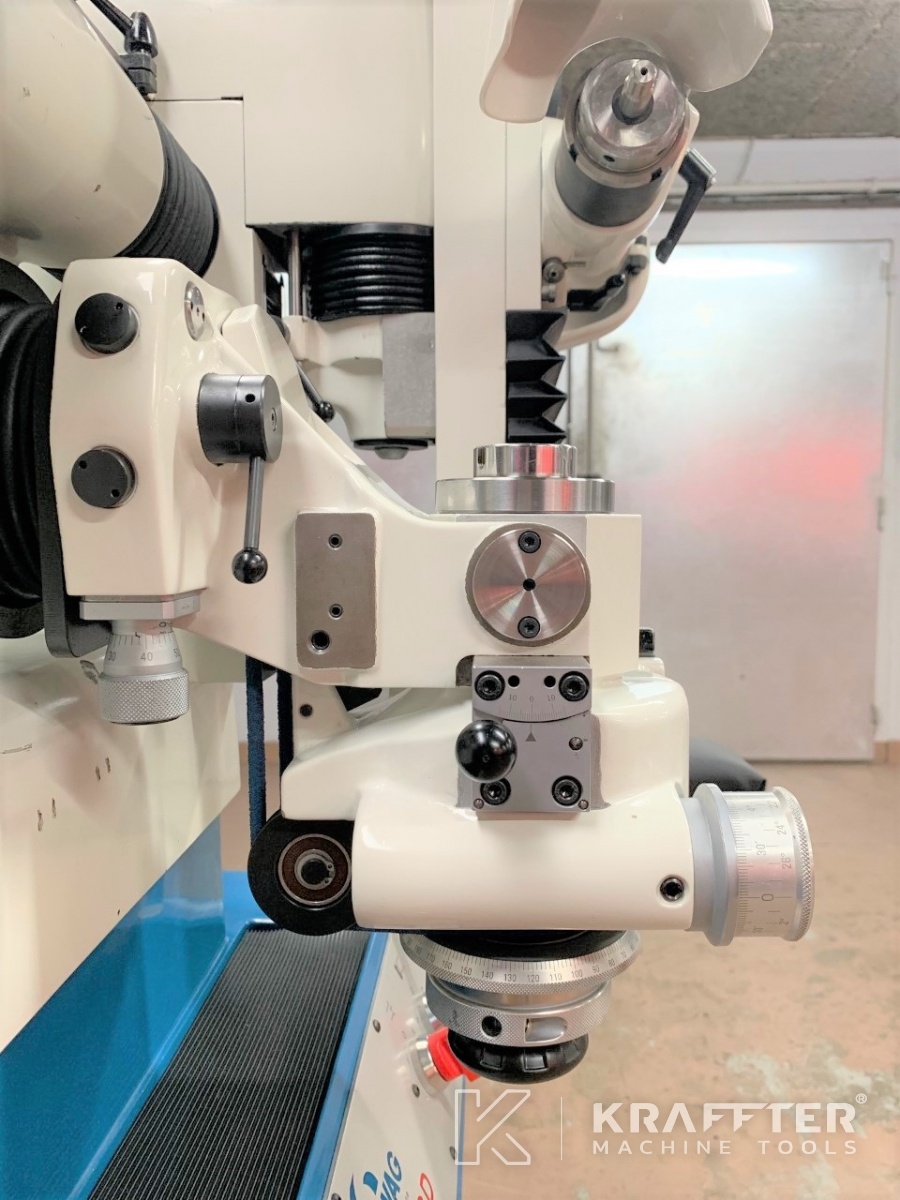

- x 1 Spiral grinding head W25 - EWAG part N° 113-2-15839
- x 1 Sinus scale for helical grinding
- x 1 Dust extraction unit
- x 1 Foot switch 9M - EWAG part N° 111-2-15740
- x 1 Halogen spot lamp

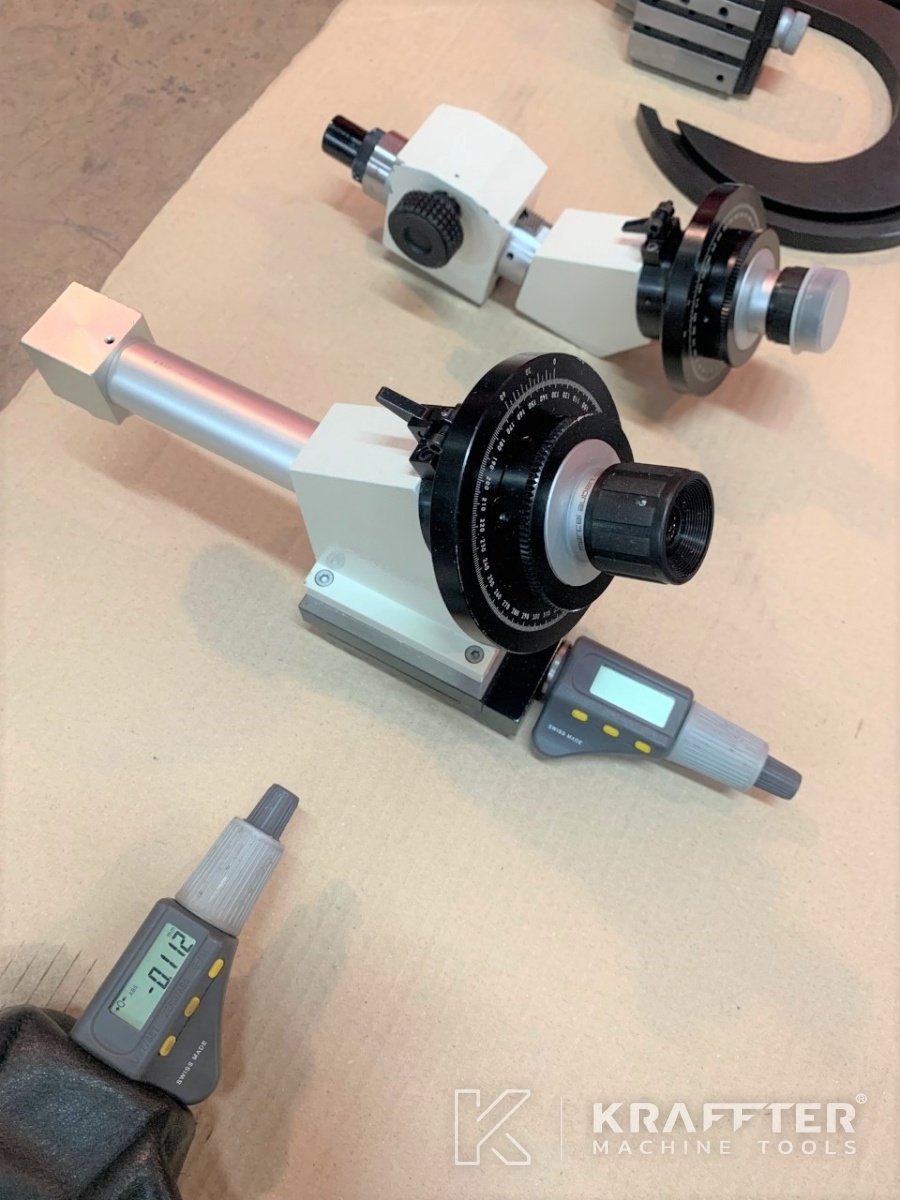

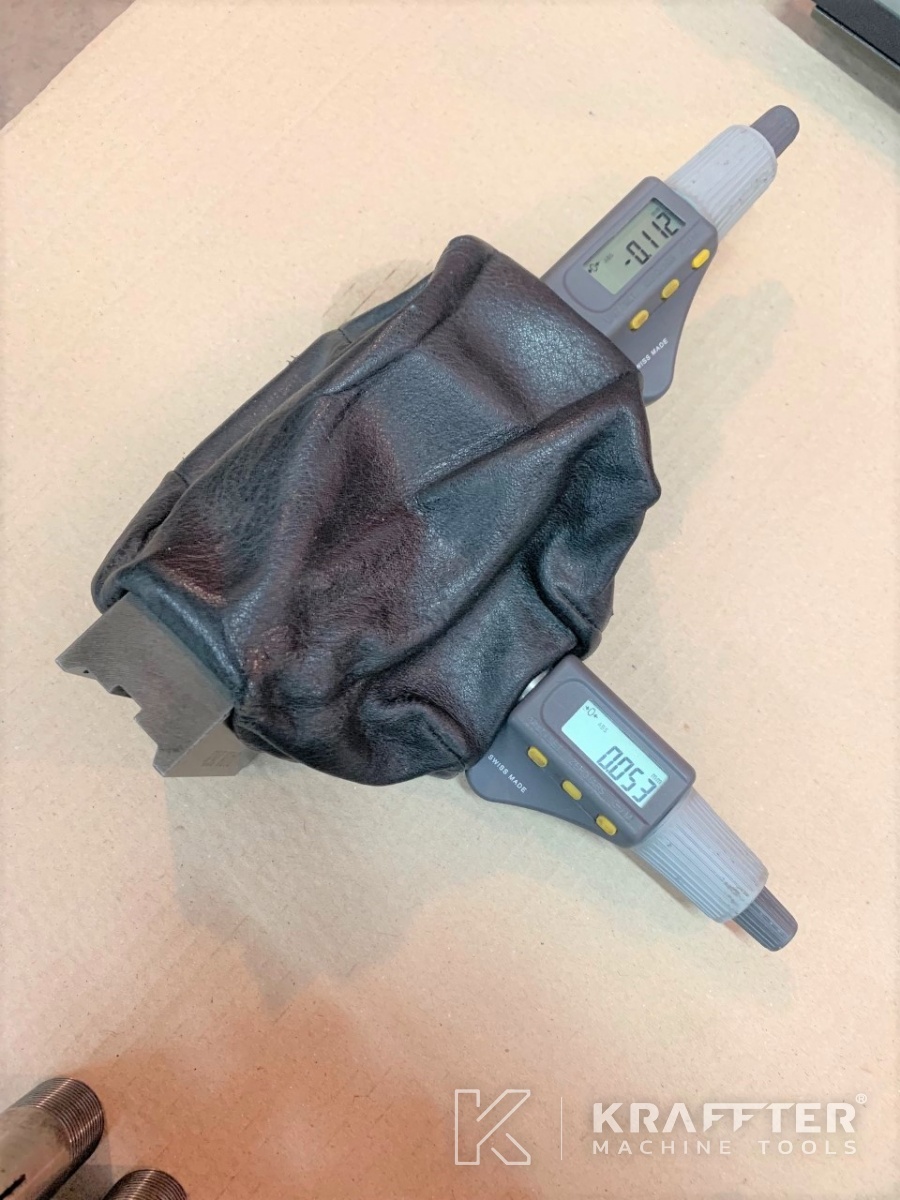

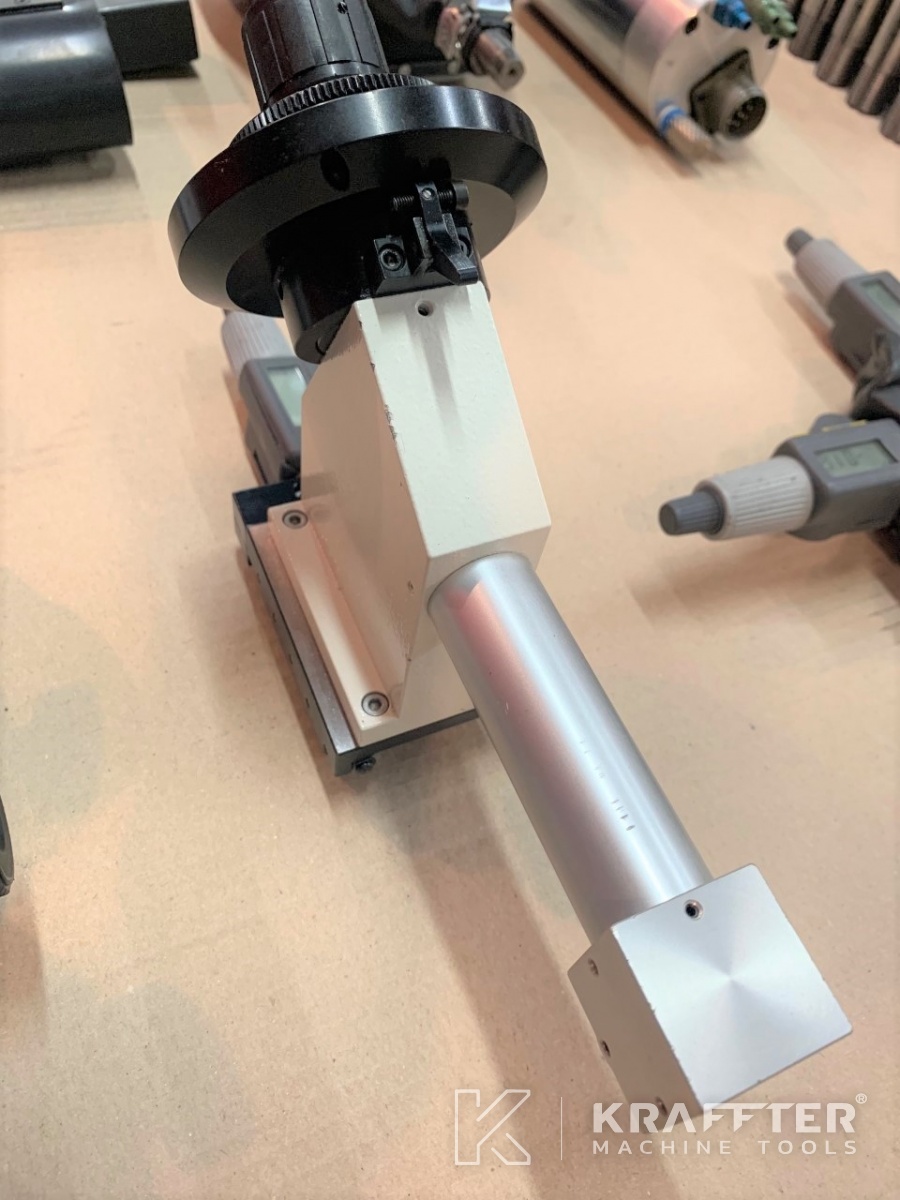

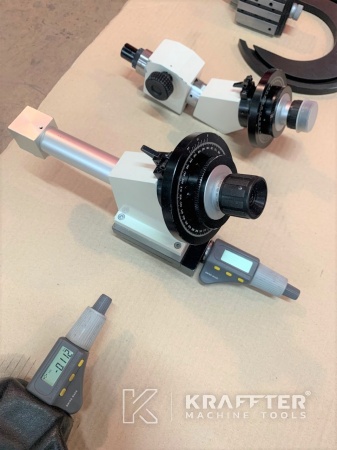

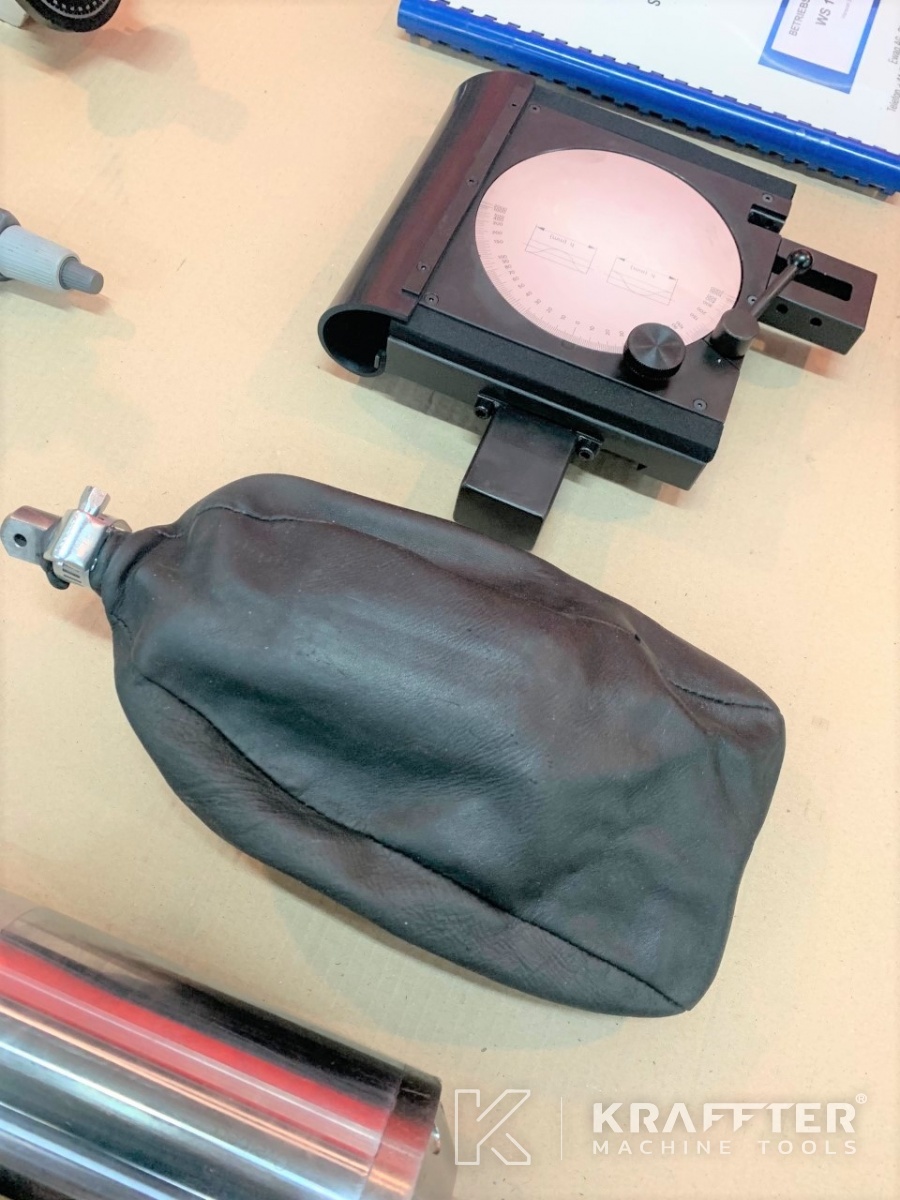

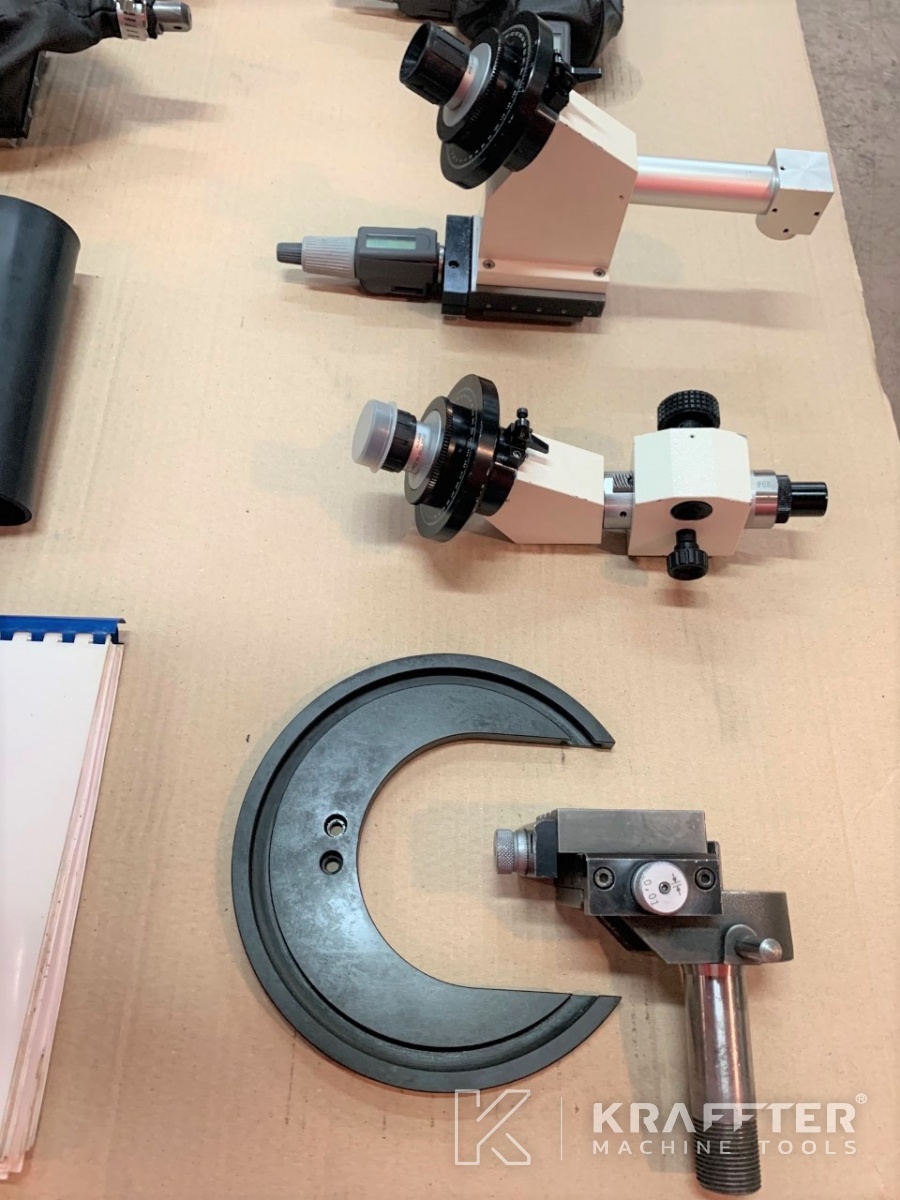

- x 1 measuring table MT-MZ DIG (execution with TESA digital micrometer - 0.001 mm) - EWAG part N° 113-2-31803

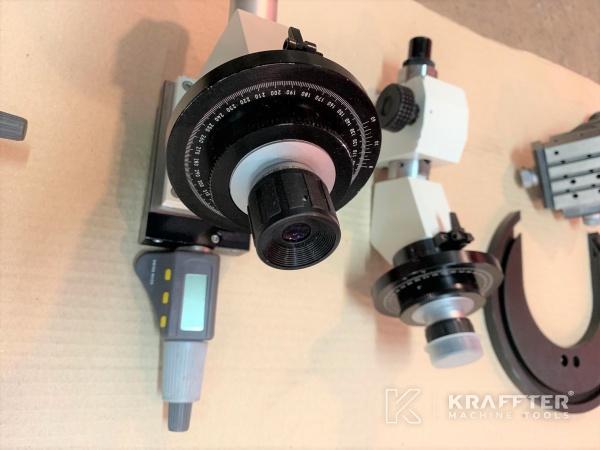

- x 1 Microscope optic from the front - EWAG part N° 70-32
- x 1 Microscope optic from the top (+ TESA digital micrometer - 0.001 mm) - EWAG part N° 111-2-312

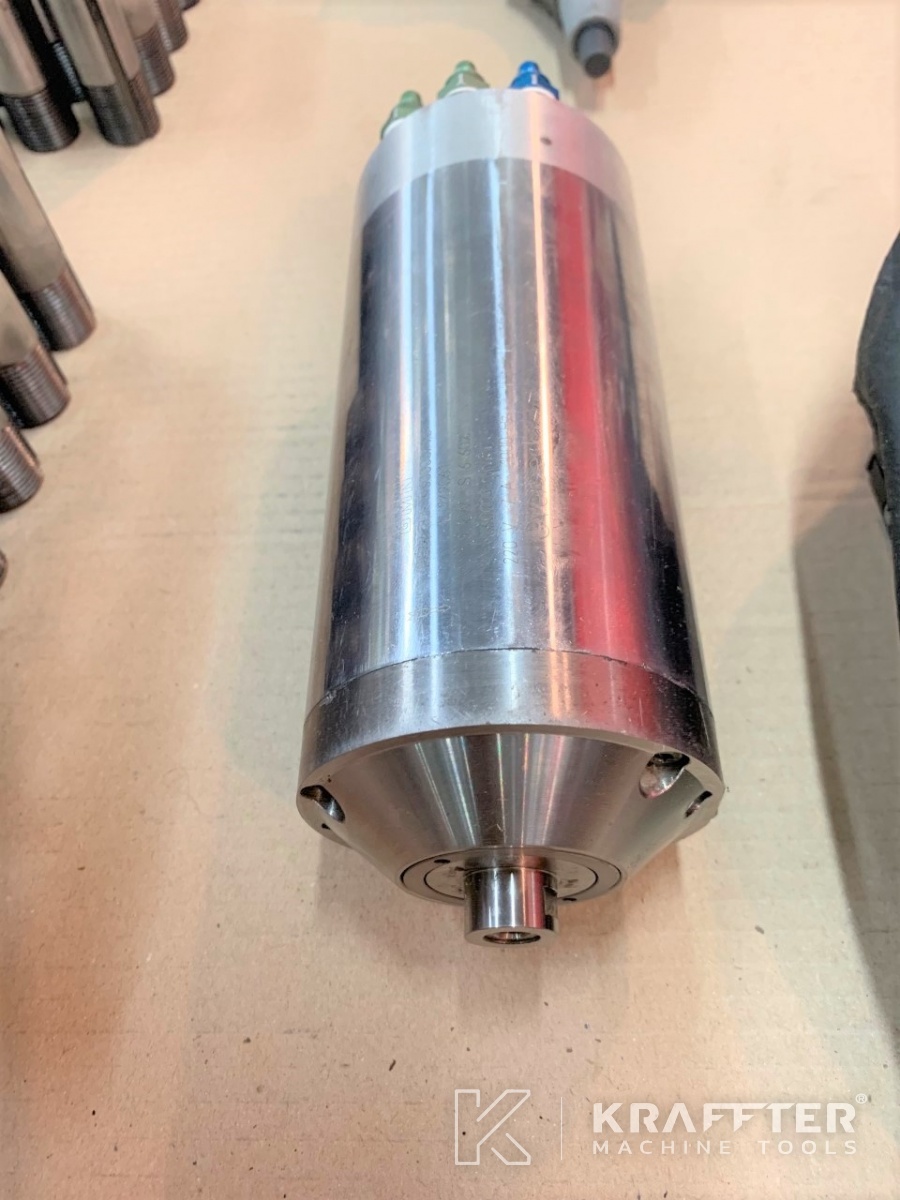

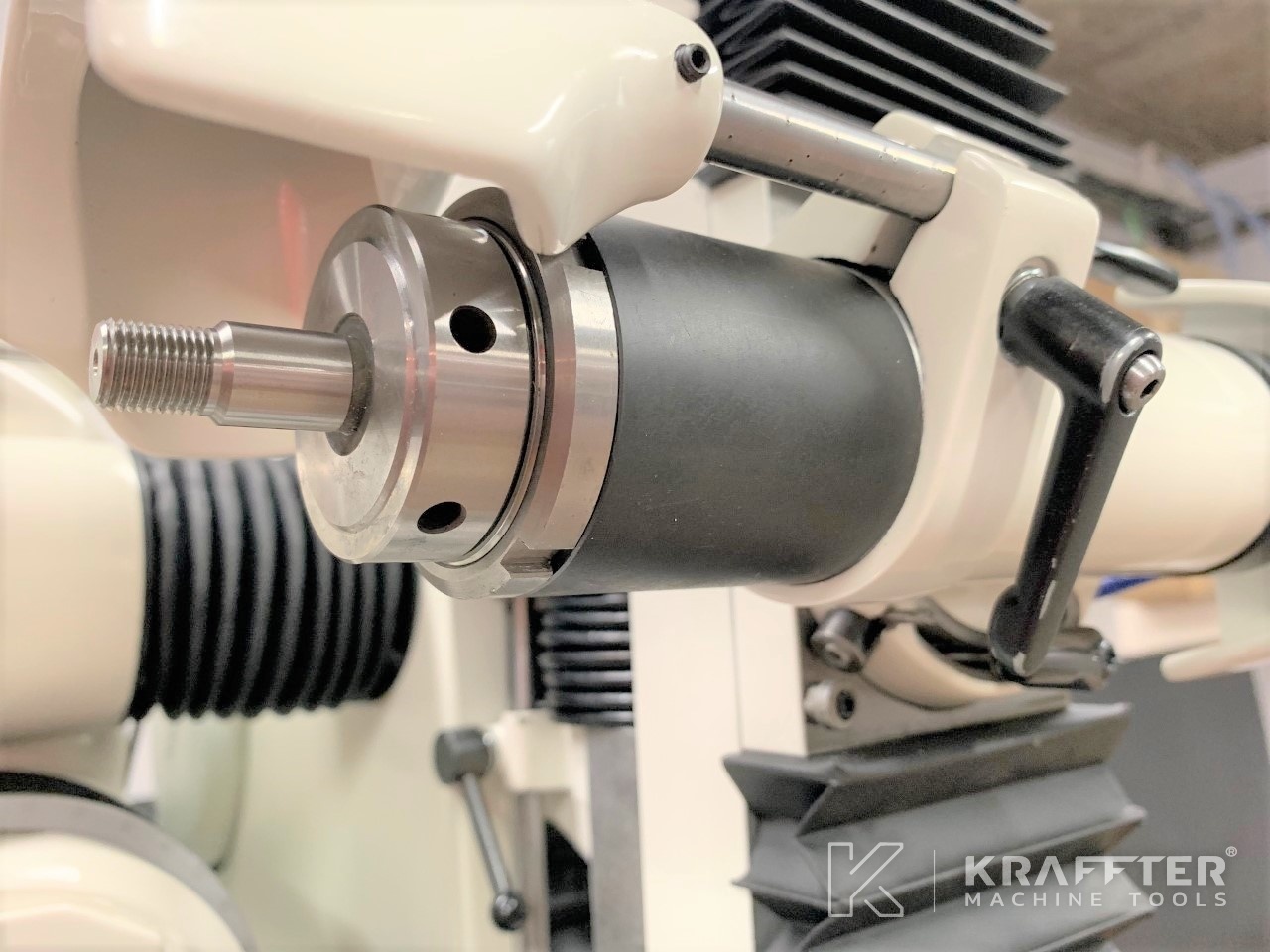

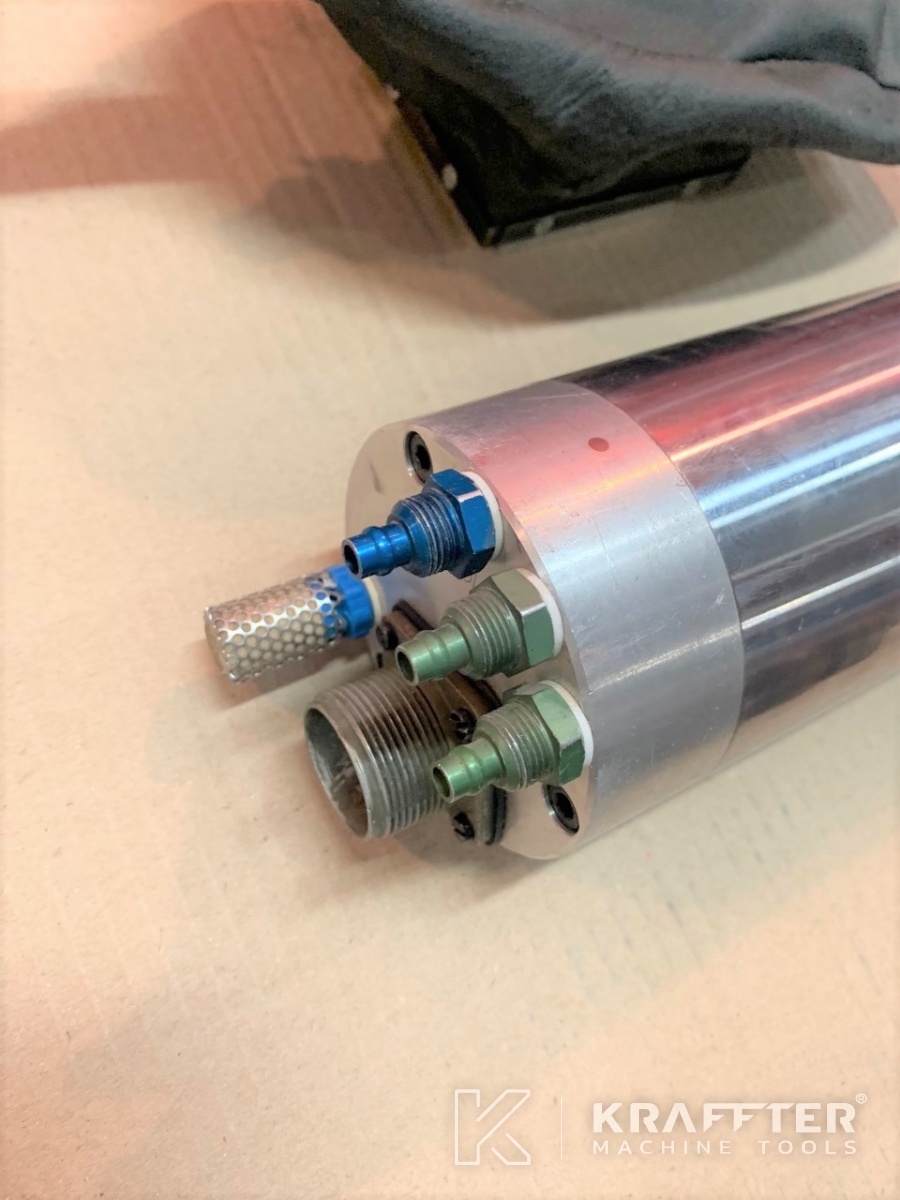

- x 1 High frequency spindle HFQ (60,000 to 10,000 rpm) air cooled - EWAG part N° 111-2-30219 (without frequency converter)

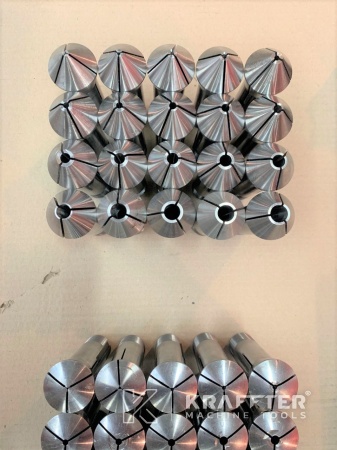

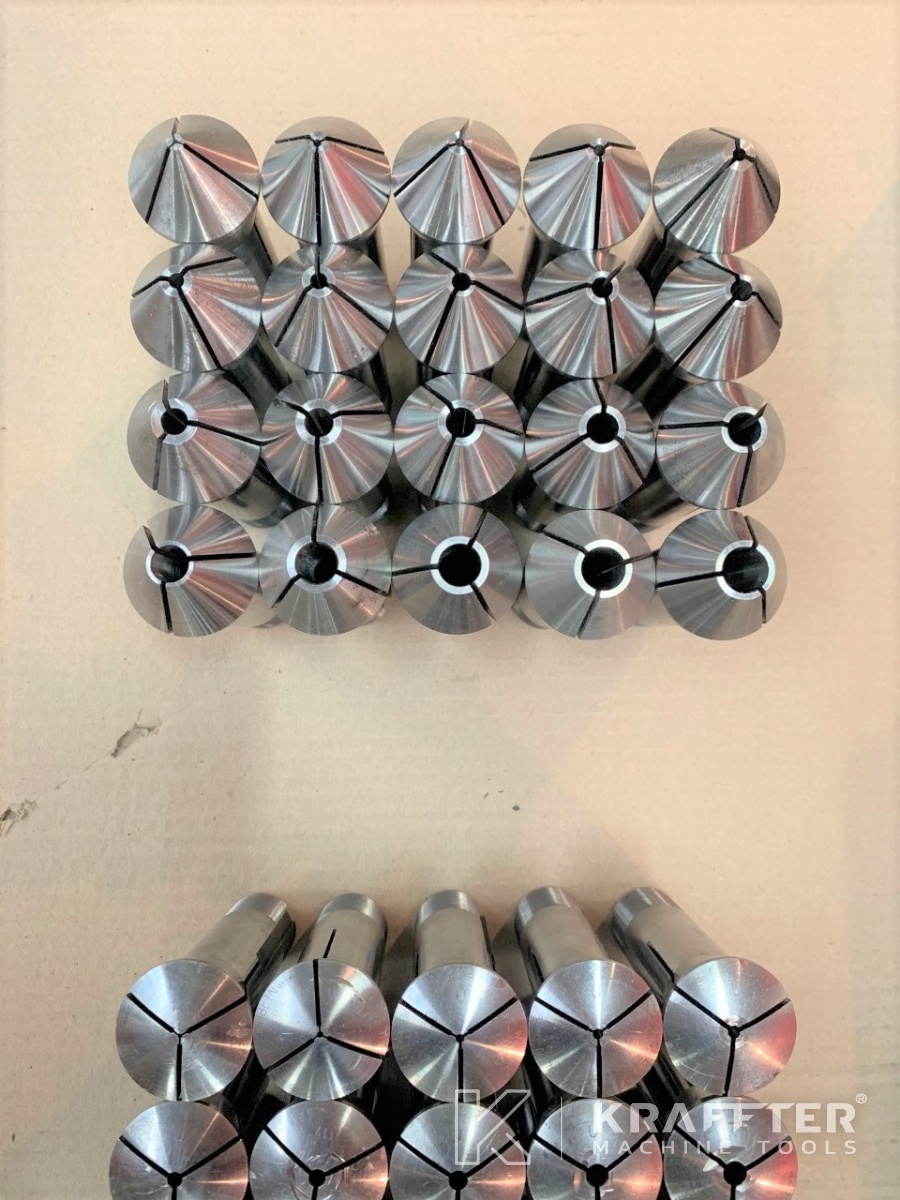

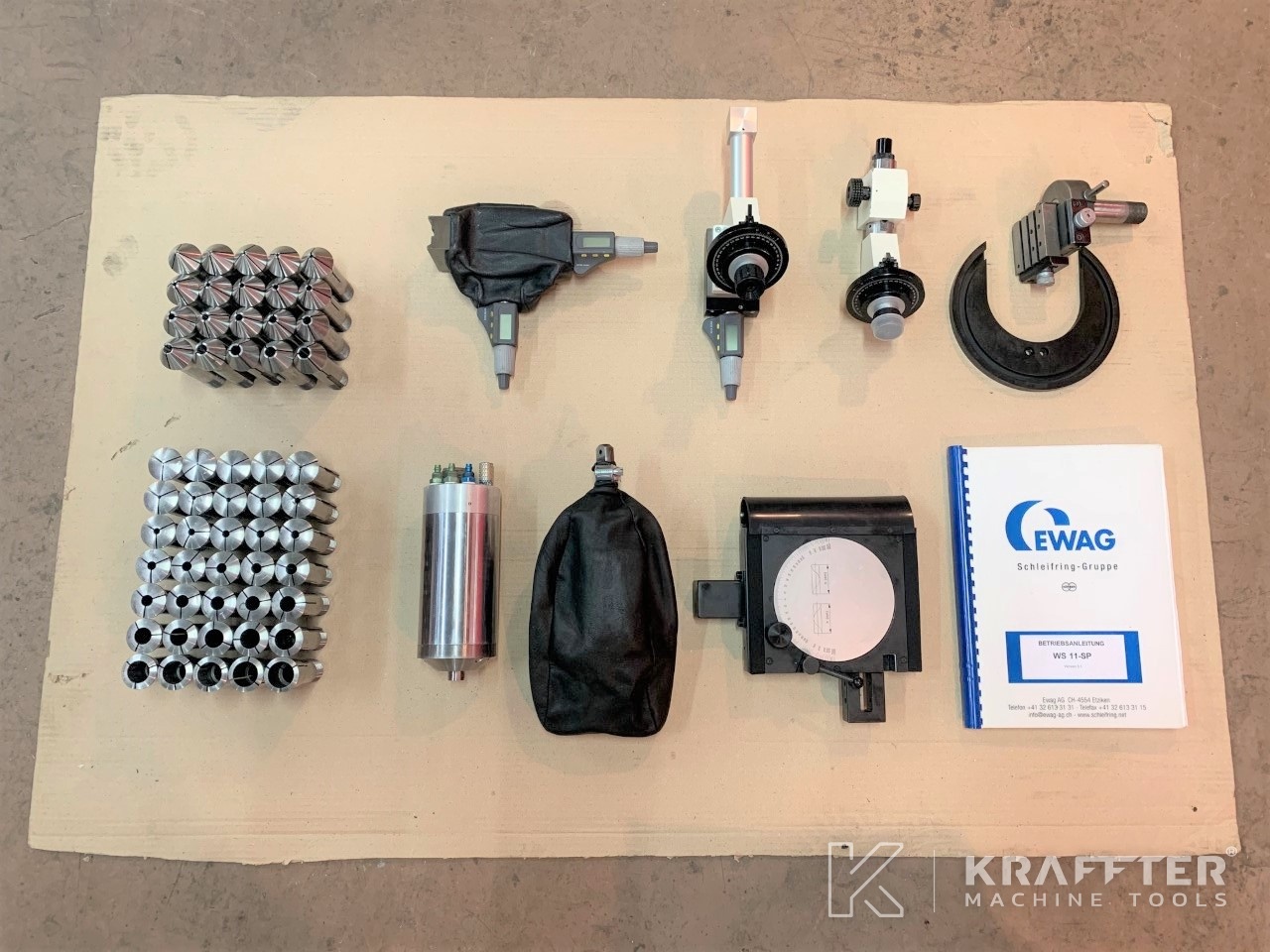

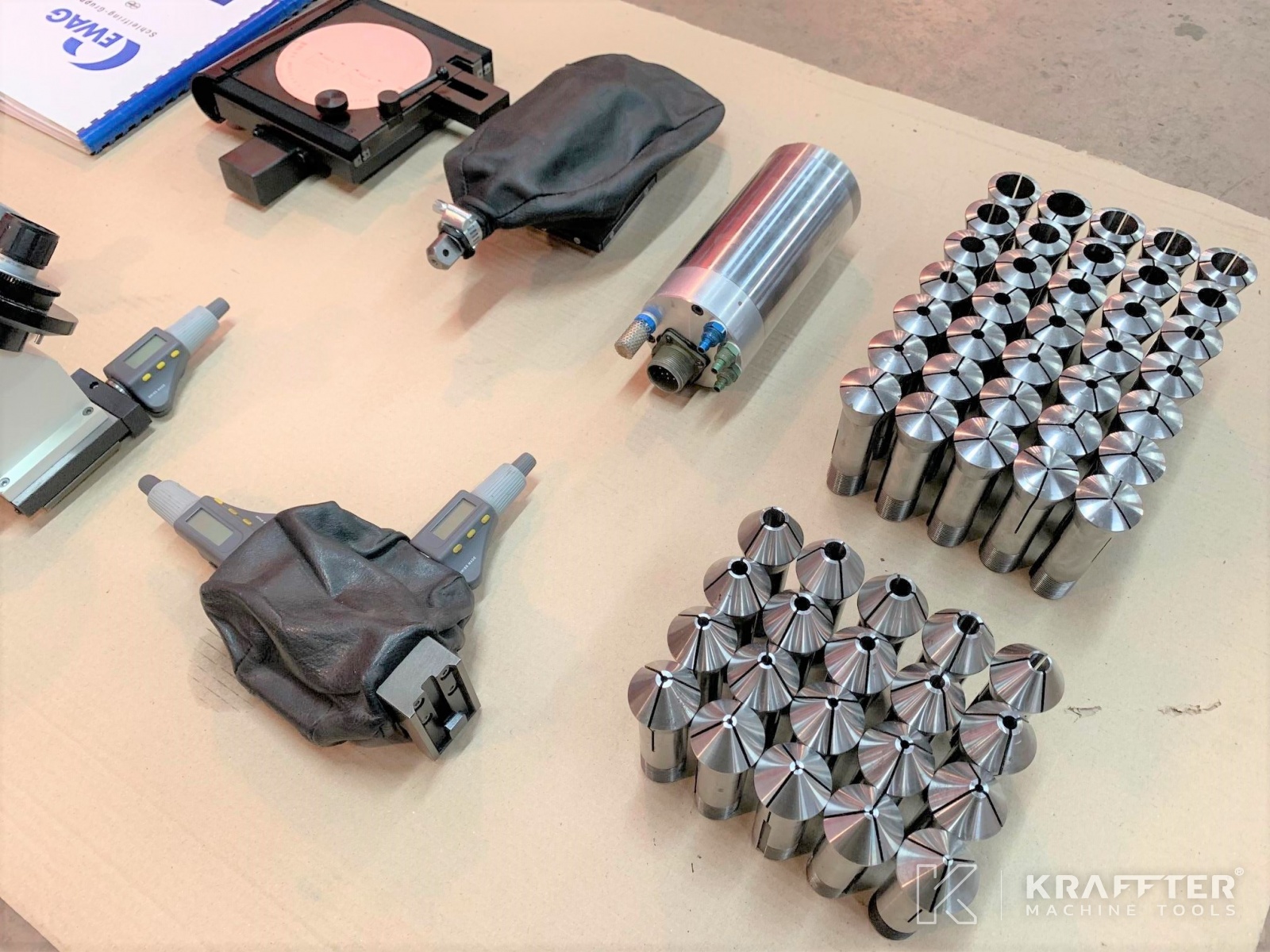

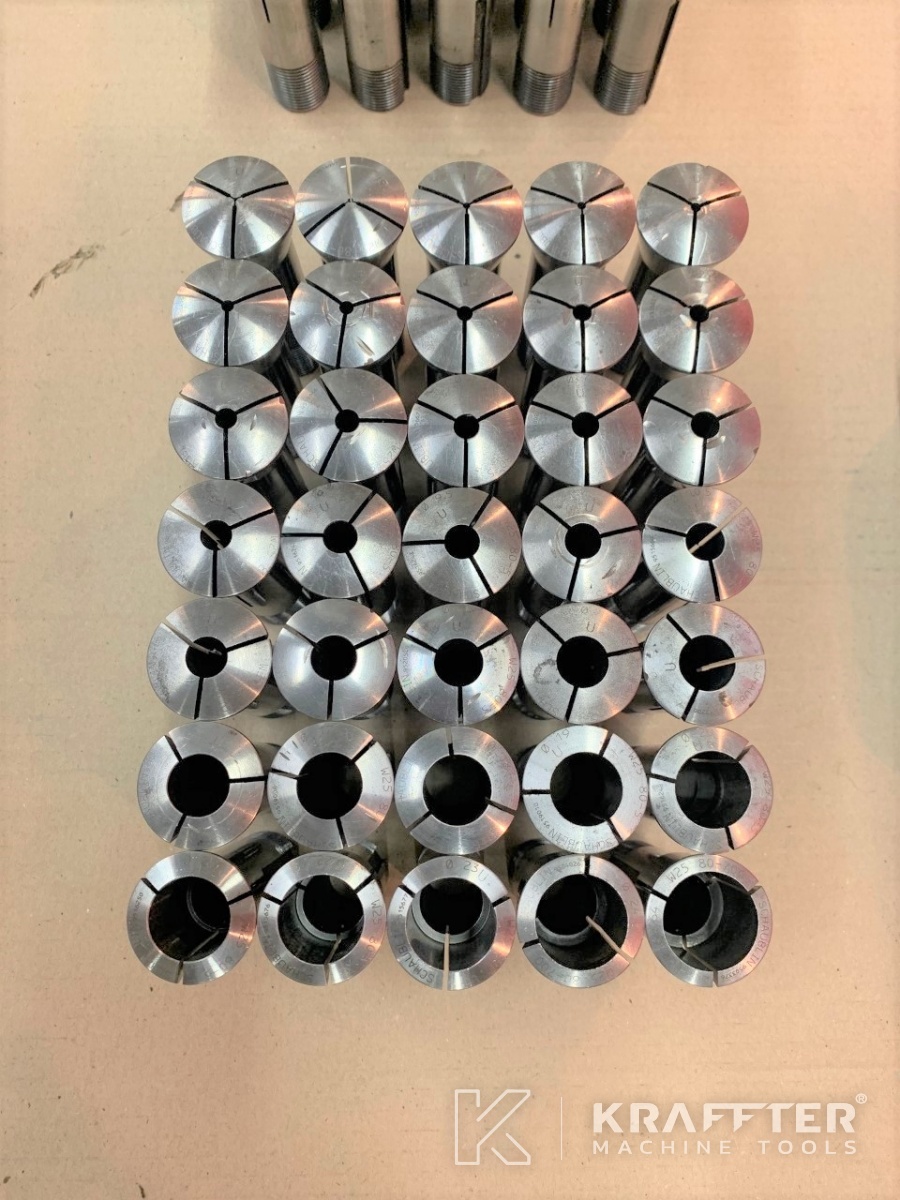

- x 1 Set of x35 W25 collets
- x 1 Set of x20 W25 collets with extended nose
- x 1 Radius grinding attachment INCOMPLETE – EWAG part 111-2-23294
- x 1 USED grinding spindle

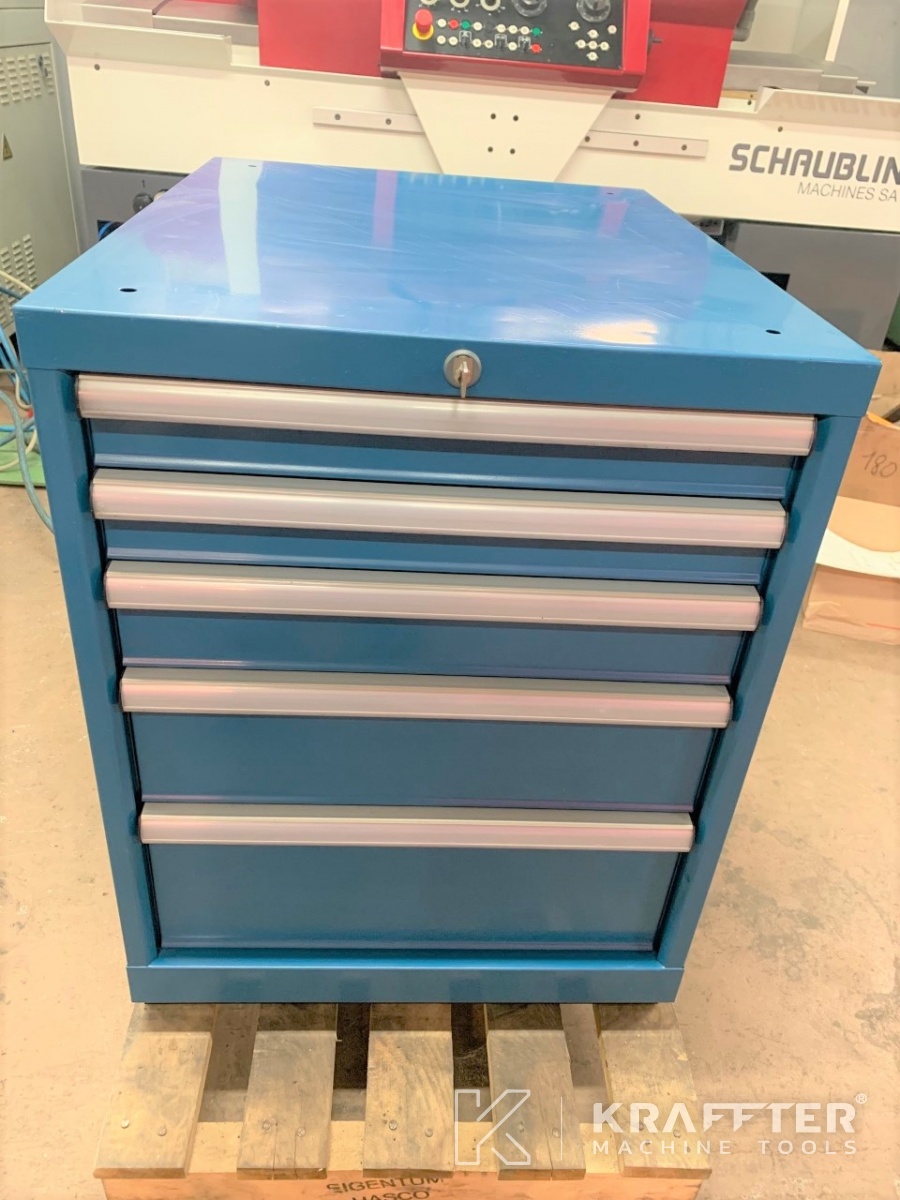

- x 1 Metallic tool cabinet (5 drawers)
