Sold

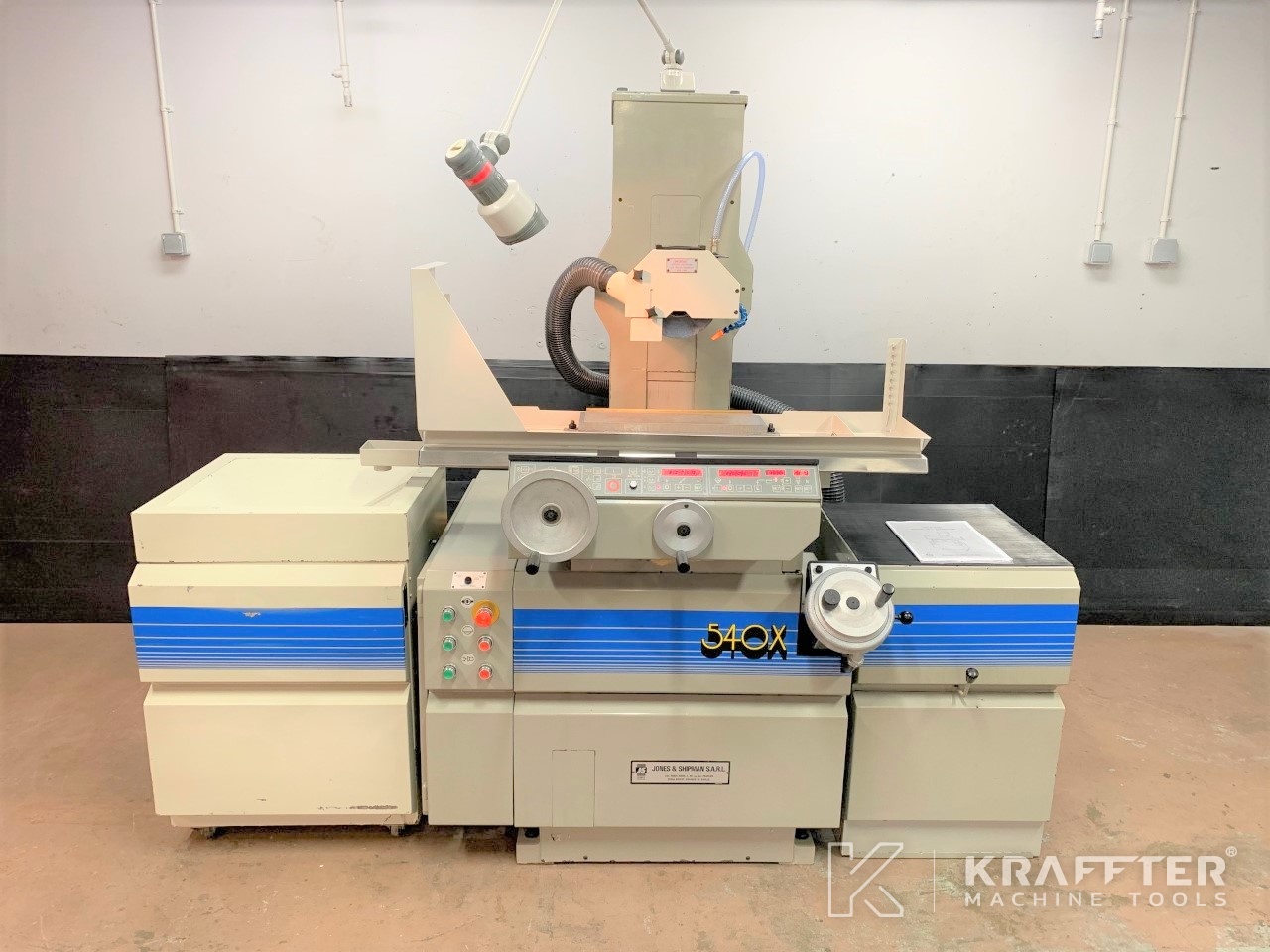

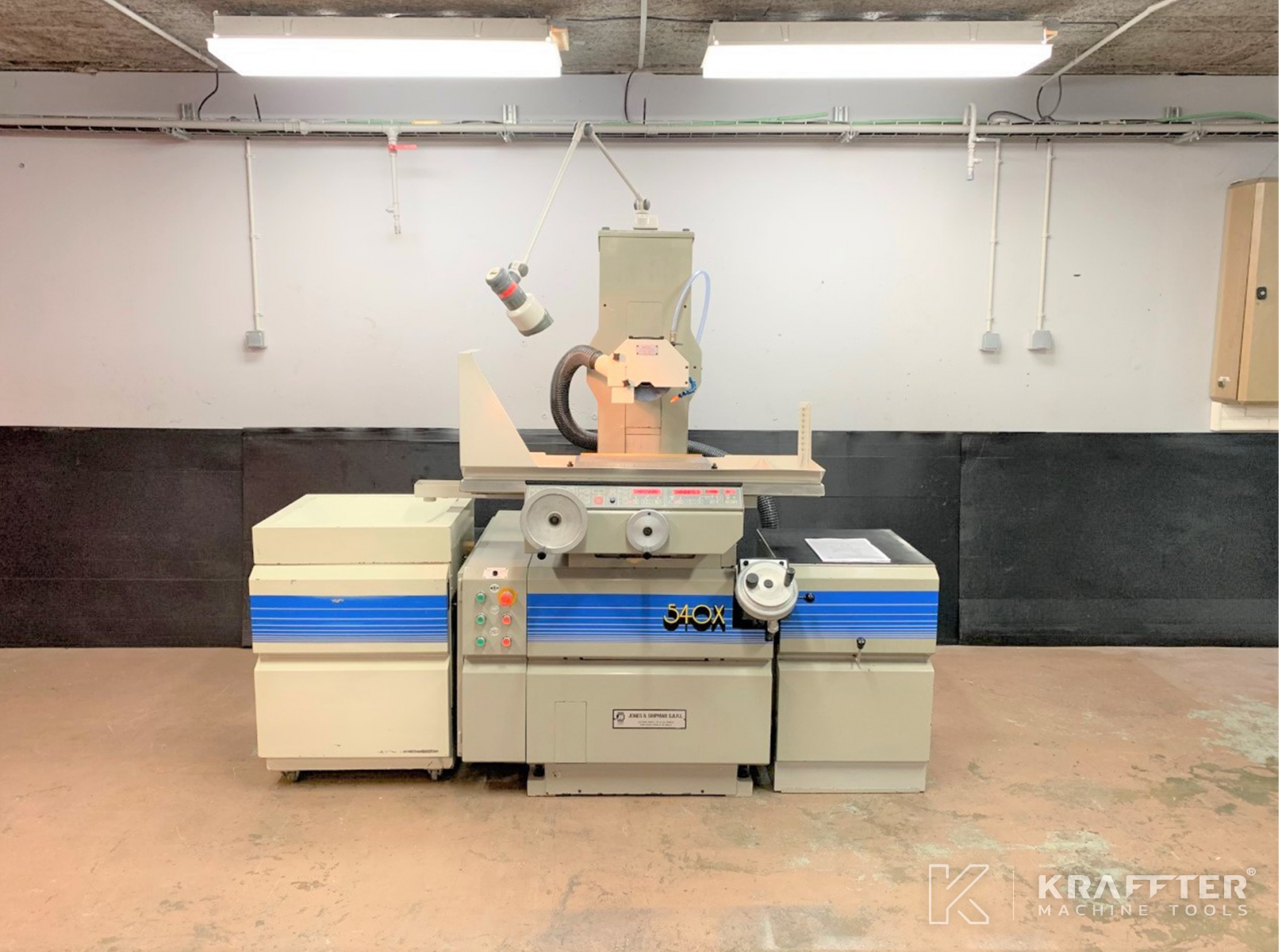

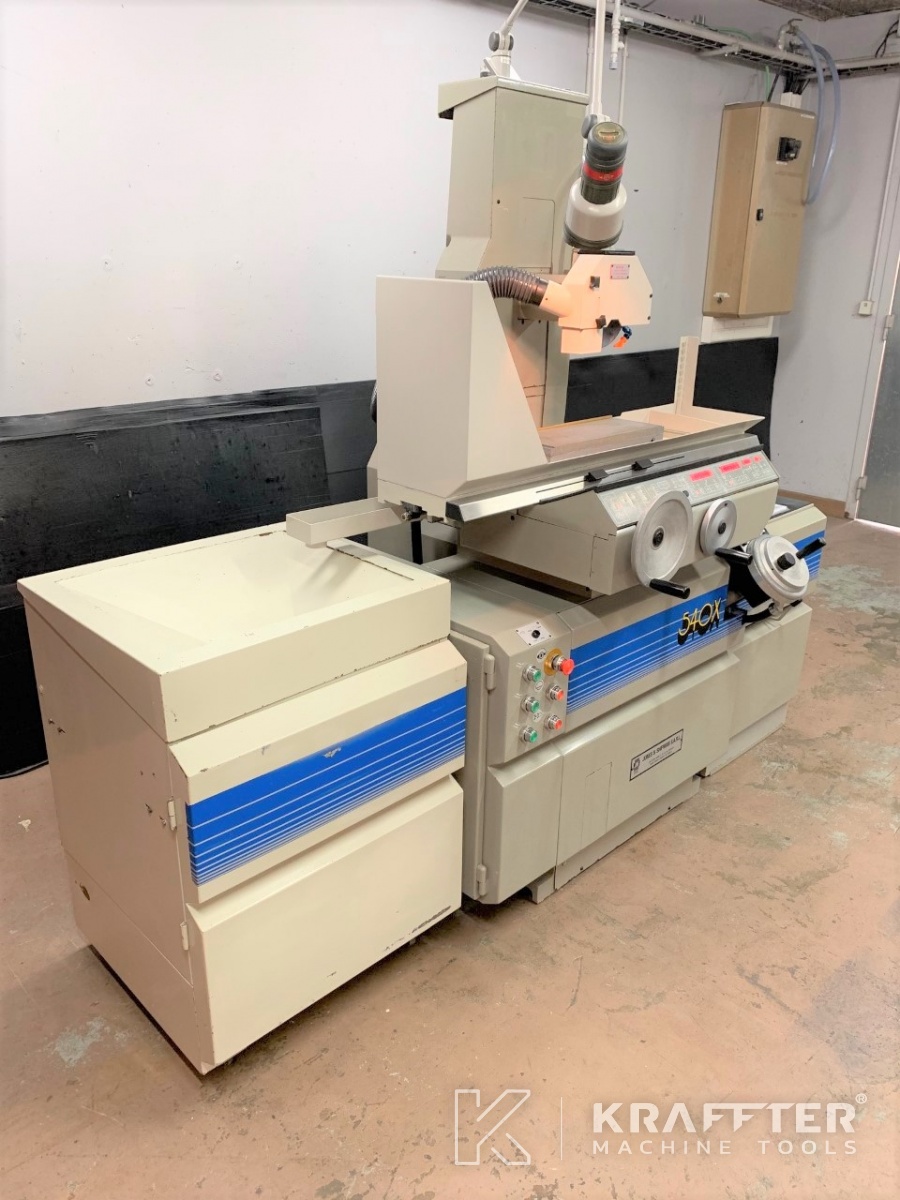

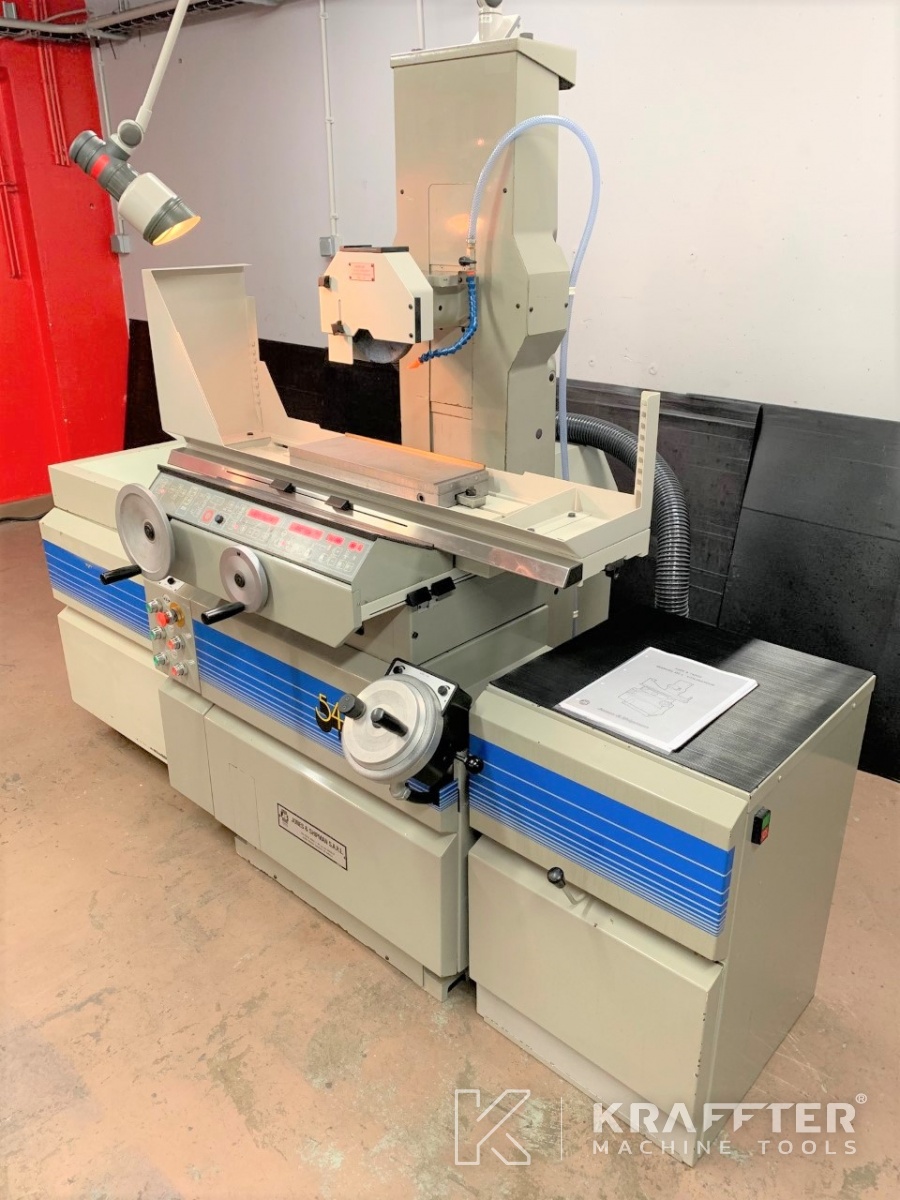

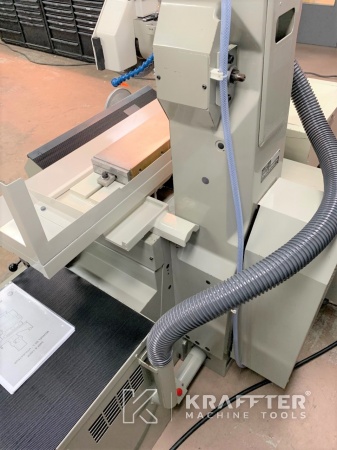

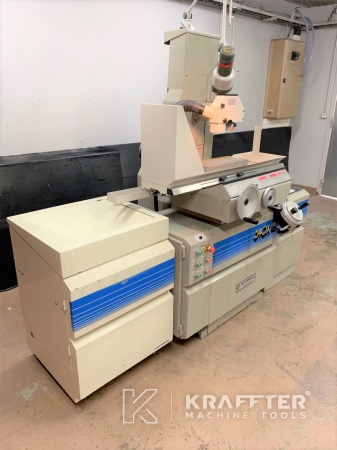

Type of machine : Surface grinder
Brand : JONES & SHIPMAN
Stock N° : 20689-955

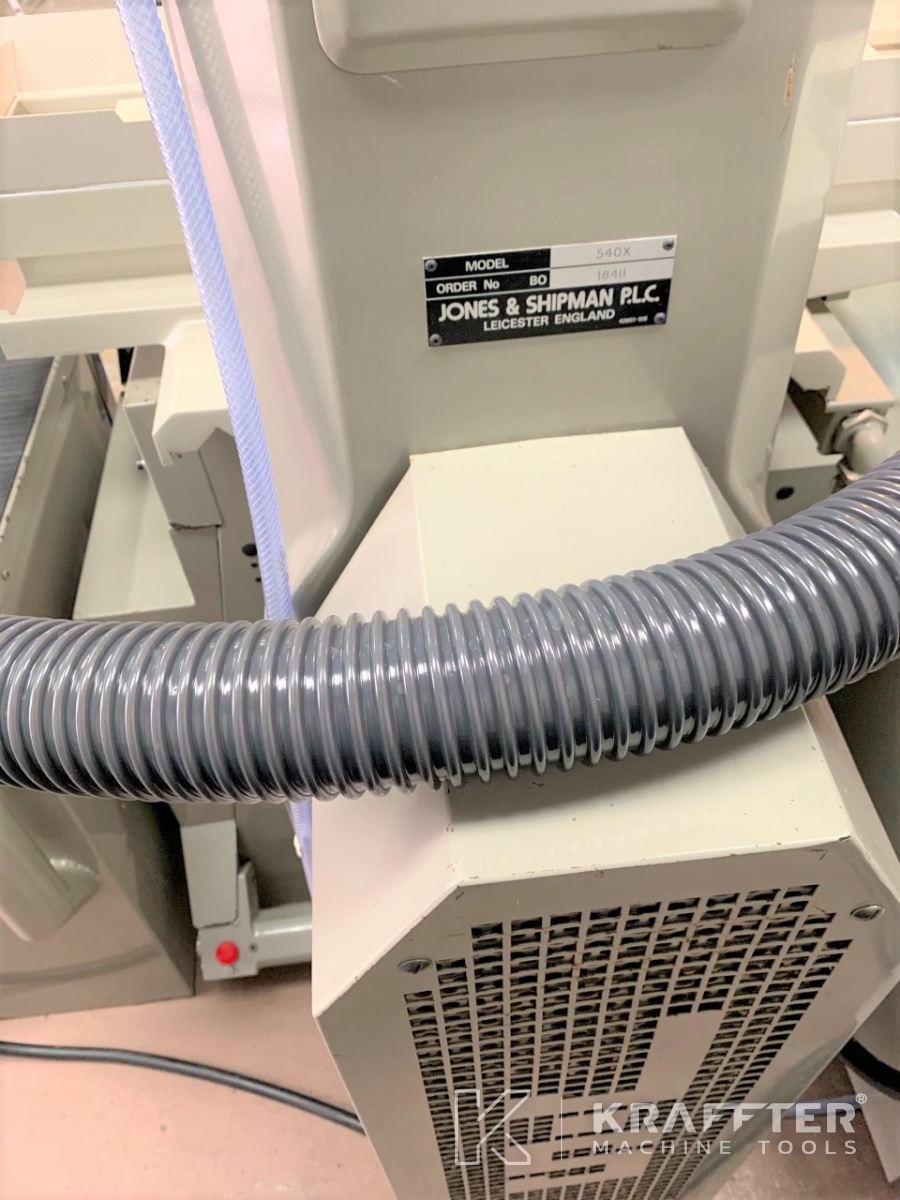

Model : 540 X
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Automatic
Yes
Stroke X axis
490 [mm]
Stroke Y axis
171 [mm]
Table length
450 [mm]
Table width
150 [mm]
Max. distance spindle nose / table
400 [mm]
Grinding spindle motor power
1.5 [kW]
Grinding wheel diameter
200 [mm]
Grinding wheel width
20 [mm]
Variable power feeding
Yes

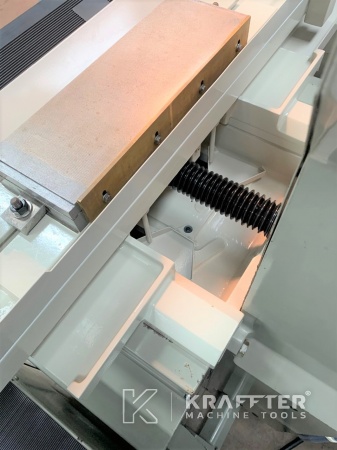

Magnet clamping plate
Yes
Dimensions of magnetic plate
425 x 150

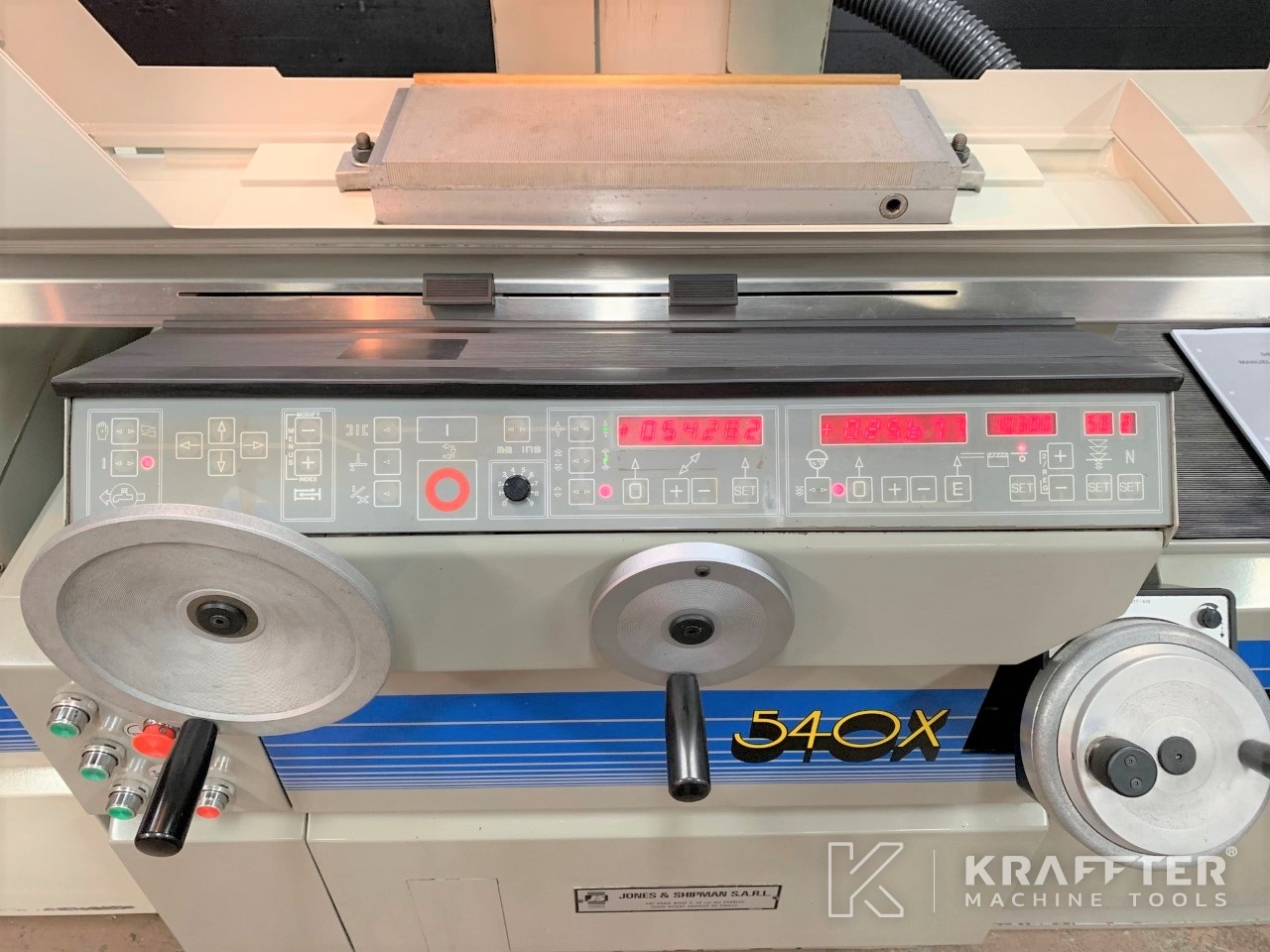

Digital read out
Jones & Shipman
Number of axes Digital Read Out
2

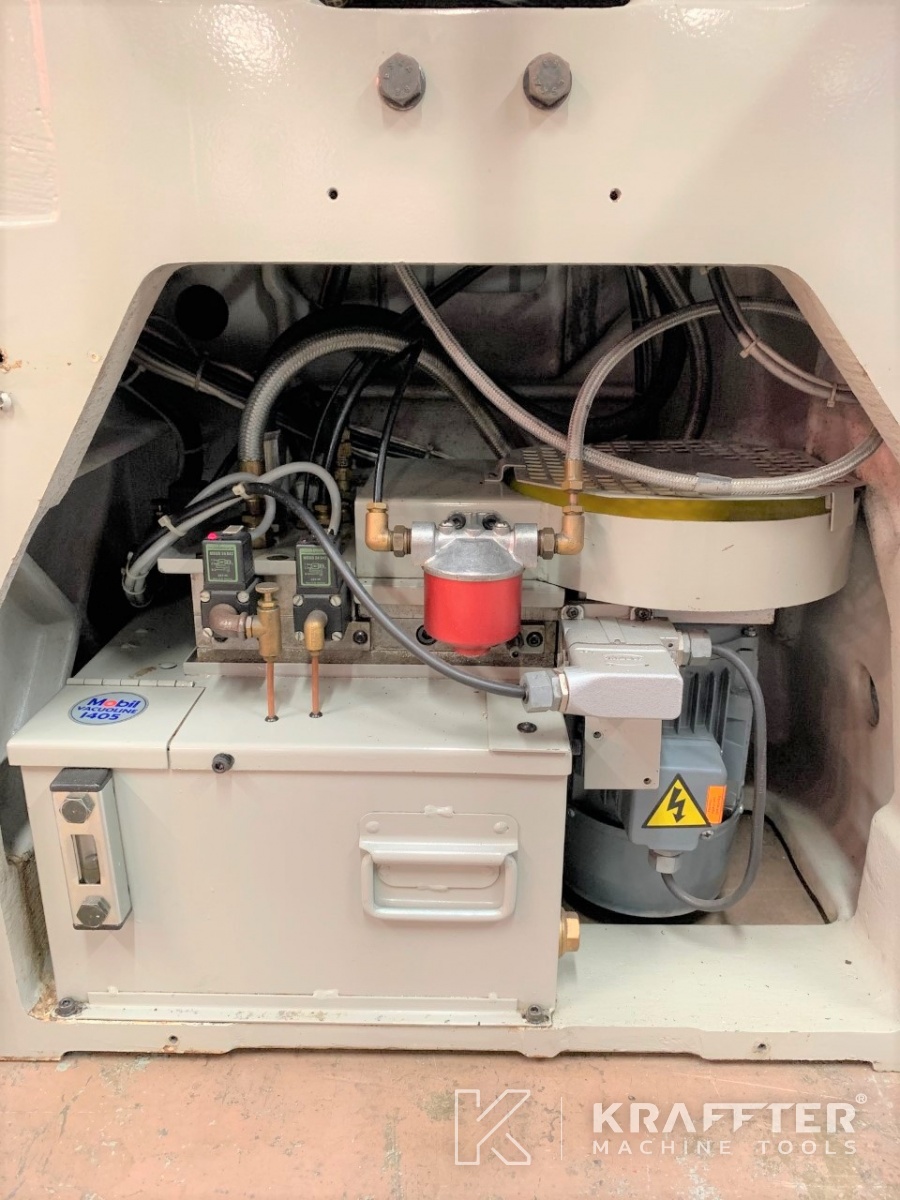

Lubrication tank with pump
Yes
Paper filtration unit
No
Centralized lubrication
Automatique
Supply voltage
400 [V]
Dimensions
1600 x 720 x 1875
Weight
950 [Kg]

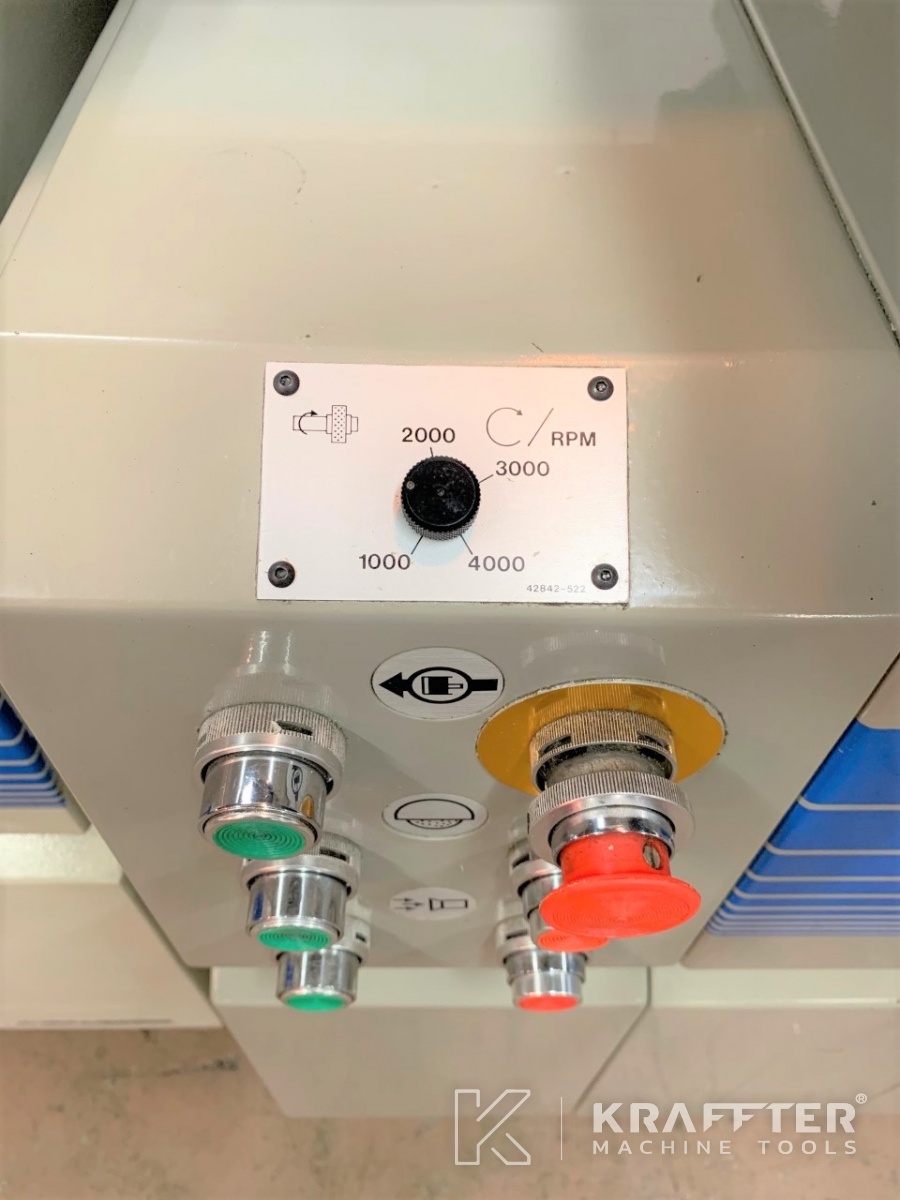

- Variable grinding wheel speed : from 1000 to 4000 [rpm]
- 2 axis digital read out,
- Digital read out resolution : 0.001 [mm]

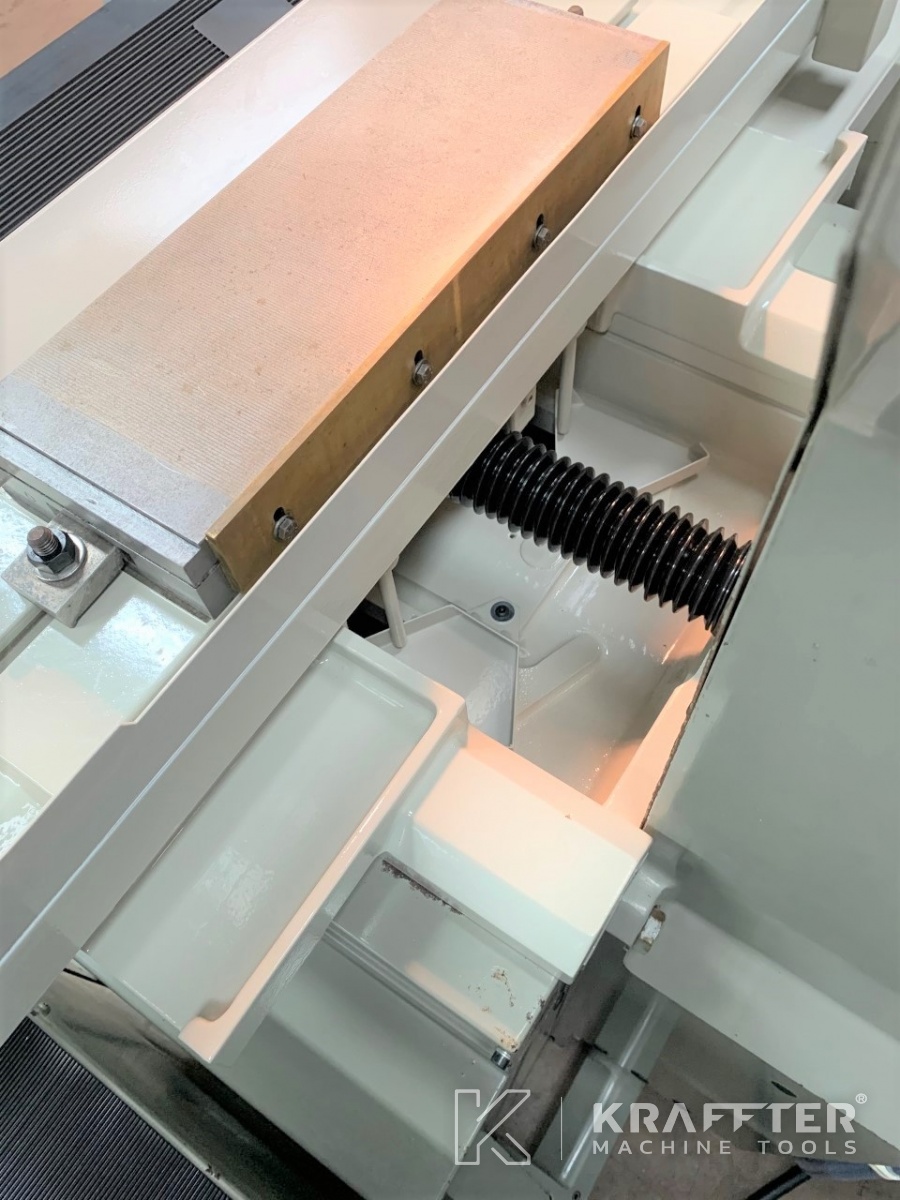

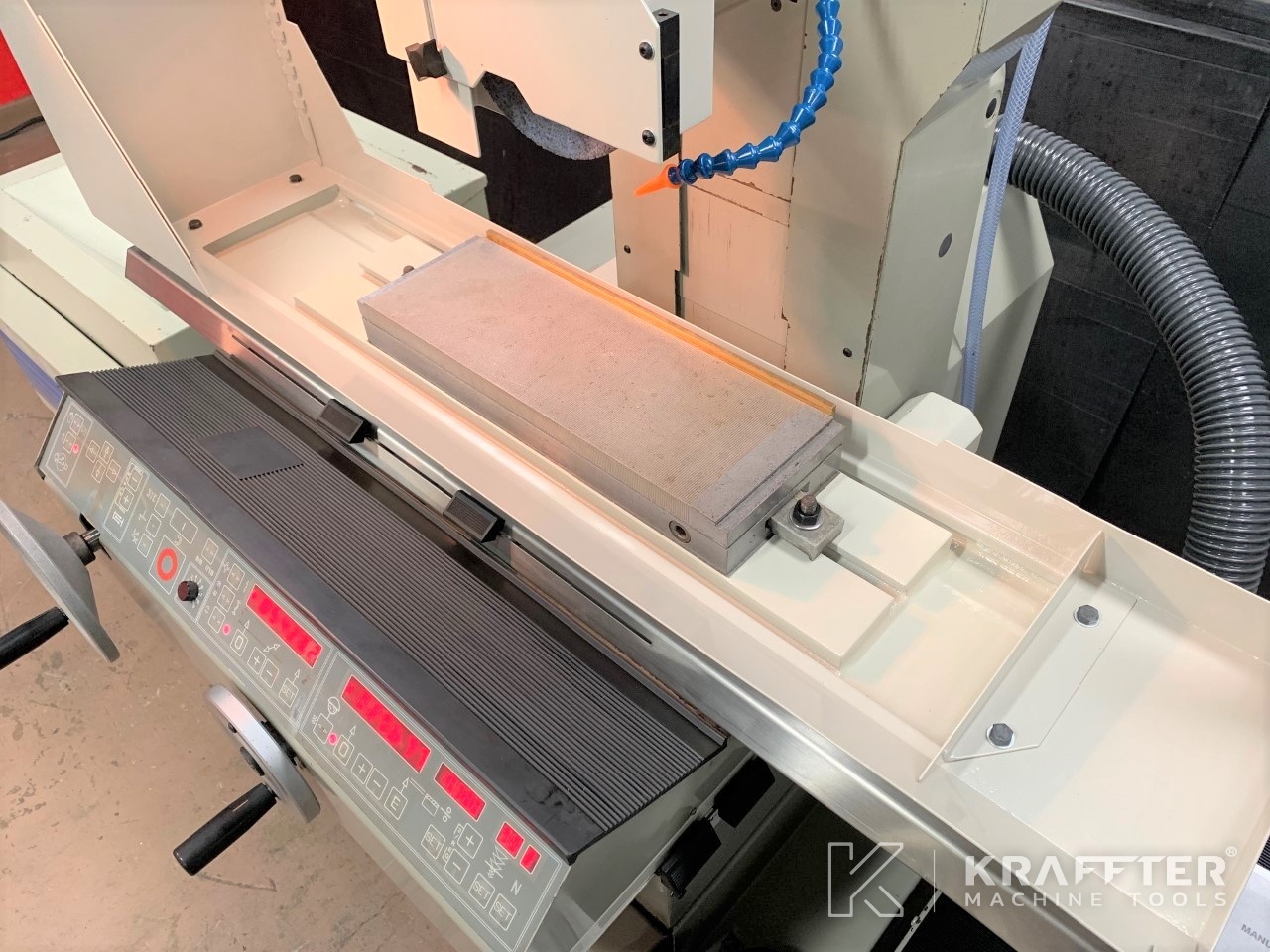

- Magnetic clamping plate ; clamping surface : 425 x 150 [mm]
- Rapid feeding on the Z axis
- Complete coolant system including paper band filtration

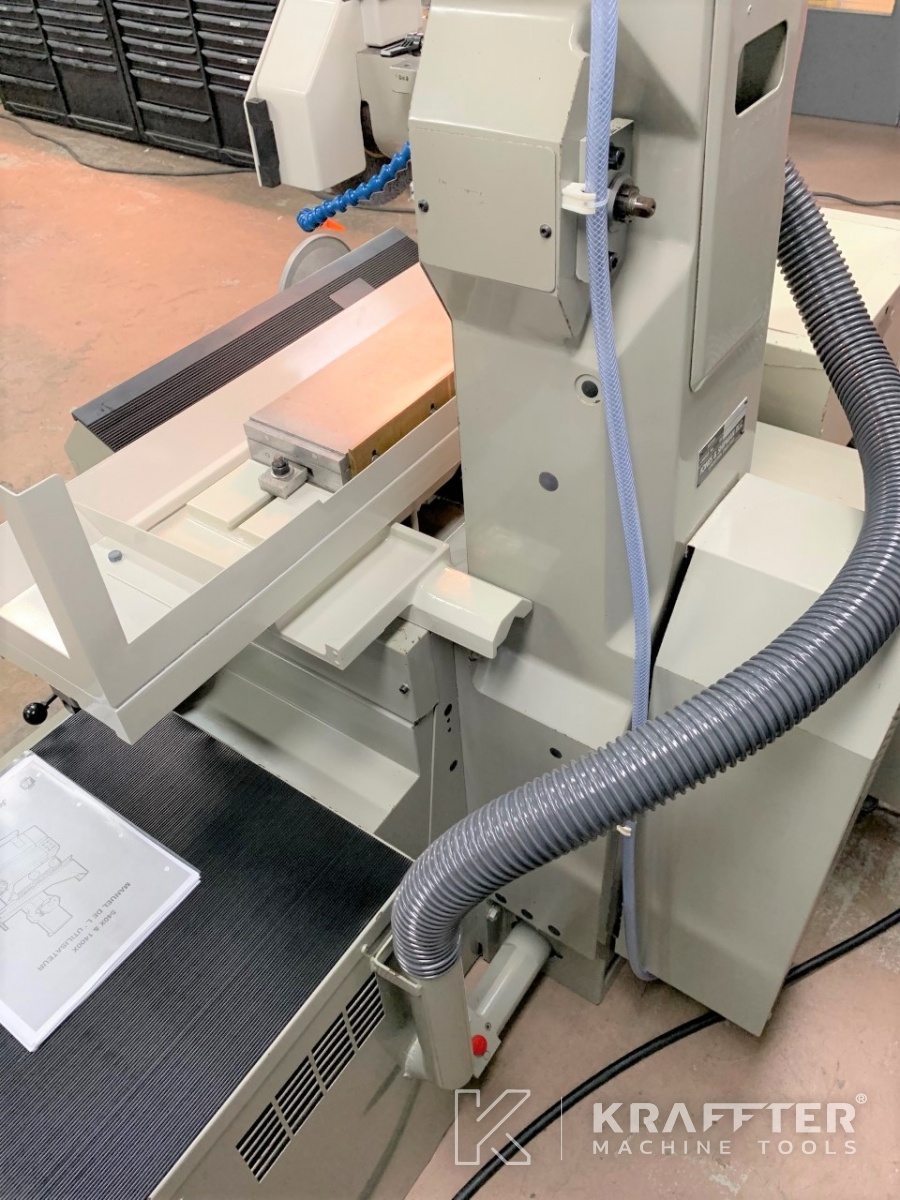

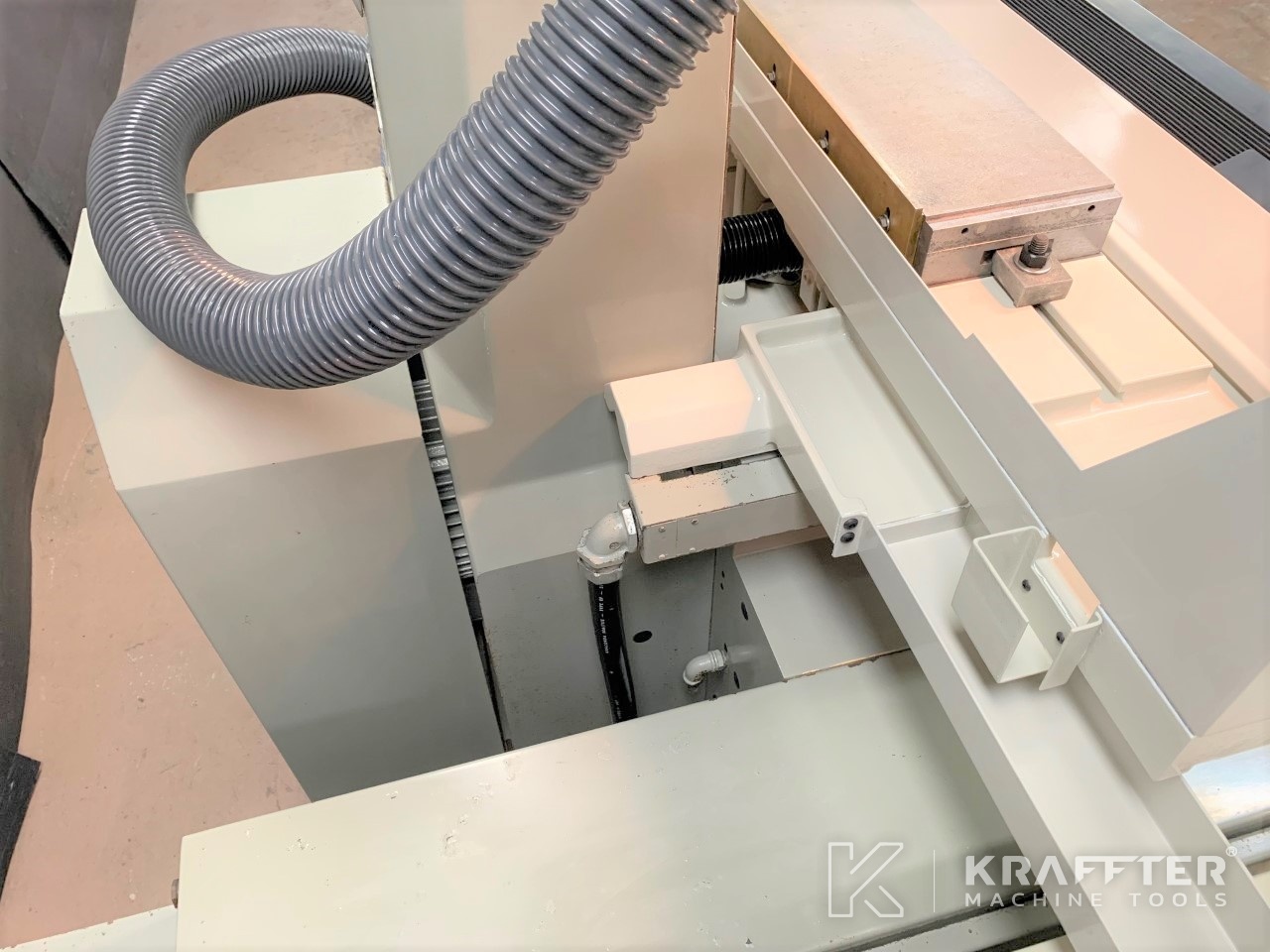

- Dust extraction unit

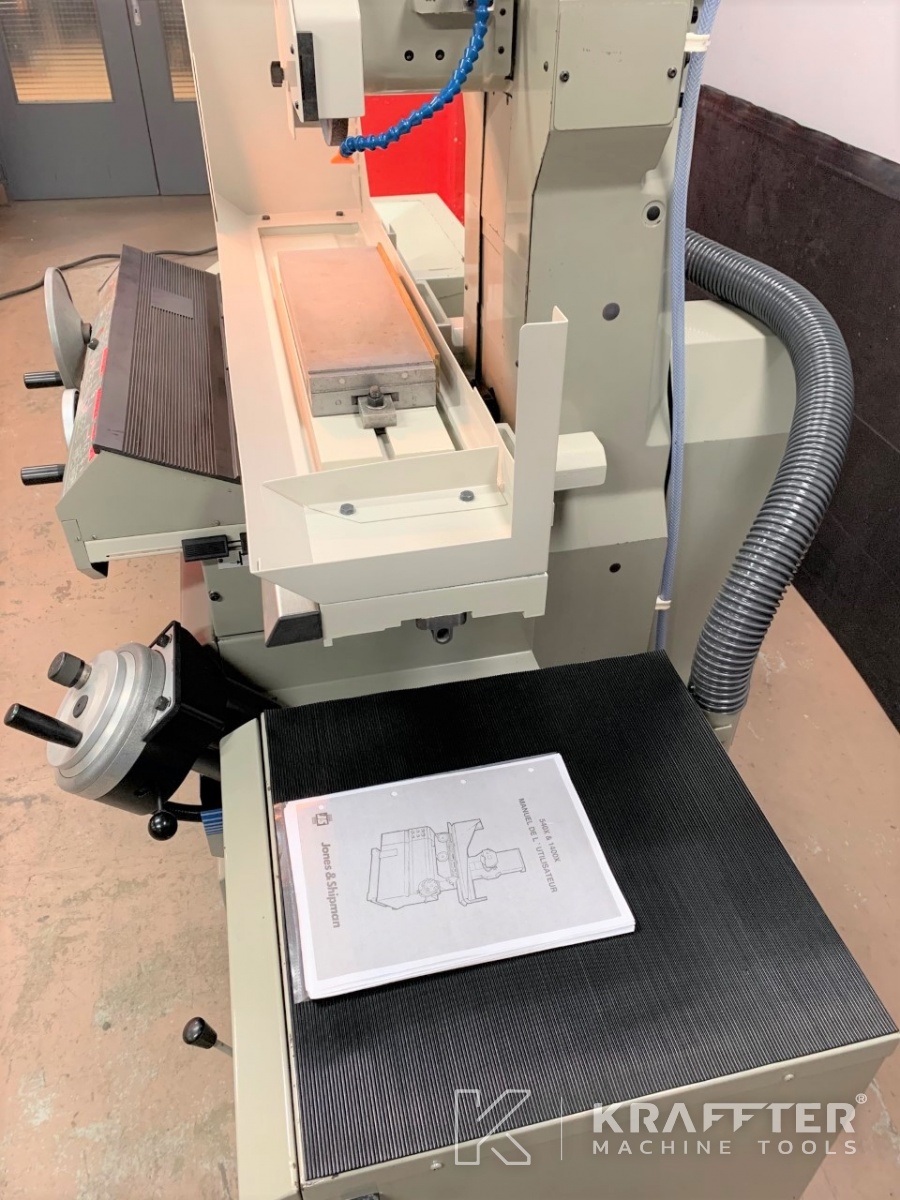

- Service and user manual
