Sold

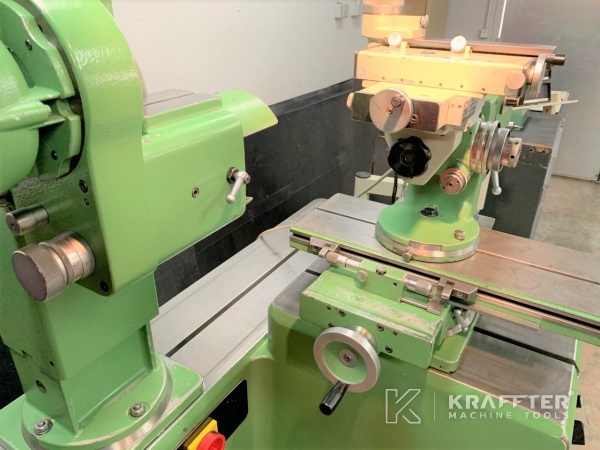

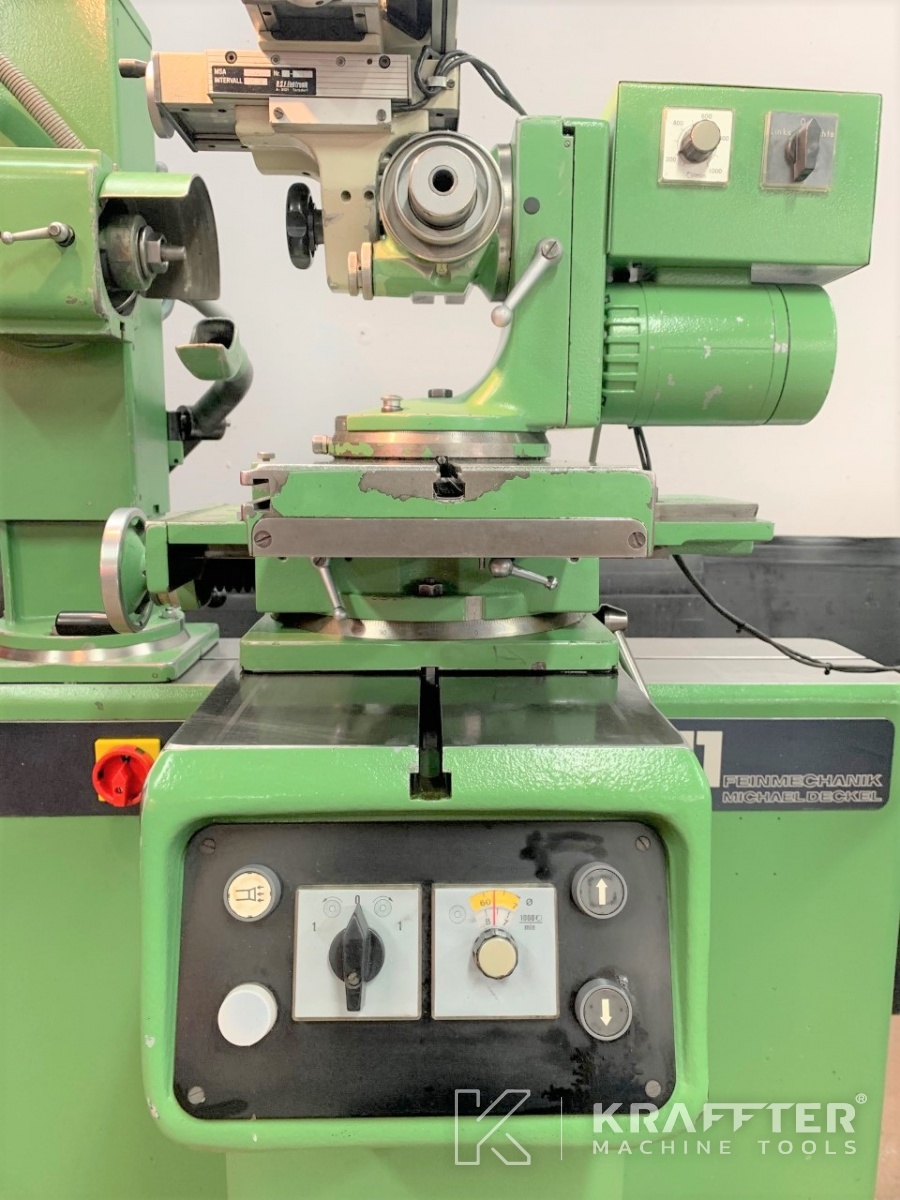

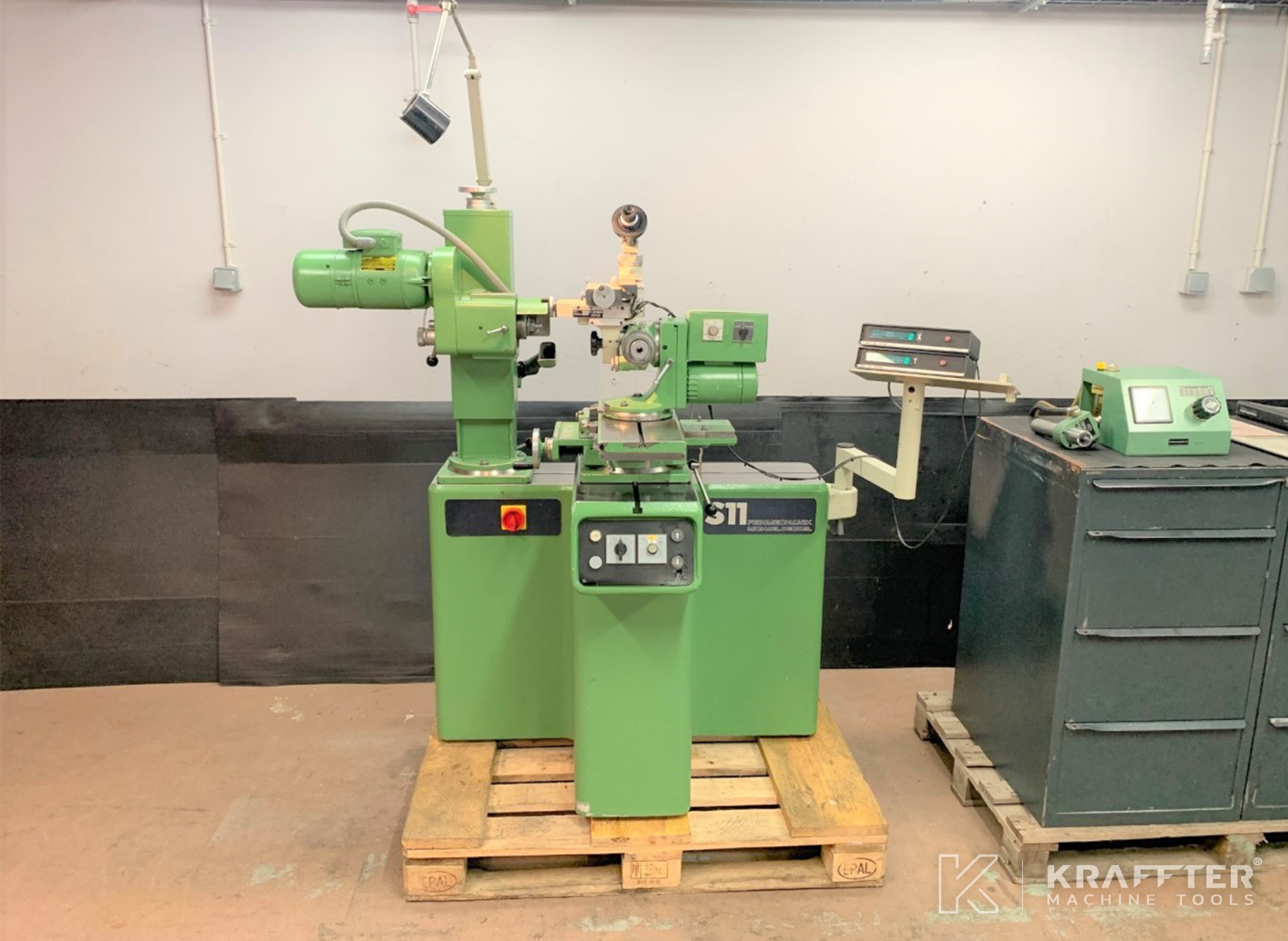

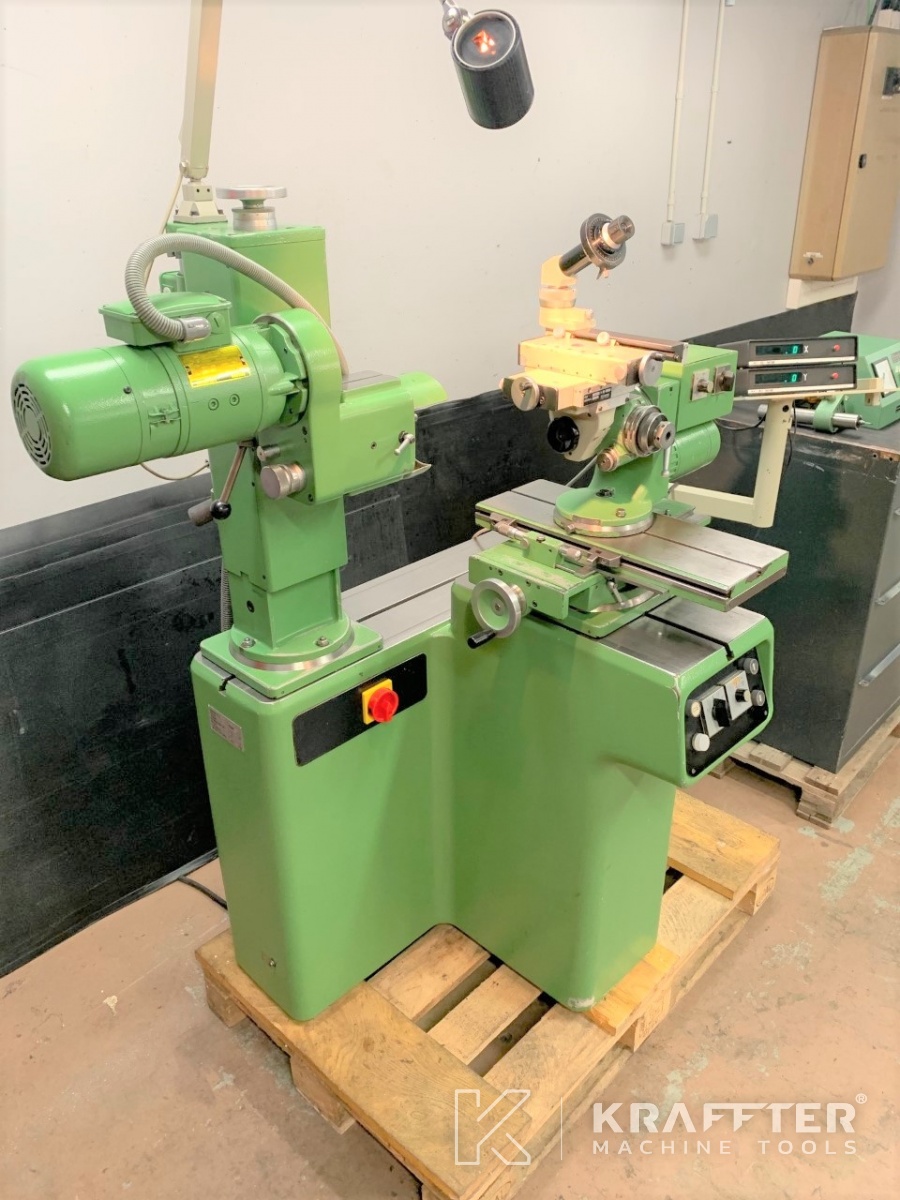

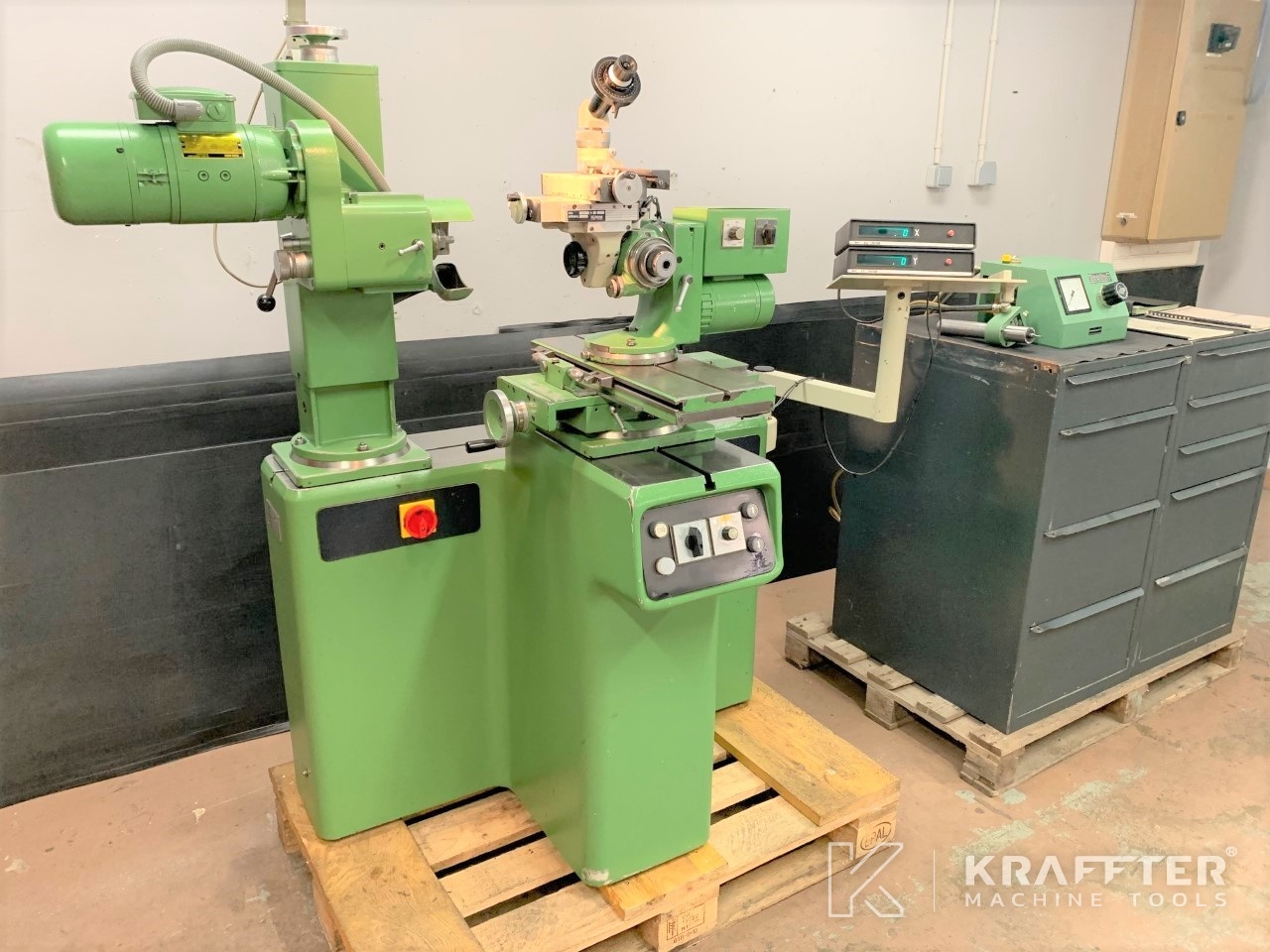

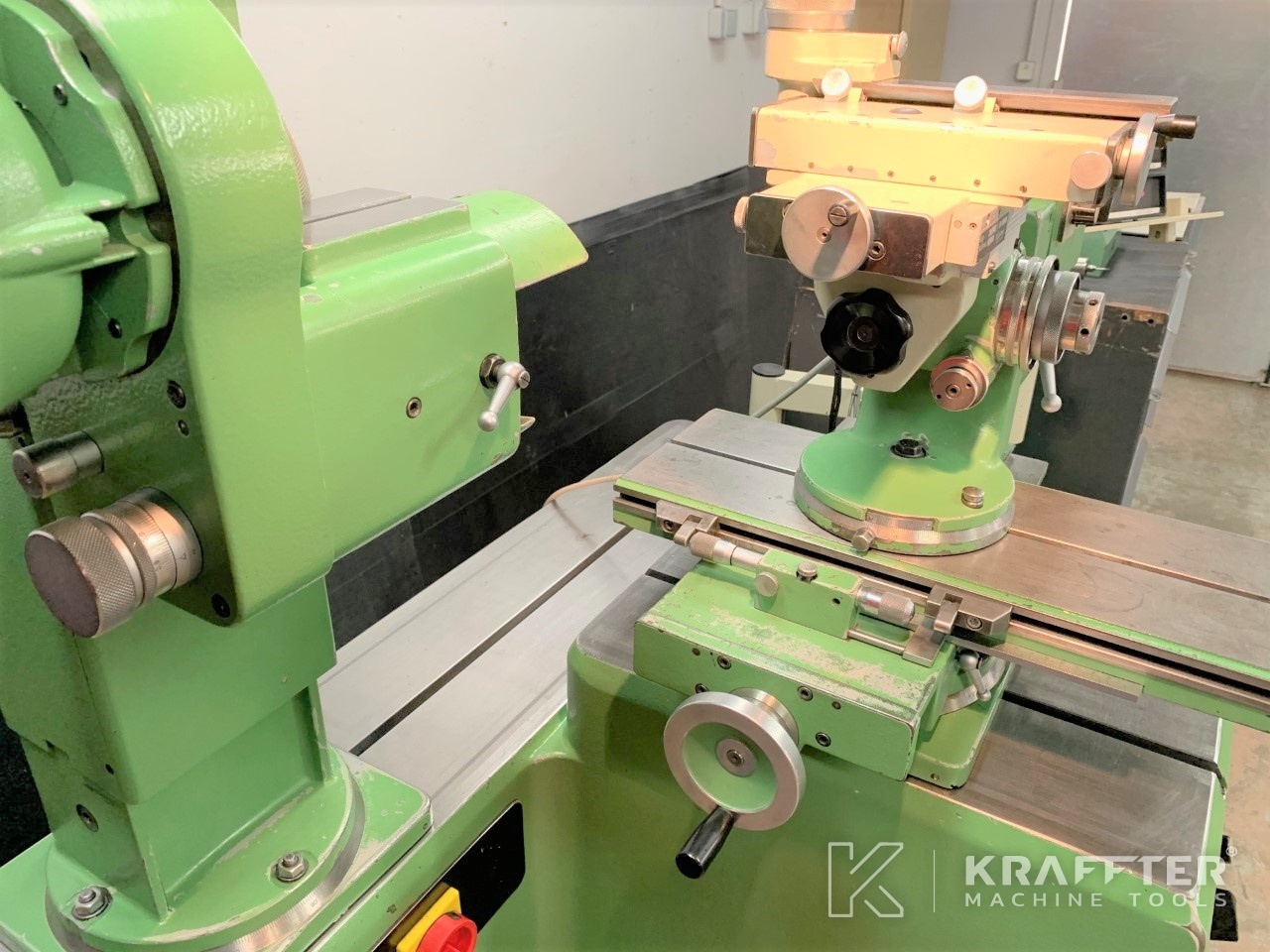

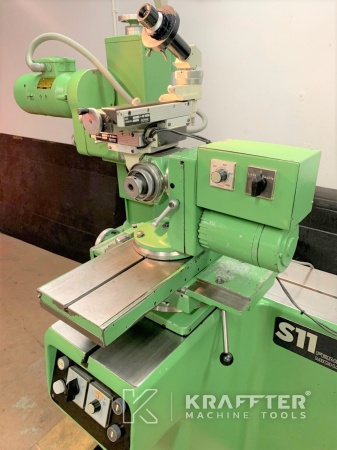

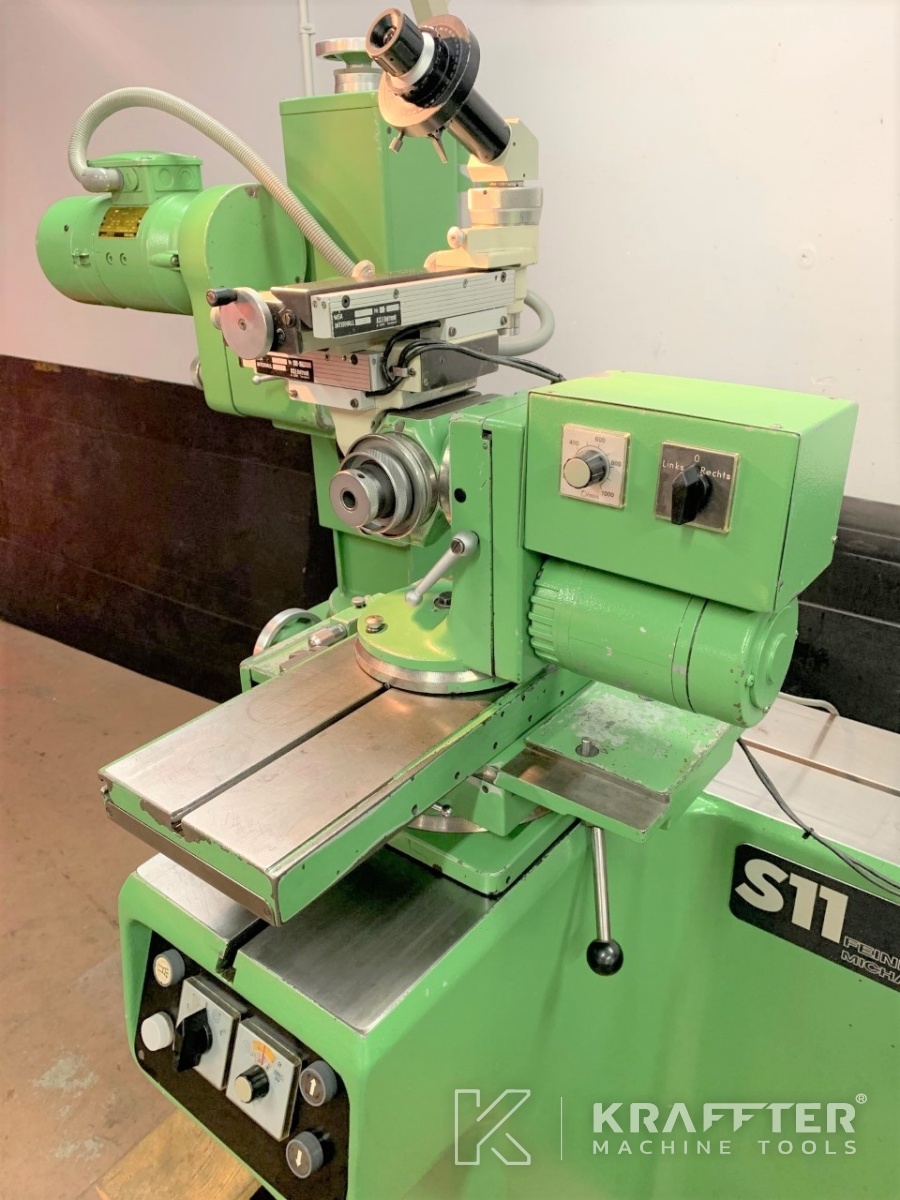

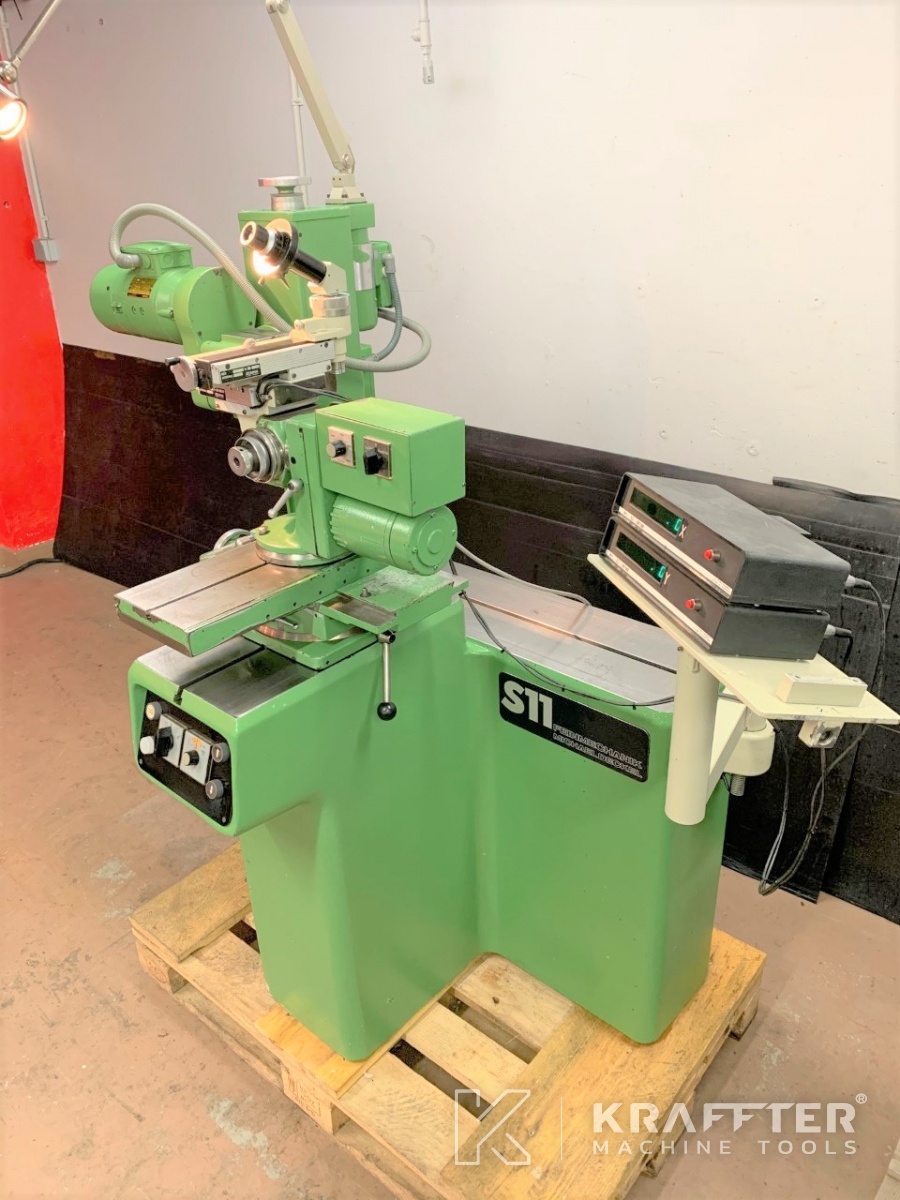

Type of machine : Tool grinding machine
Brand : DECKEL
Stock N° : 20689-956
Model : S11
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Grinding wheel diameter
125 [mm]
Workpiece spindle nose
ISO 40
Digital read out
RSF-Elektronik
Supply voltage
400 [V]
Total power required
2 [kVA]
Dimensions
1100 x 800 x 1760
Weight
520 [Kg]

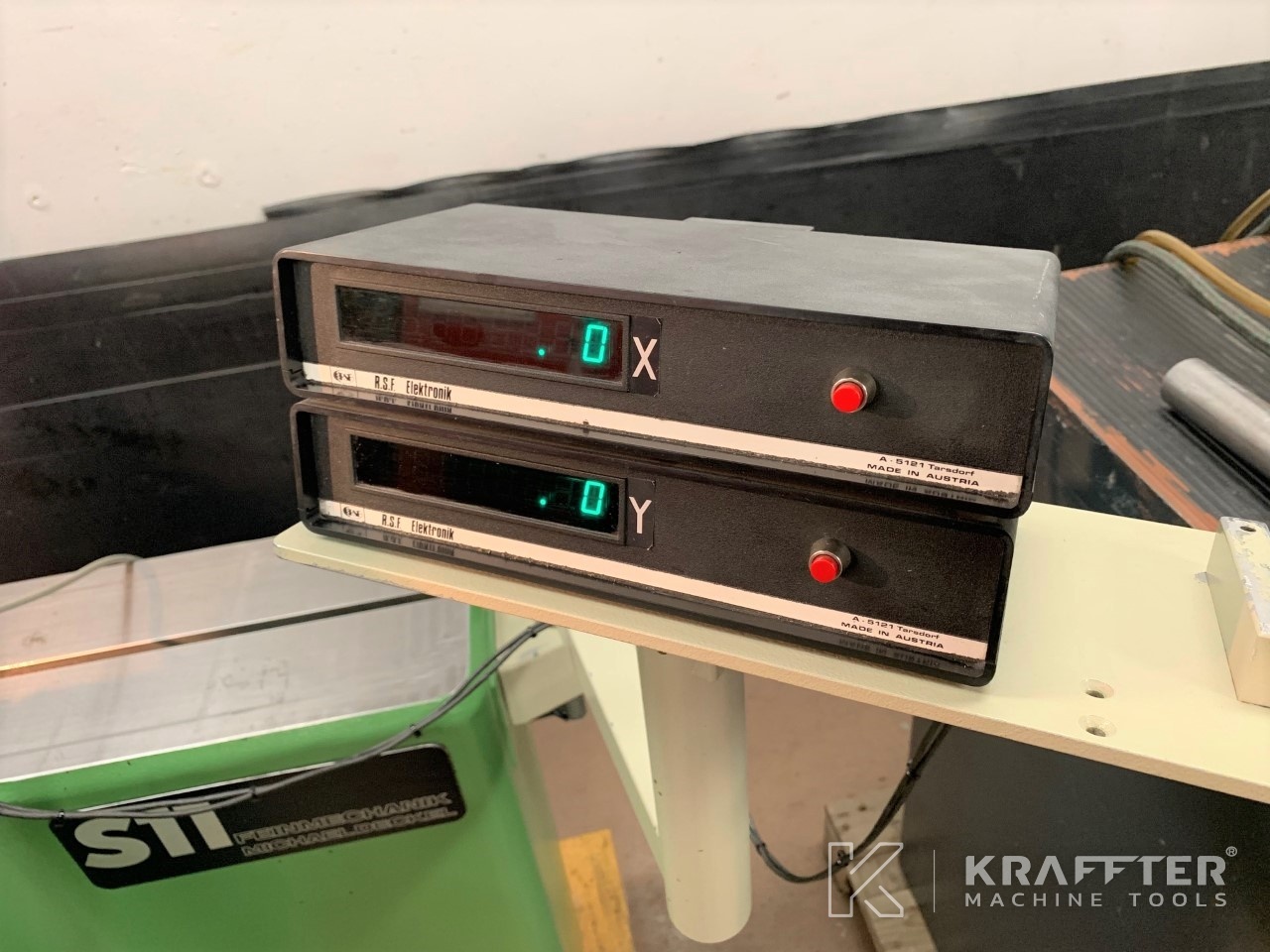

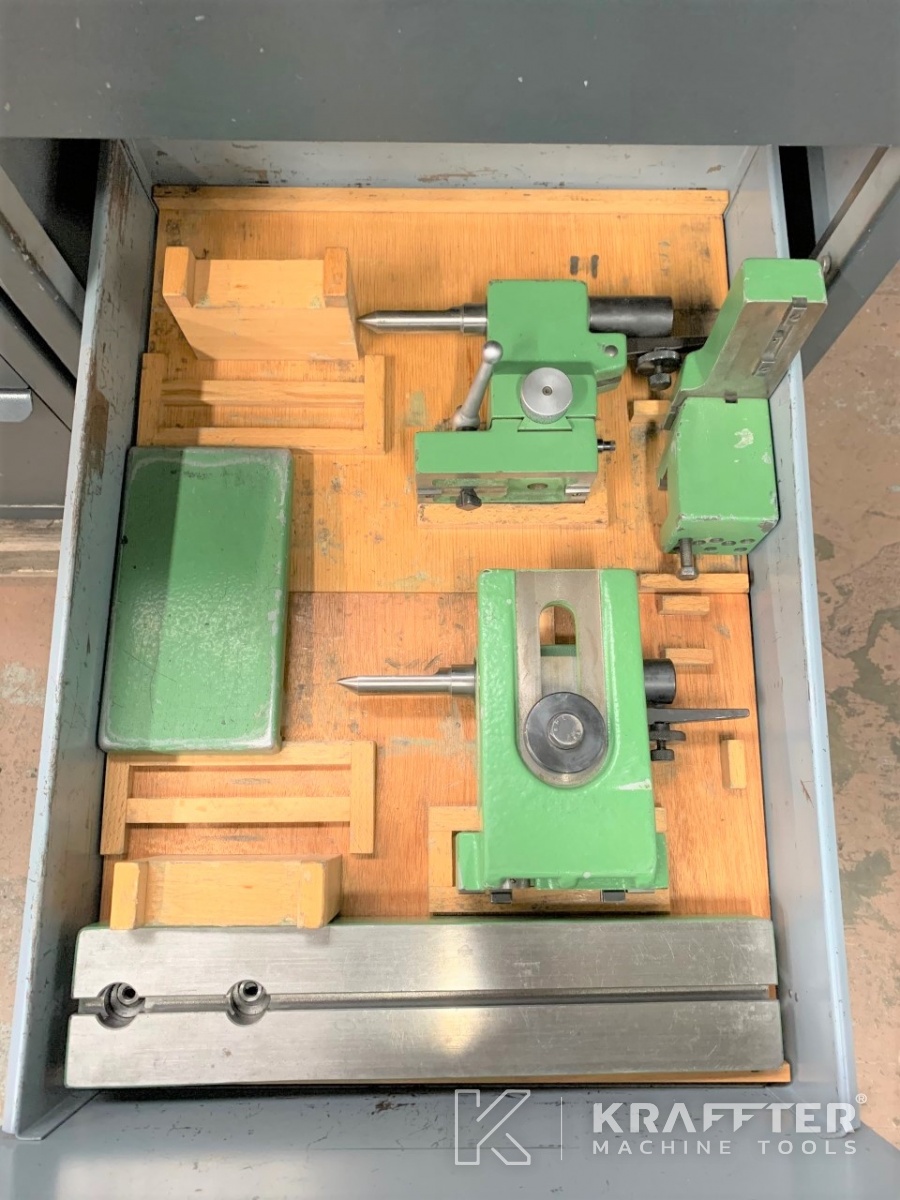

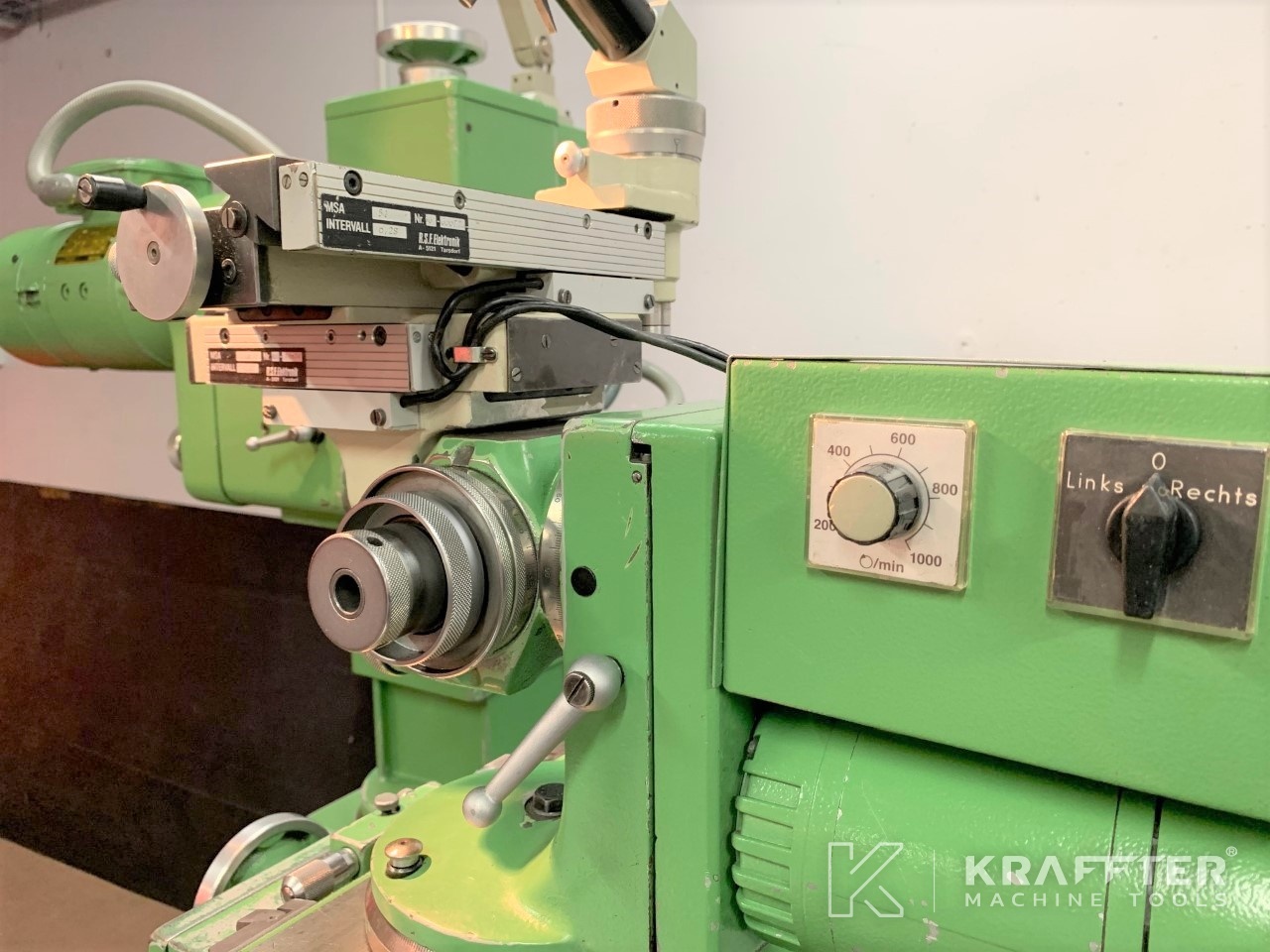

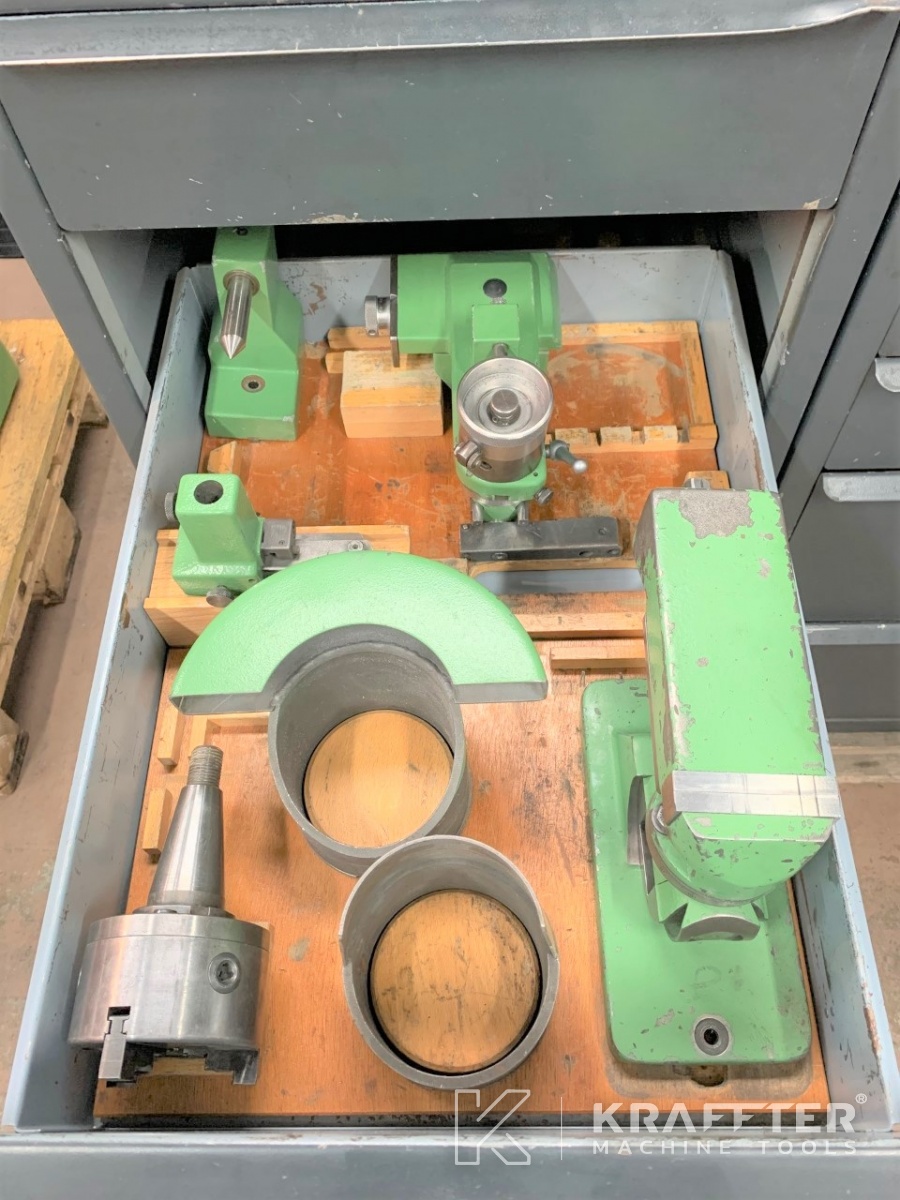

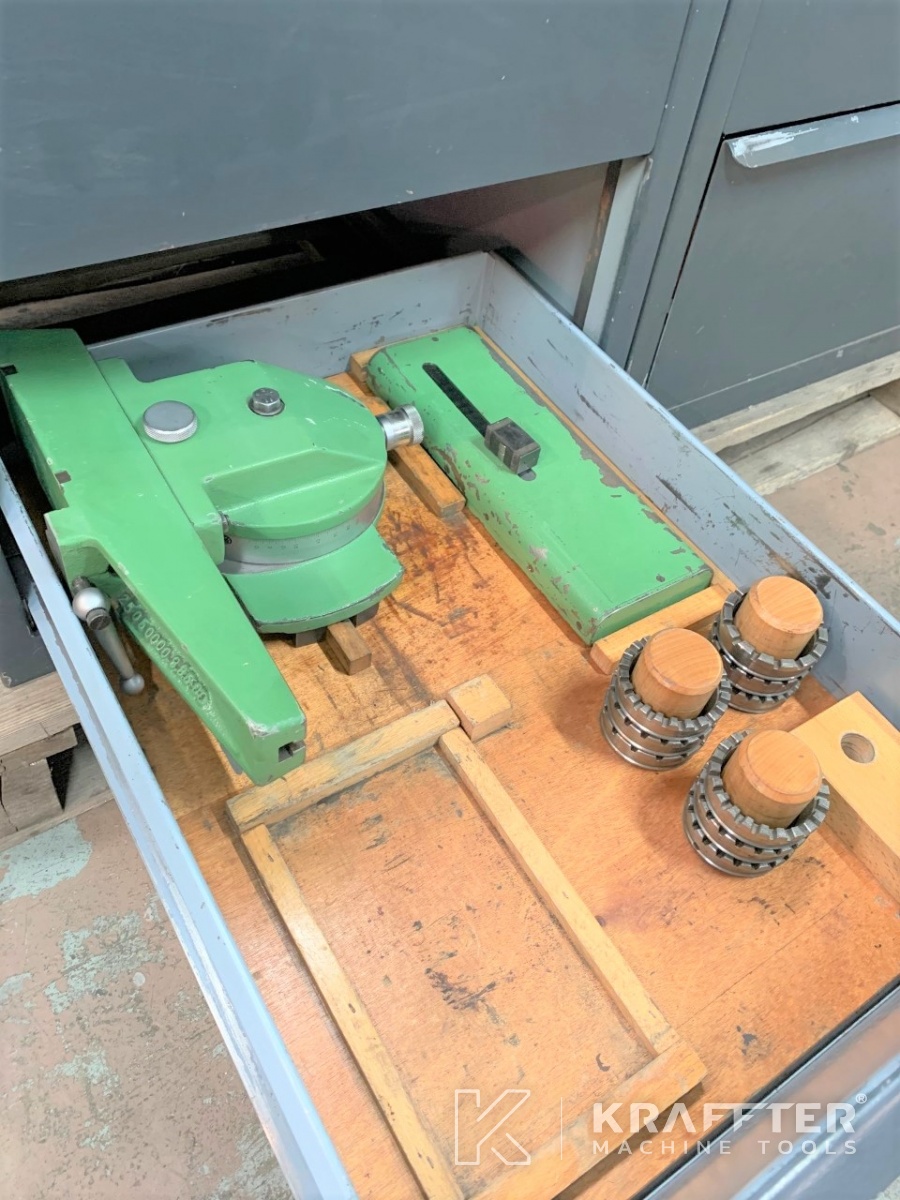

- 1 electronic mesuring unit (glass scales) + 2 axis digital read out RSF-Elektronik Z-502

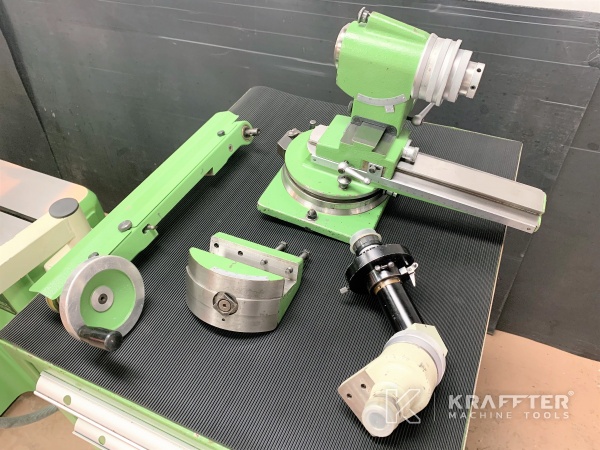

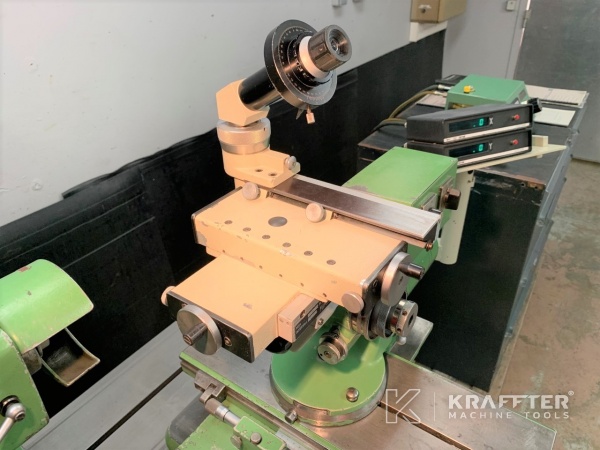

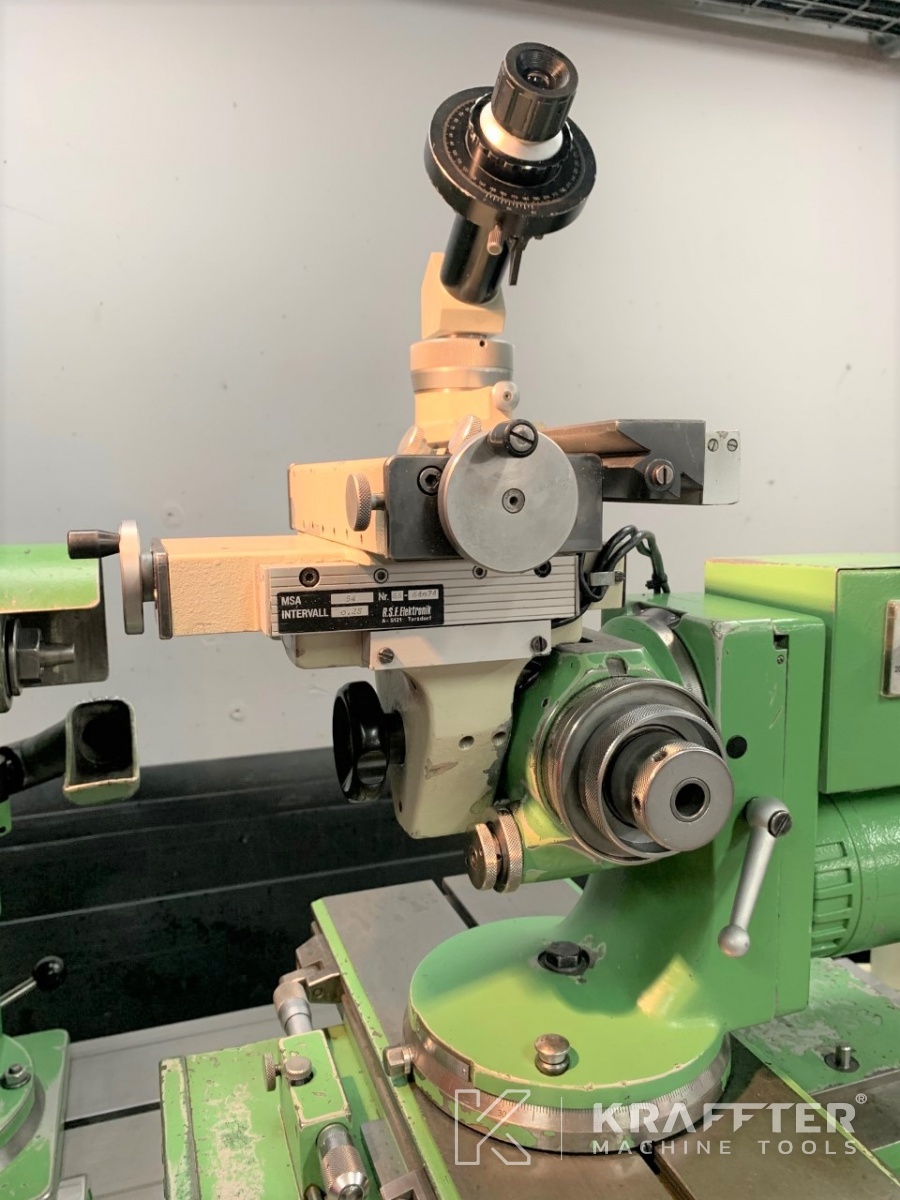

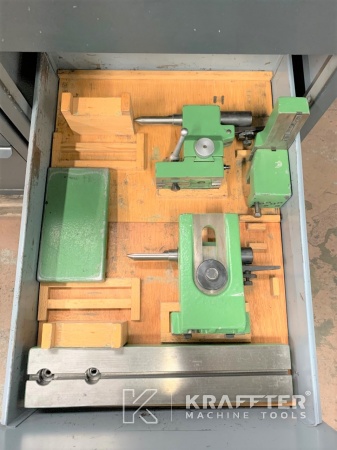

- 1 microscope, - 1 universal index head 2555201
- 10 dividing inserts for universal index head

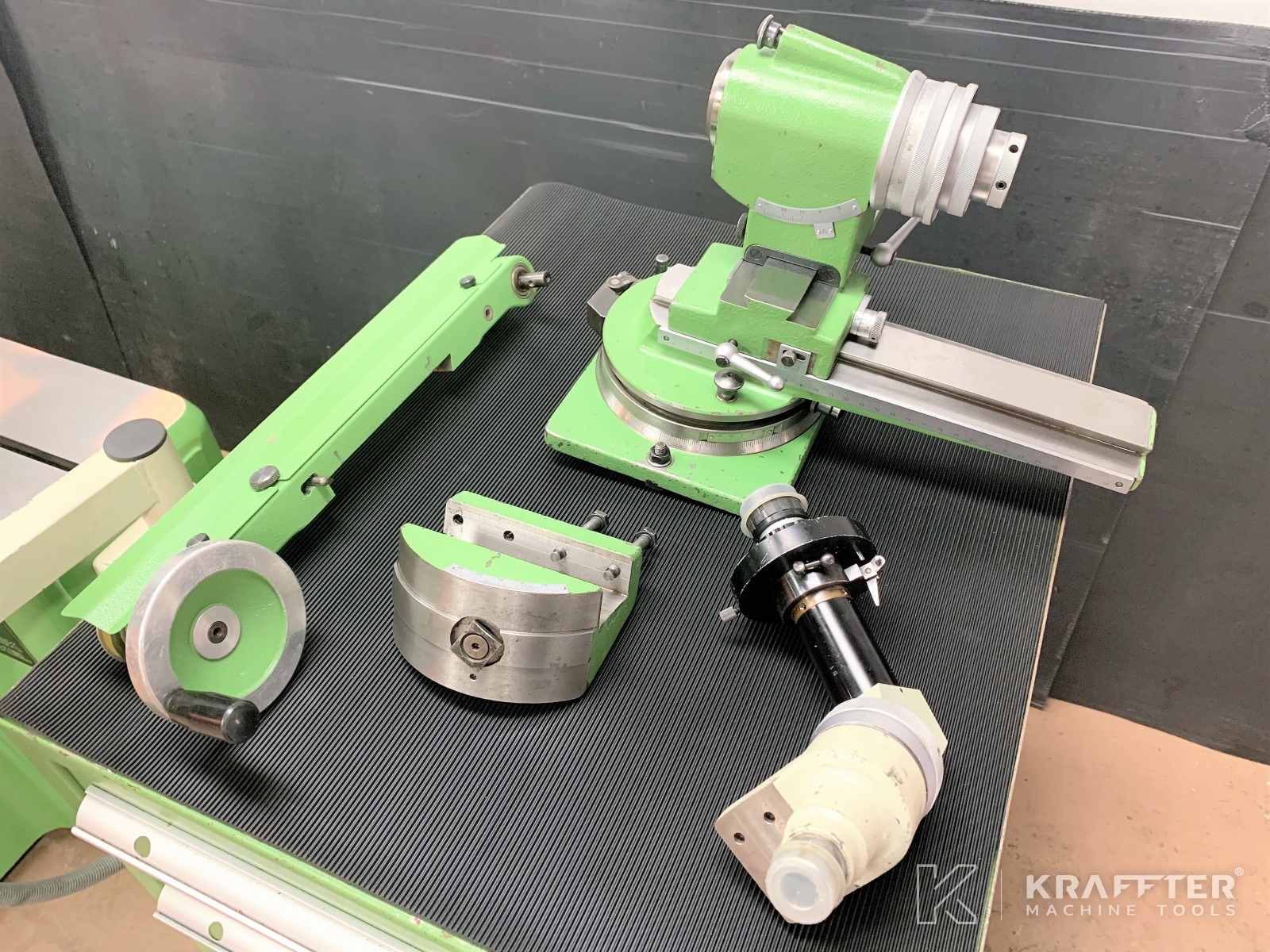

- 1 spiral and relief grinding attachement 2580000
- 1 support arm assembly 2576000
- 1 universal machine vice – jaw width 80 [mm] opening 80 [mm] 2635000
- 1 universal setting gauge 2570000
- 1 tooth rest 2571000
- 1 universal wheel dresser (convex or concave) 2628000

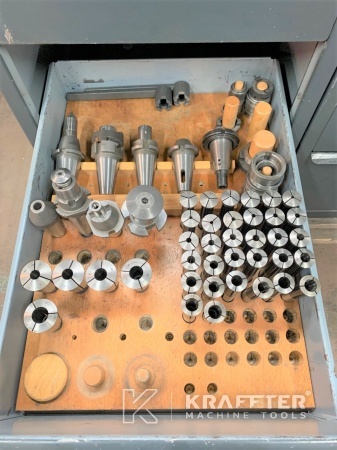

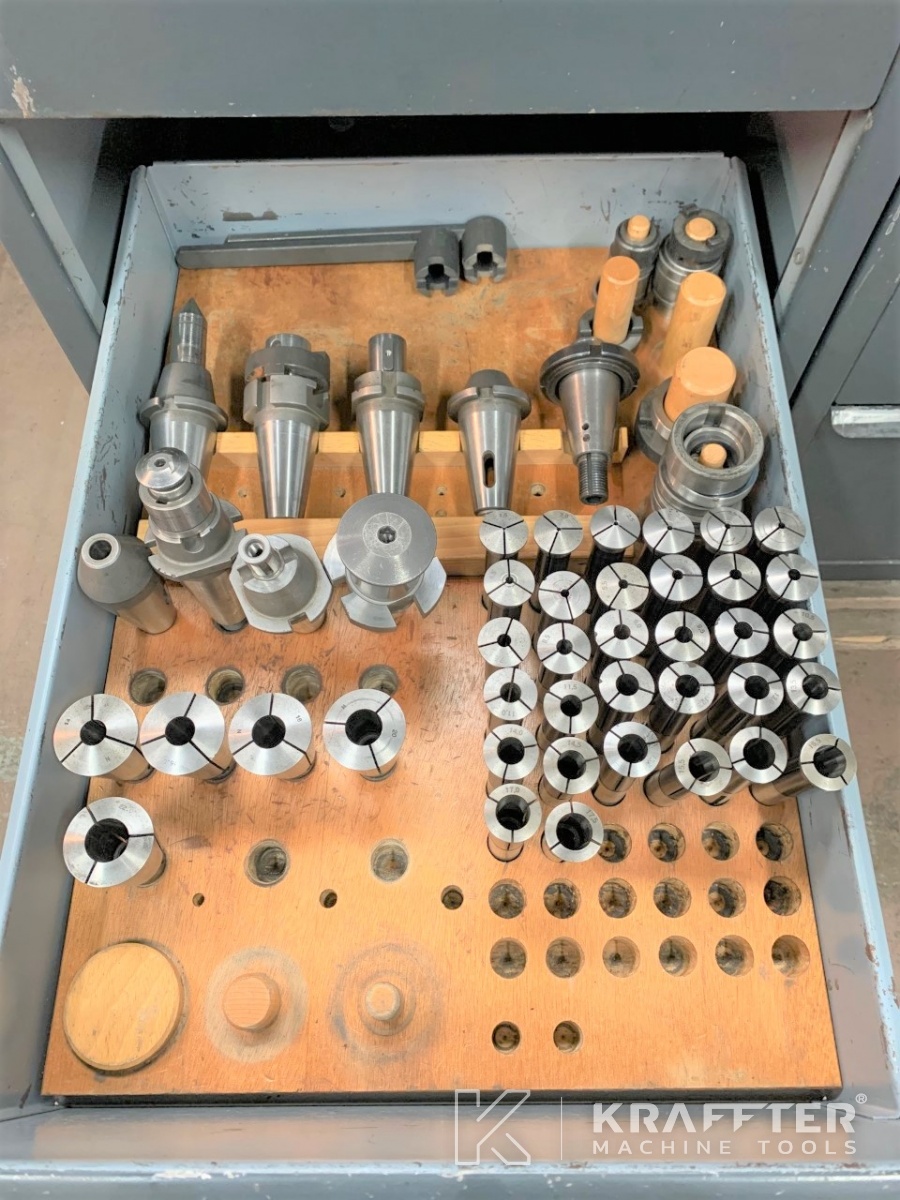

- 33 collets 355E Ø 0.5 to 17.5 [mm]
- 5 collets ISO40 Ø 14 to 22 [mm]
- 1 Ext ISO40 - Int 355E Drill sleeve
- 1 Ext ISO40 - Int MK1 Drill sleeve
- 1 Ext ISO40 - Int MK2 Drill sleeve
- 1 Ext ISO40 - Int MK3 Drill sleeve
- 1 shell mill adaptor ISO40 Ø16 [mm]
- 1 shell mill adaptor ISO40 Ø22 [mm]
- 1 shell mill adaptor ISO40 Ø27 [mm]
- 1 shell mill adaptor ISO40 Ø32 [mm]
- 1 shell mill adaptor ISO40 Ø40 [mm]
- 1 steel chuck 3 concentric jaws Ø100 [mm] attachement ISO40 (including internal/external jaws)
- Various grinding wheel holders

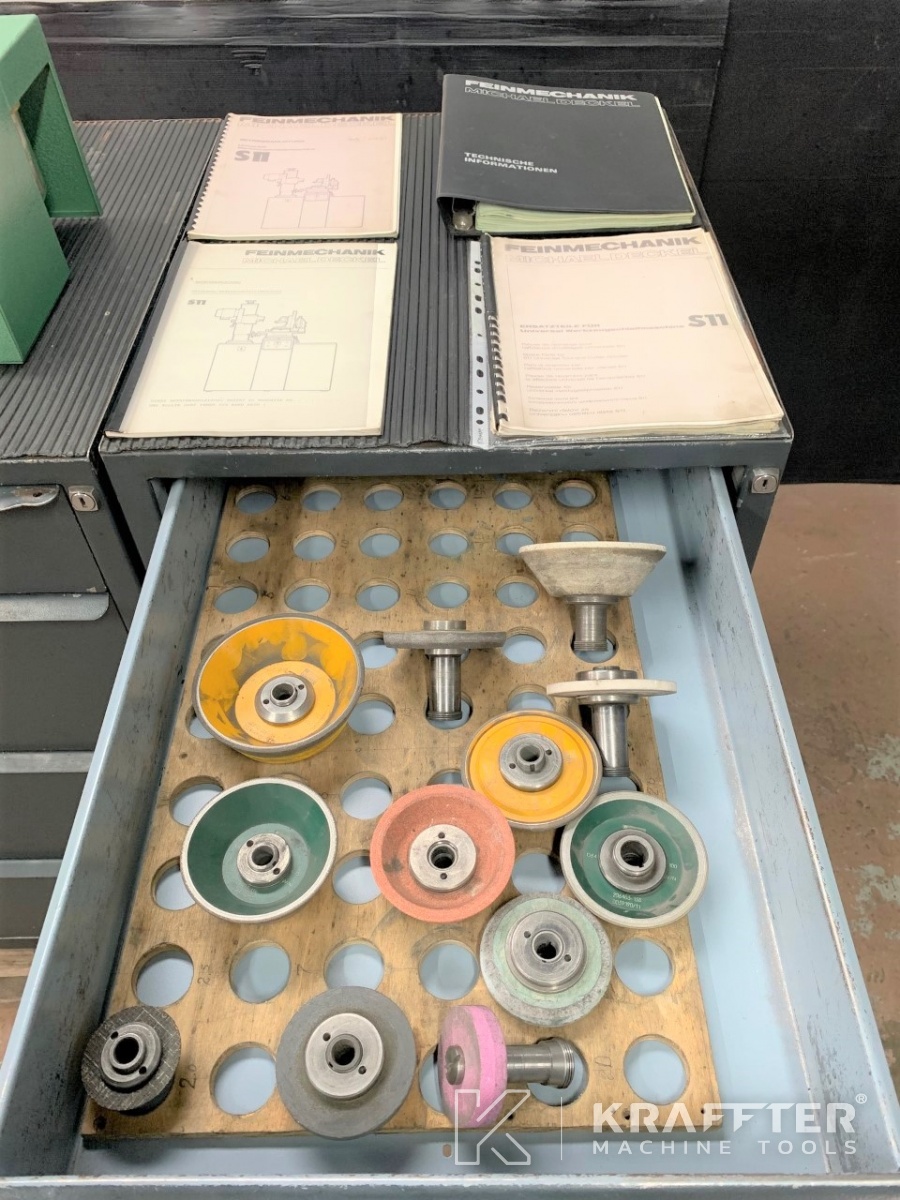

- Various grinding wheels
- Service keys

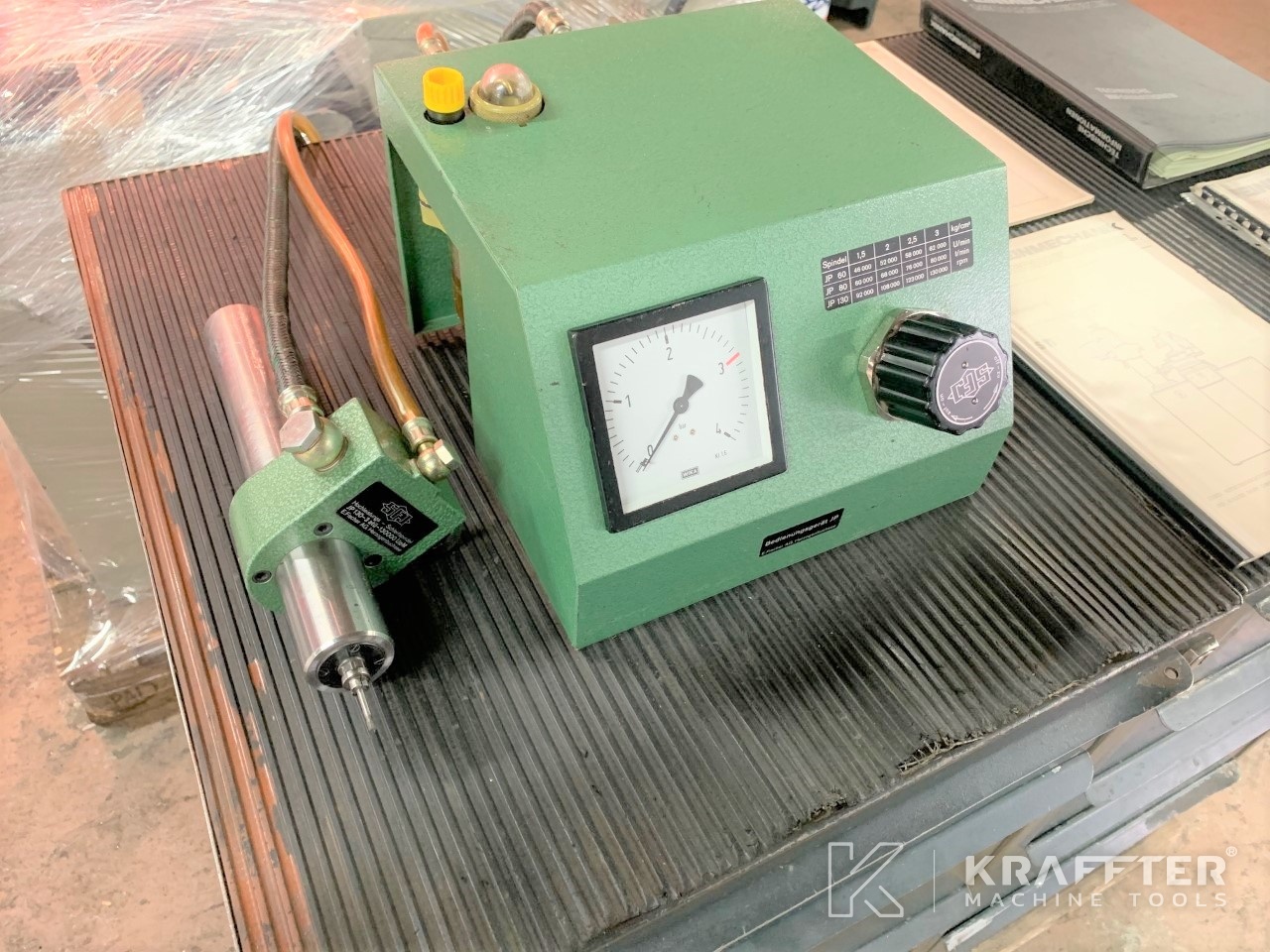

- 1 internal grinding device including its pneumatical unit distributor
- 1 halogene lamp
- Original books , technical manuals , mechanical schemes of the machine
