Sold

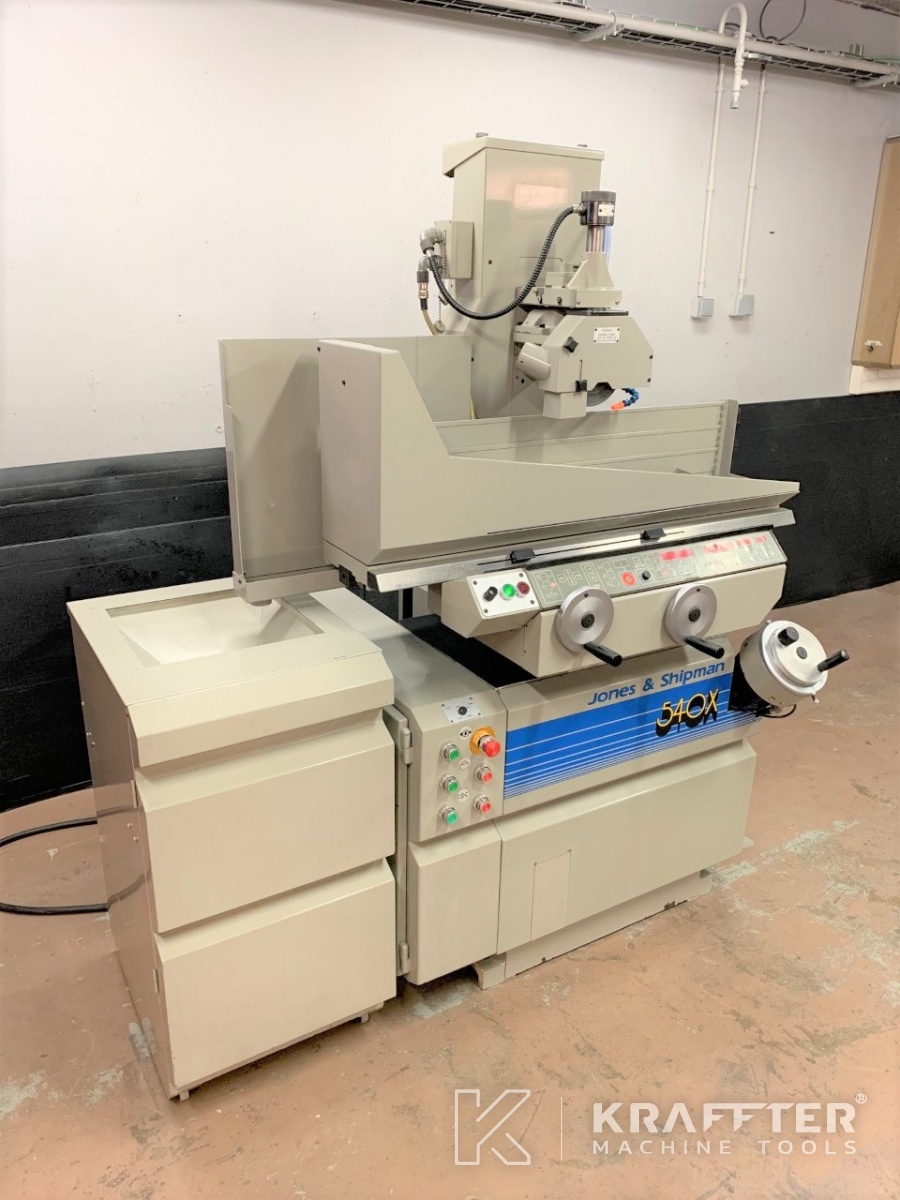

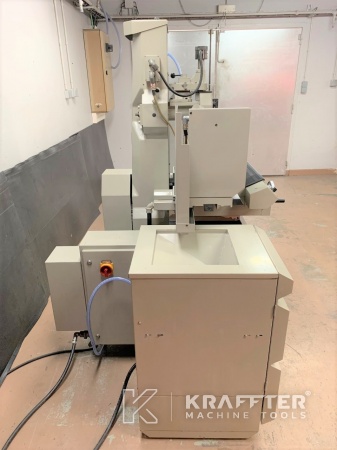

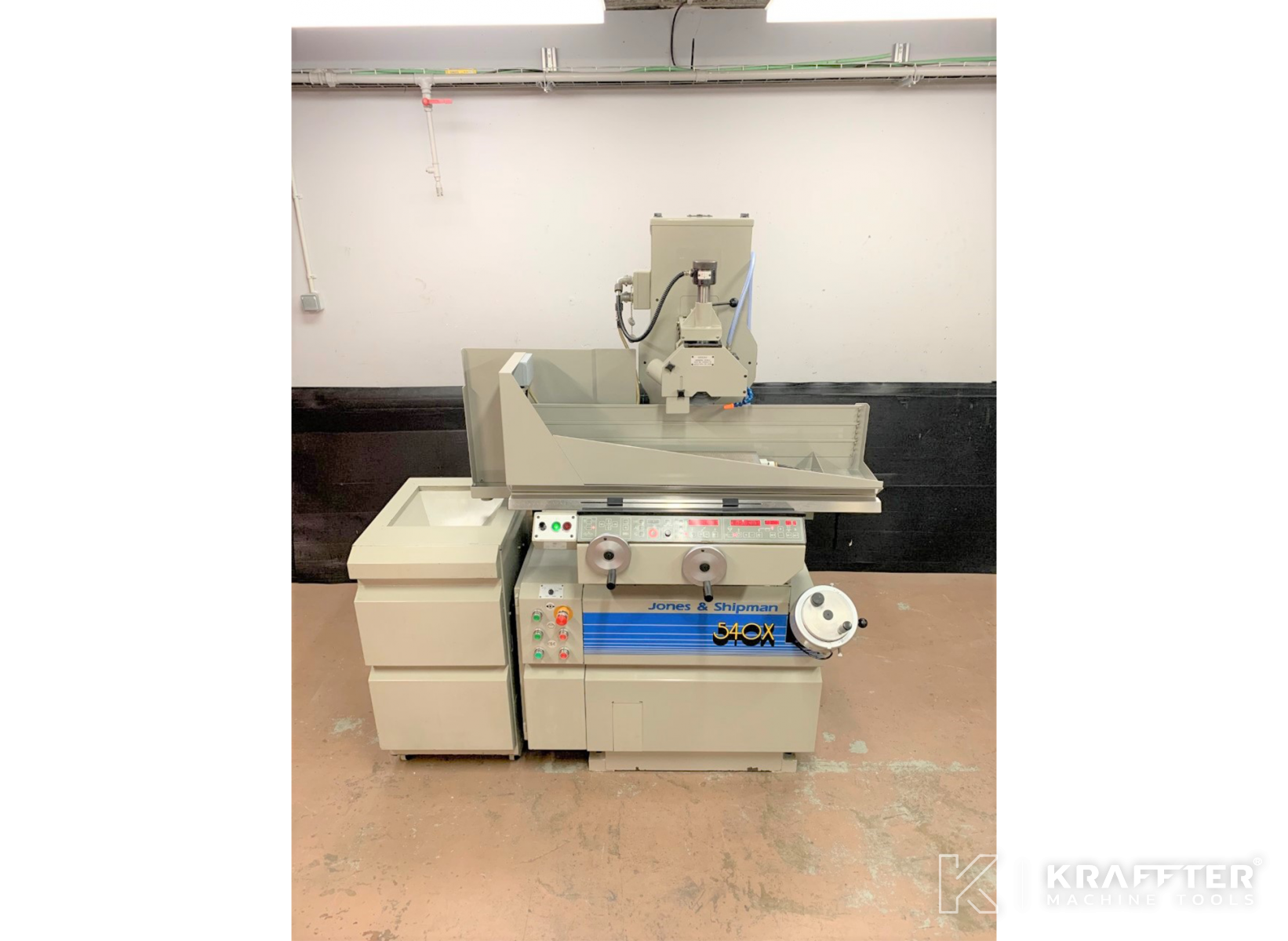

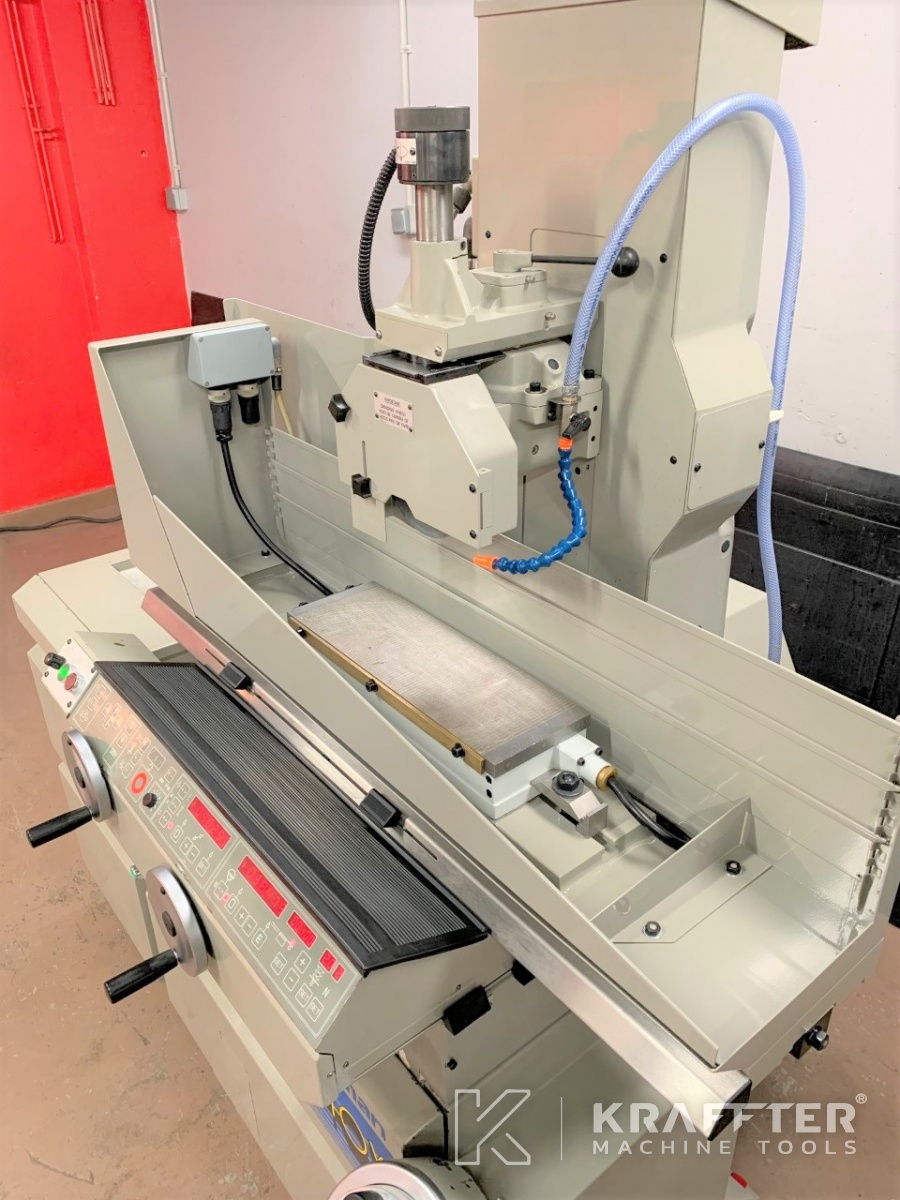

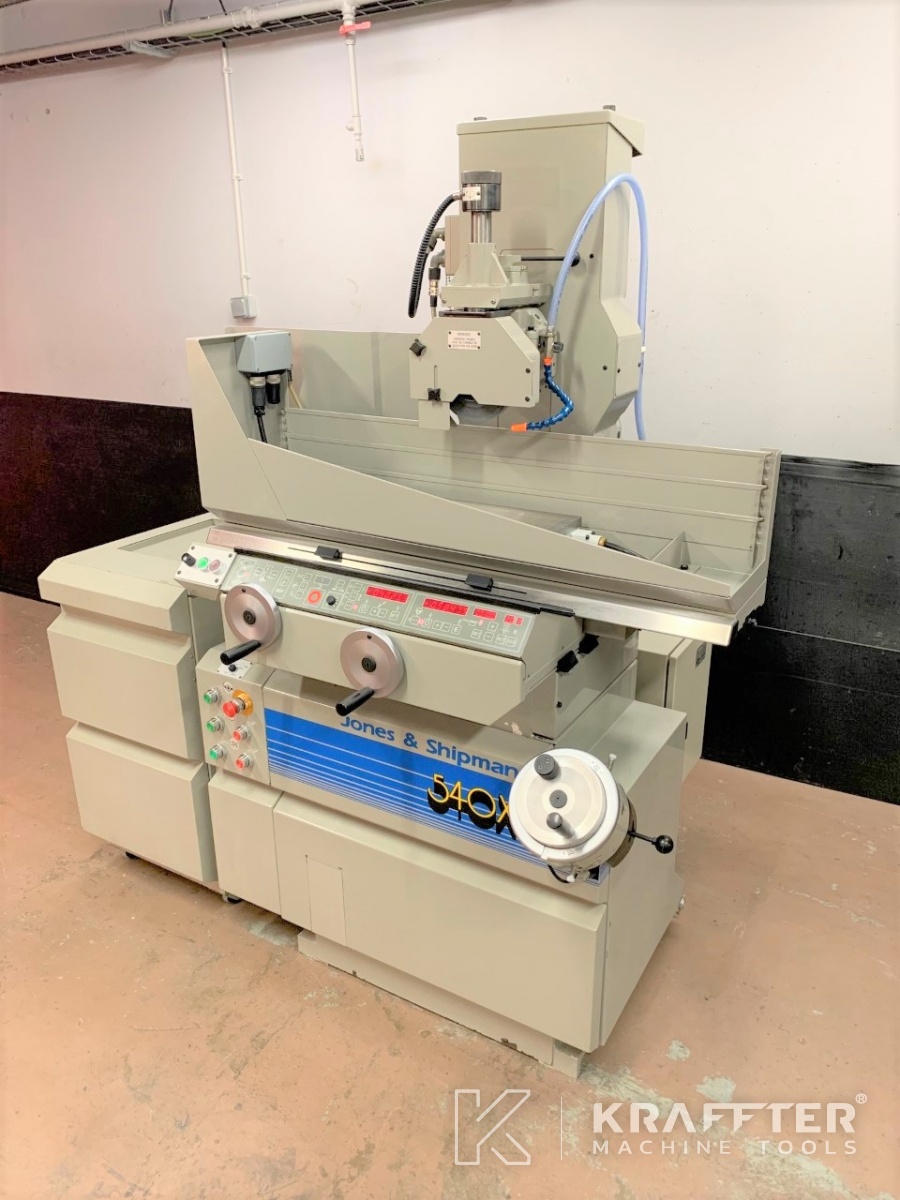

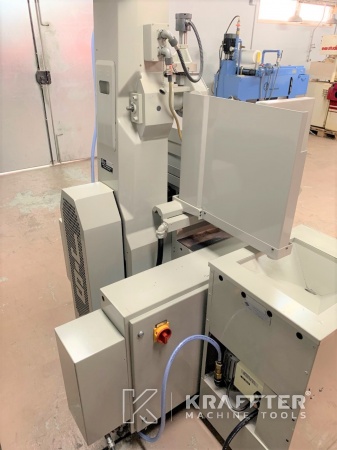

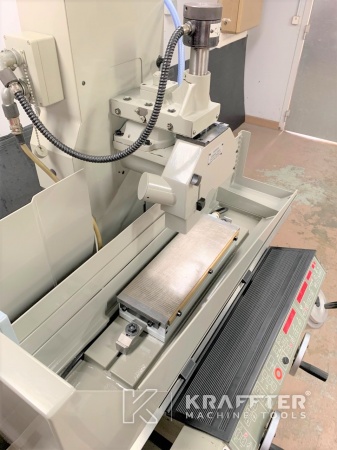

Type of machine : Surface grinder
Brand : JONES & SHIPMAN
N° de stock: 20689-959
Model : 540 X
Location : 73520 Saint-Béron, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Automatic
Yes
Stroke X axis
490 [mm]
Stroke Y axis
171 [mm]
Table length
450 [mm]
Table width
150 [mm]
Grinding spindle motor power
1.5 [kW]
Grinding wheel diameter
200 [mm]
Grinding wheel width
20 [mm]
Wheel dresser on head
Yes
Variable power feeding
Yes

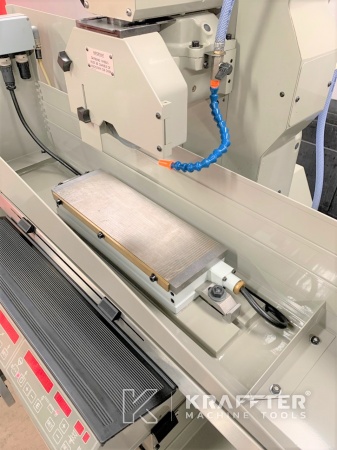

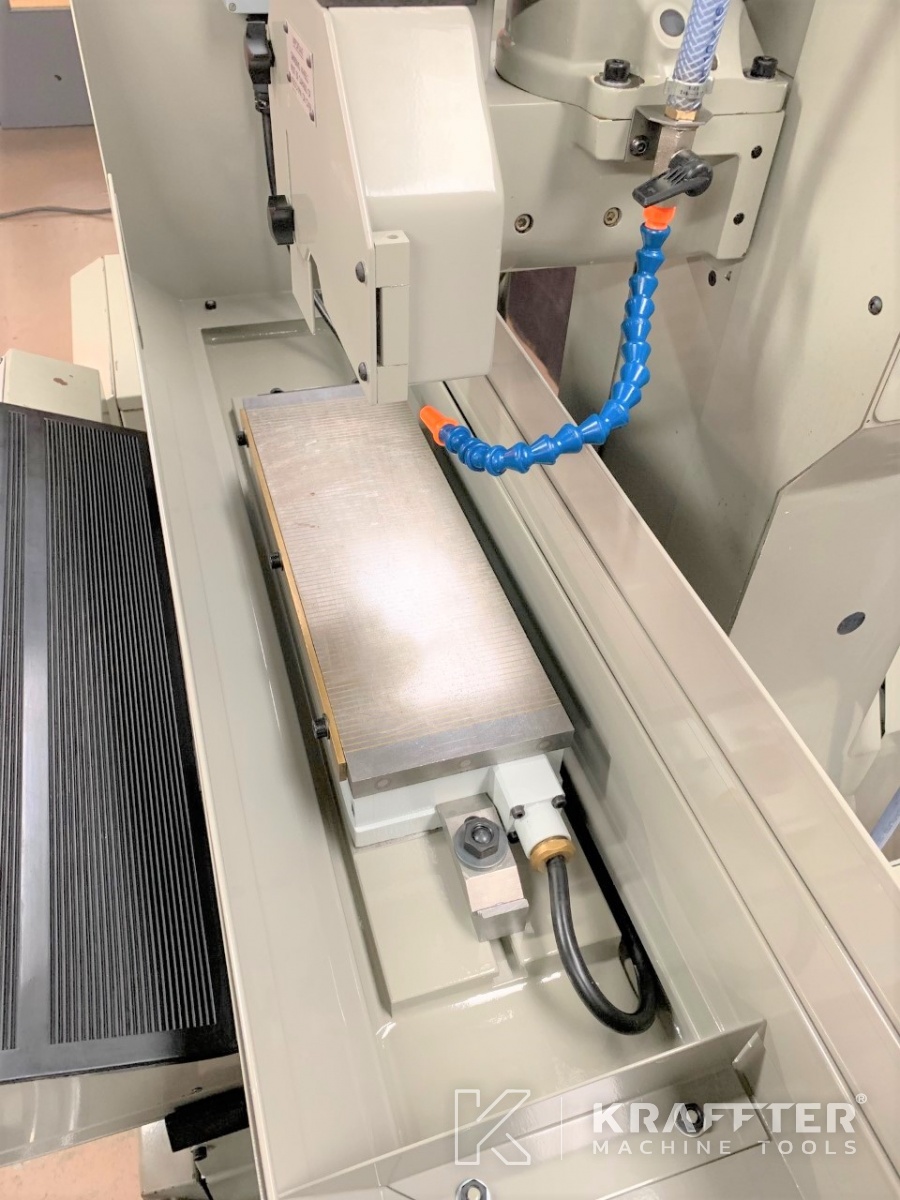

Electro permanent magnet clamping plate
Yes
Dimensions of magnetic plate
450 x 150

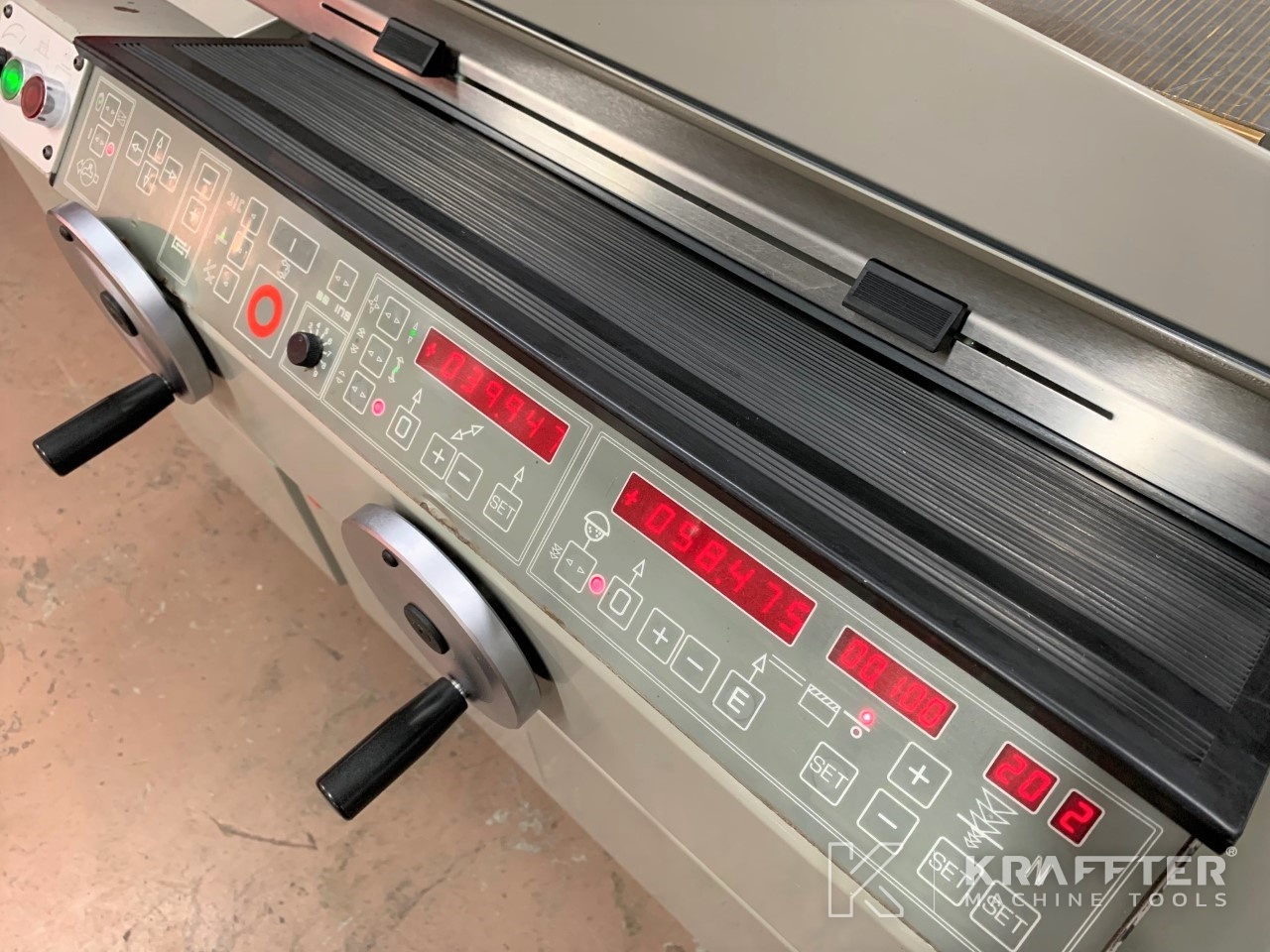

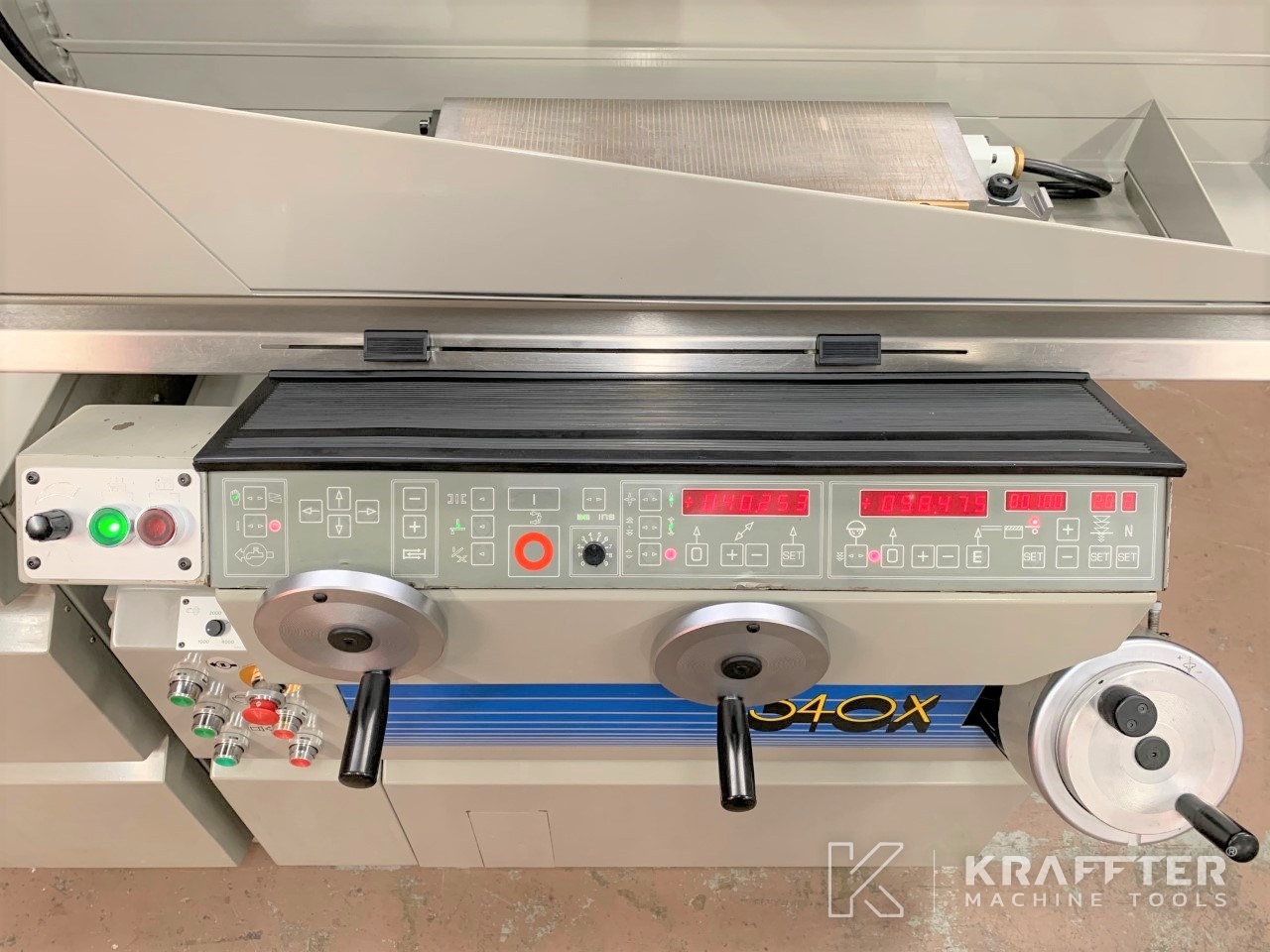

Digital read out
Jones & Shipman
Number of axes Digital Read Out
2

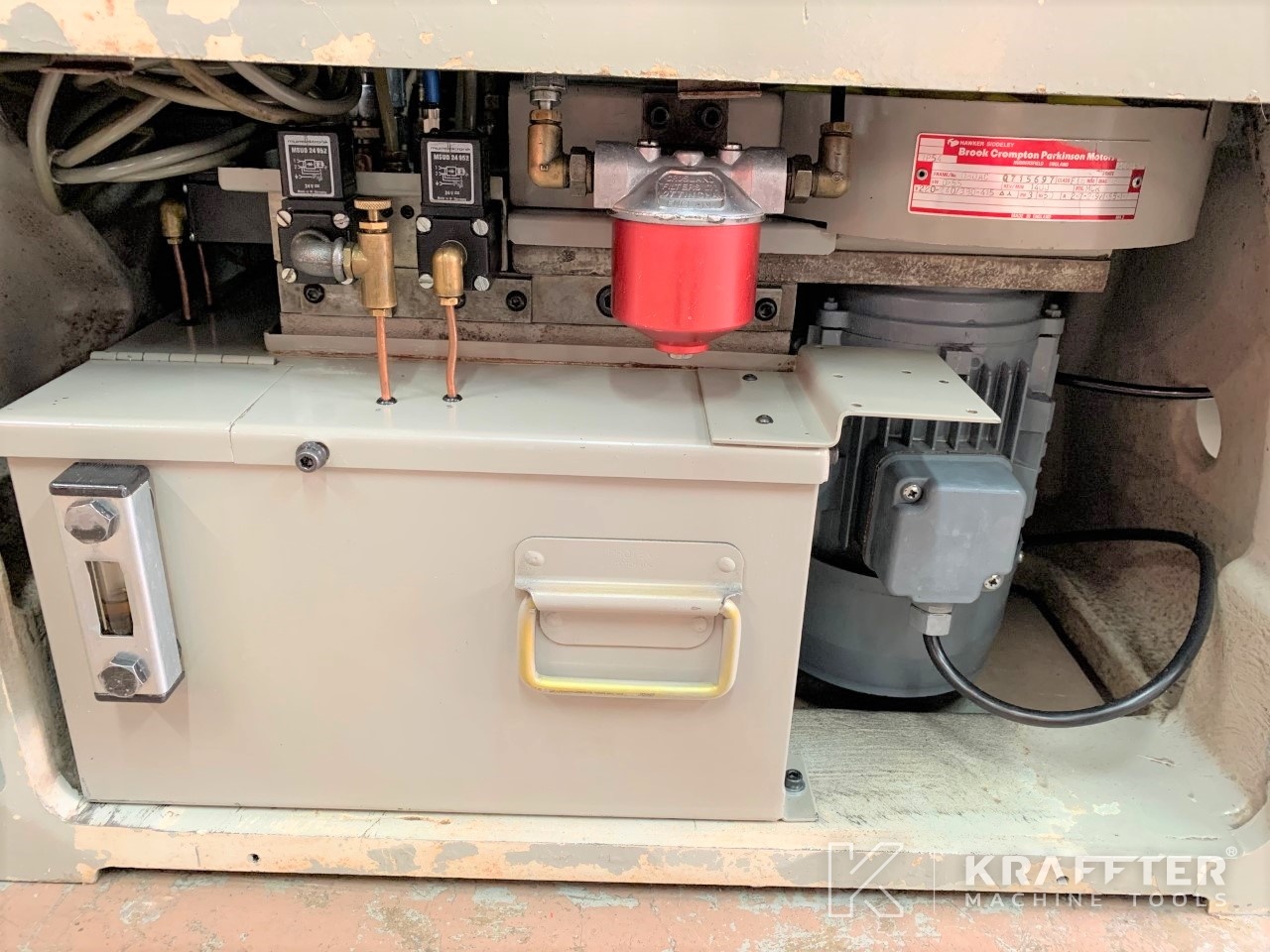

Lubrication tank with pump
Yes
Centralized lubrication
Automatique
Supply voltage
400 [V]
Dimensions
1600 x 720 x 1875
Weight
950 [Kg]
Additional information

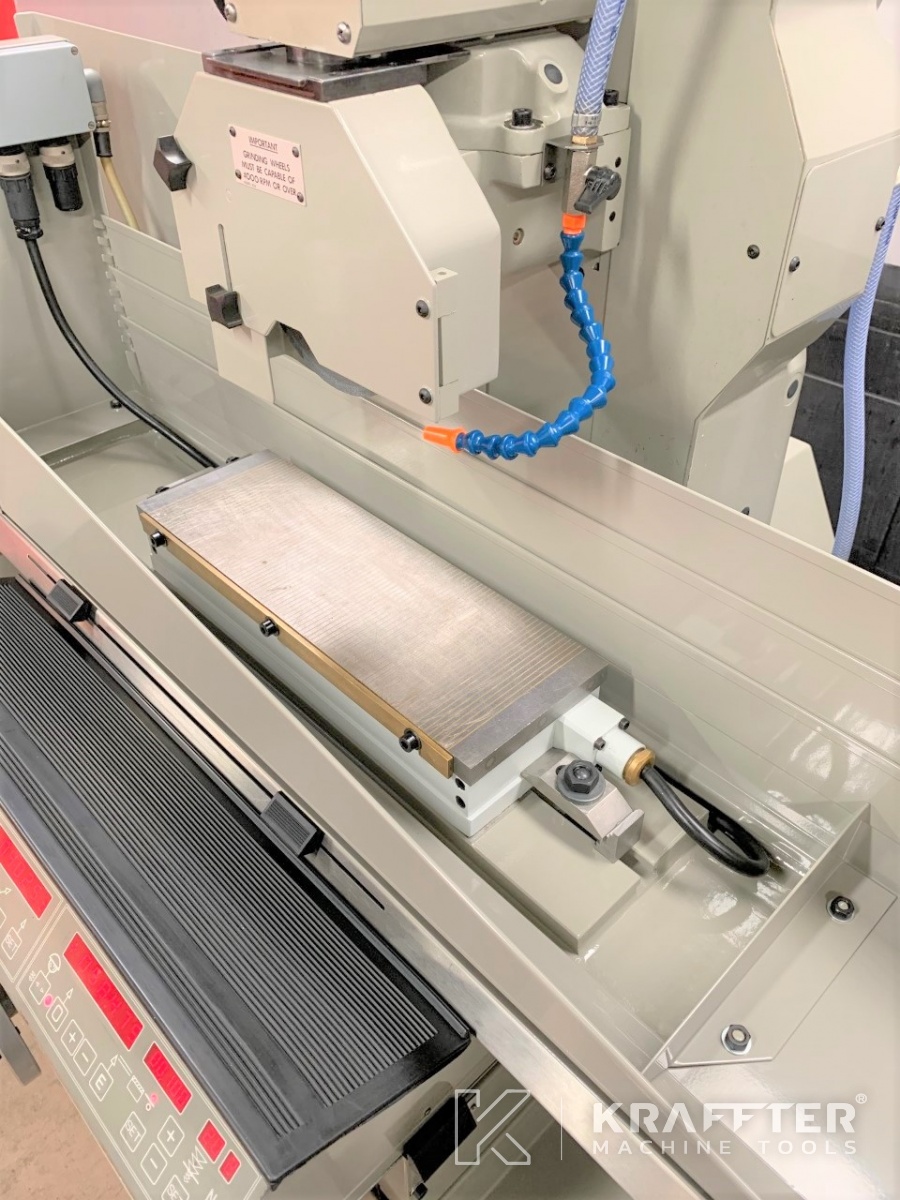

- Electro-magnetic clamping plate BRAILLON ; clamping surface : 450 x 150 [mm]

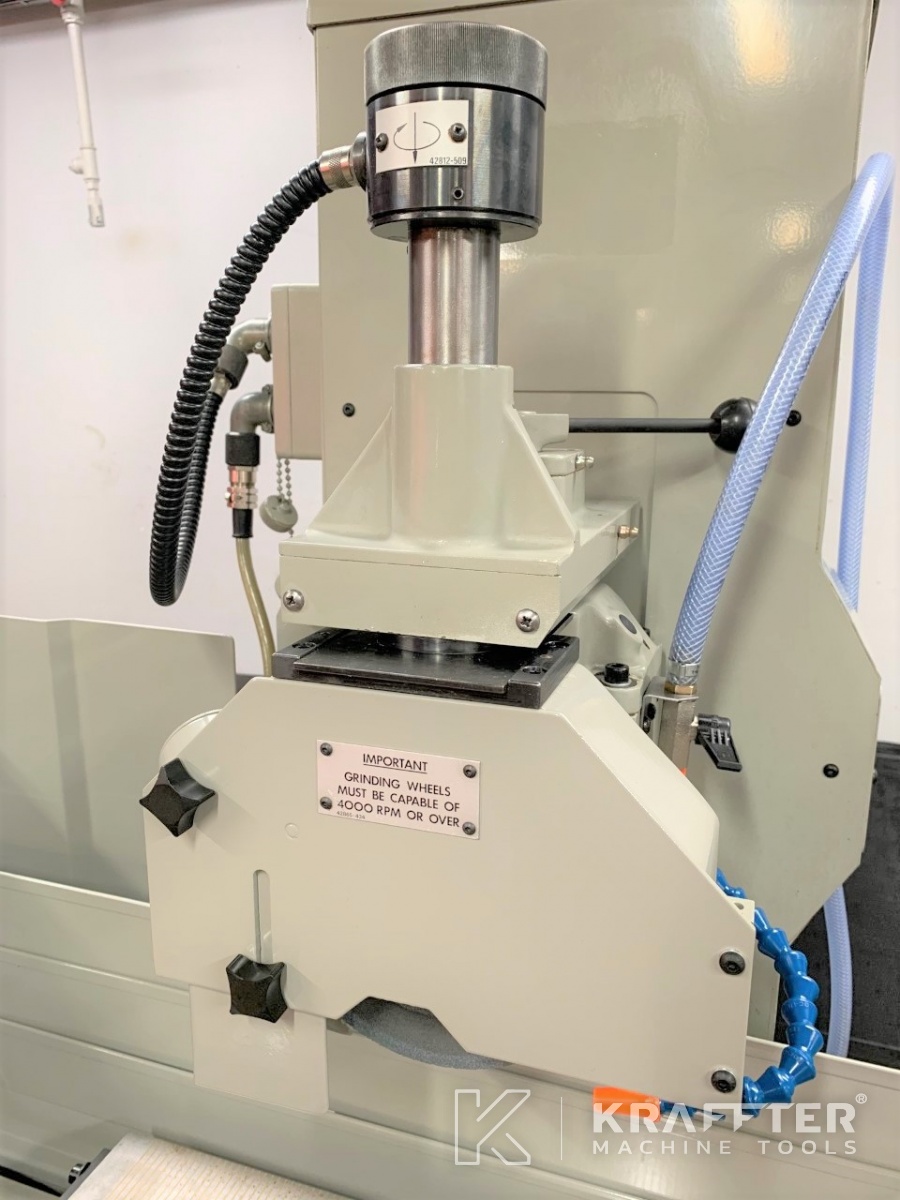

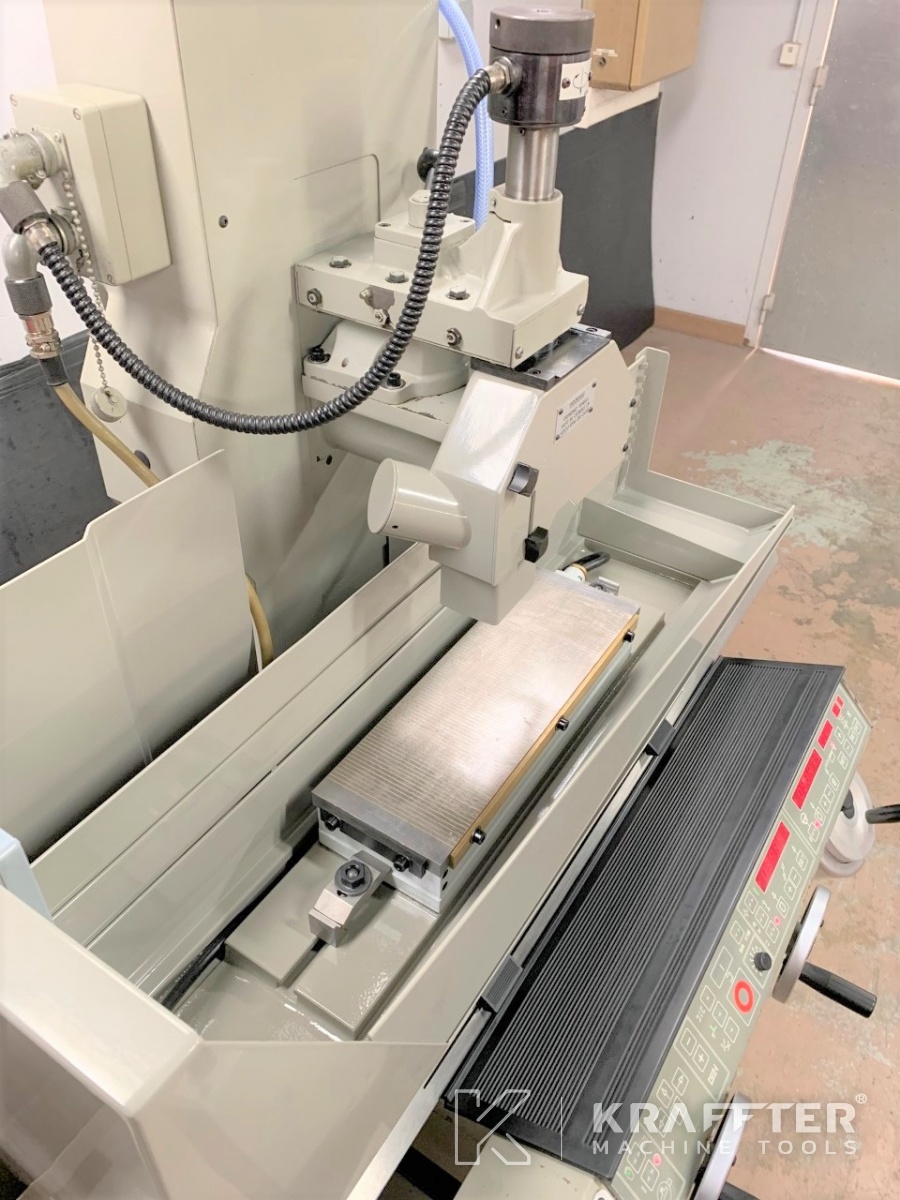

- Wheel dresser on spindle head,

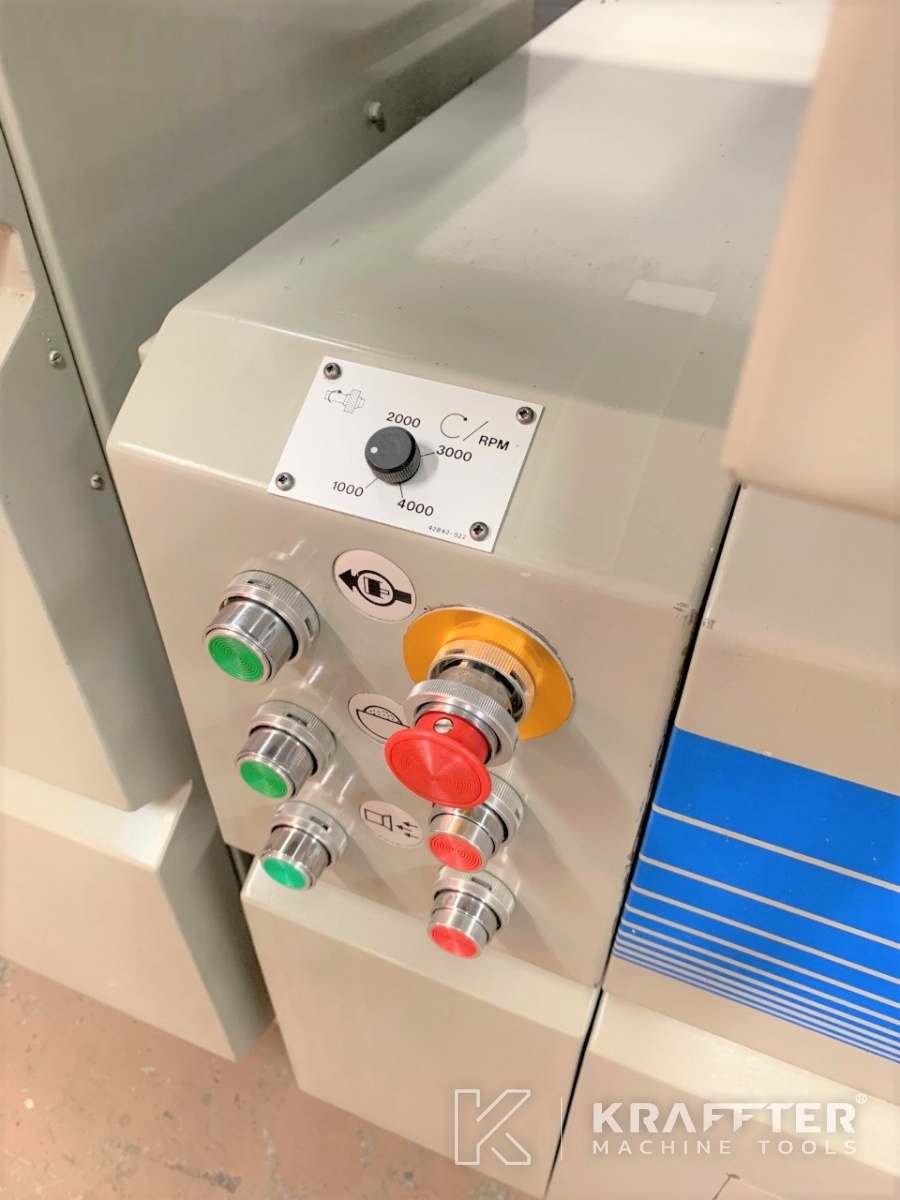

- Variable grinding wheel speed : from 1000 to 4000 [rpm] (option J&S)
- 2 axis digital read out,
- Digital read out resolution : 0.001 [mm] or INCH,
- Electro-magnetic clamping plate BRAILLON ; clamping surface : 450 x 150 [mm]
- Rapid feeding on the Z axis

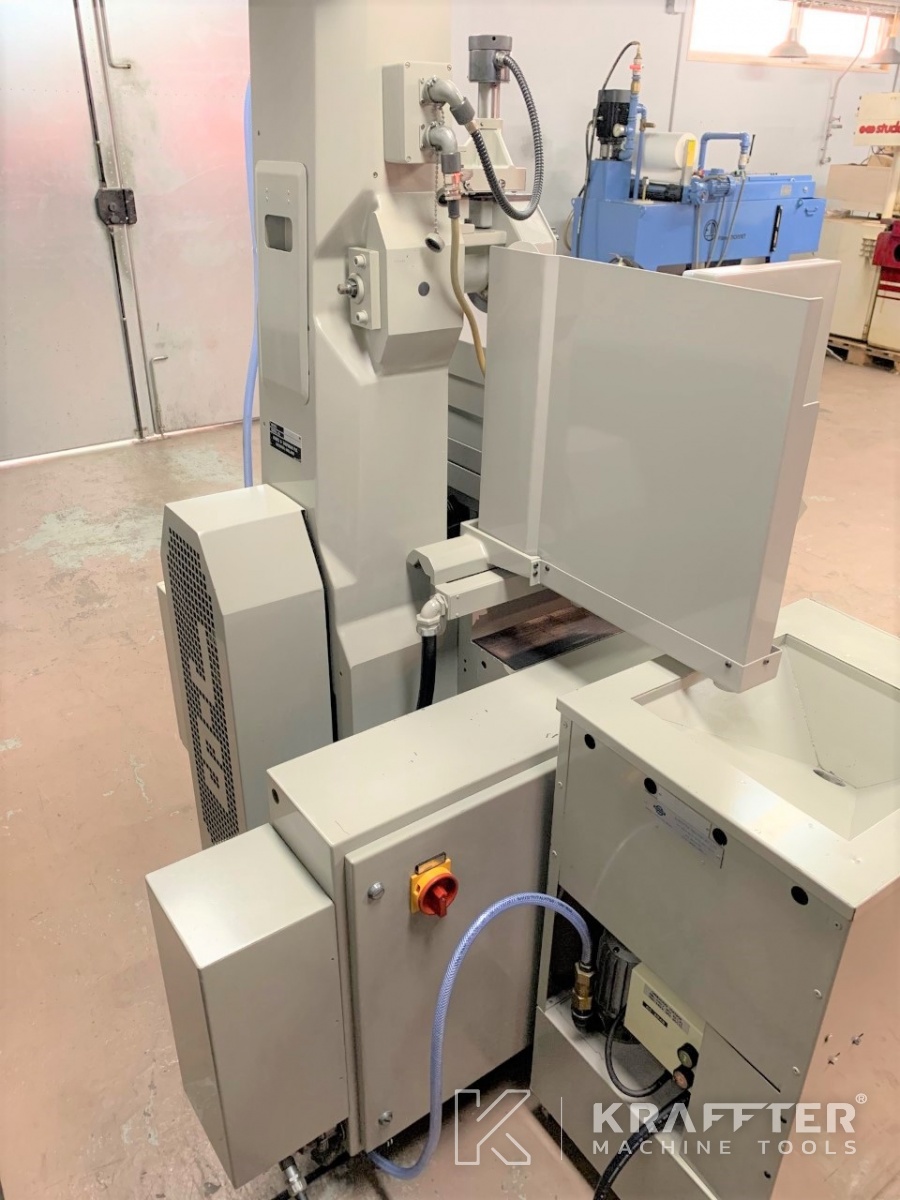

- Complete coolant system including paper band filtration

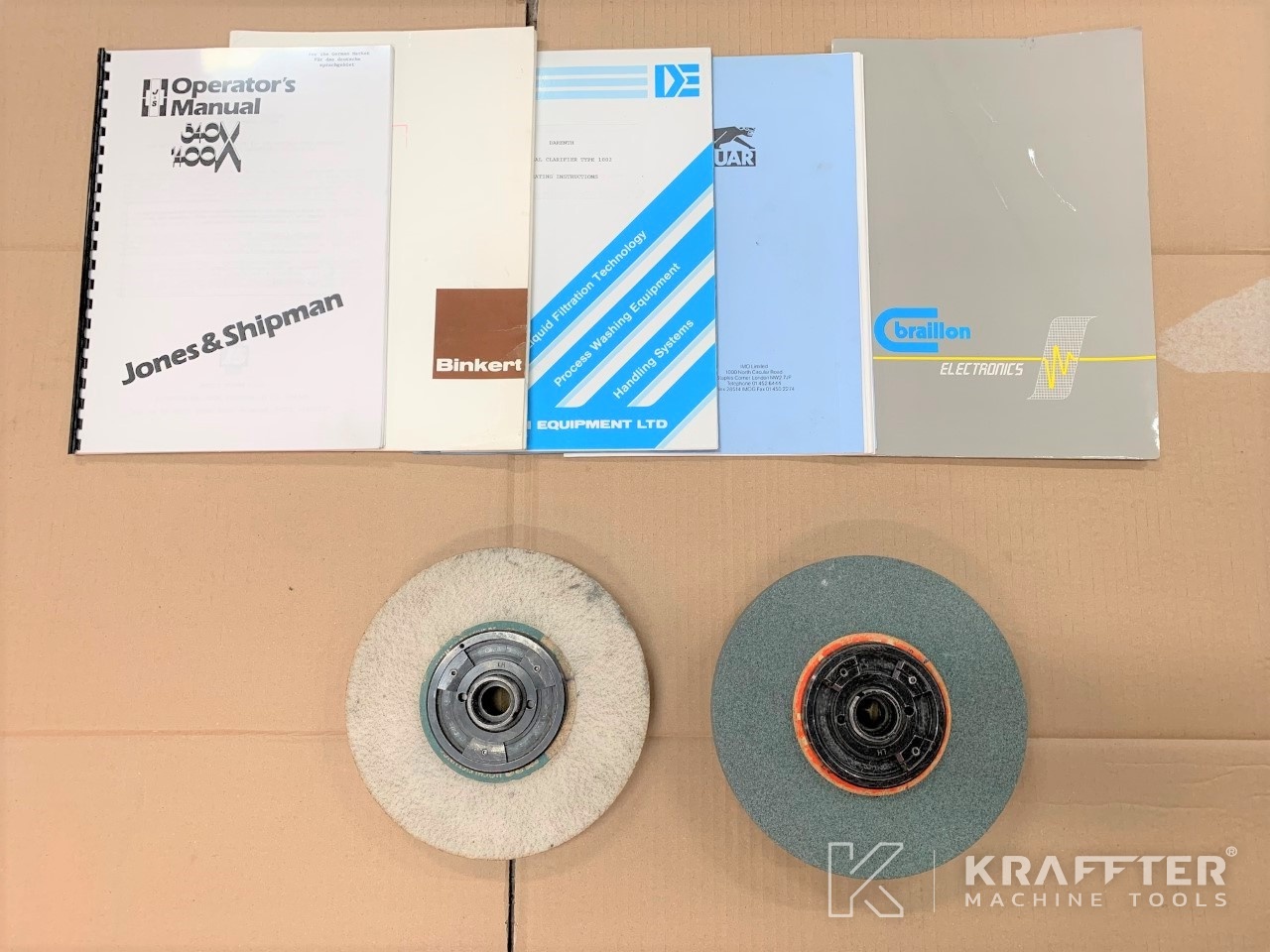

- Service and users manual (French)
