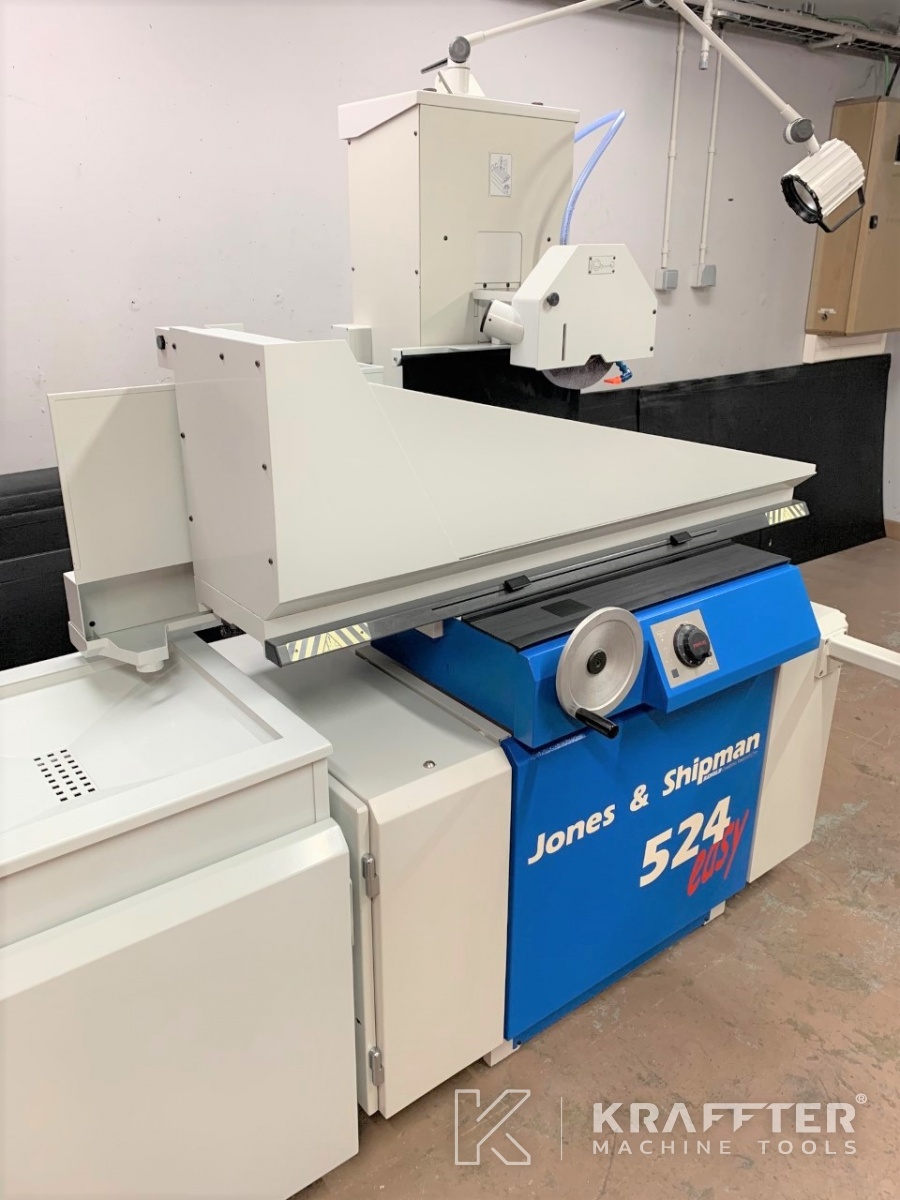

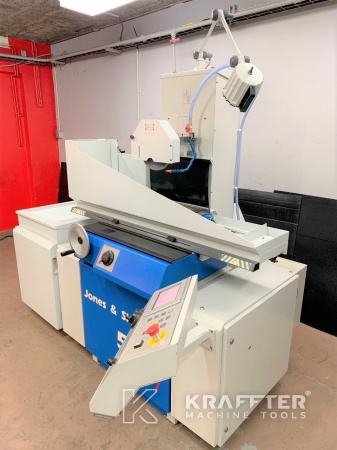

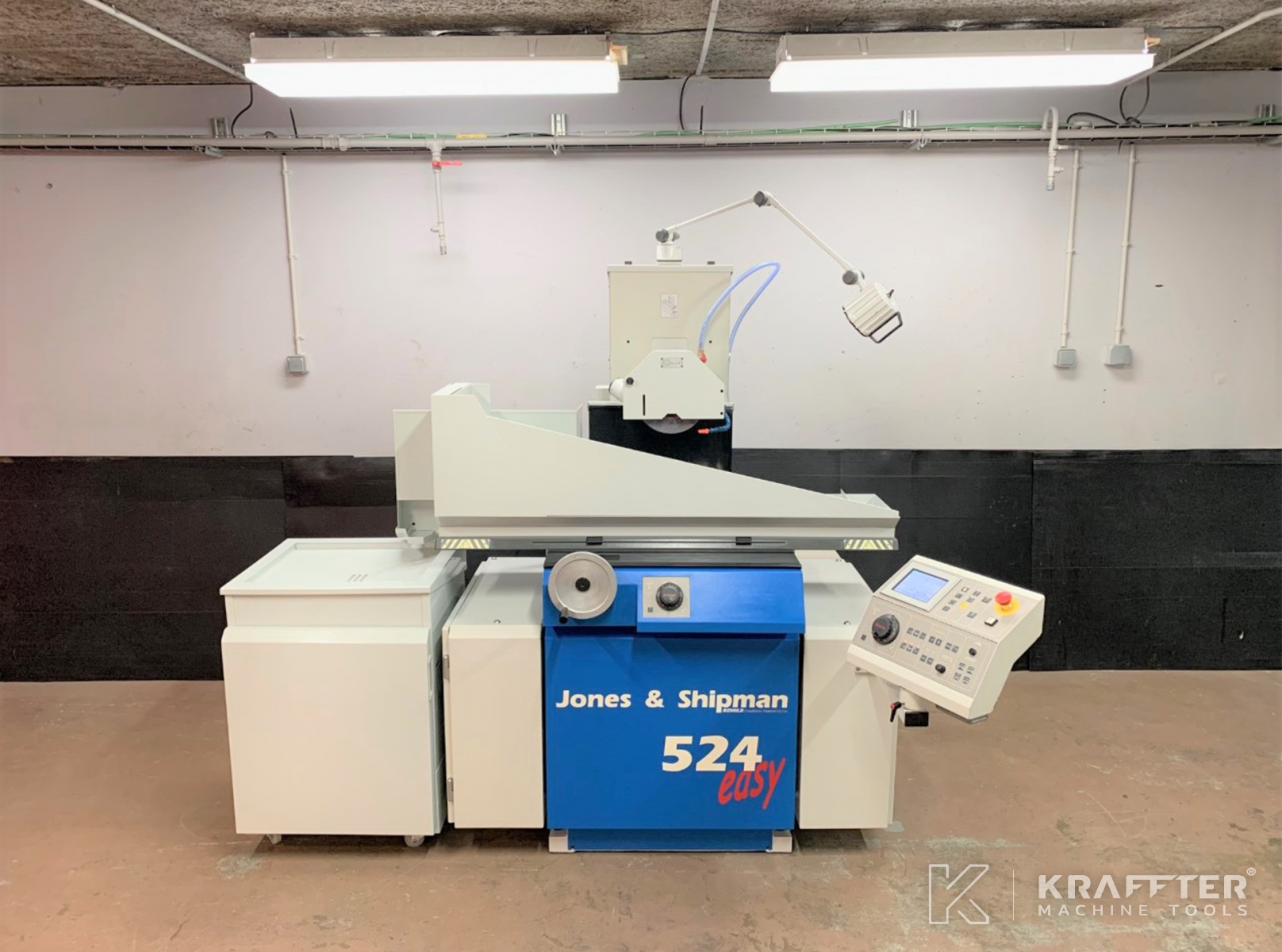

Type of machine : Surface grinder
Brand : JONES & SHIPMAN
Stock N° : 20689-961
Model : 524 EASY
Year : 2003
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

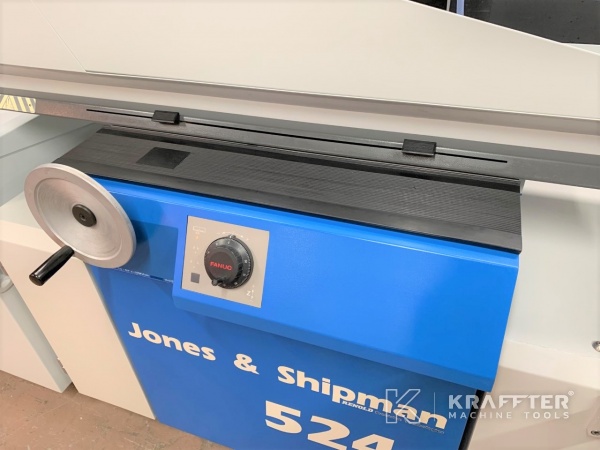

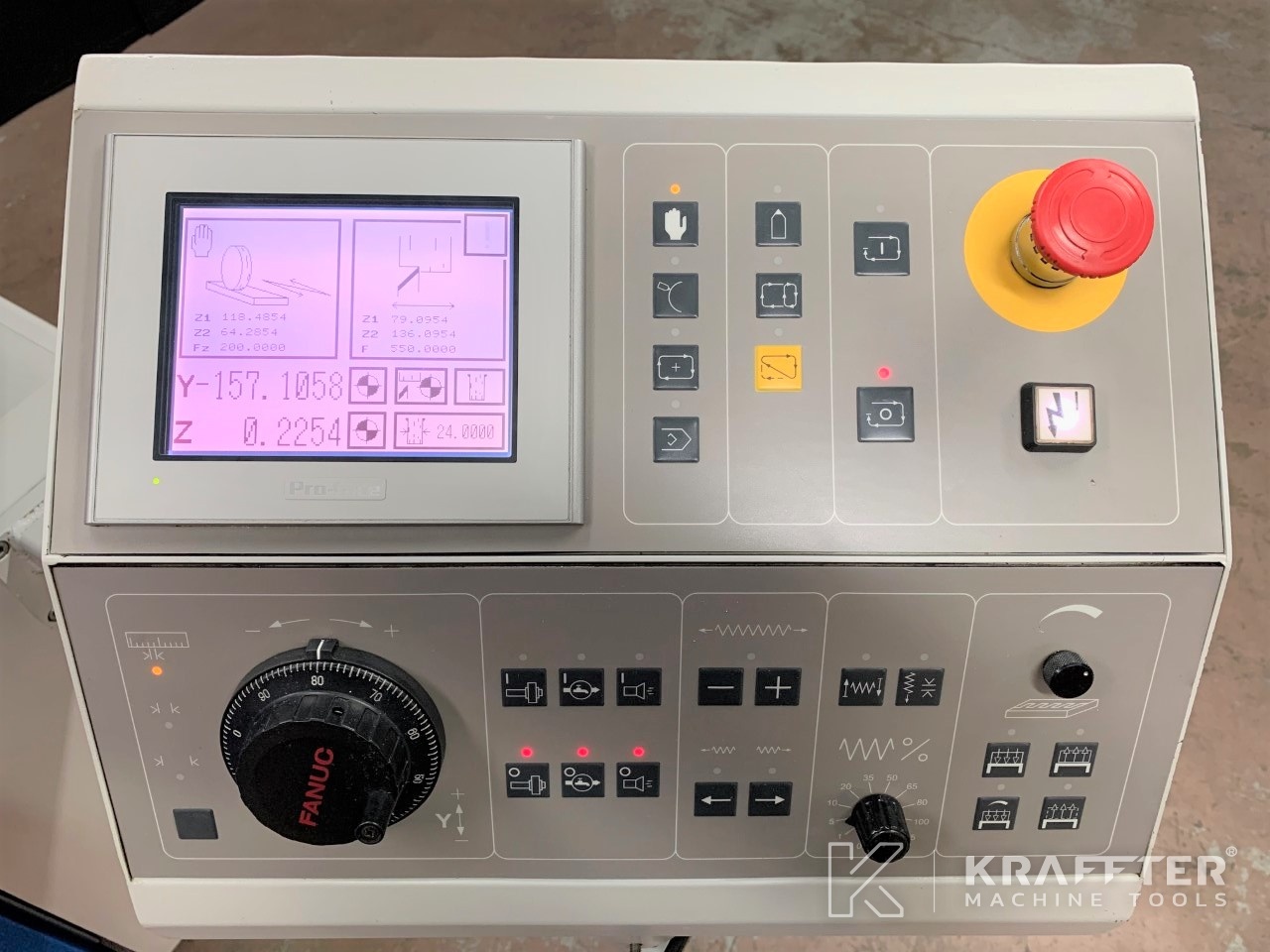

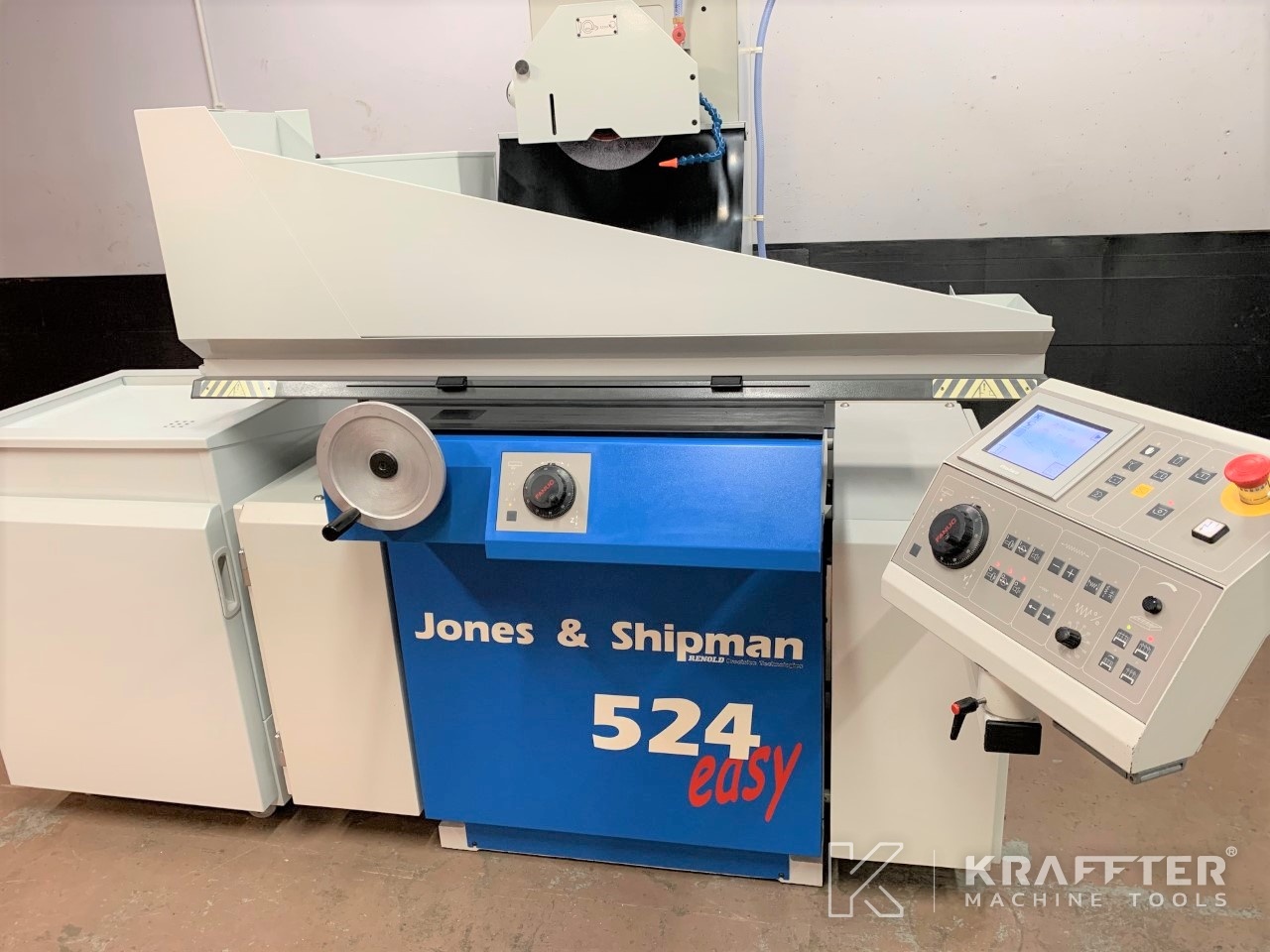

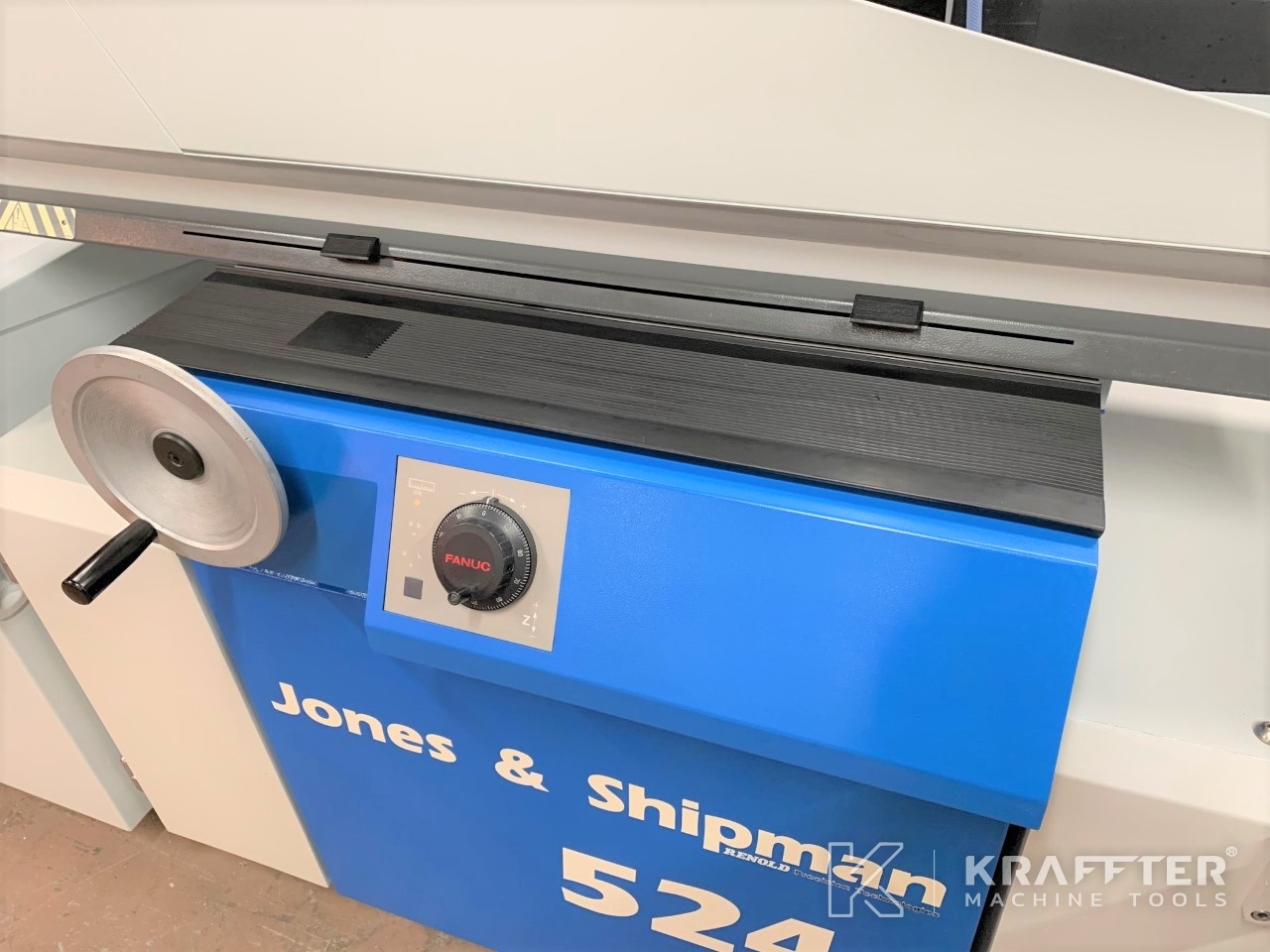

CNC control
FANUC Power Mate
Automatic
Yes
Stroke X axis
500 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
400 [mm]
Table length
500 [mm]
Table width
200 [mm]
Max. distance spindle nose / table
380 [mm]
Max. load on table
160 [Kg]

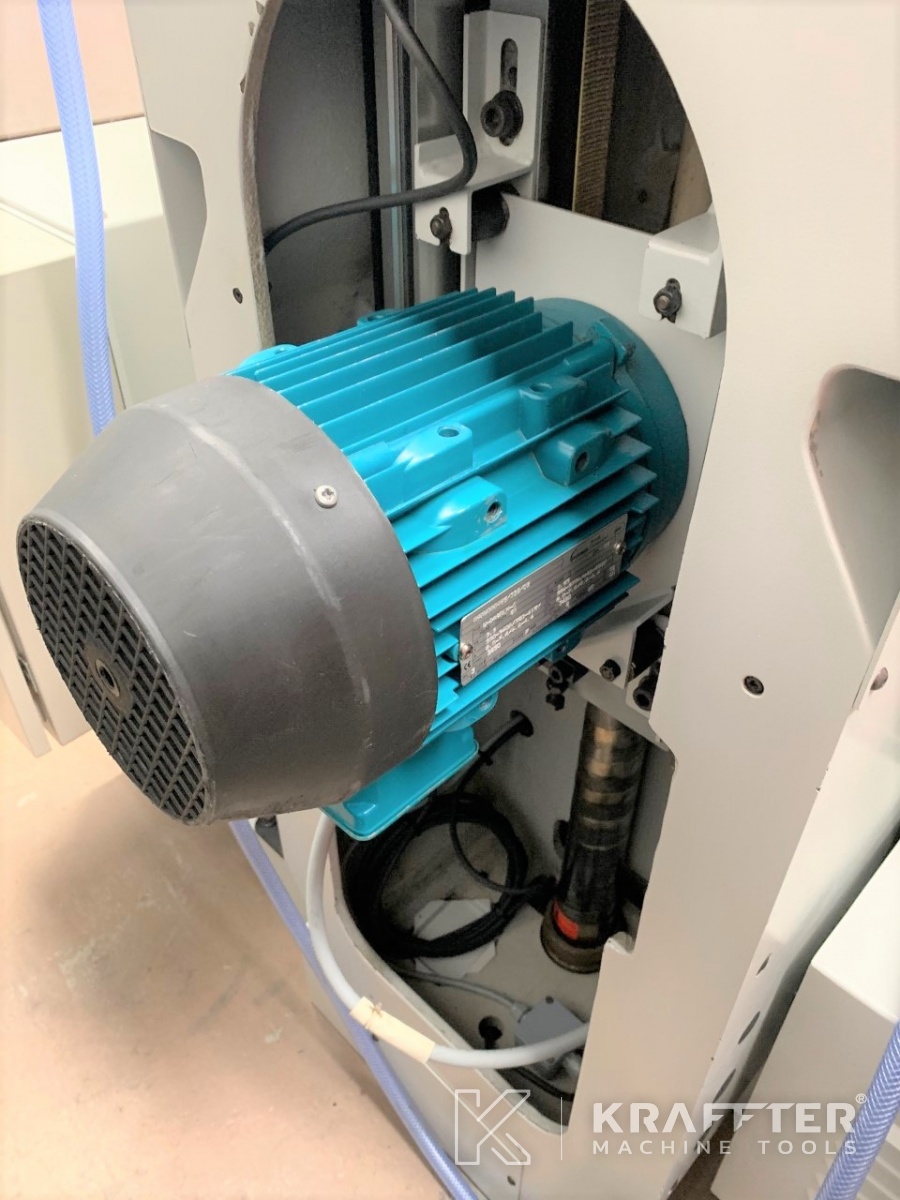

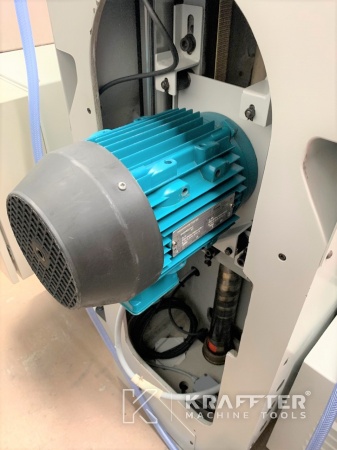

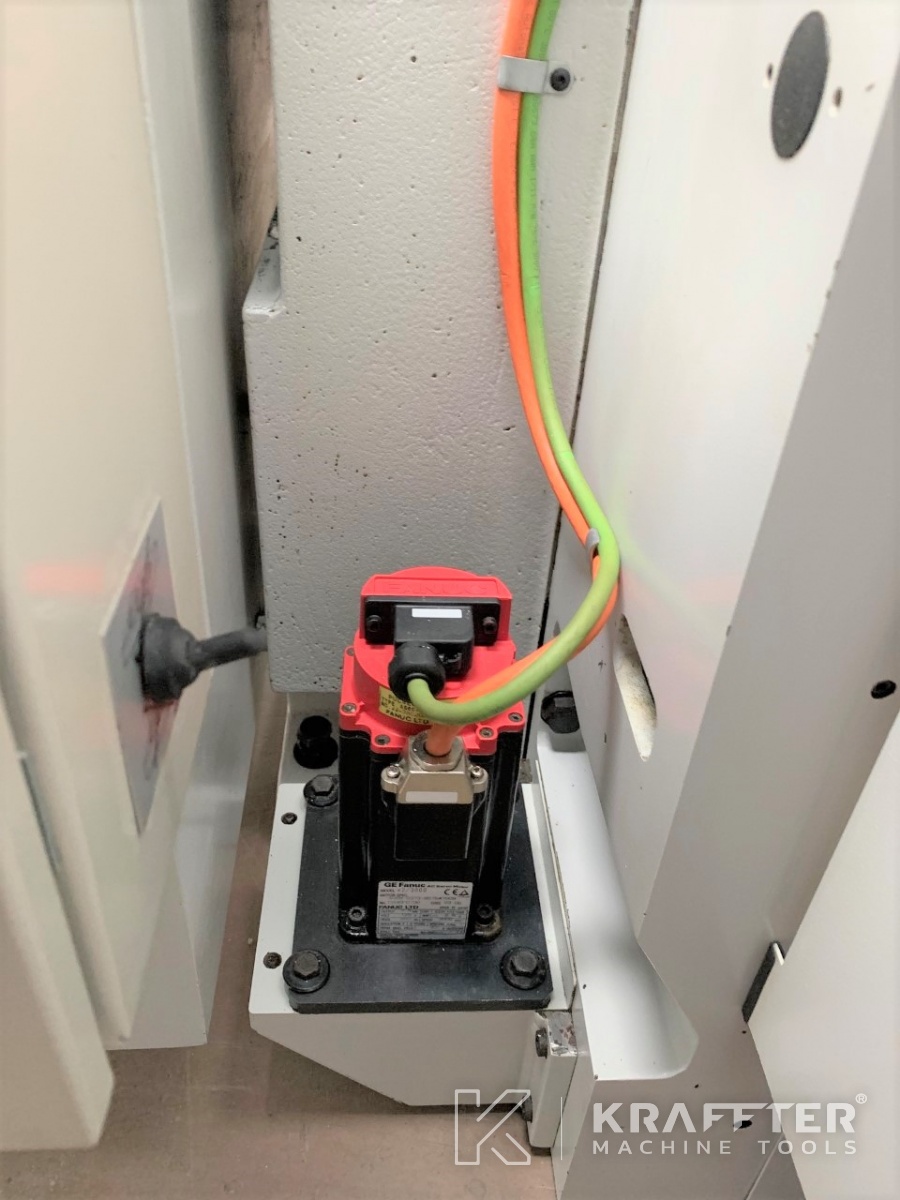

Grinding spindle motor power
2.2 [kW]
Grinding wheel diameter
254 [mm]
Grinding wheel width
19 [mm]
Wheel dresser
oui
Variable power feeding
Yes
CNC
Yes
Electro permanent magnet clamping plate
Yes
Dimensions of magnetic plate
500 x 200 mm
Lubrication tank with pump
Yes
Centralized lubrication
Automatique
Supply voltage
400 [V]
Dimensions
1900 x 1300 x 2000
Weight
1370 [Kg]
General description :
• Specifically designed to offer unrivalled ease-of-use coupled to the highest
levels of productivity
• Easy manual, semi or fully automatic operation
• ‘Self Teach‘ software enables inexperienced and experienced operators
alike to be immediately more productive
• Quick set automatic dressing and grinding cycles enable
unmanned operation
• Straight, facing, slotting or Vee form wheel macros
• Easy form dressing of complex profiles
• No optional complex dressing devices required
• Ability to use CBN and Diamond wheels
• Plunge, area, face, multi-plunge, multi-slot, multi-plunge and area
grind macros
• Easy down load/up load to PC, PDA and Network
Grinding cycles setting-up :
• At start-up the operator is offered three simple options : Manual, Dress or Grind cycle mode
• In Manual Mode the Easy operates as a simple hand controlled machine, with manual dress and no setup procedures. Work speeds and feeds are adjustable via the touchscreen
• Dress Mode offers five standard wheel shape options, Flat, Slot, Facing, Vee form and Full ISO with one or two diamonds as needed.
Equipements et options :

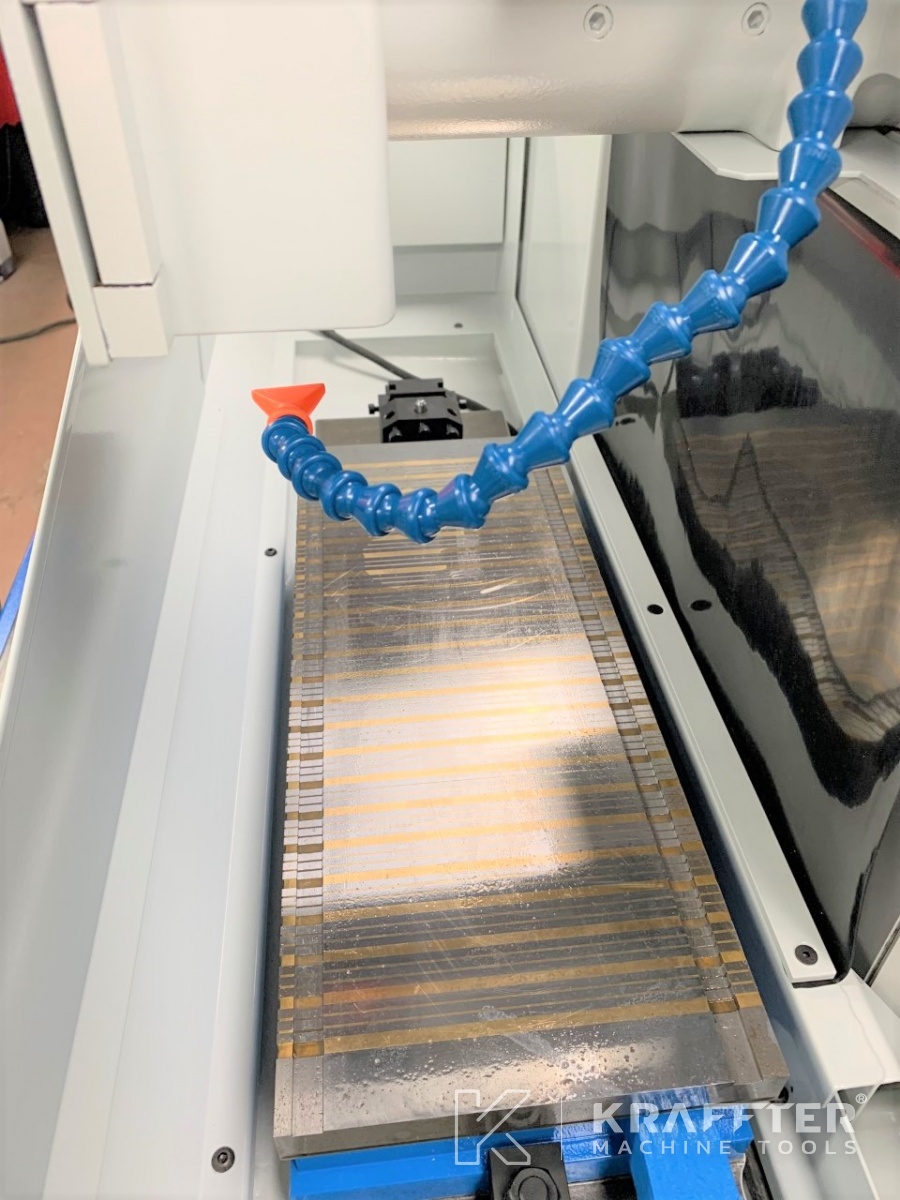

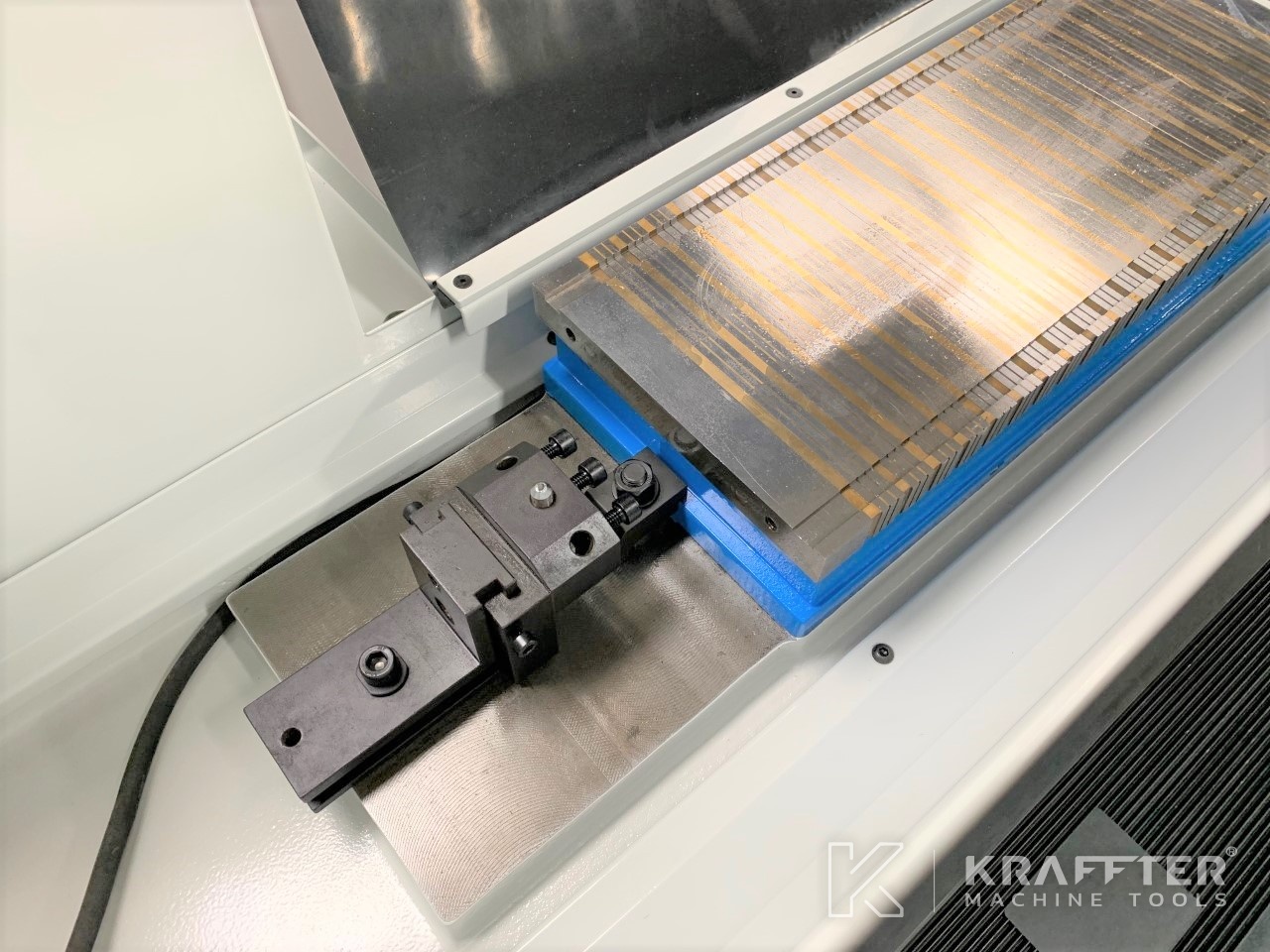

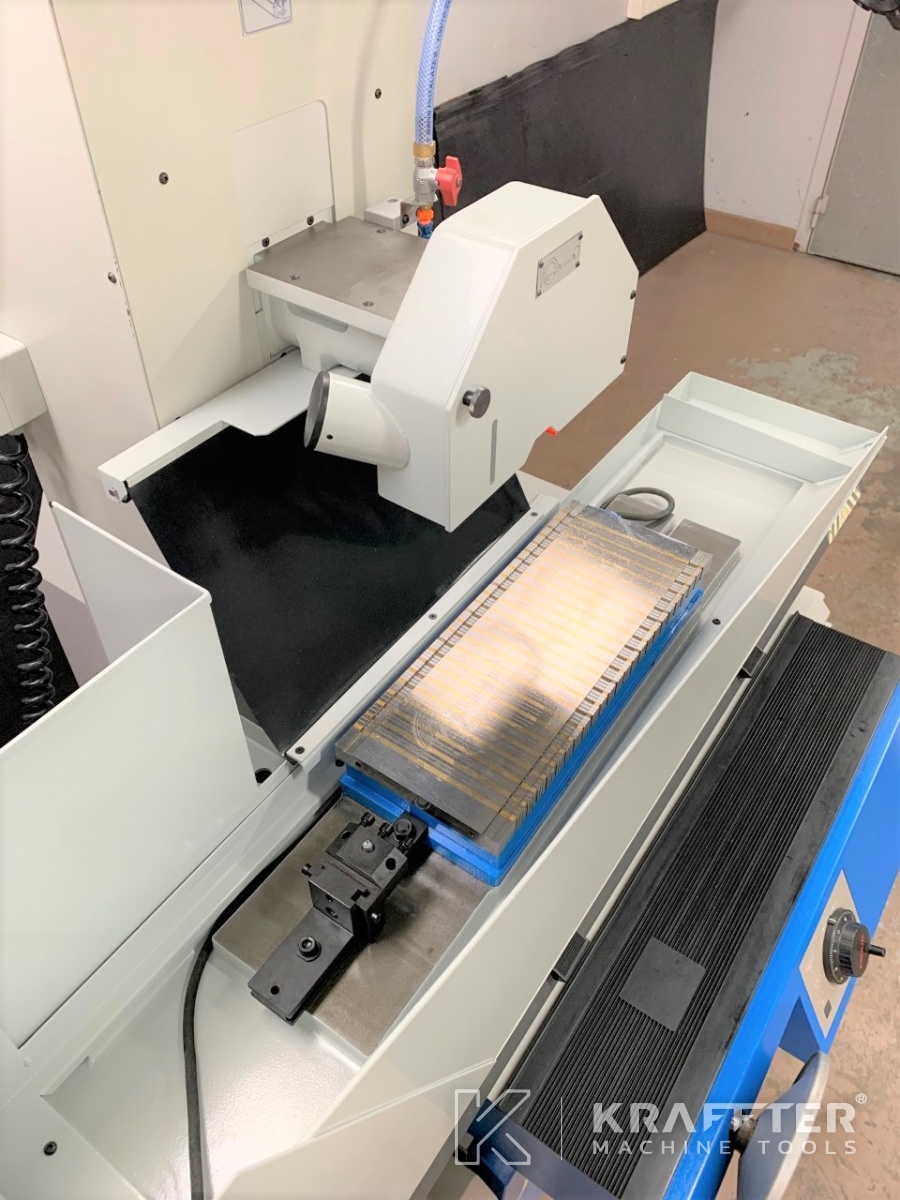

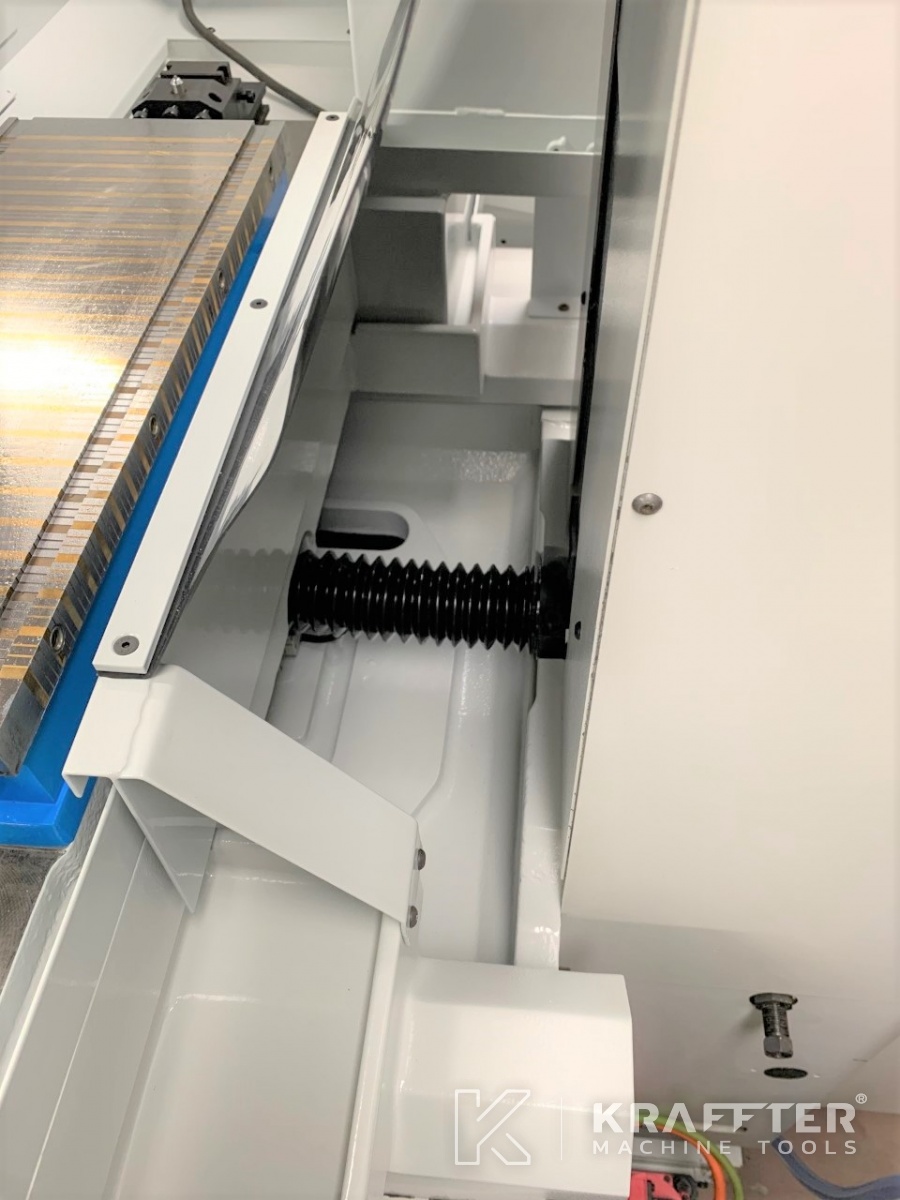

- 1x electro-magnetic clmaping plate WALKER BRAILLON MAGNETICS, clamping surface : 500 x 200 [mm]

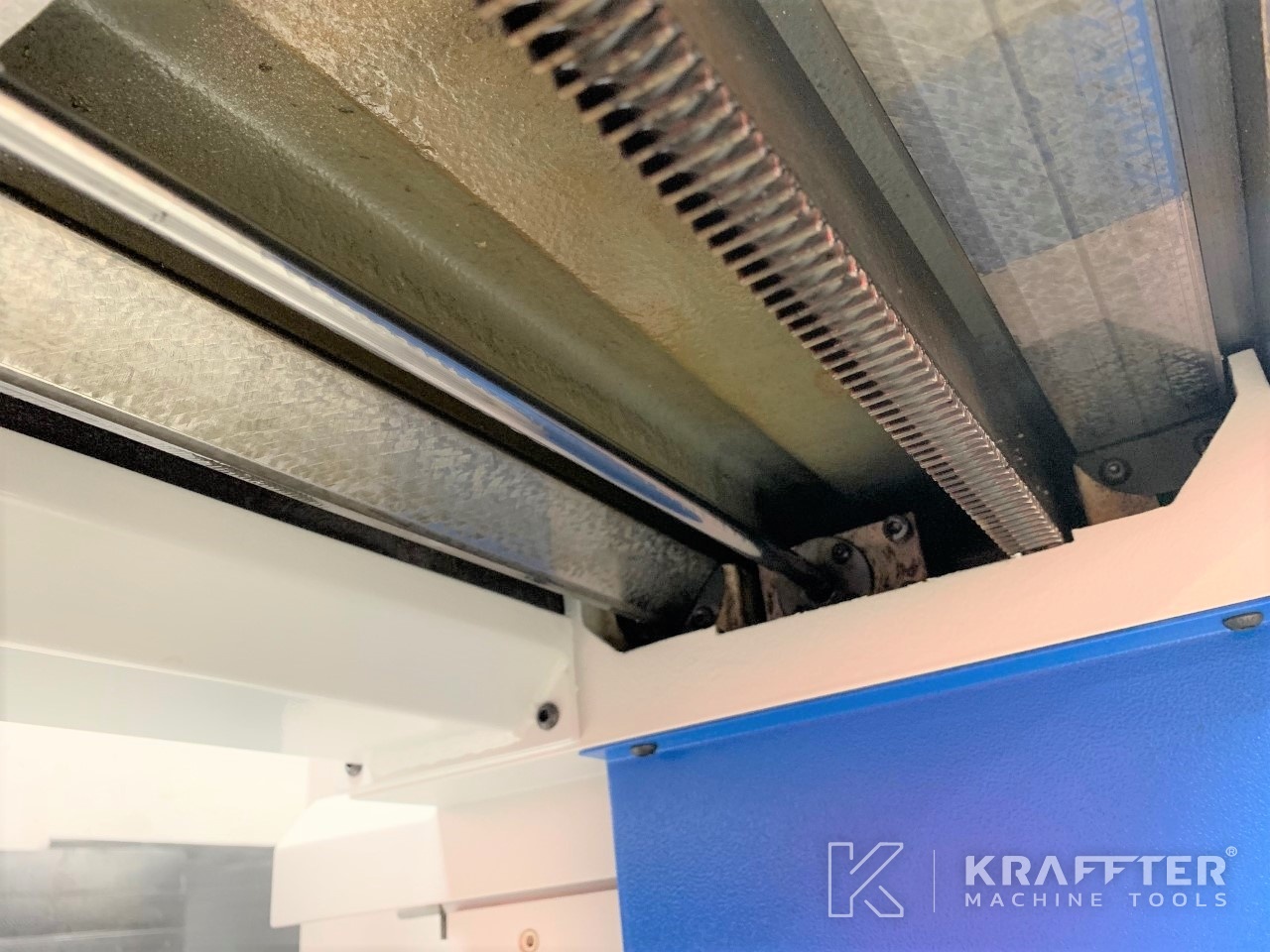

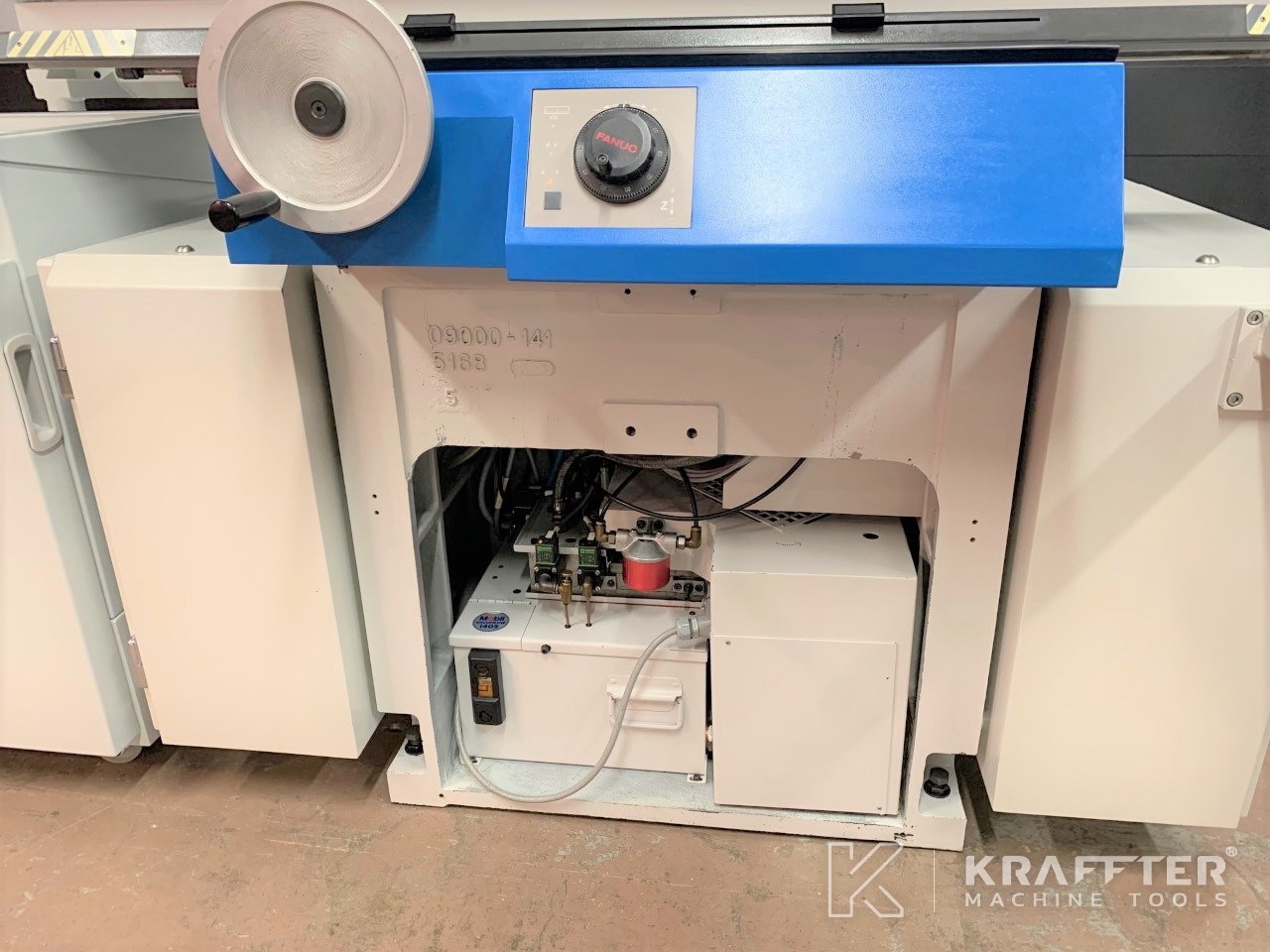

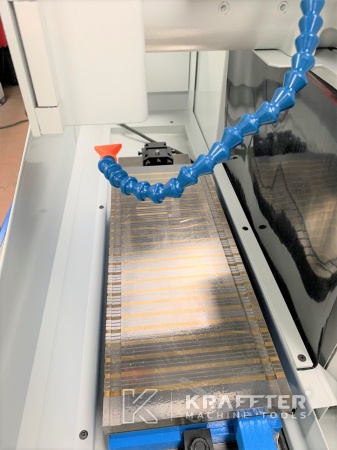

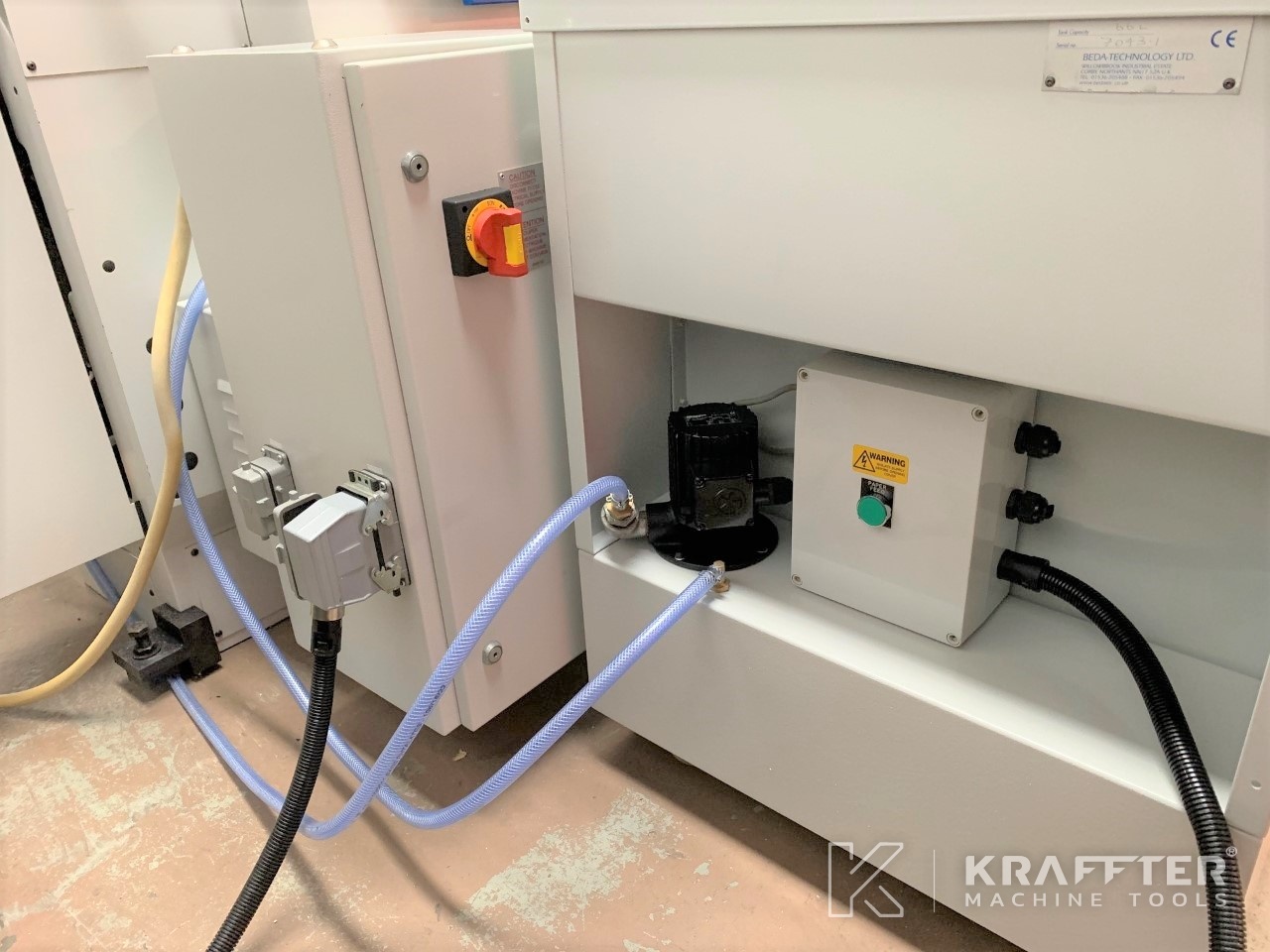

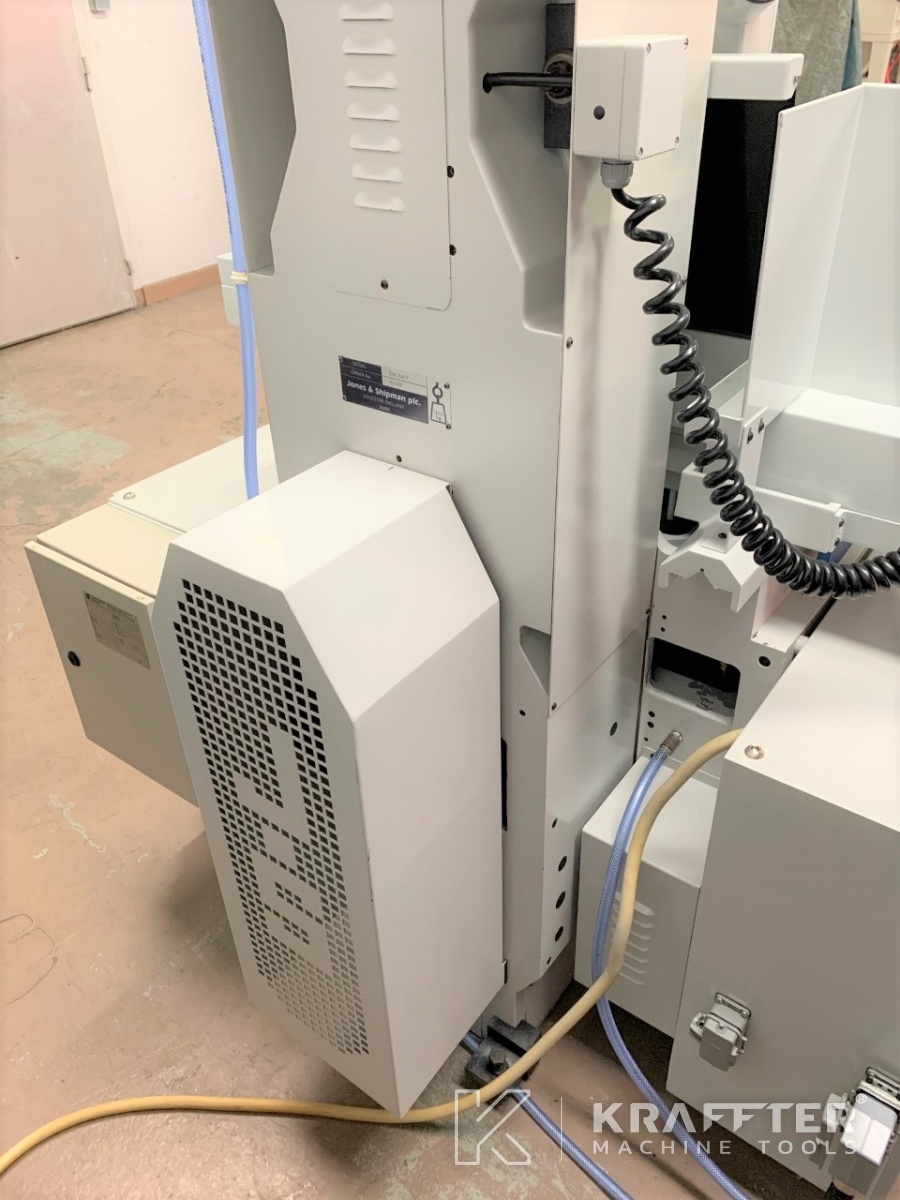

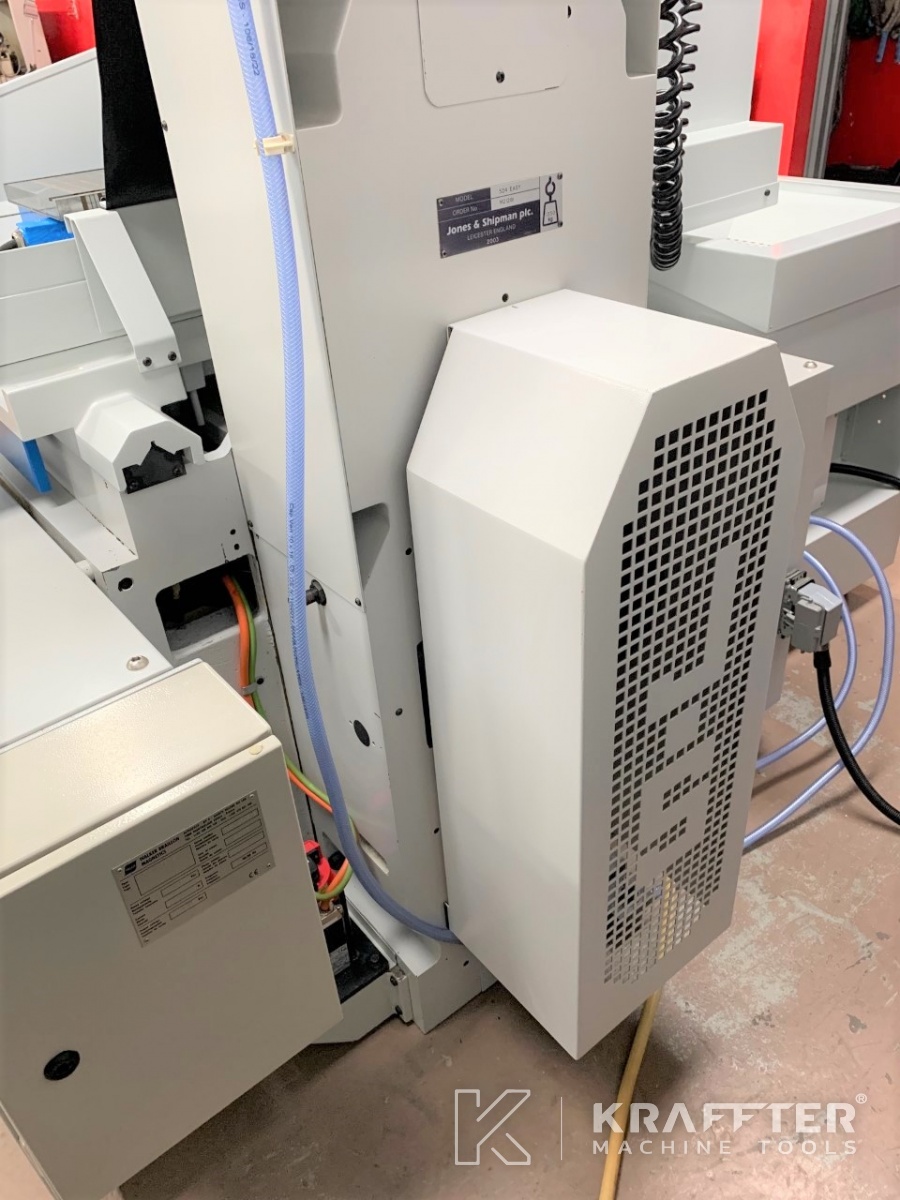

- 1x coolant unit (tank & pump)
- 1x paper band filter roll 30 µm - NEW

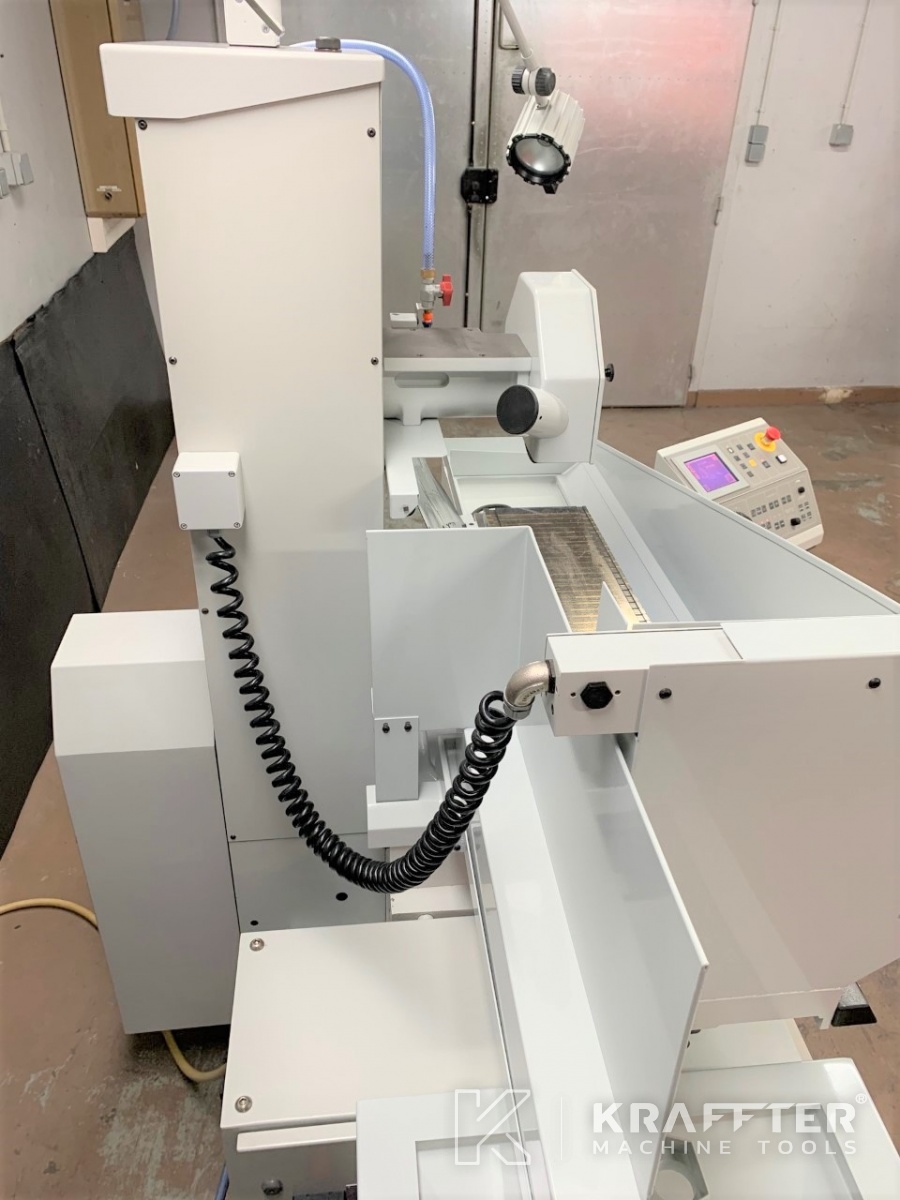

- 1x halogen lamp

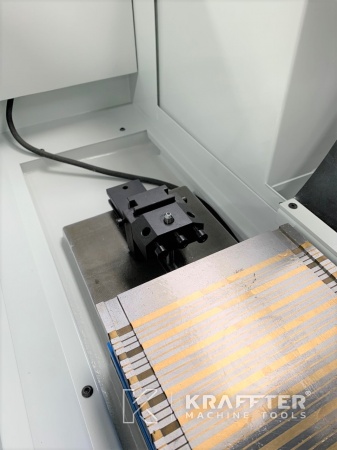

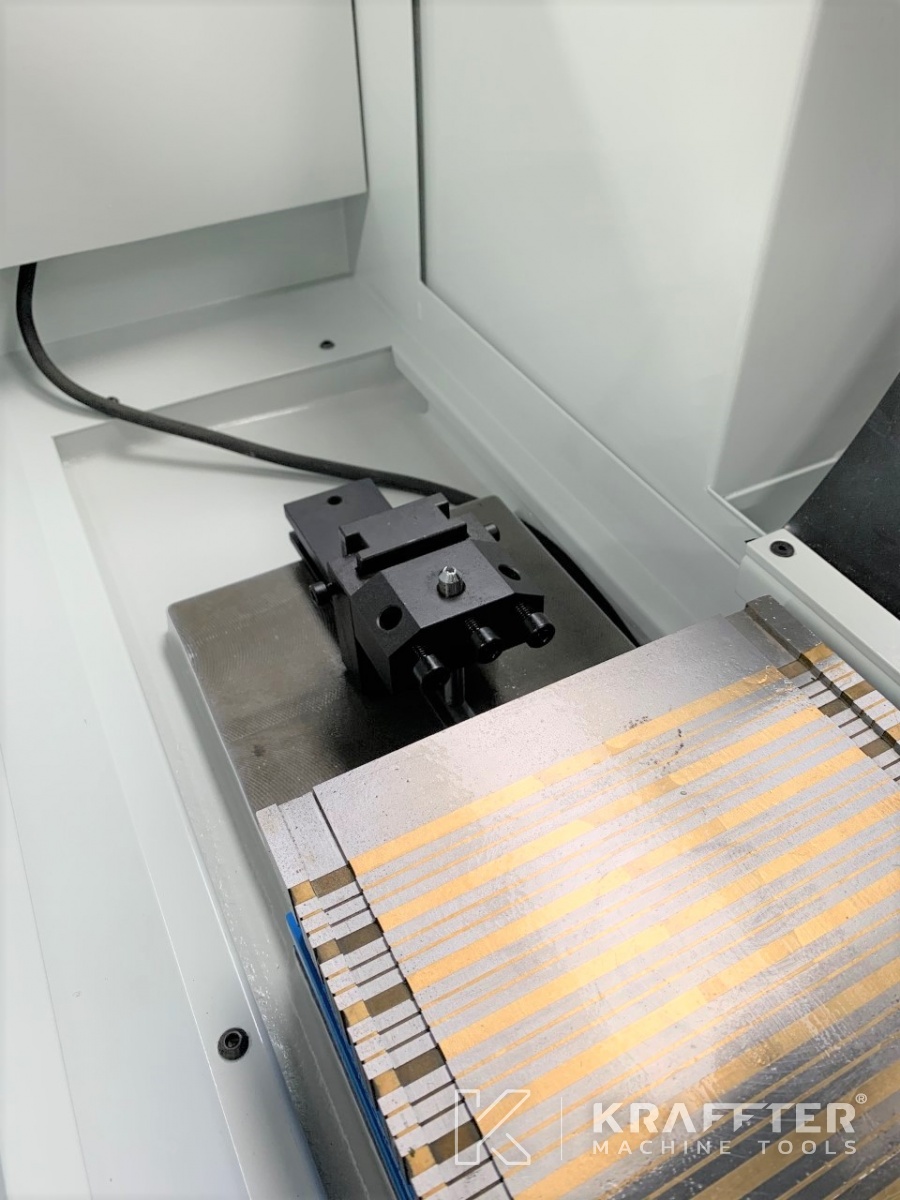

- 1x wheel dresser (up to 3 diamond positions possible)
- 1x wheel flange
- 1x grinding wheel

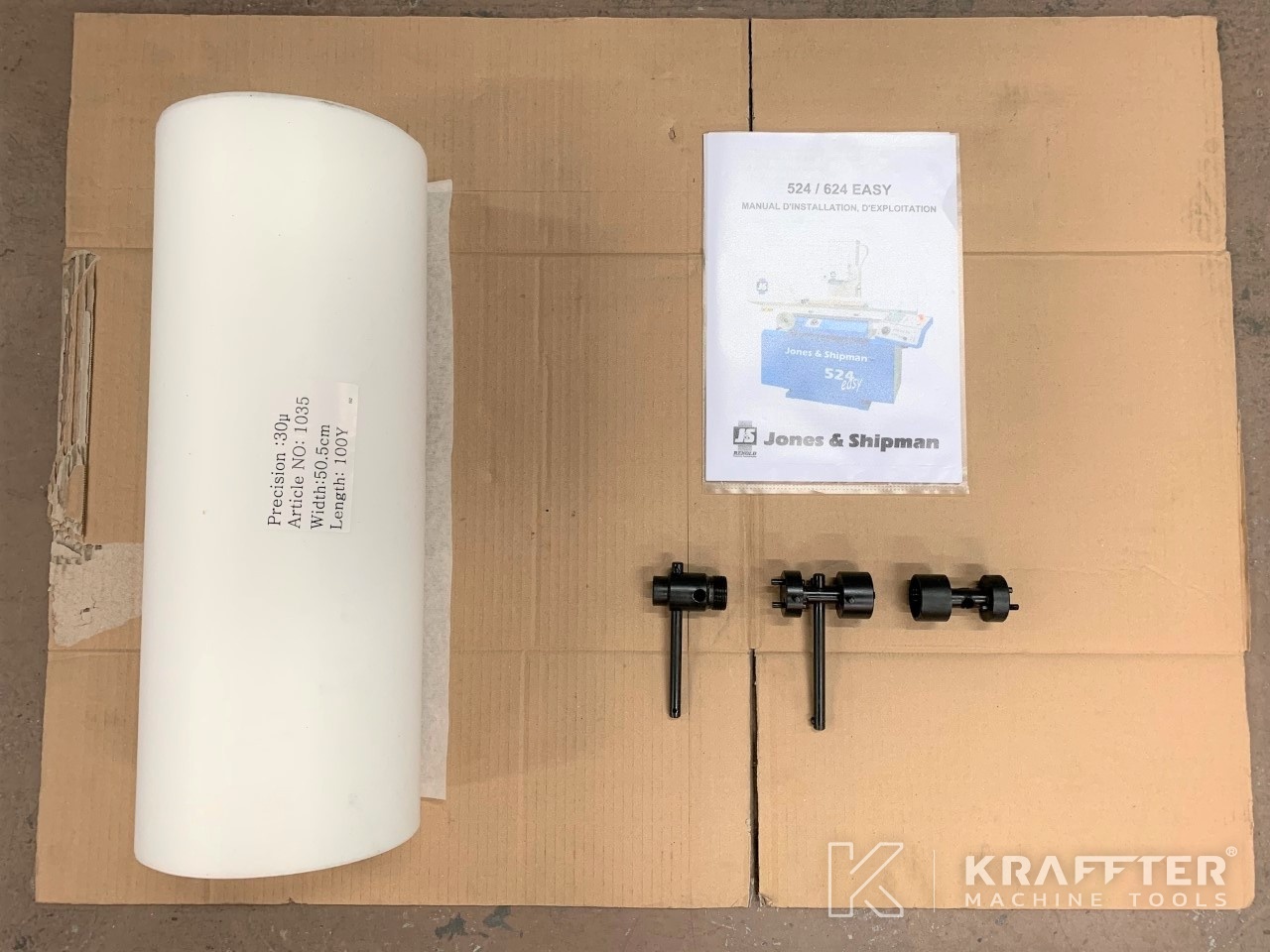

- 3x service keys
- 1x users & maintenance manual
