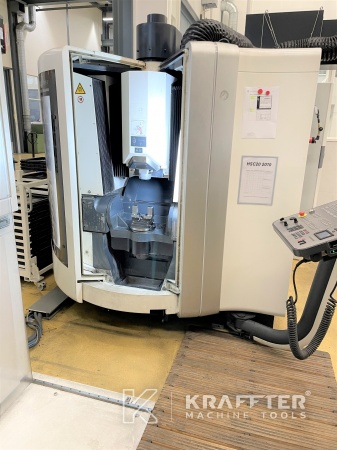

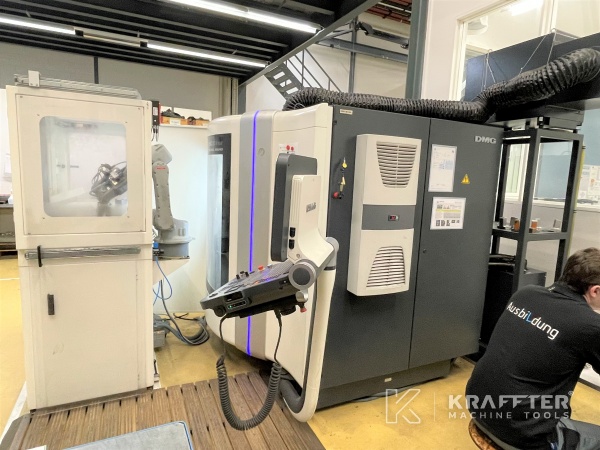

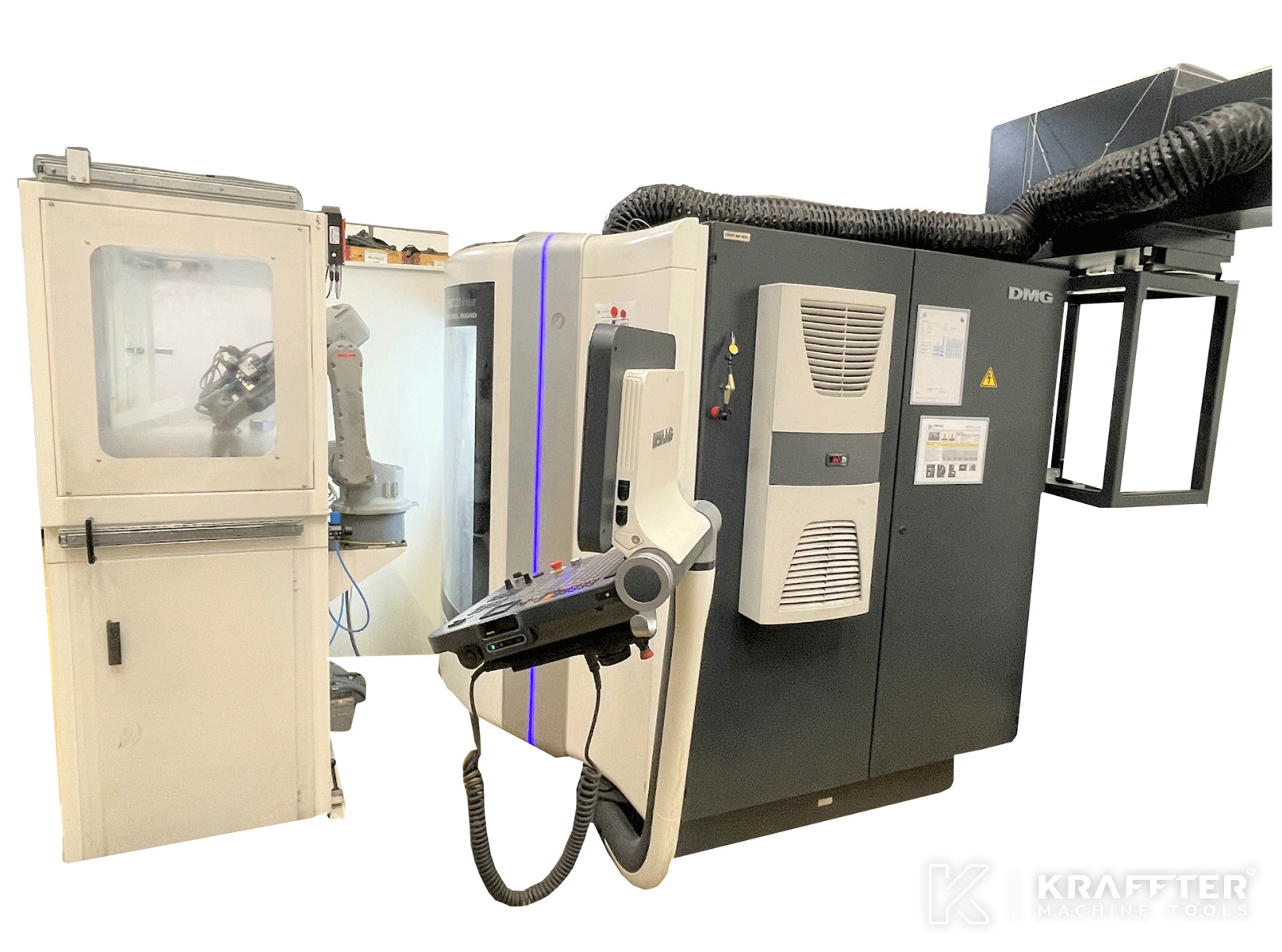

Type of machine : Vertical machining center
Brand : DMG
Stock N° : 20689-982
Model : HSC 20 linear
Year : 2011
Location : 73520 Saint-Béron, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

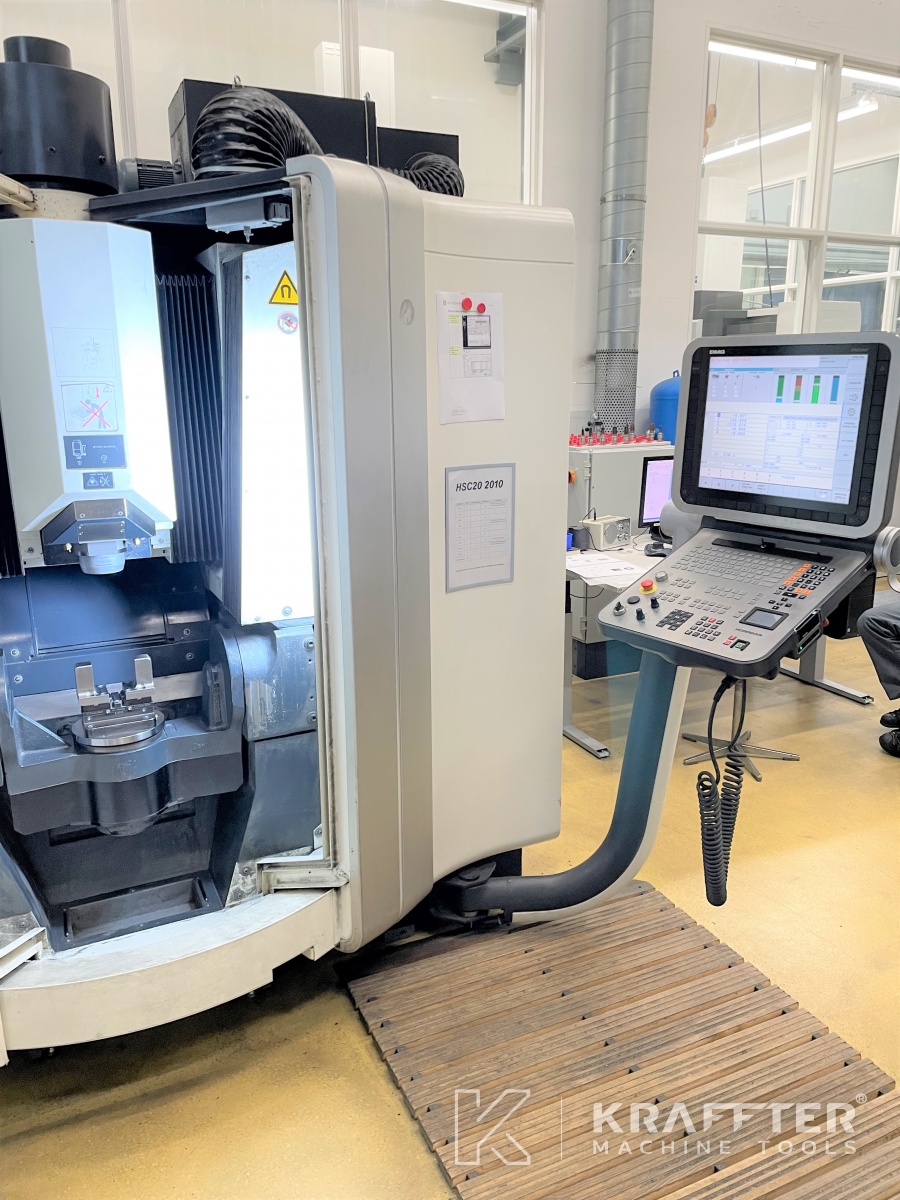

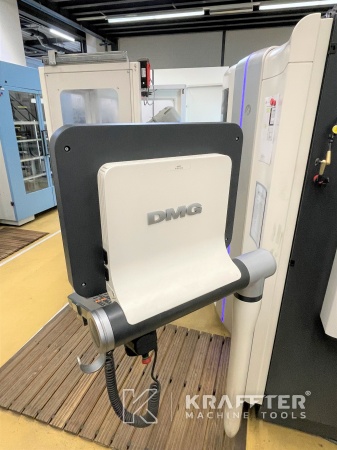

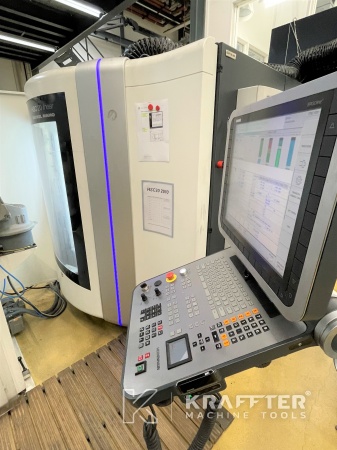

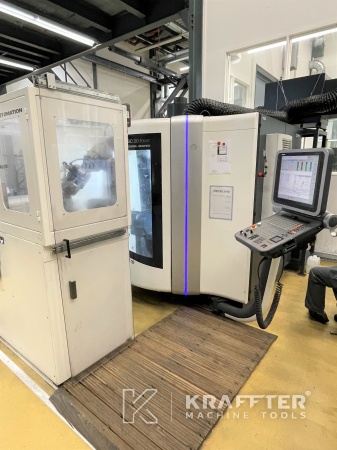

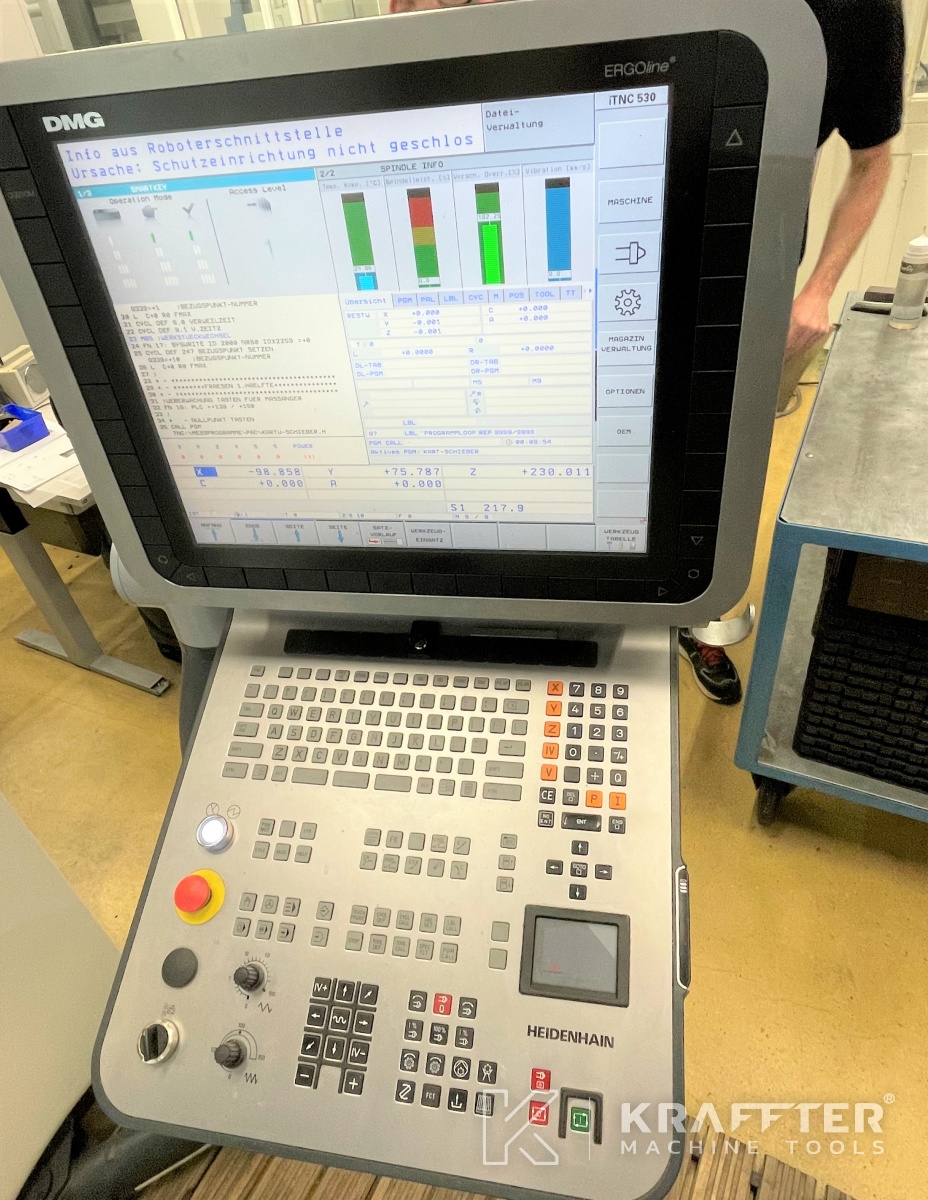

CNC control
HEIDENHAIN iTNC 530
Number of simultaneous axes
5
Stroke X axis
200 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
280 [mm]
Axes acceleration
>2 g
Positioning tolerances of all axes
0.005 [µm]

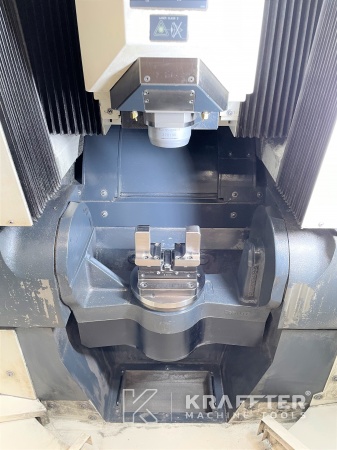

Stroke A axis : swiveling area of rotary table
-10° / 130°
Table surface Ø
200 [mm]
Stroke C axis : table revolution
0° / 360°
Carrier plates available in the automation cell
15
Spindle type
HSK-E 32

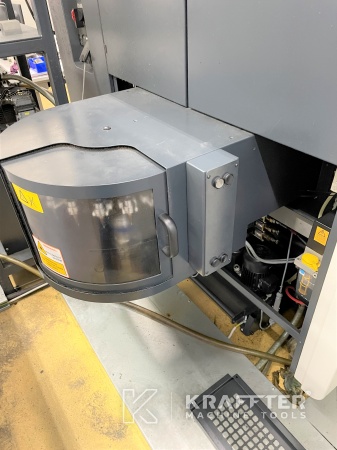

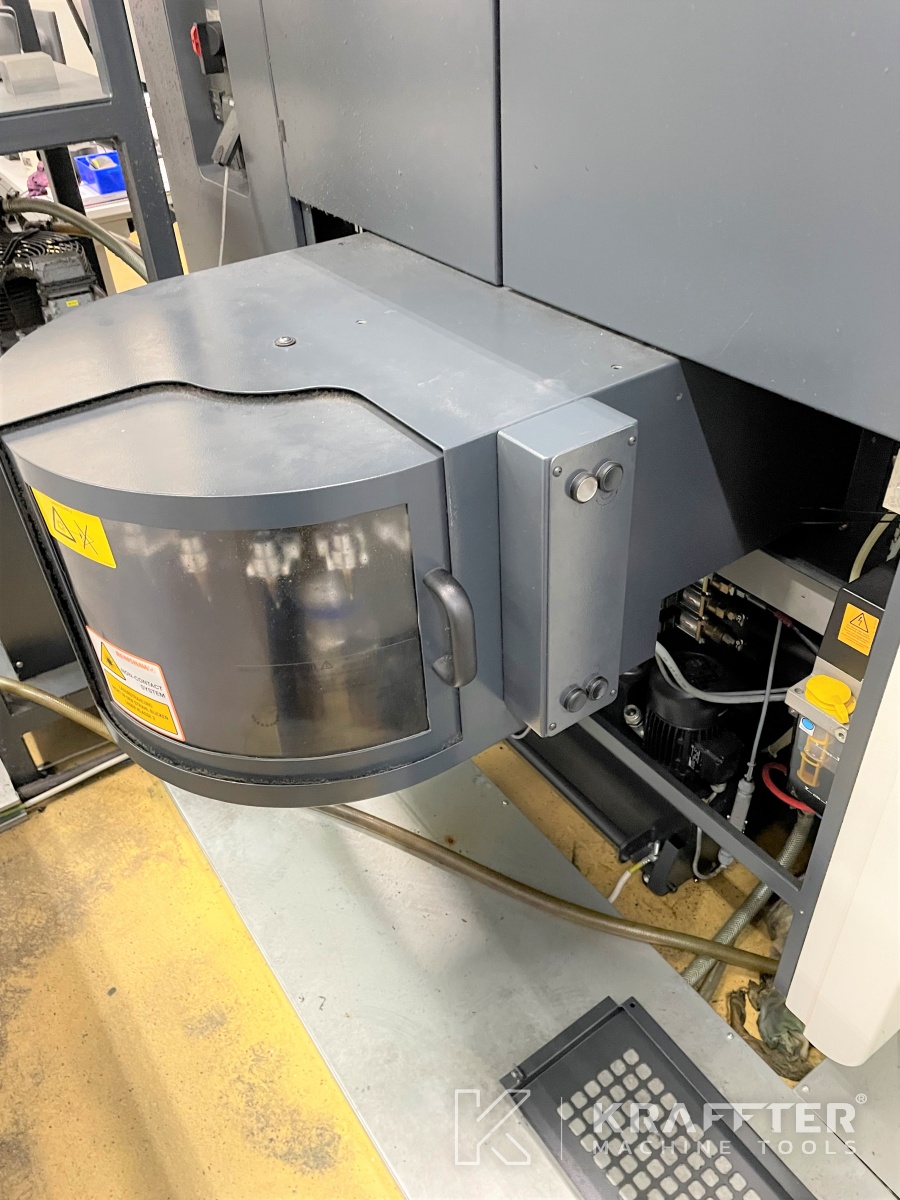

Tool changer magazin number of stations
60

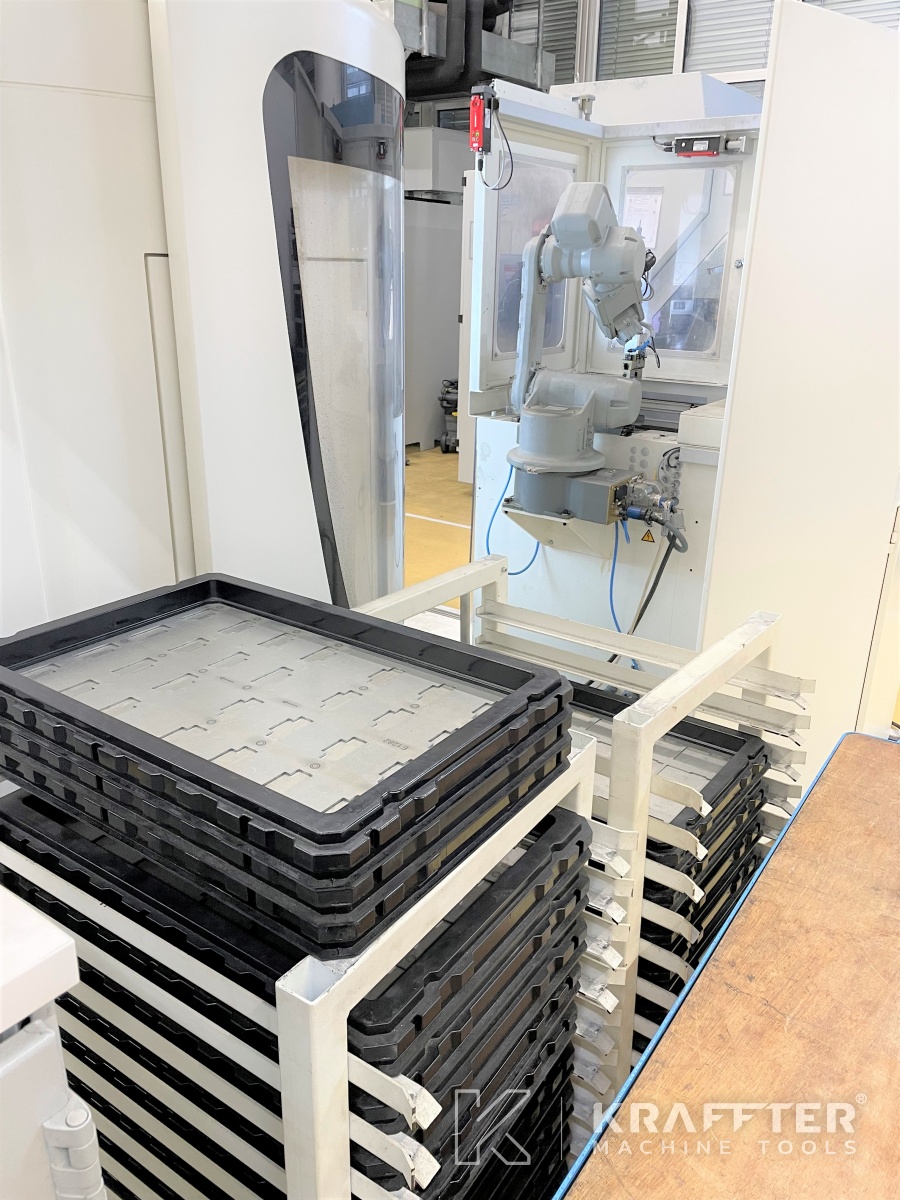

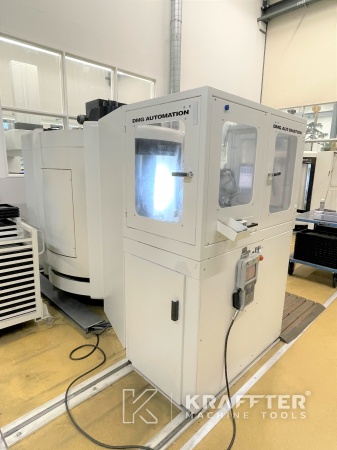

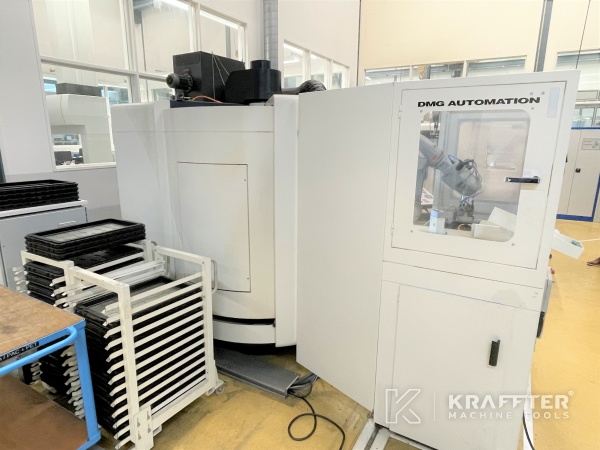

Automation robot cell

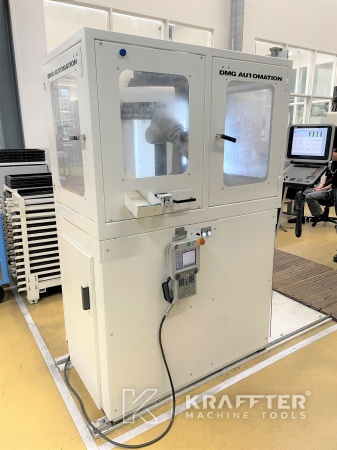

WH 3 DMG Automation

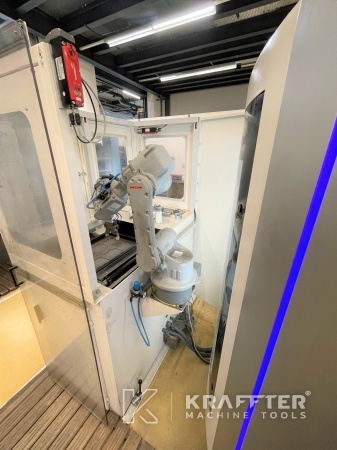

Transfer robot arm

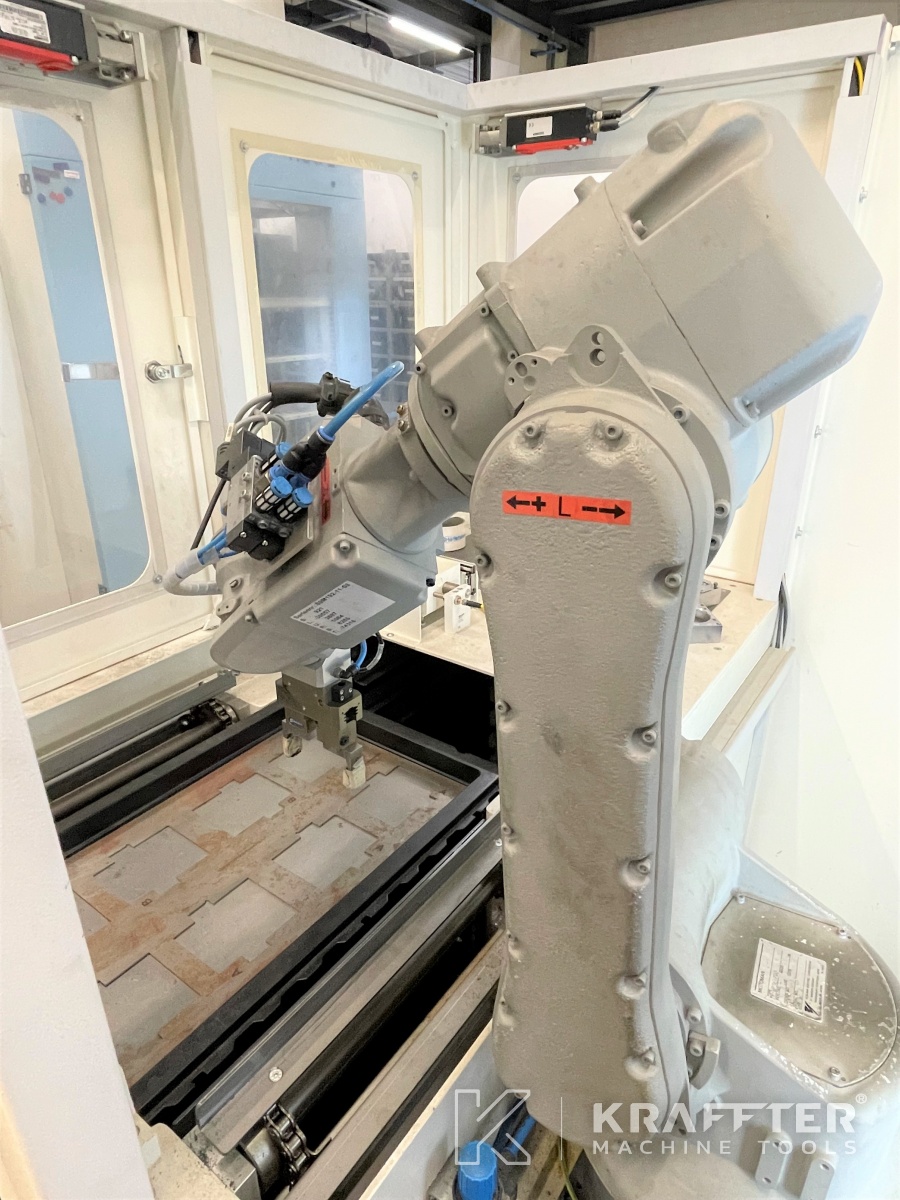

MOTOMAN HP3L

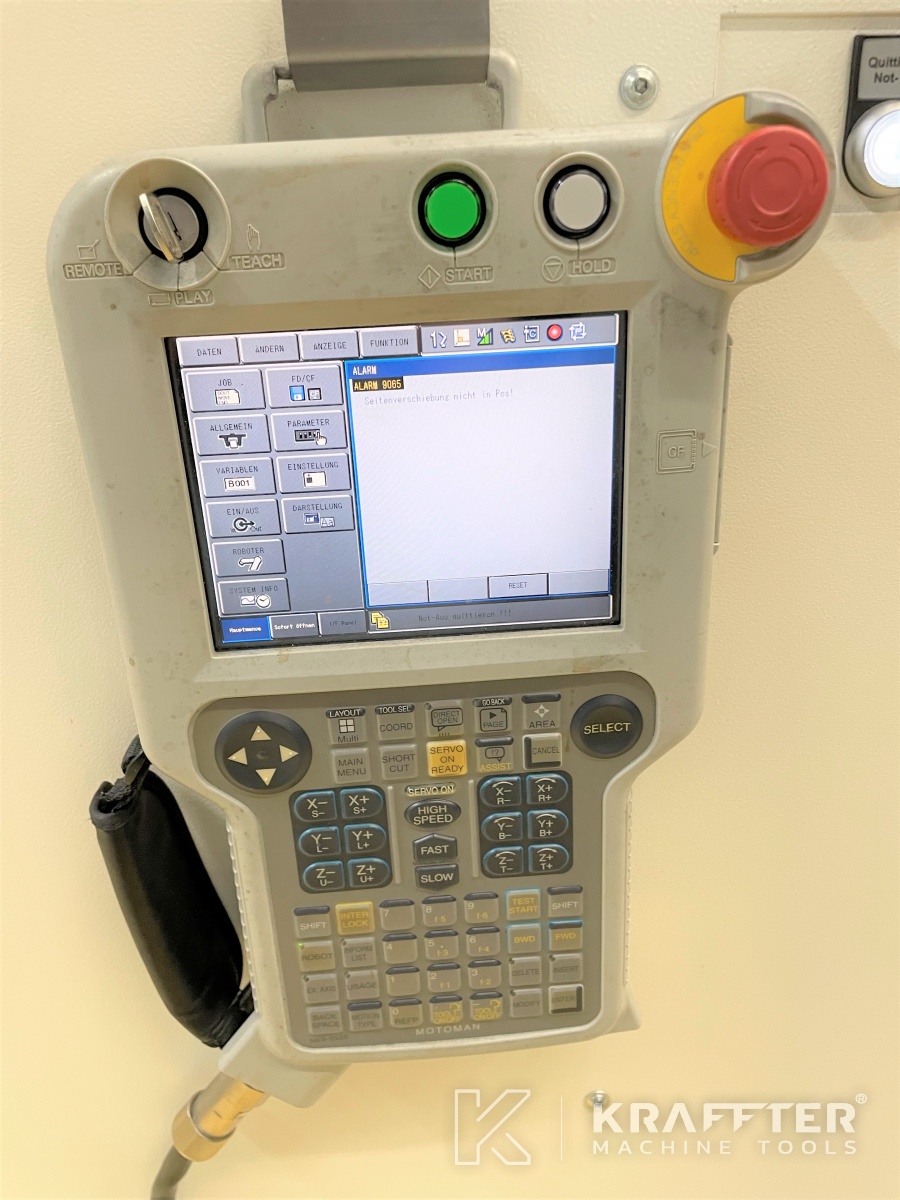

Robot interface control

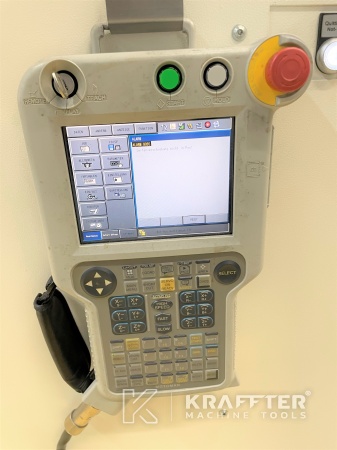

MOTOMAN NX100
Max. handling weight robot arm
3 [Kg]
Part turnaround by robot (6th side machining)
Yes
Loading carriage plates dimensions
600 x 400 mm
High accuracy laser tool setter
RENISHAW NC-4 III
Part probe
RENISHAW OMP400

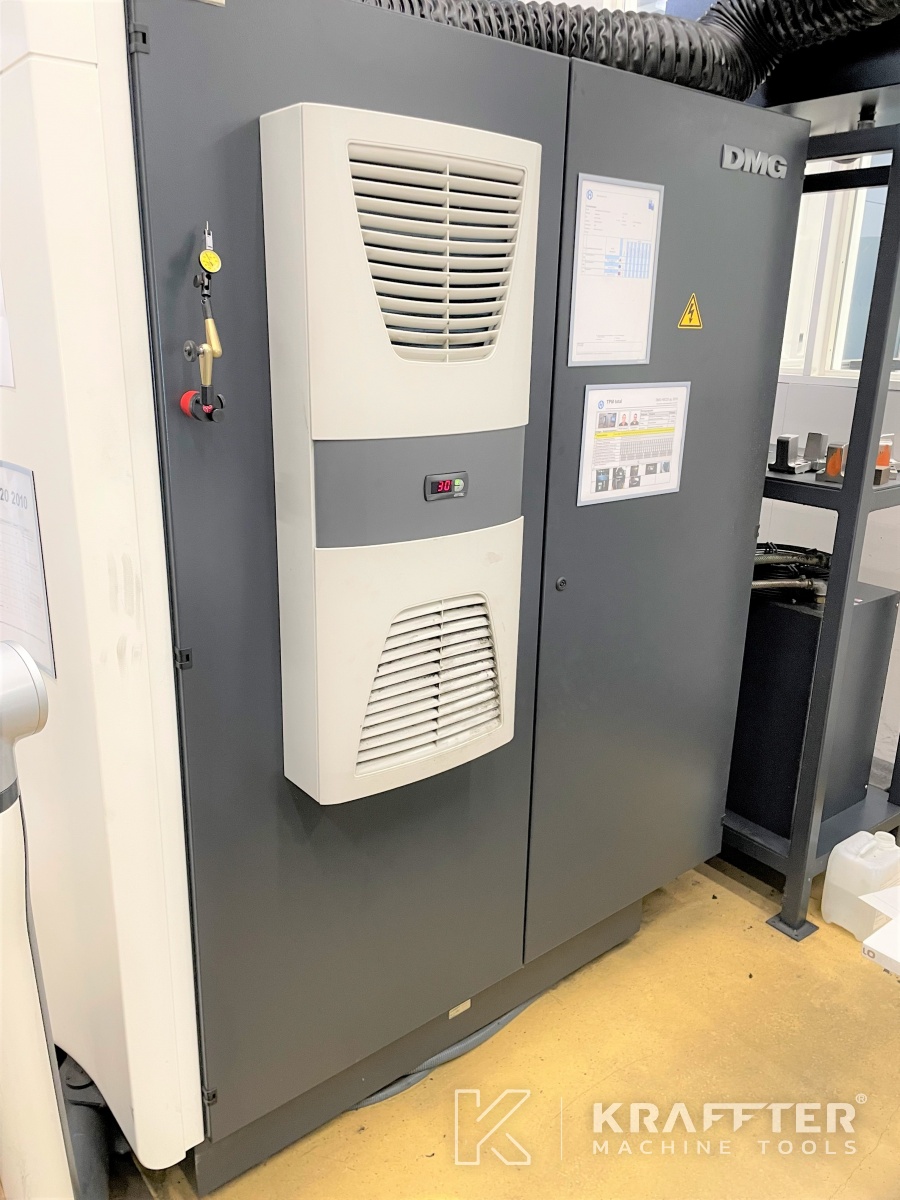

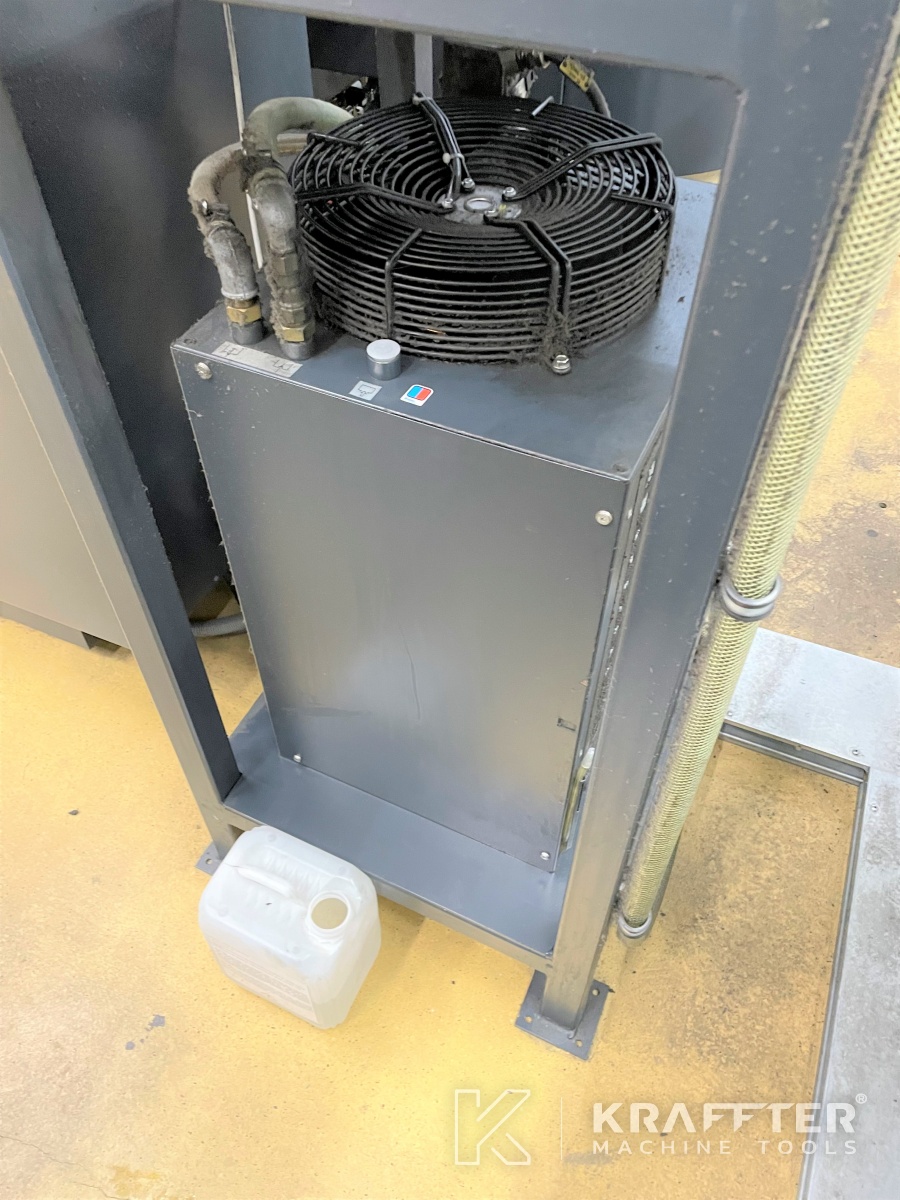

Supply voltage
400 [V]
Number of running hours
25900 [h]
Only used for finishing operations.
Has always been regulary maintained (DMG invoices in our possession).
Visible under power on production site until mid-January 2022. Visible thereafter at our premises under power.
ACESSORIES / EQUIPMENT:
x30 tool holders HSK-E 32

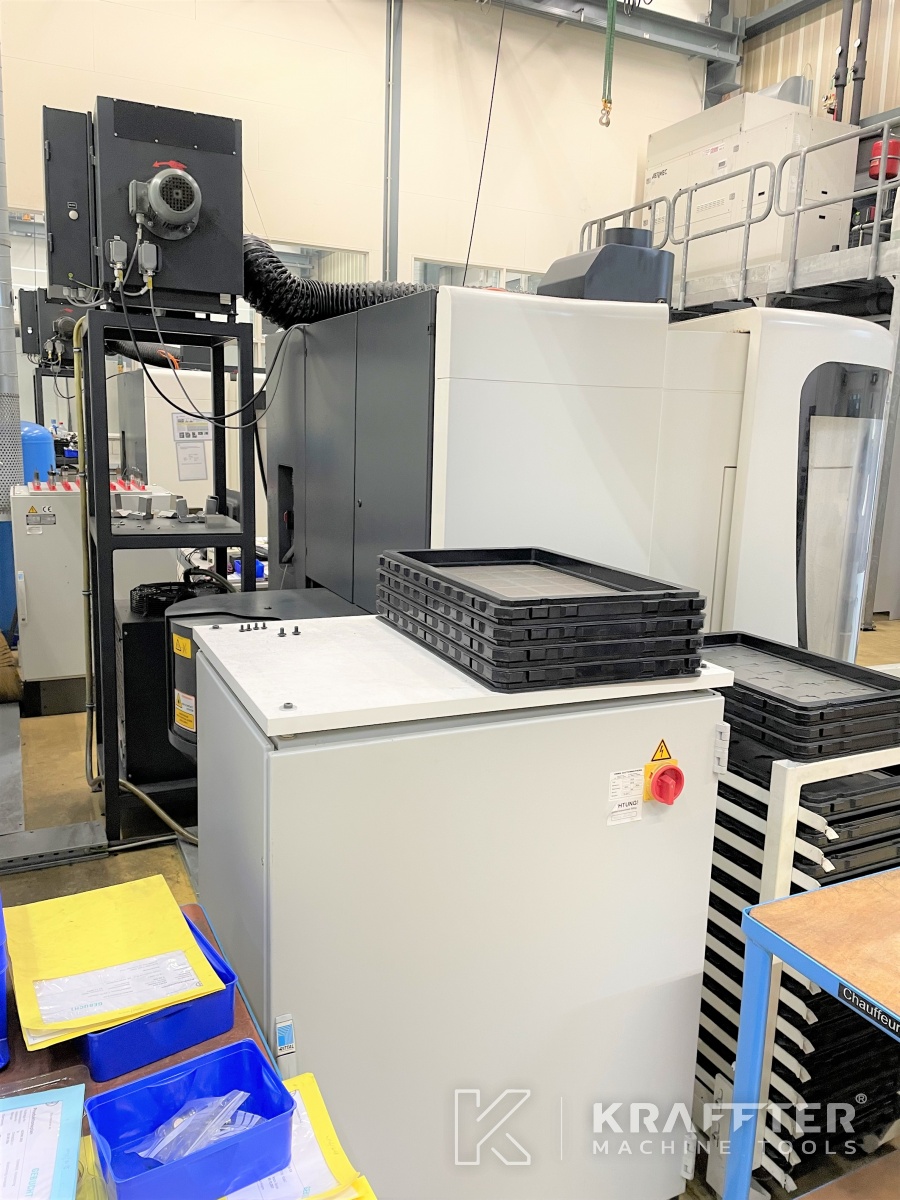

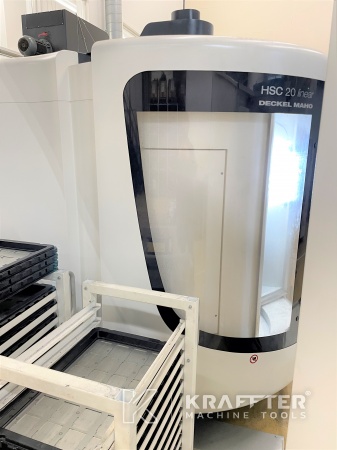

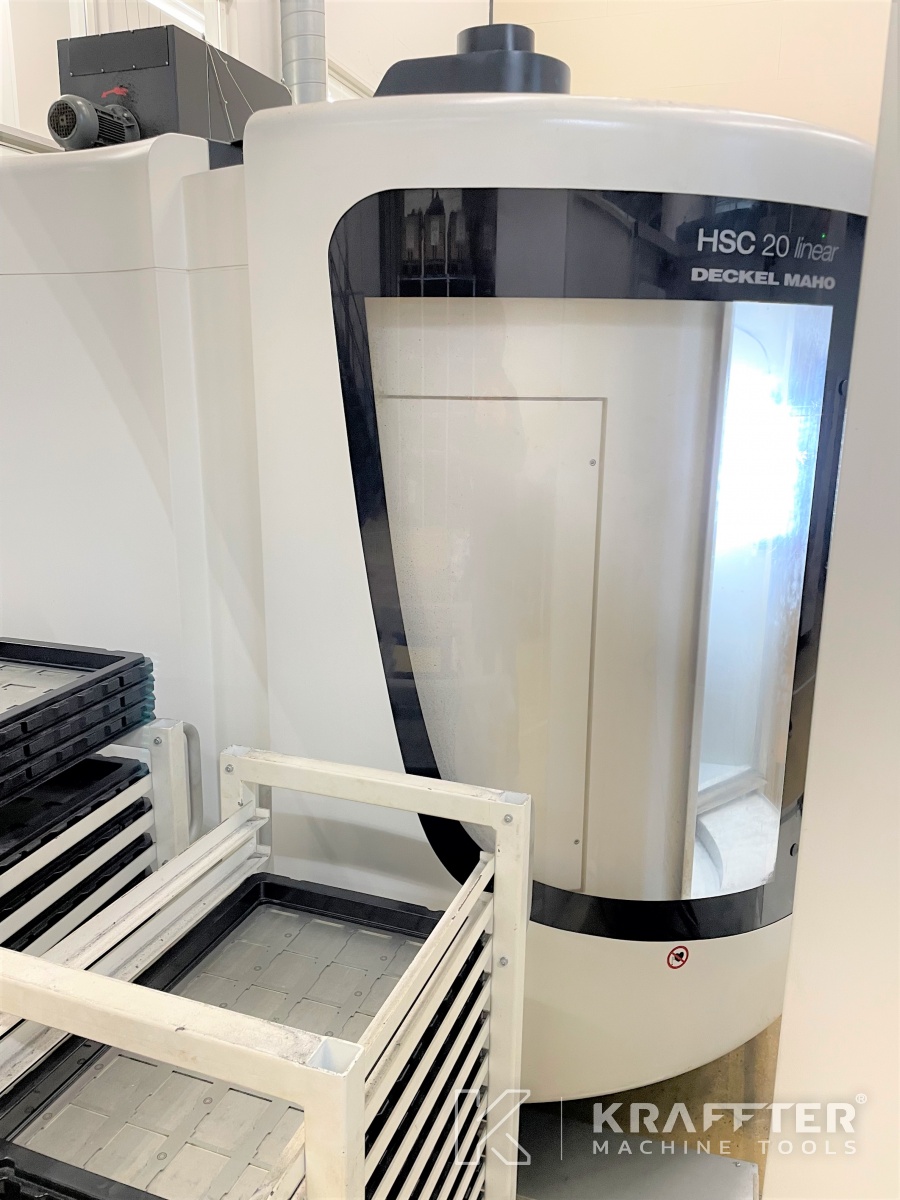

x30 part loading trays for WH 3 DMG Automation device

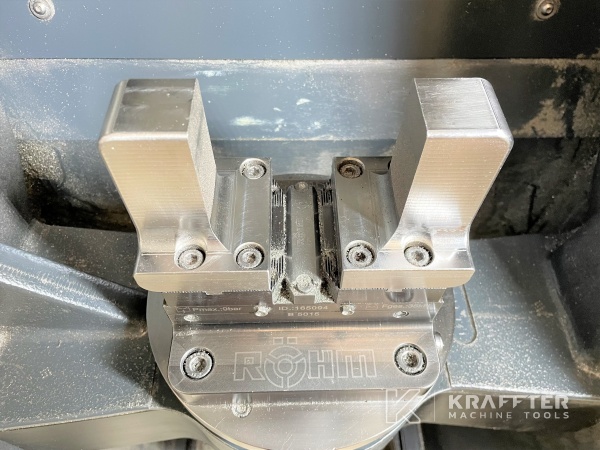

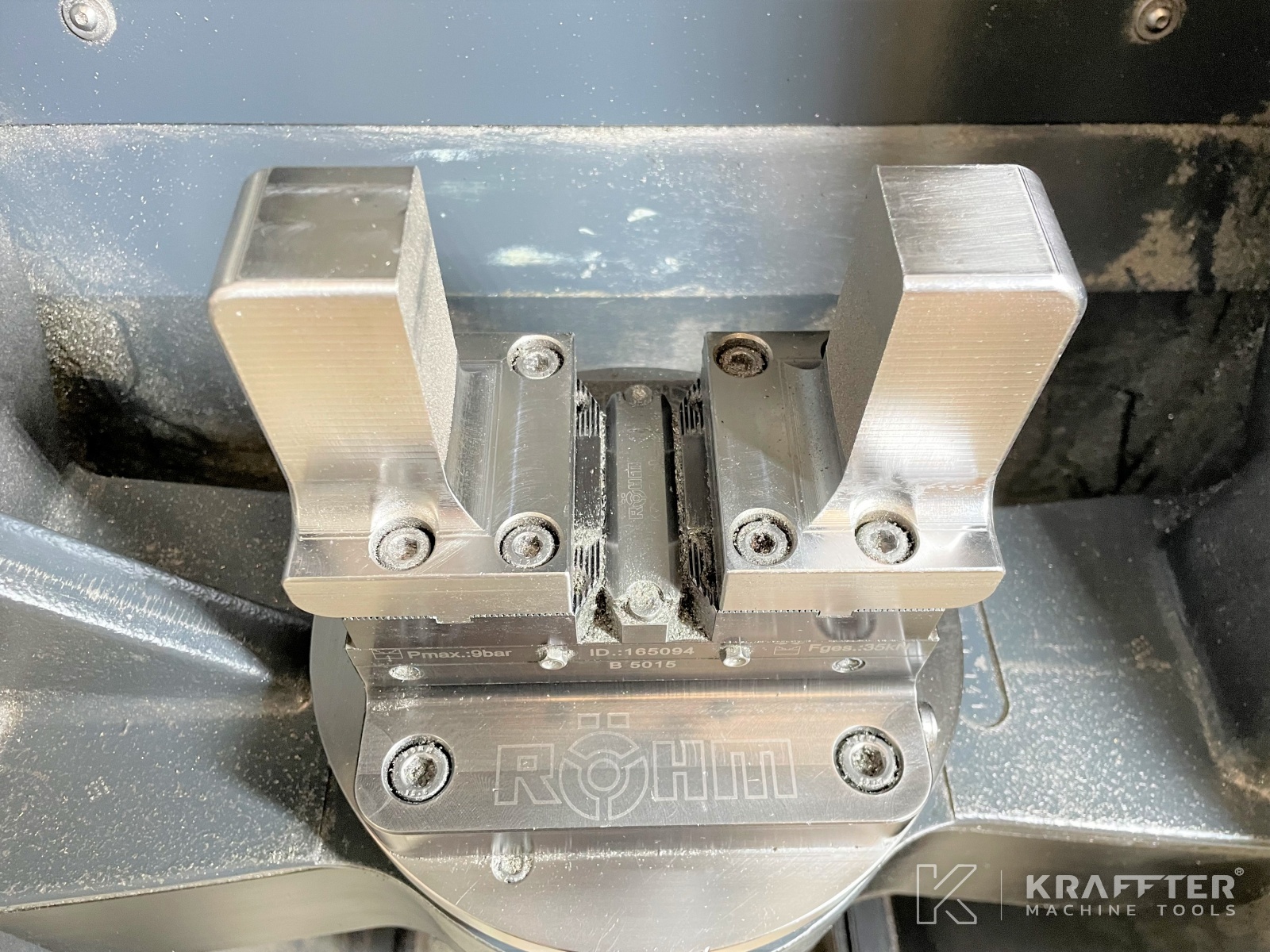

x1 ROHM chuck
x4 compressed air nozzles (around the spindle)
x1 axes jig-clamping set for transportation
