Sold

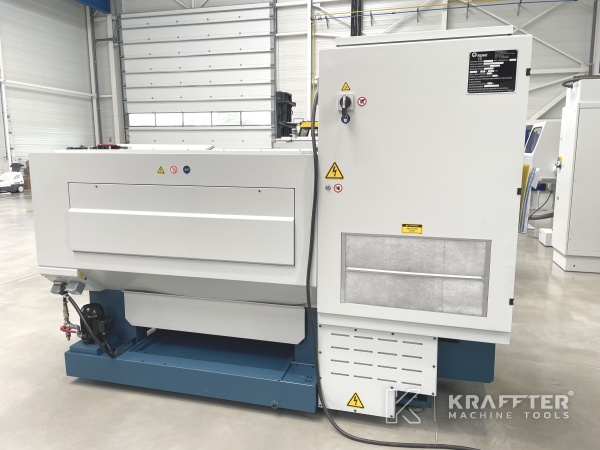

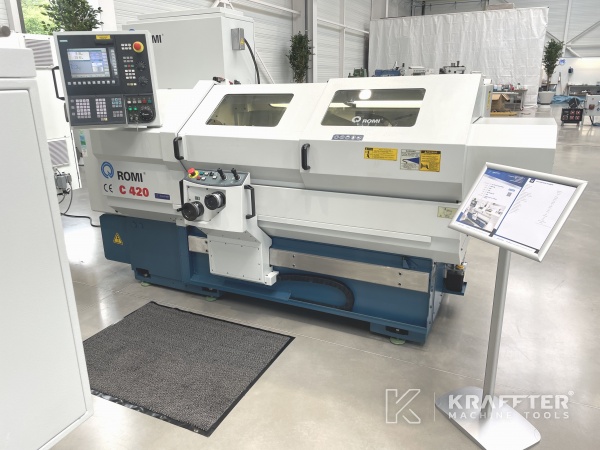

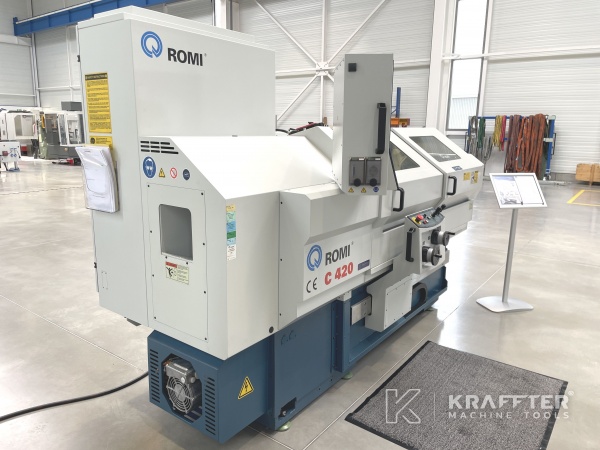

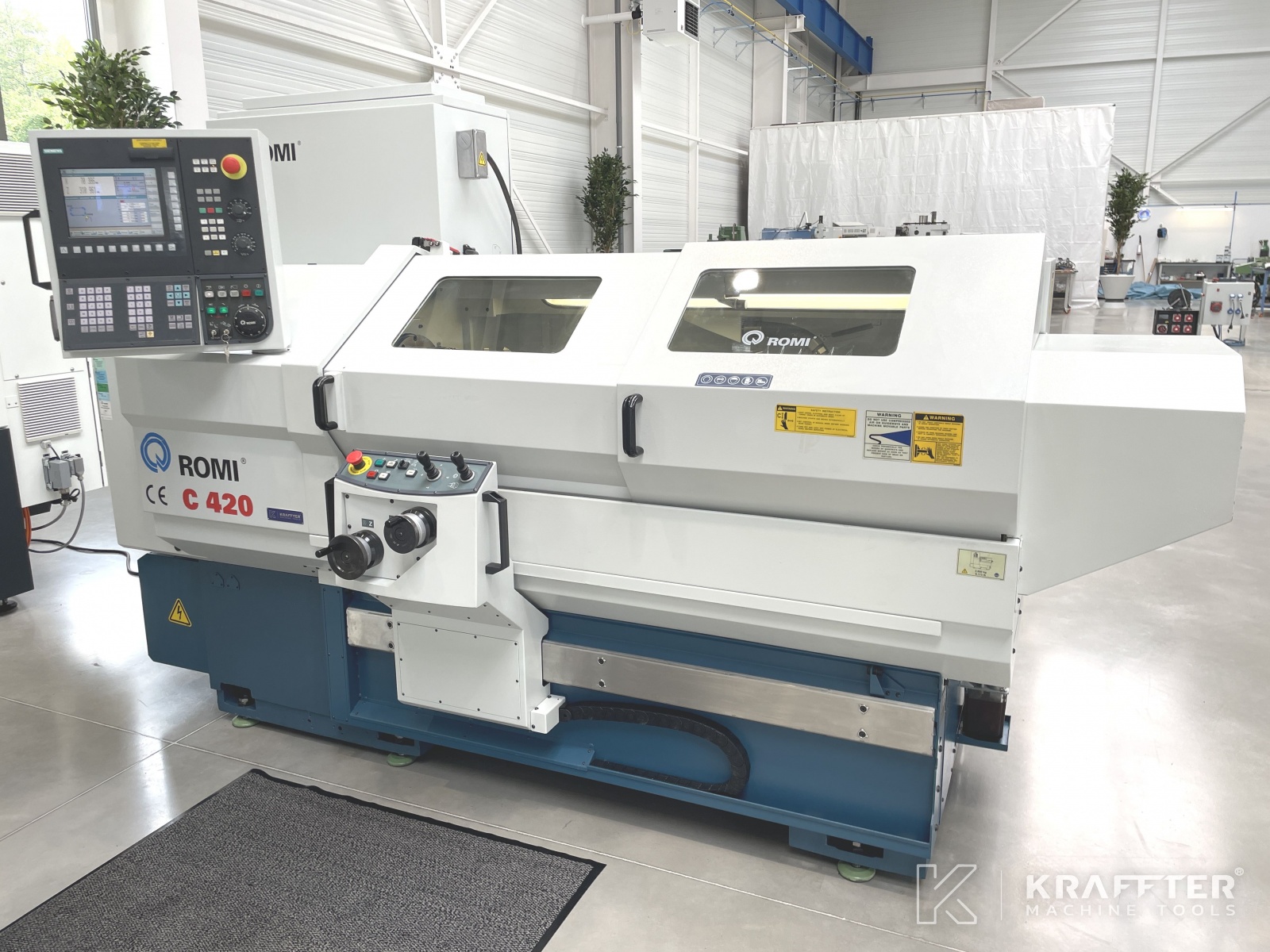

Type of machine : CNC teach-in lathe
Brand : ROMI
Stock N° : 20689-995
Model : C420
Serial N° : 002-094428-448
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

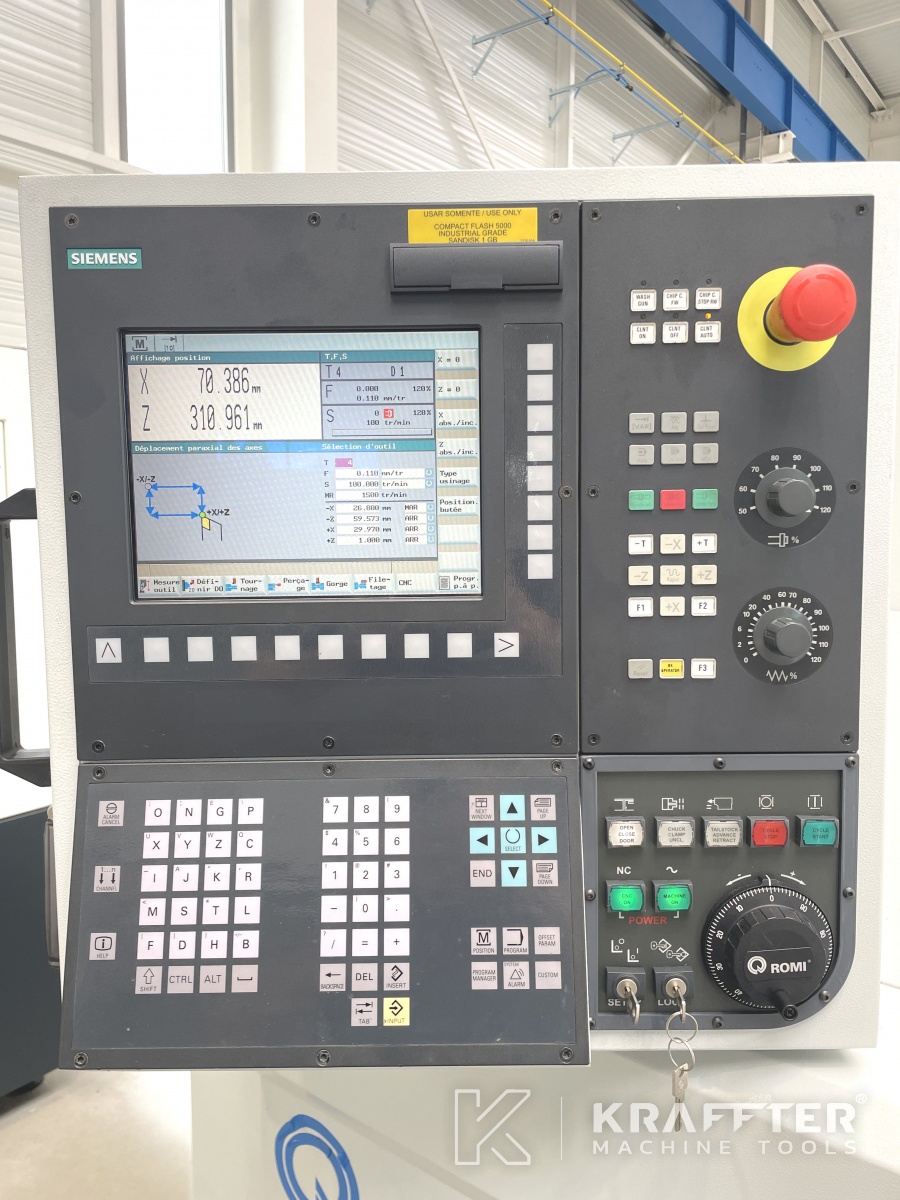

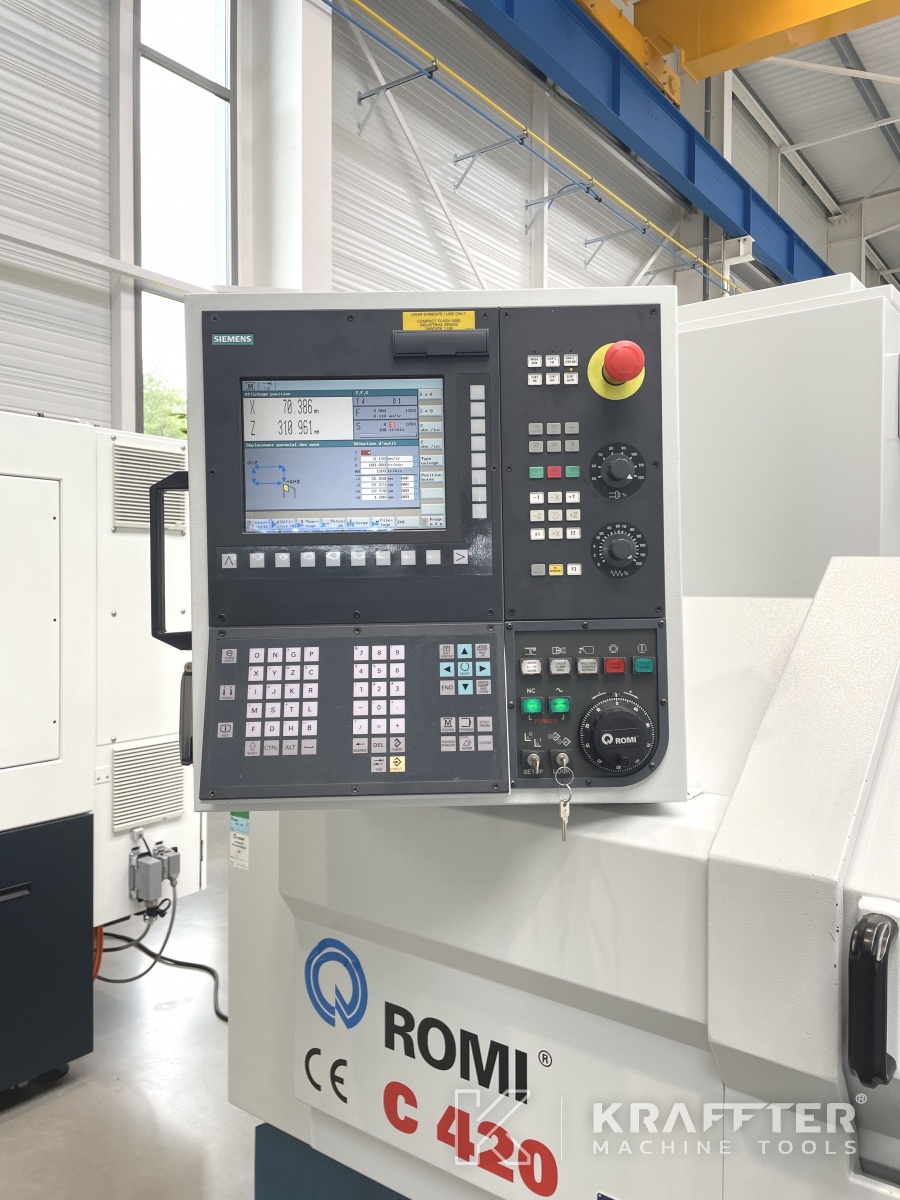

CNC control
SIEMENS 802D SL
Number of axes
2
Distance between centers
1000 [mm]
Height of centers
215 [mm]
Height of centers over cariage
200 [mm]
Max. swing over bed
430 [mm]
Stroke X axis
220 [mm]
Stroke Z axis
1065 [mm]
Spindle nose
A2-5"
Spindle throughbore
53 [mm]
Min. spindle speed
4 [rpm]
Max. spindle speed
4000 [rpm]

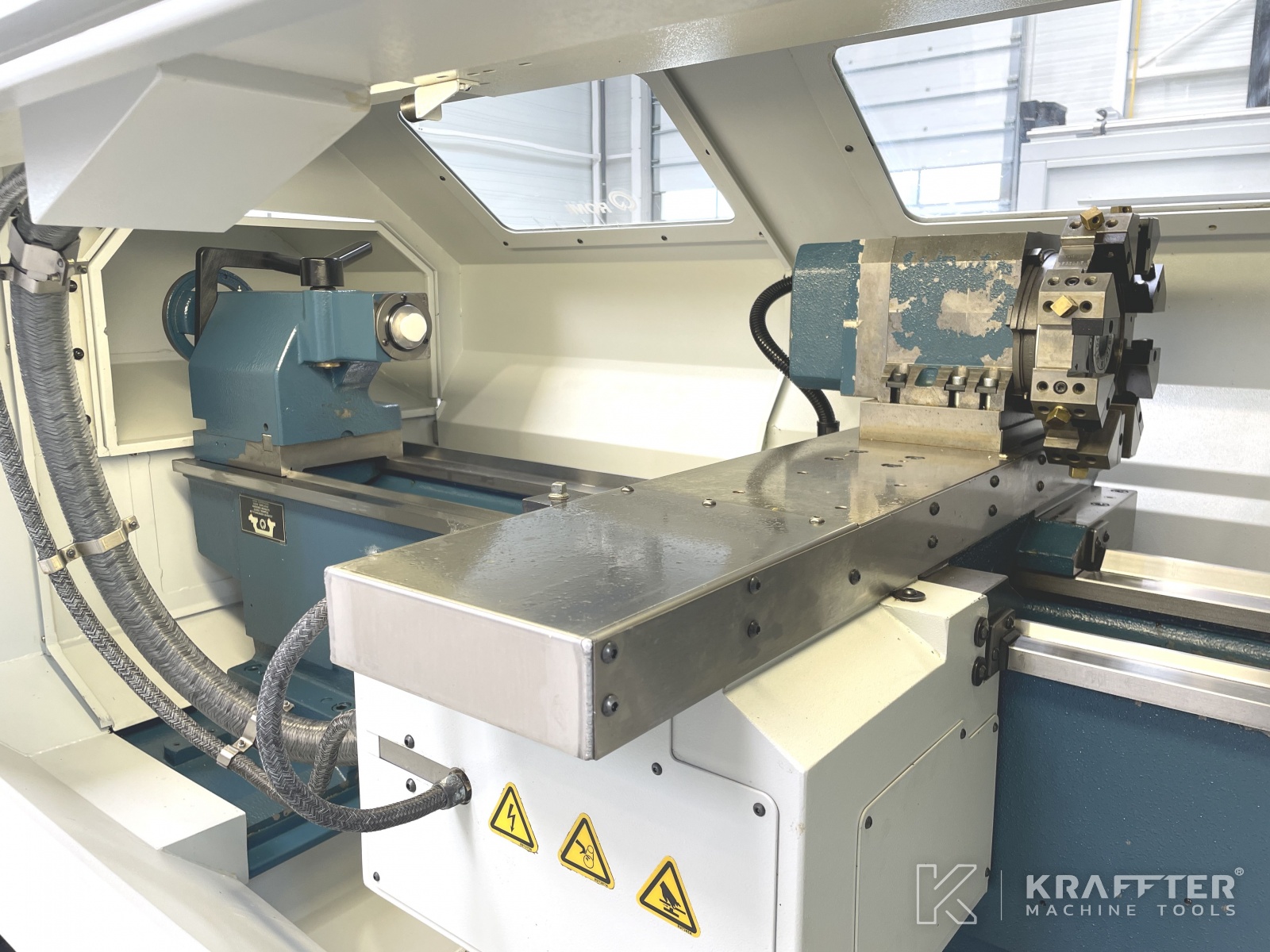

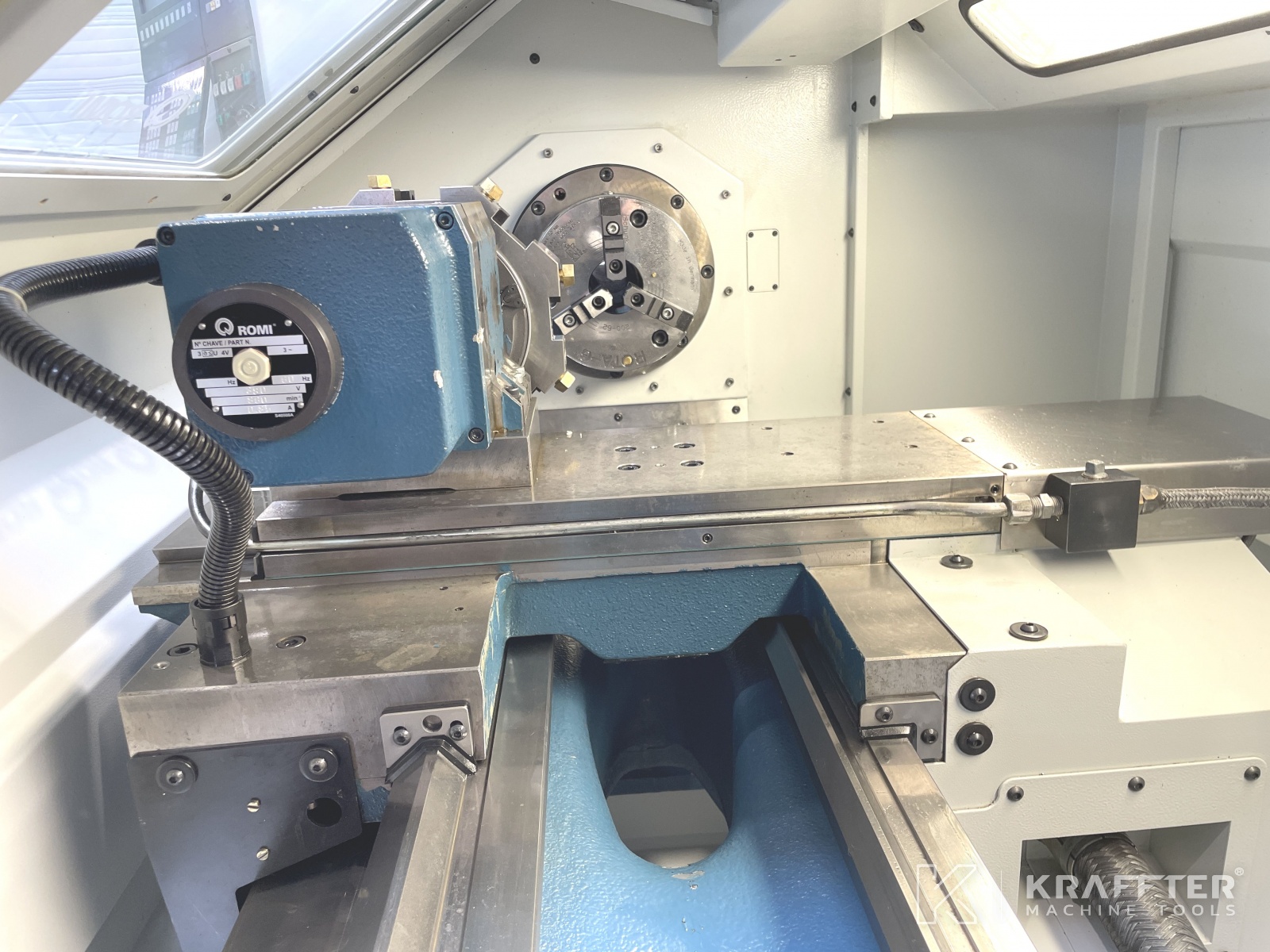

Tailstock type
Manuelle
Type of attachment tailstock
CM5
Tailstock quill stroke
120 [mm]
Tailstock quill diameter
60 [mm]

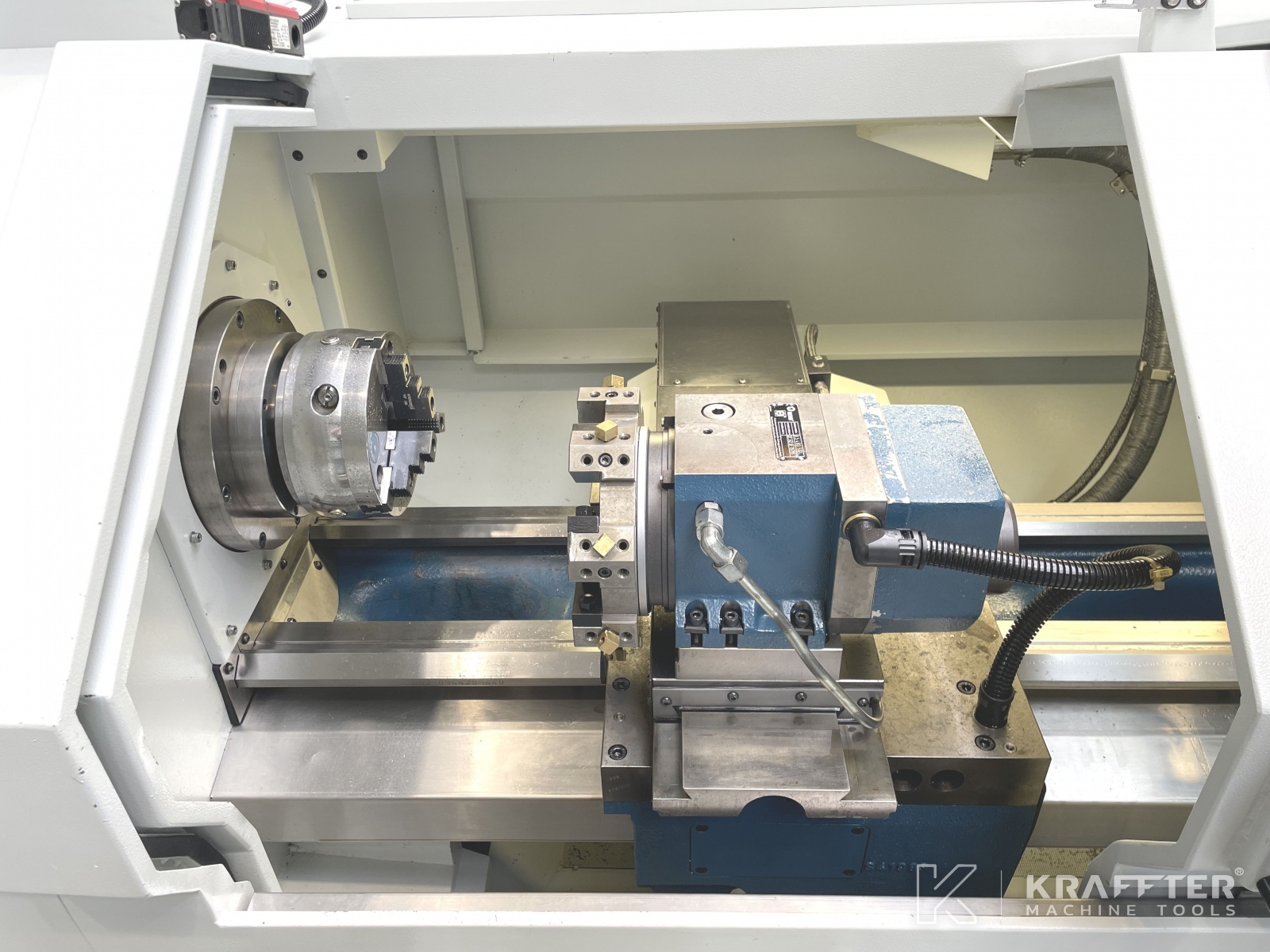

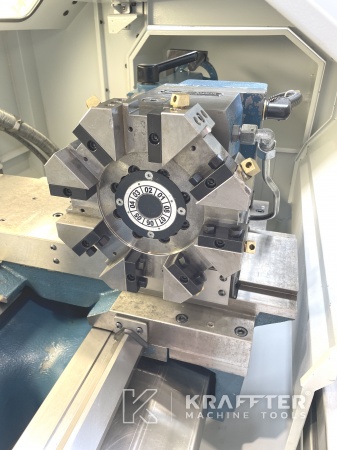

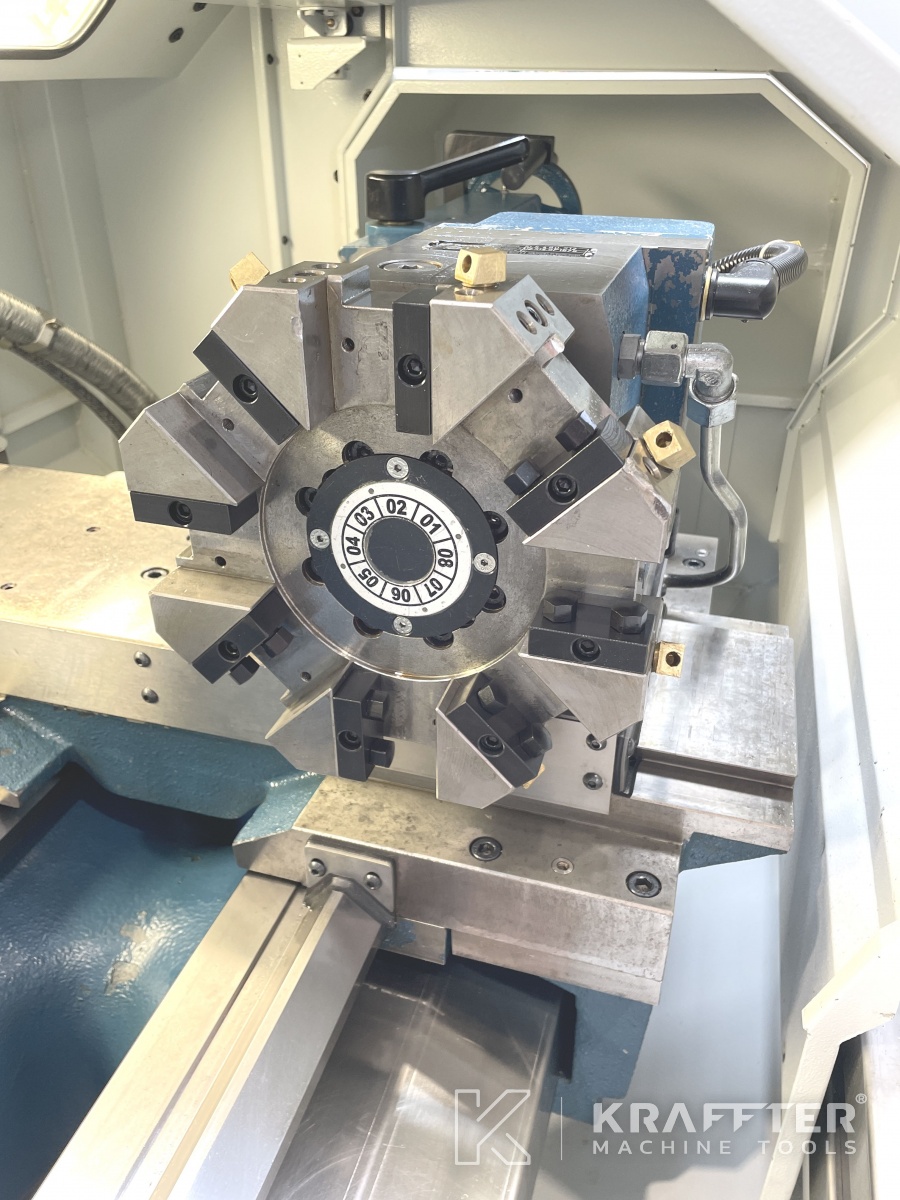

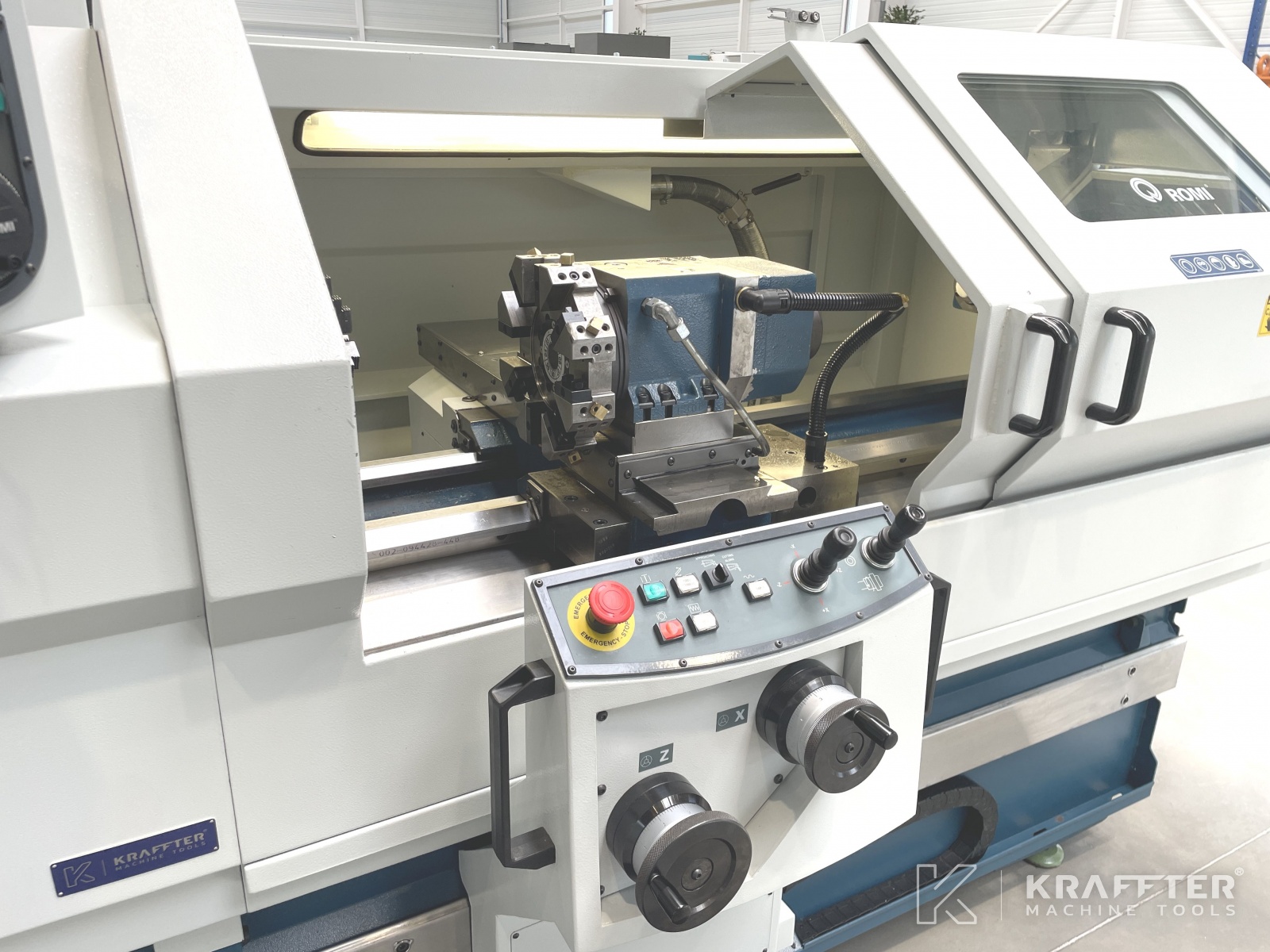

Turret
SAUTER
Type of tool holders
ROMI
Number of tool stations
8

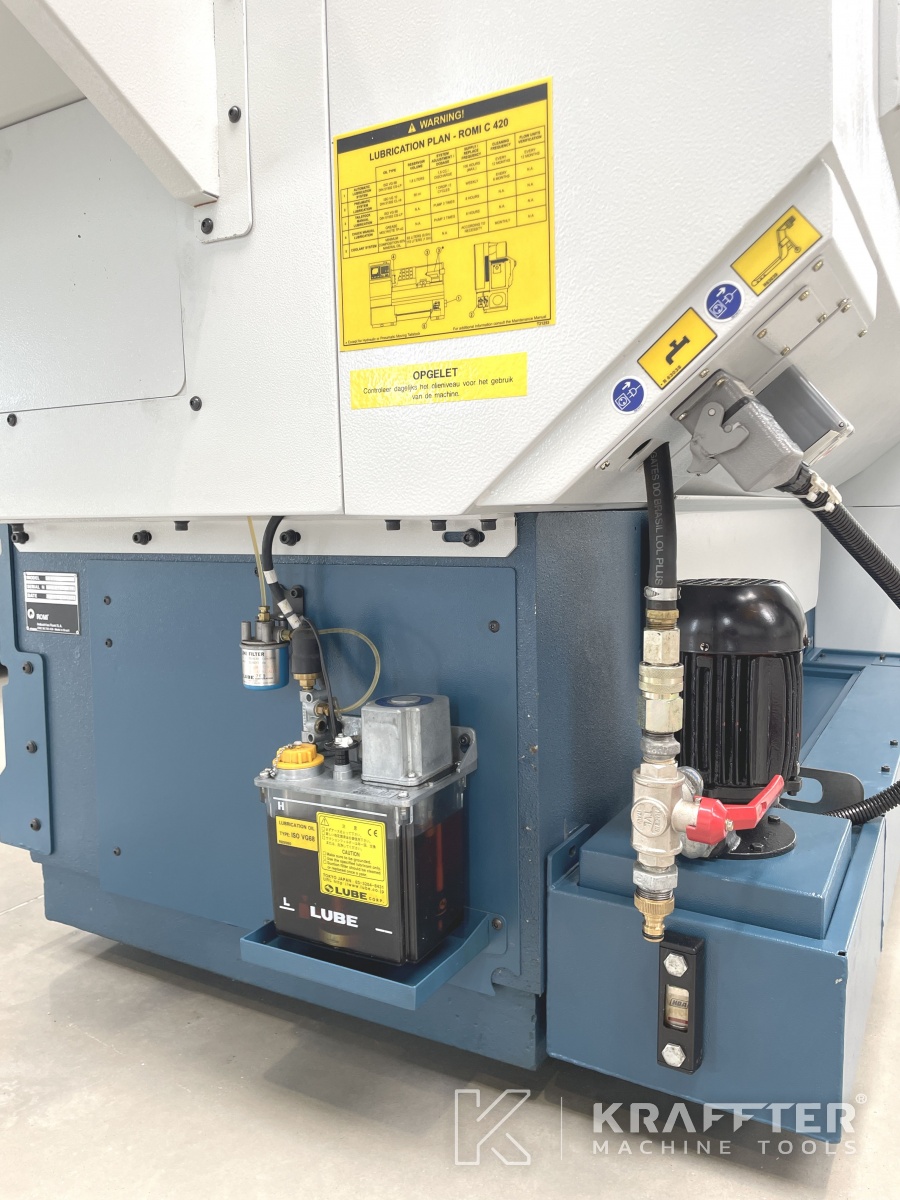

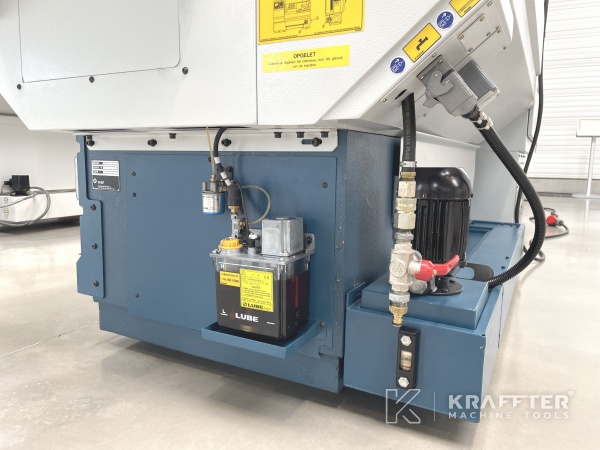

Centralized lubrication
Automatique

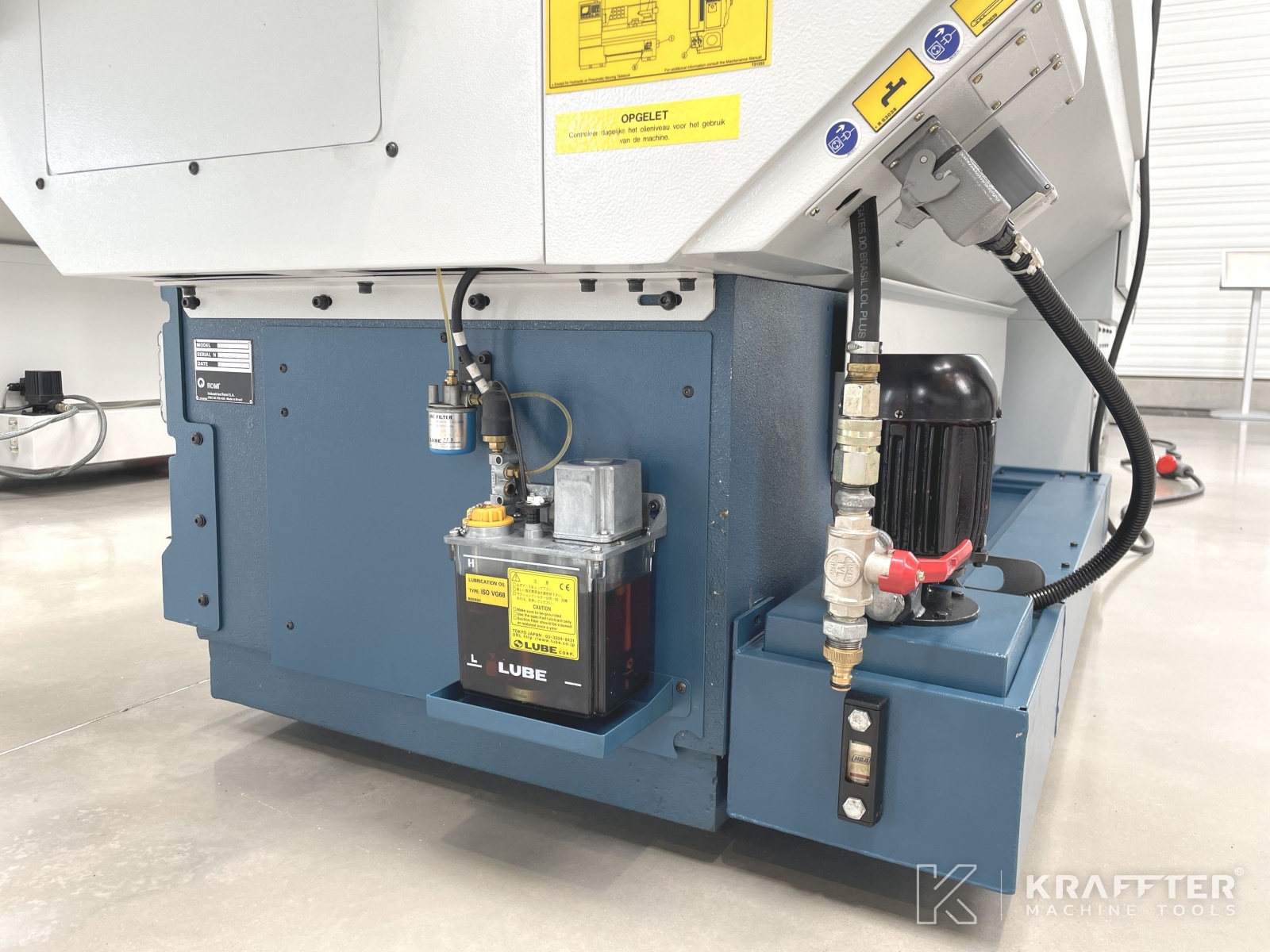

Lubrication tank with pump
Yes
Lubrication tank capacity
115 [l]
Supply voltage
400 [V]
Dimensions
3080 x 1500 x 1980 [mm]
Weight
2800 [Kg]

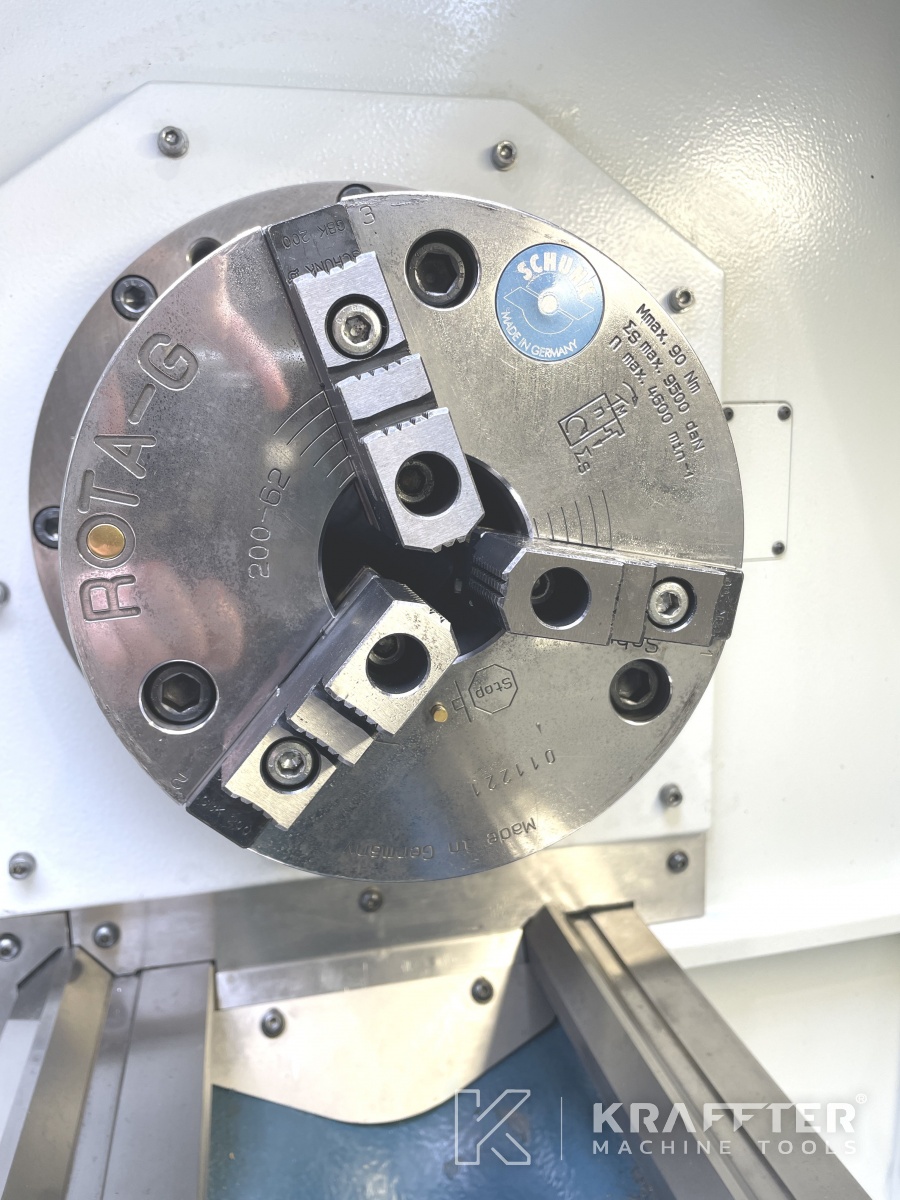

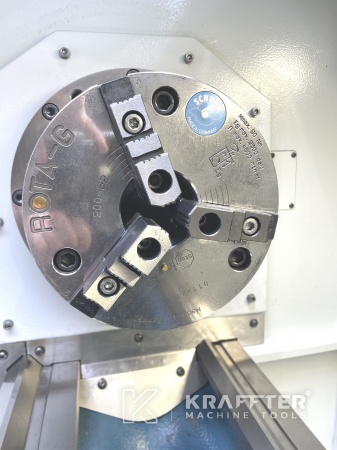

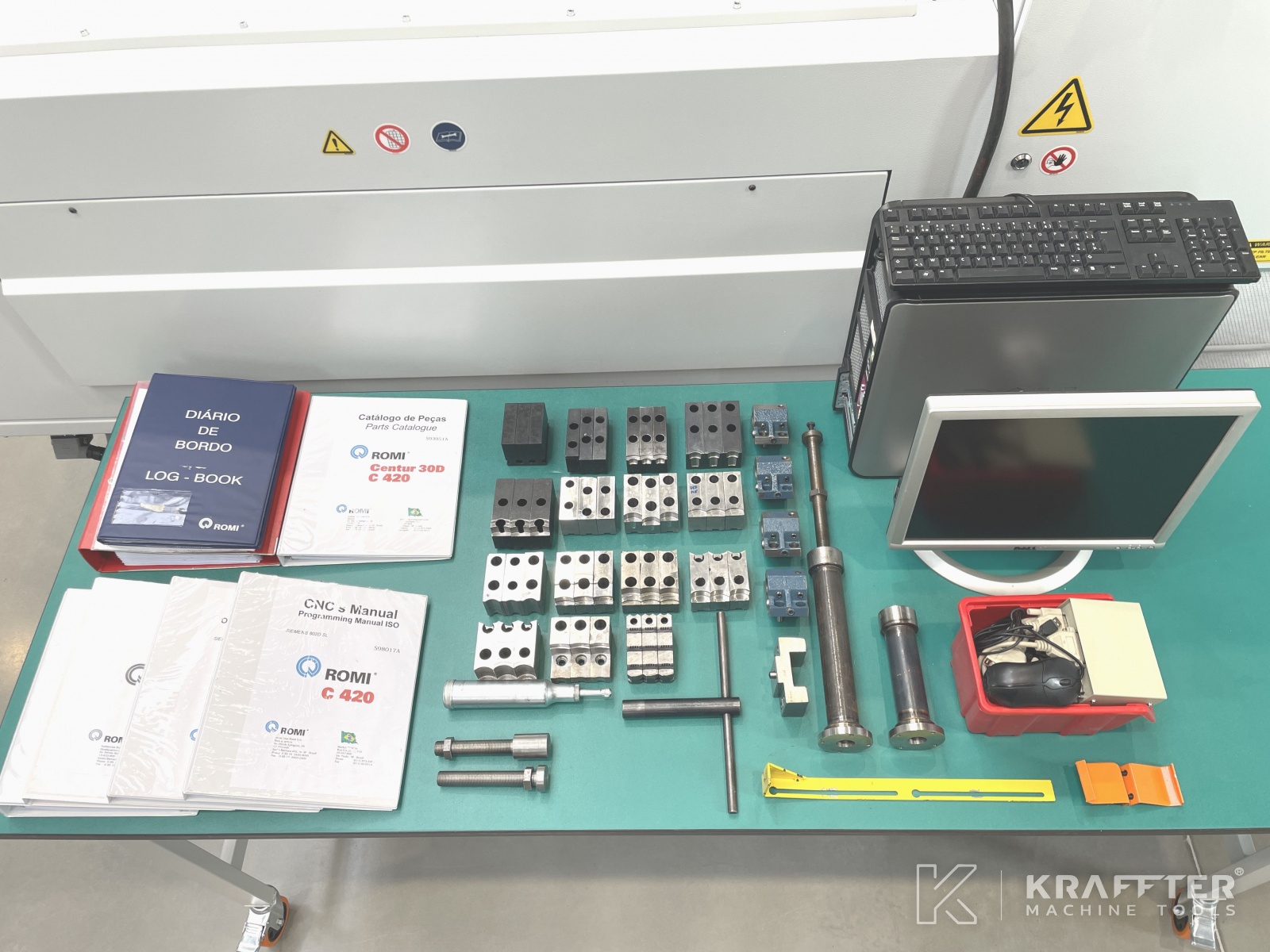

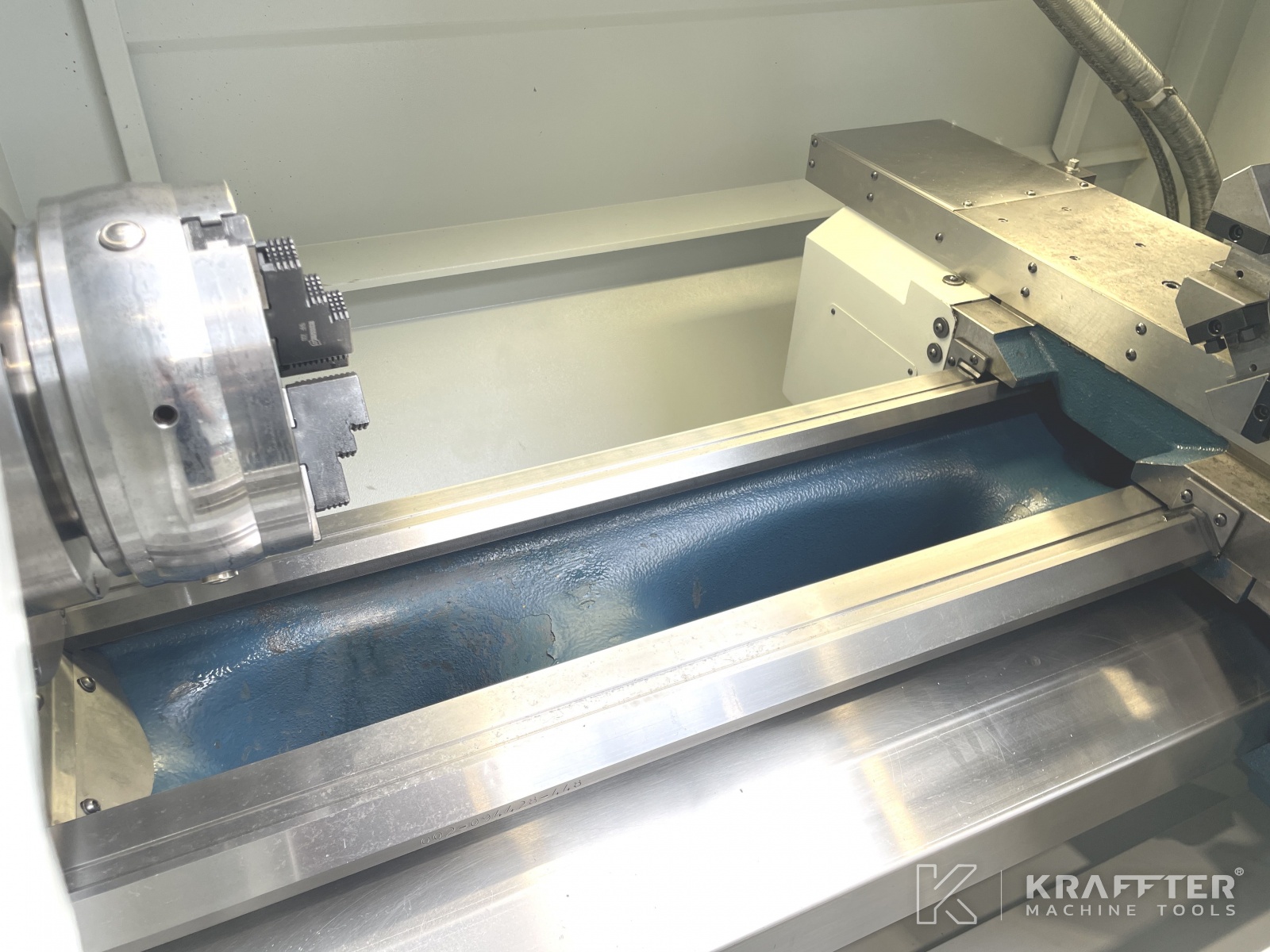

x1 SCHUNK 3 jaw chuck Ø200 [mm] type ROTA-G
x1 set of hardened jaw saddles
x2 sets of hardened jaws
x14 sets of soft jaws
x2 spindle through-bore adjustable stops
x4 supports for borings bars
x1 tooling metallic cabinet
x1 computer + LCD screen
x1 Maintenance manual (in English)
x1 Diagnostics guide (in English)
x1 Parts catalogue (in English)
x1 Operation & Programming manual (in English)
x1 Programming Manual ISO (in English)
