Sold

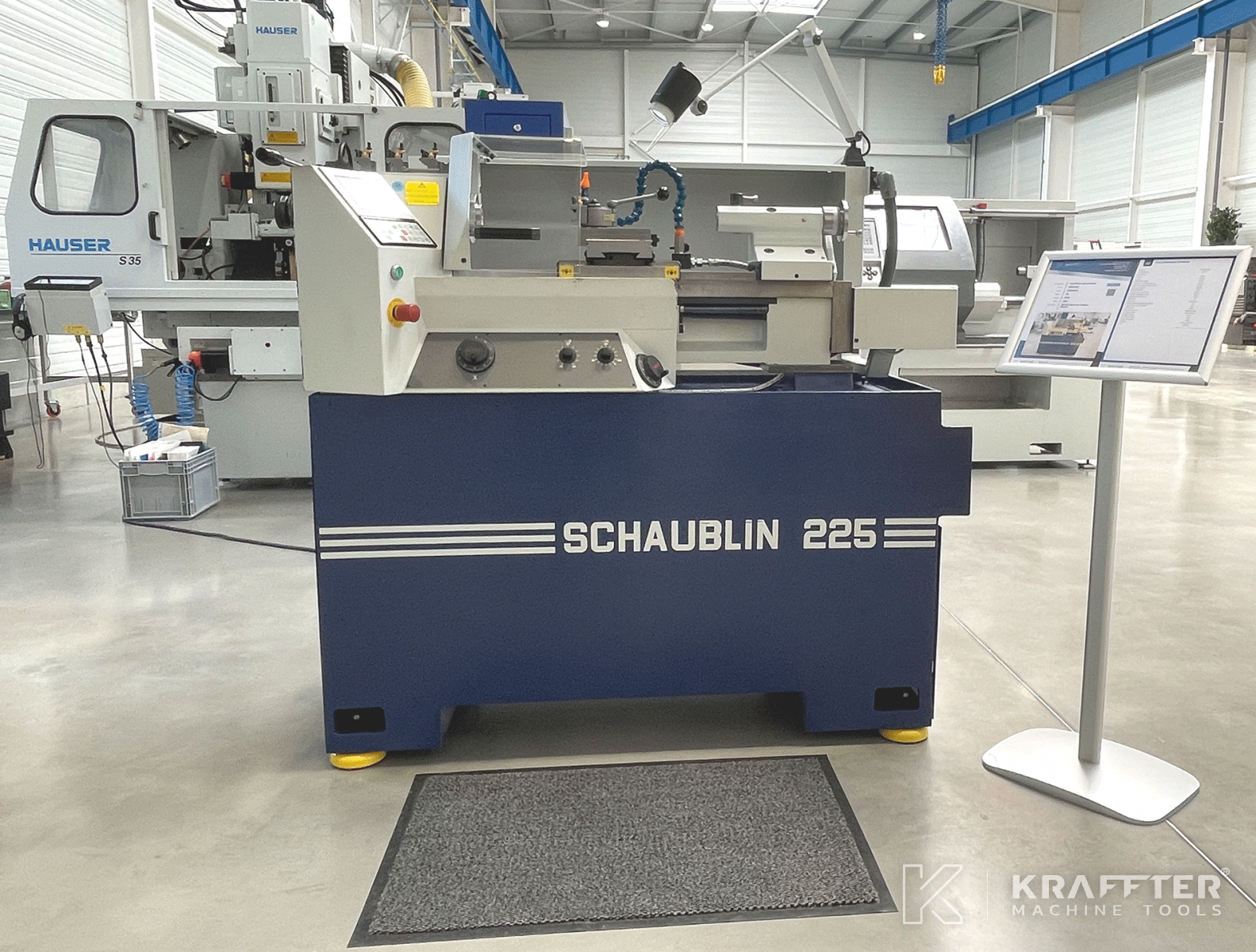

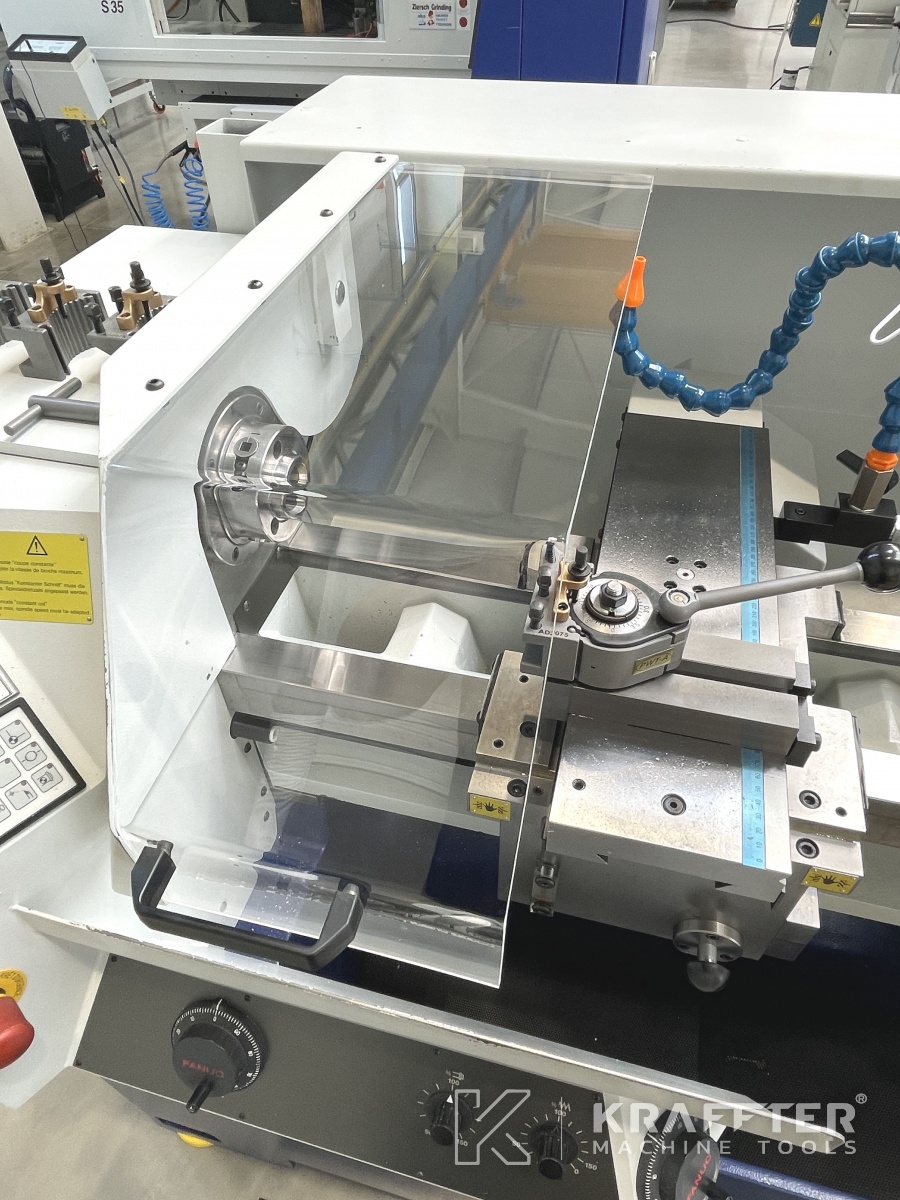

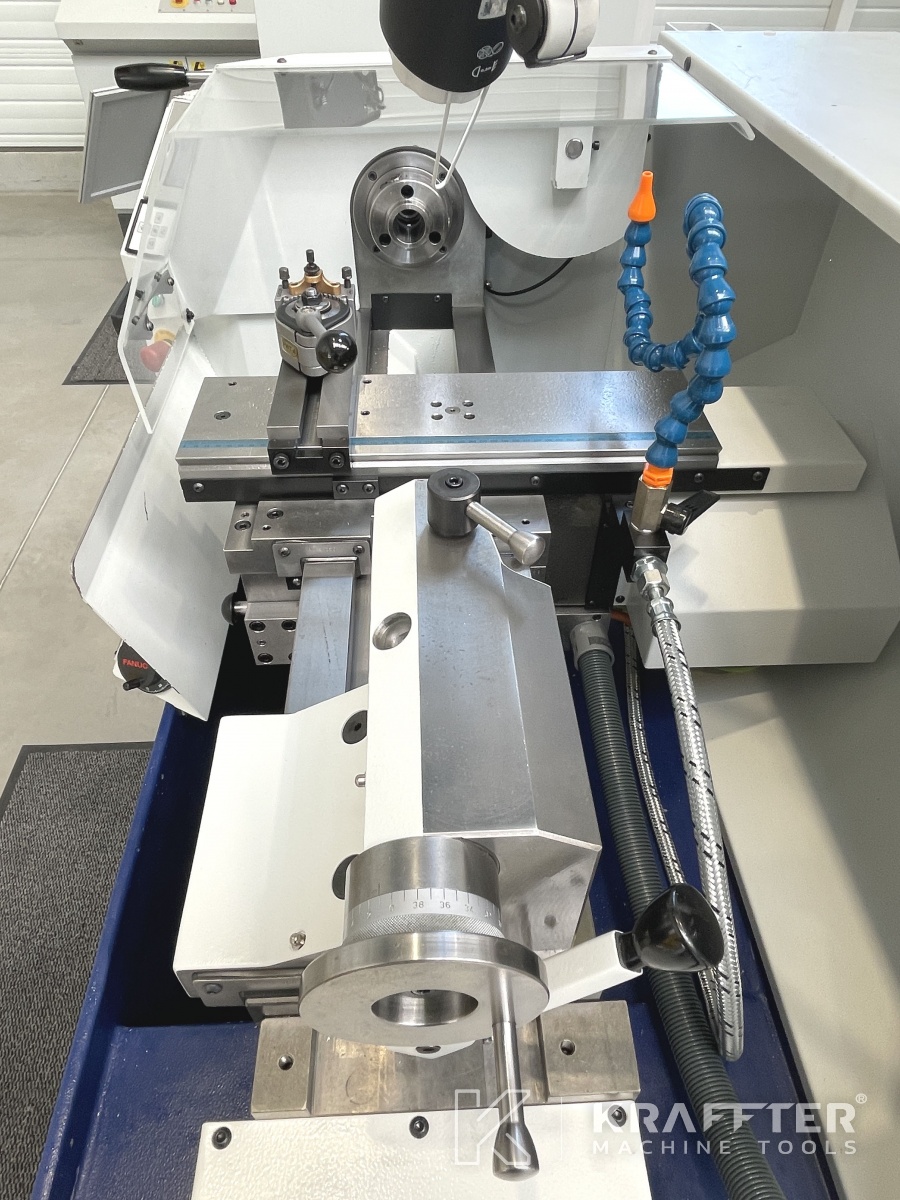

Type of machine : CNC teach-in lathe
Brand : SCHAUBLIN

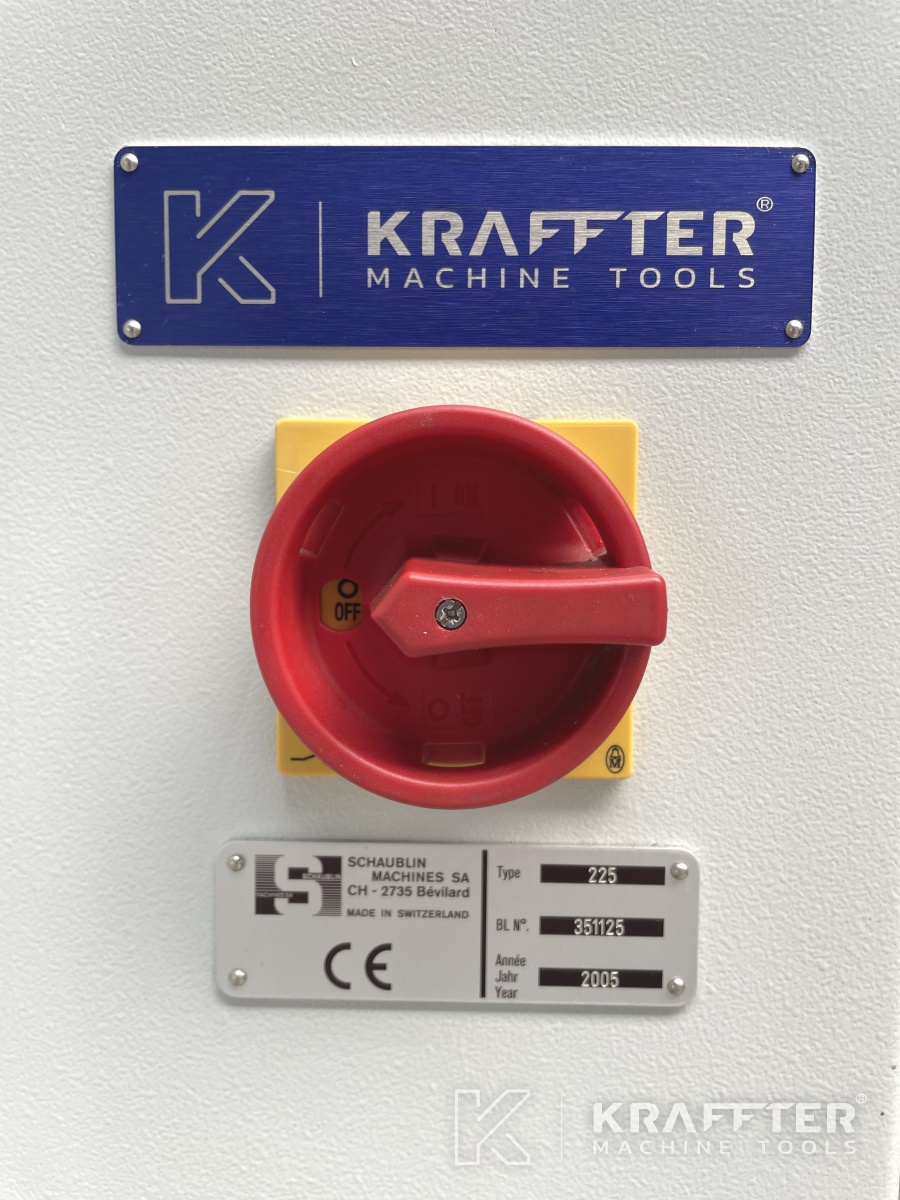

Stock N° : 20690-007
Model : 225
Serial N° : 351125
Year : 2005
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

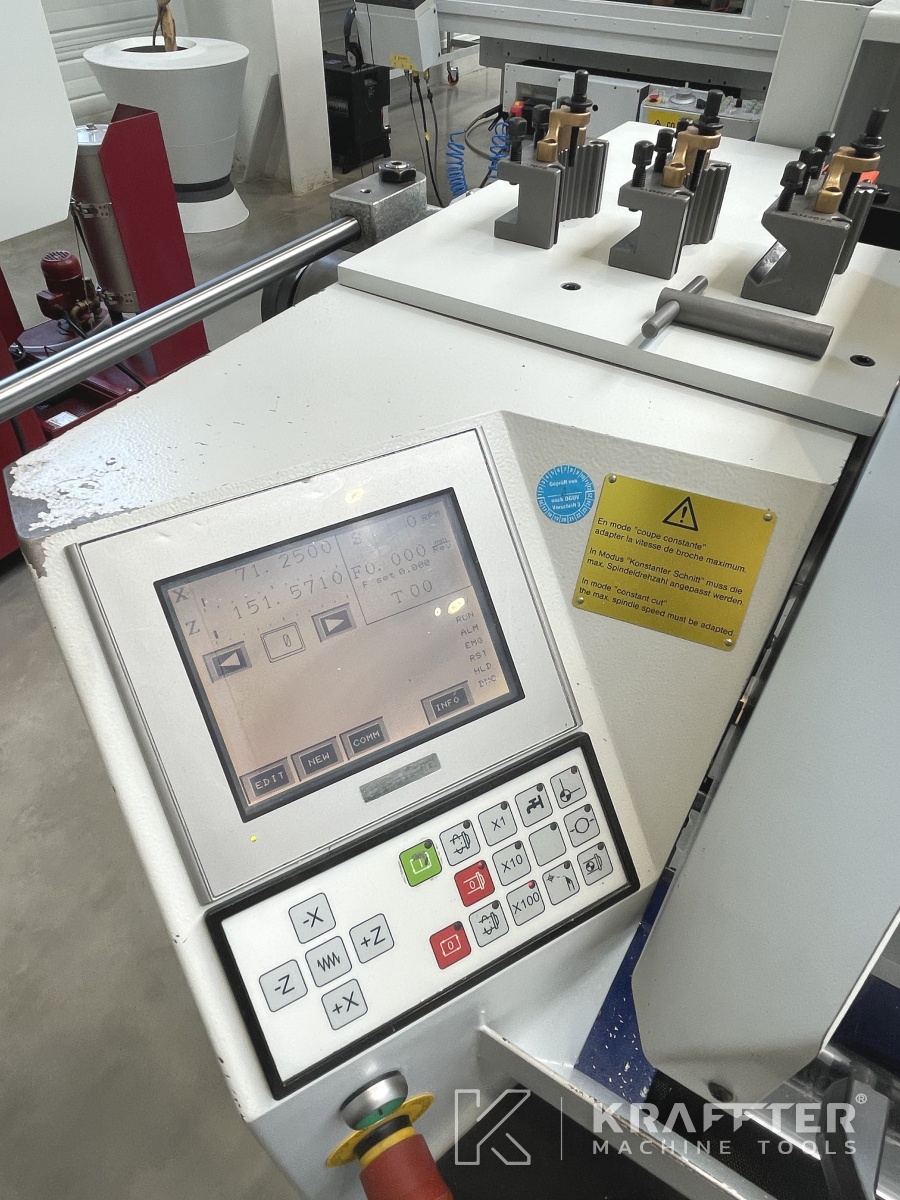

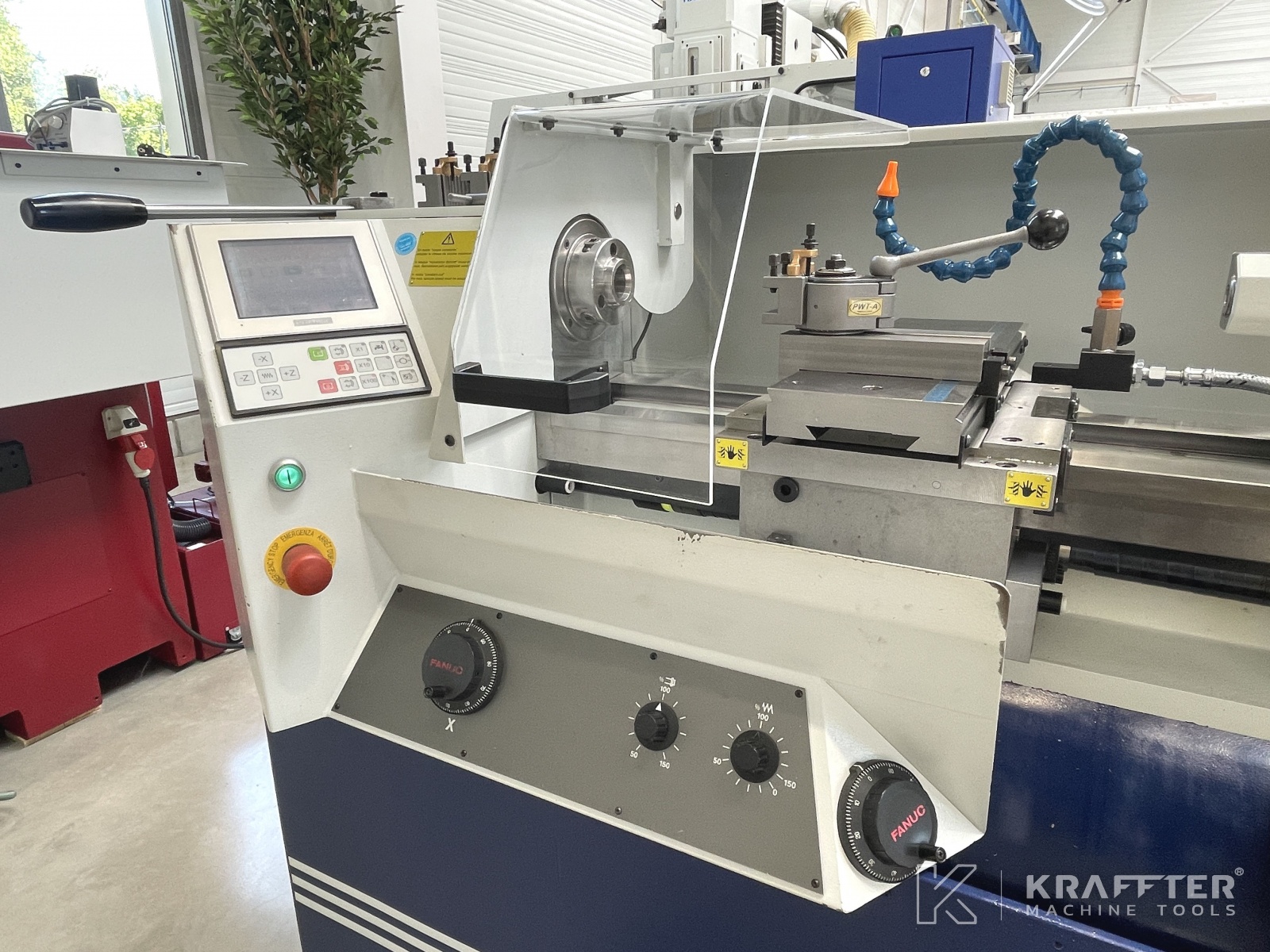

CNC control
FANUC QuickTurn
Number of axes
2
Height of centers
125 [mm]
Max. turning diameter
270 [mm]
Height of centers over cariage
115 [mm]
Stroke X axis
136 [mm]
Stroke Z axis
410 [mm]

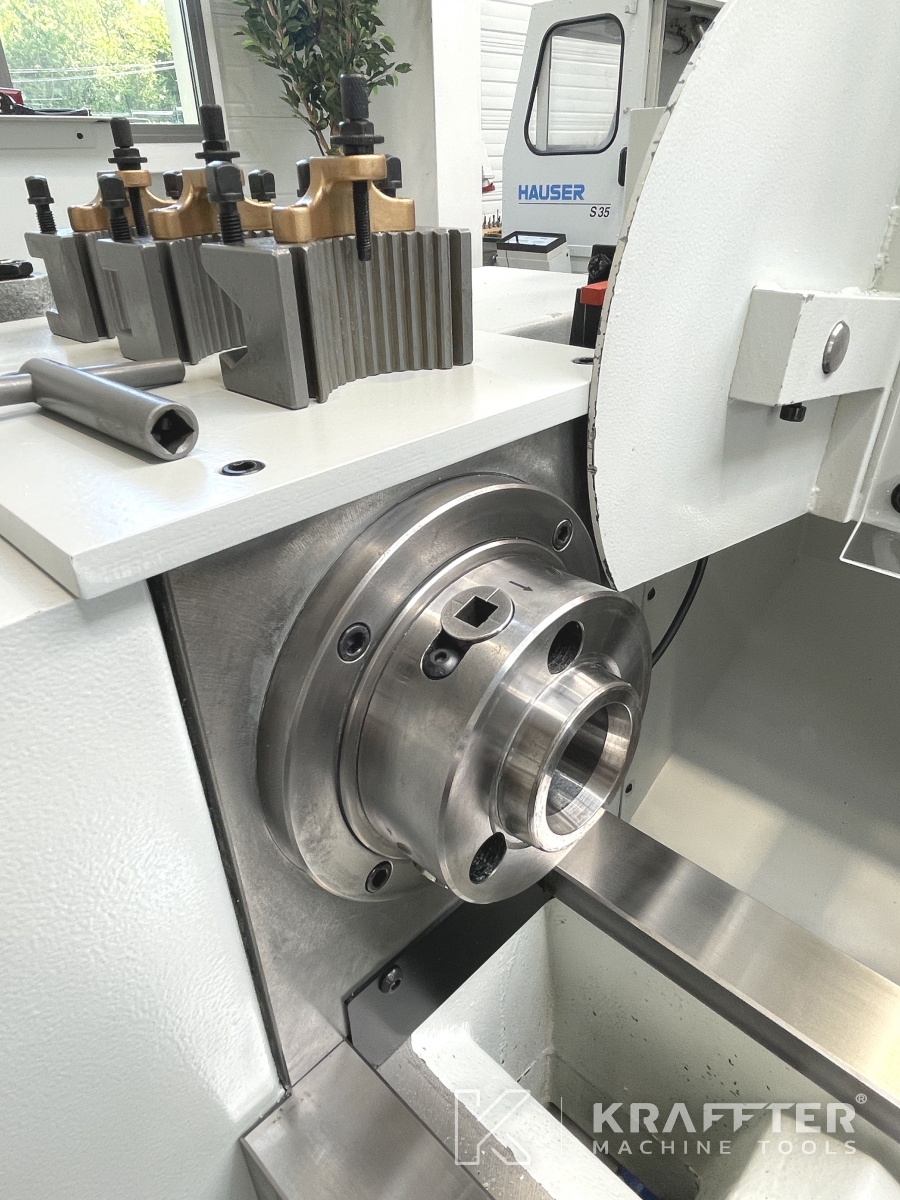

Spindle nose
CAMLOCK D 1-3’’
Spindle for collets
B32
Max. throughbore with collet
24 [mm]
Spindle throughbore
28 [mm]
Min. spindle speed
50 [rpm]
Max. spindle speed
5000 [rpm]

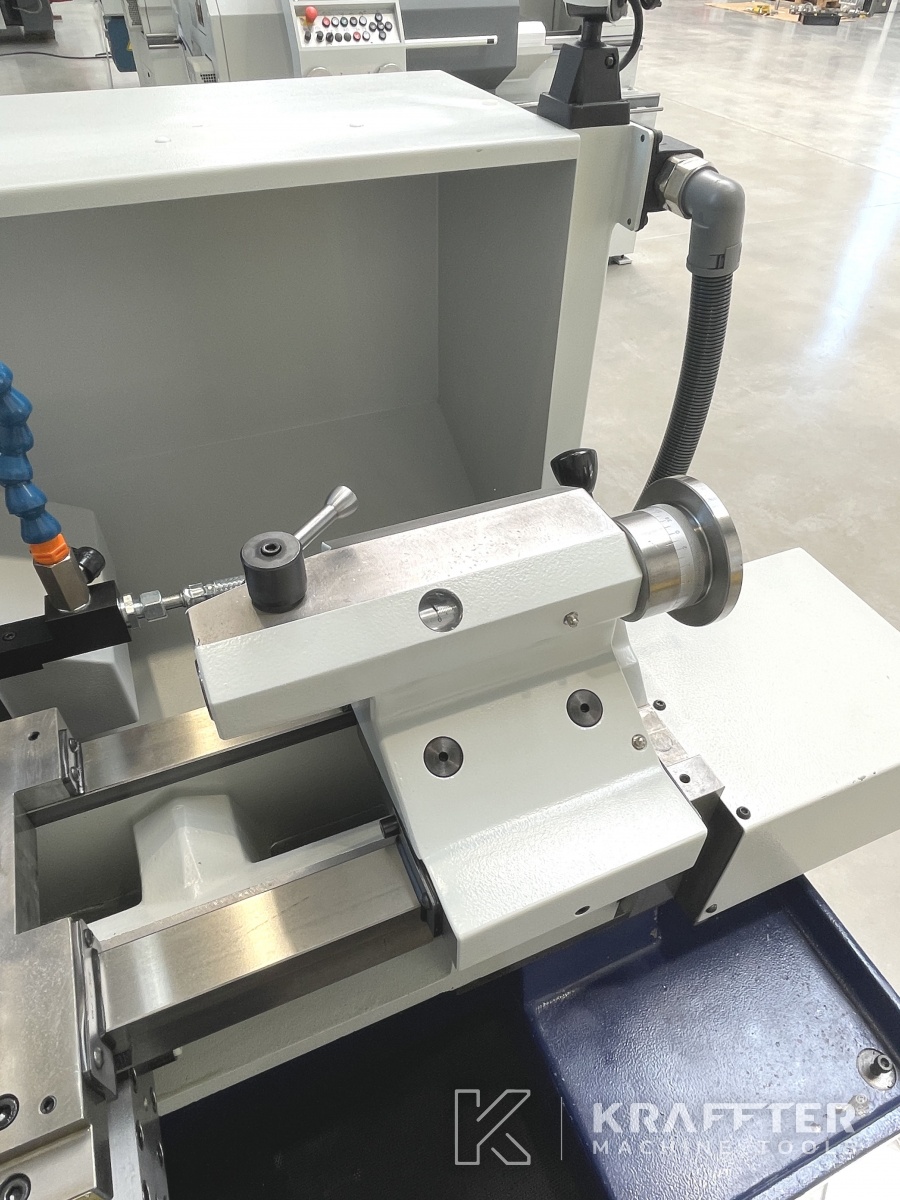

Tailstock type
manuelle
Type of attachment tailstock
CM2
Tailstock quill stroke
100 [mm]
Tailstock quill diameter
35 [mm]

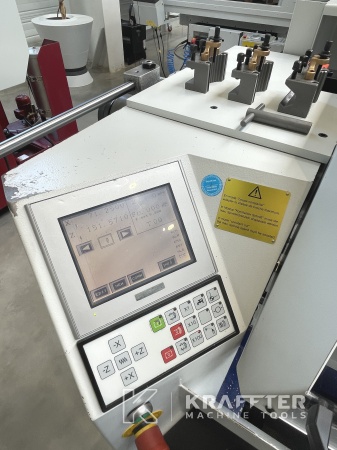

Touchscreen
Yes
Manual lever-operated quick-closing attachment
Yes
Turret
Type Multifix (A)
Centralized lubrication
Manuel
Lubrication tank capacity
55 [l]
Supply voltage
400 [V]
Dimensions
1660 x 1200 x 1630 [mm]
Weight
1200 [Kg]

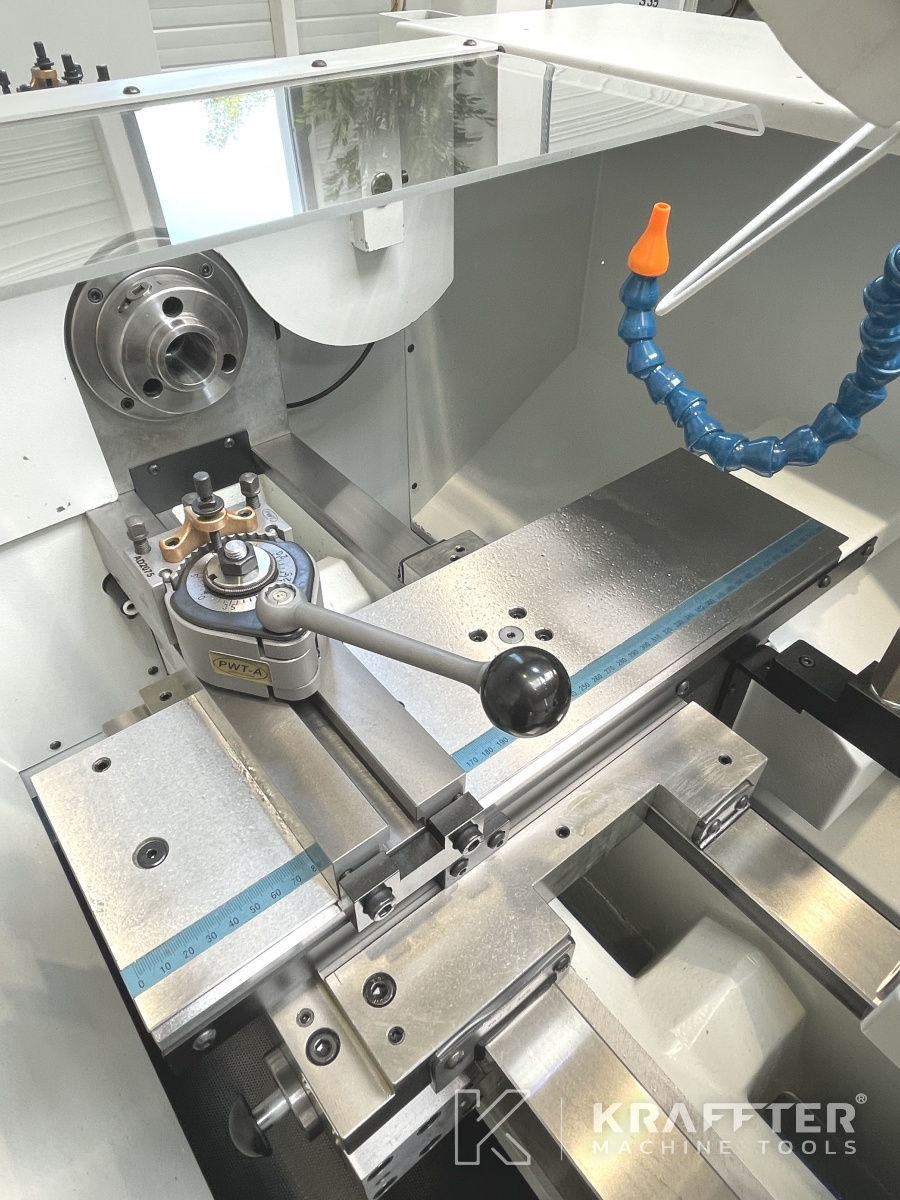

x1 lever-operated quick-closing W25 - Ref SCHAUBLIN 0225-21700-000

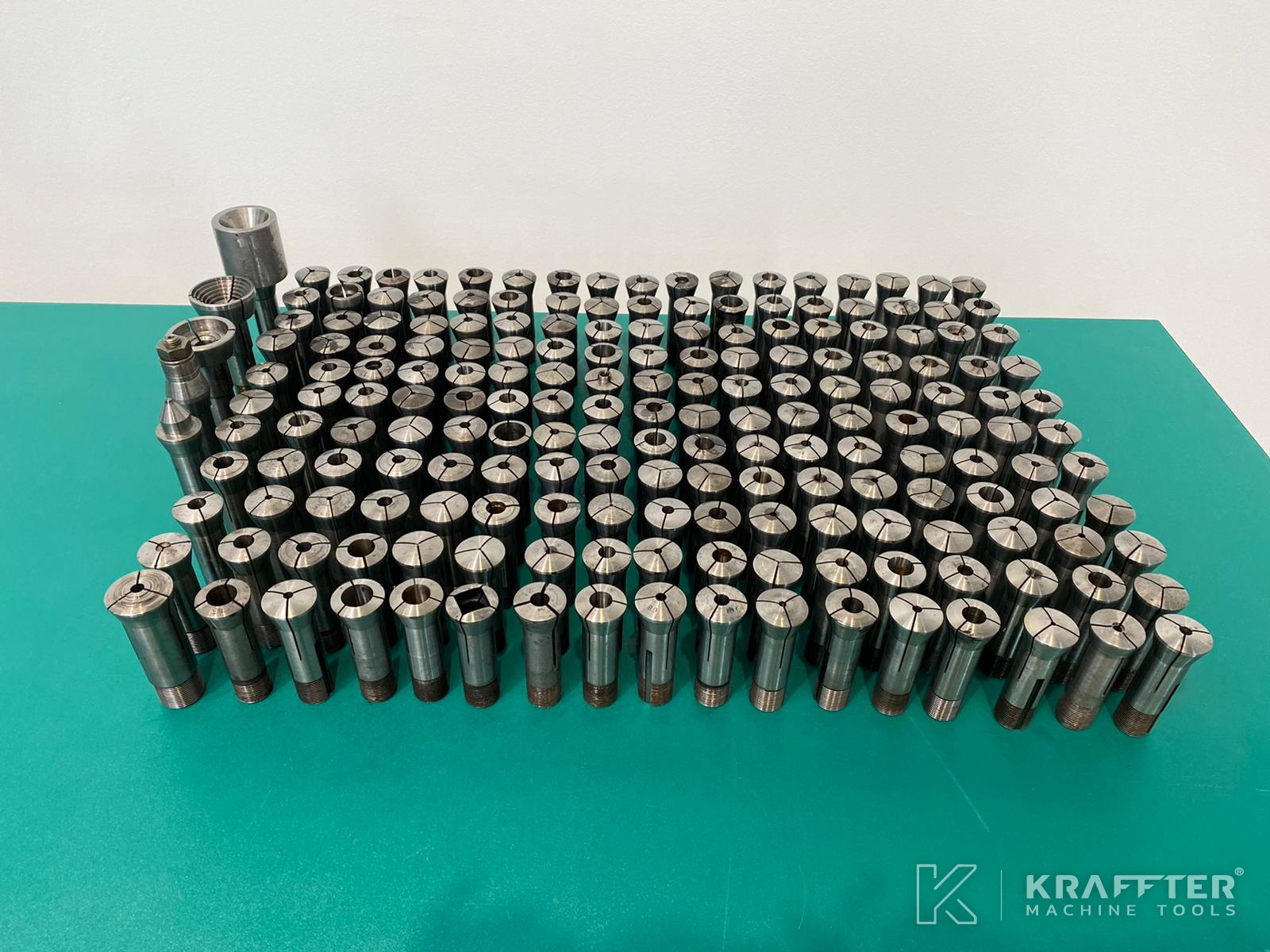

x187 collets W25
x1 reduction bush B32/W25

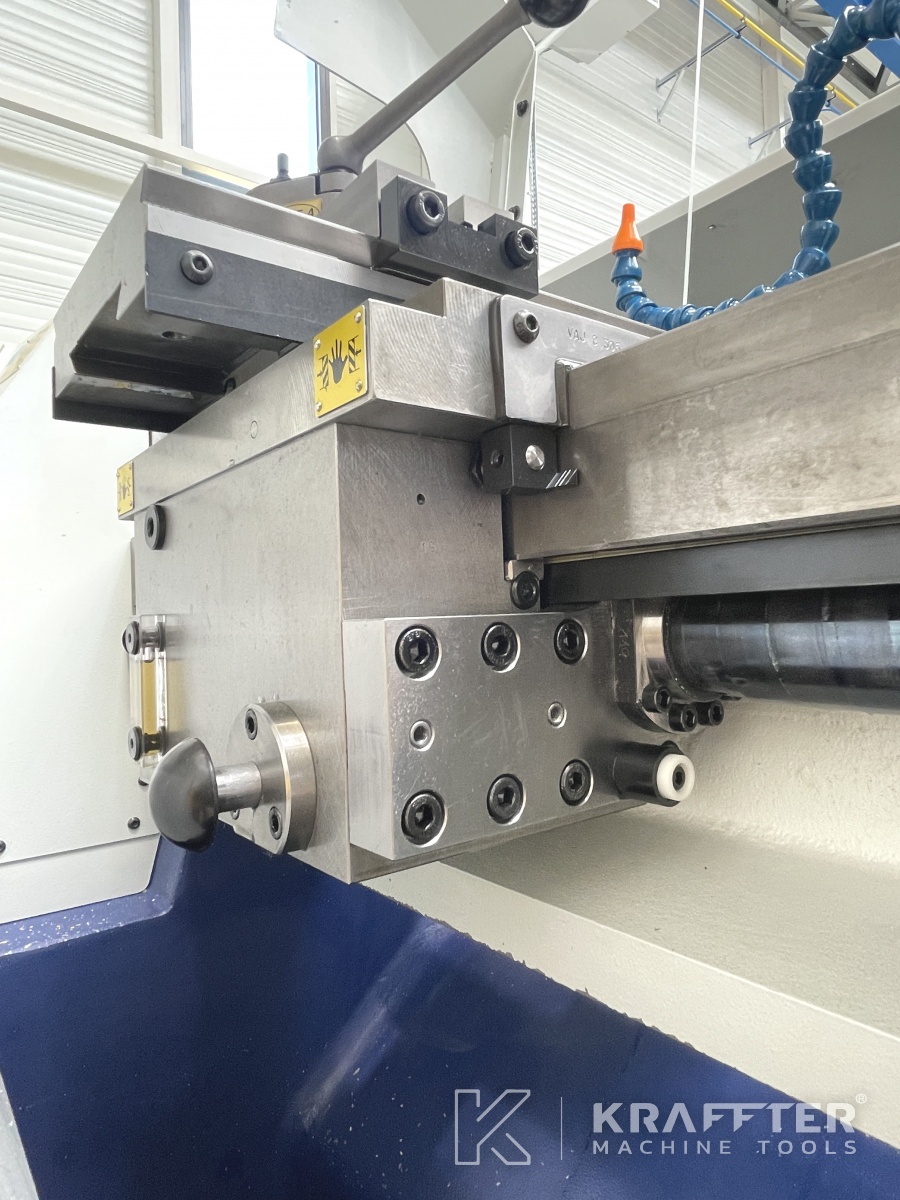

x1 front saddle with T-slot width 70 [mm], height 30 [mm] - Ref SCHAUBLIN 0225-46520-000

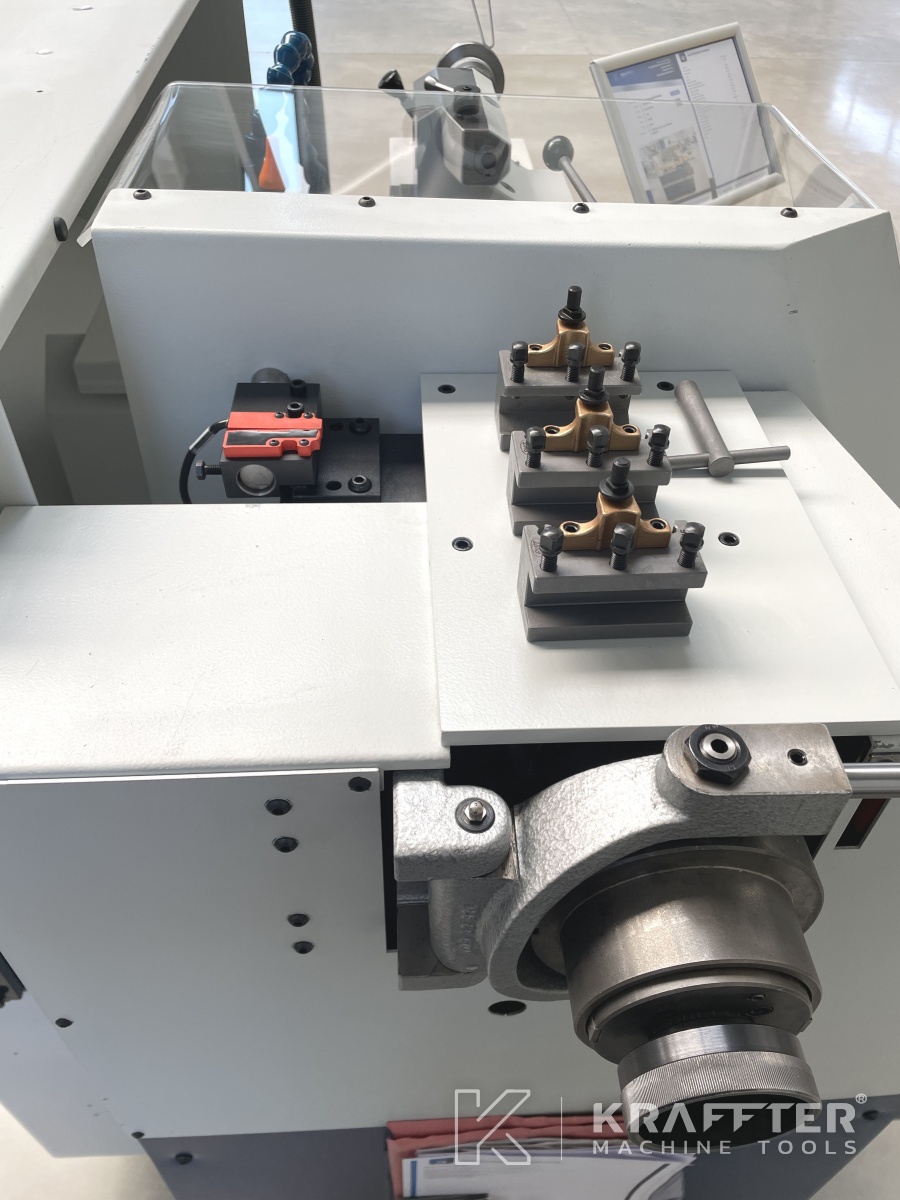

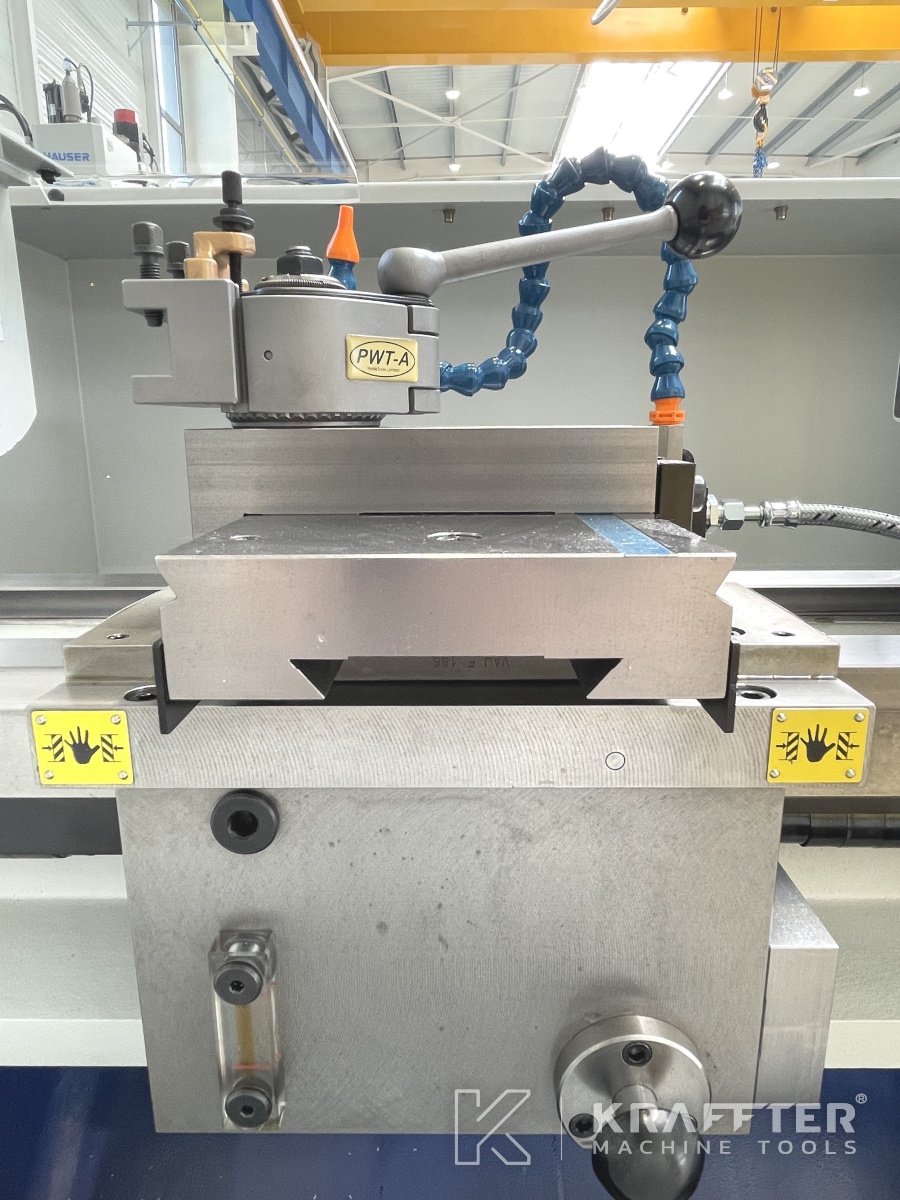

x1 MULTIFIX version A (copy) quick-clamping toolholder
x4 tool holders
x4 feetpads
x1 parameter backup disk
x1 SERVICE manual in French
x1 OPERATORS manual in French & German

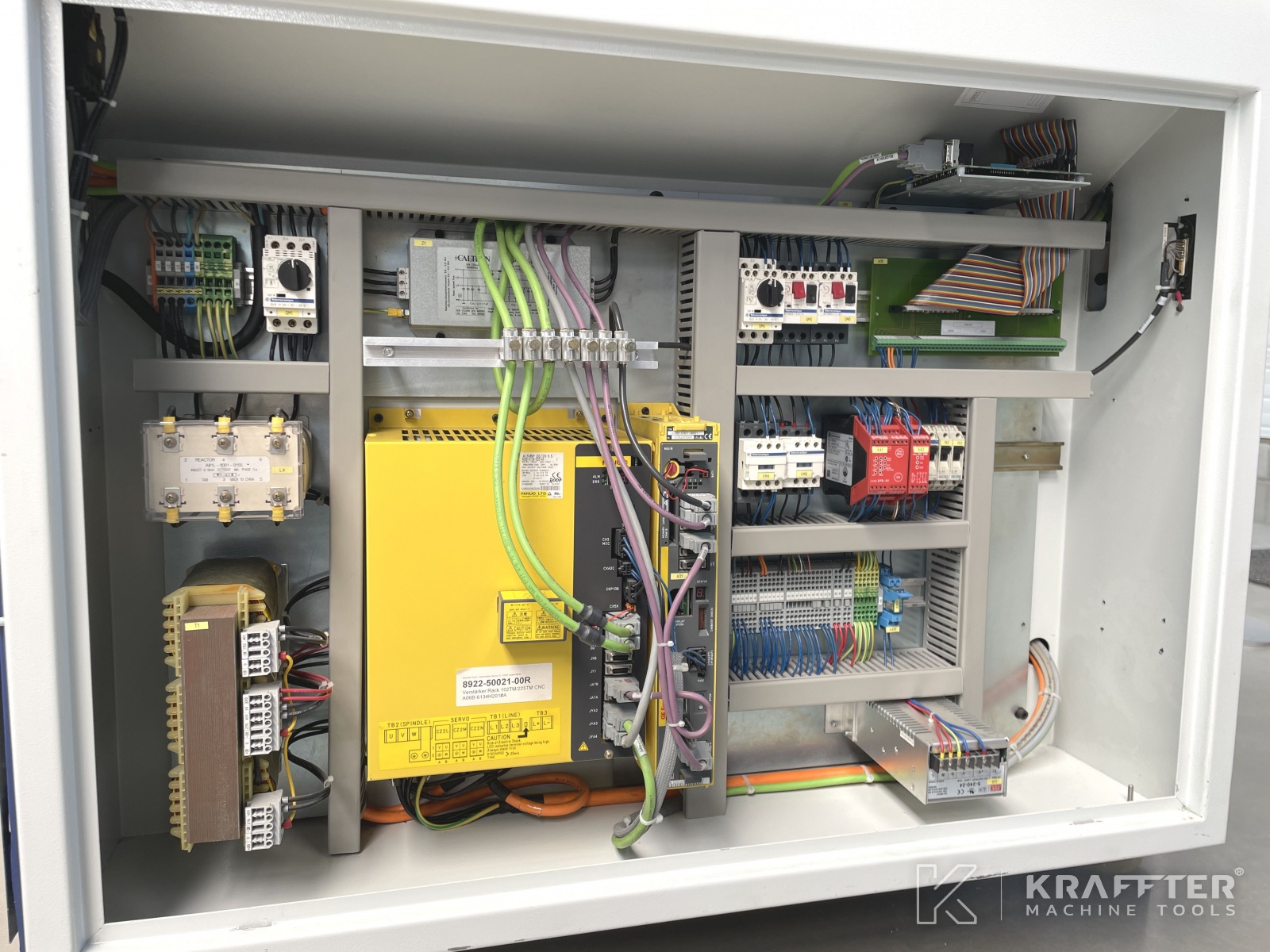

x1 ELECTRICAL manual
