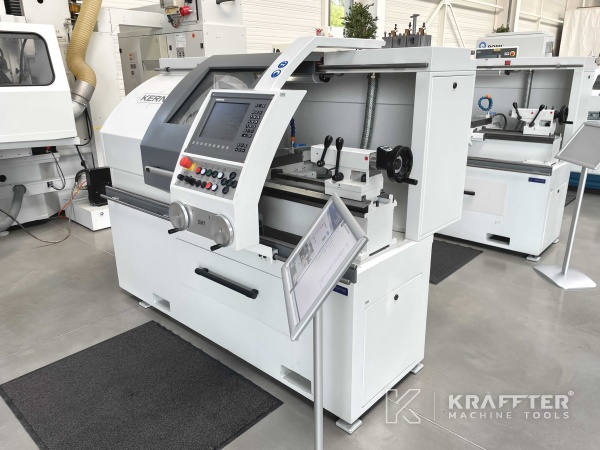

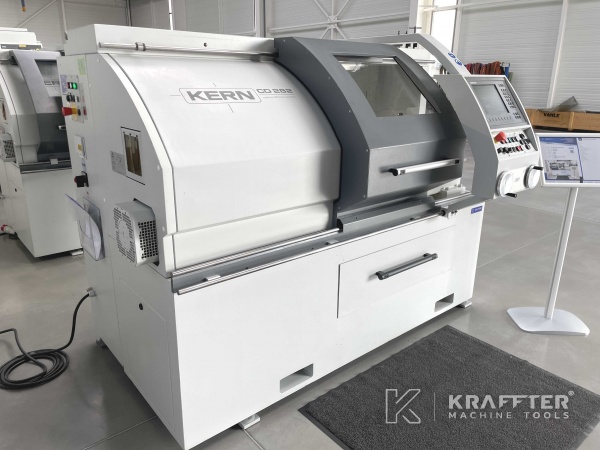

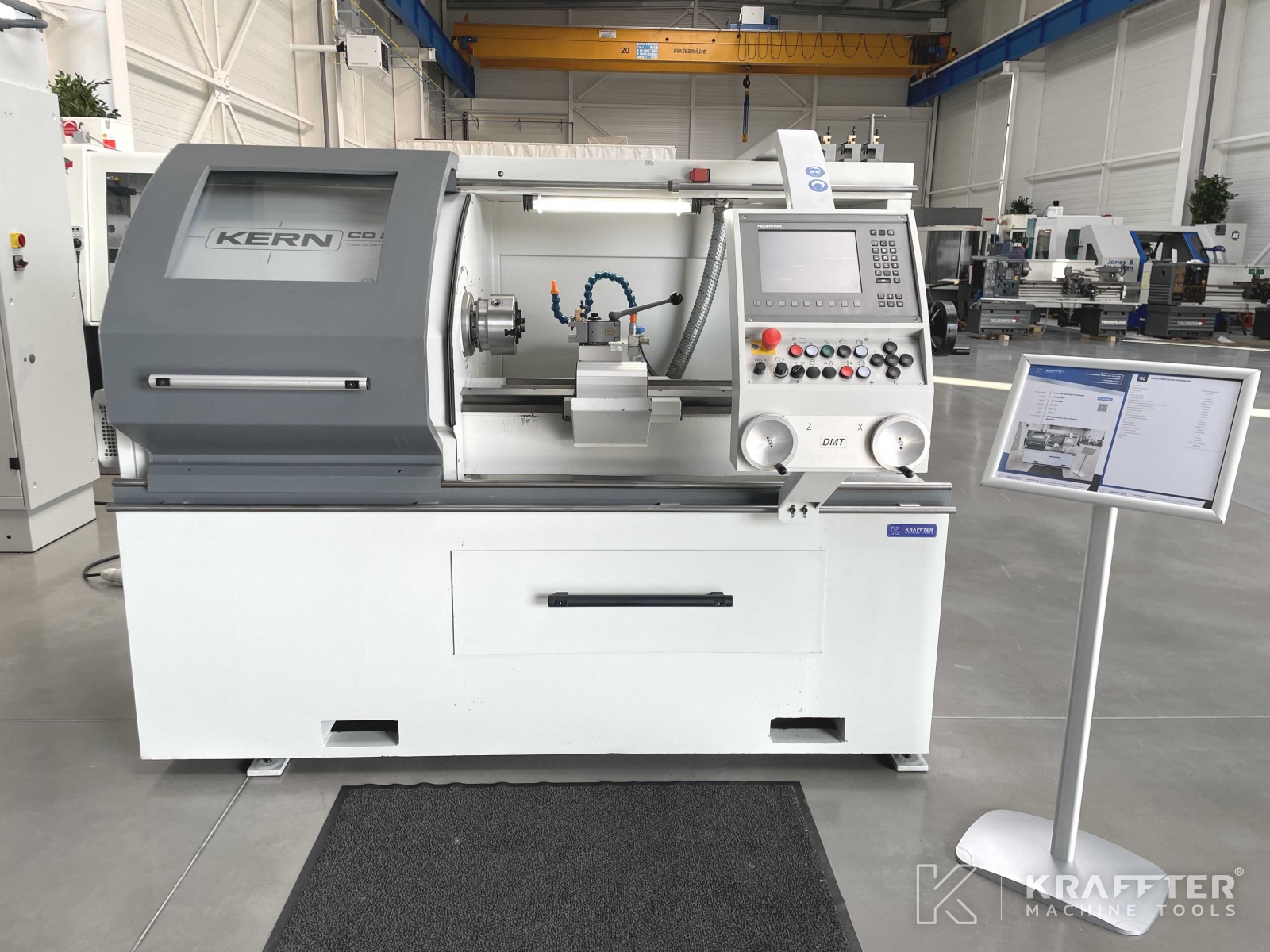

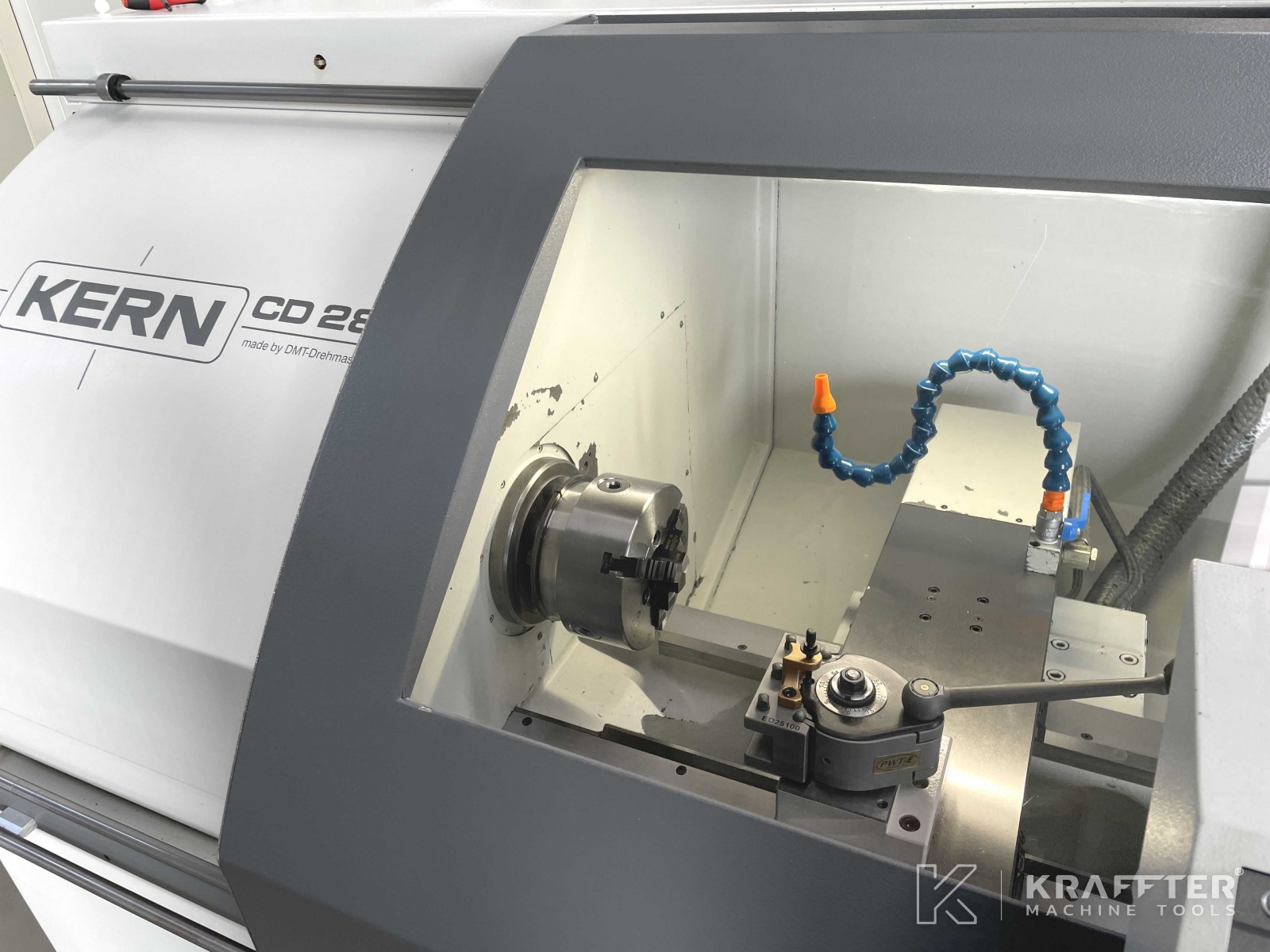

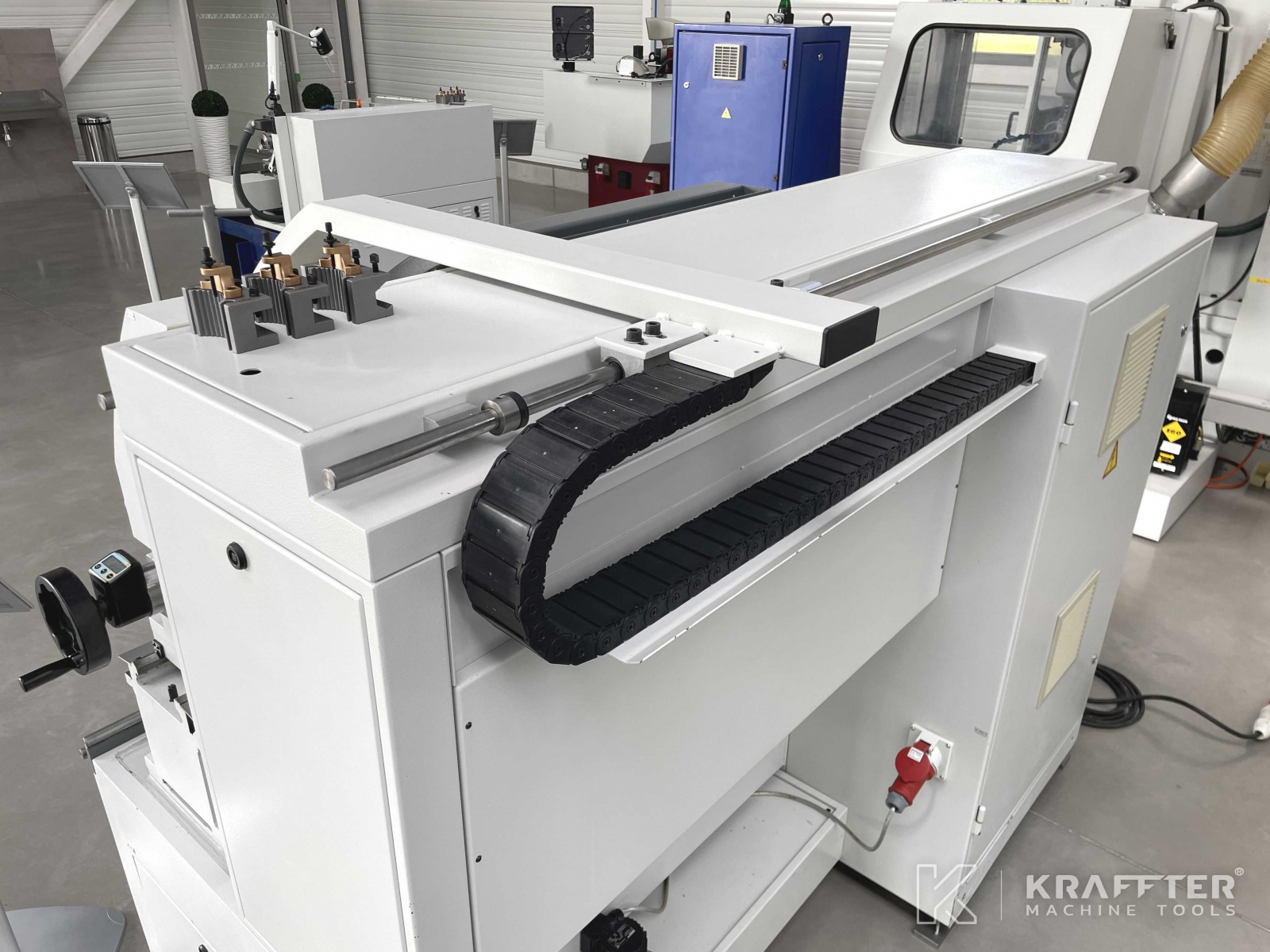

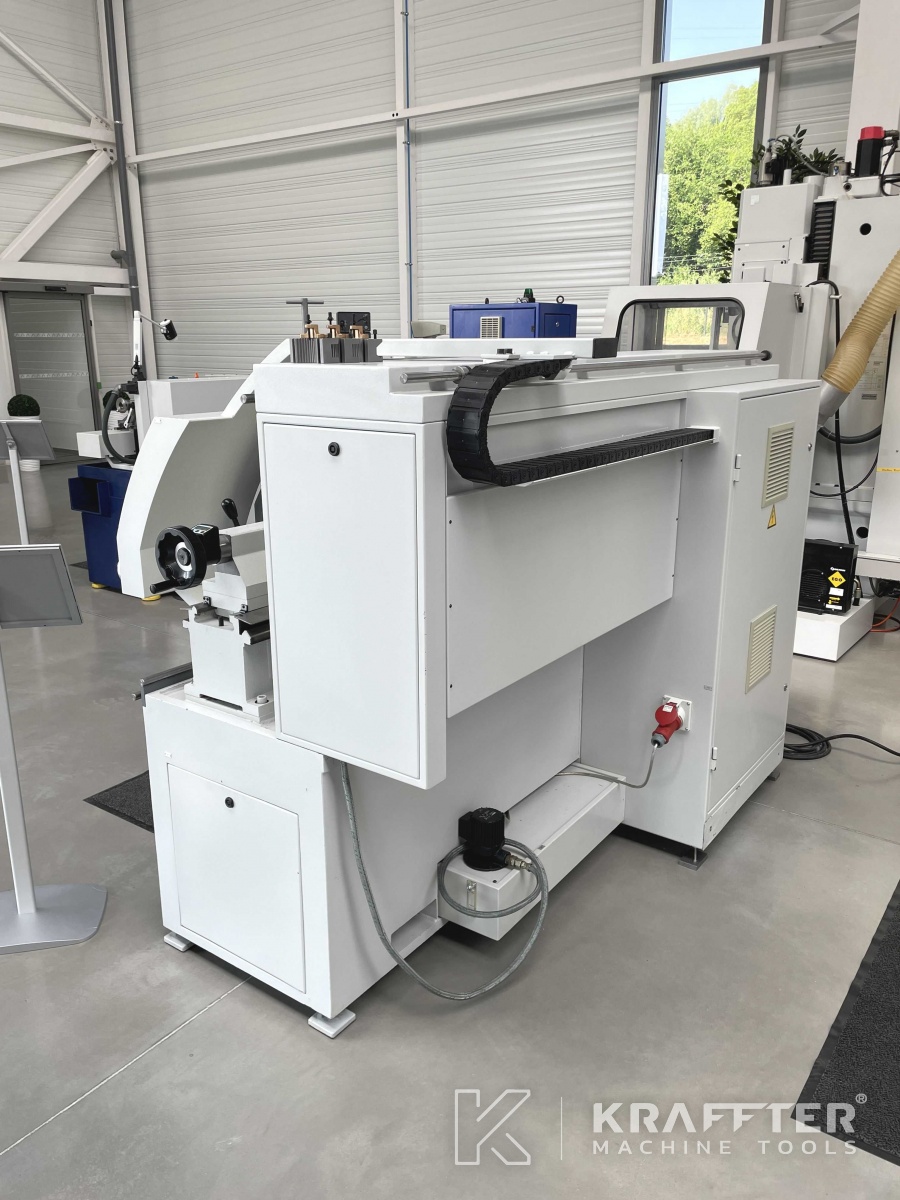

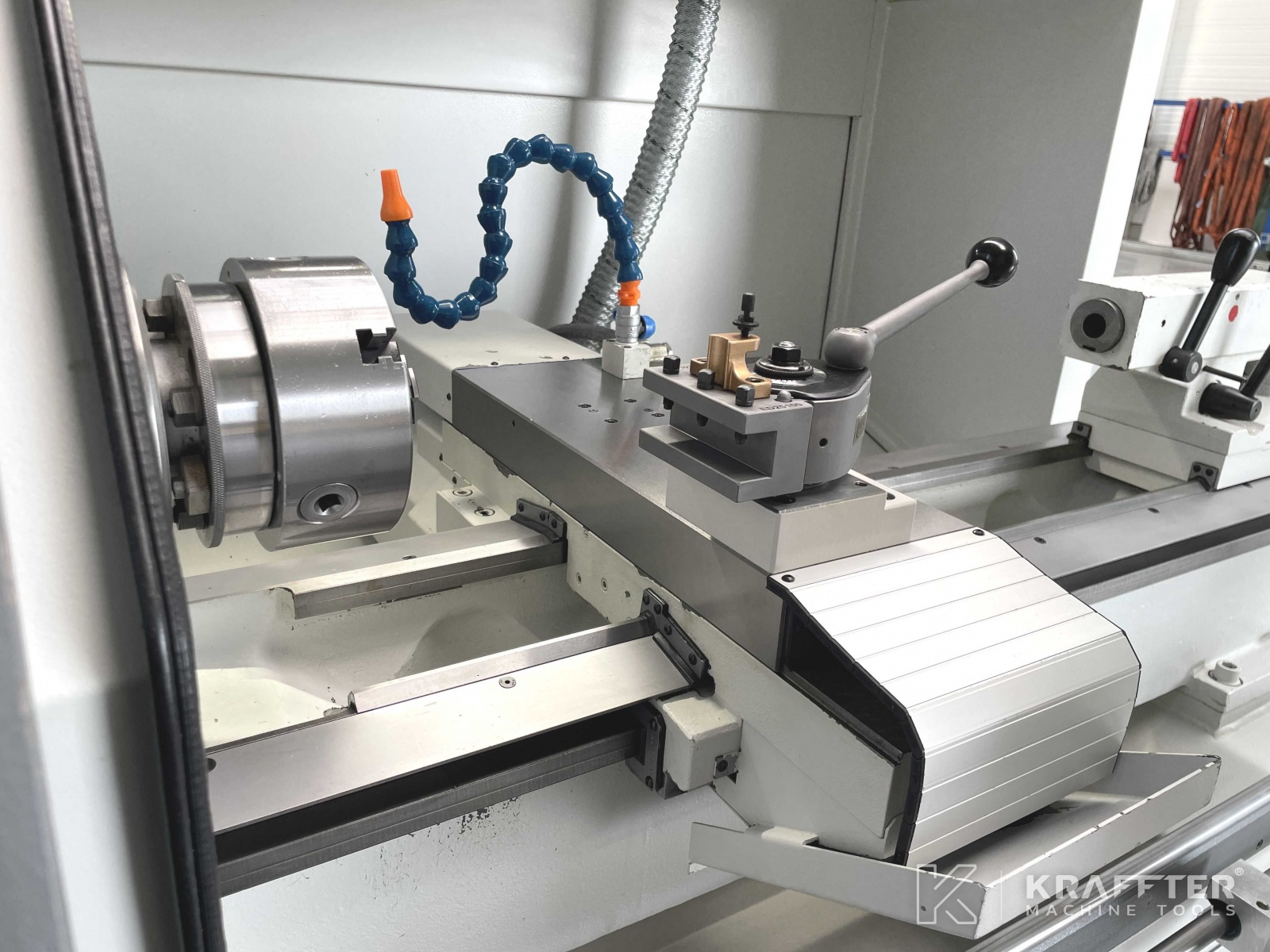

Type of machine : CNC teach-in lathe
Brand : DMT KERN
Stock N° : 20689-993
Model : CD 282
Serial N° : 2314.05
Year : 2005
Location : 73240 St-Genix-les-Villages, FRANCE
Technical characteristics
Additional information
Request a quotation

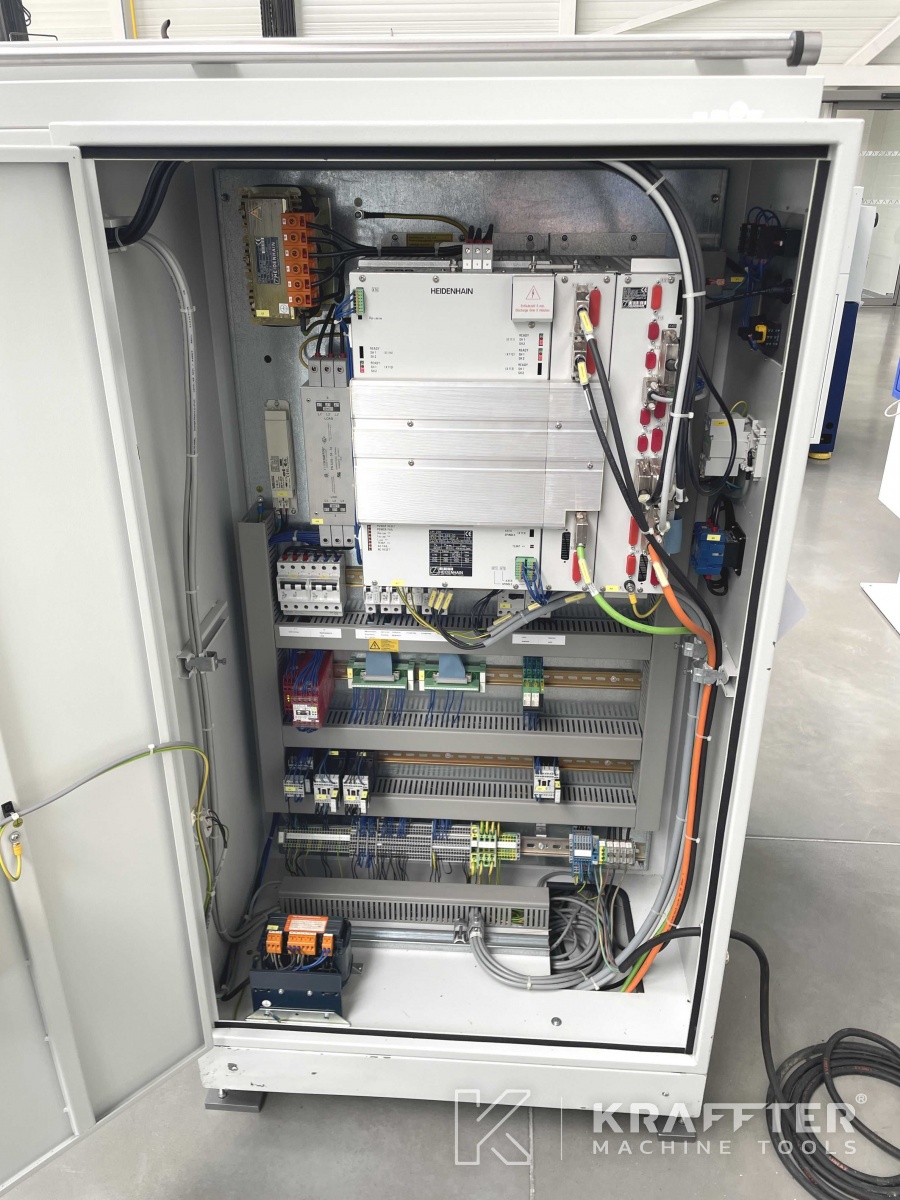

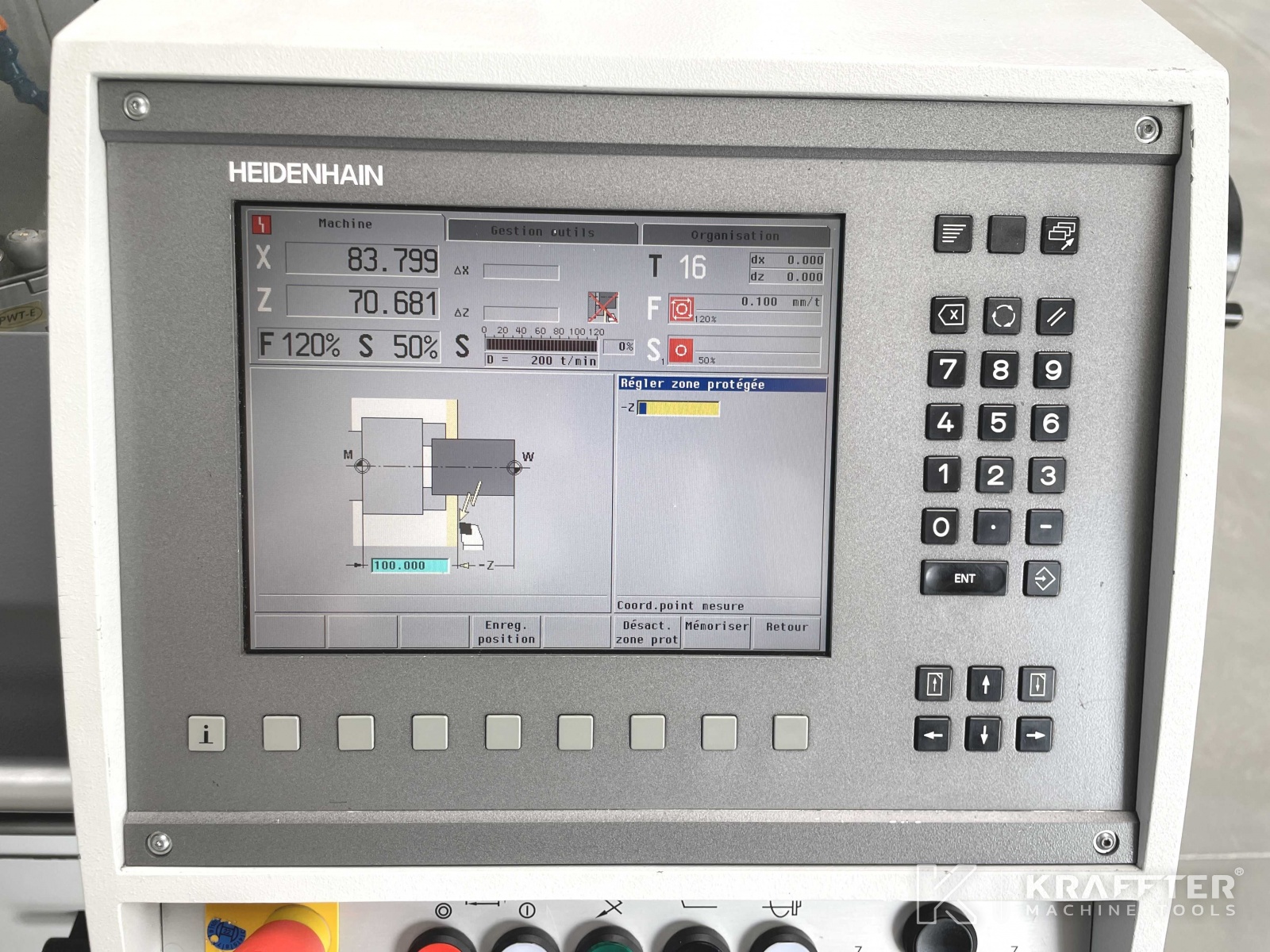

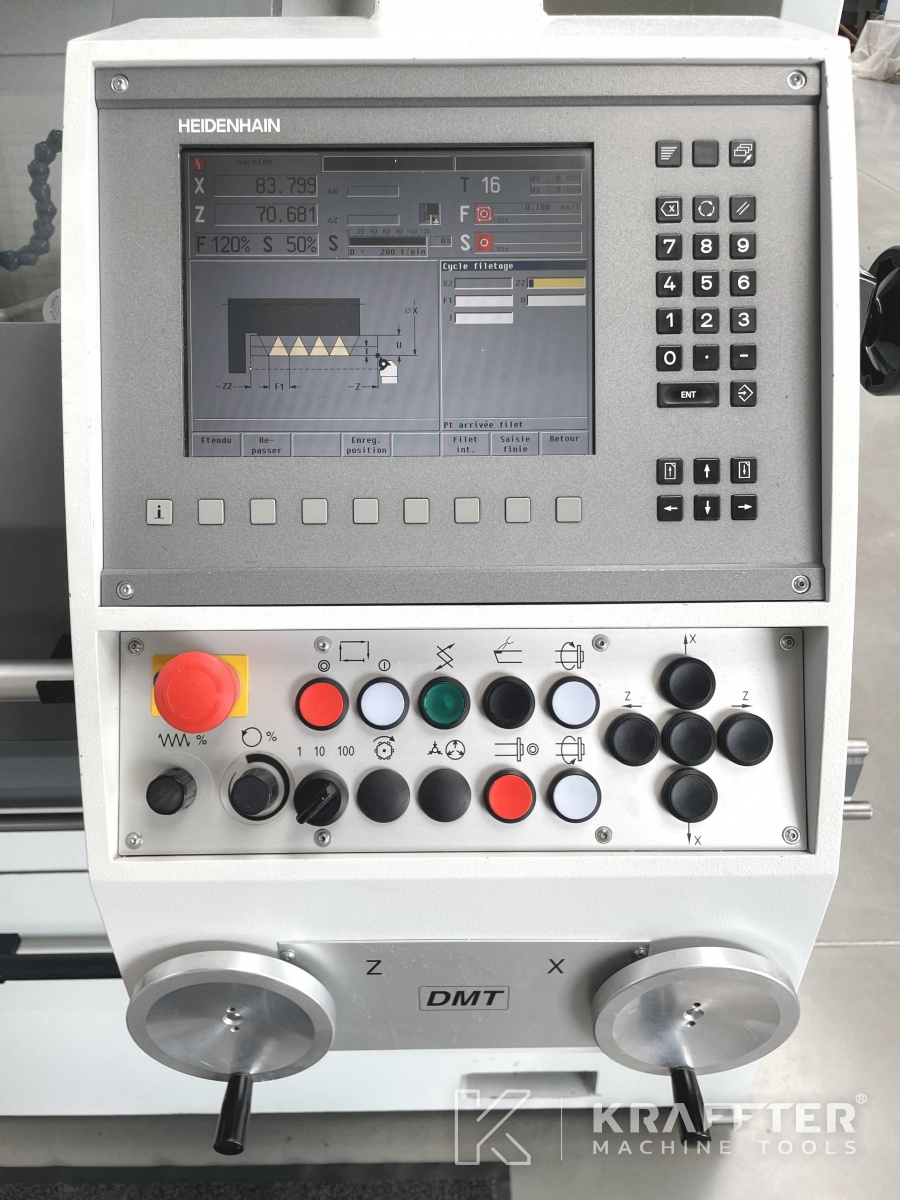

CNC control
HEIDENHAIN Manual Plus 4110
Number of axes
2
Distance between centers
500 [mm]
Height of centers over cariage
140 [mm]
Max. swing over bed
280 [mm]
Stroke X axis
200 [mm]
Spindle nose
DIN 55027 taille 5
Spindle throughbore
45 [mm]
Spindle throughbore at the front bearing
75 [mm]
Min. spindle speed
10 [rpm]
Max. spindle speed
5000 [rpm]

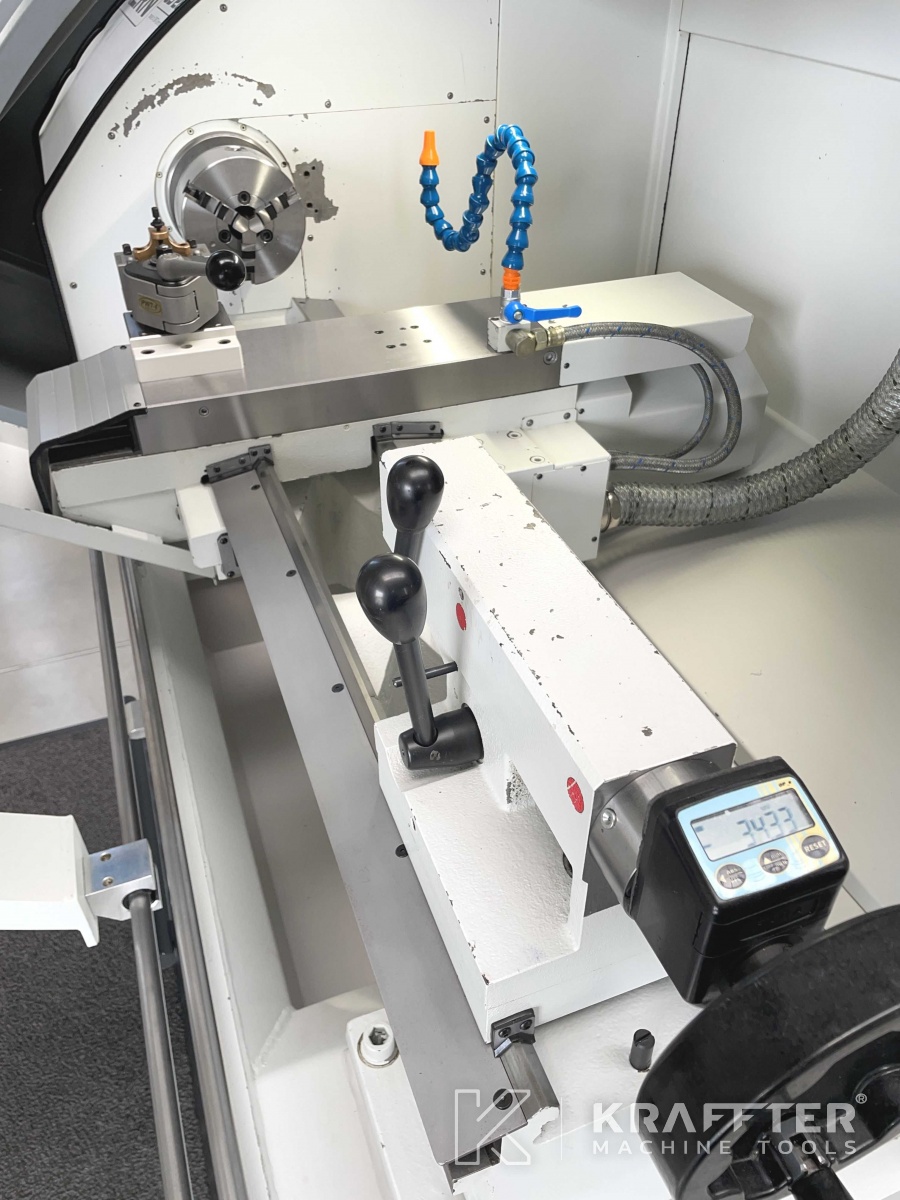

Tailstock type
Manuelle
Type of attachment tailstock
CM3
Tailstock quill stroke
120 [mm]
Tailstock quill diameter
50 [mm]
Centralized lubrication
Automatique

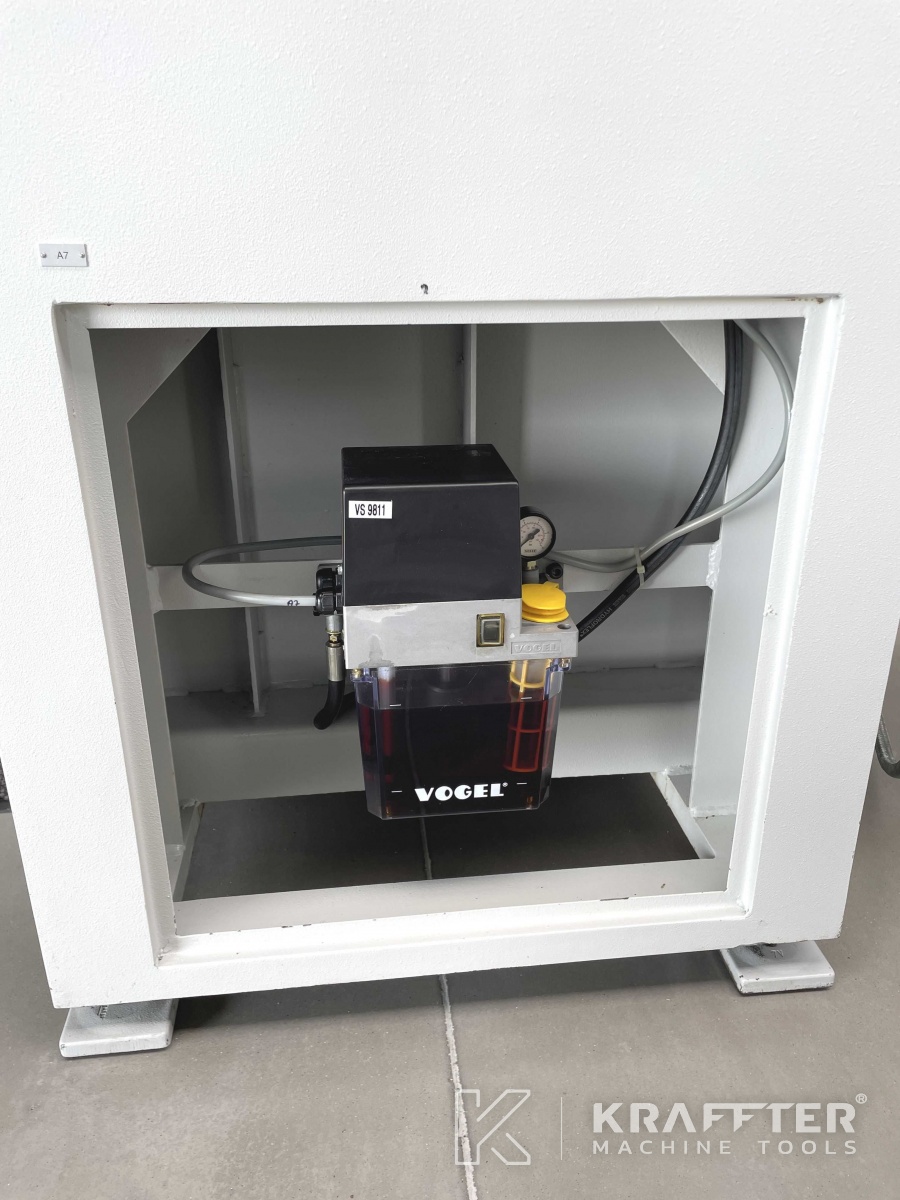

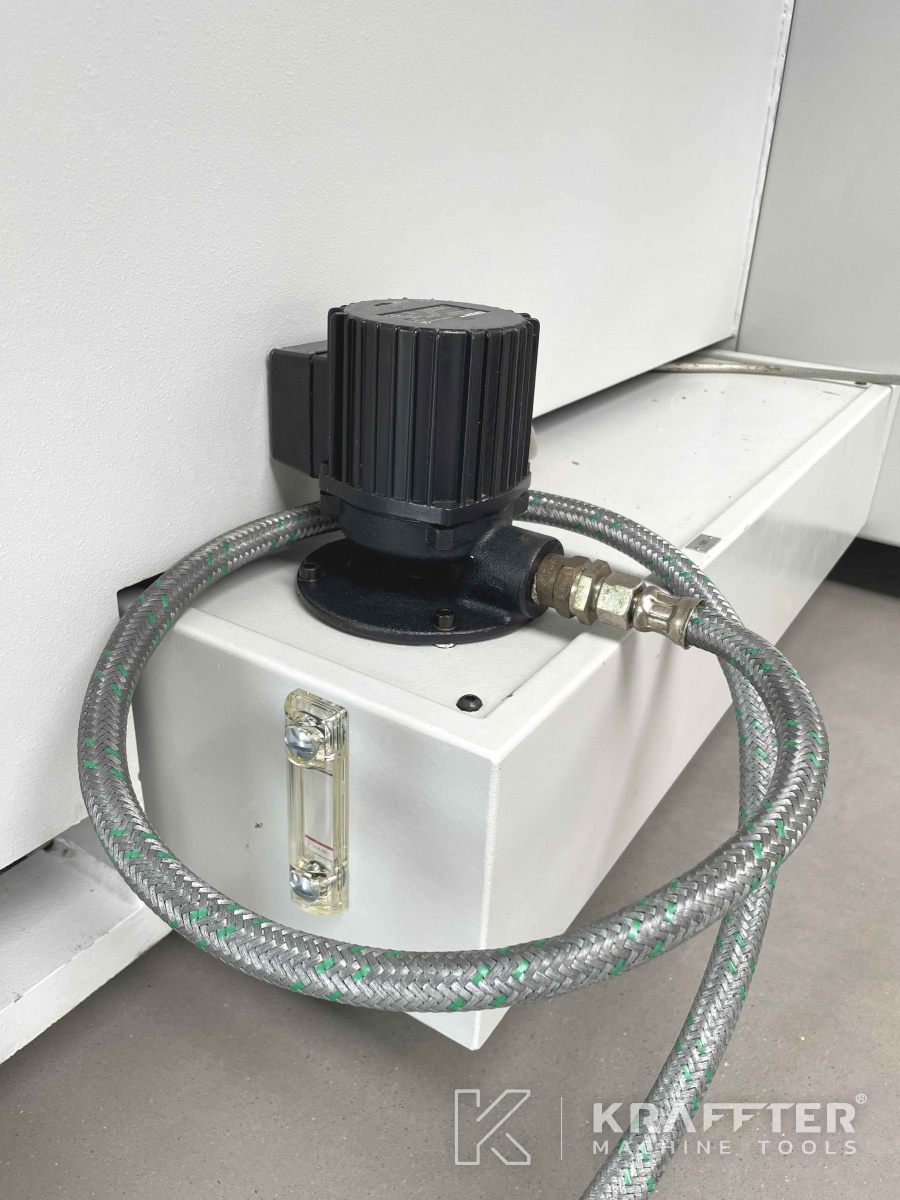

Lubrication tank with pump
Yes
Supply voltage
400 [V]
Number of hours under power
3796 [h]
Number of running hours
600 [h]
Dimensions
2170 x 1560 x 1115 [mm]
Weight
1600 [Kg]

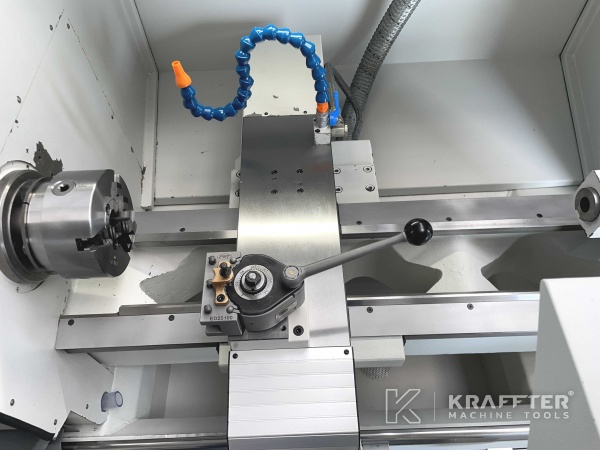

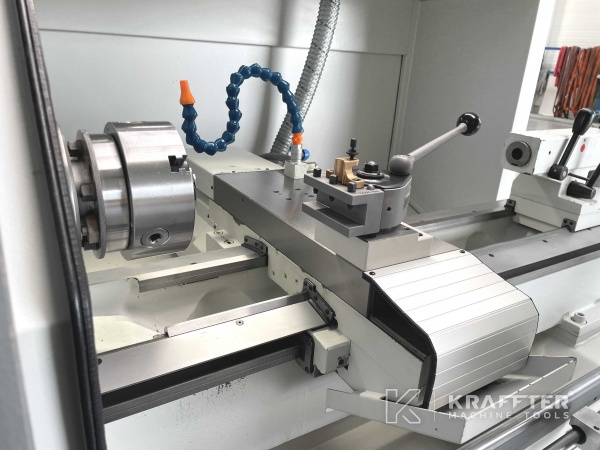

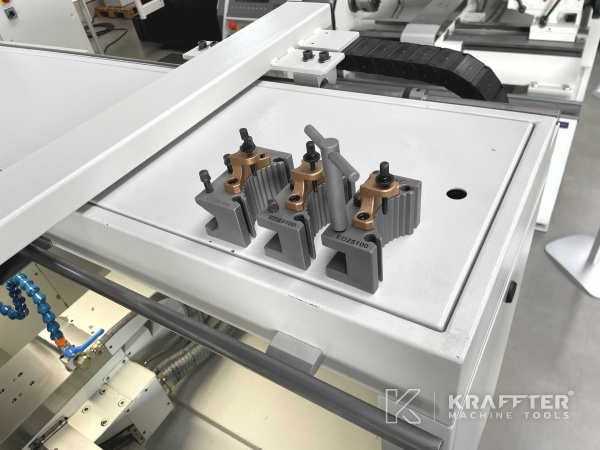

x1 PWT-AS Multifix type tool-post - type E

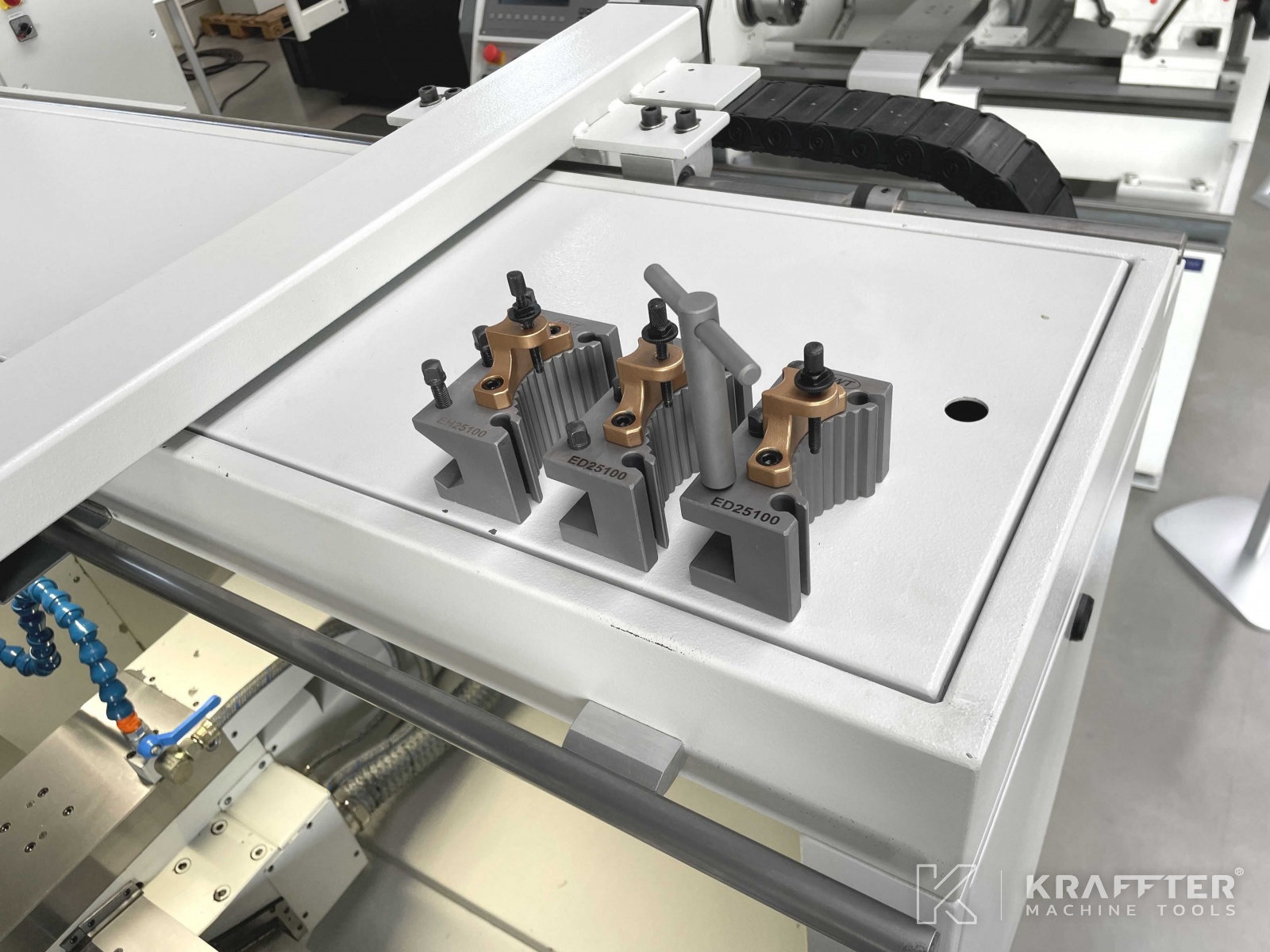

x4 tool holders PWT-AS - type E

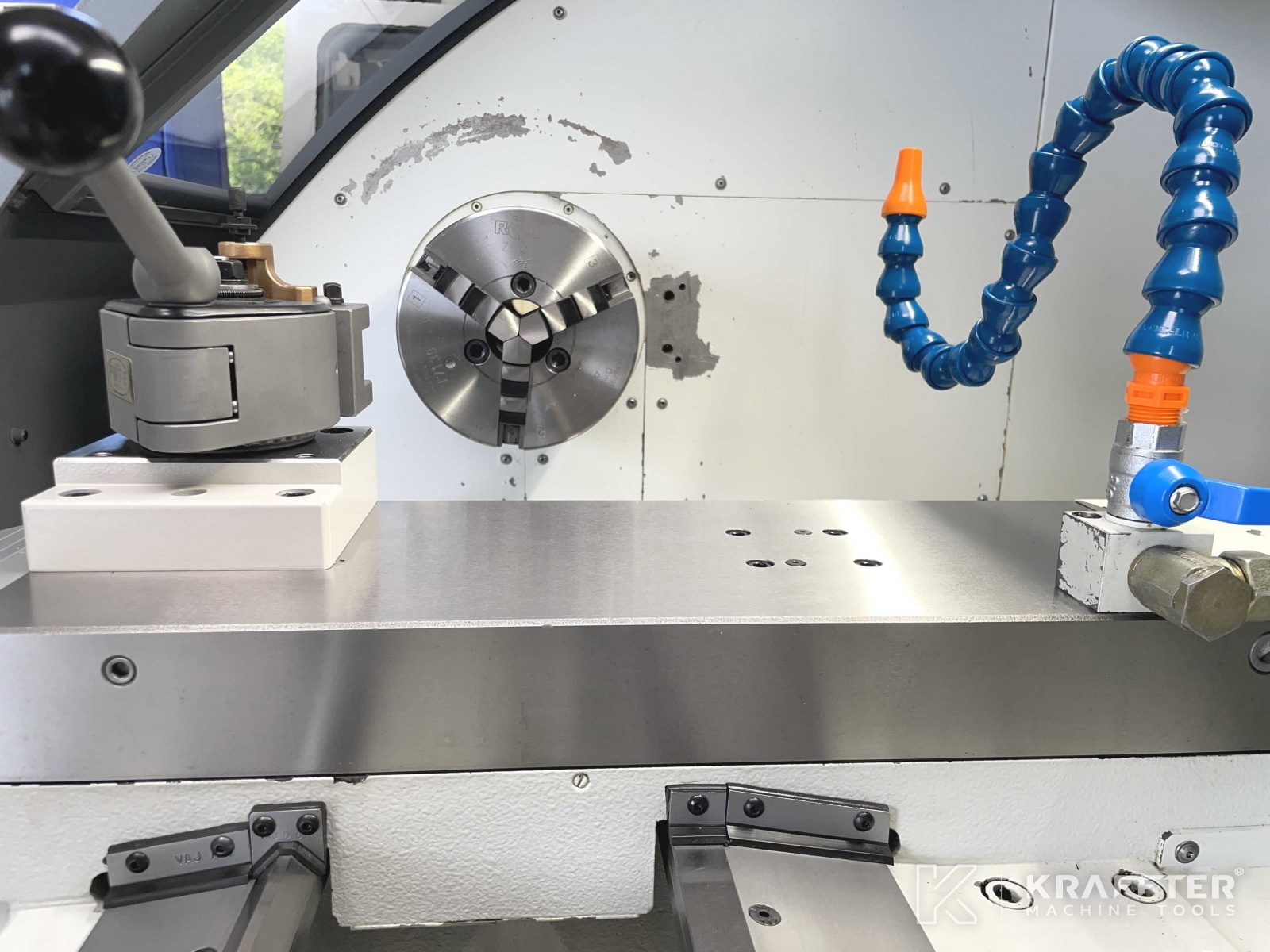

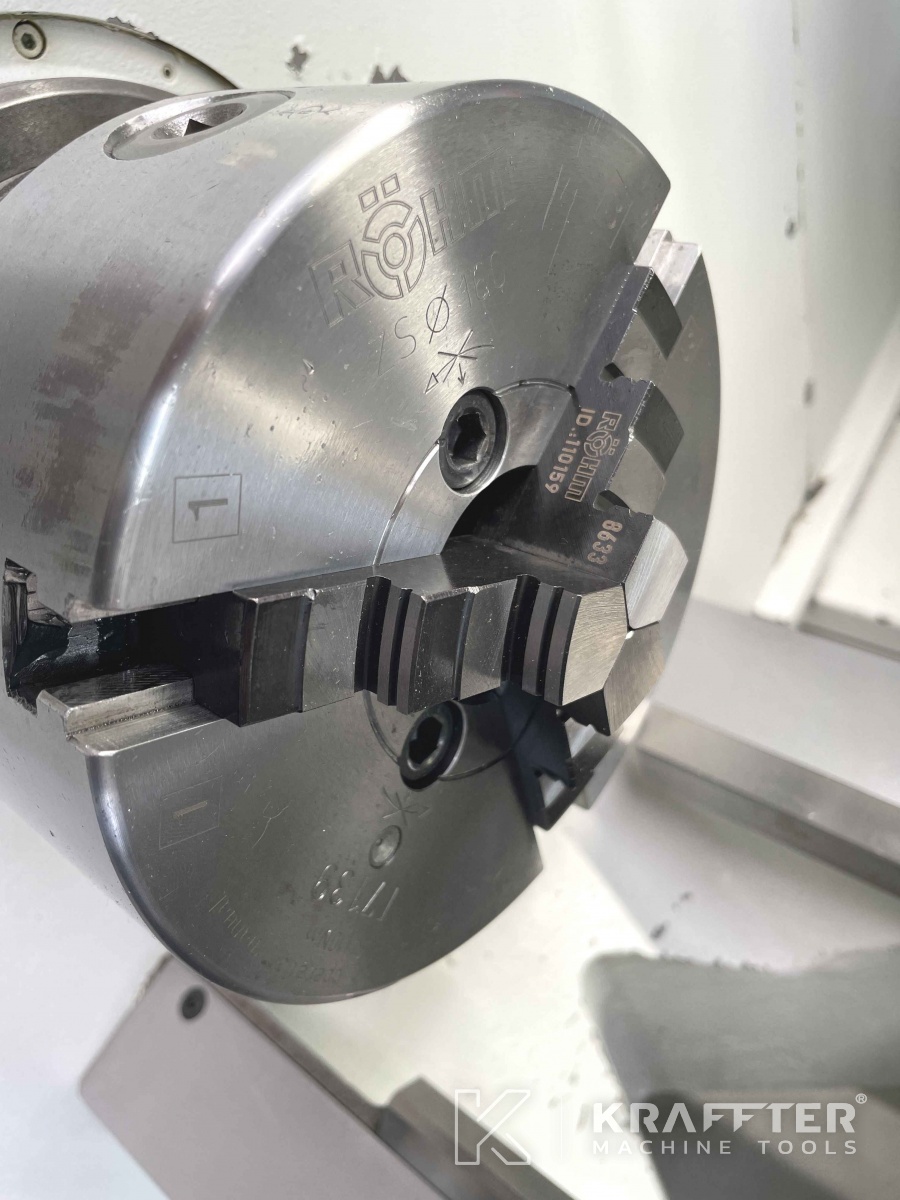

x1 chuck RÖHM ZS Ø160 [mm] 3 jaw type
x1 set of RÖHM hard jaws
x1 collant lubrication unit
