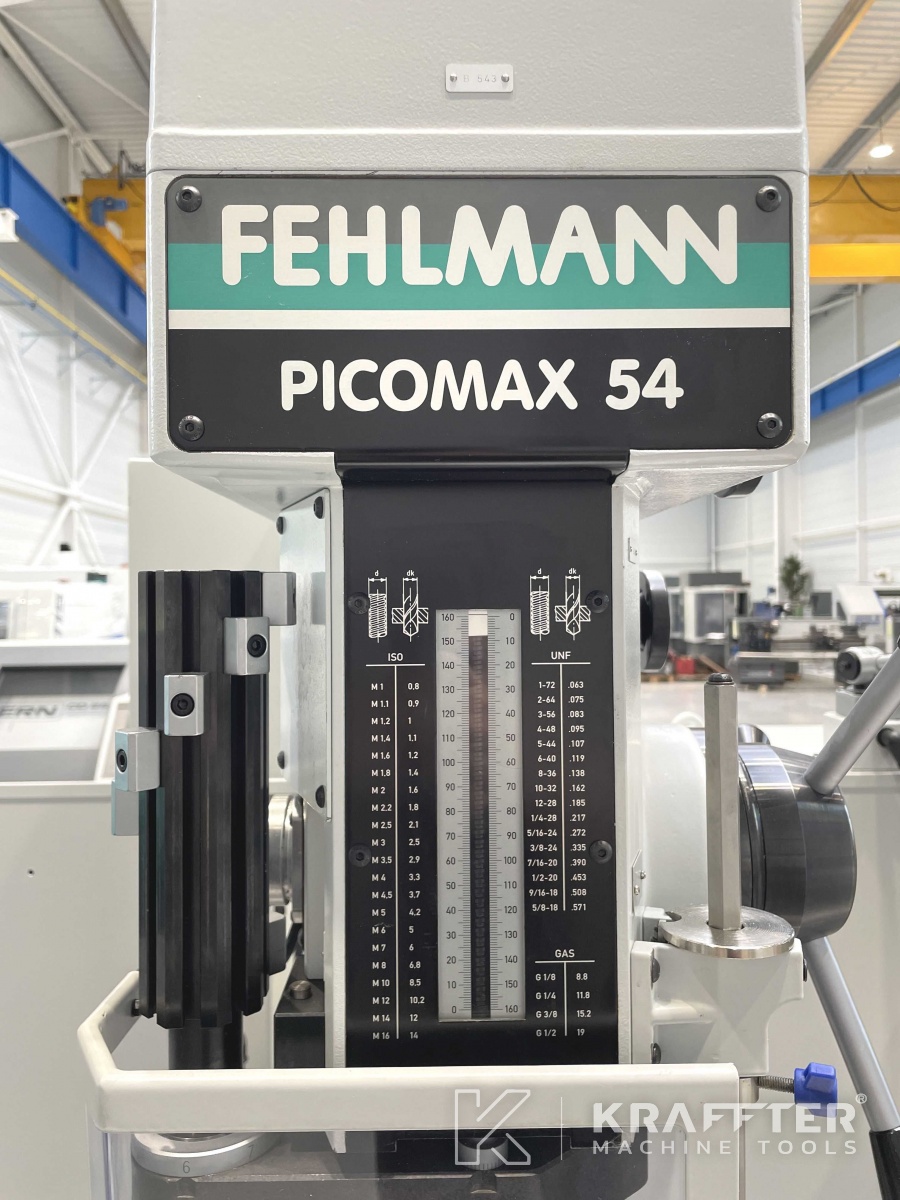

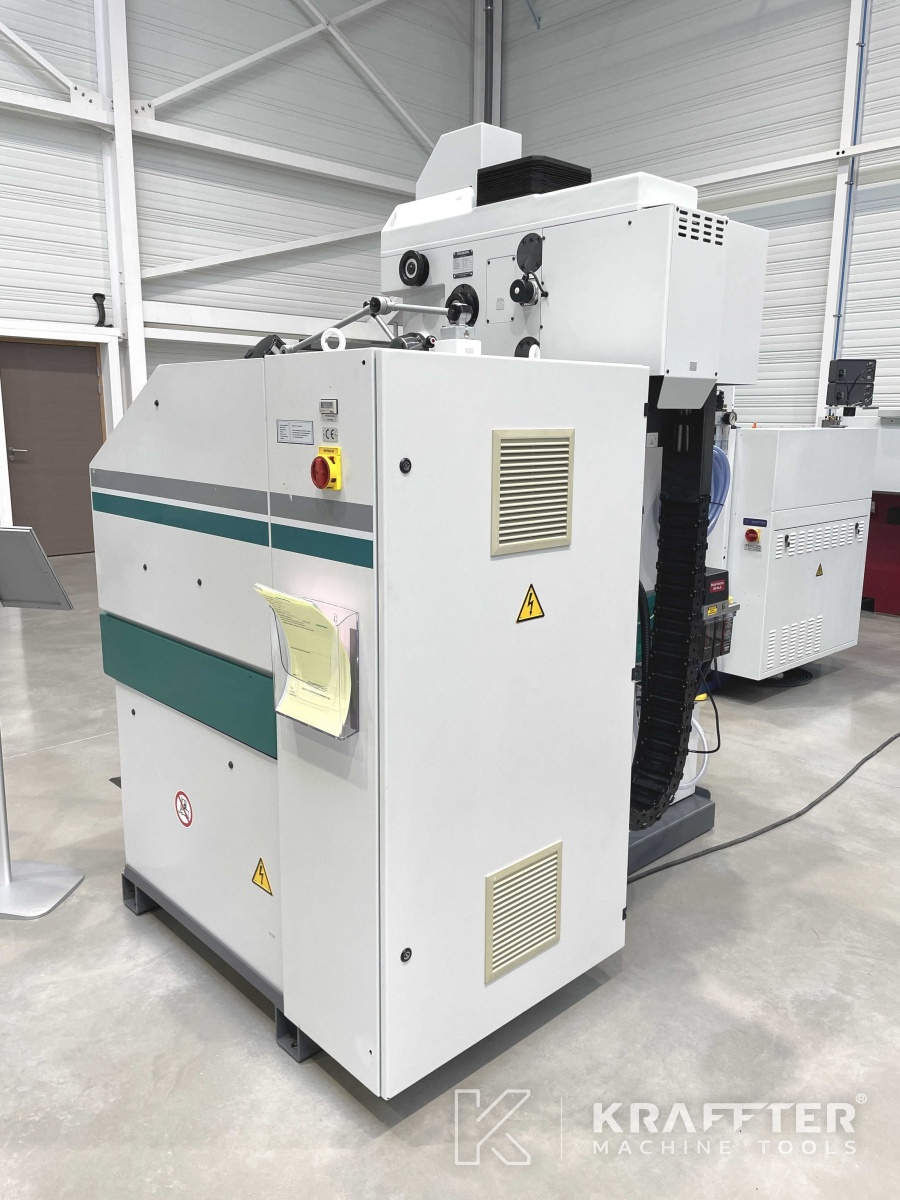

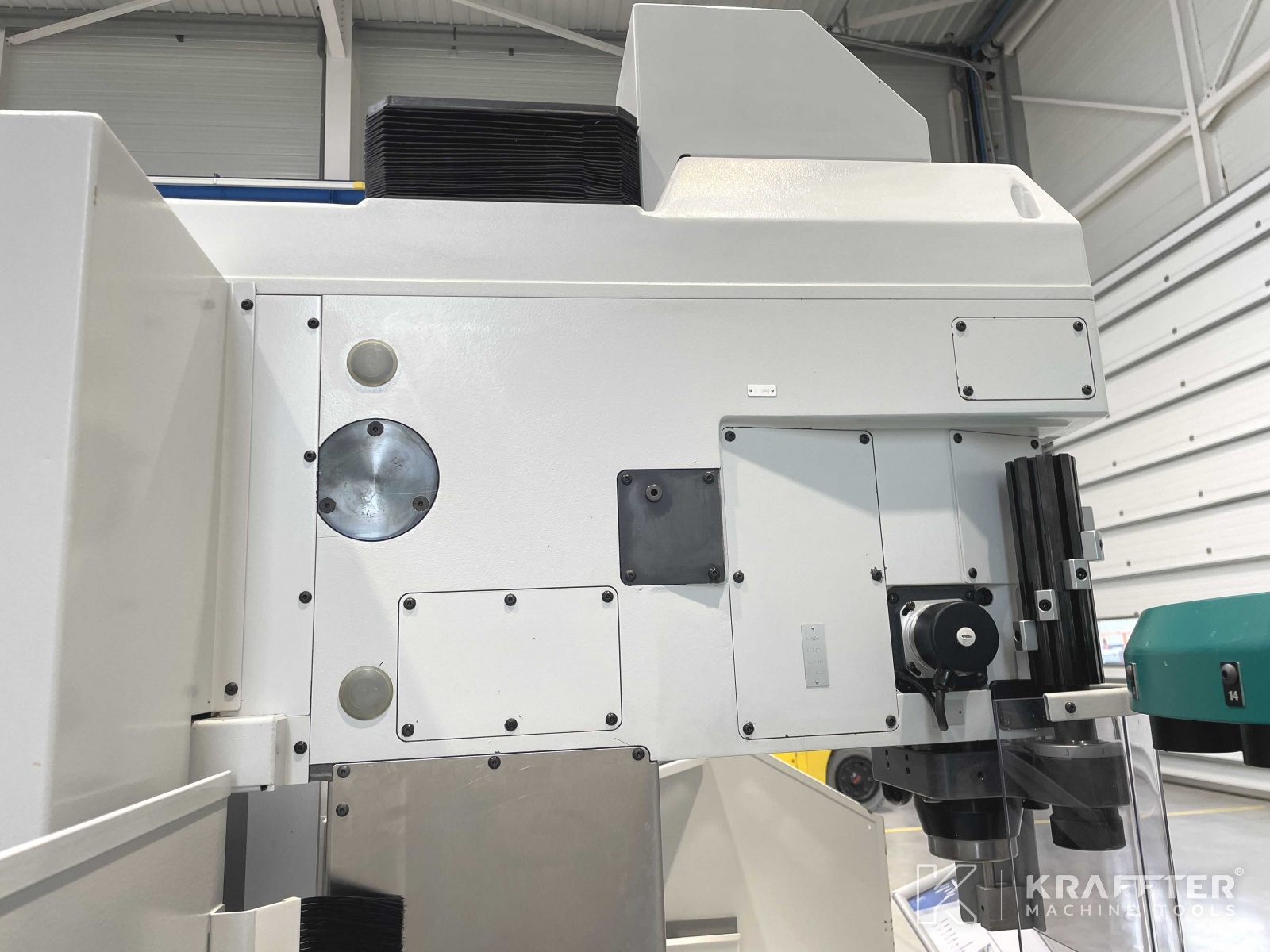

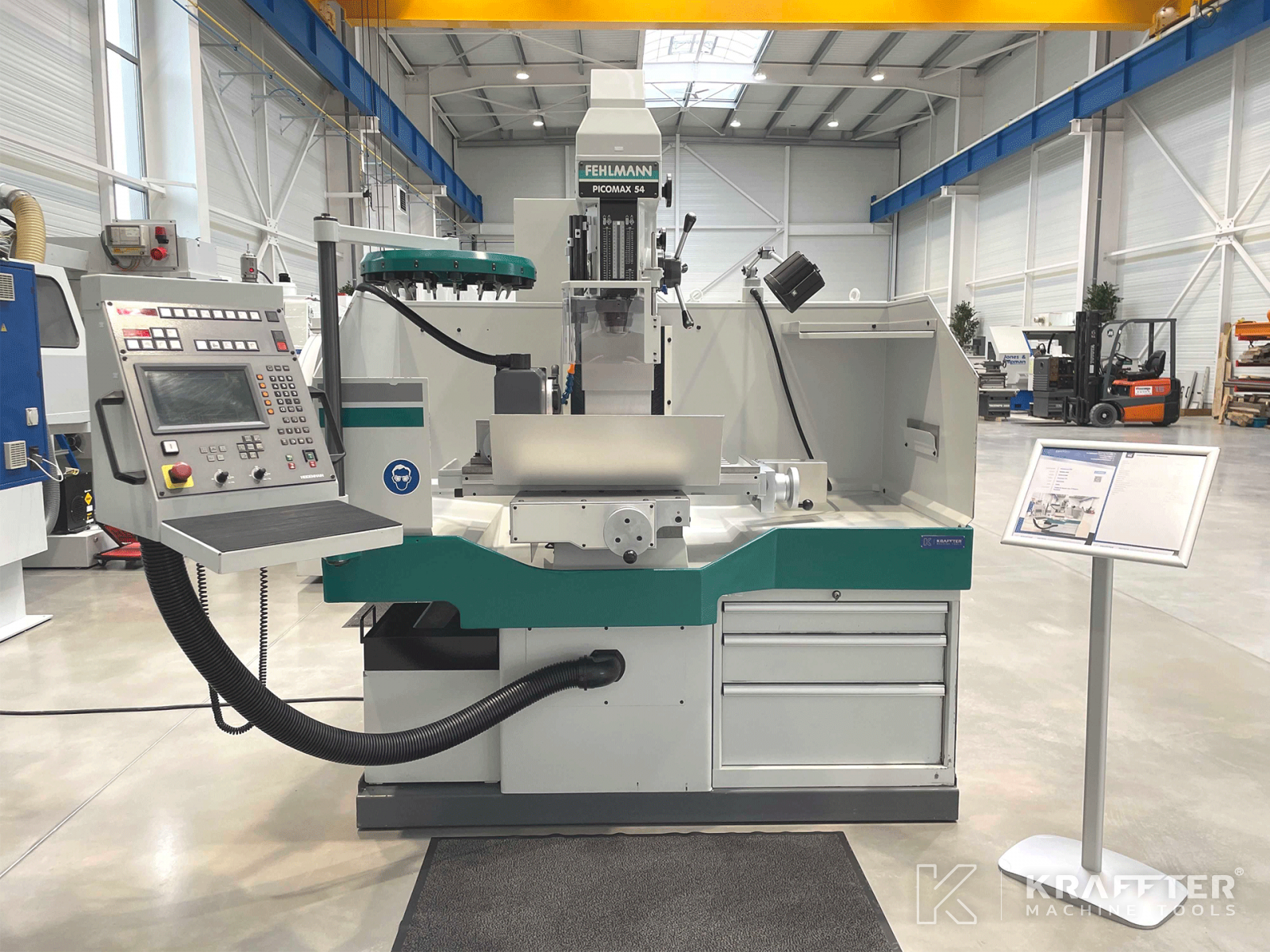

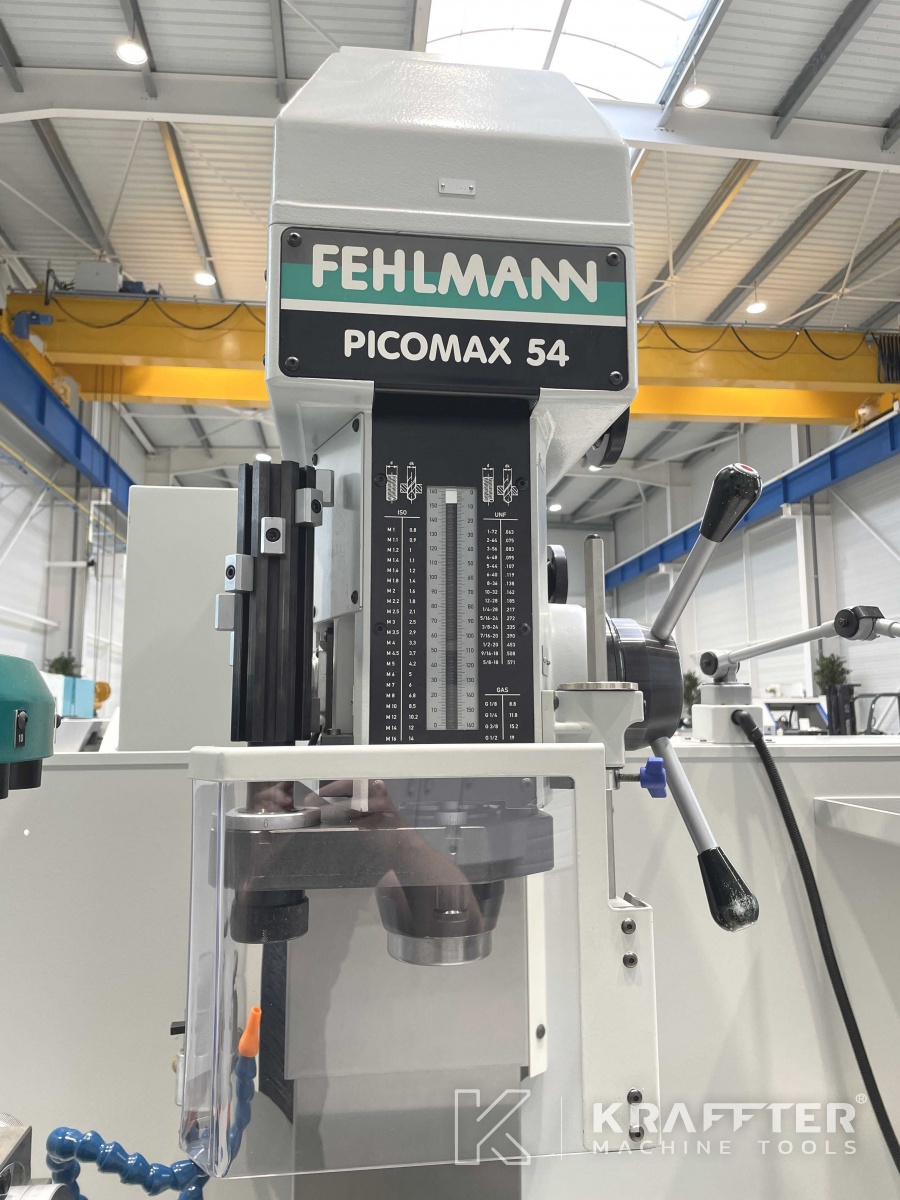

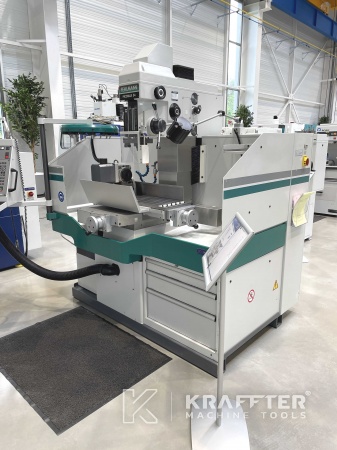

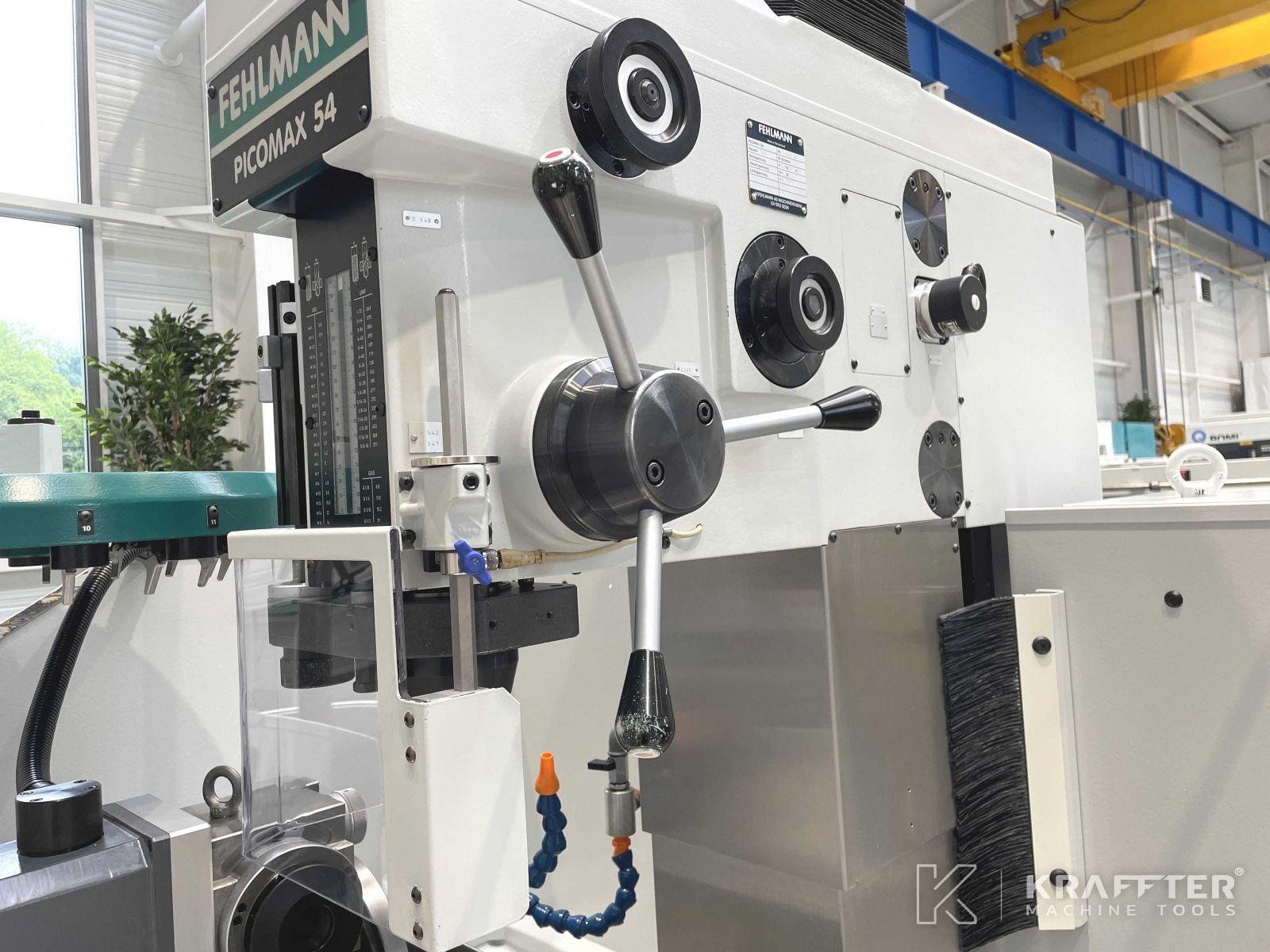

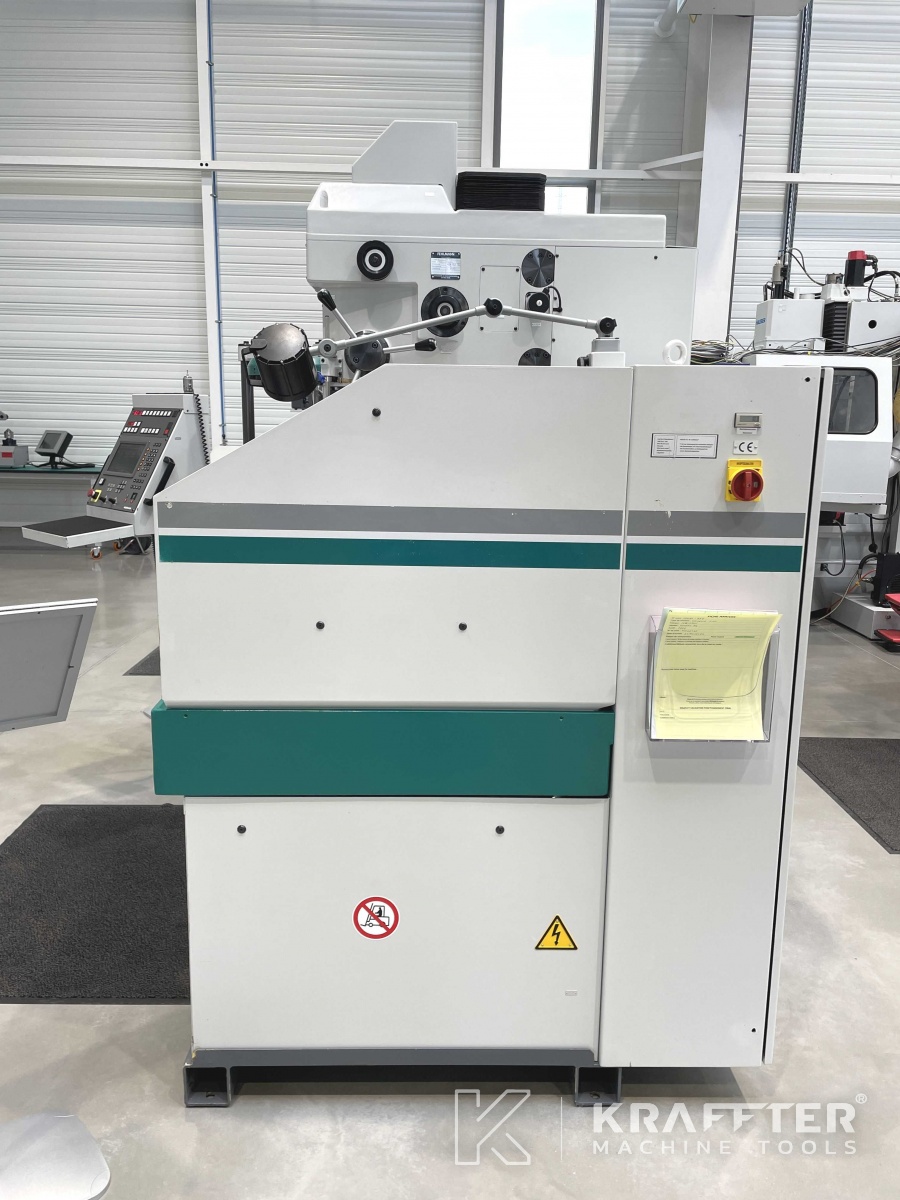

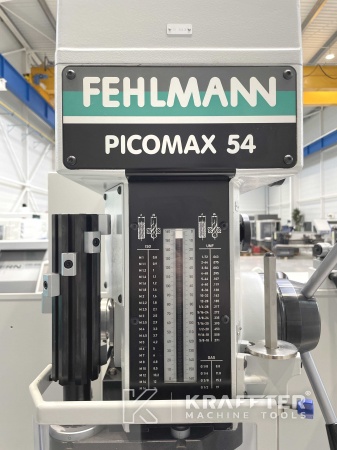

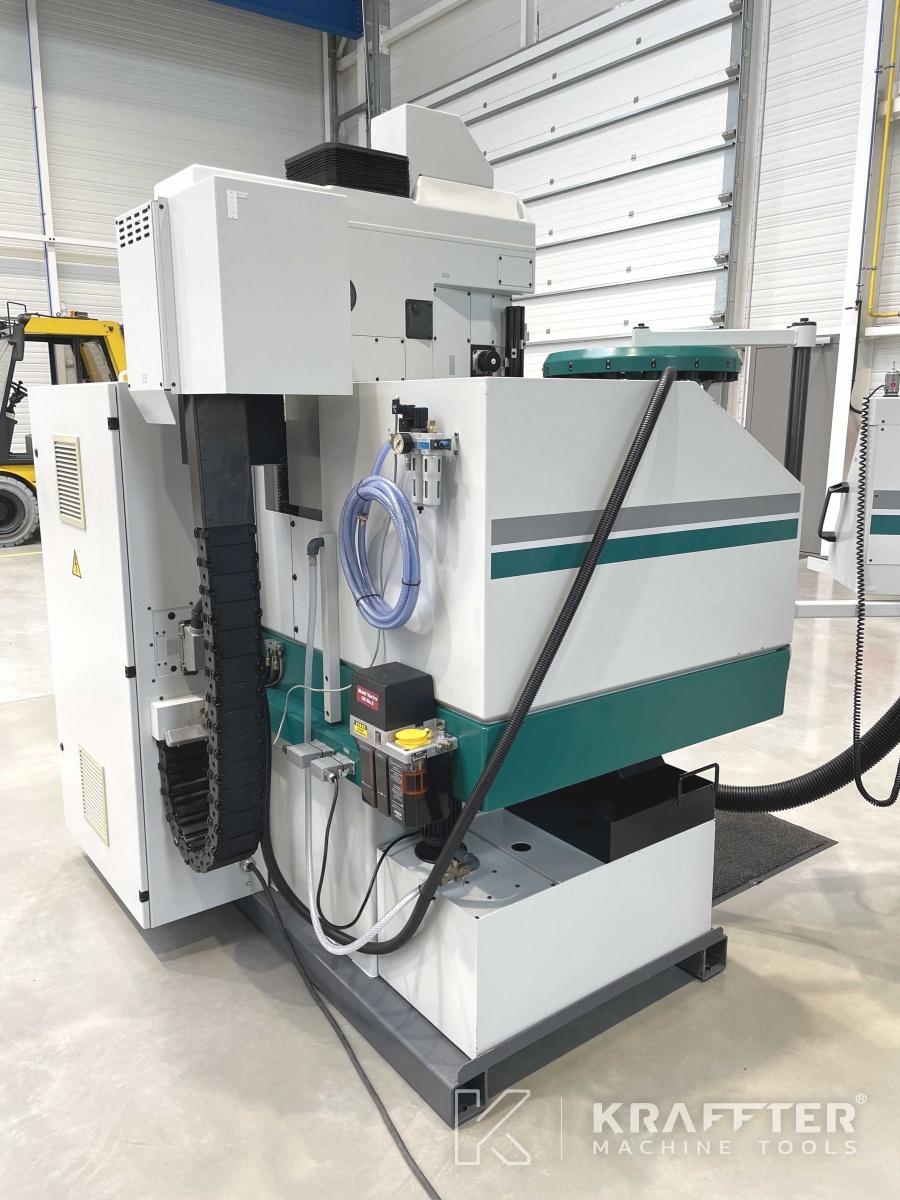

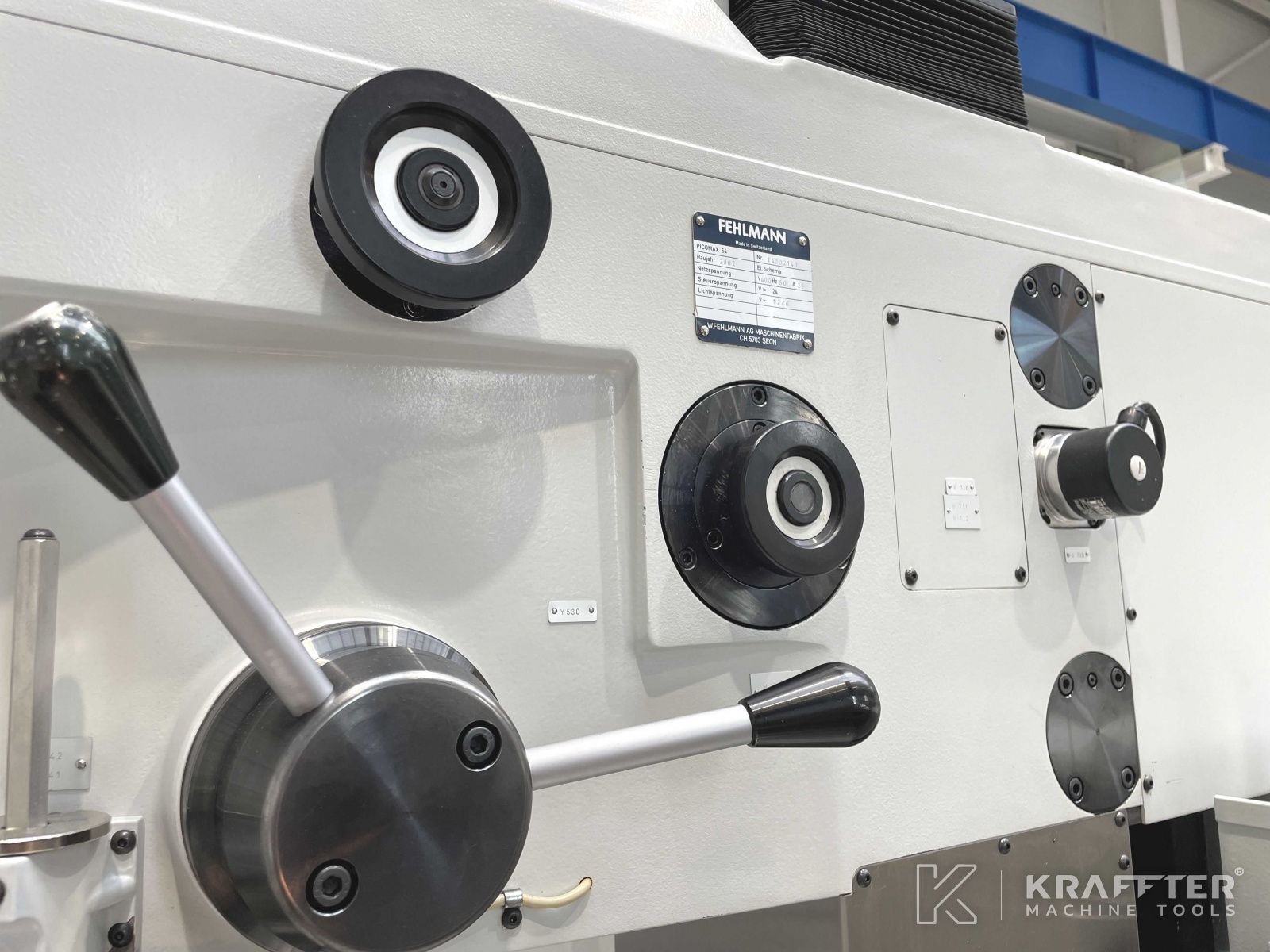

Type of machine : CNC milling machine
Brand : FEHLMANN
Stock N° : 20689-998
Model : Picomax 54
Serial N° : 14002140
Year : 2002
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
CNC control

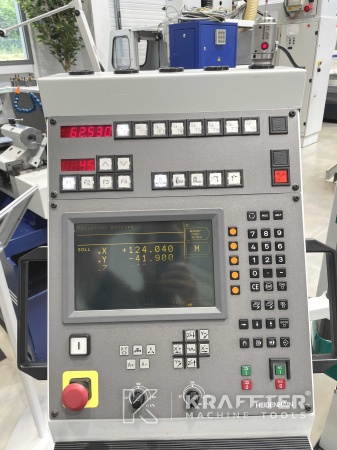

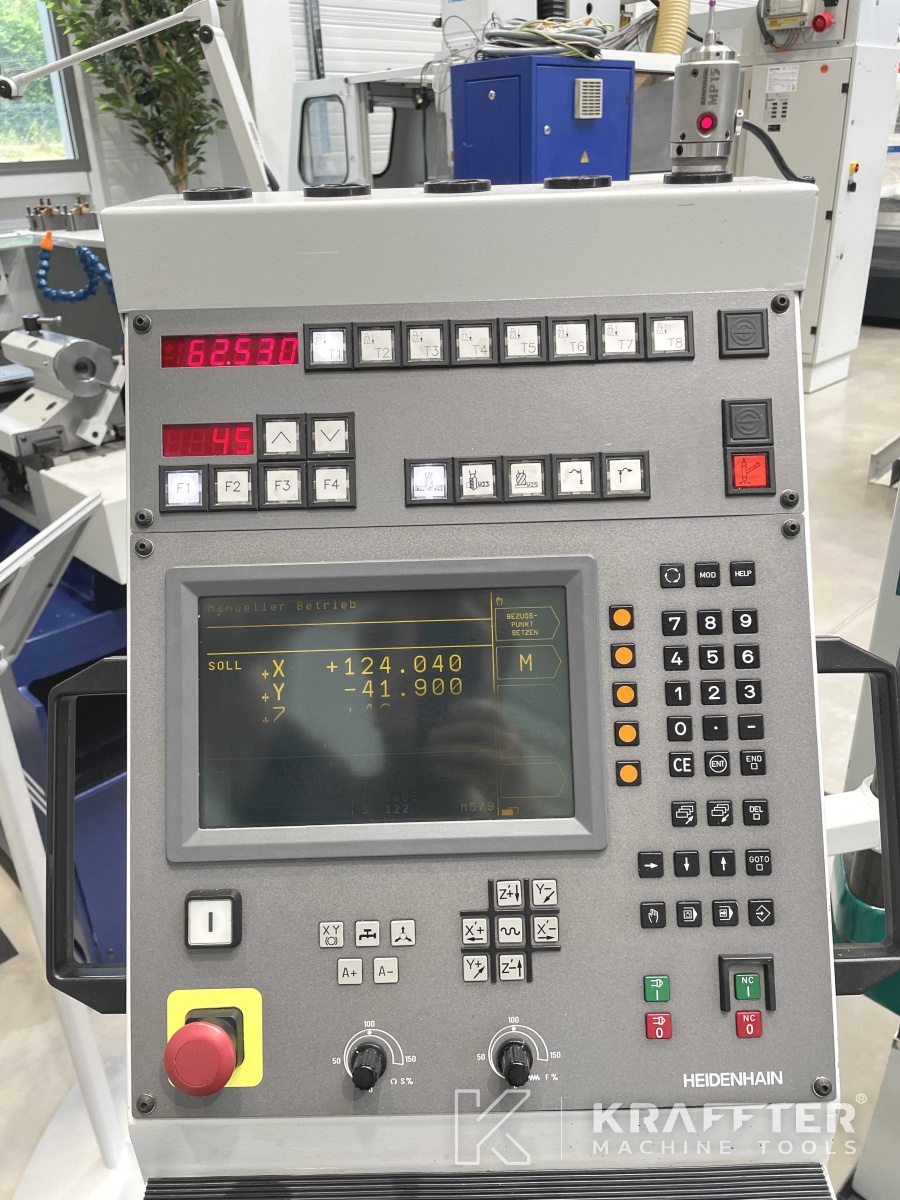

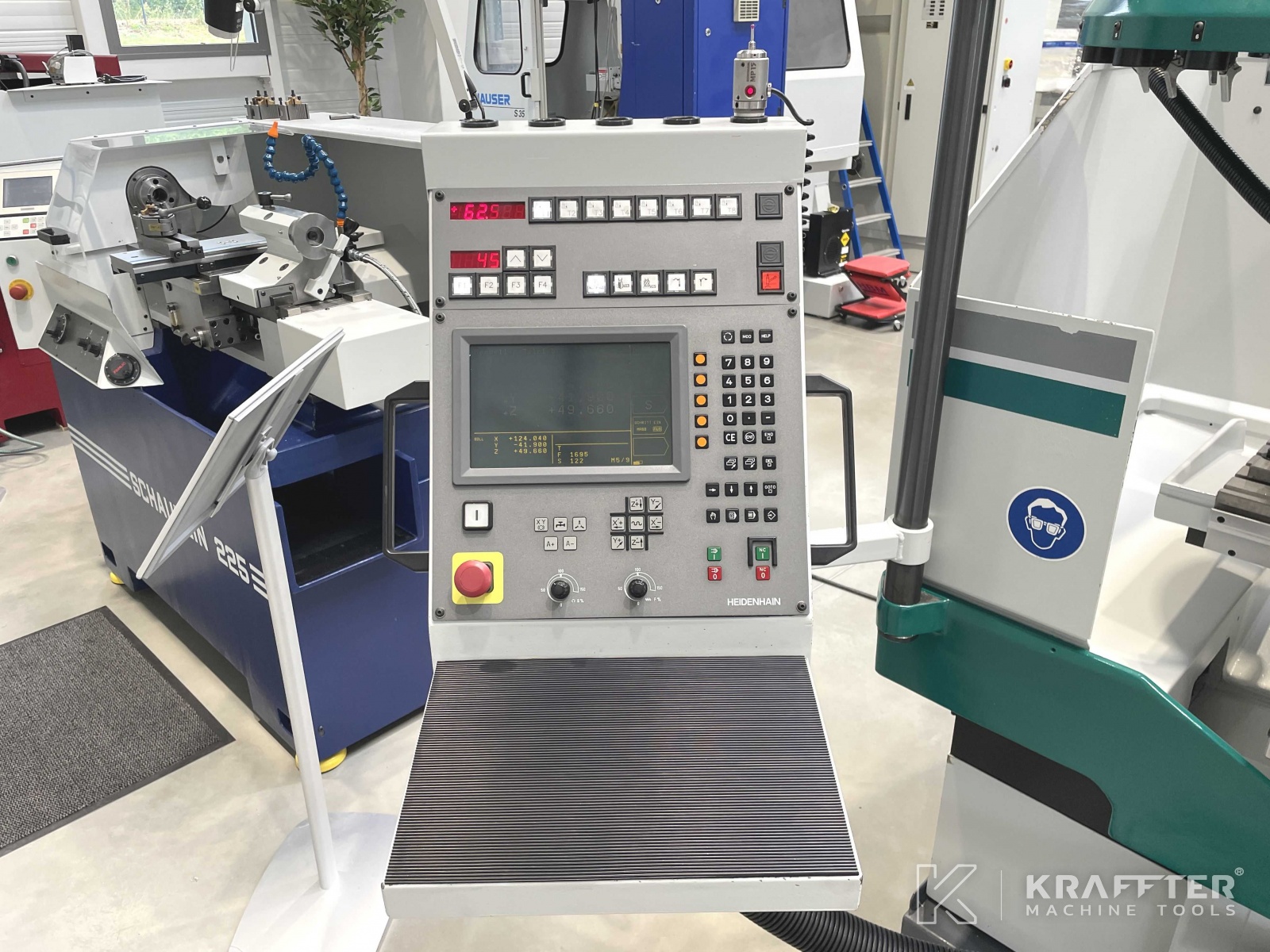

HEIDENHAIN TNC 310
Number of axes
4
Stroke X axis
500 [mm]

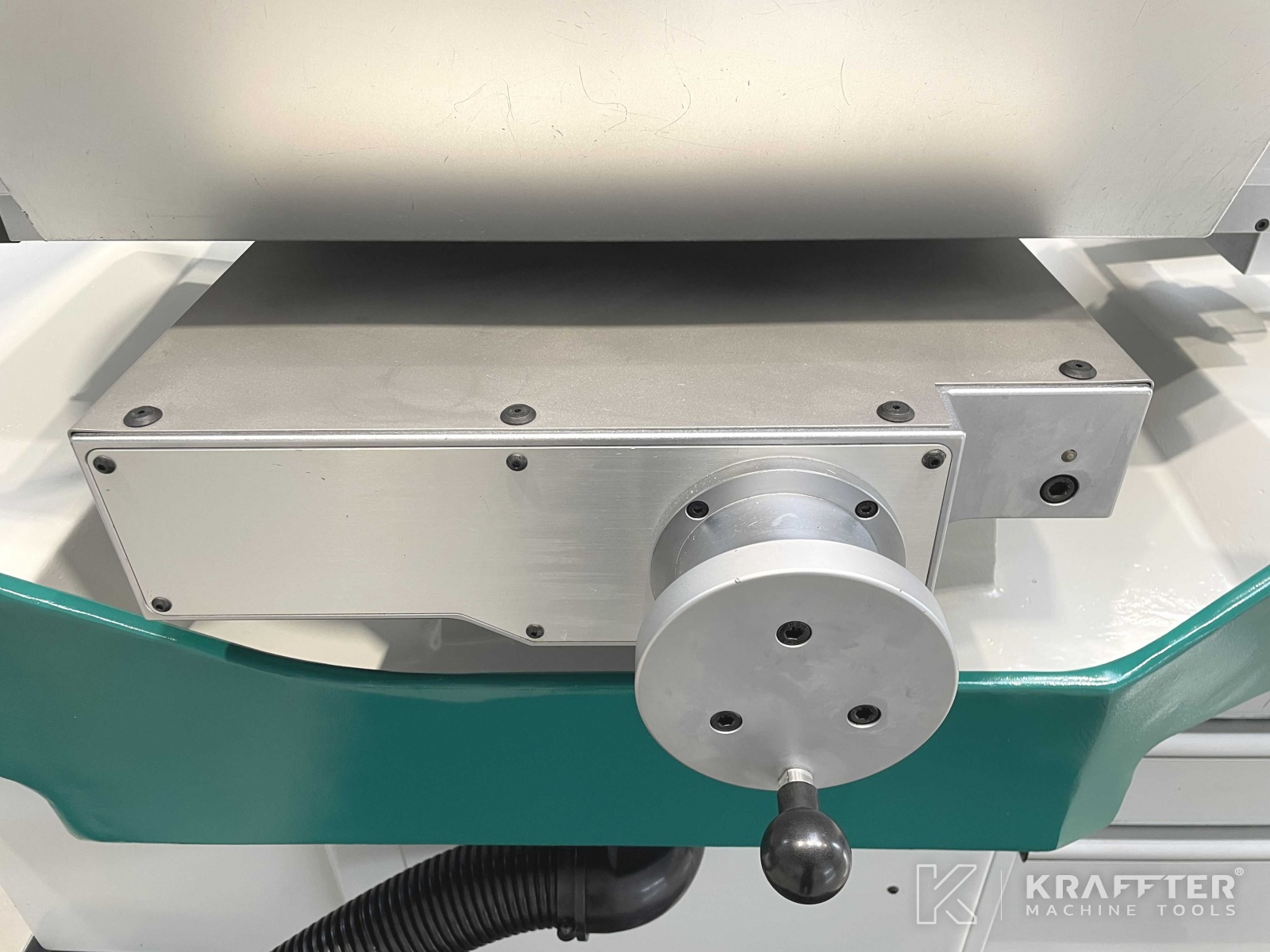

Stroke Y axis
260 [mm]
Stroke Z axis
490 [mm]
Quill stroke
160 [mm]
Max. distance spindle nose / table
610 [mm]

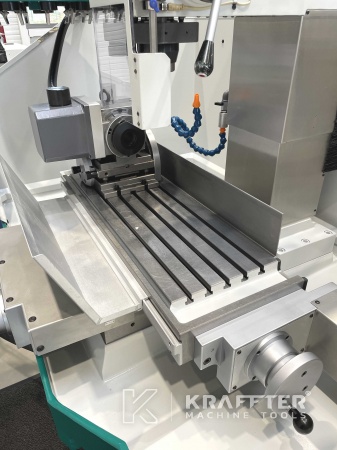

Table length
880 [mm]
Table width
320 [mm]
Max. load on table
300 [Kg]

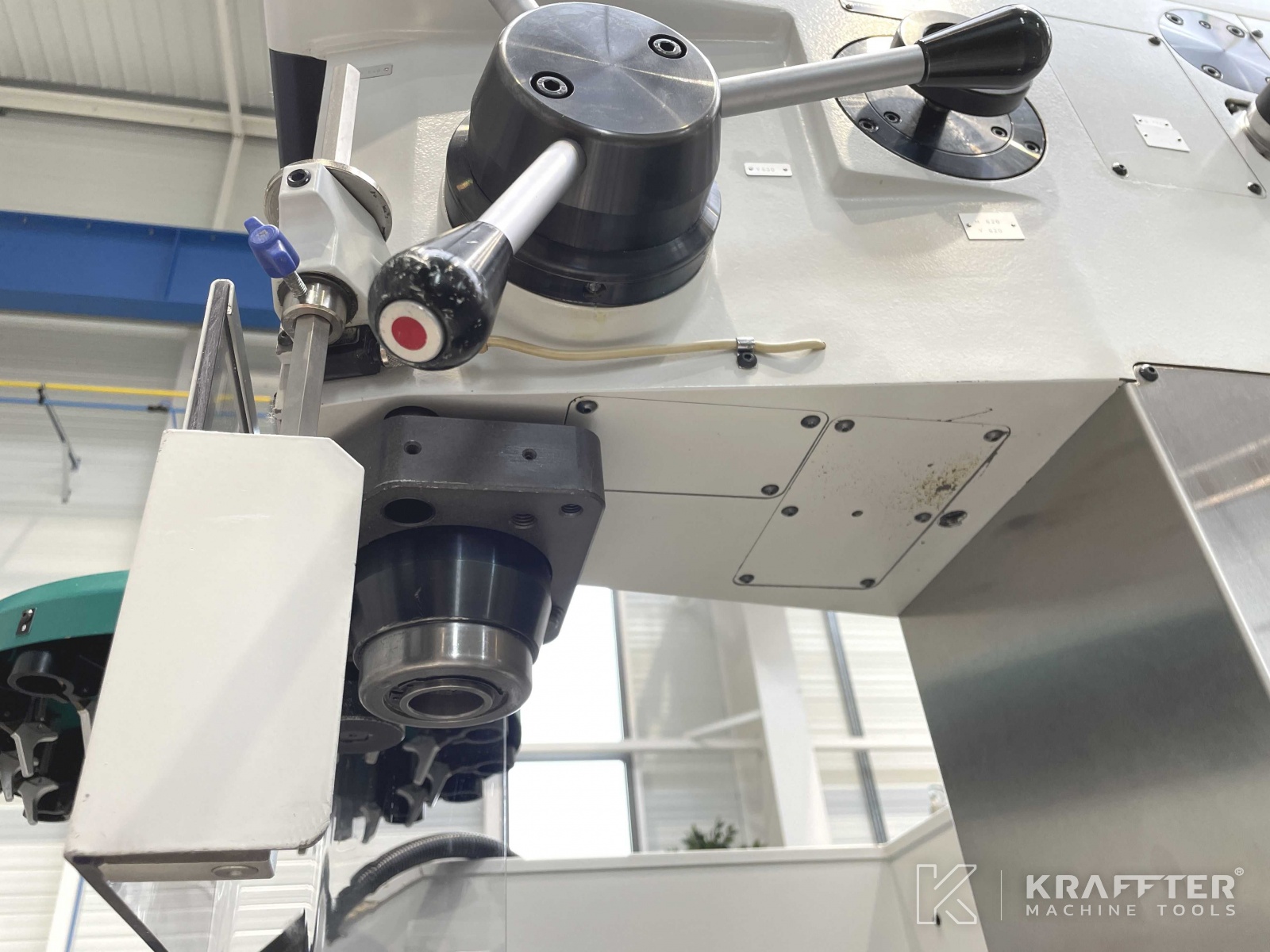

Spindle type
SF32
Min. spindle speed
100 [rpm]
Max. spindle speed
9000 [rpm]
Part probe
RENISHAW MP15

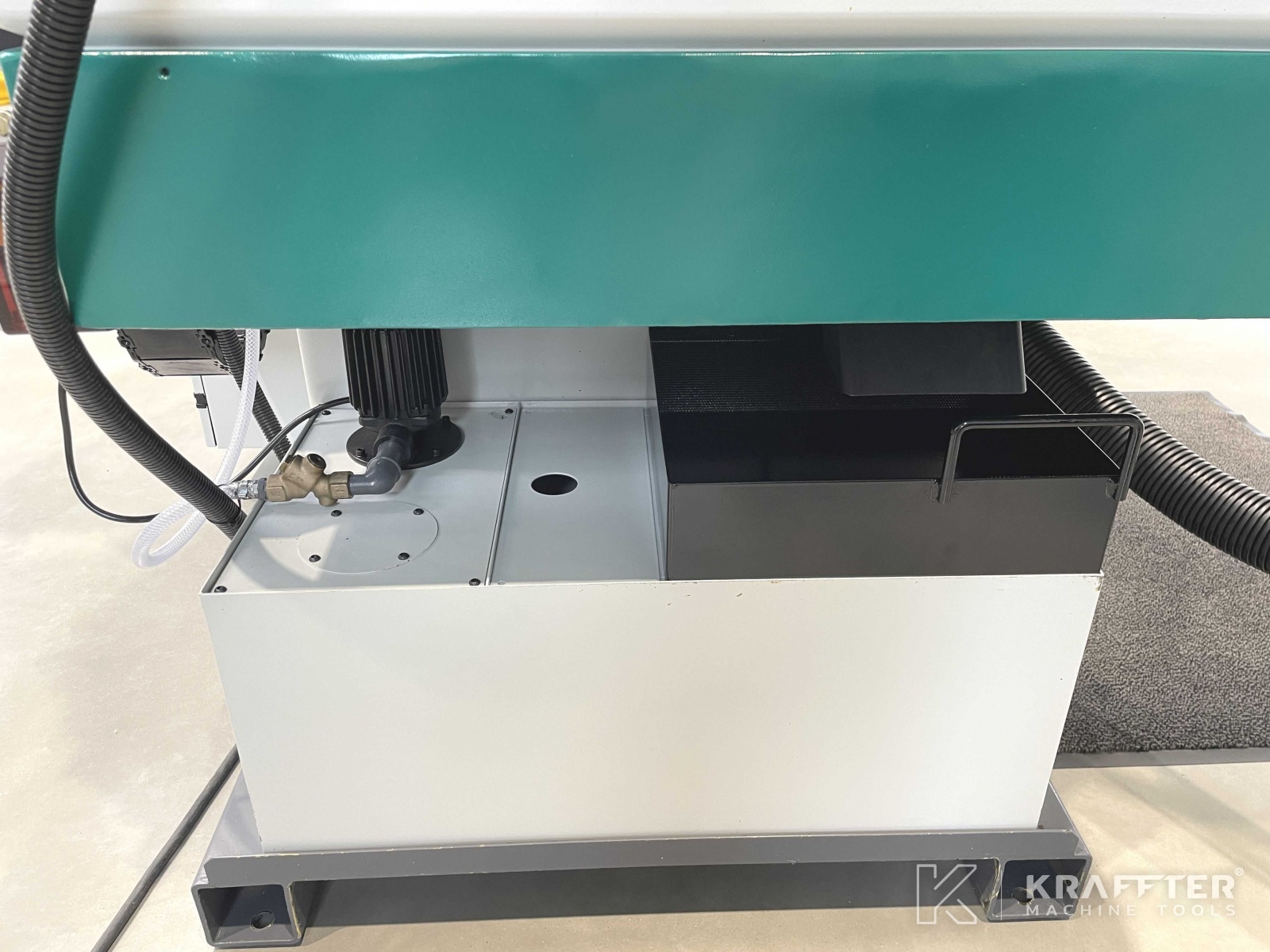

Lubrication tank capacity
100 [l]

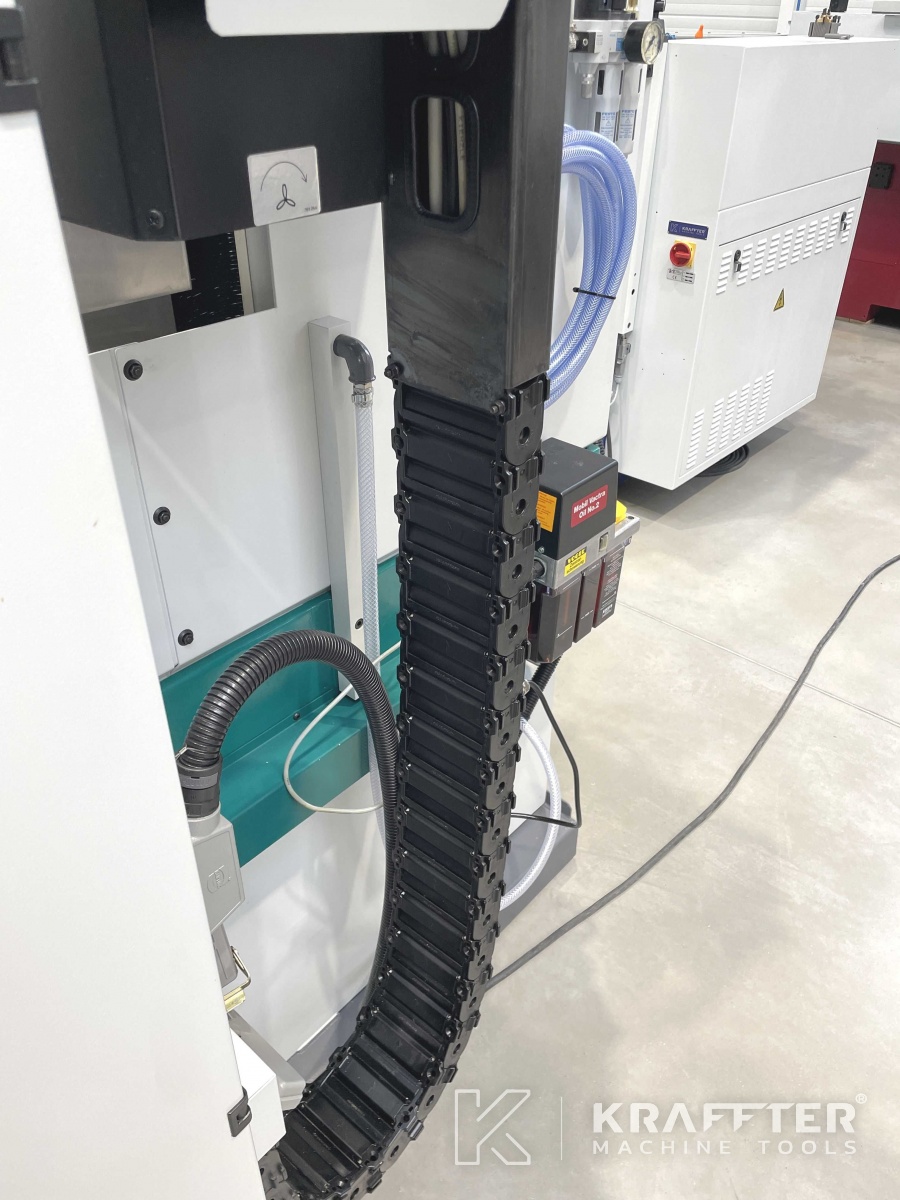

Centralized lubrication

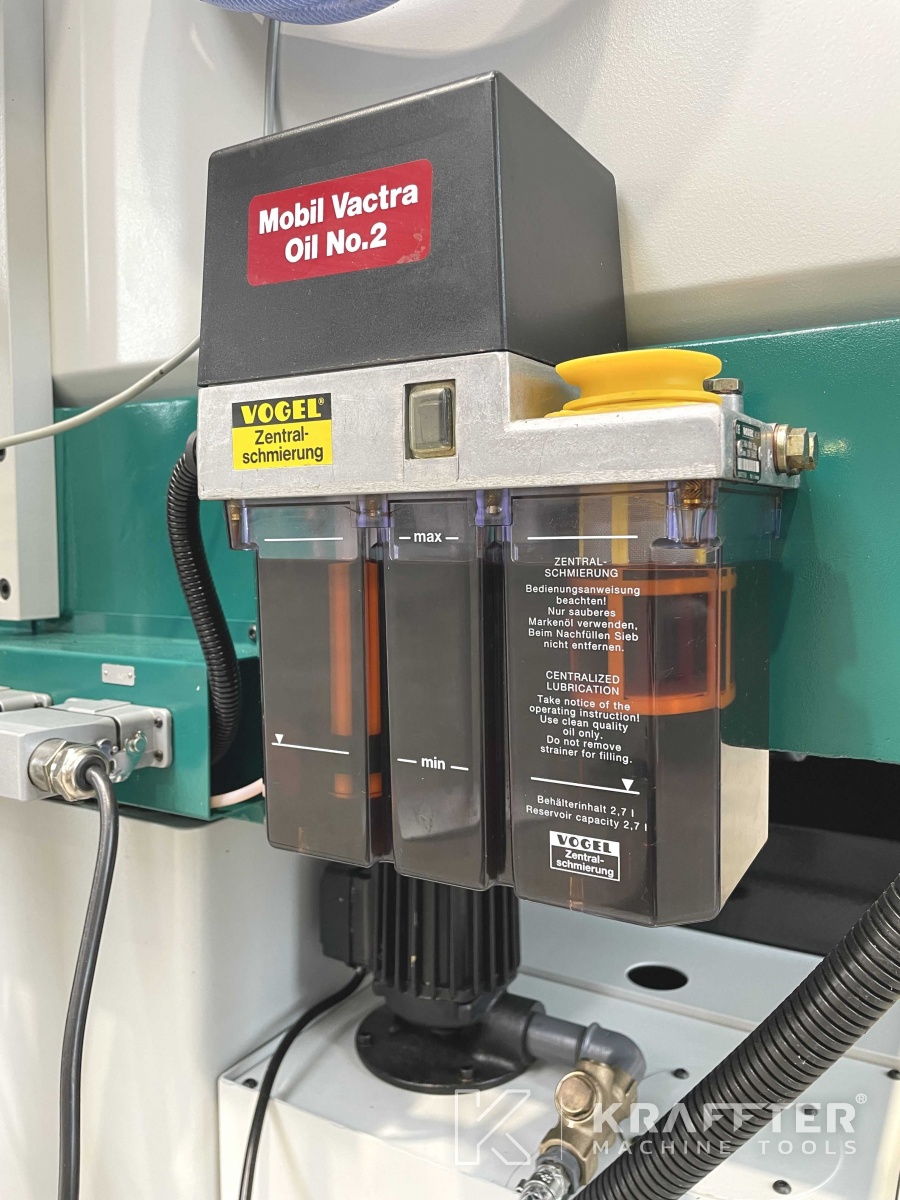

Automatique - WILLY VOGEL
Supply voltage
400 [V]

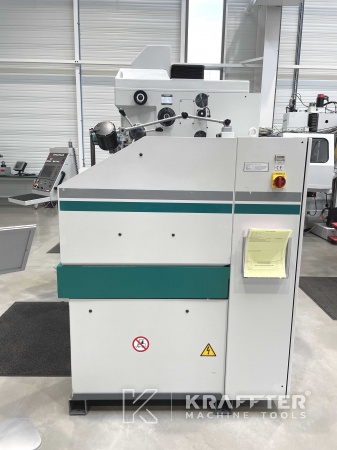

Dimensions
2200 x 2100 x 2250 [mm]
Weight
2450 [Kg]

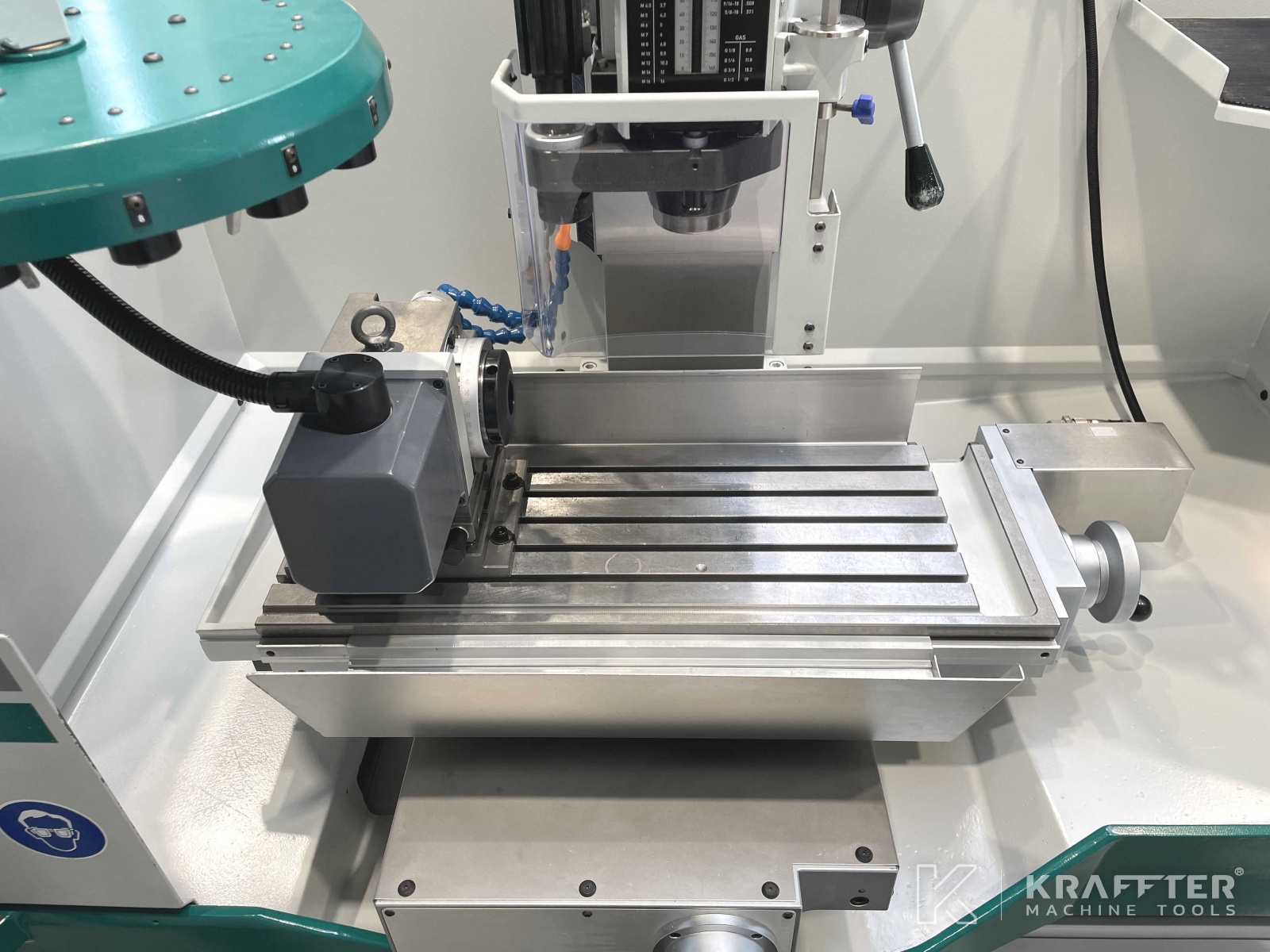

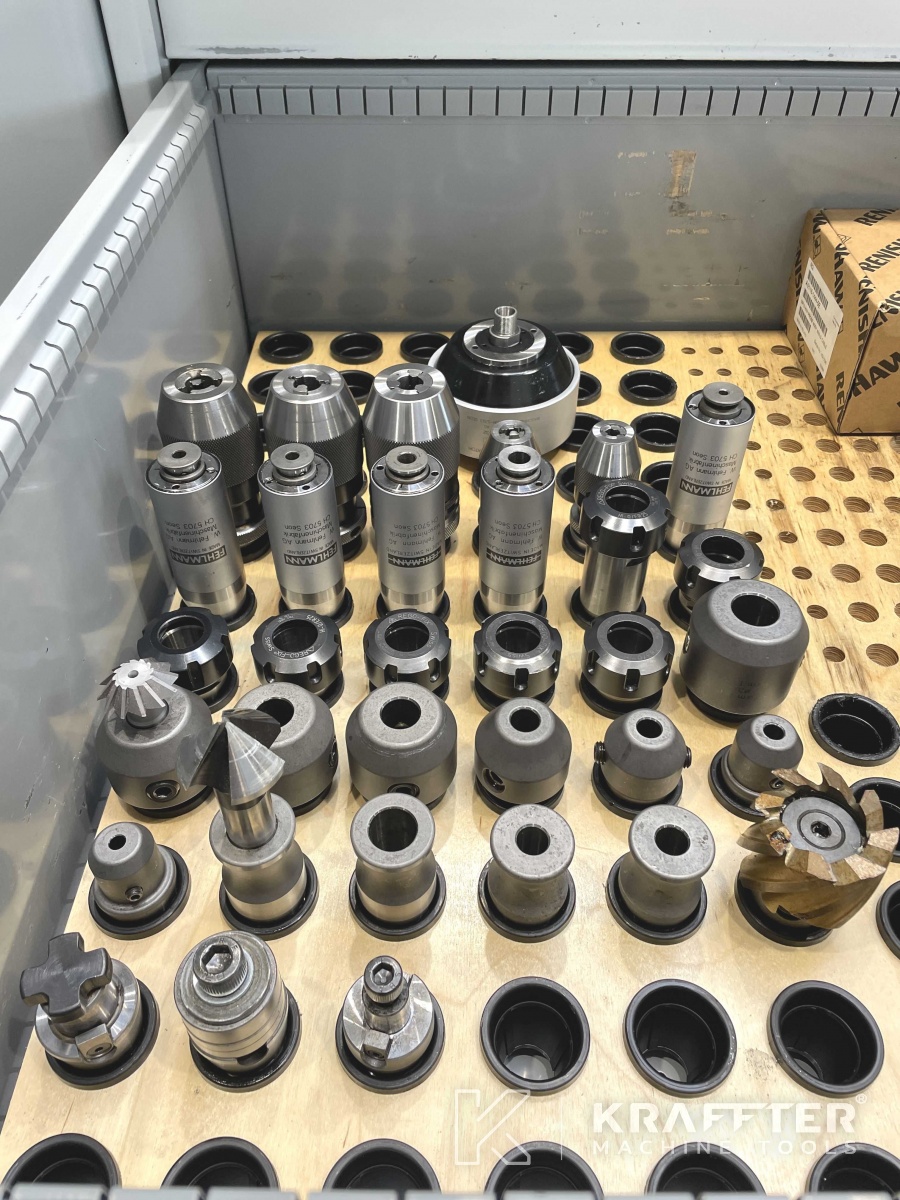

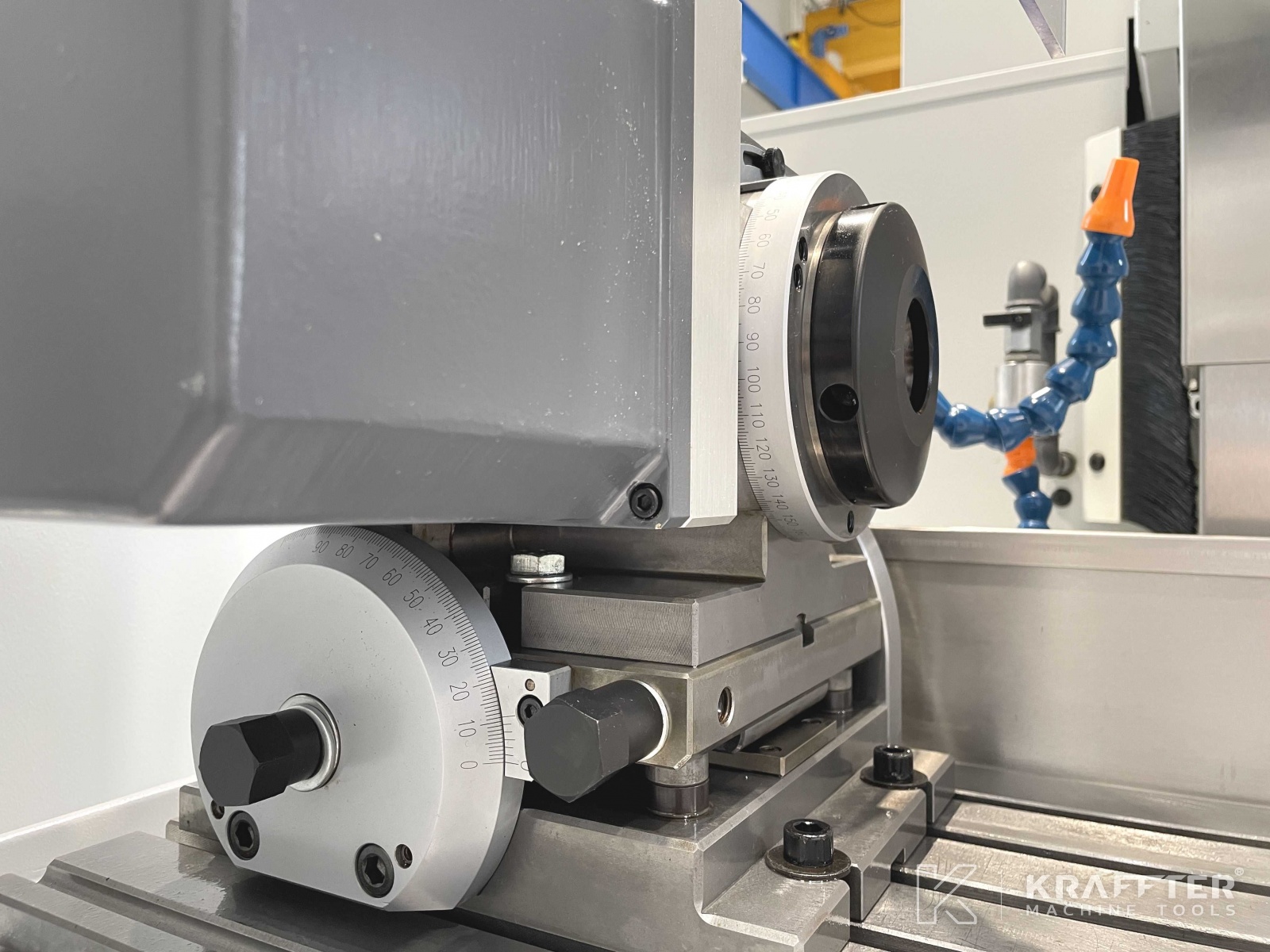

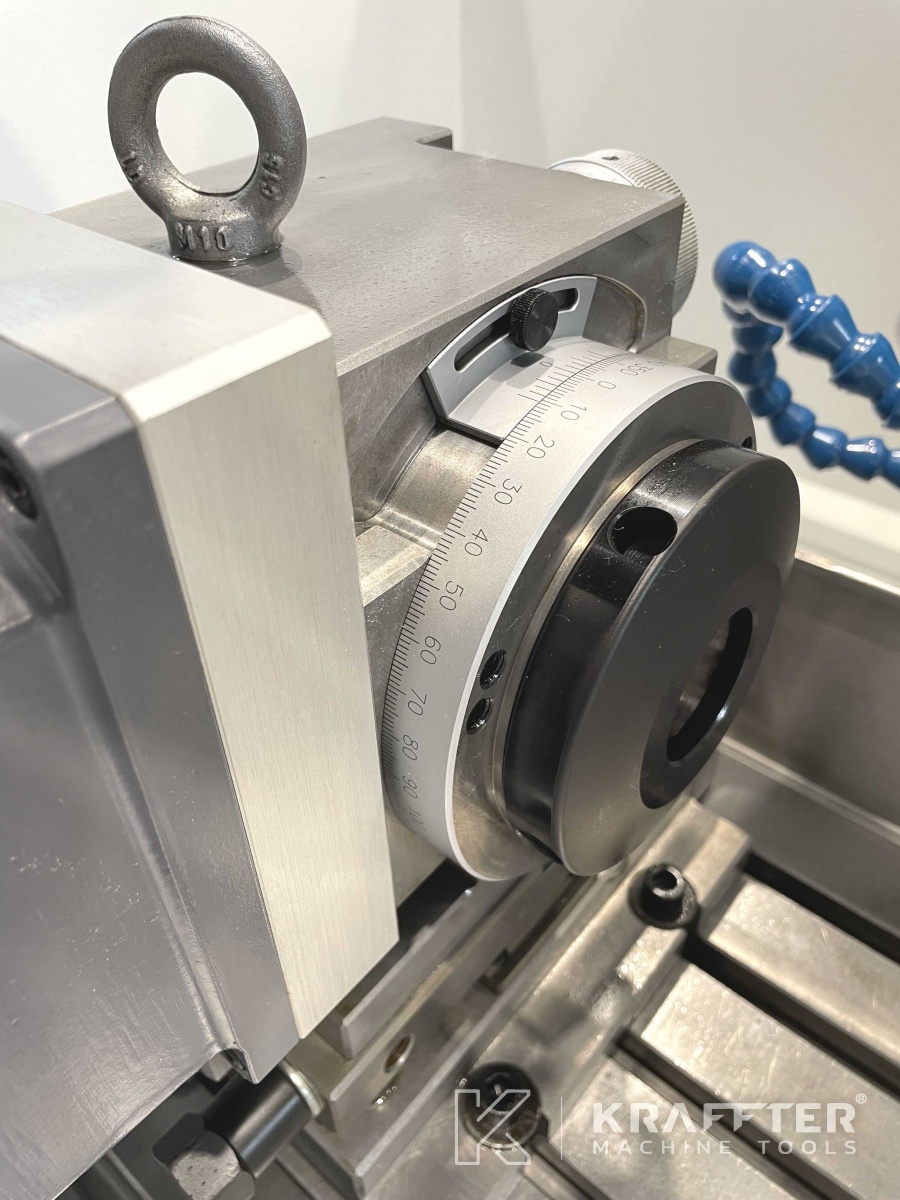

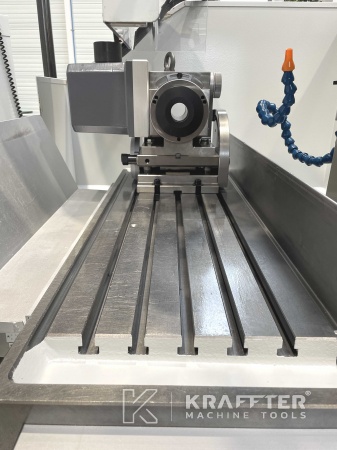

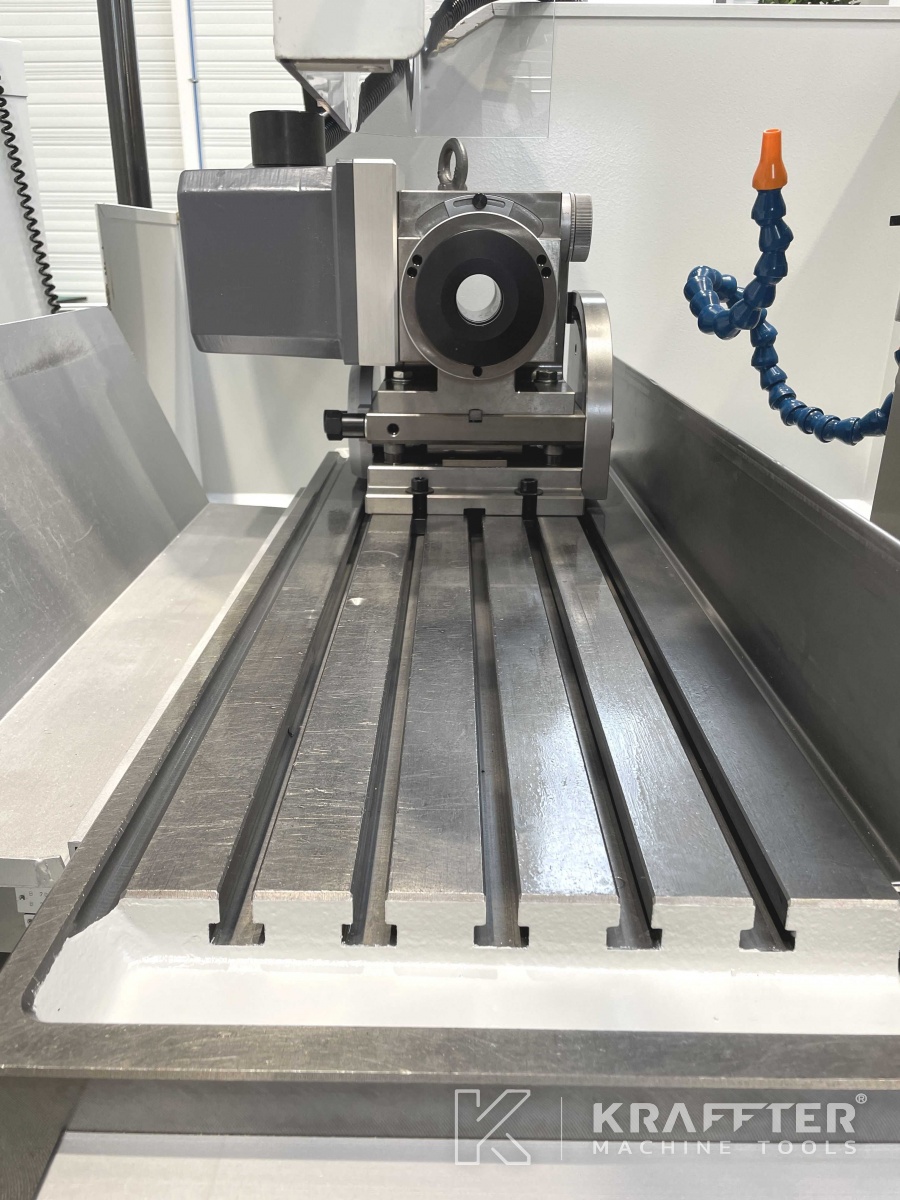

x1 4th axis FEHLMANN type AT100 CNC AC for F38 collets - indexation 0.001°

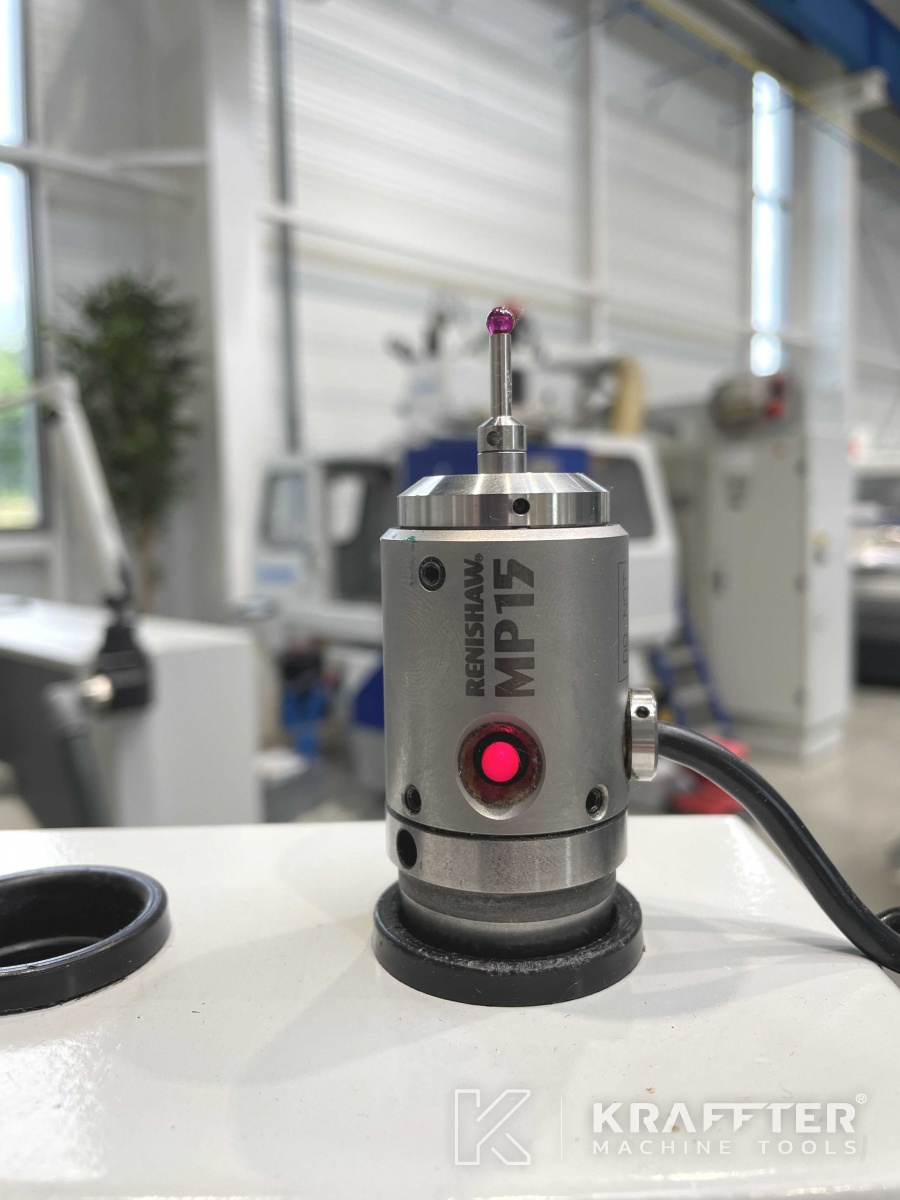

x1 RENISHAW MP15 3D touch probe
x1 speed-up head type NX6 SF32 (multiplied number revolution 6x) - max. revolution : 25'000 rpm
x2 reduction sleeve attachments SF32 to MT2 with tenon
x2 reduction sleeve attachments SF32 to MT1 with tenon

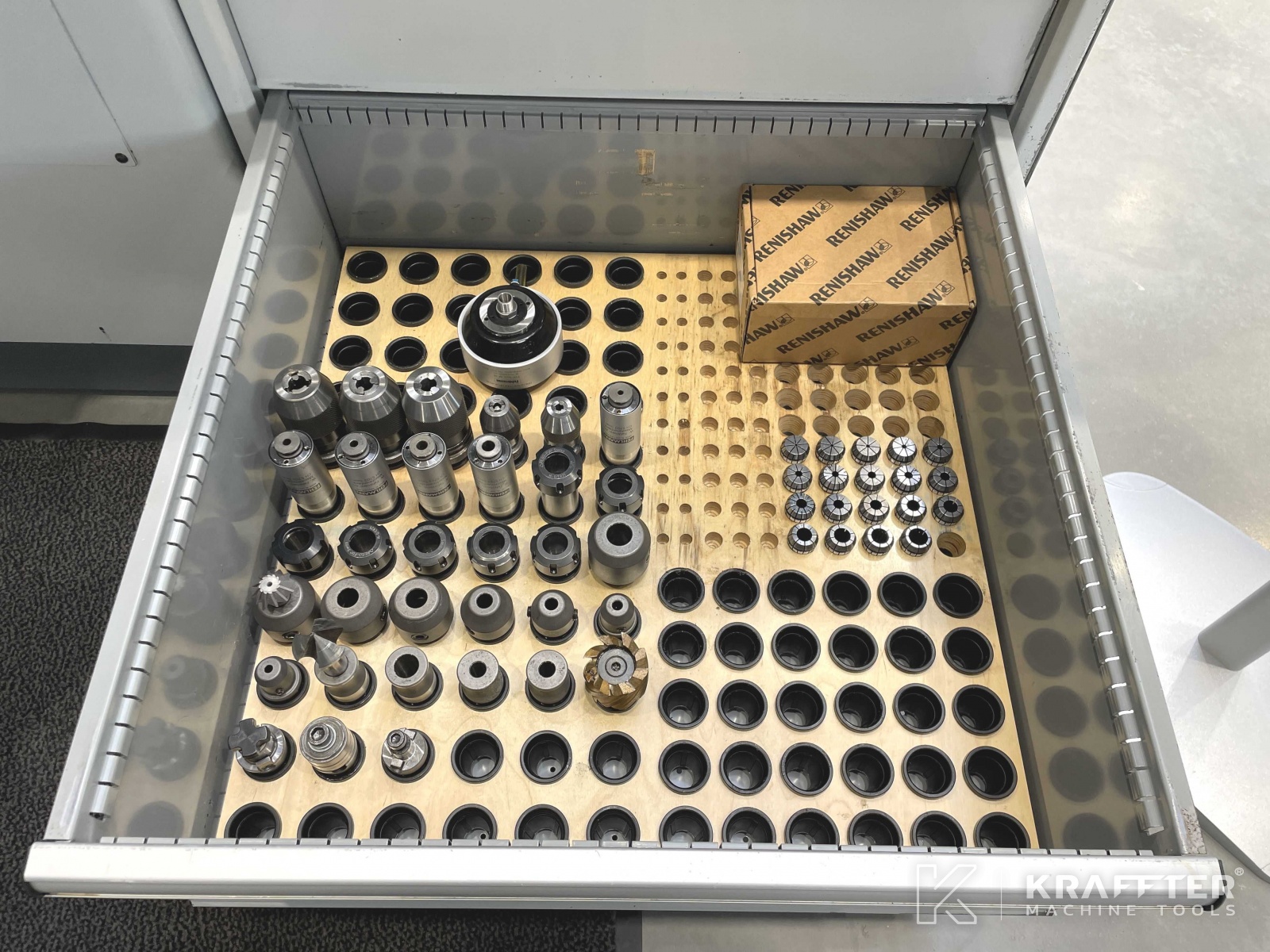

x3 precision keyless drill chucks ALBRECHT 1-13 [mm]
x2 precision keyless drill chucks ALBRECHT 0-6.5 [mm]

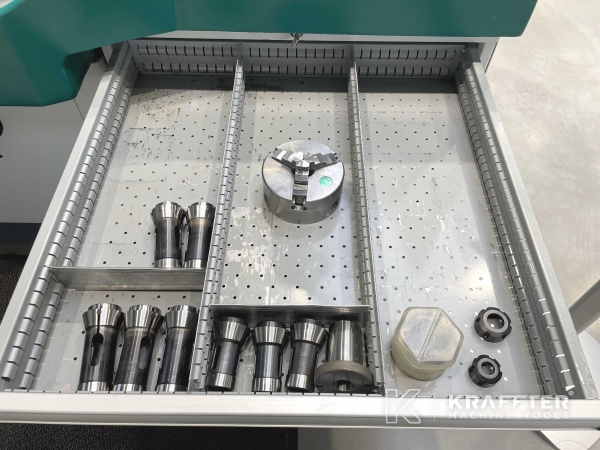

x6 collet chucks ESX25 with locking nut
x1 collet chucks ESX25 with locking nut - extended
x1 tapping head with preset slipping clutch with axial float in one dircetion only M4
x1 tapping head with preset slipping clutch with axial float in one dircetion only M5
x1 tapping head with preset slipping clutch with axial float in one dircetion only M6
x1 tapping head with preset slipping clutch with axial float in one dircetion only M8
x1 tapping head with preset slipping clutch with axial float in one dircetion only M10
x1 milling chuck Ø8 [mm]
x1 milling chuck Ø10 [mm]
x1 milling chuck Ø12 [mm]
x3 milling chucks Ø16 [mm]
x1 milling chuck Ø20 [mm]
x4 milling chucks (for milling cutter of different internal diameters)

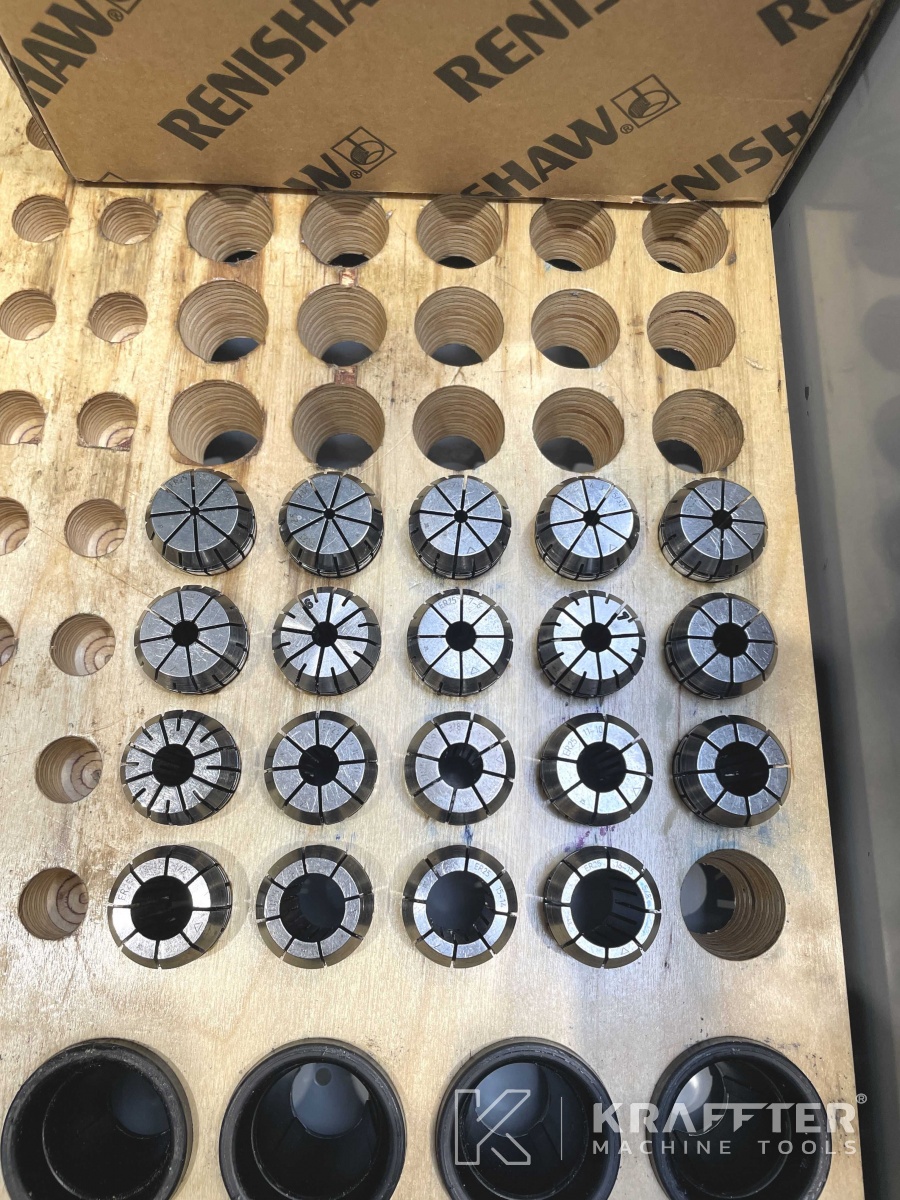

x1 collet ER25 Ø2-1 [mm]
x1 collet ER25 Ø2.5 [mm]
x1 collet ER25 Ø3-2 [mm]
x1 collet ER25 Ø4-3 [mm]
x1 collet ER25 Ø5-4 [mm]
x1 collet ER25 Ø6-5 [mm]
x1 collet ER25 Ø6 [mm]
x1 collet ER25 Ø7-6 [mm]
x1 collet ER25 Ø7 [mm]
x1 collet ER25 Ø8-7 [mm]
x2 collets ER25 Ø9-8 [mm]
x1 collet ER25 Ø10-9 [mm]
x1 collet ER25 Ø11-10 [mm]
x1 collet ER25 Ø12-11 [mm]
x1 collet ER25 Ø13-12 [mm]
x1 collet ER25 Ø14-13 [mm]
x1 collet ER25 Ø15-14 [mm]
x1 collet ER25 Ø16-15 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø6 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø8 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø10 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø16 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø20 [mm]
x1 concentric 3 jaw chuck Ø125 [mm]
x1 WALDMANN lamp - 8500K

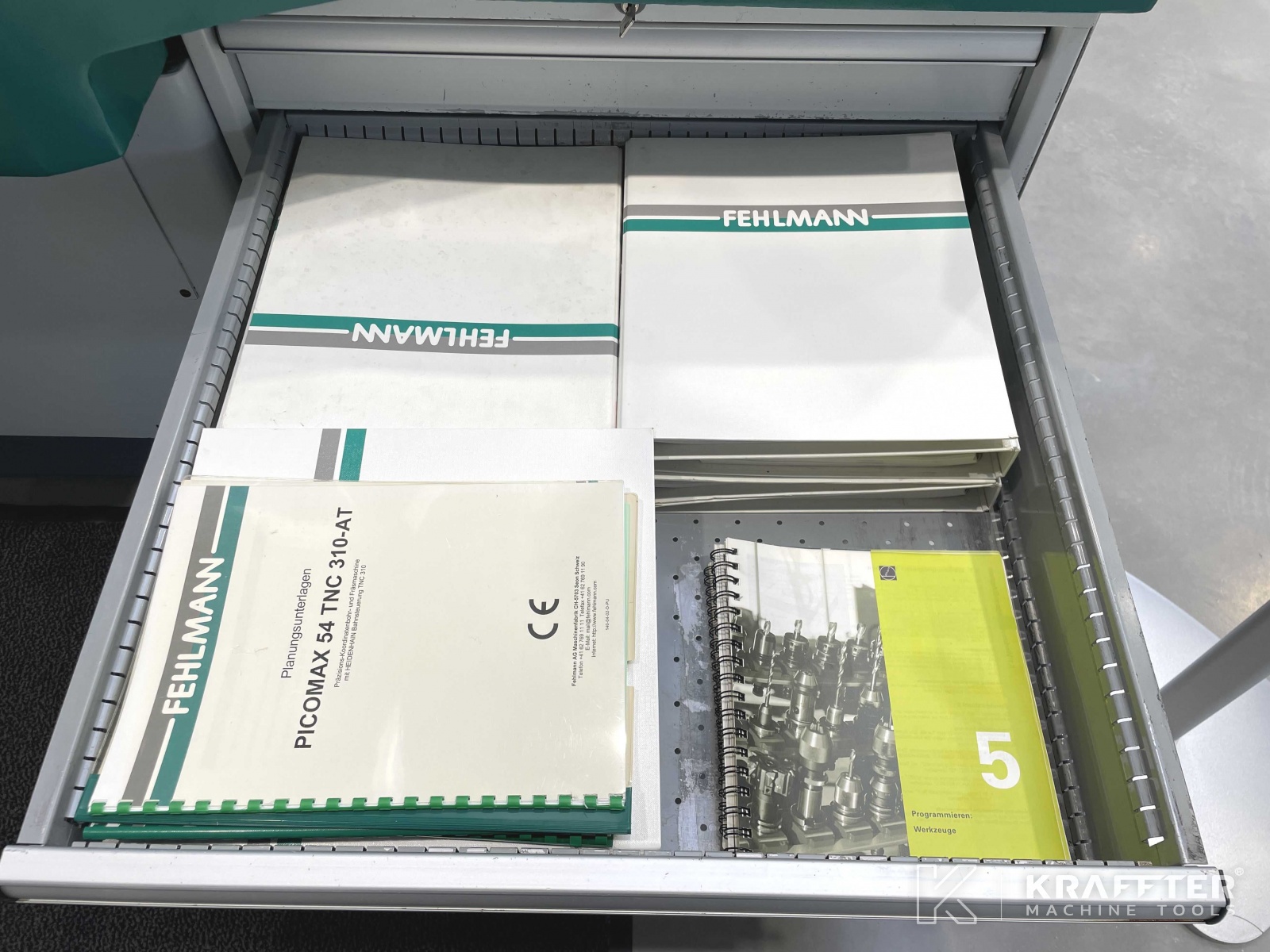

x1 users & maintenance manual (in German & French)
x1 programming manual FEHLMANN / HEIDENHAIN TNC 310 (in German & French)
x1 electrical wiring diagram manual
