Sold

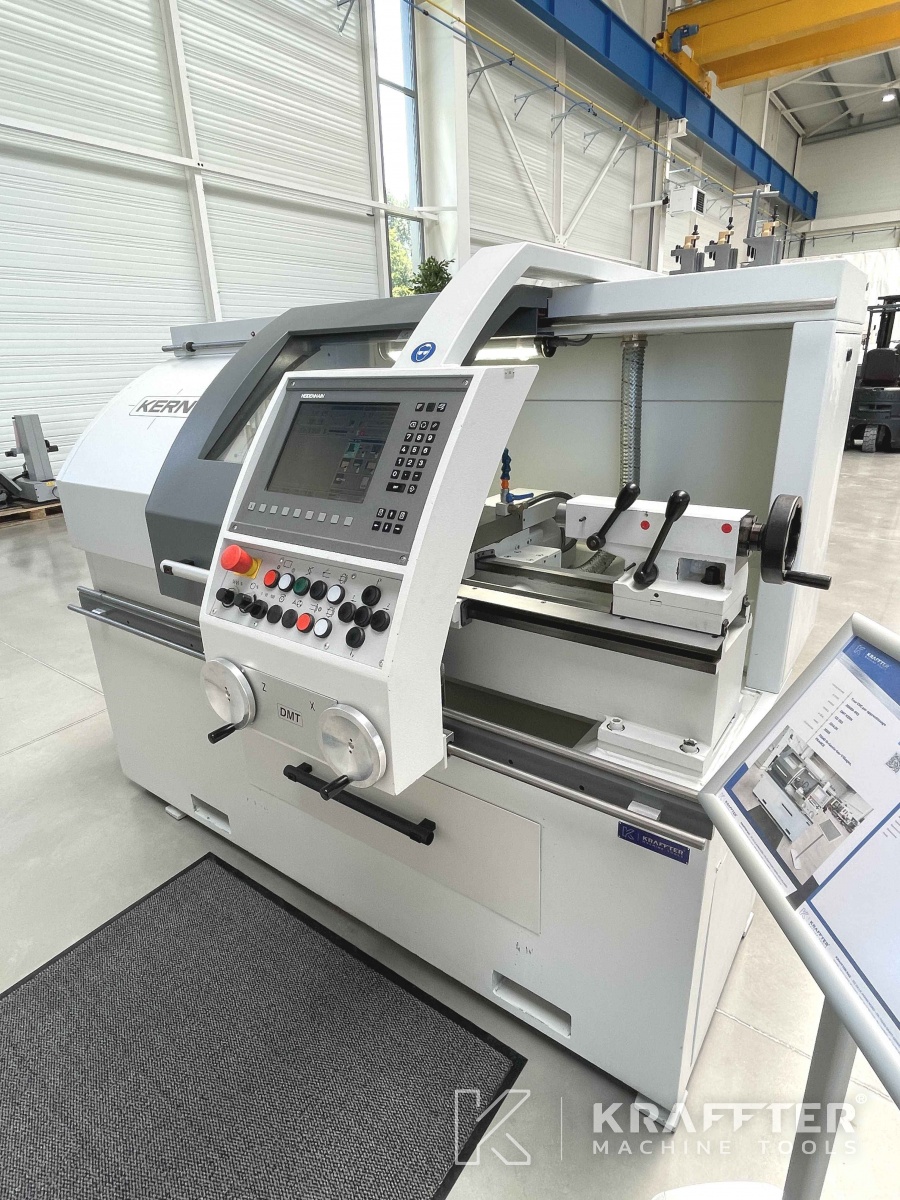

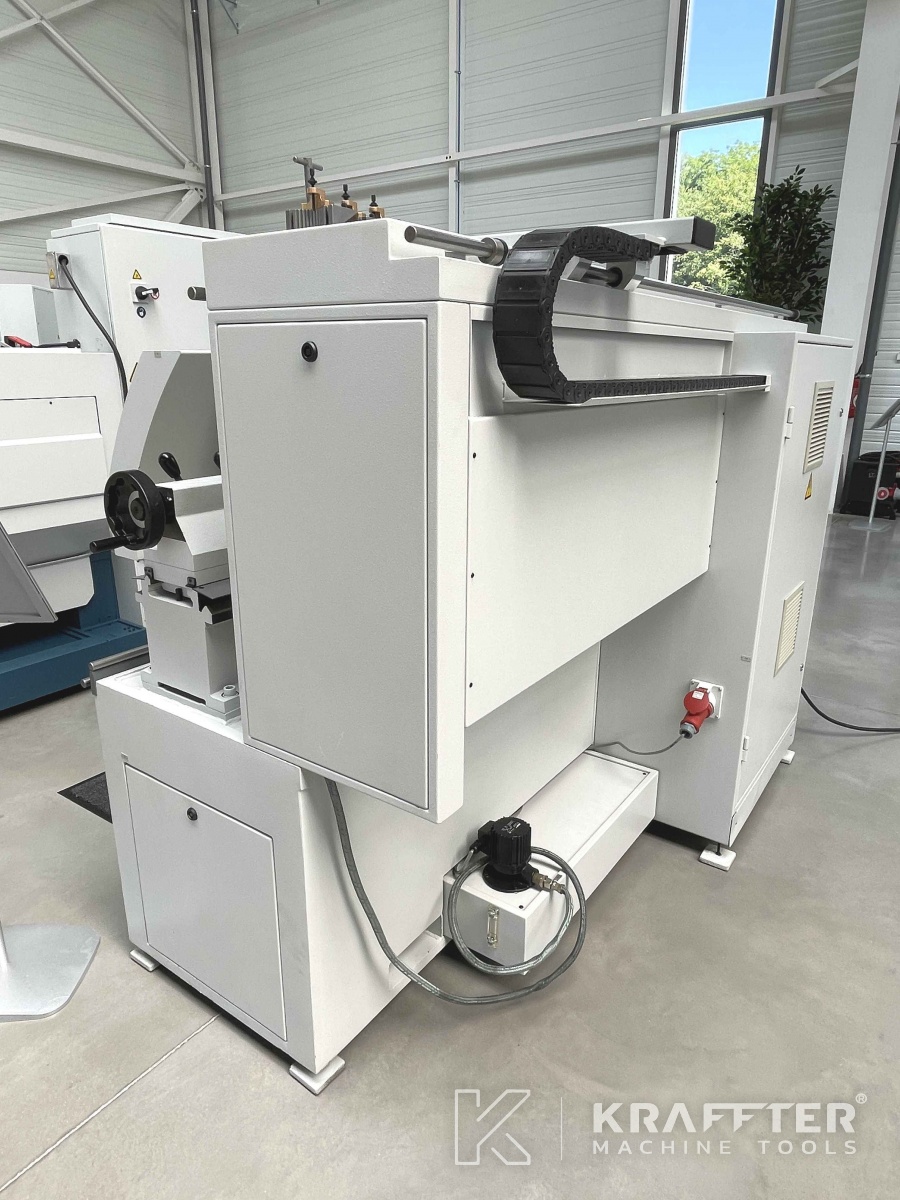

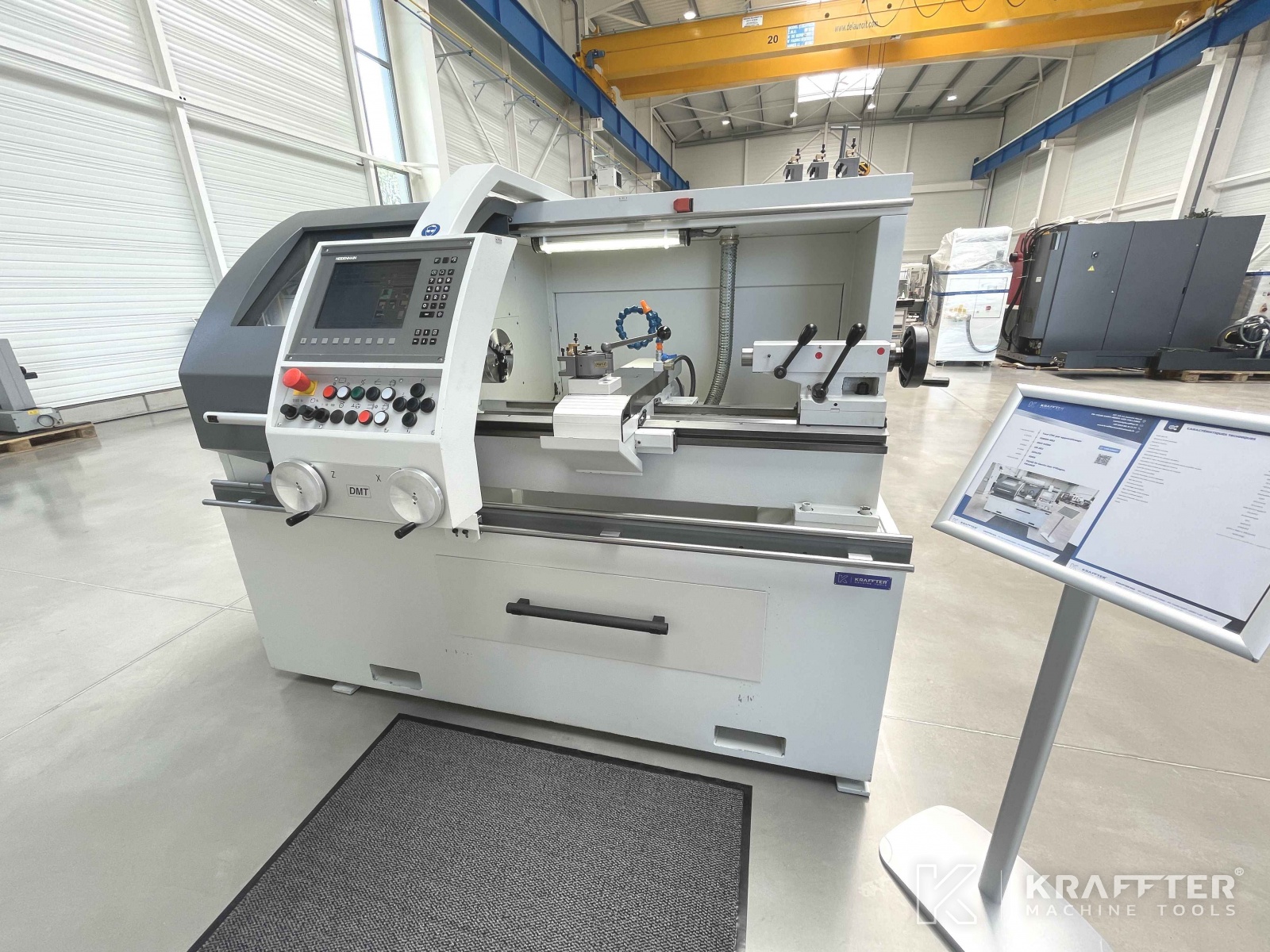

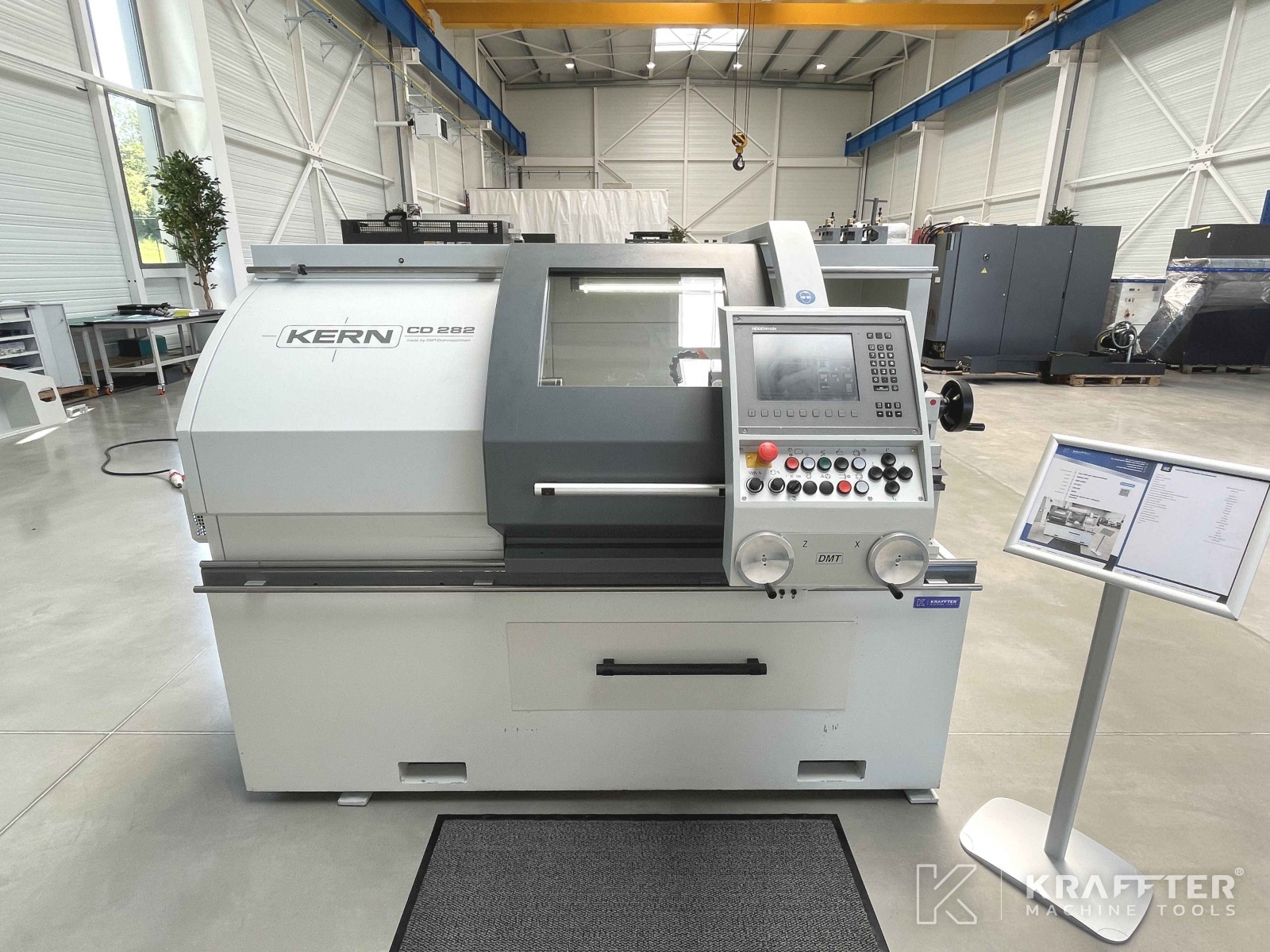

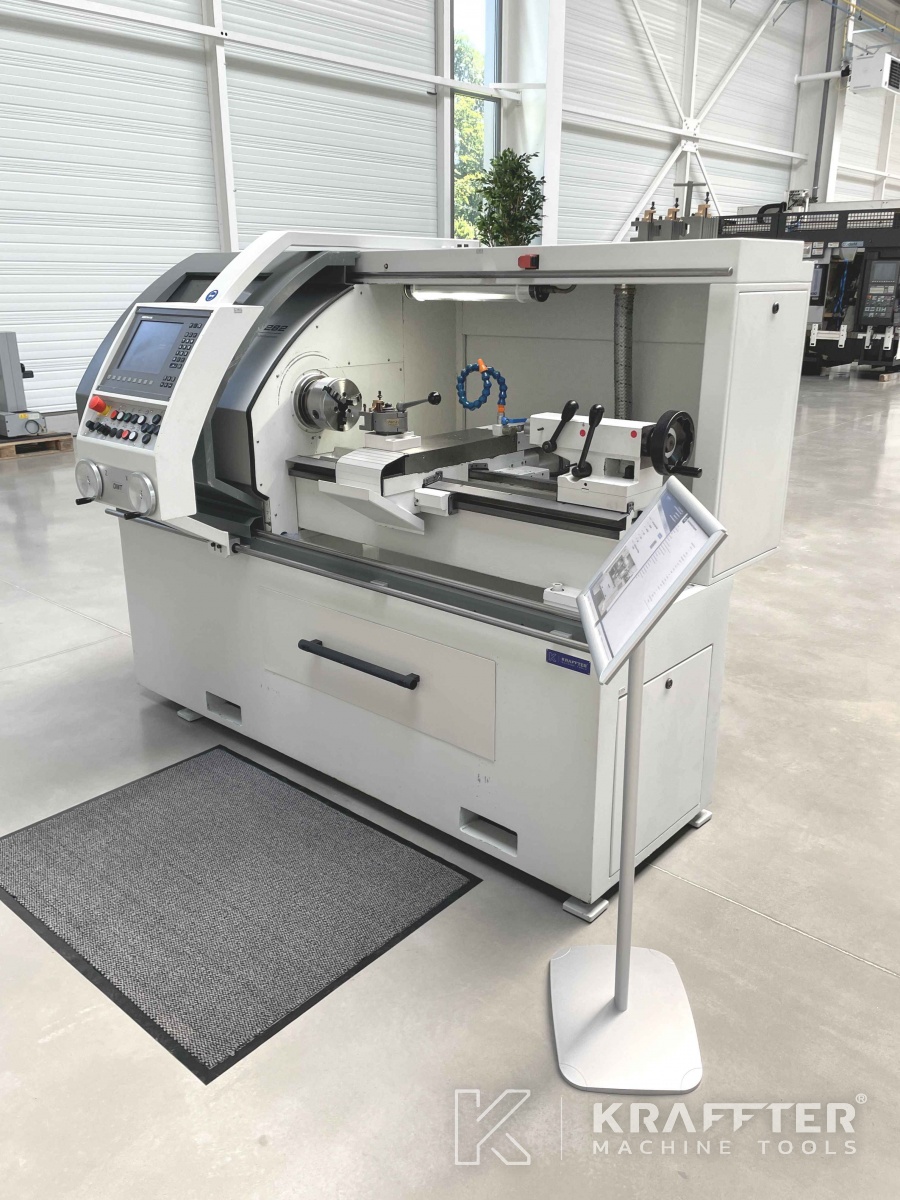

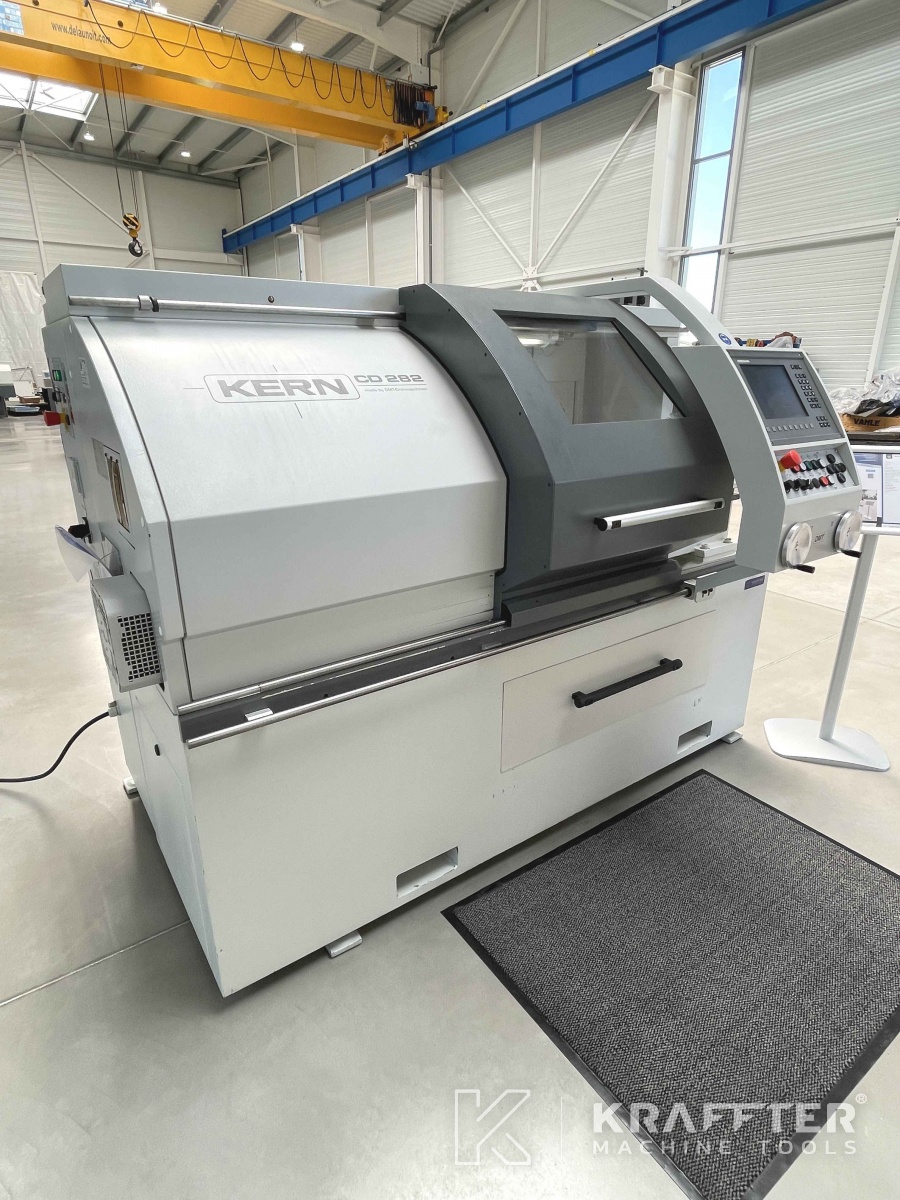

Type of machine : CNC teach-in lathe

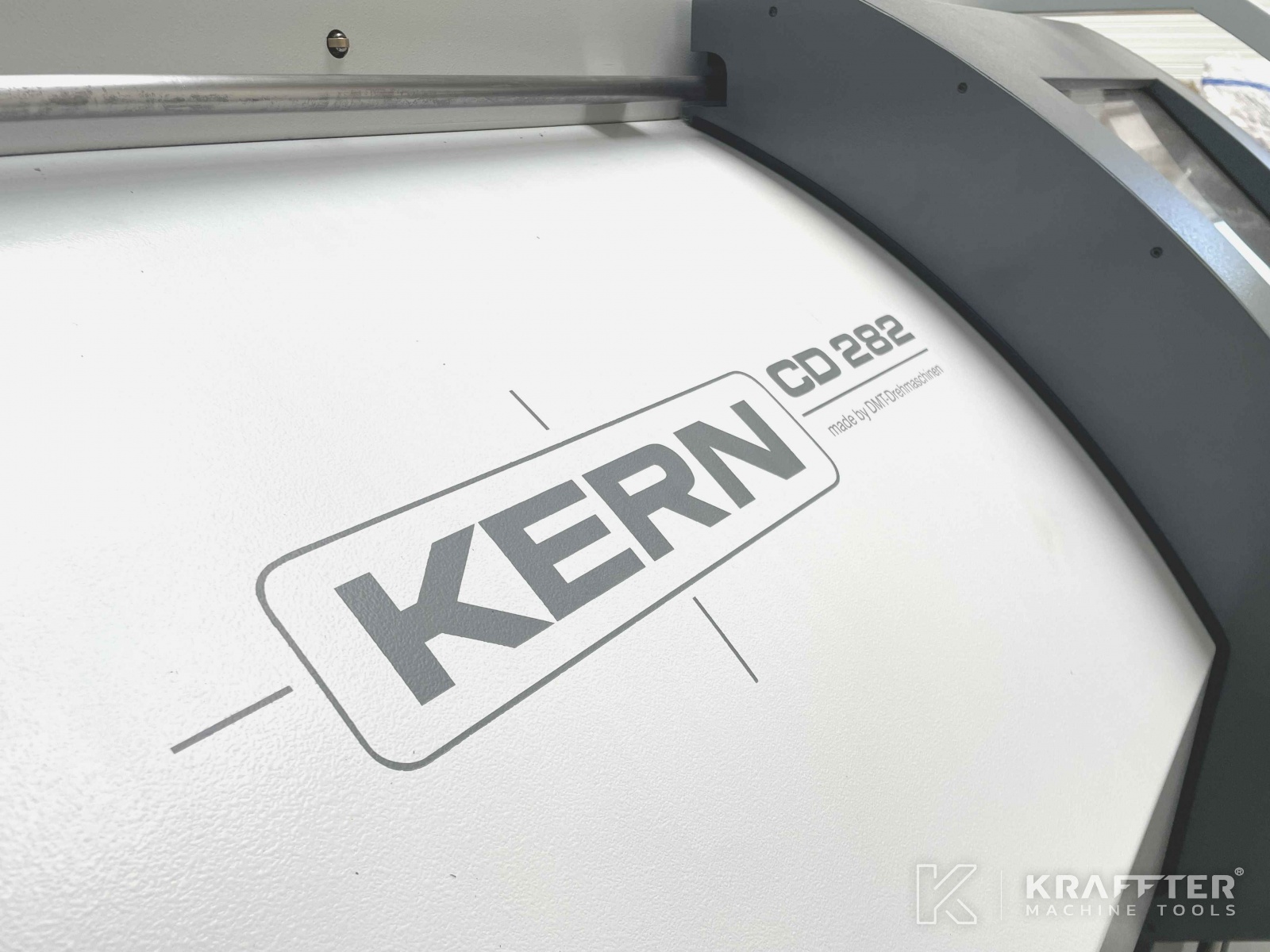

Brand : DMT KERN
Stock N° : 20689-992
Model : CD 282
Serial N° : 2313.05
Year : 2005
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

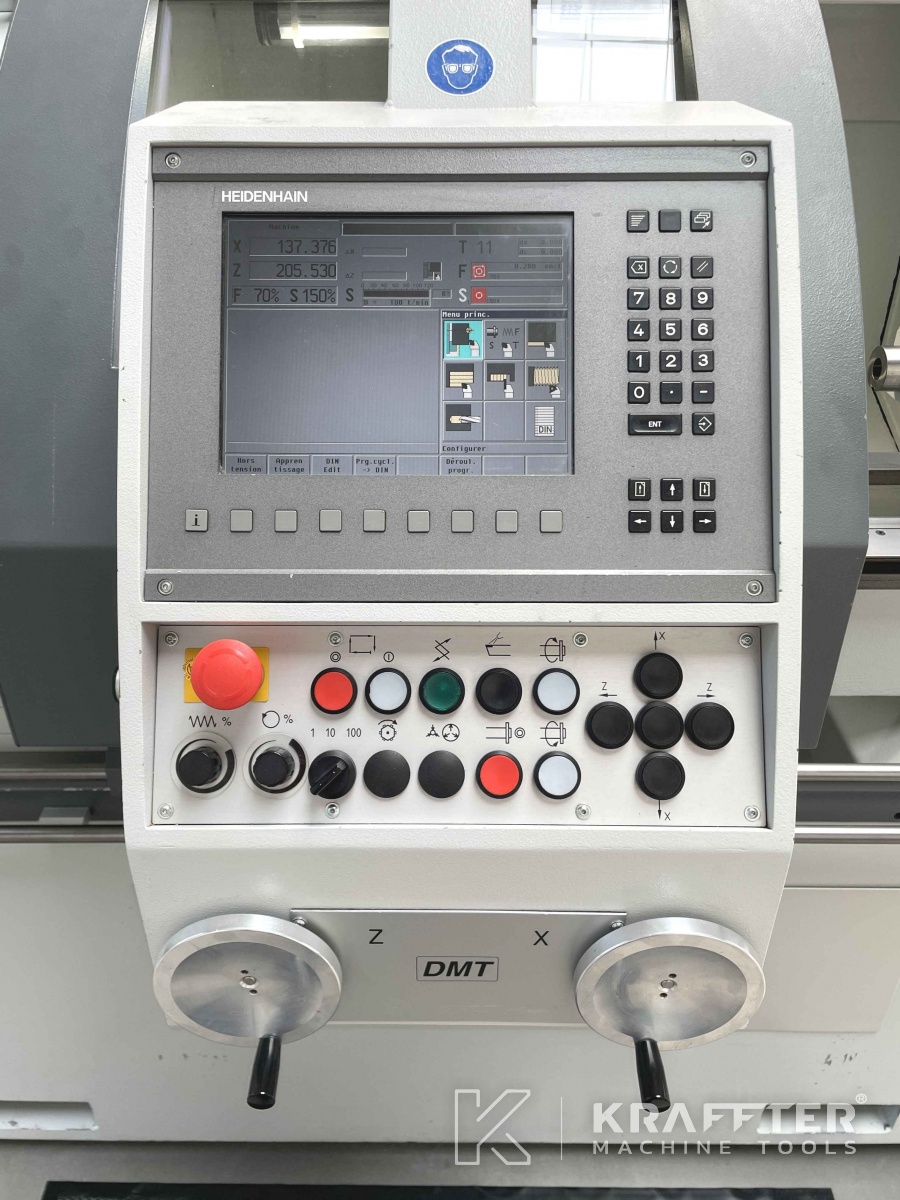

CNC control

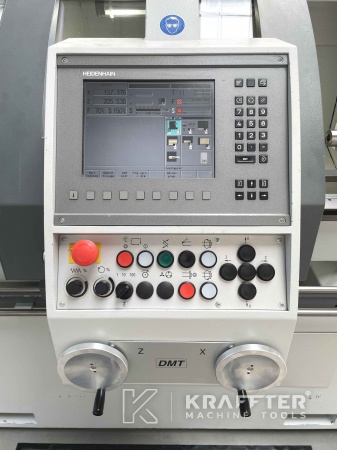

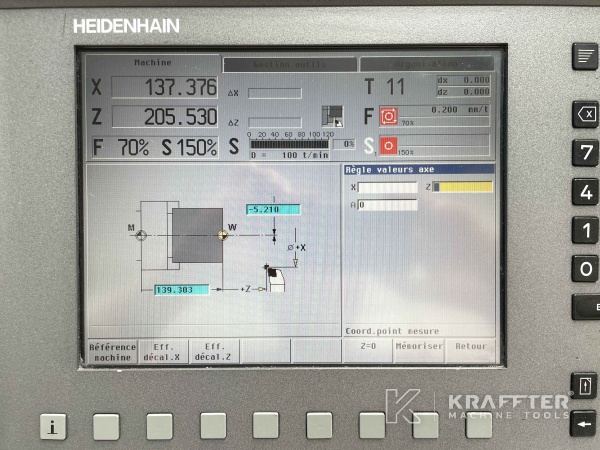

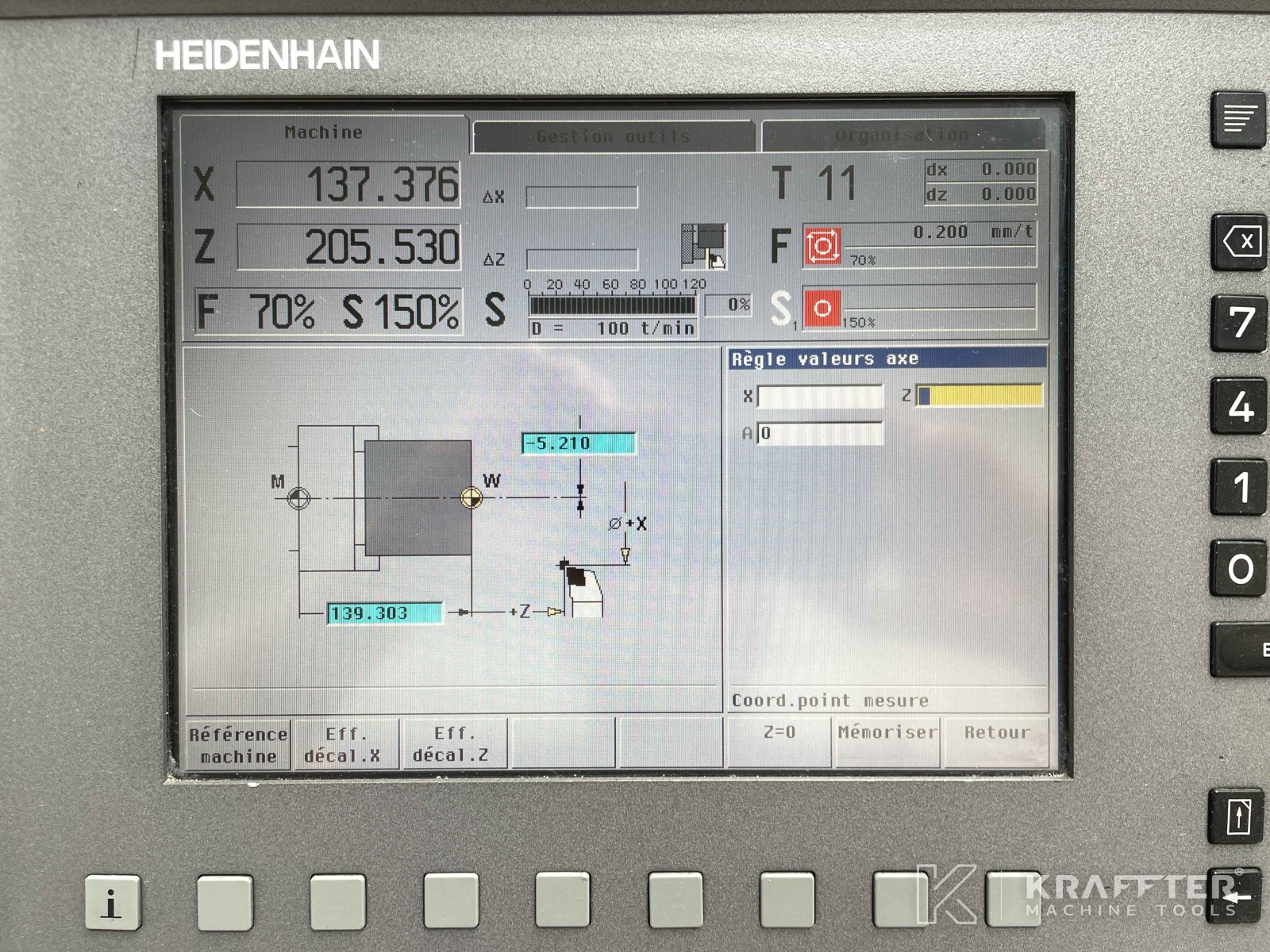

HEIDENHAIN Manual Plus 4110
Number of axes
2
Distance between centers
500 [mm]
Height of centers over cariage
140 [mm]
Max. swing over bed
280 [mm]
Stroke X axis
200 [mm]
Spindle throughbore
45 [mm]
Spindle throughbore at the front bearing
75 [mm]
Min. spindle speed
10 [rpm]
Max. spindle speed
5000 [rpm]

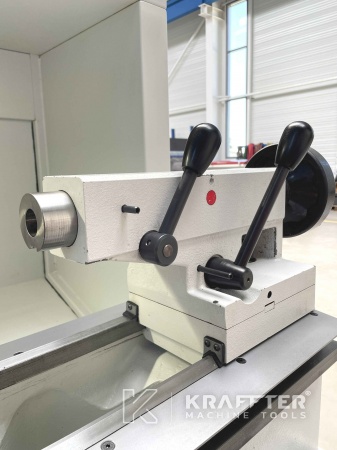

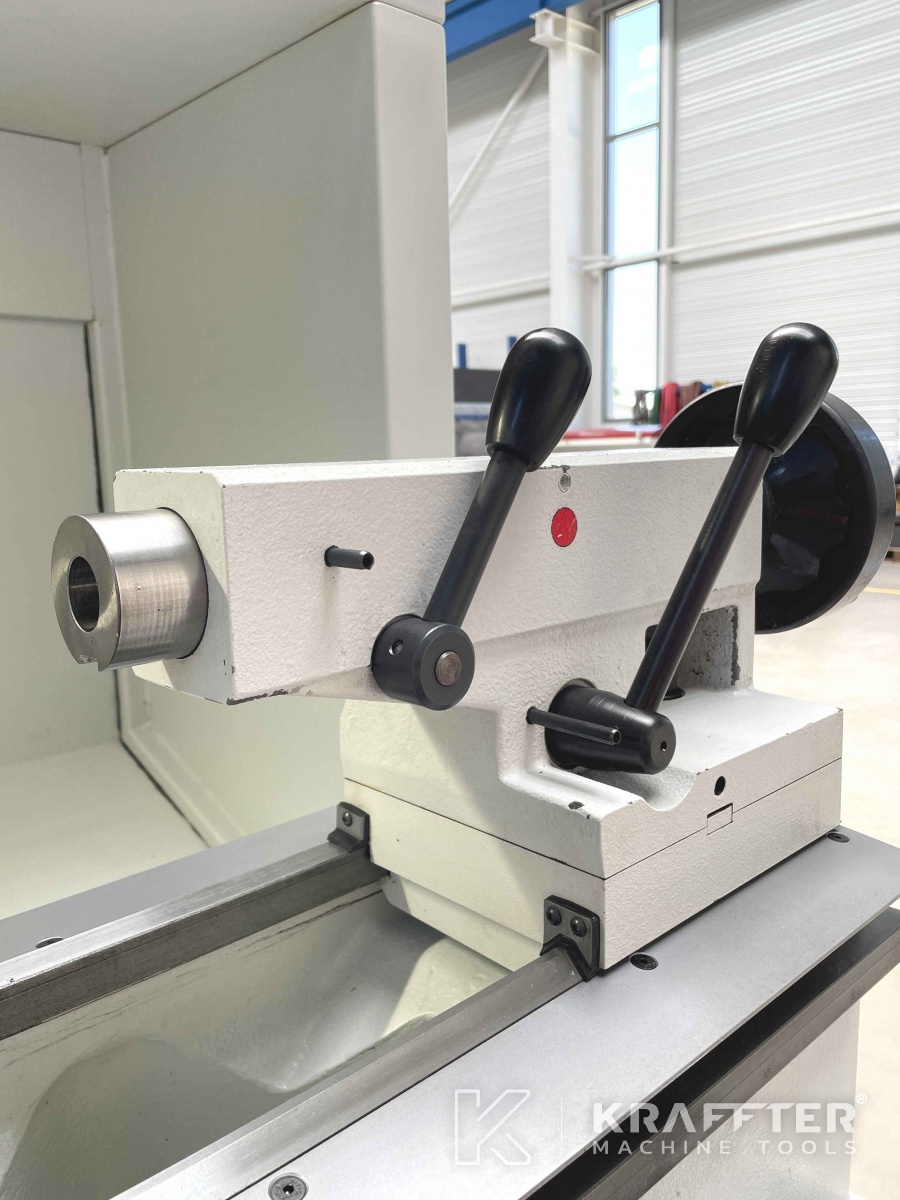

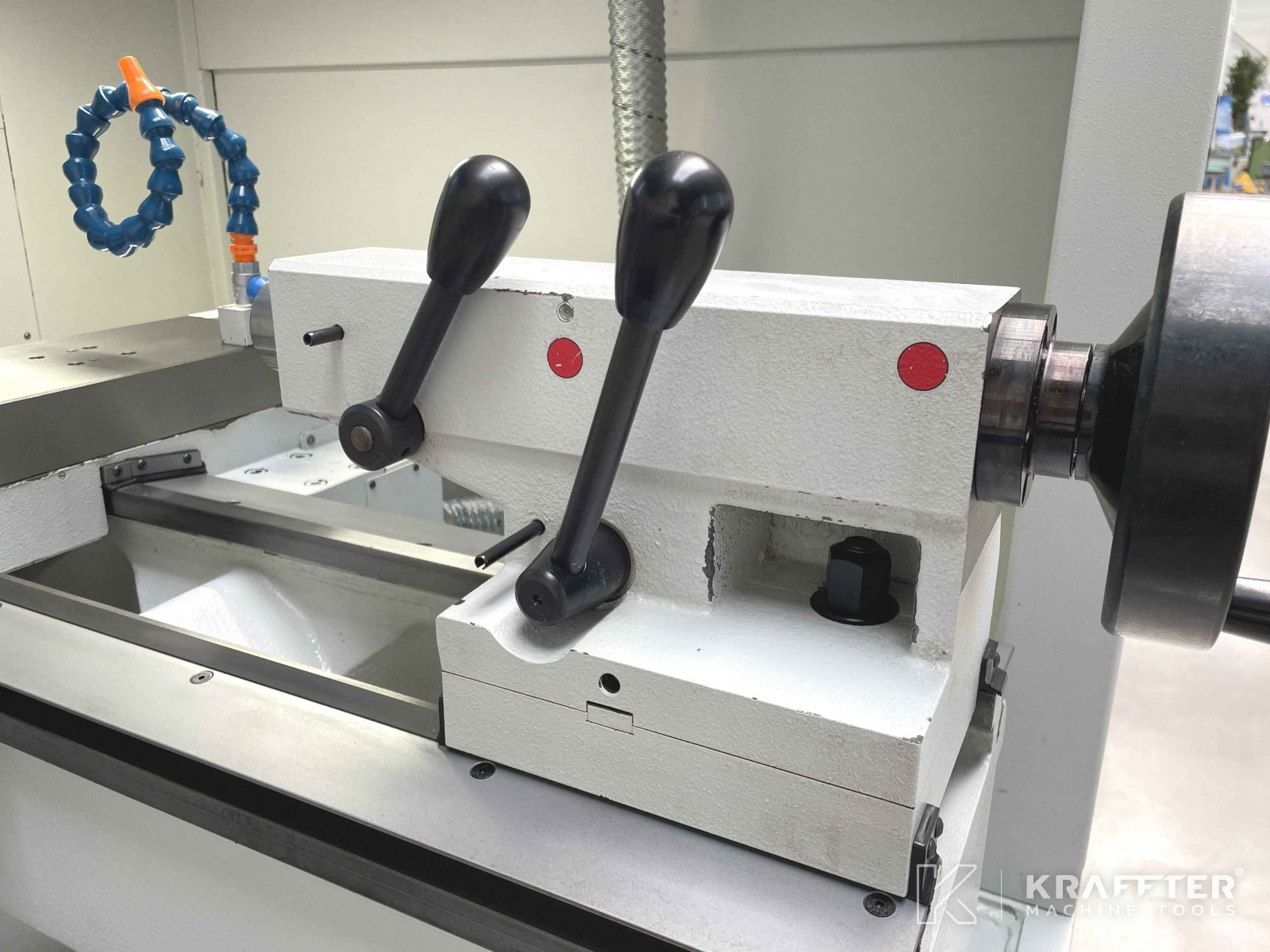

Tailstock type
Manuelle
Type of attachment tailstock
CM3
Tailstock quill stroke
120 [mm]
Tailstock quill diameter
50 [mm]
Supply voltage
400 [V]

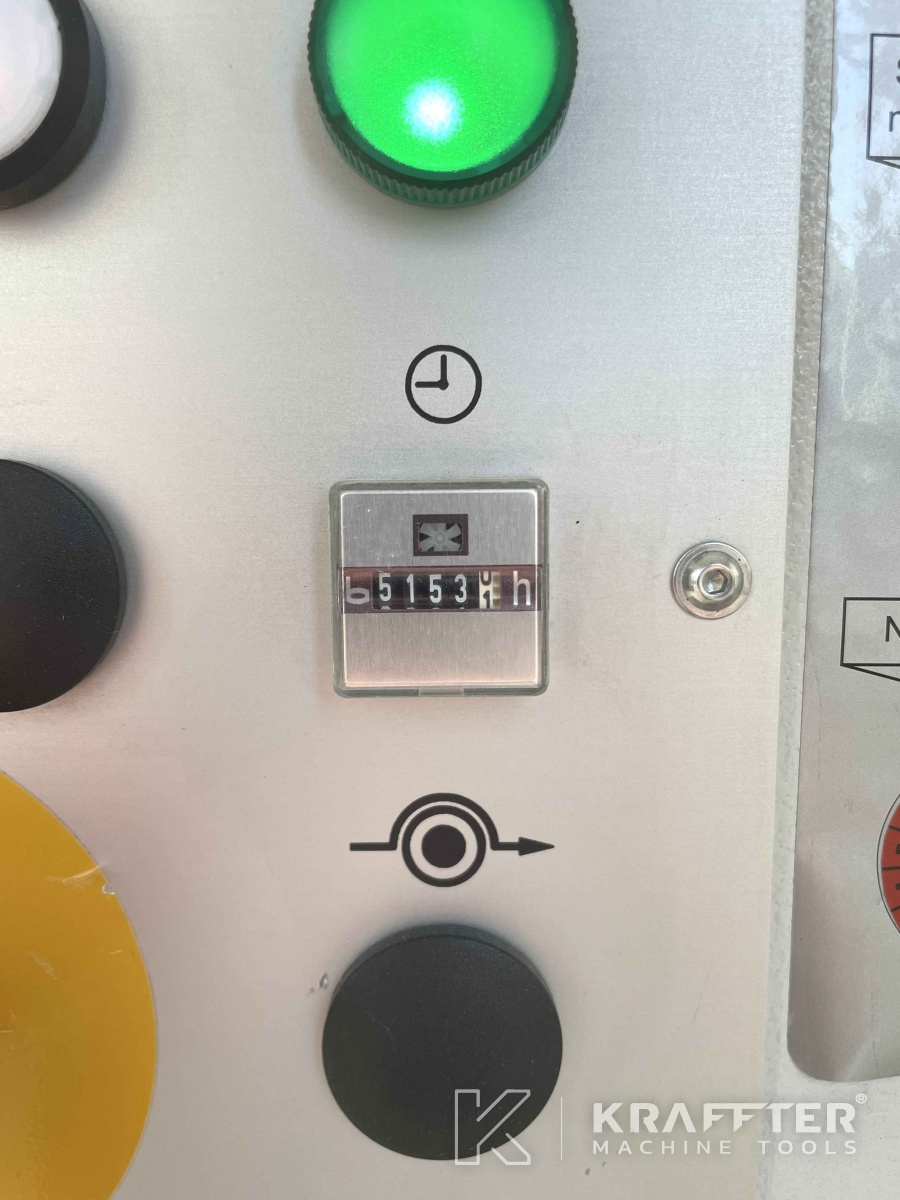

Number of hours under power
5153 [h]
Number of running hours
1800 [h]
Dimensions
2170 x 1560 x 1115 [mm]
Weight
1600 [Kg]

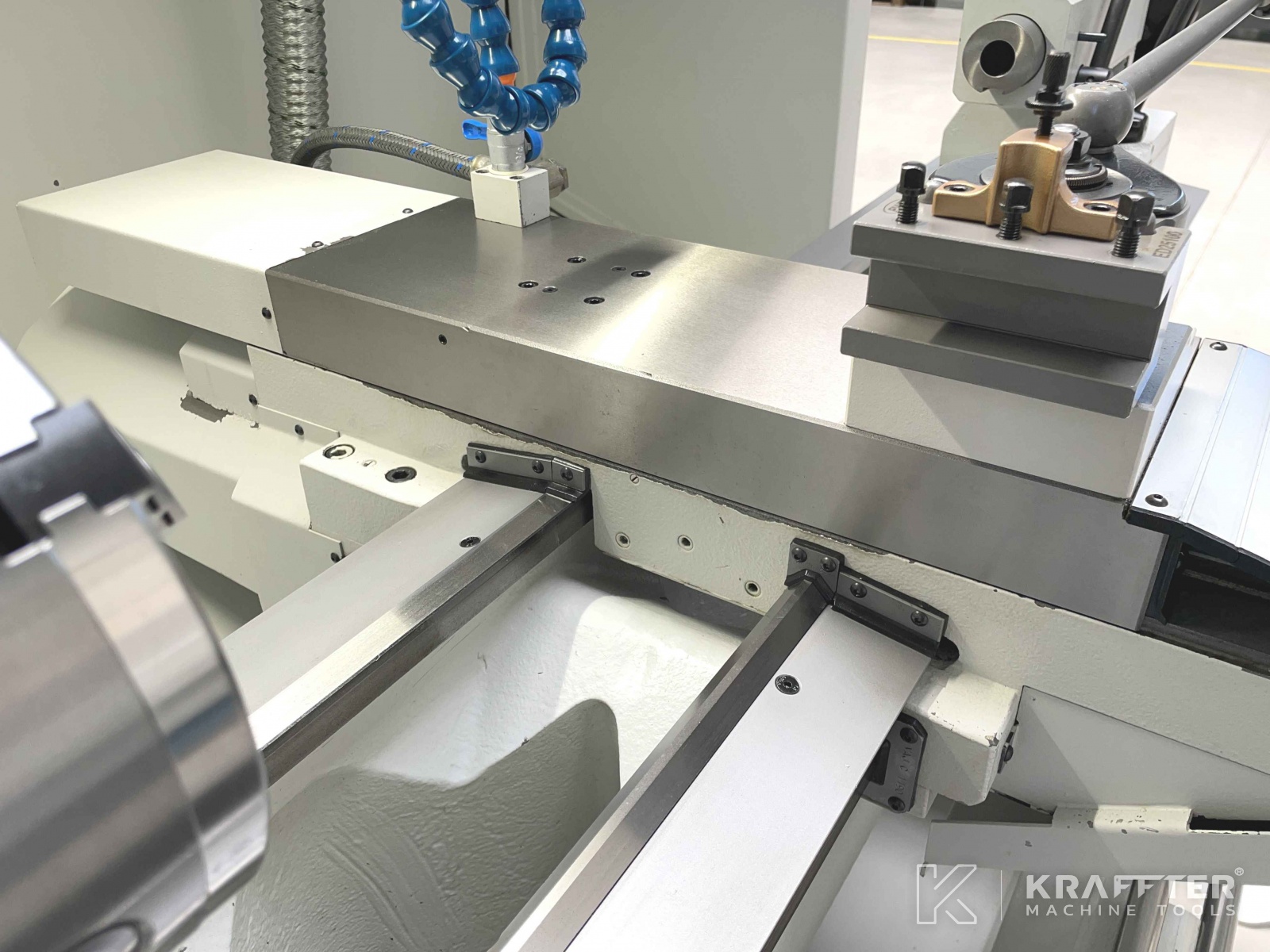

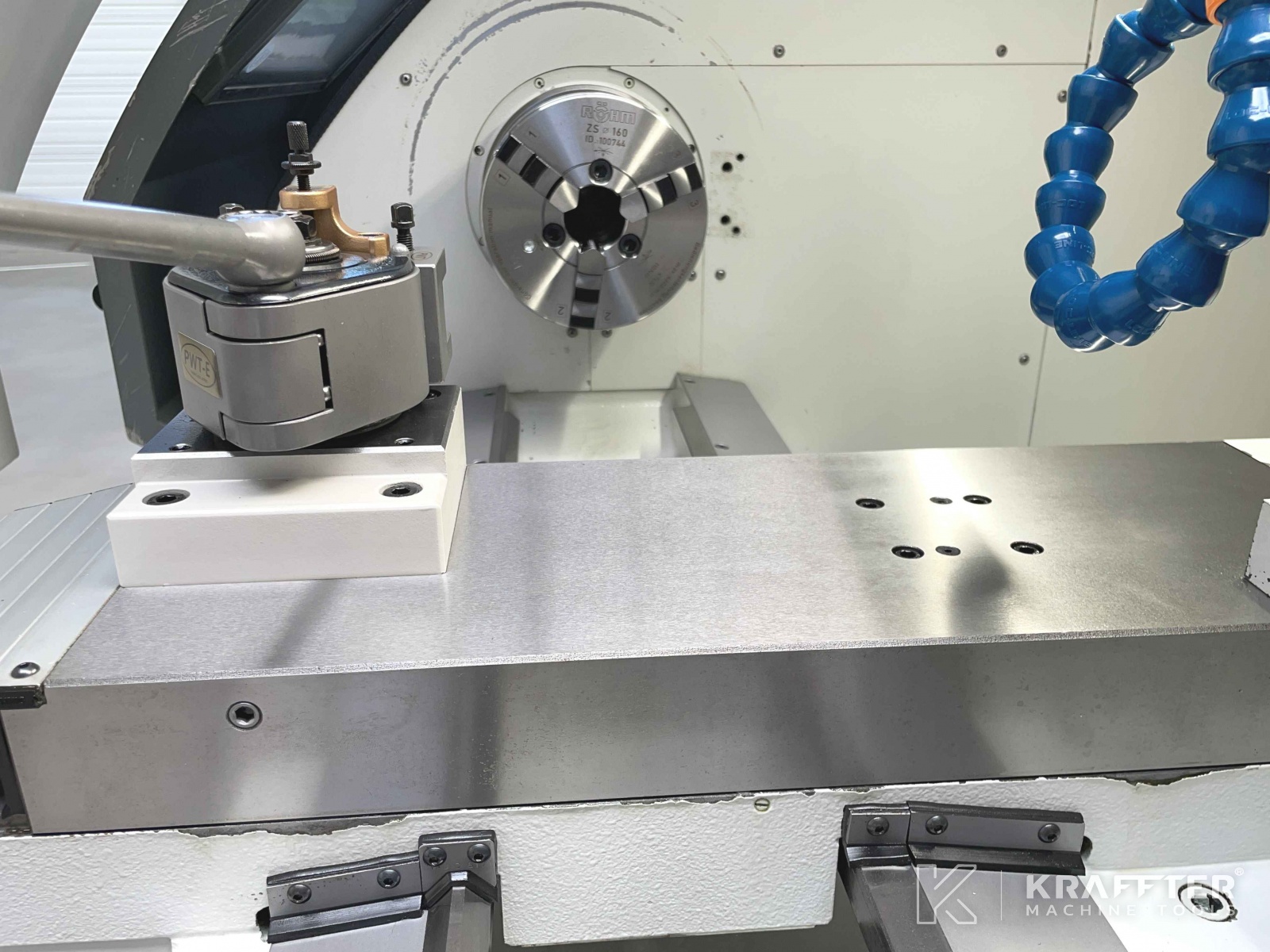

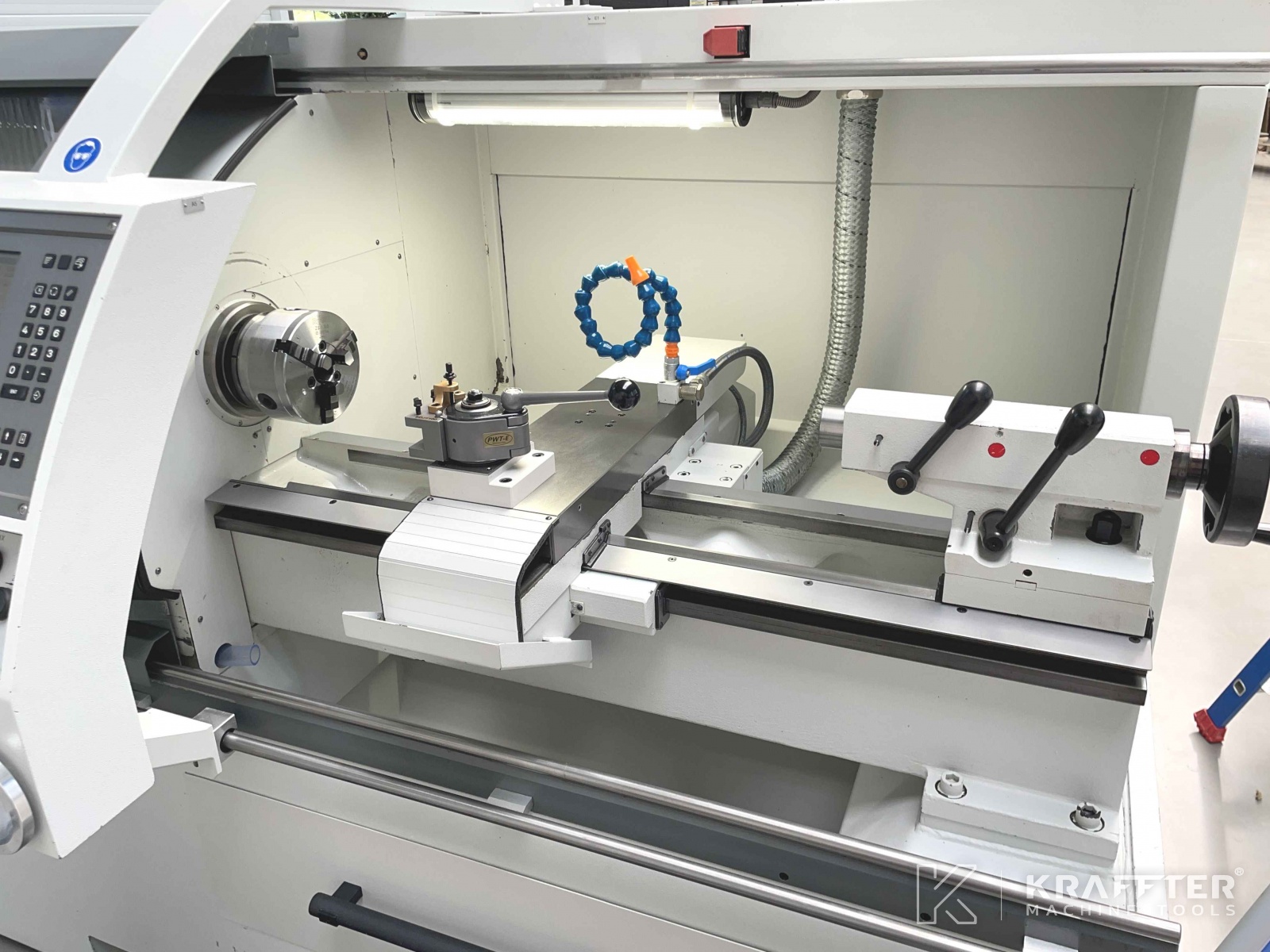

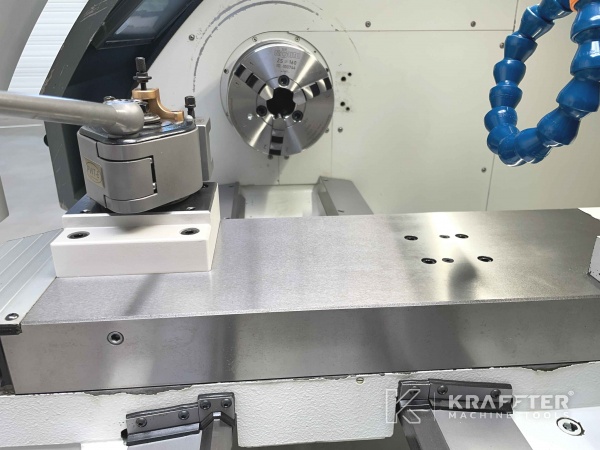

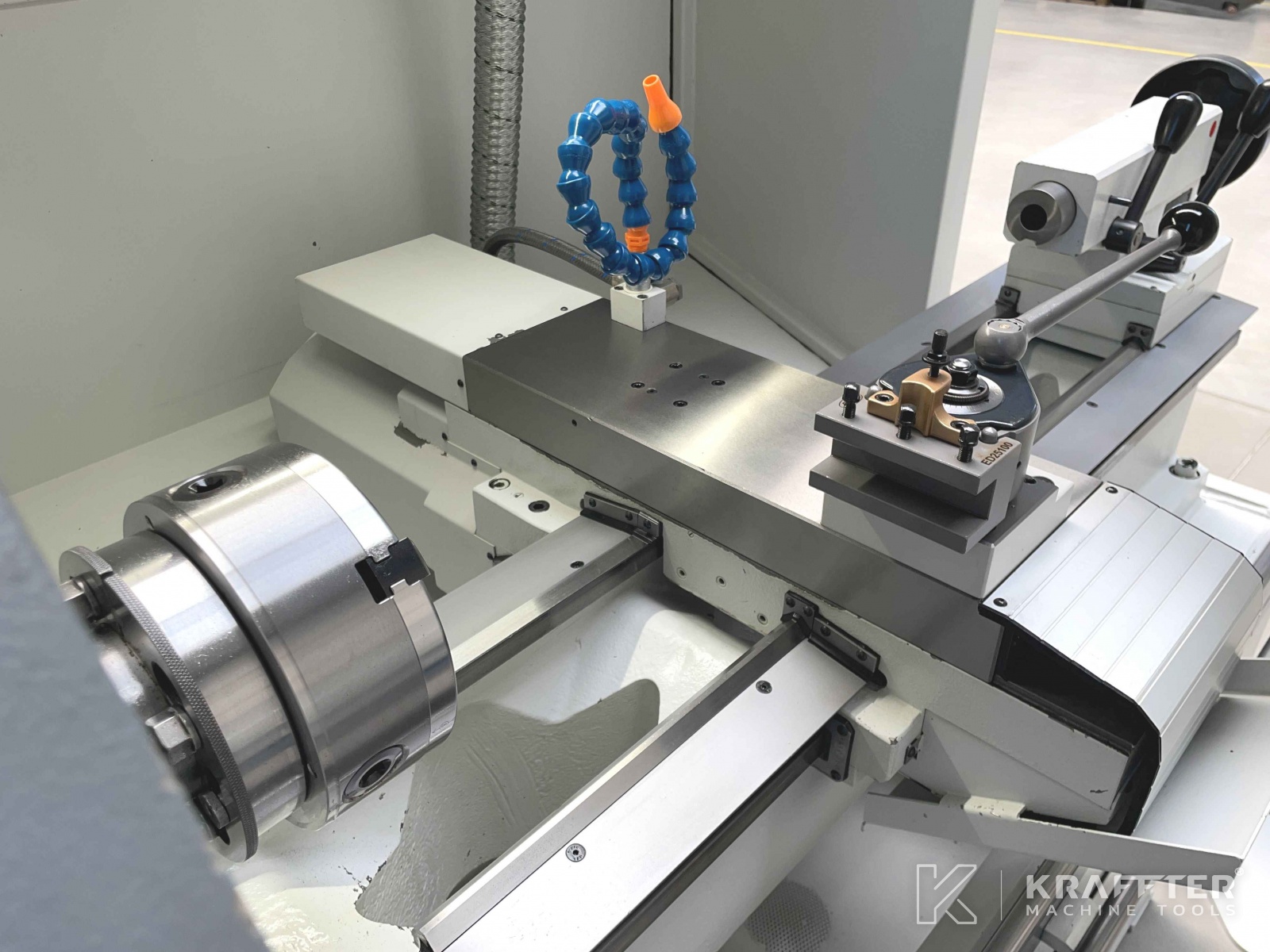

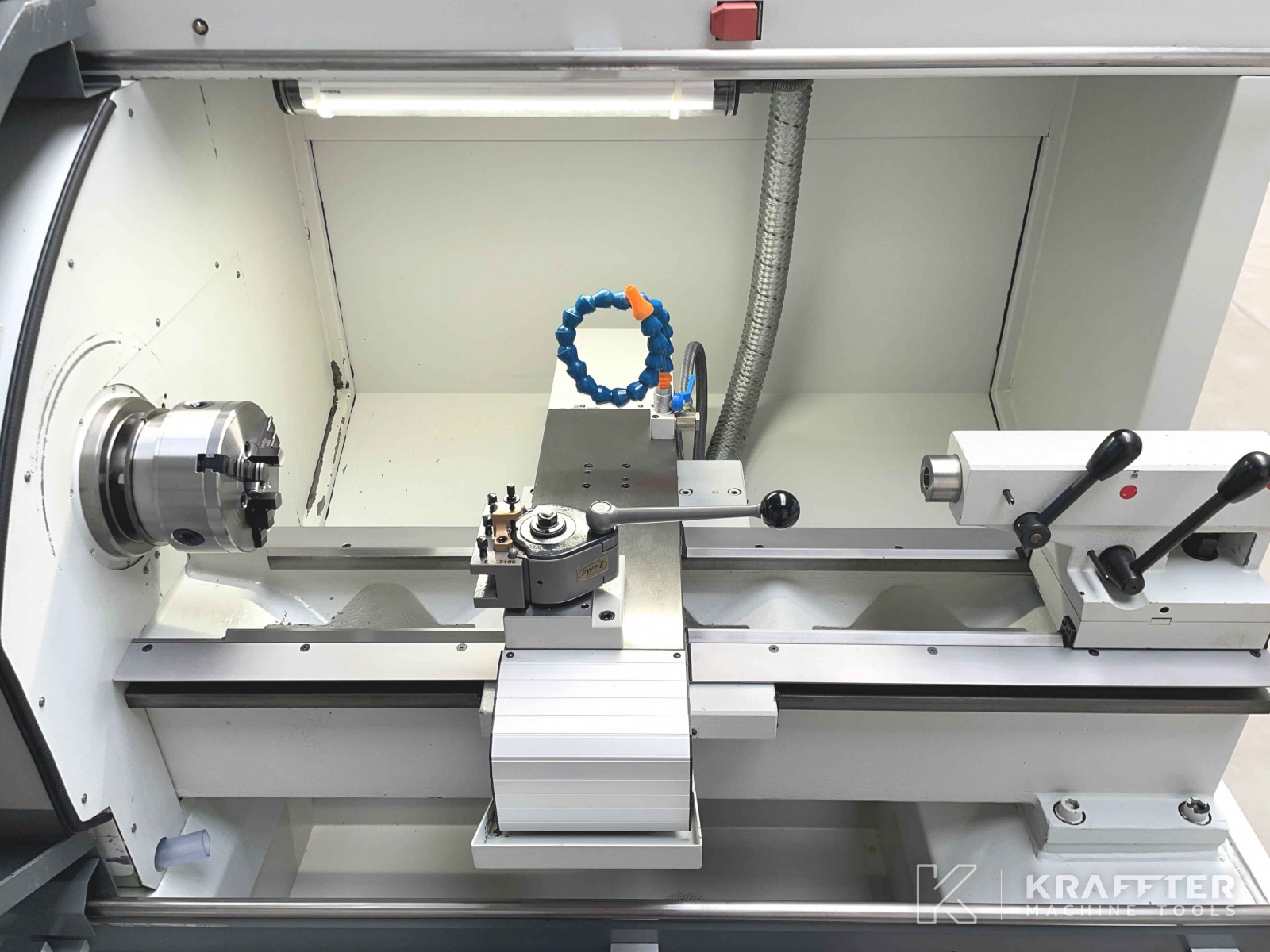

x1 PWT-AS Multifix type tool-post - type E

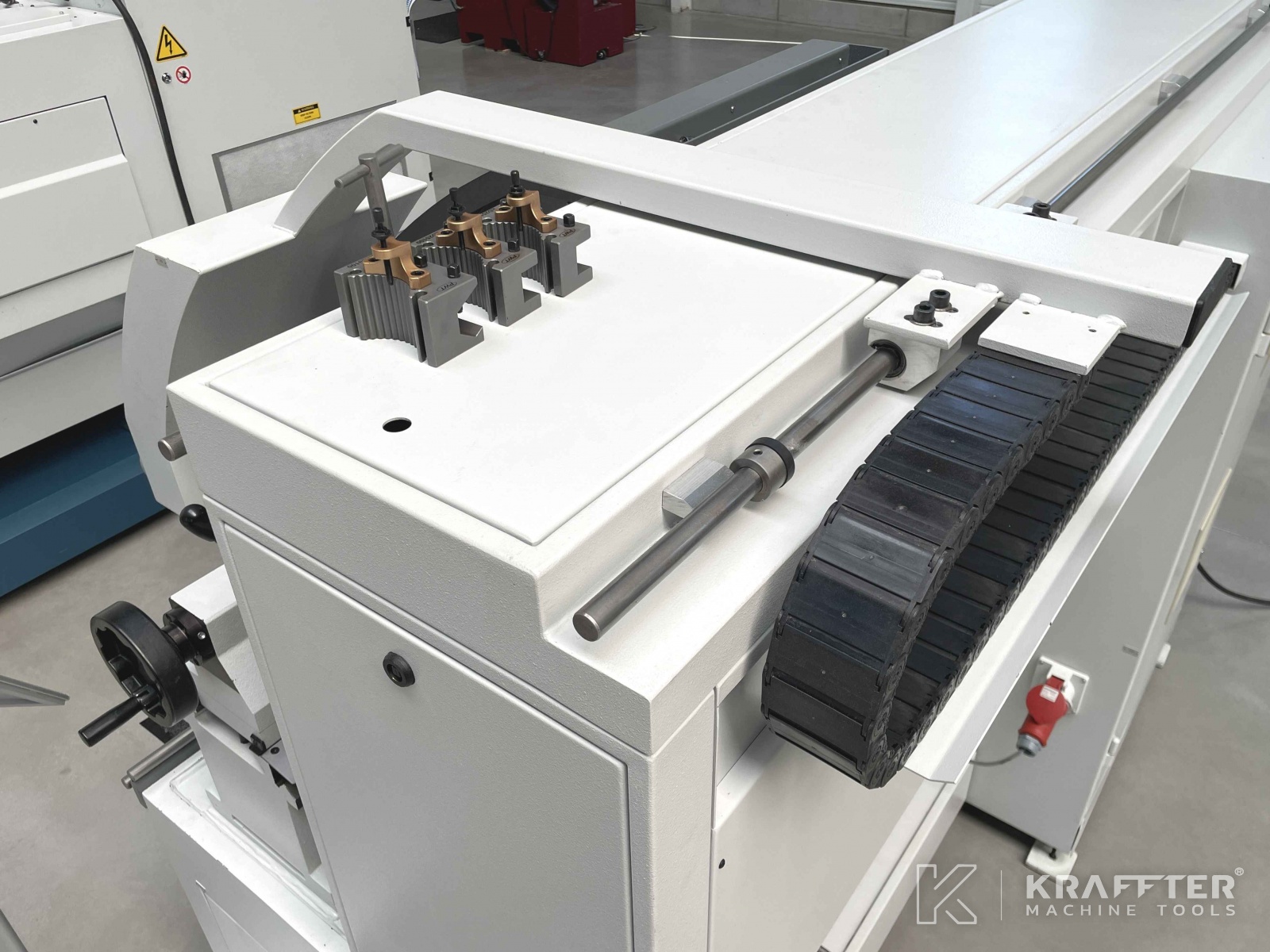

x4 tool holders PWT-AS - type E

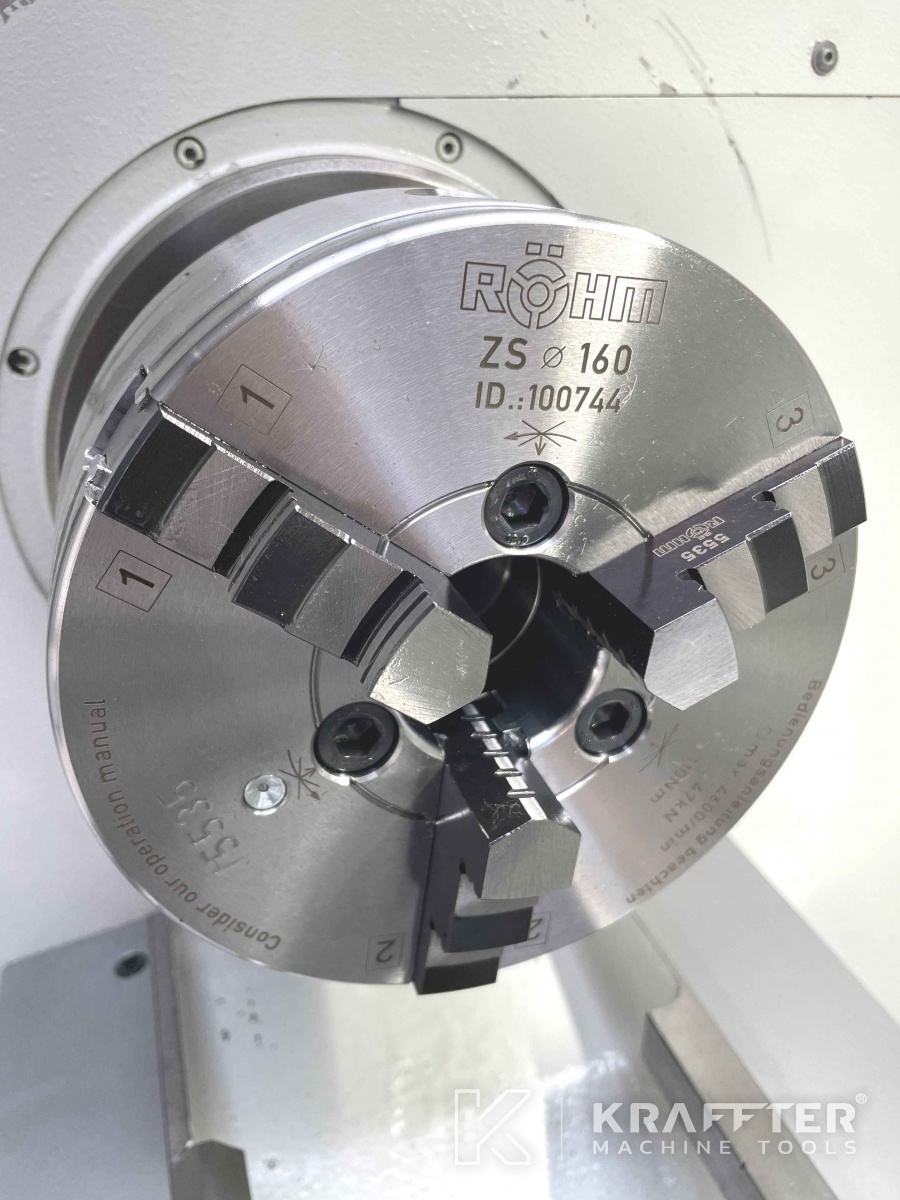

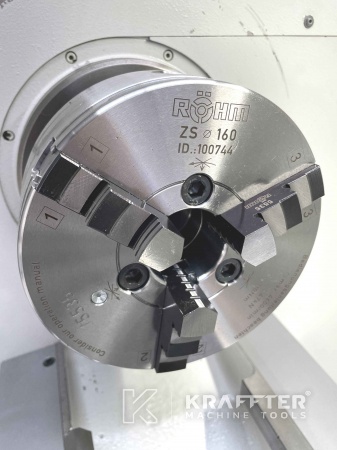

x1 chuck RÖHM ZS Ø160 [mm] 3 jaw type
x1 set of RÖHM hard jaws

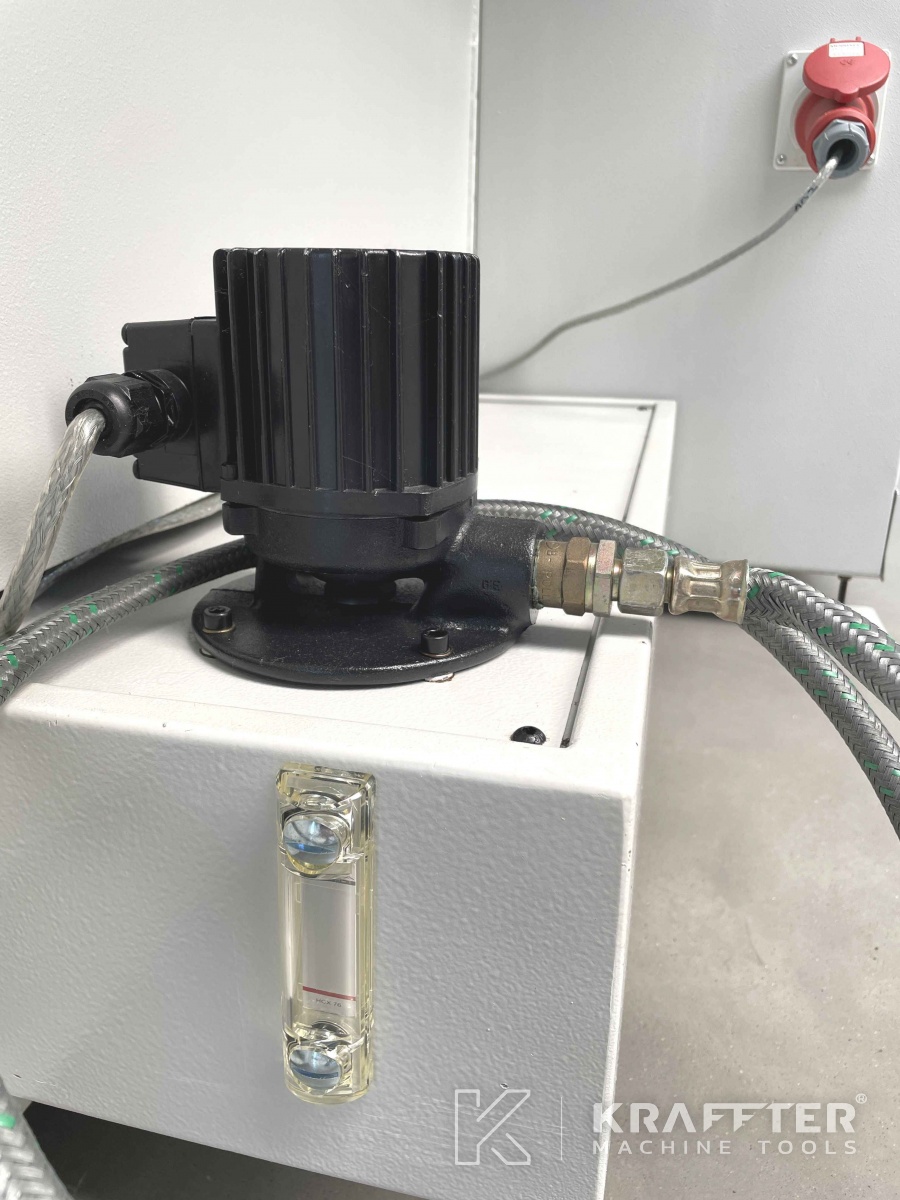

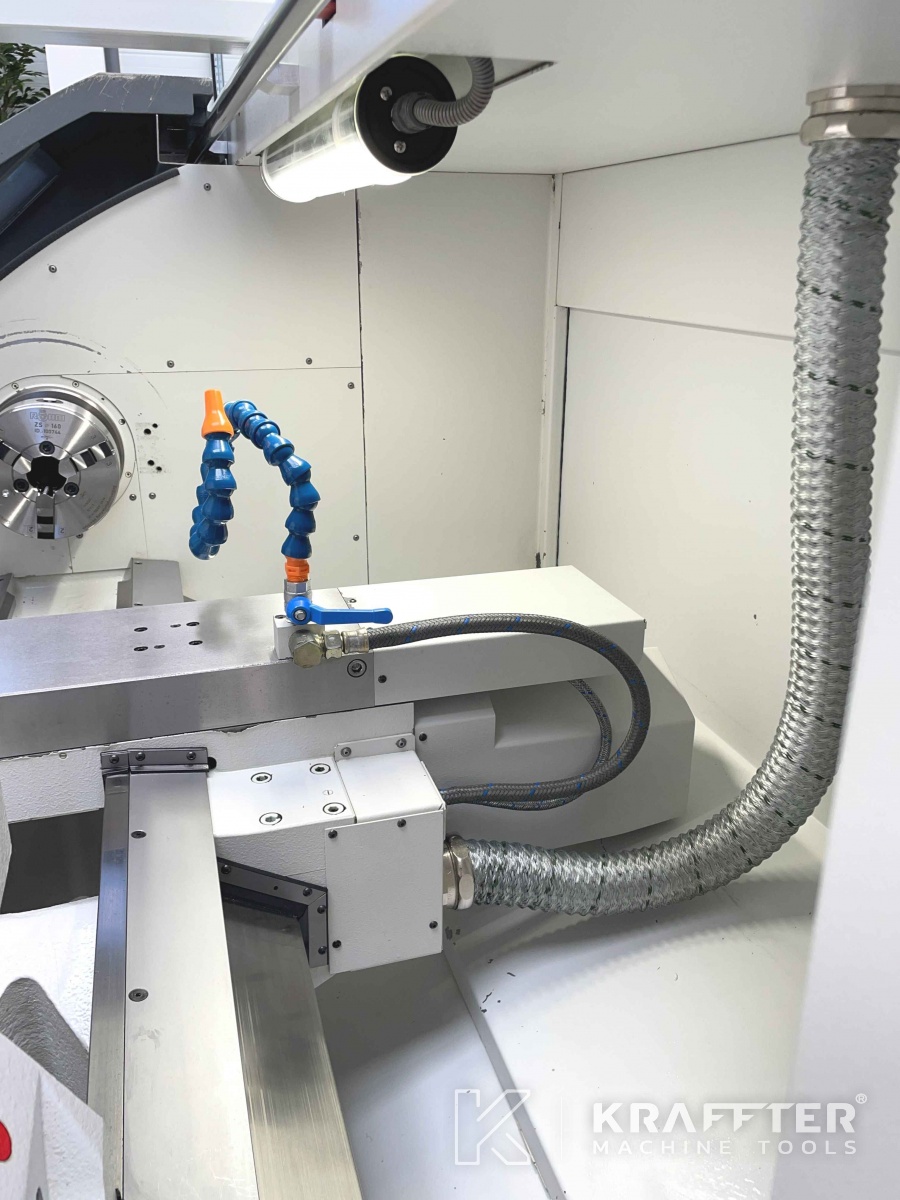

x1 collant lubrication unit
